Contents

Users Manual 2

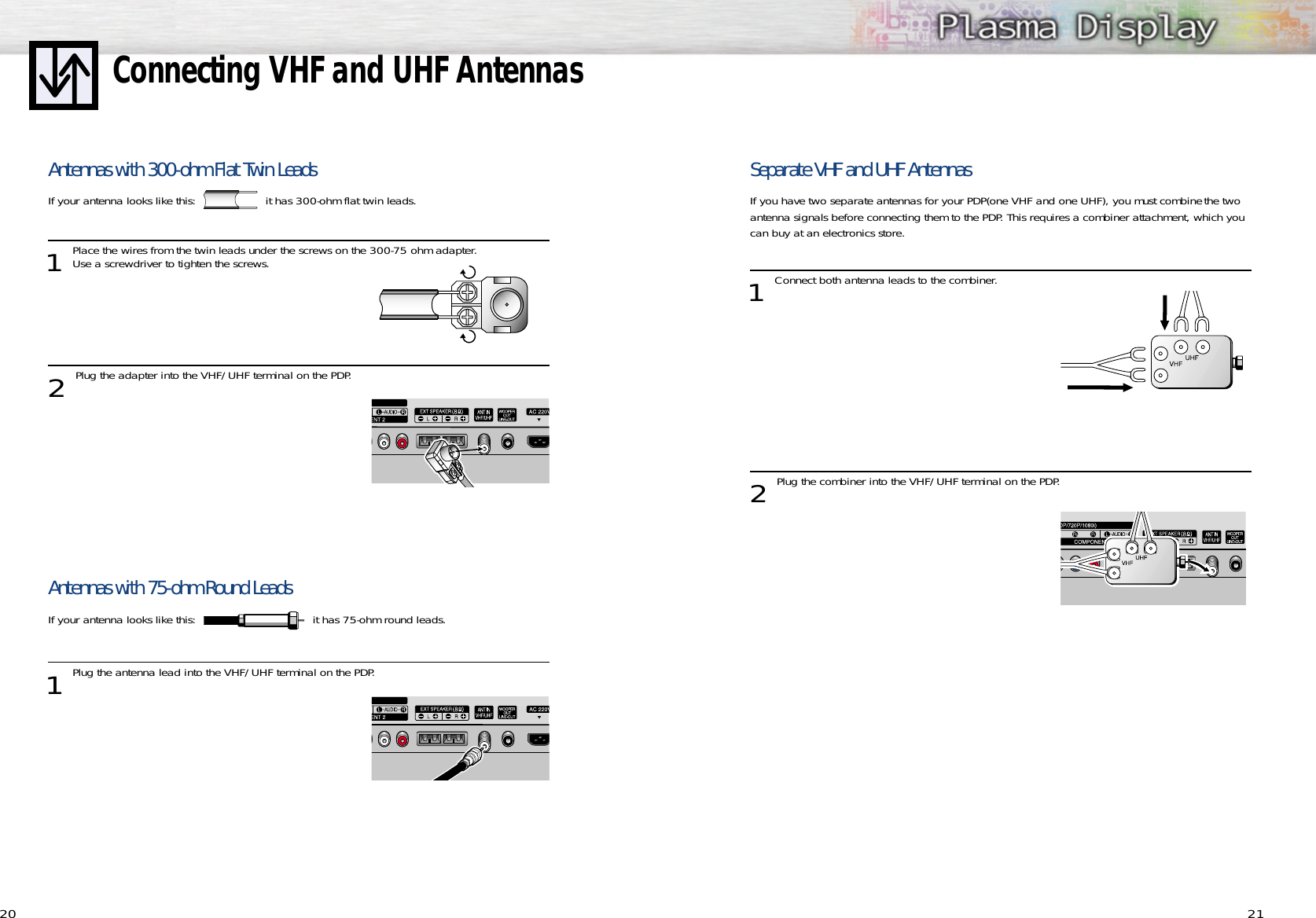

Separate VHF and UHF AntennasIf you have two separate antennas for your PDP(one VHF and one UHF), you must combine the twoantenna signals before connecting them to the PDP. This requires a combiner attachment, which youcan buy at an electronics store.1 Connect both antenna leads to the combiner.2 Plug the combiner into the VHF/UHF terminal on the PDP.21Connecting VHF and UHF Antennas20Antennas with 300-ohm Flat Twin LeadsIf your antenna looks like this: it has 300-ohm flat twin leads.1 Place the wires from the twin leads under the screws on the 300-75 ohm adapter. Use a screwdriver to tighten the screws.2 Plug the adapter into the VHF/UHF terminal on the PDP.Antennas with 75-ohm Round LeadsIf your antenna looks like this: it has 75-ohm round leads. 1Plug the antenna lead into the VHF/UHF terminal on the PDP.

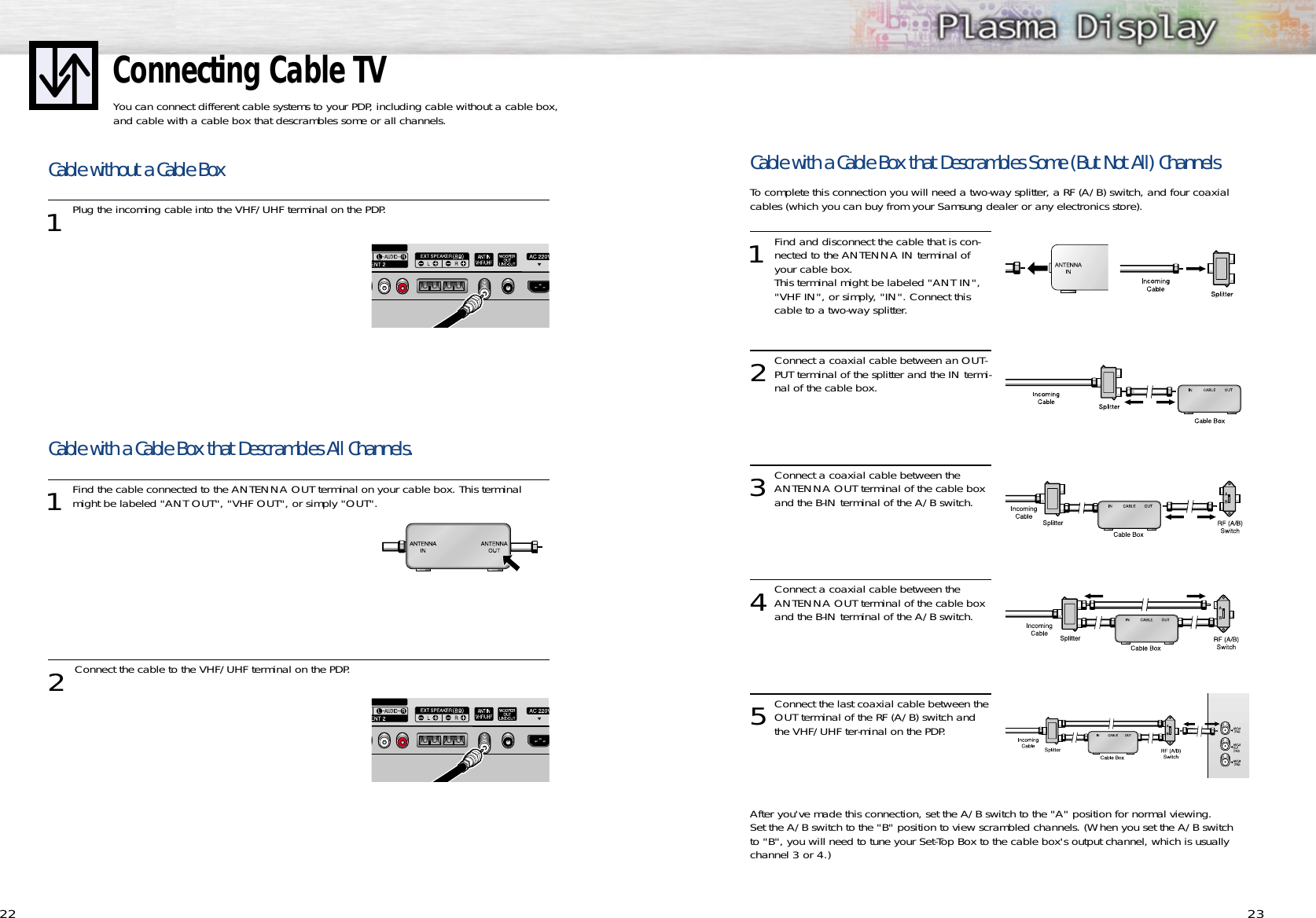

Connecting Cable TVYou can connect different cable systems to your PDP, including cable without a cable box, and cable with a cable box that descrambles some or all channels.Cable without a Cable Box1 Plug the incoming cable into the VHF/UHF terminal on the PDP.Cable with a Cable Box that Descrambles All Channels.1 Find the cable connected to the ANTENNA OUT terminal on your cable box. This terminalmight be labeled "ANT OUT", "VHF OUT", or simply "OUT".2 Connect the cable to the VHF/UHF terminal on the PDP. 22Cable with a Cable Box that Descrambles Some (But Not All) ChannelsTo complete this connection you will need a two-way splitter, a RF (A/B) switch, and four coaxialcables (which you can buy from your Samsung dealer or any electronics store).1Find and disconnect the cable that is con-nected to the ANTENNA IN terminal of your cable box. This terminal might be labeled "ANT IN", "VHF IN", or simply, "IN". Connect this cable to a two-way splitter.2Connect a coaxial cable between an OUT-PUT terminal of the splitter and the IN termi-nal of the cable box.3Connect a coaxial cable between theANTENNA OUT terminal of the cable box and the B-IN terminal of the A/B switch.4Connect a coaxial cable between theANTENNA OUT terminal of the cable box and the B-IN terminal of the A/B switch.5Connect the last coaxial cable between theOUT terminal of the RF (A/B) switch and the VHF/UHF ter-minal on the PDP.After you've made this connection, set the A/B switch to the "A" position for normal viewing. Set the A/B switch to the "B" position to view scrambled channels. (When you set the A/B switch to "B", you will need to tune your Set-Top Box to the cable box's output channel, which is usuallychannel 3 or 4.)23

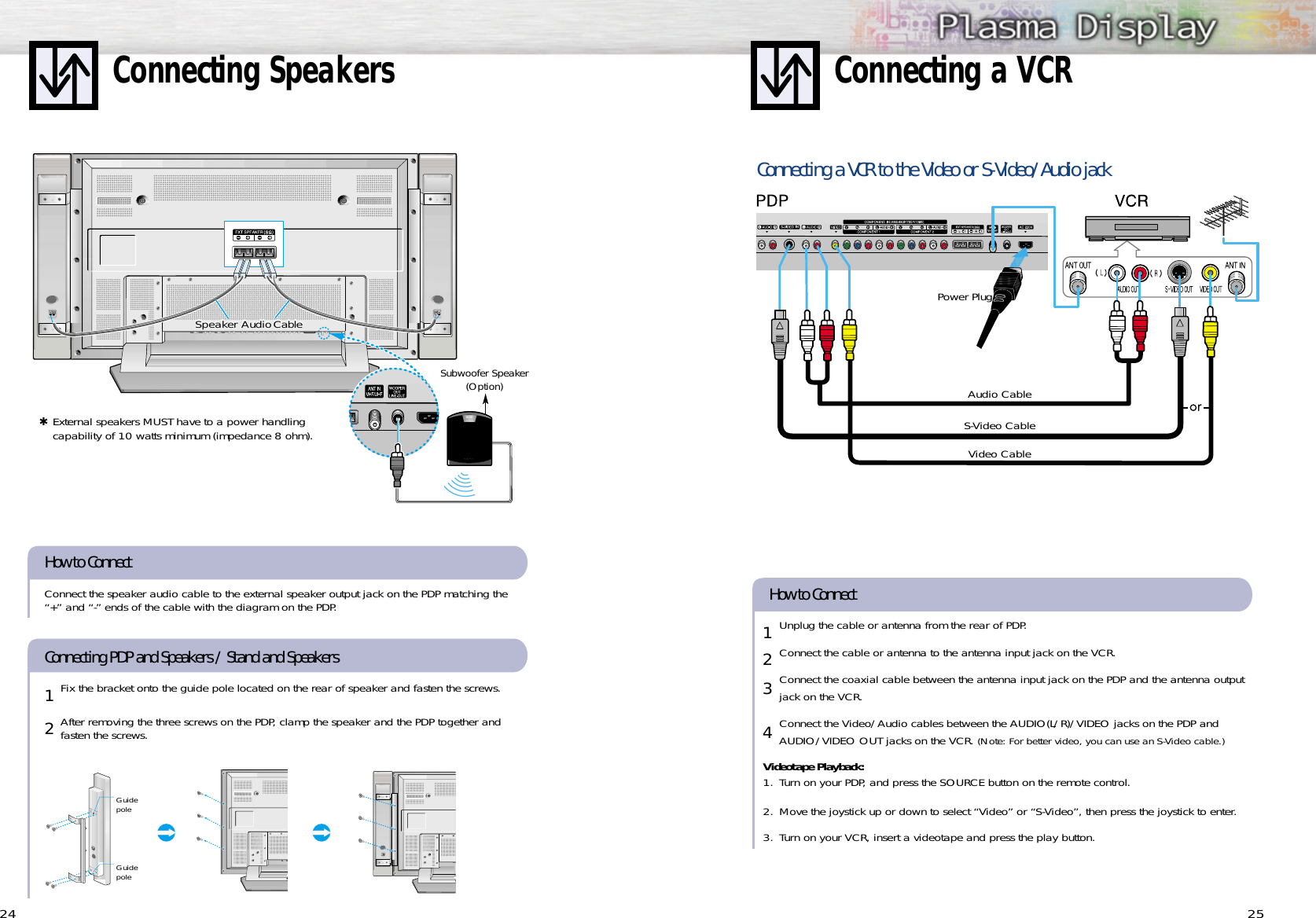

25Connecting a VCR 24Connecting a VCR to the Video or S-Video/Audio jackS-Video CableAudio CableVideo CablePower PlugUnplug the cable or antenna from the rear of PDP.Connect the cable or antenna to the antenna input jack on the VCR.Connect the coaxial cable between the antenna input jack on the PDP and the antenna outputjack on the VCR.Connect the Video/Audio cables between the AUDIO(L/R)/VIDEO jacks on the PDP andAUDIO/VIDEO OUT jacks on the VCR. (Note: For better video, you can use an S-Video cable.)Videotape Playback:1. Turn on your PDP, and press the SOURCE button on the remote control.2. Move the joystick up or down to select “Video” or “S-Video”, then press the joystick to enter.3. Turn on your VCR, insert a videotape and press the play button.How to Connect1234Connecting SpeakersSpeaker Audio CableConnect the speaker audio cable to the external speaker output jack on the PDP matching the“+” and “-” ends of the cable with the diagram on the PDP. How to ConnectFix the bracket onto the guide pole located on the rear of speaker and fasten the screws.After removing the three screws on the PDP, clamp the speaker and the PDP together andfasten the screws.Connecting PDP and Speakers / Stand and Speakers12GuidepoleGuidepole✱External speakers MUST have to a power handling capability of 10 watts minimum (impedance 8 ohm).Speaker AudioCableSubwoofer Speaker(Option)

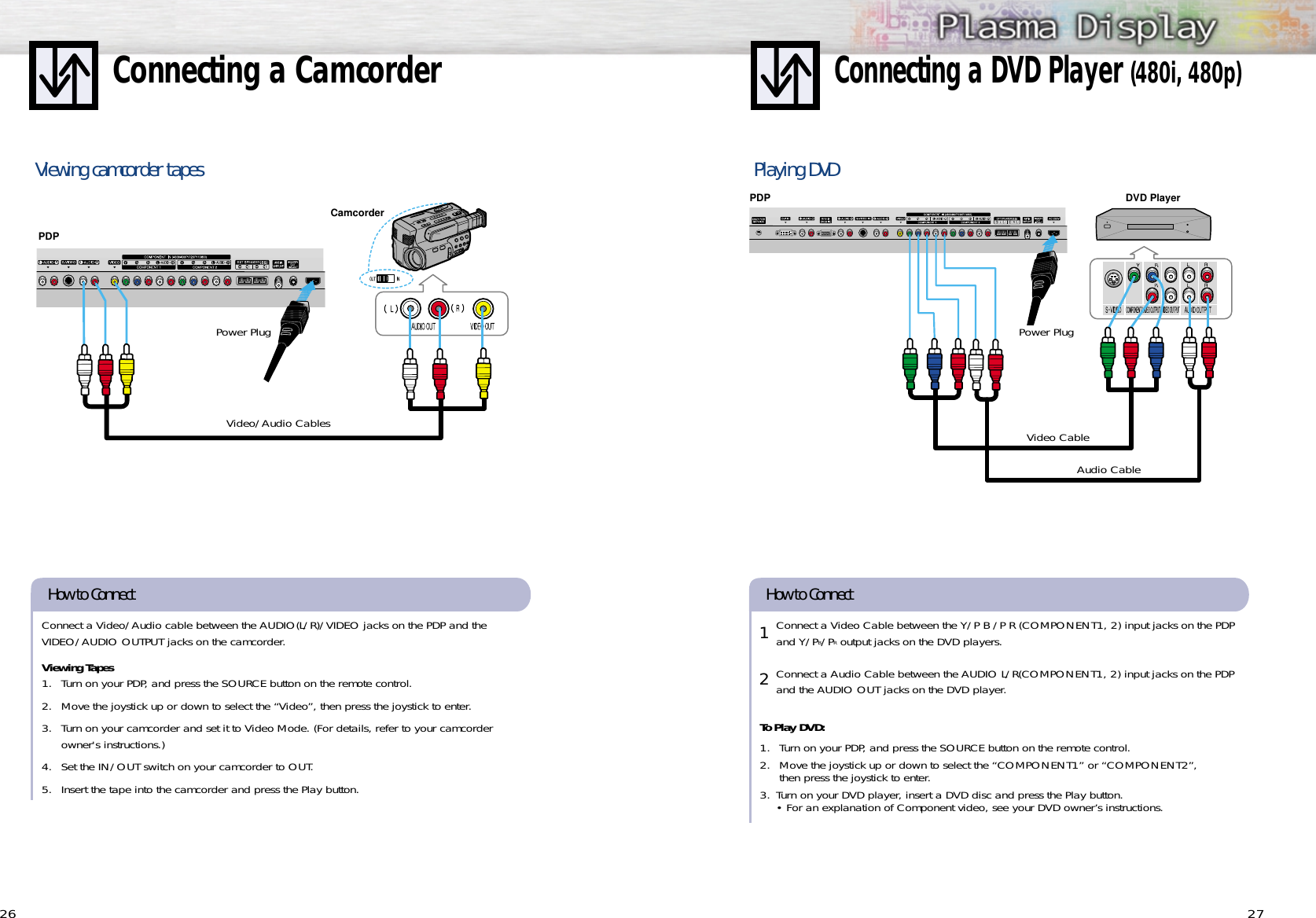

27Connecting a CamcorderConnecting a DVD Player (480i, 480p)26Video/Audio CablesPower PlugConnect a Video/Audio cable between the AUDIO(L/R)/VIDEO jacks on the PDP and theVIDEO/AUDIO OUTPUT jacks on the camcorder.Viewing Tapes1. Turn on your PDP, and press the SOURCE button on the remote control.2. Move the joystick up or down to select the “Video”, then press the joystick to enter. 3. Turn on your camcorder and set it to Video Mode. (For details, refer to your camcorder owner's instructions.)4. Set the IN/OUT switch on your camcorder to OUT.5. Insert the tape into the camcorder and press the Play button.How to ConnectViewing camcorder tapes Playing DVDAudio CableVideo CablePower PlugConnect a Video Cable between the Y/P B /P R (COMPONENT1, 2) input jacks on the PDPand Y/PB/PRoutput jacks on the DVD players.Connect a Audio Cable between the AUDIO L/R(COMPONENT1, 2) input jacks on the PDPand the AUDIO OUT jacks on the DVD player.To Play DVD:1. Turn on your PDP, and press the SOURCE button on the remote control.2. Move the joystick up or down to select the “COMPONENT1” or “COMPONENT2”, then press the joystick to enter.3. Turn on your DVD player, insert a DVD disc and press the Play button.• For an explanation of Component video, see your DVD owner’s instructions.How to Connect12PDPPDP DVD PlayerCamcorder

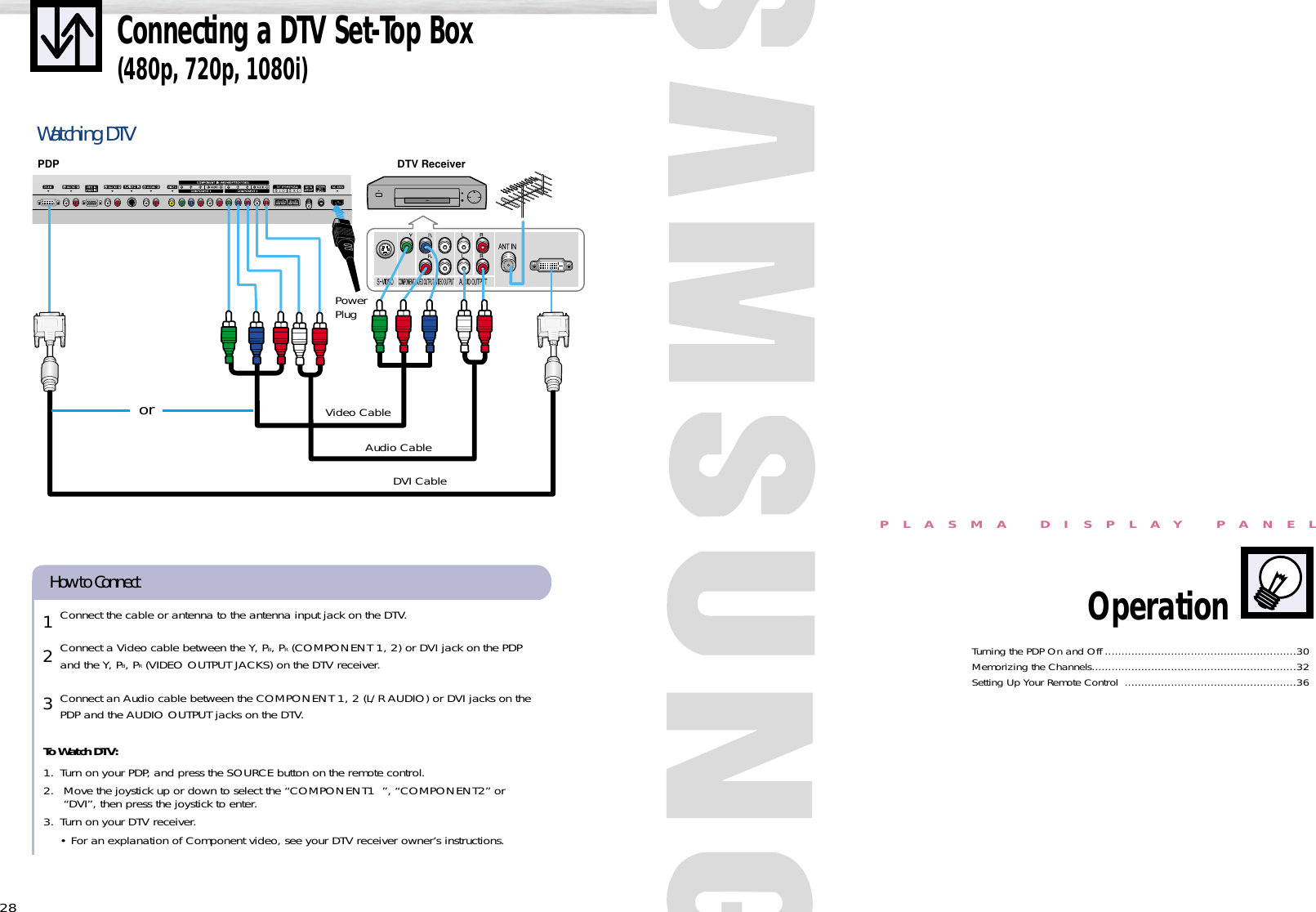

PLASMA DISPLAY PANELOperationTurning the PDP On and Off ..........................................................30Memorizing the Channels..............................................................32Setting Up Your Remote Control ....................................................36Connecting a DTV Set-Top Box(480p, 720p, 1080i)28Watching DTVVideo CableAudio CableDVI CableorPower PlugConnect the cable or antenna to the antenna input jack on the DTV.Connect a Video cable between the Y, PB, PR(COMPONENT 1, 2) or DVI jack on the PDPand the Y, PB, PR(VIDEO OUTPUT JACKS) on the DTV receiver.Connect an Audio cable between the COMPONENT 1, 2 (L/R AUDIO) or DVI jacks on the PDP and the AUDIO OUTPUT jacks on the DTV.To Watch DTV:1. Turn on your PDP, and press the SOURCE button on the remote control.2. Move the joystick up or down to select the “COMPONENT1 ”, “COMPONENT2” or “DVI”, then press the joystick to enter.3. Turn on your DTV receiver.• For an explanation of Component video, see your DTV receiver owner’s instructions.How to Connect123PDP DTV Receiver

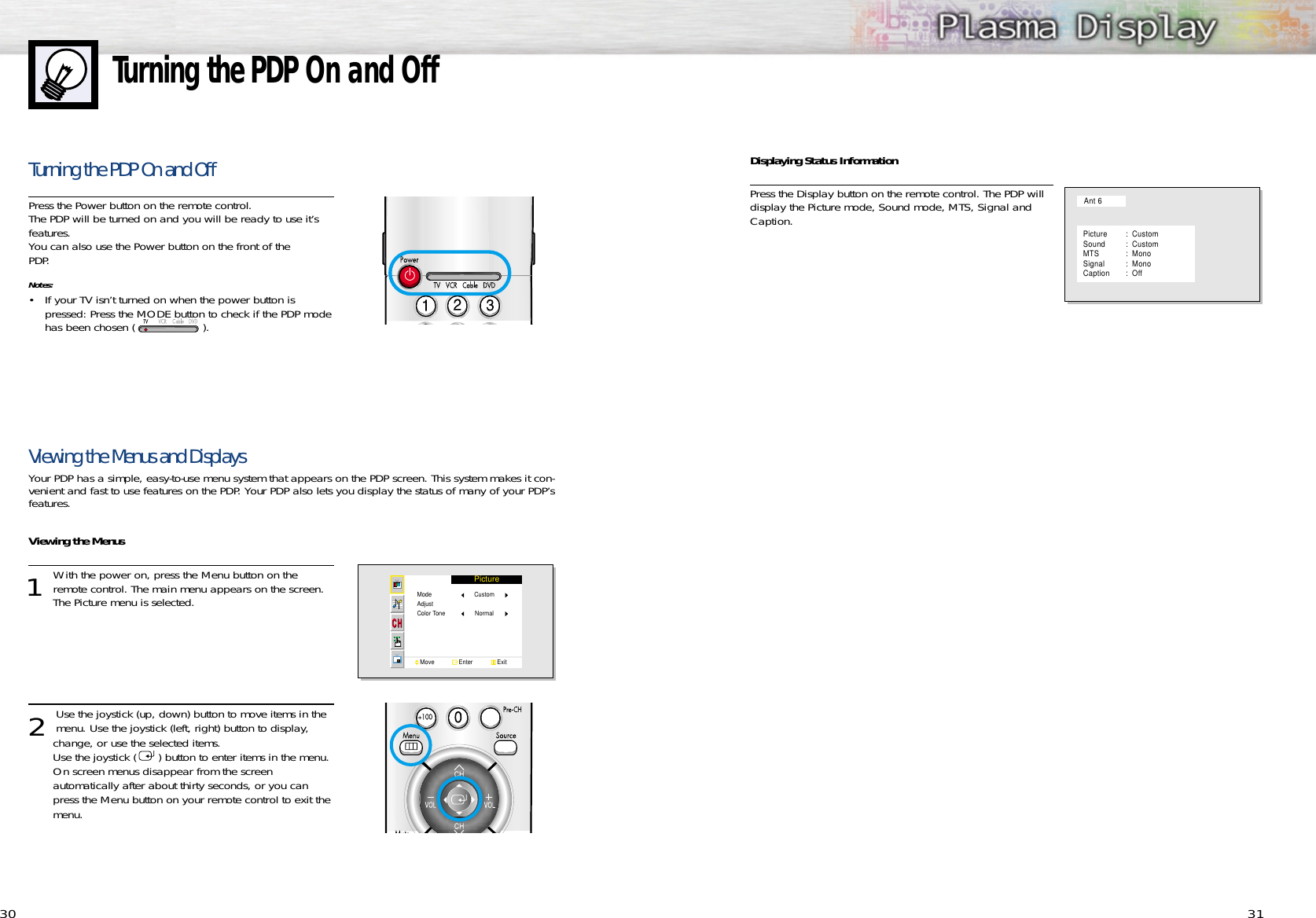

Turning the PDP On and Off30 31Turning the PDP On and OffPress the Power button on the remote control.The PDP will be turned on and you will be ready to use it’s features.You can also use the Power button on the front of the PDP.Notes: • If your TV isn’t turned on when the power button ispressed: Press the MODE button to check if the PDP modehas been chosen ( ). Viewing the Menus and DisplaysYour PDP has a simple, easy-to-use menu system that appears on the PDP screen. This system makes it con-venient and fast to use features on the PDP. Your PDP also lets you display the status of many of your PDP’sfeatures.Viewing the Menus1 With the power on, press the Menu button on theremote control. The main menu appears on the screen. The Picture menu is selected.2 Use the joystick (up, down) button to move items in themenu. Use the joystick (left, right) button to display, change, or use the selected items.Use the joystick ( ) button to enter items in the menu. On screen menus disappear from the screen automatically after about thirty seconds, or you can press the Menu button on your remote control to exit the menu.PictureModeAdjustColor ToneMove Enter ExitCustomNormalDisplaying Status InformationPress the Display button on the remote control. The PDP willdisplay the Picture mode, Sound mode, MTS, Signal andCaption.Picture : CustomSound : CustomMTS : MonoSignal : MonoCaption : OffAnt 6

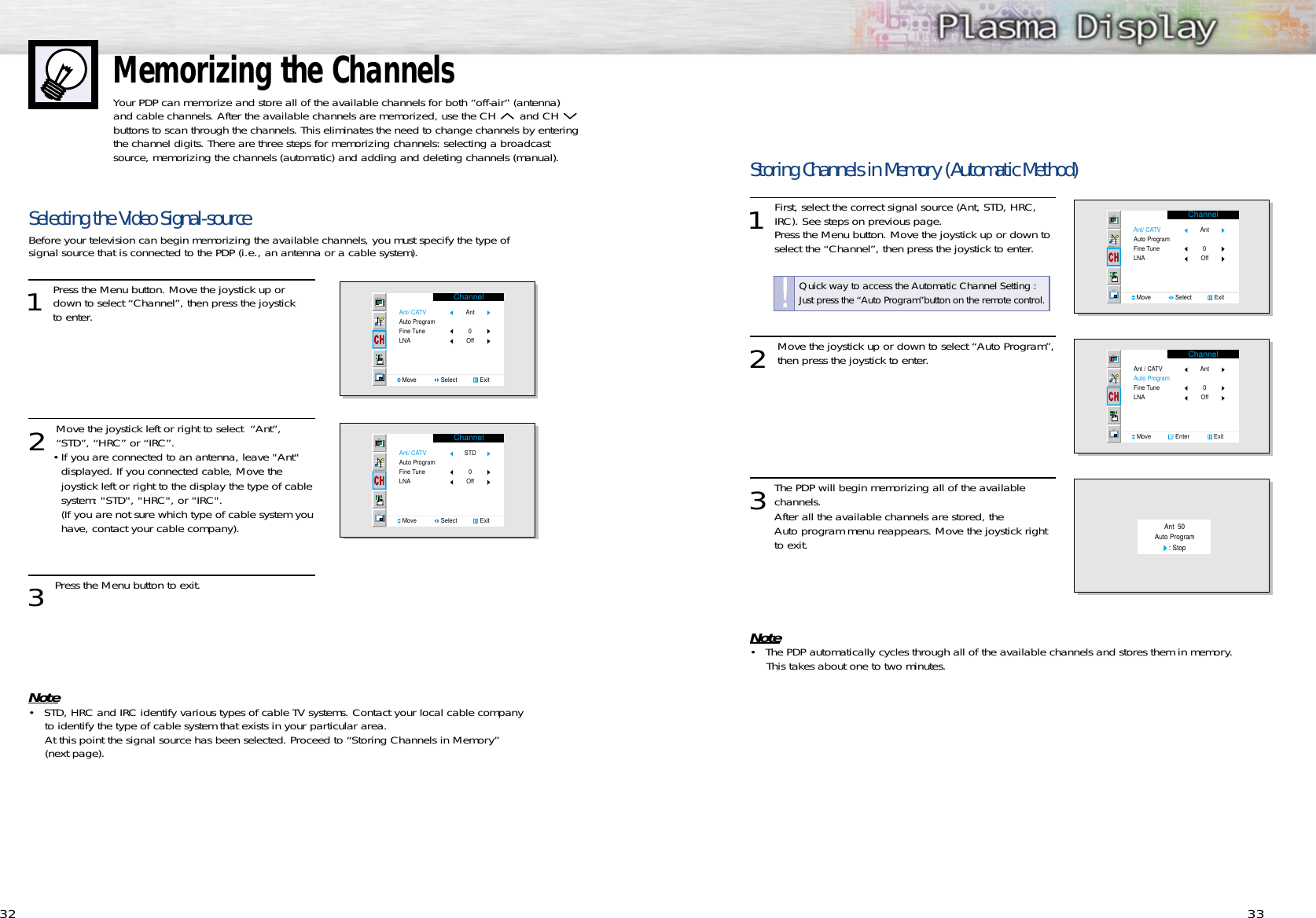

Memorizing the ChannelsYour PDP can memorize and store all of the available channels for both “off-air” (antenna)and cable channels. After the available channels are memorized, use the CH and CH buttons to scan through the channels. This eliminates the need to change channels by enteringthe channel digits. There are three steps for memorizing channels: selecting a broadcastsource, memorizing the channels (automatic) and adding and deleting channels (manual).32 33Selecting the Video Signal-sourceBefore your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the PDP (i.e., an antenna or a cable system).1 Press the Menu button. Move the joystick up ordown to select “Channel”, then press the joystick to enter. 2 Move the joystick left or right to select “Ant”,“STD”, “HRC” or “IRC”.•If you are connected to an antenna, leave "Ant" displayed. If you connected cable, Move the joystick left or right to the display the type of cable system: "STD", "HRC", or "IRC". (If you are not sure which type of cable system youhave, contact your cable company).3 Press the Menu button to exit.Note• STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area.At this point the signal source has been selected. Proceed to “Storing Channels in Memory” (next page).ChannelAnt/ CATVAuto ProgramFine TuneLNAMove Select ExitAnt Off 0ChannelAnt/ CATVAuto ProgramFine TuneLNAMove Select ExitSTD Off 0Storing Channels in Memory (Automatic Method)1 First, select the correct signal source (Ant, STD, HRC,IRC). See steps on previous page. Press the Menu button. Move the joystick up or down to select the “Channel”, then press the joystick to enter. 2 Move the joystick up or down to select “Auto Program”,then press the joystick to enter.3The PDP will begin memorizing all of the available channels. After all the available channels are stored, the Auto program menu reappears. Move the joystick right to exit.Note• The PDP automatically cycles through all of the available channels and stores them in memory. This takes about one to two minutes. ChannelAnt/ CATVAuto ProgramFine TuneLNAMove Select ExitAnt Off 0ChannelAnt / CATVAuto ProgramFine TuneLNAMove Enter ExitAnt Off 0Ant 50Auto Program : StopQuick way to access the Automatic Channel Setting :Just press the “Auto Program”button on the remote control.!

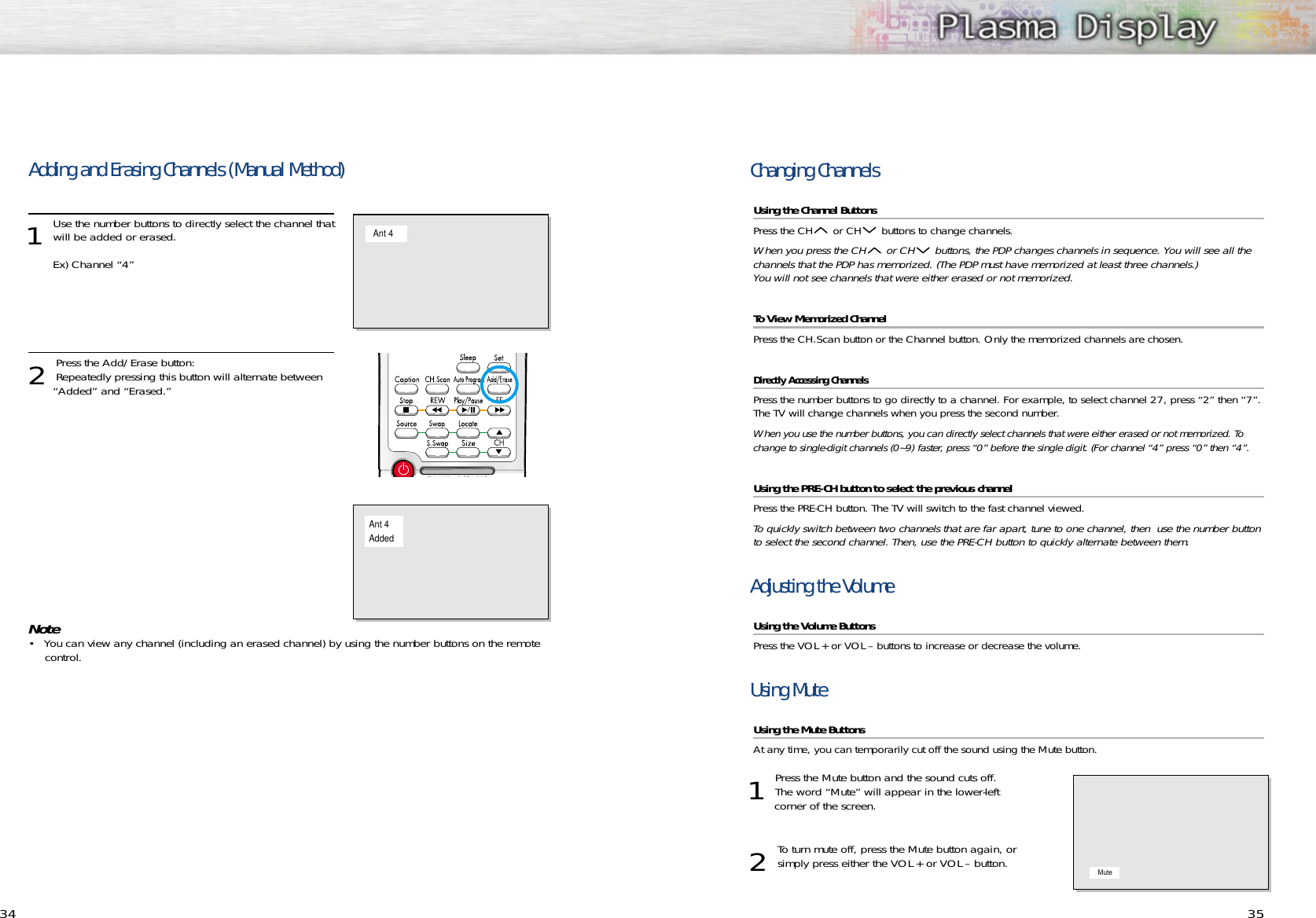

Changing ChannelsUsing the Channel ButtonsPress the CH or CH buttons to change channels.When you press the CH or CH buttons, the PDP changes channels in sequence. You will see all thechannels that the PDP has memorized. (The PDP must have memorized at least three channels.) You will not see channels that were either erased or not memorized.To View Memorized ChannelPress the CH.Scan button or the Channel button. Only the memorized channels are chosen. Directly Accessing ChannelsPress the number buttons to go directly to a channel. For example, to select channel 27, press “2” then “7”. The TV will change channels when you press the second number.When you use the number buttons, you can directly select channels that were either erased or not memorized. Tochange to single-digit channels (0~9) faster, press “0” before the single digit. (For channel “4” press “0” then “4”. Using the PRE-CH button to select the previous channelPress the PRE-CH button. The TV will switch to the fast channel viewed.To quickly switch between two channels that are far apart, tune to one channel, then use the number buttonto select the second channel. Then, use the PRE-CH button to quickly alternate between them.Adjusting the VolumeUsing the Volume ButtonsPress the VOL + or VOL – buttons to increase or decrease the volume. Using MuteUsing the Mute ButtonsAt any time, you can temporarily cut off the sound using the Mute button.1 Press the Mute button and the sound cuts off. The word “Mute” will appear in the lower-left corner of the screen.2 To turn mute off, press the Mute button again, orsimply press either the VOL + or VOL – button.Mute34 35Adding and Erasing Channels (Manual Method)1 Use the number buttons to directly select the channel thatwill be added or erased.Ex) Channel “4”2 Press the Add/Erase button: Repeatedly pressing this button will alternate between “Added” and “Erased.” Note• You can view any channel (including an erased channel) by using the number buttons on the remotecontrol.Ant 4Ant 4Added

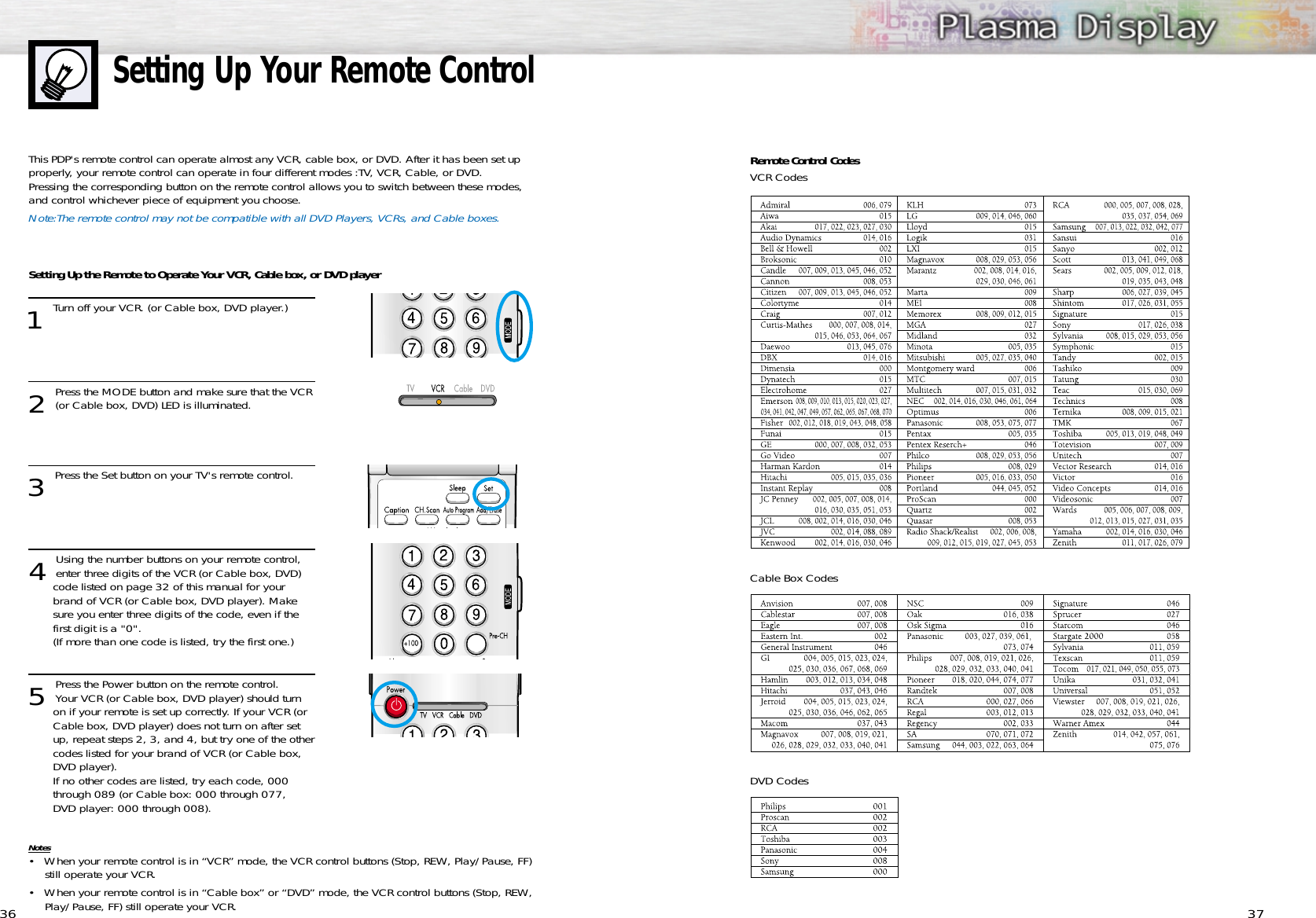

36 37Setting Up Your Remote ControlThis PDP's remote control can operate almost any VCR, cable box, or DVD. After it has been set upproperly, your remote control can operate in four different modes :TV, VCR, Cable, or DVD. Pressing the corresponding button on the remote control allows you to switch between these modes,and control whichever piece of equipment you choose.Note:The remote control may not be compatible with all DVD Players, VCRs, and Cable boxes. Setting Up the Remote to Operate Your VCR, Cable box, or DVD player1 Turn off your VCR. (or Cable box, DVD player.)2 Press the MODE button and make sure that the VCR(or Cable box, DVD) LED is illuminated.3 Press the Set button on your TV's remote control.4 Using the number buttons on your remote control,enter three digits of the VCR (or Cable box, DVD) code listed on page 32 of this manual for your brand of VCR (or Cable box, DVD player). Make sure you enter three digits of the code, even if the first digit is a "0". (If more than one code is listed, try the first one.)5 Press the Power button on the remote control. Your VCR (or Cable box, DVD player) should turn on if your remote is set up correctly. If your VCR (or Cable box, DVD player) does not turn on after set up, repeat steps 2, 3, and 4, but try one of the othercodes listed for your brand of VCR (or Cable box, DVD player). If no other codes are listed, try each code, 000 through 089 (or Cable box: 000 through 077, DVD player: 000 through 008).Notes• When your remote control is in “VCR” mode, the VCR control buttons (Stop, REW, Play/Pause, FF)still operate your VCR.• When your remote control is in “Cable box” or “DVD” mode, the VCR control buttons (Stop, REW,Play/Pause, FF) still operate your VCR.Remote Control CodesVCR CodesCable Box CodesDVD Codes

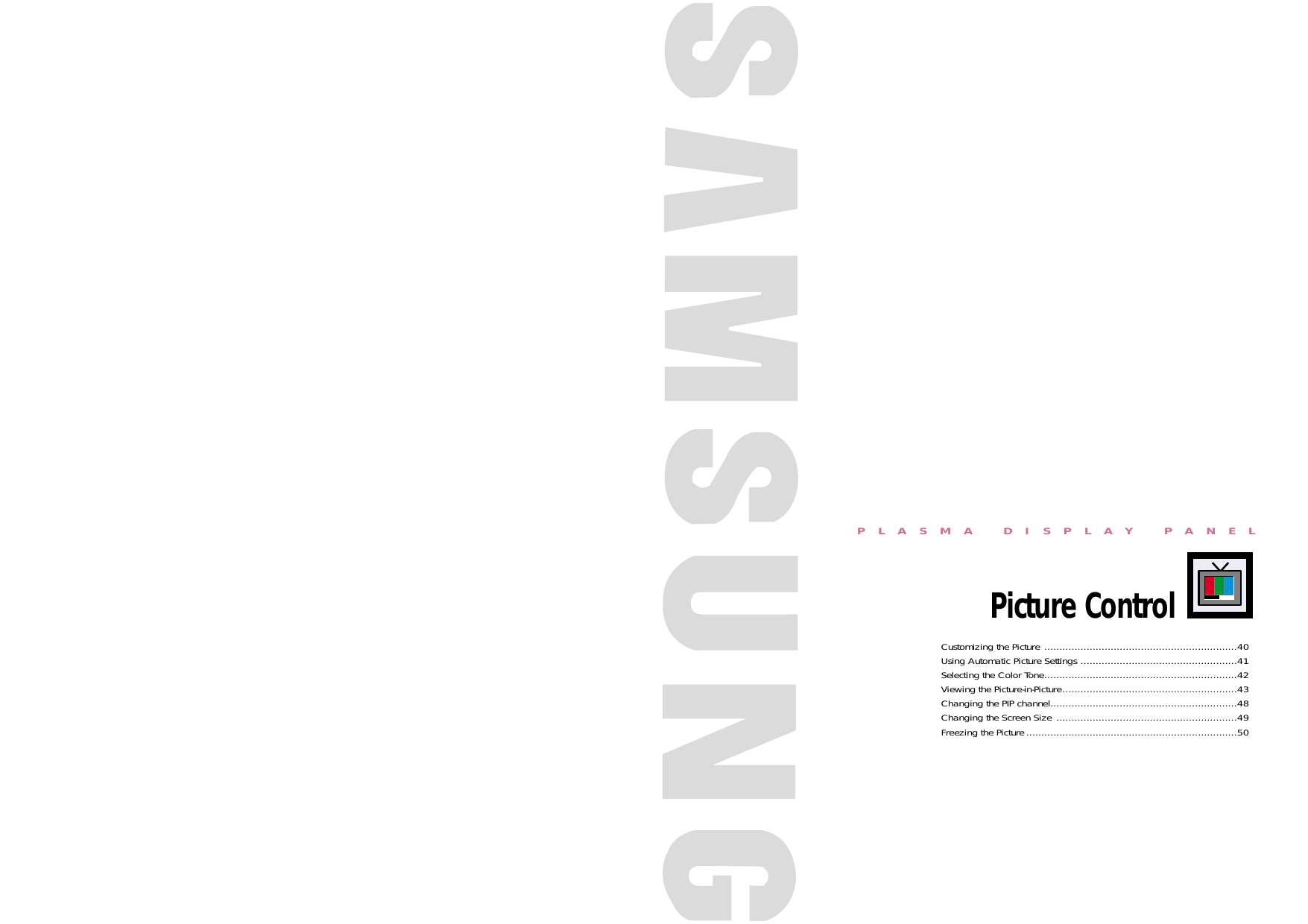

PLASMA DISPLAY PANELPicture ControlCustomizing the Picture ................................................................40Using Automatic Picture Settings ....................................................41Selecting the Color Tone................................................................42Viewing the Picture-in-Picture..........................................................43Changing the PIP channel..............................................................48Changing the Screen Size ............................................................49Freezing the Picture ......................................................................50

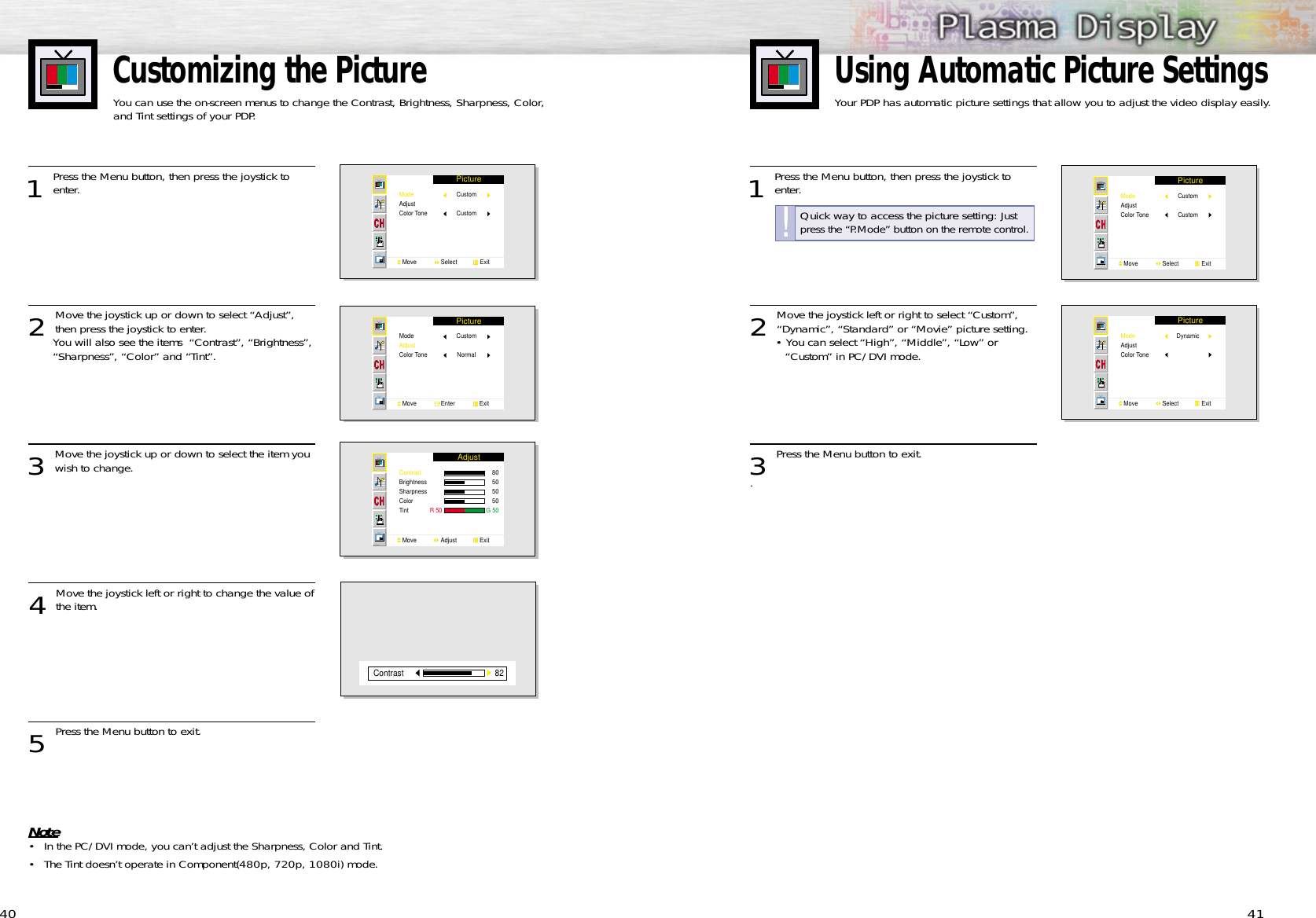

Customizing the PictureYou can use the on-screen menus to change the Contrast, Brightness, Sharpness, Color, and Tint settings of your PDP. 411 Press the Menu button, then press the joystick toenter.2 Move the joystick left or right to select “Custom”,“Dynamic”, “Standard” or “Movie” picture setting.• You can select “High”, “Middle”, “Low” or “Custom” in PC/DVI mode.3 Press the Menu button to exit..Using Automatic Picture SettingsYour PDP has automatic picture settings that allow you to adjust the video display easily.PictureModeAdjustColor ToneMove Select ExitCustomCustomPictureModeAdjustColor ToneMove Select ExitDynamic 401 Press the Menu button, then press the joystick toenter. 2 Move the joystick up or down to select “Adjust”,then press the joystick to enter.You will also see the items “Contrast”, “Brightness”, “Sharpness”, “Color” and “Tint”. 3 Move the joystick up or down to select the item you wish to change.4 Move the joystick left or right to change the value ofthe item.5 Press the Menu button to exit.Note• In the PC/DVI mode, you can’t adjust the Sharpness, Color and Tint.• The Tint doesn’t operate in Component(480p, 720p, 1080i) mode.PictureModeAdjustColor ToneMove Select ExitCustomCustomPictureModeAdjustColor ToneMove Enter ExitCustomNormalAdjustContrastBrightnessSharpnessColorTint R 50 G 50Move Adjust Exit8050505082ContrastQuick way to access the picture setting: Justpress the “P.Mode” button on the remote control.!

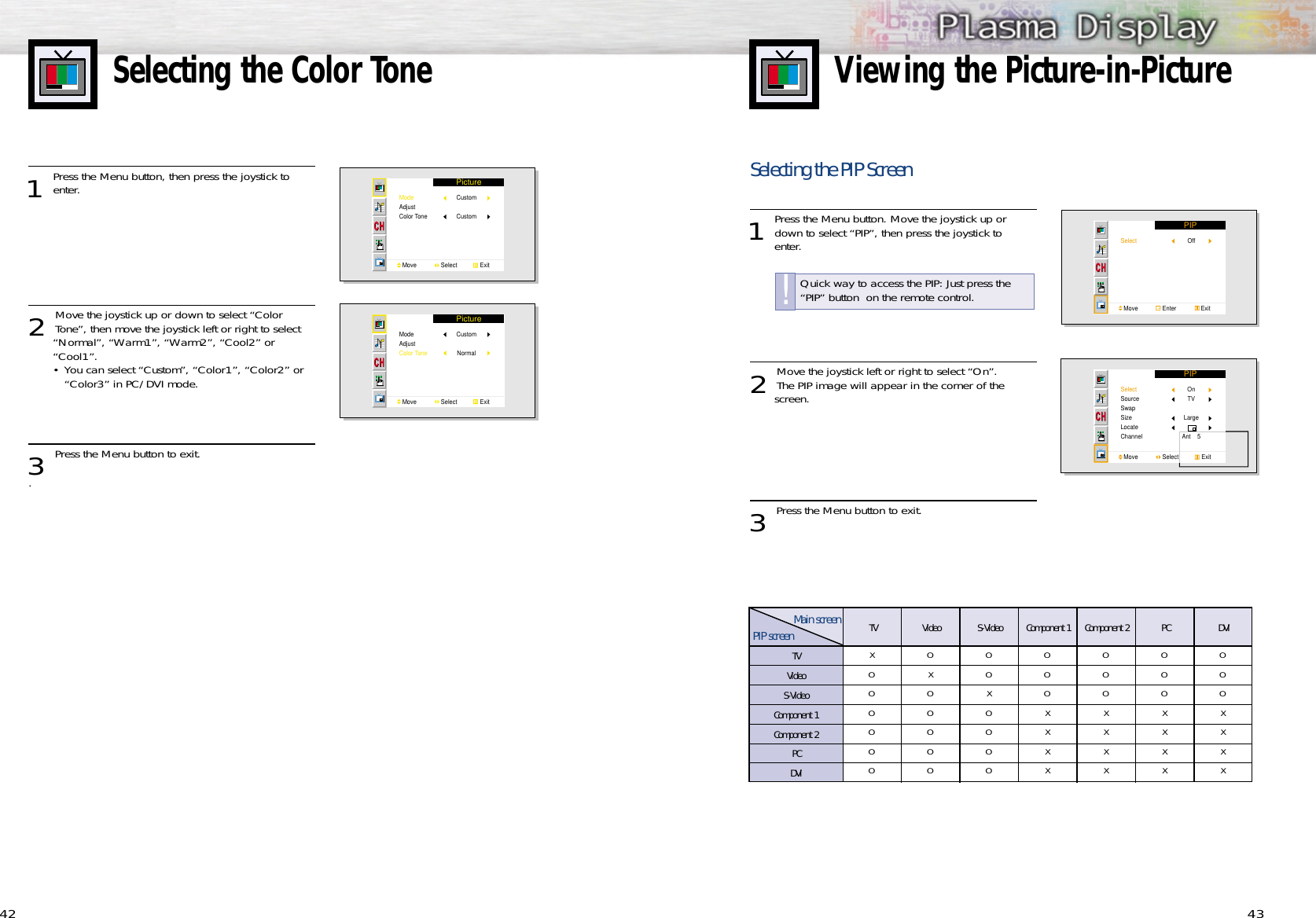

4342Selecting the Color Tone1 Press the Menu button, then press the joystick toenter.2 Move the joystick up or down to select “ColorTone”, then move the joystick left or right to select “Normal”, “Warm1”, “Warm2”, “Cool2” or “Cool1”.• You can select “Custom”, “Color1”, “Color2” or “Color3” in PC/DVI mode.3 Press the Menu button to exit..PictureModeAdjustColor ToneMove Select ExitCustomCustomPictureModeAdjustColor ToneMove Select ExitCustomNormalViewing the Picture-in-PictureSelecting the PIP Screen1 Press the Menu button. Move the joystick up ordown to select “PIP”, then press the joystick to enter.2 Move the joystick left or right to select “On”. The PIP image will appear in the corner of the screen.3 Press the Menu button to exit.PIPSelectMove Enter ExitOffPIPSelectSourceSwapSizeLocateChannelMove Select ExitOnTVLargeAnt 5Quick way to access the PIP: Just press the“PIP” button on the remote control.!PIP screenMain screen TV Video S-Video Component 1 Component 2 PC DVITVXOOOOOOOXOOOOOOOXOOOOOOOXXXXOOOXXXXOOOXXXXOOOXXXXVideoS-VideoComponent 1Component 2PCDVI

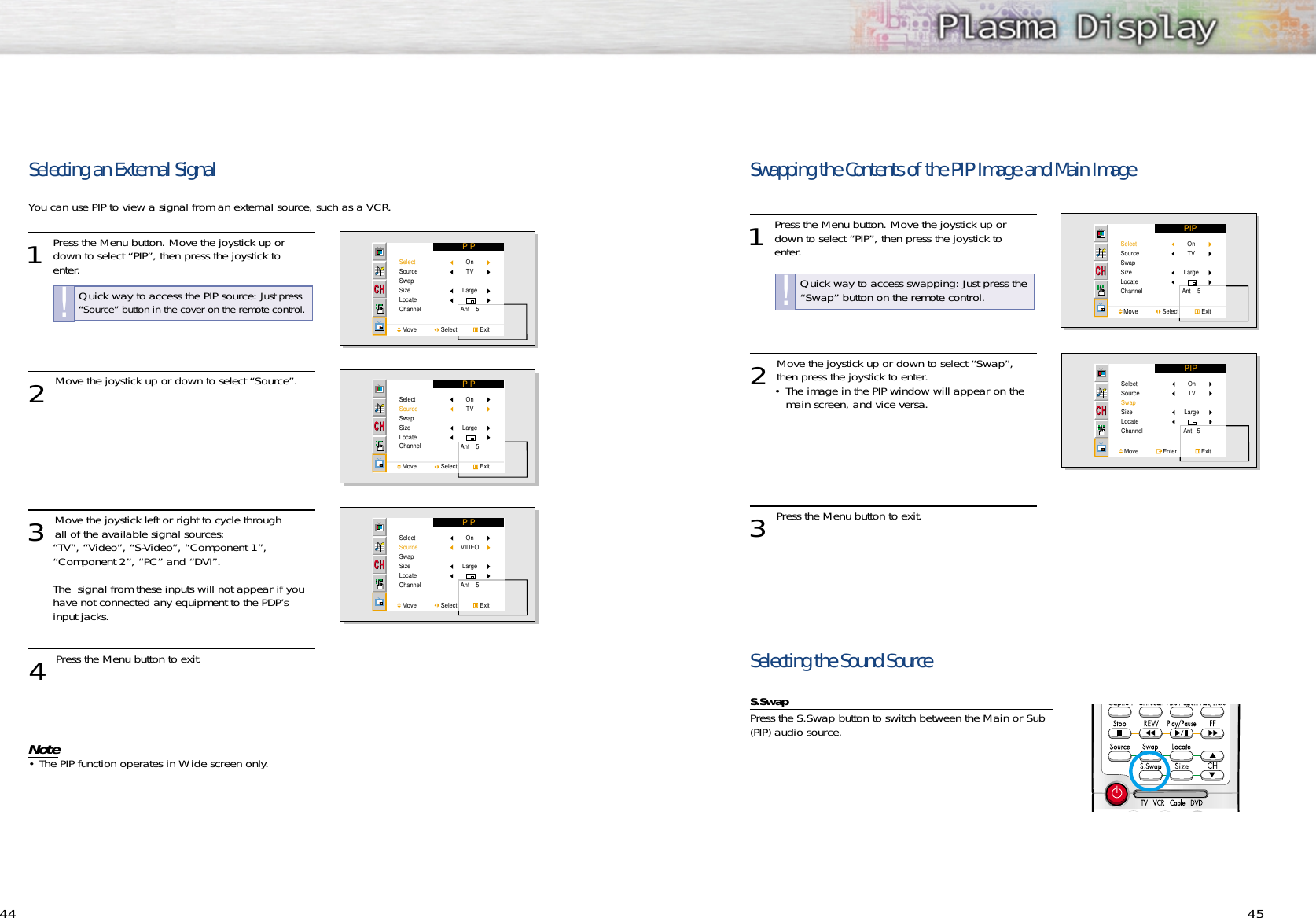

4544Selecting an External SignalYou can use PIP to view a signal from an external source, such as a VCR. 1 Press the Menu button. Move the joystick up ordown to select “PIP”, then press the joystick to enter.2 Move the joystick up or down to select “Source”.3 Move the joystick left or right to cycle through all of the available signal sources:“TV”, “Video”, “S-Video”, “Component 1”, “Component 2”, “PC” and “DVI”.The signal from these inputs will not appear if you have not connected any equipment to the PDP’s input jacks.4 Press the Menu button to exit.Note• The PIP function operates in Wide screen only.PIPSelectSourceSwapSizeLocateChannelMove Select ExitOnTVLargeAnt 5PIPSelectSourceSwapSizeLocateChannelMove Select ExitOnTVLargeAnt 5PIPSelectSourceSwapSizeLocateChannelMove Select ExitOnVIDEOLargeAnt 5Quick way to access the PIP source: Just press“Source” button in the cover on the remote control.!Swapping the Contents of the PIP Image and Main Image1 Press the Menu button. Move the joystick up ordown to select “PIP”, then press the joystick to enter.2 Move the joystick up or down to select “Swap”,then press the joystick to enter.• The image in the PIP window will appear on the main screen, and vice versa. 3 Press the Menu button to exit.Selecting the Sound Source S.SwapPress the S.Swap button to switch between the Main or Sub(PIP) audio source.PIPSelectSourceSwapSizeLocateChannelMove Select ExitOnTVLargeAnt 5PIPSelectSourceSwapSizeLocateChannelMove Enter ExitOnTVLargeAnt 5Quick way to access swapping: Just press the“Swap” button on the remote control.!

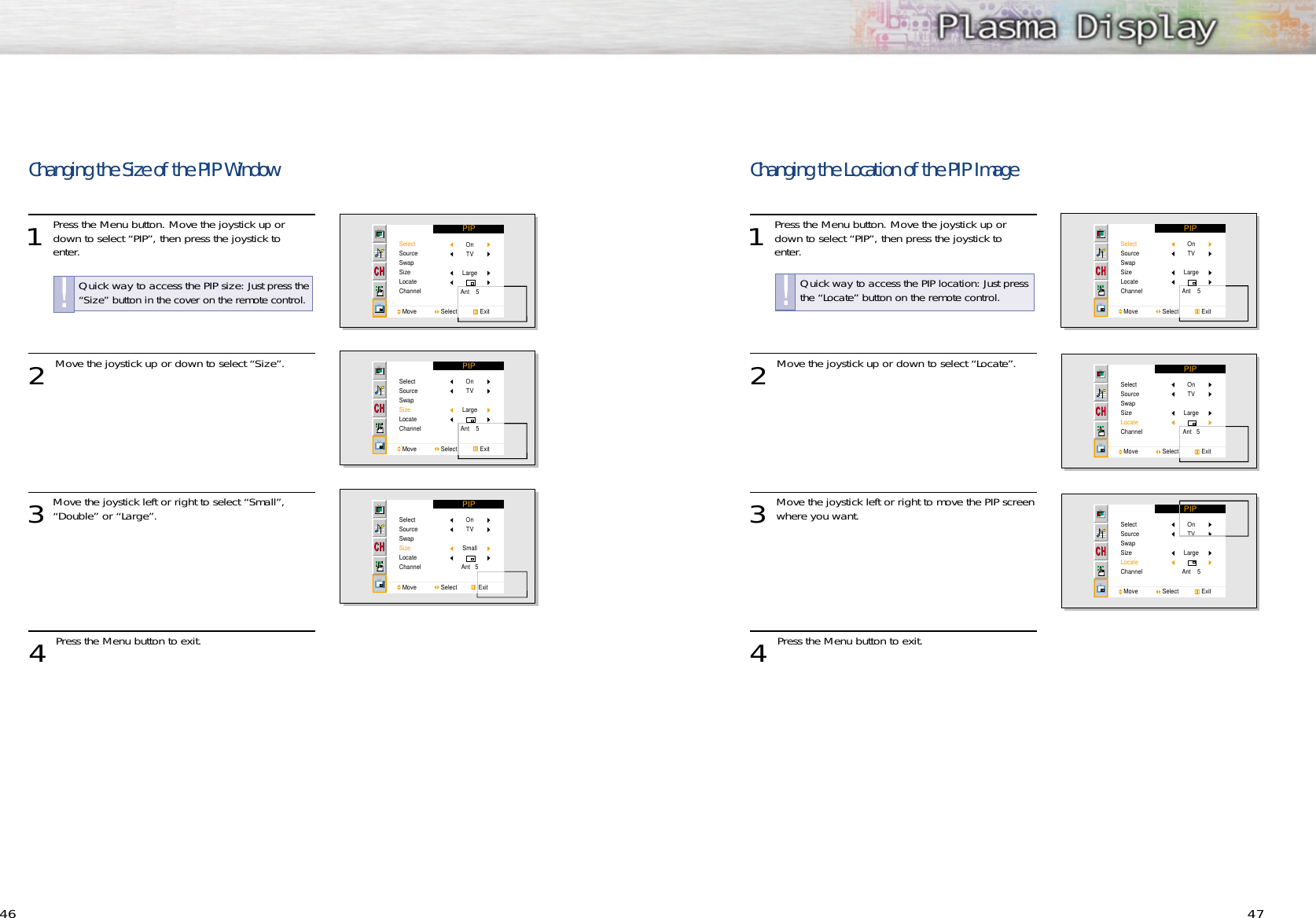

46 47Changing the Size of the PIP Window1 Press the Menu button. Move the joystick up ordown to select “PIP”, then press the joystick to enter.2 Move the joystick up or down to select “Size”.3Move the joystick left or right to select “Small”,“Double” or “Large”.4 Press the Menu button to exit.PIPSelectSourceSwapSizeLocateChannelMove Select ExitOnTVLargeAnt 5PIPSelectSourceSwapSizeLocateChannelMove Select ExitOnTVLargeAnt 5PIPSelectSourceSwapSizeLocateChannelMove Select ExitOnTVSmallAnt 5Quick way to access the PIP size: Just press the“Size” button in the cover on the remote control.!Changing the Location of the PIP Image1 Press the Menu button. Move the joystick up ordown to select “PIP”, then press the joystick to enter.2 Move the joystick up or down to select “Locate”.3 Move the joystick left or right to move the PIP screenwhere you want. 4 Press the Menu button to exit.PIPSelectSourceSwapSizeLocateChannelMove Select ExitOnTVLargeAnt 5PIPSelectSourceSwapSizeLocateChannelMove Select ExitOnTVLargeAnt 5PIPSelectSourceSwapSizeLocateChannelMove Select ExitOnTVLarge Ant 5Quick way to access the PIP location: Just pressthe “Locate” button on the remote control.!

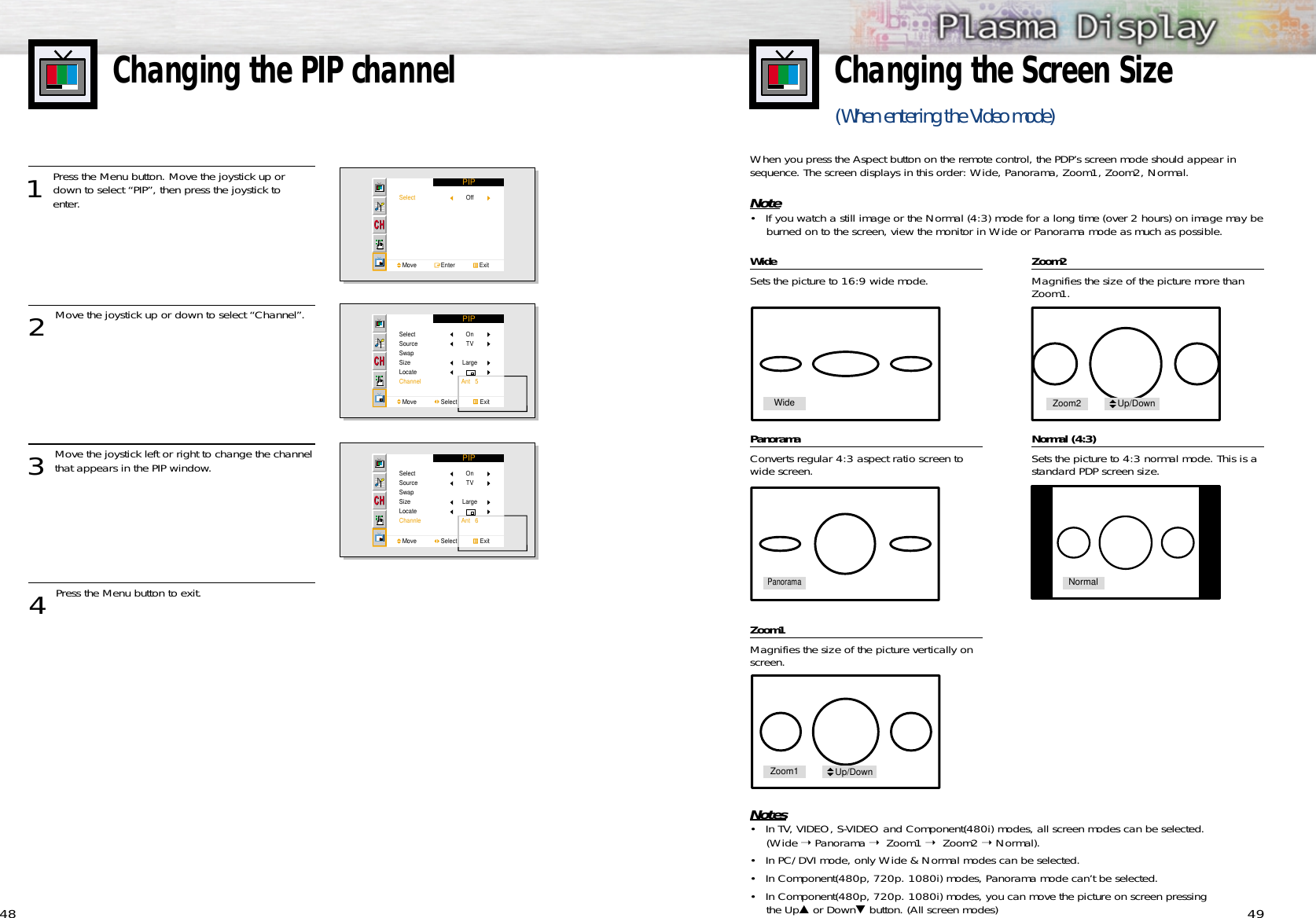

49Changing the Screen Size(When entering the Video mode) 48WideSets the picture to 16:9 wide mode.PanoramaConverts regular 4:3 aspect ratio screen towide screen.Zoom1Magnifies the size of the picture vertically onscreen.Zoom2Magnifies the size of the picture more thanZoom1.Normal (4:3)Sets the picture to 4:3 normal mode. This is astandard PDP screen size.Notes• In TV, VIDEO, S-VIDEO and Component(480i) modes, all screen modes can be selected.(Wide ➝ Panorama ➝ Zoom1 ➝ Zoom2 ➝ Normal).• In PC/DVI mode, only Wide & Normal modes can be selected.• In Component(480p, 720p. 1080i) modes, Panorama mode can’t be selected.• In Component(480p, 720p. 1080i) modes, you can move the picture on screen pressing the Up▲or Down▼button. (All screen modes)When you press the Aspect button on the remote control, the PDP’s screen mode should appear insequence. The screen displays in this order: Wide, Panorama, Zoom1, Zoom2, Normal.Note• If you watch a still image or the Normal (4:3) mode for a long time (over 2 hours) on image may beburned on to the screen, view the monitor in Wide or Panorama mode as much as possible.Changing the PIP channel1 Press the Menu button. Move the joystick up ordown to select “PIP”, then press the joystick to enter.2 Move the joystick up or down to select “Channel”.3 Move the joystick left or right to change the channelthat appears in the PIP window.4 Press the Menu button to exit.PIPSelectMove Enter ExitOffPIPSelectSourceSwapSizeLocateChannelMove Select ExitOnTVLargeAnt 5PIPSelectSourceSwapSizeLocateChannleMove Select ExitOnTVLargeAnt 6WidePanoramaNormalZoom1 Up/DownZoom2 Up/Down
