Specification REV 0.1 Samsung Electronics 1/17 User Manual SPW-B4319S 802.11b/g/n WLAN Module
Specification REV 0.1 Samsung Electronics 2/17 Revision History Revision Date Descriptions 0.1 2011-09-01 Created 0.2 2011-09-26 Update the module picture and table for WLAN Spec. 0.3 2011-10-10 Update the Power Table

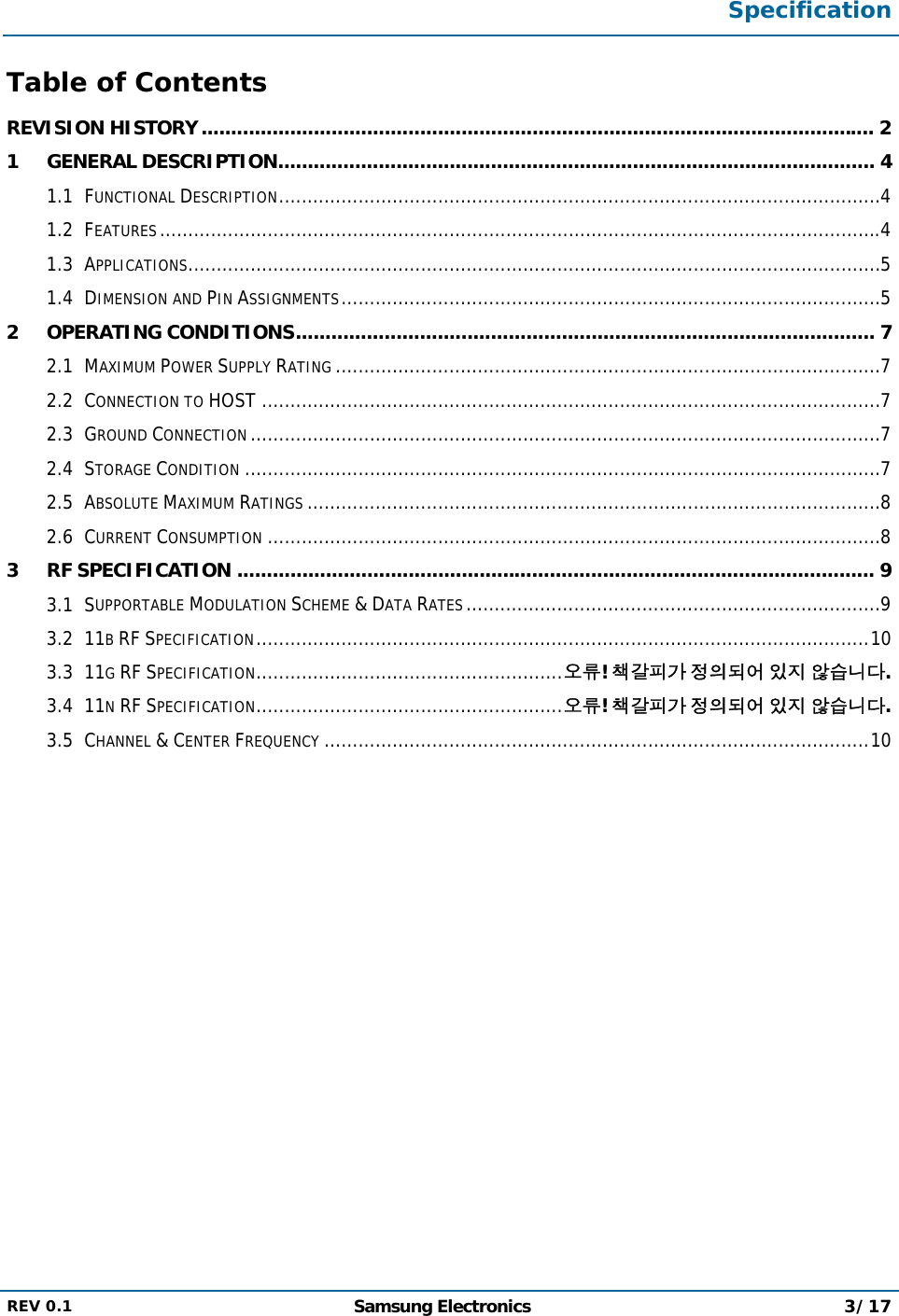

Specification REV 0.1 Samsung Electronics 3/17 Table of Contents REVISION HISTORY .................................................................................................................. 2 1 GENERAL DESCRIPTION ..................................................................................................... 4 1.1 FUNCTIONAL DESCRIPTION .......................................................................................................... 4 1.2 FEATURES ............................................................................................................................... 4 1.3 APPLICATIONS .......................................................................................................................... 5 1.4 DIMENSION AND PIN ASSIGNMENTS ............................................................................................... 5 2 OPERATING CONDITIONS .................................................................................................. 7 2.1 MAXIMUM POWER SUPPLY RATING ................................................................................................ 7 2.2 CONNECTION TO HOST ............................................................................................................. 7 2.3 GROUND CONNECTION ............................................................................................................... 7 2.4 STORAGE CONDITION ................................................................................................................ 7 2.5 ABSOLUTE MAXIMUM RATINGS ..................................................................................................... 8 2.6 CURRENT CONSUMPTION ............................................................................................................ 8 3 RF SPECIFICATION ............................................................................................................ 9 3.1 SUPPORTABLE MODULATION SCHEME & DATA RATES ......................................................................... 9 3.2 11B RF SPECIFICATION ............................................................................................................ 10 3.3 11G RF SPECIFICATION ...................................................... 오류! 책갈피가 정의되어 있지 않습니다. 3.4 11N RF SPECIFICATION ...................................................... 오류! 책갈피가 정의되어 있지 않습니다. 3.5 CHANNEL & CENTER FREQUENCY ................................................................................................ 10
Specification REV 0.1 Samsung Electronics 4/17 1 General Description 1.1 Functional Description SPW-B4319S is the low power SDIO module for 802.11b/g/n wireless LAN (WLAN) aimed at embedded applications. SPW-B431U is the SDIO module that adopts a single-chip wireless local area network (WLAN) medium-access controller (MAC) spread-spectrum baseband processor and 2.4 GHz RF radio. SPW-B4319S supports IEEE 802.11b, 802.11g and 802.11n standards, SPW-B4319 supports only 20MHz band width. SPW-B4319 supports 1 Tx and 1 Rx Antenna (1x1, SISO). SPW-B4319 supports 2412 ~ 2462 MHz. SPW-B4319S provides crucial power management functionality and requires only a single 3.3V or 5.0 V supply voltage Figure 1-1 SPW-B4319S 1.2 Features  Wi-Fi compliant  Security: WEP, WPA-PSK, WPA2-PSK, WMM, WMM-PS, TKIP, and AES hardware acceleration  Host interface: SDIO  Low power consumption  Single 3.3V or 5.0 V external supply voltage required

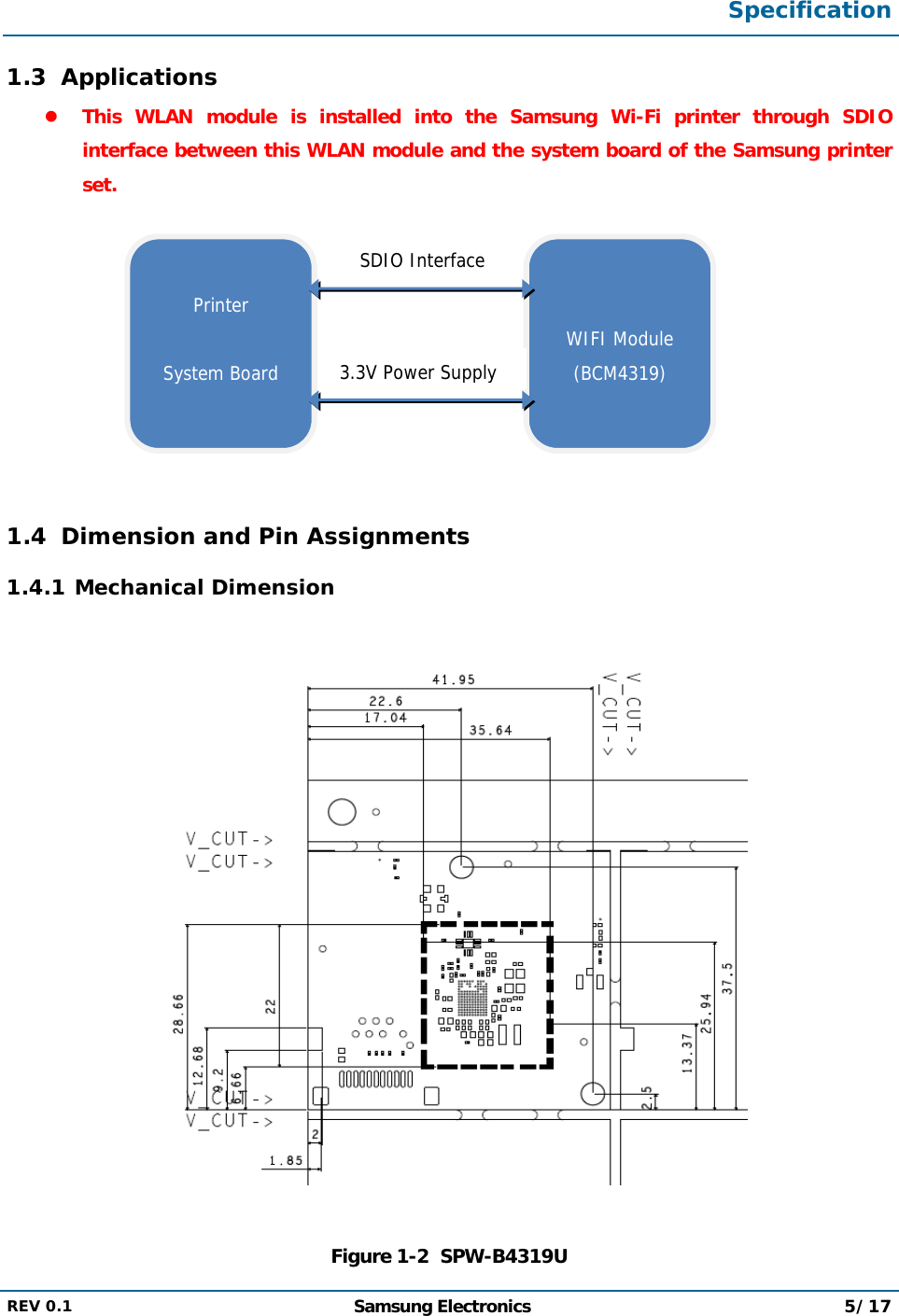

Specification REV 0.1 Samsung Electronics 5/17 1.3 Applications  This WLAN module is installed into the Samsung Wi-Fi printer through SDIO interface between this WLAN module and the system board of the Samsung printer set. 1.4 Dimension and Pin Assignments 1.4.1 Mechanical Dimension Figure 1-2 SPW-B4319U WIFI Module (BCM4319) Printer System Board SDIO Interface 3.3V Power Supply

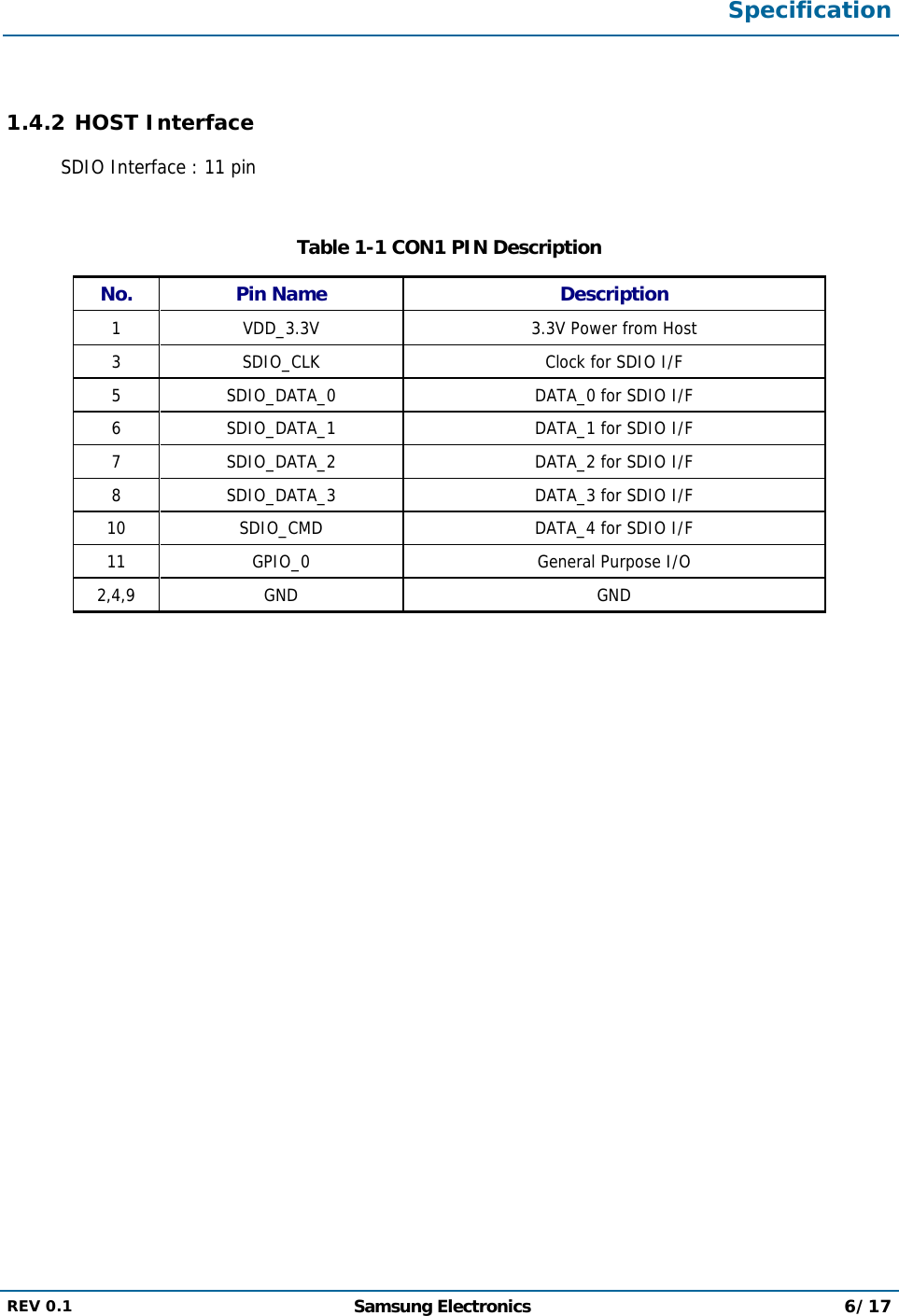

Specification REV 0.1 Samsung Electronics 6/17 1.4.2 HOST Interface SDIO Interface : 11 pin Table 1-1 CON1 PIN Description No. Pin Name Description 1 VDD_3.3V 3.3V Power from Host 3 SDIO_CLK Clock for SDIO I/F 5 SDIO_DATA_0 DATA_0 for SDIO I/F 6 SDIO_DATA_1 DATA_1 for SDIO I/F 7 SDIO_DATA_2 DATA_2 for SDIO I/F 8 SDIO_DATA_3 DATA_3 for SDIO I/F 10 SDIO_CMD DATA_4 for SDIO I/F 11 GPIO_0 General Purpose I/O 2,4,9 GND GND
Specification REV 0.1 Samsung Electronics 7/17 Operating Conditions 1.5 Maximum Power Supply Rating The supply Voltage of SPW-B4319S is 5V, do follow the Maximum Rating in 3.1. 1.6 Connection to HOST SPW-B4319S will work properly only if connecting to SDIO Interface. 1.7 Ground Connection SPW-B4319S does not need special ground, but uses the ground wire in HOST Interface. 1.8 Storage Condition It needs proper condition for protecting the rust. - Temperature : 0 ~ +50 °C - Humidity : lower level recommended , 25% ~ 65%RH - Max Storage Limit : Within 6 Month from Production
Specification REV 0.1 Samsung Electronics 8/17 1.9 Absolute Maximum Ratings Symbol Parameter Conditions Min. Nom. Max. Unit DC supply DC supply voltage from HOST 3.3V applied +3.1 +3.3 +3.5 V 5V applied +4.85 +5.0 +5.25 V DC for I/O SDIO Compliant - - - - ESD* Electro-static discharge voltageIEC1000-4~2 POINT: CON1, CON12 AIR 5K V Contact 1K V TS Storage temperature -20 - +85 °C TO Operating temperature 0 - +60 °C * Final specification will be fixed later. 1.10 Current Consumption Symbol Parameter Min. Nom. Max. Unit Current consumption * Transmit current value 11b (Tx pwr: 13 dBm) 250 <300 mA 11g/n (Tx pwr: 14 dBm) 200 <250 mA * It can be different to test condition.
Specification REV 0.1 Samsung Electronics 9/17 2 RF Specification All measurements are made under nominal power supply and room temperature 25 °C unless specified. RF specification of SPW-B4319S was defined according to 802.11b/g mandatory 2.1 Supportable Modulation Scheme & Data Rates Spacing Rate Data rates (Mbps) Remark 802.11n OFDM 20MHz MCS0 6.5 Mandatory MCS1 13 MCS2 19.5 MCS3 26 MCS4 39 MCS5 52 MCS6 58.5 MCS7 65 40MHz MCS0 15 Not Supported MCS1 30 MCS2 45 MCS3 60 MCS4 90 MCS5 120 MCS6 135 MCS7 150 Modulation Coding rate Data rates (Mbps) Remark 802.11g OFDM BPSK 1/2 6 Supported BPSK 3/4 9 Supported QPSK 1/2 12 Supported QPSK 3/4 18 Supported 16-QAM 1/2 24 Supported 16-QAM 3/4 36 Supported 64-QAM 1/2 48 Supported 64-QAM 3/4 54 Supported 802.11b DBPSK NA 1 Supported DQPSK NA 2 CCK NA 5.5 NA 11
Specification REV 0.1 Samsung Electronics 10/17 2.2 RF Specification Data Rate / TRx Item Min Nom Max Unit 11Mbps/Tx Power 12 13 14 dBm 54Mbps/Tx Power 12 13 14 dBm 65Mbps/Tx Power 12 13 14 dBm 11Mbps/Tx Freq. Tolerance -25 14 25 ppm 54Mbps/Tx Freq. Tolerance -25 14 25 ppm 65Mbps/Tx Freq. Tolerance -25 14 25 ppm 11Mbps/Tx EVM 0 12 16 % 54Mbps/Tx EVM -45 -32 -25 dB 65Mbps/Tx EVM -45 -32 -28 dB 11Mbps/Rx Sensitivity N/A -86 -84 dBm 54Mbps/Rx Sensitivity N/A -74 -72 dBm 65Mbps/Rx Sensitivity N/A -72 -70 dBm 2.3 Channel & Center Frequency Channel No Center Frequency [Mbps] FCC, IC ETSI Korea 1 2412 O O 2 2417 O O 3 2422 O O 4 2427 O O 5 2432 O O 6 2437 O O 7 2442 O O 8 2447 O O 9 2452 O O 10 2457 O O 11 2462 O O 12 2467 - O 13 2472 - O
Specification REV 0.1 Samsung Electronics 11/17 FCC Compliance  FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  Caution Any changes or modifications NOT explicitly APPROVED by Samsung Electronics Co., Ltd. could cause the SPW-B4319S module to cease to comply with FCC rules part 15, and thus void the user's authority to operate the equipment.  RF-exposure statement These modular transmitters, SPW-B4319S , comply with FCC radiation exposure limits set forth for an uncontrolled environment. The SPW-B4319S should be installed and operated with minimum distance 20cm between the antenna and the body of the user or nearby persons. The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID and IC number cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter).  Antenna These modular transmitters are for OEM integrations only. The end-user product will be installed in such a manner that only the authorized antennas are used.

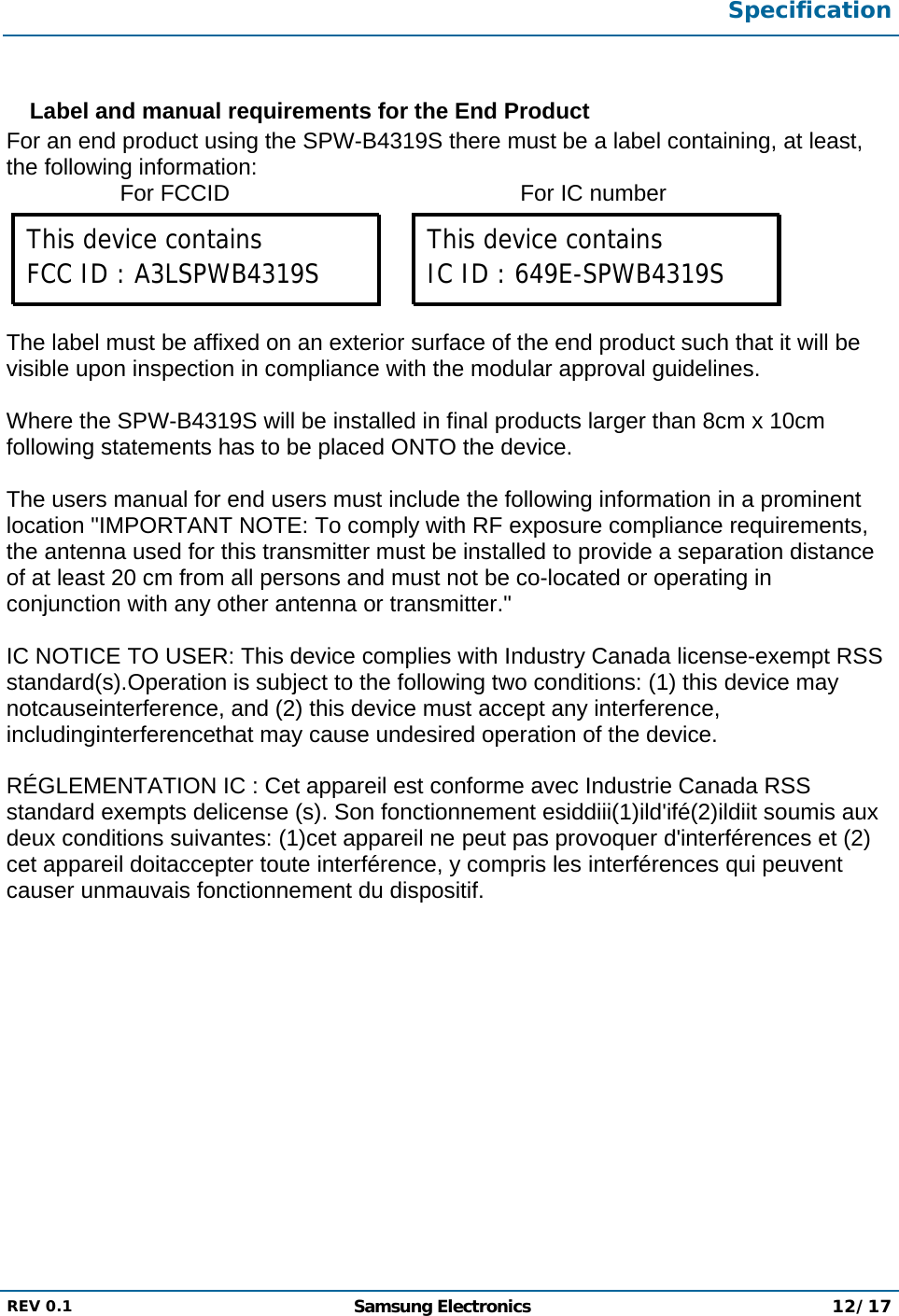

Specification REV 0.1 Samsung Electronics 12/17  Label and manual requirements for the End Product For an end product using the SPW-B4319S there must be a label containing, at least, the following information: For FCCID For IC number The label must be affixed on an exterior surface of the end product such that it will be visible upon inspection in compliance with the modular approval guidelines. Where the SPW-B4319S will be installed in final products larger than 8cm x 10cm following statements has to be placed ONTO the device. The users manual for end users must include the following information in a prominent location "IMPORTANT NOTE: To comply with RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." IC NOTICE TO USER: This device complies with Industry Canada license-exempt RSS standard(s).Operation is subject to the following two conditions: (1) this device may notcauseinterference, and (2) this device must accept any interference, includinginterferencethat may cause undesired operation of the device. RÉGLEMENTATION IC : Cet appareil est conforme avec Industrie Canada RSS standard exempts delicense (s). Son fonctionnement esiddiii(1)ild'ifé(2)ildiit soumis aux deux conditions suivantes: (1)cet appareil ne peut pas provoquer d'interférences et (2) cet appareil doitaccepter toute interférence, y compris les interférences qui peuvent causer unmauvais fonctionnement du dispositif. This device contains FCC ID : A3LSPWB4319S This device contains IC ID : 649E-SPWB4319S

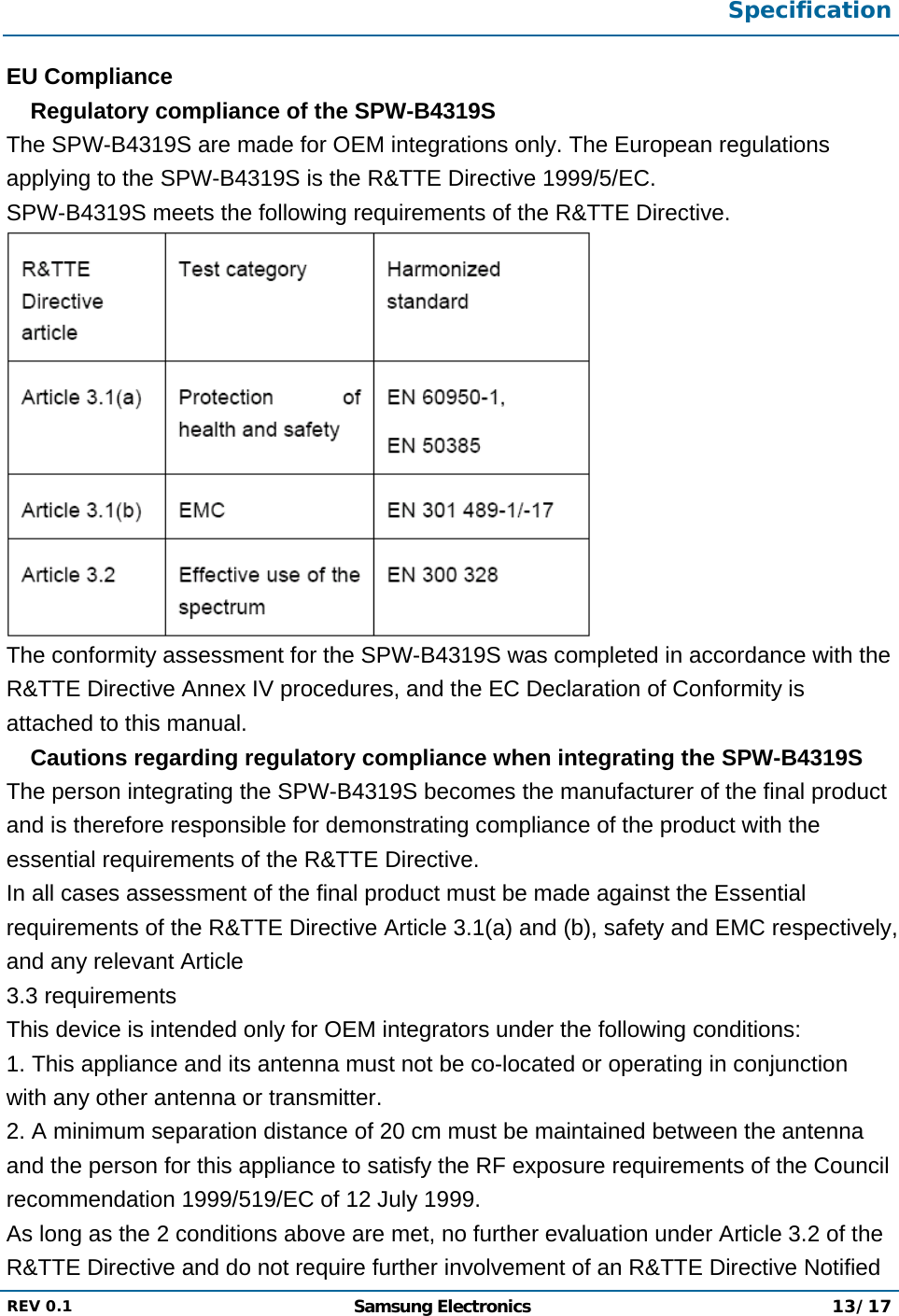

Specification REV 0.1 Samsung Electronics 13/17 EU Compliance  Regulatory compliance of the SPW-B4319S The SPW-B4319S are made for OEM integrations only. The European regulations applying to the SPW-B4319S is the R&TTE Directive 1999/5/EC. SPW-B4319S meets the following requirements of the R&TTE Directive. The conformity assessment for the SPW-B4319S was completed in accordance with the R&TTE Directive Annex IV procedures, and the EC Declaration of Conformity is attached to this manual.  Cautions regarding regulatory compliance when integrating the SPW-B4319S The person integrating the SPW-B4319S becomes the manufacturer of the final product and is therefore responsible for demonstrating compliance of the product with the essential requirements of the R&TTE Directive. In all cases assessment of the final product must be made against the Essential requirements of the R&TTE Directive Article 3.1(a) and (b), safety and EMC respectively, and any relevant Article 3.3 requirements This device is intended only for OEM integrators under the following conditions: 1. This appliance and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. 2. A minimum separation distance of 20 cm must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements of the Council recommendation 1999/519/EC of 12 July 1999. As long as the 2 conditions above are met, no further evaluation under Article 3.2 of the R&TTE Directive and do not require further involvement of an R&TTE Directive Notified
Specification REV 0.1 Samsung Electronics 14/17 Body for the final product. In all other cases, or if the manufacturer of the final product is in doubt then the equipment integrating the radio module must be assessed against Article 3.2 of the R&TTE Directive. Please note that this product, SPW-B4319S , uses radio frequency bands not harmonized throughout the Community. This product is classified as Class 2 radio equipment for which some Member States apply restrictions on placing on the market and in use. Any parties putting Class 2 radio equipment on the market must notify the relevant national spectrum management authority of their intention, and the radio equipment must be given a Class Identifier (alert symbol).  Antenna This product, SPW-B4319S, is for OEM integrations only. The end-user product will be installed in such a manner that only the authorized antennas are used.  Enclosure This product, SPW-B4319S, is made for integrating in another final product. For this reason, there are some parts of the final product on which the SPW-B4319S depends for regulatory compliance regarding EMC and safety. The SPW-B4319S is mounted on the circuit board of the final product, and must be contained inside the case of the final product. Integrated the SPW-B4319S in the final product so that its surfaces are not in contact with the outside.  Documentation In the documentation for the conformity assessment of the final product, state clearly that the SPW-B4319S is integrated in the system.  Conformity Assessment of the Products integrating the SPW-B4319S The following is a supplementary explanation of conformity assessments for final products integrating the radio modules such as the SPW-B4319S , that have passed conformity assessments in accordance with the R&TTE Directive. The procedures for conformity assessment in accordance with the R&TTE Directive are the responsibility of the manufacturer of the final product. With final products integrating radio modules, the person who integrates the module in the system becomes the manufacturer of the final product, and it is their responsibility to certify that the requirements of the R&TTE Directive and met.  Exemption from conformity assessment However, if radio modules that meet the requirements of the R&TTE Directive and that have passed the conformity assessment are integrated in a final product that follows the cautions concerning integrating radio modules, they are exempted from the conformity assessment for R&TTE Directive Article 3.2 (efficient use of the radio spectrum). For
Specification REV 0.1 Samsung Electronics 15/17 details, refer to the following Guidance and ETSI Technical Report from the R&TTE Compliance Association, and check whether your case applies.
Specification REV 0.1 Samsung Electronics 16/17  Conformity assessment procedures for final products exempted from R&TTE Directive Article 3.2 In every case, the manufacturer of a final product must follow the procedures for conformity assessment of the final product with the requirements of R&TTE Directive Article 3.1(a) and (b), for safety and EMC. The conformity assessment for Article 3.2 is carried out in accordance with the following: 1) Attach the EN 300 328 test report of the assessed radio module and the EC Declaration of Conformity to the conformity assessment of the final product (The Declaration of Conformity is attached to the manual). 2) Specify on the conformity assessment of the end product that the assessed radio module was integrated in the system without any changes, in accordance with the installation directions of the manufacturer.  Notification of the final product Please note that this product, SPW-B4319S , uses radio frequency bands not harmonized throughout the Community. The notification required by R&TTE Directive Article 6(4) is necessary. It is the responsibility of the manufacturer of the final product to notify the relevant national spectrum management authority of the intention to place the final product on the market.  CE marking It is necessary to attach the CE mark to the final product to indicate that it conforms with all the directives that apply to the final product. It must be given a Class Identifier (alert symbol) in addition to the CE mark.  Exemption clause Samsung Electronics Co., Ltd. does not guarantee the accuracy of the information above. In case of doubt or uncertainty, we recommend that you check with the authorities or official certification organizations of the relevant countries.
Specification REV 0.1 Samsung Electronics 17/17 EC Declaration of Conformity Samsung Electronics Co., Ltd. of #416 Maetandong, Youngtonggu, Suwonsi, Gyeonggido, Korea of Samsung declares under our sole responsibility that the product WLAN Module model " SPW-B4319S " to which this declaration relates is in conformity with R&TTE Directive 1999/5/EC By application of the following standards Notified UL Apex Co., Ltd. Body 4383-326, Asama-cho, Ise-shi, Mie 516-0021, JAPAN EU Identification Number: 0983 Documentary evidence to demonstrate conformity
