User manual
RFID Reader
User Manual
SSA-R2001
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please visit our website.
www.samsungsecurity.com
2_ Safety information
safety information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric shock is
present within this unit.
This exclamation point symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING
To reduce the risk of fi re or electric shock, do not expose this appliance to rain or moisture.
WARNING
Be sure to use only the standard adapter that is specifi ed in the specifi cation sheet.
Using any other adapter could cause fi re, electrical shock, or damage to the product.
Incorrectly connecting the power supply or replacing battery may cause explosion, fi re, electric shock, or damage to
the product.
Do not connect multiple controllers to a single adapter. Exceeding the capacity may cause abnormal heat generation or fi re.
Securely plug the power cord into the power receptacle. Insecure connection may cause fi re.
When installing the controller, fasten it securely and fi rmly. The fall of controller may cause personal injury.
Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers fi lled with water on top of the
controller. Doing so may cause personal injury due to fi re, electric shock, or falling objects.
Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fi re or electric shock.
If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the
power source and contact the service center. Continued use in such a condition may cause fi re or electric shock.
If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in
any way. (SAMSUNG is not liable for problems caused by unauthorized modifi cations or attempted repair.)
. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fi re or electric shock.
CAUTION
Do not drop objects on the product or apply strong blows to it. Keep away from a location subject to excessive
vibration or magnetic interference.
Do not install in a location subject to high temperature (over 50°C), low temperature (below -10°C), or high humidity.
Doing so may cause fi re or electric shock.
If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it.
Remove the power plug from the outlet when there is a lighting storm. Neglecting to do so may cause fi re or damage
to the product.
•
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
1.
2.
3.
4.
English3
SAFETY INFORMATION
Keep out of direct sunlight and heat radiation sources. It may cause fi re.
Install it in a place with good ventilation.
Avoid aiming the controller directly towards extremely bright objects such as sun.
Apparatus shall not be exposed to dripping or splashing and no objects fi lled with liquids, such as vases, shall be
placed on the apparatus.
The Mains plug is used as a disconnect device and shall stay readily operable at any time.
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :
This device may not cause harmful interference, and
This device must accept any interference received including interference that may cause undesired operation.
5.
6.
7.
8.
9.
1)
2)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifi ers) that
produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
Only use attachments/accessories specifi ed by the manufacturer.
Use only with cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with
the apparatus.
Unplug this apparatus when a card is used. Use caution when moving the cart/ apparatus
combination to avoid injury from tip-over.
Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any
way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
IMPORTANT SAFETY INSTRUCTIONS
Caution
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in ac-
cordance with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
4_ Contents
contents
PRODUCT INTRODUCTION
5
5 Features
5 What’s included
6 At a Glance
7 Cable Color Scheme
7 Cable Selection
INSTALLATION AND EXTERNAL
CONNECTION
8
8 Installation
9 Precautions on installation
10 External Connection
INITIALIZATION
11
11 Output Format
12 Basic Operations
OUTPUT FORMAT
13

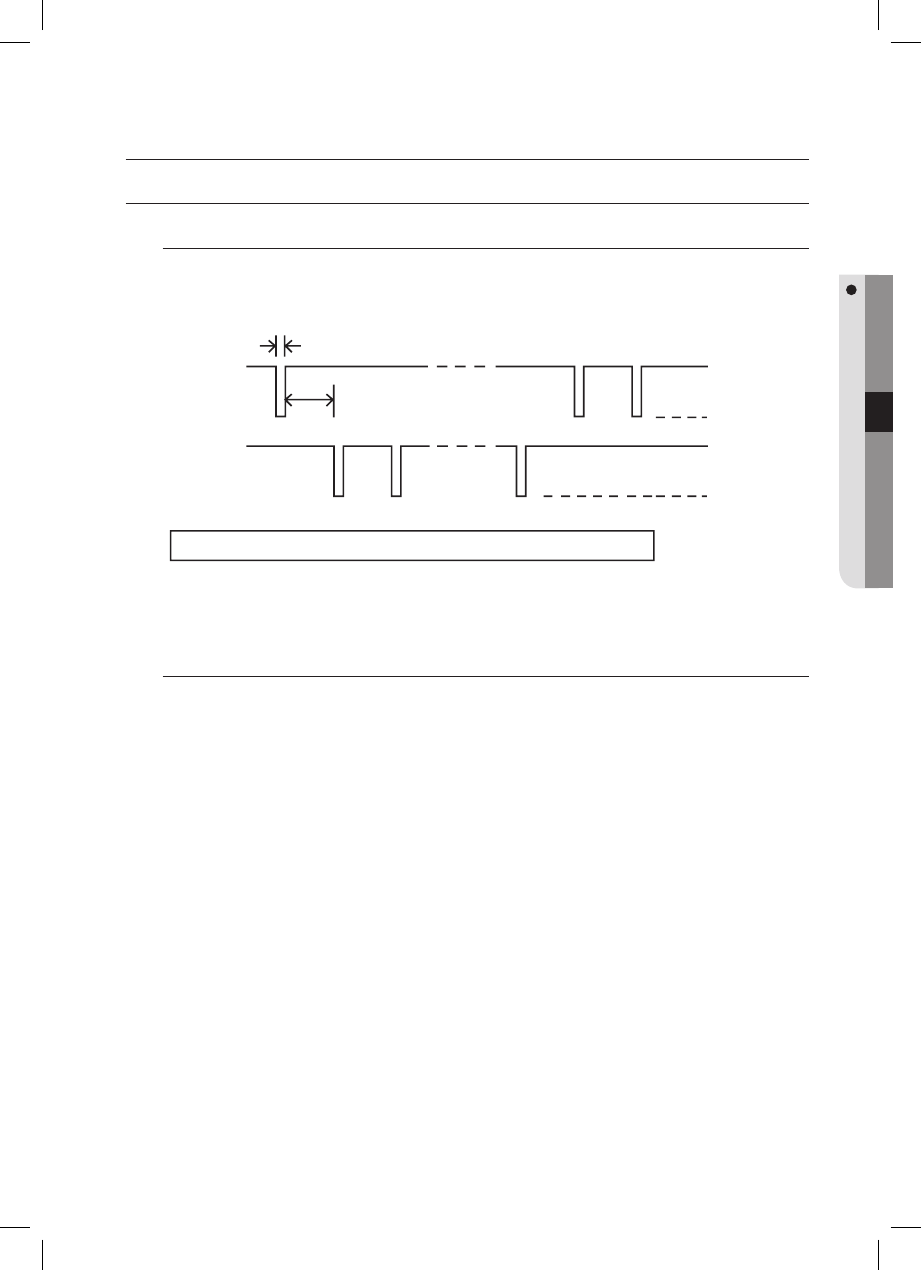

13 WIEGAND Output
14 4/8 BIT BURST Output Format
TROUBLESHOOTING
15
15 Troubleshooting
PRODUCT SPECIFICATIONS
16
16 Product Specifi cations
English5
PRODUCT INTRODUCTION
FEATURES
This product is an elegant-looking proximity reader equipped with the built-in keypad, which has the maximum of 10cm (4”)
read range. It is also supported by backlighting on the keypad, enabling stable operation at night. This product permits user
access through authentication of the contactless card and personal identifi cation number using the keypad. Red, green and
orange LED indicators and the built-in buzzer ensure reliable and accurate operations.
13.56 MHz [MIFARE] Contactless Smart Card & PIN Reader
Compatible with ISO14443 Type A
34 bit Wiegand & RS-232 Data Output
4/8 Bit Burst Output Format supported
Numeric keypad with backlighting for night operation
Control of External LED Indicators
Control of External Buzzer
Tamper Switch
Reverse Polarity Protection

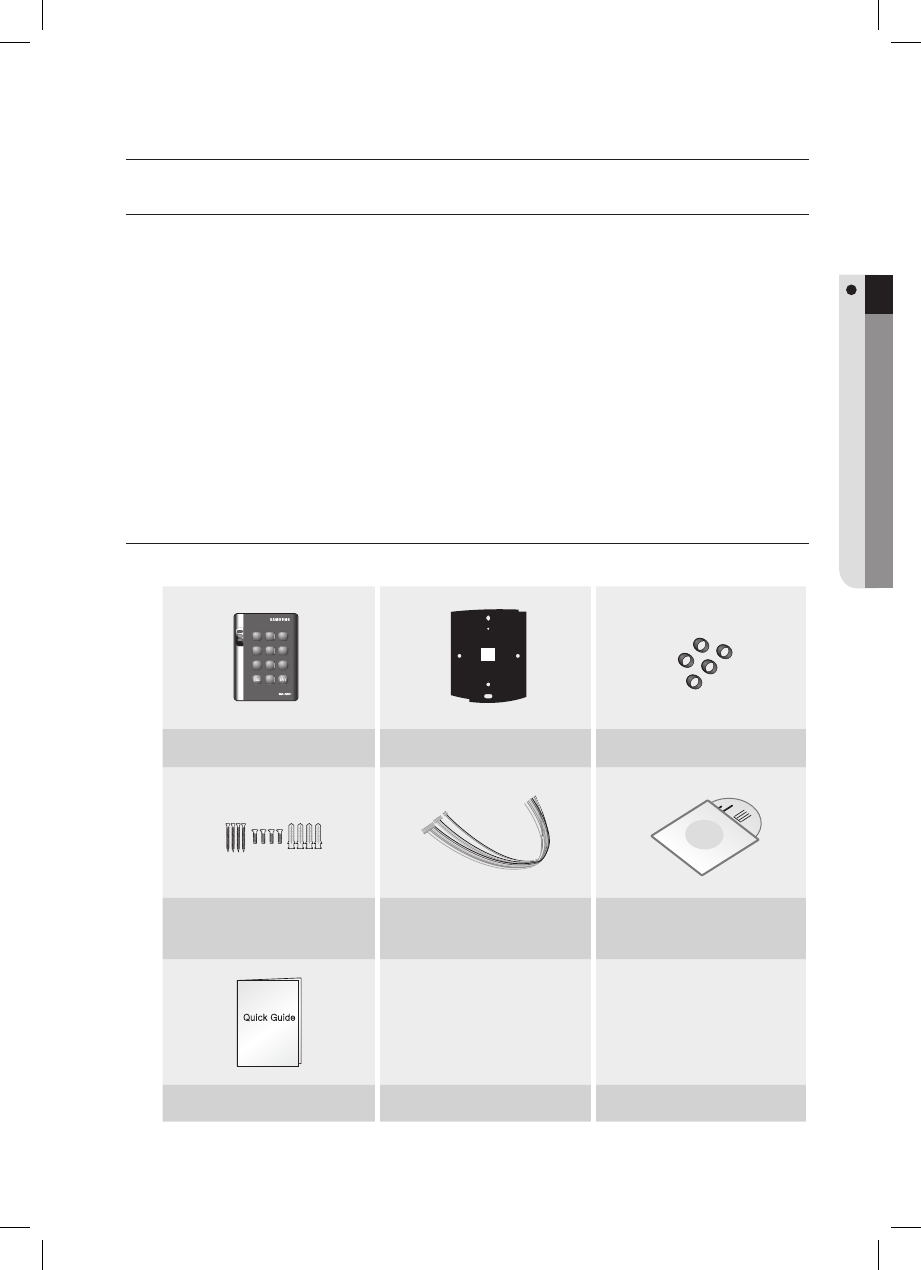

WHAT’S INCLUDED
Check if the following items are included in the product package.
X Y Z
[ \ ]
^ _ `
lzj lu{
W
zzhTyYWWX
Main Unit Rear Panel O-ring (x5)
3.5 x 40mm Screws (x4)
3.5 x 12mm Screws (x4)
6 x 30mm Plastic Anchor (x4)
Cables (x3) CD Manual
xGn
Quick Guide
◆
◆
◆
◆
◆
◆
◆
◆
◆
product introduction
6_ Product Introduction
product introduction

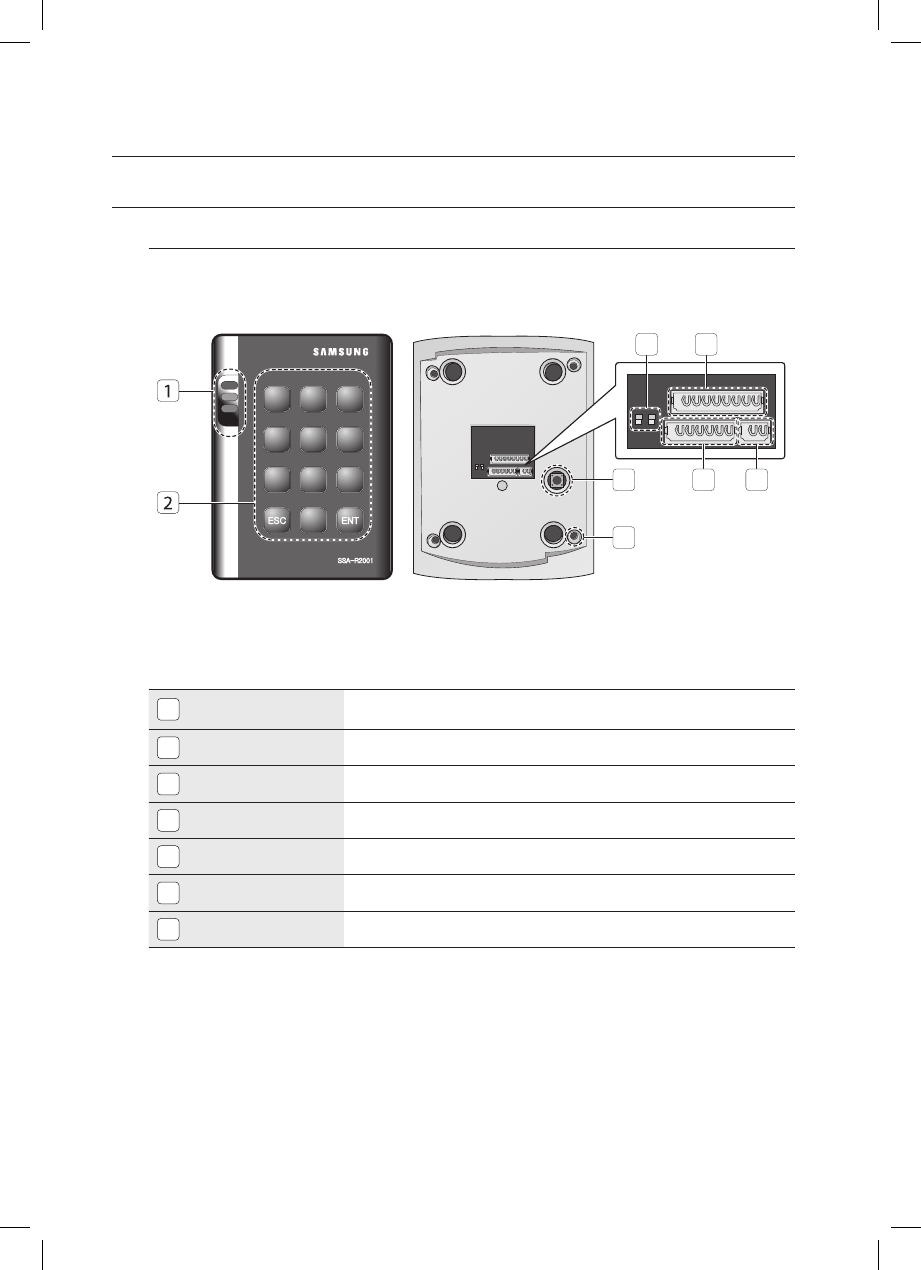

AT A GLANCE
Front/Rear
1LED Displays the status of the system operation.
2Keypad Used to enter the ID/password.
32-PIN Connector Can be connected to the power cable.
48-PIN Connector Connected to the tamper, LED and buzzer control connection cables.
5Output Selection Switch Switch that allows you to select an output from 8 bit, 4 bit Burst and Wiegand.
6Tamper Switch Tamper switch.
7Fixing Screw Screws for fi xing the devices.
XYZ
[\]
^_`
lzj lu{
W
zzhTyYWWX
347
8
56
English7
PRODUCT INTRODUCTION
CABLE COLOR SCHEME
2-PIN Connector
I/O Pins Signal Cable Color
Power (+12V) DC +12V Red
Earth-grounding GND (-) Black
6-PIN Connector
I/O Pins Signal Cable Color
Wiegand Data Output 0 WIK_DATA0 Green
Wiegand Data Output 1 WIK_DATA1 White
Not Used Not Used Orange
Not Used Not Used Brown
8-PIN Connector
I/O Pins Signal Cable Color
Tamper Switch NC Tamper NC Green with White Stripes
Tamper Switch COM Tamper COM Gray
LED Control Red LED Control White with Red Stripes
LED Control Green LED Control Yellow
LED Control Orange LED Control Blue with White Stripes
Buzzer Control BUZZER Control Blue
Not Used Not Used Pink
Not Used Not Used Sky Blue
CABLE SELECTION
Item
Cable Type
Cable Type
1
Power (DC12V)
Belden #9409, 18 AWG 2 Conductor, Unshielded (Maximum Allowable Distance : Within 3m)
Belden #9409, 18 AWG 2 Conductor, Unshielded (Maximum Allowable Distance : Within 3m)
2
Card/PIN data (Wiegand)
Control Signal (LED,BUZZER)
TAMPER
Belden #9512, 22 AWG 4 Conductor, Shielded
Belden #9514, 22 AWG 8 Conductor, Shielded
❖
❖
❖
8_
Installation and External Connection
installation and external connection
INSTALLATION

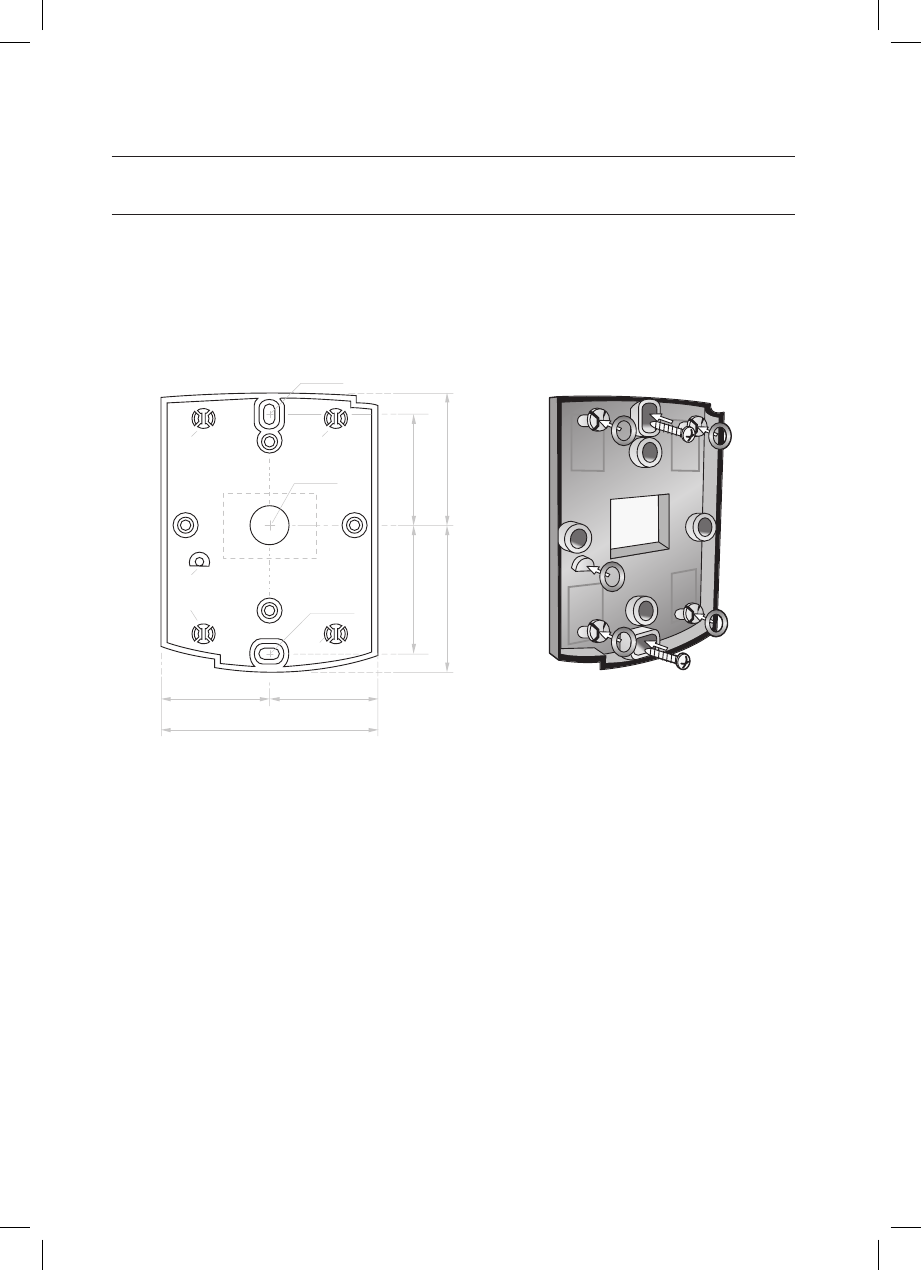

Attach the provided rear panel to the wall and drill two 6-32 holes and one 1/2 inch hole on it. (See [Figure 1])
Refer to [Figure 2] below on how to secure the rear panel to the wall using the provided screws.
Apply each of 5 O-rings to the corresponding point as shown in [Figure 2].
Fix the main unit with the rear panel by inserting the main unit’s cables into the center hole and pushing the main
unit towards the rear panel.
Once the main unit is fi xed with the rear panel, it will not be loosened. Please check if the device is operating properly
before fi xing it.
If you try to remove the rear panel once it is fi xed, the lock parts of the rear panel will break, resulting in a situation where
the whole rear panel must be replaced.
1.
2.
3.
4.
J
2.05"(52mm) 1.85"(47mm)
3.03"(77mm)
1.52"(38.5mm) 1.52"(38.5mm)
1.55"(39.5mm)1.79"(45.5mm)
O-ring
O-ring
O-ring
O-ring
O-ring
6-32 hole
6-32 hole
1/2” hole
[Figure 1] [Figure 2]
English9
INSTALLATION AND EXTERNAL CONNECTION

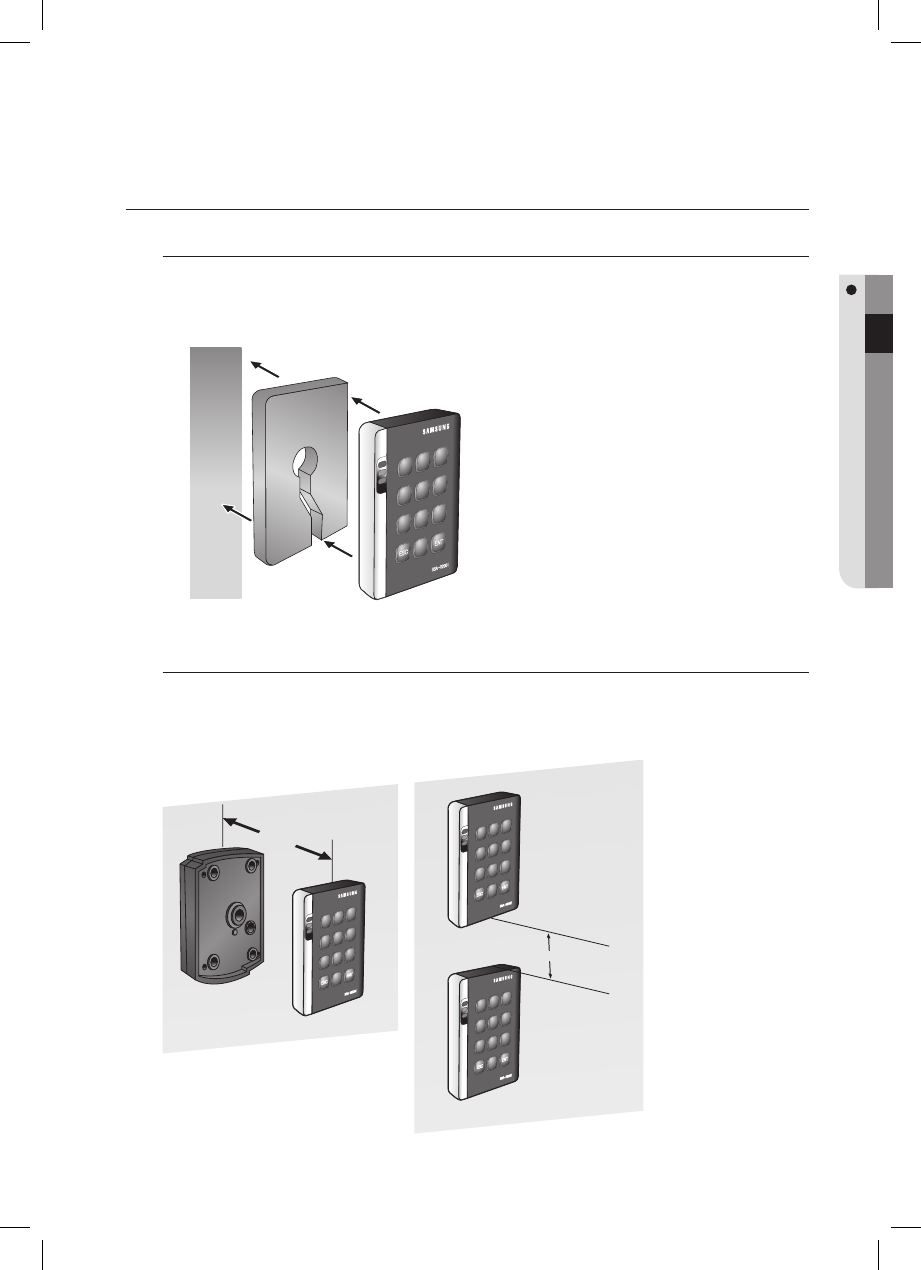

PRECAUTIONS ON INSTALLATION
IF INSTALLING ON A METAL WALL
If you install the reader on a metal wall, the read range may be reduced.
To avoid this problem, it is recommended to insert the spacer between the metal wall and the reader as shown
below.
IF INSTALLING MORE THAN ONE READER SIDE BY SIDE OR
FRONT AND BACK
If you install more than one reader side by side or front and back, the read range may be reduced. In this case, if
you present a card to one reader, the other reader may recognize the same card, meaning both readers read the
same card simultaneously.
To avoid this problem
, keep at least 20 cm of space between the two readers.
zzhTyYWWX
XYZ
[\]
^_`
lzj lu{
W
Spacer
Reader
Metal
Wall
BACK TO BACK
INSTALLATION
SIDE BY SIDE
INSTALLATION
zzhTyYWWX
XYZ
[\]
^_`
lzj lu{
W
zzhTyYWWX
XYZ
[\]
^_`
lzj lu{
W
zzhTyYWWX
XYZ
[\]
^_`
lzj lu{
W
<Front and Back>
<Side by Side>
Minimum
20cm
Minimum
20cm
#Reader 1
#Reader 2
#Reader 1
#Reader 2
10_
Installation and External Connection
installation and external connection
EXTERNAL CONNECTION

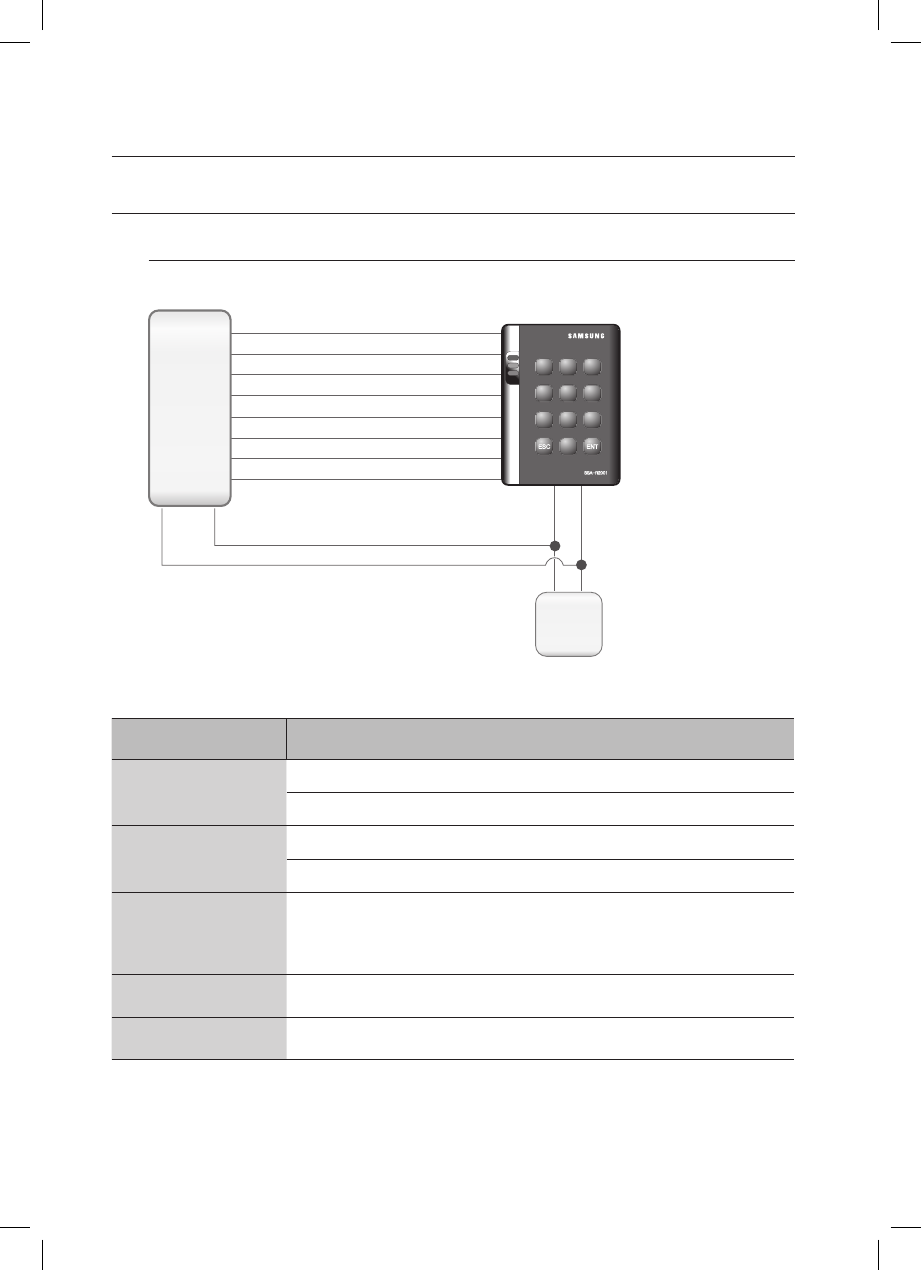

WIRING DIAGRAM
Category
Cable Color
Power Supply Unit
Connect the DC+12V to the red line.
Connect GND to the black line.
Wiegand Connection
Connect the green line of the product to the Wiegand D0 input port of the controller.
Connect the white line of the product to the Wiegand D1 input port of the controller.
LED Control
Enables you to turn on or off the LED indicators.
To control green indicator, connect the yellow line to the controller’s output (relay). Connect the blue with
white stripes to control the orange indicator, connect the white with red stripes to control the red indicator.
(see page 12)
Buzzer Control Enables you to turn on or off the buzzer.
To control the buzzer, connect the blue line to the controller’s output (relay).
(see page 12)
Tamper Control Connect the COM port (gray line) of the product’s tamper switch to GND; connect the NC port (green line
with white stripe) of the tamper switch to the input port of the controller.
X Y Z
[ \ ]
^ _ `
lzj lu{
W
zzhTyYWWX
Wiegand Data 0 Out
Wiegand Data 1 Out
POWER
CONTROLLER
SSA-R2001
Red Black
DC +12V GND
Tamper Switch Out(NC)
Tamper Switch Out(COM)
Buzzer Control In
LED Control In(Red)
LED Control In(Green)
LED Control In(Orange)
Green
White
Green with white stripes
Gray
Blue
White with red stripes
Yellow
Blue with white stripes
English11
INITIALIZATION
initialization

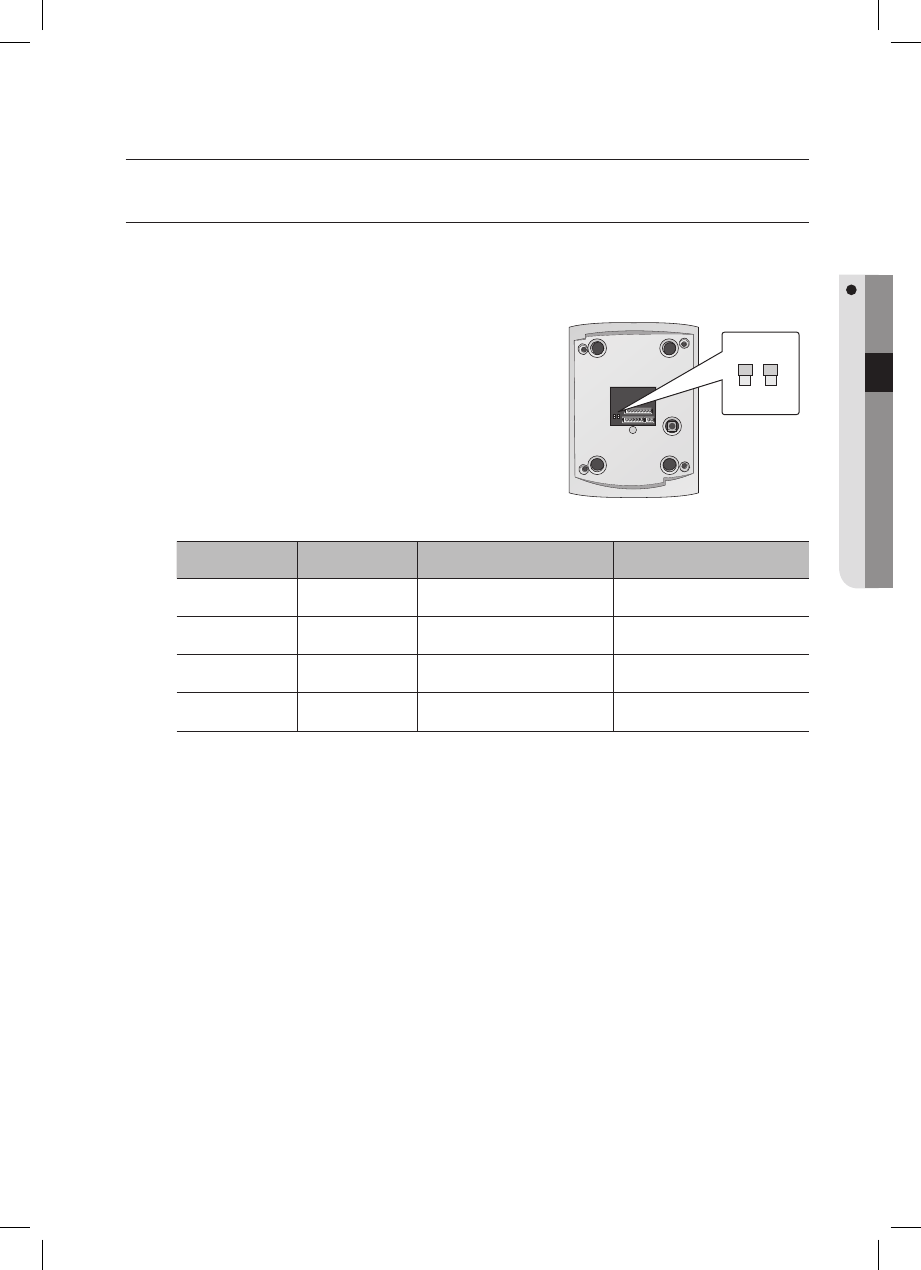

OUTPUT FORMAT
You can adjust the output format of the numeric values from the keypad.
You can select 4/8 bit Burst or 34bit Wiegand.
Adjust the format according to the controller receiving the keypad input.
To change the output format, use the switch on the rear of the
product.
See the table below to make adjustment as needed.
Output Format
SW #1
SW #2 Output Format of Card Output Format of Keypad
ON ON 34bit Wiegand 34bit Wiegand
ON OFF 34bit Wiegand 34bit Wiegand
OFF ON 34bit Wiegand 4 bit Burst
OFF OFF 34bit Wiegand 8 bit Burst (Default)
All switches are defaulted to “OFF”.
Before you change the output format, you must disconnected the power.
1.
2.
❖
M
ON
12
12_ Initialization
initialization

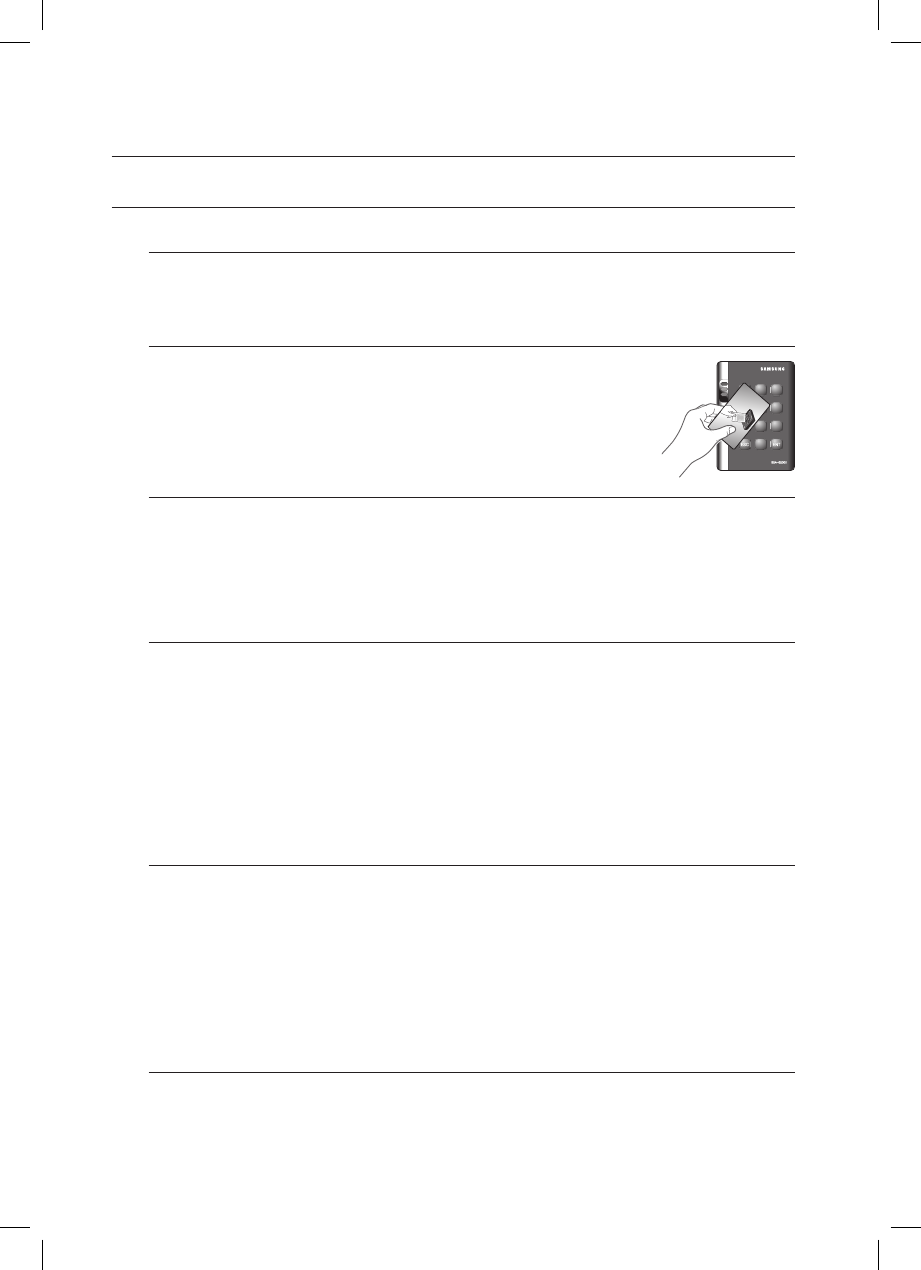

BASIC OPERATIONS
Initial State (when the power is supplied)
When you apply power to the product, it will sound beep three times before entering Standby with the red indicator
turned on.
Using the card
Present the card to the product until you hear a beep and the green indicator turns on.
The reader keeps the green indicator turned on while transferring the card data to the
controller.
When it is done, the green indicator turns off and for receiving the next card, the red
indicator stays ON.
Using the keypad
Hold down the keypad until you hear a beep. The reader transfers the keypad data to the controller.
If the output format of the keypad is the option to 26bit Wiegand, pressing any key of the keypad turns on orange
indicator, and green indicator blinks when [ENT] is pressed after the input. The red indicator stays on after
transferring data to the controller. By default, it is 8-bit burst. Hence, keypad input and pressing [ENT] will blink the
green indicator only when you change the option to 26bit Wiegand.
LED Control
You can control the red, green and orange indicators as necessary.
To control the red indicator, connect the relay output NO port of the controller to the red indicator control input line
(white line with red stripes), and connect the GND line to the COM line. Set I/O of the controller; now you can
control turning on/off the indicators.
You can turn on/off the indicators according to the I/O settings of the controller, which can be applied to various
situations.
For more information about the I/O settings of the controller, refer to the user manual of the controller.
Connect the yellow line for the green indicator, or the blue with white stripes for the orange indicator, to the COM
port of the controller.
Buzzer Control
Connect the buzzer control input line (blue) to the NO port of the controller relay output, and GND to the COM port.
You can confi gure the I/O settings of the controller so that it beeps. If the product continues to beep, it means that
the buzzer control is working properly.
The controller can use the I/O settings to set the buzzer control so that it sounds an additional beep for authorized
or unauthorized access upon user authentication.
Furthermore, you can make various modifi cations according to the different I/O settings of the controller.
For more information about the I/O settings of the controller, refer to the user manual of the controller.
Card reading is not available while the buzzer control is sounding the buzzer.
Tamper Control
You can set the signal that you want to output if the device is dismantled forcibly.
Connect the COM port (gray line) of the product’s tamper switch to GND; connect the NC port (green with white
stripe) of the tamper switch to the input port of the controller. If the tamper of the reader operates, the controller
produces an input signal and generates the corresponding output depending on the controller setting.
X Y Z
[ \ ]
^ _ `
lzj lu{
W
zzhTzYWWW
Card
XYZ
[\]
^_`
lzjlzj
W
i
zzhTzYWWW
English13
OUTPUT FORMAT
output format
WIEGAND OUTPUT
Timing Diagram
Data Format (34-bit)
Bit 1 : Even Parity (bit 2 ~ bit 17)
Bit 2~Bit33 : 4-byte ID Number
Bit 34 : Odd Parity (bit 18 ~ bit 33)
•
•
•
100us
1ms
DATA-0
DATA-1
123
5V
0V
0V
5V
0LOGIC 1 1 1 0 0
n-2 n-1 n *n : 34 or26
14_ Output Format
output format
4/8 BIT BURST OUTPUT FORMAT
4Bit Burst Output Format
Keypads
Binary Hexa
Keypads
Binary
Hexa
0 0000 0 6 0110 6
1 0001 1 7 0111 7
2 0010 2 8 1000 8
3 0011 3 9 1001 9
4 0100 4 ESC 1010 A
5 0101 5 ENT 1011 B
8Bit Burst Output Format
Keypads
Binary Hexa
Keypads
Binary
Hexa
0 11110000 F0 6 10010110 96
1 11100001 E1 7 10000111 87
2 11010010 D2 8 01111000 78
3 11000011 C3 9 01101001 69
4 10110100 B4 ESC 01011010 5A
5 10100101 A5 ENT 01001011 4B
English15
TROUBLE SHOOTING
troubleshooting
TROUBLESHOOTING
If the product does not function properly, please see the below for trouble shooting. If the trouble persists, please contact
the SAMSUNG Customer Service near you.
PROBLEM SOLUTION
My card is not read properly. 1) Check the rated voltage specifi ed in the user manual and the catalog.
2) Ensure that you are using an ISO14443 Type A card.
- Cards of 125 kHz format can not be used. However, the 13.56 MHz card can
not be used if it is of Type B, ISO15693.
(Contact the card retailer regarding the card format.)
3) If the problem persists, contact the nearest customer service for your assistance.
When I turn on the product, it sounds a
beep with dimly turned on indicator.
1) 1) Ensure that you are using a larger-capacity adaptor than specifi ed in the user
manual or the catalog, which should cover the rated current consumption of the
reader. If you are using multiple readers that are connected to one adaptor,
make sure that the adaptor should be large enough to cover the current
consumption multiplied by the reader count.
2)
Even with a large adaptor enough to supply adequate power, if the power cable is
not a dedicated line (such as communication line or UPT cable), or if it’s so long to
cause power loss, you’d better replace it with a dedicated line or reinforce it.
3) If the problem persists, contact the nearest customer service for your assistance.
The read range (R/R) of the card differs
each time the product reads the card.
1) The characteristics of a card are determined by the nature of the coils used and in the
manufacturing process engaged by the card manufacturer. So what you do fi rst is to check
that the cards in use are made by the same manufacturer.
If you are using cards from different card makers, the read range (R/R) differs by the card,
which is the result of normal operation.
2)
If you encounter a different read range for each card that is made by the same manufacturer,
please contact the nearest customer service.
16_ English
product specifi cations
PRODUCT SPECIFICATIONS
Item SSA-R2001
Power / Current DC 12V / Max.75mA
Reading Time (Card) 30ms
Input Port 2 ea : External LED Control, External Buzzer Control
Output Port 34bit Wiegand, 4/8bit Burst for PIN (Selectable)
LED Indicator 3 LED Indicators (Red, Green and Orange)
Beeper Piezo Buzzer
Keypad 12 Key Numeric Keypad with Back Lighting
Operating Temperature -25°C to +50°C
Operating Humidity 10% to 90% Relative Humidity Non-Condensing
Color / Material Silver with Black/ Polycarbonate
Dimension
(W x H x D(mm)) 87.0 x 109.0 x 31.0
Weight 160g
RF Specifi cations
Frequency : 13.5605 MHz
Modulation : ASK
No. of Channels : 1CH
Output : Less than 47.544 mV/m at a distance of 10m
AB82-02555A
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of
with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate
that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are
not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and
recycle them through your local, free battery return system.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these
items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for
details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
