1. Install/Uninstall mWiMAX U200 Connection Program
1.1. Install mWiMAX U200 Connection Program
* Before installing SWC-U200 connection Program, insert USB dongle into USB port on
your laptop.
If new hardware detection pop-up window is appered, click “Cancel” button.

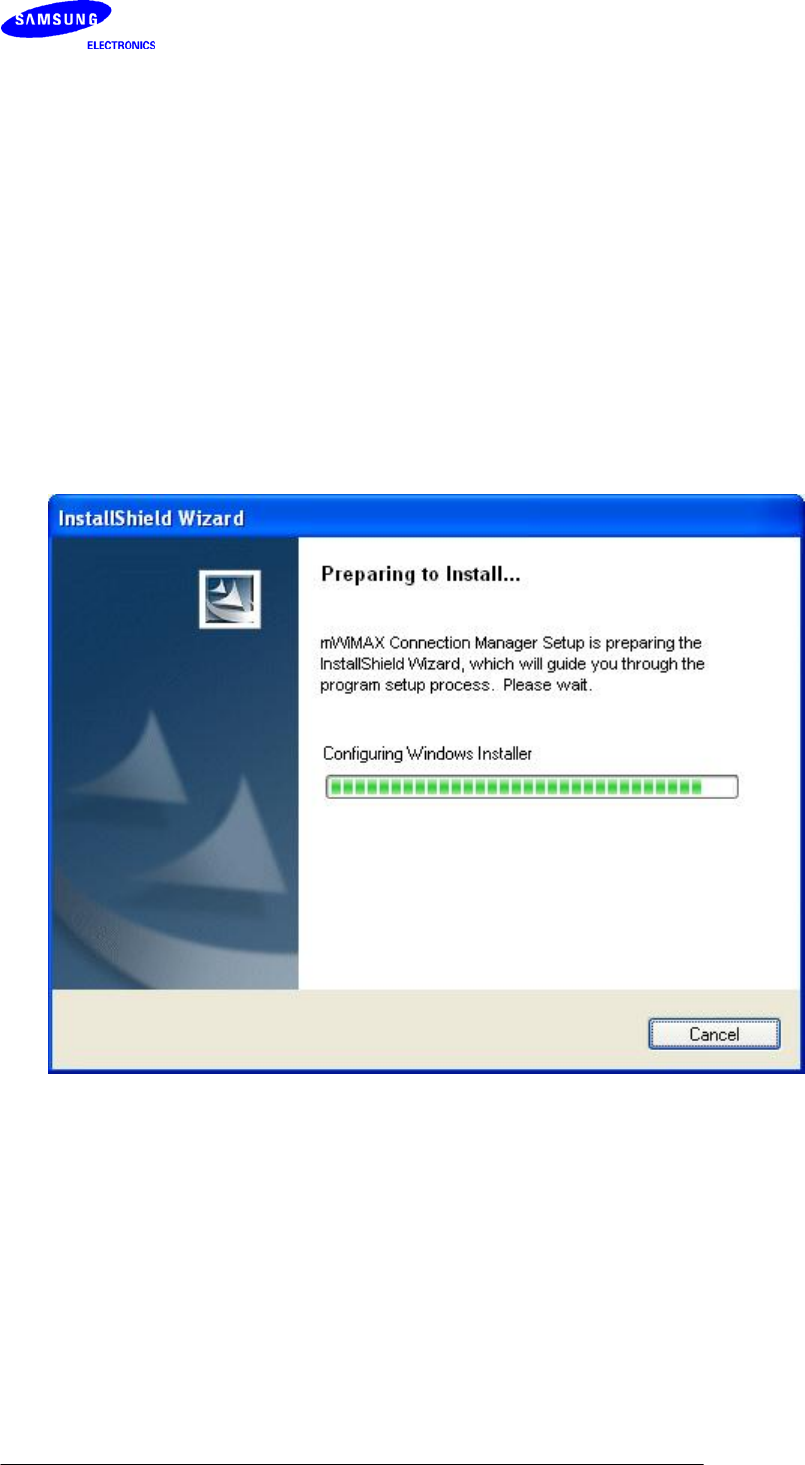

- Click [Next] to start installation.
- Please click [Install].
5/22

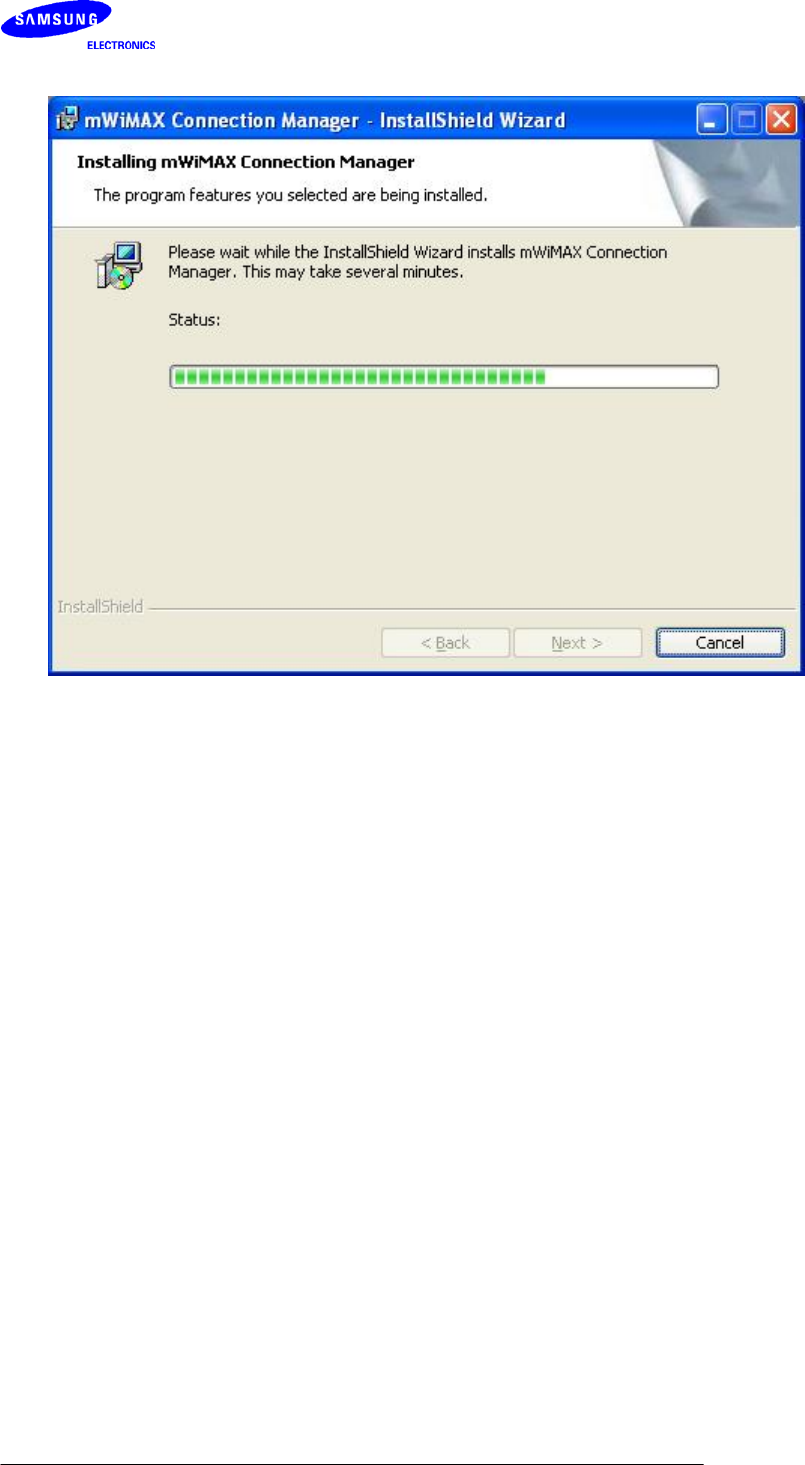

- mWiMAX PCMCIA device driver and mWiMAX virtual serial port driver are installed
first. After this, mWiMAX Connection Manager is installed.
* Driver installation process might cause some screen blinks.
6/22

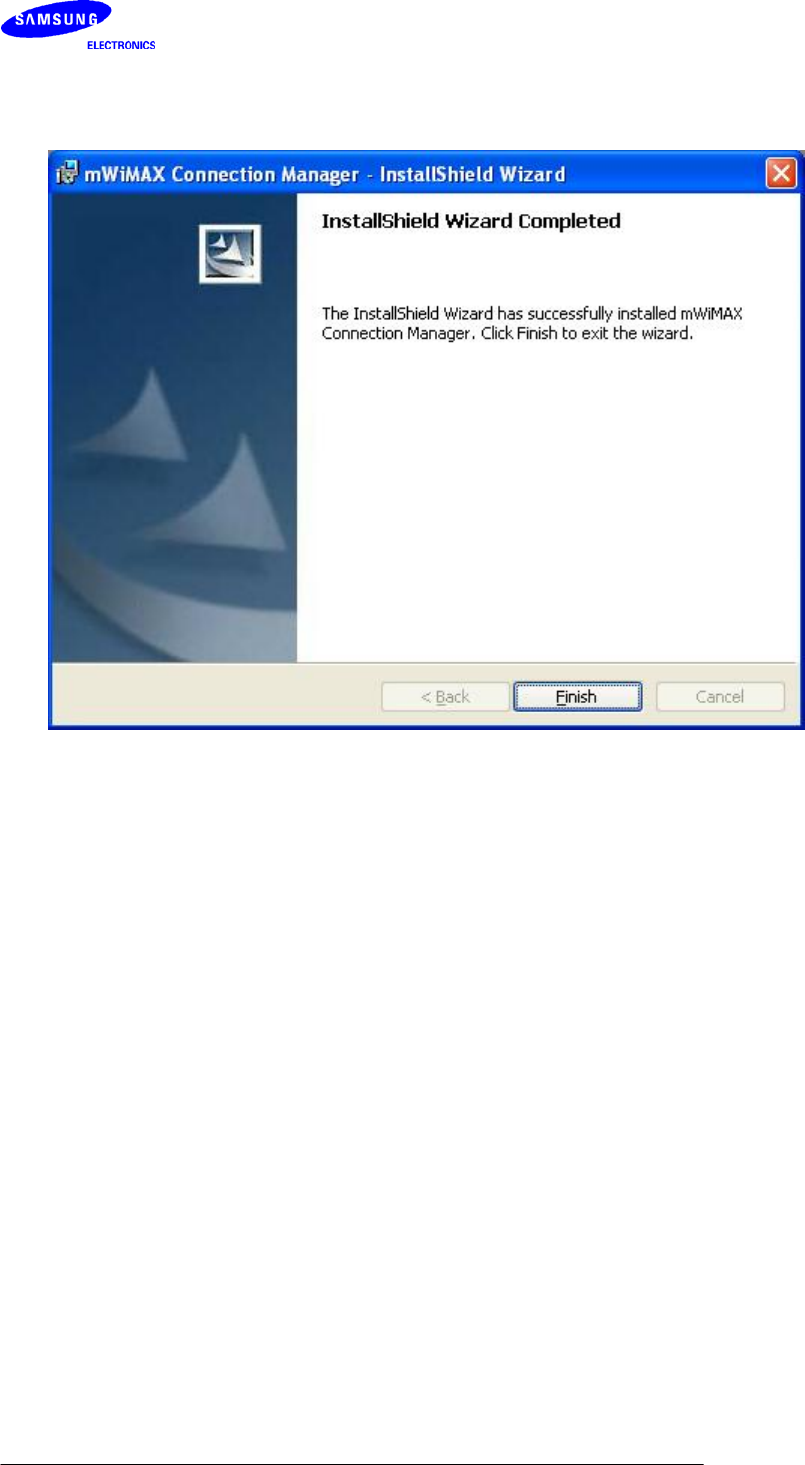

- Click [Finish] to end installation.
7/22
1.1.1. Installation Checkup

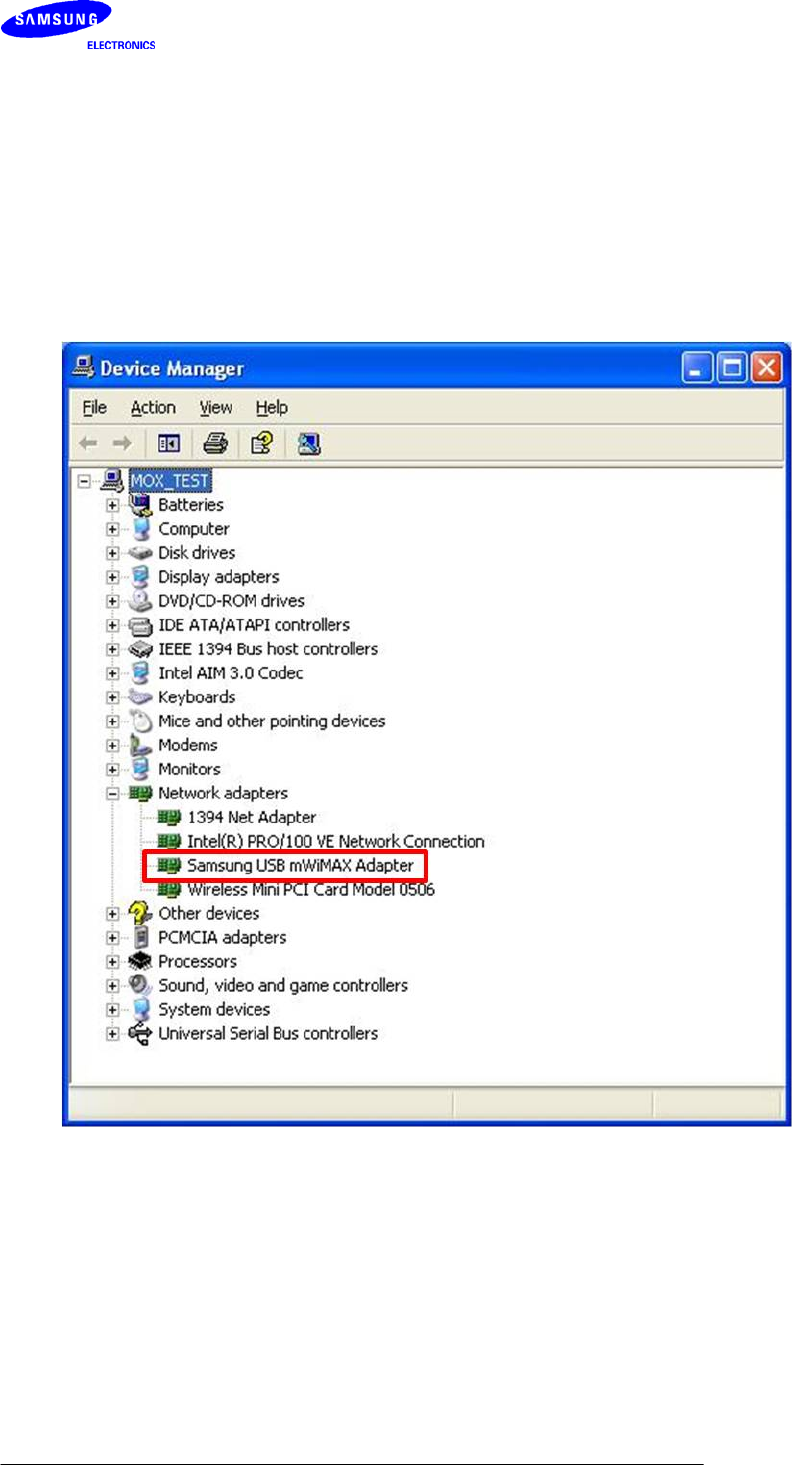

Select [Start] – [Control Panel] – [System] – [Hardware] – [Device Manager].
When mWiMAX Connection Program is normally installed, Device Manager is shown as
the following picture.
8/22
1.2. Uninstall mWiMAX Connection Program
1.2.1. Uninstall on Start menu

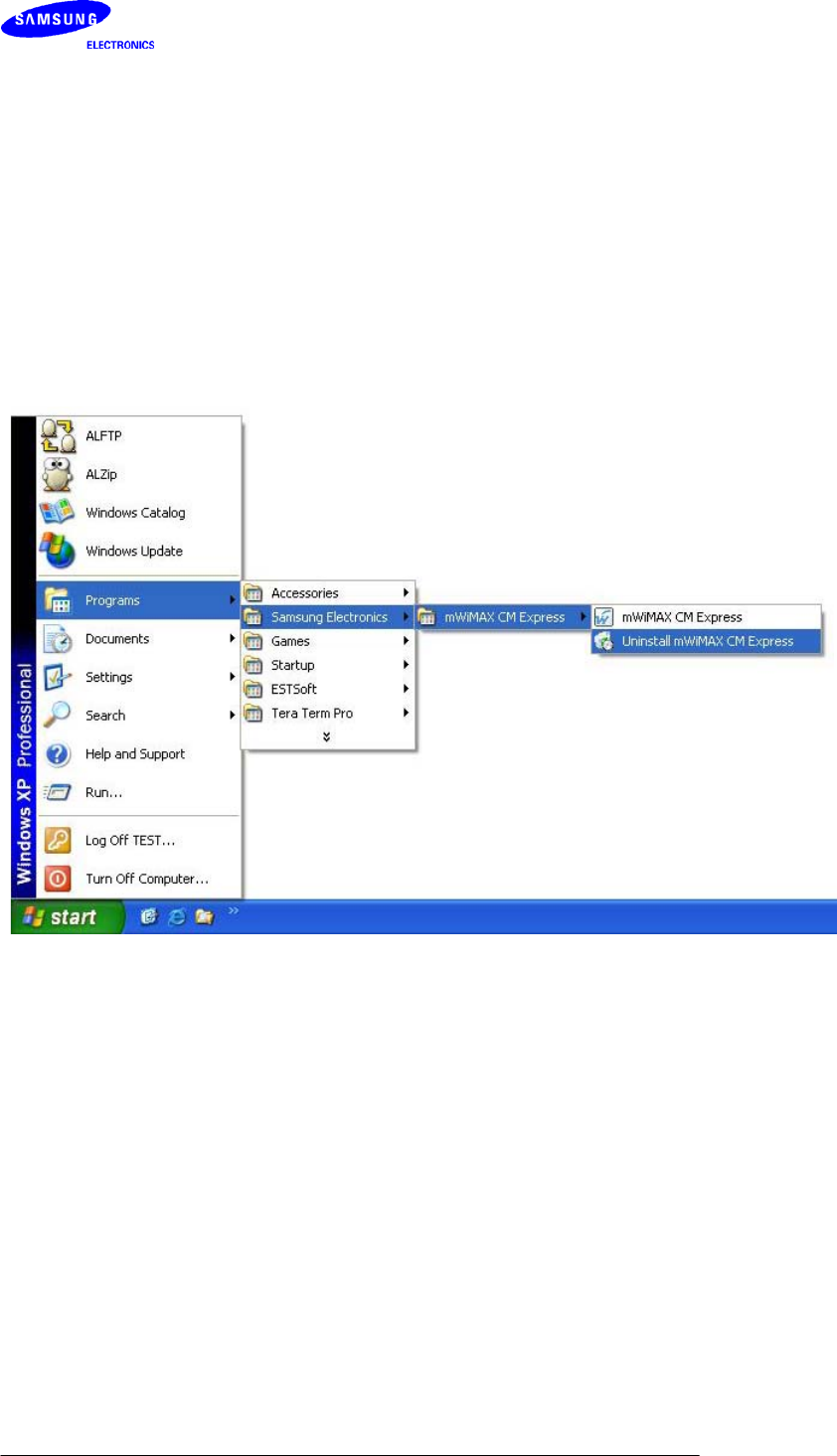

Click [Start] menu, then select [Program] – [SAMSUNG ELECTRONICS] – [mWiMAX CM
Express] Æ [Uninstall mWiMAX CM Express].
9/22
1.2.2. Uninstall on [Control Panel]
Select [Start] – [Control Panel].
On [Control Panel] menu, select [Add/Delete Program].

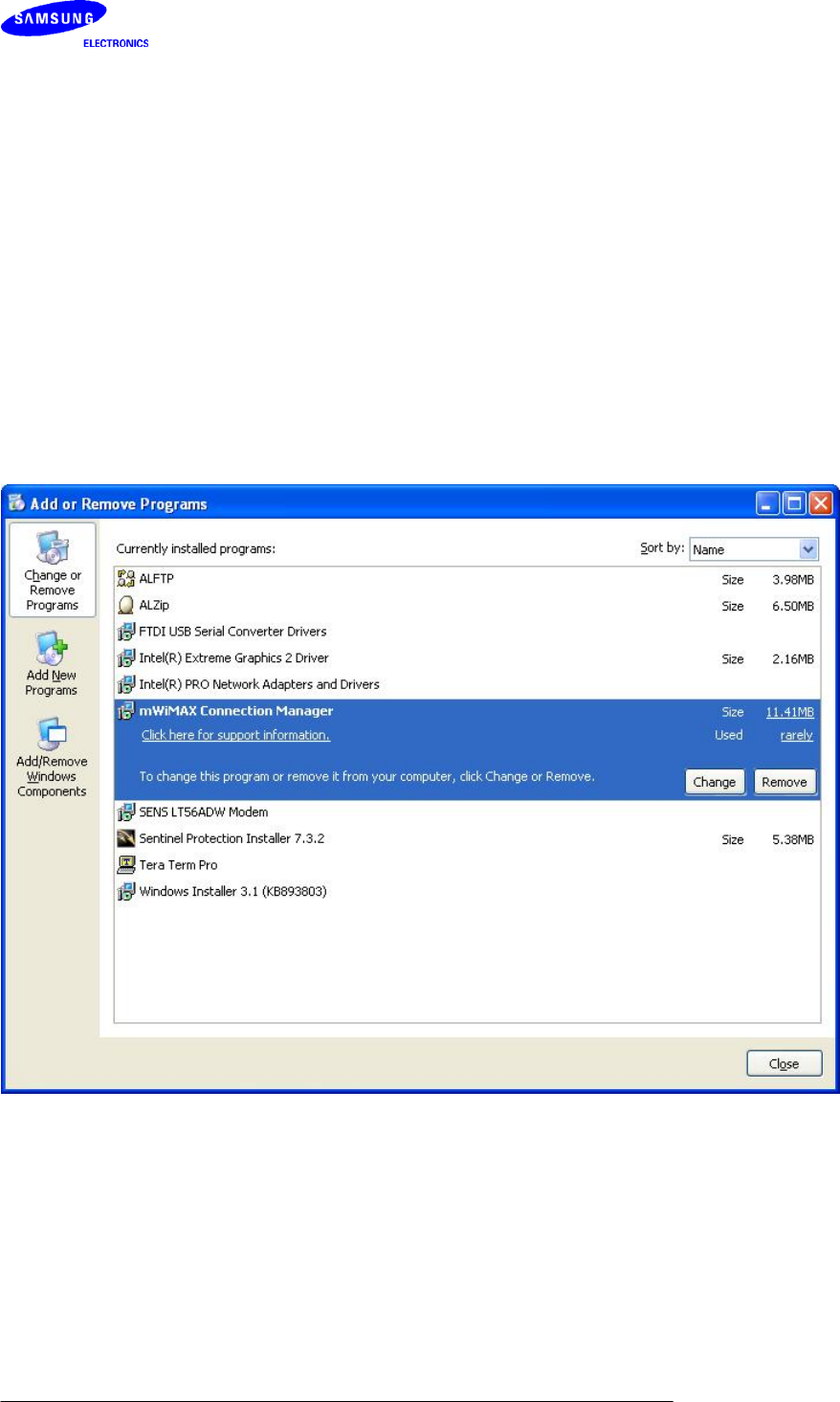

On [Add/Delete Program], select [mWiMAX Connection Manager] and hit [Delete]
button on the right, then a message is displayed asking if you want to delete the
program.
By selecting [Yes], the program is deleted.
10/22
2. mWiMAX Connection Manager
2.1. mWiMAX Connection Manager Overview
mWiMAX Connection Manager is Windows OS-based application supporting mWiMAX
connection and features mWiMAX system connection and disconnection and other
mWiMAX-related functions.

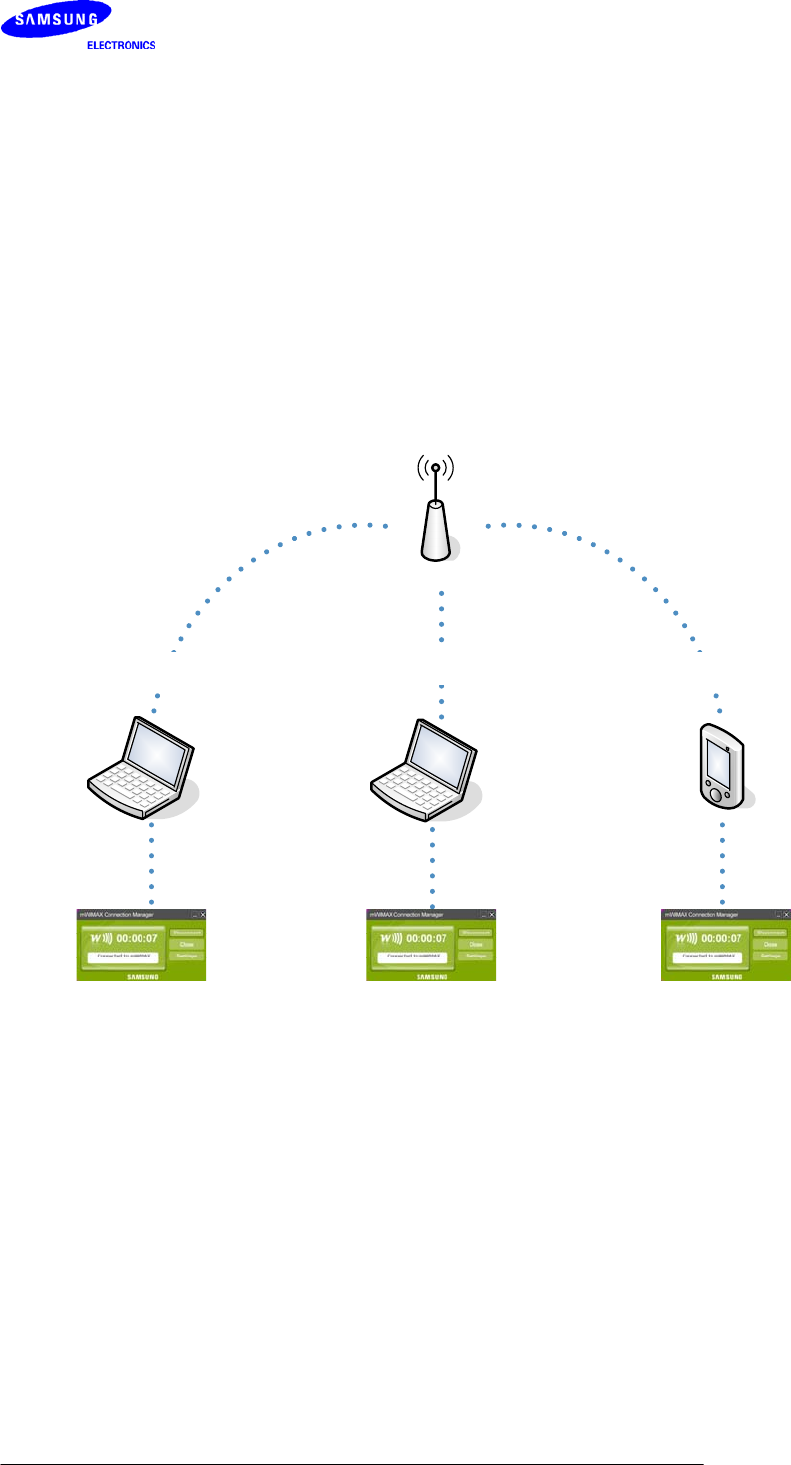

mWiMAX system
Connection ConnectionConnection
mWiMAX connection managermWiMAX connection managermWiMAX connection manager
2.1.1 Product Mix
- mWiMAX(Mobile WiMAX) USB dongle
- Easy Installation Guide
11/22
2.1.2. mWiMAX Connection Manager User Interface
OS
Microsoft Windows X
P
,
Vista
CPU
Intel Pentium 1.7 GHz or above recommended
Memor
y
512MB or above recommended
2.2. To Use mWiMAX Connection Manager
2.2.1. Run mWiMAX Connection Manager
2.2.1.1 Run on [Start] Menu

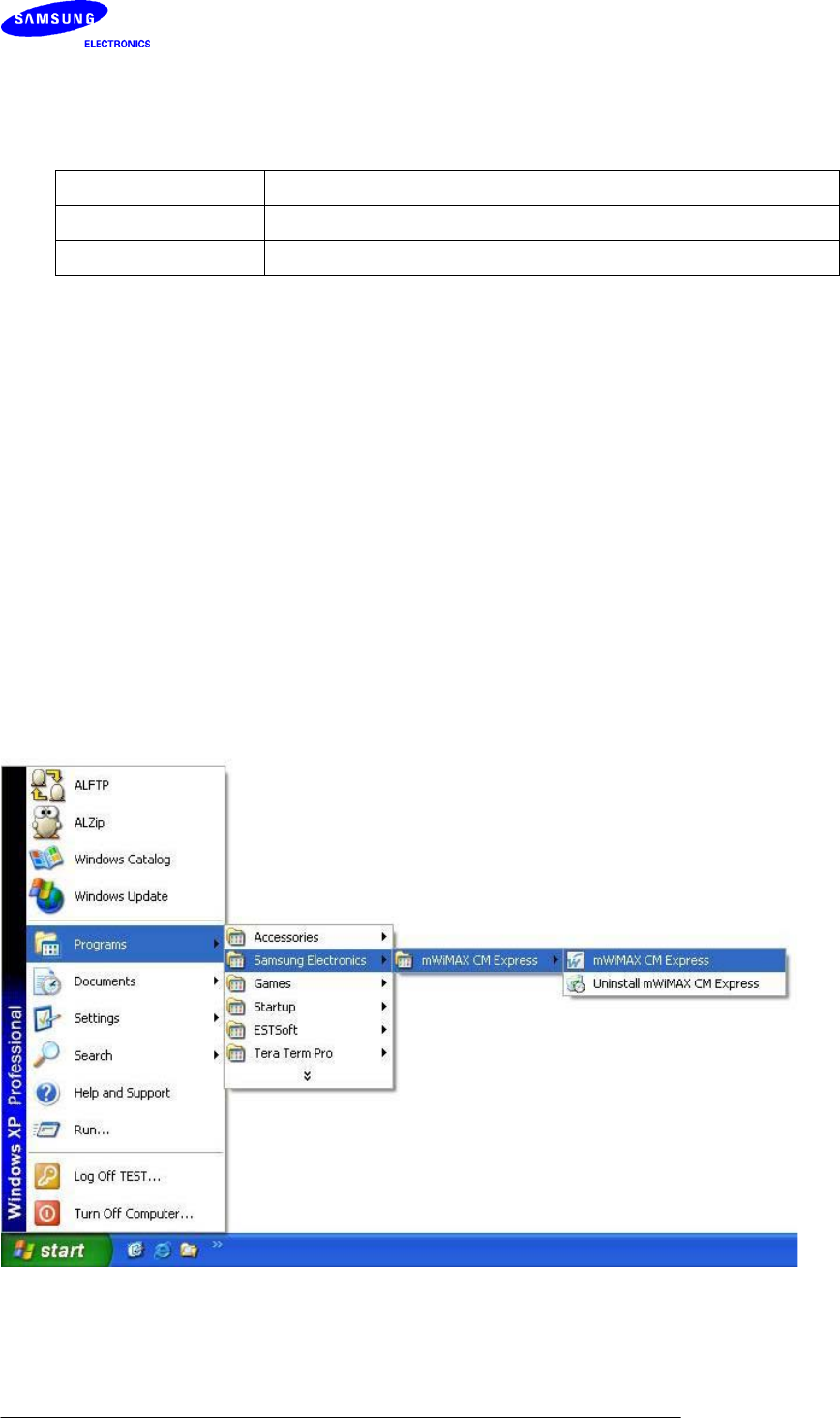

Click [Start] menu, then select [Program] Æ [SAMSUNG ELECTRONICS] Æ [mWiMAX CM
Express] Æ [mWiMAX CM Express].
12/22
2.2.1.2. Run on Desktop
Execute [mWiMAX CM] icon on Desktop.
SWC-U200 mWiMAX CM
2.2.2. Screen Configuration

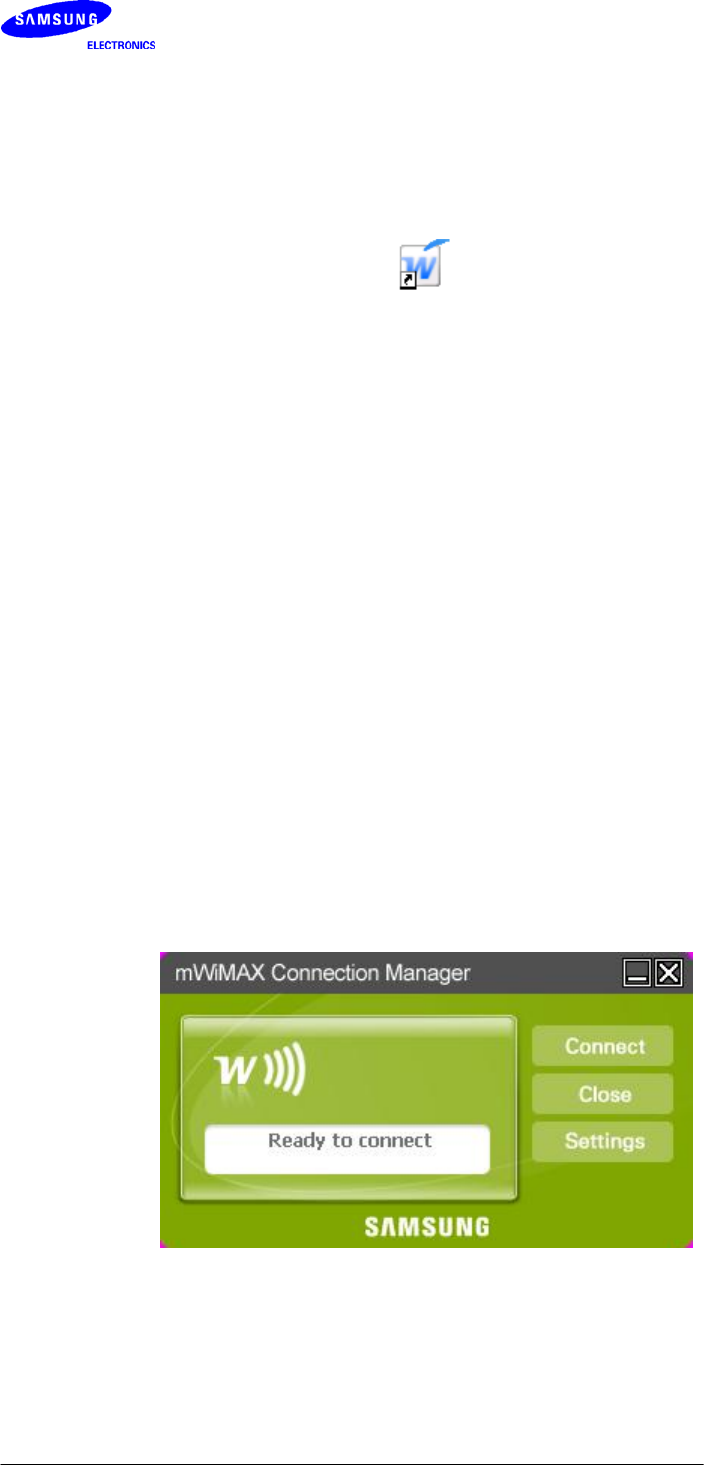

2.2.2.1. Main Screen

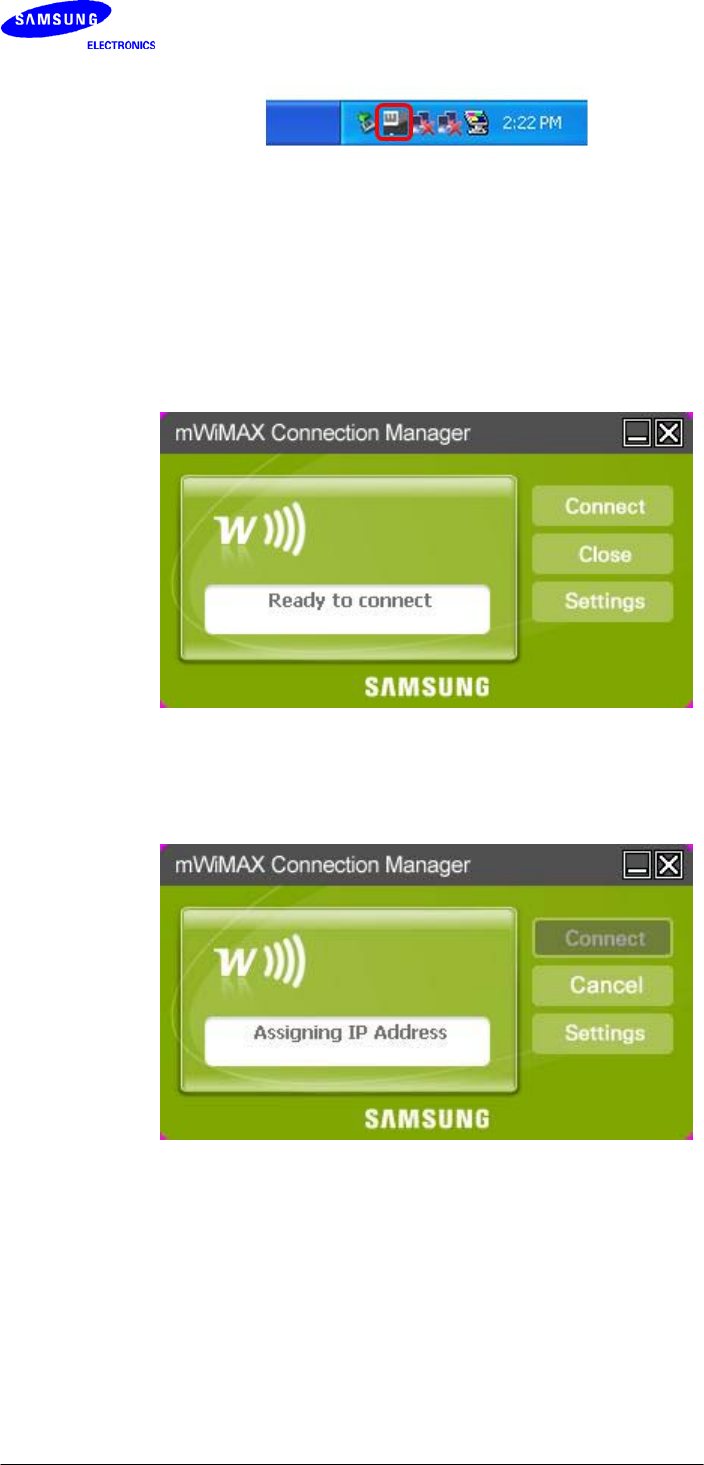

Main screen appears when mWiMAX Connection Manager is run.
- In the upper left is an antenna showing receive sensitivity and to its right is a
message box informing connection status.
At the right side of the screen there are [Connect], [Close] and [Settings] button for
mWiMAX connection.
13/22
2.2.2.2. Settings Screen

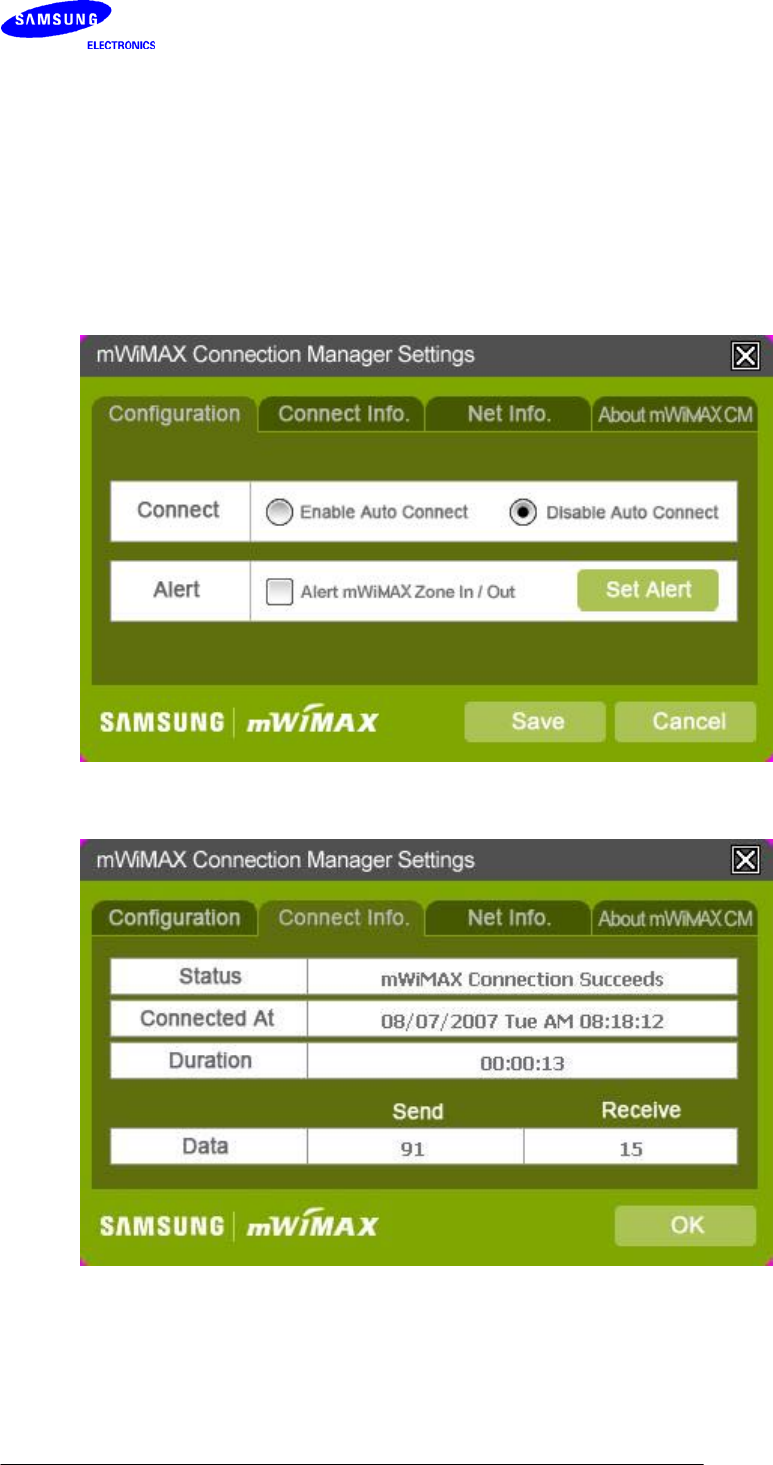

The following screen is displayed by clicking [Settings] button and it shows
- [Configuration].
- [Connection Info]
14/22

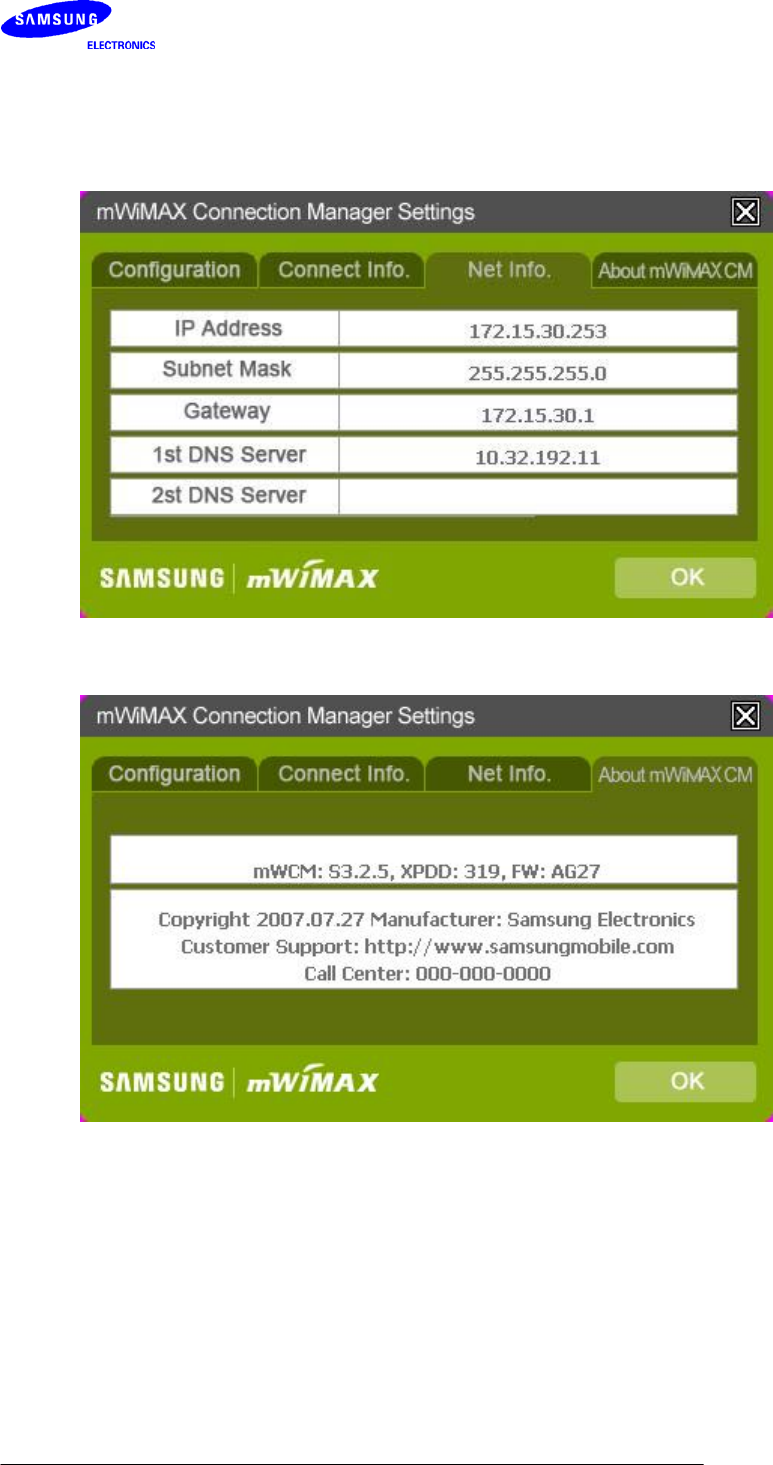

- [Network Info]
- [About mWiMAX CM].
2.2.2.3. Tray Screen
When you click [Close] or [Minimize] button in the top-right corner on Main Screen,
Main screen disappears and the program runs as a Tray icon.
15/22
2.2.3. Connect to mWiMAX
On the Main screen, press [Connect] button.
Connecting to mWiMAX’ message is displayed as in the following picture.
* For maximum performance, please upright antenna from USB dongle.
- Connection Success
If the connection to mWiMAX succeeds, the following screen is displayed.
16/22
- Connection Failure
If the connection to mWiMAX fails, the following screen is displayed.
17/22
2.2.4. Disconnect mWiMAX
When you press [Disconnect] button on Main screen, connection is cut off and the
status changes to ‘waiting for connection’.
18/22
2.2.5. Show Settings
Select [Settings] on Main screen.
- Then [Configuration], [Connection Info], [Network Info], [About mWiMAX CM] tabs
are appeared same as in Settings Screen on page 15.
2.2.6. Exit

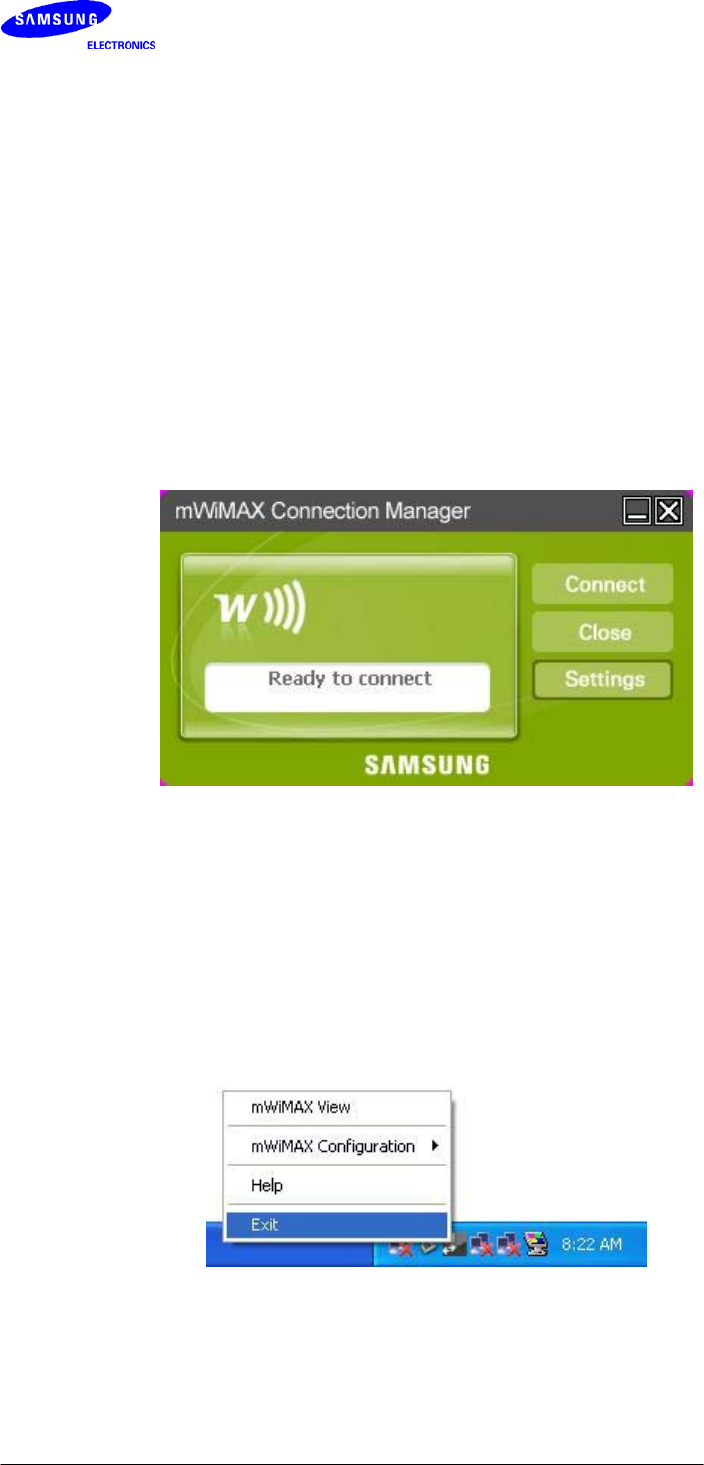

Right-click on Tray screen to see a pop-up menu.
Select [Exit].
19/22
2.2.7. Use Tray
Switch Tray screen to Main screen
Right-click on Tray screen to see a pop-up menu. Select [mWiMAX View].
2.2.8. Tray Icon Description
Signal strength is low
Standby
Signal strength is weak
Signal strength is good
Signal strength is very good
Signal strength is best
Signal strength is low
Online
Signal strength is weak
Signal strength is good
Signal strength is very good
Signal strength is best
No service area
20/22
3. Health and safety information
Exposure to Radio Frequency (RF) Signals
Certification Information (SAR)
Your SWC-U200 dongle is a radio transmitter and receiver. It is designed and
manufactured not to exceed the exposure limits for radio frequency (RF) energy set
by the Federal Communications Commission (FCC) of the U.S. government. These
FCC exposure limits are derived from the recommendations of two expert
organizations, the National Counsel on Radiation Protection and Measurement
(NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both
cases, the recommendations were developed by scientific and engineering experts
drawn from industry, government, and academia after extensive reviews of the
scientific literature related to the biological effects of RF energy. The exposure limit
set by the FCC for wireless USB dongles employs a unit of measurement known as
the Specific Absorption Rate (SAR).
The SAR is a measure of the rate of absorption of RF energy by the human body
expressed in units of watts per kilogram (W/ kg). The FCC requires wireless USB
dongles to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC
exposure limit incorporates a substantial margin of safety to give additional
protection to the public and to account for any variations in measurements.
SAR tests are conducted using standard operating positions accepted by the FCC
with the wireless USB dongle transmitting at its highest certified power level in all
tested frequency bands. Although the SAR is determined at the highest certified
power level, the actual SAR level of the wireless USB dongle while operating can be
well below the maximum value. This is because the wireless USB dongle is designed
to operate at multiple power levels so as to use only the power required to reach
the network. In general, the closer you are to a wireless base station antenna, the
lower the power output.
Before a new model wireless USB dongle is available for sale to the public, it must
be tested and certified to the FCC that it does not exceed the exposure limit
established by the FCC. Tests for each model wireless USB dongle are performed in
positions and locations (e.g. worn on the body) as required by the FCC.
The highest SAR values for this model wireless USB dongle as reported to the FCC
are:
21/22
SAR(Body-worn): 1.18 W/Kg.
For body worn operation, the SWC-U200 USB dongle must be 0.5 cm or more from
users during operation, to satisfy FCC RF exposure requirements and has been
tested and meets the FCC RF exposure limits in laptop configurations with all sides
(bottom, top, and sides).
Non-compliance with the above restrictions may result in violation of FCC RF
exposure guidelines. SAR information on this and other model wireless USB dongles
can be viewed on-line at www.fcc.gov/oet/fccid. This site uses the wireless USB
dongle FCC ID number, A3LSWCU200. Once you have the FCC ID number for a
particular wireless USB dongle, follow the instructions on the website and it should
provide values for typical or maximum SAR for a particular wireless USB dongle.
Additional product specific SAR information can also be obtained at
www.fcc.gov/cgb/ sar.
Restricting Children's access to your Wireless USB dongle
Your wireless USB dongle is not a toy. Children should not be allowed to play with it
because they could hurt themselves and others, damage the wireless USB dongle
or make calls that increase your wireless USB dongle bill.
Cautions
Changes or modifications made in the radio USB dongle, not expressly approved by
Samsung, will void the user’s authority to operate the equipment.
Only use approved batteries, antennas and chargers. The use of any unauthorized
accessories may be dangerous and void the wireless USB dongle warranty if said
accessories cause damage or a defect to the wireless USB dongle.
Although your wireless USB dongle is quite sturdy, it is a complex piece of
equipment and can be broken. Avoid dropping, hitting, bending or sitting on it.
Other Important Safety Information
Only qualified personnel should service the wireless USB dongle or install the
wireless USB dongle in a vehicle. Faulty installation or service may be dangerous
and may invalidate any warranty applicable to the device.
Check regularly that all wireless USB dongle equipment in your vehicle is mounted
and operating properly.
Do not store or carry flammable liquids, gases or explosive materials in the same
compartment as the wireless USB dongle, its parts or accessories.
For vehicles equipped with an air bag, remember that an air bag inflates with great
22/22
force. Do not place objects, including both installed and portable wireless
equipment in the area over the air bag or in the air bag deployment area. If
wireless equipment is improperly installed and the air bag inflates, serious injury
could result.
The use of wireless USB dongle in aircraft is illegal and may be dangerous to the
aircraft's operation.
Failure to observe these instructions may lead to the suspension or denial of USB
dongle services to the offender, or legal action, or both.
