Quick Setup GuideRoom Speaker (HUB) imagine the possibilitiesThank you for purchasing this Samsung product. To receive more complete service, please register your product atwww.samsung.com/registerWAM250WAM250(HUB)-ZC_QG.indd 1 2013-06-07 오후 2:38:27
24Getting Started Front Panel Rear PanelPOWERPairingB-HUBR-HUBSPK ADDSERVICEETHERNET SWITCHRESETDC INWAM250(HUB)-ZC_QG.indd 2 2013-06-07 오후 2:38:27
34Functions Download Room Speaker app1 On your Smartphone or Tablet PC, select the Play Store.2 Download Room Speaker app. Using the Room Speaker Wirelessly with the HUB (Not Supplied)1 For proper connection, connect the HUB (Not Supplied) to the router before turning on the room speaker.2 Turn on the Room speaker.NOTE 9For proper connection, connect the HUB (Not Supplied) to the router before turning on the room speaker.3 On your Smartphone or Tablet PC, select the network to be connected from the available network list.4 On your Smartphone or Tablet PC, select the Room Speaker app.5 A confirmation dialog for the established connection between the Room Speaker and Hub (Not supplied) appears. WAM250(HUB)-ZC_QG.indd 3 2013-06-07 오후 2:38:27
446 Once finished network connection, speaker naming screen appears. Edit the name and select Go.7 Select the desired track to be played from the appeared music list.8 The Room Speaker produces sound.WAM250(HUB)-ZC_QG.indd 4 2013-06-07 오후 2:38:27

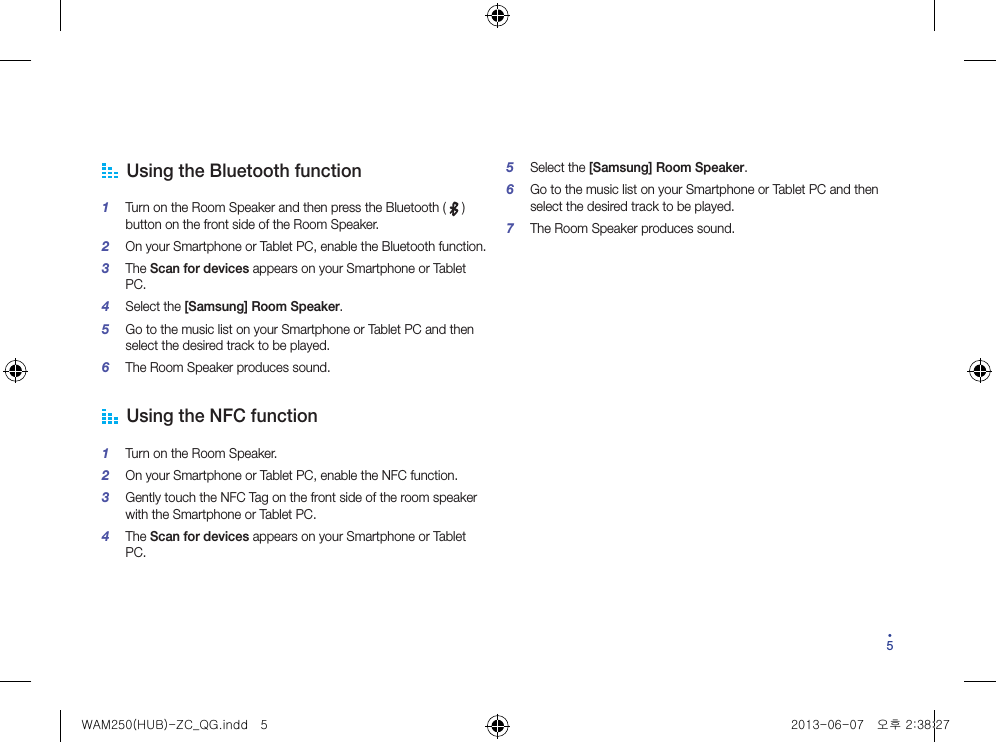

54 Using the Bluetooth function1 Turn on the Room Speaker and then press the Bluetooth ( ) button on the front side of the Room Speaker.2 On your Smartphone or Tablet PC, enable the Bluetooth function.3 The Scan for devices appears on your Smartphone or Tablet PC.4 Select the [Samsung] Room Speaker.5 Go to the music list on your Smartphone or Tablet PC and then select the desired track to be played.6 The Room Speaker produces sound. Using the NFC function1 Turn on the Room Speaker.2 On your Smartphone or Tablet PC, enable the NFC function.3 Gently touch the NFC Tag on the front side of the room speaker with the Smartphone or Tablet PC.4 The Scan for devices appears on your Smartphone or Tablet PC.5 Select the [Samsung] Room Speaker.6 Go to the music list on your Smartphone or Tablet PC and then select the desired track to be played.7 The Room Speaker produces sound.WAM250(HUB)-ZC_QG.indd 5 2013-06-07 오후 2:38:27
64Appendix WarningTO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENThe lighting flash and Arrowhead within the triangle is a warning sign alerting you of dangerous voltage inside the product.CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.The explanation point within the triangle is a warning sign alerting you of important instructions accompanying the product.WARNING• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.FCC Statement:Federal Communication Commission Interference StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.WAM250(HUB)-ZC_QG.indd 6 2013-06-07 오후 2:38:27
74FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.This device and it’s antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only.IMPORTANT NOTE: FCC Radiation Exposure Statement:This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.IC Statement:CAN ICES-3 (B)/NMB-3(B)This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.This device and it’s antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with IC multi-transmitter product procedures.The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology.The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems.IMPORTANT NOTE: IC Radiation Exposure Statement:This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.WAM250(HUB)-ZC_QG.indd 7 2013-06-07 오후 2:38:28
84IC Statement:CAN ICES-3 (B)/NMB-3(B)Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d’autres canaux n’est pas possible.Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec une autre antenne ou transmetteur.Le dispositif pourrait automatiquement cesser d’émettre en cas d’absence d’informations à transmettre, ou une défaillance opérationnelle. Notez que ce n’est pas l’intention d’interdire la transmission des informations de contrôle ou de signalisation ou l’utilisation de codes répétitifs lorsque requis par la technologie.les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;IMPORTANT NOTE: IC Radiation Exposure Statement:Declaración de exposición a la radiación de Canada: Este equipo cumple con los límites de exposición a la radiación de la IC establecidos para un ambiente no controlado. Este equipo se debe instalar y operar con una distancia mínima de 20 cm entre el radiador y su cuerpo. PrecautionsImportant Safety InstructionsRead these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.1 Read these instructions.2 Keep these instructions.3 Heed all warnings.4 Follow all instructions.5 Do not use this apparatus near water.6 Clean only with a dry cloth.7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.WAM250(HUB)-ZC_QG.indd 8 2013-06-07 오후 2:38:28
948 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including AV receivers) that produce heat.9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where it exits the apparatus.11 Only use attachments/accessories specified by the manufacturer.12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13 Unplug this apparatus during lightning storms or when unused for long periods of time.14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Copyright© 2013 Samsung Electronics Co.,Ltd.All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd. Other NotesAbout NFC• NFC tagging for Bluetooth connection cannot be established while powering on and off.• NFC tagging for Bluetooth connection will not work while the battery indicator is blinking.About Automatic Bluetooth Connection• When switching to Bluetooth mode or powered up in Bluetooth mode, the last Bluetooth connection will be restored automatically if available. Automatic Bluetooth connection attempt will abort after 1 minute.• Within the automatic connection trial, connection to another Bluetooth device can be limited. To connect to a different Bluetooth device, switch the product’s Bluetooth mode to pairing mode. WAM250(HUB)-ZC_QG.indd 9 2013-06-07 오후 2:38:28
1044 SpecificationsGeneralWeight 0.8 KgDimensions 100 x 106 x 25 mmOperating Temperature Range+41°F to +95°FOperating Humidity Range 10 % to 75 %Audio Output Digital Audio Output OpticalNetworkEthernet 100BASE - TX TerminalWireless LAN Built-inSecurity WEP (OPEN/SHARED) WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES)WPS(PBC) Supported - Network speeds equal to or below 10Mbps are not supported. - Design and specifications are subject to change without prior notice. - For the power supply and power consumption, refer to the label attached to the product. - Weight and dimensions are approximate. - Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect. - This Quick Guide is based on the product using the Android operating system. - For further details on using the Room Speaker, visit www.samsung.com.WAM250(HUB)-ZC_QG.indd 10 2013-06-07 오후 2:38:28
WAM250(HUB)-ZC_QG.indd 11 2013-06-07 오후 2:38:28
