Samsung Electronics Co WB1100F Digital Camera User Manual
Samsung Electronics Co Ltd Digital Camera
User Manual.pdf
This user manual includes detailed usage instructions for
your camera. Please read this manual thoroughly.
Click a topic
WB1100F/WB1101F/WB1102F
USER
MANUAL
Basic troubleshooting Quick reference Contents
Basic functions Extended functions Shooting options
Playback/Editing Wireless network Settings
Appendixes Index
1
Health and safety information
Always comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera.
Prevent damage to subjects’ eyesight.
Do not use the ash in close proximity (closer than 1 m/3 ft) to people or animals.
If you use the ash too close to your subject’s eyes, this can cause temporary or
permanent eyesight damage.
Keep your camera away from small children and pets.
Keep your camera and all accessories out of the reach of small children and animals.
Small parts may cause choking or serious injury if swallowed. Moving parts and
accessories may present physical dangers as well.
Do not expose the camera to direct sunlight or high temperatures for an
extended period of time.
Prolonged exposure to sunlight or extreme temperatures can cause permanent
damage to your camera’s internal components.
Warning—situations that could cause injury to yourself or others
Do not disassemble or attempt to repair your camera.
You can damage the camera and expose yourself to the risk of an electric shock.
Do not use your camera near ammable or explosive gases and liquids.
This may cause a fire or explosion.
Do not insert ammable materials into the camera or store these materials
near the camera.
This may cause a fire or electric shock.
Do not handle your camera with wet hands.
This may result in an electric shock.
2
Avoid covering the camera or charger with blankets or clothes.
The camera may overheat, which may distort the camera or cause a re.
Do not handle the power supply cord or the charger during a thunderstorm.
This may result in electric shock.
If liquid or foreign objects enter your camera, immediately disconnect all
power sources, such as the battery or charger, and then contact a Samsung
service center.
Comply with any regulations that restrict the use of a camera in a certain area.
•
Avoid interference with other electronic devices.
•
Turn o the camera when in an aircraft. Your camera can cause interference with
aircraft equipment. Follow all airline regulations and turn o your camera when
directed by airline personnel.
•
Turn o the camera near medical equipment. Your camera can interfere with
medical equipment in hospitals or health care facilities. Follow all regulations,
posted warnings, and directions from medical personnel.
Avoid interference with pacemakers.
Maintain a safe distance between this camera and all pacemakers to avoid potential
interference, as recommended by the manufacturer and research groups. If you
have any reason to suspect that your camera is interfering with a pacemaker
or other medical device, turn o the camera immediately and contact the
manufacturer of the pacemaker or medical device for guidance.
Health and safety information
3
Caution—situations that could cause damage to your camera or other
equipment
Remove the batteries from your camera when storing it for an extended period
of time.
Installed batteries may leak or corrode over time and cause serious damage to your
camera.
Use only authentic, manufacturer-recommended, Lithium-ion replacement
batteries. Do not damage or heat the battery.
Inauthentic, damaged, or heated batteries may cause a re or personal injury.
Use only Samsung-approved batteries, chargers, cables and accessories.
•
Using unauthorized batteries, chargers, cables or accessories can cause batteries
to explode, damage your camera, or cause injury.
•
Samsung is not responsible for damage or injuries caused by unapproved
batteries, chargers, cables or accessories.
Use the battery only for its intended purpose.
Misusing the battery may cause a re or electric shock.
Do not touch the ash while it res.
The ash is very hot when red and may burn your skin.
When you use the AC charger, turn o the camera before you disconnect the
power to the AC charger.
Failing to do so may result in re or electric shock.
Disconnect the charger from the wall socket when not in use.
Failing to do so may result in re or electric shock.
Do not use a damaged power supply cord, plug, or loose outlet when you
charge batteries.
This may cause a re or electric shock.
Do not allow the AC charger to come in contact with the +/- terminals on the
battery.
This may cause a re or electric shock.
Do not drop or subject the camera to strong impacts.
Doing so may damage the screen or external or internal components.
Exercise caution when you connect cables or adapters and install batteries and
memory cards.
If you force the connectors, improperly connect cables, or improperly install
batteries and memory cards, you can damage ports, connectors, and accessories.
Health and safety information
4
Keep cards with magnetic strips away from the camera case.
Information stored on the card may be damaged or erased.
Never use a damaged charger, battery, or memory card.
This may result in electric shock or camera malfunction or cause a re.
Do not place the camera in or near magnetic elds.
Doing so may cause the camera to malfunction.
Do not use the camera if the screen is damaged.
If the glass or acrylic parts are broken, visit a Samsung Electronics Service Center to
have the camera repaired.
Check that the camera is operating properly before use.
The manufacturer takes no responsibility for any loss of les or damage that may
result from camera malfunction or improper use.
You must plug the small end of the USB cable into your camera.
If the cable is reversed, it may damage your les.
The manufacturer is not responsible for any loss of data.
Avoid interference with other electronic devices.
Your camera emits radio frequency (RF) signals that may interfere with unshielded
or improperly shielded electronic equipment, such as pacemakers, hearing aids,
medical devices, and other electronic devices in homes or vehicles. Consult the
manufacturers of your electronic devices to solve any interference problems you
experience. To prevent unwanted interference, use only Samsung-approved devices
or accessories.
Use your camera in the normal position.
Avoid contact with your camera’s internal antenna.
Data transference and your responsibilities
•
Data transferred via WLAN could be leaked, so avoid transferring sensitive data in
public areas or on open networks.
•
The camera manufacturer is not liable for any data transfers that infringe on
copyrights, trademarks, intellectual property laws, or public decency ordinances.
Health and safety information
5
Copyright information
•
Microsoft Windows and the Windows logo are registered trademarks of the
Microsoft Corporation.
•
Mac and Apple App Store are registered trademarks of the Apple
Corporation.
•
Google Play Store is a registered trademark of Google, Inc.
•
Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered
trademarks of the Wi-Fi Alliance.
•
Trademarks and trade names used in this manual are the property of their
respective owners.
•
Camera specications or contents of this manual may be changed
without prior notice due to upgrade of camera functions.
•
We recommend using your camera within the country where you
purchased.
•
Use this camera responsibly and adhere to all laws and regulations
concerning its use.
•
You are not allowed to reuse or distribute any part of this manual
without prior permission.
Outline of the User Manual
Basic functions 19
Learn about your camera’s layout, icons, and basic functions for
shooting.
Extended functions 43
Learn how to capture a photo and record a video by selecting
a mode.
Shooting options 53
Learn how to set the options in Shooting mode.
Playback/Editing 74
Learn how to play back photos or videos, and edit photos or videos.
Also, learn how to connect your camera to your computer or TV.
Wireless network 92
Learn to connect to wireless local area networks (WLANs) and use
functions.
Settings 109
Refer to options to congure your camera’s settings.
Appendixes 115
Get information about error messages, specications, and
maintenance.
6
Indicators used in this manual
Shooting mode Indicator
Smart Auto
Program
Smart
Panorama
Magic Plus
Settings
Movie
Wi-Fi
Shooting mode icons
These icons appear in the text when a function is available in a mode. See the
example below.
Note: The or mode may not support functions for all scenes or modes.
For example:

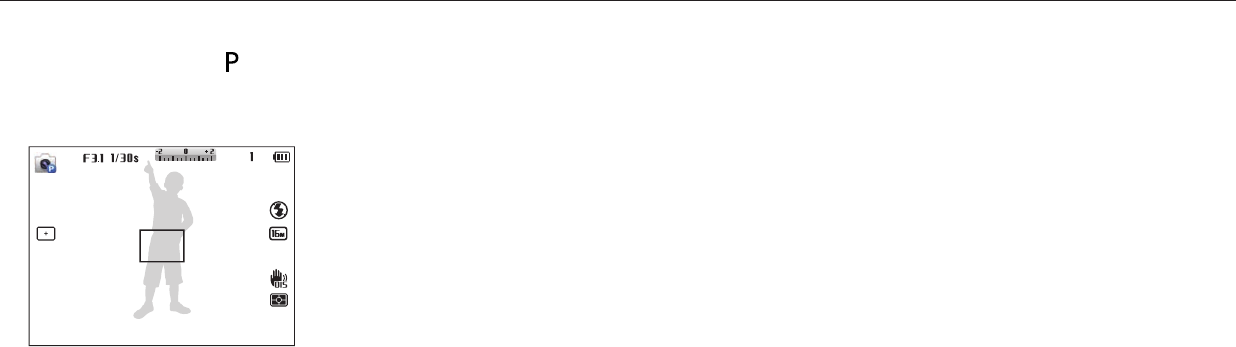

Shooting options
67
3 Press [F/
t
] to adjust the exposure.
•
The photo will be brighter as the exposure value increases.
Back Set
EV : +1
4 Press [
o
] to save your settings.
•
Once you adjust the exposure, the setting will be stored automatically. You
may need to change the exposure value later to avoid overexposure or
underexposure.
•
If you cannot decide on an appropriate exposure, select the AEB (Auto Exposure
Bracket) option. The camera will capture 3 consecutive photos, each with a
dierent exposure: normal, underexposed, and overexposed. (p. 72)
Adjusting the exposure manually (EV)
Depending on the intensity of the ambient light, your photos may be too bright or
dark. In these cases, you can adjust the exposure to get a better photo.
Darker (-)
Neutral (0)
Brighter (+)
1 In Shooting mode, press [
m
].
2 Select EV.
Adjusting brightness and color
Learn how to adjust the brightness and color for better image quality.
Available in Program
and Movie modes
Icons used in this manual
Icon Function
Additional information
Safety warnings and precautions
[ ] Camera buttons. For example, [Shutter] represents the shutter button.
( ) Page number of related information
→
The order of options or menus you must select to perform a step; for
example: Select Face Detection → Normal (represents Select Face
Detection, and then select Normal).
*Annotation
7

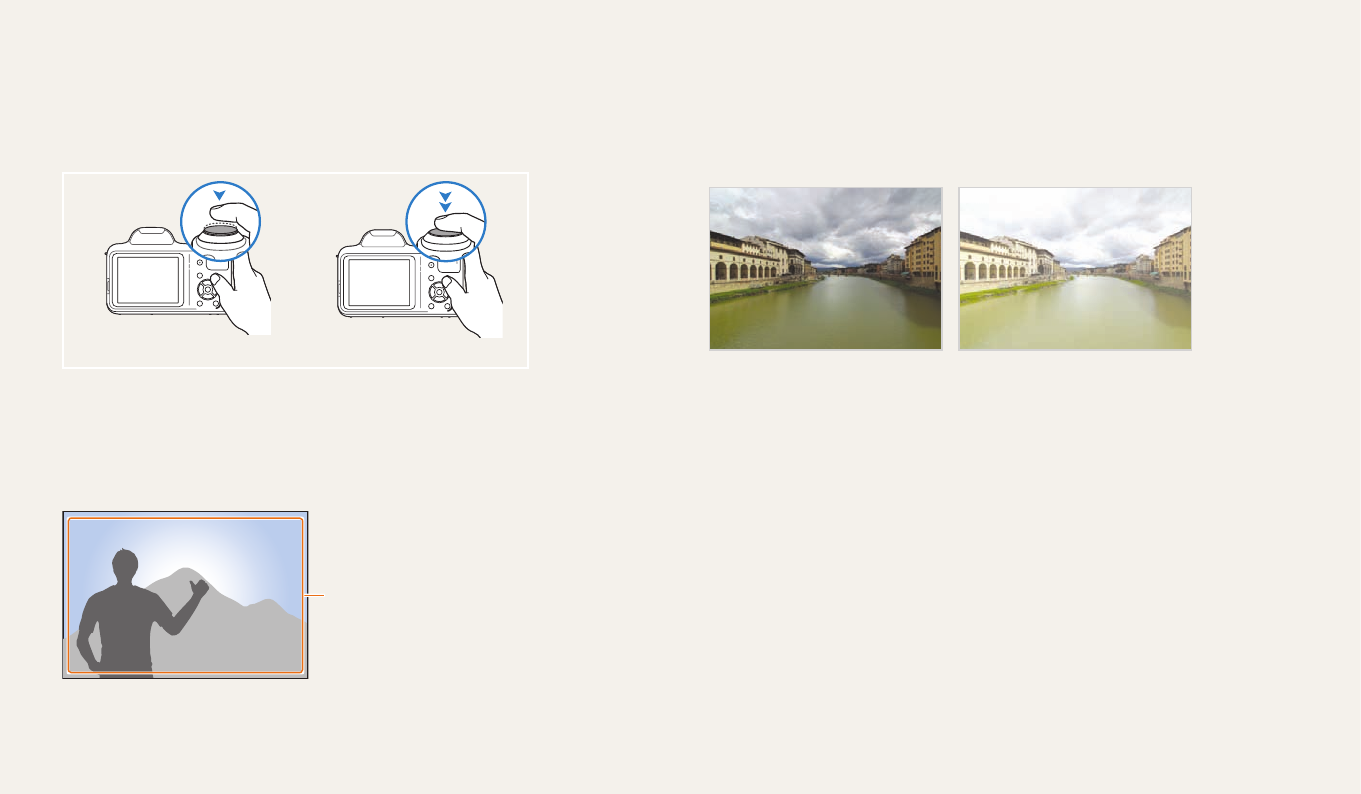

Expressions used in this manual
Pressing the shutter
•
Half-press [Shutter]: Press the shutter halfway down
•
Press [Shutter]: Press the shutter all the way down
Half-press [Shutter]Press [Shutter]
Subject, background, and composition
•
Subject: The main object in a scene, such as a person, animal, or still life
•
Background: The objects around the subject
•
Composition: The combination of a subject and background
Composition
Background
Subject
Exposure (Brightness)
The amount of light that enters your camera determines the exposure. You can alter
the exposure by changing the shutter speed, aperture value, or ISO sensitivity. By
altering the exposure, your photos will be darker or lighter.
Normal exposure
Overexposure (too bright)
8
Special features of your camera
Reading NFC tag information (Tag & Go)
Install the Samsung SMART CAMERA App on an NFC-enabled device, and then
place the device’s NFC antenna near the camera’s NFC tag. The Samsung SMART
CAMERA App launches automatically. If the app is not installed, a prompt to install
the app will appear.
Using the DIRECT LINK button
Press the DIRECT LINK button to activate the Wi-Fi function that you have
designated.
Setting a DIRECT LINK button option
You can select a Wi-Fi function to launch when you press the DIRECT LINK button.
1 Access Settings.
2 Access the DIRECT LINK button option.
3 Select a Wi-Fi feature from the list.
9
9
Special features of your camera
Using AutoShare
When you capture a photo with your camera, the photo is saved to a smart phone automatically. The camera connects to the smart phone wirelessly.
4 Select the camera from the list and
connect the smart phone to the
camera.
•
If a pop-up message appears on your
camera, allow the smart phone to
connect to your camera.
5 Capture a photo.
•
The captured photo is saved to the camera, and then transferred to the
smart phone.
1 Install Samsung SMART CAMERA
App on the smart phone.
2 Turn on the AutoShare feature on
the camera.
3 Launch Samsung SMART CAMERA
App on the smart phone.
10
10
Special features of your camera
Using MobileLink
You can send les easily from your camera to a smart phone. The camera connects wirelessly to smart phones that support the MobileLink feature.
4 Select the camera from the list and
connect the smart phone to the
camera.
•
If a pop-up message appears on your
camera, allow the smart phone to
connect to your camera.
5 On the smart phone or camera,
select les to transfer from the
camera.
6 On the smart phone, touch the copy
button or on the camera, select
Send.
1 Install the Samsung SMART
CAMERA App on the smart phone.
2 Access the MobileLink mode on the
camera.
•
If a pop-up message appears, select an
option.
3 Launch the Samsung SMART
CAMERA App on the smart phone.
11
Special features of your camera
Using Remote Viewnder
You can remotely control your camera from a smart phone. The camera connects to the smart phone wirelessly. Use the smart phone as a remote shutter release with the
Remote Viewnder feature. The captured photo will appear on the smart phone.
4 Select the camera from the list and
connect the smart phone to the
camera.
•
If a pop-up message appears on your
camera, allow the smart phone to
connect to your camera.
5 Touch and hold to focus, and
then release it to capture a photo.
6 Touch the thumbnail to view the
photo.
1 Install the Samsung SMART
CAMERA App on the smart phone.
2 Access the Remote Viewnder
mode on the camera.
3 Launch the Samsung SMART
CAMERA App on the smart phone.
12
Special features of your camera

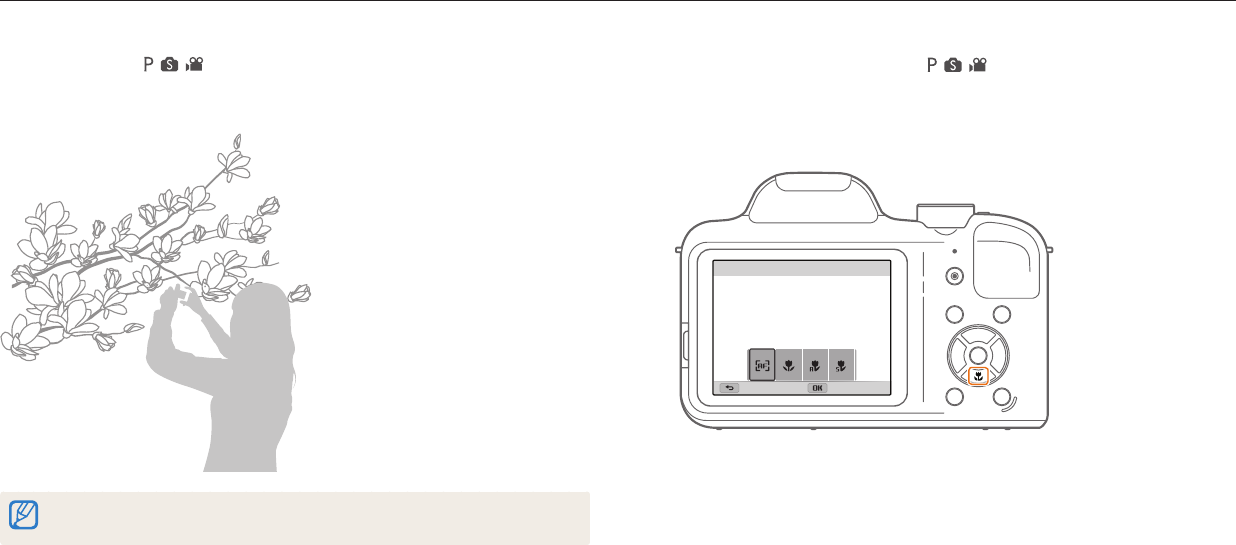

Shooting samples – Macro
You can capture close up shots of a subject or small subjects, such as owers or
insects.
The example image may dier from the actual photo that you capture.
1 Select the macro option ( ).
2 Capture a photo.
13
Basic troubleshooting
Learn to solve common problems by setting shooting options.
The subject’s eyes
appear red.
Red eye occurs when the subject's eyes reect light from the camera ash.
•
Set the ash option to Red-eye or Red-eye Fix. (p. 57)
•
If the photo has already been captured, select Red-eye Fix in the edit menu. (p. 86)
Photos have dust spots. If dust particles are present in the air, you may capture them in photos when you use the ash.
•
Turn o the ash or avoid capturing photos in a dusty place.
•
Set ISO sensitivity options. (p. 59)
Photos are blurred. Blurring can occur if you capture photos in low light conditions or hold the camera incorrectly.
Use the OIS function or half-press [Shutter] to ensure the subject is in focus. (p. 41)
Photos are blurred when
shooting at night.
As the camera tries to let in more light, the shutter speed slows. This can make it dicult to hold the camera steady long
enough to capture a clear photo and may result in camera shake.
•
Select Night in mode. (p. 47)
•
Turn on the ash. (p. 58)
•
Set ISO sensitivity options. (p. 59)
•
Use a tripod to prevent your camera from shaking.
Subjects come out
too dark because of
backlighting.
When the light source is behind the subject or when there is a high contrast between light and dark areas, the subject may
appear too dark.
•
Avoid shooting toward the sun.
•
Set the ash option to Fill in. (p. 58)
•
Adjust the exposure. (p. 67)
•
Set the Auto Contrast Balance (ACB) option. (p. 68)
•
Set the metering option to Spot if a subject is in the center of the frame. (p. 68)
14
Quick reference
Adjusting the exposure (brightness)
•
ISO sensitivity (to adjust the sensitivity to light)
59
•
EV (to adjust exposure)
67
•
ACB (to compensate for subjects against bright
backgrounds)
68
•
Metering
68
•
AEB (to capture 3 photos of the same scene with
dierent exposures)
71
Capturing photos of scenery
•
mode > Landscape
47
•
mode
48
Applying eects to photos
•
mode > Photo Filter
50
•
Image Adjust (to adjust Sharpness, Contrast, or
Saturation)
72
Applying eects to videos
•
mode > Movie Filter
51
Capturing photos of people
•
mode > Beauty Face
47
•
Red-eye/Red-eye Fix (to prevent or correct red-eye)
57
•
Face Detection, Self-Portrait
64
•
Smile Shot
65
Capturing photos at night or in the dark
•
mode > Sunset, Silhouette, Fireworks, Light Trace
47
•
Flash options
58
•
ISO sensitivity (to adjust the sensitivity to light)
59
Capturing action photos
•
mode > Action Freeze
47
•
Continuous, Motion Capture
71
Capturing photos of text, insects, or
owers
•
mode > Macro
47
•
Macro
60
Reducing camera shake
•
Optical Image Stabilization (OIS)
40
•
Dual Image Stabilization (Dual IS)
40
Sending and sharing les
•
Using the NFC Feature (Tag & Go)
97
•
Sending photos or videos to a smart phone
99
•
Sending photos or videos via email
102
•
Using photo or video sharing services
105
•
Viewing photos or videos on devices that support
Samsung Link
107
•
Viewing les as thumbnails
76
•
Viewing les by category
77
•
Deleting all les on the memory
79
•
Viewing les as a slide show
81
•
Viewing les on a TV
88
•
Connecting your camera to a computer
89
•
Adjusting sound and volume
111
•
Adjusting the brightness of the display
112
•
Changing the display language
113
•
Setting the date and time
113
•
Before contacting a service center
128
15
Contents
Using the Mode screen ........................................................................................... 31
Selecting a Mode Screen ....................................................................................... 31
Icons on the Mode screen ..................................................................................... 32
Selecting options or menus .................................................................................. 33
Setting the display and sound ............................................................................. 35
Setting the display type ........................................................................................ 35
Setting the sound ................................................................................................... 36
Capturing photos ..................................................................................................... 37
Zooming .................................................................................................................. 38
Changing the zoom speed ................................................................................... 39
Reducing camera shake (OIS) .............................................................................. 40
Tips for getting a clearer photo ........................................................................... 41
Basic functions
................................................................................................................. 19

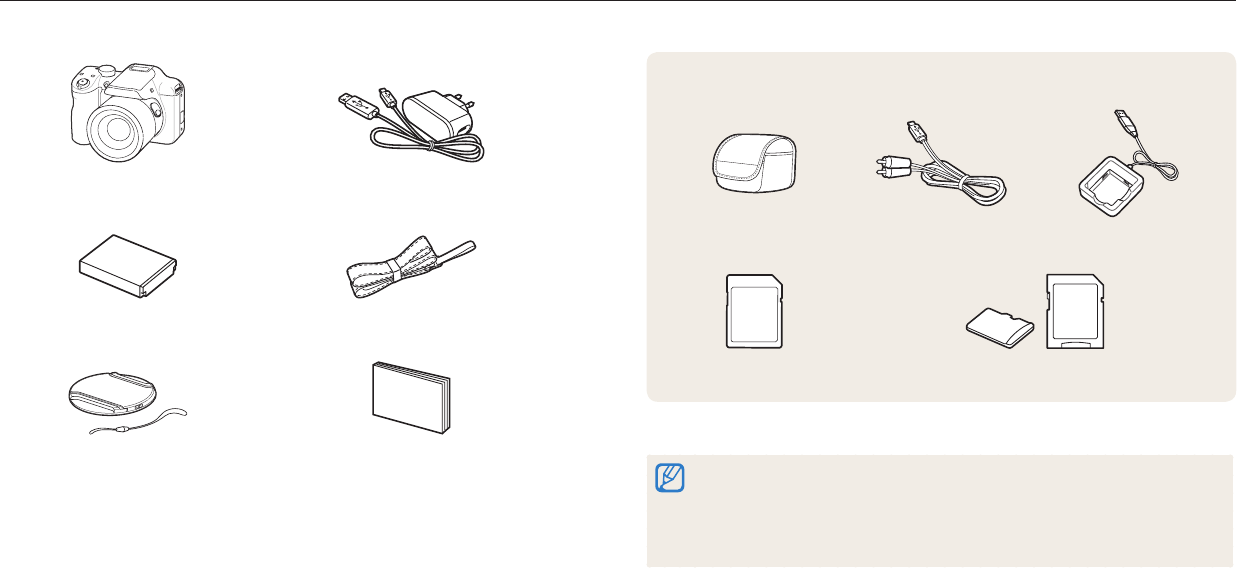

Unpacking ................................................................................................................... 20
Camera layout ............................................................................................................ 21
Using the DIRECT LINK button ............................................................................. 23
Attaching a strap .................................................................................................... 24
Attaching a lens cap ............................................................................................... 24

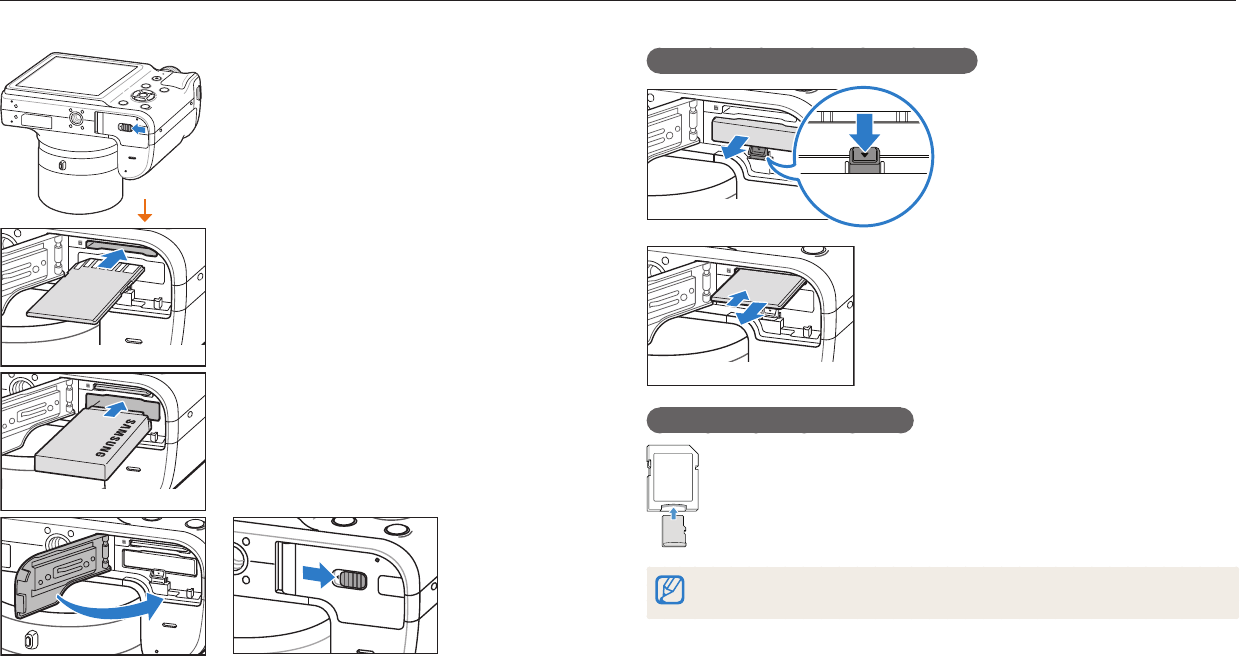

Inserting the battery and memory card .......................................................... 25
Charging the battery and turning on your camera ..................................... 26
Charging the battery ............................................................................................. 26
Turning on your camera ........................................................................................ 26
Performing the initial setup ................................................................................. 27
Learning icons ........................................................................................................... 29
16
Contents
Extended functions
....................................................................................................... 43
Using the Smart Auto mode ................................................................................. 44
Using the Program mode ...................................................................................... 46
Using the Smart mode ............................................................................................ 47
Using the Panorama mode ................................................................................... 48
Using the Magic Plus mode ................................................................................. 50
Using the Photo Filter mode ................................................................................ 50
Using the Movie Filter mode ................................................................................ 51
Using the Movie mode ........................................................................................... 52
Shooting options
............................................................................................................ 53
Selecting a resolution and quality ..................................................................... 54
Selecting a resolution ............................................................................................ 54
Setting the photo quality ...................................................................................... 55
Using the timer .......................................................................................................... 56
Shooting in the dark ................................................................................................ 57
Preventing red-eye ................................................................................................. 57
How to use the ash .............................................................................................. 57
Using the ash ........................................................................................................ 58
Adjusting the ISO sensitivity ................................................................................. 59
Changing the camera’s focus .............................................................................. 60
Using macro ............................................................................................................ 60
Changing the focus option ................................................................................... 60
Adjusting the focus area ....................................................................................... 61
Using Face Detection .............................................................................................. 64
Detecting faces ....................................................................................................... 64
Capturing a self portrait shot ............................................................................... 64
Capturing a smile shot ........................................................................................... 65
Detecting eye blinking .......................................................................................... 65
Tips for detecting faces ......................................................................................... 66
17
Contents
Adjusting brightness and color ........................................................................... 67
Adjusting the exposure manually (EV) ............................................................... 67
Compensating for backlighting (ACB) ................................................................ 68
Changing the metering option ............................................................................ 68
Selecting a White Balance setting ....................................................................... 69
Using burst modes (continuous, motion capture, AEB) ............................. 71
Adjusting images ..................................................................................................... 72
Reducing the sound of the zoom ....................................................................... 73
Playback/Editing
............................................................................................................. 74
Viewing photos or videos in Playback mode ................................................. 75
Starting Playback mode ........................................................................................ 75
Viewing photos ....................................................................................................... 79
Playing a video ........................................................................................................ 82
Editing a photo .......................................................................................................... 83
Resizing photos ...................................................................................................... 83
Rotating a photo .................................................................................................... 83
Applying Smart Filter eects ................................................................................ 84
Adjusting your photos ........................................................................................... 85
Editing a video ........................................................................................................... 87
Trimming a video ................................................................................................... 87
Capturing an image from video ........................................................................... 87
Viewing les on a TV ............................................................................................... 88
Transferring les to a computer .......................................................................... 89
Transferring les to your Windows OS computer ............................................. 89
Transferring les to your Mac OS computer ...................................................... 90
System Requirements ............................................................................................. 91
Wireless network
............................................................................................................ 92
Connecting to a WLAN and conguring network settings ....................... 93
Connecting to a WLAN .......................................................................................... 93
Using the login browser ........................................................................................ 94
Network connection tips ...................................................................................... 95
Entering text ............................................................................................................ 96
Using the NFC Feature (Tag & Go) ...................................................................... 97
Using NFC features in Shooting mode ............................................................... 97
Using NFC features in Playback mode (Photo Beam) ....................................... 97
Using NFC features in Wi-Fi mode ....................................................................... 97
18
Contents
Saving les to a smart phone automatically .................................................. 98
Sending photos or videos to a smart phone .................................................. 99
Using a smart phone as a remote shutter release ...................................... 100
Sending photos or videos via email ................................................................ 102
Changing email settings ..................................................................................... 102
Sending photos or videos via email ................................................................. 104
Using photo or video sharing services .......................................................... 105
Accessing a sharing service ................................................................................ 105
Uploading photos or videos .............................................................................. 105
Using Samsung Link to send les ..................................................................... 107
Viewing photos or videos on devices that support Samsung Link .............. 107
Settings
............................................................................................................................. 109
Settings menu ......................................................................................................... 110
Accessing the settings menu ............................................................................. 110
Sounds ................................................................................................................... 111
Display .................................................................................................................... 111
Connectivity .......................................................................................................... 112
General ................................................................................................................... 113
Appendixes
.....................................................................................................................115
Error messages ........................................................................................................ 116
Camera maintenance ............................................................................................ 117
Cleaning your camera .......................................................................................... 117
Using or storing the camera ............................................................................... 118
About memory cards ........................................................................................... 120
About the battery ................................................................................................. 123
Upgrading Firmware ............................................................................................ 127
Before contacting a service center ................................................................... 128
Camera specications ........................................................................................... 131
Glossary ..................................................................................................................... 135
FCC notice ................................................................................................................. 140
Index ........................................................................................................................... 142
Unpacking
……………………………………… 20
Camera layout
…………………………………… 21
Using the DIRECT LINK button
………………… 23
Attaching a strap
……………………………… 24
Attaching a lens cap
…………………………… 24
Inserting the battery and memory card
……… 25
Charging the battery and turning on your
camera
…………………………………………… 26
Charging the battery
…………………………… 26
Turning on your camera
……………………… 26
Performing the initial setup
…………………… 27
Learning icons
…………………………………… 29
Using the Mode screen
………………………… 31
Selecting a Mode Screen
……………………… 31
Icons on the Mode screen
……………………… 32
Selecting options or menus
…………………… 33
Setting the display and sound
………………… 35
Setting the display type
………………………… 35
Setting the sound
……………………………… 36
Capturing photos
……………………………… 37
Zooming
……………………………………… 38
Changing the zoom speed
…………………… 39
Reducing camera shake (OIS)
………………… 40
Tips for getting a clearer photo
………………… 41
Basic functions
Learn about your camera’s layout, icons, and basic functions for shooting.
Basic functions
20
Unpacking
The following items are included in your product box.
Camera AC adapter/USB cable
Rechargeable battery Strap
Lens cap/Lens cap strap Quick Start Guide
Optional accessories
Camera case A/V cable Battery charger
Memory card Memory card/Memory card adapter
•
The illustrations may dier slightly from the items shipped with your product.
•
The items included in the box may dier depending on the model.
•
You can purchase optional accessories at a retailer or a Samsung service center.
Samsung is not responsible for any problems caused by using unauthorized
accessories.
Basic functions
21
Camera layout
Before you start, familiarize yourself with your camera’s parts and their functions.
Shutter button
DIRECT LINK button
Start a preset Wi-Fi function.
Lens
POWER button
AF-assist light/Timer lamp
NFC Tag
Launch an NFC feature by reading a tag from
an NFC-enabled device. (p. 97)
Mode dial
Flash pop-up button
SPEED CONTROL button (p. 39)
Internal antenna*
* Avoid contact with the internal antenna while using
a wireless network.
Flash*
* While not in use, keep the ash unit closed to
prevent damage. Forcing the ash unit open may
cause damage to your camera.
USB and A/V port
Accepts USB cable and A/V cable.
Camera layout
Basic functions
22
Status lamp
•
Blinking: When the camera is saving
a photo or video, being read by
a computer, when the image is out
of focus, or when the camera is
connecting to WLAN or sending
a photo.
•
Steady: When the camera is
connected to a computer, charging
the battery, or when the image is in
focus.
Zoom button
•
In Shooting mode: Zoom in or out.
•
In Playback mode: Zoom in on part of a photo or
view les as thumbnails, or adjust the volume.
Display
Buttons (p. 23)
Eyelet for camera strap
Microphone
Battery chamber cover
Insert a memory card and battery.
Speaker
Tripod mount
Camera layout
Basic functions
23
Using the DIRECT LINK button
You can turn on the Wi-Fi feature conveniently with [DIRECT LINK].
Press [DIRECT LINK] to activate the Wi-Fi function that you have designated.
Press [DIRECT LINK] again to return to the previous mode.
Setting a DIRECT LINK button option
You can select a Wi-Fi function to launch when you press [DIRECT LINK].
1 Rotate the mode dial to .
2 Select General → DIRECT LINK (Wi-Fi Button).
3 Select a Wi-Fi feature. (p. 114)
Buttons
Button Description
Start recording a video.
Access options or menus.
Go back.
Basic functions Other functions
D
Change the display option. Move up
c
Change the macro option. Move down
F
Change the ash option. Move left
t
Change the timer option. Move right
Conrm the highlighted option or menu.
Enter Playback mode.
Delete les in Playback mode.
Camera layout
Basic functions
24
Attaching a strap
Attach a strap to carry your camera conveniently.
Attaching a lens cap
Attach a lens cap with a lens cap strap to protect the camera lens.
Basic functions
25
Inserting the battery and memory card
Learn how to insert the battery and an optional memory card into the camera.
Removing the battery and memory card
Rechargeable battery
Battery lock
Slide the lock down to release
the battery.
Memory card
Push the card gently until it disengages
from the camera, and then pull it out of
the slot.
Using the memory card adapter
To use micro memory cards with this product, a PC,
or a memory card reader, insert the card into an adapter.
You can use the internal memory for temporary storage if a memory card is not
inserted.
Memory card
Insert a memory card with the gold-
colored contacts facing up.
Rechargeable battery
Insert the battery with the Samsung logo
facing up.
Basic functions
26
Charging the battery and turning on your camera
Turning on your camera
Press [
X
] to turn your camera on or o.
•
The initial setup screen appears when you turn on the camera for the rst time.
(p. 27)
Turning on your camera in Playback mode
Press [
P
]. The camera turns on and immediately accesses Playback mode.
If you turn on your camera by pressing and holding [
P
] until the status lamp
blinks, the camera does not emit any sounds.
Charging the battery
Before you use the camera for the rst time, you must charge the battery. Plug the
small end of the USB cable into your camera, and then plug the other end of the
USB cable into the AC adapter.
Status lamp
•
Red light on: Charging
•
Red light o: Fully charged
Use only the AC adapter and USB cable supplied with your camera. If you use
another AC adapter (such as AD5055), the camera battery may not charge or work
properly.
Basic functions
27
1 Press [
c
] to select Time Zone, and then press [
t
] or [
o
].
2 Press [
F
/
t
] to select a time zone, and then press [
o
].
Cancel Set
Home
London
3 Press [
c
] to select Date/Time Set, and then press [
t
] or [
o
].
Cancel Set
Date/Time Set
Year Month Day Hour Min DST
4 Press [
F
/
t
] to select an item.
5 Press [
D
/
c
] to set the date, time, and daylight-saving time, and
then press [
o
].
Performing the initial setup
When the initial setup screen appears, follow the steps below to congure the camera’s basic settings. The default language is preset for the country or region where the camera
is sold. You can change the language as desired by selecting Language.
Performing the initial setup
Basic functions
28
6 Press [
c
] to select Date Type, and then press [
t
] or [
o
].
7 Press [
D
/
c
] to select a date type, and then press [
o
].
Date Type
Back Set
YYYY/MM/DD
MM/DD/YYYY
DD/MM/YYYY
8 Press [
c
] to select Time Type, and then press [
t
] or [
o
].
9 Press [
D
/
c
] to select a time type, and then press [
o
].
10
Press [
r
] to nish the initial setup.
The screen may dier depending on the language you selected.
Basic functions
29
Learning icons
The camera displays icons for the mode and options you set. The icons ash yellow for a while if you change options.
1
Icon Description
Current date
Current time
Auto focus frame
Camera shake
Zoom indicator
Photo resolution when the Intelli
zoom is on
Zoom ratio
Histogram
1
Shooting information
Icon Description
Aperture value
Shutter speed
Available recording time
Exposure value
Available number of photos
Memory card inserted
•
: Fully charged
•
: Partially charged
•
: Replace the batteries
Learning icons
Basic functions
30
2
Shooting options (left)
Icon Description
Shooting mode
White Balance
Image adjustment
(Sharpness, Contrast, and Saturation)
Focus area
Focus
Face Detection
Burst option
AutoShare On
3
Shooting options (right)
Icon Description
ISO sensitivity
Video resolution
Flash
Frame Rate (per second)
Photo resolution
Zoom Mute
Intelli zoom on
Optical Image Stabilization (OIS)
Metering
Timer
2
3
Basic functions
31
Selecting a Mode Screen
In Shooting or Playback mode, rotate the mode dial to display a Mode Screen.
You can select an icon on the Mode screen in Magic Plus mode.
1
2
Editor
Filter
Movie
Filter
▲ For example: When you select Photo Filter in Magic Plus mode.
No. Description
1
Current Mode screen
•
Rotate the mode dial to go to another mode screen.
2
Mode icons
•
Press [
D
/
c
/
F
/
t
] to scroll to a desired mode, and then press [
o
]
to access the mode.
Using the Mode screen
Use the mode dial to select a shooting mode or function. Rotate the mode dial to a desired mode. You can also select an icon on the Mode screen in some modes.
Using the Mode screen
Basic functions
32
Mode Icon Description
Movie: Customize settings to record a video. (p. 52)
MobileLink: Send photos or videos to a smart phone. (p. 99)
Remote Viewnder: Use a smart phone as a remote shutter
release and see a preview of an image from your camera on
your smart phone. (p. 100)
Email: Send photos or videos stored on the camera via email.
(p. 102)
SNS & Cloud: Upload photos or videos to le sharing services.
(p. 105)
Samsung Link: View les on devices that support Sansung
Link. (p. 107)
Icons on the Mode screen
Mode Icon Description
Smart Auto: Capture a photo with a scene mode selected
automatically by the camera. (p. 44)
Program: Capture a photo with settings you have adjusted
manually. (p. 46)
Smart: Capture a photo with options preset for a specic
scene. (p. 47)
Panorama: Capture and combine a series of photos to create a
panoramic image. (p. 48)
Photo Filter: Capture a photo with various lter eects. (p. 50)
Movie Filter: Record a video with various lter eects. (p. 51)
Photo Editor: Edit photos with various eects. (p. 83)
Settings: Adjust settings to match your preferences. (p. 110)
Basic functions
33
Selecting options or menus
To select an option or a menu, press [
m
], and then press [
D
/
c
/
F
/
t
] or [
o
].
Going back to the previous menu
Press [
r
] to go back to the previous menu.
Half-press [Shutter] to return to Shooting mode.
1 In Shooting or Playback mode, press [
m
].
2 Select an option or a menu.
•
To move up or down, press [
D
] or [
c
].
•
To move left or right, press [
F
] or [
t
].
3 Press [
o
] to conrm the highlighted option or menu.
Selecting options or menus
Basic functions
34
For example, to select a White Balance option in Program mode:
1 Rotate the mode dial to .
2 Press [
m
].
Exit Select
AutoShare
EV
White Balance
ISO
Flash
Focus
3 Press [
D
/
c
] to select White Balance, and then press [
t
] or
[
o
].
4 Press [
F
/
t
] to select a White Balance option.
Back Set
White Balance : Daylight
5 Press [
o
] to save your settings.
Basic functions
35
Setting the display and sound
Learn how to change the basic display information and sound settings.
About histograms
A histogram is a graph that illustrates how light is distributed in your photo. If the
histogram has a high peak on the left, the photo is underexposed and will appear
dark. A peak on the right of the graph means that the photo is overexposed and
will appear washed out. The height of the peaks is related to color information. The
more of a particular color, the taller the peak.
Under-exposed
Well-exposed
Over-exposed
Setting the display type
You can select a display type for the Shooting or Playback mode. Each type displays
dierent shooting or playback information. See the table below.
Press [
D
] repeatedly to change the display type.
Mode Display type
Shooting
•
Hide all information about shooting options.
•
Show all information about shooting options.
•
Show all information about shooting options and a histogram.
Playback
•
Hide all information about the current le.
•
Hide all information about the current le except basic
information.
•
Show all information about the current le.
Setting the display and sound
Basic functions
36
Setting the option display view
You can hide or show the option display appearing in some modes.
Press [
o
] repeatedly.
•
Hide the option display.
•
Show the option display.
Option display
Smart : Beauty Face
Set
▲ For example, in mode
Setting the sound
Turn the sound your camera emits when you perform functions on or o.
1 Rotate the mode dial to .
2 Select Sounds → Beep Sound.
3 Select an option.
Option Description
O The camera does not emit any sounds.
On The camera emits sounds.
Basic functions
37
1 Rotate the mode dial to .
2 Align your subject in the frame.
3 Half-press [Shutter] to focus.
•
A green frame means the subject is in focus.
•
A red frame means the subject is out of focus.
4 Press [Shutter] to capture a photo.
5 Press [
P
] to view the captured photo.
•
To delete the photo, press [
f
], and then select Ye s .
6 Press [
P
] to return to Shooting mode.
See page 41 for tips to get clearer photos.
Capturing photos
Learn how to capture photos easily and quickly in Smart Auto mode.
Capturing photos
Basic functions
38
Zooming
You can capture close-up photos by adjusting the zoom.
Zoom inZoom out
Zoom ratio
When you rotate the zoom button, the zoom ratio shown on the screen may
change inconsistently.
Digital zoom
Digital zoom is supported by default in Shooting mode. If you zoom in on a subject
in Shooting mode and the zoom indicator is in the digital range, your camera is
using Digital zoom. By using both the 35X Optical zoom and 2X Digital zoom, you
can zoom in up to 70 times.
Zoom indicator
Optical range
Digital range
•
Digital zoom is not available with the Tracking AF option or Face Detection
options.
•
If you capture a photo with Digital zoom, the photo quality may be lower than
normal.
Capturing photos
Basic functions
39
Intelli zoom
If the zoom indicator is in the Intelli range, your camera is using Intelli zoom. Photo
resolution varies according to the zoom rate if you use Intelli zoom. By using both
Optical zoom and Intelli zoom, you can zoom in up to 70 times.
Zoom indicator
Optical range
Intelli range
Photo resolution
when the Intelli
zoom is on
•
Depending on the shooting options you selected, Intelli zoom is not available.
•
Intelli zoom helps you capture a photo with less quality deterioration than
Digital zoom. However, the photo quality may be lower than when you use
Optical zoom.
•
Intelli zoom is available only when you set a 4:3 resolution ratio.
If you set another resolution ratio with Intelli zoom on, Intelli zoom will be
turned o automatically.
•
Intelli zoom is always on in mode.
Setting Intelli zoom
1 In Shooting mode, press [
m
].
2 Select Intelli Zoom.
3 Select an option.
Icon Description
O: The Intelli zoom is deactivated.
On: The Intelli zoom is activated.
Changing the zoom speed
When you use the zoom button with [SPEED CONTROL], the speed of the zoom is
changed.
•
Photo recording mode: the zoom
function works faster.
•
Video recording mode: the zoom
function works slower.
Capturing photos
Basic functions
40
Reducing camera shake (OIS)
In Shooting mode, you can set either the Optical Image Stabilizer (OIS) or the Dual
Image Stabilizer (Dual IS) to reduce or eliminate picture blurriness from camera
shake.
Before correction
After correction
1 In Shooting mode, press [
m
].
2 Select OIS.
3 Select an option.
Icon Description
O: OIS is deactivated.
On: OIS is activated.
Dual IS: The Dual Image Stabilizer (Dual IS) is activated.
•
OIS may not function properly when:
-
you move your camera to follow a moving subject
-
you use Digital zoom
-
there is too much camera shake
-
the shutter speed is slow (for example, when you capture night scenes)
-
the battery is low
-
you capture a close-up shot
•
If you use the OIS function with a tripod, your images may be blurred by the
vibration of the OIS sensor. Deactivate the OIS function when you use a tripod.
•
If the camera is hit or dropped, the display will be blurry. If this occurs, turn o
the camera, and then turn it on again.
Basic functions
41
Holding your camera correctly
Ensure nothing is blocking the lens, ash,
or microphone.
Half-pressing the shutter button
Half-press [Shutter] and adjust the focus. The camera
adjusts the focus and exposure automatically.
The camera sets the aperture value and shutter
speed automatically.
Focus frame
•
Press [Shutter] to capture the photo if the
focus frame appears in green.
•
Change the composition and half-press
[Shutter] again if the focus frame appears in
red.
Reducing camera shake
•
Set the Optical Image Stabilization option to reduce camera
shake digitally. (p. 40)
•
Set the Dual IS option to reduce camera shake both optically
and digitally. (p. 40)
When is displayed
Camera shake
When you shoot in the dark, avoid setting the ash option to Slow Sync or O. The
aperture remains open longer and it may be harder to hold the camera steady long
enough to capture a clear photo.
•
Use a tripod or set the ash option to Fill in. (p. 58)
•
Set ISO sensitivity options. (p. 59)
Tips for getting a clearer photo
Basic functions
42
Preventing your subject from being out of focus
It may be dicult to get your subject in focus when:
-
there is little contrast between the subject and background (for example, when
your subject is wearing clothing that is similar in color to the background)
-
the light source behind the subject is too bright
-
the subject is shiny or reective
-
the subject includes horizontal patterns, such as blinds
-
the subject is not positioned in the center of the frame
•
When you capture photos in low light
Turn on the ash.
(p. 58)
•
When subjects are moving rapidly
Use the Continuous
or Motion Capture
function. (p. 71)
Using the focus lock
Half-press [Shutter] to focus. When the subject is in focus, you can
reposition the frame to change the composition. When you are ready,
press [Shutter] to capture your photo.
Using the Smart Auto mode
…………………… 44
Using the Program mode
……………………… 46
Using the Smart mode
………………………… 47
Using the Panorama mode
…………………… 48
Using the Magic Plus mode
…………………… 50
Using the Photo Filter mode
…………………… 50
Using the Movie Filter mode
…………………… 51
Using the Movie mode
………………………… 52
Extended functions
Learn how to capture a photo and record a video by selecting a mode.
Extended functions
44
Using the Smart Auto mode
In Smart Auto mode, your camera automatically chooses the appropriate camera settings based on the type of scene it detects. The Smart Auto mode is helpful if you are not
familiar with the camera settings for various scenes.
Icon Description
Landscapes
Scenes with bright white backgrounds
Landscapes at night
Portraits at night
Landscapes with backlighting
Portraits with backlighting
Portraits
Close-up photos of objects
Close-up photos of text
Sunsets
Indoors, dark
Partially lit
Close-up with spot lighting
Portraits with spot lighting
1 Rotate the mode dial to .
2 Align your subject in the frame.
•
The camera automatically selects a scene. An appropriate scene icon appears
at the top left of the screen. The icons are listed below.
3 Half-press [Shutter] to focus.
4 Press [Shutter] to capture the photo.
Using the Smart Auto mode
Extended functions
45
Icon Description
Blue skies
Forested areas
Close-up photos of colorful subjects
Camera is stabilized on a tripod and the subject is not moving for a
certain period of time. (when shooting in the dark)*
Actively moving subjects*
* This icon appears next to the scene icon.
•
If the camera does not recognize an appropriate scene mode, it uses the default
settings for mode.
•
Even if it detects a face, the camera may not select a portrait mode depending on
the subject's position or lighting.
•
The camera may not select the correct scene depending on the shooting
conditions, such as camera shake, lighting, or distance to the subject.
•
Even if you use a tripod, the camera may not detect the mode if the subject is
moving.
•
The camera consumes more battery power, because it changes settings often to
select appropriate scenes.
Extended functions
46
3 Align your subject in the frame, and then half-press [Shutter] to
focus.
4 Press [Shutter] to capture the photo.
1 Rotate the mode dial to .
2 Set the desired options.
•
For a list of options, refer to "Shooting options". (p. 53)
Using the Program mode
In Program mode, you can set most options, except the shutter speed and aperture value, which the camera sets automatically.
Extended functions
47
Option Description
Night
Capture multiple photos in low light conditions without a
ash. The camera combines them to create a single image
that is brighter and has less blurring.
Macro Capture small or close-up subjects.
Light Trace Capture scenes with the light trailing in low-light conditions.
3 Align your subject in the frame, and then half-press [Shutter] to
focus.
4 Press [Shutter] to capture the photo.
1 Rotate the mode dial to .
2 Select a scene.
Smart : Beauty Face
Set
Option Description
Beauty Face Capture a portrait with options to hide facial imperfections.
Action Freeze Capture subjects moving at high speed.
Sunset Capture scenes at sunset, with natural-looking reds and
yellows.
Landscape Capture still-life scenes and landscapes.
Silhouette Capture subjects as dark shapes against a light background.
Fireworks Capture scenes with reworks.
Using the Smart mode
In Smart mode, you can capture a photo with options that are preset for a specic scene.
Extended functions
48
4 With [Shutter] pressed, slowly move the camera in the direction that
will let it capture the rest of the panorama.
•
Arrows pointing in the direction of motion are displayed, and the entire
shooting image is displayed in the preview box.
•
When the viewnder is aligned with the next scene, the camera captures the
next photo automatically.
Shakiness: A atter line
represents less camera shake.
5 When you are nished, release [Shutter].
•
When you have captured all the necessary shots, the camera combines them
into one panoramic photo.
Shooting example
1 Rotate the mode dial to .
2 Align your subject in the frame, and then half-press [Shutter] to
focus.
•
Align the camera with the far left or the far right, or very top or bottom, of the
scene you want to capture.
3 Press and hold [Shutter] to start shooting.
Using the Panorama mode
In Panorama mode, you can capture a wide panoramic scene in a single photo. Panorama mode captures and combines a series of photos to create a panoramic image.
Using the Panorama mode
Extended functions
49
•
For best results when capturing panoramic photos, avoid the following:
-
moving the camera too quickly or too slowly
-
moving the camera too little to capture the next image
-
moving the camera at irregular speeds
-
shaking the camera
-
shooting in dark places
-
capturing moving subjects nearby
-
shooting conditions where the brightness or color of light is changing
•
Photos taken are automatically saved, and shooting is stopped under the
following conditions:
-
if you change the shooting direction while shooting
-
if you move the camera too rapidly
-
if you don't move the camera
•
Selecting Panorama mode will disable the digital and optical zoom functions.
If you select Panorama mode while the lens is zoomed in, the camera
automatically zooms out to the default position.
•
Some shooting options are not available.
•
The camera may stop shooting due to the shooting composition or movement
within the scene.
•
Your camera may not capture the last scene in its entirety if you stop moving the
camera exactly where you want the scene to end. To capture the entire scene,
move your camera slightly beyond the point where you want the scene to end.
Extended functions
50
Using the Photo Filter mode
Apply various lter eects to your photos to create unique images.
Miniature Vignetting
Fish-eye Classic
1 Rotate the mode dial to .
2 Select .
3 Select an eect.
Option Description
Miniature
Apply a tilt-shift eect to make the subject appear in
miniature. (The top and bottom of the photo will be
blurred.)
Vignetting Apply the retro-looking colors, high contrast, and strong
vignette eect of Lomo cameras.
Fish-eye Distort close objects to imitate the visual eect of a sheye
lens.
Classic Apply a black and white eect.
Retro Apply a sepia tone eect.
Cross Filter Add lines that radiate outward from bright objects to
imitate the visual eect of a cross lter.
4 Align your subject in the frame, and then half-press [Shutter] to
focus.
5 Press [Shutter] to capture a photo.
•
Depending on the option you select, the resolution may change to or less
automatically.
•
To apply lter eects to saved photos, press [
m
], and then select Open
Image → a desired image. The camera will save edited photos as new les.
Using the Magic Plus mode
Capture a photo or record a video with various eects.
Using the Magic Plus mode
Extended functions
51
Using the Movie Filter mode
Apply various lter eects to your videos to create unique images.
1 Rotate the mode dial to .
2 Select .
3 Select an eect.
Option Description
Miniature
Apply a tilt-shift eect to make the subject appear in
miniature. (The top and bottom of the photo will be
blurred.)
Vignetting Apply the retro-looking colors, high contrast, and strong
vignette eect of Lomo cameras.
Fish-eye Distort close objects to imitate the visual eect of a
sheye lens.
Classic Apply a black and white eect.
Retro Apply a sepia tone eect.
Palette Eect 1 Create a vivid look with sharp contrast and strong color.
Palette Eect 2 Make scenes clean and clear.
Palette Eect 3 Apply a soft brown tone.
Palette Eect 4 Create a cold and monotone eect.
4 Press (Video recording) or [Shutter] to start recording.
5 Press (Video recording) or [Shutter] again to stop recording.
•
If you select Miniature, playback speed will increase.
•
If you select Miniature, you cannot record sound in the video.
•
Depending on the option you select, the recording resolution may change to
or less automatically.
Extended functions
52
1 Rotate the mode dial to .
2 Set desired options.
•
For a list of options, refer to "Shooting options". (p. 53)
3 Press (Video recording) or [Shutter] to start recording.
4 Press (Video recording) or [Shutter] again to stop recording.
You can start recording a video in some modes by pressing (Video recording)
without having to rotate the mode dial to .
Pause recording
The camera allows you to temporarily pause a video while recording. With this
function, you can record separate scenes as a single video.
•
Press [
o
] to pause while recording.
•
Press [
o
] to resume.
Using the Movie mode
In Movie mode, you can customize settings to record HD (1280 X 720) videos of up to 20 minutes in length. The camera saves recorded videos as MP4 (H.264) les.
•
MP4 (H.264) is a high-compression video format established by the international standards organizations ISO-IEC and ITU-T.
•
If you use memory cards with slow write speeds, the camera may not save videos properly. Video recordings may be corrupted or fail to play back correctly.
•
Memory cards with slow write speeds will not support high-resolution videos. To record high-resolution videos, use memory cards with faster write speeds.
•
If you use the zoom function when recording a video, the camera may record the noise of the zoom operating. Use the Zoom Mute function not to record zoom noise. (p. 73)
Selecting a resolution and quality
…………… 54
Selecting a resolution
………………………… 54
Setting the photo quality
……………………… 55
Using the timer
………………………………… 56
Shooting in the dark
…………………………… 57
Preventing red-eye
…………………………… 57
How to use the ash
…………………………… 57
Using the ash
………………………………… 58
Adjusting the ISO sensitivity
…………………… 59
Changing the camera’s focus
………………… 60
Using macro
…………………………………… 60
Changing the focus option
…………………… 60
Adjusting the focus area
……………………… 61
Using Face Detection
…………………………… 64
Detecting faces
………………………………… 64
Capturing a self portrait shot
………………… 64
Capturing a smile shot
………………………… 65
Detecting eye blinking
………………………… 65
Tips for detecting faces
………………………… 66
Adjusting brightness and color
………………… 67
Adjusting the exposure manually (EV)
………… 67
Compensating for backlighting (ACB)
………… 68
Changing the metering option
………………… 68
Selecting a White Balance setting
……………… 69
Using burst modes
(continuous, motion capture, AEB)
…………… 71
Adjusting images
………………………………… 72
Reducing the sound of the zoom
……………… 73
Shooting options
Learn how to set the options in Shooting mode.
Shooting options
54
Selecting a resolution
As you increase the resolution, your photo or video will include more pixels, so it
can be printed on larger paper or displayed on a larger screen. When you use a high
resolution, the le size will also increase.
Setting the photo resolution
1 In Shooting mode, press [
m
].
2 Select Photo Size.
3 Select an option.
Icon Description
4608 X 3456: Print on A1 paper.
4608 X 3072: Print on A1 paper in wide ratio (3:2).
4608 X 2592: Print on A1 paper in panorama ratio (16:9) or play
back on an HDTV.
3648 X 2736: Print on A2 paper.
2832 X 2832: Print on A3 paper in 1:1 ratio.
2592 X 1944: Print on A4 paper.
1984 X 1488: Print on A5 paper.
1920 X 1080: Print on A5 paper in panorama ratio (16:9) or play
back on an HDTV.
1024 X 768: Attach to an email.
Setting the video resolution
1 In Shooting mode, press [
m
].
2 Select Movie Size.
3 Select an option.
Icon Description
1280 X 720: HD les to play back on an HDTV.
640 X 480: SD les to play back on an analog TV.
320 X 240: Post on a web page.
For Sharing: Post on a website using the wireless network
(30 seconds maximum).
Selecting a resolution and quality
Learn how to change the image resolution and quality settings.
Selecting a resolution and quality
Shooting options
55
Setting the photo quality
Set the photo quality settings. Higher image quality settings will result in larger le
sizes. The camera compresses and saves the photos you capture in the JPEG format.
1 In Shooting mode, press [
m
].
2 Select Quality.
3 Select an option.
Icon Description
Super Fine: Capture photos in super high quality.
Fine: Capture photos in high quality.
Normal: Capture photos in normal quality.
Shooting options
56
1 In Shooting mode, press [
t
].
Exit Set
Timer : O
2 Select an option.
Icon Description
O: The timer is not active.
10 Sec: Capture a photo after a 10-second delay.
2 Sec: Capture a photo after a 2-second delay.
Double: Capture one photo after a 10-second delay and another
photo after a 2-second delay.
Available options may dier depending on the shooting conditions.
3 Press [Shutter] to start the timer.
•
The AF-assist light/timer lamp blinks. The camera will automatically capture a
photo after the specied time has elapsed.
•
Press [Shutter] or [
t
] to cancel the timer.
•
Depending on the Face Detection options you selected, the timer function may
not be available.
•
Timer options are not available if you set burst options.
•
In some modes, you can also set the timer option by pressing [
m
], and then
selecting Timer.
Using the timer
Learn how to set the timer to delay shooting.
Shooting options
57
Preventing red-eye
If the ash res when you capture a photo of a person in the dark, a red glow may
appear in the person’s eyes. To prevent this, select Red-eye or Red-eye Fix. Refer to
ash options in "Using the ash." (p. 58)
Before correction
After correction
How to use the ash
Press the ash pop-up button to pop the
ash up. When the ash unit pops up, the
ash res in accordance with the option
you have selected. If you select O, the
ash does not re even when it is popped
up.
•
While not in use, keep the ash unit closed to prevent damage.
•
Forcing open the ash unit may cause damage to your camera.
Shooting in the dark
Learn how to capture photos at night or in low light conditions.
Shooting in the dark
Shooting options
58
Using the ash
Use the ash when you capture photos in the dark or when you need more light in
your photos.
1 Press [
F
] to pop the ash up when it is need.
2 In Shooting mode, press [
F
].
Exit Set
Flash : Auto
3 Select an option.
Icon Description
O:
•
The ash will not re.
•
The camera will display the shake warning when you are
shooting in low light.
Auto: The ash will re automatically when the subject or
background is dark.
Red-eye:
•
The ash will re twice when the subject or background is dark to
reduce the red-eye eect.
•
There is an interval between the 2 bursts of the ash. Do not move
until the ash res a second time.
Fill in:
•
The ash always res.
•
The camera automatically adjusts the intensity of the ash.
Slow Sync:
•
The ash res and the shutter stays open longer.
•
This option is recommended when you want to capture more
ambient light to reveal more details in the background.
•
Use a tripod to prevent your photos from blurring.
•
The camera will display the shake warning when you are
shooting in low light.
Shooting in the dark
Shooting options
59
Icon Description
Red-eye Fix:
•
The ash res twice when the subject or background is dark. The
camera corrects red-eye through its advanced software analysis.
•
There is an interval between the 2 bursts of the ash. Do not move
until the ash res a second time.
Available options may dier depending on the shooting conditions.
•
Flash options are not available if you set burst options or select Self-Portrait or
Blink Detection.
•
Make sure that your subjects are within the recommended distance from the
ash. (p. 132)
•
If light from the ash is reected or there is a substantial amount of dust in the
air, tiny spots may appear in your photo.
•
In some modes, you can also set the ash option by pressing [
m
], and then
selecting Flash.
Adjusting the ISO sensitivity
The ISO sensitivity is the measure of a lm’s sensitivity to light as dened by the
International Organization for Standardization (ISO). The higher ISO sensitivity you
select, the more sensitive to light your camera becomes. Use a higher ISO sensitivity
to capture better photos and reduce camera shake when not using the ash.
1 In Shooting mode, press [
m
].
2 Select ISO.
3 Select an option.
•
Select to use an appropriate ISO sensitivity based on the brightness of
the subject and lighting.
•
Higher ISO sensitivities may result in more image noise.
•
If you set the ISO option to , the resolution may change to or smaller.
Shooting options
60
Changing the camera’s focus
Learn how to adjust the camera’s focus to suit the subject and the shooting conditions.
Changing the focus option
You can get clearer photos by selecting an appropriate focus option according to
the distance between the camera and subjects.
1 In Shooting mode, press [
c
].
Exit Set
Focus : Normal (AF)
Using macro
Use macro to capture close-up photos of subjects, such as owers or insects.
(Refer to "Changing the focus option".)
•
Try to hold the camera rmly to prevent blurry photos.
•
Turn o the ash if the distance to the subject is less than 40 cm.
Changing the camera’s focus
Shooting options
61
Adjusting the focus area
You can get clearer photos by selecting an appropriate focus area according to your
subject's location in the scene.
1 In Shooting mode, press [
m
].
2 Select Focus Area.
3 Select an option.
Icon Description
Center AF: Focus on the center of the frame (suitable when subjects
are located at or near the center).
Multi AF: Focus on one or more of 9 possible areas.
Selection AF: Focus on the area that you select. (p. 62)
Tracking AF: Focus on and track the subject. (p. 62)
Available shooting options may dier depending on the shooting conditions.
2 Select an option.
Icon Description
Normal (AF): Focus on a subject farther than 31 in. (80 cm) away.
Farther than 59 in. (150 cm) away when you use the zoom.
Macro: Focus on a subject that is 4-31 in. (10-80 cm) from the
camera. 59-138 in. (150-350 cm) when you use the zoom.
Auto Macro:
•
Focus on a subject farther than 0.4 in. (1 cm) away.
Farther than 59 in. (150 cm) away when you use the zoom.
•
It is set automatically in some shooting modes.
Super Macro: Focus on a subject that is 0.4 in. (1 cm) from the
camera.
Available options may dier depending on the shooting conditions.
In some modes, you can also set the focus option by pressing [
m
], and then
selecting Focus.
Changing the camera’s focus
Shooting options
62
Using tracking auto focus
Tracking AF allows you to track and auto focus on your subject, even when you are
moving.
1 In Shooting mode, press [
m
].
2 Select Focus Area → Tracking AF.
3 Focus on the subject you want to track, and then press [
o
].
•
A focus frame appears on the subject and follows the subject as you move
the camera.
•
The white frame means that your camera is tracking the subject.
•
When you half-press [Shutter], the green frame means that your subject is in
focus.
•
The red frame means that your camera failed to focus.
4 Press [Shutter] to capture the photo.
Focusing on a selected area
You can focus on an area that you have selected.
1 In Shooting mode, press [
m
].
2 Select Focus Area → Selection AF.
3 Press [
o
], and then press [
D
/
c
/
F
/
t
] to move the frame to
a desired area.
Move Set
4 Press [
o
].
5 Press [Shutter] to capture the photo.
•
Press [
o
] to change the focus area.
If you use this function, you cannot set Face Detection options, Timer options, and
Intelli zoom.
Changing the camera’s focus
Shooting options
63
•
If you do not select a focus area, the focus frame will appear in the center of the
screen.
•
Tracking a subject may fail when:
-
the subject is too small
-
the subject moves excessively
-
the subject is backlit or you are shooting in a dark place
-
colors or patterns on the subject and the background are the same
-
the subject includes horizontal patterns, such as blinds
-
the camera shakes excessively
•
When tracking fails, the feature will be reset.
•
If the camera fails to track the subject, you must reselect the subject to track.
•
If the camera fails to focus, the focus frame will change to red and the focus will
be reset.
•
If you use this function, you cannot set Face Detection options, Timer options,
Drive options and Intelli zoom.
Shooting options
64
Detecting faces
Your camera automatically detects up to 10 human faces in one scene.
1 In Shooting mode, press [
m
].
2 Select Face Detection → Normal.
The face nearest the camera or nearest
the center of the scene appears in a
white focus frame and the rest of the
faces appear in gray focus frames.
The closer you are to the subjects, the quicker your camera will detect faces.
Capturing a self portrait shot
Capture photos of yourself. The camera sets the focus distance to close-up, and then
emits a beep when ready.
1 In Shooting mode, press [
m
].
2 Select Face Detection → Self-Portrait.
3 Compose your shot with the lens facing you.
4 When you hear a quick beep, press [Shutter].
When faces are located in the center,
the camera beeps rapidly.
If you turn Volume o in the sound settings, the camera will not emit a beep.
(p. 111)
Using Face Detection
If you use Face Detection options, your camera can automatically detect a human face. When you focus on a human face, the camera adjusts the exposure automatically. Use
Blink Detection to detect closed eyes or Smile Shot to capture a smiling face.
Using Face Detection
Shooting options
65
Capturing a smile shot
The camera automatically releases the shutter when it detects a smiling face.
1 In Shooting mode, press [
m
].
2 Select Face Detection → Smile Shot.
3 Compose your shot.
•
The camera automatically releases the shutter when it detects a smiling face.
When your subject smiles
broadly, your camera can detect
the smile more easily.
Detecting eye blinking
If your camera detects closed eyes, it will automatically capture 2 photos in
succession.
1 In Shooting mode, press [
m
].
2 Select Face Detection → Blink Detection.
Using Face Detection
Shooting options
66
Tips for detecting faces
•
When your camera detects a face, it tracks the detected face automatically.
•
Face Detection may not be eective when:
-
the subject is far from the camera
-
it is too bright or too dark
-
the subject is not facing the camera
-
the subject is wearing sunglasses or a mask
-
the subject’s facial expression changes drastically
-
the subject is backlit or the lighting conditions are unstable
•
Face Detection is not available when you set the Selection AF or Tracking AF.
•
When you set Face Detection options, the AF area is automatically set to Multi AF.
•
Depending on the Face Detection options you selected, some shooting options
may not be available.
•
Depending on the shooting options you selected, Face Detection options may
not be available.
Shooting options
67
3 Press [F/
t
] to adjust the exposure.
•
The photo will be brighter as the exposure value increases.
Back Set
EV : +1
4 Press [
o
] to save your settings.
•
Once you adjust the exposure, the setting will be stored automatically. You
may need to change the exposure value later to avoid overexposure or
underexposure.
•
If you cannot decide on an appropriate exposure, select the AEB (Auto Exposure
Bracket) option. The camera will capture 3 consecutive photos, each with a
dierent exposure: normal, underexposed, and overexposed. (p. 71)
Adjusting the exposure manually (EV)
Depending on the intensity of the ambient light, your photos may be too bright or
dark. In these cases, you can adjust the exposure to get a better photo.
Darker (-)
Neutral (0)
Brighter (+)
1 In Shooting mode, press [
m
].
2 Select EV.
Adjusting brightness and color
Learn how to adjust the brightness and color for better image quality.
Adjusting brightness and color
Shooting options
68
Changing the metering option
The metering mode refers to the way in which a camera measures the quantity
of light. The brightness and lighting of your photos will vary depending on the
metering mode you select.
1 In Shooting mode, press [
m
].
2 Select Metering.
3 Select an option.
Icon Description
Multi:
•
Your camera divides the frame into several areas, and then
measures the light intensity of each area.
•
Suitable for general photos.
Spot:
•
Your camera measures only the light intensity at the very center
of the frame.
•
If a subject is not in the center of the frame, your photo may be
improperly exposed.
•
Suitable for a subject with backlighting.
Center-weighted:
•
Your camera averages the meter reading of the entire frame with
emphasis placed on the center.
•
Suitable for photos with subjects in the center of the frame.
Compensating for backlighting (ACB)
When the light source is behind your subject or there is high contrast between your
subject and the background, your subject is likely to appear dark in the photo. In
this case, set the Auto Contrast Balance (ACB) option.
▲ Without ACB ▲ With ACB
1 In Shooting mode, press [
m
].
2 Select ACB.
3 Select an option.
Icon Description
O: ACB (Auto Contrast Balance) is deactivated.
On: ACB (Auto Contrast Balance) is activated.
•
The ACB feature is always on in mode.
•
The ACB feature is not available when you set burst options.
Adjusting brightness and color
Shooting options
69
1 In Shooting mode, press [
m
].
2 Select White Balance.
3 Select an option.
Icon Description
Auto WB: Automatically set the White Balance based on the
lighting conditions.
Daylight: For outdoor photos on a sunny day.
Cloudy: For outdoor photos on a cloudy day or in shadows.
Fluorescent_H: For shooting under a daylight uorescent or 3-way
uorescent light.
Fluorescent_L: For shooting under white uorescent light.
Tungsten: For shooting indoor photos under incandescent bulbs
or halogen lamps.
Custom Set: To use White Balance settings that you dene. (p. 70)
Color Temp.: To adjust the color temperature of the light source.
(p. 70)
Selecting a White Balance setting
The color of your photo depends on the type and quality of the light source. If you
want the color of your photo to be realistic, select a White Balance setting that
is appropriate for the lighting conditions, such as Auto WB, Daylight, Cloudy, or
Tungsten.
Auto WB Daylight
Cloudy Tungsten
Adjusting brightness and color
Shooting options
70
Adjusting color temperature
1 In Shooting mode, press [
m
].
2 Select White Balance → Color Temp..
3 Press [
F
/
t
] to adjust the color temperature to match your light
source.
•
You can get a warmer photo with a higher value, and a cooler photo with a
lower value.
Back Set
Color Temp. : 6500K
4 Press [
o
] to save your settings.
Dening your own White Balance
You can customize the White Balance by capturing a photo of a white surface, such
as a piece of paper, under the lighting conditions in which you intend to capture a
photo. The White Balance feature will help you to match the colors in your photo
with the actual scene.
1 In Shooting mode, press [
m
].
2 Select White Balance → Custom Set.
3 Aim the lens at a piece of white paper, and then press [Shutter].
Shooting options
71
1 In Shooting mode, press [
m
].
2 Select Drive.
3 Select an option.
Icon Description
Single: Capture a single photo.
Continuous:
•
While you are pressing [Shutter], the camera continuously
captures photos.
•
The maximum number of photos depends on the capacity of
your memory card.
Icon Description
Motion Capture: While you are pressing [Shutter], the camera
captures photos (5 photos per second; maximum of 30 photos).
AEB:
•
Capture 3 consecutive photos, each with a dierent exposure:
normal, underexposed, and overexposed.
•
Use a tripod to prevent blurry photos.
•
You can use the ash, timer, OIS, and ACB only when you select Single.
•
When you select Motion Capture, your camera will set the resolution to
and set the ISO sensitivity to Auto.
•
Depending on the Face Detection option you selected, some Burst options may
not be available.
Using burst modes
(continuous, motion capture, AEB)
It can be dicult to capture photos of fast-moving subjects or capture natural facial expressions and gestures of your subjects in photos. Also, it can be dicult to adjust the
exposure correctly and select a proper light source. In these cases, select one of the burst modes.
Shooting options
72
1 In Shooting mode, press [
m
].
2 Select Image Adjust.
3 Select an option.
•
Sharpness
•
Contrast
•
Saturation
Image Adjust
Sharpness
Contrast
Saturation
Back Set
4 Press [
F
/
t
] to adjust each value.
Sharpness Description
-Soften the edges on your photos (suitable for editing the
photos on your computer).
+Sharpen the edges to improve the clarity of your photos. This
may also increase the noise in your photos.
Contrast Description
-Decrease the color and brightness.
+Increase the color and brightness.
Saturation Description
-Decrease the saturation.
+Increase the saturation.
5 Press [
o
] to save your settings.
Select 0 if you do not want to apply any eects (suitable for printing).
Adjusting images
Adjust the sharpness, contrast, or saturation of your photos.
Shooting options
73
1 In Shooting mode, press [
m
].
2 Select Voice.
3 Select an option.
Icon Description
Zoom Mute: The camera stops recording sound temporarily when
you use the zoom.
O: Record a video without sound.
On: Record a video with sound.
•
Do not block the microphone when you use the Voice function.
•
Recordings made with Voice may dier from actual sounds.
Reducing the sound of the zoom
When you use the zoom while recording videos, the camera can record the sound of the zoom. Use the Zoom Mute function not to record zoom noise.
Viewing photos or videos in Playback mode
… 75
Starting Playback mode
……………………… 75
Viewing photos
………………………………… 79
Playing a video
………………………………… 82
Editing a photo
………………………………… 83
Resizing photos
………………………………… 83
Rotating a photo
……………………………… 83
Applying Smart Filter eects
…………………… 84
Adjusting your photos
………………………… 85
Editing a video
…………………………………… 87
Trimming a video
……………………………… 87
Capturing an image from video
……………… 87
Viewing les on a TV
…………………………… 88
Transferring les to a computer
……………… 89
Transferring les to your Windows OS
computer
……………………………………… 89
Transferring les to your Mac OS computer
…… 90
System Requirements
…………………………… 91
Playback/Editing
Learn how to play back photos or videos, and edit photos or videos. Also, learn how to connect your camera to
your computer or TV.
Playback/Editing
75
Viewing photos or videos in Playback mode
Learn how to play back photos or videos and how to manage les.
Photo le information
File Information
Histogram
Memory in use
Album/Zoom In
Icon Description
Current le/Total les
Folder name–File name
Protected le
To display le information on the screen, press [
D
].
Starting Playback mode
View photos or play videos stored in your camera.
1 Press [
P
].
•
The most recent le will be displayed.
•
If the camera is o, it will turn on and display the most recent le.
2 Press [
F
/
t
] to scroll through les.
•
Press and hold [
F
/
t
] to scroll through les quickly.
•
If you want to view les stored in the internal memory, remove your memory
card.
•
You may not be able to edit or play back les that were captured with other
cameras, due to unsupported sizes (image size, etc) or codecs. Use a computer
or another device to edit or play back these les.
•
Photos or videos captured in portrait orientation do not rotate automatically and
are displayed in landscape orientation by the camera and other devices.
Viewing photos or videos in Playback mode
Playback/Editing
76
Video le information
Play Capture
File Information
Album
Icon Description
Current le/Total les
Folder name-File name
Current playback time
Video length
Protected le
To display le information on the screen, press [
D
].
Viewing les as thumbnails
Scan thumbnails of les.
In Playback mode, rotate [Zoom] to the left to view thumbnails
(12 at a time). Rotate [Zoom] to the left once more to display
more thumbnails (24 at a time). Rotate [Zoom] to the right to
return to the previous view.
Menu
Move to the desired le, and
then press [
o
] to display it
in full screen view.
Press [
D
/
c
/
F
/
t
] to scroll through les.
Viewing photos or videos in Playback mode
Playback/Editing
77
Viewing les by category
View les by category, such as date or le type.
1 In Playback mode, rotate [Zoom] to the left.
2 Press [
m
].
3 Select Filter → a category.
All
Date
File Type
Back Set
Filter
Icon Description
All: View les normally.
Date : View les by the date they were saved.
File Type: View les by the le type.
4 Scroll to a desired list, and then press [
o
] to open the list.
5 Scroll to a desired le, and then press [
o
] to view the le.
6 Rotate [Zoom] to the left to return to the previous view, and then
press [r].
•
If you change the category, it may take some time for the camera to reorganize
les depending on the number of les.
•
If you delete a category classied by Date or File Type, all les in the category
will be deleted.
Viewing photos or videos in Playback mode
Playback/Editing
78
Protecting les
Protect a le from accidental deletion.
1 In Playback mode, select a le to protect.
2 Press [m], and then select Protect → On .
3 Repeat steps 1 and 2 to protect additional les.
You cannot delete, resize, or rotate a protected le.
Deleting les
Select les to delete in Playback mode.
Deleting a single le
You can select one le, and then delete it.
1 In Playback mode, select a le, and then press [
f
].
2 When the pop-up message appears, select Yes .
You can also delete les in Playback mode by pressing [
m
], and then selecting
Delete → Delete → Yes.
Deleting multiple les
You can select multiple les, and then delete them at once.
1 In Playback mode, press [
f
].
•
When in thumbnails view, press [
m
], select Delete → Select, and then
skip to step 3, or press [
f
], select Select, and then skip to step 3.
2 When the pop-up message appears, select Multiple Delete.
3 Scroll to each le you want to delete, and then press [
o
].
•
Press [
o
] again to cancel your selection.
4 Press [
f
].
5 When the pop-up message appears, select Yes .
Viewing photos or videos in Playback mode
Playback/Editing
79
Deleting all les
You can select all les, and then delete them at once.
1 In Playback mode, press [
m
].
•
When in thumbnails view, press [
m
], select Delete → Delete All, and then
skip to step 3, or press [
f
], select Delete All, and then skip to step 3.
2 Select Delete → Delete All.
3 When the pop-up message appears, select Yes .
•
All unprotected les are deleted.
Copying les to a memory card
Copy les from the internal memory to a memory card.
1 In Playback mode, press [
m
].
2 Select Copy to Card.
Viewing photos
Enlarge part of a photo or view photos as a slide show.
Enlarging a photo
In Playback mode, rotate [Zoom] to the right to enlarge a portion
of the photo. Rotate [Zoom] to the left to zoom out.
Enlarged area
Back Crop
Viewing photos or videos in Playback mode
Playback/Editing
80
To Description
Move the enlarged area Press [
D
/
c
/
F
/
t
].
Trim the enlarged photo
Press [
o
], and then select Ye s .
(The trimmed photo will be saved as a new le. The
original photo is retained in its original form.)
When you view photos that were captured by another camera, the zoom ratio may
dier.
Viewing panoramic photos
View photos captured in Panorama mode.
1 In Playback mode, press [
F
/
t
] to scroll to a desired panoramic
photo.
•
The entire panoramic photo appears on the screen.
2 Press [
o
].
•
The camera automatically scrolls through the photo from left to right for a
horizontal panoramic photo and from top to bottom for a vertical panoramic
photo. The camera then switches to Playback mode.
•
While playing back a panoramic photo, press [
o
] to pause or resume from
pausing.
•
After you have paused the playback of a panoramic photo, press
[
D
/
c
/
F
/
t
] to move the photo horizontally or vertically, depending on
the direction you moved when capturing the photo.
3 Press [
r
] to return to Playback mode.
The camera automatically scrolls through the panoramic photo only if the longest
side of the photo is two or more times longer than the shortest side.
Viewing photos or videos in Playback mode
Playback/Editing
81
Playing a slide show
Apply eects and audio to a slide show of your photos. The slide show function
does not work for videos.
1 In Playback mode, press [
m
].
2 Select Slide Show Options.
•
Skip to step 5 to start a slide show with no eects.
3 Select a slide show eect option.
* Default
Option Description
Play Mode Set whether or not to repeat the slide show. (One Play*, Repeat)
Interval
•
Set the interval between photos. (1 sec*, 3 sec, 5 sec, 10 sec)
•
You must set the Eect option to O to set the interval.
Music Set background audio.
Eect
•
Set a scene change eect between photos. (O, Calm*, Relax,
Lively, Sweet, Shine)
•
Select O to cancel eects.
•
When you use the Eect option, the interval between photos
will be set to 1 second.
4 Press [
m
] or [
r
].
5 Select Start Slide Show.
6 View the slide show.
•
Press [
o
] to pause the slide show.
•
Press [
o
] again to resume the slide show.
•
Press [
r
] to stop the slide show and return to Playback mode.
•
Rotate [Zoom] to the left or right to adjust the volume level.
Viewing photos or videos in Playback mode
Playback/Editing
82
Playing a video
In Playback mode, you can view a video, and then capture or trim parts of the
playing video. You can save the captured or trimmed segments as new les.
1 In Playback mode, select a video, and then press [
o
].
2 View the video.
Stop Pause
Current playback time/
Video length
To Description
Scan backward
Press [
F
]. Each time you press [
F
], you
change the scan speed in this order: 2X, 4X,
8X.
Pause or resume playback Press [
o
].
Scan forward
Press [
t
]. Each time you press [
t
], you
change the scan speed in this order: 2X, 4X,
8X.
Adjust the volume level Rotate [Zoom] to the left or right.
You can scan backwards or forwards or pause the video after at least 2 seconds
have elapsed from the starting point.
Playback/Editing
83
Editing a photo
Learn how to edit photos.
•
The camera will save edited photos as new les.
•
When you edit photos, the camera will automatically convert them to a lower resolution. Photos that you rotate or resize manually are not automatically converted to a lower
resolution.
Rotating a photo
1 Rotate the mode dial to .
2 Select .
3 Rotate [Zoom] to the left, and then select a photo.
4 Select Rotate → an option.
Cancel Save
Rotate : Right 90˚
5 Press [
c
] to save.
•
The camera will overwrite the original le.
•
In Playback mode, press [
m
], and then select Rotate to rotate a photo.
Resizing photos
Change the size of a photo and save it as a new le.
1 In Playback mode, select a photo, and then press [
m
].
2 Select Resize.
3 Select an option.
Back Set
2592 X 1944
1984 X 1488
1024 X 768
Resize
Available resize options dier depending on the original size of the photo.
Editing a photo
Playback/Editing
84
Applying Smart Filter eects
Apply special eects to your photos.
1 Rotate the mode dial to .
2 Select .
3 Rotate [Zoom] to the left, and then select a photo.
4 Select Smart Filter → an option.
Cancel Set
Smart Filter : Miniature
Option Description
Normal No eect
Miniature
Apply a tilt-shift eect to make the subject appear in
miniature. (The top and bottom of the photo will be
blurred.)
Vignetting Apply the retro-looking colors, high contrast, and strong
vignette eect of Lomo cameras.
Fish-eye Distort close objects to imitate the visual eect of a sheye
lens.
Classic Apply a black and white eect.
Retro Apply a sepia tone eect.
Cross Filter Add lines that radiate outward from bright objects to
imitate the visual eect of a cross lter.
5 Press [
c
] to save.
Editing a photo
Playback/Editing
85
Adjusting your photos
Learn how to adjust the brightness, contrast, or saturation or how to correct the
red-eye eect. If the center of a photo is dark, you can adjust it to be brighter.
The camera will save an edited photo as a new le, but may convert it to a lower
resolution.
•
You can adjust brightness, contrast, and saturation and apply Smart Filter eects
at the same time.
•
You cannot apply the ACB, Face Retouch, and Red-eye Fix eects at the same
time.
Adjusting brightness, contrast, or saturation
1 Rotate the mode dial to .
2 Select .
3 Rotate [Zoom] to the left, and then select a photo.
4 Select an adjusting option.
Icon Description
Brightness
Contrast
Saturation
5 Press [
F
/
t
] to adjust the option.
6 Press [
o
].
7 Press [
c
] to save.
Adjusting dark subjects (ACB)
1 Rotate the mode dial to .
2 Select .
3 Rotate [Zoom] to the left, and then select a photo.
4 Select ACB.
5 Press [
c
] to save.
Editing a photo
Playback/Editing
86
Retouching faces
1 Rotate the mode dial to .
2 Select .
3 Rotate [Zoom] to the left, and then select a photo.
4 Select Face Retouch.
5 Press [
F
/
t
] to adjust the option.
•
As the number increases, the skin tone becomes brighter and smoother.
6 Press [
c
] to save.
Removing red-eye
1 Rotate the mode dial to .
2 Select .
3 Rotate [Zoom] to the left, and then select a photo.
4 Select Red-eye Fix.
5 Press [
c
] to save.
Playback/Editing
87
Editing a video
While playing back a video, you can trim the video or capture an image from the video.
Capturing an image from video
1 While viewing a video, press [
o
] at the point where you want to
capture an image.
2 Press [
c
].
•
The resolution of the captured image will be the same as the original video.
•
The captured image is saved as a new le.
Trimming a video
1 In Playback mode, select a video, and then press [
m
].
2 Select Trim Movie.
3 Press [
o
] to start playing the video.
4 Press [
o
] → [
c
] at the point where you want the trimming to
begin.
5 Press [
o
] to resume playing the video.
6 Press [
o
] → [
c
] at the point where you want the trimming to end.
7 Press [
c
] to trim.
8 When the pop-up message appears, select Yes .
•
The original video should be at least 10 seconds long.
•
The camera will save the edited video as a new le and leave the original video
intact.
Playback/Editing
88
1 Rotate the mode dial to .
2 Select Connectivity → Video Out.
3 Select the video signal output for your country or region. (p. 112)
4 Turn o your camera and TV.
5 Connect your camera to your TV with the A/V cable.
Video
Audio
6 Turn on your TV, and then select the A/V video source.
7 Turn on your camera.
•
The camera automatically enters Playback mode when you connect it to a TV.
8 View photos or play videos using the camera buttons.
•
Depending on the TV model, you may see some digital noise or part of an image
may not appear.
•
Images may not be centered on the TV screen depending on your TV settings.
Viewing les on a TV
Play back photos or videos by connecting your camera to a TV with the A/V cable.
Playback/Editing
89
Transferring les to your Windows OS computer
Connect the camera to your computer as a removable disk.
Your computer must be running Windows XP, Windows Vista, Windows 7, or
Windows 8 for you to connect the camera as a removable disk.
1 Rotate the mode dial to .
2 Select Connectivity → i-Launcher → O.
3 Turn o the camera.
4 Connect the camera to your computer with the USB cable.
You must plug the small end of the USB cable into your camera. If the cable is
reversed, it may damage your les. The manufacturer is not responsible for any
loss of data.
5 Turn on the camera.
•
The computer recognizes the camera automatically.
6 On your computer, select My Computer → Removable Disk →
DCIM → 100PHOTO.
7 Drag or save les to your computer.
Disconnecting the camera (for Windows XP)
With Windows Vista , Windows 7 and Windows 8 the methods for disconnecting the
camera are similar.
1 If the status lamp on your camera is blinking, wait until it stops.
2 Click on the tool bar at the bottom right of your computer screen.
3 Click the pop-up message.
4 Click the message box that indicates the camera can be removed
safely.
5 Remove the USB cable.
Transferring les to a computer
Connect the camera to the computer, to transfer les from the camera's memory card to the computer.
Transferring les to a computer
Playback/Editing
90
Transferring les to your Mac OS computer
When you connect the camera to your Mac OS computer, the computer will
automatically recognize the device. You can transfer les directly from the camera to
the computer without installing any programs.
Mac OS 10.5 or later (except PowerPC) is supported.
1 Turn o the camera.
2 Connect your camera to your Mac OS computer with the USB cable.
You must plug the small end of the USB cable into your camera. If the cable is
reversed, it may damage your les. The manufacturer is not responsible for any
loss of data.
3 Turn on the camera.
•
The computer recognizes the camera automatically and displays a removable
disk icon.
4 On your computer, open the removable disk.
5 Drag or save les to your computer.
Playback/Editing
91
System Requirements
Recommended system requirements to play videos on a PC or run the i-Launcher application.
Mac OS requirements
Item Requirements
OS Mac OS 10.5 or higher (except PowerPC)
RAM Minimum 256 MB RAM (512 MB or more recommended)
Hard disk capacity Minimum 110 MB
Others USB 2.0 port
•
The requirements are recommendations only. It may not work properly even
when the computer meets the requirements, depending on the condition of
your computer.
•
The manufacturer is not responsible for any damage that results from using
unqualied computers such as a computer you assembled yourself.
Windows OS Requirements
Item Requirements
CPU Intel® Pentium®4 3.2 GHz or higher/
AMD Athlon™ FX 2.6 GHz or higher
RAM Minimum 512 MB RAM (1 GB or more recommended)
OS* Windows 7 or Windows 8
Hard disk capacity 250 MB or more (1 GB and above recommended)
Others
•
1024 X 768 pixels, 16-bit color display compatible
monitor (1280 X 1024 pixels, 32-bit color display
recommended)
•
USB 2.0 port
•
nVIDIA Geforce 7600GT or higher/
ATI X1600 series or higher
* A 32-bit version of i-Launcher will be installed—even on 64-bit editions of Windows 7 and
Windows 8.
Connecting to a WLAN and conguring network
settings
…………………………………………… 93
Connecting to a WLAN
………………………… 93
Using the login browser
……………………… 94
Network connection tips
……………………… 95
Entering text
…………………………………… 96
Using the NFC Feature (Tag & Go)
……………… 97
Using NFC features in Shooting mode
………… 97
Using NFC features in Playback mode
(Photo Beam)
…………………………………… 97
Using NFC features in Wi-Fi mode
……………… 97
Saving les to a smart phone automatically
… 98
Sending photos or videos to a smart phone
… 99
Using a smart phone as a remote shutter
release
…………………………………………… 100
Sending photos or videos via email
…………… 102
Changing email settings
……………………… 102
Sending photos or videos via email
…………… 104
Using photo or video sharing services
……… 105
Accessing a sharing service
…………………… 105
Uploading photos or videos
…………………… 105
Using Samsung Link to send les
……………… 107
Viewing photos or videos on devices that support
Samsung Link
…………………………………… 107
Wireless network
Learn to connect to wireless local area networks (WLANs) and use functions.
Wireless network
93
Connecting to a WLAN and conguring network settings
Learn to connect via an access point (AP) when you are in a range of a WLAN. You can also congure network settings.
Icon Description
Ad hoc AP
Secured AP
WPS AP
Signal strength
Press [
t
] to open network setting options.
•
When you select a secured AP, a pop-up window appears. Enter the required
passwords to connect to the WLAN. For information about entering text, refer
to "Entering text". (p. 96)
•
When a login page appears, refer to "Using the login browser". (p. 94)
•
When you select an unsecured AP, the camera will connect to the WLAN.
•
If you select a WPS prole supported AP, select → WPS PIN connection,
and then enter a PIN on the AP device. You can also connect to a WPS prole
supported AP by selecting → WPS button connection on the camera, and
then pushing the WPS button on the AP device.
•
If a pop-up message about data collection regulations appears, read and
agree to it.
Connecting to a WLAN
1 Rotate the mode dial to .
2 Select , , or .
3 Follow the on-screen instructions until the Wi-Fi Setting screen
appears.
•
The camera automatically searches for available AP devices.
•
In some modes, press [
m
], and then select Wi-Fi Setting.
4 Select an AP.
Wi-Fi Setting
Refresh
Samsung 1
Samsung 2
Samsung 3
Samsung 4
Back Manual
•
Select Refresh to refresh the list of connectable APs.
•
Select Add wireless network to add an AP manually. The AP name must be
in English to add the AP manually.
Connecting to a WLAN and conguring network settings
Wireless network
94
Setting network options
1 In the Wi-Fi Setting screen, move to an AP, and then press [
t
].
2 Select each option, and then enter the required information.
Option Description
Network Password Enter the network password.
IP Setting Set the IP address automatically or manually.
Manually setting the IP address
1 In the Wi-Fi Setting screen, move to an AP, and then press [
t
].
2 Select IP Setting → Manual.
3 Select each option, and then enter the required information.
Option Description
IP Enter the static IP address.
Subnet Mask Enter the subnet mask.
Gateway Enter the gateway.
DNS Server Enter the DNS address.
Using the login browser
You can enter your login information via the login browser when connecting to
some APs, sharing sites, or cloud servers.
Button Description
[
D
/
c
/
F
/
t
]Move to an item or scroll the page.
[
o
] Select an item.
[
m
]
Access the following options:
•
Previous Page: Move to the previous page.
•
Next Page: Move to the next page.
•
Reload: Reload the page.
•
Stop: Stop loading the page.
•
Exit: Close the login browser.
[
f
] Close the login browser.
•
You may not be able to select some items depending on the page you
connected to. This does not indicate a malfunction.
•
The login browser may not close automatically after you log into some pages. If
this occurs, close the login browser by pressing [
f
], and then proceed with the
desired operation.
•
It may take longer to load the login page due to the page size or network speed.
If this occurs, wait until the login information input window appears.
Connecting to a WLAN and conguring network settings
Wireless network
95
Network connection tips
•
Some Wi-Fi features are not available if you do not insert a memory card.
•
The quality of the network connection will be determined by the AP.
•
The further the distance between your camera and the AP, the longer it will take
to connect to the network.
•
If a nearby device is using the same radio frequency signal as your camera, it may
interrupt your connection.
•
If your AP name is not in English, the camera may not be able to locate the device
or the name may appear incorrectly.
•
For network settings or a password, contact your network administrator or
network service provider.
•
If a WLAN requires authentication from the service provider, you may not be able
to connect to it. To connect to the WLAN, contact your network service provider.
•
Depending on the encryption type, the number of digits in the password may
dier.
•
A WLAN connection may not be possible in all surroundings.
•
The camera may display a WLAN enabled printer on the AP List. You cannot
connect to a network via a printer.
•
You cannot connect your camera to a network and a TV simultaneously.
•
Connecting to a network may incur additional charges. Costs will vary based on
the conditions of your contract.
•
If you cannot connect to a WLAN, try another AP from the available AP list.
•
A login page may appear when you select free WLANs provided by some
network service providers. Enter your ID and password to connect to the WLAN.
For information about registering or the service, contact the network service
providers.
•
Be cautious when you enter personal information for an AP connection. Do not
enter any payment or credit card information on your camera. The manufacturer
is not liable for any problem caused by entering such information.
•
Available network connections may dier by country.
•
The WLAN feature of your camera must comply with radio transmission laws in
your region. To ensure compliance, use the WLAN feature only in the country
where you purchased the camera.
•
The process for adjusting network settings may dier, depending on network
conditions.
•
Do not access a network that you are not authorized to use.
•
Before you connect to a network, ensure your battery is fully charged.
•
You cannot upload or send les captured in some modes.
•
Files that you transfer to another device may not be supported by the device. In
this case, use a computer to playback the les.
Connecting to a WLAN and conguring network settings
Wireless network
96
Entering text
Learn how to enter text. The icons in the table below let you move the cursor,
change the case, etc. Press [
D
/
c
/
F
/
t
] to move to a desired key, and then
press [
o
] to enter the key.
Cancel Backspace
Done
Icon Description
Delete the last letter.
Move the cursor.
In ABC mode, change the case.
Enter ".com".
Switch between Symbol mode and ABC mode.
Enter a space.
Done Save the displayed text.
View the entering text guide.
•
You can use only the English alphabets in some modes, regardless of the display
language.
•
To move to Done directly, press [
P
].
•
You can enter up to 64 characters.
•
The screen may dier depending on the input mode.
Wireless network
97
Using the NFC Feature (Tag & Go)
Place a smart phone's NFC tag near the camera’s NFC tag to launch the feature for saving photos to a smart phone automatically or the feature for using a smart phone as a
remote shutter. You can also transfer les to an NFC-enabled device in Playback mode.
•
This feature is supported by NFC-enabled smart phones running Android OS. It is recommended that you use the latest version. This feature is not available for iOS devices.
•
You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps or the Google Play Store.
Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.
•
To read an NFC tag, place the NFC-enabled device near the camera’s NFC tag for more than 2 seconds.
•
Do not modify the tag information in any way.
Using NFC features in Wi-Fi mode
Select MobileLink or Remote Viewnder from the pop-up window that appears by
reading a tag from an NFC-enabled device. (p. 99, 100)
Using NFC features in Shooting mode
Launch AutoShare or Remote Viewnder by reading a tag from an NFC-enabled
device. (p. 98, 100) Preset to launch the Wi-Fi function by reading a tag on an NFC-
enabled device. (p. 114)
Using NFC features in Playback mode (Photo Beam)
In Playback mode, the camera transfers the current le to the smart phone
automatically when you read a tag from an NFC-enabled device.
•
To transfer multiple les, select les from the thumbnail view, and then read a tag
from an NFC-enabled device.
Wireless network
98
Saving les to a smart phone automatically
The camera connects to a smart phone that supports the AutoShare feature via a WLAN. When you capture a photo with your camera, the photo is saved to the smart phone
automatically.
•
The AutoShare feature is supported by smart phones or tablets running Android OS or iOS. Some features may not be supported by some models. Before using this feature, update
the device’s rmware to the latest version. If the rmware version is not the most recent, this function may not perform properly.
•
You should install the Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store,
or the Apple App Store. The Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.
•
This feature is not available with the internal memory in some Shooting modes.
•
If you set this function, the setting is maintained even when you change the Shooting mode.
•
This feature may not be supported in some modes.
5 On the camera, allow the smart phone to connect to your camera.
•
If the smart phone has been connected to your camera before, it is connected
automatically.
•
An icon that shows the connection status ( ) will appear on the camera’s
screen.
6 On the camera, capture a photo.
•
The captured photo is saved to the camera, and then transferred to the smart
phone.
•
If you recorded a video, it is saved only to the camera.
1 On the camera, in Shooting mode, press [
m
].
2 On the camera, select AutoShare → On.
•
If the pop-up message that prompts you to download the application
appears, select Next.
3 On the smart phone, turn on the Samsung SMART CAMERA App.
•
For iOS devices, turn on the Wi-Fi feature before turning on the application.
•
To start the application automatically on an NFC-enabled smart phone, turn
on the function and place the smart phone near the NFC tag (p. 21) on the
camera.
4 Select the camera from the list and connect the smart phone to the
camera.
•
The smart phone can connect to only one camera at a time.
Wireless network
99
Sending photos or videos to a smart phone
The camera connects to a smart phone that supports the MobileLink feature via a WLAN. You can easily send photos or videos to your smart phone.
•
The MobileLink feature is supported by smart phones or tablets running Android OS or iOS. Some features may not be supported by some models. Before using this feature, update
the device’s rmware to the latest version. If the rmware version is not the most recent, this function may not perform properly.
•
You should install the Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store,
or the Apple App Store. The Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.
•
When there are no les in the camera memory, you cannot use this feature.
•
If you select les from the smart phone, you can view up to 1,000 recent les and send up to 1,000 les at a time. If you select les from the camera, you can view les that were
selected from the camera and the maximum number of les you can send varies depending on the storage space of the smart phone.
•
When using this feature on an iOS device, the device may lose its Wi-Fi connection.
5 Select the camera from the list and connect the smart phone to the
camera.
•
The smart phone can connect to only one camera at a time.
6 On the camera, allow the smart phone to connect to your camera.
•
If the smart phone has been connected to your camera before, it is connected
automatically.
7 On the smart phone or camera, select les to transfer from the
camera.
8 On the smart phone, touch the copy button or on the camera, select
Send.
•
The camera will send the les.
1 On the camera, rotate the mode dial to .
2 On the camera, select .
•
If the pop-up message that prompts you to download the application
appears, select Next.
3 On the camera, select a sending option.
•
If you select Select Files from Smartphone, you can use your smart phone
to view and share les stored on the camera. The screen turns o if you
perform no operations on the smart phone for 30 seconds. The screen turns
o if you perform no operations on the smart phone for 30 seconds.
•
If you select Select Files from Camera, you can select les to send on the
camera.
4 On the smart phone, turn on the Samsung SMART CAMERA App.
•
For iOS devices, turn on the Wi-Fi feature before turning on the application.
•
To start the application automatically on an NFC-enabled smart phone, turn
on the function and place the smart phone near the NFC tag (p. 21) on the
camera.
Wireless network
100
1 On the camera, rotate the mode dial to .
2 On the camera, select .
•
If the pop-up message that prompts you to download the application
appears, select Next.
3 On the smart phone, turn on the Samsung SMART CAMERA App.
•
For iOS devices, turn on the Wi-Fi feature before turning on the application.
•
To start the application automatically on an NFC-enabled smart phone, turn
on the function and place the smart phone near the NFC tag (p. 21) on the
camera.
4 Select the camera from the list and connect the smart phone to the
camera.
•
The smart phone can connect to only one camera at a time.
5 On the camera, allow the smart phone to connect to your camera.
•
If the smart phone has been connected to your camera before, it is connected
automatically.
6 On the smart phone, set the following shooting options.
Icon Description
Flash option
Timer option
10
Photo size
Saving location
Zoom ratio
•
While using this feature, some buttons are not available on your camera.
•
With the smart phone, you can operate the camera only by touching the
screen.
•
Remote Viewnder mode supports the
10
and
3
photo sizes only.
Using a smart phone as a remote shutter release
The camera connects to a smart phone via a WLAN. Use the smart phone as a remote shutter release with the Remote Viewnder feature. The captured photo will display on the
smart phone.
•
The Remote Viewnder feature is supported by smart phones or tablets running Android OS or iOS. Some features may not be supported by some models. Before using this feature,
update the device’s rmware to the latest version. If the rmware version is not the most recent, this function may not perform properly.
•
You should install the Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store,
or the Apple App Store. The Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.
Using a smart phone as a remote shutter release
Wireless network
101
7 On the smart phone, touch and hold to focus.
•
The focus is automatically set to Multi AF.
8 Release to capture the photo.
•
The photo will be resized to 1024 X 768 when it is stored to the smart phone.
•
When you use this feature, the ideal distance between the camera and the smart
phone may vary, depending on your surroundings.
•
The smart phone must be within 23 feet (7 m) when you use this feature.
•
It will take some time to capture the photo after you release on the smart
phone.
•
The Remote Viewnder function will deactivate when:
-
there is an incoming call on the smart phone
-
either the camera or the smart phone turn o
-
the memory is full
-
either device loses its connection to the WLAN
-
the Wi-Fi connection is poor or unstable
-
you perform no operations for approximately 3 minutes while connected
Wireless network
102
Changing email settings
In the email menu, you can change settings for storing your information. You can
also set or change the email password. For information about entering text, refer to
"Entering text". (p. 96)
Storing your information
1 Rotate the mode dial to .
2 Select .
3 Connect to a WLAN. (p. 93)
4 Press [
m
].
5 Select Sender Setting.
6 Select the Name box, enter your name, and then select Done.
Name
Email
Back
Save Reset
Sender Setting
7 Select the Email box, enter your email address, and then select
Done.
8 Select Save to save your changes.
•
To delete your information, select Reset.
Sending photos or videos via email
You can change settings in the email menu and send photos or videos stored on the camera via email.
Sending photos or videos via email
Wireless network
103
Setting an email password
1 Rotate the mode dial to .
2 Select .
3 Connect to a WLAN. (p. 93)
4 Press [
m
].
5 Select Setting Password → On.
•
To deactivate the password, select O.
6 When the pop-up appears, select OK.
•
The pop-up disappears automatically even if you do not select OK.
7 Enter a 4-digit password.
8 Enter the password again.
9 When the pop-up appears, select OK.
If you forget your password, you can reset it by selecting Reset on the password
setting screen. When you reset the information the previously saved user’s setting
information, email address, and recently sent email list will be deleted.
Changing the email password
1 Rotate the mode dial to .
2 Select .
3 Connect to a WLAN. (p. 93)
4 Press [
m
].
5 Select Change Password.
6 Enter your current 4-digit password.
7 Enter a new 4-digit password.
8 Enter the new password again.
9 When the pop-up appears, select OK.
Sending photos or videos via email
Wireless network
104
Sending photos or videos via email
You can send photos or videos stored on the camera via email. For information
about entering text, refer to "Entering text". (p. 96)
1 Rotate the mode dial to .
2 Select .
3 Connect to a WLAN. (p. 93)
4 Select the Sender box, enter your email address, and then select
Done.
•
If you have previously saved your information, it will be inserted
automatically. (p. 102)
•
To use an address from the list of previous senders, select → an address.
5 Select the Receiver box, enter an email address, and then select
Done.
•
To use an address from the list of previous recipients, select → an address.
•
Select to add additional recipients. You can input up to 30 recipients.
•
Select to delete an address from the list.
6 Select Next.
7 Scroll to les to send, and then press [
o
].
•
You can select up to 20 les. The total size must be 7 MB or less.
8 Select Next.
9 Select the comment box, enter your comments, and then select
Done.
10
Select Send.
•
The camera will send the email.
•
Even if a photo appears to have transferred successfully, errors with the
recipient’s email account may cause the photo to be rejected or recognized as
spam.
•
You may not be able to send an email if no network connection is available or if
your email account settings are incorrect.
•
You cannot send an email if the combined le sizes exceed the 7MB. The
maximum photo resolution of photos you can send is 2M. The maximum
resolution of videos you can send is . If the selected photo has a resolution
higher than 2M, it will be automatically resized to a lower resolution.
•
If you cannot send an email because of rewall or user authentication settings,
contact your network administrator or network service provider.
•
When there are no les in the camera memory, you cannot use this feature.
•
You can also send an email in Playback mode by pressing [
m
], and then
selecting Share(Wi-Fi) → Email.
Wireless network
105
Accessing a sharing service
1 Rotate the mode dial to .
2 Select .
3 Connect to a WLAN. (p. 93)
4 Select a sharing service.
•
If the pop-up message that prompts you to create an account appears, select
OK.
5 Enter your ID and password to log in.
•
For information about entering text, refer to "Entering text". (p. 96)
•
To select an ID from the list, select → an ID.
•
If you have previously logged in to the sharing service, you may be logged in
automatically.
You must have an existing account on the le sharing services to use this feature.
Uploading photos or videos
1 Access the sharing service with your camera.
2 Select les to upload.
•
You can select up to 20 les. The total size must be 10 MB or less.
(On some sharing services, the total size or number of les may vary.)
3 Select Upload.
•
The camera will upload photos or videos.
•
On some sharing services, you can enter your comments by selecting the
comment box. For information about entering text, refer to "Entering text".
(p. 96)
Using photo or video sharing services
Upload your photos or videos to le sharing services. Available sharing services will be displayed on your camera. To upload les to some sharing services, you must visit the
services and register before connecting your camera.
Using photo or video sharing services
Wireless network
106
•
You can set an upload folder for Facebook by pressing [
m
], and then selecting Upload Folder (Facebook) on the sharing service's list screen.
•
You cannot upload les if the le size exceeds the limit. The maximum resolution of photos you can upload is 2M. The maximum resolution of videos you can upload is . If the
selected photo has a resolution higher than 2M, it will be automatically resized to a lower resolution. (On some sharing services, the maximum photo resolution may vary.)
•
The method of uploading photos or videos may dier depending on the selected sharing service.
•
If you cannot access a sharing service because of rewall or user authentication settings, contact your network administrator or network service provider.
•
Uploaded photos or videos may be automatically titled with the date they were captured.
•
The speed of your internet connection may aect how quickly photos upload or web pages open.
•
When there are no les in the camera memory, you cannot use this feature.
•
You can also upload photos or videos to le sharing services in Playback mode by pressing [
m
], and then selecting Share(Wi-Fi) → a sharing service.
•
You cannot upload videos to some sharing services.
Wireless network
107
Viewing photos or videos on devices that support Samsung
Link
1 Rotate the mode dial to .
2 Select → Nearby devices.
•
If the guide message appears, select OK.
•
The camera will automatically attempt to connect to a WLAN via the most
recently connected AP device.
•
If the camera has not previously been connected to a WLAN, it will search for
available AP devices. (p. 93)
•
You can set to allow only selected devices or all devices to connect by
pressing [
m
], and then selecting DLNA Access Control on the screen.
•
A sharing le list is created. Wait until other devices can nd your camera.
3 Connect the Samsung Link device to a network, and then turn on
the Samsung Link feature.
•
Refer to your device's user manual for more information.
4 On the camera, allow the Samsung Link device to connect to your
camera.
5 On the Samsung Link device, select a camera to connect to.
6 On the Samsung Link device, browse the shared photos or videos.
•
For information about searching for the camera and browsing the photos or
videos on the Samsung Link device, refer to the device's user manual.
•
Videos may not play smoothly depending on the type of Samsung Link
device or the network condition. If this happens, re-record the video in
(640 X 480) or smaller quality and play it again. If videos do not play
smoothly on your device over the wireless connection, try connecting the
camera to the device with an A/V cable.
AP
The camera is connected to a TV that supports Samsung Link via WLAN.
Using Samsung Link to send les
You can view les on an Samsung Link device connected to the same AP.
Using Samsung Link to send les
Wireless network
108
•
You can share up to 1,000 recent les.
•
On an Samsung Link device, you can view only photos or videos captured with your camera.
•
The range of the wireless connection between your camera and an Samsung Link device may vary depending on the specications of the AP.
•
If the camera is connected to 2 Samsung Link devices, playback may be slower.
•
Photos or videos will be shared in their original sizes.
•
You can use this feature only with devices that support Samsung Link.
•
Shared photos or videos will not be stored on the Samsung Link device, but they can be stored in the camera to meet the device's specications.
•
Transferring photos or videos to the Samsung Link device may take some time depending on the network connection, the number of les to be shared, or the sizes of the les.
•
If you power o the camera abnormally while viewing photos or videos on an Samsung Link device (for example, by removing the battery), the device considers the camera to still be
connected.
•
The order of photos or videos on the camera may be dierent than on the Samsung Link device.
•
Depending on the number of photos or videos you want to share, it may take some time to load your photos or videos and complete the initial set-up process.
•
While viewing photos or videos on the Samsung Link device, continuously using the device's remote or performing additional operations on the device may prevent this feature from
working properly.
•
If you reorder or sort les on the camera while viewing them on an Samsung Link device, you must repeat the initial set-up process to update the list of les on the device.
•
When there are no les in the camera memory, you cannot use this feature.
•
We recommend you use a network cable to connect your Samsung Link device to your AP. This will minimize any video ‘Stuttering’ you may experience when streaming content.
•
To view les on an Samsung Link device using the Nearby devices feature, enable multicast mode on your AP.
Settings
110
3 Select an item.
Back Select
Medium
On
Sound 1
O
On
Volume
Beep Sound
Shutter Sound
Start Sound
AF Sound
Sounds
4 Select an option.
Back Set
O
Low
Medium
High
Volume
5 Press [
r
] to return to the previous screen.
Accessing the settings menu
1 Rotate the mode dial to .
2 Select a menu.
Settings
Sounds
Display
Connectivity
General
Icon Description
Sounds: Set various camera sounds and the volume. (p. 111)
Display: Customize the display settings. (p. 111)
Connectivity: Set the connection options. (p. 112)
General: Change the settings for the camera system such as
memory format and default le name. (p. 113)
Settings menu
Learn to congure your camera's settings.
Settings menu
Settings
111
Display
* Default
Item Description
Start Image
Set a start image to display when the camera turns on.
•
O*: Display no start image.
•
Logo: Display a default image stored in the internal memory.
•
User Image : Select User Image from the photos you captured
in the memory.
•
The camera will save only one User Image in the internal
memory at a time.
•
If you select a new photo as a User Image or reset your
camera, the camera will delete the current image.
Guide Line Select a guide to help you compose a scene.
(O*, 3 X 3, 2 X 2, Cross, Diagonal)
Date/Time
Display
Set whether or not to display the date and time on the camera's
display. (O*, On)
Help Display Display a brief description of an option or menu. (O, On*)
Sounds
* Default
Item Description
Volume Set the volume of all sounds. (O, Low, Medium*, High)
Beep Sound Set the sound the camera emits when you press the buttons or
switch modes. (O, On*)
Shutter Sound Set the sound the camera emits when you press the shutter
button. (O, Sound 1*, Sound 2, Sound 3)
Start Sound Set the sound the camera emits when you turn on your camera.
(O*, Star Flight, Laser Show, Cloud)
AF Sound Set the sound the camera emits when you half-press the shutter
button. (O, On*)
Settings menu
Settings
112
Connectivity
* Default
Item Description
Video Out
Set the video signal output for your region.
•
NTSC: USA, Canada, Japan, Korea, Taiwan, Mexico, etc
•
PAL (supports only BDGHI): Australia, Austria, Belgium, China,
Denmark, England, Finland, France, Germany, Italy, Kuwait,
Malaysia, Netherlands, New Zealand, Norway, Singapore, Spain,
Sweden, Switzerland, Thailand, etc
i-Launcher Set i-Launcher to launch automatically when you connect your
camera to your computer. (O, On*)
* Default
Item Description
Display
Brightness
Adjust the brightness of the screen. (Auto*, Dark, Normal,
Bright)
Normal is xed in Playback mode even if you have selected
Auto.
Quick View
Set whether or not to review a captured image before returning
to the Shooting mode. (O, On*)
This feature does not work in some modes.
Auto Display
O
If you perform no operations for 30 seconds, the camera
automatically switches to Auto Display O mode. (O*, On)
In Auto Display O mode, press any button other than [X] to
resume using the camera.
Settings menu
Settings
113
* Default
Item Description
File No.
Specify how to name les.
•
Reset: Set the le number to start from 0001 when you
insert a new memory card, format a memory card, or
delete all les.
•
Series*: Set the le number to resume from the
previous le number when you insert a new memory
card, format a memory card, or delete all les.
•
The default name of the rst folder is 100PHOTO and
the default name of the rst le is SAM_0001.
•
The le number increases by one, from SAM_0001 to
SAM_9999, each time you take a picture.
•
The folder number increases by one, from 100PHOTO
to 999PHOTO, each time a folder is full.
•
The maximum number of les that can be stored in
one folder is 9,999.
•
The camera denes le names according to the Design
rule for Camera File system (DCF) standard. If you
intentionally change le names, the camera may not
play back the les.
General
* Default
Item Description
Network Information View the Mac address and network certication number
of your camera.
Language Set a language for the display text.
Time Zone
Set the time zone for your location. When you travel
to another country, select Visit, and then select the
appropriate time zone. (Home*, Visit)
Date/Time Set Set the date and time.
Date Type
Set a date format. (YYYY/MM/DD, MM/DD/YYYY,
DD/MM/YYYY)
The default date type may dier depending on the
language selected.
Time Type
Set the time format. (12 Hr, 24 Hr)
The default time type may dier depending on the
language selected.
Settings menu
Settings
114
* Default
Item Description
Live view NFC
Set a Wi-Fi function to launch by reading a tag from an
NFC-enabled device in Shooting mode.
(AutoShare, Remote Viewnder*)
AF Lamp Set a light to turn o automatically in dark places to help
you focus. (O, On*)
Format
Format the memory. Formatting will delete all les,
including protected les. (Yes , No*)
Errors can occur if you use a memory card formatted by
another brand of camera, a memory card reader, or a
computer. Please format memory cards in the camera
before using them to capture photos.
Reset
Reset menus and shooting options. Date and time,
language, and video output settings will not be reset.
(Yes, No*)
Open Source Licenses Show the Open source licenses information.
* Default
Item Description
Imprint
Set whether or not to display the date and time on
captured photos. (O*, Date, Date & Time)
•
The date and time will be displayed on the bottom
right corner of the photo.
•
Some printer models may not print the date and time
properly.
•
The photo will not display the date and time if:
-
you select mode
Auto Power O
Set the camera to turn o automatically when you
perform no operations for a specied period.
(O, 1 min, 3 min*, 5 min, 10 min)
•
Your settings will not change when you replace the
battery.
•
The camera will not turn o automatically when the
camera is connected to a computer or WLAN or when
you are playing a slide show or videos.
DIRECT LINK (Wi-Fi
Button)
Start a preset Wi-Fi function by pressing [DIRECT LINK].
(AutoShare, MobileLink*, Remote Viewnder, Email,
SNS & Cloud, Samsung Link)
Error messages
……………………………………… 116
Camera maintenance
……………………………… 117
Cleaning your camera
…………………………… 117
Using or storing the camera
……………………… 118
About memory cards
……………………………… 120
About the battery
………………………………… 123
Upgrading Firmware
……………………………… 127
Before contacting a service center
……………… 128
Camera specications
……………………………… 131
Glossary
…………………………………………… 135
FCC notice
…………………………………………… 140
Index
………………………………………………… 142
Appendixes
Get information about error messages, specications, and maintenance.
Appendixes
116
Error message Suggested remedies
Cannot read le
content Delete the damaged le or contact a service center.
Card Error
•
Turn o your camera, and then turn it on again.
•
Remove your memory card, and then insert it again.
•
Format your memory card.
Card not supported. The inserted memory card is not supported by your
camera. Insert a SD, SDHC, or SDXC memory card.
Connection failed.
•
The camera cannot connect to the network using the
selected access point. Select another AP and try again.
•
The camera has failed to connect to the other devices.
Try connecting again.
Device disconnected.
Network connection disconnected while photos are
being transferred to supported devices. Re-select a
supported device.
File Error Delete the damaged le or contact a service center.
File system not
supported.
Your camera does not support the FAT le structure of
the inserted memory card. Format the memory card on
the camera.
Initialization failed.
The camera has failed to locate a device that supports
Samsung Link. Turn on devices on the network that
support Samsung Link.
Error message Suggested remedies
Low Battery Insert a charged battery or recharge the battery.
Memory Full Delete unnecessary les or insert a new memory card.
No Image File Capture photos or insert a memory card that contains
some photos.
Password Incorrect The password for transferring les to another camera is
wrong. Enter the correct password.
Transfer failed.
•
The camera has failed to send e-mails or les to the
other devices. Try sending again.
•
Check the network connection and try again.
Unable to capture a
photo because folder
and le number on
the memory card
reached the maximum
values. Reset the folder
number?
File names do not match the DCF standard. Transfer
the les from the memory card to your computer and
format the card. Then, open the Settings menu and
select General → File No. → Reset. (p. 113)
Error messages
When the following error messages appear, try these remedies.
Appendixes
117
Cleaning your camera
Camera lens and display
Use a blower brush to remove dust and wipe the lens gently with a soft cloth. If any
dust remains, apply lens cleaning liquid to a piece of lens cleaning paper and wipe
gently.
Camera body
Wipe gently with a soft, dry cloth.
•
Never use benzene, thinners, or alcohol to clean the device. These solutions can
damage the camera or cause it to malfunction.
•
Do not press on the lens cover or use a blower brush on the lens cover.
Camera maintenance
Camera maintenance
Appendixes
118
Using or storing the camera
Inappropriate places to use or store the camera
•
Avoid exposing the camera to very cold or very hot temperatures.
•
Avoid using your camera in areas with extremely high humidity, or where the
humidity changes drastically.
•
Avoid exposing the camera to direct sunlight and storing it in hot, poorly-
ventilated areas, such as in a car during summer time.
•
Protect your camera and the display from impact, rough handling, and excessive
vibration to avoid serious damage.
•
Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated
areas to prevent damage to moving parts and internal components.
•
Do not use your camera near fuels, combustibles, or ammable chemicals. Do
not store or carry ammable liquids, gases, or explosive materials in the same
compartment as the camera or its accessories.
•
Do not store the camera where there are mothballs.
Using on beaches or shores
•
Protect your camera from sand and dirt when you use it on beaches or in similar
areas.
•
Your camera is not waterproof. Do not handle the battery, adapter, or memory
card with wet hands. Operating the camera with wet hands may cause damage to
your camera.
Storing for extended period of time
•
When you store the camera for an extended period, place it in a sealed container
with an absorbent material, such as silica gel.
•
Over time, unused batteries will discharge and must be recharged before use.
•
The present date and time can be initialized when the camera is turned on after
the camera and battery have been separated for a prolonged period.
Using the camera with caution in humid environments
When you transfer the camera from a cold environment to a warm one,
condensation can form on the lens or internal components of the camera. In this
situation, turn o the camera and wait for at least 1 hour. If condensation forms
on the memory card, remove the memory card from the camera and wait until all
moisture has evaporated before reinserting it.
Other cautions
•
Do not swing your camera by the strap. This may cause injury to yourself or others
or damage to your camera.
•
Do not paint your camera, as paint can clog moving parts and prevent proper
operation.
•
Turn o the camera when not using it.
•
Your camera contains delicate parts. Avoid impacts to the camera.
Camera maintenance
Appendixes
119
•
Protect the display from external force by keeping it in the case when not in
use. Protect the camera from scratches by keeping it away from sand, sharp
implements, or loose change.
•
Do not use the camera if the screen is cracked or broken. Broken glass or acrylic
could cause injury to your hands and face. Take the camera to a Samsung service
center to have it repaired.
•
Never place cameras, batteries, chargers, or accessories near, on, or in heating
devices, such as microwave ovens, stoves, or radiators. Heat can deform or
overheat these devices, which can cause a re or explosion.
•
Do not expose the lens to direct sunlight, as this may discolor the image sensor or
cause it to malfunction.
•
Protect the lens from ngerprints and scratches. Clean the lens with a soft, clean,
debris-free lens cloth.
•
The camera may turn o if struck or dropped. This is to protect the memory card.
Turn on the camera to use it again.
•
While you use the camera, it may heat up. This is normal and should not aect
your camera’s lifespan or performance.
•
When you use the camera in low temperatures, it may take some time to turn on,
the color of the display may be changed temporarily, or after-images may appear.
These conditions are not malfunctions and they will correct themselves when the
camera is returned to milder temperatures.
•
Paint or metal on the outside of the camera may cause allergies, itchy skin,
eczema, or swelling for people with sensitive skin. If you experience any of these
symptoms, stop using the camera immediately and consult a doctor.
•
Do not insert foreign objects into any of your camera’s compartments, slots, or
access points. Damage due to improper use may not be covered by your warranty.
•
Do not allow unqualied personnel to service the camera or attempt to service
the camera yourself. Any damage that results from unqualied service is not
covered by your warranty.
Camera maintenance
Appendixes
120
About memory cards
Supported memory cards
This product supports SD (Secure Digital), SDHC (Secure Digital High Capacity),
SDXC (Secure Digital eXtended Capacity), microSD, microSDHC, or microSDXC
memory cards.
Terminal
Write-protect switch
Label (front)
You can prevent les from being deleted by using the write protect switch on an SD,
SDHC, or SDXC card. Slide the switch down to lock or slide it up to unlock. Unlock
the card when capturing photos and videos.
Memory card adapter
Memory card
To use micro memory cards with this product, a PC, or a memory card reader, insert
the card into an adapter.
Camera maintenance
Appendixes
121
Memory card capacity
The memory capacity may dier depending on shooting scenes or shooting
conditions. These capacities are based on a 2 GB SD card:
Size Super Fine Fine Normal
325 488 673
264 525 697
407 610 813
360 723 943
592 849 1,146
673 1139 1,463
957 1,619 1,928
1,382 2,263 2,740
2,645 3,147 3,682
Video
Size 30fps
1280 X 720 Approx. 15' 45"
640 X 480 Approx. 30' 45"
320 X 240 Approx. 90' 06"
For Sharing Approx. 90' 06"
The gures above are measured without using the zoom function. Available recording time
may vary if you use the zoom. Several videos were recorded in succession to determine the
total recording time.
Camera maintenance
Appendixes
122
Cautions when using memory cards
•
Avoid exposing memory cards to very cold or very hot temperatures (below
0 °C/32 °F or above 40 °C/104 °F). Extreme temperatures can cause memory cards
to malfunction.
•
Insert a memory card in the correct direction. Inserting a memory card in the
wrong direction may damage your camera and memory card.
•
Do not use memory cards that have been formatted by other cameras or by a
computer. Reformat the memory card with your camera.
•
Turn o the camera before you insert or remove the memory card.
•
Do not remove the memory card or turn o your camera while the lamp is
blinking, as this may damage your data.
•
When the lifespan of a memory card has expired, you cannot store any more
photos on the card. Use a new memory card.
•
Do not bend, drop, or subject memory cards to heavy impact or pressure.
•
Avoid using or storing memory cards near strong magnetic elds.
•
Avoid using or keeping memory cards in areas with high temperature, high
humidity, or corrosive substances.
•
Prevent memory cards from making contact with liquids, dirt, or foreign
substances. If dirty, wipe the memory card clean with a soft cloth before you
insert the memory card into your camera.
•
Do not allow liquids, dirt, or foreign substances to come in contact with memory
cards or the memory card slot. Doing so may cause memory cards or the camera
to malfunction.
•
When you carry a memory card, use a case to protect the card from electrostatic
discharges.
•
Transfer important data to other media, such as a hard disk, CD, or DVD.
•
When you use the camera for an extended period, the memory card may become
warm. This is normal and does not indicate a malfunction.
The manufacturer is not responsible for any loss of data.
Camera maintenance
Appendixes
123
About the battery
Use only Samsung-approved batteries.
Battery specications
Specication Description
Model SLB-10A
Type Lithium-ion battery
Cell capacity 1030 mAh
Voltage 3.7 V
Charging time* (when the camera is
switched o) Approximately 240 min
* Charging the battery by connecting it to a computer may take longer.
Battery life
Average shooting time/
Number of photos Test conditions (when the battery is fully charged)
Photos
Approximately
100 min/
Approximately
200 photos
The battery life was measured under the following
conditions: in Program mode, in darkness,
resolution, Fine quality, OIS on.
1. Set the ash option to Fill in, take a single shot,
and zoom in or out.
2. Set the ash option to O, take a single shot, and
zoom in or out.
3. Perform steps 1 and 2, waiting 30 seconds
between each step. Repeat the process for
5 minutes, and then turn o the camera for
1 minute.
4. Repeat steps 1 to 3.
Videos Approximately
70 min Record videos at resolution and 60 FPS.
•
The gures above are based on the CIPA test standards. Your results may dier depending
on your actual usage.
•
Several videos were recorded in succession to determine the total recording time.
•
When using network functions, the battery will be depleted more quickly.
Camera maintenance
Appendixes
124
Low battery message
When the battery has fully discharged, the battery icon will turn red and the "Low
Battery" message will appear.
Notes about using the battery
•
Avoid exposing batteries to very cold or very hot temperatures (below 0 °C/32 °F
or above 40 °C/104 °F). Extreme temperatures can reduce the charging capacity of
your batteries.
•
When you use the camera for an extended period, the area around the battery
chamber may become warm. This does not aect the normal use of the camera.
•
Do not pull the power supply cord to disconnect the plug from the power outlet,
as this may cause a re or electric shock.
•
In temperatures below 0 °C/32 °F, battery capacity and battery life may decrease.
•
Battery capacity may decrease in low temperatures but will return to normal in
milder temperatures.
•
Remove the batteries from your camera when storing it for an extended period.
Installed batteries may leak or corrode over time and cause serious damage
to your camera. Storing the camera for extended periods with the battery
installed causes the battery to discharge. You may not be able to recharge a fully
discharged battery.
•
When you do not use the camera for an extended period (3 months or more),
check the battery and recharge it regularly. If you let the battery discharge
continually, its capacity and life may decrease, which can lead to a malfunction,
re, or explosion.
Cautions about using the battery
Protect batteries, chargers, and memory cards from damage
Prevent batteries from making contact with metal objects, as this can create a
connection between the + and – terminals of your battery and lead to temporary or
permanent battery damage and may cause a re or electric shock.
Notes about charging the battery
•
If the status lamp is o, make sure that the battery is inserted correctly.
•
If the camera is on while charging, the battery may not fully charge. Turn o the
camera before charging the battery.
•
Do not use your camera when you are charging the battery. This may cause a re
or electric shock.
•
Do not pull the power supply cord to disconnect the plug from the power outlet,
as this may cause a re or electric shock.
•
Let the battery charge for at least 10 minutes before turning on the camera.
•
If you connect the camera to an external power source when the battery is
depleted, using high energy-consuming functions will cause the camera to turn
o. To use the camera normally, recharge the battery.
Camera maintenance
Appendixes
125
•
If you reconnect the power cable when the battery is fully charged, the status
lamp turns on for approximately 30 minutes.
•
Using the ash or recording videos depletes the battery quickly. Charge the
battery until the red status lamp turns o.
•
If the indicator light does not illuminate, reconnect the cable, or remove the
battery and insert it again.
•
Overcharging batteries may shorten battery life. After charging is nished,
disconnect the cable from your camera.
•
Do not bend or place heavy objects on the AC cable. Doing so may damage the
cable.
Notes about charging with a computer connected
•
Use only the provided USB cable.
•
The battery may not charge when:
-
you use a USB hub
-
other USB devices are connected to your computer
-
you connect the cable to the port on the front side of your computer
-
the USB port of your computer does not support the power output standard
(5 V, 500 mA)
Handling and disposing of batteries and chargers with care
•
Never dispose of batteries in a re. Follow all local regulations when you dispose
of used batteries.
•
Never place batteries or cameras on or in heating devices, such as microwave
ovens, stoves, or radiators. Batteries may explode when they are overheated.
Camera maintenance
Appendixes
126
•
Do not disassemble or puncture the battery with any sharp object.
•
Avoid exposing the battery to high pressure or crushing forces.
•
Avoid exposing the battery to major impacts, such as dropping it from
high places.
•
Do not expose the battery to temperatures of 60 °C (140 °F) or above.
•
Do not allow the battery to come in contact with moisture or liquids.
•
Do not expose the battery to sources of excessive heat such as sunshine,
re, or the like.
Disposal guidelines
•
Dispose of the battery with care.
•
Do not dispose of the battery in a re.
•
Disposal regulations may dier by country or region. Dispose of the
battery in accordance with all local and federal regulations.
Guidelines for charging the battery
Charge the battery only by the method described in this user manual.
The battery can ignite or explode if not charged properly.
Personal injury or death can occur if the battery is handled carelessly
or improperly. For your safety, follow these instructions for proper
battery handling:
•
The battery can ignite or explode if not handled properly.
If you notice any deformities, cracks, or other abnormalities in the battery,
immediately discontinue use of the battery and contact a service center.
•
Use only authentic, manufacturer-recommend battery chargers and
adapters and charge the battery only by the methods described in this
user manual.
•
Do not place the battery near heating devices or expose it to excessively
warm environments, such as the inside of an enclosed car in the
summertime.
•
Do not place the battery in a microwave oven.
•
Avoid storing or using the battery in hot, humid places, such as spas or
shower enclosures.
•
Do not rest the device on ammable surfaces, such as bedding, carpets,
or electric blankets for a prolonged period.
•
When the device is switched on, do not leave it in any conned space for
a prolonged period.
•
Do not allow battery terminals to come in contact with metallic objects,
such as necklaces, coins, keys, or watches.
•
Use only authentic, manufacturer-recommended, Lithium-ion
replacement batteries.
Camera maintenance
Appendixes
127
6 Install i-Launcher on the PC.
OS How to install
Windows
When the pop-up window prompting you to install i-Launcher
appears, select Yes.
•
If a pop-up window prompting you to run iLinker.exe
appears, run it rst.
•
If the pop-up window prompting does not appear,
click My Computer → i-Launcher → iLinker.exe.
•
When you connect the camera to a computer with i-Launcher
installed, the program will launch automatically.
Mac Click Devices → i-Launcher → Mac → iLinker.
7 Upgrade the rmware to the latest version following the on-screen
instructions.
•
Select Firmware Upgrader on the screen of i-Launcher.
•
Before upgrading the rmware, ensure that the PC is connected to a network.
•
Do not turn the camera o until the rmware upgrading is nished.
Upgrading Firmware
i-Launcher allows you to upgrade the rmware of your camera.
1 Rotate the mode dial to .
2 Select Connectivity → i-Launcher → On.
3 Turn o the camera.
4 Connect the camera to your computer with the USB cable.
You must plug the small end of the USB cable into your camera. If the cable is
reversed, it may damage your les. The manufacturer is not responsible for any
loss of data.
5 Turn on the camera.
Appendixes
128
Situation Suggested remedies
Cannot turn on the
camera
•
Ensure that the battery is inserted.
•
Ensure that the battery is inserted correctly. (p. 25)
•
Charge the battery.
The power turns o
suddenly
•
Charge the battery.
•
Your camera may be in Auto Power O mode. (p. 114)
•
The camera may turn o to prevent the memory card
from being damaged due to an impact. Turn on your
camera again.
The camera is losing
battery power quickly
•
The battery may lose power more quickly in low
temperatures (below 0 °C/32 °F). Keep the battery warm
by putting it into your pocket.
•
Using the ash or recording videos depletes the battery
quickly. Recharge if needed.
•
Batteries are consumable parts that must be replaced
over time. Get a new battery if the battery life is
diminishing quickly.
Situation Suggested remedies
Cannot capture
photos
•
There is no space on the memory card. Delete
unnecessary les or insert a new card.
•
Format the memory card.
•
The memory card is defective. Get a new memory card.
•
Make sure that the camera is switched on.
•
Charge the battery.
•
Make sure that the battery is inserted correctly.
The camera freezes Remove the battery and insert it again.
The camera heats up
While you use the camera, it may heat up. This is
normal and should not aect your camera’s lifespan or
performance.
The ash does not
work
•
The ash option may be set to O. (p. 58)
•
You cannot use the ash in some modes.
Before contacting a service center
If you are having trouble with your camera, try these troubleshooting procedures before you contact a service center. If you have attempted the suggested remedy and are still
having problems with your device, contact your local dealer or service center.
When you leave your camera at a service center, be sure to also leave the other components that may have contributed to the malfunction, such as the memory card and battery.
Before contacting a service center
Appendixes
129
Situation Suggested remedies
The ash res
unexpectedly
The ash may re due to static electricity. The camera is
not malfunctioning.
The date and time are
incorrect Set the date and time in the display settings. (p. 113)
The display or
buttons do not work Remove the battery, and then insert it again.
The camera display
responds poorly
If you use your camera at very low temperatures, it may
cause the camera screen to malfunction or discolor. For
better performance of your camera screen, use your
camera in moderate temperatures.
The memory card has
an error
•
Turn o your camera, and then turn it on again.
•
Remove your memory card, and then insert it again.
•
Format your memory card.
See "Cautions when using memory cards" for more detail.
(p. 122)
Situation Suggested remedies
Cannot play back les
If you change the name of a le, your camera may not
play the le (the name of the le should meet the DCF
standard). If you encounter this situation, play back the
les on your computer.
The photo is blurry
•
Make sure that the focus option you set is suitable for
close-up shots. (p. 60)
•
Make sure that the lens is clean. If not, clean the lens.
(p. 117)
•
Make sure that the subject is within range of the ash.
(p. 132)
The colors in the
photo do not match
the actual scene
An incorrect White Balance can create unrealistic color.
Select the proper White Balance option to suit the light
source. (p. 69)
The photo is too
bright or dark
Your photo is overexposed or underexposed.
•
Turn the ash o or on. (p. 58)
•
Adjust the ISO sensitivity. (p. 59)
•
Adjust the exposure value. (p. 67)
Before contacting a service center
Appendixes
130
Situation Suggested remedies
The TV does not
display your photos
•
Make sure that the camera is correctly connected to the
TV with the A/V cable.
•
Make sure that your memory card contains photos.
Your computer does
not recognize your
camera
•
Make sure that the USB cable is connected correctly.
•
Make sure that your camera is switched on.
•
Make sure that you are using a supported operating
system.
Your computer
disconnects the
camera while
transferring les
The le transmission may be interrupted by static
electricity. Disconnect the USB cable and connect it again.
i-Launcher is not
functioning properly
•
End i-Launcher and restart the program.
•
Make sure that i-Launcher is set to On in the settings
menu. (p. 112)
•
Depending on your computer's specications
and environment, the program may not launch
automatically. In this case, click Start → All Programs
→ Samsung → i-Launcher → Samsung i-Launcher on
your computer. (For Windows 8, click Start → All apps
→ Samsung i-Launcher.)
Situation Suggested remedies
Your TV or computer
cannot display photos
and videos that are
stored on a SDXC
memory card.
SDXC memory cards use the exFAT le system. Ensure
that the external device is compatible with the exFAT le
system before connecting the camera to the device.
Your computer does
not recognize a SDXC
memory card.
SDXC memory cards use the exFAT le system. To use
SDXC memory cards on a Windows XP computer,
download and update the exFAT le system driver from
the Microsoft website.
Appendixes
131
Image sensor
Type 1/2.3" (Approximately 7.73 mm) CCD
Eective pixels Approximately 16.20 mega-pixels
Total pixels Approximately 16.50 mega-pixels
Lens
Focal length Samsung Lens f = 4.5–157.5 mm
(35 mm lm equivalent: 25–875 mm)
F-stop range F3.0 (W)–F5.9 (T)
Digital zoom
•
Still image mode: 1.0–35.0X (Optical zoom X Digital zoom:
70.0X, Optical zoom X Intelli zoom: 70.0X)
•
Playback mode : 1.0X–14.4X (depending on image size)
Display
Type TFT LCD
Feature 3.0" (75.0 mm) 460K
Focusing
Type TTL Auto Focus (Center AF, Multi AF, Selection AF, Tracking AF,
Face Detection AF)
Range
Wide (W) Tele (T)
Normal (AF) 31 in. (80 cm)–
innity 59 in. (150 cm)–innity
Macro 4-31 in. (10-80 cm) 59-138 in. (150-350 cm)
Auto Macro 0.4 in. (1 cm)–
innity 59 in. (150 cm)–innity
Super Macro 0.4 in. (1 cm)
Shutter speed
•
Auto: 1/8–1/2,000 sec.
•
Program: 1–1/2,000 sec.
•
Night: 8–1/2,000 sec.
Exposure
Control Program AE
Metering Multi, Spot, Center-weighted, Face Detection
Metering range EV 1–17 (Wide, ISO Auto), EV 3–17 (Tele, ISO Auto)
Compensation ±2EV (1/3 EV Step)
ISO equivalent Auto, ISO 80, ISO 100, ISO 200, ISO 400, ISO 800,
ISO 1600, ISO 3200
Camera specications
Camera specications
Appendixes
132
Flash
Mode O, Auto, Red-eye, Fill in, Slow Sync, Red-eye Fix
Range
•
Wide: 31-236 in. (0.8–6 m) (ISO Auto)
•
Tele: 59-118 in. (1.5 –3 m) (ISO Auto)
Recharging time Approximately 5 sec.
Shake reduction
Dual IS [OIS(Optical Image Stabilization) + DIS(Digital Image Stabilization)]
Eect
Photo Shooting
mode
•
Photo Filter (Smart Filter): Miniature, Vignetting, Fish-eye,
Classic, Retro, Cross Filter
•
Image Adjust: Sharpness, Contrast, Saturation
Video Shooting
mode
Movie Filter (Smart Filter): Miniature, Vignetting, Fish-eye,
Classic, Retro, Palette Eect 1, Palette Eect 2, Palette Eect 3,
Palette Eect 4
White Balance
Auto WB, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom Set,
Color Temp.
Date Imprinting
Date & Time, Date, O
Shooting
Photos
•
Modes: Smart Auto (Portrait, Night Portrait, Night, Backlight
Portrait, Backlight, Landscape, White, Macro, Macro Text,
Tripod, Action, Macro Color, Natural Green, Blue Sky, Sunset,
Low Light, Spot Light, Spot Light Macro, Spot Light Portrait),
Program, Smart (Beauty Face, Action Freeze, Sunset,
Landscape, Silhouette, Fireworks, Night, Macro, Light Trace),
Panorama, Magic Plus (Photo Filter, Movie Filter, Photo
Editor)
•
Burst: Single, Continuous, AEB, Motion Capture
•
Timer: O, 10 Sec, 2 Sec, Double
Videos
•
Modes: Movie, Magic Plus (Movie Filter)
•
Format: MP4 (H.264) (Max recording time: 20 min)
•
Size: 1280 X 720, 640 X 480, 320 X 240, 240 Web
•
Frame Rate : 30fps
•
Voice: On, O, Zoom Mute
•
Video editing (embedded): Pause during recording
Camera specications
Appendixes
133
Playback
Photos
•
Type: Single image, Thumbnails, Multi Slide Show with Music
and Eect, Movie clip
•
Edit: Resize, Rotate, Smart Filter, Crop
•
Eect: Image Adjust (Brightness, Contrast, Saturation, ACB,
Face Retouch, Red-eye Fix), Smart Filter (Normal, Miniature,
Vignetting, Fish-eye, Classic, Retro, Cross Filter)
Videos Edit: Still image capture, Time trimming
Storage
Media
•
Internal memory: Approximately 21MB
•
External memory (Optional):
SD card (2 GB guaranteed),
SDHC card (up to 32 GB guaranteed),
SDXC card (up to 64 GB guaranteed)
-
Class 6 and above recommended
Internal memory capacity may not match these specications.
File format
•
Still Image: JPEG (DCF), EXIF 2.3
•
Movie Clip: MP4 (Video: MPEG4, AVC/H.264, Audio: AAC)
Image size
Icon Size
4608 X 3456
4608 X 3072
4608 X 2592
3648 X 2736
2832 X 2832
2592 X 1944
1984 X 1488
1920 X 1080
1024 X 768
Wireless network
MobileLink, Remote Viewnder, SNS & Cloud, Email, S/W Upgrade Notier,
Samsung Link, AutoShare
NFC
Yes
Camera specications
Appendixes
134
Interface
Digital output
connector USB 2.0
Audio input/
output Internal speaker (Mono), Microphone (Mono)
Video output A/V: NTSC, PAL (selectable)
DC power input
connector 5.0 V
Power source
Rechargeable
battery Lithium-ion battery (SLB-10A, 1030 mAh)
Connector type Micro USB (5 pin)
The power source may dier depending on your region.
Dimensions (W X H X D)
4.9 X 3.4 X 3.6 in. (124.5 X 86.5 X 92.0 mm) (without protrusions)
Weight
16.4 oz. (464 g) (without battery and memory card)
Operating Temperature
0–40 °C (32–104 °F)
Operating Humidity
5–85 %
Software
i-Launcher
Specications may change without notice to improve performance.
Appendixes
135
Glossary
Composition
Composition in photography means arranging objects in a photo. Usually, abiding
by the rule of thirds leads to a good composition.
DCF (Design rule for Camera File system)
A specication to dene a le format and le system for digital cameras created by
the Japan Electronics and Information Technology Industries Association (JEITA).
Depth of eld
The distance between the nearest and farthest points that can be acceptably
focused in a photograph. Depth of eld varies with lens aperture, focal length, and
distance from the camera to the subject. For example, using a smaller f-number will
increase the size of the aperture. This will create a large depth of eld and blur the
background in the composition.
Digital zoom
A feature that articially increases the amount of zoom available with a zoom lens
(Optical zoom). When using the Digital zoom, the image quality will deteriorate as
the magnication increases.
ACB (Auto Contrast Balance)
This feature automatically improves the contrast of your images when the subject is
backlit or when there is a high contrast between your subject and the background.
AEB (Auto Exposure Bracket)
This feature automatically captures several images at dierent exposures to help
you capture a properly-exposed image.
AF (Auto Focus)
A system that automatically focuses the camera lens on the subject. Your camera
uses the contrast to focus automatically.
Aperture
The aperture controls the amount of light that reaches the camera’s sensor.
Camera shake (Blur)
If the camera is moved while the shutter is open, the entire image may appear
blurred. This occurs more often when the shutter speed is slow. Prevent camera
shake by raising the sensitivity, using the ash, or using a faster shutter speed.
Alternately, use a tripod, the DIS or OIS function to stabilize the camera.
Glossary
Appendixes
136
Exposure
The amount of light allowed to reach the camera’s sensor. Exposure is controlled by
a combination of the shutter speed, the aperture value, and ISO sensitivity.
Flash
A speed light that helps to create adequate exposure in low-light conditions.
Focal length
The distance from the middle of the lens to its focal point (in millimeters). Longer
focal lengths result in narrower angles of view and the subject is magnied. Shorter
focal lengths result in wider angles of view.
Histogram
A graphical representation of the brightness of an image. The horizontal axis
represents the brightness and the vertical axis represents the number of pixels. High
points at the left (too dark) and right (too bright) on the histogram indicate a photo
that is improperly exposed.
H.264/MPEG-4
A high-compression video format established by international standard
organizations ISO-IEC and ITU-T and developed by the Joint Video Team (JVT). This
codec is capable of providing good video quality at low bit rates.
DIS (Digital Image Stabilization)
This feature compensates in real-time for shaking and vibrating while shooting.
There can be a certain amount of image degradation compare to Optical Image
Stabilization.
EV (Exposure Value)
All the combinations of the camera’s shutter speed and lens aperture that result in
the same exposure.
EV Compensation
This feature allows you to quickly adjust the exposure value measured by the
camera, in limited increments, to improve the exposure of your photos. Set the EV
compensation to -1.0 EV to adjust the value one step darker and 1.0 EV to one step
brighter.
Exif (Exchangeable Image File Format)
A specication to dene an image le format for digital cameras created by the
Japan Electronic Industries Development Association (JEIDA).
Glossary
Appendixes
137
Macro
This feature allows you to capture close-up photos of very small objects. When
using the macro feature, the camera can maintain a sharp focus on small objects at
a near life-size ratio (1:1).
Metering
The metering refers to the way in which the camera measures the quantity of light
to set the exposure.
MJPEG (Motion JPEG)
A video format which is compressed as a JPEG image.
NFC (Near Field Communication)
NFC is a set of standards for radio communication at very close proximity. You can
use NFC-enabled devices to activate features or exchange data with other devices.
Noise
Misinterpreted pixels in a digital image that may appear as misplaced or random,
bright pixels. Noise usually occurs when photos are shot with a high sensitivity or
when a sensitivity is automatically set in a dark place.
Image sensor
The physical part of a digital camera that contains a photosite for each pixel in
the image. Each photosite records the brightness of the light that strikes it during
an exposure. Common sensor types are CCD (Charge-coupled Device) and CMOS
(Complementary Metal Oxide Semiconductor).
ISO sensitivity
The sensitivity of the camera to light, based on the equivalent lm speed used in
a lm camera. At higher ISO sensitivity settings, the camera uses a higher shutter
speed, which can reduce blur caused by camera shake and low light. However,
images with high sensitivity are more susceptible to noise.
JPEG (Joint Photographic Experts Group)
A lossy method of compression for digital images. JPEG images are compressed to
reduce their overall le size with minimal deterioration of the image resolution.
LCD (Liquid Crystal Display)
A visual display commonly used in consumer electronics. This display needs a
separate backlight, such as CCFL or LED, to reproduce colors.
Glossary
Appendixes
138
Vignetting
A reduction of an image’s brightness or saturation at the periphery (outer edges)
compared to the center of the image. Vignetting can draw interest to subjects
positioned in the center of an image.
White balance (color balance)
An adjustment of the intensities of colors (typically the primary colors red, green,
and blue) in an image. The goal of adjusting the white balance, or color balance, is
to correctly render the colors in an image.
Optical zoom
This is a general zoom which can enlarge images with a lens and does not
deteriorate quality of images.
Quality
An expression of the rate of compression used in a digital image. Higher quality
images have a lower rate of compression, which usually results in a larger le size.
Resolution
The number of pixels present in a digital image. High resolution images contain
more pixels and typically show more detail than low resolution images.
Shutter speed
Shutter speed refers to the amount of time it takes to open and close the shutter,
and it is an important factor in the brightness of a photo, as it controls the amount
of light which passes through the aperture before it reaches the image sensor. A
fast shutter speed allows less time to let light in and the photo becomes darker and
more easily freezes subjects in motion.
Appendixes
139
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories, or literature indicates that the product
and its electronic accessories (e.g. charger, headset, USB cable) should not be
disposed of with other household waste at the end of their working life. To prevent
possible harm to the environment or human health from uncontrolled waste
disposal, please separate these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product or their local government oce for details of where and how they can take
these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product and its electronic accessories should not be
mixed with other commercial wastes for disposal.
PlanetFirst represents Samsung Electronics' commitment to
sustainable development and social responsibility through
eco-driven business and management activities.
Correct disposal of batteries in this product
(Applicable in countries with separate collection systems)
This marking on the battery, manual, or packaging indicates that the batteries in
this product should not be disposed of with other household waste at the end of
their working life. Where marked, the chemical symbols Hg, Cd, or Pb indicate that
the battery contains mercury, cadmium, or lead above the reference levels in EC
Directive 2006/66. If batteries are not properly disposed of, these substances can
cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate
batteries from other types of waste and recycle them through your local, free
battery return system.
CAN ICES-3 (B)/NMB-3(B)
Dispose unwanted electronics through an approved recycler.
To nd the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect Or call, (877) 278 - 0799
Appendixes
140
FCC notice
FCC ID:A3LWB1100F
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Radiation Exposure Statement:
The product comply with the FCC portable RF exposure limit set forth for an uncontrolled
environment and are safe for intended operation as described in this manual. The further RF
exposure reduction can be achieved if the product can be kept as far as possible from the
user body or set the device to lower output power if such function is available.
IC: 649E-WB1100F
FCC notice
Appendixes
141
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils
radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1)
le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter
tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement
indésirable.
FOR PORTABLE DEVICE USAGE (<20m from body/SAR needed)
Radiation Exposure Statement:
The product comply with the Canada portable RF exposure limit set forth for an uncontrolled
environment and are safe for intended operation as described in this manual. The further RF
exposure reduction can be achieved if the product can be kept as far as possible from the
user body or set the device to lower output power if such function is available.
Déclaration d'exposition aux radiations:
Le produit est conforme aux limites d'exposition pour les appareils portables RF pour les
Etats-Unis et le Canada établies pour un environnement non contrôlé.
Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux
expositions RF peut être augmentée si l'appareil peut être conservé aussi loin que possible
du corps de l'utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si
une telle fonction est disponible.
IC: 649E-WB1100F
•
Declaration of Conformity
Trade Name : Samsung Electronics America, Inc.
Model No. : Samsung WB1100F
Responsible Party : Samsung Electronics America, Inc.
Address : 85 Challenger Road, Ridgeeld Park, NJ 07660
Telephone No. : 1-800-SAMSUNG (726-7864)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
Appendixes
142
Index
A
AF-assist light
location 21
Settings 114
AF Lamp 114
AF Sound 111
Auto Contrast Balance (ACB)
Playback mode 85
Shooting mode 68
Auto Display O 112
Auto Exposure Bracket (AEB) 71
AutoShare 98
A/V port 21
B
Battery
Caution 124
Charging 26
Inserting 25
Beauty Face 47
Blink Detection 65
Brightness
Playback mode 85
Shooting mode 67
Burst modes
Auto Exposure Bracket (AEB) 71
Continuous 71
Motion Capture 71
C
Camera maintenance 117
Camera specications 131
Capturing an image from video 87
Charging 26
Cleaning
Camera body 117
Display 117
Lens 117
Connecting to a computer
Mac 90
Windows 89
Contrast
Playback mode 85
Shooting mode 72
D
Date/Time Set 113
Deleting les 78
Digital zoom 38
DIRECT LINK button 21
Disconnecting the camera 89
Display brightness 112
Display type 35
E
Editing photos 83
Editing videos
Capturing 87
Trimming 87
Appendixes
143
Index
Email 102
Enlarging 79
Error messages 116
Exposure 67
F
Face Detection 64
Flash
Auto 58
Fill in 58
O 58
Red-eye 58
Red-eye Fix 59
Slow Sync 58
Focus area
Center AF 61
Multi AF 61
Selection AF 61
Tracking AF 61
Formatting 114
G
Guide Line 111
H
Half-press shutter 41
I
Icons
Playback mode 75
Shooting mode 29
i-Launcher 127
Image Adjustment
ACB 85
Brightness
Playback mode 85
Shooting mode 67
Contrast
Playback mode 85
Shooting mode 72
Red-eye 86
Saturation
Playback mode 85
Shooting mode 72
Sharpness 72
Image quality 55
Imprint 114
Intelli zoom 39
ISO sensitivity 59
L
Language settings 113
M
Macro
Auto Macro 61
Macro 61
Super Macro 61
Magic Plus mode
Movie Filter 51
Photo Filter 50
Appendixes
144
S
Samsung Link 107
Saturation
Playback mode 85
Shooting mode 72
Self portrait 64
Service center 128
Settings 113
Sharing service
Accessing 105
Uploading photos or videos 105
Sharpness 72
Shooting portraits
Blink Detection 65
Face Detection 64
Red-eye 58
Red-eye x 59
Self portrait 64
Smile Shot 65
Q
Quick view 112
R
Red-eye
Playback mode 86
Shooting mode 57
Remote Viewnder 100
Reset 114
Resolution
Playback mode 83
Shooting mode 54
Retouching faces 86
Rotating 83
O
Open source licenses 114
Optical Image Stabilization (OIS) 40
Optional accessories 20
P
Panorama mode 48
Playback button 23
Playback mode 75
POWER button 21
Program mode 46
Protecting les 78
Memory card
Caution 122
Insert 25
Menu button 23
Metering
Center-weighted 68
Multi 68
Spot 68
MobileLink 99
Movie mode 52
N
NFC 97
Index
Appendixes
145
Shutter button 21
Slide show 81
Smart Auto mode 44
Smart Filter
Photo shooting mode 50
Playback mode 84
Video recording mode 51
Smart mode 47
Smile Shot 65
Sound settings 36
Start Image 111
Status lamp 22
T
Thumbnails 76
Timer
Shooting mode 56
Timer lamp 21
Time settings 27
Time zone settings 27, 113
Transferring les
Email 102
Mac 90
Windows 89
Tripod mount 22
U
Unpacking 20
USB port 21
V
Video
Playback mode 82
Shooting mode 52
Video out 112
Viewing les
Category 77
Panoramic photos 80
Slide show 81
Thumbnails 76
TV 88
W
White Balance 69
Wireless network 93
Z
Zoom
Using the zoom 38
Zoom button 22
Zoom sound settings 73
Index
Please refer to the warranty that came with your product or
visit our website www.samsung.com for after-sales service or
inquiries.
