Samsung Electronics Co WB150F Digital Camera User Manual

Samsung Electronics Co Ltd Digital Camera

User Manual

This user manual includes detailed usage instructions for your camera. Please read this manual thoroughly.User ManualWB150/WB150F WB152/WB152F Click a topicBasic troubleshootingQuick referenceContents Basic functionsExtended functionsShooting optionsPlayback/EditingWireless networkSettingsAppendixesIndex

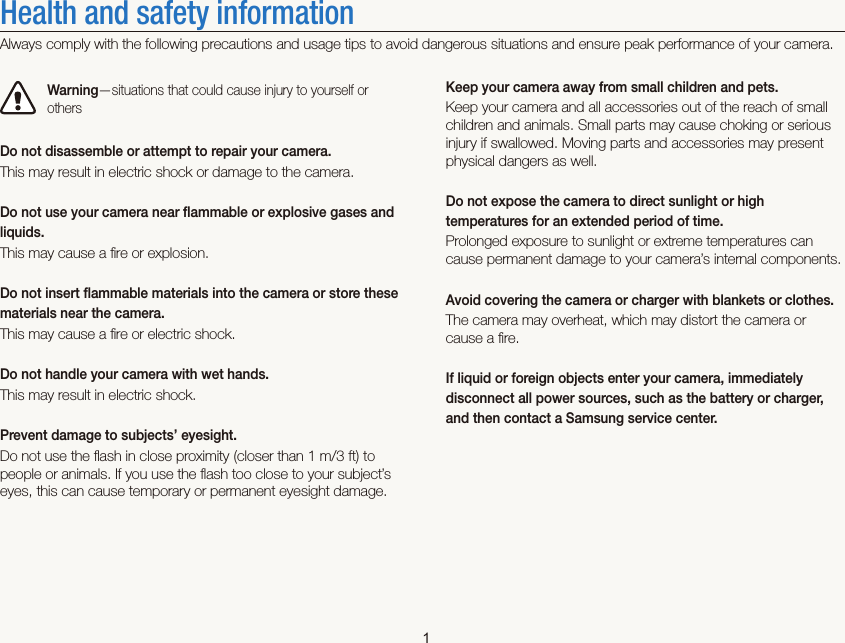

1Keep your camera away from small children and pets.Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.Do not expose the camera to direct sunlight or high temperatures for an extended period of time.Prolonged exposure to sunlight or extreme temperatures can cause permanent damage to your camera’s internal components.Avoid covering the camera or charger with blankets or clothes.The camera may overheat, which may distort the camera or cause a fire.If liquid or foreign objects enter your camera, immediately disconnect all power sources, such as the battery or charger, and then contact a Samsung service center.Health and safety informationAlways comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera.Warning—situations that could cause injury to yourself or othersDo not disassemble or attempt to repair your camera.This may result in electric shock or damage to the camera.Do not use your camera near flammable or explosive gases and liquids.This may cause a fire or explosion. Do not insert flammable materials into the camera or store these materials near the camera.This may cause a fire or electric shock.Do not handle your camera with wet hands.This may result in electric shock.Prevent damage to subjects’ eyesight.Do not use the flash in close proximity (closer than 1 m/3 ft) to people or animals. If you use the flash too close to your subject’s eyes, this can cause temporary or permanent eyesight damage.
2Caution—situations that could cause damage to your camera or other equipmentRemove the batteries from your camera when storing it for an extended period of time.Installed batteries may leak or corrode over time and cause serious damage to your camera.Use only authentic, manufacturer-recommended, Lithium-ion replacement batteries. Do not damage or heat the battery.Inauthentic, damaged, or heated batteries may cause a fire or personal injury.Use only Samsung-approved batteries, chargers, cables and accessories.• Using unauthorized batteries, chargers, cables or accessories can cause batteries to explode, damage your camera, or cause injury.• Samsung is not responsible for damage or injuries caused by unapproved batteries, chargers, cables or accessories.Use the battery only for its intended purpose.Misusing the battery may cause a fire or electric shock.Do not touch the flash while it fires.The flash is very hot when fired and may burn your skin.When you use the AC charger, turn off the camera before you disconnect the power to the AC charger.Failing to do so may result in fire or electric shock.Disconnect the charger from the wall socket when not in use.Failing to do so may result in fire or electric shock.Do not use a damaged power supply cord, plug, or loose outlet when you charge batteries.This may cause a fire or electric shock.Do not allow the AC charger to come in contact with the +/- terminals on the battery.This may cause a fire or electric shock.Do not force the camera’s parts or apply pressure to the camera.This may cause your camera to malfunction.Health and safety information

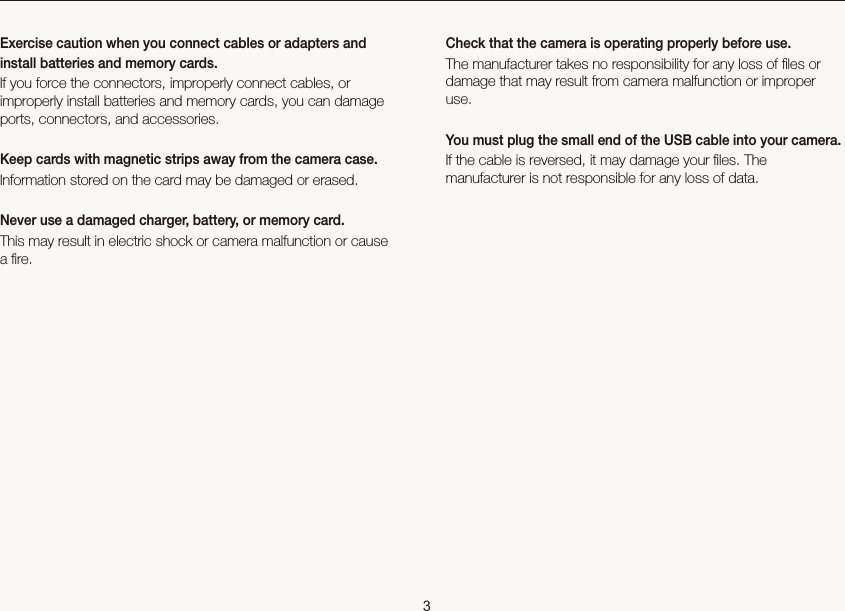

3Health and safety informationExercise caution when you connect cables or adapters and install batteries and memory cards.If you force the connectors, improperly connect cables, or improperly install batteries and memory cards, you can damage ports, connectors, and accessories.Keep cards with magnetic strips away from the camera case.Information stored on the card may be damaged or erased.Never use a damaged charger, battery, or memory card.This may result in electric shock or camera malfunction or cause a fire.Check that the camera is operating properly before use.The manufacturer takes no responsibility for any loss of files or damage that may result from camera malfunction or improper use.You must plug the small end of the USB cable into your camera.If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data.
4Copyright information• Microsoft Windows and the Windows logo are registered trademarks of the Microsoft Corporation.• Mac is a registered trademark of the Apple Corporation.• Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.• Trademarks and trade names used in this manual are the property of their respective owners.• Camera specifications or contents of this manual may be changed without prior notice due to upgrade of camera functions.• We recommend using your camera within the country where you purchase it.• You are not allowed to reuse or distribute any part of this manual without prior permission.• For Open Source License information, refer to the ‘OpenSourceInfo.pdf’ in the provided CD-ROM.Outline of the User ManualBasic functions 13Learn about your camera’s layout, icons, and basic functions for shooting.Extended functions 34Learn how to capture a photo and record a video by selecting a mode.Shooting options 57Learn how to set the options in Shooting mode.Playback/Editing 84Learn how to play back photos or videos, and edit photos or videos. Also, learn how to connect your camera to your computer, photo printer, TV, HDTV, or 3D TV.Wireless network 111Learn to connect to wireless local area networks (WLANs) and use functions.Settings 131Refer to options to configure your camera’s settings.Appendixes 137Get information about error messages, specifications, and maintenance.
5Indicators used in this manualShooting mode IndicatorSmart AutoSProgrampAperture Priority, Shutter Priority, ManualGDUAL ISdScenesPanoramaRCreative Movie MakerKMovievShooting mode iconsThese icons appear in the text when a function is available in a mode. See the example below. Note: The s mode may not support functions for all scenes.For example:Available in Program, Aperture Priority, Shutter Priority, DUAL IS, and Movie modesIcons used in this manualIcon FunctionAdditional informationSafety warnings and precautions[] Camera buttons. For example, [Shutter] represents the shutter button.() Page number of related informationThe order of options or menus you must select to perform a step; for example: Select a  Photo Size (represents Select a, and then select Photo Size).*Annotation
6Pressing the shutter• Half-press [Shutter]: press the shutter halfway down• Press [Shutter]: press the shutter all the way downHalf-press [Shutter] Press [Shutter]Subject, background, and composition• Subject: the main object in a scene, such as a person, animal, or still life • Background: the objects around the subject• Composition : the combination of a subject and backgroundComposition BackgroundSubjectExposure (Brightness)The amount of light that enters your camera determines the exposure. You can alter the exposure with shutter speed, aperture value, and ISO sensitivity. By altering the exposure, your photos will be darker or lighter. Normal exposure Overexposure (too bright)Expressions used in this manual
7Basic troubleshootingLearn to solve common problems by setting shooting options.The subject’s eyes appear red.Red eye occurs when the subject's eyes reflect light from the camera flash.• Set the flash option to Red-eye or Red-eye Fix. (p. 61)• If the photo has already been captured, select Red-eye Fix in the edit menu. (p. 98)Photos have dust spots.If dust particles are present in the air, you may capture them in photos when you use the flash.• Turn off the flash or avoid capturing photos in a dusty place.• Set ISO sensitivity options. (p. 63)Photos are blurred. Blurring can occur if you capture photos in low light conditions or hold the camera incorrectly.• Use the OIS function or half-press [Shutter] to ensure the subject is focused. (p. 32)• Use the d mode. (p. 47)Photos are blurred when shooting at night.As the camera tries to let in more light, the shutter speed slows. This can make it difficult to hold thecamera steady long enough to take a clear picture and may result in camera shake.• Select Night in s mode. (p. 37)• Turn on the flash. (p. 61)• Set ISO sensitivity options. (p. 63)• Use a tripod to prevent your camera from shaking.Subjects come out too dark because of backlighting.When the light source is behind the subject or when there is a high contrast between light and dark areas, the subject may appear too dark.• Avoid shooting toward the sun.• Select Backlight in s mode. (p. 37)• Set the flash option to Fill in. (p. 61)• Adjust the exposure. (p. 73)• Set the metering option to Spot if a subject is in the center of the frame. (p. 74)

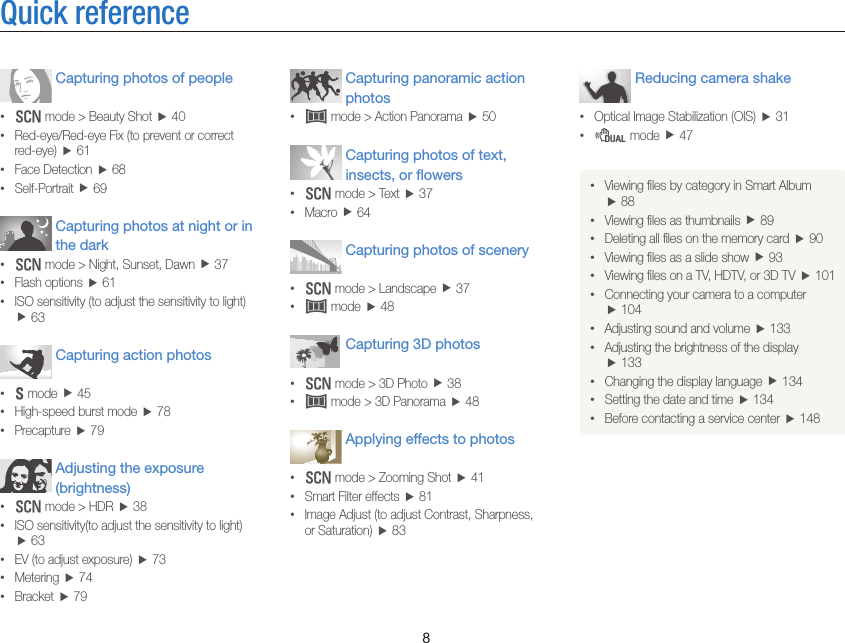

8Quick referenceCapturing photos of people• s mode > Beauty Shot  40• Red-eye/Red-eye Fix (to prevent or correct red-eye)  61• Face Detection  68• Self-Portrait  69Capturing photos at night or in the dark• s mode > Night, Sunset, Dawn  37• Flash options  61• ISO sensitivity (to adjust the sensitivity to light)  63Capturing action photos• h mode  45• High-speed burst mode  78• Precapture  79Adjusting the exposure (brightness)• s mode > HDR  38• ISO sensitivity(to adjust the sensitivity to light)  63• EV (to adjust exposure)  73• Metering  74• Bracket  79Capturing panoramic action photos• R mode > Action Panorama  50Capturing photos of text, insects, or flowers• s mode > Text  37• Macro  64Capturing photos of scenery• s mode > Landscape  37• R mode  48Capturing 3D photos• s mode > 3D Photo  38• R mode > 3D Panorama  48Applying effects to photos• s mode > Zooming Shot  41• Smart Filter effects  81• Image Adjust (to adjust Contrast, Sharpness, or Saturation)  83Reducing camera shake• Optical Image Stabilization (OIS)  31• d mode  47• Viewing files by category in Smart Album  88• Viewing files as thumbnails  89• Deleting all files on the memory card  90• Viewing files as a slide show  93• Viewing files on a TV, HDTV, or 3D TV  101• Connecting your camera to a computer  104• Adjusting sound and volume  133• Adjusting the brightness of the display  133• Changing the display language  134• Setting the date and time  134• Before contacting a service center  148
9Contents Extended functions .......................................................... 34Using the Smart Auto mode ........................................ 35Using the Scene mode ................................................ 37Using the 3D Photo mode ........................................... 38Using the HDR mode ................................................. 38Using the Magic Frame mode ..................................... 39Using the Beauty Shot mode ....................................... 40Using the Zooming Shot mode .................................... 41Using the Program mode ............................................ 42Using the Aperture Priority, Shutter Priority, or Manual mode .......................................................... 43Using the Aperture Priority mode .................................. 44Using the Shutter Priority mode .................................... 45Using the Manual mode .............................................. 46Using the DUAL IS mode ............................................ 47Using the Panorama mode ......................................... 48Using the 2D or 3D Panorama mode ........................... 48Using the Action Panorama mode ................................ 50Using the Movie mode ................................................ 51Recording high-speed videos ...................................... 53Using the Smart Scene Detection mode ...................... 54Using the Creative Movie Maker mode ...................... 55Making a movie with the Creative Movie Maker ............. 55View a movie made in Creative Movie Maker mode ....... 56Basic functions ................................................................. 13Unpacking ................................................................... 14Camera layout ............................................................. 15Inserting the battery and memory card ....................... 18Charging the battery and turning on your camera ...... 19Charging the battery ................................................... 19Turning on your camera .............................................. 19Performing the initial setup ......................................... 20Learning icons ............................................................. 22Selecting options or menus ........................................ 23Using [MENU] ............................................................ 23Using [Fn] .................................................................. 25Setting the display and sound .................................... 26Setting the display type ............................................... 26Setting the sound ....................................................... 27Capturing photos ......................................................... 28Zooming .................................................................... 29Reducing camera shake (OIS) ..................................... 31Tips for getting a clearer photo ................................... 32
10 Contents Shooting options .............................................................. 57Selecting a resolution and quality ............................... 58Selecting a resolution .................................................. 58Setting the photo quality .............................................. 59Using the timer ............................................................ 60Shooting in the dark .................................................... 61Preventing red-eye ..................................................... 61Using the flash ........................................................... 61Adjusting the ISO sensitivity ......................................... 63Changing the camera’s focus ..................................... 64Using macro .............................................................. 64Using auto focus ........................................................ 64Focusing on a selected area ....................................... 66Using tracking auto focus ............................................ 66Adjusting the focus area .............................................. 67Using Face Detection .................................................. 68Detecting faces .......................................................... 68Capturing a self portrait shot ........................................ 69Capturing a smile shot ................................................ 69Detecting eye blinking ................................................. 70Using Smart Face Recognition .................................... 70Registering faces as your favorites (My Star) ................. 71Adjusting brightness and color ................................... 73Adjusting the exposure manually (EV) ........................... 73Changing the metering option ...................................... 74Selecting a White Balance setting ................................ 75Using burst modes ...................................................... 78Capturing photos in the High-speed burst mode ........... 78Capturing photos in the Precapture mode .................... 79Capturing bracketed photos ........................................ 79Applying effects/Adjusting images .............................. 81Applying Smart Filter effects ........................................ 81Adjusting your photos ................................................. 83
11 Contents Playback/Editing ............................................................... 84Viewing photos or videos in Playback mode .............. 85Starting Playback mode .............................................. 85Viewing photos .......................................................... 91Playing a video ........................................................... 94Editing a photo ............................................................ 96Resizing photos ......................................................... 96Rotating a photo ......................................................... 96Applying Smart Filter effects ........................................ 97Adjusting your photos ................................................. 98Creating a print order (DPOF) ....................................... 99Viewing files on a TV, HDTV, or 3D TV ....................... 101Transferring files to your Windows computer ........... 104Transferring files with Intelli-studio ............................... 105Transferring files by connecting the camera as a removable disk ...................................................... 107Disconnecting the camera (for Windows XP) ............... 108Transferring files to your Mac computer ................... 109Printing photos with a PictBridge photo printer ....... 110Wireless network ............................................................ 111Connecting to a WLAN and configuring network settings ........................................................ 112Connecting to a WLAN ............................................. 112Setting network options ............................................ 113Manually setting the IP address ................................. 113Network connection tips ........................................... 114Sending photos via email .......................................... 115Changing email settings ............................................ 115Sending photos via email .......................................... 117Entering text ............................................................. 118Using photo or video sharing websites .................... 119Accessing a website ................................................ 119Uploading photos or videos ....................................... 119Using a smart phone as a remote shutter release .... 120Viewing photos or videos on a AllShare-enabled TV .................................................. 122Viewing photos or videos on a TV I ............................. 122Viewing photos or videos on a TV II ............................ 124Sending or receiving photos or videos with another camera .................................................. 125Sending photos or videos to another camera .............. 125Receiving photos or videos from another camera ........ 125Using Auto Backup to send photos or videos .......... 127Installing the program for Auto Backup on your PC ...... 127Sending photos or videos to a PC ............................. 127Sending photos or videos to a Blu-ray disc Player ....... 128About the Wakeup on LAN (WOL) feature ................ 129
12 Contents Settings ........................................................................... 131Settings menu ........................................................... 132Accessing the settings menu .................................... 132Sound ..................................................................... 133Display .................................................................... 133Settings ................................................................... 134Appendixes ..................................................................... 137Error messages ......................................................... 138Camera maintenance ................................................ 139Cleaning your camera ............................................... 139Using or storing the camera ...................................... 140About memory cards ................................................ 141About the battery ...................................................... 144Before contacting a service center ........................... 148Camera specifications ............................................... 151Glossary ..................................................................... 155FCC notice ................................................................. 160Index .......................................................................... 161
Unpacking ………………………………… 14Camera layout ……………………………… 15Inserting the battery and memory card … 18Charging the battery and turning on your camera …………………………… 19Charging the battery ……………………… 19Turning on your camera ………………… 19Performing the initial setup ……………… 20Learning icons ……………………………… 22Selecting options or menus ……………… 23Using [MENU] …………………………… 23Using [Fn] ………………………………… 25Setting the display and sound …………… 26Setting the display type …………………… 26Setting the sound ………………………… 27Capturing photos ………………………… 28Zooming ………………………………… 29Reducing camera shake (OIS) …………… 31Tips for getting a clearer photo …………… 32Basic functionsLearn about your camera’s layout, icons, and basic functions for shooting.

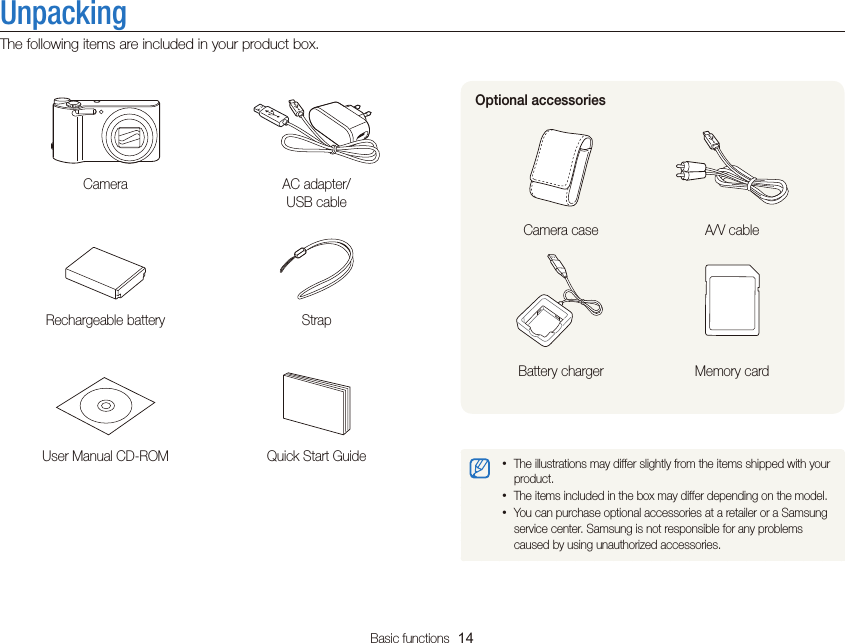

Basic functions 14UnpackingThe following items are included in your product box.Camera AC adapter/ USB cableRechargeable battery StrapUser Manual CD-ROM Quick Start GuideOptional accessoriesCamera case A/V cableBattery charger Memory card• The illustrations may differ slightly from the items shipped with your product.• The items included in the box may differ depending on the model.• You can purchase optional accessories at a retailer or a Samsung service center. Samsung is not responsible for any problems caused by using unauthorized accessories.
Basic functions 15USB and A/V portAccepts USB cable and A/V cableCamera layoutBefore you start, familiarize yourself with your camera’s parts and their functions.Battery chamber coverInsert a memory card and batteryTripod mountSpeakerShutter buttonPOWER buttonAF-assist light/Timer lamp FlashLensMicrophone
Basic functions 16Camera layoutStatus lamp• Blinking: When the camera is saving a photo or video, being read by a computer or printer, or when the image is out of focus• Steady: When the camera is connected to a computer, charging the battery, or when the image is in focusZoom button• In Shooting mode: Zoom in or out• In Playback mode: Zoom in on part of a photo or view files as thumbnails, or adjust the volumeDisplayAttaching the strapMode dial(p. 17)Buttons(p. 17)xy
Basic functions 17Camera layoutMode dialIcon Description TSmart Auto: Capture a photo with a scene mode selected automatically by the camera.pProgram: Capture a photo by setting options except the shutter speed and aperture value which the camera sets automatically.GAAperture Priority: The camera selects a shutter speed based on the aperture value you have set manually.hShutter Priority: The camera selects an aperture value based on the shutter speed you have set manually.MManual: Adjust various camera settings including shutter speed and aperture value.dDUAL IS: Capture a photo with options that reduce camera shake.sScene: Capture a photo with options preset for a specific scene.RPanorama: Capture and combine a series of photos to create a panoramic image.KCreative Movie Maker: Create movies from photos and videos stored on the memory card.vMovie: Customize settings to record a video.ButtonsButton Description Start recording a video.Access options or menus.Go back.Basic functions Other functionsDChange the display option. Move upcChange the macro option. Move downFChange the flash option. Move lefttChange the timer option. Move rightConfirm the highlighted option or menu.Enter Playback mode.• Access options in Shooting mode.• Delete files in Playback mode.
Basic functions 18Inserting the battery and memory cardLearn how to insert the battery and an optional memory card into the camera. Removing the battery and memory card Memory cardPush the card gently until it disengages from the camera, and then pull it out of the slot.Rechargeable batteryBattery lockSlide the lock down to release the battery.You can use the internal memory for temporary storage if a memory card is not inserted.Memory cardInsert a memory card with the gold-colored contacts facing up.Rechargeable batteryInsert the battery with the Samsung logo facing up.
Basic functions 19Charging the battery and turning on your cameraTurning on your cameraPress [POWER] to turn your camera on or off.• The initial setup screen appears when you turn on the camera for the first time. (p. 20) Turning on your camera in Playback mode Press [P]. The camera turns on and immediately accesses Playback mode.If you turn on your camera by pressing and holding [P] for about 5 seconds, the camera does not emit any sounds.Charging the batteryBefore you use the camera for the first time, you must charge the battery. Plug the small end of the USB cable into your camera, and then plug the other end of the USB cable into the AC adapter.Indicator light• Red light on: Charging• Red light off: Fully chargedUse only the AC adapter and USB cable supplied with your camera. If you use another AC adapter (such as SAC-48), the camera battery may not charge or work properly.
Basic functions 20Performing the initial setupWhen you turn on your camera for the first time, the initial setup screen appears. Follow the steps below to configure the camera’s basic settings.4 Press [D/c] to select Home, and then press [o].• When you travel to another country, select Visit, and then select a new time zone.5 Press [F/t] to select a time zone, and then press [o].• To set daylight-savings time, press [D].Back DSTTime Zone : HomeLondon1 Verify that Language is highlighted, and then press [t] or [o].2 Press [D/c/F/t] to select a language, and then press [o].3 Press [c] to select Time Zone, and then press [t] or [o].
Basic functions 21Performing the initial setup6 Press [c] to select Date/Time Set, and then press [t] or [o].Exit SetDate/Time SetYear Month Day Hour Min• The screen may differ depending on the language selected.7 Press [F/t] to select an item.8 Press [D/c] to set the date and time, and then press [o].9 Press [c] to select Date Type, and then press [t] or [o].10 Press [D/c] to select a date type, and then press [o].LanguageTime ZoneDate/Time SetDate TypeEnglishLondon2011/01/01Back SetYYYY/MM/DDMM/DD/YYYYDD/MM/YYYY• The default date type may differ depending on the language selected.11 Press [m] to switch to Shooting mode.
Basic functions 223 Shooting informationIcon DescriptionShooting modeAperture valueShutter speedExposure valueAvailable number of photosMemory card inserted• : Fully charged • : Partially charged• : Empty (Recharge)Available recording timeAuto focus frameCamera shakeZoom indicatorZoom ratioHistogram (p. 26)Current time and dateLearning iconsThe icons the camera displays on the screen change according to the mode you select or the options you set.2 Shooting options (right)Icon DescriptionSmart zoom onPhoto resolutionVideo resolutionSingle shot modeHigh-speed burst modePrecapture modeBracket modeFrame ratePhoto qualityMeteringFlashFlash intensity adjustedAuto focus optionTimer1 Shooting options (left)Icon DescriptionSmart filterFace toneImage adjustment (contrast, sharpness, and saturation)White balanceWhite balance adjustedFace retouchFace detectionFocus areaOptical Image Stabilization (OIS)Sound Alive onISO sensitivity123
Basic functions 23Selecting options or menusTo select an option or a menu, press [m] or [f]. Going back to the previous menu Press [m] again to go back to the previous menu.Half-press [Shutter] to return to Shooting mode.Using [MENU]To select options, press [m], and then rotate the navigation button or press [D/c/F/t] or [o].1 In Shooting mode, press [m].2 Rotate the navigation button or press [D/c/F/t] to scroll to a menu or an option.or3 Press [o] to confirm the highlighted option or menu.
Basic functions 24Selecting options or menus4 Rotate the navigation button or press [D/c] to select White Balance, and then press [t] or [o].Photo SizeQualityEVISOWhite BalanceSmart FilterFace DetectionExit Move5 Rotate the navigation button or press [F/t] to select a White Balance option.Back AdjustWhite Balance : Daylight6 Press [o] to save your settings.7 Press [m] to return to Shooting mode. For example, to select a White Balance option in Program mode: 1 Rotate the mode dial to p.2 Press [m].Exit MovePhoto SizeQualityEVISOWhite BalanceSmart FilterFace Detection3 Rotate the navigation button or press [D/c] to select a, and then press [t] or [o].

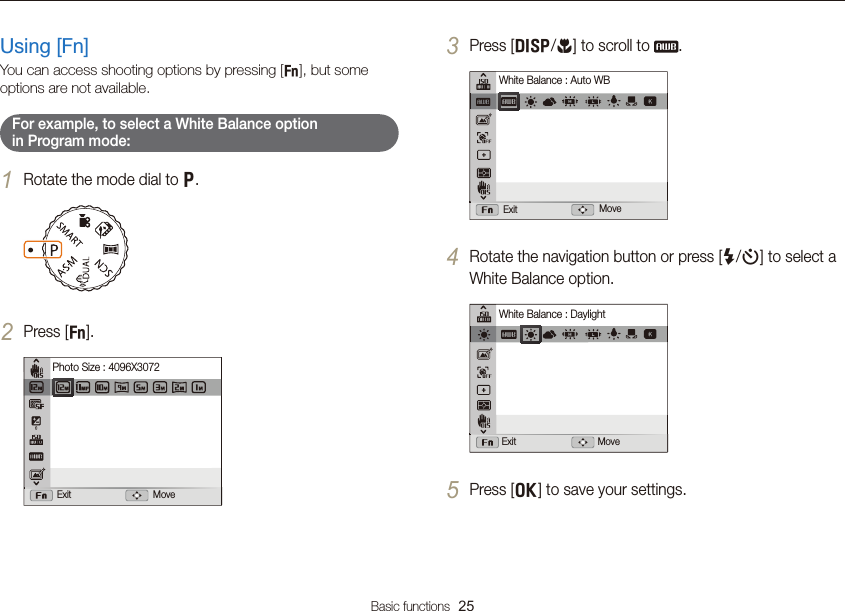

Basic functions 25Selecting options or menusUsing [Fn]You can access shooting options by pressing [f], but some options are not available. For example, to select a White Balance option in Program mode: 1 Rotate the mode dial to p.2 Press [f].Photo Size : 4096X3072Exit Move3 Press [D/c] to scroll to .White Balance : Auto WBExit Move4 Rotate the navigation button or press [F/t] to select a White Balance option.White Balance : DaylightExit Move5 Press [o] to save your settings.
Basic functions 26Setting the display and soundLearn how to change the basic display information and sound settings. About histograms A histogram is a graph that illustrates how light is distributed in your photo. If the histogram has a high peak on the left, the photo is underexposed and will appear dark. A peak on the right of the graph means that the photo is overexposed and will appear washed out. The height of the peaks is related to color information. The more of a particular color, the taller the peak. Under-exposed Well-exposed Over-exposedSetting the display typeYou can select a display type for the Shooting or Playback mode. Each type displays different shooting or playback information. See the table below.Press [D] repeatedly to change the display type.Show all photographic information.Mode DescriptionShooting• Hide all information about shooting.• Hide information about shooting, except the information on the bottom line.• Display all information about shooting.• Display histogram. Playback• Hide all information about the current file.• Display information about the current file, except the shooting settings and histogram.• Display all information about the current file.
Basic functions 27Setting the display and soundSetting the soundTurn on or off the sound your camera emits when you perform functions.1 In Shooting or Playback mode, press [m].2 Select U  Beep Sound.3 Select an option.Option DescriptionOff The camera does not emit any sounds.On The camera emits sounds.
Basic functions 28Capturing photosLearn how to capture photos easily and quickly in Smart Auto mode.3 Half-press [Shutter] to focus.• A green frame means the subject is in focus.• A red frame means the subject is out of focus.4 Press [Shutter] to capture a photo.5 Press [P] to view the captured photo.• To delete the photo, press [f], and then select Yes.6 Press [P] to return to Shooting mode.See page 32 for tips to get clearer photos.1 Rotate the mode dial to T.2 Align your subject in the frame.

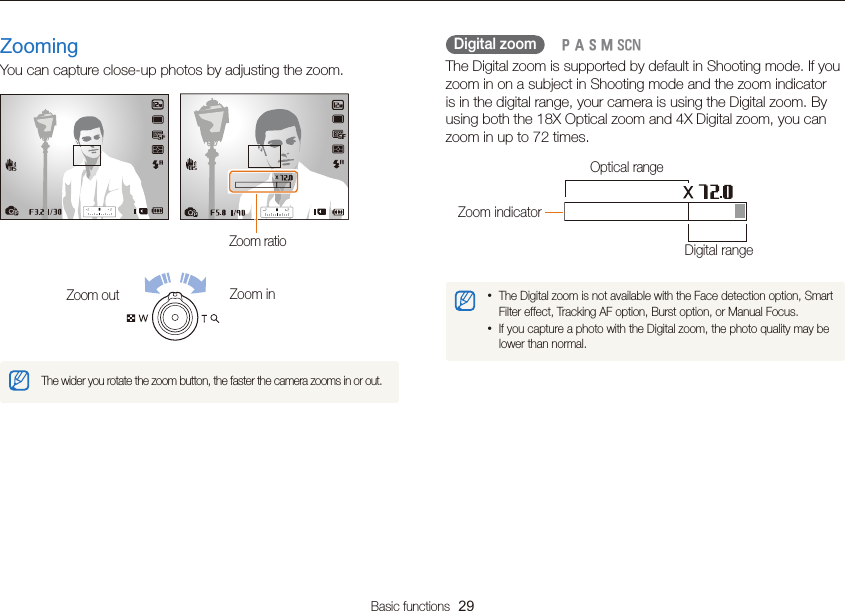

Basic functions 29Capturing photos Digital zoom The Digital zoom is supported by default in Shooting mode. If you zoom in on a subject in Shooting mode and the zoom indicator is in the digital range, your camera is using the Digital zoom. By using both the 18X Optical zoom and 4X Digital zoom, you can zoom in up to 72 times.Digital rangeZoom indicatorOptical range• The Digital zoom is not available with the Face detection option, Smart Filter effect, Tracking AF option, Burst option, or Manual Focus.• If you capture a photo with the Digital zoom, the photo quality may be lower than normal. pAhMsZoomingYou can capture close-up photos by adjusting the zoom.Zoom out Zoom inZoom ratioThe wider you rotate the zoom button, the faster the camera zooms in or out.
Basic functions 30Capturing photos Smart zoom You can use 24X Smart zoom which lets you zoom in with less degradation of picture quality than the Optical zoom and Digital zoom. By using both the Smart zoom and Digital zoom, you can zoom in up to 72 times.Smart rangeDigital rangeZoom indicator• Smart zoom is not available with the Face detection option, Smart Filter effect, Tracking AF option, Burst option, or Manual Focus.• If you capture a photo with the Smart zoom, the photo quality may be lower than normal. pAhM Setting Smart zoom 1 In Shooting mode, press [m].2 Select a  Smart Zoom.3 Select an option.Icon DescriptionOff: The Smart zoom is deactivated.On: The Smart zoom is activated.
Basic functions 31Capturing photosReducing camera shake (OIS)Reduce camera shake optically in Shooting mode. Before correction After correction1 In Shooting mode, press [m].2 Select a or V  OIS.3 Select an option.Icon DescriptionOff: OIS is deactivated.On: OIS is activated. pAhMsv • OIS may not function properly when: - you move your camera to follow a moving subject - you use the Digital zoom - there is too much camera shake - the shutter speed is slow (for example, when you capture night scenes) - the battery is low - you capture a close-up shot• If you use the OIS function with a tripod, your images may be blurred by the vibration of the OIS sensor. Deactivate the OIS function when you use a tripod.• If the camera is hit or dropped, the display will be blurry. If this occurs, turn off the camera, and then turn it on again.
Basic functions 32 Holding your camera correctly Ensure nothing is blocking the lens, flash, or microphone. Half-pressing the shutter button Half-press [Shutter] and adjust the focus. The camera adjusts the focus and exposure automatically.The camera sets the aperture value and shutter speed automatically.Focus frame• Press [Shutter] to capture the photo if the focus frame appears in green.• Change the composition and half-press [Shutter] again if the focus frame appears in red. Reducing camera shake • Set the Optical Image Stabilization option to reduce camera shake optically. (p. 31)• Select the d mode to reduce camera shake both optically and digitally. (p. 47) When is displayed Camera shakeWhen you shoot in the dark, avoid setting the flash option to Slow Sync or Off. The aperture remains open longer and it may be harder to hold the camera steady long enough to capture a clear photo.• Use a tripod or set the flash option to Fill in. (p. 61)• Set ISO sensitivity options. (p. 63)Tips for getting a clearer photo
Basic functions 33 Preventing your subject from being out of focus It may be difficult to get your subject in focus when: -there is little contrast between the subject and background (for example, when your subject is wearing clothing that is similar in color to the background) -the light source behind the subject is too bright -the subject is shiny or reflective -the subject includes horizontal patterns, such as blinds -the subject is not positioned in the center of the frame• When you capture photos in low lightTurn on the flash. (p. 61)• When subjects are moving rapidlyUse the High-speed burst mode or Precapture function. (p. 78)Using the focus lockHalf-press [Shutter] to focus. When the subject is in focus, you can reposition the frame to change the composition. When you are ready, press [Shutter] to capture your photo.
Extended functionsLearn how to capture a photo and record a video by selecting a mode.Using the Smart Auto mode ……………… 35Using the Scene mode …………………… 37Using the 3D Photo mode ……………… 38Using the HDR mode …………………… 38Using the Magic Frame mode …………… 39Using the Beauty Shot mode …………… 40Using the Zooming Shot mode …………… 41Using the Program mode ………………… 42Using the Aperture Priority, Shutter Priority, or Manual mode ………………… 43Using the Aperture Priority mode ………… 44Using the Shutter Priority mode ………… 45Using the Manual mode ………………… 46Using the DUAL IS mode ………………… 47Using the Panorama mode ……………… 48Using the 2D or 3D Panorama mode …… 48Using the Action Panorama mode ……… 50Using the Movie mode …………………… 51Recording high-speed videos …………… 53Using the Smart Scene Detection mode … 54Using the Creative Movie Maker mode … 55Making a movie with the Creative Movie Maker …………………… 55View a movie made in Creative Movie Maker mode ……………… 56
Extended functions 35Using the Smart Auto modeIn Smart Auto mode, your camera automatically chooses the appropriate camera settings based on the type of scene it detects. The Smart Auto mode is helpful if you are not familiar with the camera settings for various scenes.Icon DescriptionPortraits with backlightingPortraitsClose-up photos of objectsClose-up photos of textSunsetsBlue skiesForested areasClose-up photos of colorful subjectsCamera is stabilized or on a tripod (when shooting in the dark)Actively moving subjectsFireworks (when using a tripod)3 Half-press [Shutter] to focus.4 Press [Shutter] to capture the photo.1 Rotate the mode dial to T.2 Align your subject in the frame.• The camera automatically selects a scene. An appropriate scene icon appears at the bottom left of the screen. The icons are listed below.Icon DescriptionLandscapesScenes with bright white backgroundsLandscapes at night (when the flash is off)Portraits at nightLandscapes with backlighting
Extended functions 36Using the Smart Auto mode• If the camera does not recognize an appropriate scene mode, it uses the default settings for the T mode.• Even if it detects a face, the camera may not select a portrait mode depending on the subject's position or lighting.• The camera may not select the correct scene depending on the shooting conditions, such as camera shake, lighting, or distance to the subject.• Even if you use a tripod, the camera may not detect the mode if the subject is moving.• In T mode, the camera consumes more battery power, because it changes settings often to select appropriate scenes.
Extended functions 37Using the Scene modeIn Scene mode, you can capture a photo with options that are preset for a specific scene.Option DescriptionText Clearly capture text from printed or electronic documents.Sunset Capture scenes at sunset, with natural-looking reds and yellows.Dawn Capture scenes at sunrise.Backlight Capture backlit subjects.Beach & SnowReduce underexposure of subjects caused by sunlight reflected from sand or snow.Zooming Shot Capture scenes with blurred edges.• To change a scene mode, press [m], and then select . You can select any of the scenes listed.3 Align your subject in the frame, and then half-press [Shutter] to focus.4 Press [Shutter] to capture the photo.1 Rotate the mode dial to s.2 Select a scene.3D PhotoOption Description3D Photo Capture scenes with a 3D effect (the 3D effect works only on a 3D TV or 3D monitor).HDR Capture scenes with emphasis on mid-tones, by minimizing the dark and bright areas.Magic Frame Capture scenes with various frame effects.Beauty ShotCapture a portrait with options to hide facial imperfections.Night Capture scenes at night or in low lighting (using a tripod is recommended).Landscape Capture still-life scenes and landscapes.
Extended functions 38Using the Scene modeUsing the HDR modeIn HDR(High Dynamic Range) mode, your camera captures two photos with different exposures, and then overlays the bright area of the underexposed photo and the dark area of the overexposed photo. You can capture photos with soft, rich colors. Without HDR effect  With HDR effect1 Rotate the mode dial to s.2 Select HDR.3 Align your subject in the frame, and then half-press [Shutter] to focus.4 Press [Shutter] to capture the photo.• The camera captures 2 photos, and then automatically merges them into a single photo.Using the 3D Photo modeIn 3D Photo mode, you can capture scenes with a 3D effect.1 Rotate the mode dial to s.2 Select 3D Photo.3 Align your subject in the frame, and then half-press [Shutter] to focus.4 Press [Shutter] to capture the photo.• The camera captures 2 photos in both JPEG and MPO file formats.• In 3D Photo mode, the resolution is automatically set to .• In 3D Photo mode, some shooting options are not available.• You can view an MPO file that supports the 3D effect only on an MPO-compatible display, such as a 3D TV or 3D monitor. On your camera's display, you can view only JPEG files.• Use proper 3D glasses when you view an MPO file on a 3D TV or 3D monitor.
Extended functions 39Using the Scene mode• The HDR effect may be affected by camera shake, lighting, movement of the subject, and the shooting environment.• You cannot use the flash when you use the HDR mode.• It may take longer to save a photo using the HDR mode.• When you use the HDR mode, the preview image on the screen and the captured photo may appear slightly larger than a photo captured without this effect.• When you capture a moving subject using the HDR mode, an afterimage may appear.Using the Magic Frame modeIn Magic Frame mode, you can apply various frame effects to your photos. The shape and the feel of the photos will change according to the frame you select.1 Rotate the mode dial to s.2 Select Magic Frame.3 Press [m].4 Select a  Frame.5 Select an option.FrameQualityOISWall ArtOld FilmRippleFull MoonOld RecordMagazineSunny DayBack Set6 Press [m] to return to Shooting mode.7 Align your subject in the frame, and then half-press [Shutter] to focus.8 Press [Shutter] to capture the photo.In Magic Frame mode, the resolution is automatically set to .
Extended functions 40Using the Scene modeUsing the Beauty Shot modeIn Beauty Shot mode, you can capture a portrait with options to hide facial imperfections. 1 Rotate the mode dial to s.2 Select Beauty Shot.3 Press [m].4 Select a  Face Tone.5 Select an option.• For example, increase the face tone setting to make skin appear lighter.Back SetFace ToneFace RetouchFace DetectionSmart FR EditPhoto SizeQualityFocus AreaOffLevel 1Level 2Level 36 Select Face Retouch.7 Select an option.• For example, increase the face retouch setting to hide more imperfections.Back SetFace ToneFace RetouchFace DetectionSmart FR EditPhoto SizeQualityFocus AreaOffLevel 1Level 2Level 38 Press [m] to return to Shooting mode.9 Align your subject in the frame, and then half-press [Shutter] to focus.10 Press [Shutter] to capture the photo.When you use the Beauty Shot mode, the focus distance will be set to Auto Macro.
Extended functions 41Using the Scene modeUsing the Zooming Shot modeIn Zooming Shot mode, you can emphasize the center of a photo by blurring the edges. Without Zooming Shot effect With Zooming Shot effect1 Rotate the mode dial to s.2 Select Zooming Shot.3 Align your subject in the frame, and then half-press [Shutter] to focus.4 Press [Shutter] to capture the photo.In Zooming Shot mode, the resolution is automatically set to or below.
Extended functions 42Using the Program modeIn Program mode, you can set most options, except the shutter speed and aperture value, which the camera sets automatically.1 Rotate the mode dial to p.2 Set the desired options. (For a list of options, refer to "Shooting options" starting on page 57.)3 Align your subject in the frame, and then half-press [Shutter] to focus.4 Press [Shutter] to capture the photo.
Extended functions 43Using the Aperture Priority, Shutter Priority, or Manual modeAdjust the aperture value or shutter speed to control the exposure of your photos. You can use these options in the Aperture Priority, Shutter Priority, and Manual modes.Shutter speedShutter speed, which is an important factor in the brightness of a photo, refers to the amount of time it takes to open and close the shutter. A slow shutter speed allows more time to let light in. All things being equal, photos are brighter, but fast moving objects tend to blur. On the other hand, a fast shutter speed allows less time to let light in. Photos are darker, but objects in motion are captured more clearly. Slow shutter speed Fast shutter speedAperture valueThe aperture is a hole that lets light into the camera. The aperture housing contains thin, metal plates that open and close, widening or narrowing the aperture, and controlling the amount of light that enters the camera. The size of the aperture is closely related to the brightness of a photo: the larger the aperture, the brighter the photo; the smaller the aperture, the darker the photo. Note that the larger the aperture value, the smaller the aperture size. For example, an aperture set to 5.6 is larger than an aperture set to 11. Small aperture value (The size of the aperture is large.) Large aperture value (The size of the aperture is small.)
Extended functions 44Using the Aperture Priority, Shutter Priority, or Manual mode4 Set options. (For a list of options, refer to “Shooting options” starting on page 57.)5 Align your subject in the frame, and then half-press [Shutter] to focus.6 Press [Shutter] to capture the photo.Using the Aperture Priority modeThe Aperture Priority mode allows you to set the aperture value manually while the camera automatically selects an appropriate shutter speed.1 Rotate the mode dial to G.2 Select Aperture Priority.• To select another mode when the mode dial is set to G, press [m], and then select  a mode.3 Press [o], and then rotate the navigation button or press [D/c] to adjust the aperture value.• See page 43 for more information about the aperture value.
Extended functions 45Using the Aperture Priority, Shutter Priority, or Manual mode4 Set options. (For a list of options, refer to “Shooting options” starting on page 57.)5 Align your subject in the frame, and then half-press [Shutter] to focus.6 Press [Shutter] to capture the photo.Using the Shutter Priority modeThe Shutter Priority mode allows you to set the shutter speed manually while the camera automatically selects an appropriate aperture value.1 Rotate the mode dial to G.2 Select Shutter Priority.• To select another mode when the mode dial is set to G, press [m], and then select  a mode.3 Press [o], and then rotate the navigation button or press [D/c] to adjust the shutter speed.• See page 43 for more information about the shutter speed.

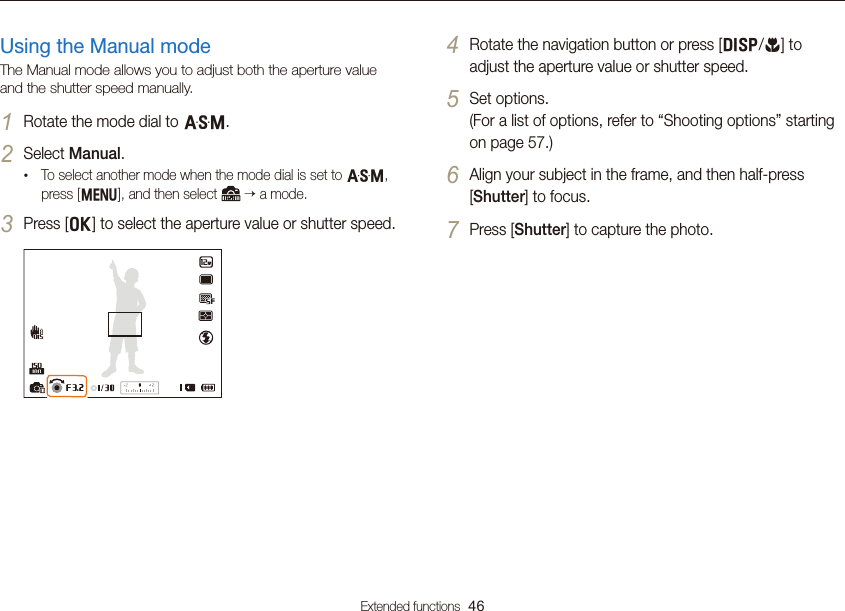

Extended functions 46Using the Aperture Priority, Shutter Priority, or Manual modeUsing the Manual modeThe Manual mode allows you to adjust both the aperture value and the shutter speed manually.1 Rotate the mode dial to G.2 Select Manual.• To select another mode when the mode dial is set to G, press [m], and then select  a mode.3 Press [o] to select the aperture value or shutter speed.4 Rotate the navigation button or press [D/c] to adjust the aperture value or shutter speed.5 Set options. (For a list of options, refer to “Shooting options” starting on page 57.)6 Align your subject in the frame, and then half-press [Shutter] to focus.7 Press [Shutter] to capture the photo.
Extended functions 47Using the DUAL IS modeReduce camera shake and prevent blurred photos with Optical and Digital Image Stabilization functions. Before correction After correction1 Rotate the mode dial to d.2 Align your subject in the frame, and then half-press [Shutter] to focus.3 Press [Shutter] to capture the photo.• The Digital zoom and Smart zoom are not available in d mode. • The camera will correct photos optically only when the light source is brighter than fluorescent light.• If your subject is moving rapidly, the photo may be blurry.• Set the Optical Image Stabilization option to reduce camera shake in different shooting modes. (p. 31)
Extended functions 48Using the Panorama modeIn Panorama mode, you can capture a wide panoramic scene in a single photo. Capture and combine a series of photos to create a panoramic image.7 With [Shutter] pressed, slowly move the camera in the direction that will let it capture the rest of the panorama.• In 3D Panorama mode, you can capture a scene only in horizontal directions.• When the viewfinder is aligned with the next scene, the camera captures the next photo automatically.8 When you are finished, release [Shutter].• When you have captured all the necessary shots, the camera combines them into one panoramic photo.Using the 2D or 3D Panorama modeIn Panorama mode, you can capture a normal or 3D panoramic photo.  Shooting example1 Rotate the mode dial to R.2 Press [m].3 Select a  Panorama  Live Panorama or 3D Panorama.4 Press [m] to return to Shooting mode.5 Align your subject in the frame, and then half-press [Shutter] to focus.• Align the camera with the far left or the far right, or very top or bottom, of the scene you want to capture.6 Press and hold [Shutter] to start shooting.
Extended functions 49Using the Panorama mode• For best results when capturing panoramic photos, avoid the following: - moving the camera too quickly or too slowly - moving the camera too little to capture the next image - moving the camera at irregular speeds - shaking the camera - changing the camera direction while capturing a photo - shooting in dark places - capturing moving subjects nearby - shooting conditions where the brightness or color of light is changing• Selecting Panorama mode will disable the digital and optical zoom functions. If you select Panorama mode while the lens is zoomed in, the camera automatically zooms out to the default position.• In Panorama mode, some shooting options are not available.• The camera may stop shooting due to the shooting composition or movement within the scene.• In Panorama mode, your camera may not capture the last scene in its entirety if you stop moving the camera exactly where you want the scene to end. To capture the entire scene, move your camera slightly beyond the point where you want the scene to end.• In 3D Panorama mode, your camera may not capture the very beginning or end of a scene due to the nature of the 3D effect. To capture the entire scene, move slightly beyond the beginning and end points you want to capture.• In 3D Panorama mode, photos are captured in both JPEG and MPO file formats.• You can view an MPO file that supports the 3D effect only on an MPO-compatible display, such as 3D TV or 3D monitor. On your camera's display, you can view only JPEG files.• Use proper 3D glasses when you view an MPO file on a 3D TV or 3D monitor.
Extended functions 50Using the Panorama modeUsing the Action Panorama modeIn Action Panorama mode, you can capture and combine a series of photos of a moving subject. Shooting example1 Rotate the mode dial to R.2 Press [m].3 Select a  Panorama  Action Panorama.4 Press [m] to return to Shooting mode.5 Align your subject in the frame, and then half-press [Shutter] to focus.• Align the camera with the far left or the far right side of the scene you want to capture.6 Press and hold [Shutter] to start shooting.7 With [Shutter] pressed, slowly move the camera in the direction that will let it capture the rest of the panorama.• If there is more than one moving subject, the camera may not recognize the correct subject.• If subjects are outside of the guide frame while capturing, the camera does not capture the movement of the subjects.8 When you are finished, release [Shutter].• The camera automatically combines the shots into one photo.• For best results when capturing panoramic photos, avoid the following: - moving the camera too quickly or too slowly - moving the camera too little to capture the next image - moving the camera at irregular speeds - shaking the camera - changing the camera direction while capturing a photo - shooting in dark places - capturing moving subjects nearby - shooting conditions where the brightness or color of light is changing• The camera may take time to save panoramic photos.• In Action Panorama mode, some shooting options are not available.
Extended functions 51Using the Movie modeIn Movie mode, you can customize settings to record full HD videos of up to 20 minutes in length. The camera saves recorded videos as MP4 (H.264) files. • H.264 (MPEG-4 part10/AVC) is a high-compression video format established by the international standards organizations ISO-IEC and ITU-T.• Some memory cards may not support high definition recording. If your card does not, set a lower resolution.• Memory cards with slow writing speeds will not support high-resolution videos and high-speed videos. To record high-resolution or high-speed videos, use memory cards with faster write speeds.• If you activate the OIS function while recording a video, the camera may record the operating sound of the OIS function.• If you use the zoom function when recording a video, the camera may record the noise of the zoom operating. To decrease zoom noise, use the Sound Alive function. See Steps 3 and 4 below.5 Set desired options. (For a list of options, refer to "Shooting options" starting on page 57.)6 Press (Video recording) to start recording.7 Press (Video recording) again to stop recording.• You can start recording a video in some modes by pressing (Video recording) without having to rotate the mode dial to v.• The video frame size may appear smaller while you are recording a video depending on the video resolution and frame rate.• If you perform no operations for approximately 3 minutes while recording a video, the screen will become dim. To activate the screen, perform any camera operation. If you operate POWER, Zoom, Shutter, or Video recording button, the camera will carry out the assigned function, even when the screen is dim.1 Rotate the mode dial to v.2 Press [m].3 Select V  Voice.4 Select a Sound Alive option.Icon DescriptionSound Alive Off: Turn off the Sound Alive function to record the zoom noise.Sound Alive On: Turn on the Sound Alive function to reduce the zoom noise.Mute: Do not record sounds.• Do not block the microphone when you use the Sound Alive function.• Recordings made with Sound Alive may differ from actual sounds.
Extended functions 52Using the Movie mode Pause recording The camera allows you to temporarily pause a video while recording. With this function, you can record separate scenes as a single video.• Press [o] to pause while recording.• Press [o] to resume. Capturing still images while recording a video You can capture still images while recording a video without switching to the photo shooting modes (up to 6 photos). This feature is available only when you use a memory card.Images captured while recording a video• Press [Shutter] to capture images while recording a video.• Captured images will be saved automatically.• Captured images will be automatically resized, depending on the size of the recorded video.• You cannot capture still images while recording high-speed videos.• You cannot capture still images when you pause the video recording.• The quality of images captured while recording a video may be lower than those captured normally.

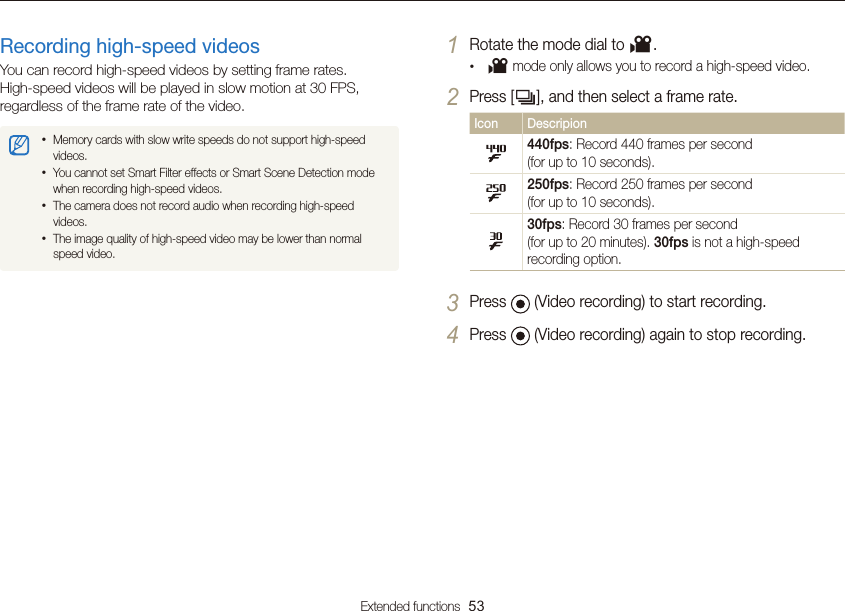

Extended functions 53Using the Movie modeRecording high-speed videosYou can record high-speed videos by setting frame rates. High-speed videos will be played in slow motion at 30 FPS, regardless of the frame rate of the video.• Memory cards with slow write speeds do not support high-speed videos.• You cannot set Smart Filter effects or Smart Scene Detection mode when recording high-speed videos.• The camera does not record audio when recording high-speed videos.• The image quality of high-speed video may be lower than normal speed video.1 Rotate the mode dial to v.• v mode only allows you to record a high-speed video.2 Press [Q], and then select a frame rate.Icon Descripion440fps: Record 440 frames per second (for up to 10 seconds).250fps: Record 250 frames per second (for up to 10 seconds).30fps: Record 30 frames per second (for up to 20 minutes). 30fps is not a high-speed recording option.3 Press (Video recording) to start recording.4 Press (Video recording) again to stop recording.
Extended functions 54Using the Movie modeUsing the Smart Scene Detection modeIn Smart Scene Detection mode, your camera automatically chooses the appropriate camera settings based on the scene it has detected.1 Rotate the mode dial to v.2 Press [m].3 Select V  Smart Scene Detection  On.4 Press [m] to return to Shooting mode.5 Align your subject in the frame.• The camera automatically selects a scene. An appropriate scene icon will appear at the bottom left of the screen.Icon DescriptionLandscapesSunsetsBlue skiesForested areas6 Press (Video recording) to start recording.7 Press (Video recording) again to stop recording.• If the camera does not recognize an appropriate scene mode, it uses the default settings for the Smart Scene Detection mode.• The camera may not select the correct scene depending on the shooting conditions, such as camera shake, lighting, and distance to the subject.• Smart Filter effects are not available in Smart Scene Detection mode.
Extended functions 55Making a movie with the Creative Movie Maker1 Rotate the mode dial to K.2 Select + Movie Creation.3 Select Select, and then select files.• You must select at least 2 files.• If you select a folder, every photo in the folder will be selected.• If you select a video, every photo captured while recording the video will be selected.• Select Shuffle to let the camera select photos and videos randomly. The movie cannot exceed 2 minutes 30 seconds in length.SelectShuffleBack SetSelect image• You cannot select photos captured in Panorama mode, videos made in Creative Movie Maker mode, videos recorded with some Smart Filter effects (Miniature, Vignetting, Half Tone Dot, Sketch, or Fish-eye), or some high-speed videos (440fps).• You can select up to 60 photos and 10 videos.4 Press [f] to confirm the selection.5 Press [t] to select Theme, and then select a theme.6 Press [t] to select Music, and then select music.7 Press [t] to select Movie Size, and then select a movie size.8 Press [t] to select Creation, and then select Creation Start.• If your camera does not have enough available memory to store the movie, you cannot select Creation Start. Delete files from the memory card to make more memory available. (p. 90)• If the pop-up message appears when you select Creation Start, select a smaller movie size in the Movie Size option.• The video rendering may take longer depending on the number and size of the selected files.• Press [m] to cancel the video rendering.Using the Creative Movie Maker modeIn the Creative Movie Maker mode, you can easily make movies from the photos and videos stored on your memory card.

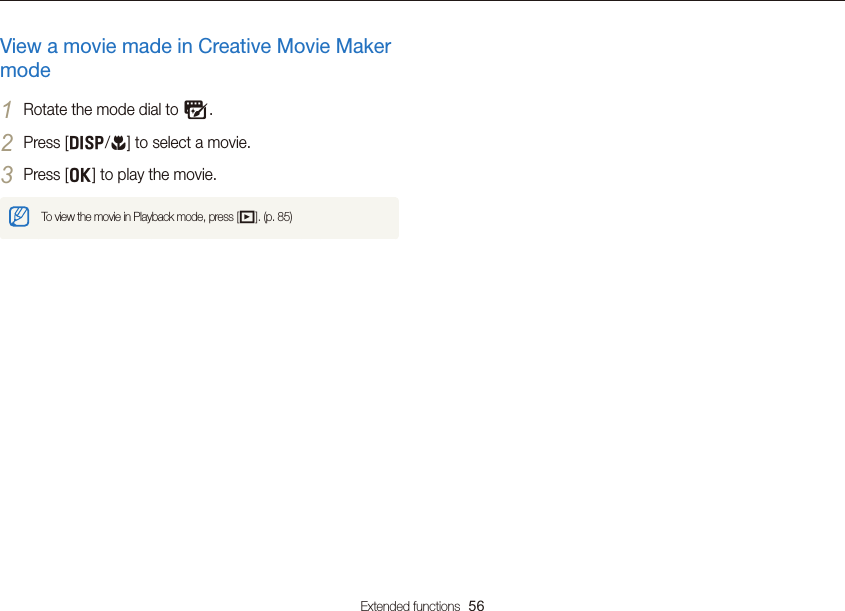

Extended functions 56Using the Creative Movie Maker modeView a movie made in Creative Movie Maker mode1 Rotate the mode dial to K.2 Press [D/c] to select a movie.3 Press [o] to play the movie.To view the movie in Playback mode, press [P]. (p. 85)
