User manual
World Wide Web
http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-xxxxxA
(EU A) 09/2008. Rev. 1.0
English ...................................................................................1
English
1
Contents
Getting started
Your headset overview ....................................................3
Button functions .............................................................4
Charging the headset ......................................................5
Wearing the headset .......................................................7
Using your headset
Turning the headset on or off ...........................................8
Pairing with your Bluetooth phone.....................................9
Using call functions ....................................................... 10
Appendix
Frequently asked questions ............................................ 12
Certication ................................................................. 14
Warranty and parts replacement ..................................... 15
Correct disposal of this product ...................................... 16
Correct disposal of batteries in this product ...................... 17
Specications ............................................................... 18
2
Read this user’s guide before you start to use your new Bluetooth
headset.
Bluetooth® is a registered trademark of the Bluetooth SIG, Inc.
worldwide—Bluetooth QD ID: B0xxxxx
More information about Bluetooth is available at www.bluetooth.com.
Safety precautions
Never disassemble or modify your headset for any reason. Doing this
may cause the headset to malfunction or become combustible. Bring
the headset to an authorised service centre to repair it or replace the
battery.
When using your headset while driving, follow local regulations in the
region you are in.
Avoid storage at high temperatures (above 50 °C/122 °F), such as in
a hot vehicle or in direct sunlight, as this can damage performance
and reduce battery life.
Do not expose the headset or any of its supplied parts to rain or other
liquids.
At very high volumes, prolonged listening to the headset can damage
your hearing.
•
•
•
•
English
3
Getting started
This section explains what to remember for the proper use of your
Bluetooth headset.
Your headset overview
Make sure you have the following items with your headset : Travel Adapter,
User's Guide
The items supplied with your headset may vary depending on your region.
Indicator light
Volume down button
Adapter jack
Ear hook
Primary
Microphone
Volume up button
Earpiece
Multi-function
button
Secondary
Microphone
4
Button functions
Multi-function button
Press and hold to turn the headset on or off.
Press to make or answer a call.
Press to end a call.
Press and hold to enter Pairing mode.
/ Volume up or down button
Press to adjust the volume.
Press and hold at the same time to turn the indicator light on or off.
Press and hold to turn the microphone on or off.
•
•
•
•
•
•
•
English
5
Charging the headset
This headset has a rechargeable internal battery which is non-
removable. Ensure that you fully charge the battery before using the
headset for the rst time.
1 Put the travel adapter into the jack on the headset and into a power
outlet.
6
2 Disconnect the travel adapter from the power outlet and the headset
when the indicator light changes to blue.
Use only a Samsung-approved travel adapter. Unauthorised adapters
may cause an explosion or damage to the headset.
The battery will gradually wear out while charging or discharging
because it is a consumable part.
The headset is not able to operate while charging. Try connecting after
charging is completed.
•
•
•
When the battery charge gets low
A warning sound beeps and the indicator light ashes red. If you are on
a call, transfer the call from the headset to the phone before the headset
automatically turns off.
English
7
Wearing the headset
Place the headset on your ear.
Ensure to put the correct (Left, Right) earpiece on
each ear.
Depending on what ear you are going to wear the headset, simply adjust
the ear hook accordingly.
Left Right
8
Using your headset
This section explains how to turn the headset on, pair with the phone,
and use various functions.
Activated functions may differ depending on the types of your phone.
Some devices, especially those that are not tested or approved by
Bluetooth SIG, may be incompatible with your headset.
•
•
Turning the headset on or off
To turn the headset on, press and hold [ ] until the blue indicator
light ashes 4 times.
To turn the headset off, press and hold [ ] until both blue and red
indicator lights ash.
•
•
English
9
Pairing with your Bluetooth phone
Pairing will create a unique and encrypted wireless link between two
Bluetooth enabled devices, such as a Bluetooth phone and a Bluetooth
headset. To use the headset with other Bluetooth devices, both devices
must be paired. When trying to pair the two devices, keep the headset
and the phone reasonably close together.
1 Enter Pairing mode.
Turn off your headset and press and hold [ ] until the blue
indicator light turns on and stays lit after ashing.
If you turn the headset on for the rst time, it proceeds into
Pairing mode immediately.
2 Search for and connect with your phone according to your phone
user's guide. (Bluetooth PIN: 0000, 4 zeros)
The headset can be connected with two Bluetooth phones at the
same time. After connecting with the rst Bluetooth phone, turn off
the headset. Enter Pairing mode again and connect with the second
Bluetooth phone.
The headset attempts to reconnect to the last connected phone
automatically each time it turns on. Otherwise, press [ ] to reconnect
to the last connected phone.
•
•
•
•
10
Using call functions
If the headset is connected with two phones, all actions with [ ] are
related with the rst connected phone.
Making a call
Redialing the last number
Press [ ] to redial the last number.
For some phones, pressing the key opens the call log list. Press [ ] to
dial the selected number.
Dialing a number by voice
Press and hold [ ] to dial a number by voice, and say a name.
Answering a call
Press [ ] to answer a call when you hear incoming call tones.
Ending a call
Press [ ] to end a call.
Rejecting a call
Press and hold [ ] to reject a call when a call comes in.
English
11
Using options during a call
You can use the following functions to control your call during a call.
Adjusting the volume
Press the Volume up or down button to adjust the volume.
Muting the microphone
Press and hold the Volume up or down button to turn the microphone off
so that the person with whom you are speaking cannot hear you. Press
and hold the Volume up or down button again to turn the microphone
back on.
Transferring a call from the phone to the headset
Press [ ] to transfer a call from the phone to the headset.
Placing a call on hold
Press and hold [ ] to place the current call on hold.
Answering a second call
Press [ ] to end the rst call and answer a second call when you hear
call waiting tones.
Press and hold [ ] to place the rst call on hold and answer a second
call when you hear waiting tones.
To switch between the current call and the held call, press and hold [ ].
12
Appendix
Frequently asked questions
Will my headset
work with laptops,
PCs, and PDAs?
Your headset will work with devices that
support your headset's Bluetooth version and
proles. For specications, see page 16.
Will anything cause
interference with
my conversation
when I am using
my headset?
Appliances such as cordless phones and
wireless networking equipment may cause
interference with your conversation, usually
adding a crackling noise. To reduce any
interference, keep the headset away from
other devices that use or produce radio waves.
Will my headset
interfere with my
car's electronics,
radio, or
computer?
Your headset produces signicantly less power
than a typical mobile phone. It also only
emits signals that are in compliance with the
international Bluetooth standard. Therefore,
you should not expect any interference
with standard consumer-grade electronics
equipment.
English
13
Can other
Bluetooth phone
users hear my
conversation?
When you pair your headset to your Bluetooth
phone, you are creating a private link between
only these two Bluetooth devices. The wireless
Bluetooth technology used in your headset is
not easily monitored by third parties because
Bluetooth wireless signals are signicantly
lower in radio frequency power than those
produced by a typical mobile phone.
The sound is
echoing while
talking.
Adjust the speaker volume, or move to another
area and try again.
How do I take care
of my headset?
Wipe it with a soft dry cloth.
The headset does
not fully charge.
The headset and the travel adapter may not
have been connected properly.
Separate the headset from the travel adapter,
reconnect, and charge the headset.
14

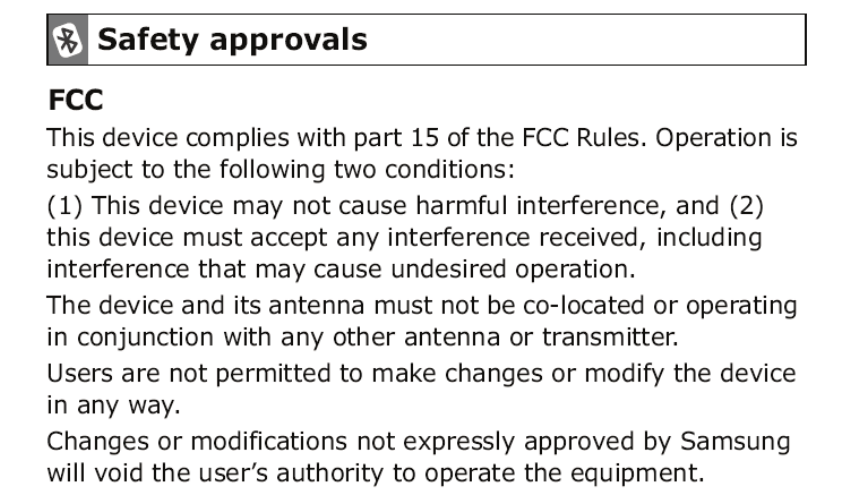

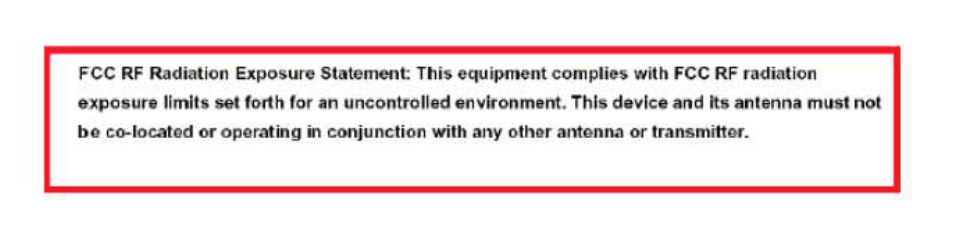

Certication
English
15
Warranty and parts replacement
Samsung warrants this product as free of defects in material, design
and workmanship for the period of one year from the original date of
purchase.*
If during the period of warranty this product proves defective under
normal use and service you should return the product to the retailer
from whom it was originally purchased or qualied service centre. The
liability of Samsung and its appointed maintenance company is limited
to the cost of repair and/or replacement of the unit under warranty.
The warranty is limited to the original purchaser
A copy of your receipt or other proof of purchase is required for a
proper warranty service
The warranty is void if the serial number, date code label or product
label is removed, or if the product has been subject to physical abuse,
improper installation, modication, or repair by unauthorised third
parties
Specically exempt from any warranty are limited-life consumable
components such as batteries and other accessories
Samsung will not assume any responsibility for any loss or damage
incurred in shipping. All repair work on Samsung products by
unauthorised third parties voids any warranty
* Depending on your region, the length of warranty may vary.
•
•
•
•
•
16
Correct disposal of this product
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature, indicates
that it should not be disposed with other household wastes at the
end of its working life.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of
wastes and recycle it responsibly to promote the sustainable reuse of
material resources.
Household users should contact either the retailer where they purchased
this product, or their local government ofce, for details of where and
how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed
with other commercial wastes for disposal.
English
17
Correct disposal of batteries in this product
(Applicable in the European Union and other European
countries with separate battery return systems)
This marking on the battery, manual or packaging indicates
that the batteries in this product should not be disposed of with
other household waste at the end of their working life. Where marked,
the chemical symbols Hg, Cd or Pb indicate that the battery contains
mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances can
cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please
separate batteries from other types of waste and recycle them through
your local, free battery return system.
The rechargeable battery incorporated in this product is not user replaceable.
For information on its replacement, please contact your service provider.
18
Specications
Item Specications and description
Bluetooth version 2.0+EDR
Support prole Headset Prole, Hands-Free Prole 1.5
Operating range Up to 30 feet (10 metres)
Standby time Up to 200 hours*
Talk time Up to 6 hours*
Charging time Approximately 2 hours*
* Depending on the phone type and usage, the actual time may vary.
