Be sure to reconnect the cables to the proper connectors. Otherwise, the instrument may malfunction or may be

damaged.

•

Never use with other power supplies and cables. Use DEPS9601 only

- During Cleaning

•

Do not use anything other than neutral detergent for cleaning the cover of the instrument. Otherwise, the coating will

be corroded.

- Storage

•

Be sure to store the sensor unit a safe place where it will not fall or drop

•

When not using the portable detector on the flat place or using the detector on the uneven Place, Be cautious for

damage.

WARNING



Power Supply Box

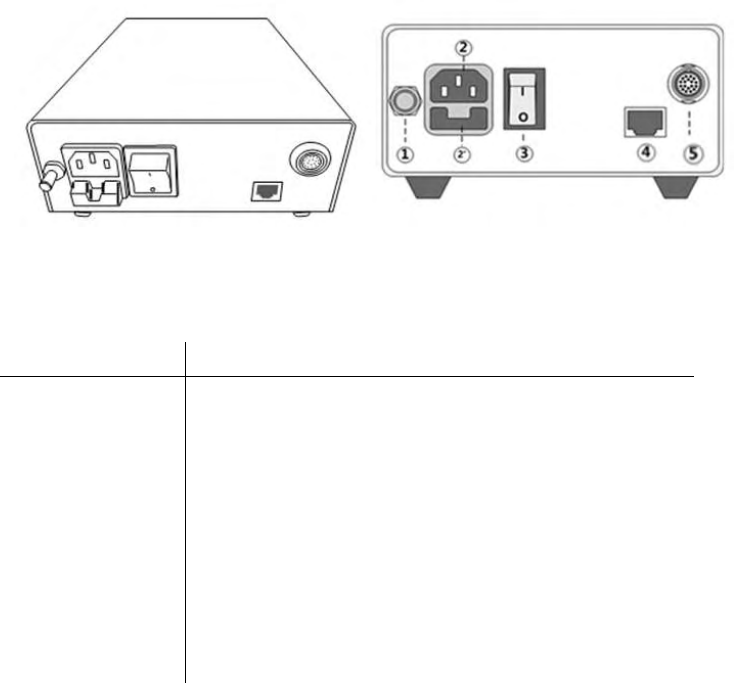

IGURE

10 P

OWER

UPPLY

Table 5 P

OWER

UPPLY

ESCRIPTION

Item

Description

Power Supply Box

①

Grounding Jack : Common Ground or Earth

②

AC Inlet: AC Power Plug (2' - Fuse socket)

Input AC Socket Type : IEC60320 C14 Type

Input AC Socket : 6220(SCHURTER)

③

Power switch: Power On/Off switch

→ Green colored indicator is constant when Power ON

④

LAN port : LAN cable connector

⑤

Main Cable Connector : connecting power supply with detector



Main Cable

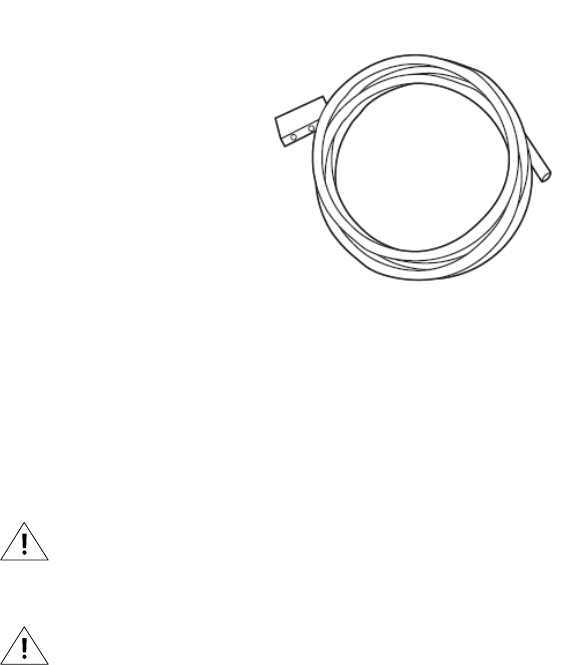

FIGURE 11 MAIN CABLE

This cable connects the detector to the power supply box.

Because the instrument’s cable is long, take care so cables do not get tangled during use.

Also, be careful not to get your feet caught in the cable.

Do not pull the cable by force. And If the cable gets tangled, do not pull the main body of portable

detector by force. Otherwise, the cable is damaged and causes fire or electric shock.

WARNING



Battery Recharger

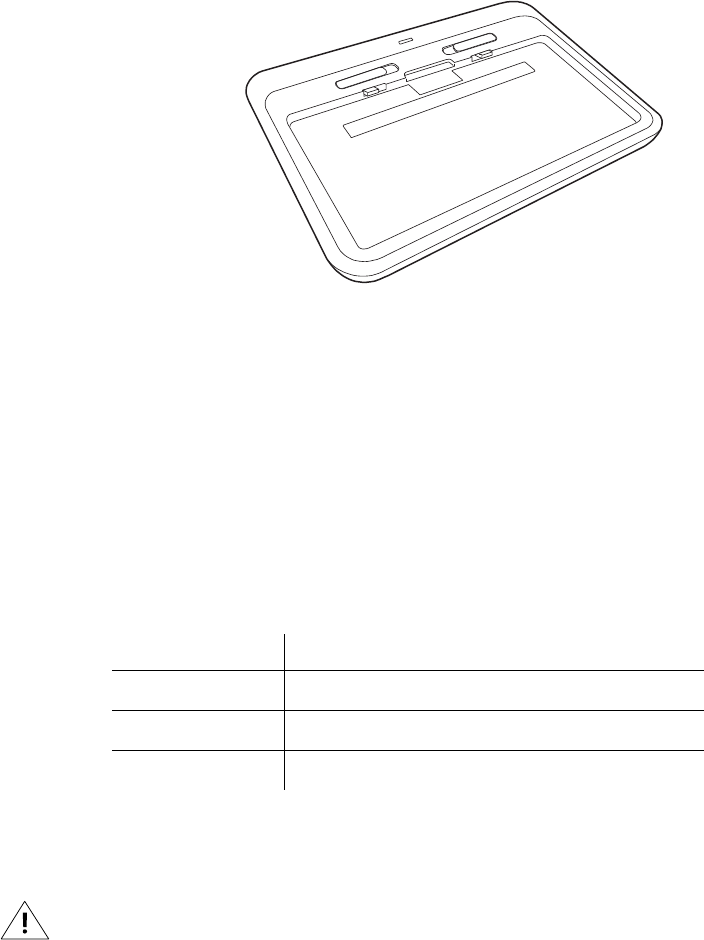

The battery recharger is used for S3025-W. You can recharge the battery and check the charge

condition.

FIGURE 12 BATTERY RECHARGER

1. LED: Indicates the condition of charge. This is turned off when the power is disconnected or is not

recharged.

2. The Battery recharger Terminal

3. Knob: It is used to detach a battery from the recharger.

Indicates as follows When the battery recharges, When the battery is recharging, it changes red into

green according to the level of charge.

LED

The status of batt

ery Recharger

•

Red

•

Fast charging mode ( Until About 90% )

•

Green

•

Normal charging mode ( About 85% ~ 100 % )

•

Blue

•

The error of charging

Table 6 BATTERY RECHARGER INDICATE LED

If LED light is blue during recharging the battery, stop recharging the battery immediately and check

whether there are Impurities or not in the battery recharger Terminal (②).

Despite taking action on upper step, if LED light is still blue, stop recharging the battery.

WARNING

Recharger Adapter

Input AC Socket Type : IEC 320 C6 Type.

 The use

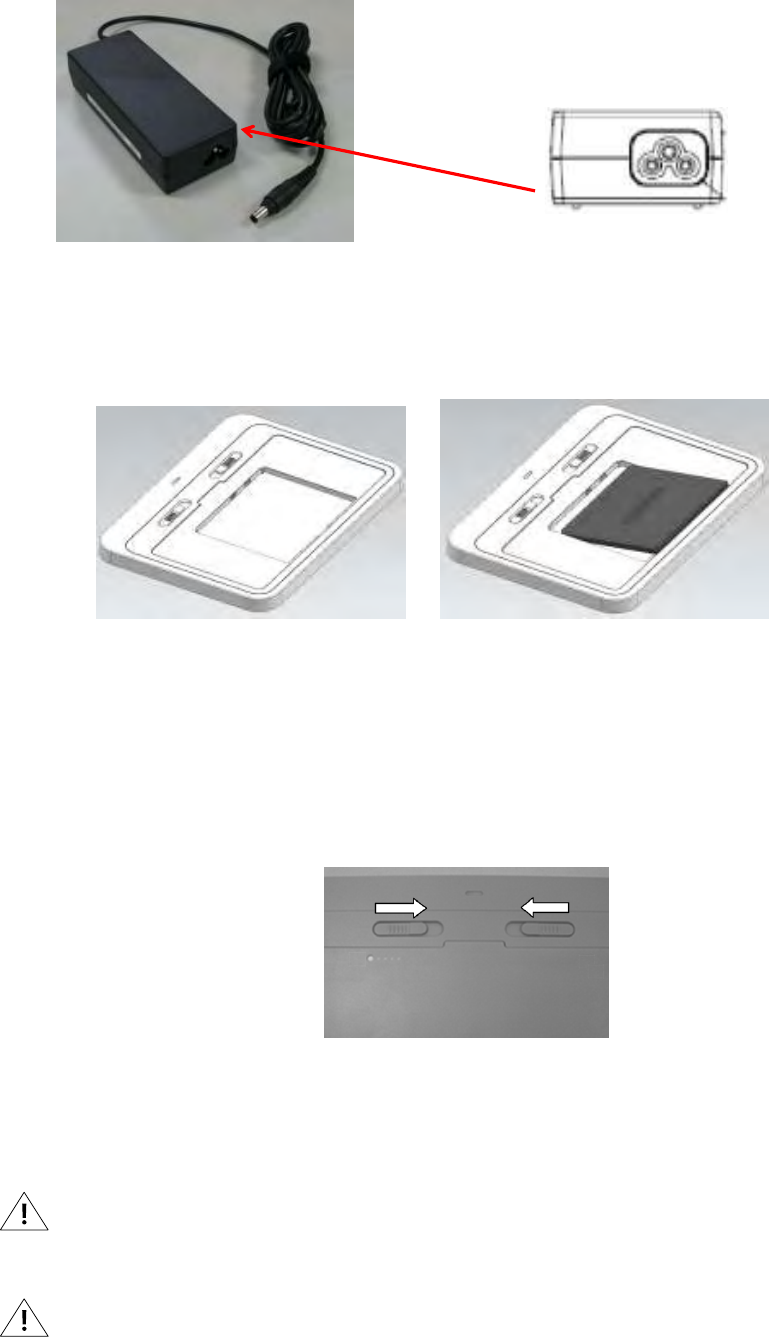

FIGURE 13 BATTERY INSERT

After the Adaptor (AD-9019S) connects to Power cord, be sure to connect it to Adaptor terminal on the

back side of Recharger

Be sure to insert the battery to recharger until it sounds clack.

FIGURE 14 BATTERY LOCK

Be sure to push inside two knobs to the end when the battery detached from the recharger.

• When using the S3025-W battery recharger, always use the battery (SDB-3S1PA) provided by

Samsung Electronics Co. Ltd..

• When using Battery recharger, Be sure to use Adapter (AD-9019S) Provided by Samsung Electronics Co. Ltd..

• When moving the S3025-W battery recharger, always separate the power and battery pack

WARNING

• When using the S3025-W battery recharger, Always be cautious about touching liquid, impurities.

In case of short trouble.

• Do not disassemble the battery recharger.

• When using the S3025-W battery recharger, be sure to comply with the user environment. The

performance of S3025-W battery can be down and the durability can be shorter.

• Be sure to use the S3025-W battery recharger in the Control Room. This battery recharger is not

designed to use in the Examination Room.

• When not using the S3025-W battery recharger for a long time. Always do separate the battery

recharger from the Power.

• When inserting the battery to the battery recharger, Be careful of being caught clothes or

impurities.

WARNING



Battery

This is the battery for using the

IGURE

This is the battery for using the

S3025-W

(Detector) by wireless communications

IGURE

15 BATTERY

(Detector) by wireless communications

• Be sure to recharge the battery by using the S3025-W (Detector) or the battery recharger (DEPS-9606) provided by

Samsung Electronics Co. Ltd..

• If the battery is needed to be stored for a long period, battery should be removed from the application and stored in a

place where humidity and temperature are low.

• While the battery is charged, used and stored, keep it away from object materials with static electric chargers.

• If the terminals of the battery become dirty, wipe with a dry cloth before using the battery.

• Be sure to use the battery in the environment designated by Samsung. Otherwise, the life of battery can be short

• Stop using the battery if the battery becomes abnormally hot, disorder, discoloration, deformation, or abnormal

conditions is detected during use, charge, or storage.

Don't short circuit (+) and (-) terminals with metallic object intentionally.

• Not be sure to touch liquid on the surface of the battery.

Don't pierce the battery with a sharp object such as a needle, screw drivers.

• Do not hit the battery with heavy objects.

• Don't step on the battery and throw or drop the battery on the hard floor to avoid mechanical shock.

• Don't disassemble the battery or modify the battery design including electric circuit.

WARNING

PERATING THE

YSTEM

ARDWARE

Operating the System Hardware

 IP set up

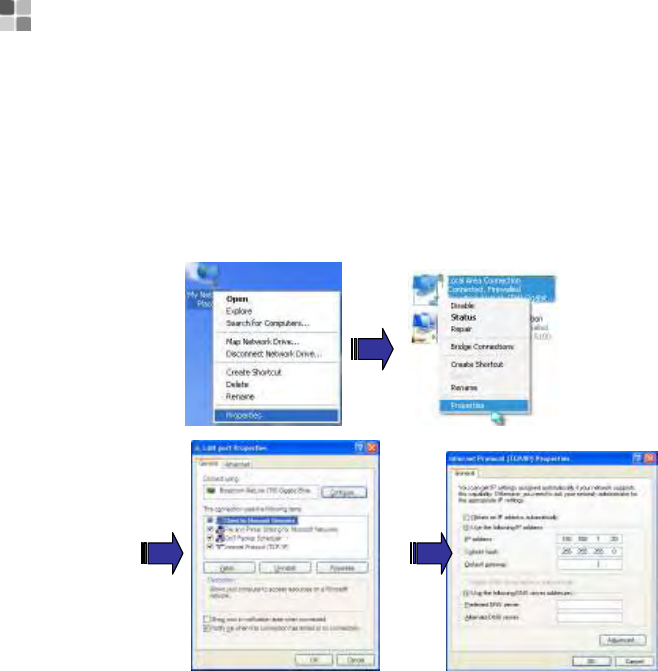

[My Network Places] → [Properties] → [Local Area Connection] → [Properties] → [Internet Protocol

(TCP/IP)]

→ [Use the following IP address]

IP address : 192 . 168 . 197 . 20 (Console PC)

Detector IP address is 192. 168. 197. 80 (default)

Figure 16 IP SET UP

It is possible to change IP address, but it shouldn’t be the same as the detector IP address.



Checking Connection

Check LED on the detector & power supply

Ping test: [Start] → [Run] → ping -t 192.168.197.80



Operation



Switching power on / off

This equipment is turned on by the Power Button of each component.

Table 9 lists the methods for checking the power on status of the system components.

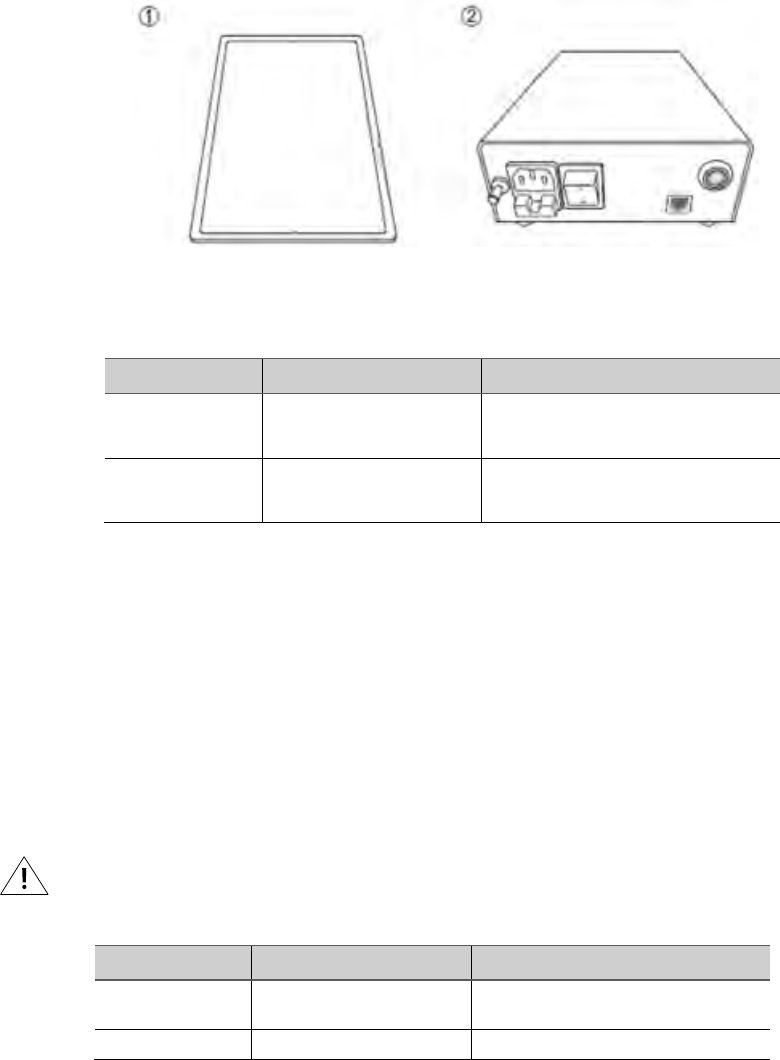

FIGURE 17 POWER APPLIED COMPONENTS (S3025-W)

Table 7

CHECKING THE POWER STATUS OF COMPONENTS (S3025-W)

All connection should be done, before turn on the power supply box.

Turn on the power of the detector power supply box, workstation.

The green light of the LED indicator on the detector is on, the detector power is on.

The blue light of the LED indicator on the detector is blinking, the detector is getting prepared to work

and initialize.

Turn off the power of the detector power supply box

When Detector is not turned on, be sure to check the Connection, the status of Battery and installation at first.

Below table 10 for turning off each component.

Table 8

POWER OFF STATUS

Component

Power

button location

To check the power status

Detector

Power switch on the bottom of

the right side

Dimming blue power LED

Power supply Box

The front side of Power supply

box

Green power LED

Component

Power Button Location

To check the power status

Detector

On the bottom of the right side

White power LED is turned off.

Power supply

The front side

of PSU

Green power LED is turned off.



Operating description

Figure 18:

TIMING CHART

Item min. typ. max. unit

Exposure request time (II)

Before x-ray pulse start - - 0.5 sec

Exposure window - 0.5 4.0 sec

Image transmitted

after exposure done

(IV + V + VI)

Wireless 3.5 4.0 - sec

Wired - 2.05 2.50 sec

Image cycle time for exposure of 0.5sec

sec

Booting time - 34 40 sec

Table 9

OPERATING TIME TABLE

PPENDICES

 REQUIRED PUBLIC STATEMENT FOR GPL/LGPL/GPLv2/OpenSSL/CPOL

LICENSED SOFTWARE USED IN THIS PRODUCT

The software included in this product contains copyrighted software that is licensed under the GPL/LGPL. You may obtain the complete Corresponding

Source code from us for a period of three years after our last shipment of this product by sending email to:

oss.request@samsung.com

This offer is valid to anyone in receipt of this information.

Source/Lib

License

Kernel 3.2.0 GPLv2

boot 2011.09

GPLv2

Busybox 1.19.4 GPLv2

Mtd

util

1.5.0

GPLv2

Glib 2.12.2

LGPL v2.1

Hostap

BSD

Libnl

LGPL v2.1

3.0

fi driver(atheros AR1021x)

GPLv2
