User Manual
1
UMS4335-W
Digital Flat-Panel X-RAY Detector
User Manual for S4335-W
Samsung Electronics Co., Ltd.
This manual is prov ided for the installation and operation of S4335-W.
Please read this manual before the detector install and use.
© 2013 S amsung Electronics Co., Ltd. A ll rights reserv ed.
2
Revision History
Version
Date
Page
Revision
1.0
2013 April
-
1st Edition
1.1
2013 July
¤ 37
The main revised item are as below
- Table 1 OPERATING TIME TABLE
1.2
2014 May
¤ 28
The main revised item are as below
- Changed Power Supply Box Input
1.3
2014. June
¤ 51
~
58
Add FCC Statement of Conformance
Add EMC Declarat ion
3
Table of Contents
About this Manua l
........................................................................................................................................................................................................................................................ 7
Symbols Used in This Manual ...................................................................................................................................................................................................................... 7
Intended for use ............................................................................................................................................................................................................................................... 8
User Requirements .......................................................................................................................................................................................................................................... 8
Service Center ................................................................................................................................................................................................................................................... 8
1. Safety instructions ..................................................................................................................................................................................................................................................... 9
Safety Instructions ........................................................................................................................................................................................................................................... 9
System Sy mbols ..................................................................................................................................................................................................................................... 10
System Maintenance Checkpoints.................................................................................................................................................................................................... 12
Genenral Safety...................................................................................................................................................................................................................................... 13
Electrical Safety ...................................................................................................................................................................................................................................... 14
Mechanical Safety.................................................................................................................................................................................................................................. 15
Fire Sa fety
................................................................................................................................................................................................................................................. 15
Sa fety fro m E xplosion
............................................................................................................................................................................................................................. 15
EMC (Electromagnetic Compatibility).....................................................................................................................................Error! Bookmark not defined.
Label........................................................................................................................................................................................................................................................... 16
Maintenace, Cleaning and Disposal ................................................................................................................................................................................................. 16
Disclaimer ................................................................................................................................................................................................................................................. 17
2.
Syste m Overvie w
....................................................................................................................................................................................................................................................... 18
System Ov erview ........................................................................................................................................................................................................................................... 18
System Purposes.................................................................................................................................................................................................................................... 18
Product components............................................................................................................................................................................................................................. 19
Examination Room Components ...................................................................................................................................................................................................... 20
Control Room Components ................................................................................................................................................................................................................ 21
3.
Syste m Co mpone nts
................................................................................................................................................................................................................................................. 22
System Components..................................................................................................................................................................................................................................... 22
Detector .................................................................................................................................................................................................................................................... 22
Power Supply Box.................................................................................................................................................................................................................................. 27
Main Cable................................................................................................................................................................................................................................................ 28
Battery Recharger.................................................................................................................................................................................................................................. 29
Battery ....................................................................................................................................................................................................................................................... 32
4
4.
Ope ra ting the Syste m Ha rd wa re
........................................................................................................................................................................................................................... 34
Operating the System Hardware.............................................................................................................................................................................................................. 34
Checking Connection ............................................................................................................................................................................................................................ 34
Operation.................................................................................................................................................................................................................................................. 35
Operating description ........................................................................................................................................................................................................................... 36
5. Appendices ................................................................................................................................................................................................................................................................ 37
REQ UIRED PUBLIC STATEMENT FOR GPL/LGPL/GPLv 2/OpenSSL/CPOL LICENSED SOFTWARE USED IN THIS PRO DUCT ............................................ 38
GNU GENERA L PUBLIC LICENSE ........................................................................................................................................................................................................................ 39
GNU LESSER GENERA L PUBLIC LICENSE ...................................................................................................................................................................................................... 44
BSD LICENSE.................................................................................................................................................................................................................................................................. 49
5
Table 1 Special Symbol................................................................................................................................................................................................................................. 11
Table 2 System Maintenance Checkpoints............................................................................................................................................................................................. 12
Table 3 COMPONENTS ....................................................................................................................................................................................................................................... 19
Table 4 LED STATUS ........................................................................................................................................................................................................................................ 23
Table 5 POWER SUPPLY BOX DESCRIPTION.................................................................................................................................................................................................... 27
Table 6 BATTERY RECHARGER INDICATE LED................................................................................................................................................................................................ 29
Table 7 BATTERY RESIDUAL DISPLAY.............................................................................................................................................................................................................. 32
Table 8 BATTERY INDICATE LED..................................................................................................................................................................................................................... 33
Table 9 CHECKING THE POWER STATUS OF COMPONENTS (S4335-W) ....................................................................................................................................................... 35
Table 10 POWER OFF STATUS ......................................................................................................................................................................................................................... 35
Table 11 OPERATING TIME TABLE.................................................................................................................................................................................................................... 36
6
Figure 1 Examination Room Components .............................................................................................................................................................................................. 20
FIGURE 2 RECHARGER......................................................................................................................................................................................................................................... 21
FIGURE 3 RECHARGER ADAPTER ........................................................................................................................................................................................................................ 21
FIGURE 4 WIRELESS DETECTOR ........................................................................................................................................................................................................................ 22
FIGURE 5 INDICATE LED .................................................................................................................................................................................................................................... 23

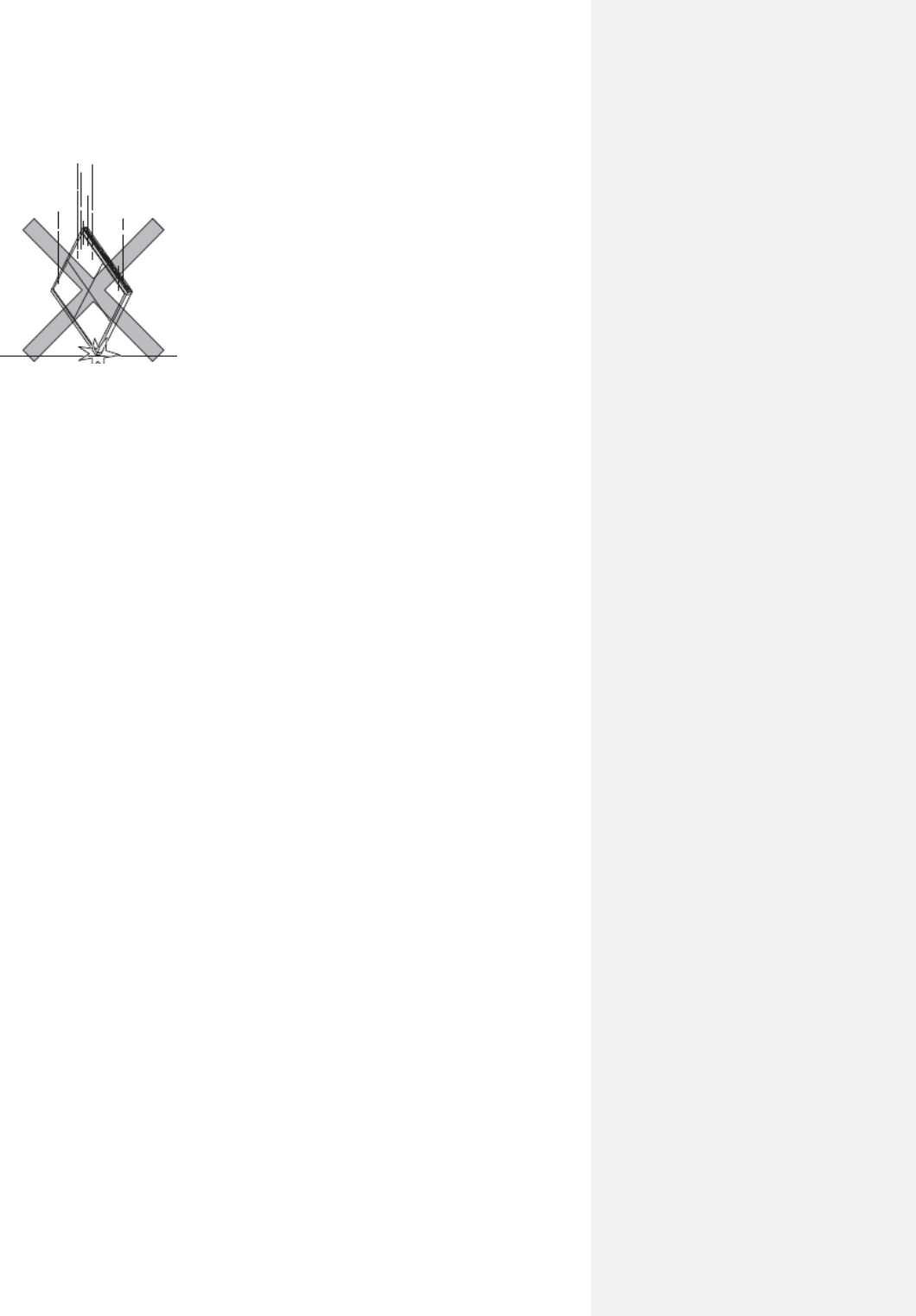

FIGURE 6 DO NOT DROP .................................................................................................................................................................................................................................. 24
FIGURE 7 Be CAREFUL OF DETECTOR LOCATION ............................................................................................................................................................................................ 25
FIGURE 8 KEEP WEIGHT DISTRIBUTED EVENLY............................................................................................................................................................................................... 25
FIGURE 9 AVOID LOCALIZED WEIGHT............................................................................................................................................................................................................... 25
FIGURE 10 POWER SUPPLY BOX........................................................................................................................................................................................................................ 27
FIGURE 11 MAIN CABLE.................................................................................................................................................................................................................................... 28
FIGURE 12 BATTERY RECHARGER ...................................................................................................................................................................................................................... 29
FIGURE 13 BATTERY INSERT............................................................................................................................................................................................................................. 30
FIGURE 14 BATTERY LOCK ................................................................................................................................................................................................................................ 30
FIGURE 15 BATTERY ........................................................................................................................................................................................................................................... 32
Figure 16 IP SET UP ........................................................................................................................................................................................................................................ 34
FIGURE 17 POWER APPLIED COMPONENTS (S4335-W) ................................................................................................................................................................................ 35
Figure 18: TIMING CHART................................................................................................................................................................................................................................ 36
7
About this Manual
Symbols Used in This Manual
The specifications and details of this manual may be changed in order to improve the product
or to enhance its performance
The following symbols are used throughout this manual to alert the user to the relevant safety
instructions or to any useful information when using this system
Symbol
Name
Description
Warning
Indicates content which, if you fail to follow the accompanying
instructions, may cause death or serious personal injury.
Caution
Indicates content which, if you fail to follow the accompanying
instructions, may cause personal injury or damage to the product.
Note
Provides users with additional information on the topic for better
understanding.
Please note that our company does not take responsibility for any accidents and is not
obligated to do free repair service for any damage of the equipment due to the user's
negligence which results from failure to follow the contents in this manual. Make sure you are
familiar with the safety precautions and usage procedures. Also note that the product features
may slightly differ from the contents of this manual depending on the specifications.
8
Intended for use
S4335-W, Digital Flat Panel X-Ray Detector is indicated for digital imaging solution designed
for providing general radiographic diagnosis of human anatomy targeting both adult and
children. It is intended to replace film based radiographic diagnostic systems and provide more
precise case diagnosis and treatment planning on a real time basis for physicians and
radiologists. Not to be used for mammography and direct cardiac application.
User Requirements
□ This equipment should be only operated by users who have received professional medical
education and training, such as physicians, radiologists, and other medical specialists.
□ Please read the user manual and the safety information carefully before using this
equipment. Operating the equipment without reading the safety information may result in
personal injury to the patient or to yourself.
Service Center
- Korea : Service Center 080-022-9797
Head Quarters
- 129 Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea
9
1.
S
AFETY INSTRUCTIONS
Safety Instructions
□In this chapter, information of safety instructions and regulations are provided. It is provided to protect
users of the system from unintended safety hazard and prevent property damage,
please read thoroughly and keep instructions. If additional training is required, consult your dealer or the
service center of the manufacturer.
□ Before using this system, please read safety instructions thoroughly. The manufacturer is not responsible
for any damages and accidents caused by violating such safety instructions or regulations.
10

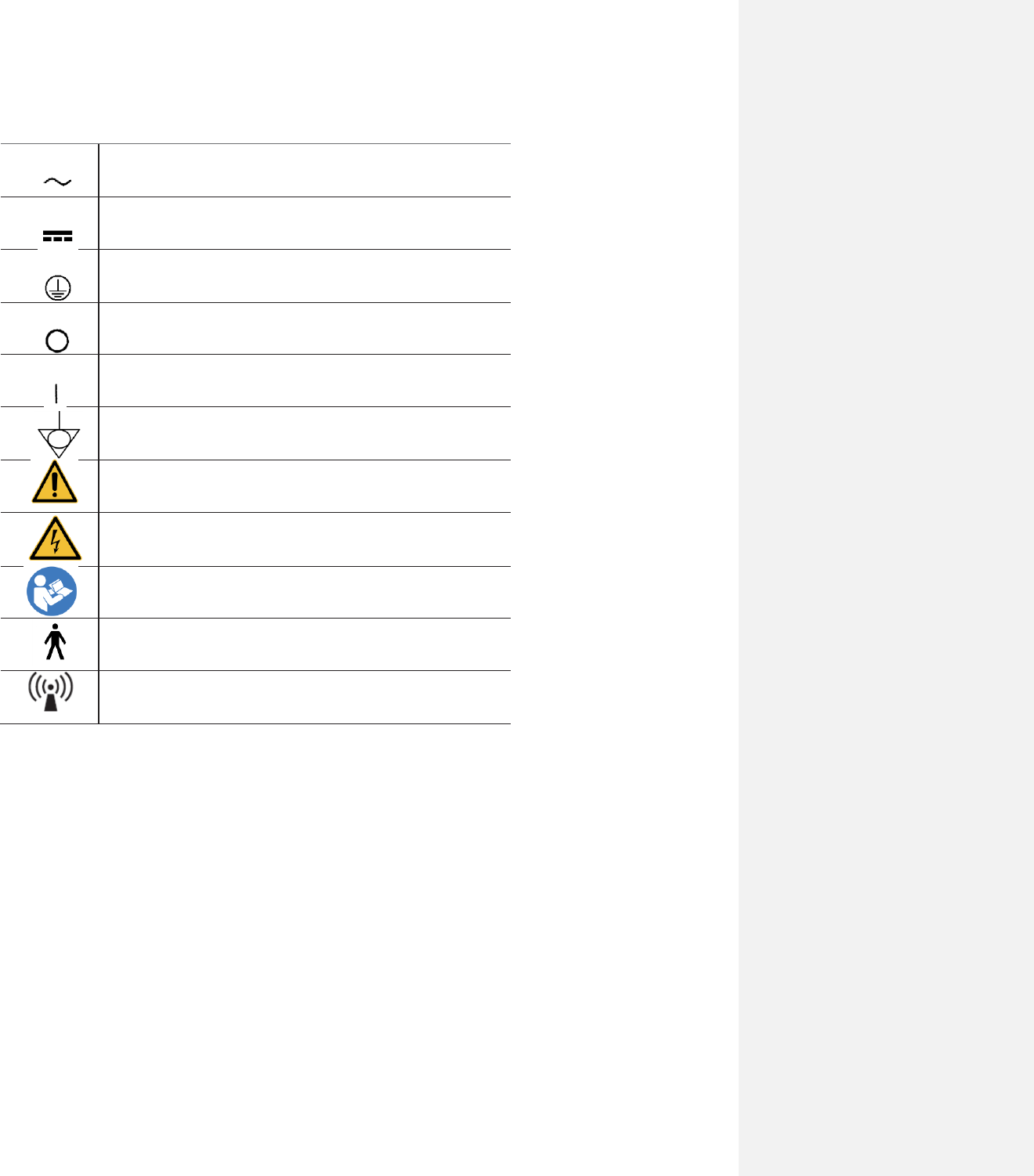

System Symbols
Table 1 shows the symbols related to maintaining the safety of the patient and the user.
Alternate current
Direct current
Protective earth (Ground)
O ff (power : disconnect from the main switch)
O n (power : connect to the main switch)
Identifies terminals which, when connected together, bring various parts of a
piece of equipment or of a sy stem to the same potential.
Indicates content w hich, if you fail to follow the accompanying instructions,
may cause personal injury or damage to the product.
Indicates that the dangerous factors can be occurred caused by High Voltage.
Indicates that the accompanying operating instructions in the manual must be
followed to operate the equipment safely .
TYPE B Applied part
Marks it contains radio transmitting device.
11
Table 2 SPEC IA L SYM BO L
Av oid contact with water
No unauthorized or unlawful modification
Waste electrical and electronic equipment (WEEE)
Temperature limitation
Marks fragile device that requires full attention when handling.
Manufacturer
EC Representativ e
12
System Maintenance Checkpoints
To ensure the system performance and usability along with safety, regular maintenance and checking the
condition are required. To secure safety of both patient and operator and to ensure the performance of the
system, check the system on a regular interval. For periodic inspection of the system, consult your dealer
or the manufacturer's service center.
No.
Item
Category
Checkpoints
Check
Interval
Remark
1
Noise / V ibration
In use
Check noise and vibration from each
operating parts of the system.
1 year
2
Power Supply box
While in use
Check the power supply box voltage
while the equipment s turned off.
1 year
3
Appearance
While in use
Run a v isual inspection to check if the
appearance show s any abnormalities,
such as loosened bolts or had grips,
transformation, etc. while the equipment
is turned off.
1 year
4
Cables
Before Using
Check cable runs for worn out cables,
damage or short circuited, broken w ires,
etc. while the equipment is turned off.
6 months
5
Grounding
While in use
Check the earth-grounding is intact, not
brok en or loosened terminal. (Grounding
resistance should be below 0.1Ω.)
1 year
6
Installation
Checkpoints
When
Installin g
When installing, check that the
equipment is lev eled and firmly fixed.
1 year
Table 3 SYSTE M MA INTENA NC E CH E C KPO INTS
□ When inspecting on checkpoints requiring no power, please make sure to keep the system turned off.
Classification
- The type of protection against electric shock: Class I equipment
- The degree of protection against electric shock: Type B applied part
- The degree of protection against ingress of water: Ordinary equipment
- The method(s) of sterilization or disinfection: Not applicable
- The degree of safety of application in the presence of a FLAMMABLE ANAESTHETIC MIXTURE WITH AIR
or WITH OXYGEN OR NITROUS OXIDE: Not applicable
- Mode of operation: As momentary continuous operation
13
Genenral Safety
□ Before using the equipment, the user should check that:
• All components are connected correctly.
• All components are operational when the system is powered on.
• Neither the patient nor the user is present in the examination room when powering the equipment on.
□ If any electrical or mechanical fault occurs, stop using the system immediately.
You can identify faults from the display or warnings.
□ Please consult the manufacturer before connecting a component from another system to this system.
Any auxiliary device connected to the system must be IEC certified (data processing equipment: IEC60950-
1, medical electrical equipment: IEC60601-1). Also, if the auxiliary device is connected to a signal I/O port,
it should comply with IEC60601-1 and/or IEC60601-1-1.
Do not connect the instrument with anything other than specified. Otherwise, it may result in fire or
electric shock.
□ Medical equipment requires periodic maintenance and management. For more information, refer to 1.
Maintenance, Cleaning and Disposal.
□ If an error message appears while the system is in use, it may stop operating. When an error message
appears, contact the service center
□ The manufacturer will not accept liability for:
Fault, damage or personal injury incurred as a result of the user incorrectly performing maintenance on the system
Personal injury incurred due to the user’s carelessness
Fault, damage or personal injury incurred due to use of an ancillary device which is not provided by the manufacturer.
□ When Problem Occurs
Should any of the following occur, immediately turn OFF the power of each instruments, unplug the power
cable from the AC outlet, and contact SAMSUNG representative or distributor.
When there is smoke, odd smell or abnormal sound.
When liquid has been spilled into the instrument or a metal object has entered through an opening.
When the instrument has been dropped and it is damaged.
□ This detector should be used by selected users. If not you fully aware of the factor of exposure, the
manual, and the schedule of organization, This could be dangerous for the patients and users.
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNI NG
WARNI NG
14
Electrical Safety
□ In compliance with IEC 60601-1, this medical equipment complies with the requirements for Safety class
I, type B.
□ This system must be used in an environment complying with the requirements of the IEC.
□ Do not remove the safety cover of this system needlessly. When it is removed, the high voltage current
inside the system may cause electric shock.
□ Be careful to ensure that no liquids enter the system.
□ If chemicals are spilled or evaporate, it may result in fire or electric shock through contact with electric
parts inside the instruments. Also, some disinfectants are flammable. Be sure to take care when using
them.
□ Be sure to turn OFF the power of each instrument before connecting or disconnecting the cables. Also,
do not handle them with wet hands. Otherwise, you may get an electric shock that may result in death or
serious injury.
□ Do not cut or process the cables. Also, do not place anything heavy, including the instrument on it, step
on it, pull it, bend it, or bundle it. Otherwise, the cable may be damaged, which may result in fire or
electric shock.
□ Be sure to hold the plug or connector to disconnect the cable. If you pull the cable, the core wire may be
damaged, resulting in fire or electric shock.
□ Do not turn ON the system power when condensation is formed on the instrument. Otherwise, it may
result in fire or electric shock.
□ Do not spill liquid or chemicals onto the instrument or, in cases where the patient is injured, do not allow
it to become wet with blood or other body fluids, as doing so may result in fire or electric shock. In such
situation, protect the instrument with disposable covering as necessary.
For safety reasons, be sure to turn OFF the power of each instrument when the inspections indicated in
this manual are going to be performed. Otherwise, it may result in electric shock.
When the instrument is going to be cleaned, be sure to turn OFF the power of each instrument, and
unplug the power cable from the AC outlet. Otherwise, fire or electric shock may result.
□ Never disassemble or modify the product as it may result in fire or electric shock. Also, since the
instrument incorporates parts that may cause electric shocks and other hazardous parts, touching them
may cause death or serious injury
WARNIN G
WARNIN G
WARNIN G
WARNIN G
WARNIN G
WARNIN G
WARN IN G
WARN IN G
WARNIN G
WARN IN G
WARNIN G
15
Mechanical Safety
□ Never remove the cover (Detector, Power Box, Recharger, Battery Pack, and Adapter) or cables unless directed to do so
by a professionally trained engineer.
□ When an examination is in progress, auditory and visual communication between the patient and the system user must
be possible at all times.
□ Be careful not to pinch any part of your or the patient's body or clothing while using the system.
□ Do not hit or drop the instrument. The instrument may be damaged if it receives a strong jolt, which may result in fire
or electric shock if the instrument is used without it being repaired.
Fire Safety
□ Do not operate the system in a location where there is a danger of fire.
□ In the event of a fire, stop the entire system immediately and disconnect the power cable. Make sure to extinguish the
fire with a carbon dioxide fire extinguisher
Safety from Explosion
□ Do not operate the system in a location where there is a danger of explosion. This system is not designed to be used in a
location where there is a danger of explosion, and does not comply with the AP/AGP standard.
WARNIN G
WARN IN G
WARNIN G
WARNIN G
WARNIN G
WARNIN G
WARN IN G
16
Label
□ For information on the types and attachment locations of the Detector Component labels, refer to Labels.
Maintenace, Cleaning and Disposal
Maintenance
□ Inspect the equipment periodically for patient and user safety.
□ The instrument must be repaired by a qualified engineer only. If it is not repaired properly, it may cause fire, electric
shock, or accident.
.
Cleaning
□ Always turn off the equipment completely before cleaning.
□ Do not open the cover and insert liquids into the system.
□ When cleaning the exterior of the system, use a soft cleaning cloth dampened with tepid Water and soap. Do not use
detergents or chemical solutions.
□ While a maintenance personnel is cleaning the room, cables connected to the equipment may be lifted or pulled.
When lifting , or pulling cables, the connection with the equipment may be disconnected causing malfunction, electric
shock, or danger of fire. Also, water may be absorbed into the equipment if mopped with a damp cloth, which may cause
electric shocks or fire.
□ If the equipment generates abnormal noises, contact the service center immediately. The user must not arbitrarily
disassemble, repair, or modify the equipment. Fire or electric shock may result.
□ Always be sure to keep checking the condition of the system and the patient to ensure they are normal
during the use of the instrument. If any problem is found, take appropriate measures, such as stopping
the operation of the instrument, as required.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic
accessories should not be disposed of with other household waste at the end of their working life. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, please
separate these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local
government office, for details of where and how they can take these items for environmentally safe
recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
WARNIN G
WARNIN G
WARNIN G
WARN IN G
WARNIN G
WARNIN G
WARNIN G
17
Environment of Use and Storage
□ Does not use or store the instrument near any flammable chemicals such as alcohol, thinner, benzene,
etc. Also, this instrument is not a category AP or APG equipment. If chemicals are spilled or evaporate, it
may result in fire or electric shock through contact with electric parts inside the instruments. Also, some
disinfectants are flammable. Be sure to take care when using them.
□ Do not install the instrument in a location with the conditions listed below. Otherwise, it may result in
failure or malfunction, fall or cause fire or injury.
Close to facilities where water is used.
Where it will be exposed to direct sunlight.
Close to air-conditioner or ventilation equipment.
Close to heat source such as a heater.
Prone to vibration.
Insecure place.
Dusty environment.
Saline or sulfurous environment.
High temperature or humidity.
Freezing or condensation.
Do not place the storage case in a location with the conditions listed below.
Where the cable of the sensor unit will be strongly pulled when the sensor unit is put into the case, otherwise, the
cable may be damaged, resulting in fire or electric shock.
Where someone might get their foot caught in the cable of the sensor unit is put in the case. Otherwise they could trip
over, resulting in injury.
Disclaimer
The manufacturer assumes no liability for any failure or damage which may occur by using other
company's products
The manufacturer assumes no liability for any failure or damage that may occur from installing, relocating, modifying,
maintaining, or repairing the equipment by any personnel other than designated personnel by the manufacturer.
The manufacturer assumes no liability for any accidents or damage on the equipment which may
occur due to operations performed without following the relevant precautions or instructions in this
manual..
The manufacturer assumes no liability for any failure or damage due to natural disasters such as
fire, earthquake, flood, and lightning.
The manufacturer assumes no liability for erroneous diagnostic criteria or results.
The manufacturer assumes no liability for any failure or damage which may occur due to
operations performed for any purposes other than its intended use.
This equipment should be operated under the specified conditions. The manufacturer assumes no
liability for any failure or damage which may occur due to operations performed under conditions
other than those specified in this manual. For more information on the operating conditions, refer
to Appendices.
WARNIN G
WARN IN G
18
2.
S
YSTEM
O
VERVIEW
System Overview
System Purposes
The S4335-W is a portable digital X-ray flat panel wireless detector that can generate Images of any part
of the body. This X-ray imaging system consists of a scintillator directly coupled to an a-Si TFT sensor.
S4335-W can be used for radiographic imaging of human body parts such as head, Chest, spinal,
abdominal, particular, hand, foot, and other internal organs. However, do not use the system for
mammography purposes.
Radiated X-rays through the body is processed to produce radiography by the detector. Converted
electric signal is processed by the signal processor to amplify and digitize data And the result is
transferred to the workstation.
19

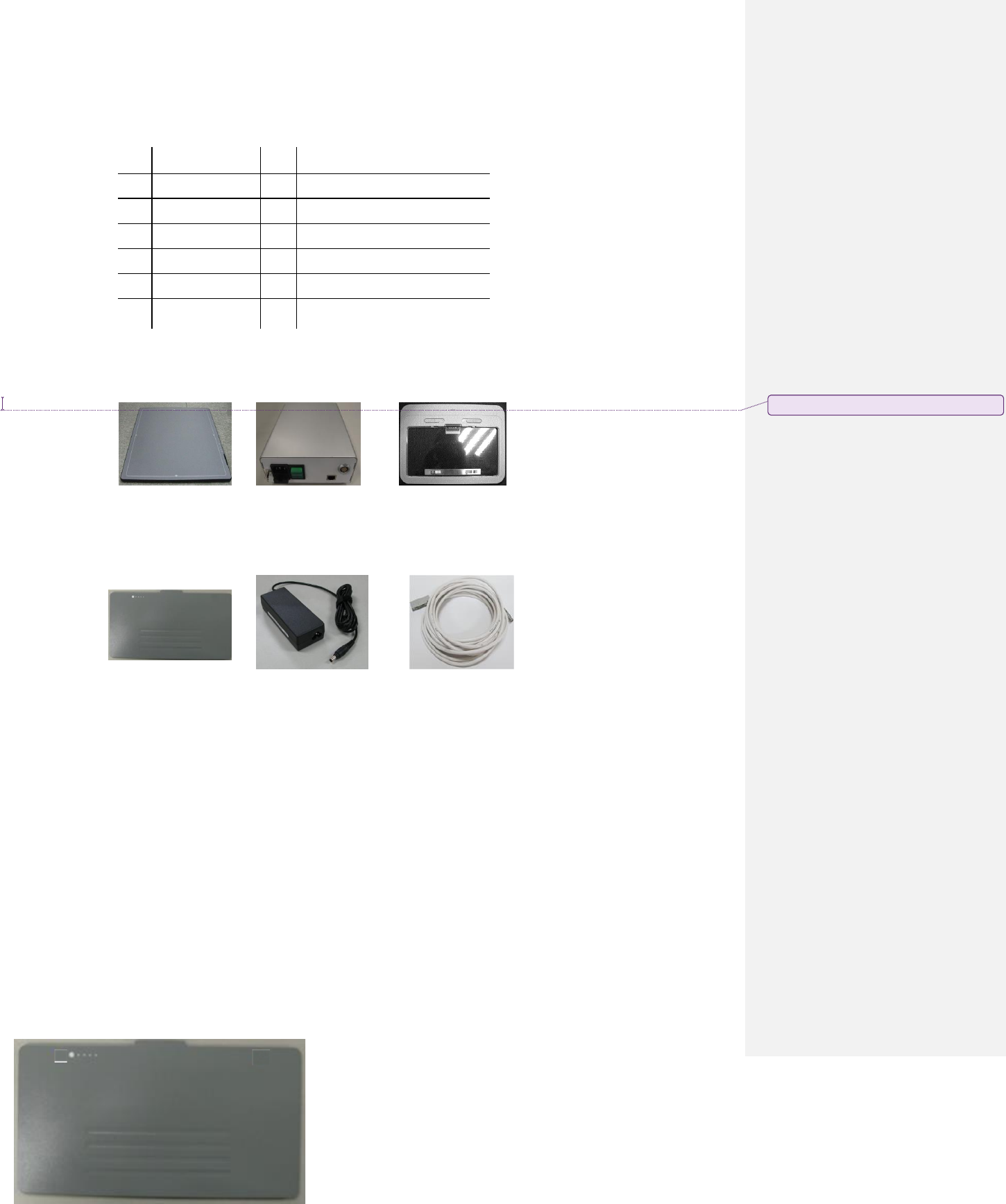

Product components
Item
Part Name
Qty
Description
1
Detector
1
Front v iew of the dev ice
2
Power Supply Box
1
Source of necessary electricity
3
Battery Recharger
1
To recharge an extra battery
4
Battery Pack
2
Source for wireless connection
5
Recharger Adaptor
1
Source of the battery pack recharger
6

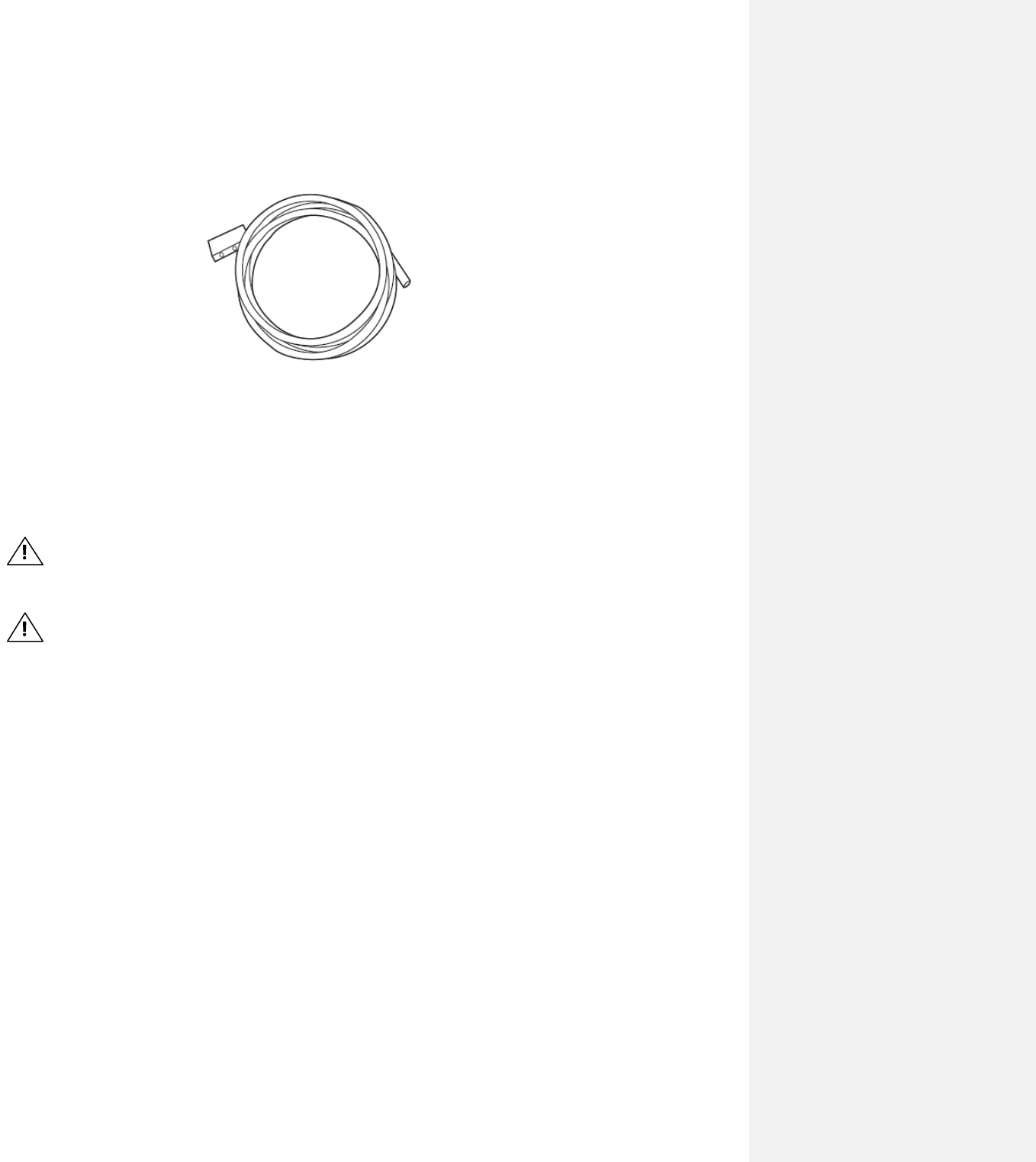

Main Cable
1
To connect x-ray detector with Power
Supply Box
Table 4 CO M PO NENTS
Recharger Adapter
Detector
Power Supply Box
Battery pack Recharger
Battery pack
Main Cable
Commented [오전1]: DC 24V 삭제 사진
20

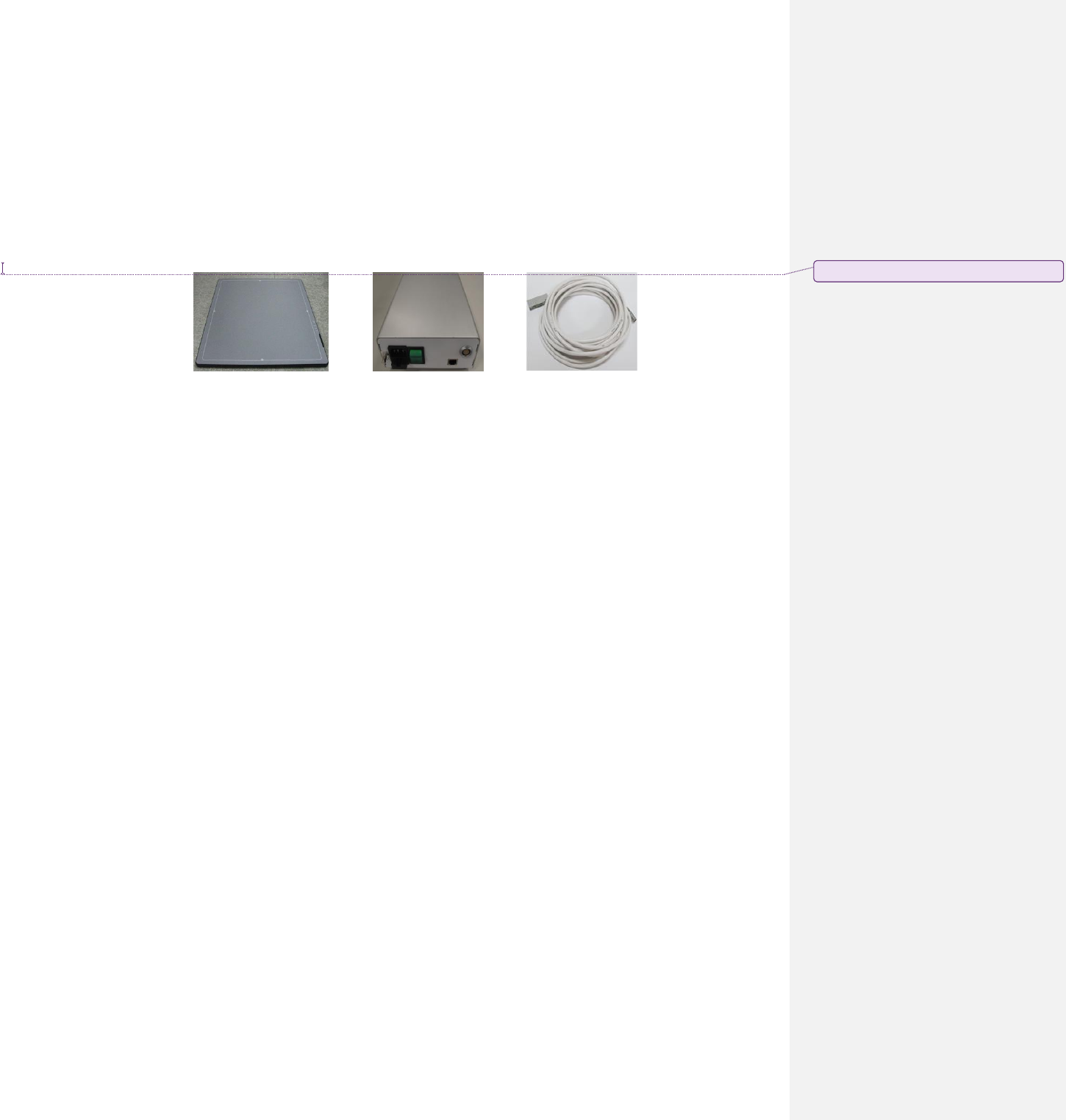

Examination Room Components
The components of S4335-W can be divided into the examination room components and the control room
Components in accordance with their installation locations.
The below figure 1 shows S4335-W Examination Components.
Figure 1 EXA M INA TIO N RO O M CO M PO NE NTS
All examination room components of the system should be used inside a shielded environment.
Detector
Power box
Main cable
Commented [오전2]: DC 24V 삭제반영
21

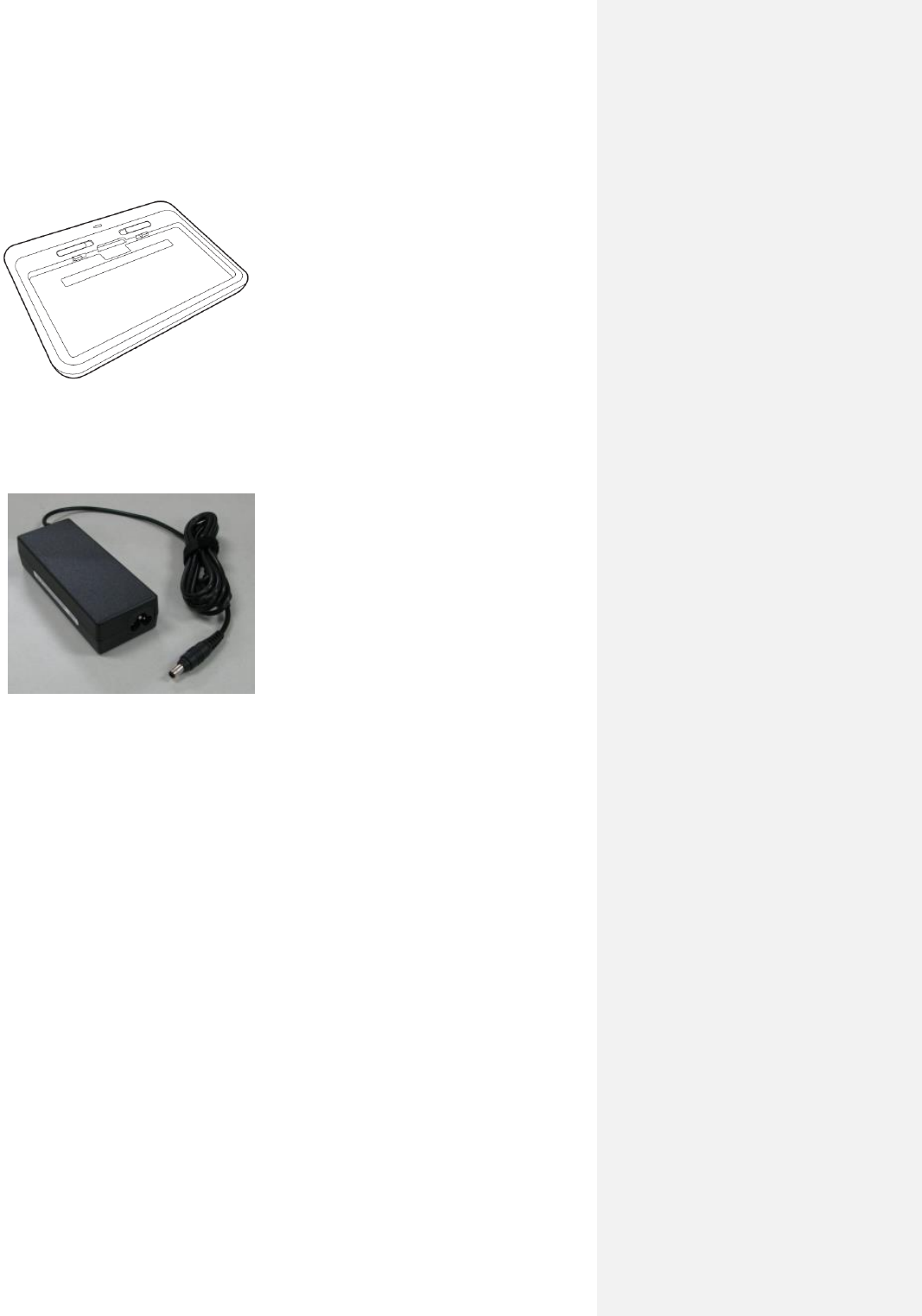

Control Room Components
The control room for S4335-W is configured as shown in Figure.
FIGURE 2 RE C HA RGE R
FIGURE 3 REC HA RGE R ADA P TE R
22
3.
S
YSTEM
C
OMPONENTS
System Components
Detector

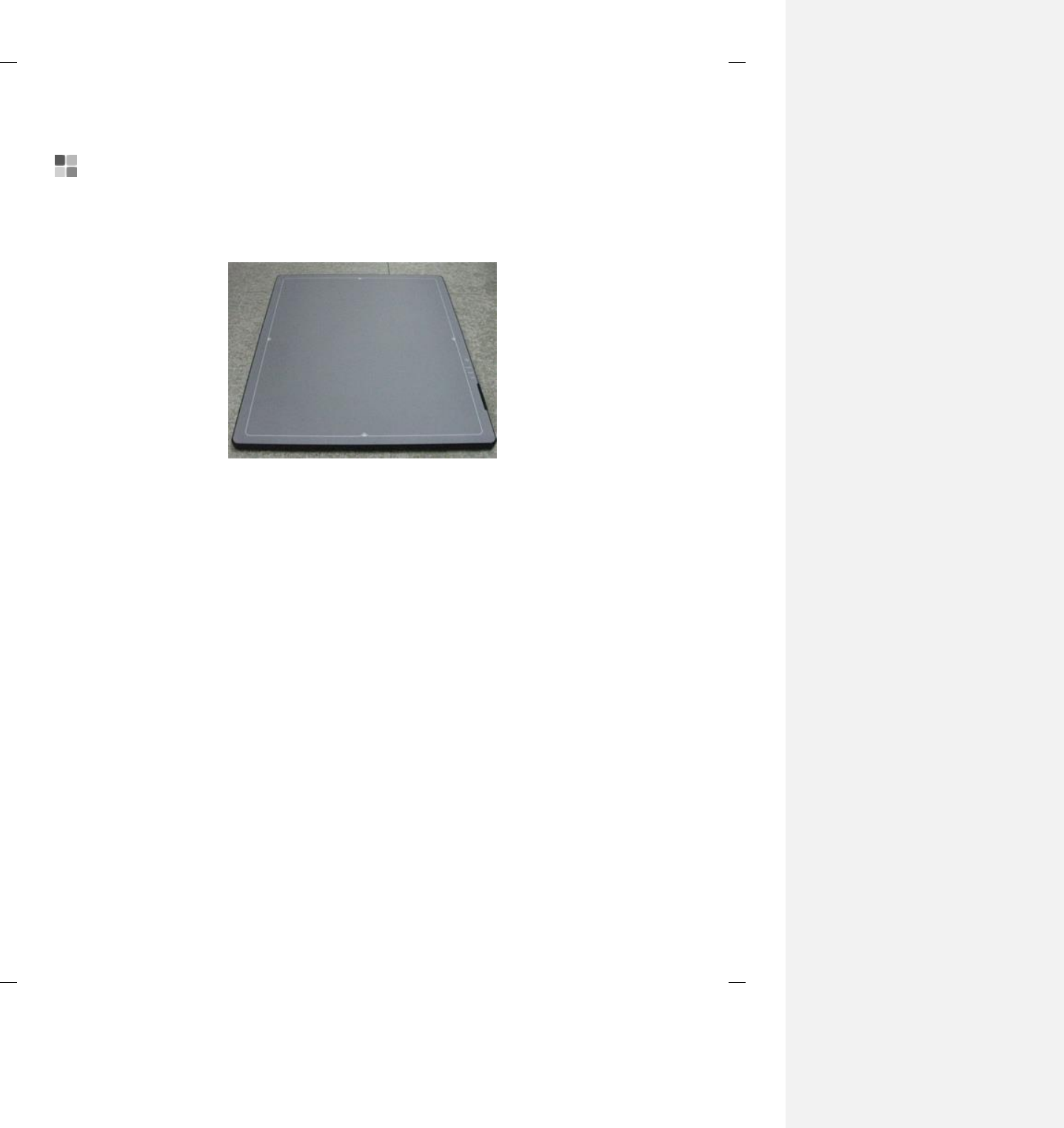

FIGURE 4 WIRELESS DE TEC T O R
This Flat-Panel, wireless digital X-ray detector is designed for generating images of any part of the body.
It makes high-resolution, high-sensitive digital images.
Overview
The S4335-W is a portable digital x-ray flat panel detector that can generate images of any part of the
body. This x-ray imaging system consists of a scintillator directly coupled to an a-Si TFT sensor. It makes
high-resolution, high-sensitive digital images.
Product features
Based on a-Si TFT active matrix
Compact (15 mm thickness) and light weight (less than 3.2 kg)
High resolution : ~ 3.57 lp/mm
14-bit digital output
Easy integration
23

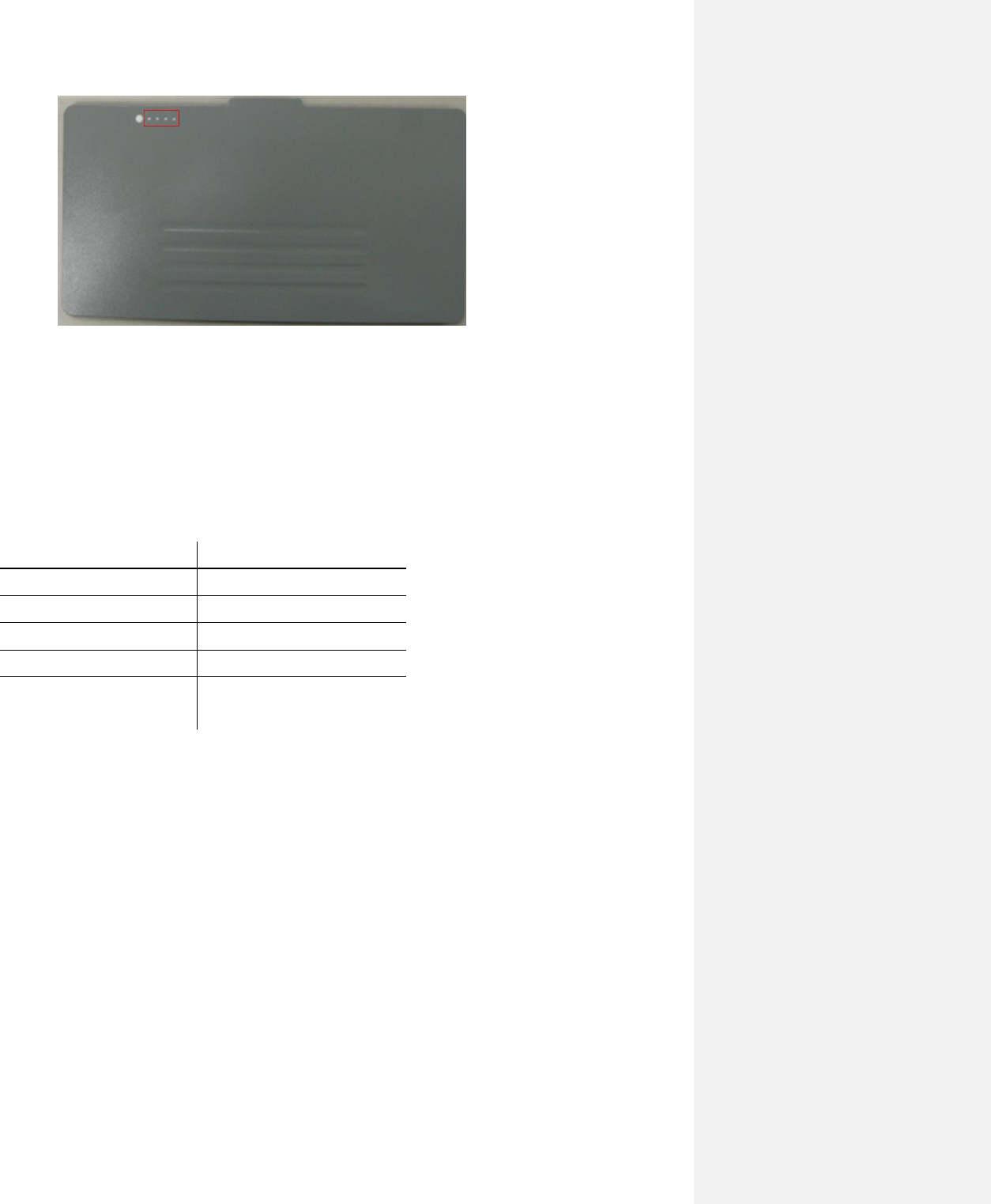

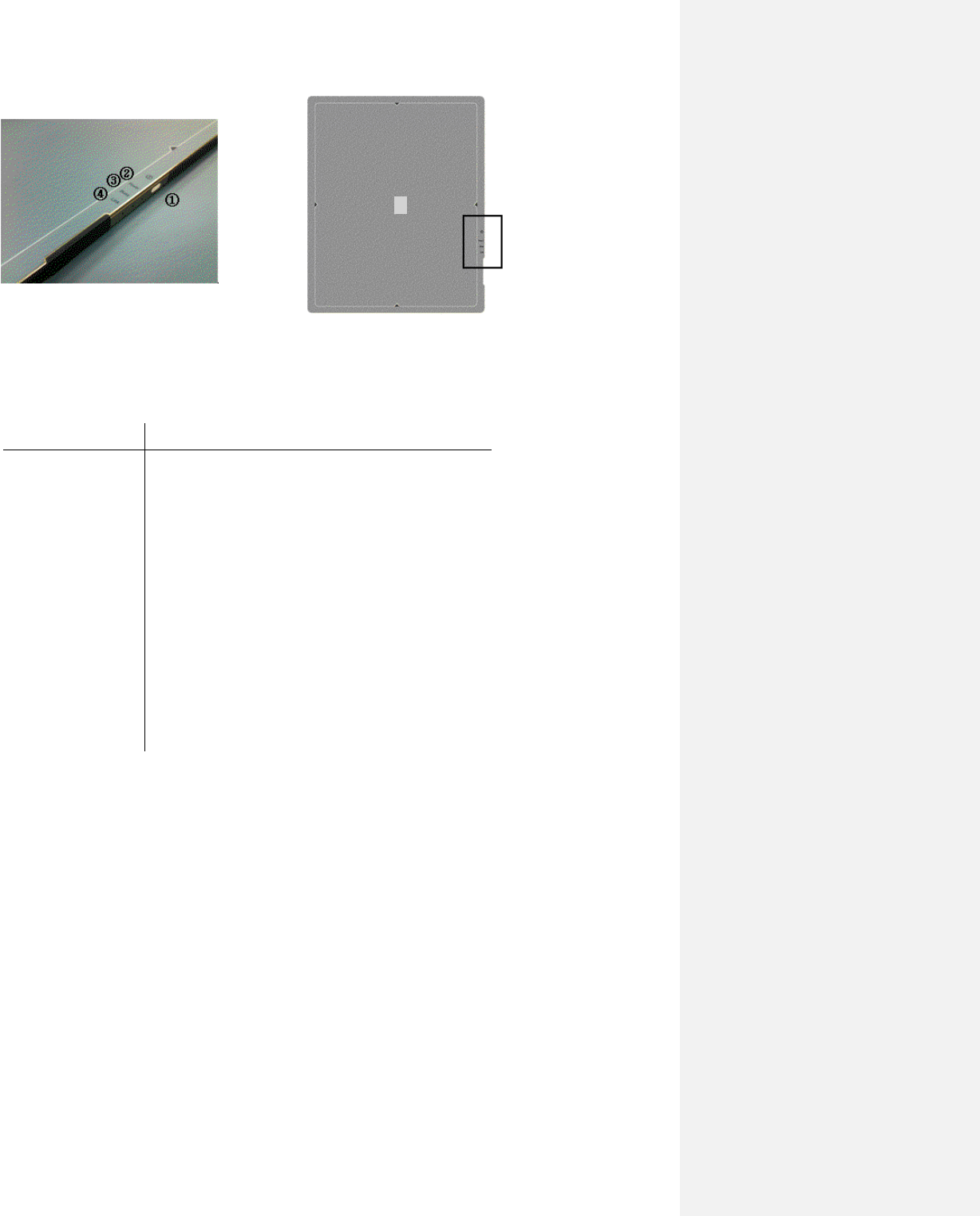

FIGURE 5 INDIC A TE LED
Table 5 LED STA TUS
You cannot get the patient body image from the outside of domain.
Item
Description
Detector
Power ON/OFF Button
Power Status Indicator
→ Blue colored indicator is constant when Power ON
Internal Processing Status Indicator
→ Green colored indicator flashes during internal processing
Interface Link Indicator
→ Wired mode : Blinking in Blue while connecting with
work station
→ W ireless mode : Green colored indicator is constant
Active Pixel Area: This is an area which converses X-ray
through the patient into the image.
⑤
24
Notes for Using the Detector
- Handling
FIGURE 6 DO NO T DRO P
Handle the instrument carefully, as it may be damaged if something is hit against it, dropped, or receives
a strong jolt.
Embedded Mechanical shock sensor specification is 100G.
- Before Exposure
If the instrument is used with condensation formed on it, problems may occur in the quality of the
instrument.
Sudden heating of the room in cold areas will cause condensation to form on the instrument. In this
case, wait until condensation disappears before performing exposure.
When an air-conditioner is going to be used, be sure to raise/lower the temperature gradually so that a
difference in temperature in the room and in the instrument does not occur, to prevent forming of
condensation.
- During Exposure
Do not apply excessive weight to the sensor unit. Otherwise, the sensor may be damaged.
The detector and patient must be taken from a fixed state. Otherwise, the performance may be
degraded.
25

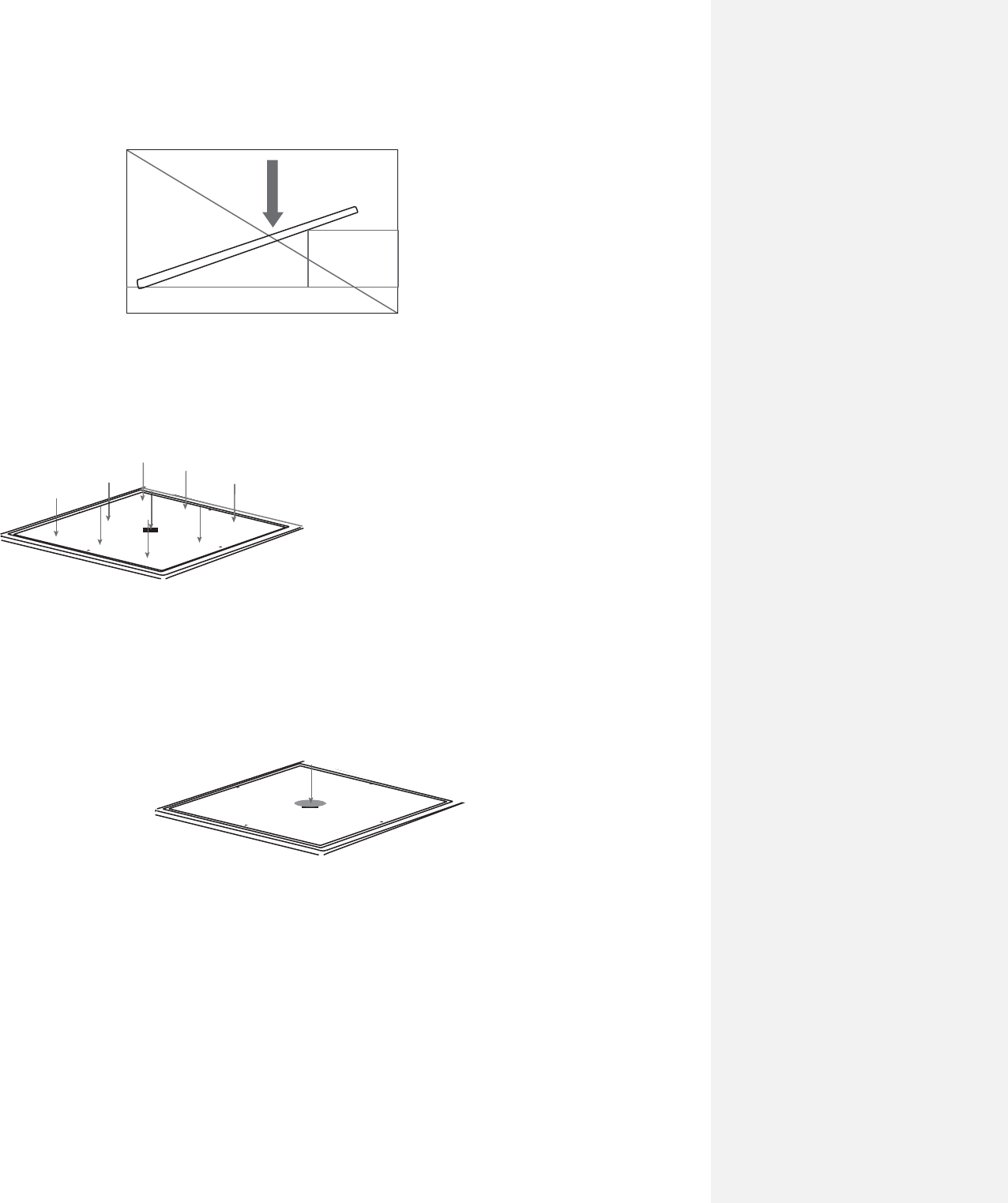

- Limit of Load
FIGURE 7 Be CA REF UL O F DETE C TO R LO C A TIO N
Be sure to use the sensor unit on a flat place so it will not bend.
Otherwise, the sensor may be damaged.
FIGURE 8 KEEP WEIGHT DISTRIBUTED EV ENLY
Uniform load
Supposing the distribution of the detection part on S4335-W, Do not load over 150Kg.
FIGURE 9 AV O ID LO C A LIZE D WEIGHT
26
- Others
Be sure to reconnect the cables to the proper connectors. Otherwise, the instrument may malfunction or may be
damaged.
Never use with other power supplies and cables. Use DEPS9601 only
- During Cleaning
Do not use anything other than neutral detergent for cleaning the cover of the instrument. Otherwise, the coating will
be corroded.
- Storage
Be sure to store the sensor unit a safe place where it will not fall or drop
When not using the portable detector on the flat place or using the detector on the uneven Place, Be cautious for
damage.
WARNIN G
WARNIN G
27

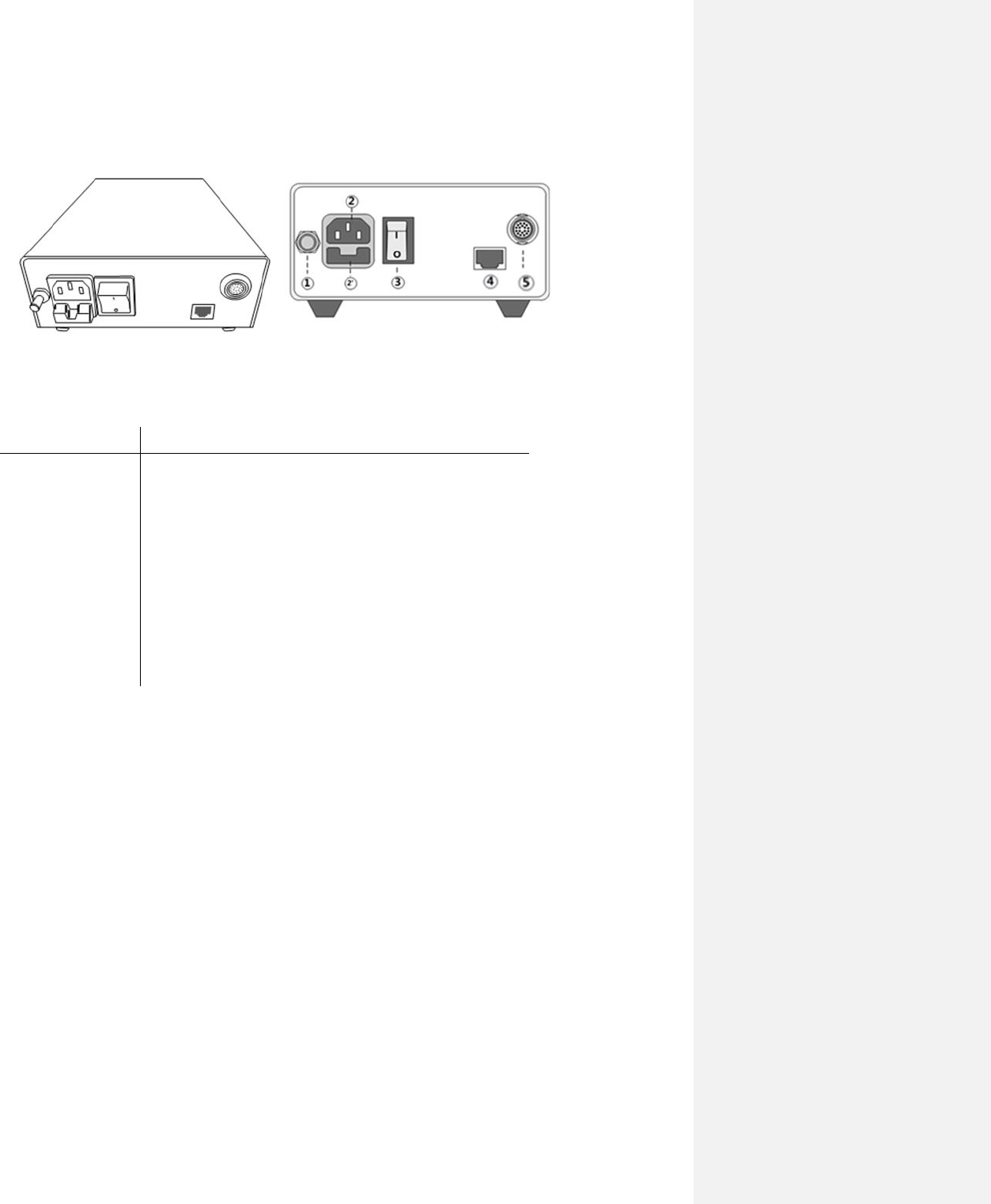

Power Supply Box
FIGURE 10 PO WE R SUP P LY BOX
Table 6 PO WER SUPPLY BO X DES C RIP TIO N
Item
Description
Power Supply Box
Grounding Jack : Common Ground or Earth
AC Inlet: AC Power Plug (2' - Fuse sock et)
Input AC Socket Type : IEC60320 C14 Ty pe
Input AC Socket : 6220(SCHURTER)
③ Power switch: Power O n/Off switch
→ Green colored indicator is constant when Power ON
④ LAN port : LAN cable connector
⑤ Main Cable Connector : connecting power supply with detector
28
Main Cable
FIGURE 11 MA IN CA BLE
This cable connects the detector to the power supply box.
Because the instrument’s cable is long, take care so cables do not get tangled during use.
Also, be careful not to get your feet caught in the cable.
Do not pull the cable by force. And If the cable gets tangled, do not pull the main body of portable
detector by force. Otherwise, the cable is damaged and causes fire or electric shock.
WARNIN G
WARNIN G
29
Battery Recharger
The battery recharger is used for S4335-W. You can recharge the battery and check the charge
condition.
FIGURE 12 BA TTERY REC HA RGE R
1. LED: Indicates the condition of charge. This is turned off when the power is disconnected or is not
recharged.
2. The Battery recharger Terminal
3. Knob: It is used to detach a battery from the recharger.
Indicates as follows When the battery recharges, When the battery is recharging, it changes red into
green according to the level of charge.
LED
The status of battery Recharger
Red
Fast charging mode ( Until About 90% )
Green
Normal charging mode ( About 85% ~ 100 % )
Blue
The error of charging
Table 7 BA TTERY RE C HA RGER INDIC A TE LED
If LED light is blue during recharging the battery, stop recharging the battery immediately and check
whether there are Impurities or not in the battery recharger Terminal ().
Despite taking action on upper step, if LED light is still blue, stop recharging the battery.
WARNING
30
Recharger Adapter
Input AC Socket Type : IEC 320 C6 Type.
The use
FIGURE 13 BA TTERY INS ERT
After the Adaptor (AD-9019S) connects to Power cord, be sure to connect it to Adaptor terminal on the
back side of Recharger
Be sure to insert the battery to recharger until it sounds clack.
FIGURE 14 BA TTERY LO C K
Be sure to push inside two knobs to the end when the battery detached from the recharger.
When using the S4335-W battery recharger, always use the battery (SDB-3S1PA) provided by
Samsung Electronics Co. Ltd..
When using Battery recharger, Be sure to use Adapter (AD-9019S) Provided by Samsung Electronics Co. Ltd..
WARNIN G
WARNIN G
31
When moving the S4335-W battery recharger, always separate the power and battery pack
When using the S4335-W battery recharger, Always be cautious about touching liquid, impurities.
In case of short trouble.
Do not disassemble the battery recharger.
When using the S4335-W battery recharger, be sure to comply with the user environment. The
performance of S4335-W battery can be down and the durability can be shorter.
Be sure to use the S4335-W battery recharger in the Control Room. This battery recharger is not
designed to use in the Examination Room.
When not using the S4335-W battery recharger for a long time. Always do separate the battery
recharger from the Power.
When inserting the battery to the battery recharger, Be careful of being caught clothes or
impurities.
WARNIN G
WARNIN G
WARNIN G
WARNI NG
WARNIN G
32
Battery
FIGURE 15 BA T TERY
This is the battery for using the S4335-W (Detector) by wireless communications
This light usually turns off. If you push the circle button, you can check the condition of battery as
follows below.
- When using,
LED
Battery residual display
LED 1,2,3,4 light on
76 % ~ 100 %
LED 1,2,3 light on
51 % ~ 75 %
LED 1,2 light on
26 % ~ 50 %
LED 1 light on
11 % ~ 25%
LED 1 Dimming
(About 0.5sec interval)
Under 10%
Table 8 BA TTERY RES IDUA L DISP LA Y
33
- When recharging,
Table 9 BA TTERY INDIC A TE LED
Be sure to recharge the battery by using the S4335-W (Detector) or the battery recharger (DEPS-9606) provided by
Samsung Electronics Co. Ltd..
If the battery is needed to be stored for a long period, battery should be removed from the application and stored in a
place where humidity and temperature are low.
While the battery is charged, used and stored, keep it away from object materials with static electric chargers.
If the terminals of the battery become dirty, wipe with a dry cloth before using the battery.
Be sure to use the battery in the environment designated by Samsung. Otherwise, the life of battery can be short
Stop using the battery if the battery becomes abnormally hot, disorder, discoloration, deformation, or abnormal
conditions is detected during use, charge, or storage.
Don't short circuit (+) and (-) terminals with metallic object intentionally.
Not be sure to touch liquid on the surface of the battery.
Don't pierce the battery with a sharp object such as a needle, screw drivers.
Do not hit the battery with heavy objects.
Don't step on the battery and throw or drop the battery on the hard floor to avoid mechanical shock.
Don't disassemble the battery or modify the battery design including electric circuit.
LED
Battery residual display
LED 1,2,3 light on LED 4 Dimming
76 % ~ 100 %
LED 1,2 light on LED 3 Dimming
51 % ~ 75 %
LED 1 light on LED 2 Dimming
26 % ~ 50 %
LED 1 Dimming
11 % ~ 25%
LED 1 Dimming
(About 0.5sec interval )
Under 10%
WARNIN G
WARNI NG
WARNIN G
WARNIN G
WARNIN G
WARNIN G
WARNIN G
WARNIN G
WARNIN G
WARNIN G
WARNIN G
WARNIN G
34
4.
O
PERATING THE
S
YSTEM
H
ARDWARE
Operating the System Hardware
IP set up

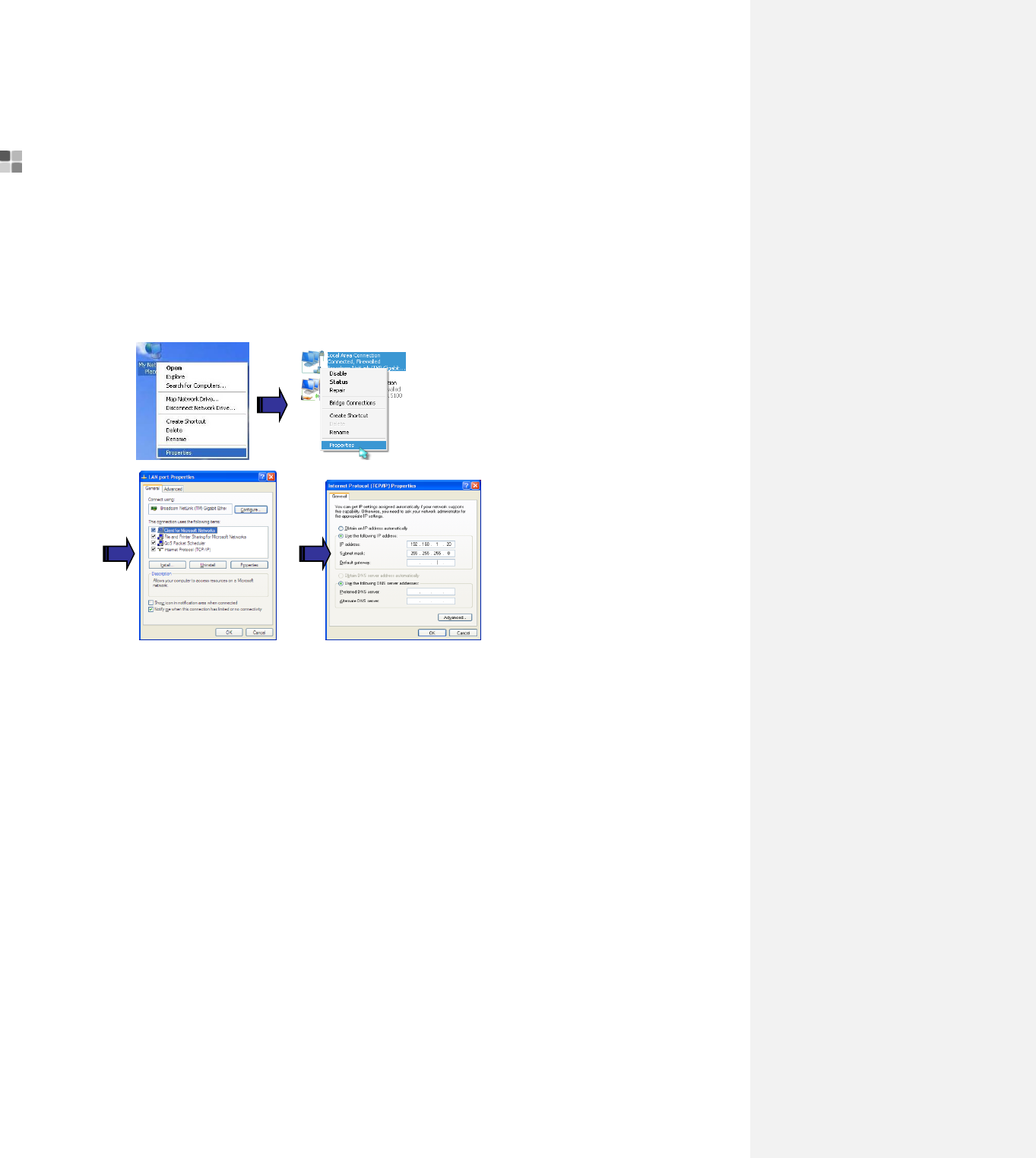

[My Network Places] → [Properties] → [Local Area Connection] → [Properties] → [Internet Protocol
(TCP/IP)]
→ [Use the following IP address]
IP address : 192 . 168 . 197 . 20 (Console PC)
Detector IP address is 192. 168. 197. 80 (default)
Figure 16 IP SE T UP
It is possible to change IP address, but it shouldn’t be the same as the detector IP address.
Checking Connection
Check LED on the detector & power supply
Ping test: [Start] → [Run] → ping -t 192.168.197.80
35
Operation
Switching power on / off
This equipment is turned on by the Power Button of each component.
Table 9 lists the methods for checking the power on status of the system components.

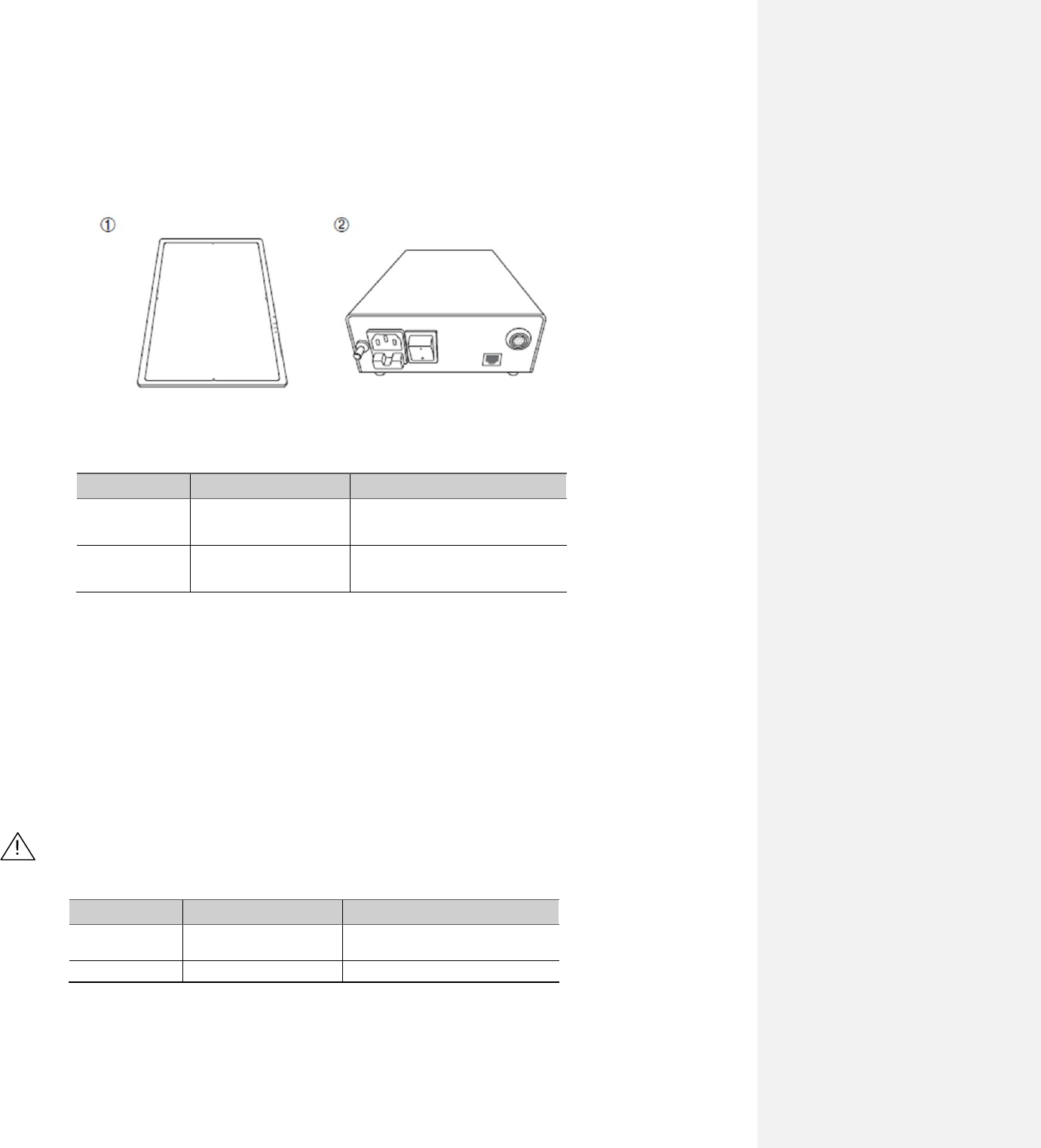

FIGURE 17 PO WER A P PLIED C O M P O NENTS (S4335-W)
Table 10 CHEC KING THE P O WER STA TUS O F CO M PO NE NTS (S4335-W)
All connection should be done, before turn on the power supply box.
Turn on the power of the detector power supply box, workstation.
The green light of the LED indicator on the detector is on, the detector power is on.
The blue light of the LED indicator on the detector is blinking, the detector is getting prepared to work
and initialize.
Turn off the power of the detector power supply box
When Detector is not turned on, be sure to check the C onnection, the status of Battery and installation at first.
Below table 10 for turning off each component.
Table 11 PO WER OFF STA TUS
Component
Power button location
To check the power status
Detector
Power switch on the bottom of
the right side
Dimming blue power LED
Power supply Box
The front side of Power supply
box
Green power LED
Component
Powe r Button Locatio n
To che ck the powe r status
Detector
O n the bottom of the right side
Blue powe r LED is turned off.
Power supply
box
The front side of PSU
Green pow er LED is turned off.
36

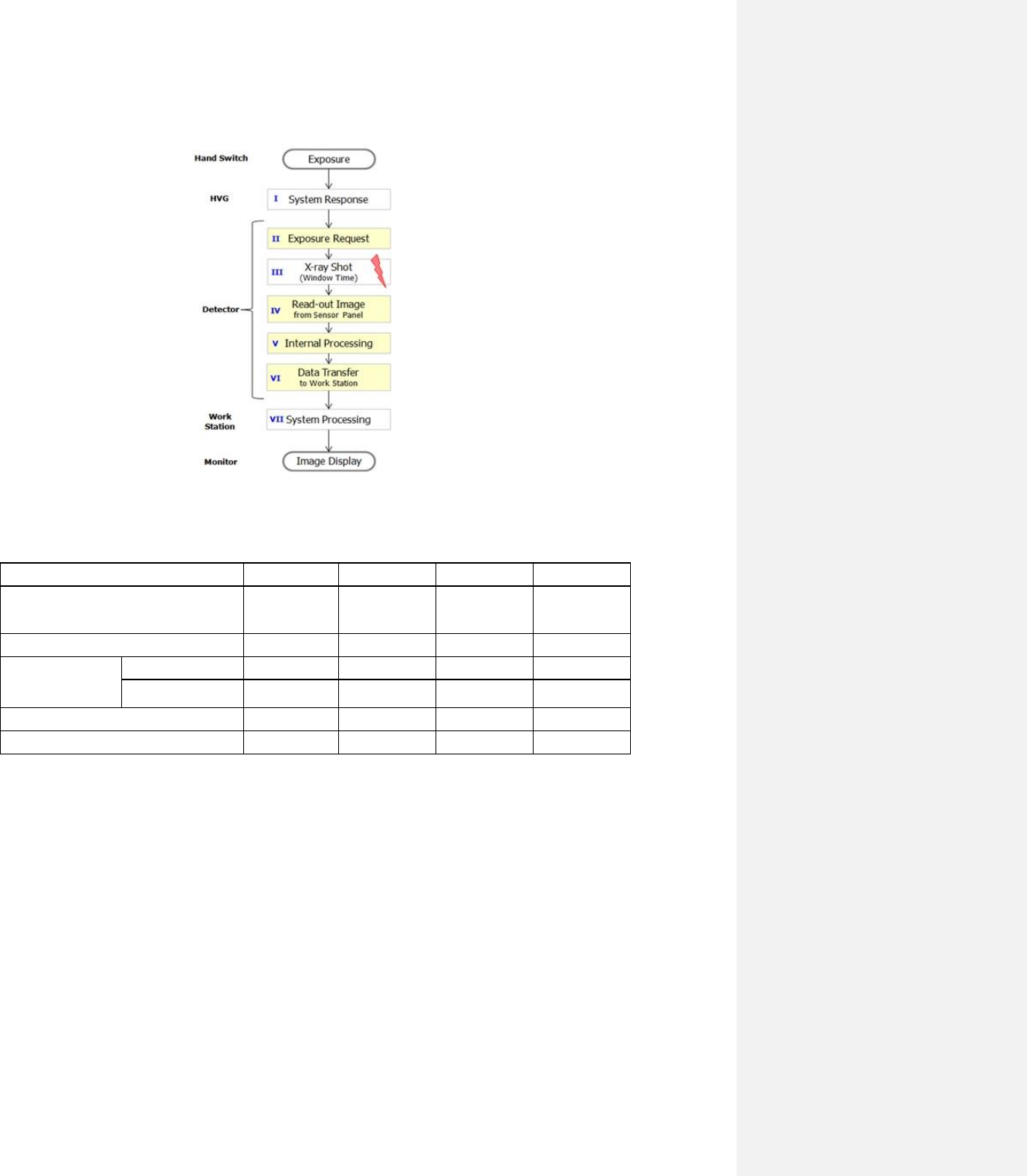

Operating description
Figure 18: TIM ING C HA RT
Item
min.
typ.
max.
unit
Exposure request time (II)
Before x-ray pulse start
-
-
0.5
sec
Exposure window
-
0.5
4.0
sec
Image transmitted
after exposure done
(IV + V + VI)
W ireless
3.5
4.0
-
sec
W ired
-
2.05
2.50
sec
Image cy cle time for exposure of 0.5sec
8
-
-
sec
Booting time
-
34
40
sec
Table 12 OPERA TING TIM E TA BLE
37
5.
A
PPENDICES
38
REQUIRED PUBLIC STATEMENT FOR GPL/LGPL/GPLv2/OpenSSL/CPOL
LICENSED SOFTWARE USED IN THIS PRODUCT
The software included in this product contains copyrighted software that is licensed under the GPL/LGPL. You may obtain the complete Corresponding
Source code from us for a period of three years after our last shipment of this product by sending email to:
oss.request@samsung.com
This offer is v alid to any one in receipt of this information.
Sour ce/Lib
License
Kernel 3.2.0
GPLv2
U-boot 2011.09
GPLv2
Busy box 1.19.4
GPLv2
Mtd-util-1.5.0
GPLv2
Glib 2.12.2
LGPL v 2.1
Hostap
BSD
Libnl-1
LGPL v 2.1
Iw-3.0
-
Wi-fi driv er(atheros AR1021x)
GPLv2
39
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.,
51 Frank lin Street, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute v erbatim copies of this license document, but changing it is not allowed.
Pr eamble
The licenses for most software are designed to take aw ay y our freedom to share and change it. By contrast, the GNU General Public License is intended to
guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of
the Free Software Foundation's software and to any other program w hose authors commit to using it. (Some other Free Software Foundation software is
cov ered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.
W hen we speak of free software, we are referring to freedom, not price. O ur General Public Licenses are designed to make sure that you have the
freedom to distribute copies of free software (and charge for this serv ice if y ou wish), that you receive source code or can get it if you w ant it, that you can
change the software or use pieces of it in new free programs; and that you know y ou can do these things.
To protect y our rights, we need to make restrictions that forbid any one to deny you these rights or to ask y ou to surrender the rights. These restrictions
translate to certain responsibilities for y ou if y ou distribute copies of the software, or if you modify it.
For example , if y ou distribute copies of such a program, whether gratis or for a fee, y ou must giv e the recipients all the rights that you hav e. You must
mak e sure that they , too, receive or can get the source code. And you must show them these terms so they k now their rights.
W e protect y our rights w ith two steps: (1) copyright the software, and (2) offer y ou this license which gives y ou legal permission to copy, distribute and/or
modify the software.
Also, for each author's protection and ours, we want to mak e certain that everyone understands that there is no warranty for this free software. If the
software is modified by someone else and passed on, we want its recipients to know that what they hav e is not the original, so that any problems introduced
by others will not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software patents. W e wish to avoid the danger that redistributors of a free program will individually
obtain patent licenses, in effect mak ing the program proprietary. To prevent this, we have made it clear that any patent must be licensed for ev eryone's
free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
GNU GENERA L PUBLIC LICENSE
TERMS A ND CONDITIONS FOR COPYING, DISTRIBUTION A ND MODIFICA TION
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of
this General Public License. The "Program", below, refers to any such program or w ork, and a "work based on the Program" means either the Program or
any deriv ative work under copyright law: that is to say , a work containing the Program or a portion of it, either verbatim or with modifications and/or
translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not
restricted, and the output from the Program is cov ered only if its contents constitute a work based on the Program (independent of having been made by
running the Program). Whether that is true depends on what the Program does.
40
1. You may copy and distribute v erbatim copies of the Program's source code as y ou receive it, in any medium, provided that y ou conspicuously and
appropriately publish on each copy an appropriate copyright notice and disclaimer of w arranty; keep intact all the notices that refer to this License and to the
absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.
2. You may modify y our copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such
modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices stating that y ou changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be
licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most
ordinary way, to print or display an
Announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that y ou provide a warranty) and that
users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is
interactive but does not normally print such an announcement, y our work based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not deriv ed from the Program, and can be reasonably
considered independent and separate works in themselv es, then this License, and its terms, do not apply to those sections when you distribute them as
separate works. But when y ou distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be
on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to
control the distribution of derivative or
Collectiv e works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage
or distribution medium does not bring the other work under the scope of this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2
abov e provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on
a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three y ears, to give any third party, for a charge no more than your cost of physically performing
source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a
medium customarily used for software interchange; or,
c) Accompany it with the information y ou received as to the offer to distribute corresponding source code. (This alternative is allowed only for
noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for mak ing modifications to it. For an executable w ork, comp lete source code means all
the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the
executable. How ever, as a special exception, the source code distributed need not include any thing that is normally distributed (in either source or binary
41
form) with the major components (compiler, kernel, and so on) of the operating sy stem on which the executable runs, unless that component itself
accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source
code from the same place counts as distribution of the source code, ev en though third parties are not compelled to copy the source along w ith the object
code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy,
modify, sublicense or distribute the Program is v oid, and will automatically terminate y our rights under this License. Howev er, parties who have received
copies, or rights, from y ou under this License will not hav e their licenses terminated so long as such parties remain in full compliance.
5. You are not required to accept this License, since y ou hav e not signed it. However, nothing else grants y ou permission to modify or distribute the
Program or its derivativ e works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program
(or any work based on the Program), y ou indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or
modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a lic ense from the original licensor to
copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the
rights granted herein. You are not responsible for enforcing compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are
imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions
of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a
consequence y ou may not distribute the Program at all. For example, if a patent license would not permit royalty -free redistribution of the Program by all
those who receiv e copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from
distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the
section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section
has the sole purpose of protecting the integrity of the free software distribution sy stem, which is implemented by public license practices. Many people have
made generous contributions to the wide range of software distributed through that sy stem in reliance on consistent application of that sy stem; it is up to
the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believ ed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder
who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted
only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the bo dy of this License.
9. The Free Software Foundation may publish rev ised and/or new versions of the General Public License from time to time. Such new versions will be
similar in spirit to the present v ersion, but may differ in detail to address new problems or concerns.
Each version is giv en a distinguishing v ersion number. If the Program specifies a version number of this License which applies to it and "any later version",
you have the option of following the terms and conditions either of that v ersion or of any later v ersion published by the Free Software Foundation. If the
Program does not specify a v ersion number of this License, you may choose any v ersion ev er published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for
permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; w e sometimes make exceptions for
this. Our decision will be guided by the two goals of preserv ing the free status of all derivativ es of our free softw are and of promoting the sharing and reuse
of software generally.
42
NO WA RRA NTY
11. BECAUSE THE PRO GRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PRO GRAM, TO THE EXTENT PERMITTED BY APPLICABLE
LAW . EXCEPT WHEN OTHERWISE STATED IN W RITING THE COPYRIGHT HO LDERS AND/OR OTHER PARTIES PROVIDE THE PRO GRAM "AS IS" W ITHOUT
W ARRANTY O F ANY KIND, EITHER EXPRESSED O R IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY A ND
FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE Q UALITY AND PERFORMANCE OF THE PRO GRAM IS W ITH YOU. SHO ULD THE
PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR O R CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW O R AGREED TO IN W RITING WILL ANY COPYRIGHT HOLDER, O R ANY OTHER PARTY WHO
MAY MO DIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING O UT O F THE USE O R INABILITY TO USE THE PRO GRAM (INCLUDING BUT NOT LIMITED TO LOSS
O F DATA OR DATA BEING RENDERED INACCURATE O R LOSSES SUSTAINED BY YOU OR THIRD PARTIES O R A FAILURE OF THE PRO GRAM TO OPERATE
W ITH ANY OTHER PRO GRAMS), EVEN IF SUCH HO LDER OR O THER PARTY HAS BEEN ADVISED O F THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS A ND CONDITIONS
How to Apply These Terms to Your New Programs
If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software
which everyone can redistribute and change under these terms.
To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of
warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.
<one line to give the program's name and a brief idea of what it does.>
Copyright (C) <year> <name of author>
This program is free software; you can redistribute it and/or modify
it under the terms of the GNU General Public License as published by
the Free Software Foundation; either v ersion 2 of the License, or
(at your option) any later version.
This program is distributed in the hope that it will be useful,
but W ITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
GNU General Public License for more details.
You should have received a copy of the GNU General Public License along
with this program; if not, write to the Free Software Foundation, Inc.,
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.
Also add information on how to contact you by electronic and paper mail.
If the program is interactive, mak e it output a short notice like this when it starts in an interactive mode:
43
Gnomovision version 69, Copyright (C) year name of author
Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type `show w'.
This is free software, and y ou are welcome to redistribute it
under certain conditions; type `show c' for details.
The hy pothetical commands `show w' and `show c' should show the appropriate parts of the General Public License. O f course, the commands you use may
be called something other than `show w' and `show c'; they could ev en be mouse-clicks or menu items--whatever suits y our program.
You should also get your employer (if you work as a programmer) or y our school, if any , to sign a "copy right disclaimer" for the program, if necessary. Here
is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the program
`Gnomov ision' (w hich makes passes at compilers) written by James Hacker.
<signature of Ty Coon>, 1 April 1989
Ty Coon, President of Vice
This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, y ou may consider
it more useful to permit linking proprietary applications with the library . If this is what y ou want to do, use the GNU Lesser General Public License instead of
this License.
44
GNU LESSER GENERAL PUBLIC LICENSE
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Every one is permitted to copy and distribute v erbatim copies of this license document, but changing it is not allowed.
[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, v ersion 2, hence the v ersion number
2.1.]
Pr eamble
The licenses for most softw are are designed to take aw ay your freedom to share and change it. By contrast, the GNU General Pu blic Licenses are intended to
guarantee your freedom to share and change free software--to make sure the software is free for all its users.
This license, the Lesser General Public License, applies to some specially designated software packages--ty pically libraries--of the Free Software Foundation
and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public
License is the better strategy to use in any particular case, based on the explanations below.
W hen we speak of free software, we are referring to freedom of use, not price. O ur General Public Licenses are designed to make sure that you have the
freedom to distribute copies of free software (and charge for this serv ice if y ou wish); that y ou receive source code or can get it if you want it; that you can
change the software and use pieces of it in new free programs; and that you are informed that y ou can do these things.
To protect y our rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These
restrictions translate to certain responsibilities for y ou if y ou distribute copies of the library or if you modify it.
For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gav e y ou. You must make
sure that they , too, receiv e or can get the source code. If you link other code with the library, you must provide complete o bject files to the recipients, so
that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they k now their
rights.
W e protect y our rights w ith a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy,
distribute and/or modify the library.
To protect each distributor, we want to mak e it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and
passed on, the recipients should k now that what they have is not the original version, so that the original author's reputation will not be affected by
problems that might be introduced by others.
Finally, softw are patents pose a constant threat to the existence of any free program. W e wish to mak e sure that a company cannot effectively restrict the
users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a v ersion of the
library must be consistent with the full freedom of use specified in this license.
Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License,
applies to certain designated libraries, and is quite different from the ordinary General Public License. W e use this license for certain libraries in order to
permit linking those libraries into non-free programs.
W hen a program is linked with a library , whether statically or using a shared library , the combination of the two is legally speaking a combined work, a
deriv ative of the original library . The ordinary General Public License therefore permits such link ing only if the entire combination fits its criteria of freedom.
The Lesser General Public License permits more lax criteria for linking other code with the library.
W e call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the ordinary General Public License. It also
prov ides other free software developers Less of an advantage over competing non-free programs. These disadv antages are the reason we use the ordinary
General Public License for many libraries. How ever, the Lesser license provides adv antages in certain special circumstances.
For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto
standard. To achieve this, non-free programs must be allowed to use the library . A more frequent case is that a free library does the same job as widely
used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.
In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For
example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating sy stem, as well as its
variant, the GNU/Linux operating system.
45
Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is link ed with the Lib rary
has the freedom and the wherewithal to run that program using a modified v ersion of the Library .
The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a "work based on the
library" and a "work that uses the library ". The former contains code deriv ed from the library, whereas the latter must be co mbined with the library in order
to run.
TERMS A ND CONDITIONS FOR COPYING, DISTRIBUTION A ND MODIFICA TION
0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party
saying it may be distributed under the terms of this Lesser General Public License (also called "this License"). Each licensee is addressed as "you".
A "library" means a collection of software functions and/or data prepared so as to be conveniently linked w ith application programs (which use some of those
functions and data) to form executables.
The "Library ", below, refers to any such software library or work which has been distributed under these terms. A "work based on the Library" means either
the Library or any derivative work under copyright law: that is to say , a work containing the Library or a portion of it, either v erbatim or with modifications
and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term "modification".)
"Source code" for a work means the preferred form of the work for mak ing modifications to it. For a library , complete source code means all the source code
for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using
the Library is not restricted, and output from such a program is cov ered only if its contents constitute a work based on the Library (independent of the use of
the Library in a tool for writing it). W hether that is true depends on w hat the Library does and what the program that uses the Library does.
1. You may copy and distribute v erbatim copies of the Library's complete source code as you receive it, in any medium, provided that y ou conspicuously and
appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; k eep intact all the notices that refer to this License and to the
absence of any warranty; and distribute a copy of this License along w ith the Library.
You may charge a fee for the physical act of transferring a copy, and y ou may at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such
modifications or work under the terms of Section 1 abov e, provided that y ou also meet all of these conditions:
a) The modified work must itself be a software library .
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change.
c) You must cause the whole of the w ork to be licensed at no charge to all third parties under the terms of this License.
d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than
as an argument passed when the facility is inv oked, then y ou must mak e a good faith effort to ensure that, in the event an application does not
supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.
(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore,
Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it,
the square root function must still compute square roots.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not deriv ed from the Library, and can be reasonably
considered independent and separate works in themselv es, then this License, and its terms, do not apply to those sections when y ou distribute them as
separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on
the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to
control the distribution of derivative or collective works based on the Library.
In addition, mere aggregation of another work not based on the Library with the Library (or w ith a work based on the Library) on a volume of a storage or
distribution medium does not bring the other work under the scope of this License.
3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must
alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, v ersion 2, instead of to this License. (If a newer
version than version 2 of the ordinary GNU General Public License has appeared, then y ou can specify that v ersion instead if you wish.) Do not make any
other change in these notices.
O nce this change is made in a giv en copy, it is irrev ersible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and
deriv ative works made from that copy.
This option is useful when you wish to copy part of the code of the Library into a program that is not a library.
46
4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1
and 2 above provided that y ou accompany it w ith the complete corresponding machine-readable source code, which must be distributed under the terms of
Sections 1 and 2 abov e on a medium customarily used for software interchange.
If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the
same place satisfies the requirement to distribute the source code, ev en though third parties are not compelled to copy the source along with the object
code.
5. A program that contains no deriv ative of any portion of the Library , but is designed to work with the Library by being compiled or linked with it, is called a
"work that uses the Library". Such a w ork, in isolation, is not a deriv ative work of the Library , and therefore falls outside the scope of this License.
Howev er, linking a "work that uses the Library" with the Library creates an executable that is a deriv ative of the Library (b ecause it contains portions of the
Library ), rather than a "work that uses the library". The executable is therefore cov ered by this License. Section 6 states terms for distribution of such
executables.
W hen a "work that uses the Library" uses material from a header file that is part of the Library, the object code for the work may be a deriv ative work of the
Library even though the source code is not. W hether this is true is especially significant if the work can be link ed without the Library , or if the work is itself a
library. The threshold for this to be true is not precisely defined by law.
If such an object file uses only numerical parameters, data structure lay outs and accessors, and small macros and small inlin e functions (ten lines or less in
length), then the use of the object file is unrestricted, regardless of w hether it is legally a deriv ative work. (Executables containing this o bject code plus
portions of the Library will still fall under Section 6.)
O therw ise, if the w ork is a deriv ative of the Library, y ou may distribute the object code for the work under the terms of Section 6. Any executables
containing that work also fall under Section 6, w hether or not they are link ed directly with the Library itself.
6. As an exception to the Sections above, y ou may also combine or link a "work that uses the Library" with the Library to produce a work containing portions
of the Library , and distribute that work under terms of y our choice, provided that the terms permit modification of the w ork for the customer's ow n use and
rev erse engineering for debugging such modifications.
You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are cov ered by this License. You
must supply a copy of this License. If the work during execution displays copyright notices, y ou must include the copyright notice for the Library among
them, as well as a reference directing the user to the copy of this License. Also, y ou must do one of these things:
a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes w ere used in
the work (which must be distributed under Sections 1 and 2 abov e); and, if the w ork is an executable link ed with the Library, with the complete
machine-readable "work that uses the Library", as object code and/or source code, so that the user can modify the Library and then relink to
produce a modified executable containing the modified Library. (It is understood that the user who changes the c ontents of definitions files in the
Library will not necessarily be able to recompile the application to use the modified definitions.)
b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library
already present on the user's computer sy stem, rather than copying library functions into the executable, and (2) will operate properly with a
modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was
made with.
c) Accompany the w ork with a written offer, valid for at least three y ears, to give the same user the materials specified in Sub section 6a, abov e, for
a charge no more than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equiv alent access to copy the above specified
materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.
For an executable, the required form of the "work that uses the Library" must include any data and utility programs needed for reproducing the executable
from it. Howev er, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary
form) with the major components (compiler, k ernel, and so on) of the operating sy stem on which the executable runs, unless that component itself
accompanies the executable.
It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating sy stem.
Such a contradiction means y ou cannot use both them and the Library together in an executable that y ou distribute.
7. You may place library facilities that are a work based on the Library side-by-side in a single library together w ith other library facilities not covered by this
License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is
otherwise permitted, and prov ided that y ou do these two things:
a) Accompany the combined library with a copy of the same w ork based on the Library, uncombined with any other library facilities. This must be
distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the
accompanying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. A ny attempt otherwise to copy,
modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. Howev er, parties who have
receiv ed copies, or rights, from y ou under this License will not hav e their licenses terminated so long as such parties remain in full compliance.
47
9. You are not required to accept this License, since you have not signed it. Howev er, nothing else grants y ou permission to modify or distribute the Library
or its derivativ e works. These actions are prohibited by law if you do not accept this License. Therefore, by modify ing or distributing the Library (or any work
based on the Library), you indicate y our acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library
or works based on it.
10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to
copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise
of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.
11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are
imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions
of this License. If y ou cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a
consequence y ou may not distribute the Library at all. For example, if a patent license w ould not permit royalty-free redistribution of the Library by all those
who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from
distribution of the Library.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the
section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section
has the sole purpose of protecting the integrity of the free software distribution sy stem which is implemented by public license practices. Many people have
made generous contributions to the wide range of software distributed through that sy stem in reliance on consistent application of that sy stem; it is up to
the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believ ed to be a consequence of the rest of this License.
12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder
who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted
only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
13. The Free Software Foundation may publish rev ised and/or new v ersions of the Lesser General Public License from time to time. Such new v ersions will
be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
Each version is giv en a distinguishing v ersion number. If the Library specifies a version number of this License which applies to it and "any later v ersion", you
have the option of following the terms and conditions either of that v ersion or of any later v ersion published by the Free Software Foundation. If the Library
does not specify a license v ersion number, you may choose any v ersion ever published by the Free Softw are Foundation.
14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to
ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Softw are Foundation; we sometimes make
exceptions for this. O ur decision will be guided by the two goals of preserving the free status of all derivativ es of our free software and of promoting the
sharing and reuse of software generally.
NO WA RRA NTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO W ARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE
LAW . EXCEPT WHEN O THERWISE STATED IN W RITING THE COPYRIGHT HO LDERS AND/OR O THER PARTIES PROVIDE THE LIBRARY "AS IS" W ITHOUT
W ARRANTY O F ANY KIND, EITHER EXPRESSED O R IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY A ND
FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE Q UALITY AND PERFORMANCE OF THE LIBRARY IS W ITH YOU. SHOULD THE
LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR O R CORRECTION.
16. IN NO EVENT UNLESS REQ UIRED BY APPLICABLE LAW O R AGREED TO IN W RITING WILL ANY COPYRIGHT HOLDER, O R ANY O THER PARTY WHO MAY
MO DIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING O UT O F THE USE O R INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS O F
DATA O R DATA BEING RENDERED INACCURATE OR LO SSES SUSTAINED BY YO U O R THIRD PARTIES OR A FAILURE OF THE LIBRARY TO O PERATE WITH
ANY O THER SO FTWARE), EVEN IF SUCH HO LDER O R O THER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS A ND CONDITIONS
How to A pply These Ter ms to Your New Librar ies
If you develop a new library, and y ou want it to be of the greatest possible use to the public, we recommend mak ing it free software that everyone can
redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively , under the terms of the ordinary General Public
License).
To apply these terms, attach the follow ing notices to the library. It is safest to attach them to the start of each source file to most effectively convey the
exclusion of warranty; and each file should hav e at least the "copyright" line and a pointer to where the full notice is found.
48
one line to give the library's name and an idea of what it does.
Copyright (C)
year
name of author
This library is free software; you can redistribute it and/or
modify it under the terms of the GNU Lesser General Public
License as published by the Free Software Foundation; either
version 2.1 of the License, or (at y our option) any later version.
This library is distributed in the hope that it will be useful,
but W ITHO UT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU
Lesser General Public License for more details.
You should have received a copy of the GNU Lesser General Public
License along with this library ; if not, w rite to the Free Software
Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Also add information on how to contact you by electronic and paper mail.
You should also get your employer (if you work as a programmer) or y our school, if any, to sign a "copy right disclaimer" for the library, if necessary. Here is
a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in
the library `Frob' (a library for tweaking k nobs) written
by James Random Hack er.
signature of Ty Coon
, 1 April 1990
Ty Coon, President of Vice
That's all there is to it!
49
BSD LIC ENSE
Copyright (c) 1993 The Regents of the Univ ersity of California. All rights reserv ed.
This software was developed by the Computer Sy stems Engineering group at Lawrence Berkeley Laboratory under DARPA contract BG 91-66 and contributed
to Berk eley .
All adv ertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed
by the University of California, Lawrence Berkeley Laboratory.
Redistribution and use in source and binary forms, w ith or without modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or
other materials provided with the distribution.
3. All adv ertising materials mentioning features or use of this software must display the following acknowledgement: This pro duct includes software
developed by the University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products deriv ed from this software without
specific prior written permission.
THIS SO FTWARE IS PRO VIDED BY THE CO PYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES O F MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT
SHALL THE CO PYRIGHT OWNER O R CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, O R CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, O R PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND O N ANY THEORY O F LIABILITY, W HETHER IN CO NTRACT, STRICT LIABILITY,
O R TORT (INCLUDING NEGLIGENCE OR O THERWISE) ARISING IN ANY W AY OUT O F THE USE OF THIS SOFTWARE, EVEN IF ADVISED O F THE
PO SSIBILITY OF SUCH DAMAGE.
50
FCC Statement of Conformance
This device complies wit h part 15 of the FCC Rules. Operation is subject to the follow ing two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
IC Information
This device complies w ith Industry Canada license-exempt RSS standard(s). Operation is subject to the follow ing t wo
conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence(s), Son utilisation est soumise à Les deux
conditions suivantes:
(1) cet appareil ne peut pas provoquer d’interférences et
(2) cet appareil doit accepter Toute interférence, y compris les int erférences qui peuvent causer un mauvais fonctionnement
du dispositif.
Tests for EMC and RF including wireless EMC w ere performed according to the standards in the follow ing table below .
Item
Standards
EMC
IEC 60601-1-2
Wire le ss EMC
EN 301 489-1
EN 301 489-17
RF
47 CFR Pa rt 15C
47 CFR Pa rt 15E
EN 300 328
EN 301 893
51
EMC
Declaration
1.
Complianc e
Statement
This equipment complies with
IEC
60601-1-2 EMC standards
for
medical
devices.
This equipment
needs special precautions regarding EMC and needs to be installed and put into service according to the EMC
information provided in the user manual.
Do not use any w ireless devices, including cellular phones, near the system. All wireless devices, w hether they comply w ith
the EMC standard or not, may emit electromagnetic interferences and cause the system to malfunction w hen they are used
nearby.
This equipment should not be used adjacent to or stacked w ith other equipment; if adjacent or stacked use is necessary,
the equipment should be tested and verified in order to ensure normal operations in the configuration in w hich it w ill be
used.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
All interconnect cables to peripheral devices must be shielded and properly grounded, except when technologically
prohibited. Use of cables not properly shielded and grounded may result in the equipment causing radio frequency
interference.
EMC Cable List
Port
No.
Name
Type*
Cable
Max. > 3 m
Cable
Shielded
Comments
Signal
1
Tether cable
I/O
7.0
Shielded
None
*Note: I/O = Signal Input or Output Port (Not Involved in Process Control)
The use of cables or accessories other than those specified may result in increased emissions or decreased immunity.
Should any interference (EMC) be detected with other equipment, please position other equipment away from this one.
When using this system on a patient w ith an implantable pacemaker or an implantable cardioverter defibrillator, the
patient must be informed that continuous X-ray exposure in pulse form may cause the pacemaker or cardioverter
defibrillator to malfunction.
When using this system, ensure that X-rays are not exposed directly onto the patient’s implantable pacemaker or
implantable cardioverter defibrillator, and that the exposure time is kept as short as possible.
This equipment may be interfered w ith by other equipment, even if that other equipment complies with CISPR EMISSION
requirements.
52
This device contains wireless module.
“FCC ID : A3LWIDT30Q”
Re striction
of use
of Wi-Fi using
5
GHz bands(5150
-
5350 MHz)
“In the EU,
the Wi-Fi function
in this
equipme nt sho uld
not be
use d
outdoors.
Wired
&
Wireless
Interface
Wired
Standard
IEEE 802.3
compliant
Physical data
rate
10/100/1000
BASE-T
Wireless
Standard
IEEE 802.11 a/b/g/n
WI-FI
Frequency
2.4GHz/5GHz
dual
Modulation
OFDM with BPSK, QPSK,
16
QAM,
64
QAM,
DBPSK,
CCK
Security
Ope n, WEP, WPA/WPA2 PSK, PWA/WPA2
Enterprise
Physical data
rate
•IEEE 802 .11a
: 6-54Mbps
•IEEE 802 .11b
: 1-11Mbps
•IEEE 802 .11g
: 6-54Mbps
•IEEE 802 .11n
: 6.5-300Mbps
Power Output
(EIRP)
For 2.4
GHz band
:
13.80
dBm
For 5
GHz Lower sub-band
:
14.76
dBm
For 5
GHz Higher sub-band
:
12.39
dBm
53
Table1
Guidance and m anufacturer’s declaratio n- Elec trom agnetic
emissions
This W ire le ss De te ctor
is
intende d
for
use
in
the electroma gnetic
environment
specifie d be low. The user
of
this
Wireless Detector should a ssure that
it is used in
such
an environment
Emission
test
Compliance
Electromagne tic environment
- guidance
RF emissions
CISPR 11
Group
1
This W ireless Detector uses RF energy only for its internal
function. Therefore, its RF emissions are very low and are
not lik ely to cause any interference in nearby electronic
equipment.
RF emissions
CISPR 11
Cla ss A
This W ireless Detector is suitable for use in all establishments
other than domestic, and may be used in domestic
establishments and those directly connected to the public
low-v oltage power supply network that supplies buildings
used for domestic purposes, provided the follow ing warning
is heeded:
W arning: This equipment/system is intended for use by
healthcare professionals only . This equipment/system may
cause radio interference or may disrupt the operation of
nearby equipment. It may be necessary to take mitigation
measures, such as re-orienting or relocating the W ireless
Detector or shielding the location.
Harmonics emission
IEC 61000-3-2
Cla ss A
Vo ltage fluctuations/
flicker e missions
IEC 61000-3-3
Complies
W
54
Table2
Guidance and m anufacturer’s declaration- E lectrom agnetic
immunity
This W ireless Detector is intended for use in the electromagnetic env ironment specified below . The
customer or the user of this W ireless Detector should assure that it is used in such an environment.
IMMUNITY test
IEC 60601 test lev el
Compliance lev el
Electromagnetic
environment – guidance
Electrostatic discha rge
(ESD)
IEC61000-4-2
±6 kV
Contact
±8 kV
Air
±6 kV
Con ta ct
±8 kV
Air
Floo rs should
be
wood,
concre te
or
cera mic tile.
If
flo o rs
are covered
with
synthe tic ma terial,
the
relativ e
humidity sho uld
be
at
lea st
30 %
Electrical fast Tra nsie nt
/
burst
IEC61000-4-4
±2kV
for
powe r supply
lines
±1kV
for
input/output lines
±2kV
for
powe r supply
lines
±1kV
for
input/output lines
Mains power qua lity should
be that of a
typical
comme rcia l
or hospital
environment.
Surge
IEC61000-4-5
±1 kV
differentia l
mode
±2 kV
common
mode
±1 kV
differentia l
mode
±2 kV
common
mode
Mains power qua lity should
be that of a
typical
comme rcia l
or hospital
environment.
Power fre quency
(50/60 Hz) Ma gne tic
field
IEC61000-4-8
3.0 A/m
3.0 A/m
Power fre quency ma gne tic
fields
sho uld
be at
levels
characteristic of a
typica l
loca tion
in a ty pical
comme rcia l
or hospital
environment.
Vo ltage dips, short
Inte rruptions and
Vo ltage va riations
on
power supply input lines
IEC61000-4-11
<5%
Uт
(>95% dip
in Uт)
for
0.5 cycle
40%
Uт
(60%
dip
in
Uт) for 5
cycle, 6
cycle
70%
Uт
(30%
dip
in
Uт) for 25
cycle, 30
cycle
<5%
Uт
(>95% dip
in Uт )
for 5
se c
<5%
Uт
(>95% dip
in Uт)
for
0.5 cycle
40%
Uт
(60%
dip
in
Uт) for 5
cycle, 6
cycle
70%
Uт
(30%
dip
in
Uт) for 25
cycle, 30
cycle
<5%
Uт
(>95% dip
in Uт
) for 5
se c
Mains power qua lity
sho uld
be
that
of a
typical
comme rcia l
or
hospita l
environment.
If the user
of
this W ire less Detector
requires
continue d
ope ration
during
power
mains inte rruptions,
it is
recommende d tha t
this
W ireless Detector
be
powe red from
an
uninterruptible power
supply
or a battery
Note:
Uт is the a.c.
mains voltage prior
to
application
of the
test
level.
55
Table3
Guidance and m anufacturer’s declaration- E lectrom agnetic
immunity
This W ireless Detector is intended for use in the electromagnetic env ironment specified below . The customer
or the user of this W ireless Detector should assure that it is used in such an env ironment.
IMMUNITY test
IEC 60601 TEST
LEVEL
Compliance
lev el
Electromagnetic environment – guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 kHz to 80 MHz
3 V/m
80 MHz to 2,5 GHz
3 Vrms
150 kHz to 80 MHz
3 V/m
80 MHz to 2,5 GHz
Portable and mobile RF communications
equipment should be used no closer to any
part of this W ireless Detector, including
cables, than the recommended separation
distance calculated from the equation
applicable to the frequency of the
transmitter.
Recommended separation distance
80 MHz to 800 MHz
800 MHz to 2,5 GHz
where
P
is the maximum output power
rating of the transmitter in watts (W )
according to the transmitter manufacturer
and
d
is the recommended separation
distance in metres (m).
Field strengths from fixed RF transmitters,
as determined by an electromagnetic site
surv ey ,a should be less than the compliance
lev el in each frequency range.b
Interference may occur in the v icinity of
equipment marked with the following
sy mbol:
NO TE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NO TE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land
mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically
with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic
site surv ey should be considered. If the measured field strength in the location in which this W ireless Detector
is used exceeds the applicable RF compliance lev el above, this W ireless Detector should be observed to v erify
normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-
orienting or relocating this W ireless Detector.
b O v er the frequency range 150 k Hz to 80 MHz, field strengths should be less than 3 V/m.
56
Table4
Recommended separation distances between
portable and mobile RF communications equipment and this Wireless Detector
This W ireless Detector is intended for use in an electromagnetic environment in which radiated RF
disturbances are controlled. The customer or the user of this W ireless Detector can help prev ent
electromagnetic interference by maintaining a minimum distance between portable and mobile RF
communications equipment (transmitters) and this W ireless Detector as recommended below, according to the
maximum output pow er of the communications equipment.
Rated maximum output
power
of transmitter
W
Separation distance according to frequency of transmitter
m
150 kHz to 80 MHz
80 MHz to 800 MHz
800 MHz to 2.5 GHz
0.01
0.12
0.12
0.24
0.1
0.37
0.37
0.74
1
1.17
1.17
2.34
10
3.69
3.69
7.38
100
11.67
11.67
23.34
For transmitters rated at a maximum output pow er not listed above, the recommended separation distance
d
in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where
P
is
the maximum output power rating of the transmitter in watts (W ) according to the transmitter manufacturer.
NO TE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NO TE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects and people.
57
RF exposure compliance
The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low
pow er wireless devices are absolutely safe. Low power wireless devices emit low levels radio frequency energy (RF) in the microwave range while being used. Whereas high
lev els of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many
studies of low -level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not
been confirmed by additional research. This device has been tested and found to comply with FCC/IC radiation exposure limits set forth for an uncontrolled equipment and
meets the FCC radio frequency (RF) Exposure Guidelines in Suppleme
