USER MANUAL
WM55H
The color and the appearance may differ depending on the product, and the specifications are subject to change without prior
notice to improve the performance.
The contents of this manual are subject to change without notice to improve quality.
© Samsung Electronics
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.
Trademarks other than that of Samsung Electronics are owned by their respective owners.
2
Table of contents
Before Using the Product
Safety Precautions 4
Storage 4
Electricity and Safety 4
Installation 5
Operation 6
Precautions for use 8
Preparations
Checking the Components 9
Parts 10
Ports 11
Before Installing the Product
(Installation Guide) 12
Rotation 12
Ventilation 12
Installing the Wall Mount 14
Installing the Wall Mount 14
Wall Mount Kit Specifications (VESA) 14
Connecting to a network 15
Network Settings (Wired) 15
Network Settings (Wireless) 17
Use WPS 19
Screen Elements
Create
Drawing / Eraser 21
Changing the pen thickness 21
Changing the pen color 21
Eraser 21
Managing Rolls 22
OPEN 23
Page Viewer 24
IMPORT
Connecting to a Mobile Device 26
Connecting using screen mirroring 26
Connecting using NFC tagging 26
Connecting to a Laptop 27
Connecting using a cable 27
Connecting using a screen mirroring 27
Importing from a USB Device 28
Importing from a Network Drive 28
PIP screen 29
EXPORT
E-MAIL 31
PRINT 32
NetPrinting Server Program Installation 32
Setting up the printer 32
Exporting to a USB Device 34
Exporting from a Network Drive 34
Menu
Pen 35
Connect 36
System 37
Picture 38
Support 39
Troubleshooting Guide
Check the followings. 40
3
Table of contents
Specifications
General 45
Preset Timing Modes 47
Appendix
Responsibility for the Pay Service
(Cost to Customers) 49
Not a product defect 49
A Product damage caused by customer's
fault 49
Others 49
Optimum Picture Quality and Afterimage
Burn-in Prevention 50
Optimum Picture Quality 50
Prevention of Afterimage Burn-in 50
License 52
4
Before Using the Product
Chapter 01
Safety Precautions
Warning
A serious or fatal injury may result if instructions are not followed.
Caution
Personal injury or damage to properties may result if instructions are not followed.
Activities marked by this symbol are prohibited.
Instructions marked by this symbol must be followed.
Storage
Due to the characteristics of high-glossy products, using a UV humidier nearby may create white-
colored stains on the product.
"Contact Customer Service Center if the inside of the product needs cleaning (service fee will
be charged).
Electricity and Safety
Warning
Do not use a damaged power cord or plug, or a loose power socket.
An electric shock or fire may result.
Do not use multiple products with a single power socket.
Overheated power sockets may cause a fire.
Do not touch the power plug with wet hands. Otherwise, an electric shock may result.
Connect the power plug to a grounded power socket (type 1 insulated devices only).
An electric shock or injury may result.
Do not bend or pull the power cord with force. Be careful not to leave the power cord
under a heavy object.
Damage to the cord may result in a fire or electric shock.
Insert the power plug all the way in so it is not loose.
An unsecure connection may cause a fire.
Connect the power plug to a grounded power socket (type 1 insulated devices only).
An electric shock or injury may result.
Clean any dust around the pins of the power plug or the power socket with a dry cloth.
A fire may result.
5
Caution
Do not disconnect the power cord while the product is being used.
The product may become damaged by an electric shock.
Only use the power cord provided with your product by Samsung. Do not use the power
cord with other products.
A fire or electric shock may result.
Keep the power socket where the power cord is connected unobstructed.
•The power cord must be disconnected to cut off power to the product when an
issue occurs.
•Note that the product is not completely powered down by using only the power
button on the remote.
Hold the plug when disconnecting the power cord from the power socket.
An electric shock or fire may result.
Installation
Warning
DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE
PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
A fire may result.
Do not install the product on an unstable or vibrating surface (insecure shelf, sloped
surface, etc.)
•The product may fall and become damaged and/or cause an injury.
•Using the product in an area
Do not expose the product to direct sunlight, heat, or a hot object such as a stove.
The product lifespan may be reduced or a fire may result.
Do not install the product within the reach of young children.
•The product may fall and injure children.
•As the front is heavy, install the product on a flat and stable surface.
Edible oil, such as soybean oil, can damage or deform the product. Do not install the
product in a kitchen or near a kitchen counter.
Have a technician install the wall-mount hanger.
•Installation by an unqualified person can result in an injury.
•Only use approved cabinets.
Keep the plastic packaging out of the reach of children.
Children may suffocate.
Do not install the product in a vehicle or a place exposed to dust, moisture (water drips,
etc.), oil, or smoke.
A fire or electric shock may result.
6
Caution
Do not set down the product on its front.
The screen may become damaged.
When installing the product on a cabinet or shelf, make sure that the bottom edge of the
front of the product is not protruding.
•The product may fall and become damaged and/or cause an injury.
•Install the product only on cabinets or shelves of the right size.
Set down the product gently.
Product failure or personal injury may result.
Installing the product in an unusual place (a place exposed to a lot of ne dust, chemical
substances, extreme temperatures or a signicant presence of moisture, or a place
where the product will operate continuously for an extended period of time) may
seriously affect its performance.
Be sure to consult Samsung Customer Service Center if you want to install the
product at such a place.
Operation
Warning
There is a high voltage inside the product. Never disassemble, repair or modify the
product yourself.
•A fire or electric shock may result.
•Contact Samsung Customer Service Center for repairs.
Do not let children hang from the product or climb on top of it.
Children may become injured or seriously harmed.
If the product is dropped or the outer case is damaged, turn off the power switch and
disconnect the power cord. Then contact Samsung Customer Service Center.
Continued use can result in a fire or electric shock.
Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the
product.
The product or heavy objects may fall as children try to reach for the toys or sweets
resulting in a serious injury.
Do not move the product by pulling the power cord or any cable.
Product failure, an electric shock or fire may result from a damaged cable..
Do not lift or move the product by pulling the power cord or any cable.
Product failure, an electric shock or fire may result from a damaged cable.
Ensure the vents are not blocked by tablecloths or curtains.
An increased internal temperature may cause a fire.
7
Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily
(paper, matches, etc) into the product (via the vent or input/output ports, etc).
•Be sure to power off the product and disconnect the power cord when water
or other foreign substances have entered the product. Then contact Samsung
Customer Service Center.
•Product failure, an electric shock or fire may result.
Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on
top of the product.
•Be sure to power off the product and disconnect the power cord when water
or other foreign substances have entered the product. Then contact Samsung
Customer Service Center.
•Product failure, an electric shock or fire may result.
Before moving the product, turn off the power switch and disconnect the power cable
and all other connected cables.
Damage to the cord may result in a fire or electric shock.
If the product generates abnormal sounds, a burning smell or smoke, disconnect the
power cord immediately and contact Samsung Customer Service Center.
An electric shock or fire may result.
During a lightning or thunderstorm, power off the product and remove the power cable.
A fire or electric shock may result.
Do not drop objects on the product or apply impact.
A fire or electric shock may result.
If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area
immediately.
Sparks can cause an explosion or fire.
Caution
Do not hold the product upside-down or move it by holding the stand.
The product may fall and become damaged or cause an injury.
Do not use humidiers or stoves around the product.
A fire or electric shock may result.
Do not place heavy objects on the product.
Product failure or personal injury may result.
Do not touch the screen when the product has been turned on for an extended period of
time as it will become hot.
Leaving the screen xed on a stationary image for an extended period of time may cause
afterimage burn-in or defective pixels.
Activate power-saving mode or a moving-picture screen saver if you will not be using
the product for an extended period of time.
Disconnect the power cord from the power socket if you do not plan on using the product
for an extended period of time (vacation, etc).
Dust accumulation combined with heat can cause a fire, electric shock or electric
leakage.
Use the product at the recommended resolution and frequency.
Your eyesight may deteriorate.
Looking at the screen too close for an extended period of time can deteriorate your
eyesight.
Rest your eyes for more than 5 minutes for every 1 hour of product use.
Eye fatigue will be relieved.
Store small accessories out of the reach of children.
8
Exercise caution when adjusting the product angle or stand height.
•Your hand or finger may get stuck and injured.
•Tilting the product at an excessive angle may cause the product to fall and an
injury may result.
Do not use or keep combustible spray or an inammable substance near the product.
An explosion or fire may result.
Precautions for use
Be careful that if you use the supplied pen with a load exceeding 2.5kg, scratches may occur on the
protective glass.
If you use a ballpoint pen other than the supplied pen, be careful that the screen may be stained
with ink or damaged.
"We recommend that you use the supplied pen. Do not use sharp, pointed objects other than
the pen.
"If dust or dirt from the supplied pen remains on the protective glass, clean it referring to the
instructions below.

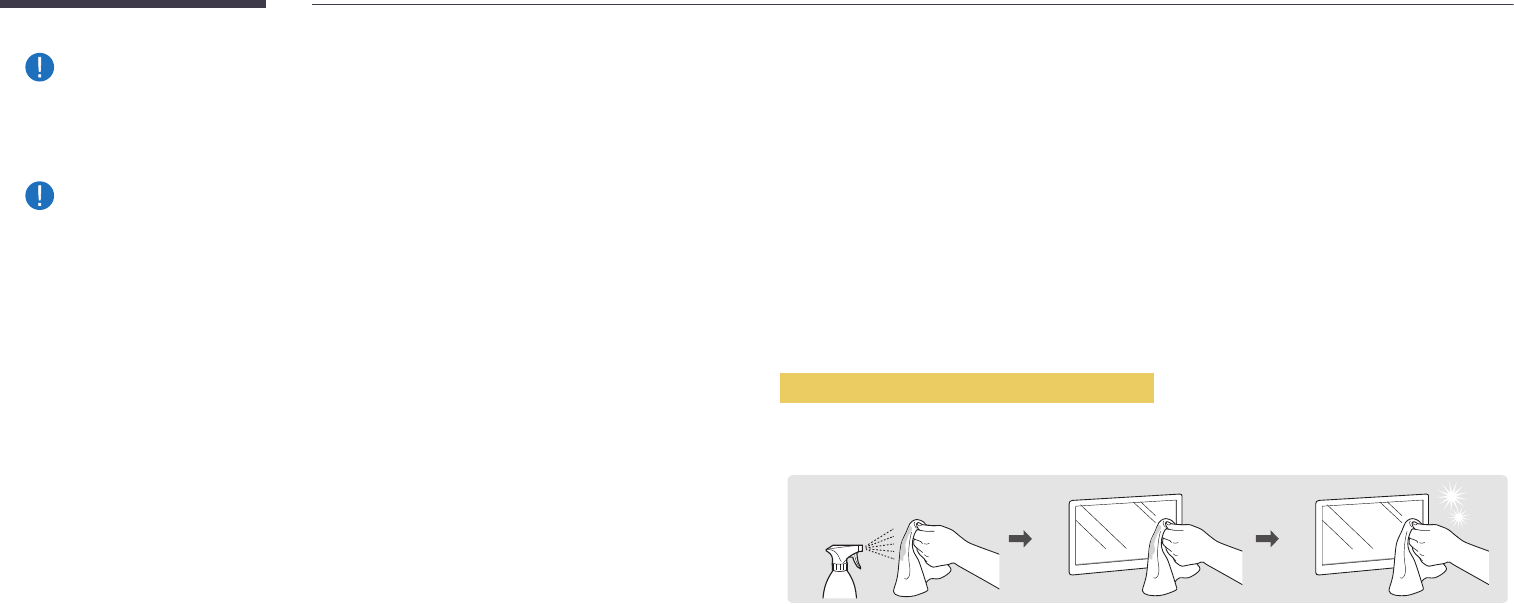

Cleaning the exterior and display
Wipe the surface with a slightly wet, soft cloth, and then wipe with a dry cloth.
1 2 3
9
"Contact the vendor where you
purchased the product if any
components are missing.
"The appearance of the components
may differ from the images shown.
Checking the Components
Quick Setup Guide Warranty card
(Not available in some locations) Regulatory guide Power cord
Touch Pen (2 EA) USB cable
Preparations
Chapter 02
10
"The color and shape of parts may differ from what is shown. Specifications are subject to change without notice
to improve quality.

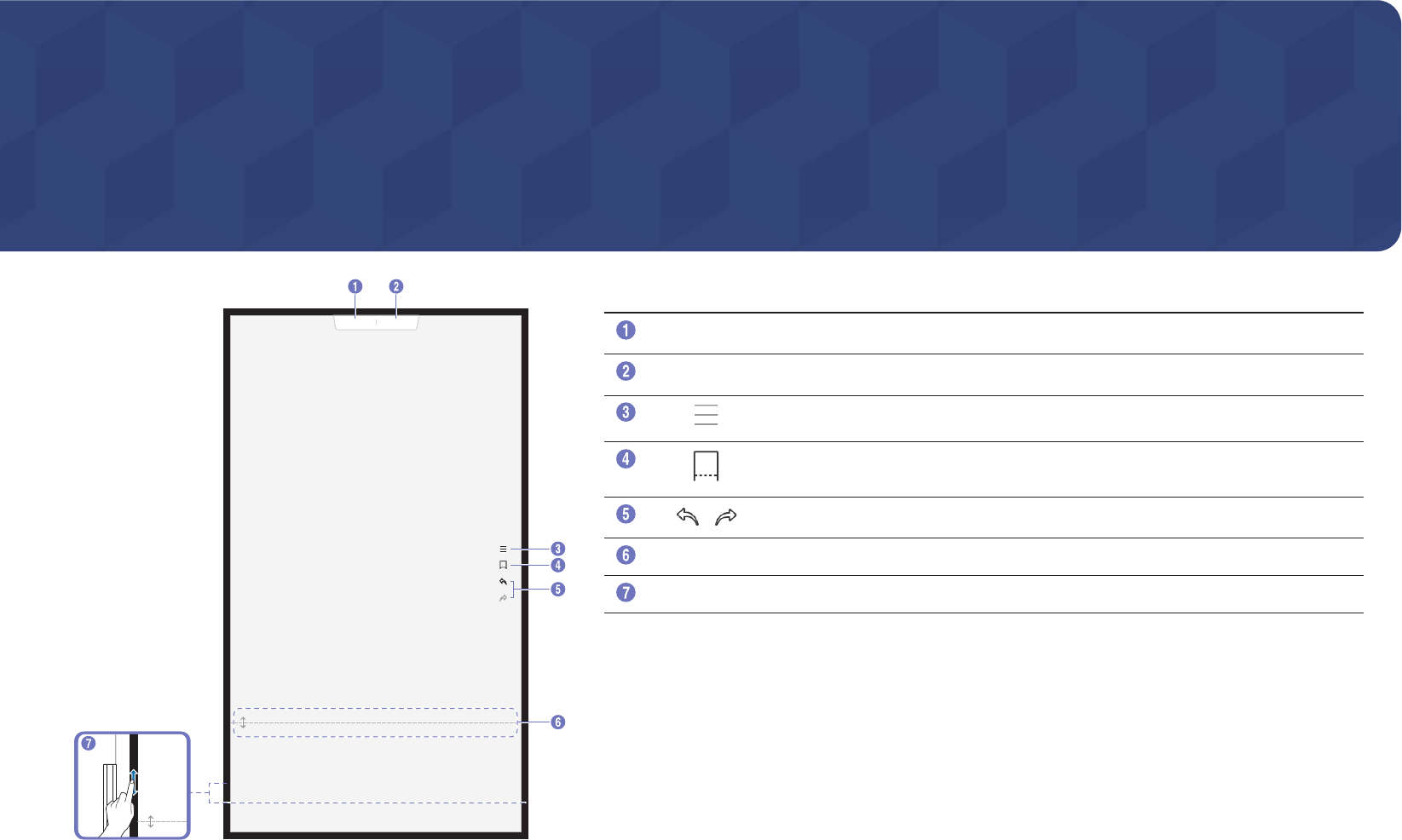

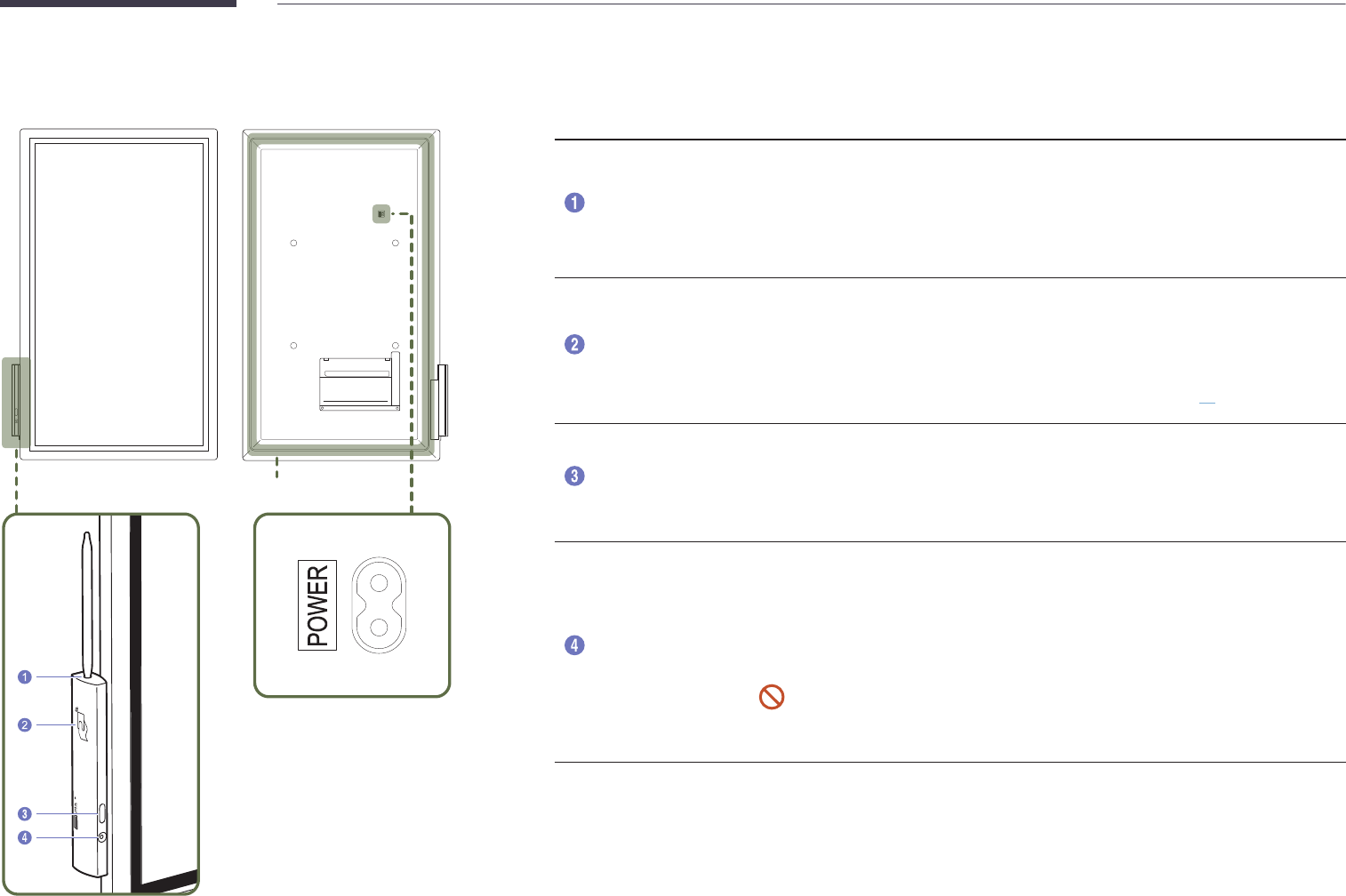

Parts Description
Pen holder
Keep the touch pen in place.
•When the product is turned off and you lift the pen from the pen holder, the
screen turns on.
•When the product is in standby mode and you lift the pen from the pen holder,
the screen turns on.
NFC pad
Tag your smartphone to the NFC pad to connect it to the product.

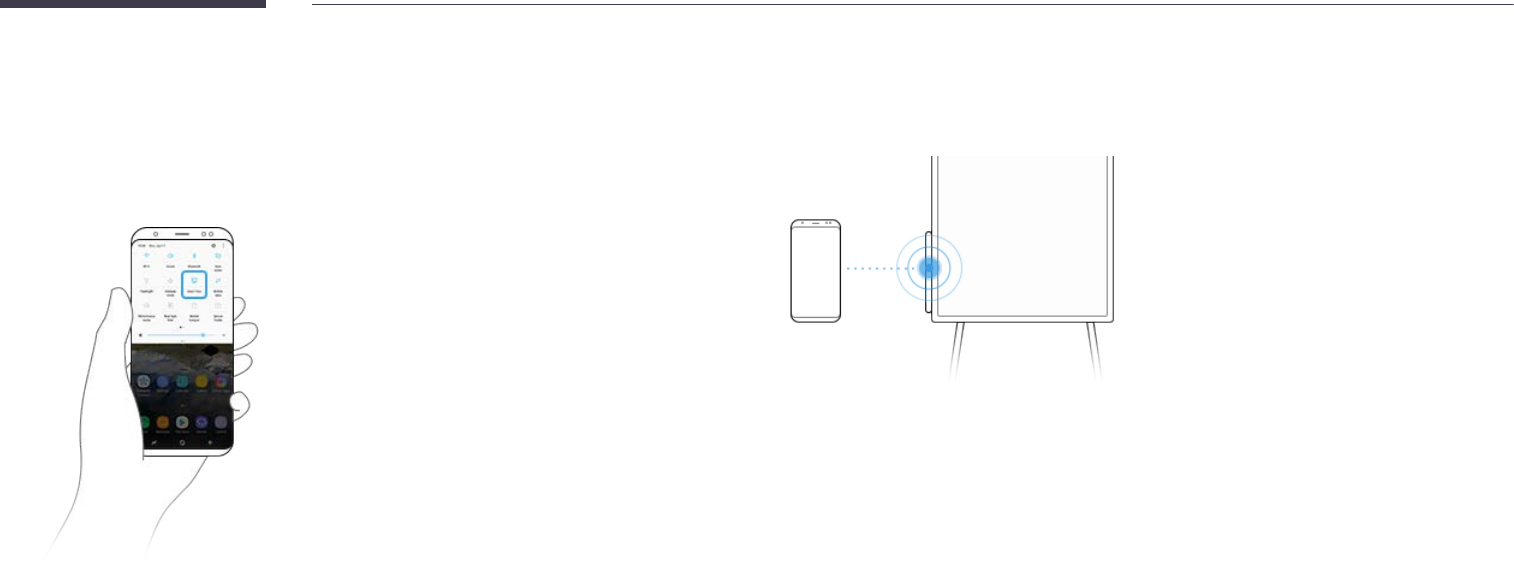

•Tag an NFC card to enter an email address automatically.
•NFC tagging automatically starts the Smart View or Screen Mirroring feature of
your mobile device.
"For more information about how to use NFC tagging, see page 26.
Power button
•Press the button to turn on the product.
•Press and hold the button to turn off the product.
"When the screen is turned on, press the power button to switch to the standby
mode.
Motion sensor
Detects user's movement.
•If no motion is detected for five minutes in the standby mode, the screen turns
off.
"If motion is detected after the screen is turned off due to the reason mentioned
above, the product switches to standby mode.
For ensuring normal operation of the motion sensor, do not install the product
in a place exposed to direct sunlight.
Do not hide the front of the motion sensor with a table or other object.
Parts
Speaker
11
Ports
"The color and shape of parts may differ from what is shown.
Specifications are subject to change without notice to improve quality.
LAN
RS232C
IN
HDMI IN
TOUCH
OUT
(1.0A)
USB
(5V 0.5A)
USB

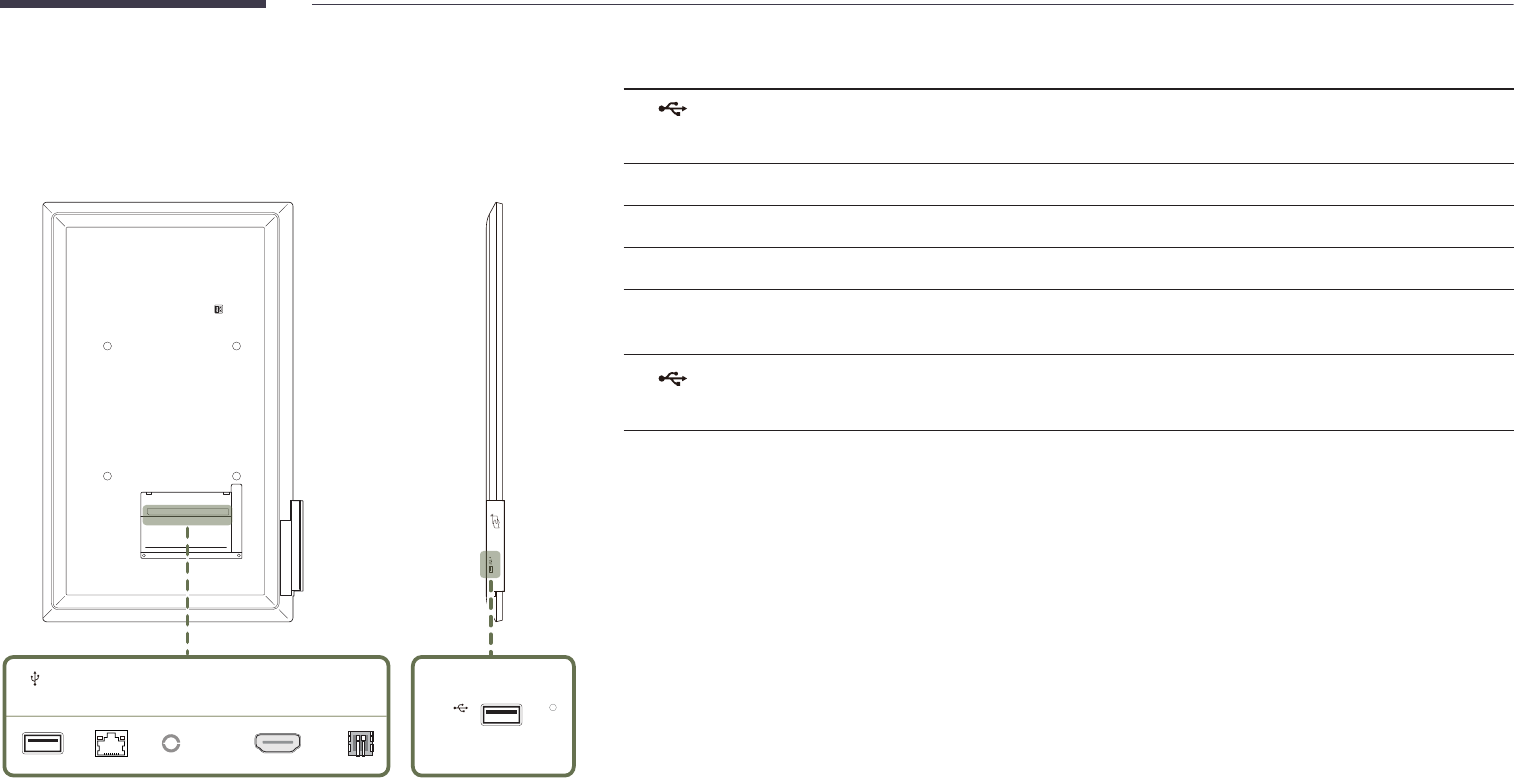

Ports Description
USB (1.0A)
Connect to a USB memory device.
"If 1.0A is exceeded, USB operation may not be available.
LAN
Connects to a network using a LAN cable.
RS232C IN
Connects to MDC using an RS232C adapter.
HDMI IN
Connects to a source device using a HDMI cable or HDMI-DVI cable.
TOUCH OUT
Connects to a PC using a USB cable. You can operate the PC screen by
touching the product screen.
USB (5V 0.5A)
Connect to a USB memory device.
"If 0.5A is exceeded, USB operation may not be available.
12
Before Installing the Product
(Installation Guide)
There is a product-specific stand sold separately from Samsung, and you can install it on the
wall, too.
Rotation
"Contact Samsung Customer Service Center for further details.
•To use the product in landscape orientation, turn the product anticlockwise so that the
sensor part faces downward.
Ventilation

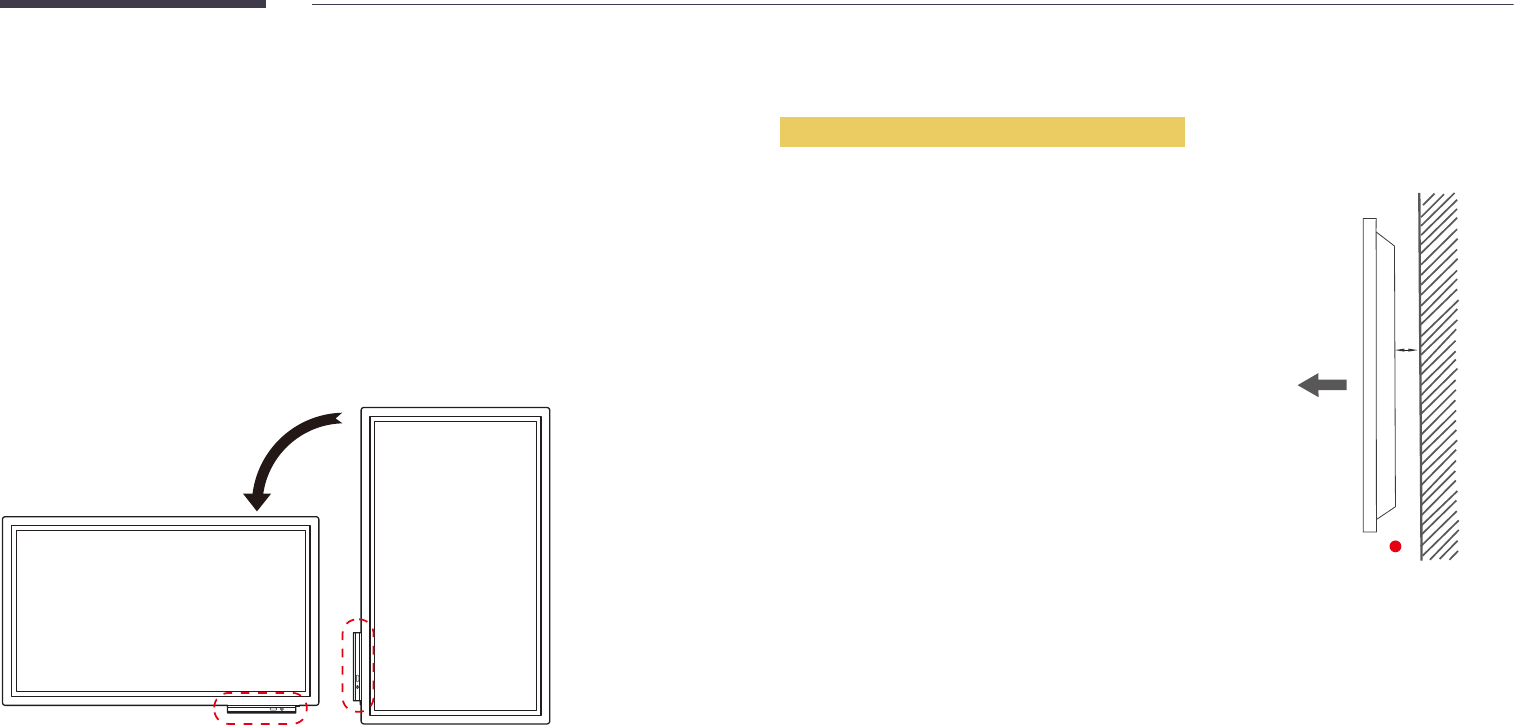

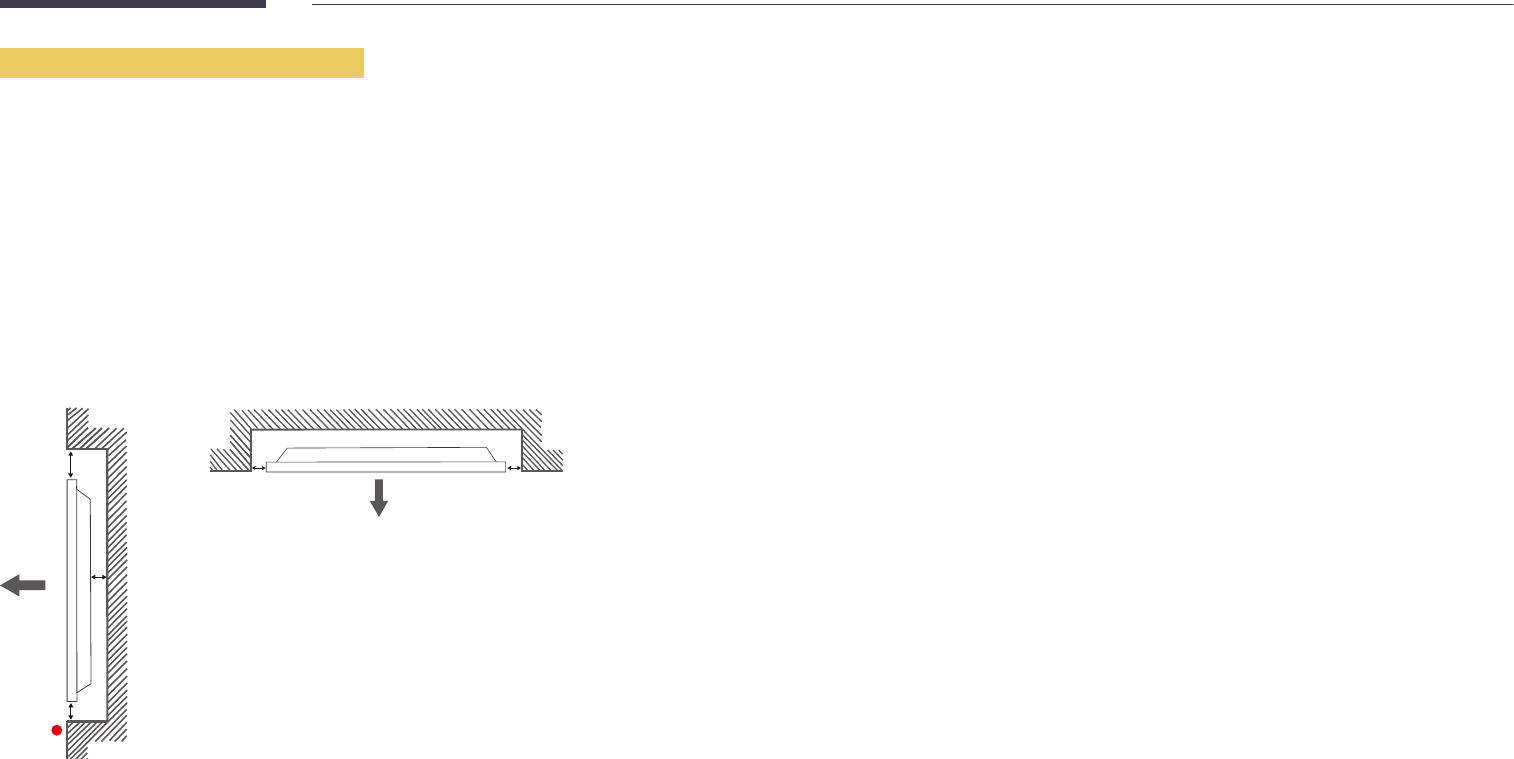

Installation on a Perpendicular Wall
A Minimum 40 mm
B Ambient temperature: Under 35°C
•When installing the product on a perpendicular wall,
allow at least 40 mm of space between the product and
wall surface for ventilation and ensure that the ambient
A temperature is kept below 35°C.
A
B
13
Installation on an Indented Wall
"Contact Samsung Customer Service Center for further details.
Plane view
A Minimum 40 mm
B Minimum 70 mm
C Minimum 50 mm
D Minimum 50 mm
E Ambient temperature: Under 35°C
"When installing the product on an indented wall, allow at least the space specified above
between the product and wall for ventilation and ensure that the ambient temperature is
kept below 35°C.
A
B
C
E
D D
14
Wall Mount Kit Specications (VESA)
"Install your wall mount on a solid wall perpendicular to the floor. Before
attaching the wall mount to surfaces other than plaster board, please
contact your nearest dealer for additional information. If you install the
product on a slanted wall, it may fall and result in severe personal injury.
•Samsung wall mount kits contain a detailed installation manual and all parts necessary for assembly are
provided.
•Do not use screws that are longer than the standard length or do not comply with the VESA standard screw
specifications. Screws that are too long may cause damage to the inside of the product.
•For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may
differ depending on the wall mount specifications.
•Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to
personal injury. Samsung is not liable for these kinds of accidents.
•Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is
used or the consumer fails to follow the product installation instructions.
•Always have two people mount the product on a wall.
•Standard dimensions for wall mount kits are shown in the table below.

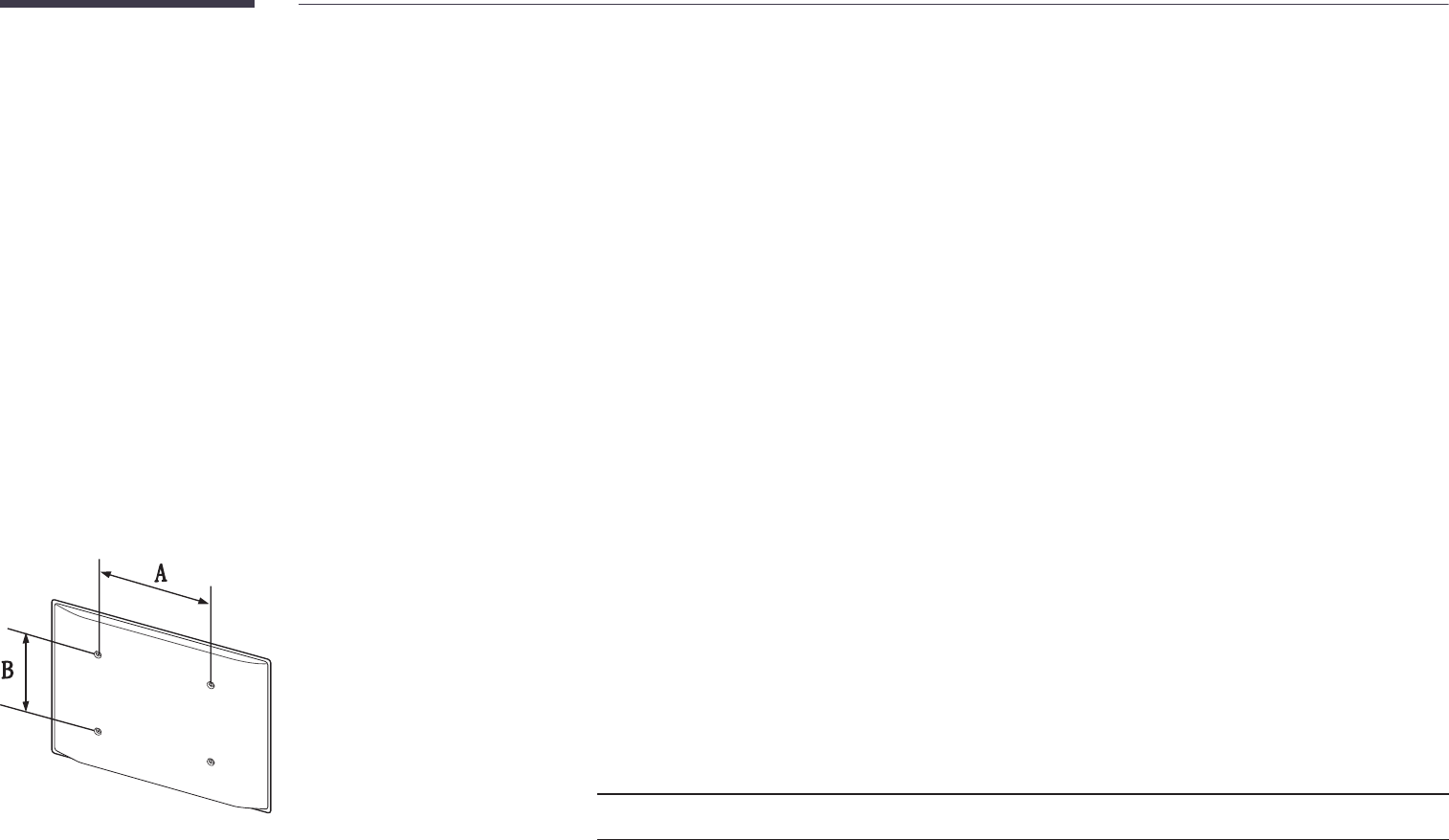

VESA screw hole specs (A * B) in
millimeters
Standard Screw Quantity
400 × 400 (15.7 × 15.7) M8 4
"Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to electric
shock.
Installing the Wall Mount
Installing the Wall Mount
The wall mount kit allows you to mount the product on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount.
We recommend you contact a technician for assistance when installing the wall mount bracket.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the wall mount on your own.
15
Connecting to a network
Network Settings (Wired)
Connecting to a Wired Network

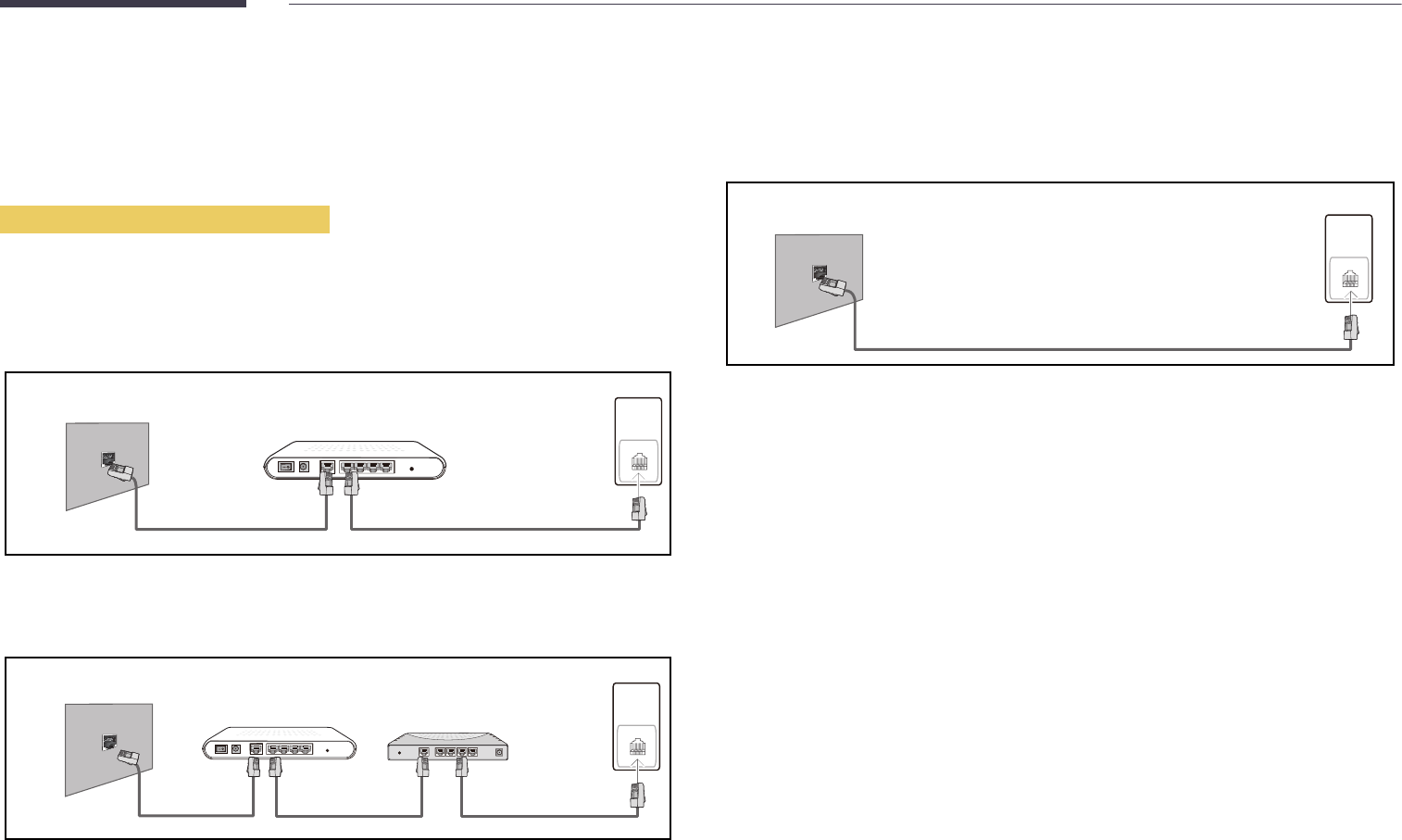

There are three ways to attach your product to your LAN using cable.
•You can attach your product to your LAN by connecting the LAN port on the back of your
product to an external modem using a LAN cable.
See the diagram below.
RJ45
The Modem Port on the Wall External Modem
(ADSL / VDSL)
Modem Cable LAN Cable
LAN
•You can attach your product to your LAN by connecting the LAN port on the back of your
product to an IP Sharer which is connected to an external modem. Use LAN cable for the
connection. See the diagram below.
The Modem Port on the Wall External Modem
(ADSL / VDSL) IP Sharer
(having DHCP server)
LAN
Modem Cable LAN Cable LAN Cable
RJ45
•Depending on how your network is configured, you may be able to attach your product to
your LAN by connecting the LAN port on the back of your product directly to a network wall
outlet using a LAN cable.
See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere
in your house.
The LAN Port on the Wall
LAN
LAN Cable
RJ45
If you have a Dynamic Network, you should use an ADSL modem or router that supports
the Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP
automatically provide the IP address, subnet mask, gateway, and DNS values your product
needs to access the Internet so you do not have to enter them manually. Most home networks
are Dynamic Networks.
Some networks require a Static IP address. If your network requires a Static IP address, you
must enter the IP address, subnet mask, gateway, and DNS values manually on your product
Cable Setup Screen when you set up the network connection. To get the IP address, subnet
mask, gateway, and DNS values, contact your Internet Service Provider (ISP).
If you have a Windows computer, you can also get these values through your computer.
"You can use ADSL modems that support DHCP if your network requires a Static IP address.
"ADSL modems that support DHCP also let you use Static IP addresses.
16
Set the network connection to use Internet services such as perform software upgrades.
Automatic Open Network Settings (Wired)
Connect to the network using a LAN cable.
Make sure a LAN cable is connected first.
How to set up automatically
1 Set Network Type to Wireless from the Open Network Settings page.
2 The network test screen appears and verifies the network connection.
When the connection has been verified, the “Success! Your device is connected to the
Internet. If you have any problems using online services, please contact your Internet
service provider” message appears.
"If the connection process fails, check the LAN port connection.
"If the automatic process cannot find the network connection values or if you want to set the
connection manually, go to the next section, network setup.
Manual Open Network Settings (Wired)
Offices may use static IP addresses.
If this is the case, ask the network administrator for the IP address, subnet mask, gateway and
DNS server address. Enter these values manually.
Getting the Network Connection Values
To view the Network connection values on most Windows computers, follow these steps.
1 Right click the Network icon on the bottom right of the screen.
2 In the pop-up menu that appears, click Status.
3 On the dialog that appears, click the Support tab.
4 On the Support Tab, click the Details button. The Network connection values are displayed.
How to set up manually
1 Set Network Type to Wireless from the Open Network Settings page.
2 The network test screen appears and the verification process starts. Press Cancel. The
verification process stops.
3 Select IP Settings on network connection screen. The IP Settings screen appears.
4 Select the field at the top, press E, and then set IP Setting to Enter manually Repeat the
entry process for each field in the IP Address.
"Setting IP Setting to Enter manually automatically changes DNS Setting to Enter
manually.
5 When done, select OK at the bottom of the page, and then press E. The network test
screen appears and the verification process starts.
6 When the connection has been verified, the “Success! Your device is connected to the
Internet. If you have any problems using online services, please contact your Internet
service provider” message appears.
17
Network Settings (Wireless)
Connecting to a Wireless Network

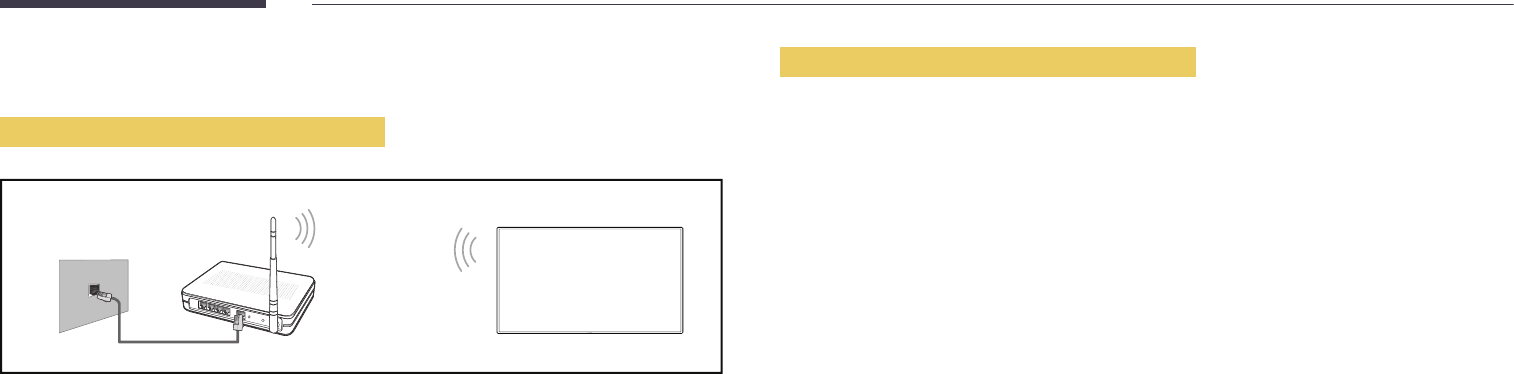

The LAN Port on the Wall
Wireless IP sharer
(router having DHCP server)
LAN Cable
Samsung recommends using IEEE 802.11n. When you play video over a network connection, the
video may not play smoothly.
"Select a channel for the wireless IP sharer that is not currently being used. If the channel set
for the wireless IP sharer is currently being used by another device nearby, this will result in
interference and communication failure.
"Your product supports only the following wireless network security protocols.
If you select the Pure High-throughput (Greenfield) 802.11n mode and the Encryption type is
set to WEP, TKIP or TKIP AES (WPS2Mixed) on your AP or wireless router, Samsung products
will not support a connection in compliance with new Wi-Fi certification specifications.
"If your wireless router supports WPS (Wi-Fi Protected Setup), you can connect to the network
via PBC (Push Button Configuration) or PIN (Personal Identification Number). WPS will
automatically configure the SSID and WPA key in either mode.
"Connection Methods: You can setup the wireless network connection in three ways.
Auto Setup (Using the Auto Network Search function), Manual Setup, Use WPS
Automatic Network Setup (Wireless)
Most wireless networks have an optional security system that requires devices that access the
network to transmit an encrypted security code called an Access or Security key. The Security
key is based on a Pass Phrase, typically a word or a series of letters and numbers of a specified
length you were asked to enter when you set up security for your wireless network. If you use
this method of setting up the network connection, and have a Security key for your wireless
network, you will have to enter the Pass Phrase during the the automatic or manual setup
process.
How to set up automatically
1 Set Network Type to Wireless from the Open Network Settings page.
2 The Network function searches for available wireless networks. When done, it displays a list
of the available networks.
3 In the list of networks, press the ▲ or ▼ button to select a network, and then press the E
button twice.
"If the desired wireless router does not appear, select Refresh to search again.
"If the router cannot be found after retrying, select the Stop button.
The Add Network button appears.
4 If the Enter the password for (AP name). screen appears, go to step 5. If you select a wireless
router that does not have security, go to step 7.
5 If the router has security, enter the Enter the password for (AP name). (Security key or PIN).
6 When done, use the right arrow button to move the cursor to Done, and then press E. The
network connection screen appears and the verification process starts.
"A connection with the router is established, but the Internet cannot be accessed.
7 When the connection has been verified, the “Success! Your device is connected to the
Internet. If you have any problems using online services, please contact your Internet
service provider” message appears.
18
Manual Network Setup (Wireless)
Offices may use static IP addresses.
If this is the case, ask the network administrator for the IP address, subnet mask, gateway and
DNS server address. Enter these values manually.
Getting the Network Connection Values
To view the Network connection values on most Windows computers, follow these steps.
1 Right click the Network icon on the bottom right of the screen.
2 In the pop-up menu that appears, click Status.
3 On the dialog that appears, click the Support tab.
4 On the Support Tab, click the Details button. The Network connection values are displayed.
How to set up manually
1 Set Network Type to Wireless from the Open Network Settings page.
2 The Network function searches for available wireless networks. When done, it displays a list
of the available networks.
3 In the list of networks, press the u or d button to select a network, and then press the E
button twice.
"If the desired wireless router does not appear, select Refresh to search again.
"If the router cannot be found after retrying, select the Stop button.
The Add Network button appears.
4 If the Enter the password for (AP name). screen appears, go to step 5. If you select a wireless
router that does not have security, go to step 7.
5 If the router has security, enter the Enter the password for (AP name). (Security key or PIN).
6 When done, use the right arrow button to move the cursor to Done, and then press E. The
network connection screen appears and the verification process starts.
7 Select Cancel while network connections are being attempted. This will stop the connection.
8 Select IP Settings on network connection screen. The IP Settings screen appears.
9 Select the field at the top, press E, and then set IP Setting to Enter manually. Repeat the
entry process for each field in the IP Address.
"Setting IP Setting to Enter manually automatically changes DNS Setting to Enter
manually.
10
When done, select OK at the bottom of the page, and then press E. The network test
screen appears and the verification process starts.
11 When the connection has been verified, the “Success! Your device is connected to the
Internet. If you have any problems using online services, please contact your Internet
service provider” message appears.
19
Use WPS
How to set up using Use WPS
If your router has a Use WPS button, follow these steps.
1 Set Network Type to Wireless from the Open Network Settings page.
2 Select Use WPS, press E, and then press E again.
3 Press the WPS or PBC button on your wireless router withine the next two minutes. Your
product automatically acquires all the network setting values it needs and connects to your
network.
4 The network connection screen appears, and network setup is done.
20
Chapter 03
Screen Elements

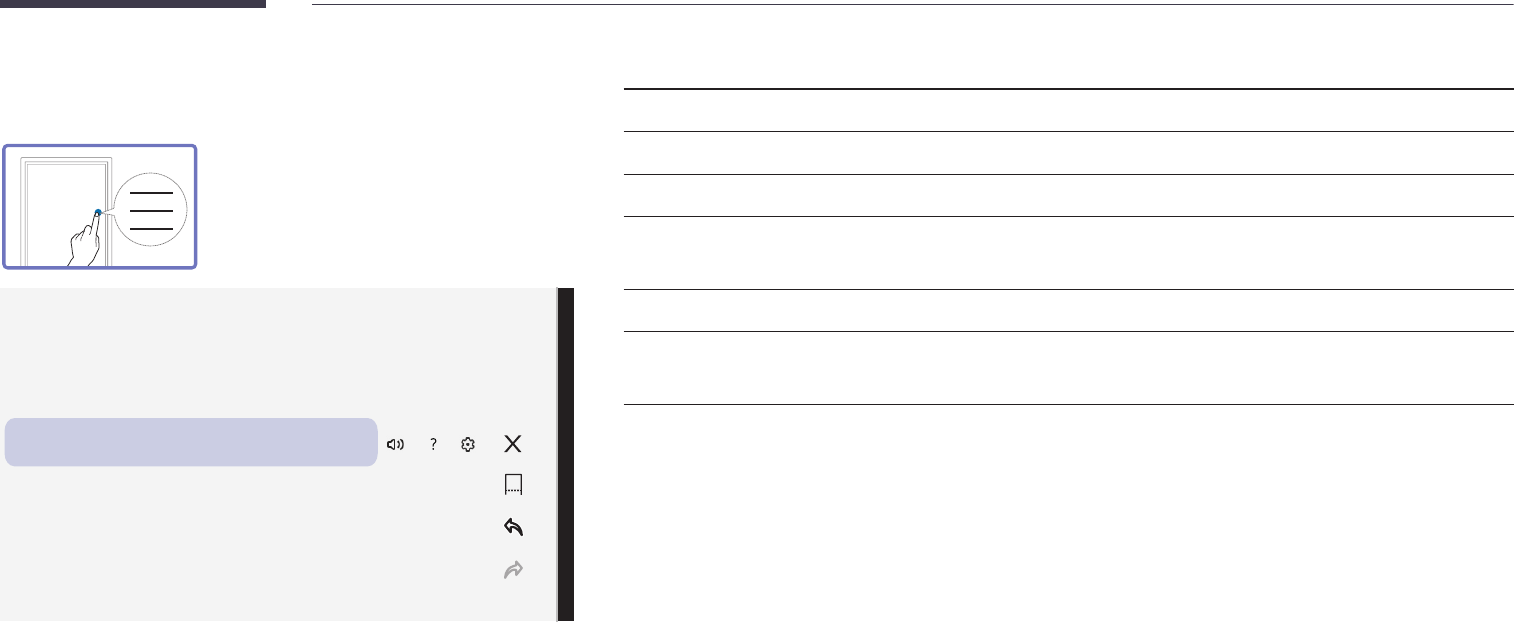

Buttons Description
IMPORT Display the screen of a connected device, or import photos and other data from it.
EXPORT Share your creations in various ways.
Manage and change the rolls and settings.
Move or edit the page.
/ Undo or redo the last action.
Handler Area Move the page up/down.
Bezel Scroll Scroll through the page.
EXPORT
IMPORT
21
Chapter 04
Create

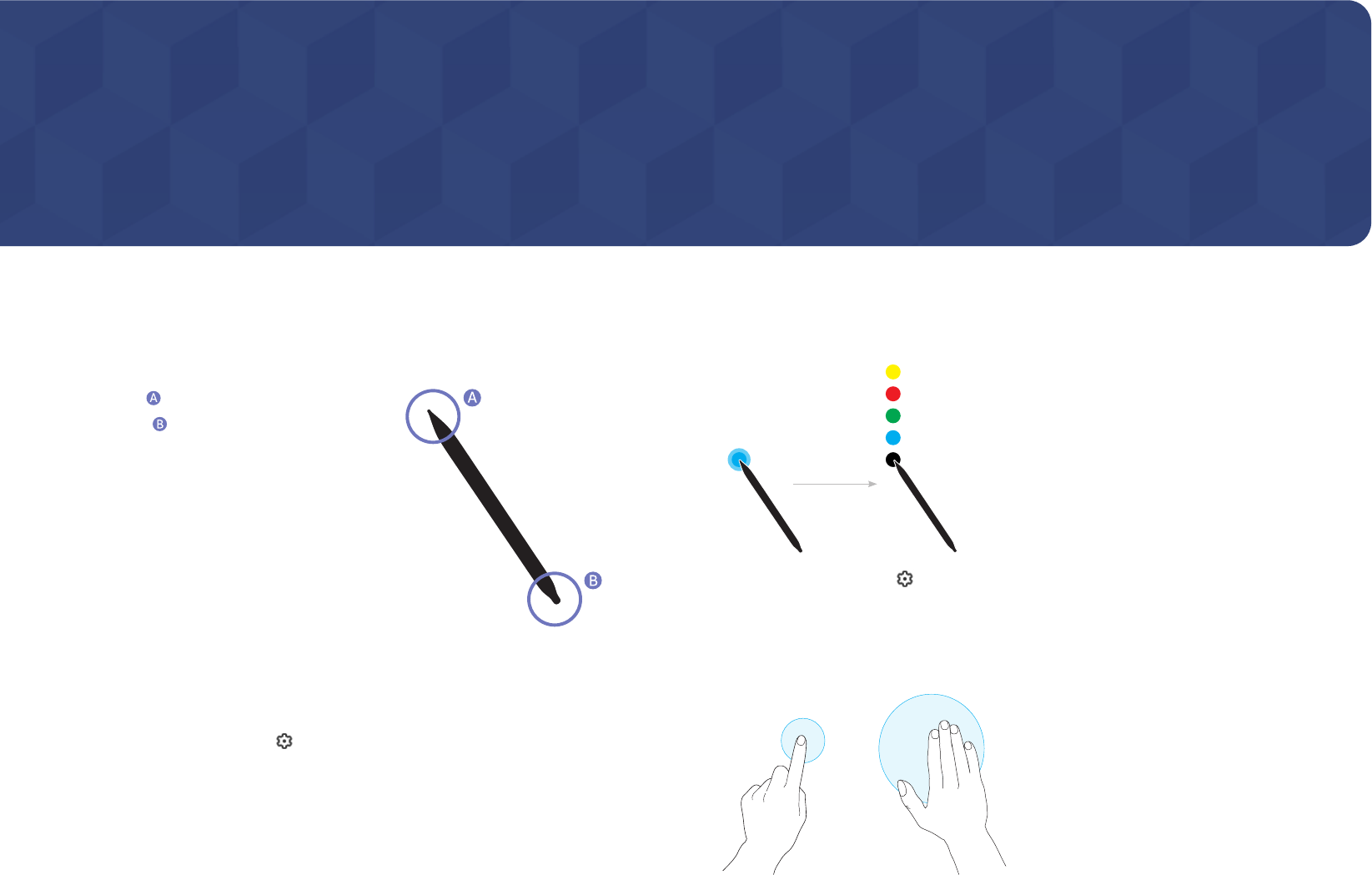

Drawing / Eraser
You can freely use the supplied pen to write anything you want.
•Thin Tip ( ): Pen Type
•Thick Tip ( ): Highlighter Type
Changing the pen thickness
You can change the pen thickness.
"Change the pen thickness at → Pen → Pen & Highlighter Thickness.
Changing the pen color
You can change the pen color by touching and holding the screen with the pen.
"Change the pen color at → Pen → Pen Color or Highlighter Color.
Eraser
You can use your finger or palm to erase your writing.
22
Managing Rolls
Buttons Description
NEW Create a new roll.
OPEN OPEN, DELETE, or EXPORT a saved roll.
SAVE Save the current roll.
LOCK Press a four-digit password to lock the current roll.
"When locked, the current roll is automatically saved and a new roll is opened.
DELETE Delete the current roll.
BLACKBOARD /
WHITEBOARD
Change the writing mode.
"The roll you are editing is automatically saved and a new roll is opened.
NEW OPEN SAVE LOCK DELETE BLACKBOARD
23

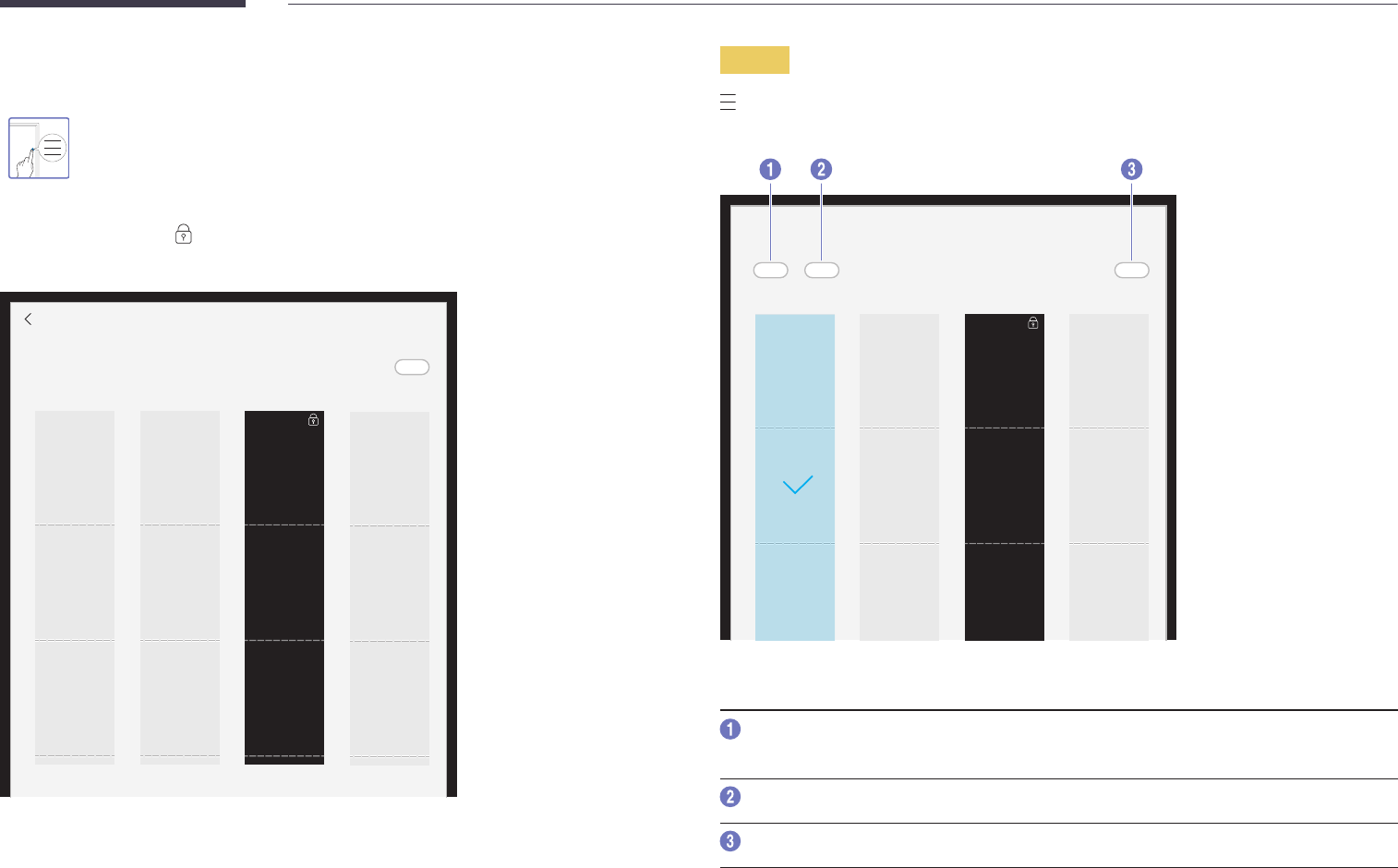

OPEN
→ OPEN
Select the desired roll.
"To open a locked roll ( ), press its password.
"The rolls are sorted by recent date.
OPEN
Select
2017.09.27 00:00 2017.09.25 00:00 2017.09.15 00:00 2017.09.11 00:00
Select
→ OPEN → Select
You can select multiple rolls to export or delete.
Select
CancelExport Delete
2017.09.27 00:00 2017.09.25 00:00 2017.09.15 00:00 2017.09.11 00:00
Parts Description
Export Share the selected rolls any way you like.
"Email / USB
Delete Delete the selected rolls.
Cancel Deselect the roll.
24

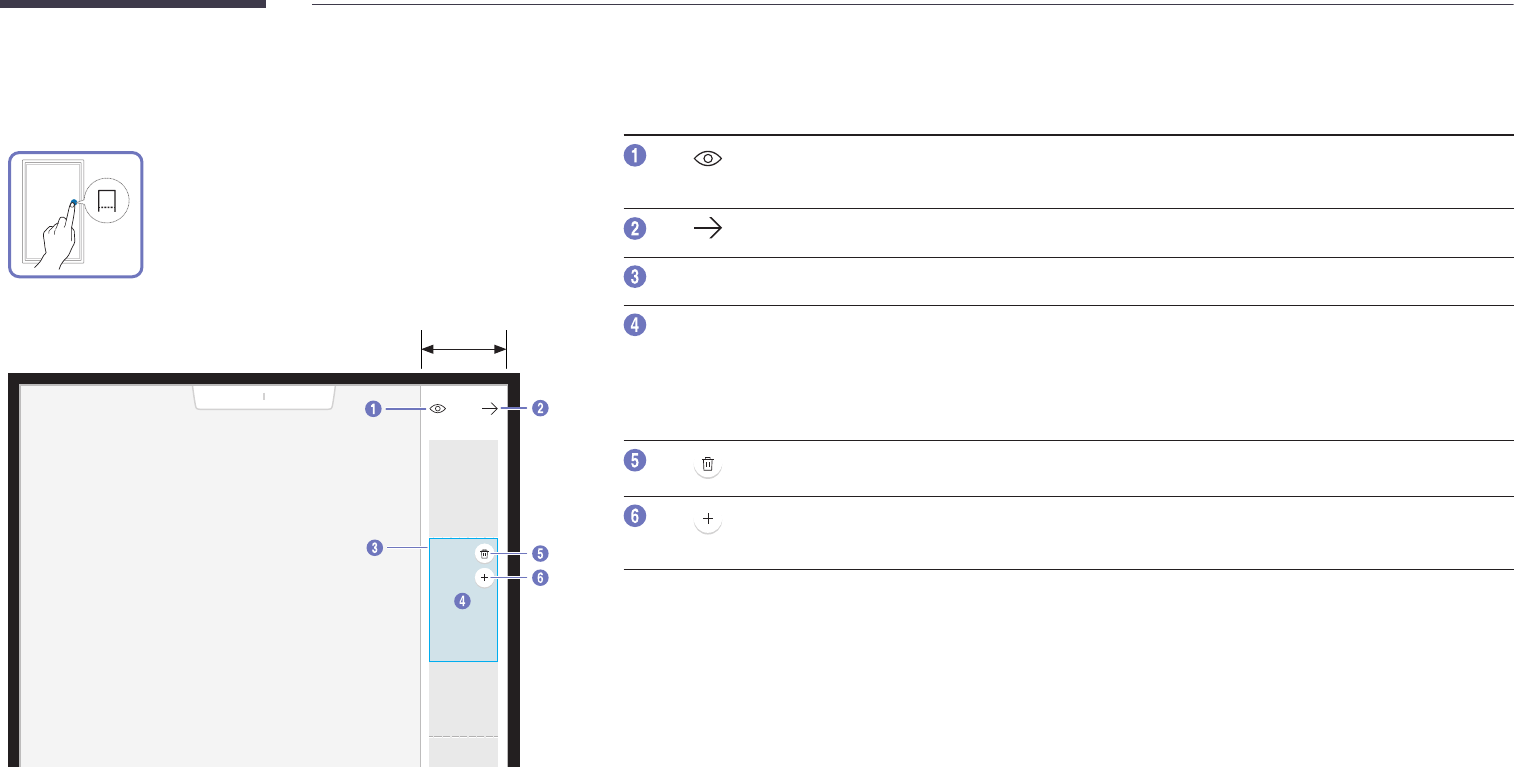

Page Viewer
01
02
03
04
05
06
07
08
09
Page viewer area
You can edit the page by zooming in on the created roll.
Parts Description
Preview the roll.
"The preview mode does not support the write/erase function.
Close the page viewer.
Page number
Displays the page number.
Focus
Displays the page you are currently viewing.
•When you select a page, the focus is moved to it.
•Drag and drop the focus to move it to other page.
•Press and hold the focused page to change its page order.
Delete the focused page.
Add a new page to the focused position.
"You can create up to 20 pages per roll.
EXPORTIMPORT
25

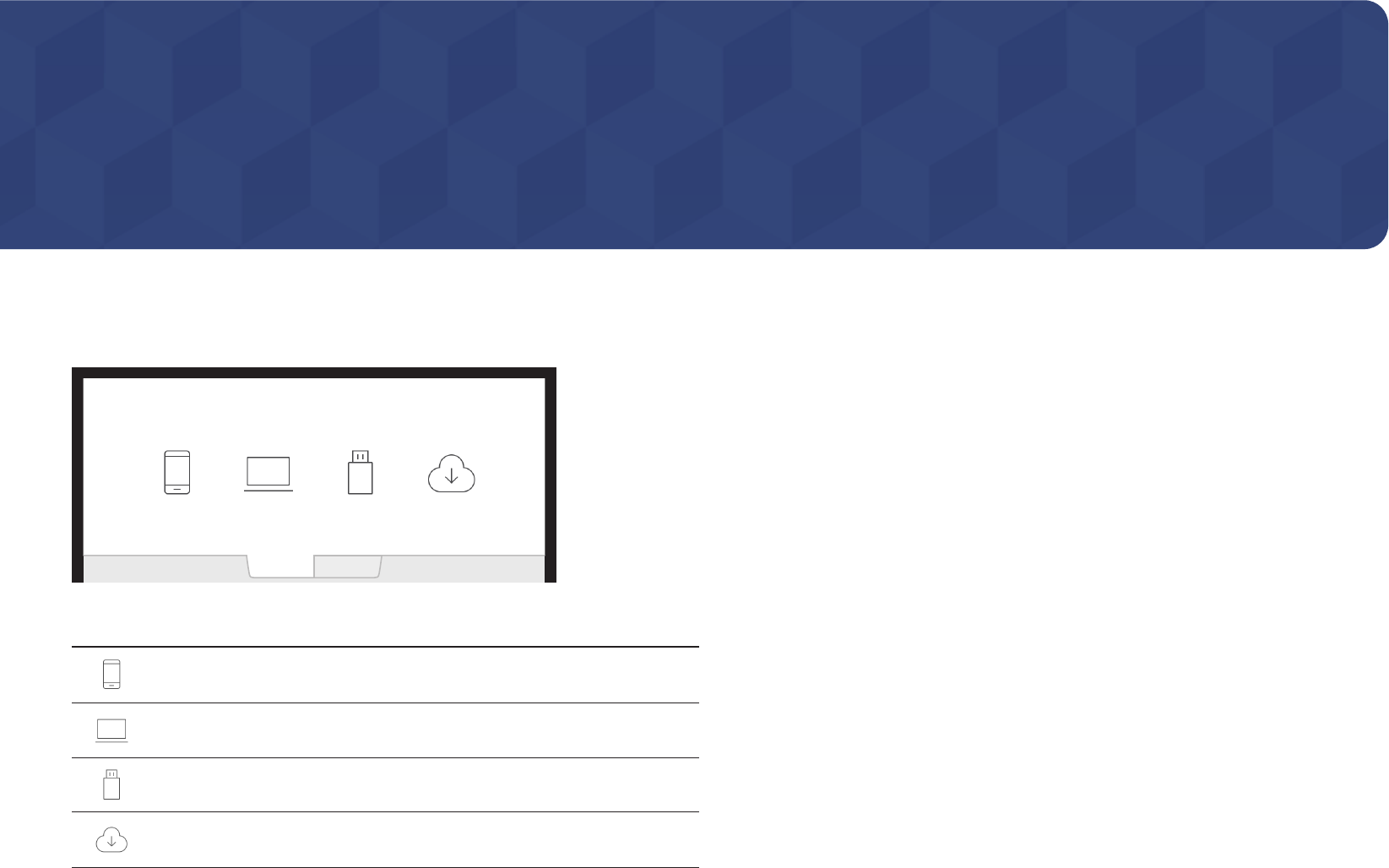

You can display the screen of a connected device, or import photos and other data from it.
Touch IMPORT at the top of the screen to select the desired device.
"You can capture the screens you want from the imported content.
Importing From
MOBILE LAPTOP USB NETWORK DRIVE
EXPORTIMPORT
Icons Description
Displays your phone screen imported using screen mirroring.
Displays your laptop screen imported using HDMI connection or screen
mirroring.
Displays images and dedicated files (.iwb) imported from a connected USB
device.
Displays images and dedicated files (.iwb) imported from a connected network
drive.
"Dedicated files (.iwb) are available on this product only.
Chapter 05
IMPORT
26
Connecting to a Mobile Device
Connecting using screen mirroring
1
Drag down the top bar on the mobile device screen to start Smart View or Screen Mirroring.
2
Select this product from the list of devices displayed on the screen.
"The initial device name is [Flip] Samsung WMH Series.
Connecting using NFC tagging
"Only some models of Samsung mobile devices are supported.
1
Turn on the NFC feature on a supported mobile device.
2
Tag the mobile device to the NFC pad at the side of the product.
"You can control the mobile device from the product screen.
27
Connecting to a Laptop
MOBILE LAPTOP
LAPTOP
USB NETWORK DRIVE
IMPORT
HDMI1 Wireless

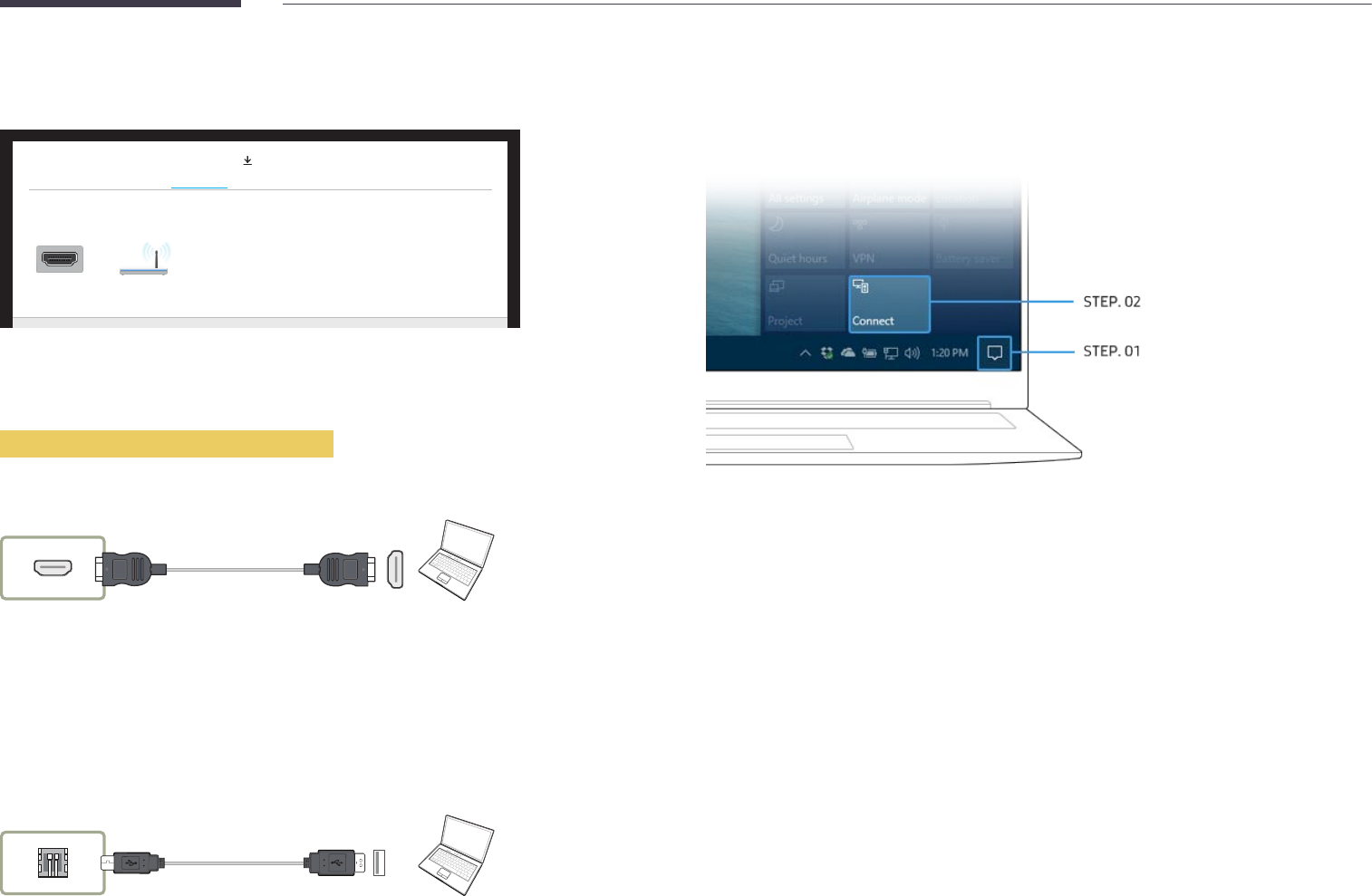

Connecting using a cable
Connecting using an HDMI cable
1
Connect the product to the laptop using an HDMI cable.
HDMI
2
Select IMPORT → LAPTOP → HDMI1 from the top of the screen.
Connecting using an USB cable
To control the laptop from the product screen, connect the supplied USB cable to the TOUCH
OUT port on the product.
"This function is supported only when the laptop screen is in both landscape orientationand
the full screen mode.
TOUCH OUT
Connecting using a screen mirroring
"This function is only available for laptops that support screen mirroring.
1
Select 'Action Center' or 'Devices' in the taskbar notification area of the laptop.
2
Click 'Connect' or 'Project' and select a [Flip] Samsung WMH Series device to complete the
connection.
"The connection procedure may vary depending on the laptop.
"After connecting to a laptop using screen mirroring, you can control the laptop screen from
the product screen.
28

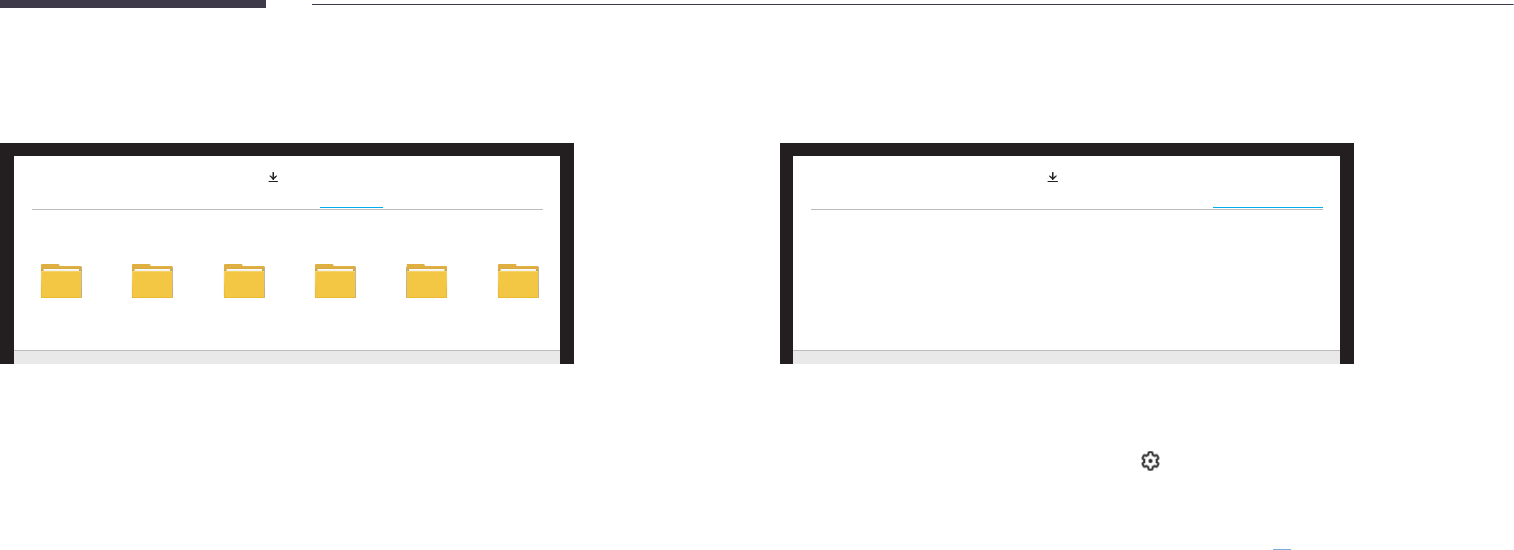

Importing from a USB Device
MOBILE LAPTOP
USB
USB NETWORK DRIVE
IMPORT
DISK1 DISK2 DISK3 DISK4 DISK5 DISK6
Connect an external HDD or a USB storage device.
"You can import only images and dedicated files (.iwb).
Importing from a Network Drive
MOBILE LAPTOP
NETWORK DRIVE
USB NETWORK DRIVE
IMPORT
You can register a network drive while the network is connected.
"You can import only images and dedicated files (.iwb).
"You can register a network drive account at → Connect → Network Drive → Add
Account.
To register a network drive account, you must enter the Address, Username, and Password.
"For information about how to connect to a network, see page 14.
29

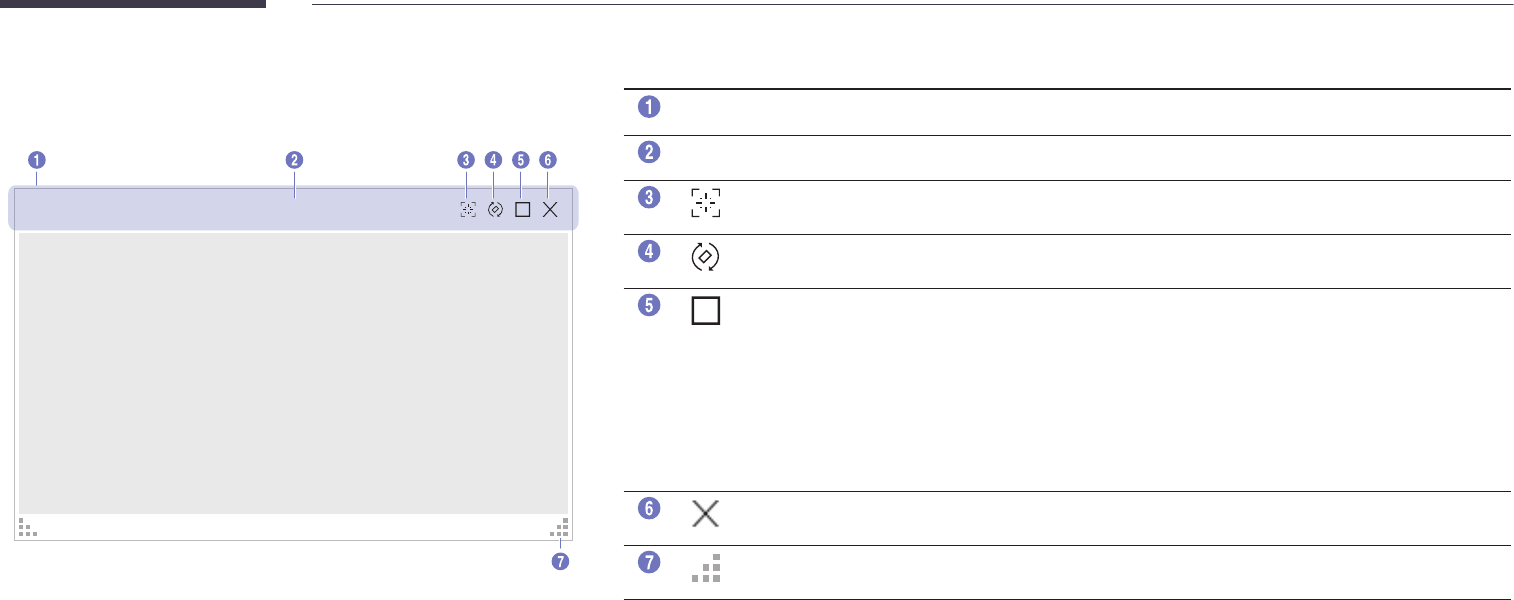

PIP screen
Device name
Parts Description
Menu bar
Drag the PIP screen to move it to the desired position.
Device name
Displays the name of the connected device.
Capture the PIP screen.
Rotate the PIP screen.
Switch to the full screen mode.
"To return to the previous screen from the full screen mode, press the
Power button.
"Only some models of the Samsung mobile devices support the full
screen mode (portrait).
"The full screen mode of the laptop is only supported in the landscape
orientation of the product.
Close the PIP screen.
Adjust the size of the PIP screen.
30

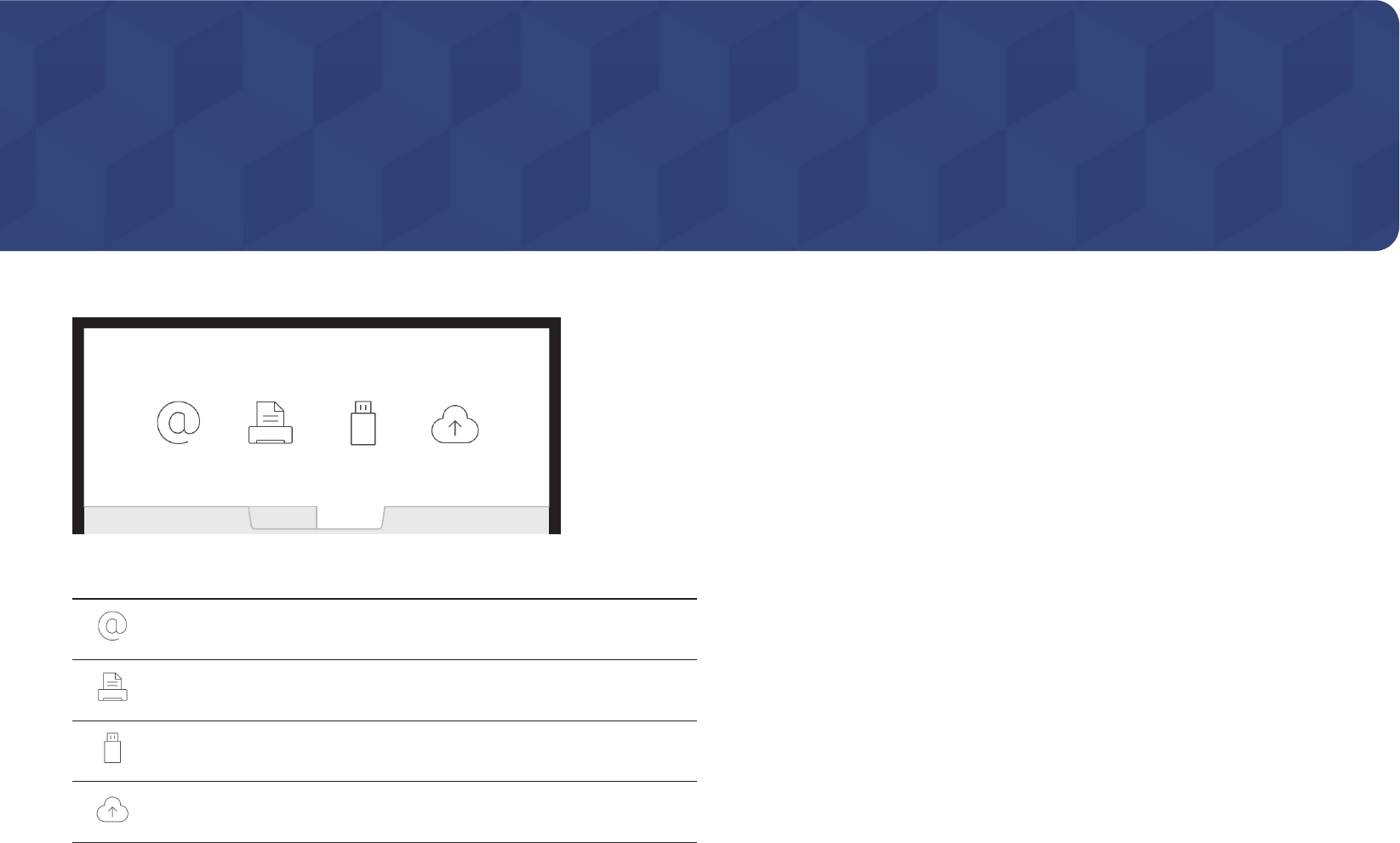

You can export your created rolls in various ways.
Exporting To
E-MAIL PRINT USB NETWORK DRIVE
EXPORTIMPORT
Icons Description
Send your created rolls via email.
Print your created rolls.
Export your created rolls to a connected USB device.
Export your created rolls to a registered network drive.
Chapter 06
EXPORT
31
E-MAIL
To send your created rolls via email, first register your email account.
"You can register your email account at → Connect → E-mail.
To register your email account, you must enter your SMTP Server Name,
SMTP Port Number, Account, and Password.
1
E-MAIL
Send
To :
Subject :

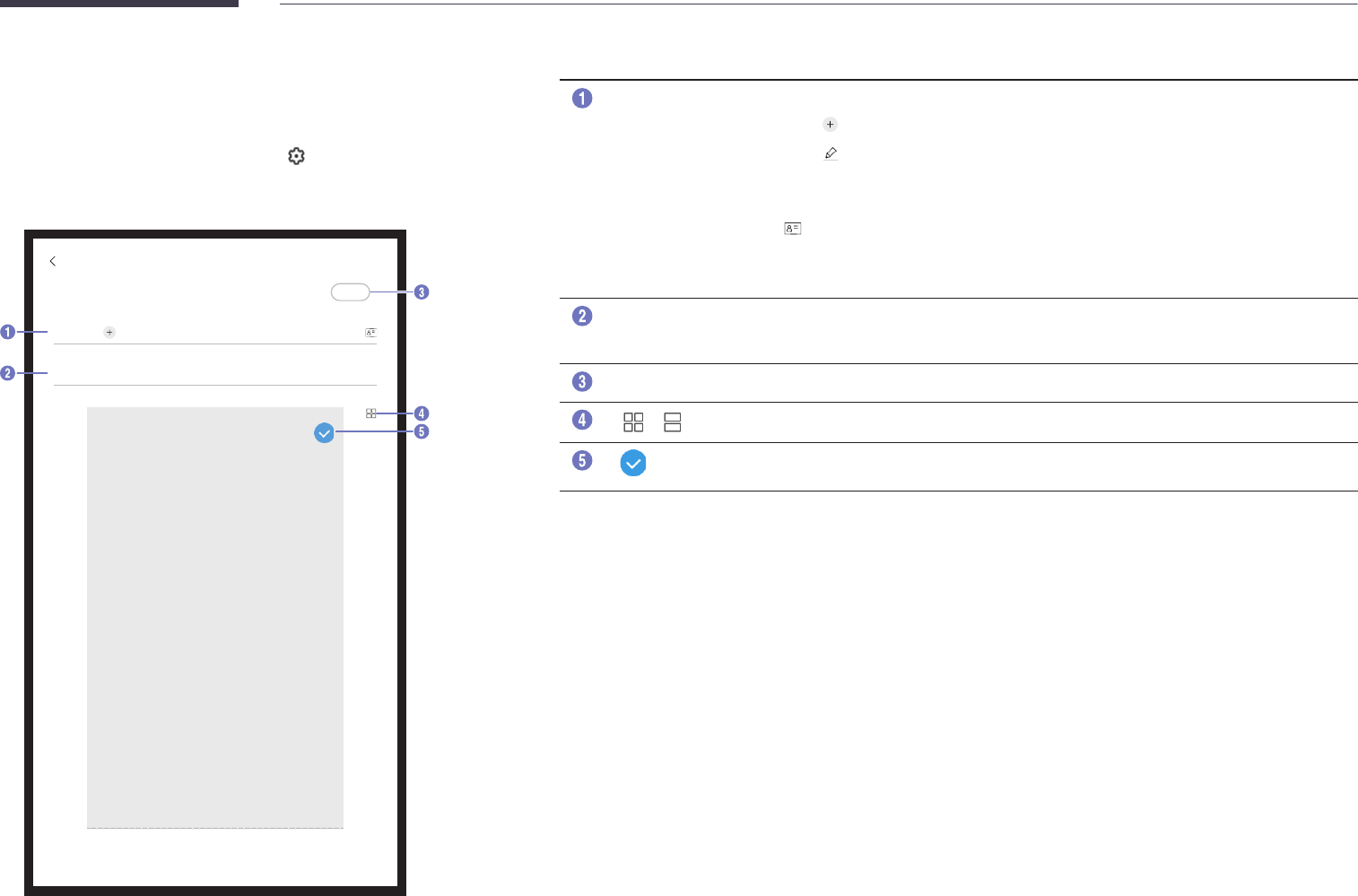

Parts Description
To
Enter the recipient's email address.
•Press to type text on the virtual keyboard that appears.
•Press on the virtual keyboard to enter text by handwriting.
•When you tag an NFC card that has an email address entered, it is automatically
entered.
" : NFC Describes where to tag the NFC card.
"Using the NFC Writing App, register an email address with the NDEF Standard
<Text> Record Type to an NFC Forum Type 2 Card sold on the market.
Subject
The email subject is automatically set to the device name and the current date.
"The email subject cannot be changed.
Send
Send the email.
/ Change the page view mode for the roll to send.
Select the pages to send.
32
PRINT
Be sure to set up the print server while the network is connected.
"You can set up the print server at → Connect → Print Server Settings.
"For information about how to connect to a network, see page 14.
NetPrinting Server Program Installation
To use the PRINT function, you must install the NetPrinting Server program on the PC you want
to connect to.
"When the program installation is completed, the PC is automatically connected. The
installation takes about 8 minutes.
"Follow the onscreen instructions to install NetPrinting Server. The NetPrinting Server
program is available on its website (https://btsp.samsunggsbn.com/).
Installation requirements
The PC must be connected to the Internet while the installation is proceeding.
"The PC and printer to be connected must be connected to the same network as the product.
•Supported operating systems:
Windows 7(32/64 bit), Windows 8(32/64 bit), Windows 10(32/64 bit)
"To install the NetPrinting Server program, update your Windows update to the latest
version.
•Required programs
Net Framework 4.6.1
Setting up the printer
After the NetPrinting Server program is installed, make the following settings on the product
onscreen menu.
Setting up automatically
1
Select → Connect menu.
"The default PIN number is 0000.
2
Select Print Server Settings → Connect Server → Auto.
Setting up manually
1
Select → Connect menu.
"The default PIN number is 0000.
2
Select Print Server Settings → Connect Server → Manual, and then enter the Server IP
address of the PC where NetPrinting Server is installed.
33
1
01
PRINT
Send
프린터
인쇄매수 색상모드
Parts Description
프린터
Displays a list of connected printers. Select a printer to print the roll with.
인쇄매수
Set the number of prints.
Print preview
Preview the roll to print.
Send
Start the printing.
색상모드
Select the color to print the roll with.
/ Change the page view mode for the roll.
Select the pages to print.
34
Exporting to a USB Device
E-MAIL PRINT
USB
USB NETWORK DRIVE
EXPORT
DISK1 DISK2 DISK3 DISK4 DISK5 DISK6
SAVE
Connect an external HDD or a USB storage device.
"You can save only dedicated files (.iwb)
Exporting from a Network Drive
E-MAIL PRINT
NETWORK DRIVE
USB NETWORK DRIVE
EXPORT
You can register a network drive while the network is connected.
"You can import only images and dedicated files (.iwb).
"You can register a network drive account at → Connect → Network Drive → Add
Account.
To register a network drive account, you must enter the Address, Username, and Password.
"For information about how to connect to a network, see page 14.
35
Pen
2nd 3nd Description
Pen & Highlighter Thickness Adjust the thickness of the pen and the highlighter. The highlighter is available by using the end of a supported pen.
Pen Color Select the color palette for the normal pen.
Highlighter Color Select the color palette for the highlighter. The highlighter is available by using the end of a supported pen.
Menu
Chapter 07
36
Connect
2nd 3nd Description
Network Configure your device's network.
Network Status View your current network and internet status.
Open Network Settings Configure network settings to connect to an available network.
Proxy Server Set up your proxy server connection and related functions.
E-mail Set up an email account for sending emails.
"To register your email account, you must enter your SMTP Server Name, SMTP Port Number, Account, and Password.
Print Server Settings To use the PRINT function, you must install the NetPrinting Server program on the PC you want to connect to.
Follow the onscreen instructions to install NetPrinting Server. The NetPrinting Server program is available on its website
(https://btsp.samsunggsbn.com/).
• Connect Server
Auto: When the NetPrinting Server program installation is completed, the PC is automatically connected.
Manual: Enter the Server IP address of the PC where NetPrinting Server is installed.
Network Drive Add or edit network drive accounts. You can only add network drives by using Samba.
Add Account Add new network drive accounts. Only Samba can be added to the network drive.
"To register a network drive account, you must enter the Address, Username, and Password.
Edit Account Edit network drive accounts.
Device Connect Manager Allow devices, like smartphones and tablets, on your network to share content with your signage.
Access Notification Display a notification when a device, such as a smartphone or tablet, is connected. If you use a Wi-Fi network that requires a
password, turn off this option to automatically connect with devices without viewing notifications.
Device List View and manage connected devices.
37
System
2nd 3nd Description
Language Change your Language settings.
Time Set current date and time.
Clock Set Set the date.
DST Adjust clock for Daylight Saving Time.
To set the daylight saving time, be sure to set this item to On.
Smart Security Security provided to protect your display device and connected storage devices against viruses includes.
Scan Inspect your display device and connected storage devices to check forviruses.
Isolated List Check the list of items that have been isolated they contain viruses.
Change PIN Changes your 4-digit Personal Iedntification Number (PIN).
"The default PIN number is 0000.
Device Name Enter Device Name.
You can find this name on the device being used over the network.
Advanced Settings Set the menu Advanced Settings. Enter your 4 digit PIN number. The default PIN number is "0-0-0-0".
"If you want to change the PIN number, use the Change PIN function.
USB Lock Set up a USB Lock. After setting up, the device will be restarted to apply the settings.
Network Lock Set up a Network Lock. After setting up, the device will be restarted to apply the settings.
Auto Save & Auto Power Off Automatically save all date. To set Auto Power Off, Auto Save must be restarted to apply the settings.
Motion Sensor Set the motion sensor duration to automatically shut down this device when no motion is detected.
Erase all files Delete all data from the device, including lock data.
Start Setup It initializes all items in the total menu.
38
2nd 3nd Description
Backlight Adjust backlight brightness to suit your preference. 100 is the brightest setting.
Color Temperature It sets color temperature. The value and temperature increase simultaneously, so the ratio of blue color rises.
White Balance R-Offset / G-Offset / B-Offset
/ R-Gain / G-Gain / B-Gain /
Reset
Adjust the color temperature of the picture so that white objects appear brighter.
Reset Picture Restore all picture settings to the factory default.
39
Support
2nd 3nd Description
Software Update Update the software installed on your product.
Update Now Update software by downloading update files.
•Current version: This is the software version already installed in the product.
Auto Update Automatically start software updates once your device is powered off.
•Current version: This is the software version already installed in the product.
Contact Samsung View this information when your product does not work properly or when you want to upgrade the software.
You can find information regarding our call centers and how to download products and software.
"Contact Samsung and find the product Model Code and Software Version.
Reset All It initializex all items in the total menu.
40
Troubleshooting Guide
Check the followings.
PIP screen (HDMI) issue
Blank spaces are found on all four sides of the screen when
an HDMI cable is connected to the product and PC.
The blank spaces found on the screen have nothing to do with the product.
Blank spaces on the screen are caused by the PC or graphics card. To resolve the problem,
adjust the screen size in the HDMI settings for the graphics card.
If the graphics card settings menu does not have an option to adjust the screen size, update
the graphics card driver to the latest version.
(Please contact the graphics card or computer manufacturer for further details about how to
adjust the screen settings.)
The images on the screen look distorted.
Check the cable connection to the product.
The screen is not clear. The screen is blurry.
Set the resolution and frequency to the recommended level.
The screen appears unstable and shaky.
Check that the resolution and frequency of the PC and graphics card are set within a range
compatible with the product. Then, change the screen settings if required by referring to the
Additional Information on the product menu and the Standard Signal Mode Table.
There are shadows or ghost images left on the screen.
Chapter 08
"Before calling Samsung Customer
Service Center, test your product
as follows. If the problem persists,
contact Samsung Customer Service
Center.
"If the product is not turned on
or off when you operate the
buttons or motion sensor of the
product, you can turn it on or off
with the Samsung remote control
or Samsung remote control
application.
41
PIP screen (HDMI) issue
White does not really look white.
Go to Picture and adjust the White Balance settings.
The product will turn off automatically.
Make sure the power cable is connected properly to the product and power outlet.
The screen display does not look normal.
Encoded video content may cause the display to appear corrupted in scenes featuring fast
moving objects such as in a sports event or action video.
Low signal level or low picture quality may cause the display to appear corrupted. This does
not mean the product is defective.
A cell phone within a distance of one-meter radius may cause static on analog and digital
products.
The brightness and color do not look normal.
From the menu, select Support → Reset All to try resetting the screen.
The display looks unstable and then freezes.
The screen may freeze when a resolution other than the recommended resolution is used or
if the signal is not stable. To resolve the issue, change the PC resolution to the recommended
resolution.
The screen cannot be displayed in full screen.
If the PIP window is set to the full screen mode when the product is in portrait orientation, a
black bar appears at both the top and bottom.
Change the product to landscape orientation, and then try switching the PIP window to the
full screen mode.
42
Sound issue
There is no sound.
Check the volume.
The volume is too low.
Adjust the volume.
If the volume is still low even when it is adjusted to the maximum, adjust the volume of the
connected PC or mobile device again.
Video is available but there is no sound.
If an HDMI cable is connected, check the audio output settings on the PC.
If a source device is used
•Check the audio output settings for the source device.
(For example, if an HDMI cable is connected to the product, the audio setting for the cable
box may need to be changed to HDMI.)
Reconnect the power cable to the device and then reboot the device.
There is static coming from the speakers.
Low signal level can cause corrupted sound.
There is audible sound when the volume is muted.
Audio settings for main speakers are separate from the internal speakers on the product.
Changing or muting the volume on the product does not affect an external amplifier(decoder).
43
Touch function issues
The touch function does not work.
Make sure the screen or your finger is not wet.
Make sure you are not wearing a glove and your finger is not dirty.
The icons can be touched but the drawings cannot.
Use the supplied product-specific pen as much as possible.
Drawing and eraser do not work when PIP connection is
used.
In the PIP mode, the drawing function is not supported within the PIP area. In the PIP mode,
drawings in a PC application such as Paintare made by that PC application.
Touching does not work when HDMI connection is used.
Make sure that the screen is in the full screen mode (Landscape).
Check whether the TOUCH OUT port of the product is connected to the PC using a USB cable.
I use two pens, but they do not work well.
Make sure that there is enough space between the two pens at multi-touching.
Touches break, reaction speed gets slow, and so on.
Make sure that there areno foreign substances on the screen surface.
Check whether the screen is broken.
Make sure that the product is not exposed to direct sunlight.
44
Other issue
The product smells like plastic.
The plastic smell is normal and disappears over time.
Small particles are found on the edges of the product.
The particles are part of the product design. The product is not defective.
When I try to change the PC resolution, a message "The
dened resolution is not currently supported." appears.
The message "The defined resolution is not currently supported." appears if the input source
resolution exceeds the maximum resolution of the display.
To resolve the issue, change the PC resolution to a resolution supported on the product.
There is no sound from the speakers in HDMI mode when a
DVI-HDMI cable is connected.
DVI cables do not transmit sound data.
HDMI Black Level is not functioning properly on an HDMI
device with YCbCr output.
This function is available only when a source device, such as a DVD player and STB, is
connected to the product via an HDMI (RGB signal) cable.
There is no sound in HDMI mode.
Displayed picture colors may not look normal. Video or sound may not be available. This can
occur if a source device that only supports an older version of the HDMI standard is connected
to the product.
The product gets slow oris not turned off.
If the product gets slow down or is not turned off, press and hold the Power button for 10
seconds. The product is turned off and on again.
45
Specications
General
Model Name WM55H
Panel Size
55 CLASS (54.6 inches / 138.7 cm)
Display area
TBD mm (H) x TBD mm (V)
Synchronization Horizontal Frequency
30 - 81kHz, 30 - 90kHz (HDMI)
Vertical Frequency
48 - 75Hz, 24 - 75Hz (HDMI)
Resolution Optimum resolution
1920 x 1080 @ 60Hz, 3840 x 2160 @ 60Hz
Maximum resolution
1920 x 1080 @ 60Hz, 3840 x 2160 @ 60Hz
Power Supply
AC 100 to 240 VAC (+/- 10%), 60 / 50 Hz ± 3 Hz
Refer to the label at the back of the product as the standard voltage can vary in different countries.
Environmental
considerations
Operating
Temperature : 32 °F – 104 °F (0 °C – 40 °C)
* For installing the housing, keep the internal temperature at 40 °C or below.
Humidity : 10% – 80%, non-condensing
Storage
Temperature : -4 °F – 113 °F (-20 °C – 45 °C)
Humidity : 5% – 95%, non-condensing
Chapter 09
"Horizontal Frequency
The time required to scan a single
line from the left to the right side of
the screen is called a horizontal cycle.
The reciprocal number of a horizontal
cycle is called horizontal frequency.
Horizontal frequency is measured in
kHz.
"Vertical Frequency
The product displays a single image
multiple times per second (like a
uorescent light) to display what
the viewer sees. The rate of a single
image being displayed repeatedly per
second is called vertical frequency
or refresh rate. Vertical frequency is
measured in Hz.
46
"Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system
optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired.
"Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may appear brighter or darker on the panel. This does
not affect product performance.
"This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate
measures.
"For detailed device specifications, visit the Samsung Electronics website.
(USA only)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call, (877) 278 - 0799
47
Preset Timing Modes
"This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Using a resolution
other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution specified for
your product.
The screen will automatically be adjusted if a signal that belongs to the following standard signal modes is transmitted from your PC. If the signal
transmitted from the PC does not belong to the standard signal modes, the screen may be blank with the power LED on. In such a case, change the settings
according to the following table by referring to the graphics card user manual.
Resolution Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 640 x 480 31.469 59.940 25.175 -/-
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
48
Resolution Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1366 x 768 47.712 59.790 85.500 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
CEA, 3840 x 2160 67.500 30.000 297.000 -/-
49
Appendix
Responsibility for the Pay Service (Cost to
Customers)
"When the service is requested, in spite of in warranty, we may charge you for a visit from a
service technician in the following cases.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
•If a service technician gives instructions on how to use product or simply adjusts options
without disassembling product.
•If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal, etc.)
•If a product is reinstalled or devices are connected additionally after installing the purchased
product for the first time.
•If a product is reinstalled to move to a different spot or to move to a different house.
•If customer requests instructions on how to use because of another company's product.
•If customer requests instructions on how to use the network or another company's program.
•If customer requests software installation and setup for the product.
•If a service technician removes/cleans dusts or foreign materials inside of the product.
•If customer requests an installation additionally after purchasing a product through home-
shopping or online.
A Product damage caused by customer's fault
Product damage caused by customer's mishandling or wrong repair
If a product damage is caused by;
•External impact or drop.
•Use of supplies or separatly sold product unspecified by Samsung.
•Repair from a person besides an engineer of outsourcing service company or partner of
Samsung Electronics Co., Ltd.
•Remodeling or repairing the product by customer.
•Using it with incorrect voltage or non-authorized electrical connections.
•Not following the "cautions" in User Manual.
Others
•If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
•If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head,
Vibrator, Lamp, Filter, Ribbon, etc.)
"If customer requests a service in case the product has no defect, service fee may be charged.
So please read User Manual first.
Chapter 10
50
Optimum Picture Quality and Afterimage
Burn-in Prevention
Optimum Picture Quality
•Due to the nature of the manufacturing of this product, approximately 1 pixel per million
(1ppm) may be brighter or darker on the panel. This does not affect product performance.
–The number of sub-pixels by panel type: TBD
•Leaving the screen fixed on a stationary image for an extended period of time may cause
afterimage burn-in or defective pixels.
–Activate power-saving mode or a dynamic screen saver if you will not be using the
product for an extended period of time.
Prevention of Afterimage Burn-in
What is afterimage burn-in?
Afterimage burn-in should not occur when the LCD panel is operating normally. Normal
operation refers to a continuously changing video pattern. If the LCD panel displays a fixed
pattern for an extended period of time a slight voltage difference may occur between the
electrodes in pixels that control the liquid crystals.
Such a voltage difference between electrodes increases with time and makes the liquid crystals
thinner. When this occurs, a previous image can remain on the screen when the pattern changes.
To prevent this, the accumulated voltage difference should be reduced.
"Afterimage burn-in should not occur when an LCD panel is operating in proper conditions.

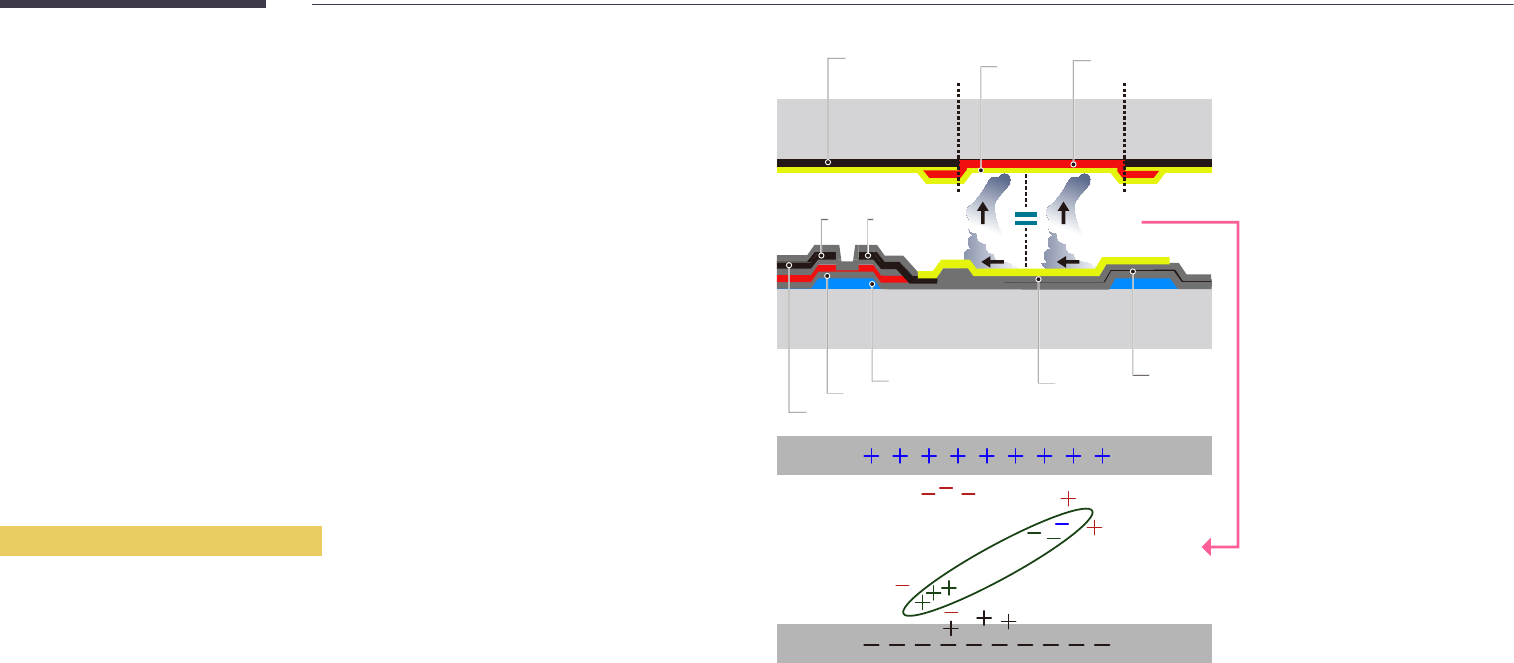

Black Matrix
Source Drain
Data Bus-Line
TFT
Gate Pixel Electrode (ITO) Storage
Capaccitor (Cs)
Color-Filter
Common
Electrode (ITO)
51
Preventing afterimage burn-in
"The best way to protect the product from afterimage burn-in is switching the power off or
setting the PC or system to run a screen saver when not in use. Also, Warranty service may be
limited depending on instruction guide.
•Powering Off, Screen Saver and Power Saving Mode
–Power off the product for 2 hours after using it for 12 hours.
–Go to Display Properties > Power Supply on your PC and set the product to power off as
required.
–Using a screen saver is recommended.
It is best to use a single-color or moving-image screen saver.
•Regular color Change
–Use 2 colors
Switch between 2 colors every 30 minutes as shown above.
FLIGHT FLIGHT
TIME TIME
OZ348
UA102 21:10
20:30
OZ348
UA102 21:10
20:30
Type 1 Type 2
•Avoid combinations of a text color and background color of contrasting brightness.
(Brightness: refers to the lightness or darkness of a color which varies depending on the
amount of light emitted.)
"Avoid using gray as it may contribute to afterimage burn-in.
"Avoid using colors of contrasting brightness (black and white; gray).
FLIGHT TIME
OZ348 20:30
:
:
FLIGHT TIME
OZ348 20:30
:
:
•Regular Text color Change
–Use bright colors of similar brightness.
Interval: Change text color and background color every 30 minutes
FLIGHT TIME
OZ348 20:30
:
:
FLIGHT TIME
OZ348 20:30
:
:
FLIGHT TIME
OZ348 20:30
:
:
FLIGHT TIME
OZ348 20:30
:
:
–Move and change text every 30 minutes as shown below.
FLIGHT TIME
OZ348 20:30
:
:
[ Step 3 ]
[ Step 2 ]
FLIGHT TIME
OZ348
:
:
[ Step 1 ]
20:30
–Regularly display a moving image along with a logo.
Interval: Display a moving image along with a logo for 60 seconds after using for 4 hours.
52
License
The terms HDMI and HDMI High-Definition Multimedia Interface, and
the HDMI Logo are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
Open Source Licence Notice
In the case of using open source software, Open Source Licences are available on the
product menu. Open Source Licence Notice is written only English.
For information on the Open Source Licence Notice, contact the Samsung Customer Center
or send email to oss.request@samsung.com.
FCC Information
This device complies with part 15 of the FCC Results. Operation is subject to the
following two conditions :
(1) This device may not cause harmful interface, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for CLASS B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try correct the interference by one or more of the following measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
Information for OEM Integrator
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
End product labelling
The label for end product must include “Contains FCC ID: A3LWCM730Q”.
“CAUTION : Exposure to Radio Frequency Radiation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment must be installed and operated with minimum distance of 20 cm between the radiator and your
body. This transmitter module is authorized only for use in device where the antenna may be installed such
that 20 cm may be maintained between the antenna and users.”
