Samsung Electronics Co WSZWM110C00 Z-wave Module User Manual
Samsung Electronics Co Ltd Z-wave Module
User Manual
Version 1.0
Samsung Electronics
page 1 of 4
User manual of WSZWM110A00
1. Introduction
WSZWM110A00 is a Z-wave module compliant with ITU-T G.9959 optimized for low-power applications.
The ZigBee chipset is from Sigma Designs, part number SD3503.
2. Hardware Architecture:
2.1 Main Chipset Information
Item
Vendor
Part Number
ITU-T G.9959
Sigma Designs
SD3503
2.2 Circuit Block Diagram
The major internal and external block diagram of WSZWM110A00 is illustrated in Figure 1-1.
Z-wave SoC
(SD3503)
X-tal
(32MHz)
SAW Filter
UART
+3.3Vdc
NRESET
900MHz Chip
Antenna
F-MEM
(2Mbit)
SPI
I/O_Port
I/O_PAD
I/O_PAD
919.70~923.10MHz
Figure 1-1 WSZWM110A00 block diagram and System Interface
Version 1.0
Samsung Electronics
page 2 of 4
3. Operational Description
WSZWM110A00 is the ITU-T G.9959 Z-wave Module that acts as a communication controller for users
of a wireless device.
- Features
> Z-Wave ITU-T G.9959
> Z-Wave 9.6/40/100 kbit/s data rate
>128-bit AES security processor and hardware random number generator
- Time base of the RF frequency
For Z-wave IF and RF frequency, a crystal(32MHz) is a clock reference.
- Z-wave Tranceiver
The WSZWM110A00 is a fully integrated module with an on-board antenna that allows the establishment
of a Z-Wave network with minimum risk. The SD3503 chip is used with an external NVM (Serial Flash
MEM), 32MHz crystal, power supply decoupling, SAW filter, matching circuit, and a PCB pattern Antenna.
- Z-wave Receiver
The module is converted into a digital signal through the available receive signal of 900MHz and low noise
have a built-in amplifier to amplify the signal to the received signal to the low noise amplifiers to match
the signal strength and the amplified signal is inside Chip ADC from the main processor the packet
containing the information is interpreted.
Version 1.0
Samsung Electronics
page 3 of 4
- Product Details
> Data Modulation
Z-Wave : FSK/GFSK for ITU-T G.9959

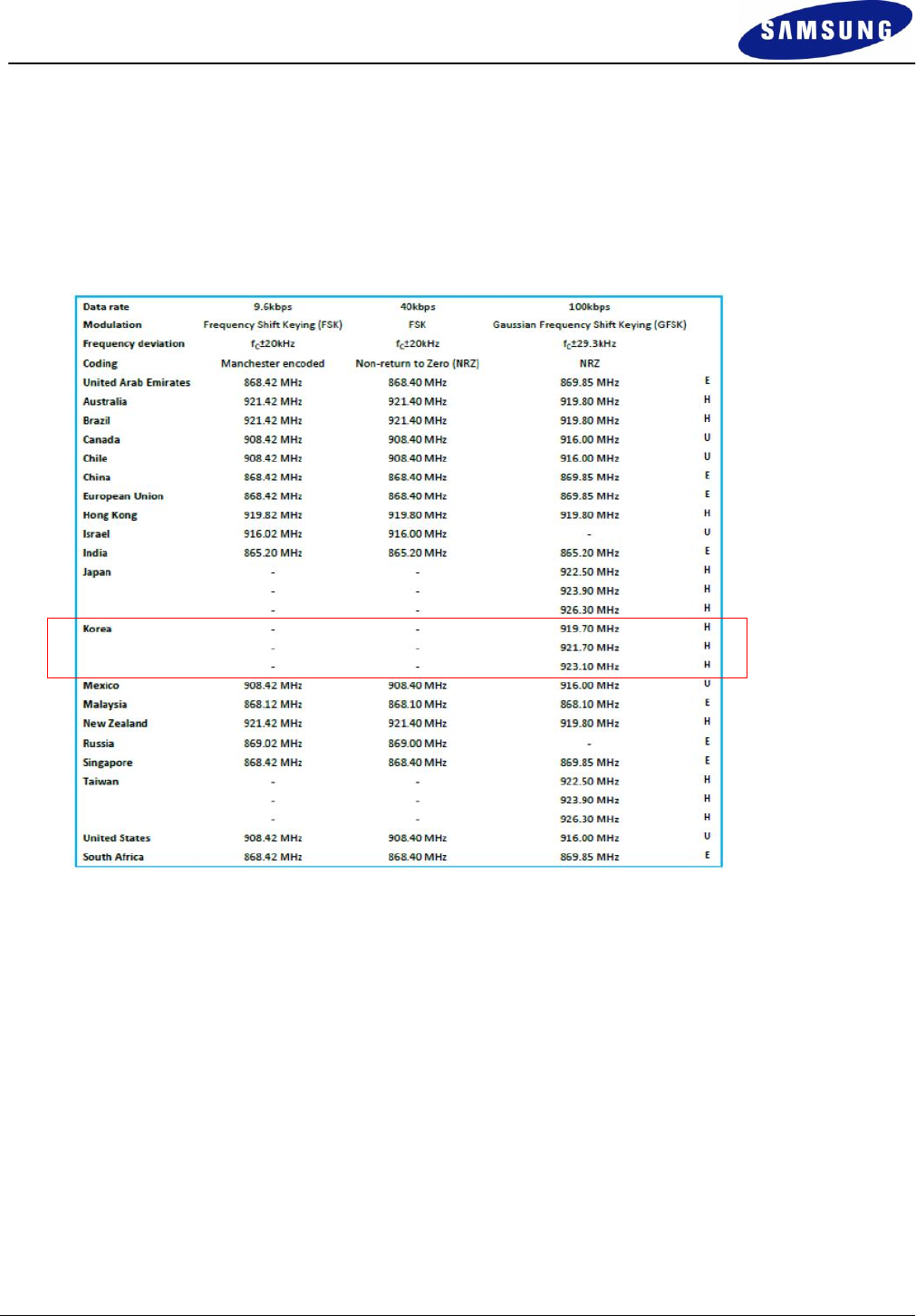

> Frequency :
Z-wave
Version 1.0
Samsung Electronics
page 4 of 4
- Product pwr Spec.
Symbol
Parameter
Min
Typ.
Max
Unit
VDD
Power supply
3.0
3.3
3.6
V
- Product Spec.
> Z-wave
Parameter
Min
Typ.
Max
Unit
RF Characteristics(NA)
RF Frequency Range
919.70
-
923.10
MHz
Output power
1
-
7
dBm
TX Frequency Tolerance
-25.0
-
25.0
KHz
TX Harmonics 2nd Harmonics
3rd Harmonics
-
-
-30
dBm
RX sensitivity PER at -85dBm
-
-
3
%
RX Spurious Emission
30.0MHz to 12.5GHz
-
-
-54
dBm
Instruction to OEM
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to
the following two conditions:
(1) This device may not cause interference and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
This application and its antenna must not be co-located or operation in conjunction with any
other antenna or transmitter. A minimum separation distance of 20cm must be maintained
between the antenna and the person for this appliance to satisfy the RF exposure requirements.
Host labeling requirement: “Contains transmitter module
FCC ID: A3LWSZWM110C00
IC ID: 649E-WSZWM110C00
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
