User manual

 WV-C830APD Access Point User’s Guide Version 6.50
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 3 Table of Contents 1Preface .................................................................................................................................................... 5Whoshouldusethisguide .......................................................................................................... 5SupportInformation .....................................................................................................................52Introduction........................................................................................................................................... 63KnowingyourWV‐C830APDKit ..................................................................................................... 7PackageContents .......................................................................................................................... 7HardwareOverview ..................................................................................................................... 74SettingUpyourWV‐C830APDKit................................................................................................. 12PoweringUpyourdevices......................................................................................................... 13PairingyourDevices................................................................................................................... 13Placingandconnectingyourdevices ....................................................................................... 14ConnectingtoYourWV‐C830APDDevice ............................................................................. 155Management‐GettingStarted ........................................................................................................ 17LoggingintotheWV‐C830APDManagementApplication.................................................. 18NavigatingtheWV‐C830APDManagementApplication .................................................... 196ManagingtheWV‐C830APDDevice.............................................................................................. 21ConfiguringtheWV‐C830APDDevice.................................................................................... 22SelectingOperationmode .................................................................................................... 22DefiningNetworkSettings................................................................................................... 24DefiningWirelessSettings.................................................................................................... 26DefiningSecuritySettings(AccessPointModeOnly) ..................................................... 31DefiningWPSSettings .......................................................................................................... 36SiteSurvey(ClientModeOnly)........................................................................................... 41StationsList(AccessPointModeOnly).............................................................................. 43
 pg. 4 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com ConfiguringRemoteManagement...................................................................................... 45PerformingAdministration.................................................................................................. 51MonitoringtheWV‐C830APDDevice ..................................................................................... 55ViewingSystemParameters................................................................................................. 55ATroubleshootingWV‐C830APDKit.....................................................................................................56UsingRescueMode: .............................................................................................................. 57UsingPerformanceManagementTool: .............................................................................. 58
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 5 Preface WelcometotheWirelessVideoExtendersolutionsetfromSamsungCommunications.TheUser’sGuidewillhelpyoutounderstandtheWirelessVideoExtender(VXT)solution,howtoinstallit,configureitandtroubleshootproblems.Who should use this guide ThisUser’sGuideassumesthatthereaderhasbasictointermediatecomputerandinternetskills.Allthebasiccomputernetworking,Internet,andotherinformationrequiredtoconfigurethehomenetworkandthedevicesisprovidedherein.Support Information info@celeno.comForsupportinquiries,pleasecontactourfieldapplicationengineersatsupport@celeno.com.
 pg. 6 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com 1 Introduction Celeno™isafablessemiconductorcompanydevelopingcomponentsandsubsystemsformultimedia,high‐definitionWiFihomenetworking.Celeno’sOptimizAirTMbreakthroughtechnologyenablesserviceprovidersandconsumerstoquicklyandsimplydeploywirelesshomenetworksthatcansecurelydelivermultiplestreamsofcarrier‐qualitySDTVandHDTV,andanyothermultimediacontentthroughoutthehome.TheCelenosolutionisoptimizedtowardQualityofExperience(QoE)andperformanceconsistencyinbothcapacityandcoverage.TheWirelessVideoExtender(VXT)solutionsetincludesapairof“Celeno‐Powered”WV‐C830APD“AccessPoint”and“Client”devices,whichenabledistributionofhigh‐definitionvideostreamsfromonecentrallocationtoaTVsetinthehousewithoutreplacingexistingrouters,gateways,settopboxesorlayingoutnewcablesacrossthehouse.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 7 2 Knowing your WV-C830APD Kit Package Contents YourWV‐C830APDKitcontainsthefollowingitems:1.VXT1821WirelessVideoExtender“AccessPoint”2.VXT1825WirelessVideoExtender“Client”3.TwoCAT5cables4.2PowerTransformersfortheWV‐C830APDdevicesHardware Overview TheWV‐C830APDKitiscomprisedfromapairofVXT1821“AccessPoint”andVXT1825“Client”devices.TheWV‐C830APDispoweredbyCeleno’sCL1800802.11nWiFichipsetthatemployssophisticatedalgorithmsandtechniquessuchasimplicitBeamFormingtoreliablystreamHighDefinitionvideotoanylocationinthehome.
 pg. 8 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com TheWV‐C830APDdeviceshavebeendesignedtobeplacedonadesktop.Allofthecablesexitfromtherearofthedevices.ThestatusdisplayLEDsarelocatedatthefrontofthedevicesandareeasilyvisible. Figure 1: WV-C830APD ThefollowingtabledescribestheconnectorsontherearpaneloftheWV‐C830APDdevice:Table 1: WV-C830APD Rear Panel – Connectors and Buttons Name Description Ethernet DataandManagementEthernetport.ResetResetandrestoredefaultsbutton.PowerInDCpowerinput.12VDC.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 9 ThefollowingtabledescribestheLEDindicationsonthefrontpaneloftheWV‐C830APDDevice.Table2‐WV‐C830APDLEDsName Color Description GreenThedeviceispoweredon.RedThedevicehasenteredapowersavemode.PowerOffThedeviceispoweredoff.GreenTheLANportisconnectedtoanetworkdevice.LANOffTheLANportiseithernotconnectedorthereisnoactivityonthelink.GreenWPSpairinghasfinishedsuccessfully.Thisisatemporarystatethatlastsfor2minutes.FlashingGreenWPSpairingisinprogress.Thisisatemporarystatethatlastsfor2minutesoruntilWPSpairingsucceeds.WPSOffDefault.GreenAccessPointBehavior‐AtleastoneClientisassociatedwiththeAccessPoint.ClientBehavior–TheClientisassociatedwithanAccessPointandcanreceiveatleastonehighdefinitionvideostream.FlashingGreenClientBehavior–TheClientisassociatedwithanAccessPointbutdoesnothaveenoughcapacitytoreceivehighdefinitionvideostreams(canreceivestandarddefinitionstream).WLANOffAccessPointBehavior‐NoClientsareassociatedwiththeAccessPoint.ClientBehavior–TheClientisnotassociatedwithanAccessPoint.
 pg. 10 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com ThefollowingLEDcombinationsdescribespecialindications:Combination–TheWLAN,LANandWPSLEDsareflashingsimultaneouslyfor10seconds.Description–Thedeviceisundergoinga“RestoreDefaults”procedure.Combination–TheWLAN,LANandWPSLEDsareflashinginsequencefor10seconds.Description–Thedeviceisundergoinga“SoftwareUpgrade”procedure.Combination–WLANLEDisflashingDescription–TheAPdeviceiscurrentlyperformingCACprocess.Table 3: WV-C830APD Front Panel – Buttons Name Description WPSWirelessProtectedSetup(WPS)button.

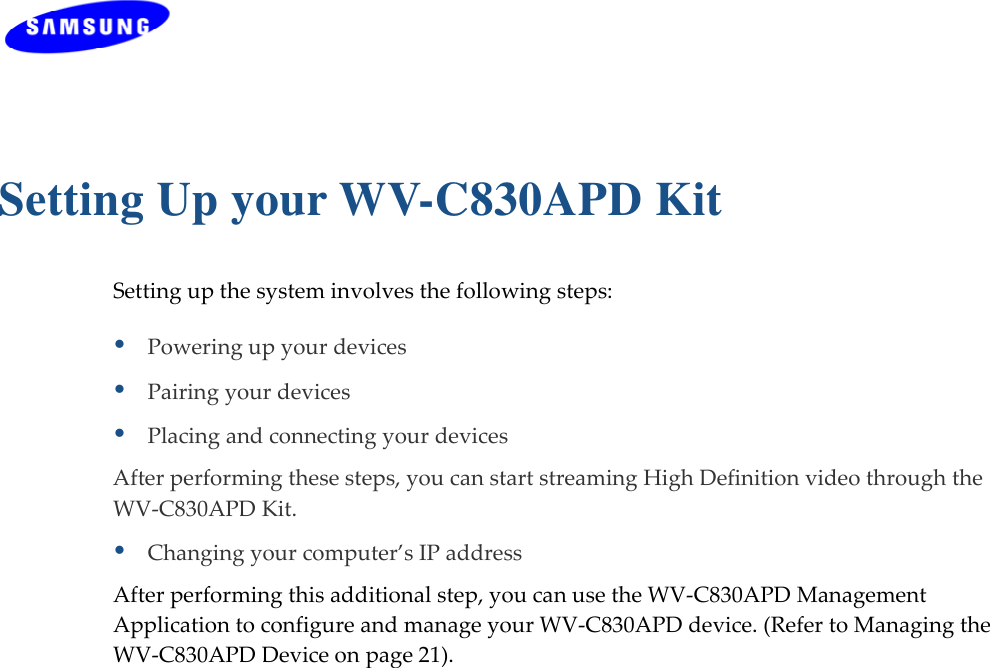

 pg. 12 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com Setting Up your WV-C830APD Kit Settingupthesysteminvolvesthefollowingsteps:PoweringupyourdevicesPairingyourdevicesPlacingandconnectingyourdevicesAfterperformingthesesteps,youcanstartstreamingHighDefinitionvideothroughtheWV‐C830APDKit.Changingyourcomputer’sIPaddressAfterperformingthisadditionalstep,youcanusetheWV‐C830APDManagementApplicationtoconfigureandmanageyourWV‐C830APDdevice.(RefertoManagingtheWV‐C830APDDeviceonpage21).
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 13 Powering Up your devices TopoweruptheWV‐C830APDdevice:1.Pluginthe12VA/CadapterandconnectittotheWV‐C830APDdevice.UsetherecommendedAC/DCpoweradaptorwhichwassuppliedinthekit.“UsingapowersupplywithadifferentvoltageratingthentheoneincludedwiththeWV‐C830APDdevicewillcausedamageandvoidthewarrantyforthisproduct”.Note:ThereisnoOn/Offswitch.Onceyouconnectthepoweradapter,theWV‐C830APDdevicepowersup.2.WaitseveralsecondswhiletheWV‐C830APDdeviceperformsareset.Pairing your Devices TopairtheVXT1821AccessPointandVXT1825Clientdevices:1.PlacetheVXT1821AccessPointandtheVXT1825Clientdevicesbetween1to3metersfromeachother.2.PairthedevicesbypressingtheWPSbuttononthefrontpanelofeachdevice.YoucanreleasethebuttonassoonastheWPSLEDbeginsflashing.Note:TheWPSbuttonsshouldbepressedwithin2minutesperiod.Thebuttonscanbepressedinanyorder.3.WaitforthepairingprocesstocompletebywatchingtheLEDsonthedevices: WhilepairingisinprogresstheWPSLEDisflashing AftersuccessfulpairingtheWPSLEDstaysonfor2minutes.
 pg. 14 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com Placing and connecting your devices ToplaceandconnectyourVXT1821AccessPointdevice:1.PlacetheVXT1821AccessPointdeviceonaneasily‐accessiblesurfacenearthehomegateway,Cable/DSLModemorDVR/PVRdevice.2.PlugoneendoftheEthernetcableintotheLANportofthegatewaydeviceandtheotherendintotheEthernetportoftheVXT1821AccessPoint.ToplaceandconnectyourVXT1825Clientdevice:1.PlacetheVXT1825Clientdeviceonaneasily‐accessiblesurfacenearthesettopbox.2.PlugoneendoftheEthernetcableintotheLANportofthesettopboxdeviceandtheotherendintotheEthernetportoftheVXT1825.3.MakesurethattheWLANLEDissolidgreen:IftheWLANLEDisturnedoff,trytorepositionthedevicetoamoreelevatedlocationandasfaraspossiblefromlargemetallicobjects.Completingtheinstallation:YouhavefinishedinstallingyourWV‐C830APDkit.Totestyourconnectivity,turnontheTVandsettopboxandwatchanyavailablechannel.Note:ToinstalladditionalVXT1825Clientdevices,repeattheaboveprocedureforeachnewVXT1825Clientdevice.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 15 Connecting to Your WV-C830APD Device TheVXT1821AccessPointdeviceispre‐configuredwiththefollowingIPparameters: IPAddress:10.0.0.2 NetMask:255.0.0.0TheVXT1825Clientdeviceispre‐configuredwiththefollowingIPparameters: IPAddress:10.0.0.10 NetMask:255.0.0.0InordertoconnectyourmanagementcomputertotheWV‐C830APDdevice,connecttheWV‐C830APDdevicedirectlytoyourcomputerandchangetheIPaddressofyourcomputersothatitisonthesamesubnetastheWV‐C830APDdevice(bydefault10.x.x.x).Sincethisdisconnectsyourcomputerfromyourcomputernetwork,youmayneedtorestorethissettinglater.TochangetheIPaddressofyourcomputer:1.ConnectanEthernetcablebetweentheEthernetportoftheWV‐C830APDdeviceandtheEthernetportofyourcomputer.2.Fromyourcomputer’sdesktop,clickStart>Settings>NetworkConnectionsanddouble‐clicktheLANconnectionforyourcomputernetwork.TheLocalAreaConnectionStatuswindowappears.3.FromtheGeneraltab,clickProperties.TheLocalAreaConnectionPropertieswindowappears.4. SelectInternetProtocol(TCP/IP)andclickProperties.TheInternetProtocol(TCP/IP)Propertieswindowappears.
 pg. 16 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com Figure 2: Internet Protocol (TCP/IP) Properties Window 5.Makeanoteofthecurrentsettingsinthiswindow.Youwillneedtoknowthesesettingswhenreconnectingyourcomputertoyourcomputernetwork.6.CheckUsethefollowingIPaddressandtypeanIPaddressinthesamesubnetastheWV‐C830APD,inthefollowingformat:10.x.x.x.BesuretouseanIPaddressthatisdifferentfromtheIPaddressofyourWV‐C830APDdevicewhichiseither10.0.0.2or10.0.0.10bydefault.7.ClickOKtosavetheinformationandclosetheInternetProtocol(TCP/IP)Propertieswindow.8.ClickOKtoclosetheLocalAreaConnectionPropertieswindow.9.ClickClosetoclosetheLocalAreaConnectionStatuswindow.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 17 3 Management - Getting Started TheWV‐C830APDManagementApplicationisaweb‐basedtoolthatenablesyoutomanageandconfigureyourWV‐C830APDdevice.ThischapterdescribeshowtonavigatethroughtheWV‐C830APDManagementApplication:Note:EnsurethatyouhaveconnectedanEthernetcablebetweenyourcomputerandtheWV‐C830APDdevice.
 pg. 18 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com Logging into the WV-C830APD Management Application Figure 3 - WV-C830APD Management Application – Login Screen TheWV‐C830APDManagementApplicationispasswordprotected.Toaccessitsfunctionsyoufirstneedtosuccessfullylogin:1.TypetheusernameandpasswordintotheappropriatefieldsandclickontheLoginbutton.2.OnsuccessfulloginyouwillbeforwardedtoaWV‐C830APDManagementApplicationconfigurationscreen.Note:Thedefaultusernameandpasswordareadmin,adminrespectively.TochangethesevaluesrefertoPerformingAdministrationonpage51.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 19 Navigating the WV-C830APD Management Application Figure 4: WV-C830APD Management Application Window TheWV‐C830APDManagementApplicationcontainsthefollowingcontrolsandareastohelpyounavigatetoallitsparameters.MainMenu–EnablesyoutoaccessthefunctionsoftheWV‐C830APDManagementApplication.TheMainMenuisdividedintothefollowingsubmenuitems:Configuration,MonitorandLogout.
 pg. 20 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com NavigationPanel–Displaystheconfigurationscreensavailableforeachsubmenuitem.CurrentScreen–Displaysthenameofthecurrentconfigurationscreen.SystemInformationPanel–Displayssystemstatusinformation.Thispanelisalwaysvisibleanddisplaysthefollowinginformation:Status–Indicateswhetherthesystemiscurrentlyactiveorstopped.Band–Indicatesthatthesystemiscurrentlytransmittinginthe5GHzradioband.Channel–Theindexnumberofthechannelcurrentlyinuse.MAC–ThelocalMACAddressofthedevice.BSSID–BasicServiceSetIdentifier.ThisfielduniquelyidentifieseachBSS.YoucannotconfigurethisparameterusingtheWV‐C830APDManagementApplication.SSID–ServiceSetIdentifier.Thecodeattachedtobeaconframesandconnectionestablishmentframes.ImageVersion–Thecurrentsoftwareimageversionofthedevice.DataArea–Foreachconfigurationscreen,theDataAreadisplaystherelevantparametersandcontrols.ControlButtons–Enableyoutoperformoperationsrelatedtothecurrentconfigurationscreen. Note:YoucanLogouttheapplicationanytimebyselectingtheLogoutmenuitemattheupperrightcornerofthescreen. Note:TheWV‐C830APDdevicecanbeconfiguredtoacteitherasanAccessPointorasaClient.Eachmodeofoperationhasdifferentconfigurationscreens.
4 Managing the WV-C830APD Device TheWV‐C830APDManagementApplicationisauser‐friendlyapplicationthatenablesyoutoconfigureandcontrolalltheparametersoftheWV‐C830APD.Themainmenucontainsthefollowingoptions:ConfigurationMonitorNote:ClickingCancelinanyoftheWV‐C830APDManagementApplicationwindowsdiscardsanyunsavedchangesyouhavemade.TheWV‐C830APDManagementApplicationthenre‐queriestheWV‐C830APDdeviceandrefreshesthedisplay.
 pg. 22 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com Configuring the WV-C830APD Device Selecting Operation mode Toselectoperationmode:1.FromthemainmenuoftheWV‐C830APDManagementApplication,clickConfigurationandfromtheNavigationPanel,clickOperationMode.TheConfiguration,OperationModewindowappears.Figure 5: WV-C830APD Management Application – Configuration, Operation Mode Window
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 23 Thefollowingtabledescribestheparametersyoucanconfigurefromthiswindow:Table 4: WV-C830APD Configuration – Operation Mode Parameter Description OperationModeManuallydeterminesiftheWV‐C830APDdevicewillactasaWi‐FiAccessPointorClient.AutoDetectmodeAutoDetecttheWV‐C830APDdevicemodetoactasWi‐FiAccessPointorClientbythedevicelocation.TheAutoDetectmodesensesthenetworkconnectionatfirstbootorafterrestoringtofactorydefaults.IfadirectlyconnectedDHCPserverisfoundthedevicewillbesettoactasanAccessPoint.Oncethedevicemodeissetitwillnotchangeuntilrestoringthedevicetofactorydefaults.2.ClickApplytoupdatethesettingsimmediately.Thesystemdisplaysanupdatemessage.3.ClickOKandwaitforthesystemtorestart.4.Note:Afterapplyingnewoperationmodeallsettingswillberestoredtodefaultvalues.
 pg. 24 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com Defining Network Settings Todefinenetworksettings:1.FromthemainmenuoftheWV‐C830APDManagementApplication,clickConfiguration.TheConfiguration,NetworkSettingswindowappears.Figure 6: WV-C830APD Management Application – Configuration, Network Settings Window
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 25 Thefollowingtabledescribestheparametersyoucanconfigurefromthiswindow:Table 5: WV-C830APD Configuration – Network Parameters Parameter Description EthernetportmodeThepropertiesoftheEthernet(LAN)portofthedevice:Canbeeitherautonegotiatedupto1Gbpsorfixedto100Mbps.ObtainanIPaddressautomatically Whenselected,thedeviceactsasaDHCPclientandobtainsitsIPpropertiesautomatically.IPAddressTheIPaddressoftheWV‐C830APDdevice.SubnetMaskThesubnetmaskoftheWV‐C830APDdevice.DefaultGatewayThedefaultgatewayoftheWV‐C830APDdevice.DNSServerTheDNSserveroftheWV‐C830APDdevice.EnableDynamicDNSWhencheckedtheWV‐C830APDdevicewillusedynamicDNSprotocoltoregisteritsaliasintotheDNSserver.ThiswillallowaccessingthedeviceusingthegivenaliasinsteadofitsIPaddress.AliasThegivenhostnameoftheWV‐C830APDdeviceLoginandPasswordThelogincredentialsoftheDNSserver/homerouter.VLANTransparent ThedevicewillpassVLANtransparentlyEnableIGMPProxyThedevicewilloperateasanIGMPProxyEnableIGMPSSMThedevicewillsupportIGMPSSM2.ClickApplytoupdatethesettingsimmediately.Thesystemdisplaysanupdatemessage.3.ClickOKandwaitforthesystemtorestart.
 pg. 26 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com Defining Wireless Settings TodefinewirelesssettingsinAccessPointmode:1.FromthemainmenuoftheWV‐C830APDManagementApplication,clickConfigurationandfromtheNavigationPanel,clickWirelessSettings.TheConfiguration,WirelessSettingswindowappears.Figure 7: WV-C830APD Management Application – Configuration, Wireless Settings Window Note: For product available in the USA/Canada market, only 5GHz Band 1 (5150MHz ~ 5250MHz) and Band 4 (5725MHz ~ 5850MHz) can be operated. Selection of other channels is not possible.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 27 Thefollowingtabledescribestheparametersyoucanconfigurefromthiswindow:Table 6: WV-C830APD Configuration – Wireless Parameters Parameter Description BroadcastSSIDWhenchecked,thesystembroadcastitsSSIDinbeaconandproberesponseframes.SSIDServicesetidentifier.Thecodeattachedtobeaconframesandconnectionestablishmentframes.TheSSIDisastringofASCIIcharacters.BeaconIntervalThetimeintervalbetweenbeaconframessentoutbythesystem.Possiblevalues:20–999milliseconds.RateThetransmissionrate(MCS).Possiblevalues:0‐15,andAuto.Selectingautoletsthesystemdynamicallyadaptthetransmissionratetosuitcurrentnetworkconditions.ChannelbandwidthThebandwidththatsystemoccupies:20MHz/40MHz.ChannelhoppingDeterminesthesystembehaviorwheninterferenceisdetected:Always–Changechannelassoonasinterferenceisdetectedonthecurrentradiochannel.Conditional–Changechannelassoonasinterferenceisdetectedonlyifnovideoisbeingstreamedthroughthesystem.DLSWhencheckedthesystememploysthedirectlinkprotocoltoenabledirectclienttoclientcommunication.Usethisoptionwhenclientdevicesinyournetworkcanstreamvideotoeachother,suchasinaMulti‐RoomDVRdeployment.WMMWhencheckedthesystemperformstrafficclassificationandprioritizationaccordingtotheWI‐FIMultimediainteroperabilitycertificationprogram.Thiswillensurethatyourvoiceandvideostreamswillnotbeimpairedbyothertypesoftraffic.UsethisoptiononlyifyouarecertainthatthevoiceandvideostreamsthatenterthesystemaremarkedwithDSCPtoindicatetheirpriority.MultipleBSSWhenenabled,thissectionshowshowmanyadditionalBSSIDsthesystemcansupport.AllowstonameandaddmoreBSSIDs,defaultissetto0.Seenote.
 pg. 28 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com 2.ClickApplytoupdatethesettingsimmediately.Thesystemdisplaysanupdatemessage.3.ClickOKandwaitforthesystemtorestart.Note:ToallowMBSSIDfeature,devicewillbepreconfiguredduringproductionbyODM
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 29 TodefinewirelesssettingsinClientmode:1.FromthemainmenuoftheWV‐C830APDManagementApplication,clickConfigurationandfromtheNavigationPanel,clickWirelessSettings.TheConfiguration,WirelessSettingswindowappears.Figure 8: WV-C830APD Management Application – Configuration, Wireless Settings Window 
 pg. 30 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com Thefollowingtabledescribestheparametersyoucanconfigurefromthiswindow:Table 7: WV-C830APD Configuration – Wireless Parameters Parameter Description RateThetransmissionrate(MCS).Possiblevalues:0‐15,andAuto.Selectingautoletsthesystemdynamicallyadaptthetransmissionratetosuitcurrentnetworkconditions.ChannelbandwidthThebandwidththatsystemoccupies.2.ClickApplytoupdatethesettingsimmediately.Thesystemdisplaysanupdatemessage.3.ClickOKandwaitforthesystemtorestart.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 31 Defining Security Settings (Access Point Mode Only) TodefineSecuritysettings:1.FromthemainmenuoftheWV‐C830APDManagementApplication,clickConfigurationandfromtheNavigationPanel,clickSecuritySettings.TheConfiguration,SecuritySettingswindowappears.TheWV‐C830APDdevicecanbeconfiguredtooperateinoneofthefollowingsecuritymodes:Unsecured–Wirelesssecurityisdisabled,anyclientcanassociatetotheVXT1821AccessPointandthewirelesssignalispassedunencrypted.WEP–StandsforWirelessEquivalentPrivacy.Itisthelegacy802.11securitystandardandprovidesonlybasicsecurity.WEPcanbeeasilycrackedanditisrecommendedtouseWPA2instead.WPA2/PSK‐StandsforWiFiProtectedAccess.ItisbasedontheIEEE802.11istandardandusesAES/TKIPencryptionalgorithm.WPA2ismuchmoresecurethenWEP,itprovidesbestinclassencryptionanduserauthentication.ItisrecommendedthatyouenableWPA2atalltimes.“TobeabletouseWirelessProtectedSetup(WPS)features(Seeatpage36),itisrequiredthatyouenabletheWPA2/PSKsecuritymode”.
 pg. 32 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com TodefineWEPsettings:Figure9‐WV‐C830APDManagementApplication–Configuration,SecuritySettingsWindow,WEPMode
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 33 Table 8: WV-C830APD Configuration – Security Parameters, WEP mode. Parameter Description SecurityModeTheselectedsecuritymode.Possiblevalues:Disable,WEPandWPA2‐PSK.AuthenticationModeTheselectedauthenticationmode.PossiblevaluesareOpenandShared.DefaultKeyTheindexoftheencryptionkeythatwillbeusedfortransmissions.WEPKey1‐4TheWEPencryptionkeys.Keyscanbeenteredeitherasnormalalpha‐numericcharactersorashexadecimaldigits.
 pg. 34 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com TodefineWPA2‐PSKsettings(default):Figure10‐WV‐C830APDManagementApplication–Configuration,SecuritySettingsWindow,WPA2‐PSKMode
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 35 Table 9: WV-C830APD Configuration – Security Parameters, WPA2-PSK mode. Parameter Description SecurityModeTheselectedsecuritymode.Possiblevalues:Disable,WEPandWPA2‐PSK.WPAAlgorithmTheselectedencryptionalgorithm.Possiblevalues:AES(recommended)andTKIP.PassPhraseThesecuritypassphrasetobeusedforgeneratingtheWPA2encryptionkeys.Thepassphrasecanbe8to63byteslong.AccessPolicies:TheWV‐C830APDdevicecanbeconfiguredtocontrolwhichwirelessclientdevicescanassociatewithit.Theavailableaccesspoliciesare:Disable–AnywirelessclientdevicecanassociatewiththeVXT1821AccessPoint.Allow–AwhitelistofallowedMACaddressesdetermineswhichwirelessclientdevicesareallowedtoassociatewiththeVXT1821AccessPoint.Reject–AblacklistofbannedMACaddressesdetermineswhichwirelessclientdevicesarenotallowedtoassociatewiththeVXT1821AccessPoint.Table 10 WV-C830APD Configuration – Access Policy Parameters. Parameter Description PolicyTheselectedAccessPolicy.Possiblevalues:DisableAllowandReject.AddastationMACEnteraMACaddressofawirelessclientdeviceandpresstheAddbuttontoaddittothelistofallowed/bannedwirelessclientdevices.PresstheDeletebuttontoremoveawirelessclientdevicefromthelist.2.ClickApplytoupdatethesettingsimmediately.Thesystemdisplaysanupdatemessage.3.ClickOKandwaitforthesystemtorestart.
 pg. 36 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com Defining WPS Settings WPSisastandardforeasyandsecuresetupofwirelesshomenetworks,createdbytheWiFiallegiance.TheWV‐C830APDKitimplementstwoWPSpairingmethods:TheWPS‐PBCconfigurationmethodallowsyoutopairVXT1821AccessPointandclientdevicesusingapushbutton(SeePairingyourDevicesonpage13).TheWPS‐PINconfigurationmethodallowsyoutopairVXT1821AccessPointandclientdevicesbyenteringthePINcodeoftheclientdeviceintheVXT1821AccessPointWEBUI.TodefineWPSsettingsinAccessPointmode:1.FromthemainmenuoftheWV‐C830APDManagementApplication,clickConfigurationandfromtheNavigationPanel,clickWPSSettings.TheConfiguration,WPSSettingswindowappears.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 37 Figure 11: WV-C830APD Management Application – Configuration, WPS Settings Window

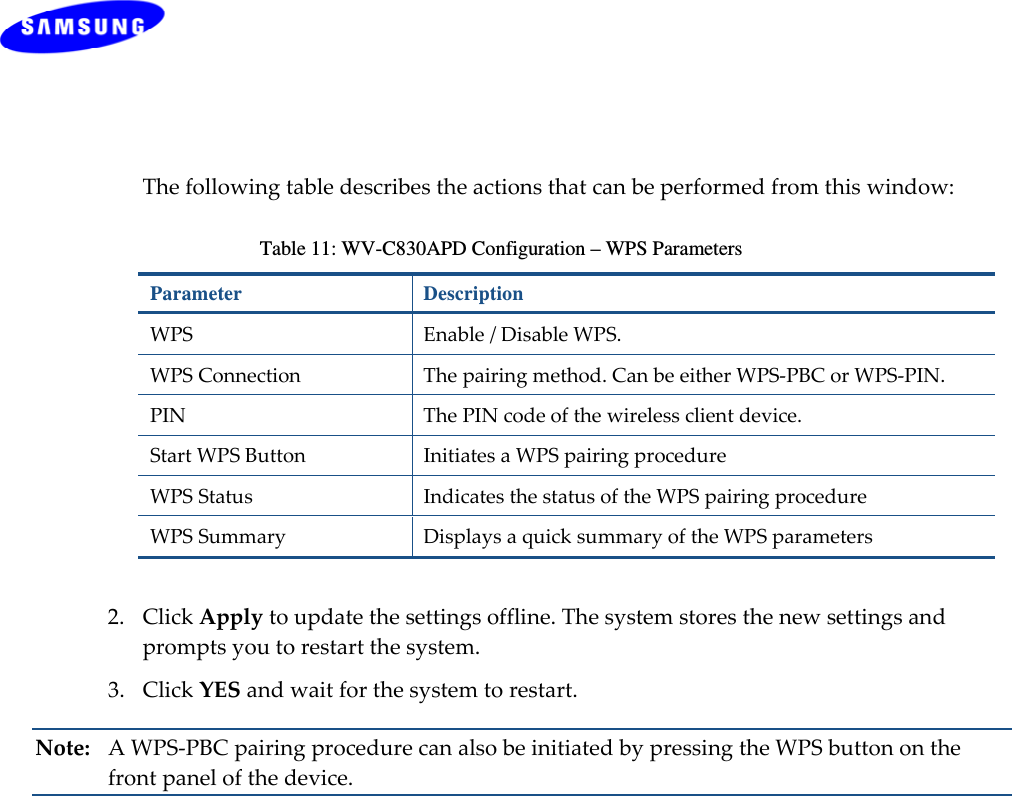

 pg. 38 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com Thefollowingtabledescribestheactionsthatcanbeperformedfromthiswindow:Table 11: WV-C830APD Configuration – WPS Parameters Parameter Description WPS Enable/DisableWPS.WPSConnectionThepairingmethod.CanbeeitherWPS‐PBCorWPS‐PIN.PINThePINcodeofthewirelessclientdevice.StartWPSButtonInitiatesaWPSpairingprocedureWPSStatusIndicatesthestatusoftheWPSpairingprocedureWPSSummaryDisplaysaquicksummaryoftheWPSparameters2.ClickApplytoupdatethesettingsoffline.Thesystemstoresthenewsettingsandpromptsyoutorestartthesystem.3.ClickYESandwaitforthesystemtorestart.Note:AWPS‐PBCpairingprocedurecanalsobeinitiatedbypressingtheWPSbuttononthefrontpanelofthedevice.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 39 TodefineWPSsettingsinClientmode:1.FromthemainmenuoftheWV‐C830APDManagementApplication,clickConfigurationandfromtheNavigationPanel,clickWPSSettings.TheConfiguration,WPSSettingswindowappears.Figure 112: WV-C830APD Management Application – Configuration, WPS Settings Window
 pg. 40 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com Thefollowingtabledescribestheactionsthatcanbeperformedfromthiswindow:Table 12: WV-C830APD Configuration – WPS Parameters Parameter Description StartWPSPBCButtonInitiatesaWPS‐PBCpairingprocedureStartWPSPINButtonInitiatesaWPS‐PINpairingprocedureClientPINAreadonlyfieldthatdisplayedthePINcodeofthewirelessclientdevice.ThisPINcodeshouldbeenteredintotheappropriatefieldontheWV‐C830APDAPdeviceWEBUIwhenperformingaWPS‐PINpairingprocedure.WPSStatusIndicatesthestatusoftheWPSpairingprocedure2.ClickApplytoupdatethesettingsoffline.Thesystemstoresthenewsettingsandpromptsyoutorestartthesystem.3.ClickYESandwaitforthesystemtorestart.Note:AWPS‐PBCpairingprocedurecanalsobeinitiatedbypressingtheWPSbuttononthefrontpanelofthedevice.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 41 Site Survey (Client Mode Only) ThesitesurveywindowallowsyoutofindandconnecttheVXT1825clienttoawirelessAccessPoint.TofindandconnecttoawirelessAccessPoint:1.FromthemainmenuoftheWV‐C830APDManagementApplication,clickConfigurationandfromtheNavigationPanel,clickSiteSurvey.TheConfiguration,Sitesurveywindowappears.Figure 123: WV-C830APD Management Application – Configuration, Site Survey Window
 pg. 42 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com Thefollowingtabledescribestheparametersinthesitesurveytable:Table 113: WV-C830APD Configuration – Site Survey table Parameter Description SSIDServiceSetIdentifier.Thecodeattachedtobeaconframesandconnectionestablishmentframes.BSSIDBasicServiceSetIdentifier.ThisfielduniquelyidentifieseachBSS.RSSIThesignalqualitybetweentheAccessPointandtheClient.ChannelThewirelesschannelthattheAccessPointisoperatingin.EncryptionTheencryptionschemeusedbytheAccessPoint.AuthenticationTheAuthenticationschemeusedbytheAccessPoint.StateIndicatesifthisisanAd‐Hocconnectionoraninfrastructurenetwork.2.SelecttheAccessPointyouwanttoconnecttoandclicktheConnectbutton.3.ClickApplyandwaitseveralsecondsfortheClienttoconnect.ClickingtheRescanbuttoninitiatesanewsitesurveyscanandmaytemporaryinterrupttheservicetothewirelessClient.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 43 Stations List (Access Point Mode Only) TheStationsListwindowpresentsalistofclientsconnectedtotheVXT1821AccessPoint.Figure 134: WV-C830APD Management Application – Configuration, Associated Stations List Window
 pg. 44 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com Thefollowingtabledescribestheparametersinthestationslist:Table 124: WV-C830APD Configuration – Stations List Parameter Description MACAddressTheMACAddressoftheassociatedclient.RateThemodulation(physicaldatarate)thattheAccessPointservicestheClientwith.BandwidthThebandwidththattheAccessPointuseswhensendingdatatotheClient.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 45 Configuring Remote Management TheWV‐C830APDimplementsmechanismsthatenableitsremotemanagementandtroubleshooting.RemoteLogging–Whenenabled,theWV‐C830APDperiodicallyuploadseventandperformancemonitoringlogstoapre‐designatedFTPserver.UPnP–Whenenabled,theWV‐C830APDusesUPnPtoaccessthehomegatewaydeviceandconfigureitsportmappingtabletoenableaccessingitremotely.NTP–Whenenabled,theWV‐C830APDusesNTPprotocoltoobtaindate&time.TR‐069–Whenenabled,theWV‐C830APDdevicecanberemotelyprovisionedusingtheTR‐069managementprotocol.ToconfigureRemoteManagementsettingsinAccessPointmode:1.FromthemainmenuoftheWV‐C830APDManagementApplication,clickConfigurationandfromtheNavigationPanel,clickRemotemanagement.TheConfiguration,RemoteManagementwindowappears.
 pg. 46 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com Figure 14: WV-C830APD Management Application – Configuration, Remote Management Window
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 47 Thefollowingtabledescribestheactionsthatcanbeperformedfromthiswindow:Table 13: WV-C830APD Configuration – Remote Management Parameter Description EnableRemoteLogging Enable/DisableRemotelogging.FTPServerTheIPaddressoftheFTPserverontowhichthelogswillbeuploaded.FTPFolderThefoldernameintowhichthelogswillbeuploaded.FTPUsernameTheFTPusername.FTPPasswordTheFTPpassword.LoggingIntervalTheperiodinhoursofthescheduledloguploads.EnableUPnPEnable/DisableUPnPbasedportmappingconfigurationintheHomeGateway.BasePortTheportattheHomeGatewaythatthedevicewillbemappedto.Incasethattheselectedportisalreadymappedinthegateway,thenextavailableportwillbeused.EnableNTPEnable/DisabletimesynchronizationwithanNTPserver.PrimaryNTPServerTheIPaddressoftheprimaryNTPserverSecondaryNTPServerTheIPaddressofthesecondaryNTPserverTimezoneThetimezonethedeviceresidesin.EnableTR‐069Configuration Enable/DisableremoteprovisioningusingtheTR‐69managementprotocol.ACSURLTheURLoftheremoteACS(AutomaticConfigurationServer)ACSUsername/PasswordThelogincredentialsoftheACS.PeriodicInformEnableWhenenabledtheWV‐C830APDdeviceconnectperiodicallytotheACS.PeriodicInformIntervalThetimeintervalinsecondsbetweenperiodicconnectionattempts.
 pg. 48 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com 2.ClickApplytoupdatethesettingsoffline.Thesystemstoresthenewsettingsandpromptsyoutorestartthesystem.3.ClickYESandwaitforthesystemtorestart.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 49 ToconfigureRemoteManagementsettingsinClientmode:1.FromthemainmenuoftheWV‐C830APDManagementApplication,clickConfigurationandfromtheNavigationPanel,clickRemotemanagement.TheConfiguration,RemoteManagementwindowappears.Figure 15: WV-C830APD Management Application – Configuration, Remote Management Window
 pg. 50 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com Thefollowingtabledescribestheactionsthatcanbeperformedfromthiswindow:Table 14: WV-C830APD Configuration – Remote Management Parameter Description EnableUPnPEnable/DisableUPnPbasedportmappingconfigurationintheHomeGateway.BasePortTheportattheHomeGatewaythatthedevicewillbemappedto.Incasethattheselectedportisalreadymappedinthegateway,thenextavailableportwillbeused.EnableNTPEnable/DisabletimesynchronizationwithanNTPserver.PrimaryNTPServerTheIPaddressoftheprimaryNTPserverSecondaryNTPServerTheIPaddressofthesecondaryNTPserverTimezoneThetimezonethedeviceresidesin.EnableTR‐069ConfigurationEnable/DisableremoteprovisioningusingtheTR‐69managementprotocol.ACSURLTheURLoftheremoteACS(AutomaticConfigurationServer)ACSUsername/PasswordThelogincredentialsoftheACS.PeriodicInformEnableWhenenabledtheWV‐C830APDdeviceconnectperiodicallytotheACS.PeriodicInformIntervalThetimeintervalinsecondsbetweenperiodicconnectionattempts.2.ClickApplytoupdatethesettingsoffline.Thesystemstoresthenewsettingsandpromptsyoutorestartthesystem.3.ClickYESandwaitforthesystemtorestart.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 51 Performing Administration Toperformadministration:1.FromthemainmenuoftheWV‐C830APDManagementApplication,clickConfigurationandfromtheNavigationPanel,clickAdministration.TheConfiguration,Administrationwindowappears.Figure 16 - WV-C830APD Management Application – Configuration, Administration Window

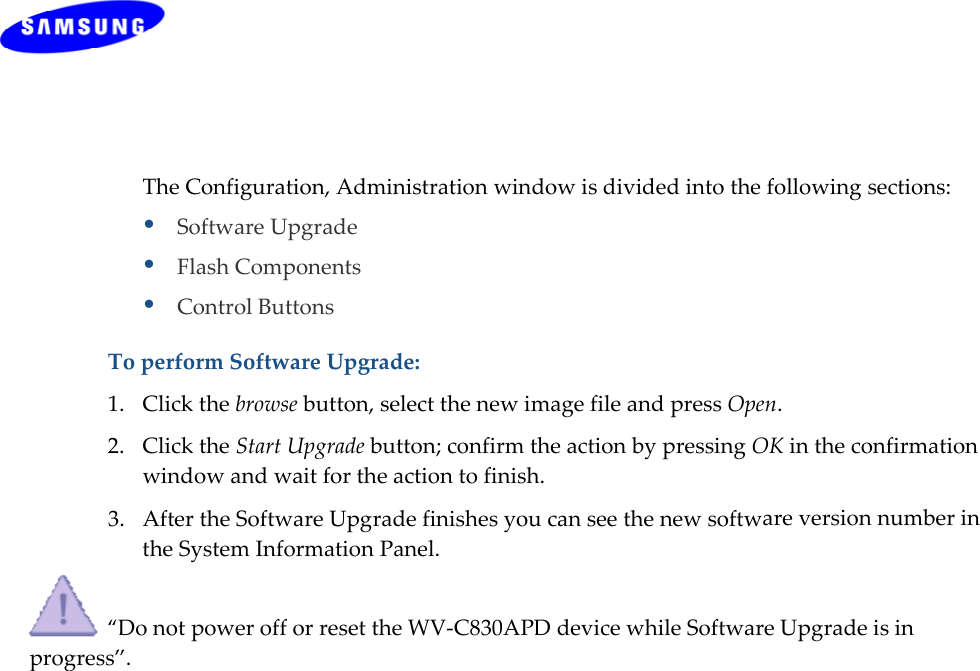

 pg. 52 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com TheConfiguration,Administrationwindowisdividedintothefollowingsections:SoftwareUpgradeFlashComponentsControlButtonsToperformSoftwareUpgrade:1.Clickthebrowsebutton,selectthenewimagefileandpressOpen.2.ClicktheStartUpgradebutton;confirmtheactionbypressingOKintheconfirmationwindowandwaitfortheactiontofinish.3.AftertheSoftwareUpgradefinishesyoucanseethenewsoftwareversionnumberintheSystemInformationPanel.“DonotpowerofforresettheWV‐C830APDdevicewhileSoftwareUpgradeisinprogress”.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 53 TochangethepasswordoftheWV‐C830APD:1.ClicktheChangePasswordButton.Thefollowingwindowappears:Figure 17 - WV-C830APD Management Application – Change Password Window 2.FillthenewpassworddetailsinthechangepasswordwindowandpressOK.3.Afterthesuccessfulcompletionoftheoperationyouwillbepromptedtologinagain.Note:Onlyasingleuser(admin)issupportedinthecurrentrelease.TodownloadlogfilesfromtheWV‐C830APDdevice:1.ClicktheDownloadLogFilesButton.2.Aconfirmationwindowwillpromptyoutoconfirmthedownload.TorestoretheWV‐C830APDconfigurationtofactorydefaults:1.ClicktheRestoreDefaultsButton;confirmtheactionbypressingOKintheconfirmationwindowandwaitfortheactiontofinish.Note:YoucanalsorestoretheWV‐C830APDdevicetofactorydefaultsbypressingandholdingtheResetbuttonfor10seconds.
 pg. 54 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com ToresettheWV‐C830APDdevice:1.ClicktheResetbutton;confirmtheactionbypressingOKintheconfirmationwindowandwaitfortheactiontofinish.Note:YoucanalsoresettheWV‐C830APDdevicebypressingshortlyontheResetbutton.Todisablerescuemode1.ClicktheEnablerescuemodecheckbox;confirmtheactionbypressingOKintheconfirmationwindowandwaitfortheactiontofinish.Forfurtherexplanationseetroubleshootingsection.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 55 Monitoring the WV-C830APD Device TheWV‐C830APDManagementApplicationMonitordisplaysinformationaboutthecurrentstatusofyourWV‐C830APDDevice.ThesystemcontinuallymonitorsavarietyofnetworkparametersanddisplaysthemintheCounterswindow.Viewing System Parameters ToviewSystemParameters:FromthemainmenuoftheWV‐C830APDManagementApplication,clickMonitor.TheMonitor,Counterswindowappears.Figure 18: WV-C830APD Management Application – Monitor, Counters Window
 pg. 56 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com A Troubleshooting WV-C830APD Kit BasicsetupSymptomAdvisedsolutionThePowerLEDisoffMakesurethat:Thepowercordisconnectedtothedeviceandthatthepoweradapterisproperlyconnectedtoafunctioningpoweroutlet.Youareusingthepoweradapterthatwassuppliedwiththeproduct.TheLANLEDisoffMakesurethat:TheLANcableconnectorsaresecurelypluggedinatthewirelessvideoextenderdeviceandatthenetworkdevice(gateway,modemorsettopbox).Theconnectednetworkdeviceisturnedon.YouareusingthecorrectcabletypeforyourEthernetequipmentthatisatleastUTPCAT5withRJ45connectors.TheWLANLEDisnotonMakesurethatyouhavecompletedasuccessfulpairingprocedureasdescribedinʺPairingyourDevicesʺonpage13herein.YouareseeingartifactsontheTVscreenMakesurethatthewirelessvideoextenderdevicesareplacedaccordingtotherecommendationinPlacingandconnectingyourdevicesonpage14herein.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 57 BasicsetupSymptomAdvisedsolutionNoaccesstotheWV‐C830APDwebcontrolpages.MakesurethatyourcomputerIPaddressis10.XXX.YYY.ZZZanditssubnetmaskis255.0.0.0.IfyourWV‐C830APDIPaddresshasbeenchanged,pleaseassignthecomputeranIPaddressinthesamerangeastheWV‐C830APDIPAddress.Remember:WheneverachangeismadeintheSetupoftheAccessPoint,theApplybuttonmustbeusedtosavethesettingstotheAccessPoint.Remember:TheAccessPointcontrolwebpageisnotaccessiblefromthewirelessclient/adaptersegment.Using Rescue Mode: RescuemodeenablestheVXT1825clienttoupdateitsfirmwareversionfromtheAP.Ifenabled,thismodecanbeusedforoneoftwopurposes: TosynchronizefirmwareversionsbetweenAPandclient. Torecoverclientinanycaseoffirmwaredamage.Howtoperformfirmwareupgradeinrescuemode:1.InordertoupdateclientfirmwareversionfromtheAPconnectbothdevicesviaEthernetcablewhilebothofthemareoff.2.PowerupAPdeviceandwaitoneminuteuntilbootprocessfinishes.3.PowerupclientdeviceandmonitortheprocessthroughLEDbehavior.Itmaytakeupto5minutes.
 pg. 58 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com 4.Atfirst,clientpowerLEDwillblinkfor5seconds.AfterthatallLEDsonbothAPandclientwillbesolidonforabout2minutes.Next,clientpowerLEDwillbeofffor5secondsandthenbothdeviceswillrebootthemselves.Asthebootprocessendsyoucanpoweroffthetwoboardsandreconnectthemwithinthenetworktopologyasyouwish.Using Performance Management Tool: TheAPcangenerateIPerftraffictotheclientsandreporttotechnicianthroughputandPERtooptimizeinstallationprocess.Thereishiddenpage,toaccess:http://<IP>/ap/cfg_tech.asp,
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 59 Howtoperformatest:1.InordertousethistoolbesurethatAPandclientdevicesareconnected.2.Choise:Protocoltype,duration,stationindex,duration,throughputandpacketsize.RecommendedtousethedefaultsettingascommonforIPTV.3.ClickStartIperftobeginatest.
 pg. 60 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com 4.TheresultswillbeappearedinIperfResultswindows.TogettheresultsintextformatuseDownloadLogFilesbutton.Note:don’tuseatoolwhenrealvideotrafficrunsoverthewirelesslink.FCCStatementFederalCommunicationCommissionInterferenceStatementThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneofthefollowingmeasures:●Reorientorrelocatethereceivingantenna.●Increasetheseparationbetweentheequipmentandreceiver.●Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.●Consultthedealeroranexperiencedradio/TVtechnicianforhelp.FCCCaution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethisequipment.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.Thisdeviceanditsantenna(s)mustnotbeco‐locatedoroperationinconjunctionwithanyotherantennaortransmitter.
 Copyright © 2012 Celeno Communications™ - All Rights Reserved | www.celeno.com pg. 61 Thisdeviceisgoingtobeoperatedin5.15~5.25GHzfrequencyrange,itisrestrictedinindoorenvironmentonly.IMPORTANTNOTE:FCCRadiationExposureStatement:ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cmbetweentheradiator&yourbody.
