2Getting started3 About this manual7 Layout13 Turning the computer on and offBasics16 Using the computer as a tablet17 Touch screen21 Keyboard23 Touchpad25 Memory card27 Wireless LANChrome OS28 Using applications28 All about Chrome OS30 Get on the web32 Discover web apps33 FAQ33 Recovery (optional)Settings & Upgrade35 LCD brightness36 Volume37 BatteryAppendix40 Product specifications41 Ergonomic tips45 Powering your device47 Safety precautions60 Important safety information63 Replacement parts and accessories66 Regulatory compliance statements84 WEEE symbol information86 Samsung package Take-Back programTable of contents

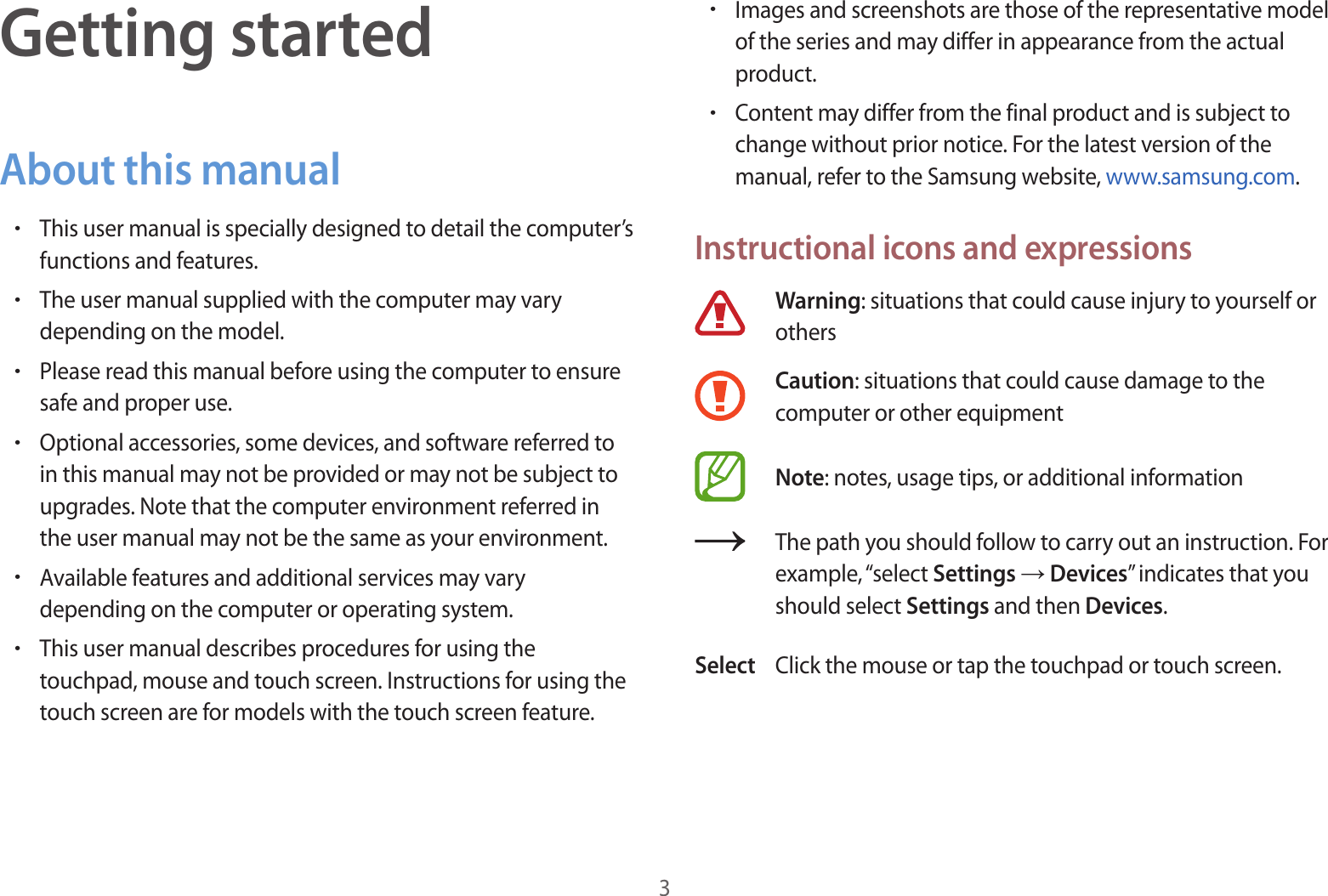

3Getting startedAbout this manual•This user manual is specially designed to detail the computer’s functions and features.•The user manual supplied with the computer may vary depending on the model.•Please read this manual before using the computer to ensure safe and proper use.•Optional accessories, some devices, and software referred to in this manual may not be provided or may not be subject to upgrades. Note that the computer environment referred in the user manual may not be the same as your environment.•Available features and additional services may vary depending on the computer or operating system.•This user manual describes procedures for using the touchpad, mouse and touch screen. Instructions for using the touch screen are for models with the touch screen feature.•Images and screenshots are those of the representative model of the series and may differ in appearance from the actual product.•Content may differ from the final product and is subject to change without prior notice. For the latest version of the manual, refer to the Samsung website, www.samsung.com.Instructional icons and expressionsWarning: situations that could cause injury to yourself or othersCaution: situations that could cause damage to the computer or other equipmentNote: notes, usage tips, or additional informationThe path you should follow to carry out an instruction. For example, “select Settings → Devices” indicates that you should select Settings and then Devices.Select Click the mouse or tap the touchpad or touch screen.
Getting started4CopyrightCopyright © 2016 Samsung ElectronicsThis manual is protected under international copyright laws.No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics.Computer specifications or the contents of this manual may be changed without prior notice due to an upgrade of the computer’s functions.To service your computerFor inquiries about the Chrome operating system or applications, visit www.google.com/support/chromeos.If you have a problem while using the Chromebook hardware, please contact our Customer Care Center below or visit www.samsung.com/sec/support/guarantee.do.If you replace or upgrade the hardware yourself, the Chrome operating system will not be automatically updated and the product will not work properly.
Getting started5Chrome OS Software LicenseThe software included in this product contains copyrighted software that is licensed under the GPL/LGPL.You may obtain the complete Corresponding Source code from website: http://git.chromium.org/gitweb/This offer is valid to anyone in receipt of this information.As an ENERGY STAR® Partner, Samsung has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.•The ENERGY STAR Program has reduced greenhouse gas emissions and saved energy through voluntary labeling.•Power management setting of this product has been enabled by default, and has various timing settings from 1 minute to 5 hours.•The product can wake with a button press on the chassis from sleep mode.Trademarks•Samsung and the Samsung logo are trademarks or registered trademarks of Samsung Electronics.•Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.•Wi-Fi®, Wi-Fi Protected Setup™, Wi-Fi Direct™, Wi-Fi CERTIFIED™, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.•All other trademarks and copyrights are the property of their respective owners.
Getting started6About the Product Capacity Representation StandardAbout Memory Capacity RepresentationThe memory capacity reported in the Chrome OS is less than the actual capacity of memory.This is because BIOS or a video adapter uses a portion of memory or claims it for further use.(E.g. For 1 GB(=1,024 MB) memory installed, OS(Windows, Chrome, etc.) may report the capacity as 1,022 MB or less)Precautions for Operating System SupportIf a problem occurs because of the reinstallation of other operating systems(OS) or a previous version of an OS pre-installed on this computer, or a software that does not support the OS, the company will not provide technical support, a replacement or refund, and if our service engineer visits you due to this problem, a service charge will be applied.Performance RestrictionsOnline games and some games(3D, 2D) may not be supported and Full HD video and some high bit rate HD video playback may be slow and stutter on this computer.

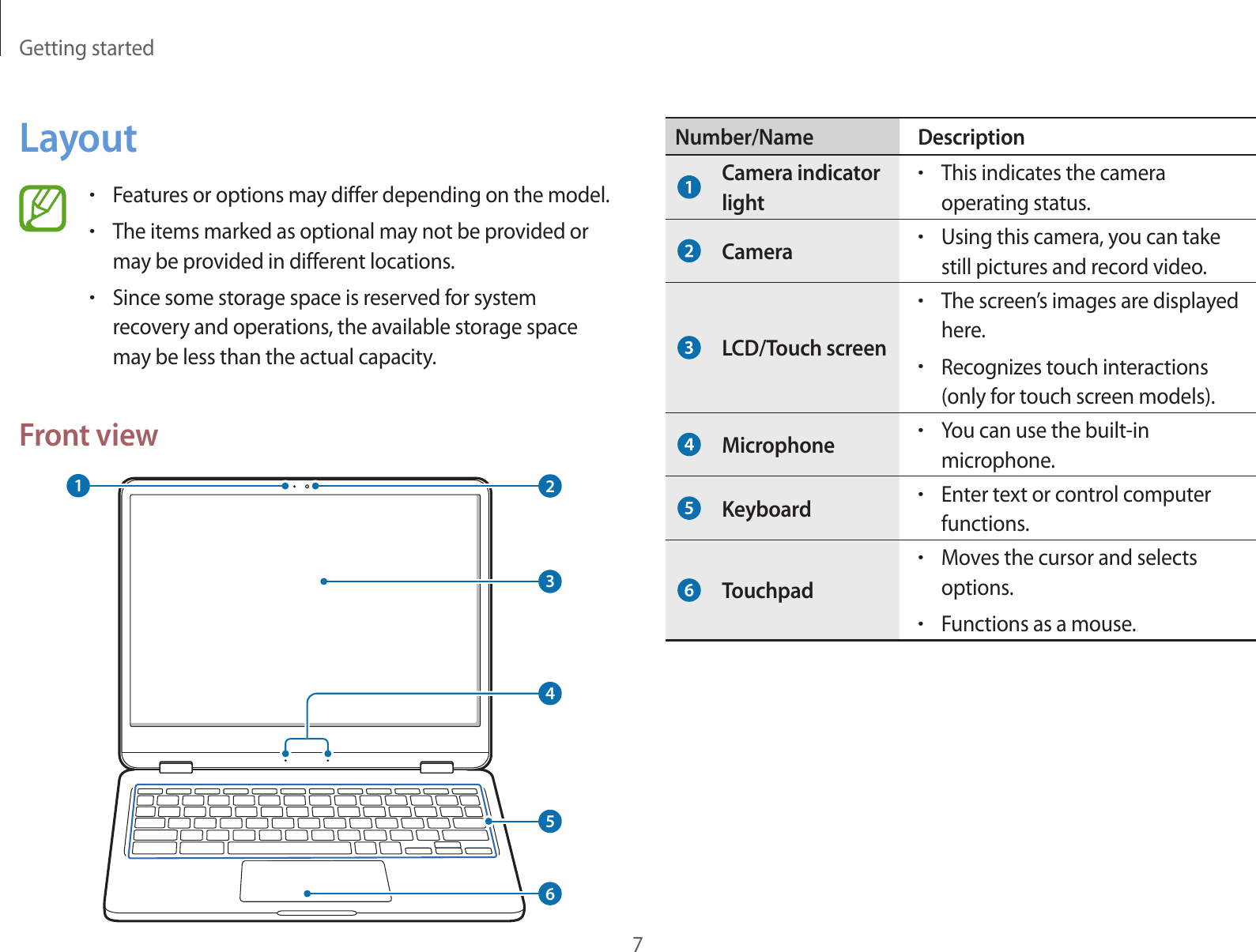

Getting started7Number/Name DescriptionCamera indicator light•This indicates the camera operating status.Camera•Using this camera, you can take still pictures and record video.LCD/Touch screen •The screen’s images are displayed here.•Recognizes touch interactions (only for touch screen models).Microphone•You can use the built-in microphone.Keyboard•Enter text or control computer functions.Touchpad•Moves the cursor and selects options.•Functions as a mouse.Layout•Features or options may differ depending on the model.•The items marked as optional may not be provided or may be provided in different locations.•Since some storage space is reserved for system recovery and operations, the available storage space may be less than the actual capacity.Front view123564

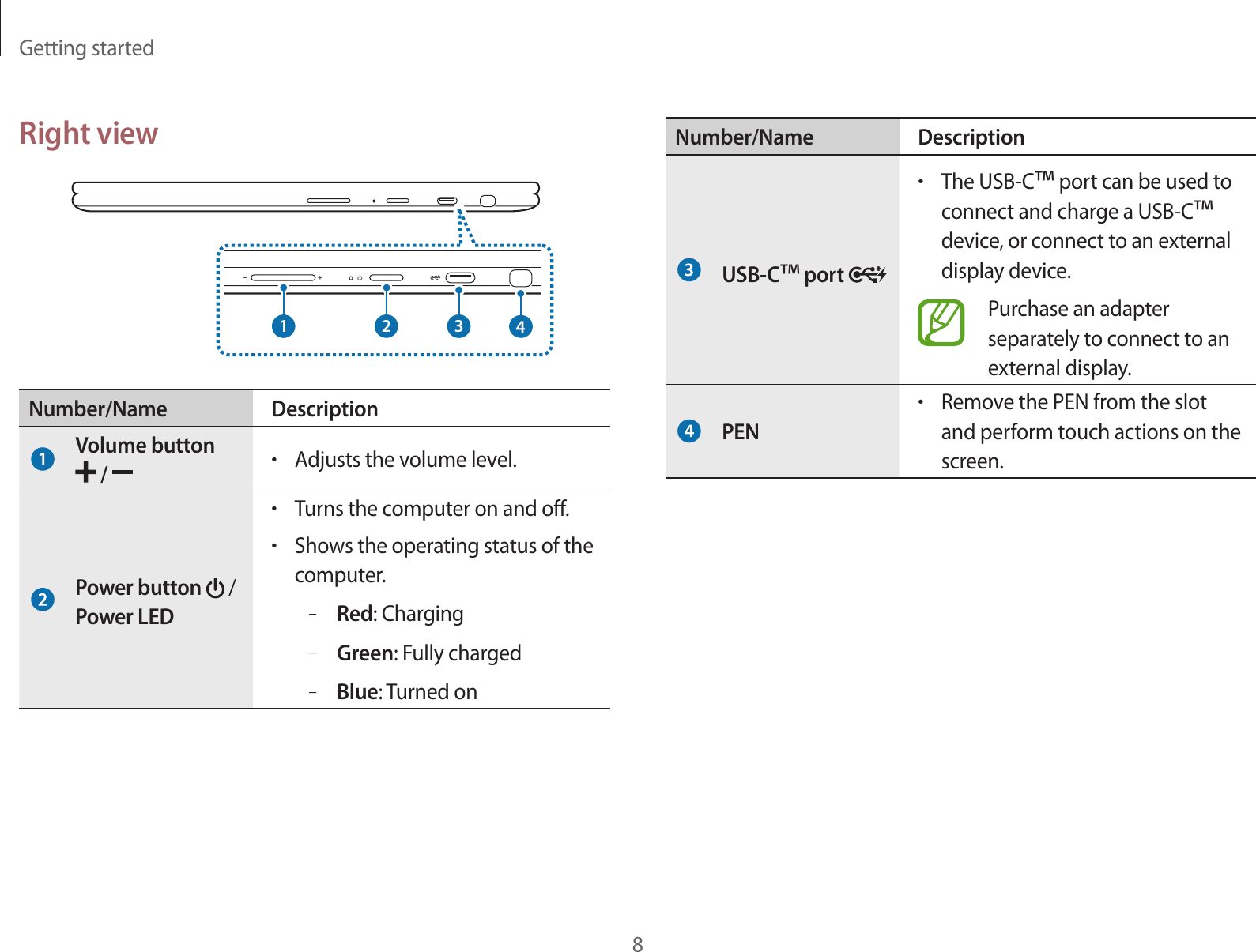

Getting started8Number/Name DescriptionUSB-C™ port •The USB-C™ port can be used to connect and charge a USB-C™ device, or connect to an external display device.Purchase an adapter separately to connect to an external display.PEN•Remove the PEN from the slot and perform touch actions on the screen.Right view21 34Number/Name DescriptionVolume button / •Adjusts the volume level.Power button / Power LED•Turns the computer on and off.•Shows the operating status of the computer.–Red: Charging–Green: Fully charged–Blue: Turned on
Getting started9Number/Name DescriptionEarpiece/Headset jack •This jack connects to the AC adapter to supply power to the computer.USB-C™ port •The USB-C™ port can be used to connect and charge a USB-C™ device, or connect to an external display device.Purchase an adapter separately to connect to an external display.Memory card slot •Insert a memory card into the slot.Left view1 2 3About the chargeable USB port•It may take longer to charge the battery when charging a USB device.•The battery power level may be reduced when charging a USB device while the computer is powered by the battery.•The charging status of the USB device is not displayed on the computer.•This feature may not be available on some USB devices.•When the computer is turned off, the device connected to the USB port is not charged.
Getting started10Number/Name DescriptionFan vents•The internal heat of the computer is emitted through these holes.•If the vents are blocked the computer may overheat. Avoid blocking the vents as this may be dangerous.Internal battery•Provides power to the computer when not connected to an AC adapter.•To remove or replace the internal battery, take it to a Samsung Service Center. You will be charged for this service.Speaker•Sound is emitted from the speakers.If the bottom of the computer is replaced, the model name, serial number, and some logos will no longer be present. For more information, contact the Samsung Service Center to request assistance.Bottom view12
Getting started11Detaching the PENPress the end of the PEN to disengage it. Then, pull the PEN from the slot. To store the PEN, push it back into the slot until you hear it click.21PEN12Number/Name DescriptionPEN nib•Use the PEN to write, draw, or perform touch actions on the screen.Tweezers•Remove the PEN nib with the tweezers when replacing the nib.
Getting started12Be careful not to pinch your fingers with the tweezers.•Do not reuse old nibs. Doing so may cause the PEN to malfunction.•Do not press the nib excessively when inserting the nib into the PEN.•Do not insert the round end of the nib into the PEN. Doing so may cause damage to the PEN or your device.•Do not bend or apply excessive pressure with the PEN while using it. The PEN may be damaged or the nib may be deformed.•If you use the PEN at sharp angles on the screen, the device may not recognise the PEN actions.•If water enters the PEN slot, gently shake the device to remove the water from the slot before using it.•For more information about the PEN, visit the Samsung website.•If the PEN is not working properly, take it to a Samsung Service Center.Replacing the PEN nibIf the nib is dull, replace it with a new one.1 Firmly hold the nib with the tweezers and remove it.2 Insert a new nib into the PEN.
Getting started133 The computer turns on automatically when the LCD panel is opened.If the computer does not turn on automatically, press the Power button.Turning the computer on and offFully charge the battery using the AC adapter before using the computer for the first time.Turning the computer on1 Before turning on the computer, check that the battery is charged and charge it if necessary.2 Open the LCD panel.
Getting started14Using the Power buttonPress and hold the Power button for about 8 seconds to shut down the Chromebook.Press and hold the Power button for about 2 seconds to enter power saving mode.In this lock state, press and hold the Power button for about 2 seconds to shut down the Chromebook.To shut down the Chromebook when the system has frozen unexpectedly, press and hold the Power button for at least 8 seconds.Turning the computer offUsing screen buttonsSelect the Power button ( ).•Save all data before turning off the computer.•If the screen is locked in power saving modeClick on the screen, tap the touchpad, or press any key to unlock the screen.
Getting started15Controlling the power of the ChromebookIf the Lid is closedWhen there is no input for a predetermined period of timeIf the Power button is pressedSigned-in stateEnters power saving modeEnters power saving modeThe state changes to the sign out stateSigned-out stateThe computer is turned offThe computer is turned offThe computer is turned offPress any key or swipe the touchpad to unlock the screen.
16•When the LCD panel is tilted past the transition pointThe keyboard and touchpad will automatically be locked and will not function.The display will rotate automatically depending on the computer’s orientation.•When the screen is turned off while using the computer as a tablet, press the Volume button to unlock the screen. When the computer is in power saving mode, press the Power button to unlock the screen.When storing the computer in a bag or carrying it, close the LCD panel to protect the computer.BasicsUsing the computer as a tabletYou can use the computer as a tablet by folding the LCD panel behind the keyboard.Open the LCD panel and rotate it away from the keyboard until it touches the bottom side of the computer.
Basics17Tapping and holding (right-clicking)To use additional options of an item, tap and hold it on the touch screen.DraggingTo move an item to another location, tap and hold it, and then drag it on the touch screen to the desired location.Touch screenUse your fingers or a PEN on the touch screen to perform actions.Touch screen gesturesTappingTo select menus, options, or applications, tap the touch screen.Double-tappingTo open files or items, double-tap the touch screen.
Basics18ScrollingTo scroll up, down, left, or right, swipe on the touch screen.ororSpreading and pinchingTo zoom in, spread two fingers apart on an image or text. Pinch to zoom out.
Basics19•Leaving the touch screen idle for extended periods may result in afterimages (screen burn-in) or ghosting. Turn off the touch screen when you are not using the computer.•Make sure your hands are clean and dry before using the touch screen. Remove any moisture from your hands before using the touch screen.•Do not expose the computer to foreign substances. Doing so may cause the touch screen to malfunction.•Very light touches on the touch screen may not be recognized.•Precisely tap items on the touch screen for the best results.•The touch screen sensors are located on the edges of the touch screen. Therefore, do not cover the edges of the touch screen with protective covers or accessories.•Touch screen gestures are available for touch screen models running Windows and work only with some applications.•Do not subject the touch screen to severe impacts or press it with sharp objects. Doing so may damage the touch screen.•Do not allow the touch screen to come into contact with other electrical devices. Electrostatic discharges can cause the touch screen to malfunction.•Do not expose the touch screen to water. The touch screen may malfunction in humid conditions or when exposed to water.•Do not spray liquid cleansing solutions directly onto the touch screen. The solution may enter the touch screen or cause undesired operation. To clean the screen, dampen a cloth with solution and gently wipe the screen. Do not use solutions or cloths that contain abrasive materials, as they may damage the touch screen.•Do not damage the edges of the touch screen. Doing so may damage the touch screen.
Basics20Using the PaletteUse the Palette to use additional touchscreen functions.To open the Palette, select on the taskbar.To change Palette options, select and click one of the following:•Capture Region ( ) : Select and capture an area of the screen.•Capture Screen ( ) : Capture the current screen.•Create Note ( ) : Open Google Keep and create a memo.•Magnifier ( ) : Expand an area of the screen to zoom in on items.•Laser Pointer ( ) : Use the PEN as a laser pointer for the screen.
Basics21KeyboardShortcut key functions and procedures are discussed in the following sections.•The keyboard image may differ from the actual keyboard.•The keyboard may differ depending on your country. The following mainly describes the shortcut keys.Shortcut KeysHere is an overview of the shortcut keys on the top row of the keyboard.Shortcut Keys Description•Go to the previous page in your browser history.•Go to the next page in your browser history.•Reload your current page.•Hide the tabs and launcher in full-screen Immersive mode.Shortcut Keys Description•Enter Overview mode, which shows all windows.•Decrease screen brightness.•Increase screen brightness.•Mutes the sound. In Mute mode, press the key to cancel the Mute function.•Decrease the volume.•Increase the volume.•Lock the screen orientation.
Basics22Shift keyHold the Shift key down to enter upper case letters.Hot key functionPress the following keys at the same time.You can check the hot keys in Chrome OS.Search keyWhere you’d find the Caps Lock key on a traditional keyboard, we’ve put the Search key.Press the Search key to move the pointer to the address bar of the Apps list.If you really need Caps Lock, go to the Settings page to make the Search key behave like a Caps Lock key.System ResetIf computer is frozen and unresponsive, press the following keys at the same time.

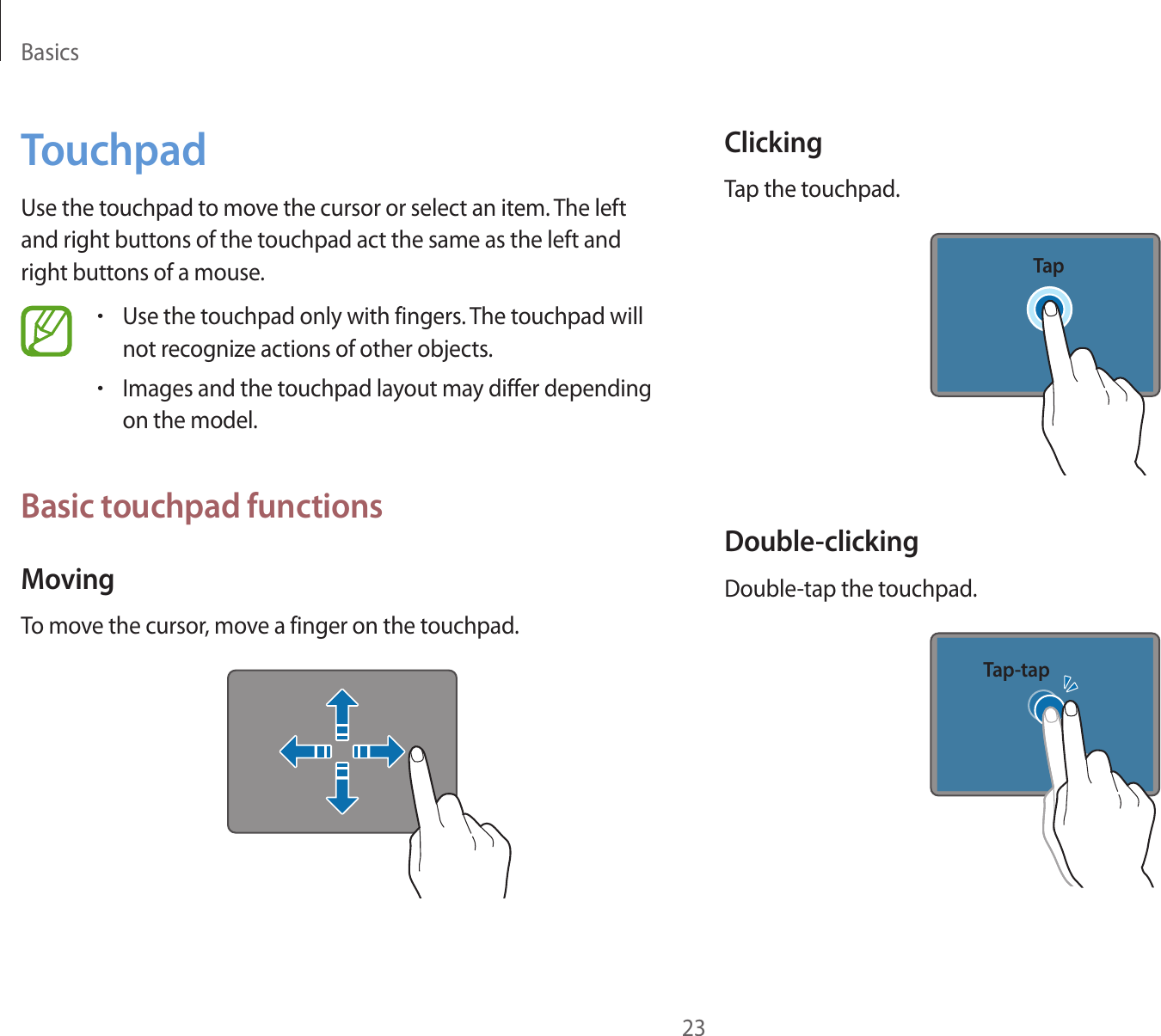

Basics23TouchpadUse the touchpad to move the cursor or select an item. The left and right buttons of the touchpad act the same as the left and right buttons of a mouse.•Use the touchpad only with fingers. The touchpad will not recognize actions of other objects.•Images and the touchpad layout may differ depending on the model.Basic touchpad functionsMovingTo move the cursor, move a finger on the touchpad.ClickingTap the touchpad.TapDouble-clickingDouble-tap the touchpad.Tap-tap
Basics24Adjusting your Touchpad SettingsIf your touchpad is too sensitive, you can adjust your settings by following these steps:1 Click the list icon on the top-right corner of your browser.2 Select Settings.3 Go to Device → Touchpad speed, and change the settings as appropriate.Right-clickingTo right-click, place two fingers on the touch area and tap once.TapDraggingTo move an icon or an app tile to a desired location, press and hold it and then drag it to the target position.Press and hold the left touchpadMove

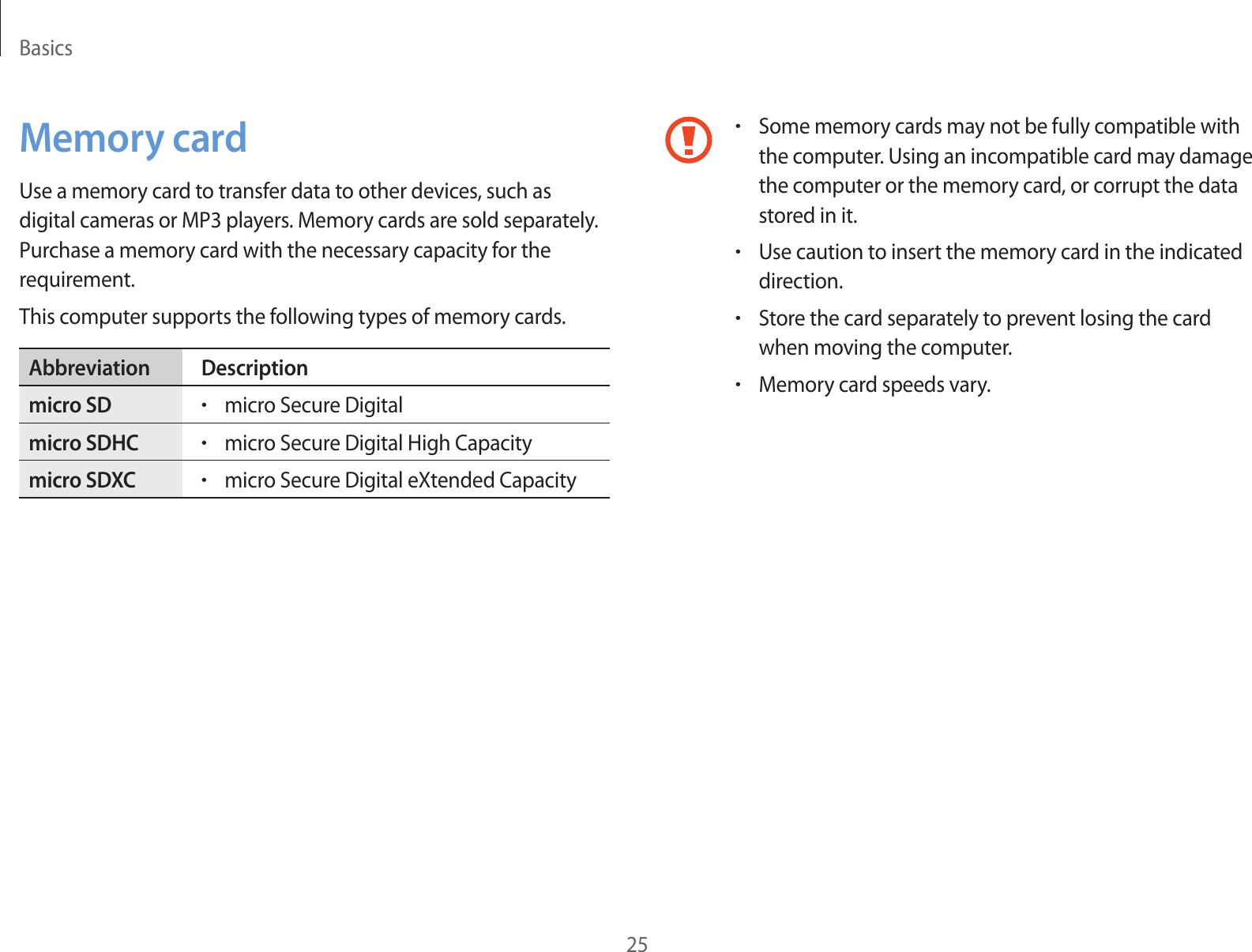

Basics25•Some memory cards may not be fully compatible with the computer. Using an incompatible card may damage the computer or the memory card, or corrupt the data stored in it.•Use caution to insert the memory card in the indicated direction.•Store the card separately to prevent losing the card when moving the computer.•Memory card speeds vary.Memory cardUse a memory card to transfer data to other devices, such as digital cameras or MP3 players. Memory cards are sold separately. Purchase a memory card with the necessary capacity for the requirement.This computer supports the following types of memory cards.Abbreviation Descriptionmicro SD•micro Secure Digitalmicro SDHC•micro Secure Digital High Capacitymicro SDXC•micro Secure Digital eXtended Capacity
Basics263 A new tab opens and the list of files on the card appears.4 Click on a file to read the data for the file.Removing a memory cardPush the card gently until it disengages from the memory card slot. Grasp the end of the card and pull it out of the slot.•Available data formats depend on the current version of the Chrome operating system.•Data on the card can be saved to the Download folder under Apps list → Files.•The maximum file size will vary depending on Chrome OS.Inserting a memory card1 If a dummy card or a memory card adapter is inserted in the memory card slot, remove it.2 Insert a memory card into the memory card slot in the indicated direction.
Basics272 Select No network.The Wi-Fi list will appear.Wi-Fi List3 Select a network from the list of detected Wi-Fi list.4 If the connection is successfully established, the network icon is displayed.•If the network is not properly connected, it is represented as .•The number of activated bars in the network icon represents the signal strength of the wireless LAN.Wireless LANConnect the computer to a wireless network to use the Internet.The descriptions below are for computer models with a Wireless LAN card or device. A Wireless LAN device is optional. The pictures in this manual may differ from the actual product depending on the wireless LAN device model.About Access Point (AP)An Access Point (AP) is a network device that bridges wired and wireless LANs and corresponds to a wireless hub in a wired network. Multiple devices can be connected to an AP.Connecting to a Wi-Fi network1 Click the network icon on the bottom-right corner of the log-in screen.
28Chrome OSUsing applications•Images and features may differ depending on the model and the application version.•Some applications may not be supported depending on the model.•Third-party software related services For descriptions about and service requests for third-party applications, please contact the relevant manufacturer. Some troubleshooting actions in response to service requests may not work depending on the application manufacturer.All about Chrome OSYour Chromebook runs the Chrome operating system that’s built and optimized for the web. Using your Chromebook is as easy as surfing the web.•Zero to web in 10 seconds.Chromebooks start in 10 seconds and resume instantly from power saving mode. Your favorite websites load quickly and run smoothly, with full support for the latest web standards and Adobe Flash. The best part: Chromebooks not only stay fast, but are designed to get faster over time as updates are released.•Same experience everywhere.All your apps, documents, and settings are synced to your account and stored in the cloud. To customize the data that gets synced, go to Settings → People.•Always connected.Now, you can stay online at home, outdoors, or on your morning commute because your Chromebook makes it easy to get online anywhere, anytime, via Wi-Fi and, if included, mobile broadband service.
Chrome OS29Usage Precautions•Some functions and screenshots are subject to change depending on the Chrome version.•To sign-in, you need a Google account. If you do not have a Google account, you can create one or connect with a guest account. Some functions may not be available when signed in as a guest.•You may experience limitations using the product under the following circumstances. Please refer to the link.–When reading from or writing to external storage devices with the filing system. (https://support.google.com/ chromebook/answer/183093?hl=en)–When playing certain local video or music files. (https://support.google.com/ chromebook/answer/183093?hl=en)–When using a local printer. (https://support.google.com/chromebook/ topic/2586004?hl=en&parent=2586068&ctx=topic)•For additional inquiries about the Chrome operating system or applications, visit https://support.google.com/chromebook.•If you have a problem while using the Chromebook hardware, please visit www.samsung.com/sec/support/guarantee.do.•Built-in security.Your Chromebook is much safer than a regular computer. Each webpage and application you visit runs in a restricted environment. So if you visit an infected page, it can’t affect the other tabs, apps, or anything else on your computer.•Less updating. More surfing.When you turn your Chromebook on, it updates itself. Automatically. All of your apps stay up-to-date, and you get the latest and greatest version of the operating system without having to think about it. Starting now, say goodbye to annoying update prompts.For more information, visit the Help Center at www.google.com/support/chromeos.
answer/183093?hl=en">
answer/183093?hl=en">
topic/2586004?hl=en&parent=2586068&ctx=topic">
topic/2586004?hl=en&parent=2586068&ctx=topic">
Chrome OS30DesktopWhen you have completed the login, the Desktop appears. You can use the Chrome and various apps by clicking the icons of the bottom left of the screen.IconsGet on the webLogging in with your Google accountYou can log into the Chromebook with your Google account.If you log in with your Google account, you can conveniently use Google services such as Gmail, Google Calendar, Google Docs and so on. In addition, since your saved bookmarks and browser settings are saved in the Google account, you can use the same settings even on another Chromebook.1 Enter the email address and the password that are used for your Google account.To add a user, click Add Person.2 Click Sign in.If the network connection fails, or if you do not have a Google account, click Browse as Guest to log in with the guest account.
Chrome OS31Number/Name DescriptionResizing button•Minimize the window or move it to the left or right.New tab button•Click to see your apps and most visited sites.Navigation buttons•Go back, forward, or reload your page.Address bar•Search or enter a web address.Bookmark•Bookmark the page.Setting•Click to adjust your browser settings.To learn about using the browser, visit the Help Center at https://support.google.com/chromebook.The browsing interfaceOnce you’re signed in, you’re instantly on the web. Here’s a quick overview of the interface you’ll see:

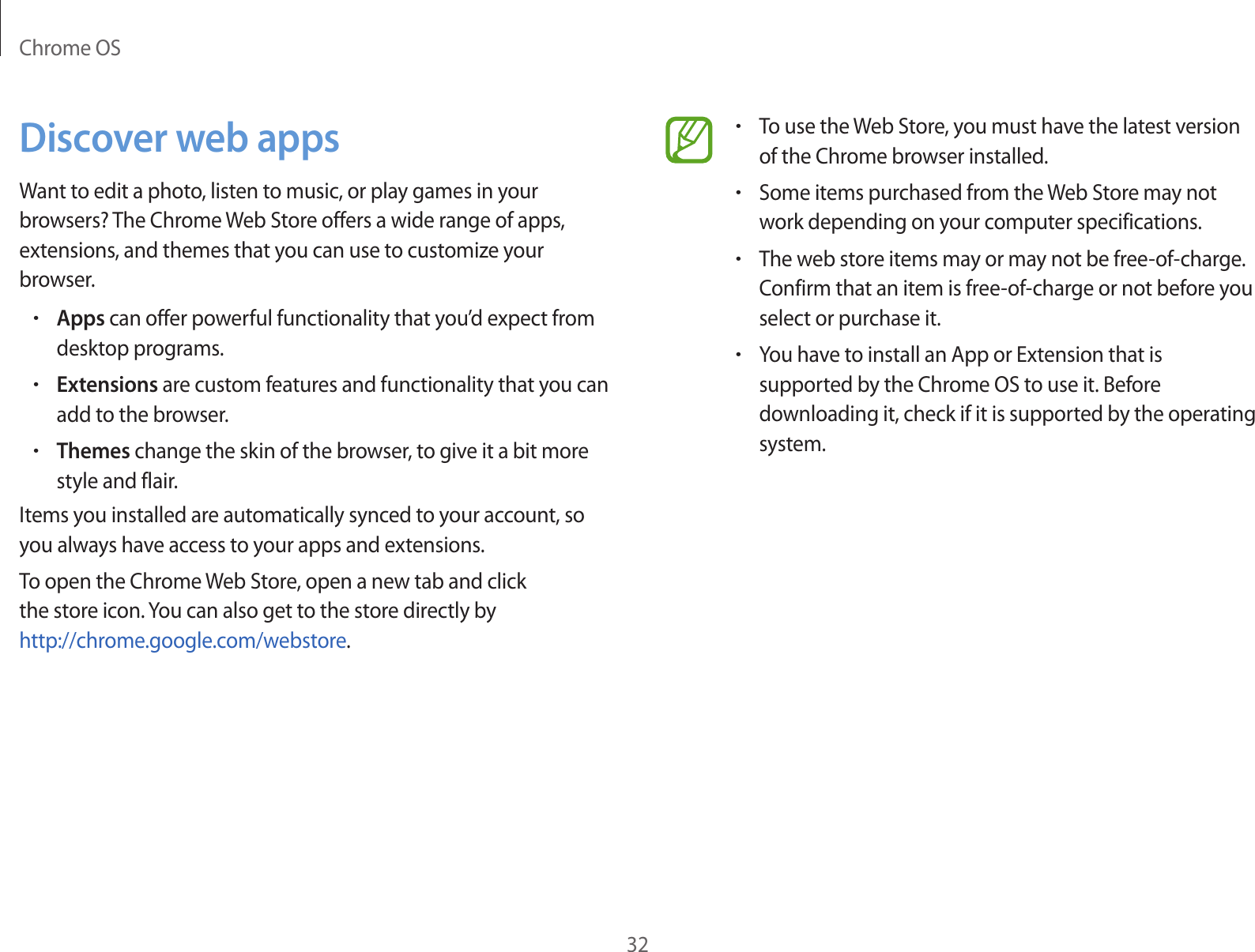

Chrome OS32•To use the Web Store, you must have the latest version of the Chrome browser installed.•Some items purchased from the Web Store may not work depending on your computer specifications.•The web store items may or may not be free-of-charge. Confirm that an item is free-of-charge or not before you select or purchase it.•You have to install an App or Extension that is supported by the Chrome OS to use it. Before downloading it, check if it is supported by the operating system.Discover web appsWant to edit a photo, listen to music, or play games in your browsers? The Chrome Web Store offers a wide range of apps, extensions, and themes that you can use to customize your browser.•Apps can offer powerful functionality that you’d expect from desktop programs.•Extensions are custom features and functionality that you can add to the browser.•Themes change the skin of the browser, to give it a bit more style and flair.Items you installed are automatically synced to your account, so you always have access to your apps and extensions.To open the Chrome Web Store, open a new tab and click the store icon. You can also get to the store directly by http://chrome.google.com/webstore.
Chrome OS33Recovery (optional)Using the Recovery function, you can restore your computer when a problem occurs with your computer. You can restore your computer after creating an update image and using a USB flash drive. For more information, refer to the Recover your Chromebook (https://support.google.com/chromebook/answer/1080595).If you restore the Chromebook using a restore image, all the data saved on the Chromebook will be deleted.Performing the Update from a USB Flash Drive1 Save the recovery image to be updated onto the SD card or USB flash drive.For the procedures to save a recovery image onto the SD card or USB flash drive, refer to the Recover your Chromebook (https://support.google.com/chromebook/ answer/1080595).FAQHow can I print on a Chromebook?Chromebook supports the Google Cloud Print service for printing.If the printer supports cloud printing, you can print without connecting the Chromebook and the printer. Also, you don’t need to install the printer driver on the Chromebook.For more information about the Google Cloud Printing service, please refer to www.google.com/cloudprint.
answer/1080595">
answer/1080595">

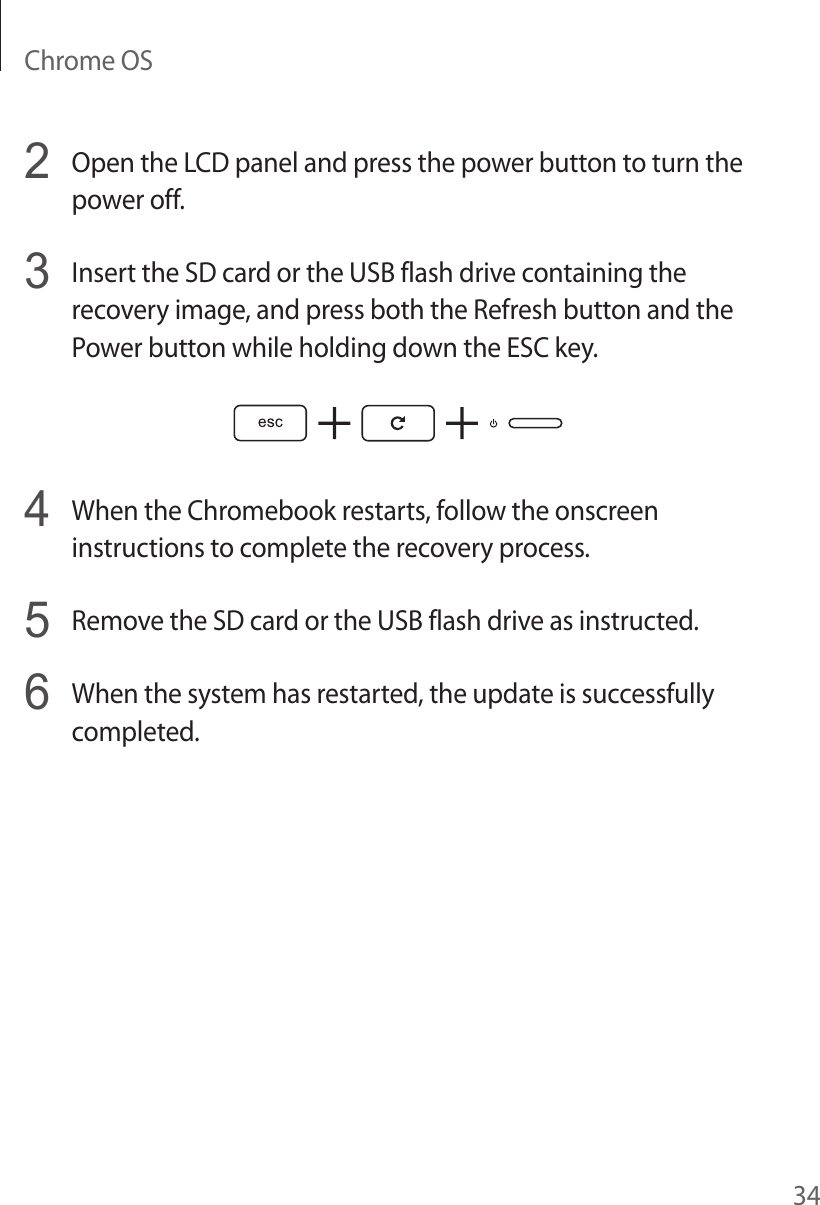

Chrome OS342 Open the LCD panel and press the power button to turn the power off.3 Insert the SD card or the USB flash drive containing the recovery image, and press both the Refresh button and the Power button while holding down the ESC key.4 When the Chromebook restarts, follow the onscreen instructions to complete the recovery process.5 Remove the SD card or the USB flash drive as instructed.6 When the system has restarted, the update is successfully completed.
35Settings & UpgradeLCD brightnessAdjust the LCD brightness to reduce eye strain and save power.•Adjust the LCD brightness by pressing the key to decrease brightness or the key to increase brightness.•Whenever you press the key, the LCD brightness increases by one level.LCD bad pixels principle of computerSamsung observes the specifications regarding strict quality and reliability of LCD. But in spite of that, it is inevitable that there might be a small number of bad pixels. A large number of bad pixels can cause problems in appearance, but a small number of pixels doesn’t affect the computer performance.Therefore Samsung observes and manages the following dot principles:•Bright dot: 2 or less•Black dot: 4 or less•Combination of Bright and Dark: 4 or lessInstructions for Cleaning the LCDClean the LCD panel with a soft cloth lightly moistened with computer cleansing detergent moving in one direction.Cleaning the LCD panel with excessive force can damage the LCD.
Settings & Upgrade36Controlling volume using the taskbar1 Select an account icon on the taskbar.2 Drag the adjustment bar to the desired volume.Volume adjustment barVolumeAdjust the system volume or sound volume when playing music or video.Controlling volume using the keyboardPress the Volume button on the right side of the computer to adjust the volume.

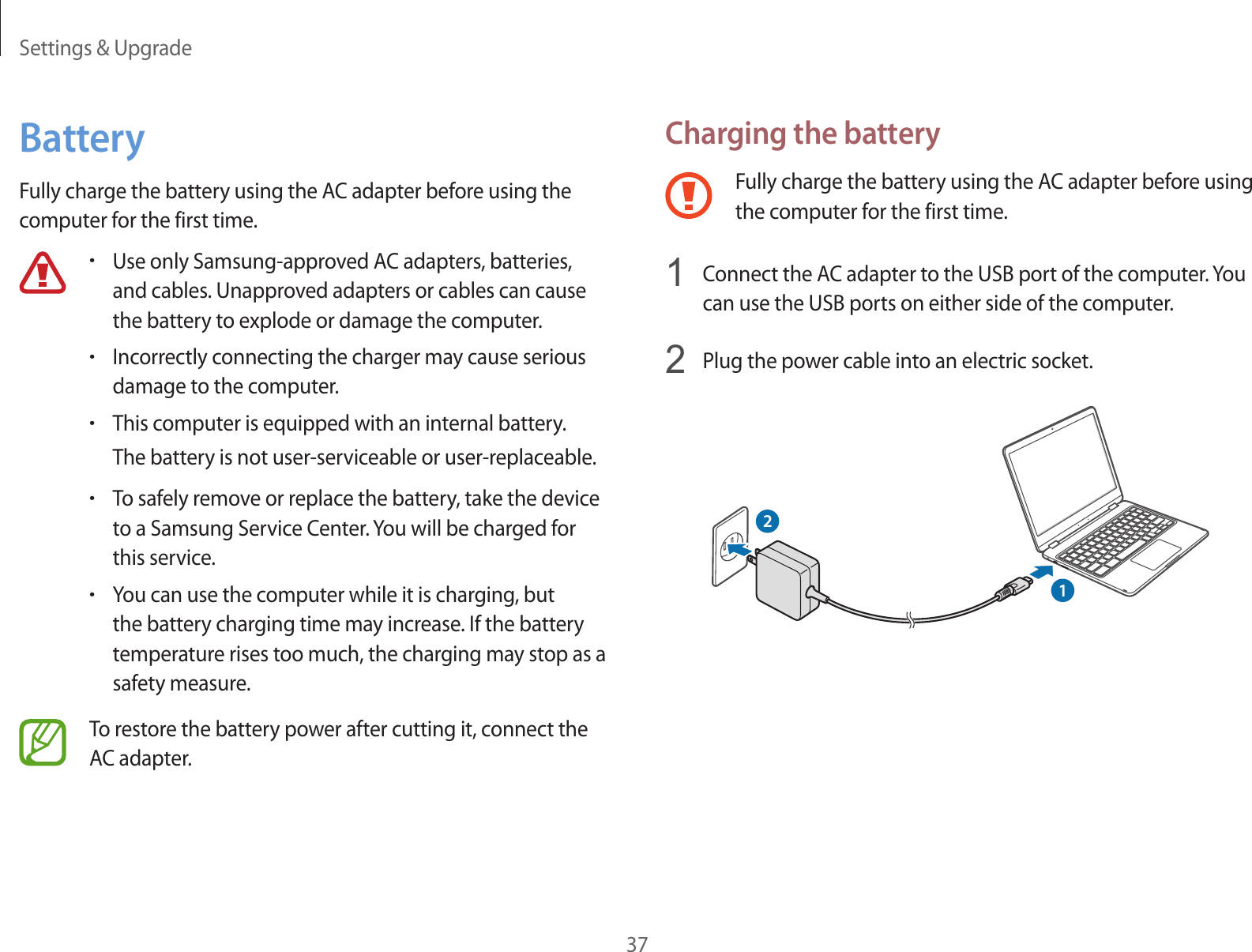

Settings & Upgrade37Charging the batteryFully charge the battery using the AC adapter before using the computer for the first time.1 Connect the AC adapter to the USB port of the computer. You can use the USB ports on either side of the computer.2 Plug the power cable into an electric socket.12BatteryFully charge the battery using the AC adapter before using the computer for the first time.•Use only Samsung-approved AC adapters, batteries, and cables. Unapproved adapters or cables can cause the battery to explode or damage the computer.•Incorrectly connecting the charger may cause serious damage to the computer.•This computer is equipped with an internal battery.The battery is not user-serviceable or user-replaceable.•To safely remove or replace the battery, take the device to a Samsung Service Center. You will be charged for this service.•You can use the computer while it is charging, but the battery charging time may increase. If the battery temperature rises too much, the charging may stop as a safety measure.To restore the battery power after cutting it, connect the AC adapter.
Settings & Upgrade38Battery statusSelect an account icon on the taskbar to view the current battery charge.Battery usage timeBatteries are replaceable items and over time the battery’s capacity to hold a charge and its power level is reduced. If a battery can only hold its charge for half of the time that it could when new, it is recommended to purchase a new, replacement battery.Checking battery life instruction messagesWhen the battery has expired, an instruction message may appear on the screen. To prevent the computer from losing data and to use the computer safely, follow the on-screen instructions.3 When the battery is fully charged, the power LED turns green. Disconnect the AC adapter from the computer.Power LED Status•Red: Charging•Green: Fully charged•Blue: Turned on4 Unplug it from the electric socket.
Settings & Upgrade39When battery expiration is imminentBatteries are consumable parts and the remaining battery life is currently low. Continued use may result in charge or discharge failures. Whether or not batteries can be used is determined based on safety evaluations. Please replace it with a new battery (genuine) to prevent data loss and ensure safe usage.When the battery has expiredBatteries are consumable parts and the current battery cannot be used as the battery life has expired. Please replace it with a new battery (genuine) to prevent data loss and ensure safe usage. Whether or not batteries can be used is determined based on safety evaluations. To prevent data loss while replacing batteries, please be sure to save your work first.
40AppendixProduct specificationsThe system specifications may differ depending on the derived model. For detailed system specifications, refer to the product catalog.Item SpecificationOperating environment•Temperature: -5–40 °C for storage, 10–35 °C when operating•Humidity: 5–90 % for storage, 20–80 % when operatingAC/DC rating•Input: 100–240 VAC, 50–60 Hz•Output: 15 VDC, 2 A/9 VDC, 3 A/5 VDC, 3 APC rating•15 VDC, 2 A/9 VDC, 3 A/5 VDC, 3 A (30 W)•Optional components may not be provided or different components may be provided depending on the model.•The system specifications are subject to change without notice.•Due to this computer’s design, memory cannot be replaced or upgraded. Also, additional storage space cannot be added.
Appendix41•Use an adjustable chair with firm, comfortable support.•Adjust the height of your chair so that thighs are horizontal to the floor and feet are flat on the floor.•The back of the chair should support the lower back. Adjust the backrest to fit your body properly.•Sit back fully in your chair and straighten the back and neck. Avoid leaning forward or craning your neck toward the computer screen.•Avoid using the computer while lying down or on your lap. If the computer’s temperature increases, there is a danger of burn injury.•The instructions in this manual have been prepared so that they can be applied to the range of needs of general users. If the user is not included in the range, the recommendations should be applied according to the user’s needs.•Images may differ from actual products.Ergonomic tipsMaintaining the proper posture during computer use is very important to prevent physical injury. Improper or prolonged keyboard use may result in repetitive strain injury. Viewing the monitor screen for extended periods of time may result in eye strain. Therefore, please follow these guidelines carefully when setting up and using the computer.Back and neck
Appendix42•When using the keyboard and touchpad, the shoulders should be relaxed. The upper arm and forearm should form an angle that is slightly greater than a right angle, with the wrist and hand in almost a straight line.•Use a light touch when typing or using the touchpad and keep the hands and fingers relaxed. Avoid rolling the thumbs under your palms or supporting the wrists on the desk while typing.•Use an external keyboard and mouse when using the computer for long periods. When using an external keyboard and mouse, position the devices at the same height as the computer and within comfortable reach.Arms and hands

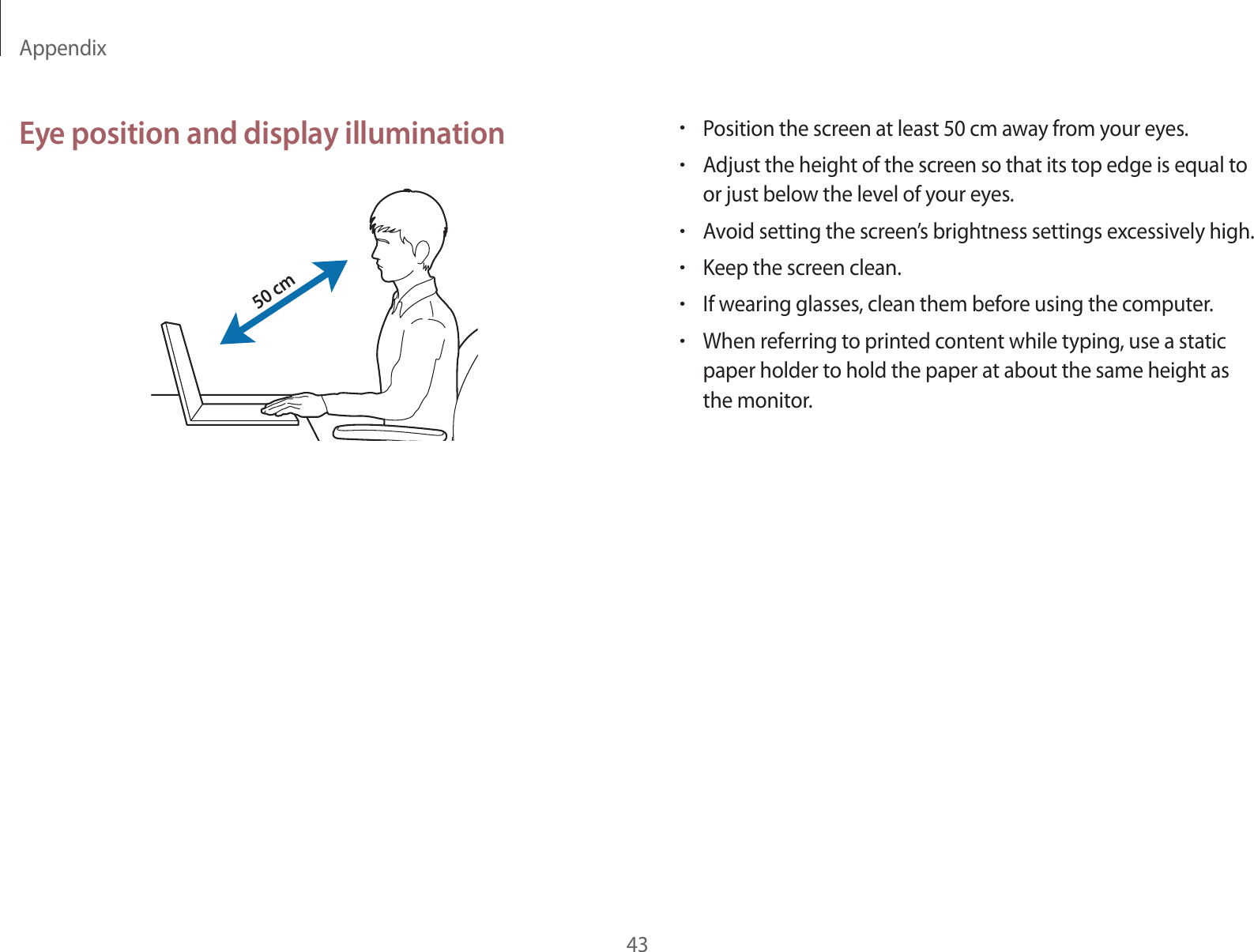

Appendix43•Position the screen at least 50 cm away from your eyes.•Adjust the height of the screen so that its top edge is equal to or just below the level of your eyes.•Avoid setting the screen’s brightness settings excessively high.•Keep the screen clean.•If wearing glasses, clean them before using the computer.•When referring to printed content while typing, use a static paper holder to hold the paper at about the same height as the monitor.Eye position and display illumination50 cm
Appendix44Operating conditions•Take at least a 10 minute break every hour.•Avoid using the computer in dark locations. Use the computer with as much ambient light as you would when reading a book.•Indirect illumination is recommended. Use a curtain to prevent reflections and glare on the screen.•While operating a computer and talking on the phone, use a headset. Using the computer while holding a phone on your shoulder or with your neck may lead to muscle strain or injury.•Keep frequently used items within reach.•Only use the computer within the temperature and humidity ranges specified in this manual.Hearing and volume controlVOLUMECheck your volume!•Ensure that volume is not too loud before using headphones.•Avoid using headphones for long periods of time.•Default audio settings can be changed by software and driver updates without your knowledge. Always recheck equalizer and volume settings before listening to audio.•To prevent possible hearing damage, do not listen at high volume levels for long periods.
Appendix45•You must insert the power plug when the power indicator light (LED) is lit green. If the plug is connected properly, the power indicator light remains green.Otherwise, the power indicator light turns off. In this case, disconnect the plug, verify that the power indicator light is green and then reconnect the power plug.Power Indicator Light (LED)Center Holes220 V Power Plug 110 V Power PlugGood Example OWrong Example XPowering your deviceCharging the battery on an airplanePower outlets may vary by airplane. Choose the connection method that fits your circumstances.The power plug and auto adapter figures may differ from the actual products.Using an AC power plugInsert the power plug pins into the center of the power outlet.•If the pins are not inserted into the centers of the holes, they will not be fully connected. In this case, reconnect the power plug.

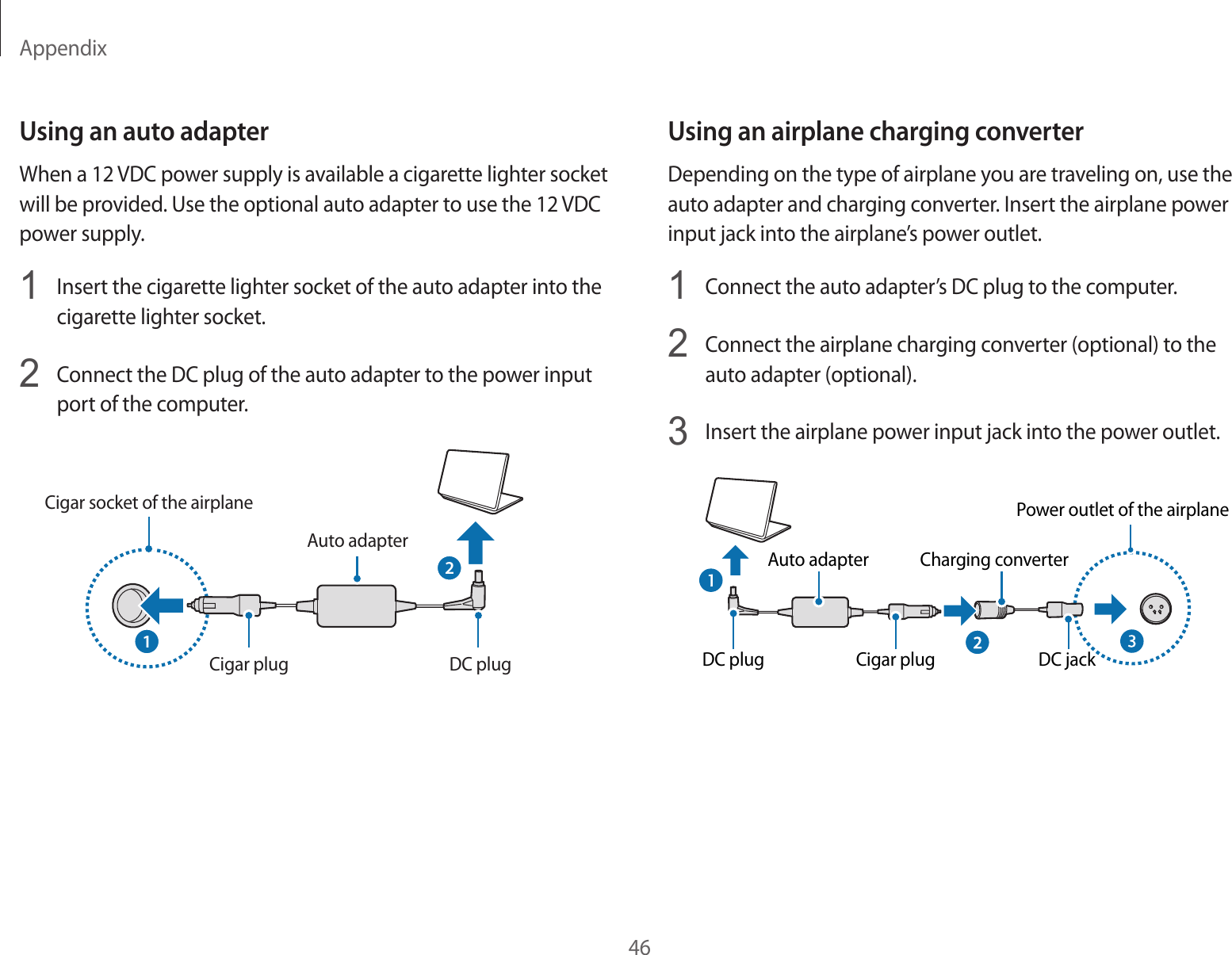

Appendix46Using an airplane charging converterDepending on the type of airplane you are traveling on, use the auto adapter and charging converter. Insert the airplane power input jack into the airplane’s power outlet.1 Connect the auto adapter’s DC plug to the computer.2 Connect the airplane charging converter (optional) to the auto adapter (optional).3 Insert the airplane power input jack into the power outlet.Auto adapter Charging converterPower outlet of the airplaneDC plug Cigar plug DC jack2Using an auto adapterWhen a 12 VDC power supply is available a cigarette lighter socket will be provided. Use the optional auto adapter to use the 12 VDC power supply.1 Insert the cigarette lighter socket of the auto adapter into the cigarette lighter socket.2 Connect the DC plug of the auto adapter to the power input port of the computer.Auto adapterCigar socket of the airplaneDC plugCigar plug21

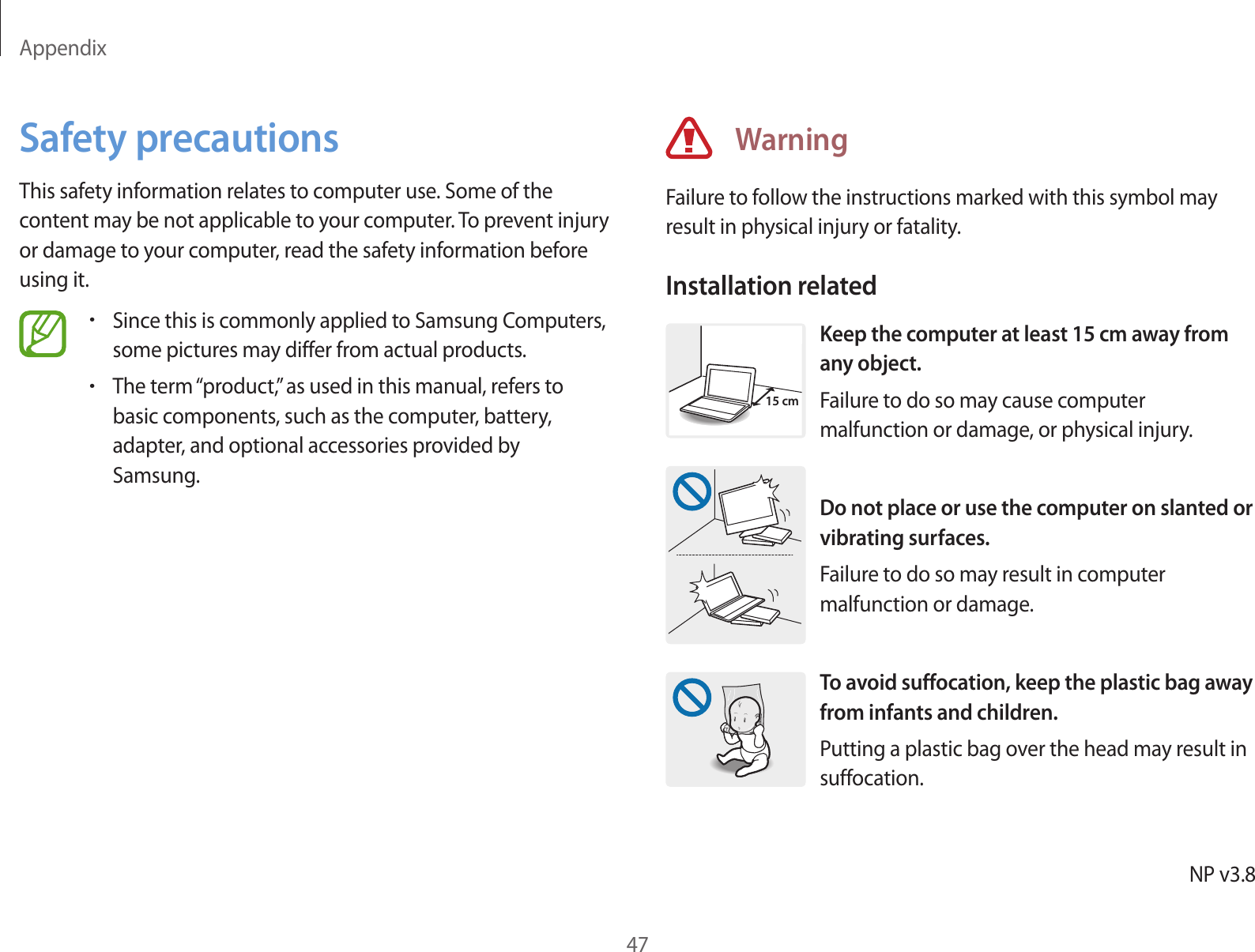

Appendix47WarningFailure to follow the instructions marked with this symbol may result in physical injury or fatality.Installation related15 cmKeep the computer at least 15 cm away from any object.Failure to do so may cause computer malfunction or damage, or physical injury.Do not place or use the computer on slanted or vibrating surfaces.Failure to do so may result in computer malfunction or damage.To avoid suffocation, keep the plastic bag away from infants and children.Putting a plastic bag over the head may result in suffocation.Safety precautionsThis safety information relates to computer use. Some of the content may be not applicable to your computer. To prevent injury or damage to your computer, read the safety information before using it.•Since this is commonly applied to Samsung Computers, some pictures may differ from actual products.•The term “product,” as used in this manual, refers to basic components, such as the computer, battery, adapter, and optional accessories provided by Samsung.NP v3.8
Appendix48Connect the power cord to the AC adapter firmly.An improper connection may result in a fire.Use only the provided AC adapter.Using a third-party adapter may cause the screen to flicker. Use only properly earthed electric sockets or extension cords.Unearthed electric sockets or extension cords may cause electric shock. Any connection to unearthed electric sockets or extension cords may produce an electric field from a current leak.Power relatedThe power plug and wall outlet figures may differ depending on the country and the product model.Handle the power cord with care.•Do not touch with wet hands.•Do not use a damaged or improperly connected power cord.•Do not overload a multi-outlet or an extension cord beyond the specified voltage/current capacity.•Firmly insert the power cable into the AC adapter.•Do not unplug the power cord by pulling on the cable.•Unplug the wall-mount AC adapter (integrated plug and power adapter) from the wall outlet while holding the body and pulling it in the direction of the arrow.Failure to do so may result in electric shock or fire.
Appendix49Battery usage relatedKeep the battery, AC adapter, and the power cord away from infants, children, and pets.Failure to do so may result in electric shock or damage.Use only Samsung-approved batteries, AC adapters, and accessories.Batteries or AC adapters that are not approved by Samsung may malfunction from a defective safety device, resulting in an explosion or fire.Take care not to allow metal objects such as a key or clip to touch the battery terminal (metal parts).This may cause excessive current and result in fire, burns, or damage to the battery.If water or other substances enters the computer, the DC jack, or the AC adapter, disconnect the power cable and contact a Samsung Service Center. For notebook computers that are supplied with an optional removable battery, disconnect the battery.Failure to do so may result in electric shock or fire.Do not let dust accumulate on the power cord or the electric socket. Regularly clean the power cord and the electric socket. Wipe the power cord and the electric socket with a dry cloth.Failure to do so may result in electric shock or fire.Do not bend or damage the power cable or the AC adapter with a heavy or sharp-edged object.A damaged cable or cord may result in electric shock or fire.

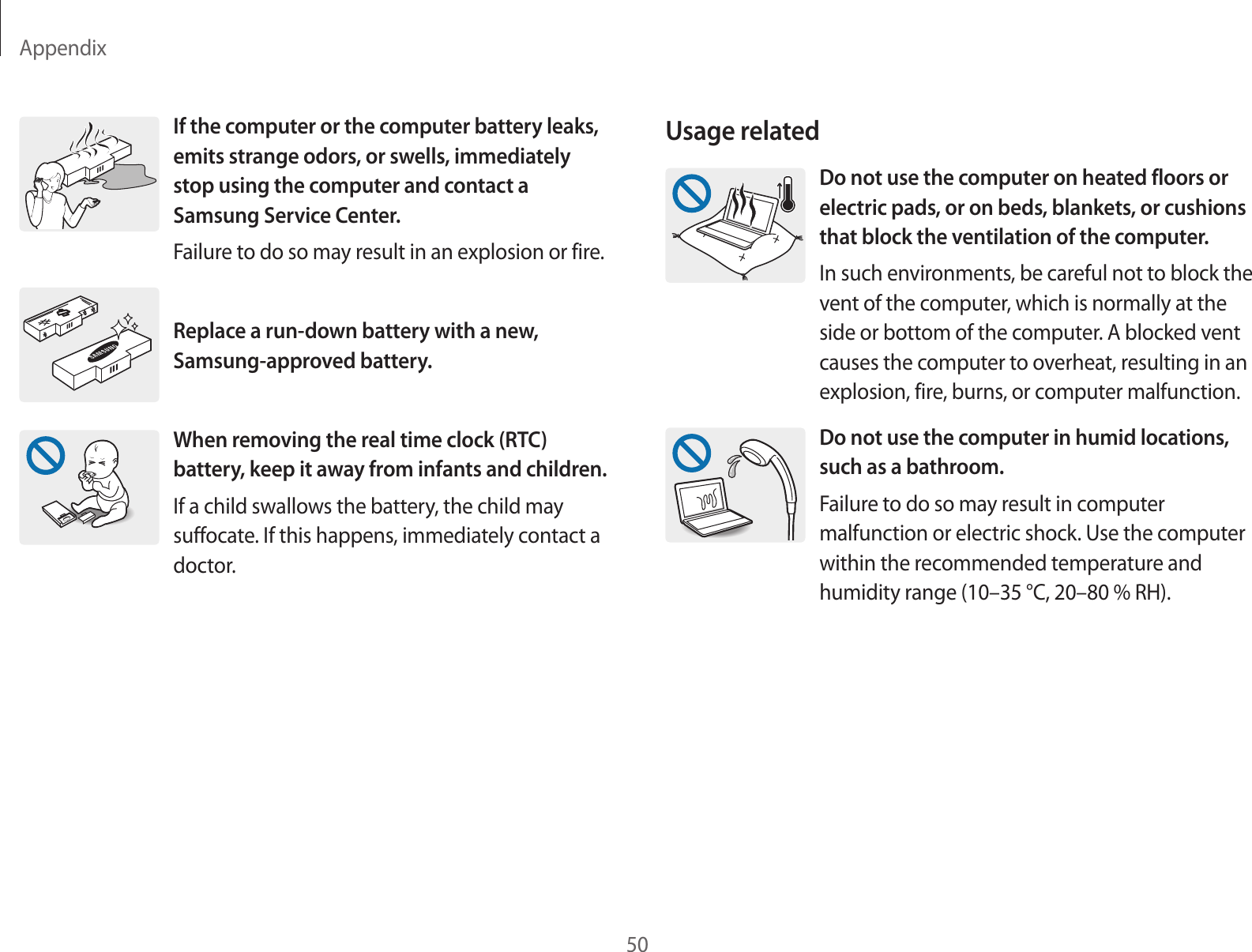

Appendix50Usage relatedDo not use the computer on heated floors or electric pads, or on beds, blankets, or cushions that block the ventilation of the computer.In such environments, be careful not to block the vent of the computer, which is normally at the side or bottom of the computer. A blocked vent causes the computer to overheat, resulting in an explosion, fire, burns, or computer malfunction.Do not use the computer in humid locations, such as a bathroom.Failure to do so may result in computer malfunction or electric shock. Use the computer within the recommended temperature and humidity range (10–35 °C, 20–80 % RH).If the computer or the computer battery leaks, emits strange odors, or swells, immediately stop using the computer and contact a Samsung Service Center.Failure to do so may result in an explosion or fire.Replace a run-down battery with a new, Samsung-approved battery.When removing the real time clock (RTC) battery, keep it away from infants and children.If a child swallows the battery, the child may suffocate. If this happens, immediately contact a doctor.

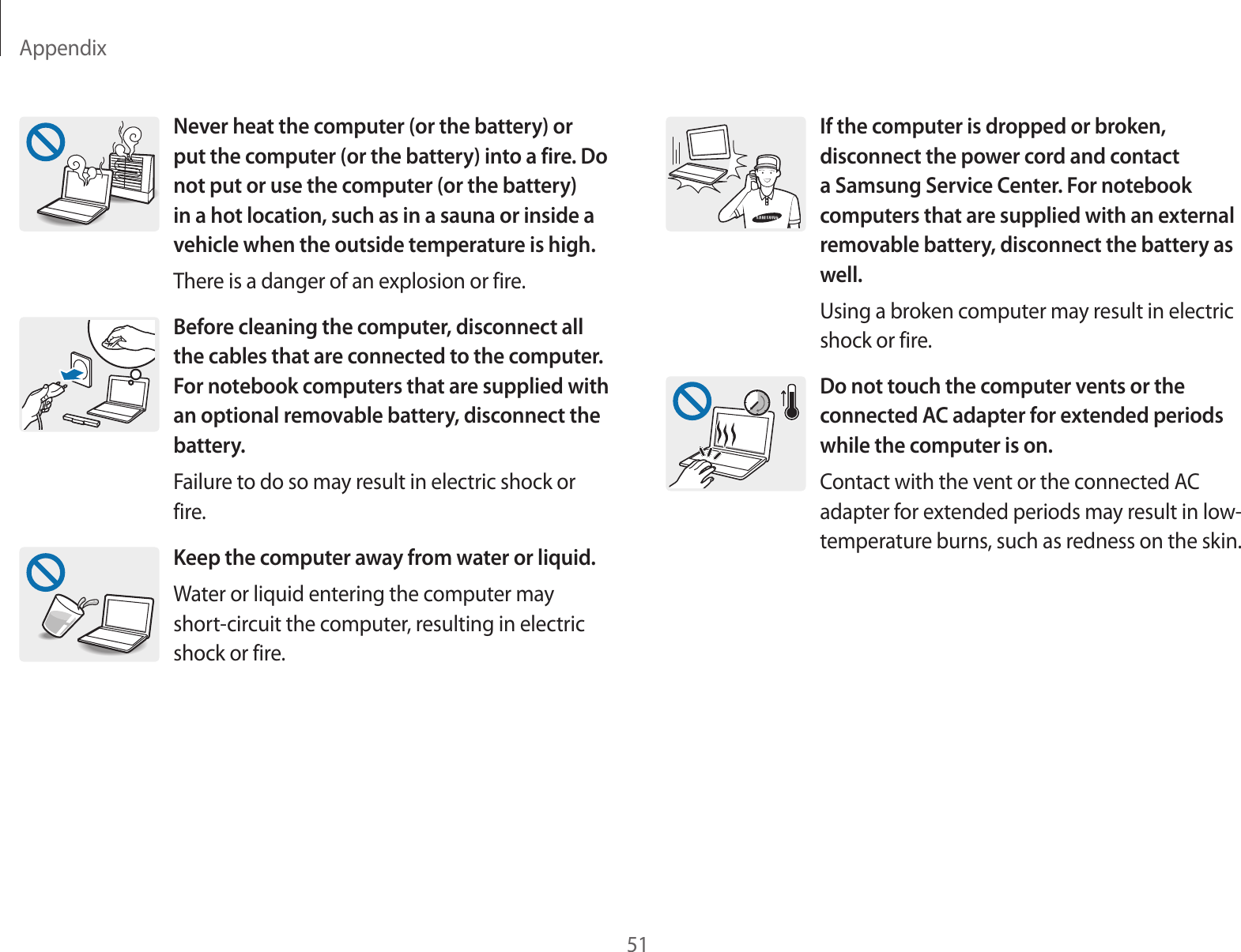

Appendix51If the computer is dropped or broken, disconnect the power cord and contact a Samsung Service Center. For notebook computers that are supplied with an external removable battery, disconnect the battery as well.Using a broken computer may result in electric shock or fire.Do not touch the computer vents or the connected AC adapter for extended periods while the computer is on.Contact with the vent or the connected AC adapter for extended periods may result in low-temperature burns, such as redness on the skin.Never heat the computer (or the battery) or put the computer (or the battery) into a fire. Do not put or use the computer (or the battery) in a hot location, such as in a sauna or inside a vehicle when the outside temperature is high.There is a danger of an explosion or fire.Before cleaning the computer, disconnect all the cables that are connected to the computer. For notebook computers that are supplied with an optional removable battery, disconnect the battery.Failure to do so may result in electric shock or fire.Keep the computer away from water or liquid.Water or liquid entering the computer may short-circuit the computer, resulting in electric shock or fire.

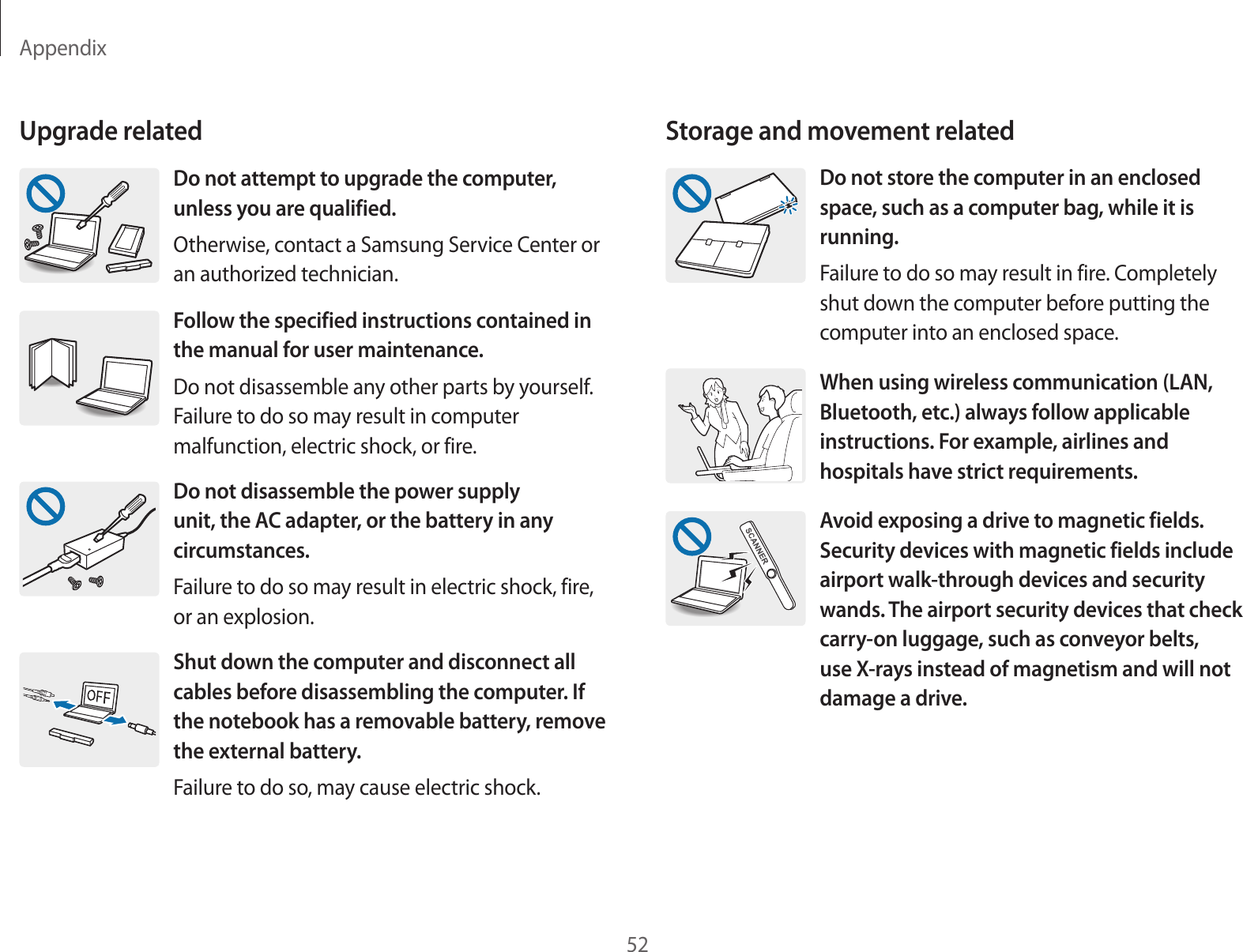

Appendix52Storage and movement relatedDo not store the computer in an enclosed space, such as a computer bag, while it is running.Failure to do so may result in fire. Completely shut down the computer before putting the computer into an enclosed space.When using wireless communication (LAN, Bluetooth, etc.) always follow applicable instructions. For example, airlines and hospitals have strict requirements.Avoid exposing a drive to magnetic fields. Security devices with magnetic fields include airport walk-through devices and security wands. The airport security devices that check carry-on luggage, such as conveyor belts, use X-rays instead of magnetism and will not damage a drive.Upgrade relatedDo not attempt to upgrade the computer, unless you are qualified.Otherwise, contact a Samsung Service Center or an authorized technician.Follow the specified instructions contained in the manual for user maintenance.Do not disassemble any other parts by yourself. Failure to do so may result in computer malfunction, electric shock, or fire.Do not disassemble the power supply unit, the AC adapter, or the battery in any circumstances.Failure to do so may result in electric shock, fire, or an explosion.Shut down the computer and disconnect all cables before disassembling the computer. If the notebook has a removable battery, remove the external battery.Failure to do so, may cause electric shock.
Appendix53CautionFailure to follow instructions marked with this symbol may result in minor physical injury or damage to the computer.Installation relatedDo not block the ports (holes), vents, etc. of the product and do not insert objects.Damage to a component within the computer may cause electric shock or fire.When using the computer on its side, ensure the vents are clear and facing upwards.Failure to do so, may cause the internal temperature of the computer to rise and the computer to malfunction or halt.When carrying the notebook computer with other items, such as the adapter, mouse, books etc., take care not to press anything against the notebook computer.If a heavy object is pressed against the notebook computer, a white spot or stain may appear on the LCD. Therefore, take care not to apply any pressure to the notebook.In this case, place the notebook computer in a separate compartment away from the other objects.

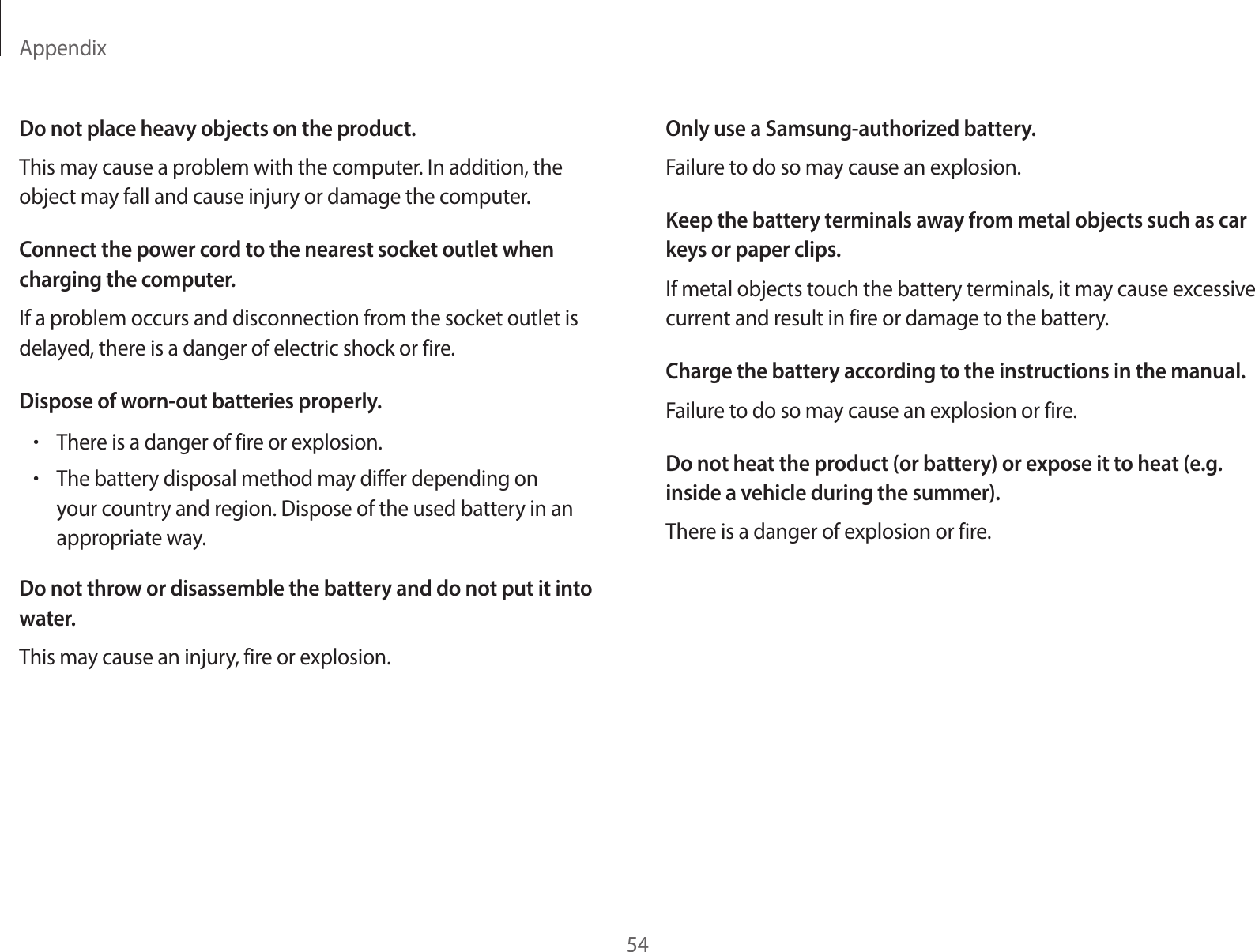

Appendix54Only use a Samsung-authorized battery.Failure to do so may cause an explosion.Keep the battery terminals away from metal objects such as car keys or paper clips.If metal objects touch the battery terminals, it may cause excessive current and result in fire or damage to the battery.Charge the battery according to the instructions in the manual.Failure to do so may cause an explosion or fire.Do not heat the product (or battery) or expose it to heat (e.g. inside a vehicle during the summer).There is a danger of explosion or fire.Do not place heavy objects on the product.This may cause a problem with the computer. In addition, the object may fall and cause injury or damage the computer.Connect the power cord to the nearest socket outlet when charging the computer.If a problem occurs and disconnection from the socket outlet is delayed, there is a danger of electric shock or fire.Dispose of worn-out batteries properly.•There is a danger of fire or explosion.•The battery disposal method may differ depending on your country and region. Dispose of the used battery in an appropriate way.Do not throw or disassemble the battery and do not put it into water.This may cause an injury, fire or explosion.
Appendix55In case of lightning, immediately turn the system off, disconnect the power cord from the wall outlet and phone line from modem. Do not use the modem or phone.There is a danger of electric shock or fire.Connect only permitted devices to the connectors or ports of the computer.Failure to do so, may cause electric shock and fire.Close the LCD panel only after checking if the notebook computer is turned off.The temperature may rise and it may cause deformation of the product.Do not press the eject button while the CD-ROM drive is in operation.You might lose data and the disc might be suddenly ejected and could cause an injury.Usage relatedUse the pen for its intended purpose only.Using the pen for abnormal actions such as poking eyes or ears may cause physical injury.Do not place a candle, light cigar, etc. over or on the product.There is a danger of fire.Make sure to have the product tested by a safety service engineer after repairing the product.Authorized Samsung Repair Centers will carry out safety checks after a repair. Using a repaired product without testing it for safety may cause an electric shock or fire.
Appendix56Do not insert the fingers into the PC Card Slot.There is a danger of injury or electric shock.Use recommended computer cleansing solutions when cleaning the product and only use the computer when it is completely dry.Failure to do so may cause electric shock or fire.You should not use a paper clip to perform an emergency disc ejection while the disc is in motion. Make sure to use the emergency disc eject method only when the Optical Disc Drive has stopped.There is a danger of injury.Do not place your face close to the Optical Disc Drive tray when it is operating.There is a danger of injury due to an abrupt ejection.Do not drop, hit, or apply excessive force to the computer.Failure to do so may result in physical injury or data loss.Do not allow the antenna and a source of electricity, such as a socket outlet, to come into contact.There is a danger of electric shock.When handling computer parts, follow the instructions on the manual supplied with the parts.Failure to do so, may cause damage to the product.If the computer emits smoke or there is a burning smell, disconnect the power plug from the wall outlet and contact a Samsung Service Center immediately. Disconnect the power supply and remove the battery if one is fitted.There is a danger of fire.Do not use a damaged or modified CD.There is a danger of damaging the product or personal injury.
Appendix57Upgrade RelatedTake care when touching the product or parts.The device may be damaged or you may be injured.Take care not to throw or drop the computer or its components.This may cause injury or damage to the product.Make sure to close the computer cover before connecting the power after a reassembly.There is a danger of electric shock if your body touches an internal part.Only use parts authorized by Samsung.Failure to do so, may cause fire or damage the product.Never disassemble or repair the product by yourself.If the computer is serviced or repaired by an unqualified person, the warranty will not cover the repair fees. There is a danger of accident. Use authorized Samsung Service Centers.To connect a device that is not manufactured or authorized by Samsung, enquire at a Samsung Service Center before connecting the device.There is a danger of damaging the product.Keep the computer away from magnetic material.•Magnetic materials may cause computer malfunction or cause the battery to discharge.•To avoid damaging the computer or magnetic stripe cards, such as credit cards, keep magnetic stripe cards away from the computer.Do not use your computer in a hospital or on an aircraft that can be interfered with by radio frequency.•Avoid using your computer within a 15 cm range of a pacemaker, if possible, as your computer can interfere with the pacemaker.•To minimize possible interference with a pacemaker, use your computer only on the side of your body that is opposite the pacemaker.•If you use medical equipment, contact the equipment manufacturer before using your computer to determine whether or not the equipment will be affected by radio frequencies emitted by the computer.•When in a hospital, turn off your computer and follow all hospital regulations. Radio frequencies emitted from the computer may affect medical equipment.
Appendix58Cautions on preventing data loss (hard disk management)Take care not to damage the data on a hard disk drive.•A hard disk drive is so sensitive to external impact that an external impact may cause loss of data on the surface of the disk.•Take extra care, because moving the computer or an impact on the computer when it is turned on may damage the data on the hard disk drive.•Samsung is not liable for any loss of data on the hard disk drive.Storage and movement relatedProperly shut down, disconnect and secure the computer cables before moving it.Failure to do so may damage the computer or cause someone to trip over a loose cable.For long periods of inactivity or storage, discharge the battery and separate it from the computer (for external or removable battery types).This will extend the battery’s lifespan.Do not operate or look at the computer while driving a vehicle.There is a danger of a traffic accident. Please concentrate on driving.
Appendix59LCD bad pixelsSamsung observes strict specifications regarding the quality and reliability of the LCD. However, there is a small chance that a few pixels may be bad. A large number of bad pixels can cause problems with the display, but a small number of bad pixels does not generally affect computer performance.Samsung’s quality standards for bad pixels are as follows:•Bright dot: 2 or fewer•Black dot: 4 or fewer•Combination (bright and dark): 4 or fewerCleaning the LCD screenClean the LCD screen with a soft cloth dampened with computer cleansing detergent. When cleaning the screen, move the cloth in one direction. Do not use excessive force. Doing so may damage the LCD screen.Situations that may damage the data of a hard disk drive and the hard disk drive itself.•The data may be lost when an external impact is applied to the disk while disassembling or assembling the computer.•The data may be lost when the computer is turned off or reset by a power failure while the hard disk drive is operating.•The data may be lost and irrecoverable due to a computer virus.•The data may be lost if the power is turned off while running an application.•Sudden impact or movement to the computer while the hard disk drive is operating, may cause files to be corrupted or bad sectors on the hard disk.To prevent data loss due to damage to the hard disk drive, please back up the data frequently.
Appendix60Setting up the system•Read and follow all instructions marked on the product and in the documentation before operating the system. Retain all safety and operating instructions for future use.•Do not use this product near water or a heat source such as a radiator.•Set up the system on a stable work surface.•The product should be operated only with the type of power source indicated on the rating label.•Ensure that the electrical outlet to power the equipment is easily accessible in case of fire or short circuit.•If the computer has a voltage selector switch, make sure that the switch is in the proper position for your area.•Openings in the computer case are provided for ventilation. Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when setting up your work area. Never insert objects of any kind into the computer ventilation openings.Important safety informationSafety instructionsThe system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.Always follow these instructions to help guard against personal injury and damage to the system.
Appendix61Care during use•Do not walk on the power cord or allow anything to rest on it.•Do not spill anything on the computer or its components. The best way to avoid spills is to not eat or drink near the computer or its components.•Some products have a replaceable CMOS battery on the system board. There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer.Dispose of batteries according to the manufacturers instructions. If the CMOS battery requires replacement ensure that a qualified technician performs the task.•When the computer is turned off, a small amount of electrical current still flows through the computer.To avoid electrical shock, always unplug all power cables, remove the battery and modem cables from the wall outlets before cleaning the system.•Ensure that the fan vents on the bottom of the casing are clear at all times. Do not place the computer on a soft surface, doing so will block the bottom vents.•When using an extension cord with this system, make sure that the total power rating on the products plugged into the extension cord does not exceed the extension cord power rating.•For Notebooks with glossy display bezels the user should consider the placement of the Notebook as the bezel may cause reflections from surrounding light and bright surfaces.
Appendix62Operating instructions1 When installing and operating devices please refer to safety requirements in the user manual.2 Devices can be used only with the equipment specified in the technical specifications of the devices.3 If any smell of burning or smoke is detected from the computer the unit should be switched off and the battery removed. The unit should be checked by a qualified technician before reuse.4 Service and repair of devices should be carried out by authorized service centers.5 Do not allow the portable computer to operate with the base resting directly on exposed skin for extended periods of time. The surface temperature of the base will rise during normal operation (particularly when AC Power is present). Allowing sustained contact with exposed skin can cause discomfort or eventually a burn.•Unplug the system from the wall outlet and contact a Samsung Service Center if:–The power cord or plug is damaged.–Liquid has been spilled into the computer.–The computer does not operate properly when the operating instructions are followed.–The computer was dropped or the casing is damaged.–The computer performance changes.
Appendix63Battery disposalDo not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage.Contact the Samsung Service Center for information on how to dispose of batteries that you cannot use or recharge any longer. Follow all local regulations when disposing of old batteries.THERE IS RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.Replacement parts and accessoriesUse only replacement parts and accessories recommended by manufacturer.To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line cord.Do not use this product in areas classified as hazardous. Such areas include patient care areas of medical and dental facilities, oxygen rich environments, or industrial areas.
Appendix64•Laser Safety Note: Use of controls or adjustments or performance of procedures other than those specified in this manual may result in hazardous radiation exposure. To prevent exposure to laser beams, do not try to open the enclosure of a CD or DVD drive.•Class 1M laser radiation when operating part is open. Do not view directly with optical instruments.•Class 3B invisible laser radiation when open.Avoid exposure to the beam.Connect and disconnect the AC adapterThe socket-outlet shall be installed near the equipment and shall be easily accessible.Do not unplug the power cord by pulling the cable only.Laser safetyAll systems equipped with CD or DVD drives comply with the appropriate safety standards, including IEC 60825-1. The laser devices in these components are classified as “Class 1 Laser Products” under a US Department of Health and Human Services (DHHS) Radiation Performance Standard. Should the unit ever need servicing, contact an authorized service location.

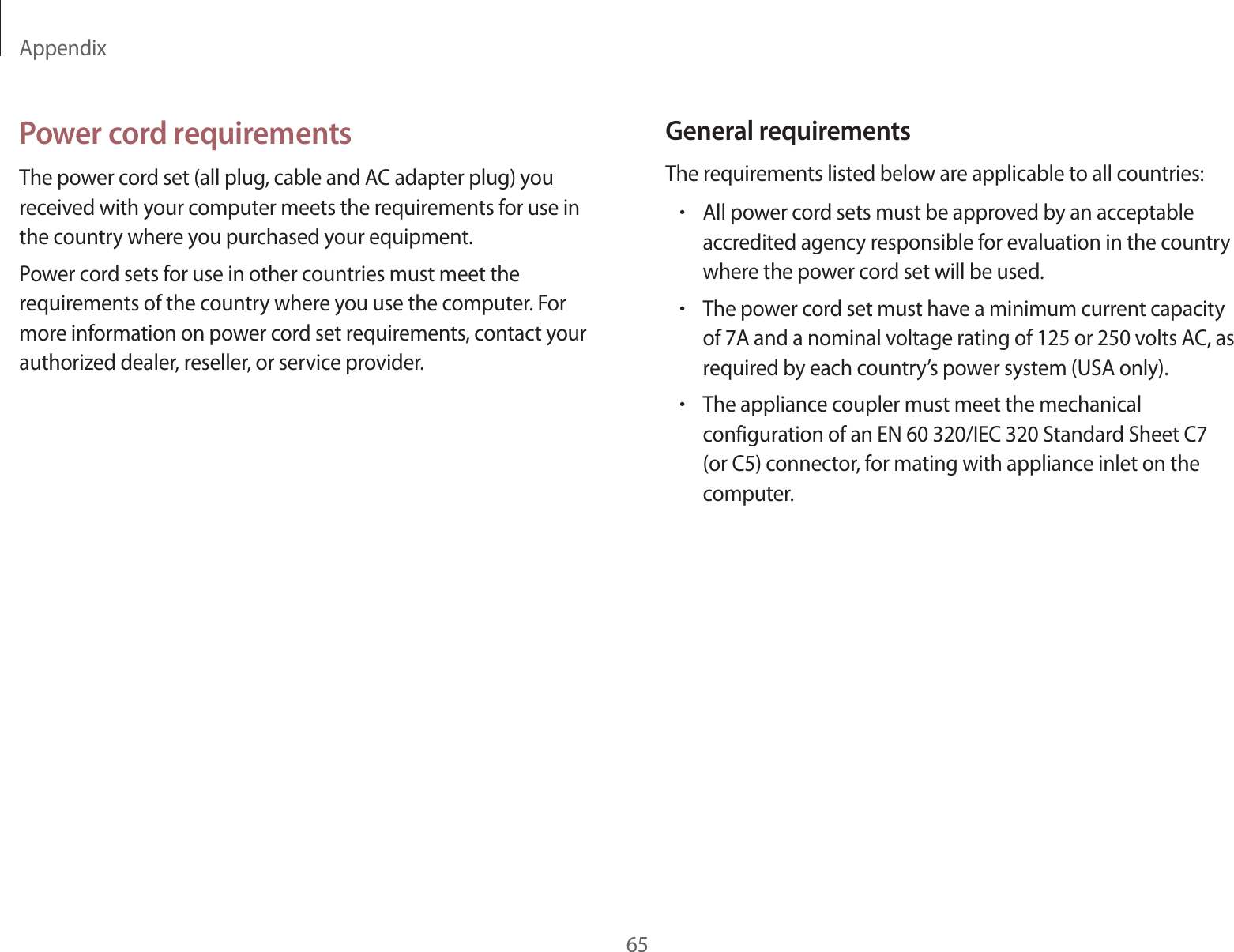

Appendix65General requirementsThe requirements listed below are applicable to all countries:•All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country where the power cord set will be used.•The power cord set must have a minimum current capacity of 7A and a nominal voltage rating of 125 or 250 volts AC, as required by each country’s power system (USA only).•The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320 Standard Sheet C7 (or C5) connector, for mating with appliance inlet on the computer.Power cord requirementsThe power cord set (all plug, cable and AC adapter plug) you received with your computer meets the requirements for use in the country where you purchased your equipment.Power cord sets for use in other countries must meet the requirements of the country where you use the computer. For more information on power cord set requirements, contact your authorized dealer, reseller, or service provider.
Appendix66The RF field strength of the wireless device or devices that may be embedded in the notebook are well below all international RF exposure limits as known at this time. Because the wireless devices (which may be embedded into the notebook) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.Some circumstances require restrictions on wireless devices.Examples of common restrictions are listed on the next page:Regulatory compliance statementsWireless guidance(If fitted with 2.4 G band or 5 G band)Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in the notebook system. The following section is a general overview of considerations while operating a wireless device.Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in the system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.
Appendix67•Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.•If the system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.•Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Please contact the manufacturer for service.•Only use drivers approved for country in which the device will be used. See the manufacturer System Restoration Kit, or contact the manufacturer’s technical support for additional information.•Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane.802.11ABGN (also known as wireless Ethernet or Wi-Fi) and Bluetooth communication devices are examples of devices that provide wireless communication.•In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.
Appendix68Explosive Device Proximity WarningDo not operate a portable transmitter (such as a wireless network device) near unshielded blasting caps or in an explosive environment unless the device has been modified to be qualified for such use.Use On Aircraft CautionRegulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments.Other wireless devicesSafety notices for other devices in the wireless network:Refer to the documentation supplied with wireless Ethernet adapters or other devices in the wireless network.United States of AmericaUSA and Canada Safety Requirements and NoticesDo not touch or move antenna while the unit is transmitting or receiving.Do not hold any component containing the radio such that the antenna is very close to touching any exposed parts of the body, especially the face or eyes, while transmitting.Do not operate the radio or attempt to transmit data unless the antenna is connected; if not, the radio may be damaged.Use in specific environments:The use of wireless devices in hazardous locations is limited by the constraints posed by the safety directors of such environments.The use of wireless devices on airplanes is governed by the Federal Aviation Administration (FAA).The use of wireless devices in hospitals is restricted to the limits set forth by each hospital.
Appendix69This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:•Reorient or relocate the receiving antenna.•Increase the separation between the equipment and receiver.•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.•Consult the dealer or an experienced radio/TV technician for help.The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Intel could void the user’s authority to operate this device.Unintentional emitter per FCC Part 15This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Appendix70Intentional emitter per FCC Part 15(If fitted with 2.4 G band or 5 G band)Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in the notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in the system are only qualified for use in the United States of America if an FCC ID number is on the system label.This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device.If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet helpful: “Something About Interference.”This is available at FCC local regional offices. Our company is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by our company. The correction will be the responsibility of the user. Use only shielded data cables with this system.
Appendix71Health and safety informationExposure to Radio Frequency (RF) Signals Certification InformationThis product can contain an embedded radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Council on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.Before a new model is available for sale to the public, it must be certified to the FCC that it does not exceed the exposure limit established by the FCC. Evaluation per each model is performed in positions and locations (e.g. at the bottom on the body) as required by the FCC.Operation of this device is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.Wireless devices are not user serviceable. Do not modify them in any way.Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.
Appendix72For corresponding model onlyThe Specific Absorption Rate (SAR) is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC wireless devices to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg).SAR level of this device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.For body worn operation, this model meets the FCC RF exposure guidelines when used with Samsung accessory designated for this product. Non-compliance with the above restrictions may result in violation of FCC RF exposure guidelines.RF exposure or SAR information can be viewed on-line at www.fcc.gov/oet/ea/fccid/. This site uses this product FCC ID number on the outside of the product. Sometimes it may be necessary to remove the battery pack to find number. Once you have the FCC ID number for a particular product, follow the instructions on the website and it should provide RF exposure information or values for typical or maximum SAR for particular product.
Appendix73The term “IC” before the equipment certification number only signifies that the Industry Canada technical specifications were met. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.(If fitted with 2.4 G band or 5 G band)Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualified for use in Canada if an Industry Canada ID number is on the system label.CanadaUnintentional emitter per ICES-003This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.Intentional emitter per RSS 210This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.
Appendix74The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by Industry Canada.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.To prevent radio interference to licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.When using IEEE 802.11a wireless LAN, this product is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. Industry Canada requires this product to be used indoors for the frequency range of 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel mobile satellite systems. High power radar is allocated as the primary user of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage to this device.The maximum allowed antenna gain for use with this device is 6dBi in order to comply with the E.I.R.P limit for the 5.25 to 5.35 GHz and 5.725 to 5.85 GHz frequency range in point-to-point operation.
Appendix75European UnionEuropean Union CE marking and compliance noticesProducts intended for sale within the European Union are marked with the Conformité Européene (CE) Marking, which indicates compliance with the applicable Directives and European standards and amendments identified below. This equipment also carries the Class 2 identifier.The following information is only applicable to systems labeled with the CE mark .European Directives This Information Technology Equipment has been tested and found to comply with the following European directives:•EMC Directive 2004/108/EC•Low Voltage Directive 2006/95/EC•R&TTE Directive 1999/5/ECBrazilEste produto esta homologado pela ANATEL, de acordo com os procedimentos regulamentados pela Resolucao 242/2000, e atende aos requisitos tecnicos aplicados.Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário.

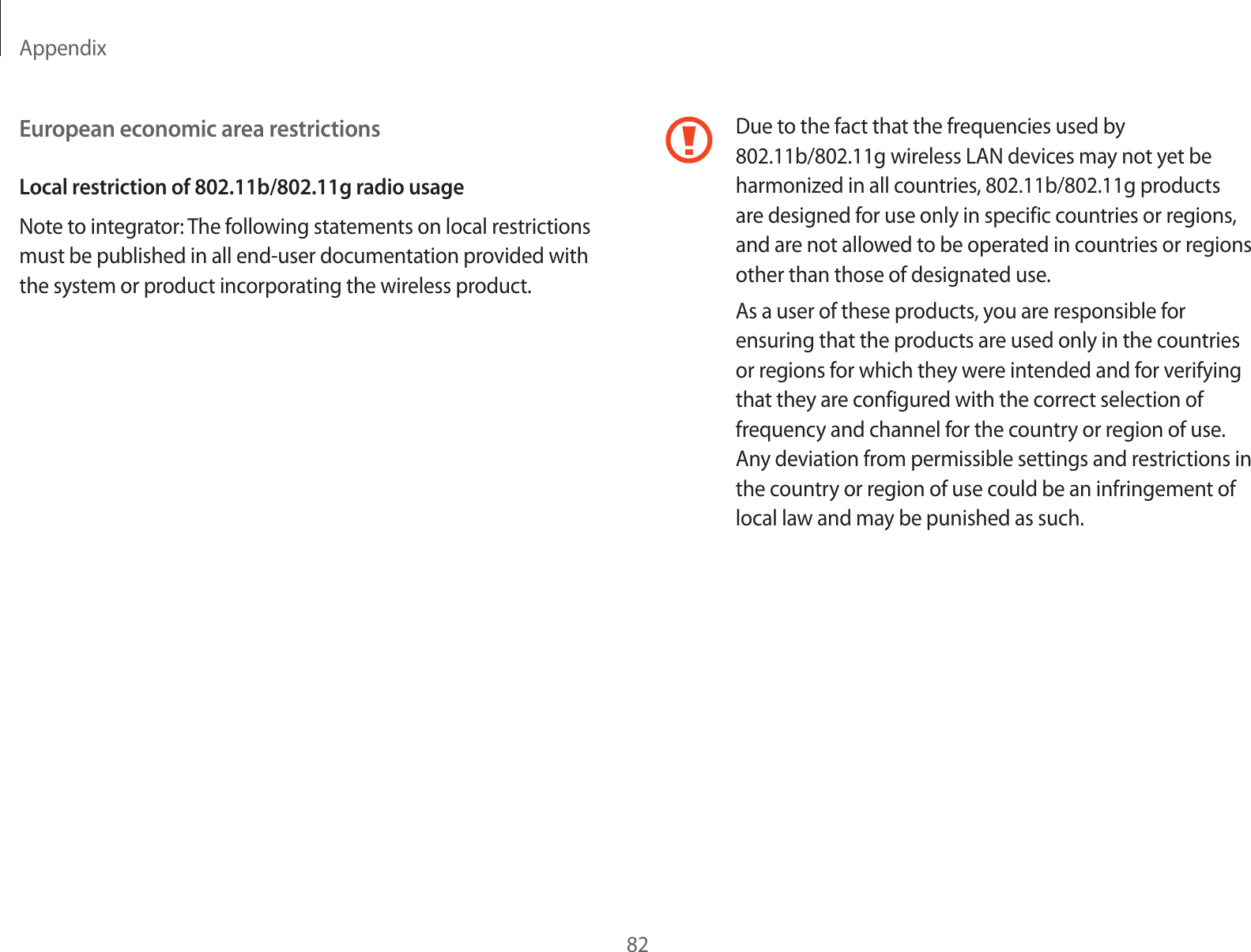

Appendix76Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label.The power output of the wireless device or devices that may be embedded in you notebook is well below the RF exposure limits as set by the European Commission through the R&TTE directive.The low band 5.15–5.35 GHz is for indoor use only.See 802.11b and 802.11g restrictions for specific countries or regions within countries under the heading “European Economic Area Restrictions” below.Samsung Electronics (UK) Ltd, Euro QA Lab.Blackbushe Business Park Saxony Way, Yateley, Hampshire GU46 6GG United KingdomEuropean radio approval information (for products fitted with EU-approved radio devices)This Product is a Notebook computer; low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be present (embedded) in your notebook system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.
Appendix77Nation DescriptionEesti[Estonian]Käesolevaga kinnitab Samsung seadme Notebook PC vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.EnglishHereby, Samsung, declares that this Notebook PC is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.Español[Spanish]Por medio de la presente Samsung declara que el Notebook PC cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.EU R&TTE compliance statementsNation DescriptionČesky[Czech]Samsung tímto prohlašuje, že tento Notebook PC je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.Dansk[Danish]Undertegnede Samsung erklærer herved, at følgende udstyr Notebook PC overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.Deutsch[German]Hiermit erklärt Samsung, dass sich das Gerät Notebook PC in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Appendix78Nation DescriptionLatviski[Latvian]Ar šo Samsung deklarē, ka Notebook PC atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.Lietuvių[Lithuanian]Šiuo Samsung deklaruoja, kad šis Notebook PC atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.Nederlands[Dutch]Hierbij verklaart Samsung dat het toestel Notebook PC in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.Nation DescriptionΕλληνική[Greek]ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Samsung ΔΗΛΩΝΕΙ ΟΤΙ Notebook PC ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.Français[French]Par la présente Samsung déclare que l’appareil Notebook PC est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.Italiano[Italian]Con la presente Samsung dichiara che questo Notebook PC è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

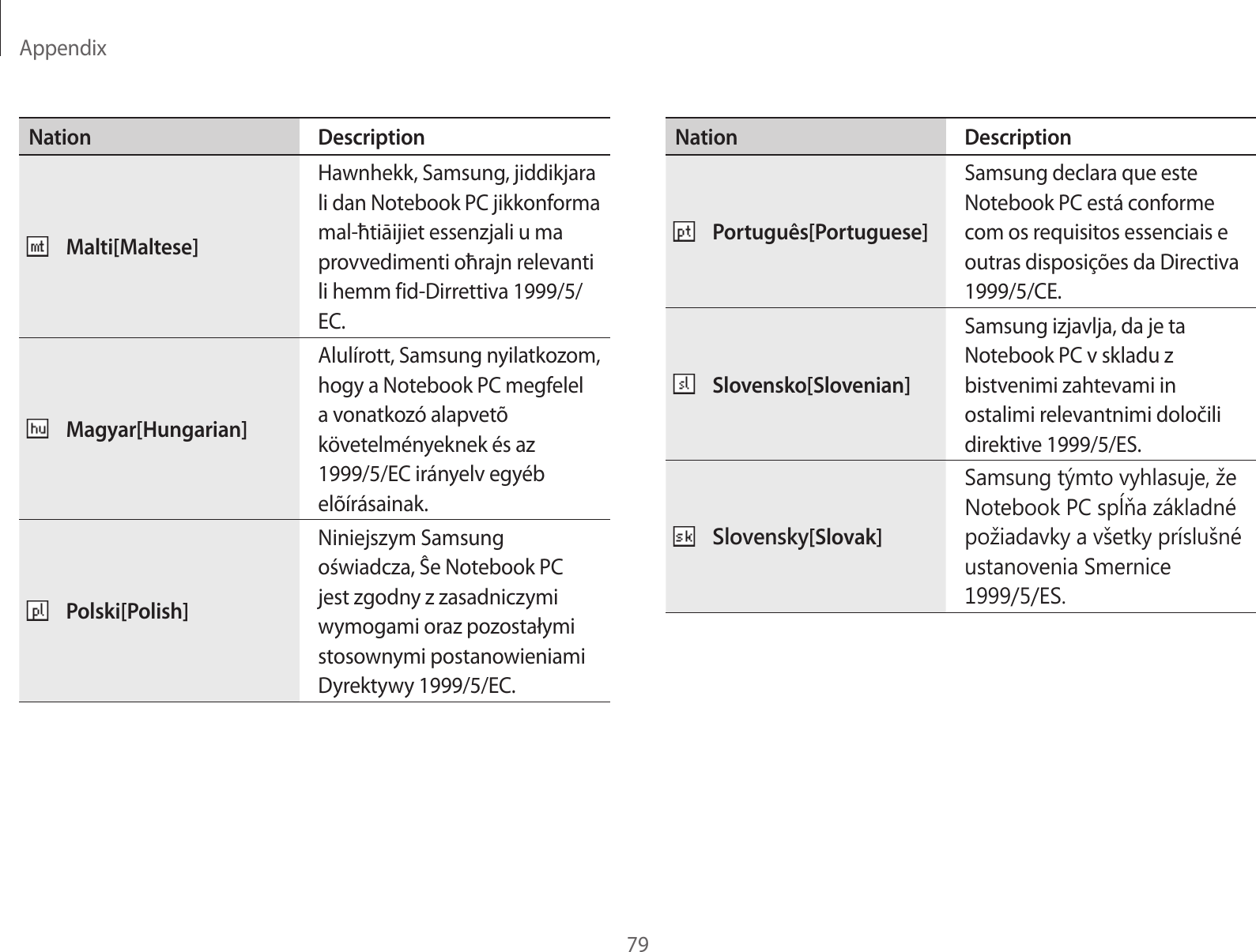

Appendix79Nation DescriptionPortuguês[Portuguese]Samsung declara que este Notebook PC está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.Slovensko[Slovenian]Samsung izjavlja, da je ta Notebook PC v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.Slovensky[Slovak]Samsung týmto vyhlasuje, že Notebook PC spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.Nation DescriptionMalti[Maltese]Hawnhekk, Samsung, jiddikjara li dan Notebook PC jikkonforma mal-ħtiāijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.Magyar[Hungarian]Alulírott, Samsung nyilatkozom, hogy a Notebook PC megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.Polski[Polish]Niniejszym Samsung oświadcza, Ŝe Notebook PC jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Appendix80Nation DescriptionNorsk[Norwegian]Samsung erklærer herved at utstyret Notebook PC er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.Türkiye[Türkçe]Bu belge ile, Samsung bu Notebook PC’nin 1999/5/EC Yönetmeliğinin temel gerekliliklerine ve ilgili hükümlerine uygun olduğunu beyan eder.Nation DescriptionSuomi[Finnish]Samsung vakuuttaa täten että Notebook PC tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.Svenska[Swedish]Härmed intygar Samsung att denna Notebook PC står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.Íslenska[Icelandic]Hér með lýsir Samsung yfir því að Notebook PC er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Appendix81Manufacturer informationSamsung Electronics Co., Ltd.129, Samsung-Ro, Yeongtong-Gu, Suwon-City, Gyeonggi-Do, 443-742, KoreaSamsung Electronics Suzhou Computer Co., Ltd.No. 198, Fangzhou Road, Suzhou Industrial Park, Jiangsu Province, 215021, ChinaTel: +86-0512-6253-8988Samsung Electronics Vietnam Co., Ltd.Yen Phong 1, I.P Yen Trung Commune, Yen Phong Dist., Bac Ninh Province, VietnamFor the web or the phone number of the Samsung Service Center, see the Warranty or contact the retailer where you purchased your product.To view the EU Declaration of Conformity for this product (in English only), go to: www.samsung.com/uk/support/main/supportMain.do or www.samsung.com/uk/support then search the model number of the product.If the Declaration of Conformity for the model you are interested in is not available on our web-site, please contact your distributor or below address.doc.eu@samsung.com
