Getting started
3 About this manual
7 Layout
13 Turning the computer on
and off
Basics
16 Using the computer as a
tablet
17 Touch screen
21 Keyboard
23 Touchpad
25 Memory card
27 Wireless LAN
Chrome OS
28 Using applications
28 All about Chrome OS
30 Get on the web
32 Discover web apps
33 FAQ
33 Recovery (optional)
Settings & Upgrade
35 LCD brightness
36 Volume
37 Battery
Appendix
40 Product specifications
41 Ergonomic tips
45 Powering your device
47 Safety precautions
60 Important safety
information
63 Replacement parts and
accessories
66 Regulatory compliance
statements
84 WEEE symbol information
86 Samsung package Take-
Back program
Table of contents
3
Getting started
About this manual
•
This user manual is specially designed to detail the computer’s
functions and features.
•
The user manual supplied with the computer may vary
depending on the model.
•
Please read this manual before using the computer to ensure
safe and proper use.
•
Optional accessories, some devices, and software referred to
in this manual may not be provided or may not be subject to
upgrades. Note that the computer environment referred in
the user manual may not be the same as your environment.
•
Available features and additional services may vary
depending on the computer or operating system.
•
This user manual describes procedures for using the
touchpad, mouse and touch screen. Instructions for using the
touch screen are for models with the touch screen feature.
•
Images and screenshots are those of the representative model
of the series and may differ in appearance from the actual
product.
•
Content may differ from the final product and is subject to
change without prior notice. For the latest version of the
manual, refer to the Samsung website, www.samsung.com.
Instructional icons and expressions
Warning
: situations that could cause injury to yourself or
others
Caution
: situations that could cause damage to the
computer or other equipment
Note
: notes, usage tips, or additional information
The path you should follow to carry out an instruction. For
example, “select
Settings
→
Devices
” indicates that you
should select
Settings
and then
Devices
.
Select Click the mouse or tap the touchpad or touch screen.
Getting started
4
Copyright
Copyright © 2016 Samsung Electronics
This manual is protected under international copyright laws.
No part of this manual may be reproduced, distributed, translated,
or transmitted in any form or by any means, electronic or
mechanical, including photocopying, recording, or storing in any
information storage and retrieval system, without the prior written
permission of Samsung Electronics.
Computer specifications or the contents of this manual may
be changed without prior notice due to an upgrade of the
computer’s functions.
To service your computer
For inquiries about the Chrome operating system or applications,
visit www.google.com/support/chromeos.
If you have a problem while using the Chromebook hardware,
please contact our Customer Care Center below or visit
www.samsung.com/sec/support/guarantee.do.
If you replace or upgrade the hardware yourself, the Chrome
operating system will not be automatically updated and the
product will not work properly.
Getting started
5
Chrome OS Software License
The software included in this product contains copyrighted
software that is licensed under the GPL/LGPL.
You may obtain the complete Corresponding Source code from
website: http://git.chromium.org/gitweb/
This offer is valid to anyone in receipt of this information.
As an ENERGY STAR® Partner,
Samsung has determined that this
product meets the ENERGY STAR®
guidelines for energy efficiency.
•
The ENERGY STAR Program has reduced greenhouse gas
emissions and saved energy through voluntary labeling.
•
Power management setting of this product has been enabled
by default, and has various timing settings from 1 minute to
5 hours.
•
The product can wake with a button press on the chassis from
sleep mode.
Trademarks
•
Samsung and the Samsung logo are trademarks or registered
trademarks of Samsung Electronics.
•
Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
worldwide.
•
Wi-Fi®, Wi-Fi Protected Setup™, Wi-Fi Direct™, Wi-Fi
CERTIFIED™, and the Wi-Fi logo are registered trademarks of
the Wi-Fi Alliance.
•
All other trademarks and copyrights are the property of their
respective owners.
Getting started
6
About the Product Capacity Representation
Standard
About Memory Capacity Representation
The memory capacity reported in the Chrome OS is less than the
actual capacity of memory.
This is because BIOS or a video adapter uses a portion of memory
or claims it for further use.
(E.g. For 1 GB(=1,024 MB) memory installed, OS(Windows, Chrome,
etc.) may report the capacity as 1,022 MB or less)
Precautions for Operating System Support
If a problem occurs because of the reinstallation of other
operating systems(OS) or a previous version of an OS pre-installed
on this computer, or a software that does not support the OS, the
company will not provide technical support, a replacement or
refund, and if our service engineer visits you due to this problem, a
service charge will be applied.
Performance Restrictions
Online games and some games(3D, 2D) may not be supported
and Full HD video and some high bit rate HD video playback may
be slow and stutter on this computer.
Getting started
7
Number/Name Description
Camera indicator
light
•
This indicates the camera
operating status.
Camera
•
Using this camera, you can take
still pictures and record video.
LCD/Touch screen
•
The screen’s images are displayed
here.
•
Recognizes touch interactions
(only for touch screen models).
Microphone
•
You can use the built-in
microphone.
Keyboard
•
Enter text or control computer
functions.
Touchpad
•
Moves the cursor and selects
options.
•
Functions as a mouse.
Layout
•
Features or options may differ depending on the model.
•
The items marked as optional may not be provided or
may be provided in different locations.
•
Since some storage space is reserved for system
recovery and operations, the available storage space
may be less than the actual capacity.
Front view
12
3
5
6
4
Getting started
8
Number/Name Description
USB-C™ port
•
The USB-C™ port can be used to
connect and charge a USB-C™
device, or connect to an external
display device.
Purchase an adapter
separately to connect to an
external display.
PEN
•
Remove the PEN from the slot
and perform touch actions on the
screen.
Right view
2
1 3
4
Number/Name Description
Volume button
/
•
Adjusts the volume level.
Power button /
Power LED
•
Turns the computer on and off.
•
Shows the operating status of the
computer.
–

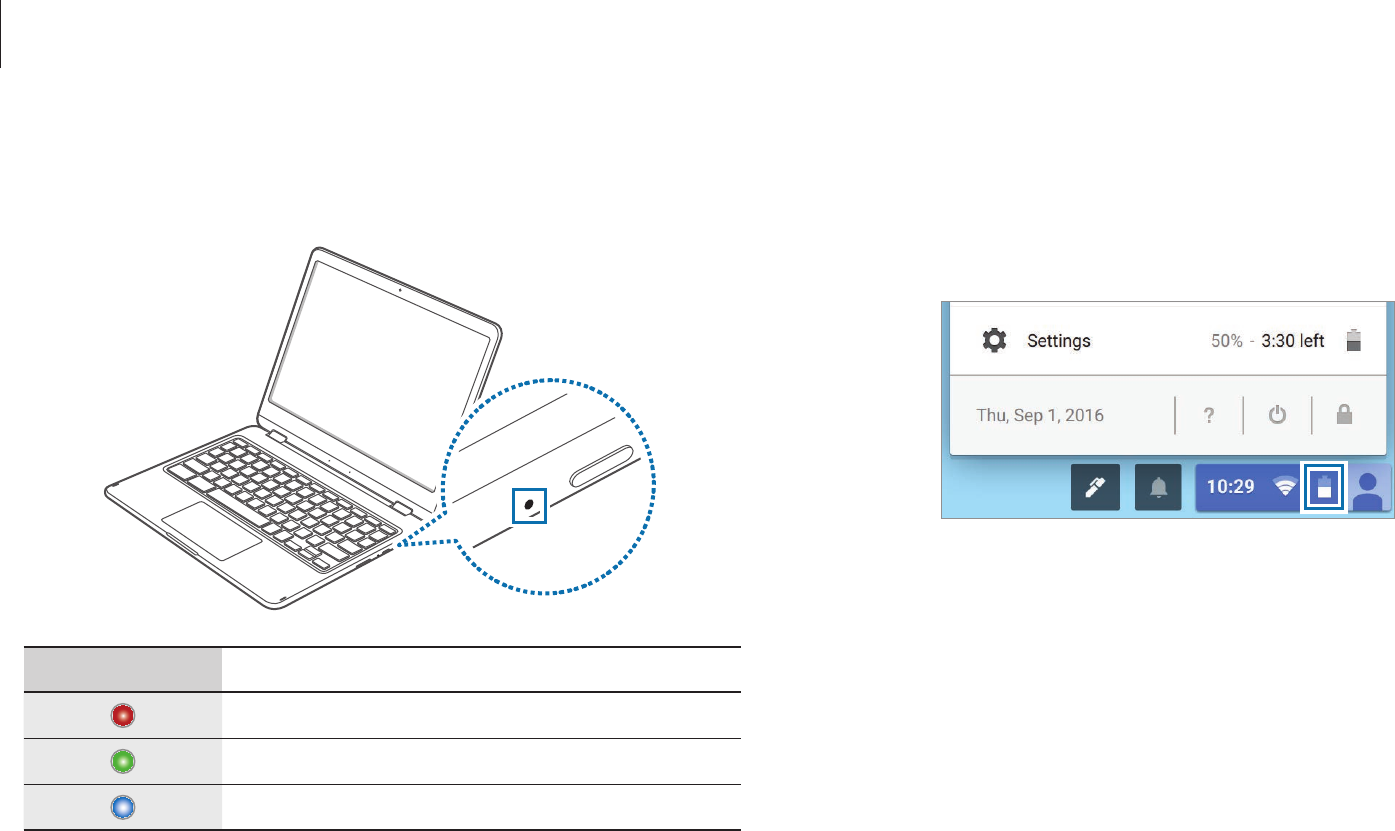

Red
: Charging
–
Green
: Fully charged
–
Blue
: Turned on
Getting started
9
Number/Name Description
Earpiece/Headset
jack
•
This jack connects to the AC
adapter to supply power to the
computer.
USB-C™ port
•
The USB-C™ port can be used to
connect and charge a USB-C™
device, or connect to an external
display device.
Purchase an adapter
separately to connect to an
external display.
Memory card slot
•
Insert a memory card into the
slot.
Left view
1 2 3
About the chargeable USB port
•
It may take longer to charge the battery when charging a USB
device.
•
The battery power level may be reduced when charging a USB
device while the computer is powered by the battery.
•
The charging status of the USB device is not displayed on the
computer.
•
This feature may not be available on some USB devices.
•
When the computer is turned off, the device connected to the
USB port is not charged.
Getting started
10
Number/Name Description
Fan vents
•
The internal heat of the computer is
emitted through these holes.
•
If the vents are blocked the
computer may overheat. Avoid
blocking the vents as this may be
dangerous.
Internal battery
•
Provides power to the computer
when not connected to an AC
adapter.
•
To remove or replace the internal
battery, take it to a Samsung Service
Center. You will be charged for this
service.
Speaker
•
Sound is emitted from the speakers.
If the bottom of the computer is replaced, the model
name, serial number, and some logos will no longer be
present. For more information, contact the Samsung
Service Center to request assistance.
Bottom view
1
2
Getting started
11
Detaching the PEN
Press the end of the PEN to disengage it. Then, pull the PEN from
the slot. To store the PEN, push it back into the slot until you hear it
click.
2
1
PEN
1
2
Number/Name Description
PEN nib
•
Use the PEN to write, draw, or
perform touch actions on the screen.
Tweezers
•
Remove the PEN nib with the
tweezers when replacing the nib.
Getting started
12
Be careful not to pinch your fingers with the tweezers.
•
Do not reuse old nibs. Doing so may cause the PEN to
malfunction.
•
Do not press the nib excessively when inserting the nib
into the PEN.
•
Do not insert the round end of the nib into the PEN.
Doing so may cause damage to the PEN or your device.
•
Do not bend or apply excessive pressure with the PEN
while using it. The PEN may be damaged or the nib may
be deformed.
•
If you use the PEN at sharp angles on the screen, the
device may not recognise the PEN actions.
•
If water enters the PEN slot, gently shake the device to
remove the water from the slot before using it.
•
For more information about the PEN, visit the Samsung
website.
•
If the PEN is not working properly, take it to a Samsung
Service Center.
Replacing the PEN nib
If the nib is dull, replace it with a new one.
1 Firmly hold the nib with the tweezers and remove it.
2 Insert a new nib into the PEN.
Getting started
13
3 The computer turns on automatically when the LCD panel is
opened.
If the computer does not turn on automatically, press the
Power button.
Turning the computer on and off
Fully charge the battery using the AC adapter before using
the computer
for the first time
.
Turning the computer on
1 Before turning on the computer, check that the battery is
charged and charge it if necessary.
2 Open the LCD panel.
Getting started
14
Using the Power button
Press and hold the Power button for about 8 seconds to shut
down the Chromebook.
Press and hold the Power button for about 2 seconds to enter
power saving mode.
In this lock state, press and hold the Power button for about
2 seconds to shut down the Chromebook.
To shut down the Chromebook when the system has frozen
unexpectedly, press and hold the Power button for at least
8 seconds.
Turning the computer off

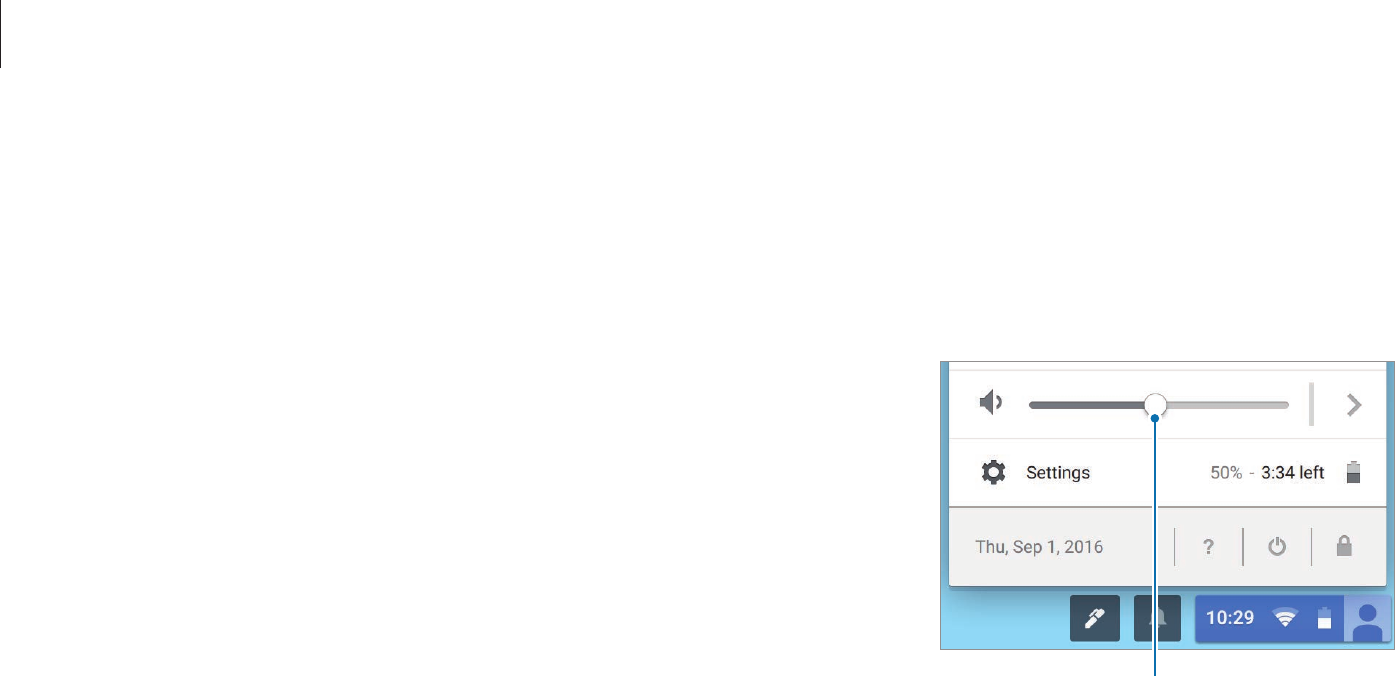

Using screen buttons
Select the Power button ( ).
•
Save all data before turning off the computer.
•
If the screen is locked in power saving mode
Click on the screen, tap the touchpad, or press any key
to unlock the screen.
Getting started
15
Controlling the power of the Chromebook
If the Lid is
closed
When there is
no input for a
predetermined
period of time
If the Power
button is
pressed
Signed-in
state
Enters power
saving mode
Enters power
saving mode
The state
changes to the
sign out state
Signed-out
state
The
computer is
turned off
The computer
is turned off
The computer
is turned off
Press any key or swipe the touchpad to unlock the screen.
16
•
When the LCD panel is tilted past the transition point
The keyboard and touchpad will automatically be
locked and will not function.
The display will rotate automatically depending on the
computer’s orientation.
•
When the screen is turned off while using the computer
as a tablet, press the Volume button to unlock the
screen. When the computer is in power saving mode,
press the Power button to unlock the screen.
When storing the computer in a bag or carrying it, close
the LCD panel to protect the computer.
Basics
Using the computer as a tablet

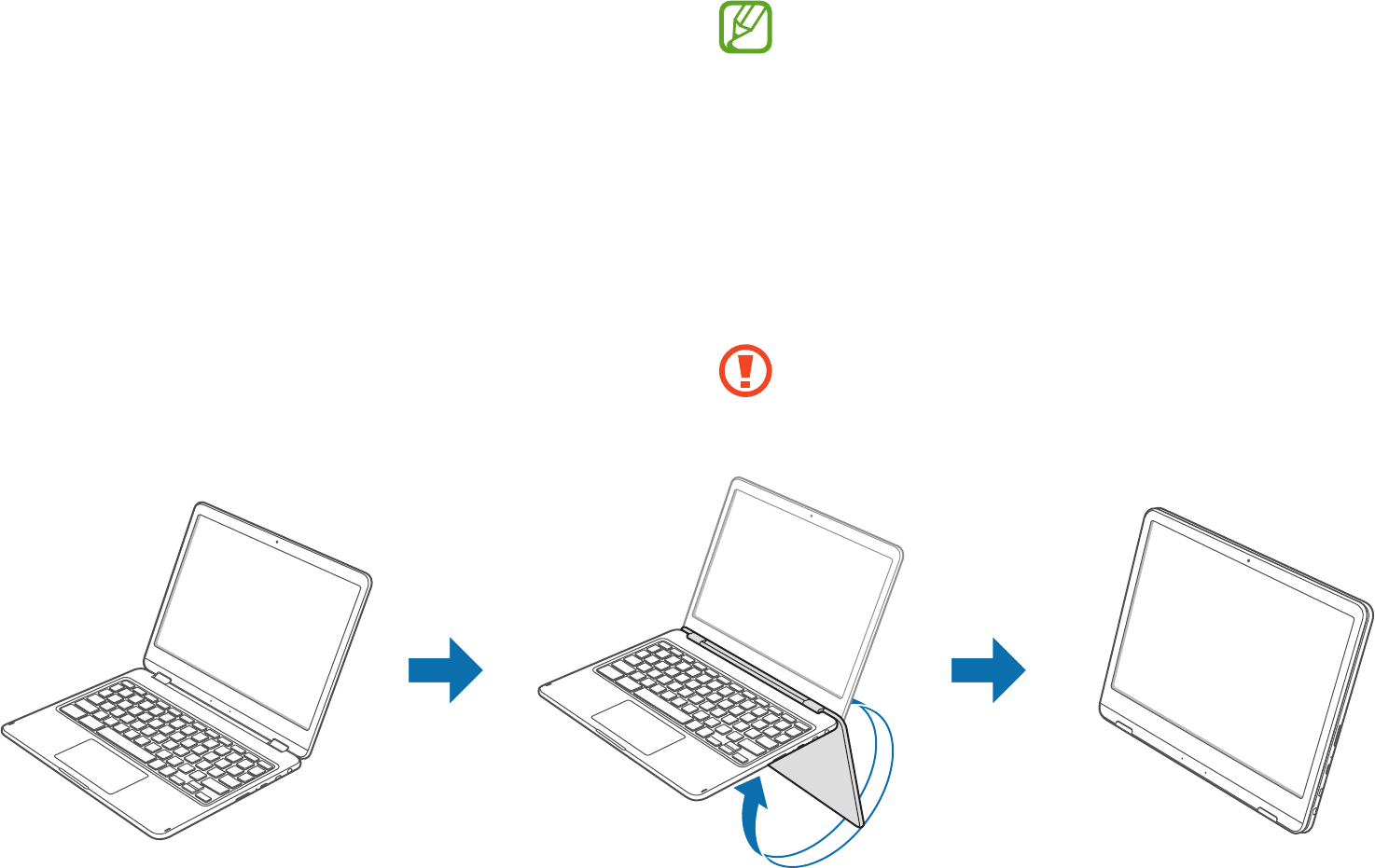

You can use the computer as a tablet by folding the LCD panel
behind the keyboard.
Open the LCD panel and rotate it away from the keyboard until it
touches the bottom side of the computer.
Basics
17

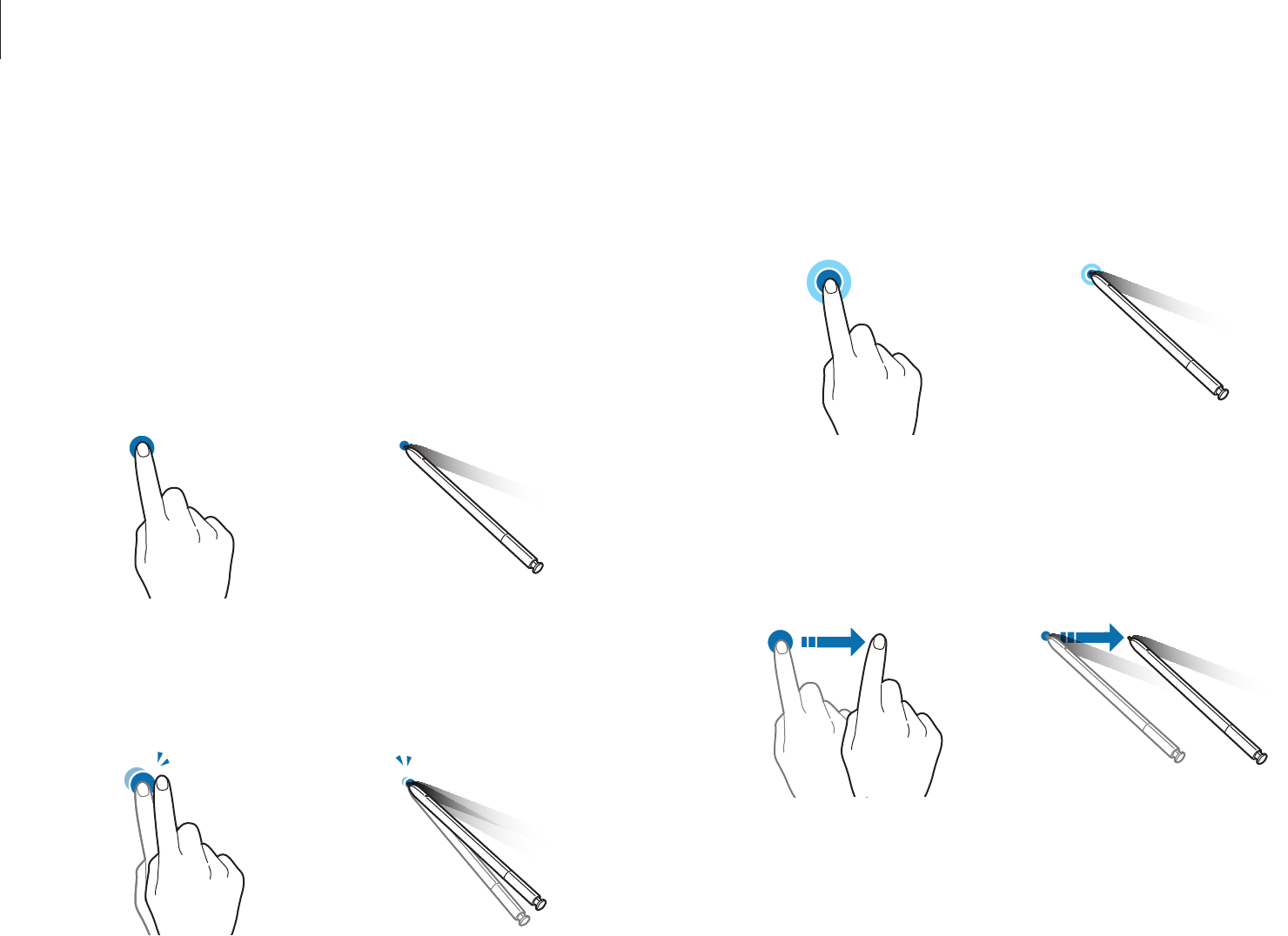

Tapping and holding (right-clicking)
To use additional options of an item, tap and hold it on the touch
screen.
Dragging
To move an item to another location, tap and hold it, and then
drag it on the touch screen to the desired location.
Touch screen
Use your fingers or a PEN on the touch screen to perform actions.
Touch screen gestures
Tapping
To select menus, options, or applications, tap the touch screen.
Double-tapping
To open files or items, double-tap the touch screen.
Basics
18

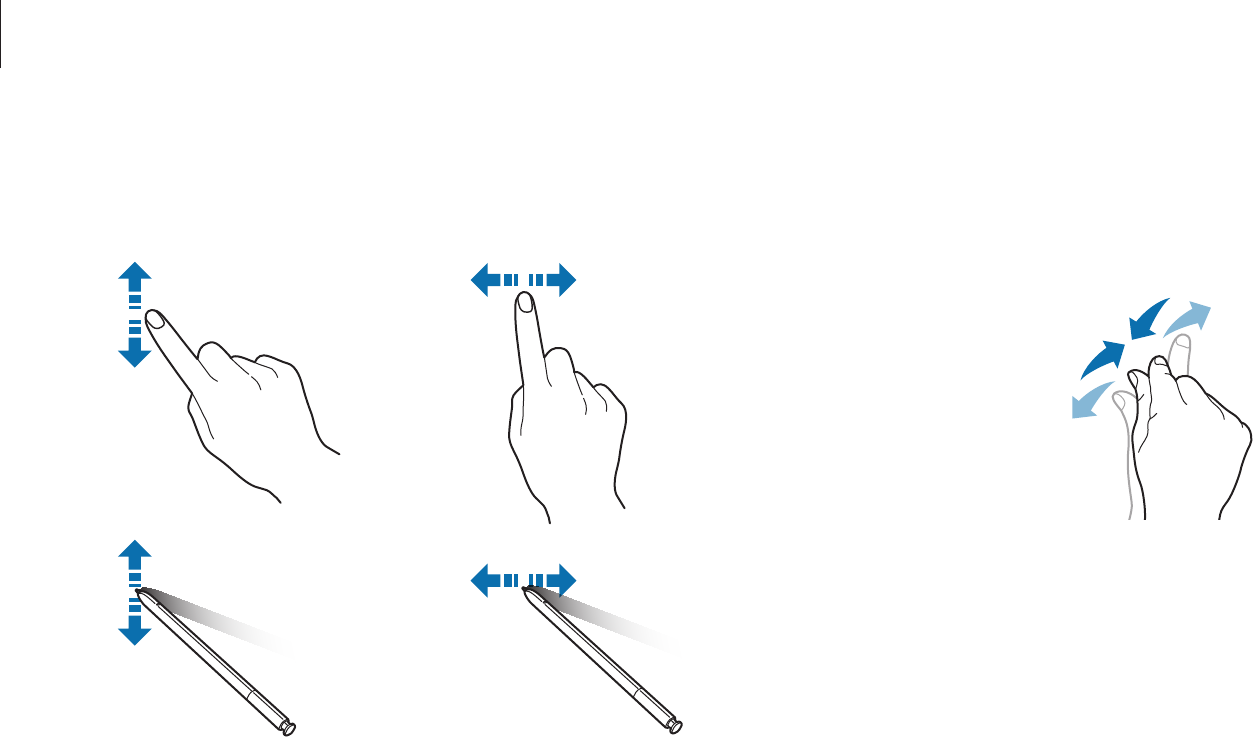

Scrolling
To scroll up, down, left, or right, swipe on the touch screen.
or
or
Spreading and pinching
To zoom in, spread two fingers apart on an image or text. Pinch to
zoom out.
Basics
19
•
Leaving the touch screen idle for extended periods
may result in afterimages (screen burn-in) or ghosting.
Turn off the touch screen when you are not using the
computer.
•
Make sure your hands are clean and dry before using
the touch screen. Remove any moisture from your
hands before using the touch screen.
•
Do not expose the computer to foreign substances.
Doing so may cause the touch screen to malfunction.
•
Very light touches on the touch screen may not be
recognized.
•
Precisely tap items on the touch screen for the best
results.
•
The touch screen sensors are located on the edges of
the touch screen. Therefore, do not cover the edges of
the touch screen with protective covers or accessories.
•
Touch screen gestures are available for touch screen
models running Windows and work only with some
applications.
•
Do not subject the touch screen to severe impacts or
press it with sharp objects. Doing so may damage the
touch screen.
•
Do not allow the touch screen to come into contact
with other electrical devices. Electrostatic discharges
can cause the touch screen to malfunction.
•
Do not expose the touch screen to water. The touch
screen may malfunction in humid conditions or when
exposed to water.
•
Do not spray liquid cleansing solutions directly onto
the touch screen. The solution may enter the touch
screen or cause undesired operation. To clean the
screen, dampen a cloth with solution and gently wipe
the screen. Do not use solutions or cloths that contain
abrasive materials, as they may damage the touch
screen.
•
Do not damage the edges of the touch screen. Doing so
may damage the touch screen.
Basics
20

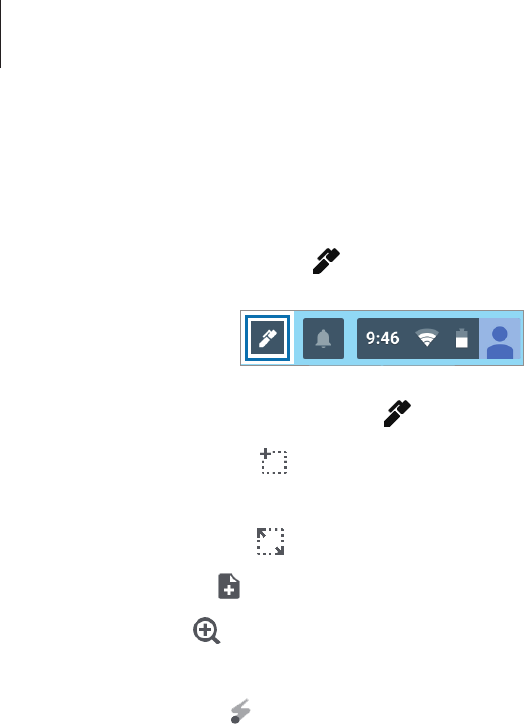

Using the Palette
Use the Palette to use additional touchscreen functions.
To open the Palette, select on the taskbar.
To change Palette options, select and click one of the following:
•
Capture Region
( ) : Select and capture an area of the
screen.
•
Capture Screen
( ) : Capture the current screen.
•
Create Note
( ) : Open
Google Keep
and create a memo.
•
Magnifier
( ) : Expand an area of the screen to zoom in on
items.
•
Laser Pointer
( ) : Use the PEN as a laser pointer for the
screen.
Basics
21
Keyboard
Shortcut key functions and procedures are discussed in the
following sections.
•
The keyboard image may differ from the actual
keyboard.
•
The keyboard may differ depending on your country.
The following mainly describes the shortcut keys.

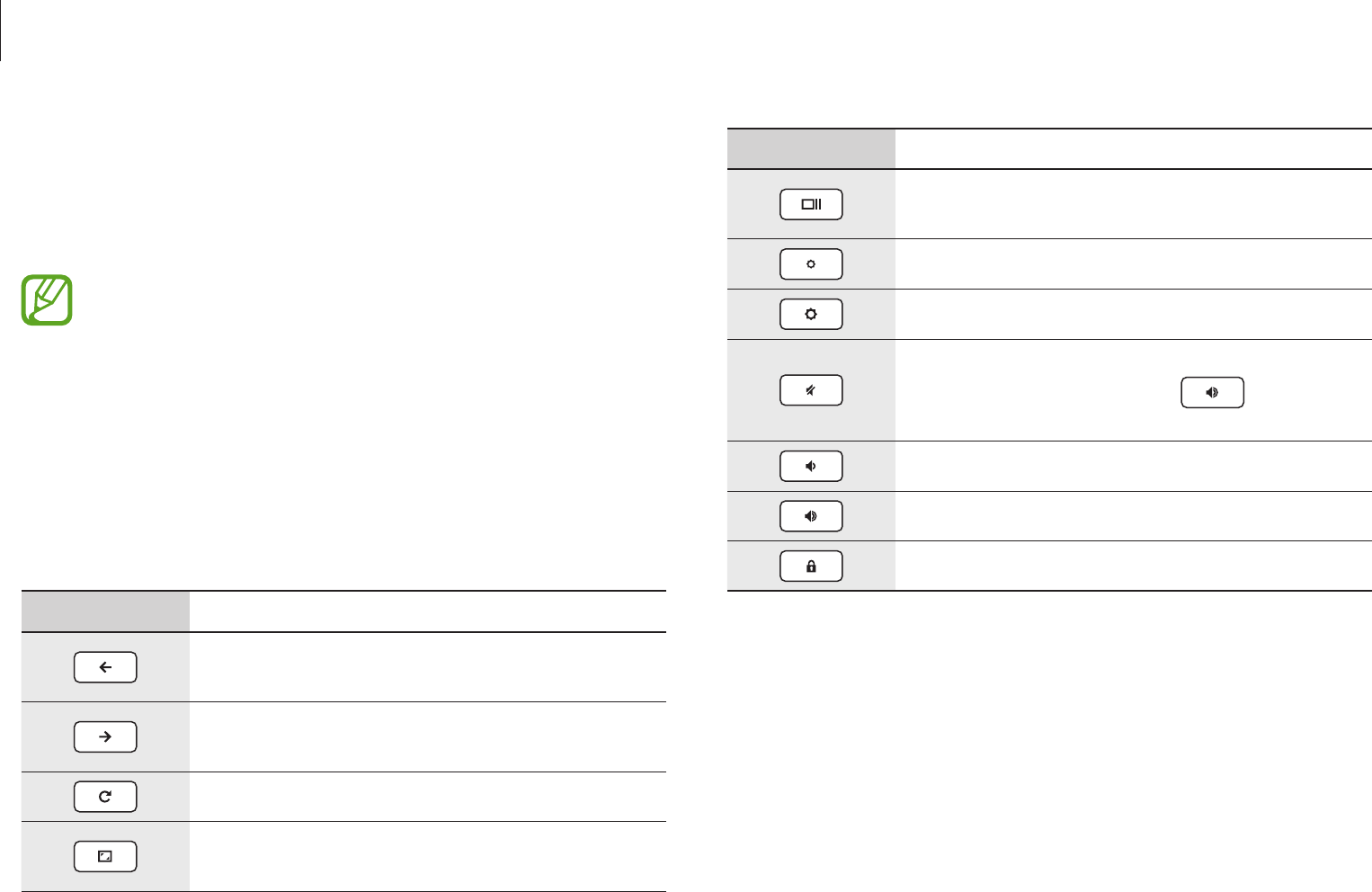

Shortcut Keys
Here is an overview of the shortcut keys on the top row of the
keyboard.
Shortcut Keys Description
•
Go to the previous page in your browser
history.
•
Go to the next page in your browser
history.
•
Reload your current page.
•
Hide the tabs and launcher in full-screen
Immersive mode.
Shortcut Keys Description
•
Enter Overview mode, which shows all
windows.
•
Decrease screen brightness.
•
Increase screen brightness.
•
Mutes the sound.
In Mute mode, press the key to
cancel the Mute function.
•
Decrease the volume.
•
Increase the volume.
•
Lock the screen orientation.
Basics
22

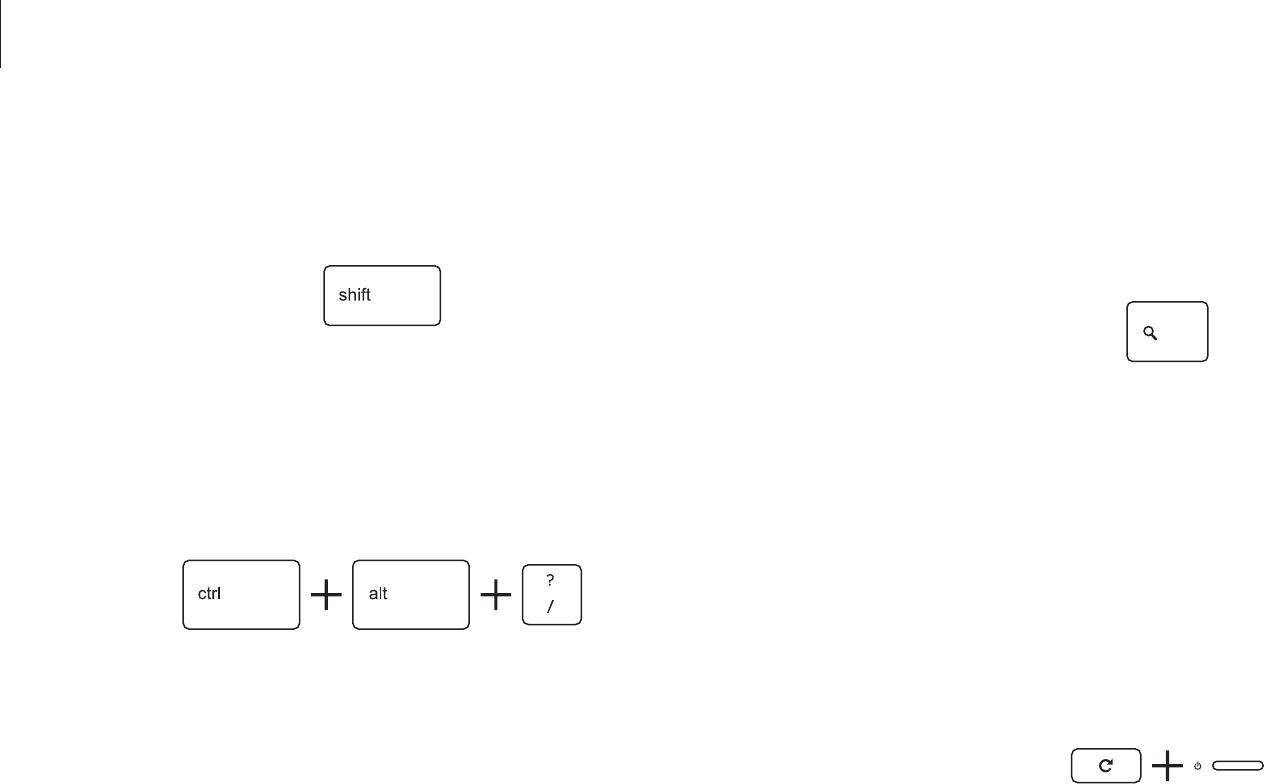

Shift key
Hold the
Shift
key down to enter upper case letters.
Hot key function
Press the following keys at the same time.
You can check the hot keys in Chrome OS.
Search key
Where you’d find the
Caps Lock
key on a traditional keyboard,
we’ve put the
Search
key.
Press the
Search
key to move the pointer to the address bar of the
Apps list
.
If you really need
Caps Lock
, go to the Settings page to make the
Search
key behave like a
Caps Lock
key.

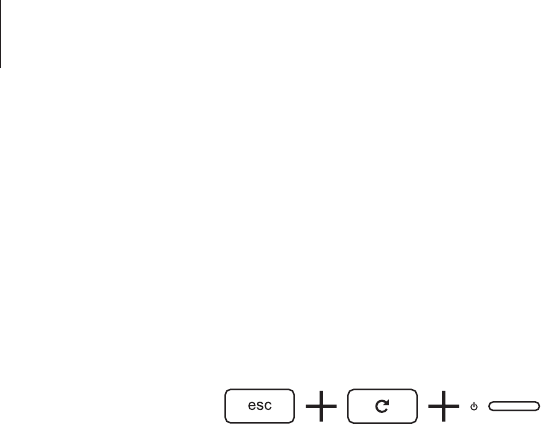

System Reset
If computer is frozen and unresponsive, press the following keys at
the same time.
Basics
23
Touchpad
Use the touchpad to move the cursor or select an item. The left
and right buttons of the touchpad act the same as the left and
right buttons of a mouse.
•
Use the touchpad only with fingers. The touchpad will
not recognize actions of other objects.
•
Images and the touchpad layout may differ depending
on the model.
Basic touchpad functions
Moving
To move the cursor, move a finger on the touchpad.
Clicking
Tap the touchpad.
Tap
Double-clicking
Double-tap the touchpad.
Tap-tap
Basics
24
Adjusting your Touchpad Settings
If your touchpad is too sensitive, you can adjust your settings by
following these steps:
1 Click the list icon on the top-right corner of your browser.
2 Select
Settings
.
3 Go to
Device
→
Touchpad
speed, and change the settings as
appropriate.

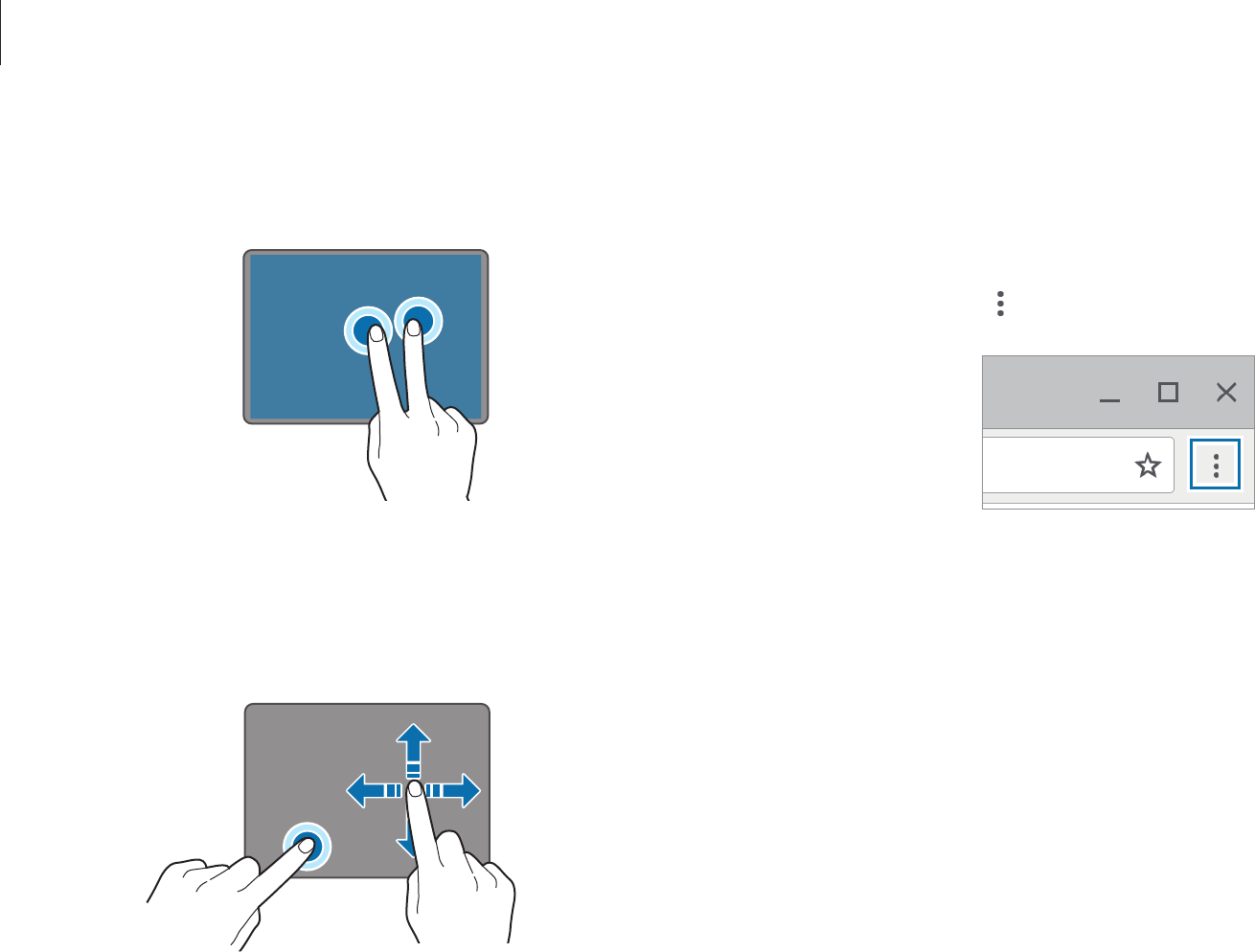

Right-clicking
To right-click, place two fingers on the touch area and tap once.
Tap
Dragging
To move an icon or an app tile to a desired location, press and hold
it and then drag it to the target position.
Press and hold the
left touchpad
Move
Basics
25
•
Some memory cards may not be fully compatible with
the computer. Using an incompatible card may damage
the computer or the memory card, or corrupt the data
stored in it.
•
Use caution to insert the memory card in the indicated
direction.
•
Store the card separately to prevent losing the card
when moving the computer.
•
Memory card speeds vary.
Memory card
Use a memory card to transfer data to other devices, such as
digital cameras or MP3 players. Memory cards are sold separately.
Purchase a memory card with the necessary capacity for the
requirement.
This computer supports the following types of memory cards.
Abbreviation Description
micro SD
•
micro Secure Digital
micro SDHC
•
micro Secure Digital High Capacity
micro SDXC
•
micro Secure Digital eXtended Capacity
Basics
26
3 A new tab opens and the list of files on the card appears.
4 Click on a file to read the data for the file.
Removing a memory card
Push the card gently until it disengages from the memory card
slot. Grasp the end of the card and pull it out of the slot.
•
Available data formats depend on the current version of
the Chrome operating system.
•
Data on the card can be saved to the Download folder
under
Apps list
→
Files
.
•
The maximum file size will vary depending on Chrome
OS.

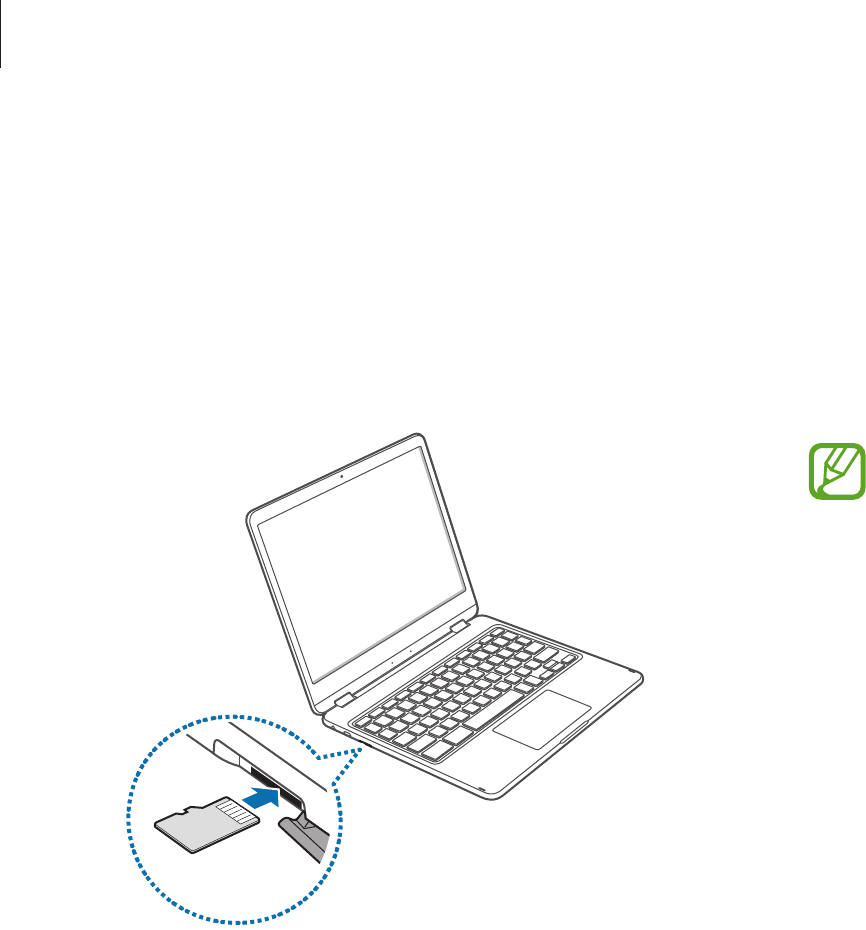

Inserting a memory card
1 If a dummy card or a memory card adapter is inserted in the
memory card slot, remove it.
2 Insert a memory card into the memory card slot in the
indicated direction.
Basics
27
2 Select
No network
.
The Wi-Fi list will appear.

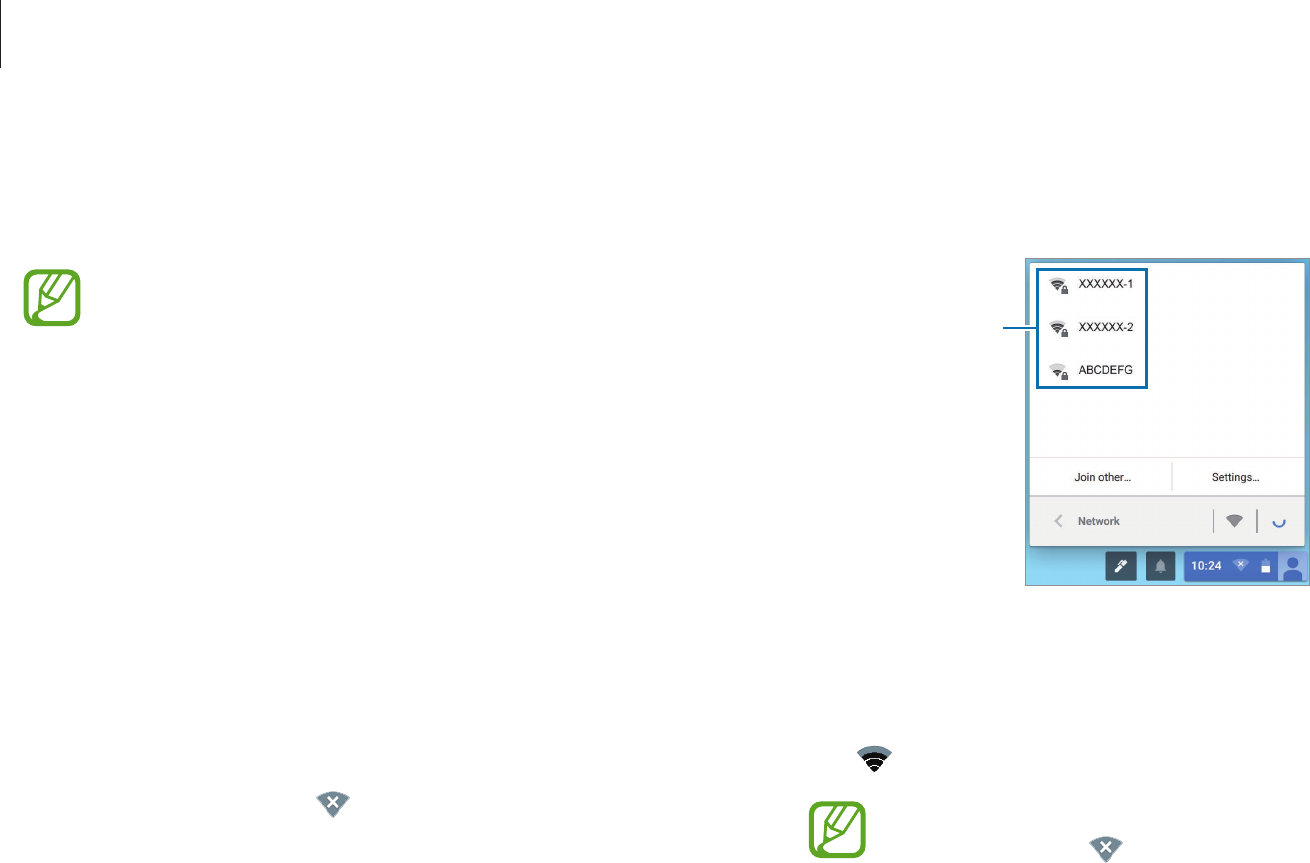

Wi-Fi List
3 Select a network from the list of detected Wi-Fi list.
4 If the connection is successfully established, the network icon
is displayed.
•
If the network is not properly connected, it is
represented as .
•
The number of activated bars in the network icon
represents the signal strength of the wireless LAN.
Wireless LAN
Connect the computer to a wireless network to use the Internet.
The descriptions below are for computer models with
a Wireless LAN card or device. A Wireless LAN device is
optional. The pictures in this manual may differ from the
actual product depending on the wireless LAN device
model.
About Access Point (AP)
An Access Point (AP) is a network device that bridges wired
and wireless LANs and corresponds to a wireless hub in a wired
network. Multiple devices can be connected to an AP.
Connecting to a Wi-Fi network
1 Click the network icon on the bottom-right corner of the
log-in screen.
28
Chrome OS
Using applications
•
Images and features may differ depending on the
model and the application version.
•
Some applications may not be supported depending
on the model.
•
Third-party software related services
For descriptions about and service requests for
third-party applications, please contact the relevant
manufacturer. Some troubleshooting actions in
response to service requests may not work depending
on the application manufacturer.
All about Chrome OS
Your Chromebook runs the Chrome operating system that’s built
and optimized for the web. Using your Chromebook is as easy as
surfing the web.
•
Zero to web in 10 seconds.
Chromebooks start in 10 seconds and resume instantly from
power saving mode. Your favorite websites load quickly and
run smoothly, with full support for the latest web standards
and Adobe Flash. The best part: Chromebooks not only stay
fast, but are designed to get faster over time as updates are
released.
•
Same experience everywhere.
All your apps, documents, and settings are synced to your
account and stored in the cloud. To customize the data that
gets synced, go to
Settings
→
People
.
•
Always connected.
Now, you can stay online at home, outdoors, or on your
morning commute because your Chromebook makes it easy
to get online anywhere, anytime, via Wi-Fi and, if included,
mobile broadband service.
Chrome OS
29
Usage Precautions
•
Some functions and screenshots are subject to change
depending on the Chrome version.
•
To sign-in, you need a Google account. If you do not have a
Google account, you can create one or connect with a guest
account. Some functions may not be available when signed in
as a guest.
•
You may experience limitations using the product under the
following circumstances. Please refer to the link.
–
When reading from or writing to external storage devices
with the filing system. (https://support.google.com/
chromebook/answer/183093?hl=en)
–
When playing certain local video or music files.
(https://support.google.com/
chromebook/answer/183093?hl=en)
–
When using a local printer.
(https://support.google.com/chromebook/
topic/2586004?hl=en&parent=2586068&ctx=topic)
•
For additional inquiries about the Chrome operating system
or applications, visit https://support.google.com/chromebook.
•
If you have a problem while using the Chromebook hardware,
please visit www.samsung.com/sec/support/guarantee.do.
•
Built-in security.
Your Chromebook is much safer than a regular computer.
Each webpage and application you visit runs in a restricted
environment. So if you visit an infected page, it can’t affect the
other tabs, apps, or anything else on your computer.
•
Less updating. More surfing.
When you turn your Chromebook on, it updates itself.
Automatically. All of your apps stay up-to-date, and you
get the latest and greatest version of the operating system
without having to think about it. Starting now, say goodbye to
annoying update prompts.
For more information, visit the Help Center at
www.google.com/support/chromeos.
Chrome OS
30
Desktop

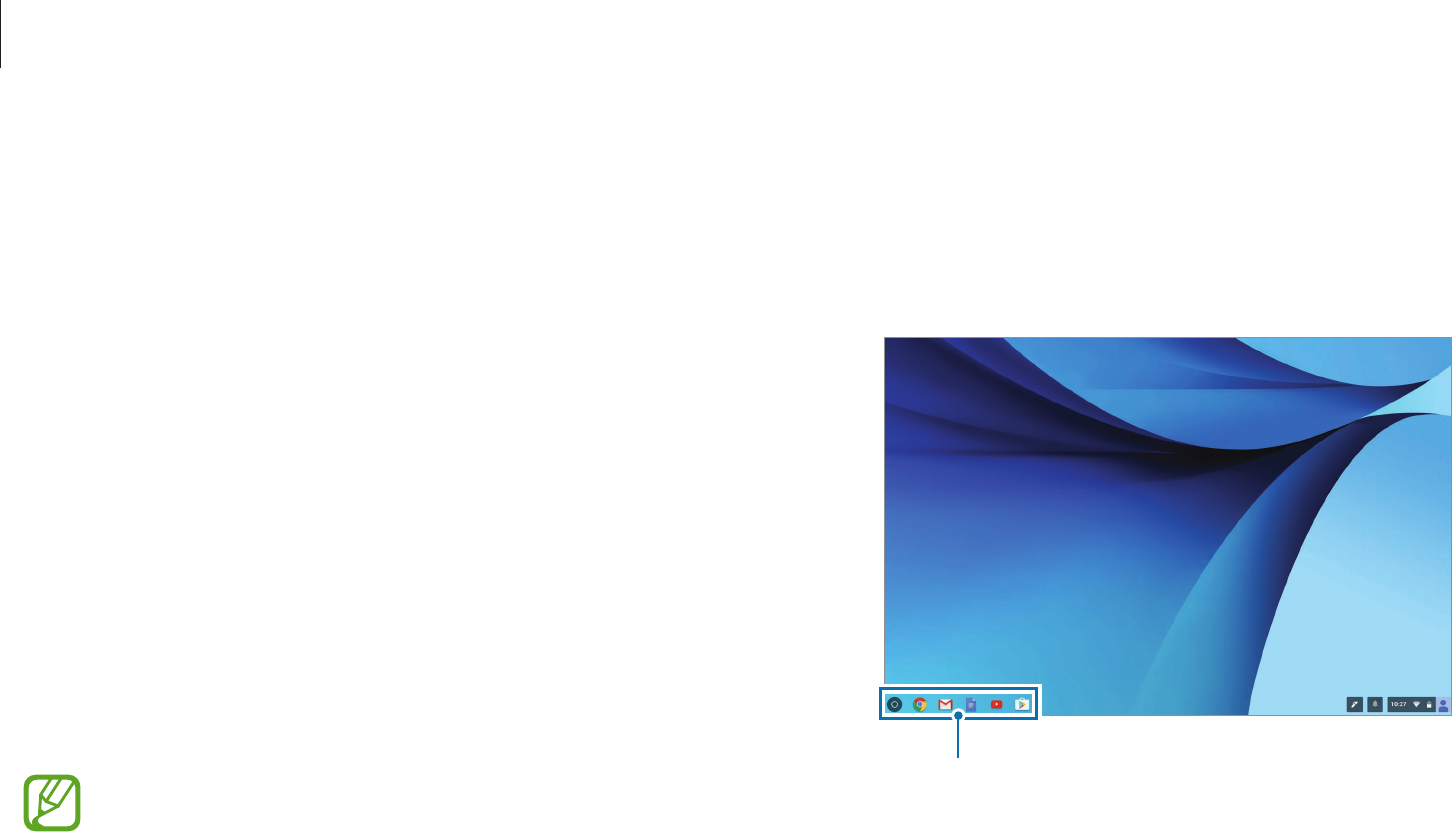

When you have completed the login, the
Desktop
appears. You
can use the Chrome and various apps by clicking the icons of the
bottom left of the screen.
Icons
Get on the web
Logging in with your Google account
You can log into the Chromebook with your Google account.
If you log in with your Google account, you can conveniently use
Google services such as Gmail, Google Calendar, Google Docs
and so on. In addition, since your saved bookmarks and browser
settings are saved in the Google account, you can use the same
settings even on another Chromebook.
1 Enter the email address and the password that are used for
your Google account.
To add a user, click
Add Person
.
2 Click
Sign in
.
If the network connection fails, or if you do not have a
Google account, click
Browse as Guest
to log in with the
guest account.
Chrome OS
31
Number/Name Description
Resizing button
•
Minimize the window or move it to
the left or right.
New tab button
•
Click to see your apps and most
visited sites.
Navigation
buttons
•
Go back, forward, or reload your
page.
Address bar
•
Search or enter a web address.
Bookmark
•
Bookmark the page.
Setting
•
Click to adjust your browser
settings.
To learn about using the browser, visit the Help Center at
https://support.google.com/chromebook.

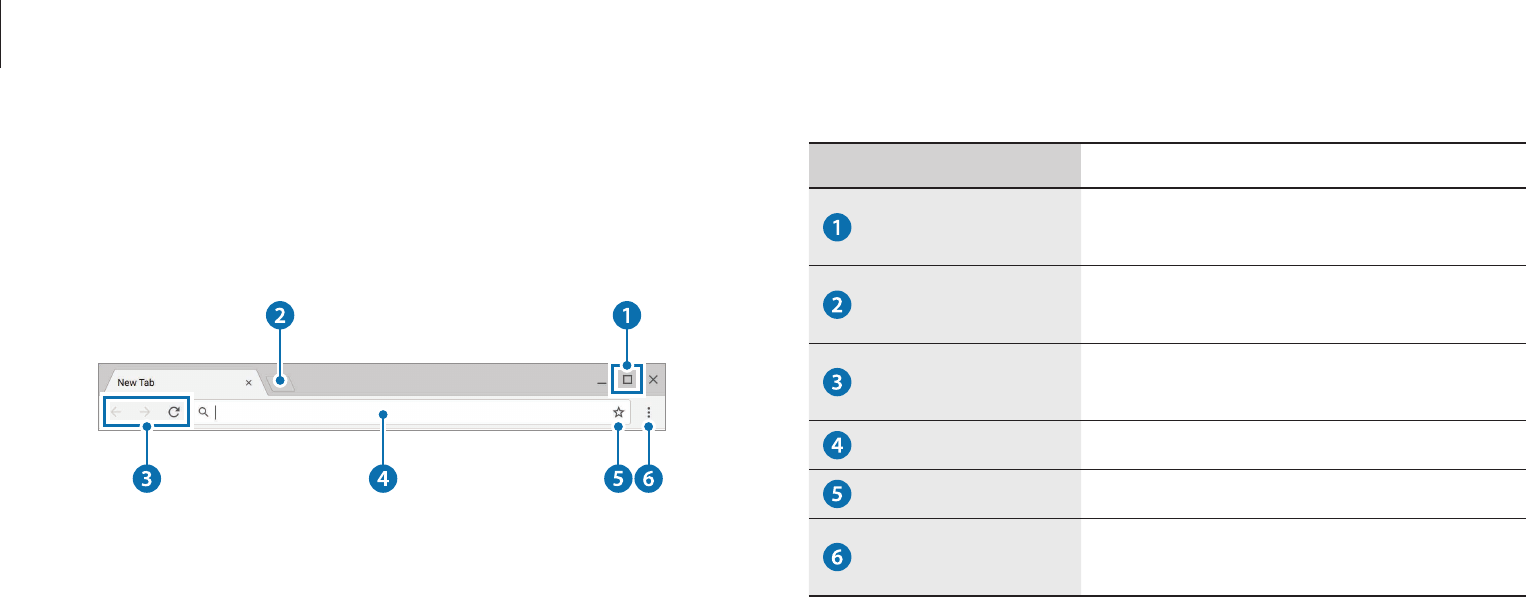

The browsing interface
Once you’re signed in, you’re instantly on the web. Here’s a quick
overview of the interface you’ll see:
Chrome OS
32
•
To use the Web Store, you must have the latest version
of the Chrome browser installed.
•
Some items purchased from the Web Store may not
work depending on your computer specifications.
•
The web store items may or may not be free-of-charge.
Confirm that an item is free-of-charge or not before you
select or purchase it.
•
You have to install an App or Extension that is
supported by the Chrome OS to use it. Before
downloading it, check if it is supported by the operating
system.
Discover web apps
Want to edit a photo, listen to music, or play games in your
browsers? The Chrome Web Store offers a wide range of apps,
extensions, and themes that you can use to customize your
browser.
•
Apps
can offer powerful functionality that you’d expect from
desktop programs.
•
Extensions
are custom features and functionality that you can
add to the browser.
•
Themes
change the skin of the browser, to give it a bit more
style and flair.
Items you installed are automatically synced to your account, so
you always have access to your apps and extensions.
To open the Chrome Web Store, open a new tab and click
the store icon. You can also get to the store directly by
http://chrome.google.com/webstore.
Chrome OS
33
Recovery (optional)
Using the Recovery function, you can restore your
computer when a problem occurs with your computer.
You can restore your computer after creating an
update image and using a USB flash drive. For more
information, refer to the
Recover your Chromebook
(https://support.google.com/chromebook/answer/1080595).
If you restore the Chromebook using a restore image, all
the data saved on the Chromebook will be deleted.
Performing the Update from a USB Flash
Drive
1 Save the recovery image to be updated onto the SD card or
USB flash drive.
For the procedures to save a recovery image onto the
SD card or USB flash drive, refer to the
Recover your
Chromebook
(https://support.google.com/chromebook/
answer/1080595).
FAQ
How can I print on a Chromebook?
Chromebook supports the Google Cloud Print service for printing.
If the printer supports cloud printing, you can print without
connecting the Chromebook and the printer. Also, you don’t need
to install the printer driver on the Chromebook.
For more information about the Google Cloud Printing service,
please refer to www.google.com/cloudprint.
Chrome OS
34
2 Open the LCD panel and press the power button to turn the
power off.
3 Insert the SD card or the USB flash drive containing the
recovery image, and press both the Refresh button and the
Power button while holding down the ESC key.
4 When the Chromebook restarts, follow the onscreen
instructions to complete the recovery process.
5 Remove the SD card or the USB flash drive as instructed.
6 When the system has restarted, the update is successfully
completed.
35
Settings & Upgrade
LCD brightness
Adjust the LCD brightness to reduce eye strain and save power.
•
Adjust the LCD brightness by pressing the key to
decrease brightness or the key to increase brightness.
•
Whenever you press the key, the LCD brightness
increases by one level.
LCD bad pixels principle of computer
Samsung observes the specifications regarding strict
quality and reliability of LCD. But in spite of that, it is
inevitable that there might be a small number of bad
pixels. A large number of bad pixels can cause problems
in appearance, but a small number of pixels doesn’t affect
the computer performance.
Therefore Samsung observes and manages the following
dot principles:
•
Bright dot: 2 or less
•
Black dot: 4 or less
•
Combination of Bright and Dark: 4 or less
Instructions for Cleaning the LCD
Clean the LCD panel with a soft cloth lightly moistened
with computer cleansing detergent moving in one
direction.
Cleaning the LCD panel with excessive force can damage
the LCD.
Settings & Upgrade
36
Controlling volume using the taskbar
1 Select an account icon on the taskbar.
2 Drag the adjustment bar to the desired volume.
Volume adjustment bar
Volume
Adjust the system volume or sound volume when playing music
or video.
Controlling volume using the keyboard
Press the Volume button on the right side of the computer to
adjust the volume.
Settings & Upgrade
37
Charging the battery
Fully charge the battery using the AC adapter before using
the computer for the first time.

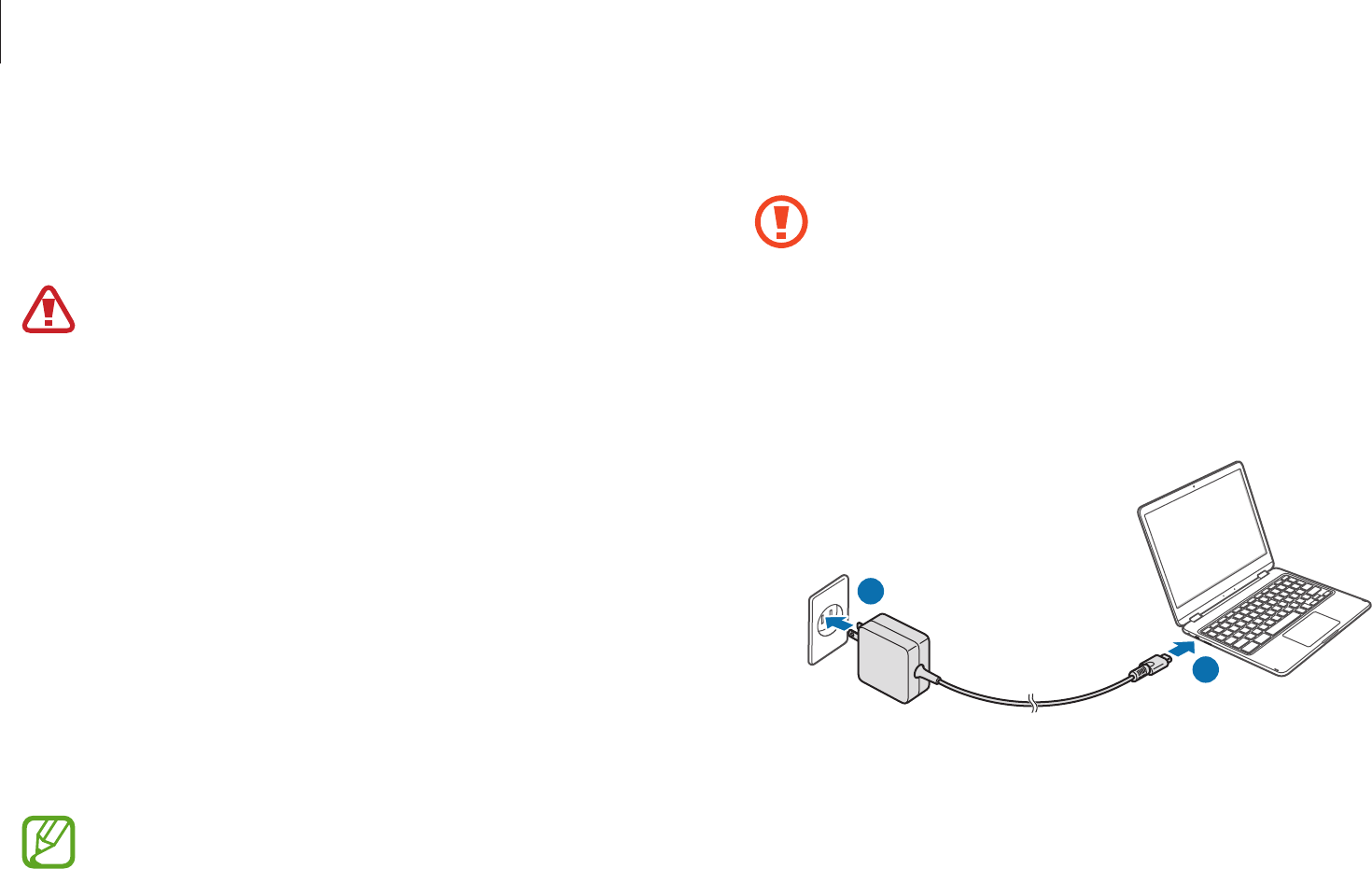

1 Connect the AC adapter to the USB port of the computer. You
can use the USB ports on either side of the computer.
2 Plug the power cable into an electric socket.
1
2
Battery
Fully charge the battery using the AC adapter before using the
computer for the first time.
•
Use only Samsung-approved AC adapters, batteries,
and cables. Unapproved adapters or cables can cause
the battery to explode or damage the computer.
•
Incorrectly connecting the charger may cause serious
damage to the computer.
•
This computer is equipped with an internal battery.
The battery is not user-serviceable or user-replaceable.
•
To safely remove or replace the battery, take the device
to a Samsung Service Center. You will be charged for
this service.
•
You can use the computer while it is charging, but
the battery charging time may increase. If the battery
temperature rises too much, the charging may stop as a
safety measure.
To restore the battery power after cutting it, connect the
AC adapter.
Settings & Upgrade
38
Battery status
Select an account icon on the taskbar to view the current battery
charge.
Battery usage time
Batteries are replaceable items and over time the battery’s
capacity to hold a charge and its power level is reduced. If a
battery can only hold its charge for half of the time that it could
when new, it is recommended to purchase a new, replacement
battery.
Checking battery life instruction messages
When the battery has expired, an instruction message may appear
on the screen. To prevent the computer from losing data and to
use the computer safely, follow the on-screen instructions.
3 When the battery is fully charged, the power LED turns green.
Disconnect the AC adapter from the computer.
Power LED Status
•
Red
: Charging
•
Green
: Fully charged
•
Blue
: Turned on
4 Unplug it from the electric socket.
Settings & Upgrade
39
When battery expiration is imminent
Batteries are consumable parts and the remaining battery life is
currently low. Continued use may result in charge or discharge
failures. Whether or not batteries can be used is determined
based on safety evaluations. Please replace it with a new battery
(genuine) to prevent data loss and ensure safe usage.
When the battery has expired
Batteries are consumable parts and the current battery cannot be
used as the battery life has expired. Please replace it with a new
battery (genuine) to prevent data loss and ensure safe usage.
Whether or not batteries can be used is determined based on
safety evaluations. To prevent data loss while replacing batteries,
please be sure to save your work first.
40
Appendix
Product specifications
The system specifications may differ depending on the derived
model. For detailed system specifications, refer to the product
catalog.
Item Specification
Operating
environment
•
Temperature: -5–40 °C for storage,
10–35 °C when operating
•
Humidity: 5–90 % for storage,
20–80 % when operating
AC/DC rating
•
Input: 100–240 VAC, 50–60 Hz
•
Output: 15 VDC, 2 A/9 VDC, 3 A/5 VDC,
3 A
PC rating
•
15 VDC, 2 A/9 VDC, 3 A/5 VDC, 3 A
(30 W)
•
Optional components may not be provided or different
components may be provided depending on the
model.
•
The system specifications are subject to change without
notice.
•
Due to this computer’s design, memory cannot be
replaced or upgraded. Also, additional storage space
cannot be added.
Appendix
41
•
Use an adjustable chair with firm, comfortable support.
•
Adjust the height of your chair so that thighs are horizontal to
the floor and feet are flat on the floor.
•
The back of the chair should support the lower back. Adjust
the backrest to fit your body properly.
•
Sit back fully in your chair and straighten the back and neck.
Avoid leaning forward or craning your neck toward the
computer screen.
•
Avoid using the computer while lying down or on your lap.
If the computer’s temperature increases, there is a danger of
burn injury.
•
The instructions in this manual have been prepared
so that they can be applied to the range of needs of
general users. If the user is not included in the range,
the recommendations should be applied according to
the user’s needs.
•
Images may differ from actual products.
Ergonomic tips
Maintaining the proper posture during computer use is very
important to prevent physical injury. Improper or prolonged
keyboard use may result in repetitive strain injury. Viewing the
monitor screen for extended periods of time may result in eye
strain. Therefore, please follow these guidelines carefully when
setting up and using the computer.
Back and neck
Appendix
42
•

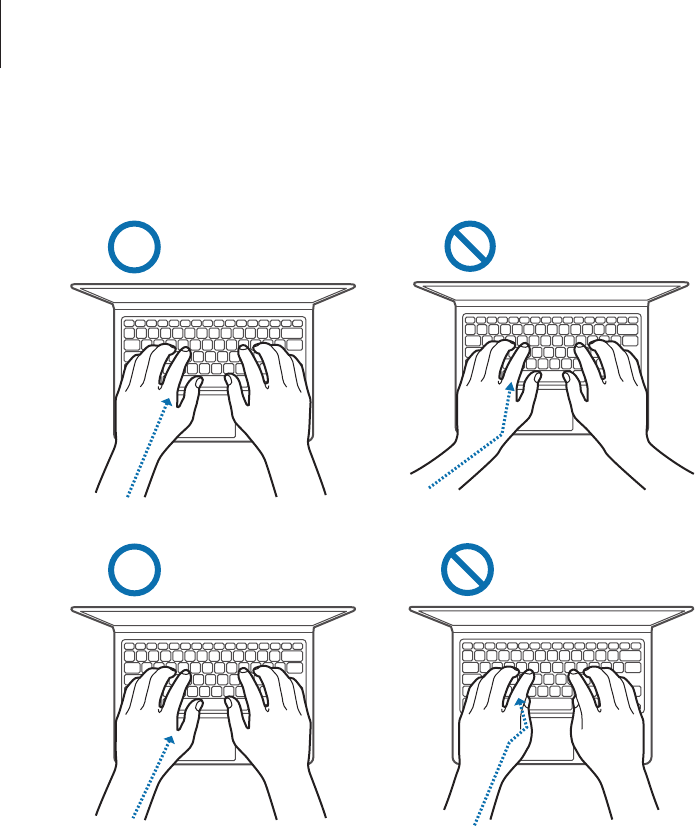

When using the keyboard and touchpad, the shoulders
should be relaxed. The upper arm and forearm should form an
angle that is slightly greater than a right angle, with the wrist
and hand in almost a straight line.
•
Use a light touch when typing or using the touchpad and
keep the hands and fingers relaxed. Avoid rolling the thumbs
under your palms or supporting the wrists on the desk while
typing.
•
Use an external keyboard and mouse when using the
computer for long periods. When using an external keyboard
and mouse, position the devices at the same height as the
computer and within comfortable reach.
Arms and hands
Appendix
43
•

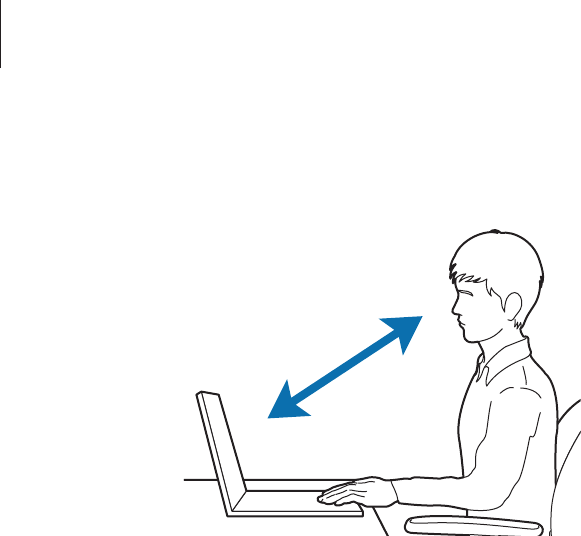

Position the screen at least 50 cm away from your eyes.
•
Adjust the height of the screen so that its top edge is equal to
or just below the level of your eyes.
•
Avoid setting the screen’s brightness settings excessively high.
•
Keep the screen clean.
•
If wearing glasses, clean them before using the computer.
•
When referring to printed content while typing, use a static
paper holder to hold the paper at about the same height as
the monitor.
Eye position and display illumination
50 cm
Appendix
44
Operating conditions
•
Take at least a 10 minute break every hour.
•
Avoid using the computer in dark locations. Use the computer
with as much ambient light as you would when reading a
book.
•
Indirect illumination is recommended. Use a curtain to
prevent reflections and glare on the screen.
•
While operating a computer and talking on the phone, use a
headset. Using the computer while holding a phone on your
shoulder or with your neck may lead to muscle strain or injury.
•
Keep frequently used items within reach.
•
Only use the computer within the temperature and humidity
ranges specified in this manual.
Hearing and volume control

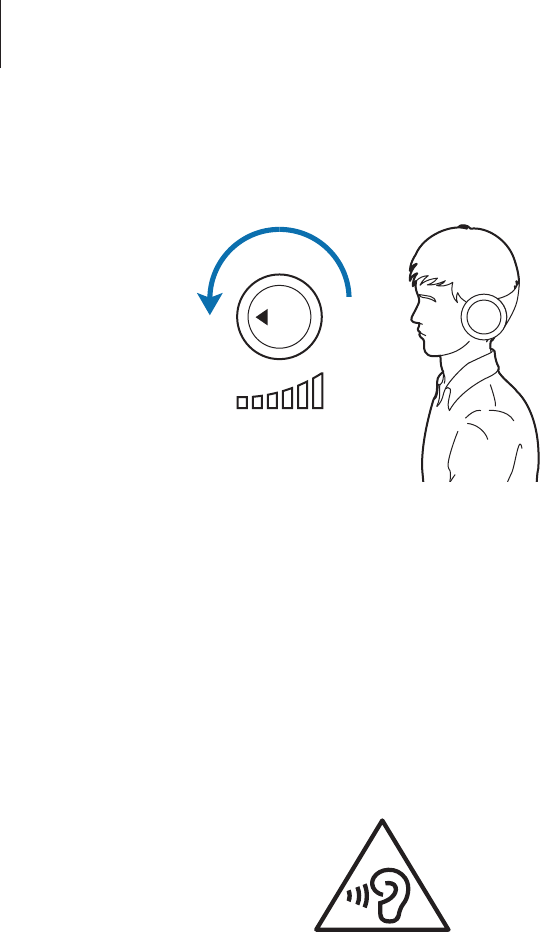

VOLUME
Check your volume!
•
Ensure that volume is not too loud before using headphones.
•
Avoid using headphones for long periods of time.
•
Default audio settings can be changed by software and driver
updates without your knowledge. Always recheck equalizer
and volume settings before listening to audio.
•
To prevent possible hearing damage, do not listen at high
volume levels for long periods.
Appendix
45
•

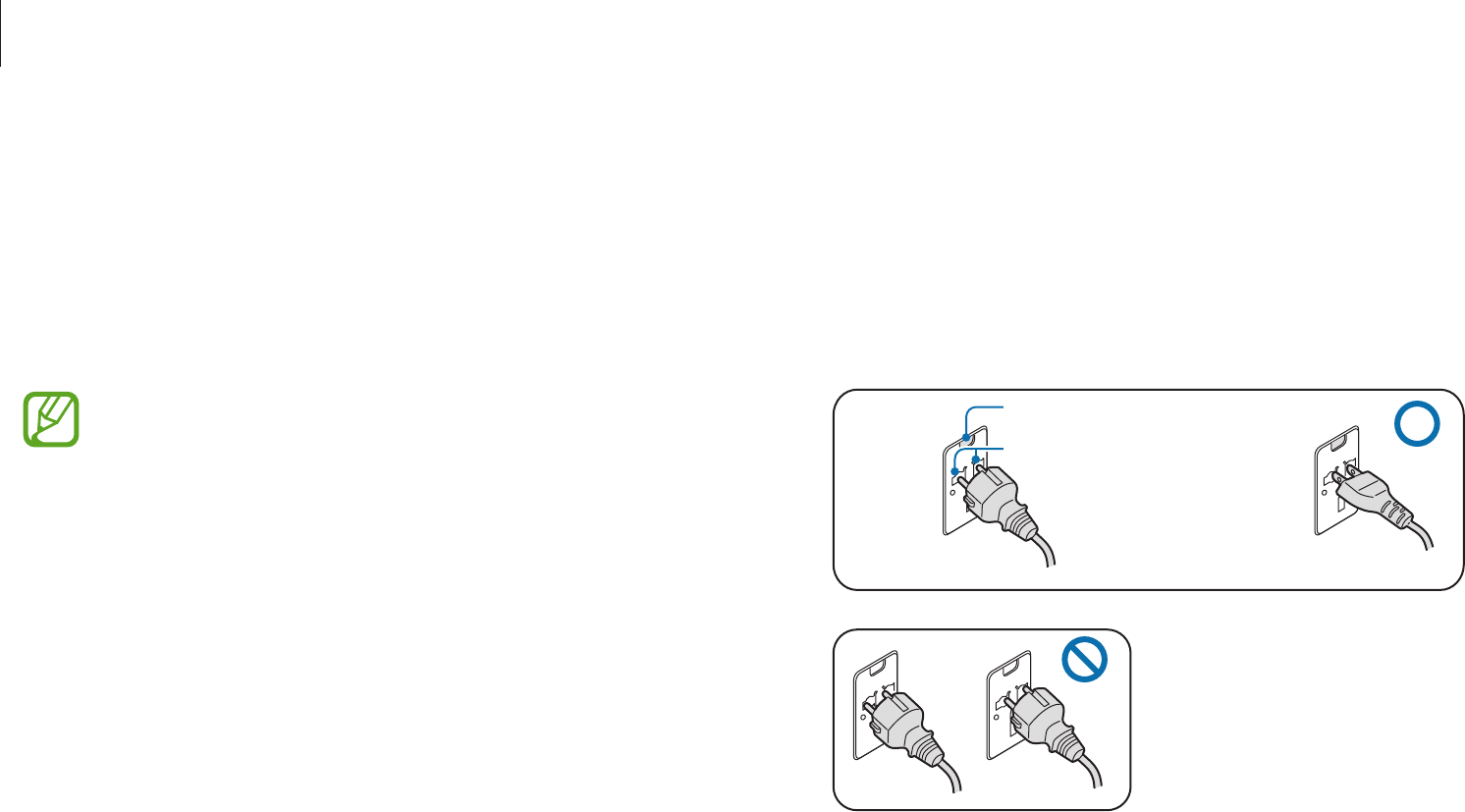

You must insert the power plug when the power indicator
light (LED) is lit green. If the plug is connected properly, the
power indicator light remains green.
Otherwise, the power indicator light turns off. In this case,
disconnect the plug, verify that the power indicator light is
green and then reconnect the power plug.
Power Indicator Light (LED)
Center Holes
220 V Power Plug 110 V Power Plug
Good Example O
Wrong Example X
Powering your device
Charging the battery on an airplane
Power outlets may vary by airplane. Choose the connection
method that fits your circumstances.
The power plug and auto adapter figures may differ from
the actual products.
Using an AC power plug
Insert the power plug pins into the center of the power outlet.
•
If the pins are not inserted into the centers of the holes, they
will not be fully connected. In this case, reconnect the power
plug.
Appendix
46

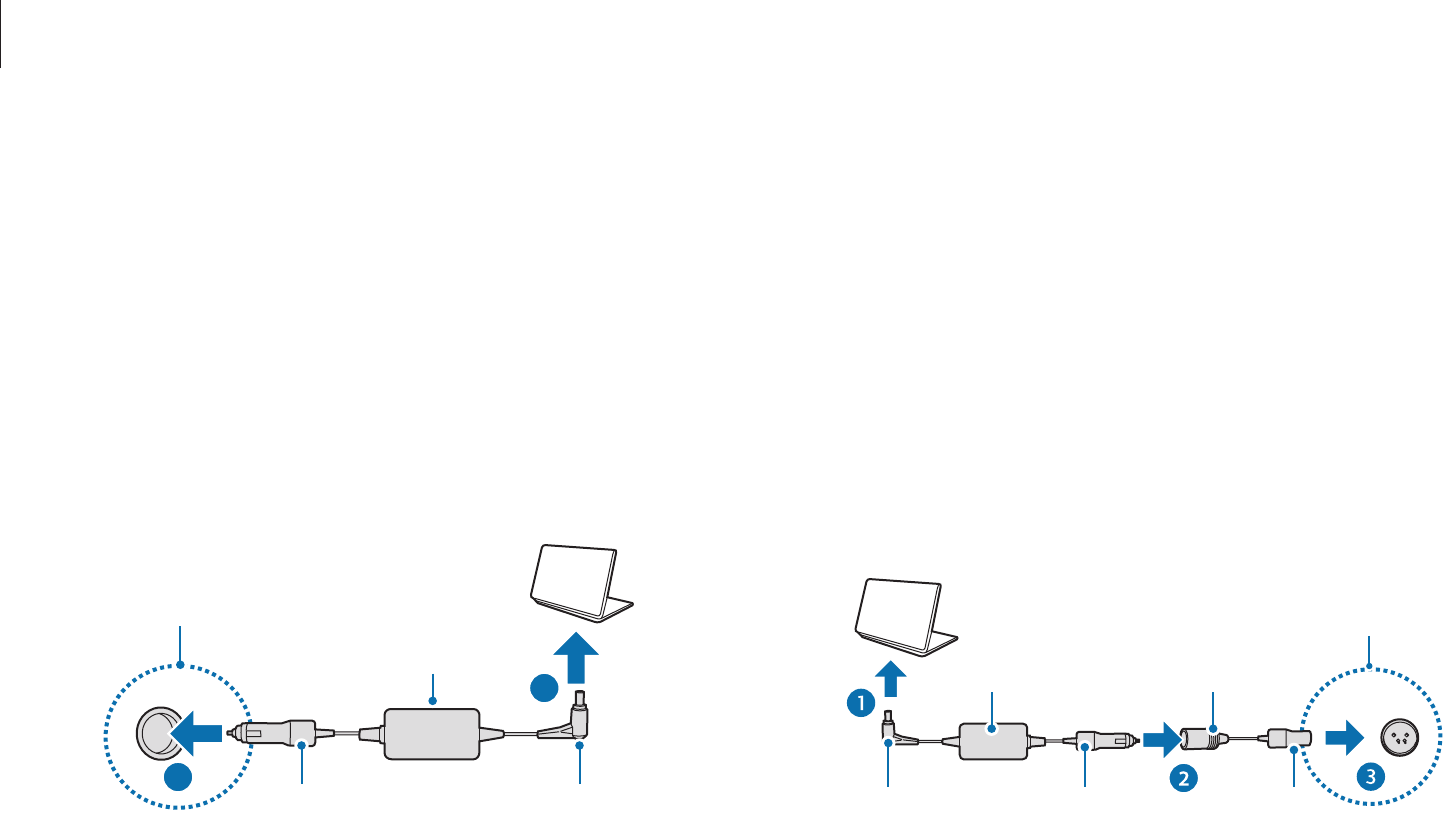

Using an airplane charging converter
Depending on the type of airplane you are traveling on, use the
auto adapter and charging converter. Insert the airplane power
input jack into the airplane’s power outlet.
1 Connect the auto adapter’s DC plug to the computer.
2 Connect the airplane charging converter (optional) to the
auto adapter (optional).
3 Insert the airplane power input jack into the power outlet.
Auto adapter Charging converter
Power outlet of the airplane
DC plug Cigar plug DC jack
2
Using an auto adapter
When a 12 VDC power supply is available a cigarette lighter socket
will be provided. Use the optional auto adapter to use the 12 VDC
power supply.
1 Insert the cigarette lighter socket of the auto adapter into the
cigarette lighter socket.
2 Connect the DC plug of the auto adapter to the power input
port of the computer.
Auto adapter
Cigar socket of the airplane
DC plugCigar plug
2
1
Appendix
47

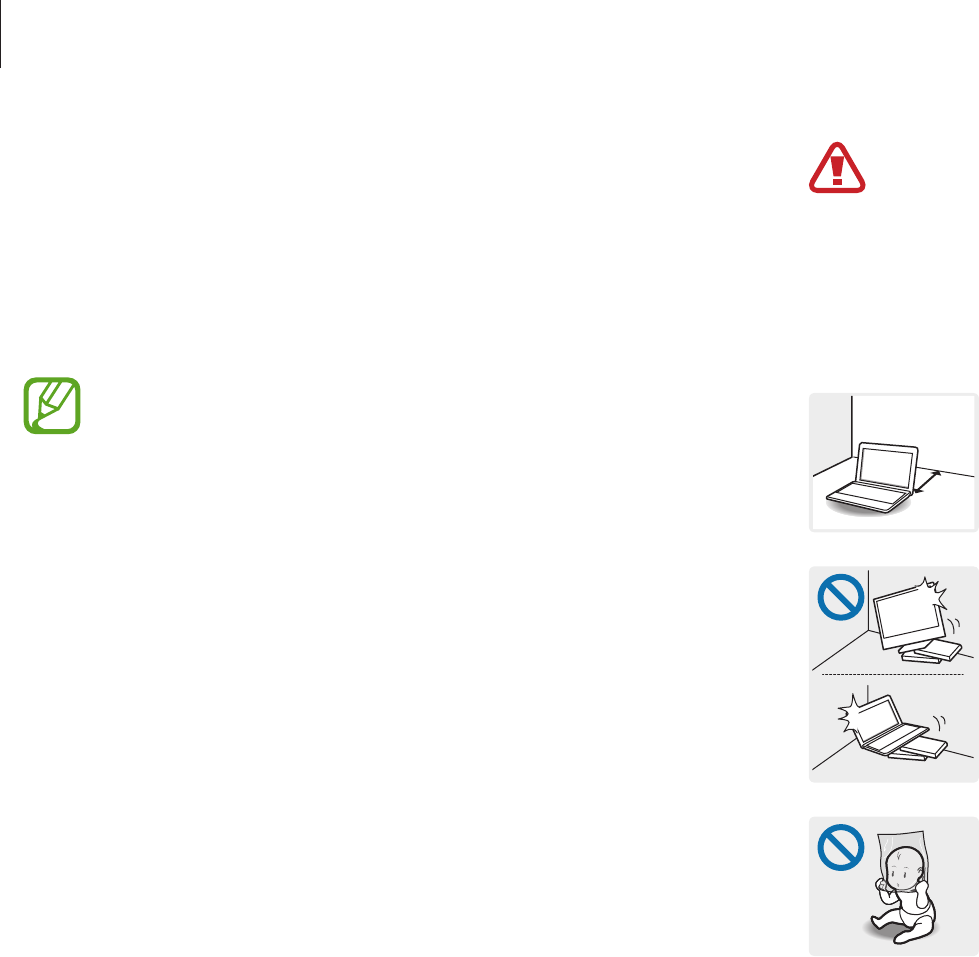

Warning
Failure to follow the instructions marked with this symbol may
result in physical injury or fatality.
Installation related
15 cm
Keep the computer at least 15 cm away from
any object.
Failure to do so may cause computer
malfunction or damage, or physical injury.
Do not place or use the computer on slanted or
vibrating surfaces.
Failure to do so may result in computer
malfunction or damage.
To avoid suffocation, keep the plastic bag away
from infants and children.
Putting a plastic bag over the head may result in
suffocation.
Safety precautions
This safety information relates to computer use. Some of the
content may be not applicable to your computer. To prevent injury
or damage to your computer, read the safety information before
using it.
•
Since this is commonly applied to Samsung Computers,
some pictures may differ from actual products.
•
The term “product,” as used in this manual, refers to
basic components, such as the computer, battery,
adapter, and optional accessories provided by
Samsung.
NP v3.8
Appendix
48
Connect the power cord to the AC adapter
firmly.
An improper connection may result in a fire.
Use only the provided AC adapter.
Using a third-party adapter may cause the screen
to flicker.
Use only properly earthed electric sockets or
extension cords.
Unearthed electric sockets or extension cords
may cause electric shock. Any connection to
unearthed electric sockets or extension cords
may produce an electric field from a current leak.
Power related
The power plug and wall outlet figures may differ
depending on the country and the product model.

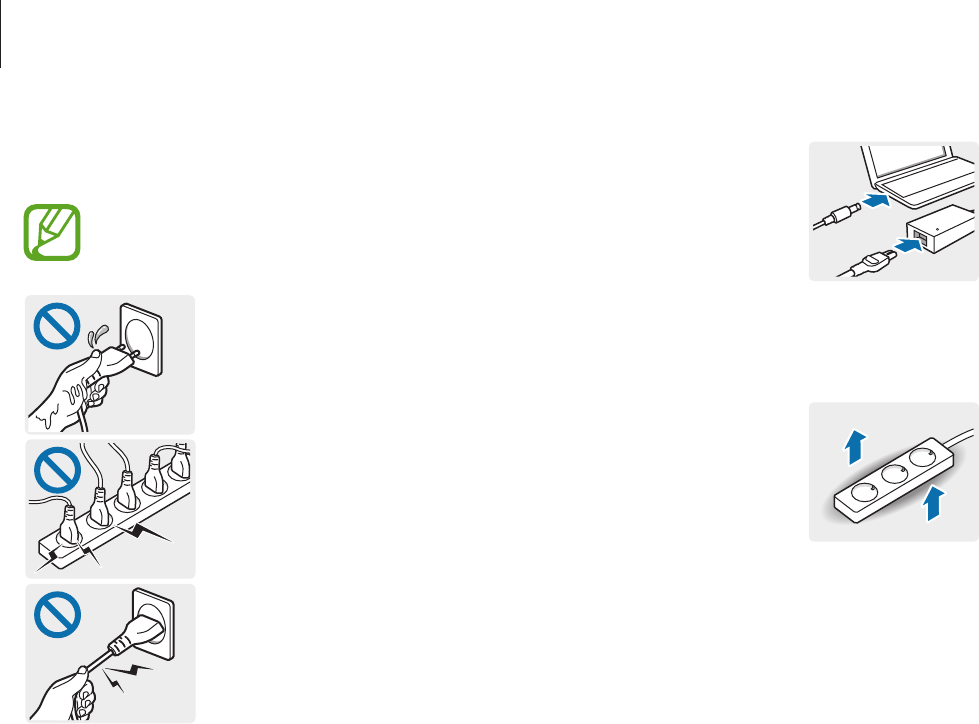

Handle the power cord with care.
•
Do not touch with wet hands.
•
Do not use a damaged or improperly
connected power cord.
•
Do not overload a multi-outlet or an
extension cord beyond the specified
voltage/current capacity.
•
Firmly insert the power cable into the AC
adapter.
•
Do not unplug the power cord by pulling
on the cable.
•
Unplug the wall-mount AC adapter
(integrated plug and power adapter) from
the wall outlet while holding the body and
pulling it in the direction of the arrow.
Failure to do so may result in electric shock
or fire.
Appendix
49

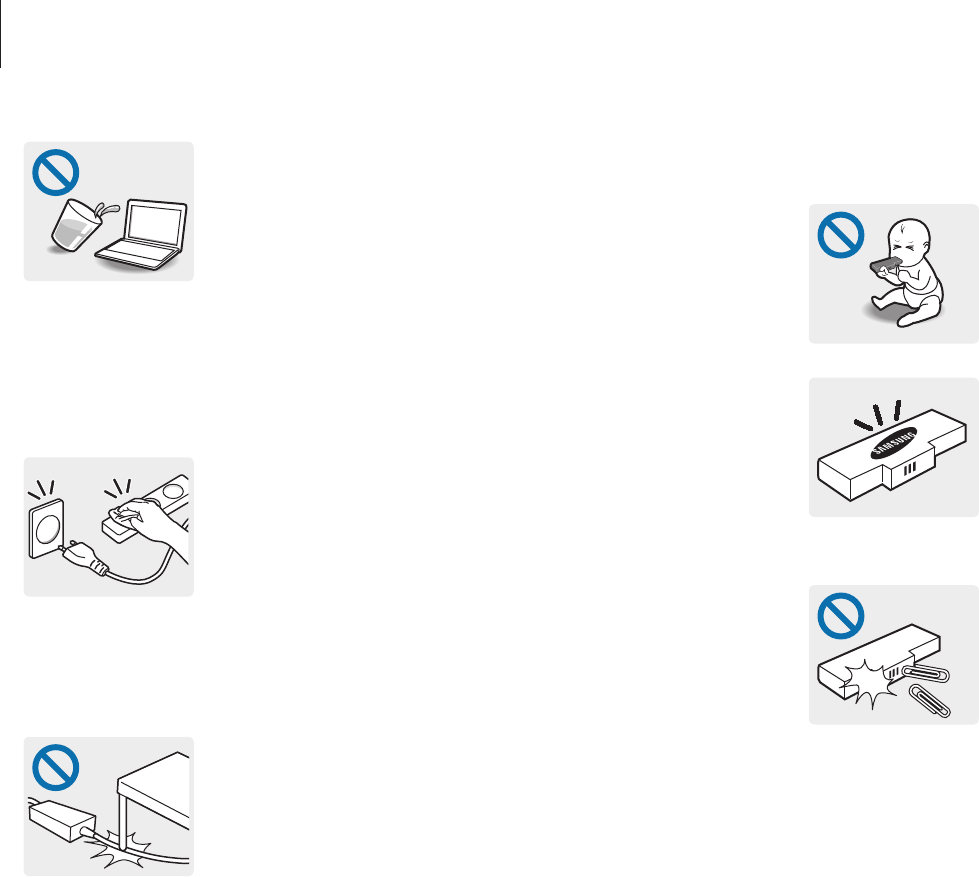

Battery usage related
Keep the battery, AC adapter, and the power
cord away from infants, children, and pets.
Failure to do so may result in electric shock or
damage.
Use only Samsung-approved batteries, AC
adapters, and accessories.
Batteries or AC adapters that are not approved
by Samsung may malfunction from a defective
safety device, resulting in an explosion or fire.
Take care not to allow metal objects such as a
key or clip to touch the battery terminal (metal
parts).
This may cause excessive current and result in
fire, burns, or damage to the battery.
If water or other substances enters the
computer, the DC jack, or the AC adapter,
disconnect the power cable and contact
a Samsung Service Center. For notebook
computers that are supplied with an optional
removable battery, disconnect the battery.
Failure to do so may result in electric shock or
fire.
Do not let dust accumulate on the power cord
or the electric socket. Regularly clean the
power cord and the electric socket. Wipe the
power cord and the electric socket with a dry
cloth.
Failure to do so may result in electric shock or
fire.
Do not bend or damage the power cable or
the AC adapter with a heavy or sharp-edged
object.
A damaged cable or cord may result in electric
shock or fire.
Appendix
50
Usage related
Do not use the computer on heated floors or
electric pads, or on beds, blankets, or cushions
that block the ventilation of the computer.
In such environments, be careful not to block the
vent of the computer, which is normally at the
side or bottom of the computer. A blocked vent
causes the computer to overheat, resulting in an
explosion, fire, burns, or computer malfunction.
Do not use the computer in humid locations,
such as a bathroom.
Failure to do so may result in computer
malfunction or electric shock. Use the computer
within the recommended temperature and
humidity range (10–35 °C, 20–80 % RH).
If the computer or the computer battery leaks,
emits strange odors, or swells, immediately
stop using the computer and contact a
Samsung Service Center.
Failure to do so may result in an explosion or fire.
Replace a run-down battery with a new,
Samsung-approved battery.
When removing the real time clock (RTC)
battery, keep it away from infants and children.
If a child swallows the battery, the child may
suffocate. If this happens, immediately contact a
doctor.
Appendix
51
If the computer is dropped or broken,
disconnect the power cord and contact
a Samsung Service Center. For notebook
computers that are supplied with an external
removable battery, disconnect the battery as
well.
Using a broken computer may result in electric
shock or fire.
Do not touch the computer vents or the
connected AC adapter for extended periods
while the computer is on.
Contact with the vent or the connected AC
adapter for extended periods may result in low-
temperature burns, such as redness on the skin.
Never heat the computer (or the battery) or
put the computer (or the battery) into a fire. Do
not put or use the computer (or the battery)
in a hot location, such as in a sauna or inside a
vehicle when the outside temperature is high.
There is a danger of an explosion or fire.
Before cleaning the computer, disconnect all
the cables that are connected to the computer.
For notebook computers that are supplied with
an optional removable battery, disconnect the
battery.
Failure to do so may result in electric shock or
fire.
Keep the computer away from water or liquid.
Water or liquid entering the computer may
short-circuit the computer, resulting in electric
shock or fire.
Appendix
52

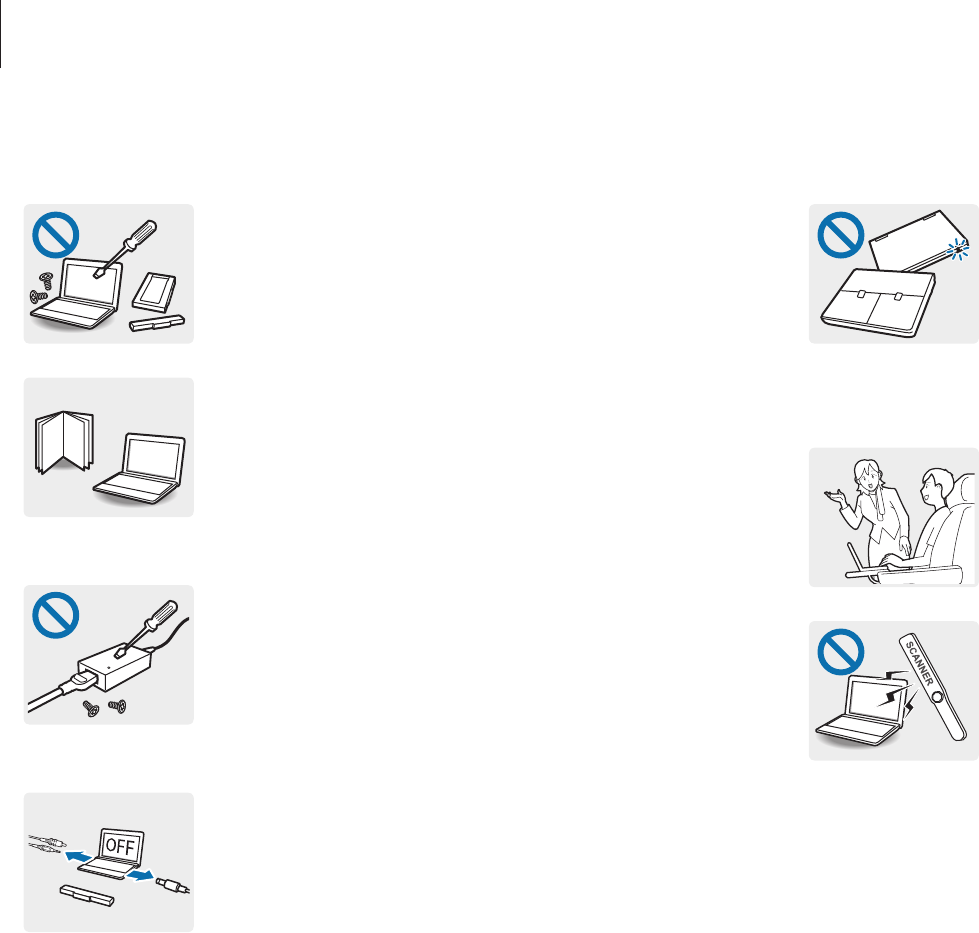

Storage and movement related
Do not store the computer in an enclosed
space, such as a computer bag, while it is
running.
Failure to do so may result in fire. Completely
shut down the computer before putting the
computer into an enclosed space.
When using wireless communication (LAN,
Bluetooth, etc.) always follow applicable
instructions. For example, airlines and
hospitals have strict requirements.
Avoid exposing a drive to magnetic fields.
Security devices with magnetic fields include
airport walk-through devices and security
wands. The airport security devices that check
carry-on luggage, such as conveyor belts,
use X-rays instead of magnetism and will not
damage a drive.
Upgrade related
Do not attempt to upgrade the computer,
unless you are qualified.
Otherwise, contact a Samsung Service Center or
an authorized technician.
Follow the specified instructions contained in
the manual for user maintenance.
Do not disassemble any other parts by yourself.
Failure to do so may result in computer
malfunction, electric shock, or fire.
Do not disassemble the power supply
unit, the AC adapter, or the battery in any
circumstances.
Failure to do so may result in electric shock, fire,
or an explosion.
Shut down the computer and disconnect all
cables before disassembling the computer. If
the notebook has a removable battery, remove
the external battery.
Failure to do so, may cause electric shock.
Appendix
53
Caution
Failure to follow instructions marked with this symbol may result
in minor physical injury or damage to the computer.
Installation related
Do not block the ports (holes), vents, etc. of the product and do
not insert objects.
Damage to a component within the computer may cause electric
shock or fire.
When using the computer on its side, ensure the vents are clear
and facing upwards.
Failure to do so, may cause the internal temperature of the
computer to rise and the computer to malfunction or halt.

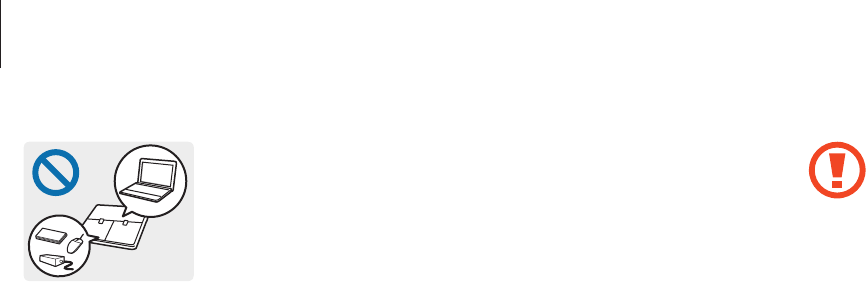

When carrying the notebook computer with
other items, such as the adapter, mouse, books
etc., take care not to press anything against the
notebook computer.
If a heavy object is pressed against the notebook
computer, a white spot or stain may appear on
the LCD. Therefore, take care not to apply any
pressure to the notebook.
In this case, place the notebook computer in
a separate compartment away from the other
objects.
Appendix
54
Only use a Samsung-authorized battery.
Failure to do so may cause an explosion.
Keep the battery terminals away from metal objects such as car
keys or paper clips.
If metal objects touch the battery terminals, it may cause excessive
current and result in fire or damage to the battery.
Charge the battery according to the instructions in the manual.
Failure to do so may cause an explosion or fire.
Do not heat the product (or battery) or expose it to heat (e.g.
inside a vehicle during the summer).
There is a danger of explosion or fire.
Do not place heavy objects on the product.
This may cause a problem with the computer. In addition, the
object may fall and cause injury or damage the computer.
Connect the power cord to the nearest socket outlet when
charging the computer.
If a problem occurs and disconnection from the socket outlet is
delayed, there is a danger of electric shock or fire.
Dispose of worn-out batteries properly.
•
There is a danger of fire or explosion.
•
The battery disposal method may differ depending on
your country and region. Dispose of the used battery in an
appropriate way.
Do not throw or disassemble the battery and do not put it into
water.
This may cause an injury, fire or explosion.
Appendix
55
In case of lightning, immediately turn the system off, disconnect
the power cord from the wall outlet and phone line from
modem. Do not use the modem or phone.
There is a danger of electric shock or fire.
Connect only permitted devices to the connectors or ports of
the computer.
Failure to do so, may cause electric shock and fire.
Close the LCD panel only after checking if the notebook
computer is turned off.
The temperature may rise and it may cause deformation of the
product.
Do not press the eject button while the CD-ROM drive is in
operation.
You might lose data and the disc might be suddenly ejected and
could cause an injury.
Usage related
Use the pen for its intended purpose only.
Using the pen for abnormal actions such as poking eyes or ears
may cause physical injury.
Do not place a candle, light cigar, etc. over or on the product.
There is a danger of fire.
Make sure to have the product tested by a safety service
engineer after repairing the product.
Authorized Samsung Repair Centers will carry out safety checks
after a repair. Using a repaired product without testing it for safety
may cause an electric shock or fire.
Appendix
56
Do not insert the fingers into the PC Card Slot.
There is a danger of injury or electric shock.
Use recommended computer cleansing solutions when
cleaning the product and only use the computer when it is
completely dry.
Failure to do so may cause electric shock or fire.
You should not use a paper clip to perform an emergency
disc ejection while the disc is in motion. Make sure to use the
emergency disc eject method only when the Optical Disc Drive
has stopped.
There is a danger of injury.
Do not place your face close to the Optical Disc Drive tray when
it is operating.
There is a danger of injury due to an abrupt ejection.
Do not drop, hit, or apply excessive force to the computer.
Failure to do so may result in physical injury or data loss.
Do not allow the antenna and a source of electricity, such as a
socket outlet, to come into contact.
There is a danger of electric shock.
When handling computer parts, follow the instructions on the
manual supplied with the parts.
Failure to do so, may cause damage to the product.
If the computer emits smoke or there is a burning smell,
disconnect the power plug from the wall outlet and contact a
Samsung Service Center immediately. Disconnect the power
supply and remove the battery if one is fitted.
There is a danger of fire.
Do not use a damaged or modified CD.
There is a danger of damaging the product or personal injury.
Appendix
57
Upgrade Related
Take care when touching the product or parts.
The device may be damaged or you may be injured.
Take care not to throw or drop the computer or its components.
This may cause injury or damage to the product.
Make sure to close the computer cover before connecting the
power after a reassembly.
There is a danger of electric shock if your body touches an internal
part.
Only use parts authorized by Samsung.
Failure to do so, may cause fire or damage the product.
Never disassemble or repair the product by yourself.
If the computer is serviced or repaired by an unqualified person,
the warranty will not cover the repair fees. There is a danger of
accident. Use authorized Samsung Service Centers.
To connect a device that is not manufactured or authorized
by Samsung, enquire at a Samsung Service Center before
connecting the device.
There is a danger of damaging the product.
Keep the computer away from magnetic material.
•
Magnetic materials may cause computer malfunction or cause
the battery to discharge.
•
To avoid damaging the computer or magnetic stripe cards,
such as credit cards, keep magnetic stripe cards away from the
computer.
Do not use your computer in a hospital or on an aircraft that can
be interfered with by radio frequency.
•
Avoid using your computer within a 15 cm range of a
pacemaker, if possible, as your computer can interfere with
the pacemaker.
•
To minimize possible interference with a pacemaker, use your
computer only on the side of your body that is opposite the
pacemaker.
•
If you use medical equipment, contact the equipment
manufacturer before using your computer to determine
whether or not the equipment will be affected by radio
frequencies emitted by the computer.
•
When in a hospital, turn off your computer and follow all
hospital regulations. Radio frequencies emitted from the
computer may affect medical equipment.
Appendix
58
Cautions on preventing data loss (hard disk
management)
Take care not to damage the data on a hard disk drive.
•
A hard disk drive is so sensitive to external impact that an
external impact may cause loss of data on the surface of the
disk.
•
Take extra care, because moving the computer or an impact
on the computer when it is turned on may damage the data
on the hard disk drive.
•
Samsung is not liable for any loss of data on the hard disk
drive.
Storage and movement related
Properly shut down, disconnect and secure the computer cables
before moving it.
Failure to do so may damage the computer or cause someone to
trip over a loose cable.
For long periods of inactivity or storage, discharge the battery
and separate it from the computer (for external or removable
battery types).
This will extend the battery’s lifespan.
Do not operate or look at the computer while driving a vehicle.
There is a danger of a traffic accident. Please concentrate on
driving.
Appendix
59
LCD bad pixels
Samsung observes strict specifications regarding the quality
and reliability of the LCD. However, there is a small chance that
a few pixels may be bad. A large number of bad pixels can cause
problems with the display, but a small number of bad pixels does
not generally affect computer performance.
Samsung’s quality standards for bad pixels are as follows:
•
Bright dot: 2 or fewer
•
Black dot: 4 or fewer
•
Combination (bright and dark): 4 or fewer
Cleaning the LCD screen
Clean the LCD screen with a soft cloth dampened with computer
cleansing detergent. When cleaning the screen, move the cloth in
one direction. Do not use excessive force. Doing so may damage
the LCD screen.
Situations that may damage the data of a hard disk drive and
the hard disk drive itself.
•
The data may be lost when an external impact is applied to
the disk while disassembling or assembling the computer.
•
The data may be lost when the computer is turned off or reset
by a power failure while the hard disk drive is operating.
•
The data may be lost and irrecoverable due to a computer
virus.
•
The data may be lost if the power is turned off while running
an application.
•
Sudden impact or movement to the computer while the hard
disk drive is operating, may cause files to be corrupted or bad
sectors on the hard disk.
To prevent data loss due to damage to the hard disk drive,
please back up the data frequently.
Appendix
60
Setting up the system
•
Read and follow all instructions marked on the product and
in the documentation before operating the system. Retain all
safety and operating instructions for future use.
•
Do not use this product near water or a heat source such as a
radiator.
•
Set up the system on a stable work surface.
•
The product should be operated only with the type of power
source indicated on the rating label.
•
Ensure that the electrical outlet to power the equipment is
easily accessible in case of fire or short circuit.
•
If the computer has a voltage selector switch, make sure that
the switch is in the proper position for your area.
•
Openings in the computer case are provided for ventilation.
Do not block or cover these openings. Make sure you provide
adequate space, at least 6 inches (15 cm), around the system
for ventilation when setting up your work area. Never insert
objects of any kind into the computer ventilation openings.
Important safety information
Safety instructions
The system is designed and tested to meet the latest standards for
safety of information technology equipment. However, to ensure
safe use of this product, it is important that the safety instructions
marked on the product and in the documentation are followed.
Always follow these instructions to help guard against
personal injury and damage to the system.
Appendix
61
Care during use
•
Do not walk on the power cord or allow anything to rest on it.
•
Do not spill anything on the computer or its components.
The best way to avoid spills is to not eat or drink near the
computer or its components.
•
Some products have a replaceable CMOS battery on the
system board. There is a danger of explosion if the CMOS
battery is replaced incorrectly. Replace the battery with the
same or equivalent type recommended by the manufacturer.
Dispose of batteries according to the manufacturers
instructions. If the CMOS battery requires replacement ensure
that a qualified technician performs the task.
•
When the computer is turned off, a small amount of electrical
current still flows through the computer.
To avoid electrical shock, always unplug all power cables,
remove the battery and modem cables from the wall outlets
before cleaning the system.
•
Ensure that the fan vents on the bottom of the casing are
clear at all times. Do not place the computer on a soft surface,
doing so will block the bottom vents.
•
When using an extension cord with this system, make sure
that the total power rating on the products plugged into the
extension cord does not exceed the extension cord power
rating.
•
For Notebooks with glossy display bezels the user should
consider the placement of the Notebook as the bezel may
cause reflections from surrounding light and bright surfaces.
Appendix
62
Operating instructions
1 When installing and operating devices please refer to safety
requirements in the user manual.
2 Devices can be used only with the equipment specified in the
technical specifications of the devices.
3 If any smell of burning or smoke is detected from the
computer the unit should be switched off and the battery
removed. The unit should be checked by a qualified
technician before reuse.
4 Service and repair of devices should be carried out by
authorized service centers.
5 Do not allow the portable computer to operate with the base
resting directly on exposed skin for extended periods of time.
The surface temperature of the base will rise during normal
operation (particularly when AC Power is present). Allowing
sustained contact with exposed skin can cause discomfort or
eventually a burn.
•
Unplug the system from the wall outlet and contact a
Samsung Service Center if:
–
The power cord or plug is damaged.
–
Liquid has been spilled into the computer.
–
The computer does not operate properly when the
operating instructions are followed.
–
The computer was dropped or the casing is damaged.
–
The computer performance changes.
Appendix
63
Battery disposal
Do not put rechargeable batteries or products powered by
non-removable rechargeable batteries in the garbage.
Contact the Samsung Service Center for information on how to
dispose of batteries that you cannot use or recharge any longer.
Follow all local regulations when disposing of old batteries.
THERE IS RISK OF EXPLOSION IF BATTERY IS REPLACED BY
AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
Replacement parts and
accessories
Use only replacement parts and accessories recommended by
manufacturer.
To reduce the risk of fire, use only No. 26 AWG or larger
telecommunications line cord.
Do not use this product in areas classified as hazardous.
Such areas include patient care areas of medical and
dental facilities, oxygen rich environments, or industrial
areas.
Appendix
64
•
Laser Safety Note: Use of controls or adjustments or
performance of procedures other than those specified
in this manual may result in hazardous radiation
exposure. To prevent exposure to laser beams, do not
try to open the enclosure of a CD or DVD drive.
•
Class 1M laser radiation when operating part is open.
Do not view directly with optical instruments.
•
Class 3B invisible laser radiation when open.
Avoid exposure to the beam.
Connect and disconnect the AC adapter
The socket-outlet shall be installed near the equipment and shall
be easily accessible.
Do not unplug the power cord by pulling the cable only.
Laser safety
All systems equipped with CD or DVD drives comply with the
appropriate safety standards, including IEC 60825-1. The laser
devices in these components are classified as “Class 1 Laser
Products” under a US Department of Health and Human Services
(DHHS) Radiation Performance Standard. Should the unit ever
need servicing, contact an authorized service location.
Appendix
65
General requirements
The requirements listed below are applicable to all countries:
•
All power cord sets must be approved by an acceptable
accredited agency responsible for evaluation in the country
where the power cord set will be used.
•
The power cord set must have a minimum current capacity
of 7A and a nominal voltage rating of 125 or 250 volts AC, as
required by each country’s power system (USA only).
•
The appliance coupler must meet the mechanical
configuration of an EN 60 320/IEC 320 Standard Sheet C7
(or C5) connector, for mating with appliance inlet on the
computer.
Power cord requirements
The power cord set (all plug, cable and AC adapter plug) you
received with your computer meets the requirements for use in
the country where you purchased your equipment.
Power cord sets for use in other countries must meet the
requirements of the country where you use the computer. For
more information on power cord set requirements, contact your
authorized dealer, reseller, or service provider.
Appendix
66
The RF field strength of the wireless device or devices that may
be embedded in the notebook are well below all international
RF exposure limits as known at this time. Because the wireless
devices (which may be embedded into the notebook) emit less
energy than is allowed in radio frequency safety standards and
recommendations, manufacturer believes these devices are safe
for use. Regardless of the power levels, care should be taken to
minimize human contact during normal operation.
Some circumstances require restrictions on wireless devices.
Examples of common restrictions are listed on the next page:
Regulatory compliance
statements
Wireless guidance
(If fitted with 2.4 G band or 5 G band)
Low power, Radio LAN type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4 GHz/5 GHz Band,
may be present (embedded) in the notebook system. The
following section is a general overview of considerations while
operating a wireless device.
Additional limitations, cautions, and concerns for specific
countries are listed in the specific country sections (or country
group sections). The wireless devices in the system are only
qualified for use in the countries identified by the Radio Approval
Marks on the system rating label. If the country you will be using
the wireless device in, is not listed, please contact your local Radio
Approval agency for requirements. Wireless devices are closely
regulated and use may not be allowed.
Appendix
67
•
Every country has different restrictions on the use of
wireless devices. Since your system is equipped with
a wireless device, when traveling between countries
with your system, check with the local Radio Approval
authorities prior to any move or trip for any restrictions
on the use of a wireless device in the destination
country.
•
If the system came equipped with an internal
embedded wireless device, do not operate the wireless
device unless all covers and shields are in place and the
system is fully assembled.
•
Wireless devices are not user serviceable. Do not modify
them in any way. Modification to a wireless device will
void the authorization to use it. Please contact the
manufacturer for service.
•
Only use drivers approved for country in which the
device will be used. See the manufacturer System
Restoration Kit, or contact the manufacturer’s technical
support for additional information.
•
Radio frequency wireless communication can interfere
with equipment on commercial aircraft. Current
aviation regulations require wireless devices to be
turned off while traveling in an airplane.
802.11ABGN (also known as wireless Ethernet or Wi-Fi)
and Bluetooth communication devices are examples of
devices that provide wireless communication.
•
In environments where the risk of interference to other
devices or services is harmful or perceived as harmful,
the option to use a wireless device may be restricted
or eliminated. Airports, Hospitals, and Oxygen or
flammable gas laden atmospheres are limited examples
where use of wireless devices may be restricted or
eliminated. When in environments where you are
uncertain of the sanction to use wireless devices, ask
the applicable authority for authorization prior to use or
turning on the wireless device.
Appendix
68
Explosive Device Proximity Warning
Do not operate a portable transmitter (such as a wireless
network device) near unshielded blasting caps or in
an explosive environment unless the device has been
modified to be qualified for such use.
Use On Aircraft Caution
Regulations of the FCC and FAA prohibit airborne
operation of radio-frequency wireless devices because
their signals could interfere with critical aircraft
instruments.
Other wireless devices
Safety notices for other devices in the wireless network:
Refer to the documentation supplied with wireless Ethernet
adapters or other devices in the wireless network.
United States of America
USA and Canada Safety Requirements and Notices
Do not touch or move antenna while the unit is transmitting or
receiving.
Do not hold any component containing the radio such that the
antenna is very close to touching any exposed parts of the body,
especially the face or eyes, while transmitting.
Do not operate the radio or attempt to transmit data unless the
antenna is connected; if not, the radio may be damaged.
Use in specific environments:
The use of wireless devices in hazardous locations is limited by the
constraints posed by the safety directors of such environments.
The use of wireless devices on airplanes is governed by the Federal
Aviation Administration (FAA).
The use of wireless devices in hospitals is restricted to the limits
set forth by each hospital.
Appendix
69
This equipment has been tested and found to comply
with the limits for a Class B digital device pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy. If not installed
and used in accordance with the instructions, it may
cause harmful interference. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and
receiver.
•
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV
technician for help.
The Part 15 radio device operates on a non-interference
basis with other devices operating at this frequency. Any
changes or modification to said product not expressly
approved by Intel could void the user’s authority to
operate this device.
Unintentional emitter per FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Appendix
70
Intentional emitter per FCC Part 15
(If fitted with 2.4 G band or 5 G band)
Low power, Radio LAN type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4 GHz/5 GHz Band,
may be present (embedded) in the notebook system. This section
is only applicable if these devices are present. Refer to the system
label to verify the presence of wireless devices.
Wireless devices that may be in the system are only qualified for
use in the United States of America if an FCC ID number is on the
system label.
This device is restricted to indoor use due to its operation in the
5.15 to 5.25 GHz frequency range. FCC requires this product to be
used indoors for the frequency range 5.15 to 5.25 GHz to reduce
the potential for harmful interference to co-channel Mobile
Satellite systems. High power radars are allocated as primary users
of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar
stations can cause interference with and/or damage this device.
If necessary, the user should consult the dealer or an experienced
radio/television technician for additional suggestions. The user
may find the following booklet helpful: “Something About
Interference.”
This is available at FCC local regional offices. Our company is not
responsible for any radio or television interference caused by
unauthorized modifications of this equipment or the substitution
or attachment of connecting cables and equipment other than
those specified by our company. The correction will be the
responsibility of the user. Use only shielded data cables with this
system.
Appendix
71
Health and safety information
Exposure to Radio Frequency (RF) Signals
Certification Information
This product can contain an embedded radio transmitter and
receiver. It is designed and manufactured not to exceed the
exposure limits for radio frequency (RF) energy set by the Federal
Communications Commission (FCC) of the U.S. government. These
FCC exposure limits are derived from the recommendations of two
expert organizations, the National Council on Radiation Protection
and Measurement (NCRP) and the Institute of Electrical and
Electronics Engineers (IEEE). In both cases, the recommendations
were developed by scientific and engineering experts drawn from
industry, government, and academia after extensive reviews of the
scientific literature related to the biological effects of RF energy.
Before a new model is available for sale to the public, it must be
certified to the FCC that it does not exceed the exposure limit
established by the FCC. Evaluation per each model is performed
in positions and locations (e.g. at the bottom on the body) as
required by the FCC.
Operation of this device is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation of the device.
Wireless devices are not user serviceable. Do not modify
them in any way.
Modification to a wireless device will void the
authorization to use it. Contact manufacturer for service.
Appendix
72
For corresponding model only
The Specific Absorption Rate (SAR) is a measure of the rate of
absorption of RF energy by the human body expressed in units
of watts per kilogram (W/kg). The FCC wireless devices to comply
with a safety limit of 1.6 watts per kilogram (1.6 W/kg).
SAR level of this device while operating can be well below the
maximum value. This is because the device is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
For body worn operation, this model meets the FCC RF exposure
guidelines when used with Samsung accessory designated for this
product. Non-compliance with the above restrictions may result in
violation of FCC RF exposure guidelines.
RF exposure or SAR information can be viewed on-line at
www.fcc.gov/oet/ea/fccid/. This site uses this product FCC ID
number on the outside of the product. Sometimes it may be
necessary to remove the battery pack to find number. Once
you have the FCC ID number for a particular product, follow the
instructions on the website and it should provide RF exposure
information or values for typical or maximum SAR for particular
product.
Appendix
73
The term “IC” before the equipment certification number only
signifies that the Industry Canada technical specifications were
met. To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (EIRP) is not more than that required
for successful communication. To prevent radio interference
to the licensed service, this device is intended to be operated
indoors and away from windows to provide maximum shielding.
Equipment (or its transmit antenna) that is installed outdoors is
subject to licensing.
(If fitted with 2.4 G band or 5 G band)
Low power, Radio LAN type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4 GHz/5 GHz Band,
may be present (embedded) in your notebook system. This
section is only applicable if these devices are present. Refer to the
system label to verify the presence of wireless devices.
Wireless devices that may be in your system are only qualified for
use in Canada if an Industry Canada ID number is on the system
label.
Canada
Unintentional emitter per ICES-003
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the radio
interference regulations of Industry Canada.
Intentional emitter per RSS 210
This device complies with RSS 210 of Industry Canada. Operation
is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired
operation of this device.
Appendix
74
The power output of the wireless device (or devices), which may
be embedded in your notebook, is well below the RF exposure
limits as set by Industry Canada.
Operation of this device is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation of the device.
To prevent radio interference to licensed service, this
device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or
its transmit antenna) that is installed outdoors is subject to
licensing.
Wireless devices are not user serviceable. Do not modify
them in any way. Modification to a wireless device will
void the authorization to use it. Contact manufacturer for
service.
When using IEEE 802.11a wireless LAN, this product is restricted to
indoor use due to its operation in the 5.15 to 5.25 GHz frequency
range. Industry Canada requires this product to be used indoors
for the frequency range of 5.15 to 5.25 GHz to reduce the potential
for harmful interference to co-channel mobile satellite systems.
High power radar is allocated as the primary user of the 5.25 to
5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can
cause interference with and/or damage to this device.
The maximum allowed antenna gain for use with this device
is 6dBi in order to comply with the E.I.R.P limit for the 5.25 to
5.35 GHz and 5.725 to 5.85 GHz frequency range in point-to-point
operation.
Appendix
75
European Union
European Union CE marking and compliance notices
Products intended for sale within the European Union are
marked with the Conformité Européene (CE) Marking, which
indicates compliance with the applicable Directives and European
standards and amendments identified below. This equipment also
carries the Class 2 identifier.
The following information is only applicable to systems labeled
with the CE mark .
European Directives
This Information Technology Equipment has been tested and
found to comply with the following European directives:
•
EMC Directive 2004/108/EC
•
Low Voltage Directive 2006/95/EC
•
R&TTE Directive 1999/5/EC
Brazil
Este produto esta homologado pela ANATEL, de acordo com
os procedimentos regulamentados pela Resolucao 242/2000, e
atende aos requisitos tecnicos aplicados.
Este equipamento opera em caráter secundário, isto é, não
tem direito a proteção contra interferência prejudicial, mesmo
de estações do mesmo tipo, e não pode causar interferência a
sistemas operando em caráter primário.
Appendix
76
Wireless devices that may be in your system are only qualified for
use in the European Union or associated areas if a CE mark
with a Notified Body Registration Number and the Alert Symbol is
on the system label.
The power output of the wireless device or devices that may be
embedded in you notebook is well below the RF exposure limits
as set by the European Commission through the R&TTE directive.
The low band 5.15–5.35 GHz is for indoor use only.
See 802.11b and 802.11g restrictions for specific countries
or regions within countries under the heading “European
Economic Area Restrictions” below.
Samsung Electronics (UK) Ltd, Euro QA Lab.
Blackbushe Business Park Saxony Way, Yateley,
Hampshire GU46 6GG United Kingdom
European radio approval information (for products
fitted with EU-approved radio devices)
This Product is a Notebook computer; low power, Radio LAN type
devices (radio frequency (RF) wireless communication devices),
operating in the 2.4 GHz/5 GHz band, may be present (embedded)
in your notebook system which is intended for home or office use.
This section is only applicable if these devices are present. Refer to
the system label to verify the presence of wireless devices.
Appendix
77
Nation Description
Eesti[Estonian]
Käesolevaga kinnitab
Samsung seadme Notebook
PC vastavust direktiivi 1999/5/
EÜ põhinõuetele ja nimetatud
direktiivist tulenevatele teistele
asjakohastele sätetele.
English
Hereby, Samsung, declares
that this Notebook PC is in
compliance with the essential
requirements and other
relevant provisions of Directive
1999/5/EC.
Español[Spanish]
Por medio de la presente
Samsung declara que el
Notebook PC cumple con
los requisitos esenciales
y cualesquiera otras
disposiciones aplicables
o exigibles de la Directiva
1999/5/CE.
EU R&TTE compliance statements
Nation Description
Česky[Czech]
Samsung tímto prohlašuje,
že tento Notebook PC je ve
shodě se základními požadavky
a dalšími příslušnými
ustanoveními směrnice 1999/5/
ES.
Dansk[Danish]
Undertegnede Samsung
erklærer herved, at følgende
udstyr Notebook PC overholder
de væsentlige krav og øvrige
relevante krav i direktiv 1999/5/
EF.
Deutsch[German]
Hiermit erklärt Samsung, dass
sich das Gerät Notebook PC
in Übereinstimmung mit den
grundlegenden Anforderungen
und den übrigen einschlägigen
Bestimmungen der Richtlinie
1999/5/EG befindet.
Appendix
78
Nation Description
Latviski[Latvian]
Ar šo Samsung deklarē, ka
Notebook PC atbilst Direktīvas
1999/5/EK būtiskajām prasībām
un citiem ar to saistītajiem
noteikumiem.
Lietuvių[Lithuanian]
Šiuo Samsung deklaruoja,
kad šis Notebook PC atitinka
esminius reikalavimus ir
kitas 1999/5/EB Direktyvos
nuostatas.
Nederlands[Dutch]
Hierbij verklaart Samsung dat
het toestel Notebook PC in
overeenstemming is met de
essentiële eisen en de andere
relevante bepalingen van
richtlijn 1999/5/EG.
Nation Description
Ελληνική[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Samsung
ΔΗΛΩΝΕΙ ΟΤΙ Notebook PC
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ
ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ
ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français[French]
Par la présente Samsung
déclare que l’appareil
Notebook PC est conforme aux
exigences essentielles et aux
autres dispositions pertinentes
de la directive 1999/5/CE.
Italiano[Italian]
Con la presente Samsung
dichiara che questo Notebook
PC è conforme ai requisiti
essenziali ed alle altre
disposizioni pertinenti stabilite
dalla direttiva 1999/5/CE.
Appendix
79
Nation Description
Português[Portuguese]
Samsung declara que este
Notebook PC está conforme
com os requisitos essenciais e
outras disposições da Directiva
1999/5/CE.
Slovensko[Slovenian]
Samsung izjavlja, da je ta
Notebook PC v skladu z
bistvenimi zahtevami in
ostalimi relevantnimi določili
direktive 1999/5/ES.
Slovensky[Slovak]
Samsung týmto vyhlasuje, že
Notebook PC spĺňa základné
požiadavky a všetky príslušné
ustanovenia Smernice
1999/5/ES.
Nation Description
Malti[Maltese]
Hawnhekk, Samsung, jiddikjara
li dan Notebook PC jikkonforma
mal-ħtiāijiet essenzjali u ma
provvedimenti oħrajn relevanti
li hemm fid-Dirrettiva 1999/5/
EC.
Magyar[Hungarian]
Alulírott, Samsung nyilatkozom,
hogy a Notebook PC megfelel
a vonatkozó alapvetõ
követelményeknek és az
1999/5/EC irányelv egyéb
elõírásainak.
Polski[Polish]
Niniejszym Samsung
oświadcza, Ŝe Notebook PC
jest zgodny z zasadniczymi
wymogami oraz pozostałymi
stosownymi postanowieniami
Dyrektywy 1999/5/EC.
Appendix
80
Nation Description
Norsk[Norwegian]
Samsung erklærer herved
at utstyret Notebook
PC er i samsvar med de
grunnleggende krav og øvrige
relevante krav i direktiv 1999/5/
EF.
Türkiye[Türkçe]
Bu belge ile, Samsung bu
Notebook PC’nin 1999/5/
EC Yönetmeliğinin temel
gerekliliklerine ve ilgili
hükümlerine uygun olduğunu
beyan eder.
Nation Description
Suomi[Finnish]
Samsung vakuuttaa täten
että Notebook PC tyyppinen
laite on direktiivin 1999/5/EY
oleellisten vaatimusten ja sitä
koskevien direktiivin muiden
ehtojen mukainen.
Svenska[Swedish]
Härmed intygar Samsung
att denna Notebook PC står
I överensstämmelse med de
väsentliga egenskapskrav och
övriga relevanta bestämmelser
som framgår av direktiv
1999/5/EG.
Íslenska[Icelandic]
Hér með lýsir Samsung yfir því
að Notebook PC er í samræmi
við grunnkröfur og aðrar kröfur,
sem gerðar eru í tilskipun
1999/5/EC.
Appendix
81
Manufacturer information
Samsung Electronics Co., Ltd.
129, Samsung-Ro, Yeongtong-Gu, Suwon-City, Gyeonggi-Do,
443-742, Korea
Samsung Electronics Suzhou Computer Co., Ltd.
No. 198, Fangzhou Road, Suzhou Industrial Park, Jiangsu Province,
215021, China
Tel: +86-0512-6253-8988
Samsung Electronics Vietnam Co., Ltd.
Yen Phong 1, I.P Yen Trung Commune, Yen Phong Dist., Bac Ninh
Province, Vietnam
For the web or the phone number of the Samsung Service Center,
see the Warranty or contact the retailer where you purchased your
product.
To view the EU Declaration of Conformity
for this product (in English only), go to:
www.samsung.com/uk/support/main/supportMain.do or
www.samsung.com/uk/support then search the model number of
the product.
If the Declaration of Conformity for the model you are interested
in is not available on our web-site, please contact your distributor
or below address.
doc.eu@samsung.com
Appendix
82
Due to the fact that the frequencies used by
802.11b/802.11g wireless LAN devices may not yet be
harmonized in all countries, 802.11b/802.11g products
are designed for use only in specific countries or regions,
and are not allowed to be operated in countries or regions
other than those of designated use.
As a user of these products, you are responsible for
ensuring that the products are used only in the countries
or regions for which they were intended and for verifying
that they are configured with the correct selection of
frequency and channel for the country or region of use.
Any deviation from permissible settings and restrictions in
the country or region of use could be an infringement of
local law and may be punished as such.
European economic area restrictions
Local restriction of 802.11b/802.11g radio usage
Note to integrator: The following statements on local restrictions
must be published in all end-user documentation provided with
the system or product incorporating the wireless product.
Appendix
83
RTC caution
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended
by the manufacturer. Discard used batteries according to the
Manufacturer’s instruction.
The European variant is intended for use throughout the European
Economic Area. However, authorization for use is further restricted
in particular countries or regions within countries, as follows:
General
European standards dictate maximum radiated transmit power
of 100 mW effective isotropic radiated power (EIRP) and the
frequency range 2400–2483.5 MHz.
The low band 5.15–5.35 GHz is for indoor use only.
Belgium
For private use outdoors in public spaces, no registration is
necessary for distances less than 300 m. For distances greater
than 300 m, you must register with the Belgian Institute for Postal
services and Telecommunications (BIPT). For commercial use
outdoors, you must obtain a license from the BIPT. For registration
or licensing, please contact the BIPT.
For other languages, refer to the corresponding manuals.
France
The low band 5.15–5.35 GHz is for indoor use only.
Appendix
84
WEEE symbol information
Correct disposal of this product (Waste Electrical &
Electronic Equipment)
(Applicable in countries with separate collection
systems)
This marking on the product, accessories or literature indicates
that the product and its electronic accessories (for example,
charger, headset, USB cable) should not be disposed of with other
household waste at the end of their working life.
To prevent possible harm to the environment or human health
from uncontrolled waste disposal, please separate these items
from other types of waste and recycle them responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where
they purchased this product, or their local government office,
for details of where and how they can take these items for
environmentally safe recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract. This product and its
electronic accessories should not be mixed with other commercial
wastes for disposal.
For information on Samsung’s environmental commitments
and product specific regulatory obligations e.g. REACH visit:
samsung.com/uk/aboutsamsung/samsungelectronics/
corporatecitizenship/data_corner.html
India only
For more information on safe disposal and recycling visit our
website www.samsung.com/in or contact our Helpline numbers -
18002668282, 180030008282.
This product is RoHS compliant.
Appendix
85
USA only
This Perchlorate warning applies only to primary CR (Manganese
Dioxide) Lithium coin cells in the product sold or distributed ONLY
in California USA.
“Perchlorate Material- special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate.”
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect
or call, (877) 278-0799.
For battery recycling go to call2recycle.org; or call 1-800-822-8837.
Warning: This product contains chemicals known to the state of
California to cause cancer, birth defects, or other reproductive
harm.
Correct disposal of batteries in this product
(Applicable in countries with separate collection
systems)
This marking on the battery, manual or packaging indicates that
the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked,
the chemical symbols Hg, Cd or Pb indicate that the battery
contains mercury, cadmium or lead above the reference levels
in EC Directive 2006/66. If batteries are not properly disposed
of, these substances can cause harm to human health or the
environment.
To protect natural resources and to promote material re-use,
please separate batteries from other types of waste and recycle
them through your local, free battery return system.
Appendix
86
Samsung package Take-Back
program
In partnering with select recyclers, Samsung offers packaging
take-back at no cost to you.
Simply call the following number for the locations nearest you.
CRT Processing, LLC
(877) 278-0799
Kathy Severson – Logistics contact
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect or call, (877) 278-0799
