Samsung Electronics Co YPP3 BLUETOOTH MP3 PLAYER User Manual YP P3
Samsung Electronics Co Ltd BLUETOOTH MP3 PLAYER YP P3
User manual
MP3 Player
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at
www.samsung.com/global/register
YP-P3
features of your new MP3 Player
Good looking. Smart. Reliable. And lots of fun. Your new MP3 player
is all this and more. Its state-of-the-art technology delivers rich sound,
and vibrant pictures. You’ll love your new MP3 player, whether you’re
exercising, downloading your favorite tunes, watching videos, or even
listening to FM Radio.
Use it once, and you’ll wonder how you ever lived without it.
PUTTING THE “MULTI” IN MULTIMEDIA
We call it an MP3 player, but it’s much more
than that. It allows you to view pictures, text,
videos and listen to FM radio.
The built-in Bluetooth wireless technology
turns your MP3 player into your own
personal network.
COLOR LCD SCREEN DESIGN
Vivid color and images are delivered on the
wide LCD screen.
DYNAMIC FEEDBACK ON YOUR TOUCH
It provides various feedbacks on your ¿ nger
touch on the touch screen.
HANDY AND USEFUL WIDGETS!
Place clock, calendar and other widgets
on your main menu screen for your
convenience, providing direct and easy
access.
You can change and decorate buttons and
icons on the background.
LONGER PLAY TIME AND SHORTER
DOWNLOADING!
A fully charged battery can play up to 30
hours of music and 5 hours of video.
Download times are shorter. Because of its
USB 2.0 capability, the player is much faster
than models with USB 1.1.
ACOUSTIC WONDER
Your new MP3 player has built-in DNSe™
(Digital Natural Sound engine), Samsung’s
unique sound technology created to deliver
richer, deeper sound for an unbelievable
listening experience.
safety information
What the icons and signs in this user manual mean :
WARNING
Means that death or serious personal injury is a risk.
CAUTION
Means that there is a potential risk for personal injury or
material damage.
CAUTION
To reduce the risk of ¿ re, explosion, electric shock, or
personal injury when using your MP3 Player, follow
these basic safety precautions:
NOTE
Means hints or referential pages that may be helpful to
operate the player.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Call the service center for help.
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
safety information
This manual describes how to properly use your new mp3 player.
Read it carefully to avoid damaging the player and injuring yourself.
Pay particular attention to the following serious warnings:
PROTECT YOURSELF
Do not disassemble, repair, or modify this product on your own.
Do not get the product wet or drop it in water. If the product gets wet, do
not switch it on because you could get an electric shock. Instead, contact
a Samsung Customer Service Center at 1-800-SAMSUNG.
Do not use the product during a thunderstorm, as it may cause
malfunction or a risk of electric shock.
Do not use the earphones while you are driving a bicycle, automobile or
motorcycle.
It can cause a serious accident, and furthermore, is prohibited by law in some
areas.
Using the earphones while walking or jogging on a road, in particular, on a
crosswalk can lead to a serious accident.
For your safety, make sure the earphone cable does not get in the way of
your arm or other surrounding objects while you are taking exercise or a
walk.
Do not place the product in damp, dusty, or sooty areas because these
environments could lead to ¿ re or electric shock.
CAUTION
WARNING
CAUTION
PROTECT YOURSELF
Using earphones or headphones for an extended time may cause serious
damage to your hearing.
If you are exposed to sound louder than 85db for an extended time, you may
adversely affect your hearing. The louder the sound is, the more seriously damaged
your hearing may be (an ordinary conversation is between 50 to 60db and road
noise is approximately 80db).
You are strongly advised to set the volume level to medium (the medium level is
usually less than 2/3 of the maximum).
If you feel a ringing in the ear(s), lower the volume or stop using the
earphones or headphones.
PROTECT YOUR MP3 PLAYER
Do not leave the player in temperatures above 95°F (35°C), such as a
sauna or a parked car.
Do not cause excessive impact on the player by dropping it.
Do not place heavy objects on top of the player.
Prevent any foreign particles or dust from entering into the product.
Do not place the product near magnetic objects.
Be sure to backup important data. Samsung is not responsible for data loss.
Use only accessories provided by or approved by Samsung.
Do not spray water on the product. Never clean the product with chemical
substances such as benzene or thinner, as it may cause ¿ re, electric
shock or deteriorate the surface.
Failure to follow these instructions may lead to physical injuries or damage to
the player.
When printing this user manual, we recommend that you print in color and
check “Fit to Page” in the print option for better viewing.
CAUTION
NOTE
WARNING
CAUTION
SAFETY INFORMATION
FCC
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Caution: Any changes or modi¿ cations in construction of this device which are not
expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications, However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Declaration of Conformity
We, Samsung Electronics Co.,Ltd., declares under its sole responsibility that
the product, Trade name Samsung & Model name YP-P3, has been tested
according to the part 15 of the FCC Rules.Party responsible for Product Compliance
Samsung Electronics America QA Lab.18600 Broadwick Street, Rancho Dominguez,
CA 90220
FCC RF Radiation Exposure Statement:This equipment complies with FCC RF radiation
exposure limits set forth for an uncontrolled environment.This device and its antenna
must not be co-located or operating in conjunction with any other antenna or transmitter.
contents
THE BASICS
12
12 What’s included
13 Your MP3 Player
15 Resetting the system
16 Charging the battery
17 Caring for the battery
17 Turning the Power on & off
18 Controlling the volume
18 Disabling the buttons
19
Browsing for ¿ les using “File Browser”
19 Deleting ¿ les with “File Browser”

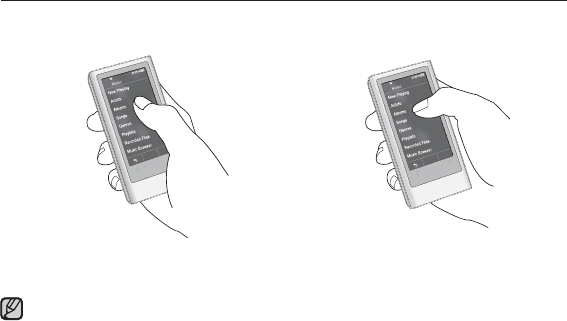

20 Using the touch screen
27 Setting the Main Menu Display
29 Using Widget
36 Using the Quick Tray
38 Using the Mini-player
39 Changing the settings and
preferences
39 Sound Setting Options
41 Display Setting Options
42 Language Setting Options
43 Time Setting Options
44 System Setting Options
EMODIO
49
49 PC requirements
50 Installing EmoDio

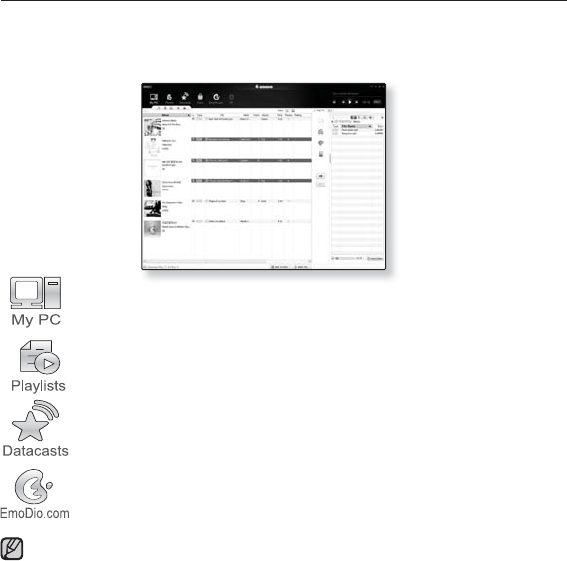

51 Using EmoDio
WATCHING A VIDEO
52
52 watching a video
53 Video Playback Display
54 Touch icons for playback control
55 Using the video menu
LISTENING TO MUSIC
62
62 Listening by category
64 Music Playback Display
65 Touch icons for playback control
66 Repeating a section
67
Creating a playlist on your MP3 player
68 Playing a playlist
69 Deleting a ¿ le from the playlist
70 Using the music menu
contents
READING TEXT
85
85 Reading text
86 Using the Text menu
VIEWING PICTURES
78
78 Viewing pictures
79 Picture display
81 Enlarging a picture
82 Using the picture menu
contents
USING BLUETOOTH
90
90 What is bluetooth?
92 Using a Bluetooth stereo headset
95 Using a Bluetooth mobile phone
101 Transferring ¿ les to/from a bluetooth
device
106 Using the Bluetooth menu
107 Bluetooth settings
VIEWING DATACASTS
109
109 Viewing Datacasts
LISTENING TO FM RADIO
110
110 Listening to FM radio
111 FM Radio Display
112 To search for FM stations
113 Recording FM Radio
114 Using the FM radio menu
USING
THE SKETCHBOOK
118
118 Using the sketchbook
contents
VOICE RECORDING
120
120 Voice recording
PLAYING VIDEO GAMES
122
122 Playing video games
SETTING THE ALARM
126
126 Setting the Alarm
ENJOYING FLASH FILES
119
119 Enjoying À ash ¿ les
E
WING THE ADDRESS BOOK
128
128 Viewing the address book
the basics _ 11
TROUBLESHOOTING
131
131 Troubleshooting
APPENDIX
134
134 Menu tree
135 Product speci¿ cations
137 License
138 Warranty
contents
USING THE CALCULATOR
129
129 Using the calculator book

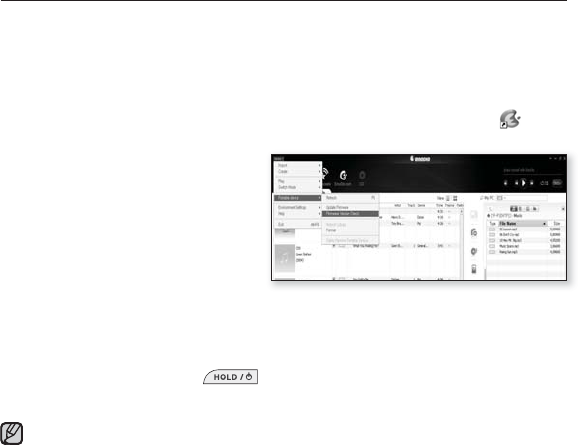

UPGRADING FIRMWARE
130
130 Upgrading ¿ rmware
12 _ the basics
the basics
WHAT’S INCLUDED
Your new mp3 player comes with these accessories. If you’re missing any of these
items, contact Samsung Customer Service at 1-800-SAMSUNG (1-800-726-7864).
Player Earphones
Black :
AH30-00087E
White :
AH30-00086H
USB Cable
AH39-00899A
Installation CD
AH46-00050A
The accessories in your box may look slightly different than these.
the basics _ 13
YOUR MP3 PLAYER
Touch screen
Up volume button
Press to increase the volume
Mini-player touch area
Power & HOLD button
Press to lock the button functions.
Press and hold for power on/off.
Down volume button
Press to reduce the volume
14 _ the basics
YOUR MP3 PLAYER (Continued)
Earphone connection jack
Earphones
Labeled “L” for
the left earpiece
and “R” for the
right earpiece.
Also serves as an
antenna for FM
Radio in the MP3
player.
Microphone/Reset hole
USB connection port
the basics _ 15
RESETTING THE SYSTEM
If your mp3 player won’t turn on, won’t play music, or isn’t recognized by your
computer when you connect it, you may have to reset the system.

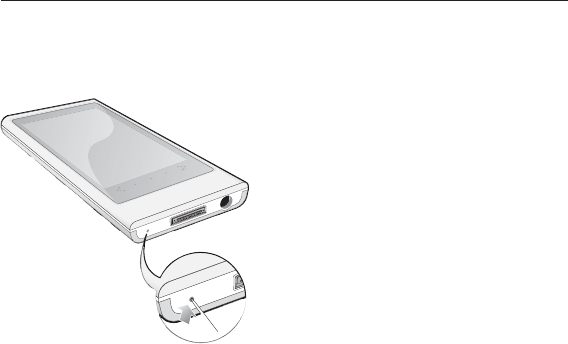

Press the Reset hole at the bottom of the
player with a pointed object such as a
safety clip.
The system will be initialized.
Your settings and ¿ les will not be affected.
16 _ the basics
CHARGING THE BATTERY
Charge the player before using it for the ¿ rst time and when you haven’t used it
for awhile.
The battery for your MP3 player will fully charge in about 3 hours, although total
charging time varies depending on your PC environment.
1. Connect the larger end of the USB cable to the USB Connection Port on the
bottom of the player.
2. Connect the USB cable to the USB port ( ) on your PC.
Play Time on Full Charge Maximum of 5 hours for video playback.
Maximum of 30 hours for music playback.
2
Screen Display
<USB connected>
<> - Charging
<> - Fully Charged
1
the basics _ 17
CARING FOR THE BATTERY
Your battery will last longer if you follow these simple guidelines for caring and
storing the player.
•
Recharge the battery within the temperature range of 40°F~95°F (5°C~35°C ).
•Do not overcharge (longer than 12 hours).
Excessive charging or discharging may shorten the battery’s life.
•Battery life naturally shortens slowly over time.
If you are charging the player while it is connected to a laptop computer, make sure
the laptop’s battery is also fully charged or that the laptop is plugged into its power
source.
The battery is not charged in the PC Standby mode or when the hardware is safely
removed.
TURNING THE POWER ON & OFF
Turning the Power on
Press and hold the [ ]button.
Turning the Power off
Press and hold the [ ] button.
Your mp3 player will be automatically turned off when none of the buttons and icons
have been pressed for a speci¿ c length of time in the pause mode. The factory
setting for <Auto Power Off> is 1 minute, but you can change this length of time.
See page 44 for more information.
NOTE
NOTE
18 _ the basics
CONTROLLING THE VOLUME
You can adjust the volume while a ¿ le is stopped or in its playback.
Press the [ ], [ ] button.
The range of volume is set between 0 to 30.
DISABLING THE BUTTONS
The hold function disables all the other buttons and icons on the mp3 player,
so that if you accidentally bump one-while working out, for example-your music
won’t be interrupted.
1. Press the [] button.
2. To release the hold function, press the []
button twice.
If <Touch Screen Only> is selected from <Settings> ĺ <System> ĺ<Hold Option>,
locks only the touch screen and allows operation of , and
buttons. See page 44.
NOTE
Video track 1.svi
the basics _ 19
BROWSING FOR FILES USING “File Browser”
Search easily for ¿ les using the “File Browser” function.
1. Tap the icon on the main menu screen.
2. Tap on a selected folder to bring up the ¿ le list.
3. Tap on a desired ¿ le.
The ¿ le will start playing.
<My Pack> of <File Browser> is where DNSe ¿ les transferred by
<EmoDio> are stored. For further information on DNSe, refer to
<Using TTS(Text to Speech) and myDNse> <DNSe (Digital
Natural Sound engine)> in the Help section of the <EmoDio>
software.
DELETING FILES WITH “File Browser”
Follow the steps 1-2 above.
3. Tap the [] icon.
4. Tap <Delete>.
5. Tap on a desired ¿ le.
6. Tap <OK> and tap <Yes>.
The selected ¿ le is deleted.
The selected ¿ le cannot be deleted while its playing back.
Once ¿ les are deleted, they cannot be recovered.
NOTE
CAUTION
NOTE
Video
Music
Playlists
Pictures
Texts
Datacasts
Games
Received Files
File Browser
Video Track 1.svi
Video Track 2.svi
Video Track 3.svi
Video
Add to Playlist
Delete
20 _ the basics
USING THE TOUCH SCREEN
Tap on the touch screen with your thumb or ¿ ngertip.
Do not use force when touching the touch screen, as it may cause damage to the
screen.
To avoid damage to the touch screen, do not use any object other than your thumb
or ¿ ngers to operate it.
Do not tap on the touch screen if your thumb or ¿ ngers are not clean.
Do not tap on the touch screen with gloves on.
The touch screen may not function if you use a ¿ ngernail or other instruments such
as a ballpoint pen.
NOTE
incorrectcorrect
the basics _ 21
USING THE TOUCH SCREEN (Continued)
Tapping once
Tap once on the desired part on the touch screen.
Examples
To select an item or run a
function
1. Used for running a function by tapping on a
function icon, or selecting an item from a list.
To display playback
information and function
icons
2. Tap on the touch screen to display playback
information and icons in video, music, picture
and text view.
Displays the main menu
style change window.
3. Tapping on an empty area of the touch screen
displays <Style>, <Layout> and <Widget> that
enable you to change the menu display.
22 _ the basics
USING THE TOUCH SCREEN (Continued)
Tapping twice
Tap on the touch screen twice.
Examples
Enlarging1. Enlarges the screen in video and picture view.
Changing Music Play
Screen
2. You can change the music play screen while
listening to music.
Changing the font size3. Enlarges the font size in text view.
For some video ¿ les, the display size of the video playback may not be
changed.
NOTE
the basics _ 23
USING THE TOUCH SCREEN (Continued)
Longer Touch
Tap and hold the desired part of the touch screen.
Examples
Moving to the screen in
playback
1. Press and hold the or icon to play a
recently played ¿ le or to move to the playback
screen of current ¿ le.
24 _ the basics
USING THE TOUCH SCREEN (Continued)
Stroking
Position your ¿ nger on the touch screen and
slide to the desired direction.
Examples
Browsing Main Menu
screen
1. Stroke on an empty space of the touch screen
to browse main menu screen.
Adjust the volume2. Stroke on the middle right of the screen.
Page Move / Playback
Searching
3.
Stroke vertically on a list view to move to the
previous / next screen.
Stroke horizontally while in video or music
playback to skip backward / forward by
prede¿ ned offset.
Stroke horizontally while in picture view with
¿ le information and icon displayed to move to
the previous / next picture.
Stroke horizontally while in text view to move
to the previous / next page.
Stroke horizontally while in FM radio
mode to search the previous / next station
automatically.
the basics _ 25
USING THE TOUCH SCREEN (Continued)
Dragging
Tap and drag your ¿ nger to the desired point.
Examples
Moving the Main Menu
screen
1. Drag on an empty space of the touch screen
horizontally to move the main menu screen.
Moving the Menu2.
You can check the sub-list by dragging in the
desired direction in video and music menu
screen.
Moving Enlarged Screen3. You can move the enlarged portion in the
direction you want.
Controlling the Play
Status Bar
4. Press and hold the play status bar on the
screen and move your ¿ nger to a desired
point before releasing it.
Moving Icons5. While using widgets, select a widget icon to
move and drag it to your destination.
26 _ the basics
USING THE TOUCH SCREEN (Continued)
Circling
Position your ¿ nger on the touch screen and circle around softly.
Examples
Rotation1.
To change the viewing mode in picture / text
view, rotate the picture or text in the direction
you want.
the basics _ 27
SETTING THE MAIN MENU DISPLAY
To Change the Menu Style
You can change the main menu style.
1. Tap on an empty area of the touch screen.
2. Tap <Style>.
3. Select a desired style and tap <OK>.
To Change the Menu Screen Layout
You can customize the menu screen layout by moving each menu icons
to a desired location.
1. Tap on an empty area of the touch screen.
2. Tap <Layout>.
3. Tap a menu icon and drag it to a desired location/
page.
4. Tap <OK>.
Dragging a menu icon to an empty page will add a new
main menu page.
You can add main menu pages up to 5 pages.
To move a widget to a different location, use the Widget
menu. See page 28.
NOTE
28 _ the basics
SETTING THE MAIN MENU DISPLAY (Continued)
To add / delete a widget
You can delete or add a widget icon from/to the main menu screen.
1. Tap on an empty area of the touch screen.
2. Tap <Style>.
3. Drag a widget from the Widget selection screen
to the main screen or drag a widget from the main
screen to the widget selection screen.
You can also move a widget from the main screen to a
desired point.
NOTE
the basics _ 29

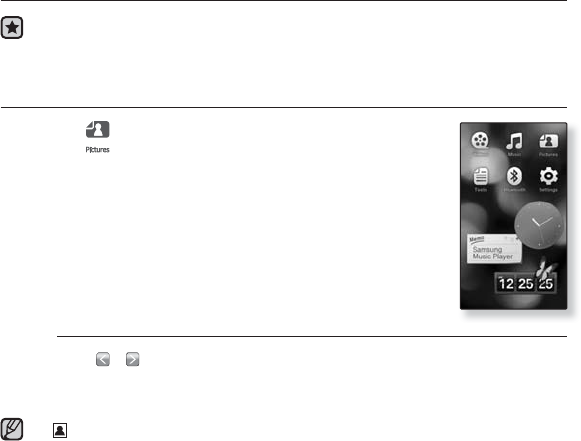

USING WIDGET
Place clock, calendar and other widgets on your main menu screen for your
convenience, providing direct and easy access.
Displays an analogue clock, shows the current time and you can
set the time. See page 31.
Displays a digital clock, shows the current time and you can set the
time. See page 31
A decorative item showing a butterÀ y around a À ower.
A decorative item À utters À oral leaves when tapped.
A decorative item of coffee cup steams up when tapped.
A decorative item of cookie cracks a bit when tapped.
30 _ the basics
USING WIDGET (Continued)
You can note and save a memo. See page 35.
You can view calendar and schedule on a date. See page 34.
You can can check the current time of two major cities in the world.
See page 33.
You can view pictures saved in the player in slideshow mode.
You can select a folder for a slideshow. See page 32.
Tap the light bulb to adjust the brightness of the touch screen.
Tap to schedule your sleep time. It will automatically turn the power
off on the scheduled time.
the basics _ 31
USING WIDGET (Continued)
To Set the Current Time
1. Tap on digital or analogue clock widget on the main
menu screen.
2. Tap the [] icon.
3. Tap on up/down side of the digits of <Year>,
<Month>,<Day>,<Hour>,<Min> and <AM/PM>
icon to set the current time.
4. Tap <OK>.
You can set the current time in <Settings> <Time>
<Date/Time Setting> too.
Clock Option
<Style>: You can change the style of Clock widget in the main menu screen.
NOTE
Date/Time
32 _ the basics
USING WIDGET (Continued)
To Select the Slideshow Folder
1. Tap on the Slideshow widget in the main menu
screen.
2. Tap on the touch screen and tap the [] icon.
3. Tap <Select Slideshow Folder>.
4. Check a desired picture folder to select as the
slideshow folder.
Selected folder’s pictures are displayed randomly in the
slideshow.
Selecting a folder will select all ¿ les and subfolders in the folder.
Slideshow option
<Change Frame>: You can change the frame shape of the slideshow widget
appears in the main menu screen.
NOTE
Select Slideshow Fold..
Change Frame
the basics _ 33
USING WIDGET (Continued)
To Change the World Time Clock
1. Tap on the World Time widget in the main menu
screen.
You can set both clocks on the top and bottom side of
the screen.
2. Select a desired time zone.
You can set the world time in <Settings> <Time>
<Time Zone>.
World Time Clock option
<Style>: You can change the world time widget appears in the main menu
screen.
NOTE
Dual Clock
Seoul/Tokyo
2008 01 06 11:04 PM
34 _ the basics
USING WIDGET (Continued)
To Check the Schedule
1. Tap on the Calendar widget in the main menu
screen.
2. Select the desired month.
Slide your ¿ nger upward or downward to select the
desired year.
3. Tap on a date with schedule icon in the calendar..
A schedule cannot be created on the player.
Calendar options
<Style>: Changes the style of the calendar widget of the main menu screen.
<View Type>: Changes the calendar view type.
<Icon Style>: Changes the icon for the date with schedules. Select a desired
one by tapping on it.
<Delete All>: Deletes all saved schedules. Tap on <Yes> to delete all
schedules.
NOTE
the basics _ 35
USING WIDGET (Continued)
To input a memo
1. Tap on the Memo widget in the main menu screen.
2. Tap the [ ] icon.
3. Tap <New>.
3. Using the keyboard dialog, input your memo and
tap <OK>.
Memo options
<Style>: You can change the background color of the memo widget of the main
menu screen.
<Set as Main Memo>: To display a memo on the main menu screen, the memo
should be set as the main memo. Select a memo by tapping on it.
<Delete>: Deletes selected memo from the list. Tap on a memo to be deleted,
and then tap <OK>.
36 _ the basics
USING THE QUICK TRAY
Provides a quick access of moving to main menu, selecting sound output, hold/
Display off, and Bluetooth pairing.
To use the Quick Tray
You can use the quick tray in all screens except the main menu screen.
To open the Quick Tray
In a screen other than the main menu screen, tap on the top side of the
touch screen to display the quick tray.
To close the Quick Tray
Tap on the touch screen area other than the Quick Tray.
1
HOLD / Display Off
2
Connecting / Disconnecting
Bluetooth Device
3
Setting the Sound Output
4
Moving the Main Menu
Video Track 1.svi
Video Track 2.svi
Video Track 3.svi
4
1
2
3
[Quick Tray Screen]
the basics _ 37
USING THE QUICK TRAY (Continued)
Moving the Main Menu
Tapping on the [ ] icon in the quick tray will move to the main menu
screen.
Setting the Sound Output
Tapping on the [ ] icon in the quick tray allows you to select sound
output from speaker or earphones. Select among [ ] (Auto),
[] (Earphones), and [ ] (Speaker) icons. See page 40.
HOLD / Display Off
Tapping on the [ ] icon in the quick tray will lock all buttons and turn
off the screen
Connecting / Disconnecting Bluetooth Device
Tapping on the [ ] icon in the quick tray will try to connect to the
recently connected device automatically, or try to disconnect the
currently connected Bluetooth device.
If the Bluetooth device is not registered, you cannot connect to the
device.
38 _ the basics
USING THE MINI-PLAYER
You can play back music ¿ les using the mini-player.
To use the Mini-player
In a mode other than Video / Music playback, FM
Radio and Recording mode, you can check out
the music ¿ le you’re playing or select a music
¿ le to play without moving to the Music playback
mode by using the mini-player.
Opening the Mini-player
Stroke fast on the mini player’s touch area horizontally.
Closing the Mini-player
Stroke fast again on the mini player’s touch area horizontally.
Play Status bar of the mini-player is not adjustable.
Video Track 1.svi
Video Track 2.svi
Video Track 3.svi
Video
Rising Sun Mini-player
Mini-player touch area
NOTE
the basics _ 39
CHANGING THE SETTINGS AND PREFERENCES
Your mp3 player comes with settings and preferences that were set up at the
factory, but you can change these pre-set values to truly customize your player.
1.
Tap the icon on the main menu screen.
2.
Tap on a desired item in the setting list
3. Tap on a desired setting option.
4. Set the options you prefer.
If the <Settings> screen is open and you don’t push any
buttons for about 1 minute, the unsaved settings will be
lost, and the player will return to the previous function.
Sound Setting Options
You can set the master EQ, touch tone, volume limit, etc.
Master EQ : You can optimize sound settings. Select
the desired frequency and its level then tap <OK>. The
frequencies that can be adjusted are <60Hz>, <150Hz>,
<400Hz>, <1.1KHz>, <3.5KHz>, <8KHz> and <14KHz>.
Touch Tone : You can adjust the volume of the sound and
vibration settings for your tapping on the screen buttons.
Select from 0~7 for volume, and 0~5 for vibration.
Noti¿ cation/Alert tone: You can adjust the volume of the
sound and vibration settings for alert and con¿ rm pop-ups.
Select from 0~7 for volume, and 0~5 for vibration.
NOTE
[Setting list]
Sound
Display
Language
Time
System
Settings
Master EQ
Touch Tone
Notification/Alert Tone
Wise Volume
Output
Sound
40 _ the basics
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Sound Setting Options (Continued)
Volume Limit: You can avoid hearing damage by setting the limit of the volume
when using the earphone. <On> will limit the maximum volume level to 15.
The maximum volume level when volume limit is set to <Off> is 30.
Even if you have selected <Off>, the volume will be set back to 15 to avoid
hearing damage when you turn the player back on.
Output: You can set the sound output to speaker or earphones. Select among
<Auto>, <Speaker> and <Earphones>.
If you select <Auto>, you can hear sound through connected earphones when
connected; otherwise, the built-in speaker will sound.
If you select <earphones>, only the earphones will produce sound.
If you select <Speaker>, built-in speaker will produce sound even when the
earphones are connected.
You can not set the <Master EQ> while the player is connecting to the
Bluetooth stereo headset.
NOTE
the basics _ 41
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Display Setting Options
You can setup font for the menu display, display off time, brightness, etc
Font: You can change the font type of the menu language.
Select one from 3 font types. In Japanese,Simpli¿ ed
Chinese,Traditional Chinese and Thai menu languages,
<Font> will be disabled and cannot be changed.
Transparency: You can control the transparency of the
touch screen. Select one among <0 ~ 3>.
Random Skin: You can set a picture ¿ le in the <Skin>
folder under the Pictures as your background skin.
For further information on saving pictures in <Skin> folder,
refer to page 84.
Select <On> and select <Select as My Skin> under Picture
view menu, then it automatically switches to <Off>.
Reset My Skin: Initializes the background image of the
touch screen display to its default image. Select <Yes> to
reset the background image.
Reset Booting Image: Resets the booting image to the
default, which is to be displayed when the player starts.
Select <Yes> to reset the booting image. For setting the
booting image, refer to page 84.
Display Off: If no buttons or icons are tapped within the
time set shown below, the touch screen will automatically
be turned off. Select from <15sec>, <30sec>, <1min>,
<3min>, <5min> and <Always On>. Press any button to
turn it back on.
Brightness: You can adjust the brightness of the screen.
Select a level from <0-10>, where 10 is the brightest.
Font
Transparency
Random Skin
Reset My Skin
Reset Booting Image
Display Off
Brightness
Display
42 _ the basics
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Language Setting Options
The menus on your new mp3 player can be set to appear in any one of
multiple languages. You can change your preference language easily.
Menu: Set the menu language.
Select from <English>, <䚐ạ㛨>, <Français>, <Deutsch>,
<Italiano>, <襲莇蛑>, <ㅔԧЁ᭛>, <㐕储Ё᭛>, <Español>,
<Ɋɭɫɫɤɢɣ>, <Magyar>, <Nederlands>, <Polski>,
<Português>, <Svenska>, <ѳъѕ>, <ýeština>, <ǼȜȜȘȞȚțȐ>,
<Türkçe>, <Norsk>, <Dansk>, <Suomi>, <Español
(Sudamérica)>, <Português (Brasil)>, <Indonesia>,
<TiӃng ViӋt>, <Bulgarian>, <Română>, <ɍɤɪɚʀɧɫɶɤɚ>,
<Slovenšþina> or <Slovenský>.
Contents: Set the language in which the track information
and Text will appear. Select from <English>, <Korean>,
<French>, <German>, <Italian>, <Japanese>,
<Simpli¿ ed
Chinese>
,
<Tranditional Chinese>
, <Spanish>, <Russian>,
<Hungarian>, <Dutch>, <Polish>, <Portuguese>,
<Swedish>, <Thai>, <Finnish>, <Danish>, <Norwegian>,
<Farsi>, <Afrikaans>, <Basque>, <Catalan>, <Czech>,
<Estonian>, <Greek>, <Hrvatski>, <Icelandic>,
<Rumanian>
, <Slovak>, <Slovene>, <Turkish> or
<Vietnamese>.
The supported languages can be changed or added.
NOTE
Menu
Contents
Language
the basics _ 43
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Time Setting Options
Setting the time allows you to use the date/time set, date type and even
time zone.
Date/Time Set: Set the current date and time. Tap on
up/down side of the digits of <Year>, <Month>, <Day>,
<Hour>, <Min> and <AM/PM> icon to set the current time.
Date Type: You can set the time display type for the world
clock. Select from <YY-MM-DD>, <MM-DD-YY> and
<DD-MM-YY>.
Time Zone: You can check the location and date/time of
major world cities based on their respective time zone. You
must set the time zone before you can display the world
time information.
Date/Time set
Date Type
Time Zone
Time
44 _ the basics
CHANGING THE SETTINGS AND PREFERENCES (Continued)
System Setting Options
Choose the sleep timer, auto power off and default setting, etc. that’s
right for you.
My Info: You can set your name and birth date. See page
46.
Sleep : Turns off power automatically after the preset time.
Select either <Off>, <15min>, <30min>, <60min>, <90min>
or <120min>.
Auto Power Off : Automatically turns power off when the
unit is in Pause mode and there is no button operation
within the preset time. Select either <15sec>, <30sec>,
<1min>, <3min>, <5min> or <Always On>.
PC Connection: You can set USB connection to the PC
to either <UMS> or <MTP>. The default (factory) setting of
PC connection is set to <MTP>. Selecting <UMS> will use
the player as a removable storage device. See page 44.
Hold Option: You can select the hold function to lock all
buttons including touch screen or touch screen only. Select
either one of <All> and <Touch Screen Only>. See page
18.
Default Set: Returns all settings to the default value.
Select either <Yes> or <No>. <Yes> initializes all settings
to default. <No> cancels default settings.
Format: Formats the internal memory. Selecting <Yes>
will format the internal memory and delete all ¿ les on the
player. Check before formatting it.
My Info
Sleep
Auto Power Off
Hold Option
Default Set
Format
About
System
the basics _ 45
CHANGING THE SETTINGS AND PREFERENCES (Continued)
System Setting Options (Continued)
About: Checks the ¿ rmware version and memory capacity.
Firmware - Displays the current ¿ rmware version.
Memory - Indicates the remaining memory capacity. <Used> indicates
the usage, <Remaining> indicates the remaining capacity and
<Total> indicates the total memory capacity.
Regarding the Built-In Memory
1GB=1,000,000,000 bytes : actual formatted capacity may be less as the
internal ¿ rmware uses a portion of the memory.
NOTE
46 _ the basics
CHANGING THE SETTINGS AND PREFERENCES (Continued)
My Name Setting
1.
Tap <My Info>.
2.
Tap on the input area below the <My Name>.
3.
Enter your name using the keyboard dialogue, and
then tap <OK>.
[ ] : The input mode switches from uppercase
English to lowercase English and to number.
[ ] : You can delete the characters one at a time.
[, ] : Moves the cursor backward / forward.
Once you completed the name setting, you will see your
name when you turn on the player.
My Birthday Setting
Before you start - First, you should set the clock for the current time. See
page 43.
1.
Tap <My Info>.
2.
Tap on top and bottom side of each <Year>, <Month>
and <Day> icons below the <My Birthday> to set
your birthday.
3.
Tap <OK>.
Once you completed the birth date setting, you will be
reminded of your birthday when you turn on the player.
My Name
My Birthday
My Info
My Name
My Birthday
My Info
the basics _ 47
CHANGING THE SETTINGS AND PREFERENCES (Continued)
When the pc connection is set to <removable disk>
Using as a removable disk
You can use the player as a removable storage device.
Before you start - Connect the player to your PC.
1. Open ¿ les/folders to transfer on
your PC.
2.
Open <My Computer>
<P3>
on the desktop.
3.
Select the ¿ les/folders to transfer
from your PC and drag-and-drop
them to a folder of your choice in
the <P3>.
The selected folders or ¿ les are
transferred to the player.
The ¿ le transfer message will appear during ¿ le download or upload.
Disconnecting the USB cable while the message is displayed may cause
malfunction of the player.
The order of music ¿ les displayed in your PC may differ from the play order
on your player.
If you transfer a DRM ¿ le(purchased ¿ le) to the removable disk, the ¿ le will
not be played.
What is DRM?
Digital Rights Management (DRM) is a technology and service to prevent
the illegal use of digital contents and protect the pro¿ t and rights of
copyright holders. DRM ¿ les are purchased music ¿ les applied with copy
protection technology.
CAUTION
NOTE
48 _ the basics
CHANGING THE SETTINGS AND PREFERENCES (Continued)
When the pc connection is set to <removable disk> (Continued)
Disconnecting from your PC
Follow the steps below to prevent damage to the player and data when
disconnecting from your PC.
1. Place the mouse cursor on top of
the icon on the taskbar at the
bottom right corner of the desktop
and click the left mouse button.
2.
Click the <Safely Remove USB
Mass Storage Device Drive>
message.
3.
Disconnect the player from your
PC.
Do not disconnect the player from the PC during ¿ le transfer. This may
cause damage to data and the player.
You cannot safely disconnect the player while ¿ les within the player are
being played on your PC. Please retry after ¿ le playback is ¿ nished.
CAUTION
1
2
EmoDio _ 49
EmoDio
EmoDio is a software application provided for this MP3 player for
various content-related services as well as device supports.
PC REQUIREMENTS
Your PC system must meet the following minimum speci¿ cations in order to
install and run EmoDio:
•Pentium 500MHz or higher
•USB Port 2.0
•Windows XP Service Pack 2 or
higher
•DirectX 9.0 or higher
•100MB of free hard disc space
•CD Rom Drive (2X or higher)
•Windows Media Player 10.0 or
higher
•Resolution 1024 X 768 or higher
•Internet Explorer 6.0 or higher
•512 MB RAM or higher
Do not disconnect the USB cable during ¿ le transfer. Disconnecting during transfer
may damage the player or your PC.
Connect the player to the computer directly rather than through a USB hub to avoid
an unstable connection.
All functions are disabled during connection.
Use FAT 32 for the ¿ le system when formatting the player on your PC.
In Windows Vista, click Restore device defaults and format it.
An audio book with DRM (Digital Rights Management) is not supported.
CAUTION
NOTE
50 _ EmoDio
INSTALLING EMODIO
Ensure that you run the <EmoDio> installer in your PC’s administrator account.
Otherwise, <EmoDio> will not be installed. To ¿ nd the administrator account, please
refer to your PC’s user manual.
1. Insert the Installation CD provided with
the player into the CD-ROM drive of your
computer.
2. Click <Install now>.
Follow the instruction to start installation.
<EmoDio> installation starts and then creates an
icon on your desktop when installation is complete.
Use care when inserting the Installation CD into a vertically oriented CD-ROM drive.
If you connect the USB cable to the PC in the Low Battery condition, the player will
be charged for several minutes before connecting to the PC.
Music recognition technology and related data are provided by Gracenote and
Gracenote CDDB® Music Recognition ServiceSM.
CDDB is a registered trademark of Gracenote. The Gracenote logo and logotype,
the Gracenote CDDB logo and logotype, and the “Powered by Gracenote CDDB”
logo are trademarks of Gracenote. Music Recognition Service and MRS are service
marks of Gracenote. All functions are disabled during connection.
NOTE
CAUTION
CAUTION
EmoDio _ 51
USING EMODIO
EmoDio is the easy-to-use software application that helps you organize your
¿ les on your PC. With your ¿ les already sorted and organized in EmoDio, you
can quickly transfer them to your mp3 without searching your entire hard drive
for the right ¿ le.
“EmoDio” ¿ le transfer is the easiest way to get ¿ les from your PC to
your mp3 player.
With “EmoDio”, you can create your own collection, or album, of
audio ¿ les.
You can transfer blog information and ¿ les registered on RSS to the
player for your entertainment.
It’s an online community service for EmoDio.com users. It provides
simple and easy upload / download of content produced by using
EmoDio and ways to share your stories with other users in the
community.
For further information on <EmoDio>, click <MENU> ĺ <Help> ĺ <Help> on the
top of the <EmoDio> program.
NOTE
52 _ watching a video
watching a video
Before you start - Transfer video ¿ les to the player using <EmoDio>.
Connect the earphones, then turn on the player, and check the battery.
WATCHING A VIDEO
1. Tap the icon on the main menu screen.
The video list appears.
2. Tap on a video ¿ le to play.
The selected video ¿ le starts to play horizontally.
When transferring a video ¿ le to the player using <EmoDio>, it is automatically
converted into SVI format before transfer. The ¿ le size is automatically adjusted,
too.
Refer to <Playing video> in Help section of the <EmoDio> software.
NOTE
Video track 1.svi
Video Track 1.svi
Video Track 2.svi
Video Track 3.svi
Video
watching a video _ 53
VIDEO PLAYBACK DISPLAY
To display the video playback information and icons, tap on the screen.
1Bluetooth/Lock/Alarm
Indicator 7Play/Pause/Search Indicator
2Battery Status 8Video Mode Indicator
3Current Time 9Play Status Bar
4Current /Total Play Time
10
Back Icon
5
File Name
11
Menu Icon
6Play/Pause/Search Icon
The screen pictures are for illustration purposes only. The actual screen may differ.
NOTE
Video track 1.svi
11
3
1
2
8
7
4
6
9
10
5
54 _ watching a video
TOUCH ICONS FOR PLAYBACK CONTROL
Tap to move to the previous screen.
Press and hold to move to the main menu screen.
Tap to display the menu.
Tap to exit the menu.
Tap twice 3 seconds after the current
video
started playing.
Press and hold to move backwards in the current ¿ le.
Tap to pause during playback.
Tap to resume playing.
The video will play from the point where it stopped.
Tap to move to the next video.
Press and hold to move forwards in the current ¿ le
Video track 1.svi
watching a video _ 55
USING THE VIDEO MENU
To set a bookmark
Once you bookmark a speci¿ c scene that you want to see again, you
can enjoy it at any time you want.
1. Tap the [ ] icon at the scene you want
during video playback.
2. Tap <Bookmark> ĺ <Add>.
The currently played/stopped point is set to
a bookmark.
You will see the [ | ] symbol on the play
status bar.
A bookmark can be set one for each video ¿ le, and you can set a maximum
of 100 bookmarks.
The bookmark point can be slightly different from the actual point.
To move to (play) / remove the bookmark
1. Tap the [ ] icon on the video playback
screen.
2. Tap <Bookmark> ĺ <Go to> or
<Delete>.
When you selected <Go to> then it will move
to the selected bookmark and start playing
from that bookmark.
<Delete> will remove the selected bookmark from the video ¿ le.
NOTE
Bookmark
Add
Sound Effect
Display
Bookmark
Add
Go to
Delete
56 _ watching a video
USING THE VIDEO MENU (Continued)
To set the Digital Natural Sound engine (DNSe)
Select the right sound for each video genre.
1. Tap the [] icon on the video playback
screen.
2. Tap <DNSe>.
3. Tap on a desired DNSe.
Select from <Normal>, <Drama> and <Action>
.
What is DNSe?
Digital Natural Sound Engine (DNSe) is a sound effect function for MP3
players developed by Samsung. It provides various sound settings to
enhance the type of music you’re listening to.
NOTE
Normal
Drama
Action
DNSe
watching a video _ 57
USING THE VIDEO MENU (Continued)
To set the play speed
Speed up or slow down your favorite video by adjusting the play speed.
1. Tap the [] icon on the video playback
screen.
2. Tap <Sound Effet> ĺ <Play Speed>.
3. Select a desired play speed and tap
<Yes>.
Select from <Slow 5>, <Slow 4>,<Slow 3>, <Slow 2>, <Slow 1>, <Normal>,
<Fast 1>, <Fast 2>, <Fast 3>, <Fast 4>, <Fast 5>.
Some ¿ les may not allow all of <Slow 5> ~ <Fast 5> playback speeds.
To set the VibeWoofer
You can experience various vibration effects according to the strength
of the sound beat.
1. Tap the [] icon on the video playback screen.
2. Tap <Sound Effet> ĺ <VibeWoofer>ĺ
<On>.
NOTE
Bookmark
Sound Effect
Play Speed
VibeWoofer
Bookmark
Sound Effect
Play Speed
VibeWoofer
58 _ watching a video
USING THE VIDEO MENU (Continued)
To select the screen size
You can select the display size of the video playback.
1. Tap the [] icon on the video playback
screen.
2. Tap <Display> ĺ <Screen Size>.
3. Tap on a desired Screen Size.
Select from <Actual>, <Standard>, <Full>
and <Zoom>.
Screen Size Menu
<Standard> <Full> <Zoom>
For some video ¿ les, <Screen Size> or other related menus may not be
displayed.
NOTE
Display
Screen Size
Brightness
Color Tone
watching a video _ 59
USING THE VIDEO MENU (Continued)
To adjust the brightness
You can adjust the brightness of the video screen.
1. Tap the [] icon on the video playback
screen.
2. Tap <Display> ĺ<Brightness>.
3. Select a desired brightness and tap
<Yes>.
Select a level from <0-10>.
The brightness adjustment menu only applies to the video screen.
To set the display off
You can turn off the touch screen and only listen to the sound for power
saving purpose.
1. Tap the [] icon on the video playback
screen.
2. Tap <Display> ĺ<Display Off>.
The touch screen turns off.
To turn the screen back on, tap on the touch
screen
NOTE
Display
Screen Size
Brightness
Color Tone
Display
Screen Size
Brightness
Color Tone
60 _ watching a video
USING THE VIDEO MENU (Continued)
To set the horizontal stroke
You can fast forward through a ¿ le at various intervals when you touch the
screen to the left or right. Skip a whole ¿ le or skip several seconds at a time.
1. Tap the [ ] icon on the video playback
screen.
2. Tap <Horizontal Stroke>.
3. Tap on a desired horizontal stroke.
Select from <1 File>, <Seek>,
<10sec Skip>, <30sec Skip> and <1min Skip>.
When the <Seek> option is set, sliding your ¿ nger to the left / right cycles
through the <x2> ĺ <x4> ĺ <x8> playback speeds.
The horizontal stroke interval can be different from the actual skip interval,
depending on the ¿ le.
NOTE
1 File
Seek
10sec Skip
Horizontal Stroke
watching a video _ 61
USING THE VIDEO MENU (Continued)
To connect a Bluetooth stereo headset
You can directly connect to a registered Bluetooth headset during video
playback.
Before you start - Use only a Bluetooth-certi¿ ed stereo headset.
Check if to make sure your Bluetooth stereo headset has been registered.
<Connect to Headset> appears when there is a registered headset. For more
information, refer to <Using a Bluetooth Stereo Headset>. See page 92.
1. Tap the [] icon on the video playback
screen.
2. Tap <Connect to Headset>.
If <Bluetooth Mode> is set to <Off>, it will be
changed to <On>.
When the connection is successfully done,
you will see the [ ] icon on the screen.
You can enjoy listening to audio on video ¿ le via the Bluetooth headset.
To disconnect the Bluetooth stereo headset
1. Tap the [] icon on the video playback
screen.
2. Tap <Disconnect Headset> ĺ<Yes>.
The Bluetooth headset is disconnected.
You can not select <DNSe> and <Sound Effect> while the player is connecting
to the Bluetooth stereo headset in video mode.
NOTE
Sound Effect
Display
Horizontal Stroke
Connect to Headset
Sound Effect
Display
Horizontal Stroke
Disconnect Headset
62 _ listening to music
Now Playing
Artists
Albums
Songs
Genres
Playlists
Recorded Files
Music Browser
Music Music
Rising sun
Samsung
Samsung Music
listening to music
Before you start -
Connect the earphones, then turn on the player, and check the battery.
LISTENING BY CATEGORY
1. Tap the icon on the main menu screen.
2. Tap on a desired item in the music list.
3. Tap on a music ¿ le to play.
The music will start playing.
listening to music _ 63
LISTENING BY CATEGORY (Continued)
Music List
File information including the artist name, album name, music title and genre will be
displayed according to the ID3 Tag information on the appropriate music ¿ le. A ¿ le without
an ID3 Tag is displayed as [Unknown].
Now Playing : Plays a recently played ¿ le or moves to the playback screen of the current
¿ le.
Artists : To play by artist
Albums : To play by album. The album cover image will be displayed.
Songs : To play in numeric or alphabetical order
Genres : To play by genre
Playlists : To play by Playlist.
Recorded Files : Shows all recorded ¿ les.
Music Browser : Shows all the music ¿ les stored in the Music Folder.
MP3, WMA and AAC music ¿ les are compatible with the player.
What is an ID3 Tag?
This is what is attached to an MP3 to carry information relevant to the ¿ le such as
the title, artist, album, year, genre and a comment ¿ eld.
NOTE
64 _ listening to music
MUSIC PLAYBACK DISPLAY
To display the music icon, tap on the screen.
1
Bluetooth/Lock/Alarm Indicator
2Current Time
3
Battery Status
4
Current track playing /
Total number of tracks Indicator
5
Music Play Screen
6
Play/Pause/Search Icon
7
Music Title
8
Current /Total Play Time
9
A-B Repeat Icon
10
Menu Icon
11
Play/Pause, Search Indicator
12
Music Mode Indicator
13
Parent Menu Indicator
14
Status Bar
15
Play Mode Indicator
16
DNSe Mode Indicator
17
Back Icon
The screen pictures are for illustration purposes only. The actual screen may differ.
NOTE
Music
Rising sun
16
11
17
9
8
7
13
2
1
4
14
3
12
5
6
15
10
listening to music _ 65
TOUCH ICONS FOR PLAYBACK CONTROL
Tap to move to the previous screen.
Press and hold to move to the main menu screen.
Tap to display the menu.
Tap to exit the menu.
Tap after 3 seconds of play to start playing the current track.
Tap twice after 3 seconds of play to return to the previous ¿ le.
Press and hold to move backwards in the current ¿ le.
Tap to pause during playback.
Tap to resume playing.
The music will play from the point where it stopped.
Tap to move to the next track.
Press and hold to move forwards in the current ¿ le..
When playing VBR ¿ les, the previous track may not play even if you tap the [ ]
icon within 3 seconds of the play.
CAUTION
Music
Rising sun
66 _ listening to music
REPEATING A SECTION
This function enables you to listen to speci¿ c parts of a track repeatedly.
It’s helpful when learning a language, for example.
1. Tap the [ ] icon at the beginning of the section you
want to repeat.
The starting point is set and <Rep A> will appear.
2. Tap the [ ] icon again to set the ending of the section
you want to repeat.
<Rep AB> will appear and the speci¿ ed section starts to play
repeatedly.
To cancel Repeating
Tap the [ ] icon again during Section Repeat.
Section Repeat will be canceled.
Section Repeat will be automatically canceled in the following case.
-The starting point of the section repeat is set but the ending point is not set until
after the current track ends.
- The end point is set for less than 3 seconds of playback after the start point.
NOTE
Music
Rising sun
Rep A
listening to music _ 67
CREATING A PLAYLIST ON YOUR MP3 PLAYER
If you’ve already downloaded ¿ les to your mp3 player, you can create a
“Favorites” playlist without EmoDio or your PC.
1. Tap the icon on the main menu screen.
2. Tap <Music Browser> in the music list.
3Tap the [] icon.
4. Tap <Add to Playlist>.
5. Tap on a desired playlist number.
6. Tap on ¿ les to add to the playlist.
Tap the [ ] icon to add all ¿ les.
7. Tap <OK>.
The selected ¿ le is included in the playlist.
You can check the playlist in <Music> ĺ <Playlists> ĺ <Playlist 1> to <Playlist 5> in
the main menu.
You can add up to 200 music ¿ les to each playlist.
For information on how to create a playlist in <EmoDio> and transfer it to the player,
refer to <My Album> in Help section of the <EmoDio> software.
NOTE
Song 1
Song 2
Song 3
Song 4
Song 5
Song 6
Song 7
Music
Add to Playlist
68 _ listening to music
PLAYING A PLAYLIST
1. Tap the icon on the main menu screen.
2. Tap <Playlists>.
3. Tap on a desired playlist number.
4. Tap on a music ¿ le to play.
The music ¿ le will start playing.
Playlist 1
Playlist 2
Playlist 3
Playlist 4
Playlist 5
Playlists
listening to music _ 69
DELETING A FILE FROM THE PLAYLIST
1. Tap the icon on the main menu screen.
2. Tap <Playlists>.
3. Tap on a desired playlist number.
4Tap the [] icon.
5. Tap <Delete>.
6. Tap on a desired playlist number.
7. Tap on a ¿ le to be deleted to select it.
Tap the [ ] icon to add all ¿ les.
8. Tap <OK> and tap <Yes>.
The selected ¿ le is deleted from the playlist.
The selected ¿ le in the playlist cannot be deleted while its playing back.
Song 1
Song 2
Song 3
Song 4
Song 5
Song 6
Playlist 1
Add to Playlist
Delete
NOTE
70 _ listening to music
USING THE MUSIC MENU
The Music menu allows you manage all facets of listening - from repeating
tracks and albums to choosing the background on the screen as you listen.
To set the sound effect
You can select the sound effect for your favorite music ¿ le.
1. Tap the [] icon on the music play screen.
2. Tap <Sound Effect>.
3. Tap on a desired sound effect.
Sound Effect Options
Street Mode: Allows you to hear the music outdoors clearly by ¿ ltering out
some of the street noise. Select from 0~2.
Playlist DNSe: If a playlist transferred to the player using <EmoDio> includes
a user DNSe, the Sound Effect will be set to the Playlist DNSe. If you select
<Off>, it will be changed to the previous sound effect.
Play Speed: Speed up or slow down your favorite music by adjusting the play
speed. Select from <Slow 3>, <Slow 2>, <Slow 1>, <Normal>, <Fast 1>,
<Fast 2>, <Fast 3>.
Audio Upscaler: This function reconstructs the sound source lost by WMA /
MP3 encoding close to its original. The Audio Upscaler only functions with music
¿ les of low quality. Select either <Off> or <On>.
Music
Sound Effect
Street Mode
Playlist DNSe
Play Speed
Audio Upscaler
VibeWoofer
Add to Playlist
listening to music _ 71
USING THE MUSIC MENU (Continued)
To set the sound effect (Continued)
Sound Effect Options (Continued)
VibeWoofer: You can experience various vibration effects according to the
strength of the sound beat. Select between <On> and <Off>.
Setting the <Playlist DNSe> to <On> when a playlist transferred to the
player using <EmoDio> includes a user DNSe, the <Playlist DNSe>
appears in the <DNSe> menu and allows changing to another Sound
Effect.
For further information on Playlist DNSe, refer to <Using TTS(Text to
Speech) and myDNse> ĺ <DNSe (Digital Natural Sound engine)> in Help
section of the <EmoDio> software.
NOTE
72 _ listening to music
USING THE MUSIC MENU (Continued)
To set the Digital Natural Sound engine (DNSe)
Select the right sound for each music genre.
1. Tap the [] icon on the music play screen.
2. Tap <DNSe>.
3. Tap on one of the DNSe options.
Select from <Auto>, <Normal>, <Studio>, <Rock>,
<Classical>, <Jazz>, <Ballad>, <Club>, <Rhythm &
Blues>, <Dance>, <Café>, <Concert Hall>, <Church>
and <myDNSe>.
Selecting <myDNSe> allows setting up user DNSe. See
page 73.
If you select <Speaker> for the sound output, the DNSe will be set to
<Normal> automatically.
What is DNSe?
Digital Natural Sound Engine (DNSe) is a sound effect function for MP3
players developed by Samsung. It provides various sound settings to
enhance the type of music you’re listening to.
NOTE
Music
Auto
Normal
Studio
Rock
Classical
Jazz
Ballad
DNSe
listening to music _ 73
USING THE MUSIC MENU (Continued)
To select myDNSe
You can set a user DNSe on your player or the user DNSe transferred
from <EmoDio>.
1. Tap the [] icon on the music play screen.
2. Tap <DNSe> ĺ <myDNSe>.
3. Tap on a desired user DNSe.
The selected user DNSe is set.
myDNSe Options
You can set <EQ>, <3D&Bass>, <Concert hall> and <Clarity> when you have
selected <myDNSe>. Select a desired user DNSe in the myDNSe list and tap
the [ ] icon.
EQ : You can adjust individual frequencies to adjust the sound to your
preference.
3D&Bass : Sets 3D sound effect and bass enhancement.
Concert hall : You can adjust the concert hall size and the level as if you are
listening to music in a real concert hall.
Clarity : You can enjoy clearer sound with improved quality.
For further information on setting a user DNSe using <EmoDio>, refer to
<Using TTS(Text to Speech) and myDNse> ĺ <DNSe (Digital Natural
Sound engine)> in Help section of the <EmoDio> software.
Up to 97 user DNSe settings excluding <User 1> to <User 3> can be
transferred to the player.
NOTE
Music
Club
Rhythm & Blues
Dance
Café
Concert Hall
Church
myDNSe
DNSe
74 _ listening to music
USING THE MUSIC MENU (Continued)
To set the play mode
Select playback mode such as repeat settings.
1. Tap the [] icon on the music play screen.
2. Tap <Play Mode>.
3. Tap on a desired play mode.
Play Mode Options
Normal : Plays all ¿ les of the current music list in order
one time.
Repeat : Repeats playing all ¿ les of the current music list.
Repeat One : Repeats playing one ¿ le.
ShufÀ e : Repeats playing all ¿ les of the current music list
at random.
Music
Sound Effect
DNSe
Play Mode
Normal
Repeat
Repeat One
Shuffle
listening to music _ 75
USING THE MUSIC MENU (Continued)
To select the music play screen
Choose a background image from those provided, or choose an image
of your own to be displayed as you listen to music.
1. Tap the [] icon on the music play screen.
2. Tap <Music Play Screen>.
3. Select a desired music play screen and tap <OK>.
Music Play Screen Options
Select from <Spectrum>, <Passionate>, <Sweet>, <Quiet>, <Cheerful>,
<Mood Tag> and <Album Art>.
Mood Tag : Music playback screen appears by the genre or other music style
information set by EmoDio. For further information, refer to EmoDio. A ¿ le
without a <Mood Tag> information is displayed as <Spectrum>.
Album Art : The album cover image displays if an album cover image is
included in the ID3 Tag information of the music ¿ le.
Album cover images less than 200 pixel (horizontal) x 200 pixel(vertical) in size
are supported.
What is an ID3 Tag?
This is what is attached to an MP3 to carry information relevant to the such
as the title, artist, album, year, genre and a comment ¿ eld.
NOTE
Music
Sound Effect
DNSe
Play Mode
Music Play Screen
Add to Alarm
Horizontal Stroke
Add to Playlist
76 _ listening to music
USING THE MUSIC MENU (Continued)
To add to alarm sound
You can add your favorite music ¿ le to the alarm sound list, so it can be
heard the next time the alarm goes off. See page 126 to set the alarm.
1. Select a music ¿ le to add to the alarm sound and
tap the [] icon.
2. Tap <Add to Alarm> ĺ <OK>.
The selected music will be added to the alarm sound list.
One music ¿ le can be added to the alarm sound.
To set the horizontal stroke
You can set the stroke interval of scrolling music ¿ le playback by sliding
your ¿ nger to the left or right.
1. Tap the [] icon on the music play screen.
2. Tap <Horizontal Stroke>.
3. Tap on a desired horizontal stroke.
Select from <1 File>, <5sec Skip>, <10sec Skip>,
<30sec Skip> and <1min Skip>.
If the ¿ le was developed with a variable bit rate(VBR),
the actual length of the horizontal stroke may not be
exactly what you select.
NOTE
Music
Sound Effect
DNSe
Play Mode
Music Play Screen
Add to Alarm
Horizontal Stroke
Add to Playlist
Music
1 File
5sec Skip
10sec Skip
30sec Skip
1min Skip
Sound Effect
Horizontal Stroke
listening to music _ 77
USING THE MUSIC MENU (Continued)
Before you start - Use only the Bluetooth-certi¿ ed stereo headset.
Check if your Bluetooth stereo headset has been registered.
<Connect to Headset> appears when there is a registered headset. For more
information, refer to <Using a Bluetooth Stereo Headset>. See page 92.
To connect a Bluetooth stereo headset
You can connect directly to the registered Bluetooth stereo headset
during music playback.
1. Tap the [ ] icon on the music play screen.
2. Tap <Connect to Headset>.
If <Bluetooth Mode> is set to <Off>, it will be changed to
<On>.
When the connection is successfully done, you will see
the [ ] icon on the screen.
You can listen to music through the Bluetooth headset.
To disconnect the Bluetooth stereo headset
1. Tap the [] icon on the music play screen.
2. Tap <Disconnect Headset> ĺ <Yes>.
The Bluetooth headset is disconnected.
You can not select <Sound Effect> and <DNSe> while the player is
connecting to the Bluetooth stereo headset in music mode.
NOTE
Music
Sound Effect
DNSe
Play Mode
Music Play Screen
Add to Alarm
Horizontal Stroke
Connect to Headset
Add to Playlist
78 _ viewing pictures
viewing pictures
Before you start -
Transfer picture ¿ les to the player using <EmoDIo>.
Connect the earphones, then turn on the player, and check the battery.
VIEWING PICTURES
1. Tap the icon on the main menu screen.
2. Tap on a desired picture ¿ le.
To move to the previous/next picture
Tap [ , ] icon on the picture view screen.
The previous/next picture will be displayed.
[]
will be displayed if the JPG ¿ les have the wrong thumbnail information.
Some pictures can be displayed slowly.
When transferring a picture to the player using <EmoDio>, it is automatically
converted into JPG format before transfer. The ¿ le size is automatically adjusted, too.
For more information, refer to <Viewing pictures> in the Help section of the
<EmoDio> software.
NOTE
viewing pictures _ 79
PICTURE DISPLAY
Preview Screen
1
Bluetooth/Lock/Alarm Indicator
2Current Time
3
Battery Status
4Slideshow Icon
5Music Play Status
6
Picture Mode
Indicator
7
Thumbnails
8
Back Icon
The screen pictures are for illustration purposes only. The actual screen may differ.
NOTE
3
1
2
5
6
7
4
8
80 _ viewing pictures
PICTURE DISPLAY (Continued)
Picture View Screen
To display detailed information and icons of the pictures, tap on the
screen.
1
Current ¿ le /
Total number of ¿ les Indicator
2
Next Image Icon
3
Zoom Icon
4
File Name
5Previous Image Icon
6
Menu Icon
7
Back Icon
The screen pictures are for illustration purposes only. The actual screen may differ.
NOTE
Picture 1
1
4
6
5
3
7
2
viewing pictures _ 81
ENLARGING A PICTURE
You can zoom in a picture.
Tap the [ ] icon on the picture view screen.
Each time you press the [ ] icon, the size of the picture is
enlarged in the sequence of <x2> ĺ <x3> ĺ <x4>.
To cancel the picture enlarging, tap on the touch screen and tap the
[] icon.
To view the enlarged photo
1. Tap on the enlarged picture twice.
Tap once to display the picture information and
icons or tap twice to display the move icon.
2. Tap the [,,,] icon to move the picture in a
desired direction.
Picture 1
82 _ viewing pictures
USING THE PICTURE MENU
To watch a slideshow
1. Tap the [] icon on the picture view screen.
2. Tap <Start Slideshow>.
The [ ] icon on the screen appears on the screen, and the slideshow will
start.
You can also start a slideshow by tapping the [ ] icon on the preview
screen.
To stop the slideshow
Tap on the screen in the slideshow mode.
This will stop the slideshow.
To set the slideshow speed
1. Tap the [] icon on the picture view screen.
2. Tap <Slideshow Speed>.
3. Tap on a desired speed.
Select from <Fast>, <Normal>, and <Slow>.
NOTE
Start Slideshow
Slideshow Speed
Set as Booting Image
Fast
Normal
Slow
viewing pictures _ 83
USING THE PICTURE MENU (Continued)
To rotate a picture
You can rotate a picture for your convenience.
1. Tap the [] icon on the picture view screen.
2. Tap <Rotate>.
3. Tap on a desired angle.
Select from <Left 90°>, <Right 90°>, and <180°>.
To select the picture view mode
1. Tap the [] icon on the picture view screen.
2. Tap <View Mode>.
3. Tap on a desired mode.
Select from <Auto> and <Horizontal>.
If you select <Auto>, a picture of greater width than
height is displayed vertically and a picture of greater
height than width is displayed horizontally.
Start Slideshow
Slideshow Speed
Rotate
Left 90°
Right 90°
180°
Start Slideshow
Slideshow Speed
Rotate
View Mode
Auto
Horizontal
84 _ viewing pictures
USING THE PICTURE MENU (Continued)
To select a picture as a background image
You can save selected picture as the touch screen’s background image
and in <Skin> folder.
1. Select a picture to set as a background image and
tap the [] icon.
2. Tap <Select as My Skin> ĺ <Yes>.
Selected picture ¿ le is saved as the background and in
the <Skin> folder under the Pictures.
An enlarged picture is saved as enlarged.
To select a picture as a booting image
You can set a desired picture to a booting image for the
screen.
1. Select a desired picture ¿ le for the booting image,
then tap on the [] icon.
2. Tap <Set as Booting Image> ĺ <Yes>.
The selected picture is set to a booting image.
An enlarged picture is saved as enlarged.
Start Slideshow
Slideshow Speed
Rotate
View Mode
Set as My Skin
Set as Booting Image
Start Slideshow
Slideshow Speed
Rotate
View Mode
Set as My Skin
Set as Booting Image
NOTE
NOTE
reading text _ 85
reading text
Whether it’s a novel, the manuscript of a new story, or your research
paper, your mp3 player allows you to read it… all while listening to music!
Before you start - Connect the earphones, then turn on the player, and check the
battery.
Transfer text ¿ les to the player using <EmoDio>.
Set a preferred text language for text in <Settings> ĺ<Language> ĺ
<Contents>. See page 42.
READING TEXT
1. Tap the icon on the main menu screen.
2. Tap on a desired text ¿ le.
The text ¿ le is displayed in full screen.
Tap on the touch screen to display the Text icons.
Your mp3 player supports the TXT ¿ le format in Text mode.
To move to previous/next page
Tap the [Ż,Ź] icon on the bottom of the touch screen.
NOTE
My doggy likes to disco dance.
He boogies every night.
He dances in his doghouse
till the early morning light.
The other dogs come running
when they hear my doggy
swing.
A few will bring play their
The others dance and sing.
They pair off with their partners
as their tails begin to wag.
My doggy likes to disco dance.
He boogies every night.
My doggy likes to disco dance.
He boogies every night.
86 _ reading text
USING THE TEXT MENU
To set a bookmark
Set a bookmark to return to that point in the text at any time.
1. Tap the [ ] icon at the desired page.
2. Tap <Add Bookmark>.
The current text screen is set to a bookmark with the
[] symbol displayed on the top left corner.
The bookmark can be set one for each text ¿ le, and you
can set a maximum of 100 bookmarks.
To move to/remove the bookmark
1. Tap the [ ] icon on the text view screen.
2. Tap <Go to Bookmark> or <Delete Bookmark>.
When you selected <Go to Bookmark> then it will move
to the selected bookmark and <Delete Bookmark> will
remove the selected bookmark from the text ¿ le.
NOTE
§ÿ¨Æ 1
My doggy likes to disco dance.
He boogies every night.
He dances in his doghouse
till the early morning light.
The other dogs come running
when they hear my doggy
A few will bring play their
The others dance and sing.
They pair off with their
partners
as their tails begin to wag.
My doggy likes to disco dance.
He
My
Add Bookmark
Text 1
§ÿ¨Æ 1
My doggy likes to disco dance.
He boogies every night.
He dances in his doghouse
till the early morning light.
The other dogs come running
when they hear my doggy
A few will bring play their
The others dance and sing.
Th
as
My
He
My
Add Bookmark
Go to Bookmark
Delete Bookmark
Text 1
reading text _ 87
USING THE TEXT MENU (Continued)
To set the text viewer color
Choose what color you’d like the text to appear.
1. Tap the [] icon on the text view screen.
2. Tap <Text Viewer Color>.
3. Select a desired color for the text viewer and tap
<OK>.
Select from <Type 1> to <Type 7>.
The selected text viewer color is displayed.
§ÿ¨Æ 1
My doggy likes to disco dance.
He boogies every night.
He dances in his doghouse
till the early morning light.
The other dogs come running
when they hear my doggy
A few will bring play their
The others dance and sing.
Th
as
My
He
My
Text Viewer Color
Font size
View Mode
Text 1
My doggy likes to disco
He boogies every night.
He dances in his
doghouse
till the early morning light.
The other dogs come
Type 1
OK Cancel
Text Viewer Color
88 _ reading text
USING THE TEXT MENU (Continued)
To change the font size
You can change the font size of the text.
1. Tap the [] icon on the text view screen.
2. Tap <Font Size>.
3. Select a desired font size and tap <OK>.
Select from <Small>, <Medium> and <Large>.
The font size is changed.
To set the Text View Mode
You can view text horizontally or vertically.
1. Tap the [] icon on the text view screen.
2. Tap <Vertical> or <Horizontal>.
Select <Normal> to view the text vertically and select
<Horizontal> to rotate the text horizontally.
My doggy likes to disco
He boogies every night.
He dances in his
doghouse
till the early morning light.
The other dogs come
Small
OK Cancel
Font Size
§ÿ¨Æ 1
My doggy likes to disco dance.
He boogies every night.
He dances in his doghouse
till the early morning light.
The other dogs come running
when they hear my doggy
A few will bring play their
The others dance and sing.
Th
as
My
He
My
View Mode
Text 1
Vertical
Horizontal
reading text _ 89
USING THE TEXT MENU (Continued)
To listen to TTS (Text to Speech)
Using the TTS function of <EmoDio>, you can convert text into a
voice ¿ le in TTS format and you can also listen to it in the player after
transferring.
Before you start - Transfer TTS ¿ les to the player using <EmoDio>.
1. Tap the icon on the main menu screen.
2. Tap on a desired TTS ¿ le.
You can listen to a text ¿ le.
Tap the [ ] icon to set a bookmark.
You can adjust the view mode, play speed and Horizontal stroke by tapping
the [ ] icon.
For further information on TTS function of <EmoDio>, refer to <Using
TTS(Text to Speech) and myDNSe> ĺ <Using TTS(Text to Speech)> in
the Help section of the <EmoDio> software.
NOTE
90 _ using bluetooth
using bluetooth
Using Bluetooth wireless, you can connect your player wirelessly to
other Bluetooth devices and exchange data with them, talk hands-free
or enjoy music using a Bluetooth stereo headset.
WHAT IS BLUETOOTH?
Bluetooth is an industry speci¿ cation that describes how Bluetooth-compliant
stereo headsets, mobile phones, and external devices can easily interconnect
with each other using a short wireless connection.
The Bluetooth device can cause a noise or malfunction, depending on the use
conditions.
Physical signal interference, for instance, if you hold the player in the hand and wear a
stereo headset in your ears.
When a part of the body is in contact with the receiving/transmitting system of the player or
the stereo headset.
Electrical variation from electrical jamming by the wall, corner or of¿ ce partitioning.
Electrical interference from the same frequency-band devices including medical equipment,
microwave oven and wireless LAN.
When pairing the Bluetooth device with the player, make it within as short distance
as possible.
The farther the distance between player and stereo headset is, the worse the
quality is. If the distance exceeds the limit, the communications are disconnected.
We do not recommend you use text and picture view modes while listening to
the music with the stereo headset as it can cause deterioration of both player
performance and Bluetooth communications.
Depending on the model of the stereo headset, ¿ les less than 32 kHz can not be
played.
In poor reception-sensitivity areas such as inside an elevator or underground, the
Bluetooth connection may not work properly.
using bluetooth_ 91
WHAT IS BLUETOOTH? (CONTINUED)
The maximum distance that enables wireless connection between the player and
the Bluetooth device is 32.8 feet. The connection will be automatically cut off if
the distance is out of this range. Even within this range, the sound quality may be
deteriorated by obstacles such as walls or doors.
When not in use, set the <Bluetooth Mode> to <Off>. If you stay in <On> for
<Bluetooth Mode>, the battery usable time is reduced.
The Bluetooth features of the player are optimized with Samsung products. If used
with third party products, the Bluetooth features may not work properly.
Do not use the Bluetooth function for illegal purposes (pirated copy, illegal wireless
tapping and communications, etc. for commercial purposes) Samsung is not
responsible for any of these illegal uses and the consequent results.
NOTE
CAUTION
92 _ using bluetooth
USING A BLUETOOTH STEREO HEADSET
You can use a Bluetooth stereo headset to let you enjoy music with high quality
stereo sound, all without wires!
Before you start - If the player is connected to a Bluetooth mobile phone or
external device, set the connection to off ¿ rst. Ensure that the Bluetooth device to
connect is ready for pairing. (refer to the device’s user manual)
To register the Bluetooth Stereo Headset
(you only need to register it once)
1. Tap the icon on the main menu screen.
2. Tap <Yes>.
The <Bluetooth Mode> is set to <On>.
The icon appears.
3. Set the stereo headset ready for pairing.
To set the headset ready for the pairing mode, refer to
the headset’s user manual.
4. Tap <Stereo Headset> and tap the [] icon.
This player automatically starts to search for any
Bluetooth device even if the [ ] icon was not pressed.
The headset to be registered will be listed.
Stereo Headset
Mobile Phone
File Transfer
Bluetooth Mode
Bluetooth Settings
Bluetooth
using bluetooth_ 93
USING A BLUETOOTH STEREO HEADSET (Continued)
To register the Bluetooth Stereo Headset (continued)
5. Tap on the name of headset you want to register.
The password input window appears if the password for the headset is other
than 0000. Refer to the headset’s manual for the password.
The registration of the headset is completed.
You can use the Bluetooth function only when playing music, video and
games. It is not supported while you are listening to FM Radio.
Description of the Bluetooth icon
: Bluetooth mode on
:Connected to a stereo headset :Connected to a mobile phone
If you want to turn off the Bluetooth function, set the Bluetooth Mode to
<Bluetooth>
ĺ
<Bluetooth Mode>
ĺ <Off>
.
Use only a Bluetooth-certi¿ ed stereo headset. Mono hands-free headsets
are not supported.
When not in use, set the <Bluetooth Mode> to <Off>. If you stay in <On>
for <Bluetooth Mode>, the battery usable time is reduced.
You can add up to 20 devices for the Bluetooth connection.
This player may not be compatible with all Bluetooth stereo headsets.
NOTE
94 _ using bluetooth
USING A BLUETOOTH STEREO HEADSET (Continued)
To connect the registered Bluetooth stereo headset
1. Tap the icon on the main menu screen.
2. Tap <Stereo Headset>.
3. Tap on the stereo headset to connect.
When the connection is successfully done, you will see
the [ ] icon.
You can connect up to 2 headsets.
4. Play a ¿ le of your choice.
You can listen to the music using a stereo headset.
If you can’t ¿ nd the desired headset to connect, register it ¿ rst. See page 92.
If you turn off the player or the headset, and then turn it on, the bluetooth
communication may be disconnected. If you want to listen to the music
again using the stereo headset, repeat the instructions above.
When two headsets are connected, the ¿ rst-connected headset alone can
be enabled for functional operation such as play/stop and volume control.
For more information, refer to the headset’s user manual.
Bluetooth-compliant Stereo Headsets
Company Model Company Model
Plantronics
PULSAR 590 LUBIX NC1
wiREVO S300 SAMSUNG SBH-170
Sony Ericsson
HBH-DS970 Jabra BT-620S
SONY DR-BT30Q Motorola HT-820
Fusion NFC BT-55D
NOTE
SBH-170
Stereo Headset
using bluetooth_ 95
USING A BLUETOOTH MOBILE PHONE
You can make and receive phone calls on your player once you connect a
Bluetooth mobile phone. The player will function as a hands-free device.
Before you start - If the player is connected to a Bluetooth stereo headset or
external device, set the connection to off ¿ rst.
Ensure that the Bluetooth mobile phone you are going to connect is ready for
pairing. (refer to the mobile phone’s user manual)
Set to <Discoverable> from <Bluetooth Settings> ĺ <Discover Option>. See page
107.
To register the Bluetooth mobile phone
(you only need to register it once)
1. Tap the icon on the main menu screen.
2. Tap <Yes>.
The <Bluetooth Mode> is set to <On>.
The icon appears.
3. Search for YP-P3 in your mobile phone’s menu.
If you renamed the YP-P3 player, search the new name.
4.
Enter the password when the password input window
appears on the mobile phone.
5.
If you see the message of <Connect?> and tap <Yes>.
The password digits may differ, depending on the mobile phone. (refer to
the mobile phone’s user manual)
NOTE
Stereo Headset
Mobile Phone
File Transfer
Bluetooth Mode
Bluetooth Settings
Bluetooth
96 _ using bluetooth
USING A BLUETOOTH MOBILE PHONE (Continued)
To register the
Bluetooth
mobile phone (Continued)
6.
Enter the password for the mobile phone to add to
the player and tap <OK>.
Make sure to enter the same password as in step 4
above.
The mobile phone registration is complete.
With some mobile phones, the search device and mobile conversation
(placing/receiving calls) functions may not work properly.
If you press a button on the mobile phone or make or end a call when there
is a Bluetooth connection between the player and the mobile phone, you
may hear a noise from the player.
We recommended using English for the device name of the mobile phone.
Bluetooth-compliant Mobile Phones
Company Model
SAMSUNG
SPH-C3250, SPH-W2700, SPH-V7400, SPH-V6900, SCH-W270,
SPH-B5600, SPH-B3200, SGH-X828, SGH-I718, SGH-E908, SGH-U608
LG LG-KH1000, LG-KV2400, LG-KG90, LG-KG77
SKY
IM-U130
NOKIA N72
PHILIPS S900
MOTOROLA Z3
NOTE
Enter PIN code
Connect Device
_
using bluetooth_ 97
USING A BLUETOOTH MOBILE PHONE (Continued)
To connect to the registered Bluetooth mobile phone
1. Tap the icon on the main menu screen.
2.
In the Bluetooth screen, tap <Mobile Phone>.
3. Tap <Mobile Phone>.
4. Tap on a mobile phone to connect to.
When the connection is successfully done, you will see the
icon.
If you can’t ¿ nd a phone to connect to, register the phone with the player
¿ rst. See page 95.
The mobile phone connection can be set off if you turn off and restart the
player. If the connection is set off, refer to the steps above to connect
again.
NOTE
Mobile Phone
Redial
Call by Number
Call History
Mobile Phone
98 _ using bluetooth
USING A BLUETOOTH MOBILE PHONE (Continued)
To dial the last used number
1.
In the Bluetooth screen, tap <Mobile Phone>.
2. Tap <Redial>.
You are now placing a call to the last used phone number.
The recent call history may appear depending on the
mobile phone. Select the latest phone number in the call
history to call.
To make a call using the player
1.
In the Bluetooth screen, tap <Mobile Phone>.
2. Tap <Call by Number>.
3. Enter the phone number for the other person.
4. Tap the [ ] icon.
You are now placing a call to the other person.
If the connected mobile phone has set shortcut numbers, you can directly
make a call on the player by pressing and holding the last number of the
shortcut.
To end the phone call
Tap <Disconnect > while making conversations.
The call is hung up.
NOTE
Mobile Phone
Redial
Call by Number
Call History
Mobile Phone
using bluetooth_ 99
USING A BLUETOOTH MOBILE PHONE (Continued)
To make a call using the phone number list
1.
In the Bluetooth screen, tap <Mobile sPhone>.
2. Tap <Call History >.
3.
Select a desired phone number and tap the [ ]icon.
You are now placing a call to the other person.
To delete a phone number in the phone number list
1.
In the <Call History>, select a phone number to delete and tap
the
[ ]
icon.
2. Tap <Delete>.
If you want to delete all numbers in the phone number list, select<Delete All>.
3. Tap <Yes>.
The selected number will be deleted.
Mobile Phone
Redial
Call by Number
Call History
Mobile Phone
100 _ using bluetooth
USING A BLUETOOTH MOBILE PHONE (Continued)
To answer the phone
1.
You will see <Connect?> when you have an incoming call.
2. Tap <Yes>.
You can now make conversations.
To switch to the mobile phone while talking on the player (YP-P3)
While talking on the player, tap <Voice to Phone>.
You can now make conversations on the mobile phone.
To switch to the player (YP-P3) while talking on the mobile phone
While talking on the mobile phone, tap <Voice to Hands-free>.
You can now make conversations on the hands-free device.
To adjust the volume
While talking on the hands-free, press the [ +, – ] button to adjust the volume.
You can select the volume from 0 to 30.
using bluetooth_ 101
TRANSFERRING FILES TO/FROM A BLUETOOTH
DEVICE
You can transfer music, picture and video ¿ les to Bluetooth-compliant external
devices such as an MP3 player, mobile phone, etc. to the player or vice versa.
Before you start - If the player is connected to a Bluetooth stereo headset or
mobile phone, set the connection to off ¿ rst.
Ensure that the Bluetooth device you are going to connect is ready for pairing. (refer
to the device’s user manual)
Check if the Bluetooth device to support the ¿ le transfer function. (refer to the
device’s user manual)
To register an external device on the player
(you only need to register it once)
1. Tap the icon on the main menu screen.
2. Tap <Yes>.
The <Bluetooth Mode> is set to <On>.
The icon appears.
3. Set the external device so it is ready for pairing.
For information on setting the external device so it is
ready for pairing, refer to the device’s user manual.
4.
Tap <File Transfer> and tap
the [ ]icon.
This player automatically starts to search for any Bluetooth device even if
the [ ] icon was not pressed.
The device to be registered will be listed.
Stereo Headset
Mobile Phone
File Transfer
Bluetooth Mode
Bluetooth Settings
Bluetooth
102 _ using bluetooth
TRANSFERRING FILES TO/FROM A BLUETOOTH
DEVICE (Continued)
To register an external device on the player (Continued)
5
.Tap on the name of device you want to register.
The password input window appears if the password for
the external device is other than 0000. Refer to the external
device’s manual for the password.
6
.Enter the password when the password input
window appears on the external device.
You must enter the same password as in step 6 above.
When the pairing is completed, you will see the File Transfer
screen.
See step 2 of page 103 to transfer ¿ les on the player to an
external device.
The password digits may differ, depending on the external device. (refer to
the device’s user manual)
Some functions may not work properly if you use a Bluetooth device other
than YP-P3 for ¿ le transfer.
NOTE
Samsung YP-P3
File Transfer
using bluetooth_ 103
TRANSFERRING FILES TO/FROM A BLUETOOTH
DEVICE (Continued)
To transfer a ¿ le on the player to the external device
Before you start - If you can’t ¿ nd the external device to connect to,
register it with the player ¿ rst. See page 101. Ensure that the Bluetooth
device you are connecting is ready for pairing. (refer to the device’s user
manual)
1
.
In the Bluetooth screen, tap <File Transfer>.
2
.Tap on an external device to connect to.
When the connection is completed, you will see the File
Transfer screen.
3
.Select a desired folder and tap <OK>
4
.Select a ¿ le to transfer and tap <OK>.
The selected ¿ les on the player will be transferred to the
external device.
When the ¿ le transfer is done, tap the [ ] icon to exit the ¿ le transfer
mode. See page 104.
DRM ¿ les (chargeable) can not be played on the player.
The connection can be set off if you turn off and restart the player or
external device. If the connection is set off, refer to the steps above to
connect again.
NOTE
Ex) <File Transfer>
screen of the player
Video
Music
Playlists
Pictures
Texts
Datacasts
Games
Received Files
File Transfer
104 _ using bluetooth
TRANSFERRING FILES TO/FROM A BLUETOOTH
DEVICE (Continued)
To cancel transferring the ¿ le
Tap <Cancel> during the transfer.
The ¿ le transfer is stopped.
To exit the File Transfer mode
1
.
Press and hold the [ ]icon in the ¿ le list window.
Each time you tap the [ ] icon, the player will return to the previous screen and
you will see the ¿ le transfer close window.
2
.Tap <Yes>.
The ¿ le transfer mode is closed.
using bluetooth_ 105
TRANSFERRING FILES TO/FROM A BLUETOOTH
DEVICE (Continued)
To transfer a ¿ le on the external device to the player
If you want to transfer an external ¿ le to the player, you must ¿ rst make it
ready for pairing.
Before you start - If the player is connected to a Bluetooth stereo headset
or mobile phone, set the connection to off ¿ rst.
Ensure that the Bluetooth device you are going to connect is ready for
pairing. (refer to the device’s user manual)
Check if the Bluetooth device to support the ¿ le transfer function.
(refer to the device’s user manual)
Set <Discoverable> from <Bluetooth Settings> ĺ <Discover Option>. See
page 107.
1
.Tap the icon on the main menu screen.
2
.Tap <Yes>.
The <Bluetooth Mode> is set to <On>.
The icon appears.
You can transfer a ¿ le on the external device to the player.
For pairing the external device with and transferring it to the player, refer to the
device’s user manual.
Files transferred to the player are saved in <File Browser>
ĺ
<Received Files>
folder.
106 _ using bluetooth
USING THE BLUETOOTH MENU
To disconnect the Bluetooth Device
1. Tap the icon on the main menu screen.
2. Tap the [ ] icon.
3. Tap <Disconnect>.
4. Tap <Yes>.
The currently connected device will be disconnected.
To check the Bluetooth Device connected
1. Tap the icon on the main menu screen.
2. Tap the [] icon.
3. Tap <Connected Device>.
You can see information of the connected device.
You can disconnect or check the connected device only
when connecting Bluetooth stereo headset or mobile
phone.
NOTE
§ÿ¨Æ 1
Disconnect
Connected Device
Stereo Headset
Mobile Phone
File Transfer
Bluetooth Mode
Bluetooth Settings
Bluetooth
§ÿ¨Æ 1
Disconnect
Connected Device
Stereo Headset
Mobile Phone
File Transfer
Bluetooth Mode
Bluetooth Settings
Bluetooth
using bluetooth_ 107
BLUETOOTH SETTINGS
Before you start - Set <Bluetooth Mode> to <On>.
1. Tap the icon on the main menu screen.
2. Tap <Bluetooth Settings>.
3. Set the options you prefer and tap <OK>.
Bluetooth Settings Options
Discover Option : You can set the Bluetooth device to detect this player.
<Discoverable> sets it to detect and <Non-Discoverable> turns off detection.
Delete Device : You can delete a registered device in the player. Tap the [ ]
icon to delete all of the registered devices. See page 108.
My Device Info. : You can check the name and address of your player.
Stereo Headset
Mobile Phone
File Transfer
Bluetooth Mode
Bluetooth Settings
Bluetooth
108 _ using bluetooth
BLUETOOTH SETTINGS (Continued)
To delete a Bluetooth device
1. Tap <Delete Device>.
You will see the list of the registered devices.
2. Select a device to remove and tap the [ ] icon.
Tap the [ ] icon to delete all of the registered devices.
3. Tap <Yes>.
The selected device will be removed.
To rename a Bluetooth device
1. Tap <My Device Info.>.
2. Tap the [] icon.
3. Rename the device by tapping on the number or
character icon.
[1Aa] : The input mode switches from number to
uppercase English and to lowercase English.
[] : You can delete the characters one at a time.
[ – ] : You can add space between characters.
You can insert ‘–‘.
[OK] : Con¿ rm your change.
E.g. To enter “YPS5”
-Move to the corresponding key icon and tap on it.
(once) ¨(3 times) ¨(once) ¨(3 times) ¨(twice)
¨(once)
Discover Option
Delete Device
My Device lnfo.
Bluetooth Settings
Edit Device Name
My Device Info.
Samsung YP-P3
viewing datacasts _ 109
viewing datacasts
You can automatically receive updated information without having to
visit your frequently visited news, blog and UCC sites every time.
Before you start - Transfer a desired channel post to the player using <EmoDio>.
Connect the earphones, then turn on the player, and check the battery.
VIEWING DATACASTS
You can view channel posts added to <Datacasts>.
1. Tap the icon on the main menu screen.
2. Tap on a desired channel title.
icon : text ¿ le
icon : picture ¿ le
icon : music ¿ le
icon : video ¿ le
3. Tap on a desired ¿ le.
The selected ¿ le will start playing.
Refer to the <Datacasts>ĺ <Using> of <EmoDio> for
detailed instructions.
NOTE
Datacast 1
Datacast 2
Datacast 3
Datacast 4
Datacasts
110 _ listening to FM radio
listening to FM radio
Before you start - Connect the earphones, then turn on the player, and check the battery.
LISTENING TO FM RADIO
Tap the icon on the main menu screen.
FM radio reception will start.
Always connect your earphones to the player when searching or setting
frequencies. The earphones serve as antennas to receive FM Radio reception.
In poor reception areas, the player may not ¿ nd an available FM frequency.
The Bluetooth function cannot be used while you are listening to FM Radio.
NOTE
listening to FM radio _ 111
FM RADIO DISPLAY
Manual mode
1
Bluetooth/Lock/Alarm Indicator
2Current Time
3
Battery Status
4
Manual Indicator
5
Record Icon
6
Radio Mode Indicator
7Current Frequency(MHz) Indicator
8
Menu Icon
9
Back Icon
Preset mode
1
Preset Indicator
2
Preset Number Icon
The screen pictures are for illustration purposes only. The actual screen may differ.
NOTE
FM Radio
3
1
2
5
9
8
4
7
6
FM Radio
1
2
112 _ listening to FM radio
TO SEARCH FOR FM STATIONS
Press and hold the [,] icon and then release in Manual
mode.
The search will stop at the frequency nearest from the point the
button is released.
OR,
Tap the [,] icon shortly to progress through the frequencies
one by one in Manual mode.
Moves to frequencies whenever the icon is pressed.
FM Radio
listening to FM radio _ 113
RECORDING FM RADIO
To record FM Radio broadcasting
You can record a FM radio program at any time while
listening to the radio.
1. Select a radio frequency to record and tap the
[] icon.
2. Tap <Yes>.
To stop recording
1. Tap the [] icon during the recording.
A message appears asking you if you want to listen to the
¿ le you just recorded.
2. Tap <Yes> or <No>.
Selecting <Yes> will play the just recorded ¿ le.
Selecting <No> will not play the recorded ¿ le.
Recorded ¿ le is saved in MP3 format.
The recorded ¿ le is stored in <File Browser> ĺ <Recorded
Files> ĺ <FM Radio>.
Each recording ¿ le can be as long as 5 hours.
You can make a recording for up to approximately 18 hours (based on
128Kbps, 1GB)
You can store a maximum of 999 ¿ les by the date for FM radio recording.
NOTE
FM Radio
FM Radio
114 _ listening to FM radio
USING THE FM RADIO MENU
To switch to Preset Mode
Select this mode if you want to search through your saved FM presets
one preset at a time.
1. Tap the [] icon in Manual mode.
2. Tap <Go to Preset Mode>.
FM radio reception will start.
Preset frequencies are stored in numeric sequence.
To switch to Manual Mode
Select this mode if you want to manually search through the FM band
one frequency at a time.
1. Tap the [] icon in Preset mode.
2. Tap <Go to Manual Mode>.
NOTE
FM Radio
FM Radio
listening to FM radio _ 115
USING THE FM RADIO MENU (Continued)
To store stations in the preset memory
You can store up to 30 stations in your MP3 player’s memory and return
to them with the press of just one number.
Manual - choose only the stations you want to store
1. Select a frequency to preset in Manual mode and
tap [] icon.
2. Tap <Add to Preset>.
The selected station is set as a preset number.
Automatic – automatically store all the stations the
player receives
1. Tap the [] icon on the FM Radio screen.
2. Tap <Auto Preset> ĺ <Yes>.
Up to 30 frequencies are automatically set.
To cancel Auto Preset
If you want to cancel the auto preset, tap the [] icon.
The auto preset setting is canceled, and only frequencies set up to that point
are stored.
You may want to re-set the stored stations if you’re going to listen to your
MP3 player in a different city. To delete the preset stations and store new
ones, simply repeat the process.
FM Radio
Go to Preset Mode
Add to Preset
Auto Preset
FM Sensitivity
FM Region
NOTE
116 _ listening to FM radio
USING THE FM RADIO MENU (Continued)
To listen to preset stations
Tap on a desired preset number in Preset mode.
You can listen to the radio frequency that is previously
stored for the number.
Tap the [
,
] icon to move to the previous or the next
number list.
To delete a preset
Follow the steps below to delete frequencies while listening to FM
Radio.
1. Tap the [] icon in Preset mode.
2. Tap <Delete from Preset>.
3. Tap on a frequency to delete.
4. Tap <Yes>.
The selected preset number is deleted.
When a preset frequency is deleted, the numbers of the
following presets are moved up by one.
FM Radio
FM Radio
Go to Manual Mode
Delete from Preset
Auto Preset
FM Sensitivity
FM Region
listening to FM radio _ 117
USING THE FM RADIO MENU (Continued)
To set the FM sensitivity
To receive more or fewer FM radio frequencies, adjust the <FM Sensitivity>.
1. Tap the [] icon on the FM Radio screen.
2. Tap <FM Sensitivity>.
3. Tap on a desired reception sensitivity.
Select from <High>, <Middle> and <Low>.
If you select <High>, more frequencies will be received.
To set the FM region
You can change an FM region setting in preparation for overseas travel.
1. Tap the [] icon on the FM Radio screen.
2. Tap <FM Region>.
3. Tap on a desired FM region.
Select from <Korea/US>, <Japan> and <Other Countries>.
Frequency range by region
- Korea/US: Search for FM frequencies in 100 kHz increments between
87.5 MHz~108.0 MHz.
- Japan: Search for FM frequencies in 100 kHz increments between 76.0
MHz~108.0 MHz.
- Other Countries: Search for FM frequencies in 50 kHz increments between 87.50 MHz~108.00 MHz.
FM region can be deleted or changed according to the target region of the player.
Your previously stored radio frequencies will be deleted when you change
the <FM Region> on your player.
NOTE
FM Radio
High
Middle
Low
Go to Preset Mode
FM Sensitivity
FM Radio
Korea/US
Japan
Other Countries
Go to Preset Mode
FM Region
118 _ using the sketchbook
using the sketchbook
You can scribble, draw freely and decorate a selected picture in your
style.
USING THE SKETCHBOOK
1. Tap the icon on the main menu screen.
2. Tap <New Picture>.
3. Using various drawing tools, scribble what you want and
tap <OK>.
Tap on [ ] icon to open a picture from the saved ¿ les.
NOTE
enjoying À ash ¿ les _ 119
enjoying fl ash fi les
Flash fi les can be saved to your player and viewed.
Before you start - Transfer À ash ¿ les to the player using <EmoDio>.
ENJOYING FLASH FILES
1. Tap the icon on the main menu screen.
2. Tap on a desired À ash ¿ le.
120 _ voice recording
voice recording
You can make a voice recording.
VOICE RECORDING
To make a voice recording
1. Tap the icon on the main menu screen.
2. Tap the [ ] icon and tasp <Yes>.
Recording starts.
Do not put the microphone too close to or far away from your mouth as it
may cause a poor recording.
Voice recording does not perform properly when the battery is low.
NOTE
voice recording _ 121
VOICE RECORDING (Continued)
To stop voice recording
1. Tap the [ ] icon during the recording.
A message appears asking you if you want to listen to
the ¿ le you just recorded.
2. Tap <Yes> or <No>.
Selecting <Yes> will play the just recorded ¿ le.
Selecting <No> will not play the recorded ¿ le.
Recorded ¿ le is saved in MP3 format.
The recorded ¿ le is stored in <File Browser> ĺ <Recorded
Files> ĺ <VOICE>.
Each recording ¿ le can be as long as 5 hours.
You can make a recording for up to approximately 18 hours (based on
128Kbps, 1GB)
You can store a maximum of 999 ¿ les by the date for voice recording.
NOTE
Record Voice
122 _ playing video games
playing video games
Your mp3 player comes with the exciting games already loaded on!
PLAYING VIDEO GAMES
1. Tap the icon on the main menu screen.
2. Tap on a desired game.
Bubble Smile
You have to gain as many scores as possible by changing the order of
three bubbles to ¿ t them horizontally or diagonally.
Turn the three adjacent bubbles clockwise or counter
clockwise in order.
The bubble will be moved in the selected direction.
You will gain scores only if three or more bubbles are
¿ tted together.
playing video games _ 123
PLAYING VIDEO GAMES (Continued)
World Car Puzzle
You have the chance to enjoy the world’s renowned cars while putting
together the mosaic pieces.
Select a desired car and set the number of
puzzles and hints, shape and the time limt.
Tap and hold an image piece and drag it to
a desired position before releasing it.
The puzzle pieice will be moved to the
release point.
Pow Wow
This is a shooting game where you can gain scores by shooting the
moving target.
Tap the moving target.
If you want to reload your gun, tap <Reload> on the
screen.
124 _ playing video games
PLAYING VIDEO GAMES (Continued)
ALGGAGI
To win this game, remove all the opponent’s pieces from the
chessboard by hitting them with your piece.
Slide one of your pieces in the direction of
your opponent’s piece to remove it from the
chessboard.
If you have not played your turn within the
timeout, the turn goes to the opponent.
Omok2
To win this strategy board game, put your pieces to make an unbroken row
of ¿ ve stones horizontally, vertically or diagonally before the opponent.
Tap on the area you want to put your stone,
and the area is enlarged.
Tap on the exact position to put your stone
while the area is enlarged.
Your stone is placed on the position.
If you have not played your turn within the
timeout, the turn goes to the opponent.
To exit from the game screen in the middle of a round, tap on the bottom
left corner of the touch screen.
NOTE
playing video games _ 125
PLAYING VIDEO GAMES (Continued)
To play 2-player battle in Bluetooth mode
Before you start - If the player is connected to a Bluetooth stereo headset,
mobile phone or external device, set the connection to off ¿ rst.
Set <Bluetooth> ĺ <Bluetooth Mode> to <On>.
Set to <Discoverable> from <Bluetooth> ĺ <Bluetooth Settings> ĺ
<Discover Option>.
1. Run the same game(<Omok2> or
<AlGGAGI>) on the two YP-P3 models
and select the <Double> mode.
2. Select <Wait> on one player and select
<Connect> on the other player.
YP-P3 appears on the YP-P3 selected
<Connect>.
3. Tap on the <YP-P3>.
The Bluetooth connection is done and starts
the 2-player battle.
When the player is connecting to the
Bluetooth stereo headset, the 2-player
battle Bluetooth game is not available.
Ex) Alggagi game – Mode Selection
Screen
Ex) Bluetooth Wait/Connect Screen
NOTE
126 _ setting the alarm
setting the alarm
This player has an alarm which can be set to go off at a scheduled time.
Before you start - First, you should set the clock for the current time. See page 43.
SETTING THE ALARM
1. Tap the icon on the main menu screen.
2. Tap <New Alarm>.
3. Tap on the ¿ rst item repeatedly to select the alarm
frequency.
Select from <Once>, <Everyday>, <Mon~Fri>, <Mon~Sat>,
<Sat~Sun> and <Off>.
4. Tap on the second item.
5. Tap on up/down side of hour/minute and AM/PM icons to
set your alarm time and tap <OK>.
6. Tap on the third item repeatedly to select the alarm sound.
You can select from <Alarm Sound 1> to <Alarm Sound 3> or
music ¿ les added as alarm sound. See page 76.
7. Tap on the fourth item repeatedly to set the alarm interval.
Once you set the interval, the alarm repeats in the set time
interval. Select from <Interval: 3min>, <Interval: 5min> and
<Interval: 10min>.
8. Tap <OK> ĺ <Yes>.
The alarm setting is added to the alarm list.
You can store up to 7 alarms.
NOTE
Once
12 : 40 AM
Alarm Sound 1
Interval : 5min
Alarm
Alarm
OK Cancel
setting the alarm _ 127
SETTING THE ALARM (Continued)
To turn of an alarm
The player will sound the alarm when it reaches the scheduled time. To
end the alarm, tap <Alarm Off>. And to sound the alarm again, tap on
the alarm interval.
To delete an alarm setting
1. Tap on an alarm setting to delete on the alarm
screen.
2. Tap the [] icon and tap <Yes>.
Tap the [ ] icon to delete all of the alarm setting.
The selected alarm will be deleted.
If the player is connected to the PC, the alarm function does not work.
CAUTION
New Alarm
AM 12:35
Alarm
128 _ viewing the address book
viewing the address book
You can download the address book using Bluetooth function to check
the phone number and directly call the other person on the player.
Before you start - First, use the Bluetooth-based ¿ le transfer function to download
the address book from an external device. For more information, refer to <To
transfer a ¿ le on the external device to the player>. See page 103.
You must pair your mobile phone with the player before you make a call in the
address book window.
For more information, refer to <Using A Bluetooth Mobile Phone>. See page 95.
VIEWING THE ADDRESS BOOK
1. Tap the icon on the main menu screen.
2. Tap on a name to check.
The selected address information will appear.
To make a call in the address book
1. Tap on a name to make a call in the Address Book
screen.
2. Select a desired phone number and tap the [] icon.
You are now placing a call to the other person.
The address book will be displayed in alphabetical order.
The address book ¿ les transferred to the player are saved in <File Browser> ĺ
<Received Files> folder.
Only the vCard ¿ le format is supported for the address book.
NOTE
enjoying the prime pack_ 129
using the calculator
The calculator helps you with the four rules of arithmetic (addition,
subtraction, multiplication and division).
USING THE CALCULATOR
1. Tap the icon on the main menu screen.
2. Calculate numbers by tapping on the touch screen.
Calculator
130 _ troubleshooting
upgrading fi rmware
Future upgrades may be available for this player to enhance
performance and compatibility.
1. Connect the player to your PC with the USB cable.
<EmoDio> will automatically start when the player is connected to your PC.
If the program does not start automatically, double click the <EmoDio> icon on the
desktop.
2. Click the [MENU] button on the
top of the <EmoDio> program.
3. Select [Portable Device] ĺ
[Update Firmware].
If there is a ¿ rmware update
available, you can update the
¿ rmware.
4. Click the [OK] button.
Updated ¿ rmware software is transferred to the player.
5. After disconnecting the USB cable, the player will be turned off automatically.
6. Press and brieÀ y hold the button.
The ¿ rmware will be upgraded.
Check the battery charge status of the player. If the battery is not suf¿ ciently
charged, the ¿ rmware will not be upgraded.
You need to have at least 50 MB of free space on the player for the upgrade.
NOTE
troubleshooting _ 131
troubleshooting
If you have a problem with your new mp3 player, check for a solution in
this list. If the problem persists, contact Samsung Customer Service at
1-800-SAMSUNG (1-800-726-7864).
PROBLEM SOLUTION
Power will not turn on.
•Power will not turn on if the battery is completely
drained. Recharge the battery and turn the power
on again.
•Press the Reset hole.
Buttons do not work.
•Check if the HOLD function is set to lock all button
operations.
•Ensure that you press the right button and icon
before trying.
•Press the Reset hole.
The screen will not
turn on.
•The screen may not be visible under direct sunlight.
•When <Display Off> is selected from <Settings>
ĺ<Display>, the touch screen will be turned off.
Tap any button or on the screen and see if it turns
on.
Power is turning off.
•The power is automatically turned off when the
battery is completely drained. Recharge the battery.
•
If <Auto Power Off> is selected from <Settings>
ĺ<System>, the Power will be turned off when the
player is in Pause mode. Turn on the Player.
132 _ troubleshooting
PROBLEM SOLUTION
Battery life differs from
the manual.
•The battery life can vary depending on the sound
mode and display setting.
•Battery life may be shortened when the player is left
for extended periods in low or high temperatures.
EmoDio Program
Malfunction
•Check if your PC meets the basic system
requirements.
Connection to your PC
is disabled.
•Check if the USB cable is correctly connected and
try again.
•Run Windows Update. Select Key Updates and
Service Packs, then update all. Reboot your PC
and reconnect.
The ¿ le transfer rate is
too slow.
•If you are running multiple programs including
<EmoDio> on your PC, the ¿ le transfer rate will
be slow. Exit unnecessary programs and try
transferring again.
Player isn’t playing.
•Check if the available ¿ le has been saved in the
memory.
•Check if the music ¿ le is damaged.
•Check if there is enough battery power.
File upload doesn’t
work.
•Check if the USB cable is securely connected.
Reconnect if necessary.
•Check if the memory is full.
•Press the Reset hole.
troubleshooting _ 133
PROBLEM SOLUTION
Files or data are
missing.
•Check if the USB cable has been disconnected
during ¿ le or data transmission. If this is the case, it
may cause serious damage not only to ¿ les/data but
also to the product. You have to be extra cautious
as Samsung is not responsible for data loss.
Abnormal play time
display during play.
•Check if the ¿ le is in Variable Bit Rate (VBR) format.
Abnormal display of ¿ le
name.
•Go to <Settings> ĺ<Language> ĺ<Contents>
in the Main Menu screen and set an appropriate
language.
The product is hot.
•Heat may be generated during recharging. This has
no effect on the product life or functions.
A message appears
while watching a video.
•Try to download the video clip through EmoDio
again.
Bluetooth connections
could not be made.
•Check if the stereo headset is Bluetooth-certi¿ ed.
The mono hands-free headset is not supported.
•The Bluetooth connection can be set off if you turn
the player or stereo headset off and on. In this case,
try to connect again.
•If you want to talk on your mobile phone, check if
you have set off the Bluetooth connections between
player and stereo headset.
•If you want to talk on your mobile phone, check if
you have set the player to <Discoverable> in the
<Bluetooth Settings> ĺ<Discover Option>.
If set to <Non-Discoverable>, you can’t ¿ nd the
player on your mobile phone.
134 _ appendix
appendix
MENU TREE
Here’s a quick look at how the menus and functions are organized on your new
mp3 player.
Menu Select Screen
Sketch
Book
Flash
Player Dictionary File
Browser
Videos Music Pictures Texts Bluetooth Settings
Datacasts FM Radio Voice
REC Game Alarm Address
Book Calculator
Stereo
Headset Sound
Mobile
Phone Display
File Transfer Language
Bluetooth
Mode Time
Bluetooth
Settings System
appendix _ 135
PRODUCT SPECIFICATIONS
Model Name YP-P3
Rating DC 5.0V / 1 A
Built-in Battery Power 620 mAh / DC 3.7V
File Compatibility
AUDIO : MPEG1/2/2.5 Layer3 (8kbps ~ 320kbps,
8kHz ~ 48kHz) WMA(8kbps~320kbps,
8kHz~48kHz)
AAC-LC (16kbps ~ 256kbps, 8kHz ~ 48kHz)
AAC-Plus (16kbps ~ 256kbps,
16kHz ~ 44.1kHz)
Enhanced-AAC-Plus : (16kbps ~ 56kbps,
32kHz ~ 44.1kHz)
VIDEO : SVI (Video: MPEG4, Audio: MP3 (CBR
44.1kHz 16bit Stereo, 128kbps),
Resolution: 480x272,
Frame Rate:
30fps)
WMV9 (Video: WMV9 Simple Pro¿ le,
Audio:WMA9 (Max 860kbps),
Resolution: 320x240 or 480x272,
Frame Rate:
30fps)
IMAGE : JPG (Baseline olny )
Earphone Output 20mW/Ch. (based on 16ȍ)
Output Frequency
Range 20Hz~20KHz
Signal to Noise Ratio 89 dB with 20 KHz LPF(based on 1kHz 0 dB)
Play Time
Music : Max. 30 hours (MP3 128kbps, Volume: 15,
Normal Sound Mode , LCD Off)
Video : Max. 5 hours (Brightness 5, Volume: 15, Normal
Sound Mode)
Temperature Range
for Operation 23~95°F (-5~35°C)
136 _ appendix
Case Tempered Glass, Plastic, Aluminum
Weight 3.38 oz
Dimensions (WxHxD) 2.07ß X 4.01ß X 0.39ß
Speakers Power Output 0.8W Mono
Impedance 8ȍ
Frequency
Range 400 Hz ~ 20 kHz
FM Radio
FM Frequency
87.5~108.0MHz FM T.H.D 0.8%
FM Signal to
Noise Ratio 59 dB FM Useable
Sensitiivity 5dB
Wireless System
Emission Type F1D
RF Power 2.4mW
Transmit Frequency 2402MHz ~ 2480MHz
Receive Frequency 2402MHz ~ 2480MHz
No. of channels 79 ch
Temperature -10°C~ +50°C (14 ~ 122°F)
Modulation System GFSK
Communication Mode Semi-duplex Operation
Humidity 0~95%
Spec Version Supported
2.0
Module BCM2048
The contents of this Manual are subject to change without prior notice for further
appendix _ 137
LICENSE
The product unit accompanying this user manual is licensed under certain
intellectual property rights of certain third parties. In particular, this product is
licensed under the following US patents : 5,991,715, 5,740,317, 4,972,484,
5,214,678, 5,323,396, 5,539,829, 5,606,618, 5,530,655, 5,777,992, 6,289,308,
5,610,985, 5,481,643, 5,544,247, 5,960,037, 6,023,490, 5,878,080, and under
US Published Patent Application
No. 2001-44713-A1.
This license is limited to private non-commercial use by end-user consumers for
licensed contents. No rights are granted for commercial use. The license does
not cover any product unit other than this product unit and the license does not
extend to any unlicensed product unit or process conforming to ISO/IEC 11172-
3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The
license only covers the use of this product unit to encode and/or decode audio
¿ les conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are
granted under this license for product features or functions that do not conform
to the ISO/IEC 11172-3 or ISO/IEC 13818-3.
138 _ appendix
WARRANTY
Samsung warrants this product as free of defects in material, design and
workmanship for a period of twelve (12) months from the original date of
purchase.
If during the period of warranty this product proves defective under normal use
and service, you should return the product to the retailer from whom it was
originally purchased.
The liability of Samsung and its appointed maintenance company is limited to
the cost of repair and/or replacement of the unit under warranty.
Return of the product for defective reasons should be to the original purchaser;
however, Samsung Authorized Dealers and Authorized Service Centers will
comply with the warranty on the terms issued to purchasers in the country
concerned. For further information relating to the Authorized Service Centers
contact; 1-800-SAMSUNG (1-800-726-7864).
www.samsung.com/us
WARRANTY CONDITIONS:
1. The warranty is only valid when the warranty card is properly completed,
and upon presentation of the proof of purchase consisting of original invoice
or sales slip con¿ rmation, indicating the date of purchase, dealer’s name,
model, serial No. and product number.
Samsung reserves the right to refuse warranty service if this information
has been removed or changed after the original purchase of the product
from the dealer.
appendix _ 139
WARRANTY (Continued)
2. Samsung’s obligations are to the repair of the defective part, and at its
discretion, replacement of the product (service exchange unit).
3. Warranty repairs must be carried out by an Authorized Samsung Dealer/
Service Center. No reimbursement will be made for repairs carried out by non
Samsung Centers, and warranty coverage will not be valid for any repairs or
damage caused by such repairs.
4. Repair or replacement under the terms of this warranty does not give right
to extension to or a new starting of the period of warranty. Repair or direct
replacement under the terms of this warranty may be ful¿ lled with functionally
equivalent service exchange units.
5. The warranty is not applicable in cases other than defects in material, design
and workmanship.
The warranty does not cover the following:
-Periodic checks, maintenance, repair and replacement of parts due to
normal wear and tear.
-Abuse or misuse, including but not solely limited to the failure to use
this product for its normal purposed or in accordance with Samsung’s
instructions usage and maintenance.
-Use of the product in conjunction with accessories not approved by
Samsung for use with this product.
140 _ appendix
WARRANTY (Continued)
- Failure of the product arising from incorrect installation or use not
consistent with technical or safety standardsin current force, or failure to
comply with productmanual instructions.
- Accidents, Acts of God or any cause beyond the control of Samsung
caused by lightning, water, ¿ re, public disturbances and improper
ventilation.
- Unauthorized modi¿ cations carried out for the product to comply with
local or national technical standards in countries for which the Samsung
product was not originally designed.
- Repairs performed by non-authorized service centers such as opening of
the product by a non-authorized person.
- The model, serial No. and product number on the product has been
altered, deleted, removed or made illegible.
6. This warranty does not affect the consumer’s statutory rights nor the
consumers rights against the dealer from their purchase/sales agreement.
appendix _ 141
WARRANTY (Continued)
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED
AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED
ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN
BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS
PRODUCT SHALL BE BINDING ON SAMSUNG, SAMSUNG SHALL NOT
BE LIABLE FOR LOSS OF REVENUE OR PROFITS,FAILURE TO REALIZE
SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR
INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL
THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER
IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY
SAMSUNG AND CAUSING THE ALLEGED DAMAGE.
WITHOUT LIMITING THE FOREGOING,
142 _ appendix
WARRANTY (Continued)
PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE
OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO
OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR
INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED
DIRECTLY BY THE NEGLIGENCE OF SAMSUNG.
THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN
THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE
AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or
the exclusion or limitation of incidental or consequential damages, so the above
limitations or exclusions may not apply to you.
This warranty gives you speci¿ c legal rights, and you may also have other rights
which vary from state to state.
This product is for personal use only, and is only for use in compliance with the
limitations of copyright and other laws.
To obtain warranty service, please contact SAMSUNG at: Samsung Electronics
America, Inc. 400 Valley Road, Suite 201 Mount Arlington, NJ 07856
1-800-SAMSUNG (1-800-726-7864)
www.samsung.com/us 081299
Declaration of Conformity
For the following product:
YP-P3**, YP-P3J** / Digital Audio Player
(The mark “*” means the memory capacity and color of product.)
Manufactured at:
1. Samsung Electronics Huizhou Co., Ltd.
Industrial Complex, Chenjiang Town, Huizhou City, Guangdong Province, China
2. Tianjin Samsung Electronics Company.
300457, TSEC12, 4th Avenue, TEDA, Tianjin, China
3. Samsung Electronics Slovakia s.r.o.
Hviezdoslavova 807, 924 27 Galanta, Slovakia
4. P.T. Samsung Electronics Indonesia Co.
Cikarang Industrial Estate JI, Jababeka Raya Blok F 29-33 Cikarang. Bekasi 17530, Indonesia
(Factory name, address)
We hereby declare, that the product above is in compliance with the essential requirements of the
R&TTE Directive (1995/5/EC) by application of:
EN 60065:2002
EN 55020:2002+A1:2003+A2:2005
EN 55022:1998+A1:2000+A2:2003
EN 55024:1998+A1:2001+A2:2003
EN 61000-3-2:2000
EN 61000-3-3:1995+A1:2001
EN 300 328-1 v1.7.1(2006-10)
EN 301 489-1 v1.6.1(2005-09)
EN 301 489-17 v1.2.1(2002-08)
Technical documentation kept at Samsung Electronics Co., Ltd. in Korea.
Manufacturer Representative in the EU:
Youn Doo Hyun / S. Engineer
Samsung Electronics Co., Ltd.
416,Maetan3-Dong, Yeongtong-Gu,
Suwon-City, Gyeonggi-Do, Korea
August 20, 2007
Yong Sang Park / S.Manager
Samsung Electronics Euro QA Lab.
Blackbushe Business Park, Saxony Way,
Yateley, Hampshire, GU46 6GG, United
Kingdom
August 20, 2007
(Place and date of issue) (Name and signature of authorized person)
QUESTIONS OR COMMENTS?
COUNTRY CALL
OR VISIT US ONLINE AT
WRITE
IN THE US 800-SAMSUNG
(800-726-7864) www.samsung.com/us
Samsung Electronics America, Inc.
105 Challenger Road
Ridgefi eld Park, NJ 07660-0511
REV. 0.0
