Samsung Electronics Co YPR1 BLUETOOTH MP3 PLAYER User Manual

Samsung Electronics Co Ltd BLUETOOTH MP3 PLAYER

User manual

YP-R1user manualMP3 PlayerFor safety information, see page • 1. Comply with all precautions to avoid dangerous situations and ensure peak performance of your MP3 player.Your MP3 player and display may differ from the illustrations in this manual.• Draft 012009. 04. 21YP-R1 0.57 EU
Using this manual Some of the contents in this manual may differ from your MP3 player depending on the • software installed. Some of the contents may be changed without prior notice. You can view the latest version of the manual on the Samsung website (http://www.samsungmobile.com/).To view the special features of your MP3 player, see "• Special features of your MP3 player."To view troubleshooting, see "• Troubleshooting." Icons used in this manual Icon Function Note Notes, usage tips, or additional information Caution Safety warnings and precautions< > Menu names or text on the screen ; for example: <YES>[ ] Buttons; for example: [Power] (represents the Power/lock key)

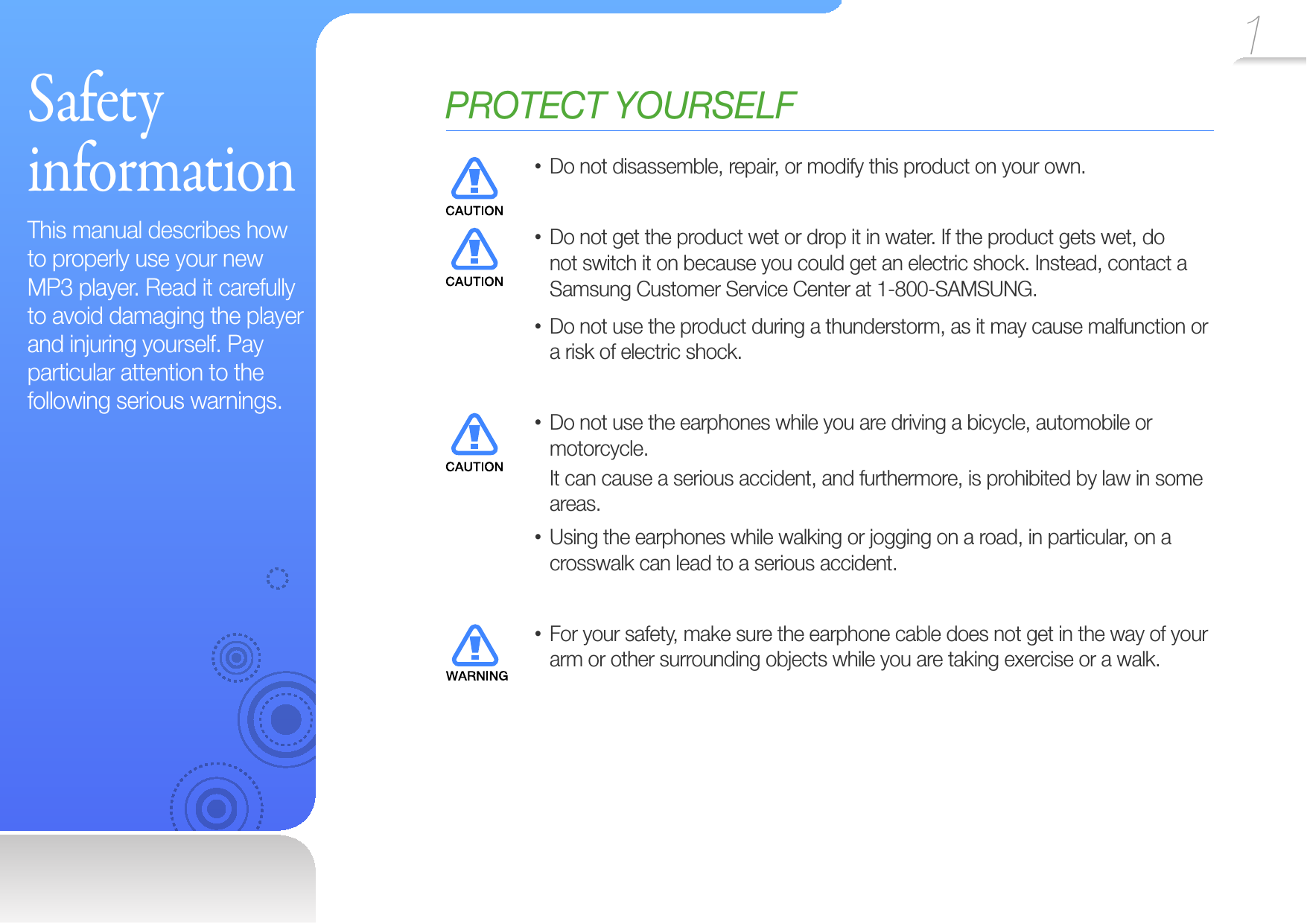

1 Safety informationThis manual describes how to properly use your new MP3 player. Read it carefully to avoid damaging the player and injuring yourself. Pay particular attention to the following serious warnings.PROTECT YOURSELF Do not disassemble, repair, or modify this product on your own.• Do not get the product wet or drop it in water. If the product gets wet, do • not switch it on because you could get an electric shock. Instead, contact a Samsung Customer Service Center at 1-800-SAMSUNG.Do not use the product during a thunderstorm, as it may cause malfunction or • a risk of electric shock.Do not use the earphones while you are driving a bicycle, automobile or • motorcycle.It can cause a serious accident, and furthermore, is prohibited by law in some areas.Using the earphones while walking or jogging on a road, in particular, on a • crosswalk can lead to a serious accident.For your safety, make sure the earphone cable does not get in the way of your • arm or other surrounding objects while you are taking exercise or a walk.
2Safety informationPROTECT YOURSELFUsing earphones or headphones for an extended • time may cause serious damage to your hearing.If you are exposed to sound louder than 85db for an extended time, you may adversely affect your hearing. The louder the sound is, the more seriously damaged your hearing may be (an ordinary conversation is between 50 to 60 db and road noise is approximately 80 db).You are strongly advised to set the volume level to medium (the medium level is usually less than 2/3 of the maximum).If you feel a ringing in the ear(s), lower the volume • or stop using the earphones or headphones.PROTECT YOUR MP3 PLAYERDo not leave the player in temperatures above 95°F • (35°C), such as a sauna or a parked car.Do not cause excessive impact on the player by • dropping it.Do not place heavy objects on top of the player.• Prevent any foreign particles or dust from entering • into the product.Do not place the product near magnetic objects.• Be sure to backup important data. Samsung is not • responsible for data loss.Use only accessories provided by or approved by • Samsung.Do not spray water on the product. Never clean • the product with chemical substances such as benzene or thinner, as it may cause fi re, electric shock or deteriorate the surface. Failure to follow these instructions may lead to • physical injuries or damage to the player. When printing this user manual, we recommend • that you print in color and check “Fit to Page” in the print option for better viewing.
3FCCThis device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.Caution: Any changes or modifi cations in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.Declaration of ConformityWe, Samsung Electronics Co.,Ltd., declares under its sole responsibility that the product, Trade name Samsung & Model name YP-P3, has been tested according to the part 15 of the FCC Rules.Party responsible for Product ComplianceSamsung Electronics America QA Lab.18600 Broadwick Street, Rancho Dominguez, CA 90220Safety informationSAFETY INFORMATIONFCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. R1
15 Special features of your MP3 playerListen to true three-dimensional sound with the Samsung Digital Natural Sound engine (DNSe™)Be a cool DJ and mix music with your own beats in Beat DJCustomize your main menu screen at your fi ngertipAdd your favorite widgets to the main menu screen Easily create Bluetooth connections with a single motionNo more complicated keys! Control you player with one simple touchListen to music with the mini player while viewing photos or documentsConveniently manage your player with “EmoDio”Easily transfer contents from other sources to your player without having to convert fi le formats.Automatically upgrade software via a USB connection.Receive regular content updates via RSS.For more information about EmoDio, see <Help> of EmoDio.
Contents7 Use basic functions 8 Device layout 9 Charge the battery 10 Turn your player on and lock the keys 11 Use the touch screen 13 Use the main menu screen14 Change the menu style 14 Select a wallpaper 15 Organize your favorite menus 17 Use widgets 17 Add widgets to the main menu screen 18 Widget list 20 Use the quick tray and menu tray 21 Use the mini player 22 Enter text22 Enter text using the virtual keypad23 Enter text with smart fi nger24 Connect your player to a TV 25 Manage media fi les 26 Download media fi les 26 Supported fi le formats and PC requirements 27 Download fi les with EmoDio 28 Download fi les using your player as a removable disk 30 Search for fi les 31 Delete fi les 32 Play video and music 33 Video 33 Play video fi les 37 Use the video options 38 Music 38 Listen to music 42 Search for a music fi le 42 Create playlists 44 Use the music options 45 Beat DJ

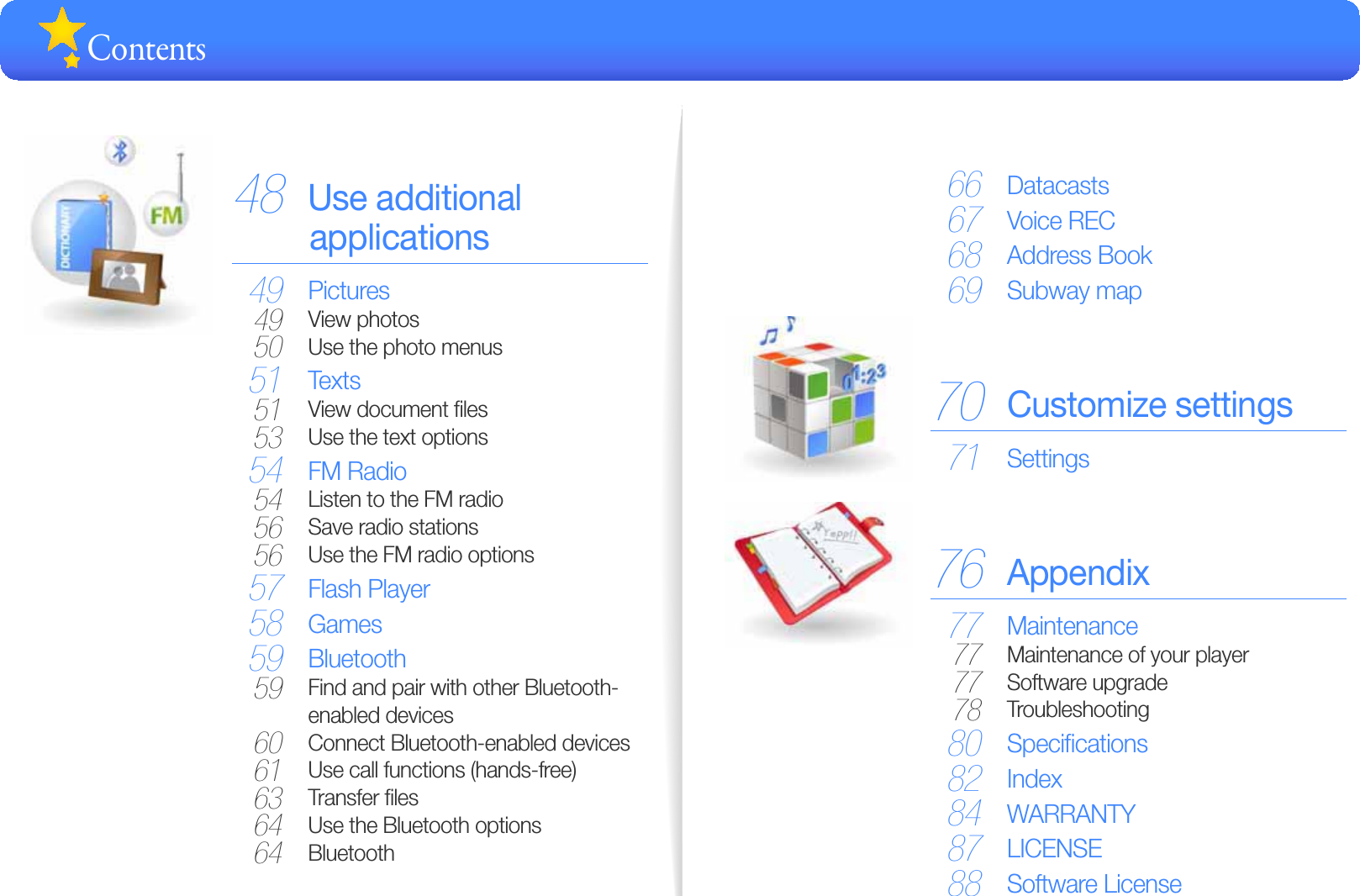

48 Use additional applications49 Pictures 49 View photos 50 Use the photo menus51 Texts51 View document fi les53 Use the text options 54 FM Radio 54 Listen to the FM radio 56 Save radio stations 56 Use the FM radio options 57 Flash Player 58 Games 59 Bluetooth 59 Find and pair with other Bluetooth-enabled devices 60 Connect Bluetooth-enabled devices 61 Use call functions (hands-free) 63 Transfer fi les 64 Use the Bluetooth options 64 BluetoothContents 66 Datacasts 67 Voice REC 68 Address Book 69 Subway map 70 Customize settings 71 Settings 76 Appendix 77 Maintenance 77 Maintenance of your player 77 Software upgrade 78 Troubleshooting 80 Specifi cations 82 Index 84 WARRANTY 87 LICENSE 88 Software License
Device layout ......................................................................8Charge the battery .............................................................9Turn your player on and lock the keys ...............................10Use the touch screen .........................................................11Use the main menu screen ................................................13Use widgets .......................................................................17Use the quick tray and menu tray ......................................20Use the mini player .............................................................21Enter text ............................................................................22Connect your player to a TV ..............................................24Use basic functionsLearn to perform basic operations with your player.
8 Device layoutMicrophoneUSB connection jackVolume key (volume down) Volume key (volume up)Power/lock key Touch screenEarphones jack (for stereo headsets)Accessories hook Reset holeIf your player is frozen or unresponsive, insert a pointed object (such as the point of a pen) into the reset hole.
9 C h a r g e t h e batteryCharge the battery before you use your player for the fi rst time or when you have not used it for a long time. Connect the large end of the USB cable (with the triangle facing up) to the USB connection jack at the bottom of your player. Connect the small end of the USB cable to the USB port of a PC.<USB CONNECTED><>: Charging <>: Fully chargedAbout batteriesCharge and store the battery at 41˚ F~95˚ F (5˚ C~35˚ C).• Do not charge the battery for more than 12 hours or leave the battery fully discharged for a • long time. Doing so may shorten the battery life.Depending on how you use your player, actual battery life may vary and may be shorter than • declared. Note The charging time may differ depending on your PC’s capabilities.• If you want to charge the battery on your laptop, make sure that the laptop's battery is full or • the laptop is plugged into a power source.Your player’s battery will not charge when your PC is in standby mode or when you • disconnect the device from your PC. Your player’s battery may not charge properly when using USB cables other than the one • provided.Charging time About 4 hours
10 Turn your player on and lock the keys Turn your player on or off Press and hold [Power] to turn your player on or off. Note If you do not use your player for 5 minutes, it will automatically turn off. Lock or unlock the touch screen and keys Lock the touch screen and keys to prevent any unwanted operations while listening to music or playing video fi les. Press [Power] to lock or unlock the touch screen and keys. Note When the touch screen • and keys are locked, will appear at the top of the screen.You can also set your player • to lock only the touch screen, so that you can still use the keys. See page 74.
11 Use the touch screenLearn how to use the touch screen and browse or select items.Your player’s touch screen lets you easily select items or perform functions. Tap the touch screen using your fi ngertip. Caution To avoid damaging the touch screen, do not press too hard with your fi ngertips or use pointed objects to touch the screen. Note Tap only one area of the screen at a time. The device will not recognize your input when you • tap two or more areas simultaneously.Keep the touch screen dry. Humidity and liquids may lower the recognition of the touch • screen.For best results, remove the protective fi lm from the touch screen and do not allow • accessories to cover the touch screen.The touch screen may not properly recognize inputs when you tap the screen with gloves, • dirty fi ngers, fi ngernails, or sharp instruments such as ballpoint pens.
Use basic functions>Use the touch screen 12 Dragging To move an item on the screen or browse items, tap and hold your fi nger on the screen and drag your fi nger.To move to the next screen or fl ip pages, quickly drag your fi nger in the desired direction.Drag an item toa location youwant.Drag from thebottom to the topto scroll up.Quickly drag rightto left to play thenext fi le duringplayback. Tapping To select a menu or option, tap the screen once with your fi nger. You can also open the quick tray or menu tray by tapping the screen.
13 Use the main menu screenLearn to move between the main menus, change the menu style or wallpaper, and organize your favorite menus. Main menus Widgets Note To return to the main menu screen while using a function, tap and hold at the bottom of the screen.
Use basic functions>Use the main menu screen 14 Change the menu style In the main menu, tap at the bottom of the screen. Tap <Style> from the menu tray. Tap < or > to select a style you want. Tap <OK> to save the style. Select a wallpaper In the main menu, tap and hold an empty space. Tap an image from the fi le list. Tap <OK> to save the wallpaper image.
Use basic functions>Use the main menu screen 15 Organize your favorite menusYour player has three main menu screens by default. You can add two more screens or organize menus that you frequently use in one main menu screen. In the main menu, tap at the bottom of the screen. Tap <Icon> from the menu tray. Add or delete the menus you want from the menu list. See "Organize your favorite menus." When you are fi nished, tap <OK>. Organize your favorite menus To add a menu, drag a menu icon to the main menu screen.Menu listTo delete a menu, drag a menu icon from the main menu screen to the menu list.
Use basic functions>Use the main menu screen 16To relocate a menu, tap <V> to close the menu list and move a menu icon to a location you want. Note To move a menu icon to a new main menu screen, drag the icon to the edge of the screen.
17 Use widgetsLearn to use functional and decorative widgets. Add widgets to the main menu screen In the main menu, tap at the bottom of the screen. Tap <Widget> from the menu tray. Add or delete the widgets you want from the widget list.For adding or deleting widgets, see " Organize your favorite menus."For information about widgets, see " Widget list." When you are fi nished, tap <OK>.
Use basic functions>Use widgets 18 Widget listWidget Function/ Analog clock/Digital clockView the current time.• Tap • > to change the current time. Drag up or down on each unit.Drag up or down on each unit to change the date.Tap to change the clock style.Widget Function/ CalendarView the calendar and scheduled events.• Drag up or down to move by year. Drag left • or right to move by month.Tap to view scheduled events on that day.Tap to delete all scheduled events.Tap to change the calendar style. Note To save scheduled events in the calendar, download Microsoft Outlook event fi les (.ics fi le extension) from a PC. Event fi les must be saved in <File Browser>  <My Pack>  <Calendar>.
Use basic functions>Use widgets 19Widget Function Battery Check the remaining battery. Random play Play music in a random order. Decoration item A cookie gradually crumbles. Decoration item Flower petals fl utter. Decoration item A butterfl y circles around a fl ower. Decoration item A cup of coffee steams.Widget Function Photo frameView your photos in a frame.Tap < / > to change the frame style.Tap to select a photo to display. MemoCreate your memos.Tap to delete a memo.Tap to enter a memo.Tap to change the memo style. Brightness Tap the light bulb icon to adjust the brightness of the screen. Sleep time Set the sleep time. Dual clock View the current time in another country or city.
20 Use the quick tray and menu trayLearn to use the quick tray and menu tray. Tap the top of the screen to open the quick tray. Tap the empty space at the bottom of the screen to open the menu tray. Quick tray The quick tray allows you to use other functions or return to the main menu screen.Icon Function Return to the main menu screen. Launch the mini player. See page 21. Search for music. See page 42. Turn off the screen and lock the keys. See page 10. Connect a Bluetooth headset your player last connected to. If you connect your player to a Bluetooth device for the fi rst time, see "Find and pair with other Bluetooth-enabled devices" for setting up the Bluetooth connection. Menu tray The menu tray displays options available in the current menu.
21 Use the mini playerLearn to listen to music with the mini player while viewing photos or documents. Open the quick tray and tap . Listen to music with the mini player.Tap to close the player screen.To Do thisSkip to the previous fi le or the next fi le Tap or Skip backward or forward in a fi le Tap and hold or Pause or resume playback Tap or Note If you were listening to the FM radio the last time you used the mini player, the FM radio will start automatically when you launch the mini player from the quick tray.
22 Enter textLearn to enter text using the virtual keypad or with smart fi nger. Enter text using the virtual keypad Tap an appropriate alphanumeric key until the character you want appears on the screen.You can tap  to show or hide the virtual keypad.Move the cursor to the rightMove the cursor to the leftSpaceBack to the previous screenChange the text input mode ( : English (lowercase), : English (uppercase), : numbers)Input fi eld Delete Switch the text input method (keypad  smart fi nger) When you are fi nished, tap <OK>.
Use basic functions>Enter text 23 Enter text with smart fi nger Tap to switch to smart fi nger. Change the text input mode. Write characters in the writing area. When entering a keyword in the music search screenMove the cursor to the rightMove the cursor to the leftSpaceChange the text input mode ( : English (lowercase), : English (uppercase), : numbers)Back to the previous screenWriting area DeleteSwitch the text input method (keypad  smart fi nger) When you are fi nished, tap a word from the list that appears.

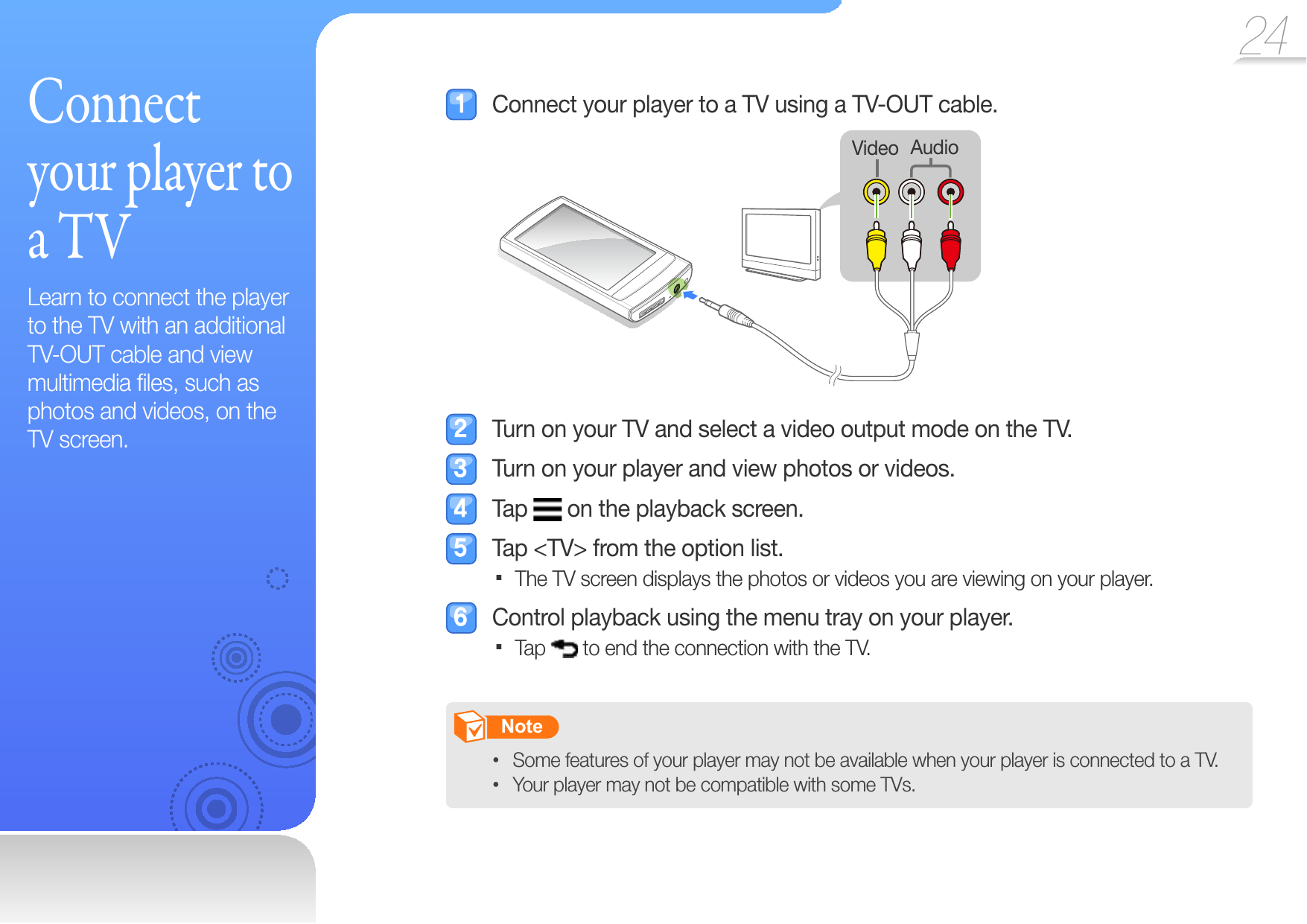

24 C o n n e c t your player to a TVLearn to connect the player to the TV with an additional TV-OUT cable and view multimedia fi les, such as photos and videos, on the TV screen. Connect your player to a TV using a TV-OUT cable.AudioVideo Turn on your TV and select a video output mode on the TV. Turn on your player and view photos or videos. Tap on the playback screen. Tap <TV> from the option list.The TV screen displays the photos or videos you are viewing on your player.  Control playback using the menu tray on your player.Tap  to end the connection with the TV. Note Some features of your player may not be available when your player is connected to a TV. • Your player may not be compatible with some TVs.•
Download media fi les .........................................................26Search for fi les ....................................................................30Delete fi les ..........................................................................31Manage media fi lesDownload media fi les to your player using EmoDio or a removable disk, and browse or delete fi les stored in your player.
26 Download media  lesLearn to download media fi les from a PC to your player with EmoDio or by connecting your player as a removable disk. Caution To avoid damage to your player and corruption of your fi les, do not disconnect the USB cable while fi les are being transferred. Supported fi le formats and PC requirements Supported fi le formats Menu File formatsMusic MP3, WMA, Ogg, AAC, FLACVideos AVI, WMVPicture JPG Text TXTFlash Player SWF Recommended PC requirements CPU Pentium 500 MHz or higherOperating System Windows 2000/XP/VistaOthersResolution 1024x768 or higher• Microsoft DirectX 9.0 or higher• Internet Explorer 6.0 or higher•
Manage media  les>Download media  les 27 Download fi les with EmoDioYou can easily download various media fi les with EmoDio. Note For information about installing EmoDio on a PC, refer to • the Quick Start Guide supplied with your player. To view precautions when installing, go to http://www.emodio.com.EmoDio will be regularly upgraded for peak performance. • Some features may change without prior notice. Using the USB cable, connect your player to a PC.EmoDio will launch automatically on your PC.  Click <My PC> on the main screen of EmoDio. Click <Get folder> or <Get fi le> at the bottom of the screen. Select a folder you want.The list of the fi les stored in your PC appears.  Select a fi le you want and click .The selected fi le is copied to your player.  Note You cannot use your player when connected to a PC.• If you connect your player to a PC when the player's • battery is low, the battery will be charged for few minutes before your player will be connected to the PC.When you format your player on a PC, use the FAT32 • system. In Windows Vista, click <Restore device defaults> and then format your player.Music recognition technology and related data are provided • by Gracenote® and Gracenote CDDB® Music Recognition ServiceTM. Gracenote and CDDB are registered trademarks of Gracenote.The Gracenote logo and logotype, CDDB logo and • logotype and the “Powered by Gracenote CDDB” logo are trademarks of Gracenote. Music Recognition Service and MRS are service marks of Gracenote.

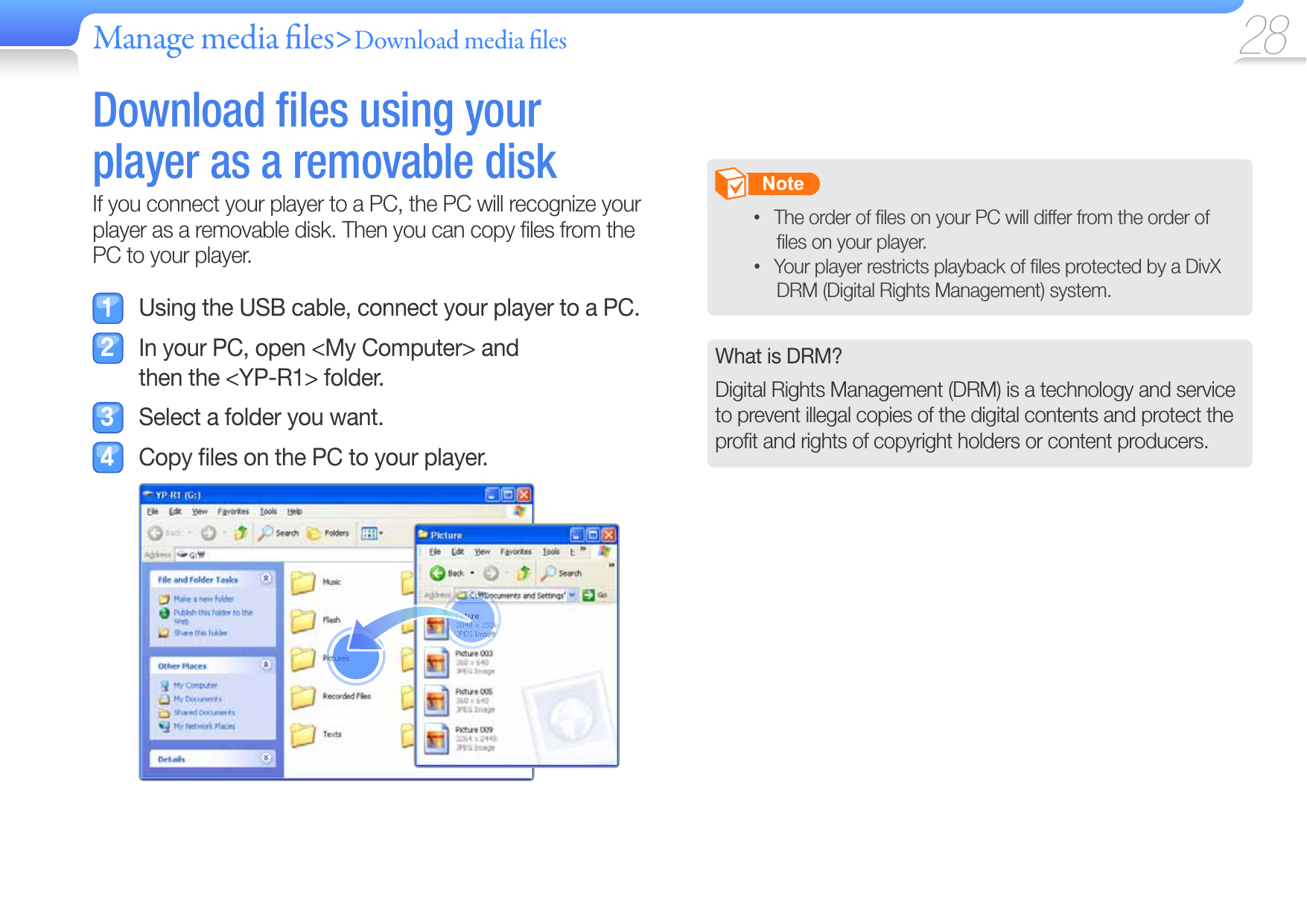

Manage media  les>Download media  les 28 Download fi les using your player as a removable diskIf you connect your player to a PC, the PC will recognize your player as a removable disk. Then you can copy fi les from the PC to your player. Using the USB cable, connect your player to a PC. In your PC, open <My Computer> and then the <YP-R1> folder. Select a folder you want. Copy fi les on the PC to your player. Note The order of fi les on your PC will differ from the order of • fi les on your player.Your player restricts playback of fi les protected by a DivX • DRM (Digital Rights Management) system.What is DRM?Digital Rights Management (DRM) is a technology and service to prevent illegal copies of the digital contents and protect the profi t and rights of copyright holders or content producers.

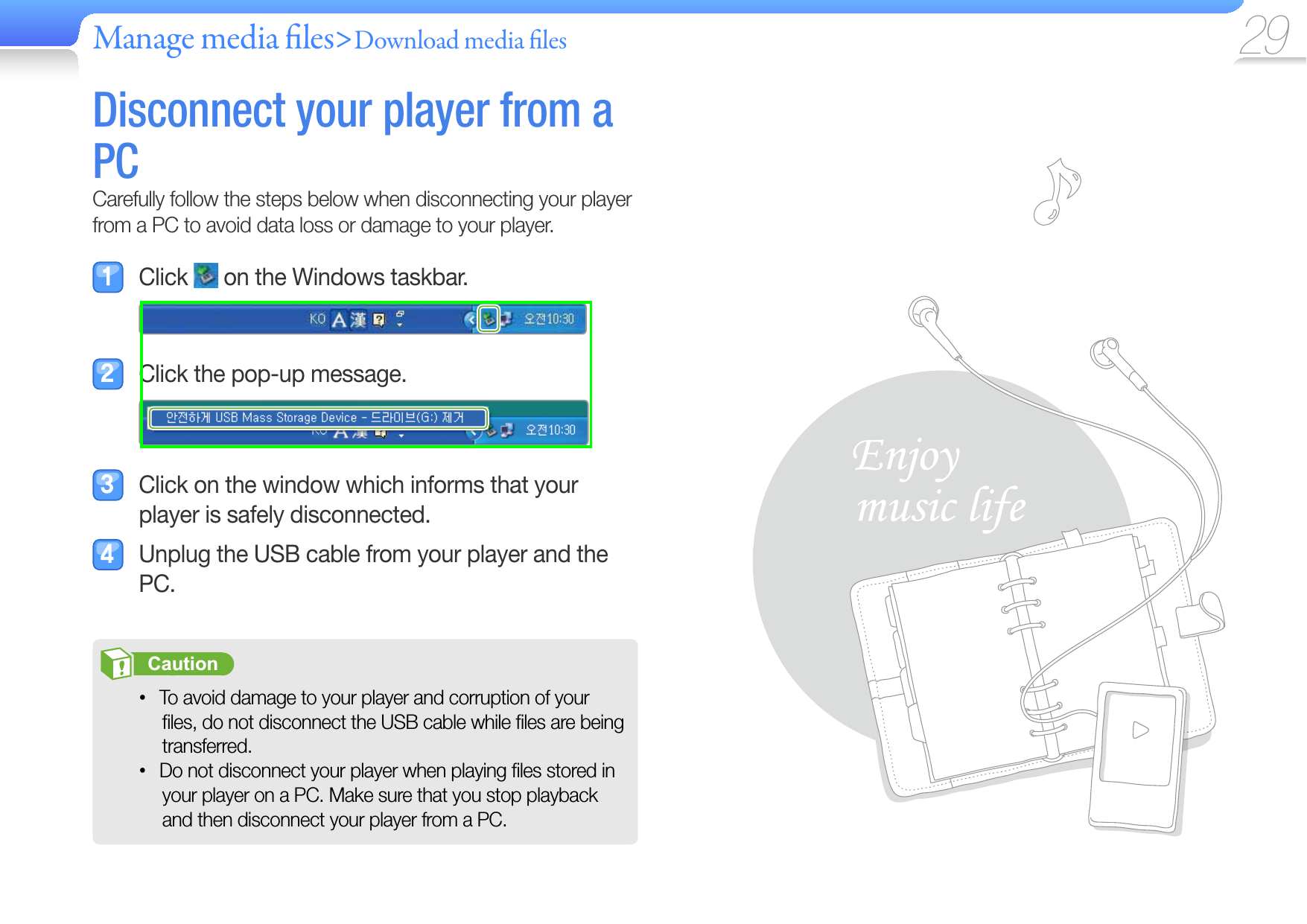

Manage media  les>Download media  les 29Disconnect your player from a PCCarefully follow the steps below when disconnecting your player from a PC to avoid data loss or damage to your player. Click on the Windows taskbar. Click the pop-up message. Click on the window which informs that your player is safely disconnected. Unplug the USB cable from your player and the PC. Caution To avoid damage to your player and corruption of your • fi les, do not disconnect the USB cable while fi les are being transferred.Do not disconnect your player when playing fi les stored in • your player on a PC. Make sure that you stop playback and then disconnect your player from a PC.
30 Search for  les Learn to fi nd fi les by folder and play them in your player. In the main menu, tap . Tap a folder from the list. Drag up or down to scroll through the fi le list.If the fi le name is long, tap and hold the fi le name area to view the full name.  Tap a fi le you want.
31 Delete  lesLearn to delete fi les from your player.To delete a video fi le, for example: In the main menu, tap . Tap at the bottom of the screen. Tap <Delete> from the option list. Tap fi les to delete and tap <OK>.  appears next to the selected fi les.Tap <All> to delete all fi les.  Tap <YES> to confi rm. Note You can also tap and then select fi les if the trash icon is available.
Video ..................................................................................33Music .................................................................................. 38Beat DJ ..............................................................................45Play video and musicTransfer music and video fi les to your player using the EmoDio program or a removable disk, and then play high-quality video fi les and listen to music in excellent 3D surround sound. Also, mix music fi les like a disc jockey using Beat DJ.
33 Video Learn to play video fi les on your player. To download fi les, see "Download media fi les." Play video fi les In the main menu, tap . Select a video fi le from the list.Drag up and down to scroll through the list and select a video fi le to play.  Note To change the view mode to the thumbnail view, tap and then <Vievw Mode>.

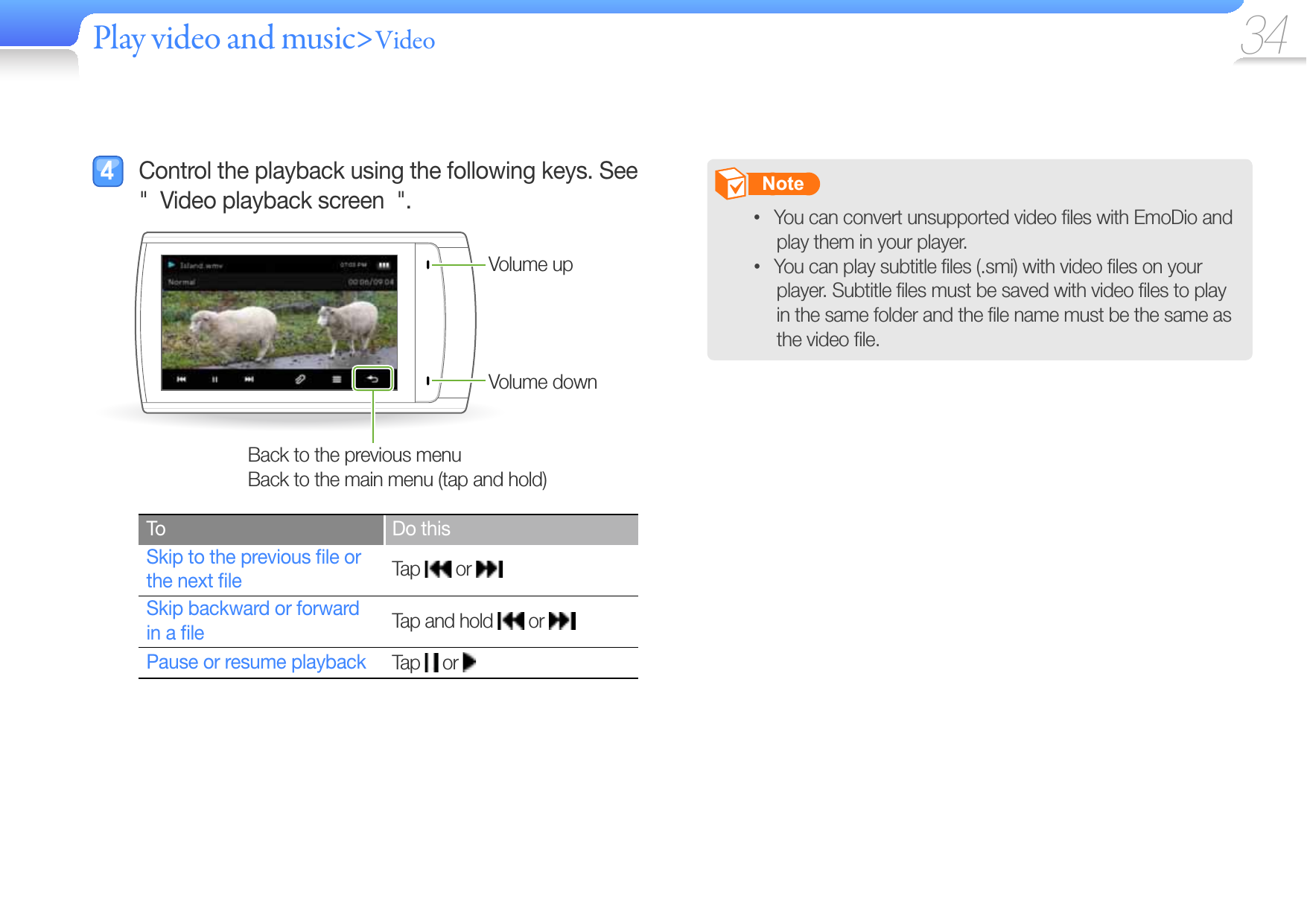

Play video and music>Video 34 Note You can convert unsupported video fi les with EmoDio and • play them in your player.You can play subtitle fi les (.smi) with video fi les on your • player. Subtitle fi les must be saved with video fi les to play in the same folder and the fi le name must be the same as the video fi le. Control the playback using the following keys. See " Video playback screen ".Volume upVolume downBack to the previous menuBack to the main menu (tap and hold)To Do thisSkip to the previous fi le or the next fi le Tap or Skip backward or forward in a fi le Tap and hold or Pause or resume playback Tap or

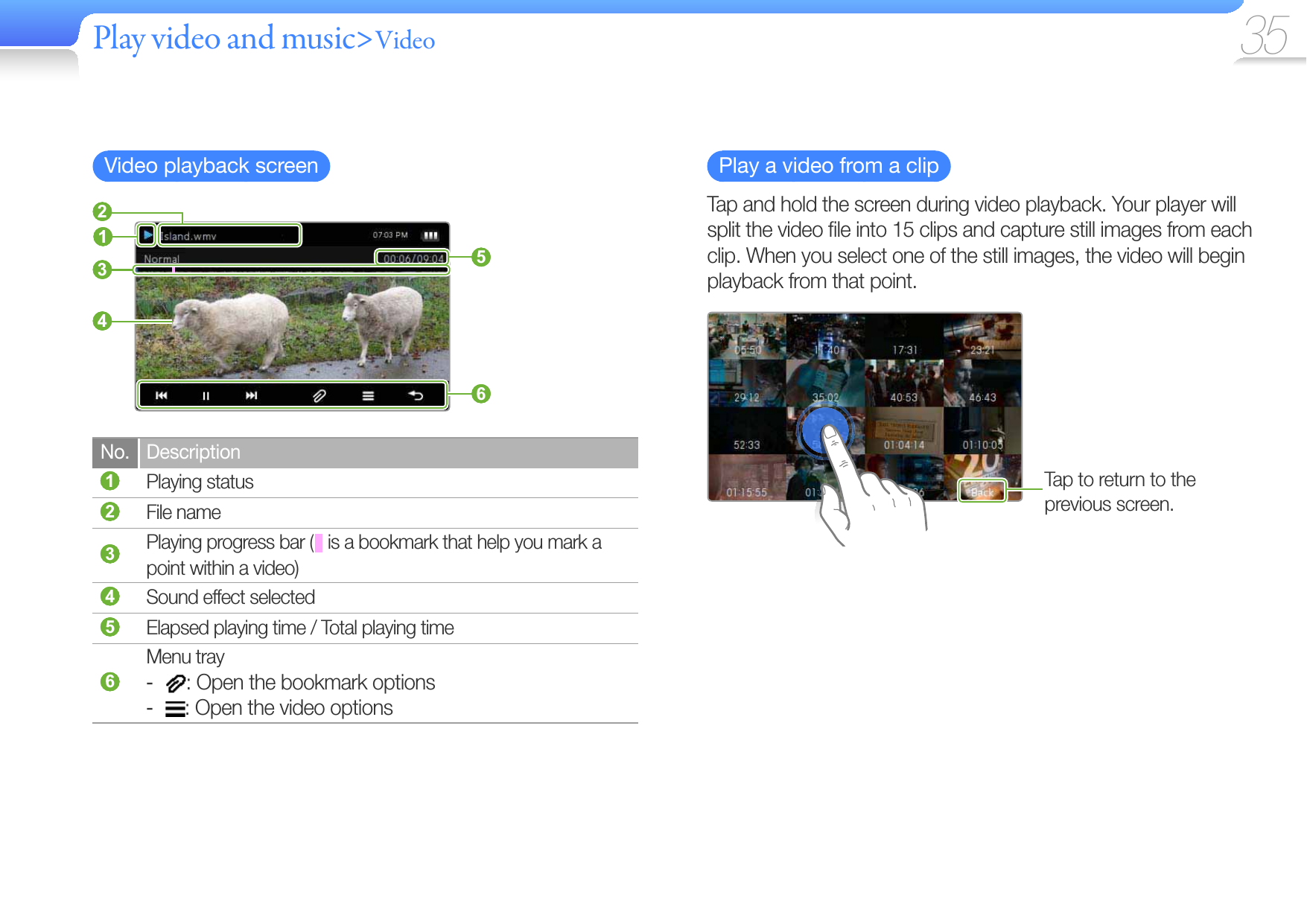

Play video and music>Video 35 Video playback screen 1 3 4 5 6 2 No. Description 1 Playing status 2 File name 3 Playing progress bar ( is a bookmark that help you mark a point within a video) 4 Sound effect selected 5 Elapsed playing time / Total playing time 6 Menu tray -: Open the bookmark options -: Open the video options Play a video from a clip Tap and hold the screen during video playback. Your player will split the video fi le into 15 clips and capture still images from each clip. When you select one of the still images, the video will begin playback from that point.Tap to return to the previous screen.
Play video and music>Video 36 Skip forward or backward with a gesture Draw a circle clockwise to skip forward or counter-clockwise to skip backward. The faster you draw, the faster you will skip forward or backward. Insert a bookmark You can insert a bookmark at the point you want and go to the bookmark to play from that point. During video playback, tap the bottom of the screen at the point you want to bookmark. Tap from the menu tray and tap <Add Bookmark>.A bookmark is added to the progress bar.  Note You can insert one bookmark for each video fi le.• The point at which you insert a bookmark within a video fi le • may not exactly match the bookmarked point. To go to a bookmark, tap • and then <Go to Bookmark>. To delete a bookmark, tap and then <Delete Bookmark>.
Play video and music>Video 37 Use the video options Tap the video playback screen. Tap from the menu tray. Select an option you want.Option DescriptionDNSe Select appropriate sound effects for videos.SearchDivide a video fi le into 15 clips. You can select one of the clips and start playback from that clip.DisplayAdjust the frame size and the brightness of the screen. Note Some video fi les may not have the <Screen Size> option.Play Speed Change the playback speed.TV out Mode Set to connect your player to a TV. Horizontal StrokeSet the interval when you drag left or right quickly during video playback.1 File -: Move between previous and next fi les.Seek -: Change the playback speed (x1  x2  x4  x8).10sec Skip -: Skip 10 seconds.30sec Skip -: Skip 30 seconds.1min Skip -: Skip 1 minute.
38 Music Learn to play music fi les stored in your player. To download fi les, see "Download media fi les." Listen to music Music fi les are categorized in folders by type. You can easily fi nd a music fi le you want.Music category FunctionArtists* Display fi les by artist.Albums* Display fi les by album.Songs* Display fi les by fi le name (in the order of special characters, numbers, and alphabets).Genres* Display fi les by genre.Playlists Display playlists you created.Recently Added Display fi les you recently downloaded.MostPlayed 50 Display fi les you recently played (up to 50 fi les).Recorded Files Display fi les recorded in <FM Radio> or <Voice REC>.Music Browser Display all fi les in the Music folder.Unknown Display fi les that have no track information (ID3 Tag).* Music fi les are sorted by track information (ID3 Tag). Files that have no track information are saved in the <Unknown> folder.What is ID3 Tag?ID3 tag is a metadata container attached to MP3 fi les. It includes information for the music, such as the title, artist, album, or track number, which can be displayed on a music player’s screen during playback.
Play video and music>Music 39 In the main menu, tap . Tap a music category.To play the fi le you last played, tap <Move Play Screen>.  Tap an artist, album, genre, or playlist if you select <Artists>, <Albums>, <Genre>, <Playlists>. Tap a fi le to play.Drag up and down to a music fi le and tap the fi le to play.  Control the playback by using the keys. See "Music playback screen."Volume upVolume downBack to the fi le listTo Do thisSkip to the previous or next fi le Tap or Skip backward or forward Tap and hold or Pause or resume playback Tap or
Play video and music>Music 40 Music playback screen 1 2 3 4 5 7 6 9 8 No. Description 1 Playing status 2 Track number / Total number of tracks 3 Playback image• Tap and hold a cover image to view the album information• 4 Current sound effect 5 Track title/artist/album title 6 Play mode 7 Search bar 8 Playing time 9 Menu tray<A - B>: Repeat a section of a track -: Opens the music options Repeat a section of a track You can select a section of the song while playing and repeat it. Tap <A  B> at the beginning of the section you want to repeat.<A  B> displays at the beginning of the section. Tap <A  B> at the end of the section you want to repeat.<A  B> displays at the end of the section. Your player repeats the marked section. To cancel repeating, tap <A  B> again.
Play video and music>Music 41 View album information If an ID3 Tag contains album information such as cover images, you can view the images and songs included in the album. From the music playback screen, tap and hold the screen. View the album images and songs.To view other albums, drag left or right. To play music from the album, tap a music fi le you want. To browse fi les, drag up or down. Indicate the currentlyplaying music file. Apply a sound effect (DNSe) From the music playback screen, tap . Tap <DNSe>. Tap a sound effect you want.If you tap <Auto>, your player will search the track information (ID3 Tag) and automatically select an appropriate effect.To select your own equalizer, tap <myDNSe>. See "Apply a sound effect (DNSe)."What is DNSe?Digital Natural Sound Engine (DNSe) is a group of sound effects for MP3 players, developed by Samsung. It provides various sound settings to enhance the music you’re listening to.

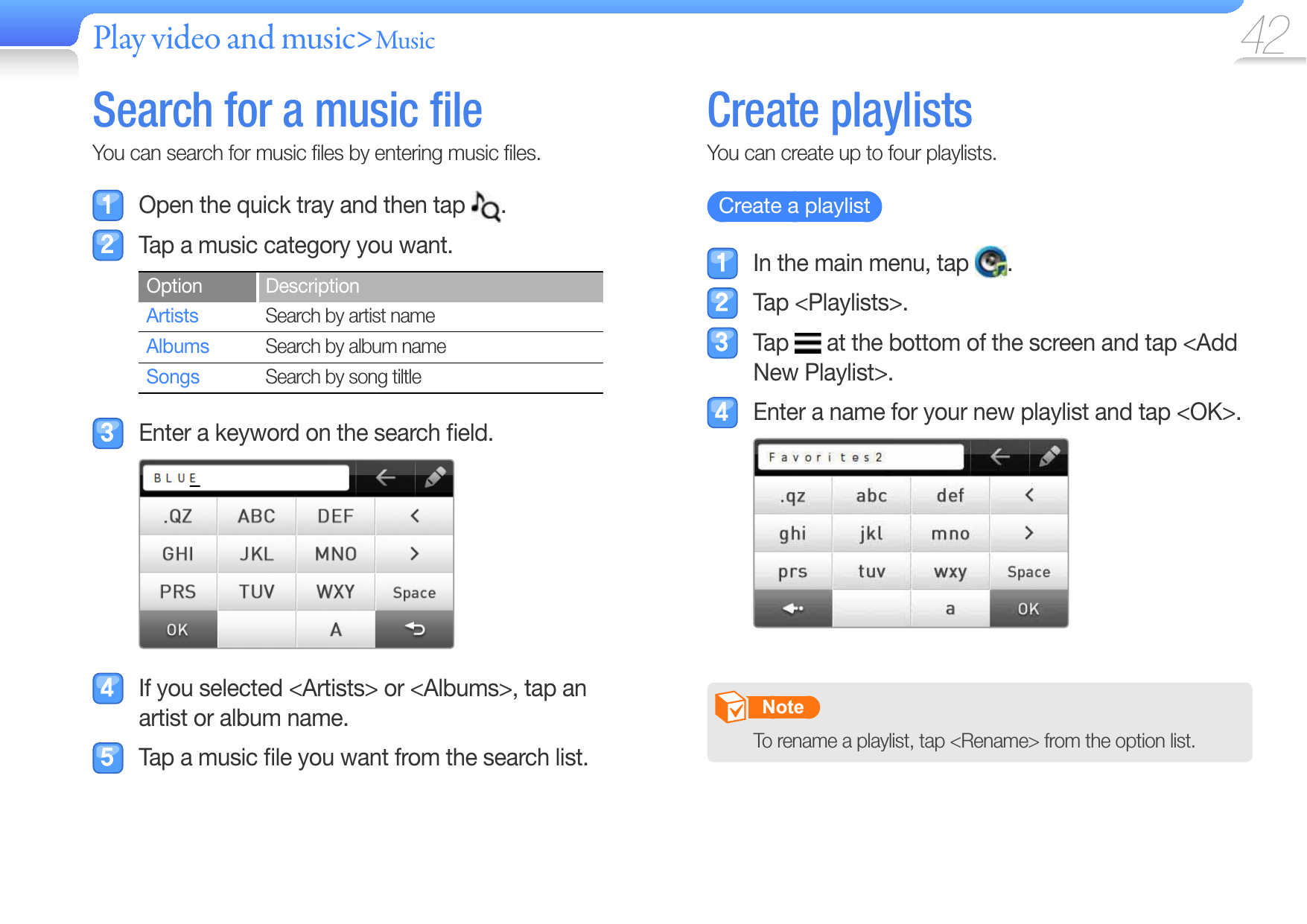

Play video and music>Music 42 Search for a music fi leYou can search for music fi les by entering music fi les. Open the quick tray and then tap . Tap a music category you want.Option DescriptionArtists Search by artist nameAlbums Search by album nameSongs Search by song tiltle Enter a keyword on the search fi eld. If you selected <Artists> or <Albums>, tap an artist or album name. Tap a music fi le you want from the search list. Create playlistsYou can create up to four playlists. Create a playlist In the main menu, tap . Tap <Playlists>. Tap at the bottom of the screen and tap <Add New Playlist>. Enter a name for your new playlist and tap <OK>. Note To rename a playlist, tap <Rename> from the option list.
Play video and music>Music 43 Add music fi les to a playlist From the fi le list, tap . Tap <Add to Playlist>. Tap fi les you want to add to a playlist.  appears next to the selected fi les.To select all fi les, tap <All>.  Tap <OK>. Tap a playlist you want to add the music fi le.To create a new playlist, tap <Add New Playlist>.  Note To add all fi les of an artist, album, or genre at once, tap • in the list and then tap <Add to Playlist>.To add the currently playing fi le to a playlist, tap • and then tap <Add to Playlist>. Delete music fi les from a playlist From the fi le list, tap <Playlists>. Tap a playlist that has a fi le to delete. Tap at the bottom of the screen and then tap <Delete from Favorites>. Tap fi les to delete.  appears next to the selected fi les.To select all fi les, tap <All>.  Tap <OK>.
Play video and music>Music 44 Use the music options From the music playback screen, tap . Customize the following options.Option DescriptionDNse Select appropriate sound effects for music. Play Mode Change the repeat mode.Music Play ScreenChange an image that displays when playing music. Note Your player supports less than 2 • MB of cover images.Your player supports subtiltle fi les • downloaded with EmoDio only.Add to Playlist Add the currently playing music fi le to the playlist.Option DescriptionHorizontal StrokeSet the interval when you drag left or right quickly during video playback.1 File -: Move between previous and next fi les.5sec Skip -: Skip 5 seconds.10sec Skip -: Skip 10 seconds.30sec Skip -: Skip 30 seconds.1min Skip -: Skip 1 minute. Note Some fi les may not skip at the interval you select.Play Speed Change the playback speed.
45 Beat DJLearn how to mix your own music the way you like it with Beat DJ. In the main menu, tap . Tap an album you want.Move the wheel or drag up and down to select an album and tap <OK>.  Use the wheel to select a music fi le and tap . Apply beat DJ effects to the music fi le. Move the wheel clockwise to skip forward or counter-clockwise to skip backward. Insert sample sound effects.Pause or resume playback.Insert a fi lter effect.Insert a scratch sound.
Play video and music>Beat DJ 46 Insert sample sounds Move the wheel to select a sound and tap .Tap the Play icon at the point you want to insert the sound. Insert scratch sounds Move your fi nger on the CD image to insert a scratch sound.
Play video and music>Beat DJ 47 Insert fi lter effects Move the wheel to select a fi lter effect and tap .Move your fi nger on the wheel to adjust the fi lter speed or beats. Note You can insert up to two fi lters in a music fi le. If you want to adjust the speed or beats of each fi lter (when two fi lters are applied), fi rst select the name of the fi lter you want to adjust and then move the wheel.
Pictures ...............................................................................49Texts ...................................................................................51FM Radio ............................................................................54Flash Player ........................................................................57Games ...............................................................................58Bluetooth ............................................................................59Datacasts ...........................................................................66Voice REC ..........................................................................67Address Book ....................................................................68Subway map .....................................................................69Use additional applicationsLearn how to work with your player’s additional applications.
49 Pictures Learn to view photos stored in your player.To download fi les, see "Download media fi les." View photos In the main menu, tap . Browse photos. Photo with no thumbnail informationDelete a photo.Change the view mode.Folder with the number of photos savedStart a slideshow. Tap a photo you want. The photo displays on a full screen. View the photo.Drag left or right to view other photos. To Do thisZoom in or out Tap and then tap or Rotate Tap Note If the photo size is big, it may take some time to display.

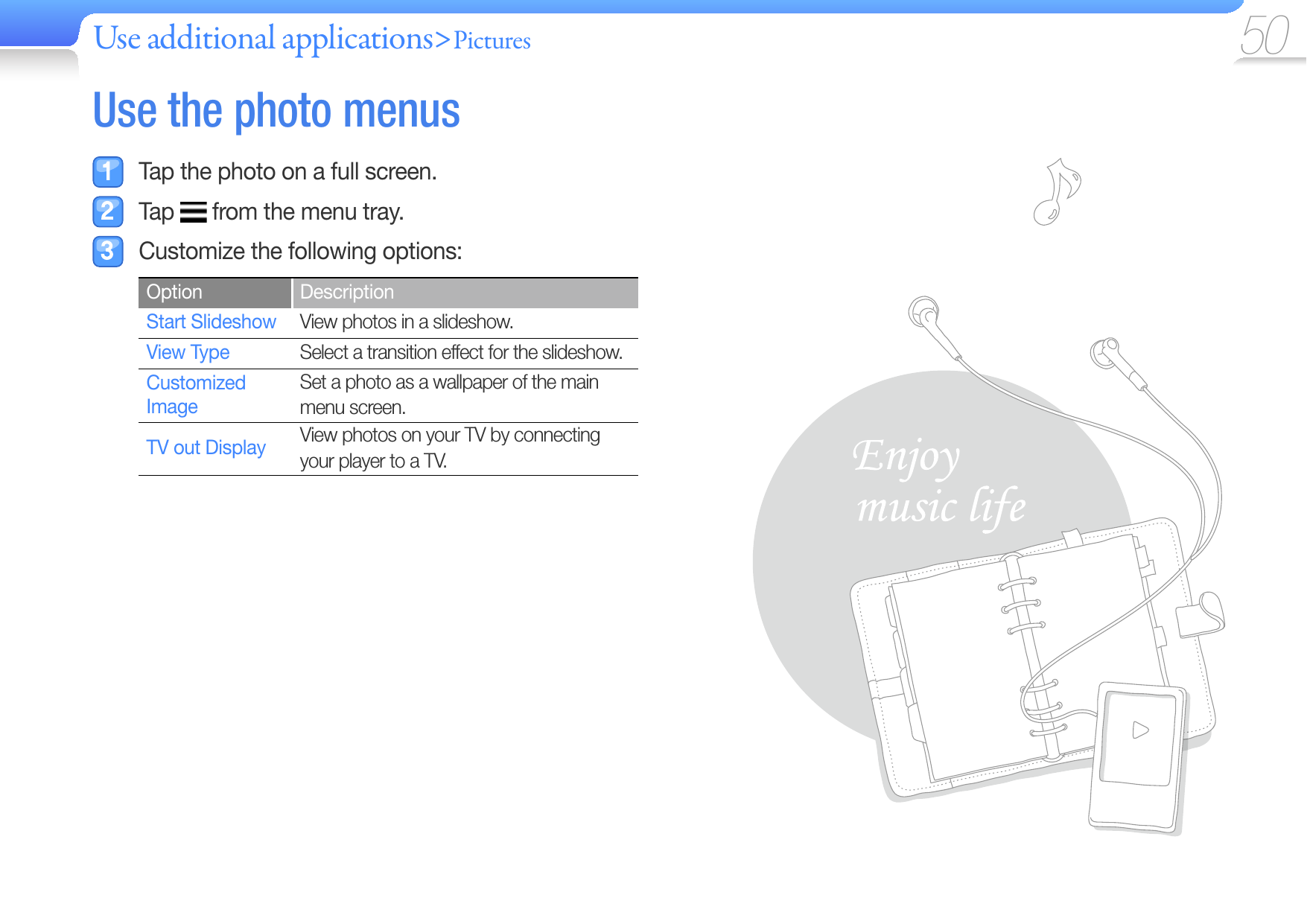

Use additional applications>Pictures 50 Use the photo menus Tap the photo on a full screen. Tap from the menu tray. Customize the following options:Option DescriptionStart Slideshow View photos in a slideshow.View Type Select a transition effect for the slideshow.Customized ImageSet a photo as a wallpaper of the main menu screen.TV out Display View photos on your TV by connecting your player to a TV.
51Te x t sLearn how to use the text viewer and view document fi les (TXT) stored in your player. To download fi les, see "Download media fi les." View document fi les In the main menu, tap . Tap a document fi le from the list. Note To change the view mode, tap and then tap <Text Viewer Type>. View the document.Tap the screen to display the text information and guide icons. Page barTo move to the previous or next pageDrag left or right• Tap • < or >Tap the page bar at the point you want to view•
Use additional applications>Te x t s 52 Insert a bookmark You can insert a bookmark on the page you want and go to the bookmark to view that page of a document. Tap the center of the screen on the page you want to bookmark. Tap from the menu tray and then tap <Add Bookmark>.A bookmark is added to the top left of the screen.  Note You can add one bookmark for a document fi le.• To go to a bookmark, tap • and tap <Go to Bookmark>. To remove a bookmark, tap and select <Delete Bookmark>. Flip pages automatically Tap the center of the screen. Tap from the menu tray. Tap the automatic fl ip time.A page automatically fl ips to the next after the specifi ed period of time.
Use additional applications>Te x t s 53 Use the text optionsYou can change settings for viewing documents in the text viewer. Tap the center of the screen. Tap from the menu tray. Customize the following options:Option DescriptionText Viewer TypeChange the background style of the text viewer.Font Size Change the size of the font displayed in your document.
54FM RadioLearn to listen to the FM radio, save radio stations, and record a FM radio. Note You must connect the earphones to your player to listen to the FM radio. The earphones serve as a radio antenna. Listen to the FM radio In the main menu, tap . Tap <Manual> at the bottom left of the FM radio screen. Tap < or > to scan the radio stations.Tap < or > to scroll through radio frequencies. Tap and hold < or > to scan the available stations automatically. You can also drag the dial to tune stations.  Listen to the FM radio. See " FM radio screen ." Note The FM radio may not tune frequencies for stations correctly depending on the signal status of your current region.
Use additional applications>FM Radio 55 FM radio screen 3 1 2 4 5 No. Description 1 Frequency scale 2 Frequency for the current stationTap -< or > to scroll through radio frequenciesTap and hold -< or > to tune available radio stations automatically 3 Tuning dialDrag the dial to tune stations - 4 Radio mode<Preset>: Preset mode -<Manual>: Manual mode - 5 Menu tray -: Mute or unmute audio -: Record the FM radio -: Open the FM radio options Record the FM radio Tap and then tap <Yes> to start recording.Tap  to pause recording. Tap to stop recording.The recorded fi le is saved automatically.  Tap <Yes> to play the recorded fi le.After the recorded fi le has played, the screen will return to Recording mode.If you want to return to Recording mode without playing back the fi le, tap <No>. Note The maximum recording time for a fi le is 5 hours.• The available recording time is about 18 hours when you • record fi les at 128 Kbps and up to 1 GB.The recorded fi les will be saved in <FM Radio> (in the main • menu, select <File Browser>  <Recorded Files>).
Use additional applications>FM Radio 56 Save radio stationsYou can save your favorite radio stations to easily access them. Save the current radio station From the FM radio screen, tap . Tap <Add to Preset>. Save radio stations automatically You can automatically search for available radio stations and save them as your favorites. You can save up to 30 radio stations. From the FM radio screen, tap . Tap <Auto Preset>. Tap <YES> to confi rm.Automatic tuning begins. The radio stations located are saved in your favorites. Listen to a favorite radio station Tap <Preset> at the bottom of the FM radio screen. Tap the radio station you want. Use the FM radio optionsYou can change options for listening to the FM radio. From the FM radio screen, tap . Customize the following options:Option DescriptionDelete preset?* Delete a saved radio station.Add to Preset** Save the current radio station.Auto Preset Search for and save available radio stations automatically (up to 30).FM RegionRe-tune frequencies according to your region. Note This option may not be available • depending on your region.If you change the region, the • previously saved stations will be deleted. * Available only in Preset mode** Available only in Manual mode
57Flash Player Learn how to use the fl ash player and view fl ash fi les (.swf) stored in your player. To download fi les, see "Download media fi les." In the main menu, tap . Tap a fi le you want. Play the fi le.Tap  at the bottom of the screen to display the menu tray.To Do thisMove on the screen Tap Pause or resume playback Tap or Note The fl ash player may not play some fl ash fi les (.swf).• Your player may restart depending on the fl ash fi les (.swf) you play.• Use the stopwatch You can count down to a specifi c event or measure the time it takes to do your exercise or work. In the main menu, tap . Tap a stopwatch fi le.
58 Games Learn how to play games stored in your player. In the main menu, tap . Tap a game you want.Game DescriptionBubbleBang Burst as many bubbles as possible in a set time.SUDOKU Enter digits from 1 to 9 into the blank spaces. Every row must contain one of each digit.Wise StarAstroRanger Tap the colored arrows at the bottom left and right of the screen to musical and visual cues. Play the game. Note Games provided may vary depending on the software of your player or your region.• For information about playing games, see the Help of each game.• You can download various games from EmoDio to your player.•
59BluetoothLearn about the Bluetooth wireless features to connect Bluetooth stereo headsets to listen to music or connect mobile phones or other wireless devices. Caution Samsung is not responsible for any illegal use of Bluetooth.Do not use Bluetooth functions for any illegal purposes, including illegal reproduction of music fi les, wireless tapping, or other prohibited actions. Find and pair with other Bluetooth-enabled devicesTo use the Bluetooth wireless features, you need to pair your player with other devices. Turn on the Bluetooth wireless feature of other device you connect to. In the main menu, tap . Tap at the center of the screen, or tap at the bottom of the screen.Your player starts searching for Bluetooth-enabled devices around the player. To stop searching, tap .To search again, tap  or . Tap and drag a device icon onto the icon.Indicate Bluetooth stereo headsetsIndicate mobile phones (hands-free car kits) Indicate the current page number (The number increases when there are more detected devices) Note It is recommended to name mobile devices in English to ensure compatibility.
Use additional applications>Bluetooth 60 Enter a Bluetooth password for the devices you connect to for the fi rst timeFor setting a Bluetooth password, see the user manual of the device you connect to. Tap <YES> to confi rm. Enter the other device’s Bluetooth password and tap <OK>.When you enter the correct Bluetooth password, pairing is complete. Now you can connect your player to the other device. For connecting Bluetooth-enabled devices, see "Connect Bluetooth-enabled devices." Delete paired devices From the Bluetooth screen, tap a device you want to delete. Tap at the bottom of the screen. Connect Bluetooth-enabled devicesYou can use the Bluetooth wireless feature to connect to other devices In the main menu, tap . Tap and drag a device icon onto the icon.To search again, tap . Tap a service depending on the device you are connecting to.Option DescriptionHandsfree Select to connect to a mobile phone to make and receive calls.File transfer Select to transfer fi les to and from the device. Use the Bluetooth-enabled device that is connected with your player. See pages 61 ~ 64.The Bluetooth icon at the top of the screen will change according to the device type connected. (: Mobile phones, : Bluetooth stereo headsets)If a Bluetooth stereo headset is connected, you can listen to music or hear a voice through the headset.
Use additional applications>Bluetooth 61 Note If you restart your player or the other device connected, the • Bluetooth connection will be disconnected. See the steps above to reconnect the devices.Some features, such as device searching or calling, • may not work correctly depending on the mobile phone connected.Some Bluetooth stereo headsets may not be compatible • with your player.You cannot use Bluetooth stereo headsets while using the • FM radio. Disconnect the Bluetooth devices From the Bluetooth screen, tap . Tap <YES> to confi rm. Note When you are not using the Bluetooth features, deactivate the Bluetooth wireless feature to save the battery. Tap and then tap <Bluetooth Mode:ON>. Use call functions ( hands-free)When your player is connected to your phone, you can make or receive calls. Make voice calls Tap . Make a call using one of the following option:Option DescriptionRedial Call a recently dialled number.Call history Make a call from the call log. Note To clear the call log, tap , <Delete> and then <YES>.Call by number Enter a phone number you want.
Use additional applications>Bluetooth 62 For <Call by number>, enter a phone number and then tap .If you want to make a call using speed dial numbers, tap and hold a speed dial number. The call is connected.Tap to switch the call to the mobile phone.Tap to end the call. Note Your player may emit some noise when you press the keys of the mobile phone or make or answer a call. Answer a call If you receive a call from the connected mobile phone while playing music or videos, the playback will stop and a pop-up window will appear. Tap <Yes> to answer the call.
Use additional applications>Bluetooth 63 Transfer fi lesWhen your player is connected with mobile phones or other MP3 players with the fi le transfer service, you can send or receive fi les, such as music fi les, photos, address book entries, etc. Send a fi le Tap a fi le you want from the fi le browser. Tap . Note If you connect Bluetooth-enabled devices other than • YP-P3 models, fi les may not transfer correctly.If you send DRM-protected fi les to another device, the fi les • will not be available on the destination device.Some video fi les may not play.• Receive a fi le When you receive a fi le, a pop-up window appears to confi rm that you are connecting. Tap <Yes> to receive the fi le. Note For sending fi les to your player from the other device, see • the user manual of the other device.Received fi les will be saved in <Shared Data> (in the main • menu, tap <File Browser>  <My Pack>).If there is a fi le with the same name in the folder, your player • will automatically add "(1)" to the name and save the fi le.
Use additional applications>Bluetooth 64 Use the Bluetooth optionsYou can set options for the Bluetooth wireless feature. Tap at the bottom of the Bluetooth main screen. Customize the following options:Option DescriptionBluetooth Mode: ON Turn the Bluetooth wireless feature on or off.Search Option Select a type of Bluetooth device to search.Discover Option Set whether or not to allow other devices to locate your player.Search Timeout Set a duration that your player is visible to other devices.My Device Info. Check the device name and address for Bluetooth. Information for using BluetoothThere may be some noise or malfunctions due to the interference • of the radio waves from other devices or the user environment.Make sure that Bluetooth devices you are trying to connect • to the player are nearby. As the distance between the player and the connected device increases, the sound quality will be downgraded.The maximum distance for the wireless connection between • your player and another Bluetooth-enabled device is 10 meters (30 feet). If the player and the device are more than 10 meters apart, the connection will be terminated automatically. Even when the devices are within the maximum distance, the quality of communications will be downgraded if the devices are separated by obstacles such as walls or doors.When you are using Bluetooth stereo headsets, avoid viewing • documents or photos as this may slow down key responses and may decrease the quality of your Bluetooth connection. The Bluetooth wireless feature in your player is optimized for • Samsung devices and may not be compatible with devices of other manufacturers. Some headsets or mobile phones may not connect or work properly. Check devices for compatibility with your player. Some games, music or video fi les may not be available when you • use the Bluetooth wireless feature.Use only Bluetooth-certifi ed stereo headsets. Your player does not • support mono hands-free headsets.Some menus in your player may not be available when the • Bluetooth wireless feature is activated.
Use additional applications>Bluetooth 65Compatible Bluetooth stereo headsets• Manufacturer Model nameSAMSUNG SBH-170Fusion NFC BT-550Jabra BT-620SLUBIX NC1Motorola HT-820Plantronics PULSAR 590SONY DR-BT30QSony Ericsson HBH-DS970wiREVO S300Compatible Bluetooth-enabled mobile phones• Manufacturer Model nameSAMSUNGSPH-C3250, SPH-W2700, SPH-V7400, SPH-V6900, SCH-W270, SPH-B5600, SPH-B3200, SGH-X828, SGH-I718, SGH-E908, SGH-U608LG LG-KH1000, LG-KV2400, LG-KG90, LG-KG77MOTOROLA Z3NOKIA N72PHILIPS S900SKY IM-U130
66 Datacasts When you have registered RSS addresses of your favorite news website, UCC, or blogs on EmoDio, you can view various contents in Datacasts. Note For more information about Datacasts, see <Help> of EmoDio.What is RSS?RSS is a standardized XML fi le format used to publish and deliver to users or readers frequently-updated works, such as news or blog entries. In the main menu, tap . Tap a folder you want.The number of unread contents displays next to the folder name.  Tap the content you want to view. View the content.Page barTo move to the previous or next pageDrag left or right• Tap • < or >Tap the page bar at the point you want to view•
67 Voice REC Learn to record voice memos or other sounds. In the main menu, tap . Tap to start recording.The recording starts. Tap  to pause recording.To Do thisPause or resume recording Tap or Stop recording Tap Tap to stop recording.The recorded fi le is saved automatically.  Tap <Yes> to play the recorded fi le.After the recorded fi le has played, the screen will return to Recording mode. If you want to return to Recording mode without playing back the fi le, tap <No>.  Note The recording may be interrupted when you record too close or too far from the • microphone.When the battery is low, you cannot record voice memos.• The maximum recording time for one fi le is 5 hours.• The available recording time is about 18 hours when you record fi les at 128 Kbps and up to • 1 GB.The recorded fi les will be saved in <Voice> (in the main menu, tap <File Browser> •  <Recorded Files>).
68 Address Book Learn to view contact information received via Bluetooth. When the mobile phone is connected to your player, you can make a call directly from the address book. In the main menu, tap . Tap a contact's name you want. View the contact information.Tap to make a call. The calling feature is available when a mobile phone is connected to your player via Bluetooth.Tap to add or change the image. Note Address book entries are sorted alphabetically.• The address book fi les transferred from other devices will be saved in <Shared Data> (in the • main menu, tap <File Browser>  <My Pack>).The address book supports only vCard fi les.•
69 Subway map Learn to view the subway map. In the main menu, tap .The subway map you last viewed appears. If you use the subway map for the fi rst time, the subway map of the capital city will appear. Tap to change to the subway map of another area. Navigate the subway map.To zoom in or out Tap and then tap or
Settings ..............................................................................71Customize settingsChange your player’s settings to match your preferences.

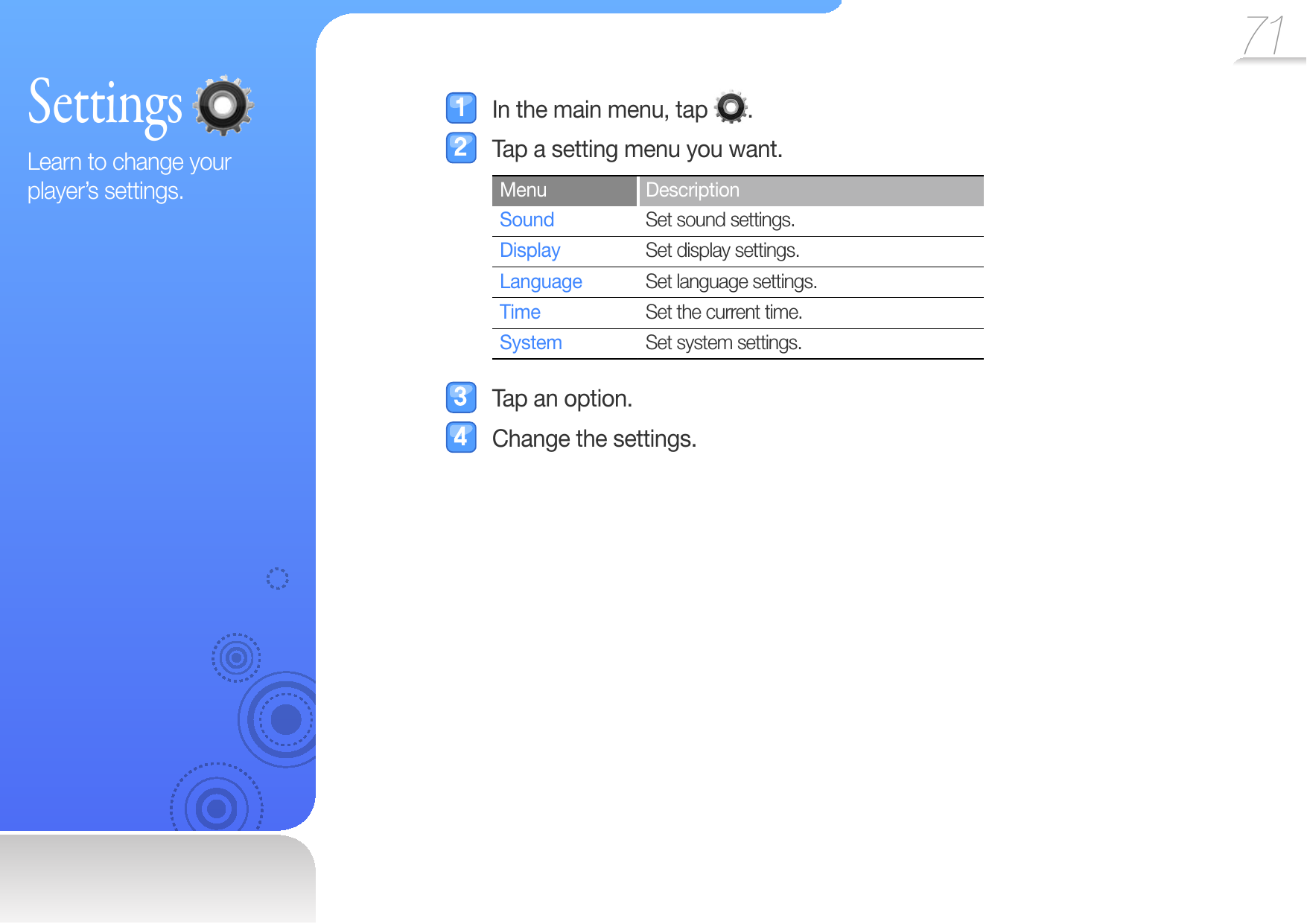

71 Settings Learn to change your player’s settings. In the main menu, tap . Tap a setting menu you want.Menu DescriptionSound Set sound settings.Display Set display settings.Language Set language settings.Time Set the current time. System Set system settings. Tap an option. Change the settings.
Customize settings>Settings 72 Sound settings Menu DescriptionStreet ModeSet to make the music sound clear by fi ltering outsome ambient noise. <0, 1, 2>Audio UpscalerSet to make high-pitched sounds resemble their original sound. <Off, On>myDNSeSet up your own equalizer (DNSe) to improve the quality of sound. Adjust frequencies for each equalizer and tap <OK>. <myDNSe1, myDNSe2>Beep SoundTurn on or off the key tone and touch tone. <Off, On>Wise VolumeSet to limit the volume of the earphones to protect your hearing.<Off>: You can adjust the volume as you want. -If you increase the volume over level 15 and restart your player, the player will turn on at volume level 15 to protect your hearing.<On>: Your player displays a warning message -and emits a warning tone when you are exposed to a high level of volume for a long period of time. Your player automatically changes the volume to a moderate level. Master EQOptimize the sound settings for your earphones. Adjust frequencies for the equalizer and tap <OK>. Display settings Menu DescriptionFont Select a font type for the display text.Reset My Skin Restore the wallpaper image.Reset Booting ImageRestore the image displayed when your player is turned on.Display Change the orientation of the screen. <Right 90°, Left 90°>Display Off TimeSet how long the screen stays on when not in use. <15sec, 1min, 3min, Always On>Brightness Adjust the brightness of the screen. <1, 2, 3, 4, 5>
Customize settings>Settings 73 Language settings Menu DescriptionMenu Select a language for the display text.Contents Select a language to display the contents stored in your player. Time settings Menu DescriptionDate&Time Set the current time and date.Date Type Set the time format. <YY-MM-DD, MM-DD-YY, DD-MM-YY> Time Zone Select your time zone to view the current time . System settings Menu DescriptionMy InfoEnter user information, such as name and birthday. Note User information will display on the screen when your player is turned on. On your birthday, the message “Happy birthday” will display.Sleep Set to automatically turn off your player after a specifi ed period of time. <Off, 30min, 60min, 90min> PC Connection Select a USB connection mode.OutputSelect an external input mode.< -NTSC>: USA, Canada, Japan, Korea, Taiwan, Mexico, etc. < -PAL> (Supports the BDGHI type only): Australia, Austria, Belgium, China, Denmark, Finland, Germany, United Kingdom, Netherlands, Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain, Sweden, Switzerland, Thailand, Norway, etc.
Customize settings>Settings 74Menu DescriptionRegisteringCheck the DivX registration code for your player. Note ABOUT DIVX VIDEO: DivX• ® is a digital video format created by DivX, Inc. This is an offi cial DivX Certifi ed device that plays DivX video.Plays Di -vX® video up to 320X240Plays DivX -® video up to 720X480ABOUT DIV• X VIDEO-ON-DEMAND: This DivX® Certifi ed device must be registered with DivX in order to play DivX Video-on-Demand (VOD) content. First generate the DivX VOD registration code for your device and submit it during the registration process. [Important: DivX VOD content is protected by a DivX DRM (Digital Rights Management) system that restricts playback to registered DivX Certifi ed devices. If you try to play DivX VOD content not authorized for your device, the message "Authorization Error" will be displayed and your content will not play.] Learn more at http://vod.divx.com.Menu Description Hold OptionSet how your player works when you press [Power].<All>: Lock the touch screen and the keys. -<Touch Screen Only>: Lock the touch screen -only. Library UpdateUpdate the fi le library. Use this option after changing the language to display the contents (select <Settings>  <Language>  <Contents>) when fi le names do not display correctly in your player.Default Set Restore all settings to the factory settings. FormatDelete all data and fi les stored in your player and restore all settings to the factory settings. Note Remember to make backup copies of all important data stored in your player. The manufacturer’s warranty does not cover loss of data that results from user actions.
Customize settings>Settings 75Menu DescriptionAboutCheck the system information of your player.<Firmware>: View the version of the software -installed in your player. For information about upgrading the software, see "Software upgrade."<Memory>: View the total amount of memory, -and the amount of memory being used and remaining.Shop ModeSet your player to play the sample video when the player is not used. Note When you do not use your player for 60 • seconds, the sample video automatically plays.If the sample video is deleted from your • player, this menu will not be available.
Maintenance .......................................................................77Specifi cations .....................................................................80Index ................................................................................... 82WARRANTY .......................................................................84LICENSE ............................................................................87Software License ................................................................88AppendixView the maintenance, specifi cations, and troubleshooting for your player.
77 MaintenanceLearn how to maintain your player and upgrade the software of your player. Maintenance of your playerCarefully read the following to properly clean, store, or dispose of your player.CleaningWhen your player is dirty, wipe your player with a soft, clean and dry cloth.• Do not apply cleaners to your player's surface. This may cause damage • or affect the performance of the player.Do not clean your player with gasoline, benzene, thinner, WD-40, or other • chemicals. This may cause damage to your player’s surface.StoringStore your player in a well-ventilated area.DisposingDispose of wrapping materials, batteries, and electronic devices • separately.The wrapping materials include paper and two kinds of plastics (PC, PE).• Software upgradeConnect to a PC and upgrade the software through EmoDio. For more information, see <Help> of EmoDio.
Appendix>Maintenance 78 TroubleshootingWhen you have a trouble using the player, try the following before contacting a service center.Problem SolutionMy player will not turn on.Your player will not turn on if the battery is • completely drained. Recharge the battery and turn the player on again.Press the reset button to reset your player • See page 8.The touch screen and buttons do not work.Check if the keys are locked.• Check if the keys or icons correspond to the • functions you want to activate.Press the reset button to reset your player • See page 8.Your player turns off when you do not use it • for a specifi c period of time. Turn your player on and try again.The screen does not display anything.The screen may not be visible under the • direct rays of the sun.The screen turns off automatically after the • period of time you set in <Display Off Time> has elapsed. Press any key or tap the screen to turn on the screen.Problem SolutionThe battery running time is different from what is written in the user manual.The battery running time may differ • depending on the current sound mode or display settings.The battery running time may shorten • when your player was left in a high or low temperature.My player will not run a program.You may download the program from a PC that does not meet PC requirements. See the recommended PC requirements.My player will not connect to a PC.Run Windows Update on a PC. Select key updates and service packs and update all. When the update is completed, reboot the PC and reconnect.The fi le transfer is too slow.The fi le transfer rate may slow down if you formatted your player on Windows 2000.Reformat the player on Windows XP or Vista and try again. End all programs you are not using. Running multiple programs simultaneously can slow down the fi le transfer rate.My player will not play any music fi les.Check if any playable music fi les are stored • in your player.Check if music fi les are stored in your player.• Check the battery remaining.•
Appendix>Maintenance 79Problem SolutionMy player is getting hot to the touch. Charging the battery can heat up your player. It does not affect the player's life or capabilities. My player does not play a video fi le but display an error message.Retransfer the video fi le with EmoDio.The Bluetooth wireless connection is not established.Check if you are connecting to Bluetooth-• certifi ed stereo headsets. Your player does not support mono hands-free headsets.If you restart your player, stereo headset, or • mobile phone, the Bluetooth connection may be ended. Reconnect again. If you are connecting to a mobile phone, the • connection with a Bluetooth stereo headset must be ended. Check if a stereo headset is connected with your player.Ensure that each device's visibility is not set • to <Non-Discoverable>.Problem SolutionI cannot download fi les to my player.Check if the USB cable is correctly • connected. Reconnect it.Check if the memory is full.• Press the reset button to reset your player • See page 8.Files or data are missing.Check if you disconnected the USB cable while transferring fi les or data. This can cause data loss or fatal errors in your player. Samsung is not responsible for any damages resulting from data loss.The playing time does not display correctly during playback.This is normal if the currently playing fi le is of the VBR format.What is VBR fi le?VBR (Variable Bit Rate) fi le varies the compression ratio per time segment depending on the complexity of the time segment.The fi le name does not display correctly.Change the language setting in <Settings>  <Language>  <Contents> and then update the fi le library.
80 Speci cationsModel Name YP-R1Rating DC 5.0V / 1AFile AudioMPEG1/2/2.5 Layer 3 (8 kbps ~ 320 kbps, 22 KHz ~ 48 KHz)• WMA (12 kbps ~ 320 kbps, 16 KHz ~ 48 KHz)• Ogg (32 kbps ~ 400 kbps, Q0 ~ Q10, 8 KHz ~ 48 KHz)• AAC-LC (8 kbps ~ 320 kbps, 8 KHz ~ 48 KHz)• AAC+ (8 kbps ~ 320 kbps, 8 KHz ~ 48 KHz)• Enhanced-AAC-Plus (8 kbps ~ 320 kbps, 8 KHz ~ 48 KHz)• FLAC (level 0 ~ 8, 16 KHz ~ 48 KHz)• RA (20 kbps ~ 96 kbps, 8 KHz, 11.025 KHz, 44.1 KHz)• WAV (wav standard, 8 KHz ~ 48 KHz)• VideoVideo AudioAVI/SVIMPEG4 (Max.720 X 480) Advanced Simple Profi le@Level 5• Divx3/4/5/(Max. 720 X 480)• Xvid (Max. 720 X 480)• H.264/AVC (Max. 720 X 480) High Profi le@Level3.0• MP3/AAC/AAC+WMV7/8 (MAX. 640 X 480) VC-1 (MAX 720 X 480) Advanced Profi le@level1 WMAMP4 MPEG4 (Max.720 X 480) Advanced Simple Profi le@Level 5• H.264/AVC (Max. 720 X 480) High Profi le@Level 3.0• MP3/AAC/AAC+WMV/ASFWMV7/8 (MAX. 720 X 480) VC-1 (MAX 720 X 480) Advanced Profi le@level1(vc1) WMARMVB RV8, 9,10 (MAX. 640 X 480) RAMOV MPEG4 (Max.720 X 480) Advanced Simple Profi le@Level 5• H.264/AVC (Max. 720 X 480) High Profi le@Level 3.0• AAC/AAC+Image JPEG (Baseline, Progressive), BMP (MAX32Bit), PNG, Gif (89a/87a)Flash SWF (Flash Player 8.0 or lower, ActionScript2.0 or lower)
Appendix>Speci cations 81 Wireless System Bluetooth QD ID B014773Emission Type F1DTransmit Frequency 2402 MHz ~ 2480 MHzReceive Frequency 2402 MHz ~ 2480 MHzNumber of channels 79 channelsTemperature 14˚ F ~ 122˚ F (-10˚ C ~ +50˚ C) Modulation System GFSKCommunication Mode Semi-duplex OperationHumidity 0 ~ 95 %Specifi cations Version Supported 2.1 + EDRModule BCM2070* Some of the contents in this manual are subject to change without prior notice for further improvement.Earphones Output 20 mW/Ch. (based on16 :)Output Frequency Range20 Hz~20 KHzSignal to Noise Ratio 90 dB with 20 KHz LPF(based on 1 KHz, 1 dB)Supported Number of Files/Folders File: Max. 10000 (including 4000 music fi les)Folder: Max. 10000 (including File)Playing Time (when using the earphones)Music: 30 hours (MP3 128 kbps, Volume level 15, Normal sound mode, LCD off)Video: 5 hours ((Brightness 5, Volume level 15, Normal sound mode)Temperature Range for Operation 23˚ F ~ 95˚ F (-5˚ C ~ 35˚ C)Case Tempered glass, Plastic, AluminumWeight 50 gDimensions (WxHxD) 45.5 X 85.2 X 8.9 mmFM RadioFM T.H.D 1 %FM Signal to Noise Ratio 50 dBFM Useable Sensitivity 38 dBμ

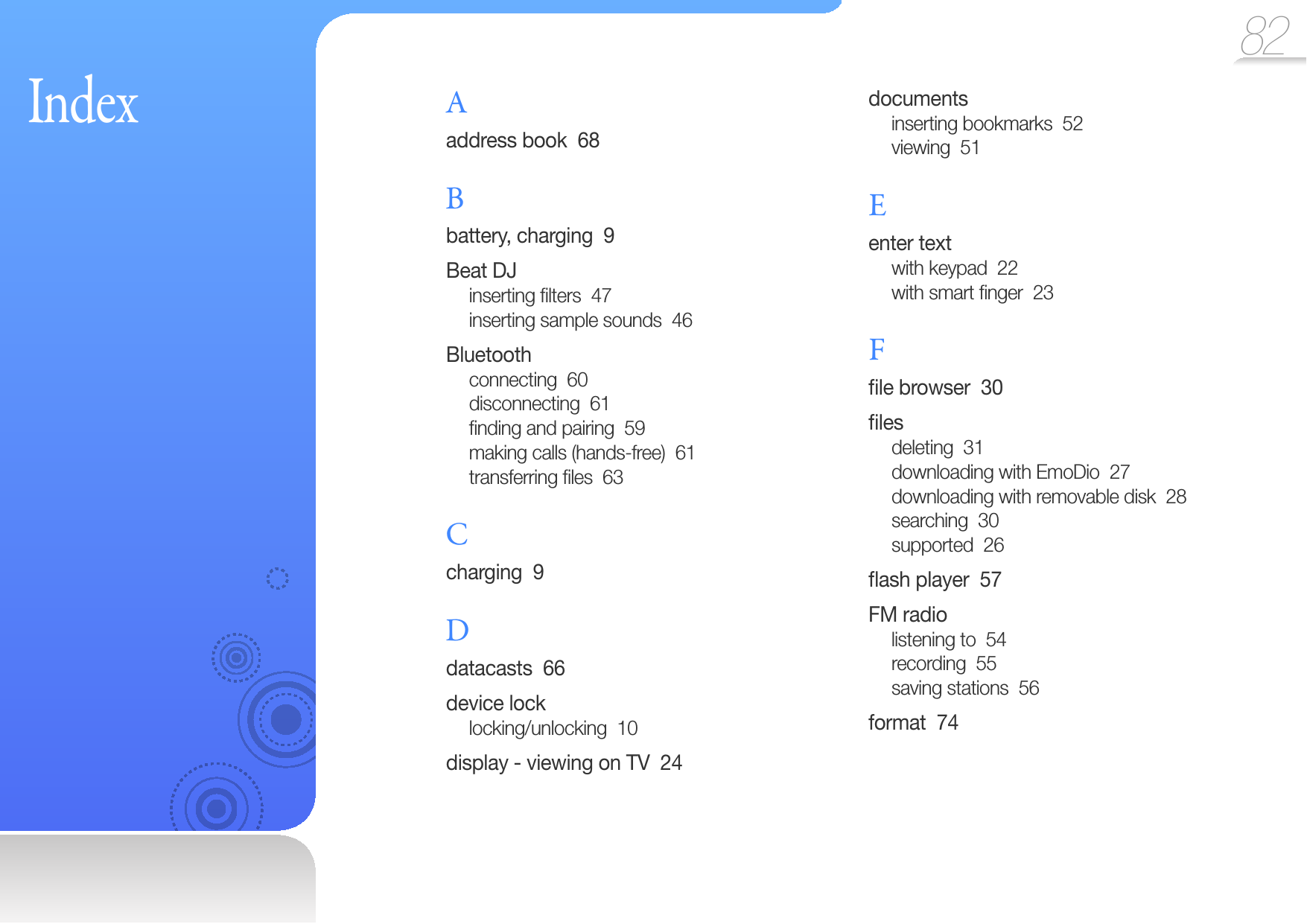

82 IndexAaddress book 68Bbattery, charging 9Beat DJinserting fi lters 47inserting sample sounds 46Bluetoothconnecting 60disconnecting 61fi nding and pairing 59making calls (hands-free) 61transferring fi les 63Ccharging 9Ddatacasts 66device locklocking/unlocking 10display - viewing on TV 24documentsinserting bookmarks 52viewing 51Eenter textwith keypad 22with smart fi nger 23Ffi le browser 30fi lesdeleting 31downloading with EmoDio 27downloading with removable disk 28searching 30supported 26fl ash player 57FM radiolistening to 54recording 55saving stations 56format 74
Appendix>Index 83Ggames 58Iimage viewer 49Llibrary update 74Mmain menuchanging style 14changing wallpaper 14organizing favorite menus 15menu tray 20mini player 21musiccreating playlists 42playing 38repeating section of track 40searching for fi les 42PPC requirements 26photosviewing 49viewing slideshows 49Qquick tray 20RrecordingFM radio 55voice 67removable disk 28reset hole 8RSS reader 66Ssettingsdisplay 72language 73sound 72system 73subway map 69Ttext viewerinserting bookmarks 52vieiwng documents 51touch screendragging 12tapping 12TV out 24Vvideosinserting bookmarks 36playing 33playing from clip 35voice recorder 67volume key 8Wwidgetsaccessing widget list 18adding to main menu screen 17
84 WARRANTYSamsung warrants this product as free of defects in material, design and workmanship for a period of twelve (12) months from the original date of purchase.If during the period of warranty this product proves defective under normal use and service, you should return the product to the retailer from whom it was originally purchased.The liability of Samsung and its appointed maintenance company is limited to the cost of repair and/or replacement of the unit under warranty.Return of the product for defective reasons should be to the original purchaser; however, Samsung Authorized Dealers and Authorized Service Centers will comply with the warranty on the terms issued to purchasers in the country concerned. For further information relating to the Authorized Service Centers contact; 1-800-SAMSUNG (1-800-726-7864).www.samsung.com/usWARRANTY CONDITIONS:1. The warranty is only valid when the warranty card is properly completed, and upon presentation of the proof of purchase consisting of original invoice or sales slip confi rmation, indicating the date of purchase, dealer’s name, model, serial No. and product number.Samsung reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the product from the dealer.2. Samsung’s obligations are to the repair of the defective part, and at its discretion, replacement of the product (service exchange unit).3. Warranty repairs must be carried out by an Authorized Samsung Dealer/Service Center. No reimbursement will be made for repairs carried out by non Samsung Centers, and warranty coverage will not be valid for any repairs or damage caused by such repairs.
Appendix>WARRANTY 856. This warranty does not affect the consumer’s statutory rights nor the consumers rights against the dealer from their purchase/sales agreement.THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG, SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE.WITHOUT LIMITING THE FOREGOING,PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG.THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.4. Repair or replacement under the terms of this warranty does not give right to extension to or a new starting of the period of warranty. Repair or direct replacement under the terms of this warranty may be fulfi lled with functionally equivalent service exchange units.5. The warranty is not applicable in cases other than defects in material, design and workmanship.The warranty does not cover the following: Periodic checks, maintenance, repair and replacement of parts due to -normal wear and tear.Abuse or misuse, including but not solely limited to the failure to use -this product for its normal purposed or in accordance with Samsung’s instructions usage and maintenance.Use of the product in conjunction with accessories not approved by -Samsung for use with this product.Failure of the product arising from incorrect installation or use not -consistent with technical or safety standardsin current force, or failure to comply with productmanual instructions.Accidents, Acts of God or any cause beyond the control of Samsung -caused by lightning, water, fi re, public disturbances and improper ventilation.Unauthorized modifi cations carried out for the product to comply -with local or national technical standards in countries for which the Samsung product was not originally designed.Repairs performed by non-authorized service centers such as opening -of the product by a non-authorized person.The model, serial No. and product number on the product has been -altered, deleted, removed or made illegible.
Appendix>WARRANTY 86Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state.This product is for personal use only, and is only for use in compliance with the limitations of copyright and other laws.To obtain warranty service, please contact SAMSUNG at: Samsung Electronics America, Inc. 400 Valley Road, Suite 201 Mount Arlington, NJ 07856 1-800-SAMSUNG (1-800-726-7864)www.samsung.com/us 081299
87 LICENSEThe product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. In particular, this product is licensed under the following US patents : 5,991,715, 5,740,317, 4,972,484, 5,214,678, 5,323,396, 5,539,829, 5,606,618, 5,530,655, 5,777,992, 6,289,308, 5,610,985, 5,481,643, 5,544,247, 5,960,037, 6,023,490, 5,878,080, and under US Published Patent Application No. 2001-44713-A1.This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio fi les conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.“Protected by U.S. patents of Immersion Corporation.A list of applicable patents can be found on Immersion’s website at www.immersion.com.”
88 So ware LicenseLicense for software used in this productThis product has software released under the GPL and LGPL. The source codes for software below will be available to all users. For getting the source codes, send an email at mp3.sec@samsung.com.GPL software LGPL software-Linux Kernel, Busybox -SDLGNU GENERAL PUBLIC LICENSEVersion 2, June 1991Copyright (C)1989, 1991 Free SoftwareFoundation, Inc.51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USAEveryone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.PreambleThe licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.
Appendix>So ware License 89TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public license.The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or aportion of it, either verbatim or with modifi cations and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modifi cation".) Each licensee is addressed as "you".Activities other than copying, distribution and modifi cation are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give anyother recipients of the Program a copy of this License along with the Program.You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have.You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.Also, for each author's protection and ours, we want to make certain that everyone understands that there is nowarranty for this free software. If the software is modifi ed by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not refl ect on the original authors' reputations.Finally, any free program is threatened constantly by software patents.We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.The precise terms and conditions for copying, distribution and modifi cation follow.We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.
Appendix>So ware License 90Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-read able copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection above.)2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifi cations or work under the terms of Section 1 above, provided that you also meet all of these conditions:a) You must cause the modifi ed fi les to carry prominent notices stating that you changed the fi les and the date of any change.b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.c) If the modifi ed program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)These requirements apply to the modifi ed work as a whole.If identifi able sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Appendix>So ware License 916. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.The source code for a work means the preferred form of the work for making modifi cations to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface defi nition fi les, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works.These actions are prohibited by law if you do not accept this License.Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.
Appendix>So ware License 92NO WARRANTY11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITINGWILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.8. If the distribution and/or use of the Program is restricted incertain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.Each version is given a distinguishing version number. If the Program specifi es a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.
Appendix>So ware License 93Also add information on how to contact you by electronic and paper mail.If the program is interactive, make it output a short notice like this when it starts in an interactive mode:Gnomovision version 69, Copyright (C) year name of authorGnomovision comes with ABSOLUTELY NO WARRANTY; for details type `show w'. This is free software, and you are welcome to redistribute it under certain conditions; type `show c' for details.The hypothetical commands `show w' and `show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than `show w' and `show c'; they could even be mouse-clicks or menu items--whatever suits your program.You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary. Here is a sample; alter the names:Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision' (which makes passes at compilers) written by James Hacker.Signature of Ty Coon, 1 april 1989Ty Coon, President of ViceThis General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License.END OF TERMS AND CONDITIONSHow to Apply These Terms to Your New ProgramsIf you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.To do so, attach the following notices to the program. It is safest to attach them to the start of each source fi le to most effectively convey the exclusion of warranty; and each fi le should have at least the "copyright" line and a pointer to where the full notice is found.one line to give the program's name and a brief idea of what it does.Copyright (C) yyyy name of authorThis program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.This program is distributed in the hope that it will beuseful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.You should have received a copy of the GNU General Public License along with this program; if not, write to the free software foundation, lnc 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.
Appendix>So ware License 94To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object fi les to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modifi ed by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specifi ed in this license.Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.GNU LESSER GENERAL PUBLIC LICENSEVersion 2.1, February 1999Copyright (C) 1991, 1999 Free Software Foundation, Inc.51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USAEveryone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.This is the fi rst released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.PreambleThe licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you fi rst think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

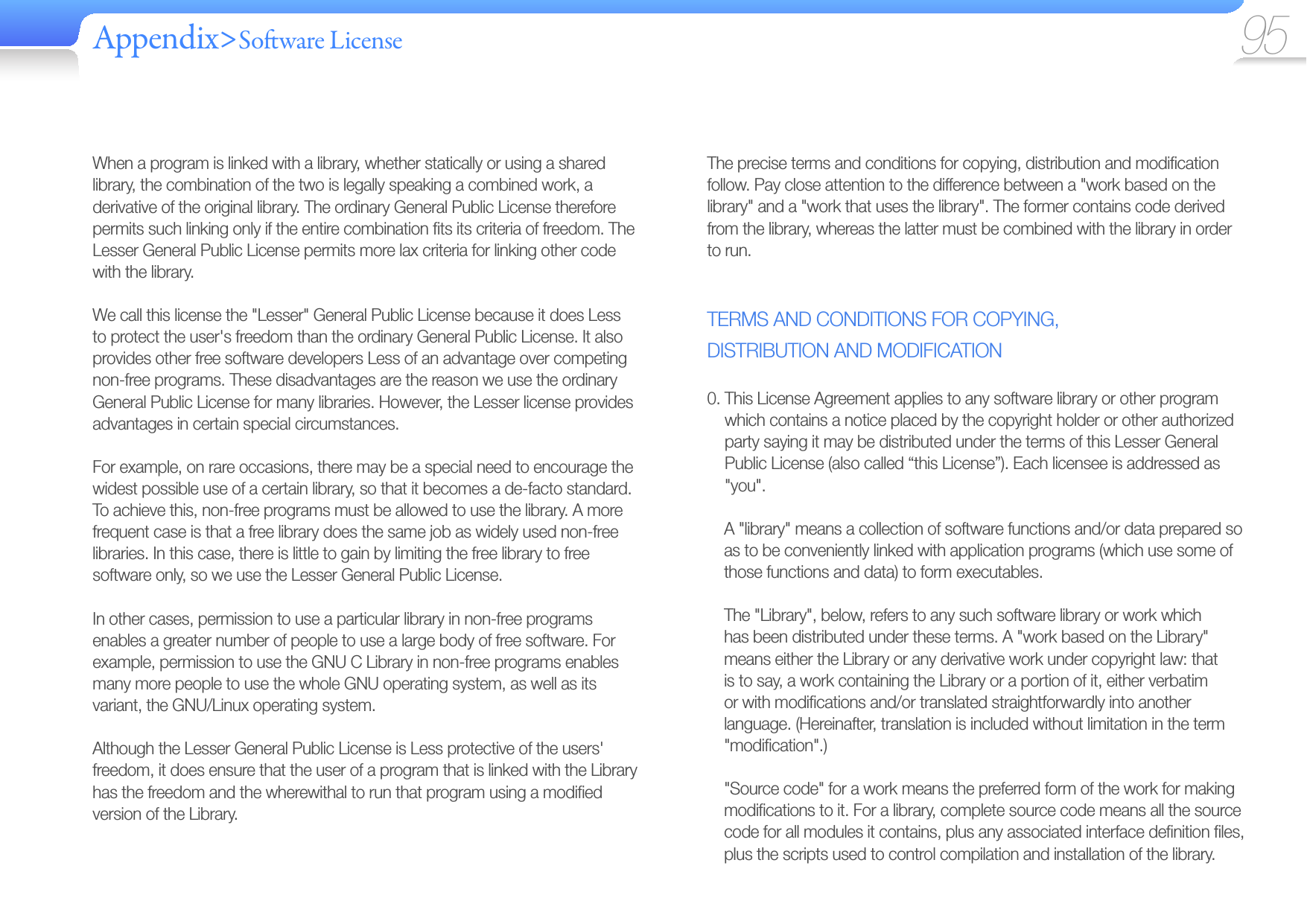

Appendix>So ware License 95The precise terms and conditions for copying, distribution and modifi cation follow. Pay close attention to the difference between a "work based on the library" and a "work that uses the library". The former contains code derived from the library, whereas the latter must be combined with the library in order to run.TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called “this License”). Each licensee is addressed as "you".A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.The "Library", below, refers to any such software library or work which has been distributed under these terms. A "work based on the Library" means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifi cations and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term "modifi cation".)"Source code" for a work means the preferred form of the work for making modifi cations to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface defi nition fi les, plus the scripts used to control compilation and installation of the library.When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fi ts its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library.We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modifi ed version of the Library.
Appendix>So ware License 96d) If a facility in the modifi ed Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.(For example, a function in a library to compute square roots has a purpose that is entirely well-defi ned independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)These requirements apply to the modifi ed work as a whole. If identifi able sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.Activities other than copying, distribution and modifi cation are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.1. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifi cations or work under the terms of Section 1 above, provided that you also meet all of these conditions:a) The modifi ed work must itself be a software library.b) You must cause the fi les modifi ed to carry prominent notices stating that you changed the fi les and the date of any change.c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.
Appendix>So ware License 97However, linking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a "work that uses the library". The executable is therefore covered by this License.Section 6 states terms for distribution of such executables.When a "work that uses the Library" uses material from a header fi le that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not.Whether this is true is especially signifi cant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defi ned by law.If such an object fi le uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object fi le is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.6. As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modifi cation of the work for the customer's own use and reverse engineering for debugging such modifi cations.3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.Once this change is made in a given copy, it is irreversible forthat copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.This option is useful when you wish to copy part of the code of the Library into a program that is not a library.4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfi es the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.
Appendix>So ware License 98e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.For an executable, the required form of the "work that uses the Library" must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to fi nd the accompanying uncombined form of the same work.You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things:a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable "work that uses the Library", as object code and/or source code, so that the user can modify the Library and then relink to produce a modifi ed executable containing the modifi ed Library. (It is understood that the user who changes the contents of defi nitions fi les in the Library will not necessarily be able to recompile the application to use the modifi ed defi nitions.)b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modifi ed version of the library, if the user installs one, as long as the modifi ed version is interface-compatible with the version that the work was made with.c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specifi ed in Subsection 6a, above, for a charge no more than the cost of performing this distribution.d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specifi ed materials from the same place.
Appendix>So ware License 99If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time.Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted hereinyou You are not responsible for enforcing compliance by third parties with this License.11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.
Appendix>So ware License 10016. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.END OF TERMS AND CONDITIONSHow to Apply These Terms to Your New LibrariesIf you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).To apply these terms, attach the following notices to the library. It issafest to attach them to the start of each source fi le to most effectively convey the exclusion of warranty; and each fi le should have at least the "copyright" line and a pointer to where the full notice is found.One line to give the library's name and a brief idea of what it does.Copyright (C) year name of authorEach version is given a distinguishing version number. If the Library specifi es a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.NO WARRANTY15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW.EXCEPT WHEN OTHERWISE STATED IN WRITING THE LIBRARY HOLDERS AND/OR OTHER PARTIES PROVIDE THE "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
Appendix>So ware License 101This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version.This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USAAlso add information on how to contact you by electronic and paper mail.You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the library, if necessary. Here is a sample; alter the names:Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob' (a library for tweaking knobs) written by James Random Hacker.Signature of Ty Coon, 1 April 1990Ty Coon, President of ViceLIBJPEG LICENSE AGREEMENTThis software is based in part on the work of the Independent JPEG Group.
QUESTIONS OR COMMENTS?COUNTRY CALL OR VISIT US ONLINE AT WRITEIN THE US 800-SAMSUNG(800-726-7864) www.samsung.com/usSamsung Electronics America, Inc.105 Challenger RoadRidgefi eld Park, NJ 07660-0511REV 1.0Halogen Free ProductSamsung's Halogen Free Product means that an environmental friendly product does not contain Chlorine, Bromine Flame Retardants and PVC (poly vinyl chloride) material based on the IEC 61249-2-21 standard. This product also complies with EU RoHS Directive, which restricts the use of certain Hazardous Substances - Cadmium (Cd), Lead (Pb), Mercury (Hg), Hexavalent Chromium (Cr+6) as well.
