Samsung SDS SAM-CRM-14 SMART VALIDATOR User Manual

SMART CARD READER/WRITER

SAM-CRM-14

System Manual Ver 1.2

SAM-CRM-14_MANUAL

Rev. 1.2

Dec. 05, 2013

this document in part or as a whole for any purposes other than those for which this document is disclosed. This document is

copyrighted and contains confidential information and other intellectual property rights of Samsung SDS Co., Ltd. Any

unauthorized use, copy, disclosure or distribution constitutes infringement of Samsung SDS’ intellectual property rights.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm between the radiator &

your body.

System Manual – SAM-OCU-14 – 2013.12.05

- 1 -

Revision History

Document Name

Smart Card Reader/Writer System Manual

Version

Date

Notice

Writer

0.1

1.0

1.1

1.2

2013.06.20

2013.11.17

2013.11.18

2013.12.05

Draft

Revision

Revision & Translation

Revision

Kihyun, Kim

Dalyoung, Kim

Kihyun, Kim

Dalyoung, Kim

System Manual – SAM-OCU-14 – 2013.12.05

- 2 -

System Manual – SAM-OCU-14 – 2013.12.05

- 3 -

목 차

Table of Contents

1 OVERVIEW .............................................................................................................................................. - 6 -

1.1 GENERAL DESCRIPTION ....................................................................................................................... - 6 -

1.2 OUTSIDE DIMENSION ........................................................................................................................... - 7 -

1.3 SYSTEM CONFIGURATION .................................................................................................................... - 8 -

1.3.1 Block Diagram ............................................................................................................................ - 8 -

1.4 GENERAL SPECIFICATION ..................................................................................................................... - 9 -

2 MODULE CONFIGURATION ............................................................................................................. - 10 -

2.1 CPU MODULE .................................................................................................................................... - 10 -

2.1.1 General Description .................................................................................................................. - 10 -

2.1.2 Block diagram ........................................................................................................................... - 11 -

2.2 BASE BOARD MODULE ........................................................................................................................ - 12 -

2.2.1 General Description .................................................................................................................. - 12 -

2.2.2 Layout of Base board module .................................................................................................... - 12 -

2.2.3 Wi-Fi/Bluetooth module ............................................................................................................ - 13 -

2.2.4 GPS module ............................................................................................................................... - 13 -

2.3 CARD READER/WRITER ..................................................................................................................... - 14 -

2.3.1 General Description .................................................................................................................. - 14 -

2.3.2 Specification .............................................................................................................................. - 14 -

2.4 TOUCH SCREEN DISPLAY ................................................................................................................... - 16 -

2.4.1 General Description .................................................................................................................. - 16 -

2.4.2 Layout........................................................................................................................................ - 16 -

2.4.3 LCD display specification ......................................................................................................... - 17 -

2.4.4 Touch panel specification .......................................................................................................... - 18 -

2.5 BARCODE READER ............................................................................................................................. - 19 -

2.5.1 General Description .................................................................................................................. - 19 -

2.5.2 Layout........................................................................................................................................ - 19 -

2.5.3 Specification .............................................................................................................................. - 19 -

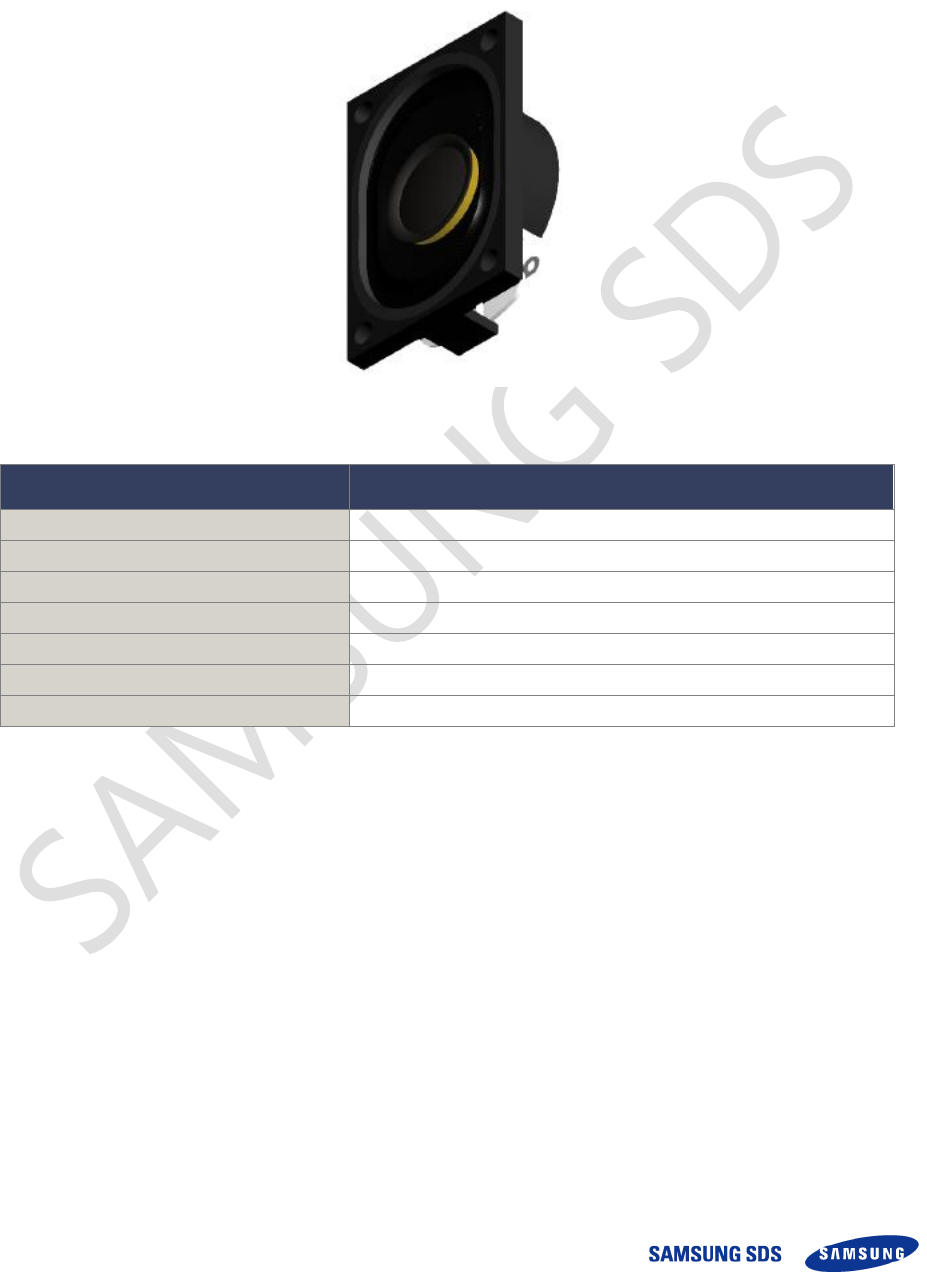

2.6 SPEAKER ............................................................................................................................................ - 20 -

2.6.1 General Description .................................................................................................................. - 20 -

2.7 CONNECTOR AND POWER SWITCH ...................................................................................................... - 21 -

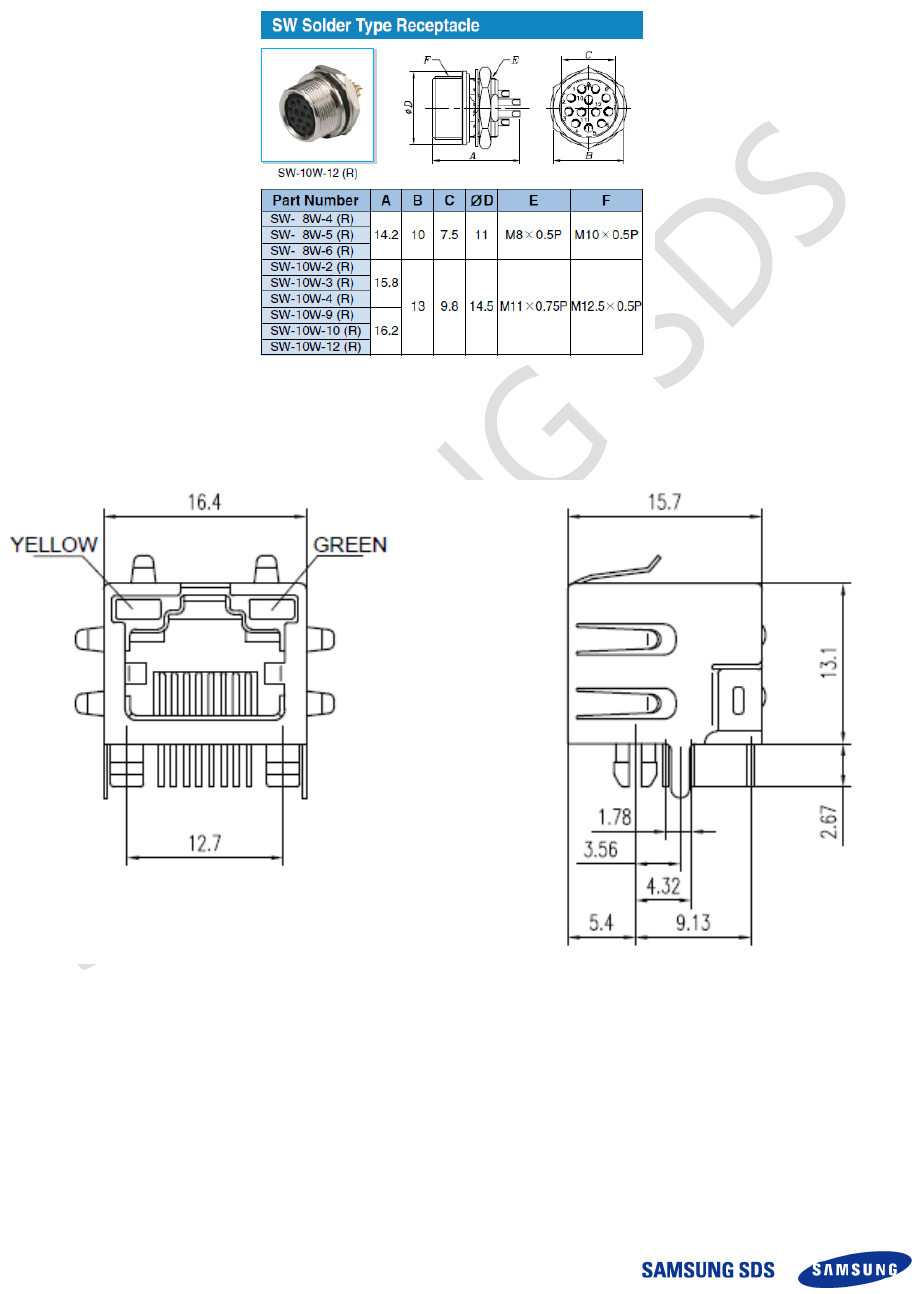

2.7.1 Signal & Power connector ........................................................................................................ - 21 -

2.7.2 LAN connector .......................................................................................................................... - 21 -

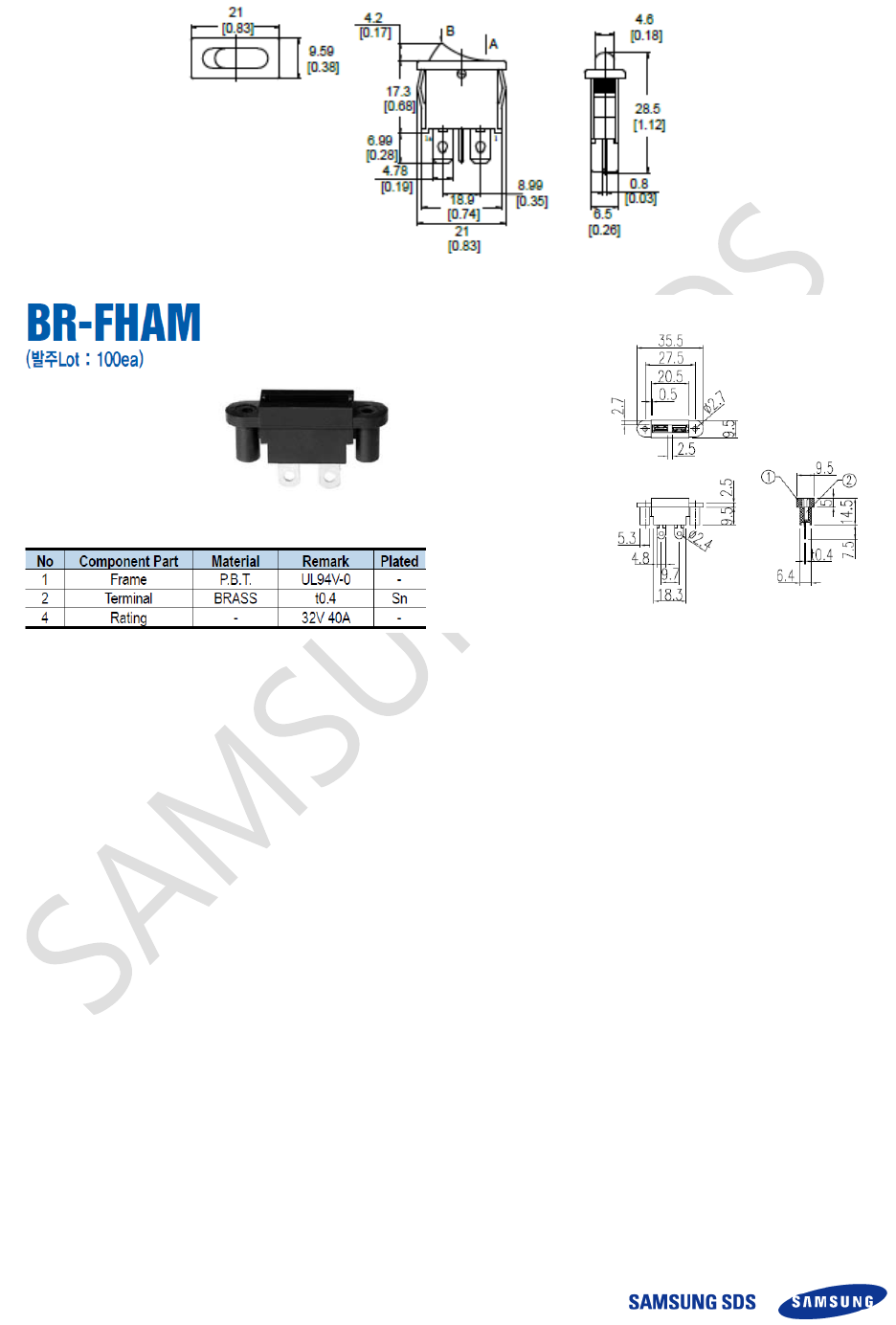

2.7.3 Power switch & Fuse holder ..................................................................................................... - 22 -

2.8 CONNECTION DIAGRAM ..................................................................................................................... - 23 -

System Manual – SAM-OCU-14 – 2013.12.05

- 4 -

2.8.1 Rear Cover connector – PWR ................................................................................................... - 24 -

2.8.2 Rear Cover connector – SIGNAL_1 .......................................................................................... - 24 -

2.8.3 Rear Cover connector – SIGNAL_2 .......................................................................................... - 25 -

2.8.4 Rear Cover connector – DIO .................................................................................................... - 25 -

2.9 OPERATION & USAGE ........................................................................................................................ - 26 -

System Manual – SAM-OCU-14 – 2013.12.05

- 5 -

List of Tables

TABLE 1 GENERAL SPECIFICATION ....................................................................................................................... - 9 -

TABLE 2 SPECIFICATION OF GPS MODULE .......................................................................................................... - 13 -

TABLE 3 SPECIFICATION OF CARD READER/WRITER ........................................................................................... - 15 -

TABLE 4 SPECIFICATION OF LCD DISPLAY ......................................................................................................... - 18 -

TABLE 5 SPECIFICATION OF TOUCH PANEL ......................................................................................................... - 18 -

TABLE 6 SPECIFICATION OF BARCODE READER .................................................................................................. - 19 -

TABLE 7 SPECIFICATION OF SPEAKER ................................................................................................................. - 20 -

TABLE 8 SPECIFICATION OF PWR CONNECTOR ................................................................................................... - 20 -

TABLE 9 SPECIFICATION OF SIGNAL_1 CONNECTOR........................................................................................... - 20 -

TABLE 10 SPECIFICATION OF SIGNAL_2 CONNECTOR ........................................................................................ - 20 -

TABLE 11 SPECIFICATION OF DIO CONNECTOR................................................................................................... - 20 -

List of Figures

FIGURE 1 DRAWING OF VALIDATOR ...................................................................................................................... - 6 -

FIGURE 2 OUTSIDE DIMENSION ............................................................................................................................ - 7 -

FIGURE 3 VALIDATOR BLOCK DIAGRAM .............................................................................................................. - 8 -

FIGURE 4 BLOCK DIAGRAM OF CPU MODULE ................................................................................................... - 11 -

FIGURE 5 TOP LAYOUT OF BASE BOARD MODULE (EXAMPLE) ........................................................................... - 12 -

FIGURE 6 BOTTOM LAYOUT OF BASE BOARD MODULE (EXAMPLE) .................................................................... - 12 -

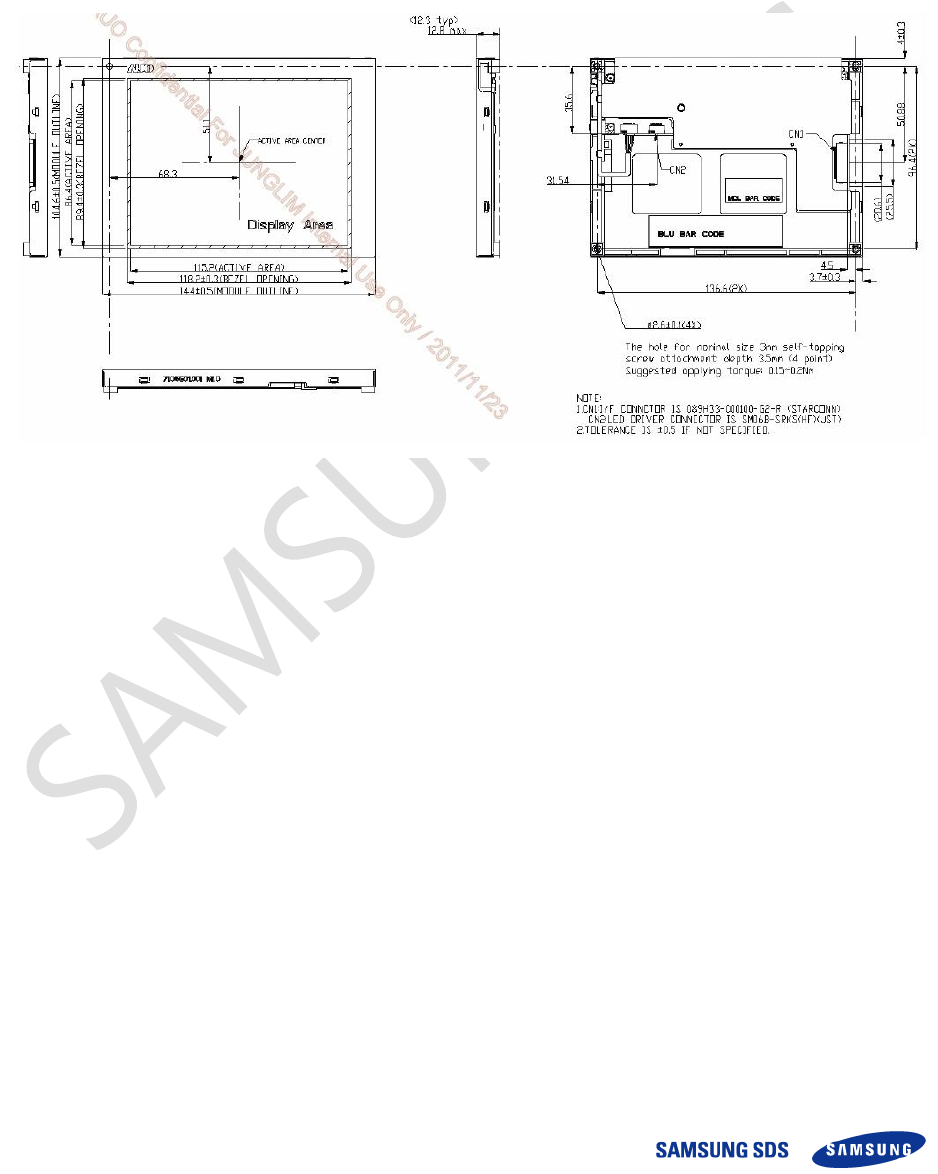

FIGURE 7 LAYOUT OF LCD DISPLAY .................................................................................................................. - 16 -

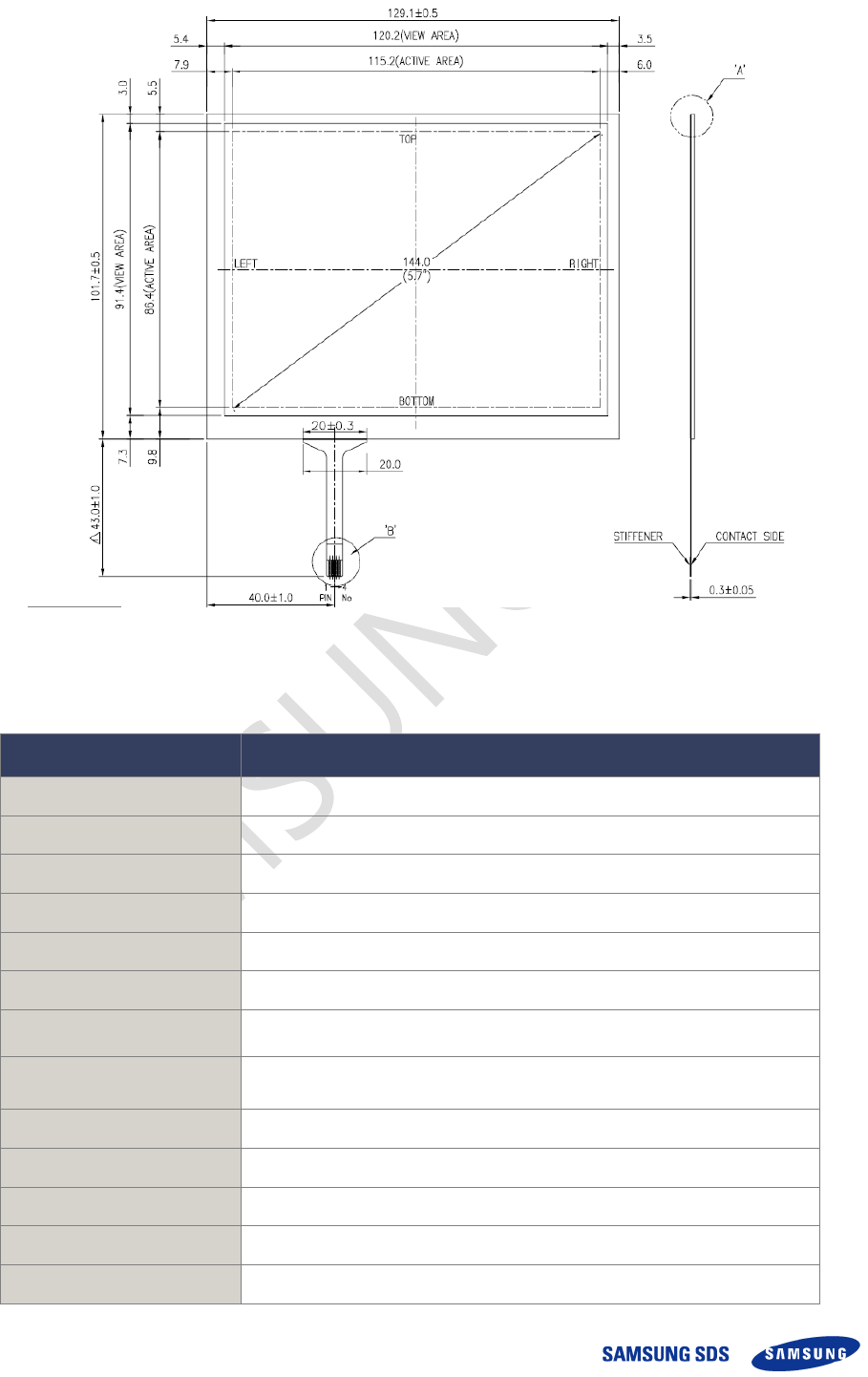

FIGURE 8 LAYOUT OF TOUCH PANEL .................................................................................................................. - 17 -

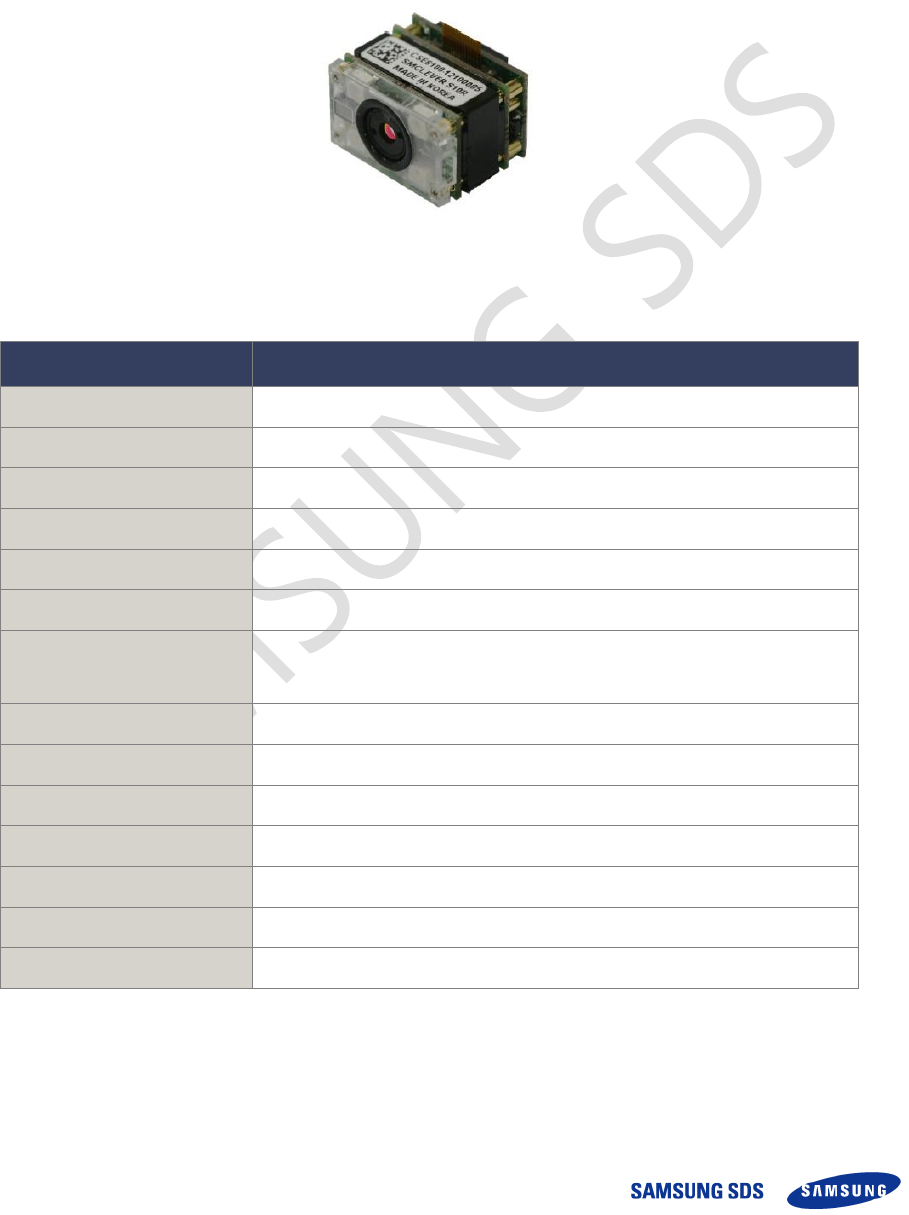

FIGURE 9 LAYOUT OF BARCODE READER ........................................................................................................... - 19 -

FIGURE 10 LAYOUT OF SPEAKER ........................................................................................................................ - 20 -

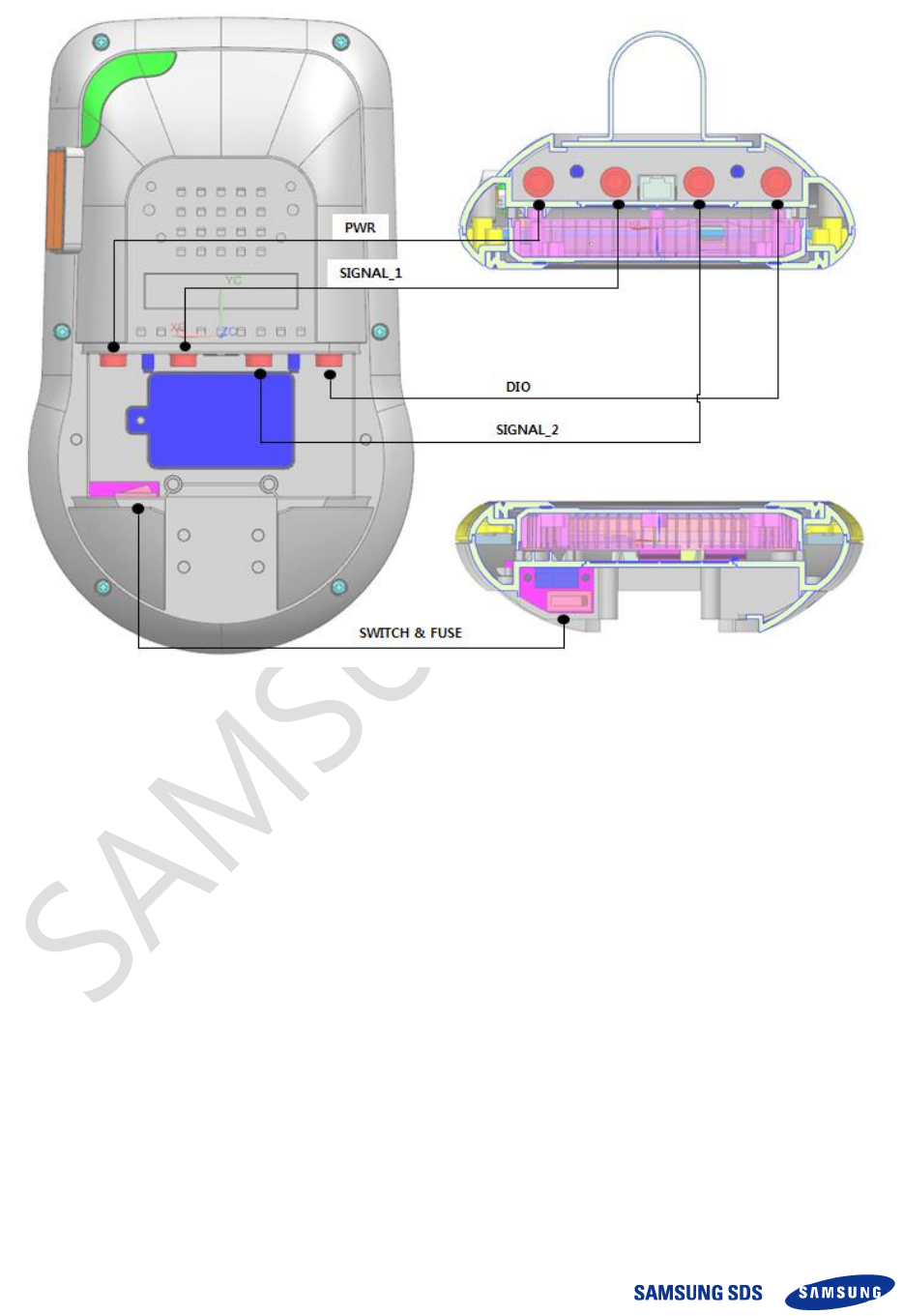

FIGURE 11 CONNECTOR LAYOUT OF REAR COVER ............................................................................................ - 23 -

FIGURE 12 LED CONFIGURATION OF REAR COVER ............................................................................................. - 26 -

FIGURE 13 LED OF CARD PROCESSING .............................................................................................................. - 26 -

System Manual – SAM-OCU-14 – 2013.12.05

- 6 -

1 Overview

1.1 General Description

The validator is installed on the bus and has a role of fare collection. It has a RF card

reader/writer which comply the EMV standard and ISO 14443 Type A. The validator has a

5.7” touch screen display for passenger interface.

It is compatible to a peripheral device through a multiple external interface such as Wi-Fi,

Bluetooth and etc.

This document informs and defines each module and specification of validator.

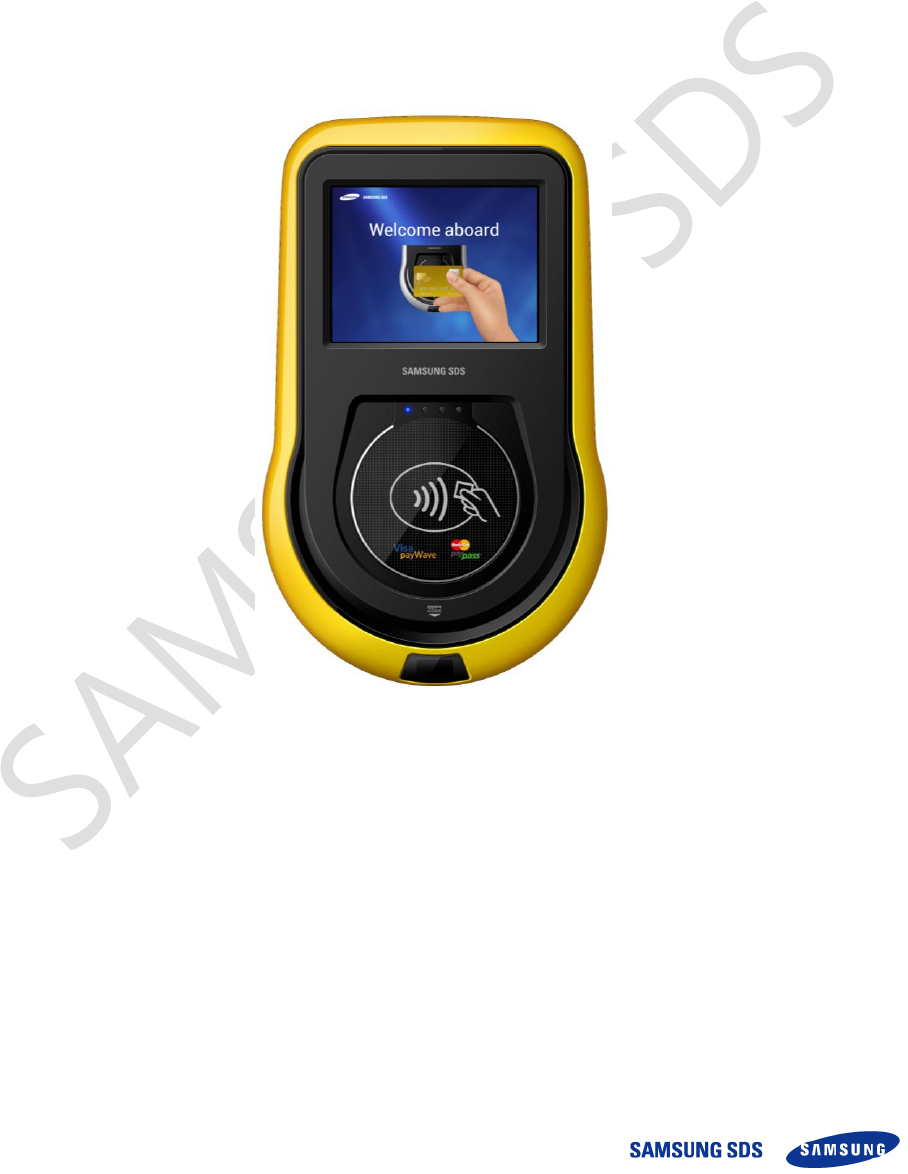

Figure 1 Drawing of validator

System Manual – SAM-OCU-14 – 2013.12.05

- 7 -

1.2 Outside Dimension

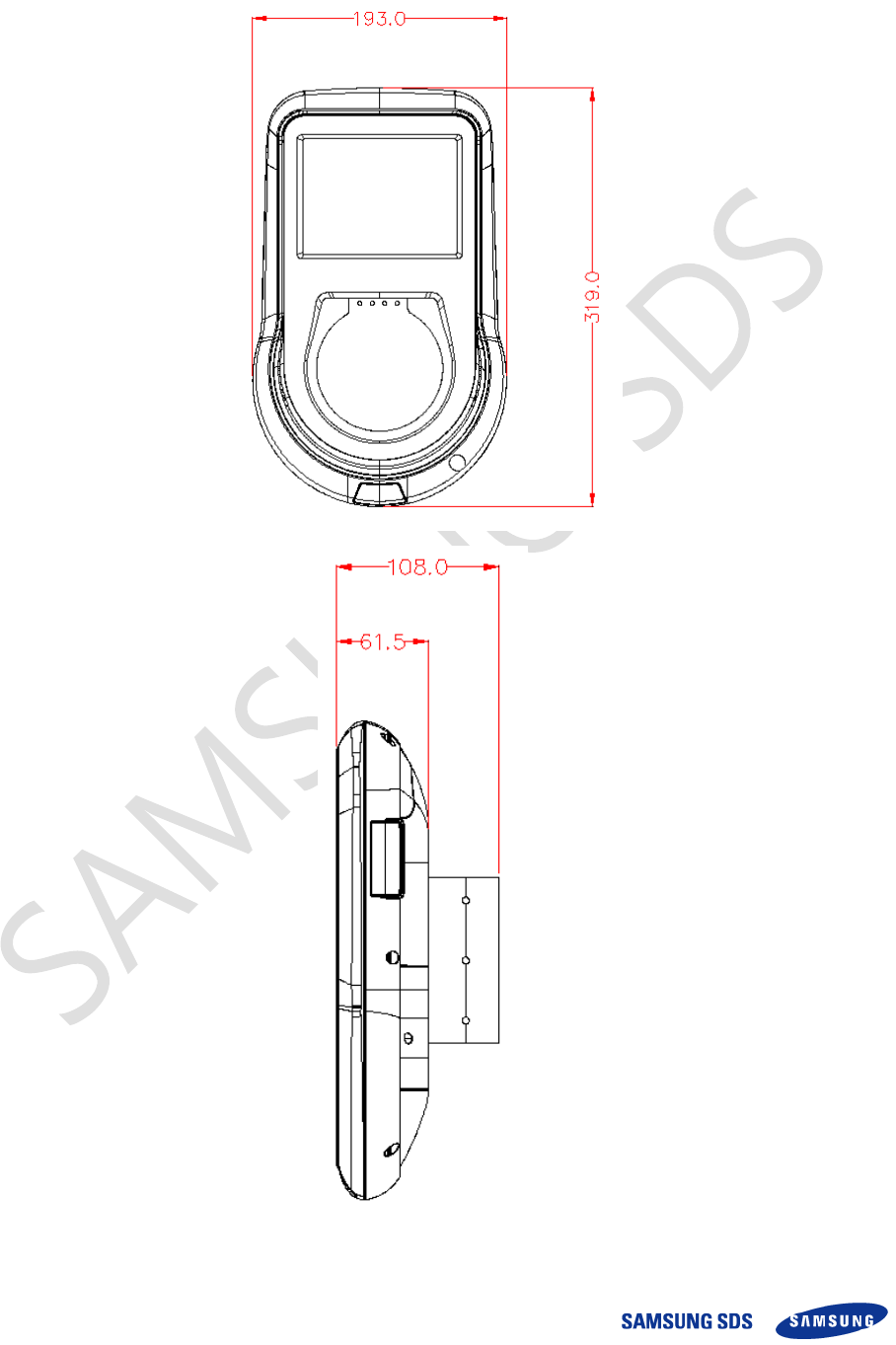

Figure 2 Outside dimension

System Manual – SAM-OCU-14 – 2013.12.05

- 8 -

1.3 System Configuration

1.3.1 Block Diagram

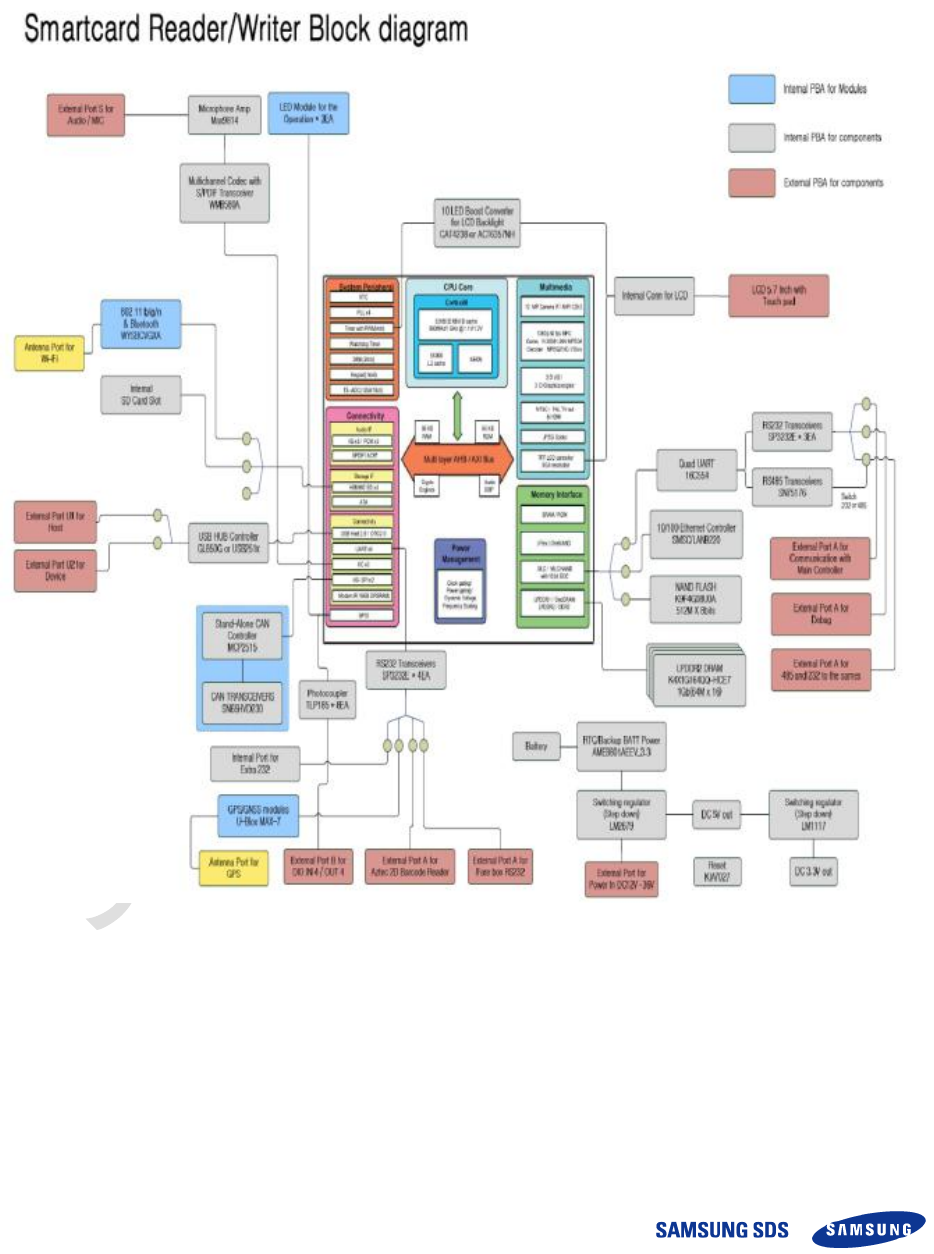

The following figure is the validator block diagram.

Figure 3 Validator Block Diagram

System Manual – SAM-OCU-14 – 2013.12.05

- 9 -

1.4 General Specification

The table below shows the general specifications of the validator.

System

Item

Specification

Enclosure

Dimension(mm)

193.0(W) * 319.0(H) * 61.5(D)

Material

Outside steel of enclosure :

Material: PC-ABS

CPU Module

Processor

Samsung S5PV210, Cortex-A8 1GHz

Memory

RAM: 512MB, NAND Flash: 512MB

OS

ANDROID 4.0

Base Board Module

WiFi/Bluetooth Module

IEEE802.11b/g/n, Bluetooth 3.0+HS

GPS module

GPS RX Sensitivity: -164dBm

GPS Accuracy: 3m

Card Reader/Writer

CPU

STM32F417Zxx, ARM Cortex-M4

Program Memory

1024KBytes Flash Memory

Data Memory

192KBytes SRAM + BACK UP(4KBytes)

SRAM

512KBytes (model : CS18LV40963ECR70)

Display

LED for Display – 4EA (Green, Blue, Red, Yellow)

LED for Debug – 1EA (Red)

LED for Power – 2EA (Red)

Communication

RS232 * 2

RF I/F

PN512

SIC9310

RC-S940

Standard

ISO14443 A/B, FeliCa, Mifare, ISO15693

Input Power

12V, 300mA

SAM

SIM socket 8EA

Barcode Reader

Image Sensor

CMOS Sensor, Max. 752*480, 8-bit grayscale

Target Distance

5~32.5Cm: Depends on code size

Symbologies

1/2 Dimensional

Touch screen display

5.7 inch

Resolution: 640 * 3(RGB) * 480

Touch method: 4-wire resistive

External Interface

USB 2.0 Host * 1

LAN * 1

RS232/485 * 2

CAN interface * 1

Antenna port *2

Speaker

Rated Input Power

1W, 8ohm

Power

Input voltage (V)

24 VDC

Table 1 General specification

System Manual – SAM-OCU-14 – 2013.12.05

- 10 -

2 Module Configuration

The configuration of validator is as follows:

 CPU Module

 Base Board Module

 Card Reader/Writer

 Barcode Reader

 Touch Screen Display

 Speaker

2.1 CPU Module

2.1.1 General Description

The CPU Module controls all the sub-modules and processes all the data in the validator.

They have sufficient space for Operating System (OS) and the application data.

CPU Module is assembled with some parts as follows;

- CPU (Samsung S5PV210, Cortex-A8 1GHz)

- RAM (LDDR2 1Gbit *4)

- NAND Flash 512MB

System Manual – SAM-OCU-14 – 2013.12.05

- 11 -

2.1.2 Block diagram

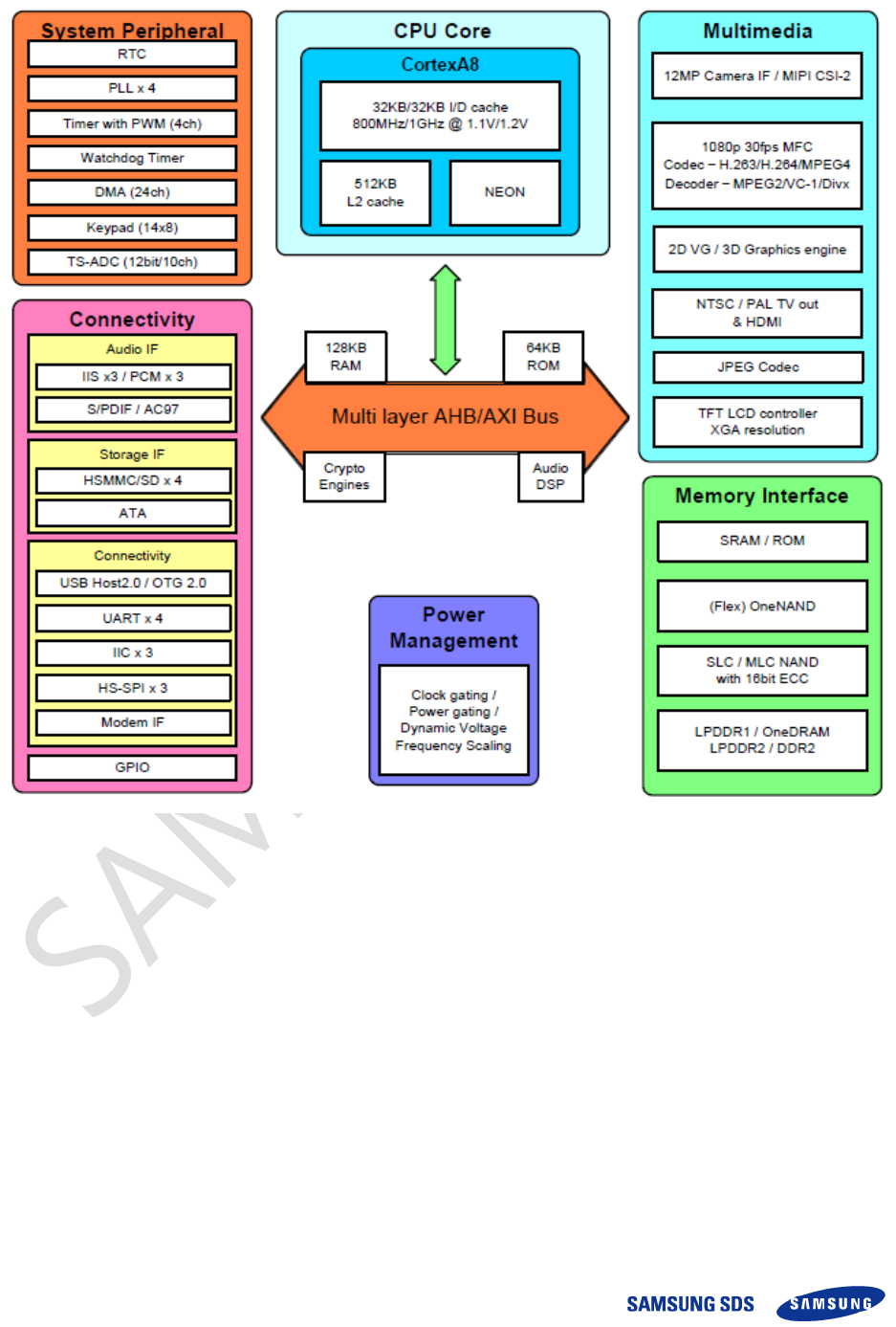

Figure 4 Block diagram of CPU Module

System Manual – SAM-OCU-14 – 2013.12.05

- 12 -

2.2 Base board module

2.2.1 General Description

Base board module performs major functions of validator device controlling. The Wi-Fi/BT

module, CAN module and etc. are installed on the base board.

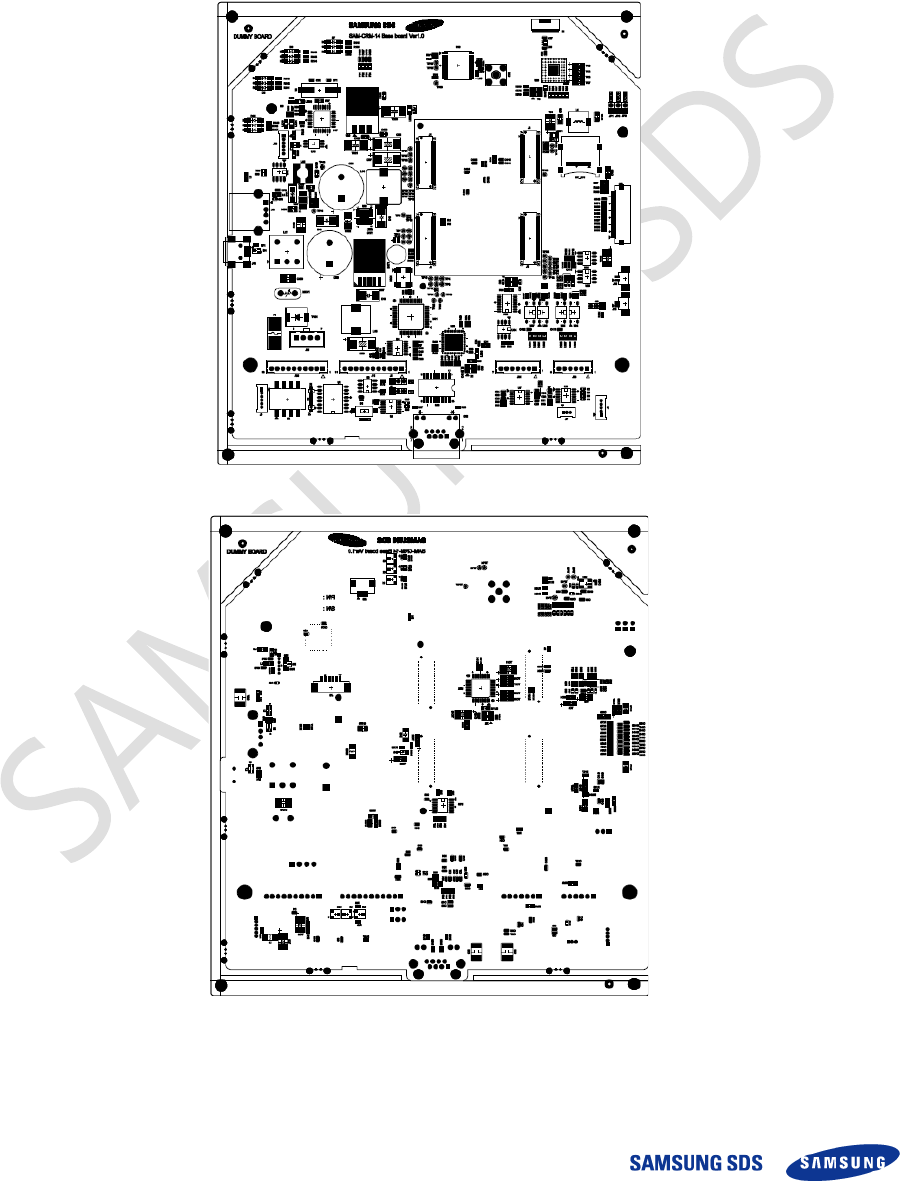

2.2.2 Layout of Base board module

Figure 5 Top Layout of Base board module (Example)

Figure 6 Bottom Layout of Base board module (Example)

System Manual – SAM-OCU-14 – 2013.12.05

- 13 -

2.2.3 Wi-Fi/Bluetooth module

The validator has the Wi-Fi/Bluetooth module to communicate with the server (in the

garage) and peripheral devices. The key features are as below;

 IEEE802.11b/g/n standard conformity, BT3.0,2.1+EDR

 Low standby current (with advanced power save and sleep mode)

 Transmit speed : 11/5.5/2/1 Mbps(11b), 54/48/36/24/18/12/9/6 Mbps(11g),

150~6.5 Mbps (11n)

 Channel Number : 1 to 13 channel (11bg), 79 channel (BT)

 Interface : SDIO

 Built-in EEPROM, 2G-PA, Crystal, BPF

 Security: WEP (64/128), TKIP, AES, WPA/WPA2, WAPI

 Small Outline: 9.0 x 8.8 x 1.35(Max) mm

 Package: Metal case package

 Utilizes 88W8787 IC

 RoHS Conformity

2.2.4 GPS module

The specification of GPS module is as below.

Item

Specification

RX Sensitivity

-164dBm

Cold start autonomous

-147dBm

Hot start autonomous

-161dBm

Tracking mode

-166dBm

Accuracy

3m

TTFF from cold start

42 sec

TTFF from warm start

30 sec

TTFF from hot start

1.8 sec

Table 2 Specification of GPS module

System Manual – SAM-OCU-14 – 2013.12.05

- 14 -

2.3 Card Reader/Writer

2.3.1 General Description

Card Reader/Writer is a high-end RF reader and it is the world first device which supports

all three specification as following, (1) Contactless card spec_Mifare, ISO14443 Standard

A/B, (2)Payment spec_Paywave, Paypass, JSMART, American Express and (3) EMVCo

Type Approval Contact less Level 1 , NFC forum spec complaint.

It also has 8(EA) of SIM slot for secure communication, RS-232(2ea) as interface method.

 Purpose (Use)

It is multi-purpose smartcard reader mainly use for credit card transaction at auto-gate at

subway station or automatic ticket vending machine

 Communication & Operation

It controls credit card transaction by sending command to Host Controller via RS232.

This terminal operates LED and Buzzer of the transaction operating and result.

The operation of LED & Buzzer can be different by each specification (refer to the Paypass,

JSMART, American Express specification for detail information)

 RF interface

Conrtactless card spec_Mifare,

ISO14443 Standard A/B

 SAM interface

It is designed to capable of communicating SAM (ISO 7816 ) by attaching extended parts

for future use.

2.3.2 Specification

System

Item

Specification

Card Reader/Writer

CPU

STM32F417Zxx, ARM Cortex-M4

Program Memory

1024KBytes Flash Memory

Data Memory

192KBytes SRAM + BACK UP(4KBytes)

SRAM

512KBytes (model : CS18LV40963ECR70)

Display

LED for Display – 4EA (Green, Blue, Red, Yellow)

LED for Debug – 1EA (Red)

LED for Power – 2EA (Red)

System Manual – SAM-OCU-14 – 2013.12.05

- 15 -

System

Item

Specification

Communication

RS232 * 2

RF I/F

PN512

SIC9310

RC-S940

Standard

ISO14443 A/B, FeliCa, Mifare, ISO15693

Input Power

12V, 300mA

SAM

SIM socket 8EA

Switch

Case open switch (PCB tamper)

Table 3 Specification of Card reader/writer

System Manual – SAM-OCU-14 – 2013.12.05

- 16 -

2.4 Touch Screen Display

2.4.1 General Description

The Touch screen display is a color graphic touch screen (5.7” inch TFT LCD) that allows

passenger to input their selection. The Touch screen display is positioned ergonomically

for passenger to operate easily.

2.4.2 Layout

Figure 7 Layout of LCD display

System Manual – SAM-OCU-14 – 2013.12.05

- 17 -

Figure 8 Layout of Touch panel

2.4.3 LCD display specification

Item

Specification

Screen Diagonal

5.7 inch

Active Area

115.2(H) x 86.4(V) (mm)

Pixels HxV

640 x 3(RGB) x 480

Pixel Pitch

0.18 x 0.18 (mm)

Pixel Arrangement

R.G.B Vertical Stripe

Display Mode

TN, Normally White

Nominal Input Voltage

VDD

3.3 typ. (Volt)

Typical Power

Consumption

3.74W (LCD:0.5W/LED BLU:3.24W)

@ All black pattern, Full Load and VLED=12V

Weight

150g(typ.), 165g(max.)

Physical Size

144.0(H) x 104.6(V) x 12.3(D)(typ.) (mm)

Electrical Interface

CMOS 6-bit Parallel RGB

Surface Treatment

Anti-Glare, Hardness 3H

Support Color

262K colors

System Manual – SAM-OCU-14 – 2013.12.05

- 18 -

Item

Specification

The most suitable view

angle

12 o’clock

Temperature Range

Operating: -30℃~+85℃

Storage: -30℃~+85℃

RoHS Compliance

Table 4 Specification of LCD Display

2.4.4 Touch panel specification

Item

Specification

Glass THK

1.1mm

Film type

Non-glare

Tail

FPC (Ni+Au)

Method

4-wire resistive touch

Table 5 Specification of Touch panel

System Manual – SAM-OCU-14 – 2013.12.05

- 19 -

2.5 Barcode Reader

2.5.1 General Description

The validator has the barcode reader to read the barcode type ticket (1D or 2D).

2.5.2 Layout

Figure 9 Layout of Barcode reader

2.5.3 Specification

Item

Specification

Image Sensor

CMOS Sensor, Max. 752*480, 8-bit grayscale

Target Distance

5~32.5cm: Depends on code size.

Viewing Angle

Wide ±53º, Standard ±40º

Aiming Pattern

Laser Aiming

Ambient Lighting

Total darkness to full sunlight

Directions

360 º omni-directional

1 Dimensional

Code11, Code32, Code39, Code93, Code128, UPC/JAN/EAN, Codabar,

Interleaved 2 of 5,

STF, RSS14, RSS Limited, RSS Truncated

2 Dimensional

PDF-417, Data Matrix, QR Code (including Chinese QR)

OCR

Application-specific OEM only

Operating Temperature

-10ºC to +50ºC (-14ºF to 122ºF)

Storage Temperature

-20ºC to +60ºC (-4ºF to 140ºF)

Shock

Multiple 4ft/1.2M drop to concrete

Humidity

0 to 95%

Certifications

FCC Class A & CE

Table 6 Specification of Barcode reader

System Manual – SAM-OCU-14 – 2013.12.05

- 20 -

2.6 Speaker

2.6.1 General Description

The speaker is installed in the validator. It makes a sound for driver’s recognition.

Figure 10 Layout of Speaker

Items

Description

Rated Input Power

1.0W (Max. 1.5W)

Impedance

8±15%(Ohm)

Output SPL @ 0.1W/0.1M

87±2dB

Resonant frequency

800±20% Hz

Magnet size (mm)

11.5 * 1.5

Weight

10g

Dimension (mm)

40(W) * 20(H) * 8.2(D)

Table 7 Specification of Speaker

System Manual – SAM-OCU-14 – 2013.12.05

- 21 -

2.7 Connector and Power switch

2.7.1 Signal & Power connector

2.7.2 LAN connector

System Manual – SAM-OCU-14 – 2013.12.05

- 22 -

2.7.3 Power switch & Fuse holder

System Manual – SAM-OCU-14 – 2013.12.05

- 23 -

2.8 Connection Diagram

Figure 11 Connector Layout of Rear Cover

System Manual – SAM-OCU-14 – 2013.12.05

- 24 -

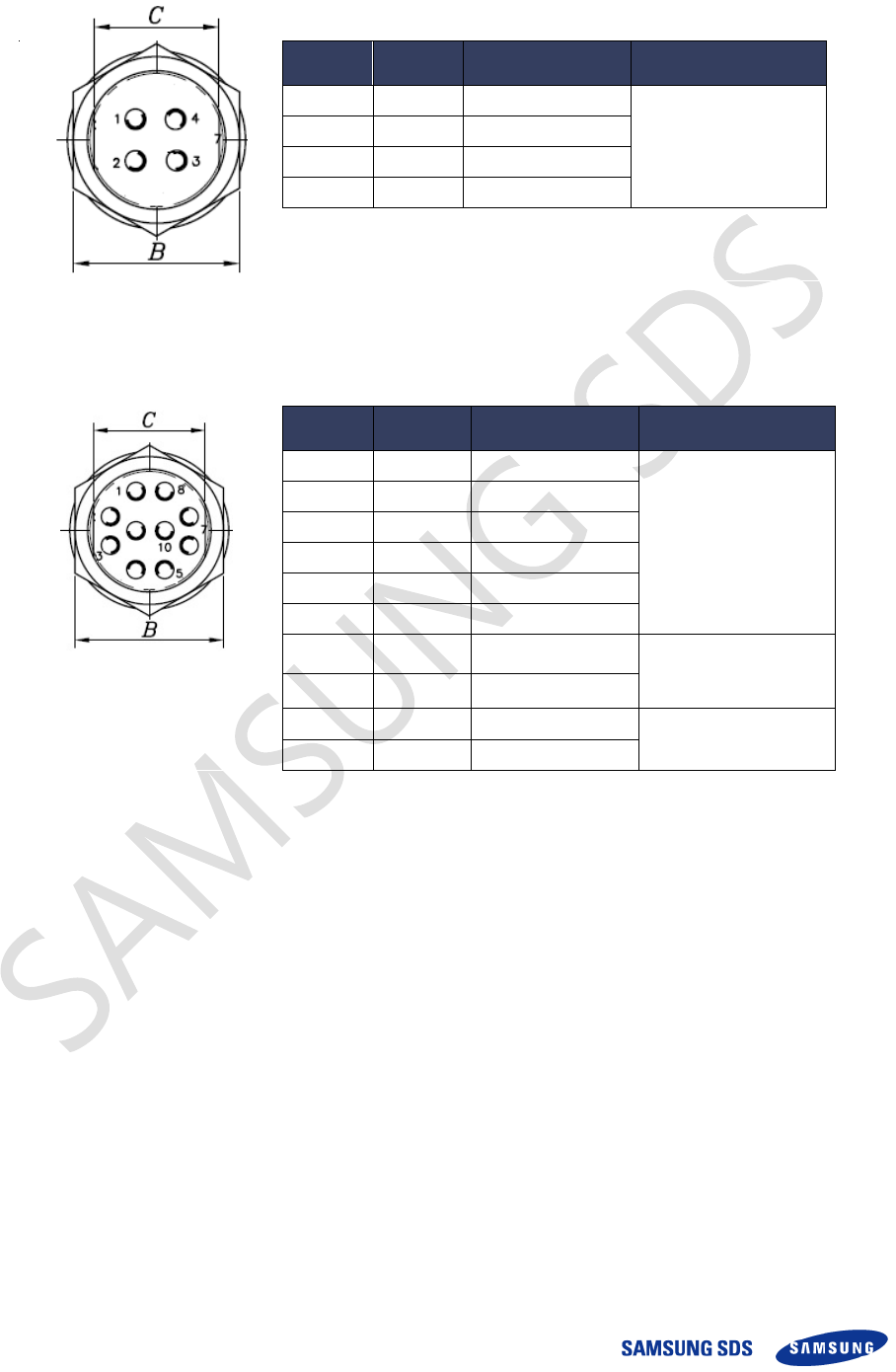

2.8.1 Rear Cover connector – PWR

Pin No

Name

Description

Connector Option

1

PWR

DC_IN

DC POWER IN

24V

2

PWR

DC_IN

3

GND

4

GND

Table 8 Specification of PWR Connector

2.8.2 Rear Cover connector – SIGNAL_1

Pin No

Name

Description

Connector Option

1

RXD

Comm

RS232 Comm

2

TXD

Comm

3

GND

Comm

4

RXD

GND

5

TXD

Comm

6

GND

Comm

7

485_A

Comm

RS 485 Comm

8

485_B

Comm

9

485_A

RS232 & 485

RS232 or 485

(Optional)

10

485_B

RS232 & 485

Table 9 Specification of SIGNAL_1 Connector

System Manual – SAM-OCU-14 – 2013.12.05

- 25 -

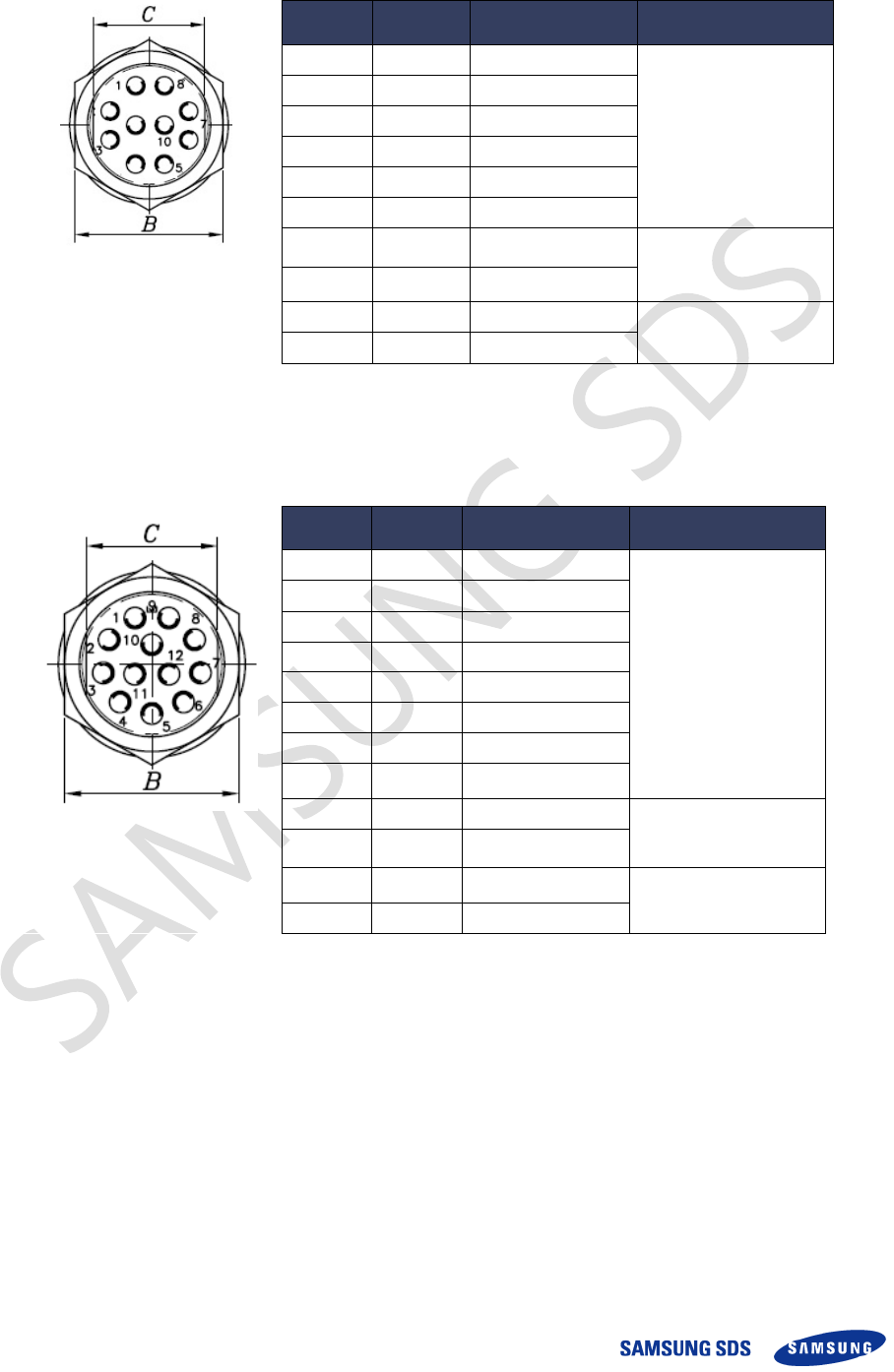

2.8.3 Rear Cover connector – SIGNAL_2

Pin No

Name

Description

Connector Option

1

VDD

DC_OUT 3.3V

RS232 Comm

2

RXD

Comm

3

TXD

Comm

4

GND

5

GND

6

VDD

DC_OUT 5.0V

7

485_A

Comm

RS 485 Comm

8

485_B

Comm

9

485_A

RS232 & 485

RS232 or 485

(Optional)

10

485_B

RS232 & 485

Table 10 Specification of SIGNAL_2 Connector

2.8.4 Rear Cover connector – DIO

Pin No

Name

Description

Connector Option

1

VDD

VDD_IN0

Digital In/Out

2 ports

2

DIO

GPIO_IN0

3

DIO

GPIO_OUT0

4

GND

GND0

5

VDD

VDD_IN1

6

DIO

GPIO_IN1

7

DIO

GPIO_OUT1

8

GND

GND1

9

CANH

CAN Comm

10

CANL

CAN Comm

11

N.C.

12

N.C

Table 11 Specification of DIO Connector

System Manual – SAM-OCU-14 – 2013.12.05

- 26 -

2.9 Operation & Usage

1. Turn on the validator, check the android OS booting by the LCD display. After boot-up, the

operator can use the validator.

2. When the validator turned on, the card r/w makes beep sound 1 time.

3. There are three (3) colors LED (Red, Blue, and Green) on the rear cover. The LED color can

be configured by setting.

Figure 12 LED configuration of rear cover

4. There are four (4) LED on the front cover indicate the card process according to the EMV

process like as below;

- Ready LED (Blue color)

- Process LED (Yellow color)

- Success LED (Green color)

- Error LED (Red color)

Figure 13 LED of Card processing

5. The LCD display has a resistive touch panel for operator to operate the validator by using his

finger.

System Manual – SAM-OCU-14 – 2013.12.05

- 27 -

6. There are USB port and External Micro SD card slot on the right side of validator.

7. There are Digital In/Output port, Serial communication port and LAN (Ethernet) port on the

rear cover of validator. So, it supports variable interface.

8. The validator has audio feedback to support the announcement for passenger.

FCC STATEMENT

CAUTION: Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which case the user

will be required to correct the interference at his own expense.

Modifications not expressly approved by the manufacturer could void the user's

authority to operated the equipment under FCC rules.

System Manual – SAM-OCU-14 – 2013.12.05

- 28 -

Tel : +82-2-3429-2114

E-mail : sdspr@samsung.com

http://www.sds.samsung.co.kr

Thank You

Samsung SDS SAM-CRM-14 SMART VALIDATOR User Manual

Samsung SDS Co., Ltd. SMART VALIDATOR

User Manual

Navigation menu

Namespaces

Views

Navigation
