COLOR
TELEVISION
SP43H3HT
Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
PICTURE INPICTURE (PIP)
TELETEXT
SELF FOCUS
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 1
English - 3
Important Warranty Information Regarding Television
Format Viewing
Standard screen format televisions (4:3, the aspect ratio of the screen width to height) are
primarily designed to view standard format full-motion video. The images displayed on them
should primarily be in the standard 4:3 ratio format and constantly moving. Displaying stationary
graphics and images on screen, such as the dark top and bottom letterbox bars (wide screen
pictures), should be limited to no more than 15% of the total television viewing per week.
Wide screen format televisions (16:9, the aspect ratio of the screen width to height) are
primarily designed to view wide screen format full-motion video. The images displayed on them
should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your
model offers this feature, and constantly moving. Displaying stationary graphics and images on
screen, such as the dark side-bars on non-expanded standard format television video and
programming, should be limited to no more than 15% of the total television viewing per week.
Additionally, viewing other stationary images and text such as stock market reports, video
game displays, station logos, web sites or computer graphics and patterns, should be limited as
described above for all televisions. Displaying any stationary images that exceed the above
guidelines can cause uneven aging of picture tubes (CRTs) that leave subtle, but permanent
burned-in ghost images in the television picture. To avoid this, vary the programming and
images, and primarily display full screen moving images, not stationary patterns or dark bars.
On television models that offer picture sizing features, use these controls to view the different
formats as a full screen picture.
Be careful in the selection and duration of television formats used for viewing. Uneven CRT
aging as a result of format selection and use, as well as other burned-in images, is not covered by
your Samsung limited warranty.
The product unit accompanying this user manual is licensed
under certain intellectual property rights of certain third parties.
This license is limited to private non-commercial use by end-user
consumers for licensed contents. No rights are granted for
commercial use. The license does not cover any product unit
other than this product unit and the license does not extend to
any unlicensed product unit or process conforming to ISO/IEC
11172-3 or ISO/IEC 13818-3 used or sold in combination with
this product unit.
The license only covers the use of this product unit to encode
and/or decode audio files conforming to the ISO/IEC 11172-3 or
ISO/IEC 13818-3. No rights are granted under this license for
product features or functions that do not conform to the ISO/IEC
11172-3 or ISO/IEC 13818-3.
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 3
English - 4
Contents
◆FOREWORD
■Important Warranty Information Regarding Television Format Viewing ........ 3
◆CONNECTING AND PREPARING YOUR TELEVISION
■Control Panel................................................................................................. 6
■Connection Panel .......................................................................................... 7
■Using a Display Deck .................................................................................... 8
■Inserting the Batteries in the Remote Control................................................ 8
■Infrared Remote Control ................................................................................ 9
■Connecting to an Aerial or Cable Television Network ................................... 10
■Connecting a Satellite Receiver or Decoder.................................................. 11
■Switching Your Television On and Off........................................................... 12
■Placing Your Television in Standby Mode ..................................................... 12
■Becoming Familiar with the Remote Control ................................................. 13
■Plug & Play Feature....................................................................................... 14~15
■Displaying Information ................................................................................... 15
■Choosing Your Language.............................................................................. 16
■Adjusting the Screen Automatically (Self Focus)........................................... 17
■Deactivating the Automatic Execution of the Self Focus............................... 18
■Removing the “Self Focus” from the Display ................................................. 19
◆SETTING THE CHANNELS
■Storing Channels Automatically..................................................................... 20
■Sorting the Stored Channels ......................................................................... 21
■Storing Channels Manually............................................................................ 22~23
■Skipping Unwanted Channels ....................................................................... 24
■Locking the Channel...................................................................................... 25
■Fine Tuning Channel Reception.................................................................... 26
◆USING YOUR TELEVISION
■Using the LNA (Low Noise Amplifier) Feature............................................... 27
■Viewing the Channel Scan Picture ................................................................ 28
■Changing the Picture Standard ..................................................................... 29
■Customizing the Picture Settings................................................................... 30
■Selecting the Picture Size (4:3 Model) .......................................................... 31
■Selecting the Picture Size (Wide Model) ....................................................... 32~33
■Selecting the Scan Mode............................................................................... 34
■Using the Digital NR (Digital Noise Reduction) Feature ................................ 35
■Freezing the Current Picture ......................................................................... 35
■DNIeTM (Digital Natural Image engine) ............................................... 36
■Setting the Blue Screen Mode....................................................................... 37
■Viewing the Picture In Picture (PIP) .............................................................. 38~39
■Changing the Sound Standard ...................................................................... 40
■Customizing the Sound Settings ................................................................... 41
■Adjusting the Volume Automatically .............................................................. 42
■Setting the Dolby Digital ................................................................................ 43~44
■Setting the Dolby Pro LogicII......................................................................... 45
■Setting the External Digital Sound................................................................. 46
■Setting the Melody Sound ............................................................................. 47
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 4
English - 5
Contents (continued)
◆USING YOUR TELEVISION (continued)
■Selecting the Sound Mode ............................................................................ 48
■Setting and Displaying the Current Time....................................................... 49
■Setting the Sleep Timer ................................................................................. 50
■Switching the Television On and Off Automatically ....................................... 51
■Viewing an External Signal Source ............................................................... 52
◆USING THE DVD FUNCTION
■Playing a Disc................................................................................................ 53
■Using the Search and Skip Functions ........................................................... 54
■Playing a Disc (MP3/WMA) ........................................................................... 55
■Playing a Disc (MPG) .................................................................................... 56
■Playing a Disc (JPEG) ................................................................................... 57
■Using the Disc Menu ..................................................................................... 58
■Using the Title Menu...................................................................................... 58
■Displaying the Disc Information ..................................................................... 59
■Using the Zoom Function (DVD/VCD)........................................................... 60
■Changing the Camera Angle ......................................................................... 60
■Using the Bookmark Function (DVD/VCD).................................................... 61
■Repeat Play ................................................................................................... 62
■Program Play (CD) ........................................................................................ 63
■Setting up the Language for Player Menu..................................................... 64
■Setting up the Display Options ...................................................................... 65
■Setting up the Parental Control ..................................................................... 66
◆USING THE TELETEXT FEATURE
■Teletext Feature ............................................................................................ 67
■Displaying the Teletext Information ............................................................... 68
■Selecting Display Options.............................................................................. 69
■Selecting a Teletext Page.............................................................................. 70
◆ADDITIONAL INFORMATION AND CONNECTIONS
■Connecting to the External Devices .............................................................. 71
■Connecting to the Audio Outputs................................................................... 72
■Connecting to the S-Video Input.................................................................... 73
■Connecting to the Digital Audio Input ............................................................ 74
■Connecting to the Component Input.............................................................. 75
■Connecting Additional Speakers ................................................................... 76
◆RECOMMENDATIONS FOR USE
■Programming the Remote Control for Other Components ............................ 77~79
- VCR Remote Control Codes ....................................................................... 78
- Cable Box (CATV) Remote Control Codes ................................................. 79
- DVD Remote Control Codes ....................................................................... 79
■Disc Type and Characteristics....................................................................... 80
■Troubleshooting: Before Contacting Service Personnel................................ 81~82
☛➢
Press Important Note
Symbols
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 5
English - 6
Control Panel
➢
The actual configuration on your TV may be different, depending on
your model.
( a ) Place the TV in standby mode
( b ) Remote control sensor
( c ) Standby & Timer indicator
( d ) Switch among video input modes
( e ) Display the on-screen menu
( f ) Adjust the volume
( g ) Select the channels
( h ) Access to the selected option on the
menu system
( i ) Switch the TV on and off
ŒSkip or search the title, chapter or track
´Stop the disc
ˇPlay or pause the disc
¨Open and close the disc tray
ˆDisc tray
54321
➢◆You can use the CH buttons to switch on the TV when it is in standby mode depending on
the model.
◆The
-
VOL + and CH buttons have the same function as the ▲/▼/œ/√buttons
on the remote control.
◆If the remote control no longer works or your have lost it, you can use controls on the panel of the TV.
Side of the TVFront of the TV
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 6
English - 7
Connection Panel
➢
The actual configuration on your TV may be different, depending on
your model.
➢For further details about connection, refer to pages 71~76.
☛Whenever you connect an audio or video system to your television, ensure that all elements are switched
off. Refer to the documentation supplied with your equipment for detailed connection instructions and
associated safety precautions.
Side of the TV
Rear of the TV
ac d
b
d
e
f
g
Video Input
S-Video Input
Audio Input
.
( a ) ANT IN VHF/UHF (75Ω)
( b ) AV OUTPUT (VIDEO / L-AUDIO-R)
( c ) AV INPUT (VIDEO/L-AUDIO-R)-1, 2
( d ) COMPONENT VIDEO/AUDIO INPUT-1, 2
( e ) DIGITAL AUDIO INPUT
( f ) SURROUND EXTERNAL SPEAKER OUTPUT
( g ) SURROUND EXTERNAL SPEAKER OUTPUT
SELECTION
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 7
English - 8

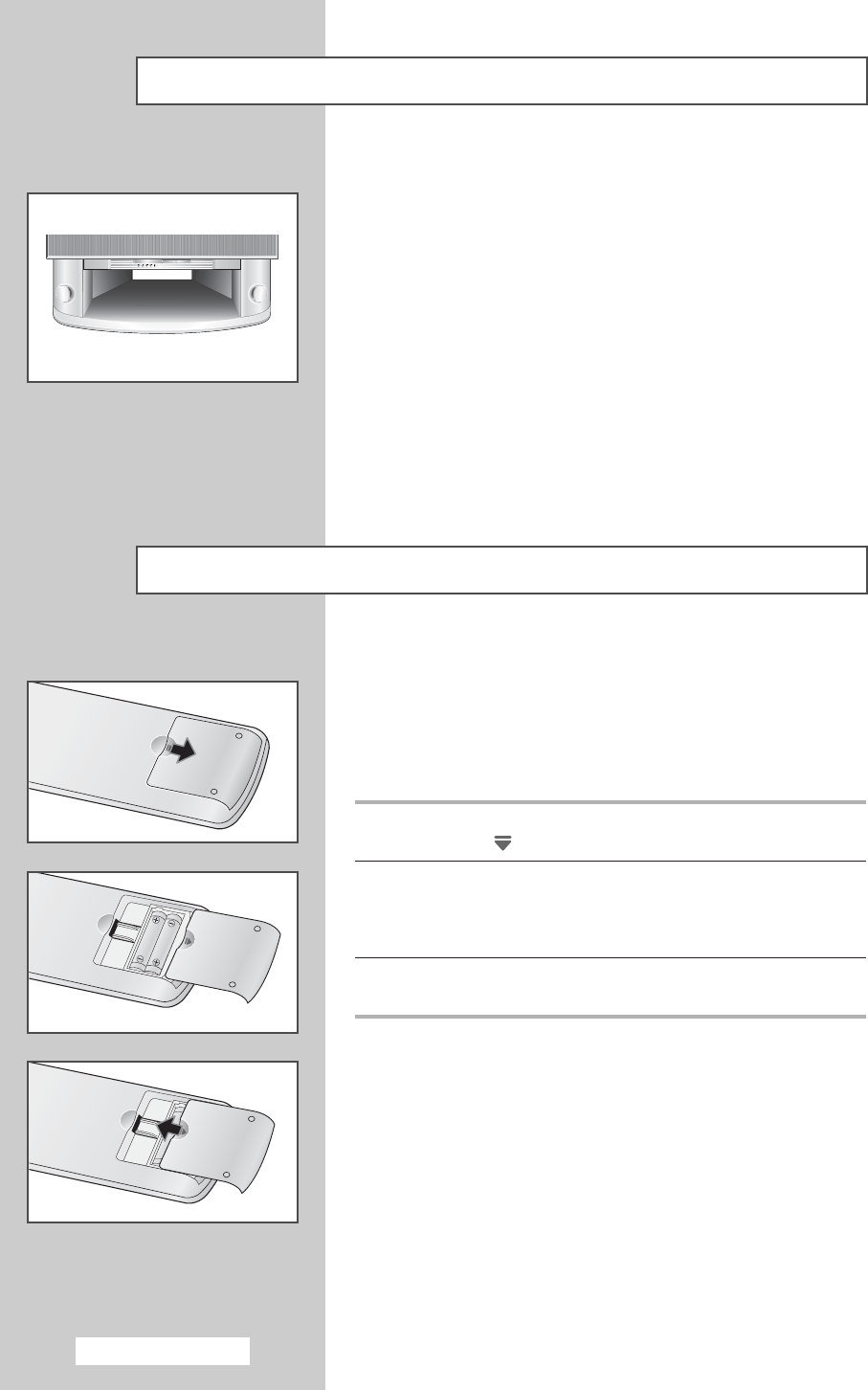

Using a Display Deck
You can display a VCR or DVD Player, etc. by using the display
deck.
You must insert or replace the batteries in the remote control when
you:
◆Purchase the television
◆Find that the remote control is no longer operating
correctly
1Remove the cover on the rear of the remote control by pressing
the symbol ( ) downwards and then pulling firmly to remove it.
2Insert two R03, UM4, “AAA” 1.5V or equivalent batteries taking
care to respect the polarities:
◆
-
on the battery against
-
on the remote control
◆
+
on the battery against
+
on the remote control
3Replace the cover by aligning it with the base of the remote
control and pressing it back into place.
Inserting the Batteries in the Remote Control
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 8
English - 9
Infrared Remote Control
DVD INFORMATION DISPLAY /
ONE, TWO, OR THREE-DIGIT
CHANNEL SELECTION
MENU DISPLAY/
TELETEXT INDEX
TELEVISION STANDBY
INFORMATION DISPLAY/
TELETEXT REVEAL
EXIT FROM ANY DISPLAY/
TUNER/CABLE NETWORK SELECTION
DELETE A BOOKMARK NUMBER AND
CANCEL THE PROGRAM PLAY/
PICTURE EFFECT SELECTION
SOUND MODE SELECTION
DIRECT CHANNEL SELECTION
PICTURE FREEZE/
TELETEXT PAGE HOLD
EXTERNAL INPUT SELECTION
SWITCH REPEATEDLY BETWEEN THE
LAST TWO CHANNELS DISPLAYED/
RETURN TO PREVIOUS MENU
NEXT CHANNEL/
TELETEXT NEXT PAGE
IF YOUR REMOTE CONTROL IS NOT
FUNCTIONING PROPERLY, TAKE
OUT THE BATTERIES AND PRESS
THE RESET BUTTON FOR ABOUT
2~3 SECONDS. RE-INSERT THE
BATTERIES AND TRY USING THE
REMOTE CONTROL AGAIN.
PREVIOUS CHANNEL/
TELETEXT PREVIOUS PAGE
DNIe ON/OFF/DEMO
PICTURE SIZE/
TELETEXT SUB-PAGE
PIP FUNCTIONS;
-PIP ACTIVATING OR DEACTIVATING
(PIP ON)
-SWAPPING THE MAIN AND THE SUB
PICTURE (SWAP)
-SELECTING THE CHANNEL OF SUB
PICTURE (P / )
MAKE THE REMOTE CONTROL WORKS
FOR TV, VCR, CATV, DVD PLAYER, STB
FASTEXT TOPIC SELECTION/
VCR/DVD FUNCTIONS;
-SEARCH BACKWARD ( )/
BACK SKIP THE TITLE, CHAPTER,
OR TRACK ( )
-STOP ( )
-PLAY/PAUSE ( )
-SEARCH FORWARD ( )/
NEXT SKIP THE TITLE, CHAPTER,
OR TRACK ( )
SWITCH BETWEEN THE
TV AND DVD MODE
VOLUME INCREASE
TEMPORARY SOUND SWITCH-OFF
VOLUME DECREASE
TELETEXT DISPLAY/
MIX BOTH TELETEXT INFORMATION
AND THE NORMAL BROADCAST
ACCESS VARIOUS CAMERA
ANGLES ON A DVD /
TELETEXT SIZE SELECTION
SELF FOCUS
➢The performance of the remote control may be affected by bright light.
WHEN YOU PRESS A BUTTON , ‘
’
APPEARS ALONG WITH SELECTED MODE
(TV, VCR, CATV, DVD OR STB) AND
REMAINING BATTERIES ON LCD
OPEN/CLOSE THE DISC TRAY
CONTROL THE CURSOR
IN THE ON-SCREEN MENU
CONFIRM YOUR CHOICE
(STORE OR ENTER)
REMOTE CONTROL SETUP
SOUND EFFECT SELECTION/
SELECTION TELETEXT CANCEL
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 9
English - 10
To view television channels correctly, a signal must be received by
the set from one of the following sources:
◆An outdoor aerial
◆A cable television network
◆A satellite network
1In the first three cases, connect the aerial or network input cable to
the 75Ωcoaxial socket on the rear of the television.
2If you are using an indoor aerial, you may need to turn it when
tuning your television until you obtain a picture that is both sharp
and clear.
For further details, refer to:
◆“Storing Channels Automatically” on page 20.
◆“Storing Channels Manually” on page 22.
Connecting to an Aerial or Cable Television Network
Rear of the TV
Cable Television
Network
or
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 10
English - 11
Connecting a Satellite Receiver or Decoder
In order to watch television programmes broadcast via a satellite
network, you must connect a satellite receiver to the rear of TV.
Also, in order to descramble a coded transmission signal, you must
connect a decoder to the rear of TV.
Using a Coaxial cable
Connect a coaxial cable to the:
◆Receiver (or Decoder) output socket.
◆Television aerial input socket.
➢If you wish to connect both a satellite receiver (or decoder)
and a VCR, you should connect the:
◆Receiver (or Decoder) to the VCR
◆VCR to the television
Otherwise, connect the receiver (or decoder) directly to the
television.
Rear of the TV
Satellite receiver/
Decoder
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 11
English - 12
Switching Your Television On and Off
TV
The mains lead is attached to the rear of your television.
1Plug the mains lead into an appropriate socket.
➢
The main voltage is indicated on the rear of the television
and the frequency is 50 or 60Hz.
2Press the power switch on the side of the television toward
“ON” (I).
Result:The Standby indicator on the front of the television
lights up.
3Press the POWER () button on the remote control to switch the
television on.
Result :The programme that you were watching last is re-
selected automatically.
➢
◆If your television isn’t turned on when the POWER ()
button is pressed, press the SELECT button to check if
the “TV” mode has been chosen.
◆If you have not yet stored any channels, No clear picture
appears. Refer to “Storing Channels Automatically” on
page 20 or “Storing Channels Manually” on page 22.
4To switch your television off, press the power switch toward
“OFF”.
Placing Your Television in Standby Mode
Your television can be placed in Standby mode, in order to reduce
the power consumption.
The Standby mode can be useful when you wish to interrupt
viewing temporarily (during a meal, for example).
1Press the POWER () button on the remote control.
Result:The screen is turned off and the Standby indicator on
the front of the television lights up.
2To switch the television back on, simply press the POWER ()
button again or a numeric button.
➢
You can also switch on by pressing the TV (),P /or
numeric button.
☛Do not leave your television in Standby mode for long
periods of time (when you are away on holiday, for
example). Turn your television off by pressing the power
switch toward “OFF”. It is best to unplug the set from
the mains and aerial.
TV
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 12
English - 13
Becoming Familiar with the Remote Control
The remote control is used mainly to:
◆Change channels and adjust the volume
◆Set up the television using the on-screen menu system
The following table presents the most frequently used buttons and
their functions.
Button Viewing Function Menu Function
Used to display the next
-
stored channel.
Used to display the
-
previous stored channel.
to Used to display the corresponding channels.
➢For double digit channels, the second digit must be
pushed immediately after the first. Failure to do this will
result in a single digit channel being displayed..
-/--/---
Used to select a channel numbered ten or over.
Press this button, and the “
--
” or “
---
” symbol is displayed.
Enter the two or three-digit channel number.
PRE-CH Press the PRE-CH button. The TV will switch to the last
channel viewed.
To quickly switch between two channels that are far apart,
tune to one channel, then use the numeric buttons to select
second channel. Then, use the PRE-CH button to quickly
alternate between them.
Used to increase the
-
volume.
Used to decrease the
-
volume.
MUTE Used to switch the sound off temporarily.
() ➢To turn the sound back on, press this button again, or
press the or button.
MENU Used to display the Used to return to the previous
() on-screen menu system. menu or normal viewing.
-
Used to:
◆Display a submenu
containing selections for
the current menu option
◆Increase/decrease a
menu option value
-
Used to confirm your choice.
TV Used to switch the Used to exit from the menu
() television on when it is system and return to normal
in Standby mode. viewing directly
EXIT
-
Used to exit from the any
() display.
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 13
English - 14
When the television is initially powered ON, several basic customer
settings proceed automatically and subsequently. The following
settings are available.
1If the television is in Standby mode, press the POWER () button
on the remote control.
Result:The message Start Plug & Play is displayed.
2To start the Plug & Play, press the ENTER () button.
Result:The Language menu is displayed.
3Select the appropriate language by pressing the ▲or ▼button.
Press the ENTER () button to confirm the language.
Result:The message Check antenna input. is displayed.
4Make sure that the antenna is connected to the TV, and then
press the ENTER () button.
Result:The Area menu is displayed.
5Select your area by pressing the ▲or ▼button. Press the ENTER
() button to confirm your choice.
Result:The Auto Store menu is displayed.
6To start the channel store, press the ENTER () button.
Result:The search will end automatically. Channels are sorted
and stored in an order which reflects their position in
the frequency range (with lowest first and highest last).
When it has finished, the Clock Set menu is
displayed.
➢To stop the search before it has finished or return to normal
viewing, press the MENU () button.
7Press the œor √button to move to the Hour, Minute or am/pm.
Set these by pressing the ▲or ▼button.
➢You can also set the Hour and Minute by pressing the
numeric buttons directly.
8Press the ENTER () button.
9When the setting has finished all, the message Enjoy your
watching. is displayed, and then the channel which has been
stored will be activated.
Plug & Play Feature
Enjoy your watching.
Plug & Play
OK
Start Plug & Play
Plug & Play
Enter Exit
OK
Check antenna input.
Plug & Play
Enter Skip
OK
Language
English
Plug & Play
Move
Enter Skip
Area
Asia/W. Europe
CIS/East Europe
China
Hong Kong/UK
Australia
NZ/Indonesia
††
Plug & Play
Move Enter Skip
Plug & Play
Auto Store
Enter Skip
Start
Plug & Play
œœ √√
Move Adjust Enter Skip
Hour Minute am/pm
-- --
am
Clock Set
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 14
English - 15
If you want to reset this feature...
1Press the MENU () button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Setup is selected.
Result:The options available in the Setup group are displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Plug & Play option is selected.
Press the ENTER () button.
Result:This feature starts with the message Start Plug &
Play is displayed.
5For further details on how to set, refer to the opposite page.
Plug & Play Feature (continued)
Setup
Move Enter Return
Time √√
Plug & Play √√
Language : English √√
Self Focus √√
Blue Screen : Off √√
Melody : On √√
TV
You can view the channel information and setting status you select
by pressing the “INFO ( )” button on the remote control.
Displaying Information
P 1
Mono
Picture Mode : Dynamic
Sound Mode : Standard
Dolby Pro Logic II : Off
12 : 02 am
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 15
English - 16
When you start using your television for the first time, you must
select the language which will be used for displaying menus and
indications.
1Press the MENU () button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Setup is selected.
Result:The options available in the Setup group are displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Language is selected. Press the
ENTER () button.
Result:The languages available are listed.
5Select the appropriate language by pressing the ▲or ▼button.
Press the ENTER () button to confirm your choice.
Choosing Your Language
Setup
Move Enter Return
Time √√
Plug & Play √√
Language : English √√
Self Focus √√
Blue Screen : Off √√
Melody : On √√
TV
Setup
Move Enter Return
Time √√
Plug & Play √√
Language : English √√
Self Focus √√
Blue Screen : Off √√
Melody : On √√
TV
English
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 16
English - 17
Setup
Move Enter Return
Time √√
Plug & Play √√
Language : English √√
Self Focus √√
Blue Screen : Off √√
Melody : On √√
TV
Self Focus
Move Enter Return
Self Focus √√
Auto : On √√
Message Display : On √√
TV

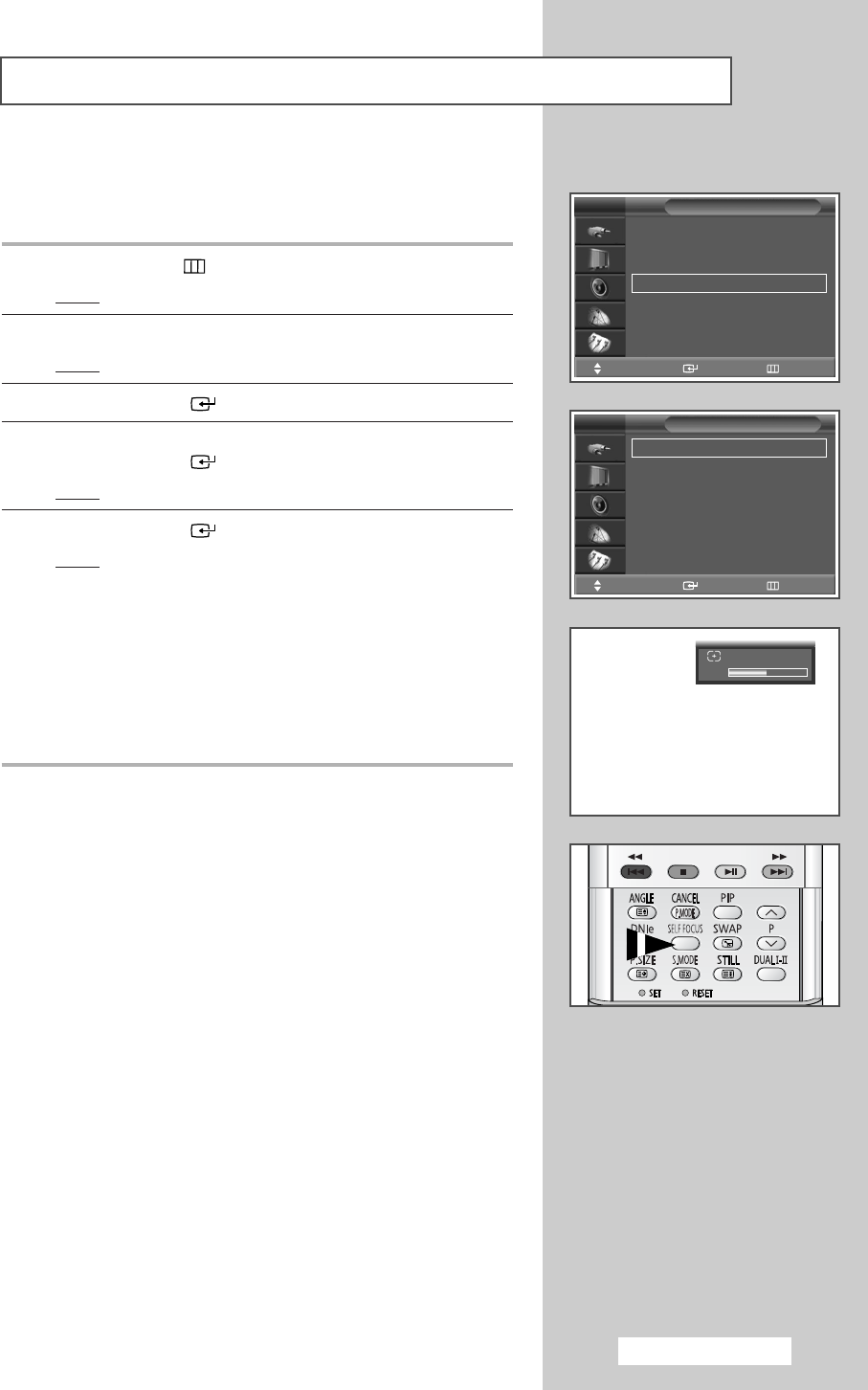

The “Self Focus” feature automatically finds the optimum picture
quality when blurring, overlapping colors or incorrect focus occurs.
These conditions may be caused by moving your TV.
1Press the MENU () button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Setup is selected.
Result:The options available in the Setup group are displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Self Focus is selected.
Press the ENTER () button.
Result:The Self Focus is selected.
5Press the ENTER ()button again
Result:The self focus process begins with the message Self
Focus and horizontal bar is displayed. During the
process, minor distortions of the picture may occur. At
this time, the colors may diffuse and a searching action
will appear on the edges of the screen. This is a normal
part of the adjustment. When it is finished, all of things
will disappear and the optimum picture quality can be
enjoyed.
➢You can also set these options simply by pressing the
SELF FOCUS button.
➢
◆Changing channels and any other signal changes will
pause the self focus until a stable signal has returned.
It resumes after the signal has been stabilised. This
feature will not work without a signal.
◆Ambient light that is too bright may affect the self focus.
If this occurs, darken the environment and try again.
Adjusting the Screen Automatically (Self Focus)
Self Focus
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 17
English - 18
Setup
Move Enter Return
Time √√
Plug & Play √√
Language : English √√
Self Focus √√
Blue Screen : Off √√
Melody : On √√
TV
Self Focus
Move Enter Return
Self Focus √√
Auto : On √√
Message Display : On √√
TV
Self Focus
Move Enter Return
Self Focus √√
Auto : On √√
Message Display : On √√
TV
The “Self Focus” feature starts on default. It will automatically
begin 10 minutes after switching on the power and the appearance
of the screen image. To set the optimum picture quality, the
“Self Focus” will automatically begin again after another 30
minutes, as the screen image is then fully stabilised.
1Press the Press the MENU () button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Setup is selected.
Result:The options available in the Setup group are displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Self Focus is selected.
Press the ENTER () button.
Result:The options available in the Self Focus group are
displayed.
5Press the ▲or ▼button until the Auto is selected.
Press the ENTER () button.
6To turn off the automatic execution of the self focus feature, select
Off by pressing the ▲or ▼button. Press the ENTER ()
button to confirm.
Deactivating the Automatic Execution of the Self Focus
Off
On
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 18
English - 19
Setup
Move Enter Return
Time √√
Plug & Play √√
Language : English √√
Self Focus √√
Blue Screen : Off √√
Melody : On √√
TV
Self Focus
Move Enter Return
Self Focus √√
Auto : On √√
Message Display : On √√
TV
Self Focus
Move Enter Return
Self Focus √√
Auto : On √√
Message Dispaly : On√√
TV

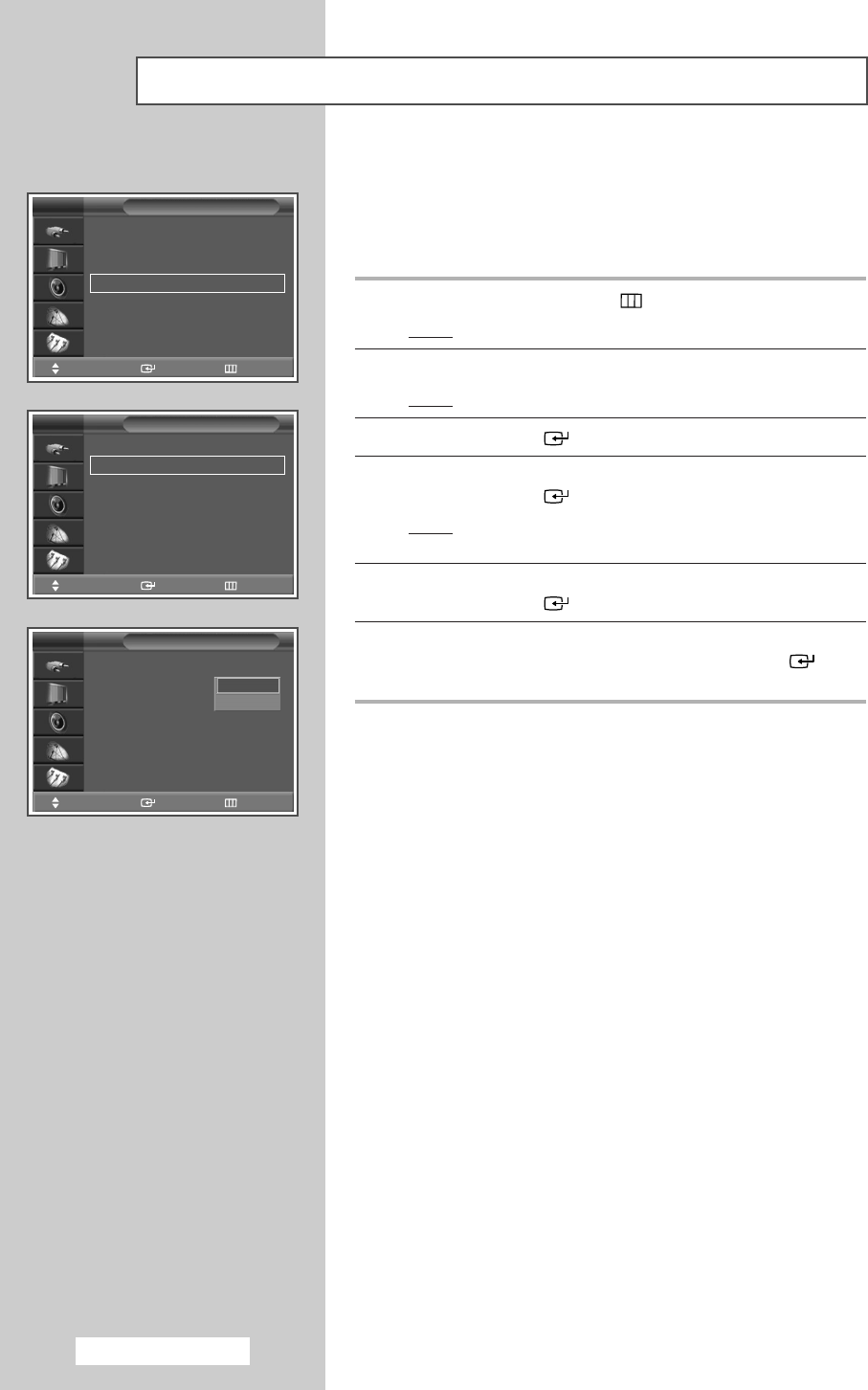

1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼ button until the Setup is selected.
Result:The options available in the Setup group are displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Self Focus is selected.
Press the ENTER () button.
Result:The options available in the Self Focus group are
displayed.
5Press the ▲or ▼button until the Message Display is selected.
Press the ENTER () button.
6To remove the message Self Focus and horizontal bar on the
screen during the self focus process, select Off by pressing the ▲
or ▼button. Press the ENTER () button to confirm.
Removing the “Self Focus” from the Display
Off
On
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 19
English - 20
You can scan for the frequency ranges available to you, (availability
depends on your area). Automatically allocated programme
numbers may not correspond to actual or desired programme
numbers. However you can sort numbers manually and clear any
channels you do not wish to watch.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Channel is selected.
Result:The options available in the Channel group are
displayed.
3Press the ENTER () button.
Result:The Auto Store is selected.
4Press the ENTER () button again.
Result:The Auto Store menu is displayed with Area option
selected.
5Press the ENTER () button once again. Select your area by
pressing the ▲or ▼button.
Result:The areas available are listed.
6Press the ENTER () button to confirm your choice
7Press the ▲or ▼button until the Search is selected. Press the
ENTER () button.
8Press the ENTER () button to start the search.
Result:The search will end automatically. Channels are sorted
and stored in an order which reflects their position in
the frequency range, (with lowest first and highest last).
The programme originally selected is then displayed.
➢To stop the search before it has finished or return to normal
viewing, press the MENU ()button.
9When searching and storing are complete, the Sort menu is
displayed.
◆
To sort the stored channels into the desired numerical order,
go to Step 5of the “Sorting the Stored Channels” procedure
on page 21.
◆
To exit from the channel store function without sorting the
channels, press the MENU () button repeatedly until the
menus disappear.
10 When the channels have been stored, you can:
◆
Sort them in the order required (see page 21)
◆
Clear a channel (see page 24)
◆
Fine-tune channel reception if necessary (see page 26)
◆
Activate/deactivate the LNA (Low Noise Amplifier) feature
(see page 27)
◆
Activate/deactivate the Digital NR (Digital Noise Reduction)
feature (see page 35)
Storing Channels Automatically
Channel
Auto Store √√
Manual Store √√
Add/Delete √√
Sort √√
Child Lock √√
Fine Tune √√
▼ More
TV
Move Enter Return
Auto Store
Area : Off
Search
TV
Move Enter Return
Asia/W.Europe
CIS/East Europe
China
Hong Kong/UK
Australia
Nz/Indonesia
▼
Auto Store
Area :Asia/W.Europe √√
Search √√
TV
Move Enter Return
Search
Enter Return
Stop
P 1
C
--
65 MHz
20 channels are memorized.
Search
OK
Search
Enter Return
Start
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 20
English - 21
This operation allows you to change the programme numbers of
stored channels. This operation may be necessary after using the
auto store. You can delete those channels you do not want to keep.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Channel is selected.
Result:
The options available in the
Channel
group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Sort is selected. Press the
ENTER () button.
Result:The Sort menu is displayed.
5Select the channel that you wish to move by pressing the ▲or ▼
button. Press the ENTER () button.
6Select the number of the programme to which the channel is to be
moved by pressing the ▲or ▼button. Press the ENTER ()
button.
Result:The channel is moved to its new position and all other
channels are shifted accordingly.
7Repeat Steps 5to 6until you have moved all the channels to the
required programme numbers.
Sorting the Stored Channels
Channel
Auto Store √√
Manual Store √√
Add/Delete √√
Sort √√
Child Lock √√
Fine Tune √√
▼ More
TV
Move Enter Return
Sort
TV
Move Enter Return
1C
--
2C
--
3C
--
4C
--
Prog.CH
Sort
TV
Move Enter Return
1C
--
2C
--
3C
--
4C
--
Prog.CH
C
--
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 21
English - 22
Storing Channels Manually
You can store the television channels, including those received via
cable networks.
When storing channels manually, you can choose:
◆Whether or not to store each of the channels found
◆The programme number of each stored channel which
you wish to identify
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Channel is selected.
Result:
The options available in the
Channel
group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Manual Store is selected.
Press the ENTER () button.
Result:The
current channels are displayed
.
5Select the channel that you wish to move by pressing the ▲or ▼
button. Press the ENTER () button.
Result:The Prog.
is selected.
6To assign a programme number to a channel, find the correct
number by pressing the ▲or ▼button.
7If necessary, select the broadcasting standard required. Press the
œor √button until the Color System is selected and press the
▲or ▼button. The color standards are displayed in the following
order.
Auto
-
PAL
-
SECAM
-
NT4.43
-
NT3.58
8Press the œor √button until the Sound System is selected and
press the ▲or ▼button. The sound standards are displayed in
the following order.
BG
-
DK
-
I
-
M
Channel
Auto Store √√
Manual Store √√
Add/Delete √√
Sort √√
Child Lock √√
Fine Tune √√
▼ More
TV
Move Enter Return
Manual Store
TV
Move Enter Return
1Auto BG C
--
2Auto BG C
--
3Auto BG C
--
4Auto BG C
--
Programme
Manual Store
œœ √√
Move Adjust Return
CH Search Store
C
--
83MHz ?
Prog. Color Sound
System System
1Auto BG
Manual Store
œœ √√
Move Adjust Return
CH Search Store
C
--
83MHz ?
Prog. Color Sound
System System
1Auto BG
Manual Store
œœ √√
Move Adjust Return
CH Search Store
C
--
83MHz ?
Prog. Color Sound
System System
1Auto BG
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 22
English - 23
9If you know the number of the channel to be stored, see the
following steps.
◆
Press the œor √button until the CH is selected.
◆
Press the ▲or ▼button to select C(Air channel) or S(Cable
channel).
◆
Press the √button
◆
Press the ▲or ▼button to select the required number.
➢If no sound or abnormal sound can be heard, re-select the
sound standard required.
10 If you do not know the channel numbers, select the Search by
pressing the œor √button. Press the ▲or ▼button to start the
search.
Result:The tuner scans the frequency range until the first
channel or the channel that you selected is received on
your screen.
11 To store the channel and associated programme number, select
Store by pressing the œor √button. Set to OK by pressing the
ENTER () button.
12 Repeat Steps 9to 11 for each channel to be stored.
☛Channel mode
◆P(Programme mode):
When completing tuning, the
broadcasting stations in your area have been assigned to
position numbers from P00 to max P99. You can select a
channel by entering the position number in this mode.
◆C(Real channel mode):
You can select a channel by
entering the assigned number to each air broadcasting station
in this mode.
◆S(Cable channel mode):
You can select a channel by
entering the assigned number for each cable channel in this
mode.
Storing Channels Manually (continued)
Manual Store
œœ √√
Move Adjust Return
CH Search Store
C
--
83MHz ?
Prog. Color Sound
System System
1Auto BG
Manual Store
œœ √√
Move Adjust Return
CH Search Store
C
--
83MHz ?
Prog. Color Sound
System System
1Auto BG
Manual Store
œœ √√
Move Adjust Return
CH Search Store
C
--
83MHz ?
Prog. Color Sound
System System
1Auto BG
Manual Store
œœ √√
Move Enter Return
CH Search Store
C
--
83MHz OK
Prog. Color Sound
System System
1Auto BG
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 23
English - 24
You can exclude the channels of your choice from the channel scan
operation. When you scan through the stored channels, those that
you have chosen to skip are thus not displayed. All channels that
you do not specifically choose to skip are displayed during
scanning.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Channel is selected.
Result:
The options available in the
Channel
group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Add/Delete is selected.
Press the ENTER () button.
Result:The Add/Delete menu is displayed with the current
channel selected.
5Press the CH or button to delete or add the required
channel. Press the ENTER () button.
6Repeat Step 5for each channel to be erased or added.
Skipping Unwanted Channels
Add/Delete
Delete
P0In Memory
Change Enter Return
< >
P
Add/Delete
Add
P1Not in Memory
Change Enter Return
< >
P
Channel
Auto Store √√
Manual Store √√
Add/Delete √√
Sort √√
Child Lock √√
Fine Tune √√
▼ More
TV
Move Enter Return
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 24
English - 25
This feature allows you to lock the television so that it cannot be
switched on via the front panel. It can, however, still be switched
on via the remote control. Thus, by keeping the remote control
away from unauthorised users, such as children, you can prevent
them from watching unsuitable programme.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Channel is selected.
Result:
The options available in the
Channel
group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Child Lock is selected.
Press the ENTER () button.
Result:The Child Lock menu is displayed and the current
channel is shown as selected.
5Press the ▲or ▼button to select the channel to be locked.
6Press the ENTER () button. To lock the channel, select
Locked by pressing the ▲or ▼button (to unlock the channel,
select Unlocked). Press the ENTER () button to confirm.
Locking the Channel
Channel
Auto Store √√
Manual Store √√
Add/Delete √√
Sort √√
Child Lock √√
Fine Tune √√
▼ More
TV
Move Enter Return
Child Lock
TV
Move Enter Return
1
Unlocked
2
Unlocked
3
Unlocked
4
Unlocked
Prog. Lock
Child Lock
TV
Move Enter Return
1
Locked
2
Unlocked
3
Unlocked
4
Unlocked
Prog. Lock
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 25
English - 26
If the reception is clear, you do not have to fine tune the channel,
as this is done automatically during the search and store operation.
If the signal is weak or distorted, you may have to fine tune the
channel manually.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Channel is selected.
Result:
The options available in the
Channel
group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Fine Tune is selected. Press
the ENTER () button.
Result:
The horizontal bar is displayed.
5To obtain a sharp and clear picture and good sound quality, press
the œor √button until you reach the setting.
Result:
The program number turns in red.
6To store the fine tuning setting in the TV’s memory, press the
ENTER () button.
Result:
The “
✽
” symbol is displayed
7To reset the fine tuning to 0, select Reset by pressing the ▲or ▼
button then press the ENTER () button.
Fine Tuning Channel Reception
Channel
Auto Store √√
Manual Store √√
Add/Delete √√
Sort √√
Child Lock √√
Fine Tune √√
▼ More
TV
Move Enter Return
P 1
5
Fine Tune
Reset
œœ √√
Adjust Save Return
Move
P 1 ✽
5
Fine Tune
Reset
œœ √√
Adjust Save Return
Move
P 1 ✽
5
Fine Tune
Reset
Move Enter Return
P 1
0
Fine Tune
Reset
Move Enter Return
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 26
English - 27
This feature is very useful in the situation that the TV is used in a
weak signal, and amplifies the TV signal in the weak signal area, but
not noise.
This feature is working only in a weak signal condition, and that is
memorized on relevant channel’s additional information.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Channel is selected.
Result:
The options available in the
Channel
group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the LNA is selected. Press the
ENTER () button.
5Select Off or On by pressing the ▲or ▼button. Press the
ENTER () button to confirm.
Using the LNA (Low Noise Amplifier) Feature
Channel
▲ More
LNA : Off √√
CH. Scan √√
TV
Move Enter Return
Channel
Move Enter Return
▲ More
LNA : Off √√
CH. Scan √√
TV
Off
On
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 27
English - 28
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Channel is selected.
Result:
The options available in the
Channel
group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the CH. Scan is selected. Press the
ENTER () button.
Result:You can view every memorized channel in order.
Viewing the Channel Scan Picture
Channel
▲ More
LNA : Off √√
CH. Scan √√
TV
Move Enter Return
CH. Scan
P 8
P 50
Return
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 28
English - 29
You can select the picture mode which best corresponds to your
viewing requirements.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Picture is selected.
Result:
The options available in the
group are
displayed.
3Press the ENTER () button.
Result:The Mode is selected
.
4Press the ENTER () button again.
Result:
The options available are listed.
5Select the required option by pressing the ▲or ▼button.
Result:The following modes are available:
Dynamic
-
Standard
-
Movie
-
Custom
6Press the ENTER () button to confirm.
➢
You can select these options by simply pressing the
P.MODE (Picture Mode) button on the remote control.
(Not available in DVD mode)
Changing the Picture Standard
Mode : Dynamic √√
Custom √√
Color Tone : Normal √√
Size √√
Scan Mode : Auto √√
Digital NR : Off √√
▼ More
TV
Move Enter Return
Mode : Dynamic √√
Custom √√
Color Tone : Normal √√
Size √√
Scan Mode : Auto √√
Digital NR : Off √√
▼ More
TV
Move Enter Return
Dynamic
Standard
Movie
Custom
Dynamic
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 29
English - 30
Your television has several settings options that allow you to
control picture quality.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Picture is selected.
Result:
The options available in the
group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Custom is selected. Press the
ENTER () button.
Result:
The
Custom
menu is displayed.
5Select the option (Contrast, Brightness, Sharpness, Color or
Tint-NTSC only) to be adjusted by pressing the ▲or ▼button.
Press the ENTER () button.
Result:The horizontal bar is displayed. Press the œor √
button until you reach the setting.
➢If you make any changes to the custom settings, the
picture standard is automatically switched to the Custom.
6Press the MENU ()button to return to the Picture menu.
Press the ▲or ▼button until the Color Tone is selected. Press
the ENTER () button.
7Select the required color tone (Warm 1 ~ Warm 10, Normal,
Cool 1 ~ Cool 10) by pressing the œor √button.
Customizing the Picture Settings
Contrast 100
Color Tone Normal
Mode : Dynamic √√
Custom √√
Color Tone : Normal √√
Size √√
Scan Mode : Auto √√
Digital NR : Off √√
▼ More
TV
Move Enter Return
Mode : Dynamic √√
Custom √√
Color Tone : Normal √√
Size √√
Scan Mode : Auto √√
Digital NR : Off √√
▼ More
TV
Move Enter Return
TV
Move Enter Return
Contrast 100
Brightness 50
Sharpness 75
Color 55
Custom
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 30
English - 31
Selecting the Picture Size (4:3 Model)
Mode : Dynamic √√
Custom √√
Color Tone : Normal √√
Size √√
Scan Mode : Auto √√
Digital NR : Off √√
▼ More
TV
Move Enter Return
Size
Normal
Zoom 1
Zoom 2
Cinema
TV
Move Enter Return
You can select the picture size which best corresponds to your
viewing requirements.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Picture is selected.
Result :
The options available in the
group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Size is selected. Press the
ENTER () button.
Result :
The
Size
menu is displayed.
5Select the required mode by pressing the ▲or ▼button. Press
the ENTER () button.
Result :The following modes are available:
Normal
Adjusts the picture to fit into a 4:3 normal aspect
ratio. (Prolonged use in 4:3 mode may cause the
lifespan of the CRT to be reduced.)
Zoom 1
Vertically enlarges the picture approximately 130%.
Zoom 2
Vertically enlarges the picture about approximately
150%.
Cinema
When the top and bottom of the screen margin are
black (blank), they will change to gray.
➢Lifting is available in the Zoom 1 or Zoom 2 mode by
pressing the ▲or ▼button
➢
◆You can select these options by simply pressing
the P.SIZE button on the remote control.
◆The picture size can not be changed in the PIP mode.
4:3 Signal
16:9 Signal
Normal Zoom 1 Zoom 2 Cinema
Normal Zoom 1 Zoom 2 Cinema
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 31
English - 32
Selecting the Picture Size (Wide Model)
Mode : Dynamic √√
Custom √√
Color Tone : Normal √√
Size √√
Scan Mode : Auto √√
Digital NR : Off √√
▼ More
TV
Move Enter Return
Size
16:9
Panorama
Zoom 1
Zoom 2
4:3
Cinema 1
Cinema 2
TV
Move Enter Return
You can select the picture size which best corresponds to your
viewing requirements.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Picture is selected.
Result :
The options available in the
group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Size is selected. Press the
ENTER () button.
Result :
The
Size
menu is displayed.
5Select the required mode by pressing the ▲or ▼button. Press
the ENTER () button.
Result :The following modes are available:
16:9 Adjusts the picture to fit into the 16:9 wide aspect
ratio.
Panorama Adjusts a Wide picture to appear natural.
Zoom 1
Vertically enlarges the picture approximately 130%.
Zoom 2
Vertically enlarges the picture about approximately
150%.
4:3 Adjusts the picture to fit into a 4:3 normal aspect
ratio. (Prolonged use in 4:3 mode may cause the
lifespan of the CRT to be reduced.)
Cinema 1
To maintain optimum screen display, the picture is
vertically enlarged and the letterboxed (black margin)
area is filled with gray instead.
Cinema 2
When the top and bottom of the screen margin are
black (blank), they will change to gray.
➢
◆Lifting is available in the Zoom 1 or Zoom 2 mode by
pressing the ▲or ▼button.
◆Subtitles may be cut-off or hidden below the screen area
in Zoom 1, Zoom 2, Cinema 1 and Cinema 2 modes.
➢
◆You can select these options by simply pressing the
P.SIZE button on the remote control.
◆The picture size can not be changed in the PIP mode.
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 32
English - 33
Selecting the Picture Size (Wide Model) (continued)
4:3 Signal
16:9 Panorama Zoom 1 Zoom 2
4:3 Cinema 1 Cinema 2
16:9 Signal
16:9 Panorama Zoom 1 Zoom 2
4:3 Cinema 1 Cinema 2
16:9 Panorama
4:3 Cinema 1 Cinema 2
16:9 Panorama
4:3 Cinema 1 Cinema 2
Zoom 2Zoom 1
Zoom 2Zoom 1
BP68-00380A (J61A_Asia_ENG) 12/10/04 3:51 PM Page 33
English - 34
You will normally find that scan mode is best set to Natural to
reduce any slight picture flicker. However, it is possible that some
occasional broadcasts (NTSC-M) may benefit by changing the scan
mode.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Picture is selected.
Result:
The options available in the
group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Scan Mode is selected. Press
the ENTER () button.
5Select the required option by pressing the ▲or ▼button.
Result:The following modes are available:
Auto
-
Natural
-
Digital
-
Progressive
6Press the ENTER () button to confirm.
Selecting the Scan Mode
Mode : Dynamic √√
Custom √√
Color Tone : Normal √√
Size √√
Scan Mode : Auto √√
Digital NR : Off √√
▼ More
TV
Move Enter Return
Mode : Dynamic √√
Custom √√
Color Tone : Normal √√
Size √√
Scan Mode : Auto √√
Digital NR : Off √√
▼ More
TV
Move Enter Return
Auto
Natural
Digital
Progressive
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 34
English - 35
If the signal received by your television is weak, you can activate
this feature to help reduce any static and ghosting that may appear
on the screen.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Picture is selected.
Result:
The options available in the
group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Digital NR is selected. Press
the ENTER () button.
5Select Off or On by pressing the ▲or ▼button. Press the
ENTER () button to confirm.
Using the Digital NR (Digital Noise Reduction) Feature
You can freeze the picture when watching a television programme
simply by pressing the “STILL” button. To return to normal viewing,
press it again.
➢
If you press the STILL button during PIP on, the main picture is
stilled, not sub picture.
Freezing the Current Picture
Mode : Dynamic √√
Custom √√
Color Tone : Normal √√
Size √√
Scan Mode : Auto √√
Digital NR : Off √√
▼ More
TV
Move Enter Return
Mode : Dynamic √√
Custom √√
Color Tone : Normal √√
Size √√
Scan Mode : Auto √√
Digital NR : Off √√
▼ More
TV
Move Enter Return
Off
On
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:50 AM Page 35
English - 36
This feature brings you more detailed images with 3D noise
reduction, detail enrichment, contrast and white enhancement.
A new image Compensation Algorithm gives brighter, clearer, more
detailed image. DNIeTM technology will always deliver the best
quality pictures from any signal.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Picture is selected.
Result:The options available in the Picture group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the DNIe is selected. Press the
ENTER () button.
5Press the ▲or ▼button to change the setting. Press the ENTER
() button to confirm.
◆On: Switches on the DNIe mode.
◆Off: Switches off the DNIe mode.
◆Demo (Option) : The screen before applying DNIe appears on
the right and the screen after applying DNIe
appears on the left.
➢
You can select these options simply by pressing the DNIe
button.
DNIeTM (Digital Natural Image engine)
DNIe Demo
DNIe On DNIe Off
▲ More
PIP √√
DNIe : On √√
TV
Move Enter Return
▲ More
PIP √√
DNIe : On √√
TV
Move Enter Return
On
Off
Demo
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 36
English - 37
If no signal is being received or the signal is very weak, a blue
screen automatically replaces the noisy picture background. If you
wish to continue viewing the poor picture, you must set the Blue
Screen mode to Off.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Setup is selected.
Result:The options available in the Setup group are displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Blue Screen is selected.
Press the ENTER () button.
5Select Off or On by pressing the ▲or ▼button. Press the
ENTER () button to confirm.
Setting the Blue Screen Mode
Setup
Move Enter Return
Time √√
Plug & Play √√
Language : English √√
Self Focus √√
Blue Screen : Off √√
Melody : On √√
TV
Setup
Move Enter Return
Time √√
Plug & Play √√
Language : English √√
Self Focus √√
Blue Screen : Off √√
Melody : On √√
TV
Off
On
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 37
English - 38
1
1
1
Eas
Bu
PI
SW
P
You can display a sub picture within the main picture of TV program
or external A/V devices. In this way you can watch TV program or
monitor the video input from any connected devices while watching
TV or other video input.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Picture is selected.
Result:The options available in the Picture group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the PIP is selected. Press the
ENTER () button.
Result:The PIP menu is displayed with PIP option selected.
5Press the ENTER () button again. To activate, set the PIP to
on by pressing the ▲or ▼button. Press the ENTER ()
button.
6Press the ▲or ▼button until the Source is selected. Press the
ENTER () button.
Result:The sources available are displayed.
TV
-
AV1
-
AV2
-
AV3
-
S-Video
7Select a source of the sub picture by pressing the ▲or ▼button.
Press the ENTER () button
8Press the ▲or ▼button until the Size is selected. Press the
ENTER () button.
Result:The sizes available are displayed.
----
(Large) (Small) (Double) (3-PIP) (12-PIP)
➢
◆
12-PIP : You can view up to 12 memorized channels on
the sub picture spontaneously.
◆
On the 12-PIP or 3-PIP mode, it is impossible to execute
swap and position.
9Select a size of the sub picture by pressing the ▲or ▼button.
Press the ENTER () button..
10 Press the ▲or ▼button until the Swap is selected. Press the
ENTER () button.
Result:The main picture and the sub picture are interchanged.
➢Not available in 12-PIP or 3-PIP modes.
Viewing the Picture In Picture (PIP)
▲ More
PIP √√
DNIe : On √√
TV
Move Enter Return
PIP
TV
Move Enter Return
PIP : On √√
Source : TV √√
Size
:
√√
Swap √√
Position
:
√√
Prog. : P 1 √√
Off
On
PIP
TV
Move Enter Return
PIP : On √√
Source : TV √√
Size
:
√√
Swap √√
Position
:
√√
Prog. : P 1 √√
PIP
TV
Move Enter Return
PIP : On √√
Source : TV √√
Size
:
√√
Swap √√
Position
:
√√
Prog. : P 1 √√
PIP
TV
Move Enter Return
PIP : On √√
Source : TV √√
Size
:
√√
Swap √√
Position
:
√√
Prog.
:
P 1 √√
TV
AV1
AV2
AV3
S-Video
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 38
English - 39
11 Press the ▲or ▼button until the Position is selected. Press the
ENTER () button.
Result:The positions available are displayed.
---
➢The Position menu is available when the Size is Large or
Small.
12 Select a position of the sub picture by pressing the ▲or ▼button.
Press the ENTER () button.
13 Press the ▲or ▼button until the Prog. is selected. Press the
ENTER () button.You can select the channel that you want to
view through sub picture by pressing the ▲or ▼button. Press the
ENTER () button to confirm.
➢When the Source is set to TV, you can select the channel of
sub picture.
Easy functions of remote control.
Buttons Feature
PIP Used to activate or deactivate the PIP function directly.
SWAP Used to interchange the main picture and the sub picture.
➢When the main picture is in the Video mode and the
sub picture is in the TV mode, you might not hear
the sound of main picture when pressing the SWAP
() button after changing the sub picture
channel. At this time, reselect the channel of main
picture.
P/ Used to select the channel of sub picture.
Viewing the Picture In Picture (PIP) (continued)
PIP
TV
Move Enter Return
PIP : On √√
Source : TV √√
Size
:
√√
Swap √√
Position
:
√√
Prog. : P 1 √√
PIP
TV
Adjust Return
PIP : On √√
Source : TV √√
Size
:
√√
Swap √√
Position
:
√√
Prog. : P 1 √√
PIP
TV
Move Enter Return
PIP : On √√
Source : TV √√
Size
:
√√
Swap √√
Position
:
√√
Prog. : P 1 √√
P 1
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 39
English - 40
You can select the type of special sound effect to be used when
watching a given broadcast.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Sound is selected.
Result:
The options available in the
Sound
group are displayed.
3Press the ENTER () button.
Result:The Mode is selected
.
4Press the ENTER () button again.
5Select the required option by pressing the ▲or ▼button.
Result:The following modes are available:
Standard
-
Music
-
Movie
-
Speech
-
Custom.
6Press the ENTER () button to confirm.
➢
You can select these options by simply pressing the
S.MODE (Sound Mode) button on the remote control.
Changing the Sound Standard
Sound
Mode : Standard √√
Custom √√
Auto Volume : Off √√
Dolby Digital √√
Digital Audio Input √√
TV
Move Enter Return
Sound
Mode : Custom √√
Custom √√
Auto Volume : Off √√
Dolby Digital √√
Digital Audio Input √√
TV
Move Enter Return
Standard
Music
Movie
Speech
Custom
Custom
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 40
English - 41
Your television has several settings which allow you to control
sound quality.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Sound is selected.
Result:
The options available in the
Sound
group are displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Custom is selected.
Press the ENTER () button.
Result:The Custom menu is displayed with the current option.
5Select the option (Bass, Treble) to be adjusted by pressing the ▲
or ▼button. Press the ENTER () button. Press the œor √
button to reach the required setting.
6Press the œor √button to reach the required setting. Press the
ENTER () button to confirm.
➢
If you make any changes to the custom settings, the sound
standard is automatically switched to the Custom.
Customizing the Sound Settings
Sound
Mode : Standard √√
Custom √√
Auto Volume : Off √√
Dolby Digital √√
Digital Audio Input √√
TV
Move Enter Return
Custom
TV
Move Enter Return
Bass 0
Treble 0
Custom
TV
Move
œœ √√
Adjust Return
Bass 0
Treble 0
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 41
English - 42
Each broadcasting station has its own signal conditions, and so it
is not easy for you to adjust the volume every time the channel is
changed. This feature lets you automatically adjust the volume of
the desired channel by lowering the sound output when the
modulation signal is high or by raising the sound output when the
modulation signal is low.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Sound is selected.
Result:
The options available in the
Sound
group are displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Auto Volume is selected.
Press the ENTER () button.
5Select Off or On by pressing the ▲or ▼button. Press the
ENTER () button to confirm.
Adjusting the Volume Automatically
Sound
Mode : Standard √√
Custom √√
Auto Volume : Off √√
Dolby Digital √√
Digital Audio Input √√
TV
Move Enter Return
Sound
Mode : Standard √√
Custom √√
Auto Volume : Off √√
Dolby Digital √√
Digital Audio Input √√
TV
Move Enter Return
Off
On
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 42
English - 43
The Dolby Digital mode allows you enjoy Dolby Digital sound
effect fully with the speakers are connected to the television.
This allows various modes for the main, center, surround and
woofer speakers to be selected.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Sound is selected.
Result:
The options available in the
Sound
group are displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Dolby Digital is selected.
Press the ENTER () button.
Result:The Dolby Digital menu is displayed with the Dolby
ProLogic II is selected.
5Press the ENTER () button again. Select Off or On by
pressing the ▲or ▼button. Press the ENTER () button to
confirm.
➢
For further details of output depending on the each options,
refer to page 45.
6If you wish to adjust the volume properly during night viewing,
press the ▲or ▼button until the Dynamic Range is selected.
Press the ENTER () button.
7Select Off or On by pressing the ▲or ▼button. Press the ENTER
() button to confirm.
➢Manufactured under license from Digital
Theater Systems, Inc. US Pat. No.
5,451,942, 5,956,674, 5,974,380,
5,978,762 and other world-wide patents
issued and pending. “DTS” and “DTS Digital Surround”
are registered trademarks of Digital Theater Systems, Inc.
Copyright 1996, 2000 Digital Theater Systems, Inc. All
Rights Reserved.
➢Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and
the double-D symbol are trademarks of
Dolby Laboratories.
Setting the Dolby Digital
Sound
Mode : Standard √√
Custom √√
Auto Volume : Off √√
Dolby Digital √√
Digital Audio Input √√
TV
Move Enter Return
Dolby Digital
Dolby Pro Logic II : Off √√
Dynamic Range : Off √√
Level Control √√
Time Delay √√
TV
Move Enter Return
Off
On
Dolby Digital
Dolby Pro Logic II : Off √√
Dynamic Range : Off √√
Level Control √√
Time Delay √√
TV
Move Enter Return
Off
On
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 43
English - 44
8Press the ▲or ▼button until the Level Control is selected.
Press the ENTER () button.
Result:The Level Control menu is displayed with the Test
Tone is selected.
9Press the ENTER () button again. To simulate the volume of
speakers, select the On by pressing the ▲or ▼button. Press the
ENTER () button.
10 Select the speaker (Front Left, Center, Front Right, Rear
Right, Rear Left or Sub Woofer)by pressing the ▲or ▼button.
Press the ENTER () button.
11 Select the speaker to be simulate, adjust the volume by pressing
the œor √button.
12 When you have finished the level control, press the MENU ()
button.
Result:The Dolby Digital menu is displayed again.
13 To set the delay time of surround channel, select the Time Delay
by pressing the ▲or ▼button. Press the ENTER () button.
14 Select the option (Rear Right, Rear Left) to be adjusted by
pressing the ▲or ▼button. Press the ENTER () button. Press
the œor √button to reach the required setting. Press the ENTER
() button to confirm.
Setting the Dolby Digital (continued)
Dolby Digital
Dolby Pro Logic II : Off √√
Dynamic Range : Off √√
Level Control √√
Time Delay √√
TV
Move Enter Return
Level Control
TV
Move Enter Return
Test Tone : Off √√
Front Left 0dB
Center 0dB
Front Right 0dB
Rear Right 0dB
Rear Left 0dB
Sub Woofer 0dB
Off
On
Level Control
TV
Move
œœ √√
Adjust Return
Test Tone : Off √√
Front Left 0dB
Center 0dB
Front Right 0dB
Rear Right 0dB
Rear Left 0dB
Sub Woofer 0dB
Dolby Digital
Dolby Pro Logic II : Off √√
Dynamic Range : Off √√
Level Control √√
Time Delay √√
TV
Move Enter Return
Time Delay
TV
Move
œœ √√
Adjust Return
Rear Right 5ms
Rear Left 5ms
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 44
English - 45
Setting the Dolby Pro LogicII
✔
✔
✔
✔
✔
✔
✔
✔
✔
Mono
Mono
Lo/Ro
Lt/Rt
5.1ch
Dolby
Digital
PCM Stereo (L/R)
DTS
MPEG I(Stereo only)
MPEG II
Main
Left
✔
✔
✔
✔
✔
✔
✔
✔
Center
✔
✔
✔
✔
✔
✔
✔
✔
✔
Main
Right
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
Right Left
Rear Sub
Woofer
✔
✔
✔
✔
✔
✔
✔
✔
✔
Output
Input
(Source)
✔
✔
✔
✔
✔
✔
✔
✔
✔
Mono
Mono
Lo/Ro
Lt/Rt
5.1ch
Dolby
Digital
PCM Stereo (L/R)
DTS
MPEG I(Stereo only)
MPEG II
Main
Left
✔
✔
✔
Center
✔
✔
✔
✔
✔
✔
✔
✔
✔
Main
Right
✔
✔
✔
✔
✔
✔
Right Left
Rear Sub
Woofer
(✔)
(✔)
(✔)
(✔)
(✔)
✔
✔
(✔)
✔
Output
Input
(Source)
➢The output of sub woofer is changed depending on the speaker setting.
In case of “Dolby Pro Logic II : Off”
In case of “Dolby Pro Logic II : On”
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 45
English - 46
This feature allows you enjoy Digital sound when the equipment
with Digital output is connected to the television.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Sound is selected.
Result:
The options available in the
Sound
group are displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Digital Audio Input is
selected. Press the ENTER () button.
Result:The options available in the Digital Audio Input
group are displayed.
5Select the option (Optical, Coaxial) by pressing the ▲or ▼
button. Press the ENTER () button.
➢
◆The Optical and Coaxial options are for digital signal
inputs, such as the Dolby Digital (5.1ch), Dolby Prologic
(4ch), DTS, or MPEG.
◆Optical :Converts the electric signal into an optical light
signal, and transmits it through glass fibers.
A transmission system of digital audio in the
form of a light wave, S/PDIF format using a
glass conductor.
◆Coaxial :The digital audio signal is received through a
coaxial copper cable.
6Select the required output (AV1, AV2, AV3, S-Video, Component1 or
Component2) by pressing the ▲or ▼button. Press the ENTER
() button to confirm.
Setting the External Digital Sound
Rear of the TV
OpticalCoaxial
Sound
Mode : Custom √√
Custom √√
Auto Volume : Off √√
Dolby Digital √√
Digital Audio Input √√
TV
Move Enter Return
Digital Audio Input
Optical :
----
√√
Coaxial :
----
√√
TV
Move Enter Return
----
AV1
AV2
AV3
S-Video
Component1
Component2
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 46
English - 47
You can hear clear melody sound when the television is powered
on or off.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Setup is selected.
Result:The options available in the Setup group are displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Melody is selected. Press the
ENTER () button.
5Select the required option (Off or On) by pressing the ▲or ▼
button.
6Press the ENTER () button to confirm.
Setting the Melody Sound
Setup
Move Enter Return
Time √√
Plug & Play √√
Language : English √√
Self Focus √√
Blue Screen : Off √√
Melody : On √√
TV
Setup
Move Enter Return
Time √√
Plug & Play √√
Language : English √√
Self Focus √√
Blue Screen : Off √√
Melody : On √√
TV
Off
On
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 47
English - 48
Selecting the Sound Mode
The “DUAL I-II” button displays/controls the processing and output
of the audio signal. When power is switched on, the mode is
automatically preset to either “Dual I ” or “Stereo”, depending on
the current transmission.
➢
◆If the receiving conditions deteriorate, listening will be
easier if the mode is set to the Mono.
◆If the stereo signal is weak and an automatic switching
occurs, then switch to the Mono.
◆When receiving a mono sound in the AV mode, connect
to the “AUDIO-L” input connector on the panel (front or
side, depending on the model). If the mono sound comes
out only from left speaker, press the DUAL I-II button.
Type of broadcast
Regular broadcast
(Standard audio)
Regular +
NICAM Mono
NICAM Stereo
NICAM Dual I/II
Regular broadcast
(Standard audio)
Bilingual or Dual I/II
Stereo
On-screen indication
Mono (Normal use)
NICAM ↔Mono
Mono (Normal)
NICAM ↔Mono
Stereo (Normal)
Mono (Normal use)
Dual I ↔ Dual II
Stereo ↔Mono
(Forced mono)
NICAM →NICAM →Mono
Dual I Dual II (Normal)
NICAM
Stereo
A2
Stereo
→
→
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 48
English - 49

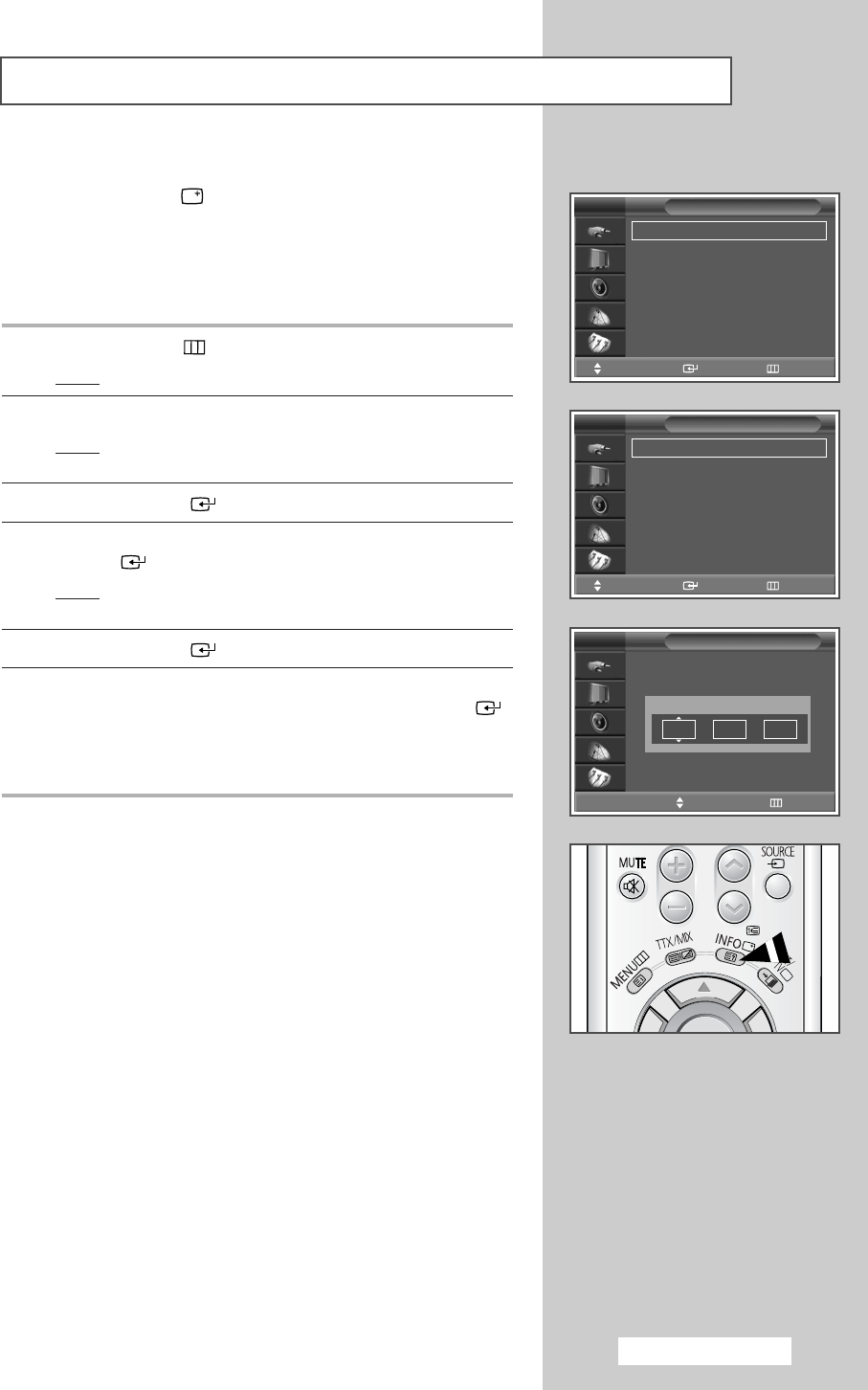

You can set the television’s clock so that the current time is displayed
by pressing the “INFO ( ) ” button. You must also set the time if
you wish to use the automatic on or off timers.
➢
When pressing the “ I ”button (On/Off) on the panel of
the television, the clock setting will be reset.
1Press the MENU () button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Setup is selected.
Result:The options available in the Setup group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Time is selected. Press the
ENTER () button.
Result:The options available in the Time group are displayed
with Clock is selected.
5Press the ENTER () button.
6Press the ¦or button to move to the Hour, Minute or am/pm.
Set these by pressing the ▲or ▼button. Press the ENTER ()
button to confirm.
➢You can also set the Hour and Minute by pressing the
numeric buttons directly.
Setting and Displaying the Current Time
Setup
Move Enter Return
Time √√
Plug & Play √√
Language : English √√
Self Focus √√
Blue Screen : Off √√
Melody : On √√
TV
Time
Move Enter Return
Clock :
--
:
--
am √√
Sleep Timer : Off √√
On Timer : Off √√
Off Timer : Off √√
TV
Clock
œœ √√
Move Adjust Return
TV
Hour Minute am/pm
11 00 am
Clock Set
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 49
English - 50
You can select a time period of between 30 and 180 minutes after
which the television automatically switches to Standby mode.
1Press the MENU () button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Setup is selected.
Result:The options available in the Setup group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Time is selected. Press the
ENTER () button.
Result:The options available in the Time group are displayed.
5Press the ▲or ▼button until the Sleep Timer is selected. Press
the ENTER () button.
6Select the preset time interval (Off, 30, 60, 90, 120, 150, 180) for
staying on by pressing the ▲or ▼button.
Press the ENTER () button to confirm.
➢If the sleep timer is not yet set, Off is displayed.
If the sleep timer is already set, the remaining time
before which the television switches to Standby mode
is displayed.
Setting the Sleep Timer
Setup
Move Enter Return
Time √√
Plug & Play √√
Language : English √√
Self Focus √√
Blue Screen : Off √√
Melody : On √√
TV
Time
Move Enter Return
Clock : 11 : 35 am √√
Sleep Timer : Off √√
On Timer : Off √√
Off Timer : Off √√
TV
Off
30
60
90
120
150
180
Time
Move Enter Return
Clock : 11 : 35 am √√
Sleep Timer : Off √√
On Timer : Off √√
Off Timer : Off √√
TV
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 50
English - 51
r
You can set the On or Off timers so that the television will:
◆Switch on automatically and tune to the channel of your
choice at the time you select
◆Switch off automatically at the time you select
➢
The first step is to set the television’s clock (refer to “Setting
the Current Time” on page 49). If you have not yet set the
clock, the message
Set the clock first. is
displayed.
1Press the MENU () button.
Result:The main menu is displayed.
2Press the ▲or ▼button until the Setup is selected.
Result:The options available in the Setup group are
displayed.
3Press the ENTER () button.
4Press the ▲or ▼button until the Time is selected. Press the
ENTER () button.
Result:The options available in the Time group are displayed.
5Press the ▲or ▼button until the On Timer is selected. Press the
ENTER () button.
Result:The options available in the On Timer group are
displayed.
6Select the Hour, Minute, am/pm, Prog No. (programme number)
or Volume. Press the œor √button to set these by pressing the
▲or ▼button.
7To activate the On Timer with the settings satisfied, select
Activation to by pressing the œor √button,then select Yes by
pressing the ▲or ▼button.
8Press the MENU ()button.
Result:The options available in the Time group are displayed
again.
9Press the ▲or ▼button until the Off Timer is selected. Press
the ENTER () button.
Result:The Off Timer menu is displayed.
10 Set the Off Timer as methods for On Timer setting.
➢
Absent Power Off
When you set the timer “On”, your television will eventually
be turned off, if you do not operate any controls during the 3
hours after the TV is turned on by timer. This function is
available in only the timer “On” mode and will prevent a
leakage accident or overheating, caused by your TV left on
for a long time due to the timer “On” (when you are away
on holiday, for example).
Switching the Television On and Off Automatically
Setup
Move Enter Return
Time √√
Plug & Play √√
Language : English √√
Self Focus √√
Blue Screen : Off √√
Melody : On √√
TV
On Timer
œœ √√
Move Adjust Return
TV
Hour Minute am/pm
630am
Prog No. Volume Activation
P 1 10 Yes
Time
Move Enter Return
Clock : 11 : 35 am √√
Sleep Timer : 30 min √√
On Timer : 6 : 30 am On √√
Off Timer : Off √√
TV
Time
Move Enter Return
Clock : 11 : 35 am √√
Sleep Timer : 30 min √√
On Timer : Off √√
Off Timer : Off √√
TV
On Timer
Off Timer
œœ √√
Move Adjust Return
TV
Hour Minute am/pm
Activation
11 00 am Yes
Off Timer
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 51
English - 52
Viewing an External Signal Source
Use the remote control to switch between viewing signals from
connected equipment, such as VCR, DVD, Set-Top Box and the TV
source (broadcast or cable)
1Press the MENU () button.
Result:The options available in the Input group are
displayed.
2Press the ENTER () button.
Result:The Source List is selected.
3Press the ENTER () button again.
4Press the ▲or ▼button to select signal source, then press the
ENTER () button.
➢
◆
When you connect equipment to the TV, you can choose
between the following sets of jacks : AV1, AV2,
Component1 or Component2 on the TV’s rear panel, and
AV3 or S-Video on the TV’s side panel.
◆
You can select these options simply by pressing the
SOURCE () button.
5Press the MENU () button.
Result:The options available in the Input group are
displayed again.
6Press the ▲or ▼button until the Edit Name is selected.
Press the ENTER () button.
7Press the ▲or ▼button to select the external source to be edited.
Press the ENTER () button.
Result:
The device names available are listed
.
VCR
-
DVD
-
Cable STB
-
HD STB
-
Satellite STB
-
AV Receiver
-
DVD Receiver
-
Game
-
Camcorder - DVD Combo -
DHR (DVD HDD Recorder) - PC.
8Select the required device by pressing the ▲or ▼button.
Press the ENTER () button to confirm.
➢
If you change the external source while viewing, pictures
might take a short period of time to be switched.
Input
Move Enter Return
Source List : TV √√
Edit Name √√
TV
Input
Move Enter Return
Source List : TV √√
Edit Name √√
TV
Source List
Move Enter Return
TV
AV1 :
----
AV2 :
----
AV3 :
----
S-Video :
----
Component1 :
----
▼ More
TV
Edit Name
Move Enter Return
AV1 :
----
√√
AV2 :
----
√√
AV3 :
----
√√
S-Video :
----
√√
Component1 :
----
√√
Component2 :
----
√√
TV
----
VCR
DVD
Cable STB
HD STB
Satellite STB
†
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 52
English - 53

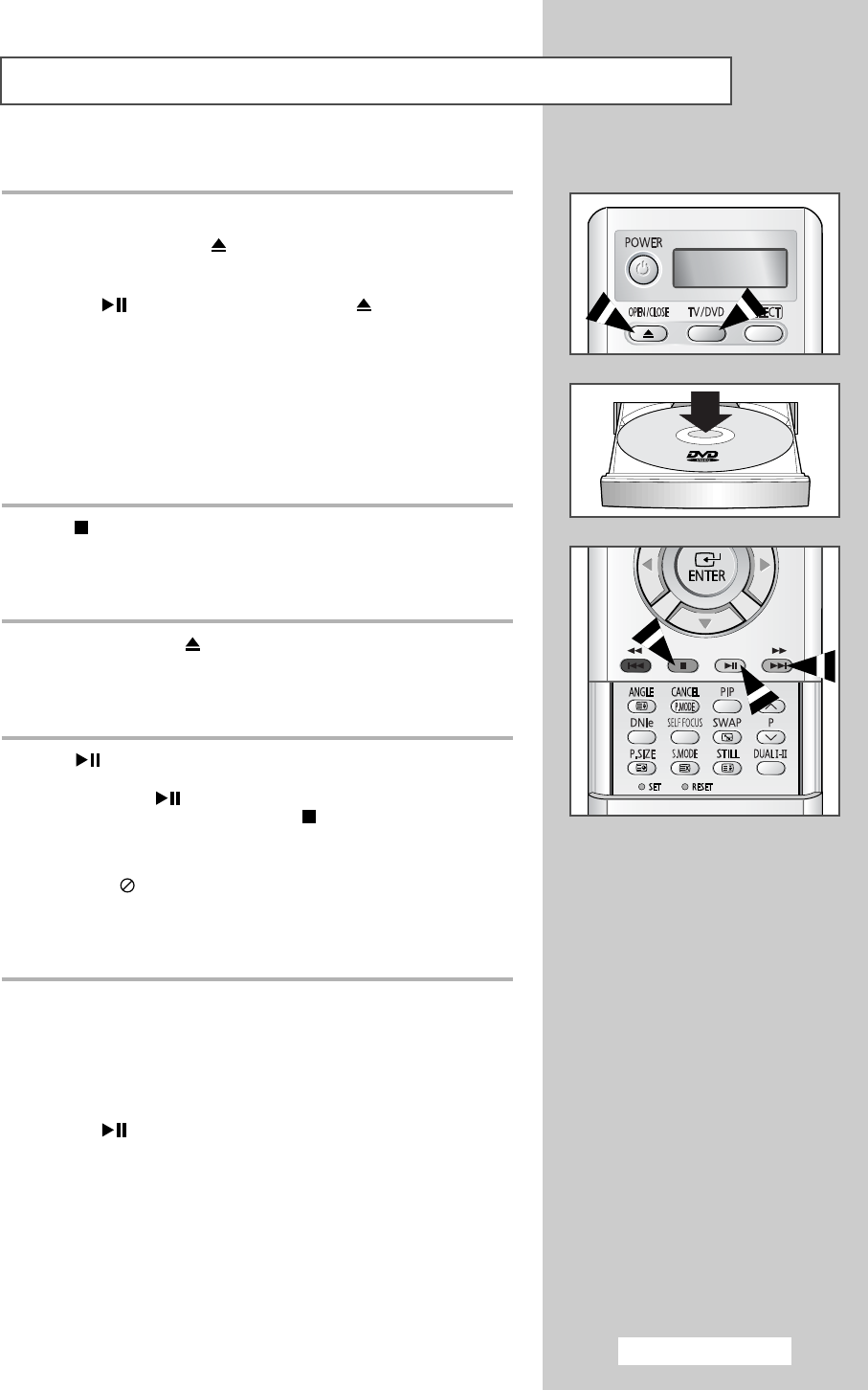

Playback
1Press the TV/DVD button to switch the DVD mode.
2Press the OPEN/CLOSE () button.
3Place a disc gently into the tray with the disc’s label facing up.
4Press the (Play/Pause) or OPEN/CLOSE () button to close the
disc tray.
☛Disks with defect or copied illegally may not be played back
by DVD player and may cause damage to the DVD system
of your TV set.
Stopping Playback
Press the (Stop) button during playback.
Removing Disc
Press the OPEN/CLOSE () button.
Pausing Playback
Press the (Play/Pause) button during playback, then screen stops
and no sound.
To resume, press the (Play/Pause) button again. It will pick up where
you left off (unless the disc is removed, the (Stop) button is pressed
twice or the set is unplugged.).
➢◆If the player is left for 5 minutes in pause mode, it will stop.
◆The “ ” icon indicates an invalid button press.
Slow Motion Play (Except CD)
Press the √√ (Forward search) button during pause.
-By pressing the √√ (Forward search) button for a second during
pause, you can select slow motion playback for 1/2, 1/4, 1/8 or 1/16 of
normal speed.
-No sound is heard during slow mode.
-Press the (Play/Pause) button to resume normal playback.
-When playing a VCD, the reverse slow motion play will not work.
Playing a Disc
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 53
English - 54
Using the Search and Skip Functions
Searching through a Chapter or Track
Press the (Forward search) or (Rewind search) button during
playback.
-Press the (Forward search) or (Rewind search) button and
press again to search at a faster speed (2X/4X/8X/16X/32X) on the
DVD, VCD, CD.
-To return to normal speed playback, press the (Play/Pause)
button.
➢When in search mode (2X/4X/8X/16X/32X) on a DVD or high-
speed playback on a VCD, no sound will be heard.
Skipping Tracks
Press the (Next skip) or (Back skip) button during playback.
-When playing a DVD, if you press the (Next skip) button, it moves
to next chapter. If you press the (Back skip) button, it moves to
the beginning of the chapter. One more press makes it move to the
beginning of the previous chapter.
-When playing a CD, if you press the (Next skip) button, it moves
to next track. If you press the (Back skip) button, it moves to the
beginning of the track. One more press makes it move to the
beginning of the previous track.
-When playing a VCD 2.0 in MENU OFF mode, a VCD1.1 or a CD,
if you press the (Next skip) button, it moves to next track.
If you press the (Back skip) button, it moves to the the beginning
of the track. One more press makes it move to the beginning of the
previous track.
-If a track exceeds 15 minutes when playing a VCD and you press the
(Next skip) button, it moves forward 5 minutes. If you press the
(Back skip) button, it moves backward 5 minutes.
-When playing a VCD 2.0 in the MENU MODE or Track View function,
if you press the (Next skip) button, it moves to the next menu or
the next Track View display. If you press the (Back skip) button, it
moves to the previous menu or the previous Track View display.
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 54
English - 55
1Press the OPEN/CLOSE ()button. Place a disc gently into the
tray with the disc’s label facing up. Press the (Play/Pause) or
OPEN/CLOSE ()button to close the disc tray.
2Press the …or †button to select the desired music folder, then
press the ENTER () or √button.
3Press the …or †button again to select a song file. Press the
ENTER () or (Play/Pause) button to begin play of the
song file.
4To play another song file of the same music folder, press the
(Stop) button and press the …or †button to select a song file.
Press the ENTER () or (Play/Pause) button.
To play another song file of another folder, press the œbutton to
move the music folder lists. Repeat Steps 2to 3.
Playing a Disc (MP3/WMA)
00:00 00:00
001/007
\
music folder1
music folder2
music folder3
music folder4
music folder5
music folder6
MP3/JPG/MPG/WMA
MP3/JPG/MPG/WMA
00:23 03:40 128Kbps
003/006
\
music folder1\
music folder1
song1
song2
song3
song4
song5
When playing CD-R/MP3 discs, please follow the recommendations below:
◆Your MP3 files should be ISO 9660 or JOLIET format.
ISO 9660 format and Joliet MP3 files are compatible with Microsoft's DOS and Windows, and with Apple's Mac.
These two formats are the most widely used.
◆When naming your MP3 files do not exceed 8 characters, and place “.mp3” as the file extension.
General name format of: Title.mp3. When composing your title, make sure that you use 8 characters or less,
have no spaces in the name, and avoid the use of special characters including: (.,/,\,=,+).
◆Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.
Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting
audio CD quality sound requires an analog/digital sampling rate (conversion to MP3 format) of at least 128 Kbps
and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound
quality. Conversely, files with sampling rates below 128 Kbps will not be played properly.
◆Do not try recording copyright protected MP3 files.
Certain “securized” files are encrypted and code protected to prevent illegal copying. These files are of the
following types: Windows MediaTM (registered trade mark of Microsoft Inc) and SDMITM (registered trademark of
The SDMI Foundation). You cannot copy such files.
◆Your DVD player only accepts one level of file directory.
Consequently you must choose:
-either to save all your MP3 recording files at the root of the disc;
-and/or create folders in the directory for each artist or music type (e.g.classical, rock, jazz, etc)
◆Important: The above recommendations cannot be taken as a guarantee that the DVD player will play MP3
recordings, or as an assurance of sound quality. You should note that certain technologies and methods for
MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound
quality and in some cases, inability of the player to read the files).
◆This unit can play a maximum of 500 files and 300 folders per disc.
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 55
English - 56
1Press the OPEN/CLOSE ()button. Place a disc gently into the
tray with the disc’s label facing up. Press the (Play/Pause) or
OPEN/CLOSE ()button to close the disc tray.
2Press the …or †button to select the desired MPEG folder, then
press the ENTER () or √button.
3Press the …or †button again to select a MPEG file. Press the
ENTER () or (Play/Pause) button to begin play of the
MPEG file.
4To play another MPEG file of the same MPEG folder, press the
(Stop) button and press the …or †button to select a MPEG
folder. Press the ENTER () or (Play/Pause) button.
To play another MPEG folder of another folder, press the œbutton
to move the MPEG folder lists. Repeat Steps 2to 3.
Playing a Disc (MPG)
MP3/JPG/MPG/WMA
00:00 00:00
003/007
\
MPEG folder1\ 
MPEG folder1\ 
MPEG 1
MPEG 2
MPEG 3
MPEG 4
MPEG 5
A/V
A/V
A/V
A/V
A/V
00:00 00:00
001/007
\
MPEG folder1
MPEG folder2
MPEG folder3
MPEG folder4
MPEG folder5
MPEG folder6
MP3/JPG/MPG/WMA
MP3/JPG/MPG/WMA
00:00 00:00
003/007
\
MPEG folder1\ 
MPEG folder1\ 
MPEG 1
MPEG 2
MPEG 3
MPEG 4
MPEG 5
A/V
A/V
A/V
A/V
A/V
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 56
English - 57
Press the OPEN/CLOSE ()button. Place a disc gently into the tray
with the disc’s label facing up. Press the (Play/Pause) or
OPEN/CLOSE ()button to close the disc tray.
Rotating and Reversing the picture
1Press the …or †button to select the desired picture file of the file
list, then press the ENTER () button.
Result:The selected picture is displayed.
➢If you want to return to the file list, press the (Stop)
button.
2Press the œor √button to rotate the picture.
3Press the …button repeatedly to reverse vertically.
Press the †button repeatedly to reverse horizontally.
Slide Show
Press the …or †button to select the desired picture file of the file list,
then press the (Play/Pause) button.
Result:It enters slide show mode.
➢If you want to return to the file list, press the (Stop) button.
Viewing the Album Screen
1Press the DVD MENU button during slide show.
Result:The DVD menu is displayed with the Disc Menu is
selected.
2Press the ENTER () button.
Result:It enters album screen mode.
3To display the next or previous 12 pictures, press the (next
skip) or (back skip) button.
4Press the …/†/œ/√button to select the desired picture, then
press the (Play/Pause) button.
Result:It enters slide show mode again.
➢If you press the ENTER () button after selecting the
desired picture, the selected picture will be displayed only.
Playing a Disc (JPEG)
MP3/JPG/MPG/WMA
00:00 00:00
003/007
\
picture folder1\
picture folder1
picture1
picture2
picture3
picture4
Press ENTER key
for DiscMenu
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 57
English - 58
1Press the DVD MENU button.
Result:The DVD menu is displayed with the Disc Menu is
selected.
2Press the ENTER () button.
➢
Depending on the disc, the Disc Menu may not work.
Using the Disc Menu
Press ENTER key
for DiscMenu
1Press the DVD MENU button.
Result:The DVD menu is displayed.
2Press the …or †button to select Title Menu.
3Press the ENTER () button.
➢
◆The Title Menu will only be displayed if there are at least
two titles in the disc.
◆Depending on the disc, the Title Menu may not work.
Using the Title Menu
Press ENTER key
for TitleMenu
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 58
English - 59
Displaying the Disc Information
Info
Zoom
Bookmark
Repeat
Program
1Press the DVD MENU button.
Result:The DVD menu is displayed.
2Press the …or †button to select Function.
Result:The options available in the Function group are
displayed.
3Press the ENTER () button.
Result:The Info menu is selected.
4Press the ENTER () button again.
Result: Depending on the disc, the disc information will be
displayed.
➢You can display by simply pressing the INFO () button.
5Press the …or †button to select the required item. Press the œ
or √button to make the required setup, then press the ENTER
() button.
➢You may use the number buttons of the remote control to
start play from a desired time.
6To make the screen disappear, press the INFO () button.
To access the desired title when there is more than one in the disc. For example, if there is more
than one movie on a DVD, each movie will be identified.
Most DVD discs are recorded in chapters so that you can quickly find a specific passage.
Allows playback of the film from a desired time. You must enter the starting time as a reference.
Refers to the language of the film soundtrack. In the example, the soundtrack is played in English
5.1ch. A DVD disc can have up to eight different soundtracks.
Refers to the subtitle languages available in the disc. You will be able to choose the subtitles
language or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different
subtitles.
➢◆What is a Chapter? Each Title on a DVD is usually divided into
chapters (similar to tracks on an audio CD).
◆What is a Title? A DVD may contain several different titles. For
example, if a disc contains four different movies, each might be
considered a title.
01/01
03/40
0:10:20
ENG 5.1
Off
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 59
English - 60
Using the Zoom Function (DVD/VCD)
1Press the DVD MENU button.
Result:The DVD menu is displayed.
2Press the …or †button to select Function.
Result:The options available in the Function group are
displayed.
3Press the ENTER () button.
4Press the …or †button to select Zoom. Press the ENTER ()
button.
Result: The “ ” mark is displayed.
5Press the ENTER () button repeatedly to zoom in on (DVD or
VCD: 2X, 3X, 4X, 1/2X, 1/3X, 1/4X in order).
6Press the …/†/œ/√button to select the part of the screen you
want to zoom in on (2X/3X/4X).
Info
Zoom
Bookmark
Repeat
Program
2X
When a DVD contains multiple angles of a particular scene, you
can select the Angle function.
Press the ANGLE button. Press the œor √button to select the desired
screen angle.
To turn off the display, press the ANGLE button again.
Changing the Camera Angle
1/9
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 60
English - 61
Using the Bookmark Function (DVD/VCD)
This feature lets you bookmark sections of a DVD or VCD so you
can quickly find them at a later time.
1Press the DVD MENU button.
Result:The DVD menu is displayed.
2Press the …or †button to select Function.
Result:The options available in the Function group are
displayed.
3Press the ENTER () button.
4Press the …or †button to select Bookmark. Press the ENTER
() button.
5Press the œor √button to move to the desired bookmark icon.
6When you reach the scene you want to mark, press the ENTER
() button.
Result:The icon will change to a number (1, 2, or 3).
Recalling a Marked Scene
Press the œor √button to select a marked scene.
Press the (Play/Pause) button to skip to the marked scene.
Clearing a Bookmark
Press the œor √button to select the bookmark number you want to
delete. Press the CANCEL button to delete a bookmark number.
➢
◆Depending on the disc, this function may not work.
◆Up to three scenes may be marked at the same time.
Info
Zoom
Bookmark
Repeat
Program
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 61
English - 62
Repeat the current track, chapter, title, a chosen section (A-B), or
all of the disc.
1Press the DVD MENU button.
Result:The DVD menu is displayed.
2Press the …or †button to select Function.
Result:The options available in the Function group are
displayed.
3Press the ENTER () button.
4Press the …or †button to select Repeat.
Press the ENTER () button.
5Press the œor √button to select the chapter, title or A-B.
Press the ENTER () button.
➢The DVD repeats play by chapter or title, the CD and VCD
repeat play by track or disc.
A-B Repeat
1Press the œor √button to select A-. Press the ENTER ()
button at the point where you want the repeat play to start.
2Press the œor √button to select B. Press the ENTER ()
button at the point where you want the repeat play to stop.
➢If the title or track is completed before marking the end (B),
the end of title or track becomes Bautomatically.
3To return to normal play, press the œor √button to select Off
and press the ENTER () button.
➢
Depending on the disc, this function may not work.
Repeat Play
Info
Zoom
Bookmark
Repeat
Program
A
-
B
A
-
B
DVD
VCD/CD
Off Chapter Title
Off Track Disk
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 62
English - 63
1Press the DVD MENU button.
Result:The DVD menu is displayed.
2Press the …or †button to select Function.
Result:The options available in the Function group are
displayed.
3Press the ENTER () button.
4Press the …or †button to select Program. Press the ENTER
() button.
5Press the numeric buttons to select the first track to add to the
program.
Result:Selected numbers are displayed in the first track.
6Press the …/†/œ/√button to move the next tray. Follow the
above instruction for programming.
7Press the (Play/Pause) button.
Result:The disc will be played in programmed order.
➢
◆Depending on the disc, this function may not work.
◆Press the (Stop) button twice to cancel program play
during playback.
◆Opening the tray by pressing the OPEN/CLOSE ()button
cancels program play.
Program Play (CD)
Info
Zoom
Bookmark
Repeat
Program
Program:Track
Exit NEXT
(01-17)
Program:Track
Exit NEXT
(01-17)
Start
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 63
English - 64
If you select the language for the player’s on-screen displays, it will
come up automatically every time.
1Press the DVD MENU button.
Result:The DVD menu is displayed.
2Press the …or †button to select Setup.
Result:The options available in the Setup group are
displayed.
3Press the ENTER () button.
Result:The Language Setup is selected.
4Press the ENTER () button again.
Result:The Player Menu is selected.
5Press the ENTER () button again.
Press the …or †button to select the appropriate language, then
press the ENTER () button.
➢
◆This function depends on what languages are encoded on
the disc and may not work with all DVDs.
◆If the selected language is not recorded on the disc, the
original pre-recorded language is selected.
Setting up the Language for Player Menu
Language Setup √√
Display Setup √√
Parental Setup : √√
Player Menu : English √√
LANGUAGE SETUP
Player Menu : English
Français
Deutsch
Español
Italiano
Nederlands
PLAYER MENU LANGUAGE
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 64
English - 65
1Press the DVD MENU button.
Result:The DVD menu is displayed.
2Press the …or †button to select Setup.
Result:The options available in the Setup group are
displayed.
3Press the ENTER () button.
4Press the …or †button to select Display Setup. Press the
ENTER () button.
Result:The options available in the Display Setup group are
displayed.
5Press the …or †button to select the required menu (Screen
Messages, Black Level, or NTSC Disc Output).
6Select the appropriate option by pressing the ENTER () or √
button.
◆Screen Messages : On or Off.
Use to turn on-screen messages on or off.
◆Black Level : On or Off.
Adjusts the brightness of the screen.
◆NTSC Disc Output
When outputting the NTSC Disc to the external device of NTSC
system, select NTSC. For the PAL system, select PAL.
Otherwise, there may be no color or abnormal color.
Setting up the Display Options
Language Setup √√
Display Setup √√
Parental Setup : √√
Screen Messages : Off
Black Level : Off
NTSC Disc Output : PAL
DISPLAY SETUP
Screen Messages : Off
Black Level : Off
NTSC Disc Output : PAL
DISPLAY SETUP
Screen Messages : Off
Black Level : Off
NTSC Disc Output : PAL
DISPLAY SETUP
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 65
English - 66
1Press the DVD MENU button.
Result:The DVD menu is displayed.
2Press the …or †button to select Setup.
Result:The options available in the Setup group are
displayed.
3Press the ENTER () button.
4Press the …or †button to select Parental Setup. Press the
ENTER () button.
Result:The Enter Password is displayed.
5Enter the default password (0000) by using the numeric buttons.
Result:The options available in the Parental Setup group
are displayed with the Use Password is selected.
➢If you have lost your password, enter the master password
(1369).
6Select Yes by pressing the √button to use a password.
Result:The Rating Level and Change Password are
displayed.
7About the Rating Level;
1Press the …or †button to select Rating Level. Press
the ENTER () button.
2Press the …or †button to select the level (e.g. Level 8)
and press the ENTER () button.
Discs that contain Level 7 will now not play.
➢To cancel the rating level, select No in the Use Password
pressing the √button.
8About the Change Password;
1Press the …or †button to select Change Password.
Press the ENTER () button.
Result:The Enter New Password is displayed.
2Enter your new password.
Result:The Re-enter New Password is displayed.
3Re-enter your new password to confirm.
Setting up the Parental Control
Language Setup √√
Display Setup √√
Parental Setup : √√
Enter Password
CREATE PASSWORD
----
Level 8 Adult
Level 7
Level 6
Level 5
Level 4
Level 3
Level 2
Level 1 Kids Safe
RATING LEVEL
Enter New Password
CHANGE PASSWORD
----
Re-enter New Password
CHANGE PASSWORD
----
Use Password : Yes
Rating Level : 8 √√
Change Password √√
PARENTAL SETUP
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 66
English - 67
Most television channels provide written information services via
teletext. Information provided includes:
◆
Television programme times
◆
News bulletins and weather forecasts
◆
Sports results
◆
Travel information

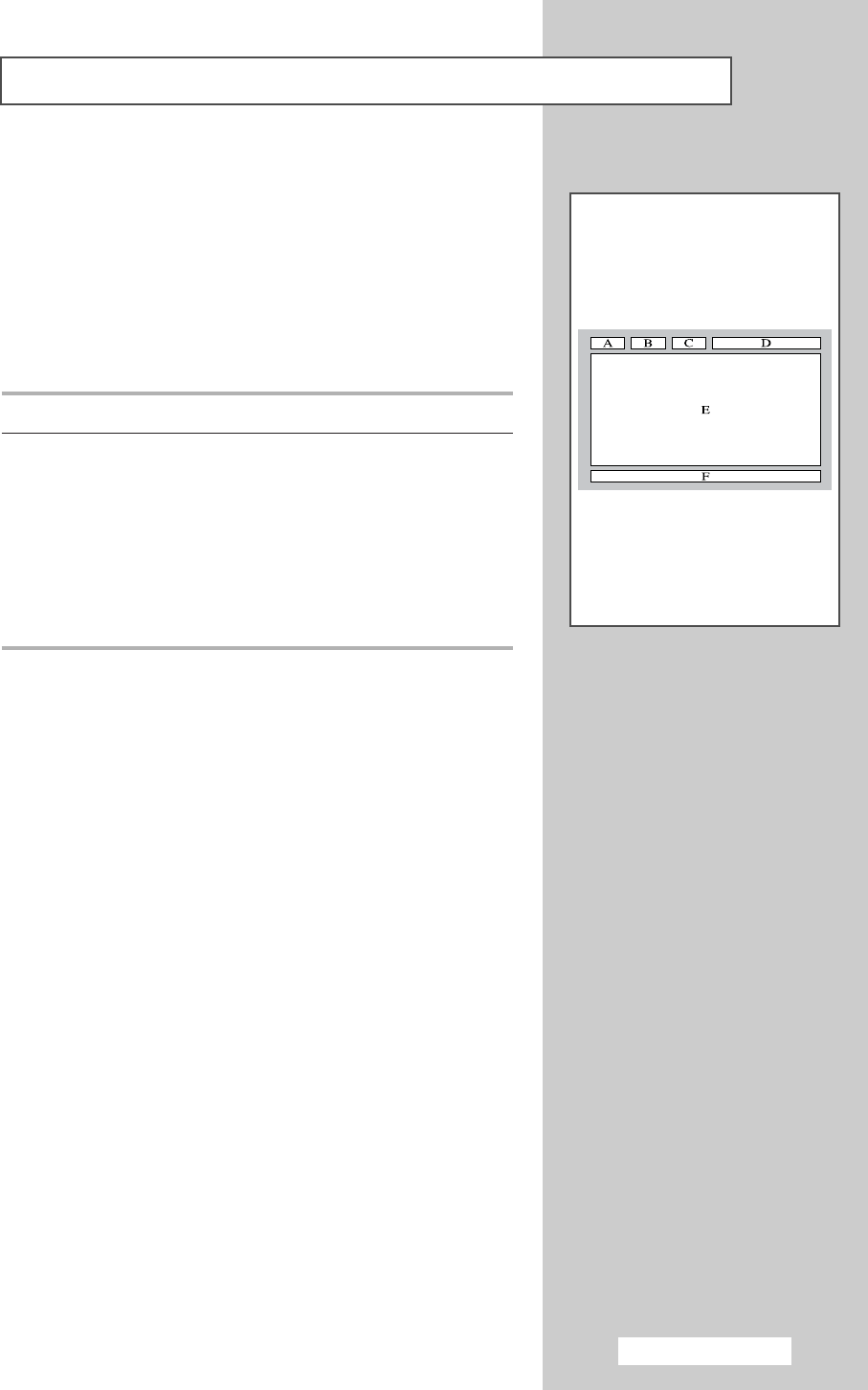

This information is divided into numbered pages (see diagram).
Part Contents
ASelected page number.
BBroadcasting channel identity.
CCurrent page number or search indications.
DDate and time.
EText.
FStatus information.
FASTEXT information.
➢
Teletext information is often divided between several pages
displayed in sequence, which can be accessed by:
◆Entering the page number
◆Selecting a title in a list
◆Selecting a colored heading (FASTEXT system)
Teletext Feature
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 67
English - 68
You can display Teletext information at any time on your television.
☛For Teletext information to be displayed correctly,
channel reception must be stable; otherwise:
◆Information may be missing
◆Some pages may not be displayed
1Select the channel providing the Teletext service using the P
or button.
2Press the TTX/MIX ()button to activate the teletext mode.
Result:
The contents page is displayed. It can be redisplayed
at any time by pressing the (index) button.
3Press the TTX/MIX ()button again.
Result:
The screen will be split into two. This Double Teletext
feature lets you view the
actual broadcast
and teletext
information separately on the screen.
4If you wish to display the actual broadcast at the same time as
the teletext page, press the TTX/MIX ()button again.
5Press the TV () button to exit from the teletext display.
Displaying the Teletext Information
TV
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 68
English - 69
Selecting Display Options
When you have displayed a Teletext page, you can select various
options to suit your requirements.
To display... Press the...
◆Hidden text (reveal)
(answers to quiz games, for example)
◆The normal screen (reveal) again
◆A secondary page (sub-page)
◆The broadcast when searching for a page (cancel)
◆The next page (page up)
◆The previous page (page down)
◆Double-size letters in the: (size)
•Upper half of the screen • Once
•Lower half of the screen • Twice
◆Normal screen • Three times
➢
To return to the normal display after using the reveal or
size feature, press the
TV ()
button.
TV
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 69
English - 70
Selecting a Teletext Page
You can enter the page number directly by pressing the numeric
buttons on the remote control.
1Enter the three-digit page number given in the content by
pressing the corresponding numeric buttons.
Result:The current page counter is incremented and the
page is then displayed. If the selected page is linked
with several secondary pages, the secondary pages
are displayed in sequence. To freeze the display on a
given page, press the (hold). Press it again to
resume.
2If the FASTEXT system is used by the broadcasting company,
the different topics covered on a Teletext page are color-coded
and can be selected by pressing the colored buttons on the
remote control.
Press the colored button corresponding to the topic that you wish
to select; the available topics are given on the status line.
Result:The page is displayed with other colored information
that can be selected in the same way.
3To display the previous or next page, press the corresponding
colored button.
4To display the subpage, see the following steps.
◆
Press the (sub-page) button.
Result:The available subpages appear.
◆
Select the required sub-page. Sub-pages can be scrolled by
pressing the or button.
5When you have finished, press the TV ()button to return to
your normal broadcast.
TV
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 70
English - 71
Connecting to the External Devices
☛Whenever you connect an audio or video system to your
television, ensure that all elements are switched off.
Refer to the documentation supplied with your equipment
for detailed connection instructions and associated safety
precautions.
Rear of the TV
(Input/Output)
①
This end can be fitted with:
◆Three RCA connectors (VIDEO + AUDIO-L and R)
②
If you have a second VCR and wish to copy cassettes tape, connect the source VCR to
IN 1
(or
IN 2
)
and the target VCR to
OUT
so that you can redirect the signal from
source VCR
to target VCR.
③
If you have a decoder, connect the decoder to the VCR and the VCR to the television.
➃
When you wish to record a programme, connect the receiver to
IN 1
(or
IN 2
) and the VCR to
OUT
so
that you can redirect the signal from
IN 1
(or
IN 2
) to
OUT
.
⑤
OUT is used for displaying the current picture to an external device.
When you wish to record the current
picture, connect the VCR to
OUT
.
①
Side of the TV
(Input)
Camcorder
Video disc player
Video game device
VCR
Decoder /
Video game device
Video disc player
Satellite receiver
③
➃
②
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 71
English - 72
➢The AUDIO-L and R connectors are used for equipment, such as an audio system or external amplifier
(to take full advantage of the Surround sound effect).
Audio System/
External Amplifier
Connecting to the Audio Outputs
Rear of the TV
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 72
English - 73
Connecting to the S-Video Input
➢The S-VIDEO INPUT and AUDIO-L and Rconnectors are used for equipment with an S-Video output,
such as a camcorder or VCR.
Camcorder
VCR
①
To play pictures and sound, both the S-VIDEO INPUT and AUDIO-L and Rconnectors must be used.
and
①
Side of the TV
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 73
English - 74
Connecting to the Digital Audio Input
➢The DIGITAL AUDIO IN (OPTICAL IN or COAXIAL IN) connectors are used for equipment with a digital
output (to take digital sound).
Rear of the TV
DVD
or
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 74
English - 75
Connecting to the Component Input
➢The COMPONENT IN connectors are used for equipment with a DVD or DTV receiver output.
(480i, 480p, 576i,576p, 1080i)
DVD
Rear of the TV
DTV receiver
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 75
English - 76
Connecting Additional Speakers
①
①
The SURROUND SPEAKER OUT connectors are used for sound output to external speakers.
-
The factory default of SURROUND SPEAKER OUT SELECTION is set to INT.
For sound output to external speakers, set to EXT. Sound to the internal speaker is off.
➢To improve the sound quality, connect the:
◆Red wire to the red terminal
◆Black wire to the black terminal
➢Speakers can be purchased separately.
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 76
English - 77
Programming the Remote Control for Other Components
Your TV comes equipped with a universal remote control. In
addition to controlling the TV, the universal remote control can
also operate a VCR, Cable box, DVD and Set-Top Box made by
Samsung (even if your VCR, Cable box and DVD are made by
manufacturers other than Samsung).
➢
The remote control might not be compatible with all
VCRs, DVD players and Cable boxes.
1Turn off your VCR (Cable box or DVD).
2Press the SELECT button to switch the remote control to the VCR
(CATV or DVD) mode.
➢The remote control has five modes : TV, VCR, CATV, DVD
and STB)
3Press the SET button.
4Enter 3 digits of the VCR (Cable box or DVD) code listed on next
page for your VCR (Cable box or DVD).
Example:To enter the code “6”, press 0, 0, and 6.
To enter the code “76”, press 0, 7, and 6.
5Press the POWER () button. Your VCR (Cable box or DVD)
should turn on. If it turns on, your remote control is now set
correctly.
➢If it does not turn on, repeat steps above, but try one of the
other codes listed for the brand of particular yours.
6Once your remote control is set up, press the SELECT button any
time you want to use the remote control to operate VCR (Cable
box or DVD).
➢
◆When your remote control is in the VCR, CATV, DVD or
STB mode, the volume buttons still control your
television’s volume.
◆When your remote control is in the TV mode, the VCR or
DVD control buttons (rewind, stop, play/pause and fast
forward) still operate your VCR or DVD.
VCR
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 77
English - 78
Programming the Remote Control for Other Components
Admiral
Aiwa
Akai
Audio Dynamics
Bell&Howell
Broksonic
Candle
Canon
Citizen
Colortyme
Craig
Curtis Mathes
Daewoo
DBX
Dimensia
Dynatech
Emerson
Fisher
Funai
General Electric
Go Video
LG (Goldstar)
Harman Kardon
Hitachi
Instant Replay
JC Penny
JVC
Kenwood
KLH
Lioyd
Logik
LXI
Magnavox
020
025
004, 027, 032
007, 026
018
022
002, 003, 006, 008, 015, 055
021, 056
002, 003, 006, 008, 015, 055
007
002, 024
002, 007, 008, 017, 021, 025, 056, 064,
066
003, 010, 011, 012, 013, 014, 015, 016
007, 026
017
034
001, 003, 006, 021, 022, 025, 030, 032,
034, 040, 047, 050, 052, 060, 063, 065,
066, 067, 069
018, 024, 028, 029, 048, 051, 061
025
002, 005, 017, 021, 056
002
006, 007, 008, 009, 010
007
019, 025, 041, 042
021
002, 007, 018, 019, 021, 026, 037, 041,
054, 056
007, 008, 018, 021, 026, 037
007, 008, 018, 026, 037
070
025
038
025
021, 036, 056, 059
Marantz
Marta
MEI
Memorex
MGA
Midland
Minolta
Mitsubishi
Montgomery Ward
MTC
Multitech
NEC
Optimus
Panasonic
Pentax
Pentex Research
Philco
Philips
Pioneer
Portland
PROSCAN
Quartz
Quasar
Radio Shack/Realistic
RCA
Samsung
Sansui
Sanyo
Scott
Sears
Sharp
Shimom
Signature
Sony
007, 008, 018, 021, 026, 036, 037, 062
006
021
006, 021, 024, 025
034
005
019, 041
019, 034, 041, 046
020
002, 025
002, 005, 025, 038
007, 008, 018, 026, 037, 062, 064
020
021, 056, 071, 072
019, 041
008
021, 036, 056, 059
021, 036
019, 026, 039, 053
015, 049, 055
017
018
021, 056
006, 018, 020, 021, 024, 025, 029,
034, 048, 056
002, 017, 019, 021, 035, 041, 043,
057, 068
000, 001, 002, 003, 004, 005
026
018, 024
003, 047, 052, 067
006, 018, 019, 024, 028, 029, 041,
048, 051
020, 034, 045, 015
027, 033, 038, 058
025
027, 033, 044
VCR Remote Control Codes
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 78
English - 79
Programming the Remote Control for Other Components
Sylvania
Symphonic
Tandy
Tashika
Tatung
Teac
Technics
Teknika
TMK
Toshiba
021, 025, 036, 056, 059
025
018, 025
006
037
025, 037, 068
021
006, 021, 025, 031
066
003, 019, 029, 051, 052
Totevision
Unitech
Vector Research
Victor
Video Concepts
Videosonic
Wards
Yamaha
Zenith
002, 006
002
007, 026
026
007, 026
002
002, 003, 006, 019, 020, 021, 024, 025,
034, 038, 041
007, 008, 018, 026, 037
023, 027, 033, 073
VCR Remote Control Codes (continued)
Anvision
GI
Hamlin
Hitachi
Jerrold
Macom
Magnavox
Oak
Panasonic
Philips
Pioneer
RCA
Regal
017, 018
041
003, 024, 031
025, 030
038, 039
025, 030
019, 023, 028
026
003, 022, 027, 037, 044
019, 021, 023, 028
004, 018, 020, 044
014, 022, 040
003
Regency
SA
Samsung
Scientific Atlanta
Sprucer
Stargate 2000
Sylvania
Texscan
Tocom
Universal
Viewstar
Wamer amex
Zenith
015, 023
042, 043
000, 001, 002, 003, 004, 005, 006, 007
042, 043
022
036
016
016
032
033, 034
019, 021, 023, 028
046
017, 029, 035, 037, 045
Samsung
JVC
PROSCAN/RCA
Panasonic
000, 001
002
003
005
LG (Goldstar)
Sony
Denon
Curtis Mathes
006
007
008
009
Cable Box (CATV) Remote Control Codes
DVD Remote Control Codes
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 79
English - 80
Disc Type and Characteristics
The DVD player is capable of playing the following types of discs with the corresponding logos:
5”
Single-sided: 240 min.
Double-sided: 480 min.
Single-sided: 80 min.
Double-sided: 160 min.
Audio
+
Video
Audio
+
Video
Audio
-
CD is recorded as a Digital
Signal with better audio quality,
less distortion and less
deterioration of audio quality
over time.
-
Video with CD sound, VHS
quality and MPEG-1
compression technology.
-
DVD contains excellent sound
and video due to Dolby Digital
and MPEG-2 system.
-
Various screen and audio
functions can be easily selected
through the on-screen menu.
VIDEO-CD
AUDIO-CD
74 min.
20 min.
DVD
Disc Types
(Logos)
Recording
Types
Disc
Size Max. Playing Time Characteristics
31/2”
5”
31/2”
74 min.
20 min.
5”
31/2”
~
Play Region Number
Both the DVD player and the discs are coded by region. These regional codes must match in order for
the disc to play. If the codes do not match, the disc will not play.
NTSC
STEREO
NTSC broadcast system in U.S.A, Canada, Korea, Japan, etc.
PAL PAL broadcast system
Dolby Digital disc
Stereo disc
DTS disc
MP3
DIGITAL
SOUND
Digital Audio disc
DCDi
Disk Markings
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 80
English - 81
Troubleshooting: Before Contacting Service Personnel
Before contacting Samsung after-sales service, perform the following simple checks.
If you cannot solve the problem using the instructions below, note the model and serial number of the
television and contact your local dealer.
No sound or picture
Normal picture but no sound
No picture or black and white picture
Sound and picture interference
Blurred or snowy picture,
distorted sound
Remote control malfunctions
◆Check that the mains lead has been connected to a wall socket.
◆Check that you have pressed the power switch toward “OFF” and
the POWER () button.
◆Check the picture contrast and brightness settings.
◆Check the volume.
◆Check the volume.
◆Check whether the volume MUTE () button on the remote control
has been pressed.
◆Adjust the color settings.
◆Check that the broadcast system selected is correct.
◆Try to identify the electrical appliance that is affecting the television,
then move it further away.
◆Plug your television into a different mains socket.
◆Check the direction, location and connections of your aerial.
This interference often occurs due to the use of an indoor aerial.
◆Replace the remote control batteries.
◆Clean the upper edge of the remote control (transmission window).
◆Check the battery terminals.
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 81
English - 82
Troubleshooting: Before Contacting Service Personnel (continued)
Disc does not play.
5.1 channel sound is not being
reproduced.
The “ ” icon appears on screen.
Disc Menu doesn’t appear.
Playback mode differs from the Setup
Menu selection.
If you experience other problems.
◆Ensure that the disc is installed with the label side facing up.
◆Check the region number of the DVD.
◆This player cannot play CD-ROMs, DVD-ROMs, CD-R, etc.
Insert a DVD, a VIDEO-CD or a CD.
◆5.1 channel sound is reproduced only when the following
conditions are met. :
1) Check whether the proper amplifier is connected.
2) The disc is recorded with 5.1 channel sound.
-Check whether the disc being played has the “Dolby 5.1 ch”
mark on the outside.
-Check if your audio system is connected and working properly.
◆The features or action cannot be completed at this time because :
1) The DVD’s software restricts it.
2) The DVD’s software doesn’t support the feature (e.g., angles).
3) The feature is not available at the moment.
4) You’ve requested a title or chapter number or search time that
is out of range.
◆Check if the disc has a Menu.
◆Some of the functions selected in the Setup menu may not work
properly if the disc is not encoded with the corresponding function.
◆Go to the contents and find the section of the instruction book that
contains the explanations regarding the current problem, and
follow the procedure once again.
◆If the problem still cannot be solved, please contact your nearest
authorized service center.
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 82
English - 83
Memo
BP68-00380A (J61A_Asia_ENG) 12/10/04 10:51 AM Page 83
ELECTRONICS
BP68-00380A-01
-
AFTER SALES SERVICE
-
Do not hesitate to contact your retailer or service agent
if a change in the performance of your product indicates
that a faulty condition may be present.
