the possibilities

Thank you for purchasing tills Samsung product

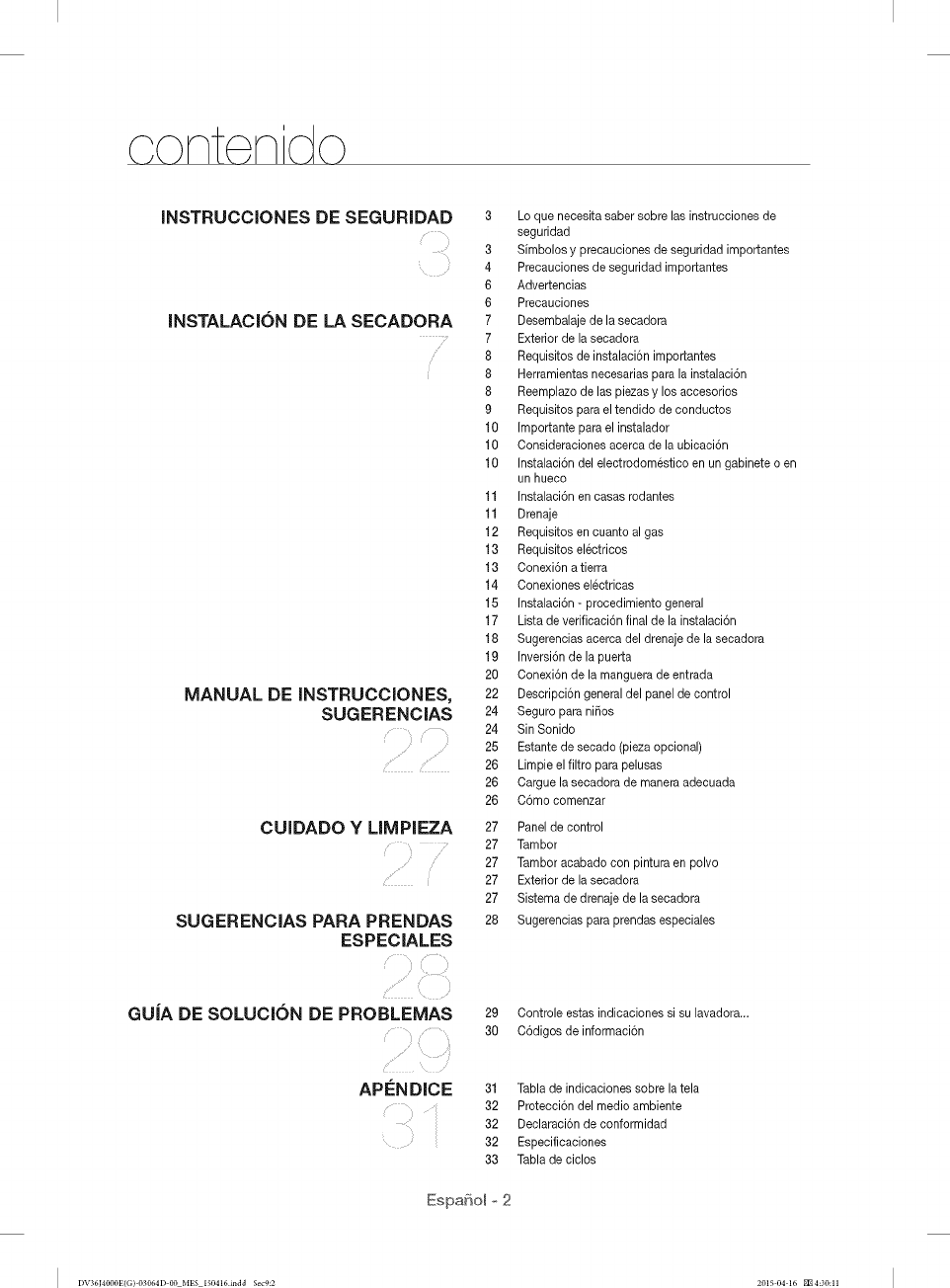

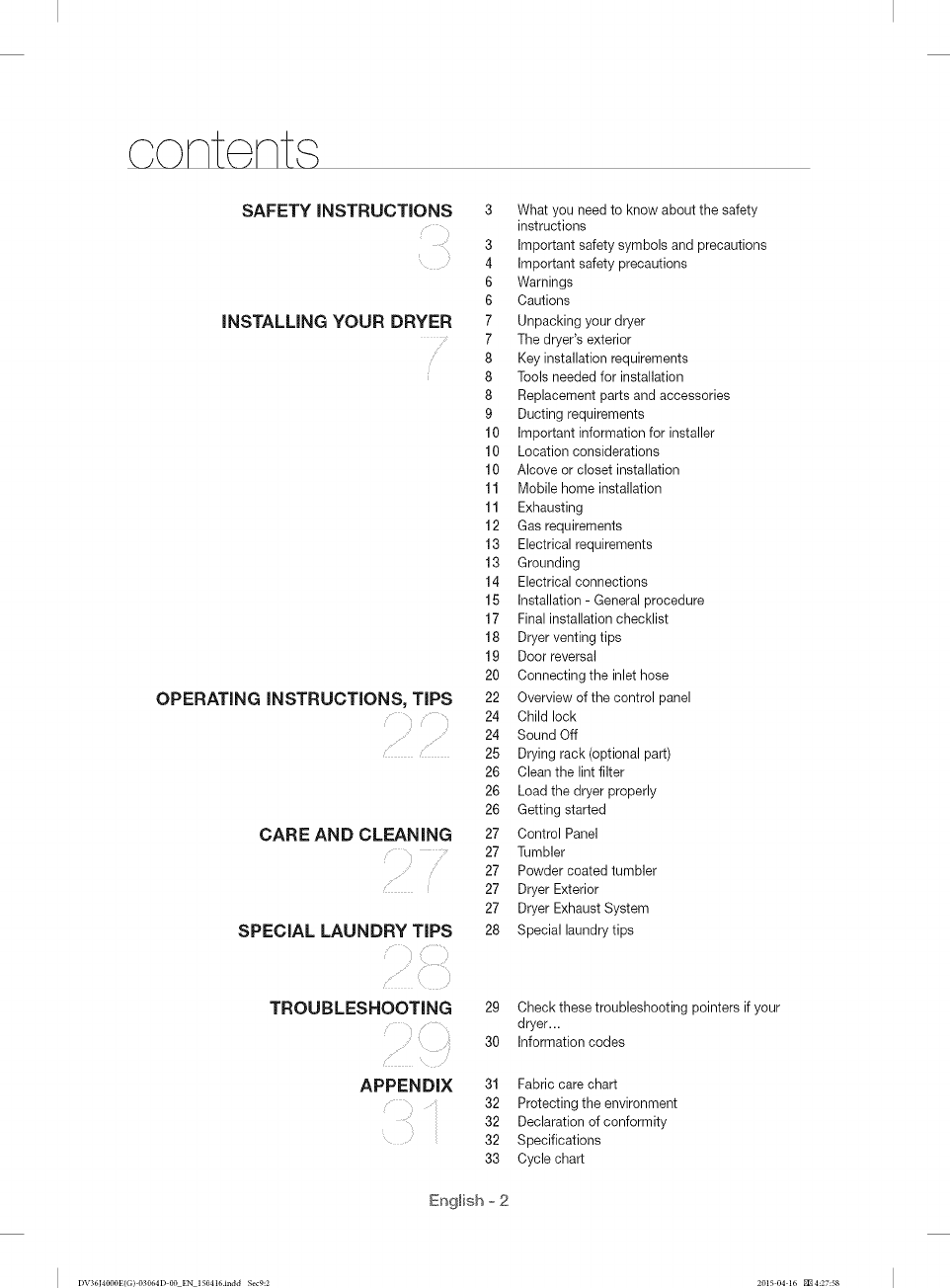

CONt Nt,

SAFETY INSTRUCTIONS 3 What you need to know about the safety

instructions

.... 3 Important safety symbols and precautions

4 Important safety precautions

6 Warnings

6 Cautions

INSTALLING YOUR DRYER 7 Unpacking your dryer

.... 7 The dryer's exterior

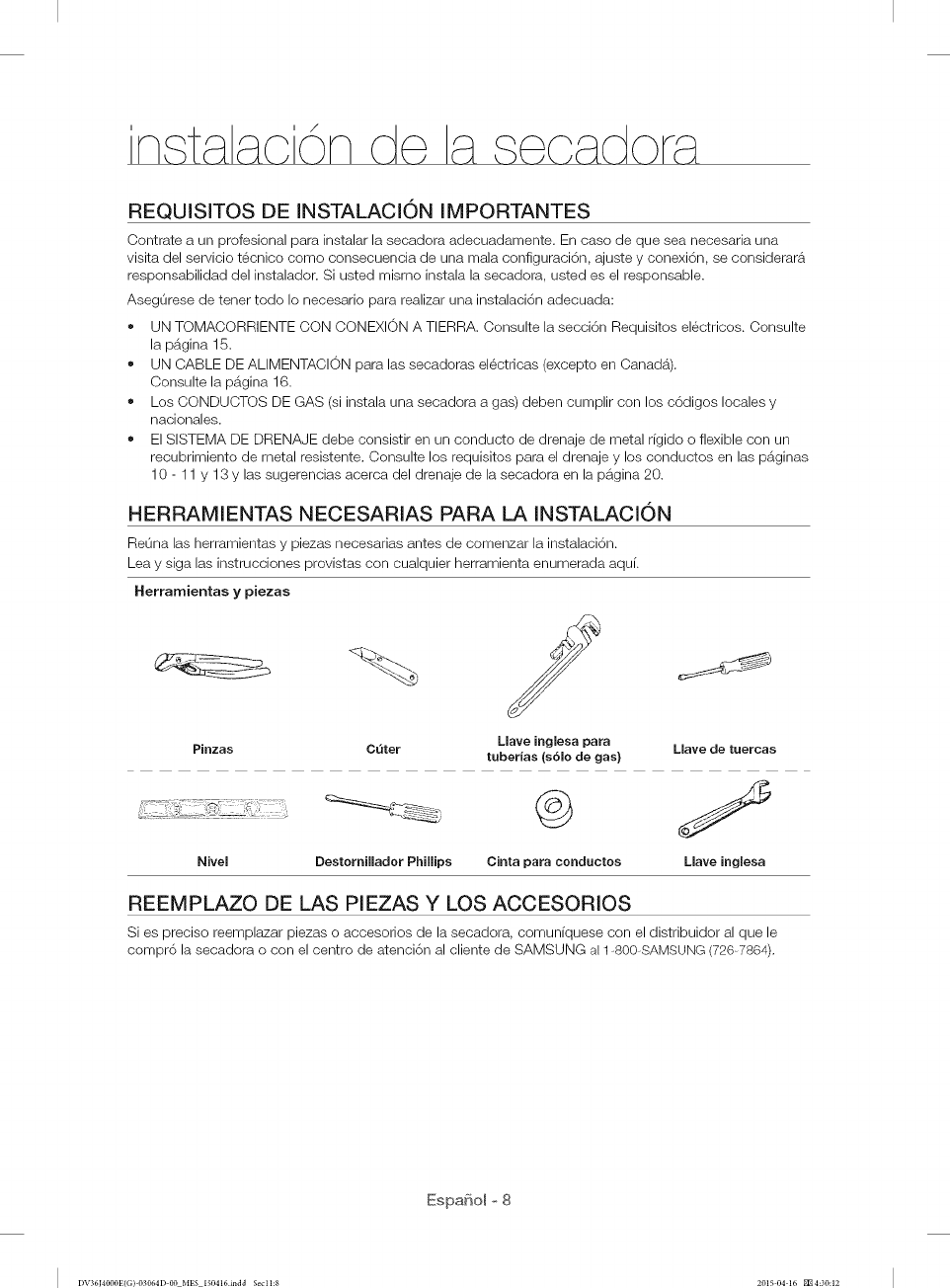

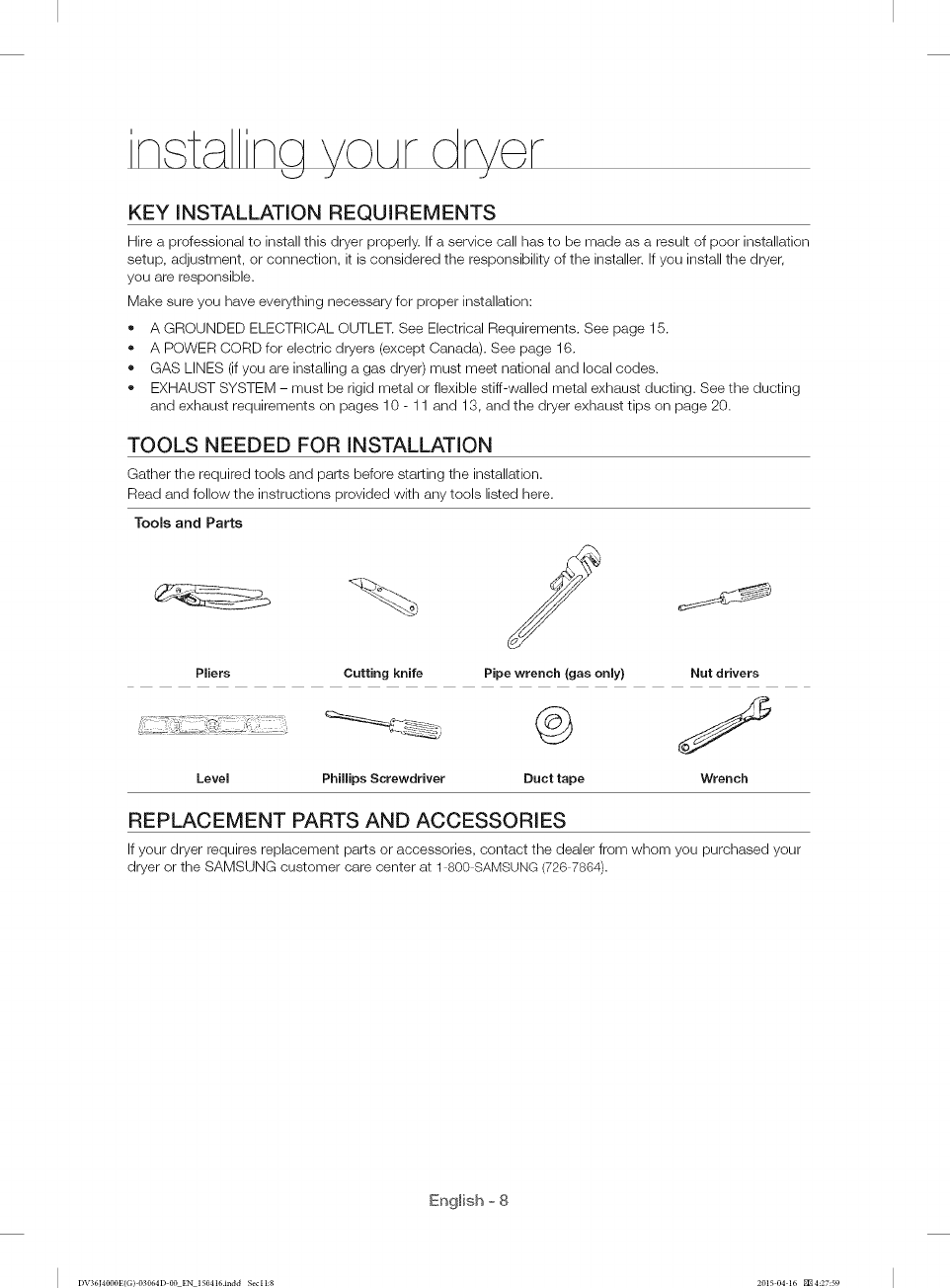

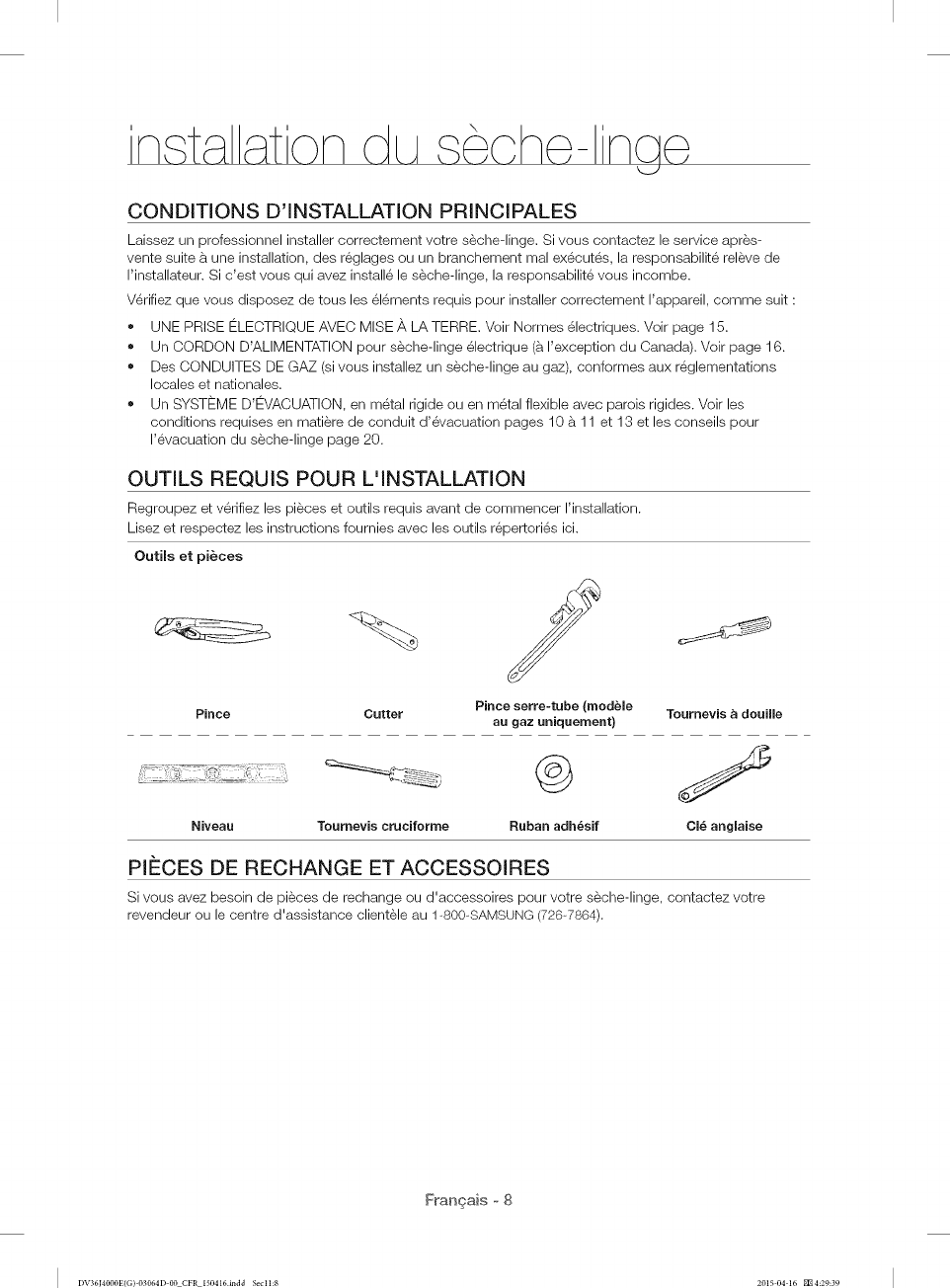

8 Key installation requirements

8 Tools needed for installation

8 Replacement parts and accessories

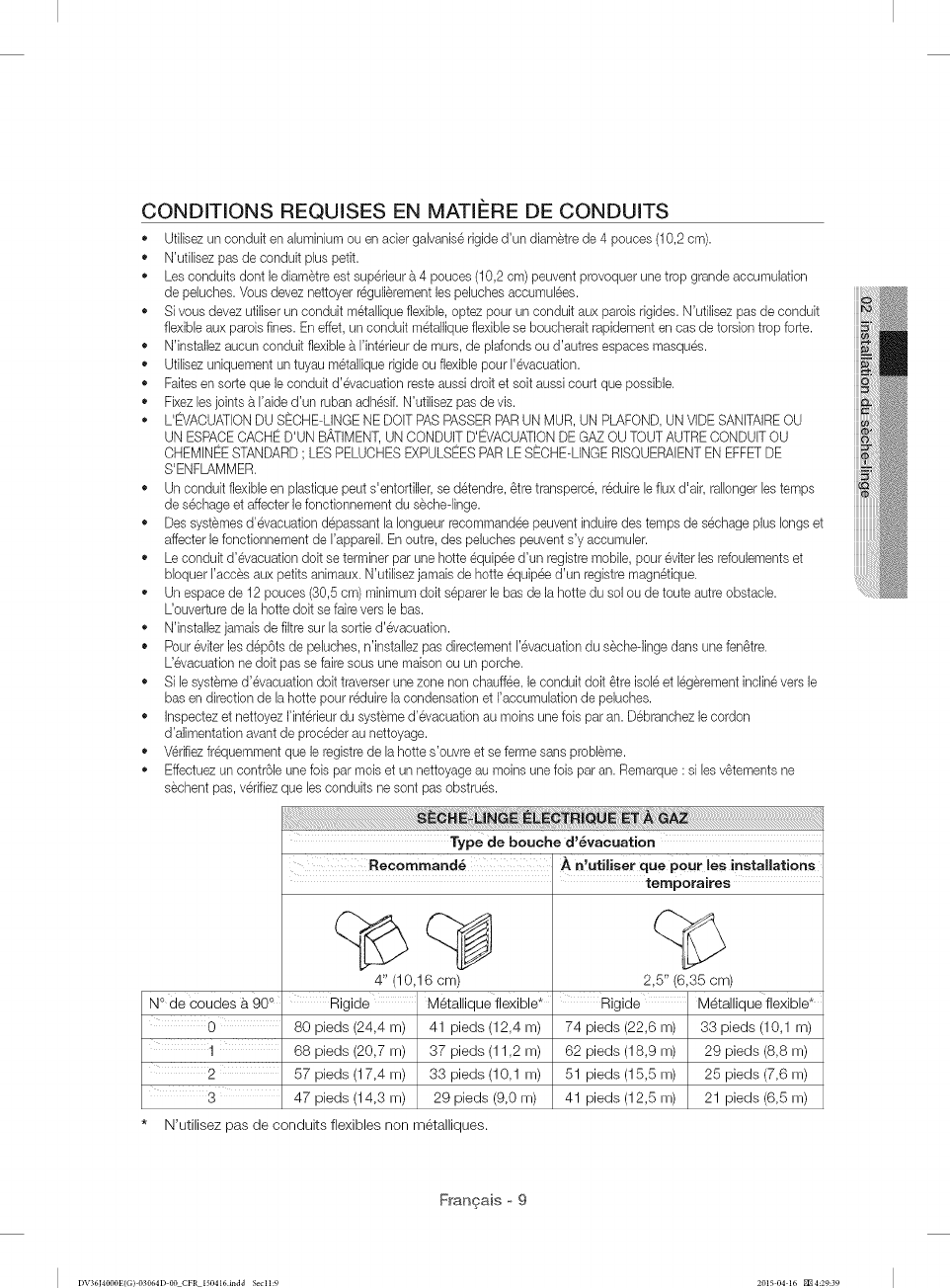

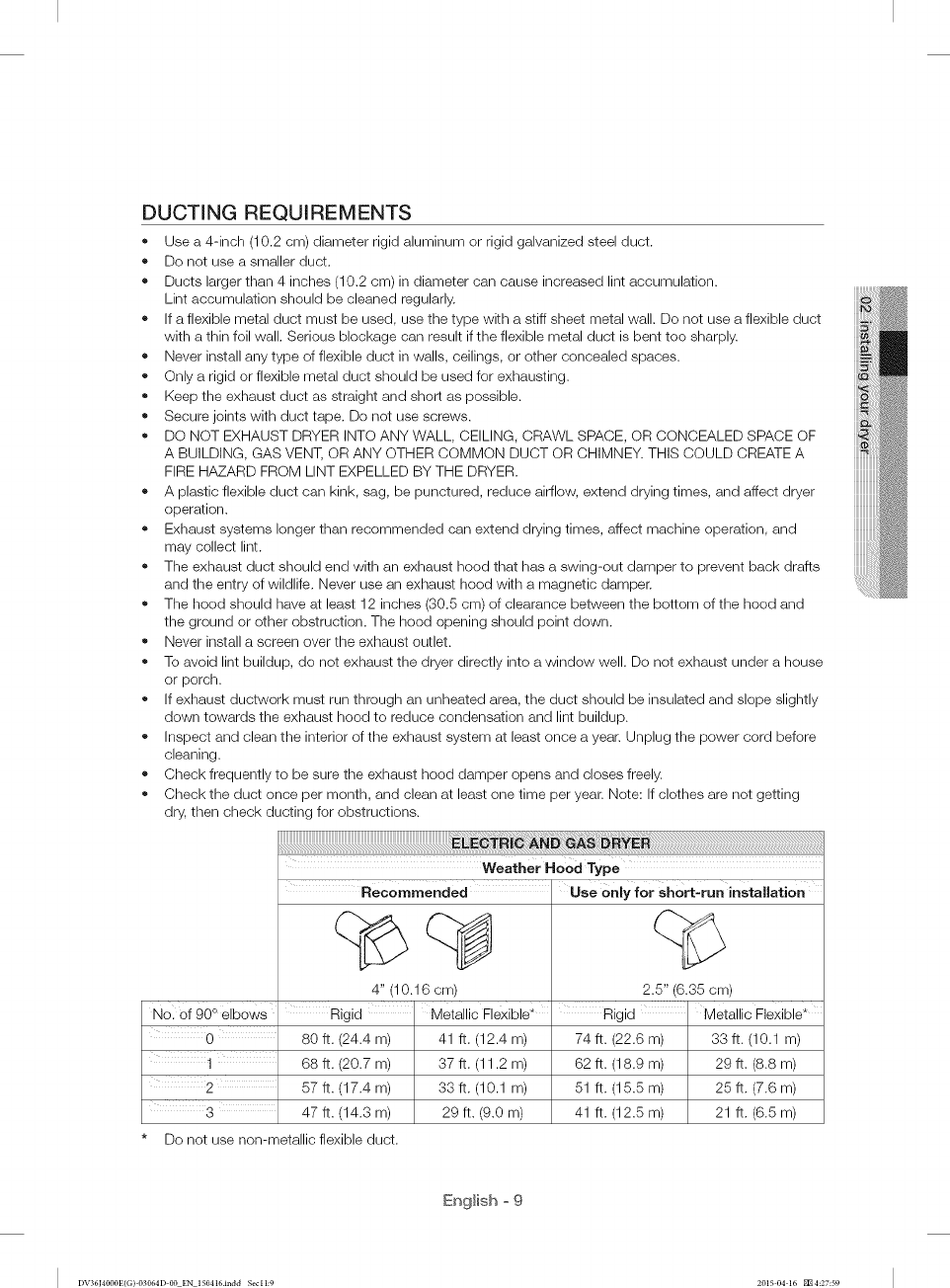

9 Ducting requirements

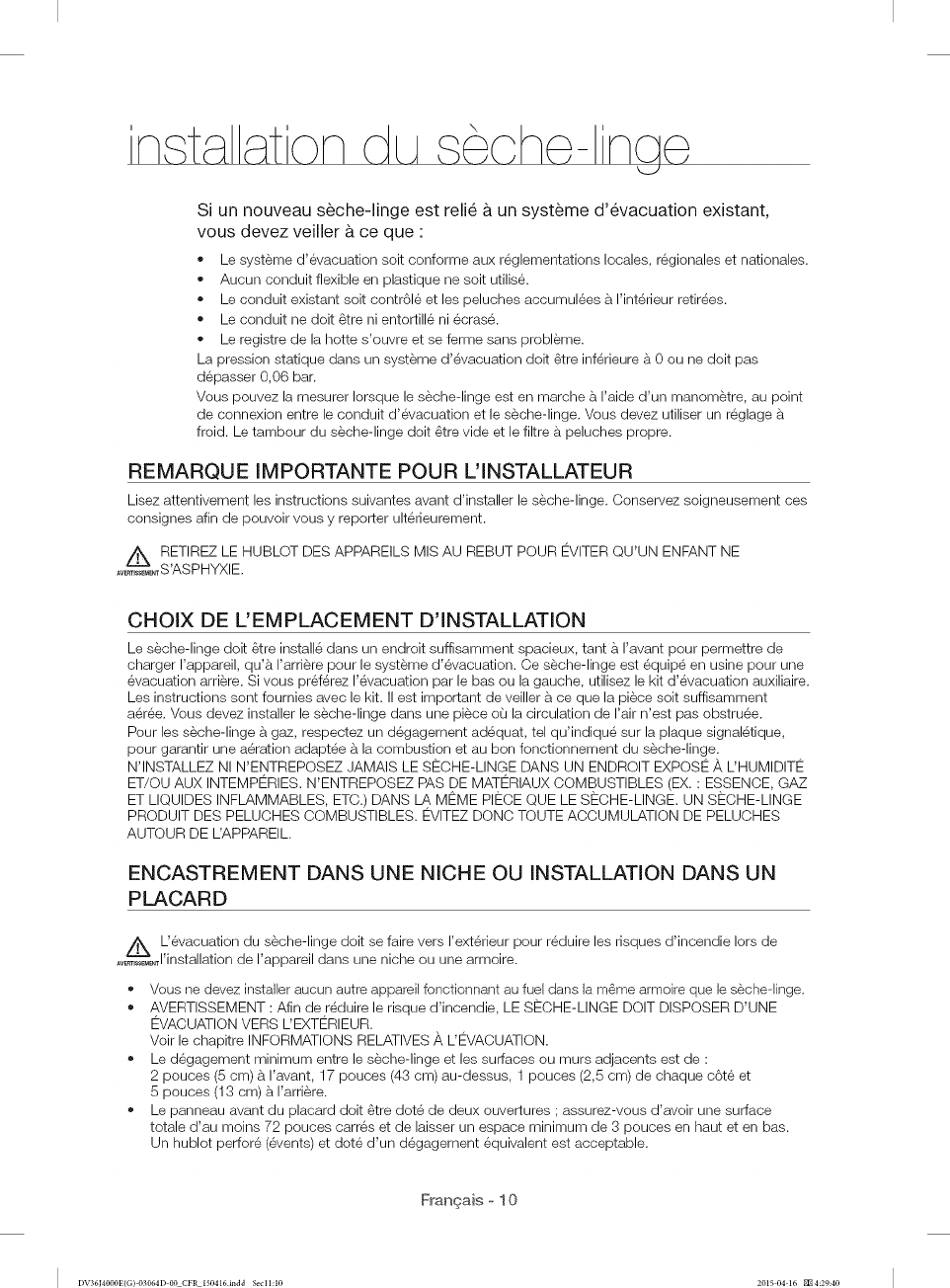

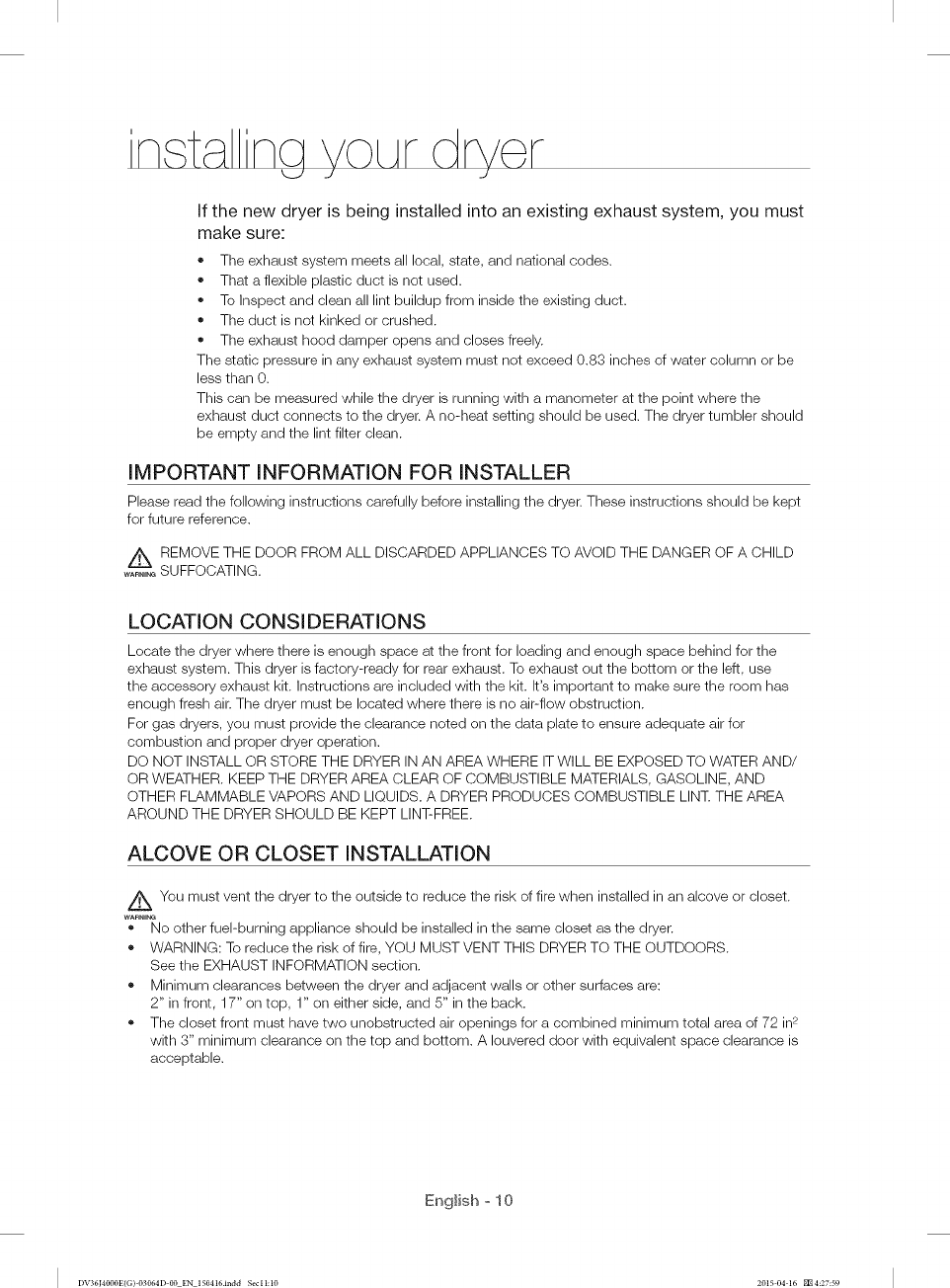

f0 Important information for installer

f0 Location considerations

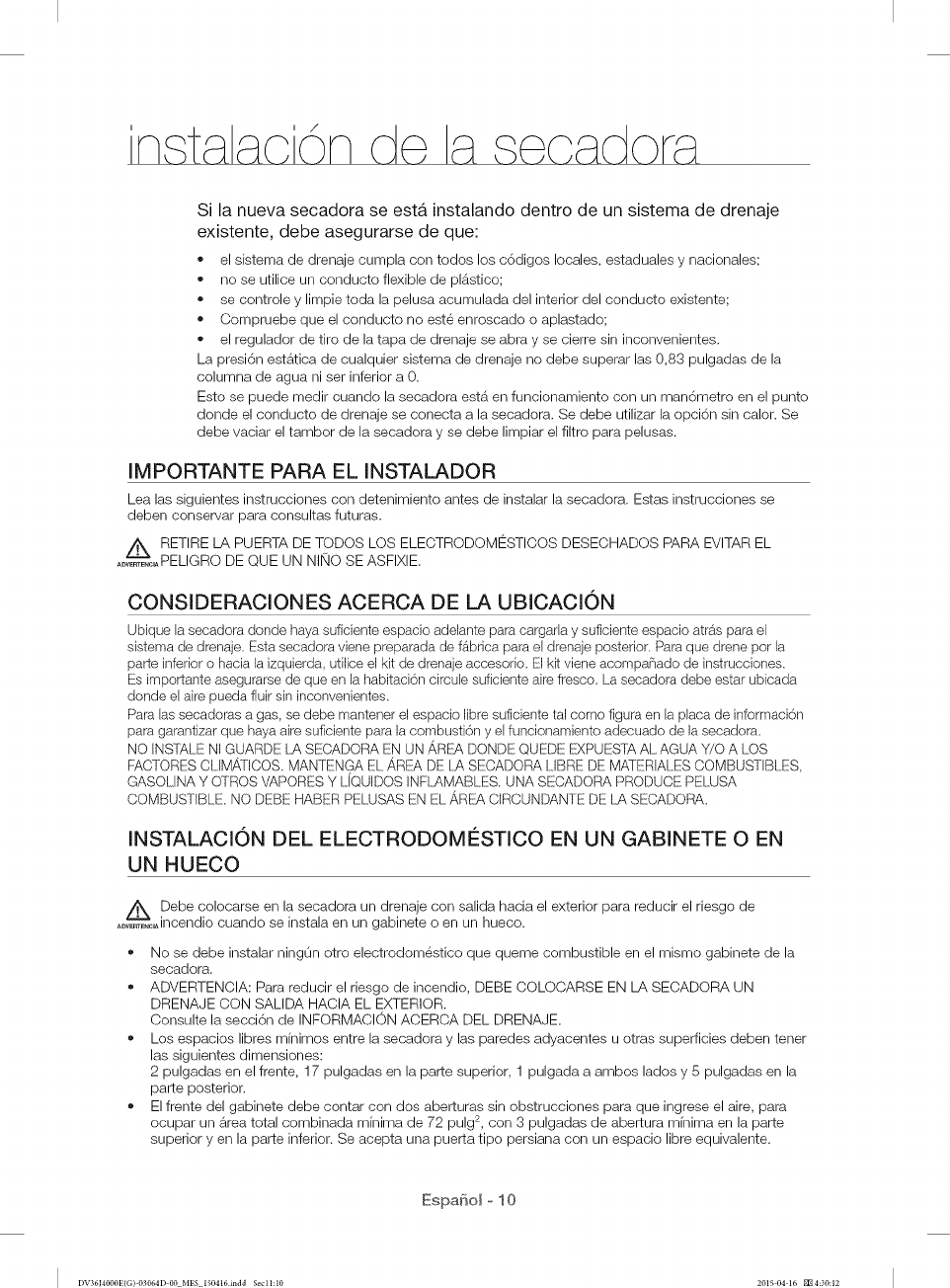

f0 Alcove or closet installation

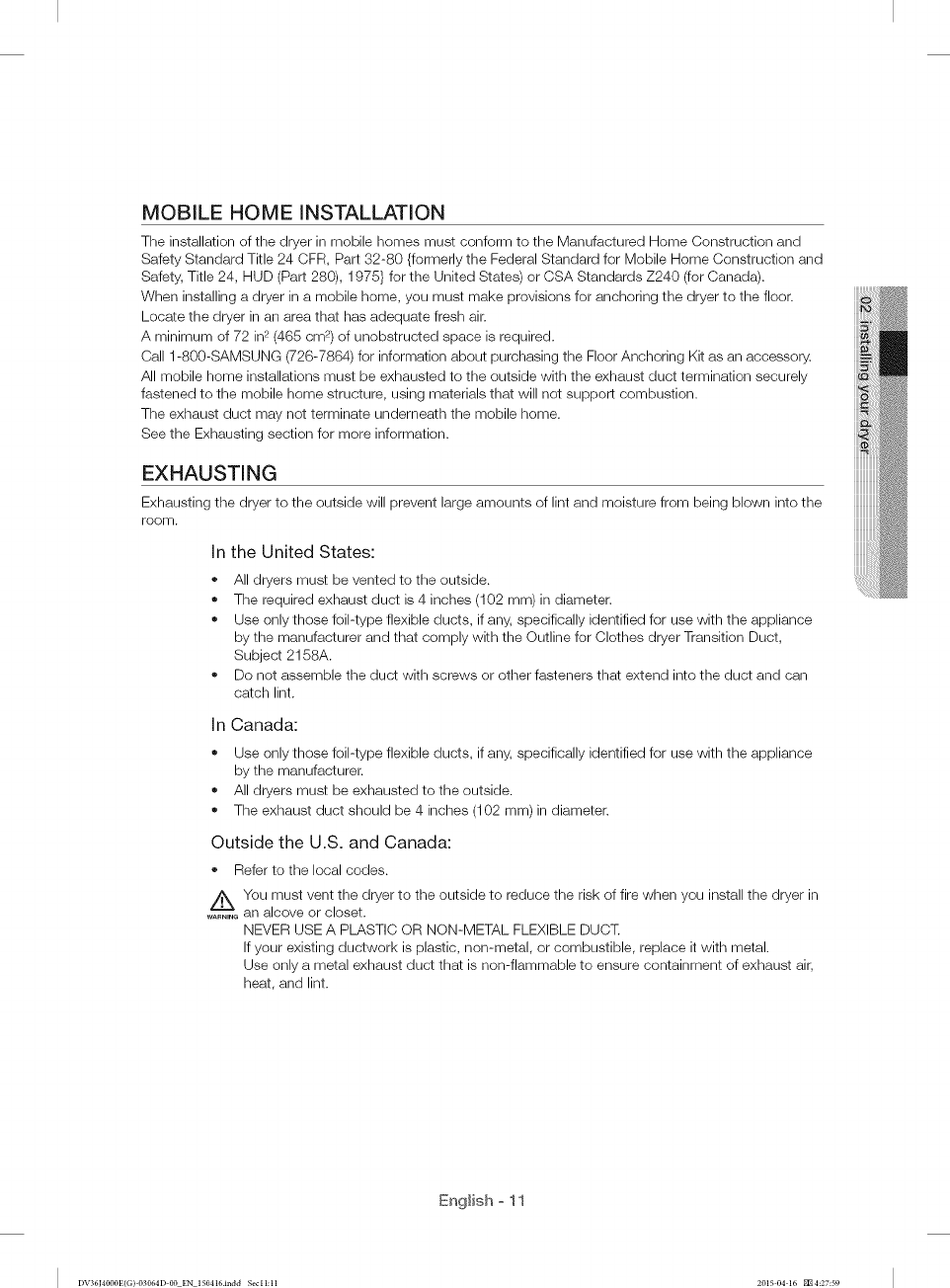

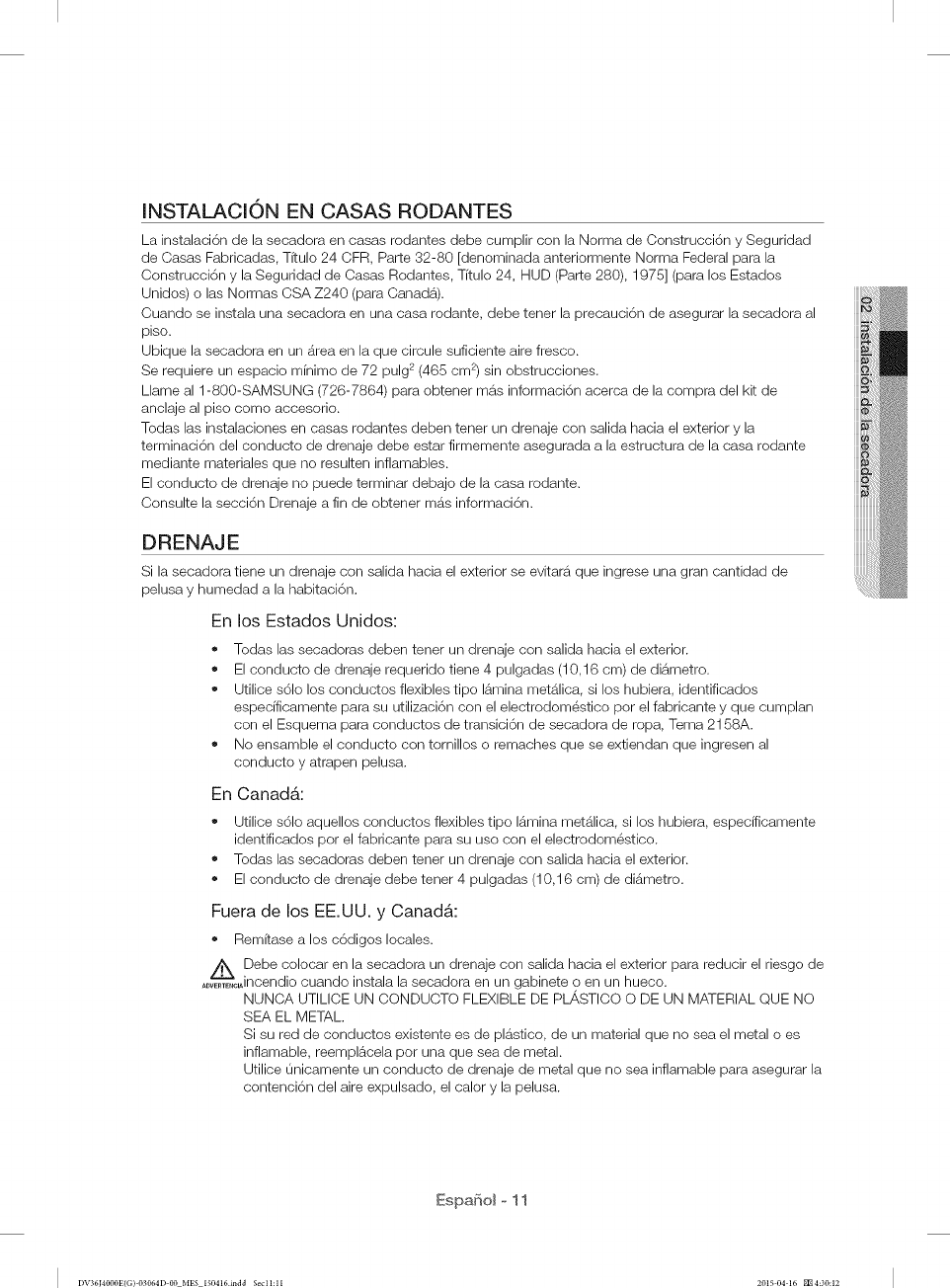

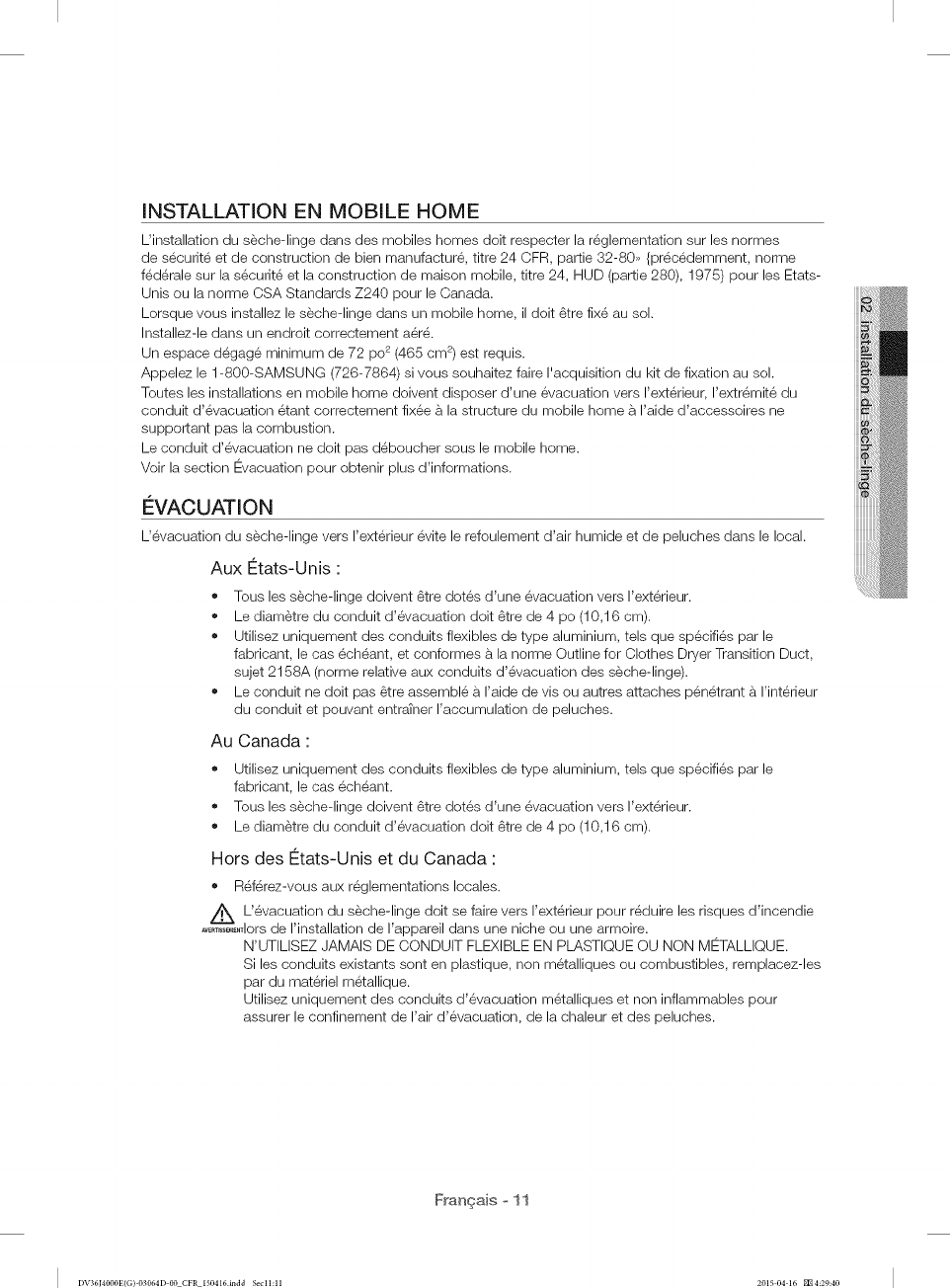

fl Mobile home installation

f 1 Exhausting

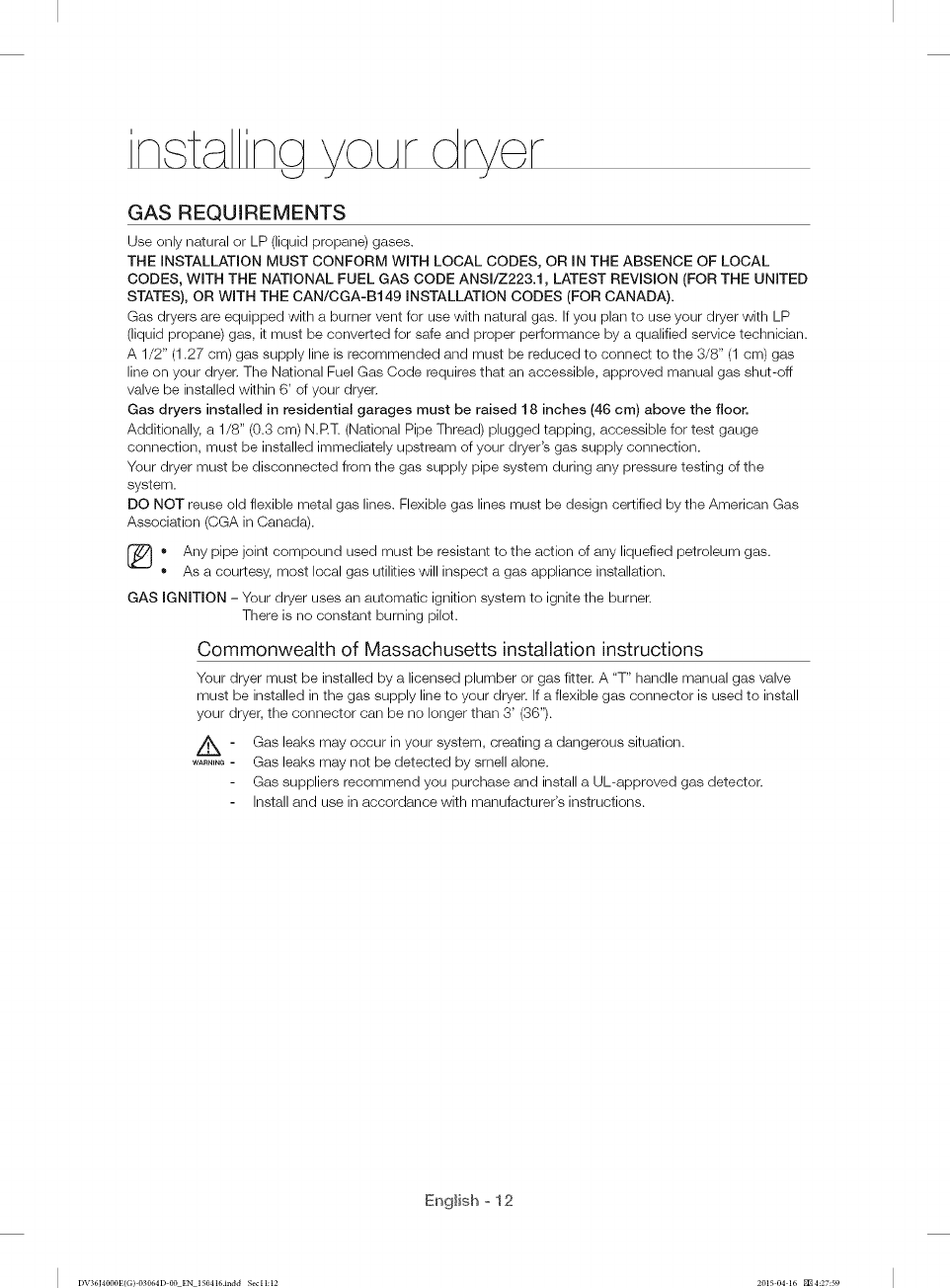

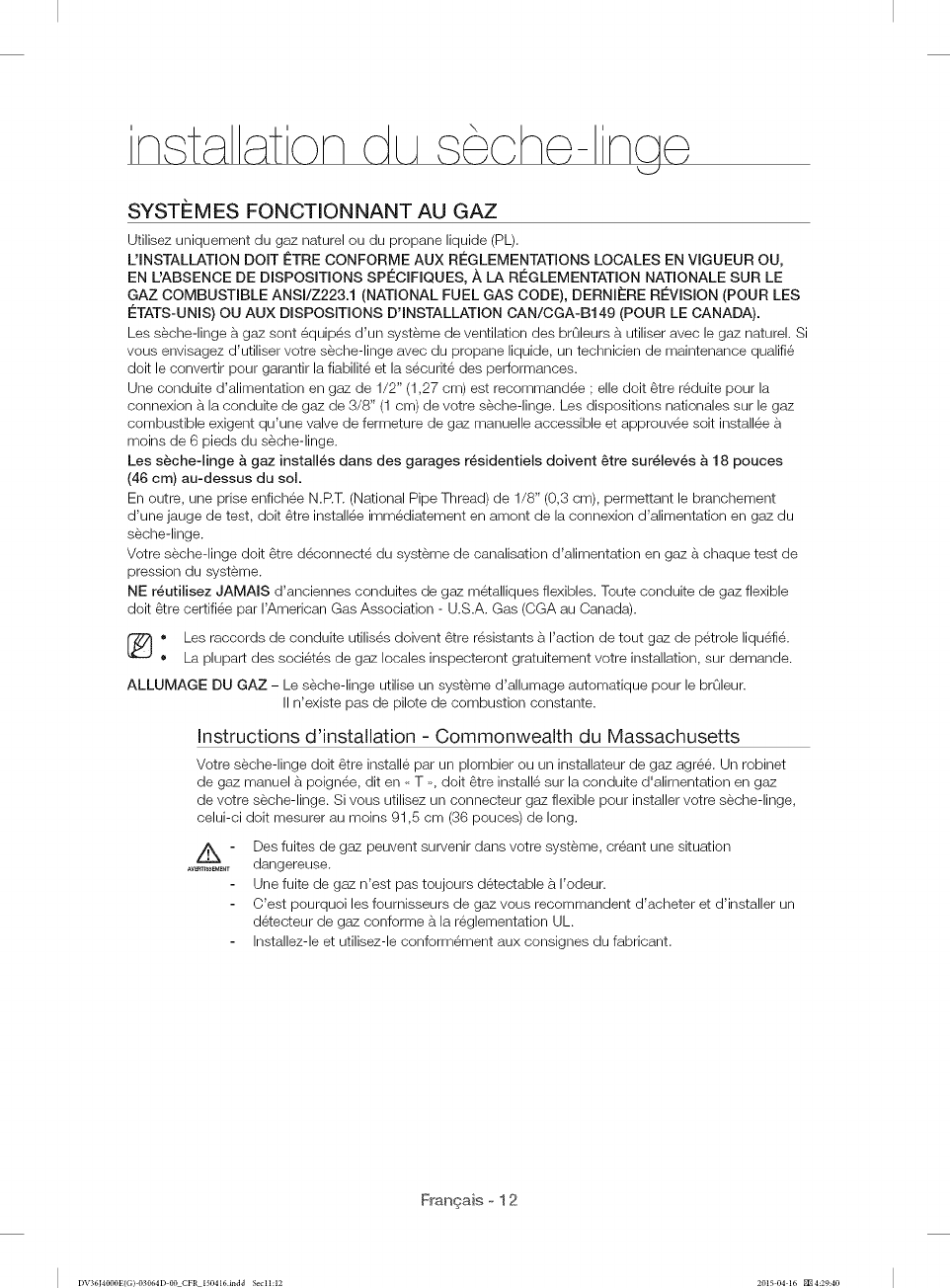

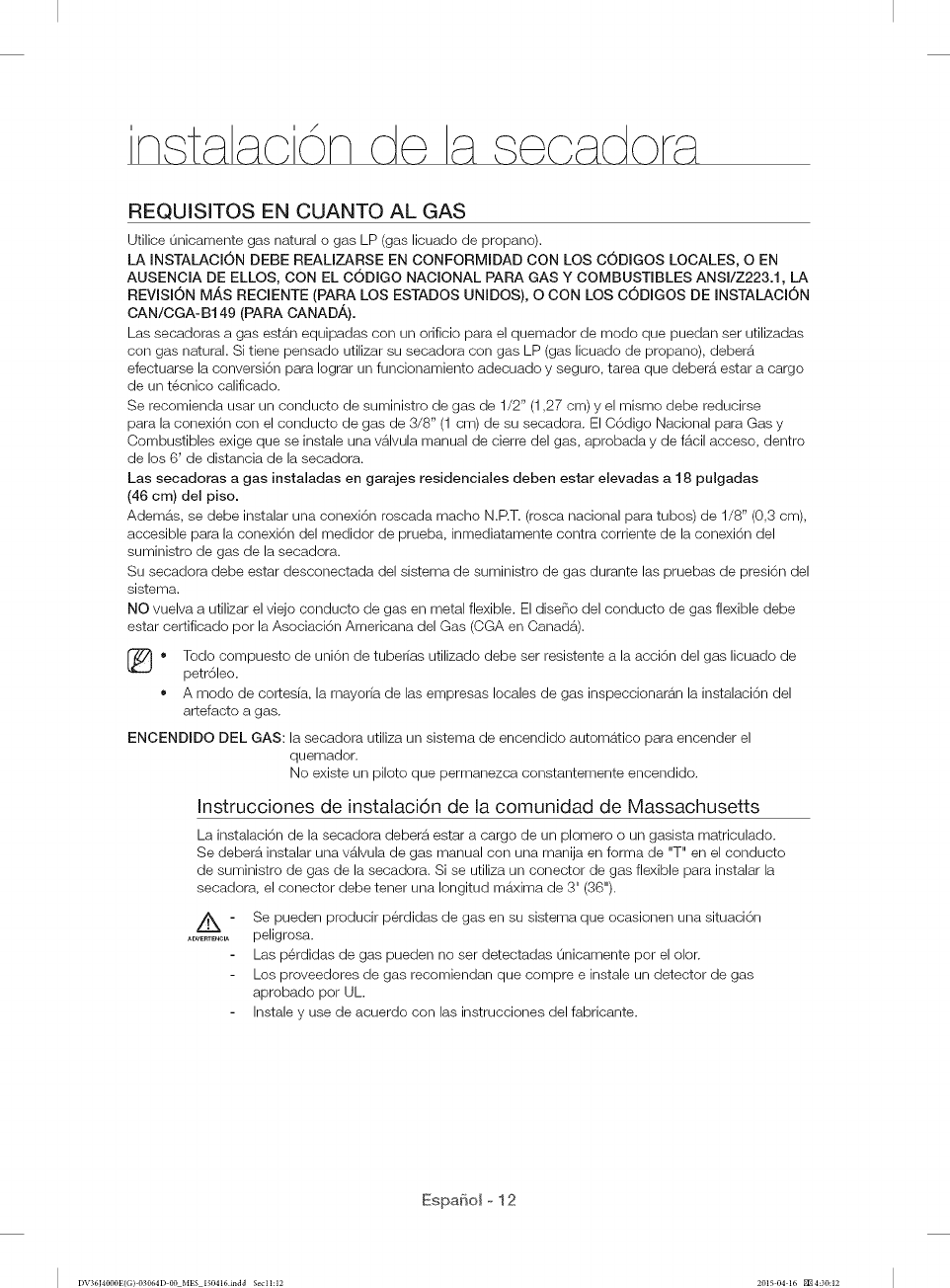

f2 Gas requirements

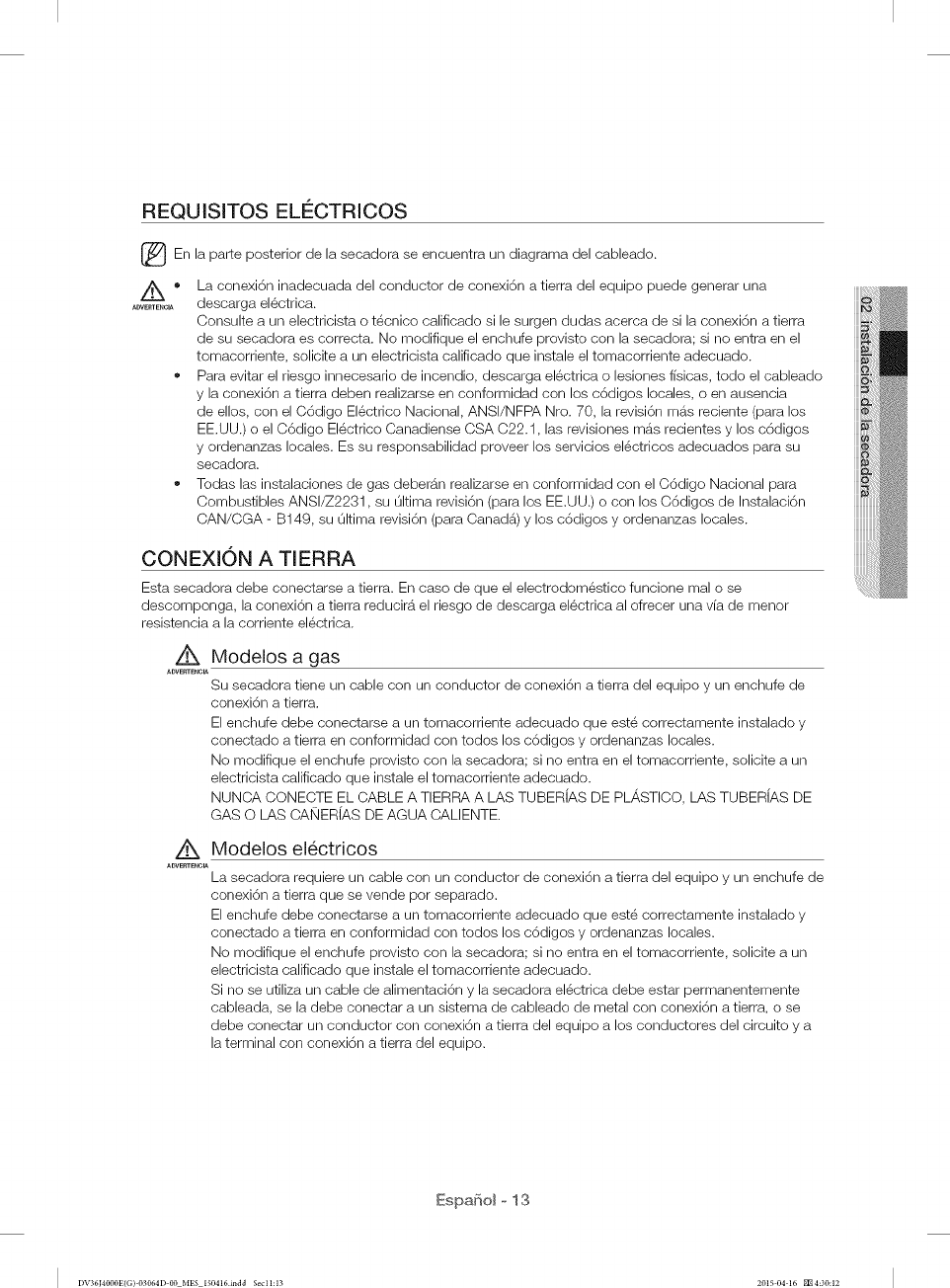

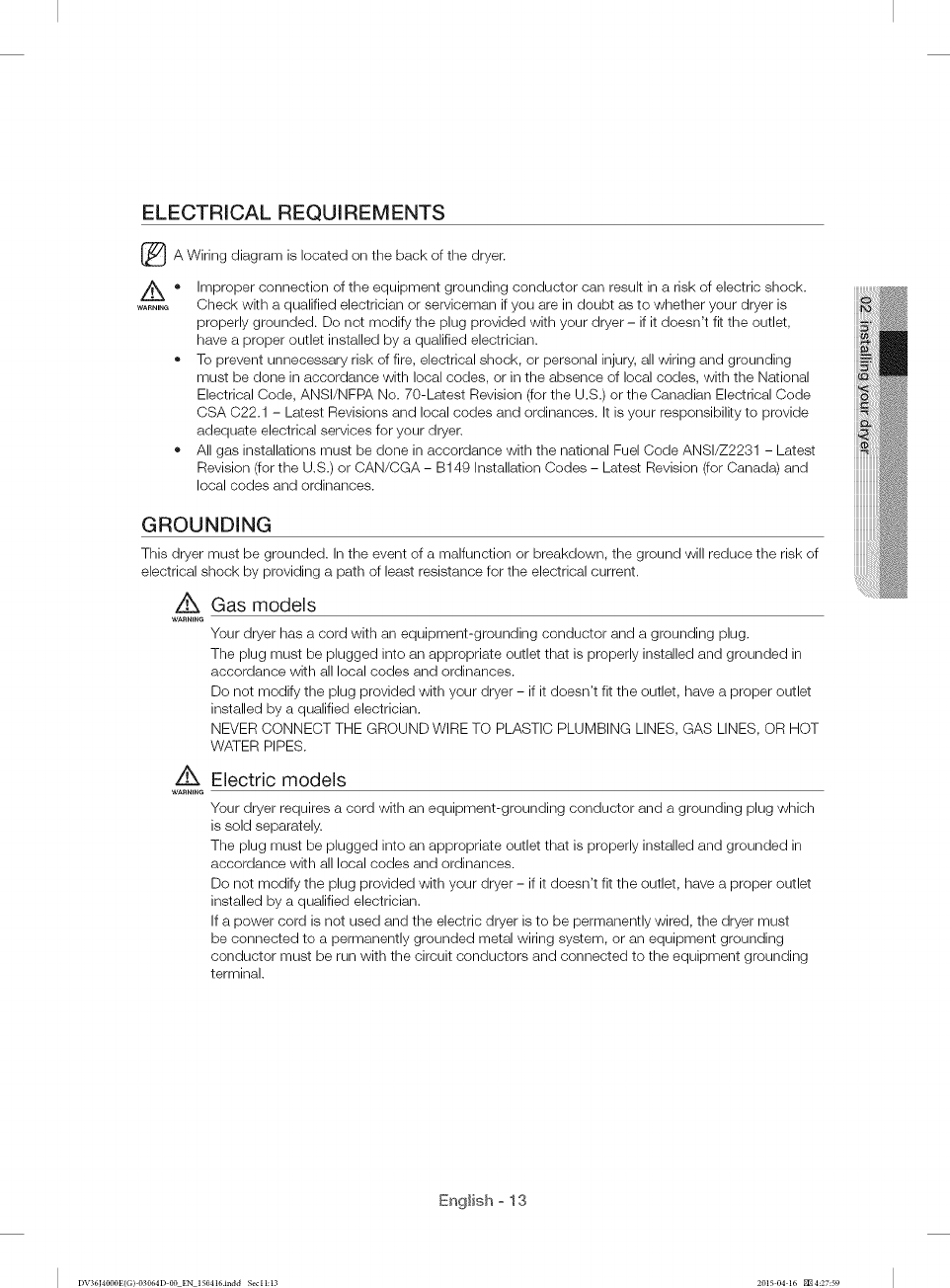

f3 Electrical requirements

13 Grounding

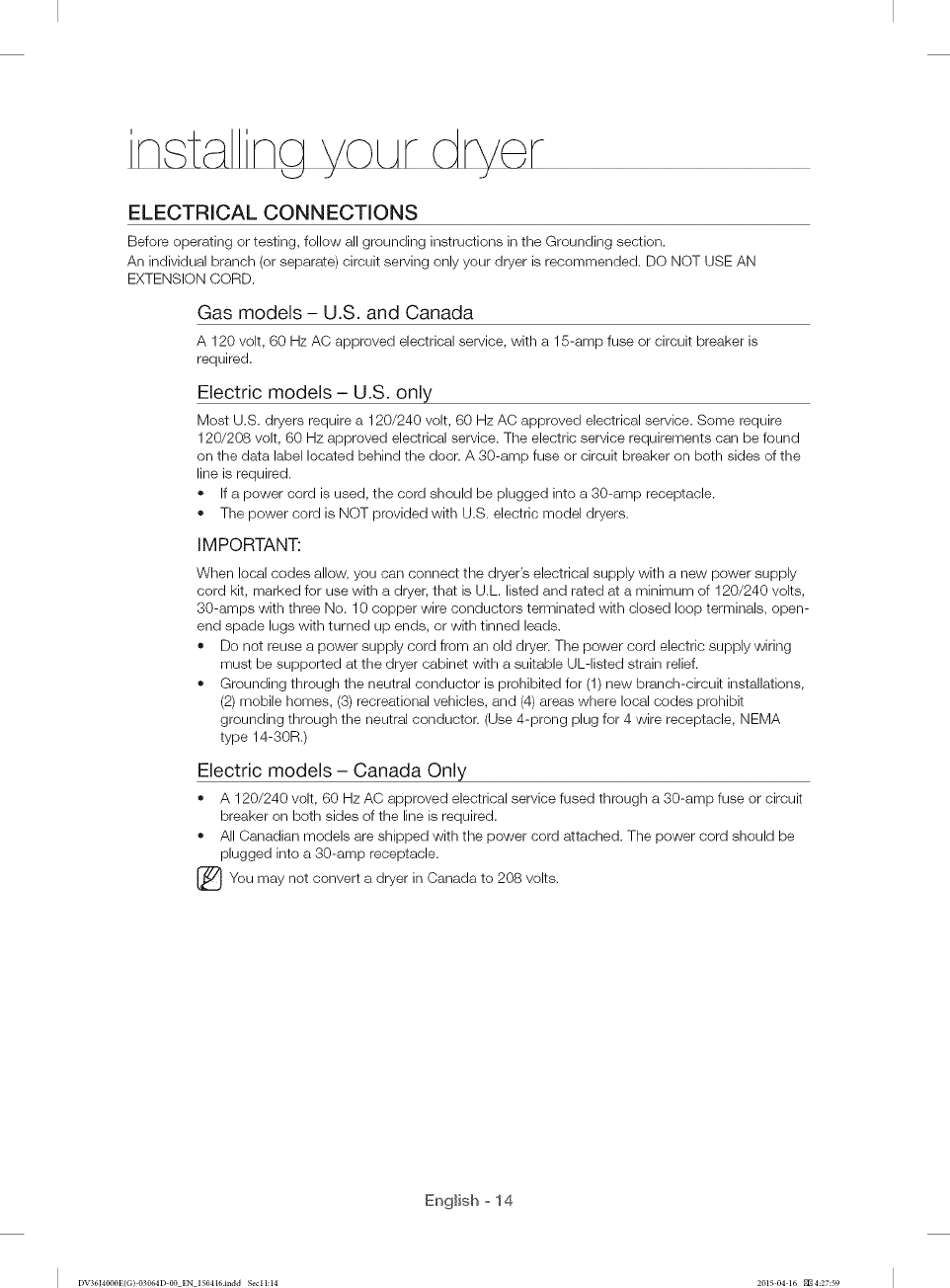

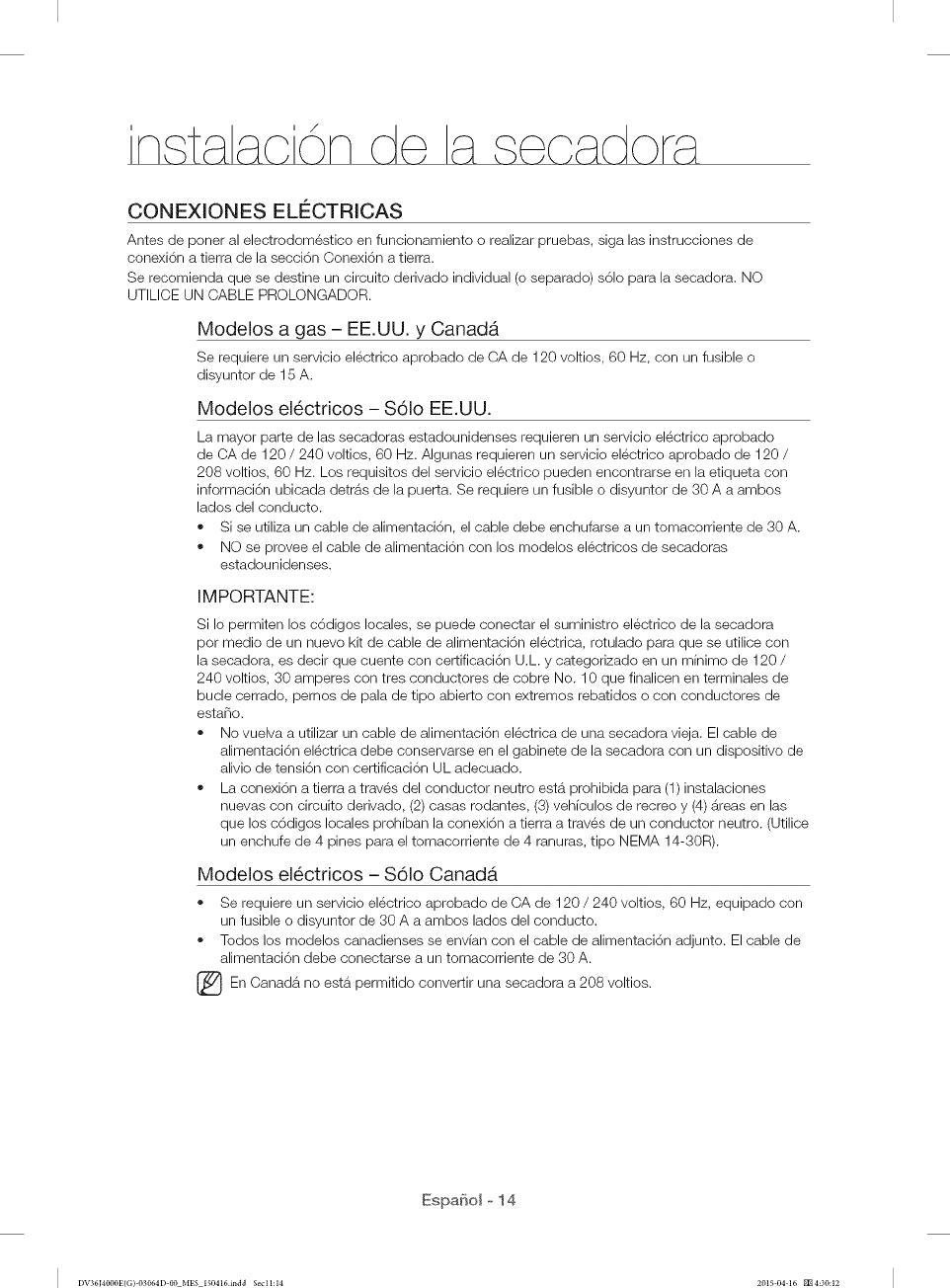

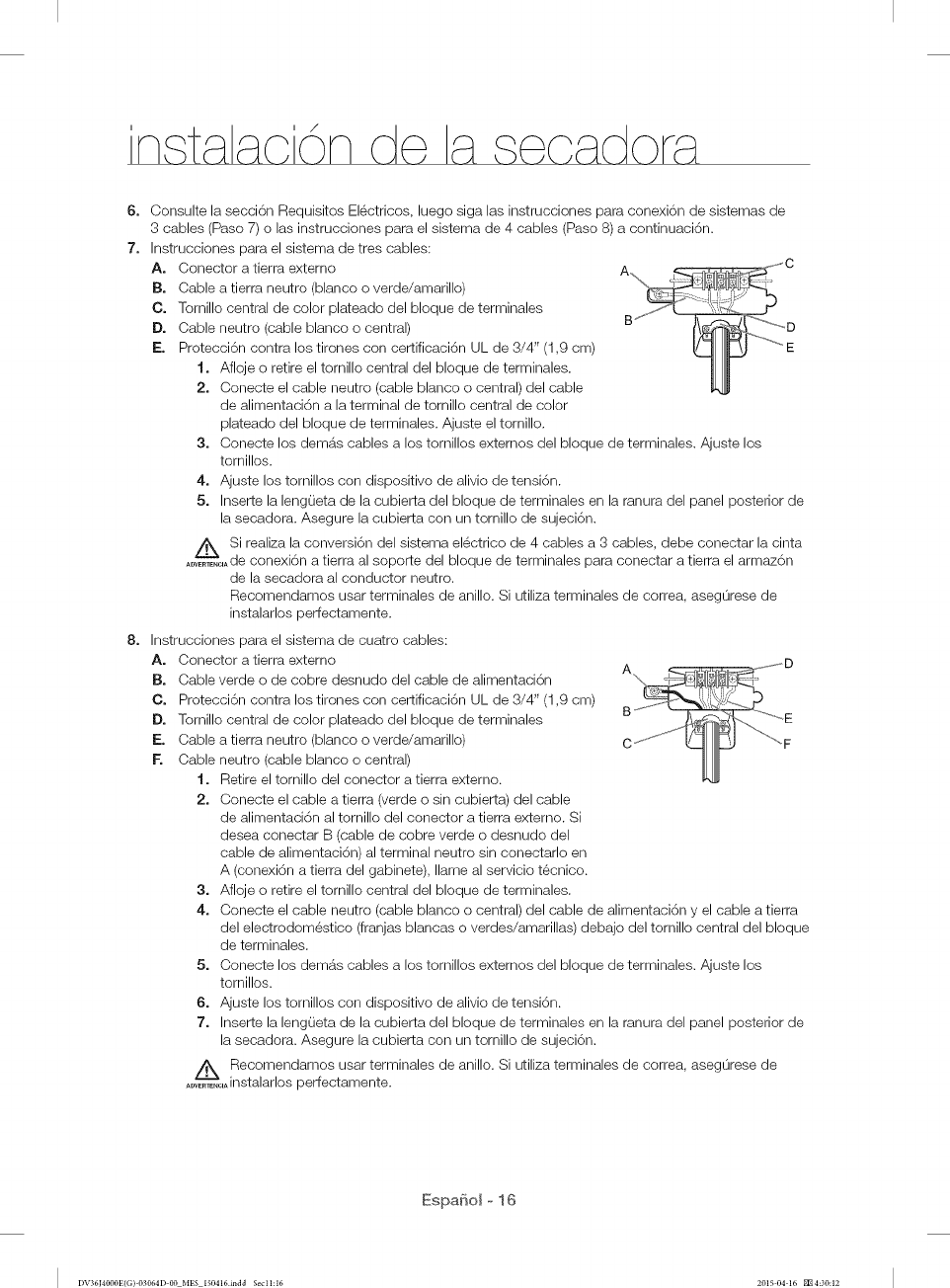

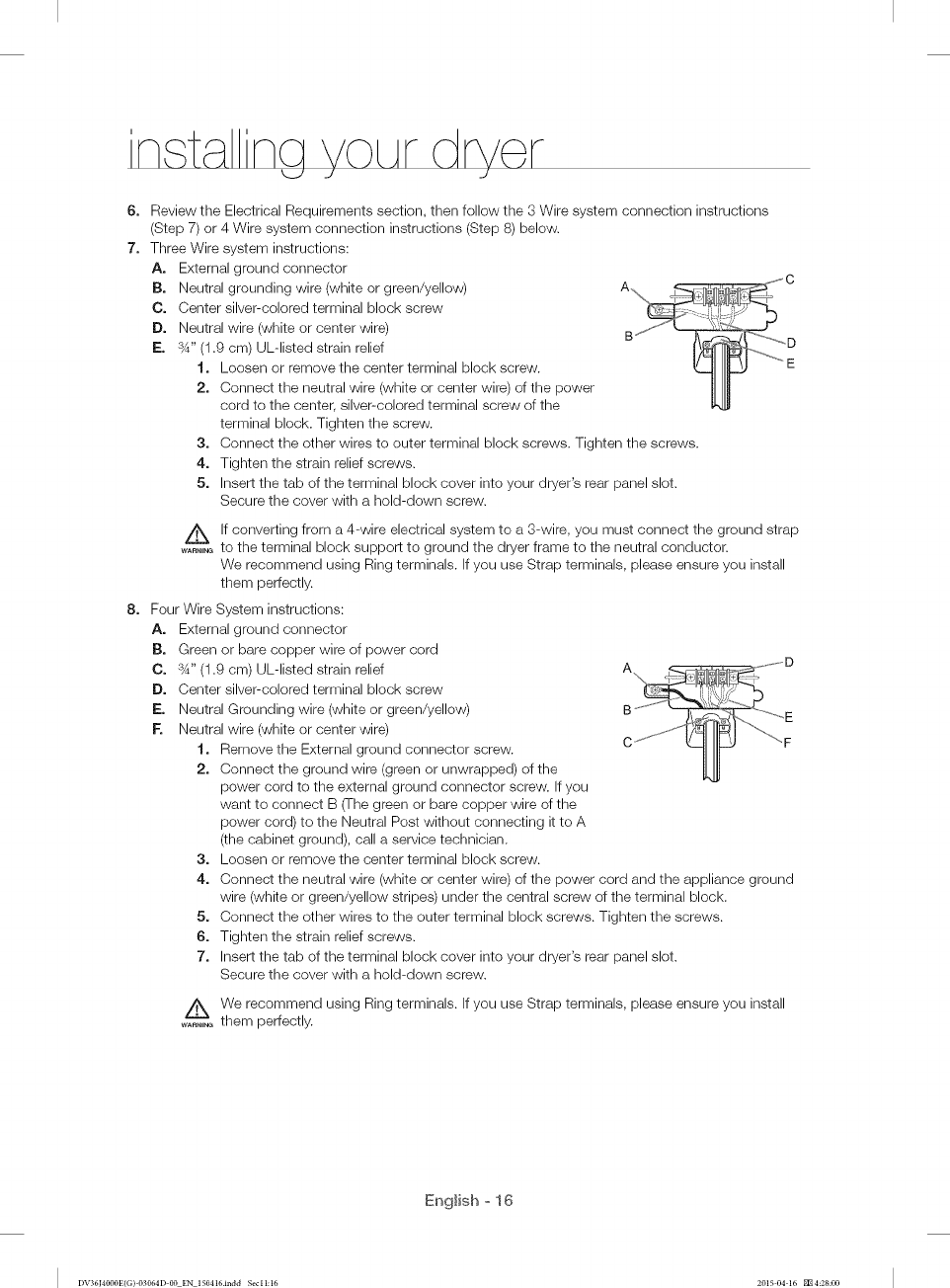

f4 Electrical connections

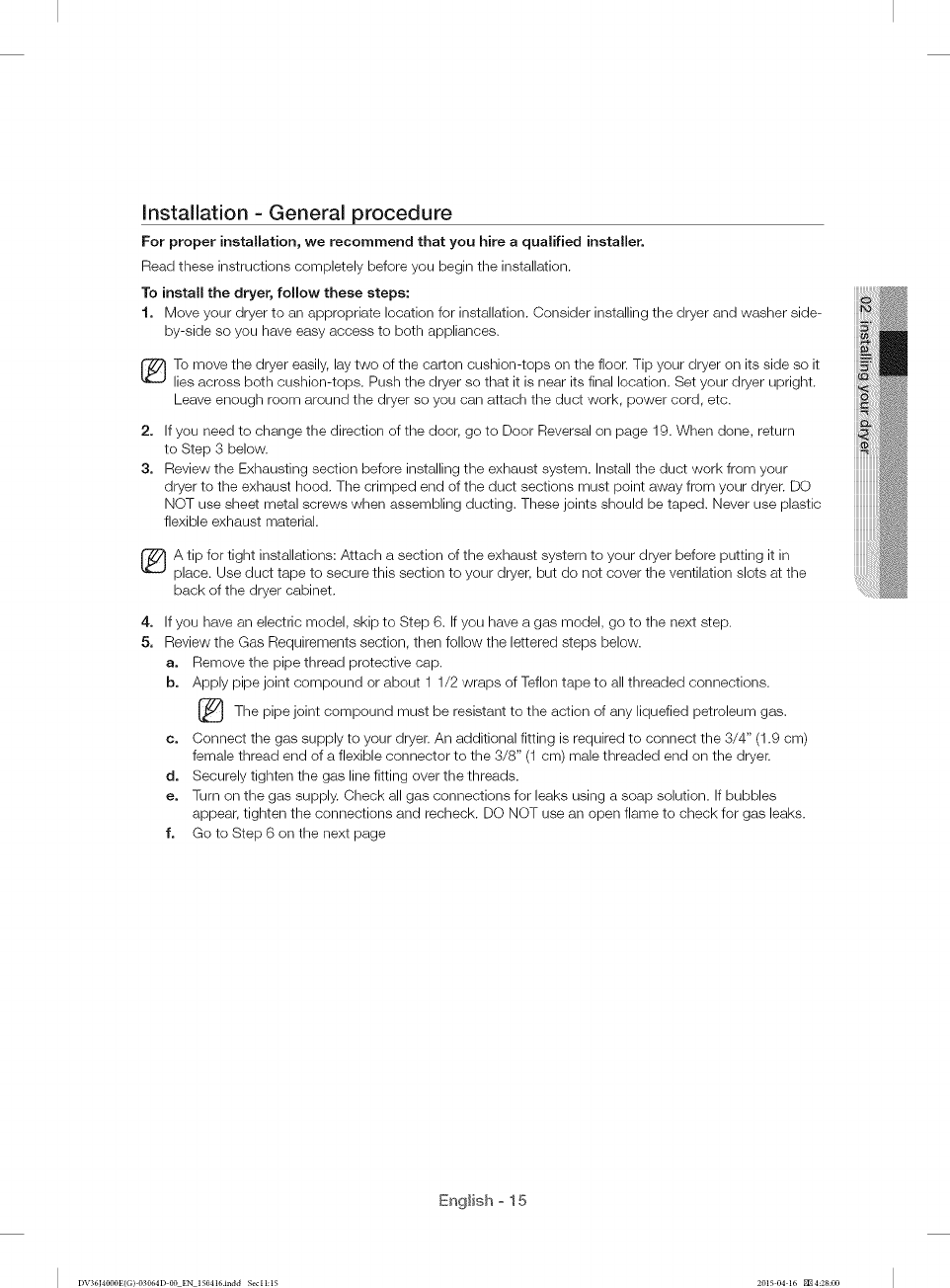

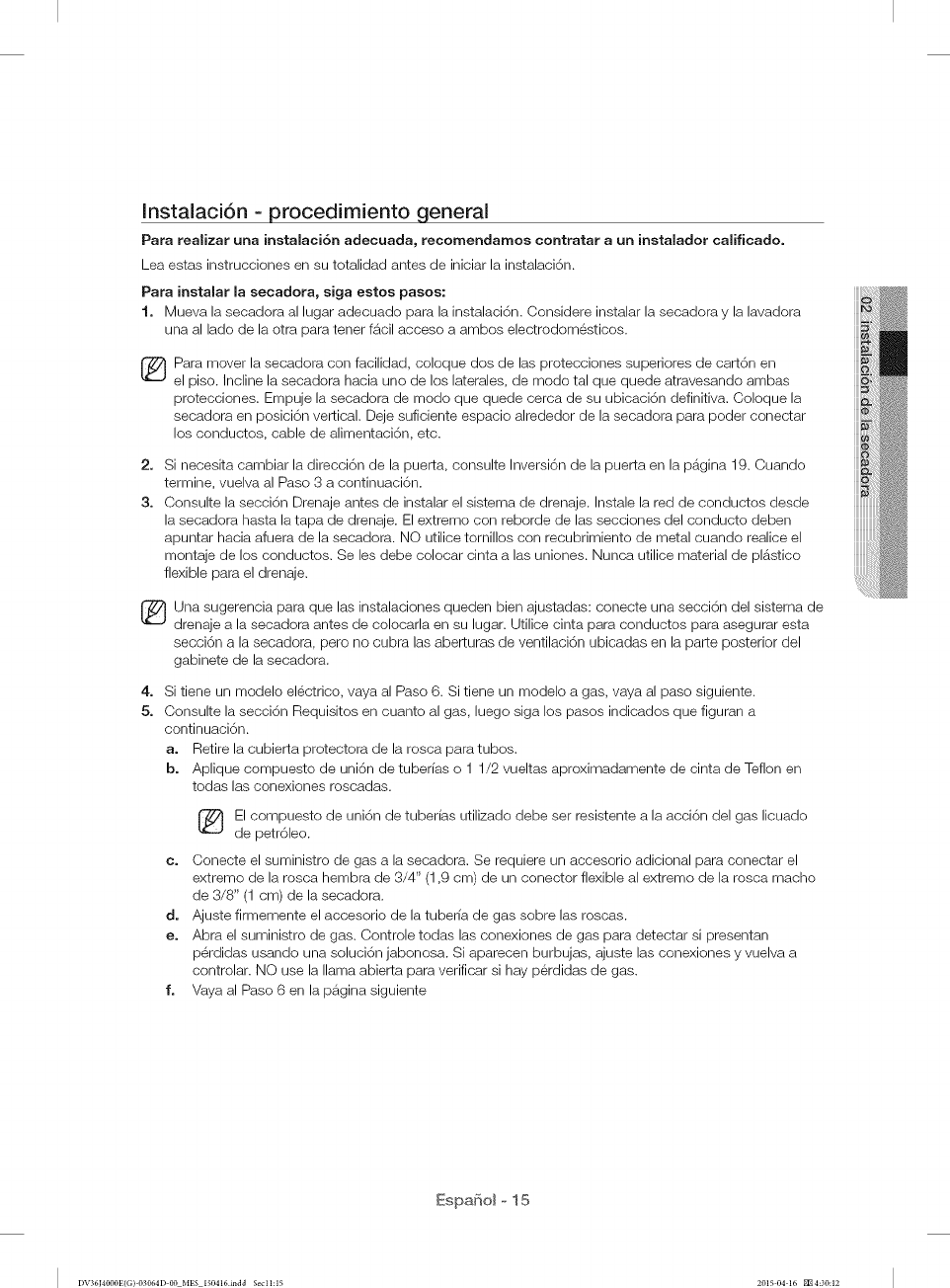

f5 Installation - General procedure

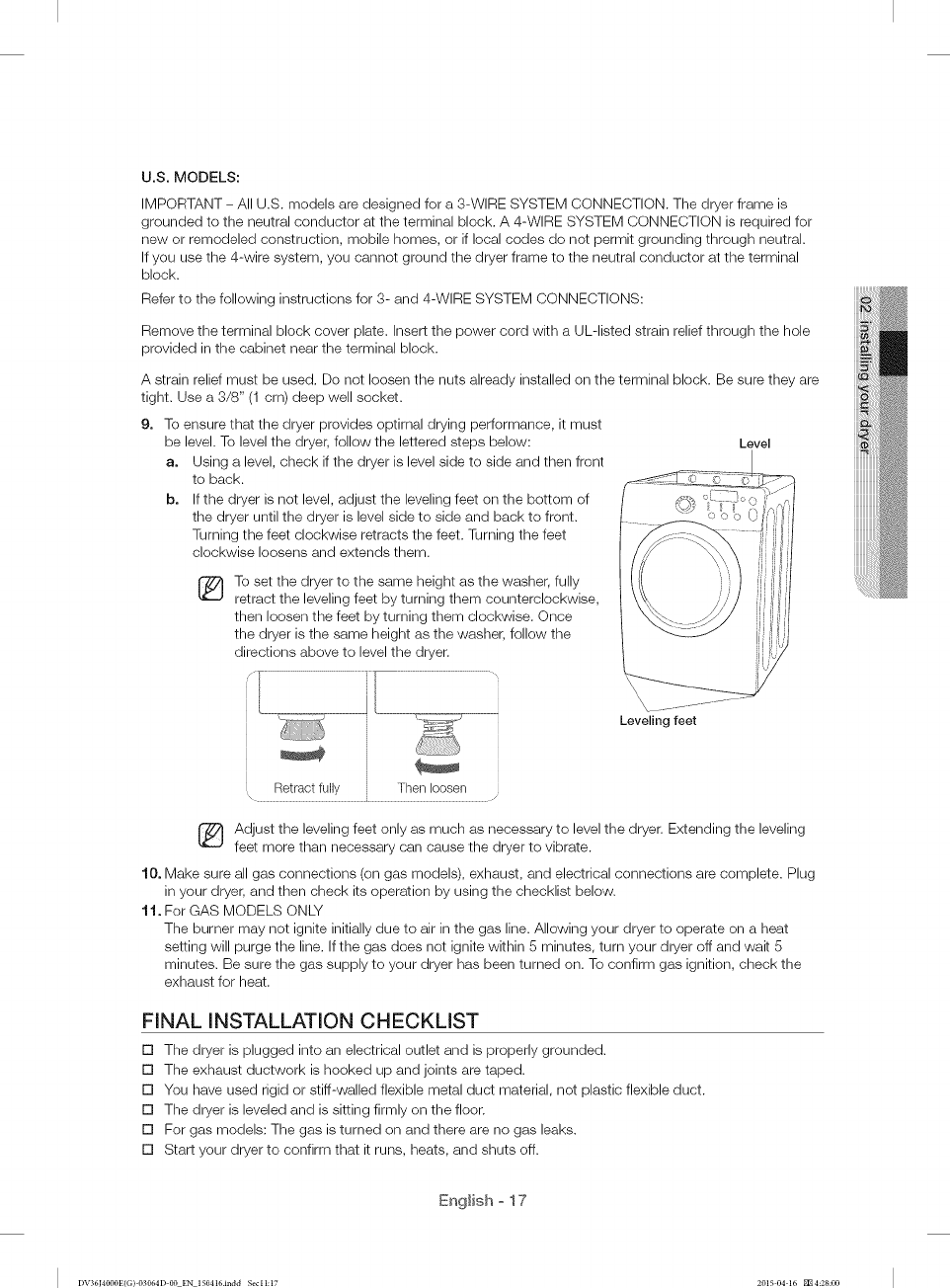

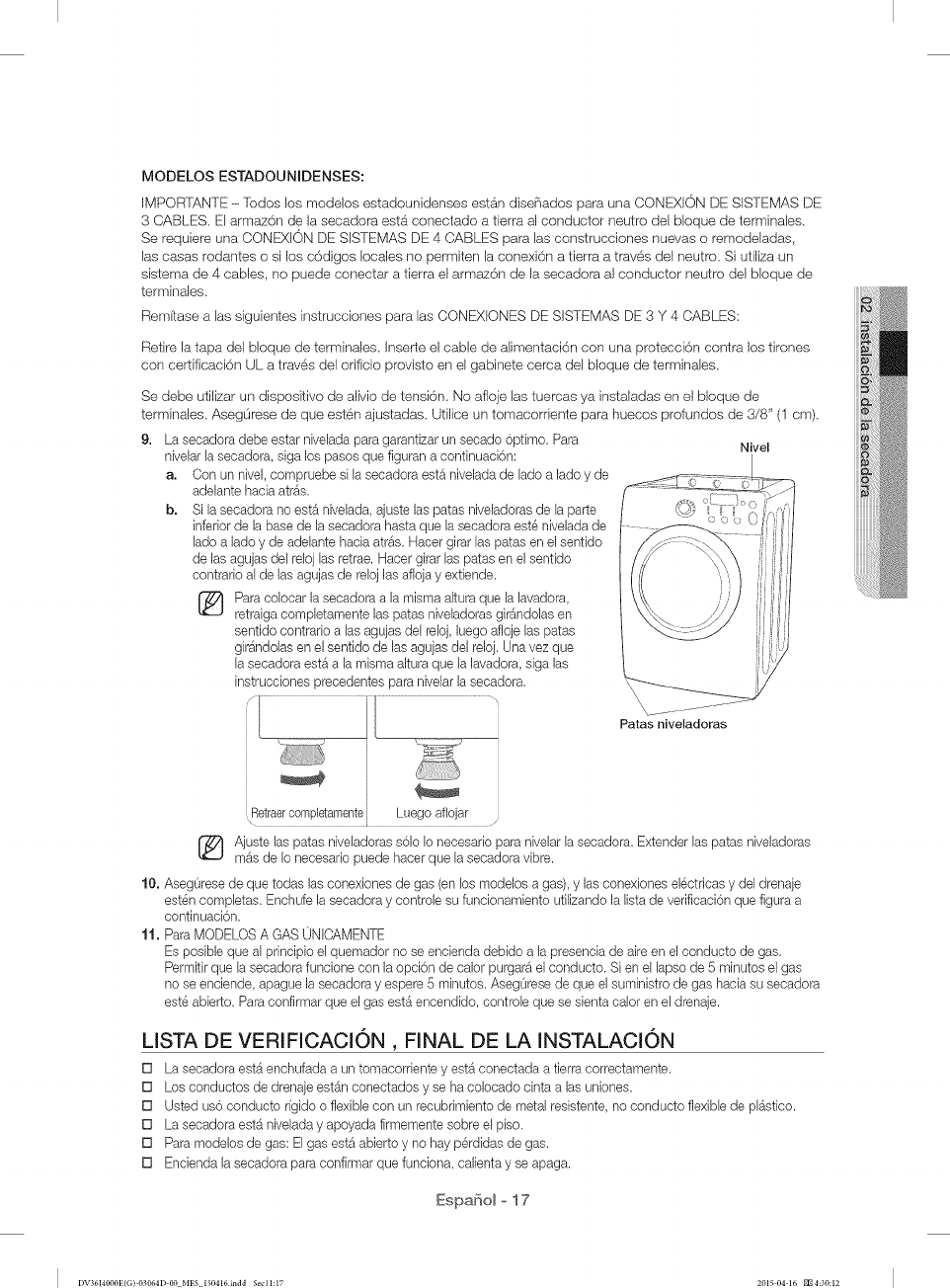

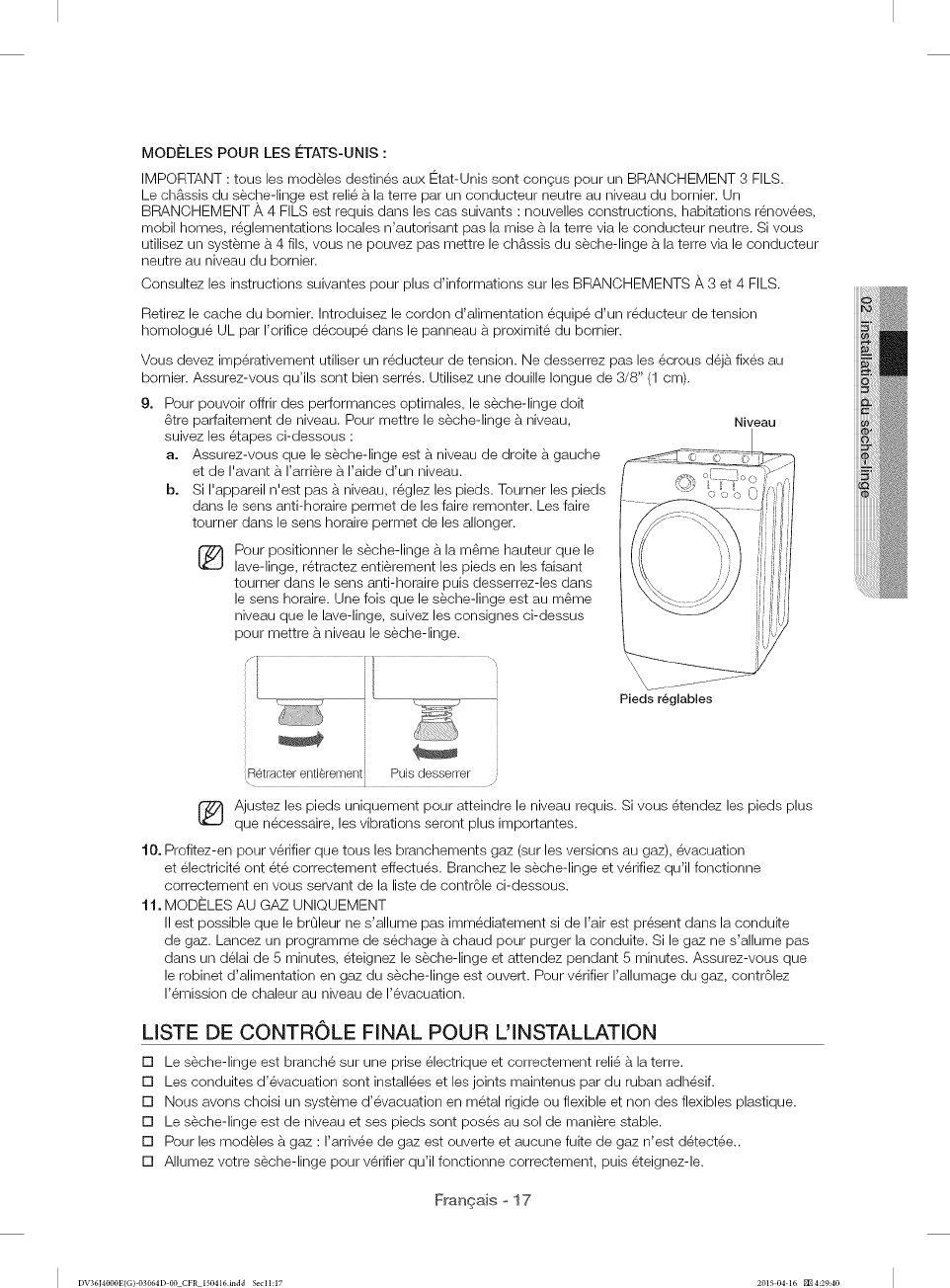

f7 Final installation checklist

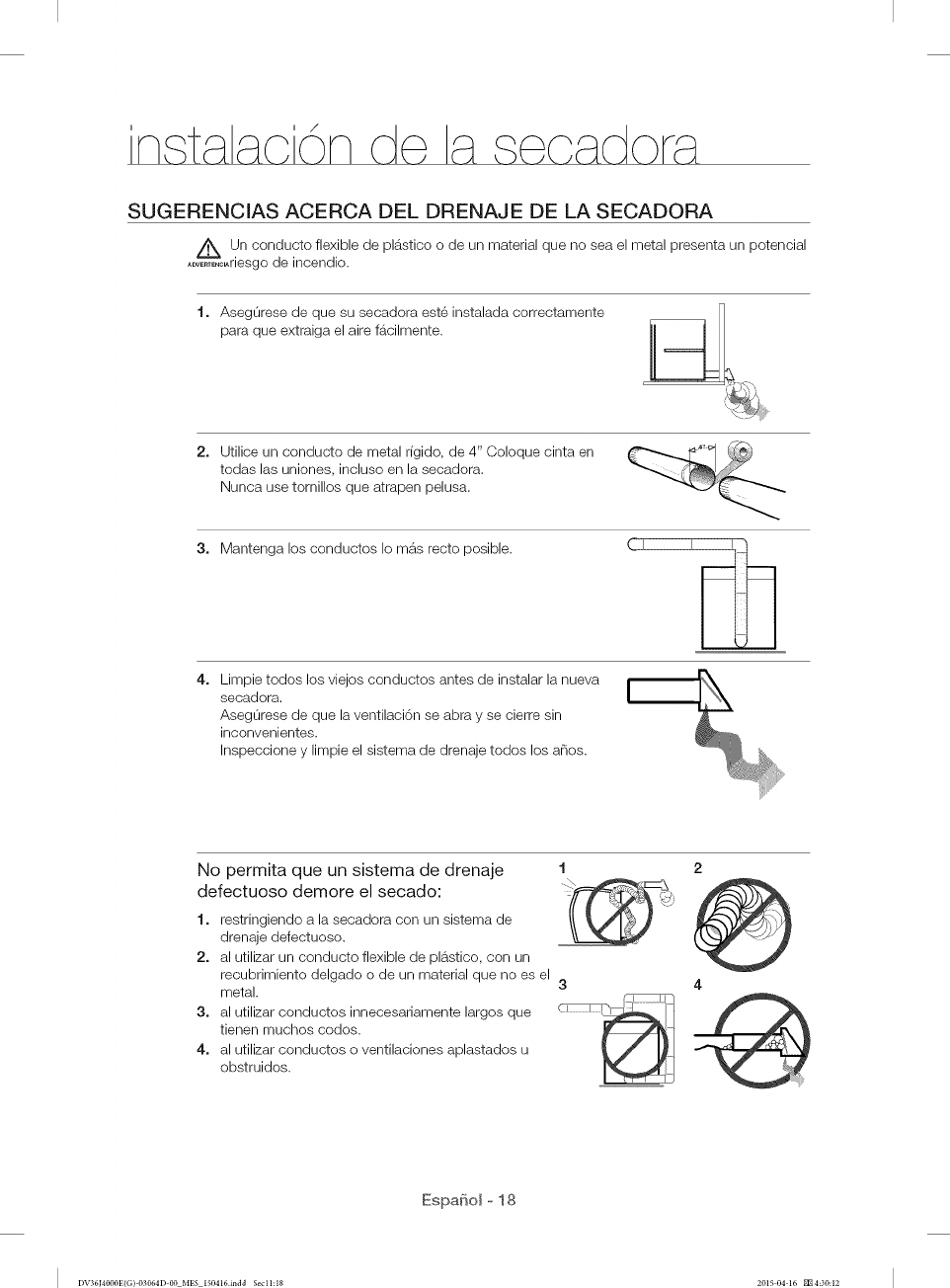

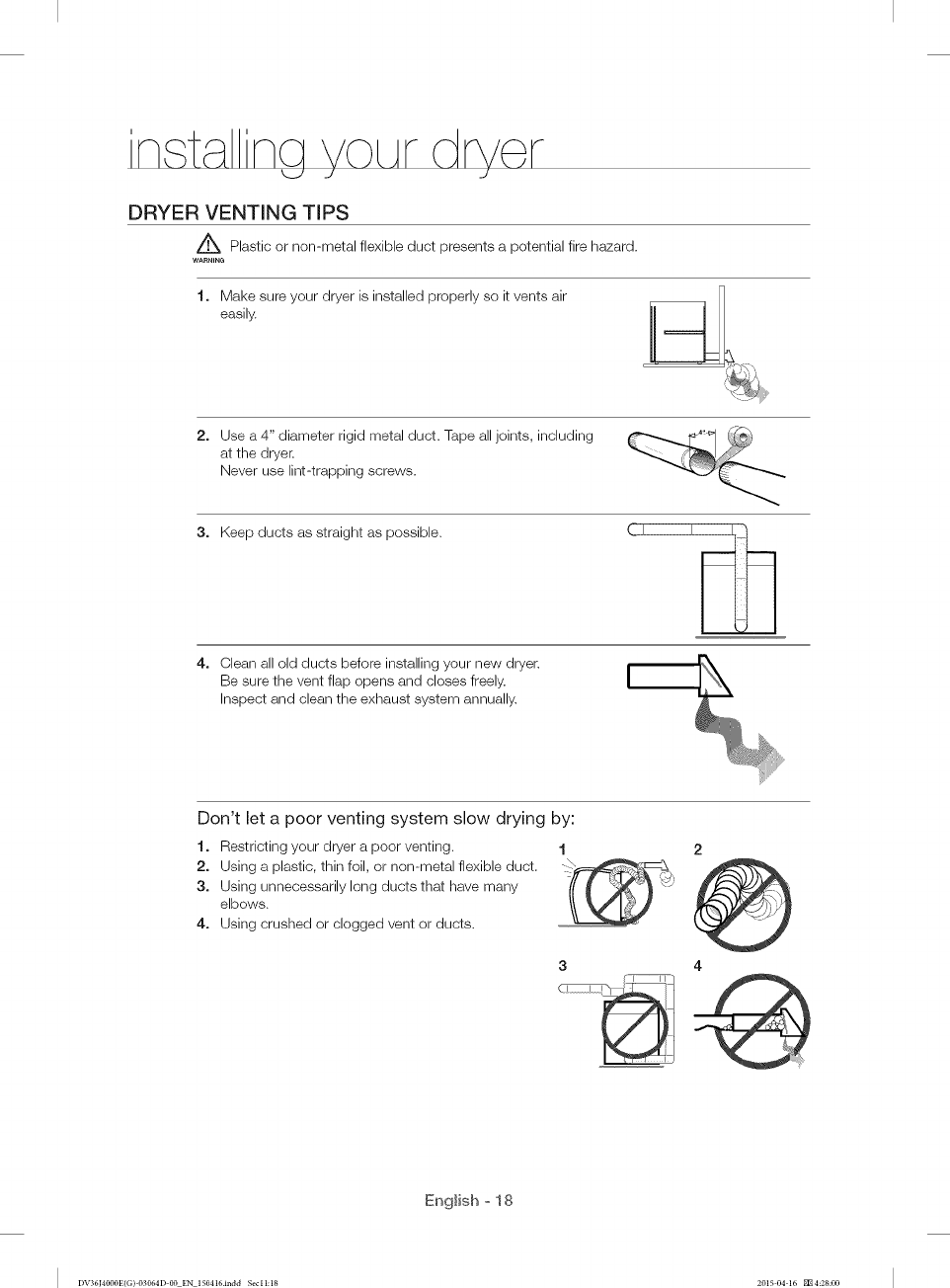

f8 Dryer venting tips

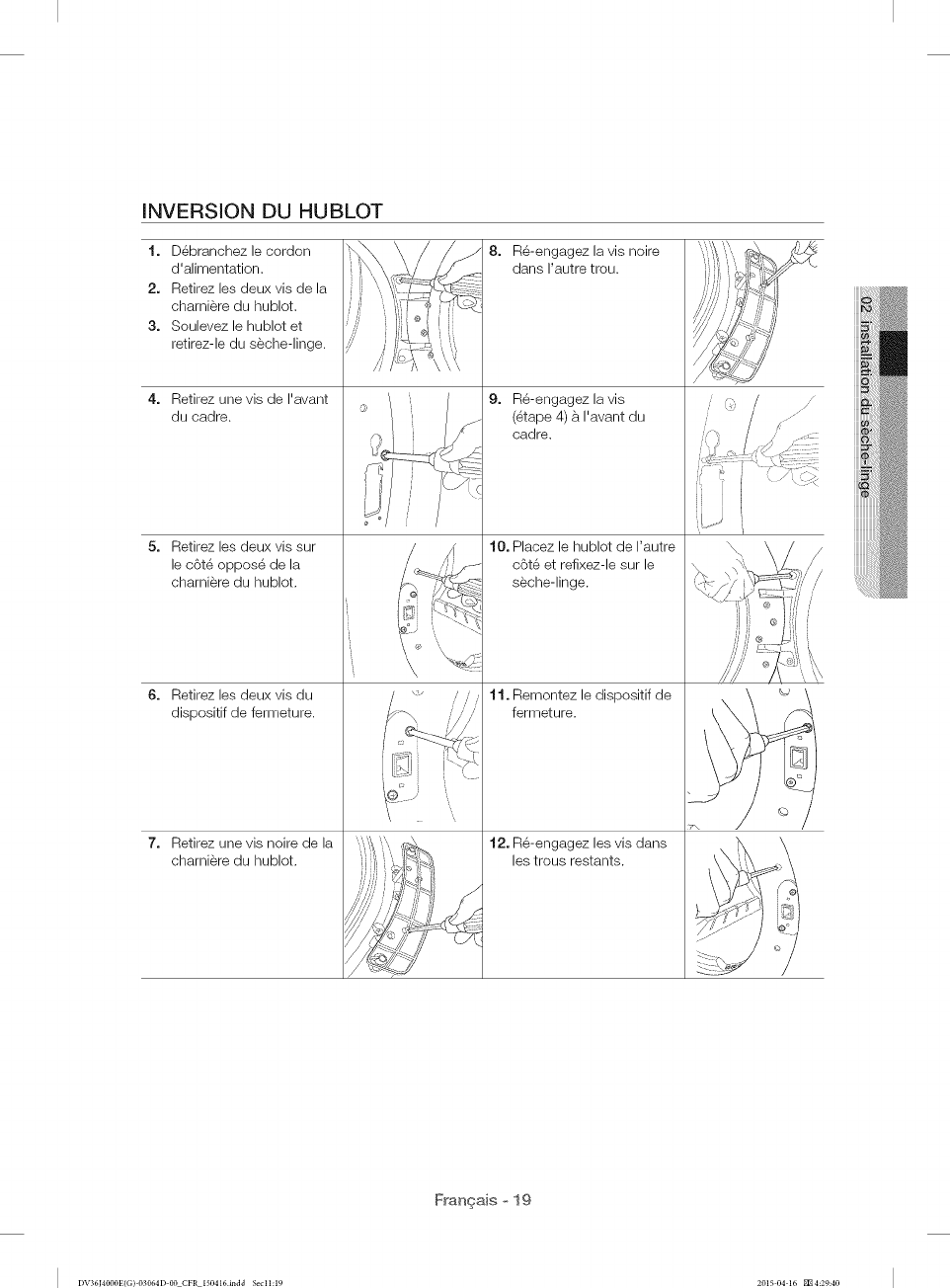

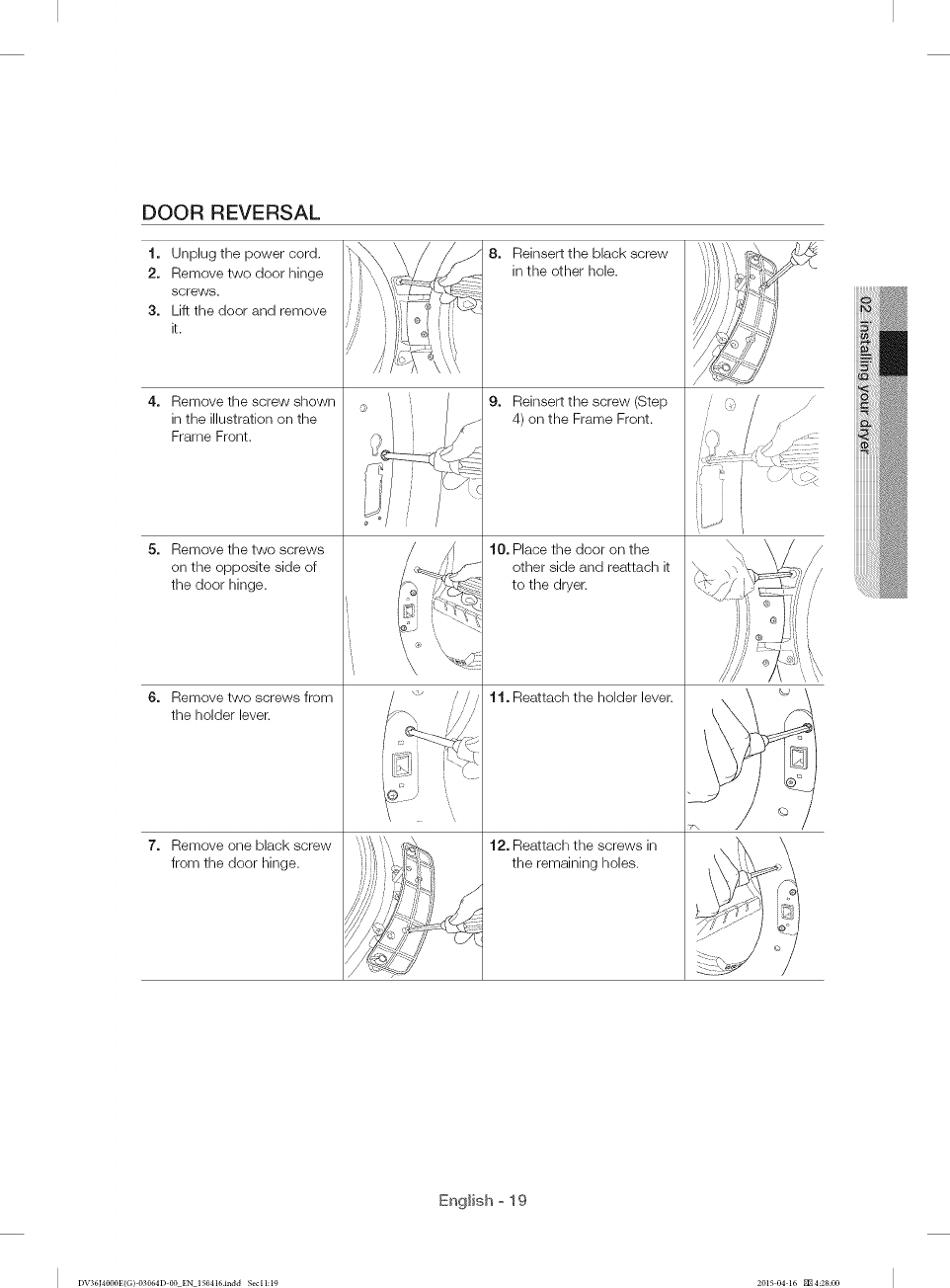

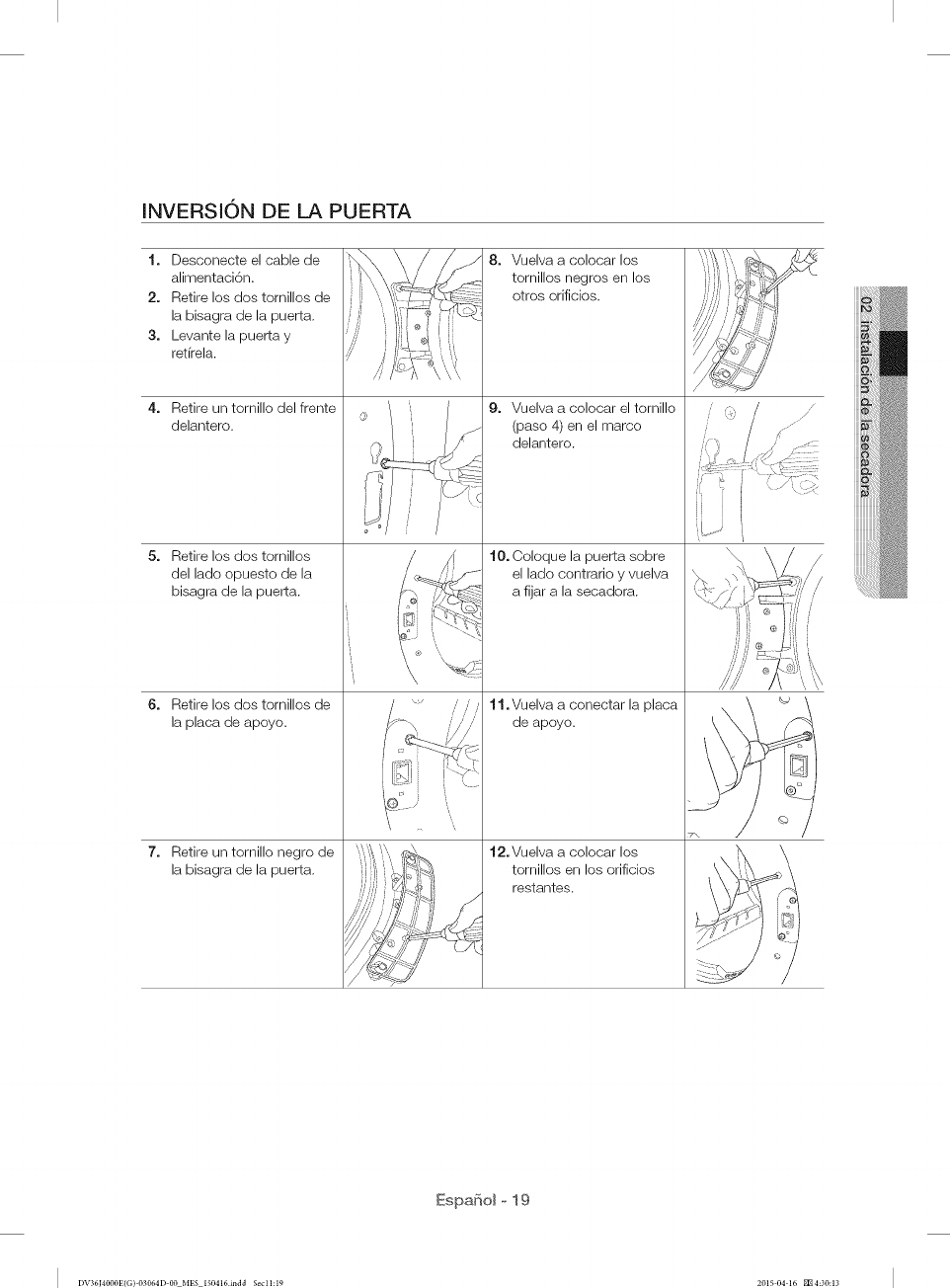

19 Door reversal

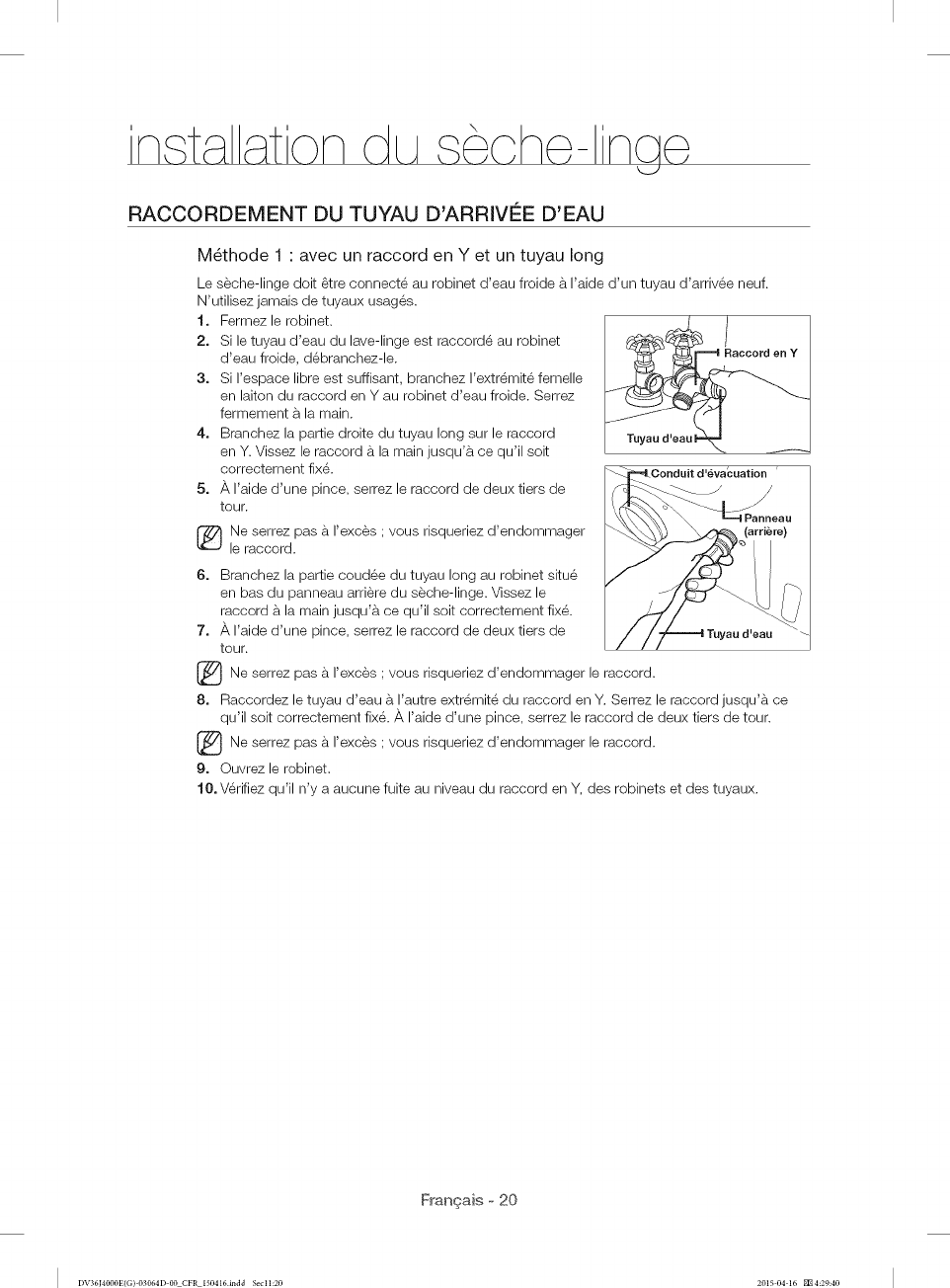

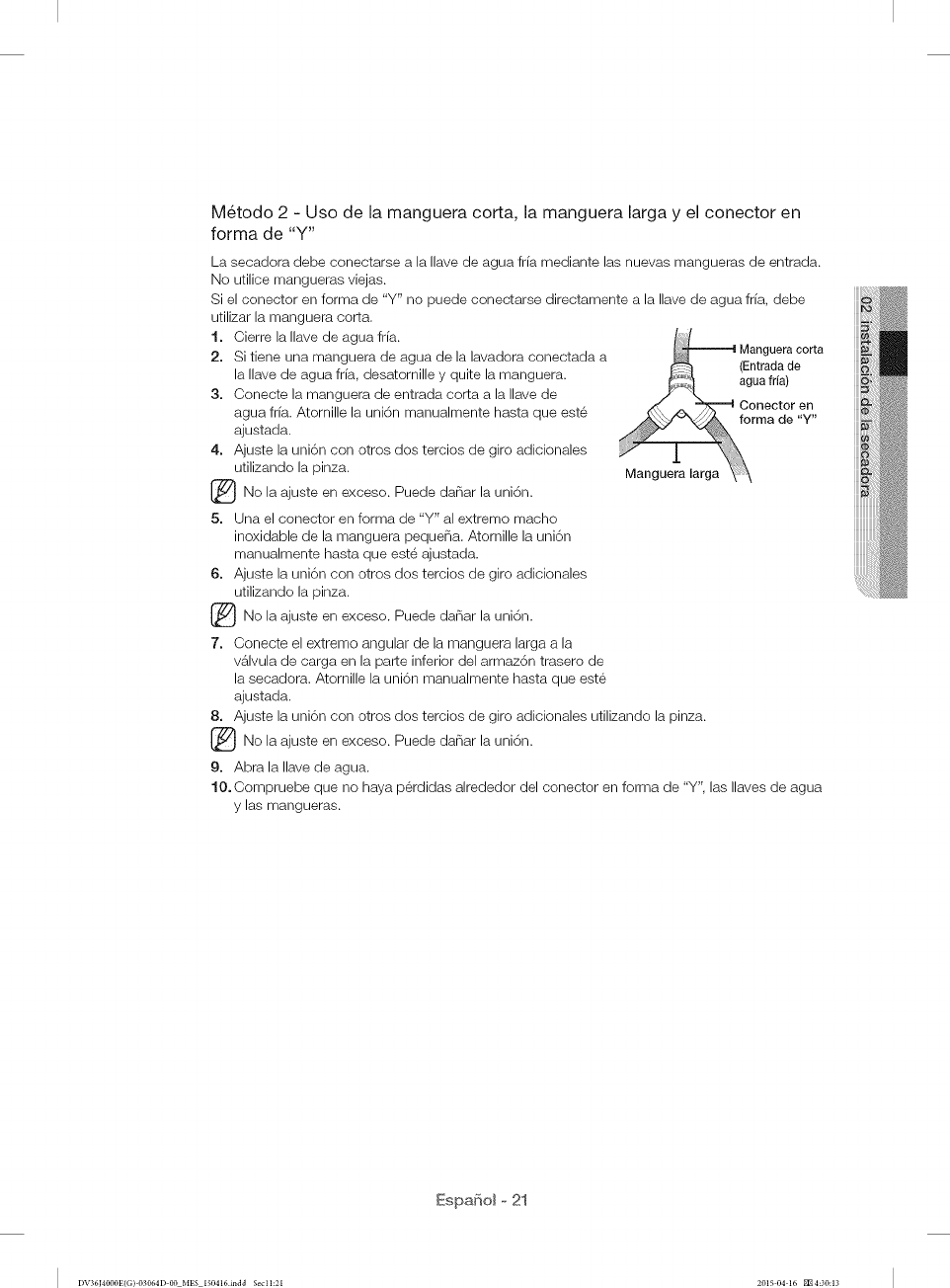

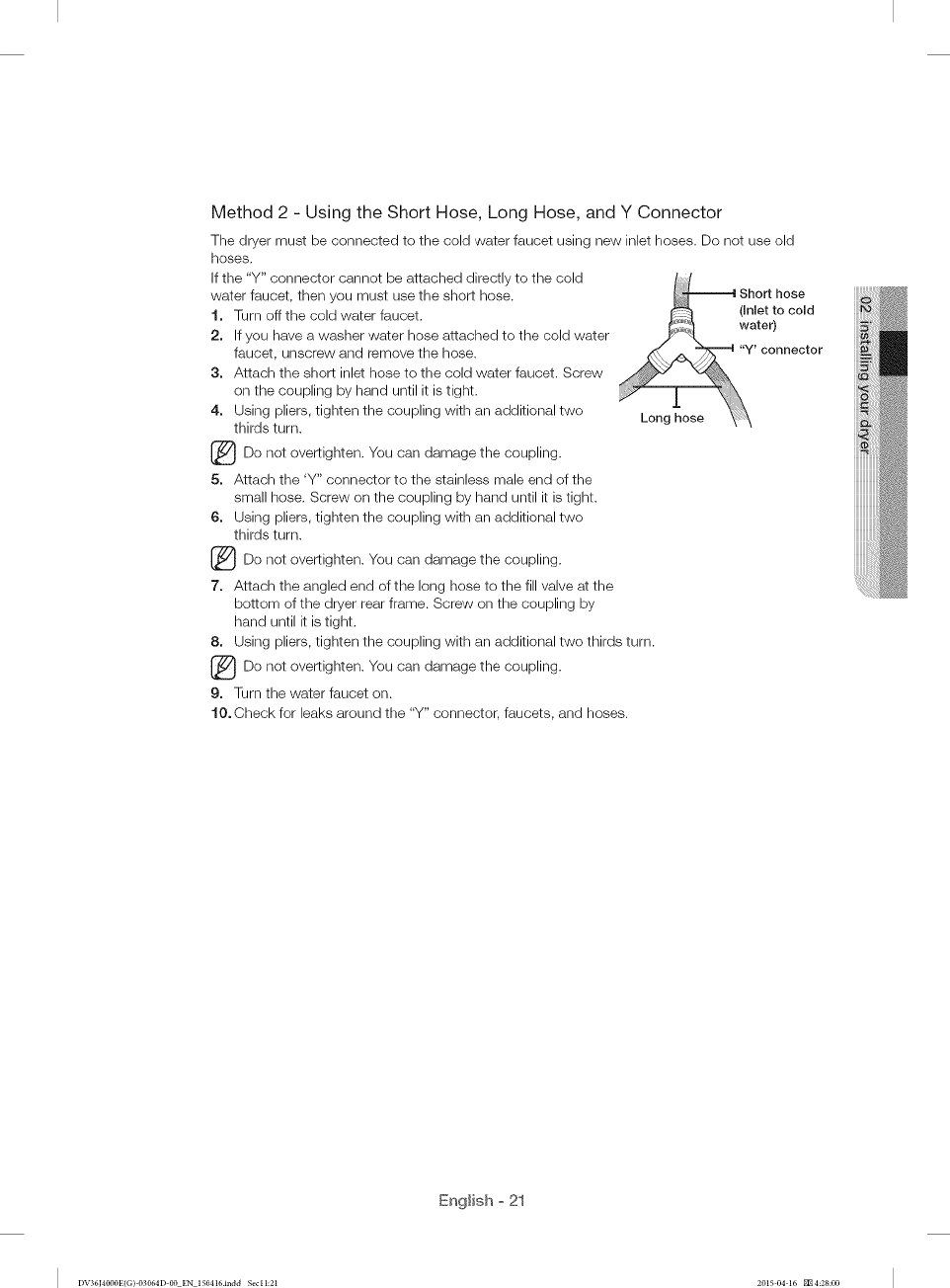

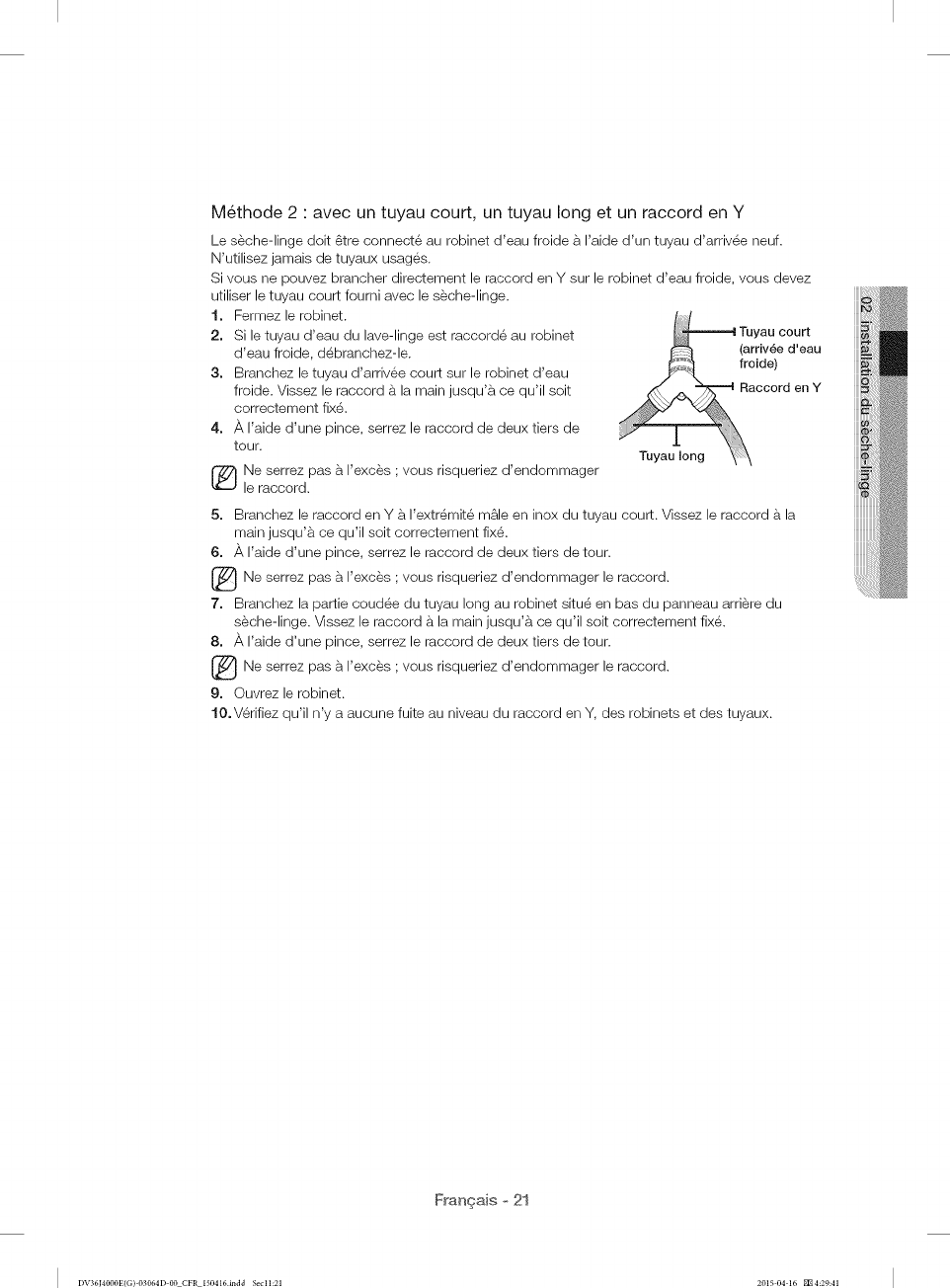

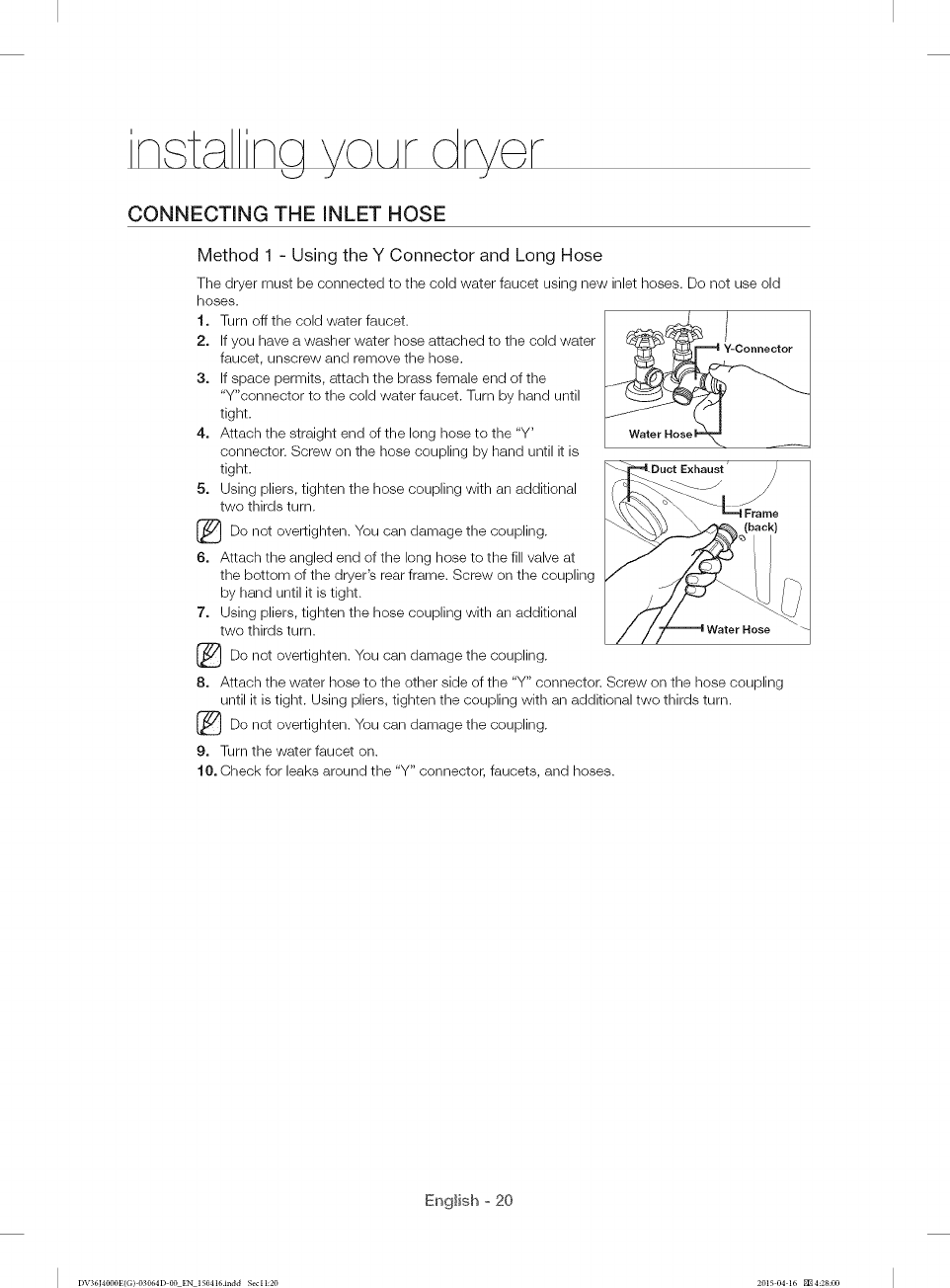

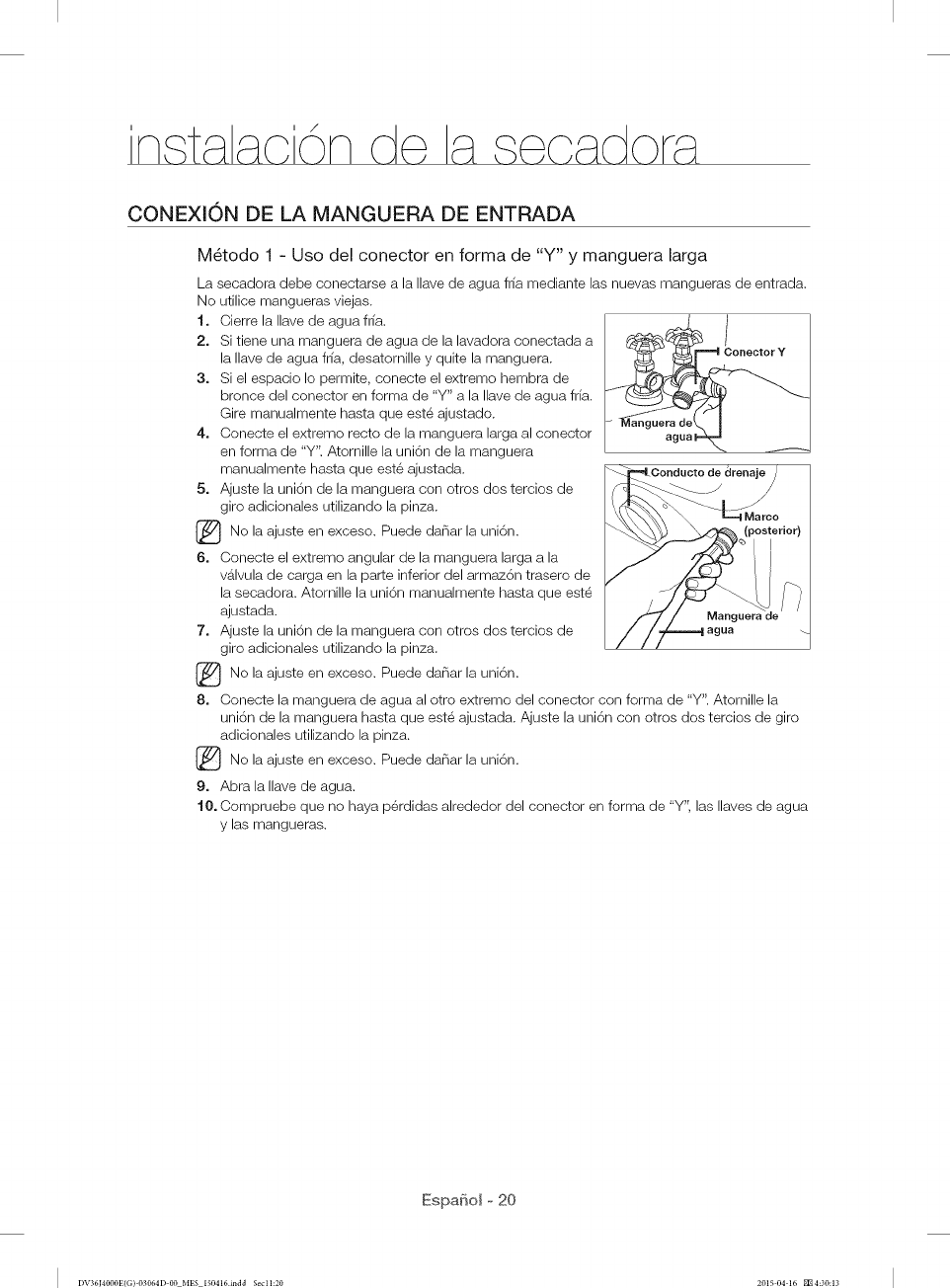

20 Connecting the inlet hose

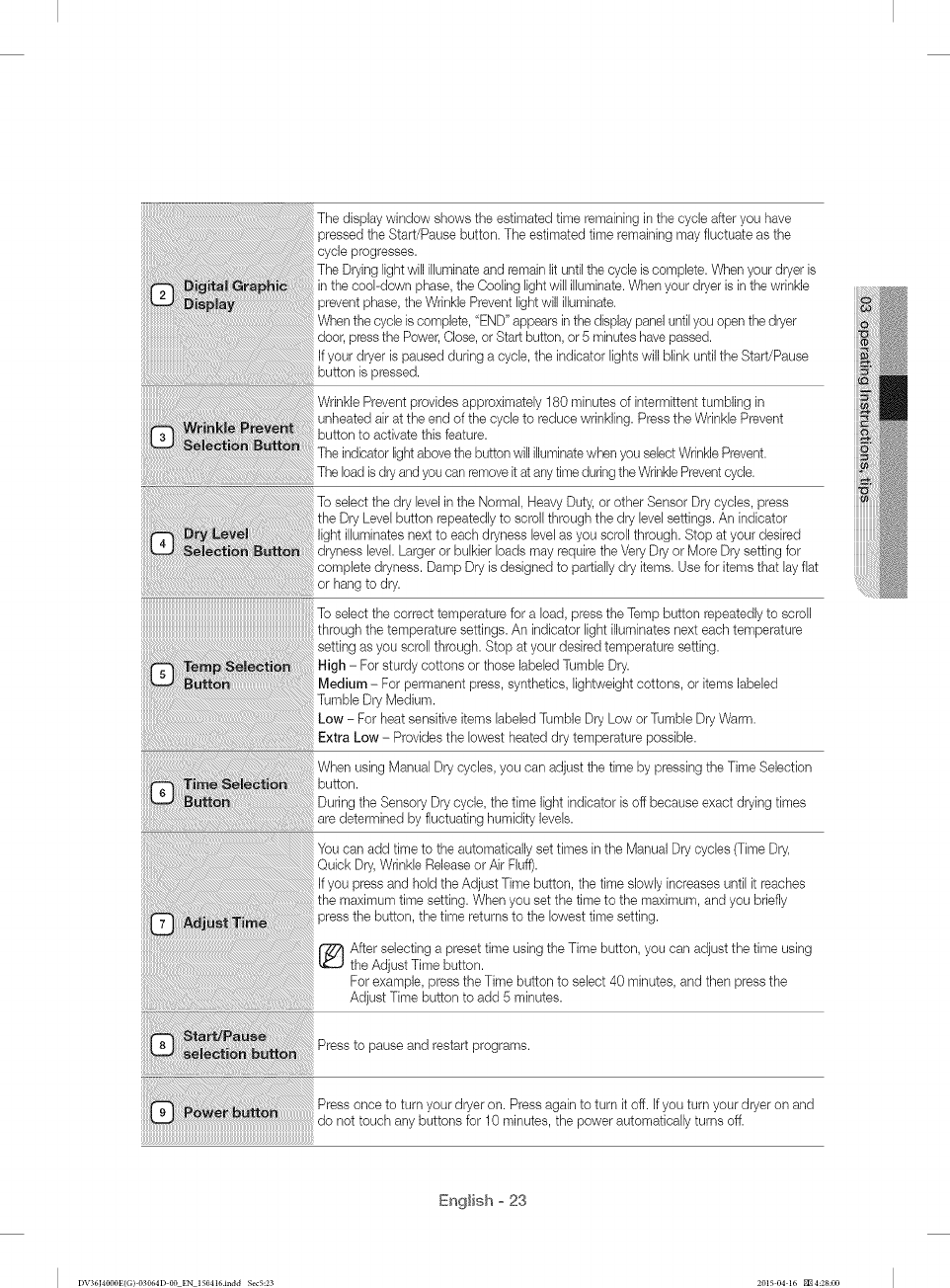

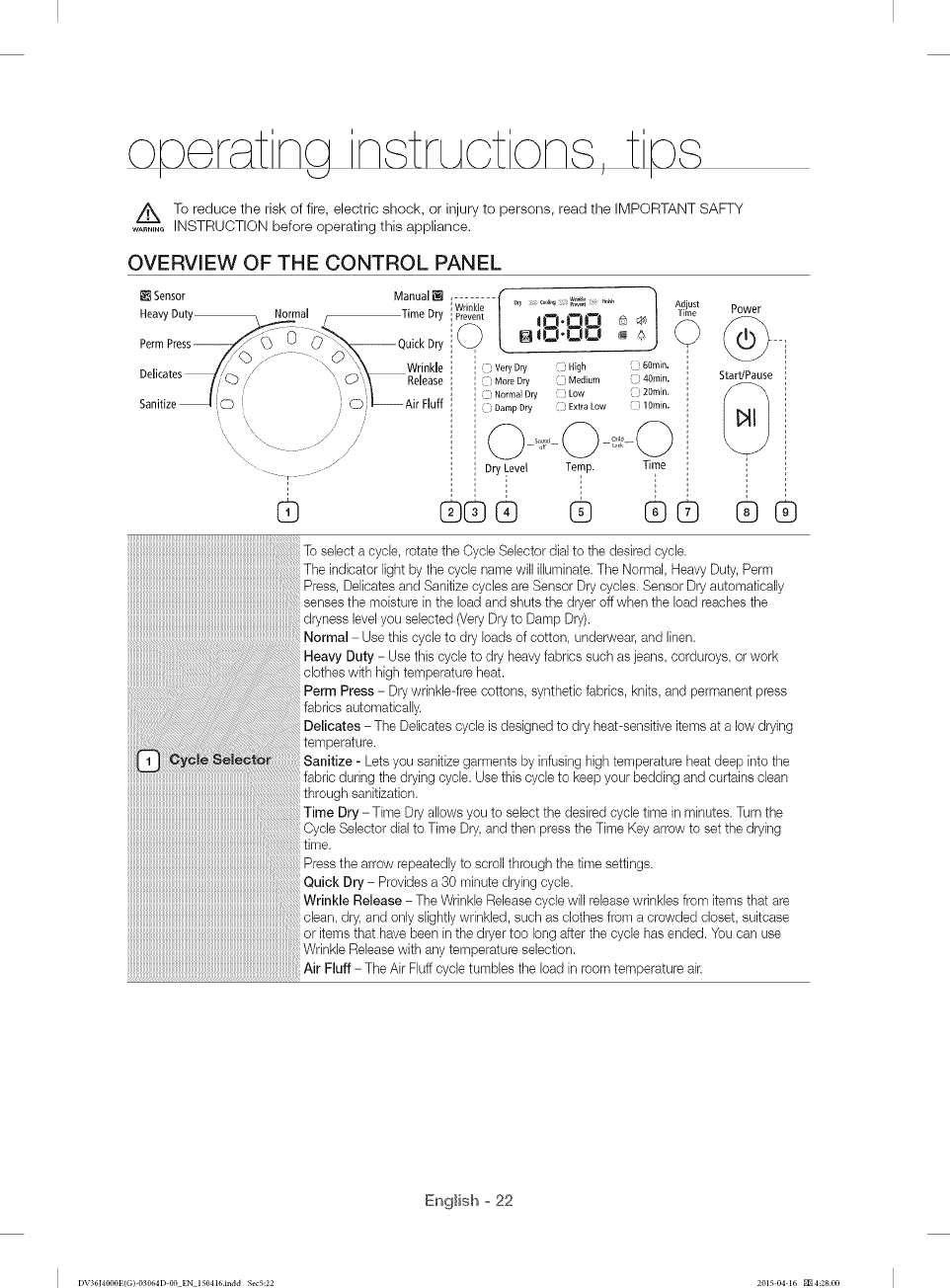

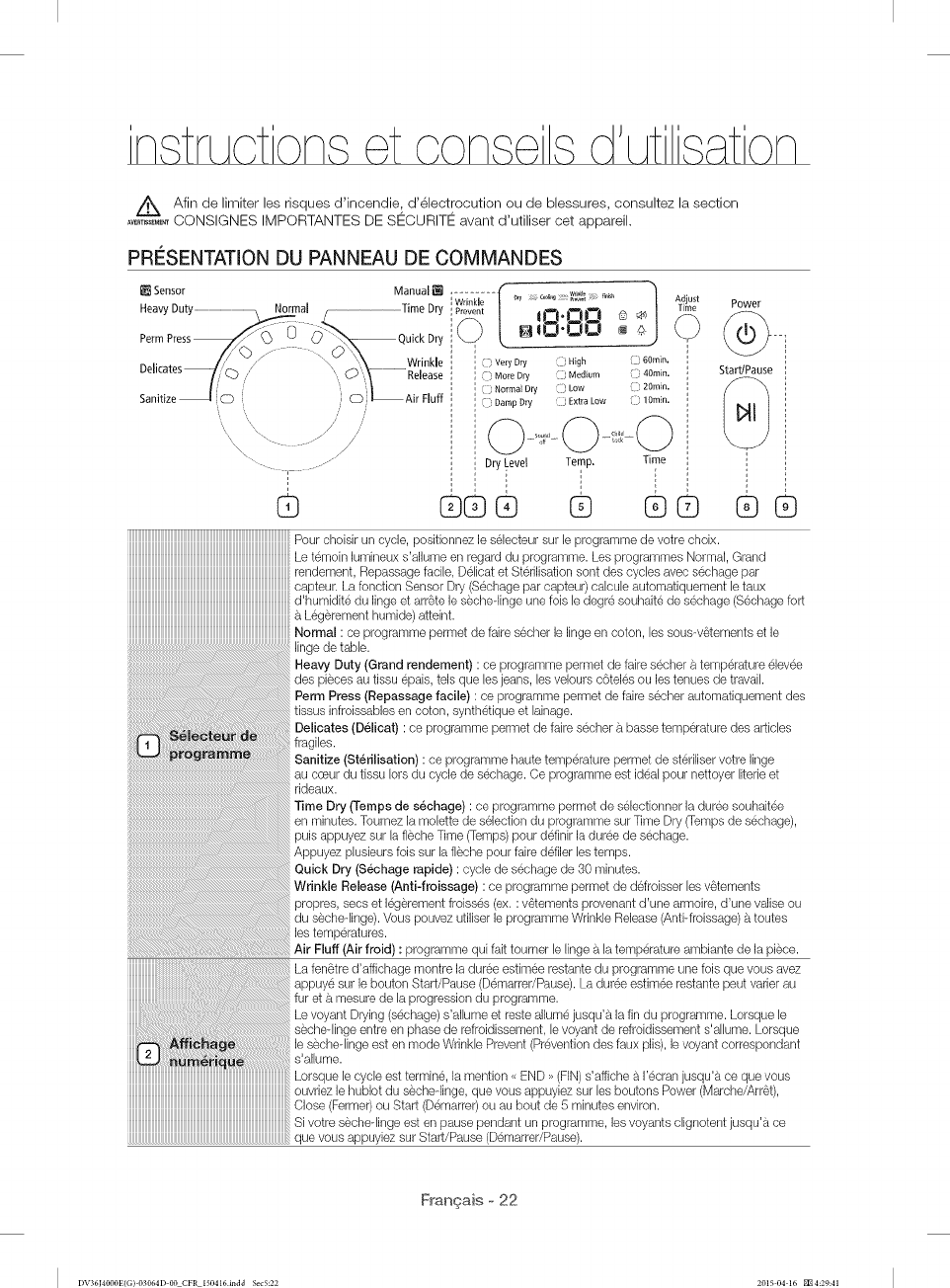

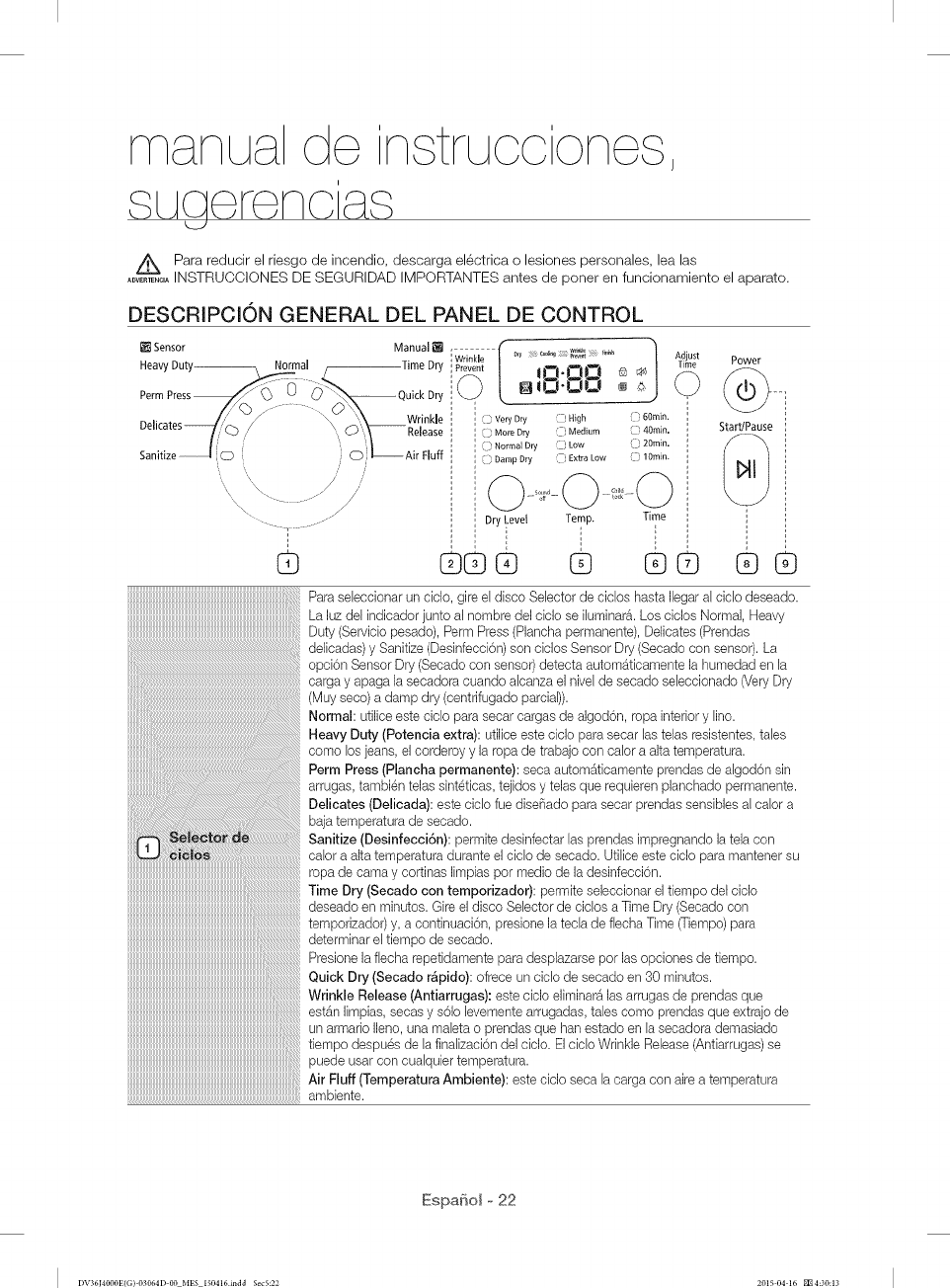

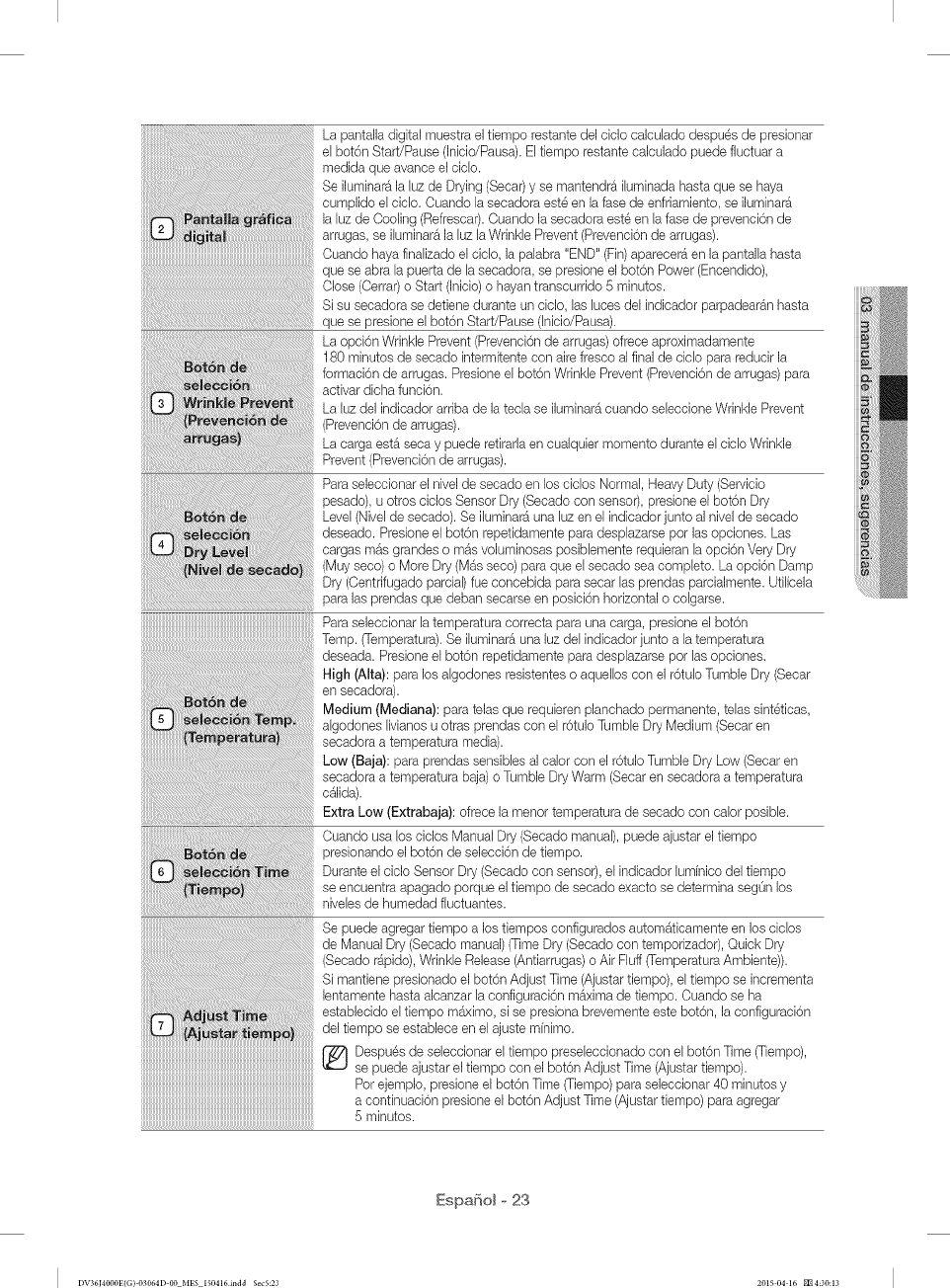

OPERATING INSTRUCTIONS, TIPS 22 Overview of the control panel

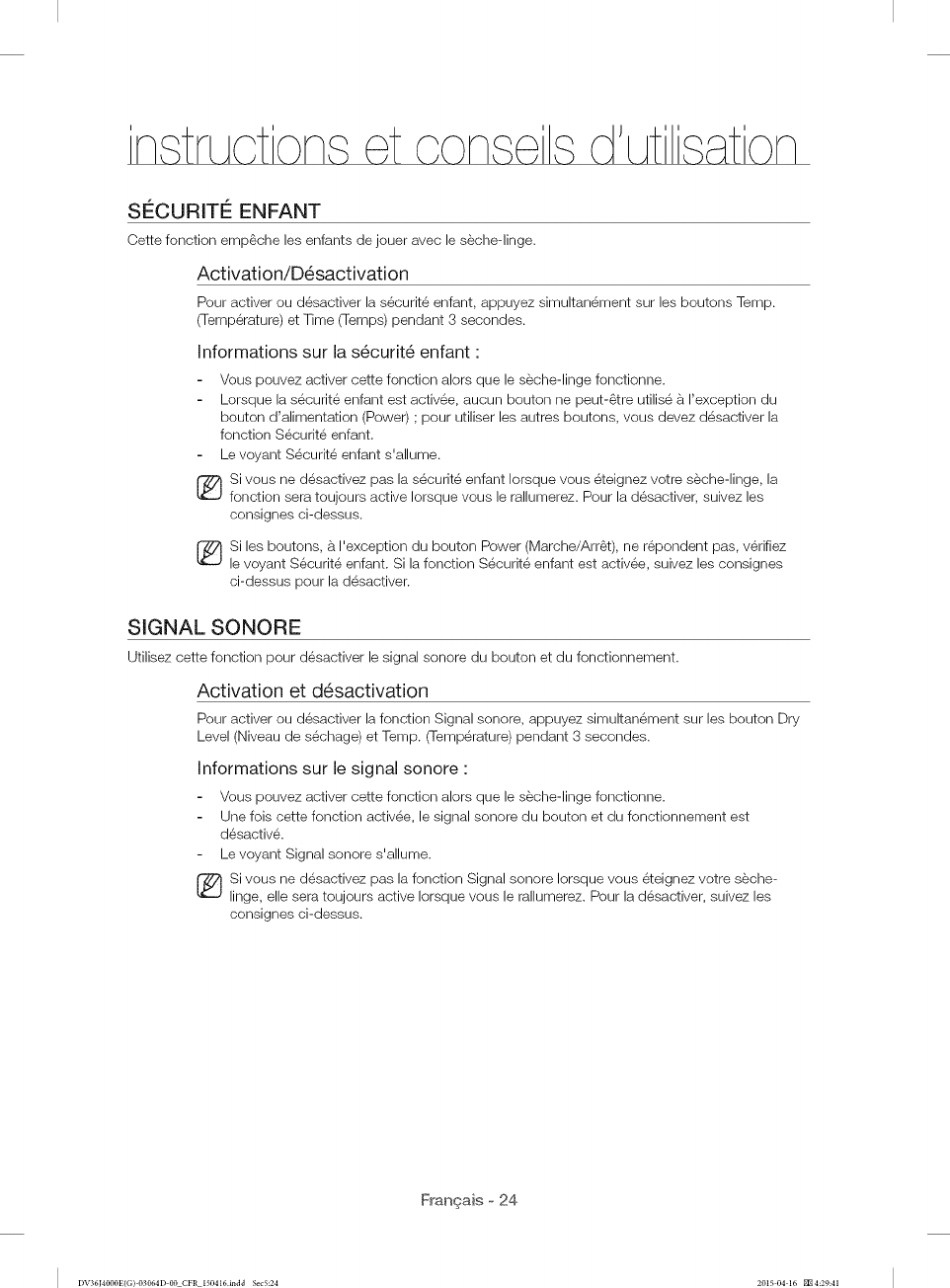

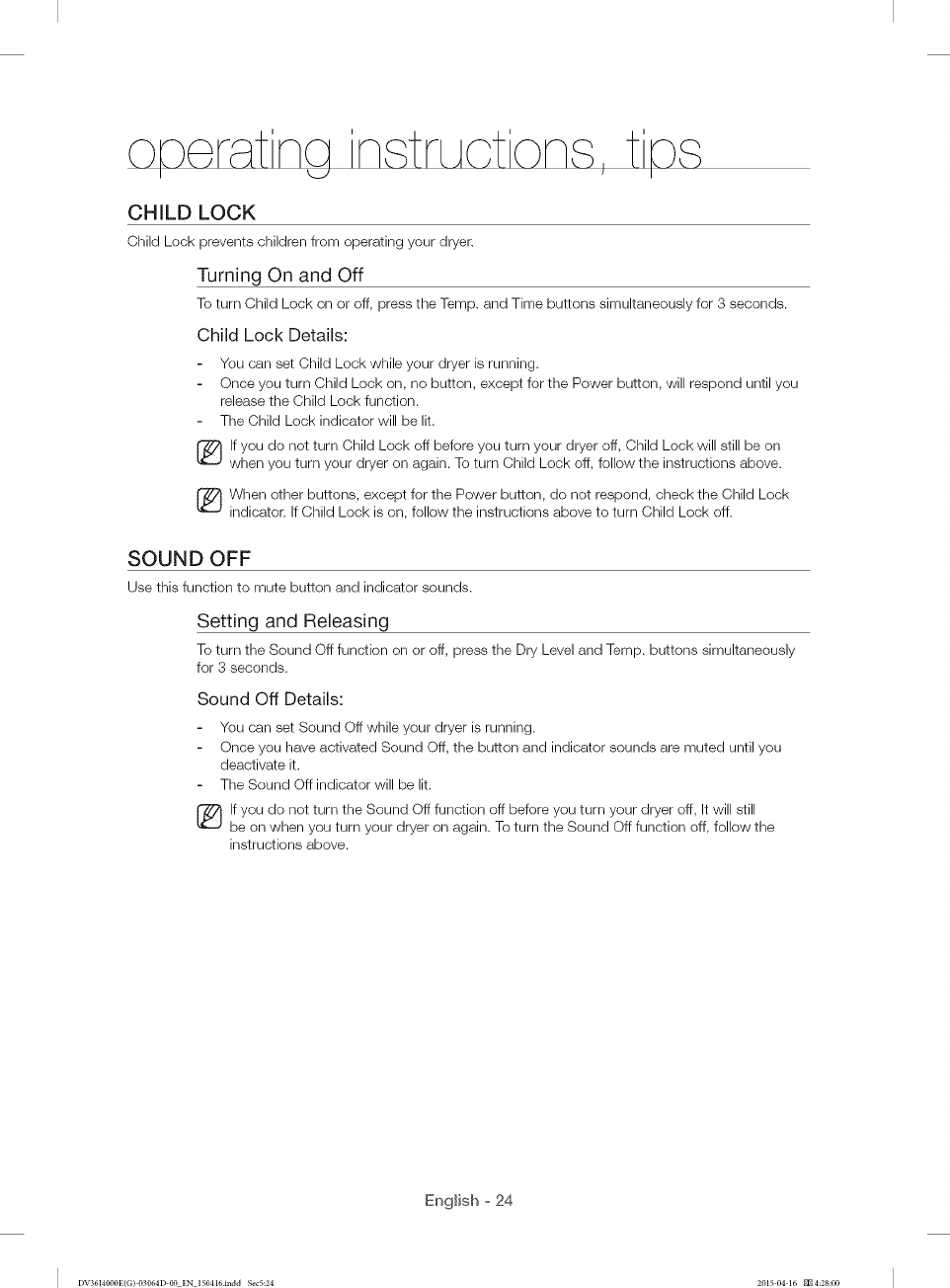

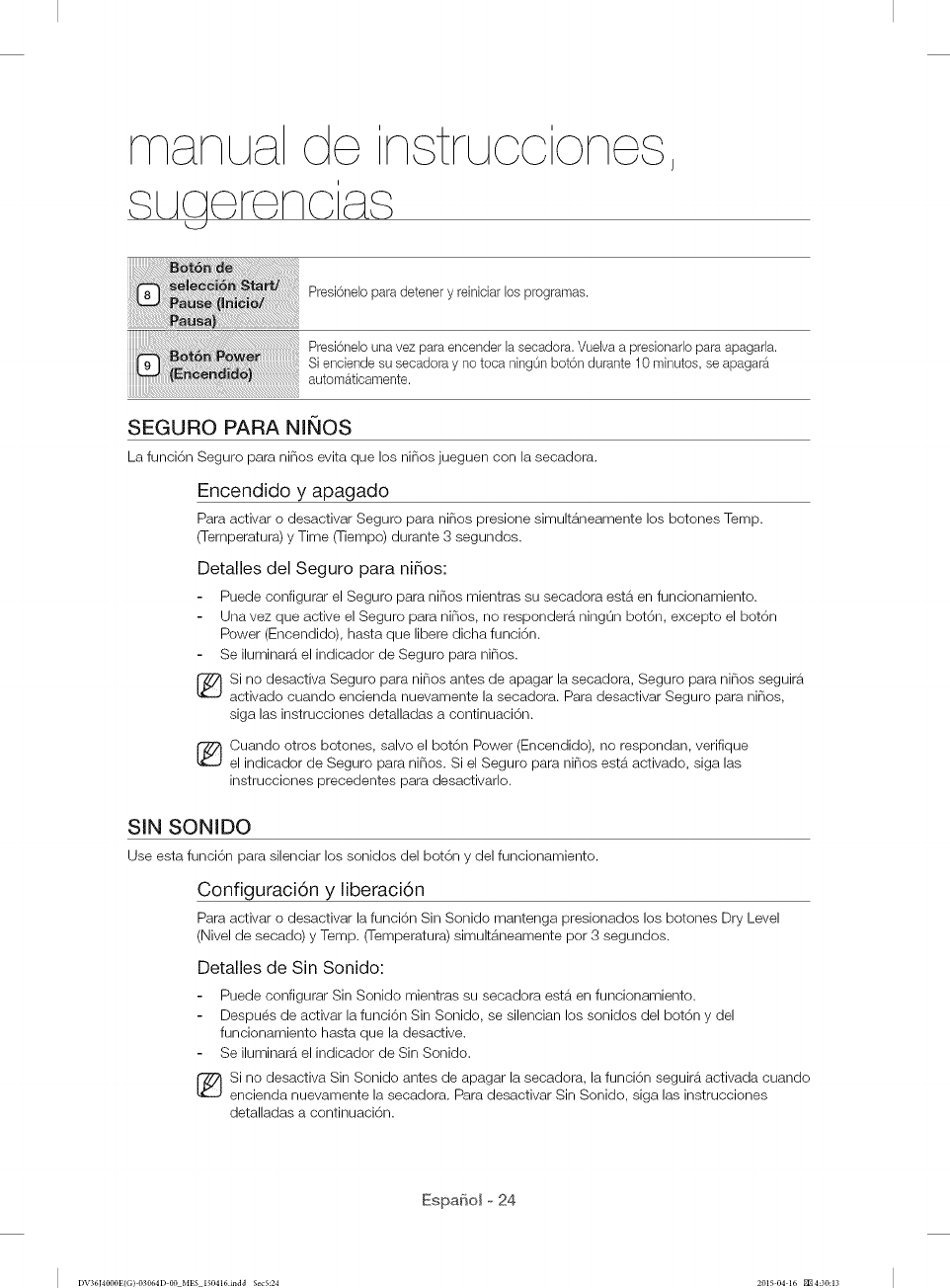

24 Child lock

24 Sound Off

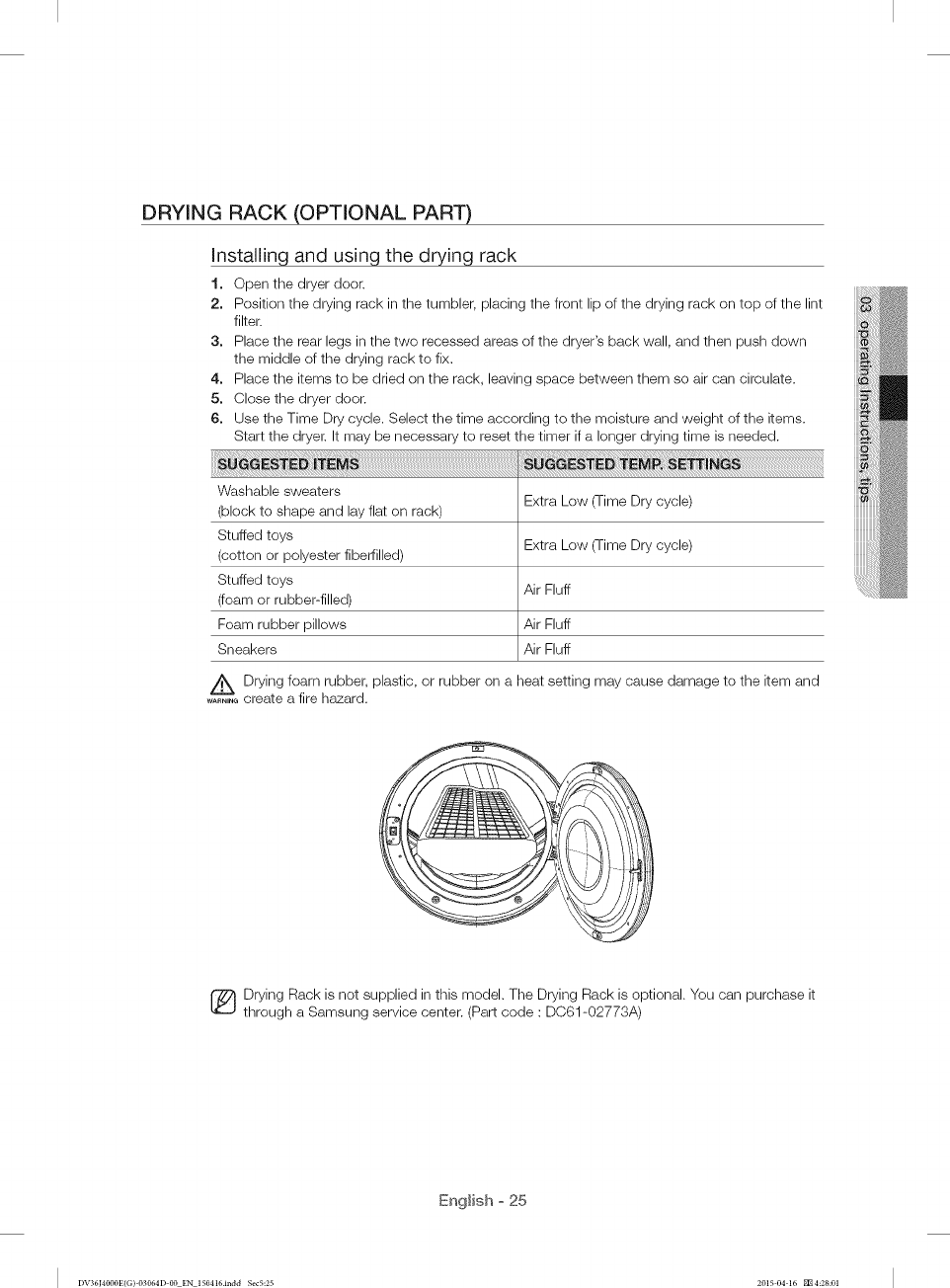

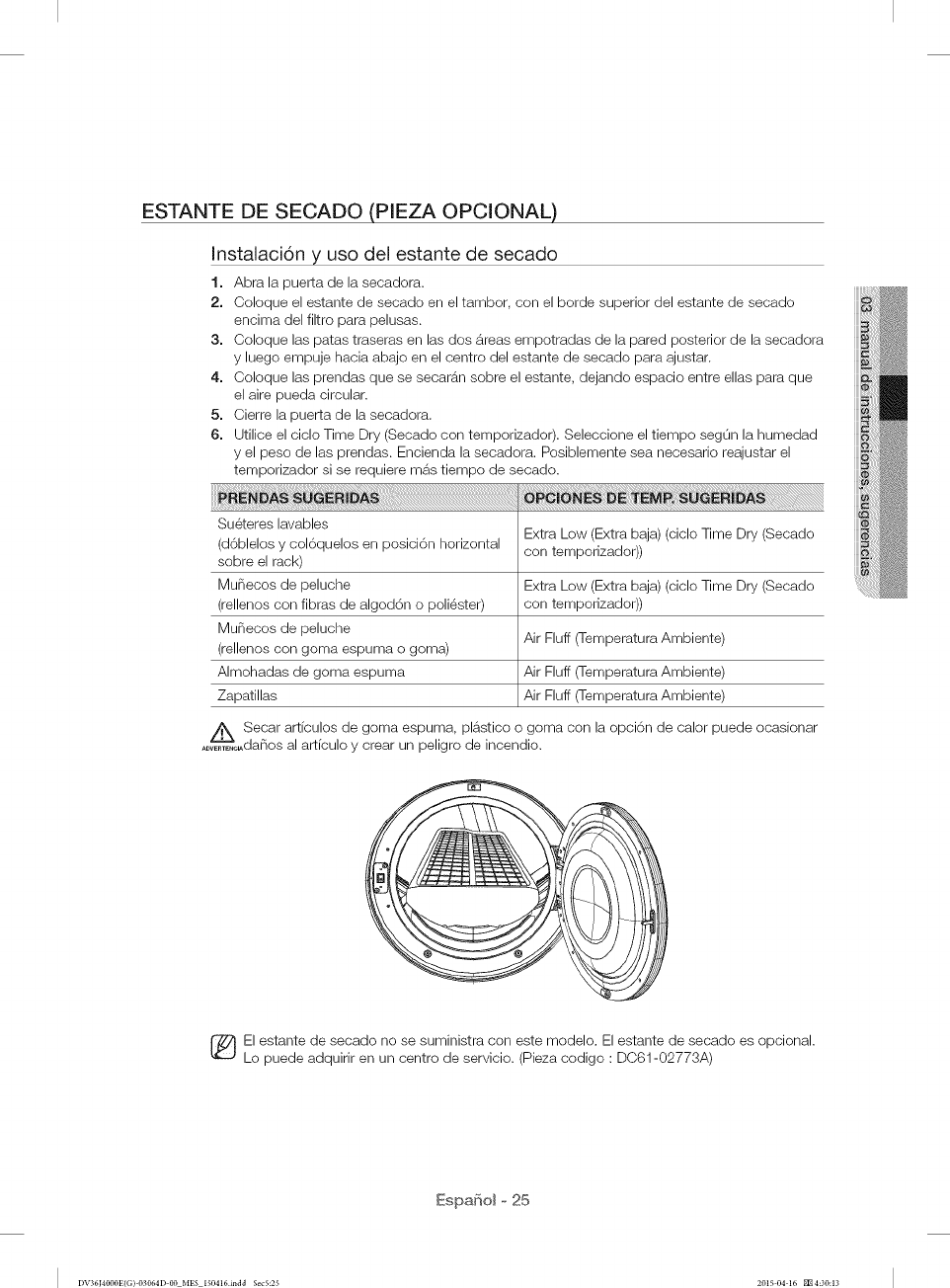

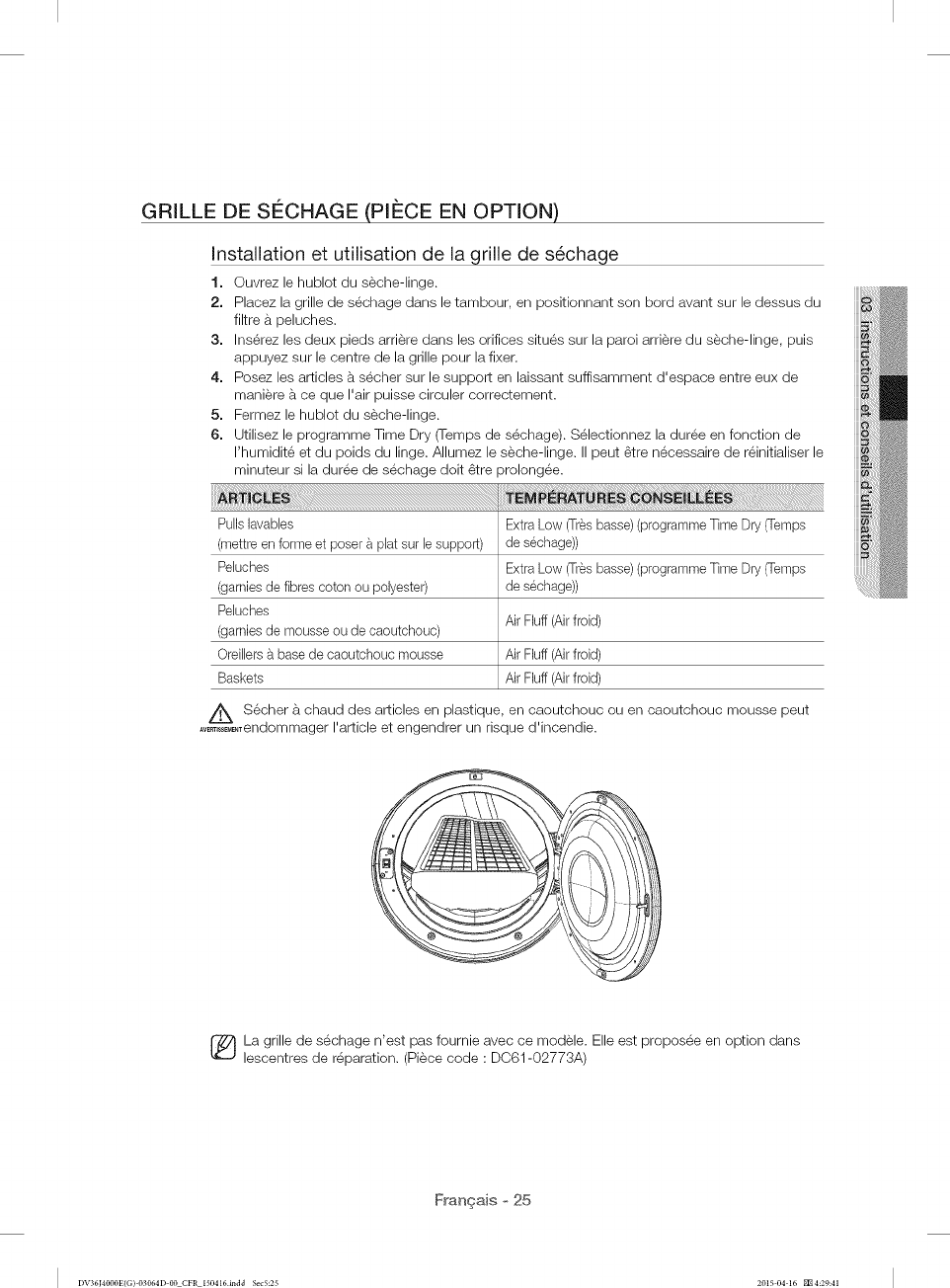

25 Drying rack (optional part)

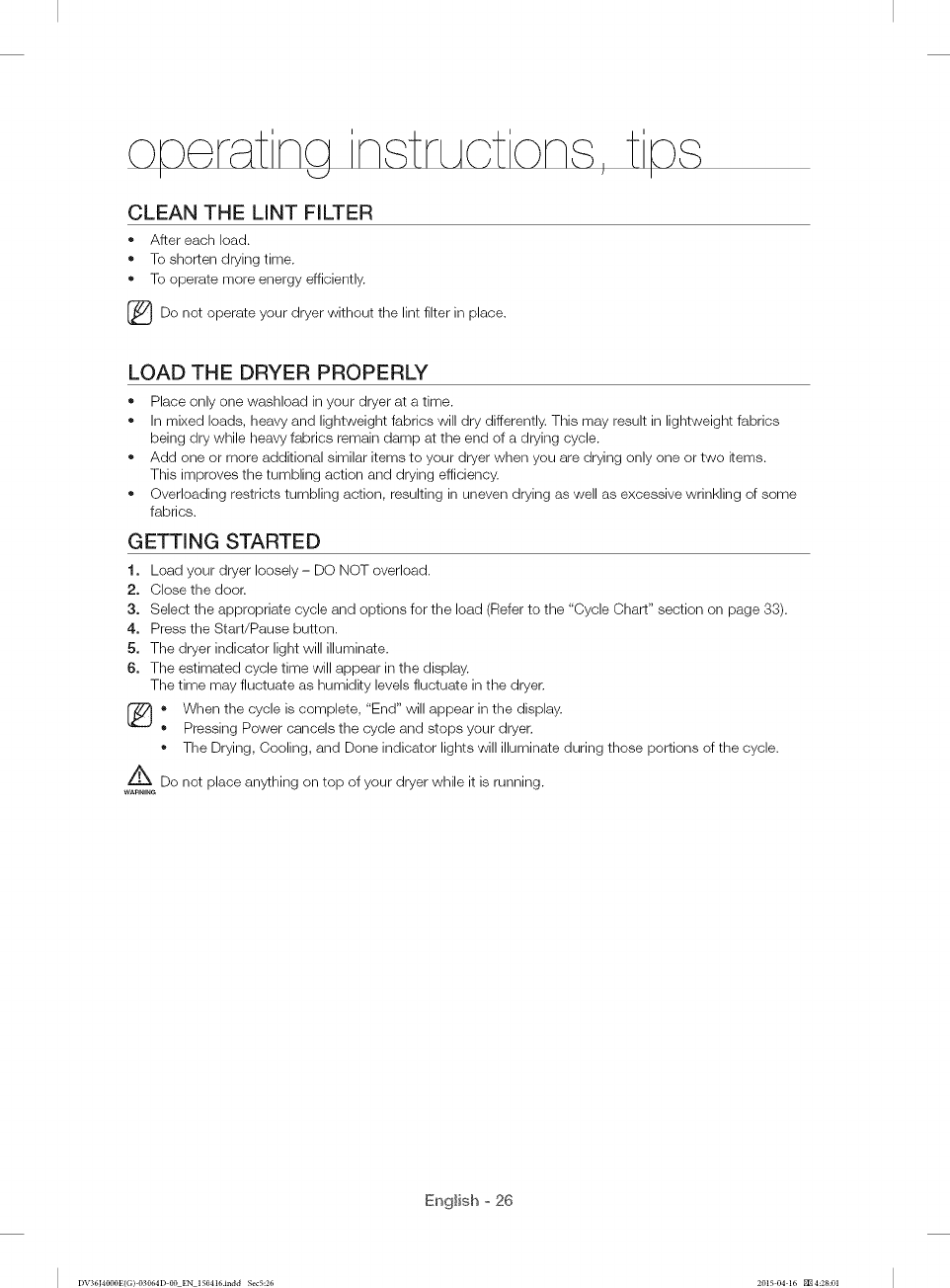

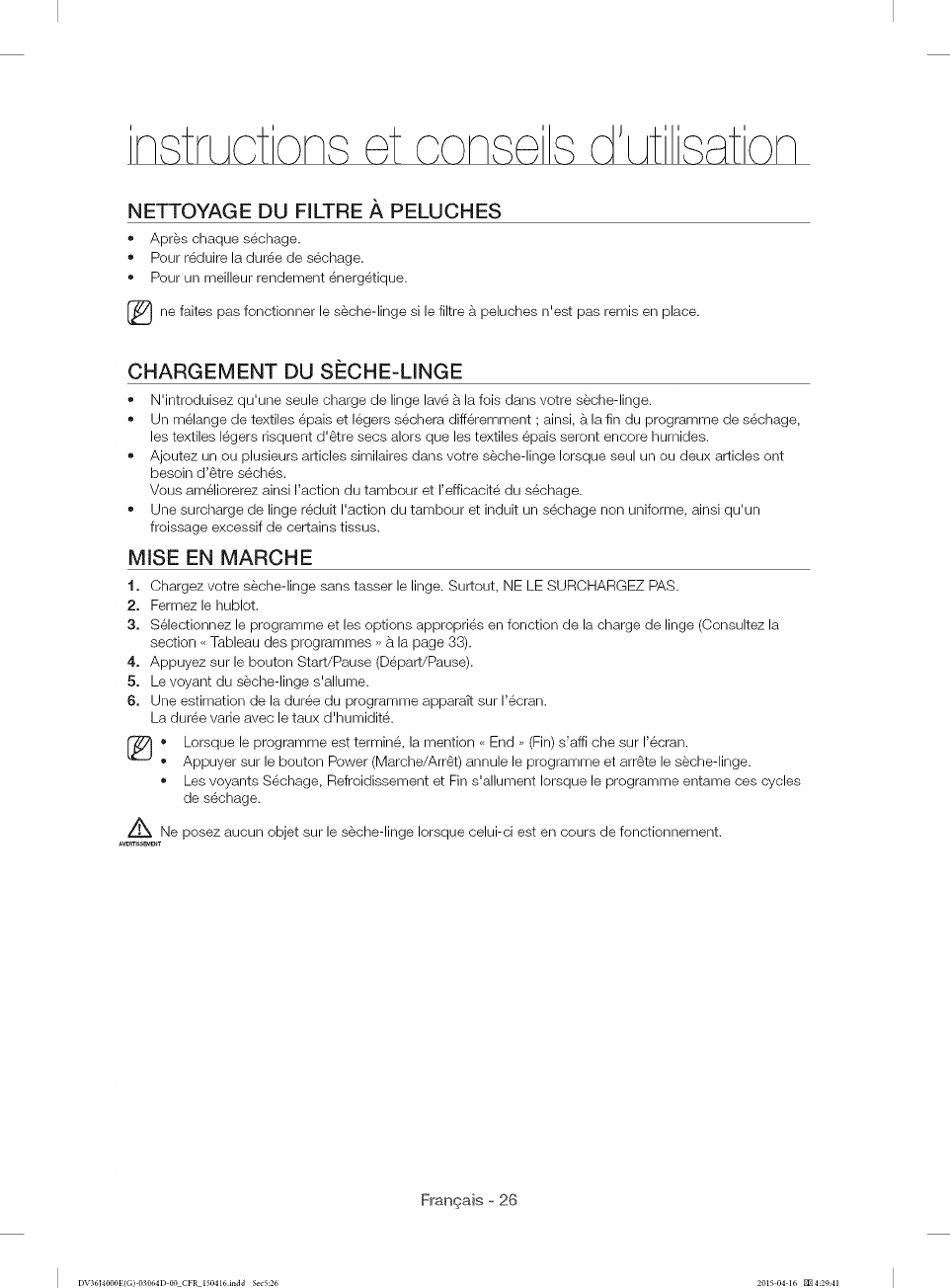

26 Clean the lint filter

26 Load the dryer properly

26 Getting started

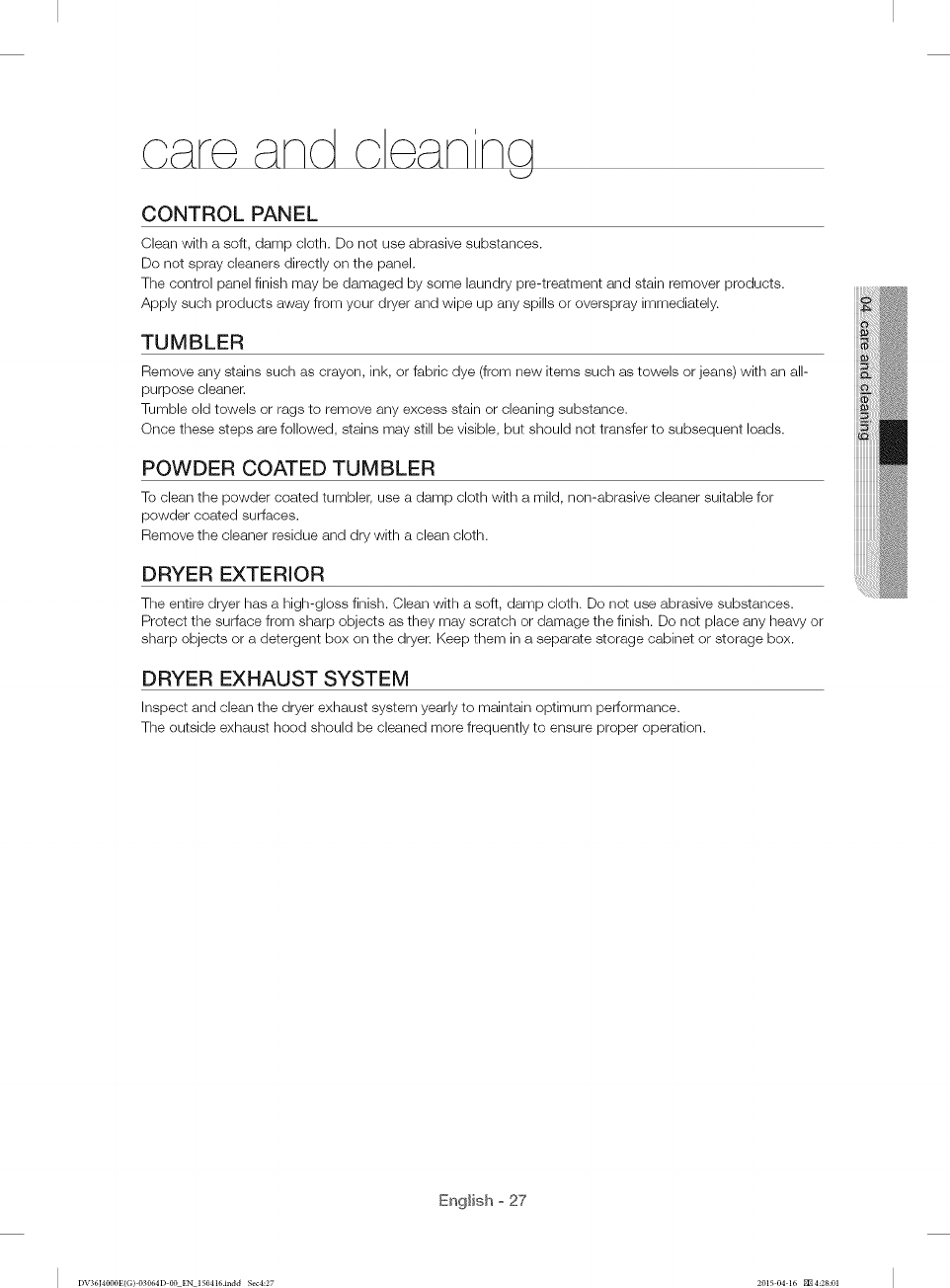

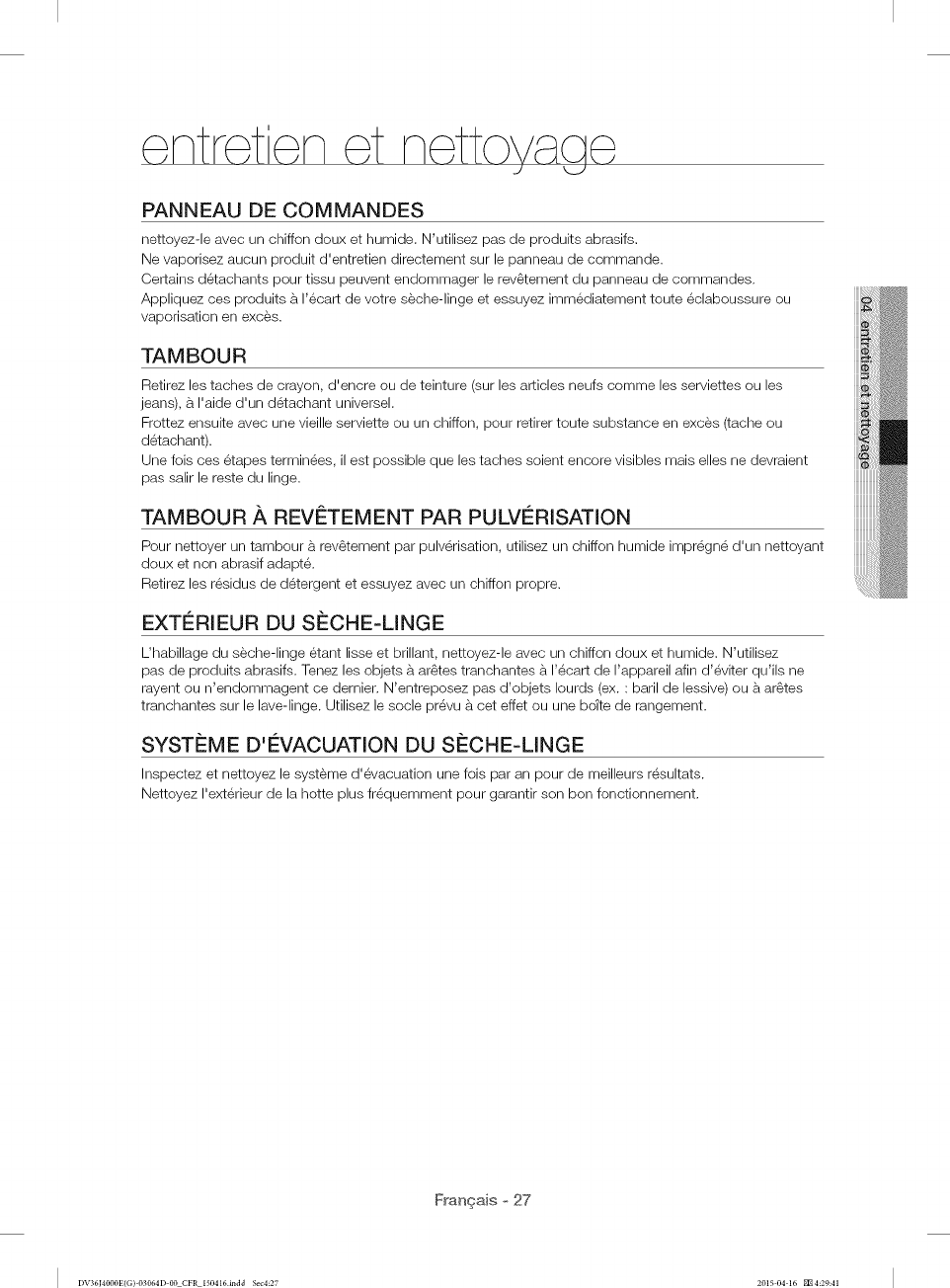

CARE AND CLEANING 27 Control Panel

27 Tumbler

27 Powder coated tumbler

27 Dryer Exterior

27 Dryer Exhaust System

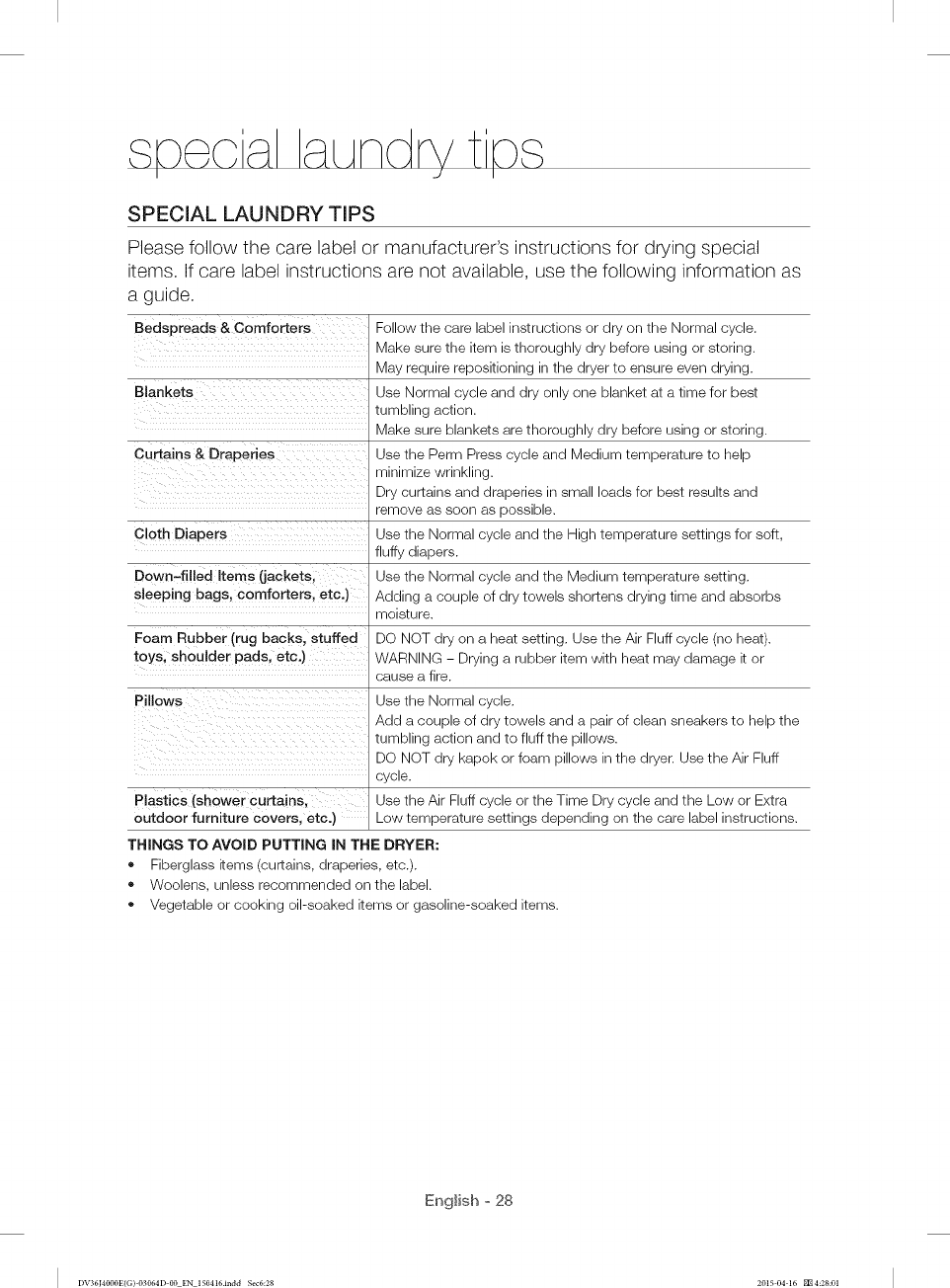

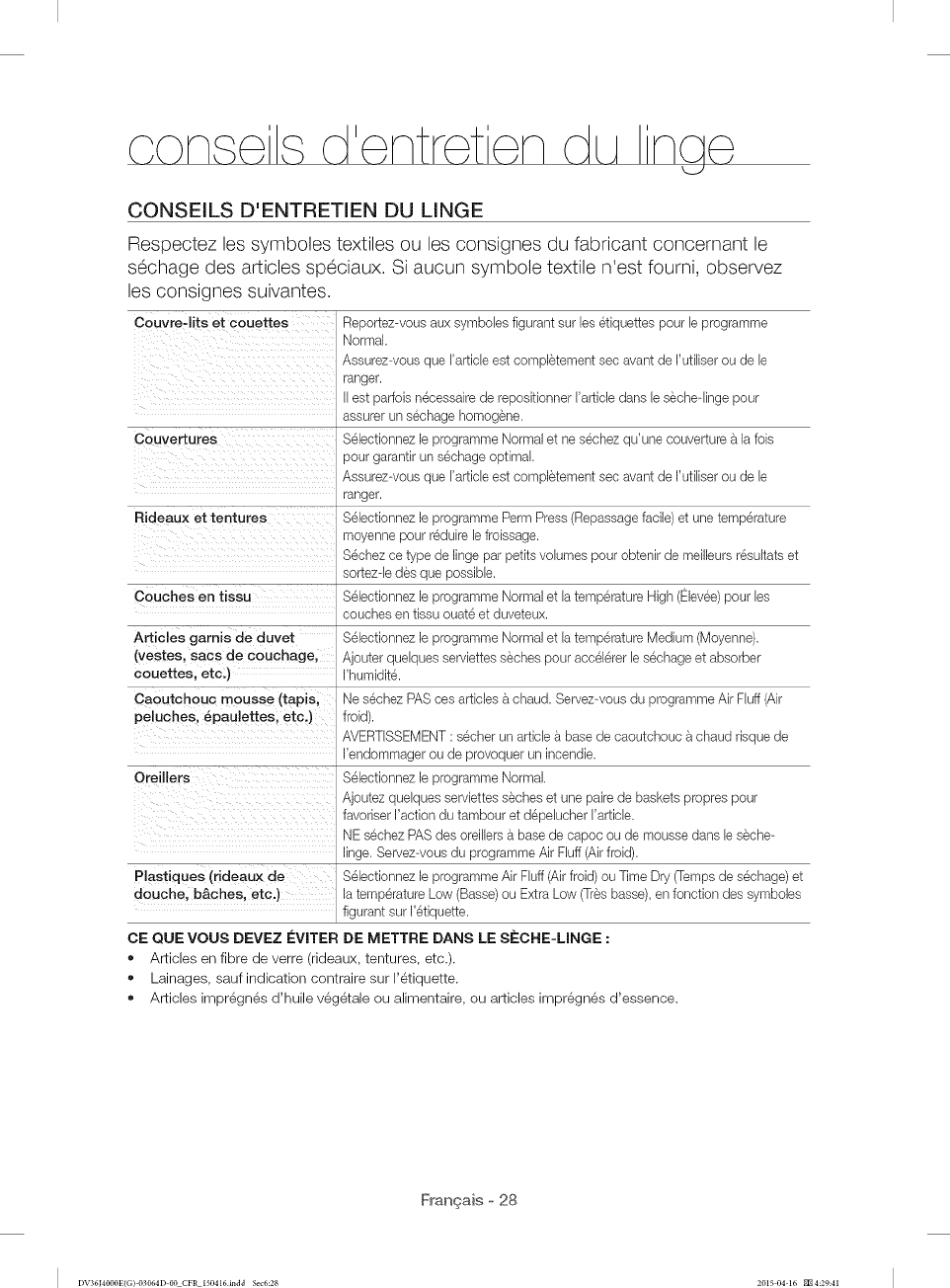

SPECIAL LAUNDRY TIPS 28 Special laundry tips

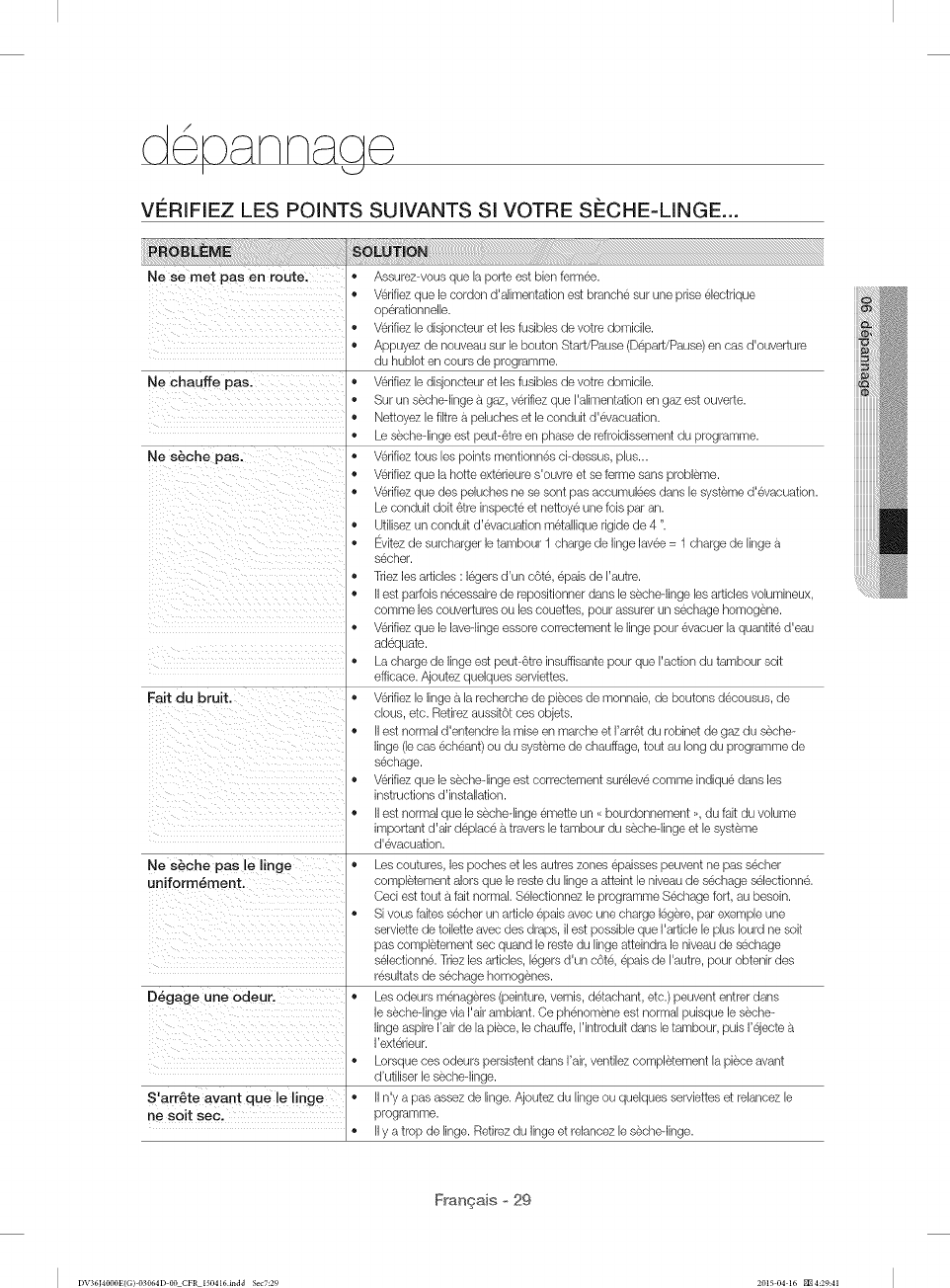

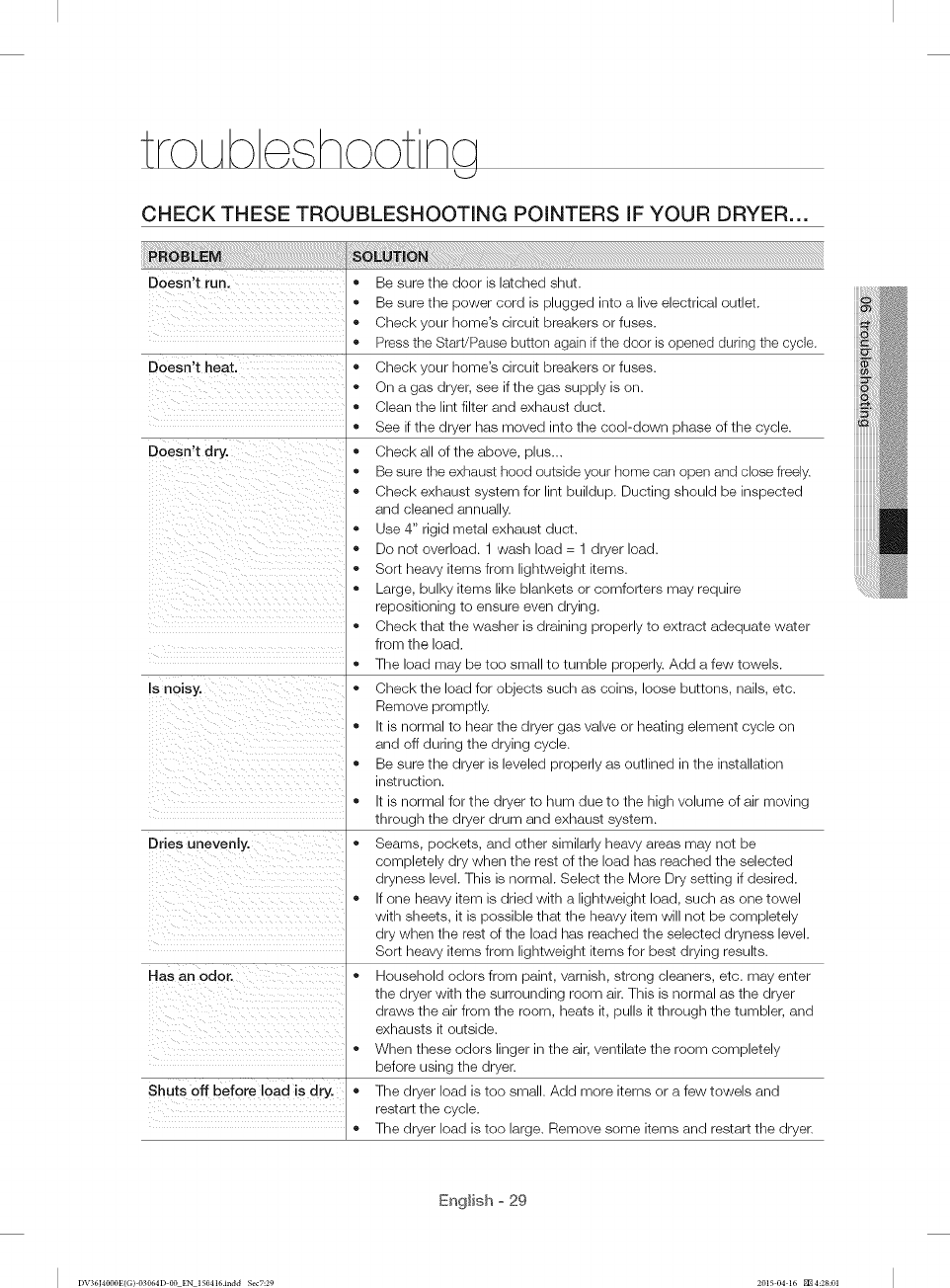

TROUBLESHOOTING 29 Check these troubleshooting pointers if your

ldryer...

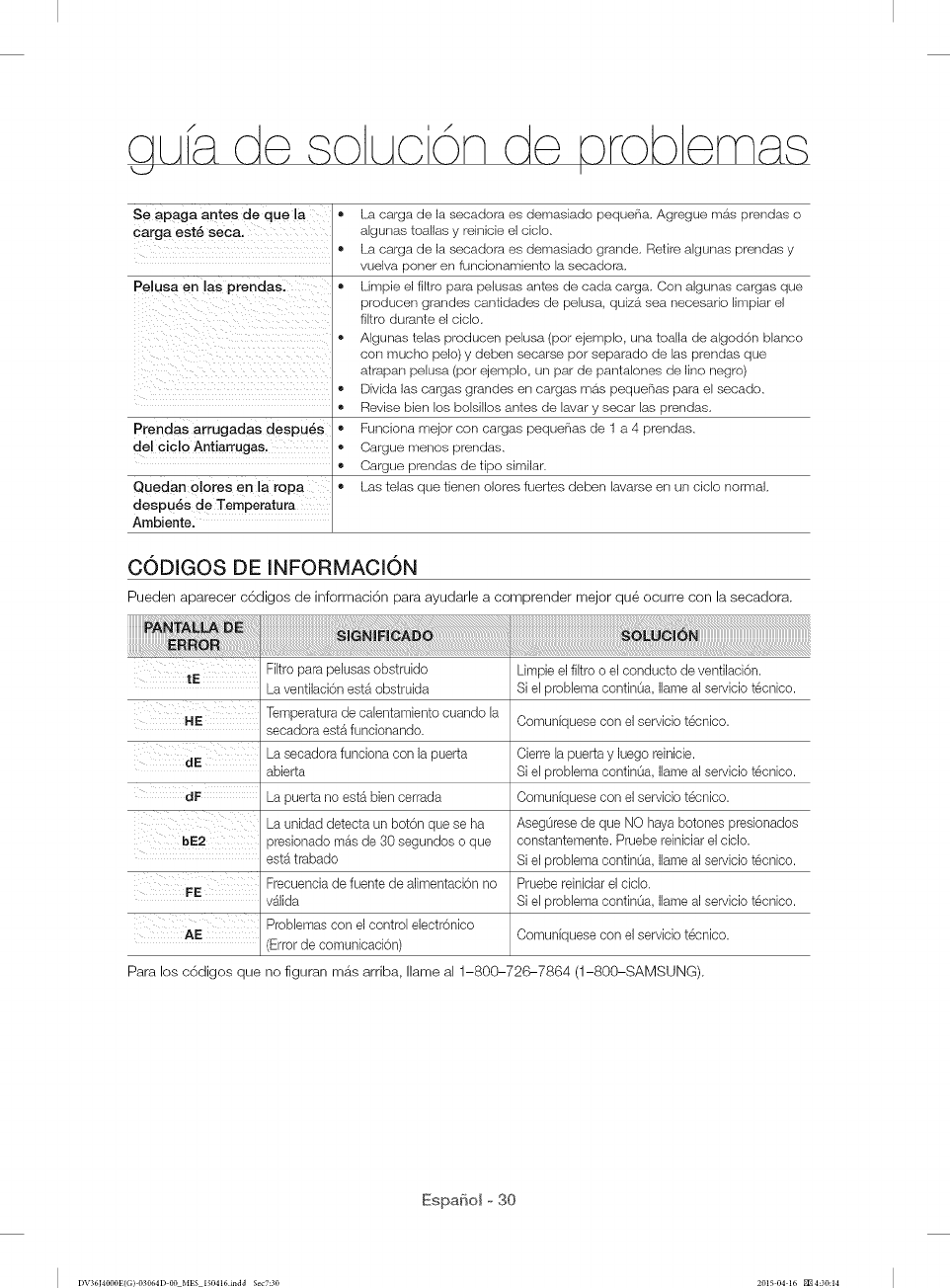

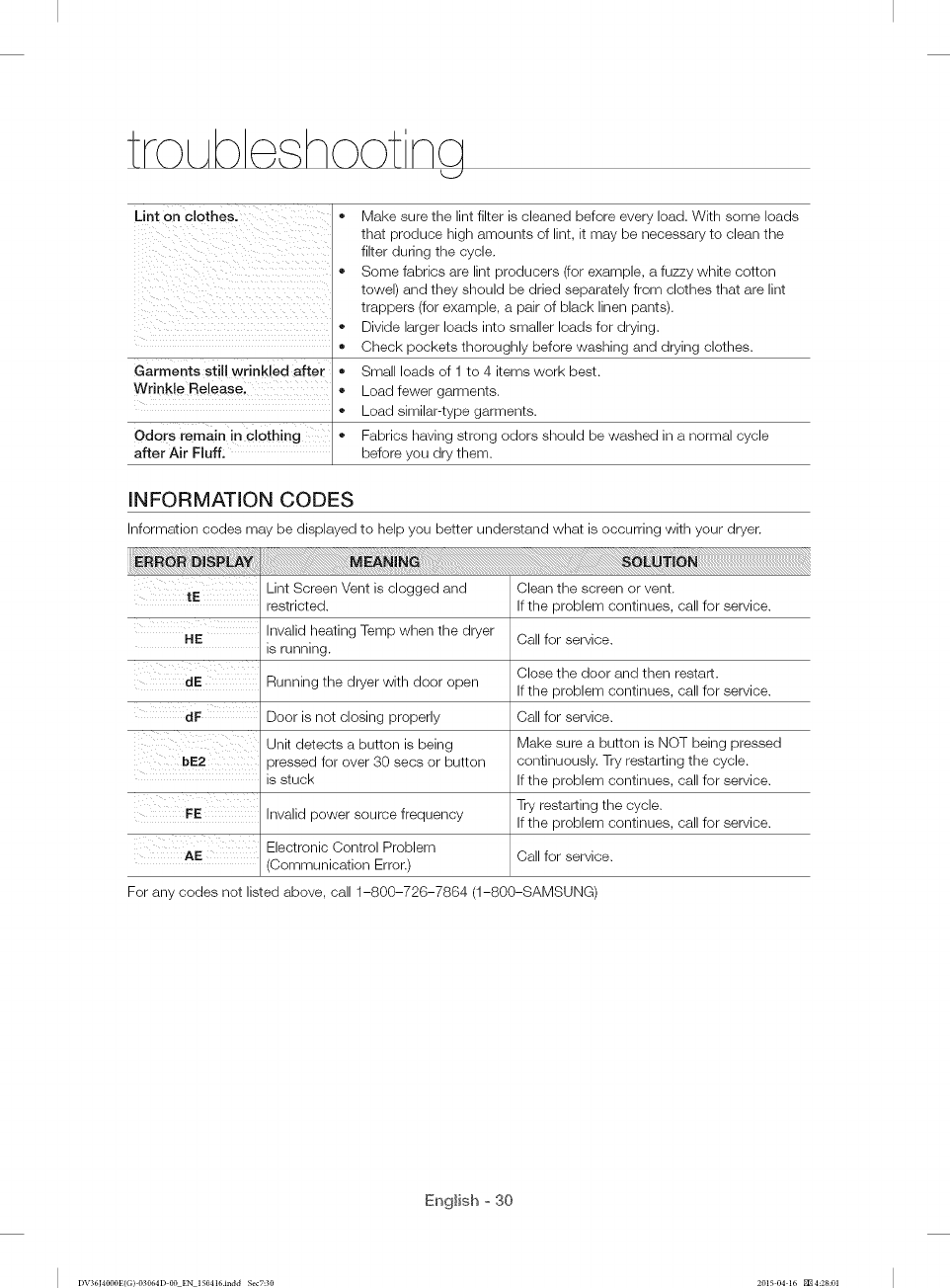

30 Information codes

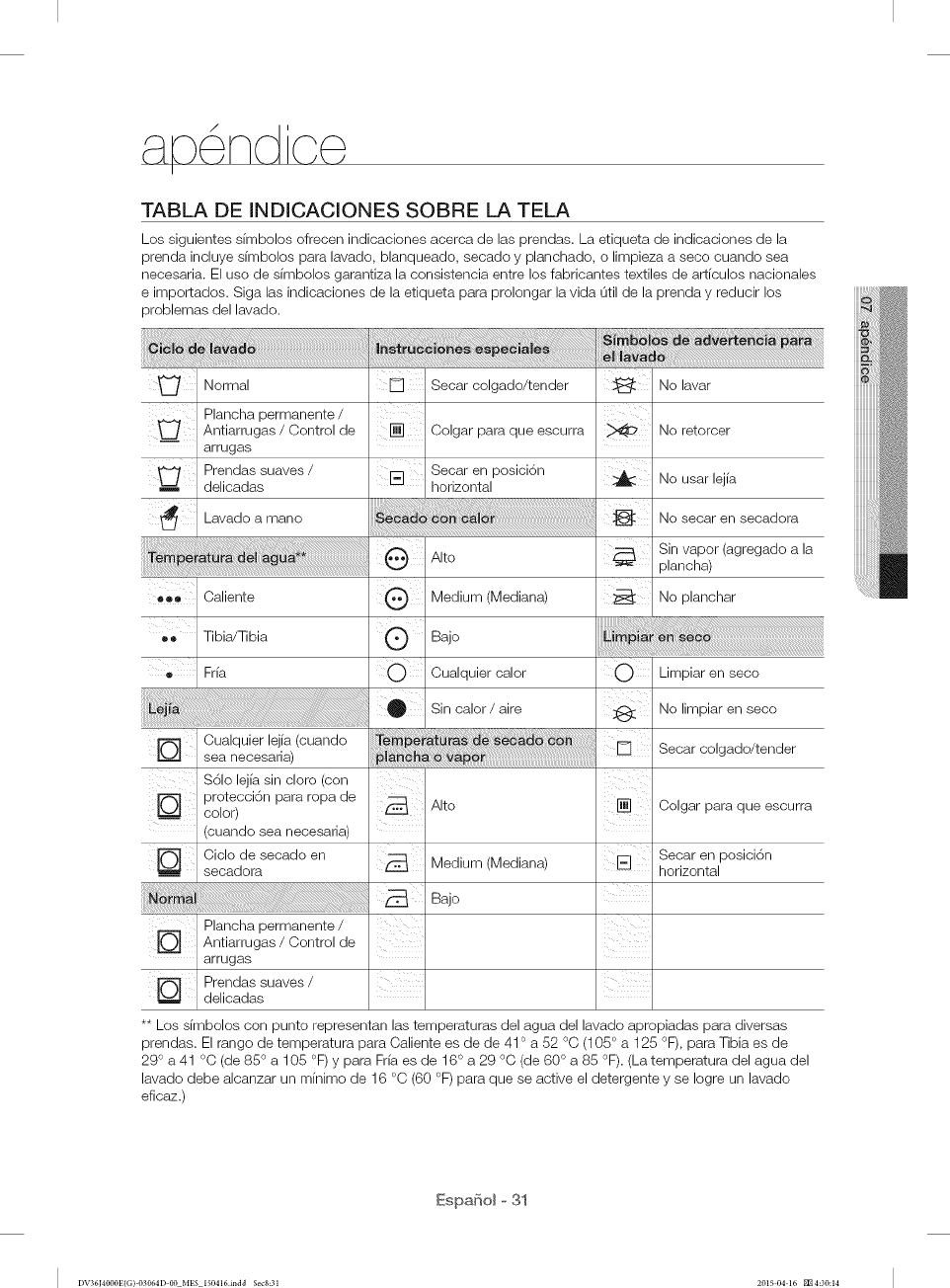

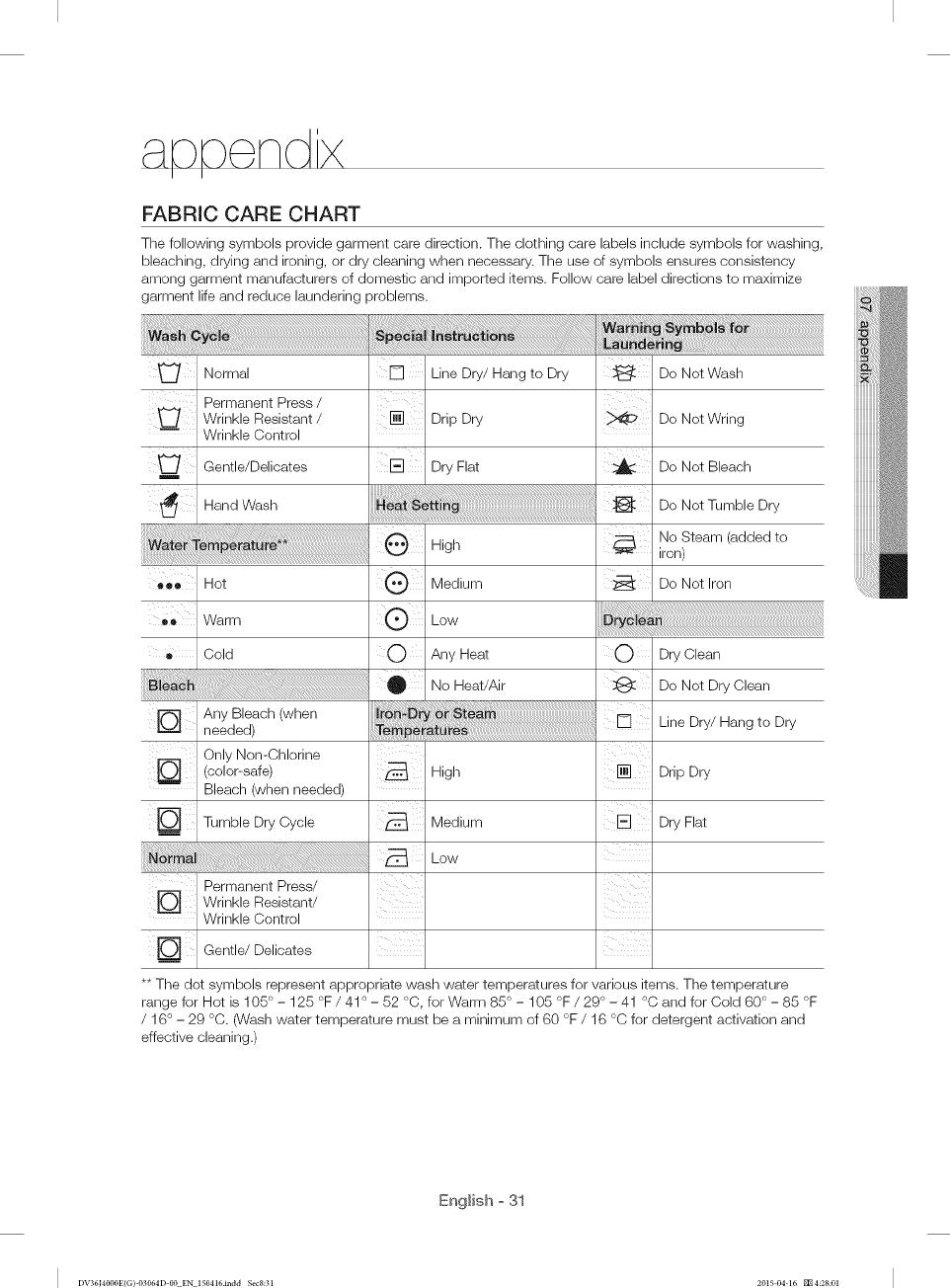

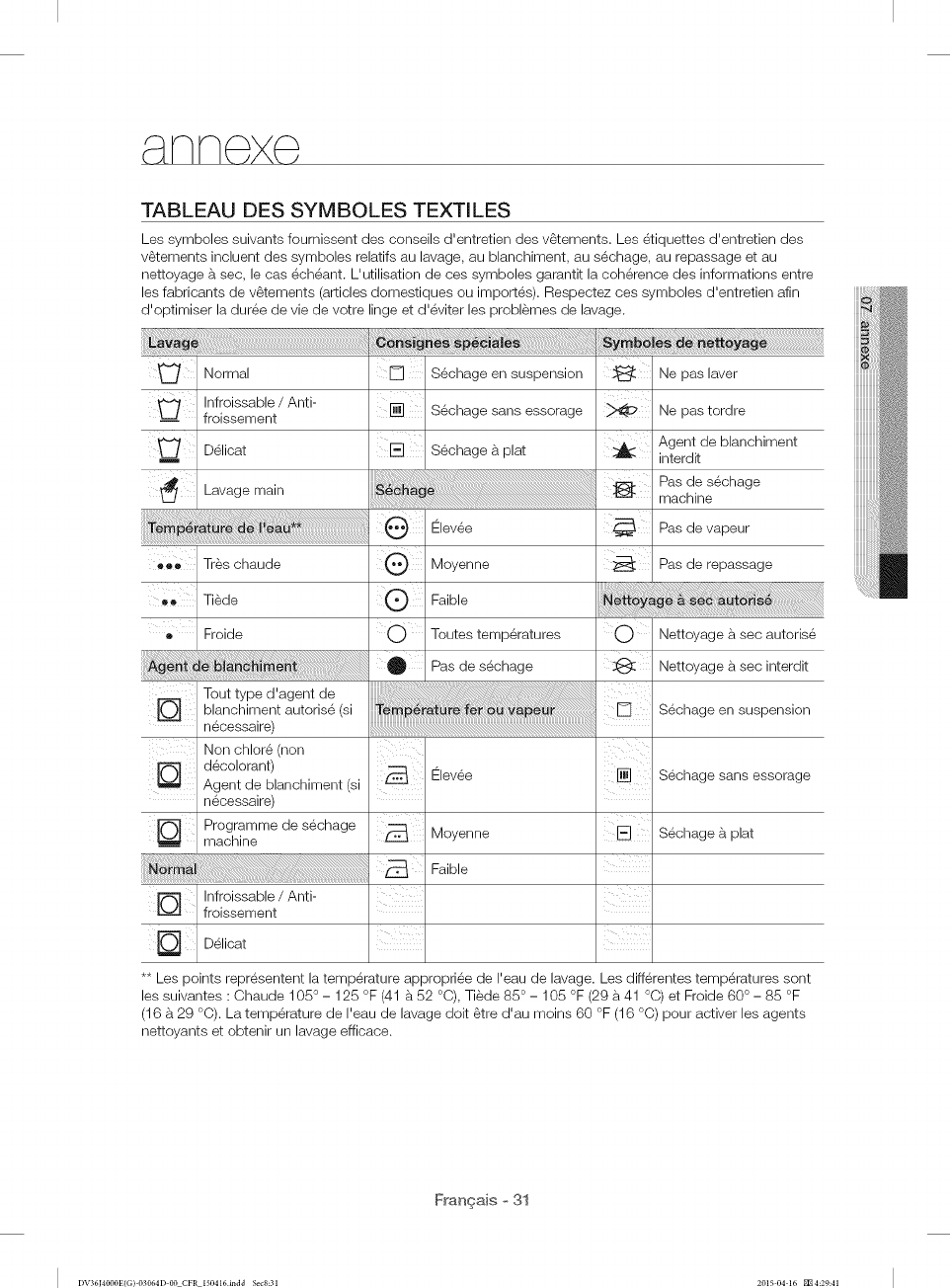

APPENDIX 31 Fabric care chart

32 Protecting the environment

32 Declaration of conformity

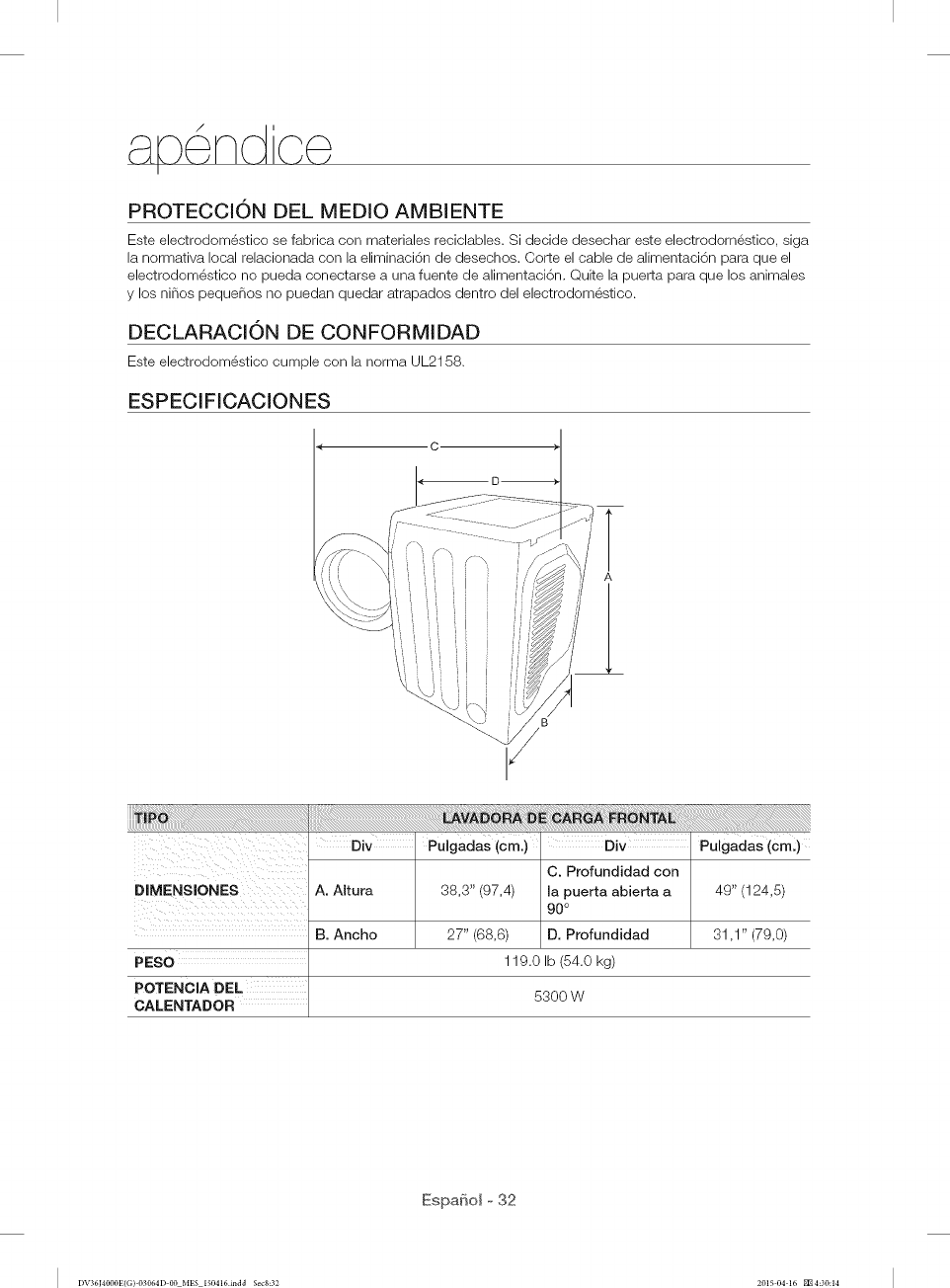

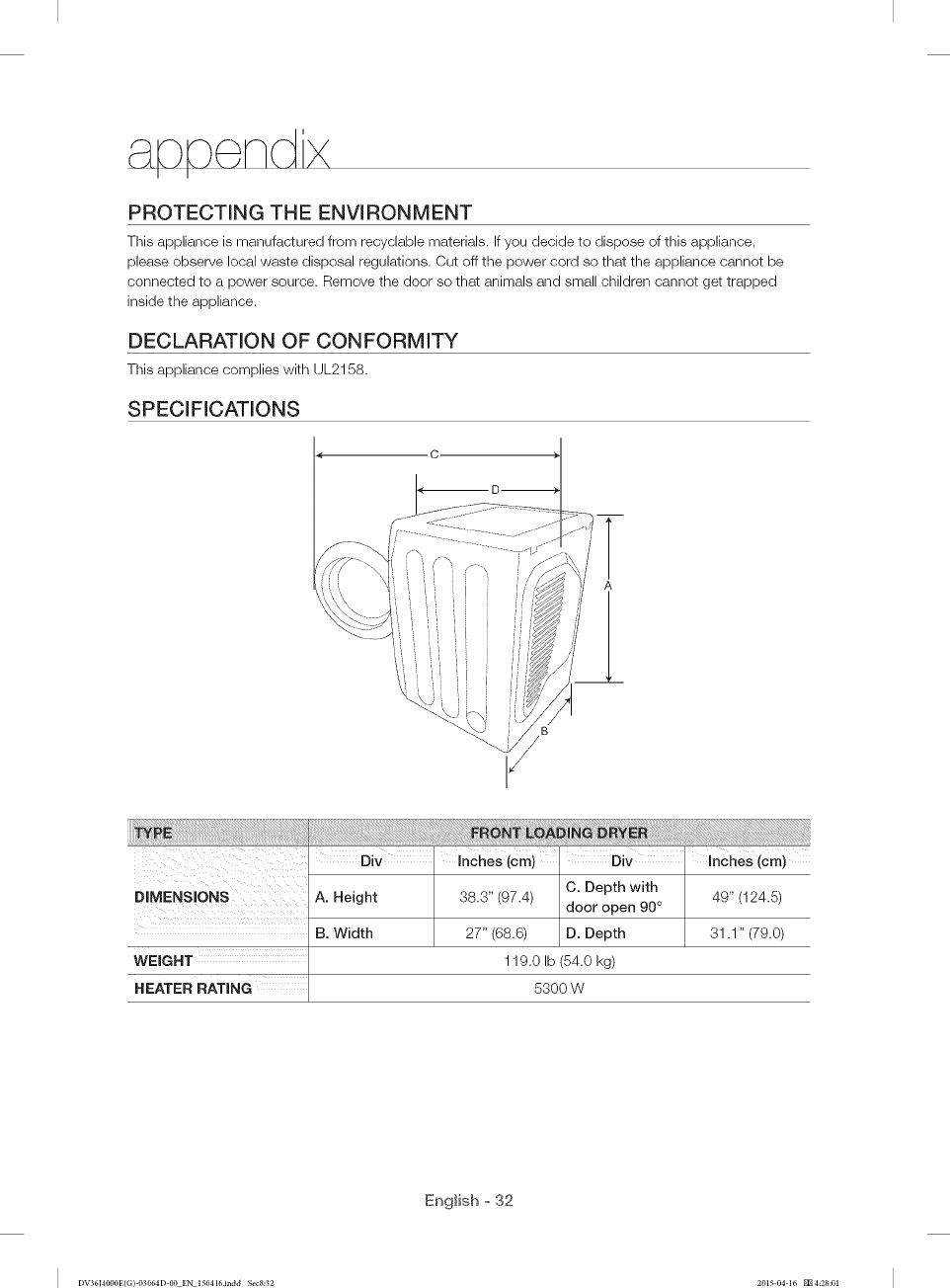

32 Specifications

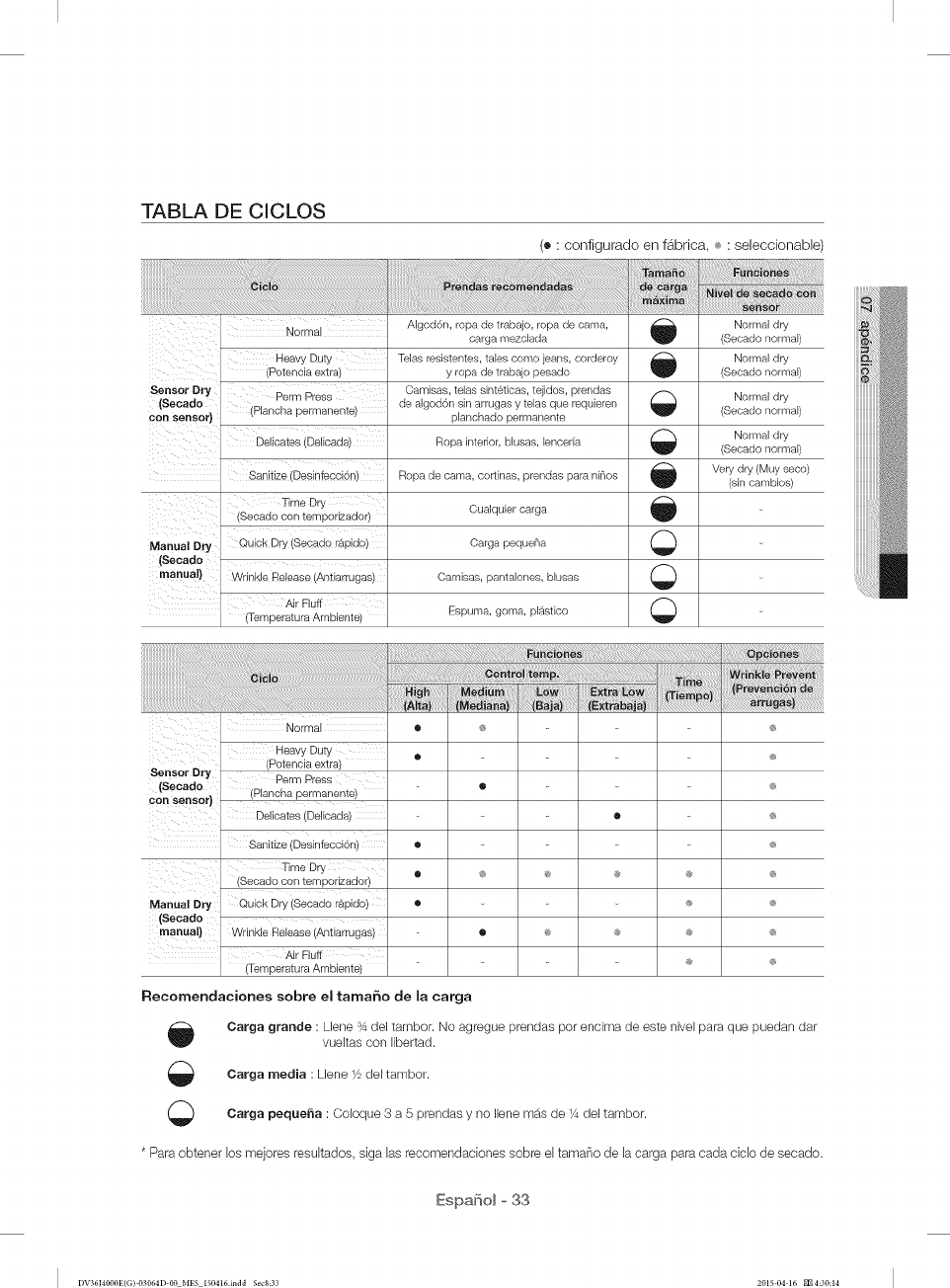

33 Cycle chart

English o 2

DV3614000E(G) 030641) 00 EN 150416illdd Sec9:2

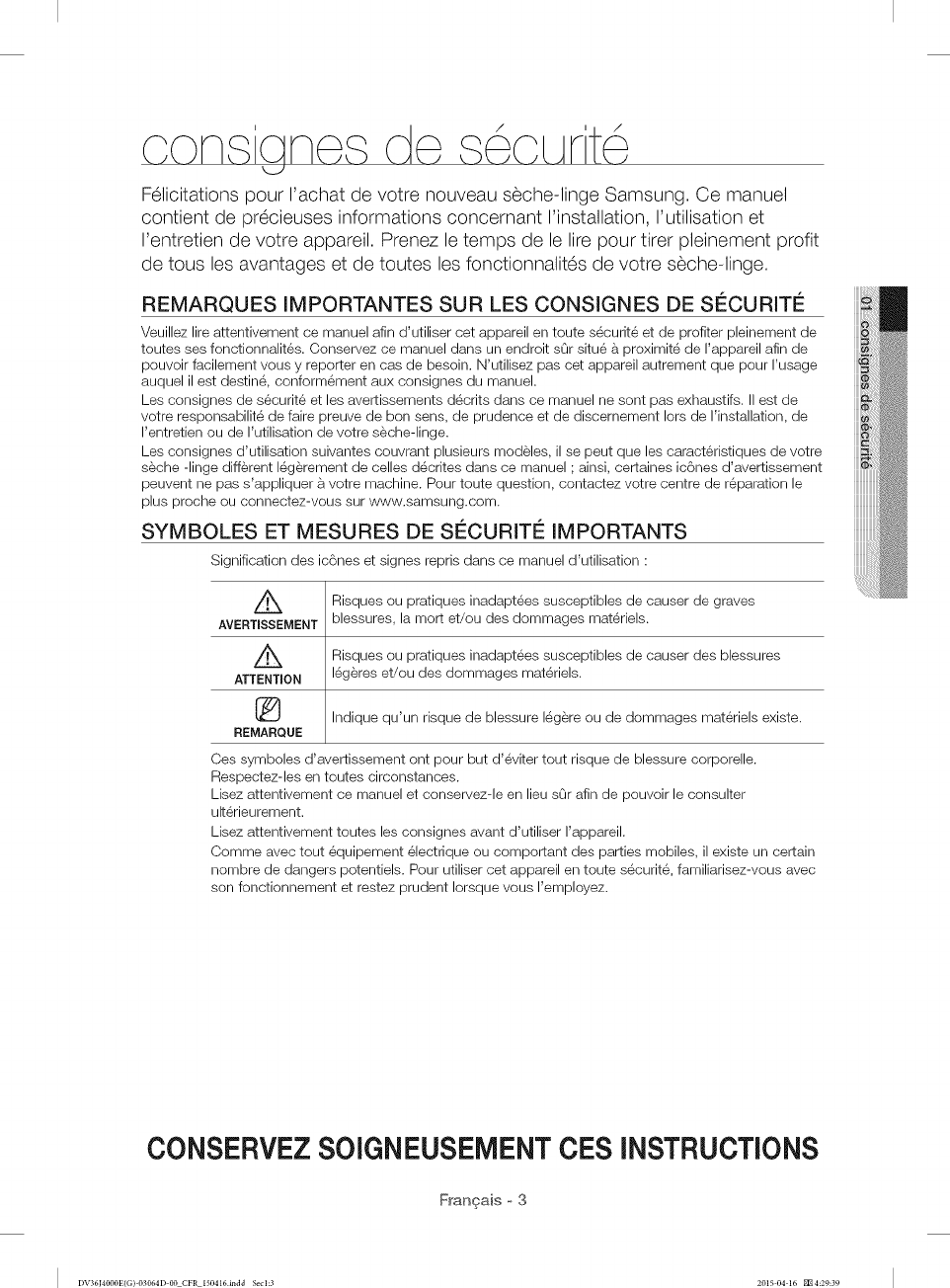

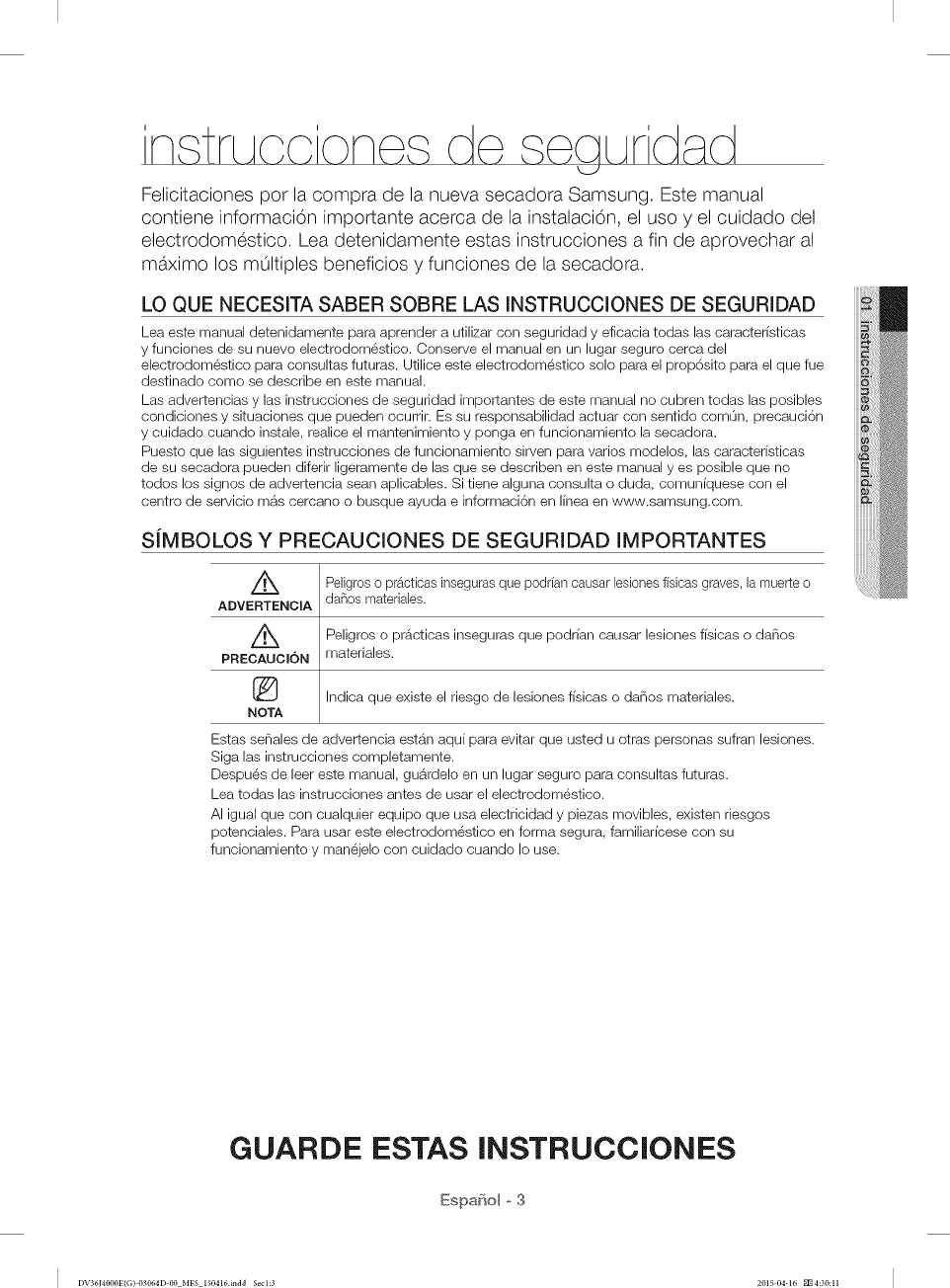

safety nstrLActons

Congratulations on your new Sarnsung dryer, This manual contains important

information on the installation, use and care of your appliance. Please take some

time to read this manual to take full advantage of your dryer's many benefits and

features.

WHAT YOU NEED TO KNOW ABOUT THE SAFETY INSTRUCTIONS

Please read this manual thoroughly to ensure that you know how to safely and efficiently operate the

extensive features and functions of your new appliance. Please store the manual in a safe location close

to the appliance for future reference. Use this appliance only for its intended purpose as described in this

instruction manual.

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and

situations that may occur. It is your responsibility to use common sense, caution and care when installing,

maintaining and operating your dryer.

Because the following operating instructions cover various models, the characteristics of your dryer may

differ slightly from those described in this manual and not all warning signs may be applicable. If you have

any questions or concerns, contact your nearest service center or find help and information online at www.

samsung.com.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

H_ards unsafe that result in death and/

or practices may severe personal injury,

WARNING or property damage.

Z_ or practices may personal injury property

Hazards unsafe that result in and/or

CAUTION damage.

Indicates that a risk of personal injury or material damage exists.

NOTE

These warning signs are here to prevent injury to yourself and others.

Please follow them explicitly.

After reading this manual, store it in a safe place for future reference.

Read all instructions before using the appliance.

As with any equipment that uses electricity and moving parts, potential hazards exist. To safely

operate this appliance, familiarize yourself with its operation and exercise care when using it.

SAVE THESE INSTRUCTIONS

English ° 3

DV3614000E(G) 030641) 00 EN 150416illdd Secl:3

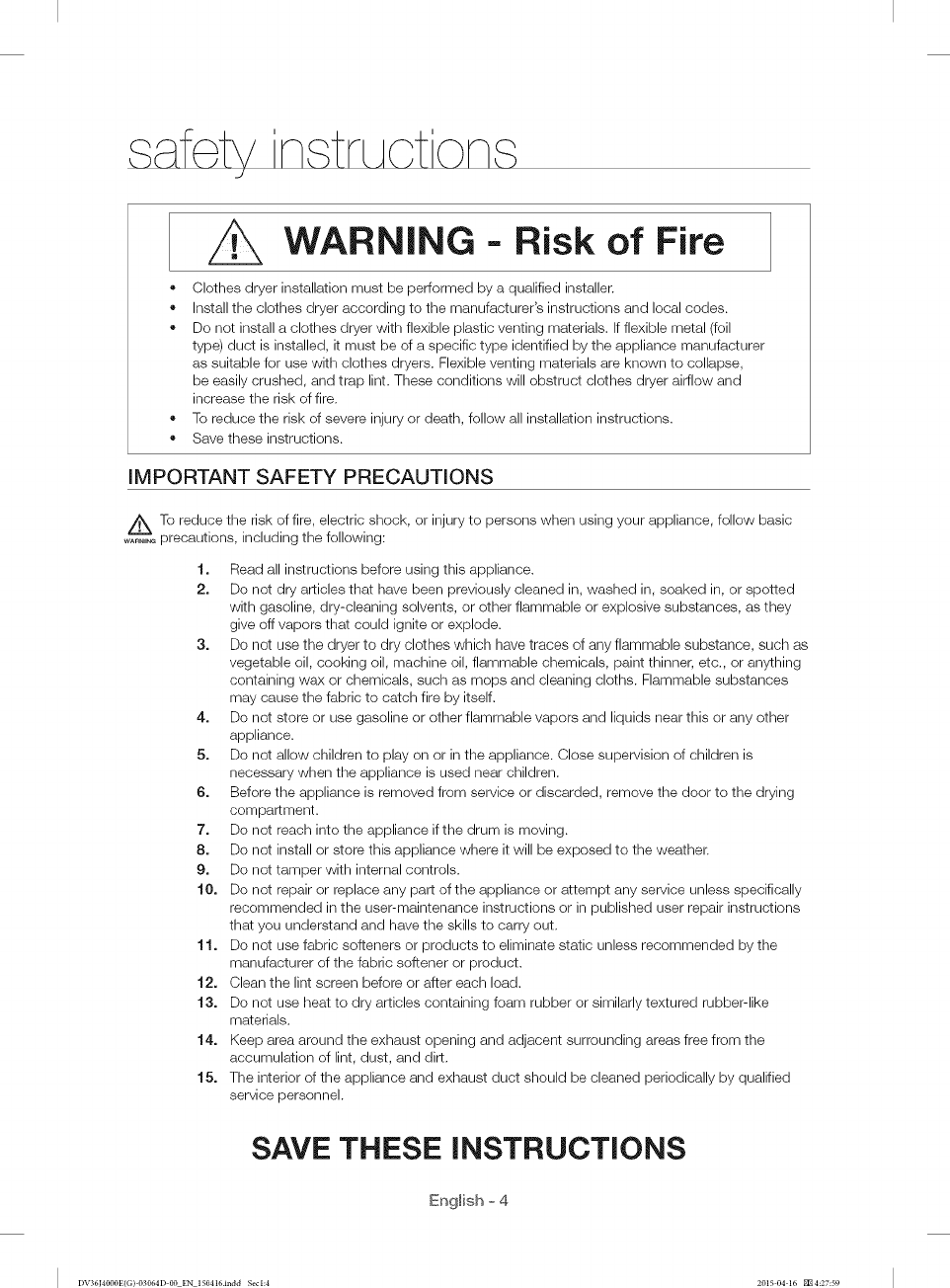

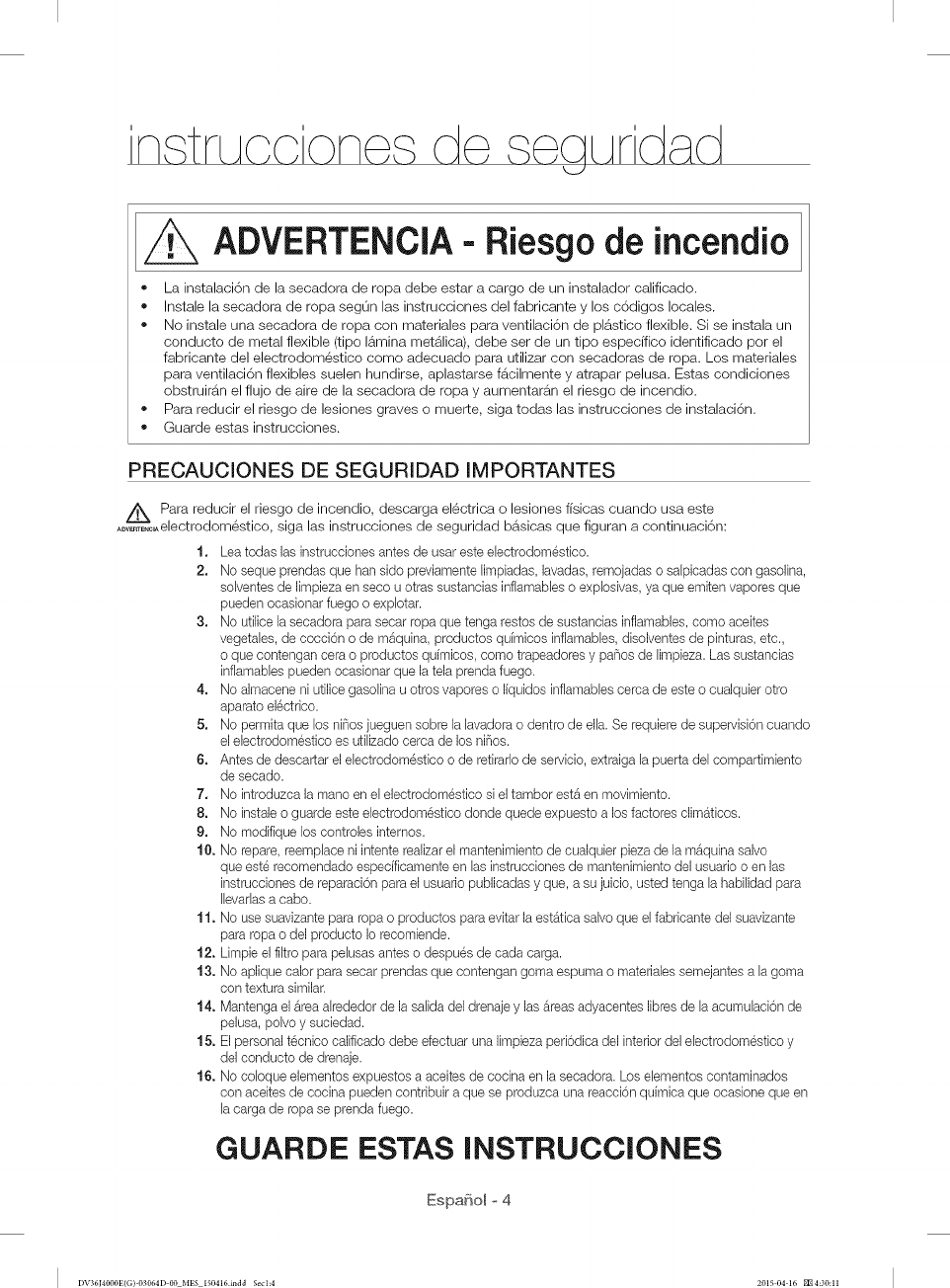

WARNING - Risk of Fire

* Clothes dryer installation must be performed by a qualified installer.

Install the clothes dryer according to the manufacturer's instructions and local codes.

Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil

type) duct is installed, it must be of a specific type identified by the appliance manufacturer

as suitable for use with clothes dryers. Flexible venting materials are known to collapse,

be easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and

increase the risk of fire.

* To reduce the risk of severe injury or death, follow all installation instructions.

Save these instructions.

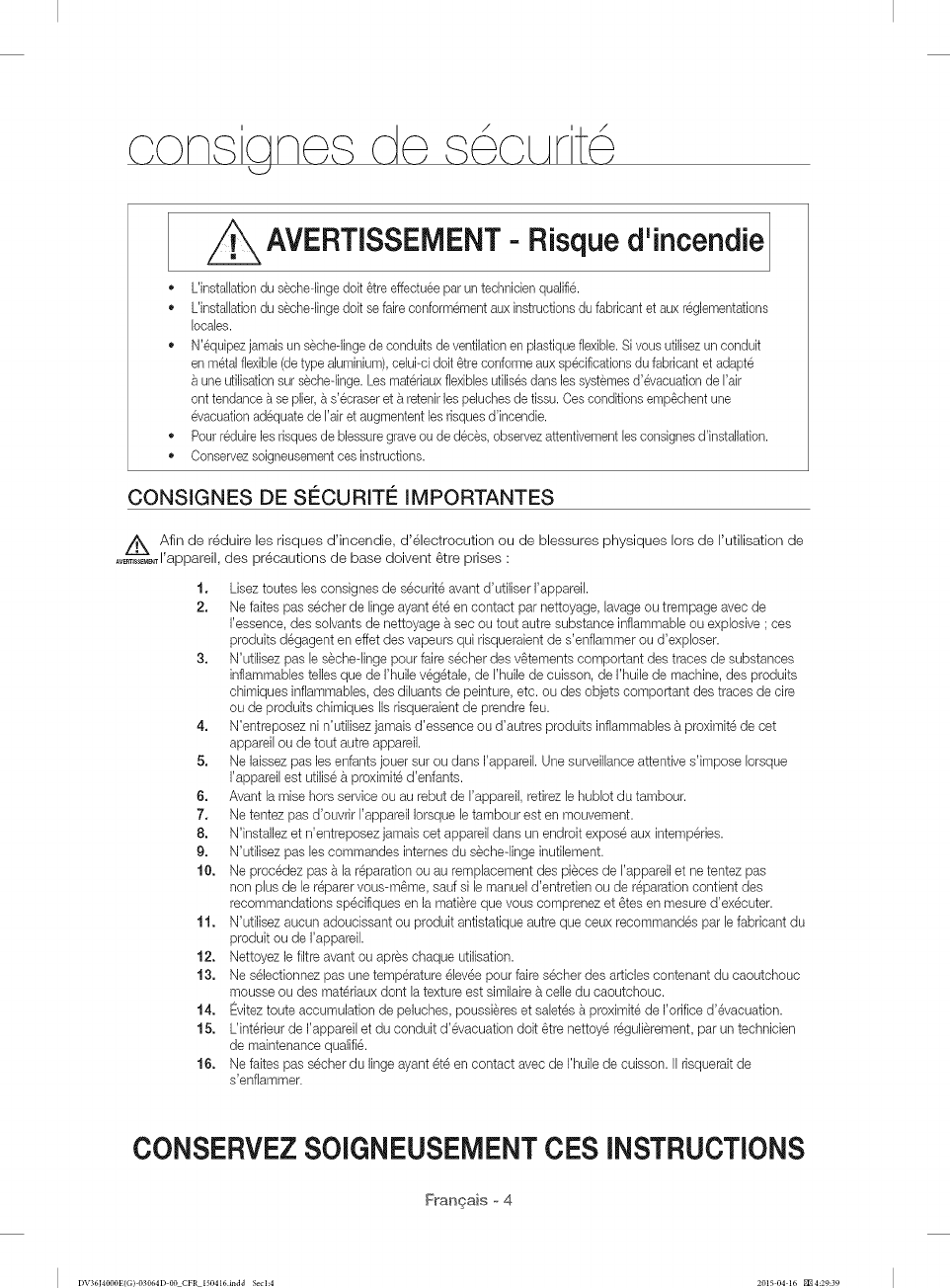

IMPORTANT SAFETY PRECAUTIONS

Z_ To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic

....... precautions, including the following:

t. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted

with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they

give off vapors that could ignite or explode.

3. Do not use the dryer to dry clothes which have traces of any flammable substance, such as

vegetable oil, cooking oil, machine oil, flammable chemicals, paint thinner, etc., or anything

containing wax or chemicals, such as mops and cleaning cloths. Flammable substances

may cause the fabric to catch fire by itself.

4. Do not store or use gasoline or other flammable vapors and liquids near this or any other

appliance.

5. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

6. Before the appliance is removed from service or discarded, remove the door to the drying

compartment.

7. Do not reach into the appliance if the drum is moving.

8o Do not install or store this appliance where it will be exposed to the weather.

9. Do not tamper with internal controls.

t0. Do not repair or replace any part of the appliance or attempt any service unless specifically

recommended in the user-maintenance instructions or in published user repair instructions

that you understand and have the skills to carry out.

t 1. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

t2o Clean the lint screen before or after each load.

t 3. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like

materials.

t4. Keep area around the exhaust opening and adjacent surrounding areas free from the

accumulation of lint, dust, and dirt.

t5. The interior of the appliance and exhaust duct should be cleaned periodically by qualified

service personnel.

SAVE THESE INSTRUCTIONS

English ° 4

D_TB614000E(G) 030641) 00 EN 150416illdd Secl:4

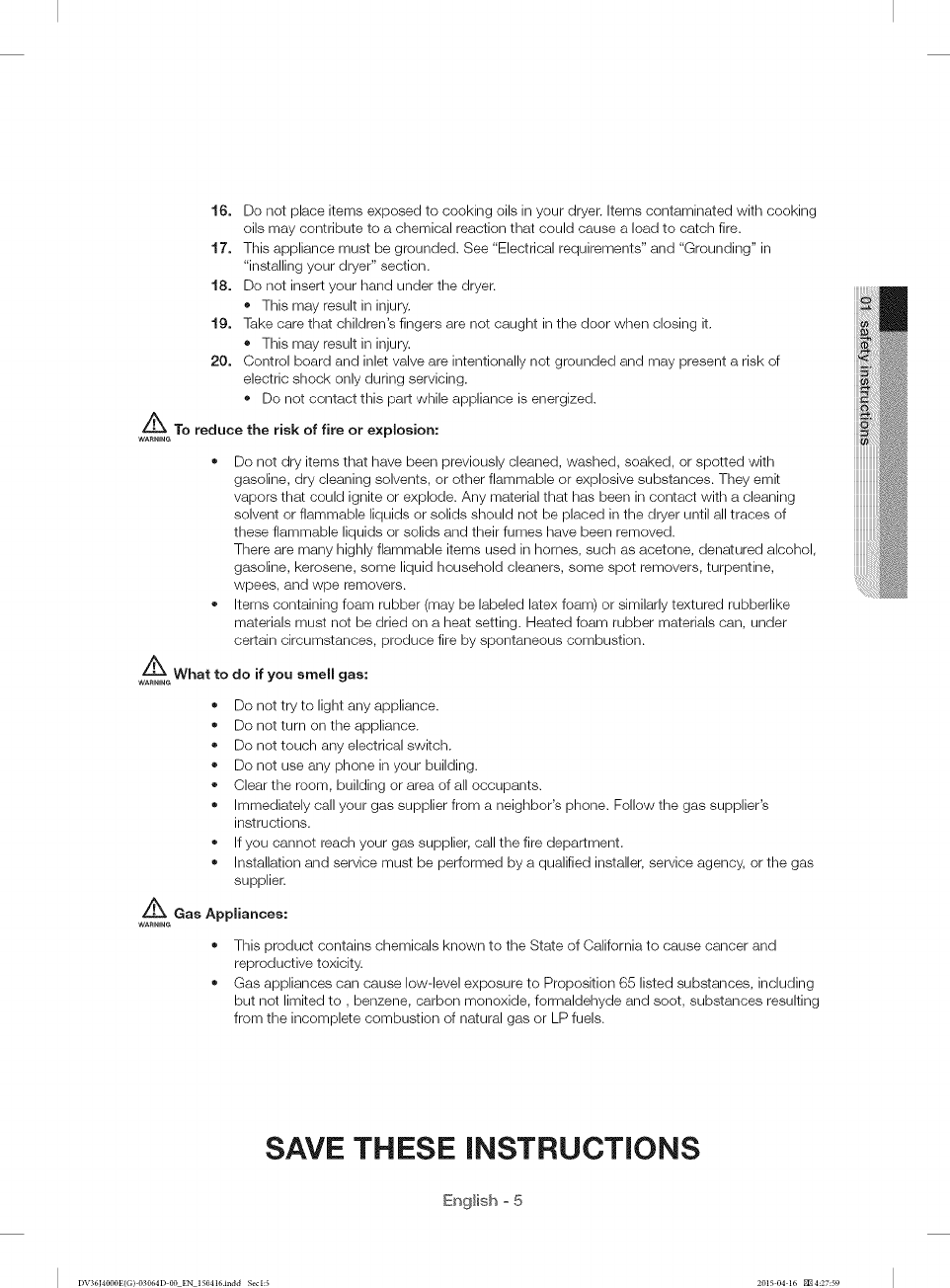

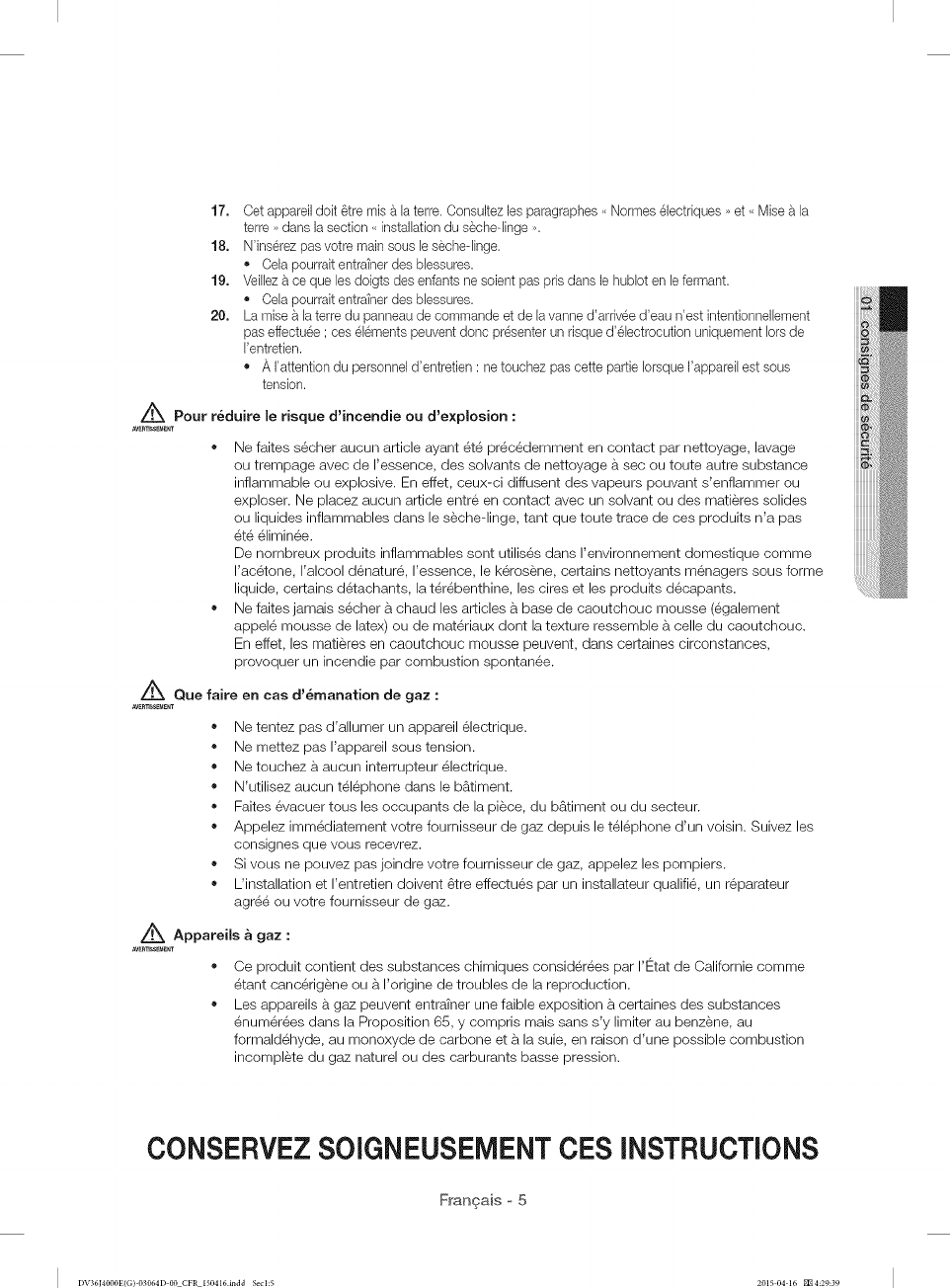

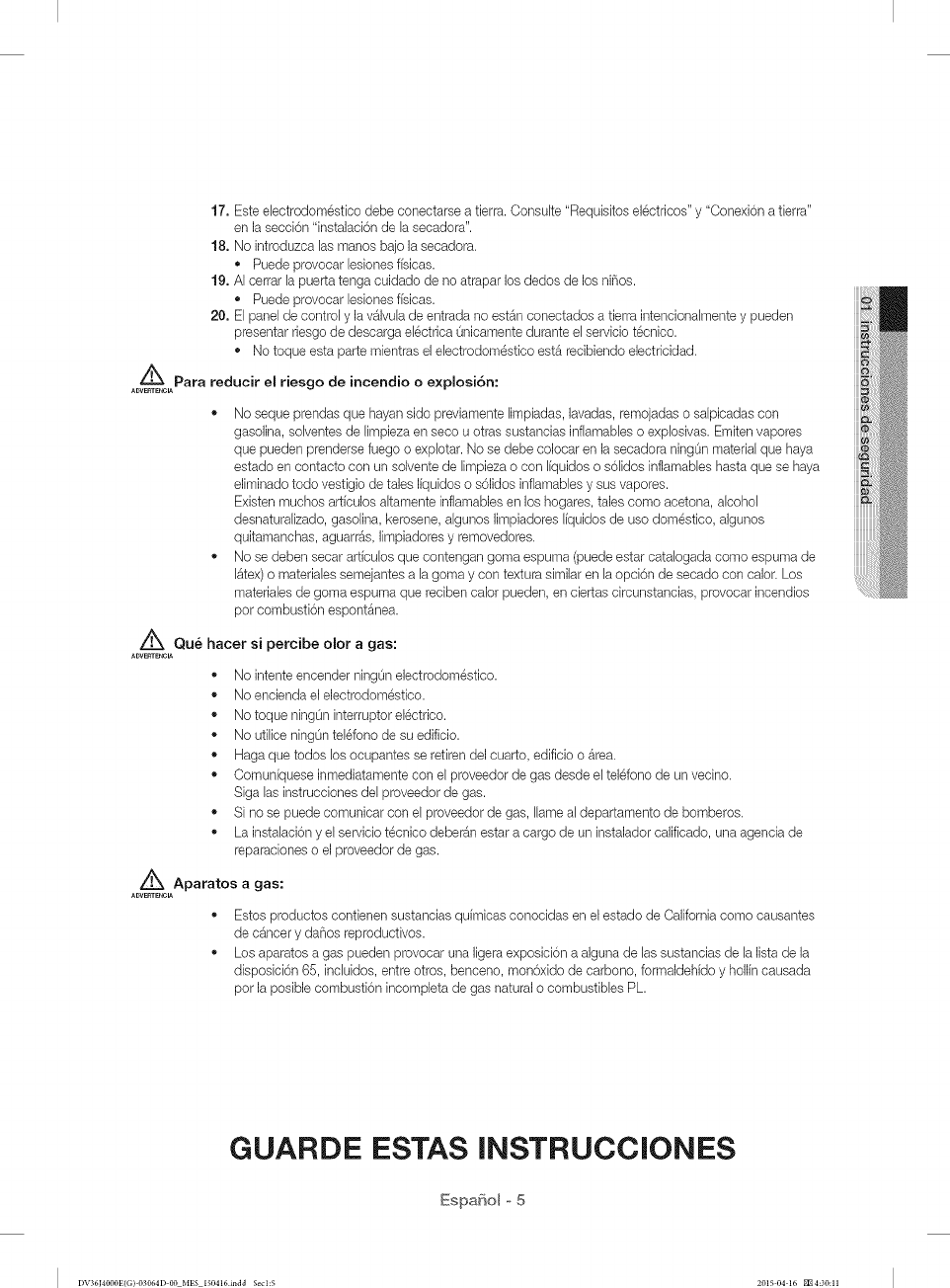

16. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking

oils may contribute to a chemical reaction that could cause a load to catch fire.

17. This appliance must be grounded. See "Electrical requirements" and "Grounding" in

"installing your dryer" section.

18. Do not insert your hand under the dryer.

• This may result in injury.

19. Take care that children's fingers are not caught in the door when closing it.

This may result in injury.

20. Control board and inlet valve are intentionally not grounded and may present a risk of

electric shock only during servicing.

Do not contact this part while appliance is energized.

To reduce the risk of fire or explosion:

WARNIN_

Do not dry items that have been previously cleaned, washed, soaked, or spotted with

gasoline, dry cleaning solvents, or other flammable or explosive substances. They emit

vapors that could ignite or explode. Any material that has been in contact with a cleaning

solvent or flammable liquids or solids should not be placed in the dryer until all traces of

these flammable liquids or solids and their fumes have been removed.

There are many highly flammable items used in homes, such as acetone, denatured alcohol,

gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine,

wpees, and wpe removers.

Items containing foam rubber (may be labeled latex foam) or similarly textured rubberlike

materials must not be dried on a heat setting. Heated foam rubber materials can, under

certain circumstances, produce fire by spontaneous combustion.

What to do if you smell gas:

WARNINe

Do not try to light any appliance.

Do not turn on the appliance.

Do not touch any electrical switch.

Do not use any phone in your building.

Clear the room, building or area of all occupants.

Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas

supplier.

Gas Appliances:

WARNIN_

• This product contains chemicals known to the State of California to cause cancer and

reproductive toxicity.

Gas appliances can cause low-level exposure to Proposition 65 listed substances, including

but not limited to, benzene, carbon monoxide, formaldehyde and soot, substances resulting

from the incomplete combustion of natural gas or LP fuels.

SAVE THESE INSTRUCTIONS

English ° 5

D_TB614000E(G) 030641) 00 EN 150416indd Secl:5

n, tnA tion,

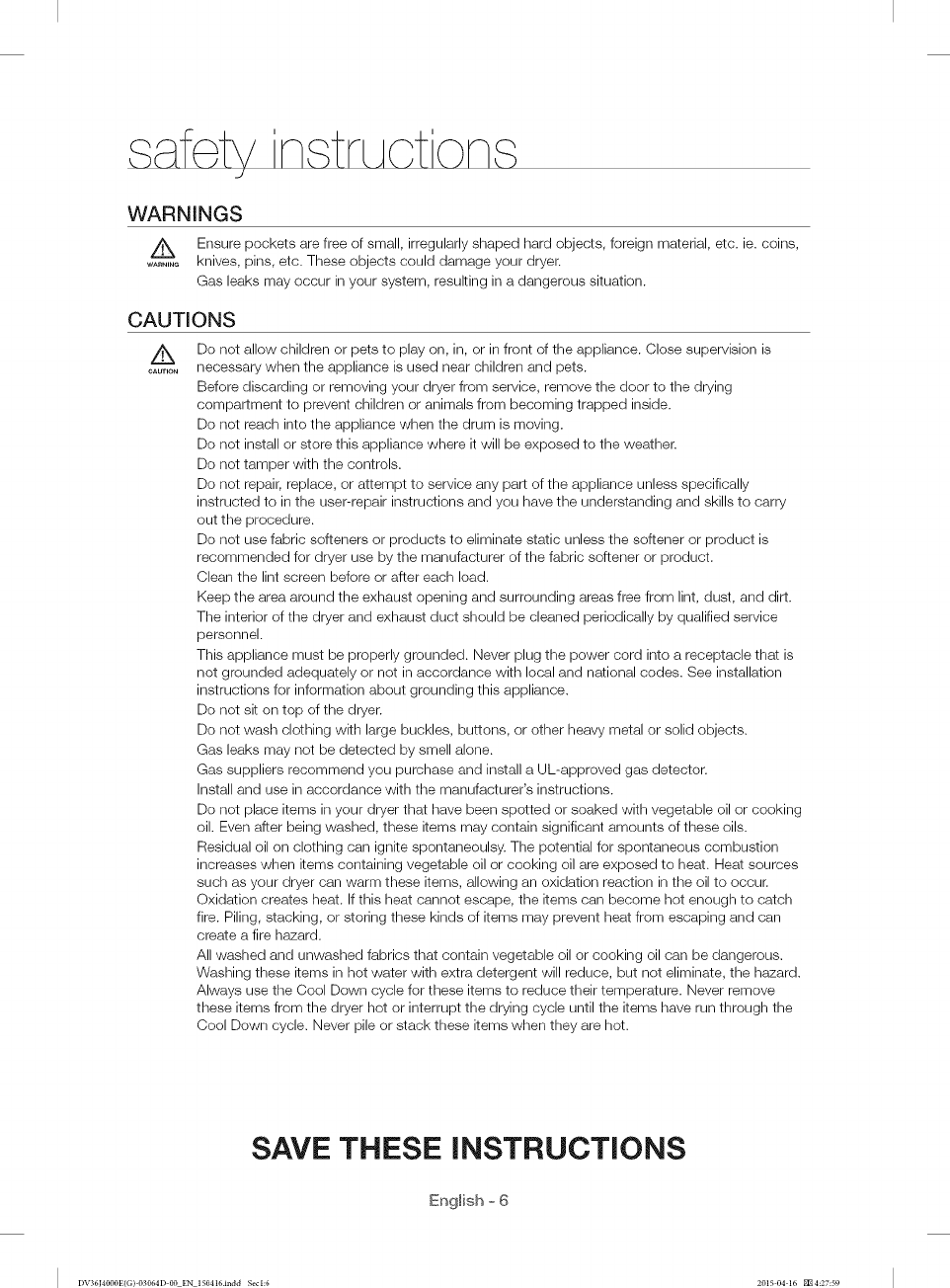

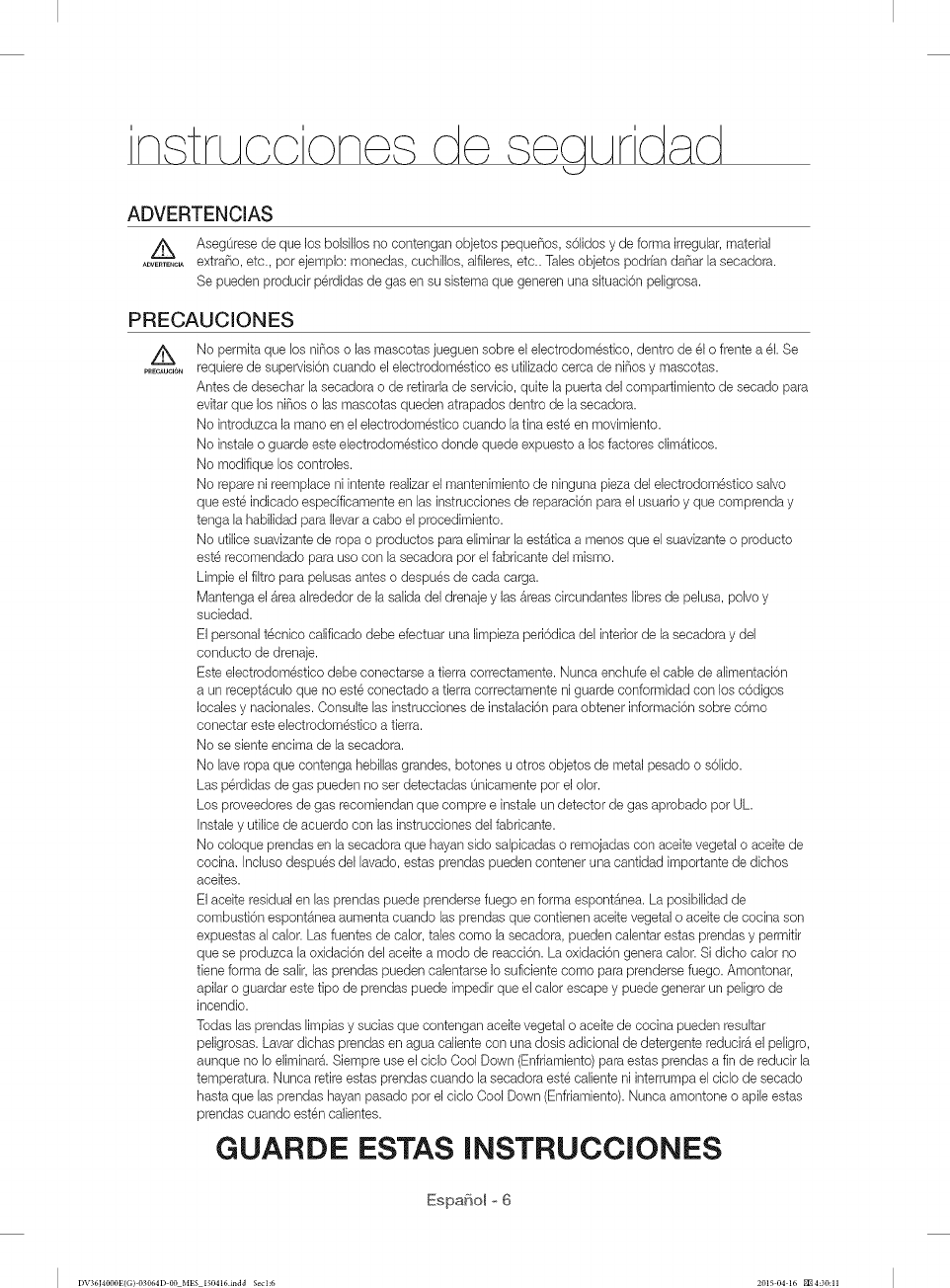

WARNINGS

/_ Ensure pockets are free of small, irregularly shaped hard objects, foreign material, etc. ie. coins,

....... knives, pins, etc. These objects could damage your dryer.

Gas leaks may occur in your system, resulting in a dangerous situation.

CAUTIONS

A,,

OAUTION

Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is

necessary when the appliance is used near children and pets.

Before discarding or removing your dryer from service, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

Do not reach into the appliance when the drum is moving.

Do not install or store this appliance where it will be exposed to the weather.

Do not tamper with the controls.

Do not repair, replace, or attempt to service any part of the appliance unless specifically

instructed to in the user-repair instructions and you have the understanding and skills to carry

out the procedure.

Do not use fabric softeners or products to eliminate static unless the softener or product is

recommended for dryer use by the manufacturer of the fabric softener or product.

Clean the lint screen before or after each load.

Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.

The interior of the dryer and exhaust duct should be cleaned periodically by qualified service

personnel.

This appliance must be properly grounded. Never plug the power cord into a receptacle that is

not grounded adequately or not in accordance with local and national codes. See installation

instructions for information about grounding this appliance.

Do not sit on top of the dryer.

Do not wash clothing with large buckles, buttons, or other heavy metal or solid objects.

Gas leaks may not be detected by smell alone.

Gas suppliers recommend you purchase and install a UL-approved gas detector.

Install and use in accordance with the manufacturer's instructions.

Do not place items in your dryer that have been spotted or soaked with vegetable oil or cooking

oil. Even after being washed, these items may contain significant amounts of these oils.

Residual oil on clothing can ignite spontaneoulsy. The potential for spontaneous combustion

increases when items containing vegetable oil or cooking oil are exposed to heat. Heat sources

such as your dryer can warm these items, allowing an oxidation reaction in the oil to occur,

Oxidation creates heat. If this heat cannot escape, the items can become hot enough to catch

fire. Piling, stacking, or storing these kinds of items may prevent heat from escaping and can

create a fire hazard.

All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous.

Washing these items in hot water with extra detergent will reduce, but not eliminate, the hazard.

Always use the Cool Down cycle for these items to reduce their temperature. Never remove

these items from the dryer hot or interrupt the drying cycle until the items have run through the

Cool Down cycle. Never pile or stack these items when they are hot.

SAVE THESE INSTRUCTIONS

English - 6

DV3614000E(G) 030641) 00 EN 150416indd Secl:6

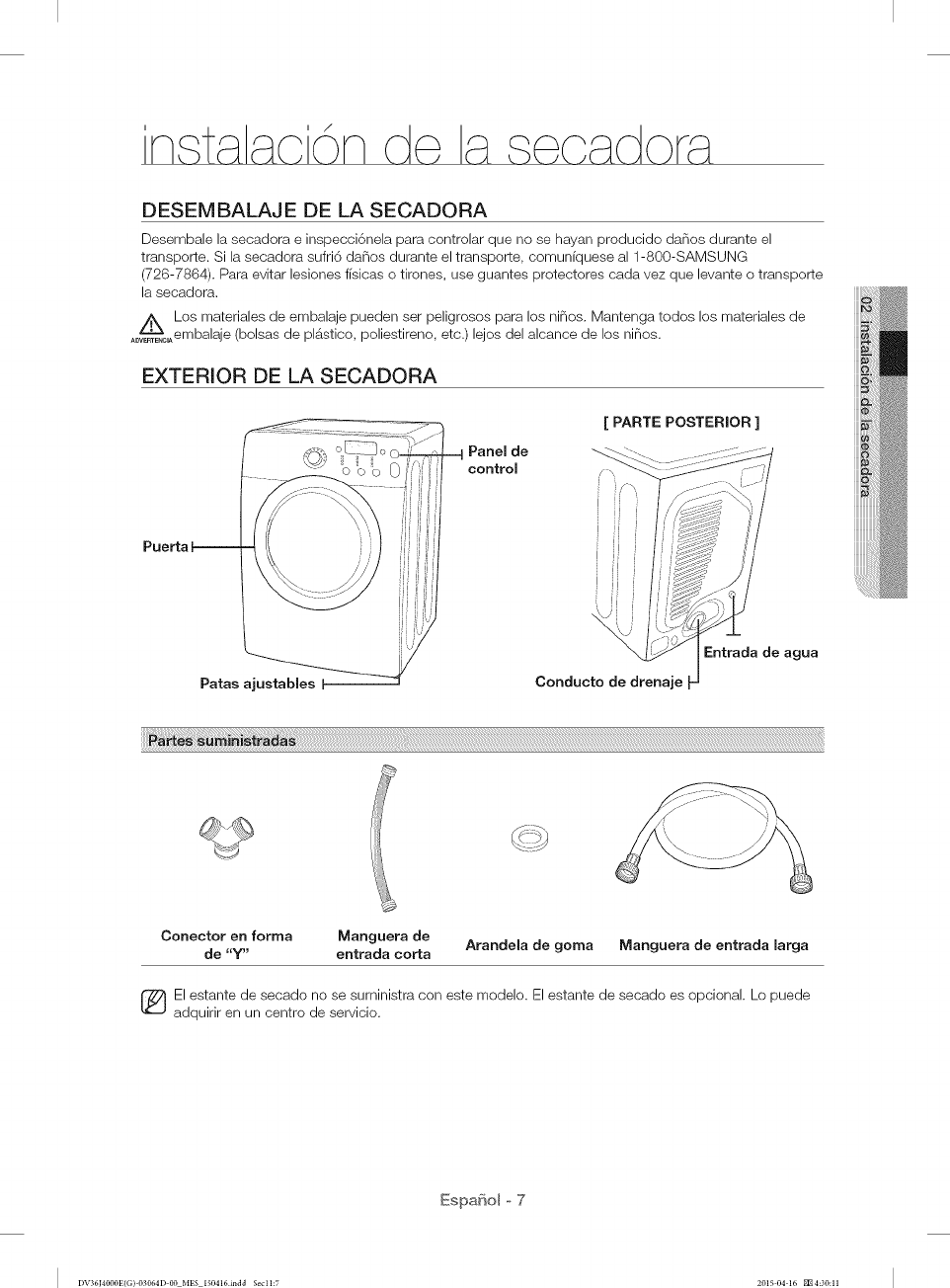

UNPACKING YOUR DRYER

Unpack your dryer and inspect it for shipping damage. If your dryer was damaged during shipping,

contact 1-800-SAMSUNG (726-7864).To prevent personal injury or strain, wear protective gloves whenever

lifting or carrying the dryer.

Z_ Packing materials can be dangerous to children. Keep all packing material (plastic bags, polystyrene,

....... etc.) well out of children's reach.

THE DRYER'S EXTERIOR

Control panel

[ RACK]

Door

Water inlet

Adjustable legs Duct Exhaust

"Y'-connector Short inlet hose Rubber Washer Long inlet hose

A Drying Rack is not supplied with this model. The Drying Rack is optional. You can purchase it

through a service center.

D_ZB614000E(( )030641) 00 EN 150416illdd Secll:7

English o 7

KEY iNSTALLATiON REQUIREMENTS

Hire a professional to install this dryer properly. If a service call has to be made as a result of poor installation

setup, adjustment, or connection, it is considered the responsibility of the installer. If you install the dryer,

you are responsible.

Make sure you have everything necessary for proper installation:

A GROUNDED ELECTRICAL OUTLET. See Electrical Requirements. See page 15.

A POWER CORD for electric dryers (except Canada). See page 16.

GAS LINES (if you are installing a gas dryer) must meet national and local codes.

EXHAUST SYSTEM - must be rigid metal or flexible stiff-walled metal exhaust ducting. See the ducting

and exhaust requirements on pages 10 - 11 and 13, and the dryer exhaust tips on page 20.

TOOLS NEEDED FOR iNSTALLATiON

Gather the required tools and parts before starting the installation.

Read and follow the instructions provided with any tools listed here.

Tools and Parts

Pliers

Level

Cutting knife Pipe wrench (gas only) Nut drivers

Phillips Screwdriver Duct tape Wrench

REPLACEMENT PARTS AND ACCESSORIES

If your dryer requires replacement parts or accessories, contact the dealer from whom you purchased your

dryer or the SAMSUNG customer care center at 1 800 SAMSUNG (726 7864).

English ° 8

D_73614000E(G) 030641) 0OEN1S0416indd Secll:g

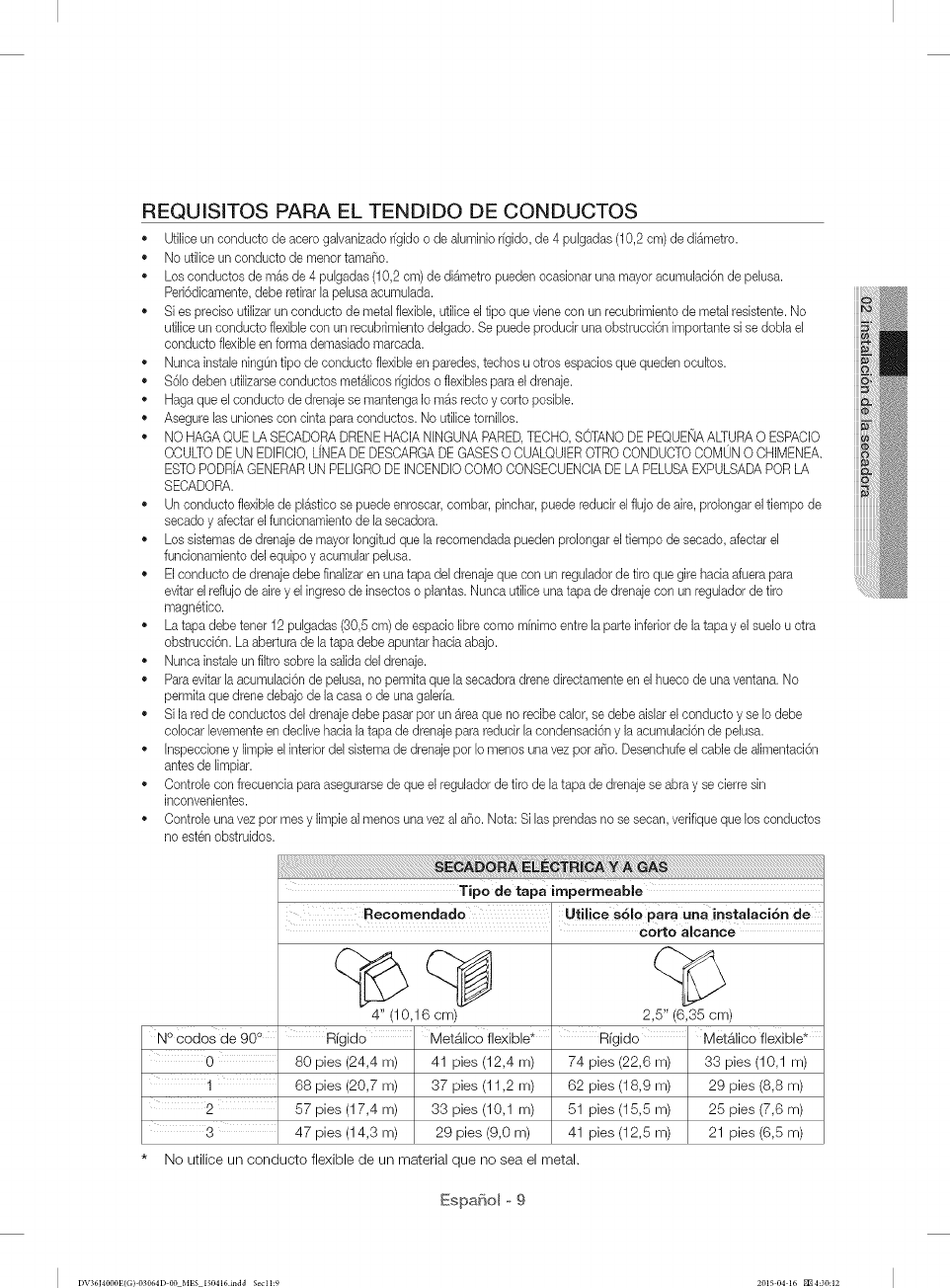

DUCTING REQUIREMENTS

* Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.

Do not use a smaller duct.

Ducts larger than 4 inches (10.2 cm) in diameter can cause increased lint accumulation.

Lint accumulation should be cleaned regularly.

If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct

with a thin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply.

Never install any type of flexible duct in walls, ceilings, or other concealed spaces.

Only a rigid or flexible metal duct should be used for exhausting.

Keep the exhaust duct as straight and short as possible.

Secure joints with duct tape. Do not use screws.

DO NOT EXHAUST DRYER INTO ANY WALL, CEILING, CRAWL SPACE, OR CONCEALED SPACE OF

A BUILDING, GAS VENT, OR ANY OTHER COMMON DUCT OR CHIMNEY. THIS COULD CREATE A

FIRE HAZARD FROM LINT EXPELLED BY THE DRYER.

A plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect dryer

operation.

Exhaust systems longer than recommended can extend drying times, affect machine operation, and

may collect lint.

The exhaust duct should end with an exhaust hood that has a swing-out damper to prevent back drafts

and the entry of wildlife. Never use an exhaust hood with a magnetic damper.

The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood and

the ground or other obstruction. The hood opening should point down.

Never install a screen over the exhaust outlet.

To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house

or porch.

If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly

down towards the exhaust hood to reduce condensation and lint buildup.

Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before

cleaning.

Check frequently to be sure the exhaust hood damper opens and closes freely.

Check the duct once per month, and clean at least one time per year. Note: If clothes are not getting

dry, then check ducting for obstructions.

Weather Hood Type

Recommended

4" (10.16 cm)

No. Of 90 ° elbows Rigid Metallic Flexible*

80 ft. (24.4 m) 41 ft. (12.4 m)

68 ft. (20.7 m) 37 ft. (11.2 m)

57 ft. (17.4 m) 33 ft. (10.1 m)

3 47ft. (14.3 m) 29ft. (9.0 m)

* Do not use non-metallic flexible duct.

U,e0nlyf0, Shoat'runinstallation

2.5" (6.35 cm)

Rigid Metallic Flexible _

74 ft. (22.6 m) 33 ft. (10.1 m)

62 ft. (18.9 m) 29 ft. (8.8 m)

51 ft. (15.5 m) 25 ft. (7.6 m)

41 ft. (12.5 m) 21 ft. (6.5 m)

English o 9

D_TB614000E(( )030641) 00 EN 150416illdd Secll:9

If the new dryer is being installed into an existing exhaust system, you must

make sure:

* The exhaust system meets all local, state, and national codes.

That a flexible plastic duct is not used.

To Inspect and clean all lint buildup from inside the existing duct.

The duct is not kinked or crushed.

The exhaust hood damper opens and closes freely.

The static pressure in any exhaust system must not exceed 0.83 inches of water column or be

less than 0.

This can be measured while the dryer is running with a manometer at the point where the

exhaust duct connects to the dryer. A no-heat setting should be used. The dryer tumbler should

be empty and the lint filter clean.

IMPORTANT INFORMATION FOR INSTALLER

Please read the following instructions carefully before installing the dryer. These instructions should be kept

for future reference.

,4k REMOVE THE DOOR FROM ALL DISCARDED APPLIANCES TO AVOID THE DANGER OF A CHILD

....... SUFFOCATING.

LOCATION CONSI DERATIONS

Locate the dryer where there is enough space at the front for loading and enough space behind for the

exhaust system. This dryer is factory-ready for rear exhaust. To exhaust out the bottom or the left, use

the accessory exhaust kit. Instructions are included with the kit. It's important to make sure the room has

enough fresh air. The dryer must be located where there is no air-flow obstruction.

For gas dryers, you must provide the clearance noted on the data plate to ensure adequate air for

combustion and proper dryer operation.

DO NOT INSTALL OR STORE THE DRYER IN AN AREA WHERE IT WILL BE EXPOSED TO WATER AND/

OR WEATHER. KEEP THE DRYER AREA CLEAR OF COMBUSTIBLE MATERIALS, GASOLINE, AND

OTHER FLAMMABLE VAPORS AND LIQUIDS. A DRYER PRODUCES COMBUSTIBLE LINT. THE AREA

AROUND THE DRYER SHOULD BE KEPT LINT-FREE.

ALCOVE OR CLOSET INSTALLATION

Z_ You must vent the dryer to the outside to reduce the risk of fire when installed in an alcove or closet.

WARNING

No other fuel-burning appliance should be installed in the same closet as the dryer.

WARNING: To reduce the risk of fire, YOU MUST VENT THIS DRYER TO THE OUTDOORS.

See the EXHAUST INFORMATION section.

Minimum clearances between the dryer and adjacent walls or other surfaces are:

2" in front, 17" on top, 1" on either side, and 5" in the back.

The closet front must have two unobstructed air openings for a combined minimum total area of 72 in2

with 3" minimum clearance on the top and bottom. A Iouvered door with equivalent space clearance is

acceptable.

English o 10

D_TB614000E(G) 030641) 00 EN 150416illdd Secll:10

MOBILE HOME INSTALLATION

The installation of the dryer in mobile homes must conform to the Manufactured Home Construction and

Safety Standard Title 24 CFR, Part 32-80 {formerly the Federal Standard for Mobile Home Construction and

Safety, Title 24, HUD (Part 280), 1975} for the United States) or CSA Standards Z240 (for Canada).

When installing a dryer in a mobile home, you must make provisions for anchoring the dryer to the floor.

Locate the dryer in an area that has adequate fresh air.

A minimum of 72 in2 (465 cm 2) of unobstructed space is required.

Call 1-800-SAMSUNG (726-7864) for information about purchasing the Floor Anchoring Kit as an accessory.

All mobile home installations must be exhausted to the outside with the exhaust duct termination securely

fastened to the mobile home structure, using materials that wiii not support combustion.

The exhaust duct may not terminate underneath the mobile home.

See the Exhausting section for more information.

EXHAUSTING

Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being blown into the

room.

the United States:

All dryers must be vented to the outside.

The required exhaust duct is 4 inches (102 mm) in diameter.

Use only those foil-type flexible ducts, if any, specifically identified for use with the appliance

by the manufacturer and that comply with the Outline for Clothes dryer Transition Duct,

Subject 2158A.

Do not assemble the duct with screws or other fasteners that extend into the duct and can

catch lint.

In Canada:

• Use only those foil-type flexible ducts, if any, specifically identified for use with the appliance

by the manufacturer.

• All dryers must be exhausted to the outside.

• The exhaust duct should be 4 inches (102 mm) in diameter.

Outside the U.S. and Canada:

• Refer to the local codes.

/_ You must vent the dryer to the outside to reduce the risk of fire when you install the dryer in

wA..,._an alcove or closet.

NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT.

If your existing ductwork is plastic, non-metal, or combustible, replace it with metal.

Use only a metal exhaust duct that is non-flammable to ensure containment of exhaust air,

heat, and lint.

English ° 11

D_TB614000E(( ) 030641) 00 EN 150416indd Secll:ll

GAS REQUIREMENTS

Use only natural or LP (liquid propane) gases.

THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL

CODES, WITH THE NATIONAL FUEL GAS CODE ANSVZ223.1, LATEST REVISION (FOR THE UNITED

STATES), OR WITH THE CAN/CGA-B149 INSTALLATION CODES (FOR CANADA).

Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with LP

(liquid propane) gas, it must be converted for safe and proper performance by a qualified service technician.

A 1/2" (1.27 cm) gas supply line is recommended and must be reduced to connect to the 3/8" (1 cm) gas

line on your dryer. The National Fuel Gas Code requires that an accessible, approved manual gas shut-off

valve be installed within G' of your dryer.

Gas dryers installed in residential garages must be raised 18 inches (46 cm) above the floor.

Additionally, a 1/8" (0.3 cm) N.RT. (National Pipe Thread) plugged tapping, accessible for test gauge

connection, must be installed immediately upstream of your dryer's gas supply connection.

Your dryer must be disconnected from the gas supply pipe system during any pressure testing of the

system.

DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design certified by the American Gas

Association (CGA in Canada).

* ny pipe joint compound used must be resistant to the action of any liquefied petroleum gas.

As a courtesy, most local gas utilities will inspect a gas appliance installation.

GAS IGNITION - Your dryer uses an automatic ignition system to ignite the burner.

There is no constant burning pilot.

Commonwealth of Massachusetts installation instructions

Your dryer must be installed by a licensed plumber or gas fitter. A "T" handle manual gas valve

must be installed in the gas supply line to your dryer. If a flexible gas connector is used to install

your dryer, the connector can be no longer than 3' (36").

- Gas leaks may occur in your system, creating a dangerous situation.

........ Gas leaks may not be detected by smell alone.

Gas suppliers recommend you purchase and install a UL-approved gas detector.

Install and use in accordance with manufacturer's instructions.

English o 12

DV3614000E(G) 030641) 00 EN 150416illdd Secll:12

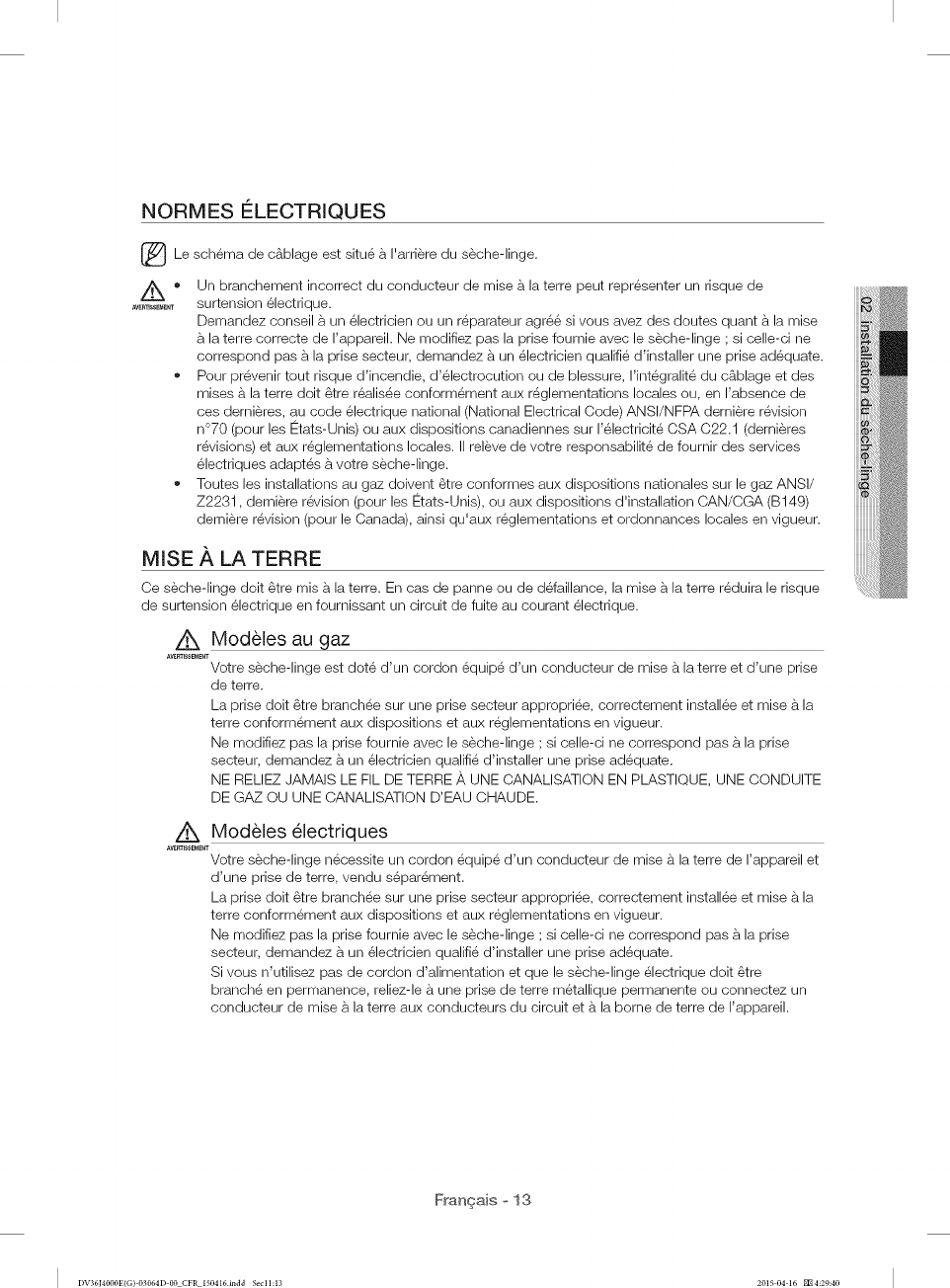

ELECTRICAL REQUIREMENTS

[_A Wiring diagram is located on the back of the dryer.

L_* Improper connection of the equipment grounding conductor can result in a risk of electric shock.

....... Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is

properly grounded. Do not modify the plug provided with your dryer - if it doesn't fit the outlet,

have a proper outlet installed by a qualified electrician.

*To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding

must be done in accordance with local codes, or in the absence of local codes, with the National

Electrical Code, ANSI/NFPA No. 70-Latest Revision (for the U.S.) or the Canadian Electrical Code

CSA C22.1 - Latest Revisions and local codes and ordinances. It is your responsibility to provide

adequate electrical services for your dryer.

*All gas installations must be done in accordance with the national Fuel Code ANSI/Z2231 - Latest

Revision (for the U.S.) or CAN/CGA - B149 Installation Codes - Latest Revision (for Canada) and

local codes and ordinances.

GROUNDING

This dryer must be grounded. In the event of a malfunction or breakdown, the ground will reduce the risk of

electrical shock by providing a path of least resistance for the electrical current.

Z_ Gas models

WARNING

Your dryer has a cord with an equipment-grounding conductor and a grounding plug.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Do not modify the plug provided with your dryer - if it doesn't fit the outlet, have a proper outlet

installed by a qualified electrician.

NEVER CONNECT THE GROUND WIRE TO PLASTIC PLUMBING LINES, GAS LINES, OR HOT

WATER PIPES.

Electric models

Your dryer requires a cord with an equipment-grounding conductor and a grounding plug which

is sold separately.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Do not modify the plug provided with your dryer - if it doesn't fit the outlet, have a proper outlet

installed by a qualified electrician.

If a power cord is not used and the electric dryer is to be permanently wired, the dryer must

be connected to a permanently grounded metal wiring system, or an equipment grounding

conductor must be run with the circuit conductors and connected to the equipment grounding

terminal.

English - 13

DV3614000E(( )030641) 00 EN 150416illdd Secll:13

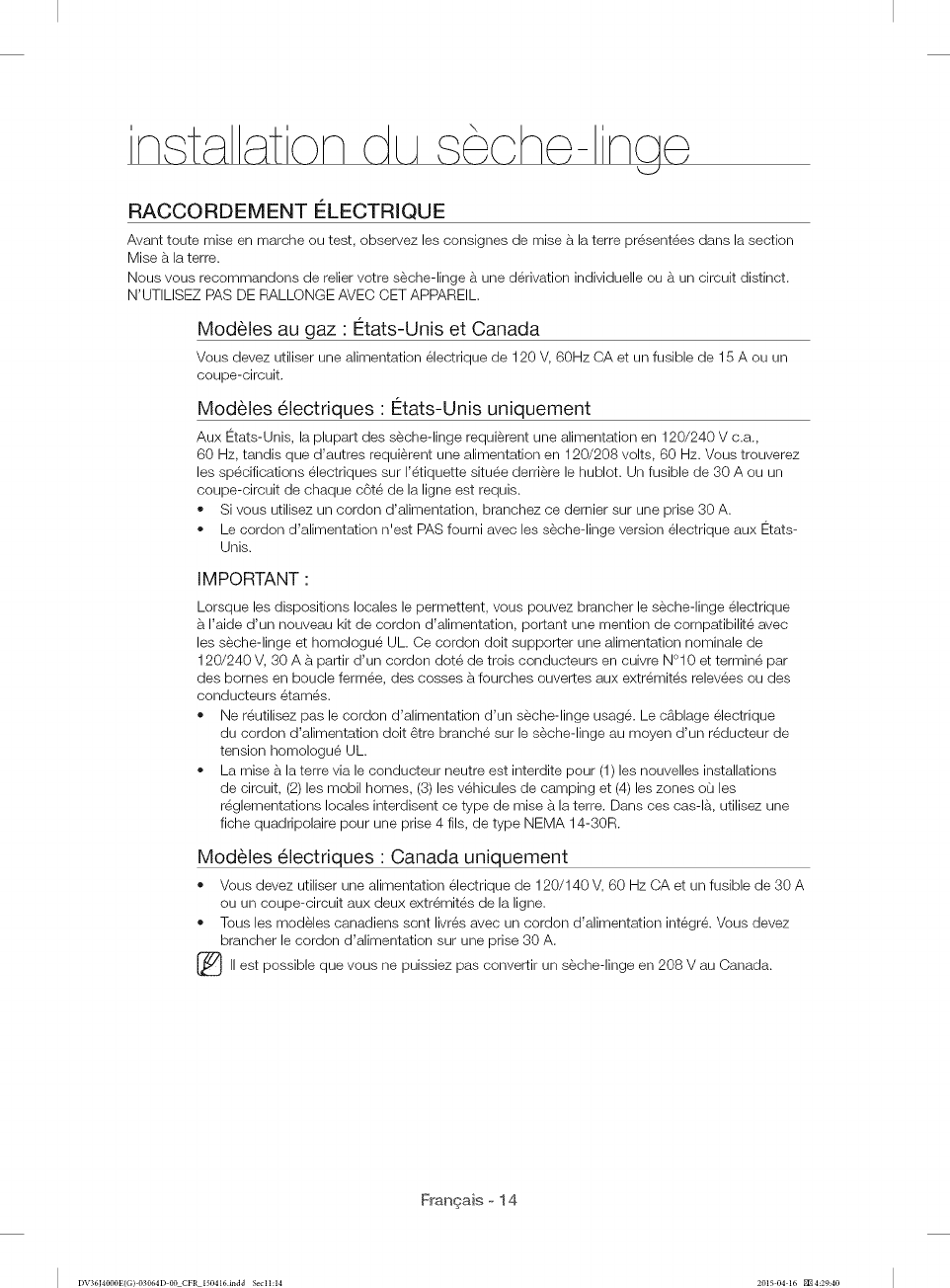

ELECTRICAL CONNECTIONS

Before operating or testing, follow all grounding instructions in the Grounding section.

An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN

EXTENSION CORD.

Gas models- U.S. and Canada

A 120 volt, 60 Hz AC approved electrical service, with a 15-amp fuse or circuit breaker is

required.

Electric models- U.S. only

Most U.S. dryers require a 120/240 volt, 60 Hz AC approved electrical service. Some require

120/208 volt, 60 Hz approved electrical service. The electric service requirements can be found

on the data label located behind the door. A 30-amp fuse or circuit breaker on both sides of the

line is required.

• If a power cord is used, the cord should be plugged into a 30-amp receptacle.

• The power cord is NOT provided with U.S. electric model dryers.

IM PO RTANT:

When local codes allow, you can connect the dryer's electrical supply with a new power supply

cord kit, marked for use with a dryer, that is U.L. listed and rated at a minimum of 120/240 volts,

30-amps with three No. 10 copper wire conductors terminated with closed loop terminals, open-

end spade lugs with turned up ends, or with tinned leads.

• Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring

must be supported at the dryer cabinet with a suitable UL-listed strain relief.

• Grounding through the neutral conductor is prohibited for (1) new branch-circuit installations,

(2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit

grounding through the neutral conductor. (Use 4-prong plug for 4 wire receptacle, NEMA

type 14-30R.)

Electric models - Canada Only

• A 120/240 volt, 60 Hz AC approved electrical service fused through a 30-amp fuse or circuit

breaker on both sides of the line is required.

• All Canadian models are shipped with the power cord attached. The power cord should be

plugged into a 30-amp receptacle.

[_) You not convert in Canada to 208 volts.

may adryer

English o 14

D_TB614000E(( )030641) 00 EN 150416indd Secll:14

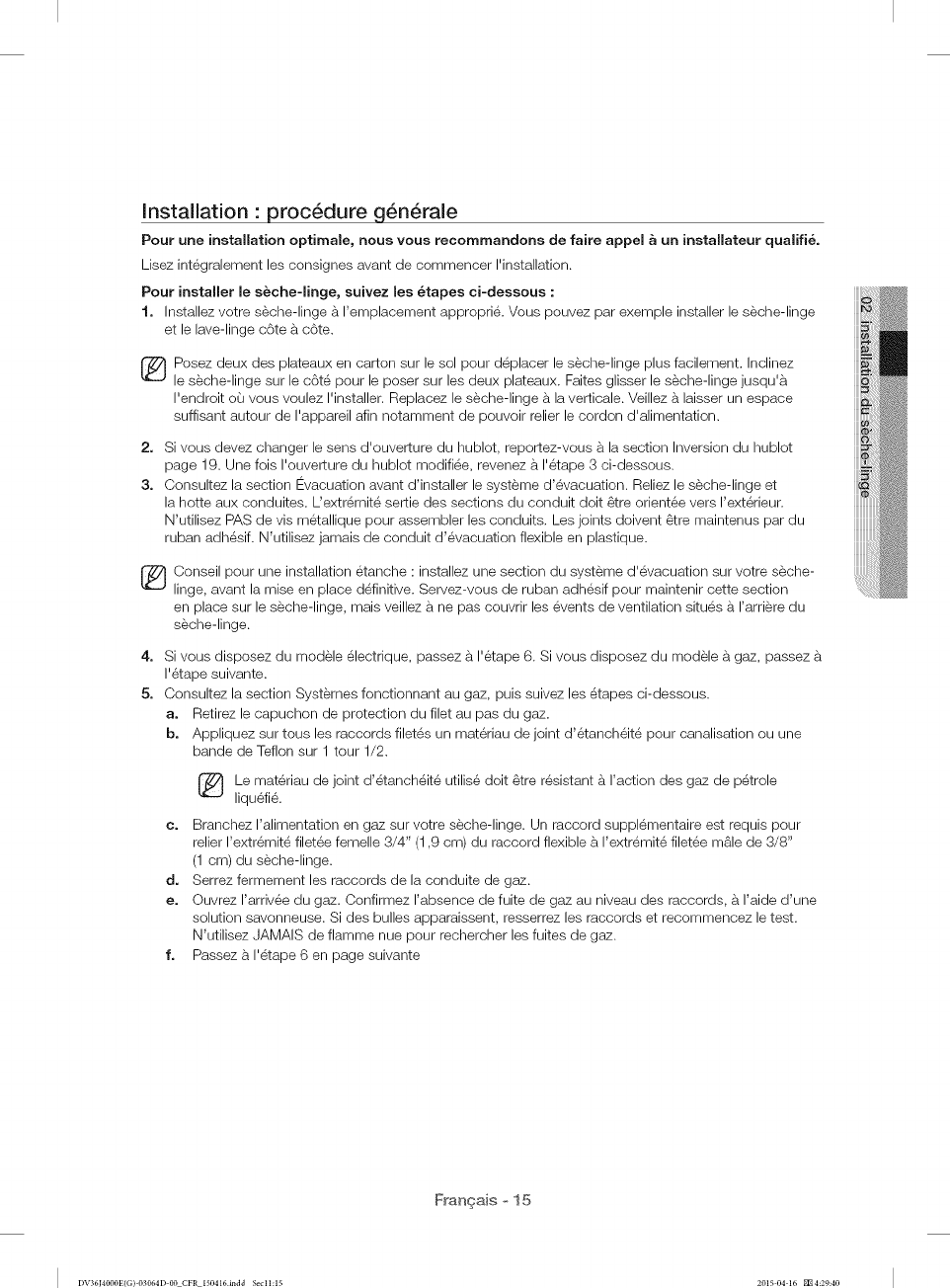

Installation - General procedure

For proper installation, we recommend that you hire a qualified installer.

Read these instructions completely before you begin the installation.

To install the dryer, follow these steps:

1. Move your dryer to an appropriate location for installation. Consider installing the dryer and washer side-

by-side so you have easy access to both appliances.

To move the dryer easily, lay two of the carton cushion-tops on the floor. Tip your dryer on its side so it

lies across both cushion-tops. Push the dryer so that it is near its final location. Set your dryer upright.

Leave enough room around the dryer so you can attach the duct work, power cord, etc.

2. If you need to change the direction of the door, go to Door Reversal on page 19. When done, return

to Step 3 below.

3. Review the Exhausting section before installing the exhaust system. Install the duct work from your

dryer to the exhaust hood. The crimped end of the duct sections must point away from your dryer. DO

NOT use sheet metal screws when assembling ducting. These joints should be taped. Never use plastic

flexible exhaust material.

A tip for tight installations: Attach a section of the exhaust system to your dryer before putting it in

place. Use duct tape to secure this section to your dryer, but do not cover the ventilation slots at the

back of the dryer cabinet.

4. If you have an electric model, skip to Step 6. If you have a gas model, go to the next step.

5. Review the Gas Requirements section, then follow the lettered steps below.

a. Remove the pipe thread protective cap.

b. Apply pipe joint compound or about 1 1/2 wraps of Teflon tape to all threaded connections.

(_ The pipe joint compound must be resistant to the action of any liquefied petroleum gas.

c. Connect the gas supply to your dryer. An additional fitting is required to connect the 3/4" (1.9 cm)

female thread end of a flexible connector to the 3/8" (1 cm) male threaded end on the dryer.

d. Securely tighten the gas line fitting over the threads.

e. Turn on the gas supply. Check all gas connections for leaks using a soap solution. If bubbles

appear, tighten the connections and recheck. DO NOT use an open flame to check for gas leaks.

f. Go to Step 6 on the next page

English o 15

DV3614000E(G) 030641) 00 EN 150416illdd Secll:I5

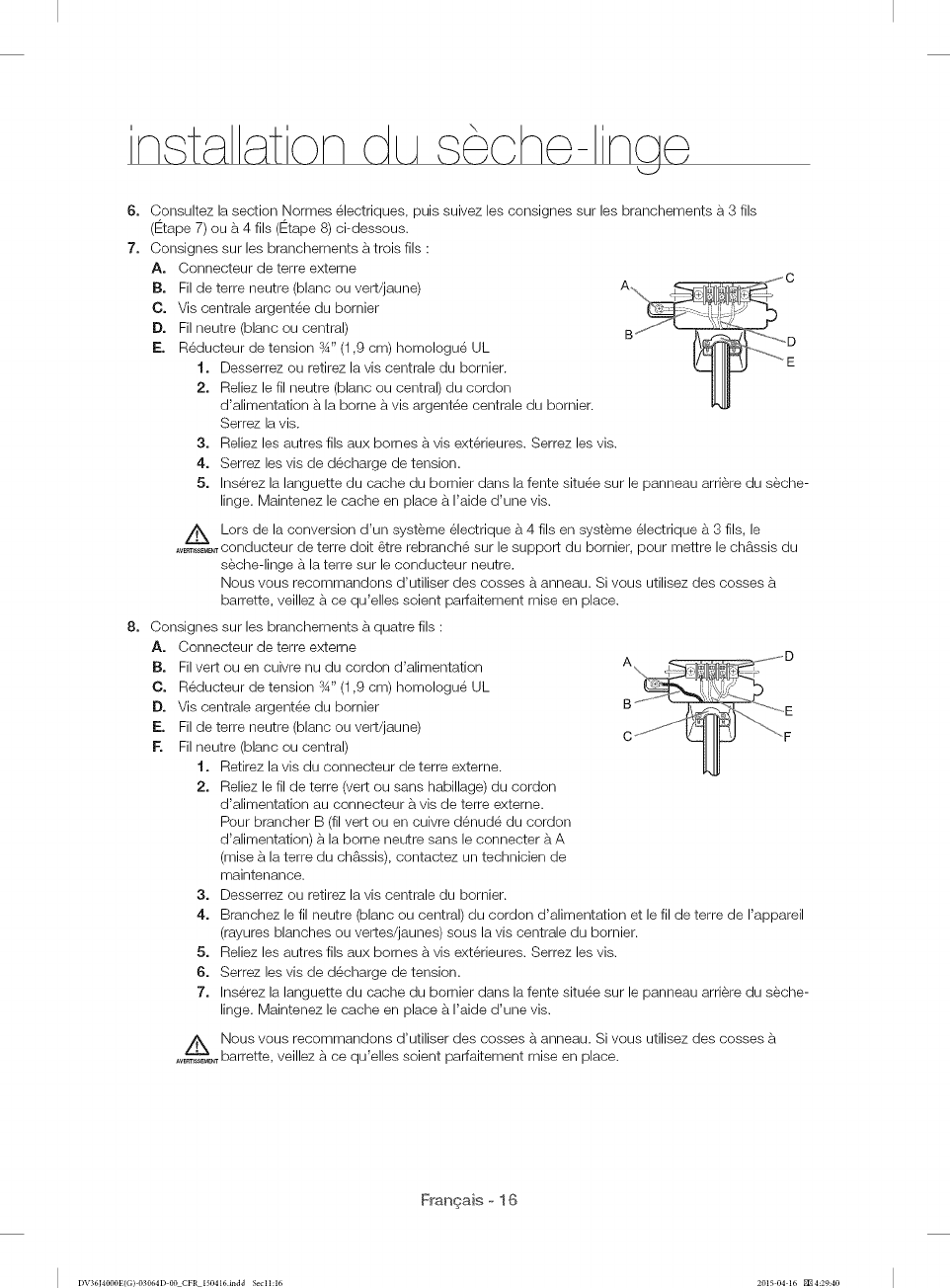

6. Review the Electrical Requirements section, then follow the 3 Wire system connection instructions

(Step 7) or 4 Wire system connection instructions (Step 8) below.

7. Three Wire system instructions:

A. External ground connector

lB. Neutral grounding wire (white or green/yellow)

¢. Center silver-colored terminal block screw

D. Neutral wire (white or center wire)

E. r_A"(1.9 cm) UL-listed strain relief

t. Loosen or remove the center terminal block screw.

2. Connect the neutral wire (white or center wire) of the power

cord to the center, silver-colored terminal screw of the

terminal block. Tighten the screw.

3. Connect the other wires to outer terminal block screws. Tighten the screws.

4. Tighten the strain relief screws.

5. Insert the tab of the terminal block cover into your dryer's rear panel slot.

Secure the cover with a hold-down screw.

8°

L_ if converting from a 4-wire electrical system to a 3-wire, you must connect the ground strap

_,AR.,,_to the terminal block support to ground the dryer frame to the neutral conductor.

We recommend using Ring terminals. If you use Strap terminals, please ensure you install

them perfectly.

Four Wire System instructions:

A. External ground connector

B. Green or bare copper wire of power cord

¢. r_A"(1.9 cm) UL-listed strain relief

D. Center silver-colored terminal block screw

E. Neutral Grounding wire (white or green/yellow)

F. Neutral wire (white or center wire)

t. Remove the External ground connector screw.

2. Connect the ground wire (green or unwrapped) of the

power cord to the external ground connector screw. If you

want to connect B (The green or bare copper wire of the

power cord) to the Neutral Post without connecting it to A

(the cabinet ground), call a service technician.

3. Loosen or remove the center terminal block screw.

4. Connect the neutral wire (white or center wire) of the power cord and the appliance ground

wire (white or green/yellow stripes) under the central screw of the terminal block.

5. Connect the other wires to the outer terminal block screws. Tighten the screws.

6. Tighten the strain relief screws.

7. Insert the tab of the terminal block cover into your dryer's rear panel slot.

Secure the cover with a hold-down screw.

/_ We recommend using Ring terminals. If you use Strap terminals, please ensure you install

......._ them perfectly.

English °16

D_TB614000E(( )030641) 0OEN1S0416indd Secll:16

U.S. MODELS:

IMPORTANT - All U.S. models are designed for a 3-WIRE SYSTEM CONNECTION. The dryer frame is

grounded to the neutral conductor at the terminal block. A 4-WIRE SYSTEM CONNECTION is required for

new or remodeled construction, mobile homes, or if local codes do not permit grounding through neutral.

If you use the 4-wire system, you cannot ground the dryer frame to the neutral conductor at the terminal

block.

Refer to the following instructions for 3- and 4-WIRE SYSTEM CONNECTIONS:

Remove the terminal block cover plate. Insert the power cord with a UL-listed strain relief through the hole

provided in the cabinet near the terminal block.

A strain relief must be used. Do not loosen the nuts already installed on the terminal block. Be sure they are

tight. Use a 3/8" (1 cm) deep well socket.

9. To ensure that the dryer provides optimal drying performance, it must

be level. To level the dryer, follow the lettered steps below: Level

ao Using a level, check if the dryer is level side to side and then front

to back.

bo If the dryer is not level, adjust the leveling feet on the bottom of

the dryer until the dryer is level side to side and back to front.

Turning the feet clockwise retracts the feet. Turning the feet

clockwise loosens and extends them.

[_ To set the dryer to the same height as the washer, fully

retract the leveling feet by turning them counterclockwise,

then loosen the feet by turning them clockwise. Once

the dryer is the same height as the washer, follow the

directions above to level the dryer.

Leveling feet

Retract fully Then loosen

[_ djust the leveling feet only as much as necessary to level the dryer. Extending the leveling

feet more than necessary can cause the dryer to vibrate.

10. Make sure all gas connections (on gas models), exhaust, and electrical connections are complete. Plug

in your dryer, and then check its operation by using the checklist below.

1t. For GAS MODELS ONLY

The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on a heat

setting will purge the line. If the gas does not ignite within 5 minutes, turn your dryer off and wait 5

minutes. Be sure the gas supply to your dryer has been turned on. To confirm gas ignition, check the

exhaust for heat.

FINAL INSTALLATION CHECKLIST

[] The dryer is plugged into an electrical outlet and is properly grounded.

[] The exhaust ductwork is hooked up and joints are taped.

[] You have used rigid or stiff-walled flexible metal duct material, not plastic flexible duct.

[] The dryer is leveled and is sitting firmly on the floor.

[] For gas models: The gas is turned on and there are no gas leaks.

[] Start your dryer to confirm that it runs, heats, and shuts off.

English o 17

D_736J4000E(( )030641) 0OEN1S0416indd Secll:17

DRYER VENTING TiPS

Z_ Plastic or non-metal flexible duct presents a potential fire hazard.

WARNING

t. Make sure your dryer is installed properly so it vents air

easily.

2. Use a 4" diameter rigid metal duct. Tape all joints, including

at the dryer.

Never use lint-trapping screws.

3. Keep ducts as straight as possible.

Clean all old ducts before installing your new dryer.

Be sure the vent flap opens and closes freely.

Inspect and clean the exhaust system annually.

Don't let a poor venting system slow drying by:

t. Restricting your dryer a poor venting. 1

2. Using a plastic, thin foil, or non-metal flexible duct.

3. Using unnecessarily long ducts that have many

elbows.

4. Using crushed or clogged vent or ducts.

English °18

DV3614000E(G) 030641) 00 EN 150416illdd Secll:18

DOOR REVERSAL

1. Unplug the power cord,

2. Remove two door hinge

screws.

3. Lift the door and remove

it.

Remove the screw shown

in the illustration on the

Frame Front,

Remove the two screws

on the opposite side of

the door hinge.

Remove two screws from

the holder lever.

Remove one black screw

from the door hinge.

8. Reinsert the black screw

in the other hole.

9. Reinsert the screw (Step

4) on the Frame Front.

t0. Place the door on the

other side and reattach it

to the dryer.

t 1. Reattach the holder lever.

\7,,

X ¸,

t2o Reattach the screws in

the remaining holes.

English ° 19

DV3614000E(( )030641) 00 EN 150416illdd Secll:19

CONNECTING THE INLET HOSE

Method 1 - Using the Y Connector and Long Hose

The dryer must be connected to the cold water faucet using new inlet hoses. Do not use old

hoses.

t. Turn off the cold water faucet.

2. If you have a washer water hose attached to the cold water

faucet, unscrew and remove the hose.

3. If space permits, attach the brass female end of the

"Y"connector to the cold water faucet. Turn by hand until

tight.

4. Attach the straight end of the long hose to the "Y'

connector. Screw on the hose coupling by hand until it is

tight.

5. Using pliers, tighten the hose coupling with an additional

two thirds turn.

[_Do overtighten, can damage coupling.

not You the

6. Attach the angled end of the long hose to the fill valve at

the bottom of the dryer's rear frame. Screw on the coupling

by hand until it is tight.

7. Using pliers, tighten the hose coupling with an additional

two thirds turn.

[_} Do not overtighten, can damage coupling.

You the

_q_"_lL Duct Exhaust' /

8. Attach the water hose to the other side of the "Y" connector. Screw on the hose coupling

until it is tight. Using pliers, tighten the coupling with an additional two thirds turn.

_Do not overtighten. You can damage the coupling.

9. Turn the water faucet on.

t0. Check for leaks around the "Y" connector, faucets, and hoses.

English o 20

DV3614000E(( )030641) 00 EN 150416illdd Secll:20

Method 2 - Using the Short Hose, Long Hose, and Y Connector

The dryer must be connected to the cold water faucet using new inlet hoses. Do not use old

hoses.

If the "Y" connector cannot be attached directly to the cold

water faucet, then you must use the short hose.

1. Turn off the cold water faucet.

2. If you have a washer water hose attached to the cold water

faucet, unscrew and remove the hose.

3. Attach the short inlet hose to the cold water faucet. Screw

on the coupling by hand until it is tight.

4. Using pliers, tighten the coupling with an additional two

thirds turn.

_Do overtighten, can damage coupling.

not You the

5. Attach the 'Y" connector to the stainless male end of the

small hose. Screw on the coupling by hand until it is tight.

6. Using pliers, tighten the coupling with an additional two

thirds turn.

[_Do not overtighten. You can damage the coupling.

7. Attach the angled end of the long hose to the fill valve at the

bottom of the dryer rear frame. Screw on the coupling by

hand until it is tight.

8. Using pliers, tighten the coupling with an additional two thirds turn.

Do not overtighten. You can damage the coupling.

9. Turn the water faucet on.

10. Check for leaks around the "Y" connector, faucets, and hoses.

English o 21

DV3614000E(( )030641) 00 EN 150416illdd Secll:21

op r t nS:nAd:ion ,t

/_ To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFTY

....... INSTRUCTION before operating this appliance.

OVERVIEW OF THE CONTROL PANEL

Time

Adjust Power

Time

StartlPause

®®

ll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lll_lllIl:l:l:7¸ii:i:i:i:i:7¸ii:i:_ili

To select a cycle, rotate the Cycle Selector dial to the desired cycle.

mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmm

mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmm,

The indicator light by the cycle name will illuminate. The Normal, Heavy Duty, Permmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmm

mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmm,

Press, Delicates and Sanitize cycles are Sensor Dry cycles. Sensor Dry automatically

mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmm

mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmm,

senses the moisture in the load and shuts the dryer off when the load reaches the

mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmm

mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmm,

dryness level you selected (Very Dry to Damp Dry).

mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmm

mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmm,

Normal i Use this cycle to dry loads of cotton, undenHear, and linen.

Heavy Duty - Use this cycle to dry heavy fabrics such as jeans, corduroys, or work

clothes with high temperature heat.

Perm Press - Dry wrinkle-free cottons, synthetic fabrics, knits, and permanent press

fabrics automatically.

Delicates -The Delicates cycle is designed to dry heat-sensitive items at a low drying

temperature.

Sanitize - Lets you sanitize garments by infusing high temperature heat deep into the

fabric during the drying cycle. Use this cycle to keep your bedding and curtains clean

through sanitization.

Time Dry -Time Dry allows you to select the desired cycle time in minutes. Turn the

Cycle Selector dial to Time Dry, and then press the Time Key arrow to set the drying

time.

Press the arrow repeatedly to scroll through the time settings.

Quick Dry - Provides a 30 minute drying cycle.

Wrinkle Release - The Wrinkle Release cycle will release wrinkles from items that are

clean, dry, and only slightly wrinkled, such as clothes from a crowded closet, suitcase

or items that have been in the dryer too long after the cycle has ended. You can use

Wrinkle Release with any temperature selection.

Air Fluff - The Air Fluff cycle tumbles the load in room temperature air.

En@ish - 22

DV3614000E(G) 030641) 00 EN 150416illdd Sec5:22

The display window shows the estimated time remaining in the cycle after you have

pressed the Start/Pause button. The estimated time remaining may fluctuate as the

cycle progresses.

The Drying light will illuminate and remain lit until the cycle is complete. When your dryer is

in the cooPdown phase, the Cooling light will illuminate. When your dryer is in the wrinkle

prevent phase, the Wrinkle Prevent light will illuminate.

When the cycle is complete, "END" appears in the display panel until you open the dryer

door, press the Power, Close, or Start button, or 5 minutes have passed.

If your dryer is paused during a cycle, the indicator lights will blink until the Start/Pause

button is pressed.

To select the dry level in the Normal, Heavy Duty, or other Sensor Dry cycles, press

Level button repeatedly to scroll through the dry level settings. An indicator

light illuminates next to each dryness bvel as you scroll through. Stop at your desired

dryness level. Larger or bulkier loads may require the Very Dry or More Dry setting for

complete dryness. Damp Dry is designed to partially dry items. Use for items that by flat

or hang to dry.

setting as you scroll tN'ough. Stop at your desired temperature setting.

High - For sturdy cottons or those labeled Tumbb Dry.

Medium -For permanent press, synthetics, lightweight cottons, or items labeled

Tumble Dry Medium.

Low -For heat sensitive items labeled Tumble Dry Low or Tumble Dry Warm.

Extra Low -Provides the lowest heated dry temperature possible.

When using Manual Dry cycbs, you can adjust the time by pressing the Time Selection

button.

During the Sensory Dry cycle, the time light indicator is off because exact drying times

are determined by fluctuating humidity levels.

Press to pause and restart programs.

Press once to turn your dryer on. Press again to turn it off. Ifyou turn your dryer on and

do not touch any buttons for 10 minutes, the power automatically turns off.

English ° 23

DV3614000E(( )030641) 0OENlS0416indd Sec5:23

op r t n tnAction , t

CHILD LOCK

Child Lock prevents children from operating your dryer.

Turning On and Off

To turn Child Lock on or off, press the Temp. and Time buttons simultaneously for 3 seconds.

Child Lock Details:

You can set Child Lock while your dryer is running.

Once you turn Child Lock on, no button, except for the Power button, will respond until you

release the Child Lock function.

The Child Lock indicator will be lit.

lf you do not turn Child Lock off before you turn your dryer off, Child Lock will still be on

when you turn your dryer on again. To turn Child Lock off, follow the instructions above.

[_ hen other buttons, except for the Power button, do not respond, check the Child Lock

indicator. If Child Lock is on, follow the instructions above to turn Child Lock off.

SOUND OFF

Use this function to mute button and indicator sounds.

Setting and Releasing

To turn the Sound Off function on or off, press the Dry Level and Temp. buttons simultaneously

for 3 seconds.

Sound Off Details:

You can set Sound Off while your dryer is running.

Once you have activated Sound Off, the button and indicator sounds are muted until you

deactivate it.

The Sound Off indicator will be lit.

lf you do not turn the Sound Off function off before you turn your dryer off, It will still

be on when you turn your dryer on again. To turn the Sound Off function off, follow the

instructions above.

D_,'B614000E(( )030641) 00 EN 150416illdd Sec5:24

English ° 24

DRYING RACK (OPTIONAL PART)

Installing and using the drying rack

1. Open the dryer door.

2. Position the drying rack in the tumbler, placing the front lip of the drying rack on top of the lint

filter.

3. Place the rear legs in the two recessed areas of the dryer's back wall, and then push down

the middle of the drying rack to fix.

4. Place the items to be dried on the rack, leaving space between them so air can circulate.

5. Close the dryer door.

6. Use the Time Dry cycle. Select the time according to the moisture and weight of the items.

Start the dryer. It may be necessary to reset the timer if a longer drying time is needed.

Washable sweaters Extra Low (Time Dry cycle)

(block to shape and lay flat on rack)

Stuffed toys Extra Low (Time Dry cycle)

(cotton or polyester fiberfilled)

Stuffed toys Air Fluff

(foam or rubber-filled)

Foam rubber pillows Air Fluff

Sneakers Air Fluff

Z_ Drying foam rubber, plastic, or rubber on a heat setting may cause damage to the item and

....... create a fire hazard.

_ rying Rack is not supplied in this model. The Drying Rack is optional. You can purchase it

through a Samsung service center. (Part code : DC61-02773A)

English o 25

DV3614000E(G) 030641) 00 EN 150416illdd Sec5:25

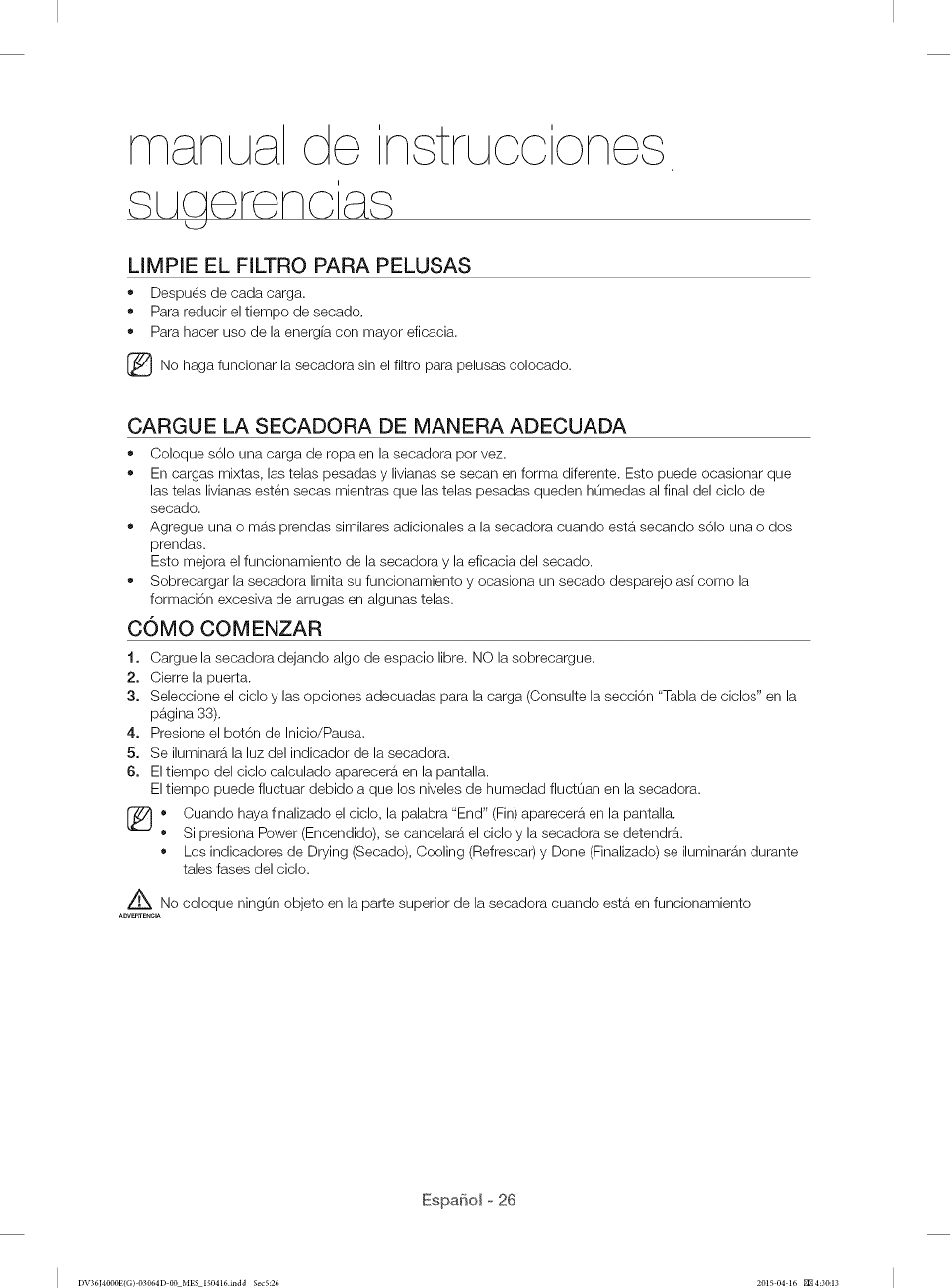

CLEAN THE LINT FILTER

* After each load.

To shorten drying time.

To operate more energy efficiently.

[_Do not operate your dryer place.

without the lint filter in

LOAD THE DRYER PROPERLY

Place only one washload in your dryer at a time.

In mixed loads, heavy and lightweight fabrics will dry differently. This may result in lightweight fabrics

being dry while heavy fabrics remain damp at the end of a drying cycle.

Add one or more additional similar items to your dryer when you are drying only one or two items.

This improves the tumbling action and drying efficiency.

Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of some

fabrics.

GETTING STARTED

t. Load your dryer loosely - DO NOT overload.

2. Close the door.

3. Select the appropriate cycle and options for the load (Refer to the "Cycle Chart" section on page 33).

4. Press the Start/Pause button.

5. The dryer indicator light will illuminate.

6. The estimated cycle time will appear in the display.

The time may fluctuate as humidity levels fluctuate in the dryer,

* hen the cycle is complete, "End" will appear in the display.

Pressing Power cancels the cycle and stops your dryer.

The Drying, Cooling, and Done indicator lights will illuminate during those portions of the cycle.

/_ Do not place anything on top of your dryer while it is running.

WARNIN_

English ° 26

DV3614000E(( ) 030641) 00 EN 150416illdd Sec5:26

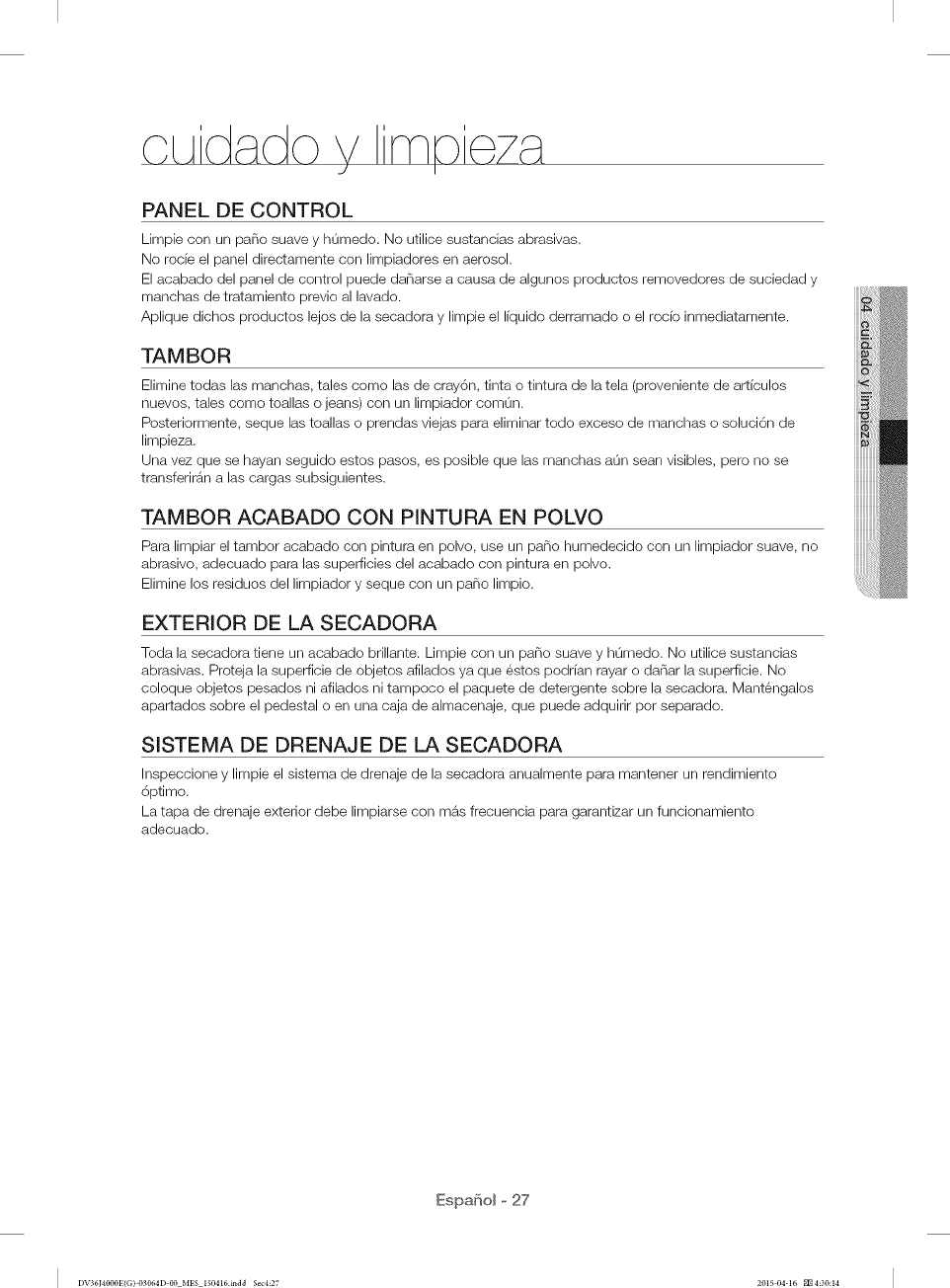

CONTROL PANEL

Clean with a soft, damp cloth. Do not use abrasive substances.

Do not spray cleaners directly on the panel.

The control panel finish may be damaged by some laundry pre-treatment and stain remover products.

Apply such products away from your dryer and wipe up any spills or overspray immediately.

TUMBLER

Remove any stains such as crayon, ink, or fabric dye (from new items such as towels or jeans) with an all-

purpose cleaner.

Tumble old towels or rags to remove any excess stain or cleaning substance.

Once these steps are followed, stains may still be visible, but should not transfer to subsequent loads.

POWDER COATED TUMBLER

To clean the powder coated tumbler, use a damp cloth with a mild, non-abrasive cleaner suitable for

powder coated surfaces.

Remove the cleaner residue and dry with a clean cloth.

DRYER EXTERIOR

The entire dryer has a high-gloss finish. Clean with a soft, damp cloth. Do not use abrasive substances.

Protect the surface from sharp objects as they may scratch or damage the finish. Do not place any heavy or

sharp objects or a detergent box on the dryer. Keep them in a separate storage cabinet or storage box.

DRYER EXHAUST SYSTEM

Inspect and clean the dryer exhaust system yearly to maintain optimum performance.

The outside exhaust hood should be cleaned more frequently to ensure proper operation.

English ° 27

D_Z3614000E(( )030641) 0OEN1S0416indd Sec4:27

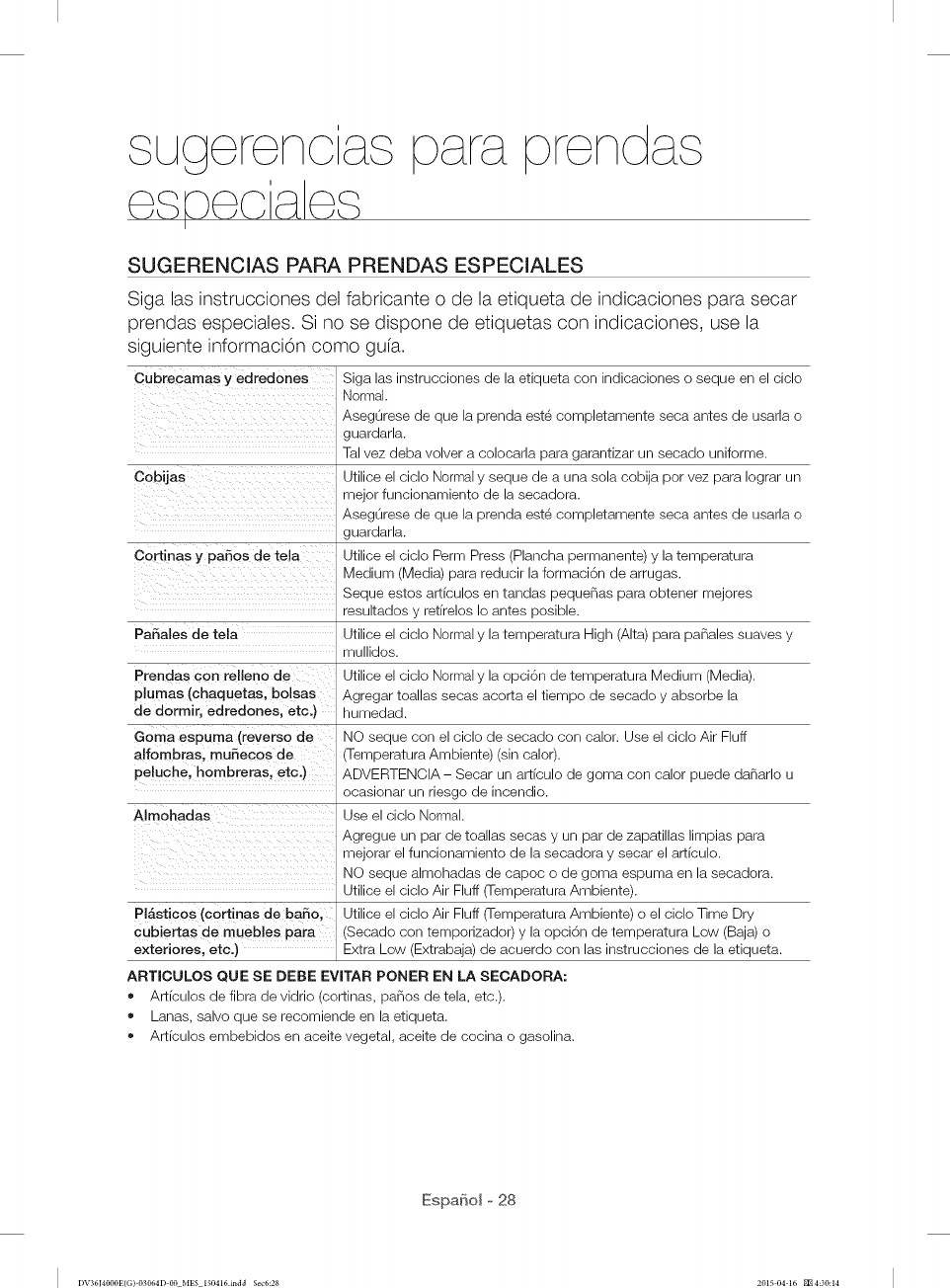

SPECIAL LAUNDRY TIPS

Please follow the care label or manufacturer's instructions for drying special

items, if care label instructions are not available, use the following information as

a guide.

Bedspreads & Comforters

Blankets

Curtains & Draperies

Cloth Diapers

Down-filled Items [jackets,

sleeping bags, comforters, etc.)

Foam Rubber (rug backs, stuffed

toys, shoulder pads, etc.)

Pillows

Follow the care label instructions or dry on the Normal cycle.

Make sure the item is thoroughly dry before using or storing.

May require repositioning in the dryer to ensure even drying.

Use Normal cycle and dry only one blanket at a time for best

tumbling action.

Make sure blankets are thoroughly dry before using or storing.

Use the Perm Press cycle and Medium temperature to help

minimize wrinkling.

Dry curtains and draperies in small loads for best results and

remove as soon as possible.

Use the Normal cycle and the High temperature settings for soft,

fluffy diapers.

Use the Normal cycle and the Medium temperature setting.

Adding a couple of dry towels shortens drying time and absorbs

moisture.

DO NOT dry on a heat setting. Use the Air Fluff cycle (no heat).

WARNING - Drying a rubber item with heat may damage it or

cause a fire.

Use the Normal cycle.

Add a couple of dry towels and a pair of clean sneakers to help the

tumbling action and to fluff the pillows.

DO NOT dry kapok or foam pillows in the dryer. Use the Air Fluff

cycle.

Plastics (shower curtains, Use the Air Fluff cycle or the Time Dry cycle and the Low or Extra

outdoor furniture covers, etc.) Low temperature settings depending on the care label instructions.

THINGS TO AVOID PUTTING IN THE DRYER:

* Fiberglass items (curtains, draperies, etc.).

Woolens, unless recommended on the label.

Vegetable or cooking oil-soaked items or gasoline-soaked items.

English o 28

D_,'3614000E(G) 030641) 0OEN150416indd Sec6:28

CHECK THESE TROUBLESHOOTING POINTERS IF YOUR DRYER...

Doesn't run,

Doesn't heat,

Doesn't dry.

Isnoisy.

Dries unevenly.

Has an odor.

Shuts off before load is dry.

Be sure the door is latched shut.

Be sure the power cord is plugged into a live electrical outlet.

Check your home's circuit breakers or fuses.

Press the Start/Pause button again if the door is opened during the cycle,

Check your home's circuit breakers or fuses.

On a gas dryer, see if the gas supply is on.

Clean the lint filter and exhaust duct.

See if the dryer has moved into the cool-down phase of the cycle.

Check all of the above, plus...

Be sure the exhaust hood outside your home can open and close freely.

Check exhaust system for lint buildup. Ducting should be inspected

and cleaned annually.

Use 4" rigid metal exhaust duct.

Do not overload. 1 wash load = 1 dryer load.

Sort heavy items from lightweight items.

Large, bulky items like blankets or comforters may require

repositioning to ensure even drying.

Check that the washer is draining properly to extract adequate water

from the load.

The load may be too small to tumble properly. Add a few towels.

Check the load for objects such as coins, loose buttons, nails, etc.

Remove promptly.

It is normal to hear the dryer gas valve or heating element cycle on

and off during the drying cycle.

Be sure the dryer is leveled properly as outlined in the installation

instruction.

It is normal for the dryer to hum due to the high volume of air moving

through the dryer drum and exhaust system.

Seams, pockets, and other similarly heavy areas may not be

completely dry when the rest of the load has reached the selected

dryness level. This is normal. Select the More Dry setting if desired.

If one heavy item is dried with a lightweight load, such as one towel

with sheets, it is possible that the heavy item will not be completely

dry when the rest of the load has reached the selected dryness level.

Sort heavy items from lightweight items for best drying results.

Household odors from paint, varnish, strong cleaners, etc. may enter

the dryer with the surrounding room air. This is normal as the dryer

draws the air from the room, heats it, pulls it through the tumbler, and

exhausts it outside.

When these odors linger in the air, ventilate the room completely

before using the dryer.

The dryer load is too small. Add more items or a few towels and

restart the cycle.

The dryer load is too large. Remove some items and restart the dryer.

English ° 29

DV3614000E(G) 030641) 0OENlS0416indd Sec7:29

troL]beshootinG

Lint on clothes.

Garments still wrinkled after

Wrinkle Release.

Odors remain in clothing

after Air Fluff.

Make sure the lint filter is cleaned before every load. With some loads

that produce high amounts of lint, it may be necessary to clean the

filter during the cycle.

* Some fabrics are lint producers (for example, a fuzzy white cotton

towel) and they should be dried separately from clothes that are lint

trappers (for example, a pair of black linen pants).

Divide larger loads into smaller loads for drying.

Check pockets thoroughly before washing and drying clothes.

Small loads of 1 to 4 items work best.

Load fewer garments.

Load similar-type garments.

Fabrics having strong odors should be washed in a normal cycle

before you dry them.

iNFORMATiON CODES

Information codes may be displayed to help you better understand what is occurring with your dryer.

Lint Screen Vent is clogged and

tE restricted.

HE Invalid heating Temp when the dryer

is running.

dE Running the dryer with door open

Door is not closing properly

Unit detects a button is being

bE2 sressed for over 30 secs or button

is stuck

FE Invalid power source frequency

AE Electronic Control Problem

(Communication Error.)

Clean the screen or vent.

If the problem continues, call for service.

Call for service.

Close the door and then restart.

If the problem continues, call for service.

Call for service.

Make sure a button is NOT being pressed

continuously. Try restarting the cycle.

If the problem continues, call for service.

Try restarting the cycle.

If the problem continues, call for service.

Call for service.

For any codes not listed above, call 1-800-726-7864 (1-800-SAMSUNG)

English o 30

DV3614000E(( ) 030641) 00 EN 150416illdd Sec7:30

appendx

FABRIC CARE CHART

The following symbols provide garment care direction. The clothing care labels include symbols for washing,

bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency

among garment manufacturers of domestic and imported items. Follow care label directions to maximize

garment life and reduce laundering broblems.

®_o Hot

Warm

• Cold

il _iii

[i@

Line Dry/Hang to Dry

Drip Dry

Dry Flat

High

Medium

Low

Any Heat

No Heat/Air

Do Not Wash

Do Not Wring

Do Not Bleach

Do Not Tumble Dry

No Steam (added to

iron)

Do Not Iron

O Dry Clean

Do Not Dry Clean

[] Any Bleach (when

needed)

Only Non-Chlorine

(color-safe)

Bleach (when needed)

Tumble Dry Cycle

Permanent Press/Wrinkle Resistant/

Wrinkle Control

[_ Gentle/Delicates

High

Medium

Low

Line Dry/Hang to Dry

[] Drip Dry

[] Dry Flat

** The dot symbols represent appropriate wash water temperatures for various items. The temperature

range for Hot is 105 ° - 125 °F /41 o_ 52 °C, for Warm 85 ° - 105 °F /29 ° - 41 °C and for Cold 60 ° - 85 °F

/16 ° - 29 °C. (Wash water temperature must be a minimum of 60 °F /16 °C for detergent activation and

effective cleaning.)

English o 31

DV3614000E(G) 030641) 00 EN 150416illdd SeeS:31

a.ppondx

PROTECTING THE ENVIRONMENT

This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance,

please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be

connected to a power source. Remove the door so that animals and small children cannot get trapped

inside the appliance.

DECLARATION OF CONFORMITY

This appliance complies with UL2158.

SPECIFICATIONS

Div inches(cm) ' Div

DIMENSIONS A. Height 38.3" (97.4) C. Depth with

door open 90 °

B. Width 27" (68.6) D. Depth

WEIGHT 119.0 Ib (54.0 kg)

HEATER RATING 5300 W

Inches (cm)

49" (124.5)

31.1" (79.0)

English o 32

DV3614000E(G) 030641) 00 EN 150416indd Sec8:32

CYCLE CHART

(e : factory setting, _ : selectable)

Hea WDuty

Sensor Dry

Sanitize

Time Dry

Manual Dry

Wdnk]e Release

Ak Fluff

Heavy Fabrics such as joan, corduroys,

heaWwork clothes

Shirts, Synthetic Fabrics, Knits, Wrinkle-free

cottons, Permanent

Underwear, Blouses, Ungede

Bedding, Curtains, CNIdren clotNng

Any load

Small loads

SNrts, Trouser, Blouses

Foam, Rubber, Plastic

Normal dry

Very dry

(No change)

Normal

Heavy Duty

Sensor Dry Perm Press

i Time Dry

Quick Dry

Manual Dry Wrinkle Release

Ak Fluff

® ®

Load Size Recommendations

Large load : Fillthe drum to about 3_full. Do not add items over this level as they need to tumble

freely.

Medium load : Fill the drum to about V2 full.

Small load : Fill the drum with 3-5 items, not more than ¼ full.

* For best results, follow the load size recommendations for each dry cycle.

English ° 33

DV3614000E(G) 030641) O0 EN 15O416indd Sec8:33

SAMSUNG DRYER

LiMiTED WARRANTY TO ORiGiNAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by

SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) Year All Parts and Labor

Two (2) Years Control Board Parts

This limited warranty begins on the original date of purchase, and is valid only on products purchased and

used in the United States.

To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service

procedures.

Warranty service can only be performed by a SAMSUNG authorized service center.

The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or

SAMSUNG's authorized service center.

SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability

within the contiguous United States.

In-home service is not available in all areas.

To receive in-home service, product must be unobstructed and accessible to the service agent.

If service is not available, SAMSUNG may elect to provide transportation of the product to and from an

authorized service center.

SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein,

with new or reconditioned parts or products if found to be defective during the limited warranty period

specified above.

All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.

Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is

longer.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal,

noncommercial use of this product and shall not apply to the following: damage that occurs in shipment;

delivew and installation; applications and uses for which this product was not intended; altered product or

serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other

acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories,

applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG

that damage this product or result in service problems; incorrect electrical line voltage, fluctuations and

surges; customer adjustments and failure to follow operating instructions, maintenance and environmental

instructions that are covered and prescribed in the instruction book; product removal and reinstallation;

problems caused by pest infestations.

This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply,

light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors.

SAMSUNG does not warrant uninterrupted or error-free operation of the product.

English o 34

DV36J4000E(G) 030641) 0OEN150416indd Seci0:34

Except as set forth herein, there are no warranties on this product either express or implied, and samsung

disclaims all warranties including, but not limited to, any implied warranties of merchantability, infringement

or fitness for a particular purpose.

No warranty or guarantee given by any person, firm, or corporation with respect to this product shall be

binding on samsung.

Samsung shall not be liable for loss of revenue or profits, failure to realize savings or thter benefits, or any

other special, incidental or consequential damages caused by the use, misuse, or inability to use this

product, regardless of the legal theory on which the claim is based, and even if samsung has been advised

of the possibility of such damages.

Nor shall recovery of any kind against samsung be greater in amount than the purchase price of the product

sold by samsung and causing the alleged damage.

Without limiting the foregoing, purchaser assumes all risk and liability for loss, damage, or injury to

purchaser and purchaser's property and to others and their property arising out of the use, misuse,

or inability to use this product. This limited warranty shall not extend to anyone other than the original

purchaser of this product, is nontransferable and states your exclusive remedy.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation

of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This

warranty gives you specific rights, and you may also have other rights, which vary from state to state.

To obtain warranty service, please contact SAMSUNG at:

Samsung Electronics America, inc.

85 Challenger Road Ridgefield Park, NJ 07660

1-800-SAMSUNG(726-7864)

www.samsung.com/us/support

English ° 35

D_73614000E(( )030641) 0OEN1S0416indd Seci0:35

SAMSUNG DRYER

LiMiTED WARRANTY TO ORiGiNAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by

SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) year part and labor

This limited warranty begins on the original date of purchase, and is valid only on products purchased and

used in the Canada.

To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service

procedures.

Warranty service can only be performed by a SAMSUNG authorized service center.

The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or

SAMSUNG's authorized service center.

SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability

within the Canada.
