Gas and Electric

User manual

Dryer

Imagine the possibilities

TI ionk iou for 13,Jrd J_sln'_ thl_ _ar N-%III,£jpr,Jd uc.t

p]da_ rei_Jbt_r ,_DUI proLitl __ dt Or ,_lD[ItdLJ

^/_,/\6 ¢F¢

\ ,_.Jamsunu.comzrejb_er

1 -Z_IIZII_I-S A IV] S LI I _G / 72t_,- ?,_'64;

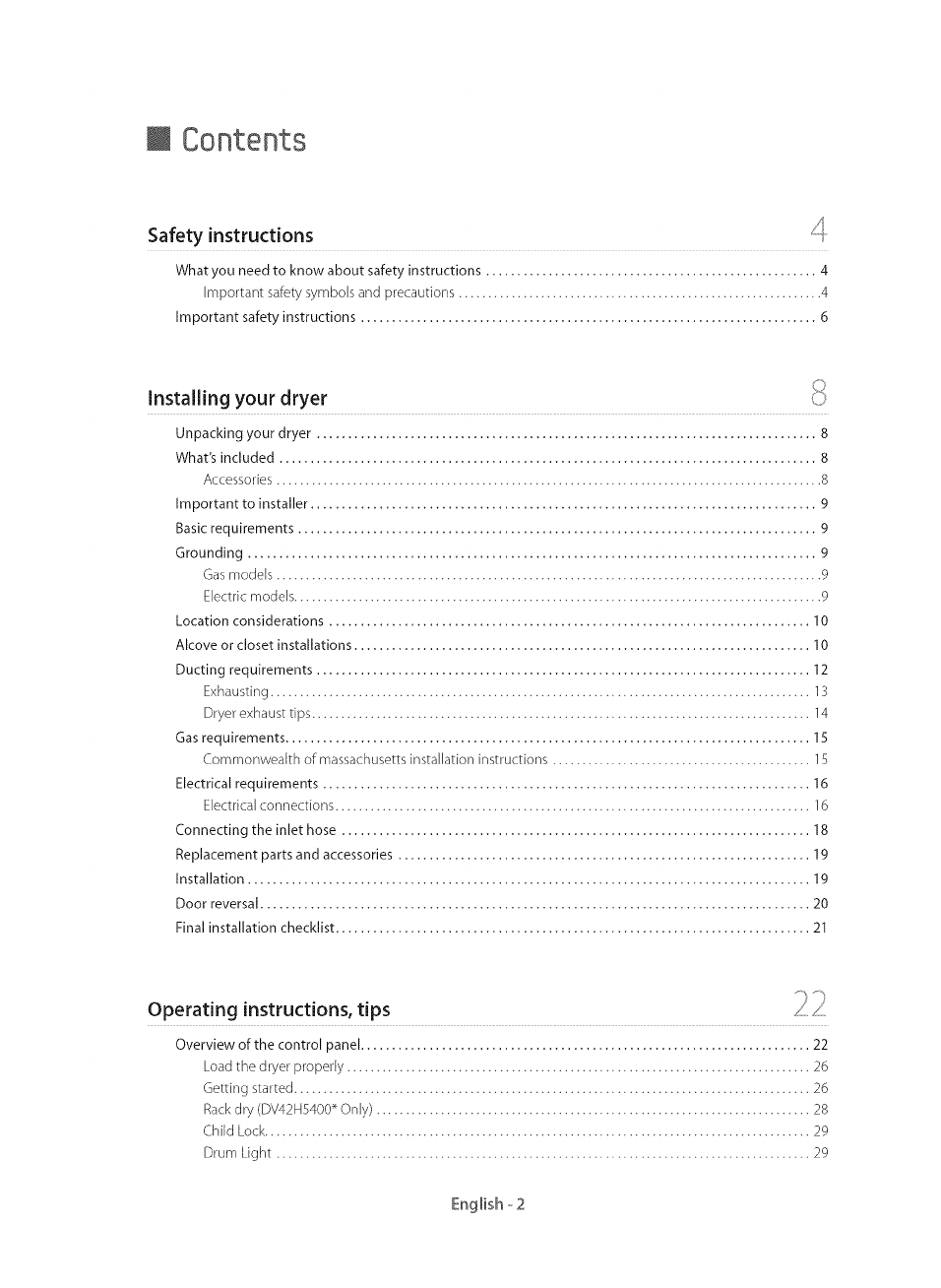

@ Contents

Safety instructions

What you need to know about safety instructions ..................................................... 4

Important safety symbols and precautions .............................................................. 4

Important safety instructions ......................................................................... 6

Installing your dryer

Unpacking your dryer ................................................................................ 8

What's included ...................................................................................... 8

Accessories ............................................................................................. 8

Important to installer ................................................................................. 9

Basic requirements ................................................................................... 9

Grounding ........................................................................................... 9

Gas models ............................................................................................. 9

Electric models .......................................................................................... 9

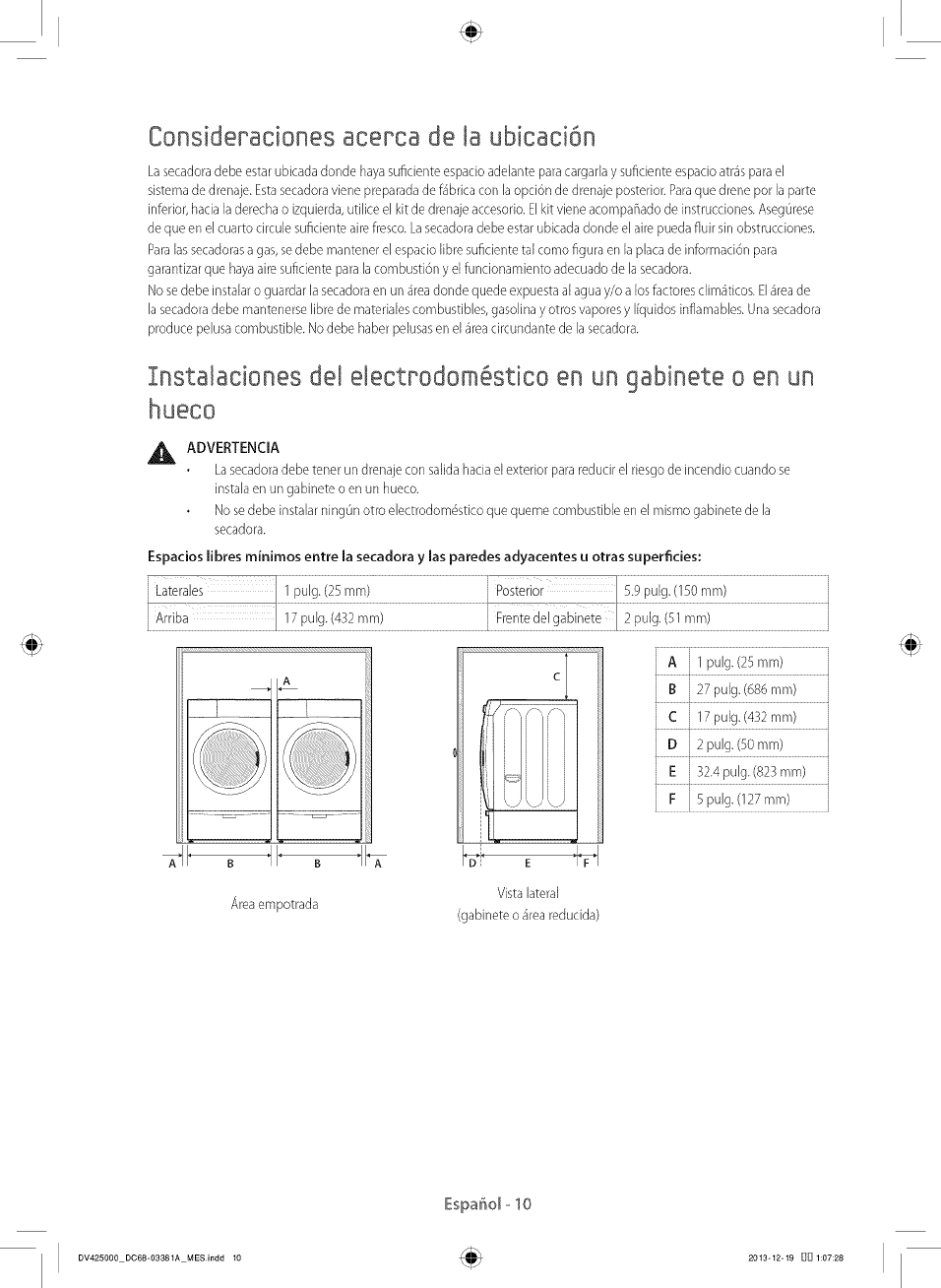

Location considerations ............................................................................. 10

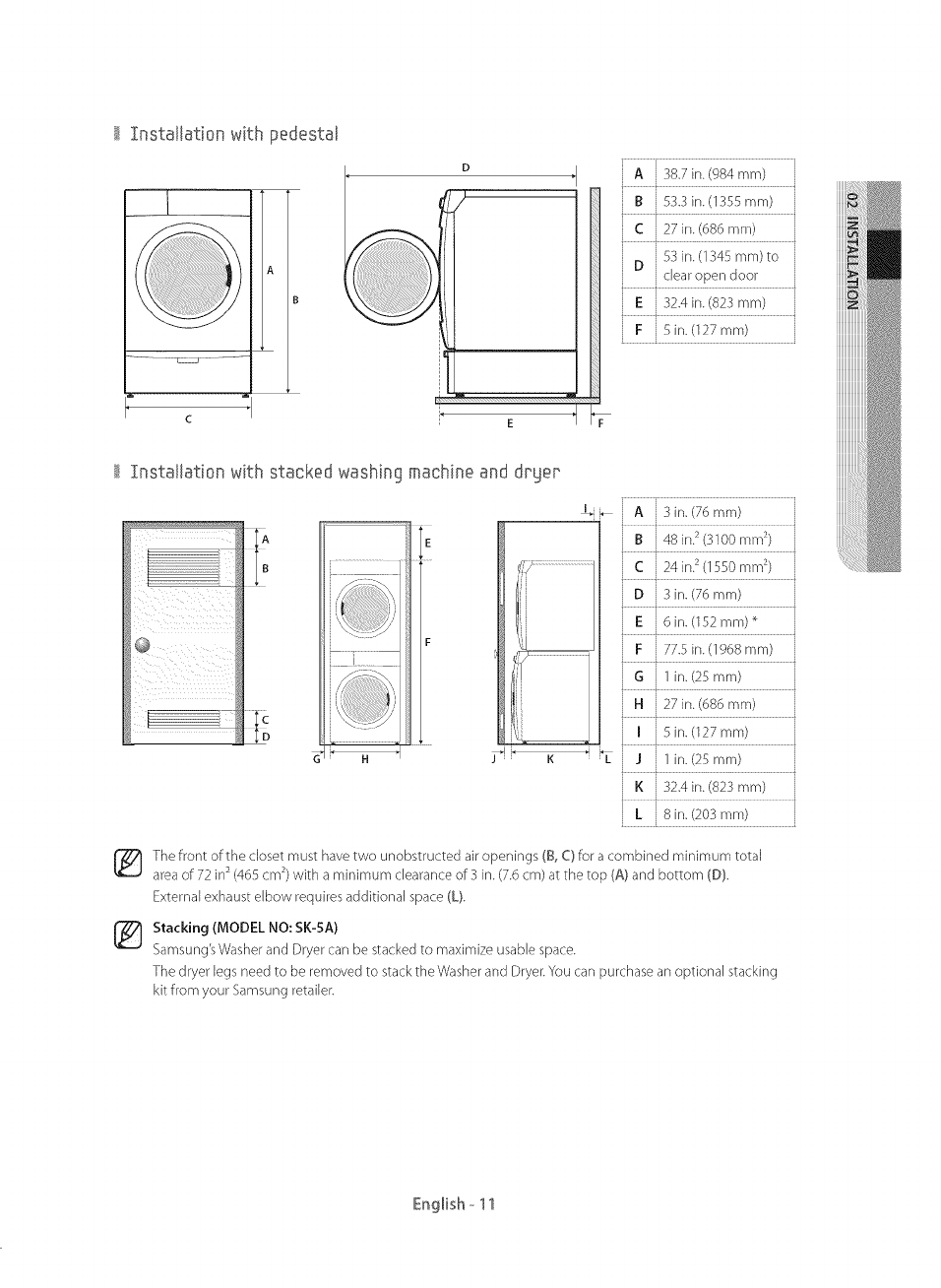

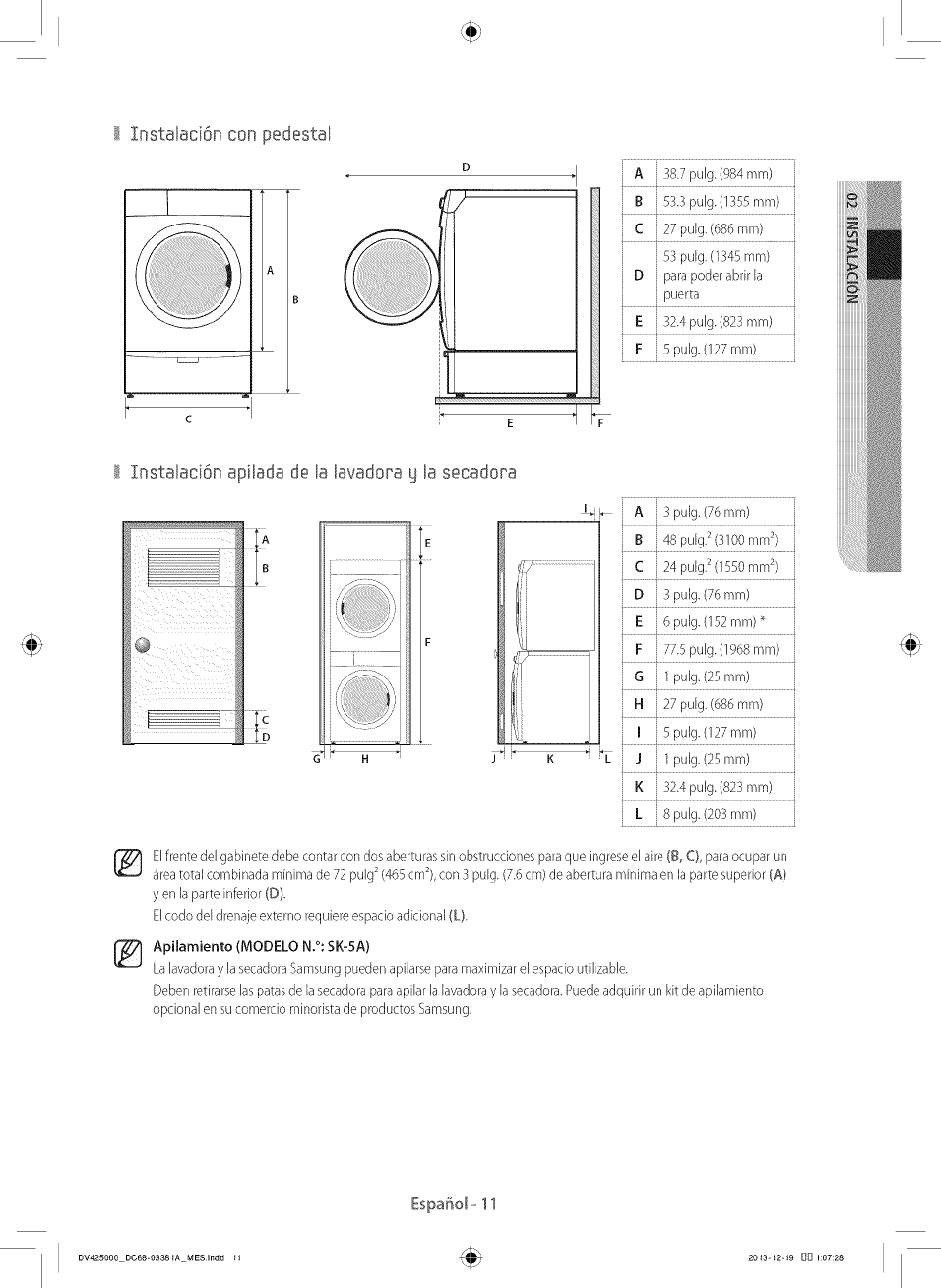

Alcove or closet installations ......................................................................... 10

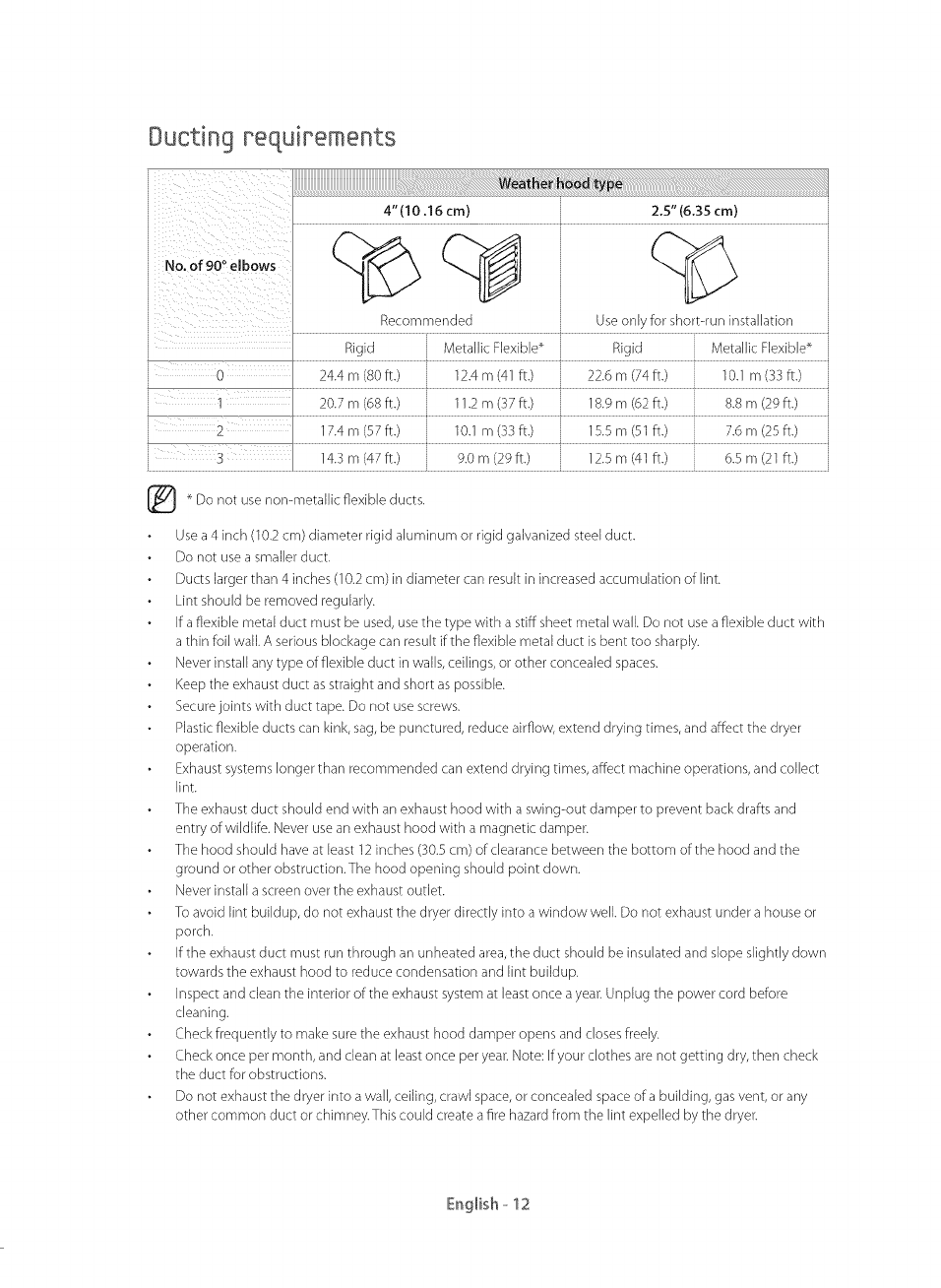

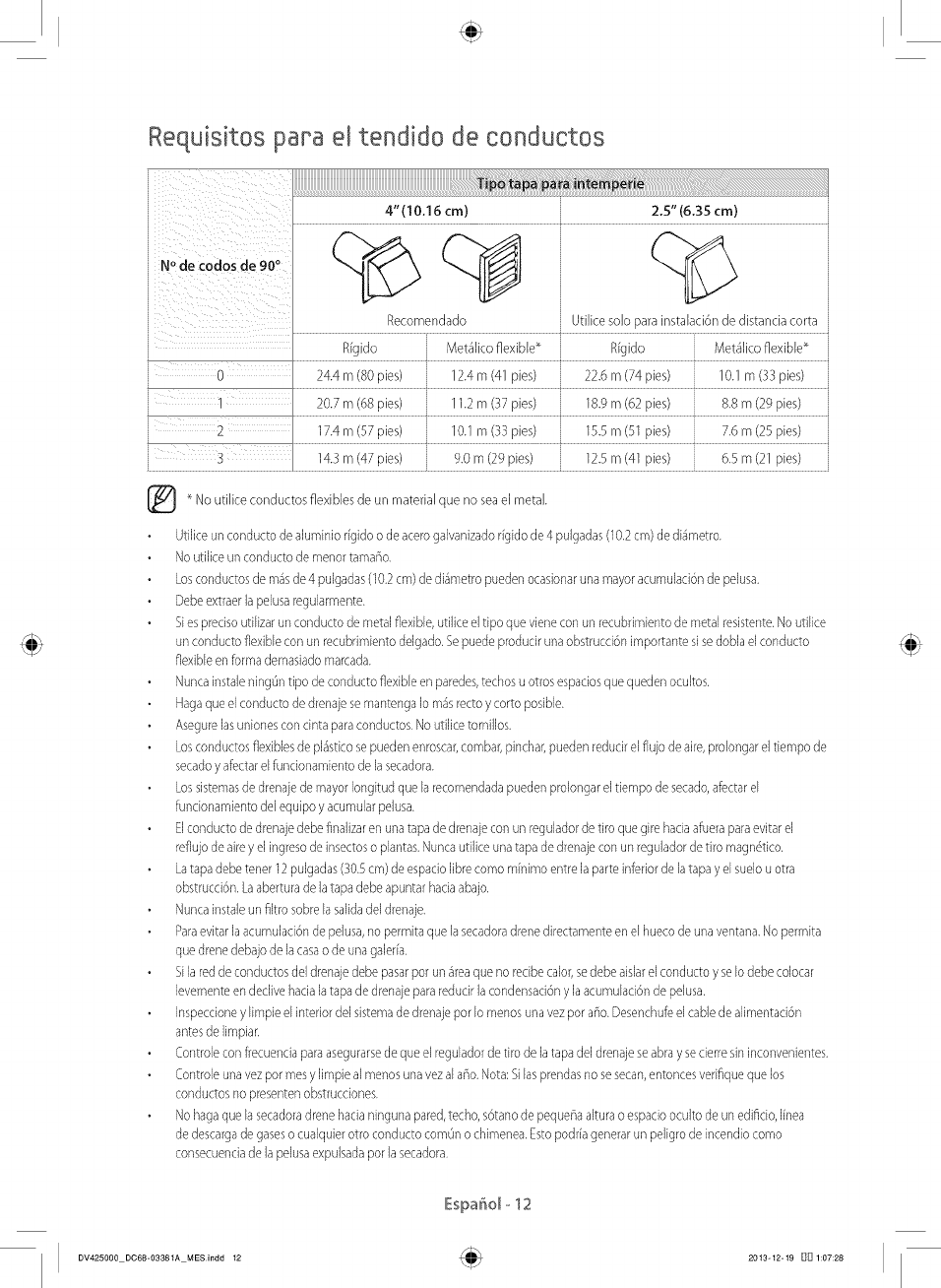

Ducting requirements ............................................................................... 12

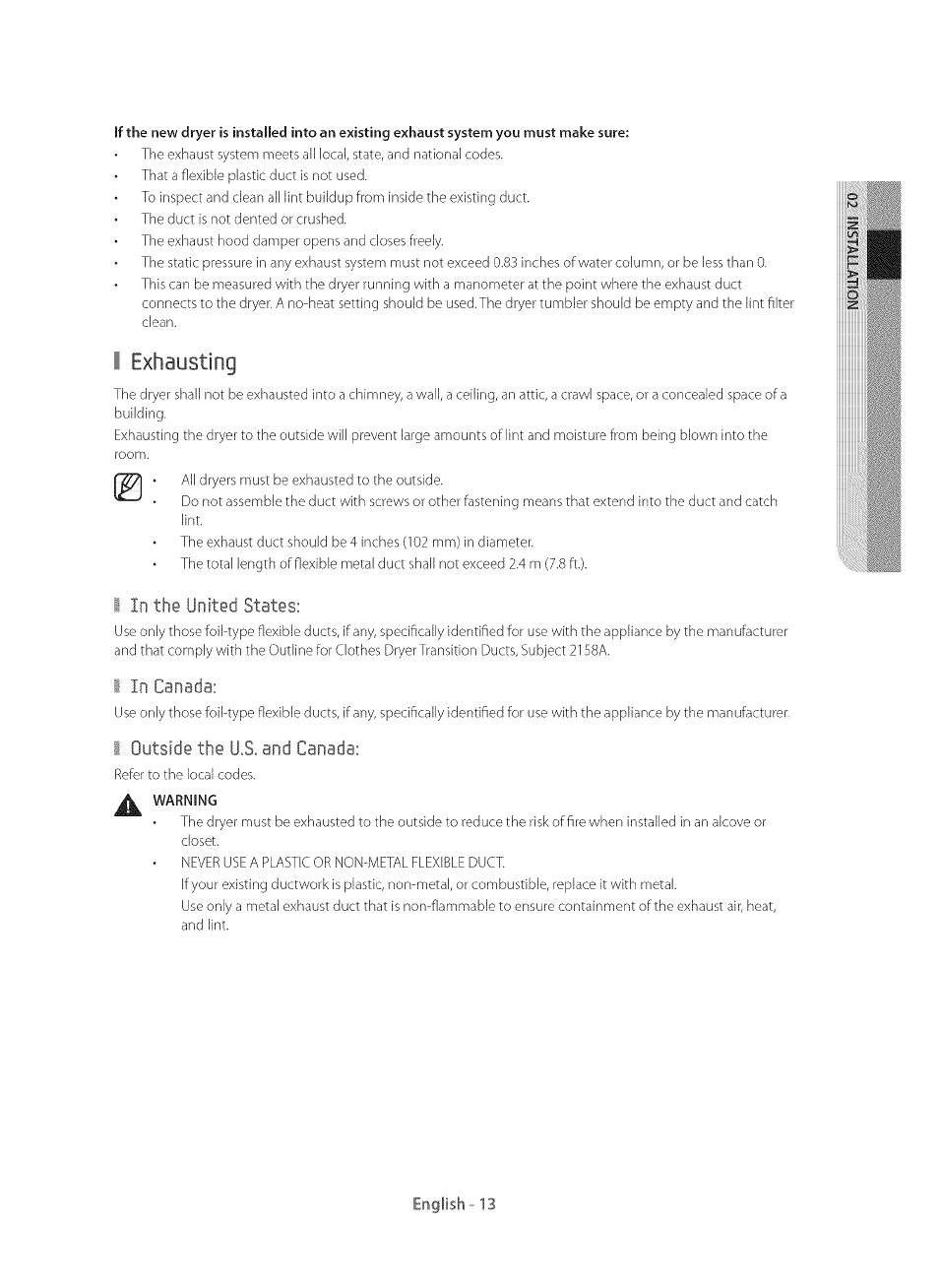

Exhausting ............................................................................................ 13

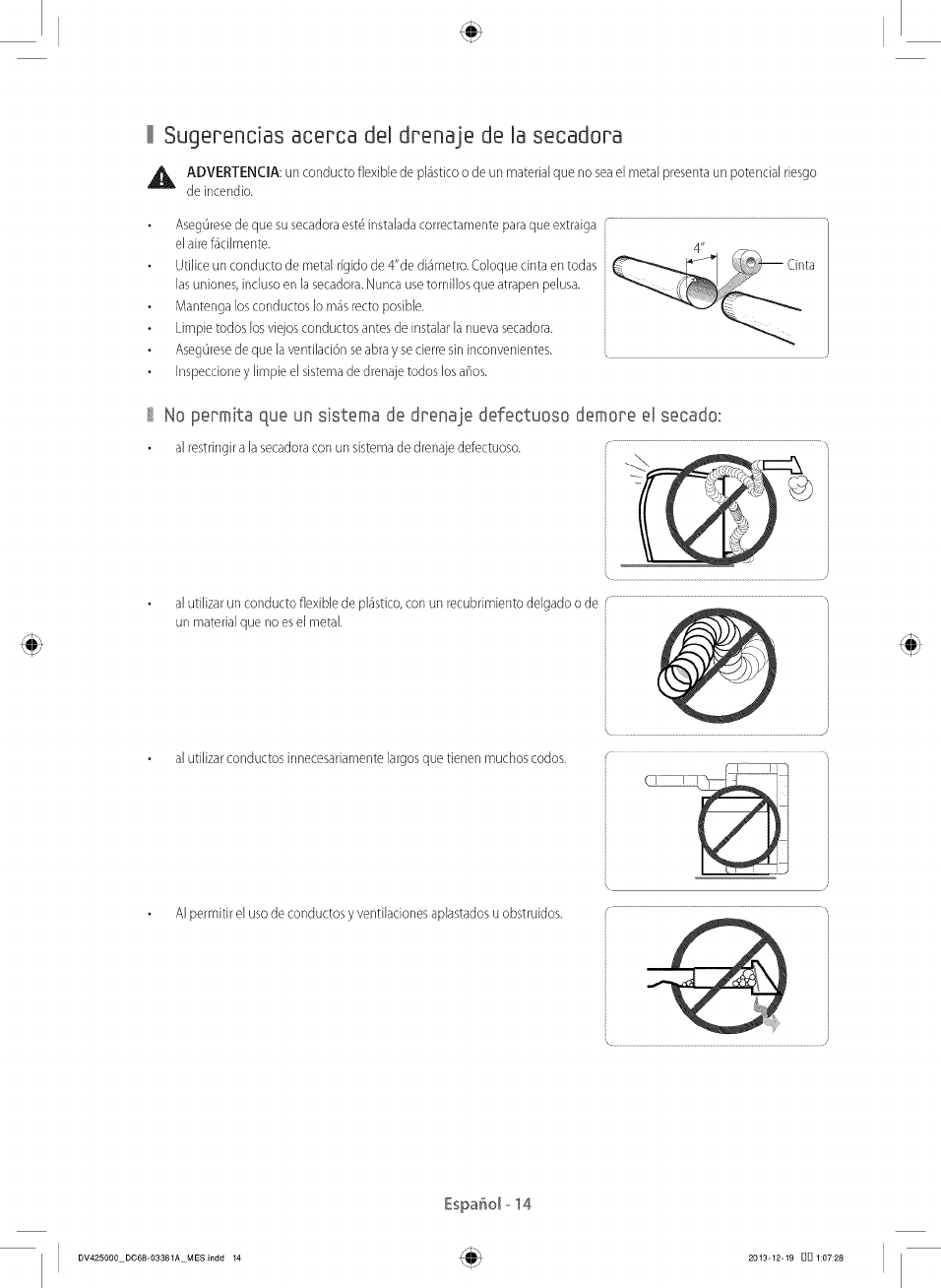

Dryer exhaust tips ..................................................................................... 14

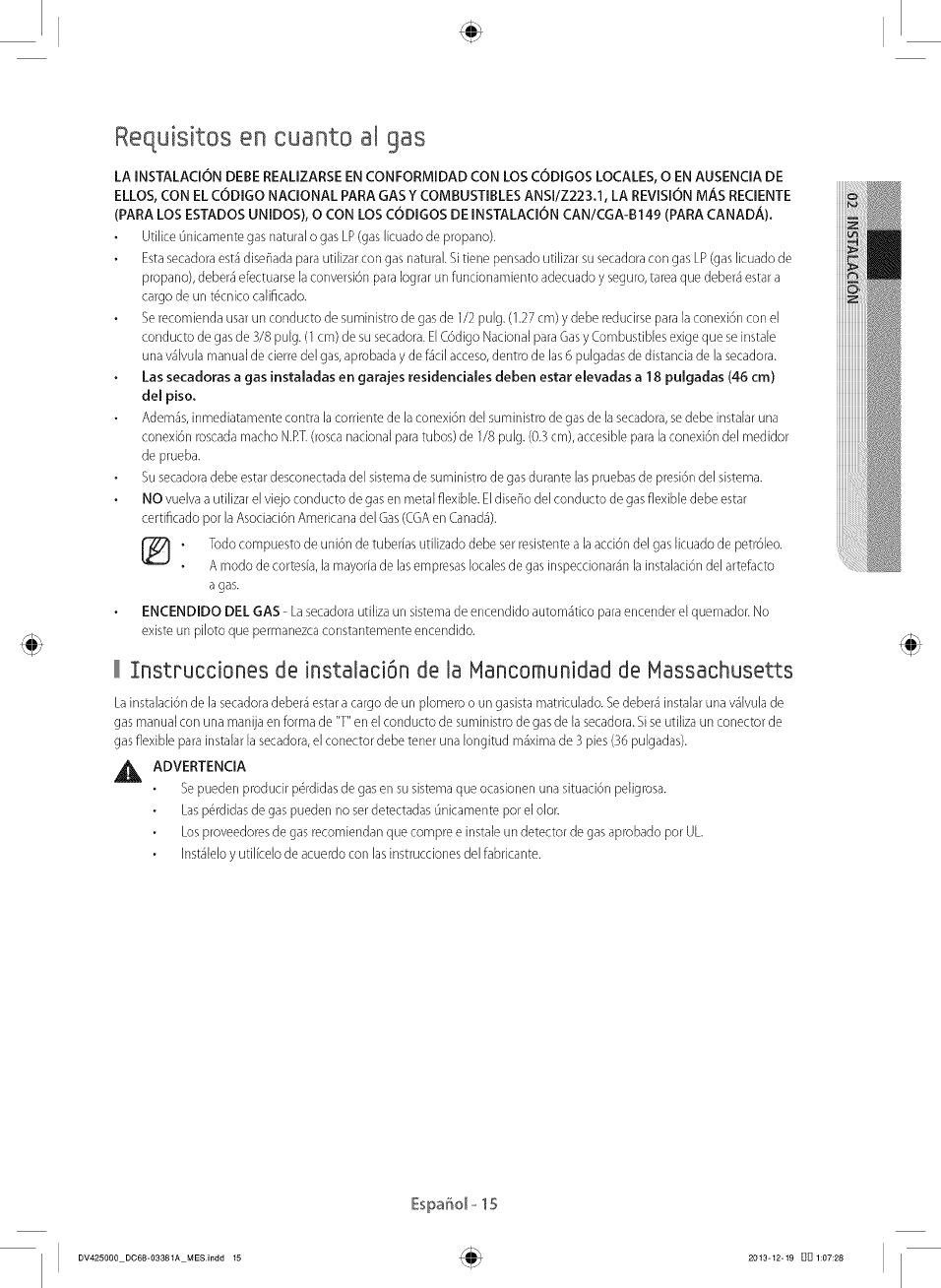

Gas requirements .................................................................................... 15

Commonwealth of massachusetts installation instructions ............................................ 15

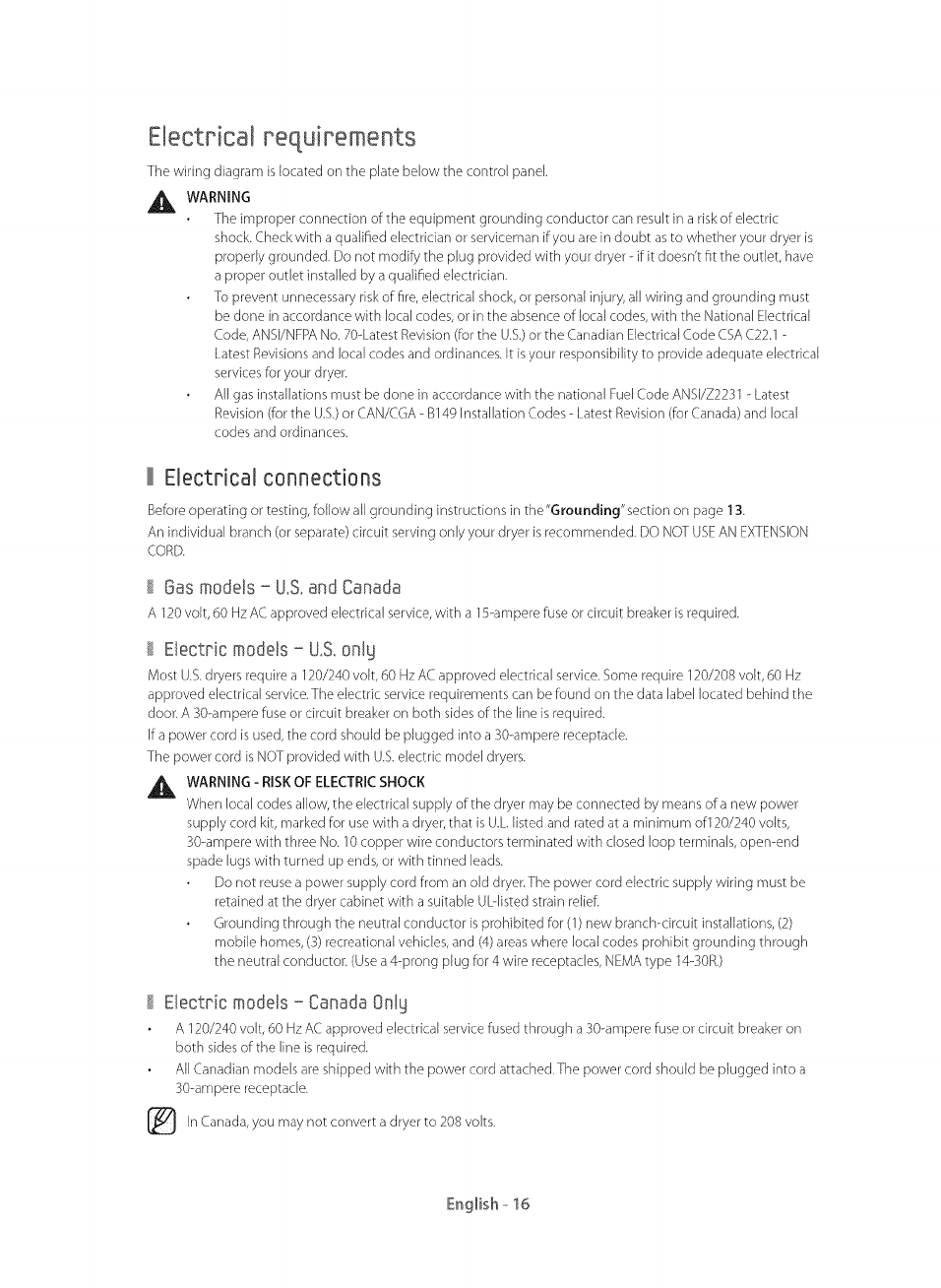

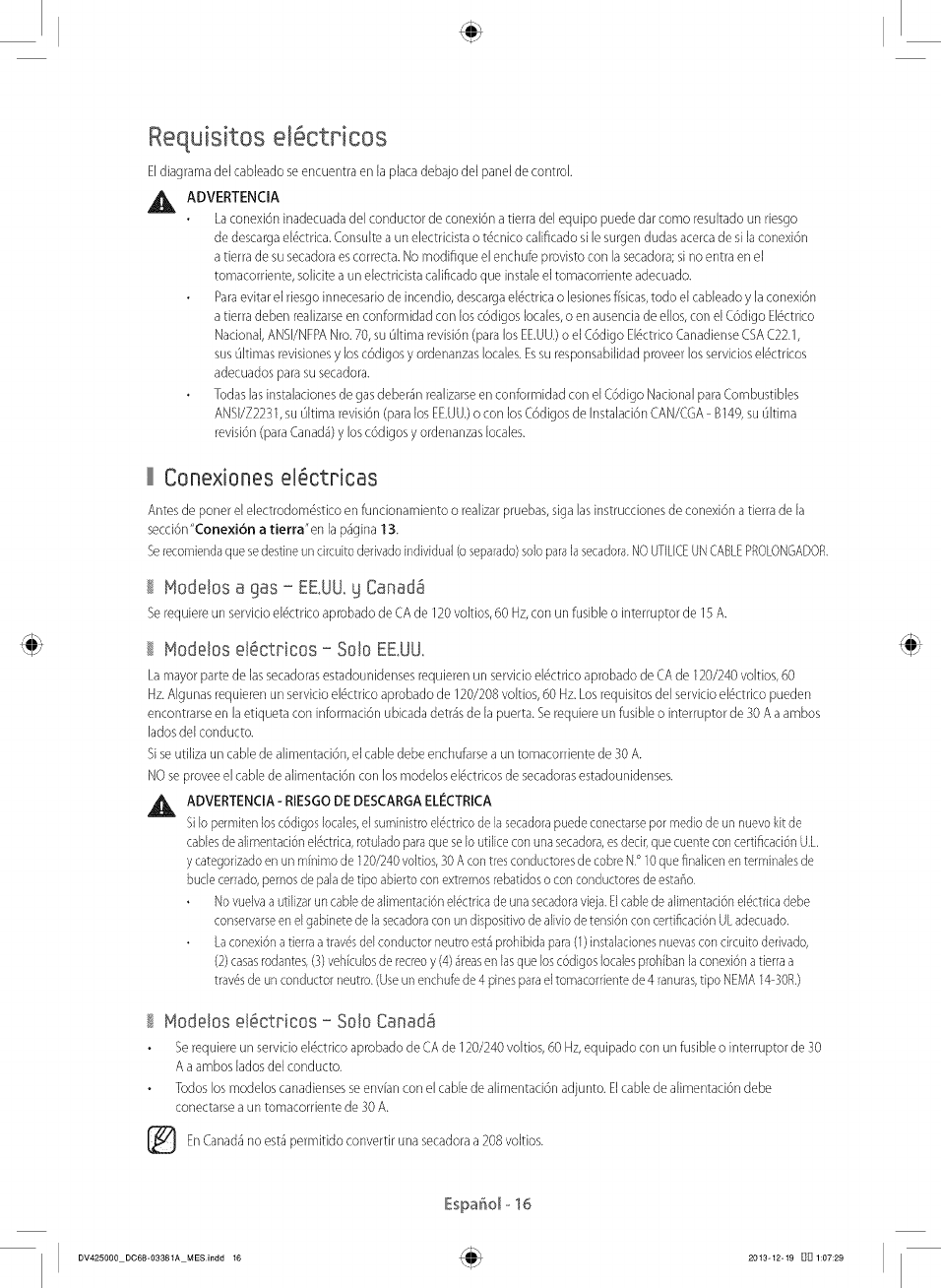

Electrical requirements .............................................................................. 16

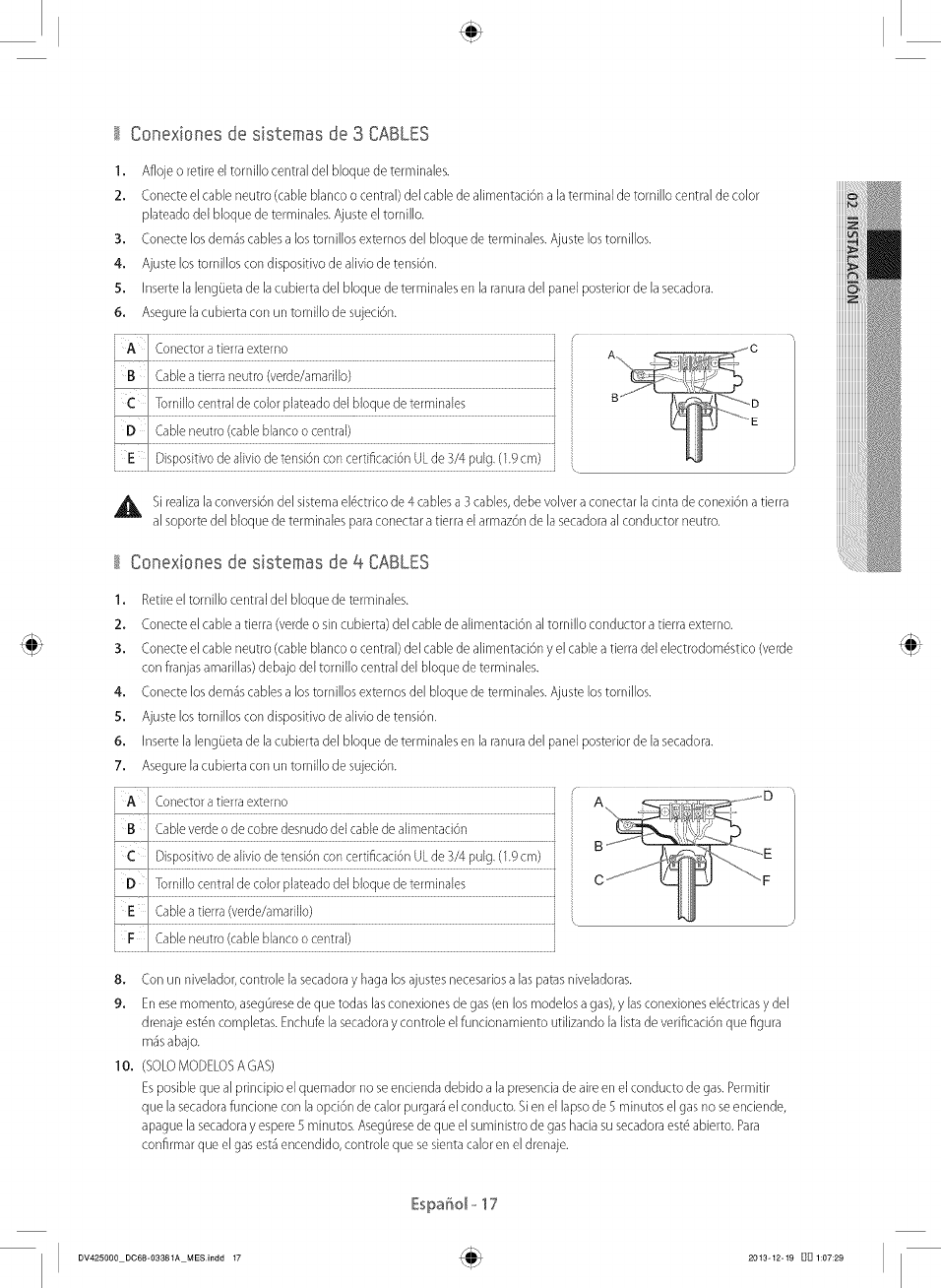

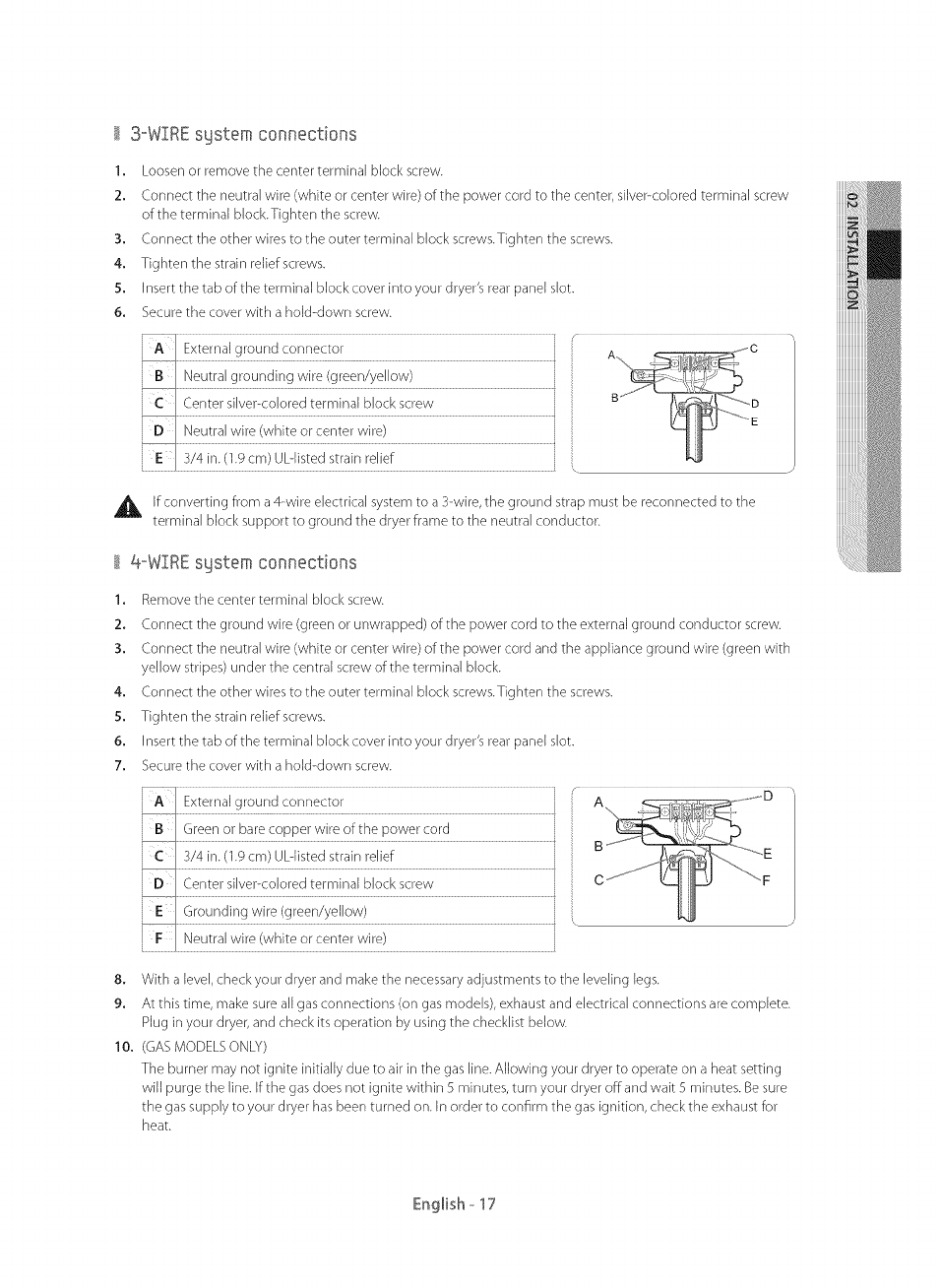

Electrical connections ................................................................................. 16

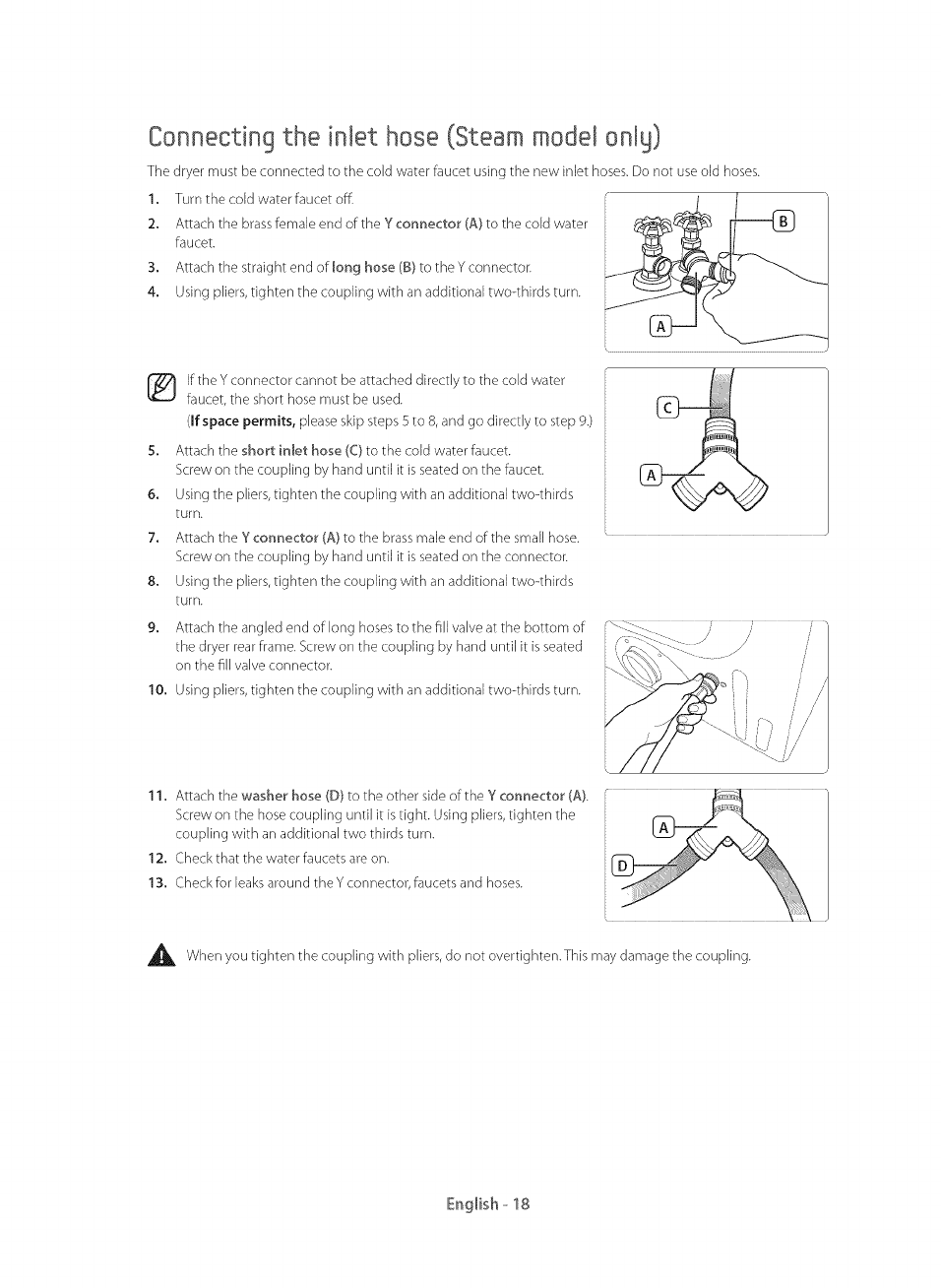

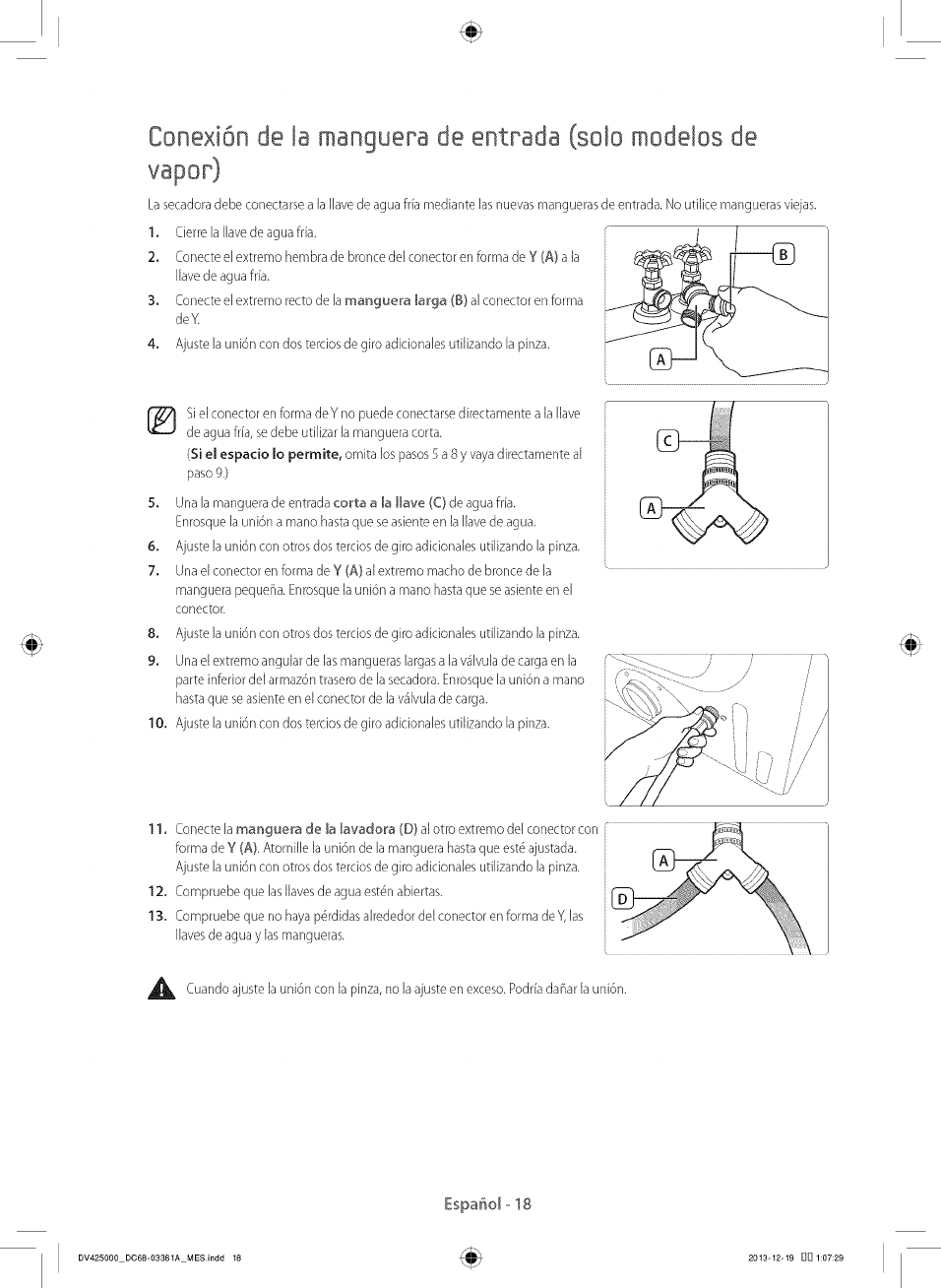

Connecting the inlet hose ........................................................................... 18

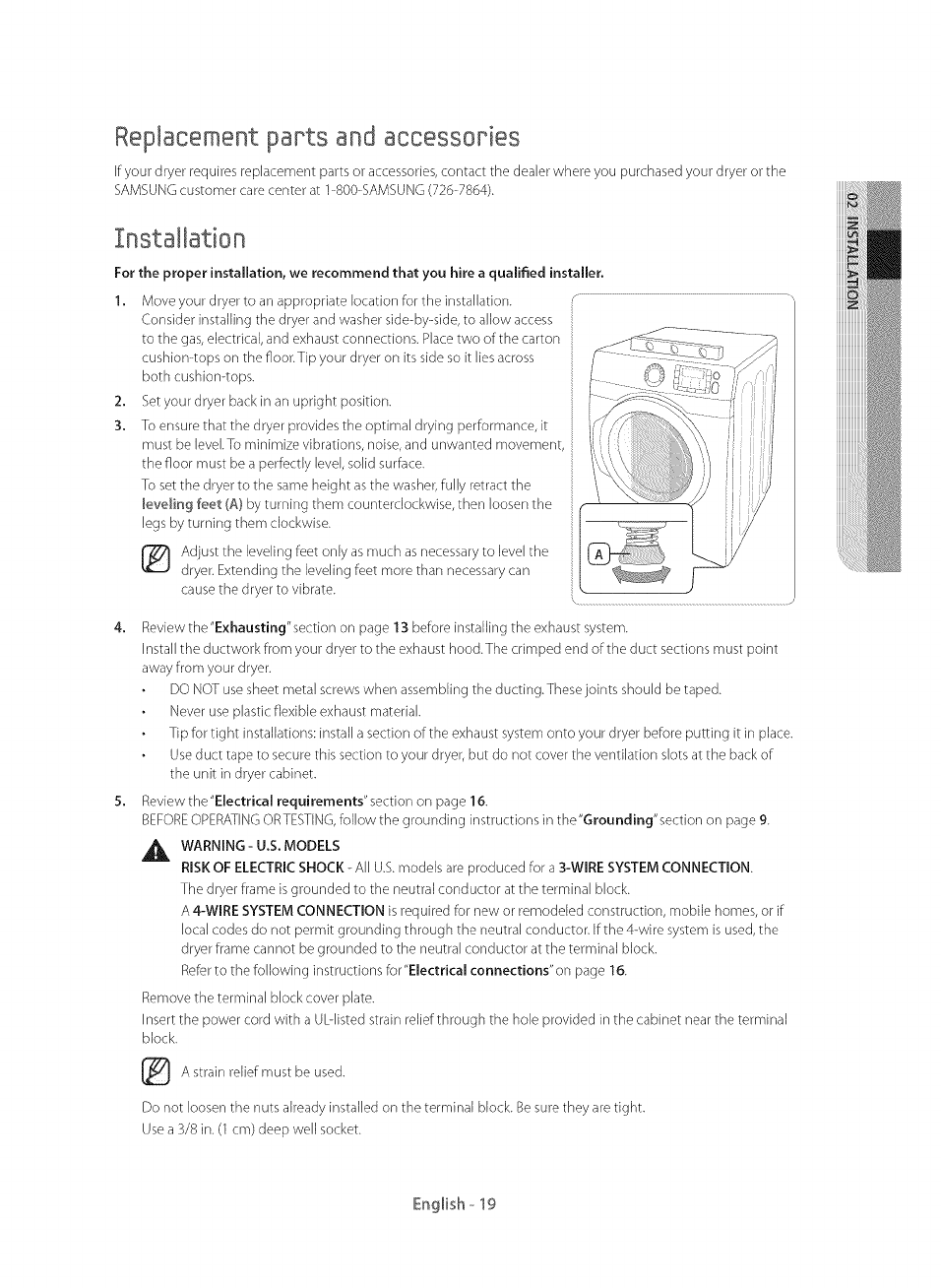

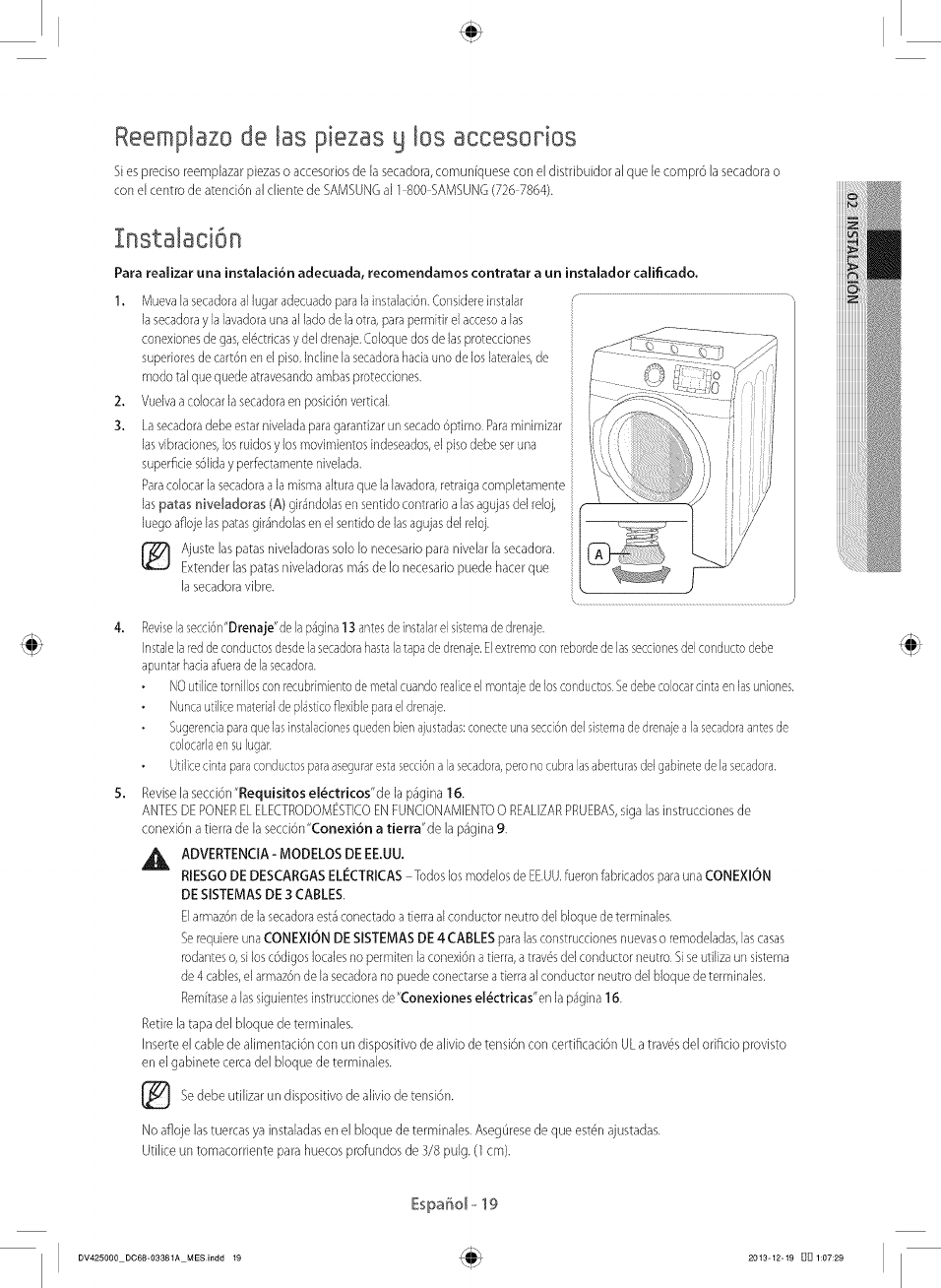

Replacement parts and accessories .................................................................. 19

Installation .......................................................................................... 19

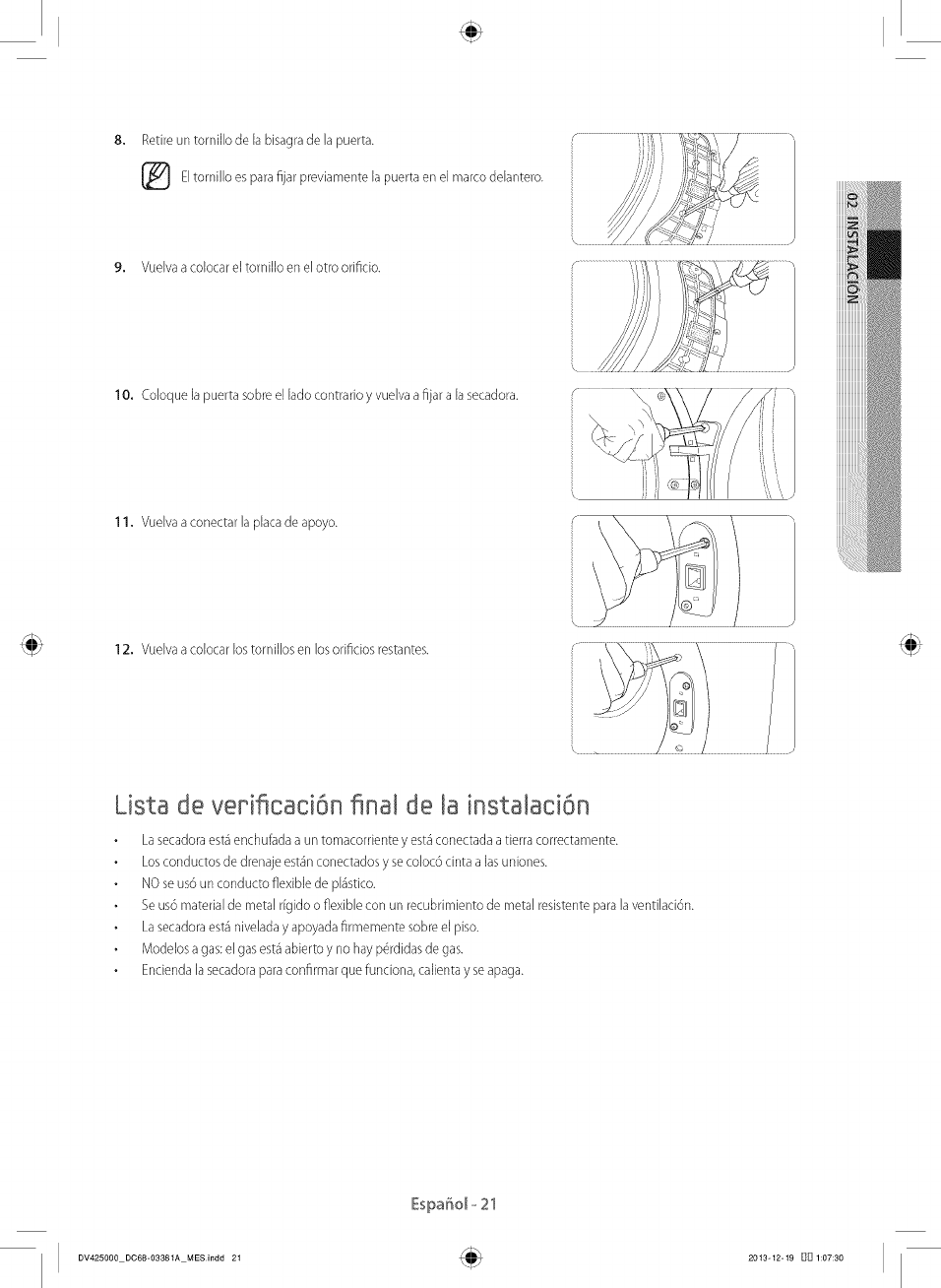

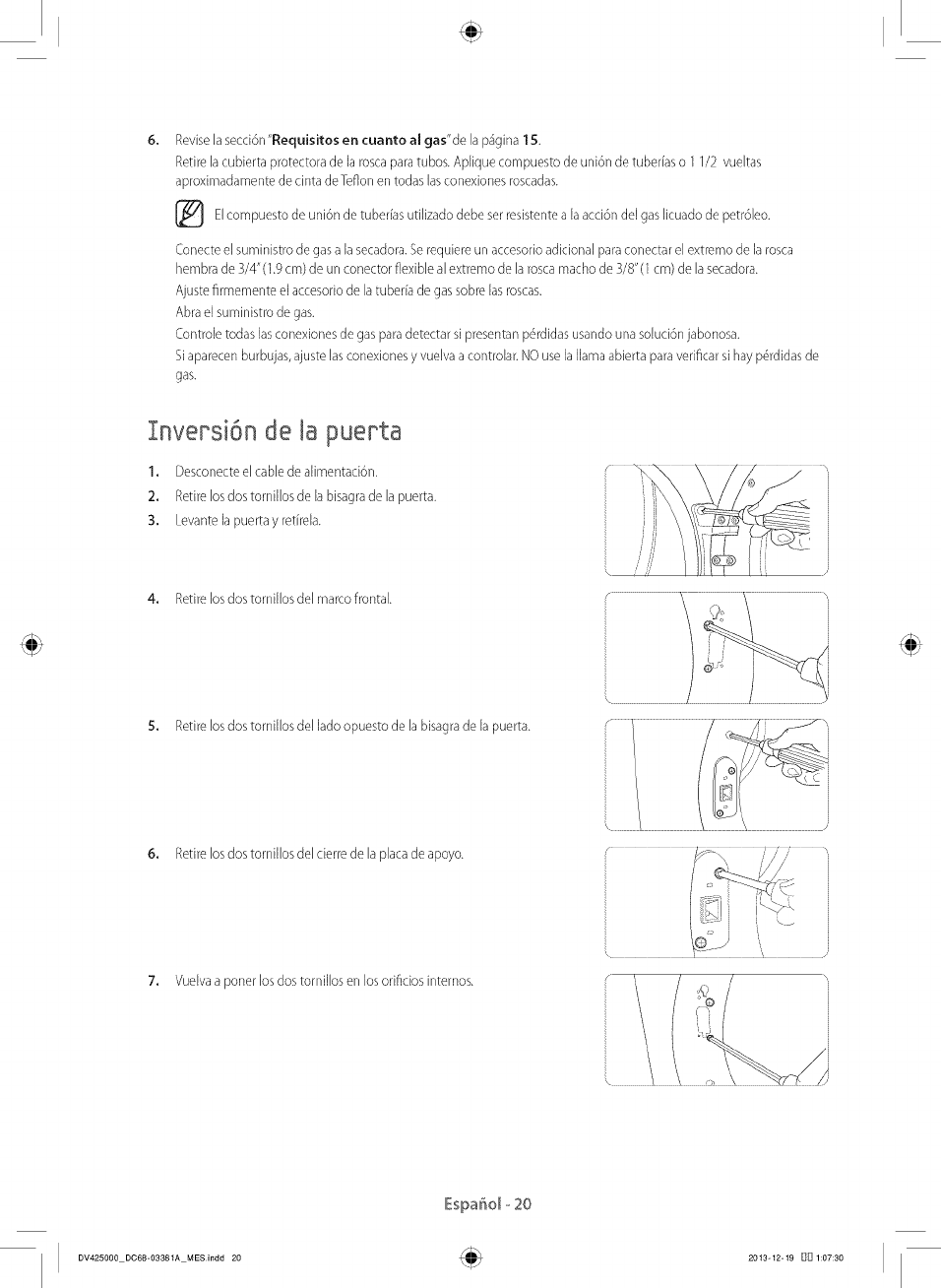

Door reversal ........................................................................................ 20

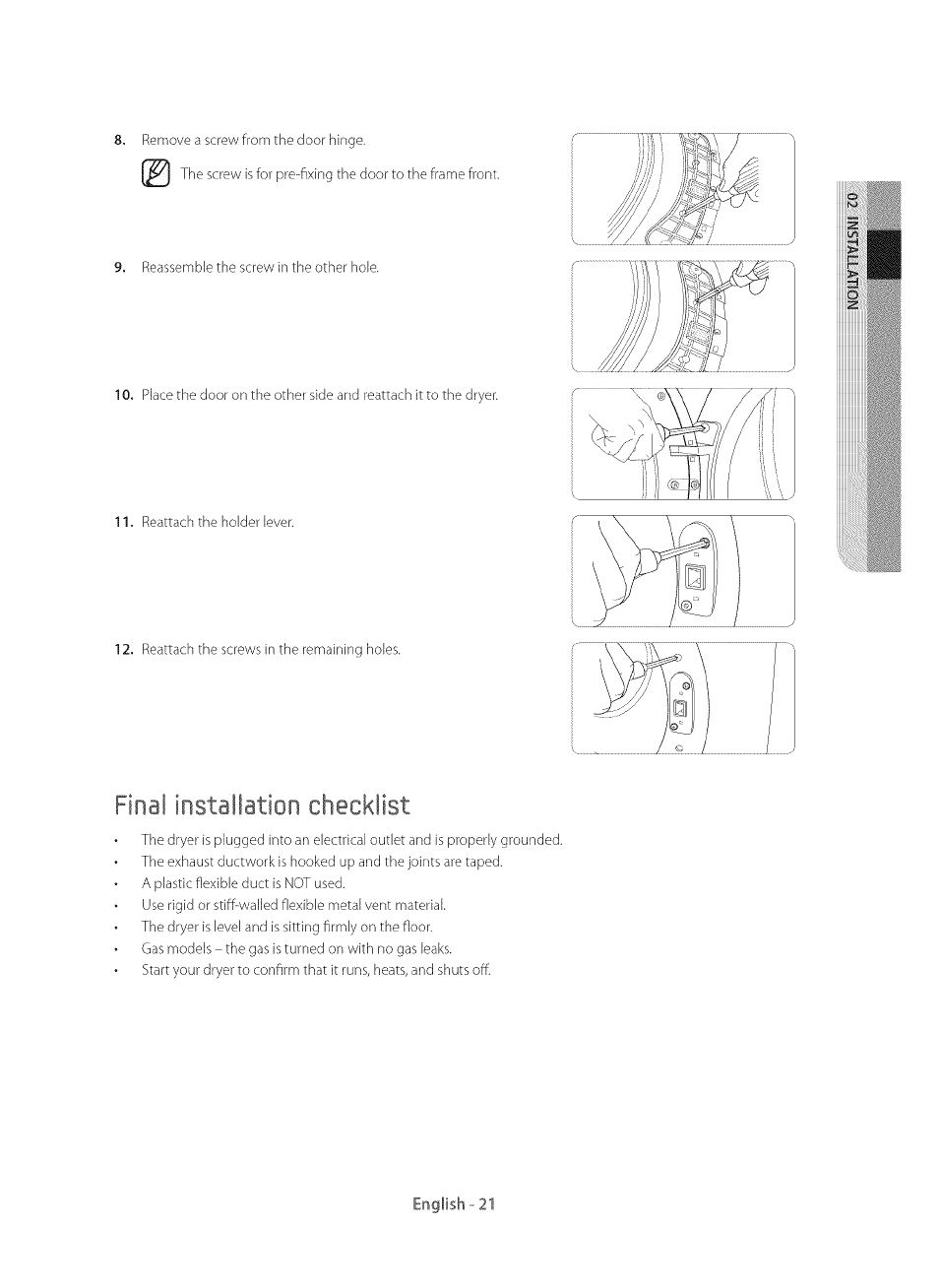

Final installation checklist ............................................................................ 21

Operating instructions, tips ,,

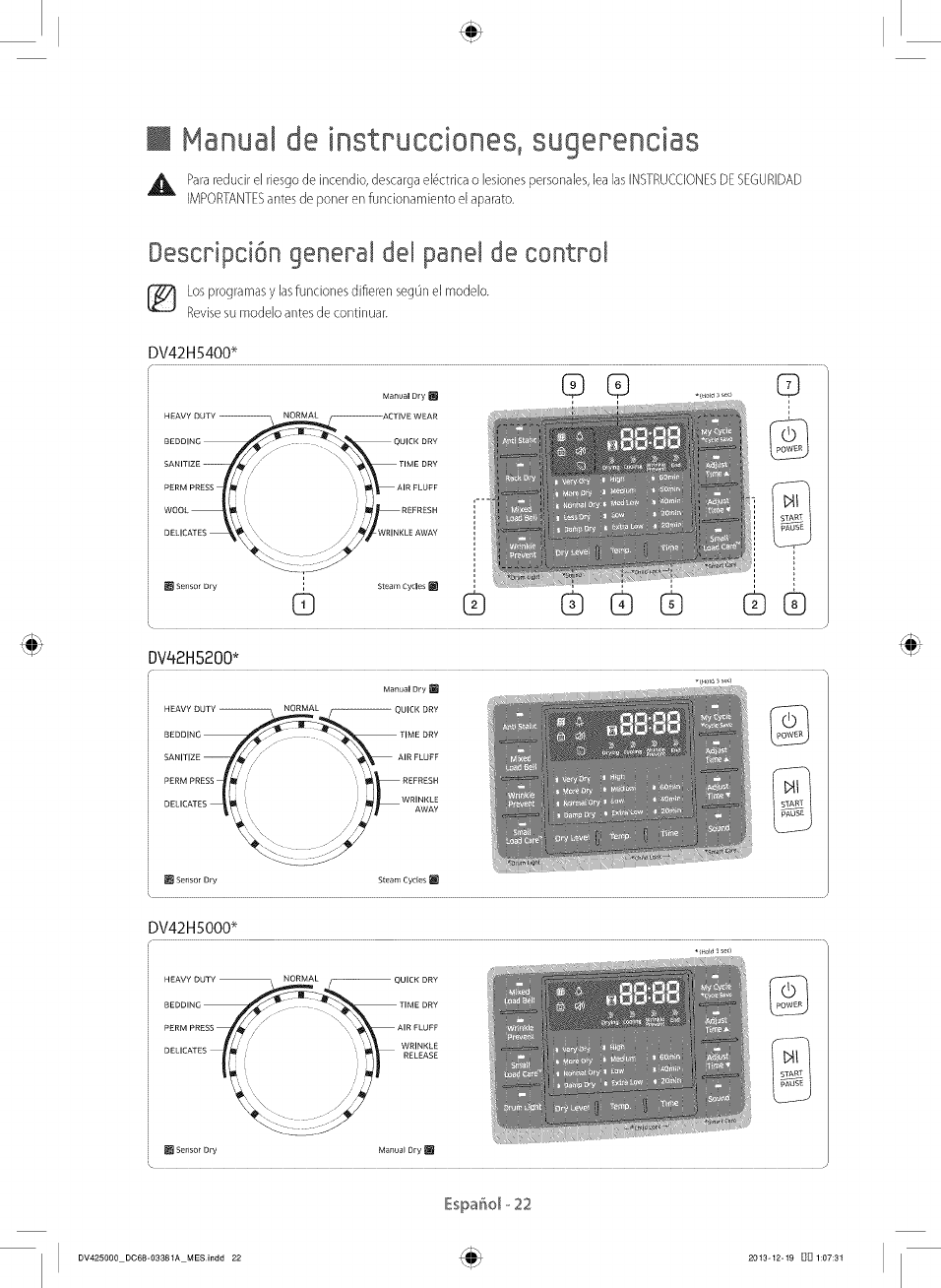

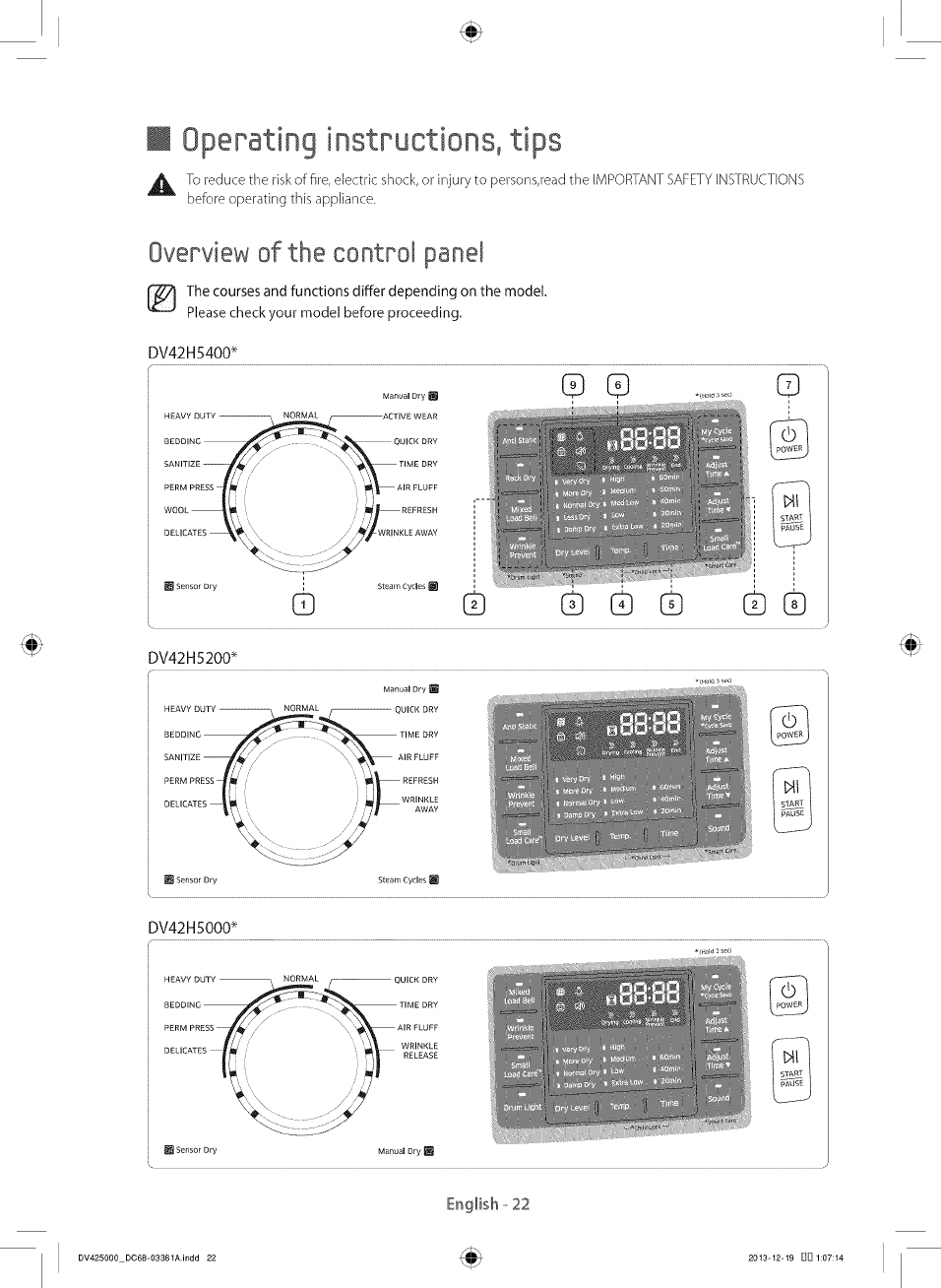

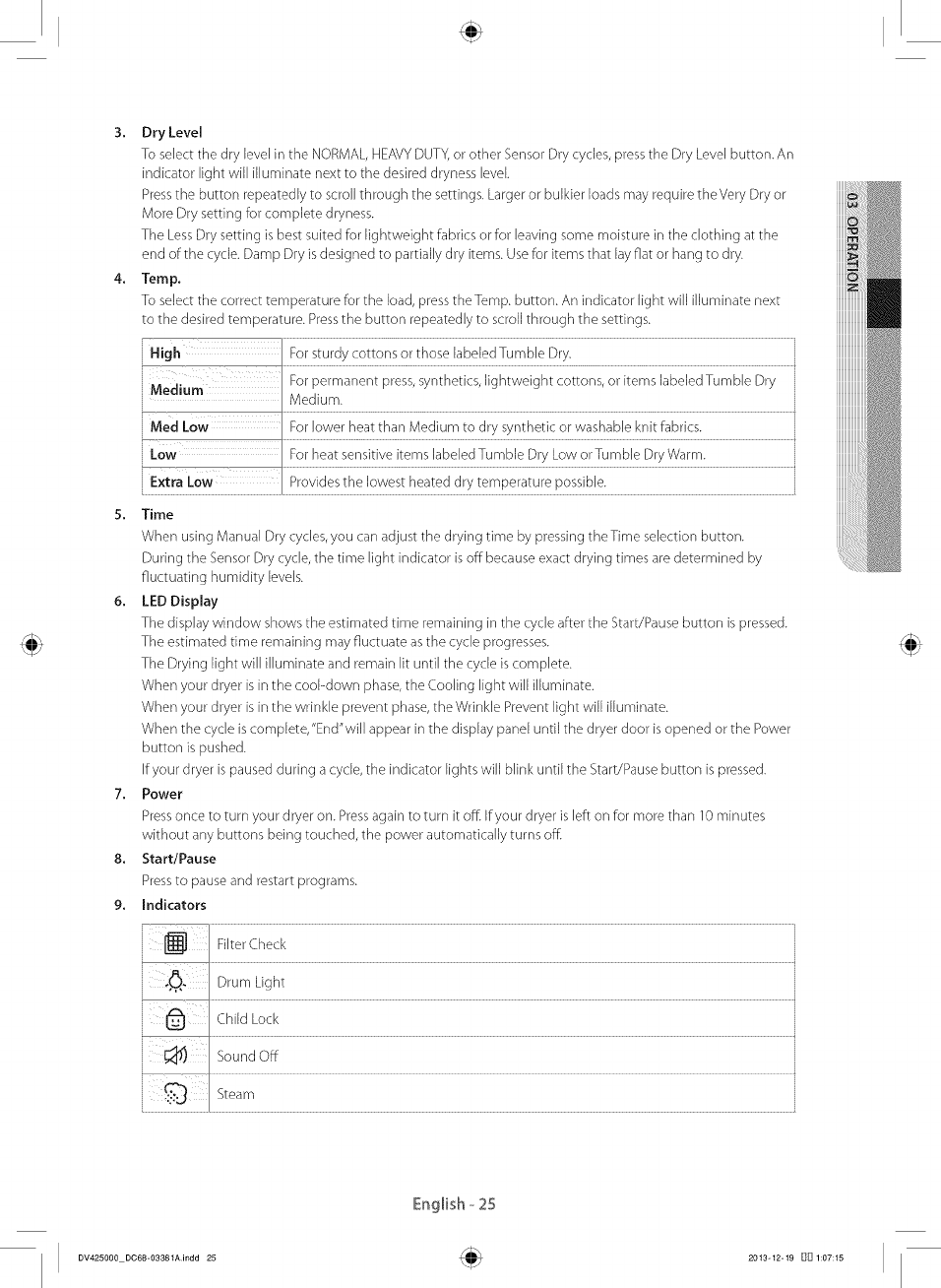

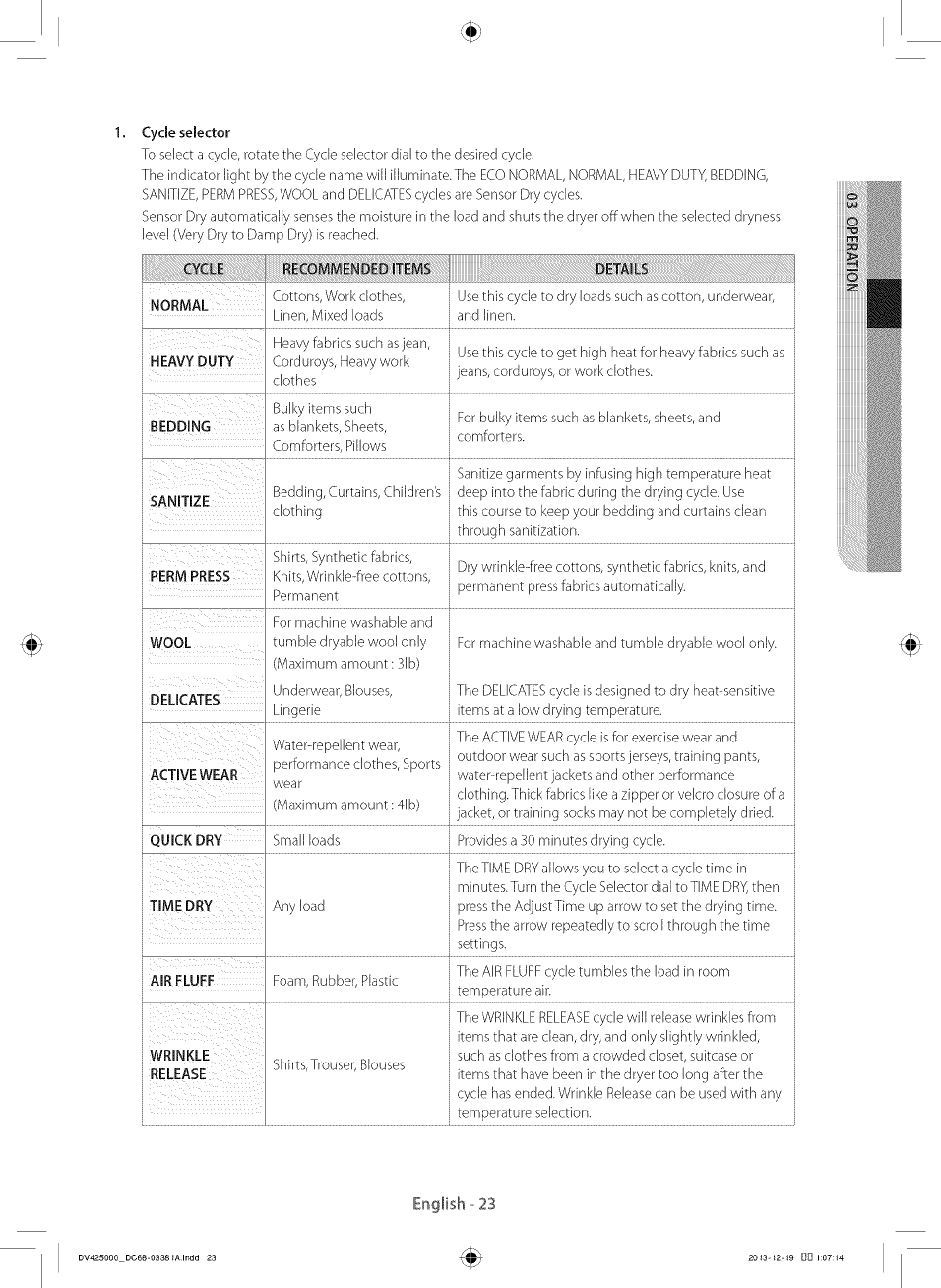

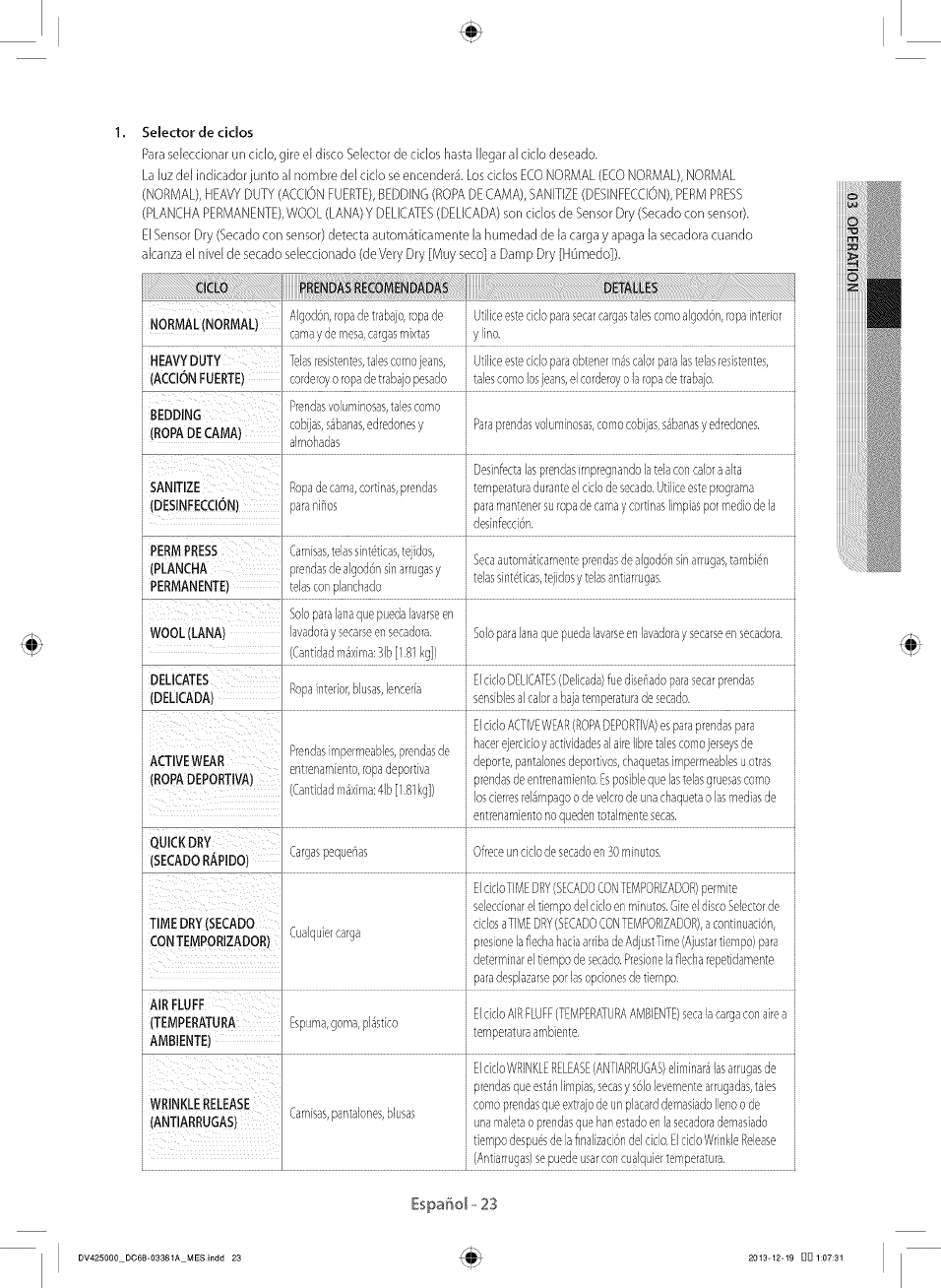

Overview of the control panel ........................................................................ 22

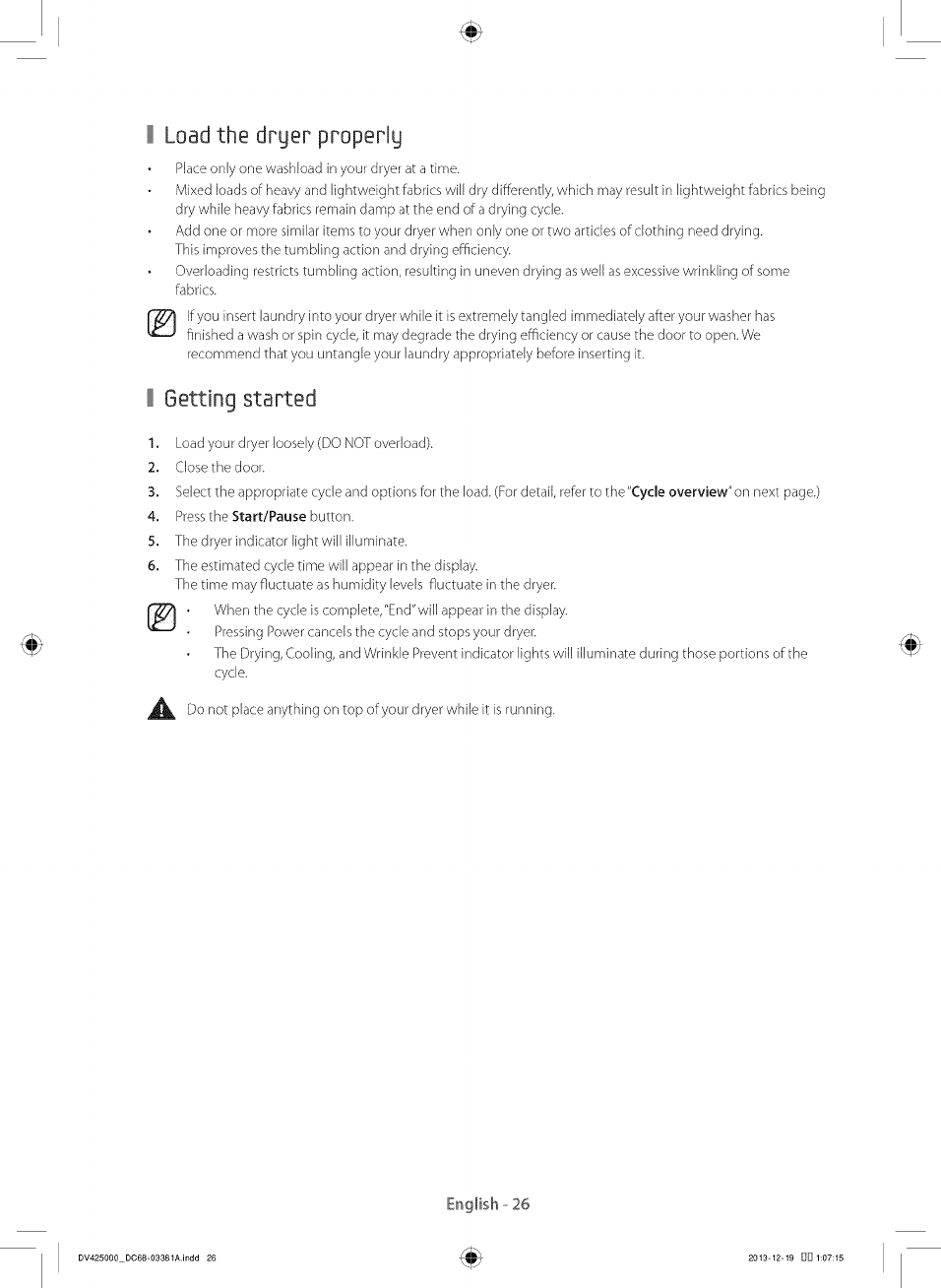

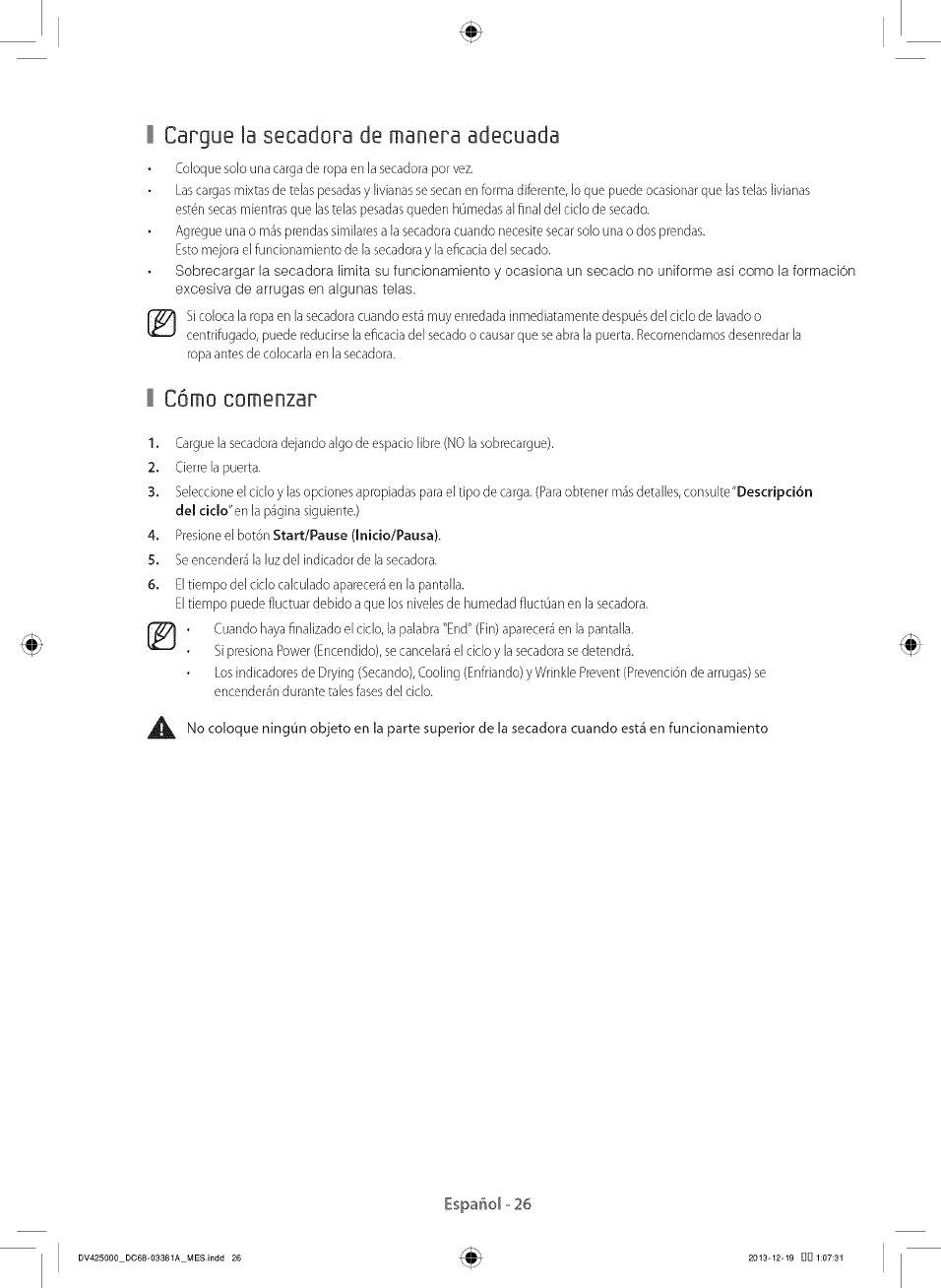

Load the dryer properly ............................................................................... 26

Getting started ........................................................................................ 26

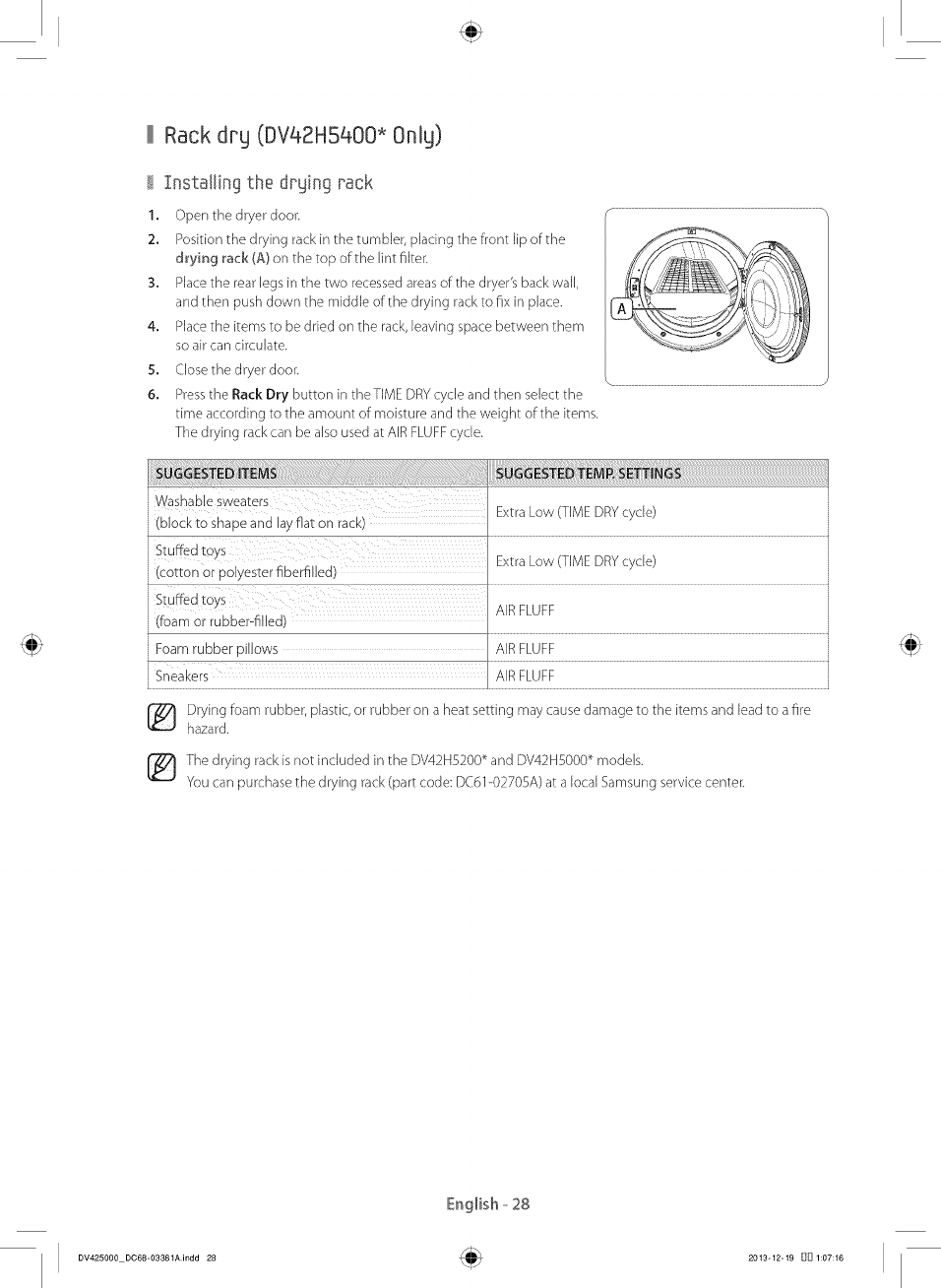

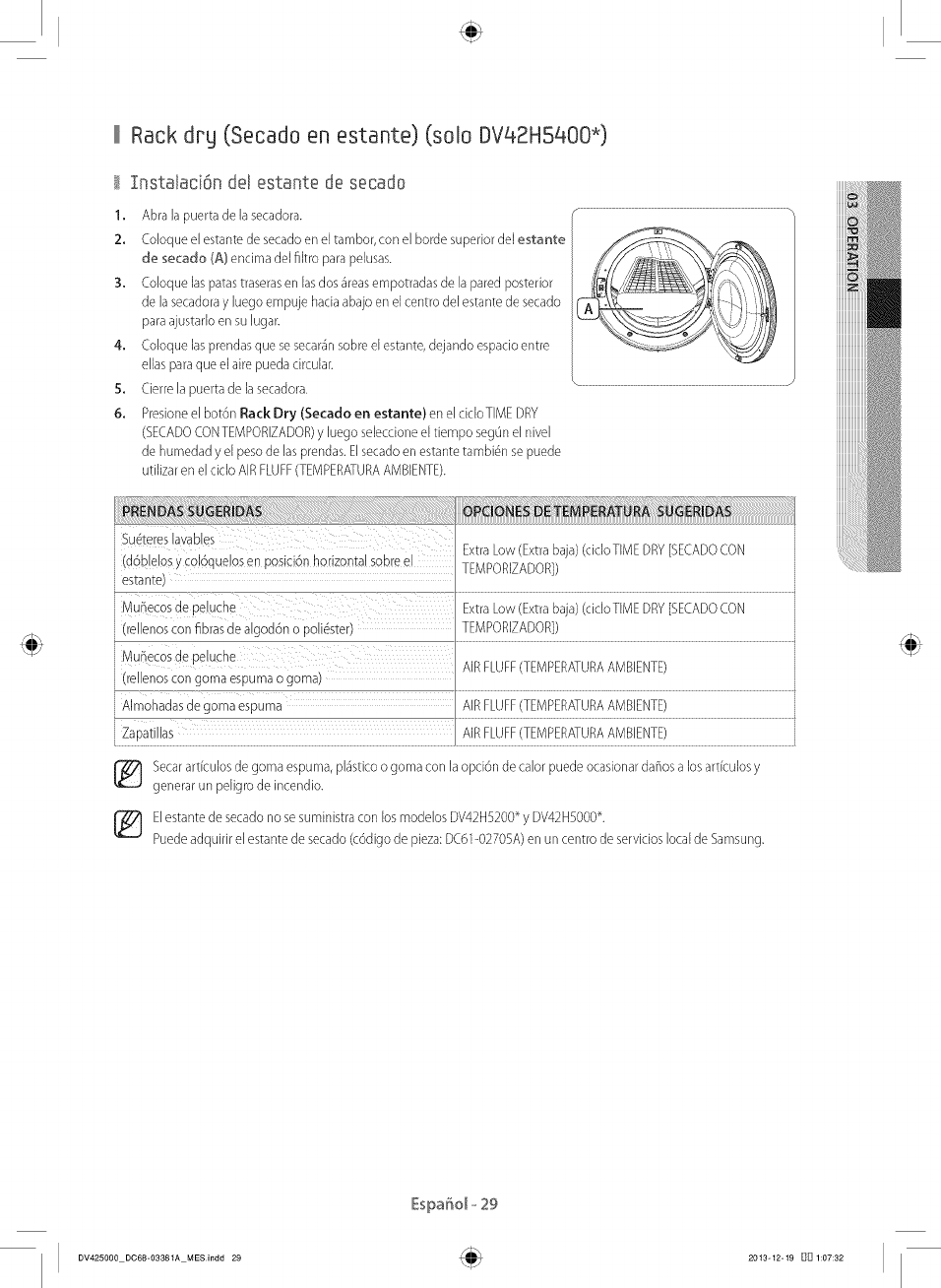

Rack dry (DV42H5400 _ Only) .......................................................................... 28

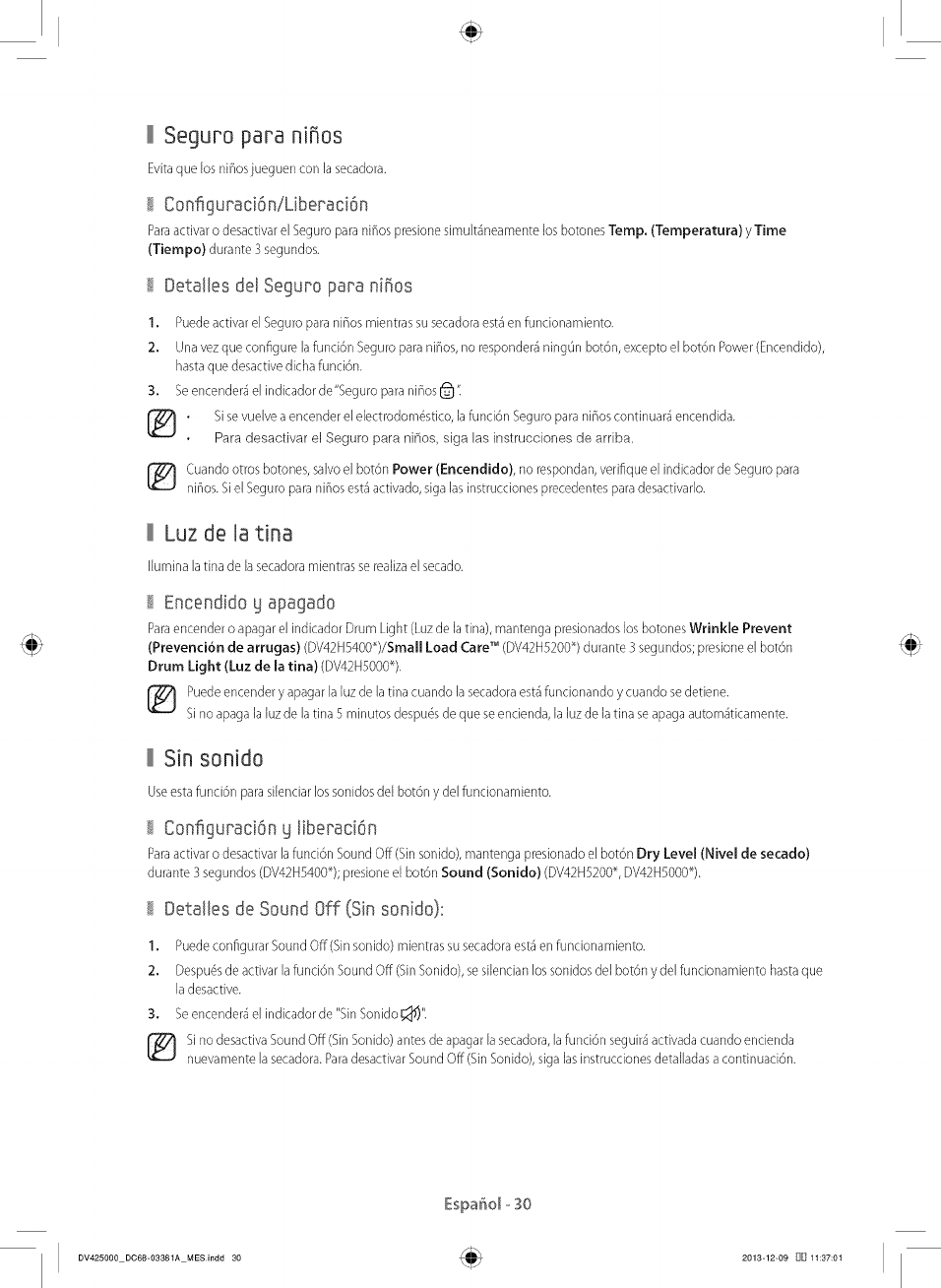

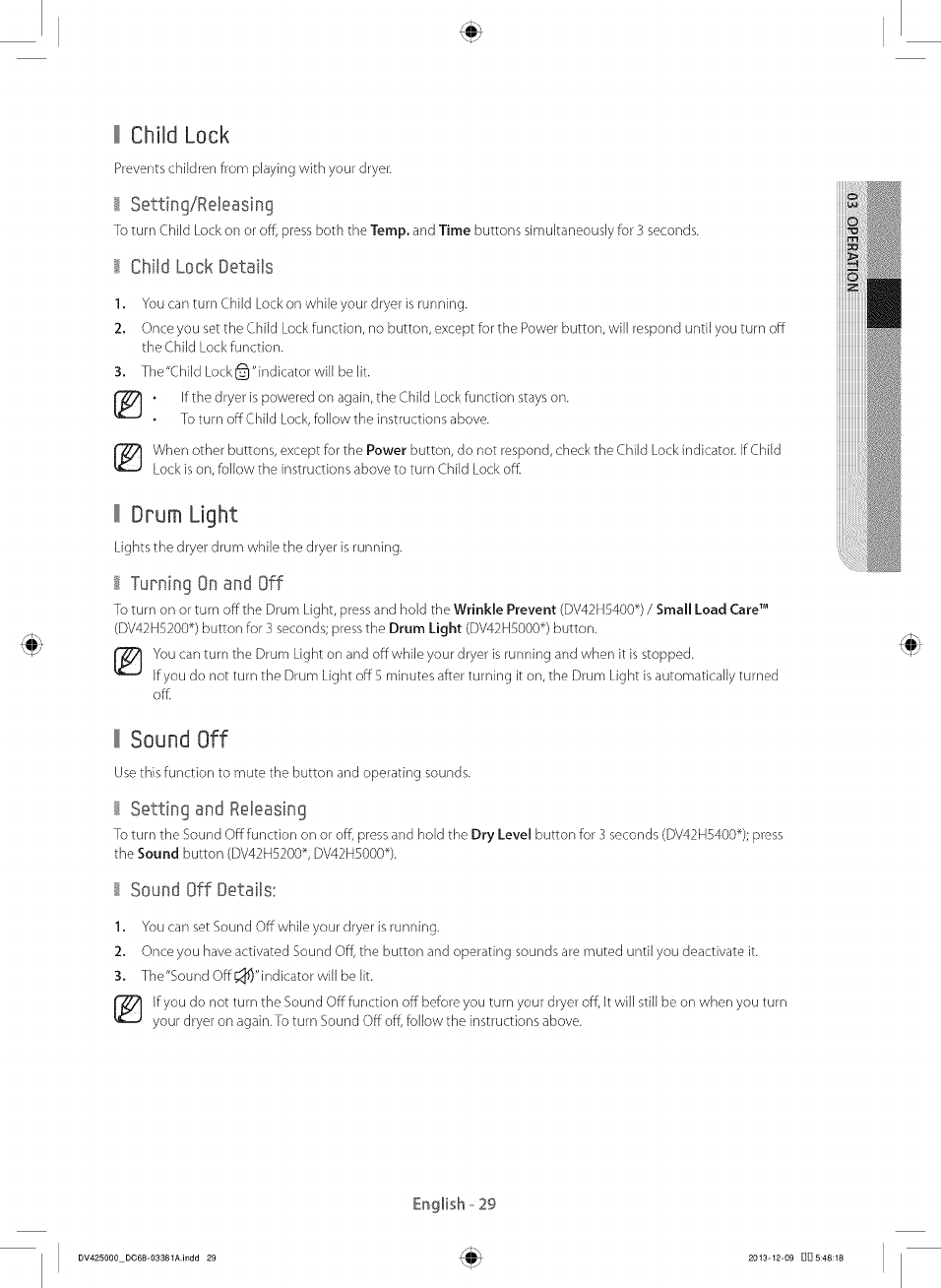

Child Lock............................................................................................. 29

Drum Light ........................................................................................... 29

English _2

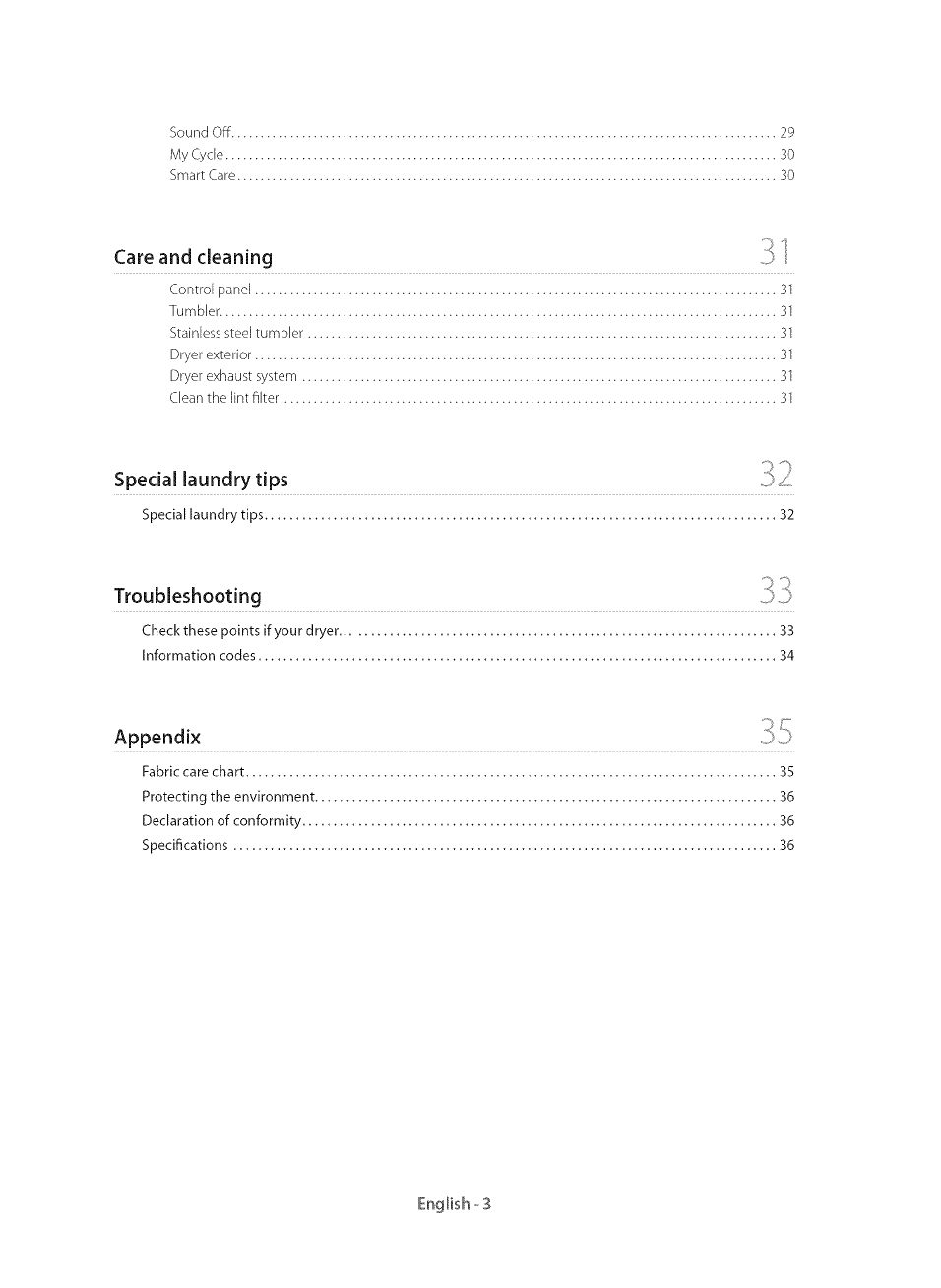

Sound Off ............................................................................................. 29

My Cycle .............................................................................................. 30

Smart Care ............................................................................................ 30

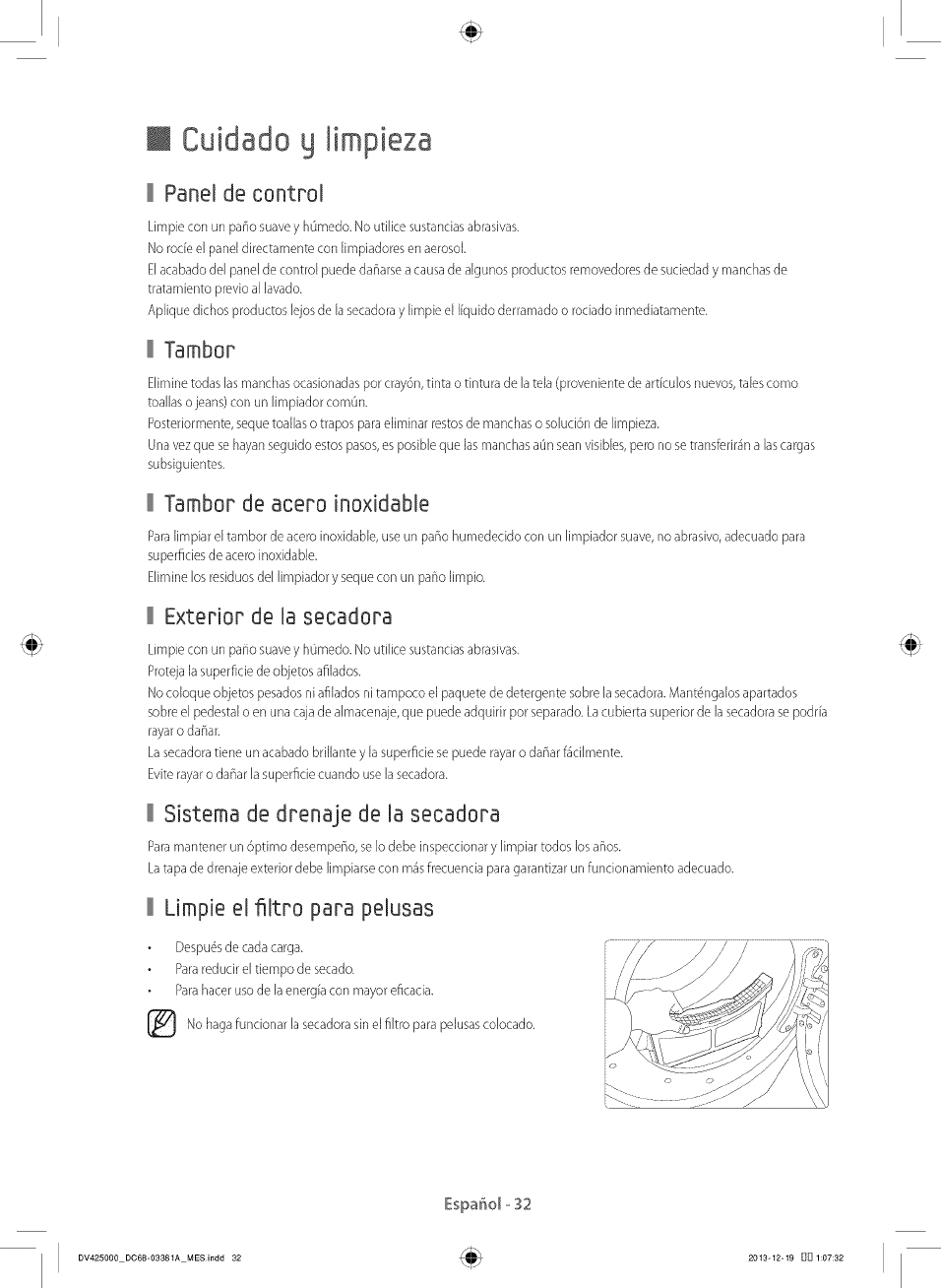

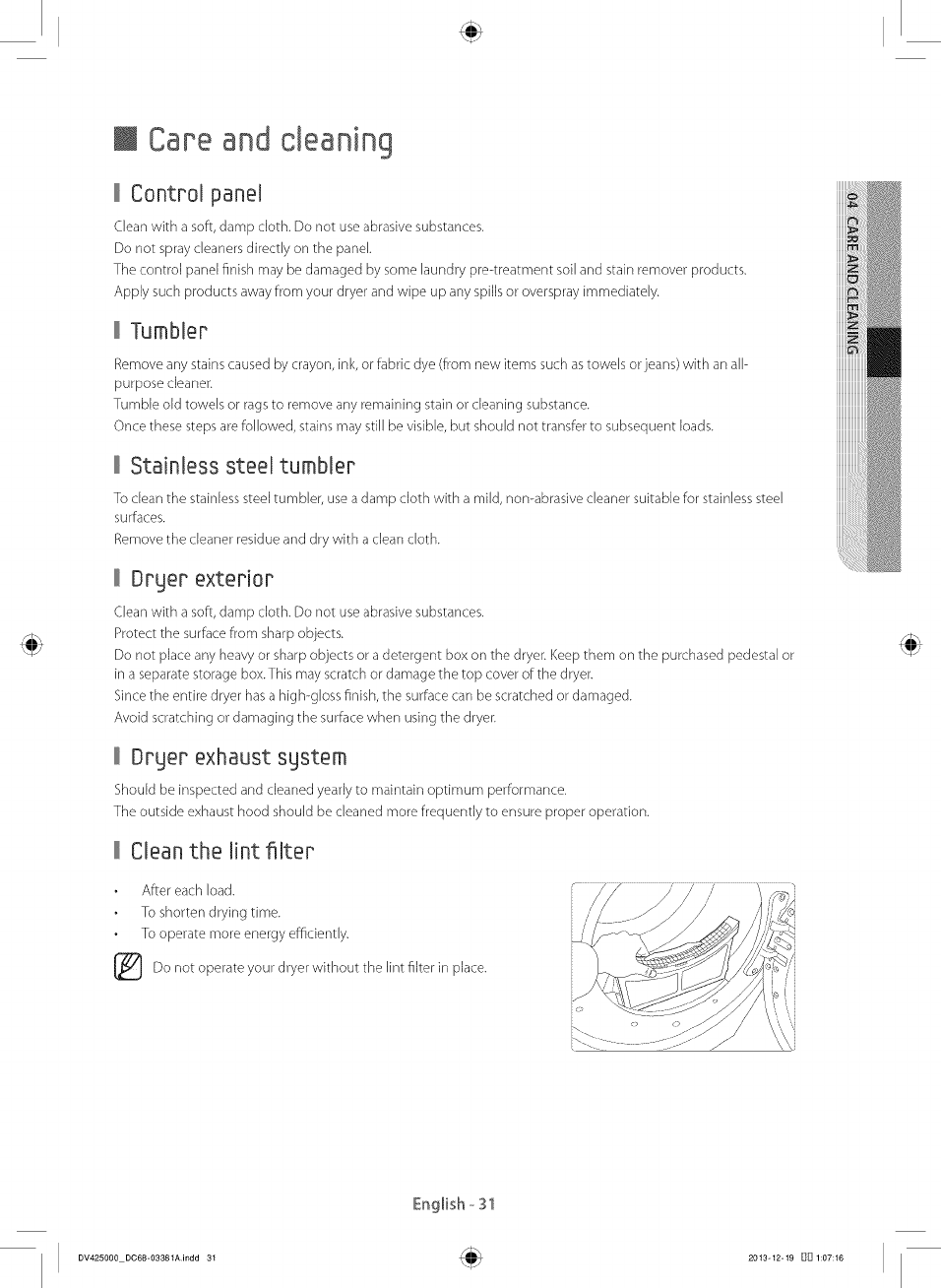

Care and cleaning i_]:::_"

Control panel ......................................................................................... 31

Tumbler ............................................................................................... 31

Stainless steel tumbler ................................................................................ 31

Dryer exterior ......................................................................................... 31

Dryer exhaust system ................................................................................. 31

Clean the lint filter .................................................................................... 31

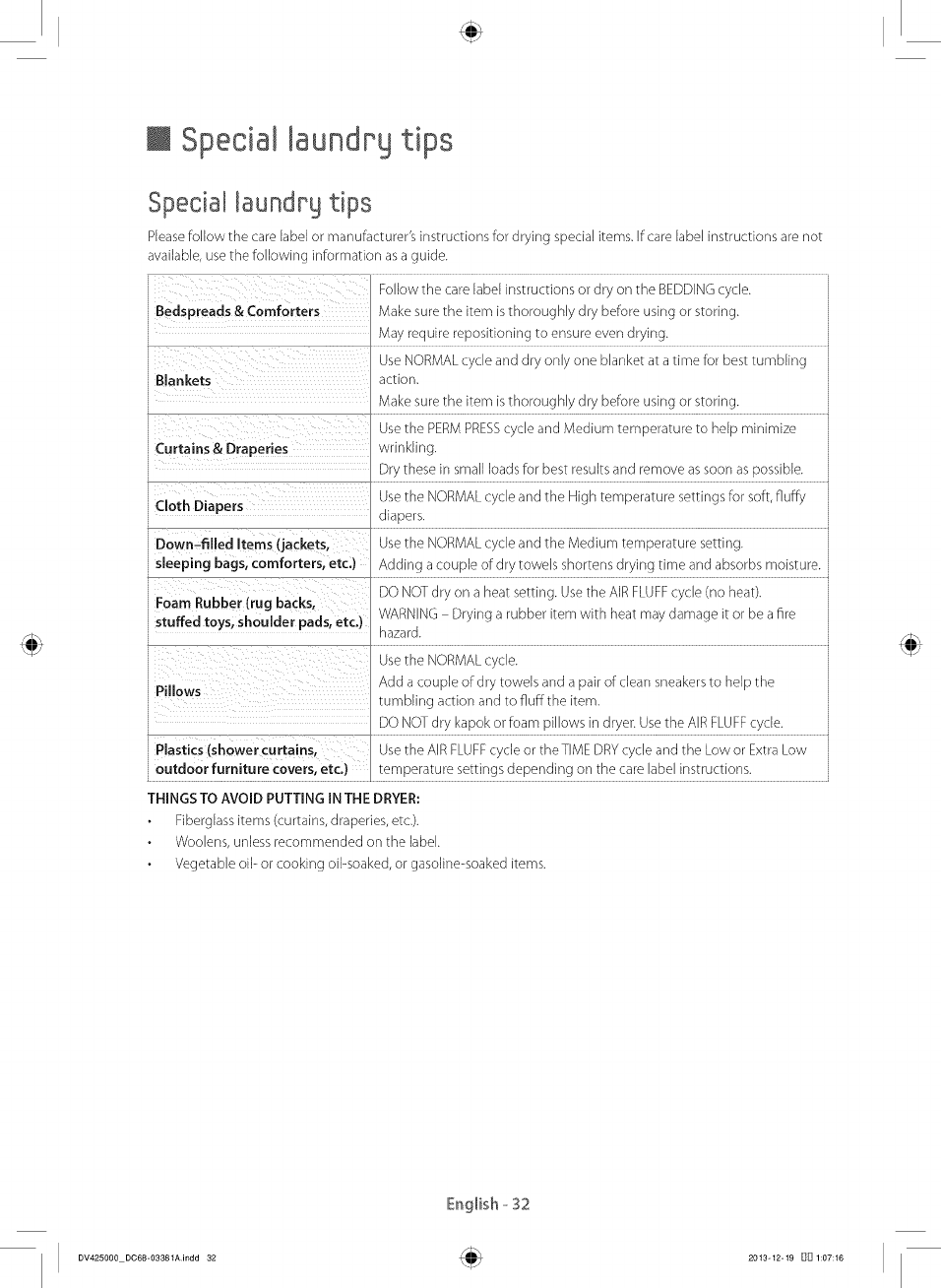

Special laundry tips

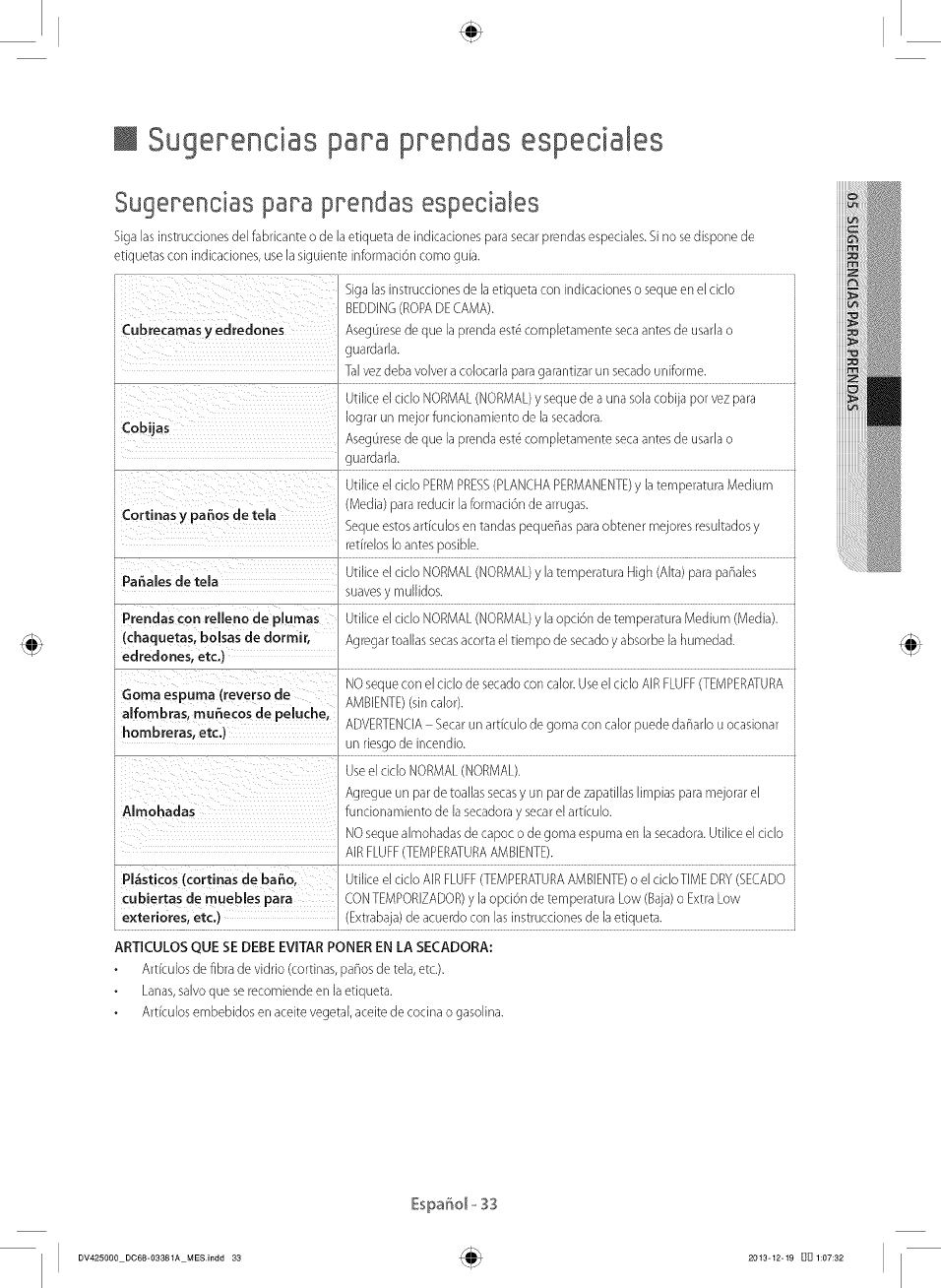

Special laundry tips .................................................................................. 32

t? ?

Troubleshooting ......_,

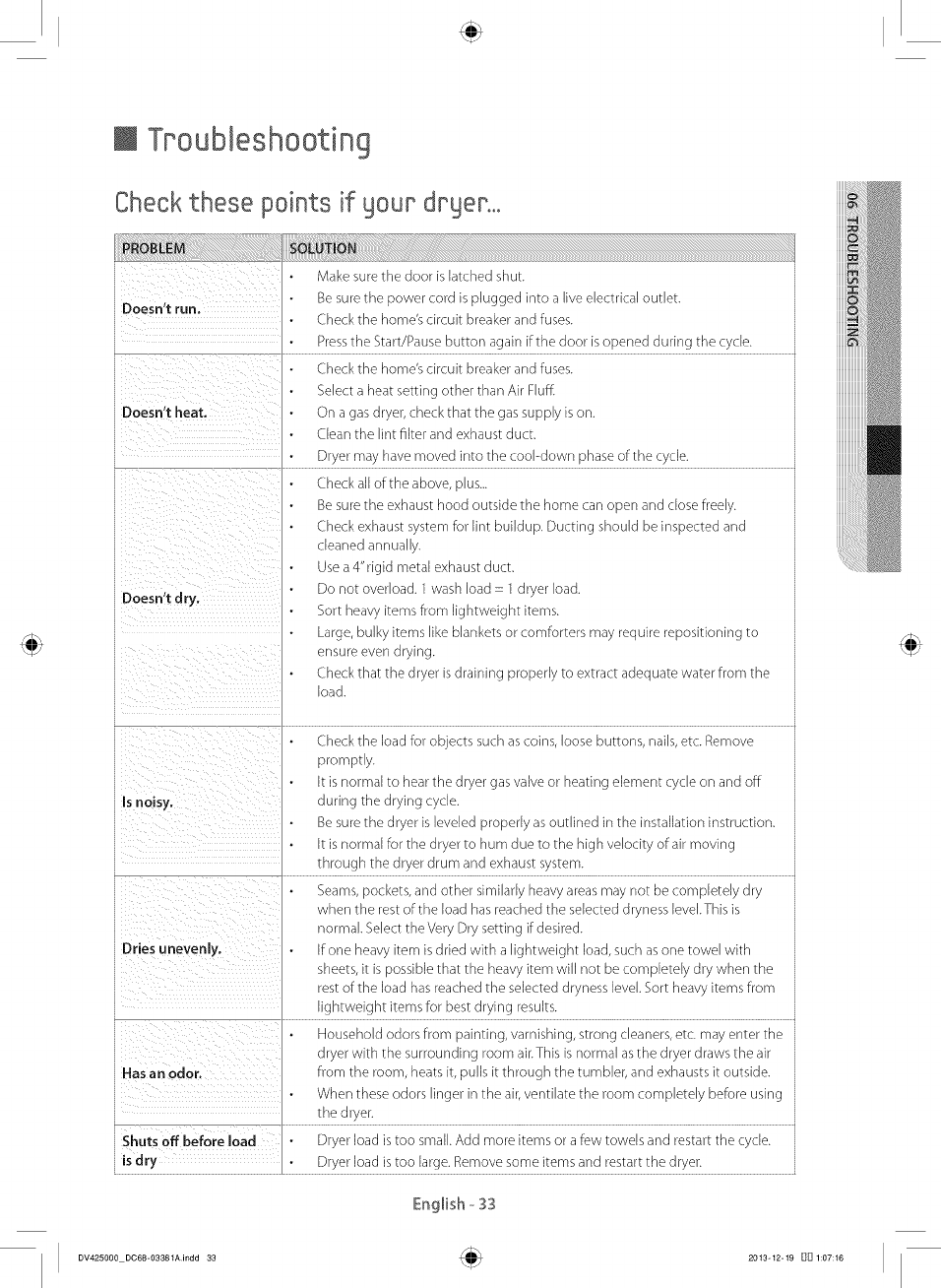

Check these points if your dryer ...................................................................... 33

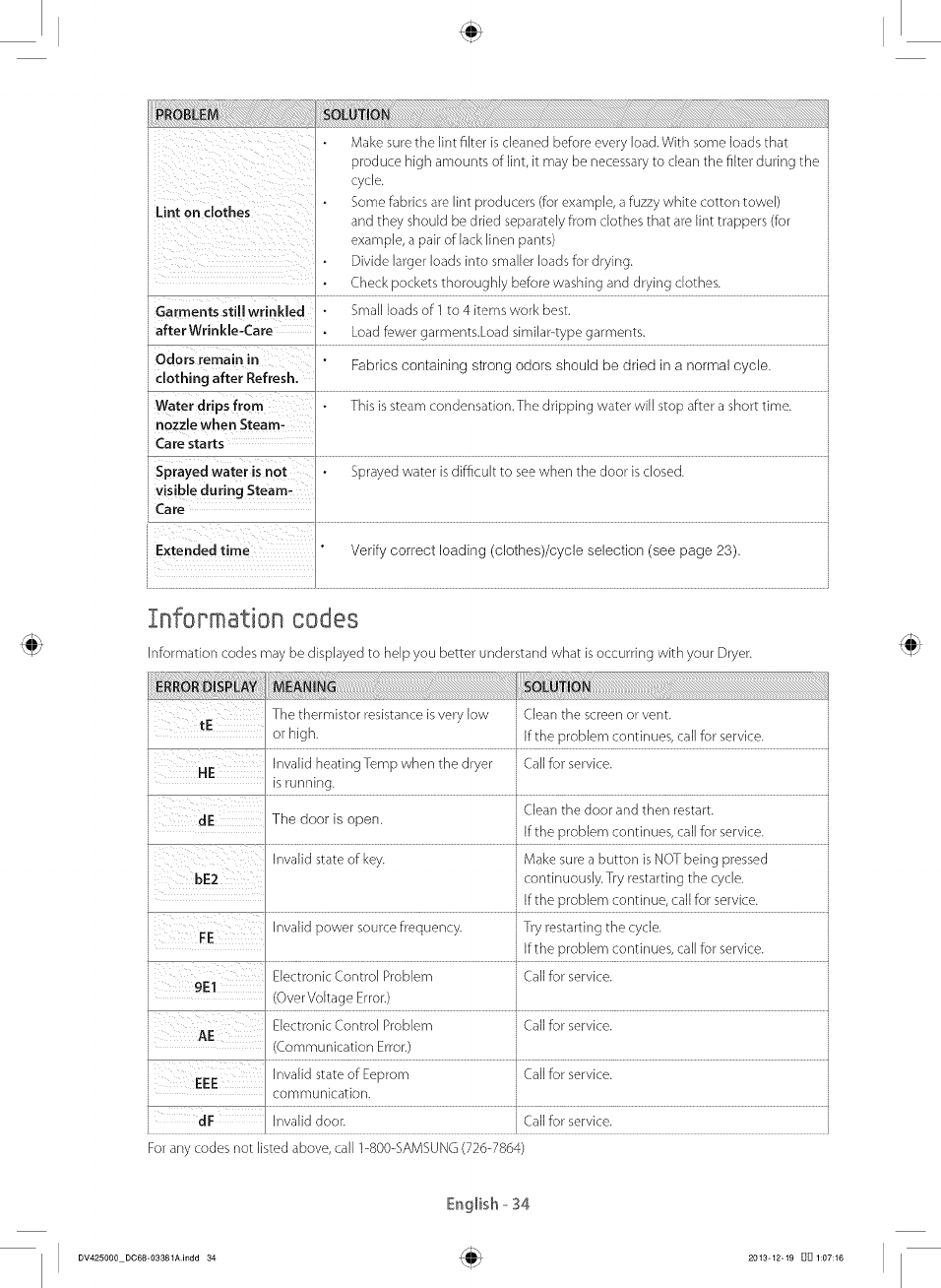

Information codes ................................................................................... 34

Appendix

Fabric care chart ..................................................................................... 35

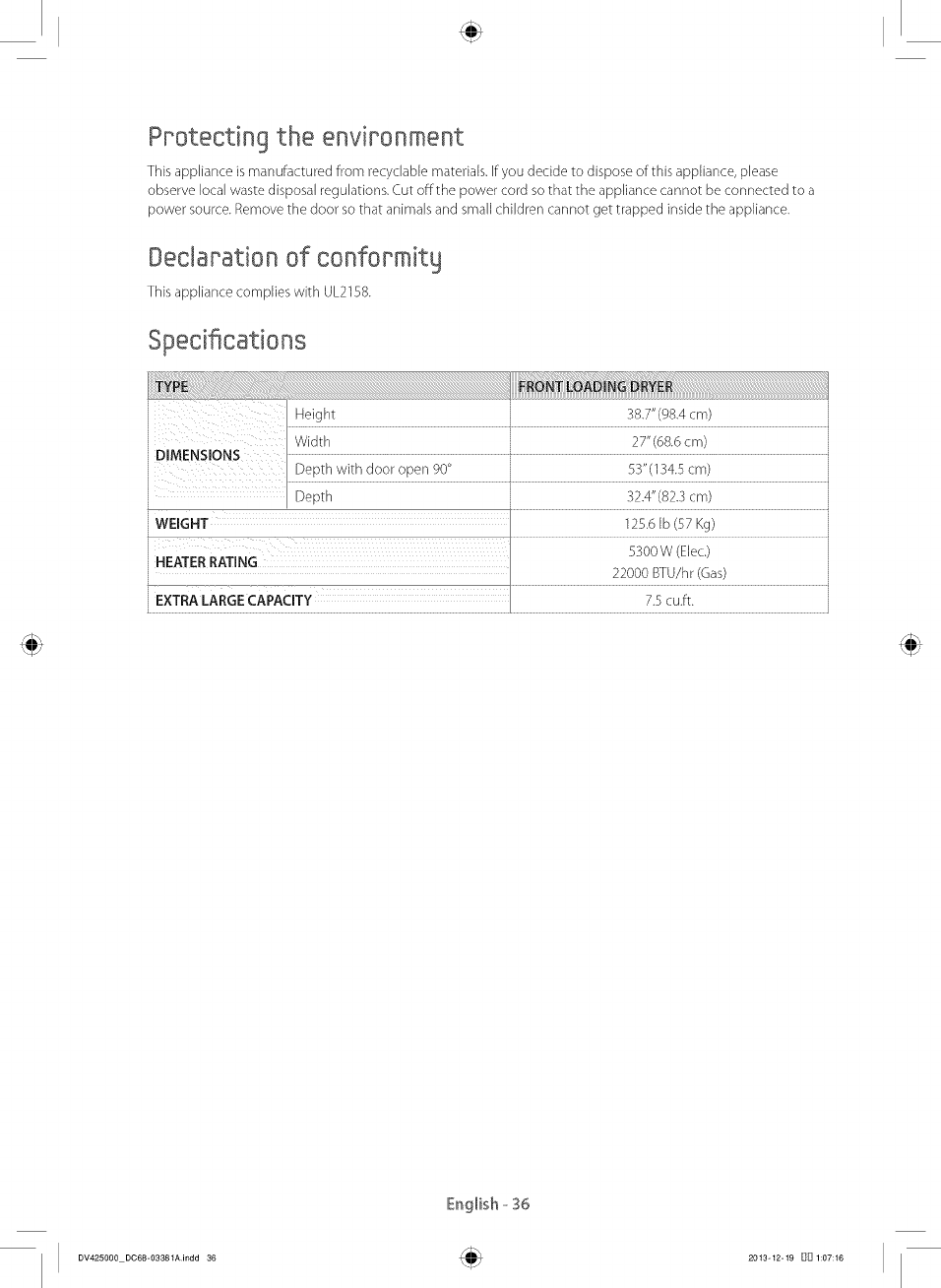

Protecting the environment .......................................................................... 36

Declaration of conformity ............................................................................ 36

Specifications ....................................................................................... 36

English _3

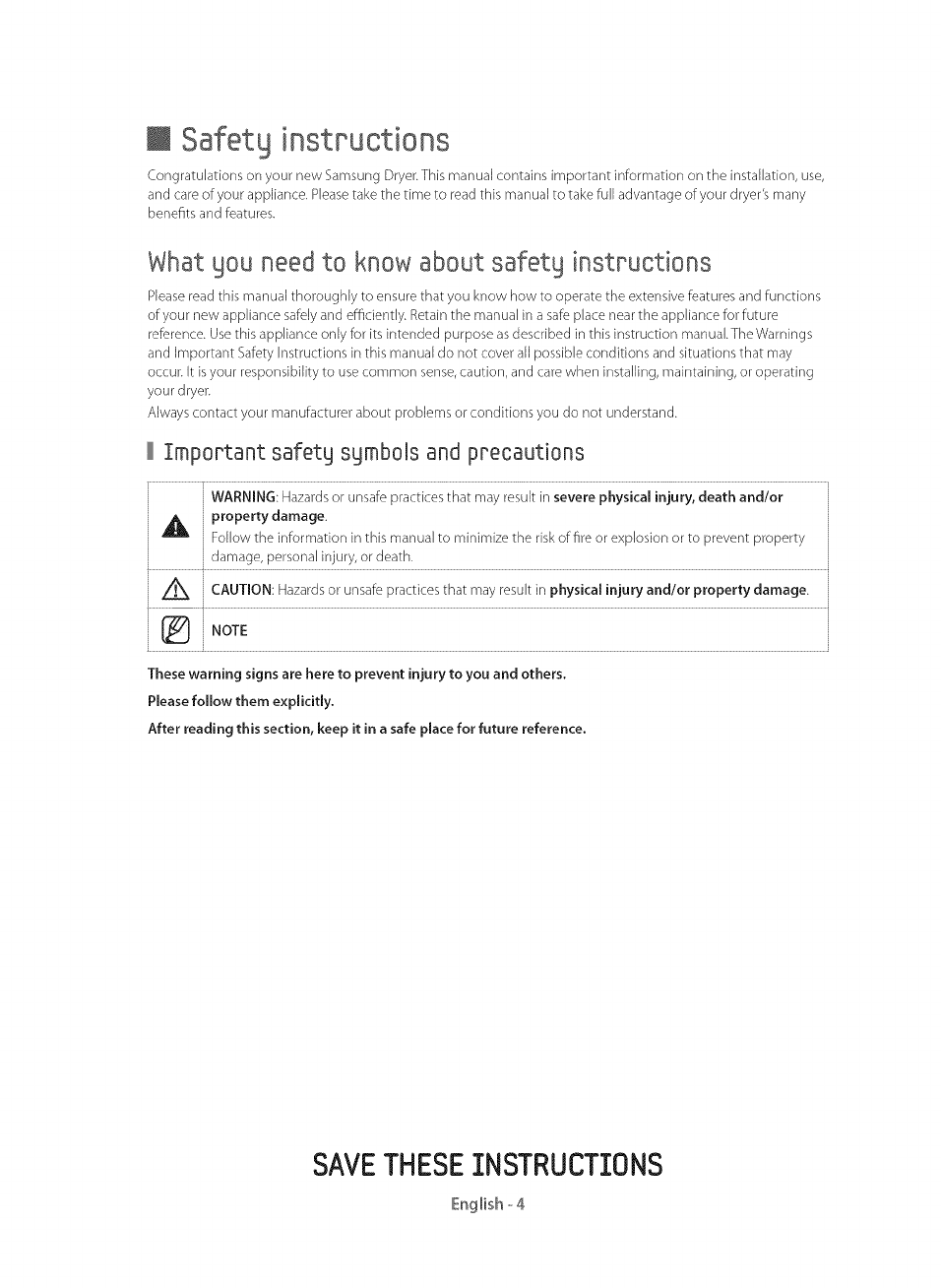

I Safety instructions

Congratulations on your new Samsung Dryer. This manual contains important information on the installation, use,

and care of your appliance. Please take the time to read this manual to take full advantage of your dryer's many

benefits and features.

What you need to know about safety instructions

Please read this manual thoroughly to ensure that you know how to operate the extensive features and functions

of your new appliance safely and emciently. Retain the manual in a safe place near the appliance for future

reference. Use this appliance only for its intended purpose as described in this instruction manual. The Warnings

and Important Safety Instructions in this manual do not cover all possible conditions and situations that may

occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, or operating

your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

Important safety sgmbols and precautions

WARNING: Hazards or unsafe practices that may result in severe physical injury, death and/or

_ roperty damage.

Follow the information in this manual to minimize the risk of fire or explosion or to prevent property

damage, personal injury, or death.

A CAUTION: Hazards or unsafe practices that may result in physical injury and/or property damage.

NOTE

These warning signs are here to prevent injury to you and others,

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

SAVETHESE INSTRUCTIONS

English-4

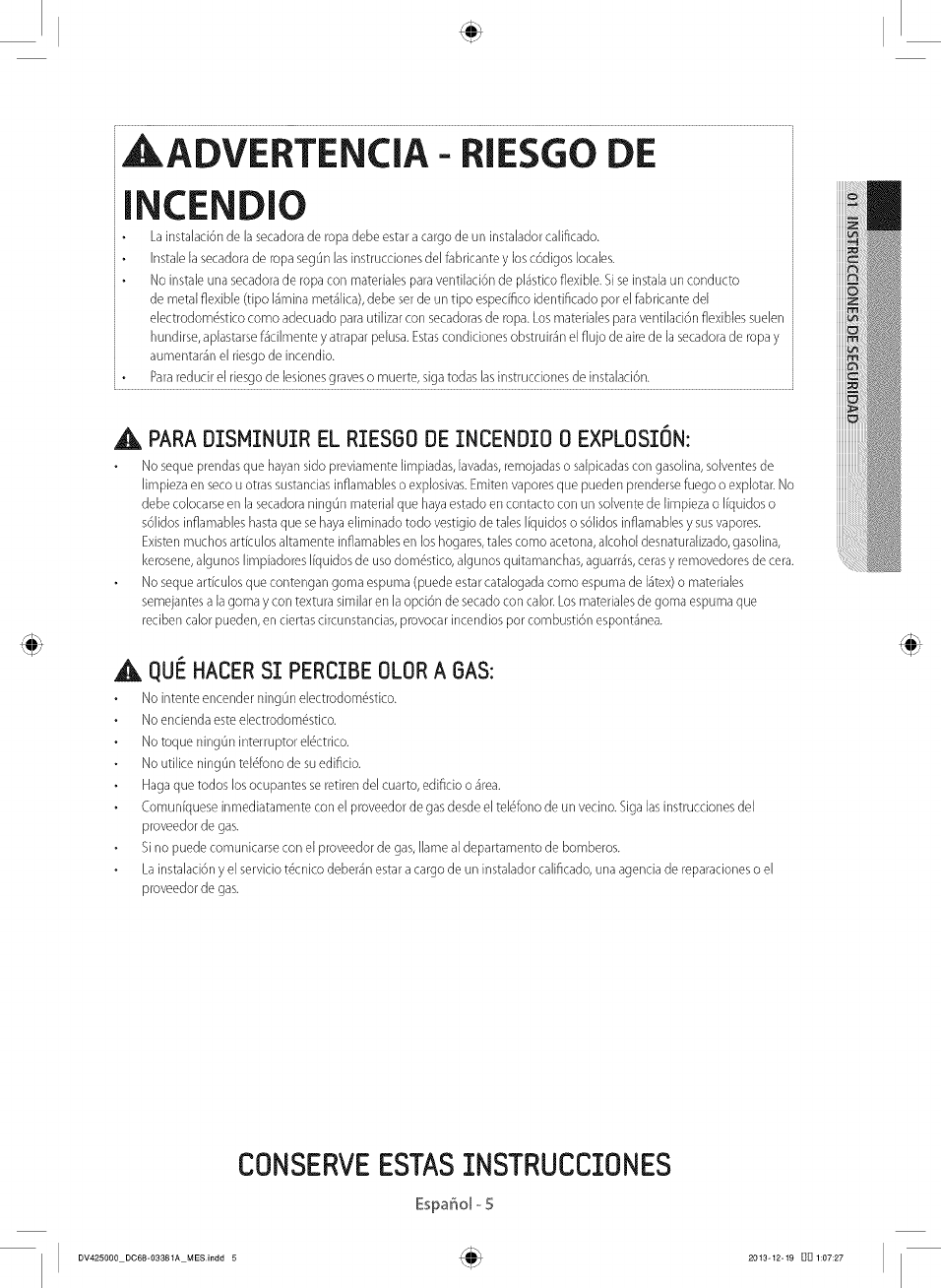

WARNING =RiSK OF FiRE

= • Clothes dryer installation must be performed by a qualified installer.

, • Install the clothes dryer according to the manufacturer's instructions and local codes.

• Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is

installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with

clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint.These

conditions will obstruct clothes dryer airflow and increase the risk of fire.

, . To reduce the risk of severe injury or death, BIIow all installation instructions.

TO REDUCE THE RISK OF FIRE OR EXPLOSION:

Do not dry items that have beer] previously cleaned, washed, soaked, or spotted with gasoline, dry cleaning

solvents, or other flammable or explosive substances.They emit vapors that could ignite or explode. Any

material that has been in contact with a cleaning solvent or flammable liquids or solids should not be placed

in the dryer until all traces of these flammable liquids or solids and their fumes have been removed.

There are many highly flammable items used in homes, such as acetone, denatured alcohol, gasoline,

kerosene, some liquid household cleaners, some spot removers, turpentine, waxes, and wax removers.

Do not dry items containing foam rubber (may be labeled latex Barn) or similarly textured rubber-like

materials on a heat setting. Heated foam rubber materials can, under certain circumstances, produce fire by

spontaneous combustion.

,A WHATTO DOIF YOUSMELL GAS:

I_)onot try to light any appliance.

Do not turn on the appliance.

Do not touch any electrical switch.

Do not use any phone in your building.

Clear the room, building or area of all occupants.

Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

SAVETHESE INSTRUCTIONS

English _5

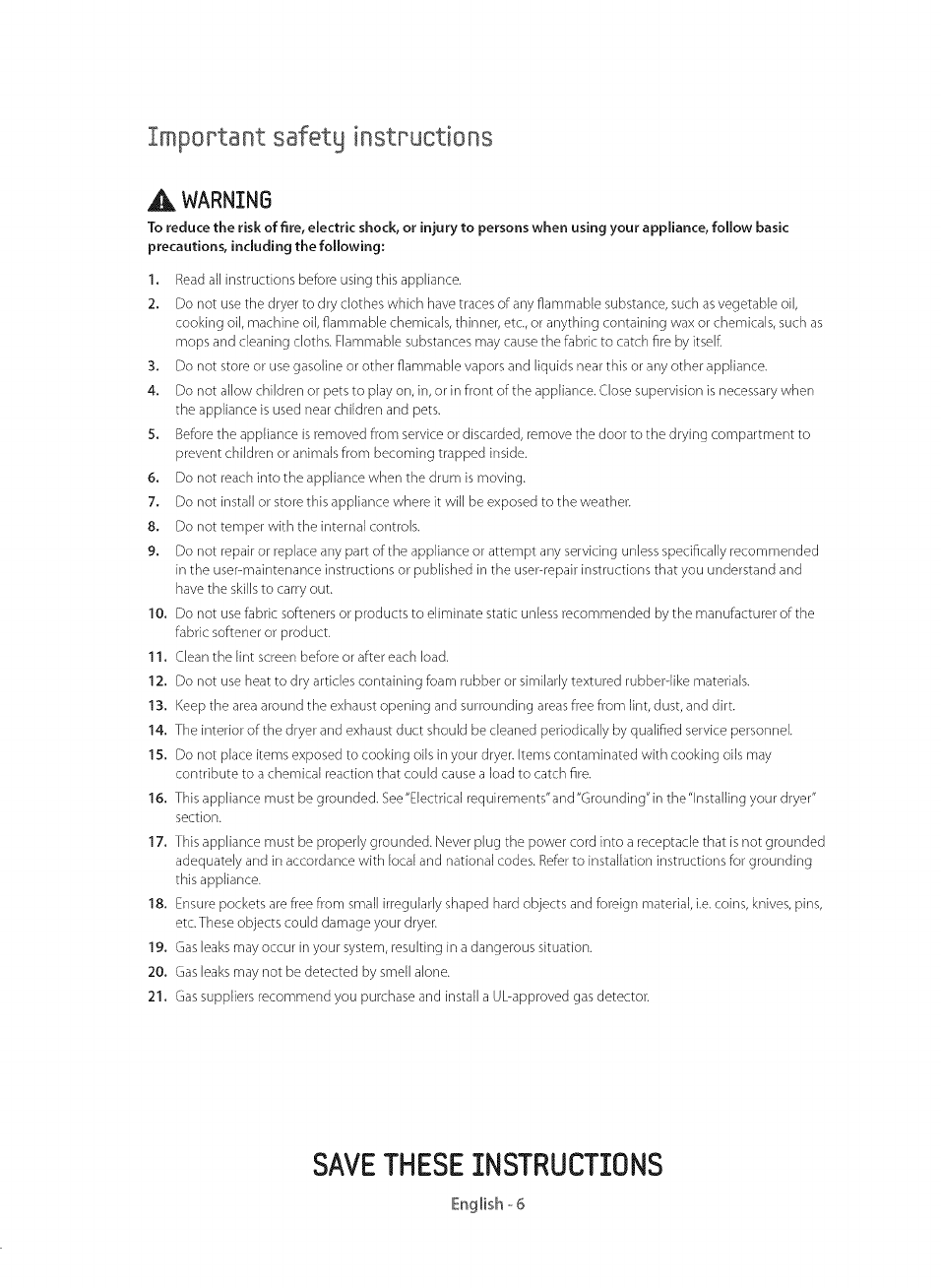

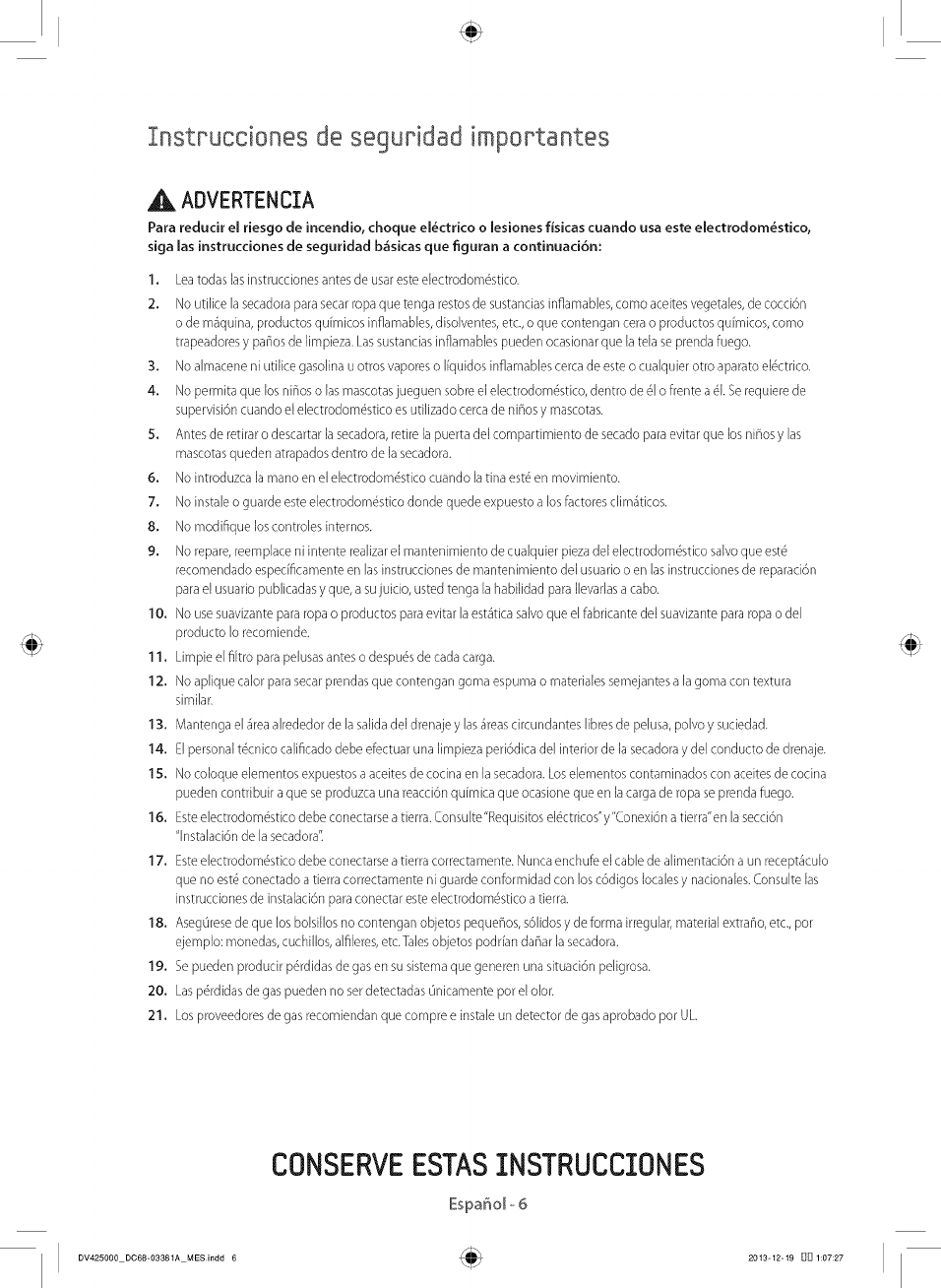

Important safety instructions

,d_ WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic

precautions, including the following:

1. Read all instructions before using this appliance.

2. Do not use the dryer to dry clothes which have traces of any flammable substance, such asvegetable oil,

cooking oil, machine oil, flammable chemicals, thinner, etc., or anything containing wax or chemicals, such as

mops and cleaning cloths. Flammable substances may cause the fabric to catch fire by itself.

3. Do not store or use gasoline or other flammable vapors and liquids near this or any other appliance.

4. Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is necessary when

the appliance is used near children and pets.

5. Before the appliance is removed from service or discarded, remove the door to the drying compartment to

prevent children or animals from becoming trapped inside.

6. Do not reach into the appliance when the drum is moving.

7. Do not install or store this appliance where it will be exposed to the weather.

8. Do not temper with the internal controls.

9. Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended

in the user-maintenance instructions or published in the user-repair instructions that you understand and

have the skills to carry out.

10. Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the

fabric softener or product.

11. Clean the lint screen before or after each load.

12. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.

13. Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.

14. The interior of the dryer and exhaust duct should be cleaned periodically by qualified service personnel.

15. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may

contribute to a chemical reaction that could cause a load to catch fire.

16. This appliance must be grounded. See"Electrical requirements'and "Grounding'in the"lnstalling your dryer"

section.

17. This appliance must be properly grounded. Never plug the power cord into a receptacle that is not grounded

adequately and in accordance with local and national codes. Refer to installation instructions for grounding

this appliance.

18. Ensure pockets are free from small irregularly shaped hard objects and foreign material, i.e. coins, knives, pins,

etc.These objects could damage your dryer.

19. Gas leaks may occur in your system, resulting in a dangerous situation.

20. Gas leaks may not be detected by smell alone.

21. Gas suppliers recommend you purchase and install a Ubapproved gas detector.

SAVETHESE INSTRUCTIONS

English _6

_, WARNING

Gas Appliances;

WARNING:This product contains chemicals known to the State of California to cause cancer and reproductive

toxicity.

Gas appliances can cause Iowqevel exposure to Proposition 65 listed substances, including but not limited to,

benzene, carbon monoxide, formaldehyde and soot, substances resulting from the incomplete combustion of

natural gas or LPfuels.

iB, CAUTION

1. Do not sit on top of the dryer.

2. Because of continuing product improvements, Samsung reserves the right to change specifications without

notice. For complete details, see the Installation Instructions packed with your product before selecting

cabinetry, making cutouts, or beginning installation.

3. Do not wash clothing with large buckles, buttons, or other heavy metal or solid things.

4. Install and use in accordance with the manufacturer's instructions.

5. All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous. Washing these

items in hot water with extra detergent will reduce, but not eliminate, the hazard. Always use the Cool Down

cycle for these items to reduce their temperature. Never remove these items from the dryer hot or interrupt

the drying cycle until the items have run through the Cool Down cycle. Never pile or stack these items when

they are hot.

6. Take care that children's fingers are not caught in the door when closing it. This may result in injury.

SAVETHESEINSTRUCTIONS

English _7

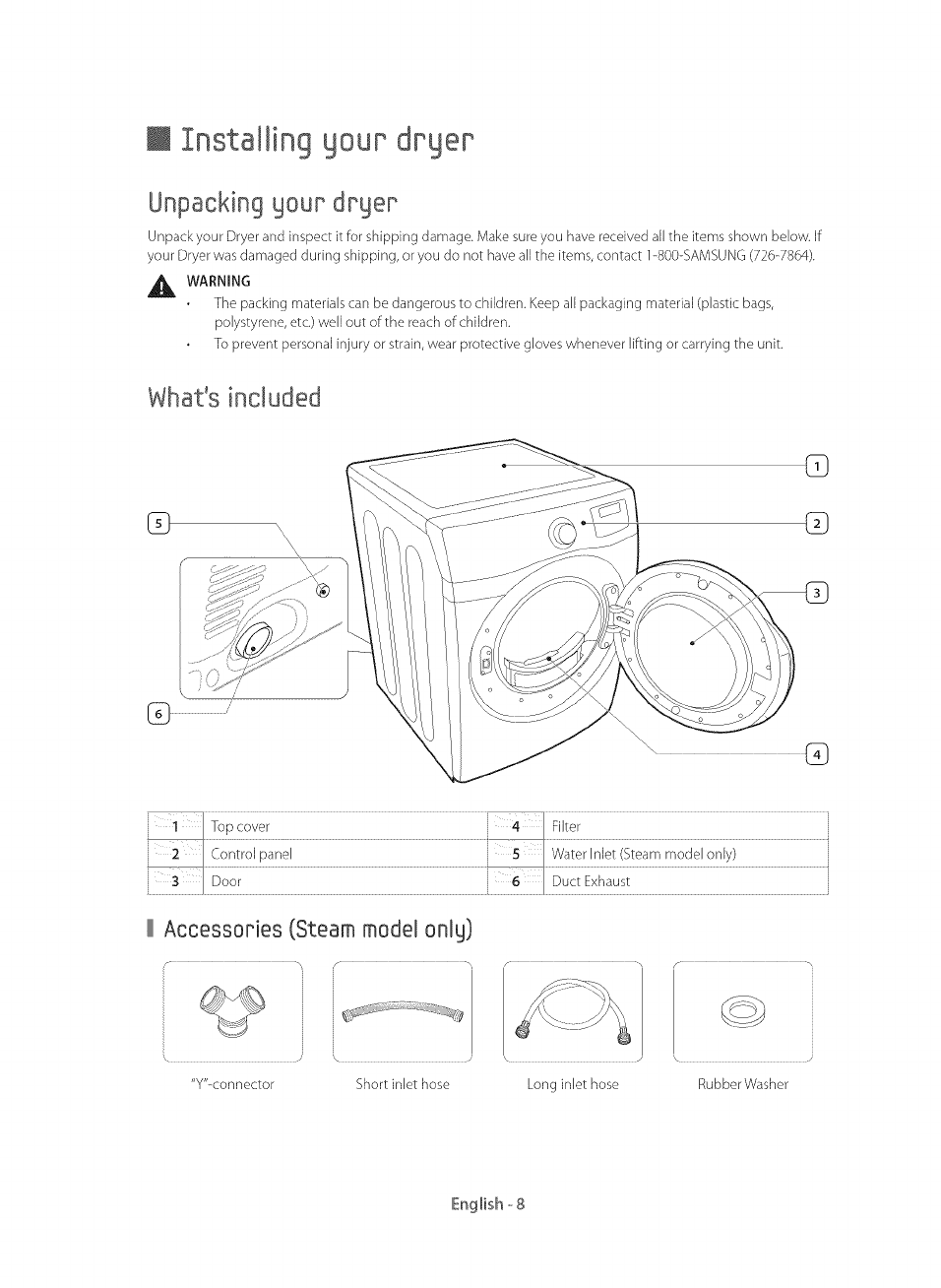

I Znstalling your dpyer

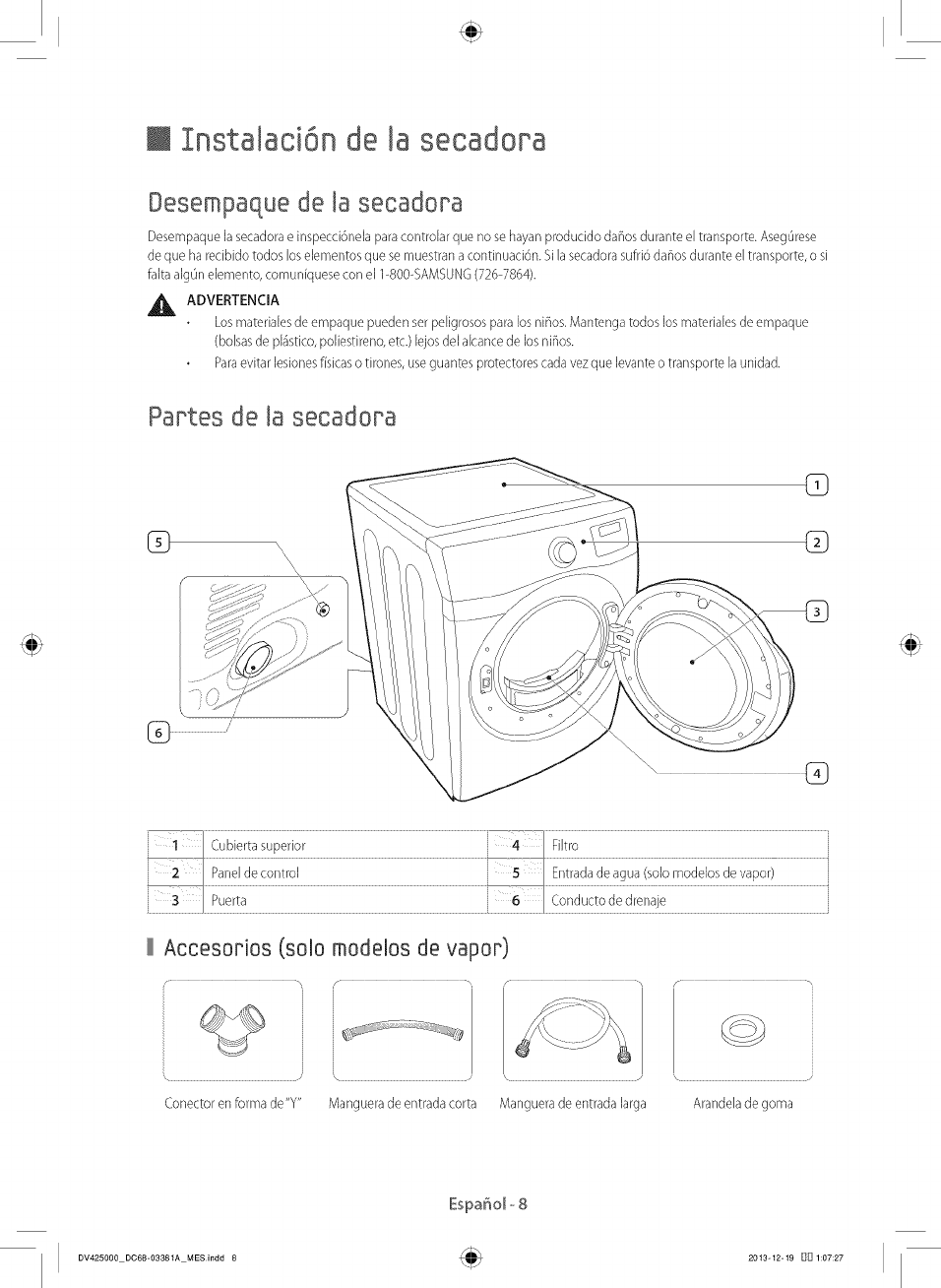

Unpackingyour dnyep

Unpack your Dryer and inspect it for shipping damage. Make sure you have received all the items shown below, if

your Dryer was damaged during shipping, or you do not have all the items, contact 1-800-SAMSUNG (726-7864).

,_ WARNING

The packing materials can be dangerous to children. Keep all packaging material (plastic bags,

polystyrene, etc.) well out of the reach of children.

To prevent personal in]ury or strain, wear protective gloves whenever lifting or carrying the unit.

What's included

8} @

Accessories (Steam model onlg)

"y'Lconnector Short inlet hose

English-8

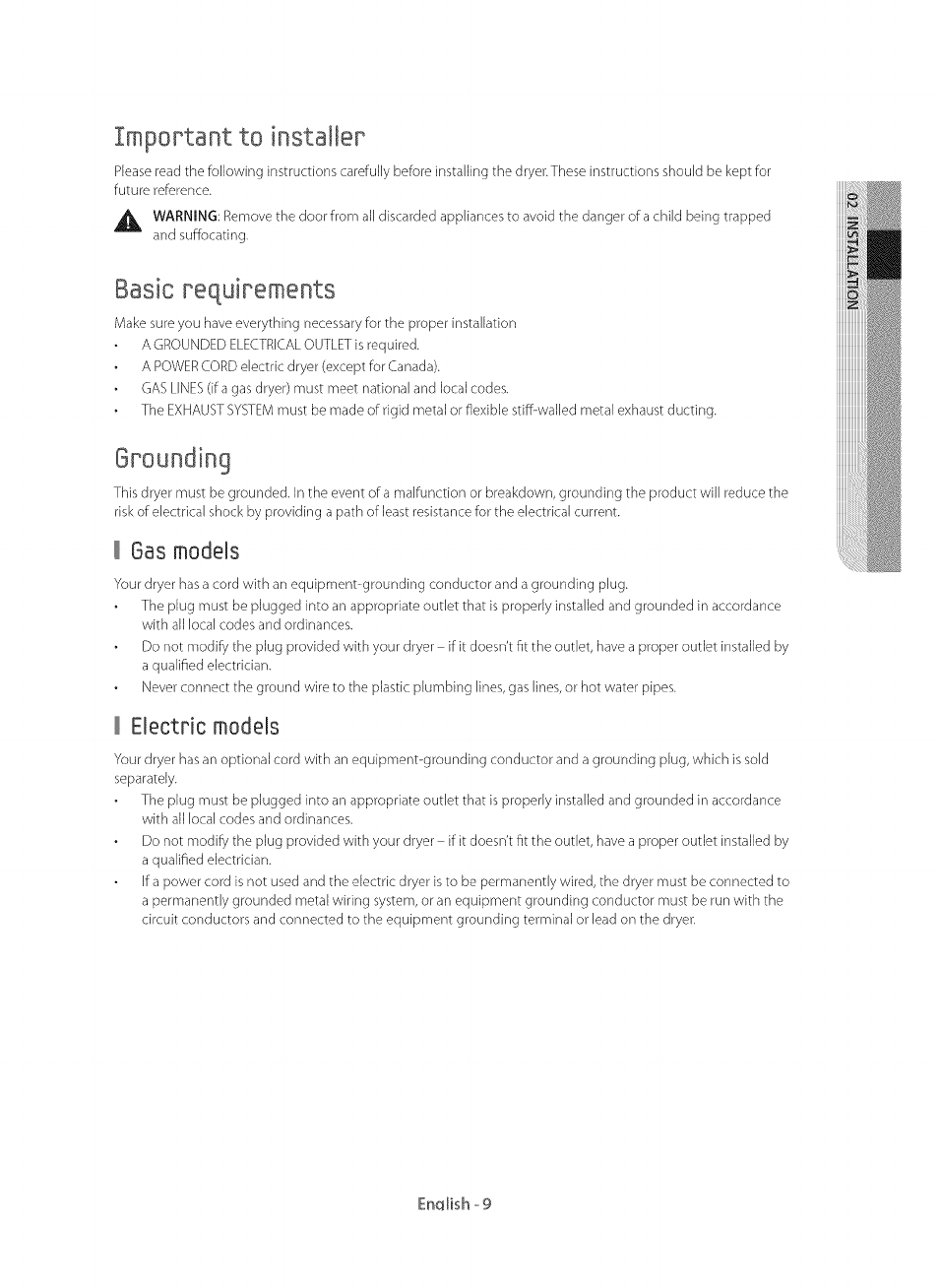

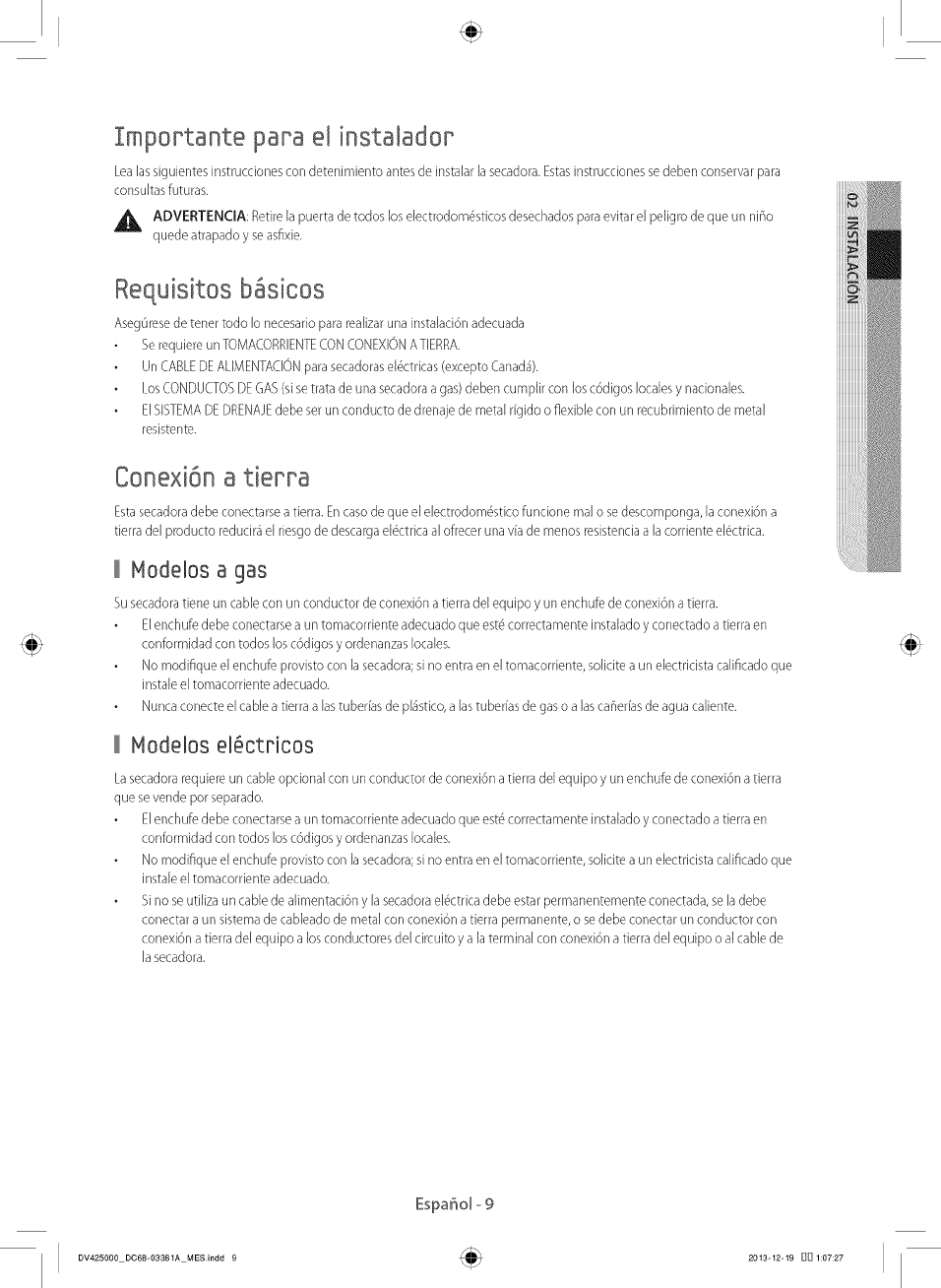

Important to installer

Please read the following instructions carefully before installing the dryer.These instructions should be kept for

future reference.

,_. WARNING: Remove the door from all discarded appliances to avoid the danger of a child being trapped

and suffocating.

Basic requirements

Make sure you have everything necessary for the proper installation

A GROUNDED ELECTRICALOUTLET is required.

A POWER CORD electric dryer (except for Canada).

GAS LINES (ifa gas dryer) must meet national and local codes.

The EXHAUST SYSTEM must be made of rigid metal or flexible stiff-walled metal exhaust ducting.

Grounding

This dryer must be grounded. In the event of a malfunction or breakdown, grounding the product will reduce the

risk of electrical shock by providing a path of least resistance for the electrical current.

Gas models

Your dryer has a cord with an equipment-grounding conductor and a grounding plug.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance

with all local codes and ordinances.

Do not modify the plug provided with your dryer if it doesn't fit the outlet, have a proper outlet installed by

a qualified electrician.

Never connect the ground wire to the plastic plumbing lines, gas lines, or hot water pipes.

Electricmodels

Your dryer has an optional cord with an equipment-grounding conductor and a grounding plug, which is sold

separately.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance

with all local codes and ordinances.

Do not modify the plug provided with your dryer if it doesn't fit the outlet, have a proper outlet installed by

a qualified electrician.

If a power cord is not used and the electric dryer is to be permanently wired, the dryer must be connected to

a permanently grounded metal wiring system, or an equipment grounding conductor must be run with the

circuit conductors and connected to the equipment grounding terminal or lead on the dryer.

Enq[ish-9

Location considerations

The dryer should be located where there is enough space at the front for loading the dryer, and enough space

behind for the exhaust system.This dryer is factory-ready for the rear exhaust option.To exhaust out the bottom,

right or the left, use the accessory exhaust kit. Instructions are included with the kit. Make sure the room in which

the dryer is located has enough fresh air.The dryer must be located where there are no air-flow obstructions.

For gas dryers, adequate clearance must be maintained as noted on the data plate to ensure adequate air for

combustion and the proper dryer operation.

The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.The dryer

area must be kept clear of combustible materials, gasoline, and other flammable vapors and liquids. A dryer

produces combustible lint.The area around the dryer should be kept lint-free.

Alcove or closet installations

WARNING

The dryer must be exhausted to the outside to reduce the risk of fire when installed in an alcove or

closet.

No other fuePburning appliance should be installed in the same closet as the dryer.

Minimum clearances between the dryer and adjacent walls or other surfaces:

js_a--es n!_mm! i%ar _ n!!_Omm! i

Top !_!n!_ ra!! i aoie;iront1_!n!.s?ra!! j

q )}(( )}

o il. o Vi' E _

Ain. (25 mm)

R 27 in. (686 ram)

C 17 in. (432 mm)

D 2 in. (50 mm)

F 32.4 in. (823 ram)

F 5 in.(127 mm)

Recessedarea Sideview

(closetor confined area)

English _ 10

Installation with pedesta!

i' '1

A 38.7in.(984mm)

B .53.3in. (1S55 mm)

C 27 in. (686 ram)

53 in. (1345 mm) to

Dclear open door

J E 32.4in.(823 ram)

F 5 in.(127 mm)

Znsta[lation wRh stacked washing machine and dpgep

_:__::rrrrrrr

i_ A 3 in.(76 mm)

B 48 in.2(3100 m m2)

C 24 in. 2(15.50 mm 2)

D 3 in. (76 ram)

E 6 in.(152 mm) _

F 773 in. (1968 mm)

G 1 in. (25 ram)

H 27 in. (686 ram)

[

I 5 in.@27 mm)

J , 1 in.(25 mm)

K 32.4 in. (823 ram)

L , 8in.(203 mm)

The front of the closet must have two unobstructed air openings (B, C) for a combined minimum total2 2

area of 72 in (465 cm ) with a minimum clearance of 3 in. (7.6 cm) at the top (A) and bottom (D).

External exhaust elbow requires additional space (L).

Stacking (MODEL NO: SK-SA)

Samsung's Washer and Dryer can be stacked to maximize usable space.

The dryer legs need to be removed to stack the Washer and Dryer. You can purchase an optional stacking

kit from your Samsung retailer.

English _ 11

Ducdng pequbements

Recommended Use only for short-run installation

i Rigid Metallic Flexible _ Rigid Metallic Flexible _

i 0 24.4 m (80 ft.) 12.4 m (41 ft.) 22.6 m (74 ft.) 10.1 m (33 ft.)

i t 20.7 m (68 ft.) 11.2 m (37 ft.) 18.9 m (62 ft.) 8.8 m (29 ft.)

i 2 17.4 m (57 ft.) 10.1 m (33 ft.) 15.5 m (51 ft.) 7.6 m (25 ft.)

3 14.3 m (47 ft.) '9.0 m (29 ft.) ' 12.5 m (41 ft.) 6..5m (2 ] ft.)

_ non-metallic flexible ducts.

Do not use

Use a 4 inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.

Do not use a smaller duct.

Ducts larger than 4 inches (10.2 cm) in diameter can result in increased accumulation of lint.

Lint should be removed regularly.

If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct with

a thin foil wall. A serious blockage can result if the flexible metal duct is bent too sharply.

Never install any type of flexible duct in walls, ceilings, or other concealed spaces.

Keep the exhaust duct as straight and short as possible.

Secure joints with duct tape. Do not use screws.

Plastic flexible ducts can kink, sag, be punctured, reduce airflow, extend drying times, and affect the dryer

operation.

Exhaust systems longer than recommended can extend drying times, affect machine operations, and collect

lint.

The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and

entry of wildlife. Never use an exhaust hood with a magnetic damper.

The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood and the

ground or other obstruction.The hood opening should point down.

Never install a screen over the exhaust outlet.

To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house or

porch.

If the exhaust duct must run through an unheated area, the duct should be insulated and slope slightly down

towards the exhaust hood to reduce condensation and lint buildup.

Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before

cleaning.

Check frequently to make sure the exhaust hood damper opens and closes freely.

Check once per month, and clean at least once per year. Note: If your clothes are not getting dry, then check

the duct for obstructions.

Do not exhaust the dryer into a wall, ceiling, crawl space, or concealed space of a building, gas vent, or any

other common duct or chimney.This could create a fire hazard from the lint expelled by the dryer.

English - 12

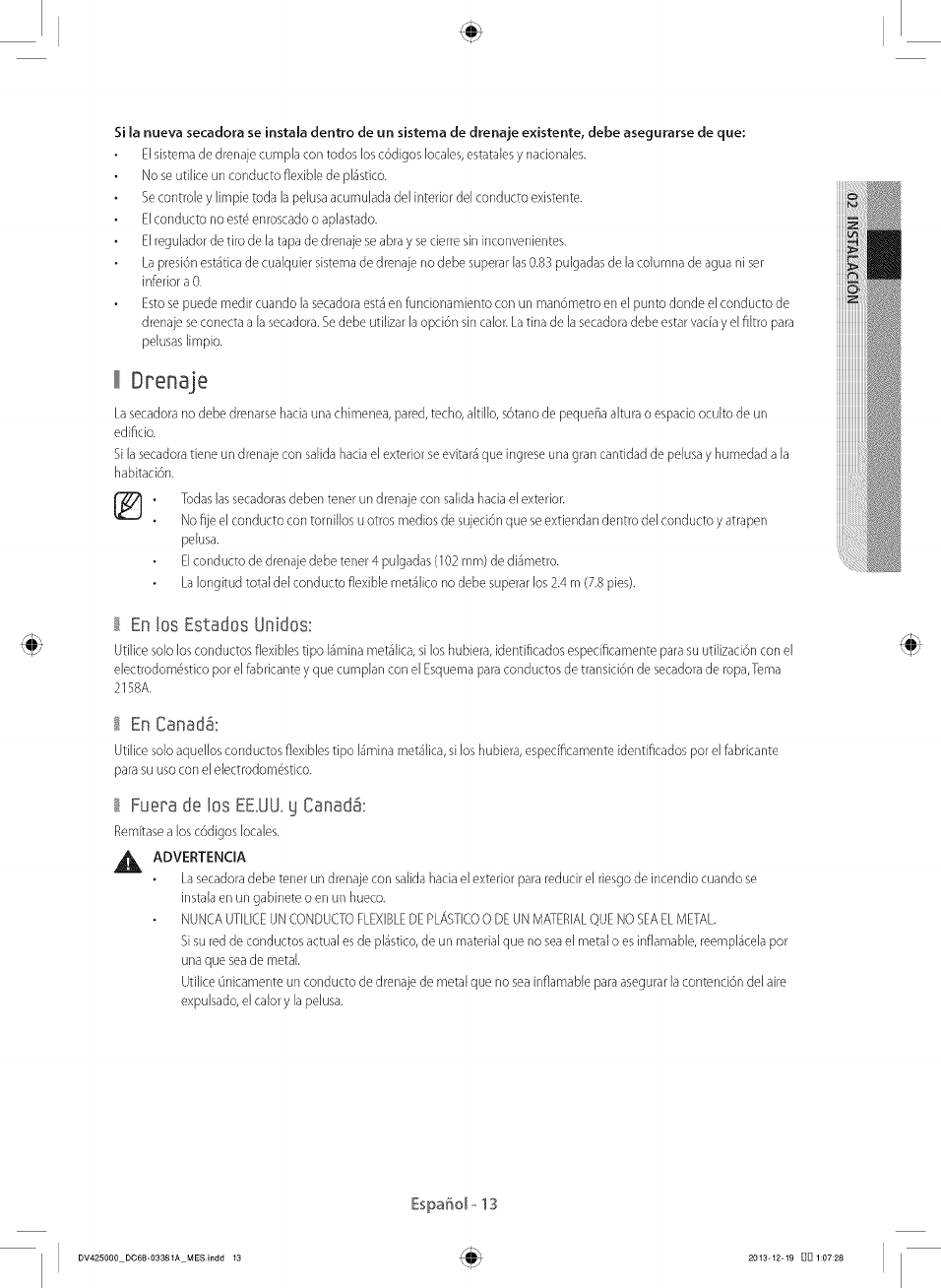

If the new dryer is installed into an existing exhaust system you must make sure:

The exhaust system meets all local, state, and national codes.

That a flexible plastic duct is not used.

To inspect and clean all lint buildup from inside the existing duct.

The duct is not dented or crushed.

The exhaust hood damper opens and closes freely.

The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be less than 0.

This can be measured with the dryer running with a manometer at the point where the exhaust duct

connects to the dryer. A no-heat setting should be used.The dryer tumbler should be empty and the lint filter

clean.

Exhausting

The dryer shall not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl space, or a concealed space of a

building.

Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being blown into the

room.

• All dryers must be exhausted to the outside.

Do not assemble the duct with screws or other fastening means that extend into the duct and catch

lint.

The exhaust duct should be 4 inches (102 mm) in diameter.

The total length of flexible metal duct shall not exceed 2.4 m (7.8 ft.).

In the United States:

Use only those foiPtype flexible ducts, if any, specifically identified for use with the appliance by the manufacturer

and that comply with the OutEine for Clothes DryerTransition Ducts, Subject 21S8A.

In Canada:

Use only those foiPtype flexible ducts, if any, specifically identified for use with the appliance by the manufacturer.

Outside the U.S and Canada:

Refer to the local codes.

WARNING

The dryer must be exhausted to the outside to reduce the risk of fire when installed in an alcove or

closet.

NEVERUSEA PLASTIC OR NON-METAL FLEXIBLE DUCT.

If your existing ductwork is plastic, non-metal, or combustible, replace it with metal.

Use only a metal exhaust duct that is non-flammable to ensure containment of the exhaust air, heat,

and lint.

English - 13

Dryer exhaust tips

WARNING: A plastic or non-metal flexible duct presents a potential fire hazard.

Make sure your dryer is installed properly so it exhausts air easily.

Use a 4"diameter rigid metal duct.Tape all joints, including at the dryer.

Never use lint-trapping screws.

Keep ducts asstraight as possible.

Clean all old ducts before installing your new dryer.

Be sure the vent flap opens and closes freely.

inspect and clean the exhaust system annually.

Don't let a poor exhaust sustain slow the drying process bg:

Restricting your dryer with a poor exhaust system. "-...................................................................................................................................................

Using a plastic, thin foil, or non-metal flexible duct.

Unnecessarily using long ducts that have many elbows.

Allowing dented or clogged ducts and vent.

English _14

Gas pequipements

THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL CODES, WITH

THE NATIONAL FUEL GAS CODE ANSIIZ223.1, LATEST REVISION (FOR THE UNITED STATES), OR WITH THE

CANICGA-B149 INSTALLATION CODES (FOR CANADA).

Use only natural or LP(liquid propane) gases.

This dryer designed for use with natural gas. If you plan to use your dryer with LP gas (liquid propane), the

conversion must be done by a qualified service technician in order to achieve safe and proper performance.

A 1/2 inch (1.27 cm) gas supply line is recommended and must be reduced to connect to the 3/8 inch (l cm)

gas line on your dryer:The National Fuel Gas Code requires that an accessible, approved manual gas shut-off

valve be installed within 6 inches of your dryer.

Gas dryers installed in residential garages must be raised 18 inches (46 cm) above the floor.

Additionally, a 1/8 inch (0.3 cm) N.RT. (National PipeThread) plugged tapping, accessible for test gauge

connection, must be installed immediately upstream of your dryer's gas supply connection.

Your dryer must be disconnected from the gas supply pipe system during any pressure testing of the system.

DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design certified by the American Gas

Association (CGA in Canada).

• Any pipe joint compound used must be resistant to the action of any liquefied petroleum gas.

As a courtesy, most local gas utilities will inspect a gas appliance installation.

GAS IGNITION -Your dryer uses an automatic ignition system to ignite the burner. There is no constant

burning pilot.

Commonwealth of massachusetts installation instructions

Your dryer must be installed by a licensed plumber or gas fitter. A'T" handle manual gas valve must be installed in

the gas supply line to your dryer. If a flexible gas connector is used to install your dryer, the connector may not be

longer than 3 feet (36 inches).

WARNING

Gas leaks may occur in your system, creating a dangerous situation.

Gas leaks may not be detected by smell alone.

Gas suppliers recommend that you purchase and install a UL-approved gas detector.

Install and use it in accordance with the manufacturer's instructions.

English - 15

Electpical pequipements

The wiring diagram is located on the plate below the control panel.

,_ WARNING

The improper connection of the equipment grounding conductor can result in a risk of electric

shock.Check with a qualified electrician or serviceman ifyou are in doubt asto whether your dryer is

properly grounded. Do not modify the plug provided with your dryer - if it doesn't fit the outlet, have

a proper outlet installed by a qualified electrician.

To prevent unnecessaryrisk of fire, electrical shock,or personalinjury, allwiring and grounding must

be done in accordancewith local codes,or in the absenceof localcodes,with the National Electrical

Code, ANSI/NFPANo.70-LatestRevision(for the U.S.)or the CanadianElectricalCode CSAC22.1-

LatestRevisionsand localcodes and ordinances.It isyour responsibilityto provide adequate electrical

servicesfor your dryer.

All gasinstallations must be done in accordance with the national FuelCode ANSVZ2231- Latest

Revision(forthe U.S.)orCAN/CGA- B149InstallationCodes- LatestRevision(for Canada)and local

codesand ordinances.

ElectPical connections

Beforeoperating or testing, follow all grounding instructions in the"Grounding"section on page 13.

An individual branch (or separate)circuit serving only your dryerisrecommended. DO NOTUSEAN EXTENSION

CORD.

6as models = U.S.and Canada

A 120volt, 60 HzA( approved electrical service,with a 1S-amperefuseor circuit breakeris required.

Electpic models - U.S.0n!y

Most U.S.dryers requirea 120/240volt, 60 HzACapproved electrical service.Some require 120/208volt, 60 Hz

approved electricalservice.Theelectric servicerequirements can be found on the data label located behind the

door. A 30-amperefuse or circuit breakeron both sidesof the line is required.

If a power cord is used,the cord should be plugged into a 30-ampere receptacle.

The power cord is NOTprovided with U.S.electric model dryers.

_k WARNING - RISKOF ELECTRICSHOCK

When local codes allow,the dectrical supply of the dryer may be connected by meansof a new power

supplycord kit, marked for usewith a dryer, that is U.L listed and rated at a minimum of120/240volts,

30-amperewith three No. 10 copper wire conductors terminated with closedloop terminals, open-end

spadelugs with turned up ends,or with tinned leads.

Do not reuseapower supply cord from an old dryer.Thepower cord electric supplywiring must be

retained at the dryer cabinet with a suitable Ublisted strain relief.

Grounding through the neutral conductor is prohibited for (1)new branch-circuit installations,(2)

mobile homes, (3)recreationalvehicles,and (4)areaswhere local codes prohibit grounding through

the neutral conductor. (Usea 4-prong plug for 4 wire receptacles,NEMAtype 14-gOR.)

EJectpicmodels = Canada0n!y

A 120/240volt, 60 Hz ACapproved electrical servicefused through a 30-ampere fuse or circuit breakeron

both sides of the line is required.

All Canadian models are shipped with the power cord attached.The power cord should be plugged into a

30-ampere receptacle.

In Canada,you may not convert a dryer to 208 volts.

English _ 16

3-WZREsystem connections

1, Loosen or remove the center terminal block screw.

2. Connect the neutral wire (white or center wire) of the power cord to the center, silver-colored terminal screw

of the terminal block.Tighten the screw.

3. Connect the other wires to the outer terminal block screws. Tighten the screws.

4. Tighten the strain reEiefscrews.

5. Insert the tab of the terminaE block cover into your dryer's rear paneEslot.

6. Secure the cover with a holddown screw.

If converting from a4-wire electrical system to a g-wire, the ground strap must be reconnected to the

terminal block support to ground the dryer frame to the neutral conductor.

4-WZREsgstem connections

Remove the center terminal block screw.

Connect the ground wire (green or unwrapped) of the power cord to the external ground conductor screw.

Connect the neutral wire (white or center wire) of the power cord and the appliance ground wire (green with

yellow stripes) under the central screw of the terminal block.

Connect the other wires to the outer terminal block screws. Tighten the screws.

Tighten the strain relief screws.

Insert the tab of the terminal block cover into your dryer's rear panel slot.

Secure the cover with a holddown screw.

J f

i_ Externa ground connector i A ,--- _j_ .............

i B Greenorbarecopperwireofthepowercord l t_ ,h%i,Y %

_' B I

J_ 314 in. (1.9 cm) UL-listed strain relief j i --E

j_i Grounding wire(green/yellow) J ii _ I

J_ Neutral wire (white or center wire)

8. With a level, check your dryer and make the necessary adjustments to the leveling legs.

9. At this time, make sure all gas connections (on gas models), exhaust and electrical connections are complete.

Plug in your dryer, and check its operation by using the checklist below.

10. (GAS MODELS ONLY)

The burner may not ignite initially due to air in the gas line. AHowing your dryer to operate on a heat setting

will purge the line. If the gas does not ignite within 5 minutes, turn your dryer off and wait 5 minutes. Be sure

the gas supply to your dryer has been turned on. In order to confirm the gas ignition, check the exhaust for

heat.

English - 17

Connecting the inlet hose (Steam model only)

The dryer must be connected to the cold water faucet using the new inlet hoses. Do not use old hoses.

1. Turn the cold water faucet off.

2, Attach the brass female end of the Y connector CA)to the cold water

faucet.

3. Attach the straight end of long hose (B) to the Y connector.

4, Using pliers, tighten the coupling with an additional two4hirds turn.

If the Y connector cannot be attached directly to the cold water

faucet, the short hose must be used.

(If space permits, please skip steps 5 to 8, and go directly to step 9.)

Attach the short inlet hose (C} to the cold water faucet.

Screw on the coupling by hand until it is seated on the faucet. ___

Using the pliers, tighten the coupling with an additional two-thirds

turf].

Attach the Y connector CA)to the brass male end of the small hose. "

Screw on the coupling by hand until it is seated on the connector.

Using the pliers, tighten the coupling with an additional two4hirds

turf].

Attach the angled end of long hoses to the fill valve at the bottom of

the dryer rear frame. Screw on the coupling by hand until it is seated

on the fill valve connector.

10. Using pliers, tighten the coupling with an additional two-thirds turn.

11. Attach the washer hose (D) to the other side of the Y connector CA).

Screw on the hose coupling until it istight. Using pliers, tighten the

coupling with an additional two thirds turn.

12. Check that the water faucets are on.

13. Check for leaks around the Y connector, faucets and hoses.

When you tighten the coupling with pliers, do not overtighten.This may damage the coupling.

English _18

Replacement parts and accessories

If your dryer requires replacement parts or accessories, contact the dealer where you purchased your dryer or the

SAMSUNG customer care center at 1-800-SAMSUNG (726-7864).

Installation

For the proper installation, we recommend that you hire a qualified installer.

1. Move your dryer to an appropriate location for the installation.

Consider installing the dryer and washer side-by-side, to allow access

to the gas, electrical, and exhaust connections. Place two of the carton

cushion-tops on the floor.Tip your dryer on its side so it lies across

both cushion-tops.

2, Set your dryer back in an upright position.

3, To ensure that the dryer provides the optimal drying performance, it

must be level. To minimize vibrations, noise, and unwanted movement,

the floor must be a perfectly level, solid surface.

To set the dryer to the same height asthe washer, fully retract the

leveling feet CA)by turning them counterclockwise, then loosen the

legs by turning them clockwise.

Adjust the leveling feet only as much as necessary to level the

dryer. Extending the leveling feet more than necessary can

cause the dryer to vibrate.

Review the"Exhausting'section on page 13 before installing the exhaust system.

Install the ductwork from your dryer to the exhaust hood.The crimped end of the duct sections must point

away from your dryer.

DQ NOT use sheet metal screws when assembling the ducting.Thesejoints should be taped.

Never use plastic flexible exhaust material.

Tip for tight installations: install a section of the exhaust system onto your dryer before putting it in place.

Use duct tape to secure this section to your dryer, but do not cover the ventilation slots at the back of

the unit in dryer cabinet.

Review the"Electrical requirements" section on page 16.

BEFOREOPERATINGOR TESTING, follow the grounding instructions in the"Grounding"section on page 9.

_IL WARNING- U.S. MODELS

RISK OF ELECTRIC SHOCK - All U.S.models are produced for a S-WIRE SYSTEM CONNECTION.

The dryer frame is grounded to the neutral conductor at the terminal block.

A 4-WIRE SYSTEM CONNECTION is required for new or remodeled construction, mobile homes, or if

local codes do not permit grounding through the neutral conductor, if the 4-wire system is used, the

dryer frame cannot be grounded to the neutral conductor at the terminal block.

Refer to the following instructions lot"Electrical connections" on page 16.

Remove the terminal block cover plate.

Insert the power cord with a Ublisted strain relief through the hole provided in the cabinet near the terminal

block.

A strain must

relief be used.

Do not loosen the nuts already installed on the terminal block. Be sure they are tight.

Use a 3/8 in. (1 cm) deep well socket.

English- 19

Review the"Gas requirements" section on page 1S.

Remove the pipe thread protective cap. Apply a pipejoint compound or about 1V2wraps of Teflon tape over

all threaded connections.

The pipe joint compound must be resistant to the actions of any liquefied petroleum gas.

Connect the gas supply to your dryer. An additional fitting is required to connect the 3/4" (1.9 cm) female

thread end of a flexible connector to the 3/8" (1 cm) male threaded end on the dryer.

Securely tighten the gas line fitting over the threads.

Turn on the gas supply.

Check all gas connections for leaks using a soap solution.

If bubbles appear, tighten the connections and recheck. DO NOT use an open flame to check for gas leaks.

Doop peversaJ

1. Unplug the power cord.

2. Remove two door hinge screws.

3. Lift the door and remove it.

4. Remove two screws from the frame front.

5. Remove the two screws from the opposite side of the door hinge.

6. Remove the two screws from the holder lever.

7. Reassemble the two screws on the inside holes.

English _20

8, Remove a screw from the door hinge.

The screw is for pre-flxing the door to the frame front.

9, Reassemble the screw in the other hole.

10. Place the door on the other side and reattach it to the dryer.

11. Reattach the holder lever.

12. Reattach the screws in the remaining holes.

Final installation checklist

The dryer is plugged into an electrical outlet and is properly grounded.

The exhaust ductwork is hooked up and the joints are taped.

A plastic flexible duct is NOT used.

Use rigid or stiff-walled flexible metal vent material.

The dryer is level and is sitting firmly on the floor.

Gas models the gas is turned on with no gas leaks.

Start your dryer to confirm that it runs, heats, and shuts off.

English- 21

@ OpeRating instructions, tips

To reduce the risk of fire, electric shock, or injury to persons,read the IMPORTANT SAFETYINSTRU(-TIQNS

before operating this appliance.

Overview of the control panel

The courses and functions differ depending on the model.

Please check your model before proceeding,

DV42H5400*

......... [] @ e ........... @

HEAVY DUTY NORMAL ACTIVE WEAR

BEDDING QUICK DRY pO_WER

....... .......

RERM AIR FLUFF _I N_ I

WOOL ' _ REFRESH

DELICATES ' ,JWRINWRINKLE AWAY

'TES_k__ ,//\'_"\ /" /

[] ......... y @...... ycles• @ @ e @ @

DV42H5000*

'EAVVODTV NOgT_E QU,CKDRYBEDDING TIME DRY

PERM PRESS /// "' AIR FLUFF

DELICATE

[] Sensor Dry Manual Dry []

English - 22

DV425000 DCBB-O3381Aindd 22 2013-12-19 _ 1:07:14

Cycle selector

To select a cycle, rotate the Cycle selector dial to the desired cycle.

The indicator light by the cycle name will illuminate.The ECO NORMAL, NORMAL, HEAVY DUTY, BEDDING,

SANITIZE, PERM PRESS,WOOL and DELICATEScycles are Sensor Dry cycles.

Sensor Dry automatically senses the moisture in the load and shuts the dryer offwhen the selected dryness

level (Very Dry to Damp Dry) is reached.

i Cottons, Work clothes, Use this cycle to dry loads such as cotton, underwear,

NORMAL

' Linen, Mixed loads arid linen.

J ... Heavy fabrics such as jean, Use this cycle to get high heat for heavy fabrics such as

lNEAV¥DUTY Corduroys,Heavywork

i_ _ clothes ijeans,corduroys,orworkclothes.

Bulky items such

i For bulky items such as blankets, sheets, and

i BEDDING as blankets, Sheets, comforters.

j Comforters, Pillows j

lSanitize garments by infusing high temperature heat

i SANITIZE Bedding, Curtains, Children's deep into the fabric during the drying cycle. Use

, clothing this course to keep your bedding and curtains clean

, through sanitization.

Shirts, Synt hetic fabrics, '

PERM PRESS Knits, Wrinkle-free cottons, , Dry wrinkle-free cottons, synthetic fabrics, knits, and

i Permanent ' permanent press fabrics automatically.

j For rnachine washable and '

J WOOL tumble dryable wool only For machine washable and tumble dryable wool only.

i Maximum amount : 3lb) ,

i Underwear, Blouses, The DELICATEScycle is designed to dry heat-sensitive

DELICATES

, Lingerie items at a low drying temperature.

K T .,

The ACTIVEWEAR cycle is for exercise wear and

Water-repellent wear,

)erformance clothes, Sports outdoor wear such as sports jerseys, training pants,

j ACT!VEWEAR water-repdlentjackets and other performance

i wear clothing. Thick fabrics like a zipper or velcro closure of a

(Maximurn amount : 41b) acket, or training socks rnay not be cornpletely dried.

i QUICKDRY Small loads Provides a 30 minutes drying cycle.

i TheTIME DRY allows you to select a cycle time in

J minutes.Turn the Cycle Selector dial toTIME DRY,then

] TIME DRY Any load press the Adjust Time up arrow to set the drying time.

Press the arrow repeatedly to scroll through the time

] settings.

i The AIR FLUFFcycle tumbles the load in room

i AIRELUFF Foam, Rubber, Plastic

i temperature air.

TheWRINKLERELEASEcyclew,llreleasewr,nklesfrom

items that are dean, dry, arid only slightly wrinkled,

WRINKLE ... suchasclothesfromacrowdedclosetsuitcaseor

J RELEASE bhlrts Trouser Blouses ........ ' _ ,

'' _terns that have been _nthe dryer too long atter the

cycle has ended. Wrinkle Release can be used with any

, temperature selection.

English- 23

DV425000 DO68-O3381Aindd 23 2013-12-19 D_ 1:07:14

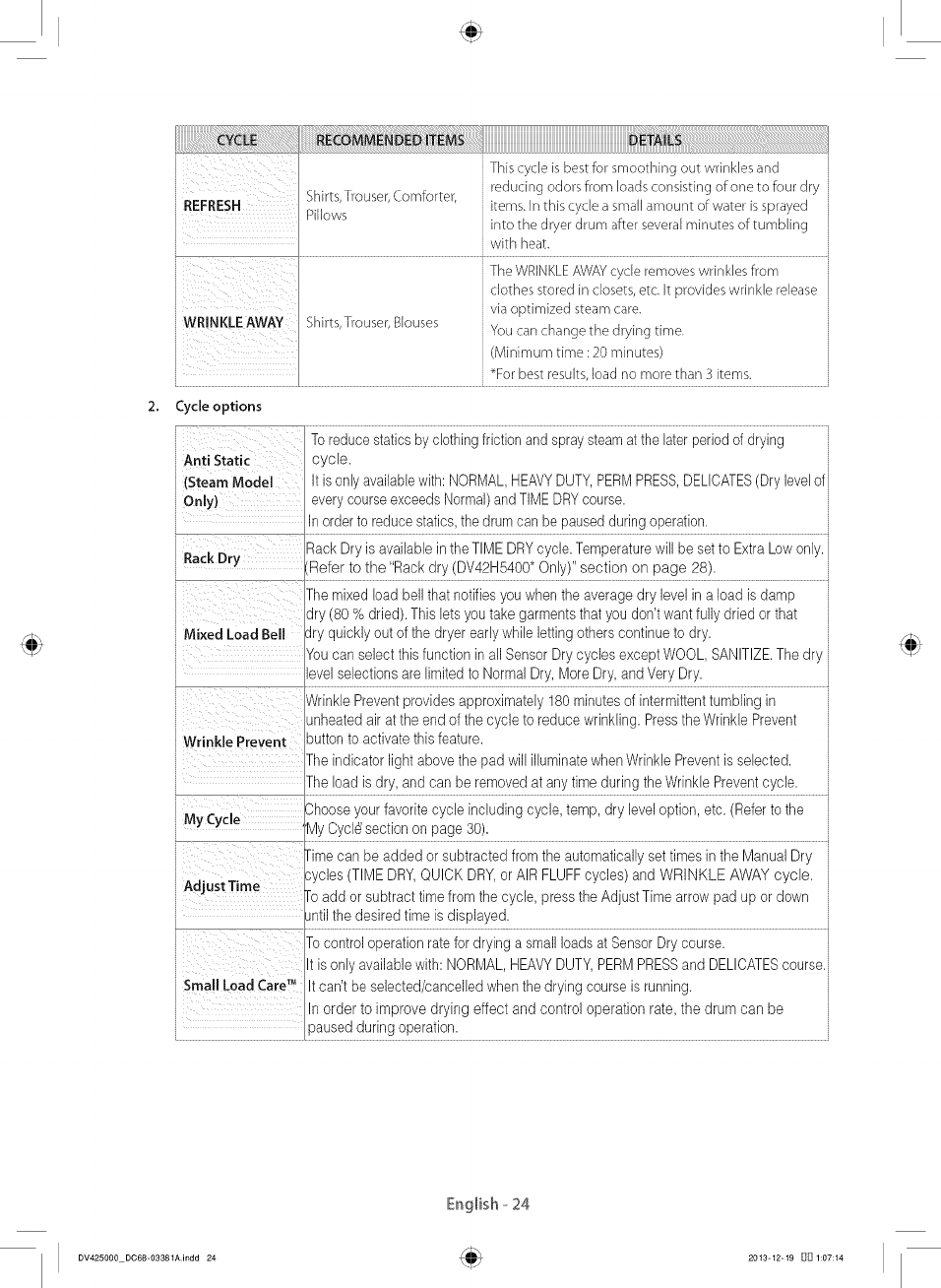

i This cycleisbestfor smoothing out wrinkles and

reducing odorsfrom loadsconsisting of one to four dry

i Shirts,Trouser,Comforter,

JREFRESH items. In this cycle a smallamount of water is sprayed

j Pillows ' into the dryer drum after severalminutes of tumbling

j with heat.

TheWRINKLEAWAYcycle removeswrinkles from '

clothes stored in closets,etc. It provideswrinkle release

viaoptimized steamcare.

JWR NKLEAWAY Shirts,Trouser,Blouses

Youcan change the drying time.

(Minimum time : 20 minutes)

i . _Forbest results,load no morethan 3 items.

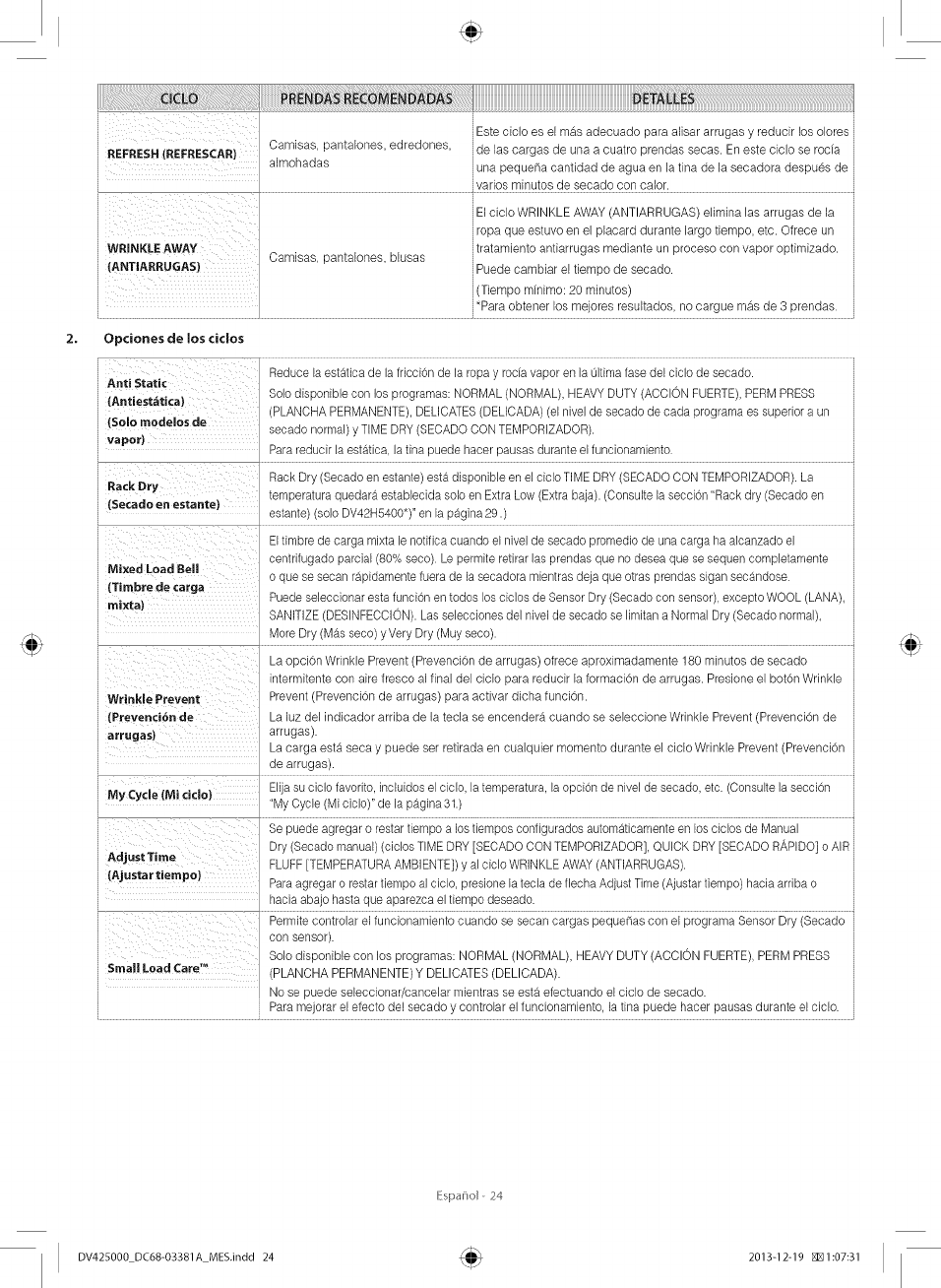

Cycle options

,i To reducestatics by clothing friction and spraysteam at the laterperiod of drying

i Anti Static cycle.

i (Steam Mode! It is only availablewith: NORMAL,HEAVYDUTY,PERMPRESS,DELICATES(Drylevelofj

i only) everycourse exceeds Normal) and TIMEDRYcourse.

: In order to reducestatics, the drum can be paused during operation.

Rack Dry Rack Dry isavailable inthe TIME DRYcycle. Temperaturewill be set to ExtraLow only.

'Refer to the "Rackdry (DV42H5400*Only)" section on page 28).

i Themixed load bell that notifies youwhen the average dry level in a load is damp

dry (80 % dried). This lets you take garments that you don't want fully dried or that

] Mixed Load Bell Jry quickly out of the dryer early while letting others continue to dry.

i Youcan select this function in all SensorDry cycles except WOOL,SANITIZE.The dry

j level selections are limitedto Normal Dry, More Dry, and VeryDry. ,

i Wrinkle Preventprovides approximately 180 minutes of intermittenttumbling in

unheated air at the end of the cycle to reduce wrinkling. Press the Wrinkle Prevent

i Wrinkle Prevent button to activate this feature.

i The indicator light abovethe pad will illuminatewhen Wrinkle Preventis selected.

j The load is dry, and can be removed at any time during the WrinklePreventcycle.

iMy cycle 3hoose your favorite cycle including cycle, temp, dry level option, etc. (Referto the

My Cyclg section on page 30),

rime can be added or subtracted from the automaticallyset times in the Manual Dry

3ycles (TIME DRY,QUICK DRY,or AIR FLUFFcycles) and WRINKLE AWAY cycle.

iAdju't'nme ro add or subtract time from the cycle, press the Adjust Time arrow pad up or down

i Jntilthe desired time is displayed.

To control operation rate for drying a small loads at Sensor Dry course.

It is only available with: NORMAL,HEAVYDUTY,PERMPRESSand DELIOATEScourse.

] Small Load care'_' It can't be selected/cancelled when the drying course is running.

i In order to improve drying effect and control operation rate,the drum can be

i _ausedduring operation.

English- 24

DV425000 DO68-O3381Aindd 24 2013-12-19 D_ 1:07:14

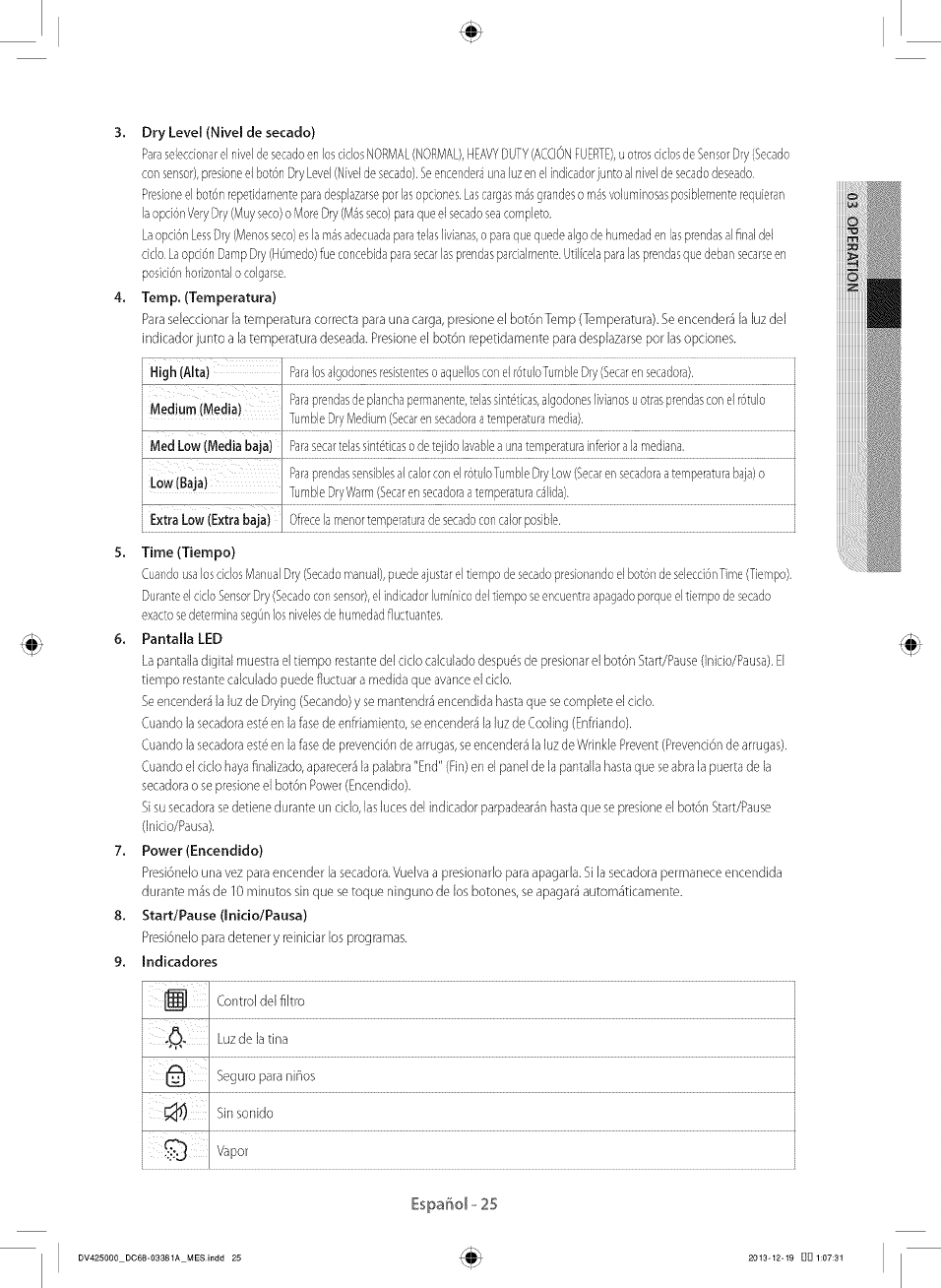

Dry Level

To select the dry level in the NORMAL, HEAVYDUTY, or other Sensor Dry cycles, press the Dry Level button. An

indicator light will illuminate next to the desired dryness level.

Press the button repeatedly to scroll through the settings. Larger or bulkier loads may require theVery Dry or

More Dry setting for complete dryness.

The Less Dry setting is best suited for lightweight fabrics or for leaving some moisture in the clothing at the

end of the cycle. Damp Dry is designed to partially dry items. Use for items that lay fiat or hang to dry.

Temp.

To select the correct temperature for the load, press theTemp, button. An indicator light will illuminate next

to the desired temperature. Pressthe button repeatedly to scroll through the settings.

High For sturdy cottons or those labeled Tumble Dry.

]

j Medium For permanent press, synthetics, lightweight cottons, or items labeled Tumble Dry

Medium.

i Med Low For lower heat than Medium to dry synthetic or washable knit fabrics.

Low For heat sensitive items labeled Tumble Dry Low orTumble Dry Warm.

E×tra Provides the lowest heated dry temperature possible.

Time

When using Manual Dry cycles, you can adjust the drying time by pressing theTime selection button.

During the Sensor Dry cycle, the time light indicator is off because exact drying times are determined by

fluctuating humidity levels.

LED Display

The display window shows the estimated time remaining in the cycle after the Start/Pause button is pressed.

The estimated time remaining may fluctuate as the cycle progresses.

The Drying light will illuminate and remain lit until the cycle is complete.

When your dryer is in the cooPdown phase, the Cooling light will illuminate.

When your dryer is in the wrinkle prevent phase, the Wrinkle Prevent light will illuminate.

When the cycle is complete,"End'will appear in the display panel until the dryer door is opened or the Power

button is pushed.

If your dryer is paused during a cycle, the indicator lights will blink until the Start/Pause button is pressed.

Power

Press once to turn your dryer on. Press again to turn it off. if your dryer is left on for more than 10 minutes

without any buttons being touched, the power automatically turns off.

Start/Pause

Press to pause and restart programs.

Indicators

Filter Check

._. Drum Light

@ Child Lock

j _ Sound Off

Steam

English- 25

DV425000 DO68-O3381Aindd 25 2013-12-19 []0 1:07:15

Load the drLjer properlLJ

Place only one washload in your dryer at a time.

Mixed loads of heavy and lightweight fabrics will dry differently, which may result in lightweight fabrics being

dry while heavy fabrics remain damp at the end of a drying cycle.

Add one or more similar items to your dryer when only one or two articles of clothing need drying.

This improves the tumbling action and drying efficiency.

Overloading restricts tumbling action, resulting in uneven drying aswell as excessive wrinkling of some

fabrics.

If you insert laundry into your dryer while it is extremely tangled immediately after your washer has

finished a wash or spin cycle, it may degrade the drying efficiency or cause the door to open. We

recommend that you untangle your laundry appropriately before inserting it.

Getting started

1. Load your dryer loosely (DO NOT overload).

2. CIosethe door.

3. Select the appropriate cycle and options for the load. (For detail, refer to the "Cycle overview" on next page.)

4, Press the Start/Pause button.

5. The dryer indicator light will illuminate.

6. The estimated cycle time will appear in the display.

The time may fluctuate as humidity levels fluctuate in the dryer.

•When the cycle is complete,"End" will appear in the display.

Pressing Power cancels the cycle and stops your dryer.

The Drying, Cooling, and Wrinkle Prevent indicator lights will illuminate during those portions of the

cycle.

,_ Do not place anything on top of your dryer while it is running.

English- 26

DV425000 DO68-O3381Aindd 26 2013-12-19 D_ 1:07:15

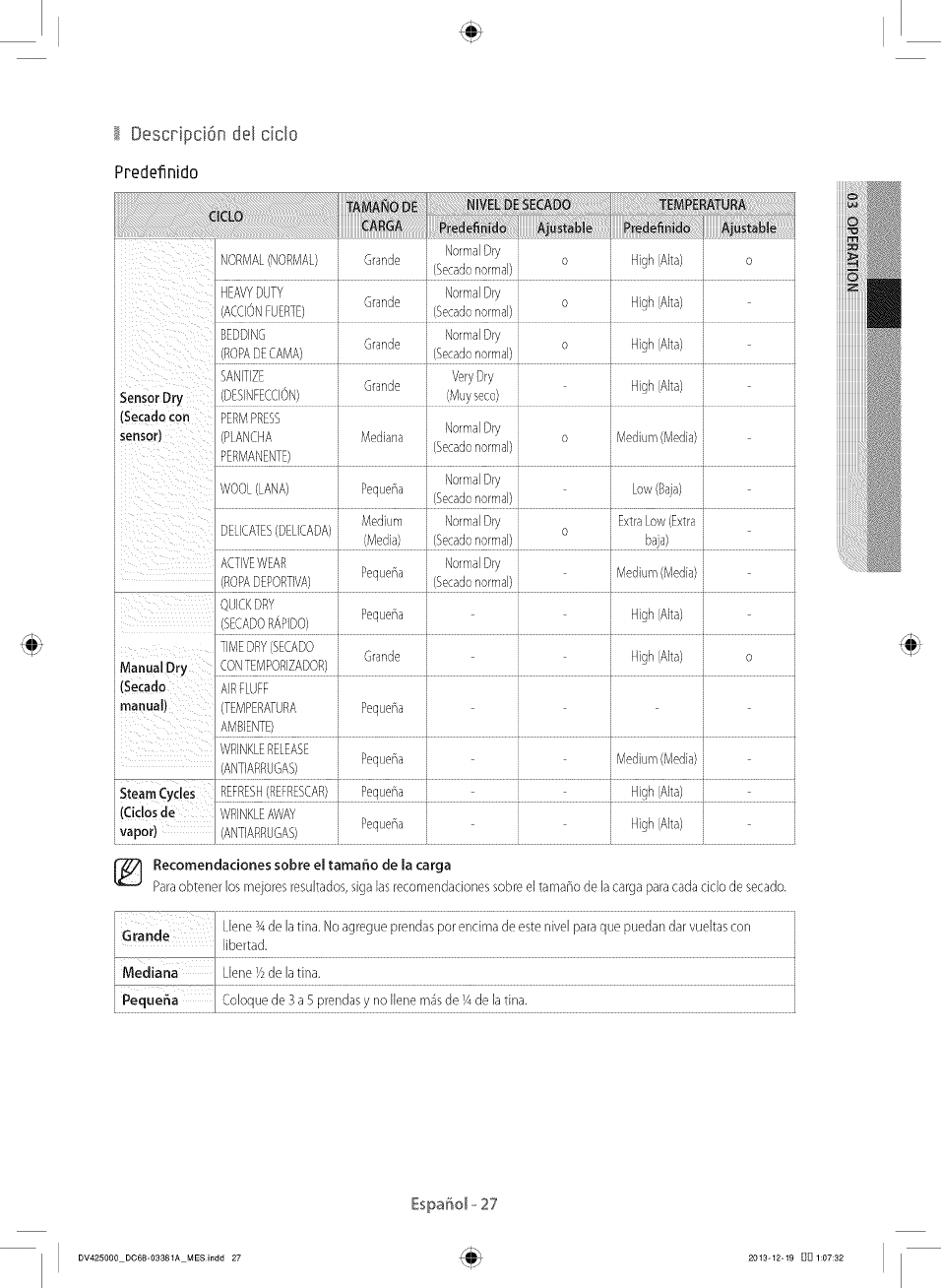

Cycle overview

Predefined

NORMAL _ Large _ Normal Dry , o _ High , o ,

i HEAVYDUTY Large Normal Dry o High

i SANITIZE Large VeryDry High

MSensorOr__ERM_RESSj Mediumi Norma_Dryj o i Medium - j

ACTIVEWEAR . Small _ Normal Dry _ _ Medium _

QU,_KDRY, Small, _ , High,

TIMEDRY Large High o

iMan_a_Dry _i_£U_F Sm;ii ' _ ' :_ _ '

i , ÷ ÷ ÷ ÷

l WRINKLERELEASE Small Medium

'l<;t_,amCv4e,_ REFRESH . Small _ _ _ High _ - .

WRINKLEAWAY , Small , High

Load size recommendations

Forbest results,follow the load sizerecommendations for eachdrying cycle.

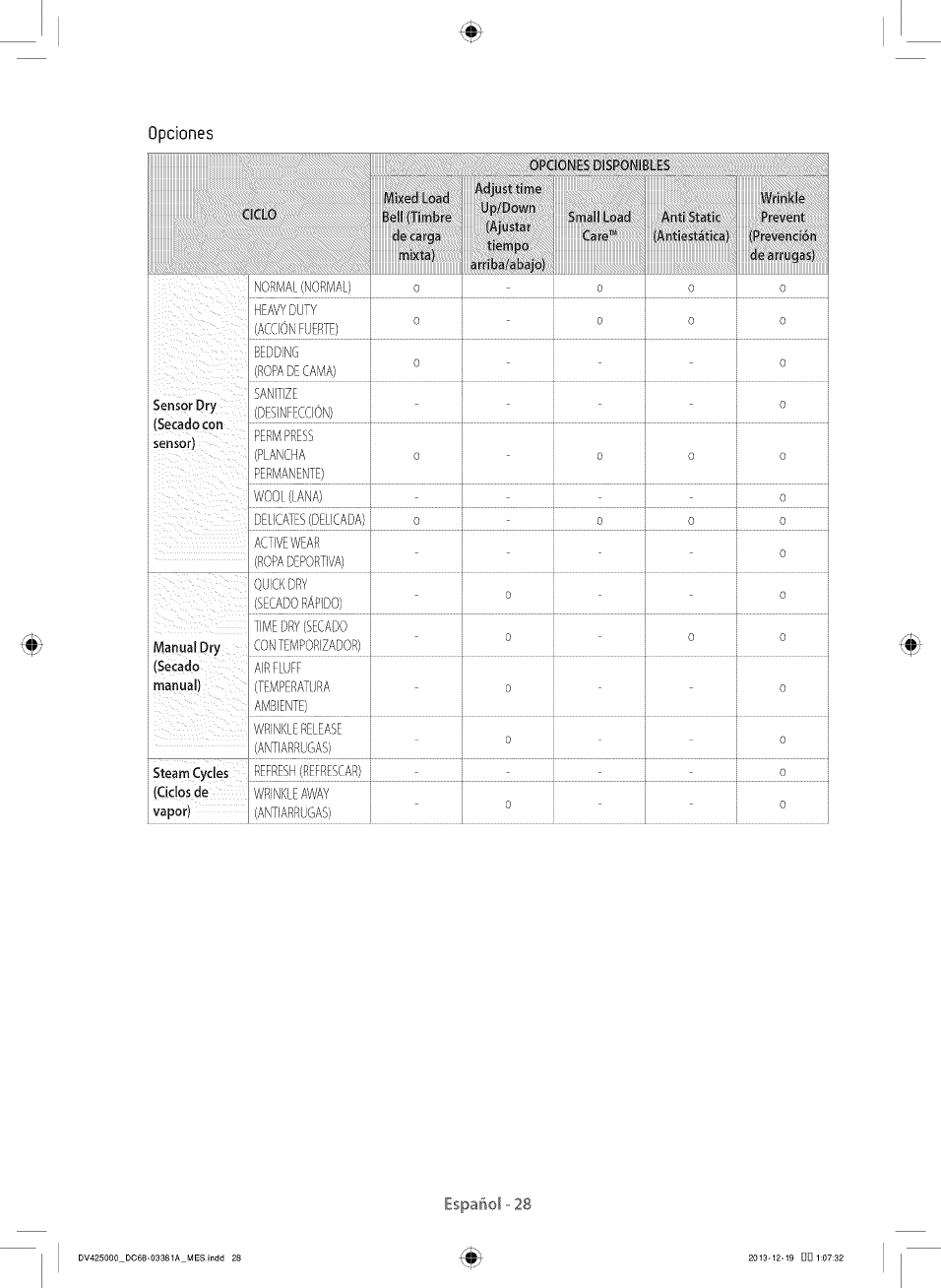

Options

l NORMAL o o o o

i , _ ÷ +

HEAVYDUTY , o , + o _ o , o ,

_EDD_N__ o .... o

SANITIZE - - - o

WOOL o ,

i DELICATES o o o o

j ACTIVEWEAR o

QUICKDRY o o

TIMEDRY o o o

i Manua! Dry

J _ WRINKLERELEASE o L i o ,

REFRESH 0

WRINKLEAWAY , , o o

English _ 27

DV425000 DO68-O3381Aindd 27 2013-12-19 []_ 1:07:15

Rack dry (DVq2HSqO0* Only)

Installingthednyingpack

1. Open the dryer door.

2. Position the drying rack in the tumbler, placing the front lip of the

drying rack (A) on the top of the lint filter.

3. Place the rear legs in the two recessed areas of the dryer's back wall,

and then push down the middle of the drying rack to fix in place.

4. Place the items to be dried on the rack, leaving space between them

so air can circulate.

5. Close the dryer door.

6. Press the Rack Dry button in the TIME DRY cycle and then select the

time according to the amount of moisture and the weight of the items.

The drying rack can be also used at AIR FLUFFcycle.

vasnalole swea_ers

[IOCK_O snaDe ana at flat on rack

Stuffed tovs

lcotton or Do ,,ester fiberfilled

Stuffed tow

Toam or rubber-filled

Foam ruDDer gillow_

Sneakers AIR FLUFF

Extra Low (TIME DRY cycle)

AIR FLUFF

Drying foam rubber, plastic, orrubber on a heat setting may cause damage to the items and lead to a fire

hazard.

The drying rack is not included in the DV42HS200* and DV42H5000* models.

You can purchase the drying rack (part code: DC61-O2705A) at a local Samsung service center.

English _28

DV425000 DO68-O3381Aindd 28 2013-12-19 O0 1:07:16

Child Lock

Prevents children from pBying with your dryer.

Setting/Releasing

To turn Child Lock on or off, press both the Temp. and Time buttons simultaneously for 3 seconds.

Chin Lock Details

1, You can turn Child Lock on while your dryer is running.

2, Once you set the Child Lock function, no button, except for the Power button, wiJJrespond until you turn off

the Child Lock function.

S, The"ChiJd Lock@"indicatorwiJl beJit.

•if the dryer is powered on again, the Child Lock function stays on.

To turn off Child Lock, follow the instructions above.

When other buttons, except for the Power button, do not respond, check the Child Lock indicator, if Child

Lock is on, follow the instructions above to turn Child Lock off.

Drum Light

Lights the dryer drum while the dryer is running.

Tupning Onand Off

To turn on or turn off the Drum Light, press and hold the Wrinkle Prevent (DV42HS400*) /Small Load Care TM

(DV42HS200*) button for 3 seconds; press the Drum Light (DV42HS000 *) button.

You can turn the Drum Light on and off whib your dryer is running and when it is stopped.

If you do not turn the Drum Light off S minutes after turning it on, the Drum Light is automatically turned

off.

Sound Off

Use this function to mute the button and operating sounds.

Setting and Releasing

To turn the Sound Off function on or off, press and hold the Dry Level button for 3 seconds (DV42HS400*); press

the Sound button (DV42HS200 _, DV42HSO00*).

Sound Off Details:

1, You can set Sound Off while your dryer is running.

2, Once you have activated Sound Off, the button and operating sounds are muted until you deactivate it.

S. The"Sound Off_"indicator will be lit.

If you do not turn the Sound Off function off before you turn your dryer off, it will still be on when you turn

your dryer on again. To turn Sound Off off, follow the instructions above.

English- 29

DV425000 DO68-O3381Aindd 29 2013-12-09 D_5:48:18

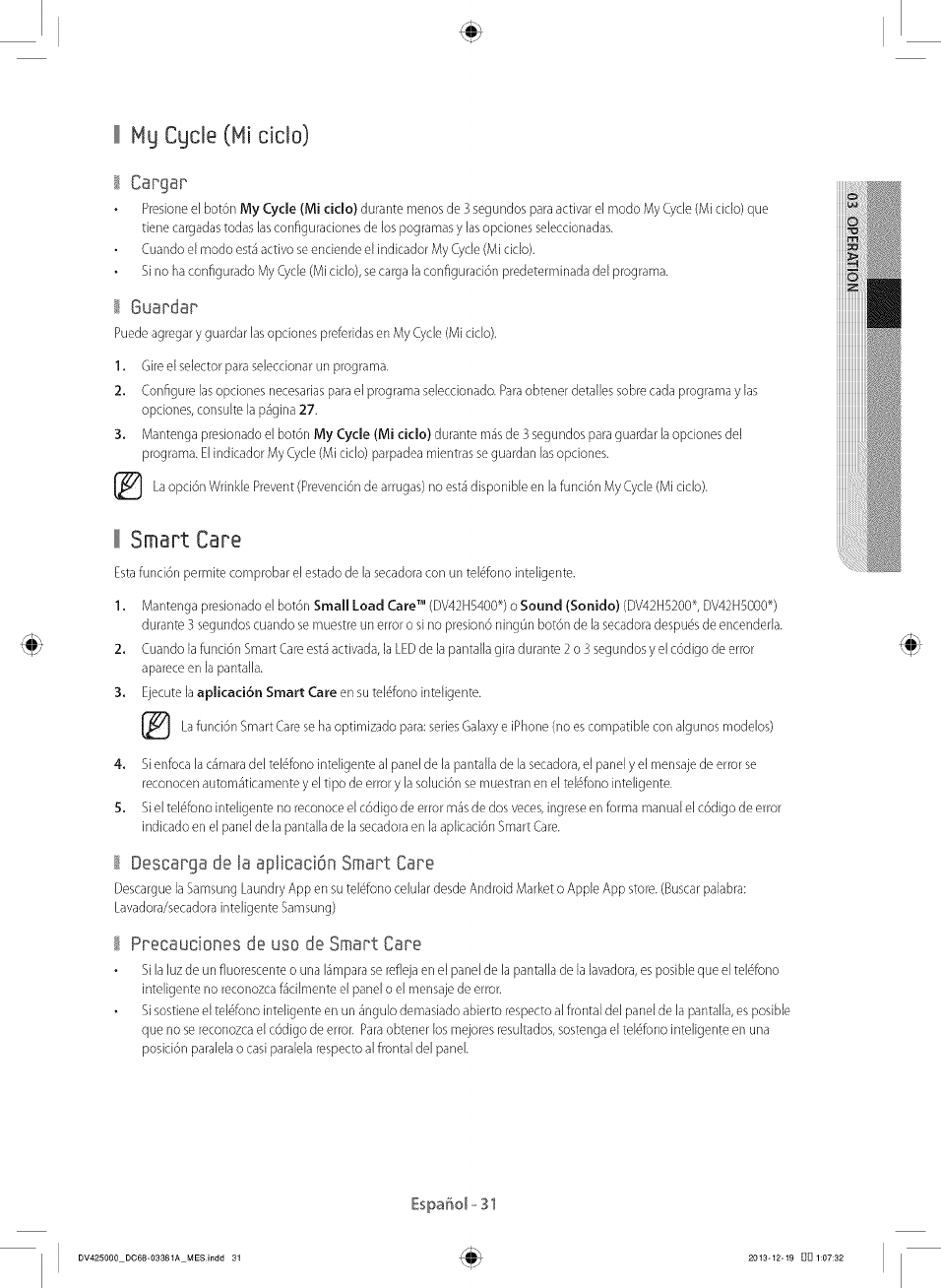

My Cycle

Load

Press the My Cycle button for less than 3 seconds to activate My Cycle mode where all course settings and

selected options are loaded.

The My Cycle indicator turns on when the mode is active.

If you have not configured any My Cycle settings, the default course settings are loaded.

# Save

You can add and save preferred options to My Cycle.

1, Turn the course dial to select a course.

2, Set necessary options for the selected course. For details on each course and options, see page 27.

3, Press and hold the My Cycle button for more than 3 seconds to save the course options.The My Cycle

indicator blinks while the options are being saved.

The Wrinkle Prevent option is not available for the My Cycle function.

Smart Care

This function enables you to check the status of the dryer using a smartphone.

1. Press and hold the Small Load Care TM (DV42HS400 _) or Sound (DV42H5200 _, DV42HS000 _) button for 3

seconds when an error occurs or if you haven't pressed any buttons on the dryer after you turned the power

on.

2. When the Smart Care function is activated, the LED on the window display rotates for 2 or 3 seconds and then

the error code will appear in the display panel.

3, Run the Smart Care app on your smart phone.

The Smart Care function has been optimized for: GaEaxy& iPhone series (cannot be supported for

some models).

4. If the smart phone's camera is focused on the display panel of the dryer, the panel and error message is

automaticalEy recognized and the error type and countermeasures are displayed on the smart phone.

5. If the smartphone fails to recognize the error code more than twice, please enter the error code displayed on

the display panel of the dryer manually into the Smart Care app.

Downloadingthe Smart Care app

Download the Samsung Laundry App into your mobile phone from the Android market or Apple App store.

(Search word : Samsung Smart Washer/Dryer)

# Precautions when using Smart Care

If light from a light bulb, fluorescent bulb, or Br-np is reflected on the display panel of the washing machine,

the smartphone may not be able to recognize the panel or error message easily.

If you hold the smartphone at too large an angle relative to the front of the display panel, it may not be able

to recognize the error code. For best results, hold the smartphone so that the front of the panel and the

smartphone are parallel or nearly parallel.

EngIBh- 30

DV425000 DO68-O3381Aindd 30 2013-12-19 DO 1:07:16

I Cape and cleaning

Control panel

Clean with a soft, damp cloth. Do not use abrasive substances.

Do not spray cleaners directly on the panel.

The control panel finish may be damaged by some laundry pre-treatment soil and stain remover products.

Apply such products away from your dryer and wipe up any spills or overspray immediately.

Tumbler

Remove any stains caused by crayon, ink, or fabric dye (from new items such as towels orleans) with an all-

purpose cleaner.

Tumble old towels or rags to remove any remaining stain or cleaning substance.

Once these steps are followed, stains may still be visible, but should not transfer to subsequent loads.

Stainless steel tumbler

To clean the stainless steel tumbler, use a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel

surfaces.

Remove the cleaner residue and dry with a clean cloth.

DrLjer exterior

Clean with a soft, damp cloth. Do not use abrasive substances.

Protect the surface from sharp objects.

Do not place any heavy or sharp objects or a detergent box on the dryer. Keep them on the purchased pedestal or

in a separate storage box. This may scratch or damage the top cover of the dryer.

Since the entire dryer has a high-gloss finish, the surface can be scratched or darnaged.

Avoid scratching or damaging the surface when using the dryer.

DrLjer exhaust sLjstem

Should be inspected and cleaned yearly to maintain optimum performance.

The outside exhaust hood should be cleaned more frequently to ensure proper operation.

Clean the lint filter

After each load.

To shorten drying time.

To operate more energy efficiently.

Do not operate your dryer without the lint filter in place.

English- 31

DV425000 DC68-O3381Aindd 31 2013-12-19 D_ 1:07:16

I Special laundry tips

Spedal laundry tips

Please follow the care label or manufacturer's instructions for drying special items. If care label instructions are not

available, use the following information as a guide.

Follow the care EabeEinstructions or dry on the BEDDING cycle.

Bedspreads & Comforters Make sure the item is thoroughly dry before using or storing.

May require repositioning to ensure even drying.

Use NORMAL cycle and dry only one blanket at a time for best tumbling

Blankets action.

Make sure the item is thoroughly dry before using or storing.

Use the PERM PRESScycle and Medium temperature to help minimize

Curtains & Draperies wrinkling.

Dry these in small loads for best results and remove as soon as possible.

Use the NORMAL cycle and the High temperature settings for soft, fluffy

Cloth Diapers diapers.

Down-filled Items (jackets, Use the NORMAL cycle and the Medium temperature setting.

sleeping bags, comforters, etc.) Adding a couple of dry towels shortens drying time and absorbs moisture.

DO NOT dry on a heat setting. Use the AiR FLUFF cycle (no heat).

Foam Rubber (rug backs,

stuffed toys, shoulder pads, etc.) WARNING Drying a rubber item with heat may damage it or be a fire

hazard.

Use the NORMAL cycle.

Pillows Add a couple of dry towels and a pair of clean sneakers to help the

tumbling action and to fluff the item.

DO NOT dry kapok or foam pillows in dryer. Use the AIR FLUFF cycle.

Plastics (shower curtains, Use the AIR FLUFFcycle or the TIME DRY cycle and the Low or Extra Low

• outdoor furniture covers, etc.) temperature settings depending on the care label instructions.

THINGS TO AVOID PUTTING IN THE DRYER:

Fiberglass items (curtains, draperies, etc.).

Woolens, unless recommended on the label.

Vegetable oil- or cooking oiPsoaked, or gasoline-soaked items.

English - S2

DV425000 DO68-O3381Aindd 32 2013-12-19 D_ 1:07:16

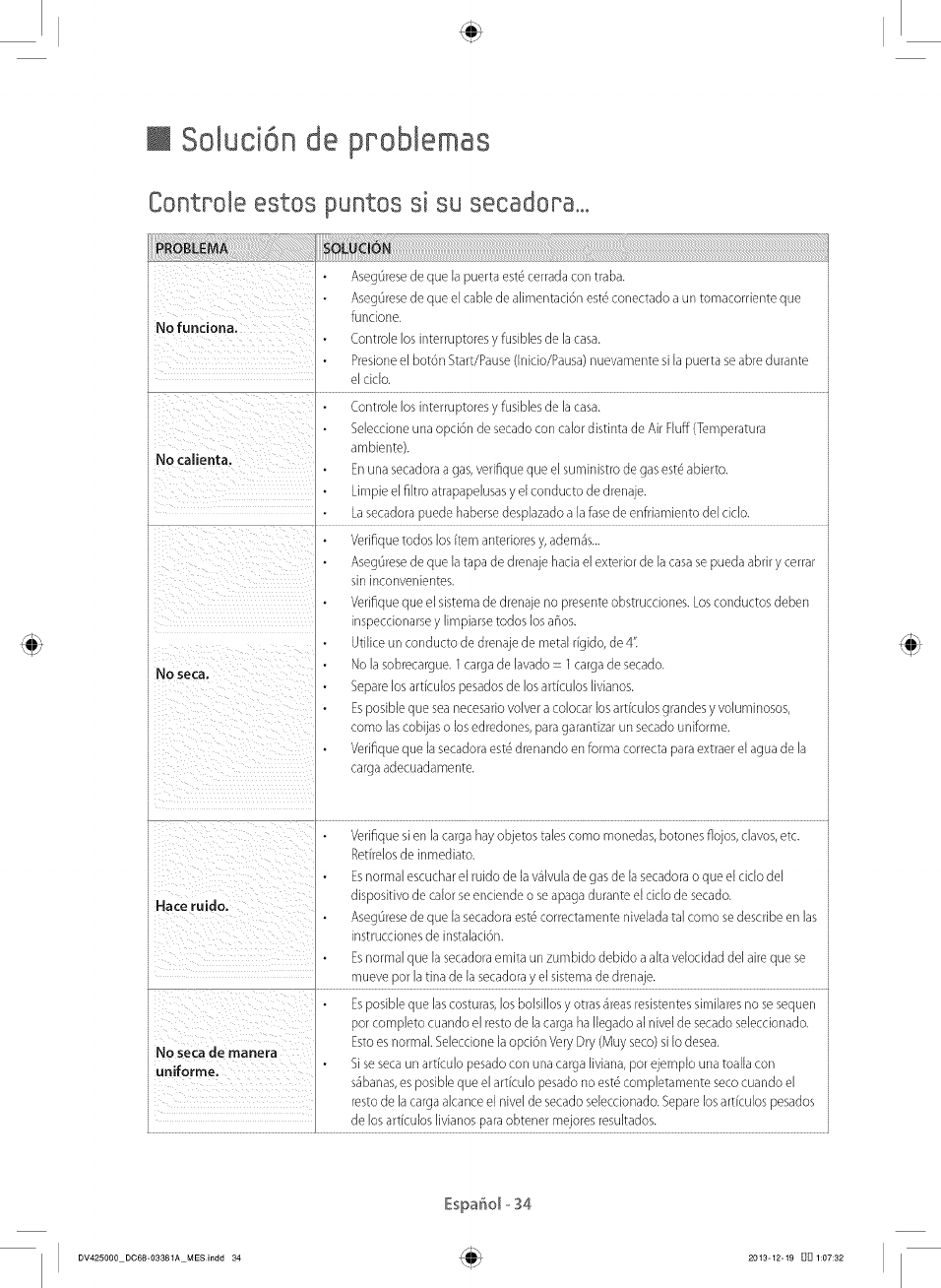

I Troubleshooting

Check these points if your dryer°°°

Make sure the door is latched shut.

Be sure the power cord is plugged into a live dectricaJ outlet.

Doesn't run. Check the home's circuit breaker and fuses.

Press the Start/Pause button again if the door is opened during the cycle.

Check the home's circuit breaker and fuses.

Select a heat setting other than Air Fluff.

Doesn't heat. On a gas dryer, check that the gas supply is on.

Clean the lint filter and exhaust duct.

- Dryer may have moved into the cooPdown phase of the cycle.

Check all of the above, plus._

Be sure the exhaust hood outside the home can open and close fredy.

Check exhaust system for lint buildup. Ducting should be inspected and

cleaned annually.

Use a 4" rigid metal exhaust duct.

Do not overload. 1 wash load - 1 dryer load.

Doesn't dry. - Sort heavy items from lightweight items.

Large, bulky items like blankets or comforters may require repositioning to

ensure even drying.

Check that the dryer is draining properly to extract adequate water from the

load.

Check the load for objects such as coins, loose buttons, nails, etc. Remove

Is noisy.

Dries unevenly.

Hasa nodor,

Shuts off before load

is dry

promptly.

it is normal to hear the dryer gas valve or heating element cycle on and off

during the drying cycle.

- Be sure the dryer is leveled properly as outlined in the installation instruction.

- it is normal for the dryer to hum due to the high velocity of air moving

through the dryer drum and exhaust system.

Seams, pockets, and other similarly heavy areas may not be completely dry

when the rest of the load has reached the selected dryness level.This is

normal. Select the Very Dry setting if desired.

If one heavy item is dried with a lightweight load, such as one towel with

sheets, it is possible that the heavy item will not be completely dry when the

rest of the load has reached the selected dryness level. Sort heavy items from

lightweight items for best drying results.

Household odors from painting, varnishing, strong cleaners, etc. may enter the

dryer with the surrounding room air.This is normal as the dryer draws the air

from the room, heats it, pulis it through the tumbler, and exhausts it outside.

When these odors linger in the air, ventilate the room completely before using

the dryer.

Dryer load is too small. Add more items or a few towels and restart the cycle.

Dryer load is too large. Remove some items and restart the dryer.

English _ 33

DV425000 DO68-O3381Aindd 33 2013-12-19 D_ 1:07:16

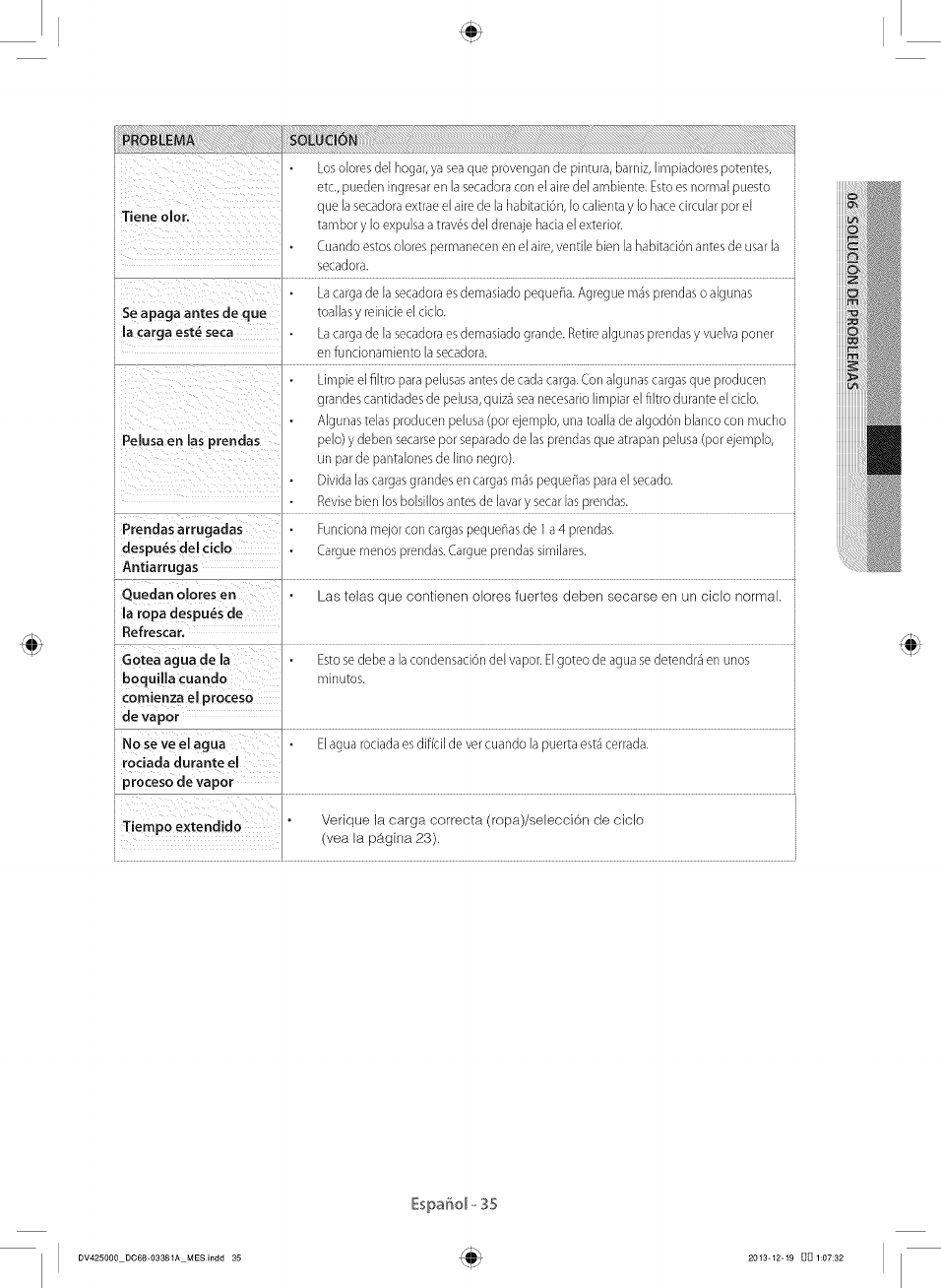

PROBLEM

Make sure the lint filter is cleaned before every load. With some loads that

produce high amounts of lint, it may be necessary to clean the filter during the

cycle.

Some fabrics are lint producers (for example, a fuzzy white cotton towel)

Lint on clothes and they should be dried separately from clothes that are lint trappers (for

example, a pair of Eacklinen pants)

Divide larger loads into smalEer loads for drying.

Check pockets thoroughly before washing and drying clothes.

Garments still wrinkled Small loads of I to 4 items work best.

afterWrinkle-Care Load fewer garments.Load similar-type garments.

Odors remain in Fabrics containing strong odors should be dried in a normal cycle.

clothing after Refresh.

Water drips from This is steam condensation.The dripping water will stop after a short time.

nozzle when Steam-

Care starts

Sprayed water is not Sprayed water is difficult to see when the door is closed.

visible during Steam-

Care

Extended time Verify correct loading (clothes)/cycle selection (see page 23).

Znfopmation codes

Information codes may be displayed to help you better understand what is occurring with your Dryer.

l The thermistor resistance is very low

J tE

j or high.

invalid heating Temp when the dryer Call for service.

j liE

i is running.

M ! i i

J Clean the door and then restart.

The door is open. If the problem continues, call for service.

-----Invalid state of key. ' lViake sure a button is NOT being pressed '

continuously. Try restarting the cycle.

i If the problem continue, call for service.

_ ,

i Invalid power source frequency. Try restarting the cycle.

If the problem continues, call for service.

l I

i Electronic Control Problem Call for service.

i1 91:1 (OverVoltage Error.)

Electronic Control Problem Call for service.

j _ Communication Error.)

i Invalid state of Eeprom Call for service.

communication.

Invalid door. Call for service.

For any codes not listed above, call 1-800-SAMSUNG (726-7864)

English _34

DV425000 DO68-O3381Aindd 34 2013-12-19 D_ 1:07:16

I Appendix

Fabric care chart

The following symbols provide garment care direction. The Clothing care labels include symbols for washing,

bleaching, drying, and ironing, or dry cleaning when necessary.The use of symbols ensures consistency among

garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life

and reduce laundering problems.

Norma_ iS_ L'neDry/HangtoDry l_ DoNotWash

:_ PermanentPress/Wr,nk_ei_ Dr,pDry i_ OoNotWr,ngU

Do NotTumble Dry i

No Steam (added to iron)

Do Not Iron

W;rn Low

i o _old AnyHeat Dry,Clean

y ( UneDry/HangtoDry

Only Non-Chlorine (coloP j High i DripDry

safe_ i_ i []

i _ Bleach (when needed) l j

M ,um ira

Permanent Press/Wrinkle

Resistant/Wrinkle Control

Gentle/F;dicates

** The dot symbols represent appropriate wash water temperatures for various items. The temperature range for

HotislOS 1ZS°F(41 52°C),BrWarm85 105°F(29 41°C) and for Cold 60 85°F(16 29°C). (Wash water

temperature must be a minimum of 60 °F (16 °C) for detergent activation and effective cleaning.)

English- 35

DV425000 DC68-O3381Aindd 35 2013-12-19 _ 1:07:16

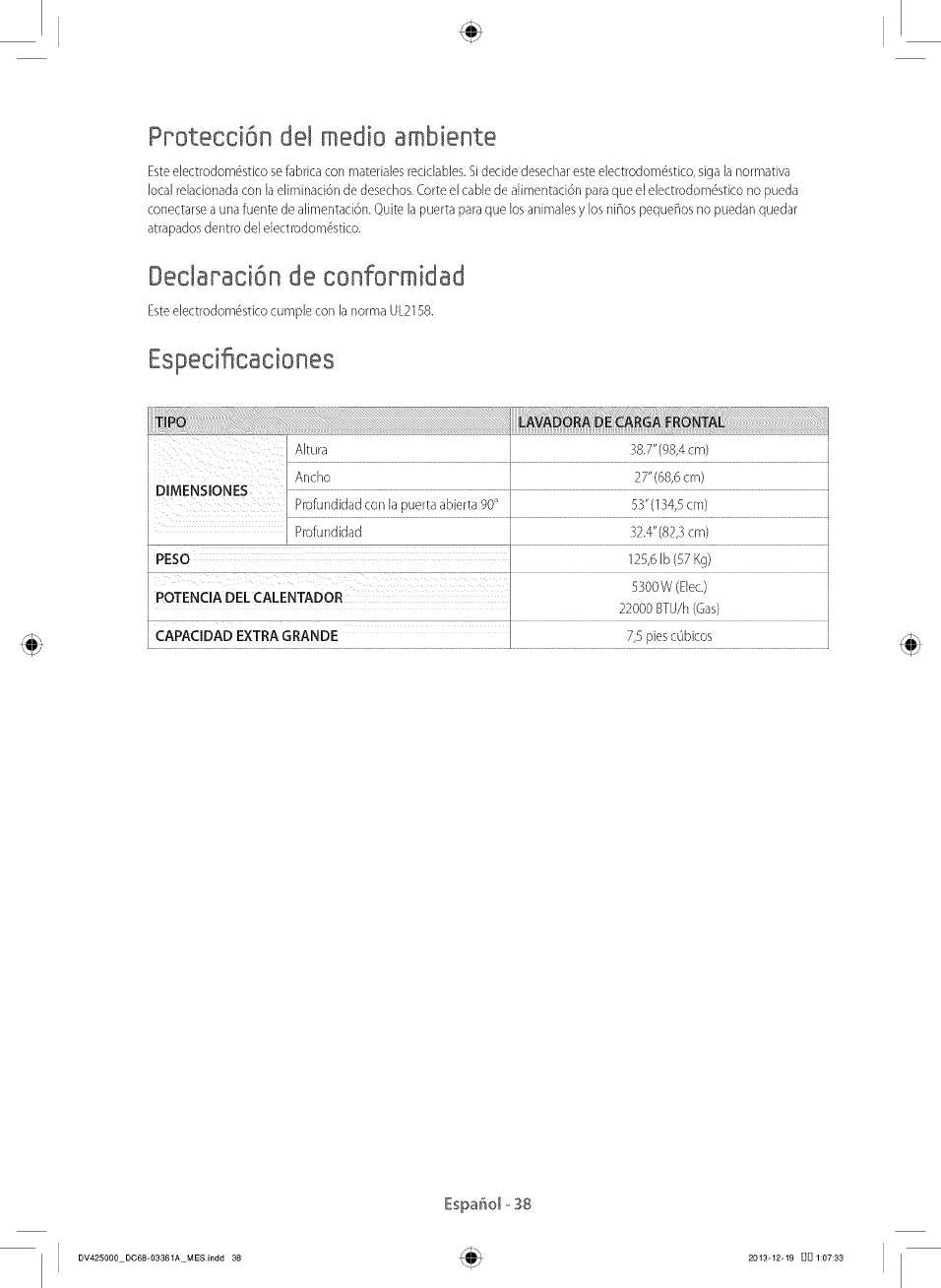

Protecting the environment

This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please

observe local waste disposal regulations. Cut offthe power cord so that the appliance cannot be connected to a

power source. Remove the door so that animals and small children cannot get trapped inside the appliance.

Declaration of conformity

This appliance complies with UL2158.

WEIGHT 125.6 Ib (57 Kg)

i 5300W (Elec.)

i HEATER RATING

i _ 22000 BTU/hr (Gas) ,

7.5 cu.ft.

English- 36

DV425000 DO68-O3381Aindd 36 2013-12-19 D_ 1:07:16

I Warranty (U°S°A)

SAMSUN6 DRYER

LIMITEDWARRANTYTOORIGINAL PURCHASER

This SAMSUNGbrand product, assupplied and distributed by SAMSUNGELECTRONICSAMERICA,INC.(SAMSUNG)

and delivered new, in the original carton to the original consumer purchaser,iswarranted by SAMSUNGagainst

manufacturing defects in materialsand workmanship for a limited warranty period of:

One (1) Year All Parts and Labor

Two (2) Years Control Board Parts

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in

the United States.

To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service

procedures.

Warranty service can only be performed by a SAMSUNG authorized service center.

The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's

authorized service center.

SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the

contiguous United States.

In-home service is not available in all areas.

To receive in-home service, product must be unobstructed and accessible to the service agent.

If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized

service center.

SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new

or reconditioned parts or products if found to be defective during the limited warranty period specified above.

All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.

Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal,

noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery

and installation; applications and uses for which this product was not intended; altered product or serial numbers;

cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other acts of nature or God;

use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations,

repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result

in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to

follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the

instruction book; product removal and reinstalBtion; problems caused by pest infestations.

This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light

bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors.

SAMSUNG does not warrant uninterrupted or error-free operation of the product.

iiiiiiiiiiiiiiiiiiii

English- S7

DV425000 DO68-O3381Aindd 37 2013-12-19 D_ 1:07:16

Except as set forth herein, there are no warranties on this product either express or implied, and samsung

disclaims all warranties including, but not limited to, any implied warranties of merchantability, infringement or

fitness for a particular purpose.

No warranty or guarantee given by any person, firm, or corporation with respect to this product shall be binding

or] samsung.

Samsung shall not be liable for loss of revenue or profits, failure to realize savings or thter benefits, or any other

special, incidental or consequential damages caused by the use, misuse, or inability to use this product, regardless

of the legal theory on which the claim is based, and even if samsung has been advised of the possibility of such

damages.

Nor shall recovery of any kind against samsung be greater in amount than the purchase price of the product sold

by samsung and causing the alleged damage.

Without limiting the foregoing, purchaser assumes all risk and liability for loss, damage, or injury to purchaser

and purchaser's property and to others and their property arising out of the use, misuse, or inability to use this

product. This limited warranty shall not extend to anyone other than the original purchaser of this product, is

nontransferable and states your exclusive remedy.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of

incidental or consequential damages, so the above limitations or exclusions may not apply to you.This warranty

gives you specific rights, and you may also have other rights, which vary from state to state.

To obtain warranty service, please contact SAMSU NG at:

Samsung Electronics America, Inc.

85 Challenger Road Ridgefleld Park, NJ 07660

1-800-SAMSUNG(726-7864)

www.samsung.com

English _38

DV425000 DO68-O3381Aindd 38 2013-12-19 DO 1:07:16

I Warranty (CANADA}

SAMSUN6 DRYER

LIMITEDWARRANTYTOORIGINAL PURCHASER

This SAMSUNGbrand product, assupplied and distributed by SAMSUNGELECTRONICSCANADA,INC.(SAMSUNG)

and delivered new, in the original carton to the original consumer purchaser,iswarranted by SAMSUNGagainst

manufacturing defects in materialsand workmanship for a limited warranty period of:

One (1) year part and labor

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in

the Canada.

To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service

procedures.

Warranty service can only be performed by a SAMSUNG authorized service center.

The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's

authorized service center.

SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the

Canada.

In-home service is not available in aHareas.

To receive in-home service, product must be unobstructed and accessible to the service agent.

if service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized
