Imagine the possibilities

Thank you foJ"puJ'chasing this Samsung p_'oduct.

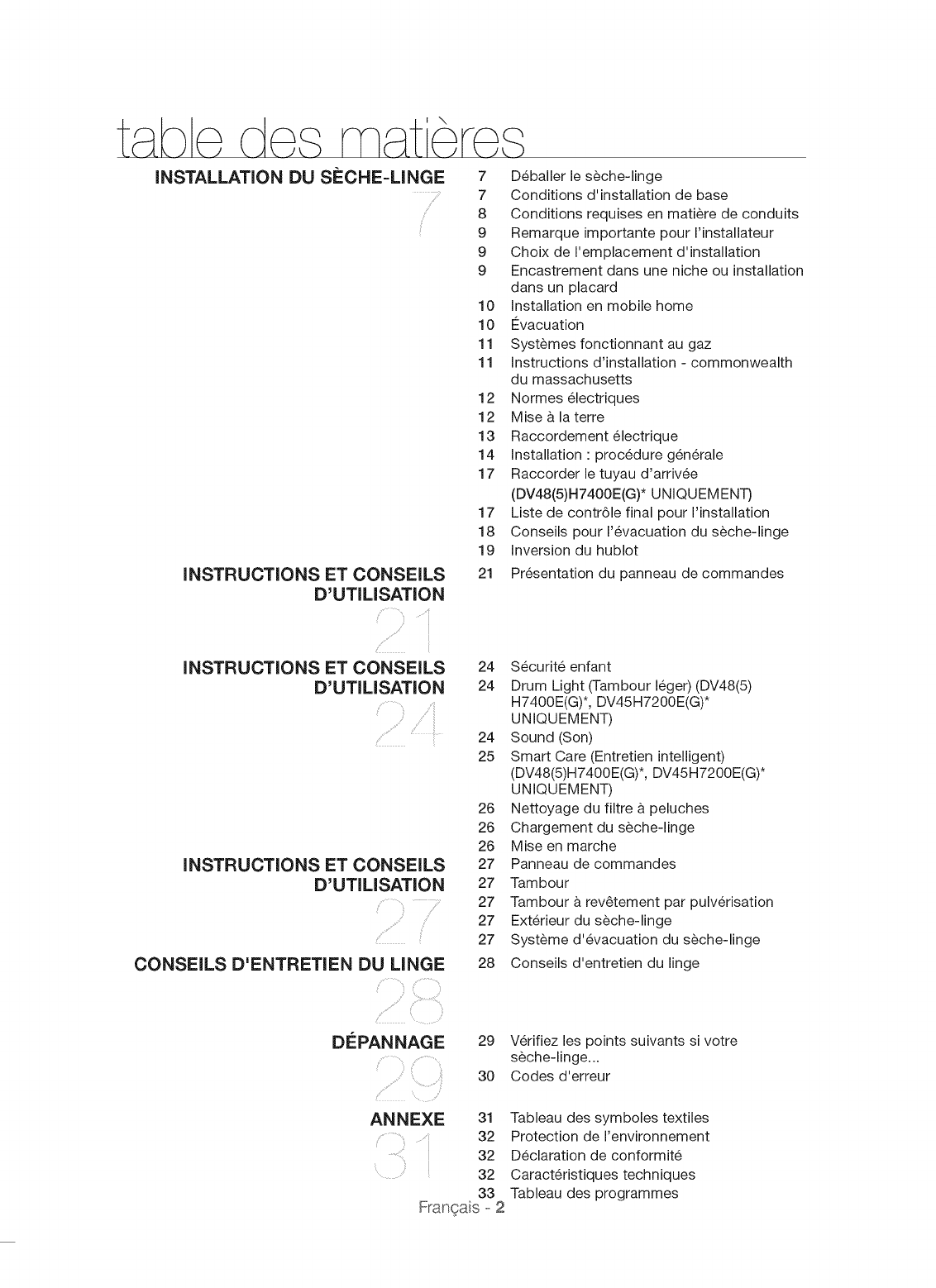

ont nt

INSTALLING YOUR DRYER 7 Unpacking your dryer

7 Basic requirments

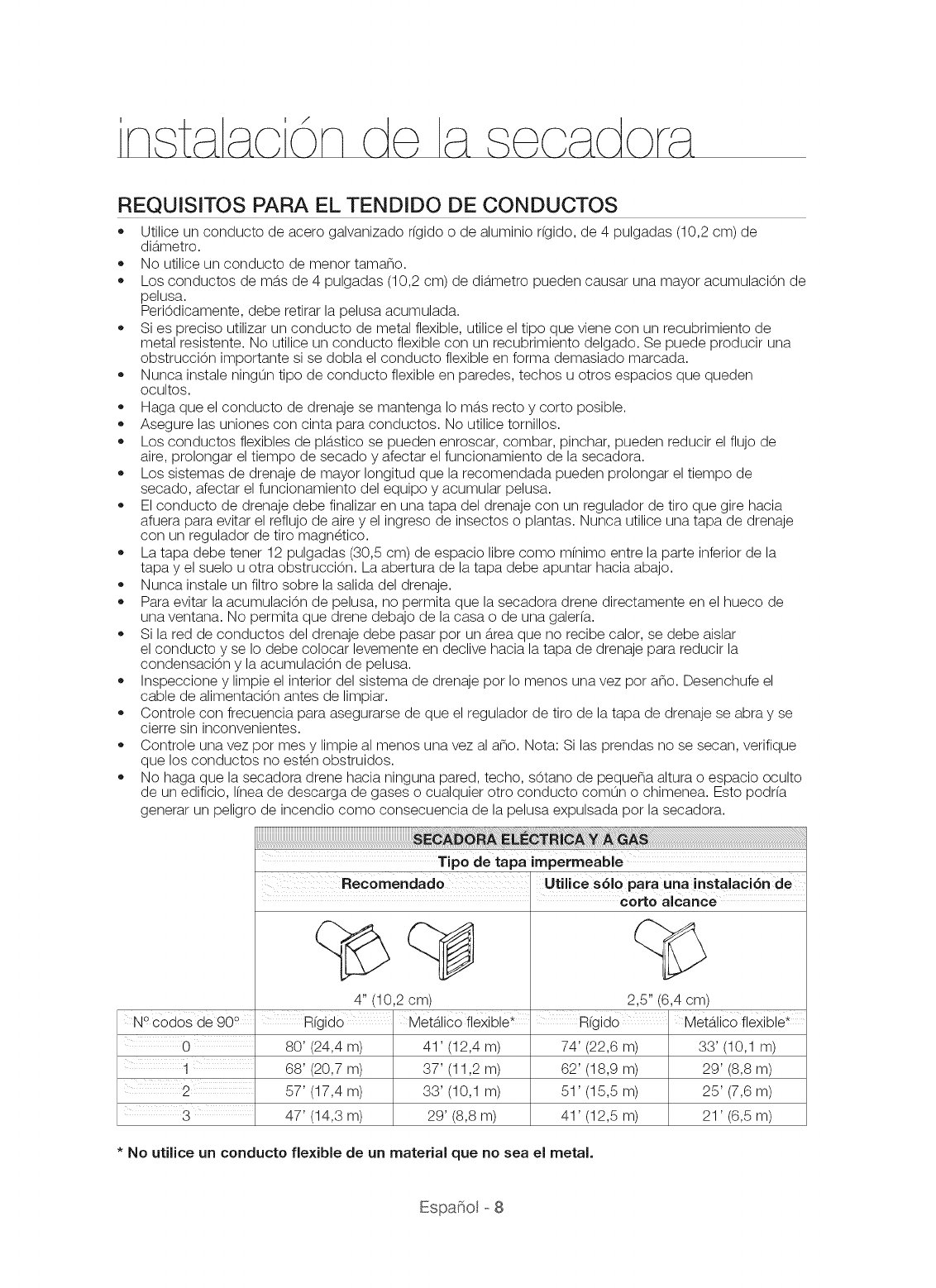

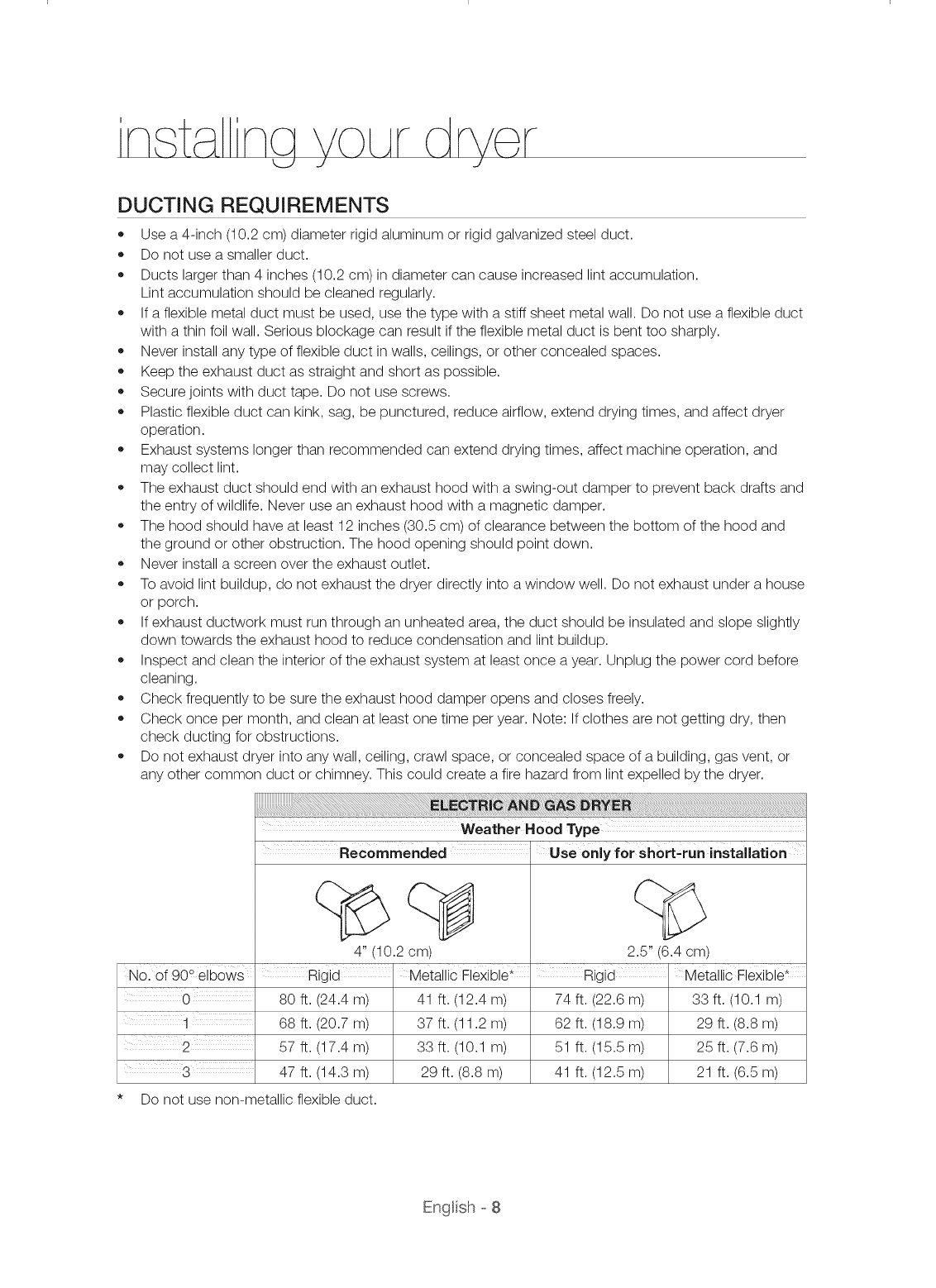

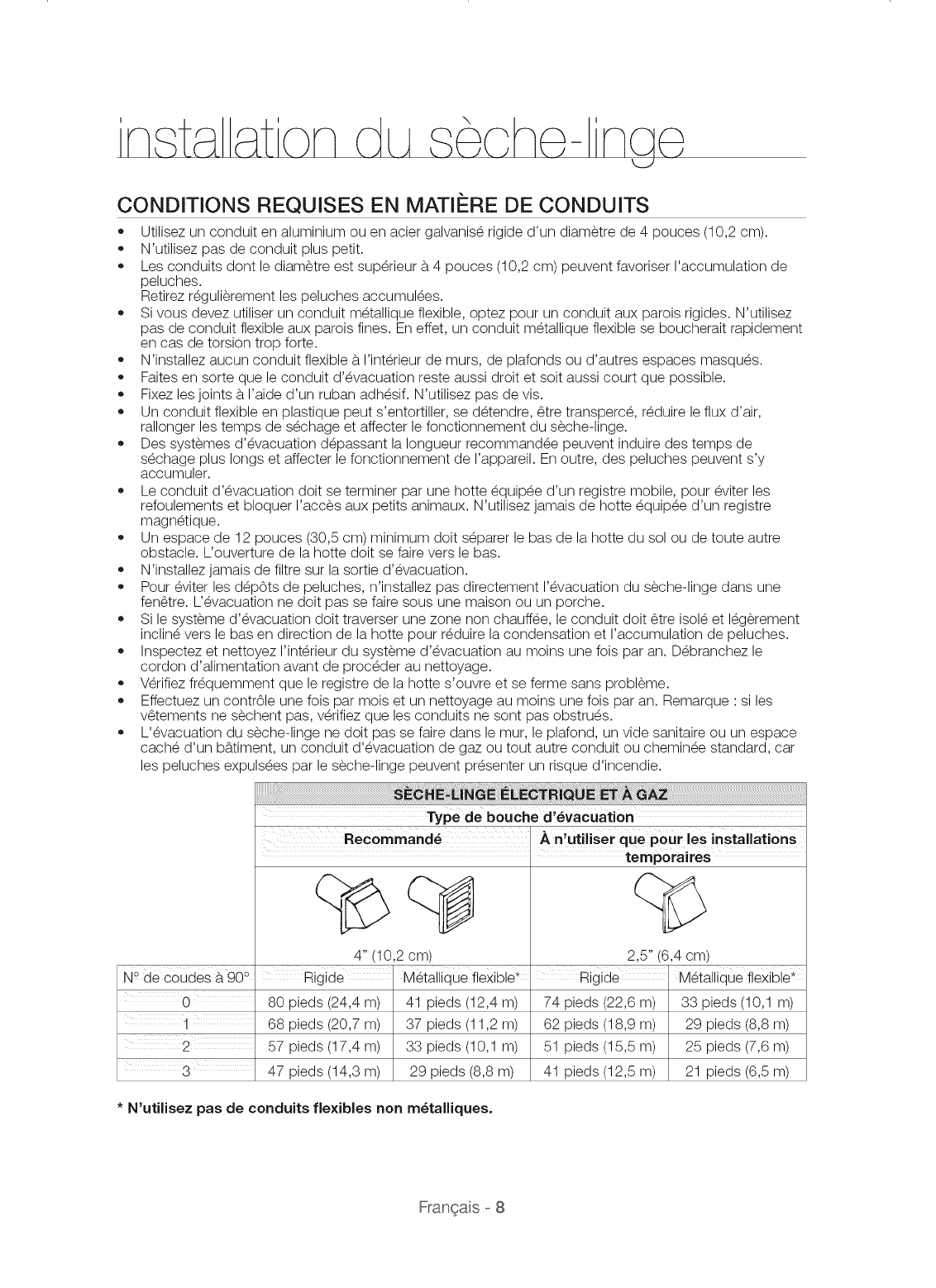

8 Ducting requirements

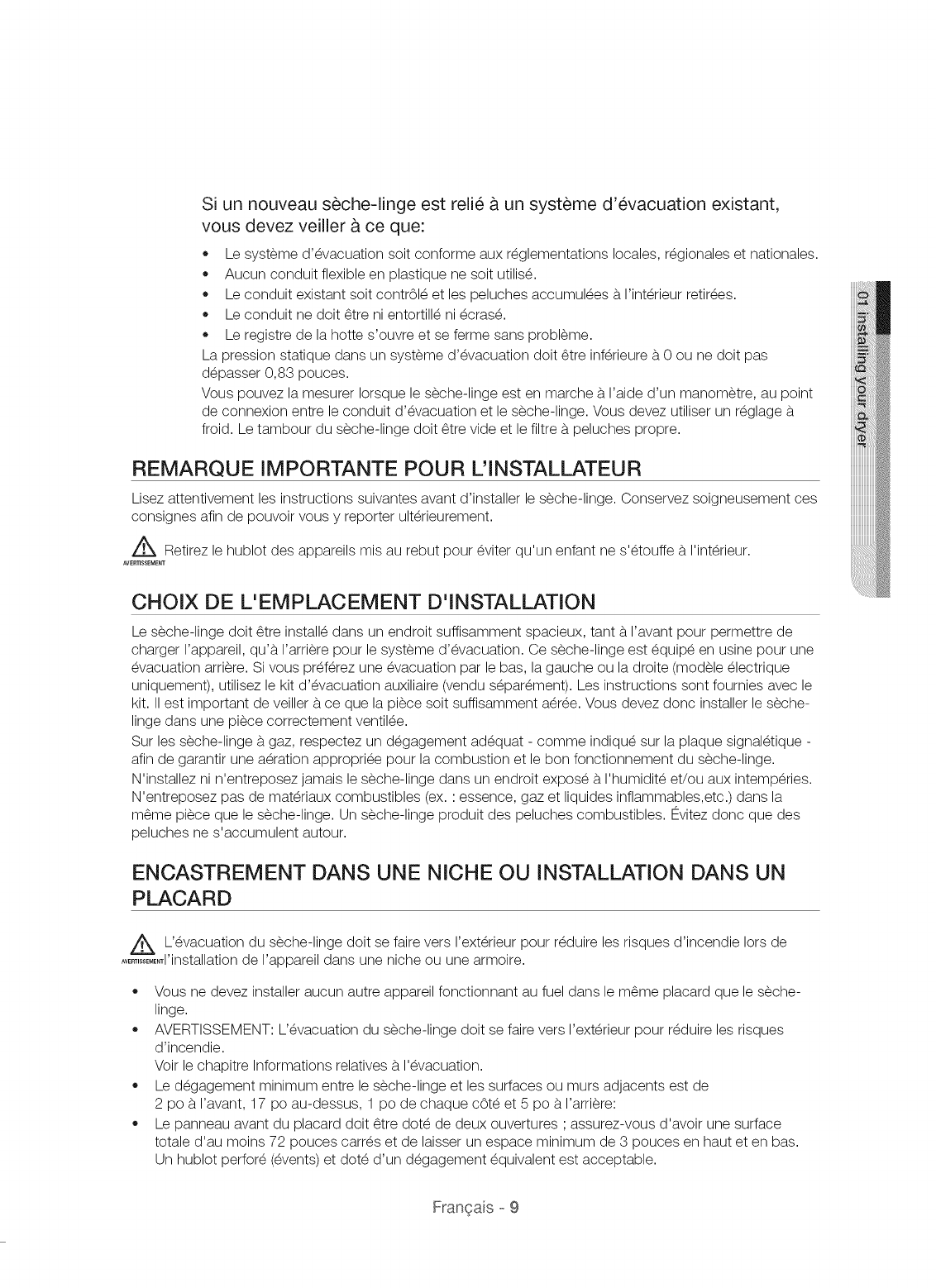

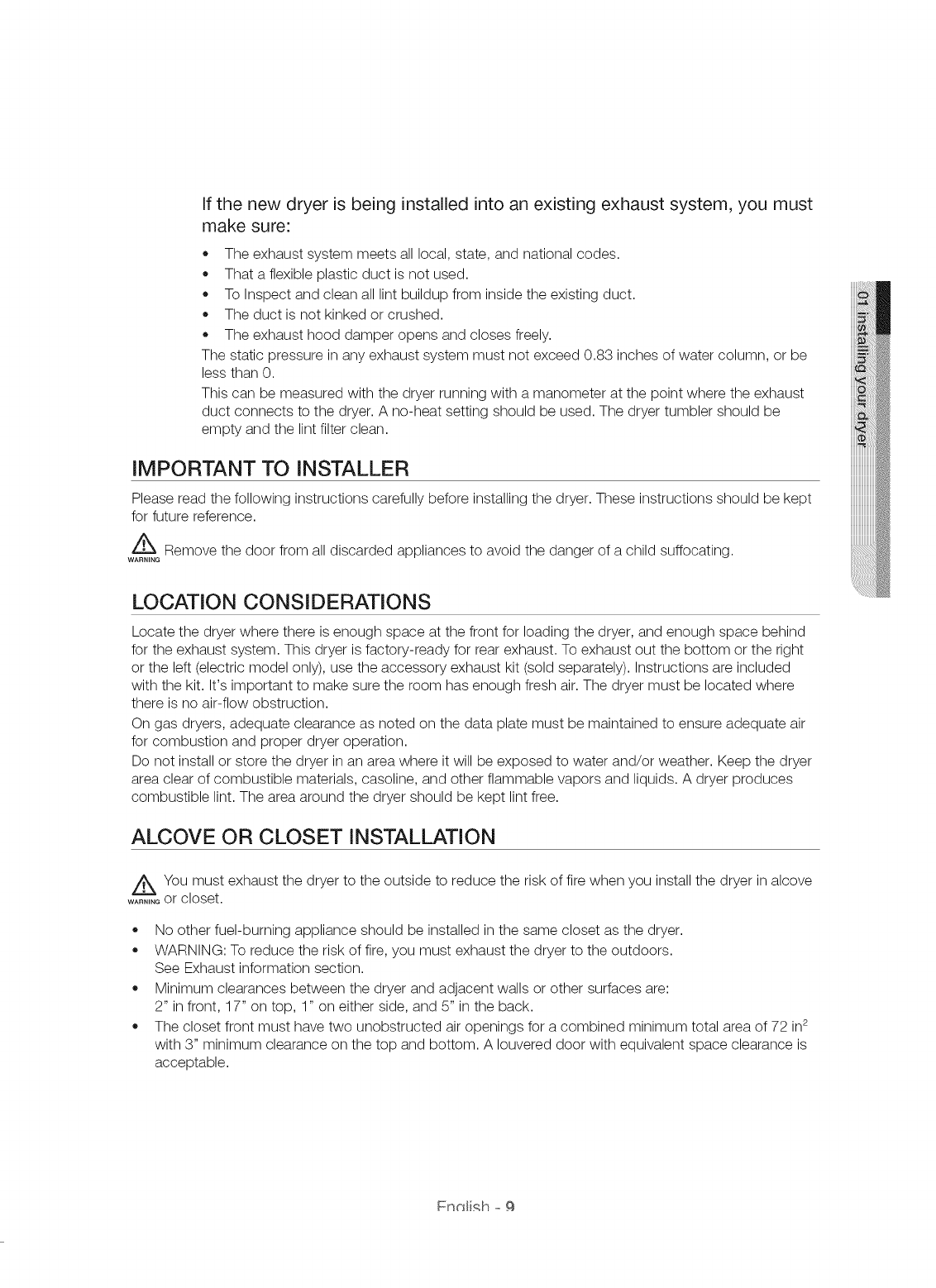

9 Important to installer

9 Location considerations

9 Alcove or closet installation

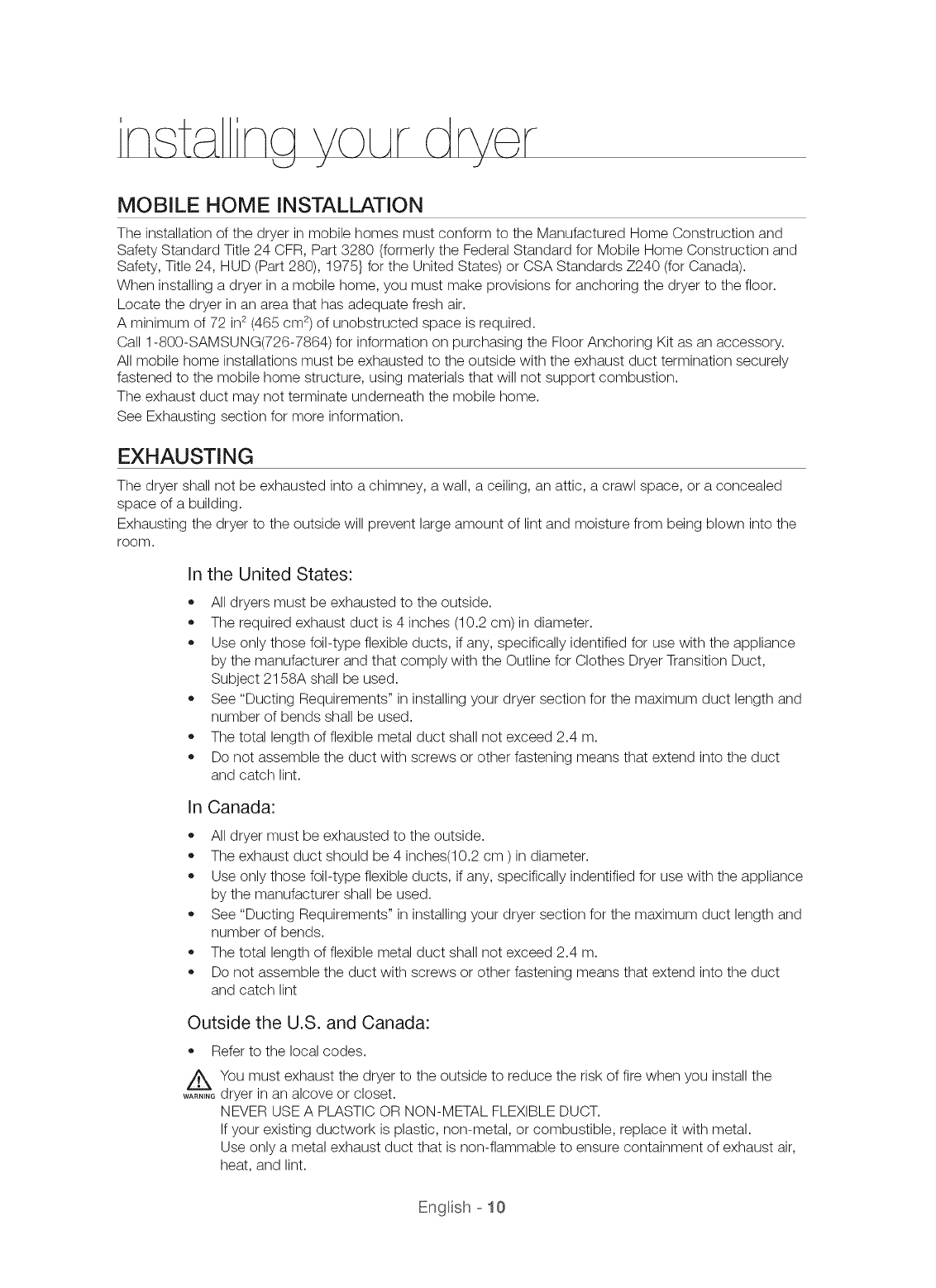

10 Mobile home installation

10 Exhausting

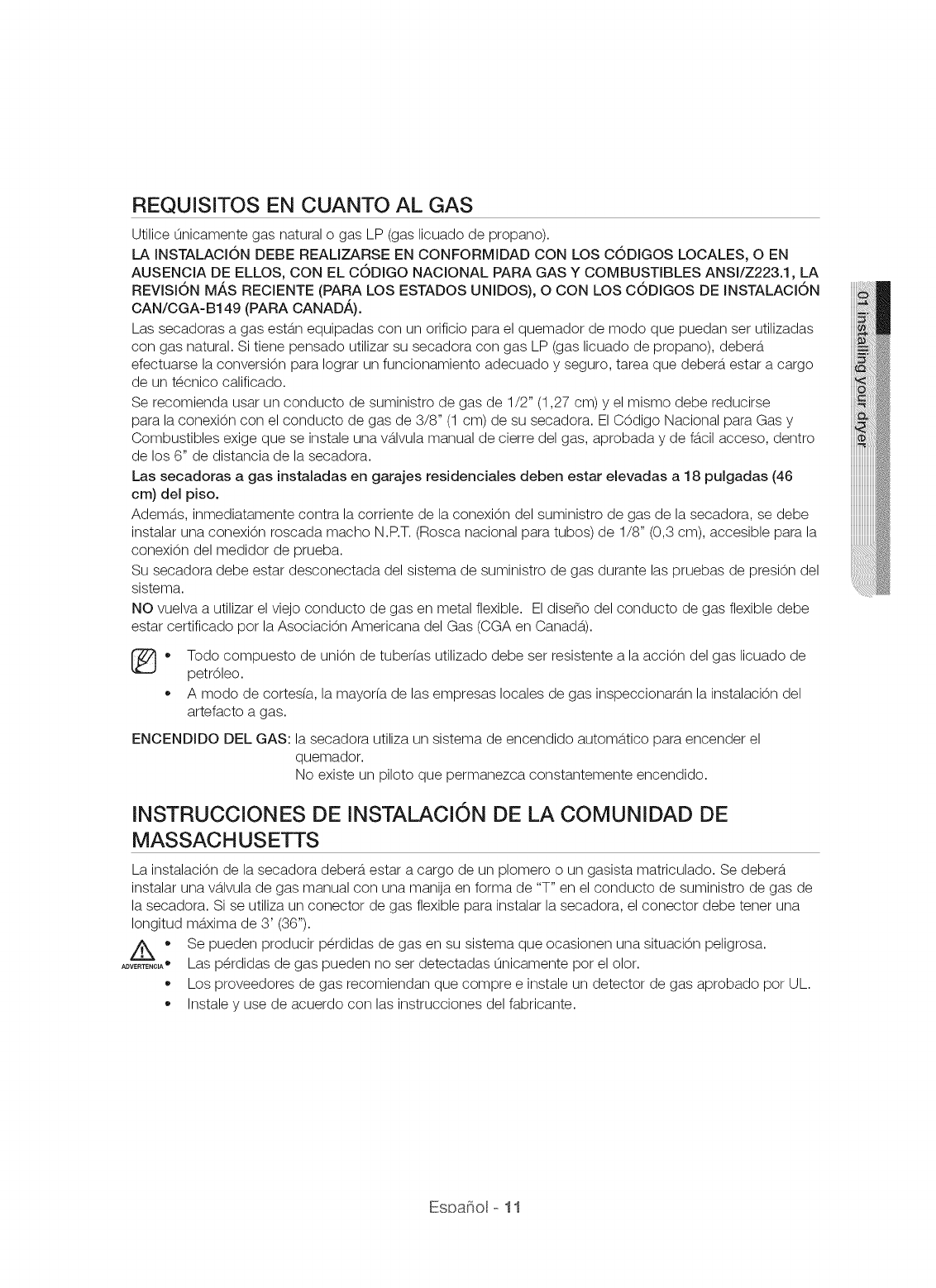

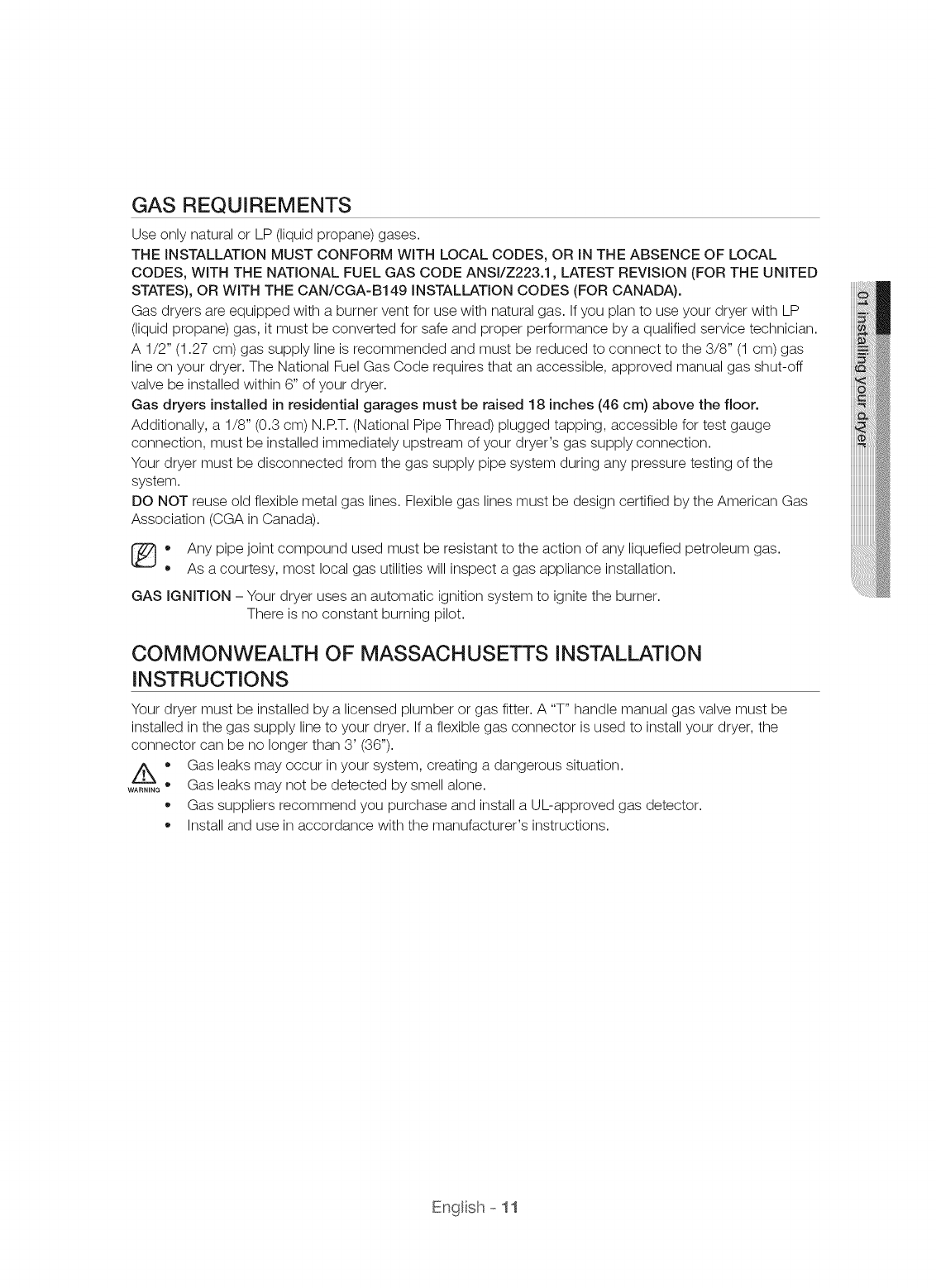

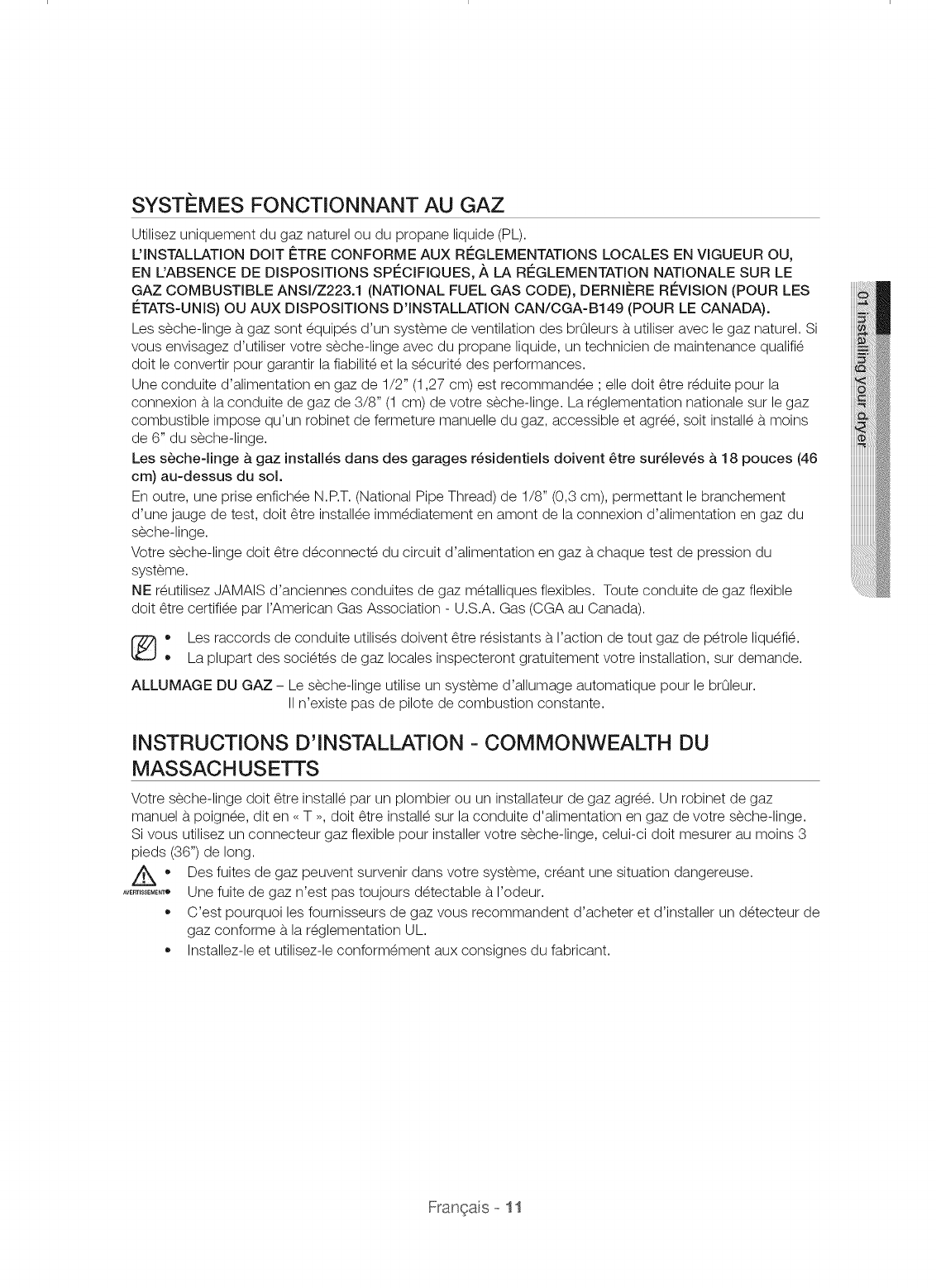

11 Gas requirements

11 Commonwealth of Massachusetts

installation instructions

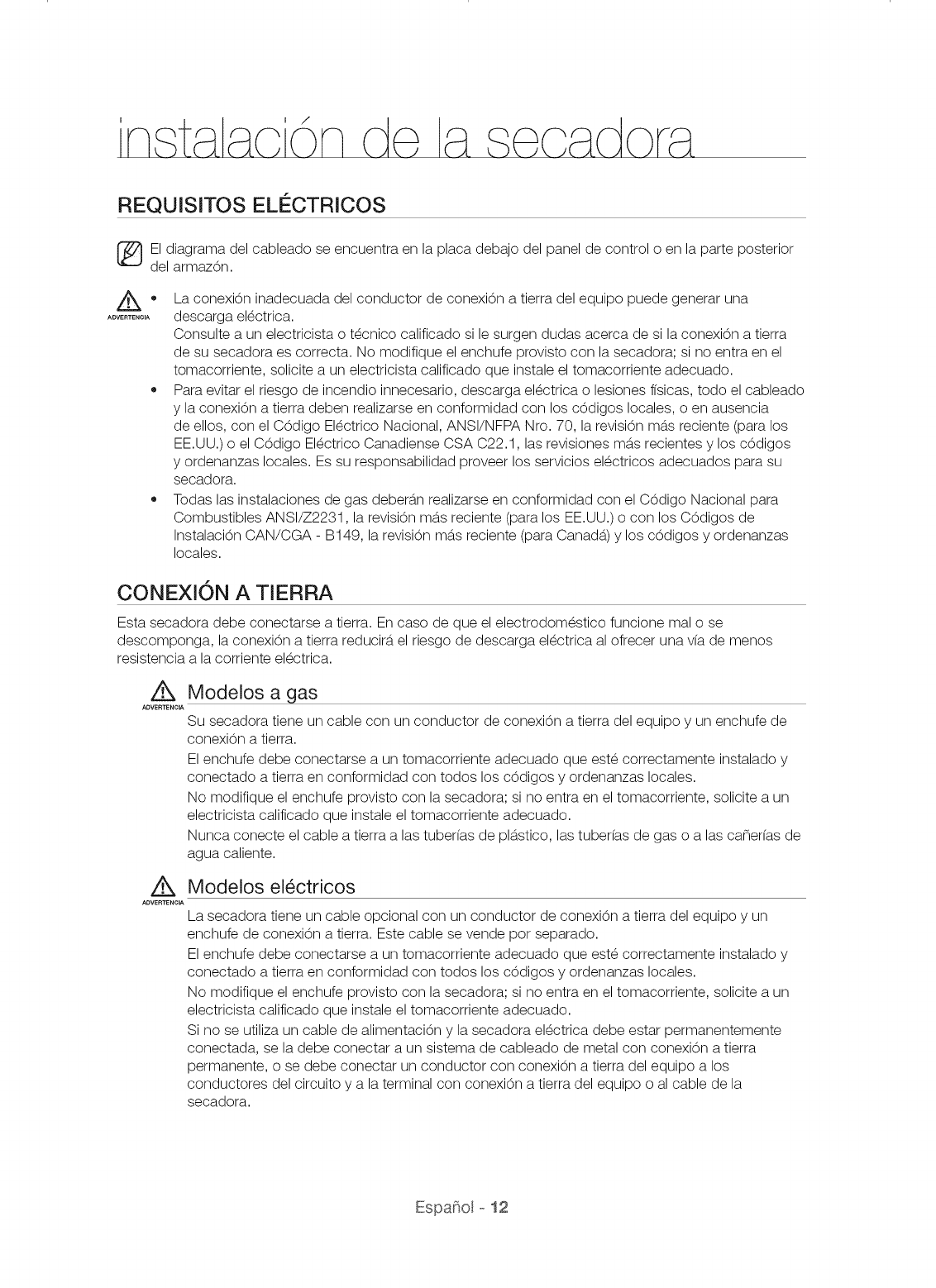

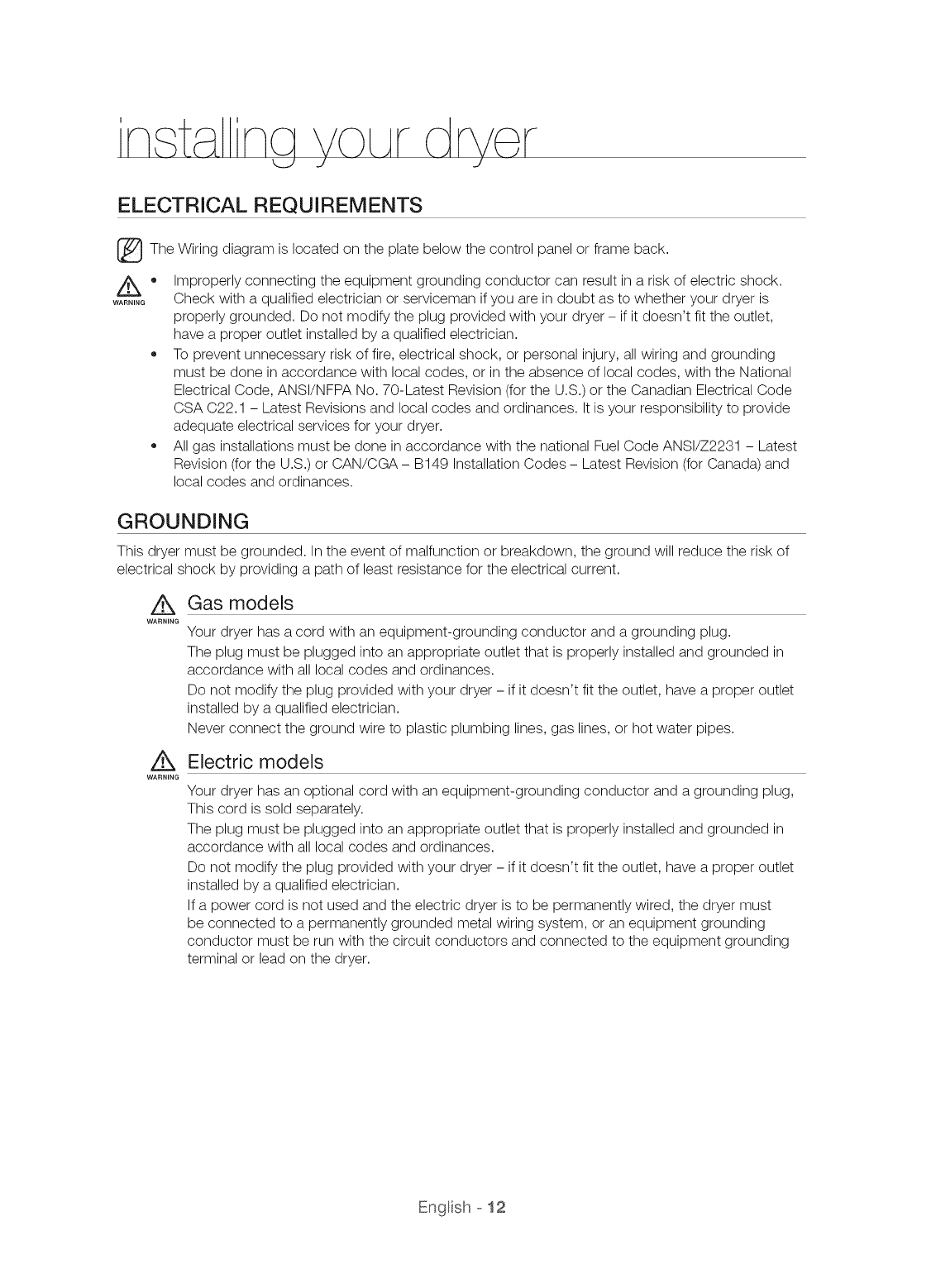

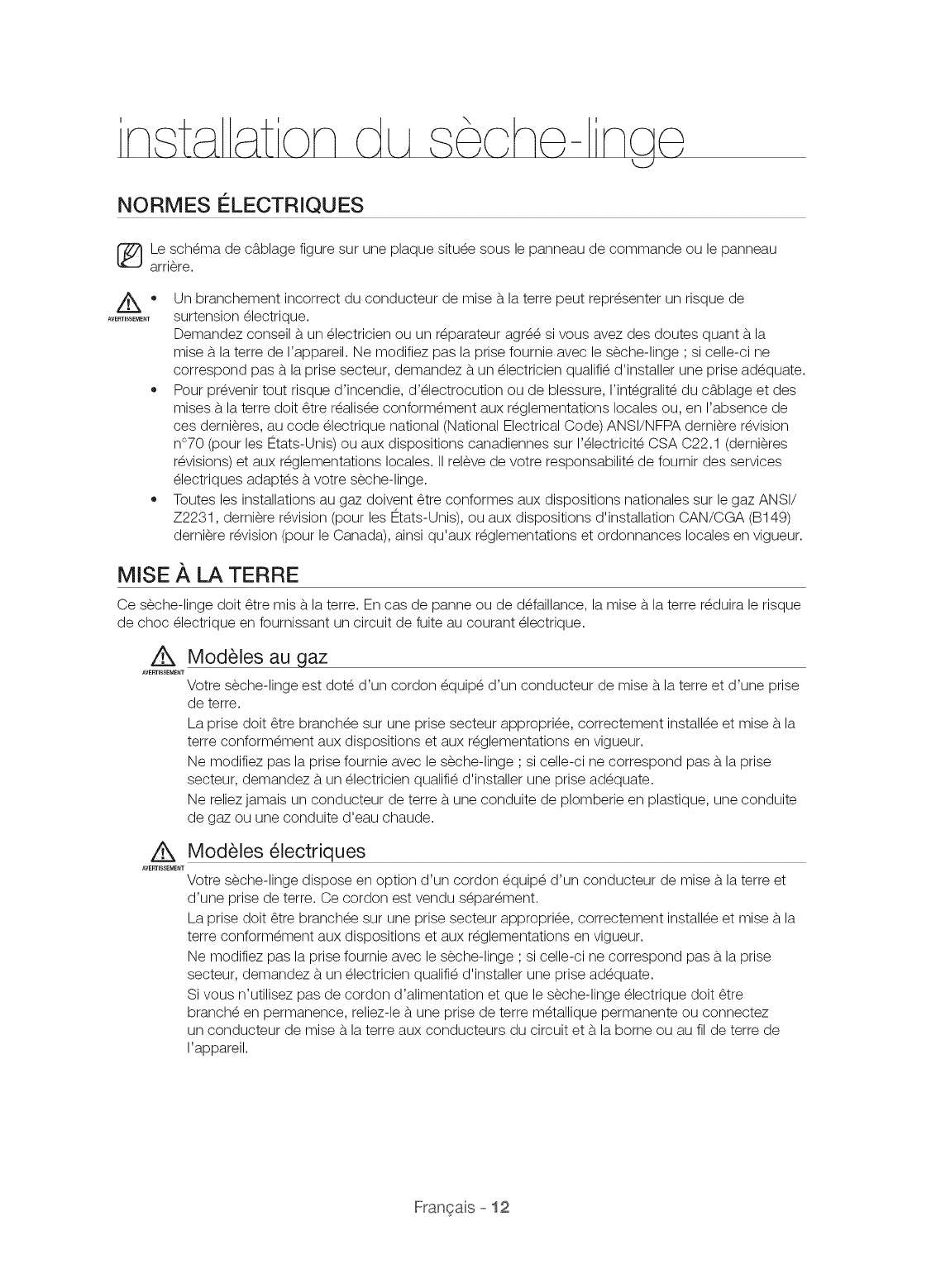

12 Electrical requirements

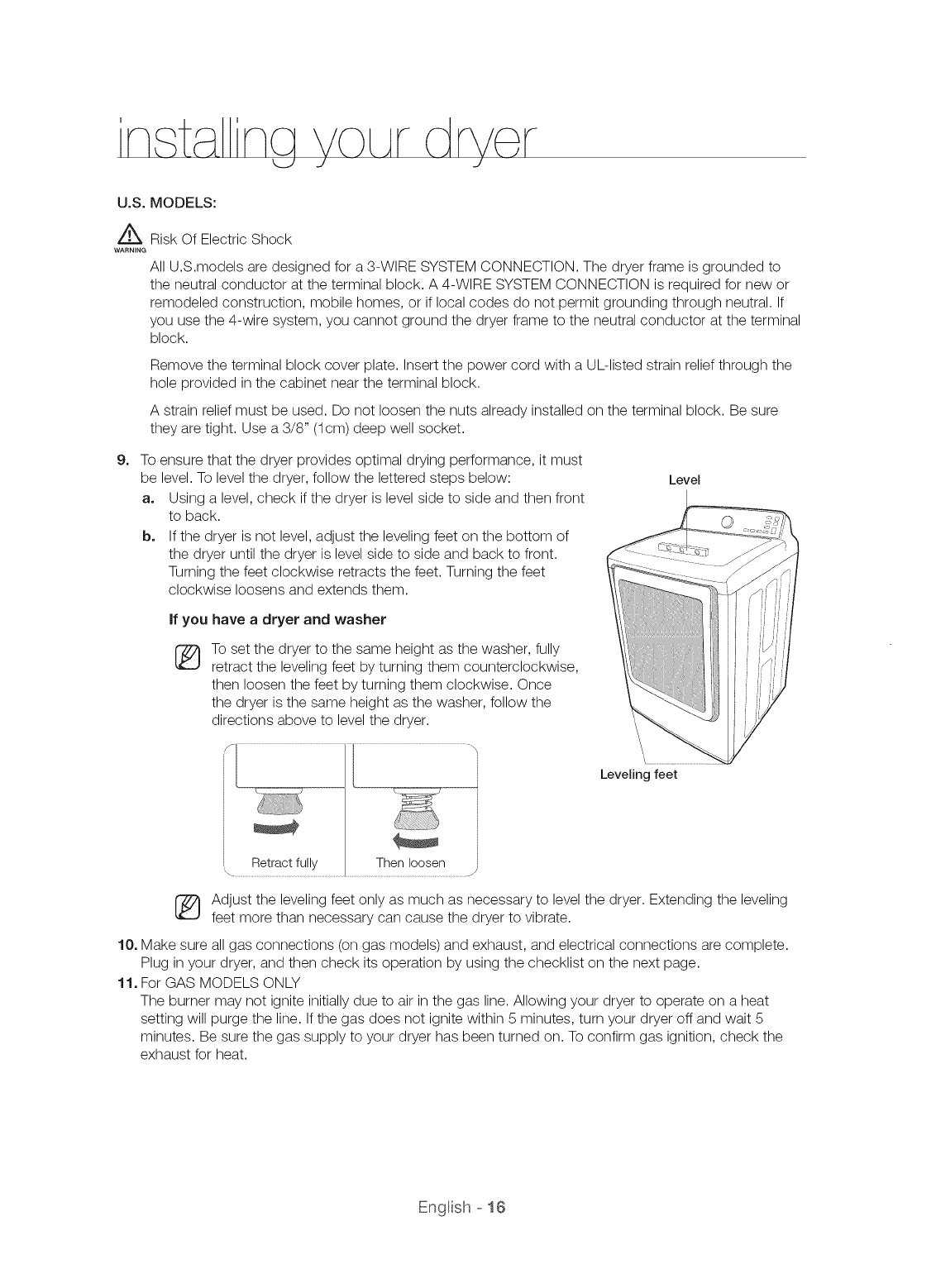

12 Grounding

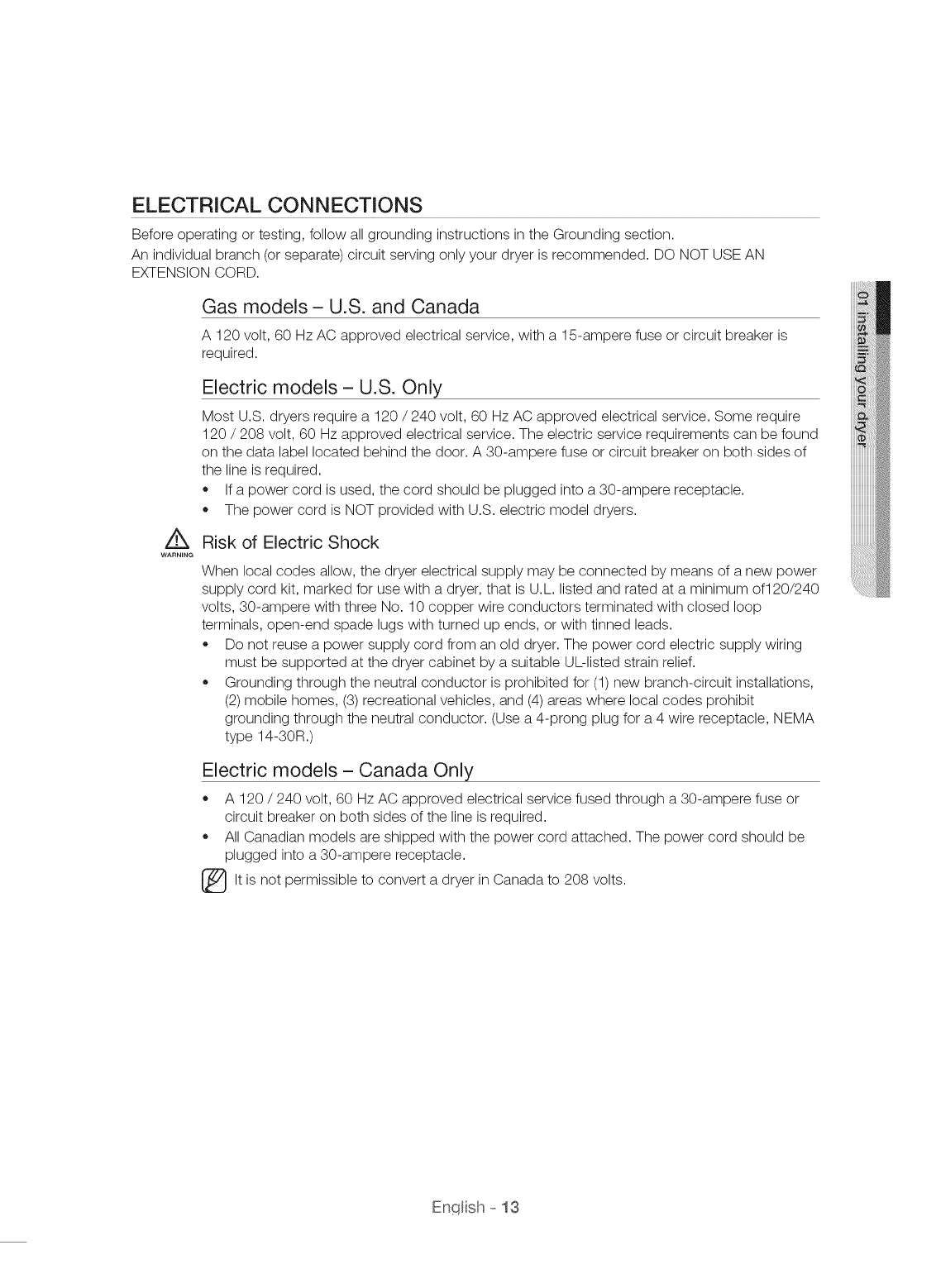

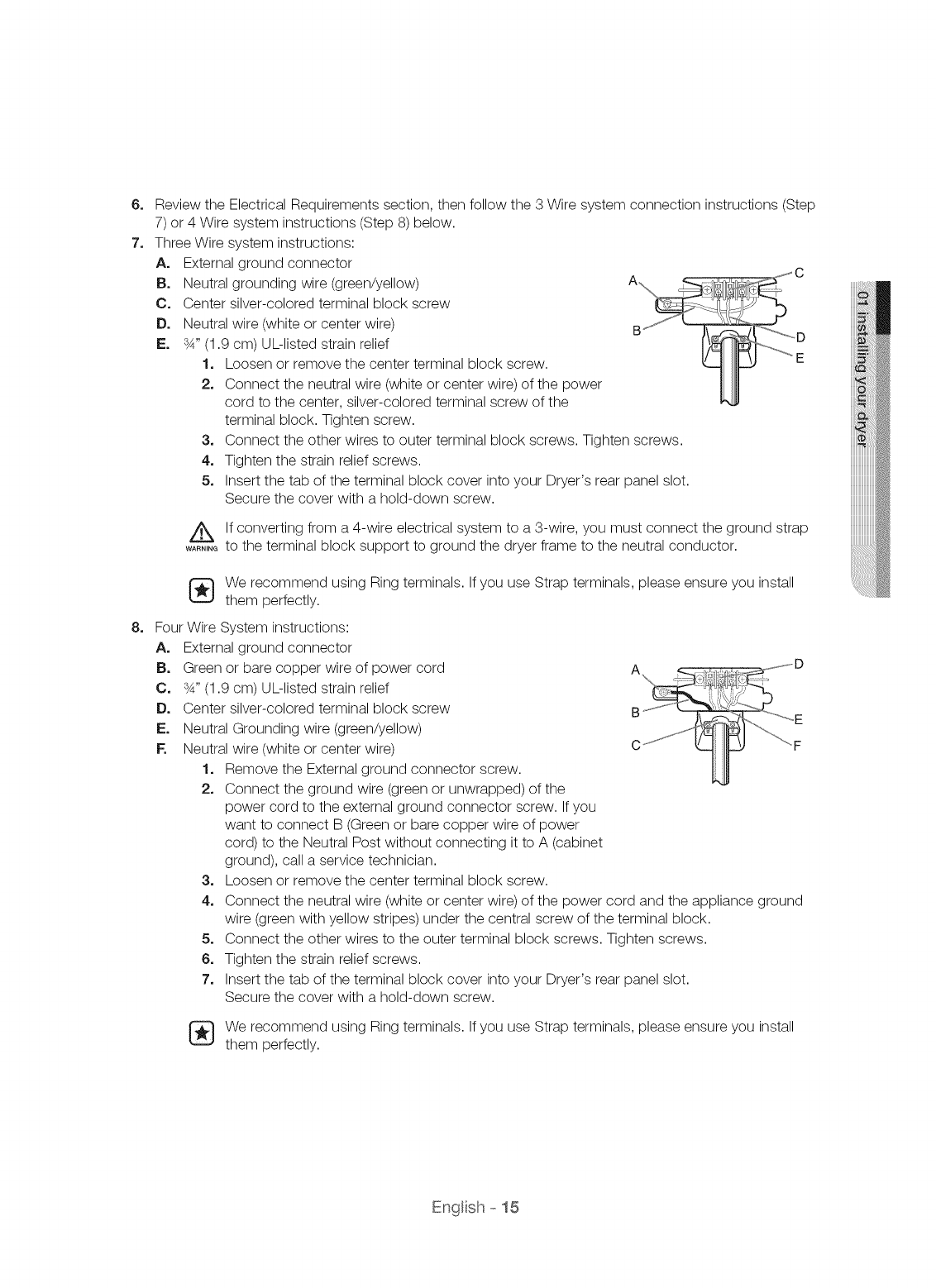

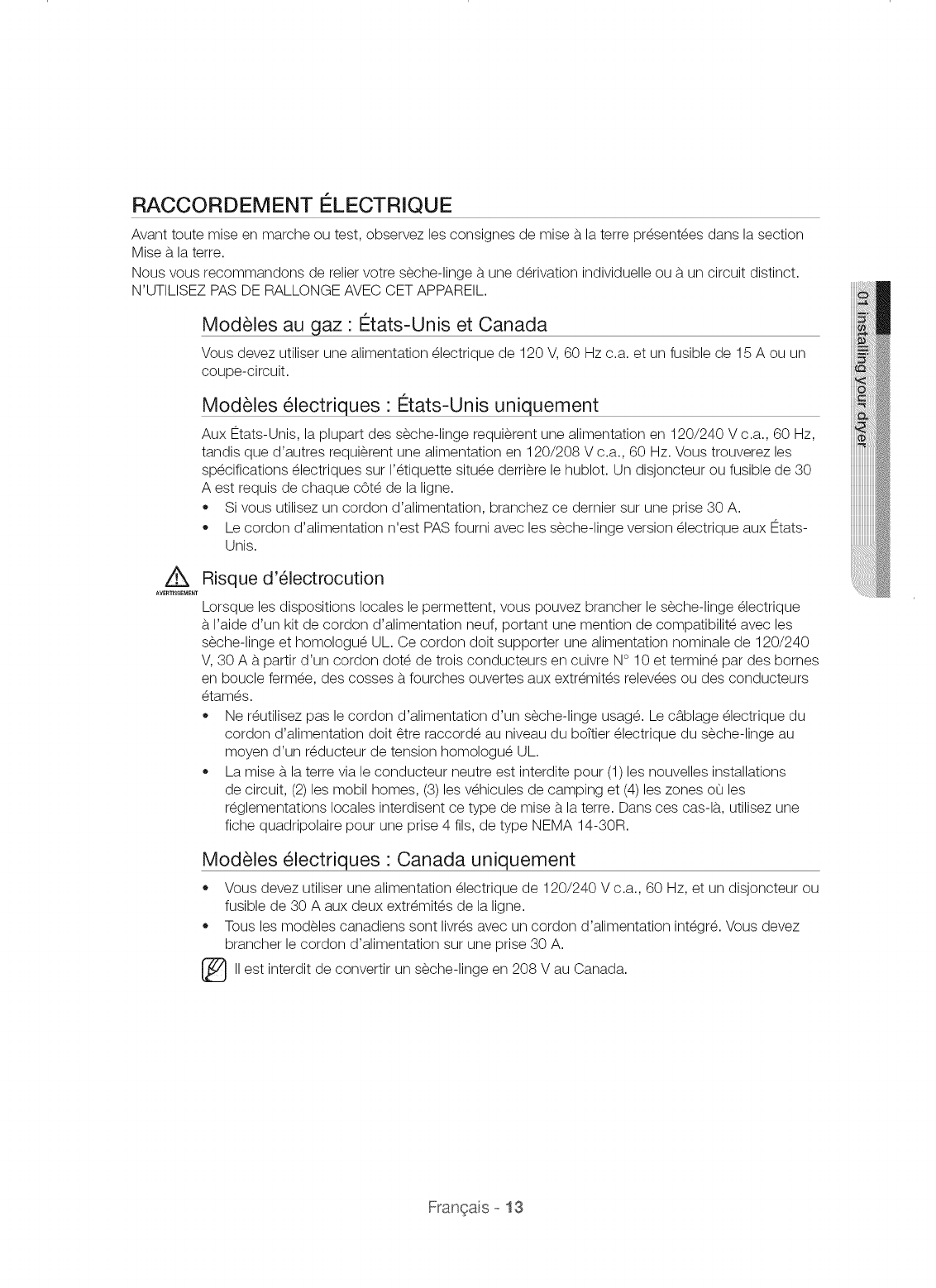

13 Electrical connections

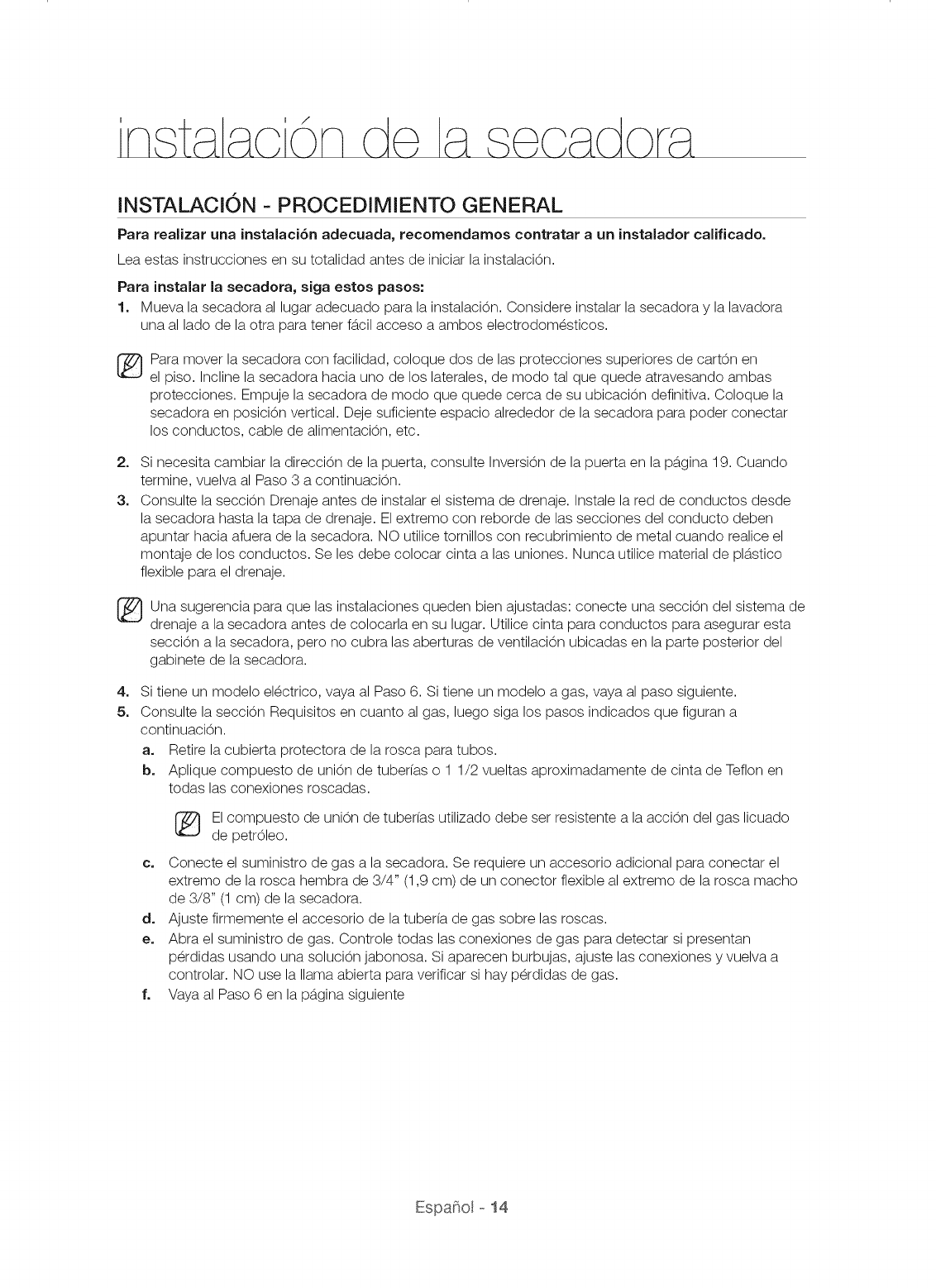

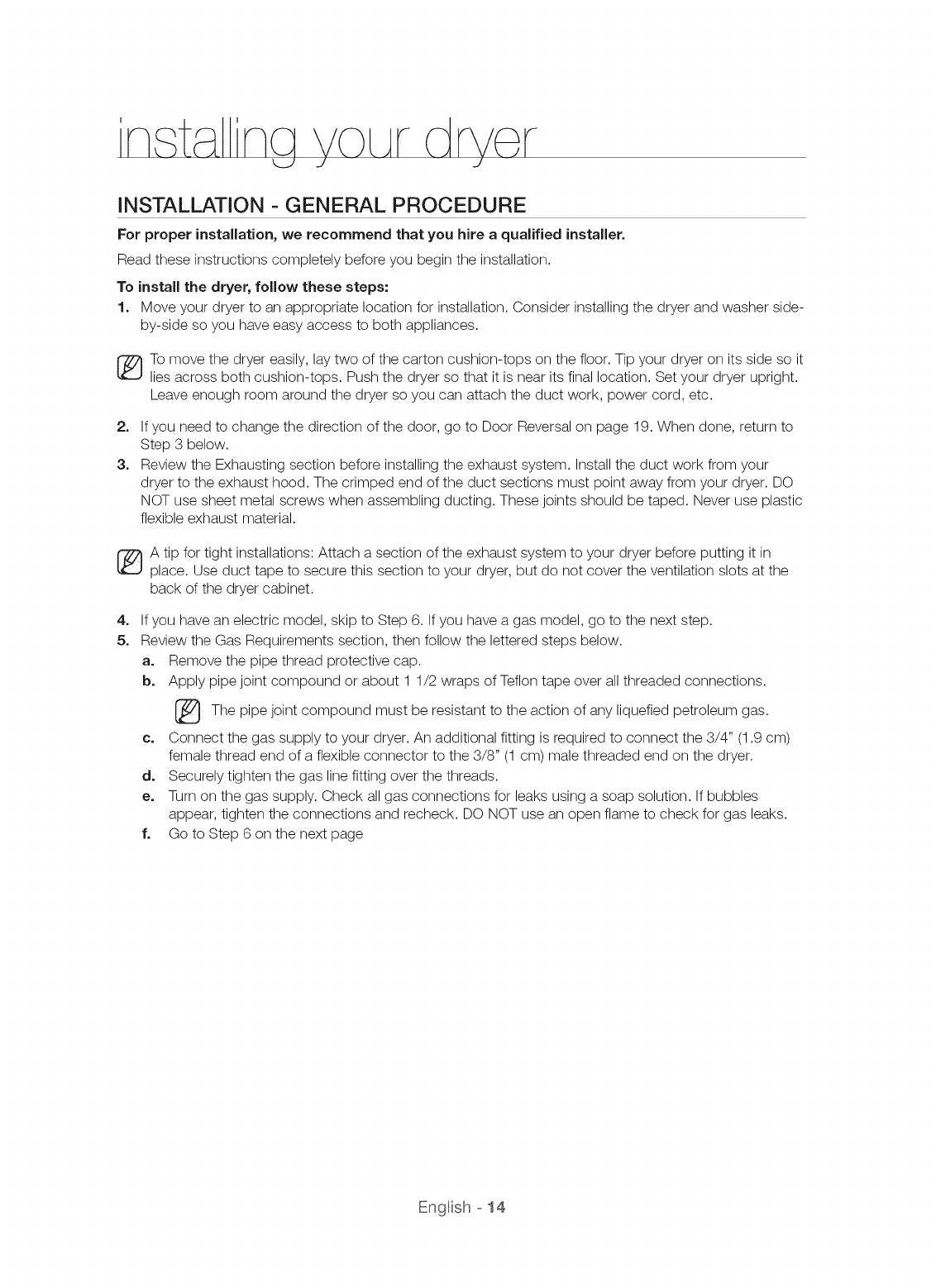

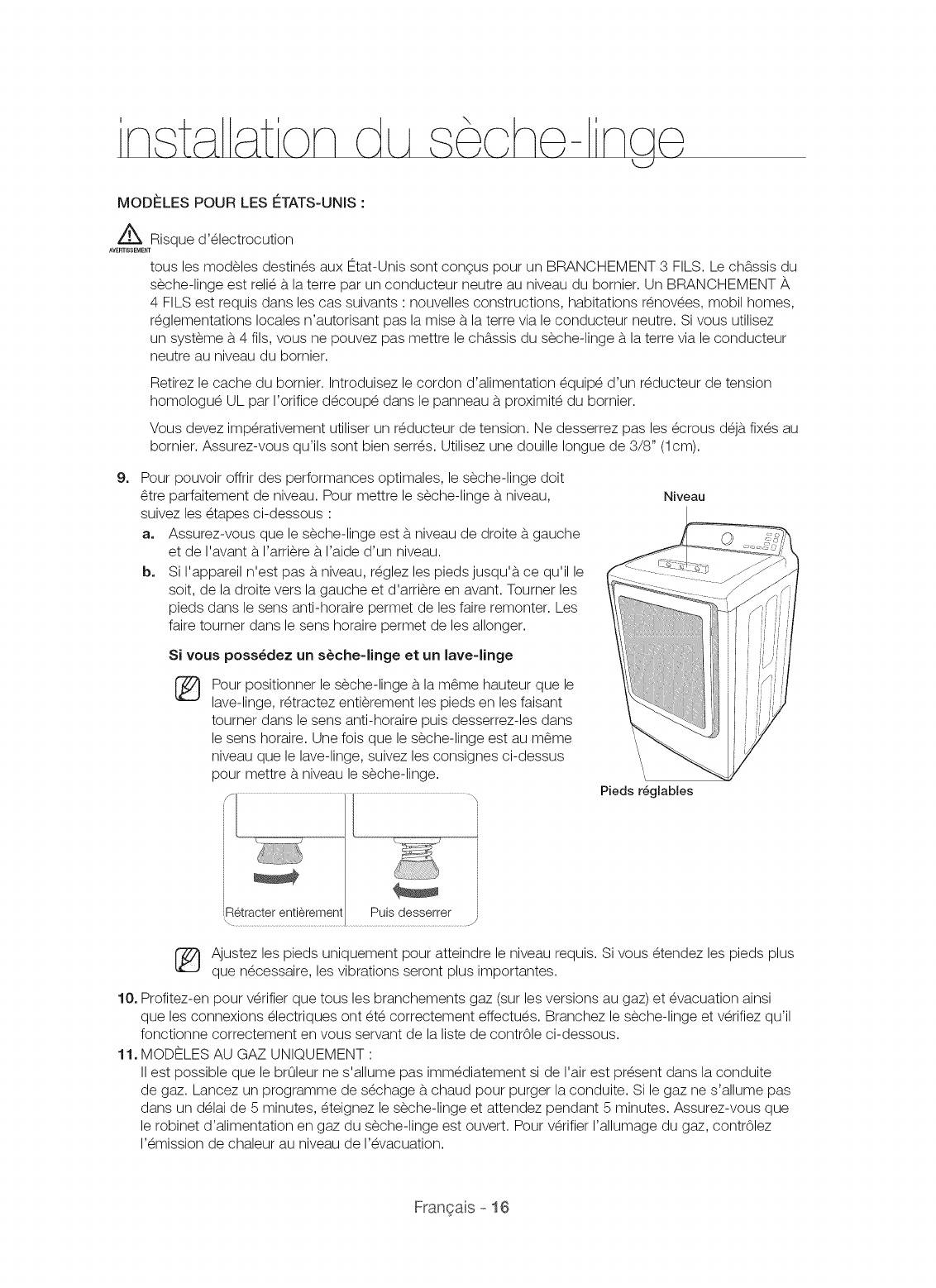

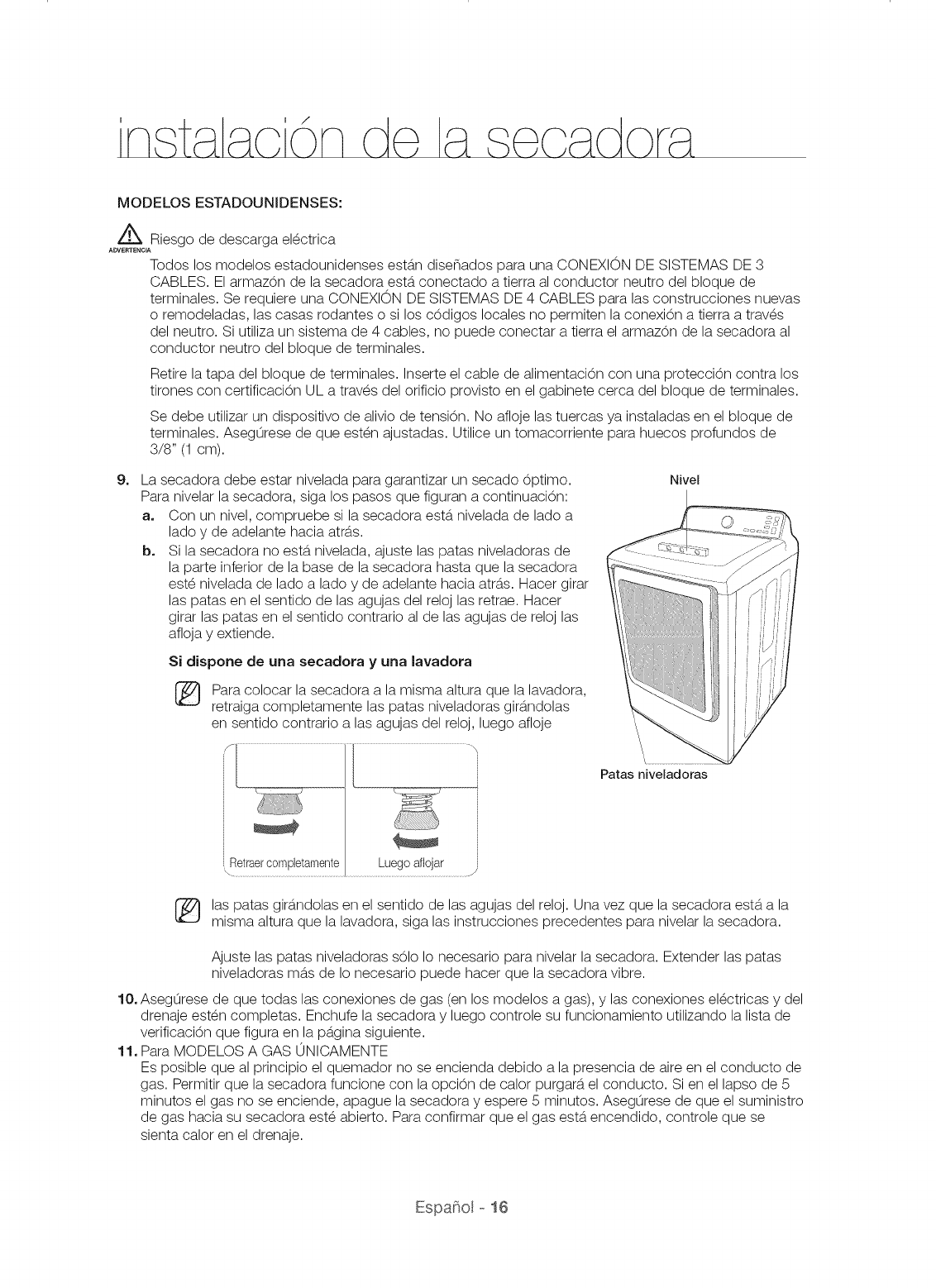

14 Installation - General procedure

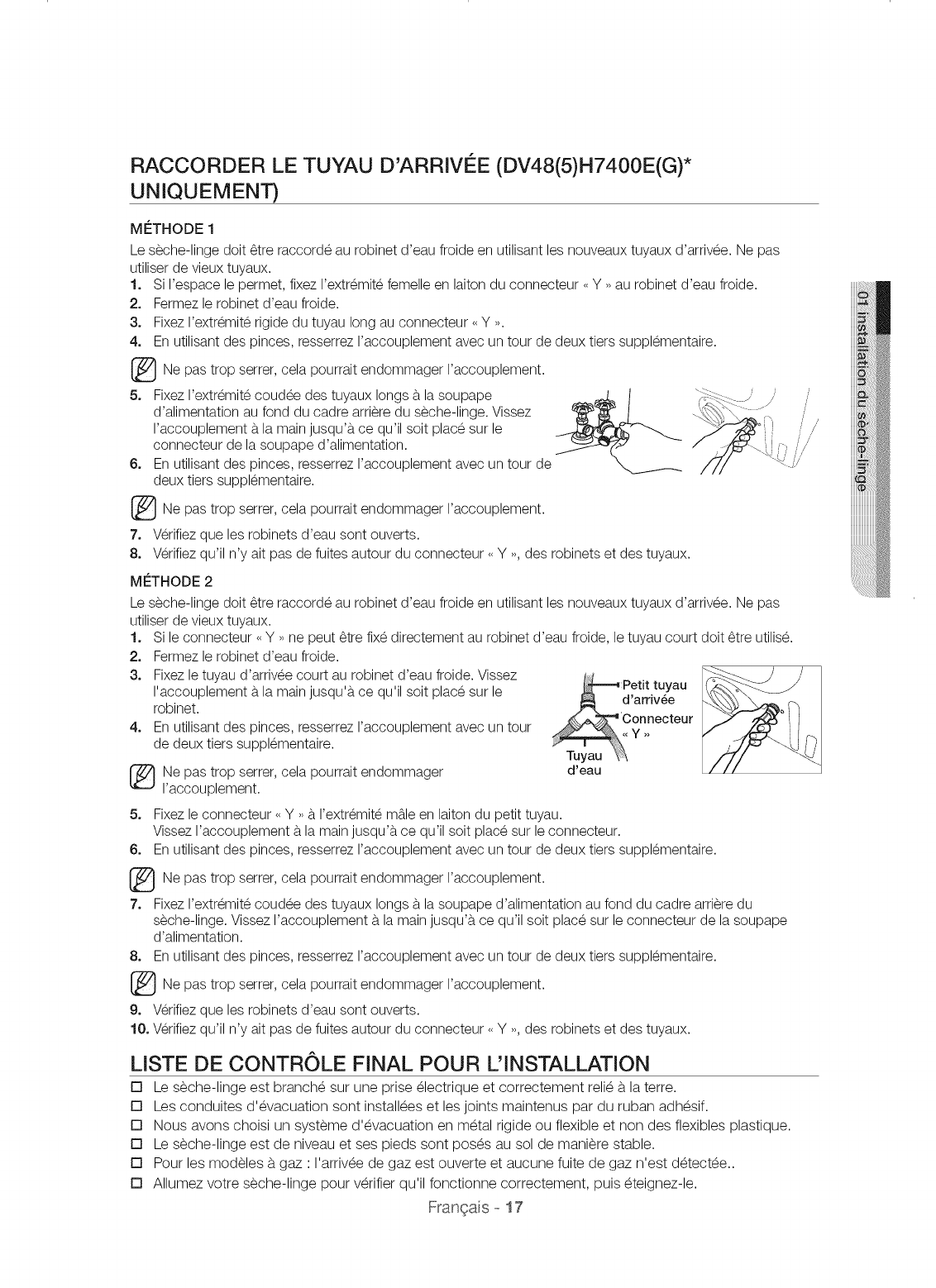

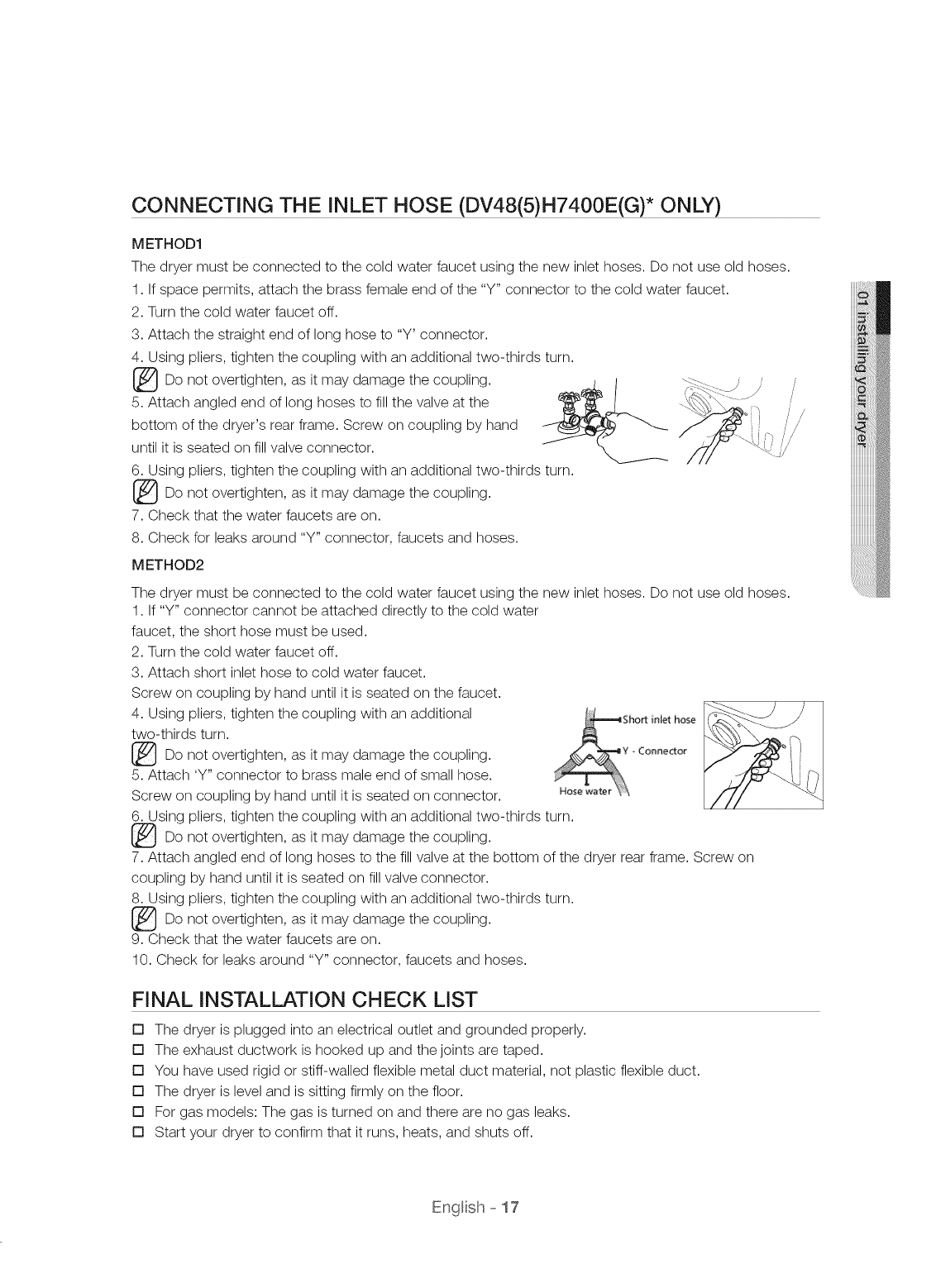

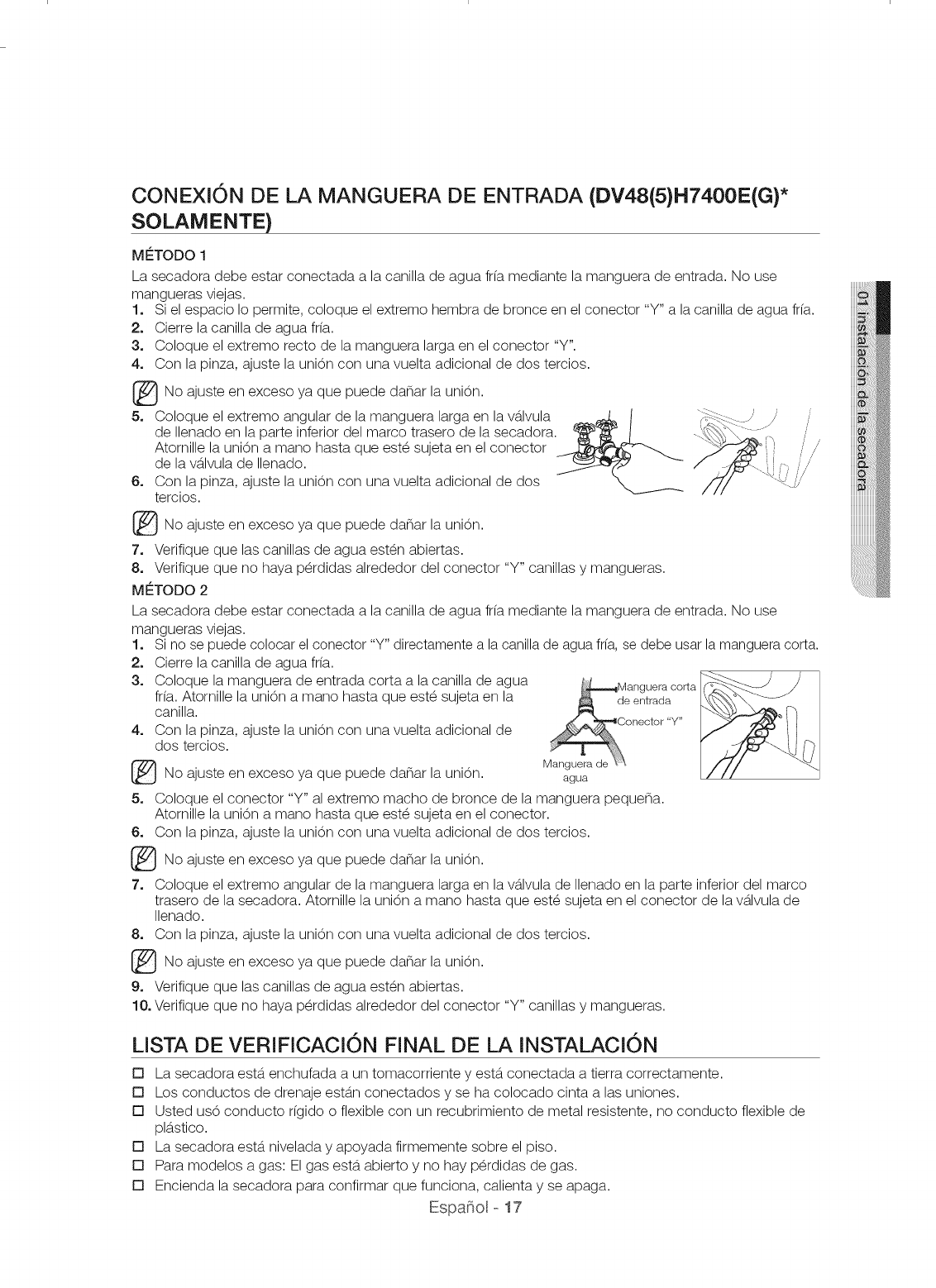

17 Connecting the Inlet Hose (DV48(5)

H7400E(G)* ONLY)

17 Final installation check list

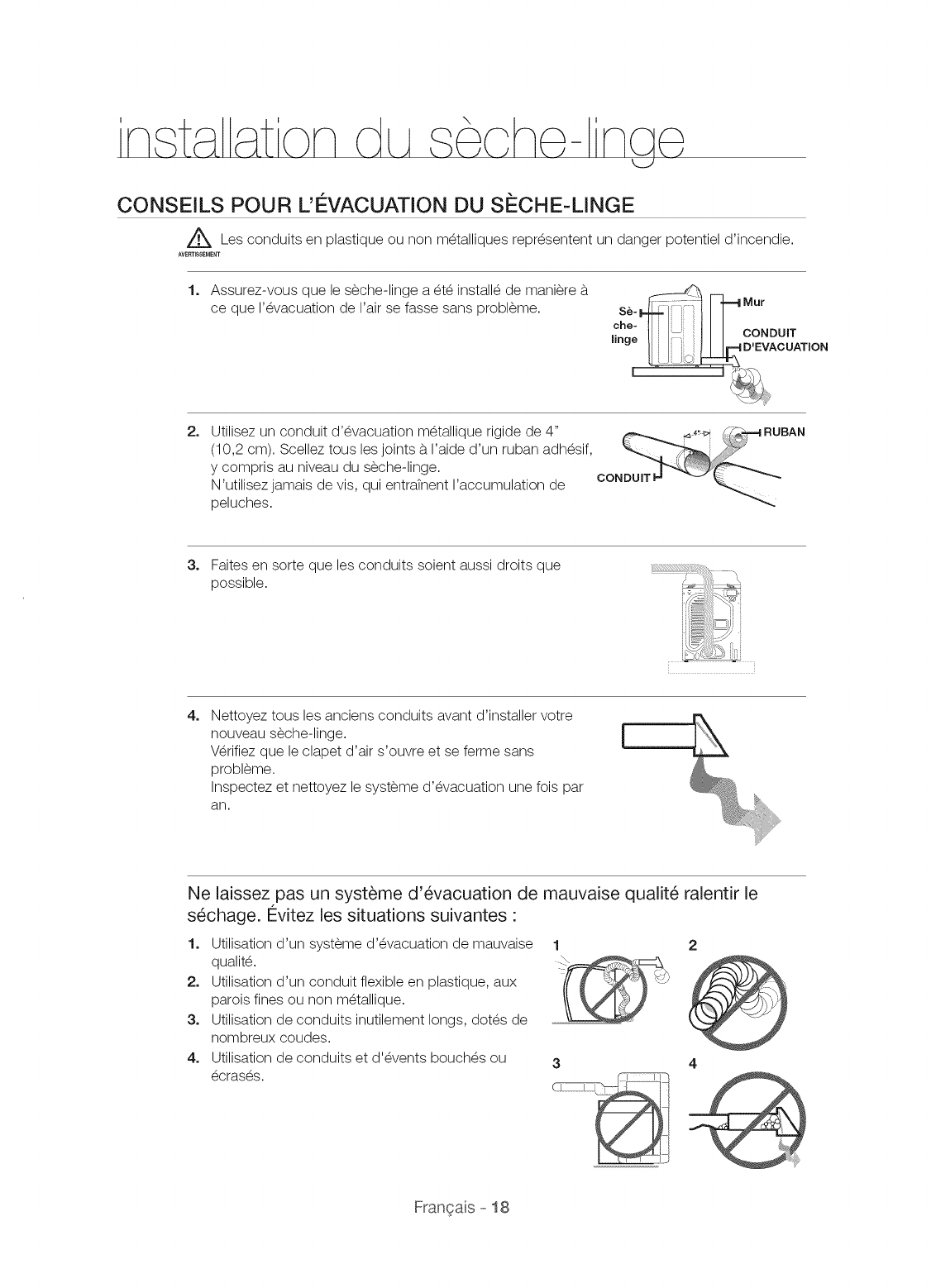

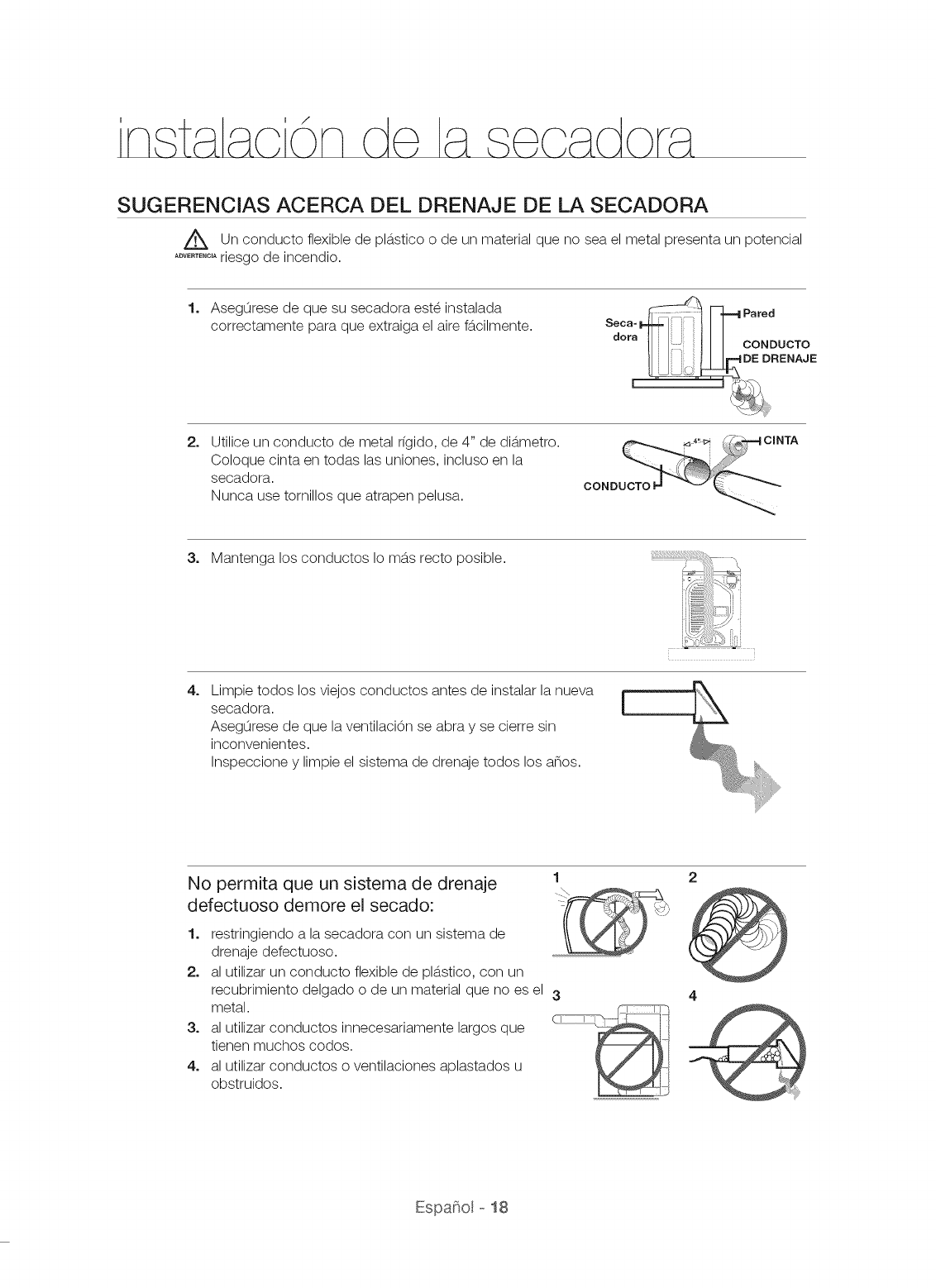

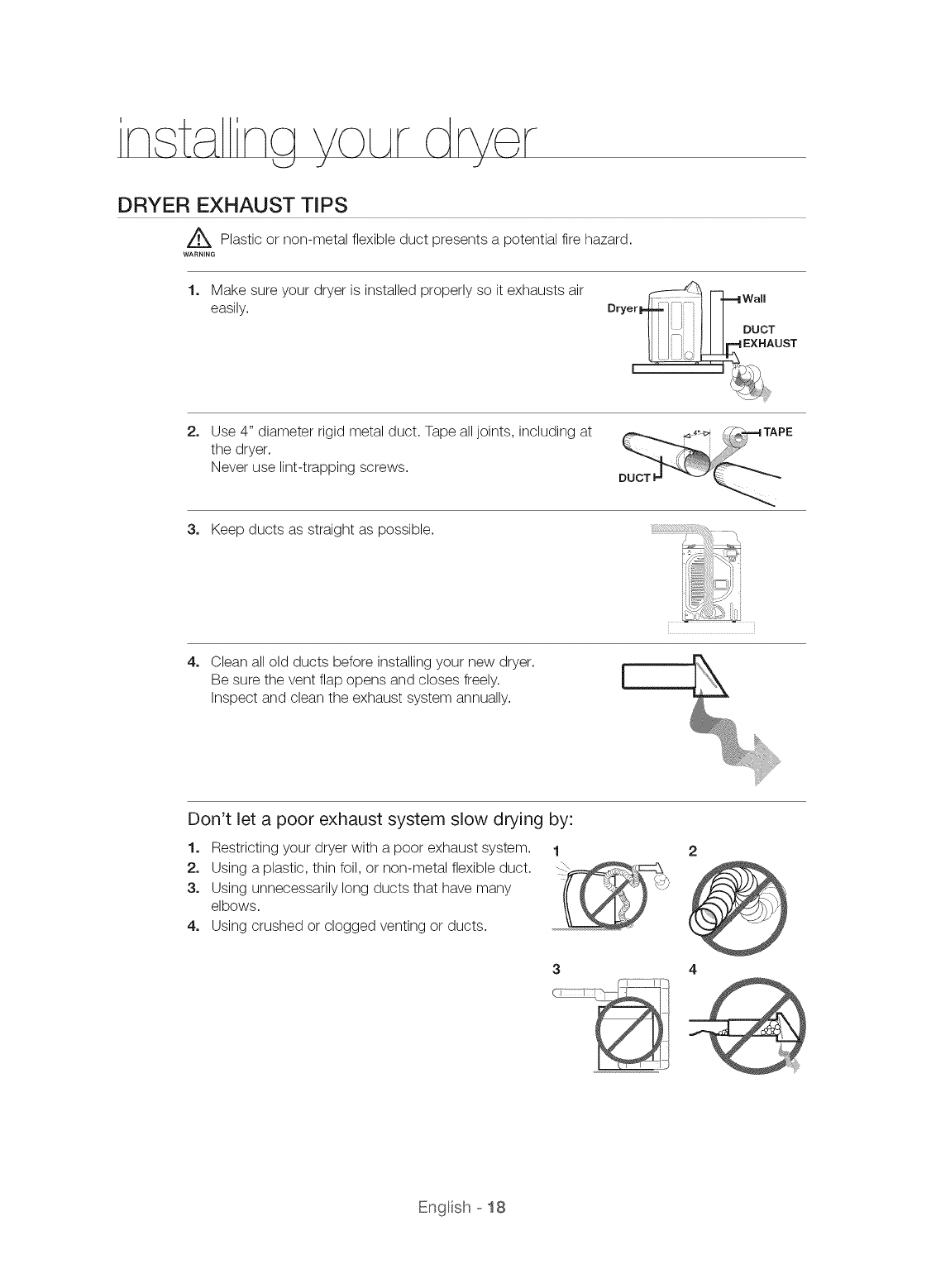

18 Dryer Exhaust Tips

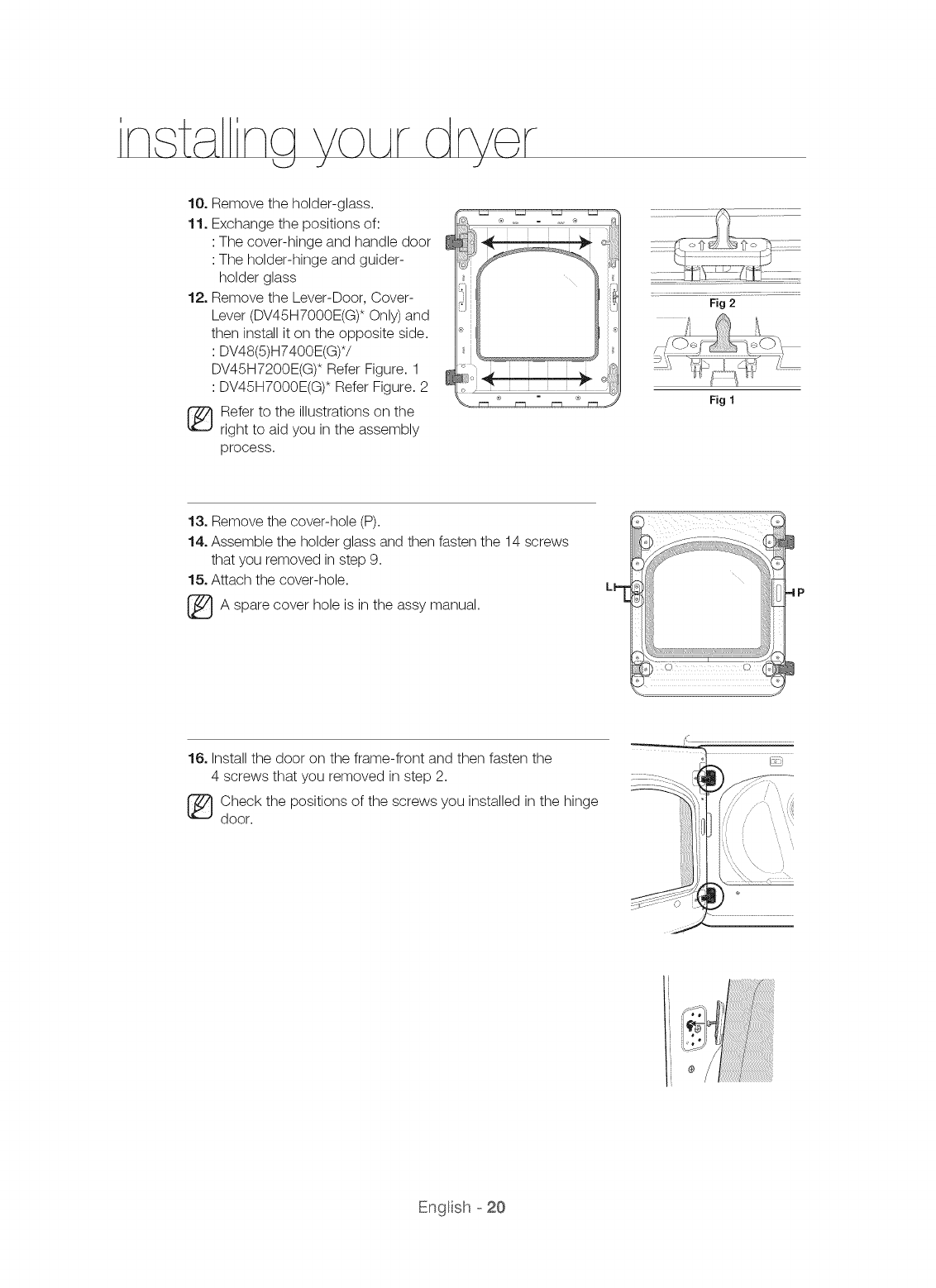

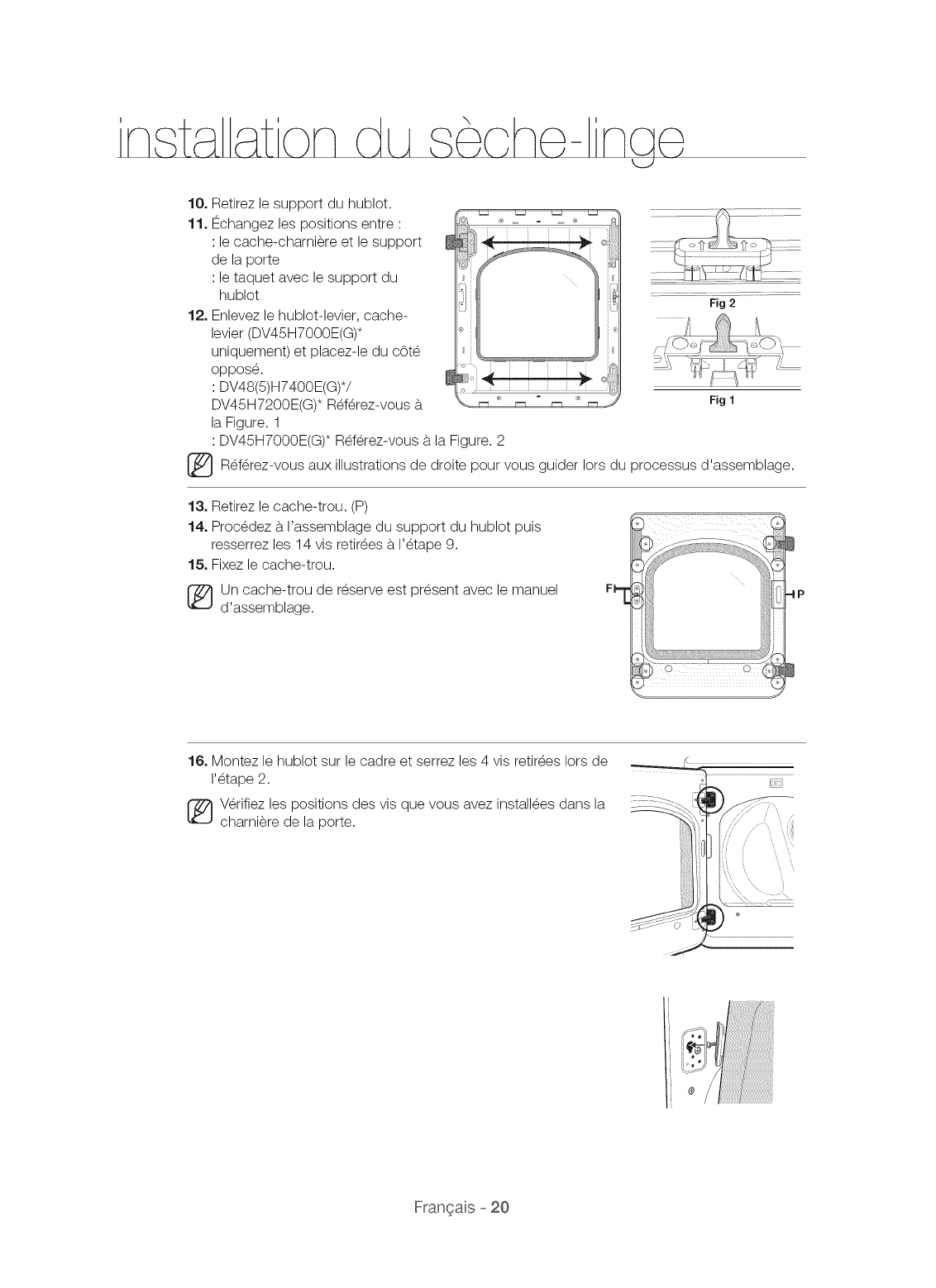

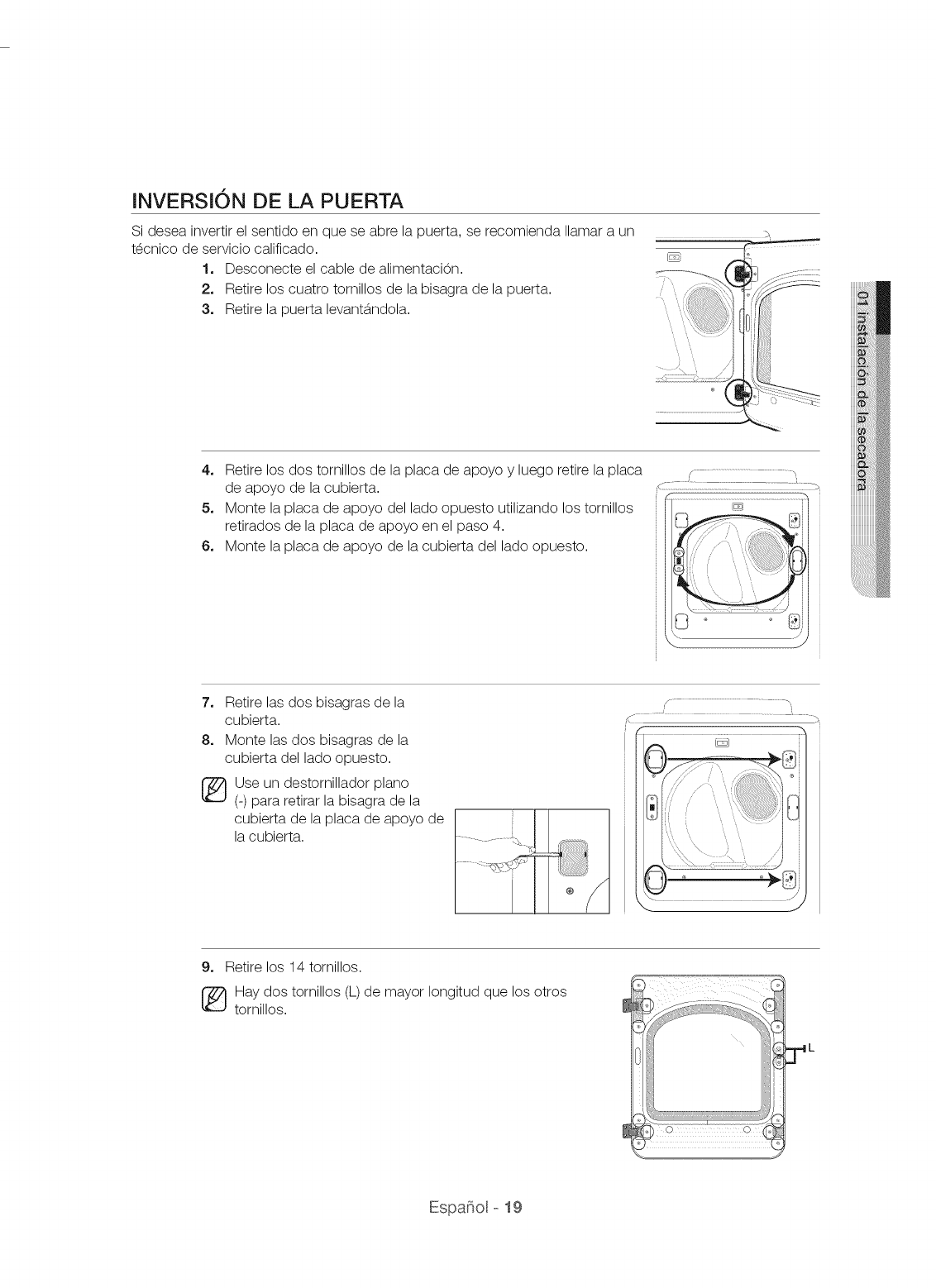

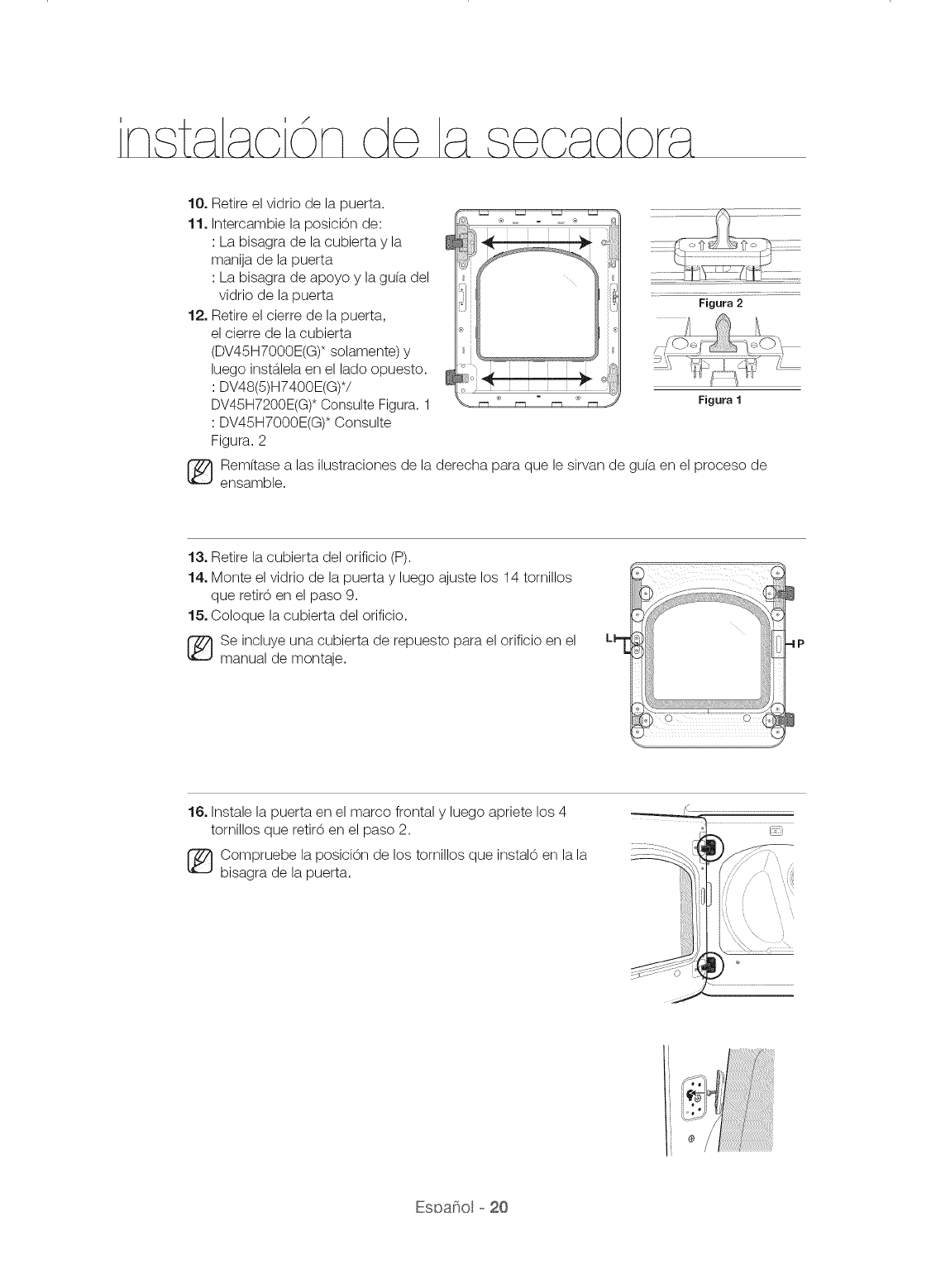

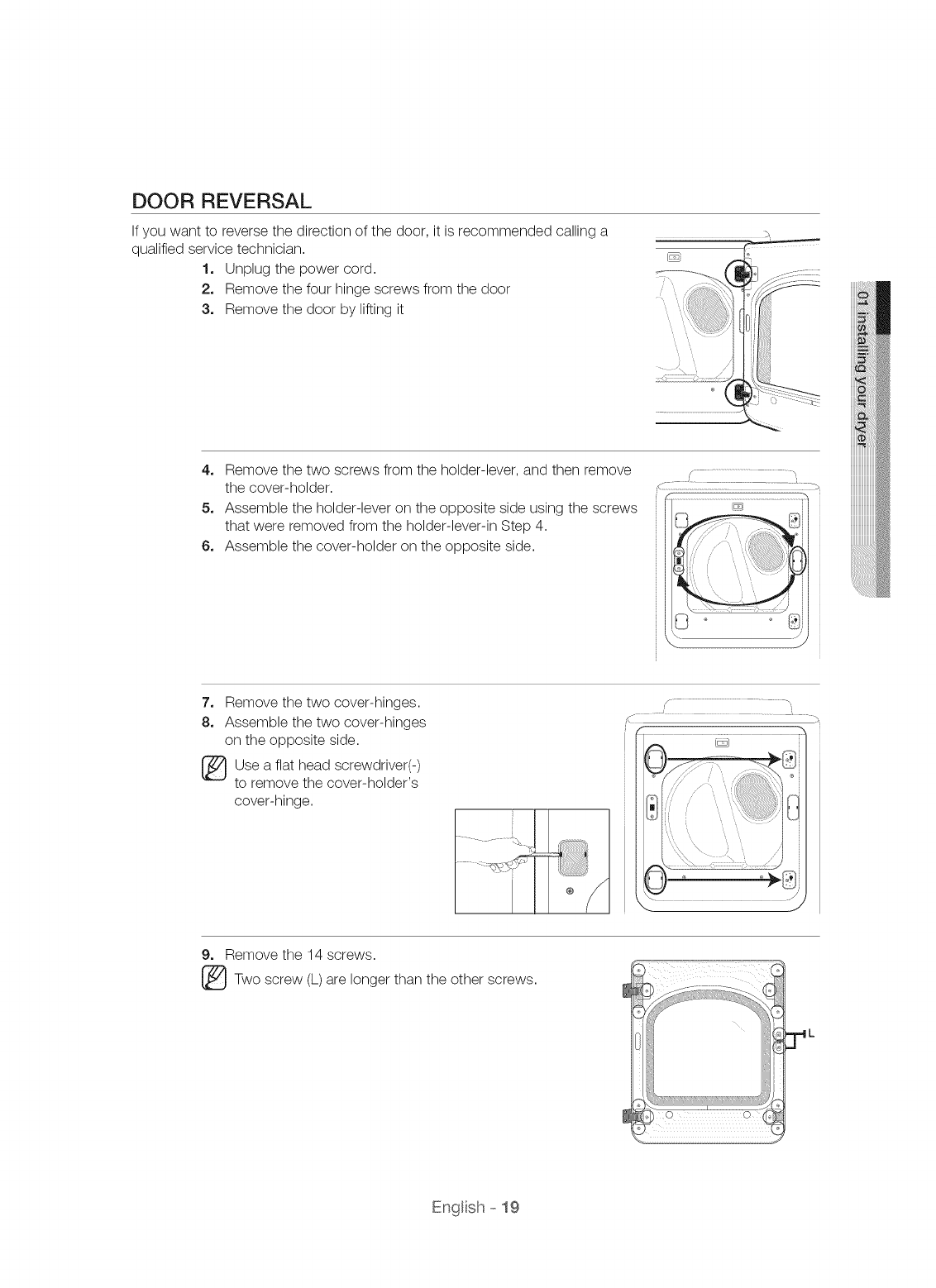

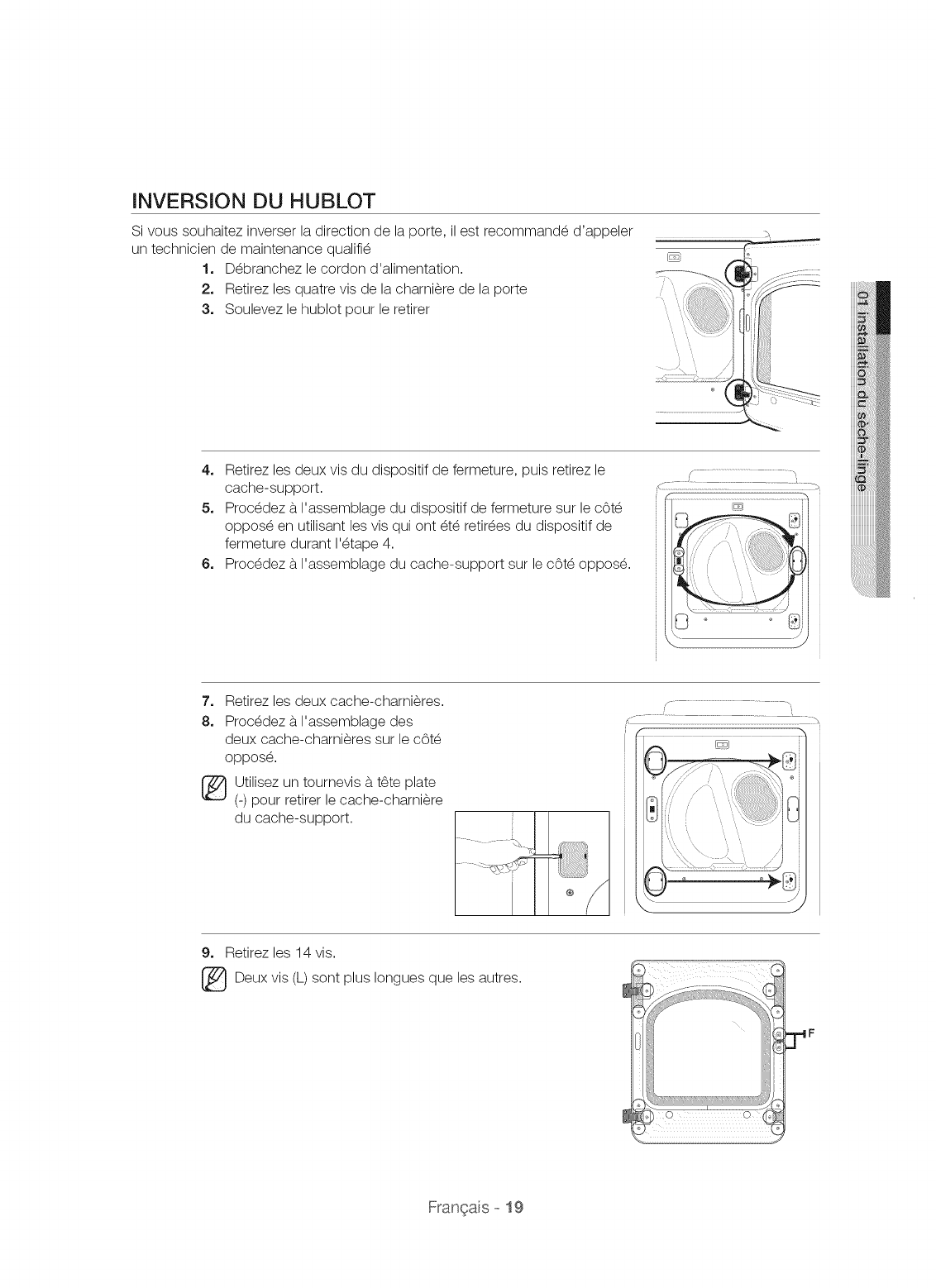

19 Door Reversal

OPERATING INSTRUCTIONS, TIPS

OPERATING INSTRUCTIONS, TiPS

OPERATING INSTRUCTIONS, TIPS

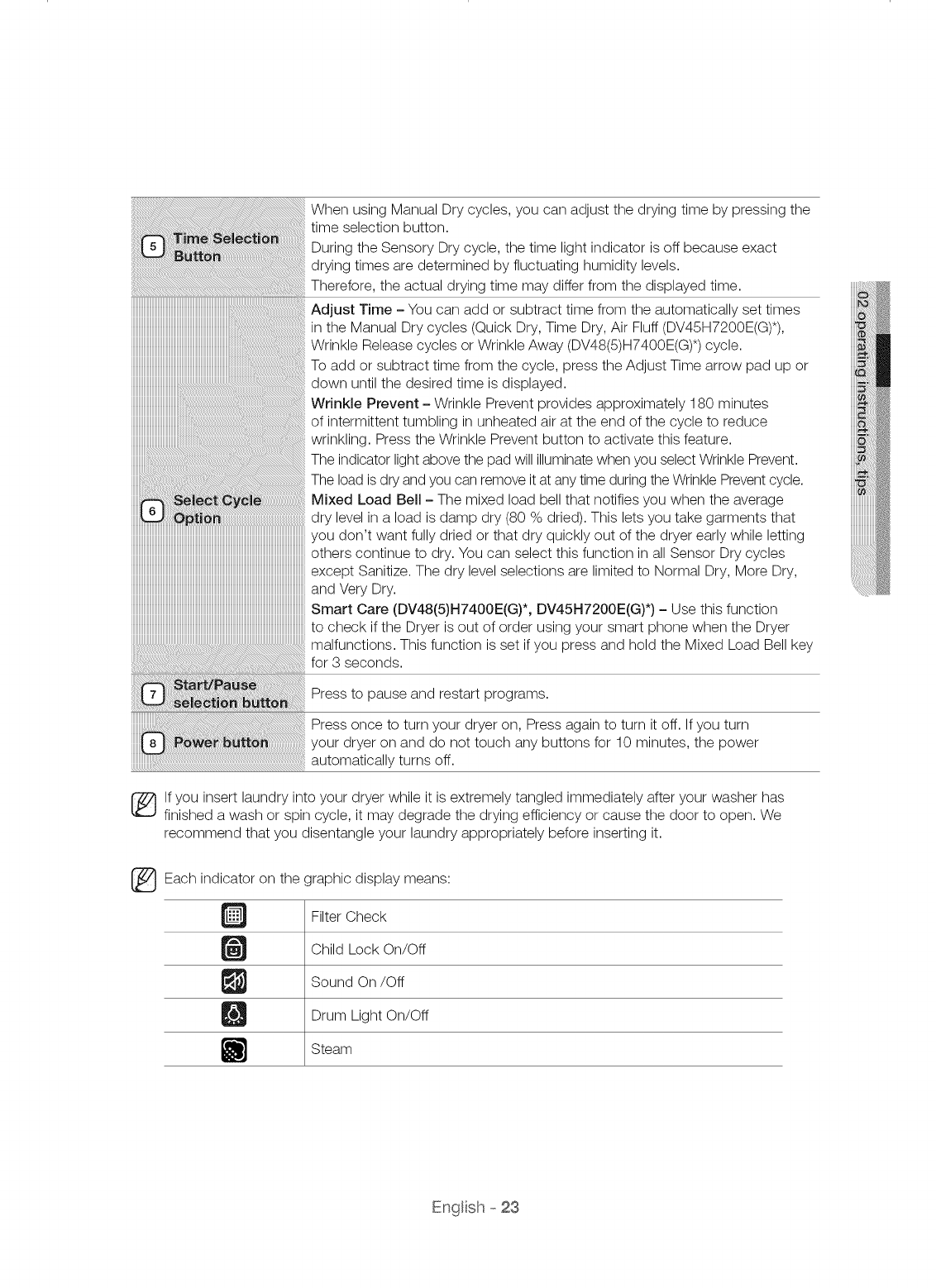

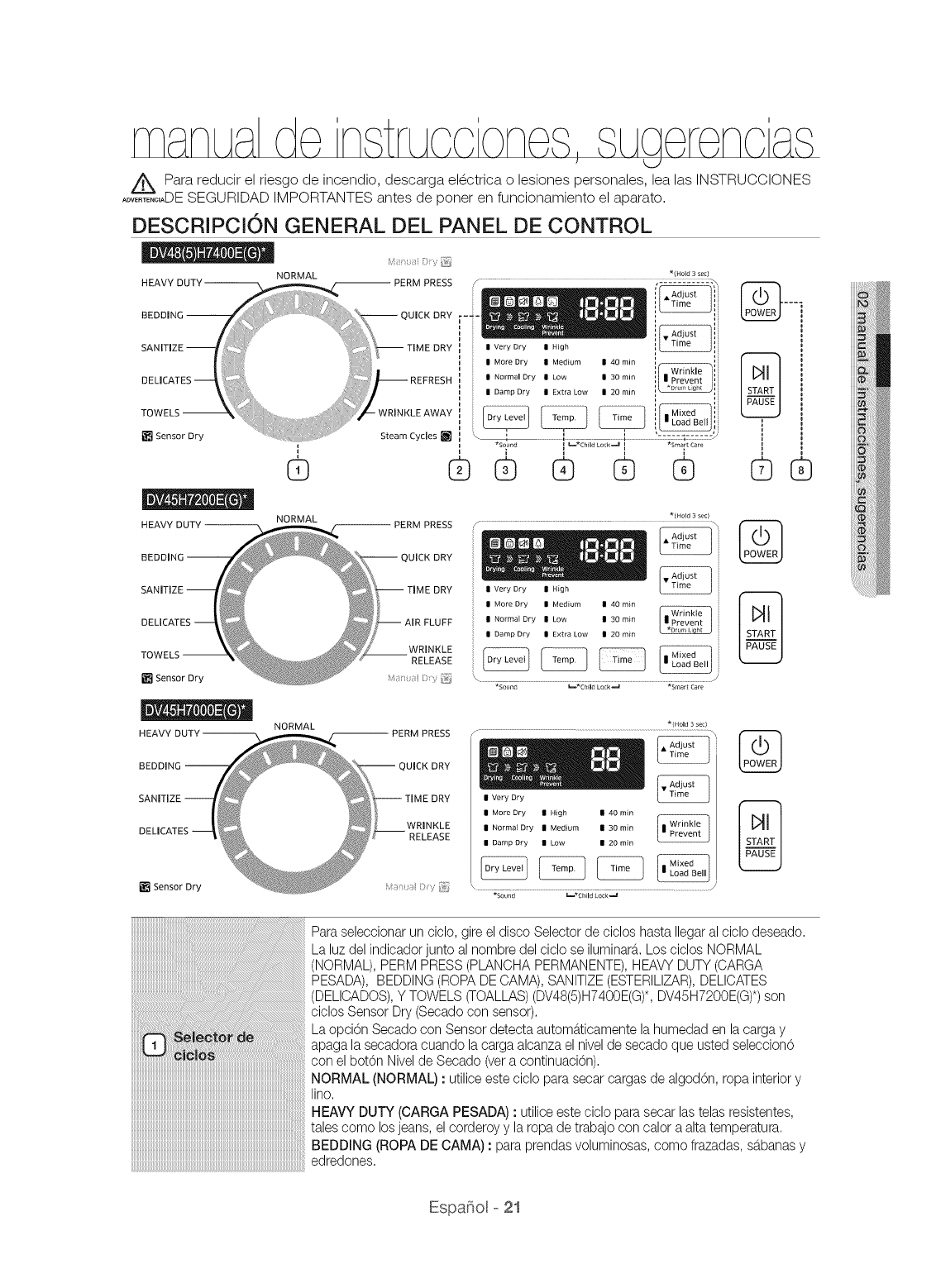

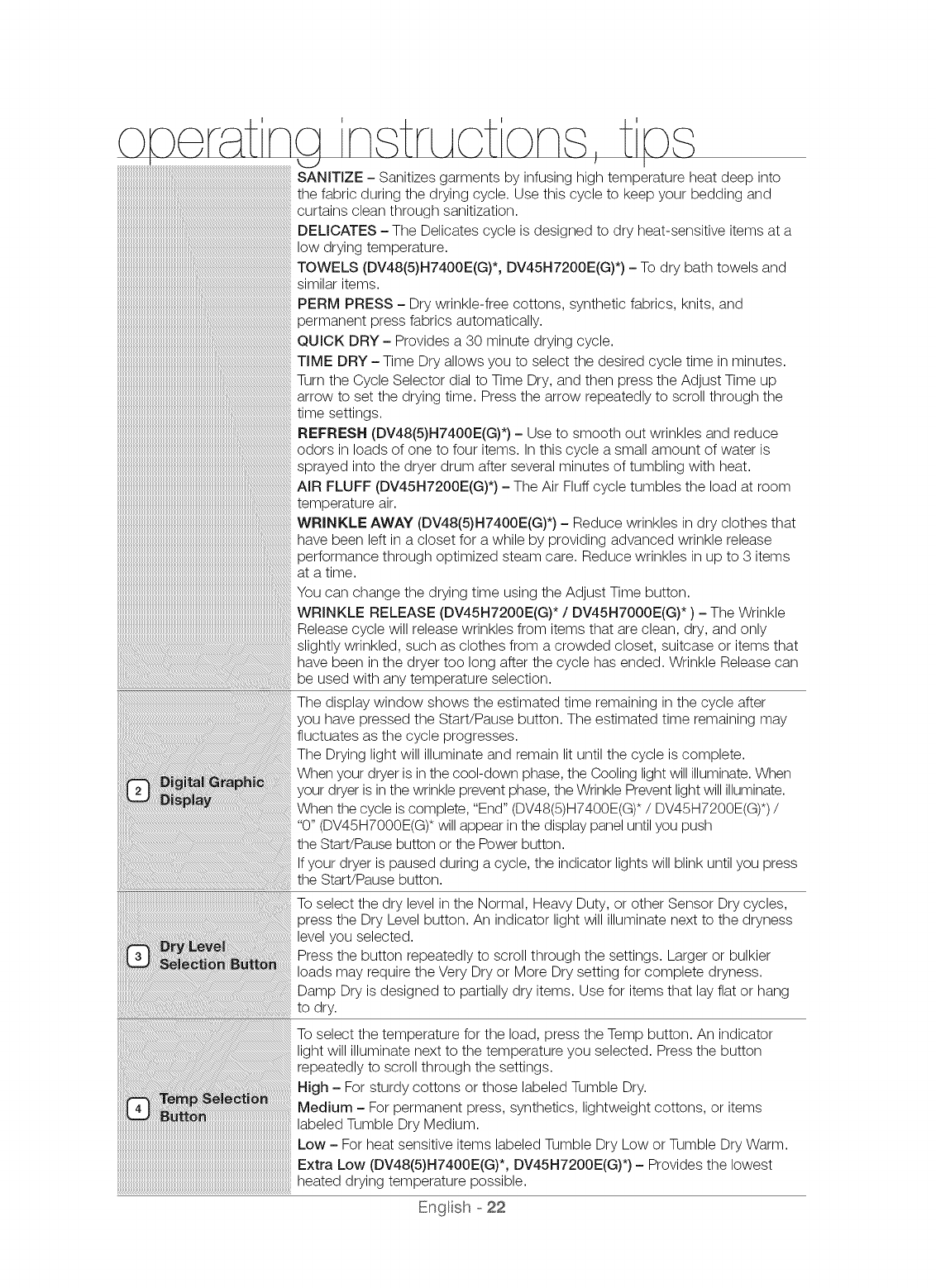

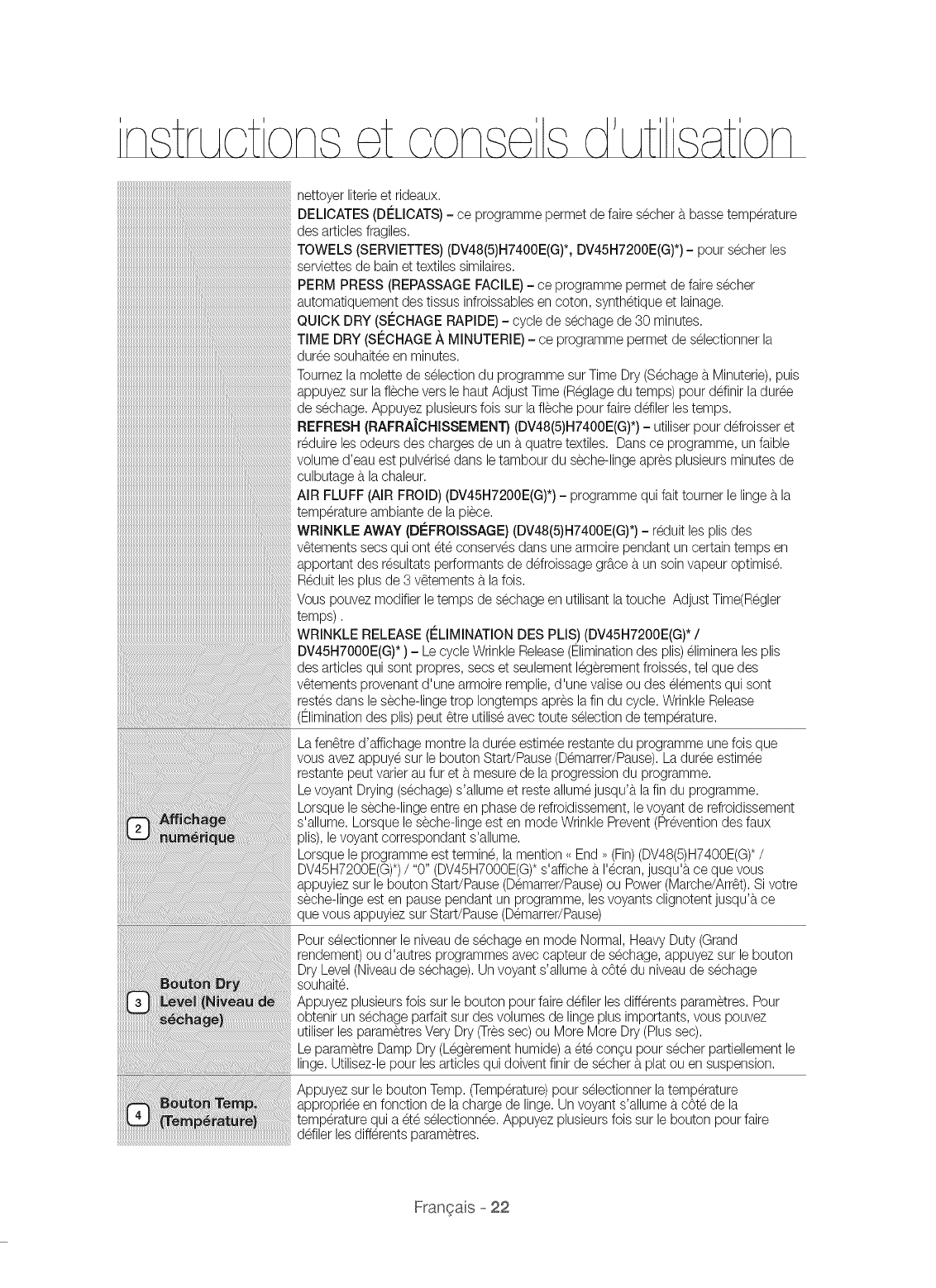

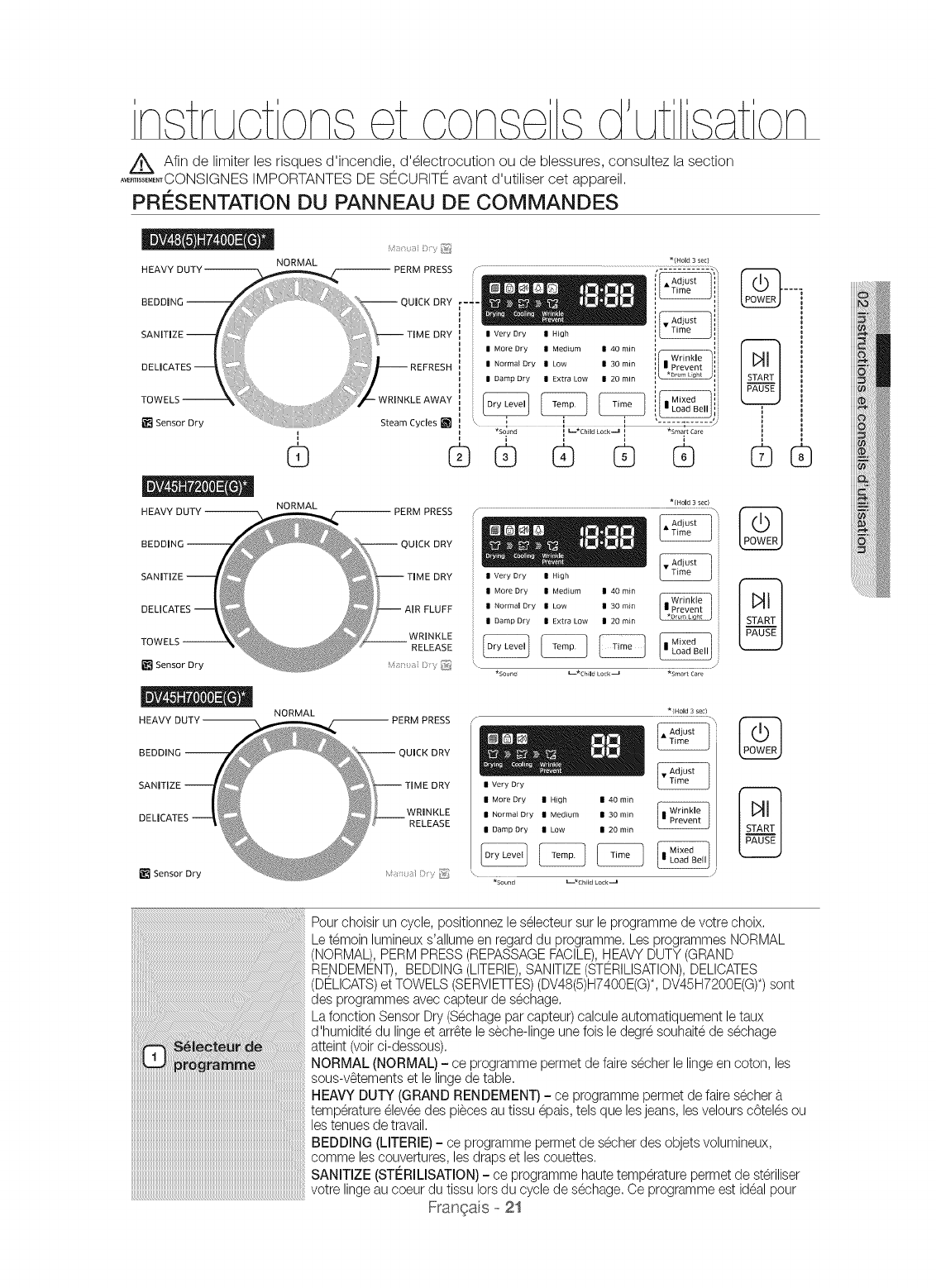

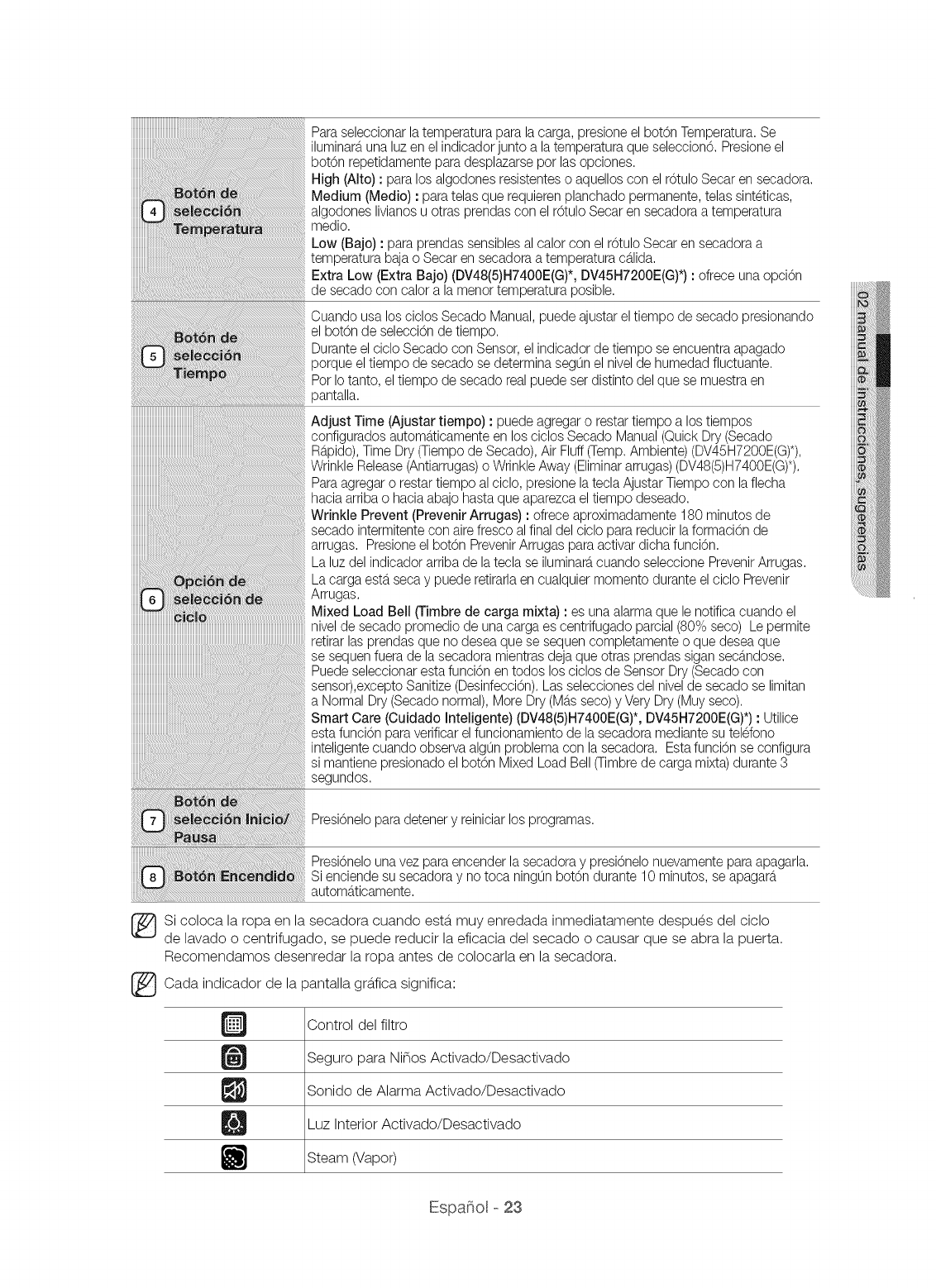

21 Overview of the control panel

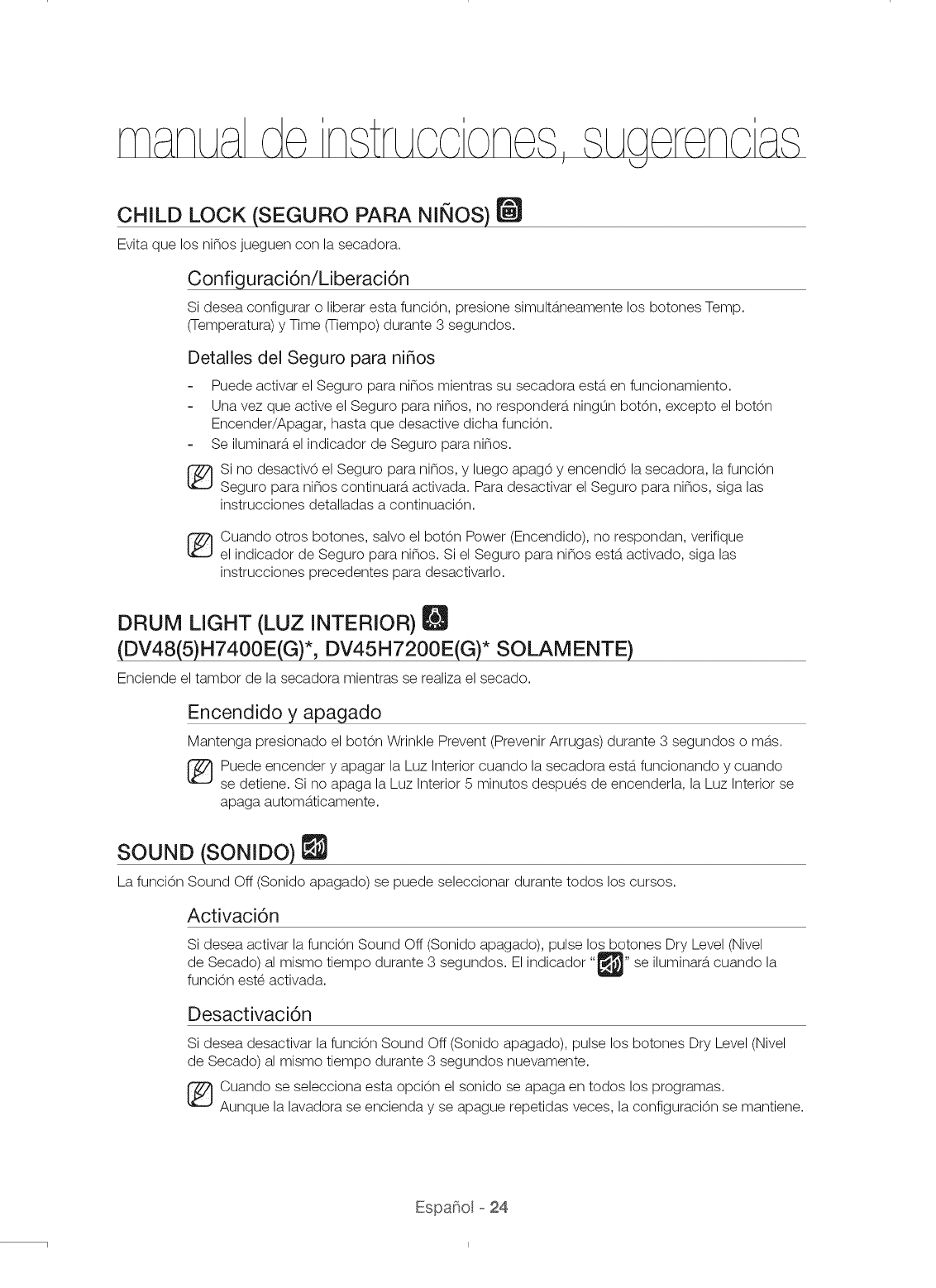

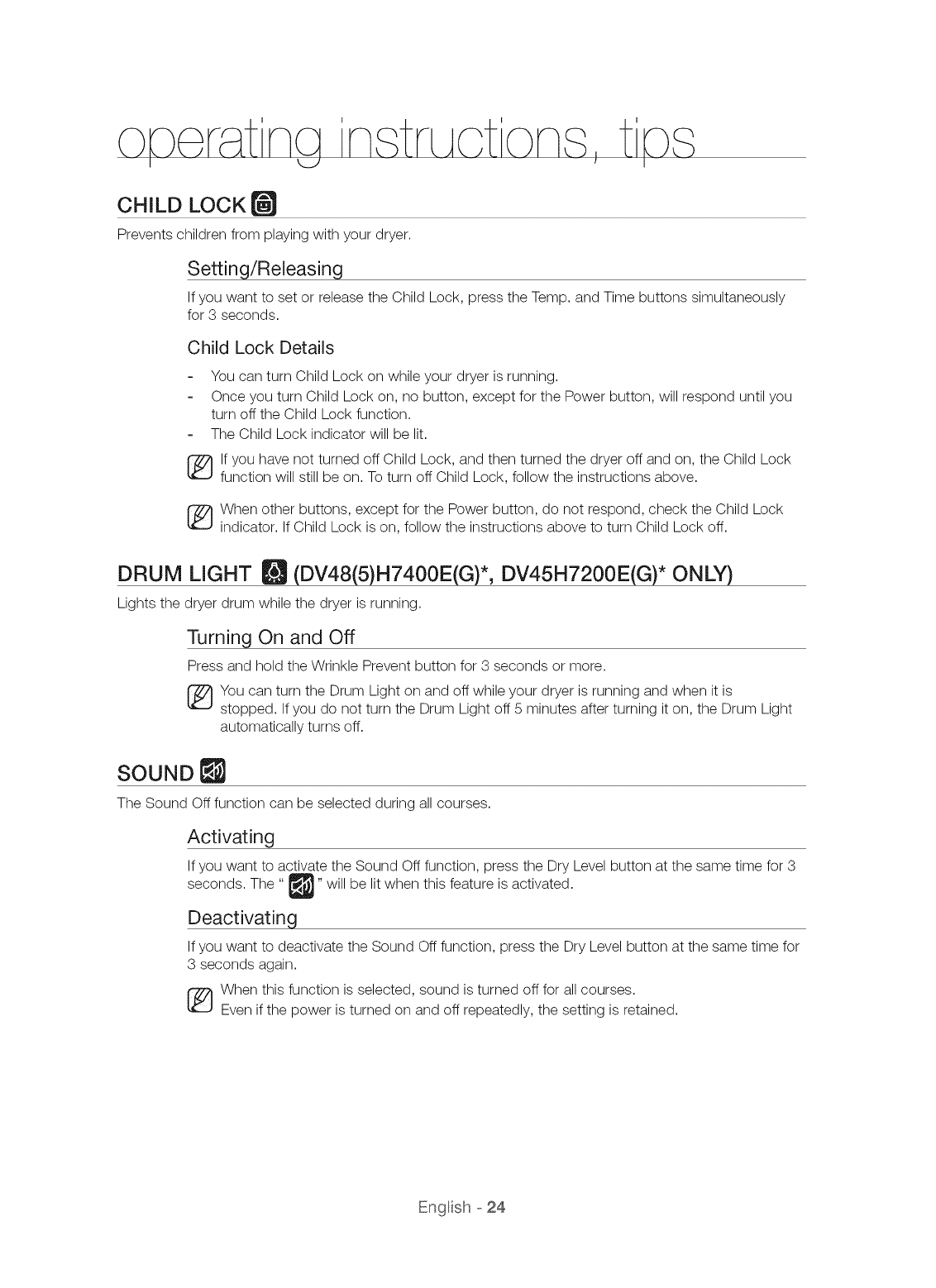

24 Child lock

24 Drum Light (DV48(5)H7400E(G)*,

DV45H7200E(G)* ONLY)

24 Sound

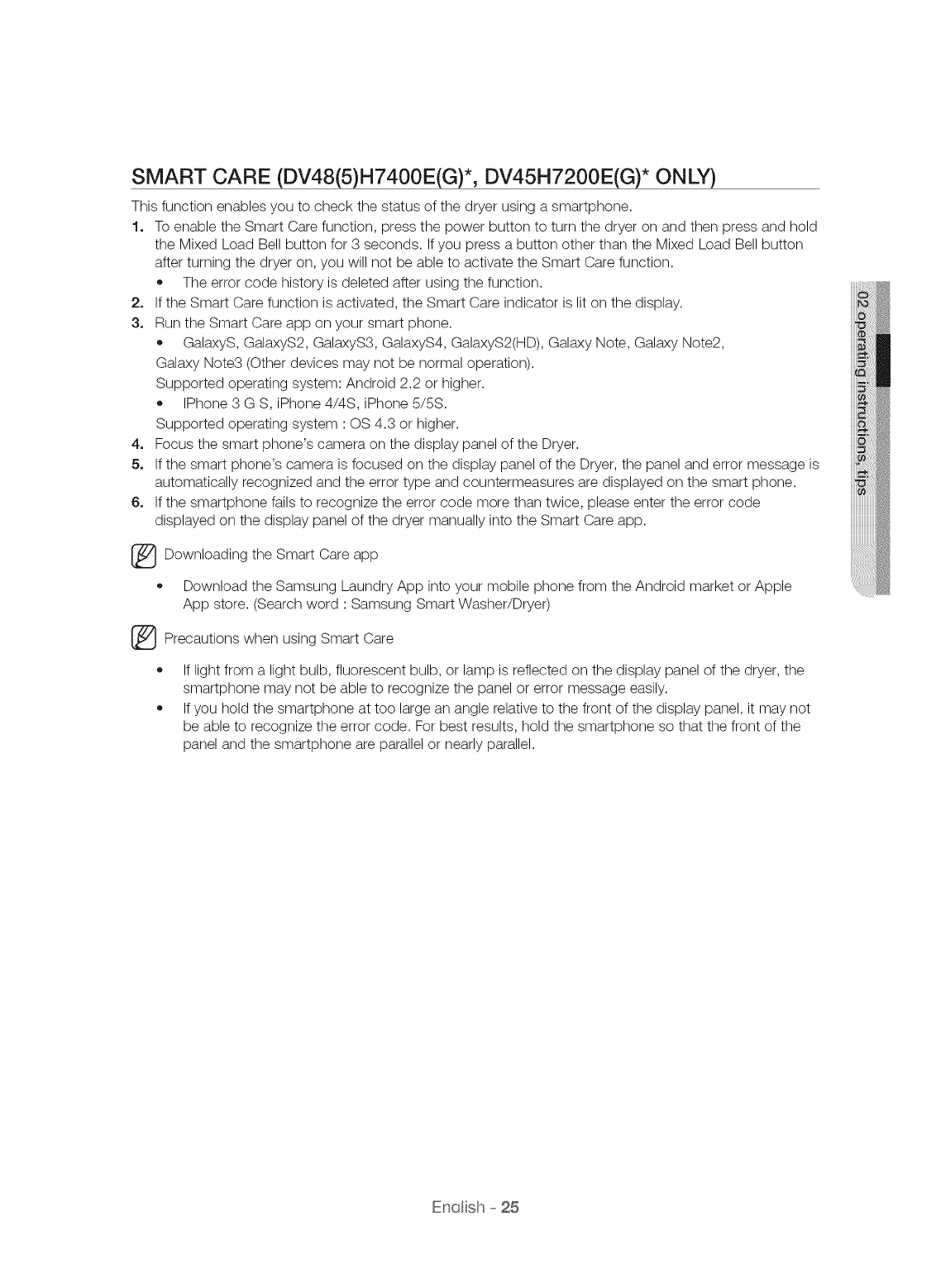

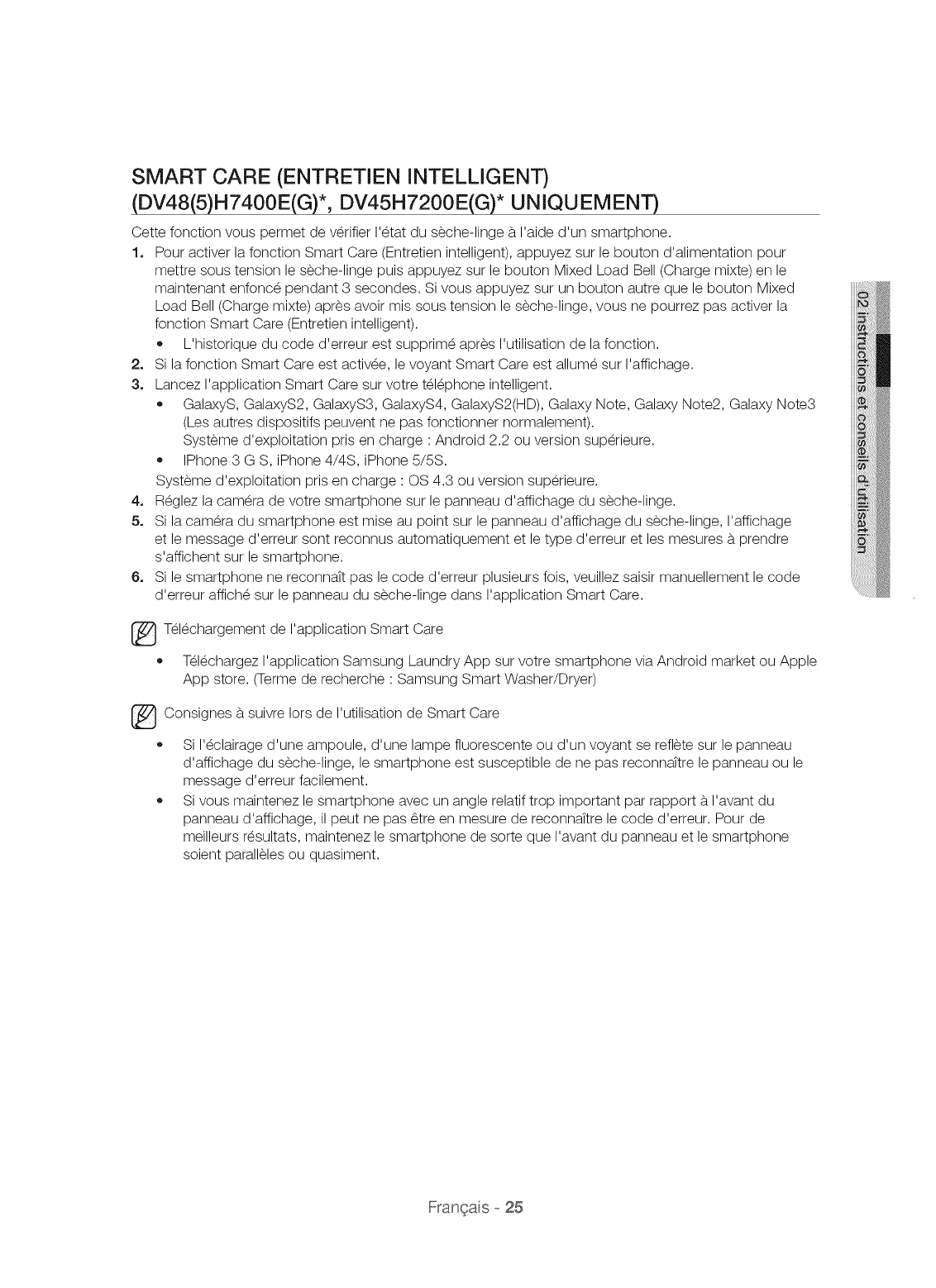

25 Smart Care (DV48(5)H7400E(G)*,

DV45H7200E(G)* ONLY)

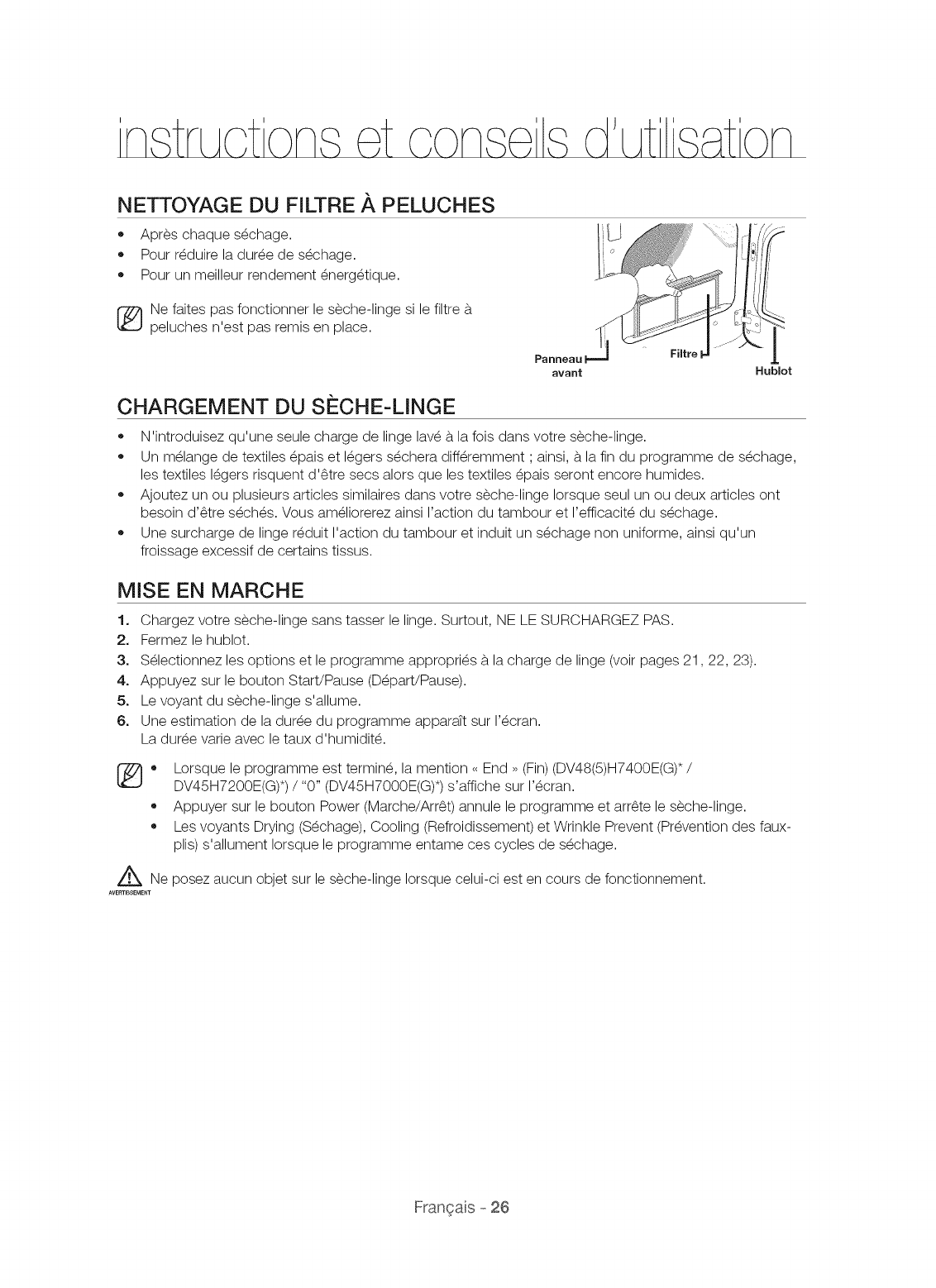

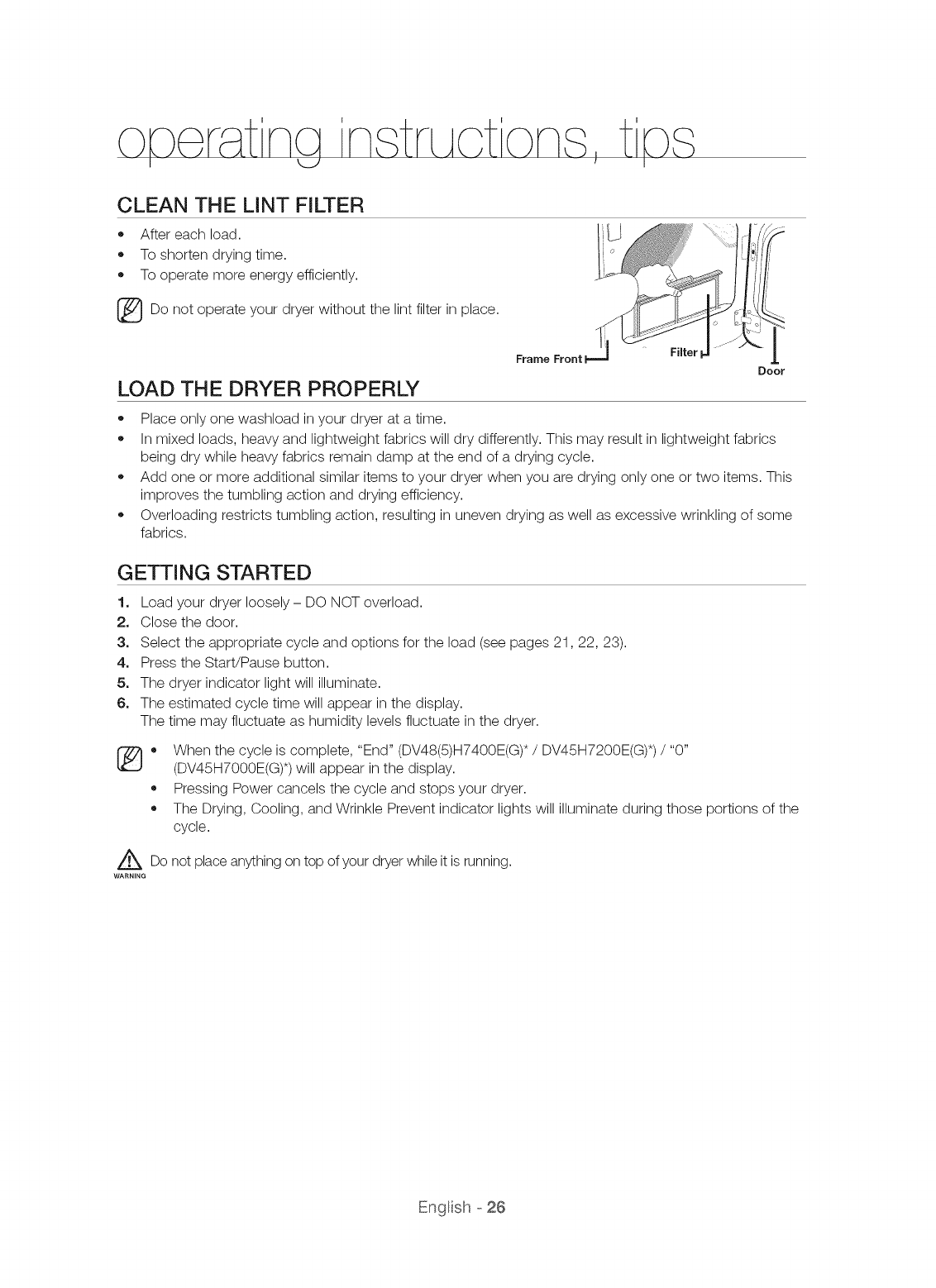

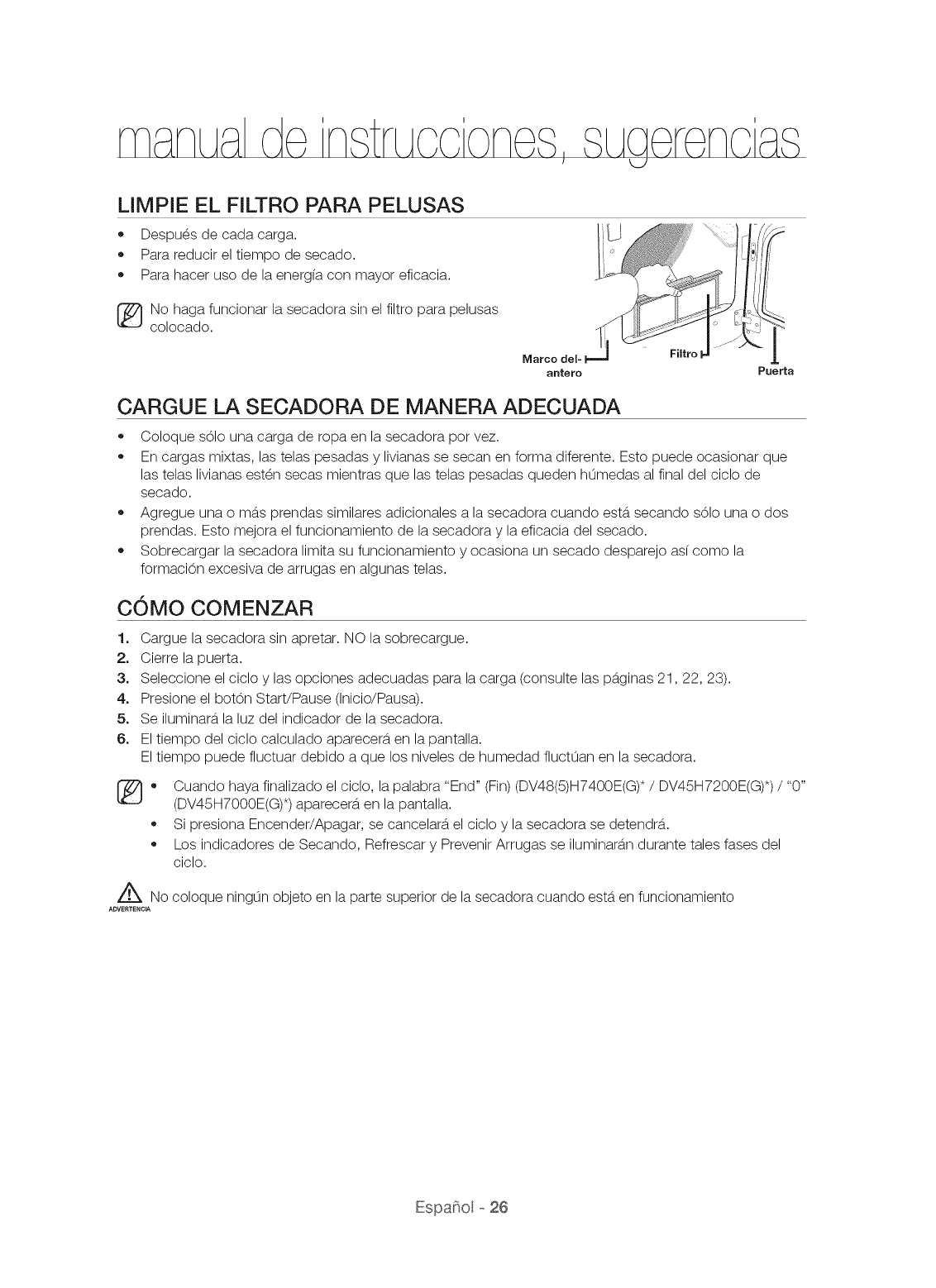

26 Clean the lint filter

26 Load the dryer properly

26 Getting started

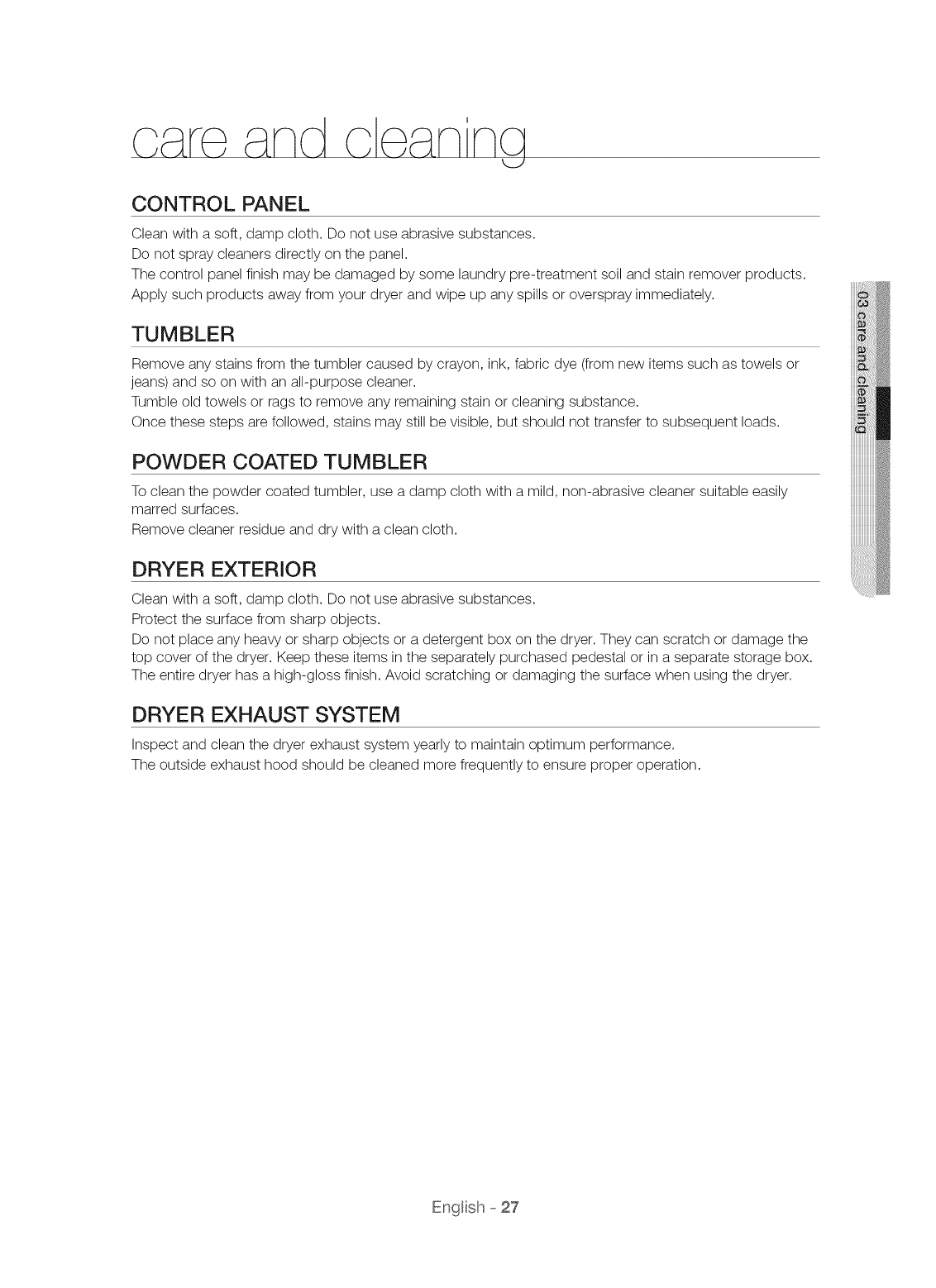

CARE AND CLEANING

SPECIAL LAUNDRY TIPS

27 Control Panel

27 Tumbler

27 Powder Coated Tumbler

27 Dryer Exterior

27 Dryer Exhaust System

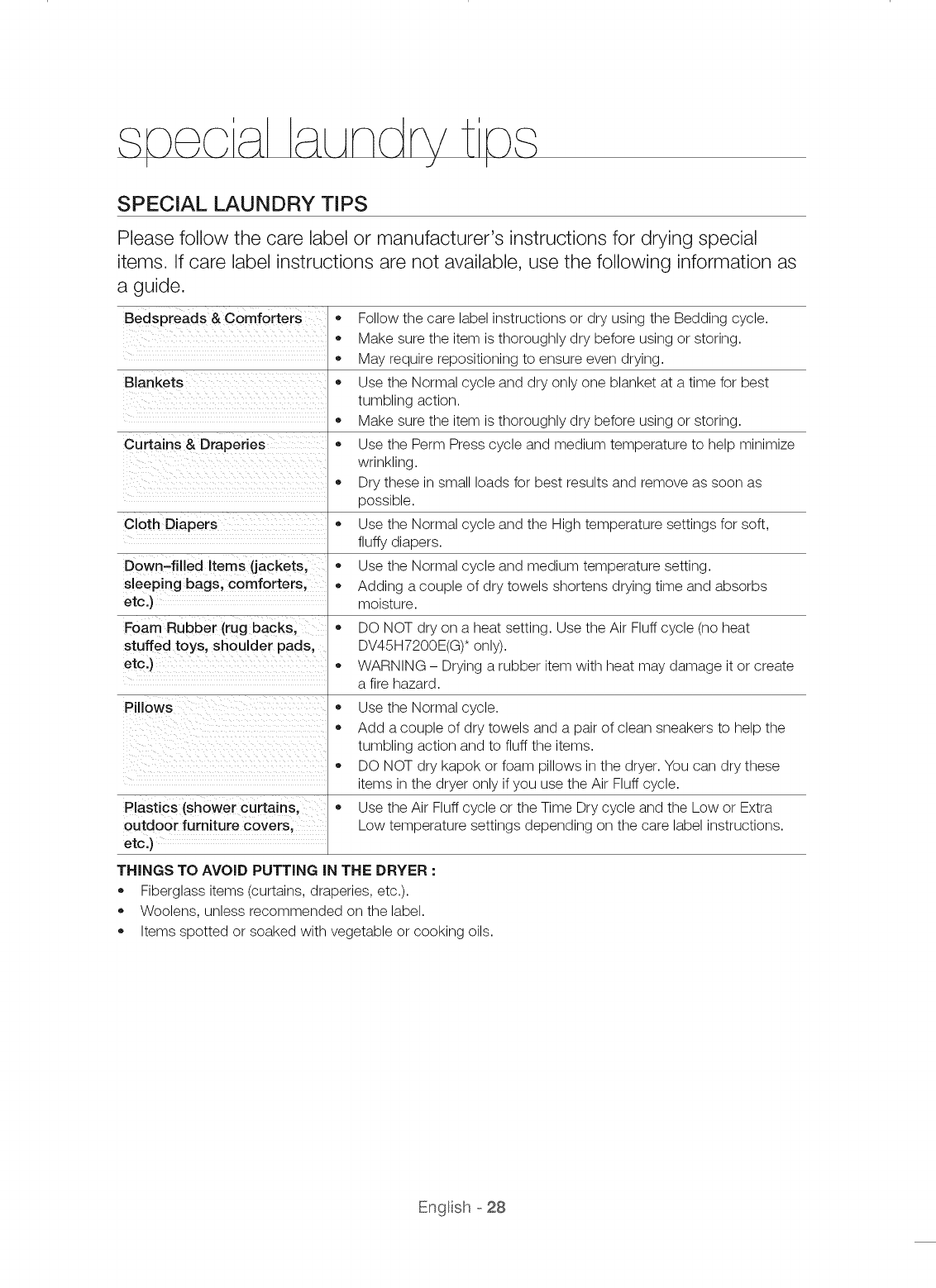

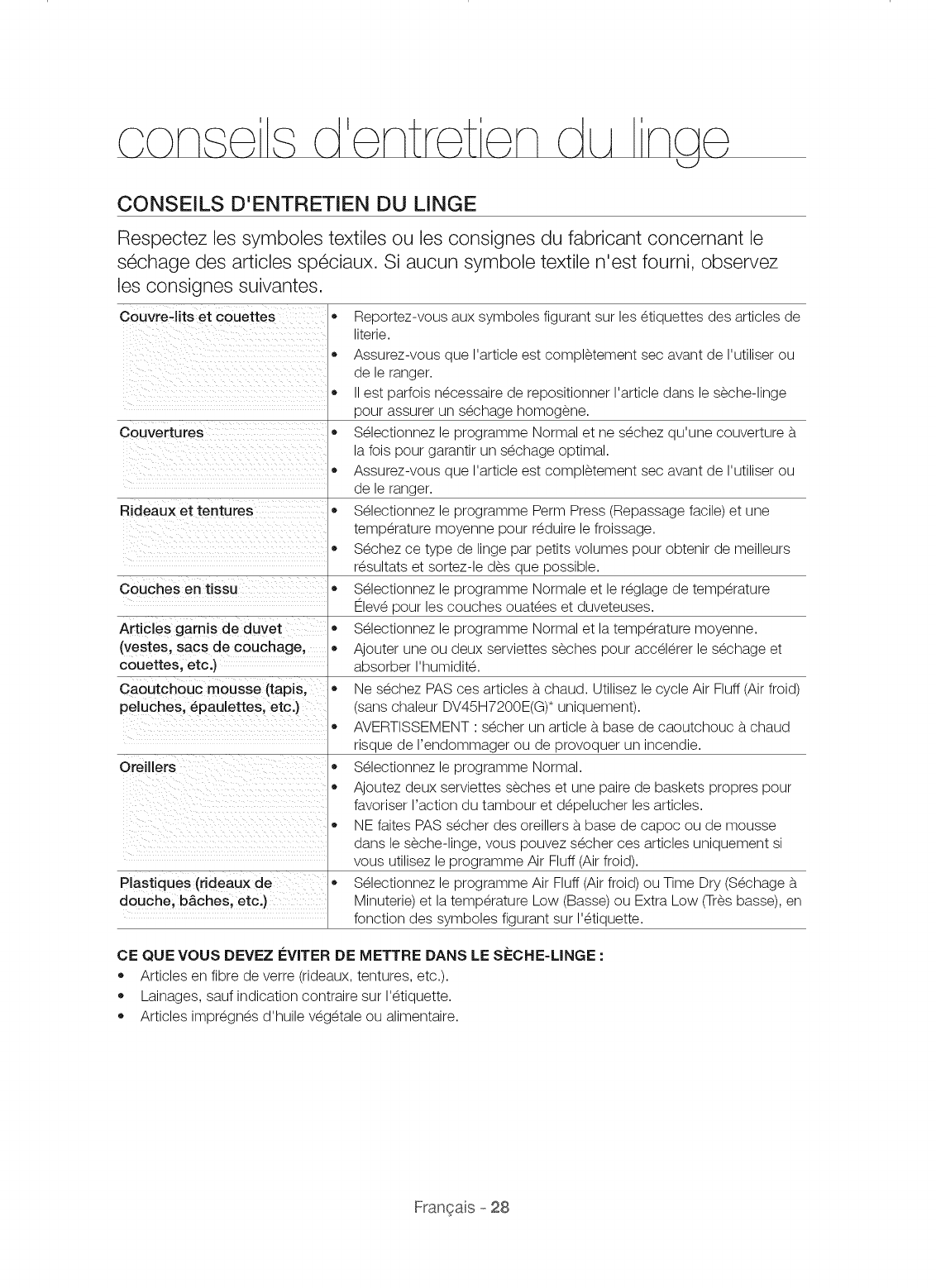

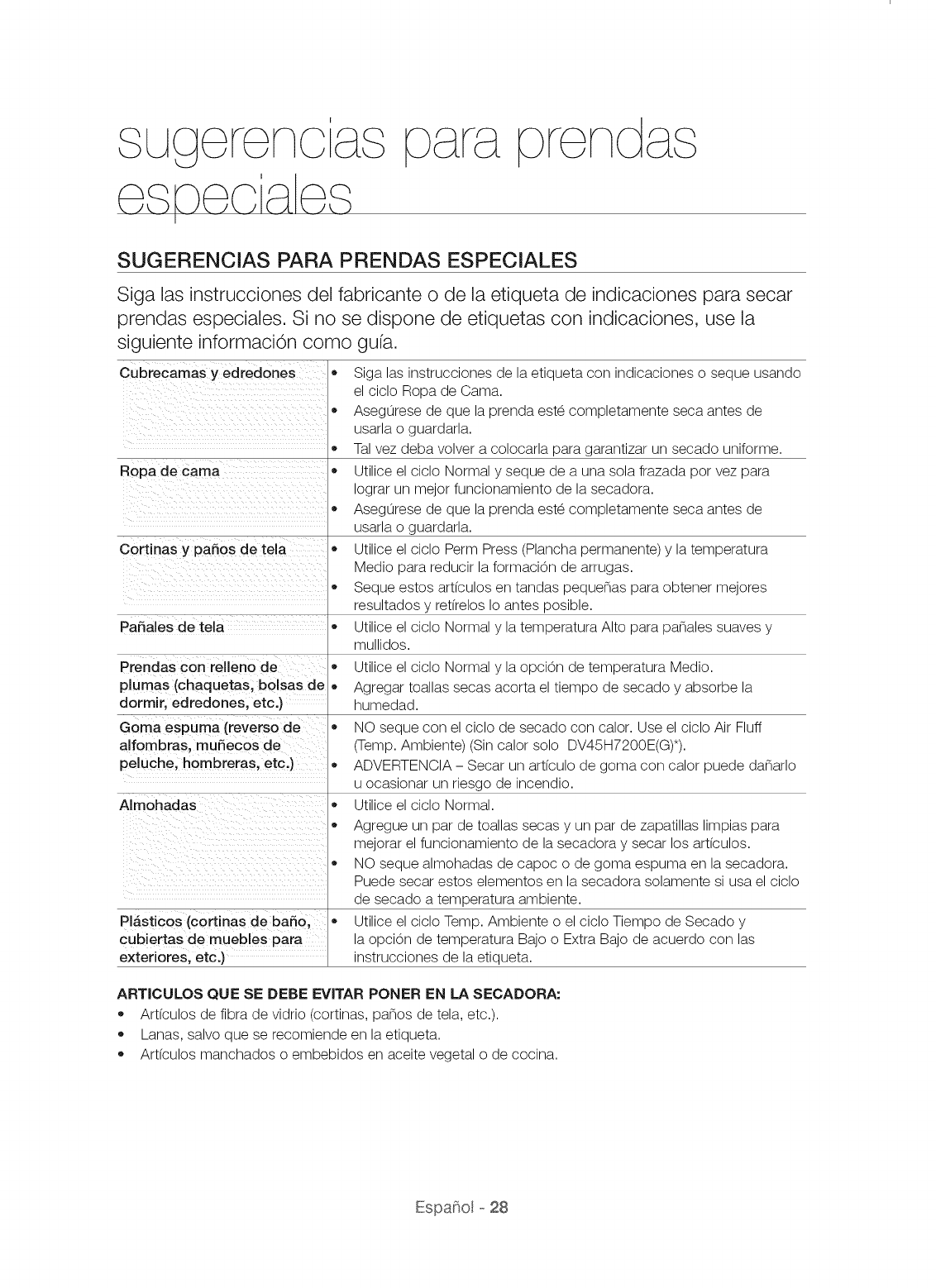

28 Special laundry tips

TROUBLESHOOTING

APPENDIX 31

" ...... 32

: 32

Engl sh- 2

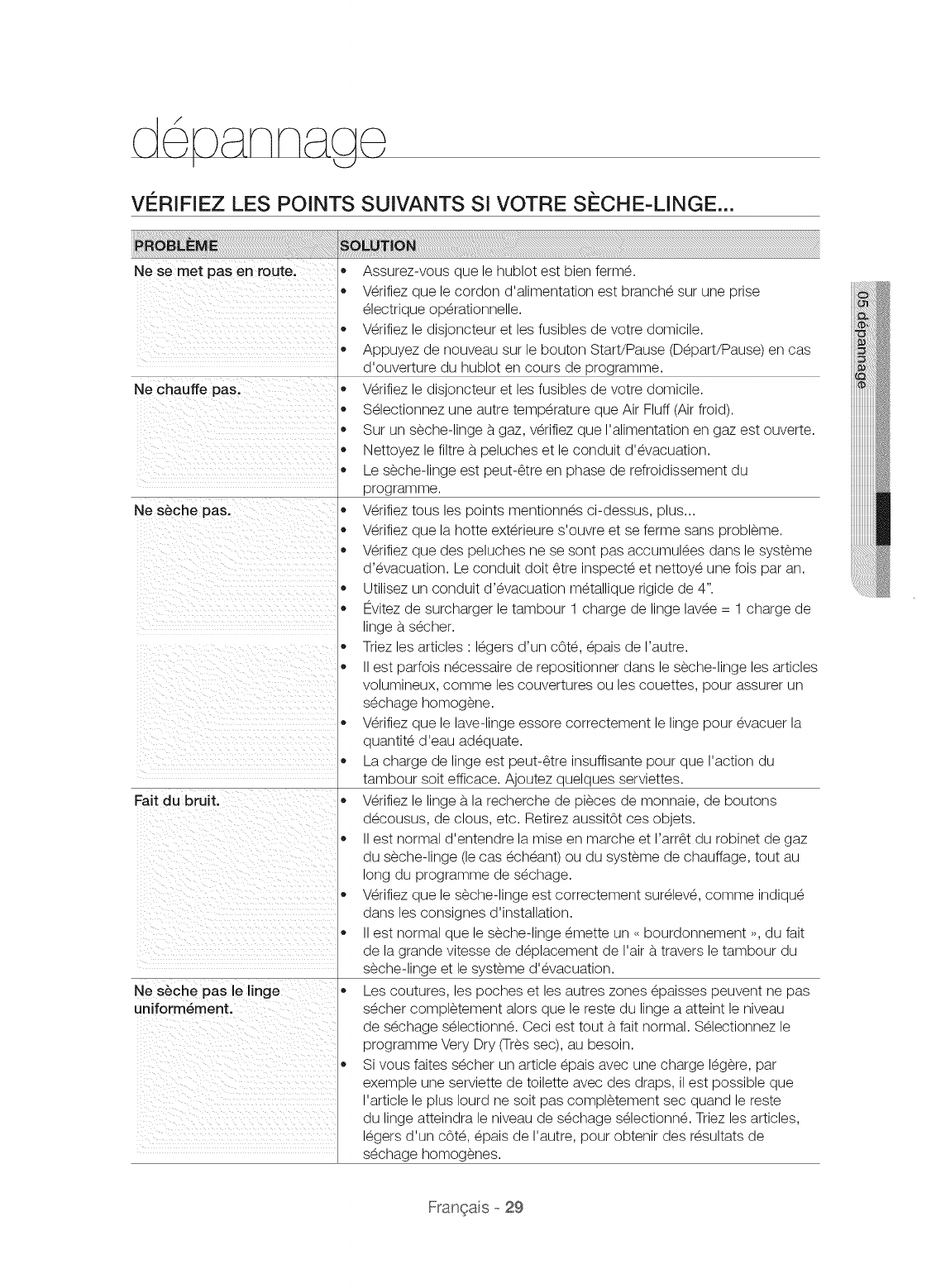

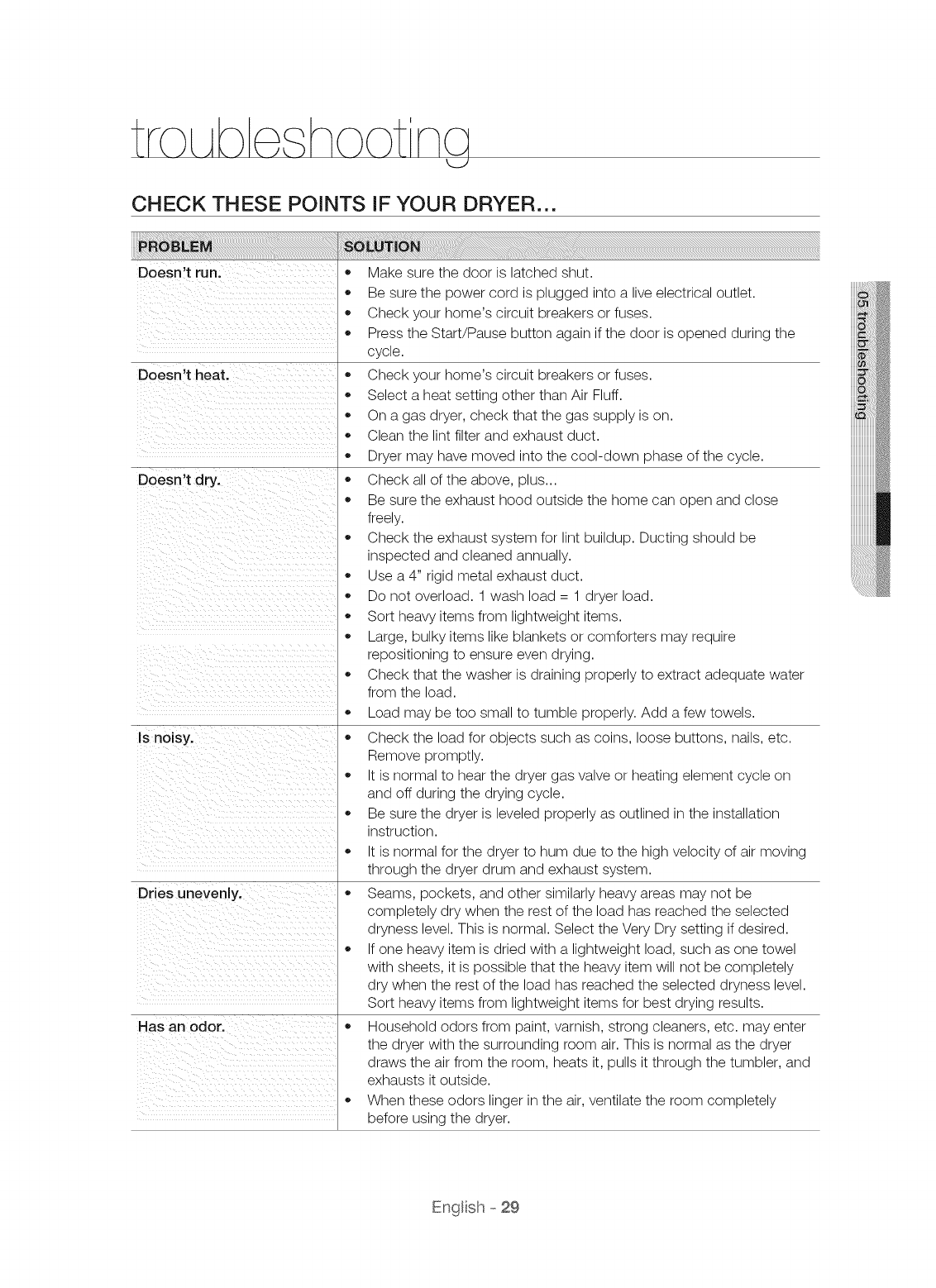

29 Check these points if your dryer...

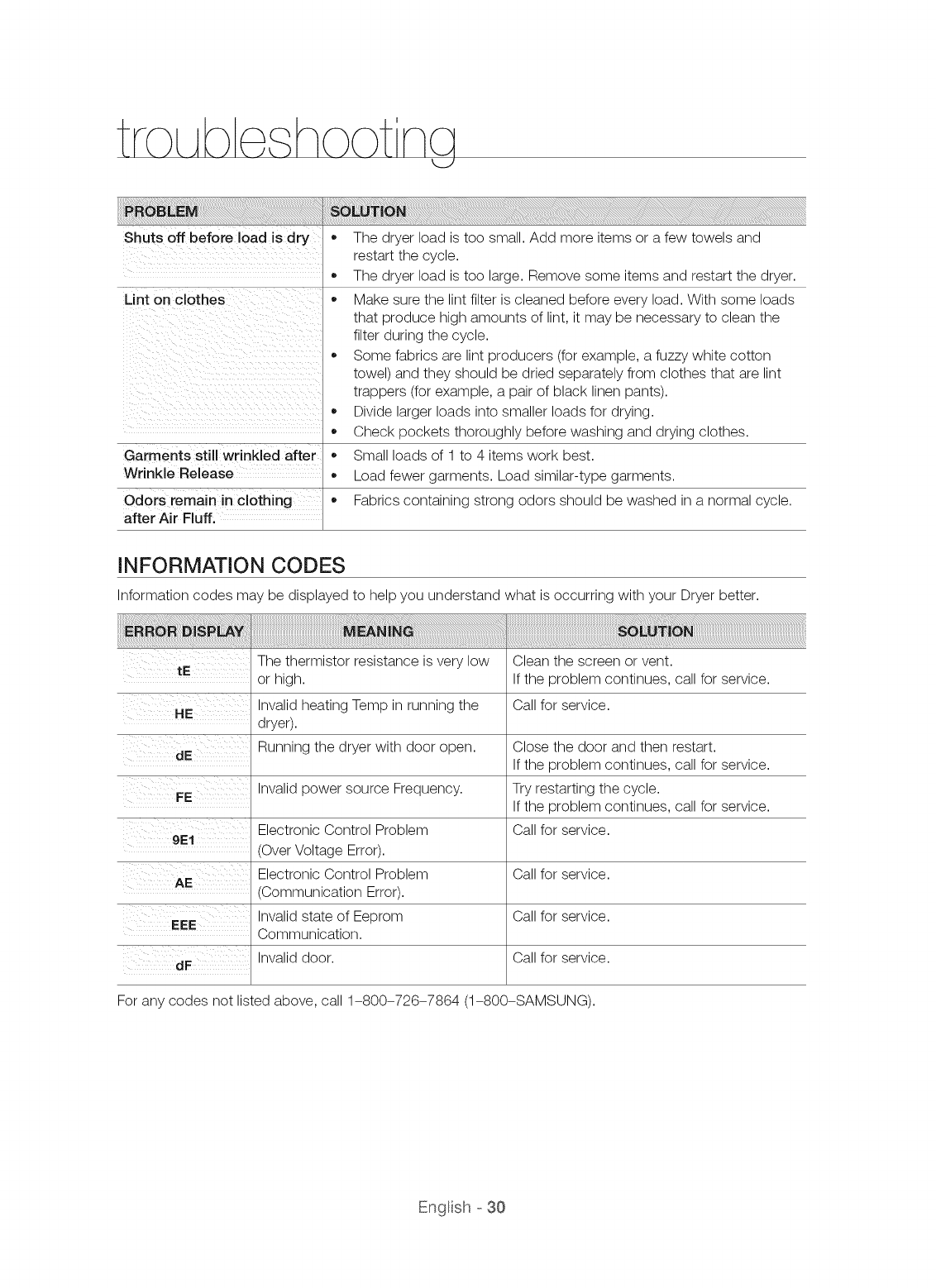

30 Information codes

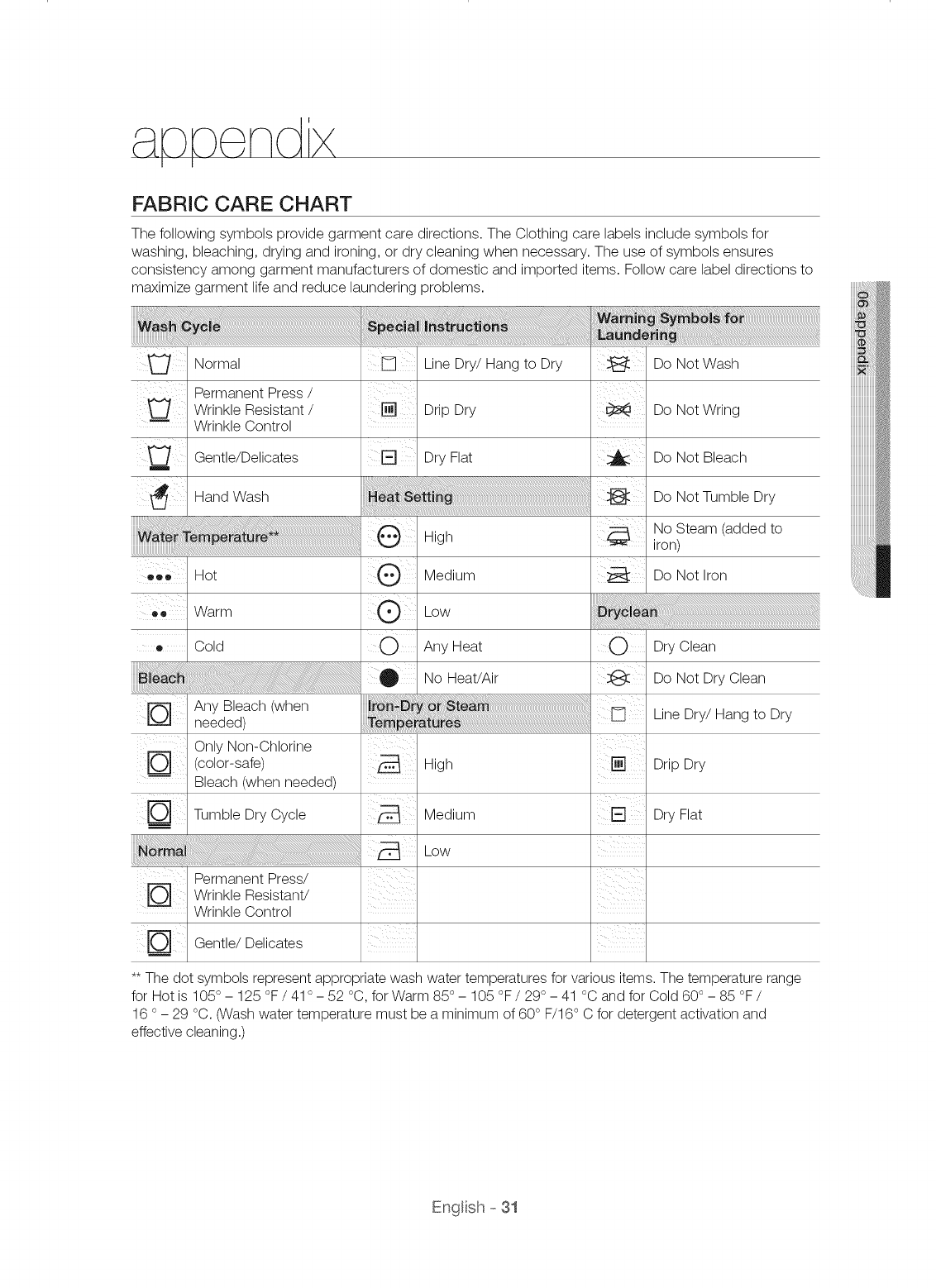

Fabric care chart

Protecting the environment

Declaration of conformity

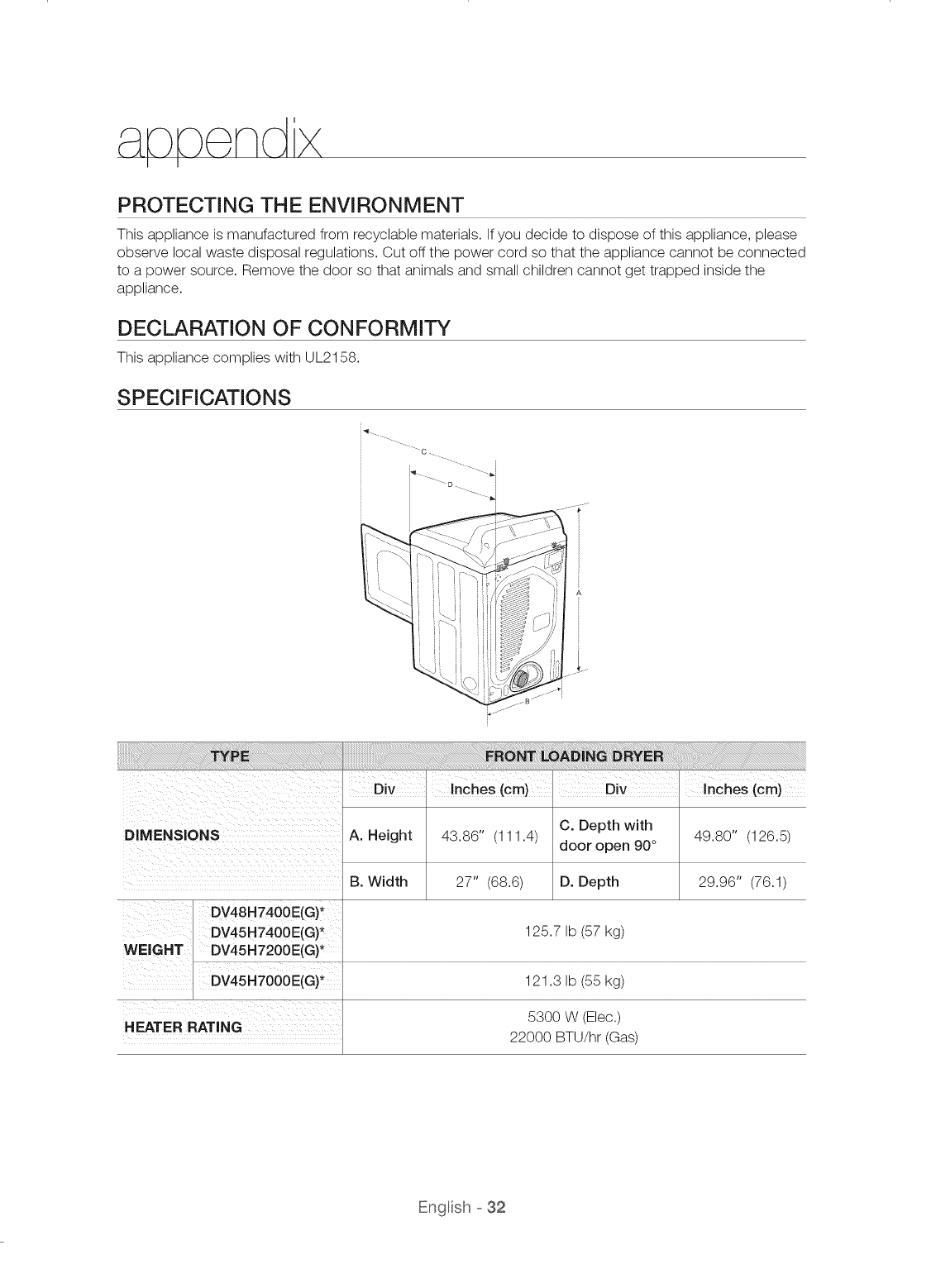

Specifications

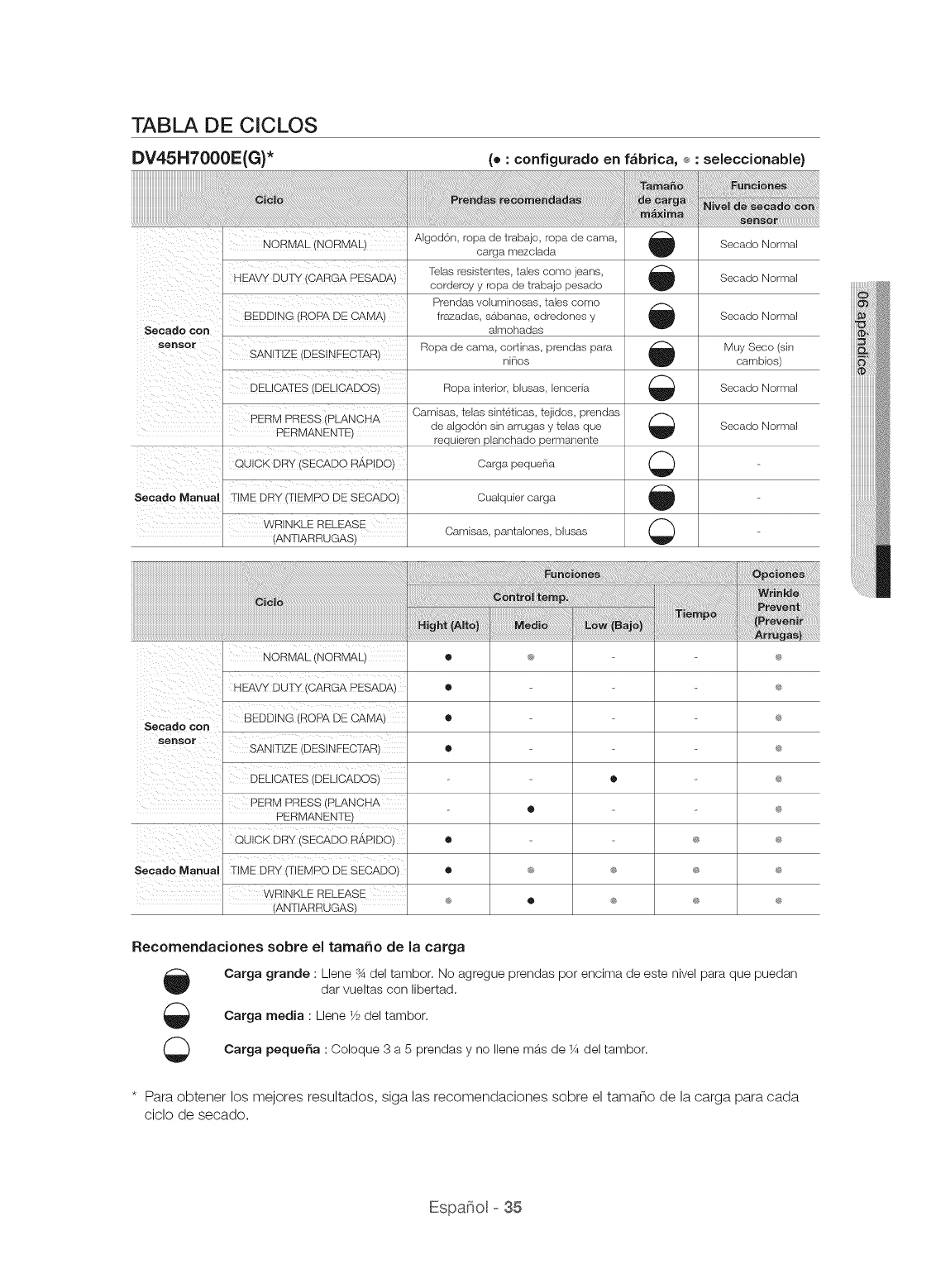

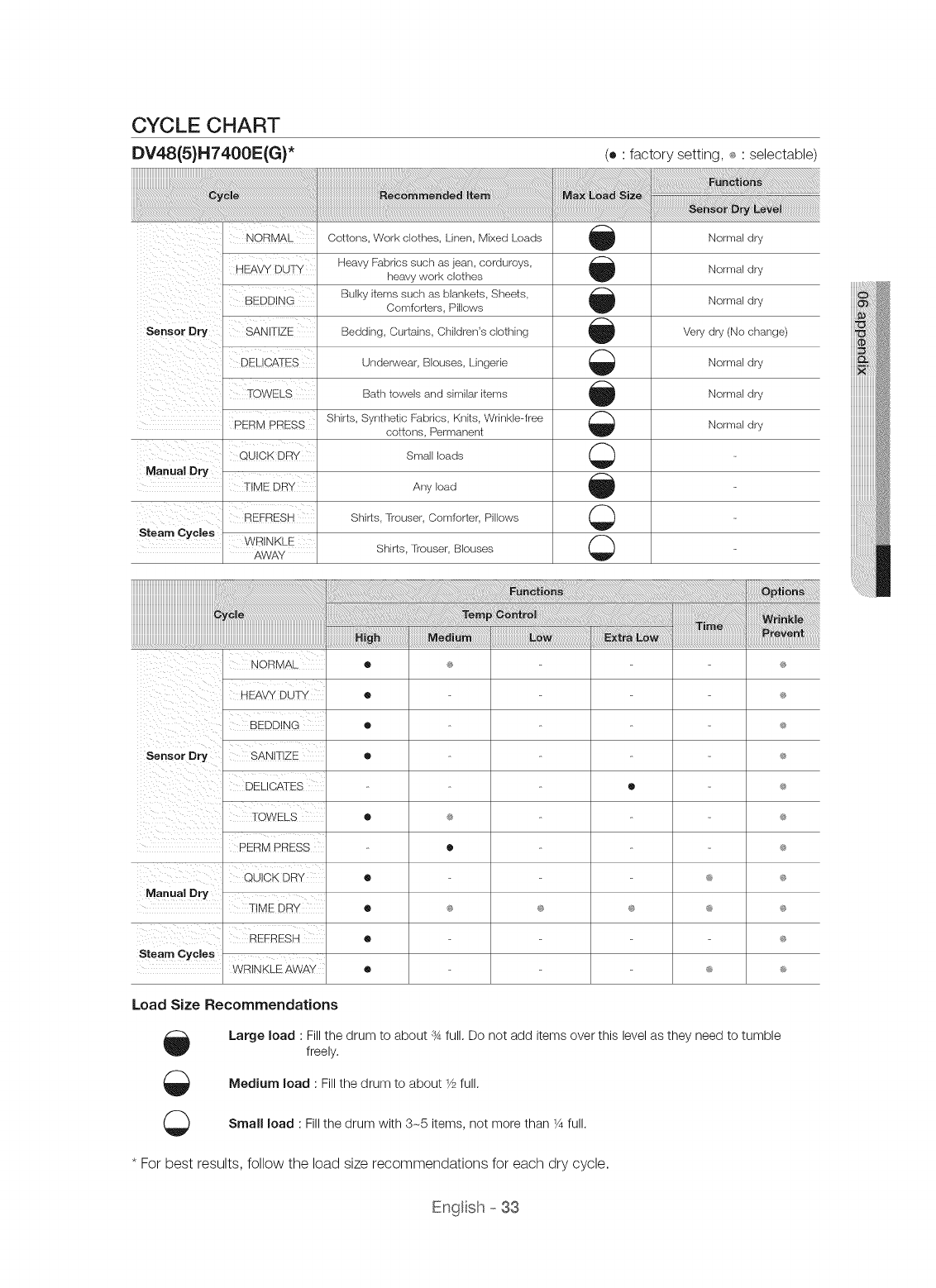

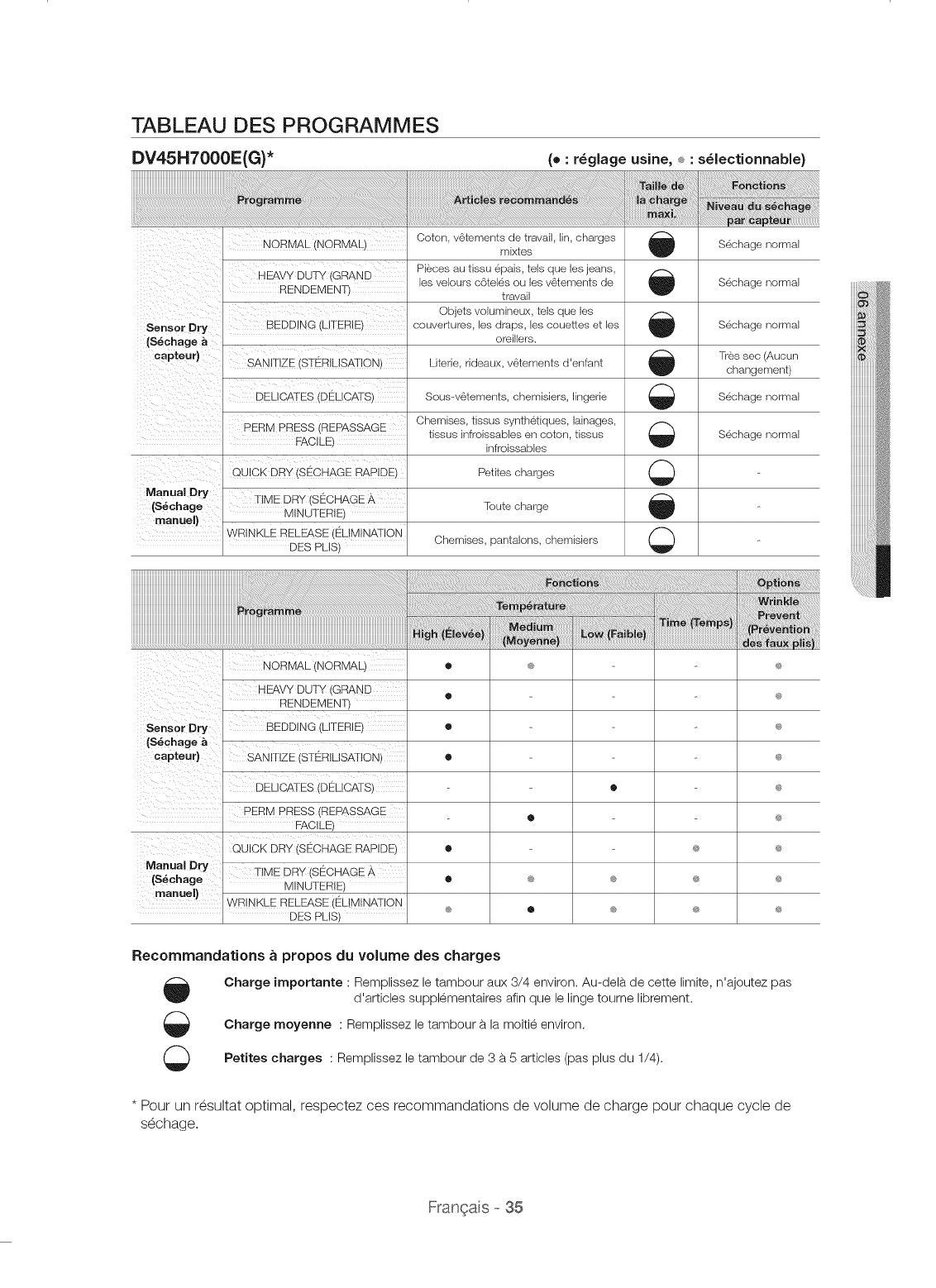

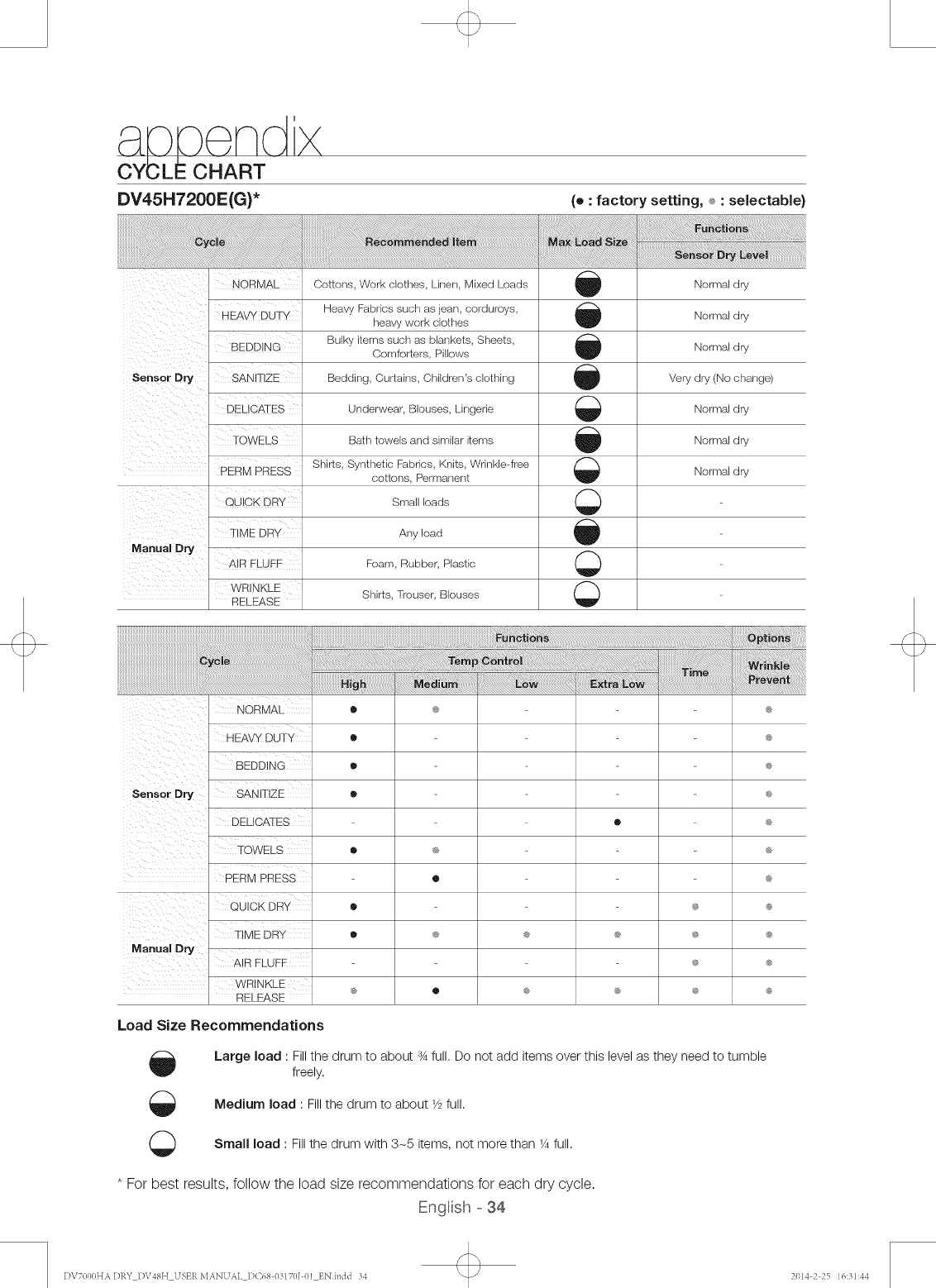

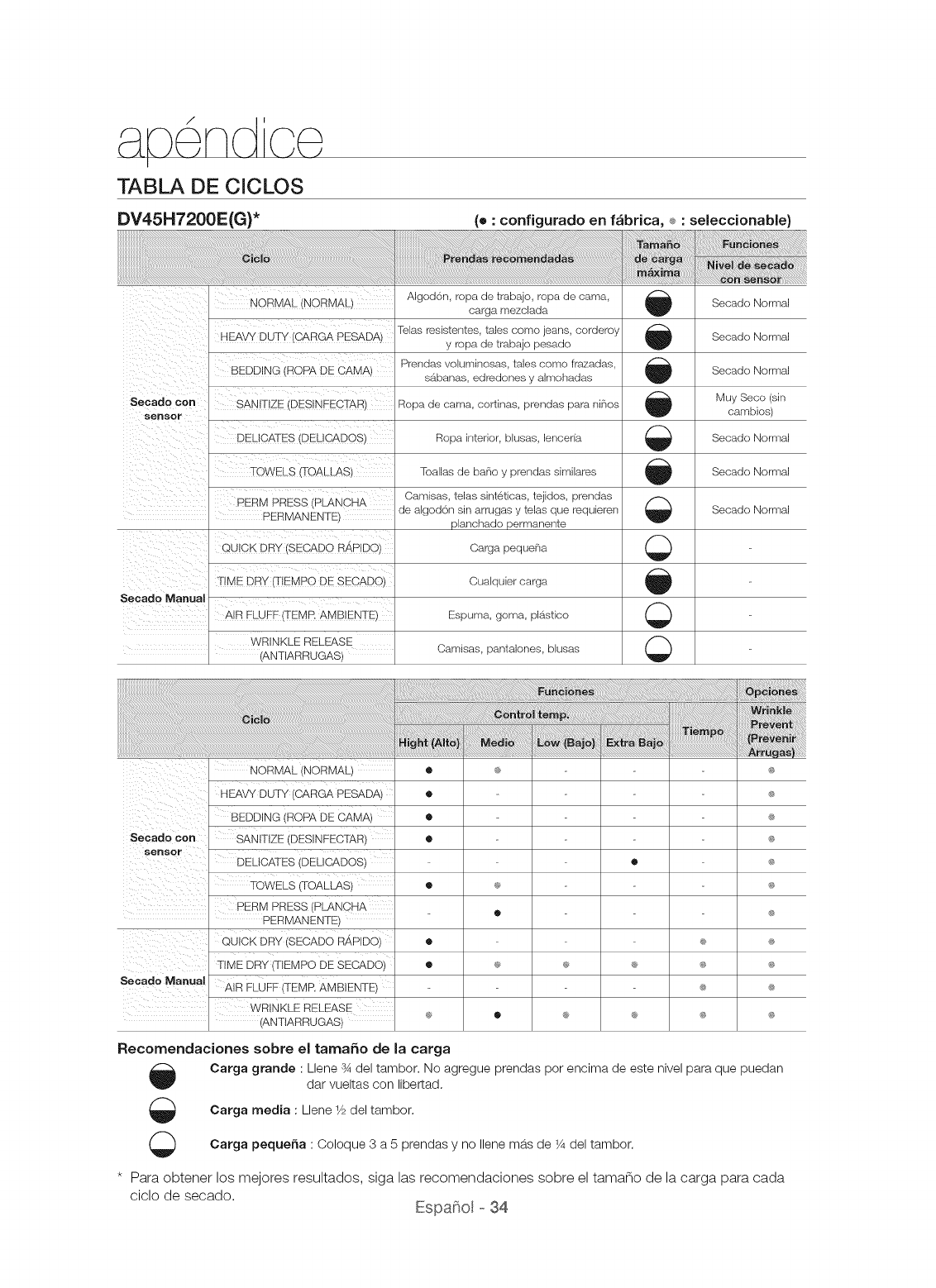

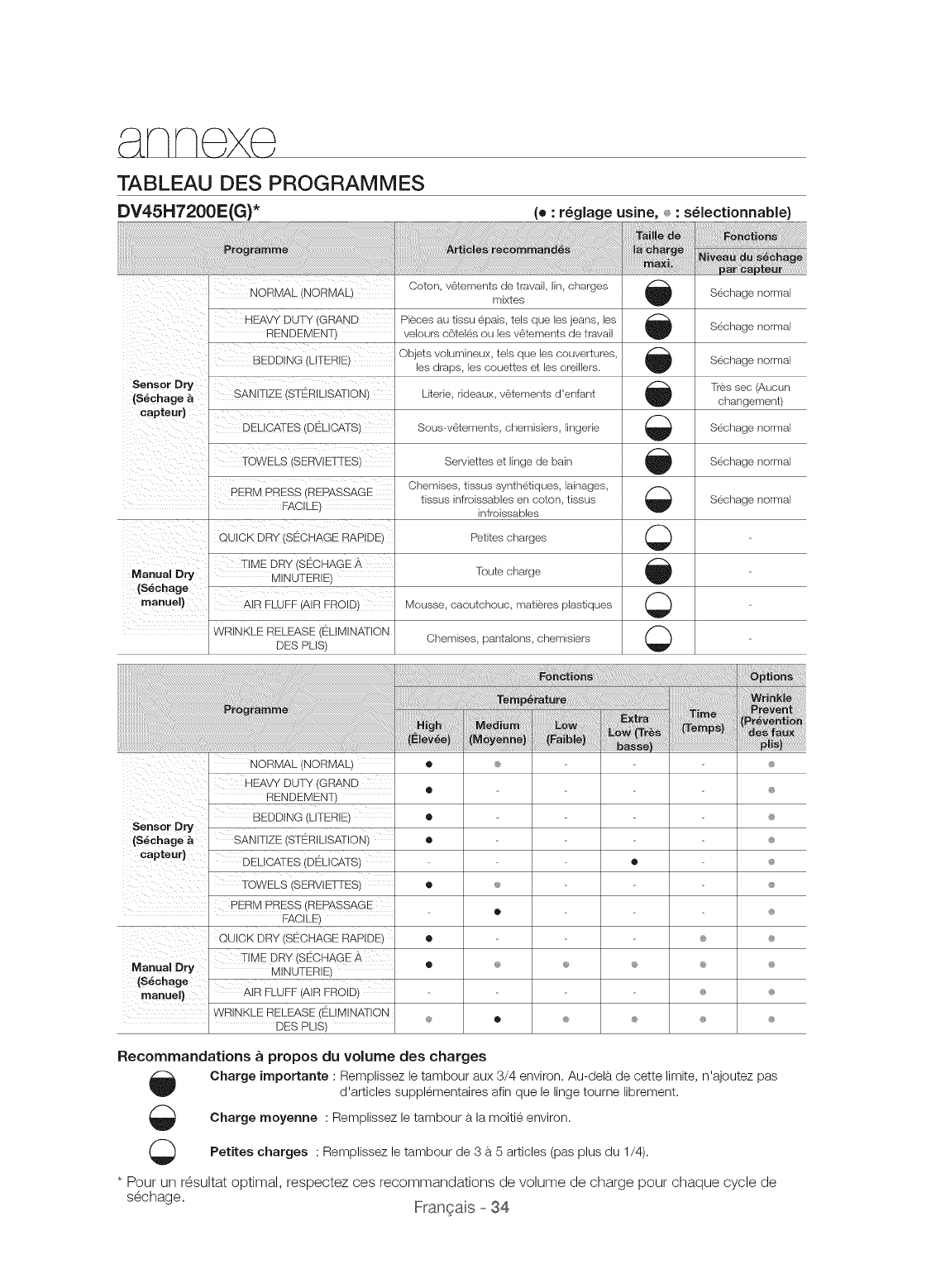

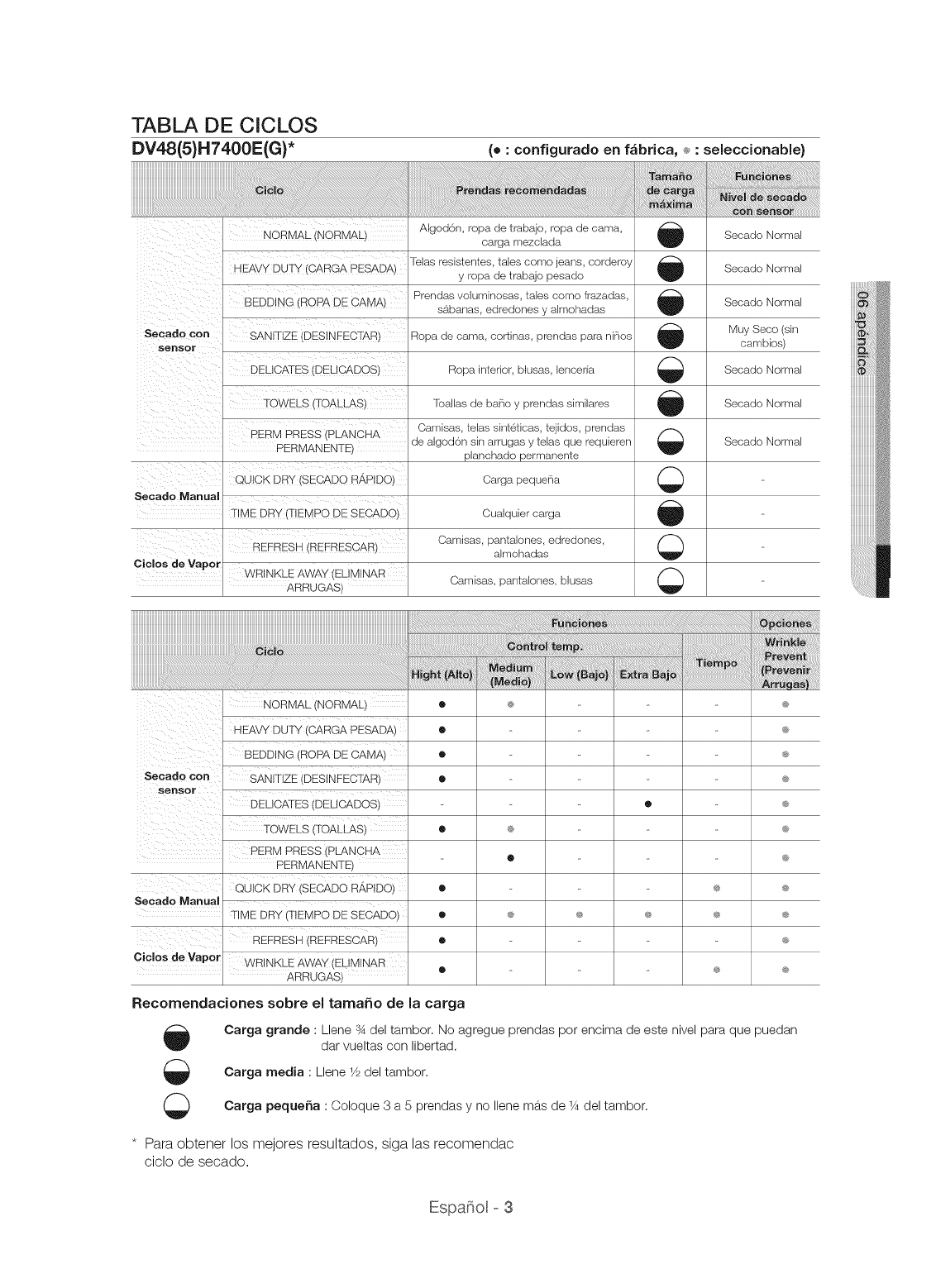

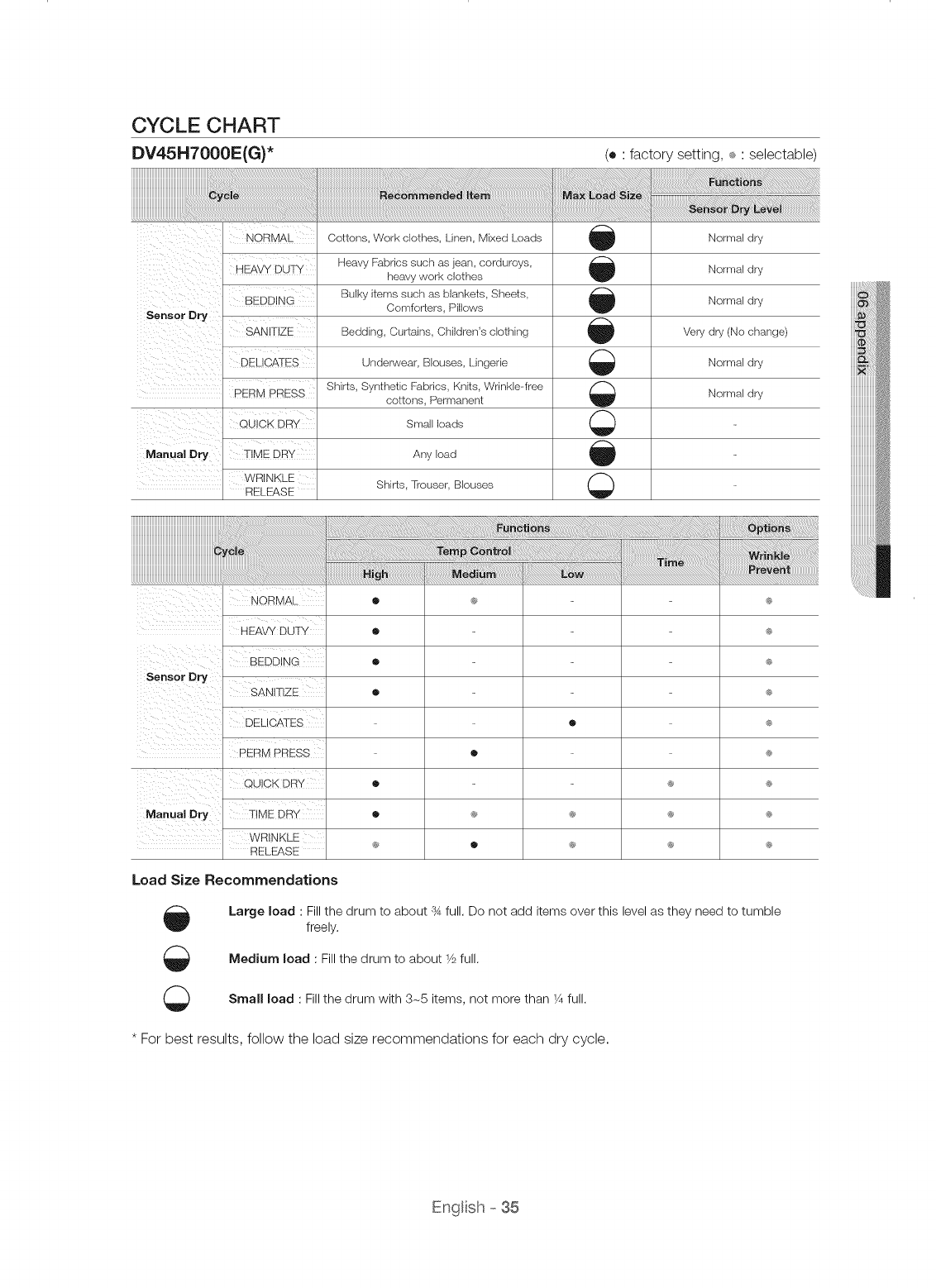

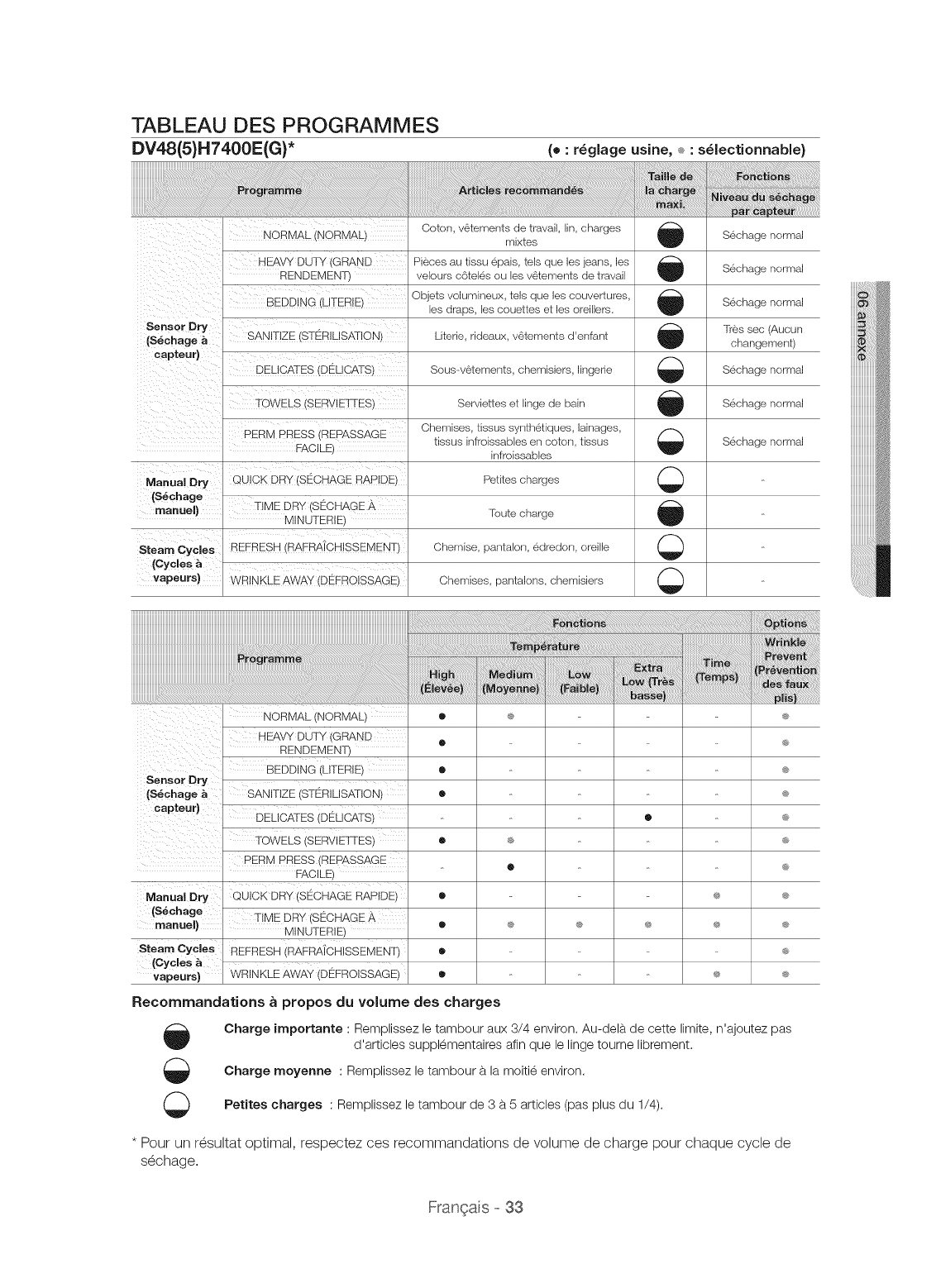

Cycle chart

Congratulations on your new Samsung Dryer. This manual contains valuable

information on the installation, use, and care of your appliance. Please take the

time to read this manual to take full advantage of your dryer's many benefits and

features.

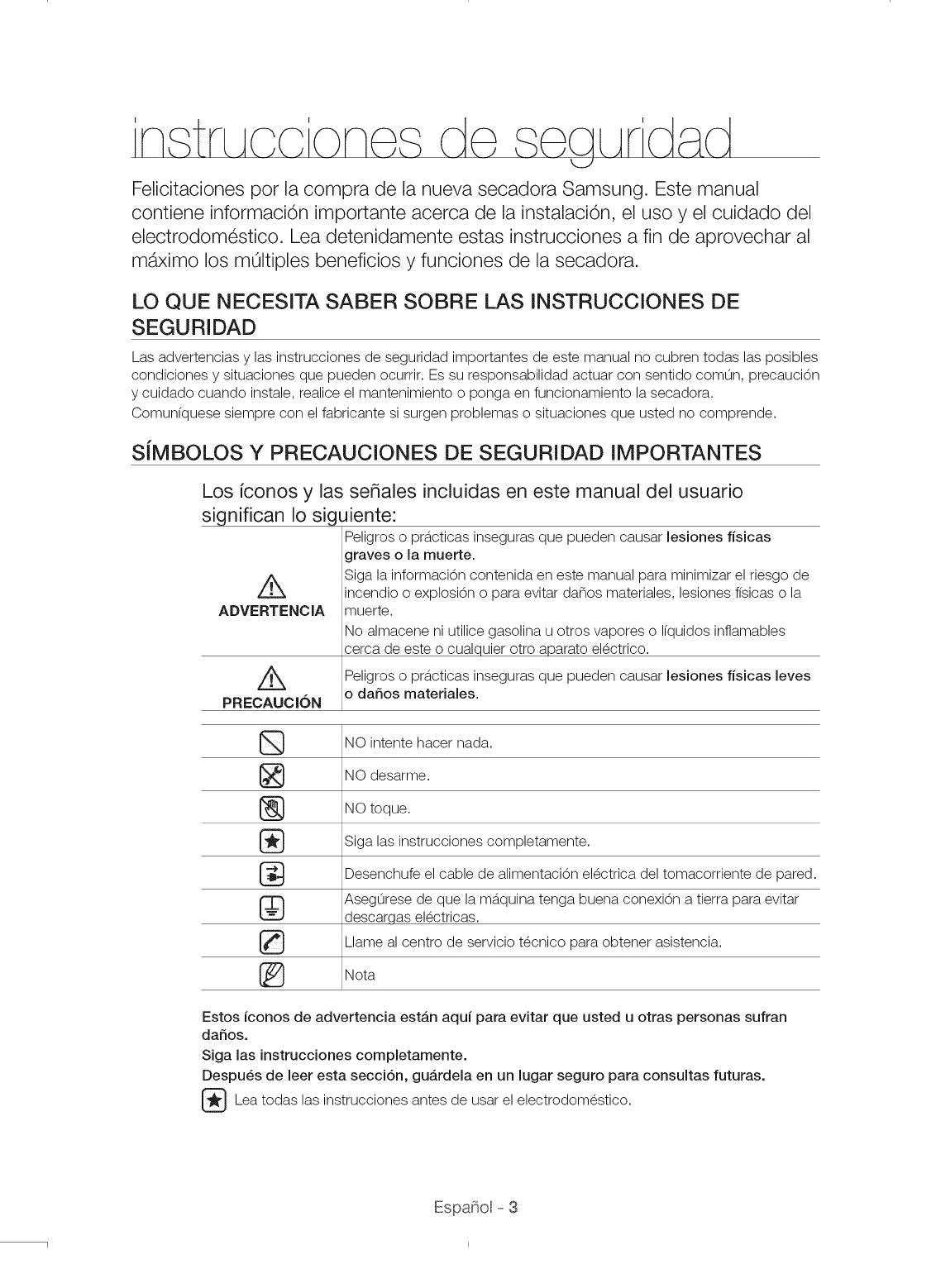

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and

situations that may occur. It is your responsibility to use common sense, caution, and care when installing,

maintaining, or operating your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

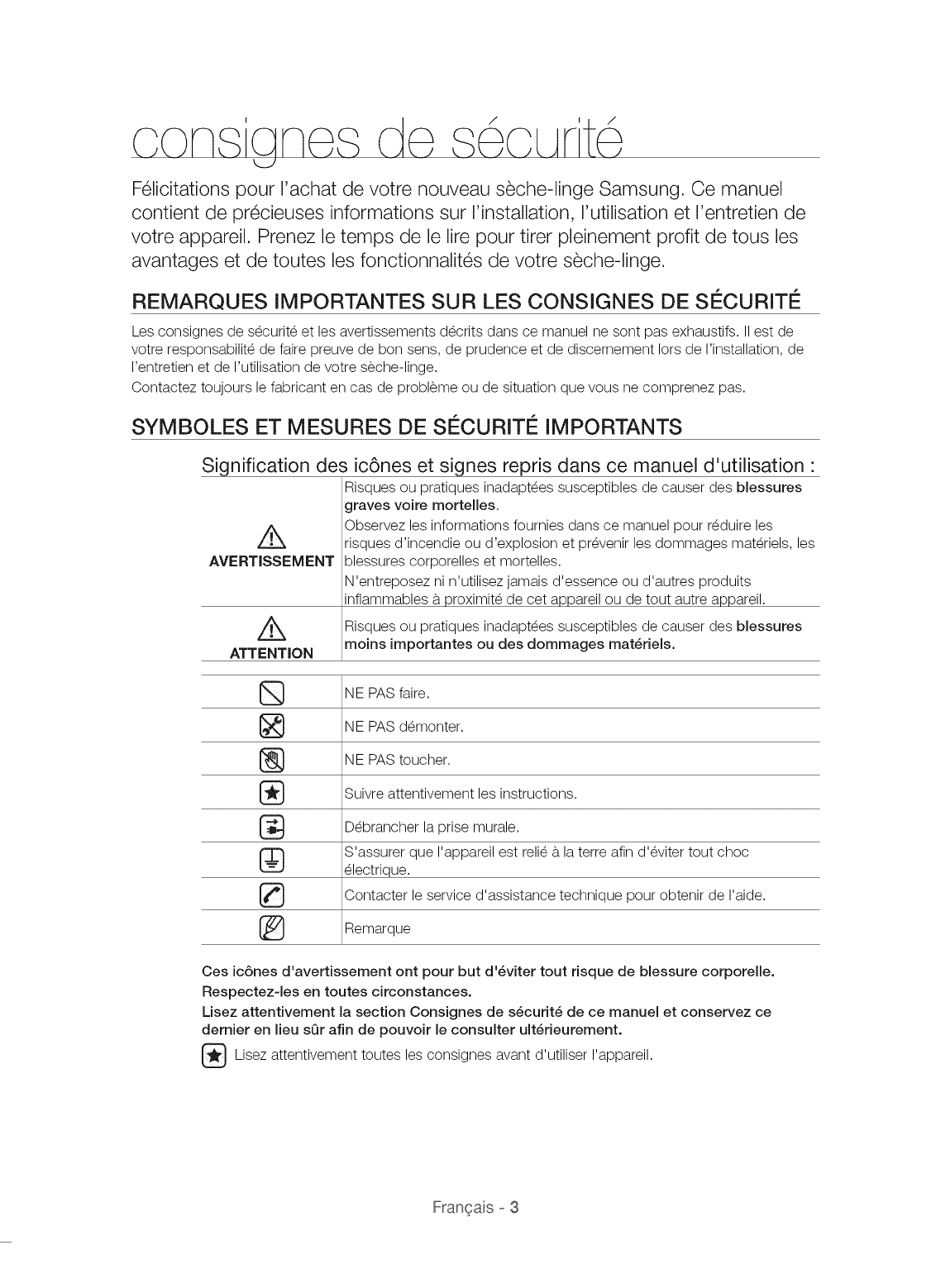

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury

or death.

Follow the information in this manual to minimize the risk of fire or

explosion or to prevent property damage, personal injury, or death.

Do not store or use gasoline or other flammable vapors and liquids near

this or any other appliance.

Z_ Hazards or unsafe practices that may result in minor personal injury or

CAUTION property damage.

Do NOT attempt.

[_ Do NOT disassemble.

[_ Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Note

These warning icons are here to prevent injury to you and others.

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

_Read all instructions before the

using appliance.

Engl sh - 3

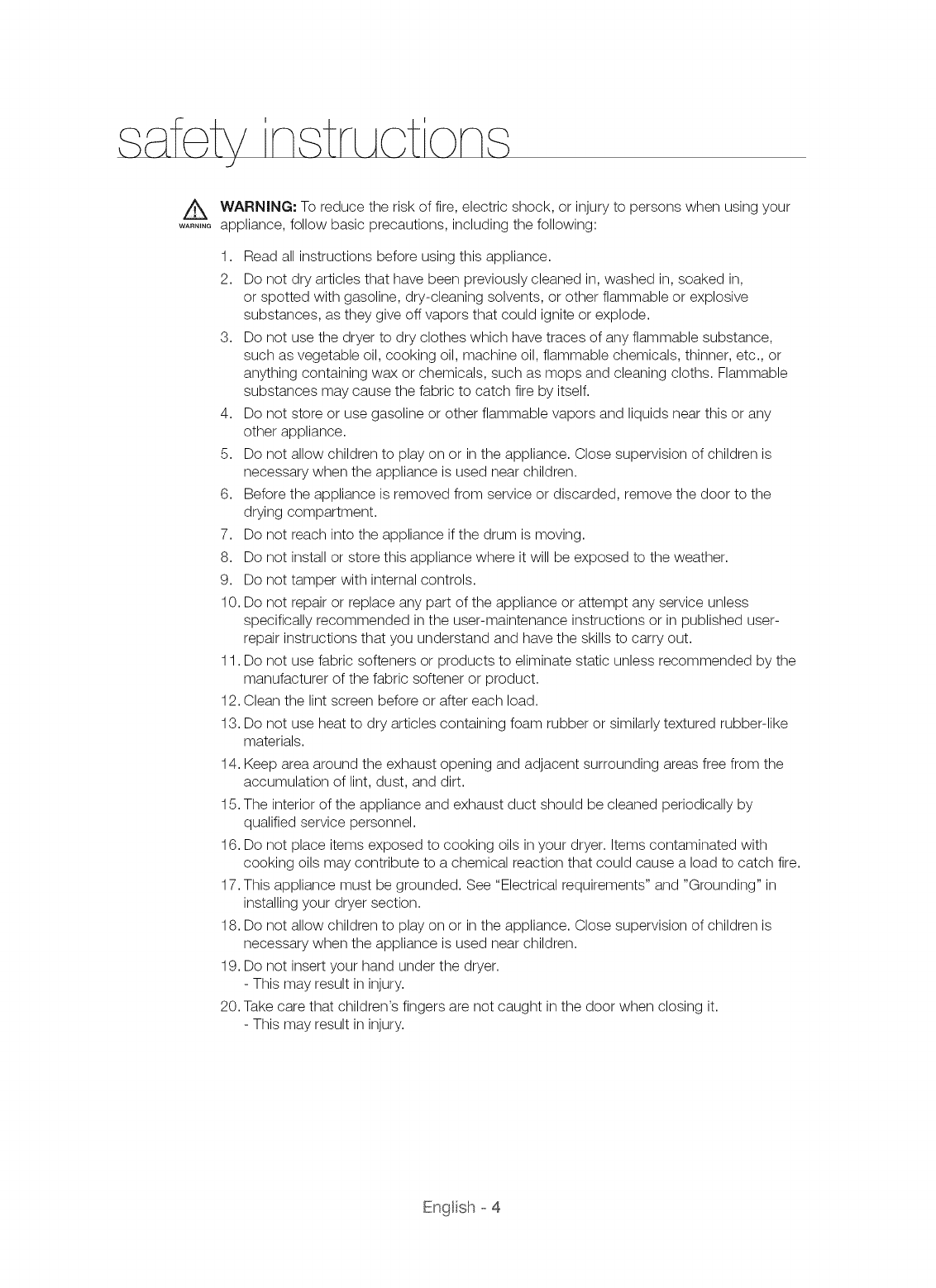

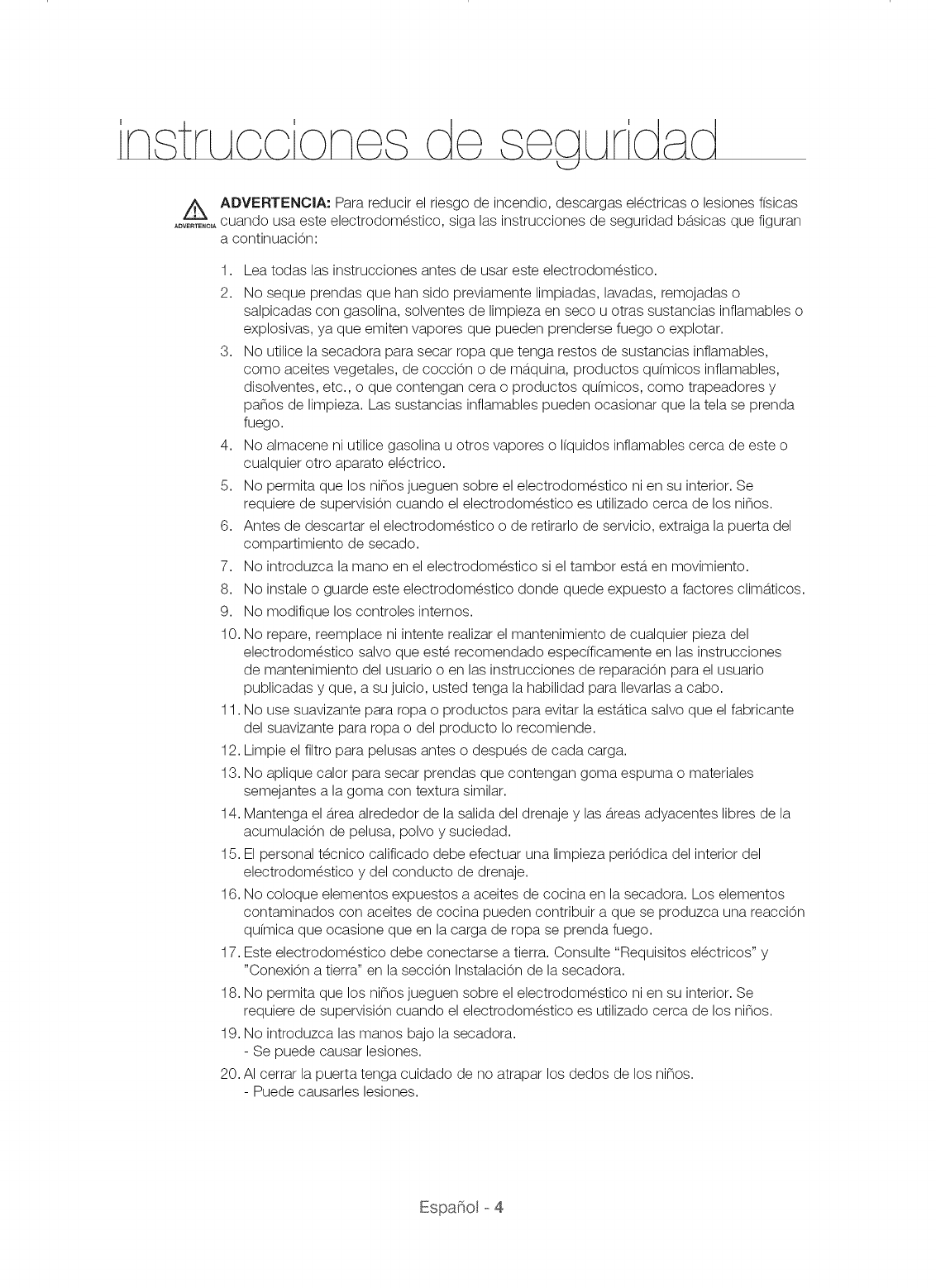

A WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your

....... appliance, follow basic precautions, including the following:

1. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in,

or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive

substances, as they give off vapors that could ignite or explode.

3. Do not use the dryer to dry clothes which have traces of any flammable substance,

such as vegetable oil, cooking oil, machine oil, flammable chemicals, thinner, etc., or

anything containing wax or chemicals, such as mops and cleaning cloths. Flammable

substances may cause the fabric to catch fire by itself.

4. Do not store or use gasoline or other flammable vapors and liquids near this or any

other appliance.

5. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

6. Before the appliance is removed from service or discarded, remove the door to the

drying compartment.

7. Do not reach into the appliance if the drum is moving.

8. Do not install or store this appliance where it will be exposed to the weather.

9. Do not tamper with internal controls.

10. Do not repair or replace any part of the appliance or attempt any service unless

specifically recommended in the user-maintenance instructions or in published user-

repair instructions that you understand and have the skills to carry out.

11. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

12. Clean the lint screen before or after each load.

13. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like

materials.

14. Keep area around the exhaust opening and adjacent surrounding areas free from the

accumulation of lint, dust, and dirt.

15. The interior of the appliance and exhaust duct should be cleaned periodically by

qualified service personnel.

16. Do not place items exposed to cooking oils in your dryer. Items contaminated with

cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

17. This appliance must be grounded. See "Electrical requirements" and "Grounding" in

installing your dryer section.

18. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

19. Do not insert your hand under the dryer.

- This may result in injury.

20. Take care that children's fingers are not caught in the door when closing it.

- This may result in injury.

Engl sh- 4

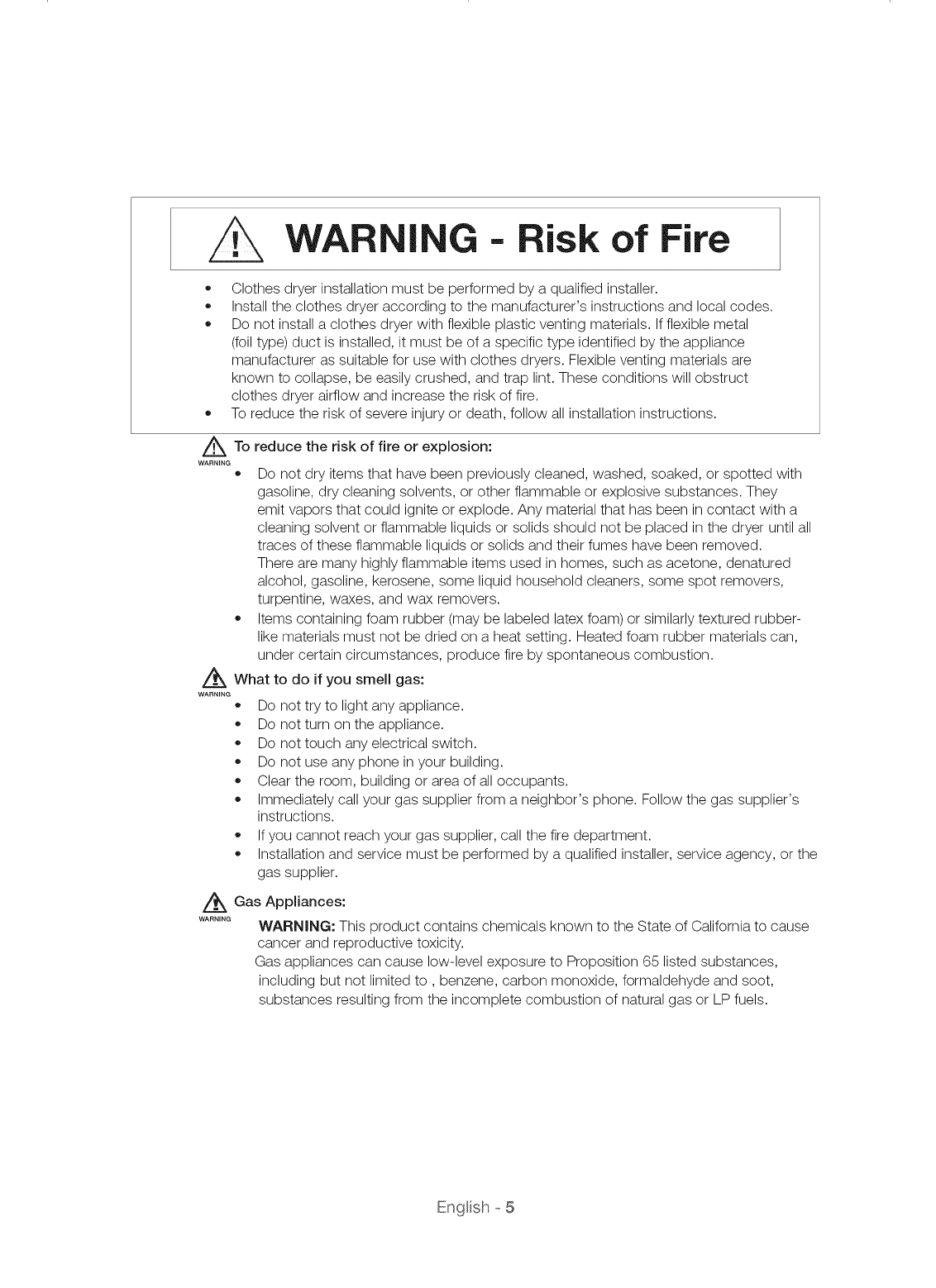

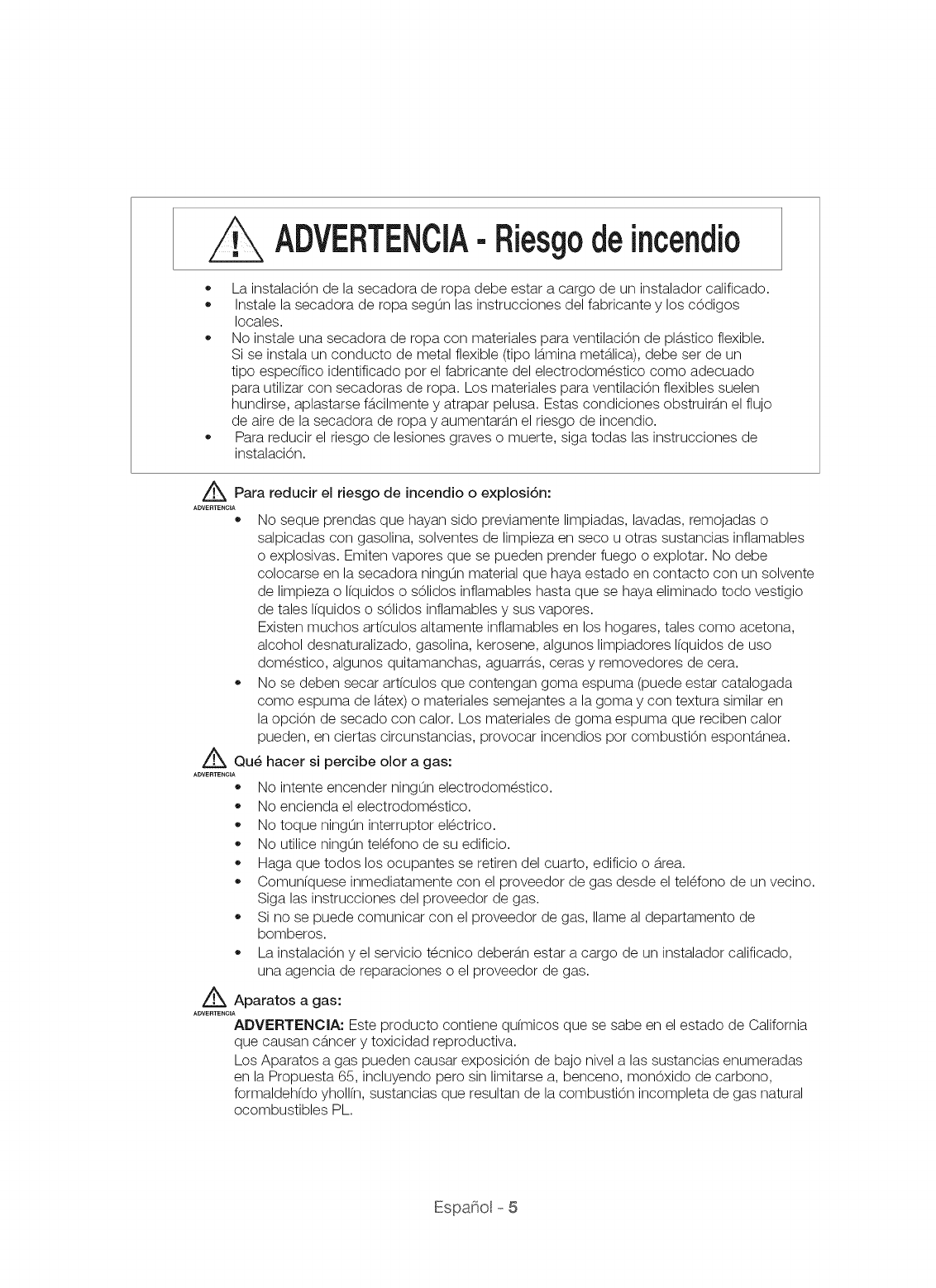

WARNING -- Risk of Fire

,, Clothes dryer installationmust be performed by a qualified installer.

Install the clothes dryer according to the manufacturer's instructions and local codes.

,, Do not install a clothes dryer with flexible plastic venting materials. If flexible metal

(foil type) duct is installed, it must be of a specific type identified by the appliance

manufacturer as suitable for use with clothes dryers. Flexible venting materials are

known to collapse, be easily crushed, and trap lint. These conditions will obstruct

clothes dryer airflow and increase the risk of fire.

To reduce the risk of severe injury or death, follow all installation instructions.

/_To

WARNING

reduce the risk of fire or explosion:

Do not dry items that have been previously cleaned, washed, soaked, or spotted with

gasoline, dry cleaning solvents, or other flammable or explosive substances. They

emit vapors that could ignite or explode. Any material that has been in contact with a

cleaning solvent or flammable liquids or solids should not be placed in the dryer until all

traces of these flammable liquids or solids and their fumes have been removed.

There are many highly flammable items used in homes, such as acetone, denatured

alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,

turpentine, waxes, and wax removers.

Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-

like materials must not be dried on a heat setting. Heated foam rubber materials can,

under certain circumstances, produce fire by spontaneous combustion.

/f_ What to do if you smell gas:

WARNING

Do not try to light any appliance.

Do not turn on the appliance.

,, Do not touch any electrical switch.

Do not use any phone in your building.

Clear the room, building or area of all occupants.

Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

,, If you cannot reach your gas supplier, call the fire department.

,, Installation and service must be performed by a qualified installer, service agency, or the

gas supplier.

_ Gas Appliances:

WARNING WARNING: This product contains chemicals known to the State of California to cause

cancer and reproductive toxicity.

Gas appliances can cause low-level exposure to Proposition 65 listed substances,

including but not limited to, benzene, carbon monoxide, formaldehyde and soot,

substances resulting from the incomplete combustion of natural gas or LP fuels.

Engl sh - 5

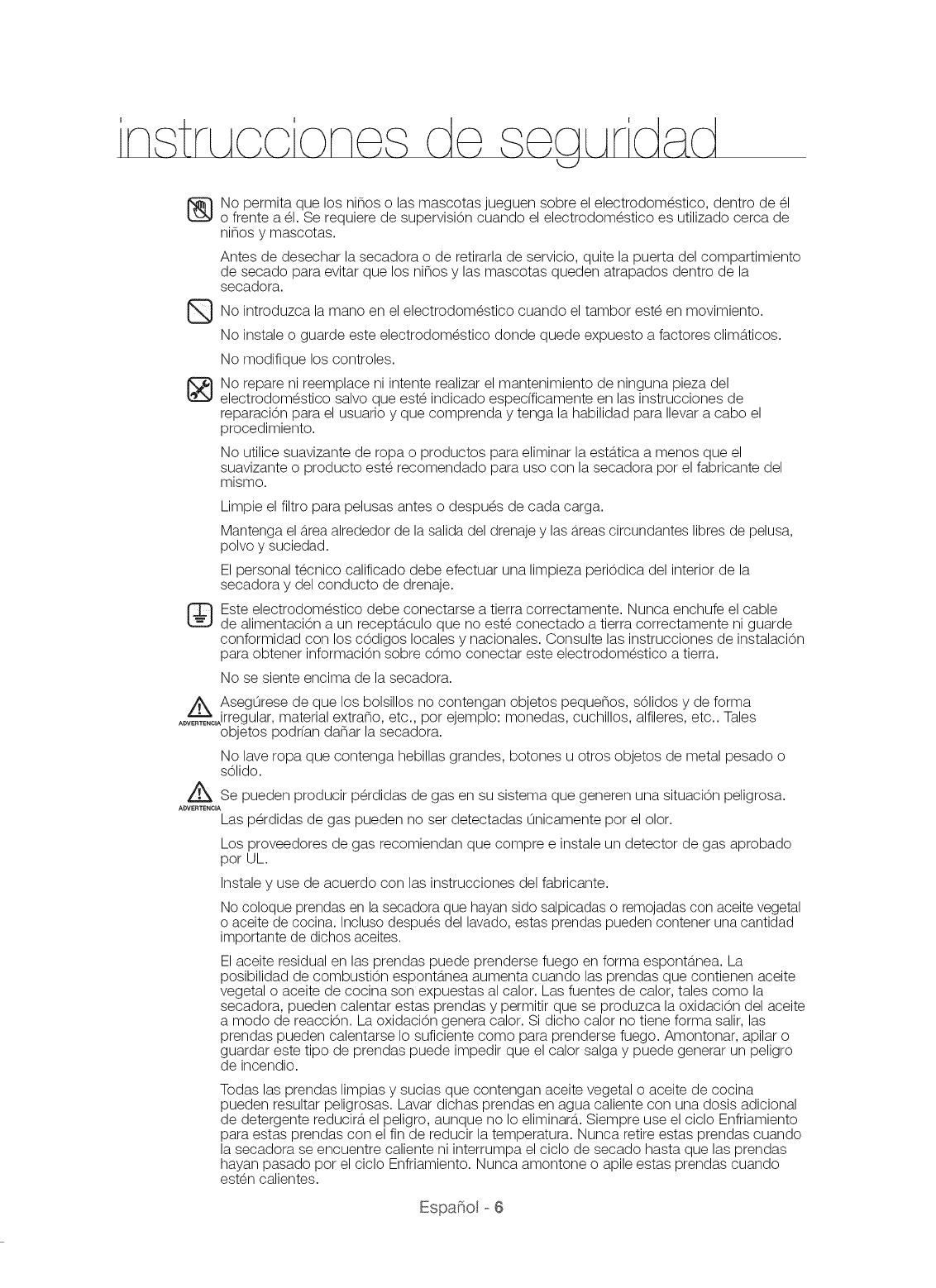

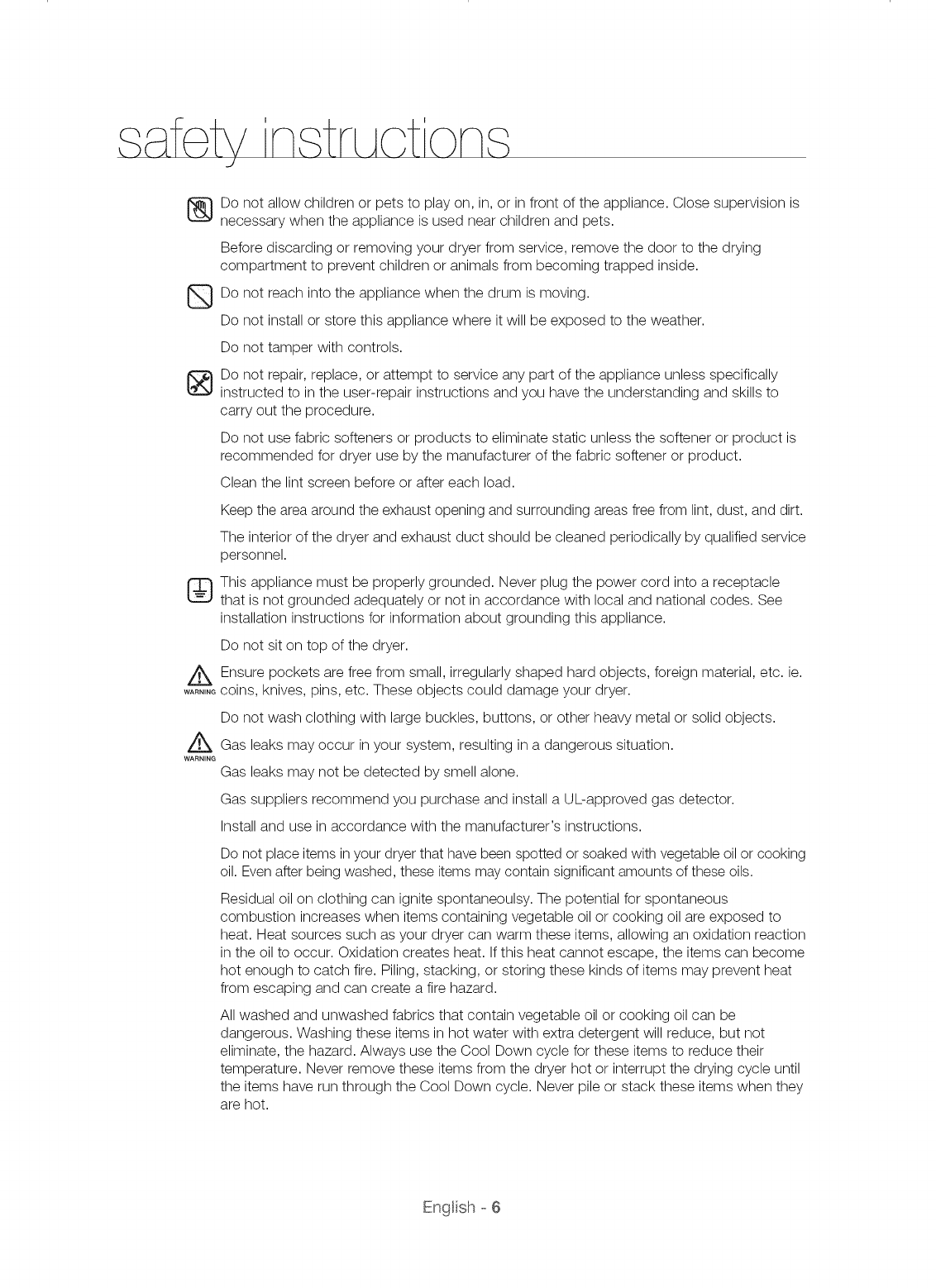

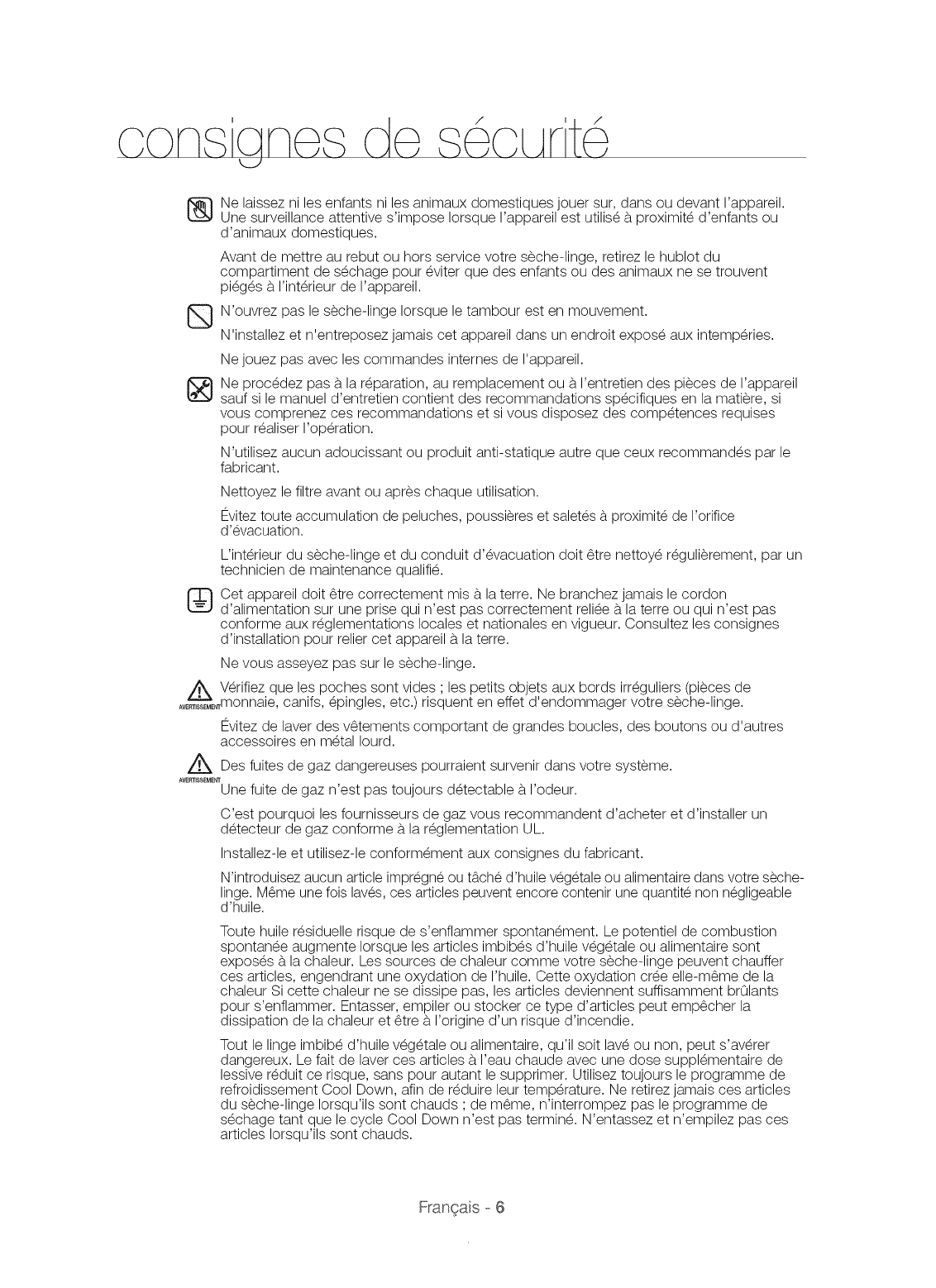

WARNING

Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is

necessary when the appliance is used near children and pets.

Before discarding or removing your dryer from service, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

Do not reach into the appliance when the drum is moving.

Do not install or store this appliance where it will be exposed to the weather.

Do not tamper with controls.

Do not repair, replace, or attempt to service any part of the appliance unless specifically

instructed to in the user-repair instructions and you have the understanding and skills to

carry out the procedure.

Do not use fabric softeners or products to eliminate static unless the softener or product is

recommended for dryer use by the manufacturer of the fabric softener or product.

Clean the lint screen before or after each load.

Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.

The interior of the dryer and exhaust duct should be cleaned periodically by qualified service

personnel.

This appliance must be properly grounded. Never plug the power cord into a receptacle

that is not grounded adequately or not in accordance with local and national codes. See

installation instructions for information about grounding this appliance.

Do not sit on top of the dryer.

Ensure pockets are free from small, irregularly shaped hard objects, foreign material, etc. ie.

coins, knives, pins, etc. These objects could damage your dryer.

Do not wash clothing with large buckles, buttons, or other heavy metal or solid objects.

Gas leaks may occur in your system, resulting in a dangerous situation.

Gas leaks may not be detected by smell alone.

Gas suppliers recommend you purchase and install a UL-approved gas detector.

Install and use in accordance with the manufacturer's instructions.

Do not place items in your dryer that have been spotted or soaked with vegetable oil or cooking

oil. Even after being washed, these items may contain significant amounts of these oils.

Residual oil on clothing can ignite spontaneoulsy. The potential for spontaneous

combustion increases when items containing vegetable oil or cooking oil are exposed to

heat. Heat sources such as your dryer can warm these items, allowing an oxidation reaction

in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items can become

hot enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat

from escaping and can create a fire hazard.

All washed and unwashed fabrics that contain vegetable oil or cooking oil can be

dangerous. Washing these items in hot water with extra detergent will reduce, but not

eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their

temperature. Never remove these items from the dryer hot or interrupt the drying cycle until

the items have run through the Cool Down cycle. Never pile or stack these items when they

are hot.

Engl sh- 6

n ta nq VOLArdrvor

J J

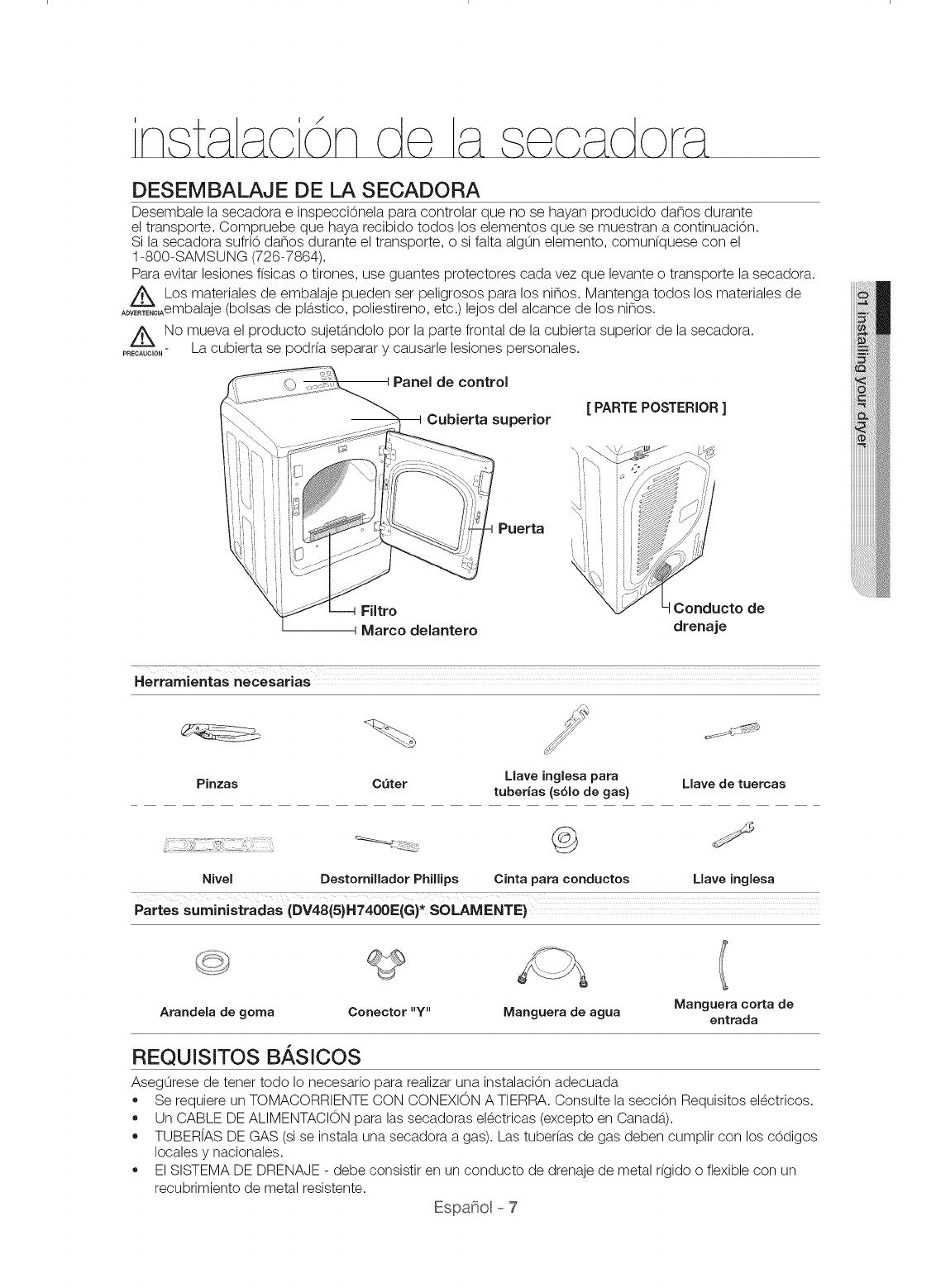

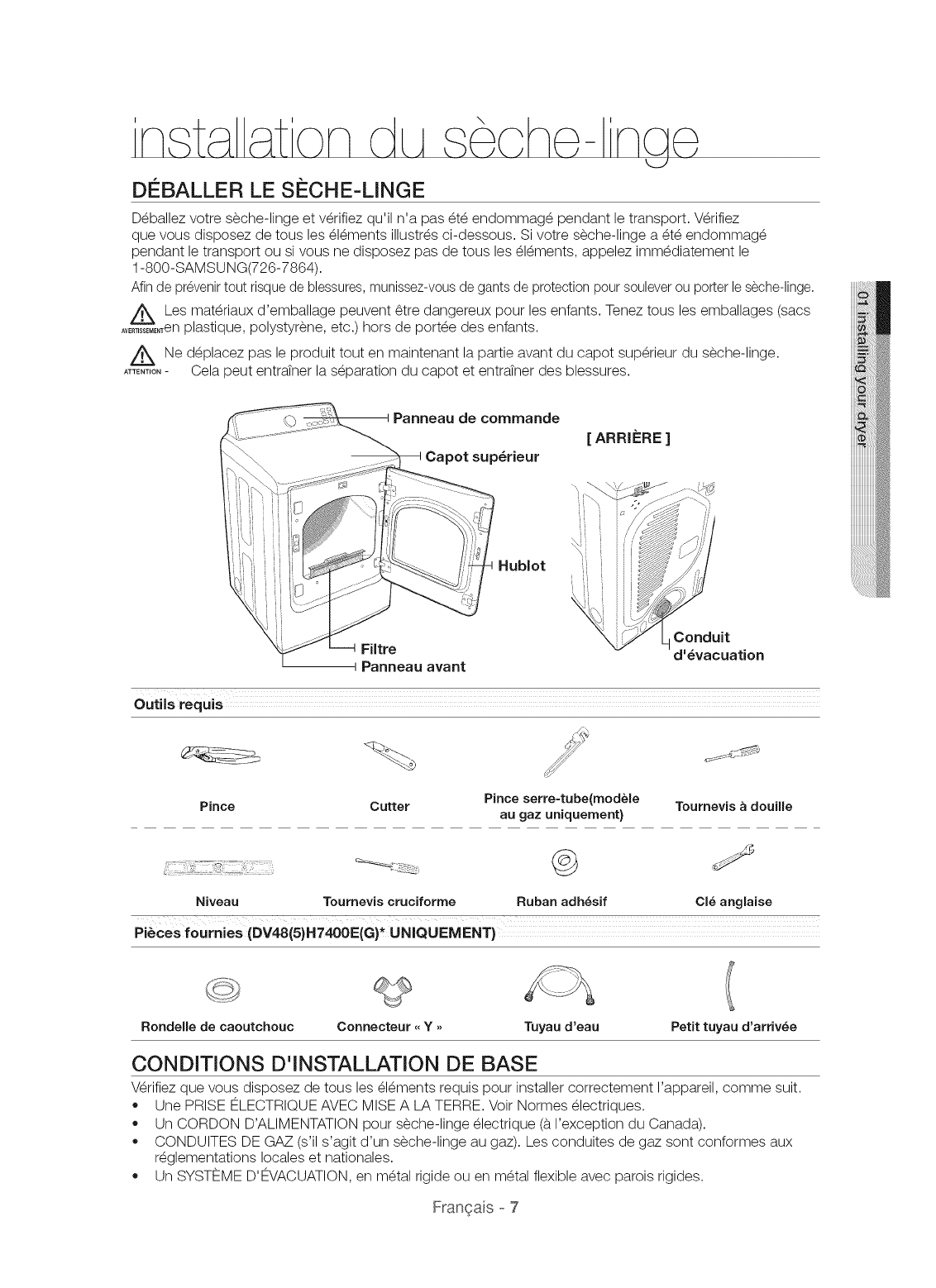

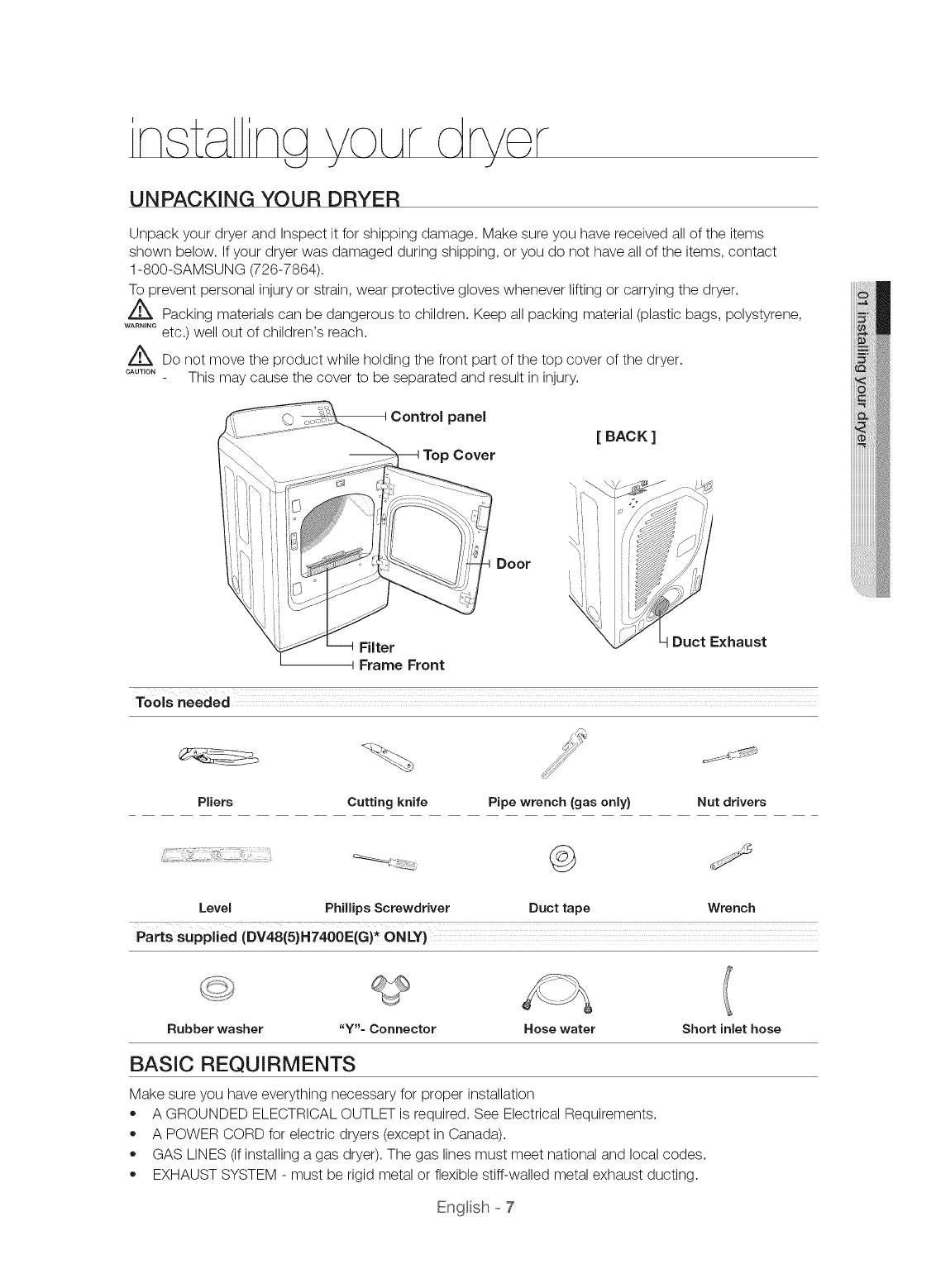

UNPACKING YOUR DRYER

Unpack your dryer and Inspect it for shipping damage. Make sure you have received all of the items

shown below. If your dryer was damaged during shipping, or you do not have all of the items, contact

1-800-SAMSUNG (726-7864).

To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the dryer.

Z_ Packing materials can be dangerous to children. Keep all packing material (plastic bags, polystyrene,

....... etc.) well out of children's reach.

Z_ Do not move the product while holding the front part of the top cover of the dryer.

....... This may cause the cover to be separated and result in injury.

Control panel

Top Cover

[ BACK ]

'ii

Door

Filter

IFrame Front

Duct Exhaust

Toolsneeded

Pliers Cutting knife Pipe wrench (gas only) Nut drivers

e _,/s f

Level Phillips Screwdriver Duct tape Wrench

Parts supplied (DV48(5}H7400E(G}* ONLY)

Rubber washer "Y"- Connector Hose water Short inlet hose

BASIC REQUIRMENTS

Make sure you have everything necessary for proper installation

A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements.

A POWER CORD for electric dryers (except in Canada).

GAS LINES (if installing a gas dryer). The gas lines must meet national and local codes.

EXHAUST SYSTEM - must be rigid metal or flexible stiff-walled metal exhaust ducting.

Engl sh- 7

na VOLArdryer

J J

DUCTING REQUIREMENTS

Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.

Do not use a smaller duct.

Ducts larger than 4 inches (10.2 cm)in diameter can cause increased lint accumulation.

Lint accumulation should be cleaned regularly.

If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct

with a thin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply.

Never install any type of flexible duct in walls, ceilings, or other concealed spaces.

Keep the exhaust duct as straight and short as possible.

Secure joints with duct tape. Do not use screws.

Plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect dryer

operation.

Exhaust systems longer than recommended can extend drying times, affect machine operation, and

may collect lint.

The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and

the entry of wildlife. Never use an exhaust hood with a magnetic damper.

The hood should have at least 12 inches (30.5 era) of clearance between the bottom of the hood and

the ground or other obstruction. The hood opening should point down.

Never install a screen over the exhaust outlet.

To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house

or porch.

If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly

down towards the exhaust hood to reduce condensation and lint buildup.

Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before

cleaning.

Check frequently to be sure the exhaust hood damper opens and closes freely.

Check once per month, and clean at least one time per year. Note: If clothes are not getting dry, then

check ducting for obstructions.

Do not exhaust dryer into any wall, ceiling, crawl space, or concealed space of a building, gas vent, or

any other common duct or chimney. This could create a fire hazard from lint expelled by the dryer.

Weather Hood Type

Recommended I use only for short.run installation

4" (10.2 cm) 2.5" (6.4 cm)

N01 of 90 ° elbows Rigid MetalliC Flexible* I Rigid ' Metallic Flexible*

80 ft. (24.4 m) 41 ft. (12.4 m) 74 ft. (22.6 m) 33 ft. (10.1 m)

68 ft. (20.7 m) 37 ft. (11.2 m) 62 ft. (18.9 m) 29 ft. (8.8 m)

57 ft. (17.4 m) 33 ft. (10.1 m) 51 ft. (15.5 m) 25 ft. (7.6 m)

47 ft. (14.3 m) 29 ft. (8.8 m) 41 ft. (12.5 m) 21 ft. (6.5 m)

Do not use non-metallic flexible duct.

Engl sh- 8

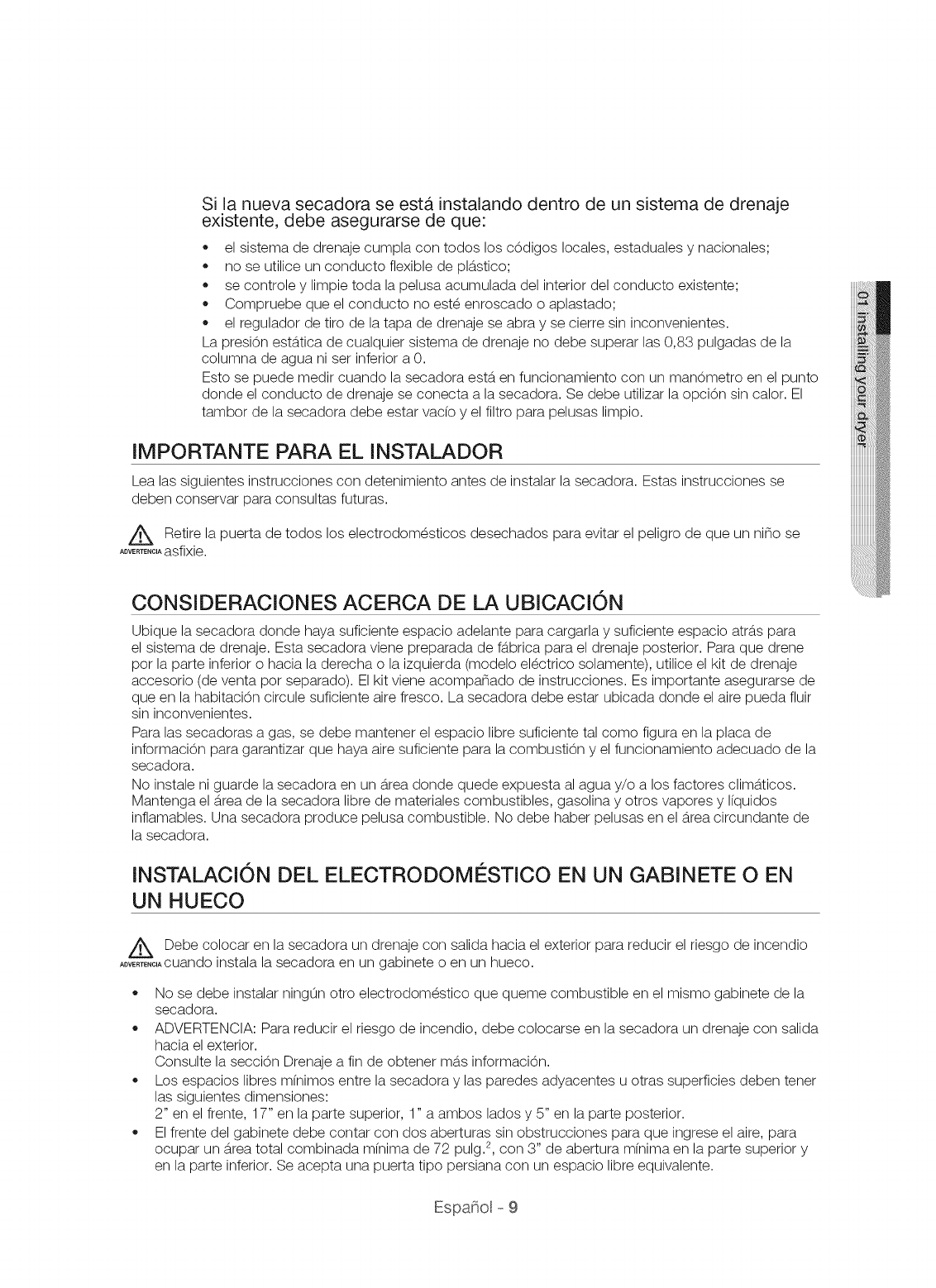

If the newdryeris beinginstalledintoanexistingexhaustsystem,you must

makesure:

The exhaust system meets all local, state, and national codes.

That a flexible plastic duct is not used.

To Inspect and clean all lint buildup from inside the existing duct.

The duct is not kinked or crushed.

The exhaust hood damper opens and closes freely.

The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be

less than 0.

This can be measured with the dryer running with a manometer at the point where the exhaust

duct connects to the dryer. A no-heat setting should be used. The dryer tumbler should be

empty and the lint filter clean.

IMPORTANT TO INSTALLER

Please read the following instructions carefully before installing the dryer. These instructions should be kept

for future reference.

Z_ Remove the door from all discarded appliances to avoid the danger of a child suffocating.

WARNING

LOCATION CONSIDERATIONS

Locate the dryer where there is enough space at the front for loading the dryer, and enough space behind

for the exhaust system. This dryer is factory-ready for rear exhaust. To exhaust out the bottom or the right

or the left (electric model only), use the accessory exhaust kit (sold separately). Instructions are included

with the kit. It's important to make sure the room has enough fresh air. The dryer must be located where

there is no air-flow obstruction.

On gas dryers, adequate clearance as noted on the data plate must be maintained to ensure adequate air

for combustion and proper dryer operation.

Do not install or store the dryer in an area where it will be exposed to water and/or weather. Keep the dryer

area clear of combustible materials, casoline, and other flammable vapors and liquids. A dryer produces

combustible lint. The area around the dryer should be kept lint free.

ALCOVE OR CLOSET INSTALLATION

z_You must exhaust the dryer to the outside to reduce the risk of fire when you install the dryer in alcove

WARN,NGor closet.

No other fuel-burning appliance should be installed in the same closet as the dryer.

WARNING: To reduce the risk of fire, you must exhaust the dryer to the outdoors.

See Exhaust information section.

Minimum clearances between the dryer and adjacent walls or other surfaces are:

2" in front, 17" on top, 1" on either side, and 5" in the back.

The closet front must have two unobstructed air openings for a combined minimum total area of 72 in2

with 3" minimum clearance on the top and bottom. A Iouvered door with equivalent space clearance is

acceptable.

Fnnli£h - #

na VoLArdryer

J J

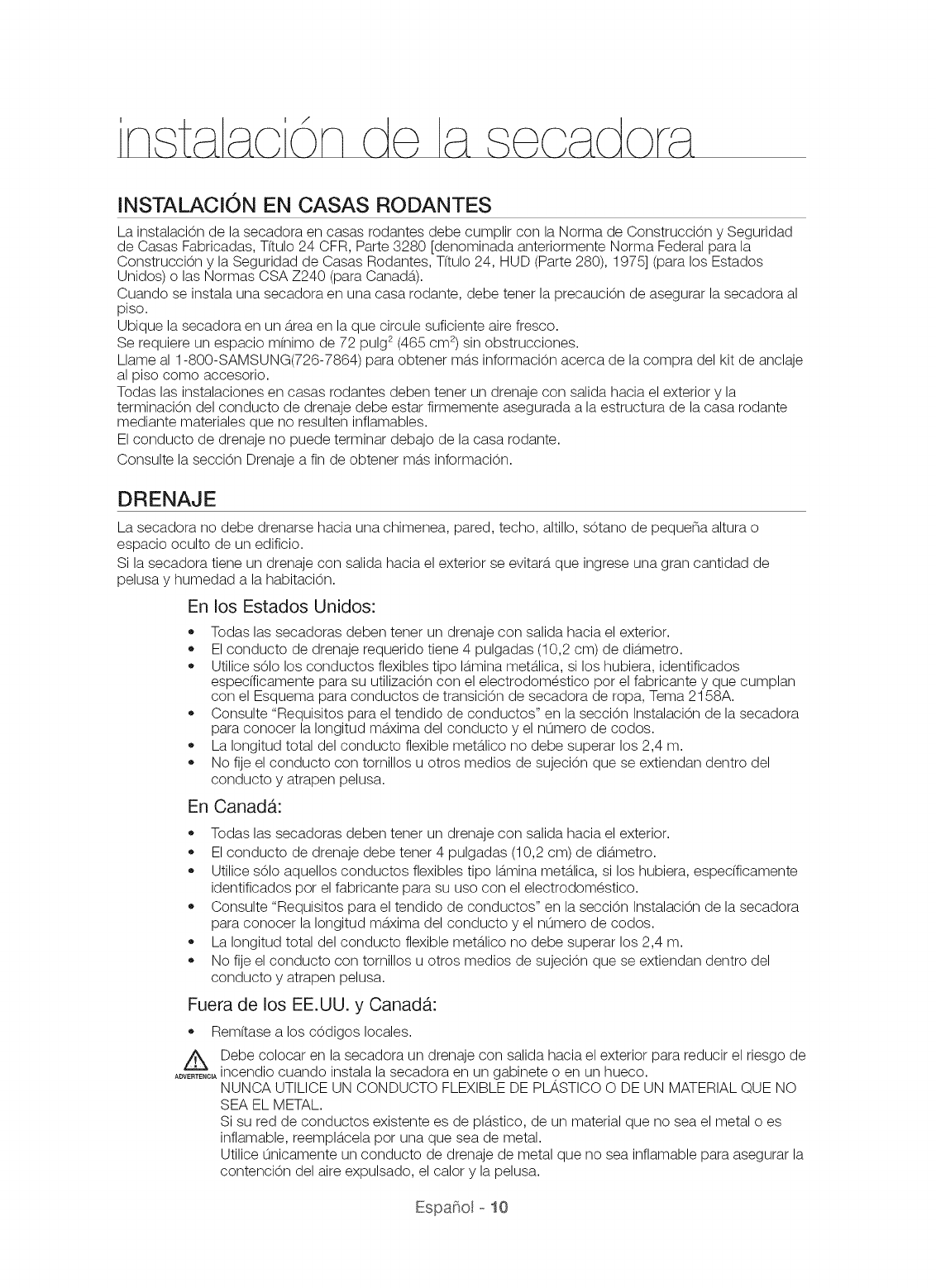

MOBILE HOME INSTALLATION

The installation of the dryer in mobile homes must conform to the Manufactured Home Construction and

Safety Standard Title 24 CFR, Part 3280 {formerly the Federal Standard for Mobile Home Construction and

Safety, Title 24, HUD (Part 280), 1975} for the United States) or CSA Standards Z240 (for Canada).

When installing a dryer in a mobile home, you must make provisions for anchoring the dryer to the floor.

Locate the dryer in an area that has adequate fresh air.

A minimum of 72 in2 (465 cm 2)of unobstructed space is required.

Call 1-800-SAMSUNG(726-7864) for information on purchasing the Floor Anchoring Kit as an accessory.

All mobile home installations must be exhausted to the outside with the exhaust duct termination securely

fastened to the mobile home structure, using materials that will not support combustion.

The exhaust duct may not terminate underneath the mobile home.

See Exhausting section for more information.

EXHAUSTING

The dryer shall not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl space, or a concealed

space of a building.

Exhausting the dryer to the outside will prevent large amount of lint and moisture from being blown into the

room.

the United States:

All dryers must be exhausted to the outside.

The required exhaust duct is 4 inches (10.2 cm) in diameter.

Use only those foil-type flexible ducts, if any, specifically identified for use with the appliance

by the manufacturer and that comply with the Outline for Clothes Dryer Transition Duct,

Subject 2158A shall be used.

See "Ducting Requirements" in installing your dryer section for the maximum duct length and

number of bends shall be used.

The total length of flexible metal duct shall not exceed 2.4 m.

Do not assemble the duct with screws or other fastening means that extend into the duct

and catch lint.

Canada:

All dryer must be exhausted to the outside.

The exhaust duct should be 4 inches(10.2 cm ) in diameter.

Use only those foil-type flexible ducts, if any, specifically indentified for use with the appliance

by the manufacturer shall be used.

See "Ducting Requirements" in installing your dryer section for the maximum duct length and

number of bends.

The total length of flexible metal duct shall not exceed 2.4 m.

Do not assemble the duct with screws or other fastening means that extend into the duct

and catch lint

Outside the U.S. and Canada:

• Refer to the local codes.

_You must exhaust the dryer to the outside to reduce the risk of fire when you install the

....... dryer in an alcove or closet.

NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT.

If your existing ductwork is plastic, non-metal, or combustible, replace it with metal.

Use only a metal exhaust duct that is non-flammable to ensure containment of exhaust air,

heat, and lint.

Engl sh - 10

GAS REQUIREMENTS

Use only natural or LP (liquid propane) gases.

THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL

CODES, WITH THE NATIONAL FUEL GAS CODE ANSVZ223.1, LATEST REVISION (FOR THE UNITED

STATES), OR WITH THE CAN/CGA-B149 INSTALLATION CODES (FOR CANADA).

Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with LP

(liquid propane) gas, it must be converted for safe and proper performance by a qualified service technician.

A 1/2" (1.27 era) gas supply line is recommended and must be reduced to connect to the 3/8" (1 cm) gas

line on your dryer. The National Fuel Gas Code requires that an accessible, approved manual gas shut-off

valve be installed within 6" of your dryer.

Gas dryers installed in residential garages must be raised 18 inches (46 cm) above the floor.

Additionally, a 1/8" (0.3 era) N.P.T. (National Pipe Thread) plugged tapping, accessible for test gauge

connection, must be installed immediately upstream of your dryer's gas supply connection.

Your dryer must be disconnected from the gas supply pipe system during any pressure testing of the

system.

DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design certified by the American Gas

Association (CGA in Canada).

* ny pipe joint compound used must be resistant to the action of any liquefied petroleum gas.

As a courtesy, most local gas utilities will inspect a gas appliance installation.

GAS IGNITION - Your dryer uses an automatic ignition system to ignite the burner.

There is no constant burning pilot.

COMMONWEALTH OF MASSACHUSETTS INSTALLATION

INSTRUCTIONS

Your dryer must be installed by a licensed plumber or gas fitter. A "T" handle manual gas valve must be

installed in the gas supply line to your dryer. If a flexible gas connector is used to install your dryer, the

connector can be no longer than 3' (36").

Z_* Gas leaks may occur in your system, creating a dangerous situation.

....... _ Gas leaks may not be detected by smell alone.

Gas suppliers recommend you purchase and install a UL-approved gas detector.

Install and use in accordance with the manufacturer's instructions.

Engl sh - 11

na VOLArdryer

J J

ELECTRICAL REQUIREMENTS

The Wiring diagram is located on the plate below the control panel or frame back.

Z_, Improperly connecting the equipment grounding conductor can result in a risk of electric shock.

....... Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is

properly grounded. Do not modify the plug provided with your dryer - if it doesn't fit the outlet,

have a proper outlet installed by a qualified electrician.

• To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding

must be done in accordance with local codes, or in the absence of local codes, with the National

Electrical Code, ANSI/NFPA No. 70-Latest Revision (for the U.S.) or the Canadian Electrical Code

CSA C22.1 - Latest Revisions and local codes and ordinances. It is your responsibility to provide

adequate electrical services for your dryer.

• All gas installations must be done in accordance with the national Fuel Code ANSI/Z2231 - Latest

Revision (for the U.S.) or CAN/CGA - B149 Installation Codes - Latest Revision (for Canada) and

local codes and ordinances.

GROUNDING

This dryer must be grounded. In the event of malfunction or breakdown, the ground will reduce the risk of

electrical shock by providing a path of least resistance for the electrical current.

Gas models

WARNING

Your dryer has a cord with an equipment-grounding conductor and a grounding plug.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Do not modify the plug provided with your dryer - if it doesn't fit the outlet, have a proper outlet

installed by a qualified electrician.

Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

Electric models

Your dryer has an optional cord with an equipment-grounding conductor and a grounding plug,

This cord is sold separately.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Do not modify the plug provided with your dryer - if it doesn't fit the outlet, have a proper outlet

installed by a qualified electrician.

If a power cord is not used and the electric dryer is to be permanently wired, the dryer must

be connected to a permanently grounded metal wiring system, or an equipment grounding

conductor must be run with the circuit conductors and connected to the equipment grounding

terminal or lead on the dryer.

Engl sh - 12

ELECTRICAL CONNECTIONS

Before operating or testing, follow all grounding instructions in the Grounding section.

An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN

EXTENSION CORD.

WARNING

Gas models- U,S, and Canada

A 120 volt, 60 Hz AC approved electrical service, with a 15-ampere fuse or circuit breaker is

required.

Electric models - U,S, Only

Most U.S. dryers require a 120 /240 volt, 60 Hz AC approved electrical service. Some require

120 /208 volt, 60 Hz approved electrical service. The electric service requirements can be found

on the data label located behind the door. A 30-ampere fuse or circuit breaker on both sides of

the line is required.

If a power cord is used, the cord should be plugged into a 30-ampere receptacle.

The power cord is NOT provided with U.S. electric model dryers.

Risk of Electric Shock

When local codes allow, the dryer electrical supply may be connected by means of a new power

supply cord kit, marked for use with a dryer, that is U.L. listed and rated at a minimum of120/240

volts, 30-ampere with three No. 10 copper wire conductors terminated with closed loop

terminals, open-end spade lugs with turned up ends, or with tinned leads.

• Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring

must be supported at the dryer cabinet by a suitable UL-listed strain relief.

,, Grounding through the neutral conductor is prohibited for (1) new branch-circuit installations,

(2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit

grounding through the neutral conductor. (Use a 4-prong plug for a 4 wire receptacle, NEMA

type 14-30R.)

Electric models - Canada Only

A 120 /240 volt, 60 Hz AC approved electrical service fused through a 30-ampere fuse or

circuit breaker on both sides of the line is required.

All Canadian models are shipped with the power cord attached. The power cord should be

plugged into a 30-ampere receptacle.

It is not to convert in Canada to 208 volts.

permissible adryer

Enql sh- 13

n ta nq VOLArdrvor

J J

INSTALLATION - GENERAL PROCEDURE

For proper installation, we recommend that you hire a qualified installer.

Read these instructions completely before you begin the installation.

To install the dryer, follow these steps:

1. Move your dryer to an appropriate location for installation. Consider installing the dryer and washer side-

by-side so you have easy access to both appliances.

To move the dryer easily, lay two of the carton cushion-tops on the floor. Tip your dryer on its side so it

lies across both cushion-tops. Push the dryer so that it is near its final location. Set your dryer upright.

Leave enough room around the dryer so you can attach the duct work, power cord, etc.

If you need to change the direction of the door, go to Door Reversal on page 19. When done, return to

Step 3 below.

Review the Exhausting section before installing the exhaust system. Install the duct work from your

dryer to the exhaust hood. The crimped end of the duct sections must point away from your dryer. DO

NOT use sheet metal screws when assembling ducting. These joints should be taped. Never use plastic

flexible exhaust material.

A tip for tight installations: Attach a section of the exhaust system to your dryer before putting it in

place. Use duct tape to secure this section to your dryer, but do not cover the ventilation slots at the

back of the dryer cabinet.

If you have an electric model, skip to Step 6. If you have a gas model, go to the next step.

Review the Gas Requirements section, then follow the lettered steps below.

a. Remove the pipe thread protective cap.

b. Apply pipe joint compound or about 1 1/2 wraps of Teflon tape over all threaded connections.

The pipe joint compound must be resistant to the action of liquefied petroleum

any gas.

c. Connect the gas supply to your dryer. An additional fitting is required to connect the 3/4" (1.9 cm)

female thread end of a flexible connector to the 3/8" (1 cm) male threaded end on the dryer.

d. Securely tighten the gas line fitting over the threads.

e. Turn on the gas supply. Check all gas connections for leaks using a soap solution. If bubbles

appear, tighten the connections and recheck. DO NOT use an open flame to check for gas leaks.

f. Go to Step 6 on the next page

Engl sh - 14

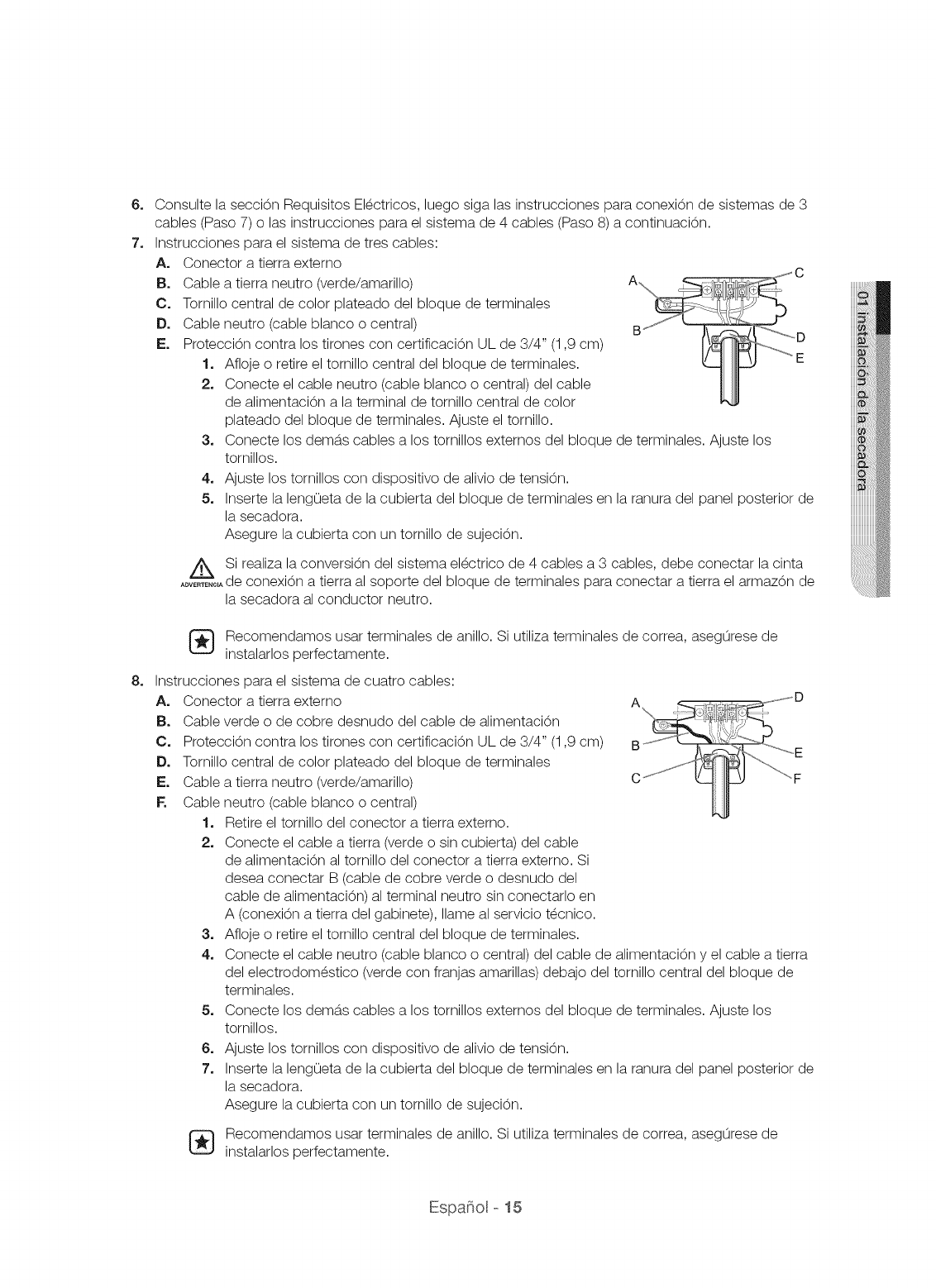

Review the Electrical Requirements section, then follow the 3 Wire system connection instructions (Step

7) or 4 Wire system instructions (Step 8) below.

Three Wire system instructions:

A. External ground connector

B. Neutral grounding wire (green/yellow)

O. Center silver-colored terminal block screw

D. Neutral wire (white or center wire)

E. 3_,,(1.9 cm) UL-listed strain relief

1o Loosen or remove the center terminal block screw. E

2. Connect the neutral wire (white or center wire) of the power

cord to the center, silver-colored terminal screw of the

terminal block. Tighten screw.

3. Connect the other wires to outer terminal block screws. Tighten screws.

4. Tighten the strain relief screws.

5. Insert the tab of the terminal block cover into your Dryer's rear panel slot.

Secure the cover with a hold-down screw.

WARNING

If converting from a 4-wire electrical system to a 3-wire, you must connect the ground strap

to the terminal block support to ground the dryer frame to the neutral conductor.

Four

[_ e recommend using Ring terminals. If you use Strap terminals, please ensure you install

them perfectly.

Wire System instructions:

External ground connector

Green or bare copper wire of power cord

3_,,(1.9 cm) UL-listed strain relief

Center silver-colored terminal block screw

Neutral Grounding wire (green/yellow)

Neutral wire (white or center wire)

1. Remove the External ground connector screw.

2. Connect the ground wire (green or unwrapped) of the

power cord to the external ground connector screw. If you

want to connect B (Green or bare copper wire of power

cord) to the Neutral Post without connecting it to A (cabinet

ground), call a service technician.

3. Loosen or remove the center terminal block screw.

4. Connect the neutral wire (white or center wire) of the power cord and the appliance ground

wire (green with yellow stripes) under the central screw of the terminal block.

5. Connect the other wires to the outer terminal block screws. Tighten screws.

6. Tighten the strain relief screws.

7. Insert the tab of the terminal block cover into your Dryer's rear panel slot.

Secure the cover with a hold-down screw.

We recommend using Ring terminals. If you use Strap terminals, please ensure you install

them perfectly.

Engl sh- 15

na VOLArdryer

J J

U.S. MODELS:

Z_ Risk Of Electric Shock

WARNING

All U.S.models are designed for a 3-WIRE SYSTEM CONNECTION. The dryer frame is grounded to

the neutral conductor at the terminal block. A 4-WIRE SYSTEM CONNECTION is required for new or

remodeled construction, mobile homes, or if local codes do not permit grounding through neutral. If

you use the 4-wire system, you cannot ground the dryer frame to the neutral conductor at the terminal

block.

Remove the terminal block cover plate. Insert the power cord with a UL-listed strain relief through the

hole provided in the cabinet near the terminal block.

A strain relief must be used. Do not loosen the nuts already installed on the terminal block. Be sure

they are tight. Use a 3/8" (lcm) deep well socket.

To ensure that the dryer provides optimal drying performance, it must

be level. To level the dryer, follow the lettered steps below:

a. Using a level, check if the dryer is level side to side and then front

to back.

b. If the dryer is not level, adjust the leveling feet on the bottom of

the dryer until the dryer is level side to side and back to front.

Turning the feet clockwise retracts the feet. Turning the feet

clockwise loosens and extends them.

Level

If you have a dryer and washer

®To set the dryer to the same height as the washer, fully

retract the leveling feet by turning them counterclockwise,

then loosen the feet by turning them clockwise. Once

the dryer is the same height as the washer, follow the

directions above to level the dryer.

Retractfully

\ ............................................................. Then loosen

....................................................................J

Leveling feet

Adjust the leveling feet only as much as necessary to level the dryer. Extending the leveling

feet more than necessary can cause the dryer to vibrate.

10. Make sure all gas connections (on gas models) and exhaust, and electrical connections are complete.

Plug in your dryer, and then check its operation by using the checklist on the next page.

11. For GAS MODELS ONLY

The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on a heat

setting will purge the line. If the gas does not ignite within 5 minutes, turn your dryer off and wait 5

minutes. Be sure the gas supply to your dryer has been turned on. To confirm gas ignition, check the

exhaust for heat.

Engl sh - 16

CONNECTING THE INLET HOSE (DV48(5)H7400E(G)* ONLY)

M ETHOD1

The dryer must be connected to the cold water faucet using the new inlet hoses. Do not use old hoses.

1. If space permits, attach the brass female end of the "Y" connector to the cold water faucet.

2. Turn the cold water faucet off.

3. Attach the straight end of long hose to "Y' connector.

4. Using pliers, tighten the coupling with an additional two-thirds turn.

Do not overtighten, as it may damage the coupling. ,_,_L l

5. Attach angled end of long hoses to fill the valve at the

bottom of the dryer's rear frame. Screw on coupling by hand

until it is seated on fill valve connector.

6. Using pliers, tighten the coupling with an additional two-thirds turn.

Do not overtighten, as it may damage the coupling.

7. Check that the water faucets are on.

8. Check for leaks around "Y" connector, faucets and hoses.

M ETHOD2

The dryer must be connected to the cold water faucet using the new inlet hoses. Do not use old hoses.

1. If "Y" connector cannot be attached directly to the cold water

faucet, the short hose must be used.

2. Turn the cold water faucet off.

3. Attach short inlet hose to cold water faucet.

Screw on coupling by hand until it is seated on the faucet.

4. Using pliers, tighten the coupling with an additional

two-thirds turn.

Do not overtighten, as it may damage the coupling.

5. Attach 'Y" connector to brass male end of small hose.

Screw on coupling by hand until it is seated on connector.

6. Using pliers, tighten the coupling with an additional two-thirds turn.

Do not overtighten, as it may damage the coupling.

7. Attach angled end of long hoses to the fill valve at the bottom of the dryer rear frame. Screw on

coupling by hand until it is seated on fill valve connector.

8. Using pliers, tighten the coupling with an additional two-thirds turn.

Do not overtighten, as it may damage the coupling.

9. Check that the water faucets are on.

10. Check for leaks around "Y" connector, faucets and hoses.

FINAL INSTALLATION CHECK LIST

[] The dryer is plugged into an electrical outlet and grounded properly.

[] The exhaust ductwork is hooked up and the joints are taped.

[] You have used rigid or stiff-walled flexible metal duct material, not plastic flexible duct.

[] The dryer is level and is sitting firmly on the floor.

[] For gas models: The gas is turned on and there are no gas leaks.

[] Start your dryer to confirm that it runs, heats, and shuts off.

Engl sh - 17

na VoLArdryer

J J

DRYER EXHAUST TIPS

/_ Plastic or non-metal flexible duct presents a potential fire hazard.

WARNING

1. Make sure your dryer is installed properly so it exhausts air

easily.

2, Use 4" diameter rigid metal duct. Tape all joints, including at

the dryer.

Never use lint-trapping screws.

3, Keep ducts as straight as possible.

4. Clean all old ducts before installing your new dryer.

Be sure the vent flap opens and closes freely.

Inspect and clean the exhaust system annually. i

Don't let a poor exhaust system slow drying by:

1. Restricting your dryer with a poor exhaust system. 1

2. Using a plastic, thin foil, or non-metal flexible duct.

3, Using unnecessarily long ducts that have many

elbows.

4, Using crushed or clogged venting or ducts.

Engl sh -18

DOOR REVERSAL

If you want to reverse the direction of the door, it is recommended calling a

qualified service technician.

1. Unplug the power cord.

2. Remove the four hinge screws from the door

3o Remove the door by lifting it

4. Remove the two screws from the holder-lever, and then remove

the cover-holder.

5o Assemble the holder-lever on the opposite side using the screws

that were removed from the holder-lever-in Step 4.

6, Assemble the cover-holder on the opposite side.

7. Remove the two cover-hinges.

8. Assemble the two cover-hinges

on the opposite side.

Use a flat head screwdriver(-)

to remove the cover-holder's

cover-hinge.

k. J

9, Remove the 14 screws.

_Two screw (L) are longer than the other screws.

Engl sh- 19

na VOLArdryer

J J

10oRemove the holder-glass.

11oExchange the positions of:

: The cover-hinge and handle door

:The holder-hinge and guider-

holder glass

12oRemove the Lever-Door, Cover-

Lever (DV45H7000E(G)* Only) and

then install it on the opposite side.

: DV48(5)H7400E(G)*/

DV45H7200E(G)* Refer Figure. 1

: DV45H7000E(G)* Refer Figure. 2

_ efer to the illustrations on the

right to aid you in the assembly

process.

Fig 2

Fig 1

13. Remove the cover-hole (P).

14. Assemble the holder glass and then fasten the 14 screws

that you removed in step 9.

15. Attach the cover-hole.

_A cover hole is in the manual.

spare assy

16. Install the door on the frame-front and then fasten the

4 screws that you removed in step 2.

_ heck the positions of the screws you installed in the hinge

door.

Engl sh - 20

I _ J I

/_To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY

....... INSTRUCTIONS before operating this appliance.

OVERVIEW OF THE CONTROL PANEL

NORMAL

HEAVY DUTY PERM PRESS

BEDDING : QUICK DRY

SANITIZE _ TIME DRY

DELICATES ....... REFRESH

TOWELS LE AWAY

[] Sensor Dry Steam Cycles []

Q @

NORMAL -- PERM PRESS

IUICK DRY

DELICATES

[] Sensor Dry

HEAVY

BEDDING --

SANITIZE --

NORMAL

WRINKLE

RELEASE

PRESS

DRY

WRINKLE

RELEASE

*{Hold 3 sec)

I Very Dry II High

II More Dry II Medium II 40 min |

II Normal Dry II LOW II 30 min

II Damp Dry II Extra LOW II 20 min j .............

*S°lund I ID*Child L°ck_l I *Smart Care

@ @ @ @

*(Hold 3 sec)

II very Dry II High

II More Dry II Medium II 40 min

II Normal Dry II Low II 30 min

I Damp Dry I Extra LOW I 20 rain

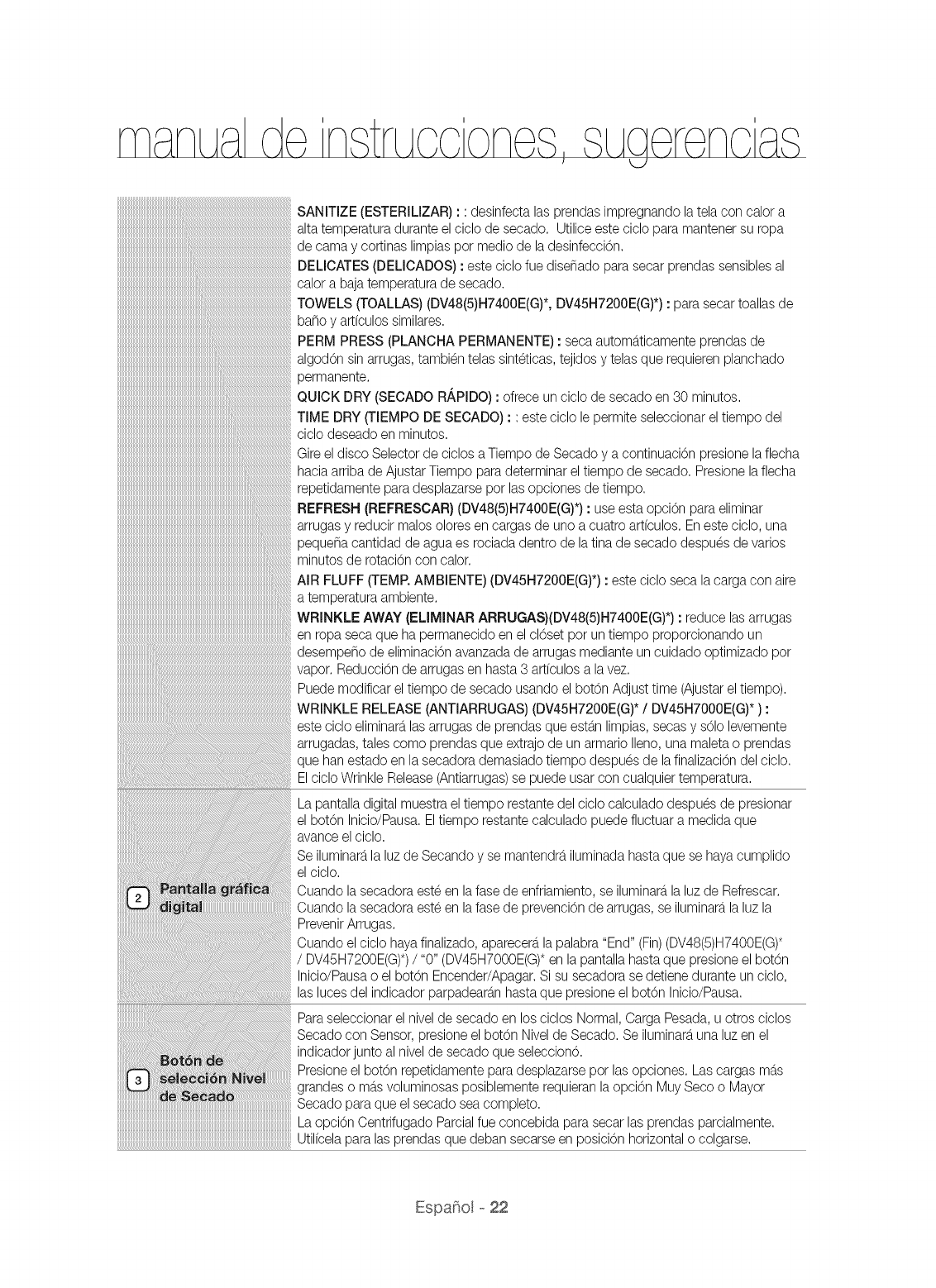

To select a cycle, rotate the Cycle Selector dial to the desired cycle.

The indicator light by the cycle name will illuminate. The NORMAL, PERM

PRESS, HEAVY DUTY, BEDDING, SANITIZE, DELICATES, AND TOWELS

(DV48(5)H7400E(G)*, DV45H7200E(G)*)cycles are Sensor Dry cycles.

Sensor Dry automatically senses the moisture in the load and shuts the dryer

i I off when the load reaches the dryness level you have selected with the Dry

Level Selection Button (see below).

NORMAL - Use this cycle to dry loads of cotton, underwear, and linen.

HEAVY DUTY - Use this cycle to dry heavy fabrics such as jeans, corduroys,

or work clothes with high temperature heat.

BEDDING - For bulky items such as blankets, sheets and comforters.

Engl sh- 21

SANITIZE-Sanitizesgarmentsbyinfusinghightemperatureheatdeepinto

the fabric during the drying cycle. Use this cycle to keep your bedding and

curtains clean through sanitization.

DEMCATES - The Delicates cycle is designed to dry heat-sensitive items at a

low drying temperature.

TOWELS (DV48(5)M7400E(G)*, DV45M7200E(G)*) - To dry bath towels and

similar items.

PERM PRESS - Dry wrinkle-free cottons, synthetic fabrics, knits, and

permanent press fabrics automatically.

QU_CK DRY -Provides a 30 minute drying cycle.

T_ME DRY - Time Dry allows you to select the desired cycle time in minutes.

Turn the Cycle Selector dial to Time Dry, and then press the Adjust Time up

arrow to set the drying time. Press the arrow repeatedly to scroll through the

time settings.

REFRESH (DV48(5)H7400E(G)*) - Use to smooth out wrinkles and reduce

odors in loads of one to four items. In this cycle a small amount of water is

sprayed into the dryer drum after several minutes of tumbling with heat.

A_R FLUFF (DV45M7200E(G)*) - The Air Fluff cycle tumbles the load at room

temperature air.

WRINKLE AWAY (DV48(5)H7400E(G)*) - Reduce wrinkles in dry clothes that

have been left in a closet for a while by providing advanced wrinkle release

performance through optimized steam care. Reduce wrinkles in up to 3 items

at a time.

You can change the drying time using the Adjust Time button.

WRINKLE RELEASE (DV45H7200E(G)* /DV45H7000E(G)* ) - The Wrinkle

Release cycle will release wrinkles from items that are clean, dry, and only

slightly wrinkled, such as clothes from a crowded closet, suitcase or items that

have been in the dryer too long after the cycle has ended. Wrinkle Release can

be used with any temperature selection.

The display window shows the estimated time remaining in the cycle after

you have pressed the Start/Pause button. The estimated time remaining may

fluctuates as the cycle progresses.

The Drying light will illuminate and remain lit until the cycle is complete.

When your dryer is in the cool-down phase, the Cooling light will illuminate. When

your dryer is in the wrinkle prevent phase, the Wrinkle Prevent light will illuminate.

When the cycle is complete, "End" (DV48(5)H7400E(G)* /DV45H7200E(G)*) /

"0" (DV45H7000E(G)* will appear in the display panel until you push

the Start/Pause button or the Power button.

If your dryer is paused during a cycle, the indicator lights will blink until you press

the Start/Pause button.

To select the dry level in the Normal, Heavy Duty, or other Sensor Dry cycles,

press the Dry Level button. An indicator light will illuminate next to the dryness

level you selected.

Press the button repeatedly to scroll through the settings. Larger or bulkier

loads may require the Very Dry or More Dry setting for complete dryness.

Damp Dry is designed to partially dry items. Use for items that lay flat or hang

to dry.

To select the temperature for the load, press the Temp button. An indicator

light will illuminate next to the temperature you selected. Press the button

repeatedly to scroll through the settings.

High - For sturdy cottons or those labeled Tumble Dry.

Medium - For permanent press, synthetics, lightweight cottons, or items

labeled Tumble Dry Medium.

Low - For heat sensitive items labeled Tumble Dry Low or Tumble Dry Warm.

,, Extra Low (DV48(5)H7400E(G)*, DV45H7200E(G)*) - Provides the lowest

heated drying temperature possible.

Engl sh - 22

IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII_

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

When using Manual Dry cycles, you can adjust the drying time by pressing the

time selection button.

During the Sensory Dry cycle, the time light indicator is off because exact

drying times are determined by fluctuating humidity levels.

Therefore, the actual drying time may differ from the displayed time.

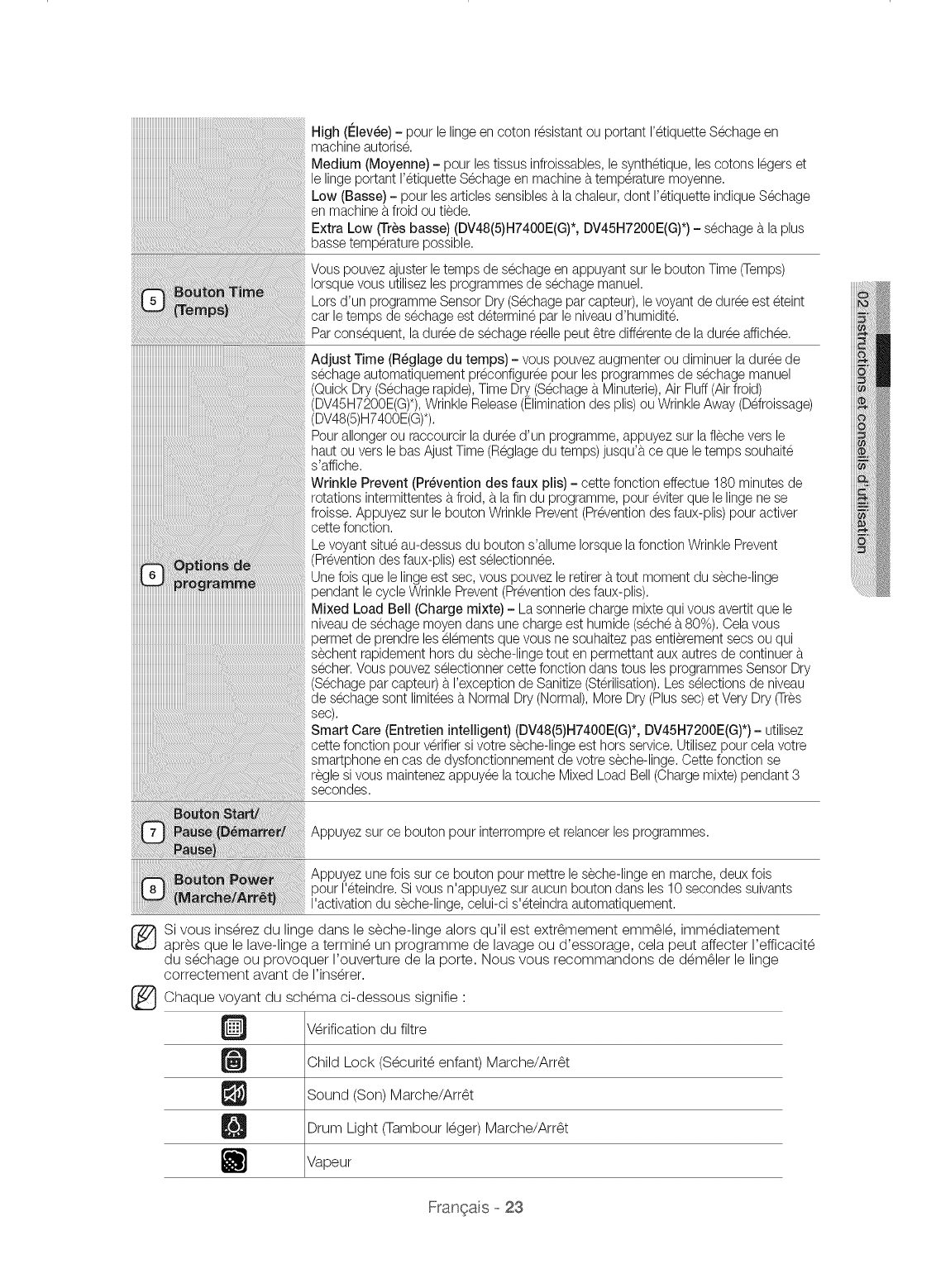

Adjust Time - You can add or subtract time from the automatically set times

in the Manual Dry cycles (Quick Dry, Time Dry, Air Fluff (DV45H7200E(G)*),

Wrinkle Release cycles or Wrinkle Away (DV48(5)H7400E(G)*) cycle.

To add or subtract time from the cycle, press the Adjust Time arrow pad up or

down until the desired time is displayed.

Wrinkle Prevent - Wrinkle Prevent provides approximately 180 minutes

of intermittent tumbling in unheated air at the end of the cycle to reduce

wrinkling. Press the Wrinkle Prevent button to activate this feature.

The indicator light above the pad will illuminate when you select Wrinkle Prevent.

The load is dry and you can remove it at any time during the Wrinkle Prevent cycle.

Mixed Load Bell - The mixed load bell that notifies you when the average

dry level in a load is damp dry (80 % dried). This lets you take garments that

you don't want fully dried or that dry quickly out of the dryer early while letting

others continue to dry. You can select this function in all Sensor Dry cycles

except Sanitize. The dry level selections are limited to Normal Dry, More Dry,

and Very Dry.

Smart Care (DV48(5)M7400E(G)*, DV45M7200E(G)*) - Use this function

to check if the Dryer is out of order using your smart phone when the Dryer

malfunctions. This function is set if you press and hold the Mixed Load Bell key

for 3 seconds.

Press to pause and restart programs.

Press once to turn your dryer on, Press again to turn it off. If you turn

your dryer on and do not touch any buttons for 10 minutes, the power

automatically turns off.

lf you insert laundry into your dryer while it is extremely tangled immediately after your washer has

finished a wash or spin cycle, it may degrade the drying efficiency or cause the door to open. We

recommend that you disentangle your laundry appropriately before inserting it.

Each indicator on the graphic display means:

Filter Check

Child Lock On/Off

Sound On/Off

Drum Light On/Off

Steam

Engl sh- 23

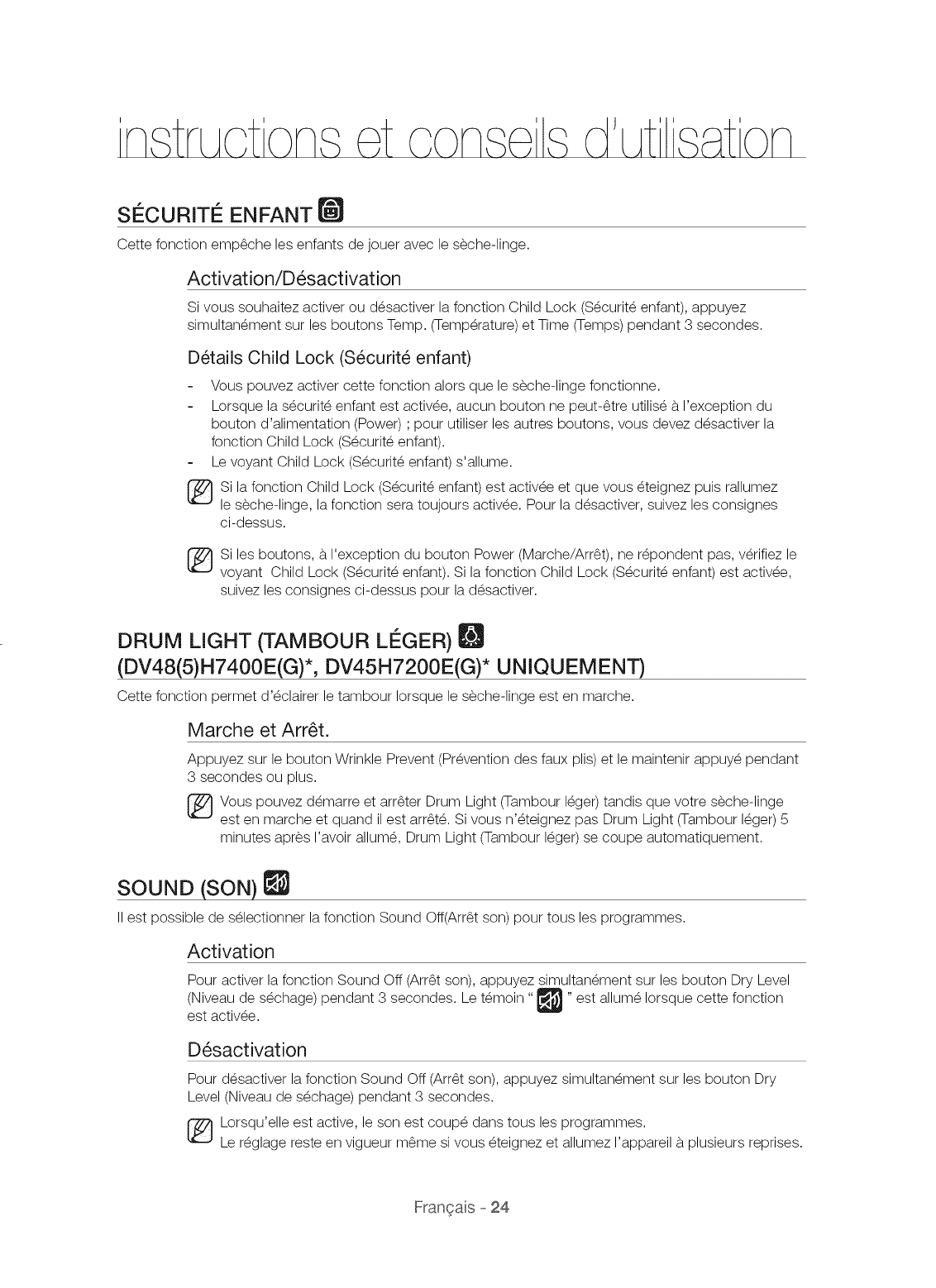

CHILD LOCK

Prevents children from playing with your dryer.

Setting/Releasing

If you want to set or release the Child Lock, press the Temp. and Time buttons simultaneously

for 3 seconds.

Child Lock Details

You can turn Child Lock on while your dryer is running.

Once you turn Child Lock on, no button, except for the Power button, will respond until you

turn off the Child Lock function.

The Child Lock indicator will be lit.

If you have not turned off Child Lock, and then turned the dryer off and on, the Child Lock

function will still be on. To turn off Child Lock, follow the instructions above.

When other buttons, except for the Power button, do not respond, check the Child Lock

indicator. If Child Lock is on, follow the instructions above to turn Child Lock off.

DRUM

Lights the

LIGHT _ (DV48(5)H7400E(G)*, DV45H7200E(G)* ONLY)

dryer drum while the dryer is running.

Turning On and Off

Press and hold the Wrinkle Prevent button for 3 seconds or more.

You can turn the Drum Light on and off while your dryer is running and when it is

stopped. If you do not turn the Drum Light off 5 minutes after turning it on, the Drum Light

automatically turns off.

SOUND

The Sound Off function can be selected during all courses.

Activating

If you want to activate the Sound Off function, press the Dry Level button at the same time for 3

seconds. The " _" will be lit when this feature is activated.

Deactivating

If you want to deactivate the Sound Off function, press the Dry Level button at the same time for

3 seconds again.

When this function is selected, sound is turned off for all courses.

Even if the power is turned on and off repeatedly, the setting is retained.

Engl sh - 24

SMART CARE (DV48(5)H7400E(G)*, DV45H7200E(G)* ONLY)

This function enables you to check the status of the dryer using a smartphone.

1. To enable the Smart Care function, press the power button to turn the dryer orsand then press and hold

the Mixed Load Bell button for 3 seconds. If you press a button other than the Mixed Load Bell button

after turning the dryer on, you will not be able to activate the Smart Care function.

•The error code history is deleted after using the function.

2. If the Smart Care function is activated, the Smart Care indicator is lit on the display.

3. Run the Smart Care app on your smart phone.

•GalaxyS, GalaxyS2, GalaxyS3, GalaxyS4, GalaxyS2(HD), Galaxy Note, Galaxy Note2,

Galaxy Note3 (Other devices may not be normal operation).

Supported operating system: Android 2.2 or higher.

•IPhone 3 G S, iPhone 4/48, iPhone 5/58.

Supported operating system : OS 4.3 or higher.

4. Focus the smart phone's camera on the display panel of the Dryer.

5. If the smart phone's camera is focused on the display panel of the Dryer, the panel and error message is

automatically recognized and the error type and countermeasures are displayed on the smart phone.

6. If the smartphone fails to recognize the error code more than twice, please enter the error code

displayed on the display panel of the dryer manually into the Smart Care app.

Downloading the Smart Care app

•Download the Samsung Laundry App into your mobile phone from the Android market or Apple

App store. (Search word ' Samsung Smart Washer/Dryer)

Precautions when using Smart Care

If light from a light bulb, fluorescent bulb, or lamp is reflected on the display panel of the dryer, the

smartphone may not be able to recognize the panel or error message easily.

If you hold the smartphone at too large an angle relative to the front of the display panel, it may not

be able to recognize the error code. For best results, hold the smartphone so that the front of the

panel and the smartphone are parallel or nearly parallel.

EnGI sh- 25

CLEAN THE LINT FILTER

• After each load.

,, To shorten drying time.

,, To operate more energy efficiently.

_Do not dryer without the lint filter in place.

operate your

Frame Front Fimter

Door

LOAD THE DRYER PROPERLY

,, Place only one washload in your dryer at a time.

In mixed loads, heavy and lightweight fabrics will dry differently. This may result in lightweight fabrics

being dry while heavy fabrics remain damp at the end of a drying cycle.

Add one or more additional similar items to your dryer when you are drying only one or two items. This

improves the tumbling action and drying efficiency.

,, Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of some

fabrics.

GETTING STARTED

1. Load your dryer loosely- DO NOT overload.

2. Close the door.

3. Select the appropriate cycle and options for the load (see pages 21,22, 23).

4. Press the Start/Pause button.

5. The dryer indicator light will illuminate.

6. The estimated cycle time will appear in the display.

The time may fluctuate as humidity levels fluctuate in the dryer.

_ When the cycle is complete, "End" (DV48(5)H7400E(G)* /DV45H7200E(G)*) /"0"

(DV45H7000E(G)*) will appear in the display.

,, Pressing Power cancels the cycle and stops your dryer.

,, The Drying, Cooling, and Wrinkle Prevent indicator lights will illuminate during those portions of the

cycle.

ADo not place anything on top of your dryer while it is running.

WARNING

Engl sh - 26

and c ean na

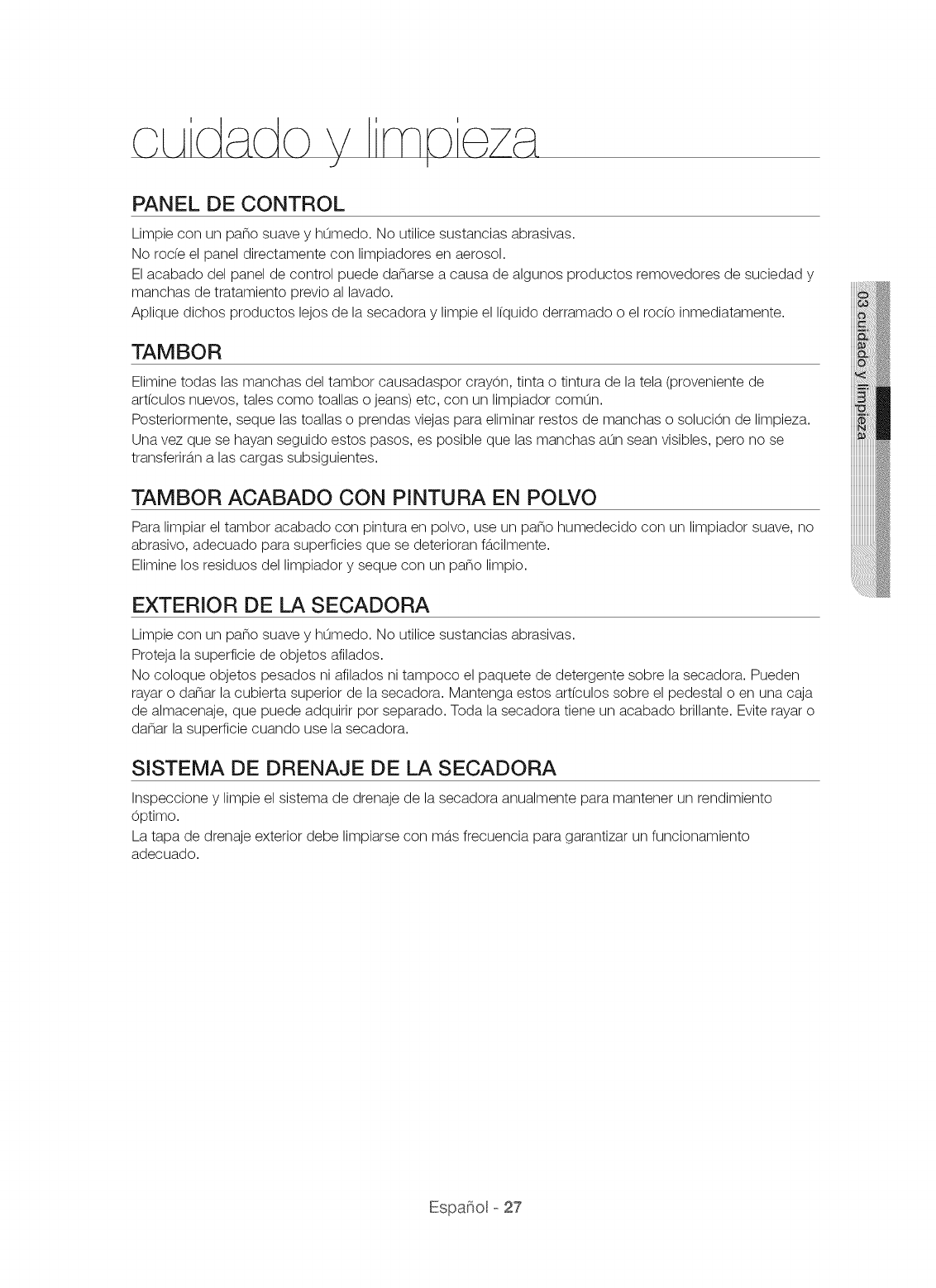

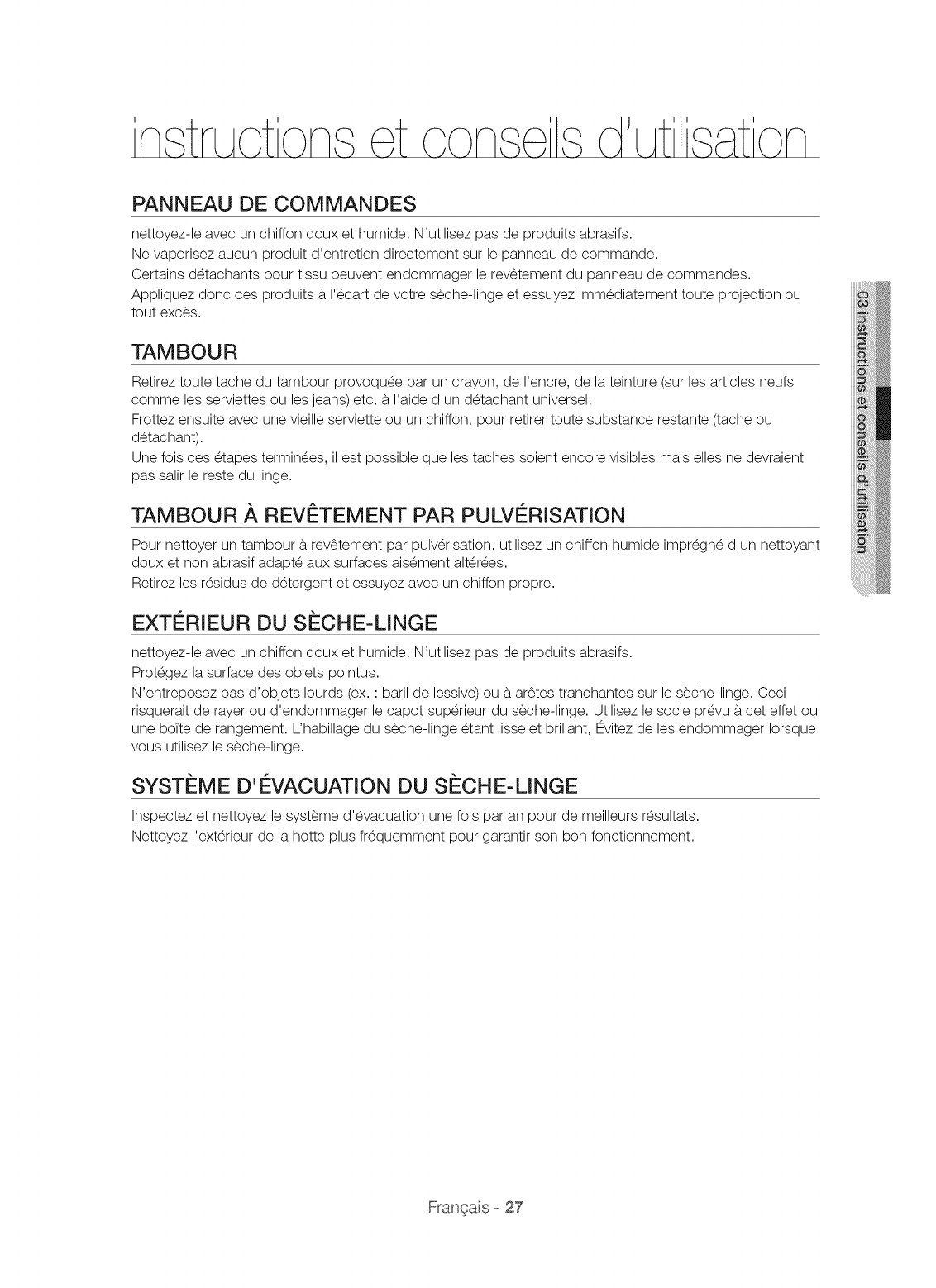

CONTROL PANEL

Clean with a soft, damp cloth. Do not use abrasive substances.

Do not spray cleaners directly on the panel.

The control panel finish may be damaged by some laundry pre-treatment soil and stain remover products.

Apply such products away from your dryer and wipe up any spills or overspray immediately.

TUMBLER

Remove any stains from the tumbler caused by crayon, ink, fabric dye (from new items such as towels or

jeans) and so on with an all-purpose cleaner.

Tumble old towels or rags to remove any remaining stain or cleaning substance.

Once these steps are followed, stains may still be visible, but should not transfer to subsequent loads.

POWDER COATED TUMBLER

To clean the powder coated tumbler, use a damp cloth with a mild, non-abrasive cleaner suitable easily

marred surfaces.

Remove cleaner residue and dry with a clean cloth.

DRYER EXTERIOR

Clean with a soft, damp cloth. Do not use abrasive substances.

Protect the surface from sharp objects.

Do not place any heavy or sharp objects or a detergent box on the dryer. They can scratch or damage the

top cover of the dryer. Keep these items in the separately purchased pedestal or in a separate storage box.

The entire dryer has a high-gloss finish. Avoid scratching or damaging the surface when using the dryer.

DRYER EXHAUST SYSTEM

Inspect and clean the dryer exhaust system yearly to maintain optimum performance.

The outside exhaust hood should be cleaned more frequently to ensure proper operation.

Engl sh- 27

IJI

SPECIAL LAUNDRY TIPS

Please follow the care label or manufacturer's instructions for drying special

items. If care label instructions are not available, use the following information as

a guide,

Bedspreads & Comforters

Blankets

Curtains & Draperies

Cloth Diapers

Down-filled Items (jackets,

sleeping bags, comforters,

etc.)

Foam Rubber (rug backs,

stuffed toys, shoulder pads,

etc.)

Pillows

Plastics (shower curtains,

outdoor furniture covers,

etc.)

Follow the care label instructions or dry using the Bedding cycle.

Make sure the item is thoroughly dry before using or storing.

May require repositioning to ensure even drying.

Use the Normal cycle and dry only one blanket at a time for best

tumbling action.

Make sure the item is thoroughly dry before using or storing.

Use the Perm Press cycle and medium temperature to help minimize

wrinkling.

Dry these in small loads for best results and remove as soon as

possible.

Use the Normal cycle and the High temperature settings for soft,

fluffy diapers.

Use the Normal cycle and medium temperature setting.

Adding a couple of dry towels shortens drying time and absorbs

moisture.

DO NOT dry on a heat setting. Use the Air Fluff cycle (no heat

DV45H7200E(G)* only).

WARNING - Drying a rubber item with heat may damage it or create

a fire hazard.

Use the Normal cycle.

Add a couple of dry towels and a pair of clean sneakers to help the

tumbling action and to fluff the items.

DO NOT dry kapok or foam pillows in the dryer. You can dry these

items in the dryer only if you use the Air Fluff cycle.

Use the Air Fluff cycle or the Time Dry cycle and the Low or Extra

Low temperature settings depending on the care label instructions.

THINGS TO AVOID PUTTING IN THE DRYER :

Fiberglass items (curtains, draperies, etc.).

Woolens, unless recommended on the label.

Items spotted or soaked with vegetable or cooking oils.

Engl sh - 28

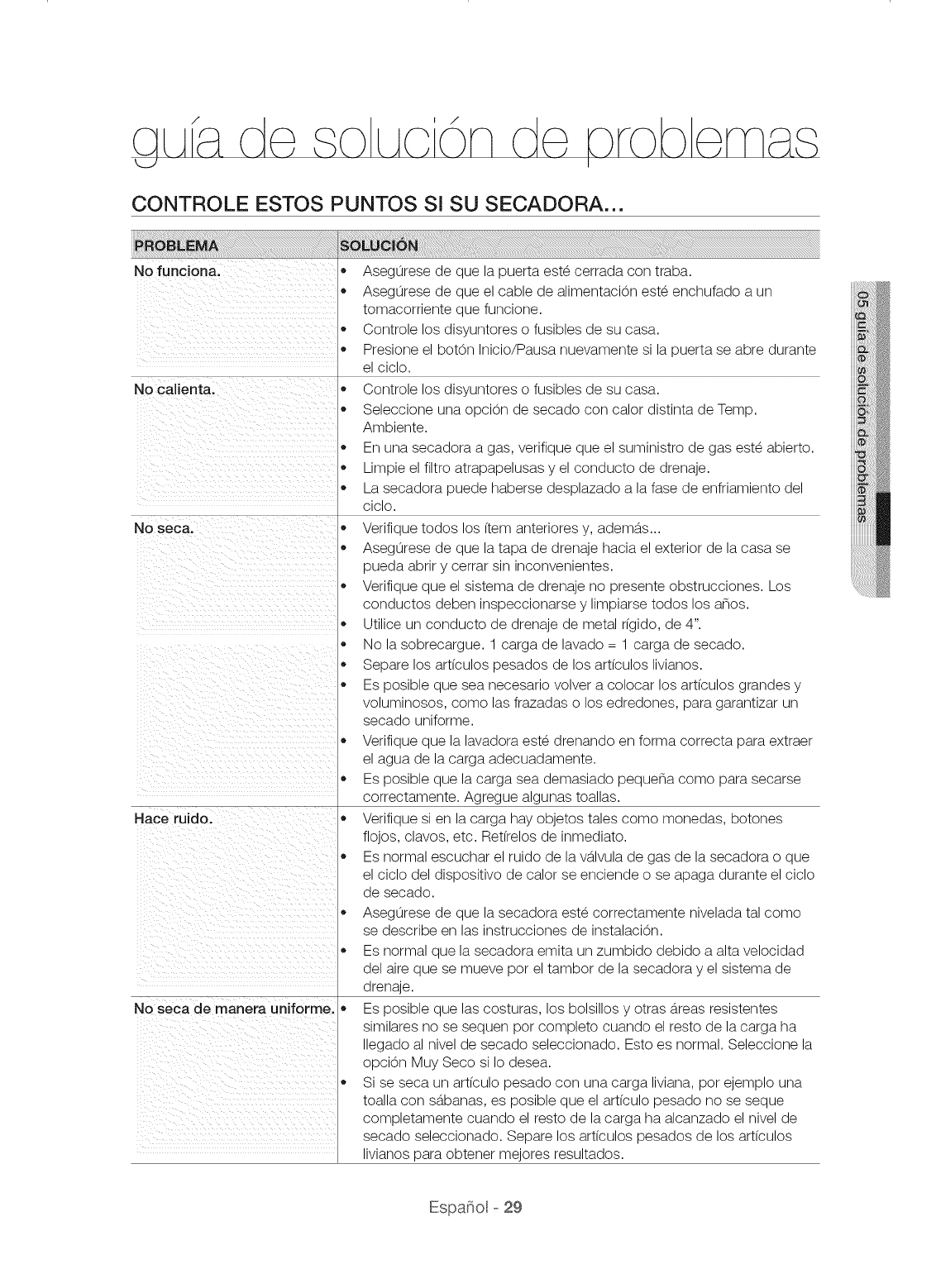

CHECK THESE POINTS IF YOUR DRYER...

Doesn't run.

Doesn't heat.

Doesn't d ry,

Is noisy.

Dries unevenly.

Has an odoc

,, Make sure the door is latched shut.

,, Be sure the power cord is plugged into a live electrical outlet.

• Check your home's circuit breakers or fuses.

• Press the Start/Pause button again if the door is opened during the

cycle.

• Check your home's circuit breakers or fuses.

• Select a heat setting other than Air Fluff.

• On a gas dryer, check that the gas supply is on.

• Clean the lint filter and exhaust duct.

• Dryer may have moved into the cool-down phase of the cycle.

• Check all of the above, plus...

• Be sure the exhaust hood outside the home can open and close

freely.

• Check the exhaust system for lint buildup. Ducting should be

inspected and cleaned annually.

• Use a 4" rigid metal exhaust duct.

• Do not overload. 1 wash load = 1 dryer load.

• Sort heavy items from lightweight items.

• Large, bulky items like blankets or comforters may require

repositioning to ensure even drying.

• Check that the washer is draining properly to extract adequate water

from the load.

• Load may be too small to tumble properly. Add a few towels.

• Check the load for objects such as coins, loose buttons, nails, etc.

Remove promptly.

• It is normal to hear the dryer gas valve or heating element cycle on

and off during the drying cycle.

• Be sure the dryer is leveled properly as outlined in the installation

instruction.

• It is normal for the dryer to hum due to the high velocity of air moving

through the dryer drum and exhaust system.

• Seams, pockets, and other similarly heavy areas may not be

completely dry when the rest of the load has reached the selected

dryness level. This is normal. Select the Very Dry setting if desired.

• If one heavy item is dried with a lightweight load, such as one towel

with sheets, it is possible that the heavy item will not be completely

dry when the rest of the load has reached the selected dryness level.

Sort heavy items from lightweight items for best drying results.

• Household odors from paint, varnish, strong cleaners, etc. may enter

the dryer with the surrounding room air. This is normal as the dryer

draws the air from the room, heats it, pulls it through the tumbler, and

exhausts it outside.

When these odors linger in the air, ventilate the room completely

before using the dryer.

Engl sh- 29

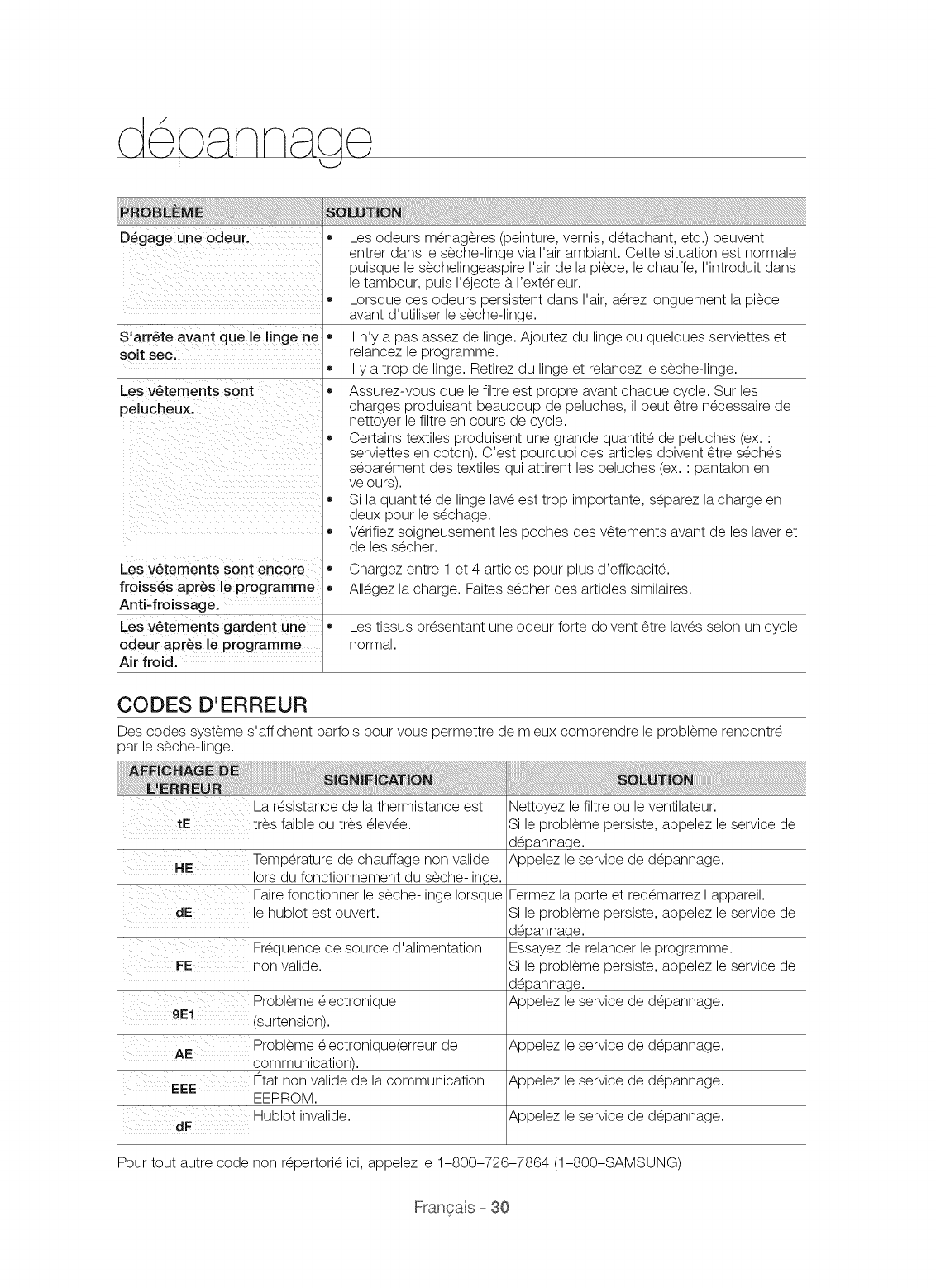

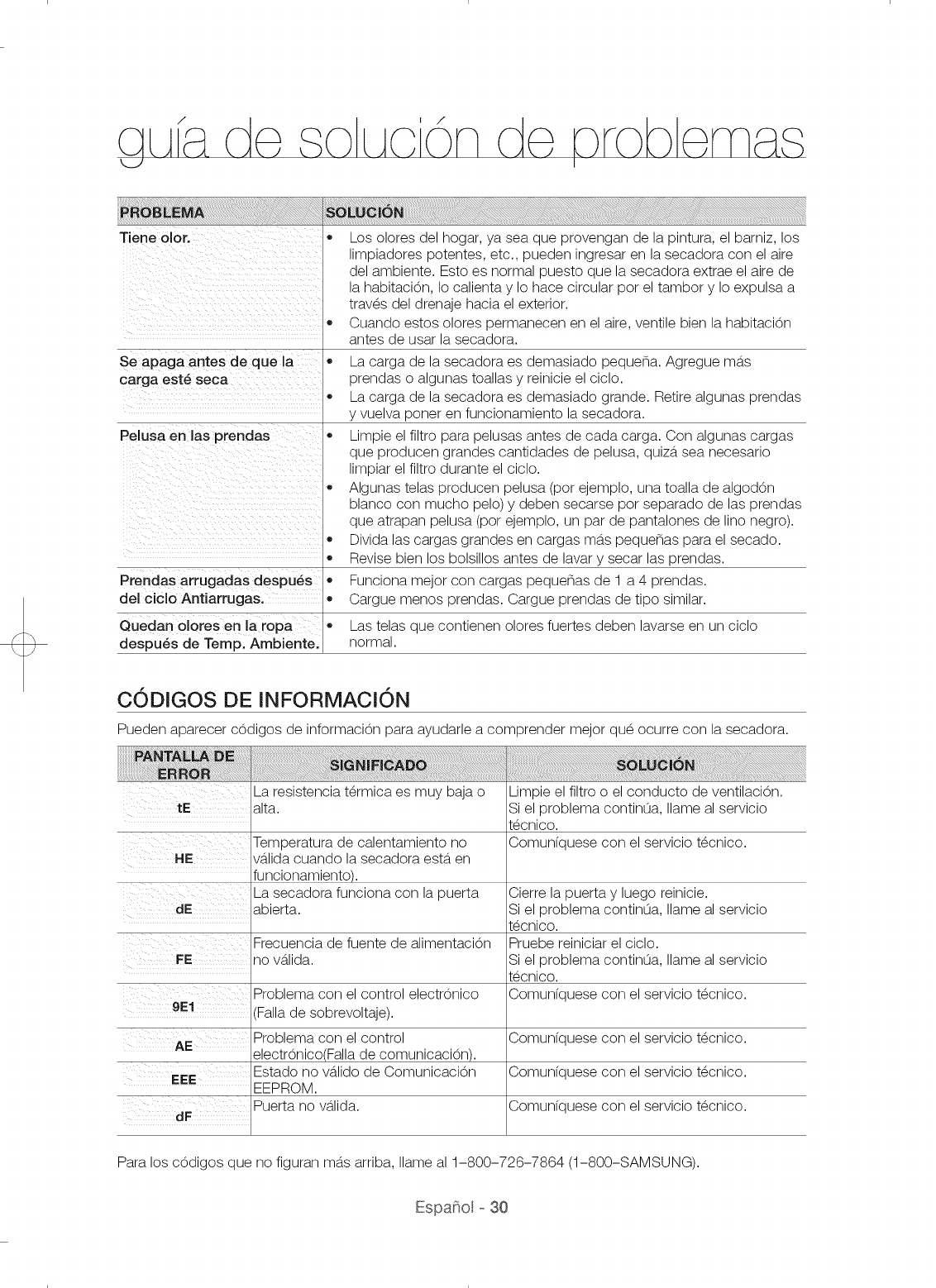

Shuts off before load is dry

Lint on clothes

Garments still wrinkled after

Wdnkle Release

Odors remain in clothing

after Air Fluff.

The dryer load is too small. Add more items or a few towels and

restart the cycle.

The dryer load is too large. Remove some items and restart the dryer.

Make sure the lint filter is cleaned before every load. With some loads

that produce high amounts of lint, it may be necessary to clean the

filter during the cycle.

Some fabrics are lint producers (for example, a fuzzy white cotton

towel) and they should be dried separately from clothes that are lint

trappers (for example, a pair of black linen pants).

Divide larger loads into smaller loads for drying.

Check pockets thoroughly before washing and drying clothes.

Small loads of 1 to 4 items work best.

Load fewer garments. Load similar-type garments.

Fabrics containing strong odors should be washed in a normal cycle.

iNFORMATiON CODES

Information codes may be displayed to help you understand what is occurring with your Dryer better.

Clean the screen or vent.

If the problem continues, call for service.

Call for service.

The thermistor resistance is very low

tE or high.

Invalid heating Temp in running the

HE dryer).

Running the dryer with door open.

Invalid power source Frequency.

Electronic Control Problem

9E1 (Over Voltage Error).

Electronic Control Problem

AE (Communication Error).

Invalid state of Eeprom

EEE Communication.

Invalid door.

Close the door and then restart.

If the problem continues, call for service.

Try restarting the cycle.

If the problem continues, call for service.

Call for service.

For any codes not listed above, call 1-800-726-7864 (1-800-SAMSUNG).

Engl sh - 30

appendx

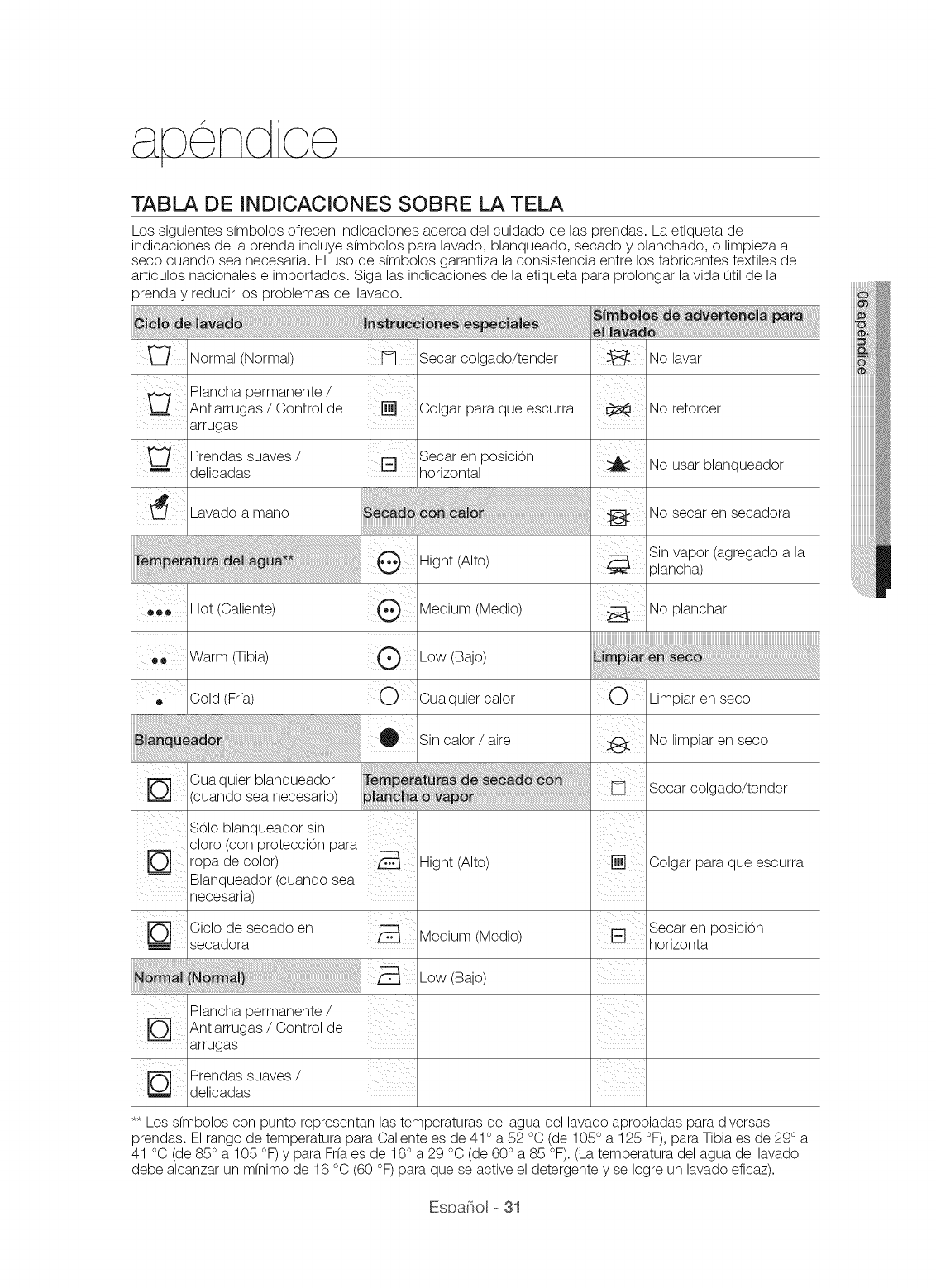

FABRIC CARE CHART

The following symbols provide garment care directions. The Clothing care labels include symbols for

washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures

consistency among garment manufacturers of domestic and imported items. Follow care label directions to

maximize garment life and reduce laundering problems.

Normal Line Dry/Hang to Dry

Permanent Press /

Wrinkle Resistant/ [] Drip Dry

Wrinkle Control

Gentle/Delicates Dry Flat

HandWash

High

o,, Hot Medium

oo Warm Low

• Cold O Any Heat O

No Heat/Air

Any Bleach (when

needed)

Only Non-Chlorine

(color-safe)

Bleach (when needed)

Tumble Dry Cycle

High

Medium

OIP_JPermanentPress/

Wrinkle Resistant/

Wrinkle Control

Gentle/Delioates

Low

[]

_iii[] _

i i

Do Not Wash

Do Not Wring

Do Not Bleach

Do Not Tumble Dry

No Steam (added to

iron)

Do Not Iron

Dry Clean

Do Not Dry Clean

Line Dry/Hang to Dry

Drip Dry

Dry Flat

** The dot symbols represent appropriate wash water temperatures for various items. The temperature range

for Hot is 105° - 125 °F /41o_ 52 °C, for Warm 85° - 105 °F /29 ° - 41 °C and for Cold 60° - 85 °F /

16 o _ 29 °C. (Wash water temperature must be a minimum of 60° F/16° C for detergent activation and

effective cleaning.)

Engl sh- 31

appondx

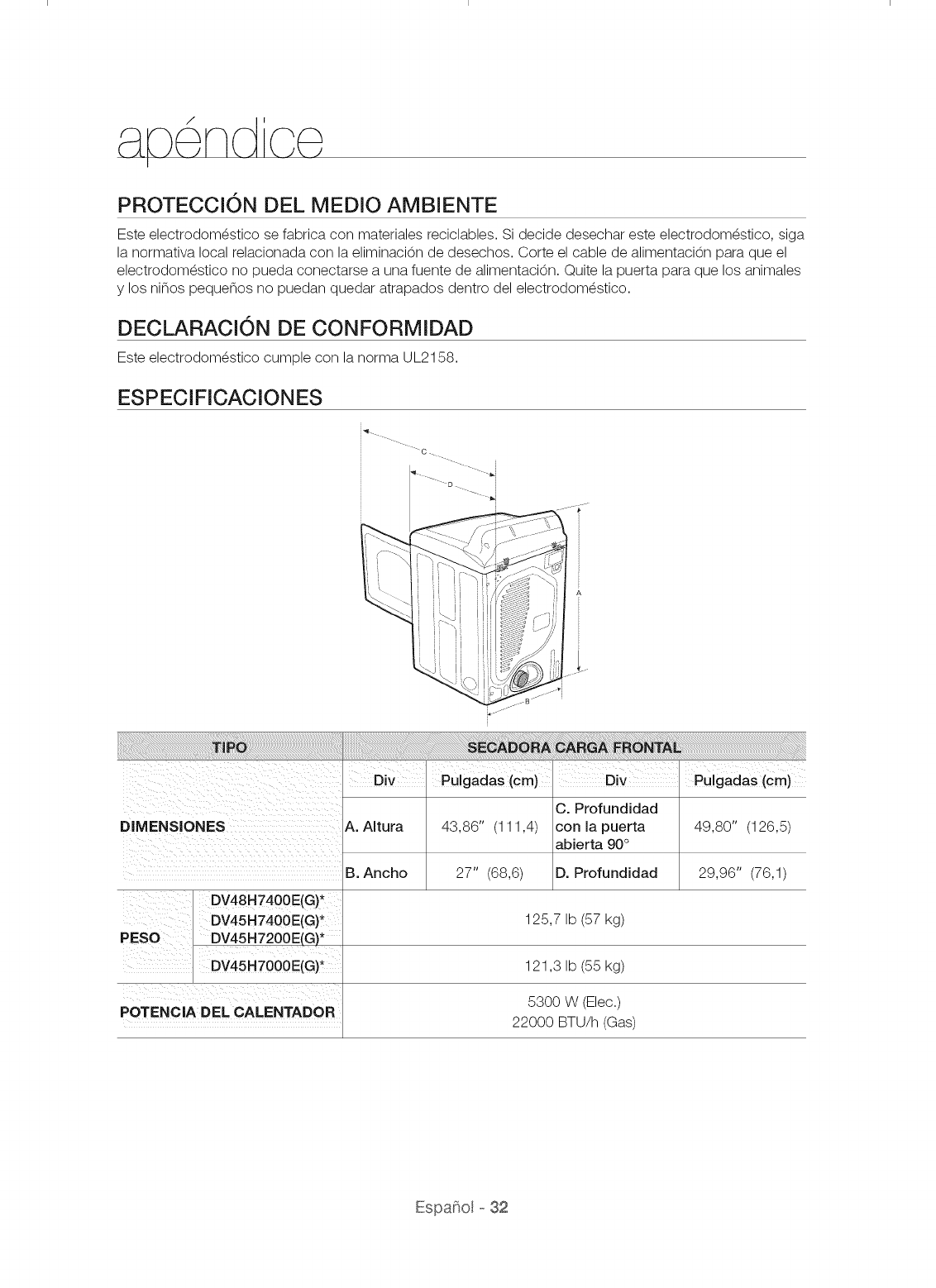

PROTECTING THE ENVIRONMENT

This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please

observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected

to a power source. Remove the door so that animals and small children cannot get trapped inside the

appliance.

DECLARATION OF CONFORMITY

This appliance complies with UL2158.

SPECIFICATIONS

C. Depth with

DiMENSiONS A. Height 43.86" (111.4) door open 90° 49.80" (126.5)

B. Width 27" (68.6) D. Depth 29.96" (76.1)

DV48H7400E(G)*

DV45H7400E(G)* 125.7 Ib (57 kg)

DV45H7200E(G)*

WEIGHT

DV45H7000E(G)*

HEATER RATING

121.3 Ib (55 kg)

5300 W (Elec.)

22000 BTU/hr (Gas)

Engl sh - 32

CYCLE CHART

DV48(5) H7400E(G)* (o ' factory setting, ' selectable

HEAW DUTY

Sensor Dry SANITtZE

DELICATES

TOWELS

PERM PRESS

Manual Dry

TIME DRY

Steam Cycles WRINKLE

AWAY

Cottons, Work clothes, Linen, Mixed Loads

Heavy Fabrics such as jean, corduroys,

heavy work clothes

Bulky items such as blankets, Sheets,

Comforters, Pillows

Bedding, Curtains, Children's clothing

Underwear, Blouses, Lingerie

Bath towels and similar items

Shirts, Synthetic Fabrics, Knits, Wrinkle--free

cottons, Permanent

Small loads

Any load

Shirts, Ti'ouser, Comforter, Pillows

Shirts, ll'ouser, Blouses

Normal dry

Very dry (No change)

Normal dry

! i_ii_ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!_!;iiiiiiiiiiiiiiiiiiiii_i!_i_iiiii!!!!!!ii#!!i!iiiiiiiii_ii!!i!i!_i_i_ii;i!_ii_!_ii!i!{ilii_i!ili!iii!i_i__;;!!!!!!;;i;i;i;!i_i'ii'ii'ii'if'fill_i_i_i_i_i!i!i!i!i_i!iiiiiii!!iiiiii_iiiiiiiii_iiiiiiiiiiiiiiiiiiiiiiii_iliiiilii!iilii_i_ii_iii_iiii_!_iiii!i_!_i_iii'_!_i,i,i,i,i!,!,!!__i_i_ili_i_i__ii_i_i_i_i_i_i_i_i_i_ii_i_i_i_iiiiiiiiiiiliilii!ii!!iiliilii!!ii!_iiiiiiiiiiiiiiiiiiiiiiiiiiiii_!i!ii_iiiiiiiiiiiiiiiiiiiii;i;i_!_i_ii!!ii_!iiiiiiiiill_!ililiiii_il,_i¸iiiiiiiiiiiiiiiiii_;!i!!iiiiiiiii!_iiiii!i!iii!!iiiiiiiiii_i_i_i_iiiiiiiiiiiiii!ii!!iiiiiii_!!iiiiiiiiiiiiiiiiiiii'_iii_ii;_!_!ii_i_i_i_i_!i!i_i_ii_

I N RMAL

HEAW DUTY

Senso_ Dry SANITIZE

' DELICATES

TOWELS

PERM PRESS

QUICK DRY

Manual Dry

TIME DRY

steam CYC!es

WRINKLE AWAY

® ®

® ® ® ® ®

® ®

Load Size Recommendations

Medium load : Fill the drum to about Y£ full.

(W) Small load : Fill the drum with 3_5 items, not more than X full.

* For best results, follow the load size recommendations for each dry cycle.

Large load : Fill the drum to about 34full. Do not add items over this level as they need to tumble

freely.

Engl sh- 33

DV45H7200E(G)* (o :factory setting, :seiectable}

HEAVY DUTY

BEDDING

Sensor Dry SANITIZE

DELICATES

TOWELS

PERM PRESS

QUICK DRY

Manual Dry

AIR FLUFF

WRINKLE

RELEASE

Cottons, Work clothes, Linen, Mixed Loads

HeaW Fabrics such as jean, corduroys,

heavy work clothes

Bulky items such as blankets, Sheets,

Comforters, Pillows

Bedding, Curtains, Children's clothing

Underwear, Blouses, Lingerie

Bath towels and similar items

Shirts, Synthetic Fabrics, Knits, Wrinkle-free

cottons, Permanent

Small loads

Any load

Foam, Rubber, Plastic

Shirts, ri_ouser, Blouses

Normal dry

Very dry (No change)

Normal dry

.....iiiiiiii_i_i_iiii!_!_iiiiiiiiiii_i_i_i!i!iii_i_iJiii!i!i!i!i!i!i!_i!iiiiiiiiiJ!i!i!i!iiii!i!i!i!_i!iiiii_i_i_i!i!i!iiiiiiiiiiiiiiiiiiiii_i_i_i!i!iii_i_iJJJiiiiii!iii_i_i_!_!_iiiiiiiiiiiiiiiiiiiiiiii!i!i!i!_i!iiiii_!_!_iiiiiiiiiii_ii!_iiiiiiiJiiiiiiiiiiii_i_i_i_iiiiiiiiiiiiii!i!iiiiiiiiii_i_iiiii_ii_i_i_ii_i_!ii_i_'i_iil_I_!i_!i_!i_!i_!{_iiiiiii_!i_!i_!i_!i_!i_!i_!i_!I_!I_!I_!{_I_!I_!I_!I_!I_!I_!I_!{_I_!I_!I_!I_!i_!i_!i_!i_!iii_!i_!i_!{_{_i!_iiiii_!i_!i_!i_!i_!i!_iiiii_!i_!i_!{_{_i!_iiiii_!i_!i_!i_!i_!i!_iiiii_!i_!i_!{_{_i!_iiiii_!i_!i_!i_!i_!i!_iiiii_!i_!i_!{_{_i!_iiiii_!i_!i_!i_!i_!i!_iiiii_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!iii_!i_!i_!i_!i_!i_!i!_iiiii_!i_!iii_!i_!i_!i_!i_!i_!i_!iii_!i_!i_!i_!i_!{_i_!i_!_!_!_d!_i!i_!i_!i_!_!_!_!i_!i_!i_!_l_iii_ii_ii_ii_ii_ii!ii!ii!iiiiii_iJl

/i ¸

' NORMAL

nEAWDUTY

BEDDING

Sensor Dry SANITIZE

DEUCATES

TOWELS

PEBM PRESS

IQUICK DRY

TIME DRY

Manual Dry AIR FLUFF

' WRINKLE

RELEASE

® @

® @ @ @ @

@ ® @ @ @

Load Size Recommendations

Large load : Fill the drum to about ,_s4full. Do not add items over this level as they need to tumble

freely.

Medium load : Fillthe drum to about 1/2full.

Small load : Fill the drum with 3-5 items, not more than _Afull.

* For best results, follow the load size recommendations for each dry cycle.

Engl sh - 34

DV7000HA DIKY L)V48H USE]_ MANUAL LX 68 03170J 01 EN indd 34 2014 2 25 16:31:44

CYCLE CHART

DV45H7000E(G}* (o ' factory setting, ® ' selectable)

HEAW DUTY

BEDDING

Sensor Dry

SANFEE

DELICATES

PERM PRESS

QUICK DRY

Manual Dry TIME DRY

WRINKLE

RELEASE

Cottons, Work clothes, Linen, Mixed Loads

Heavy Fabrics such as jean, corduroys,

heavy work clothes

Bulky items such as blankets, Sheets,

Comforters, Pillows

Bedding, Curtains, Children's clothing

Underwear, Blouses, Lingerie

Shirts, Synthetic Fabrics, Knits, Wrinkle-free

cottons, Permanent

Small loads

Normal dry

Very dry (No change)

Normal dry

Any load

Shirts, li'ouser, Blouses

NORMAL

HEAW DUTY

Sensor Dry

DELICATES

PERMPRESS

QUICK DRY

Manual Dry TIME DRY

' WRINKLE

RELEASE

® ®

® ® ® ®

Load Size Recommendations

Large load : Fill the drum to about ,_ full. Do not add items over this level as they need to tumble

freely.

Medium load : Fill the drum to about Y_full.

Small load : Fillthe drum with 3_5 items, not more than _Afull.

* For best results, follow the load size recommendations for each dry cycle.

Engl sh- 35

SAMSUNG DRYER

LiMiTED WARRANTY TO ORiGiNAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by

SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) Year All Parts and Labor

Two (2) Years Control Board Parts (Part Only)

This limited warranty begins on the original date of purchase, and is valid only on products purchased and

used in the United States.

To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service

procedures.

Warranty service can only be performed by a SAMSUNG authorized service center.

The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or

SAMSUNG's authorized service center.

SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability

within the contiguous United States.

In-home service is not available in all areas.

To receive in-home service, product must be unobstructed and accessible to the service agent.

If service is not available, SAMSUNG may elect to provide transportation of the product to and from an

authorized service center.

SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein,

with new or reconditioned parts or products if found to be defective during the limited warranty period

specified above.

All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.

Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is

longer.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal,

noncommercial use of this product and shall not apply to the following: damage that occurs in shipment;

delivery and installation; applications and uses for which this product was not intended; altered product or

serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other

acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories,

applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG

that damage this product or result in service problems; incorrect electrical line voltage, fluctuations and

surges; customer adjustments and failure to follow operating instructions, maintenance and environmental

instructions that are covered and prescribed in the instruction book; product removal and reinstallation;

problems caused by pest infestations.

This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply,

light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors.

SAMSUNG does not warrant uninterrupted or error-free operation of the product.

Engl sh -36

EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS

OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY

IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR

PURPOSE.

NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT

TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG.

SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE

SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL

DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF

THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED

OF THE POSSIBILITY OF SUCH DAMAGES.

NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE

PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE.

WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS,

DAMAGE, OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR

PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT.

THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL

PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation

of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This

warranty gives you specific rights, and you may also have other rights, which vary from state to state.

To obtain warranty service, please contact SAMSUNG at:

Samsung Electronics America, inc.

85 Challenger Road Ridgefield Park, NJ 07660

1-800-SAMSUNG (726-7864)

www.samsung.com/us/support

Visits by a Service Engineer to explain functions, maintenance or installation

is not covered by warranty.

Please contact your Samsung call agent for help with any of these issues.

Engl sh- 37

SAMSUNG DRYER

LiMiTED WARRANTY TO ORiGiNAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by

SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) year part and labor

This limited warranty begins on the original date of purchase, and is valid only on products purchased and

used in the Canada.

To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service

procedures.

Warranty service can only be performed by a SAMSUNG authorized service center.

The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or

SAMSUNG's authorized service center.

SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability

within the Canada.
