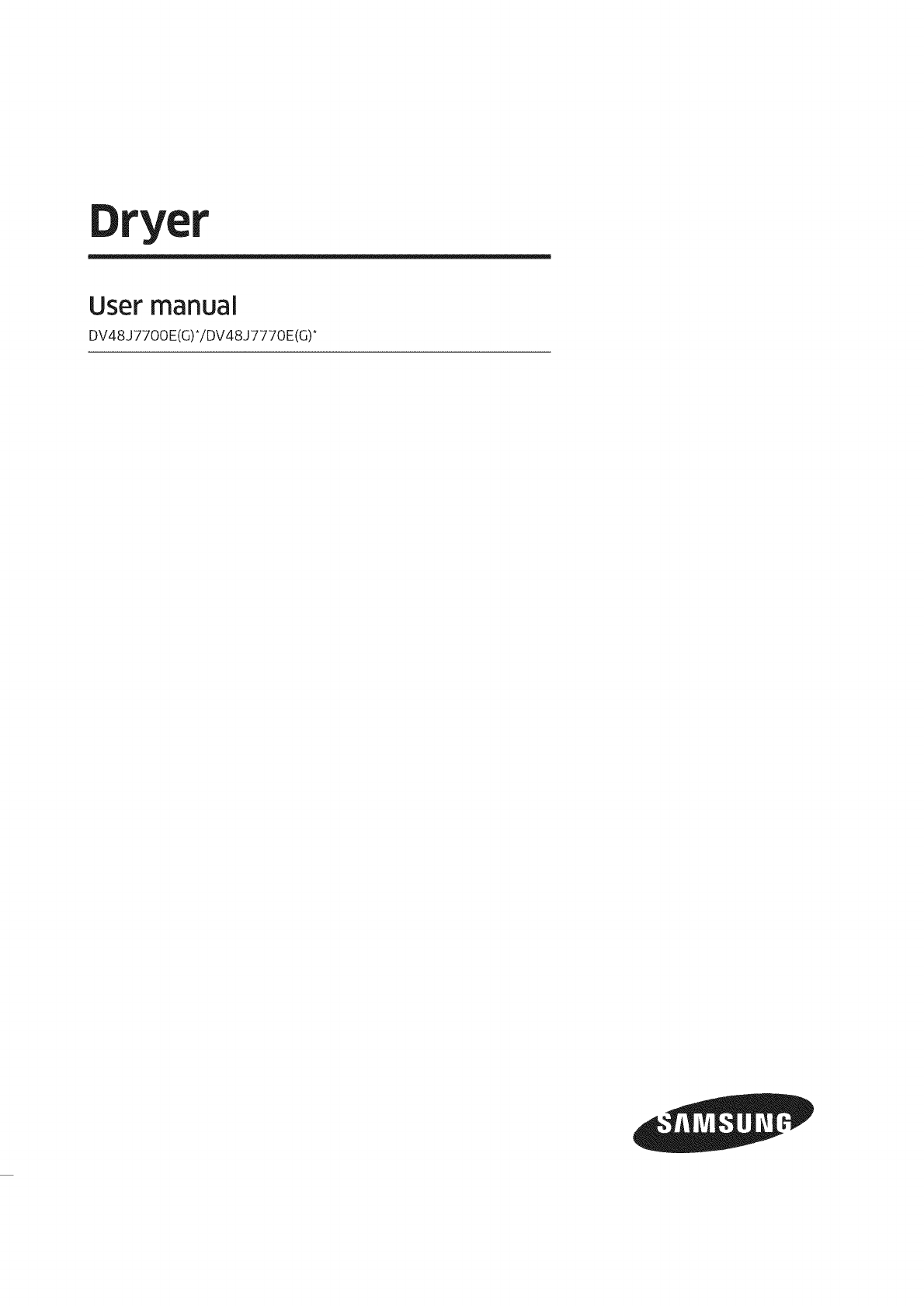

Dryer

User manual

DV4837700E(G)*iDV4837770E(G) *

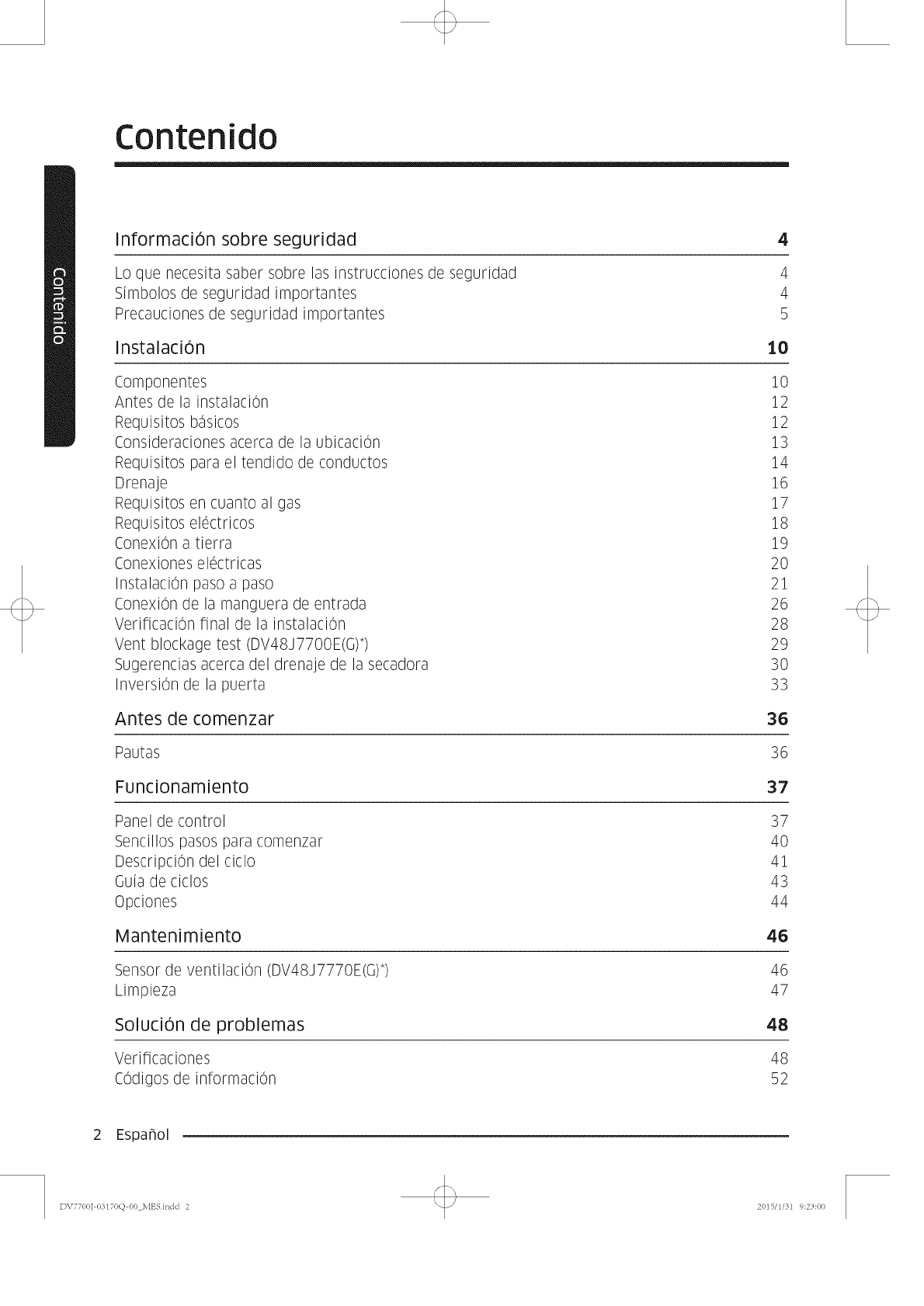

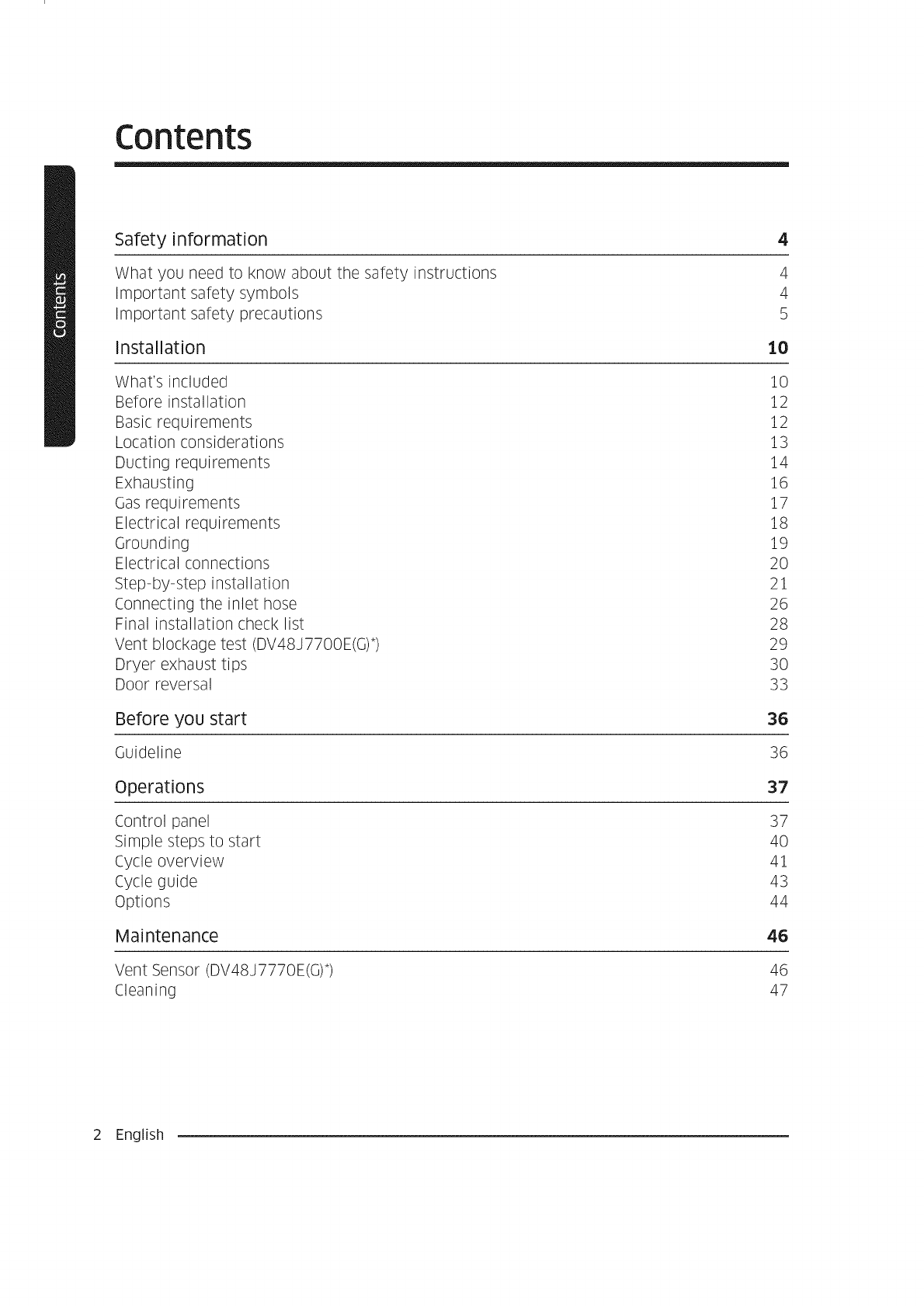

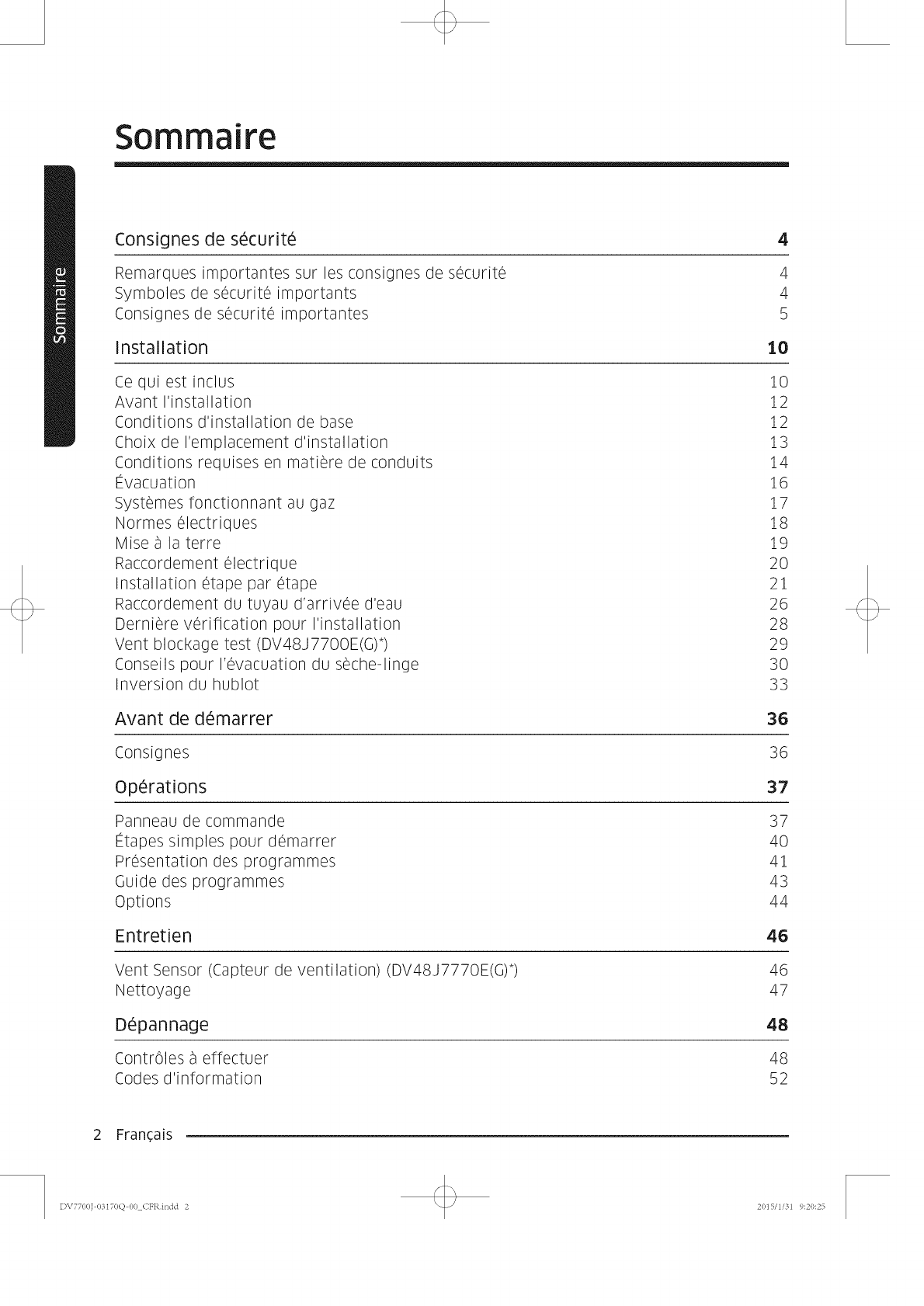

Contents

Safety information

What you need to know about the safety instructions

Important safety symbols

Important safety precautions

Installation

What's included

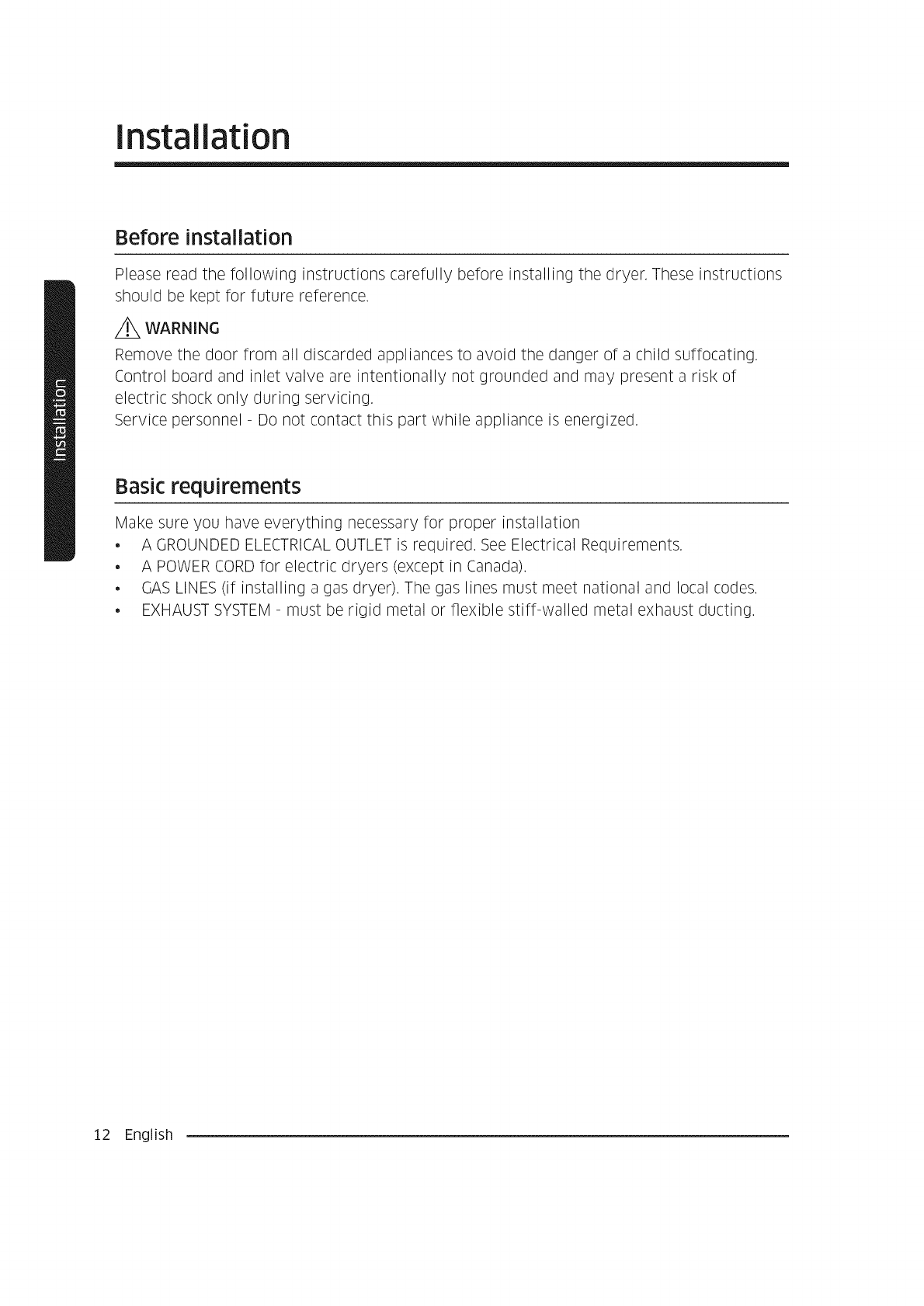

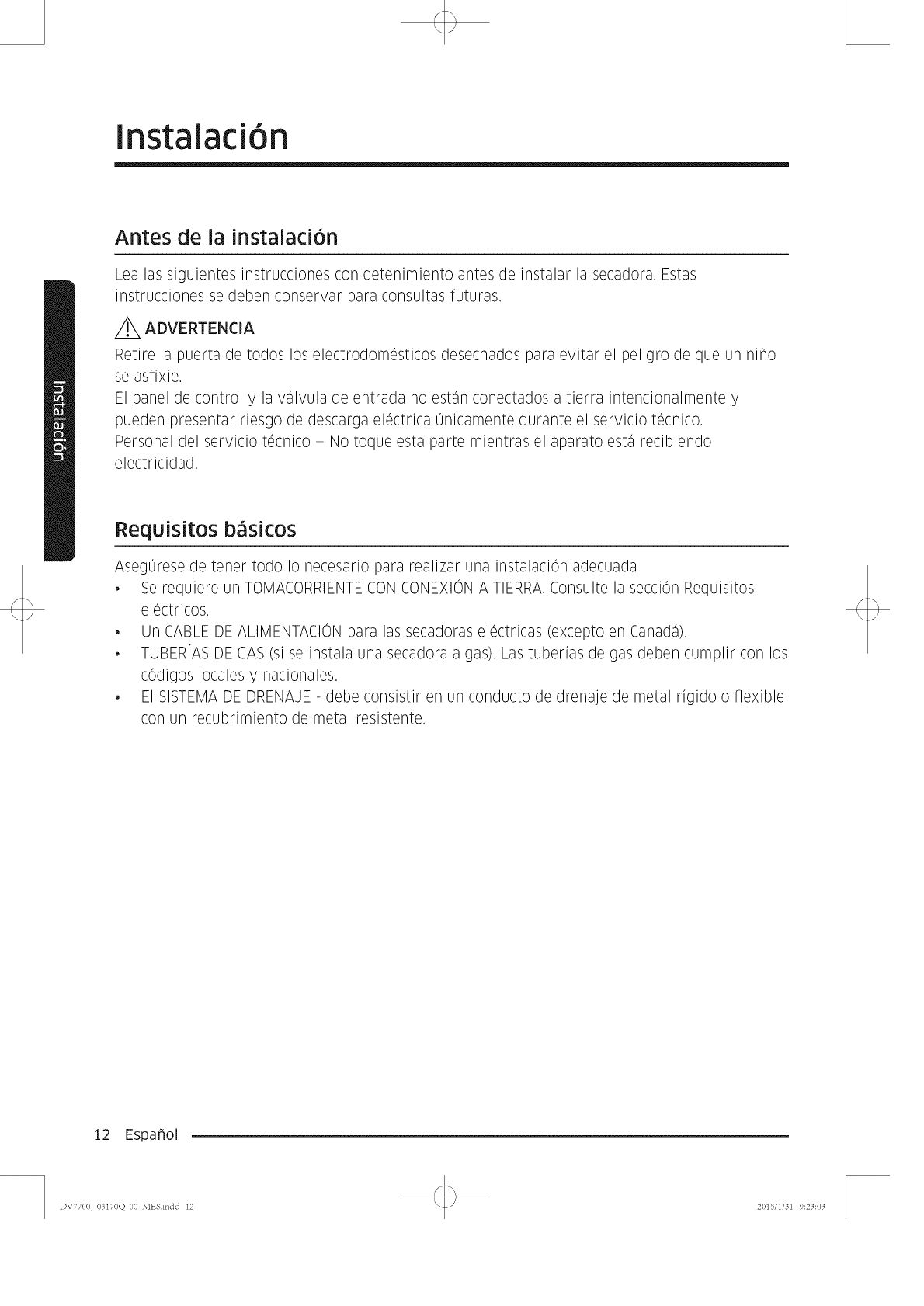

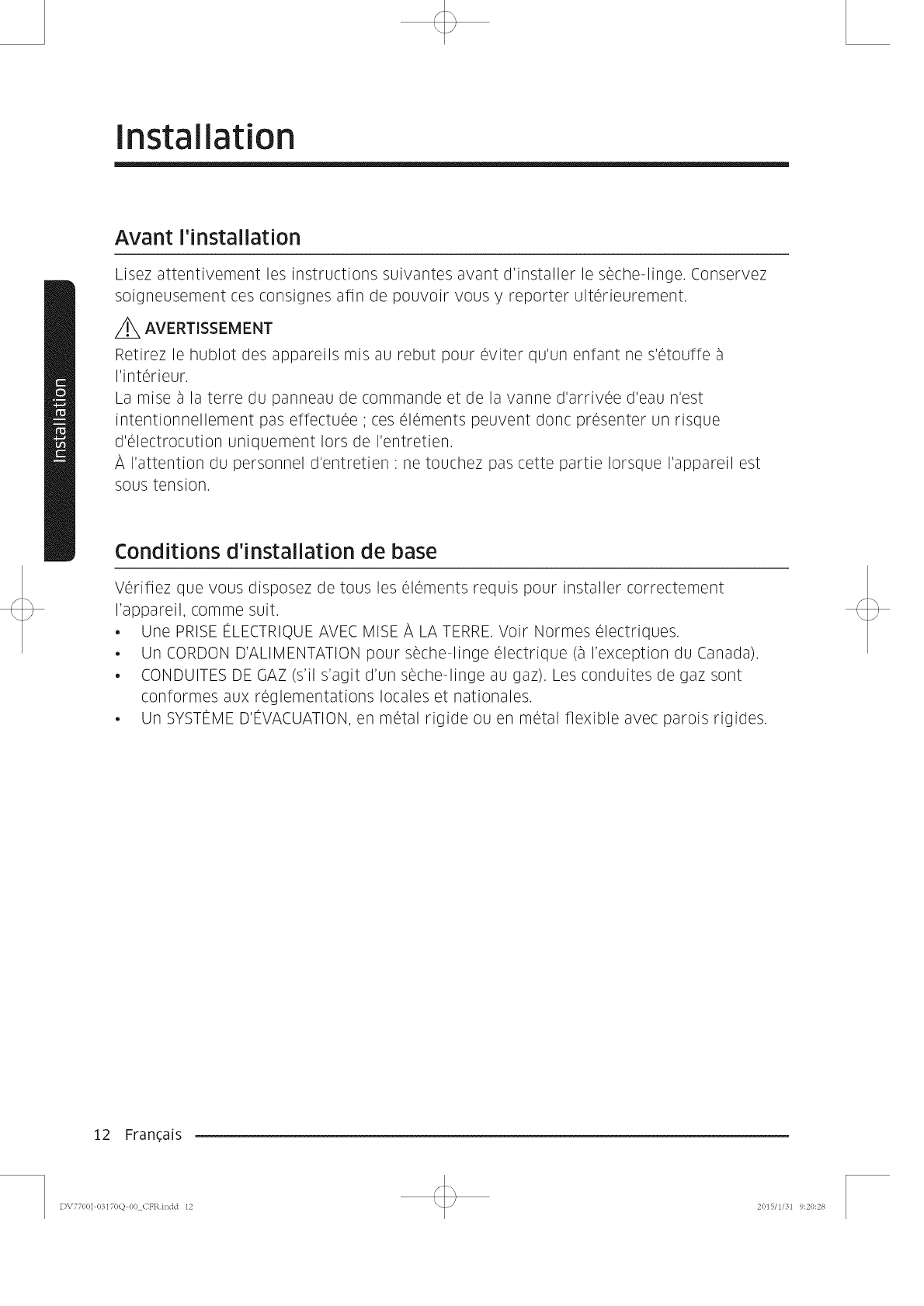

Before installation

Basic requirements

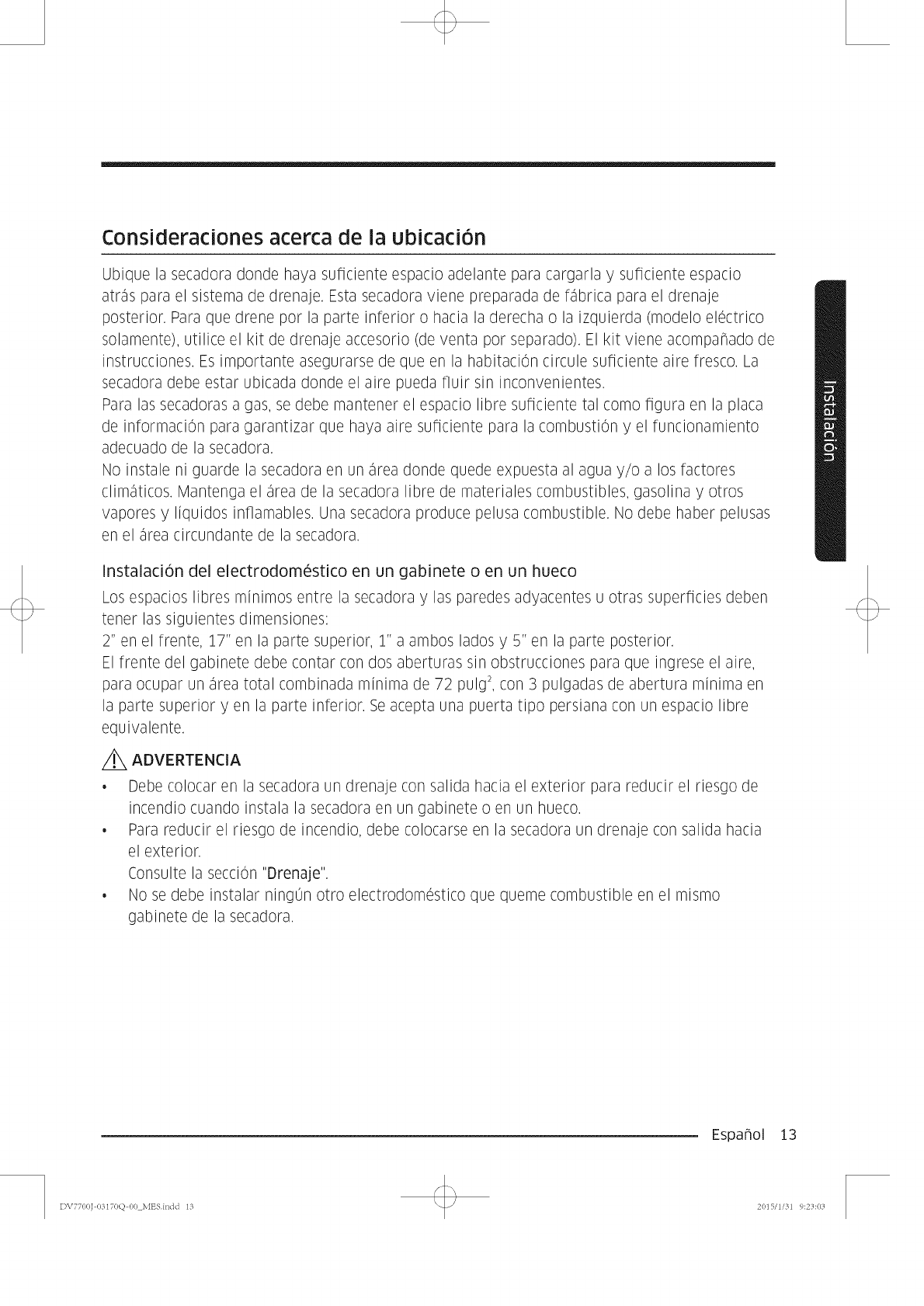

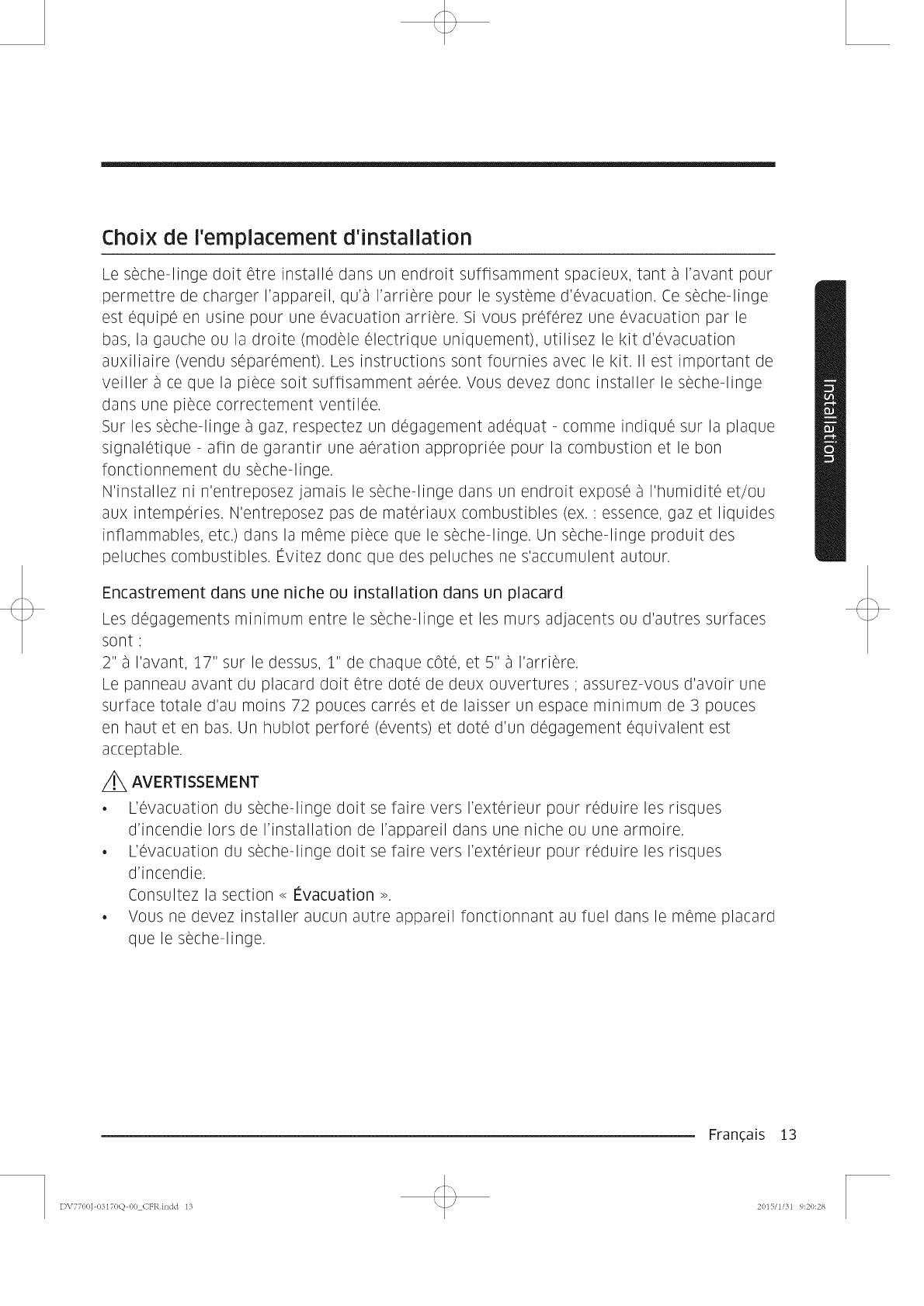

Location considerations

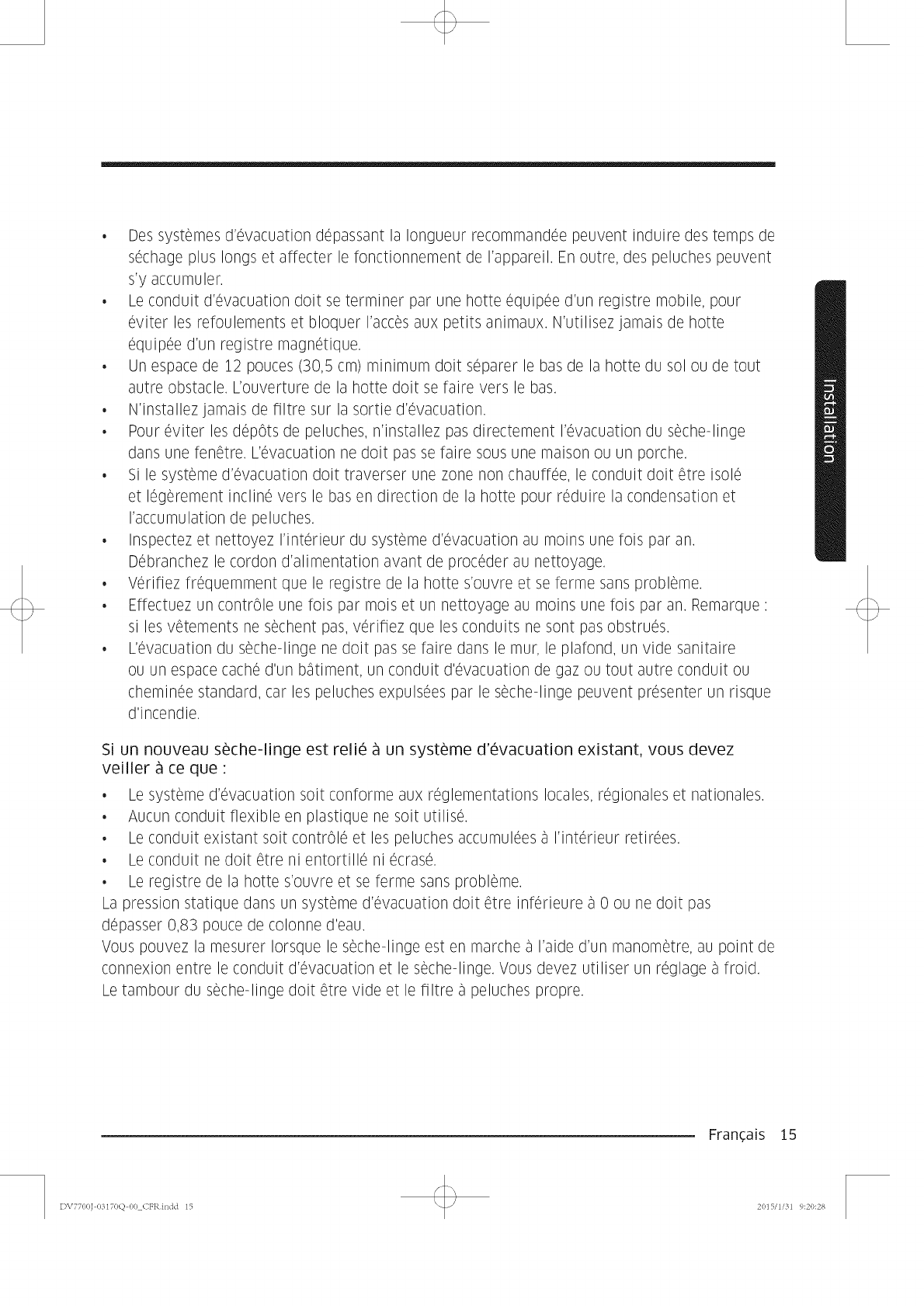

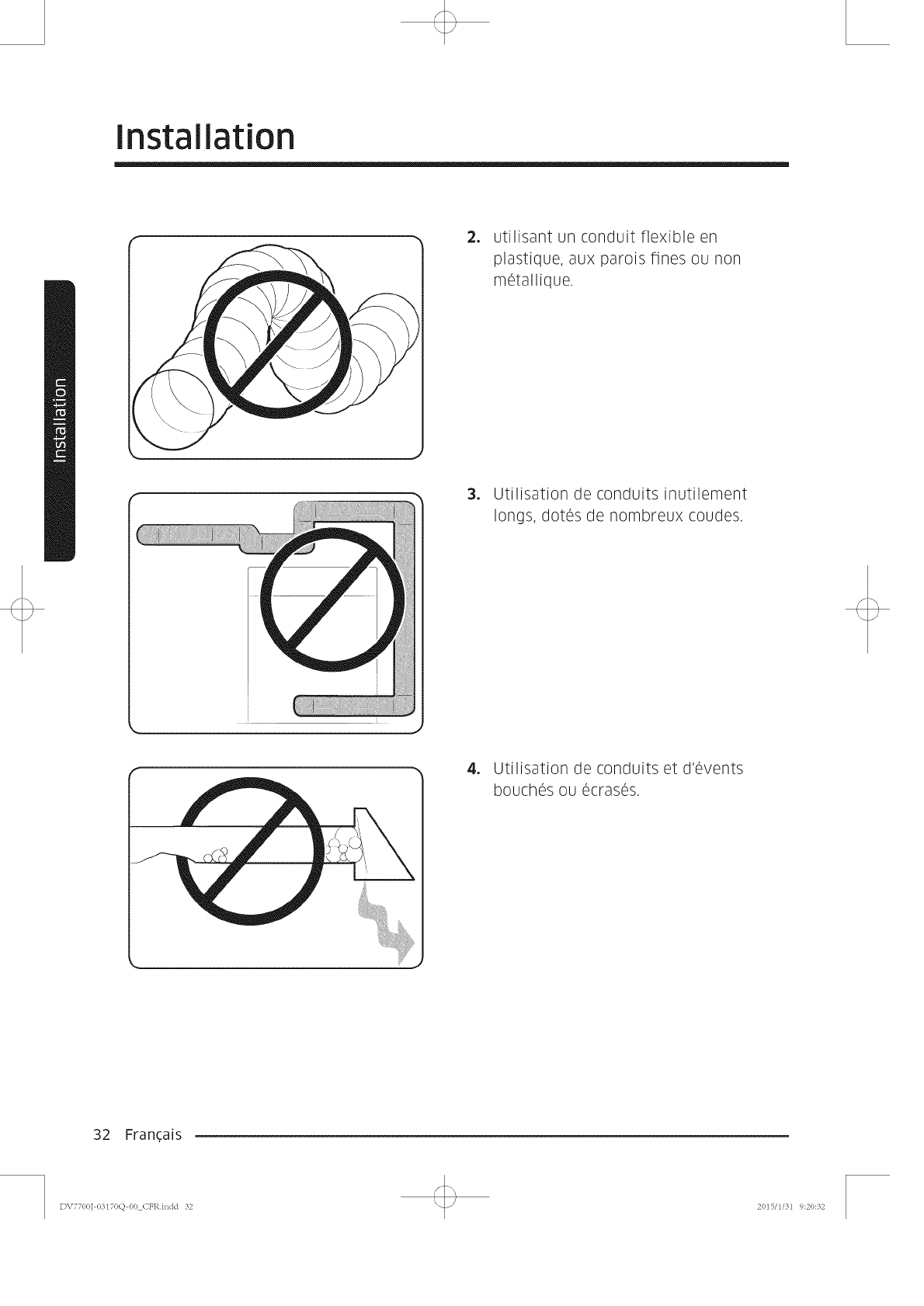

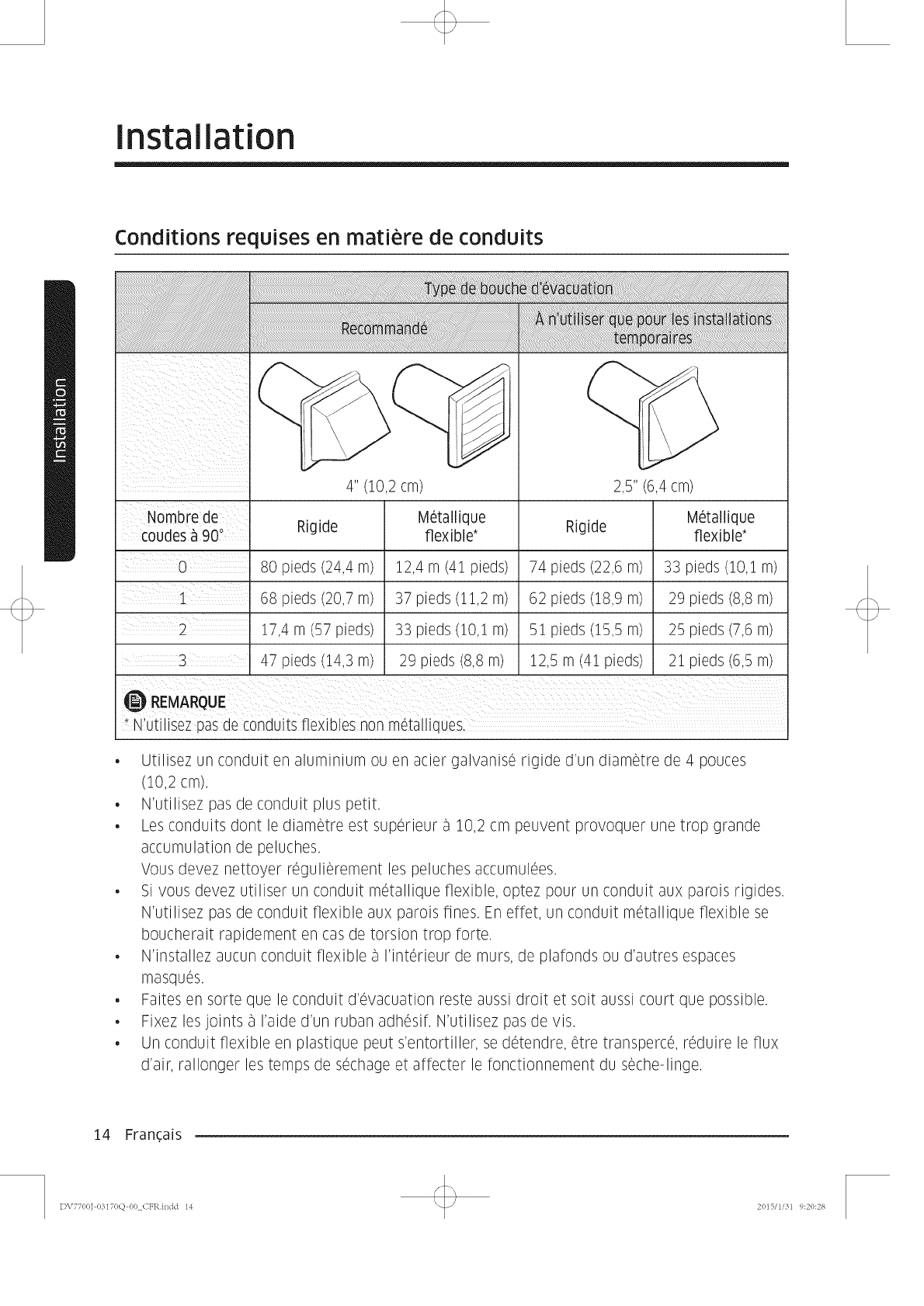

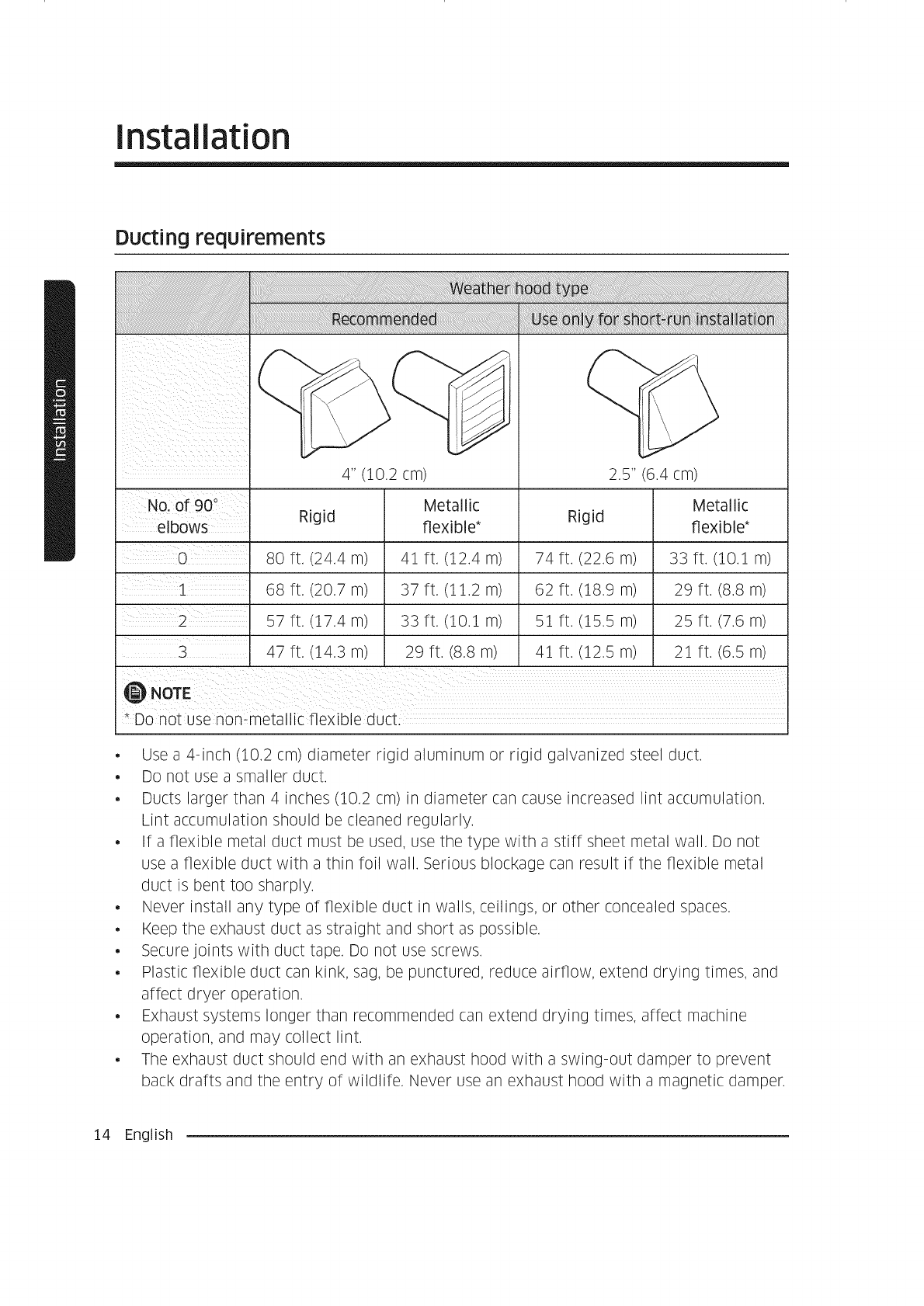

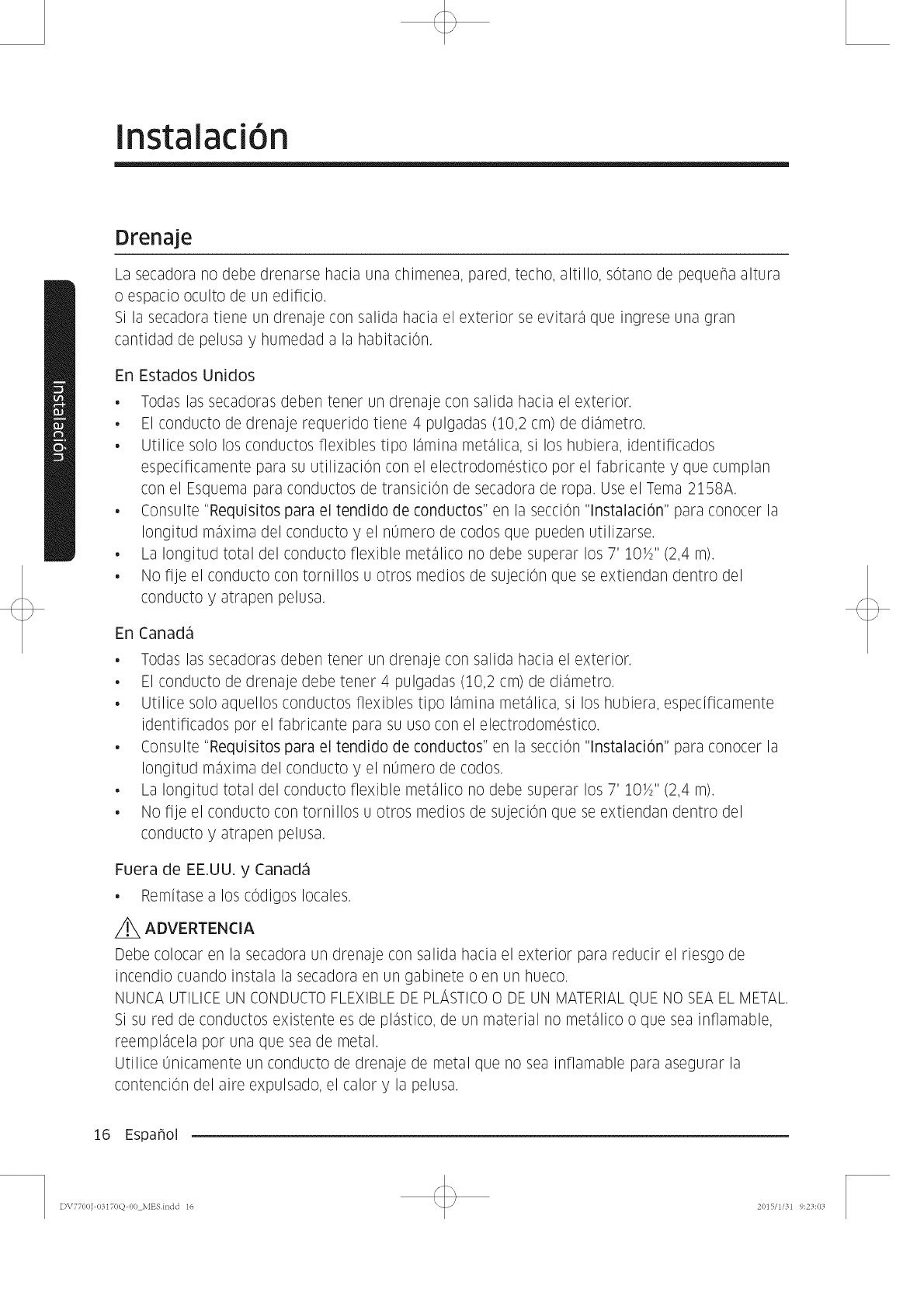

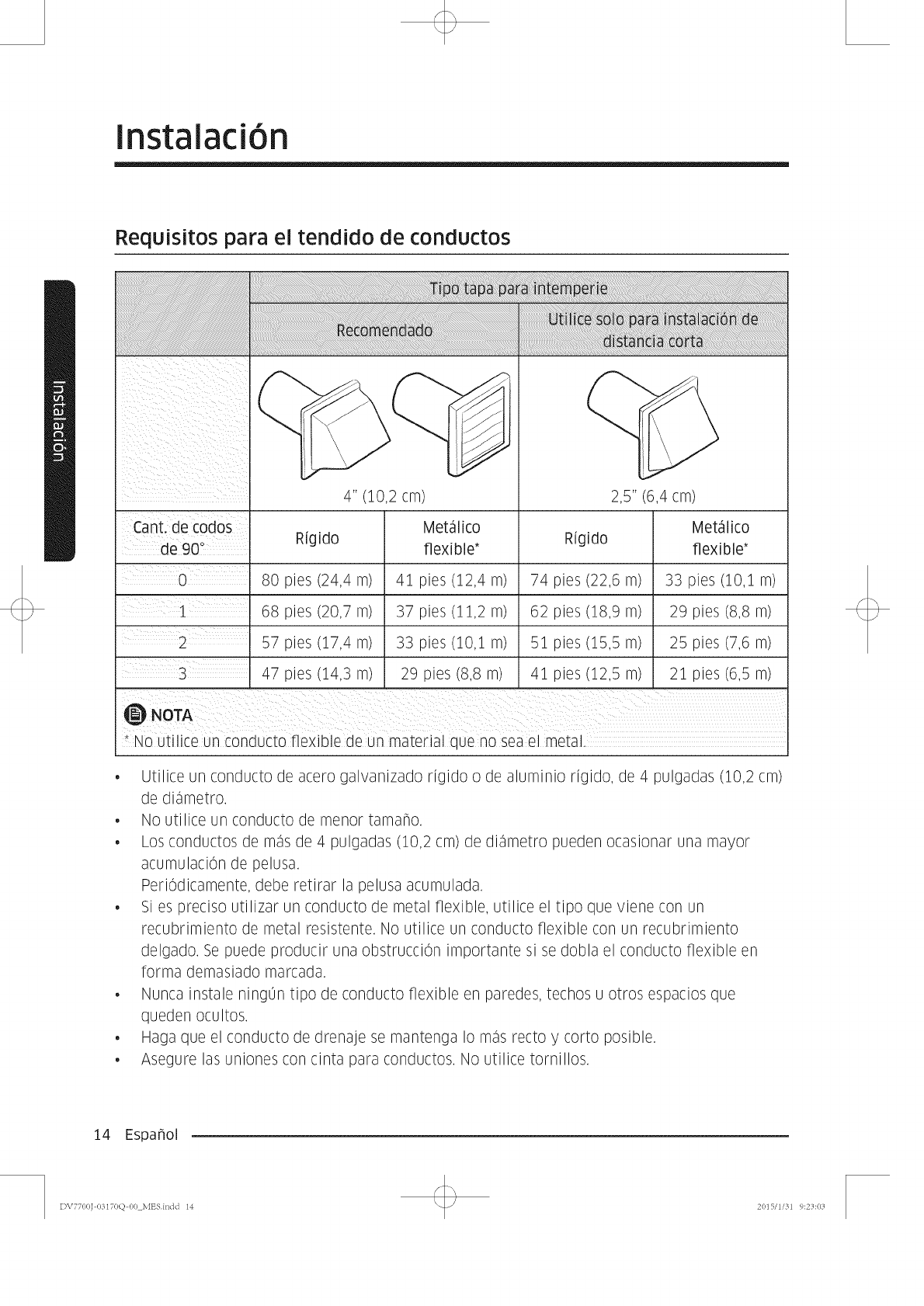

Ducting requirements

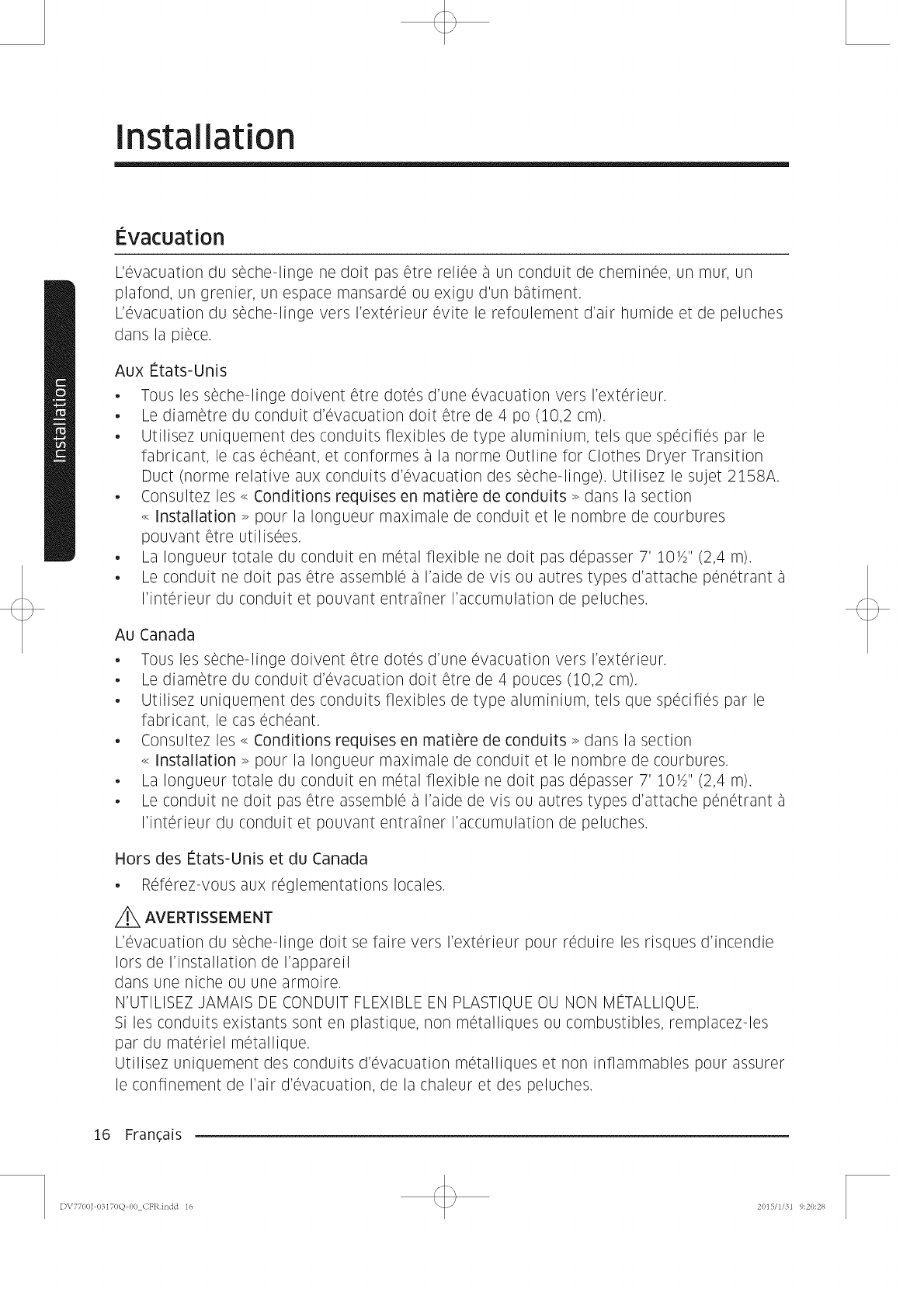

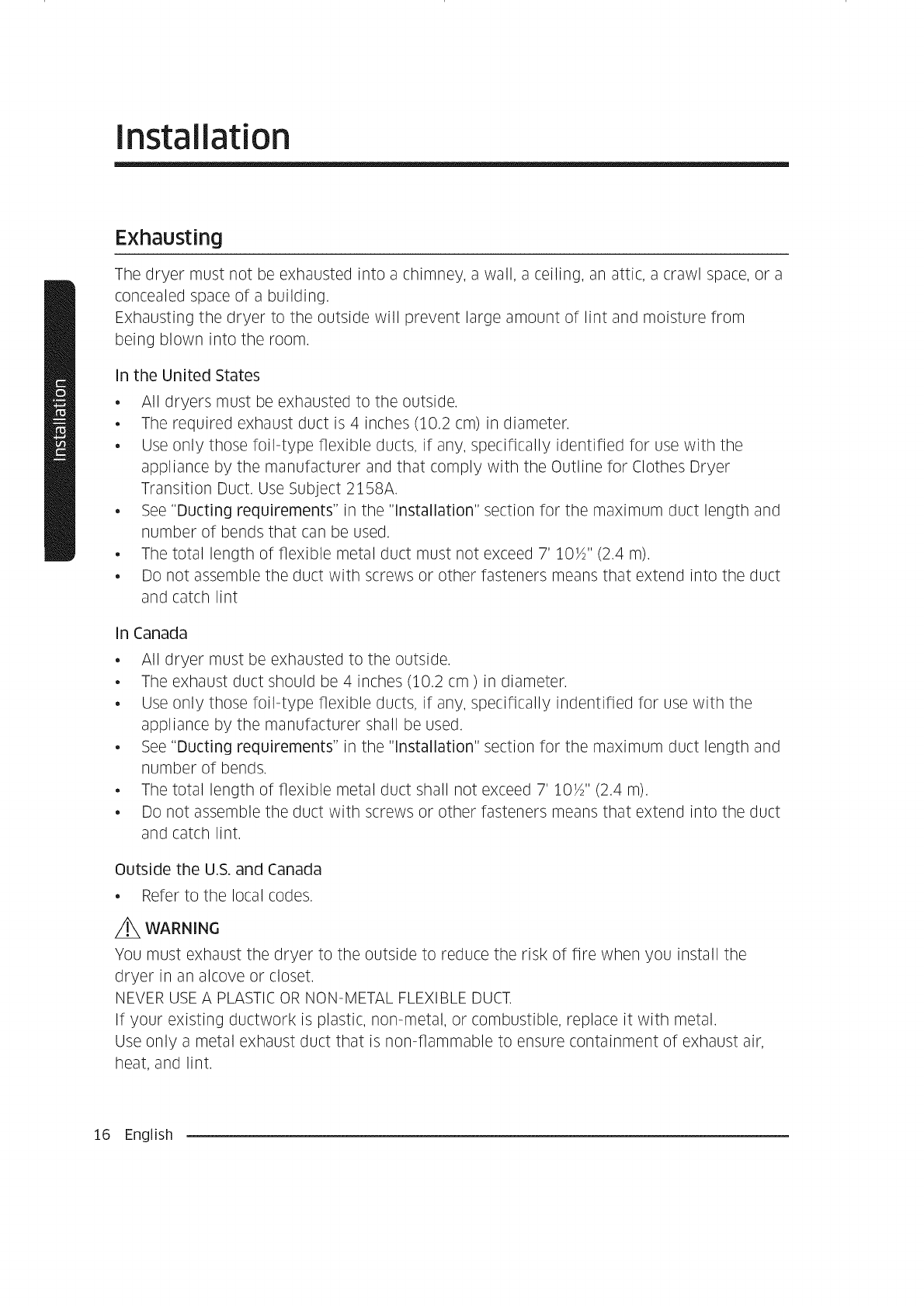

Exhausting

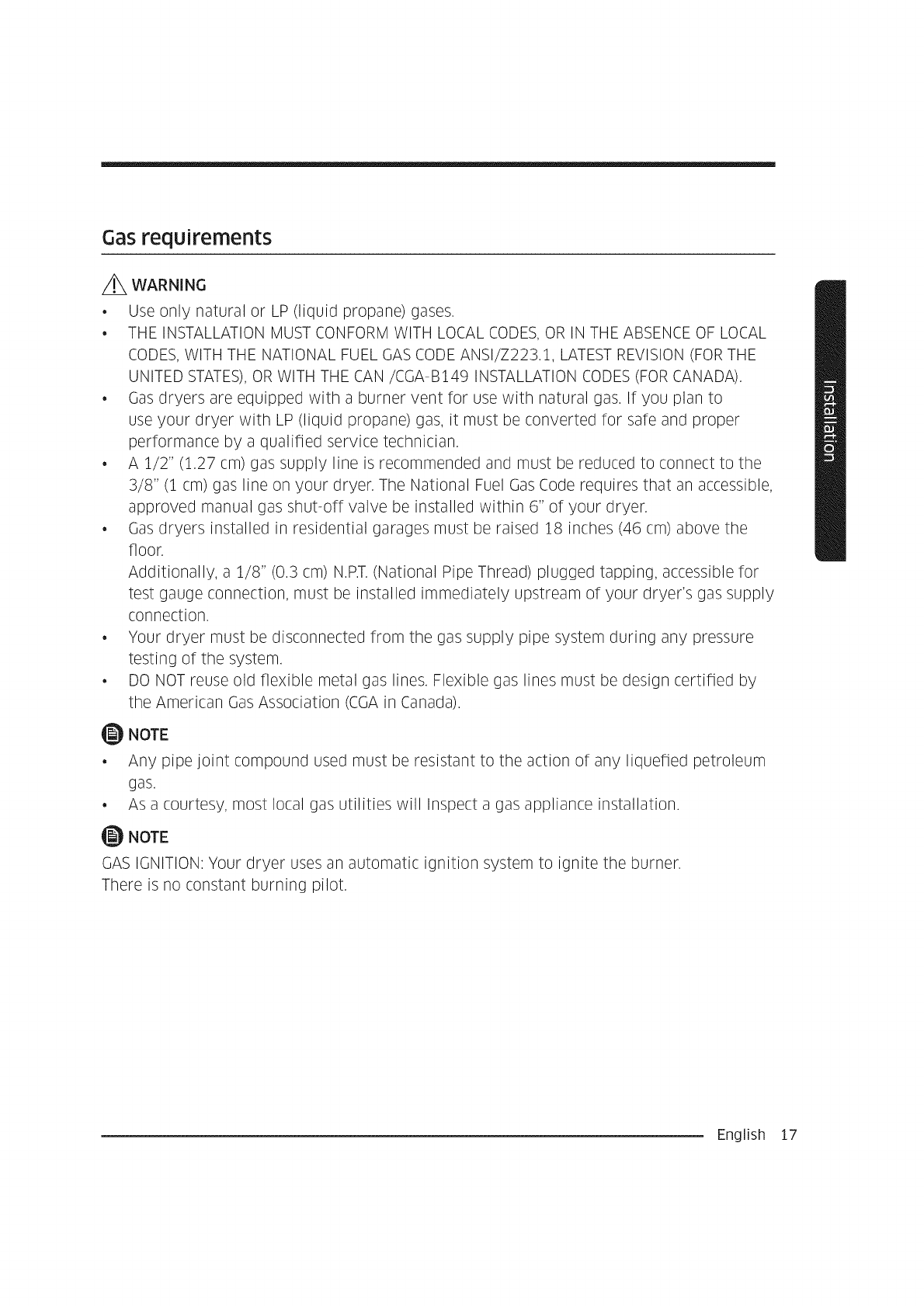

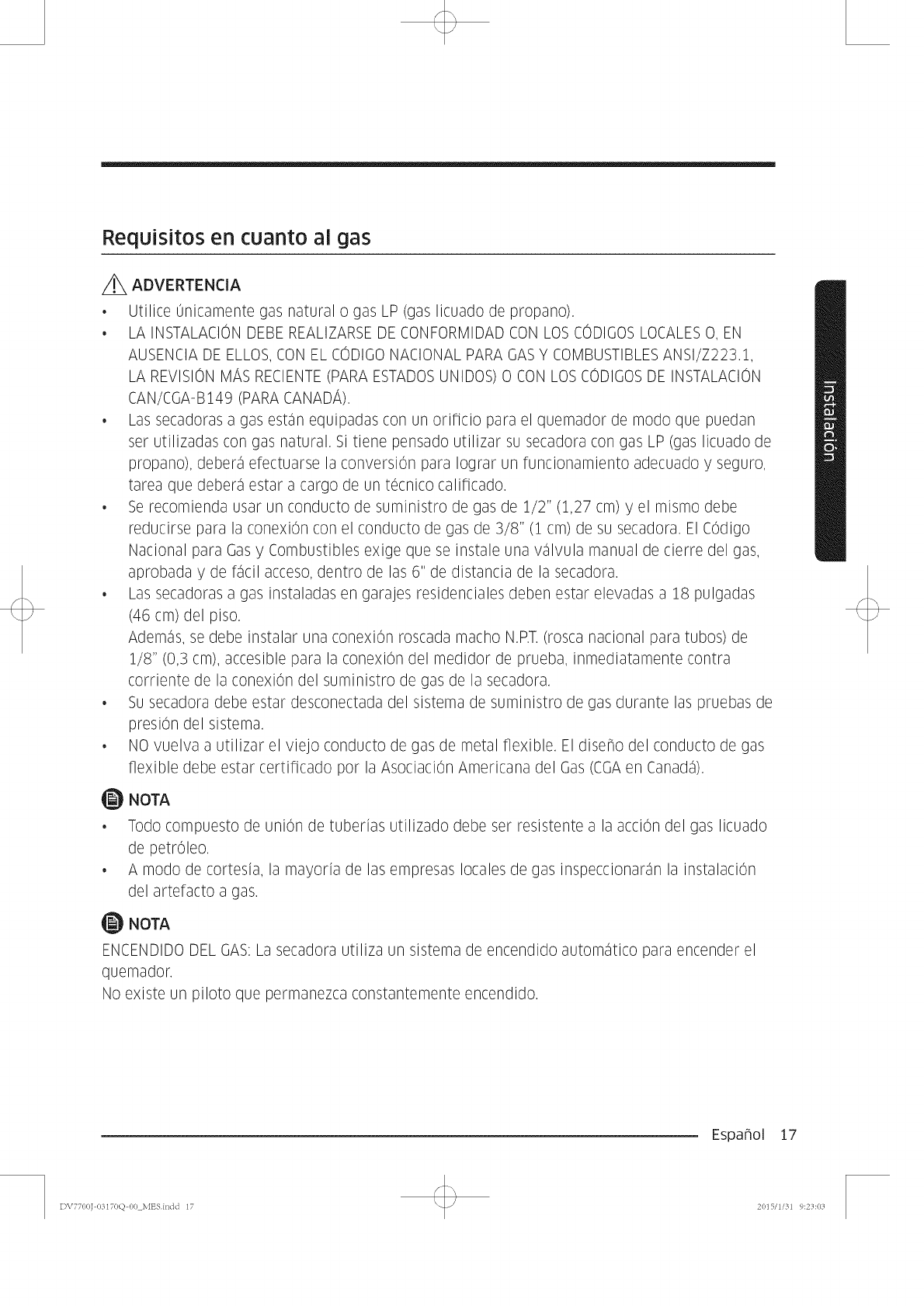

Gas requirements

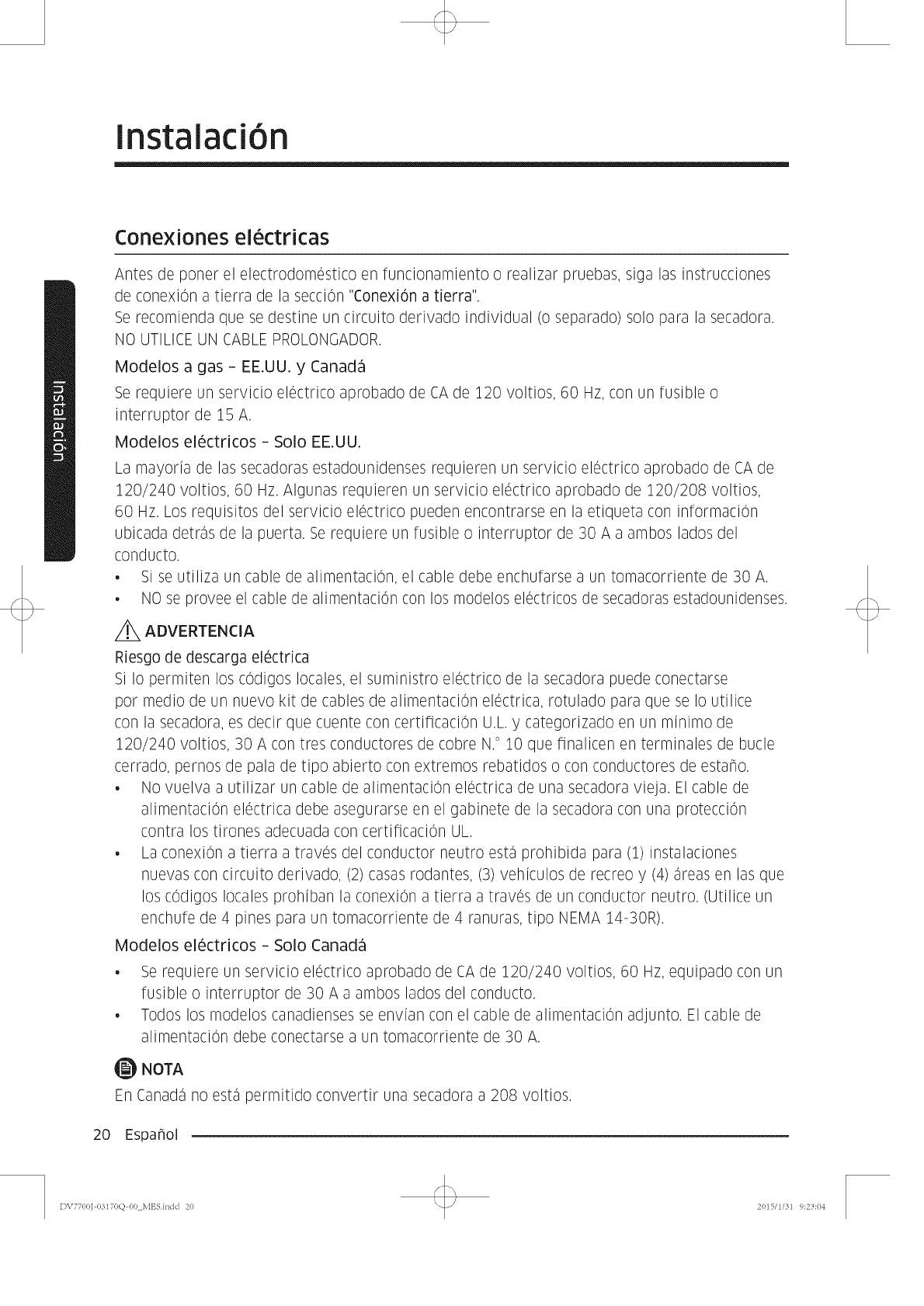

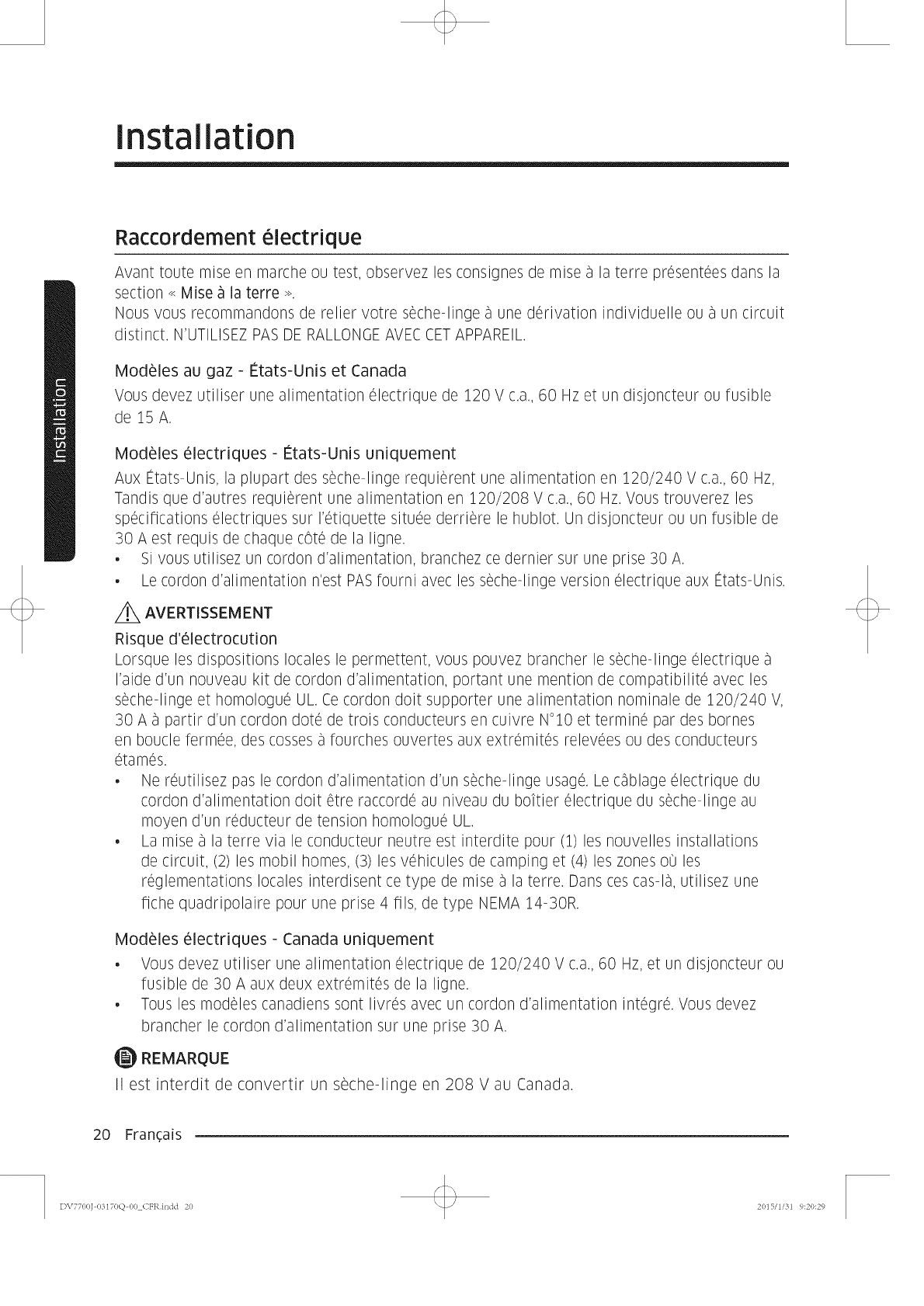

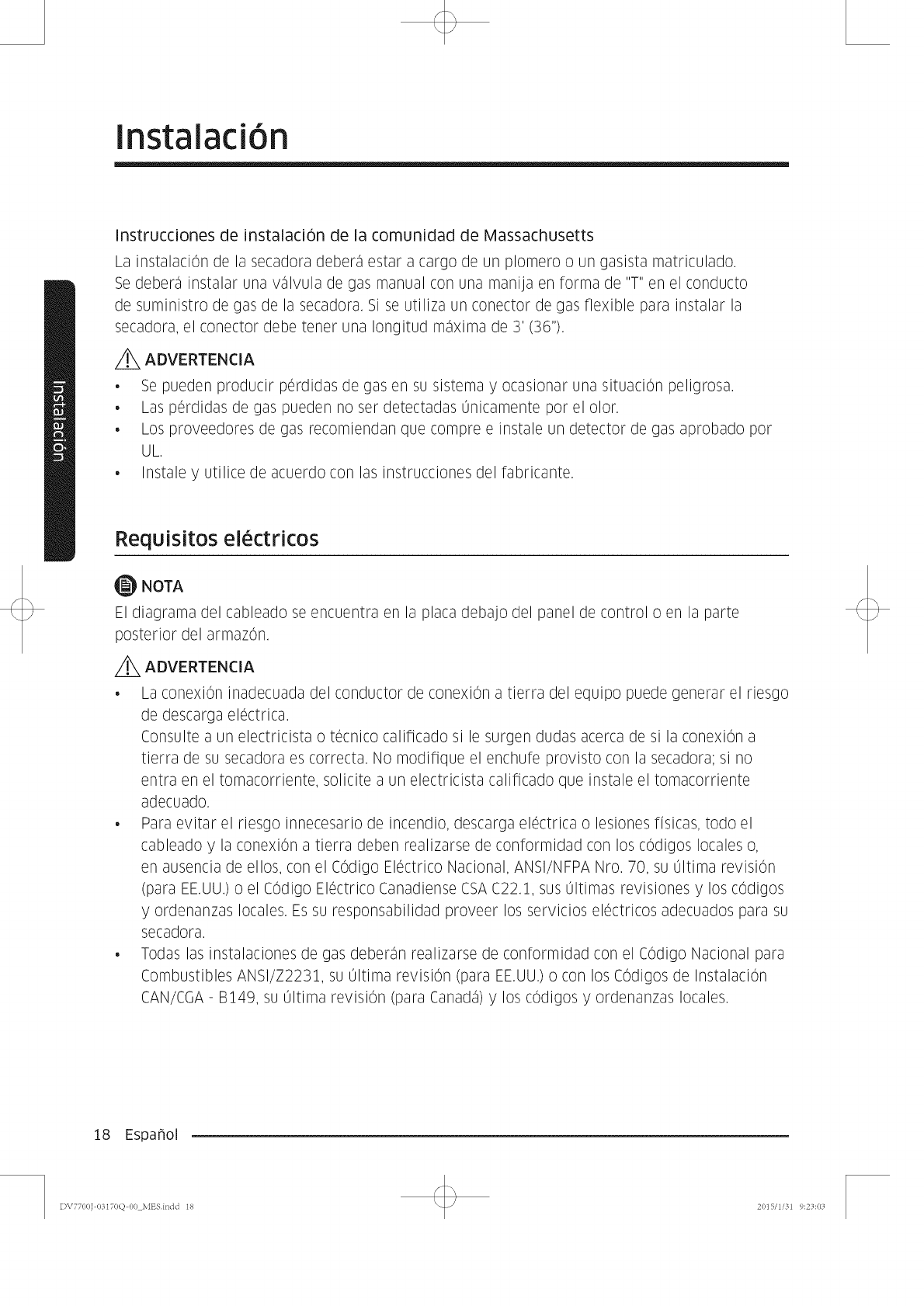

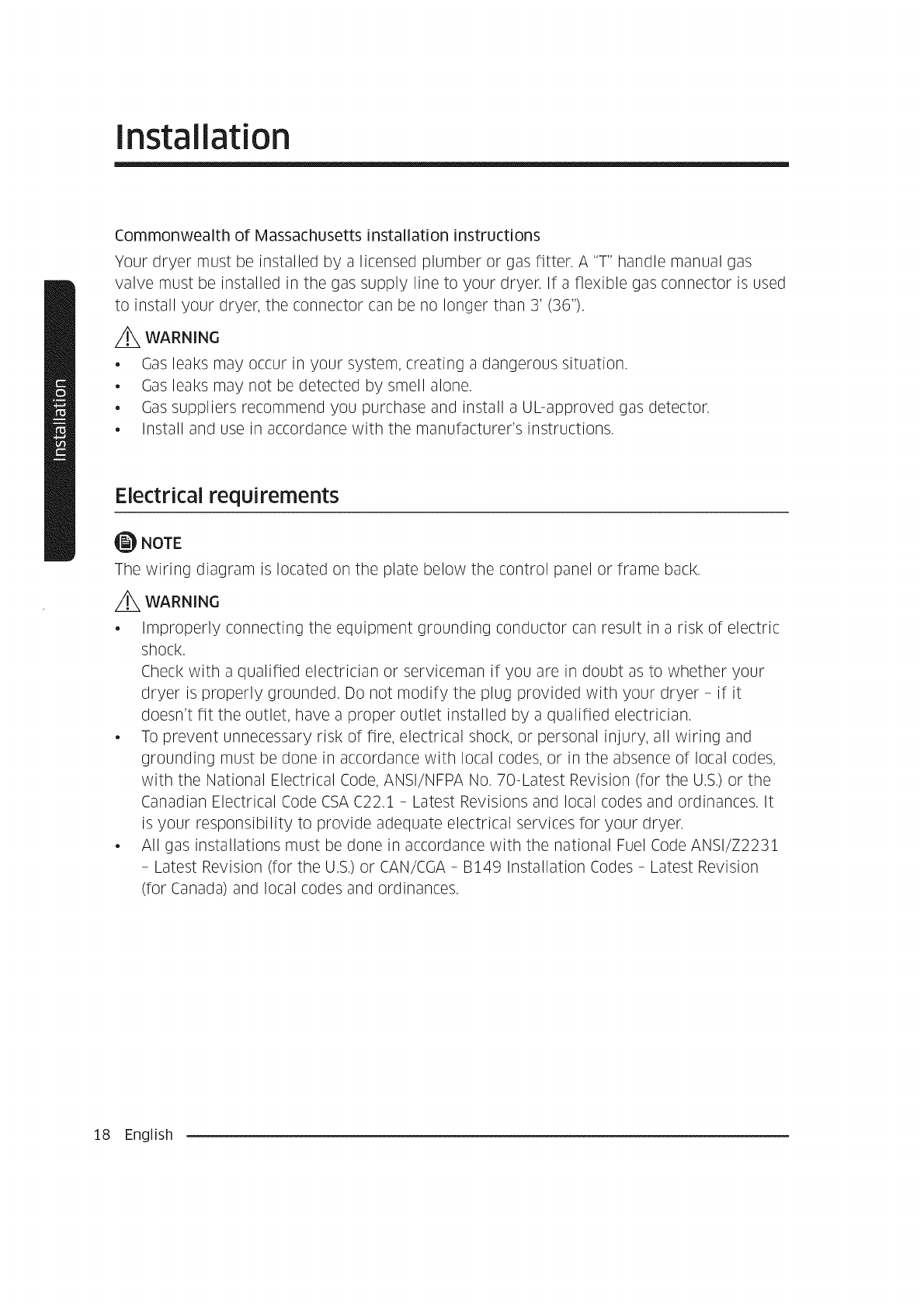

Electrical requirements

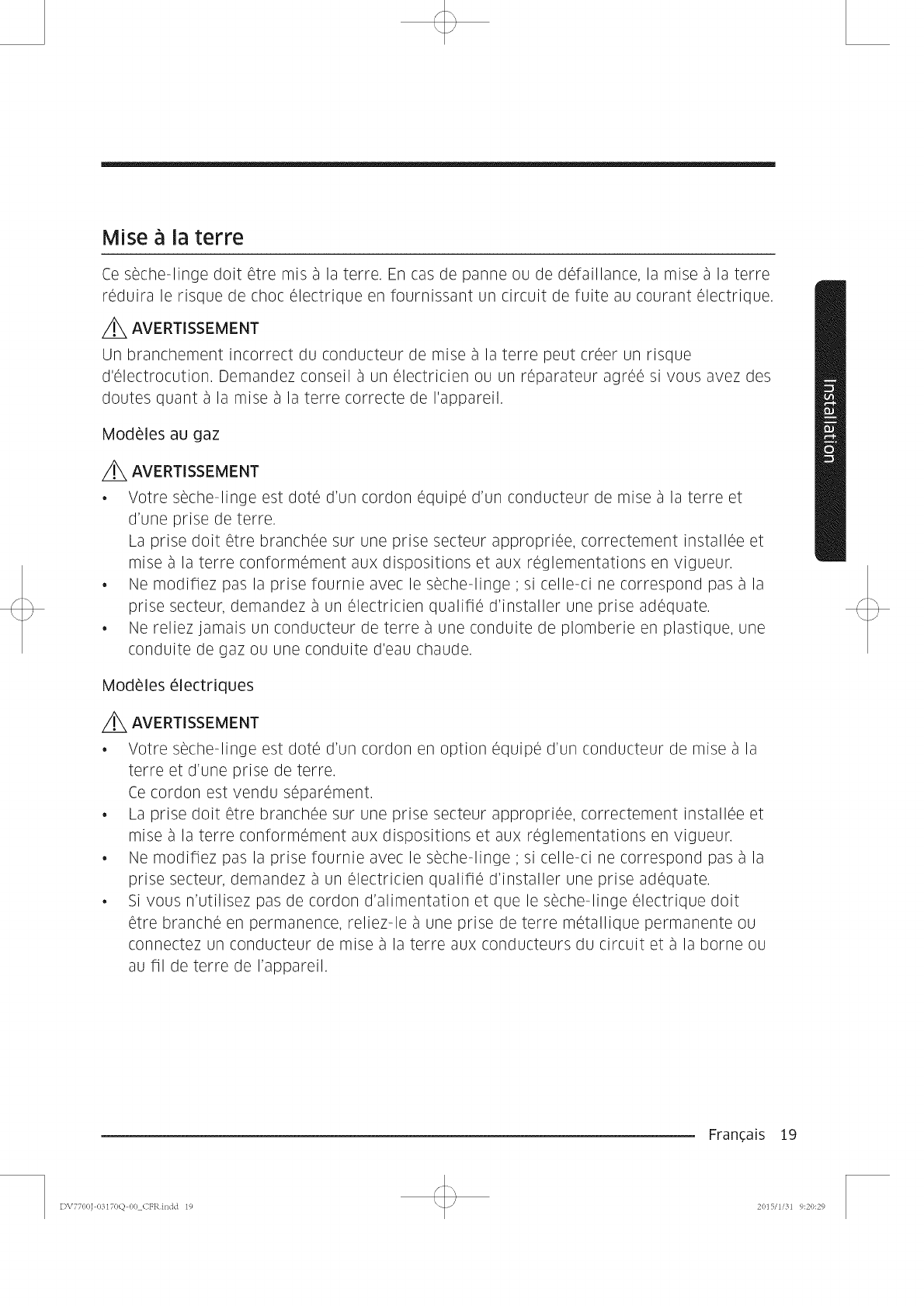

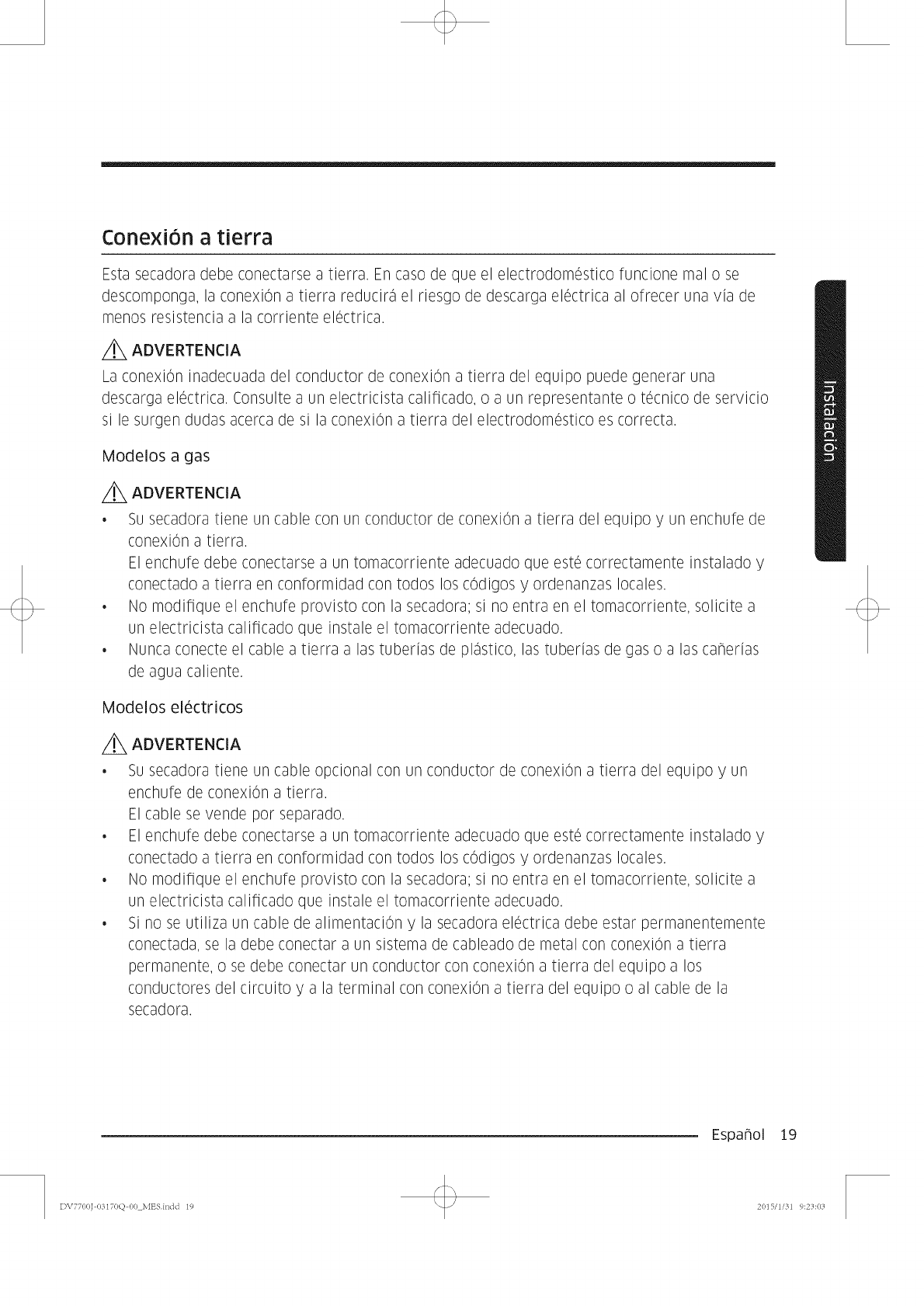

Grounding

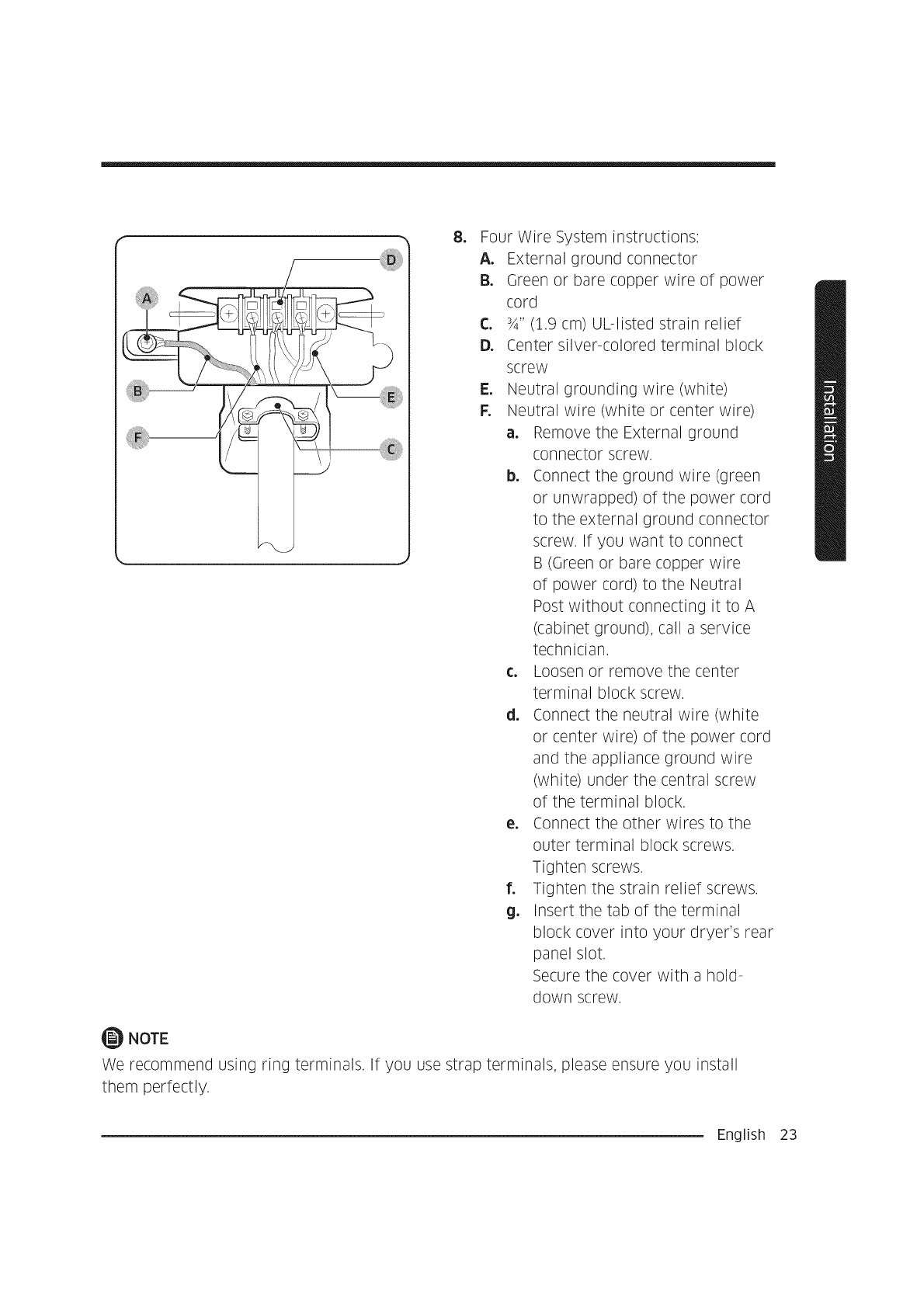

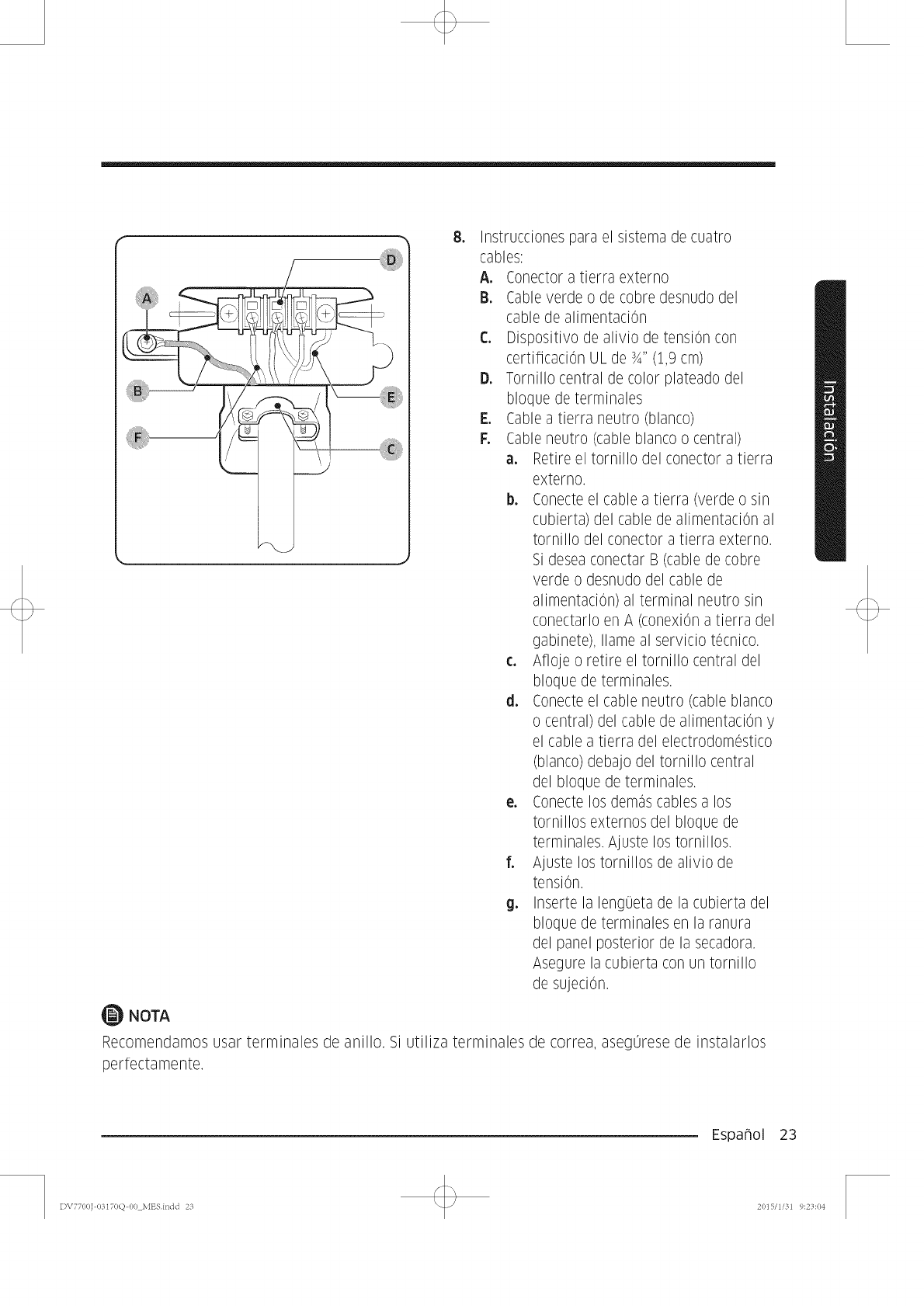

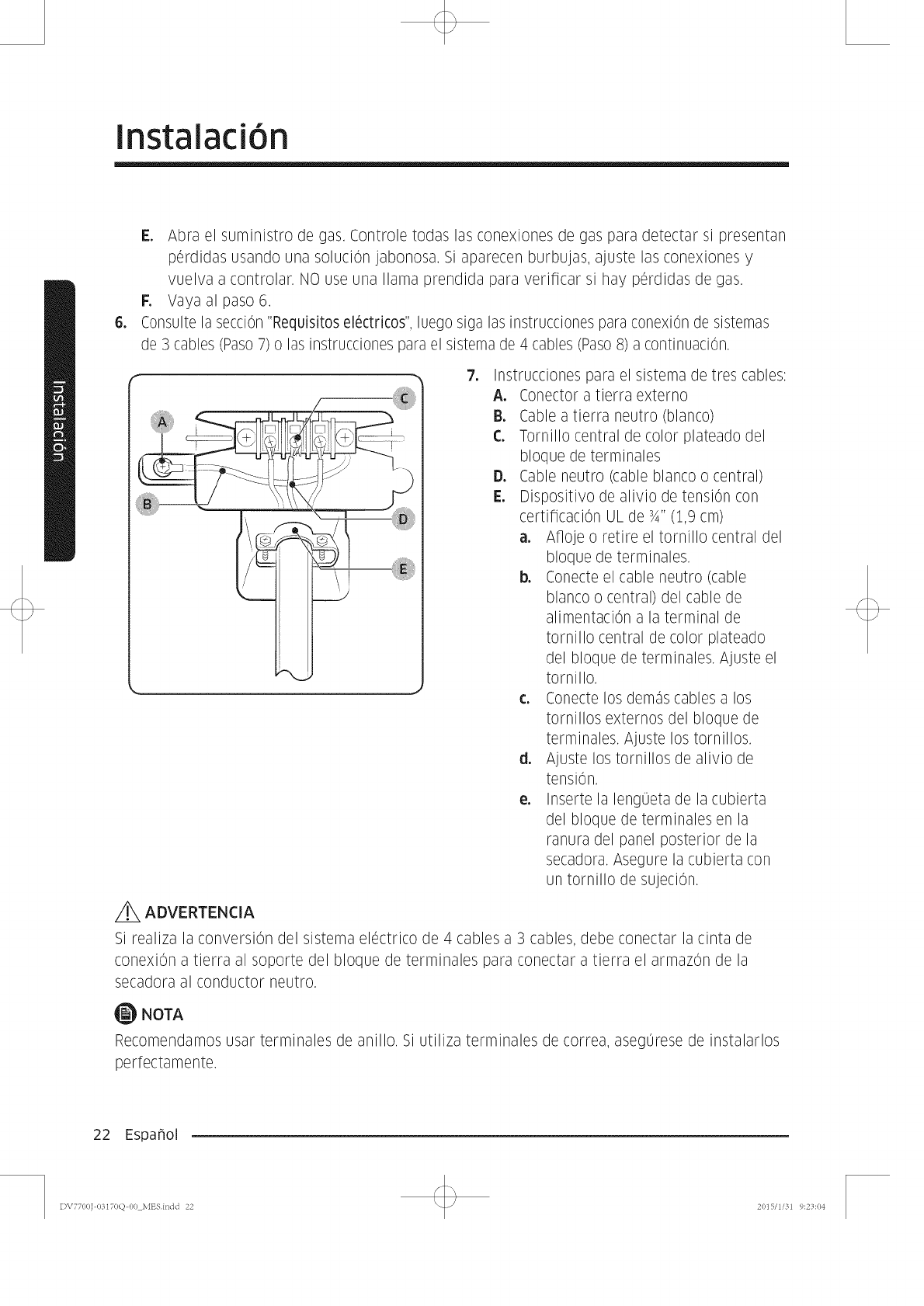

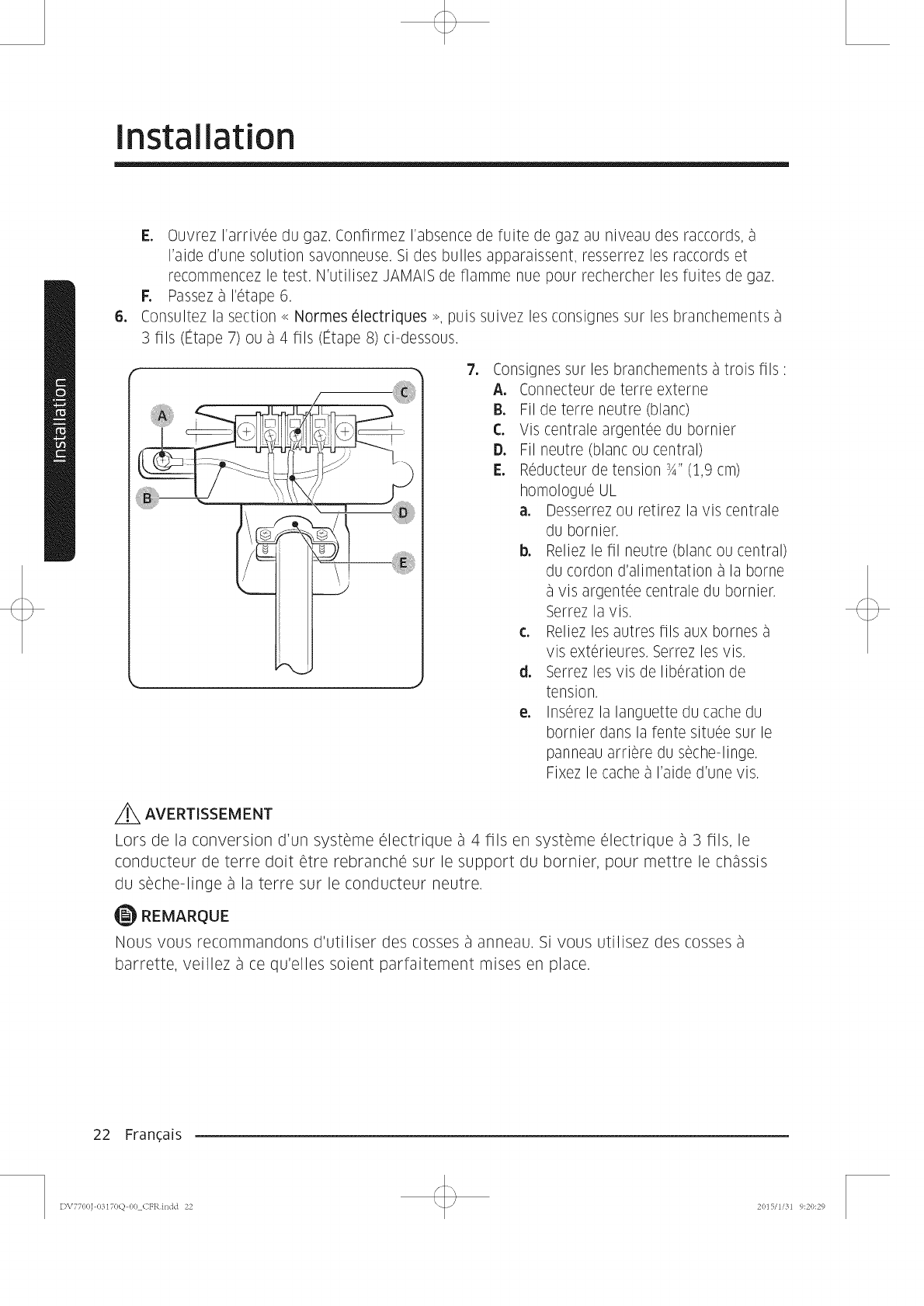

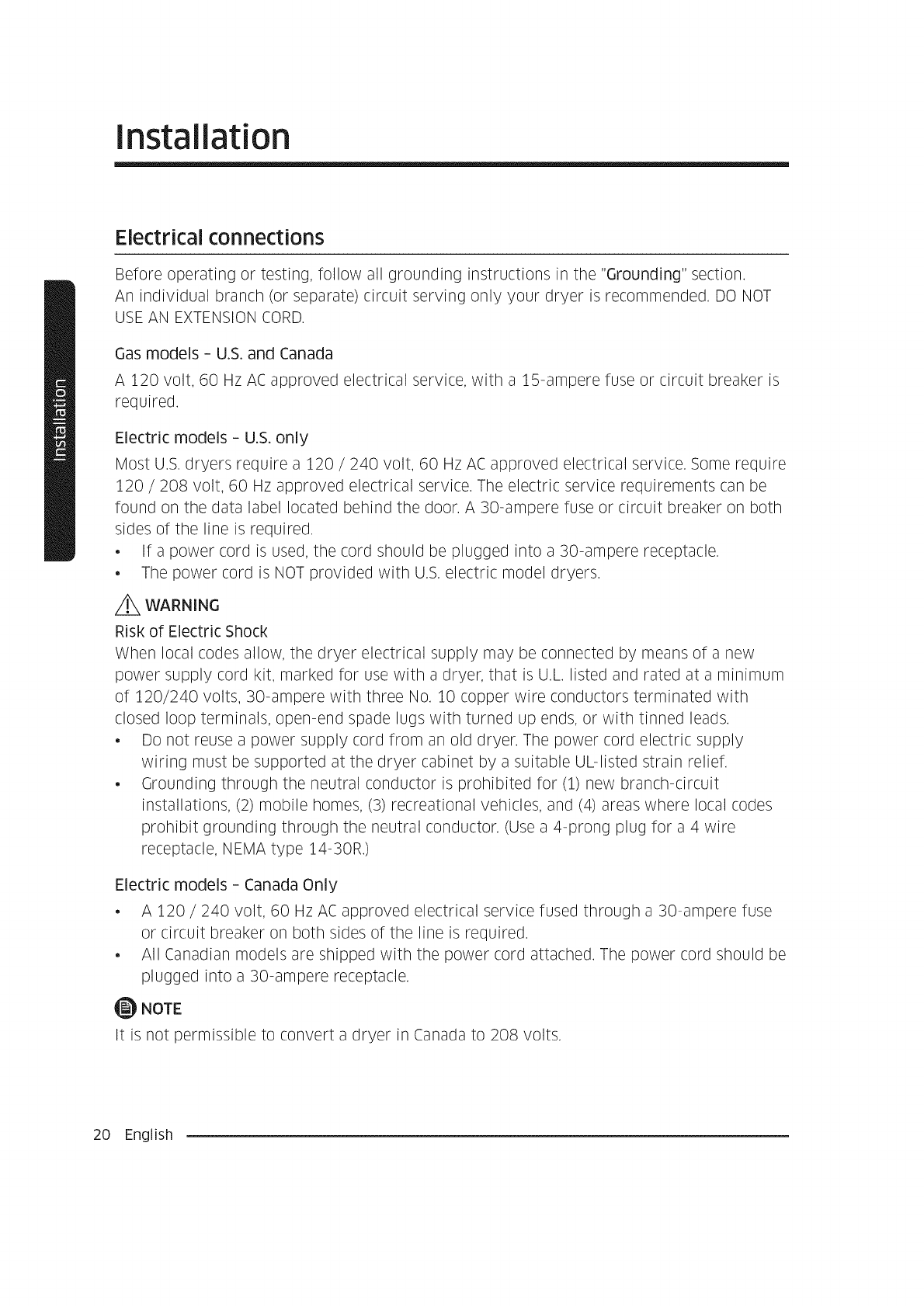

Electrical connections

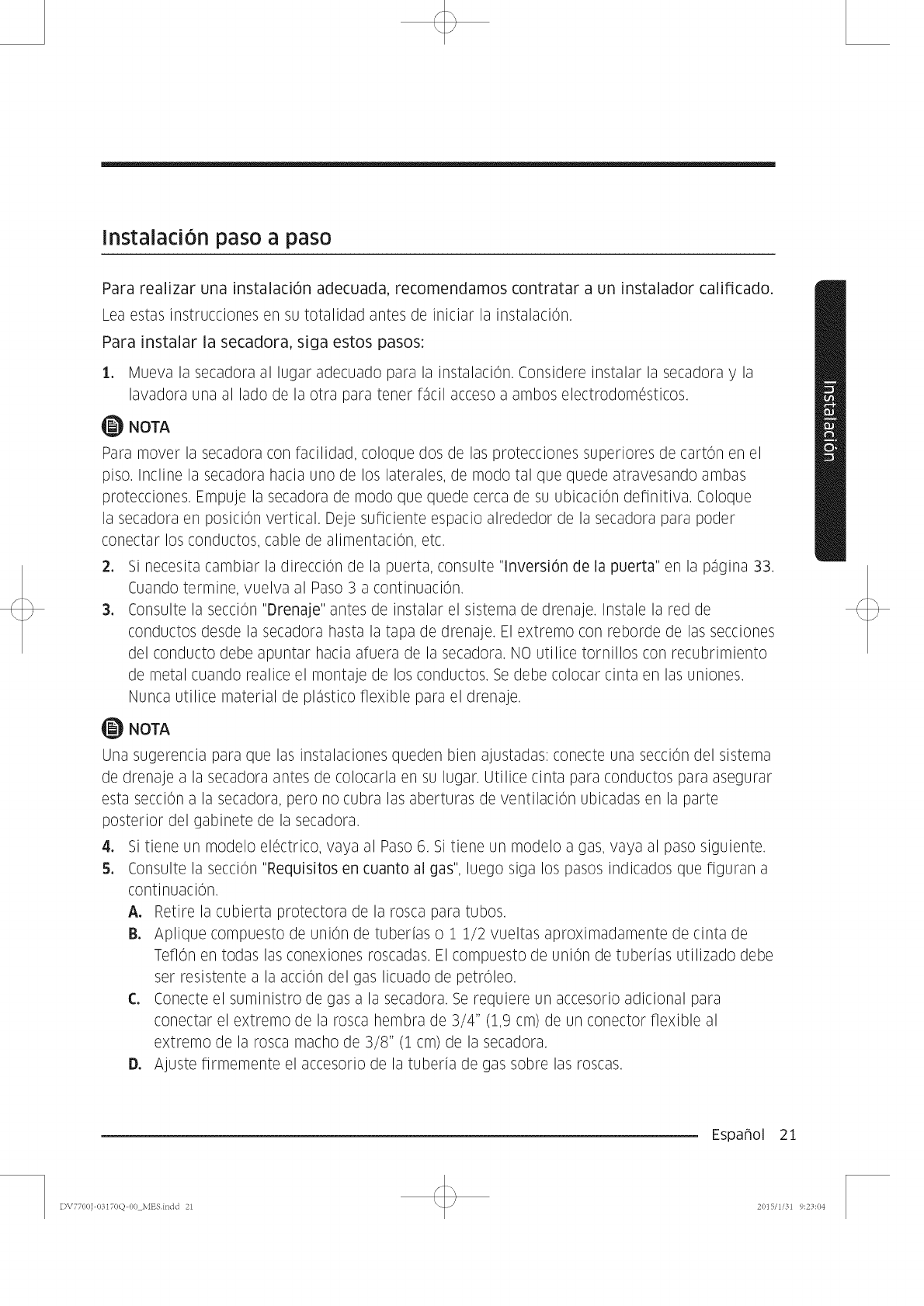

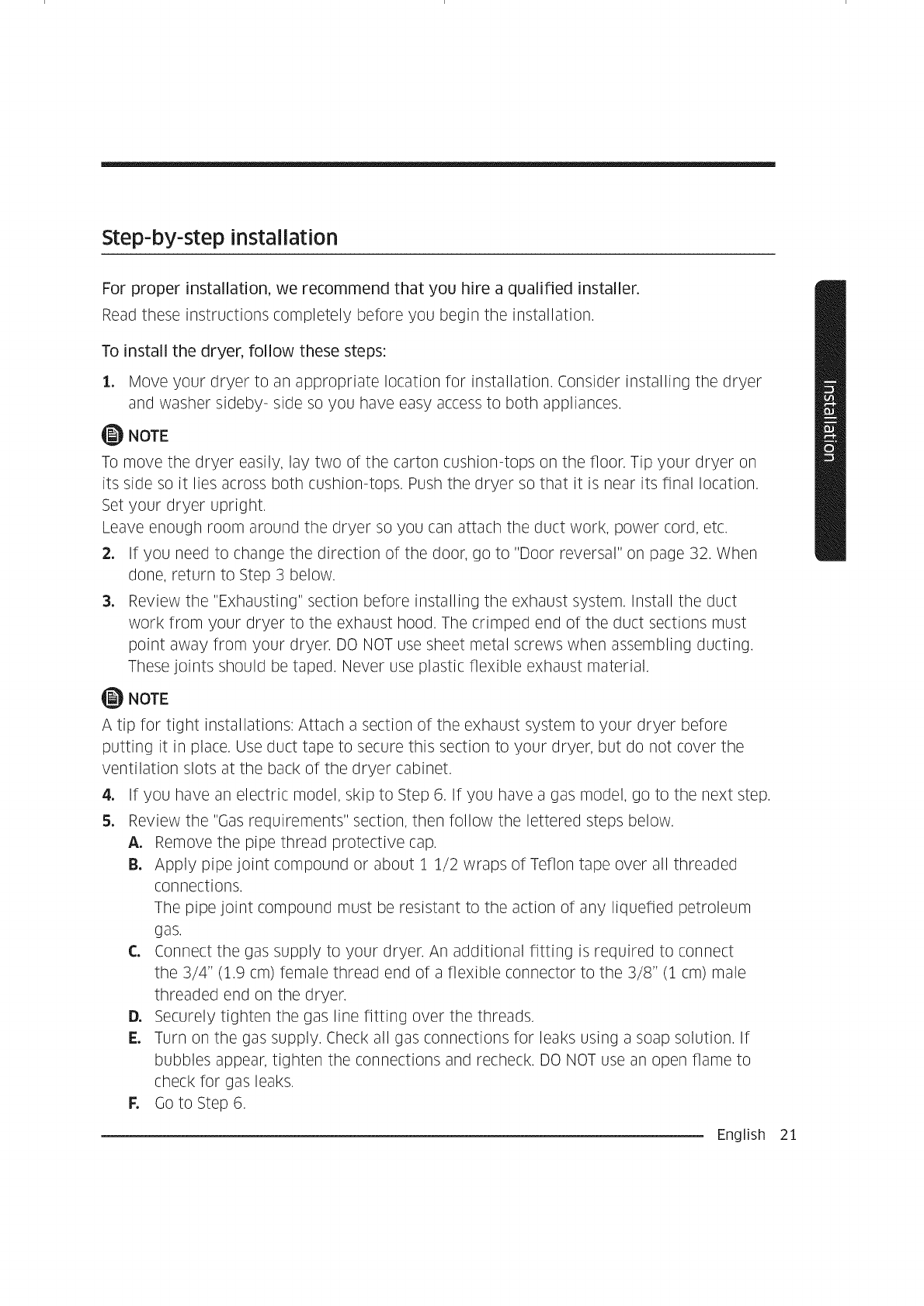

Step-by-step installation

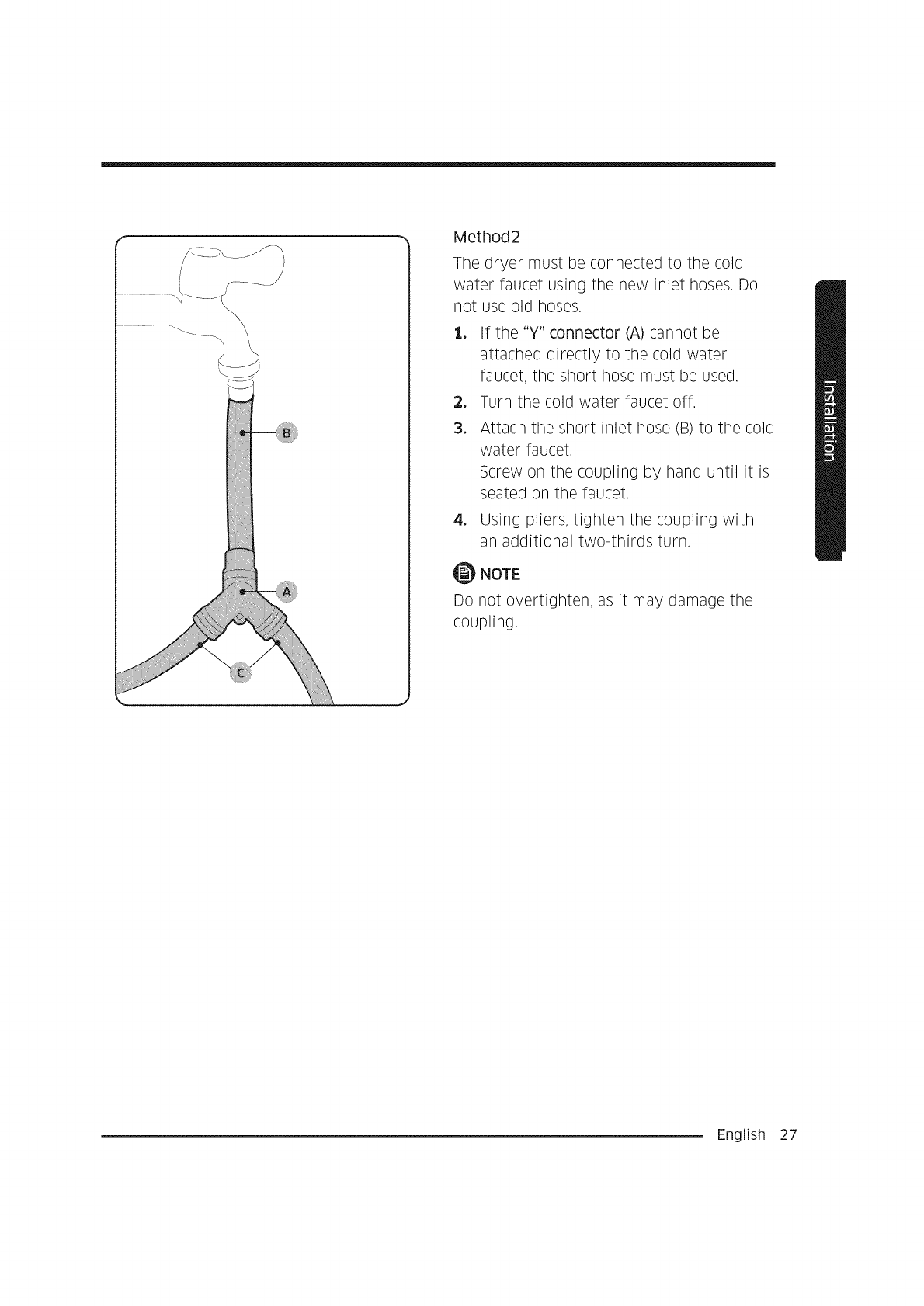

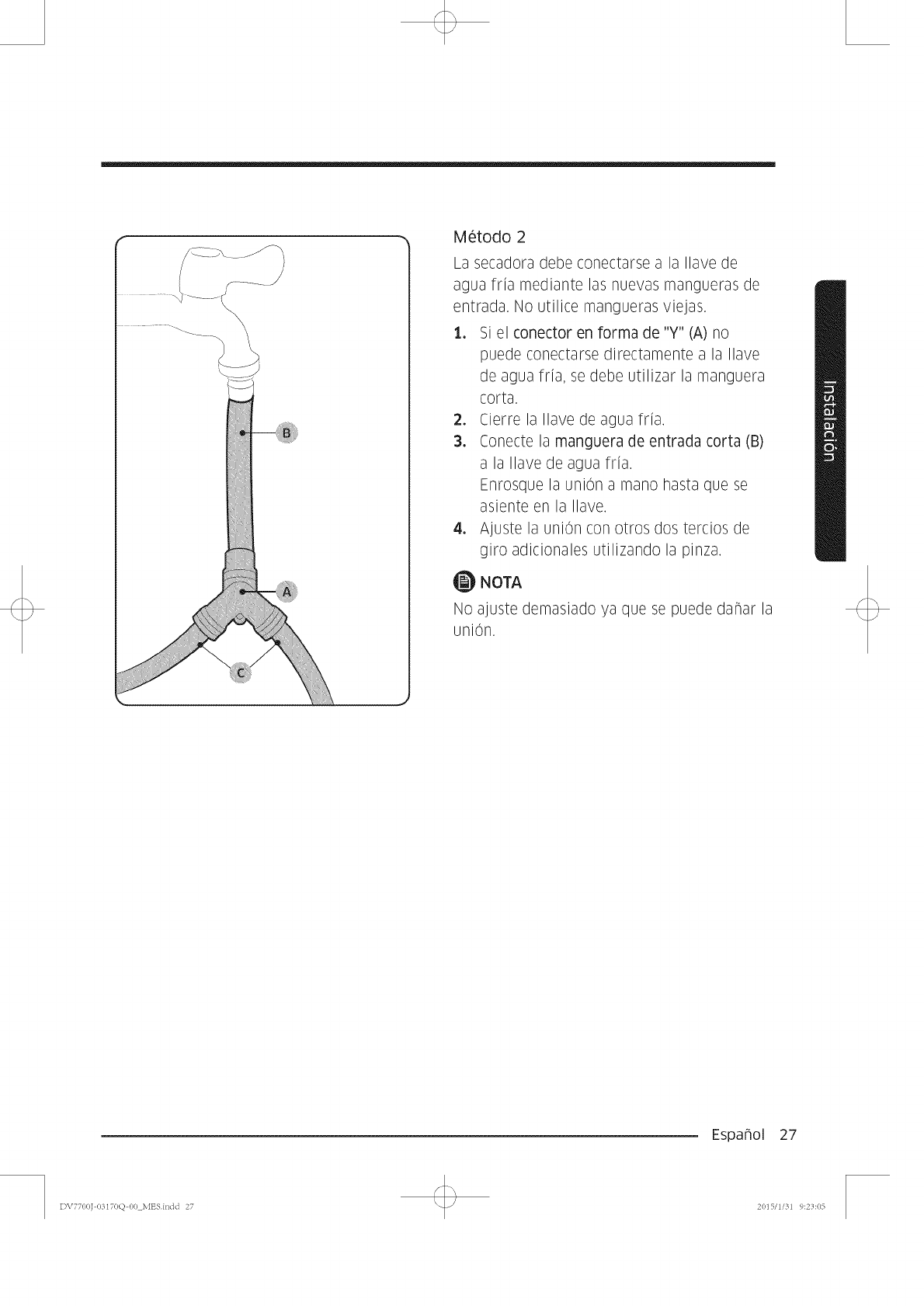

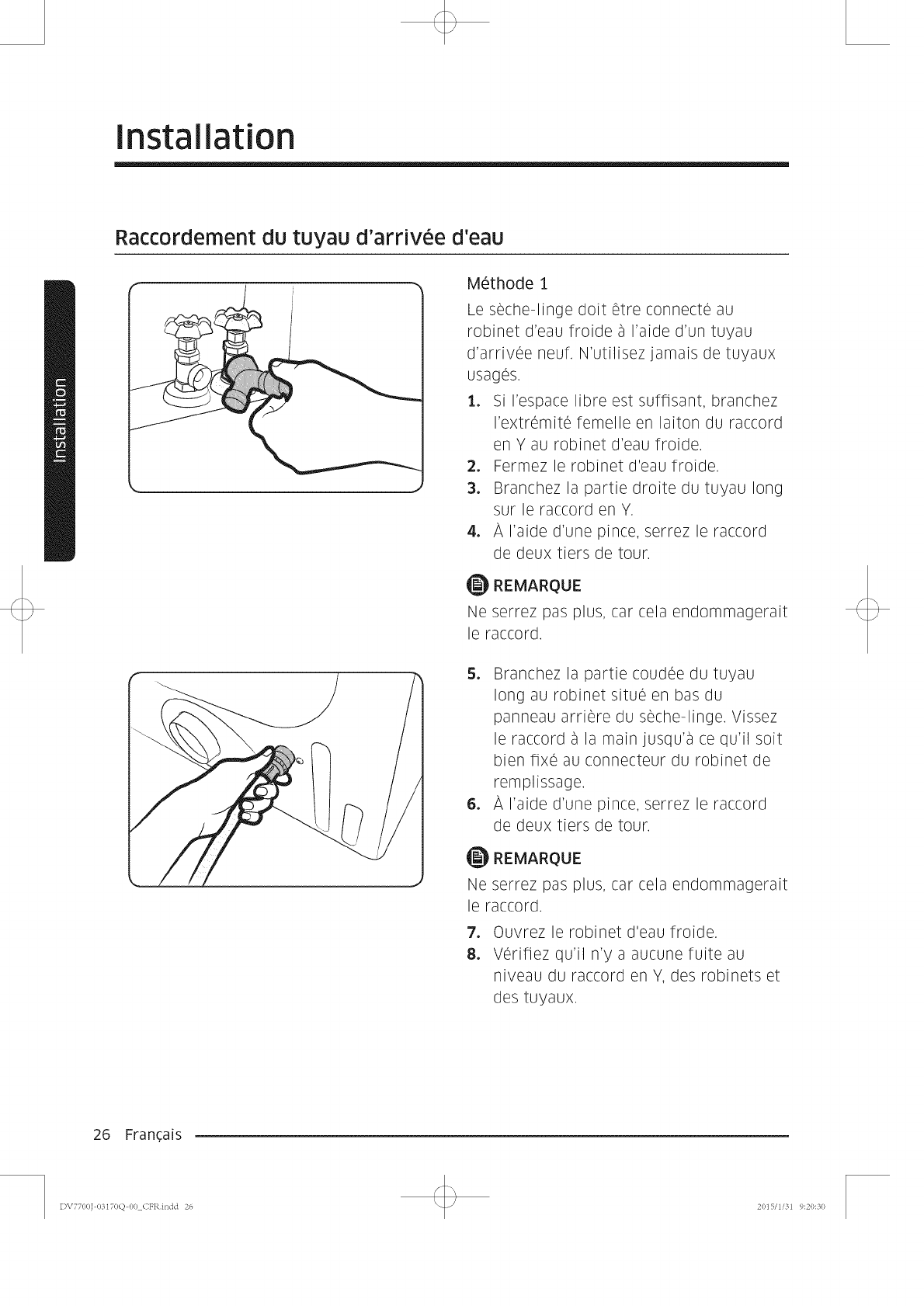

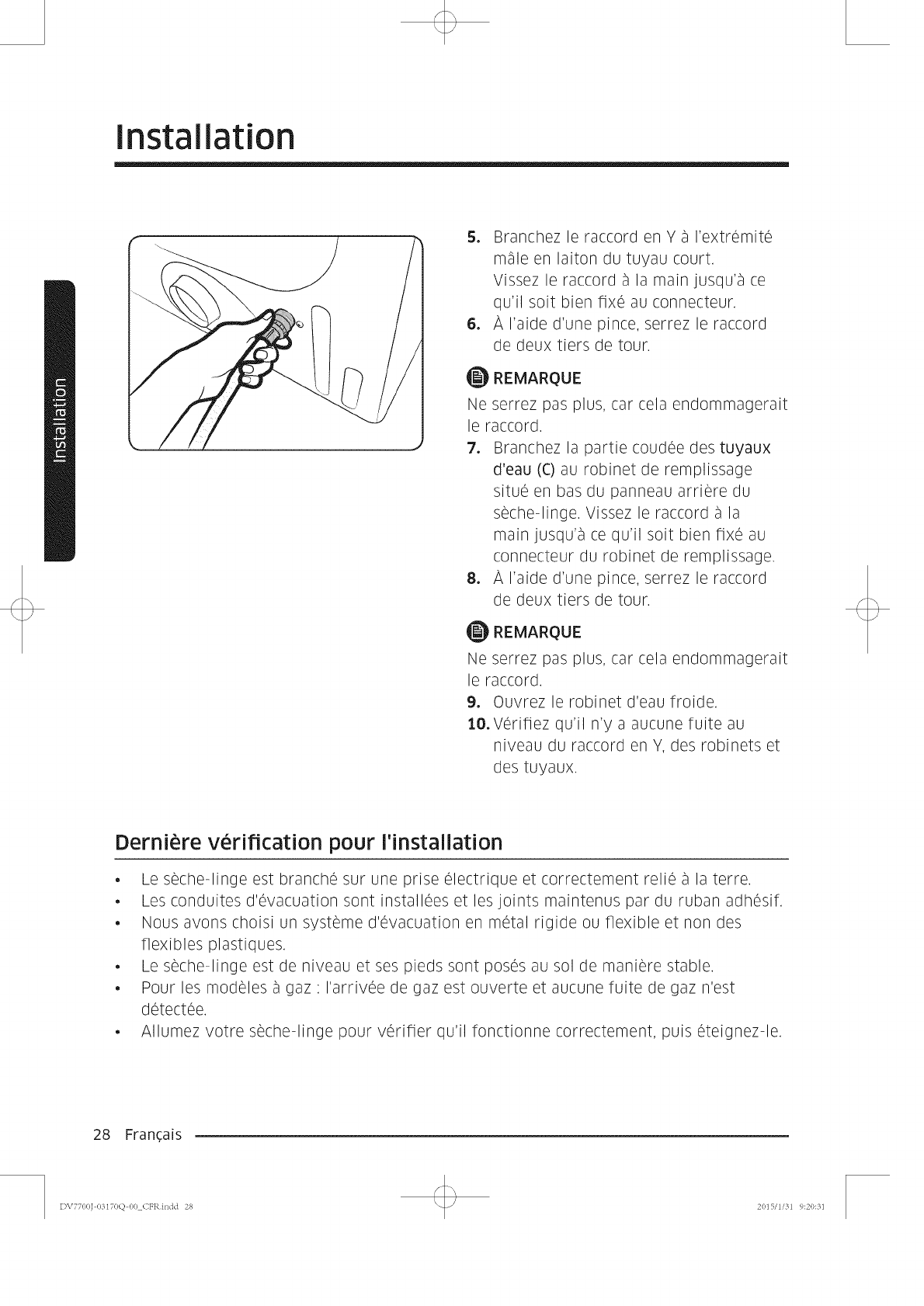

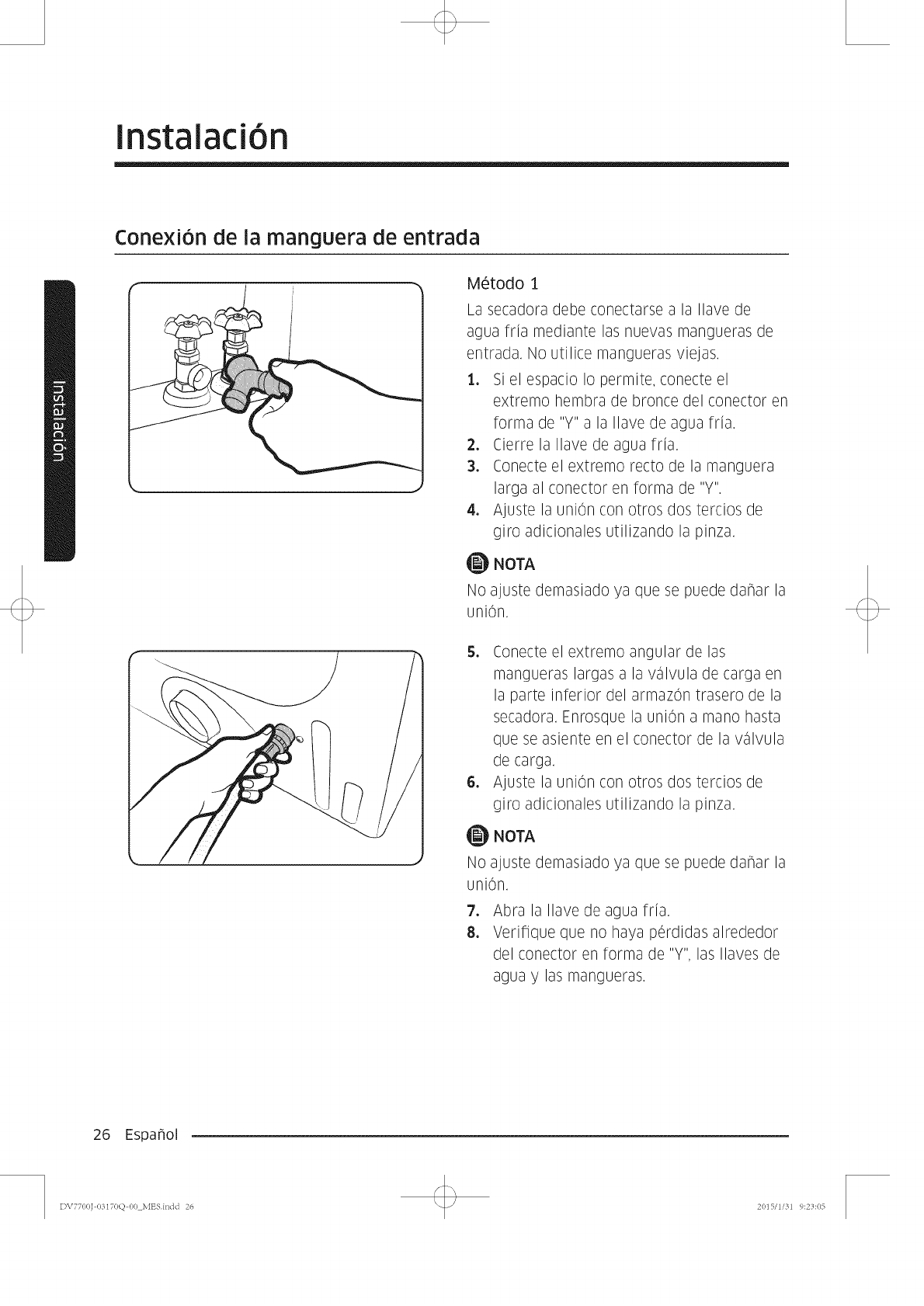

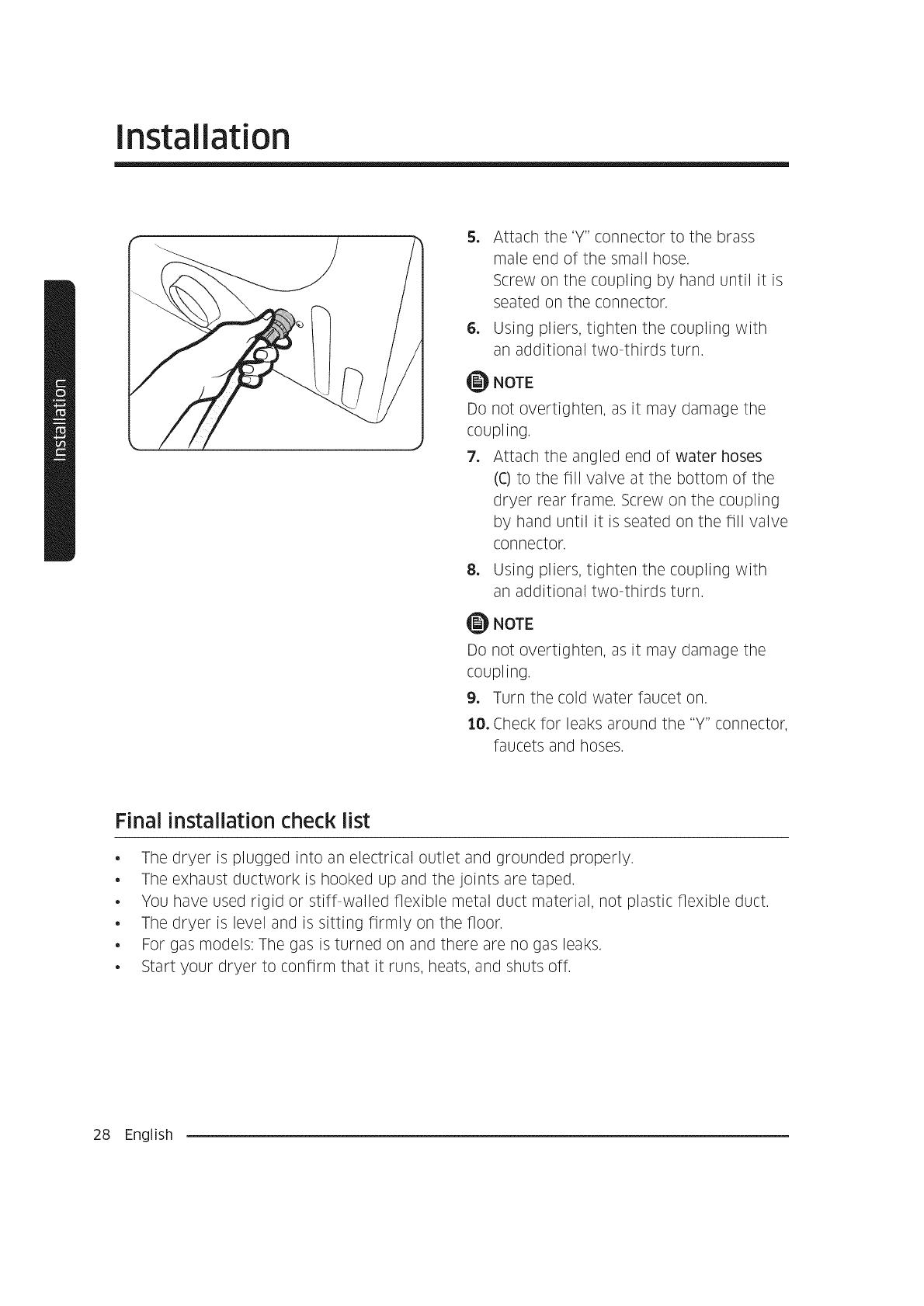

Connecting the inlet hose

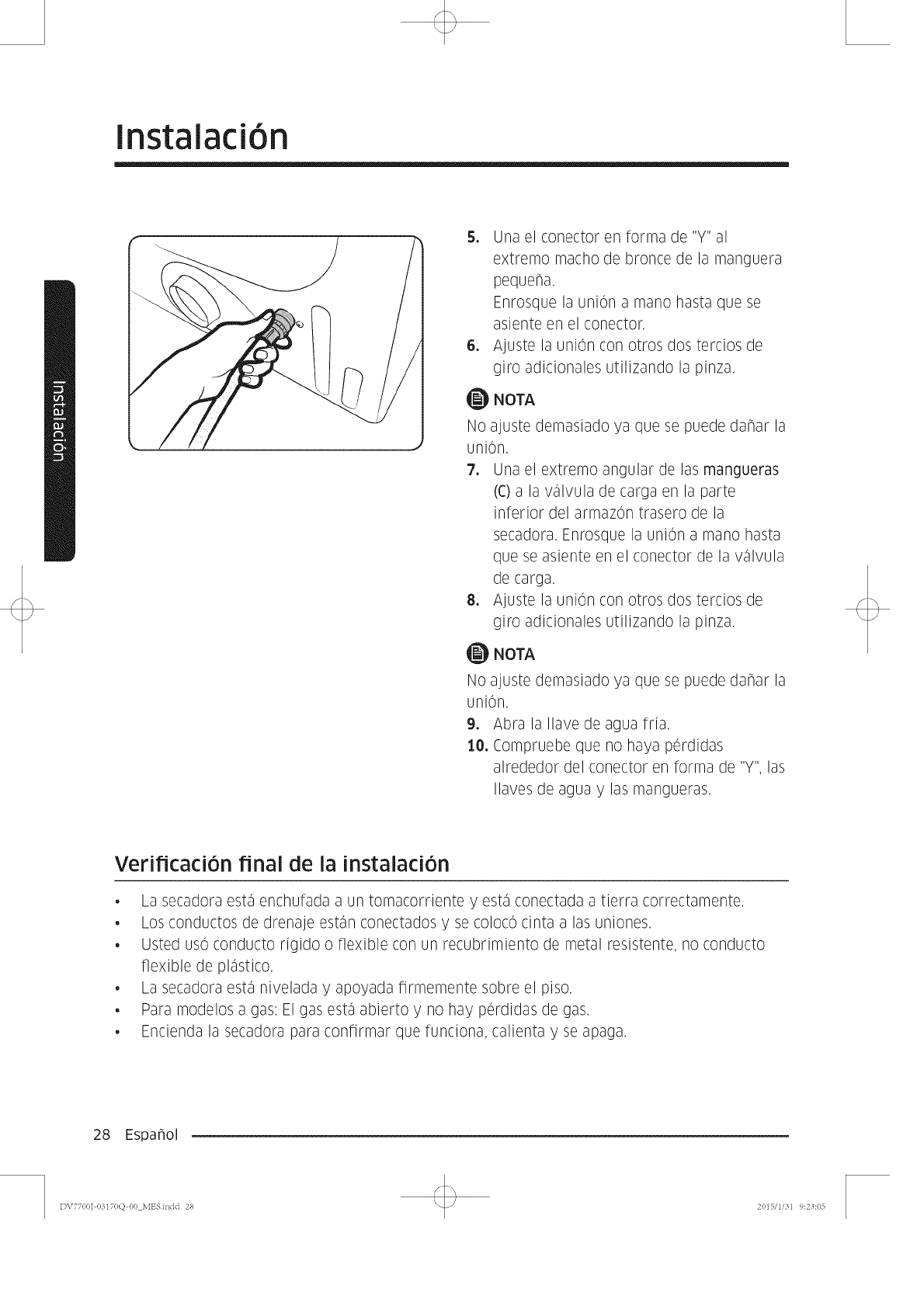

Final installation check list

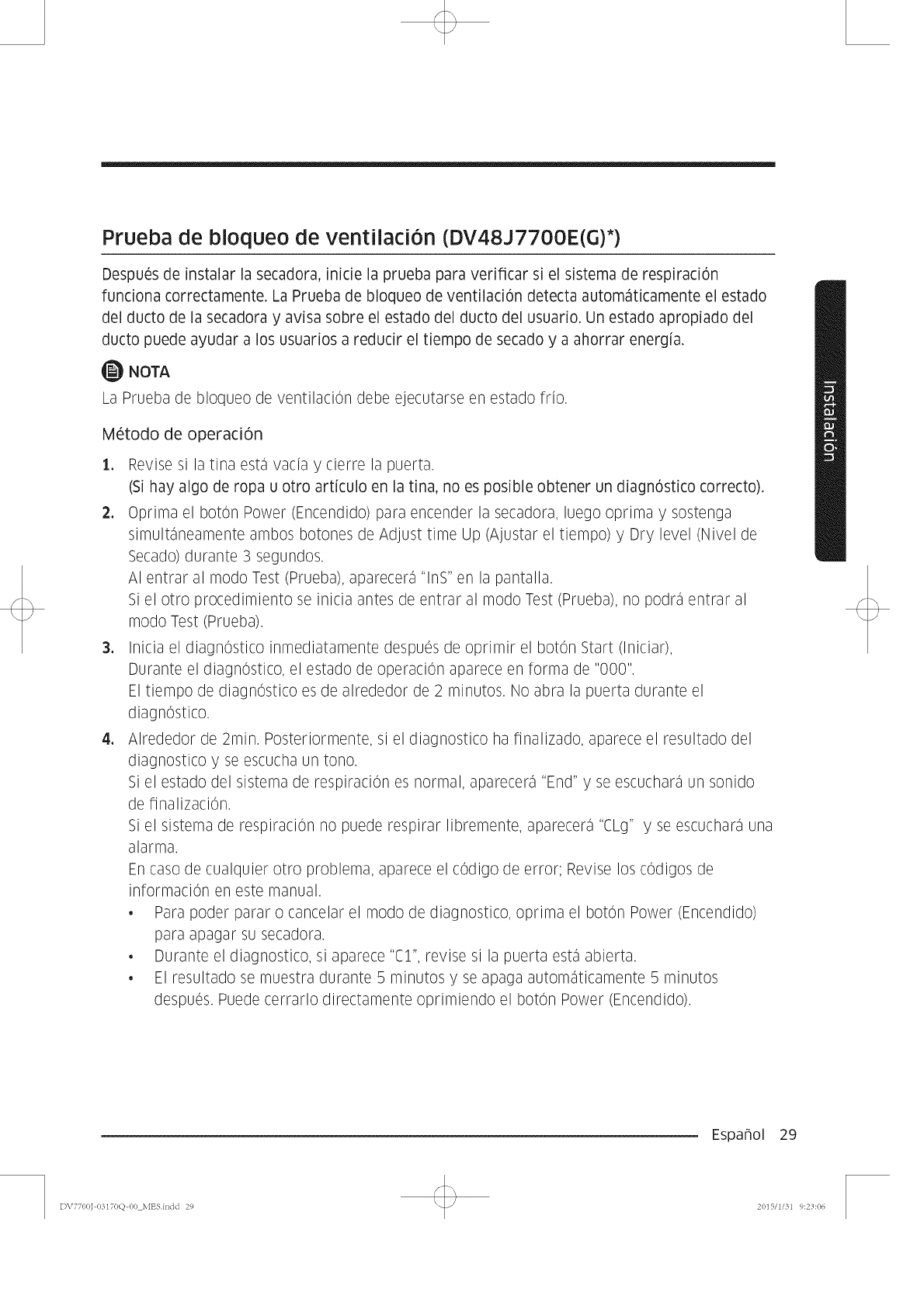

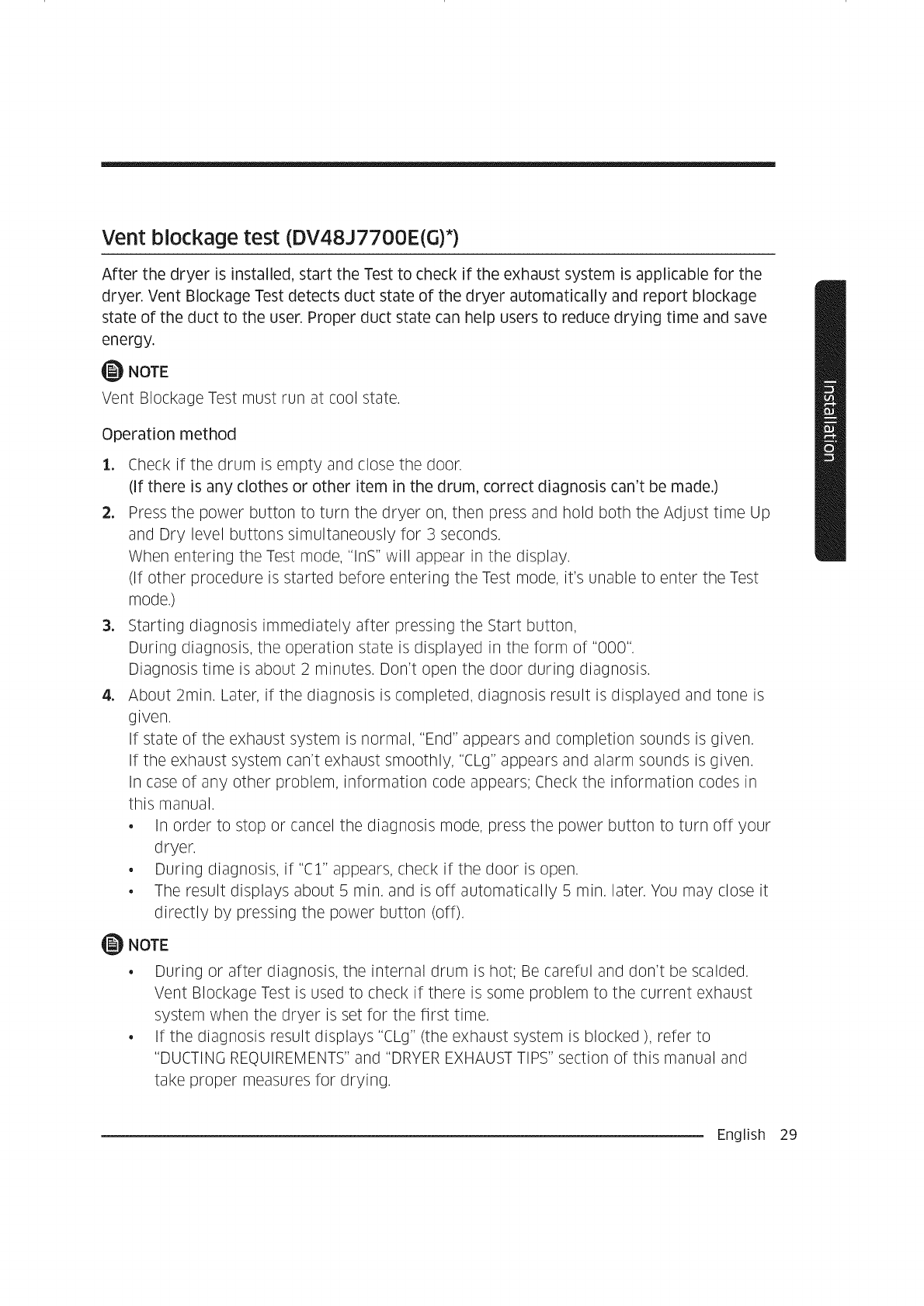

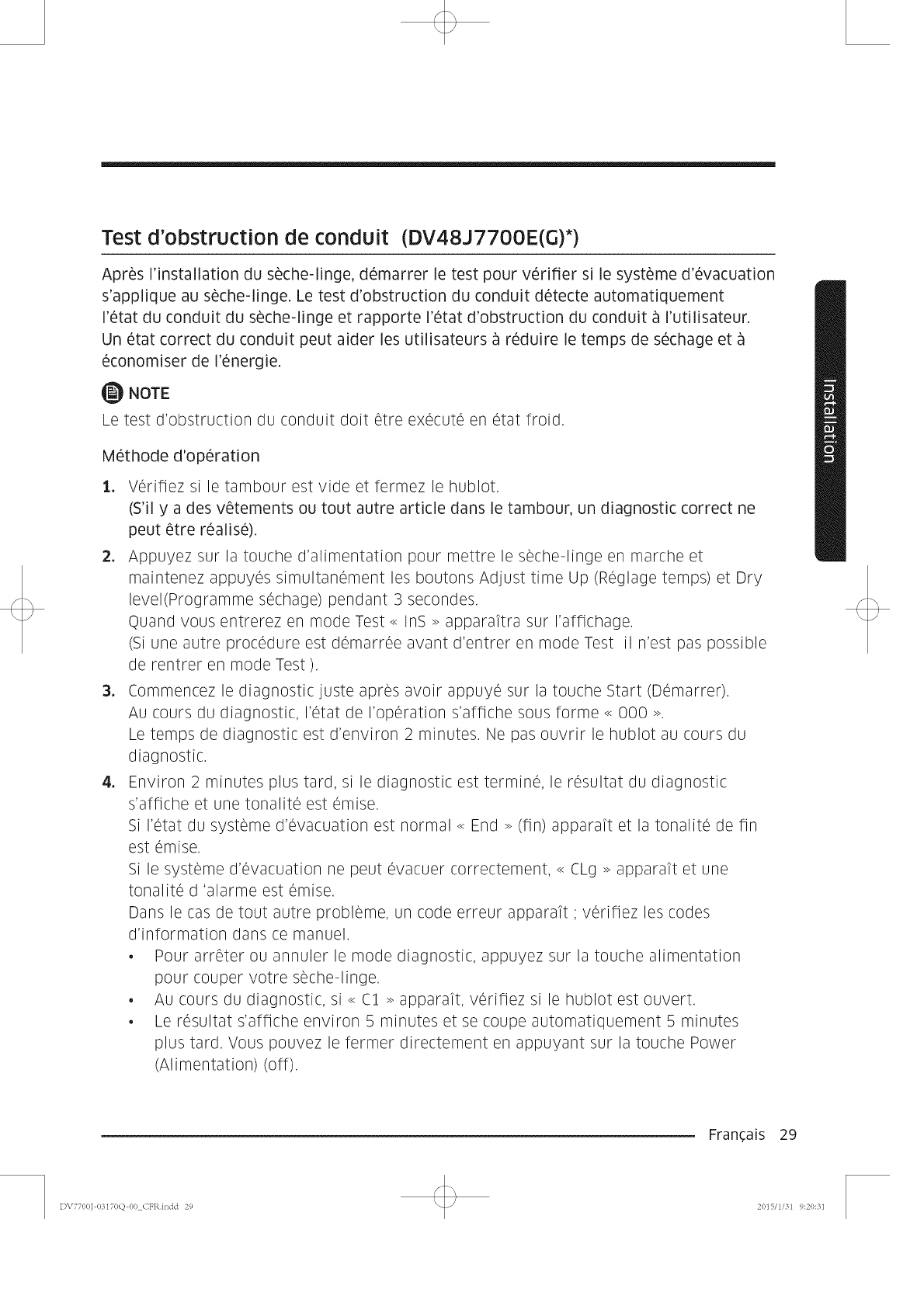

Vent blockage test (DV48J7700E(G)*)

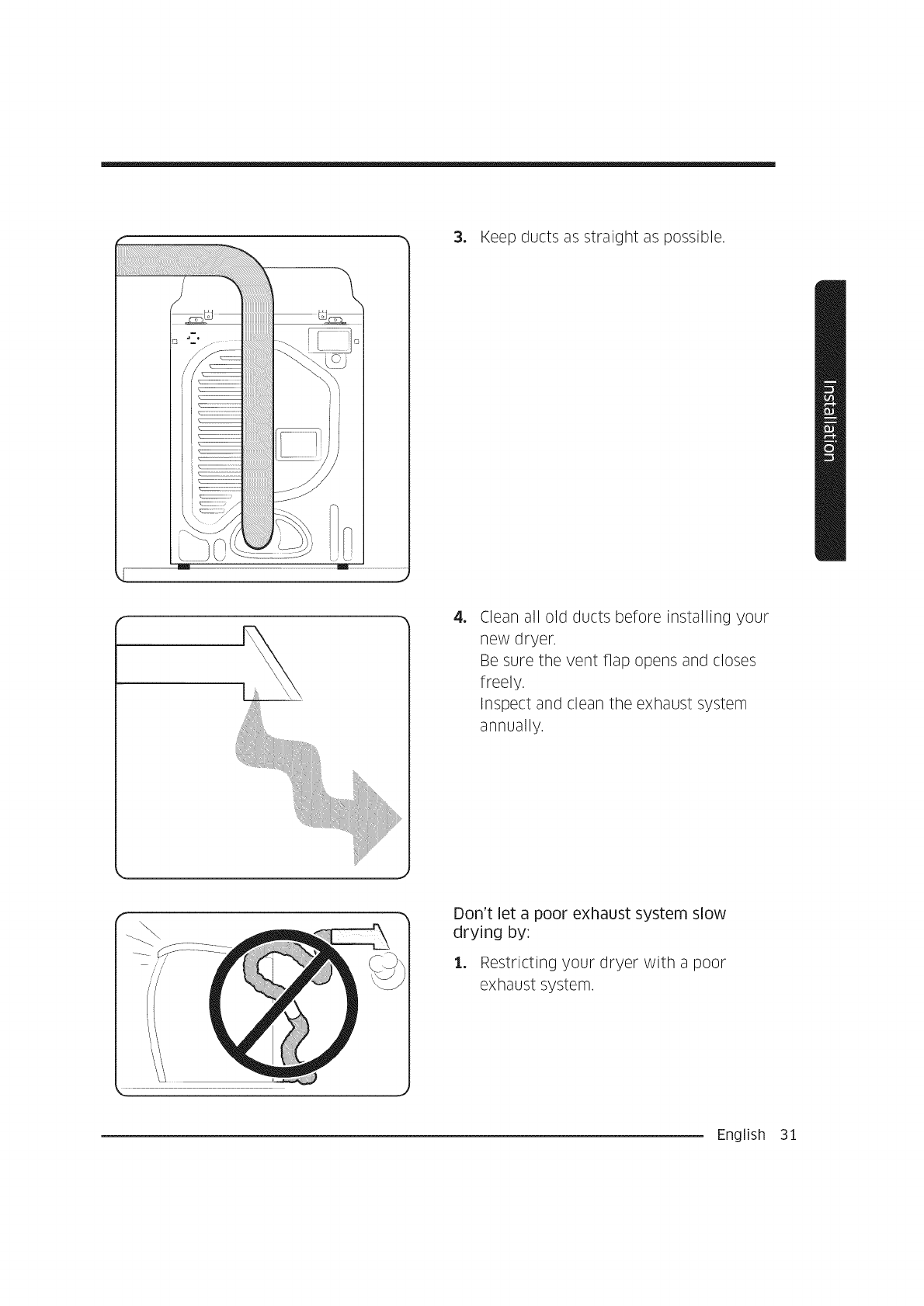

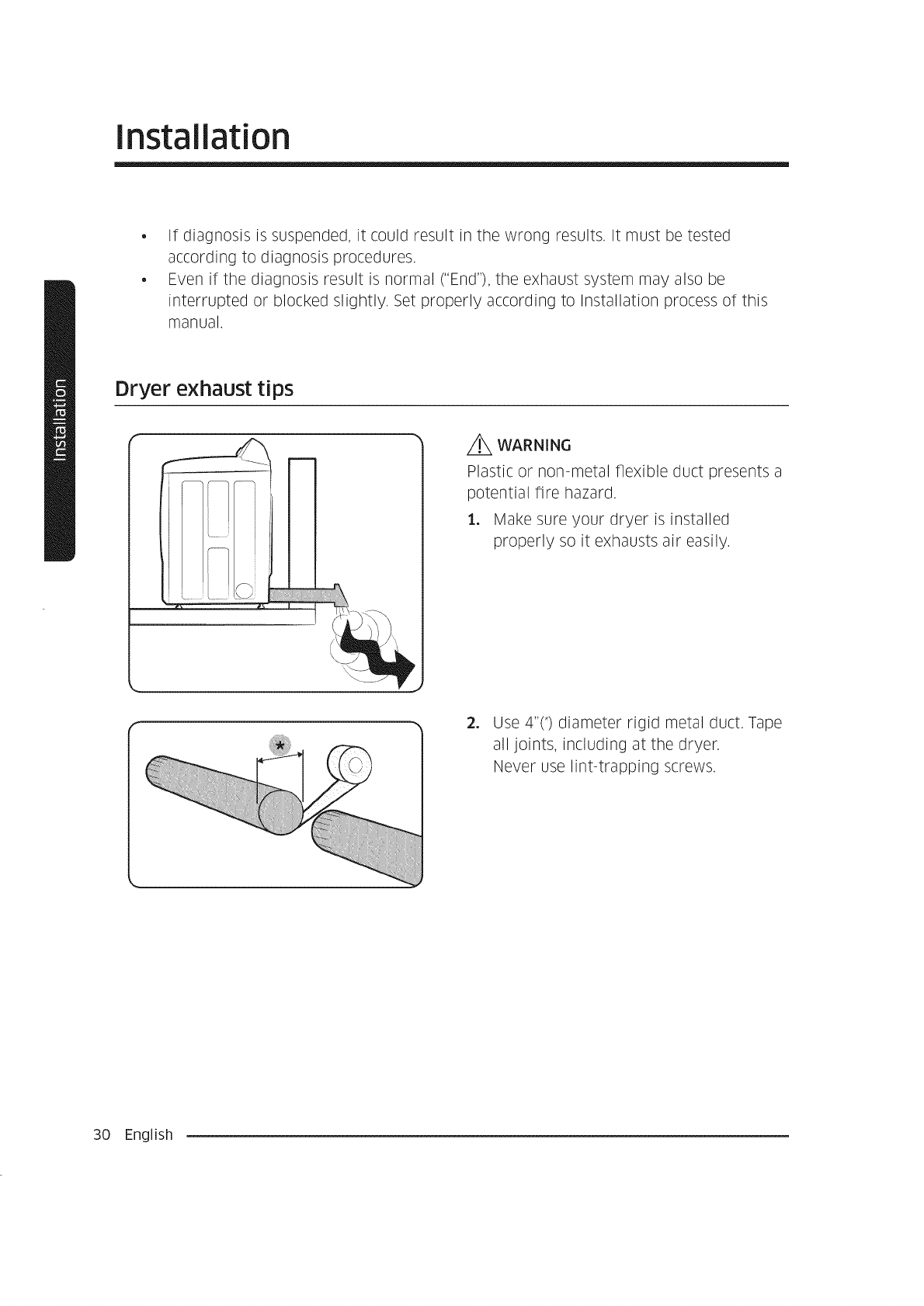

Dryer exhaust tips

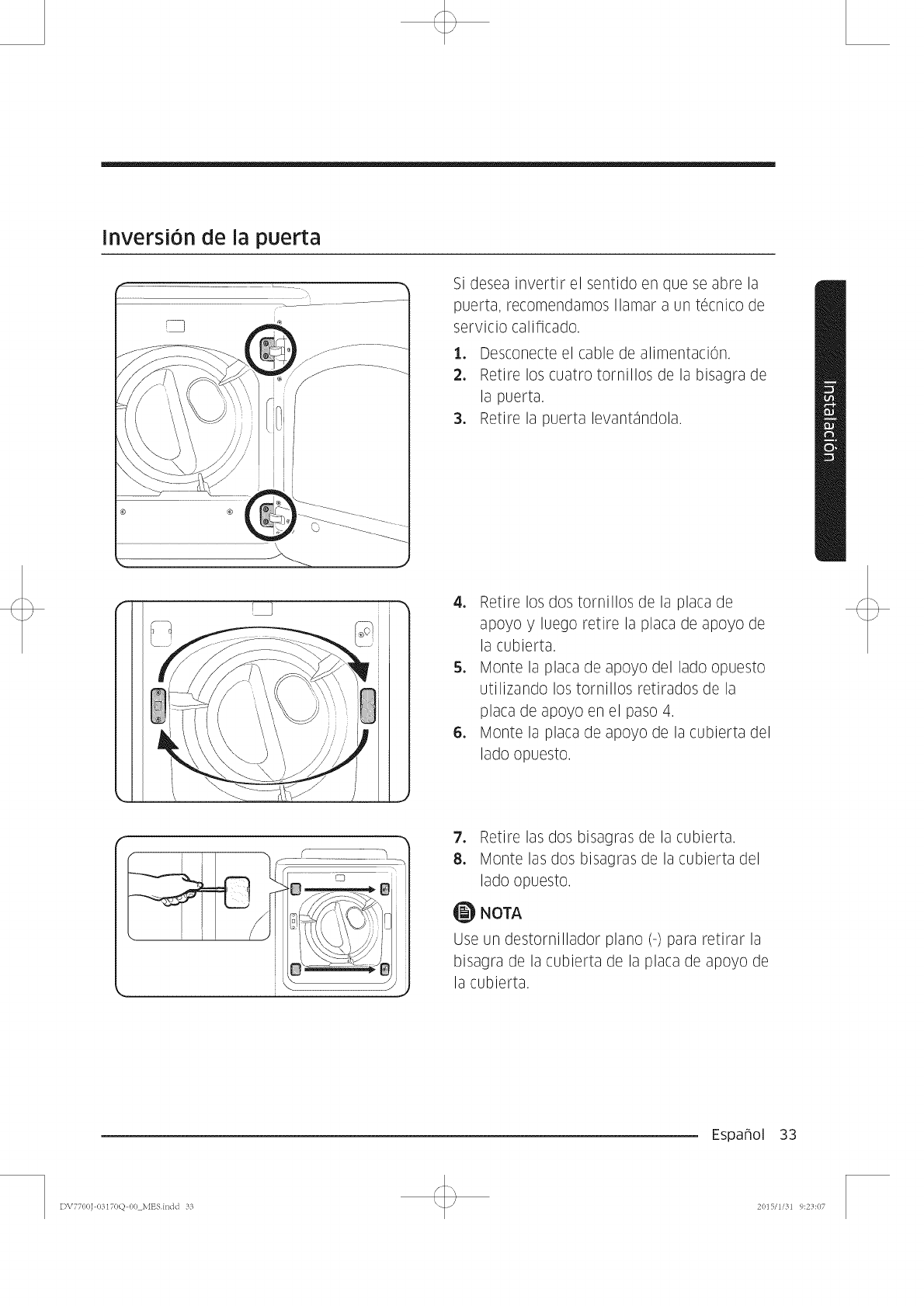

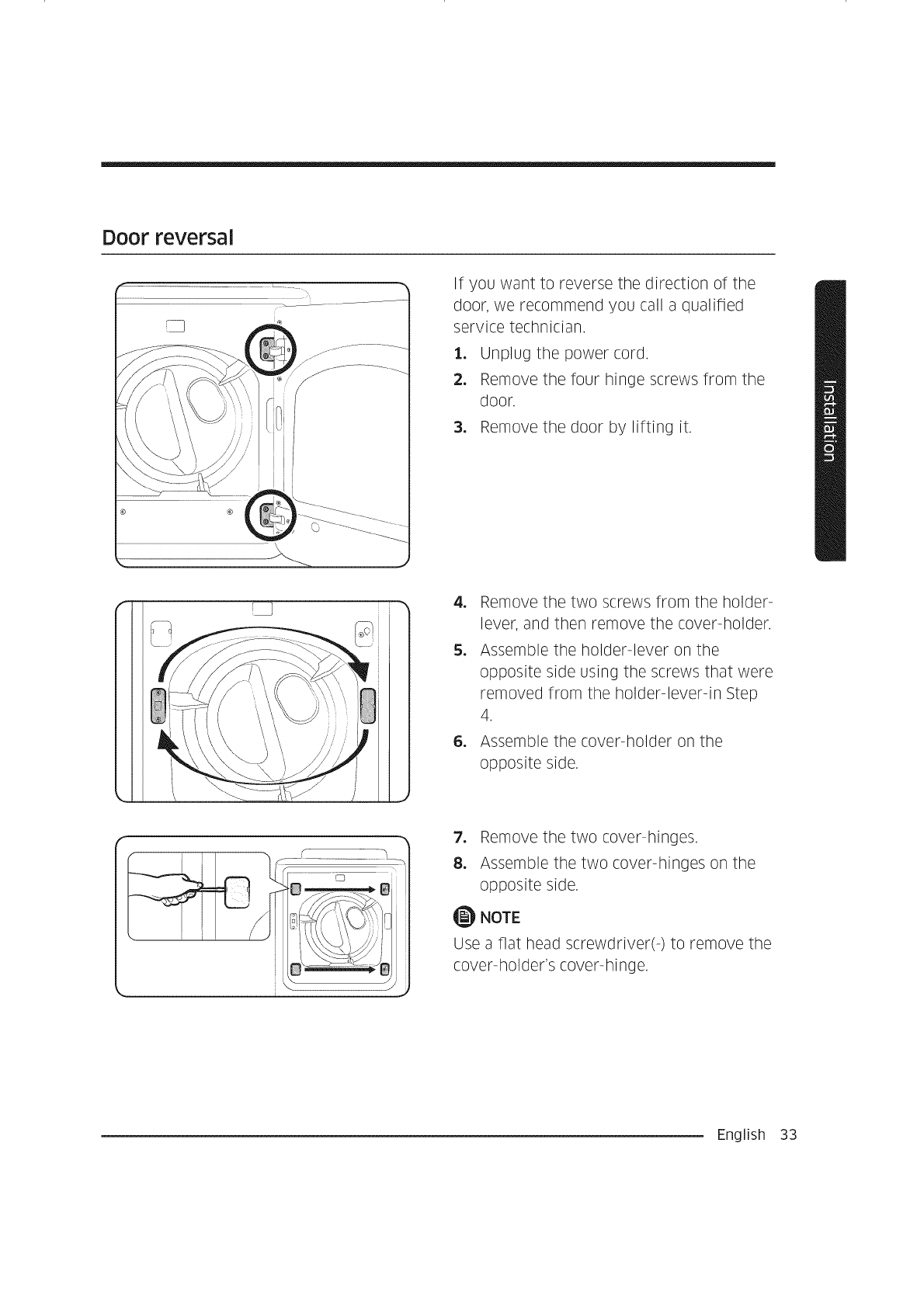

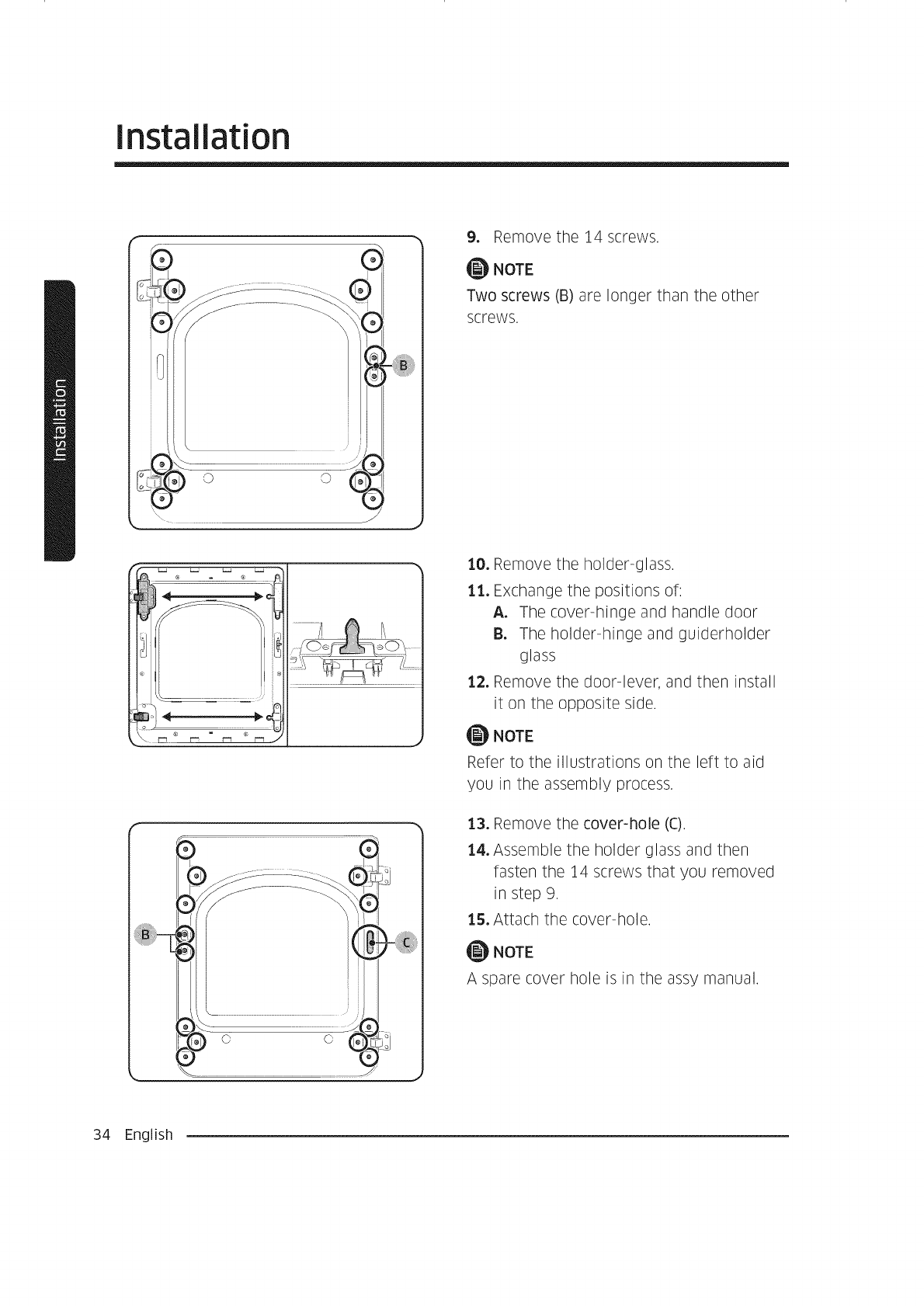

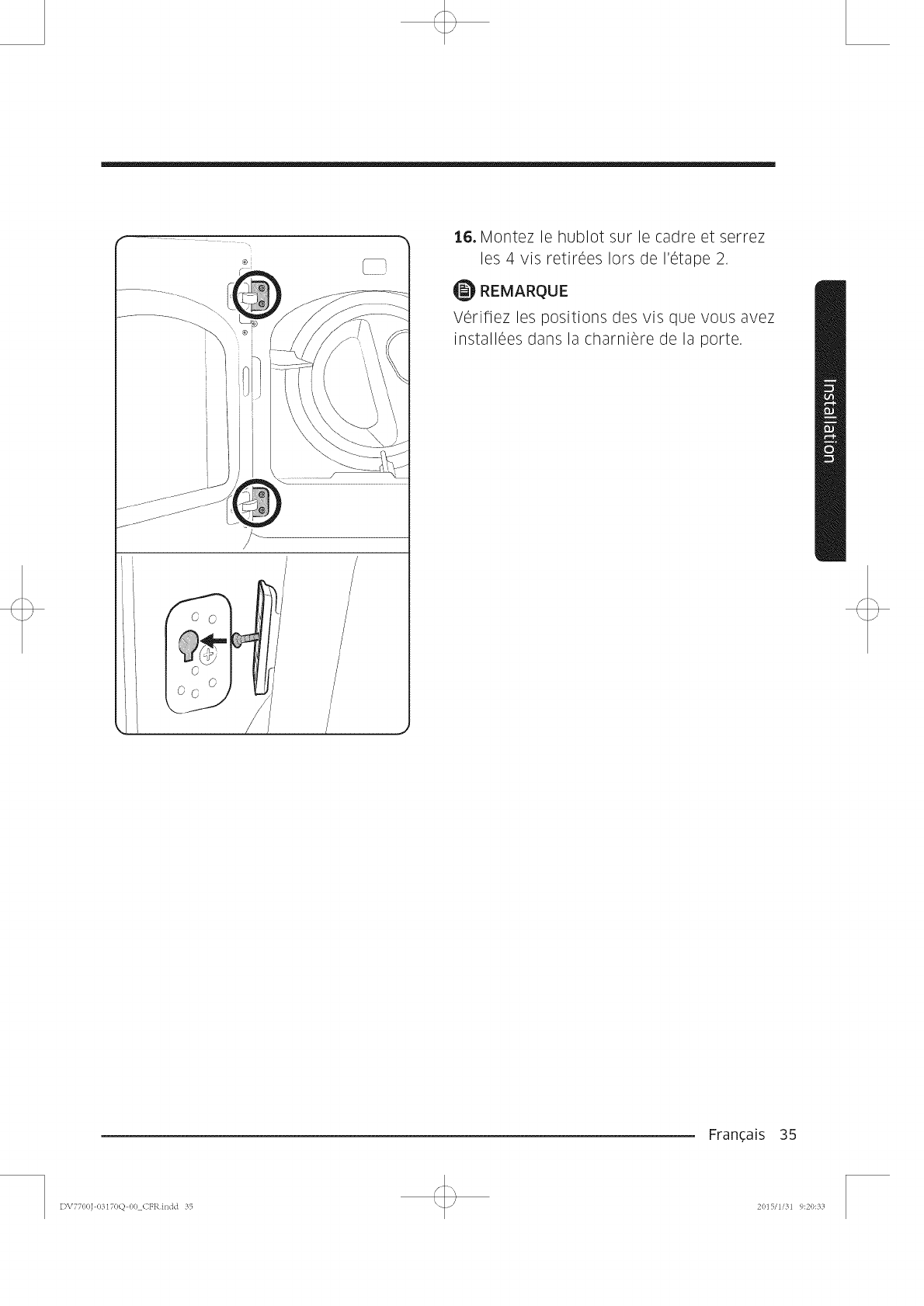

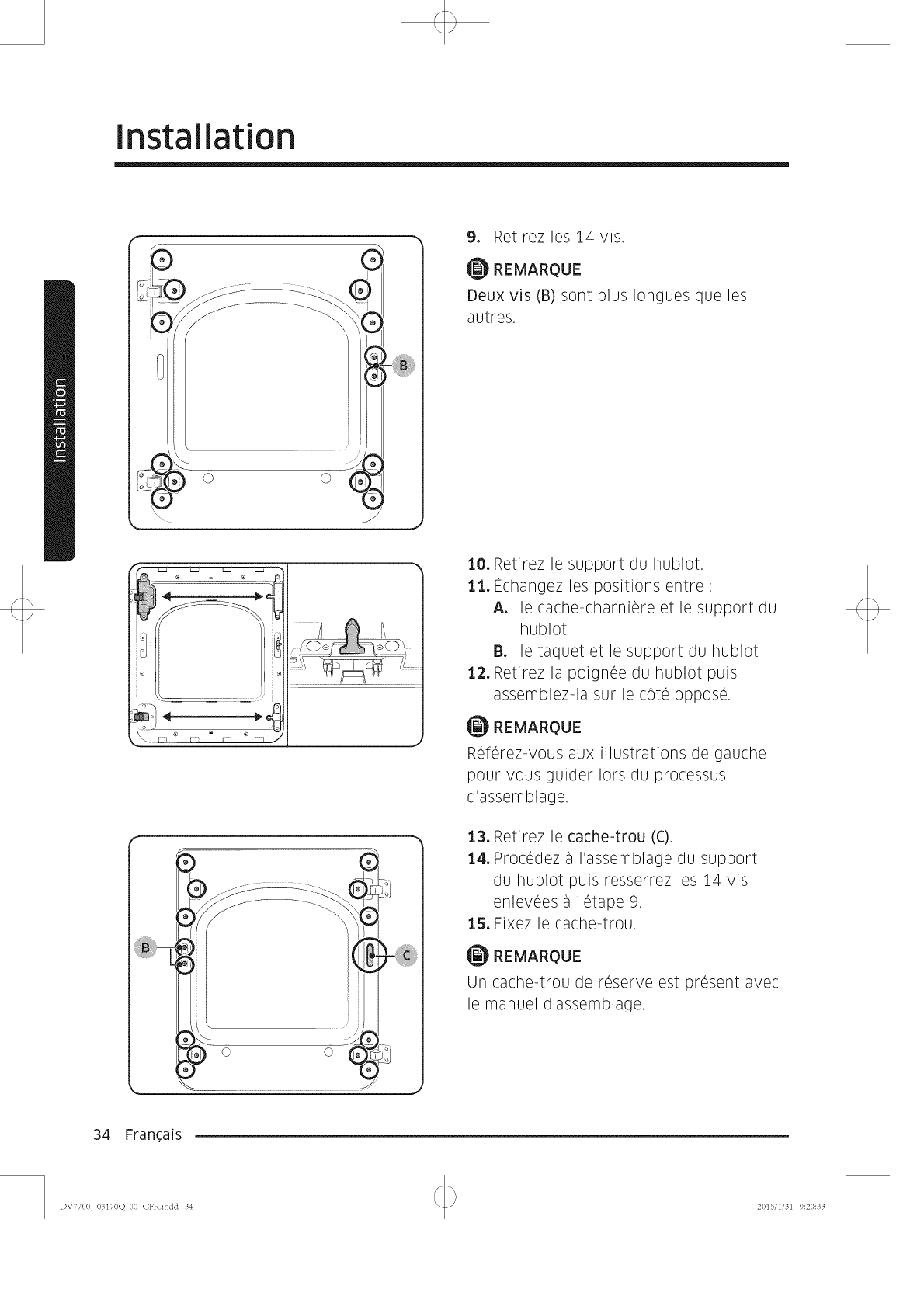

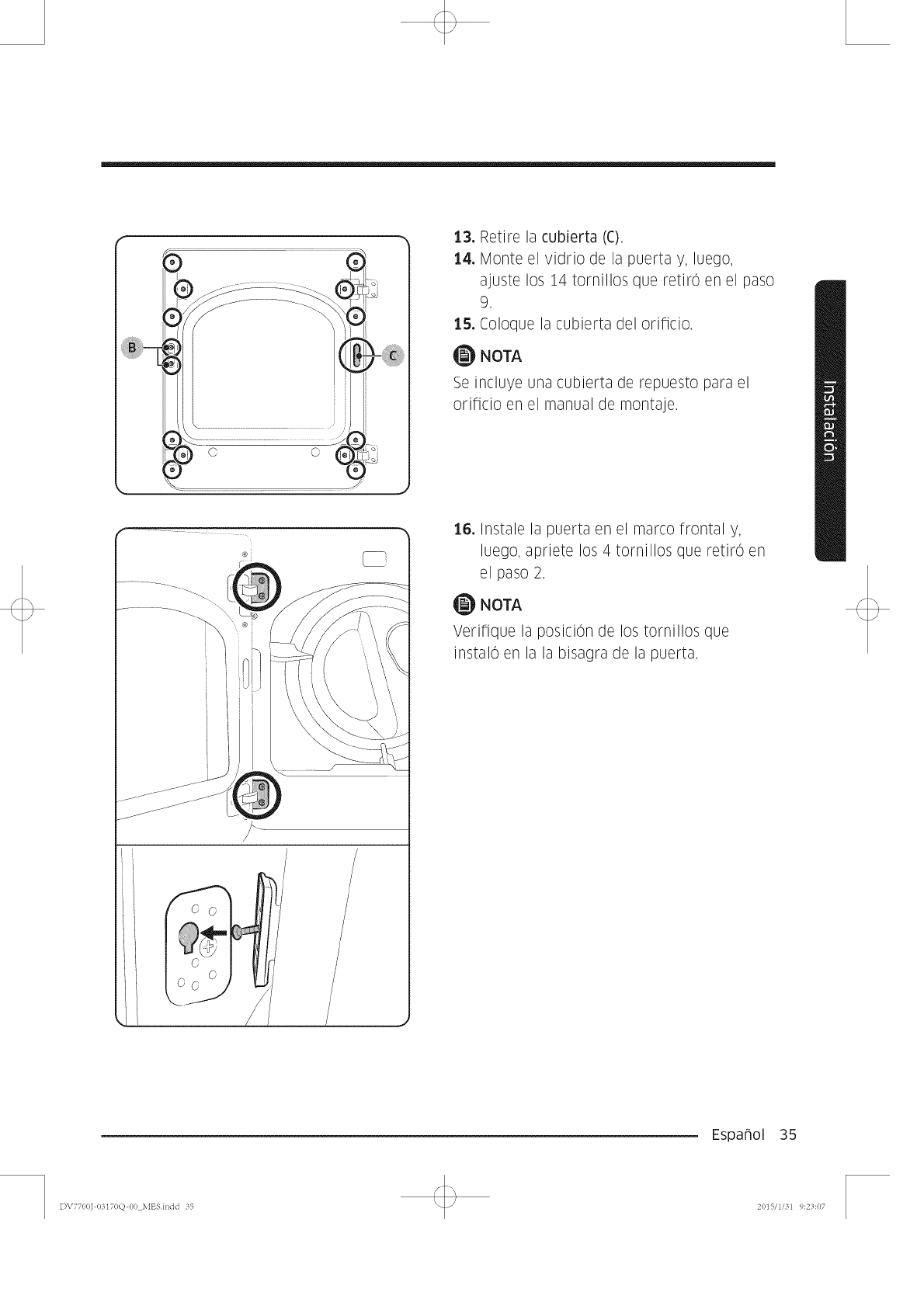

Door reversal

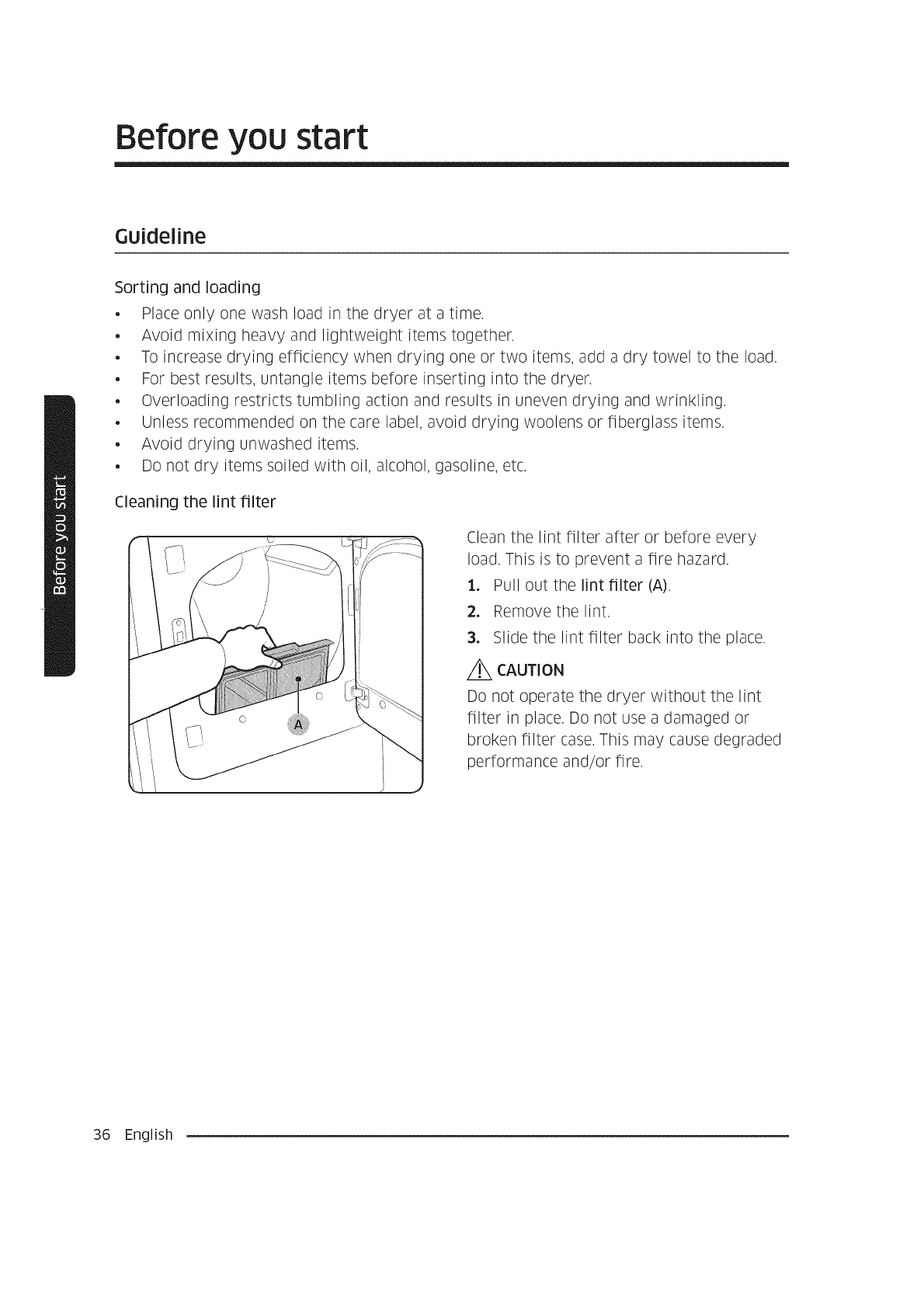

Before you start

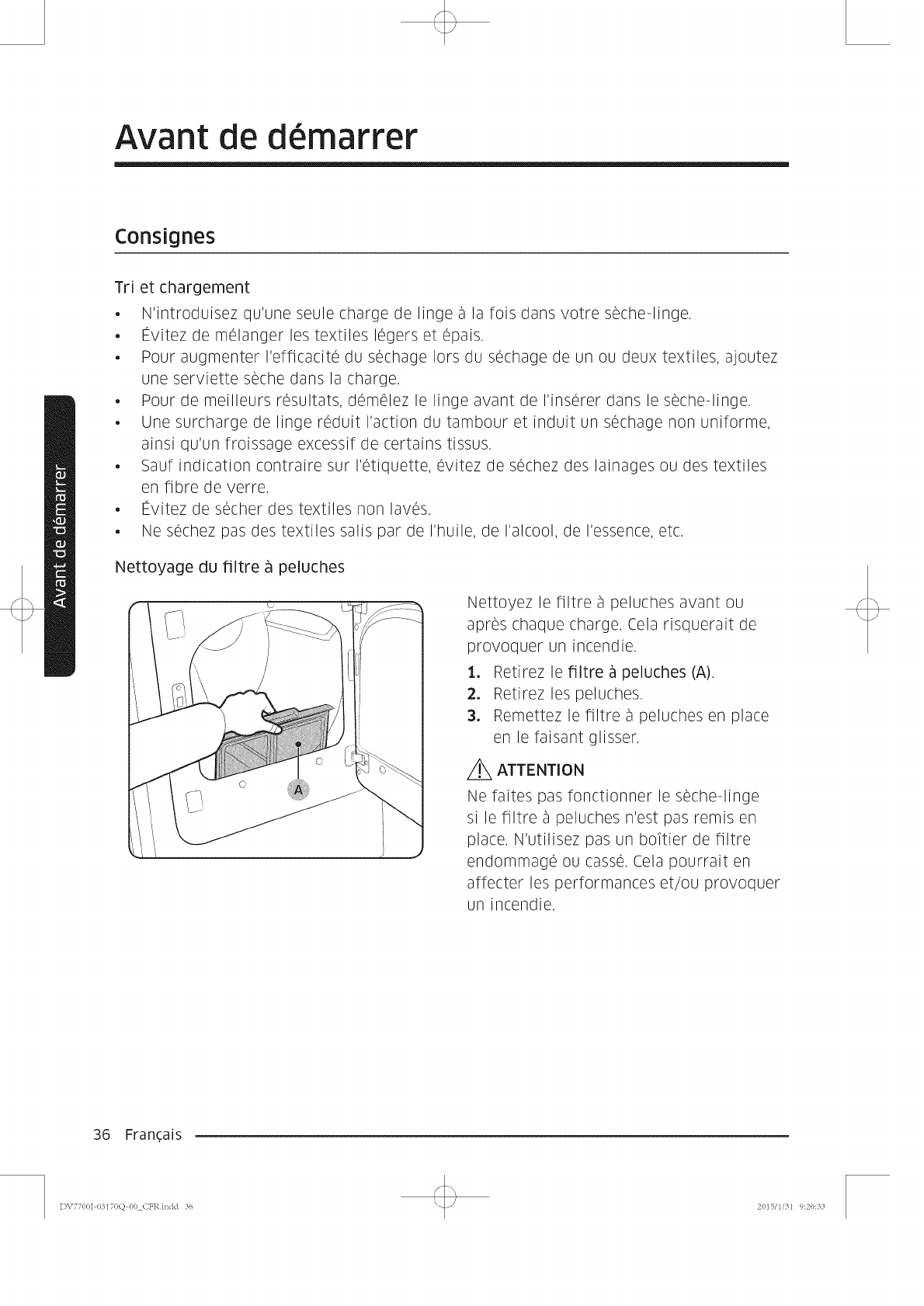

Guideline

Operations

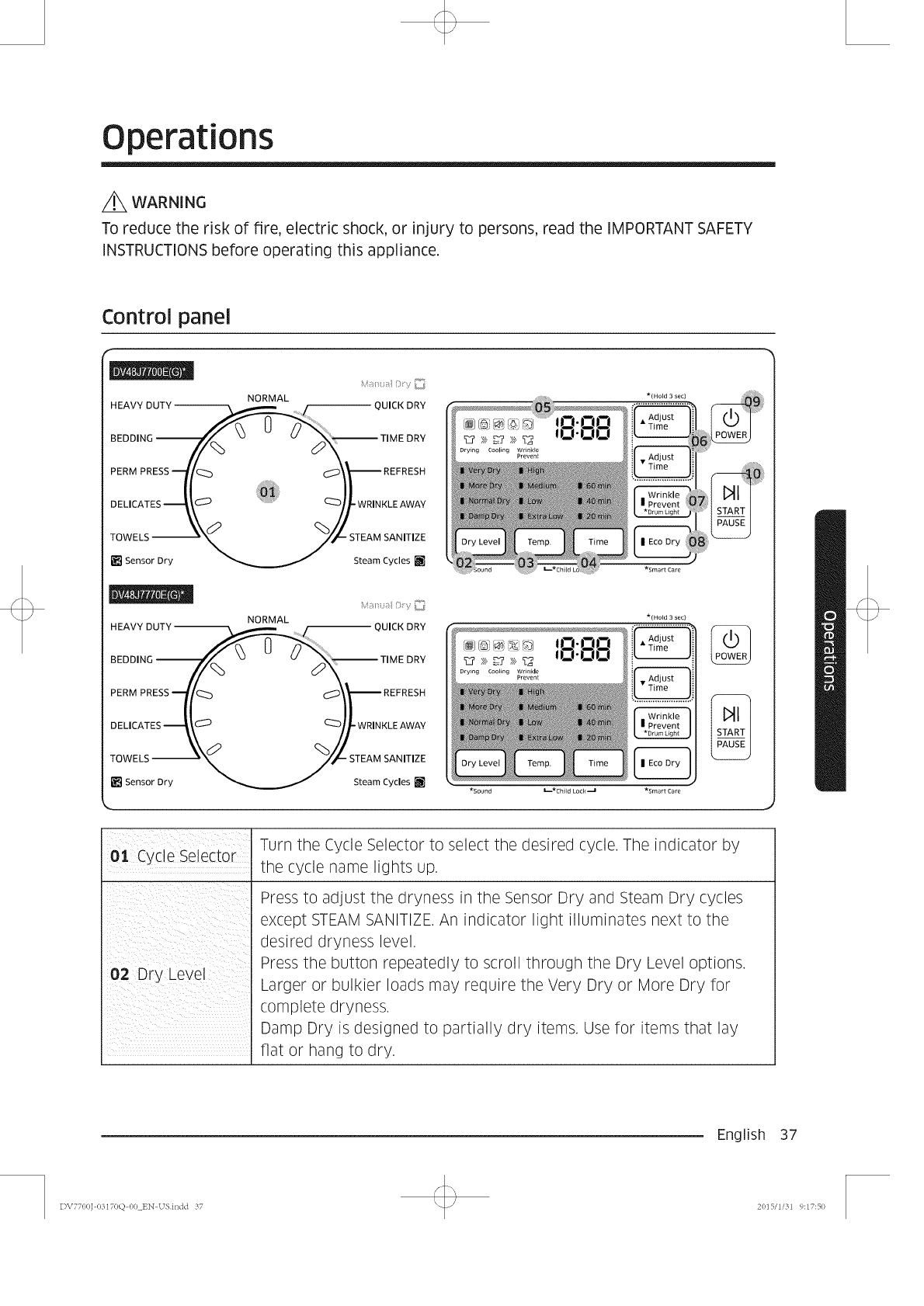

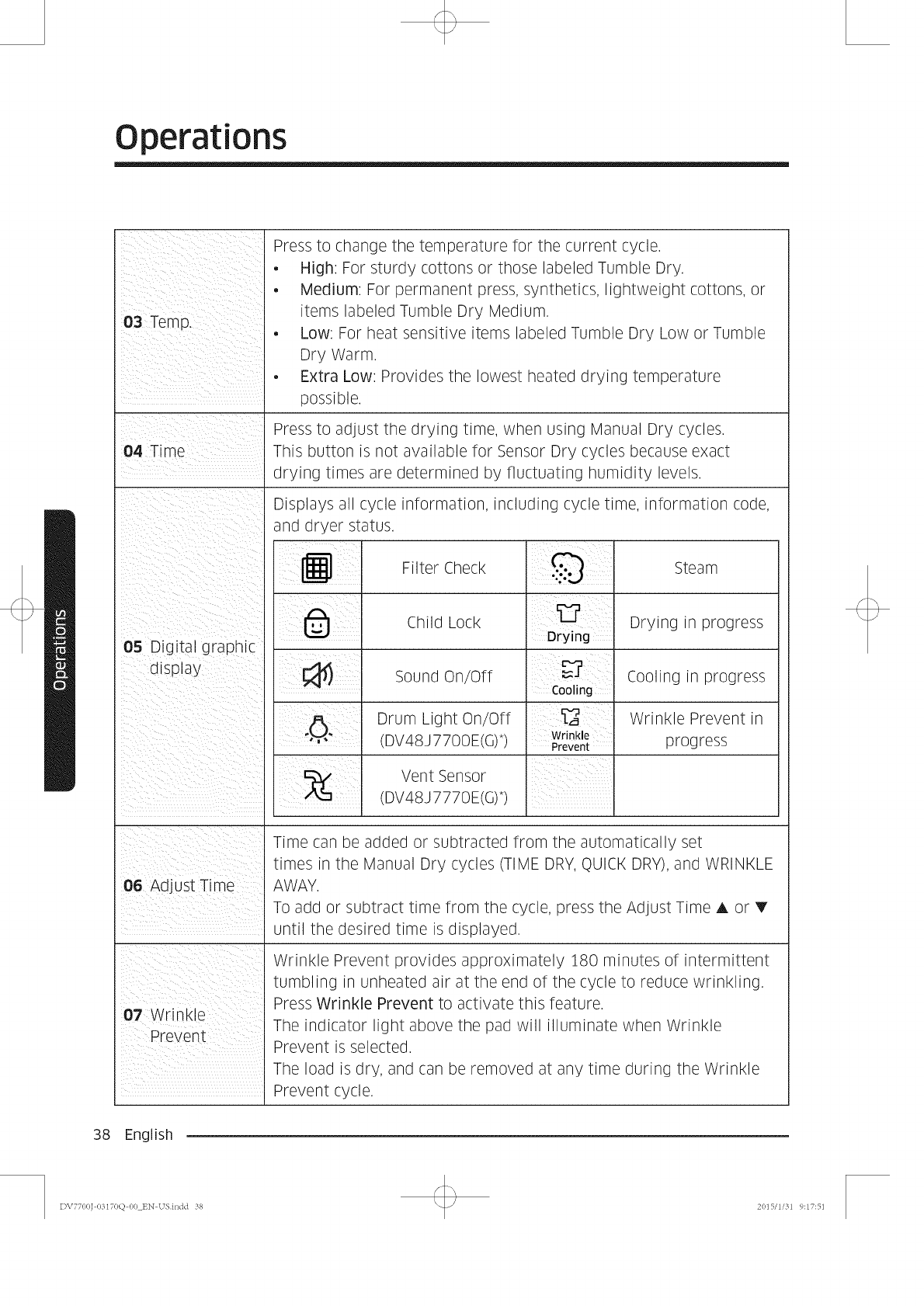

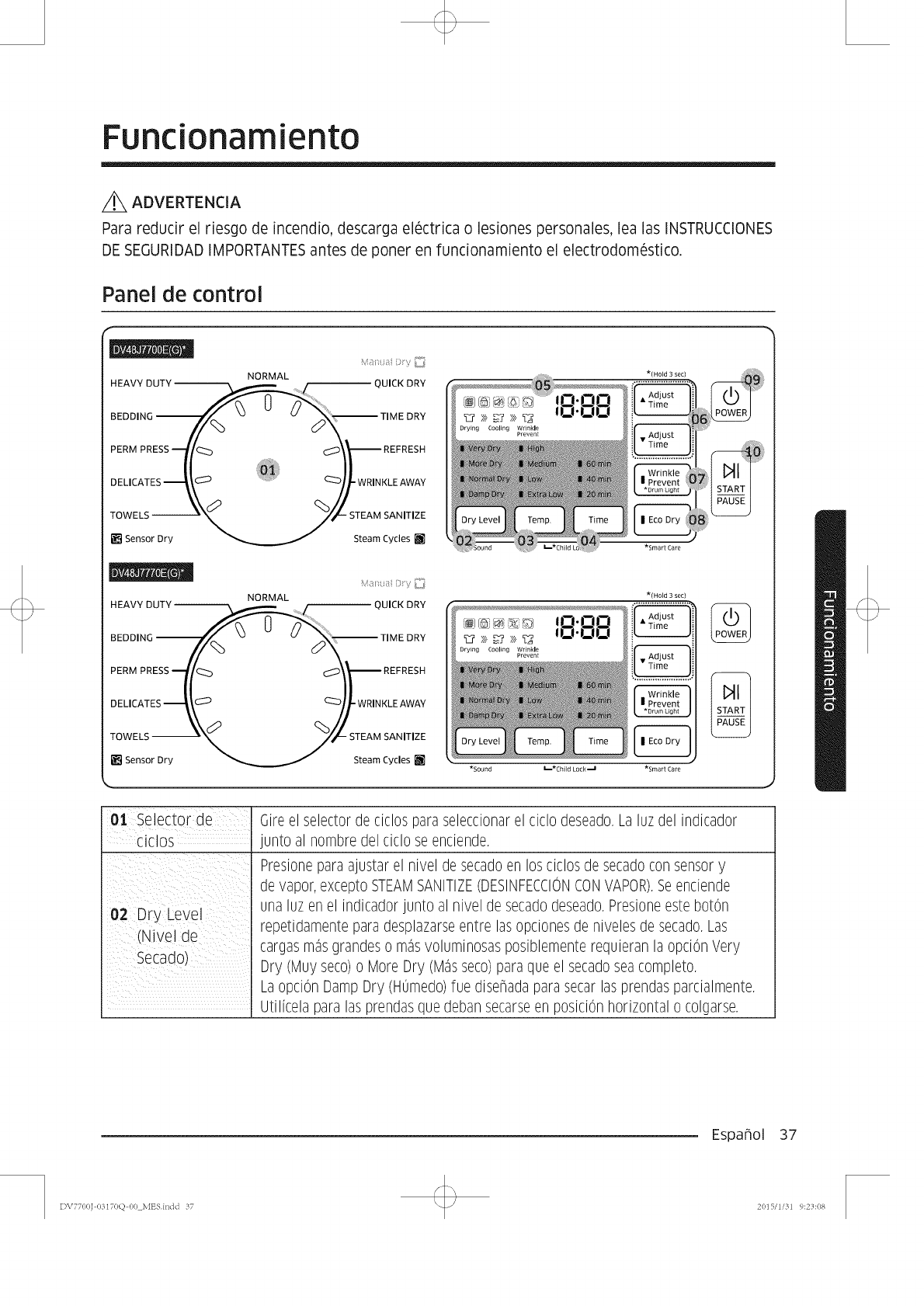

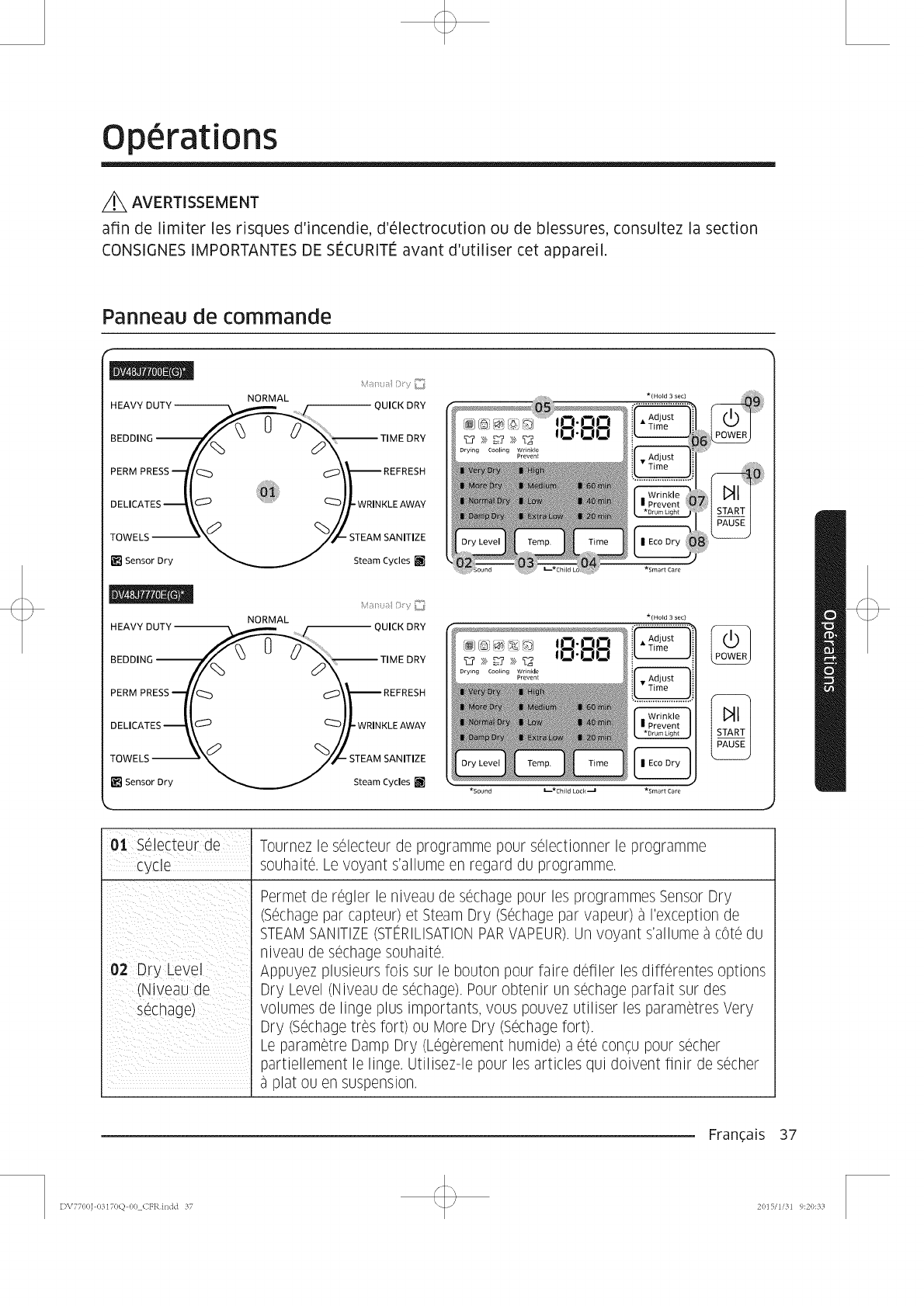

Control panel

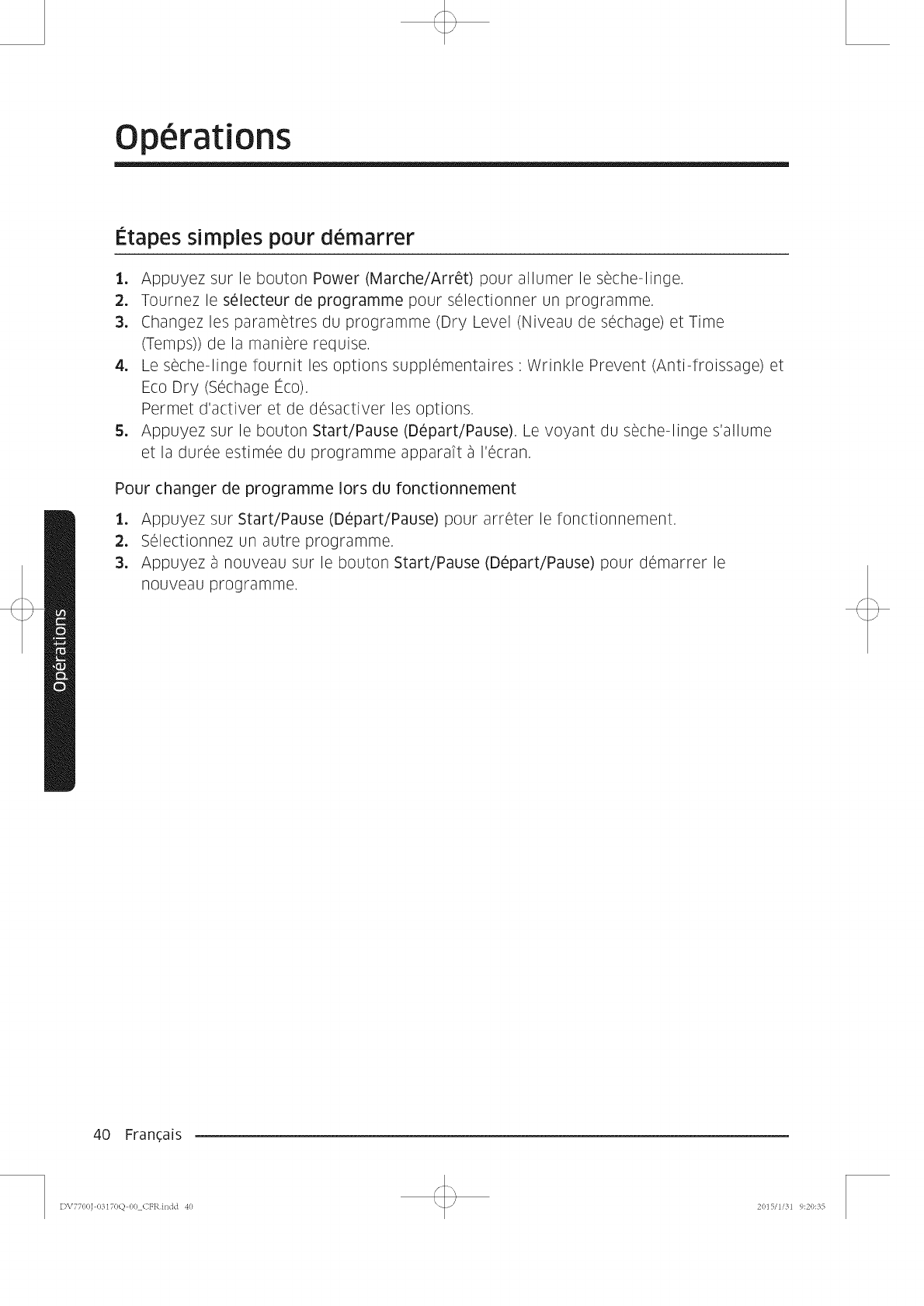

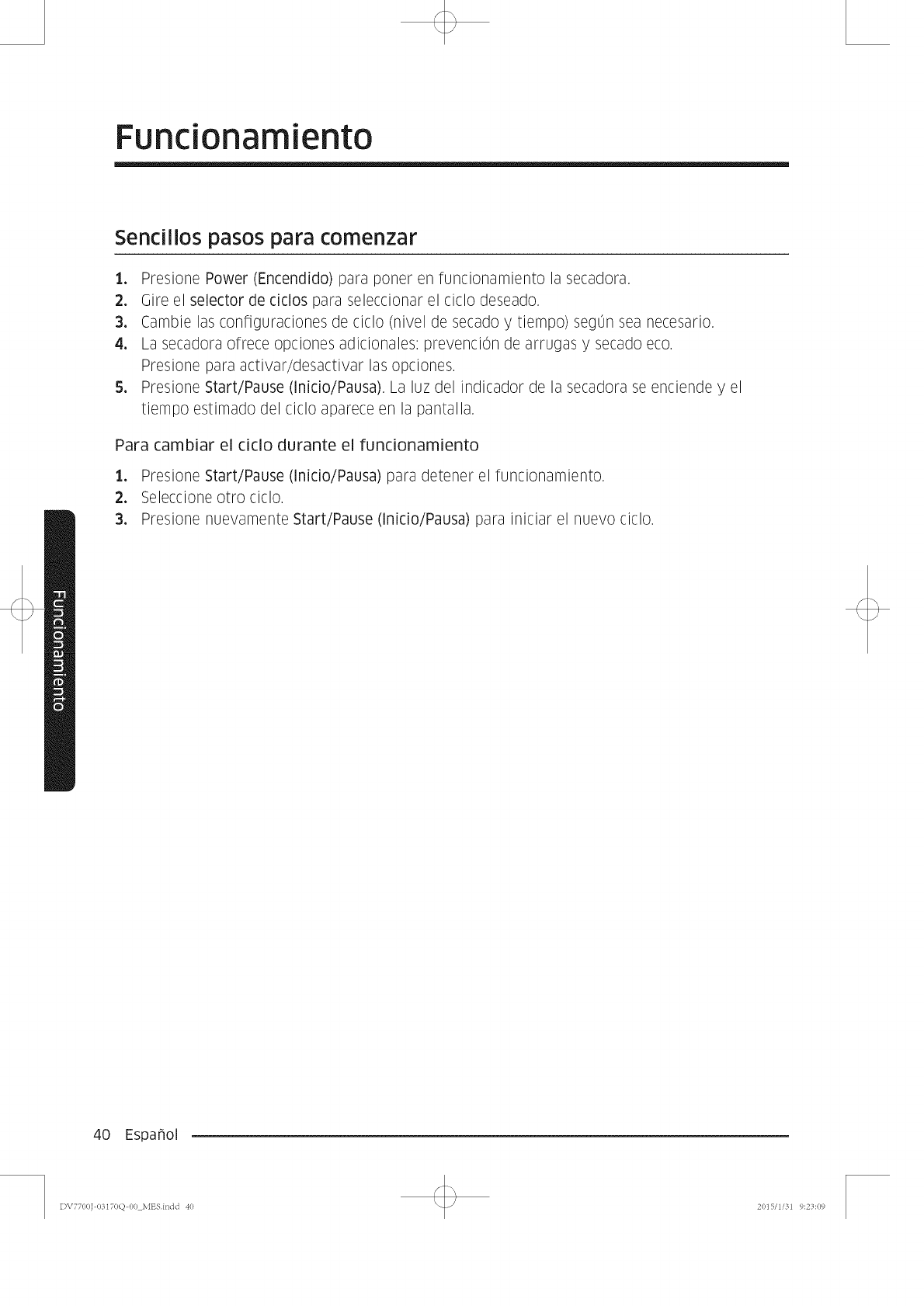

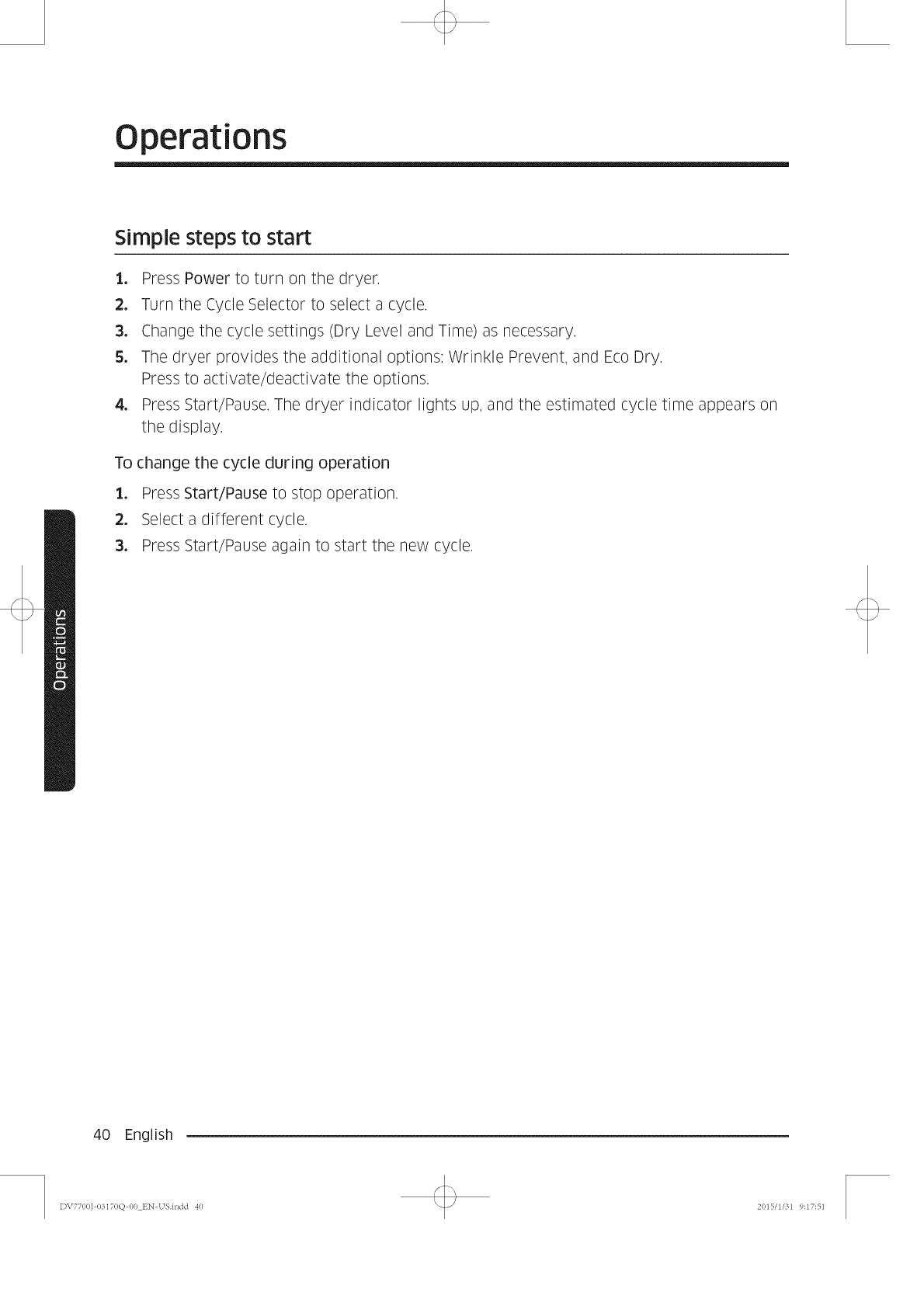

Simple steps to start

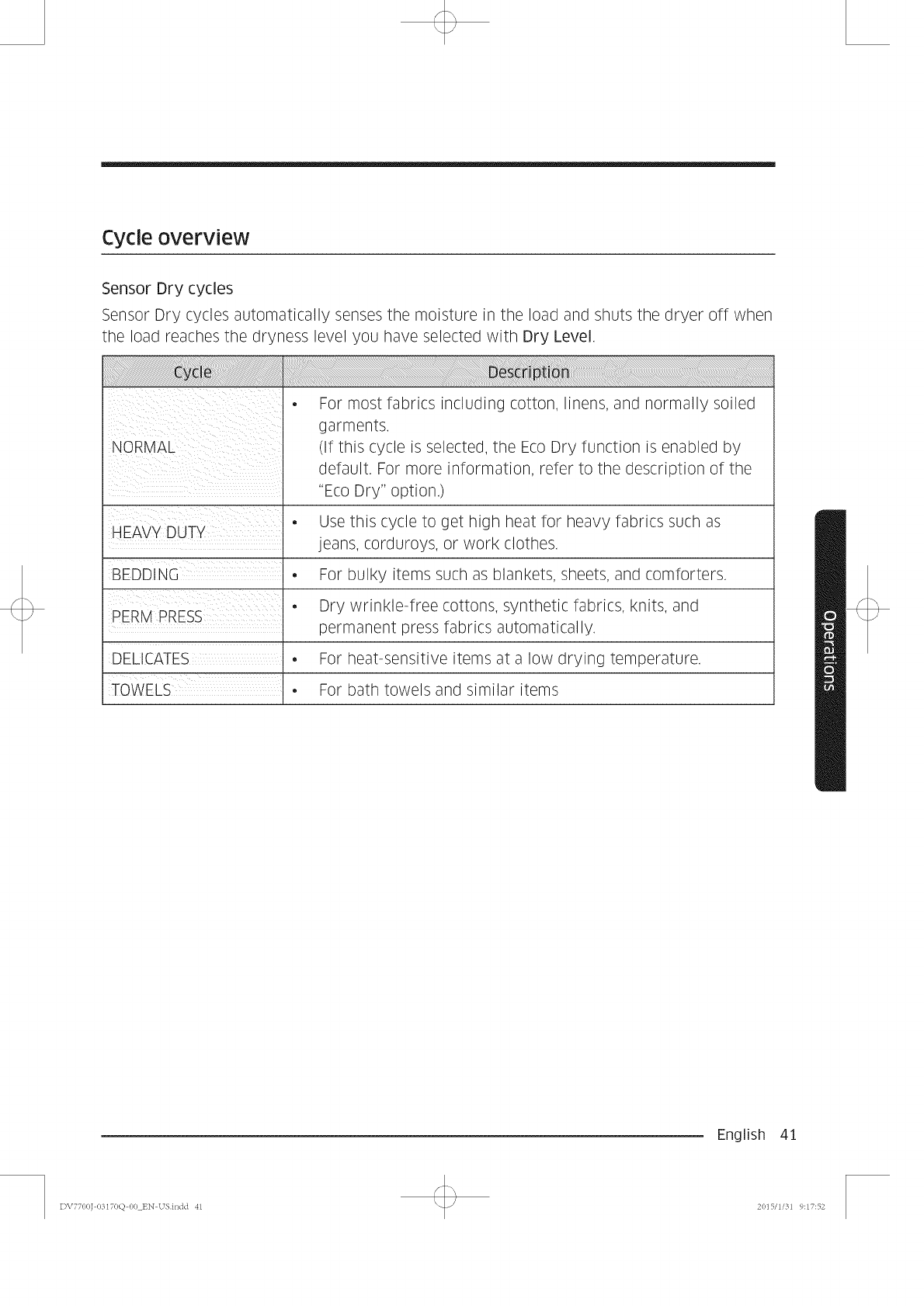

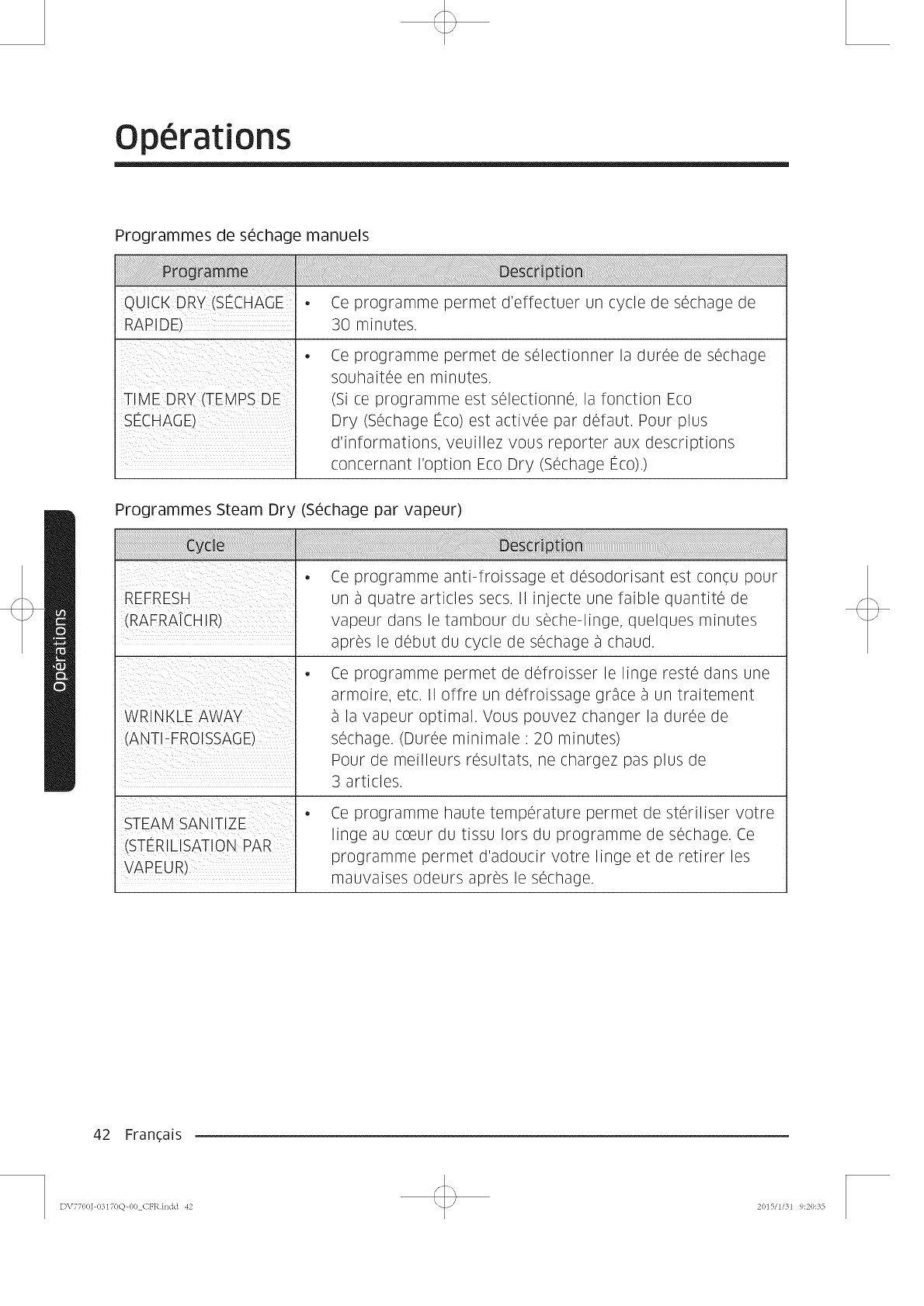

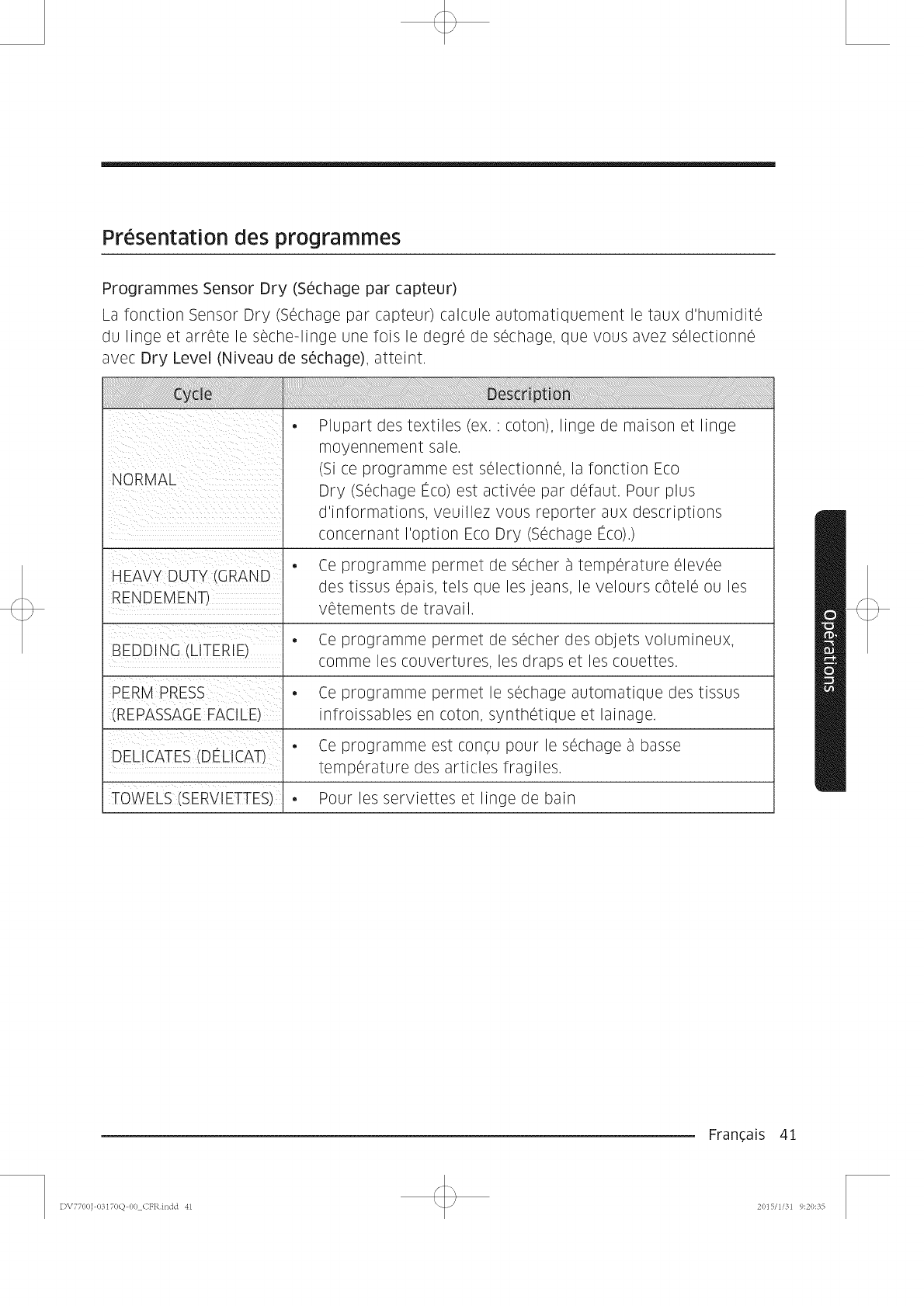

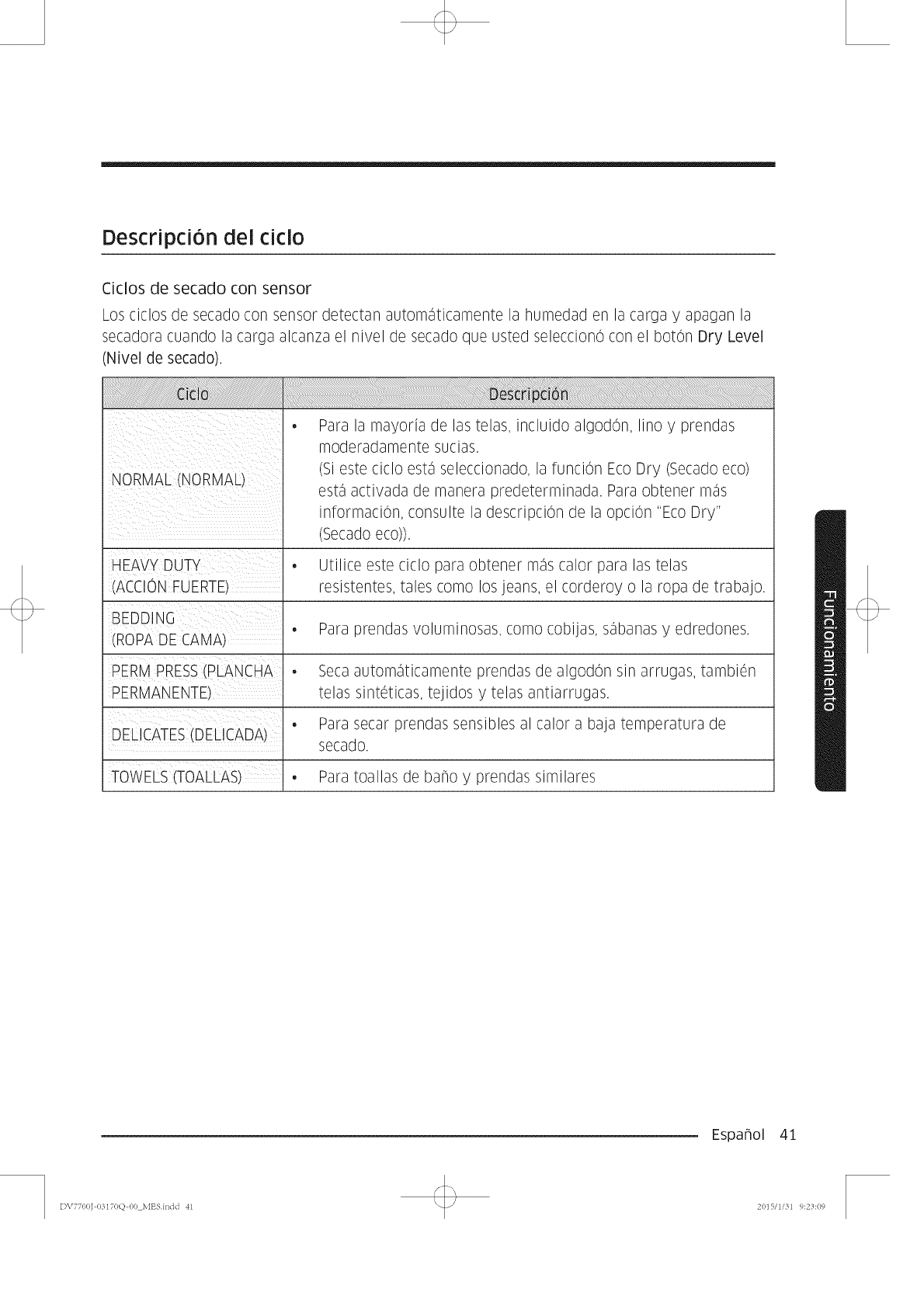

Cycle overview

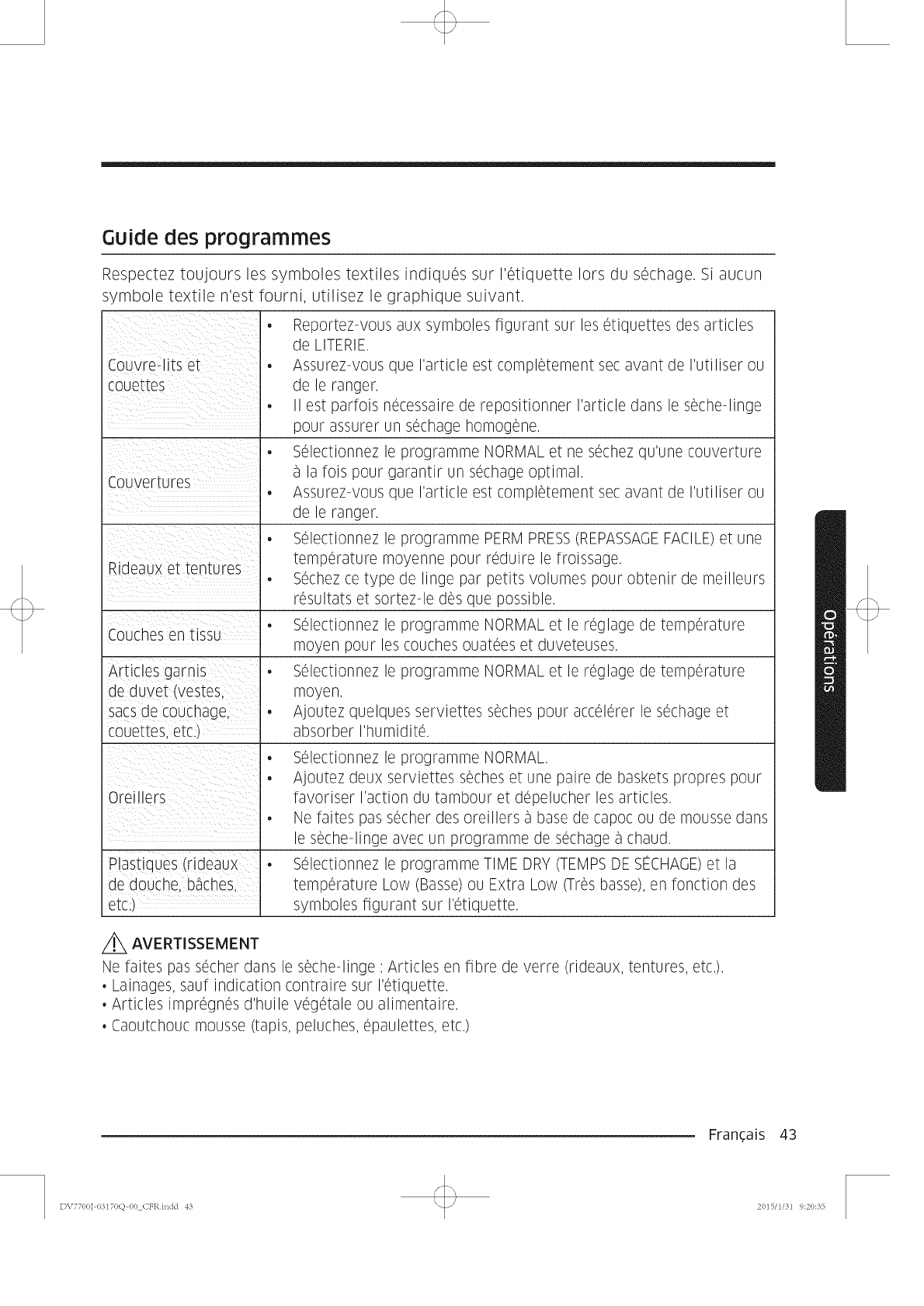

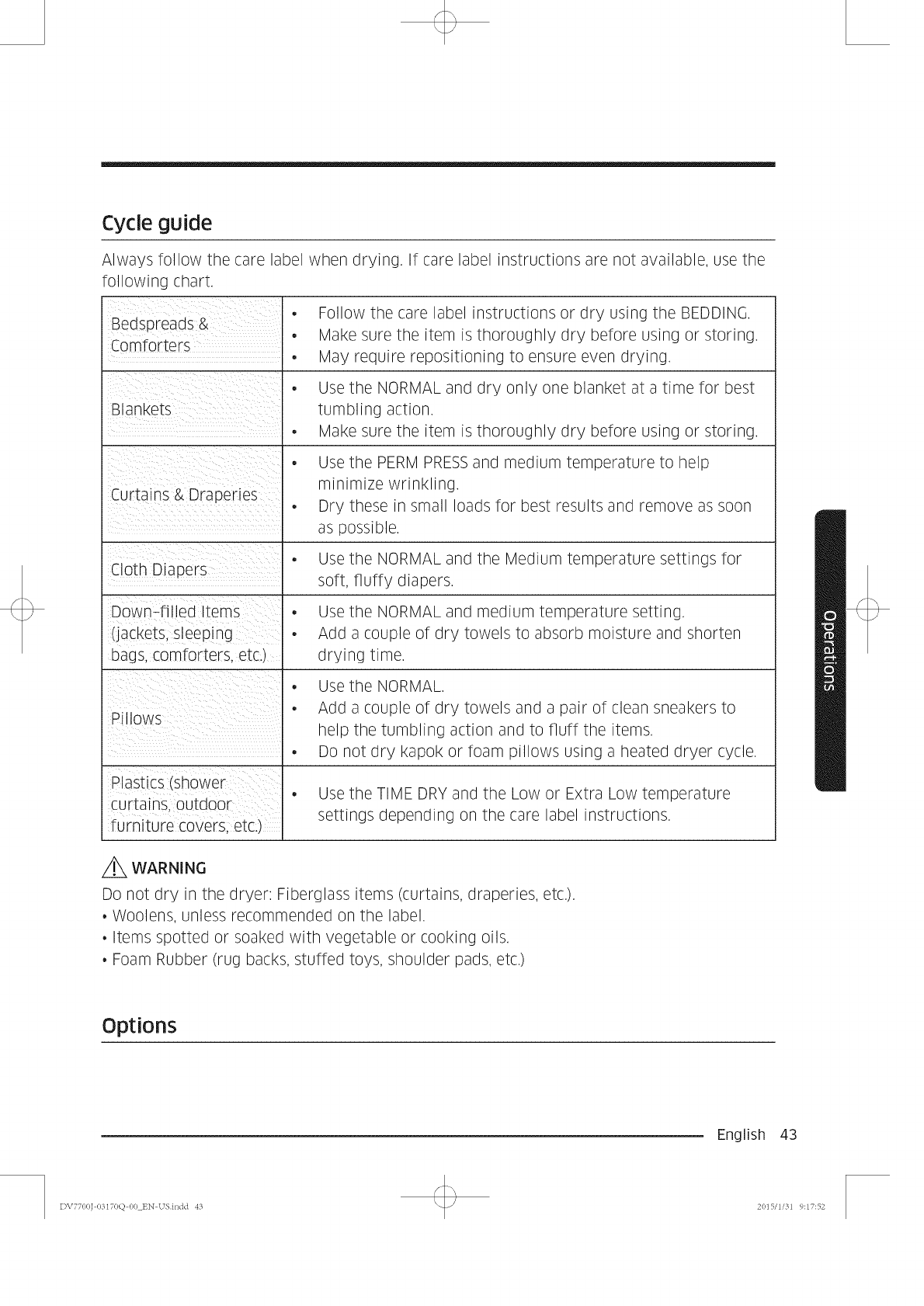

Cycle guide

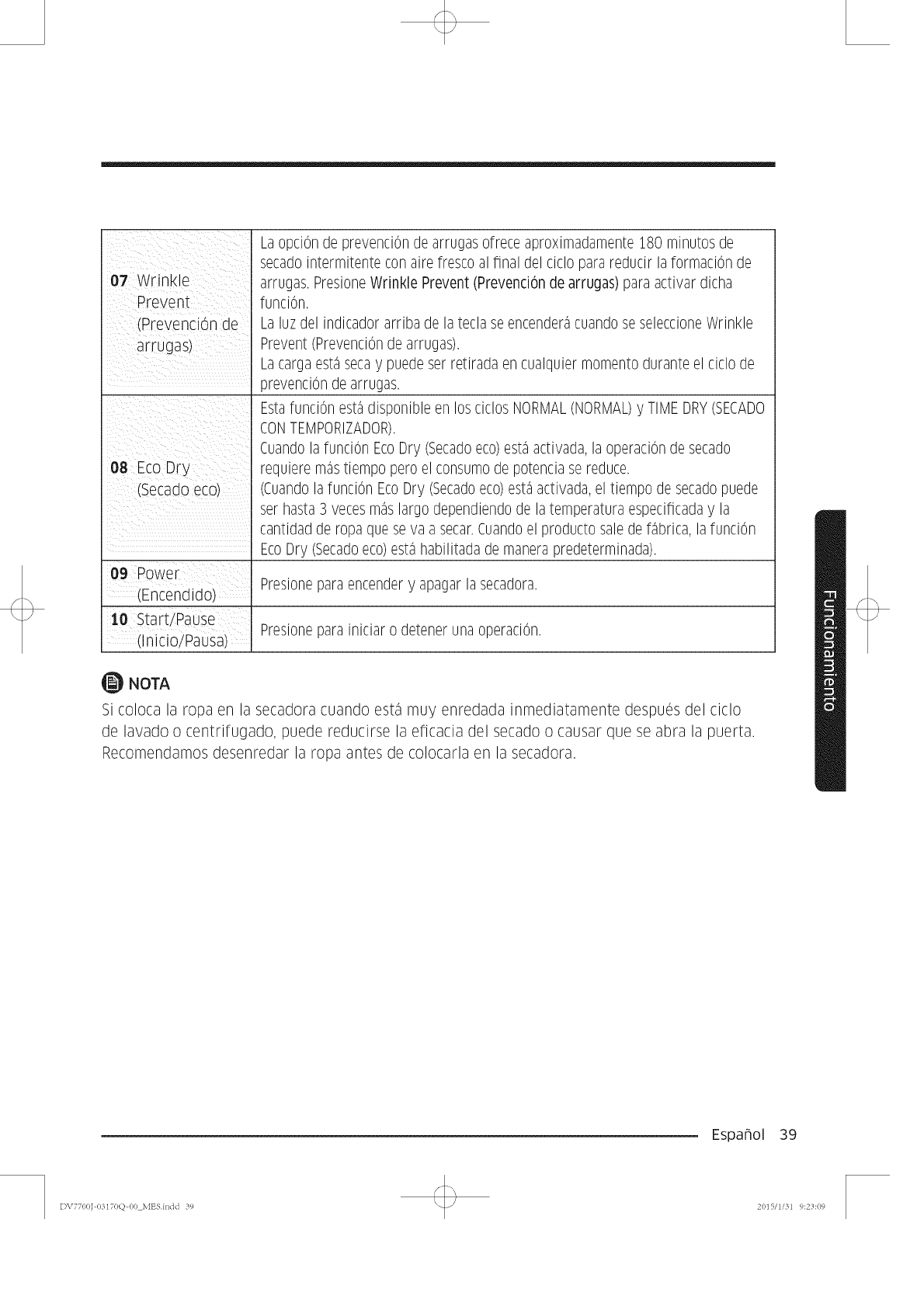

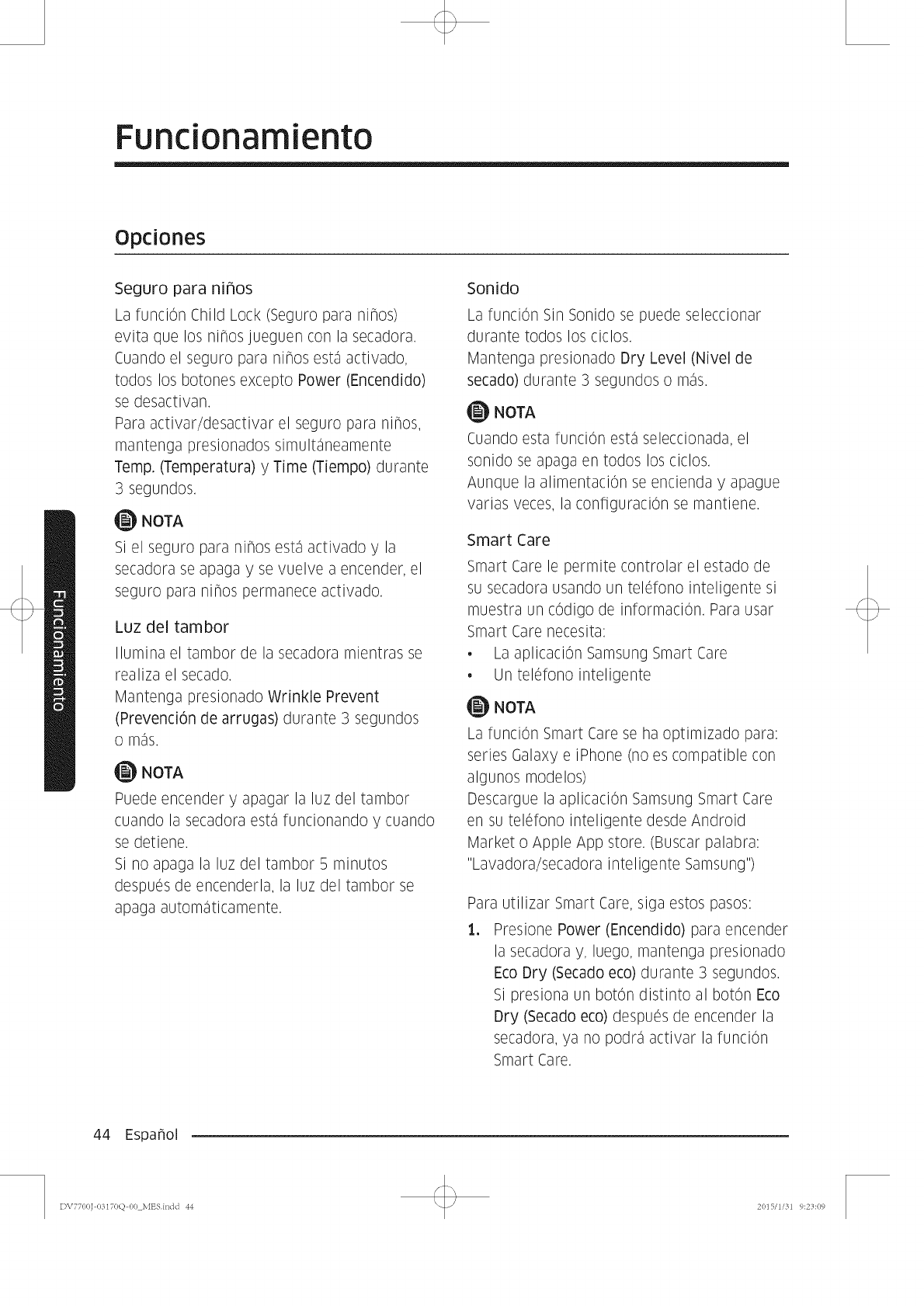

Options

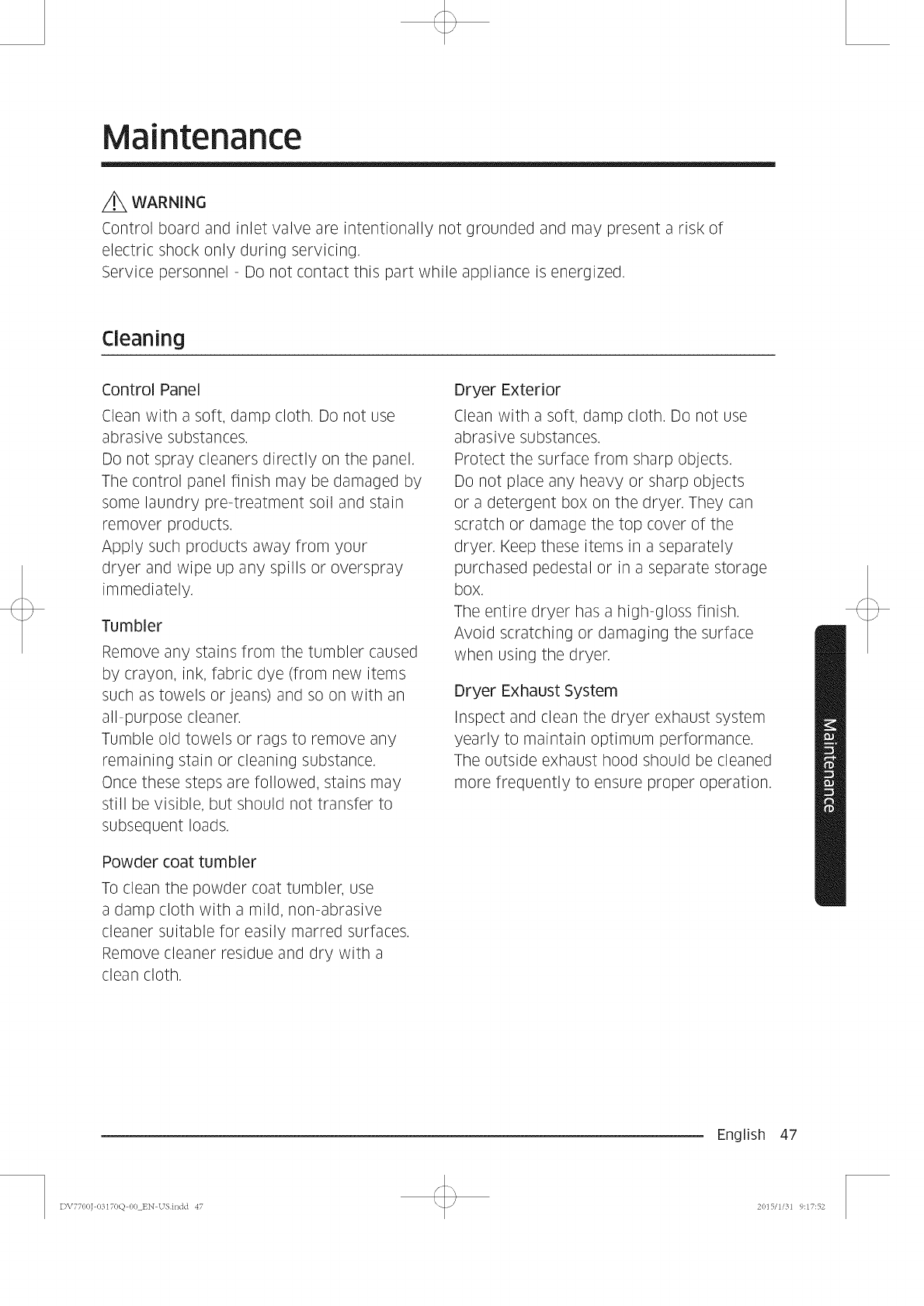

Maintenance

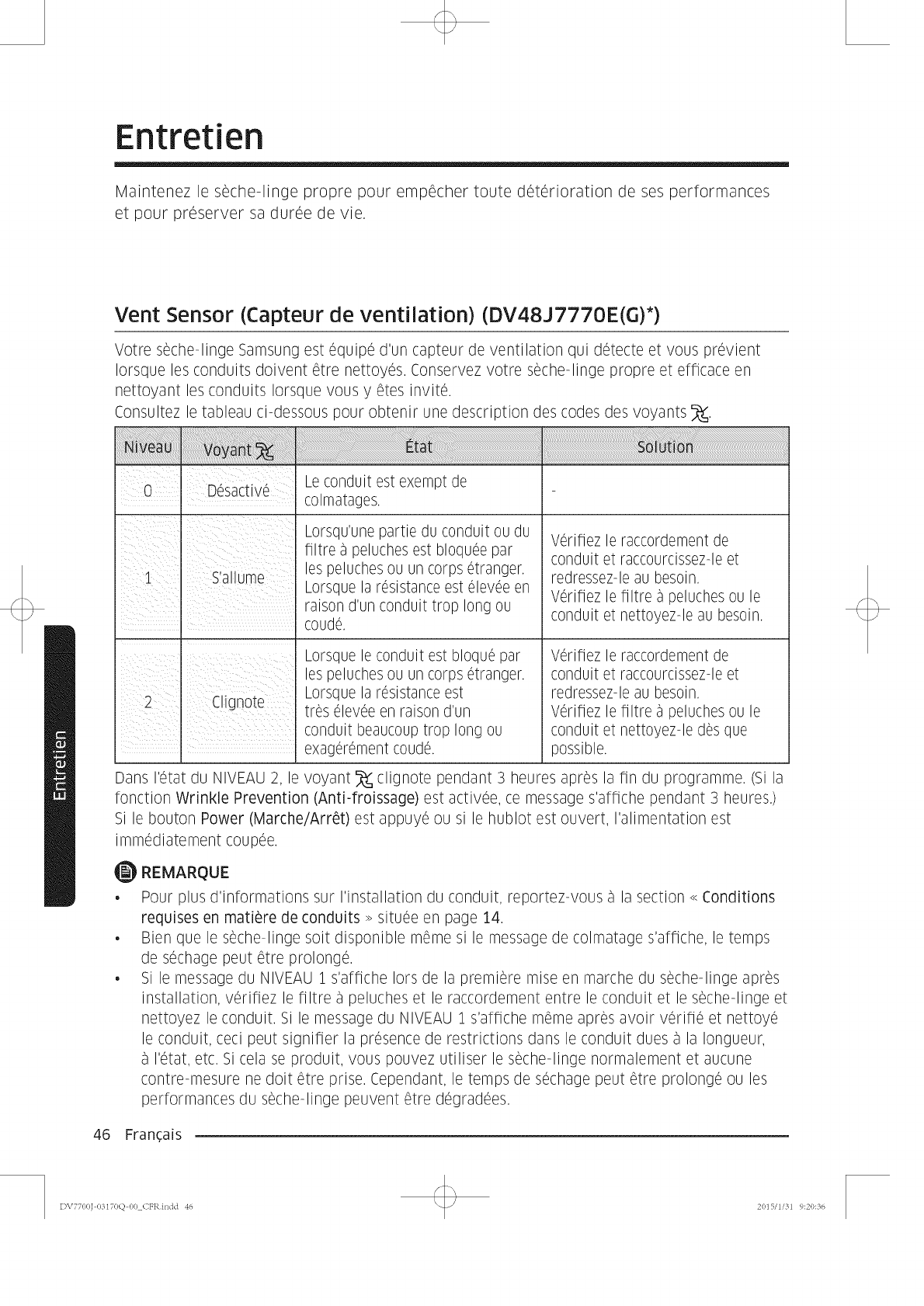

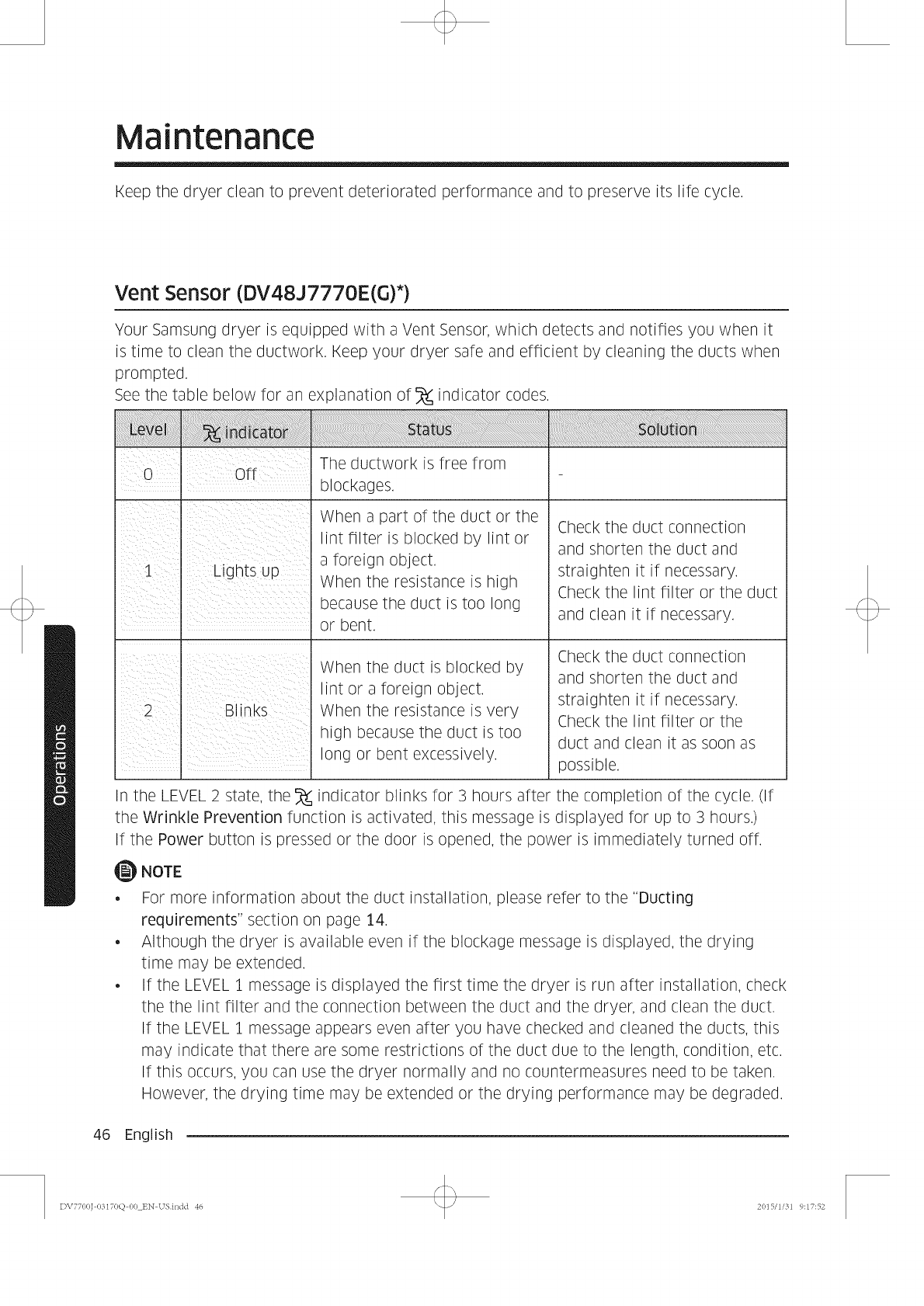

Vent Sensor (DV48J7770E(G) *)

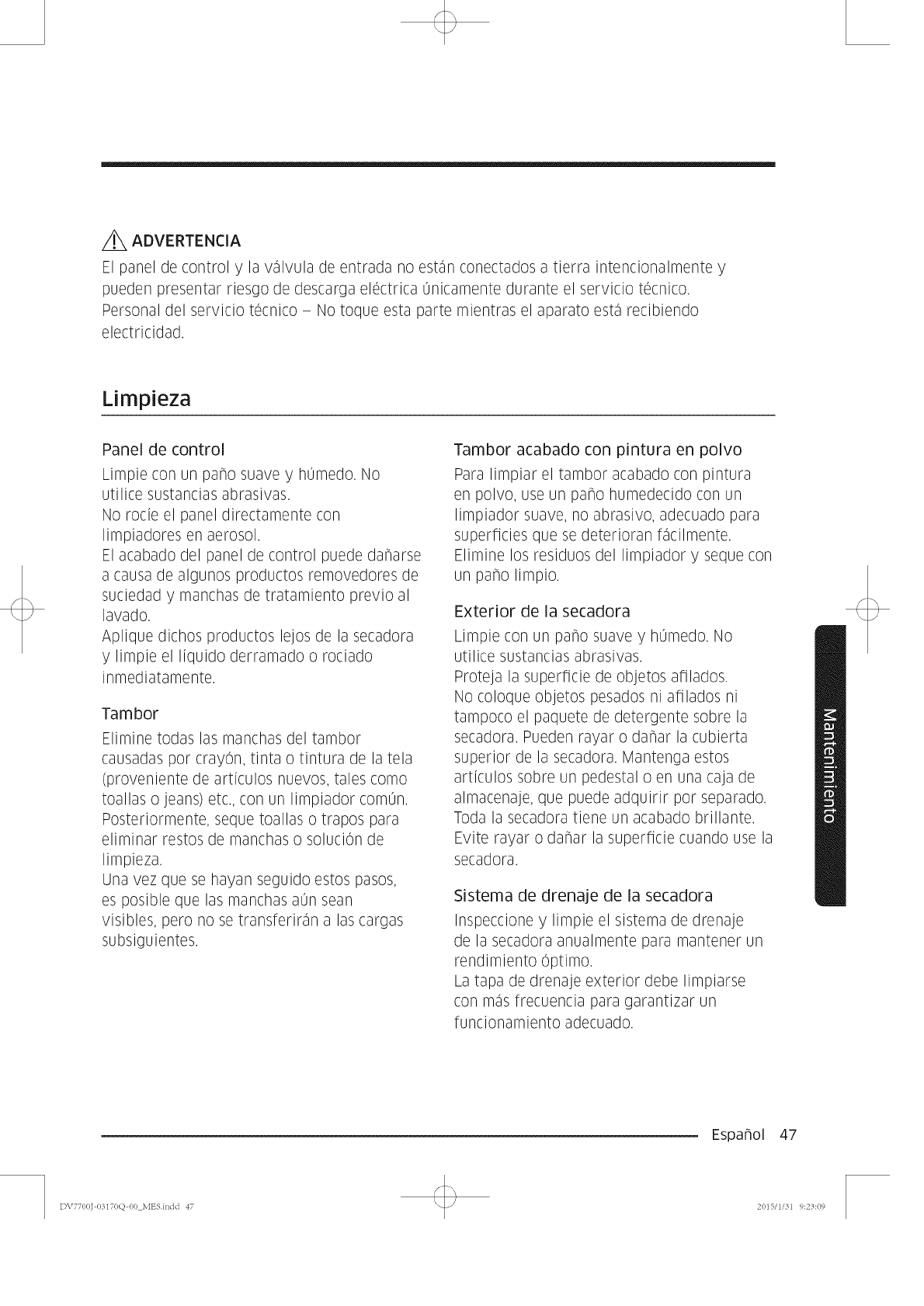

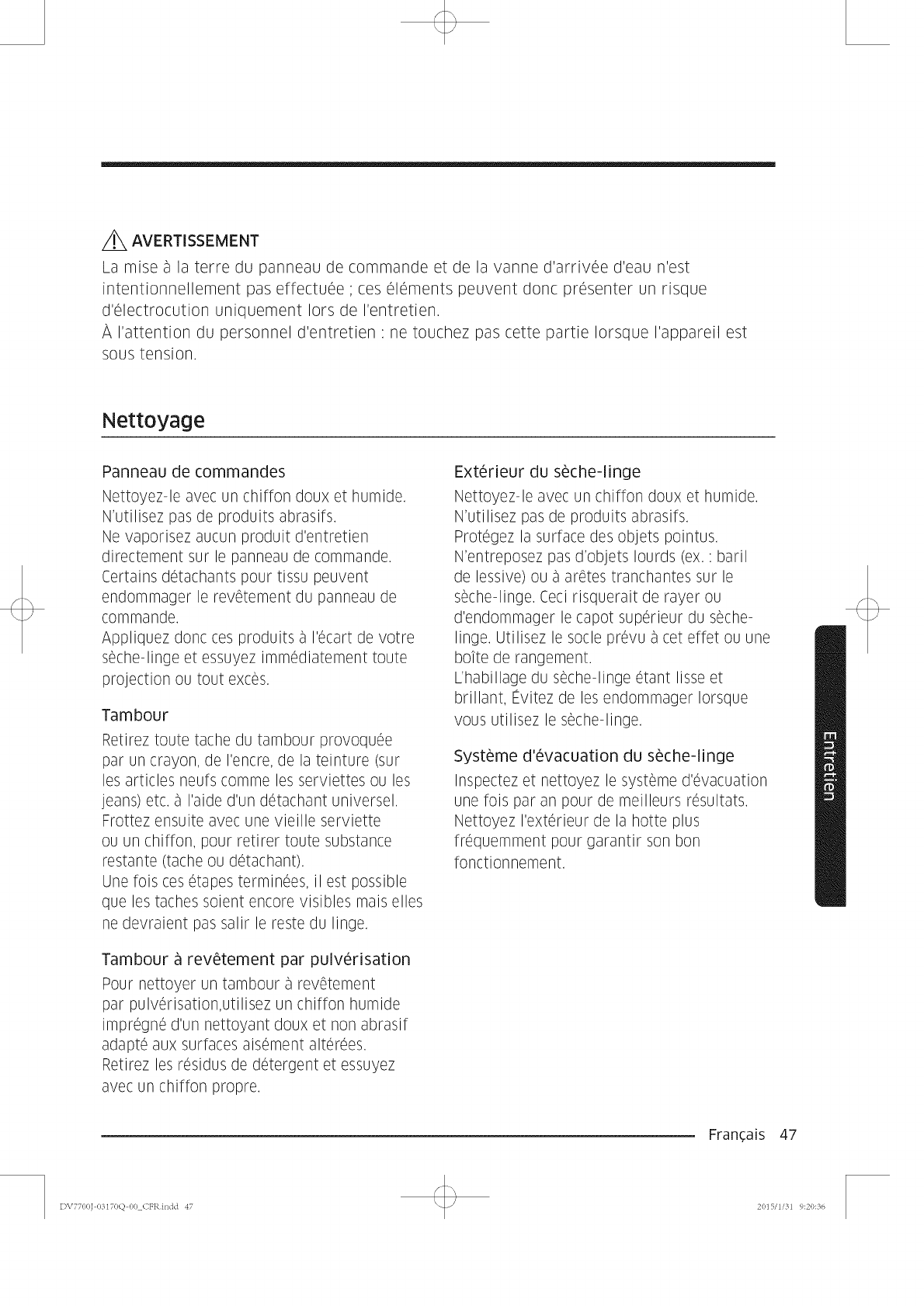

Cleaning

2 English

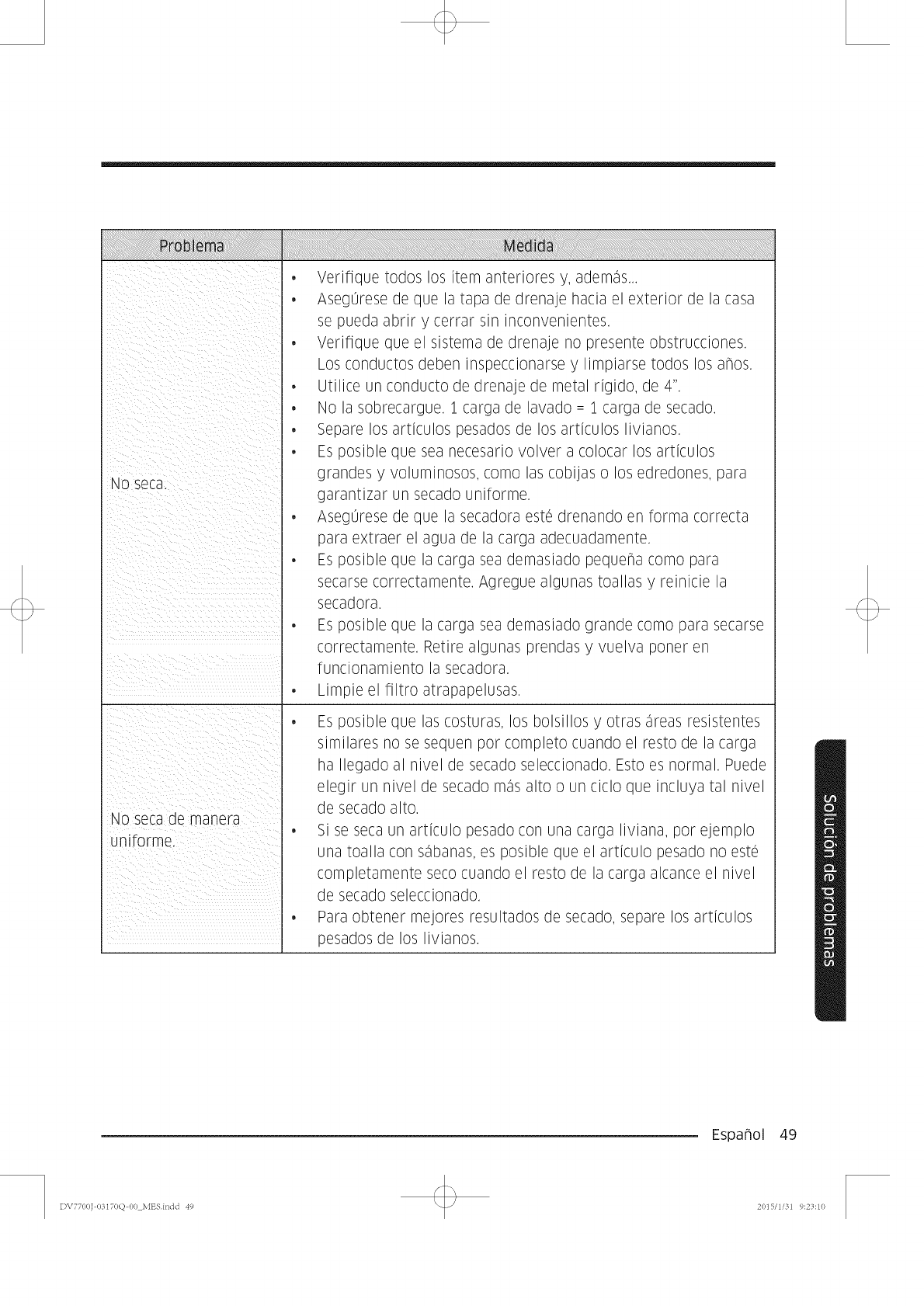

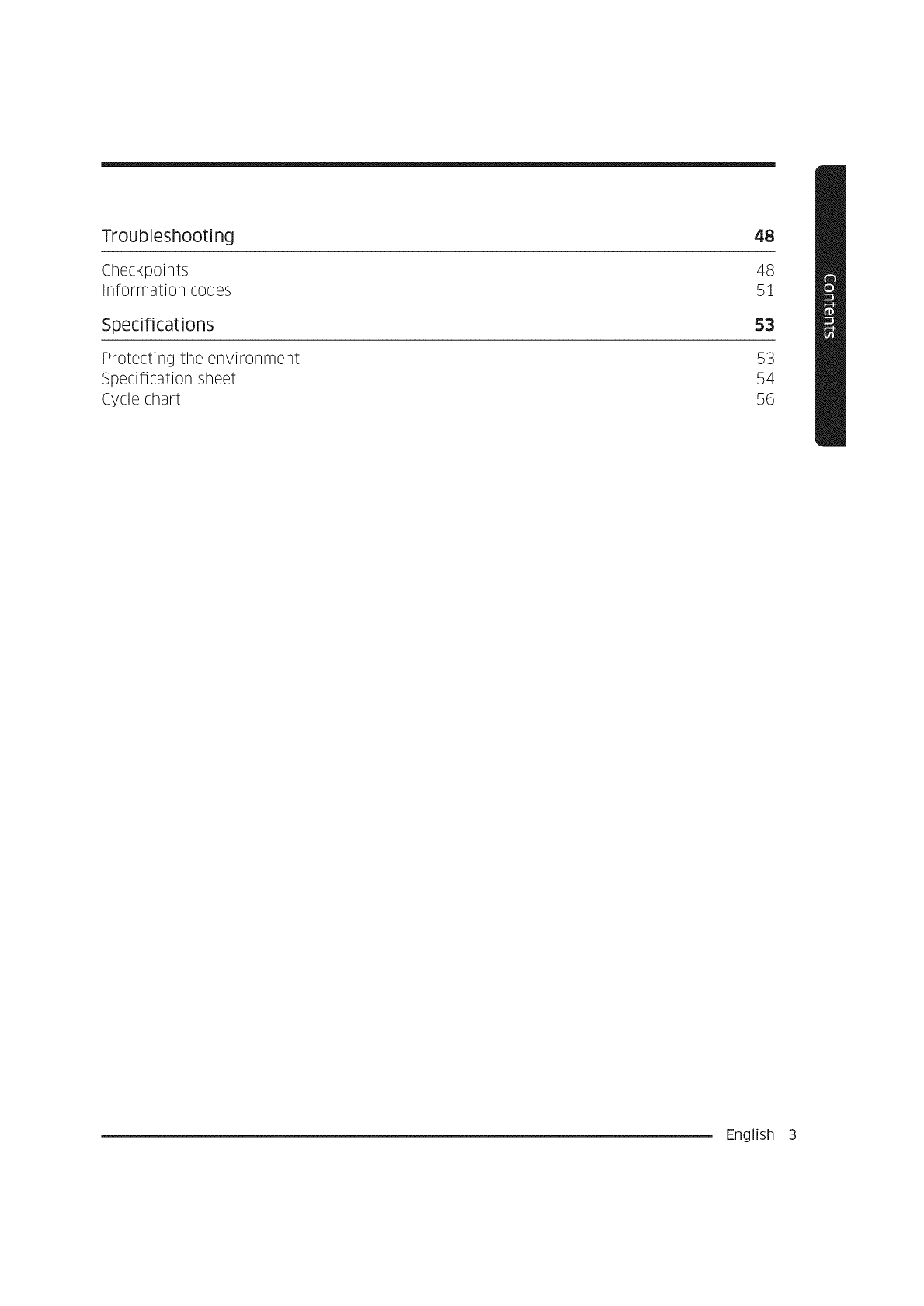

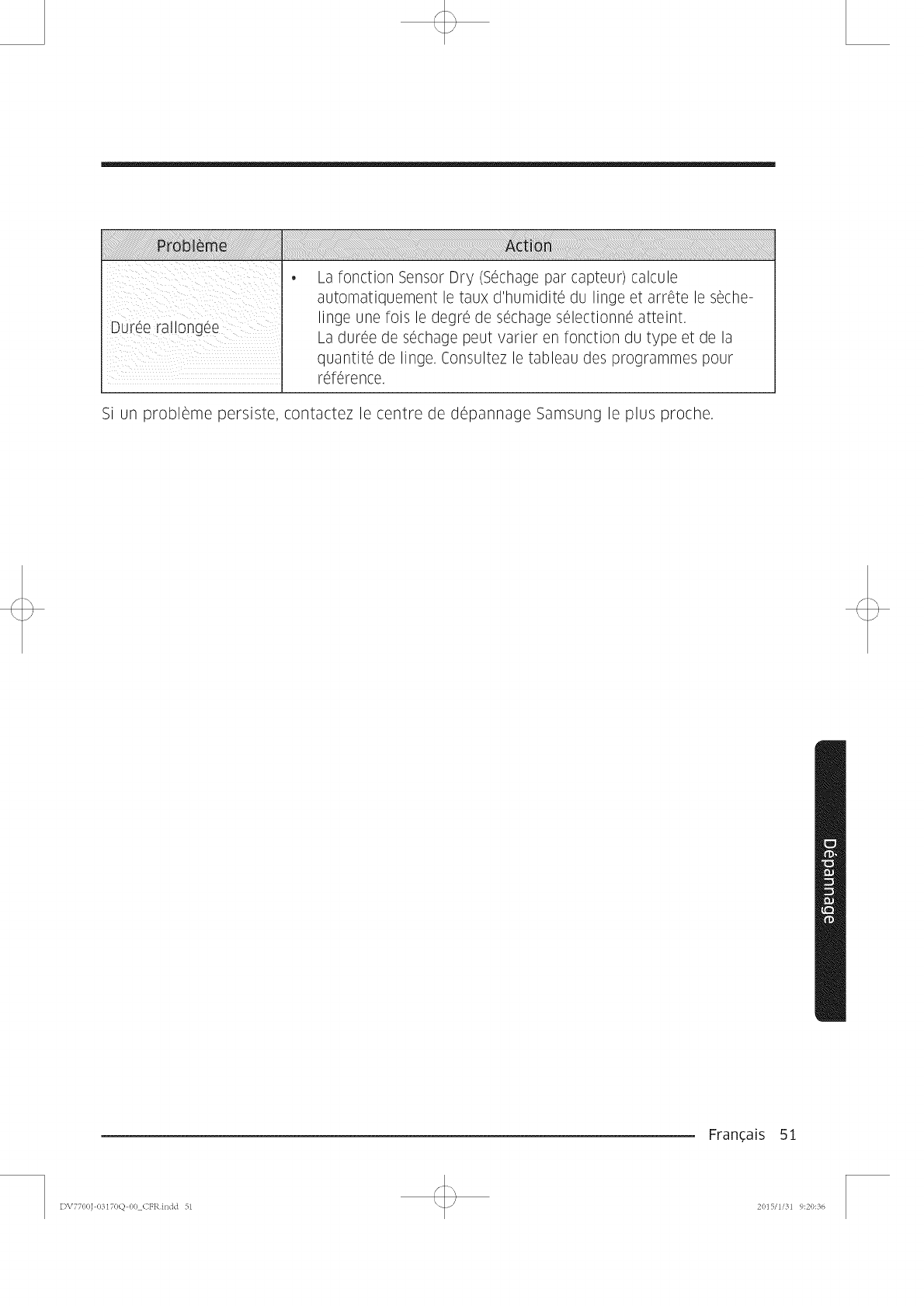

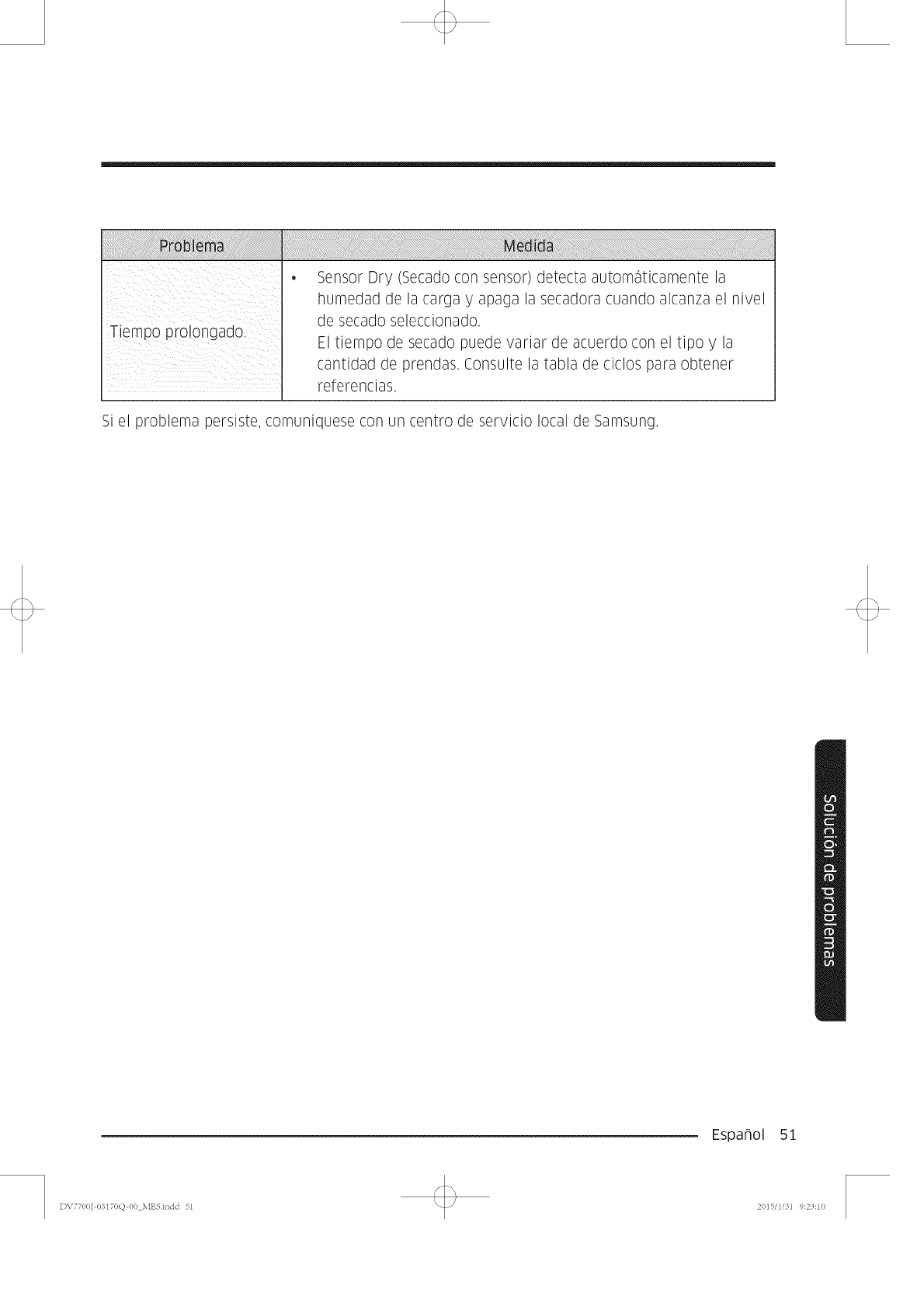

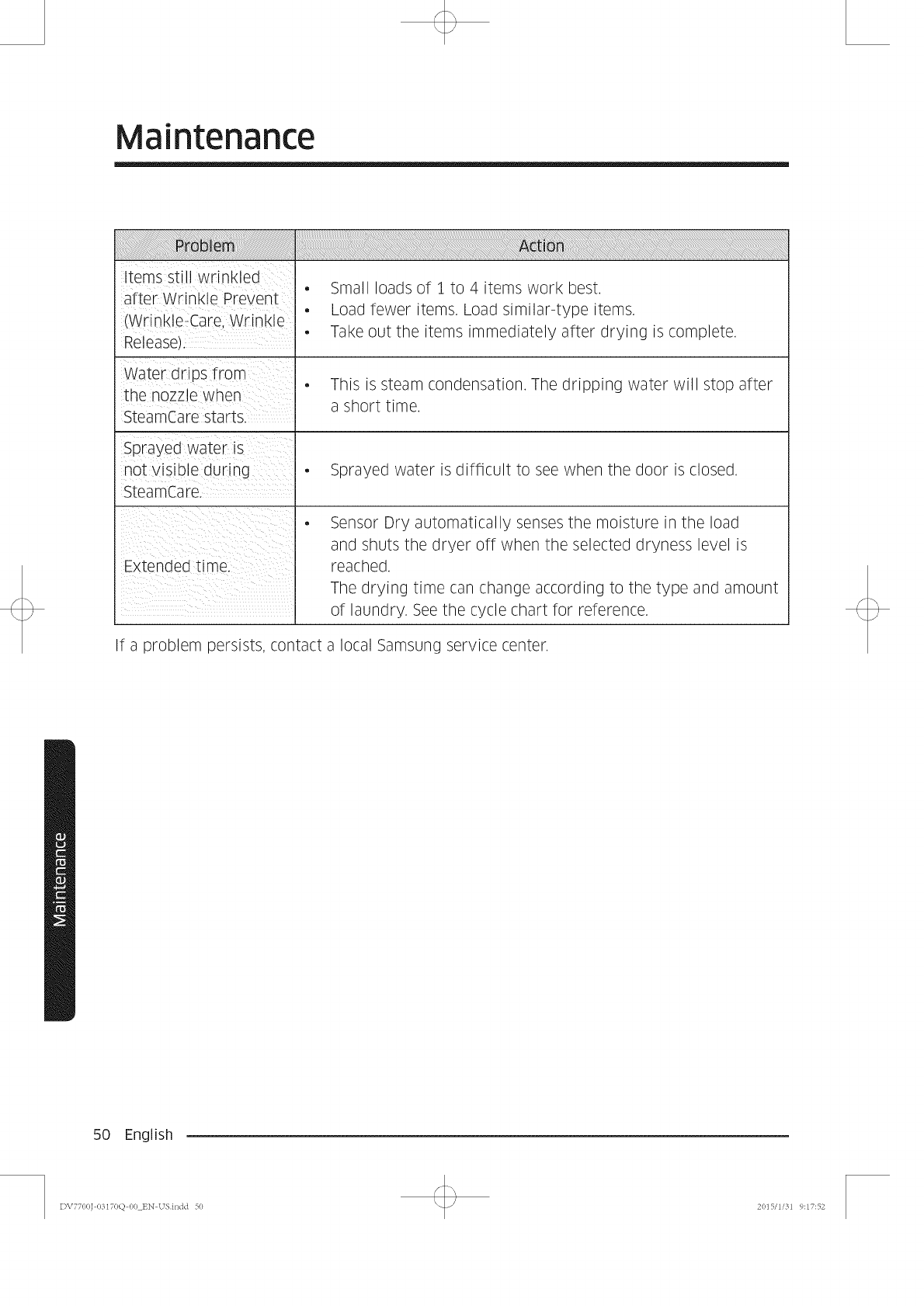

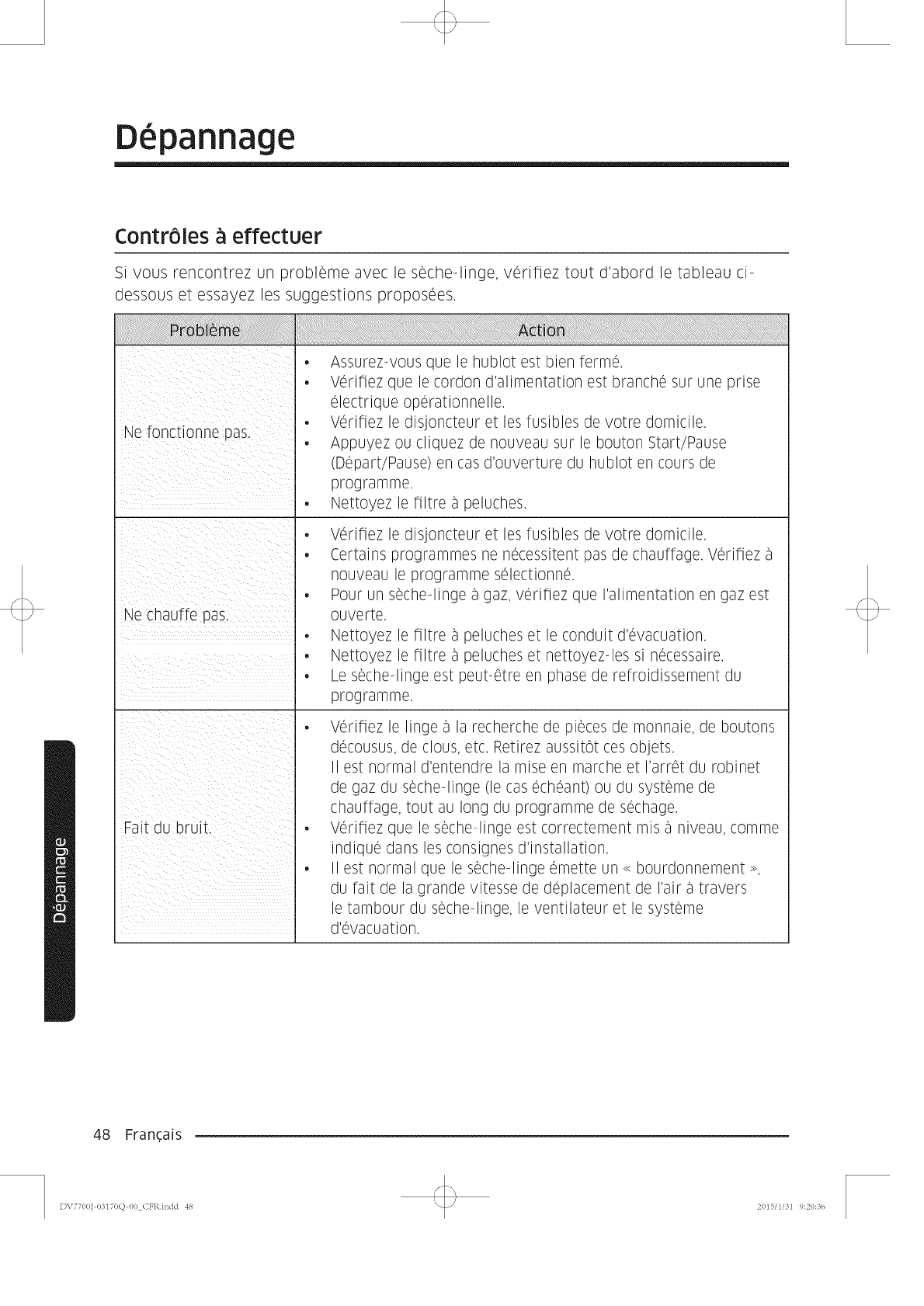

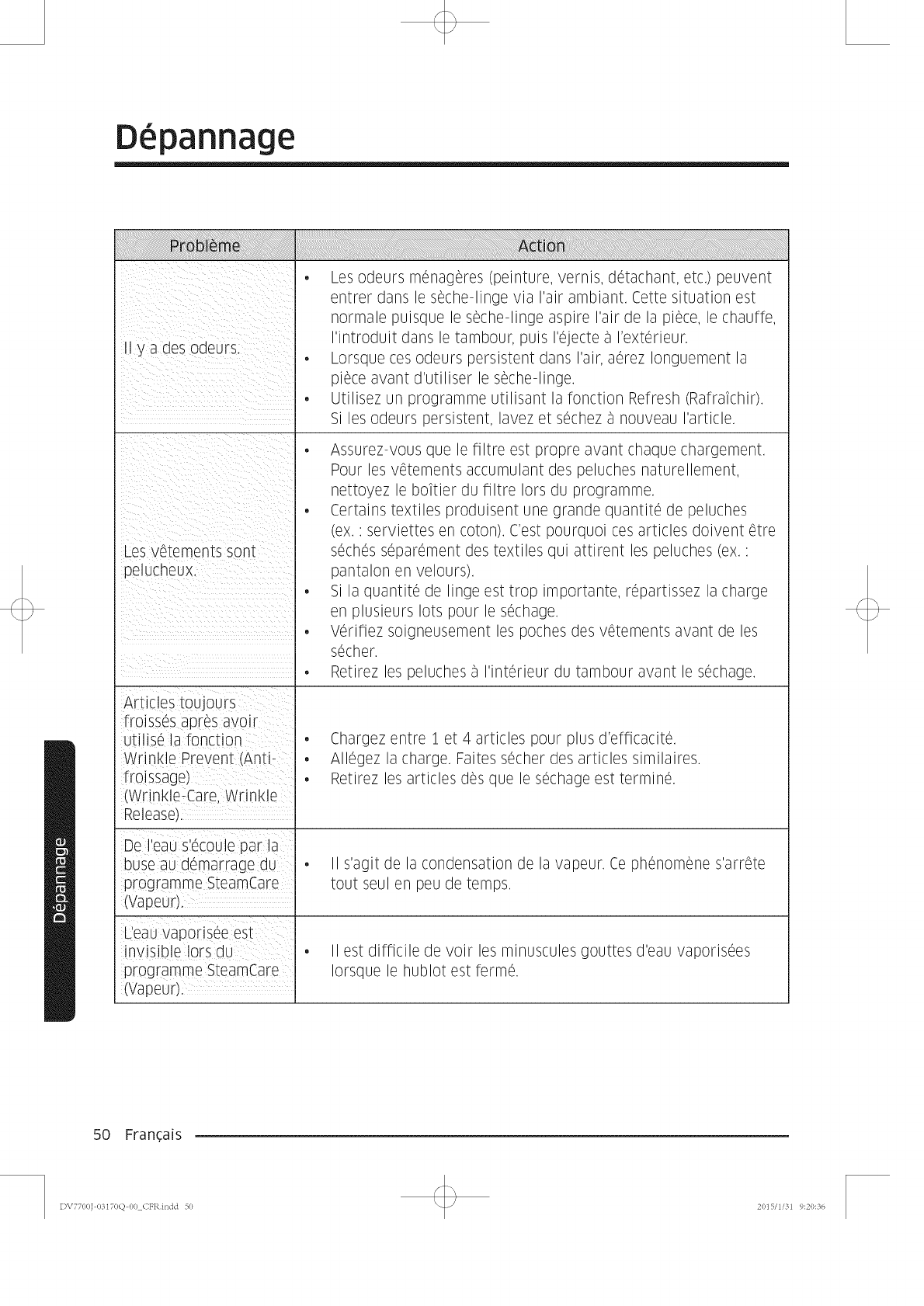

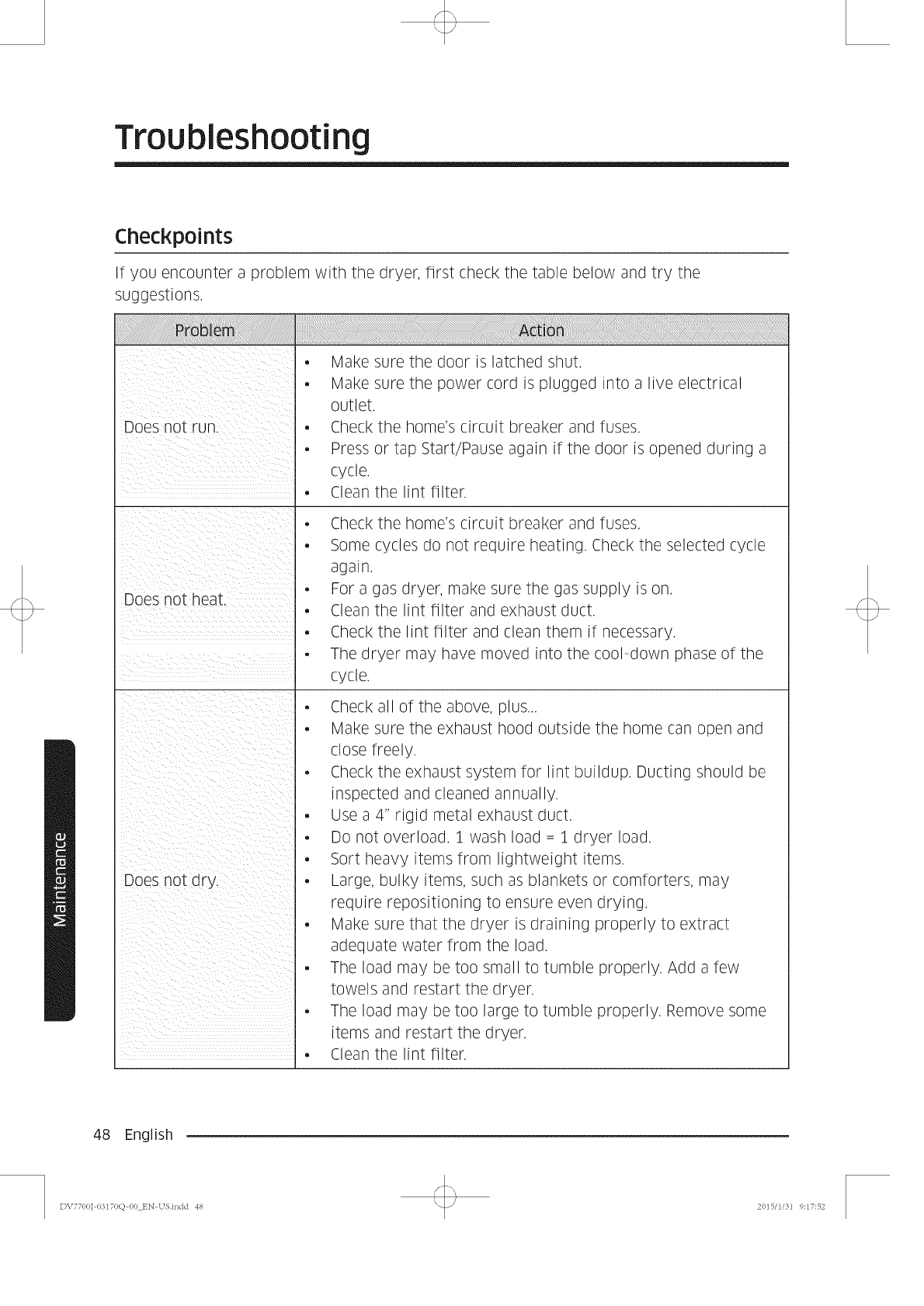

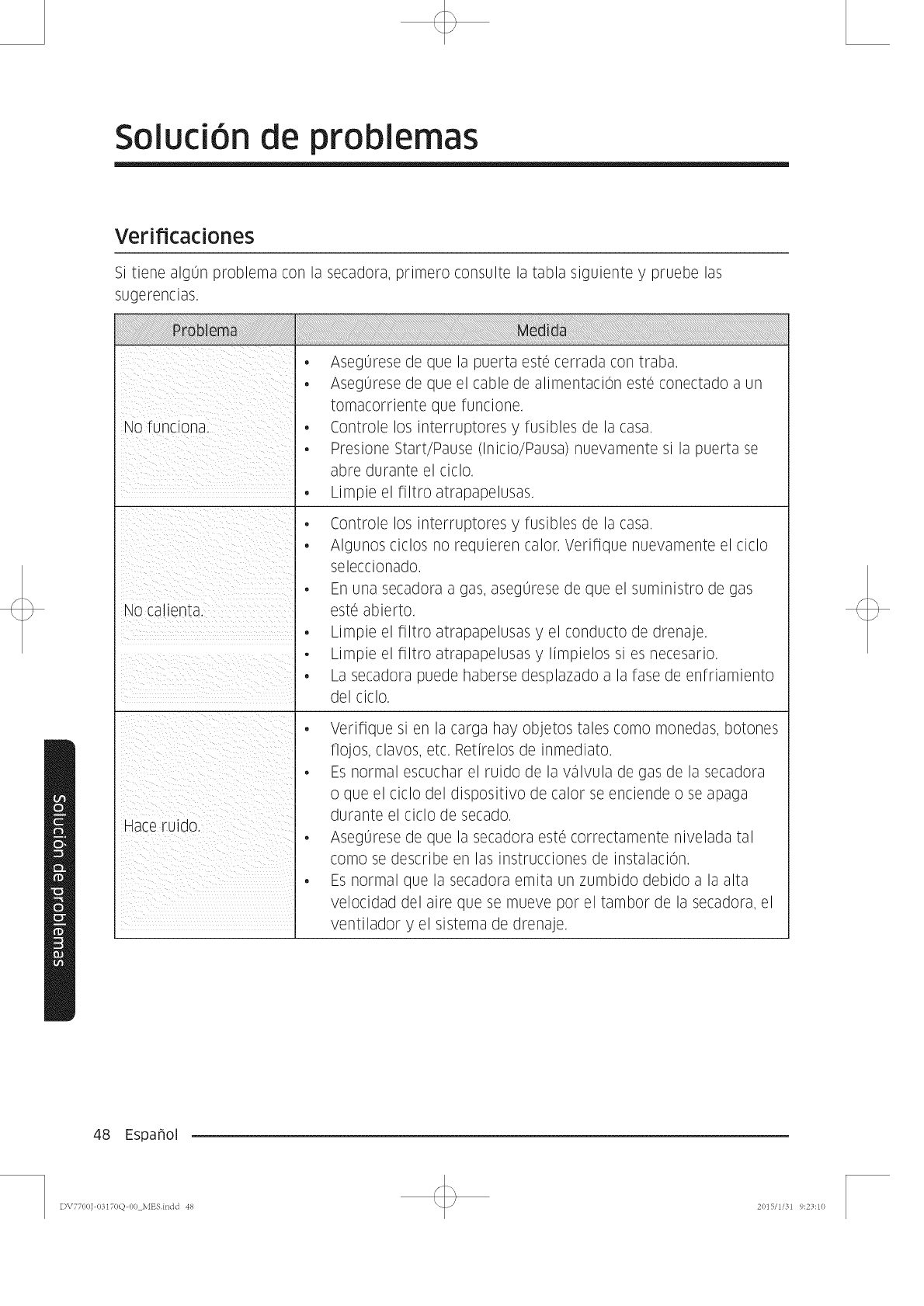

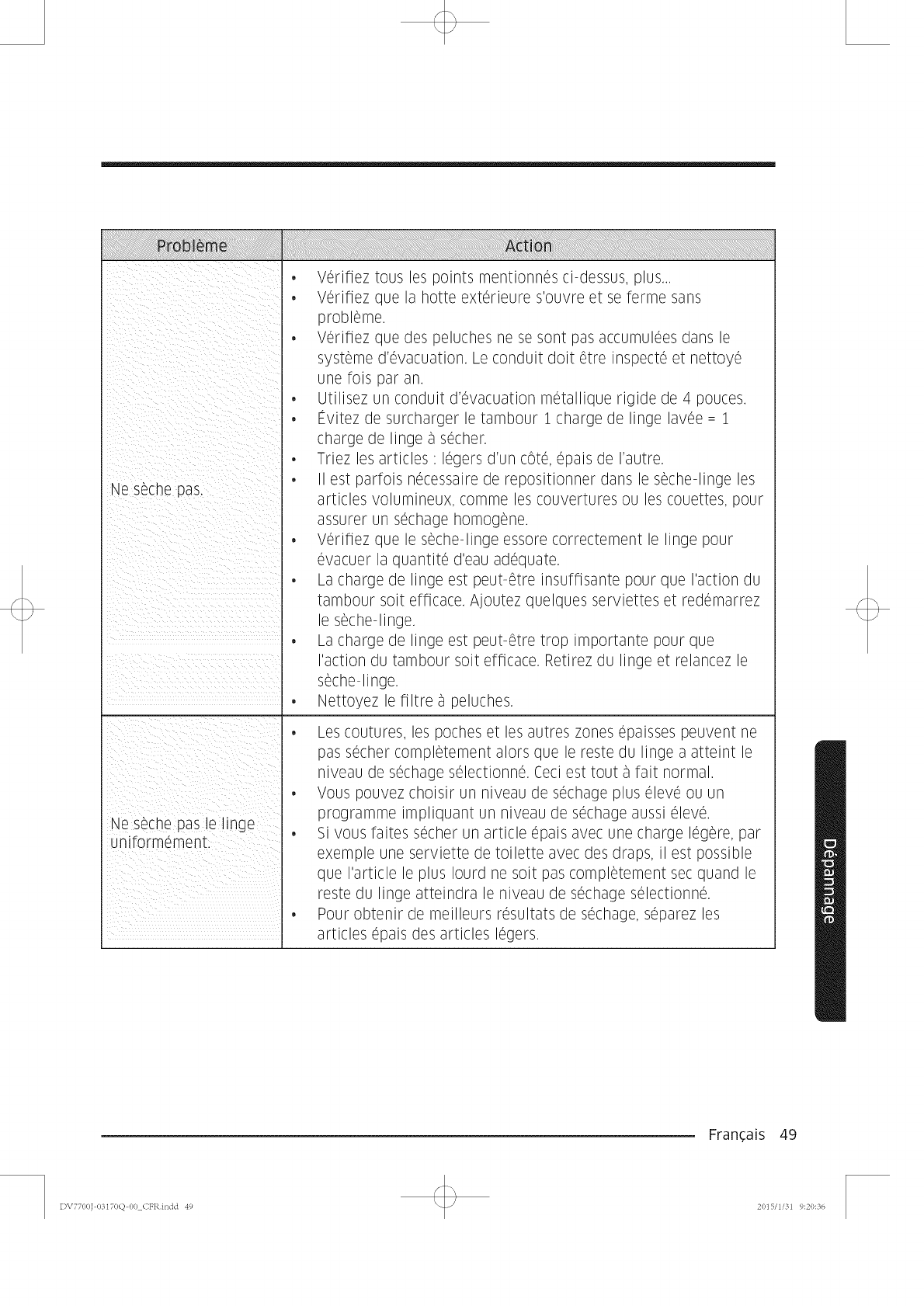

Troubleshooting 48

Checkpoints 48

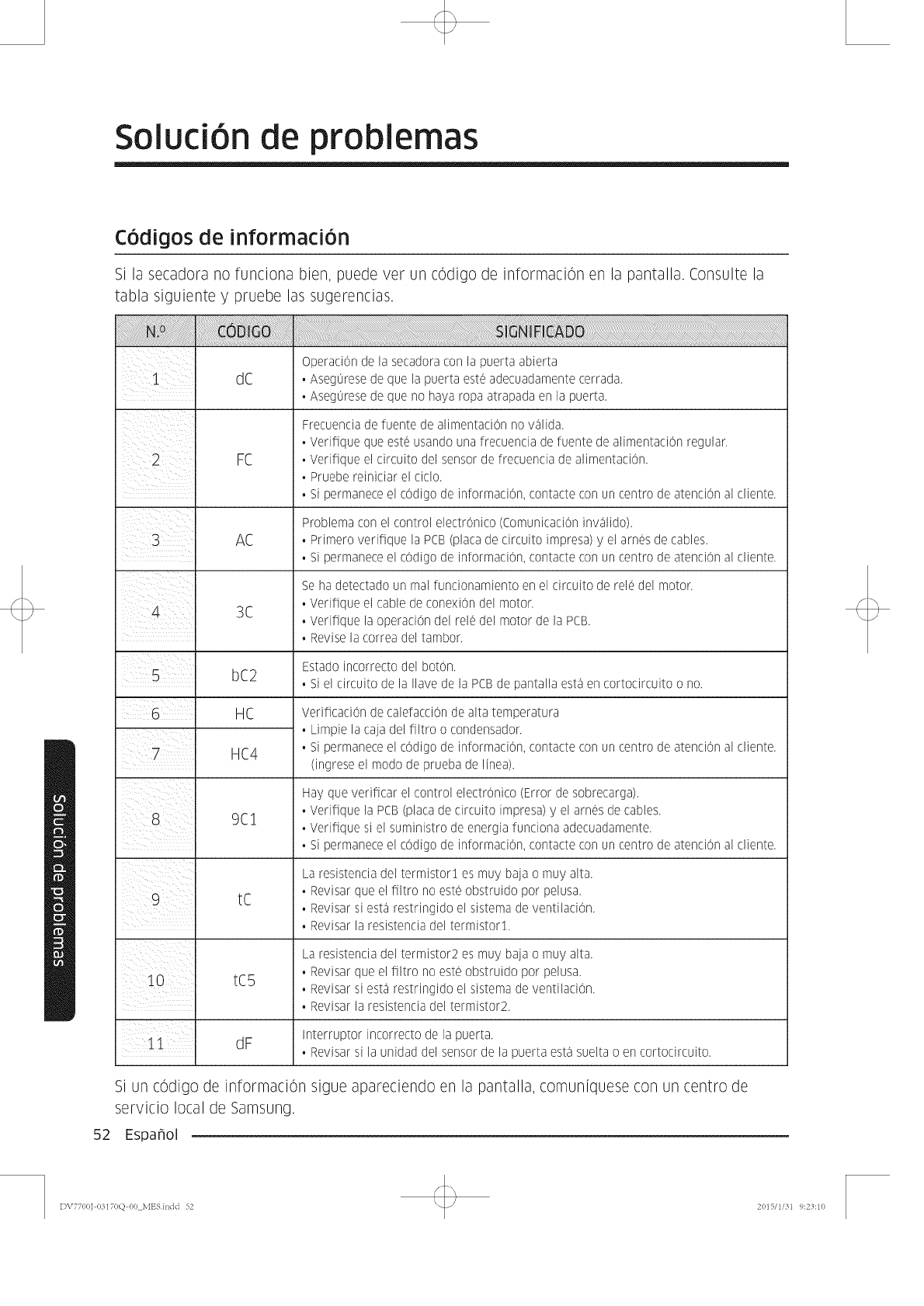

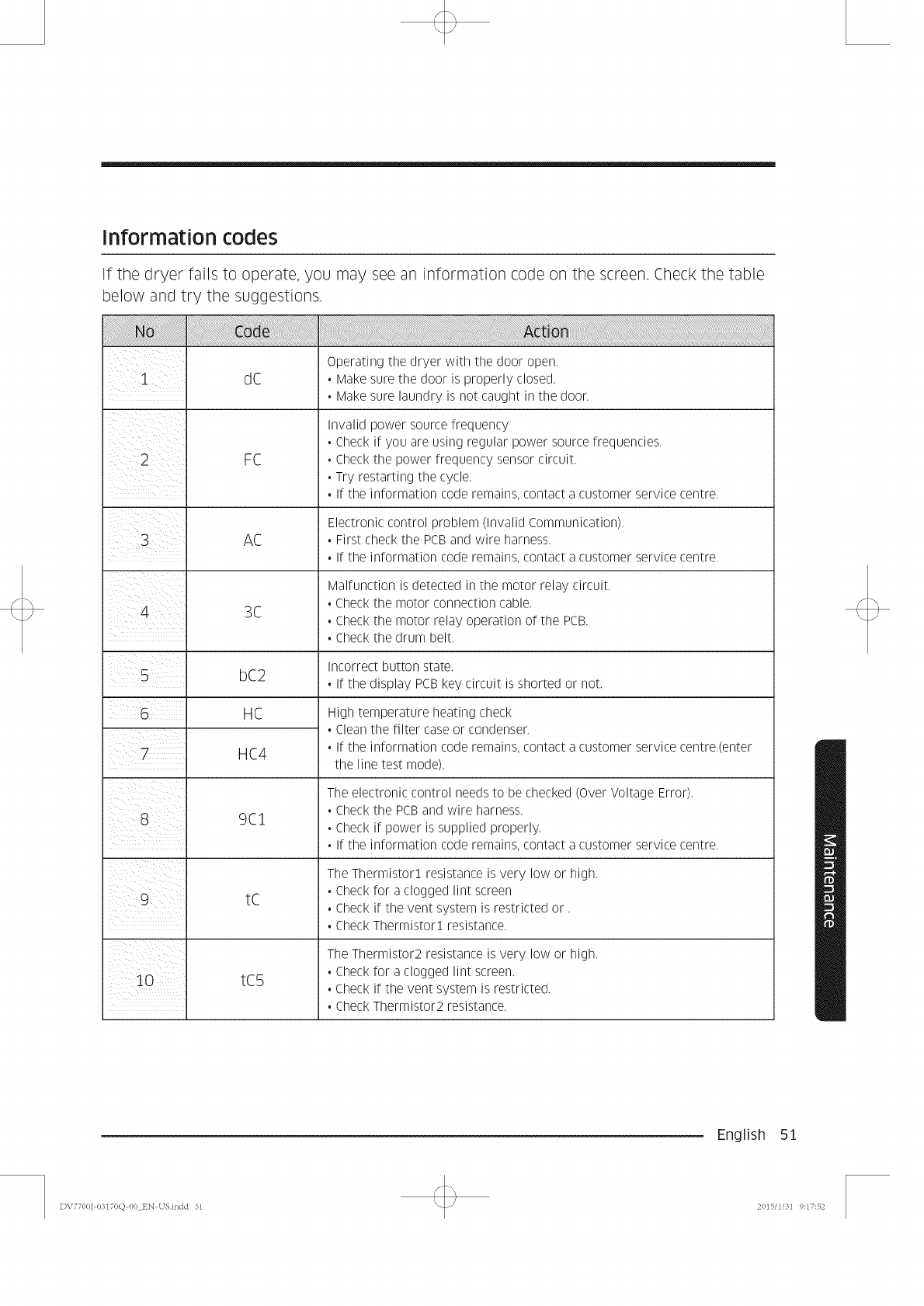

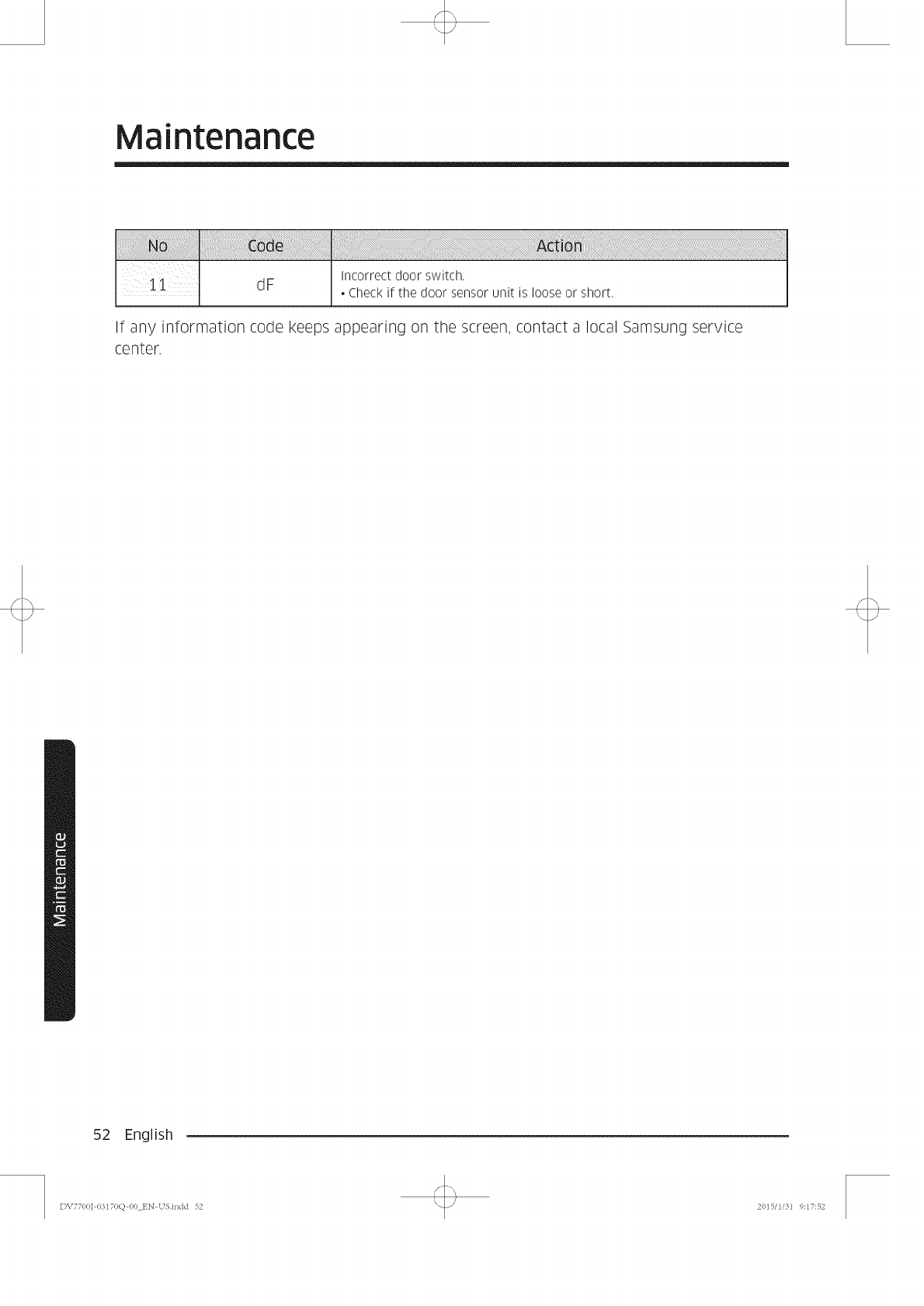

Information codes 51_

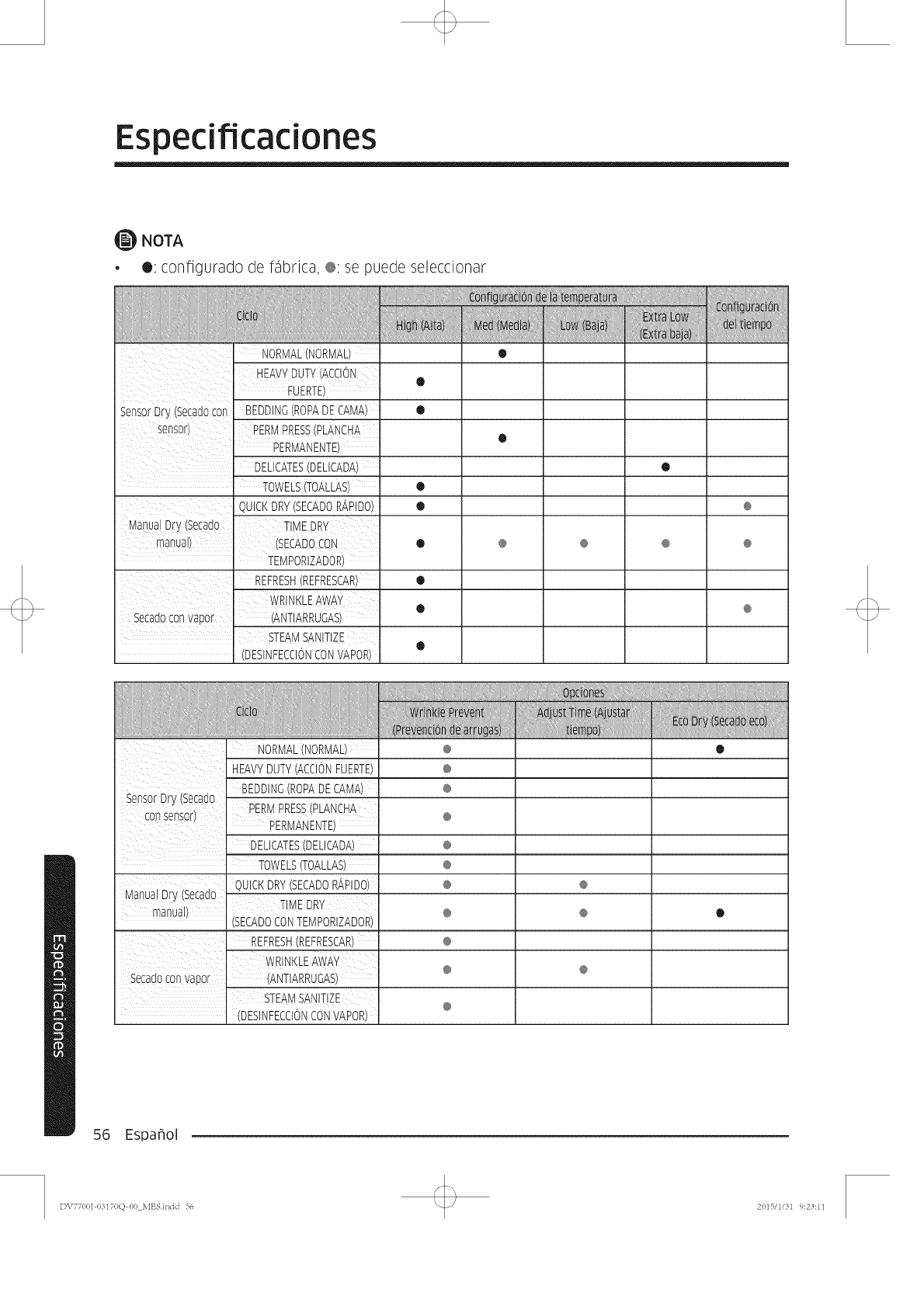

Specifications S3

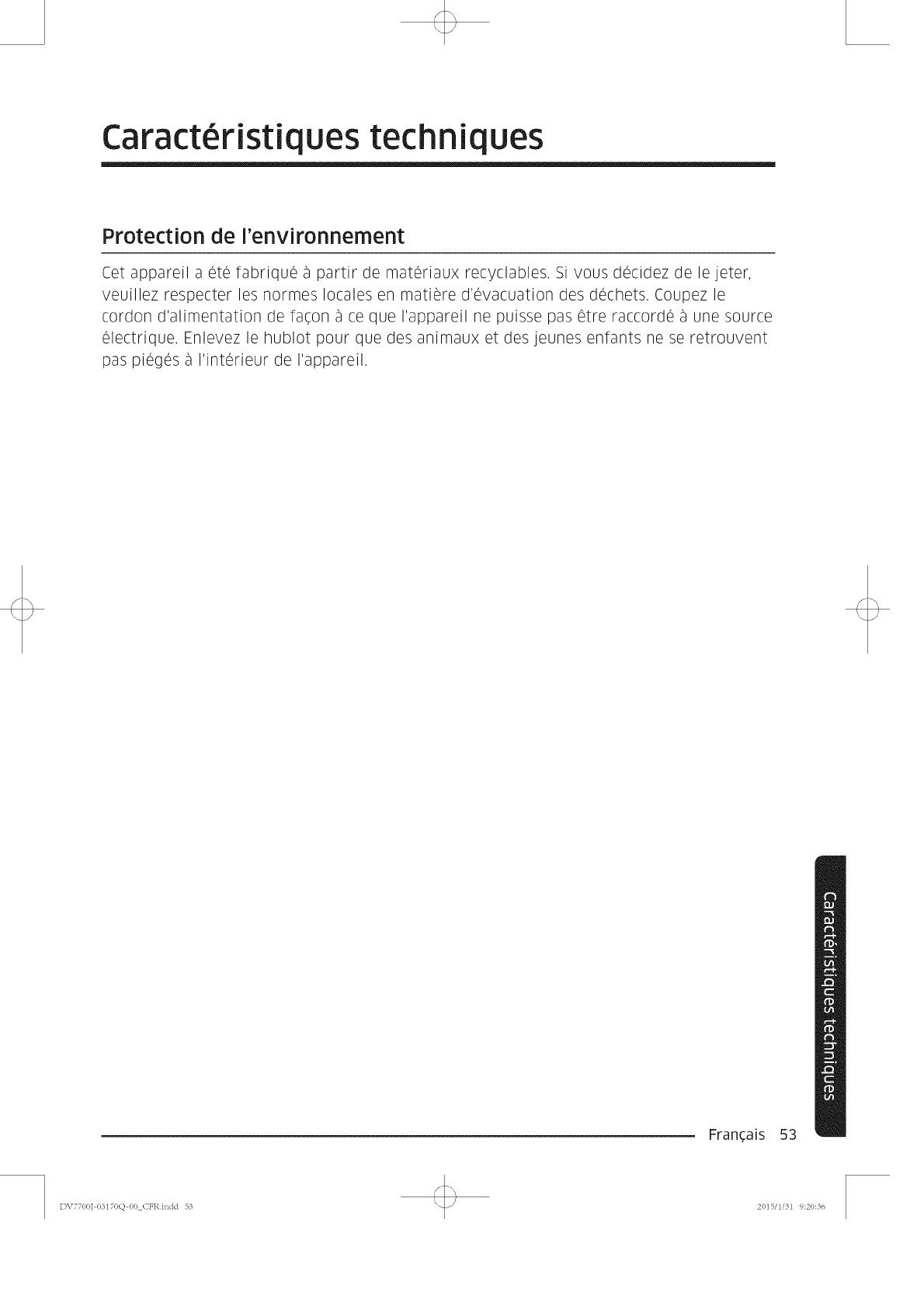

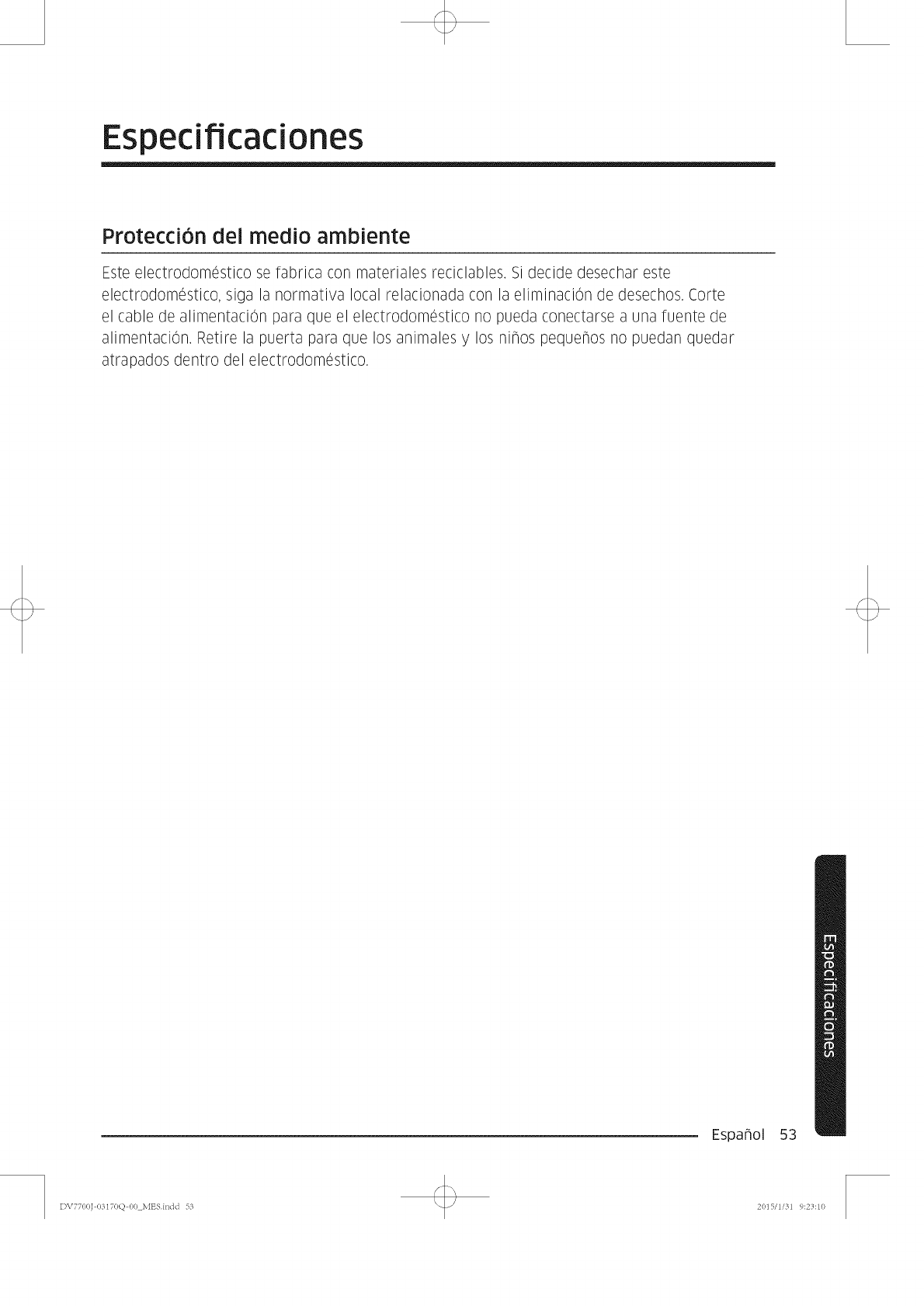

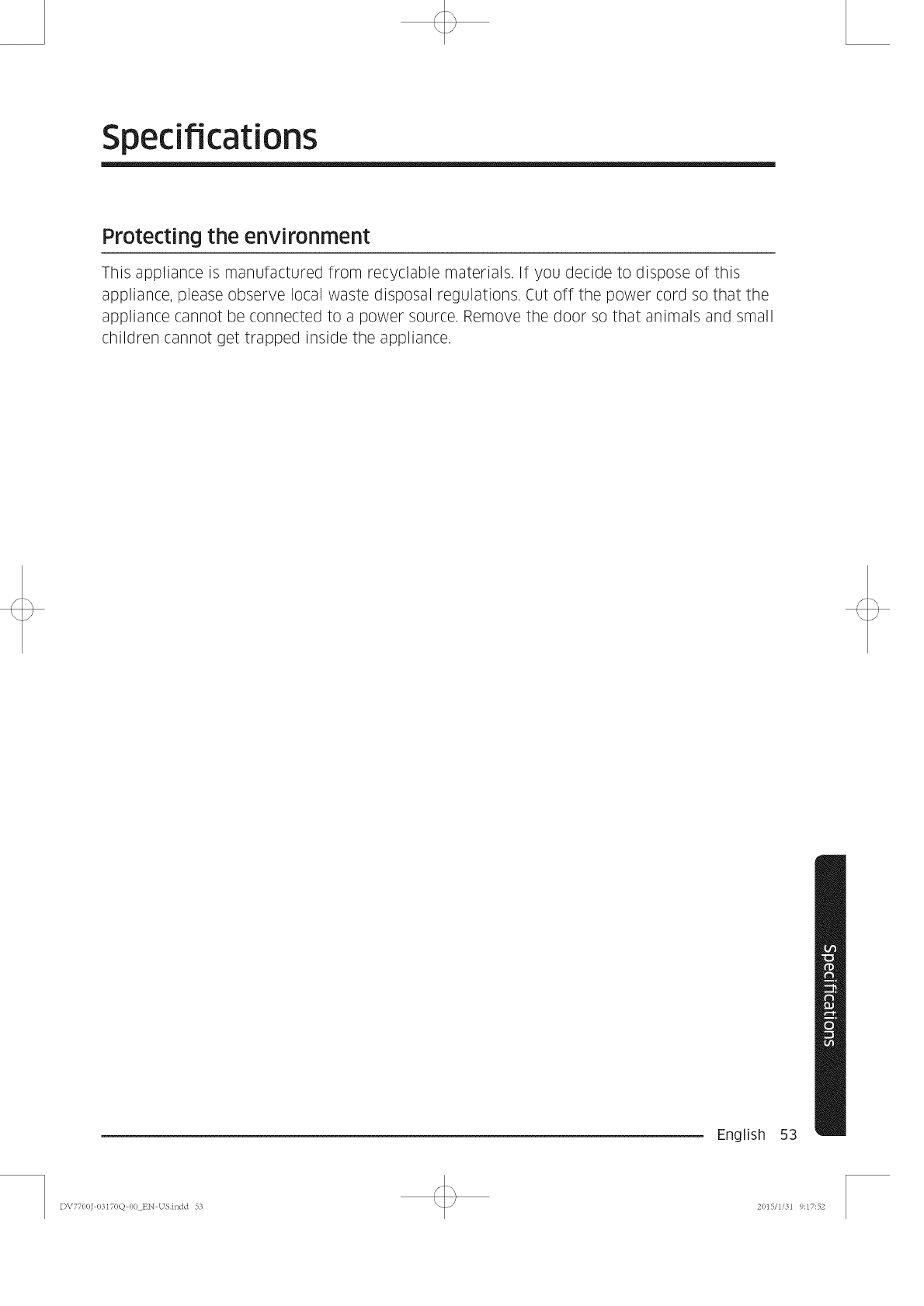

Protecting the environment 53

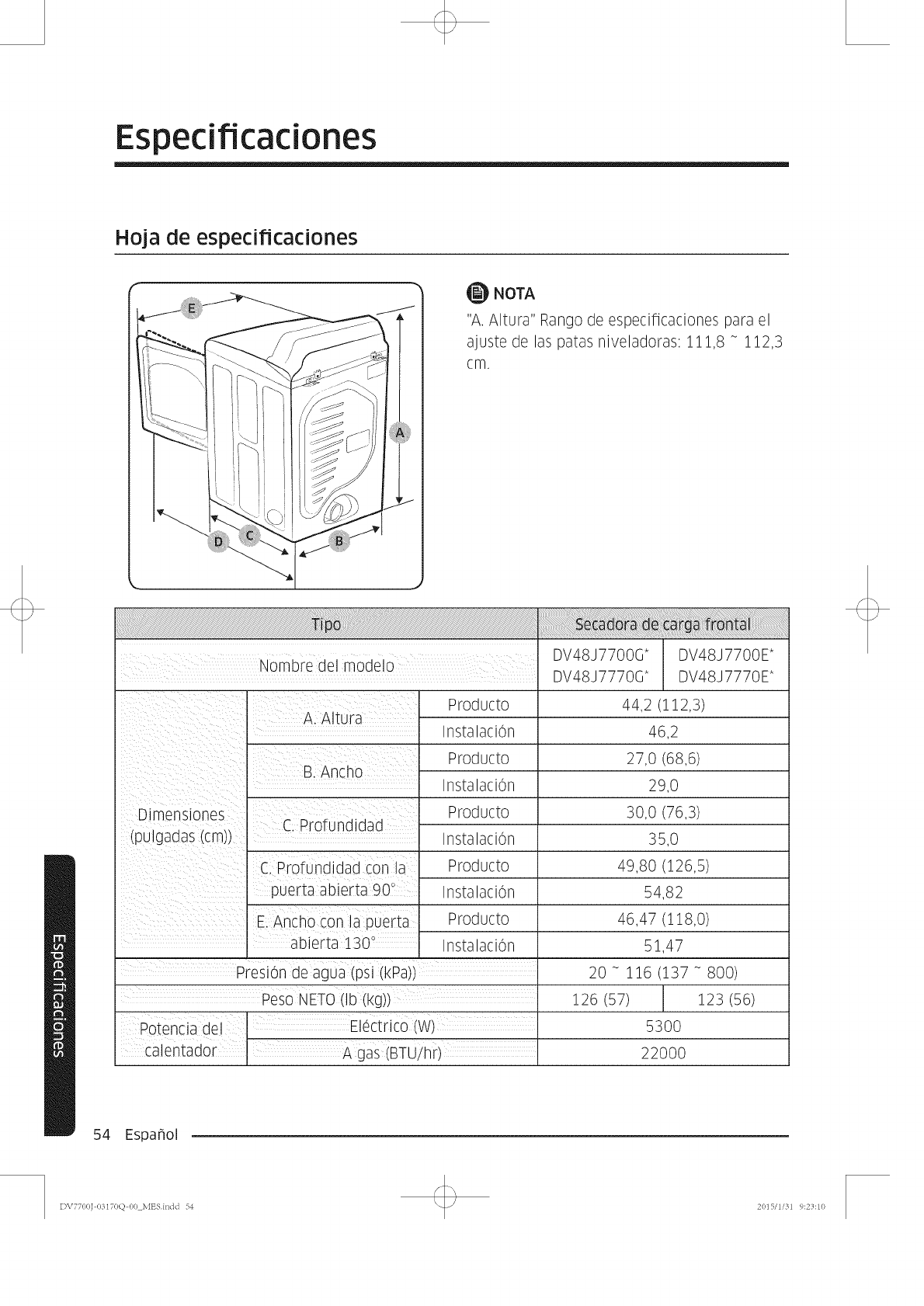

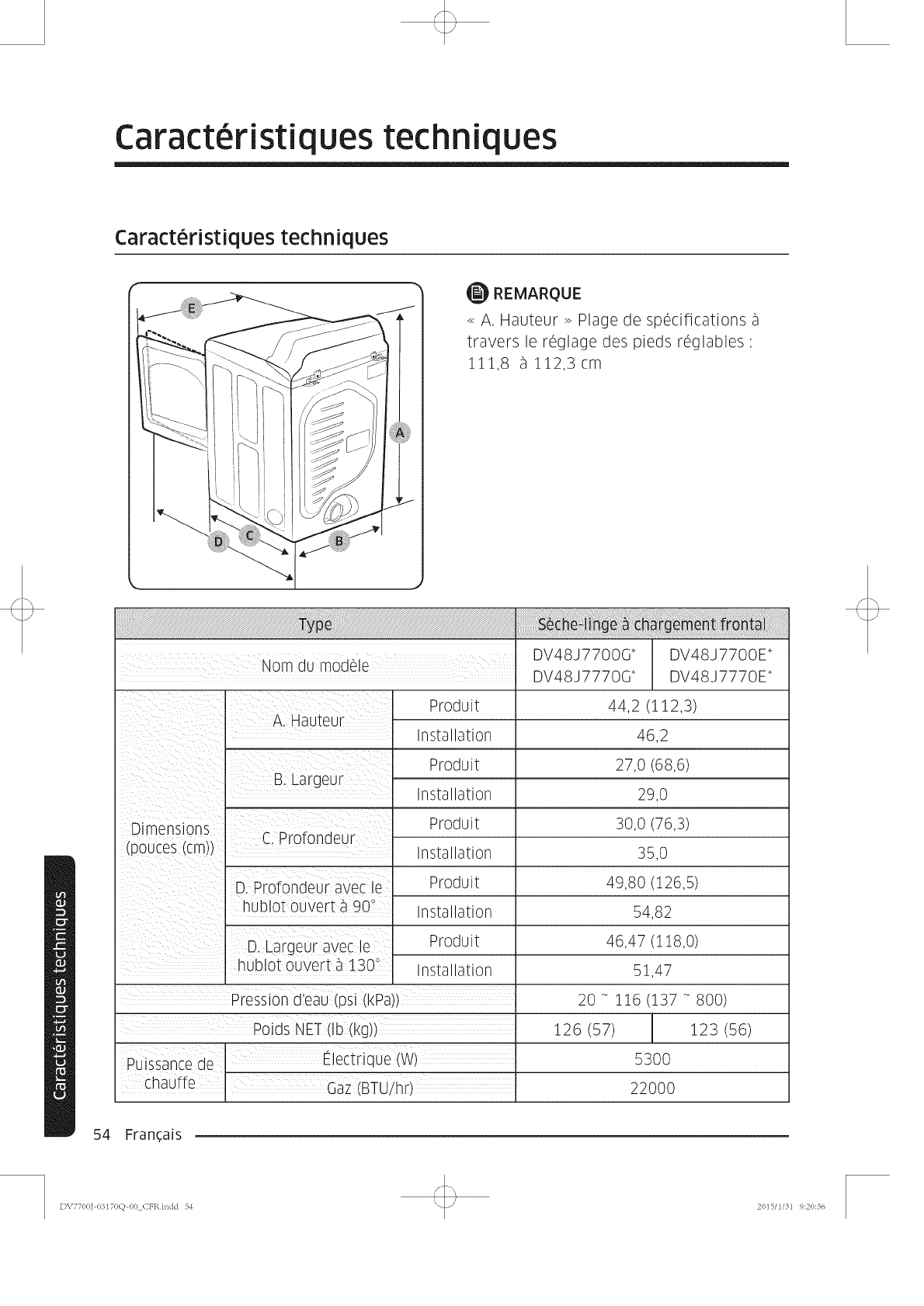

Specification sheet 54

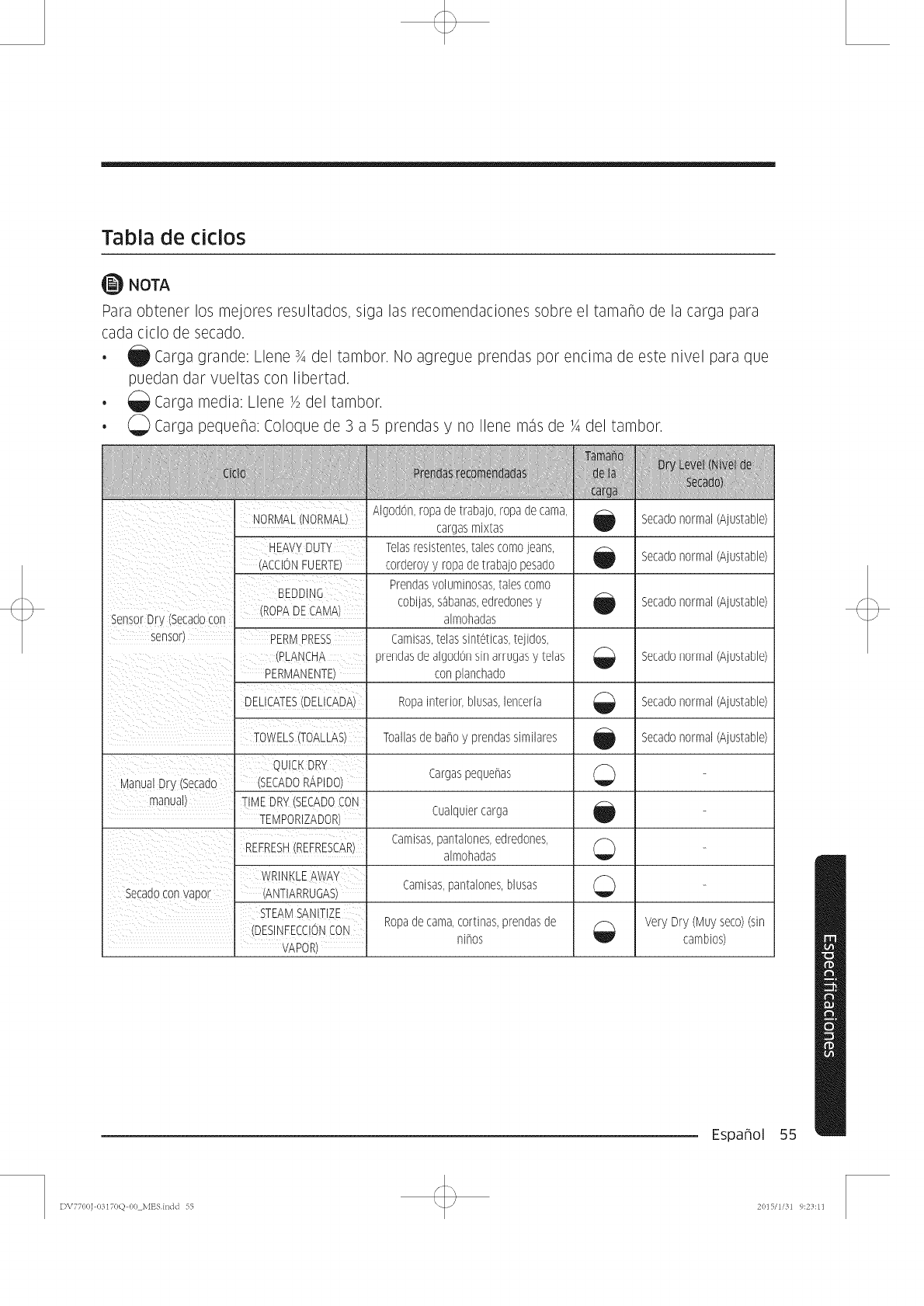

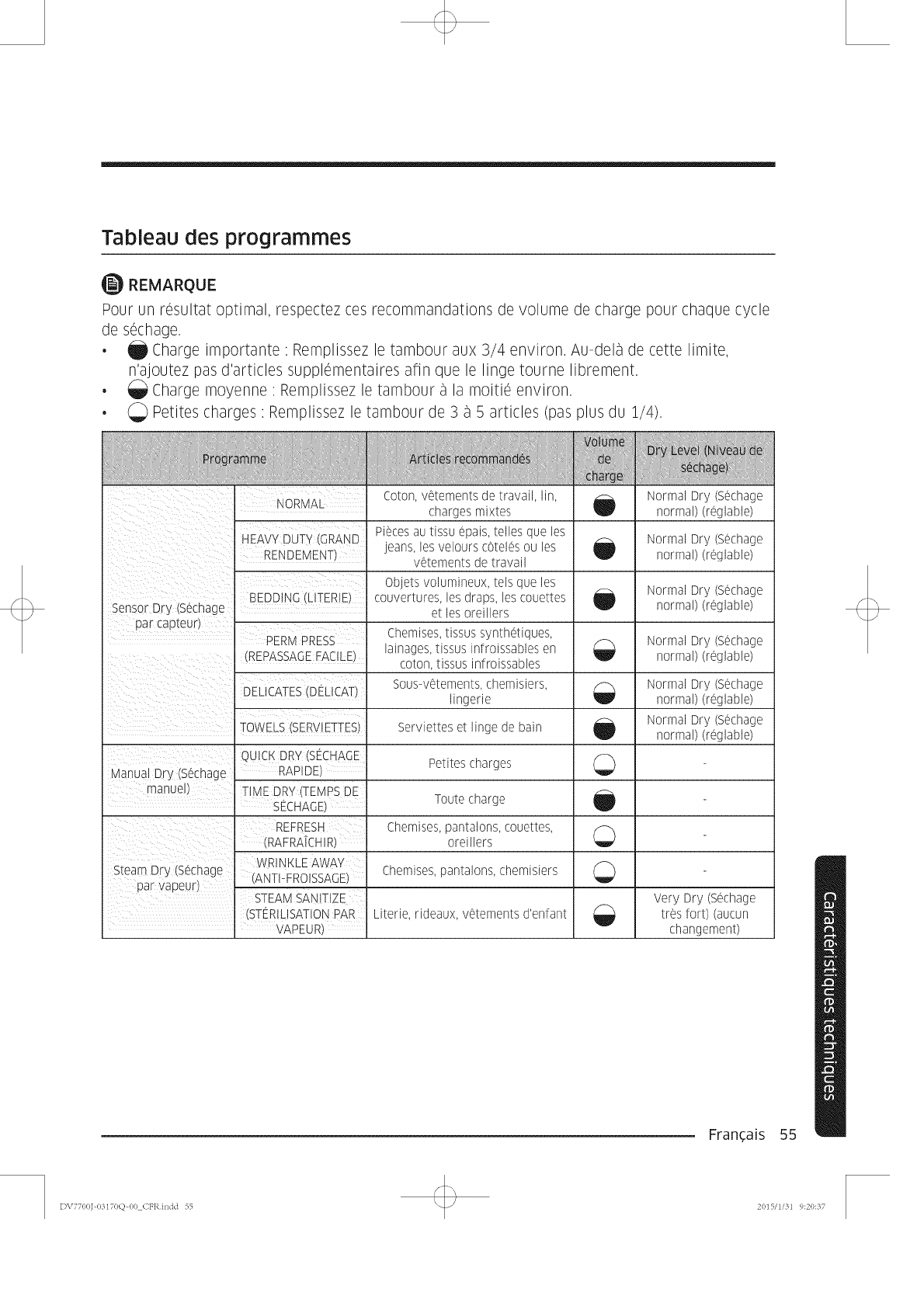

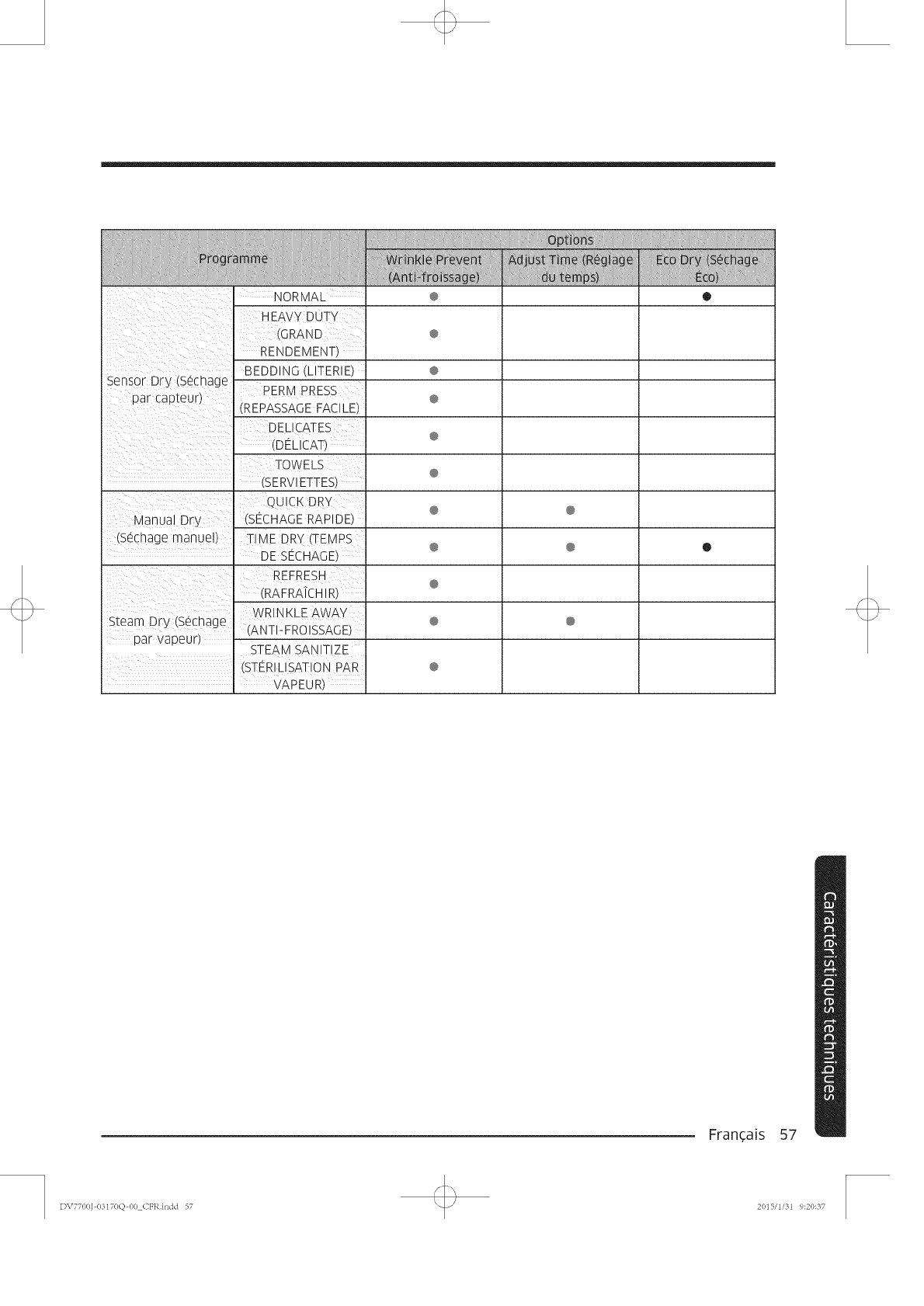

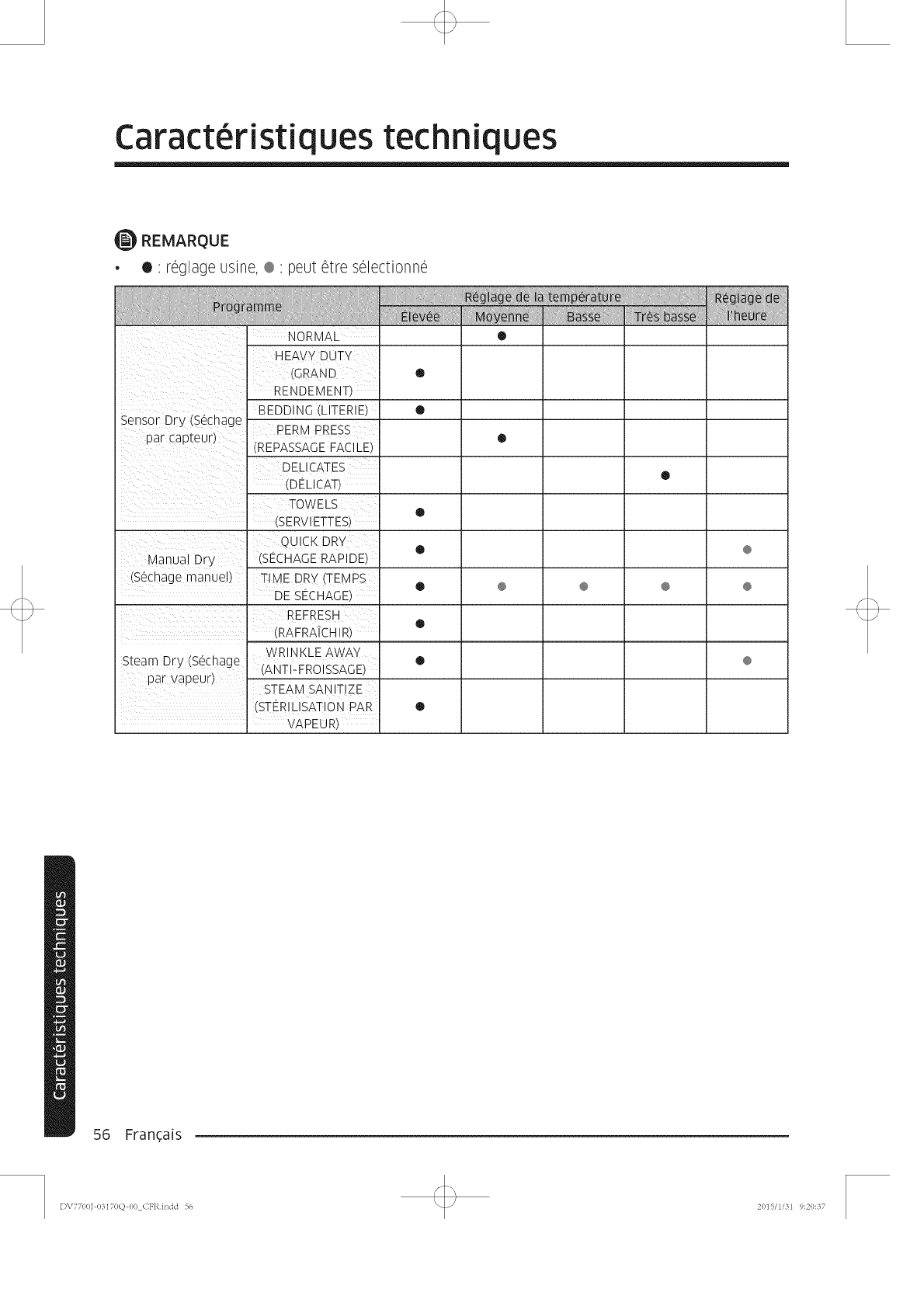

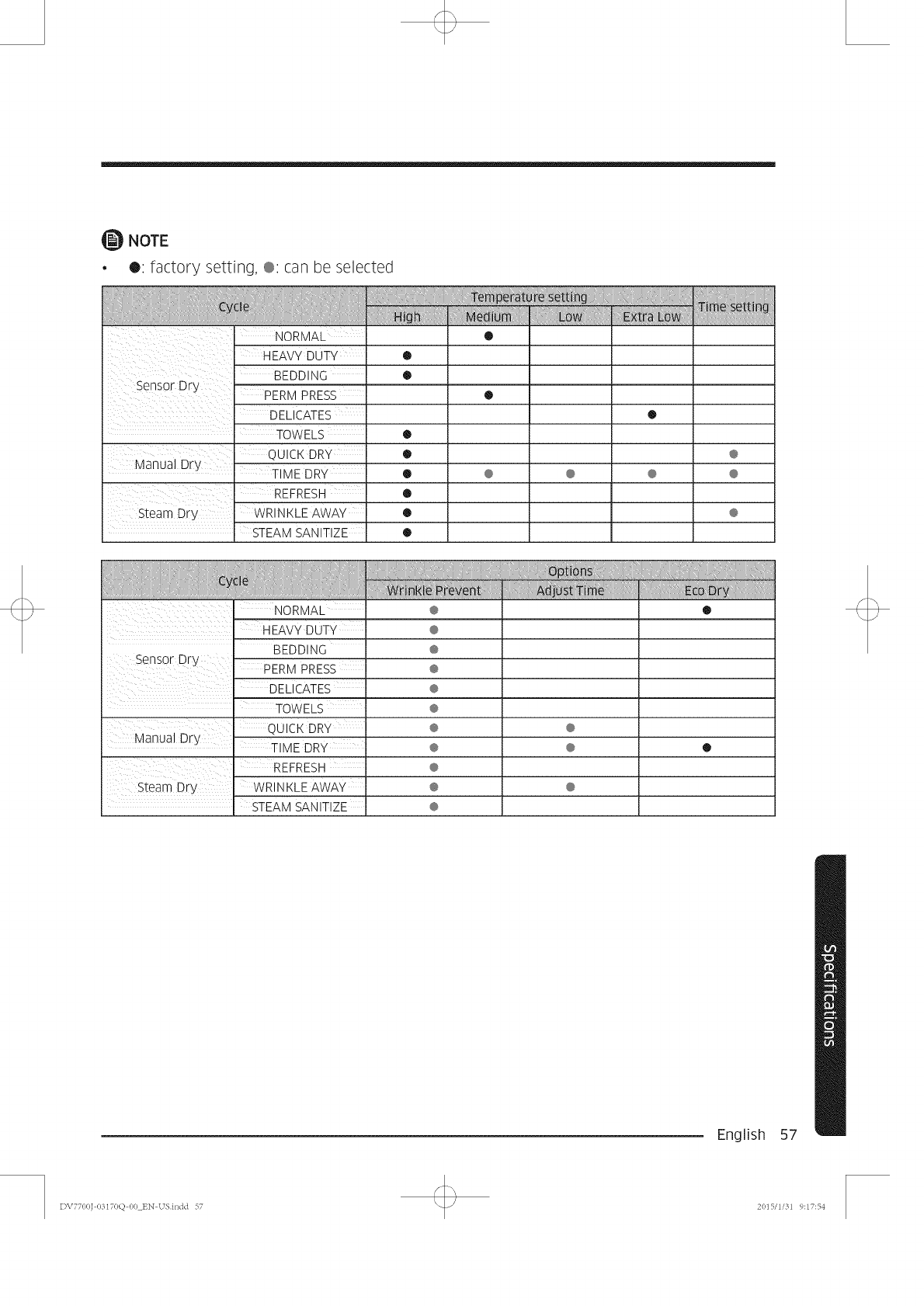

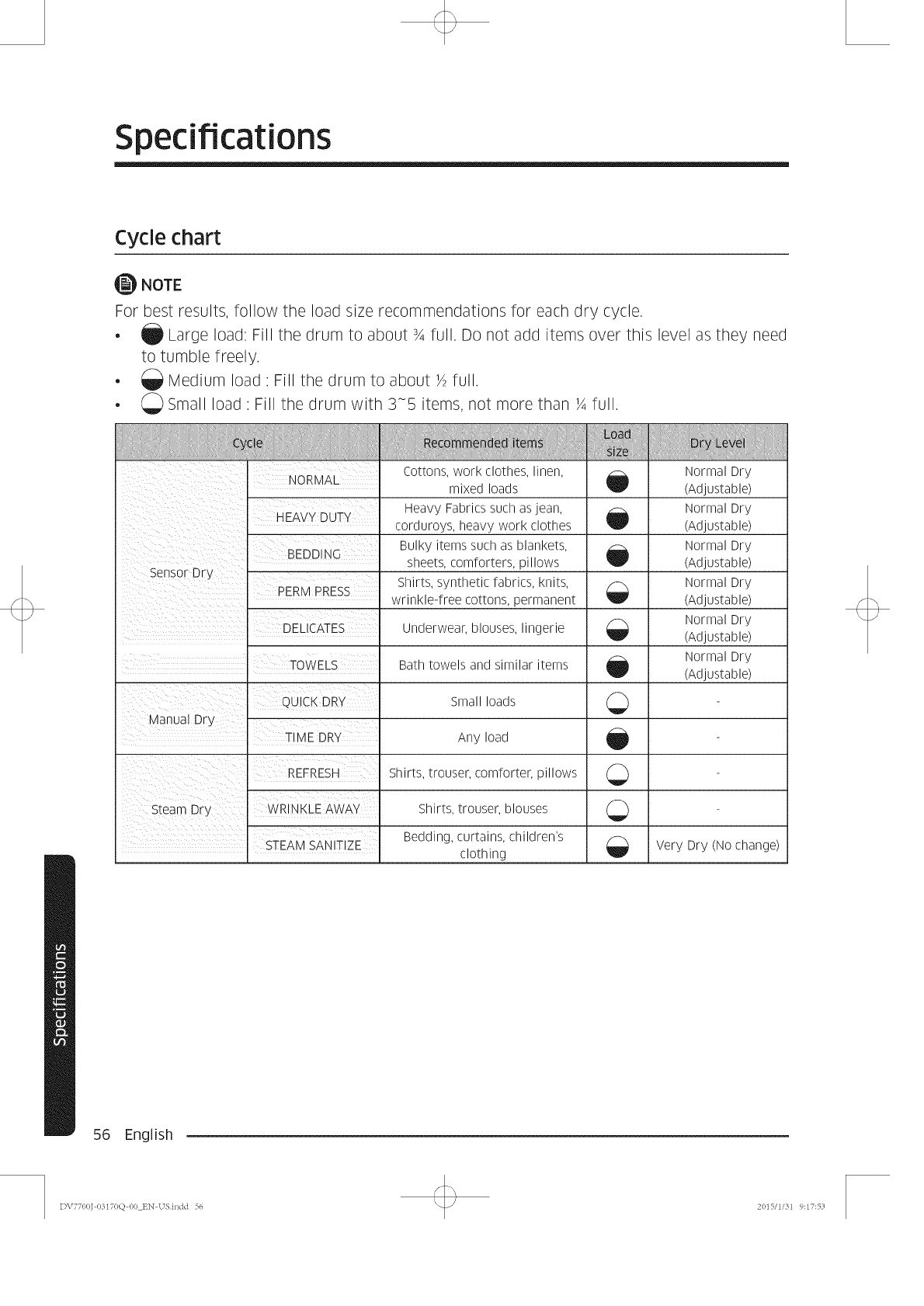

Cycle chart 56

English 3

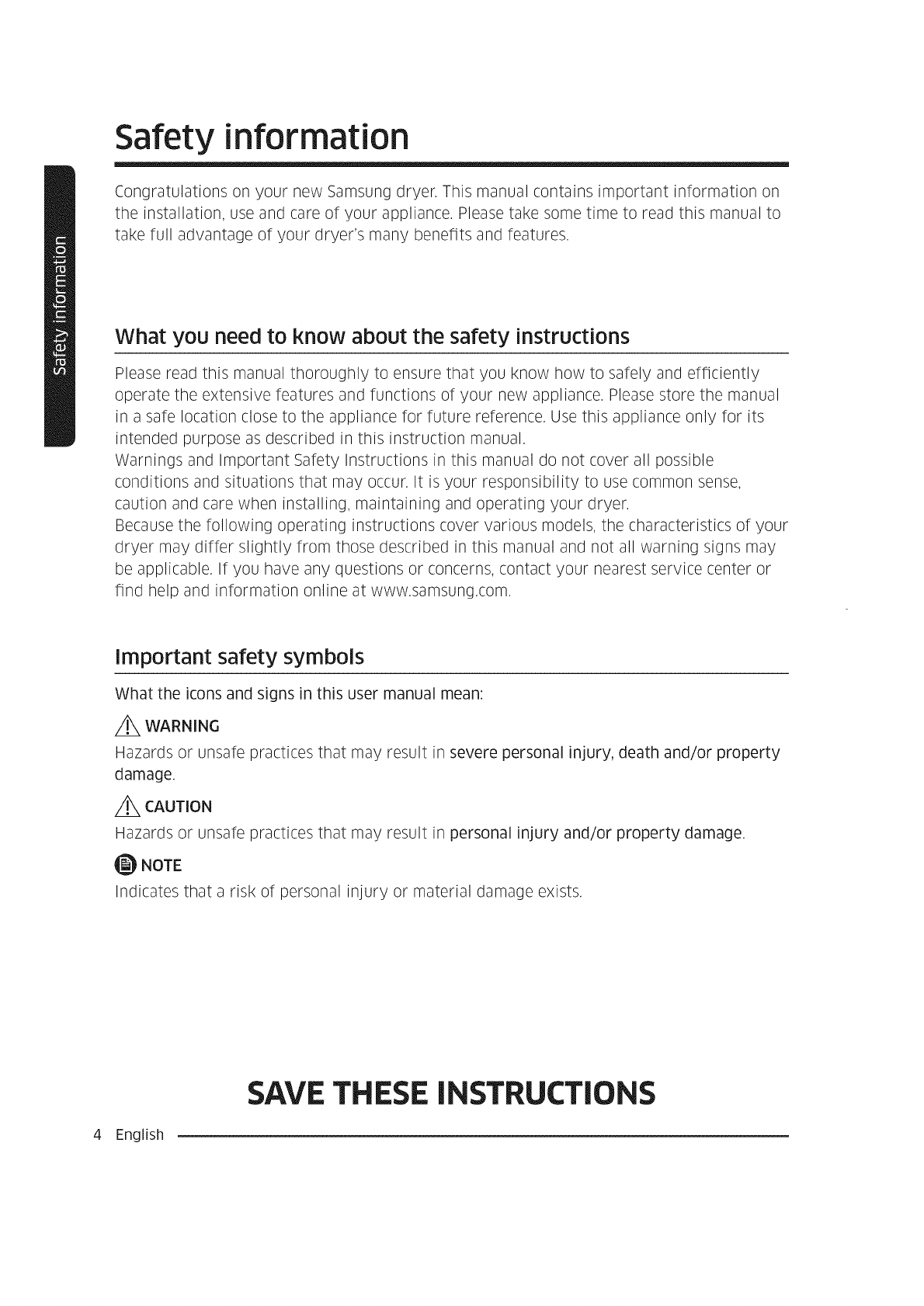

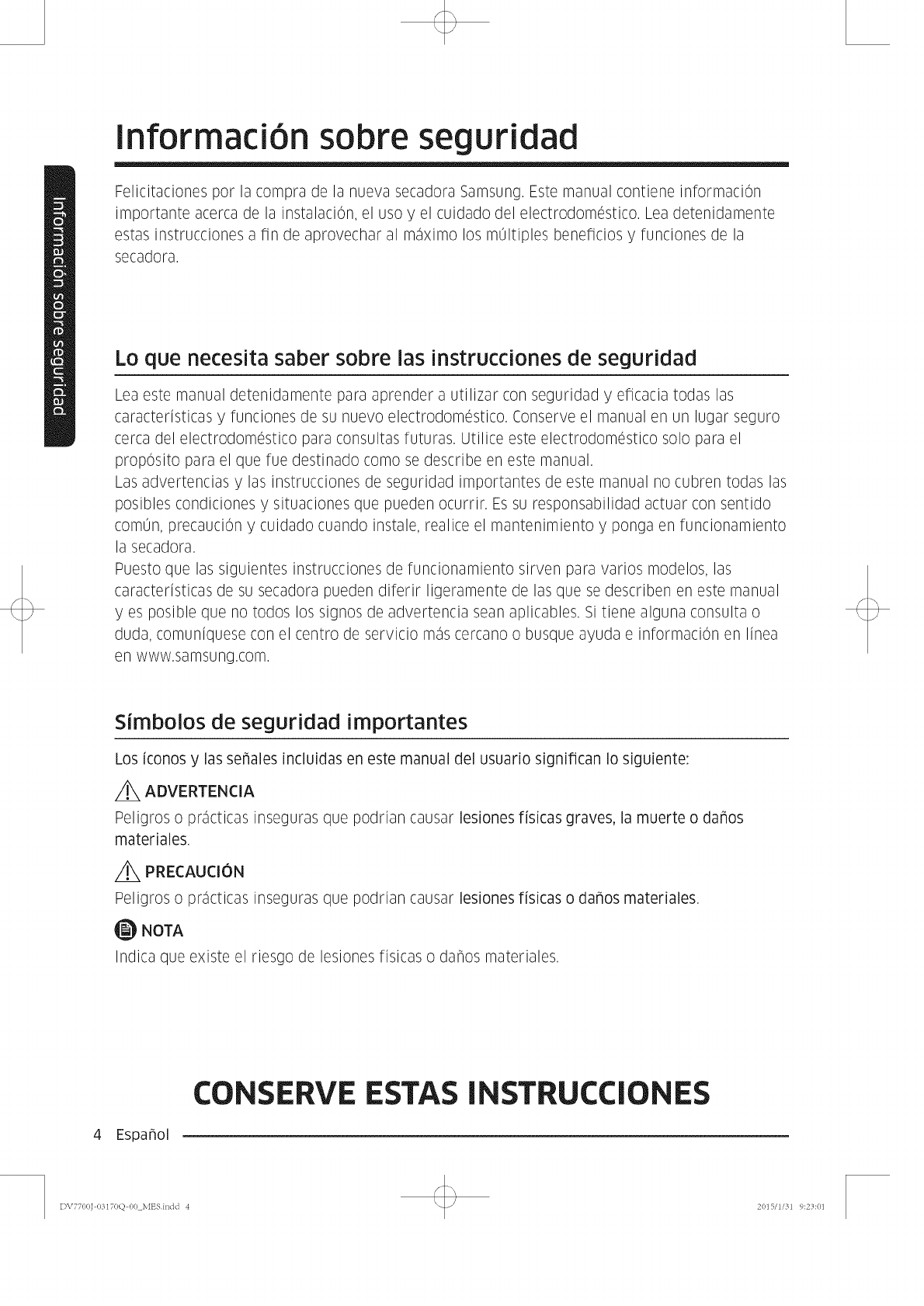

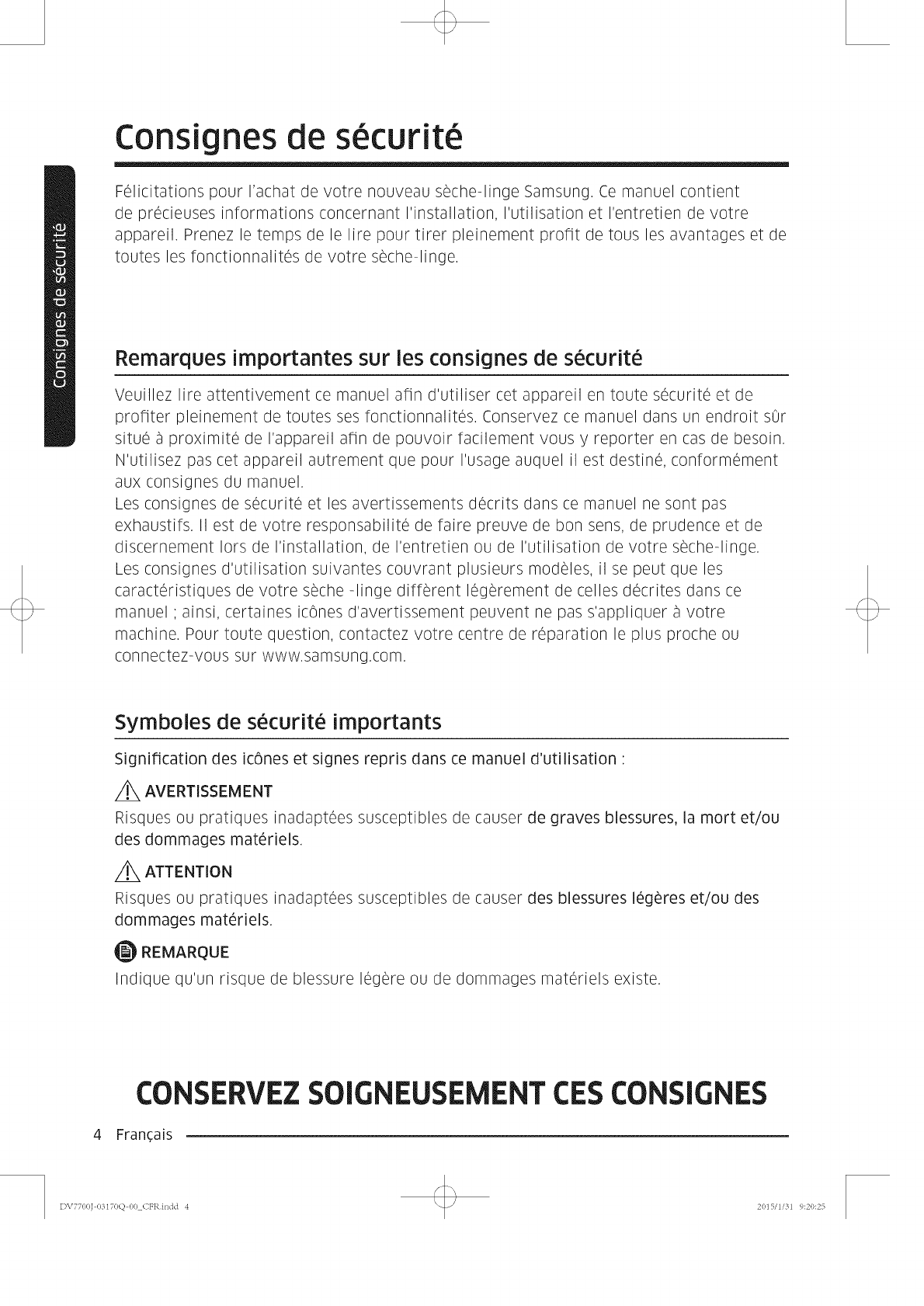

Safety information

Congratulations on your new Samsung dryer. This manual contains important information on

the installation, use and care of your appliance. Please take some time to read this manual to

take full advantage of your dryer's many benefits and features.

What you need to know about the safety instructions

Please read this manual thoroughly to ensure that you know how to safely and efficiently

operate the extensive features and functions of your new appliance. Please store the manual

in a safe location close to the appliance for future reference. Use this appliance only for its

intended purpose as described in this instruction manual.

Warnings and Important Safety Instructions in this manual do not cover all possible

conditions and situations that may occur. It is your responsibility to use common sense,

caution and care when installing, maintaining and operating your dryer.

Because the following operating instructions cover various models, the characteristics of your

dryer may differ slightly from those described in this manual and not all warning signs may

be applicable. If you have any questions or concerns, contact your nearest service center or

find help and information online at www.samsung.com.

Important safety symbols

What the icons and signs in this user manual mean:

/_, WARNING

Hazards or unsafe practices that may result in severe personal injury, death and/or property

damage.

/_ CAUTION

Hazards or unsafe practices that may result in personal injury and/or property damage.

NOTE

Indicates that a risk of personal injury or material damage exists.

SAVE THESE INSTRUCTIONS

4 English

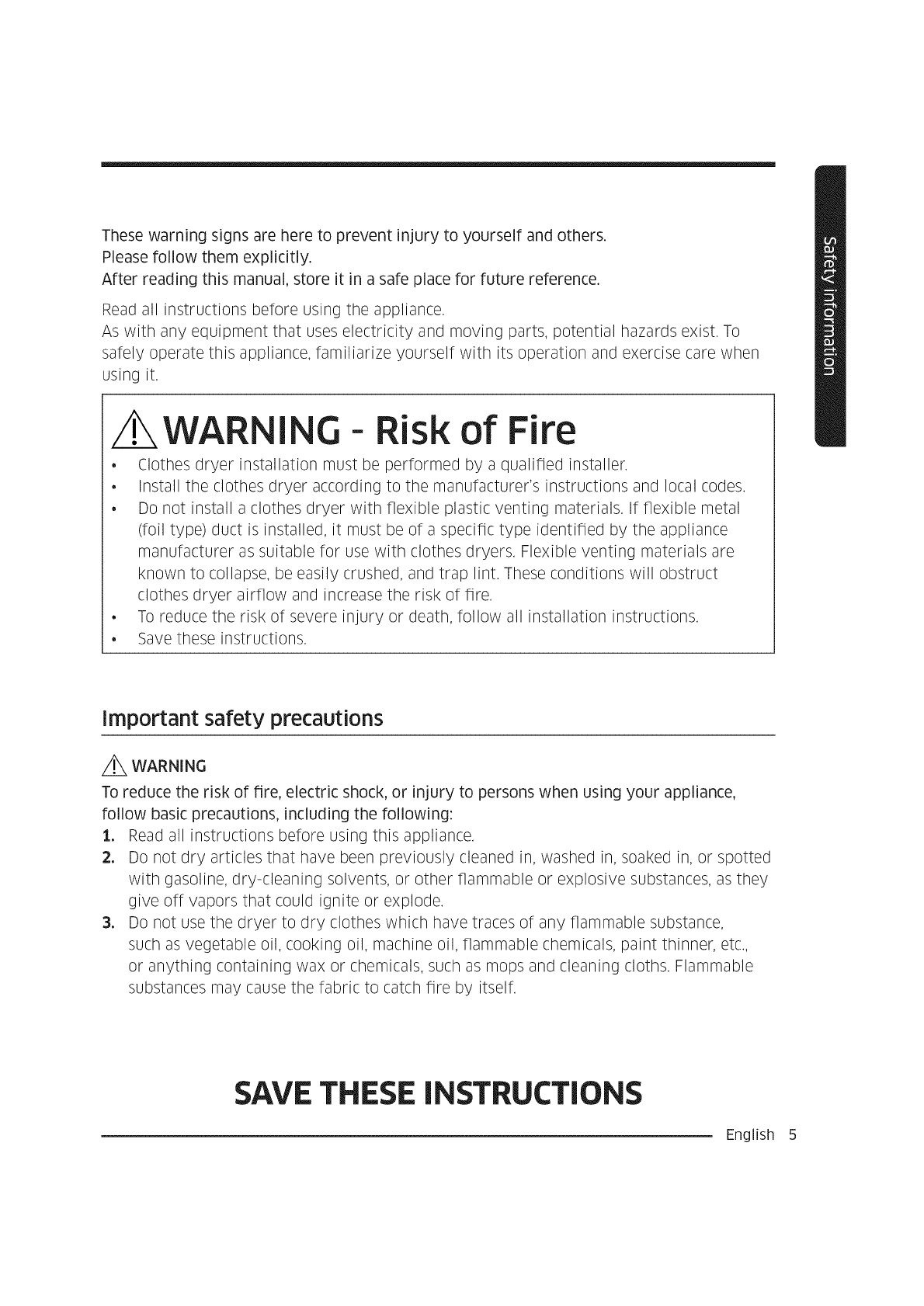

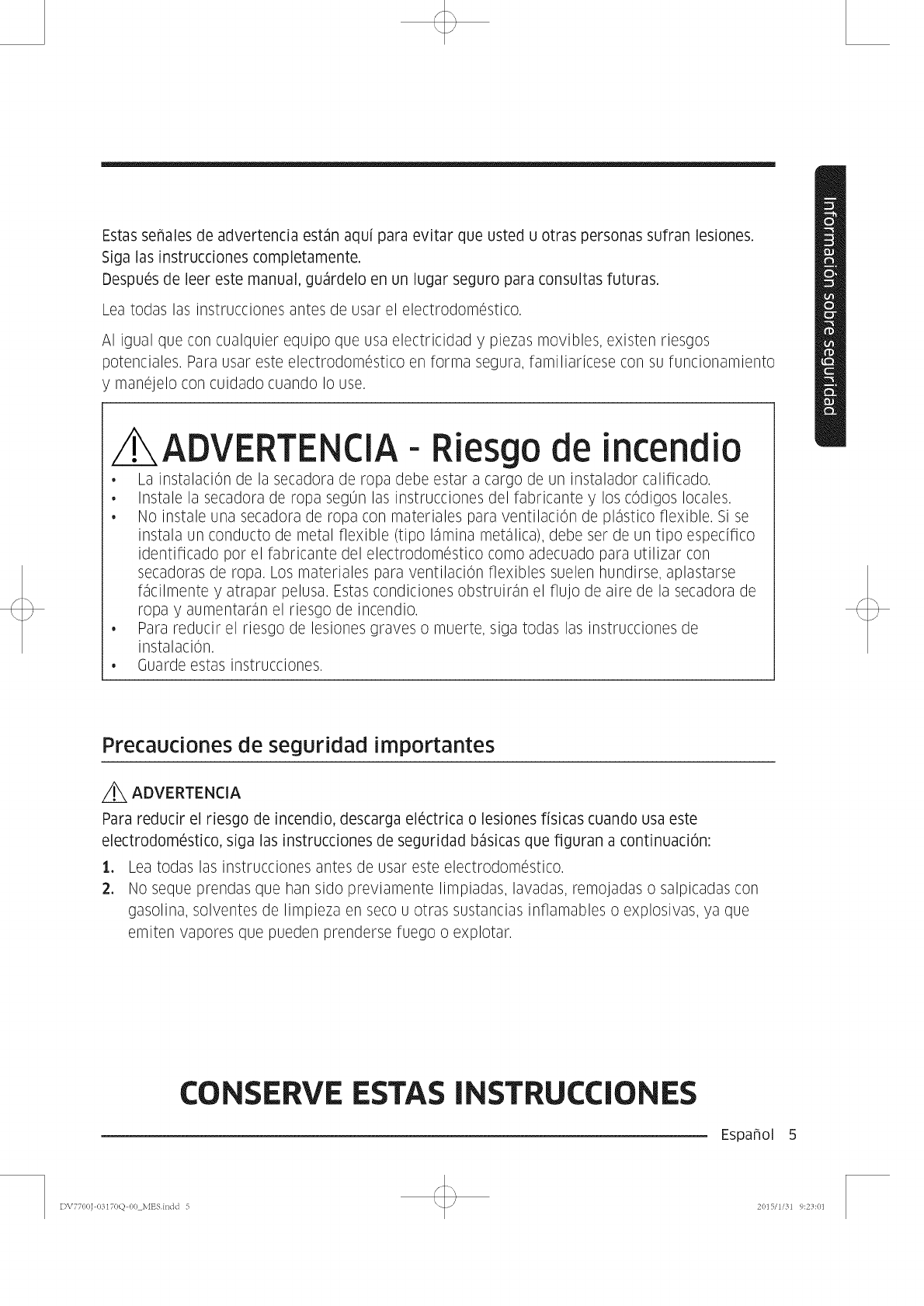

Thesewarningsignsarehereto preventinjuryto yourselfandothers.

Pleasefollowthemexplicitly.

Afterreadingthismanual,storeit inasafeplacefor futurereference.

Read all instructions before using the appliance.

As with any equipment that uses electricity and moving parts, potential hazards exist. To

safely operate this appliance, familiarize yourself with its operation and exercise care when

using it.

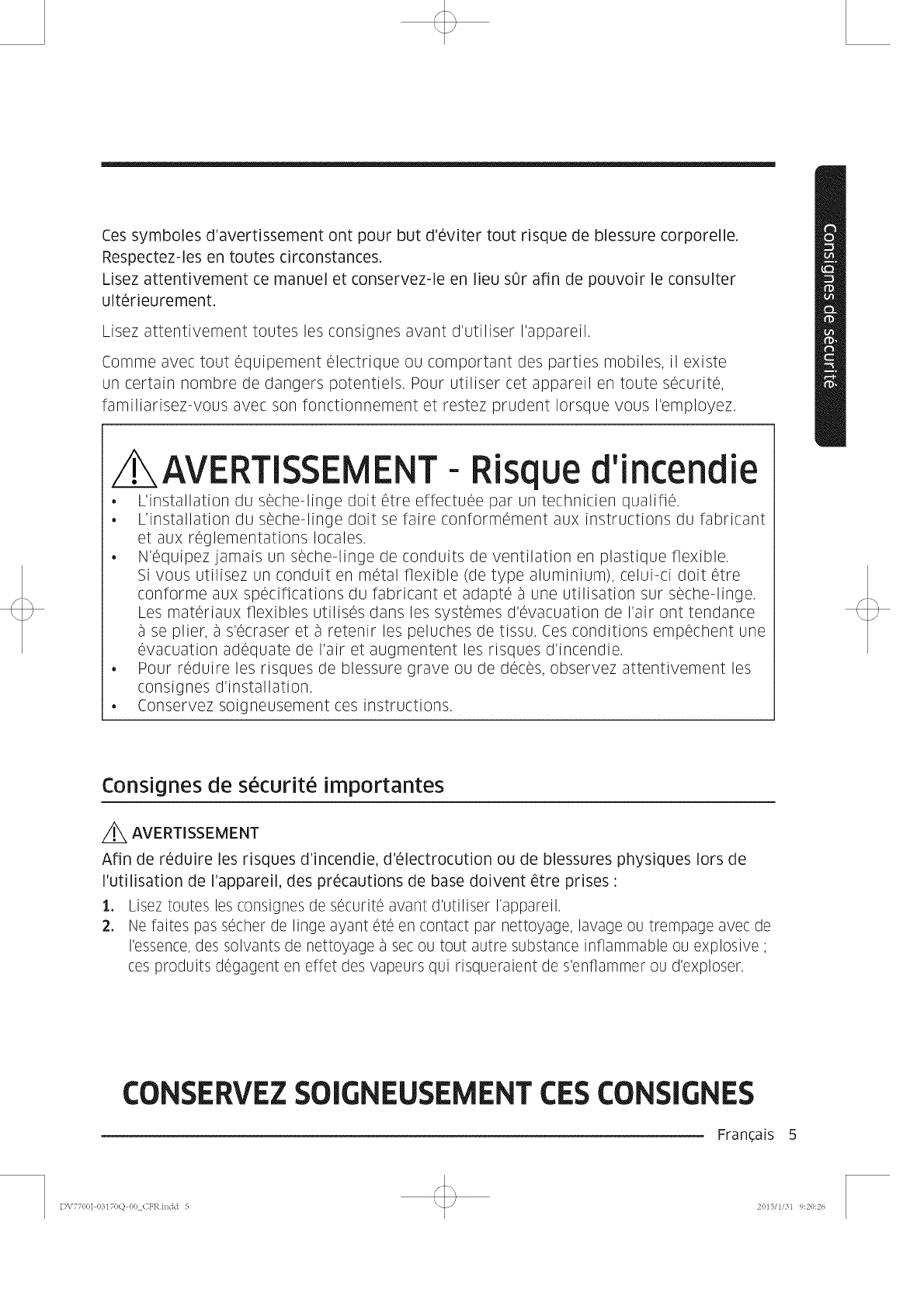

i VVARNI G- skof Fire

• Clothes dryer installation must be performed by a qualified installer.

• Install the clothes dryer according to the manufacturer's instructions and local codes.

• Do not install a clothes dryer with flexible plastic venting materials. If flexible metal

(foil type) duct is installed, it must be of a specific type identified by the appliance

manufacturer as suitable for use with clothes dryers. Flexible venting materials are

known to collapse, be easily crushed, and trap lint. These conditions will obstruct

clothes dryer airflow and increase the risk of fire.

• To reduce the risk of severe injury or death, follow all installation instructions.

• Save these instructions.

Important safety precautions

/_ WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your appliance,

follow basic precautions, including the following:

1. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted

with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they

give off vapors that could ignite or explode.

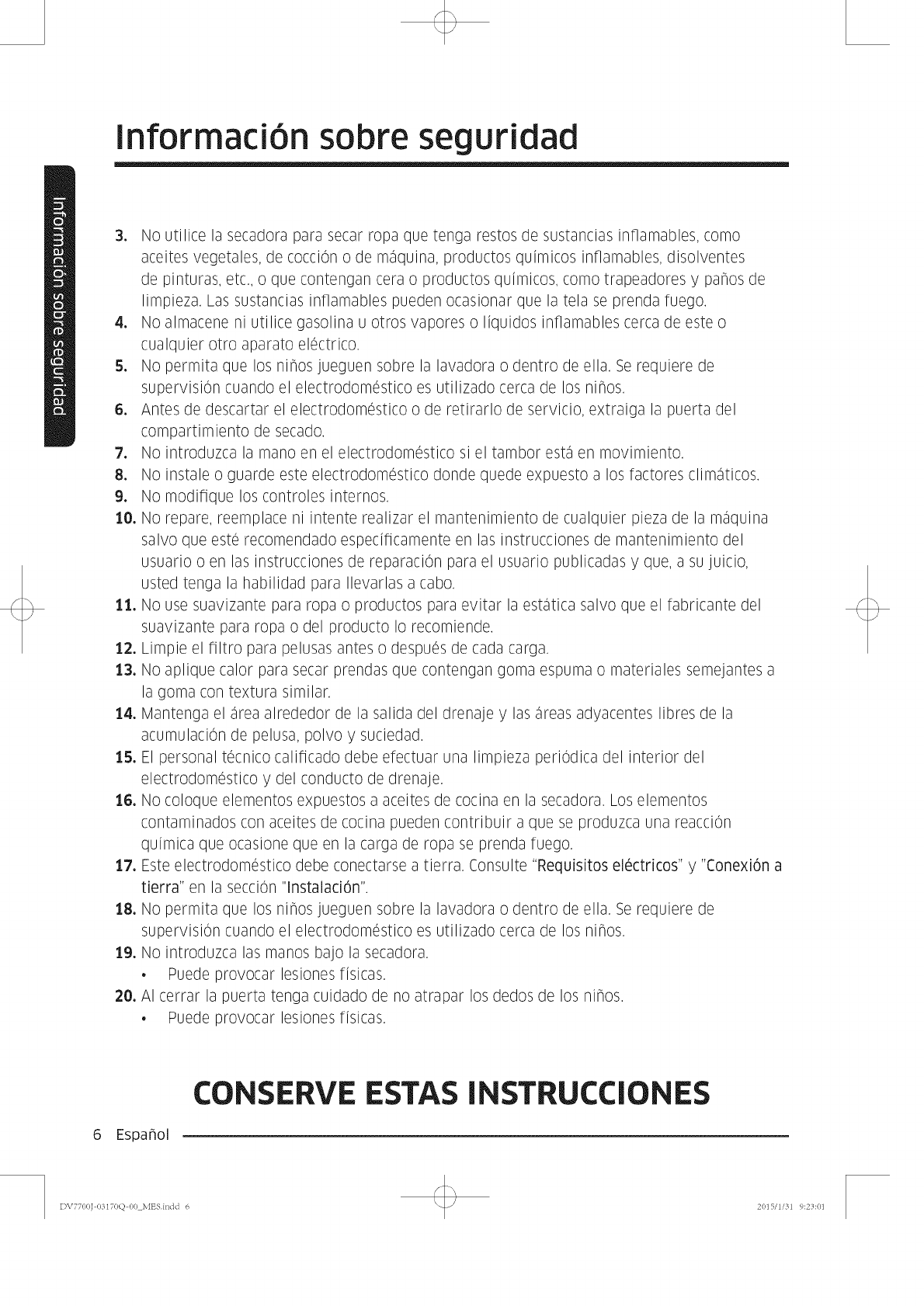

3. Do not use the dryer to dry clothes which have traces of any flammable substance,

such as vegetable oil, cooking oil, machine oil, flammable chemicals, paint thinner, etc.,

or anything containing wax or chemicals, such as mops and cleaning cloths. Flammable

substances may cause the fabric to catch fire by itself.

SAVE THESE INSTRUCTIONS

English 5

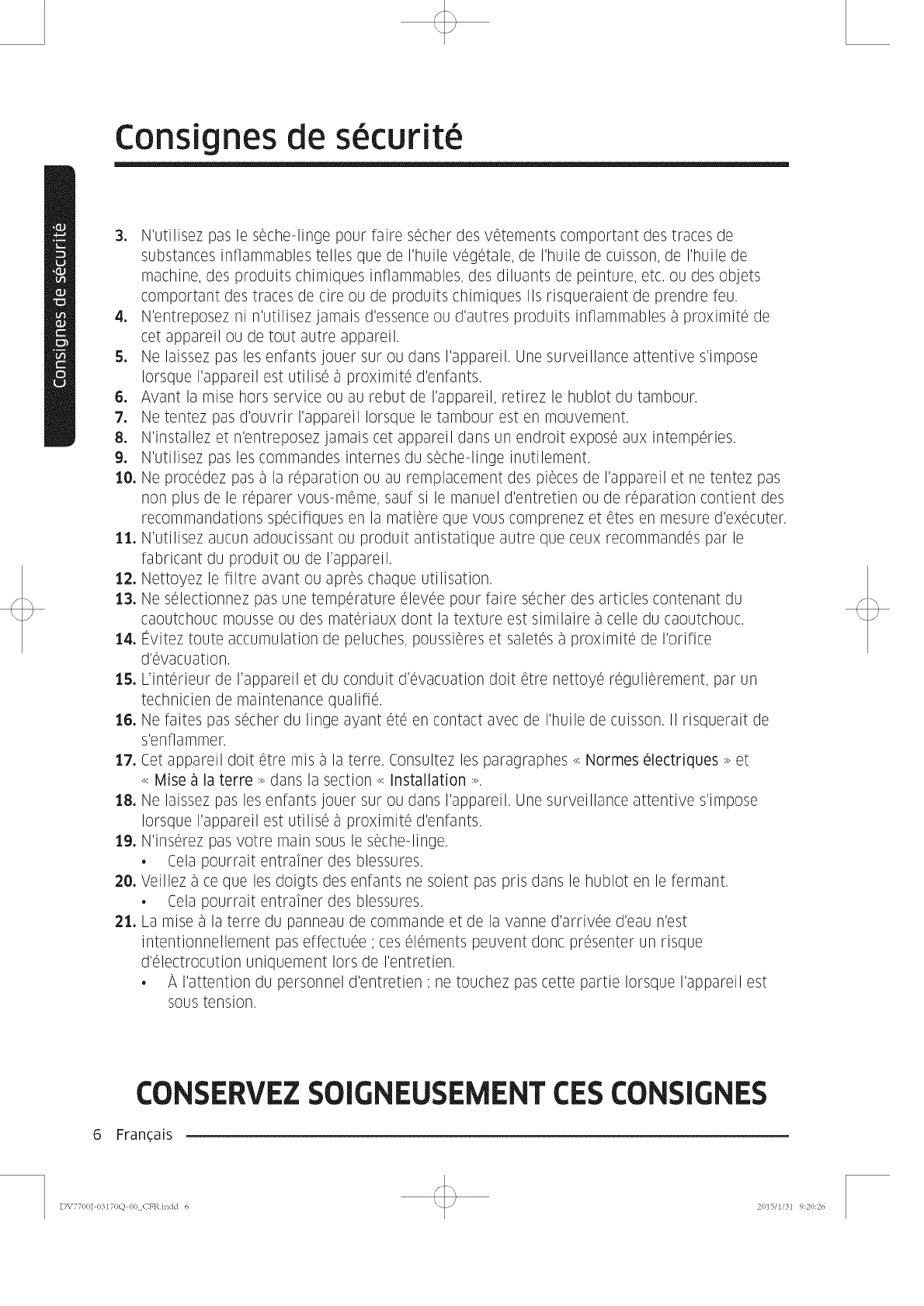

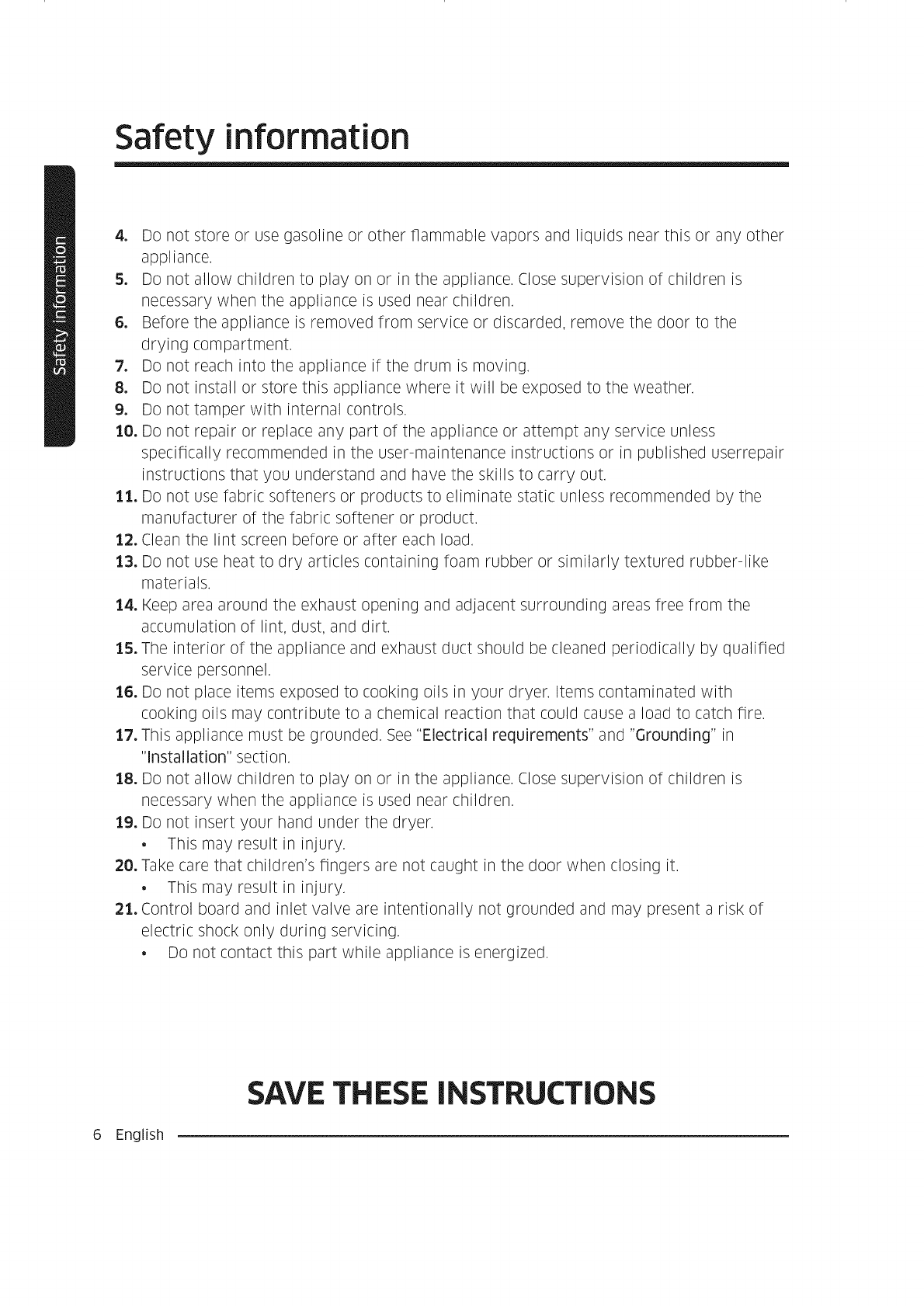

Safety information

4. Do not store or use gasoline or other flammable vapors and liquids near this or any other

appliance.

5, Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

6. Before the appliance is removed from service or discarded, remove the door to the

drying compartment.

7, Do not reach into the appliance if the drum is moving.

8, Do not install or store this appliance where it will be exposed to the weather.

9, Do not tamper with internal controls.

10, Do not repair or replace any part of the appliance or attempt any service unless

specifically recommended in the user-maintenance instructions or in published userrepair

instructions that you understand and have the skills to carry out.

11, Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

12. Clean the lint screen before or after each load.

13, Do not use heat to dry articles containing foam rubber or similarly textured rubber-like

materials.

14, Keep area around the exhaust opening and adjacent surrounding areas free from the

accumulation of lint, dust, and dirt.

15.The interior of the appliance and exhaust duct should be cleaned periodically by qualified

service personnel.

16, Do not place items exposed to cooking oils in your dryer. Items contaminated with

cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

17. This appliance must be grounded. See "Electrical requirements" and "Grounding" in

"Installation" section.

18. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

19. Do not insert your hand under the dryer.

• This may result in injury.

20. Take care that children's fingers are not caught in the door when closing it.

• This may result in injury.

21. Control board and inlet valve are intentionally not grounded and may present a risk of

electric shock only during servicing.

• Do not contact this part while appliance is energized.

SAVE THESE INSTRUCTIONS

6 English

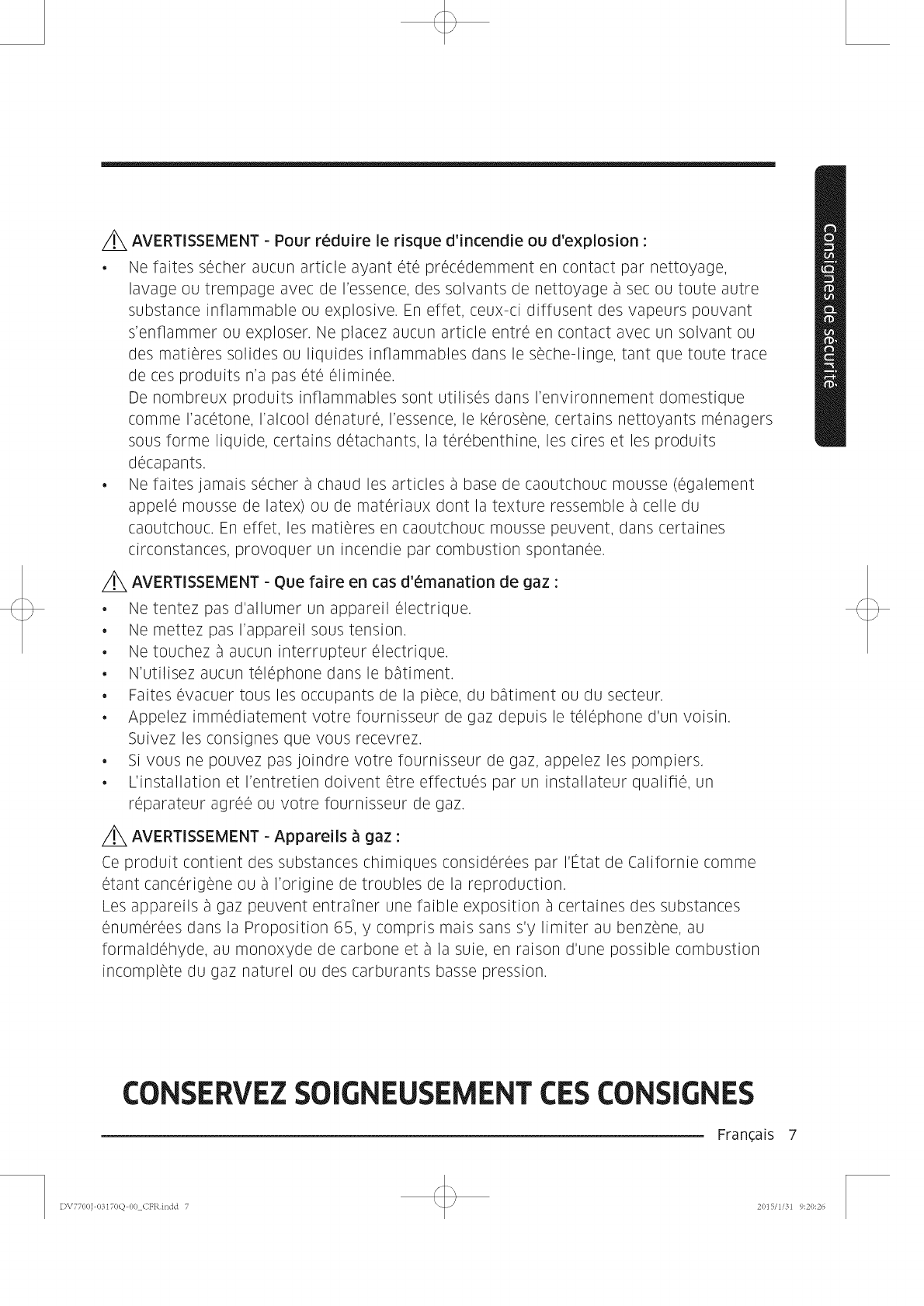

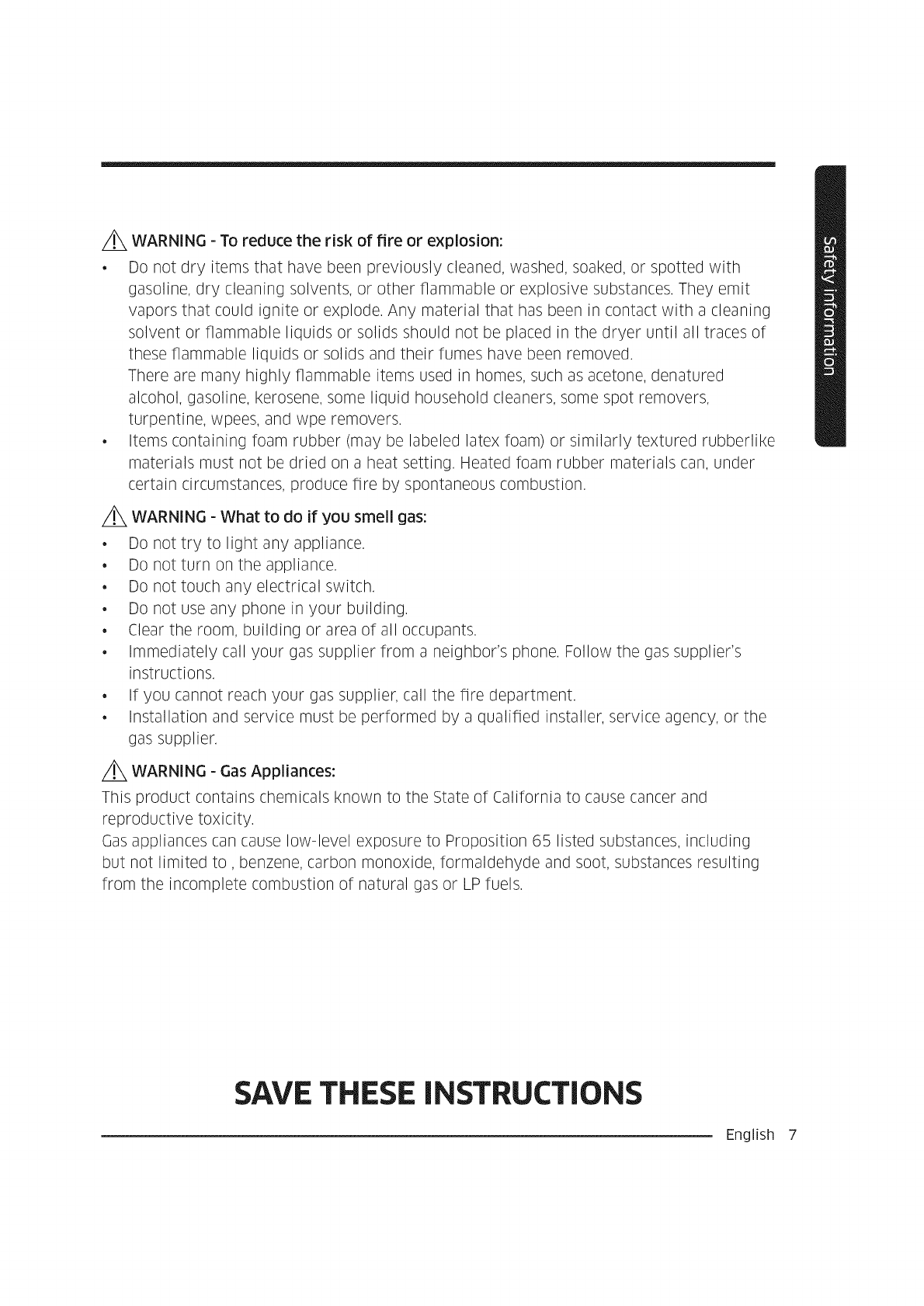

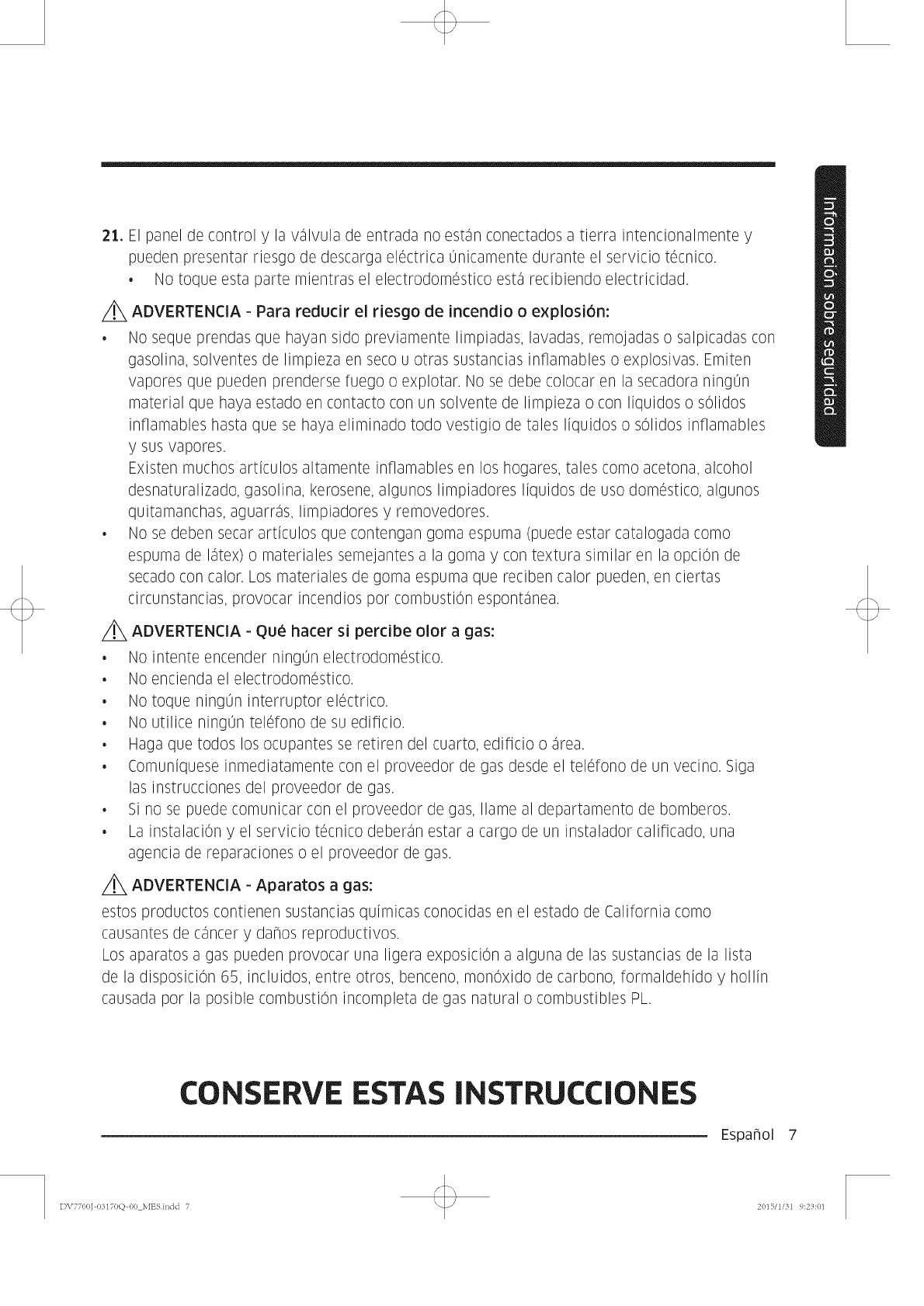

,/iX WARNING -To reduce the risk of fire or explosion:

• Do not dry items that have been previously cleaned, washed, soaked, or spotted with

gasoline, dry cleaning solvents, or other flammable or explosive substances. They emit

vapors that could ignite or explode. Any material that has been in contact with a cleaning

solvent or flammable liquids or solids should not be placed in the dryer until all traces of

these flammable liquids or solids and their fumes have been removed.

There are many highly flammable items used in homes, such as acetone, denatured

alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,

turpentine, wpees, and wpe removers.

• Items containing foam rubber (may be labeled latex foam) or similarly textured rubberlike

materials must not be dried on a heat setting. Heated foam rubber materials can, under

certain circumstances, produce fire by spontaneous combustion.

,/iX WARNING - What to do if you smell gas:

• Do not try to light any appliance.

• Do not turn on the appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

• If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer, service agency, or the

gas supplier.

/_ WARNING - Gas Appliances:

This product contains chemicals known to the State of California to cause cancer and

reproductive toxicity.

Gas appliances can cause low-level exposure to Proposition 65 listed substances, including

but not limited to, benzene, carbon monoxide, formaldehyde and soot, substances resulting

from the incomplete combustion of natural gas or LP fuels.

SAVE THESE INSTRUCTIONS

English 7

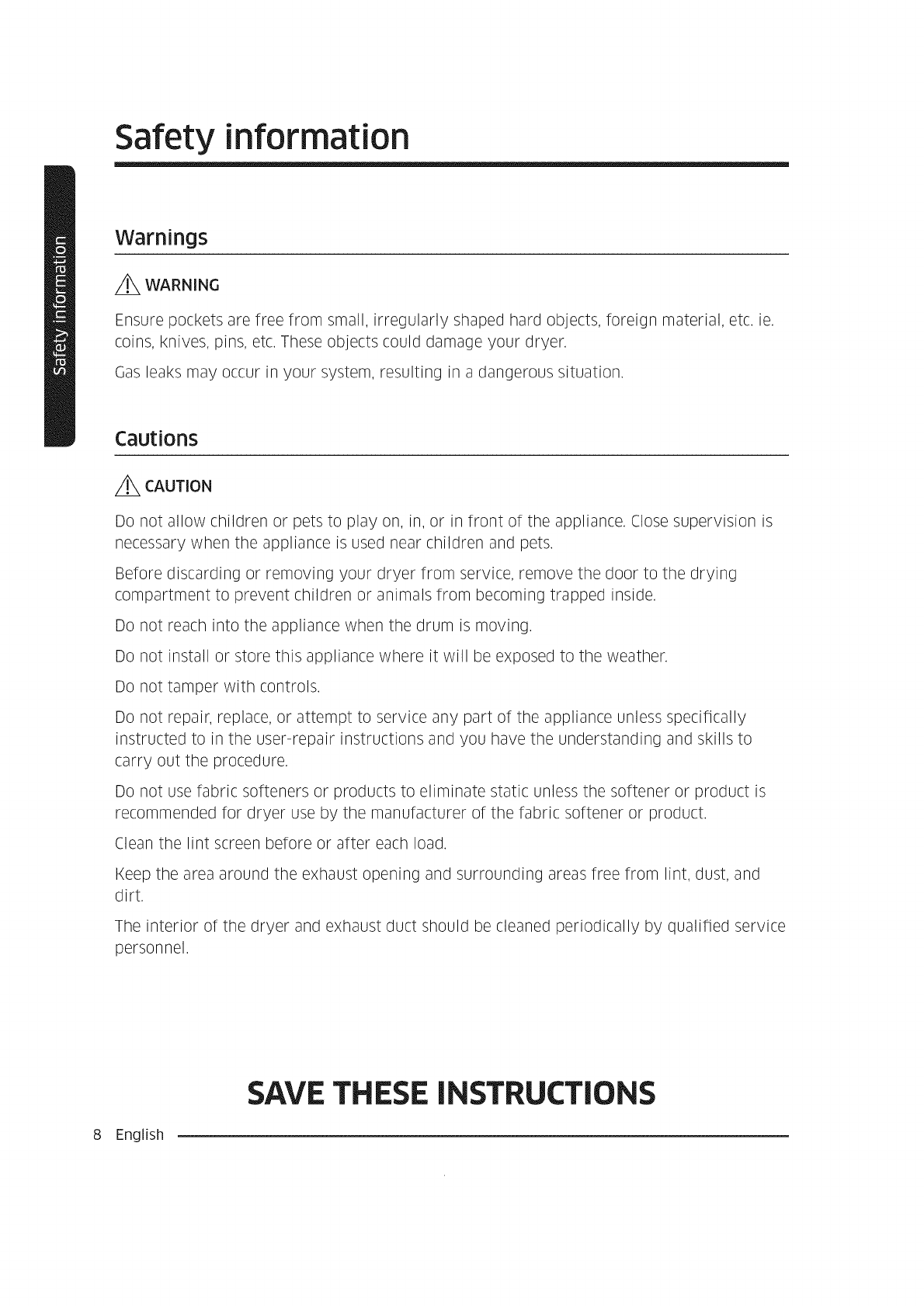

Safety information

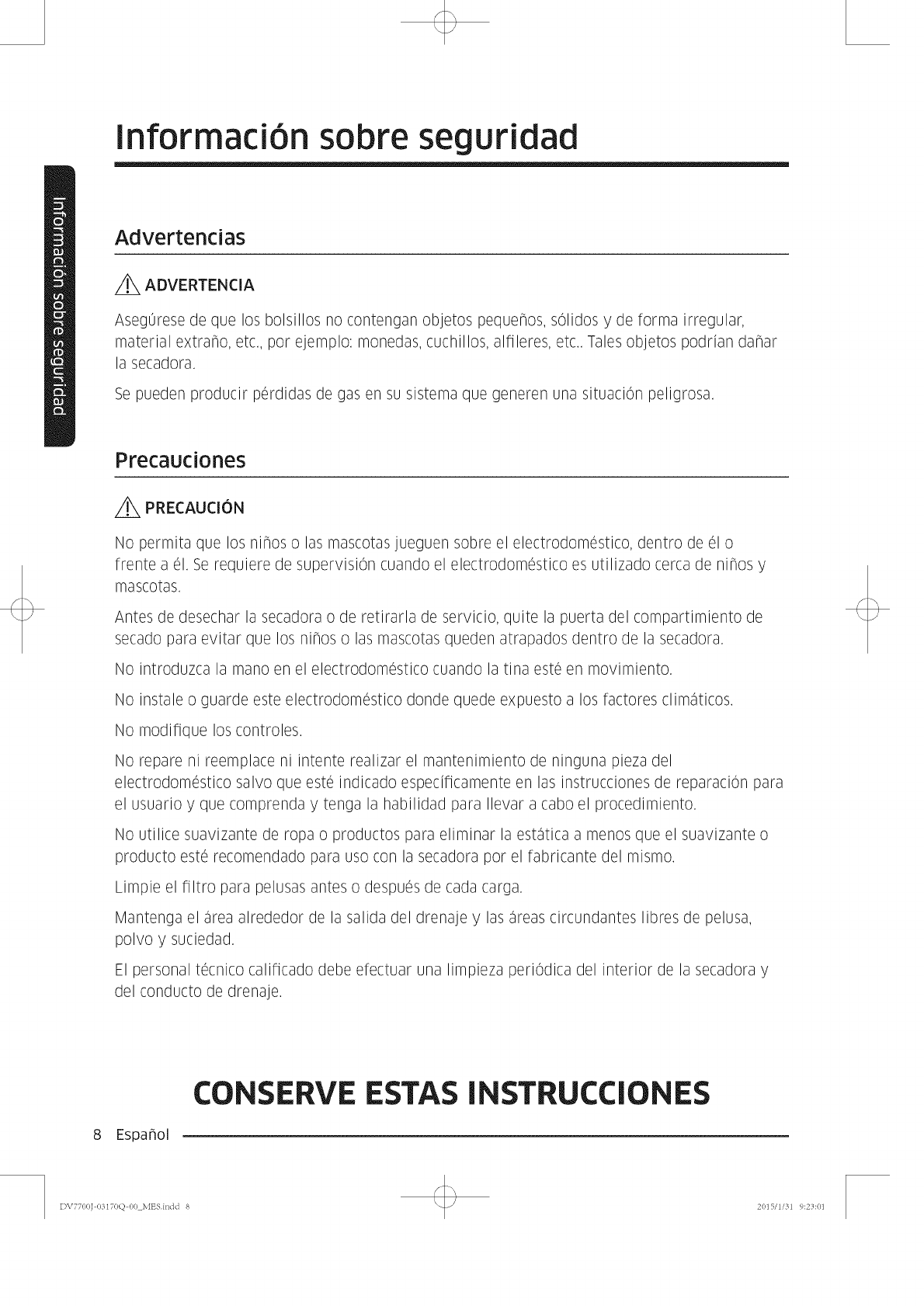

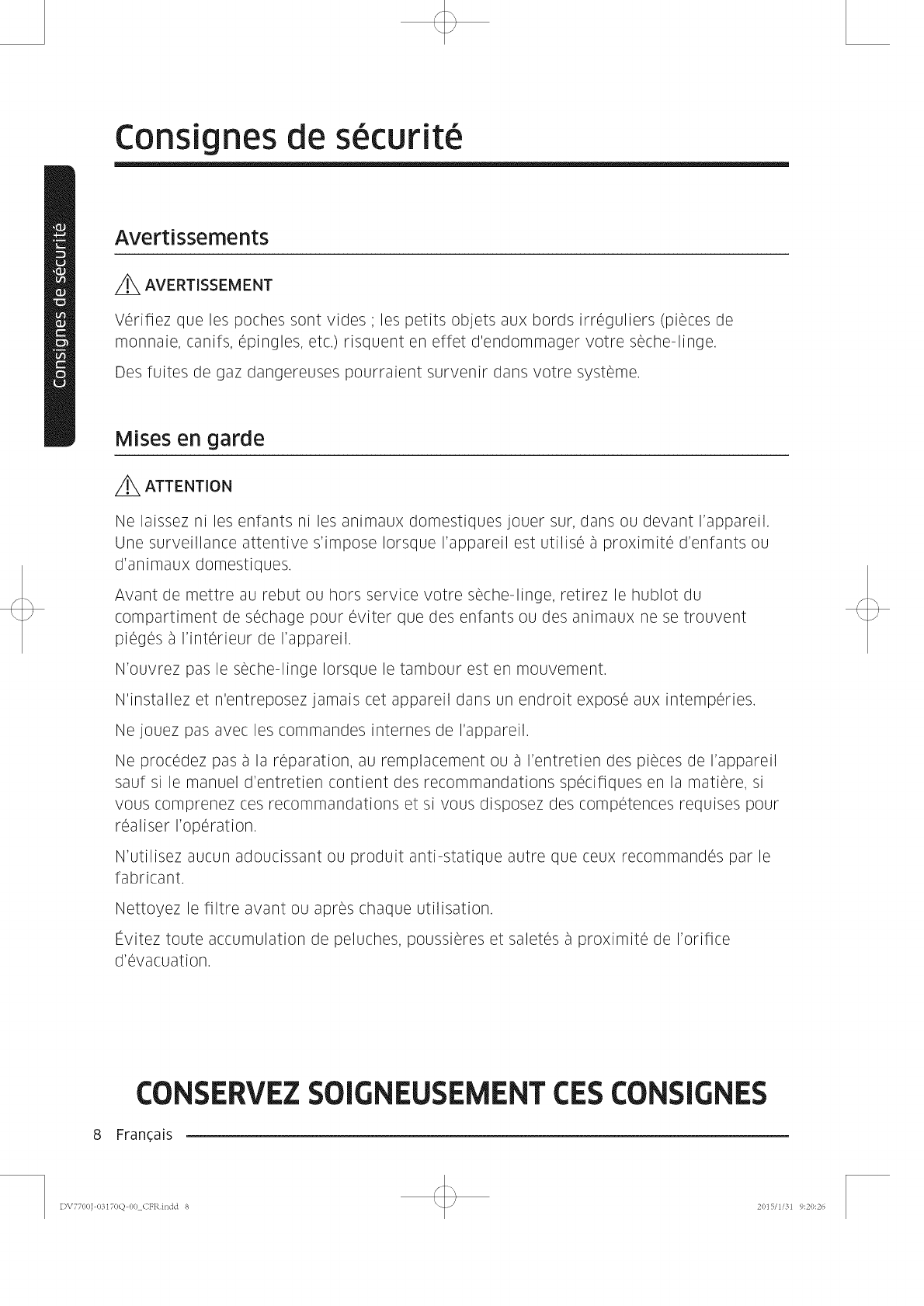

Warnings

/_ WARNING

Ensure pockets are free from small, irregularly shaped hard objects, foreign material, etc. ie.

coins, knives, pins, etc. These objects could damage your dryer.

Gas leaks may occur in your system, resulting in a dangerous situation.

Cautions

Z_ CAUTION

Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is

necessary when the appliance is used near children and pets.

Before discarding or removing your dryer from service, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

Do not reach into the appliance when the drum is moving.

Do not install or store this appliance where it will be exposed to the weather.

Do not tamper with controls.

Do not repair, replace, or attempt to service any part of the appliance unless specifically

instructed to in the user-repair instructions and you have the understanding and skills to

carry out the procedure.

Do not use fabric softeners or products to eliminate static unless the softener or product is

recommended for dryer use by the manufacturer of the fabric softener or product.

Clean the lint screen before or after each load.

Keep the area around the exhaust opening and surrounding areas free from lint, dust, and

dirt.

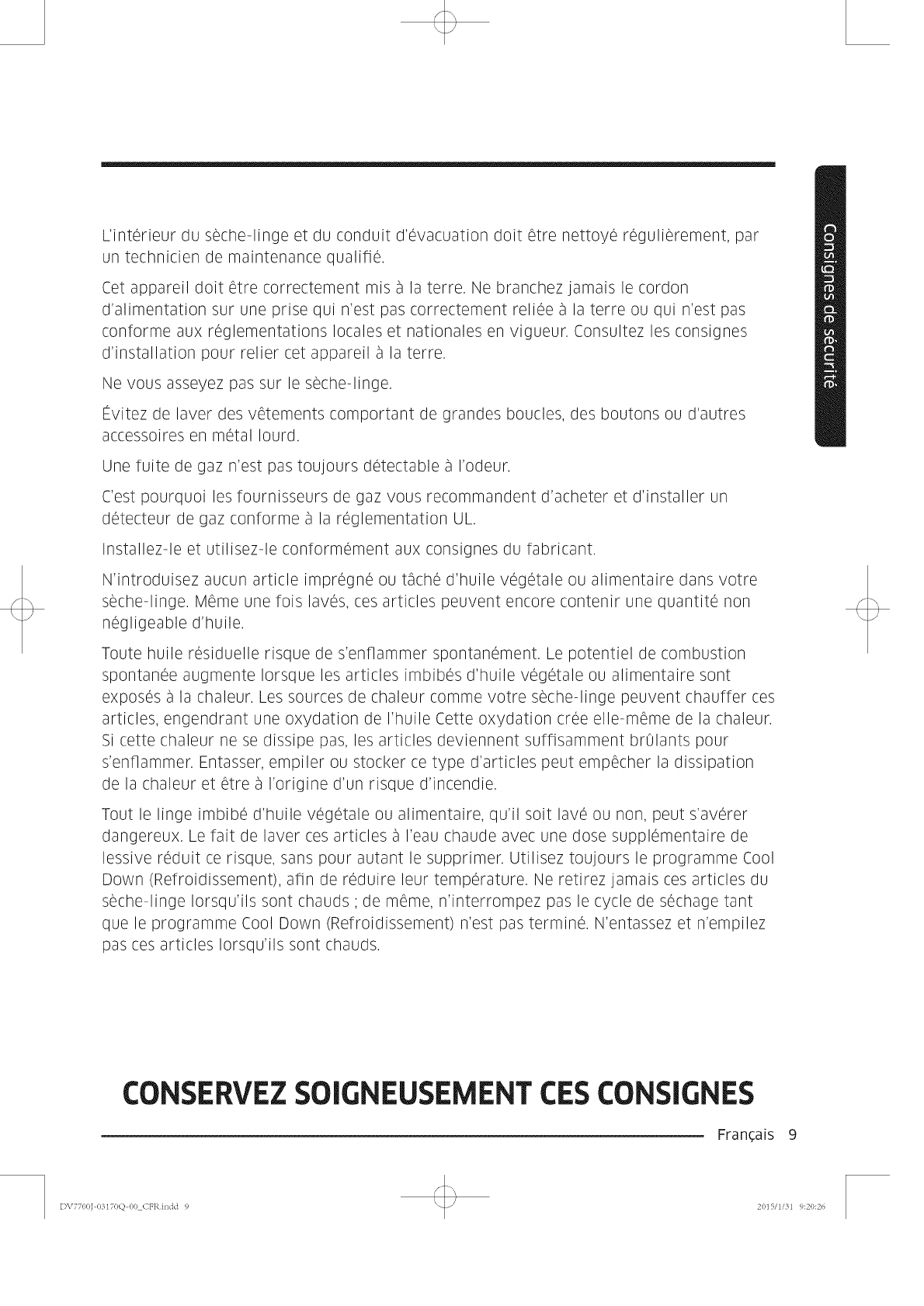

The interior of the dryer and exhaust duct should be cleaned periodically by qualified service

personnel.

SAVE THESE INSTRUCTIONS

8 English

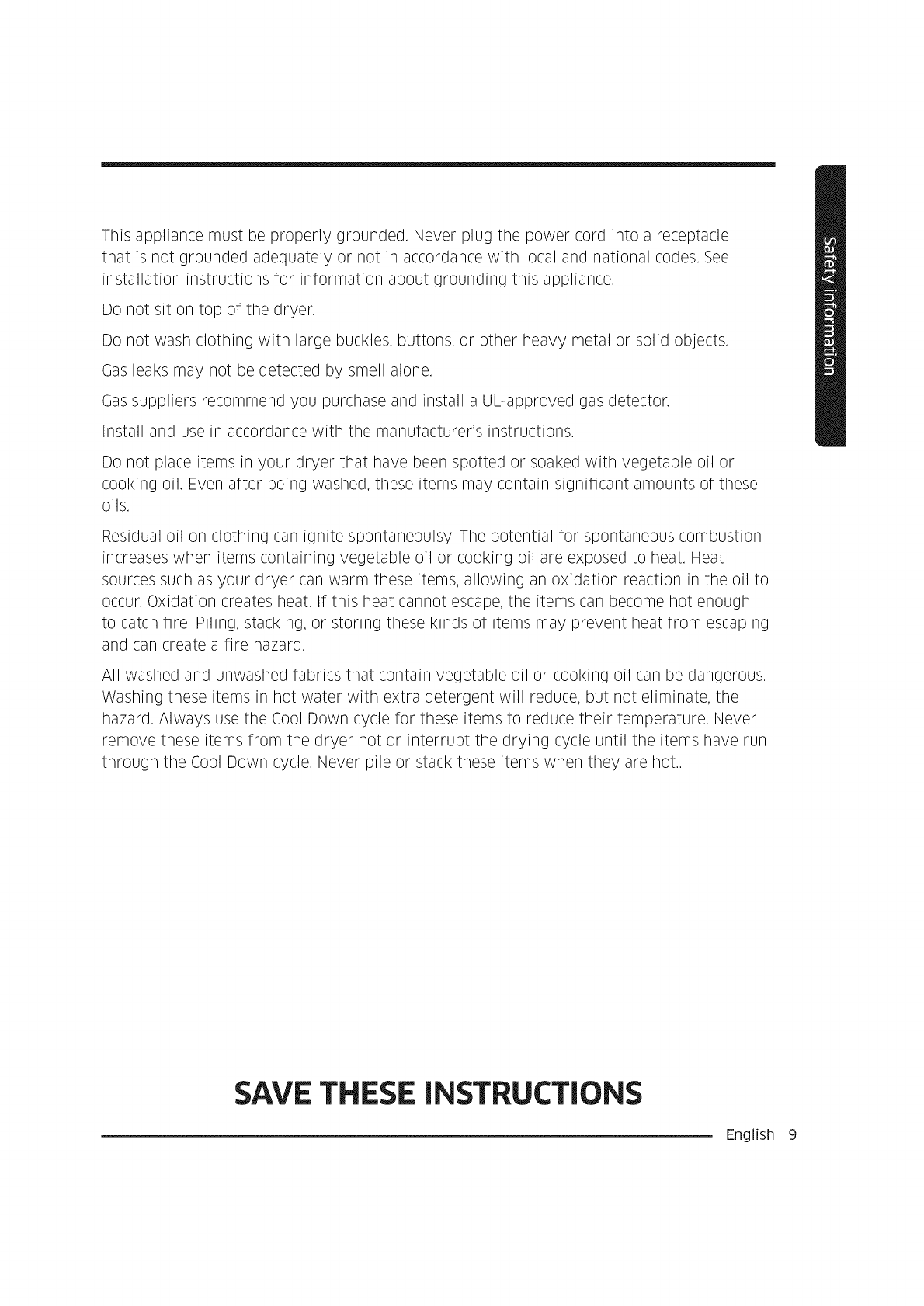

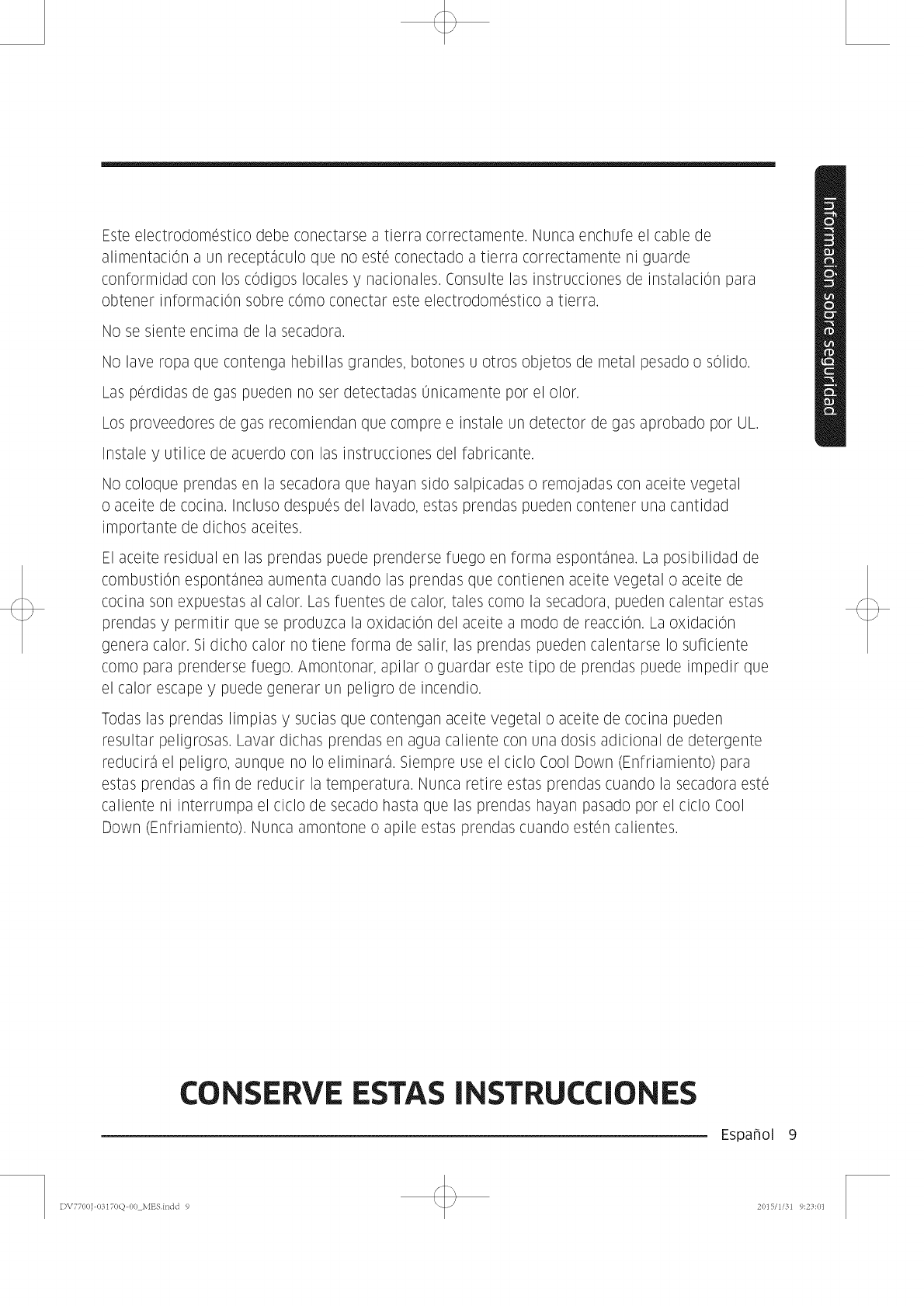

This appliance must be properly grounded. Never plug the power cord into a receptacle

that is not grounded adequately or not in accordance with local and national codes. See

installation instructions for information about grounding this appliance.

Do not sit on top of the dryer.

Do not wash clothing with large buckles, buttons, or other heavy metal or solid objects.

Gas leaks may not be detected by smell alone.

Gas suppliers recommend you purchase and install a Ubapproved gas detector.

Install and use in accordance with the manufacturer's instructions.

Do not place items in your dryer that have been spotted or soaked with vegetable oil or

cooking oil. Even after being washed, these items may contain significant amounts of these

oils.

Residual oil on clothing can ignite spontaneoulsy. The potential for spontaneous combustion

increases when items containing vegetable oil or cooking oil are exposed to heat. Heat

sources such as your dryer can warm these items, allowing an oxidation reaction in the oil to

occur. Oxidation creates heat. If this heat cannot escape, the items can become hot enough

to catch fire. Piling, stacking, or storing these kinds of items may prevent heat from escaping

and can create a fire hazard.

All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous.

Washing these items in hot water with extra detergent will reduce, but not eliminate, the

hazard. Always use the Cool Down cycle for these items to reduce their temperature. Never

remove these items from the dryer hot or interrupt the drying cycle until the items have run

through the Cool Down cycle. Never pile or stack these items when they are hot..

SAVE THESE iNSTRUCTiONS

English 9

Installation

Follow these instructions carefully to ensure proper installation of the dryer and to prevent

accidents when using it.

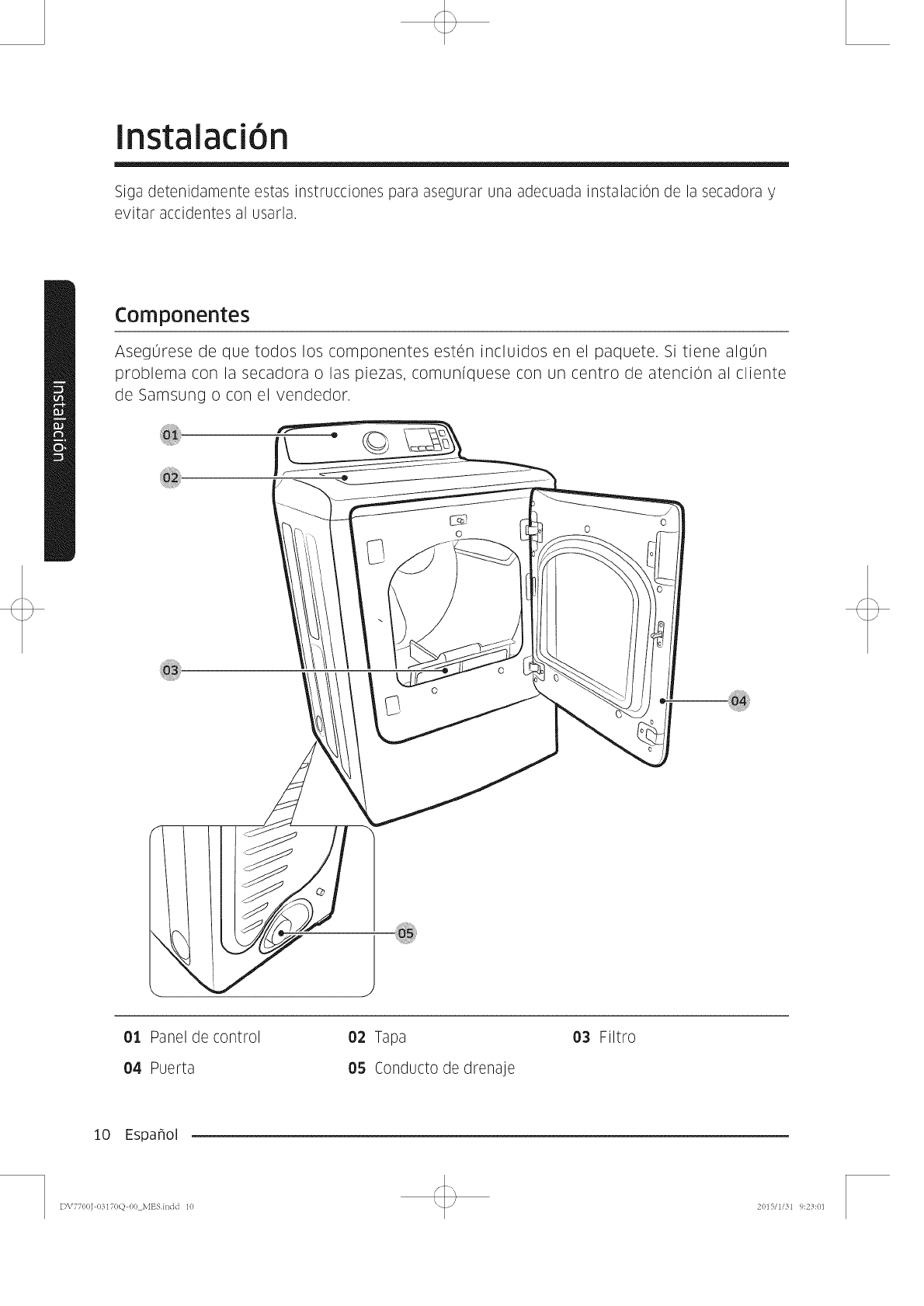

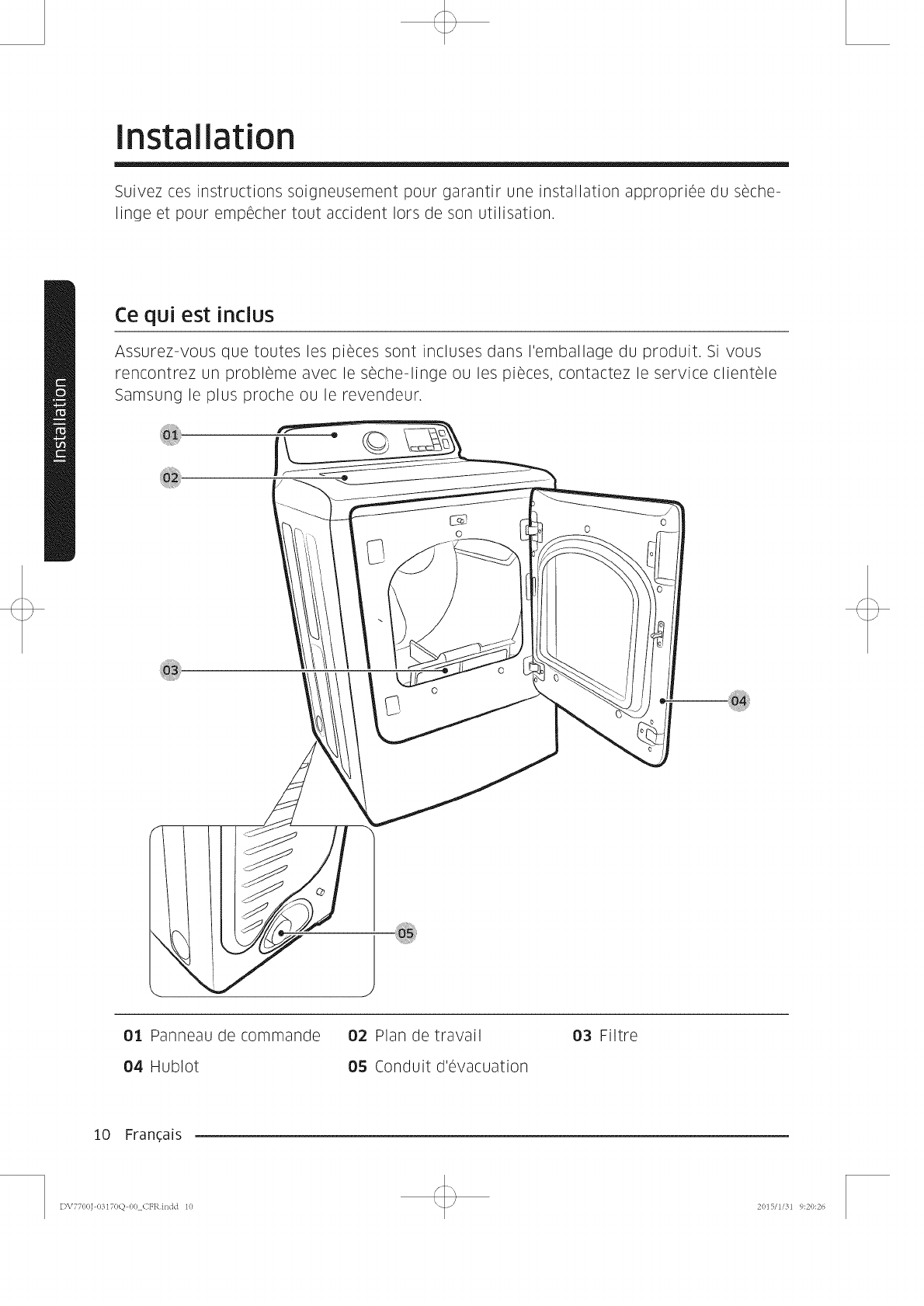

What's included

Make sure all the parts are included in the product package. If you have a problem with

the dryer or the parts, contact a local Samsung customer center or the retailer.

.©

01 Control panel

04 Door

02 Work top

05 Duct exhaust

03 Filter

10 English

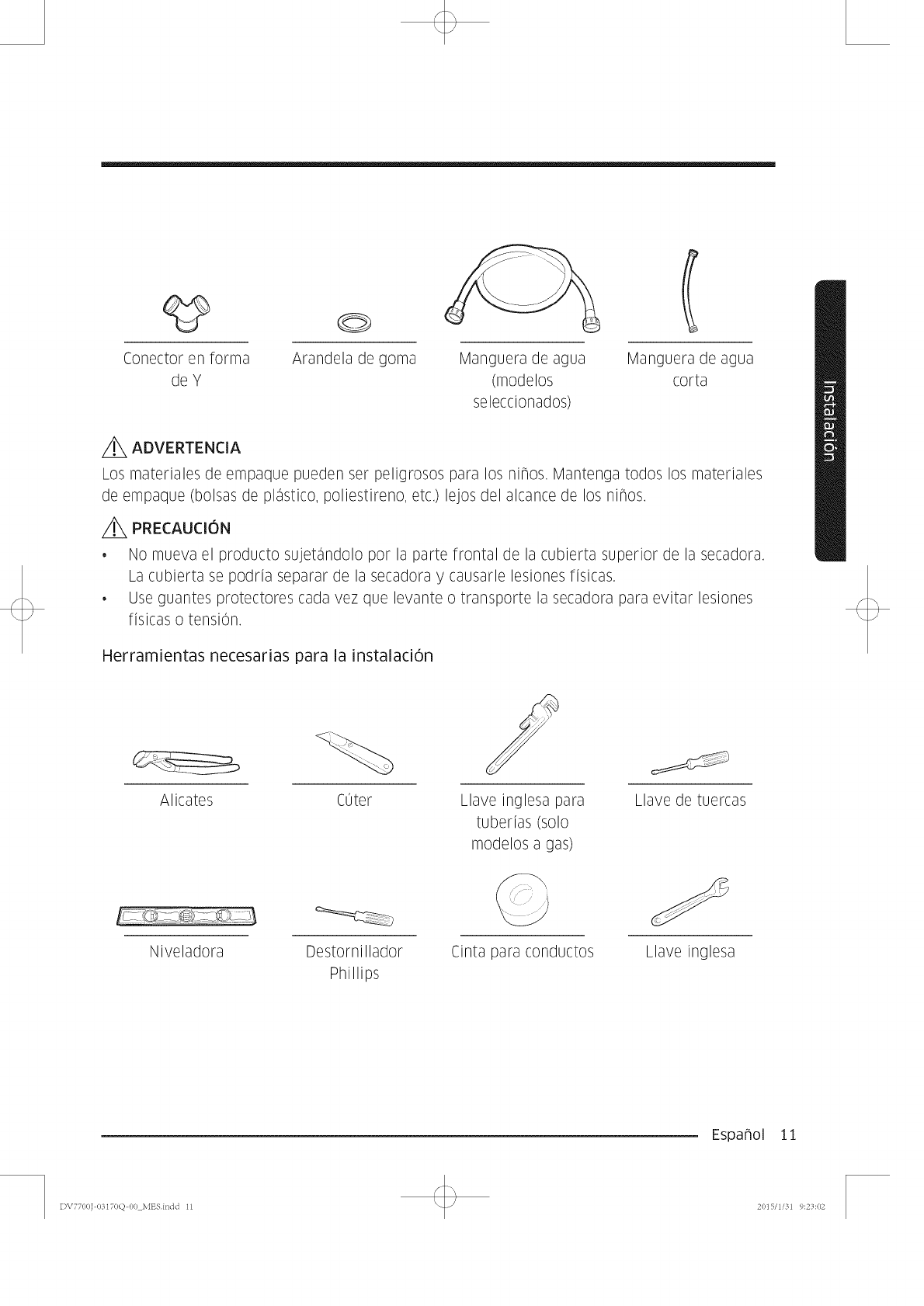

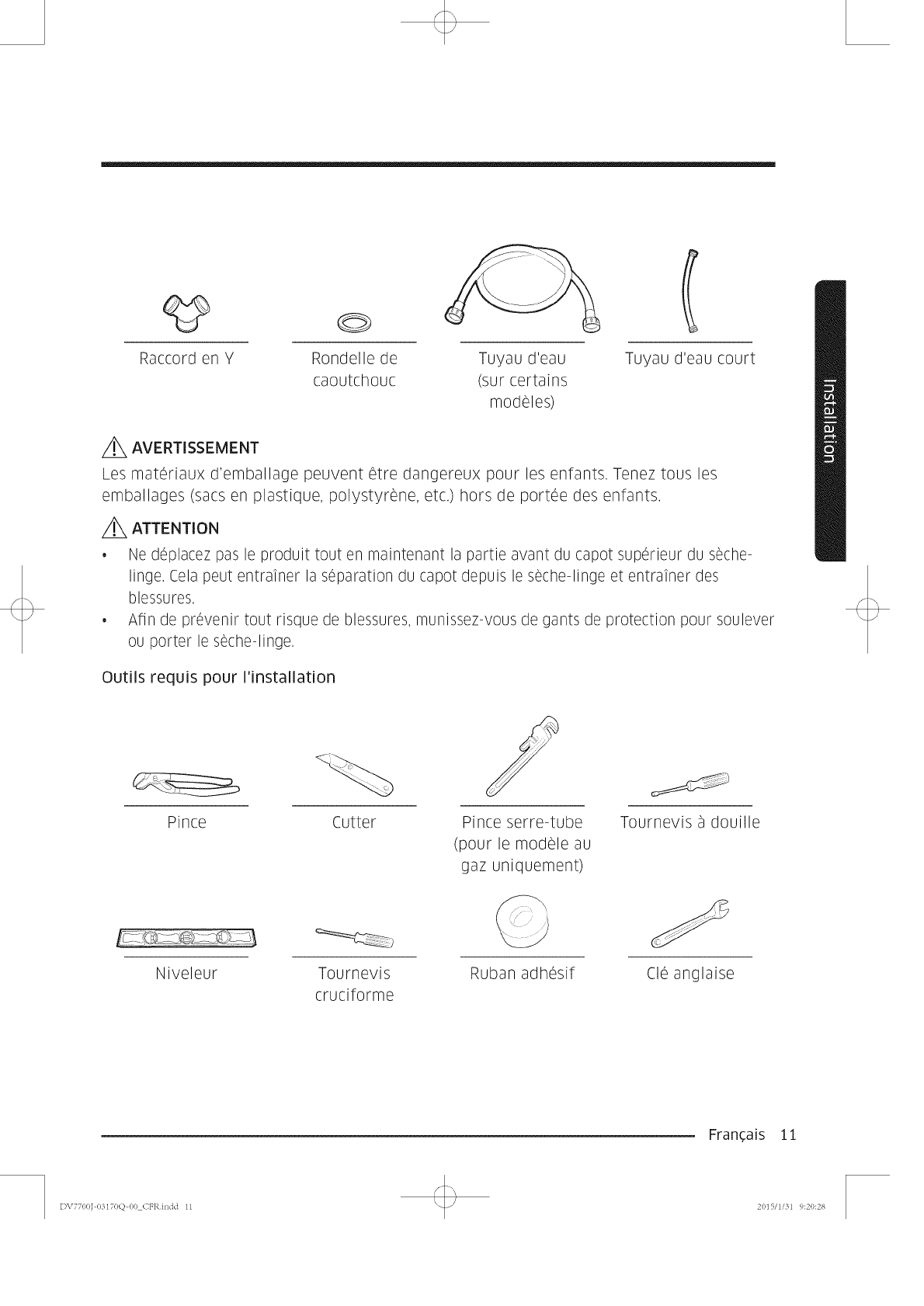

Y-connector Rubber washer Water hose

(for some models)

Short water hose

//_ WARNING

PacKing materials can be dangerous to children. Keep all packing material (plastic bags,

polystyrene, etc.) well out of children's reach.

CAUTION

• Do not move the product while holding the front part of the top cover of the dryer.

This may cause the cover to separate from the dryer and result in injury.

• Wear protective gloves whenever lifting or carrying the dryer to prevent personal injury

or strain.

Tools needed for installation

Pliers Cutting Knife Pipe wrench (for gas

model only)

Leveller Phillips screwdriver Duct tape

Nut drivers

Wrench

English 11

Installation

Before installation

Please read the following instructions carefully before installing the dryer. These instructions

should be kept for future reference.

/_ WARNING

Remove the door from all discarded appliances to avoid the danger of a child suffocating.

Control board and inlet valve are intentionally not grounded and may present a risk of

electric shock only during servicing.

Service personnel - Do not contact this part while appliance is energized.

Basic requirements

Make sure you have everything necessary for proper installation

• A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements.

• A POWER CORD for electric dryers (except in Canada).

• GAS LINES (if installing a gas dryer). The gas lines must meet national and local codes.

• EXHAUST SYSTEM - must be rigid metal or flexible stiff-walled metal exhaust ducting.

12 English

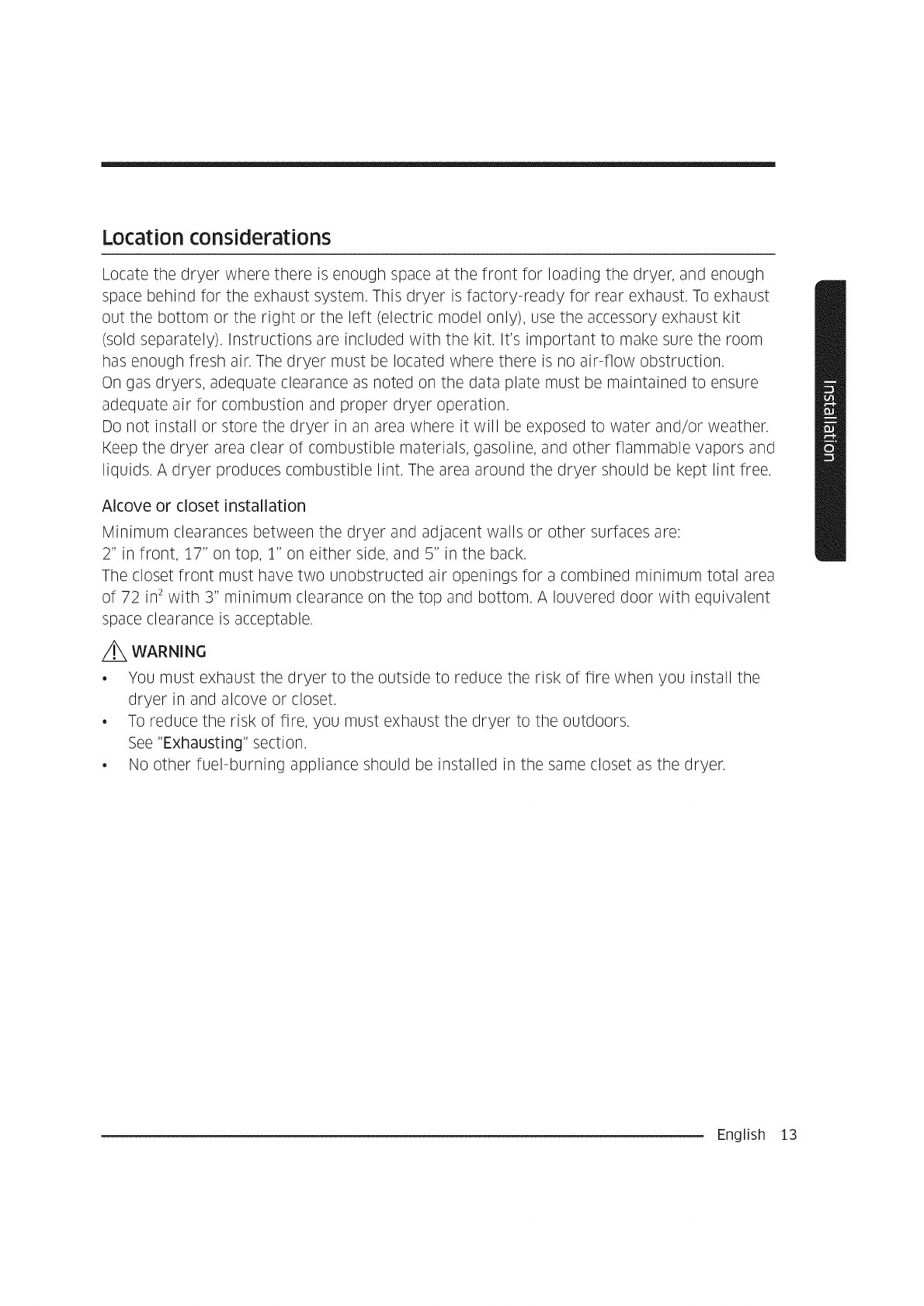

Location considerations

Locate the dryer where there is enough space at the front for loading the dryer, and enough

space behind for the exhaust system. This dryer is factory-ready for rear exhaust. To exhaust

out the bottom or the right or the left (electric model only), use the accessory exhaust kit

(sold separately). Instructions are included with the kit. It's important to make sure the room

has enough fresh air. The dryer must be located where there is no air-flow obstruction.

On gas dryers, adequate clearance as noted on the data plate must be maintained to ensure

adequate air for combustion and proper dryer operation.

Do not install or store the dryer in an area where it will be exposed to water and/or weather.

Keep the dryer area clear of combustible materials, gasoline, and other fammable vapors and

liquids. A dryer produces combustible lint. The area around the dryer should be kept lint free.

Alcove or closet installation

Minimum clearances between the dryer and adjacent walls or other surfaces are:

2" in front, 17" on top, !" on either side, and 5" in the back.

The closet front must have two unobstructed air openings for a combined minimum total area

of 72 in2with 3" minimum clearance on the top and bottom. A Iouvered door with equivalent

space clearance is acceptable.

z_ WARNING

• You must exhaust the dryer to the outside to reduce the risk of fire when you install the

dryer in and alcove or closet.

• To reduce the risk of fire, you must exhaust the dryer to the outdoors.

See "Exhausting" section.

• No other fuel-burning appliance should be installed in the same closet as the dryer.

English 13

Installation

Ducting requirements

No. of 90 °

elbows

4" (!0.2 cm)

2.5" (6.4 cm)

Rigid

80 ft. (24.4 m)

68 ft. (20.7 m)

57 ft. (!7.4 m)

47 ft. (!4.3 m)

Metallic

flexible*

4! ft. (!2.4 m)

37 ft. (!!.2 m)

33 ft. (!0.! m)

29 ft. (8.8 m)

Rigid

74 ft. (22.6 m)

62 ft. (!8.9 m)

5! ft. (!5.5 m)

4! ft. (!2.5 m)

Metallic

flexible*

33 ft. (!0.! m)

29 ft. (8.8 m)

25 ft. (7.6 m)

2 ! ft. (6.5 m)

* Do not use non-metallic flexible duct.

• Use a 4-inch (!0.2 cm) diameter rigid aluminum or rigid galvanized steel duct.

• Do not use a smaller duct.

• Ducts larger than 4 inches (!0.2 cm) in diameter can cause increased lint accumulation.

Lint accumulation should be cleaned regularly.

• If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not

use a flexible duct with a thin foil wall. Serious blockage can result if the flexible metal

duct is bent too sharply.

• Never install any type of flexible duct in walls, ceilings, or other concealed spaces.

• Keep the exhaust duct as straight and short as possible.

• Secure joints with duct tape. Do not use screws.

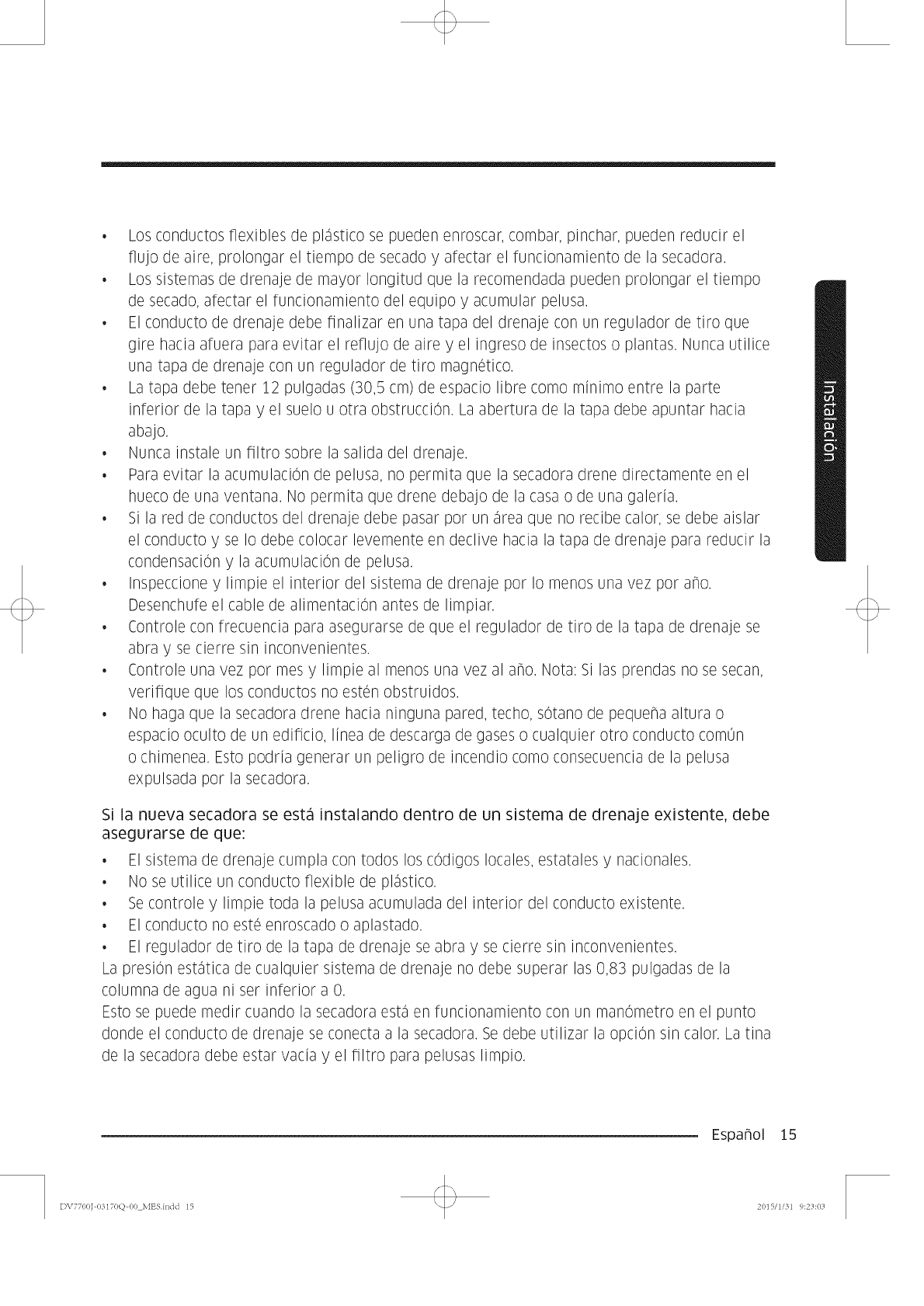

• Plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and

affect dryer operation.

• Exhaust systems longer than recommended can extend drying times, affect machine

operation, and may collect lint.

• The exhaust duct should end with an exhaust hood with a swing-out damper to prevent

back drafts and the entry of wildlife. Never use an exhaust hood with a magnetic damper.

14 English

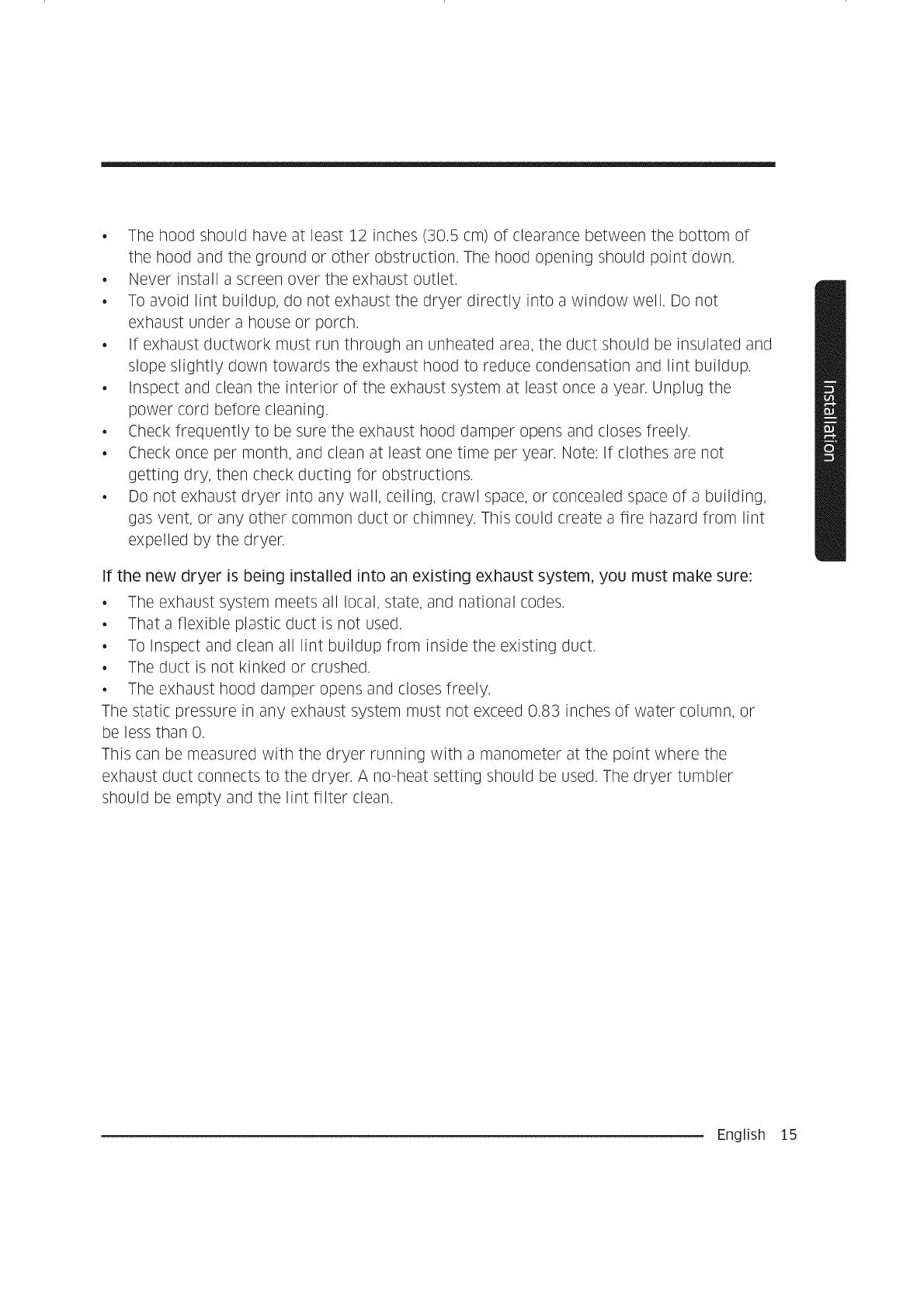

• The hood should have at least !2 inches (30.5 cm) of clearance between the bottom of

the hood and the ground or other obstruction. The hood opening should point down.

• Never install a screen over the exhaust outlet.

• To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not

exhaust under a house or porch.

• If exhaust ductwork must run through an unheated area, the duct should be insulated and

slope slightly down towards the exhaust hood to reduce condensation and lint buildup.

• Inspect and clean the interior of the exhaust system at least once a year. Unplug the

power cord before cleaning.

• Check frequently to be sure the exhaust hood damper opens and closes freely.

• Check once per month, and clean at least one time per year. Note: If clothes are not

getting dry, then check ducting for obstructions.

• Do not exhaust dryer into any wall, ceiling, crawl space, or concealed space of a building,

gas vent, or any other common duct or chimney. This could create a fire hazard from lint

expelled by the dryer.

I1:the new dryer is being installed into an existing exhaust system, you must make sure:

• The exhaust system meets all local, state, and national codes.

• That a flexible plastic duct is not used.

• To Inspect and clean all lint buildup from inside the existing duct.

• The duct is not kinked or crushed.

• The exhaust hood damper opens and closes freely.

The static pressure in any exhaust system must not exceed 0.83 inches of water column, or

be less than 0.

This can be measured with the dryer running with a manometer at the point where the

exhaust duct connects to the dryer. A no-heat setting should be used. The dryer tumbler

should be empty and the lint filter clean.

English 15

Installation

Exhausting

The dryer must not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl space, or a

concealed space of a building.

Exhausting the dryer to the outside will prevent large amount of lint and moisture from

being blown into the room.

In the United States

• All dryers must be exhausted to the outside.

• The required exhaust duct is 4 inches (!0.2 cm) in diameter.

• Use only those foil-type flexible ducts, if any, specifically identified for use with the

appliance by the manufacturer and that comply with the Outline for Clothes Dryer

Transition Duct. Use Subject 2!58A.

• See "Ducting requirements" in the "Installation" section for the maximum duct length and

number of bends that can be used.

• The total length of flexible metal duct must not exceed 7' 10_" (2.4 m).

• Do not assemble the duct with screws or other fasteners means that extend into the duct

and catch lint

In Canada

• All dryer must be exhausted to the outside.

• The exhaust duct should be 4 inches (!0.2 cm) in diameter.

• Use only those foil-type flexible ducts, if any, specifically indentified for use with the

appliance by the manufacturer shall be used.

• See "Ducting requirements" in the "Installation" section for the maximum duct length and

number of bends.

• The total length of flexible metal duct shall not exceed 7' !0½" (2.4 m).

• Do not assemble the duct with screws or other fasteners means that extend into the duct

and catch lint.

Outside the U.S. and Canada

• Refer to the local codes.

z_ WARNING

You must exhaust the dryer to the outside to reduce the risk of fire when you install the

dryer in an alcove or closet.

NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT.

If your existing ductworR is plastic, non-metal, or combustible, replace it with metal.

Use only a metal exhaust duct that is non-flammable to ensure containment of exhaust air,

heat, and lint.

16 English

Gas requirements

z_ WARNING

• Use only natural or LP (liquid propane) gases.

• THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL

CODES, WITH THE NATIONAL FUEL GAS CODE ANSI/Z223.1_, LATEST REVISION (FOR THE

UNITED STATES),OR WITH THE CAN/CGA-B1_49 INSTALLATION CODES (FOR CANADA).

• Gas dryers are equipped with a burner vent for use with natural gas. If you plan to

use your dryer with LP (liquid propane) gas, it must be converted for safe and proper

performance by a qualified service technician.

• A !/2" (1_.27 cm) gas supply line is recommended and must be reduced to connect to the

3/8" (1_cm) gas line on your dryer. The National Fuel Gas Code requires that an accessible,

approved manual gas shut-off valve be installed within 6" of your dryer.

• Gas dryers installed in residential garages must be raised 1_8inches (46 cm) above the

floor.

Additionally, a !/8" (0.3 cm) N.P.T.(National Pipe Thread) plugged tapping, accessible for

test gauge connection, must be installed immediately upstream of your dryer's gas supply

connection.

• Your dryer must be disconnected from the gas supply pipe system during any pressure

testing of the system.

• DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design certified by

the American Gas Association (CGA in Canada).

NOTE

• Any pipe joint compound used must be resistant to the action of any liquefied petroleum

gas.

• As a courtesy, most local gas utilities will Inspect a gas appliance installation.

NOTE

GAS IGNITION: Your dryer uses an automatic ignition system to ignite the burner.

There is no constant burning pilot.

English 17

Installation

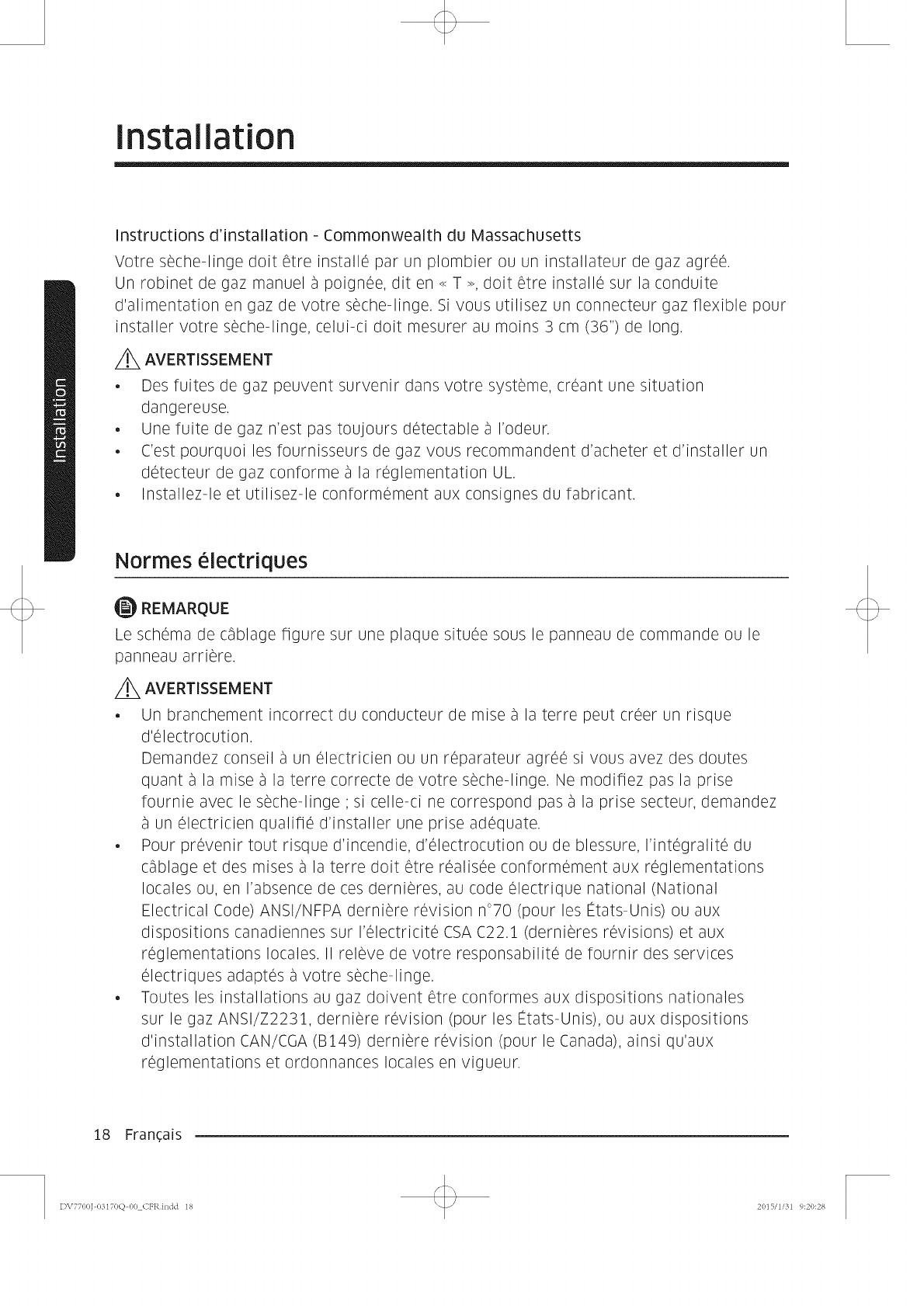

Commonwealth of Massachusetts installation instructions

Your dryer must be installed by a licensed plumber or gas fitter. A"T" handle manual gas

valve must be installed in the gas supply line to your dryer. If a flexible gas connector is used

to install your dryer, the connector can be no longer than 3' (36").

/_ WARNING

• Gas leaks may occur in your system, creating a dangerous situation.

• Gas leaks may not be detected by smell alone.

• Gas suppliers recommend you purchase and install a Ubapproved gas detector.

• Install and use in accordance with the manufacturer's instructions.

Electrical requirements

NOTE

The wiring diagram is located on the plate below the control panel or frame back.

//_ WARNING

• Improperly connecting the equipment grounding conductor can result in a risk of electric

shock.

Check with a qualified electrician or serviceman if you are in doubt as to whether your

dryer is properly grounded. Do not modify the plug provided with your dryer- if it

doesn't fit the outlet, have a proper outlet installed by a qualified electrician.

• To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and

grounding must be done in accordance with local codes, or in the absence of local codes,

with the National Electrical Code, ANSI/NFPA No. 70-Latest Revision (for the U.S.) or the

Canadian Electrical Code CSA C22.1 - Latest Revisions and local codes and ordinances. It

is your responsibility to provide adequate electrical services for your dryer.

• All gas installations must be done in accordance with the national Fuel Code ANSI/Z223!

- Latest Revision (for the U.S.) or CAN/CGA - B!49 Installation Codes - Latest Revision

(for Canada) and local codes and ordinances.

18 English

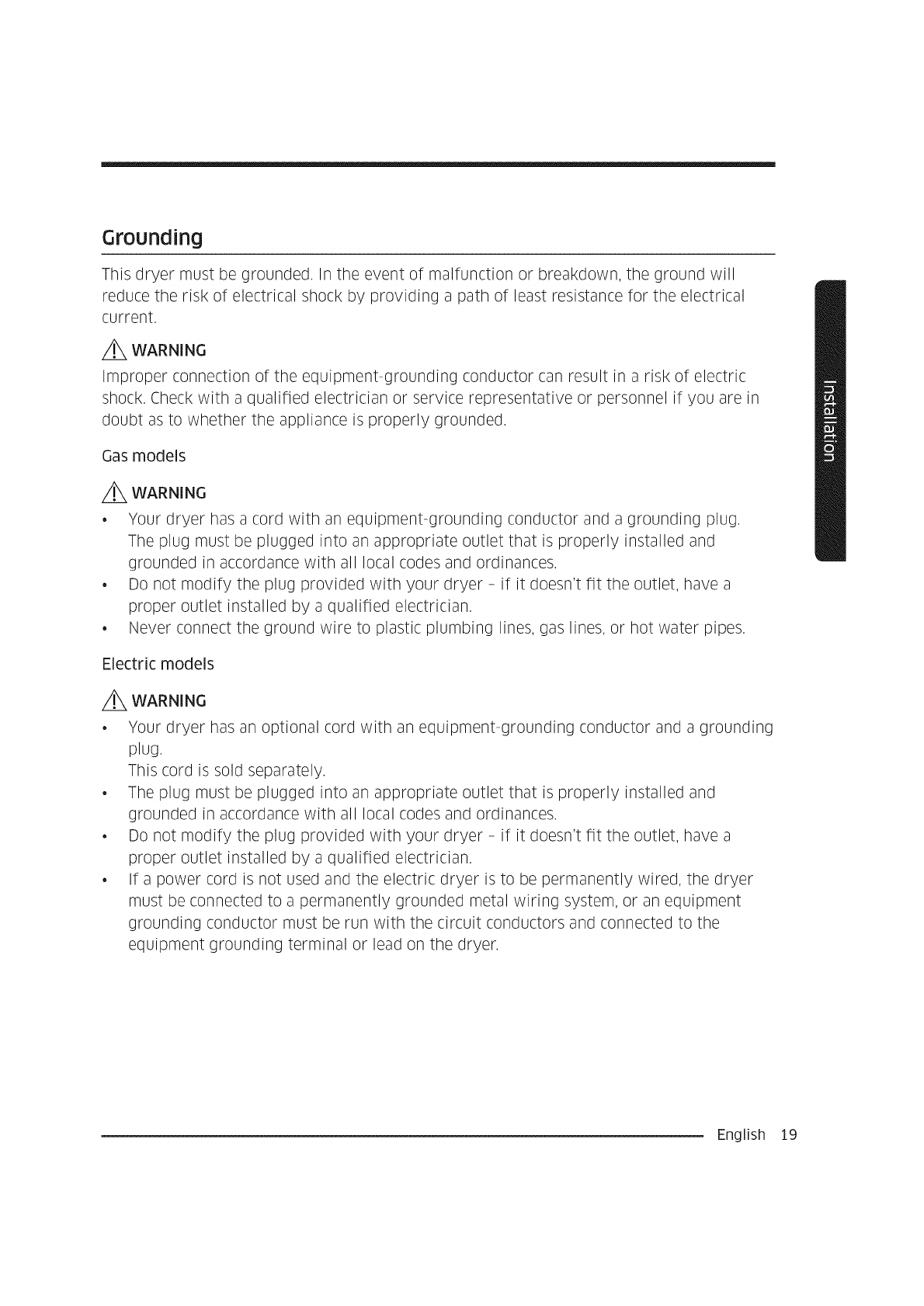

Grounding

This dryer must be grounded. In the event of malfunction or breakdown, the ground will

reduce the risk of electrical shock by providing a path of least resistance for the electrical

current.

/!_ WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electric

shock. Check with a qualified electrician or service representative or personnel if you are in

doubt as to whether the appliance is properly grounded.

Gas models

/!_ WARNING

• Your dryer has a cord with an equipment-grounding conductor and a grounding plug.

The plug must be plugged into an appropriate outlet that is properly installed and

grounded in accordance with all local codes and ordinances.

• Do not modify the plug provided with your dryer- if it doesn't fit the outlet, have a

proper outlet installed by a qualified electrician.

• Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

Electric models

//_ WARNING

• Your dryer has an optional cord with an equipment-grounding conductor and a grounding

plug.

This cord is sold separately.

• The plug must be plugged into an appropriate outlet that is properly installed and

grounded in accordance with all local codes and ordinances.

• Do not modify the plug provided with your dryer- if it doesn't fit the outlet, have a

proper outlet installed by a qualified electrician.

• If a power cord is not used and the electric dryer is to be permanently wired, the dryer

must be connected to a permanently grounded metal wiring system, or an equipment

grounding conductor must be run with the circuit conductors and connected to the

equipment grounding terminal or lead on the dryer.

English 19

Installation

Electrical connections

Before operating or testing, follow all grounding instructions in the "Grounding" section.

An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT

USE AN EXTENSION CORD.

Gas models - U.S. and Canada

A !20 volt, 60 Hz AC approved electrical service, with a!5-ampere fuse or circuit breaker is

required.

Electric models - U.S. only

Most U.S. dryers require a 120 /?40 volt, 60 Hz AC approved electrical service. Some require

120 /208 volt, 60 Hz approved electrical service. The electric service requirements can be

found on the data label located behind the door. A 30-ampere fuse or circuit breaker on both

sides of the line is required.

• If a power cord is used, the cord should be plugged into a 30-ampere receptacle.

• The power cord is NOT provided with U.S. electric model dryers.

/_, WARNING

Risk of Electric Shock

When local codes allow, the dryer electrical supply may be connected by means of a new

power supply cord kit, marked for use with a dryer, that is U.L listed and rated at a minimum

of 120/240 volts, 30-ampere with three No. 10 copper wire conductors terminated with

closed loop terminals, open-end spade lugs with turned up ends, or with tinned leads.

• Do not reuse a power supply cord from an old dryer. The power cord electric supply

wiring must be supported at the dryer cabinet by a suitable Ublisted strain relief.

• Grounding through the neutral conductor is prohibited for (1) new branch-circuit

installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes

prohibit grounding through the neutral conductor. (Use a 4-prong plug for a 4 wire

receptacle, NEMA type !4-30R.)

Electric models - Canada Only

• A !20 /240 volt, 60 Hz AC approved electrical service fused through a 30-ampere fuse

or circuit breaker on both sides of the line is required.

• All Canadian models are shipped with the power cord attached. The power cord should be

plugged into a 30-ampere receptacle.

NOTE

It is not permissible to convert a dryer in Canada to 208 volts.

20 English

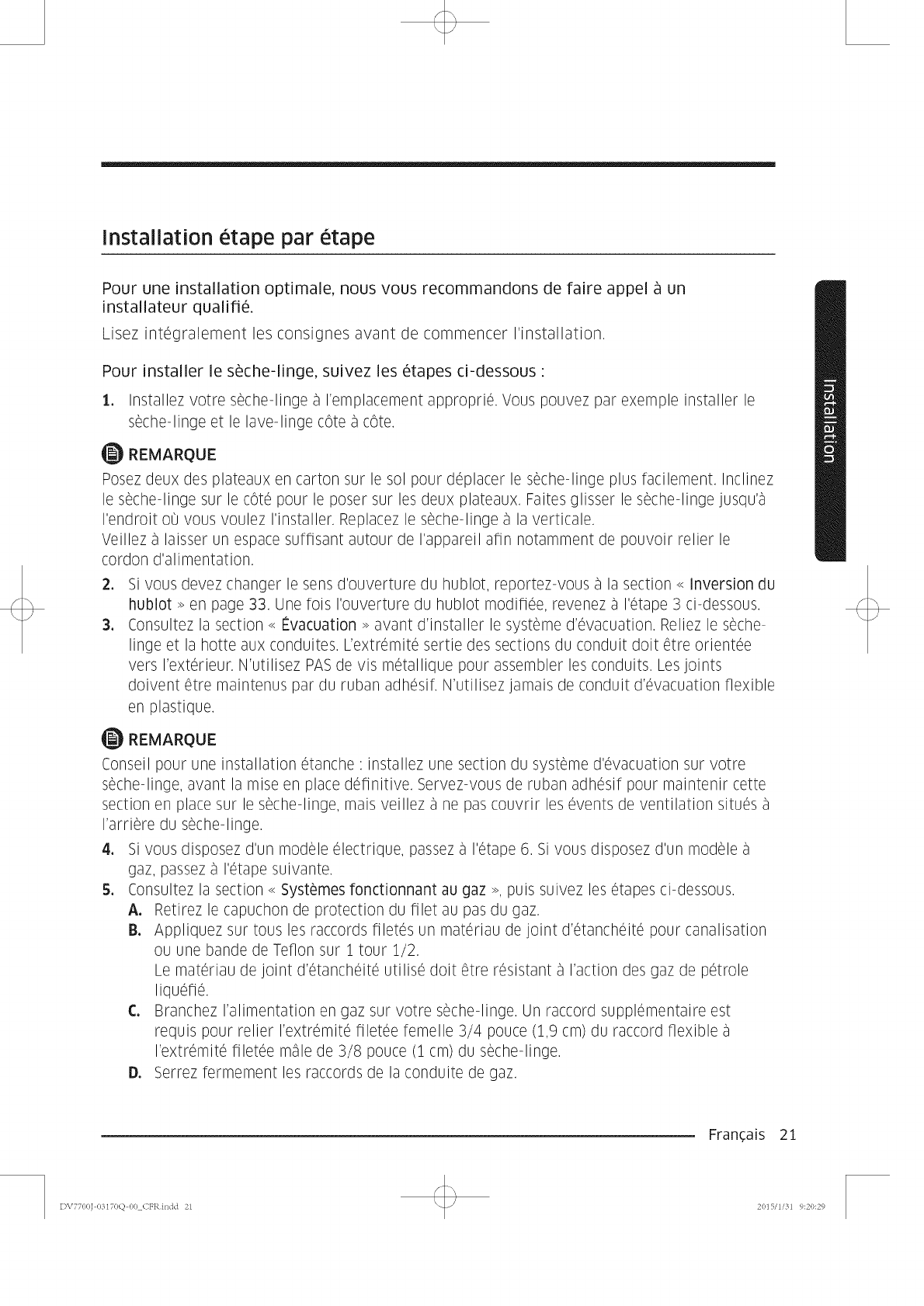

Step-by-step installation

For proper installation, we recommend that you hire a qualified installer.

Read these instructions completely before you begin the installation.

To install the dryer, follow these steps:

1, Move your dryer to an appropriate location for installation. Consider installing the dryer

and washer sideby- side so you have easy access to both appliances.

NOTE

To move the dryer easily, lay two of the carton cushion4ops on the floor. Tip your dryer on

its side so it lies across both cushion-tops. Push the dryer so that it is near its final location.

Set your dryer upright.

Leave enough room around the dryer so you can attach the duct work, power cord, etc.

2, If you need to change the direction of the door, go to "Door reversal" on page 32. When

done, return to Step 3 below.

3, Review the "Exhausting" section before installing the exhaust system. Install the duct

work from your dryer to the exhaust hood. The crimped end of the duct sections must

point away from your dryer. DO NOT use sheet metal screws when assembling ducting.

These joints should be taped. Never use plastic flexible exhaust material.

NOTE

A tip for tight installations: Attach a section of the exhaust system to your dryer before

putting it in place. Use duct tape to secure this section to your dryer, but do not cover the

ventilation slots at the back of the dryer cabinet.

4, If you have an electric model, skip to Step 6. If you have a gas model, go to the next step.

5, Review the "Gas requirements" section, then follow the lettered steps below.

A, Remove the pipe thread protective cap.

B, Apply pipe joint compound or about ! !/2 wraps of Teflon tape over all threaded

connections.

The pipe joint compound must be resistant to the action of any liquefied petroleum

gas.

C Connect the gas supply to your dryer. An additional fitting is required to connect

the 3/4" (!.9 cm) female thread end of a flexible connector to the 3/8" (! cm) male

threaded end on the dryer.

i), Securely tighten the gas line fitting over the threads.

Eo Turn on the gas supply. Check all gas connections for leaks using a soap solution. If

bubbles appear, tighten the connections and recheck. DO NOT use an open flame to

check for gas leaks.

F, Go to Step 6.

English 21

Installation

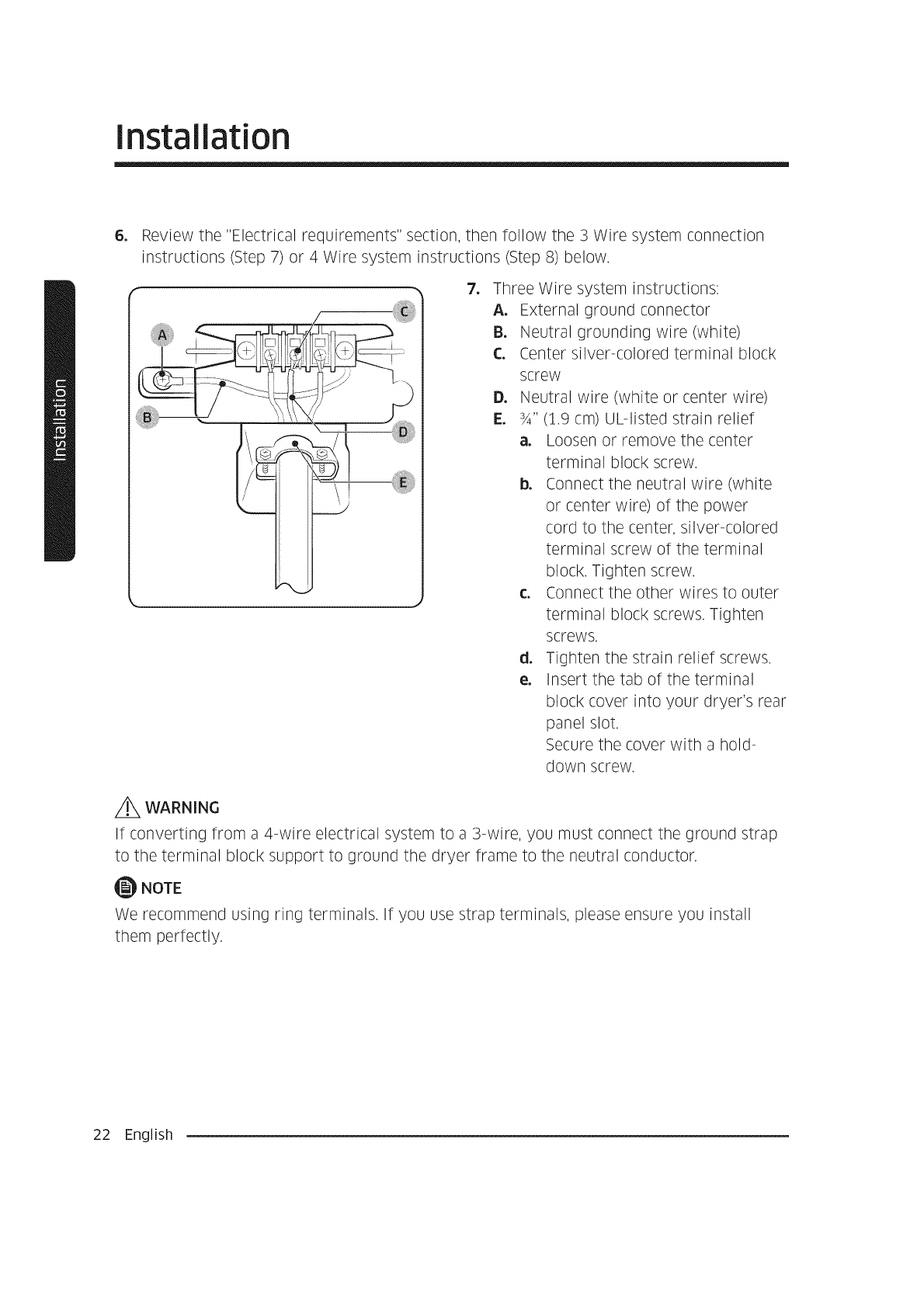

,Review the "Electrical requirements" section, then follow the 3 Wire system connection

instructions (Step 7) or 4 Wire system instructions (Step 8) below.

7_ Three Wire system instructions:

A° External ground connector

Bo Neutral grounding wire (white)

C, Center silver-colored terminal block

screw

D, Neutral wire (white or center wire)

Eo 34" (!.9 cm) Ublisted strain relief

a, Loosen or remove the center

terminal block screw.

b, Connect the neutral wire (white

or center wire) of the power

cord to the center, silver-colored

terminal screw of the terminal

block. Tighten screw.

c, Connect the other wires to outer

terminal block screws. Tighten

screws.

do Tighten the strain relief screws.

e. Insert the tab of the terminal

block cover into your dryer's rear

panel slot.

Secure the cover with a hold-

down screw.

Z_ WARNING

If converting from a 4-wire electrical system to a 3-wire, you must connect the ground strap

to the terminal block support to ground the dryer frame to the neutral conductor.

NOTE

We recommend using ring terminals. If you use strap terminals, please ensure you install

them perfectly.

22 English

8_ Four Wire System instructions:

A° External ground connector

B, Green or bare copper wire of power

cord

C, 34" (!.9 cm) Ublisted strain relief

i), Center silver-colored terminal block

screw

E, Neutral grounding wire (white)

Fo Neutral wire (white or center wire)

a, Remove the External ground

connector screw.

bo Connect the ground wire (green

or unwrapped) of the power cord

to the external ground connector

screw. If you want to connect

B (Green or bare copper wire

of power cord) to the Neutral

Post without connecting it to A

(cabinet ground), call a service

technician.

c, Loosen or remove the center

terminal block screw.

do Connect the neutral wire (white

or center wire) of the power cord

and the appliance ground wire

(white) under the central screw

of the terminal blocR.

e, Connect the other wires to the

outer terminal block screws.

Tighten screws.

f, Tighten the strain relief screws.

g, Insert the tab of the terminal

block cover into your dryer's rear

panel slot.

Secure the cover with a hold-

down screw.

NOTE

We recommend using ring terminals. If you use strap terminals, please ensure you install

them perfectly.

English 23

Installation

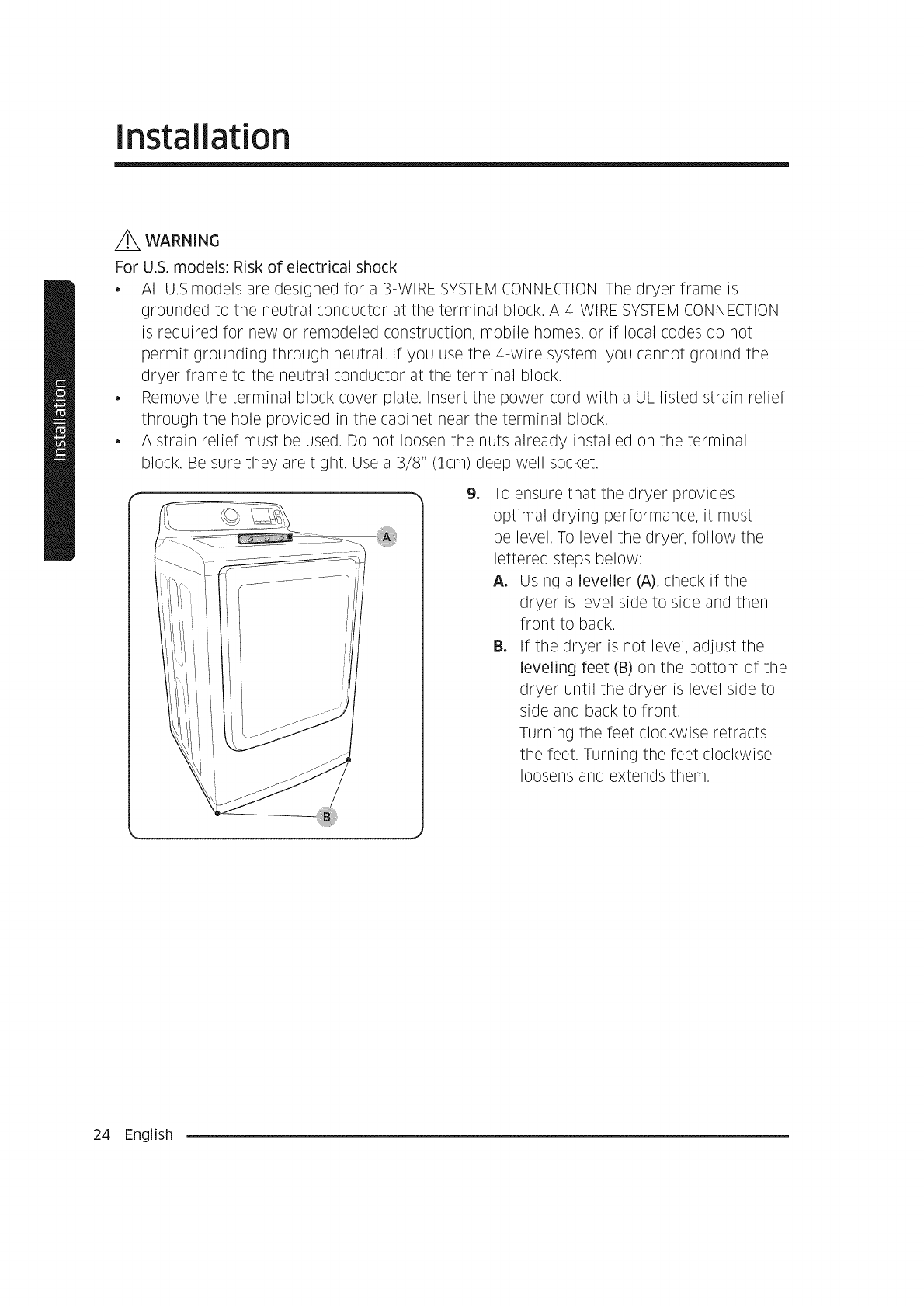

Z_ WARNING

For U.S. models: Risk o1:electrical shock

•All U.S.models are designed for a 3-WIRE SYSTEM CONNECTION. The dryer frame is

grounded to the neutral conductor at the terminal block. A 4-WIRE SYSTEM CONNECTION

is required for new or remodeled construction, mobile homes, or if local codes do not

permit grounding through neutral. If you use the 4-wire system, you cannot ground the

dryer frame to the neutral conductor at the terminal block.

•Remove the terminal block cover plate. Insert the power cord with a UL-listed strain relief

through the hole provided in the cabinet near the terminal block.

•A strain relief must be used. Do not loosen the nuts already installed on the terminal

block. Be sure they are tight. Use a 3/8" (lcm) deep well socket.

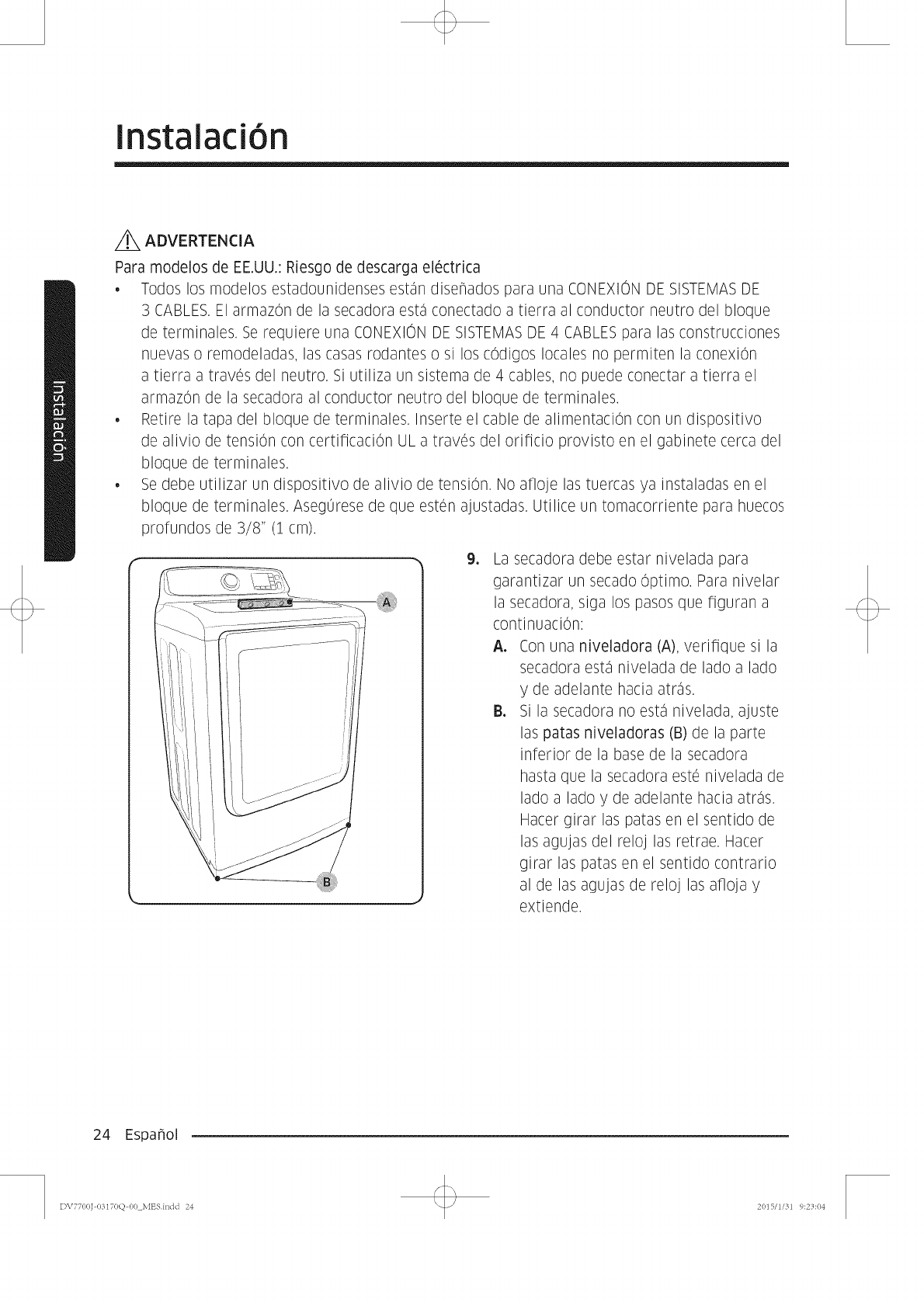

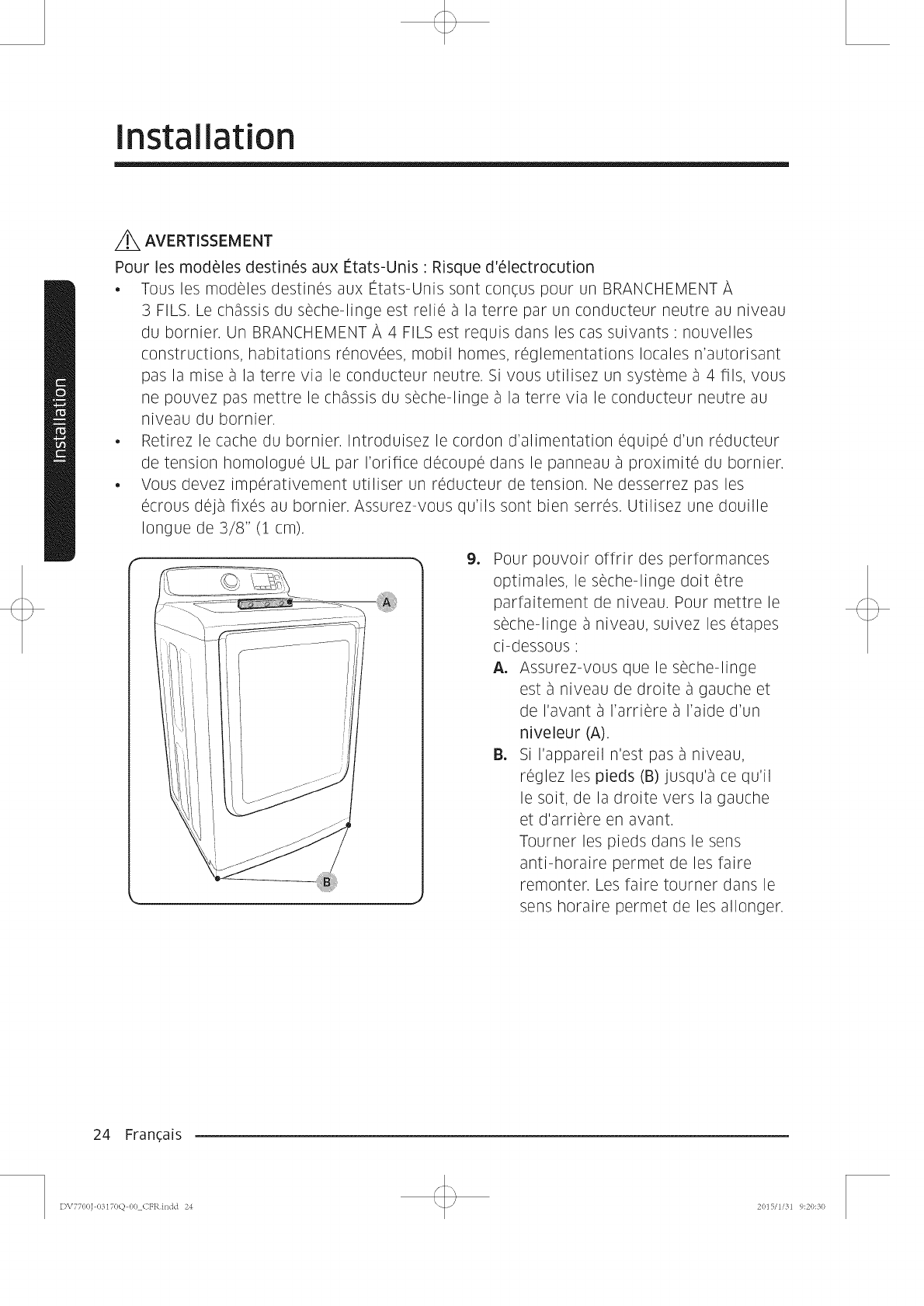

9_ To ensure that the dryer provides

optimal dr?ing performance, it must

be level. To level the dryer, follow the

lettered steps below:

A. Using a leveller (A), check if the

dryer is level side to side and then

front to back.

13. If the dryer is not level, adjust the

leveling feet (B) on the bottom of the

dryer until the dryer is level side to

side and back to front.

Turning the feet clockwise retracts

the feet. Turning the feet clockwise

loosens and extends them.

24 English

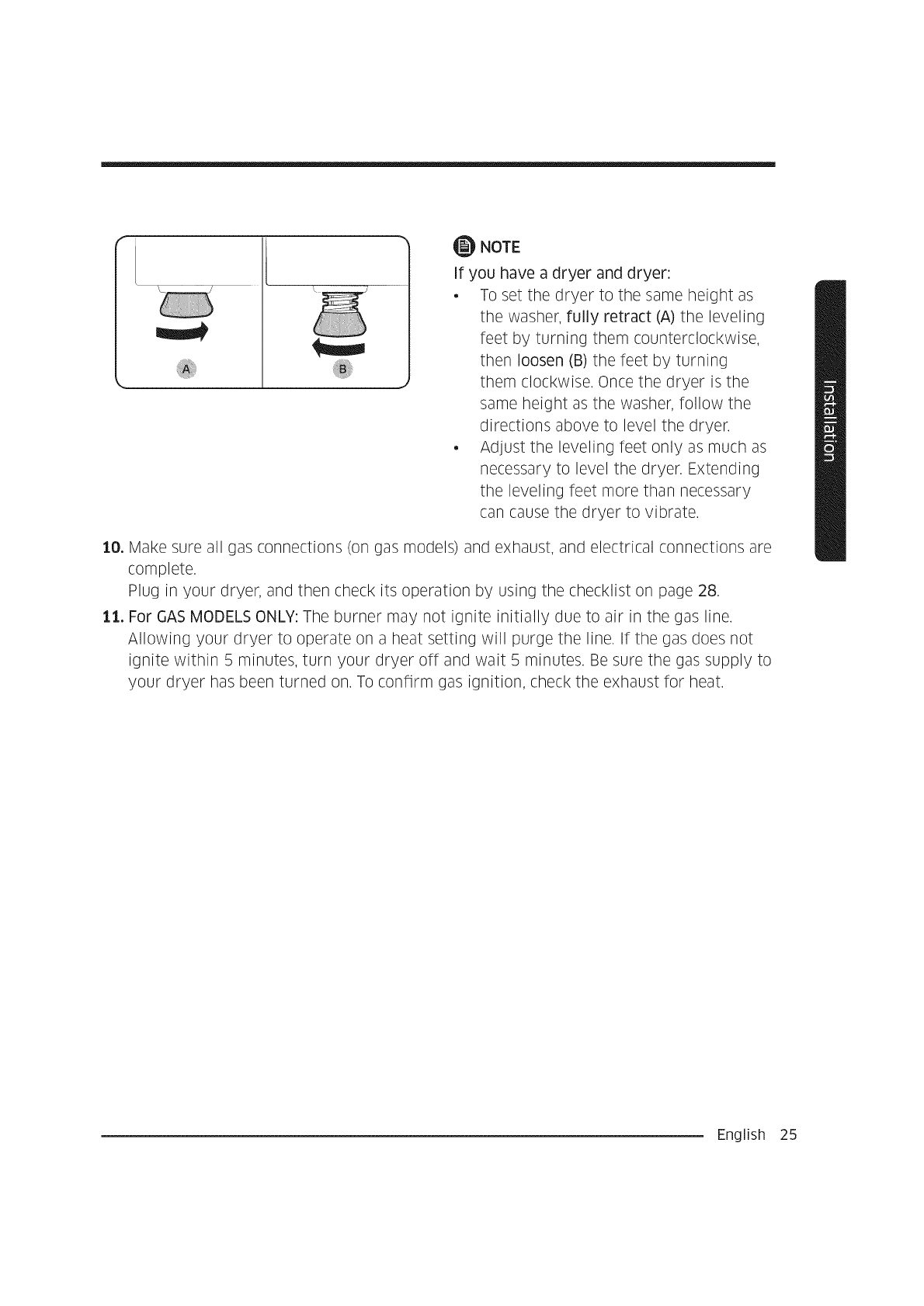

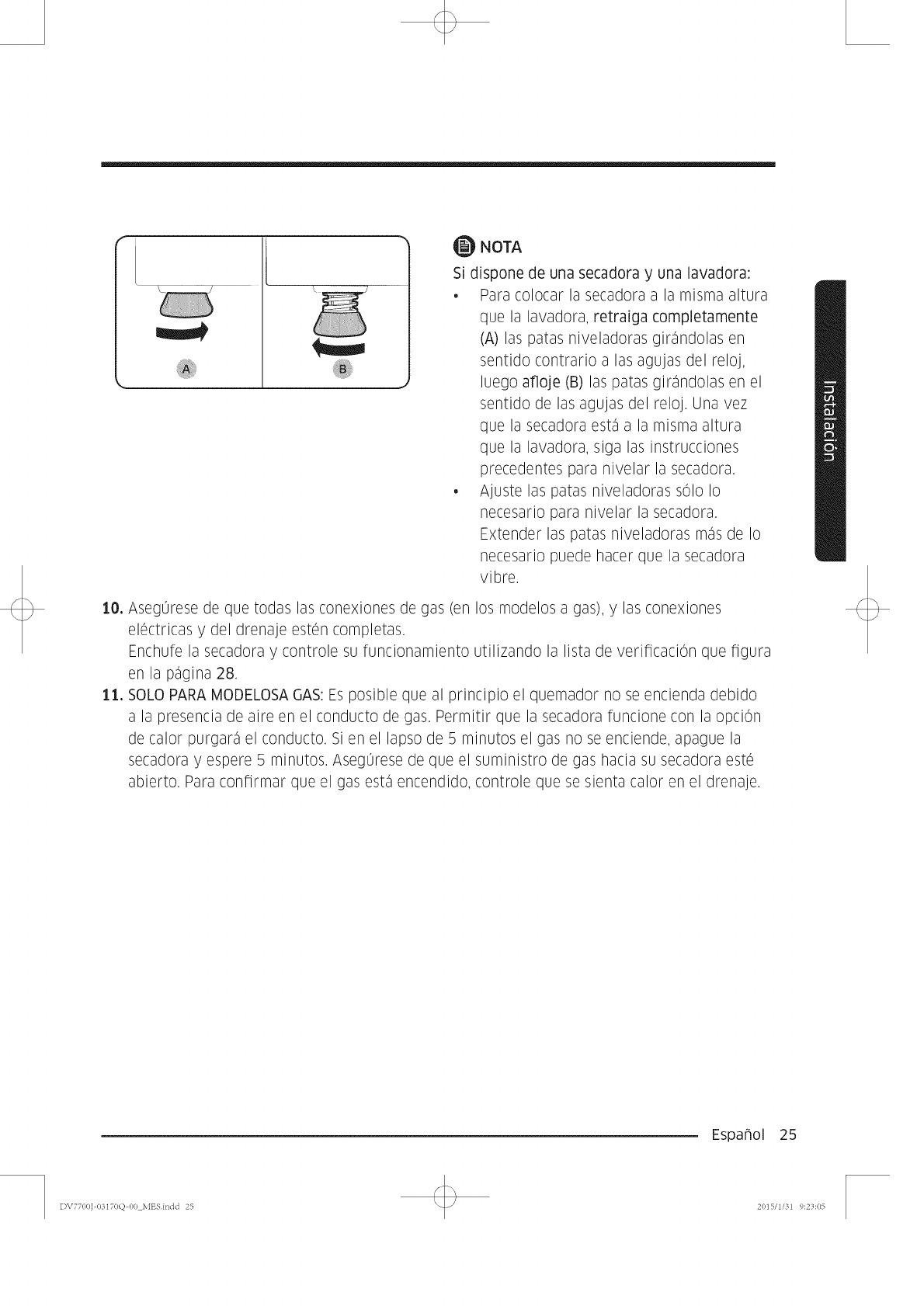

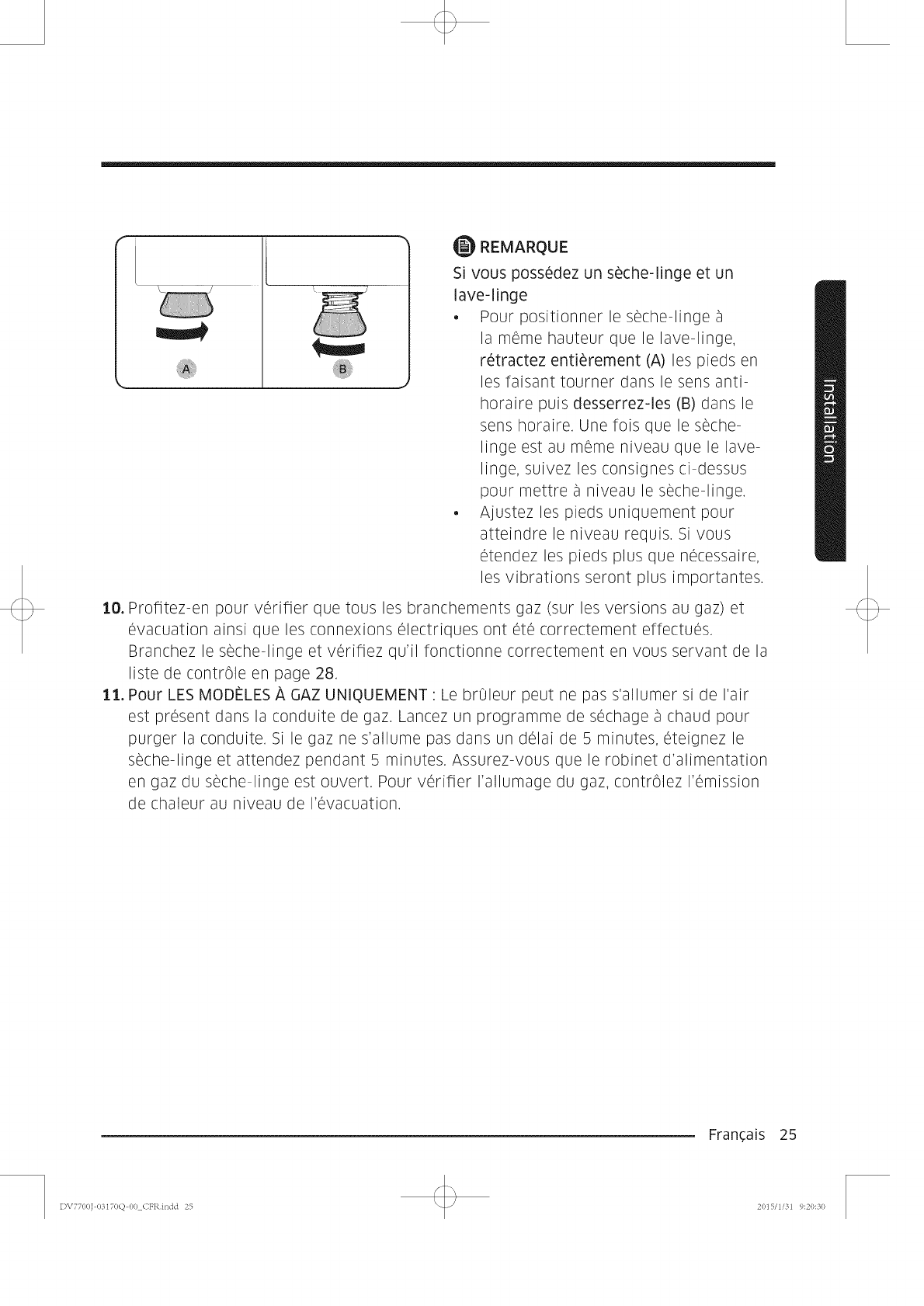

NOTE

If you have a dryer and dryer:

• To set the dryer to the same height as

the washer, fully retract (A) the leveling

feet by turning them counterclockwise,

then loosen (B) the feet by turning

them clockwise. Once the dryer is the

same height as the washer, follow the

directions above to level the dryer.

• Adjust the leveling feet only as much as

necessary to level the dryer. Extending

the leveling feet more than necessary

can cause the dryer to vibrate.

10. Make sure all gas connections (on gas models) and exhaust, and electrical connections are

complete.

Plug in your dryer, and then check its operation by using the checklist on page 28.

11. For GAS MODELS ONLY: The burner may not ignite initially due to air in the gas line.

Allowing your dryer to operate on a heat setting will purge the line. If the gas does not

ignite within 5 minutes, turn your dryer off and wait 5 minutes. Be sure the gas supply to

your dryer has been turned on. To confirm gas ignition, check the exhaust for heat.

English 25

Installation

Connecting the inlet hose

Method1

The dryer must be connected to the cold

water faucet using the new inlet hoses. Do

not use old hoses.

1. If space permits, attach the brass female

end of the "Y" connector to the cold

water faucet.

2. Turn the cold water faucet off.

3. Attach the straight end of the long hose

to the "Y' connector.

4. Using pliers, tighten the coupling with

an additional two-thirds turn.

NOTE

Do not overtighten, as it may damage the

coupling.

5. Attach the angled end of the long

hoses to the fill valve at the bottom of

the dryer's rear frame. Screw on the

coupling by hand until it is seated on the

fill valve connector.

6. Using pliers, tighten the coupling with

an additional two-thirds turn.

NOTE

Do not overtighten, as it may damage the

coupling.

7. Turn the cold water faucet on.

8. Check for leaks around the "Y" connector,

faucets, and hoses.

26 English

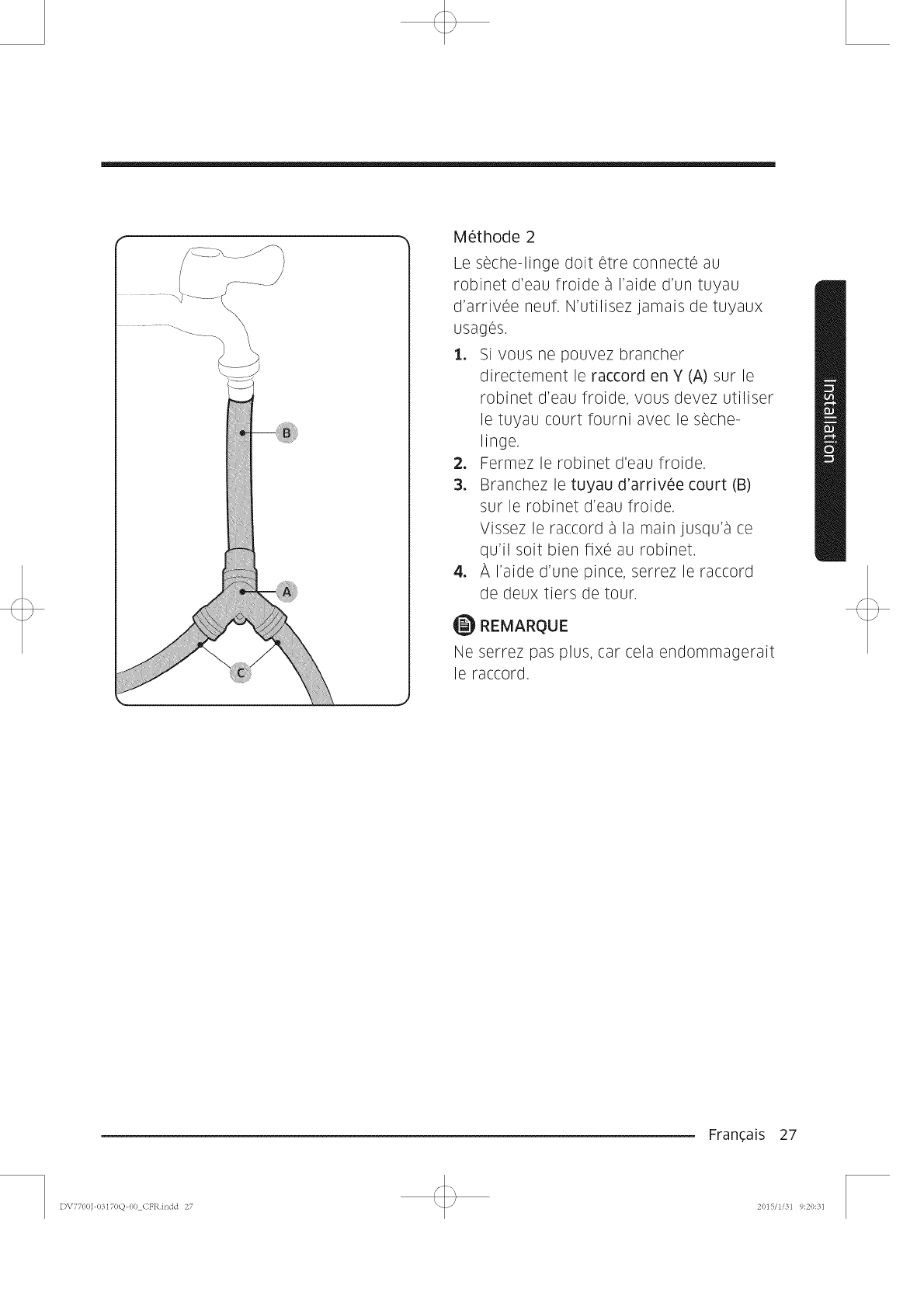

Method2

The dryer must be connected to the cold

water faucet using the new inlet hoses. Do

not use old hoses.

1. If the "Y" connector (A) cannot be

attached directly to the cold water

faucet, the short hose must be used.

2. Turn the cold water faucet off.

3. Attach the short inlet hose (B) to the cold

water faucet.

Screw on the coupling by hand until it is

seated on the faucet.

4. Using pliers, tighten the coupling with

an additional two-thirds turn.

NOTE

Do not overtighten, as it may damage the

coupling.

English 27

Installation

5. Attach the'Y" connector to the brass

male end of the small hose.

Screw on the coupling by hand until it is

seated on the connector.

6, Using pliers, tighten the coupling with

an additional two-thirds turn.

NOTE

Do not overtighten, as it may damage the

coupling.

7. Attach the angled end of water hoses

dryer rear frame. Screw on the coupling

by hand until it is seated on the fill valve

connector.

8, Using pliers, tighten the coupling with

an additional two-thirds turn.

NOTE

Do not overtighten, as it may damage the

coupling.

9. Turn the cold water faucet on.

10. Check for leaks around the "Y" connector,

faucets and hoses.

Final installation check list

• The dryer is plugged into an electrical outlet and grounded properly.

• The exhaust ductwork is hooked up and the joints are taped.

• You have used rigid or stiff-walled flexible metal duct material, not plastic flexible duct.

• The dryer is level and is sitting firmly on the floor.

• For gas models: The gas is turned on and there are no gas leaks.

• Start your dryer to confirm that it runs, heats, and shuts off.

28 English

Vent blockage test (DV48J7700E(G)*)

After the dryer is installed, start the Test to check if the exhaust system is applicable for the

dryer. Vent Blockage Test detects duct state of the dryer automatically and report blockage

state of the duct to the user. Proper duct state can help users to reduce drying time and save

energy.

NOTE

Vent Blockage Test must run at cool state.

Operation method

1. Check if the drum is empty and close the door.

(11=there is any clothes or other item in the drum, correct diagnosis can't be made.)

2. Press the power button to turn the dryer on, then press and hold both the Adjust time Up

and Dry level buttons simultaneously for 3 seconds.

When entering the Test mode, "INS" will appear in the display.

(If other procedure is started before entering the Test mode, it's unable to enter the Test

mode.)

3. Starting diagnosis immediately after pressing the Start button,

During diagnosis, the operation state is displayed in the form of "000".

Diagnosis time is about 2minutes. Don't open the door during diagnosis.

4. About 2min. Later, if the diagnosis is completed, diagnosis result is displayed and tone is

given.

If state of the exhaust system is normal, "End" appears and completion sounds is given.

If the exhaust system can't exhaust smoothly, "CLg" appears and alarm sounds is given.

In case of any other problem, information code appears; Check the information codes in

this manual.

• In order to stop or cancel the diagnosis mode, press the power button to turn off your

dryer.

• During diagnosis, if"Cl" appears, check if the door is open.

• The result displays about 5 min. and is off automatically 5 min. later. You may close it

directly by pressing the power button (off).

NOTE

• During or after diagnosis, the internal drum is hot; Be careflJl and don't be scalded.

Vent Blockage Test is used to check if there is some problem to the current exhaust

system when the dryer is set for the first time.

• If the diagnosis result displays"CLg" (the exhaust system is blocked), refer to

"DUCTING REQUIREMENTS" and "DRYER EXHAUST TIPS" section of this manual and

take proper measures for drying.

English 29

Installation

If diagnosis is suspended, it could result in the wrong results. It must be tested

according to diagnosis procedures.

Even if the diagnosis result is normal ("End"), the exhaust system may also be

interrupted or blocked slightly. Set properly according to Installation process of this

manual.

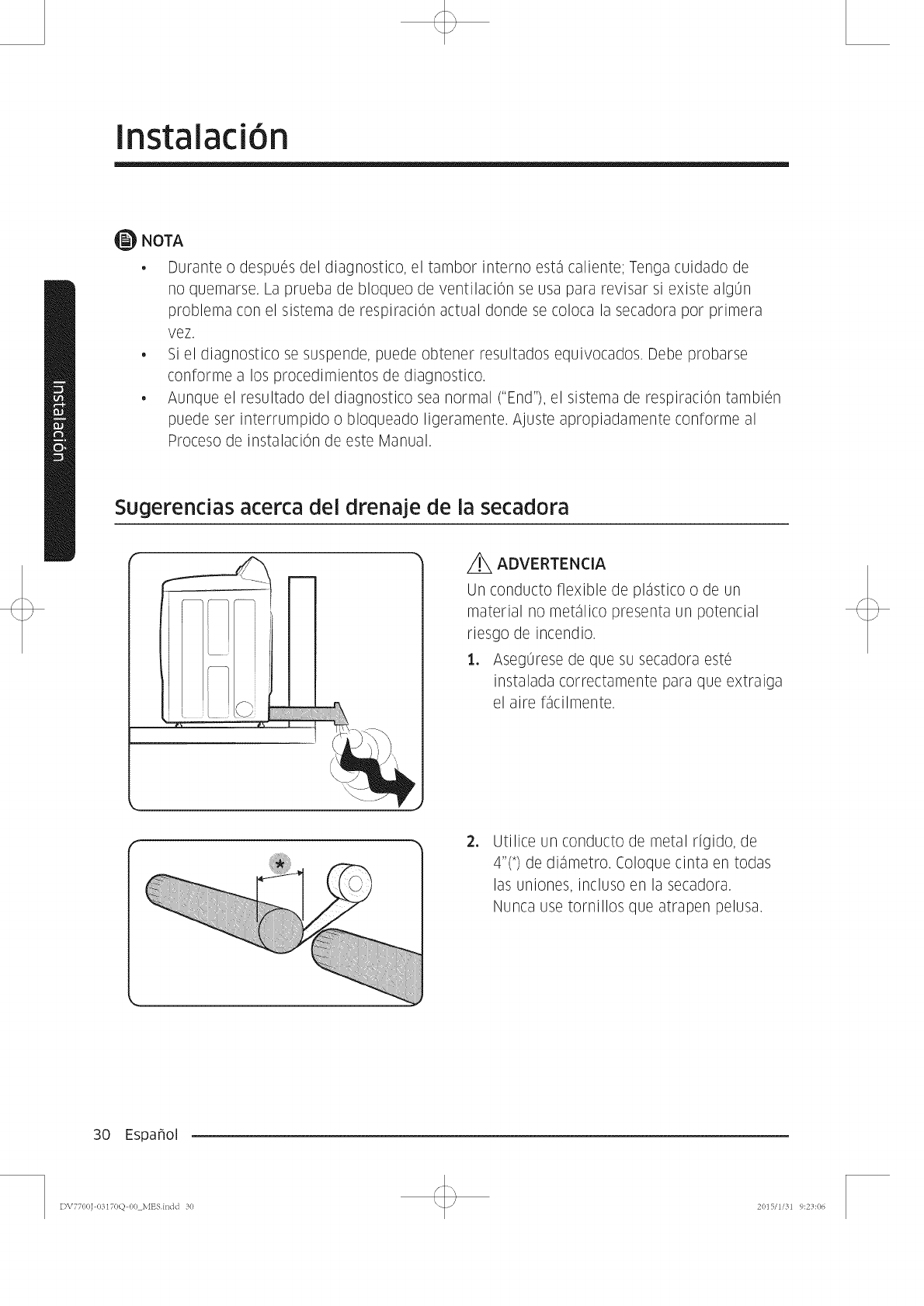

Dryer exhaust tips

Z_ WARNING

Plastic or non-metal flexible duct presents a

potential fire hazard.

1, Make sure your dryer is installed

properly so it exhausts air easily.

2, Use 4"(*) diameter rigid metal duct. Tape

all joints, including at the dryer.

Never use lint-trapping screws.

30 English

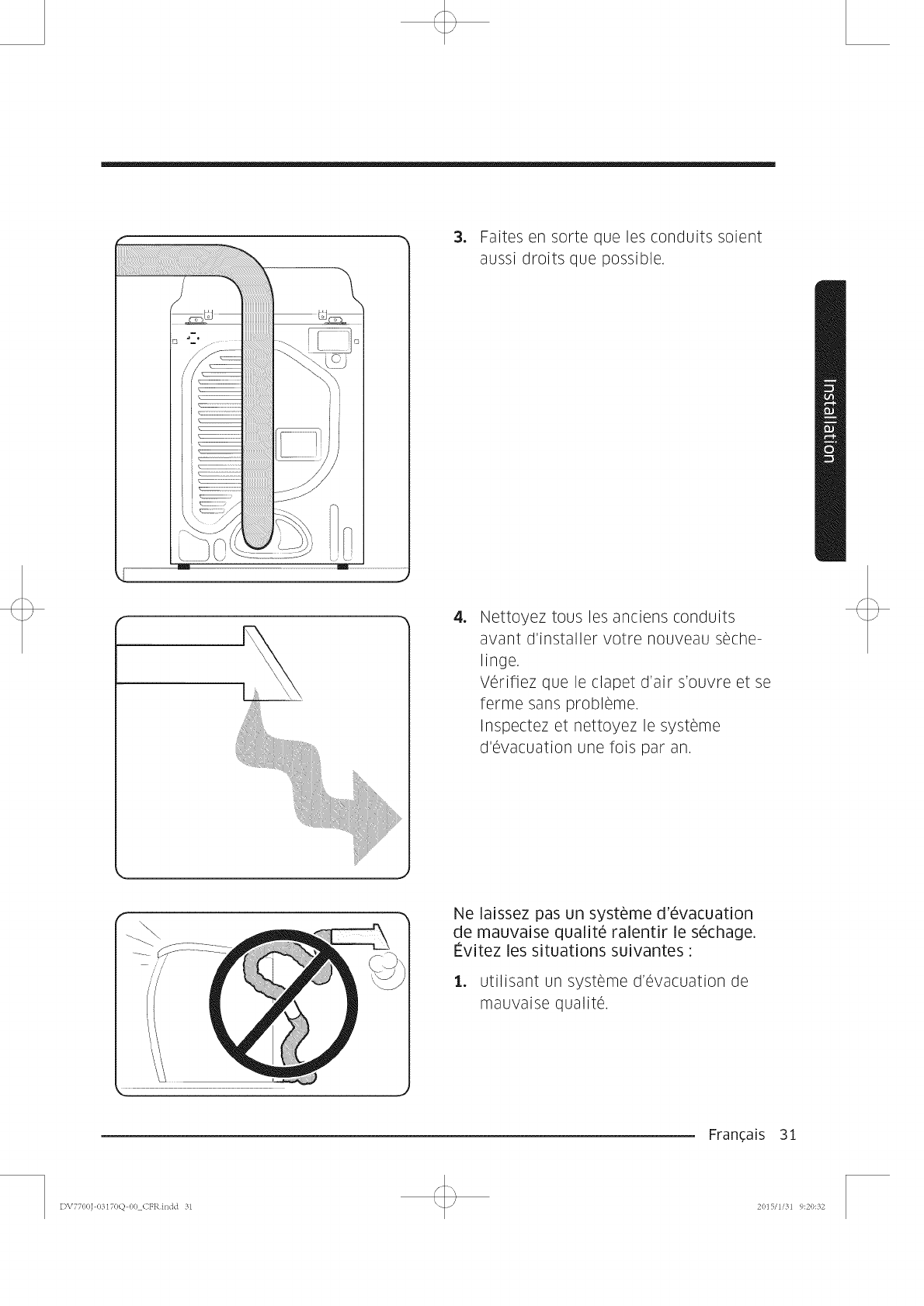

3, Keep ducts as straight as possible.

4, Clean all old ducts before installing your

new dryer.

Be sure the vent flap opens and closes

freely.

Inspect and clean the exhaust system

annually.

Don't let a poor exhaust system slow

drying by:

1, Restricting your dryer with a poor

exhaust system.

English 31

Installation

2. Using a plastic, thin foil, or non-metal

flexible duct.

Using unnecessarily long ducts that have

many elbows.

Using crushed or clogged venting or

ducts.

32 English

Door reversal

If you want to reverse the direction of the

door, we recommend you call a qualified

service technician.

1. Unplug the power cord.

2. Remove the four hinge screws from the

door.

3. Remove the door by lifting it.

4. Remove the two screws from the holder-

lever, and then remove the cover-holder.

S. Assemble the holder-lever on the

opposite side using the screws that were

removed from the holder-lever-in Step

6. Assemble the cover-holder on the

opposite side.

7. Remove the two cover-hinges.

8. Assemble the two cover-hinges on the

opposite side.

NOTE

Use a flat head screwdriver(-) to remove the

cover-holder's cover-hinge.

English 33

Installation

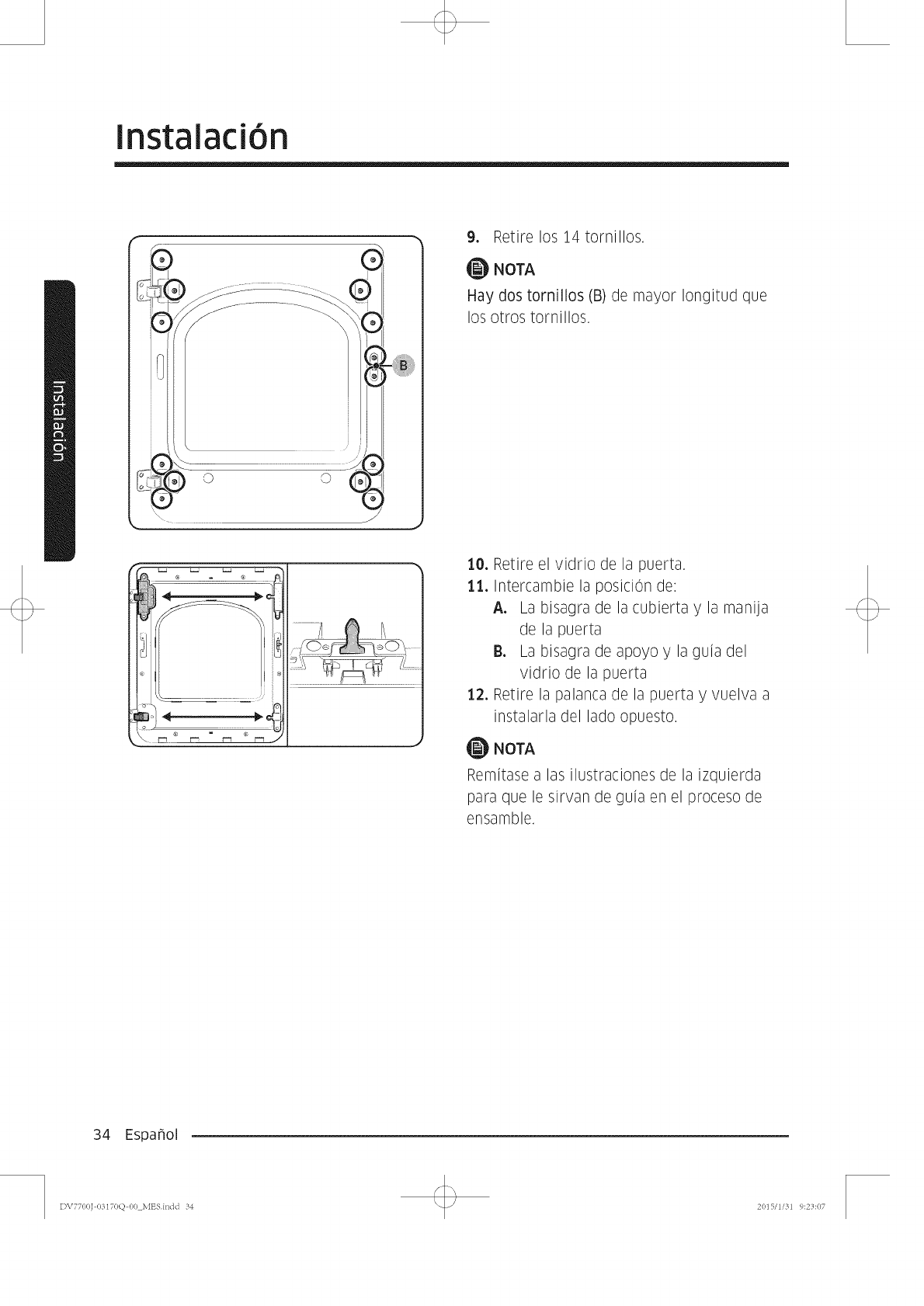

9. Remove the !4 screws.

NOTE

Two screws (B) are longer than the other

screws.

10. Remove the holder-glass.

11. Exchange the positions of:

A. The cover-hinge and handle door

13, The holder-hinge and guiderholder

glass

12. Remove the door-lever, and then install

it on the opposite side.

NOTE

Refer to the illustrations on the left to aid

you in the assembly process.

13. Remove the cover-hole (C).

14. Assemble the holder glass and then

fasten the !4 screws that you removed

in step 9.

15. Attach the cover-hole.

NOTE

A spare cover hole is in the assy manual.

34 English

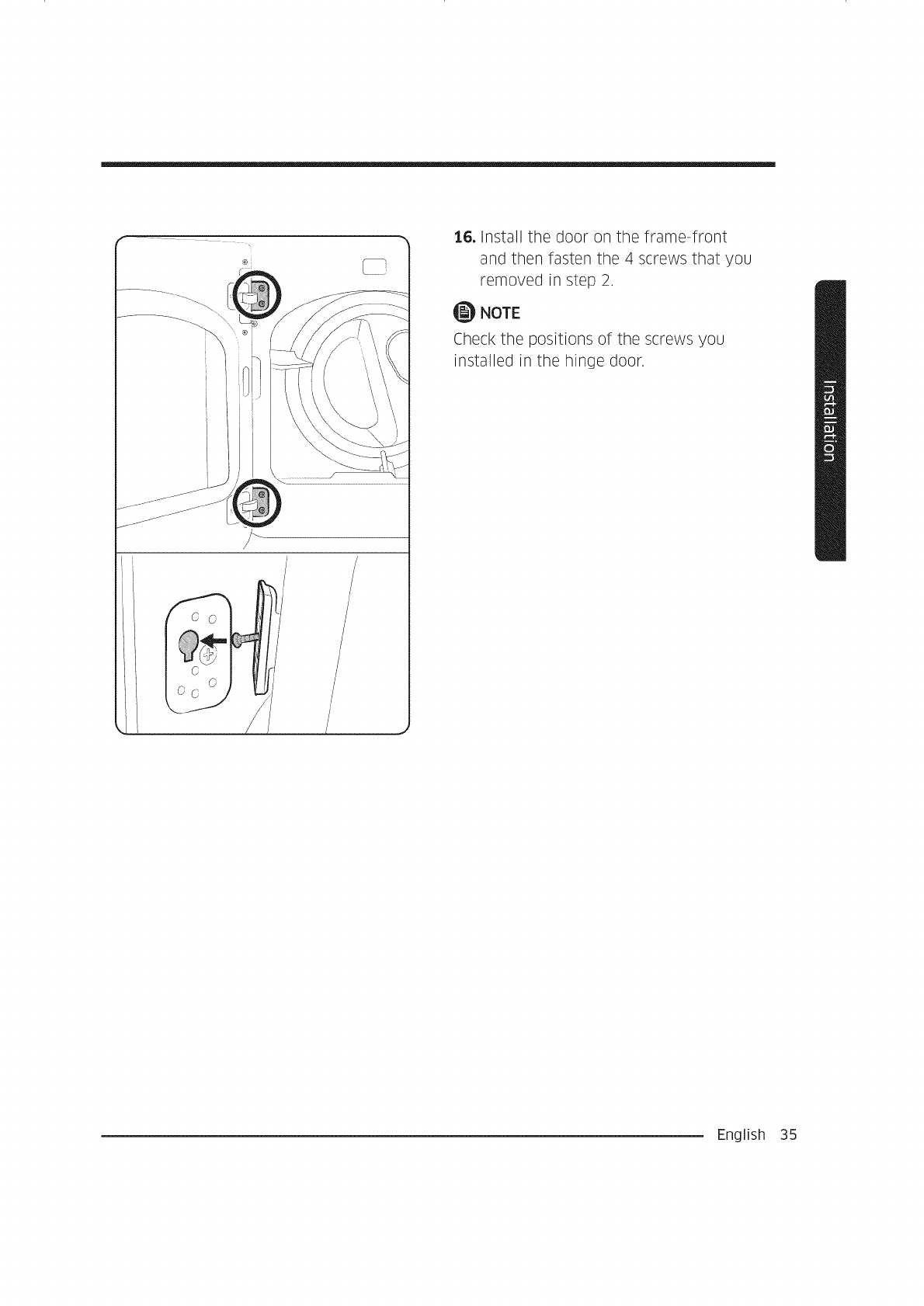

16. Install the door on the frame-front

and then fasten the 4 screws that you

removed in step 2.

NOTE

Check the positions of the screws you

installed in the hinge door.

English 35

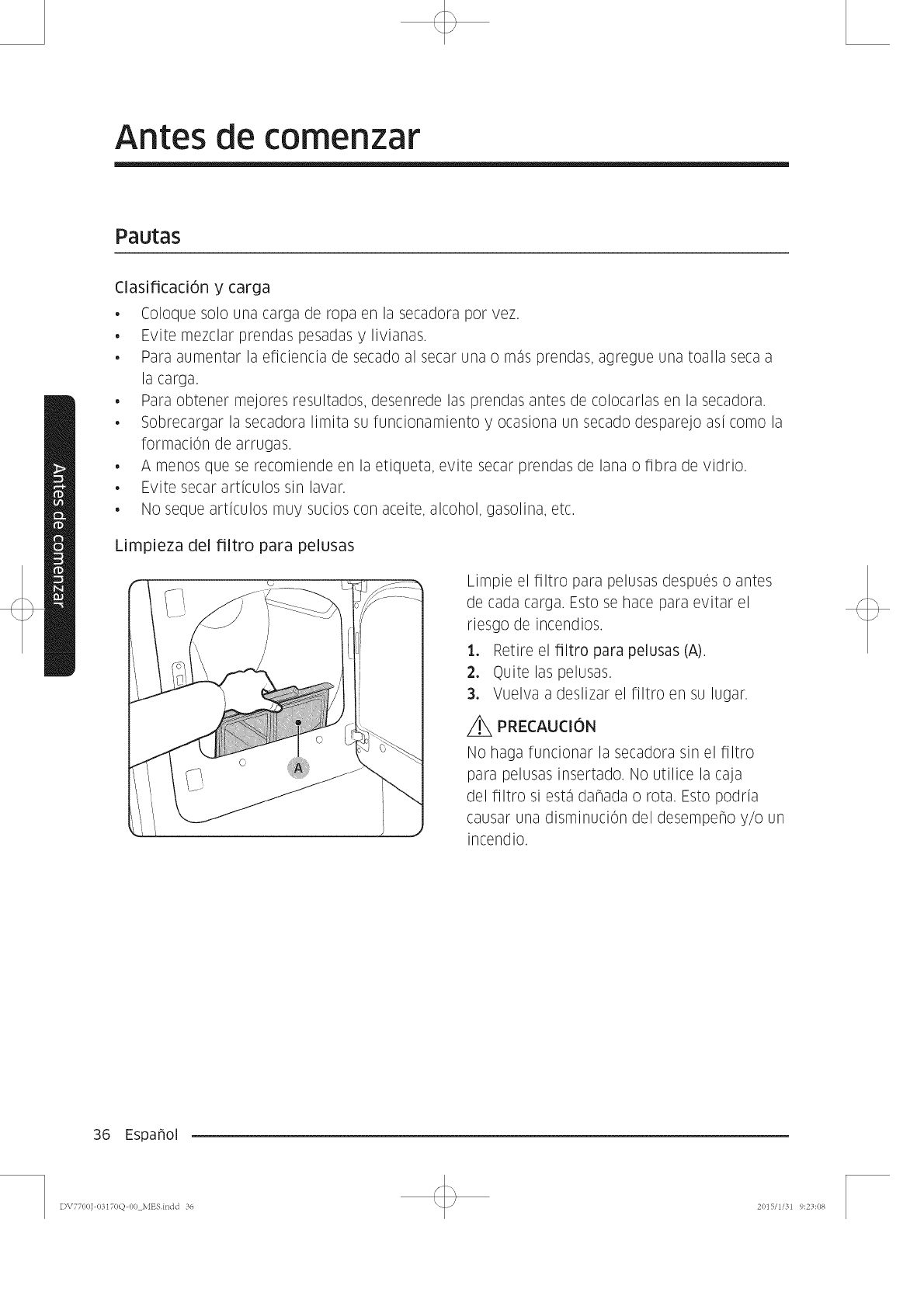

Before you start

Guideline

Sorting and loading

• Place only one wash load in the dryer at a time.

• Avoid mixing heavy and lightweight items together.

• To increase drying efficiency when drying one or two items, add a dry towel to the load.

• For best results, untangle items before inserting into the dryer.

• Overloading restricts tumbling action and results in uneven drying and wrinkling.

• Unless recommended on the care label, avoid drying woolens or fiberglass items.

• Avoid drying unwashed items.

• Do not dry items soiled with oil, alcohol, gasoline, etc.

Cleaning the lint filter

Clean the lint filter after or before every

load. This is to prevent a fire hazard.

1. Pull out the lint filter (A).

2. Remove the lint.

3. Slide the lint filter back into the place.

Z_ CAUTION

Do not operate the dryer without the lint

filter in place. Do not use a damaged or

broken filter case. This may cause degraded

performance and/or fire.

36 English

Operations

/!'X WARNING

To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY

INSTRUCTIONS before operating this appliance

Control panel

NORMAL

HEAVY DUTY _ _ /QUICK DRY

BEDDING "_7_ __ _ TIME DRY

/"-'/ _k

PERM PRESS l/c_ _ C_D/_-_ REFRESH

.........

_ sWeEnLs:r Dr y-_ __--St ea_'- STE< :yAcN::':

M_muai D_

NORMAL

HEAVY DUTY "_k _ ...../ QUICK DRY

BEDDING "_7_ __ _ TIME DRY

PERM PRESS I/Q_ _/_-_ REFRESH

o uc s-k\

_ sWeEn_SorDry"-_'_ __-- Stea_'- STEAmMcSvAc,N::':

*(Hold 3 sec)

*Smart Care

*(Hohd 3sec)

*sound _*Child Lock ,_1 *Smart Care

,.. j

Turn the Cycle Selector to select the desired cycle. The indicator by

01 Cycle Selector the cycle name lights up.

Press to adjust the dryness in the Sensor Dry and Steam Dry cycles

except STEAM SANITIZE. An indicator light illuminates next to the

desired dryness level.

Press the button repeatedly to scroll through the Dry Level options.

Larger or bulkier loads may require the Very Dry or More Dry ior

complete dryness.

Damp Dry is designed to partially dry items. Use ior items that lay

fiat or hang to dry.

English 37

DV7700] 03170Q 00EN USindd 37 2015/i/319:17:50

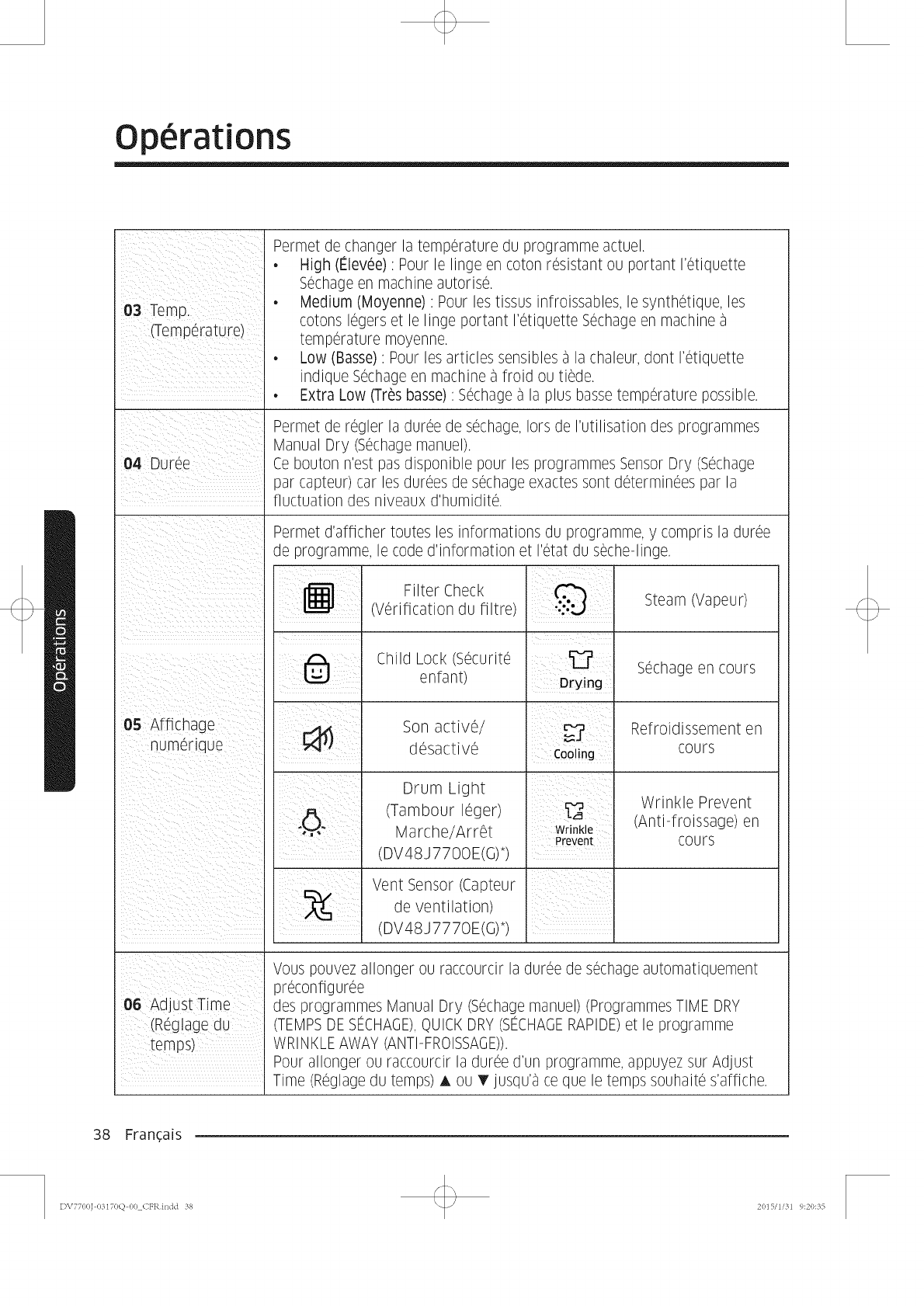

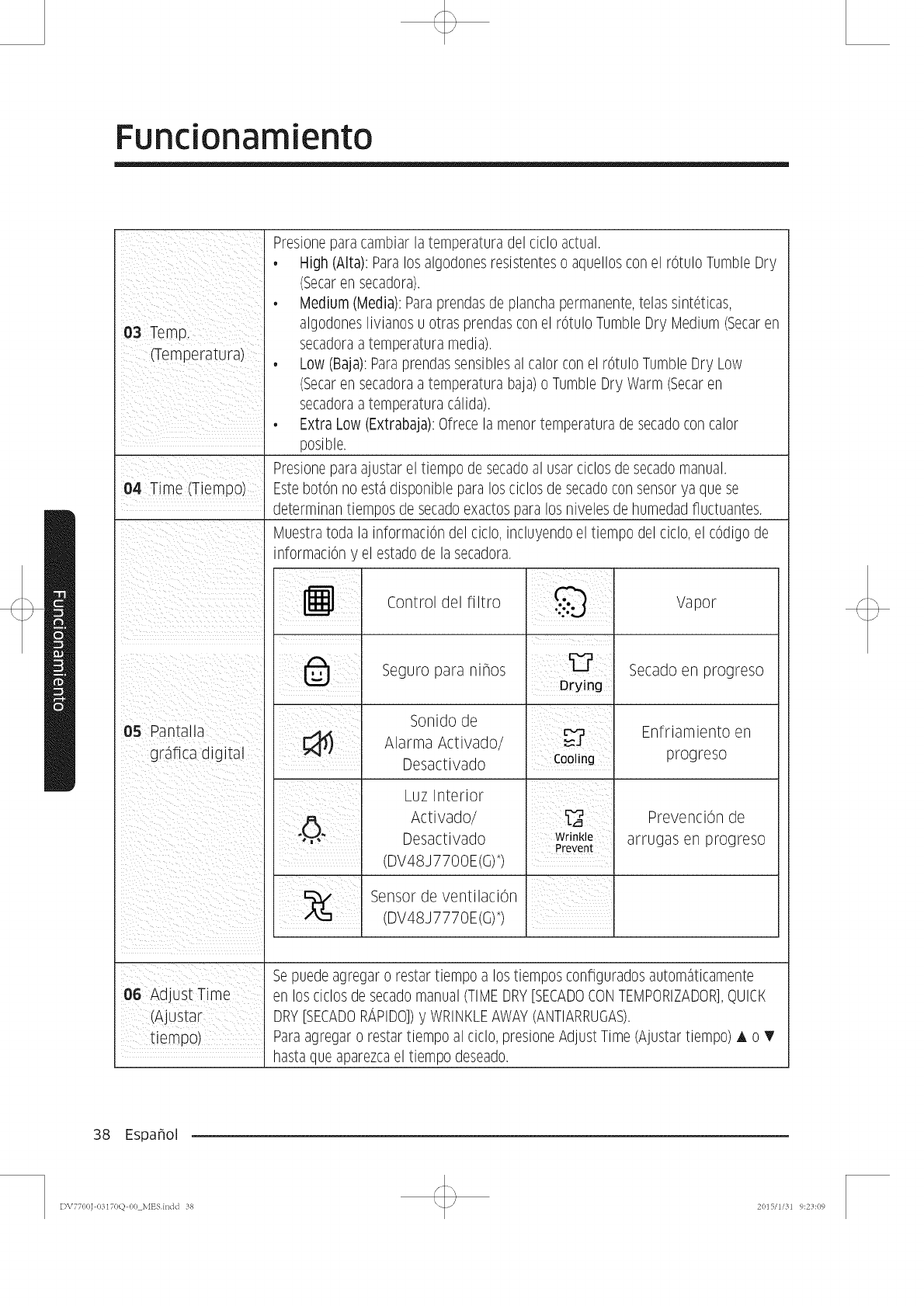

Operations

03 Tem a.

04 Time

05 Digital graphic

display

06 Adjust Time

07 Wrinkle

Prevent

Press to cnange the temperature for the current cycle.

• High: For sturdy cottons or those labeled Tumble Dry.

• Medium: For permanent press, synthetics, lightweight cottons, or

items aDe_ea Tumble Dry Medium.

• Low: For heat sensitive items labeled Tumble Dry Low or Tumble

Dry Warm.

• Extra Low: Provides the lowest heated drying temperature

oossible.

Press to aojust the drying time, when using Manual Dry cycles.

This Duttor is not available for Sensor Dry cycles because exact

drying times are determined by fluctuating humidity levels.

Displays all cycle information, including cycle time, information code,

ana aryer status.

Filter Check

Child Lock

Sound On/Off

Drum Light On/Off

(DV48J7700E(G)*)

Vent Sensor

(DV48J7770E(Q*)

Drying

Cooling

Wrinkle

Prevent

Steam

Drying in progress

Cooling in progress

Wrinkle Prevent in

progress

Time can De added or subtracted from the automatically set

times - me Manual Dry cycles (TIME DRY, QUICK DRY), and WRINKLE

AWAY.

To aaa or subtract time from the cycle, press the Adjust Time A or

until me desired time is displayed.

Wrinkle Prevent provides approximately 1_80minutes of intermittent

tumblng - unheated air at the end of the cycle to reduce wrinkling.

Press Wrinkle Prevent to activate this feature.

The indicator light above the pad will illuminate when Wrinkle

Prevent Jsselected.

The oaa is dry, and can be removed at any time during the Wrinkle

Prevent cycle.

38 English

DV7700] 03170Q 00EN USindd 38 2015/i/319:17:5]

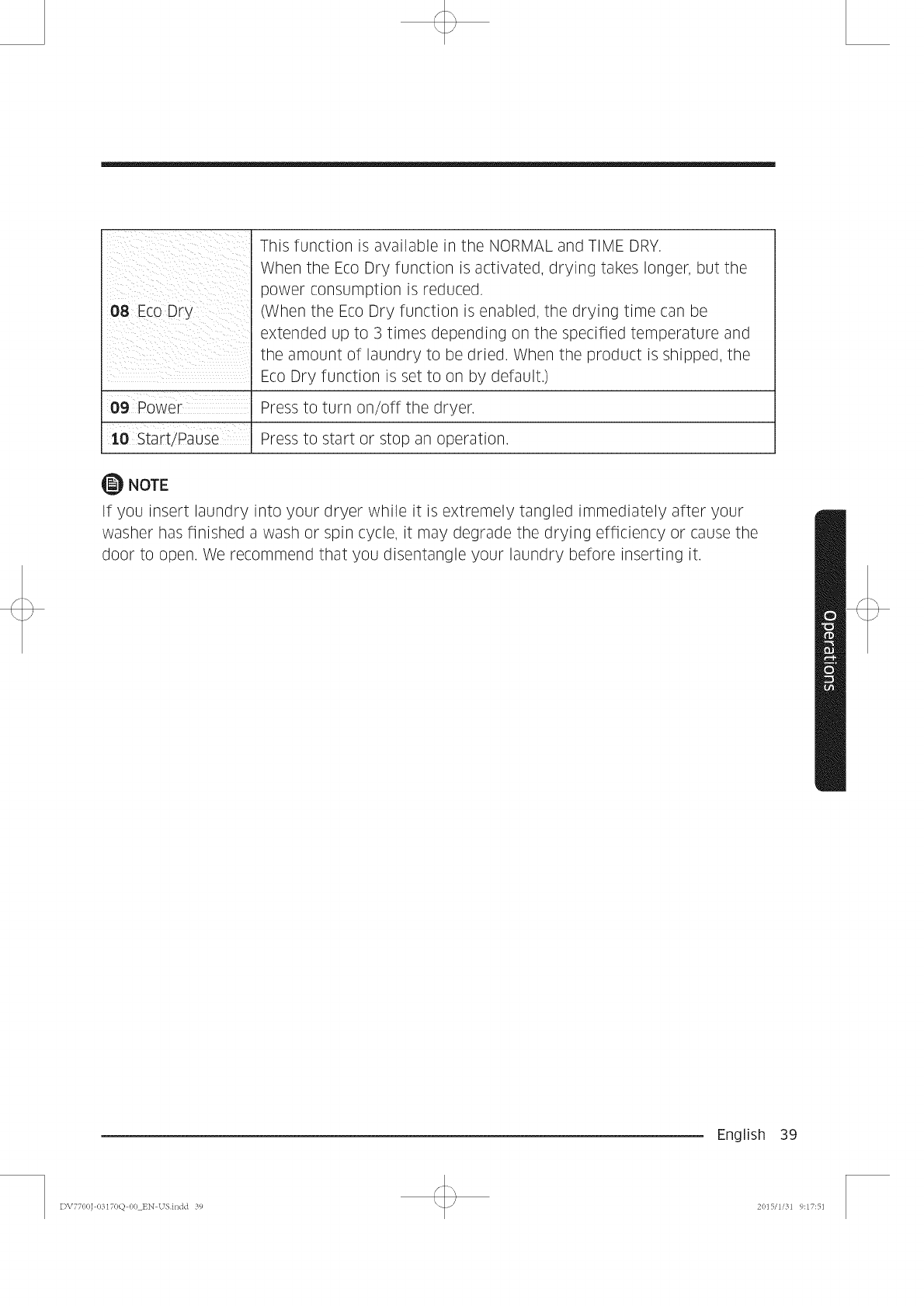

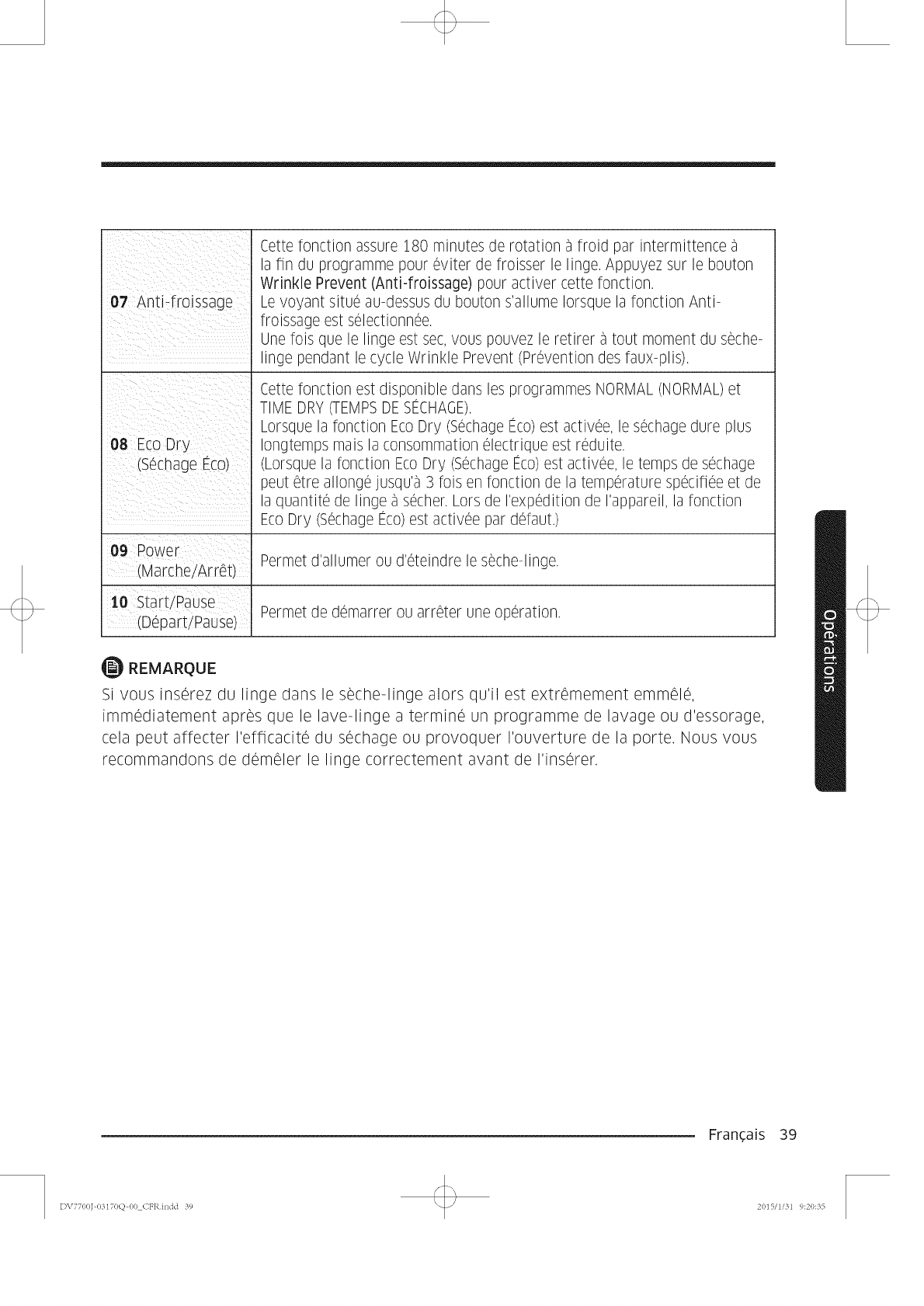

09 Power

10 Start!Pause

This function is available in the NORMAL and TIME DRY.

When the Eco Dry function is activated, drying takes longer, but the

power consumption is reduced.

(When the Eco Dry function is enabled, the drying time can be

extended up to 3 times depending on the specified temperature and

the amount of laundry to be dried. When the product is shipped, the

Eco Dry function is set to on by default.)

Press to turn on/off the dryer.

Press to start or stop an operation.

NOTE

If you insert laundry into your dryer while it is extremely tangled immediately after your

washer has finished a wash or spin cycle, it may degrade the drying efficiency or cause the

door to open. We recommend that you disentangle your laundry before inserting it.

English 39

DV7700] 03170Q (}(}_BigUSindd 39 2015/i/319:17:5]

Operations

Simple steps to start

1. Press Power to turn on the dryer.

2. Turn the Cycle Selector to select a cycle.

3. Change the cycle settings (Dry Level and Time) as necessary.

5. The dryer provides the additional options: Wrinkle Prevent, and Eco Dry.

Press to activate/deactivate the options.

4. Press Start/Pause. The dryer indicator lights up, and the estimated cycle time appears on

the display.

To change the cycle during operation

1. Press Start/Pause to stop operation.

:2. Select a different cycle.

3. Press Start/Pause again to start the new cycle.

40 English

DV7700] 03170Q 00EN USindd 40 2015/i/319:17:5]

Cycle overview

Sensor Dry cycles

Sensor Dry cycles automatically senses the moisture in the load and shuts the dryer off when

the load reaches the dryness level you have selected with Dry Level.

NORMAL

For most fabrics including cotton, linens, and normally soiled

garments.

(If this cycle is selected, the Eco Dry function is enabled by

default. For more information, refer to the description of the

"Eco Dry" option.)

• Use this cycle to get high heat for heavy fabrics such as

HEAVY DUTY jeans, corduroys, or work clothes.

BEDDING • For bulky items such as blankets, sheets, and comforters.

PERM PRESS Dry wrinkle-free cottons, synthetic fabrics, knits, and

permanent press fabrics automatically.

DELICATES • For heat-sensitive items at a low drying temperature.

TOWELS • For bath towels and similar items

English 41

DV7700] 03170Q 00EN USindd 41 2015/i/319:17:52

Operations

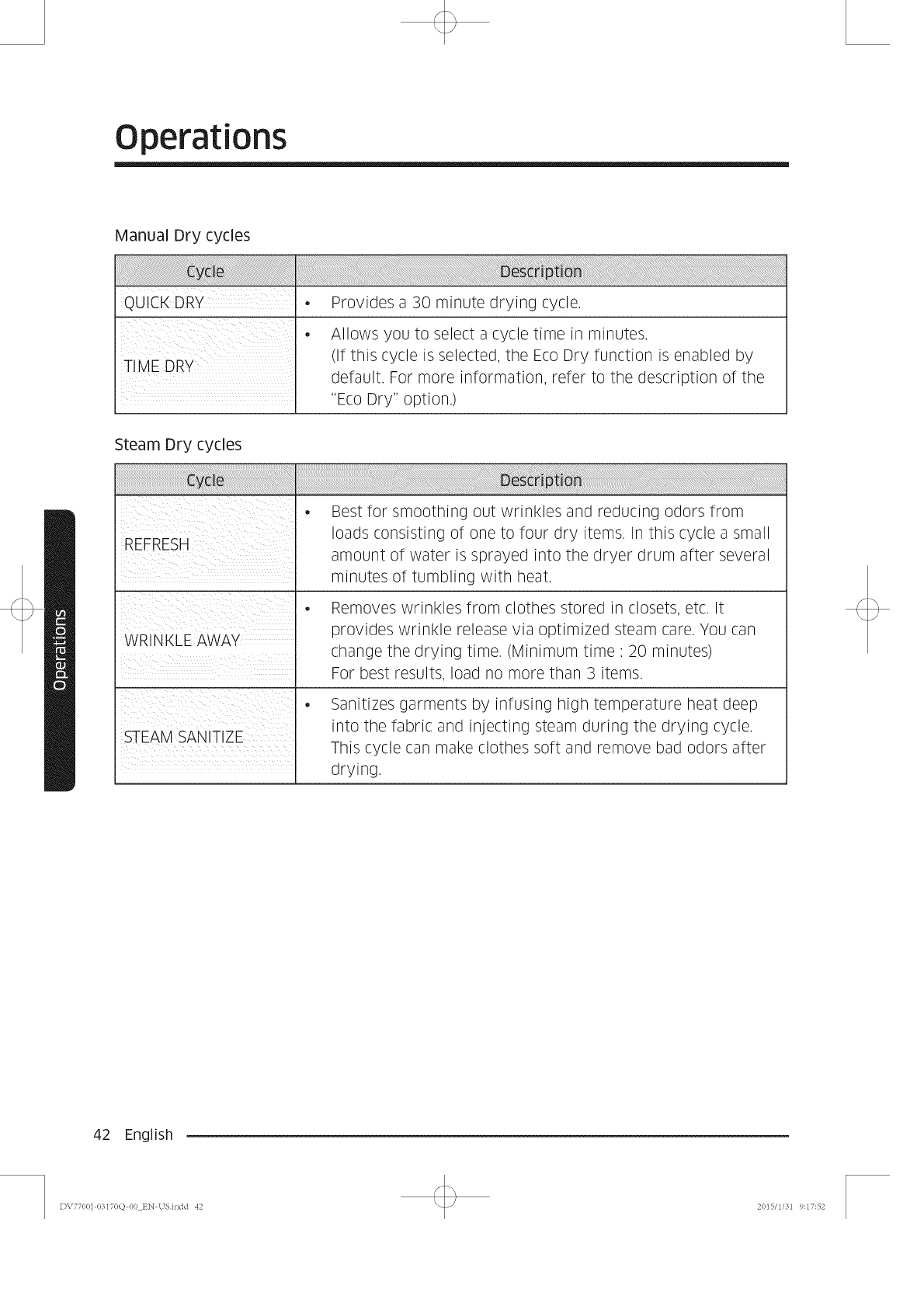

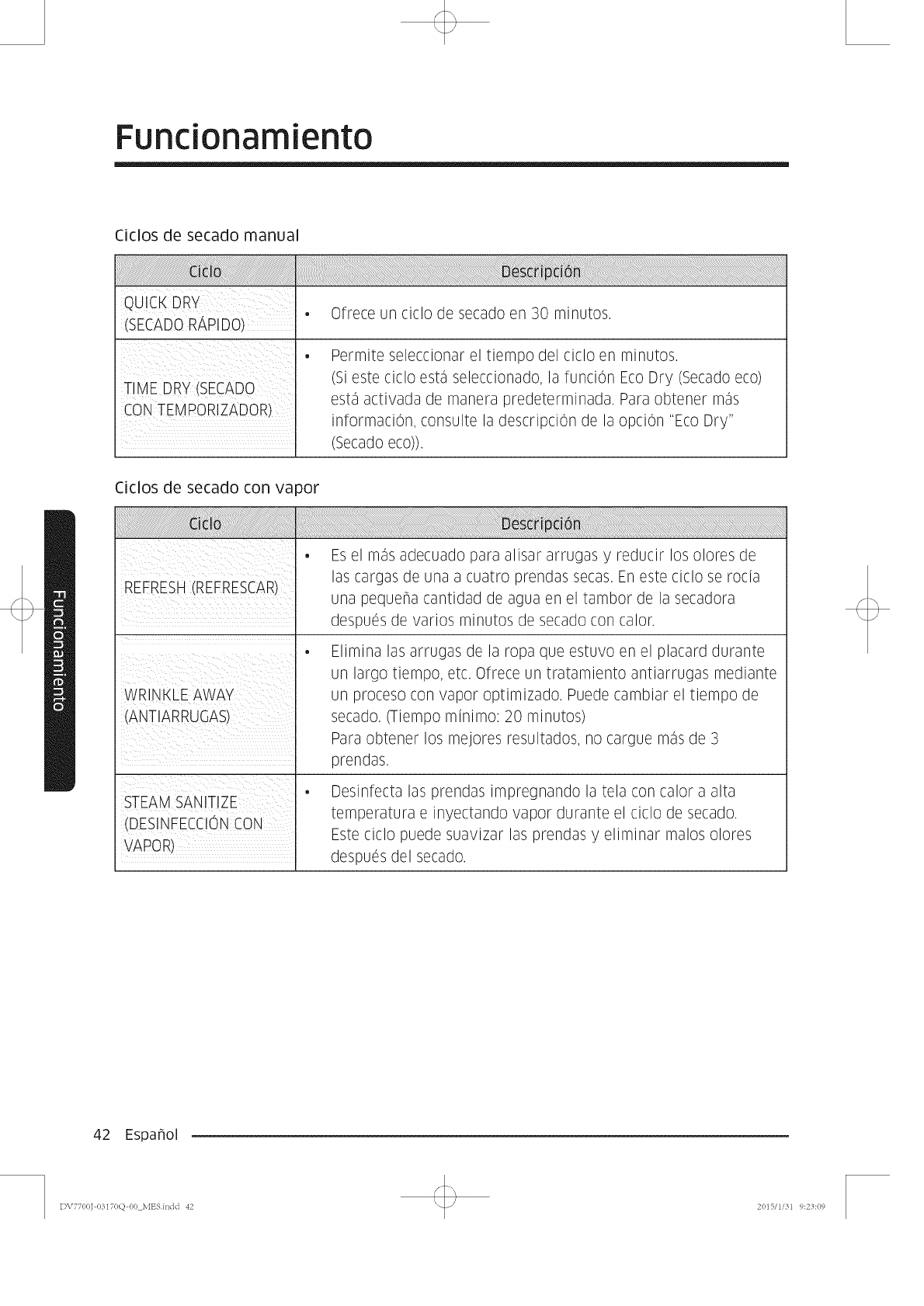

Manual Dry cycles

QUICK DRY

TIME DRY

• Provides a 30 minute drying cycle.

oAllows you to select a cycle time in minutes.

(If this cycle is selected, the Eco Dry function is enabled by

default. For more information, refer to the description of the

"Eco Dry" option.)

Steam Dry cycles

REFRESH

WRINKLE AWAY

STEAM SANITEE

Best for smoothing out wrinkles and reducing odors from

loads consisting of one to four dry items. In this cycle a small

amount of water is sprayed into the dryer drum after several

minutes of tumbling with heat.

Removes wrinkles from clothes stored in closets, etc. It

provides wrinkle release via optimized steam care. You can

change the drying time. (Minimum time: 20 minutes)

For best results, load no more than 3 items.

Sanitizes garments by infusing high temperature heat deep

into the fabric and injecting steam during the drying cycle.

This cycle can make clothes soft and remove bad odors after

drying.

42 English

DV7700] 0317()Q 00EN USindd 42 2015/i/319:17:52

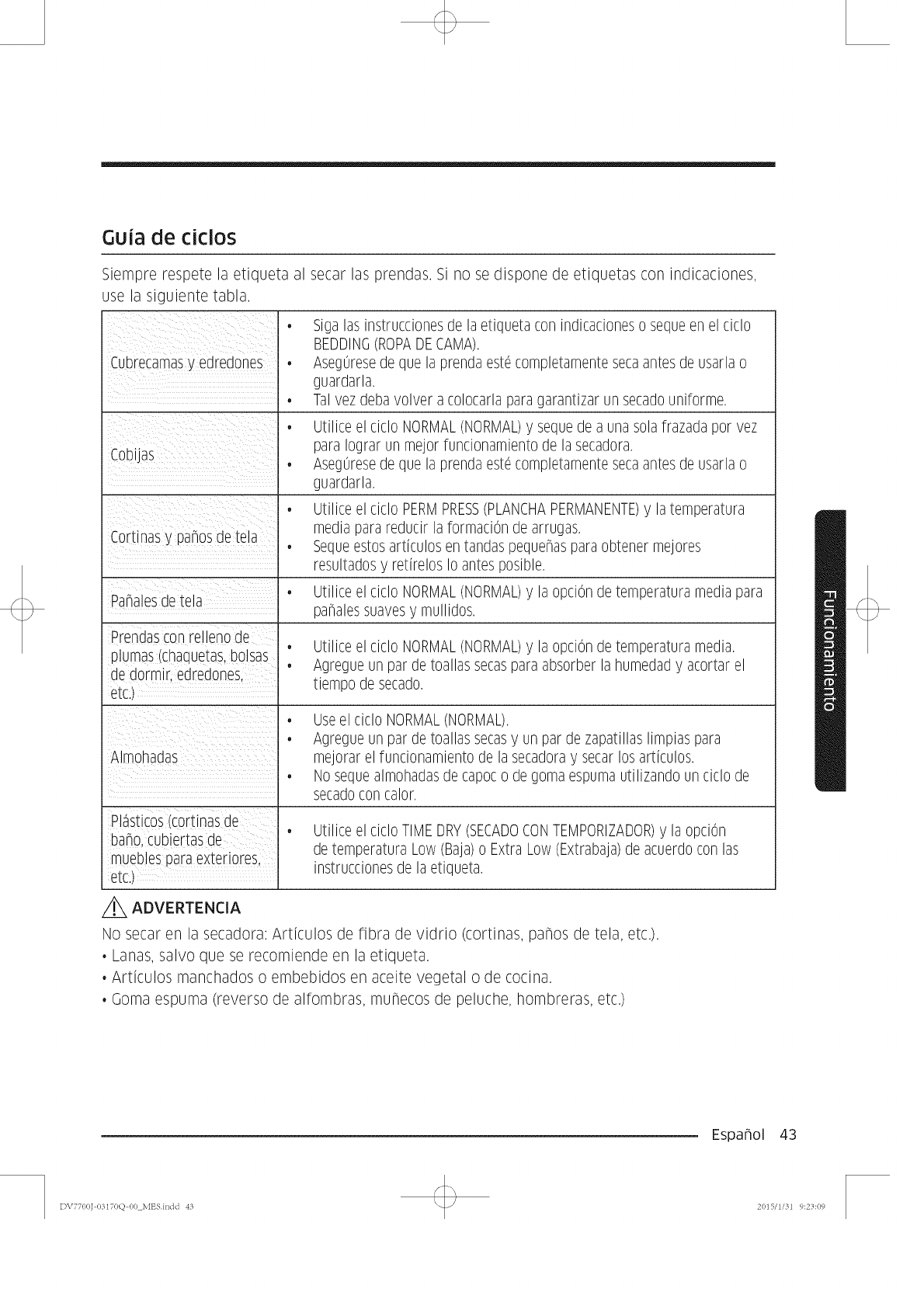

Cycle guide

Always follow the care label when drying. If care label instructions are not available, use the

following chart.

Bedspreads &

Comforters

Blankets

Curtains & Draperies

Cloth Diapers

Down-filled Items

(jackets, sleeping

bags, comforters, etc.)

Plastics (shower

curtains, outdoor

furniture covers; etc:) .......

• Follow the care label instructions or dry using the BEDDING.

• Make sure the item is thoroughly dry before using or storing.

• May require repositioning to ensure even drying.

• Use the NORMAL and dry only one blanket at a time for best

tumbling action.

• Make sure the item is thoroughly dry before using or storing.

• Use the PERM PRESSand medium temperature to help

minimize wrinkling.

• Dry these in small loads for best results and remove as soon

as possible.

• Use the NORMAL and the Medium temperature settings for

soft, fluffy diapers.

• Use the NORMAL and medium temperature setting.

• Add a couple of dry towels to absorb moisture and shorten

drying time.

• Use the NORMAL.

• Add a couple of dry towels and a pair of clean sneakers to

help the tumbling action and to fluff the items.

• Do not dry kapok or foam pillows using a heated dryer cycle.

• Use the TIME DRY and the Low or Extra Low temperature

settings depending on the care label instructions.

Z_ WARNING

Do not dry in the dryer: Fiberglass items (curtains, draperies, etc.).

• Woolens, unless recommended on the label.

• Items spotted or soaked with vegetable or cooking oils.

• Foam Rubber (rug backs, stuffed toys, shoulder pads, etc.)

Options

English 43

DV7700] 03170Q 00EN USindd 43 2(}15/i/319:17:52

Operations

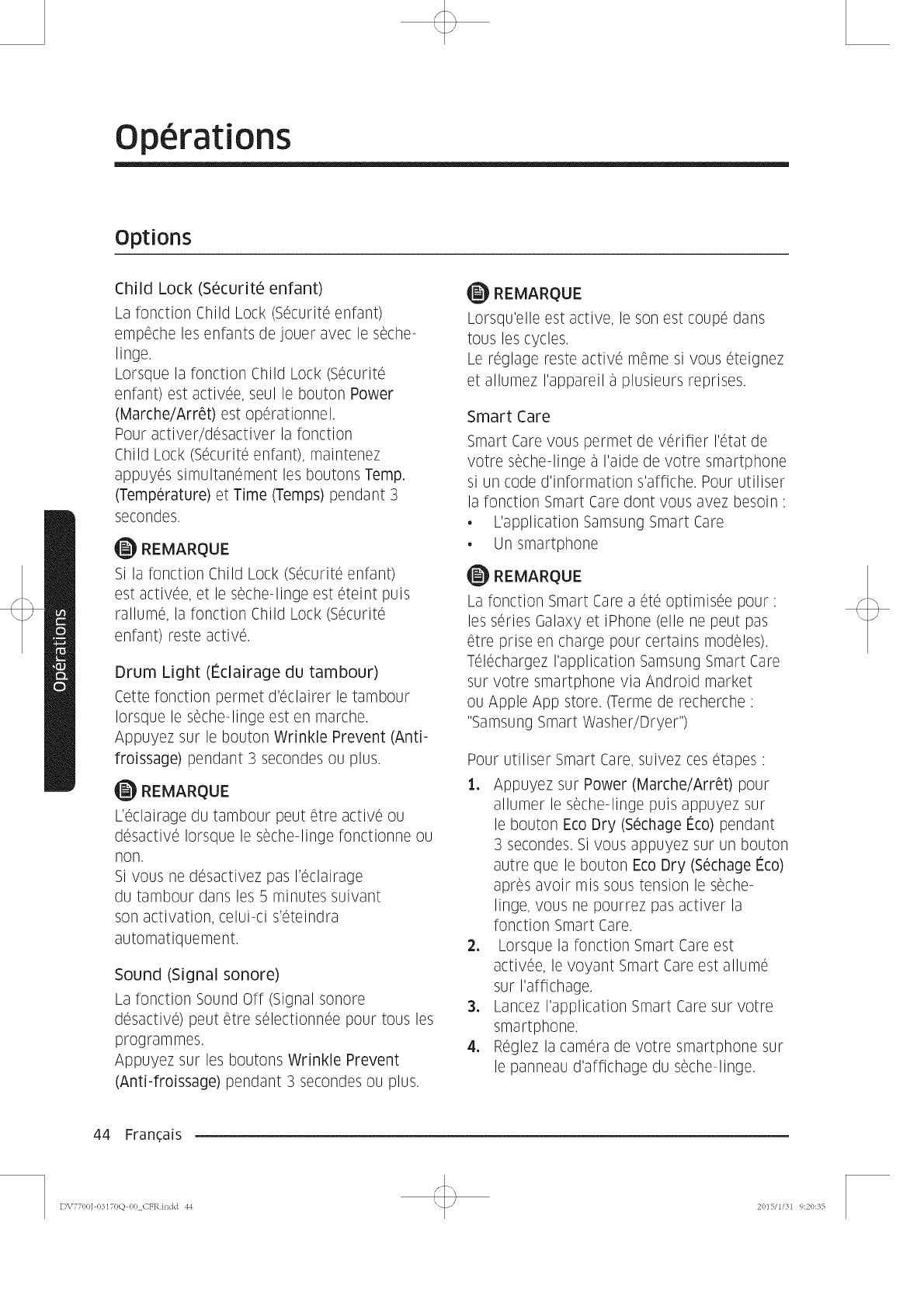

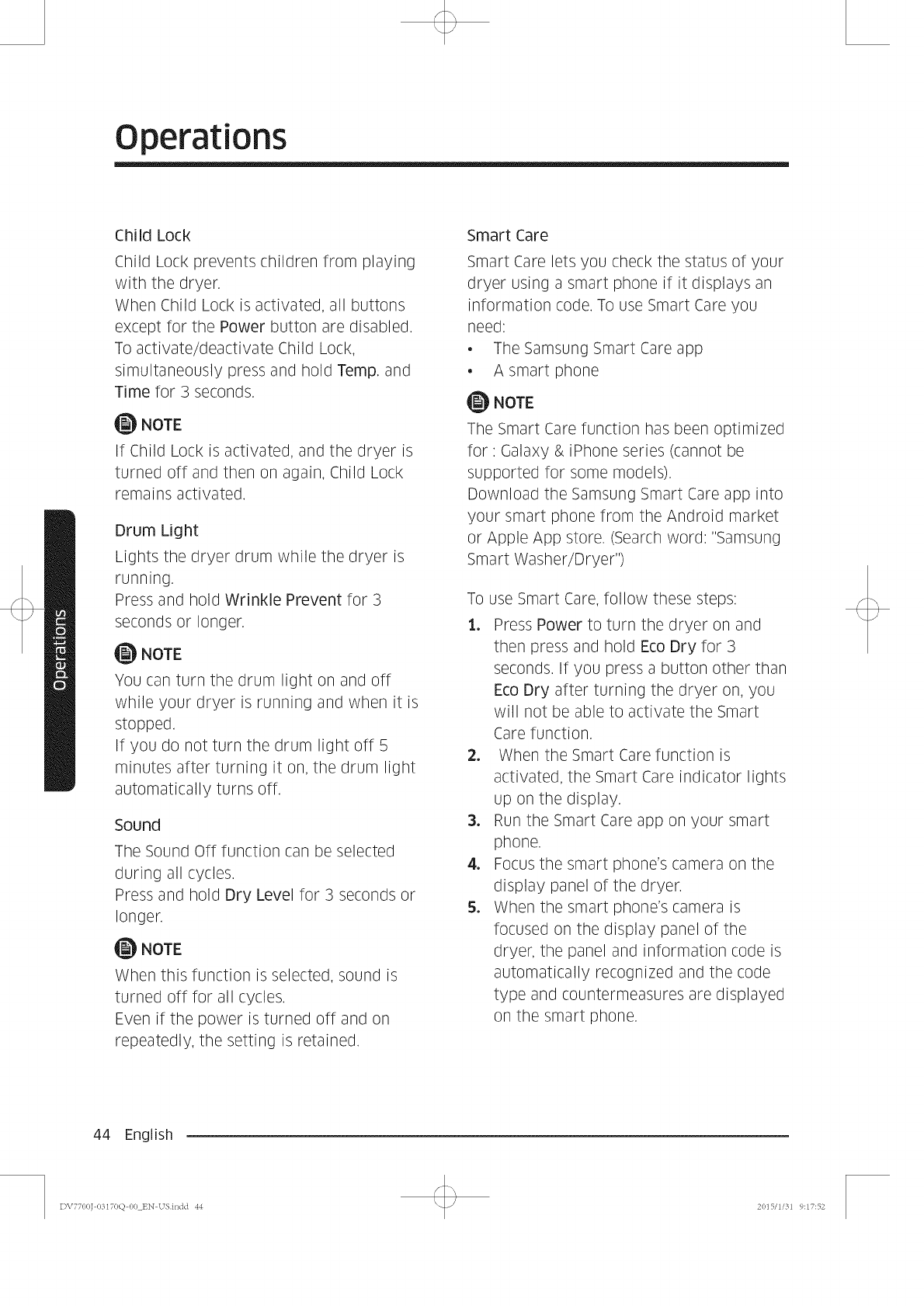

Child Lock

Child Lock prevents children from playing

with the dryer.

When Child Lock is activated, all buttons

except for the Power button are disabled.

To activate/deactivate Child Lock,

simultaneously press and hold Temp. and

Time for 3 seconds.

NOTE

If Child Lock is activated, and the dryer is

turned off and then on again, Child Lock

remains activated.

Drum Light

Lights the dryer drum while the dryer is

running.

Press and hold Wrinkle Prevent for 3

seconds or longer.

NOTE

You can turn the drum light on and off

while your dryer is running and when it is

stopped.

If you do not turn the drum light off 5

minutes after turning it on, the drum light

automatically turns off.

Sound

The Sound Off function can be selected

during all cycles.

Press and hold Dry Level for 3 seconds or

longer.

NOTE

When this function is selected, sound is

turned off for all cycles.

Even if the power is turned off and on

repeatedly, the setting is retained.

Smart Care

Smart Care lets you check the status of your

dryer using asmart phone if it displays an

information code. To use Smart Care you

need:

• TheSamsung Smart Careapp

• Asmart phone

NOTE

The Smart Care function has been optimized

for: Galaxy & iPhone series (cannot be

supported for some models).

Download the Samsung Smart Care app into

your smart phone from the Android market

or Apple App store. (Search word: "Samsung

Smart Washer/Dryer")

To use Smart Care, follow these steps:

1, Press Power to turn the dryer on and

then press and hold Eco Dry for 3

seconds. If you press a button other than

Eco Dry after turning the dryer on, you

will not be able to activate the Smart

Care function.

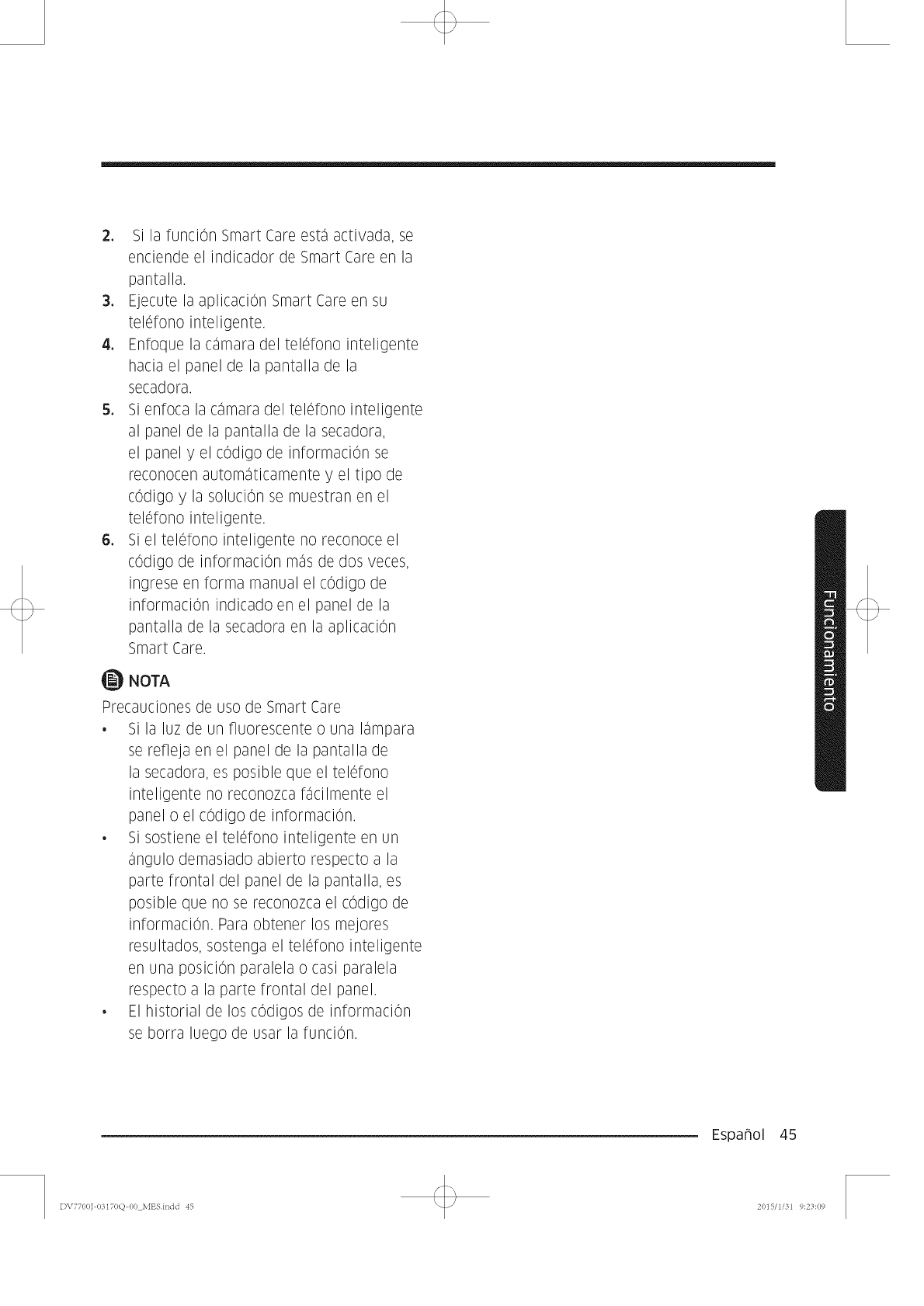

2, When the Smart Care function is

activated, the Smart Care indicator lights

up on the display.

3, Run the Smart Care app on your smart

phone.

4, Focus the smart phone's camera on the

display panel of the dryer.

5, When the smart phone's camera is

focused on the display panel of the

dryer, the panel and information code is

automatically recognized and the code

type and countermeasures are displayed

on the smart phone.

44 English

DV7700] 03170Q (}0Big USindd 44 2015/i/319:17:52

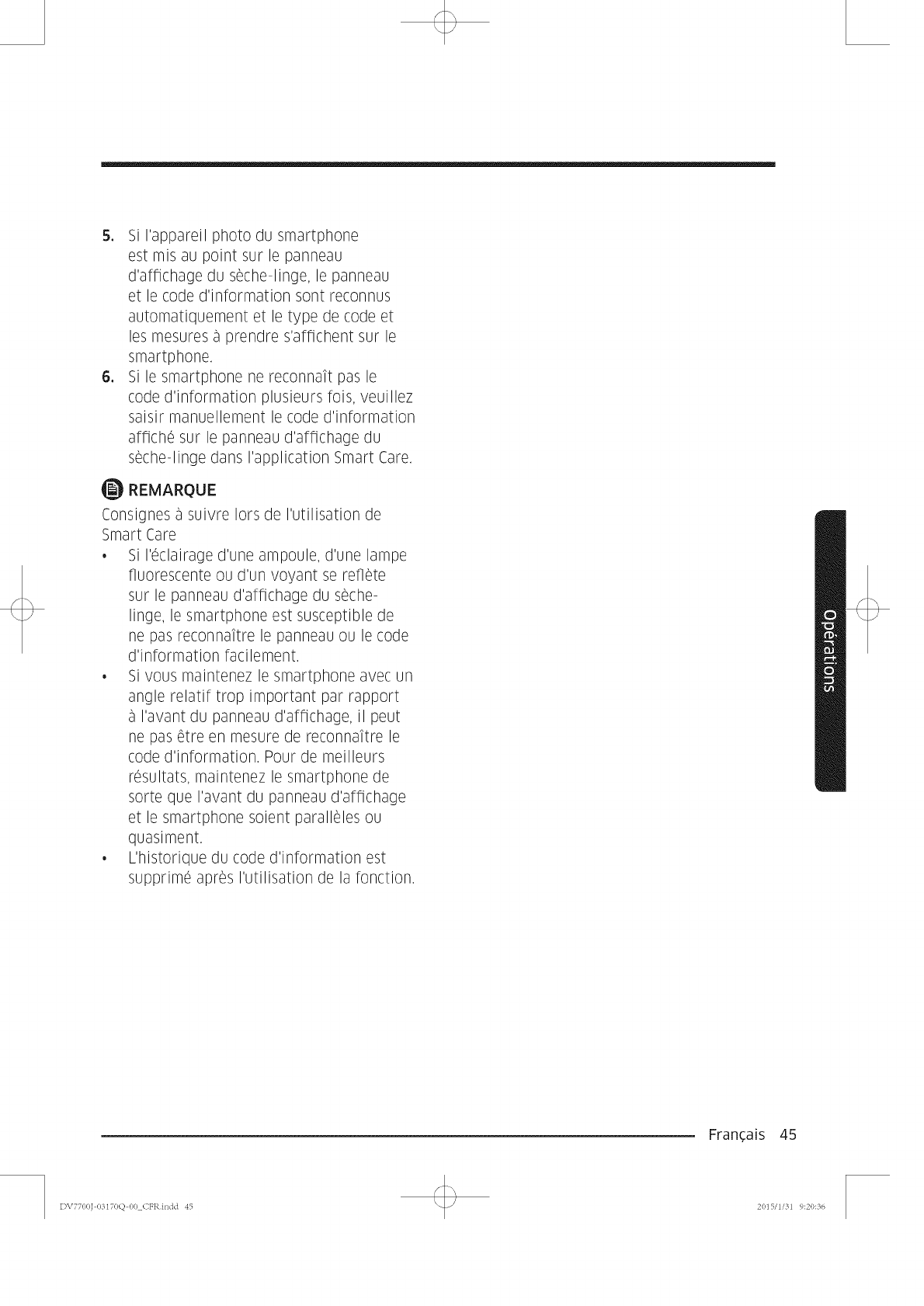

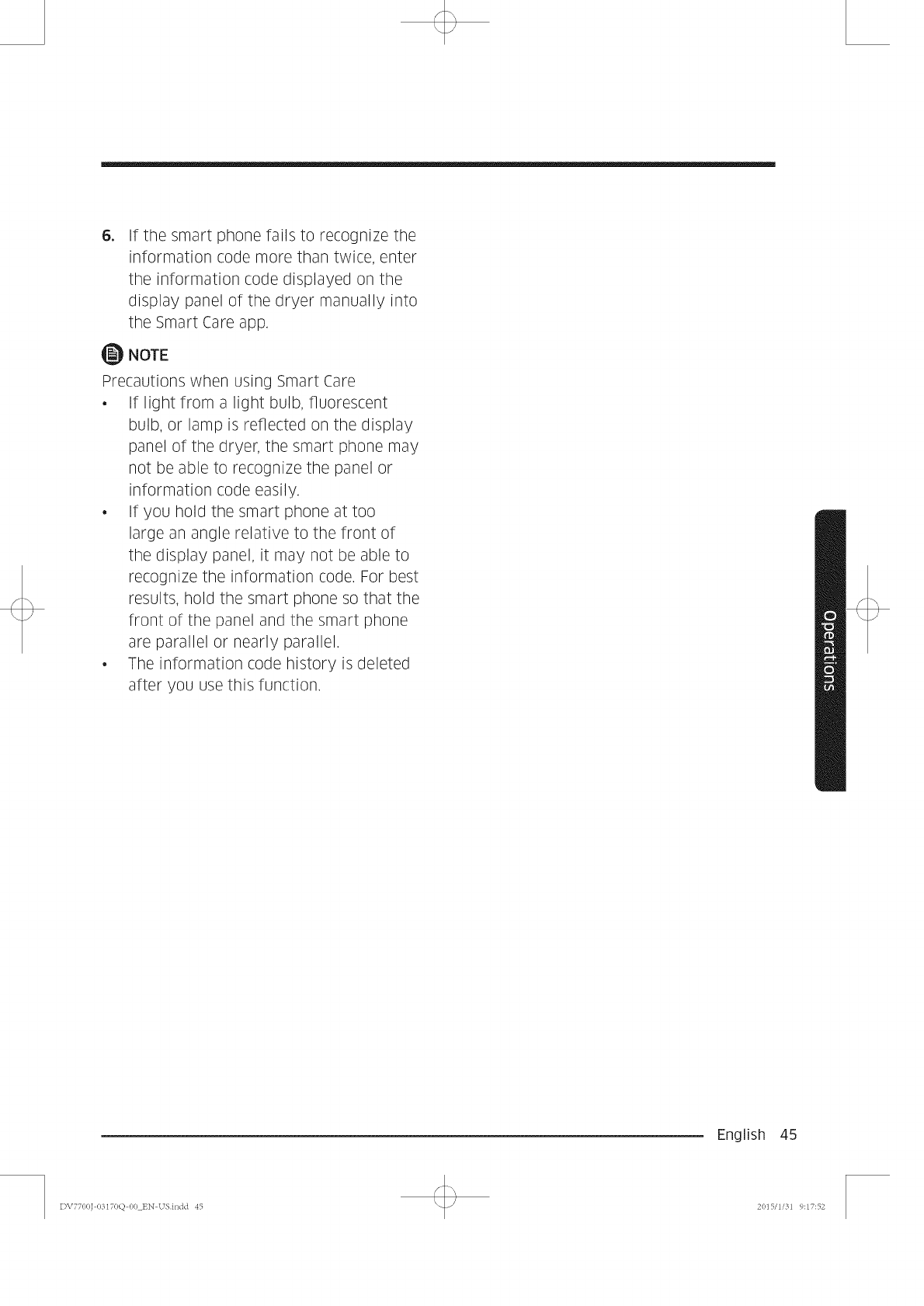

6, If the smart phone fails to recognize the

information code more than twice, enter

the information code displayed on the

display panel of the dryer manually into

the Smart Care app.

NOTE

Precautions when using Smart Care

• If light from a light bulb, fluorescent

bulb, or lamp is reflected on the display

panel of the dryer, the smart phone may

not be able to recognize the panel or

information code easily.

• If you hold the smart phone at too

large an angle relative to the front of

the display panel, it may not be able to

recognize the information code. For best

results, hold the smart phone so that the

front of the panel and the smart phone

are parallel or nearly parallel.

• The information code history is deleted

after you use this function.

English 45

DV7700] 03170Q (}0Big USindd 45 2015/I/ZII9:17:52

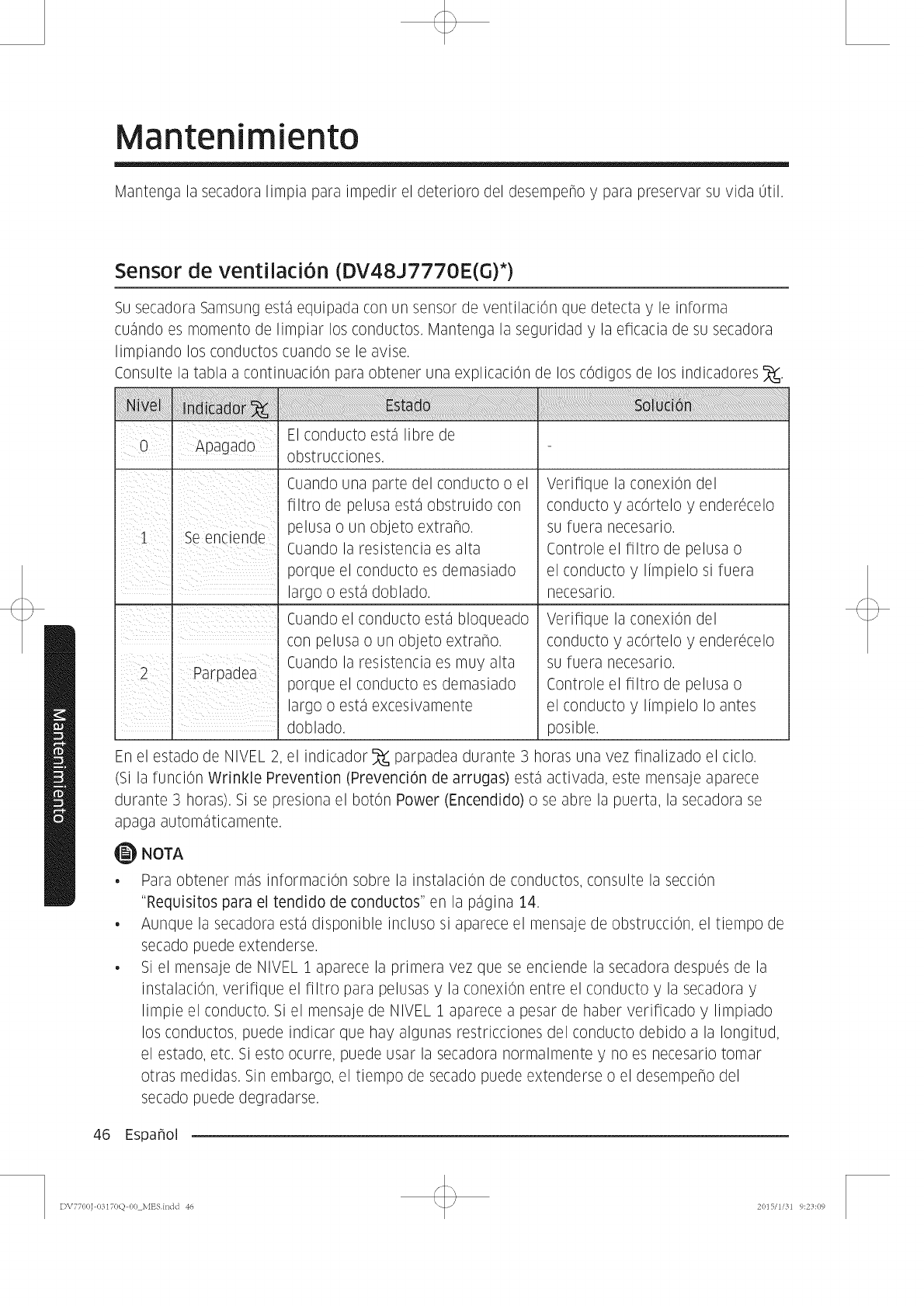

Maintenance

Keep the dryer clean to prevent deteriorated performance and to preserve its life cycle.

Vent Sensor (DV48J7770E(G)*)

Your Samsung dryer is equipped with a Vent Sensor, which detects and notifies you when it

is time to clean the ductwork. Keep your dryer safe and efficient by cleaning the ducts when

prompted.

See the table below for an explanation of_ indicator codes.

0 . Off

2 , Blinks

The ductwork is free from

blockages.

When a part of the duct or the

lint filter is blocked by lint or

a foreign object.

When the resistance is high

because the duct is too long

or bent.

When the duct is blocked by

lint or a foreign object.

When the resistance is very

high because the duct is too

long or bent excessively.

Check the duct connection

and shorten the duct and

straighten it if necessary.

Check the lint filter or the duct

and clean it if necessary.

Check the duct connection

and shorten the duct and

straighten it if necessary.

Check the lint filter or the

duct and clean it as soon as

possible.

In the LEVEL 2 state, the_ indicator blinks for 3 hours after the completion of the cycle. (If

the Wrinkle Prevention function is activated, this message is displayed for up to 3 hours.)

If the Power button is pressed or the door is opened, the power is immediately turned off.

NOTE

• For more information about the duct installation, please refer to the"Ducting

requirements" section on page !4.

• Although the dryer is available even if the blockage message is displayed, the drying

time may be extended.

• If the LEVEL 1_message is displayed the first time the dryer is run after installation, check

the the lint filter and the connection between the duct and the dryer, and clean the duct.

If the LEVEL 1_message appears even after you have checked and cleaned the ducts, this

may indicate that there are some restrictions of the duct due to the length, condition, etc.

If this occurs, you can use the dryer normally and no countermeasures need to be taken.

However, the drying time may be extended or the drying performance may be degraded.

46 English

D\_7700]03170Q 00EN USindd 46 2015/i/319:17:52

Maintenance

/! X, WARNING

Control board and inlet valve are intentionally not grounded and may present a risk of

electric shock only during servicing.

Service personnel - Do not contact this part while appliance is energized.

Cleaning

Control Panel

Clean with a soft, damp cloth. Do not use

abrasive substances.

Do not spray cleaners directly on the panel.

The control panel finish may be damaged by

some laundry pre-treatment soil and stain

remover products.

Apply such products away from your

dryer and wipe up any spills or overspray

immediately.

Tumbler

Remove any stains from the tumbler caused

by crayon, ink, fabric dye (from new items

such as towels or jeans) and so on with an

all-purpose cleaner.

Tumble old towels or rags to remove any

remaining stain or cleaning substance.

Once these steps are followed, stains may

still be visible, but should not transfer to

subsequent loads.

Powder coat tumbler

To clean the powder coat tumbler, use

a damp cloth with a mild, non-abrasive

cleaner suitable for easily marred surfaces.

Remove cleaner residue and dry with a

clean cloth.

Dryer Exterior

Clean with a soft, damp cloth. Do not use

abrasive substances.

Protect the surface from sharp objects.

Do not place any heavy or sharp objects

or a detergent box on the dryer. They can

scratch or damage the top cover of the

dryer. Keep these items in a separately

purchased pedestal or in a separate storage

box.

The entire dryer has a high-gloss finish.

Avoid scratching or damaging the surface

when using the dryer.

Dryer Exhaust System

Inspect and clean the dryer exhaust system

yearly to maintain optimum performance.

The outside exhaust hood should be cleaned

more frequently to ensure proper operation.

English 47

DV7700] 03170Q (}0Big USindd 47 2015/i/)i9:17:52

Troubleshooting

Checkpoints

If you encounter a problem with the dryer, first check the table below and try the

suggestions.

I •

Does not run.

Does not heat.

I •

Does not dry.

Make sure the door is latched shut.

Make sure the power cord is plugged into a live electrical

outlet.

Check the home's circuit breaker and fuses.

Press or tap Start/Pause again if the door is opened during a

cycle.

Clean the lint filter.

Check the home's circuit breaker and fuses.

Some cycles do not require heating. Check the selected cycle

again.

For a gas dryer, make sure the gas supply is on.

Clean the lint filter and exhaust duct.

Check the lint filter and clean them if necessary.

The dryer may have moved into the cool-down phase of the

cycle.

Check all of the above, plus...

Make sure the exhaust hood outside the home can open and

close freely.

Check the exhaust system for lint buildup. Ducting should be

inspected and cleaned annually.

Use a 4" rigid metal exhaust duct.

Do not overload. 1_wash load = 1_dryer load.

Sort heavy items from lightweight items.

Large, bulky items, such as blankets or comforters, may

require repositioning to ensure even drying.

Make sure that the dryer is draining properly to extract

adequate water from the load.

The load may be too small to tumble properly. Add a few

towels and restart the dryer.

The load may be too large to tumble properly. Remove some

items and restart the dryer.

Clean the lint filter.

48 English

DV7700] 03170Q 00EN USindd 48 2015/i/319:17:52

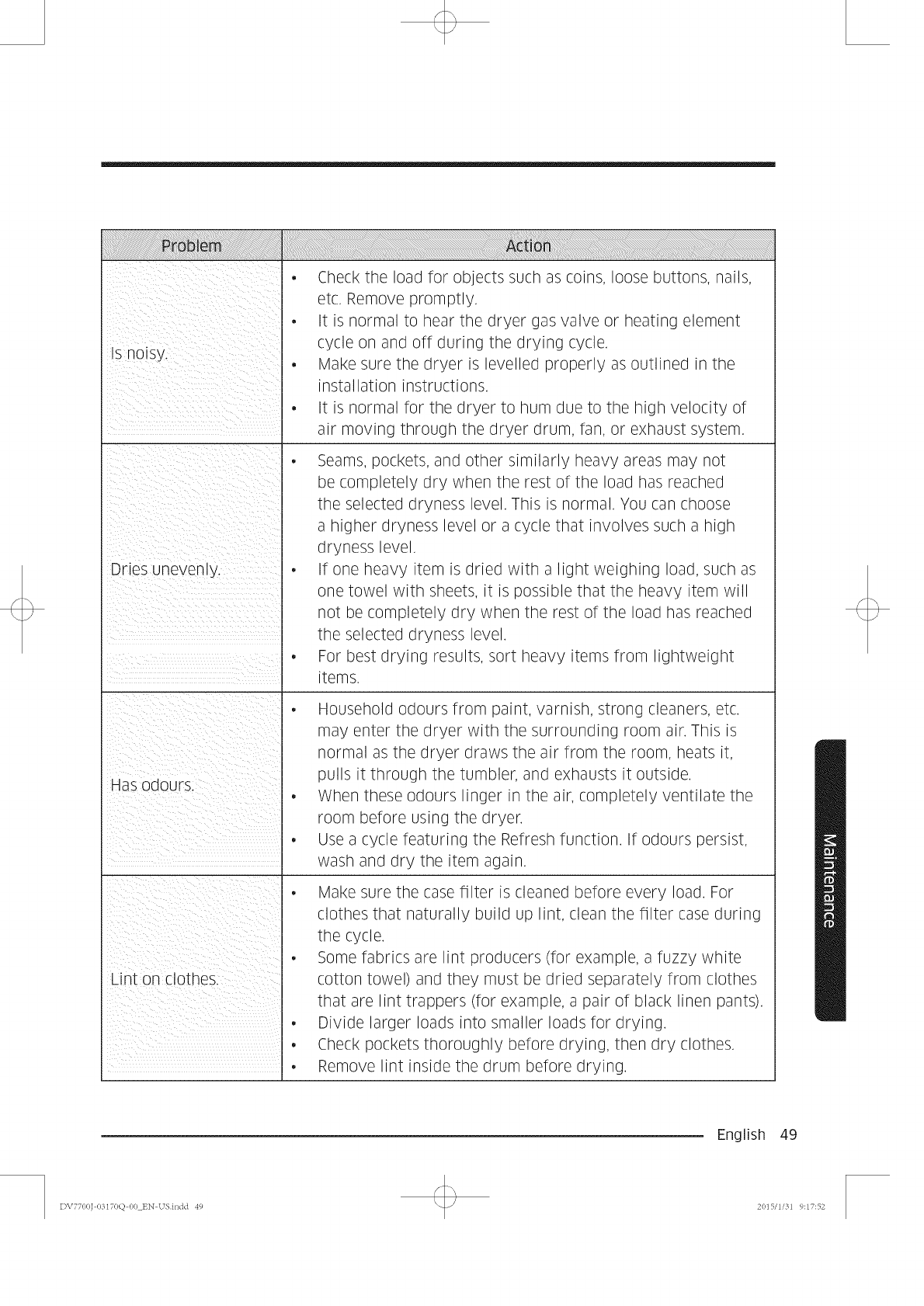

Dries unevenly.

Lint on clothes.

• Check the load for objects such as coins, loose buttons, nails,

etc. Remove promptly.

• It is normal to hear the dryer gas valve or heating element

cycle on and off during the drying cycle.

• Make sure the dryer is levelled properly as outlined in the

installation instructions.

• It is normal for the dryer to hum due to the high velocity of

air moving through the dryer drum, fan, or exhaust system.

• Seams, pockets, and other similarly heavy areas may not

be completely dry when the rest of the load has reached

the selected dryness level. This is normal. You can choose

a higher dryness level or a cycle that involves such a high

dryness level.

• If one heavy item is dried with a light weighing load, such as

one towel with sheets, it is possible that the heavy item will

not be completely dry when the rest of the load has reached

the selected dryness level.

• For best drying results, sort heavy items from lightweight

items.

• Household odours from paint, varnish, strong cleaners, etc.

may enter the dryer with the surrounding room air. This is

normal as the dryer draws the air from the room, heats it,

pulls it through the tumbler, and exhausts it outside.

• When these odours linger in the air, completely ventilate the

room before using the dryer.

• Use a cycle featuring the Refresh function. If odours persist,

wash and dry the item again.

• Make sure the case filter is cleaned before every load. For

clothes that naturally build up lint, clean the filter case during

the cycle.

• Some fabrics are lint producers (for example, a fuzzy white

cotton towel) and they must be dried separately from clothes

that are lint trappers (for example, a pair of black linen pants).

• Divide larger loads into smaller loads for drying.

• Check pockets thoroughly before drying, then dry clothes.

• Remove lint inside the drum before drying.

English 49

DV7700] 03170Q 00EN USindd 49 2015/i/319:17:52

Maintenance

Items still wrinkled '

after Wrinkle Prevent

(Wrinkle-Care, Wrinkle

Release).

Water drips from

the nozzle when

SteamCare starts.

Sprayed water is

not visible during

SteamCare.

I •

Extended time.

• Small loads of 1 to 4 items work best.

• Load fewer items. Load similar-type items.

• Take out the items immediately after drying is complete.

• This is steam condensation. The dripping water will stop after

a short time.

Sprayed water is difficult to see when the door is closed.

Sensor Dry automatically senses the moisture in the load

and shuts the dryer off when the selected dryness level is

reached.

The drying time can change according to the type and amount

of laundry. See the cycle chart for reference.

If a problem persists, contact a local Samsung service center.

50 English

DV7700] 03170Q 00EN USindd 50 2015/i/319:17:52

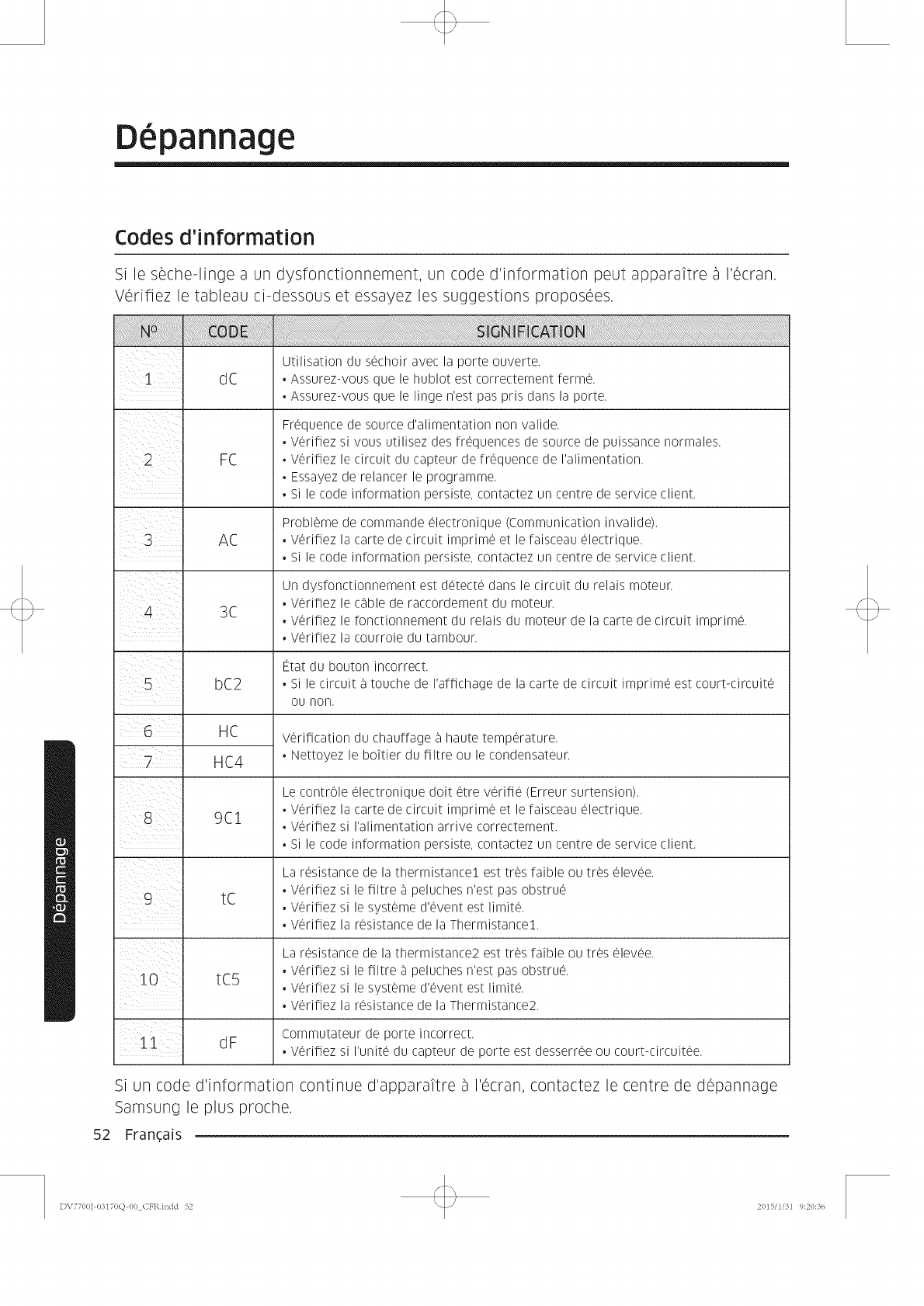

Information codes

If the dryer fails to operate, you may see an information code on the screen. Check the table

below and try the suggestions.

i ¸¸¸¸¸¸¸¸¸¸¸¸¸3

Operating the dryer with the door open.

• Make sure the door is properly closed.

• Make sure laundry is not caught in the door.

Invalid power source frequency

• Check if you are using regular power source frequencies.

• Check the power frequency sensor circuit.

• Try restarting the cycle.

• If the information code remains, contact a customer service centre.

Electronic control problem (Invalid Communication).

• First check the PCBand wire harness.

• If the information code remains, contact a customer service centre.

Incorrect button state.

• If the display PCBkey circuit is shorted or not.

d7¸

bC2

HC4

9C!

i: ¸¸¸¸¸¸¸¸8¸

_ ii_ ii m _

Malfunction is detected in the motor relay circuit.

• Check the motor connection cable.

• Check the motor relay operation of the PCB.

• Check the drum belt.

High temperature heating check

• Clean the filter caseor condenser.

• If the information code remains, contact a customer service centre.(enter

the line test mode).

The electronic control needs to be checked (Over Voltage Error).

• Check the PCBand wire harness.

• Check if power is supplied properly.

• If the information code remains, contact a customer service centre.

The Thermistor1 resistance is very low or high.

• Check for a clogged lint screen

• Check if the vent system is restricted or.

• Check Thermistor1 resistance.

The Thermistor2 resistance is very low or high.

• Check for a clogged lint screen.

• Check if the vent system is restricted.

• Check Thermistor2 resistance.

English 51

DV7700] 03170Q 00EN USindd 51 2015/i/319:17:52

Maintenance

Incorrect door switch.

dF • Check if the door sensor unit is loose or short.

If any information code keeps appearing on the screen, contact a local Samsung service

center.

52 English

DV7700] 03170Q 00EN USindd 52 2015/i/319:17:52

Specifications

Protecting the environment

This appliance is manufactured from recyclable materials. If you decide to dispose of this

appliance, please observe local waste disposal regulations. Cut off the power cord so that the

appliance cannot be connected to a power source. Remove the door so that animals and small

children cannot get trapped inside the appliance.

English 53

DV7700] 03170Q 00EN USindd 5) 2(}15/i/319:17:52

Specifications

Specification sheet

NOTE

"A. Height" Spec range through the leveling

feet adjustment !!!,8 - !!2.3 cm.

Product

A. Height Install

IB w dth Product

Install

Dimensions Product

(inches (cm)) In stall

D. Depth with Product

' door open 90 ° Install

E. Width with Product

. door open 130 ° Install

Water pressure (psi (kPa))

DV48J77006* DV48J7700E*

DV48J7770G* DV48J7770E*

44.2 (1_!2.3)

46.2

27.0 (68.6)

29.0

30.0 (76.3)

35.0

49.80 (1_26.5)

54.82

46.47 (1_1_8.0)

51_,47

20 - 1-1_6(1_37 _ 800)

1_26(57) 1_23(56)

54 English

DV7700] 03170Q 00EN USindd 54 2015/i/319:17:5)

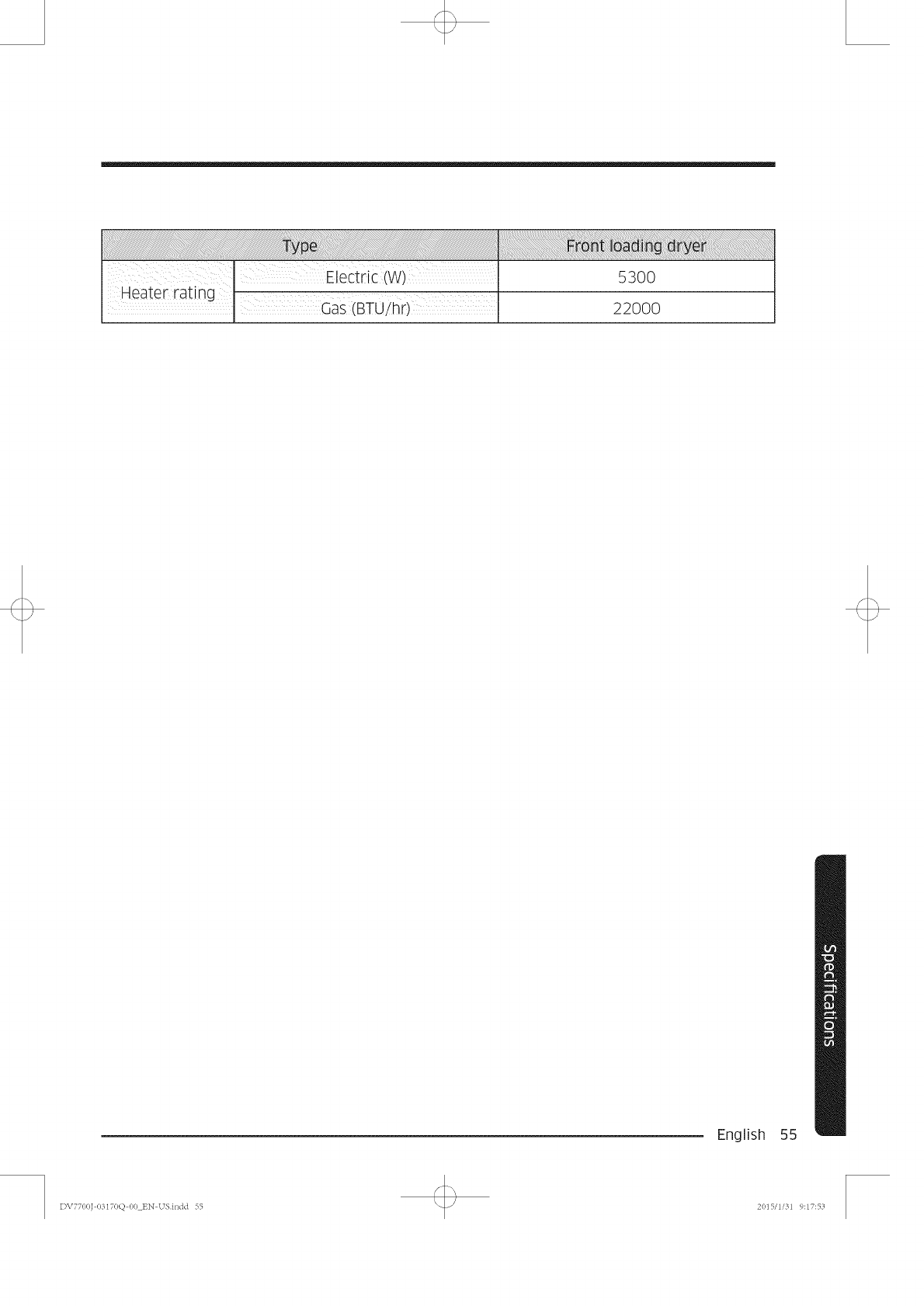

Electric(W)

Heater rating ............ ..............

Gas (BTU/hr)

53OO

22000

English 55

DV7700] O3170Q 00EN USindd 55 2015/i/319:17:53

Specifications

Cycle chart

NOTE

For best results, follow the load size recommendations for each dry cycle.

• _ Large load: Fill the drum to about 34full. Do not add items over this level as they need

to tumble freely.

• _ Medium load : Fill the drum to about ½ full.

• (_) Small load : Fill the drum with 3-5 items, not more than ¼ full.

NORMAL

Sensor Dry

PERMPRESS

DELICATES

TOWELS

Manual Dry I TIME DRY

REFRESH

Steam Dry WRINKLEAWAY

iSTEAMSANITIZE

Cottons, work clothes, linen,

mixed loads

Heavy Fabrics such as jean,

corduroys, heavy work clothes

Bulky items such as blankets,

sheets, comforters, pillows

Shirts, synthetic fabrics, knits,

wrinkle-free cottons, permanent

Underwear, blouses, lingerie

Bath towels and similar items

Small loads

Any load

Shirts, trouser, comforter, pillows

Shirts, trouser, blouses

Bedding, curtains, children's

clothing

O Normal Dry

(Adjustable)

O Normal Dry

(Adjustable)

O Normal Dry

(Adjustable)

Normal Dry

(Adjustable)

Normal Dry

(Adjustable)

Normal Dry

(Adjustable)

Very Dry (No change)

56 English

DV7700] 03170Q 00EN USindd 56 2015/i/319:17:5)

NOTE

• e: factory setting, ®: can be selected

NORMAL

' HEAVY DUTY

' BEDDING

Sensor Dry PERM PRESS

I DELICATES

QUICK DRY @

Manual Dry I TIME DRY @ @ @ @

Steam Dry ' WRINKLE AWAY @

STEAM SANITIZE

NORMAL

IHEAVY DUTY

BEDDING

PERM PRESS

DELICATES

I TOWELS

QUICK DRY

Manual Dry. TIME DRY

Steam Dry WRINKLE AWAY

STEAM SANITIZE

English 57

DV7700] 03170Q 00EN USindd 57 2015/1/31 9:17:54

Warranty (U.S.A)

SAMSUNG DRYER

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS

AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer

purchaser, is warranted by SAMSUNG against manufacturing defects in materials and

workmanship for a limited warranty period of:

• One (1_)Year All Parts and Labor

• Two (2) Years Control Board Parts (Part Only)

This limited warranty begins on the original date of purchase, and is valid only on products

purchased and used in the United States.

To receive warranty service, the purchaser must contact SAMSUNG for problem determination

and service procedures.

Warranty service can only be performed by a SAMSUNG authorized service center.

The original dated bill of sale must be presented upon request as proof of purchase to

SAMSUNG or SAMSUNG's authorized service center.

SAMSUNG will provide in-home service during the warranty period at no charge, subject to

availability within the contiguous United States.

In-home service is not available in all areas.

To receive in-home service, product must be unobstructed and accessible to the service

agent.

If service is not available, SAMSUNG may elect to provide transportation of the product to

and from an authorized service center.

SAMSUNG will repair, replace, or refund this product at our option and at no charge as

stipulated herein, with new or reconditioned parts or products if found to be defective during

the limited warranty period specified above.

All replaced parts and products become the property of SAMSUNG and must be returned to

SAMSUNG.

Replacement parts and products assume the remaining original warranty, or ninety (90) days,

whichever is longer.

58 English

DV7700] 03170Q 00EN USindd 58 2015/1/31 9:17:54

Warranty (U.S.A)

This limited warranty covers manufacturing defects in materials and workmanship

encountered in normal, noncommercial use of this product and shall not apply to the

following: damage that occurs in shipment; delivery and installation; applications and uses

for which this product was not intended; altered product or serial numbers; cosmetic damage

or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other acts of nature

or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories,

applications, installations, repairs, external wiring or connectors not supplied or authorized

by SAMSUNG that damage this product or result in service problems; incorrect electrical

line voltage, fluctuations and surges; customer adjustments and failure to follow operating

instructions, maintenance and environmental instructions that are covered and prescribed

in the instruction book; product removal and reinstallation; problems caused by pest

infestations.

This limited warranty does not cover problems resulting from incorrect electric current,

voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions,

or fixing installation errors.

SAMSUNG does not warrant uninterrupted or error-free operation of the product.

EXCEPTAS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER

EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT

LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS

FOR A PARTICULAR PURPOSE.

NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH

RESPECTTO THIS PRODUCT SHALL BE BINDING ON SAMSUNG.

SAMSUNG SHALL NOT BE LIABLE FOR LOSSOF REVENUE OR PROFITS, FAILURE TO REALIZE

SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL

DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS

OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN

THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED

DAMAGE.

WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR

LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS

AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS

PRODUCT.

THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL

PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATESYOUR EXCLUSIVE

REMEDY.

English 59

DV7700] 03170Q 00EN USindd 59 2015/1/31 9:17:54

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion

or limitation of incidental or consequential damages, so the above limitations or exclusions

may not apply to you. This warranty gives you specific rights, and you may also have other

rights, which vary from state to state.

To obtain warranty service, please contact SAMSUNG at:

Samsung Electronics America, Inc.

85 Challenger Road

Ridgefield Park, NJ 07660

1-800-SAMSUNG (726-7864)

www.samsung.com/us/support

Visits by a Service Engineer to explain functions, maintenance or installation is not

covered by warranty.

Please contact your Samsung call agent for help with any of these issues.

60 English

DV7700] 03170Q 00EN USindd 6(} 2015/i/319:17:54

Warranty (CANADA)

SAMSUNG DRYER

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS

CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer

purchaser, is warranted by SAMSUNG against manufacturing defects in materials and

workmanship for a limited warranty period of:

• One (!) year part and labor

This limited warranty begins on the original date of purchase, and is valid only on products

purchased and used in the Canada.

To receive warranty service, the purchaser must contact SAMSUNG for problem determination

and service procedures.

Warranty service can only be performed by a SAMSUNG authorized service center.

The original dated bill of sale must be presented upon request as proof of purchase to

SAMSUNG or SAMSUNG's authorized service center.

SAMSUNG will provide in-home service during the warranty period at no charge, subject to

availability within the Canada.

In-home service is not available in all areas.

To receive in-home service, product must be unobstructed and accessible to the service

agent.

If service is not available, SAMSUNG may elect to provide transportation of the product to

and from an authorized service center.

SAMSUNG will repair, replace, or refund this product at our option and at no charge as

stipulated herein, with new or reconditioned parts or products if found to be defective during

the limited warranty period specified above.

All replaced parts and products become the property of SAMSUNG and must be returned to

SAMSUNG.

Replacement parts and products assume the remaining original warranty, or ninety (90) days,

whichever is longer.

English 61

DV7700] 03170Q 00EN USindd 61 2015/1/31 9:17:54
