8 Channel/16 Channel DVR
User’s Manual
SHR-7080/7082/7160/7162
SHR-8080/8082/8160/8162
imagine the possibilities
Thanks you for purchasing this Samsung product.
To receive a more complete service, please
register your product at
www.samsungsecurity.com
00769B_SHR-8162_ENG-NEW.indb 1 2008-12-04 오전 10:13:18
2_ overview
overview
FEATURES
This DVR (Digital Video Recorder) employs MPEG-4 video encoding for 8 or 16 channels of camera input and G.723
audio encoding for 16 channels, and supports simultaneous hard disc recording and playback.
And also it supports network connectivity, providing remote monitoring from a remote PC by transferring video and
audio data.
Provides convenient User Interface
8/16 CH Composite Input Connectors
Supports CIF(S)/Half D1(M)/Full D1(L) recording formats
NTSC/PAL Compatible
Dual Codec enabling live transmission at all FPS changes depending on the bandwidths, and under all recording
conditions
De-interlacing processor for better picture quality
HDMI enabling superior picture output quality
Display of HDD information and status by using HDD SMART
D1 Size (NTSC: 704*480, PAL: 704*576) Recording in 480 IPS speed (SHR-8XXX)
CIF(S) Size (NTSC: 352*240, PAL: 352*288) Recording in 480 IPS speed (SHR-7XXX)
8/16-channel Loop Through Video port connection
Hard Disk overwrite function
Mass storage hard disk backup through high-speed USB 2.0
Mass storage hard disk backup thorugh SATA
Backup function using USB 2.0 flash memory and external CD/DVD writer
(Internal DVD writer is not available for SHR-7080/7160/8080/8160)
Simultaneous Record and Play of 8/16-channel video data
Various Search Modes (Search by time, event, backup, POS and motion detection)
Various Recording Modes (Time Lapse, Event, Scheduled Recording)
Extended Hard Disk Connection (USB 2.0, SATA)
Alarm Interface (Input: 8/16, Output: 4, Reset: 1)
Remote Monitoring function by Windows Network Viewer (Net-I/Web viewer)
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
00769B_SHR-8162_ENG-NEW.indb 2 2008-12-04 오전 10:13:18
English _3
! OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit.
Follow all the safety instructions listed below.
Keep these operating instructions handy for future reference.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. if the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.

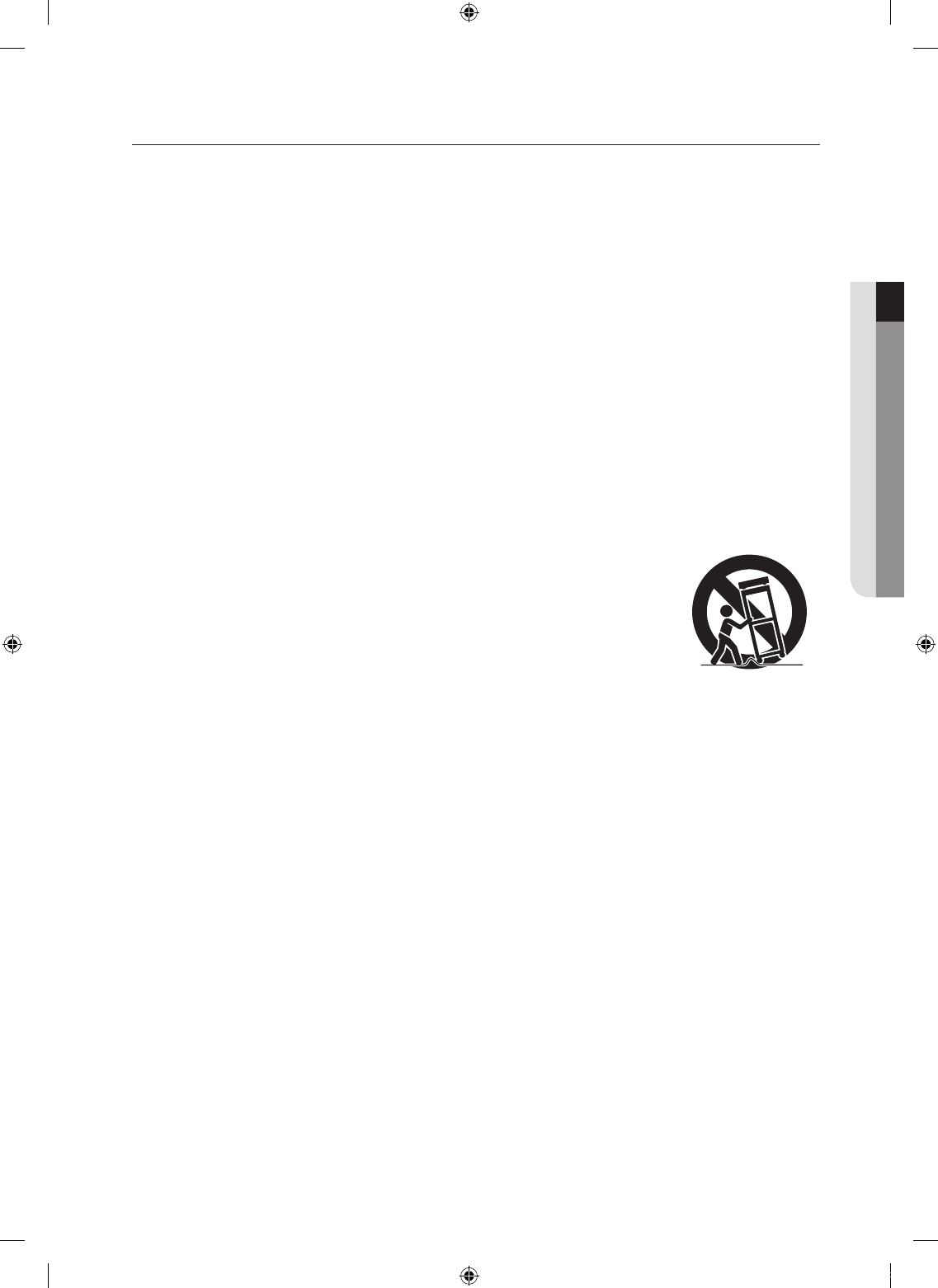

Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury from
tip-over.
Unplug this apparatus during lightning storms or when unused for long
periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
00769B_SHR-8162_ENG-NEW.indb 3 2008-12-04 오전 10:13:18
4_ overview
overview
BEFORE START
This user’s manual provides Information for using DVR such as brief introduction, part names, functions, connection
to other equipment, menu setup, and the like.
You have to keep in mind the following notices:
SEC retains the copyright on this manual.
This manual cannot be copied without SEC’s prior written approval.
We are not liable for any or all losses to the product incurred by your use of non-standard product or violation of
instructions mentioned in this manual.
If you want to open the case of your system for checking problems, please consult the expert from the shop
where you bought the product.
You may download open source codes from the following website: www.samsungsecurity.com.
Before installing an additional HDD or connecting an external storage device (USB memory or USB HDD) to this
DVR, check the compatibility. Consult your provider for the compatibility list.
Warning
Battery
Exchanging a wrong battery in your product may cause an explosion. Therefore you must use the same type
of battery as the one being used in the product.
The following are the specifications of the battery you are using now.
Normal voltage: 3V
Normal capacity: 170mAh
Continuous standard load: 0.2mA
Operating temperature: -20°C ~ +85°C
(-4°F ~ +185°F)
The rechargeable battery incorporated in this product is not user replaceable.
For information on its replacement, please contact your service provider.
System Shutdown
Turning off the power while the product is in operation, or taking not permitted actions may cause damage to
the hard drive or the product. Also it can cause a dysfunction to the hard disk while using the product.
Please turn off the power using the Power button on the front of your DVR.
After selecting <OK> in the pop-up menu, you can pull off the power cord.
You may want to install a UPS system for safe operation in order to prevent damage caused by an
unexpected power stoppage. (Any questions concerning UPS, consult your UPS retailer.)
Operating Temperature
The guaranteed operating temperature range of this product is 0°C ~ 40°C (32°F ~ 104°F).
This product may not work properly if you run right after a long period of storage at a temperature below the
guaranteed one.
When using the device after a long period of storage at low temperature, place the product at room
temperature for a while and run it.
Especially for the built-in HDD in the product, its guaranteed temperature range is 5°C ~ 55°C (41°F ~ 131°F).
Likewise, the hard drive may not work at a temperature below the guaranteed one.
~
~
~
~
~
~
❖
~
~
~
~
❖
❖
CALIFORNIA USA ONLY
This Perchlorate warning applies only to primary CR (Manganese Dioxide)
Lithium coin cells in the product sold or distributed ONLY in California USA.
“Perchlorate Material - special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.”
00769B_SHR-8162_ENG-NEW.indb 4 2008-12-04 오전 10:13:18
English _5
! OVERVIEW
Standards Approvals
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.

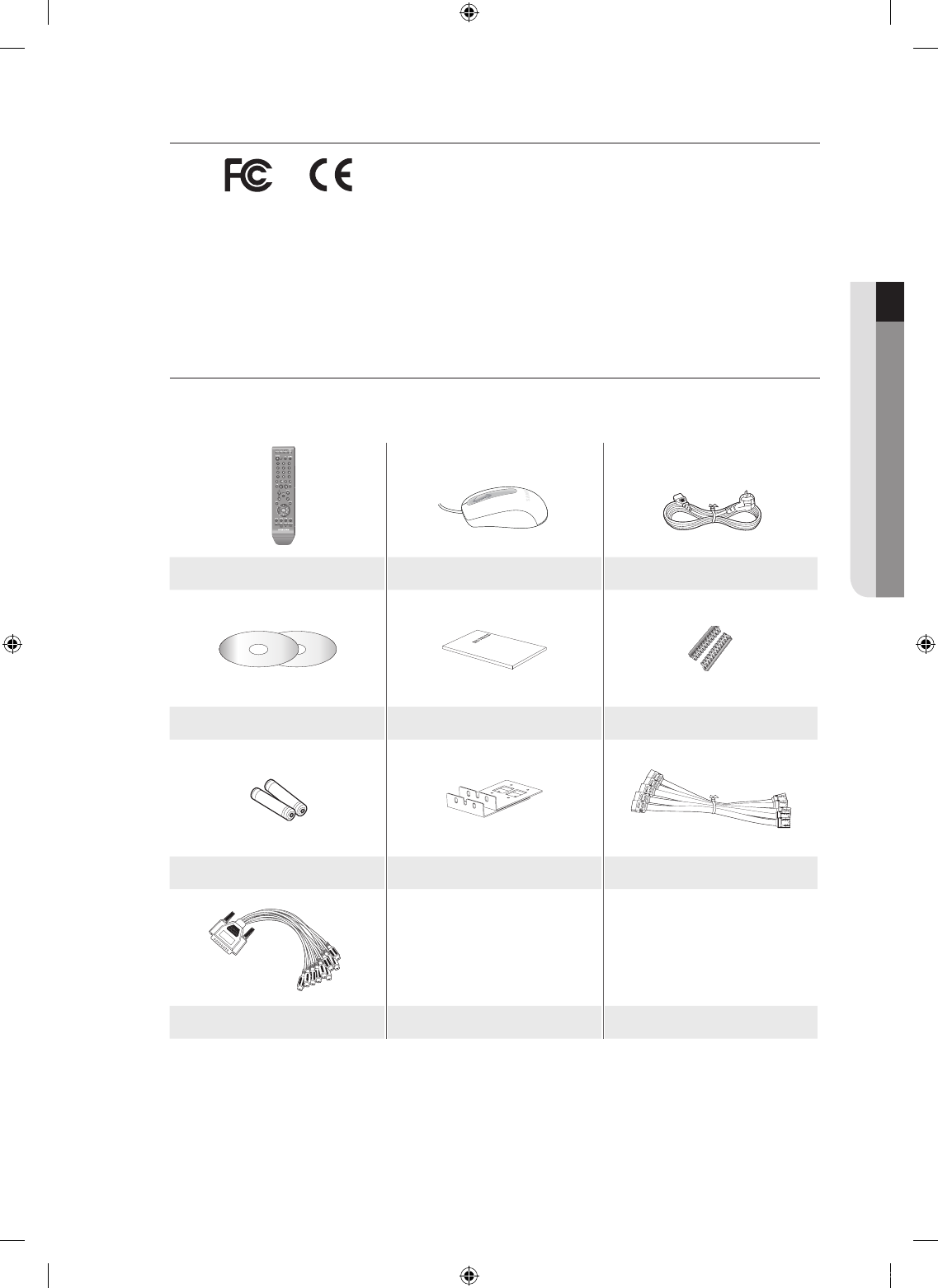

Package Contents
Please unwrap the product, and place the product on a flat place or in the place to be installed.
Please check the following contents are included in addition to the main unit.
Remote Control Mouse Power Cable
NET-i Software / User’s Manual CD User’s Manual RS-485 connector port
Remote Control Battery (AAA) Bracket Rack SATA Cable
Audio extension cable (optional)
M`
00769B_SHR-8162_ENG-NEW.indb 5 2008-12-04 오전 10:13:22
6_ overview
overview
CONTENTS
OVERVIEW
2
2 Features
3 Important Safety Instructions
4 Before Start
6 Contents
8 Part Names and Functions (Front)
10 Part Names and Functions (Rear)
12 Remote Control
INSTALLATION
14
14 Checking the installation environment
15 Rack Installation

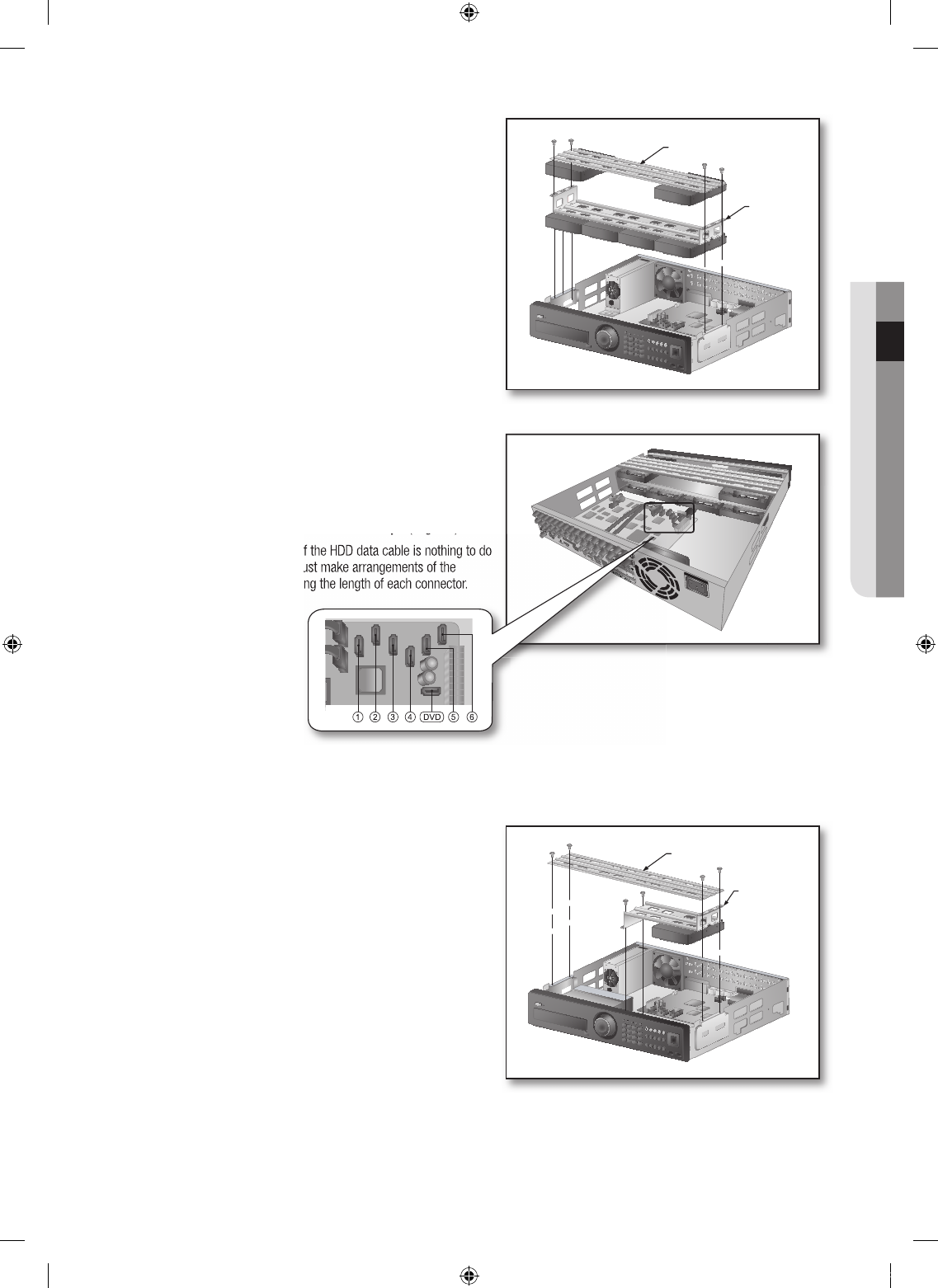

15 HDD Addition
CONNECTING WITH OTHER DEVICE
19
19 Connecting the Video, Audio, and Monitor
19 Connecting the Network
20 Connecting the USB
20 Connecting External SATA HDD
21 Connecting POS Device
21 Connecting the Alarm Input/Output
22 Connecting the RS-485 Device
LIVE
23

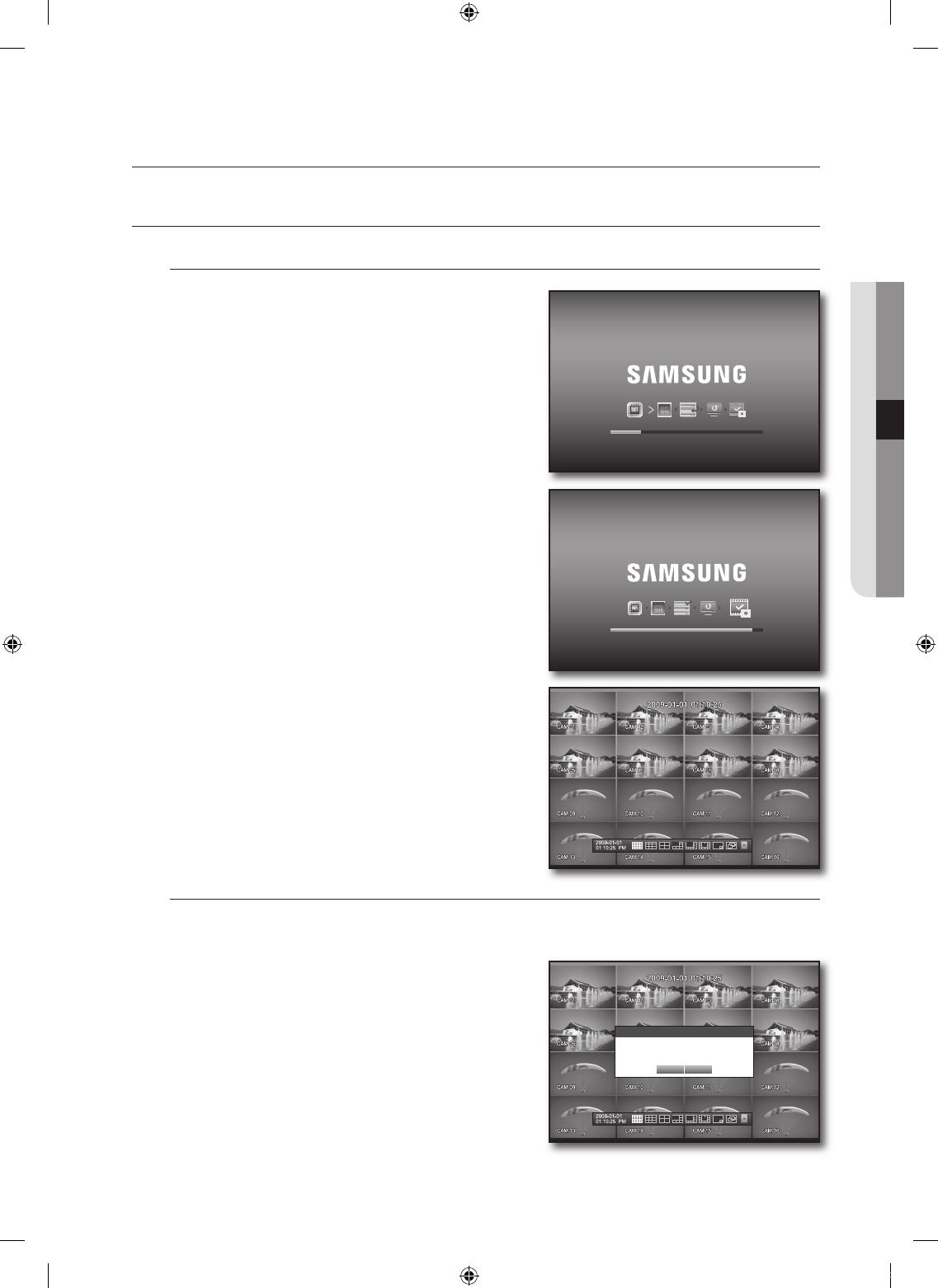

23 Getting Started

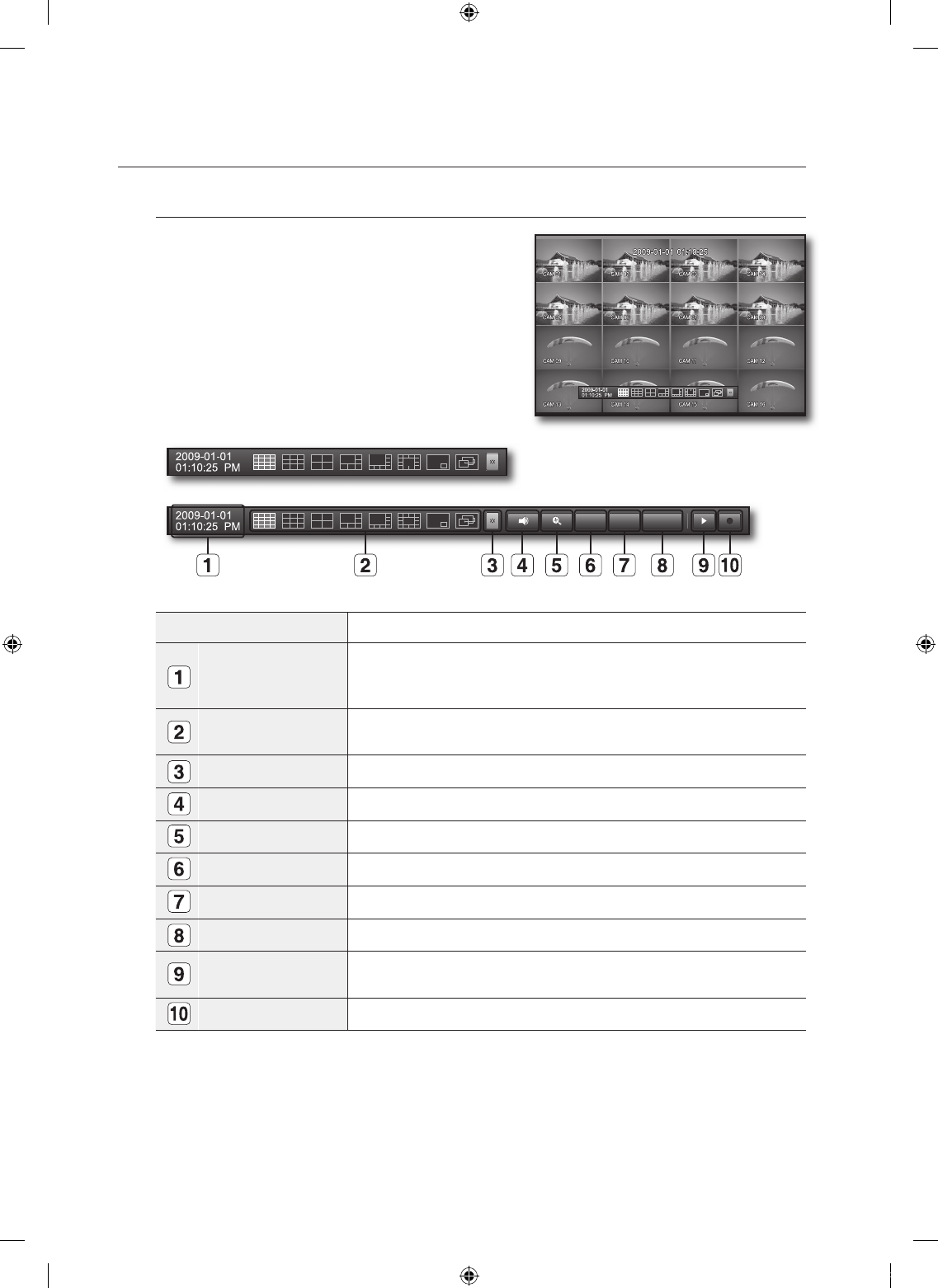

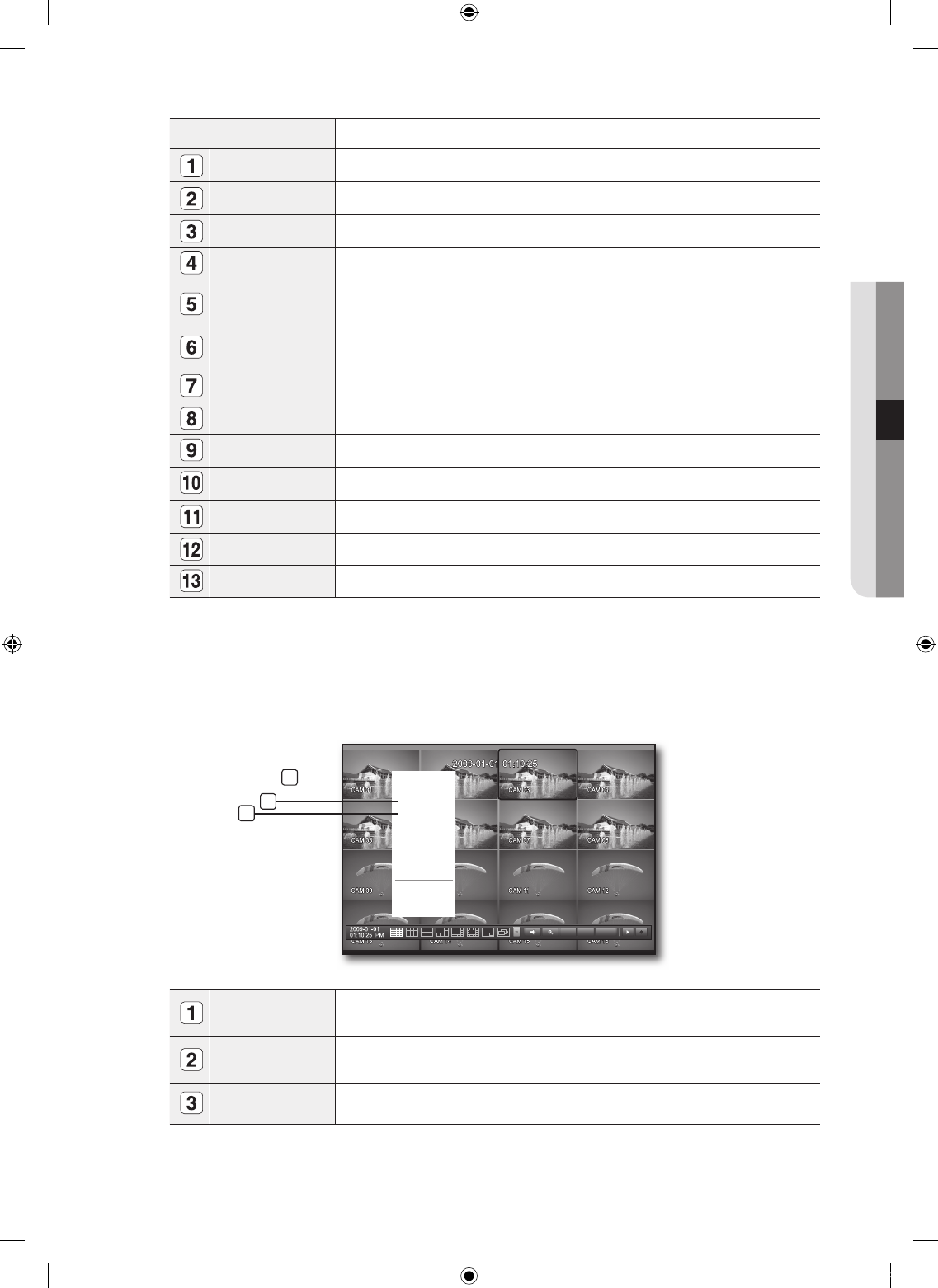

25 Live Screen Configuration
29 Live Mode
31 SPOT OUT
32 Zoom
32 AUDIO ON/OFF
32 Freeze
33 Event Monitoring
USING THE DVR
34
34 System Setup
41 Setting the Device
48 Setting the Recording
51 Setting the Event
54 Backup
55 Network Configuration
62 Controlling a PTZ device
SEARCH & PLAY
64
64 Search
67 Playback
00769B_SHR-8162_ENG-NEW.indb 6 2008-12-04 오전 10:13:22
English _7
! OVERVIEW
WEB VIEWER
68

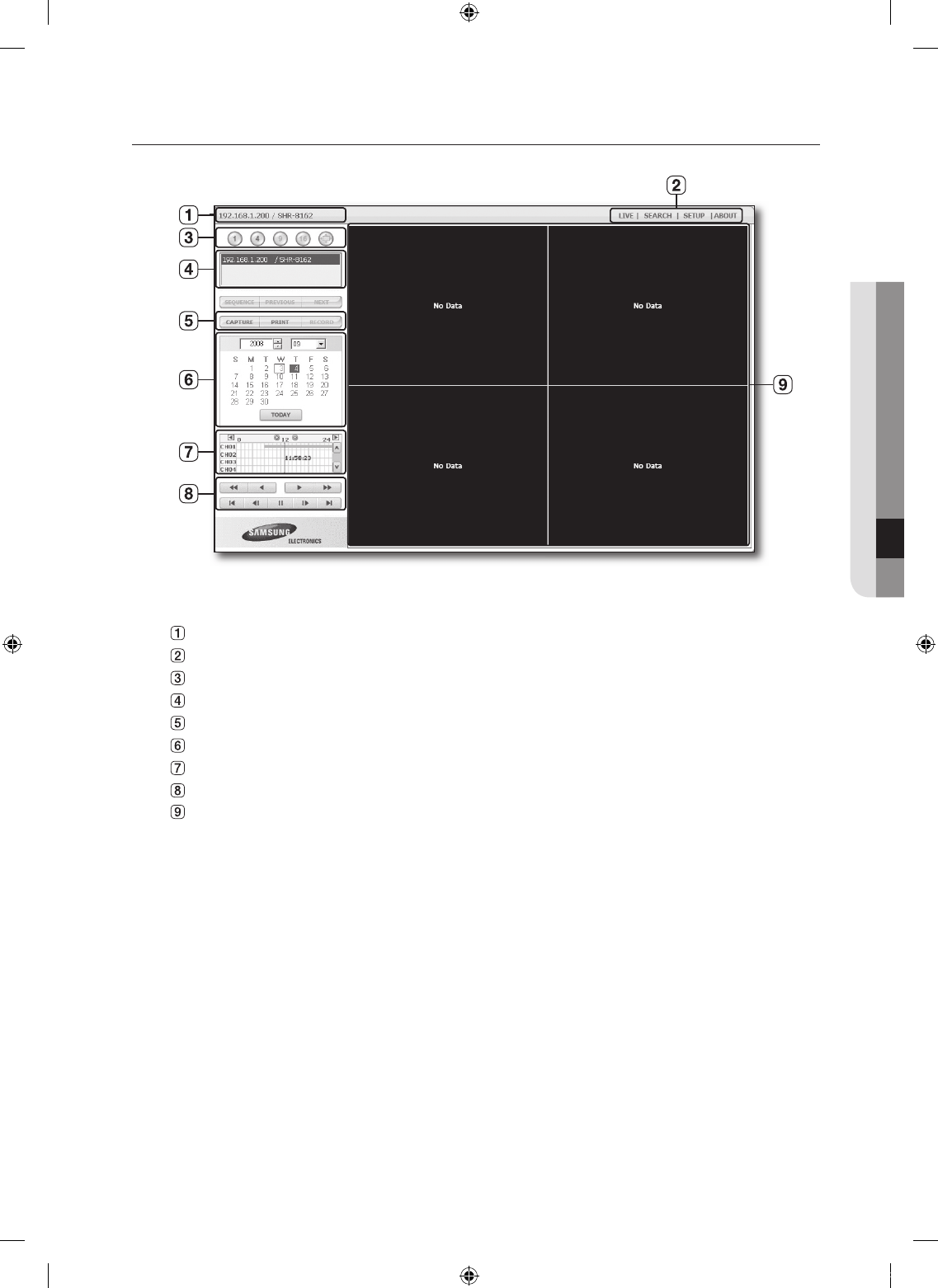

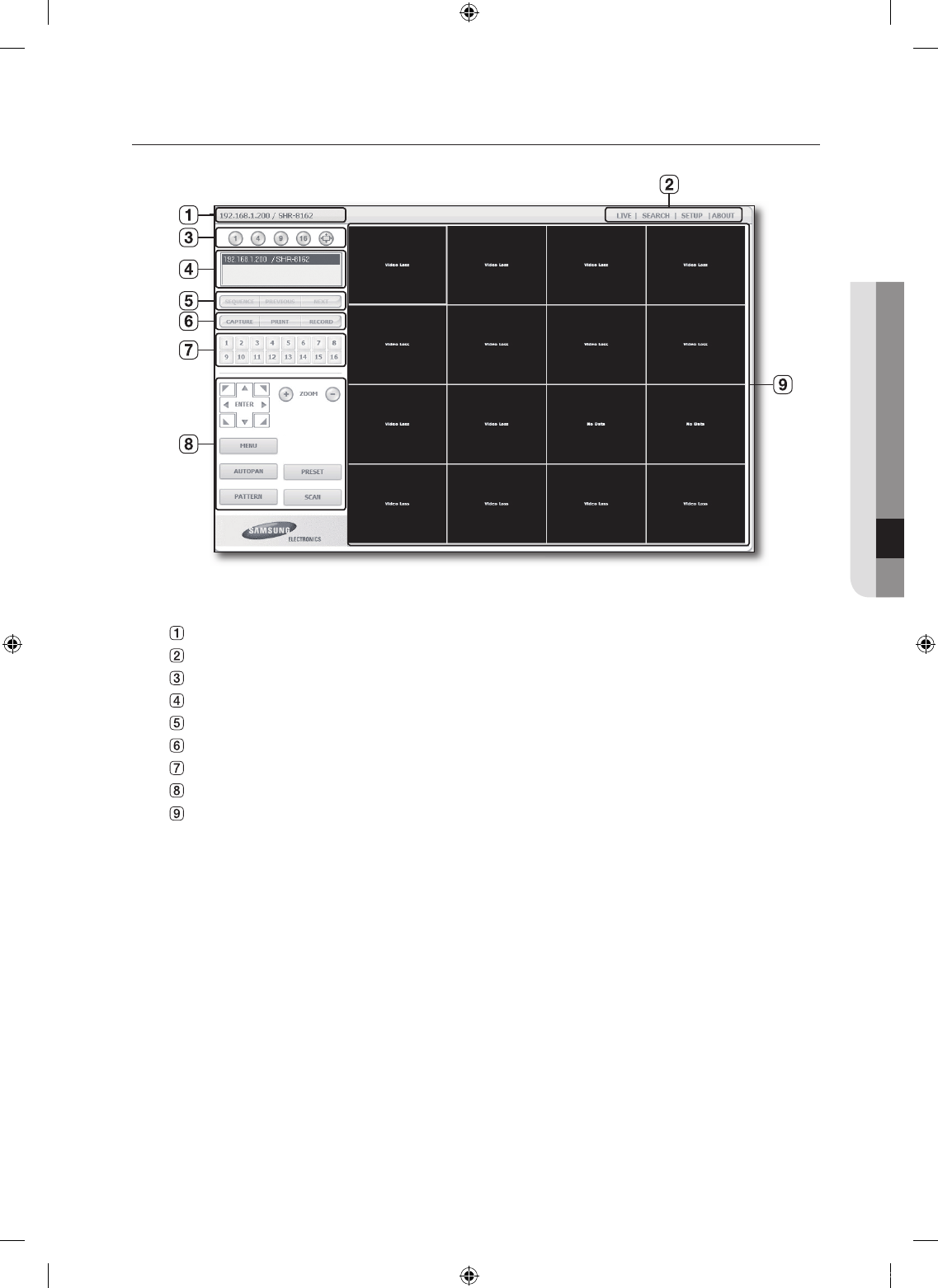

68 Introducing Web Viewer

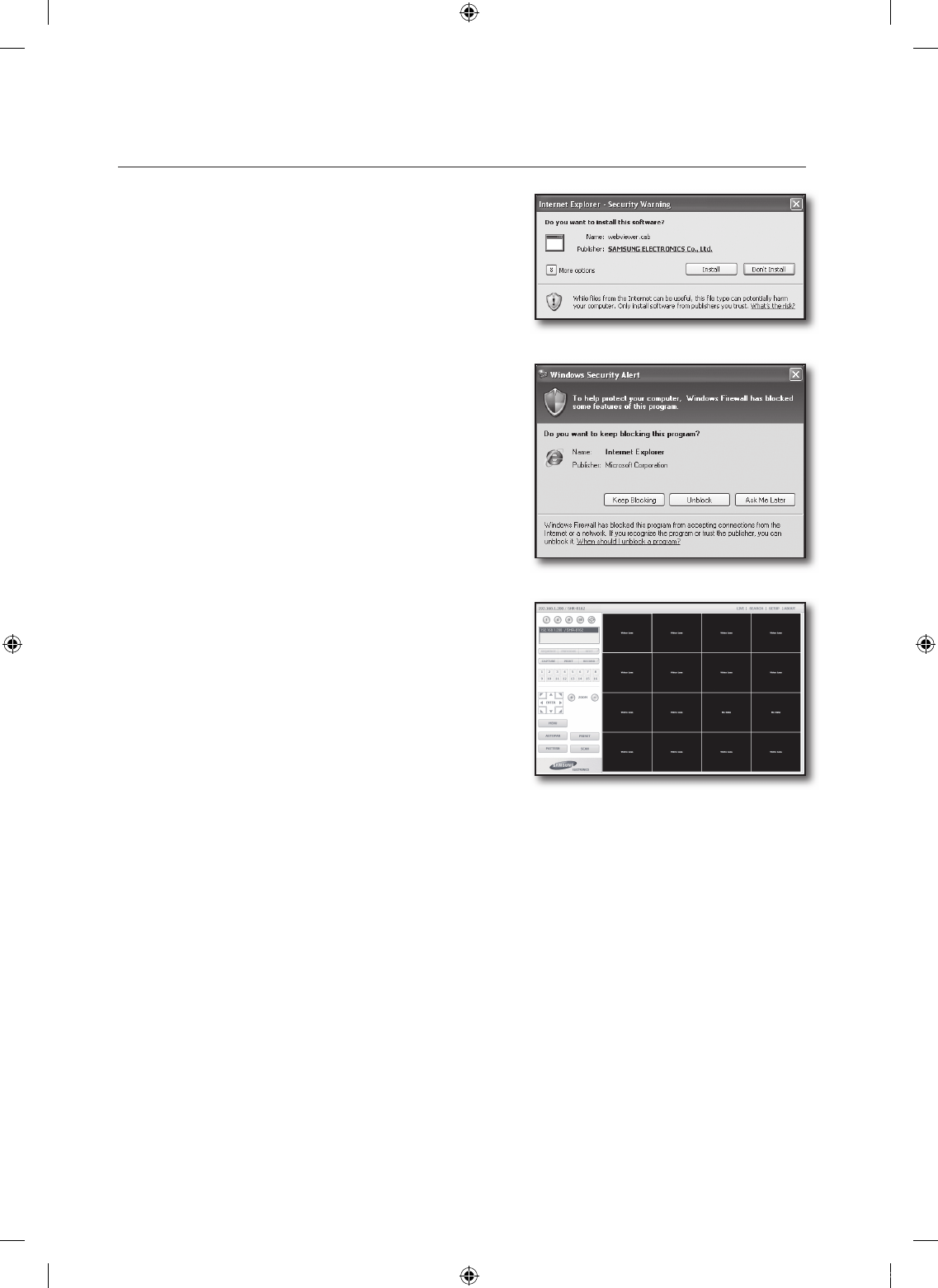

69 Connecting Web Viewer

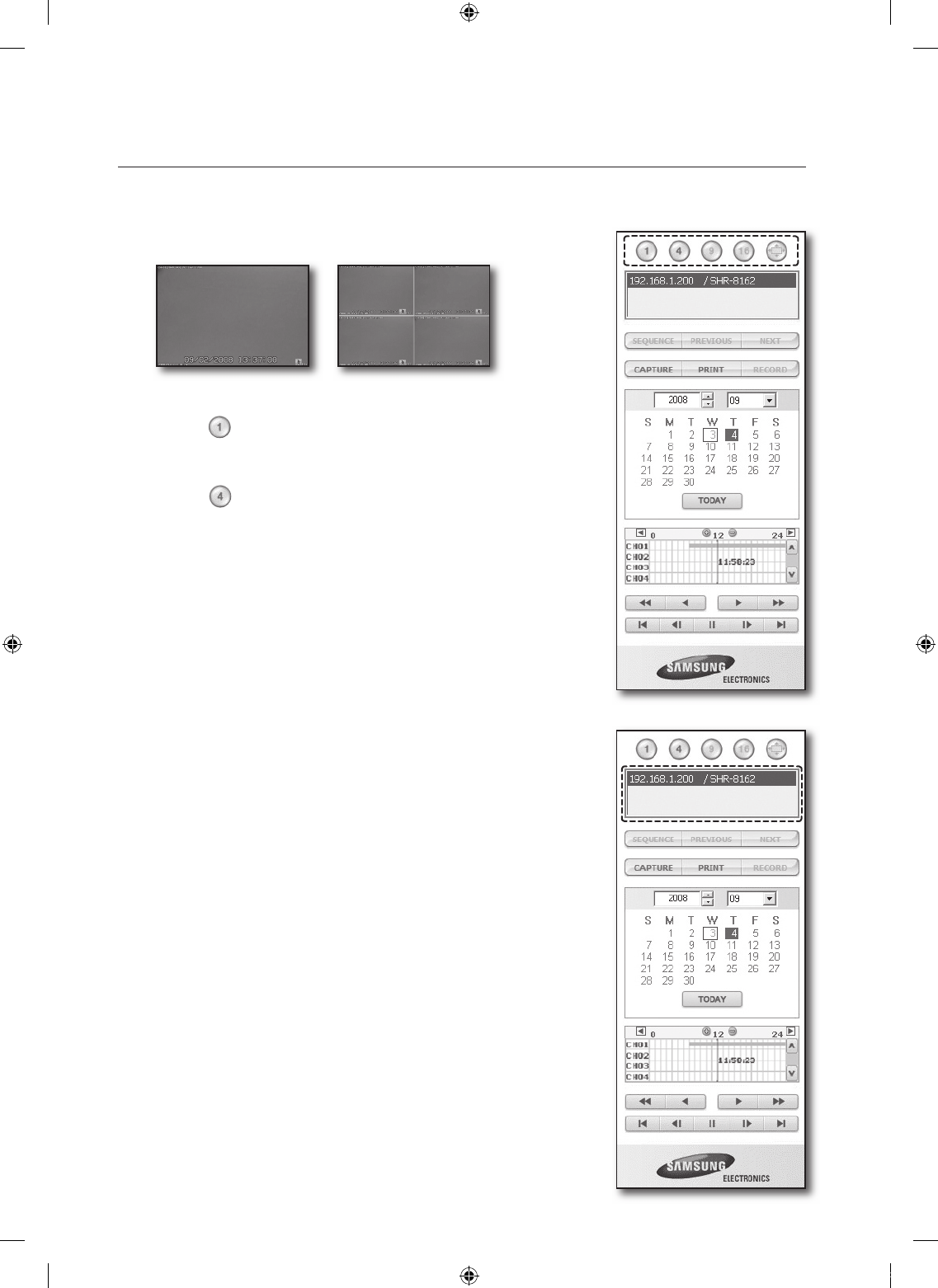

71 Using Live Viewer
77 Using Search Viewer
81 Viewer Setup
91 About
BACKUP VIEWER
92
92 SEC Backup Viewer
APPENDIX
94
94 Product Specification

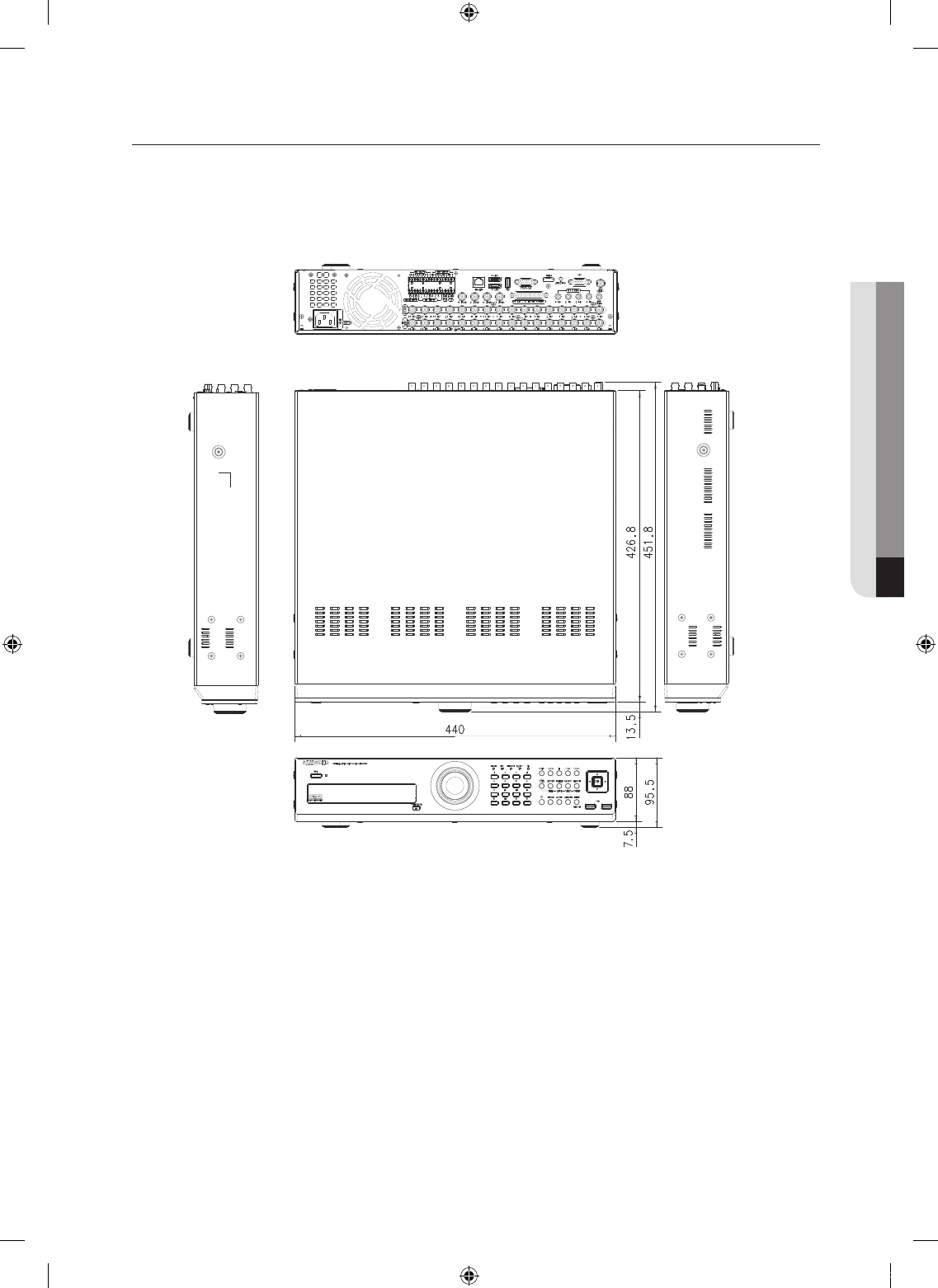

97 Product Overview
98 Default Setting
101 Troubleshooting
103 Open Source License Report on the Product
00769B_SHR-8162_ENG-NEW.indb 7 2008-12-04 오전 10:13:23
8_ overview
overview

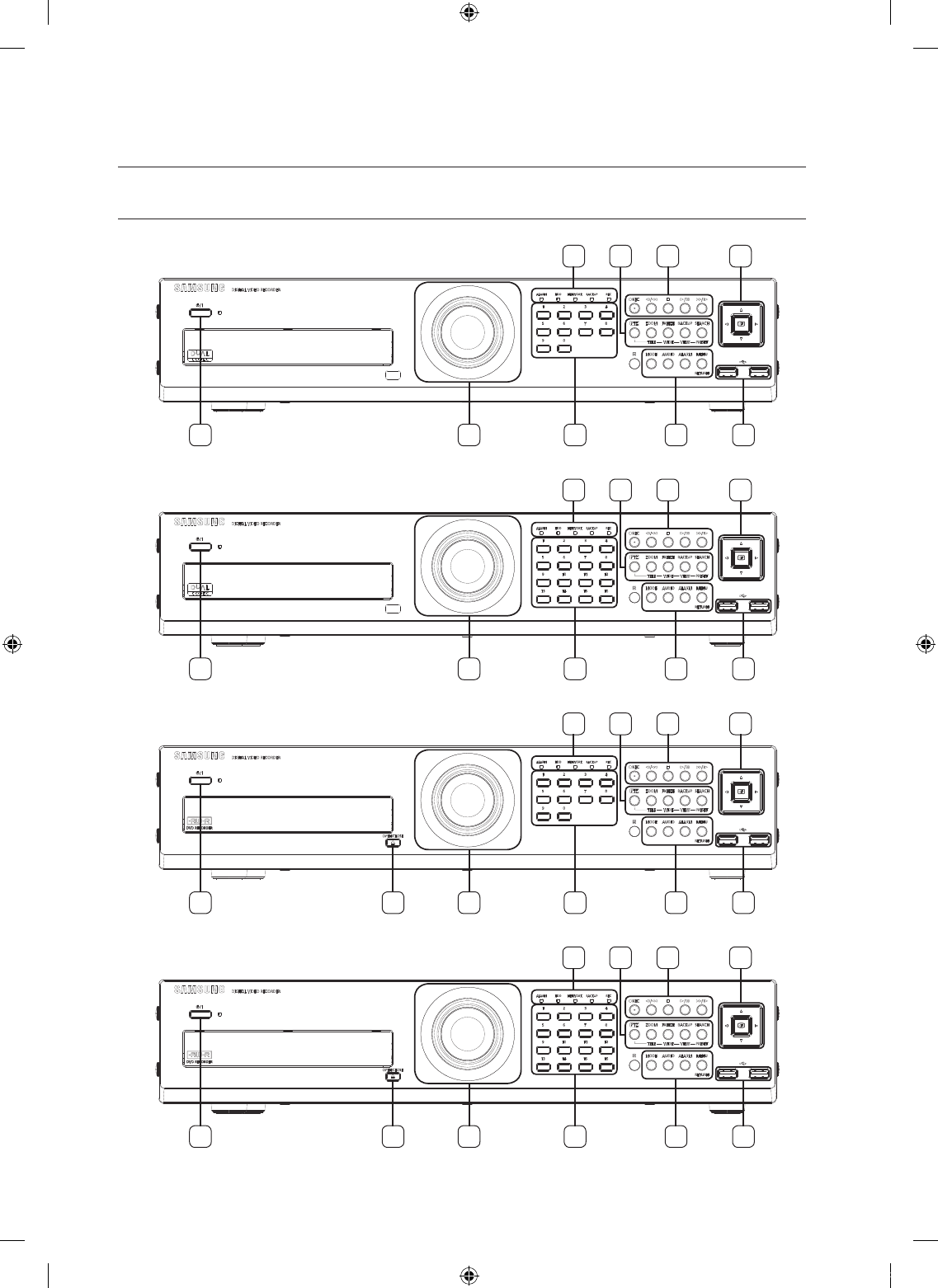

PART NAMES AND FUNCTIONS (FRONT)
7080/8080 1 3 4
7
10
6 5
2
8
7160/8160 1 3 4
7 6 5
2
8
10
1 3 4
7
10
6 5
2
9 8
7082/8082
1 3 4
7 6 5
2
9 8
10
7162/8162
00769B_SHR-8162_ENG-NEW.indb 8 2008-12-04 오전 10:13:28
English _9
! OVERVIEW
Part Names Functions
LED Indicator
ALARM : Lights on when an event occurs.
HDD : Displays the normal access to HDD.
Upon access to HDD, LED repeats on and off.
NETWORK : Displays both network connection and data transfer status.
BACKUP : Displays when Backup is in progress.
REC : Lights on when recording is in progress.
Camera Control
PTZ : Sets PTZ Mode ON/OFF.
ZOOM(TELE) : Sets the screen to the x2 digital zoom.
Runs the TELE function in the PTZ Mode.
FREEZE(WIDE) : Runs the FREEZE function in the Live Mode.
Runs the WIDE function in the PTZ Mode.
BACKUP(VIEW) : Runs the BACKUP function.
Runs the Preset View function in the PTZ Mode.
SEARCH(PRESET) : Goes to the search screen.
Runs the Preset Setup function in the PTZ Mode.
REC Starts or ends the recording.
&/(
Step Rewind (&
) : Used for backward frame-by-frame search while in PAUSE.
Fast Rewind (() : Used for quick backward search while in Play.
(-x2,-x4,-x8,-x16,-x32,-x64)
@STOP : Used to stop the playback.
+/#PLAY/PAUSE : Used to pause or resume the screen.
)/*Fast Forward ()) : Used for quick forward playback. (x2, x4, x8, x16, x32, x64)
Step Forward (
*) : Used for forward frame-by-frame search while in PAUSE.
Direction &
Select Button
Used to change a value or move the cursor up/down/left/right (▲▼_ +).
Selects a menu item or executes the selected menu.
USB Port 1 & 2 Connects the USB devices.
MODE

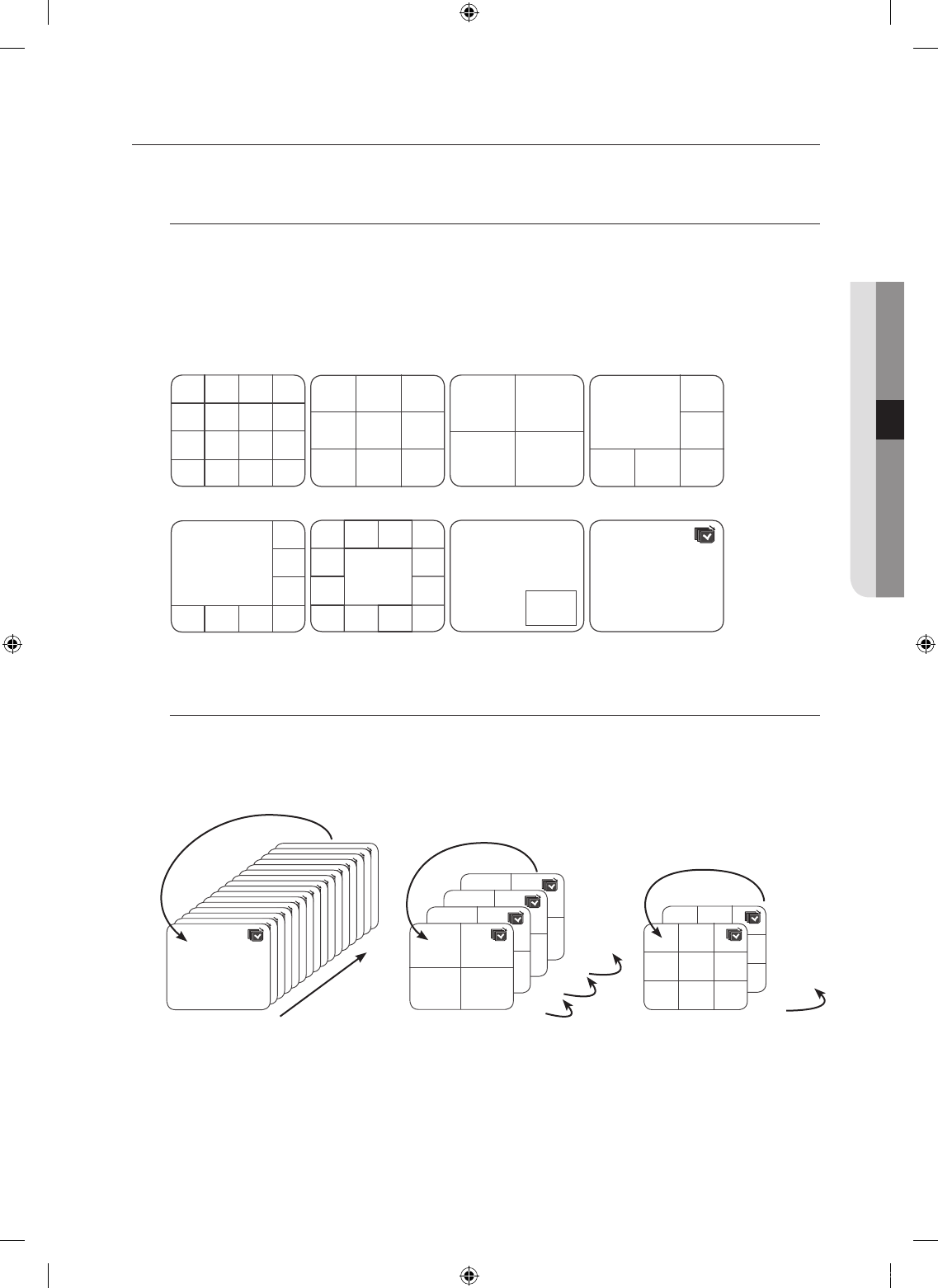

Each button press in the Live Mode switches the screen to 16-, 9-, 4-, 6-, 8-, 13- split screen,
PIP, and auto sequence mode in order.
In play mode, each press of the button will switch the screen mode to 13-, 1-, 4-, 9-, and 16-
split in order. (1 live channel + (N-1) live channel)
AUDIO Sets Audio ON/OFF.
ALARM Cancels the ALARM LED and the audible alarm when the alarm is going off, and to remove the
icon.
MENU/RETURN Either goes to the system menu screen or moves to the upper menu from the lower menu.
Channel Used to select channel numbers directly in the Live Mode, or numbers in the numeric input
mode.
Jog shuttle
When a scroll bar appears in each menu, acts as a scrolling.
In Play mode, - Jog : Pauses the playback and steps backward or forward.
- Shuttle : Fast playback forward or backward.
OPEN/CLOSE Used to open and close the DVR-RW disc tray. (available for SHR-7082/7162/8082/8162 only)
Power Power LED : Displays the power ON/OFF status.
Power Button : Used to turn the DVR ON/OFF.
00769B_SHR-8162_ENG-NEW.indb 9 2008-12-04 오전 10:13:29
10_ overview
overview

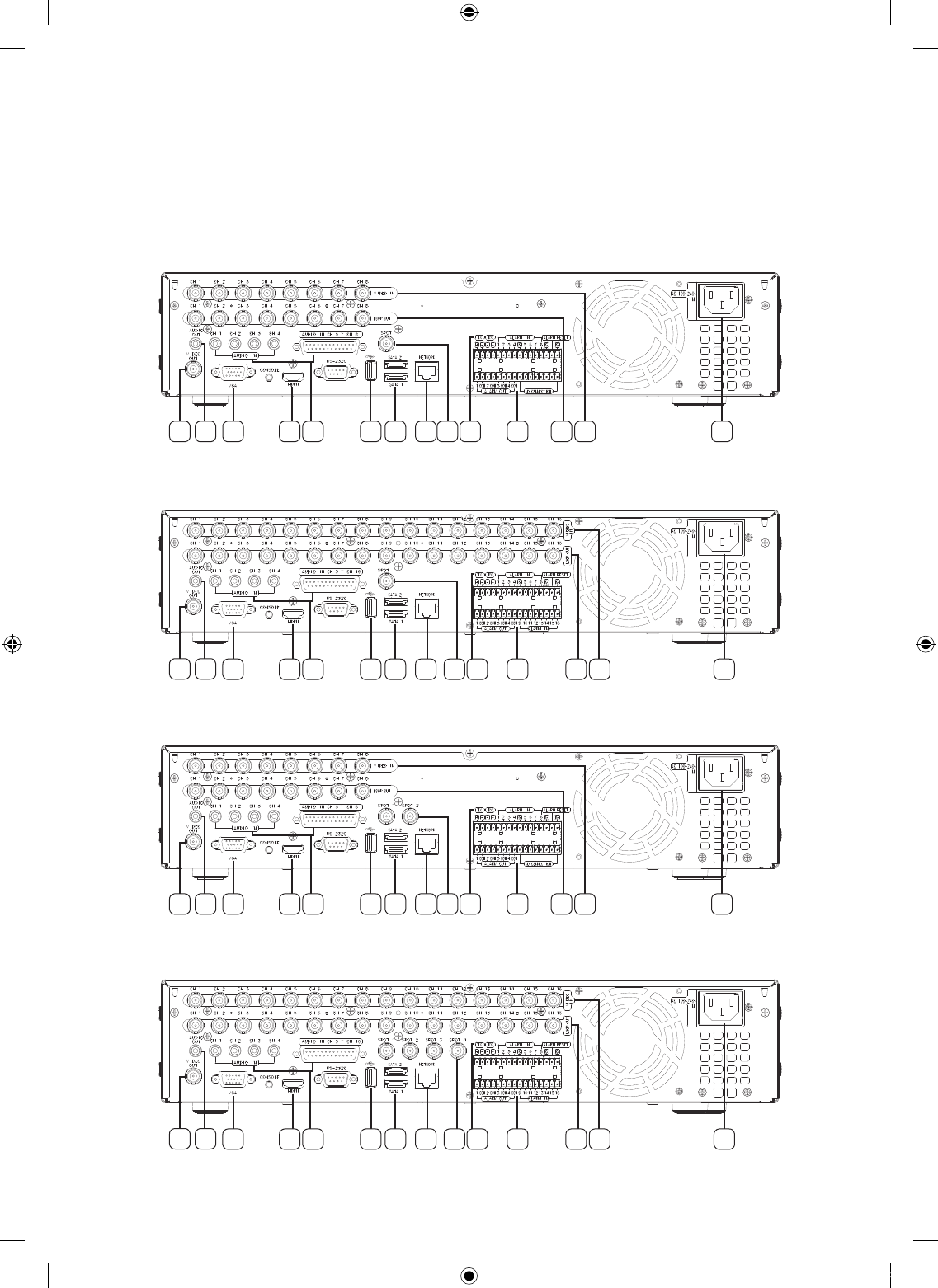

PART NAMES AND FUNCTIONS (REAR)
7080/7082 Rear
7160/7162 Rear
8080/8082 Rear
8160/8162 Rear
1 2 3 4 5 6 7 8 9 10 11 12 1413
1 2 3 4 5 6 7 8 9 10 11 12 1413
13
24 5 6 7 8 9 10 11 12 1413
13
24 5 6 7 8 9 10 11 12 1413
00769B_SHR-8162_ENG-NEW.indb 10 2008-12-04 오전 10:13:35
English _11
! OVERVIEW
Part Names Functions
VIDEO OUT Composite Video Signal Output Port (BNC type connector).
AUDIO OUT Audio Signal Output Port (RCA jack).
VGA VGA Video Signal Output Port.
HDMI HDMI connector port.
AUDIO IN
Audio input signal port (RCA Jack) and port for optional audio extension cable.
SHR-716x/816x (Audio 5~16CH)
SHR-808x/708x (Audio 5~8CH)
USB USB connector port.
SATA 1/2 Ports used for external storage device connections. (SATA HDD)
NETWORK NETWORK connector port.
SPOT
A live screen output port, separate from the VIDEO OUT.
SPOT 1: Supports Single, 4-, 9-, 16-split, and Auto Sequence modes
SPOT 2: Supports Single, 4-split, and Auto Sequence modes (only for 5 ~ 8 CH).
SPOT 3: Supports Single, 4-split, and Auto Sequence modes (only for 9 ~ 12 CH).
SPOT 4: Supports Single, 4-split, and Auto Sequence modes (only for 13 ~ 16 CH).
SHR-8162/8160 : SPOT 1,2,3,4
SHR-8082/8080 : SPOT 1,2
SHR-7162/7160/7082/7080 : SPOT 1
RS-485 Used for RS-485 communication. (TX+, TX-, RX+, RX-)

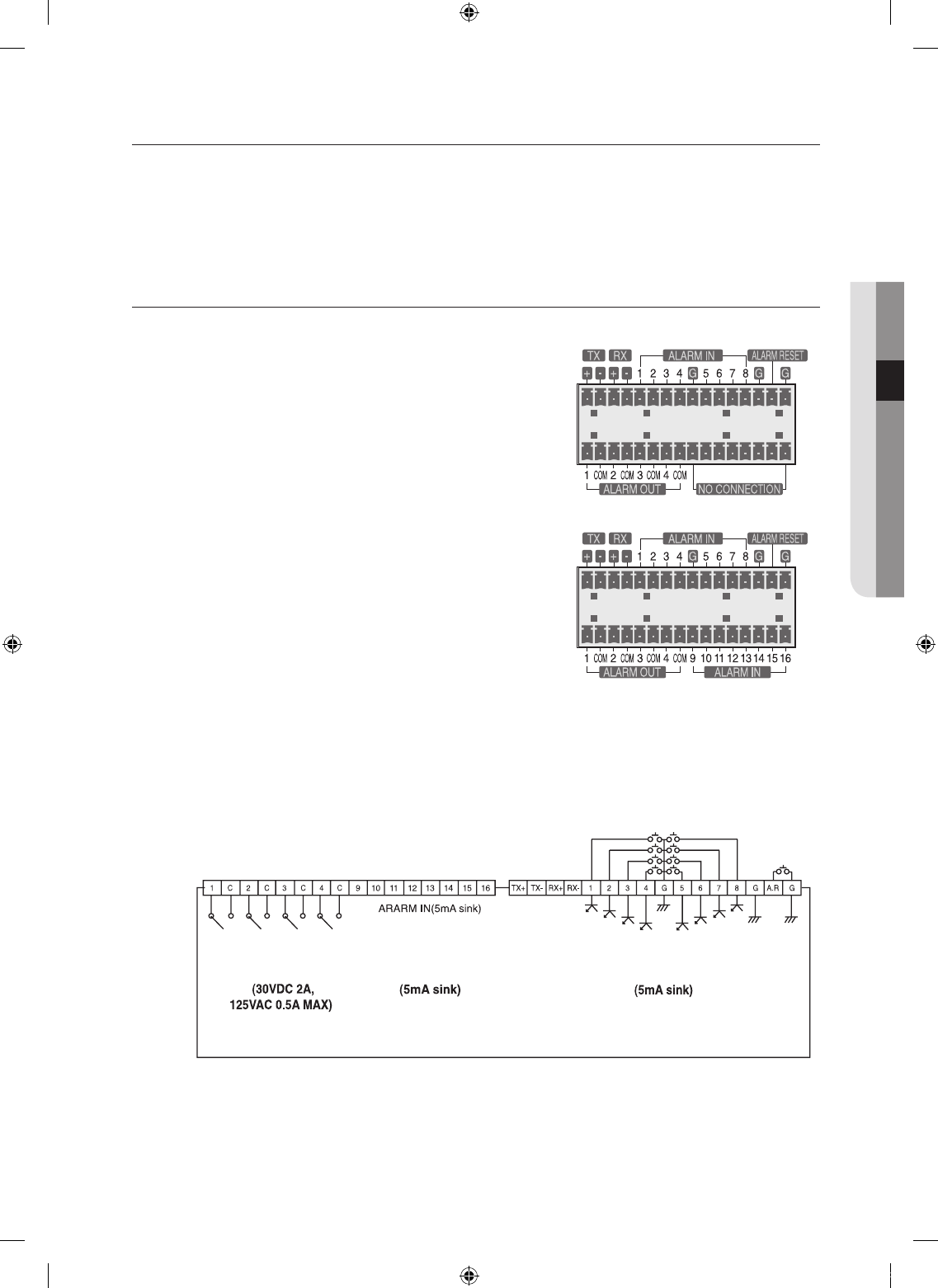

ALARM
- ALARM IN 1~16(SHR-7160,7162,8160,8162): Alarm Input port.
- ALARM IN 1~8(SHR-7080,7082,8080,8082): Alarm Input port.
- ALARM RESET IN: Alarm Reset port.
- ALARM OUT 1–4: Alarm Output port.
LOOP OUT Used to transfer a video signal to other video devices.
VIDEO IN Composite Video Signal Input Port (BNC type connector).
AC 100-240V~ IN AC 100 ~ 230V (PAL)
AC 110 ~ 220V (NTSC)
00769B_SHR-8162_ENG-NEW.indb 11 2008-12-04 오전 10:13:37
12_ overview
overview

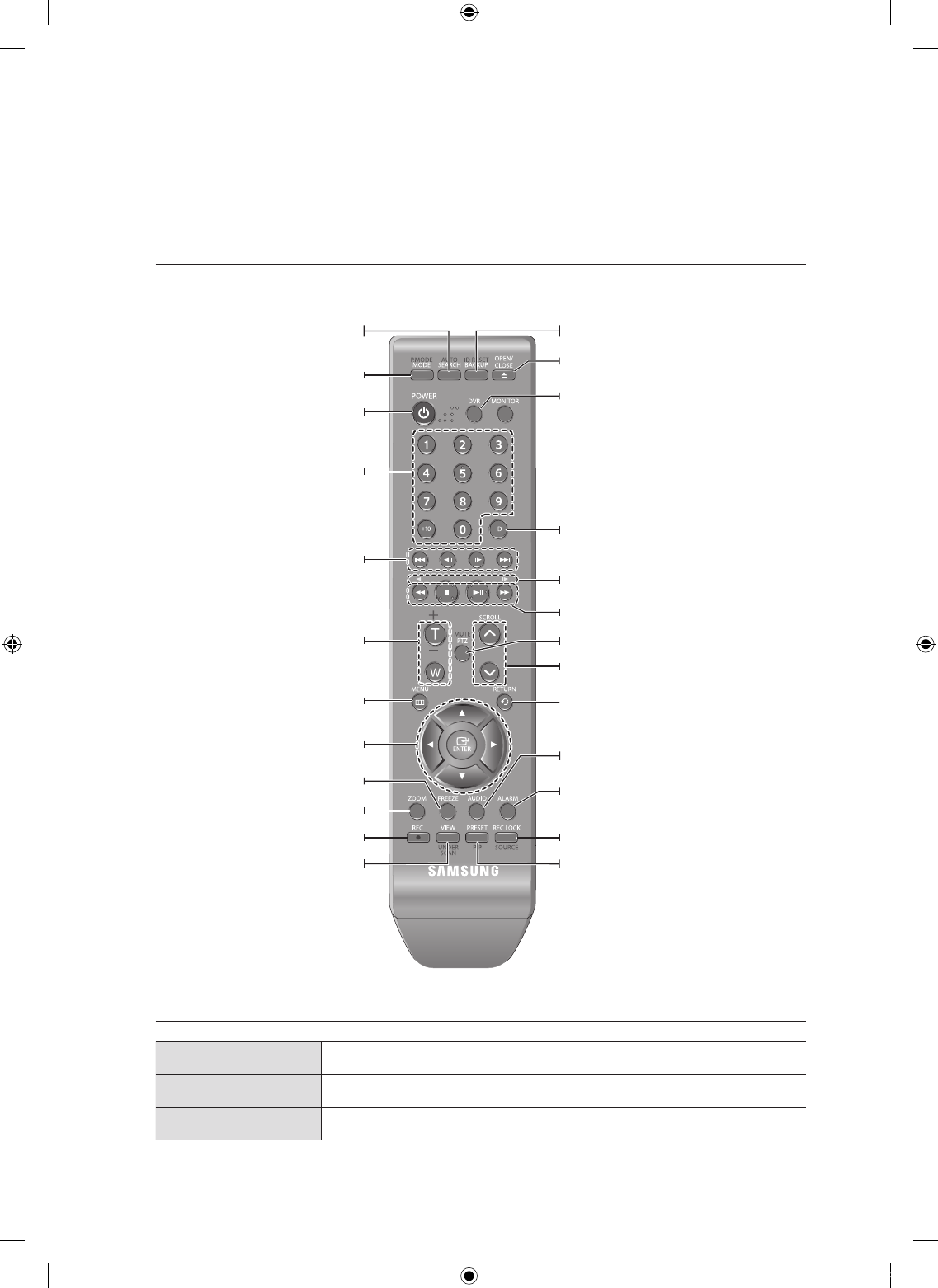

REMOTE CONTROL
DVR
Available after switching to DVR mode by pressing the [DVR] button on the remote control.
Using the numeric buttons
CHANNEL 1–9 Press each button between 1 to 9.
CHANNEL 10 Press the [+10] button first, then press the 0 button again within 3 seconds.
CHANNEL 11–16 Press the [+10] button first, then press any number between 1 to 6 within 3 seconds.
SEARCH
Displays the search menu．
POWER
Displays the Exit pop up screen．
NUMBER [0~+10]
Used as the numeric input keys, or displays a single
channel．
T/W
Zooms in or out．
BACKUP
Displays the Backup Menu.
MODE
Changes the screen mode．
MENU
Goes to the system menu screen.
Up/Down/Left/Right(▲▼_ +)/ENTER
Moves the cursor up/down/left/right, and runs the
Select Menu．
FREEZE
Freezes the screen temporarily．
ZOOM
Runs the digital zoom (x2) function.
VIEW
Runs the View function in the PTZ mode．
OPEN/CLOSE
Opens or closes the CD tray.
DVR
Activates the DVR function.
ID
Sets the ID of the system.
Select 2 digits from 0 ~ 9 while pressing the ID Key.
PTZ
Displays or ends PTZ.
SCROLL ,.
Moves the menu scroll.
RETURN
Returns to the previous screen.
AUDIO
Turns Audio on/off.
ALARM
Cancels the Alarm.
REC LOCK
Selects the recording lock function.
PRESET
Displays the Preset Setup.
REC
Starts or ends the live recording．
Skip Backward (by unit time),
Slow Rewind, Slow Forward,
Skip Forward (by unit time) Move Frame
While paused, moves to the previous/next frame.
FR, STOP, PLAY/PAUSE, FF
00769B_SHR-8162_ENG-NEW.indb 12 2008-12-04 오전 10:13:38
English _13
! OVERVIEW
MONITOR
Available after switching to Monitor mode by pressing the [MONITOR] button on the remote control.
Using the Numeric buttons
CHANNEL 1–9 Press any button among 1 to 9.
Changing the Remote Control ID
Press the ID button of the remote control and check the ID displayed on the DVR screen.
The factory default ID of the remote control is 00.
Enter 2 digits of your selection in order, while pressing the system [ID] button.
When ID input is done, press the system [ID] button again to check the setting.
If you want to change the remote control ID to 08: Press 0 and 8 in order while the system [ID] button is pressed.
Remote control's ID and DVR’s ID should be matched for proper operation. Refer to “Remote Devices”. (Page 45)
1.
2.
3.
M`
AUTO
Selects the screen status automatically．
POWER
Turns the monitor power on/off．
NUMBER [0~9]
Changes the system ID.
+/-
Adjusts the audio volume．
ID RESET
Initializes the ID value to 01.
P.MODE
Selects the screen mode．
MENU
Displays the Setup Menu．
Up/Down/Left/Right(▲▼_ +)/ENTER
Moves the cursor up/down/left/right, and runs the
Select Menu.
FREEZE
Screen Freeze．
UNDER SCAN
Displays the video screen within a screen．
MONITOR
Activates the monitor function.
ID
Sets the ID.
Select 2 digits from 0 ~ 9 while pressing the ID Key.
MUTE
Mutes the audio out.
SOURCE
Selects the input signal source.
PIP
Selects or deselects the PIP function.
00769B_SHR-8162_ENG-NEW.indb 13 2008-12-04 오전 10:13:40
14_ installation
installation
Please be noticed with the followings before you use the product.
Do not use the product outdoor.
Do not spill water or liquid in the connection part of the product.
Do not impose the system to excessive shock or force.
Do not pull out the power plug forcefully.
Do not disassemble the product on your own.
Do not exceed the rated input/output range.
Use a certifi ed power cord only.
For the product with an input ground, use a grounded power plug.

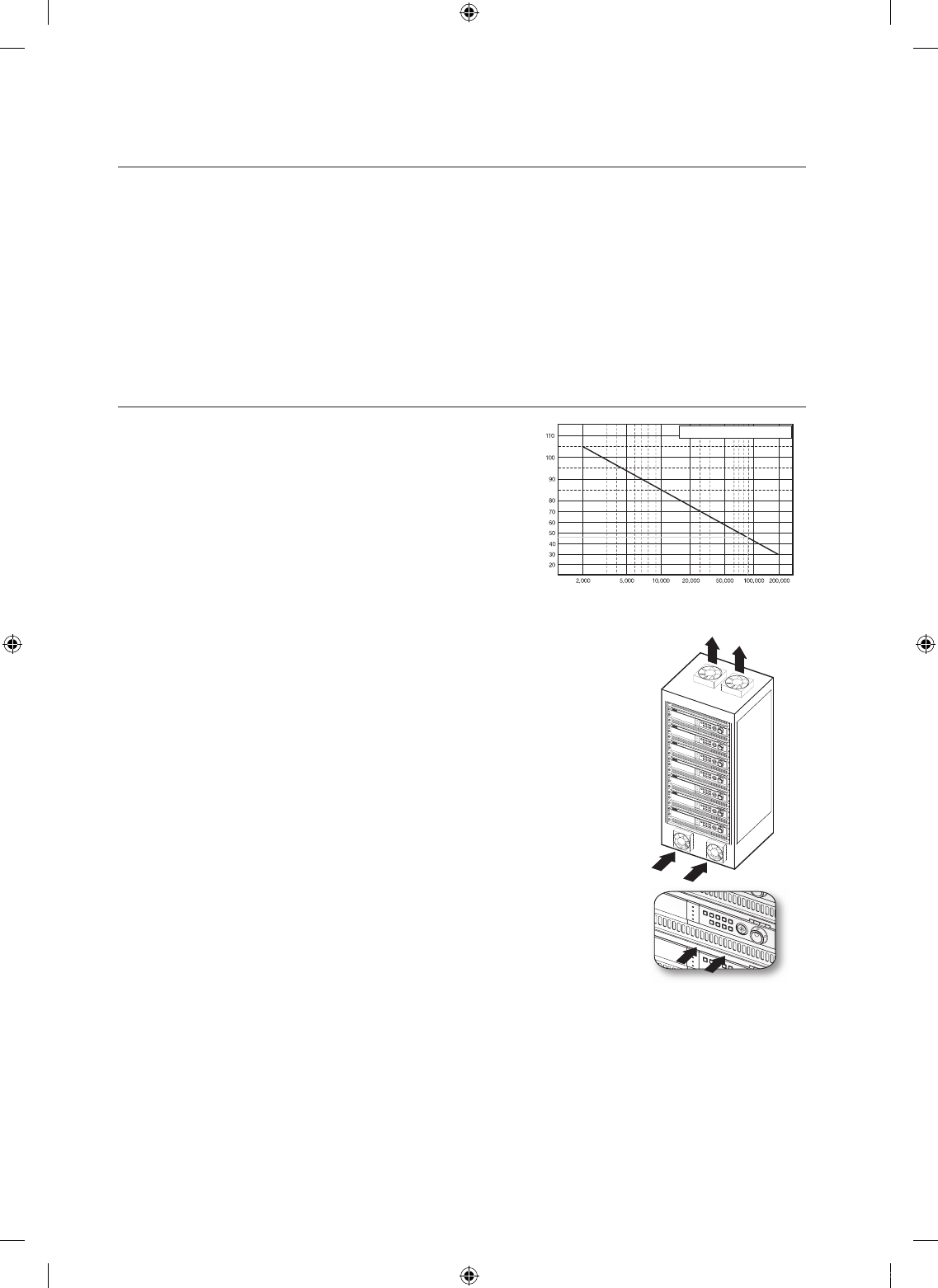

CHECKING THE INSTALLATION ENVIRONMENT
Samsung Digital Video Recorder (“DVR” hereinafter) is a
state-of-art security device, and contains mass storage
hard disk(s) and critical circuits inside.
When the temperature rises inside the product, the product
may breakdown and the product life be shortened. Please
pay attention to the following recommendations before
installation.
The followings are the recommendations when Samsung DVR is installed on a rack.
Please ensure that the rack inside is not sealed.
Please ensure the air is circulated through the inlet/outlet as shown in the picture.
If the DVR or other devices on a rack is to be stacked as in the picture, provide a
suitable space or install a ventilating opening for air circulation.
For natural air convection, place the inlet at the bottom of the rack and the outlet on
top.
It is strongly recommended that a fan motor is installed at the inlet and the outlet for
air circulation. (Please fi t a fi lter at the inlet to screen dust or foreign substances.)
Please maintain the temperature inside the rack or surrounding areas between 0°C
~ 40°C (32°F ~ 104°F) as shown in the fi gure 1.
Rack Mount Instructions - The following or similar rack-mount instructions are
included with the installation instructions:
A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack environment may be greater than
room ambient. Therefore, consideration should be given to installing the
equipment in an environment compatible with the maximum ambient temperature
(Tma) specifi ed by the manufacturer.
B) Reduced Air Flow - Installation of the equipment in a rack should be such that the
amount of air fl ow required for safe operation of the equipment is not
compromised.
C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is
not achieved due to uneven mechanical loading.
D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit
and the effect that overloading of the circuits might have on overcurrent protection and supply wiring.
Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should
be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).
~
~
~
~
~
~
~
~
~
~
1.
2.
3.
4.
5.
6.
One Year: 24HR X 365 DAY =8,760 HR
Temperature
Unit: ºC
Life (Unit: HOURS)
[Figure 1]
[Figure 2]
00769B_SHR-8162_ENG-NEW.indb 14 2008-12-04 오전 10:13:52
English _15
! INSTALLATION
RACK INSTALLATION
Loosen the screws on both sides (4 screws on each side) and install
the Bracket-Rack as shown in the fi gure, and then fasten the screws
on both sides (4 screws on each side).
Fix the screws not to be loosened by vibrations.
HDD ADDITION
You can install additional HDDs.
Make sure to unplug the power cord from the wall outlet to prevent possible electric shock, injury or product
damage.
Please consult your provider for further information on HDD installation since improper installation or settings may
damage the product.
Number of HDDs supported : SHR-7082/7162/8082/8162: Default 1 HDD + Up to 4 HDDs added
SHR-7080/7160/8080/8160: Default 1 HDD + Up to 5 HDDs added
Cautions for data loss (HDD care)
Please pay attention so that the data inside the HDD is not damaged.
Before adding a HDD, please check the compatibility with this DVR product.
HDD is vulnerable to malfunction due to its sensitive nature against externalities or shocks during operation. Please
ensure that the HDD is free from such shock or externalities.
We are not liable for any damage to the HDD incurred by user’s carelessness or externalities.
Cases might cause damage to HDD or recorded data
To minimize the risk of data loss from a damaged HDD, please backup data as often as possible.
Data may be lost due to external impacts during disassembly or installation of the DVR.
HDD may be damaged if the DVR is suddenly stopped by a power cut or power off during operation.
HDD or fi les stored inside may be damaged if the main body is moved or impacted during the HDD operation.
Cautions when adding a HDD
When adding a HDD, pay attention so that the cable does not get caught between unsuitable spaces or
the cable’s insulation does not come off.
Pay attention so as not to lose the disassembly screws or accessories.
If the screws or accessories are not put together, the product may breakdown or not operate properly.
Please check the HDD compatibility before adding a HDD.
Please contact your nearest dealer to obtain the list of compatible devices.
`
`
J`
`
1.
2.
`
3.
`
00769B_SHR-8162_ENG-NEW.indb 15 2008-12-04 오전 10:13:57
16_ installation
installation

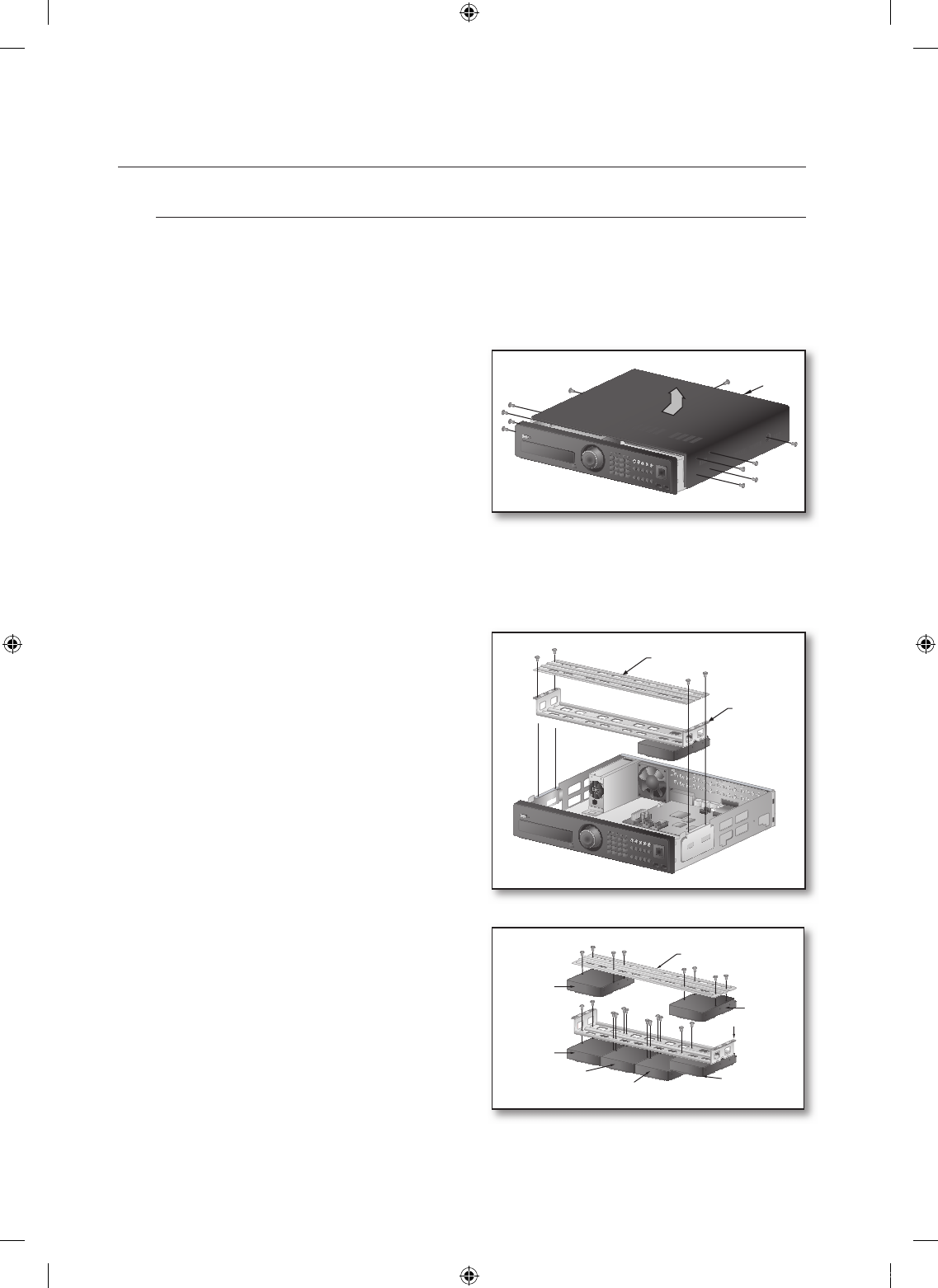

Adding a HDD
Make sure to unplug the power cord from the wall outlet before proceeding with the installation.
Number of HDDs to install : SHR-7082/7162/8082/8162 : Default 1 HDD + Up to 4 HDDs added
SHR-7080/7160/8080/8160 : Default 1 HDD + Up to 5 HDDs added
By factory default, the master unit is equipped with one HDD.
The following instructions are when you have installed the maximum number of HDDs on the master unit.
First, loosen the screws in the left and right sides
and remove the cover.
1) If adding HDDs to SHR-7080, 7160, 8080 & 8160
For SHR-7082/7162/8082/8162 models, see the following page.
Loosen the screws (x4) in the left/right and upper
sides and remove the upper and lower brackets.
Install HDDs (x3) on the lower bracket and fi x them
with screws.
The screw (UNC 6-32) to use in the installation comes with
the HDD.
Firmly secure the screw so that it can not get loose from
such as vibration.
Install HDDs (x2) on the upper bracket and fi x them
with screws.
M`
`
`
1.
M`
2.
3.
`
`
4.
Cover
Upper Bracket
Lower
Bracket
Lower Bracket
Upper Bracket
Add
Installed by
default
Add
Add
Add
Add
00769B_SHR-8162_ENG-NEW.indb 16 2008-12-04 오전 10:14:01
English _17
! INSTALLATION

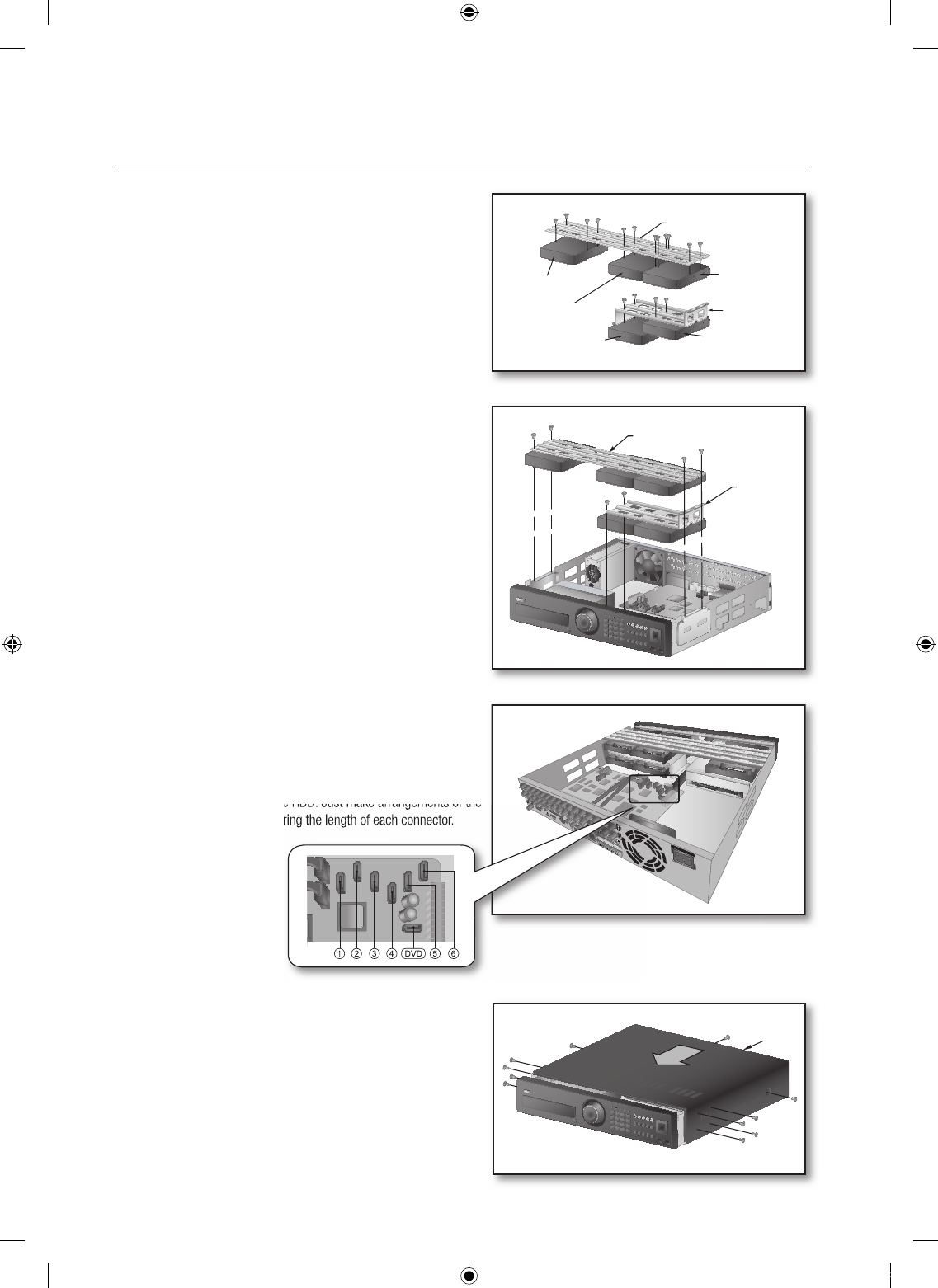

When the installation of additional HDDs is done,
insert the lower and upper brackets into the DVR
and fi x them with the provided screws.
When the installation of additional HDDs is done,
connect the power cable and connect the HDD
signal cables (SATA Cable) to connectors ~ on
the main board.

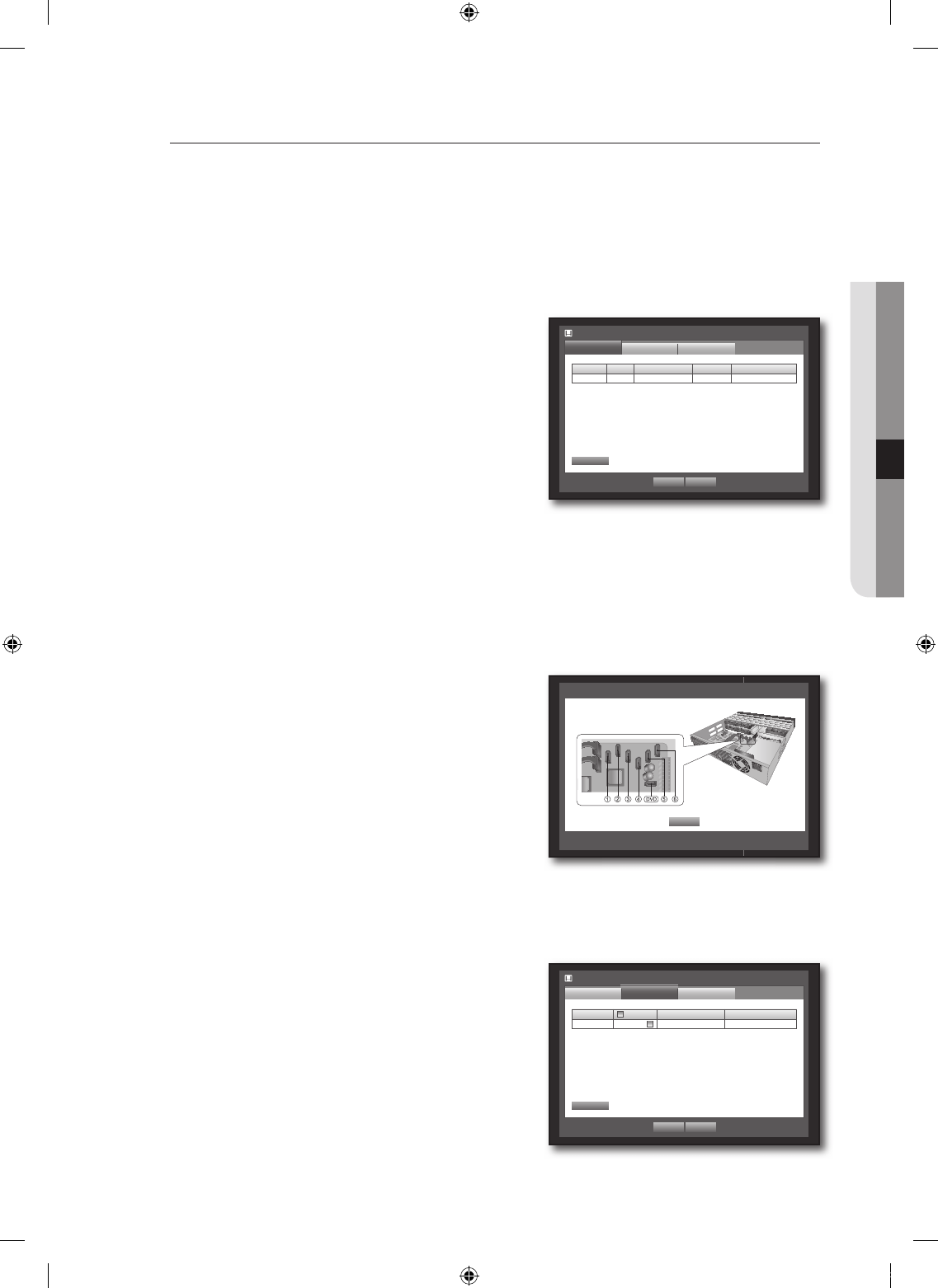

You can check the HDD map directly on the DVR.
Refer to “Storage Device > HDD Map”. (Page 43)
Note that the order of the HDD data cable is nothing to do
with the operation. Just make arrangements of the
connectors considering the length of each connector.
2) If adding HDDs to SHR-7082, 7162, 8082 & 8162
Loosen the screws (x4) in the left/right and upper
sides to remove the upper bracket and loosen the
lower screws (x2) to remove the lower bracket.
5.
6.
`
`
2.
Upper Bracket
Lower
Bracket
Upper Bracket
Lower Bracket
Storage Device
HDD Map
”. (Page 43)
with the operation. Just make arrangements of the
connectors considering the length of each connector.
00769B_SHR-8162_ENG-NEW.indb 17 2008-12-04 오전 10:14:11
18_ installation
installation
Install a HDD (x1) on the lower bracket and fi x it with
screws.
Install HDDs (x3) on the upper bracket and fi x them
with screws.
When the installation of additional HDDs is done,
insert the lower and upper brackets into the DVR
and fi x them with the provided screws.
When the installation of additional HDDs is done,
connect the power cable and connect the HDD
data cables (SATA Cable) to connectors ~ on
the main board.
Note that the number of a HDD data calbe is nothing to do
with operation of the HDD. Just make arrangements of the
connectors considering the length of each connector.
Check if the connectors are properly connected and
there is no problem with wiring, and close the cover
and fi x it with screws.
3.
4.
5.
6.
`
7.
Cover
Upper Bracket
Lower
Bracket
Lower Bracket
Upper Bracket
Add
Installed by default
Add
Add
Add
with operation of the HDD. Just make arrangements of the
connectors considering the length of each connector.
00769B_SHR-8162_ENG-NEW.indb 18 2008-12-04 오전 10:14:24
English _19
! CONNECTING WITH OTHER DEVICE
connecting with other device

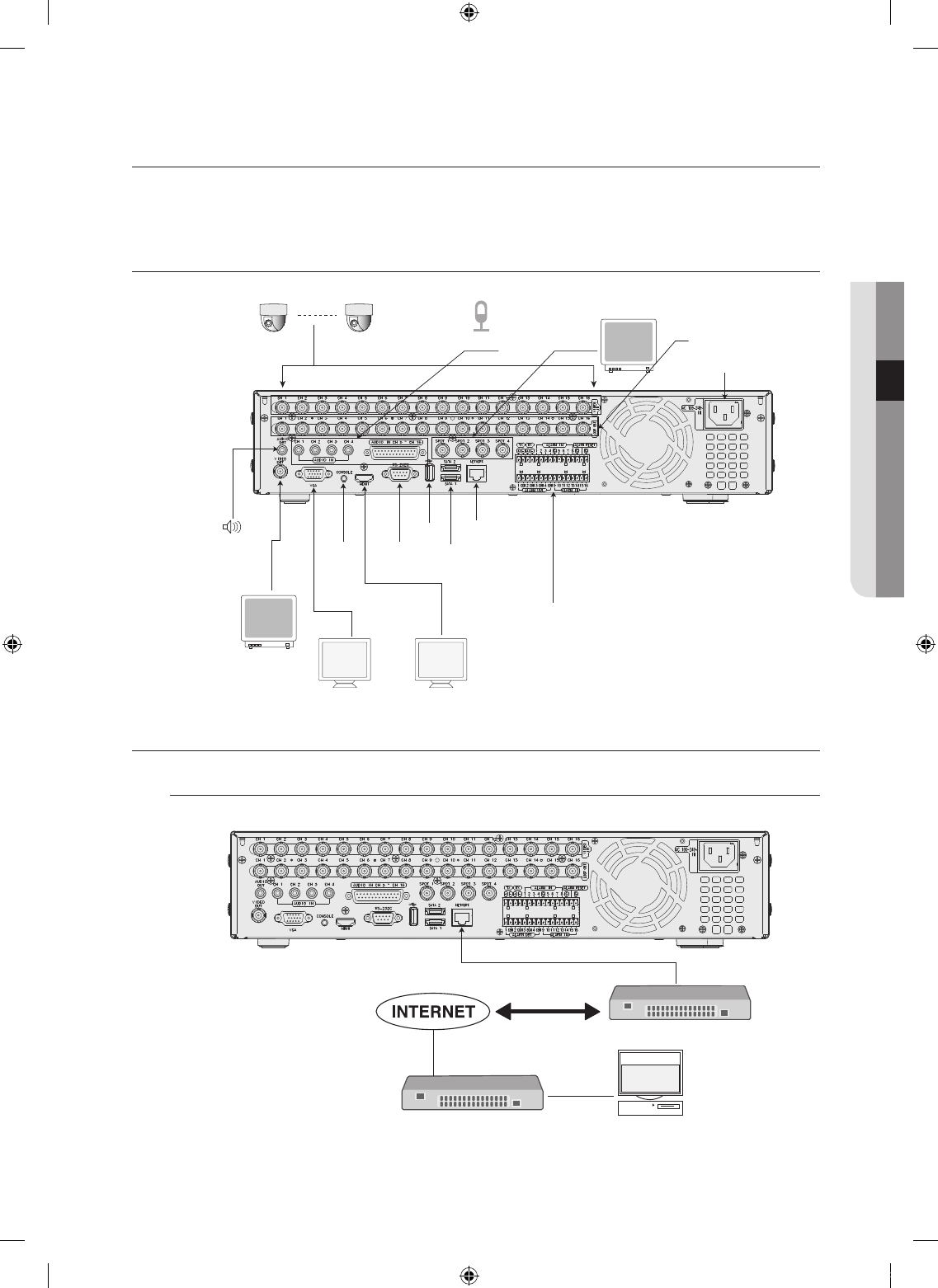

The following figures are based on Model SHR-8162.
CONNECTING THE VIDEO, AUDIO, AND MONITOR
CONNECTING THE NETWORK

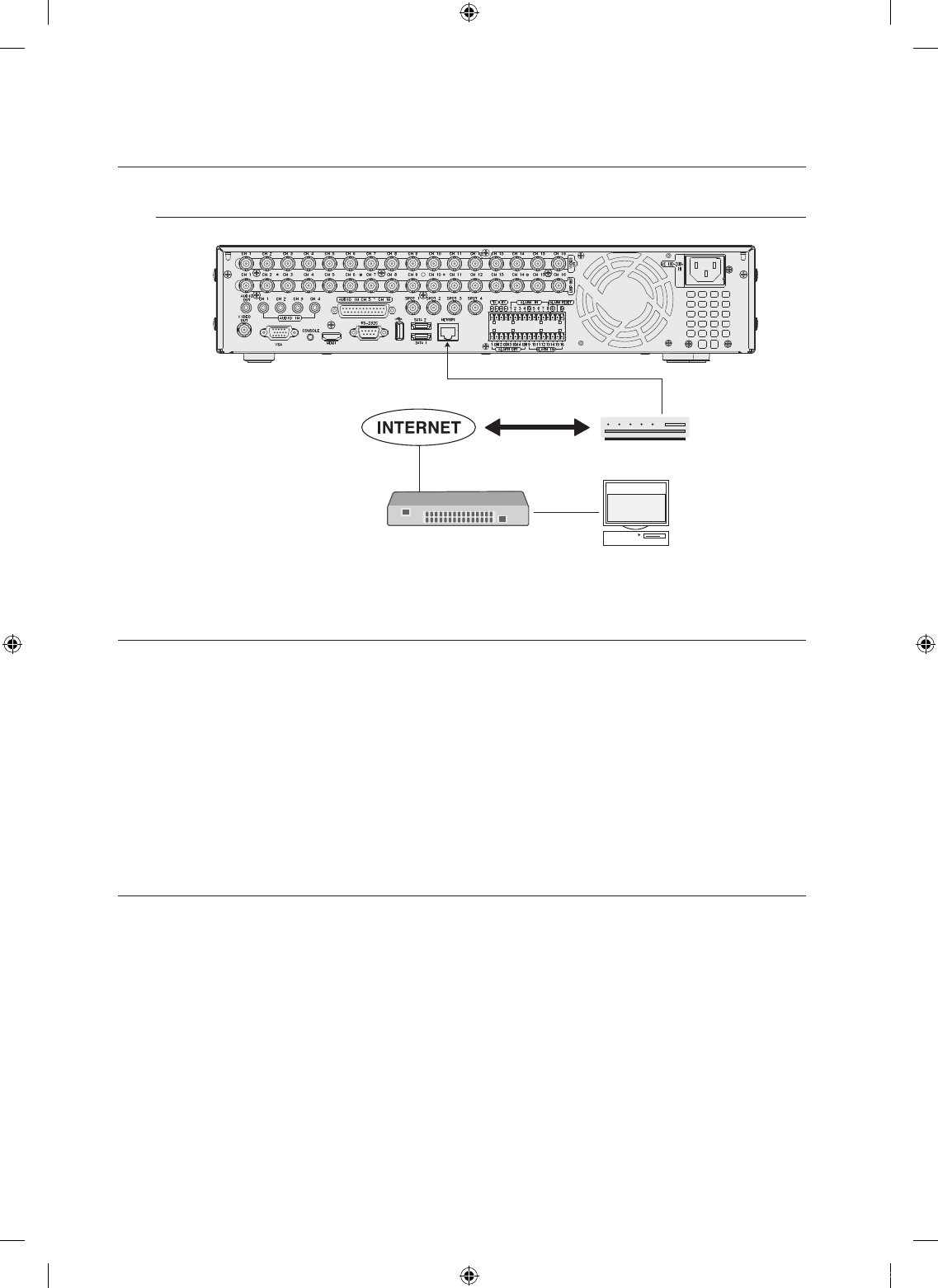

Connecting to Internet through Ethernet (10/100/1000BaseT)
M`
Windows
NET-i
Back Bone
Hub/Switcher
Hub/Switcher
RJ45 Ethernet Cable
(Direct Cable)
VIDEO IN AUDIO IN SPOT
AC 100-240V~IN
RS-485 / ALARM
USB 2.0
SATA
VIDEO OUT
(VGA)
VIDEO OUT
(composite)
AUDIO OUT
NETWORK
RS-232CONSOLE
HDMI
LOOP OUT
00769B_SHR-8162_ENG-NEW.indb 19 2008-12-04 오전 10:14:27
20_ connecting with other device
connecting with other device
Connecting to Internet through ADSL
CONNECTING THE USB
There are two USB ports at the front and one at the back of the product.
You can connect a USB HDD, USB CD/DVD player, USB memory or mouse to the USB port.
If a USB HDD is connected to the system, recognition and settings are available in “Menu > Setting the Device >
Storage Device”. (Page 43)
This product supports hot-plugging, which connects/removes the USB device during the system operation.
The USB type HDD must be set as Master.
If you use the USB device for Backup purposes, format it with FAT32 on PC if it is not formatted on the DVR.
CONNECTING EXTERNAL SATA HDD
There are two external SATA ports on the rear side of the product.
If an external SATA HDD is connected to the system, recognition and settings are available in “Menu > Device >
Storage Device”.
The DVR supports Hot Plug function to allow connection and disconnection of SATA HDD devices while the
system is in use.
Only one SATA HDD can be connected to an external SATA port.
Use a cable shorter than 1 m for the external SATA HDD connections.
1.
2.
3.
4.
J`
`
1.
2.
3.
J`
`
Hub/Switcher
Phone(ADSL) Line ADSL MODEM
RJ45 Ethernet Cable
(Direct Cable)
Windows
NET-i
00769B_SHR-8162_ENG-NEW.indb 20 2008-12-04 오전 10:14:29
English _21
! CONNECTING WITH OTHER DEVICE
CONNECTING POS DEVICE
You can connect a POS device to the RS-232C port on the product’s rear side when you connect it directly with
a RS-232C cable.
Connection setup for the RS-232C port is available in “Menu > Device > POS Devices”, press the
<POS Device Setup> button and set <Baud rate, Parity, Data, Stop bit and Transfer Type>. (Page 45)
CONNECTING THE ALARM INPUT/OUTPUT
The Alarm In/Out port at the back is composed of the following.
Alarm In/Out Port on 7080/7082/8080/8082
Alarm In/Out Port on 7160/7162/8160/8162
ALARM IN 1 ~ 8 (SHR-7080/7082/8080/8082) : Alarm Input Port
ALARM IN 1 ~ 16 (SHR-7160/7162/8160/8162) : Alarm Input Port
ALARM RESET : On receiving an Alarm Reset signal, the system cancels the current Alarm Input and resumes
sensing.
ALARM OUT 1 ~ 4 : Alarm Output Port
1.
2.
1.
2.
~
~
~
~
ALARM OUT ALARM IN ALARM IN
00769B_SHR-8162_ENG-NEW.indb 21 2008-12-04 오전 10:14:29
22_ connecting with other device
connecting with other device
CONNECTING THE RS-485 DEVICE
Connect the RS-485 device through the back port.
For example, you can connect and control the PTZ
camera which supports the RS-485
communication.
Transfer Type : You may select either Half Duplex or Full
Duplex as the data transfer type.
Baud Rate : Supported Baud rates are 600/1200/2400/
4800/9600/19200/38400.
Check if the RS-485 device is compatible with the
product first.
Pay attention not to change the polarity (+/-) of the
RS-485 device when connecting it.
Depending on camera’s type, connection polarity can be
different.
For further information, refer to the respective PTZ
Camera’s documentation.
Ex : DVR(TX+/-) SCC-C6433,35(RX+/-)
DVR(TX+/-) SCC-C6403,07(TX+/-)
M`
~
~
M`
`
`
`
PTZ device
Half Duplex Type
Data (–)
Data (+)
Full Duplex Type
Rx(+)
Rx(–)
Tx(–)
Tx(+)
Rear
Tx(–)
Tx(+)
Rx(–)
Rx(+)
00769B_SHR-8162_ENG-NEW.indb 22 2008-12-04 오전 10:14:30
English _23
! LIVE
live
GETTING STARTED
Starting the system
Connect the power cable of the DVR to the wall outlet.
Press the Power button on the front panel.
You will see the initialization screen.
The initialization process will last about 1 minute in the
order of icons appeared.
If a new HDD is installed, the initialization process may take
a longer time.
The live screen appears with a beep.
Shutting Down the System
You can shut down the system only if you have logged in to the DVR.
You should have the <Shutdown> permission to shut down the system if you are not an admin.
Press the [POWER] button on the remote control or the
front panel, or right-click to display the context sensitive
menu and select <Shutdown>.
The “Shutdown” confi rmation window appears.
Use the arrow keys on the remote control or the front panel
to move to <OK> and press the [ENTER] button or click
<OK>.
The system will shut down.
For the permission management, refer to “Permission
Management > Setting Permissions”. (Page 38)
1.
2.
3.
4.
1.
2.
3.
M`
Shutdown
Are you sure to shutdown?
OK Cancel
00769B_SHR-8162_ENG-NEW.indb 23 2008-12-04 오전 10:14:33
24_ live
live

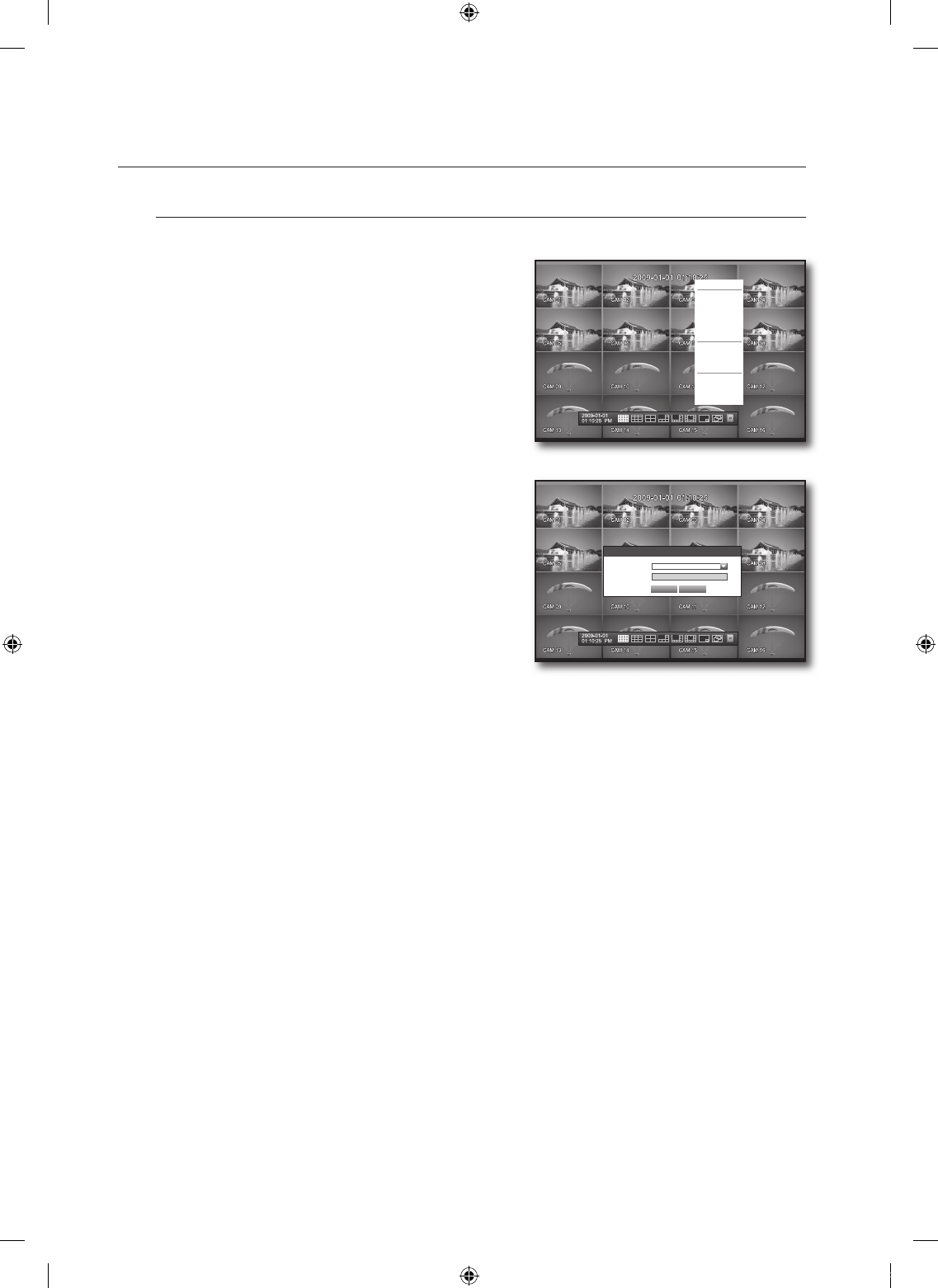

Login
To access a DVR or restricted menu, you should have logged in to the DVR.
In live mode, right-click any area of the screen.
You will see the context sensitive menu as in the right
fi gure.
Click <Login>.
The login dialog appears.
You can also see the login dialog to access a desired menu
by pressing the [MENU] button on the remote control or
the front panel.
The login dialog will also appear if you press a menu button on
the remote control or the front panel of the DVR when the
corresponding menu requires logging in.
For the restricted permission, refer to “Permission
Management > Setting Permissions”. (Page 38)
1.
2.
`
M`
Login
ID admin
Password
OK Cancel
Scene Mode
Audio Off
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Launcher hide
Login
00769B_SHR-8162_ENG-NEW.indb 24 2008-12-04 오전 10:14:35
English _25
! LIVE
LIVE SCREEN CONFIGURATION

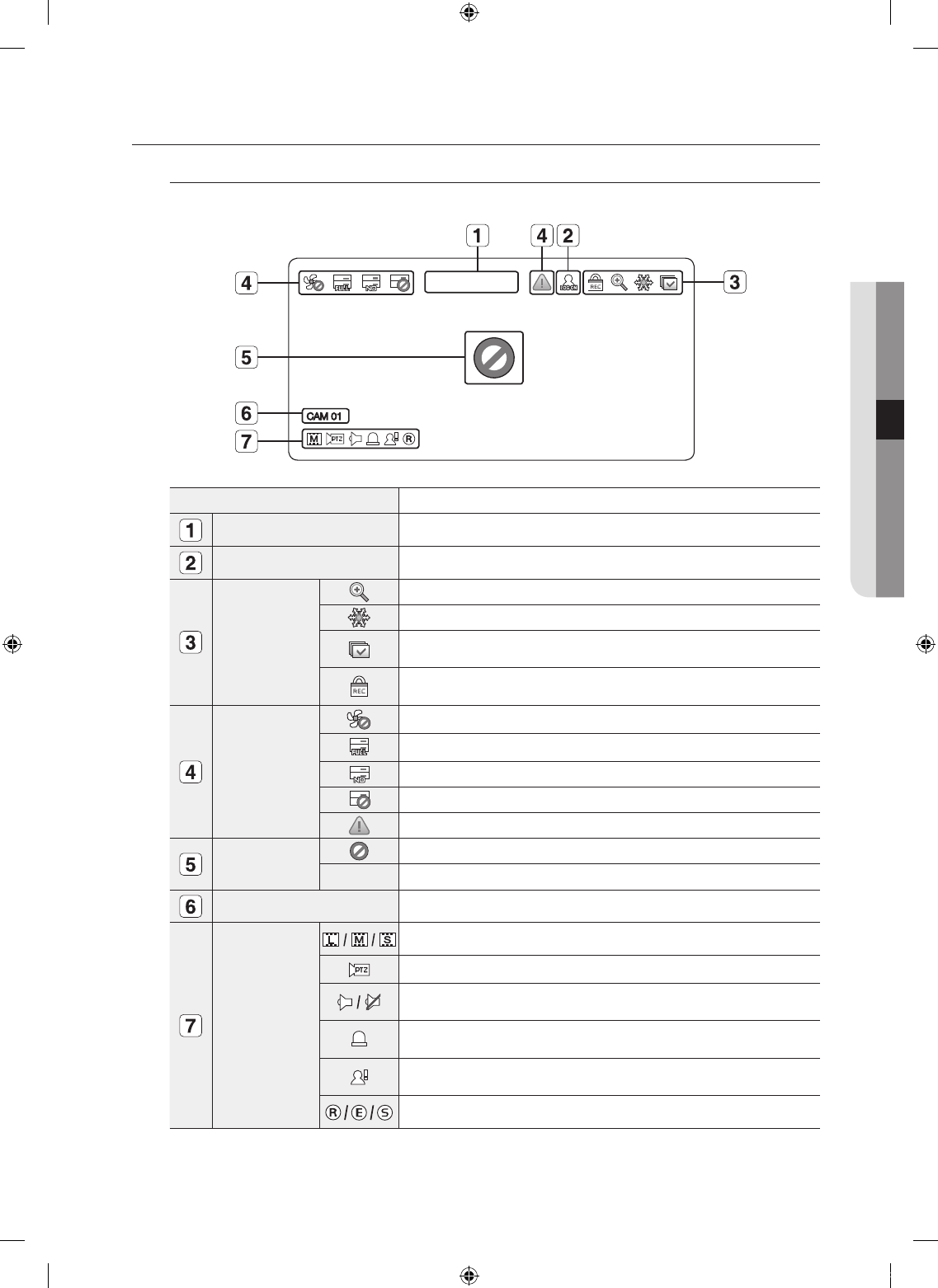

Icons on the Live Screen
You can check the status or operation of the DVR with the icons on the live screen.
Name Description
Current Date, Time
Displays the current time and date.
Login Information
When you are logged in, the “LOG ON” icon will be displayed.
Screen Mode
Displayed if the zoom function is activated.
Displayed if you press the Pause button.
Displayed in Auto Sequence mode where all channels are switched at the
specific time interval.
Displayed if the recording is in process.
M To cancel the recording, enter the password.
System Operation
Displayed if there is a problem with the cooling fan.
Displayed if the HDD is full and the DVR has an insufficient space to record.
Displayed if no HDD is installed or the existing HDD should be replaced.
Displayed if the HDD needs a technical examination.
Displayed if a new firmware is found from the network.
Video Input Status
Displayed if no input is entered in the condition that the camera is set to <ON>.
Nothing will be displayed on the screen if the camera is set to <OFF>.
Camera Name/ Channel
Displays the camera name and the changed channel, if any.
Camera Operation
Displays the resolution of the recording screen. (Page 50)
Displayed in PTZ setting, and highlighted yellow if PTZ is in operation.
Displays AUDIO ON/MUTE.
Not displayed in video mode if deactivated.
If the sensor is set to <ON>, the input signal will be displayed on the screen of
the connected channel.
Displayed if a motion detected in the condition that the motion detection is set to
<ON>.
Displays the current record mode from Record/Event/Schedule.
2009-01-01 00:00:01
CAM 01
00769B_SHR-8162_ENG-NEW.indb 25 2008-12-04 오전 10:14:39
26_ live
live
Error Information
If you turn on the system in the condition that the internal HDD is not connected or an error occurs, the
“HDD FAIL” icon ( ) will be displayed on the top left corner. In this case, make sure you contact the
service center for assistance as this may cause a failure of recording, playback or backup.
If the cooling fan does not work properly or has a problem, the <Fan Information> window will appear and
the fan error icon ( ) will be displayed on the top left corner. In this case, check the internal fan for
operations.
As a fan error can shorten the product life, make sure you contact the service center for assistance.
If you see the fan error icon or No HDD, HDD FAIL icons on the screen, contact the service center for more details.

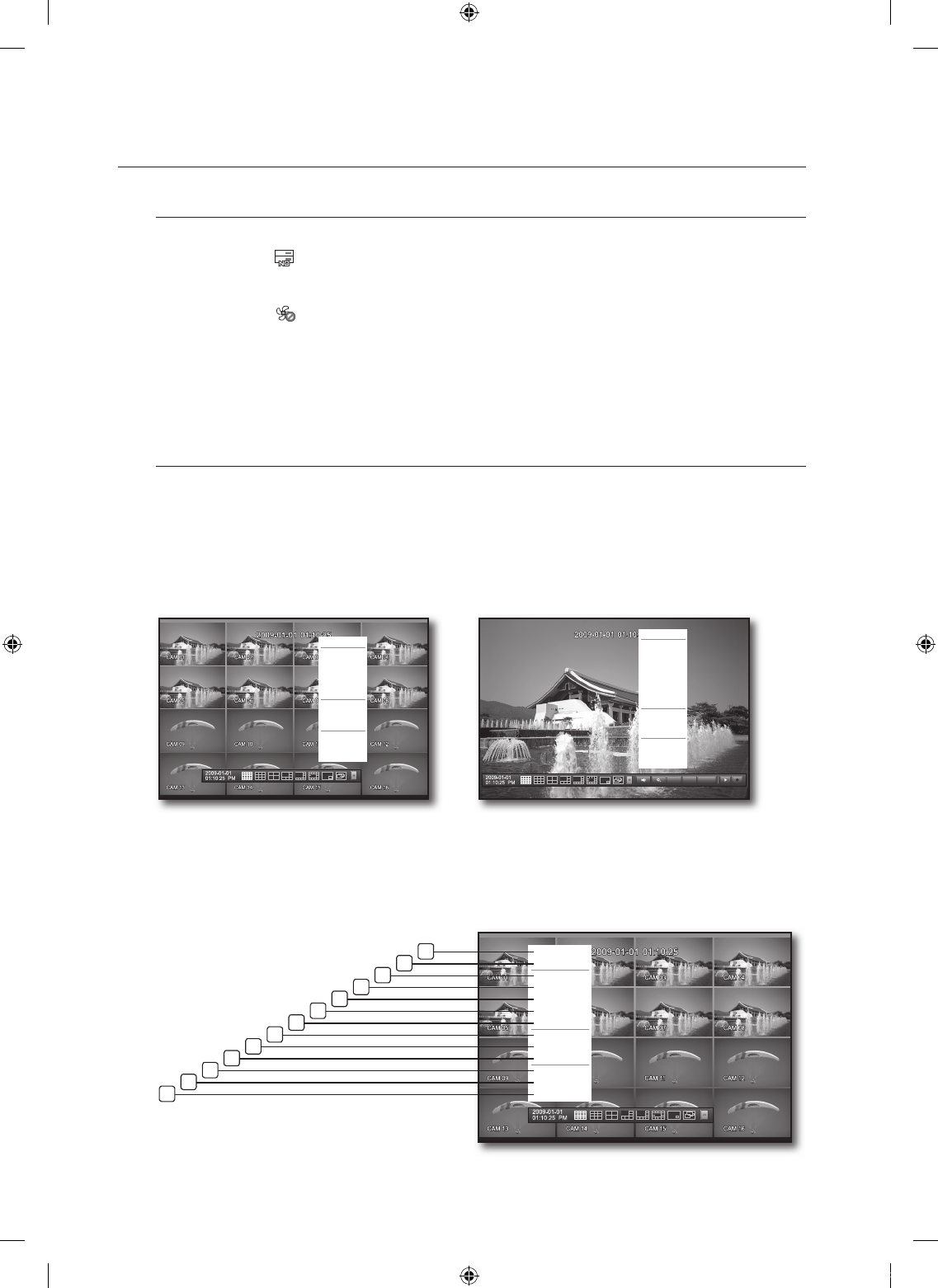

Live Screen Menu
In addition to the buttons on the front panel or the remote control, you can access a desired menu by right-
clicking any area in live mode.
The context sensitive menu appearing by right-clicking the screen differs, depending on the login/logout,
screen split mode and DVD operation mode.
Menu items of Search, Record, Backup, Shutdown and PTZ can be deactivated, depending on the user permission.

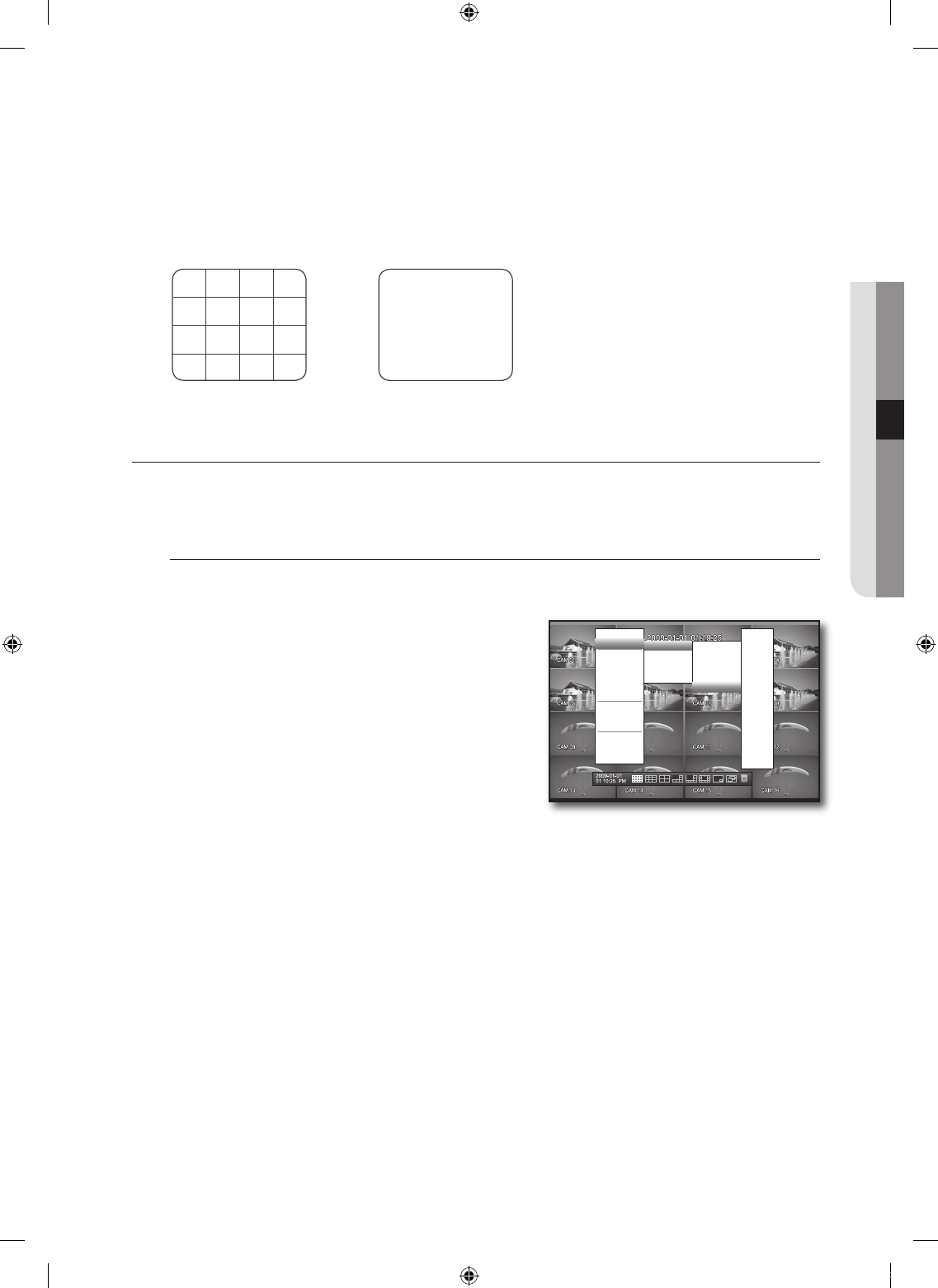

Split Mode Menu
The context sensitive menu in split mode differs, depending on the login/logout status.
~
~
M`
M`
Scene Mode
Audio Off
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Launcher hide
Login
< Split Mode Menu > < Single Mode Menu >
PTZ Alarm Freeze
Scene Mode
PTZ Control
ZOOM
Audio
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Launcher hide
Login
Scene Mode
SPOT OUT
Audio Off
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Launcher hide
Logout
2
13 12 11 10
9876543
1
00769B_SHR-8162_ENG-NEW.indb 26 2008-12-04 오전 10:14:43
English _27
! LIVE
Menu Description
Scene Mode Refer to “Live Mode”. (Page 29)
SPOT OUT Refer to “SPOT OUT”. (Page 31)
Audio On/Off Refer to “Audio ON/OFF”. (Page 32)
Freeze Refer to “Freeze”. (Page 32)
Stop Alarm Stops the alarm output and the event monitoring. Refer to “Event Monitoring”.
(Page 33)
Record/Stop Starts/stops the standard recording.
Play Plays the search result (data). Refer to “Search & Play > Play”. (Page 67)
Search Refer to “Search & Play > Search”. (Page 64)
Backup Refer to “Using the DVR> Setting the Backup”. (Page 54)
Main Menu Accesses the main menu. Refer to the Using the DVR section. (Page 34)
Shutdown
Turns down the DVR.
Launcher Show/Hide
Shows or hides the launcher. Refer to “View the Launcher Menu”. (Page 28)
Login/Logout You can log in or out.
Single Mode Menu
The single mode menu is available only in the Single mode.
The context sensitive menu of the One Channel mode in Split mode is different from that of the Single mode.
Full Screen Select and click a desired channel in Split mode to switch to the full screen of the selected
channel.
PTZ Control Accesses the PTZ Control menu. The PTZ menu is activated only in One-Channel Live
mode. (Page 62)
ZOOM Enlarges the selected image. (Page 32)
PTZ Alarm Freeze
Full Screen
SPOT OUT
PTZ Control
ZOOM
Audio
Freeze
Stop Alarm
Record
Play
Shutdown
Launcher hide
Logout
2
3
1
00769B_SHR-8162_ENG-NEW.indb 27 2008-12-04 오전 10:14:44
28_ live
live
View the Launcher Menu
You can use the Launcher menu appearing on the bottom of
the live screen to access it.
In Live mode, right-click to display the context menu and
select <Launcher Show>.
Move the cursor to the bottom and click a desired item in
the Launcher menu.
If no input is entered for 10 seconds, the menu will disappear.
The Launcher menu can be accessed only using the mouse.
Menu Description
Date/Time
Displays the current time and date.
The indication of AM/PM is displayed if you set 12 hours for the time format in
“System>Date/Time/Language>Time”. (Page 34)
Screen Mode Displays in the sequence of 16-, 9-, 4-, 6-, 8-, 13-split, PIP and Auto Sequence.
The current mode is highlighted in white.
Menu Expansion Button Click to display the hidden menu to the right.
Audio Turns ON/OFF the sound of the selected channel.
Zoom Enlarges the selected area. This is available only in Single Live mode.
PTZ Runs the PTZ Control launcher. This is available only in Single Live mode.
Alarm Stops the alarm if it's activated.
Freeze Freezes the Live screen temporarily.
Play Enters Play mode if a fi le to play exist, and if not, enters Search mode.
Record Start/End recording the Live screen.
1.
2.
M`
`
PTZ
Alarm Freeze
00769B_SHR-8162_ENG-NEW.indb 28 2008-12-04 오전 10:14:46
English _29
! LIVE
LIVE MODE
SHR-7160/7162/8160/8162 display Live images from 16 channels in a total of 8 layout of split screens.
Switching the screen mode
To switch the split mode, select a screen mode in the launcher menu, or right-click to select a screen mode in
the context menu.
Press the [MODE] button on the front panel or the remote control to switch the mode in the sequence of the
launcher menu items.
SHR-7080/7082/8080/8082 do not support the 16-split screen mode.
Switching the split mode
SHR-7160/7162/8160/8162 display 16 Live images in the sequence of Single, 4-split and 9-split modes.
Auto Sequence
In Single mode, If you have set <SEQ-Dwell Time> in “Setting the Device>Camera”, Auto Sequence will be
conducted at the set interval. (Page 41)
In a split mode, If you have set <Multi CH SEQ Time> in “Setting the Device>Monitor”, Auto Sequence will be
conducted at the set interval. (Page 46)
M`
M`
`
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
16-split mode 9-split mode 4-split mode 6-split mode
8-split mode 13-split mode PIP
Auto Sequence
16
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
1
Single mode
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
13-16
9-12
5-8
1-4
4-split mode
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
10-16
1-9
9-split mode
00769B_SHR-8162_ENG-NEW.indb 29 2008-12-04 오전 10:14:50
30_ live
live
Manual Switching
Press the left/right button on the front panel or the remote control, or click the arrow <
_
/
+
> key to move to
the next split mode.
If pressing the right [
+
] button in 9-split mode:
9-split (CH 1~9) mode 9-split (CH 10~16) mode Auto Sequence
If pressing the right [
+
] button in 4-split mode:
Channel (CH 1~4) Channel (CH 5~8) Channel (CH 9~12) Channel (CH 13~16) Auto Sequence
Channel Setting
You can display the channel in a desired area of a split screen.
Place the cursor over the camera name of each channel to display the <
▼
> key to the right on the screen.
Click a camera name to display a channel list where you can select a different channel.
Select a desired channel and click it.
The current channel will be switched to the selected one.
Ex : if switching CH 1 to CH 7
~
~
1.
2.
3.
`
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
; ; ;
;
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
13-16
9-12
5-8
1-4
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
; ;
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
10-16
1-9
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
;
00769B_SHR-8162_ENG-NEW.indb 30 2008-12-04 오전 10:14:53
English _31
! LIVE
Switching to Single Mode
In a split mode, select and double-click a desired channel to switch to its Single mode.
Press the number corresponding to a desired channel on the front panel or the remote control to switch to its
Single mode.
Refer to “Remote Control>Using the numeric buttons”. (Page 12)
Ex : If double-clicking CH 3 or pressing the number “3” on the remote control or the front panel.
SPOT OUT
The SPOT OUT monitoring is independent of the Live mode, which monitors a specifi c channel through the SPOT
OUT port.
Selecting a SPOT OUT mode
If an event occurs such as sensor, motion or alarm from the SPOT OUT port in connection with a monitor, you
can select a output screen mode.
In Live mode, right-click any area on the screen.
The Live menu appears.
Click SPOT OUT.
The split screen appears according to the SPOT OUT
source. (Page 47)
SPOT OUT 1 : Supports 16-, 9-, 4-split, Auto Sequence and
Single modes.
SPOT OUT 2, 3, 4 : Supports 4-split, Auto Sequence and Single
modes.
For the SPOT OUT port of a model, refer to “Part Names and
Functions (Rear)”. (Page 10)
`
1.
2.
`
`
`
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
;
SPOT OUT 1
SPOT OUT 2
SPOT OUT 3
SPOT OUT 4
Scene Mode
SPOT OUT
Audio Off
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Launcher hide
Logout
16-split
9-split
4-split
Auto Sequence
Single
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
CH9
CH10
CH11
CH12
CH13
CH14
CH15
CH16
< Multichannel Live Menu >
00769B_SHR-8162_ENG-NEW.indb 31 2008-12-04 오전 10:14:55
32_ live
live
ZOOM
This is available only in Single Live mode. In Single mode, select a desired area and use the Zoom function to
enlarge it twice.
Select <ZOOM> in the right-click menu.
Press the [ZOOM] button on the front panel or the remote control, or simply click < > in the launcher
menu. The zoom box appears.
Use the direction keys, or drag and drop to specify an area to enlarge.
Press the [ENTER] button, or double-click the selected area to enlarge it twice.
In the enlarged image, use the direction buttons (▲▼_ +) on the remote control or the front panel to move the
enlarged area.
Press the [ZOOM] button on the front panel or the remote control, or simply click < > in the launcher
menu to release the zoom.
AUDIO ON/OFF
You can turn the sound on/off corresponding to the channel in Live mode.
AUDIO ON/OFF in Single mode
Click the audio icon ( ) on the screen, or press the [AUDIO] button on the front panel or the remote control
to turn it on/off.
Only the channel where <AUDIO> is set to <ON> in “Device>Camera” displays the audio icon ( ) in Live mode
that you can use to turn the sound on/off.
FREEZE
This is available only in Live mode that stops playing the Live image temporarily.
Press the [FREEZE] button on the front panel or the remote control, or click <
Freeze
> in the launcher
menu.
The playback of the image is stopped temporarily.
Press the [FREEZE] button again, or click <
Freeze
>.
This will release the freeze.
1.
2.
3.
`
4.
M`
1.
2.
;
00769B_SHR-8162_ENG-NEW.indb 32 2008-12-04 오전 10:14:58
English _33
! LIVE
EVENT MONITORING
This will display the channel in sync with a specific event (Sensor/Motion/Video Loss) if it occurs.
In “Monitor>Event Display”, set the event monitoring to ON/OFF and specify the event display time.
(Page 46)
If multiple events occur simultaneously, the screen will switch to a split mode.
- 2~4 events: 4-split mode
- 5~9 events: 9-split mode
- 10~16 events: 16-split mode
If the second event occurs within the set time of <Event Display>, the first event will last until the second
one is terminated. (Page 46)
Ex : If you set <Event Display> to 5 seconds, and only one event occurs in CH 1.
Ex : If you set <Event Display> to 5 seconds, and the second event occurs in CH 2 within the set time after the first event
occurred in CH 1.
Press the [ALARM] button to reset the alarm settings and to release the event mode.
If an alarm activates in the condition you have set the event record, and pre/post alarm times, the event record will
be performed.
This will also apply to the SPOT OUT monitor.
~
~
`
`
M`
`
`
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
Event occurrence 5 seconds
Stop alarm
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
CH1
CH1
CH1
CH1
CH2
CH1
CH2
CH6
CH8
CH10 CH11 CH12 CH13
CH3 CH4 CH5
CH7
CH9
CH1
CH5 CH6 CH7 CH8
CH2
CH3
CH4
CH2
CH3
CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH4 CH5 CH6
CH7 CH8 CH9
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16
CH1
CH1
CH1
CH1 CH2
CH3 CH4
CH2 CH3
CH4 CH5 CH6
CH7 CH8 CH9
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH10 CH11 CH12
CH13 CH14 CH15
CH16
CH7 CH2 CH3 CH4
CH5 CH6 CH1 CH8
CH9 CH10 CH11 CH12
CH13 CH14 CH15 CH16 CH3 CH1
CH1 CH2
Event occurrence 4 seconds 9 seconds
Stop alarm
00769B_SHR-8162_ENG-NEW.indb 33 2008-12-04 오전 10:14:59

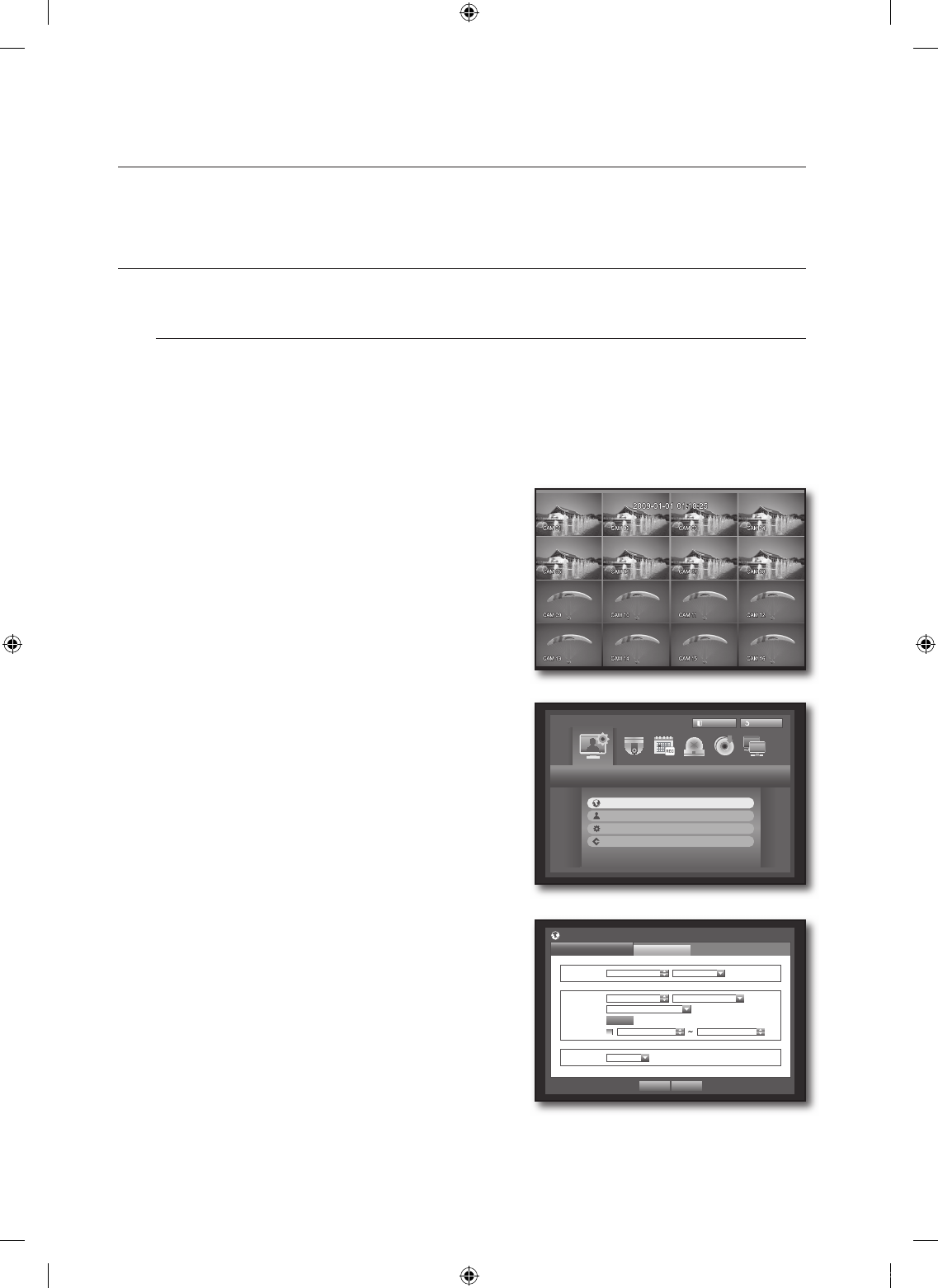

34_ using the DVR
using the DVR
You can setup the system properties, devices, and options for recording, event,
backup and network.
SYSTEM SETUP
You can setup Date/Time/Language, Permission, System Properties and Log.
Date/Time/Language
You can check and setup the current Date/Time and time related properties, as well as the language used for
the interface on the screen.
Setting the Date/Time/Language
Set the Date/Time/Language
Using the mouse may help easy setup.
Press the [MENU] button on the remote control or on the
front panel.
If not logged in, it prompts with login window.
Refer to “Login”. (Page 24.)
Use the left/right buttons (
_ +
) to select the <System>.
System property setup menu is selected.
Use the up/down buttons (
▲▼
) to select <Date/Time/
Language> and press the [ENTER] button.
Select <Date/Time/Language>.
A dialog to setup Date, Time and Language.
Use direction buttons (
▲▼_ +
) to select an item to set
and make your changes.
Date : Sets the date appears on the screen.
You can select the date format.
Time : Sets the time and its format appear on the screen.
Select either one from <24 Hours, 12 Hours (AM/PM)>.
Time Zone : Sets the time zone of your area based on the
Greenwich Mean Time (GMT).
GMT (Greenwich Mean Time) is standard World Time and the basis
of world time zone.
Time Sync. : You can set the DVR’s current time
synchronized to a selected <Time Server> regularly if you
select to use <Time Server>.
In this case, <Date/Time/Language> setup does not allow time adjustment.
1.
`
2.
3.
4.
5.
~
~
~
`
~
System
Logout Exit
Date/Time/Language
Permission Management
System Management
Log Information
Date/Time/Language
Date/Time/Language
Holiday
Date 2009 -01-01 YYYY-MM-DD
Time 08:14:24 24 Hours
Time Zone GMT+08:00
Time Sync. Setup
DST Dec First (Sun) 0 Dec First (Sun) 0
Language English
OK Cancel
00769B_SHR-8162_ENG-NEW.indb 34 2008-12-04 오전 10:15:01
English _35
● USING THE DVR

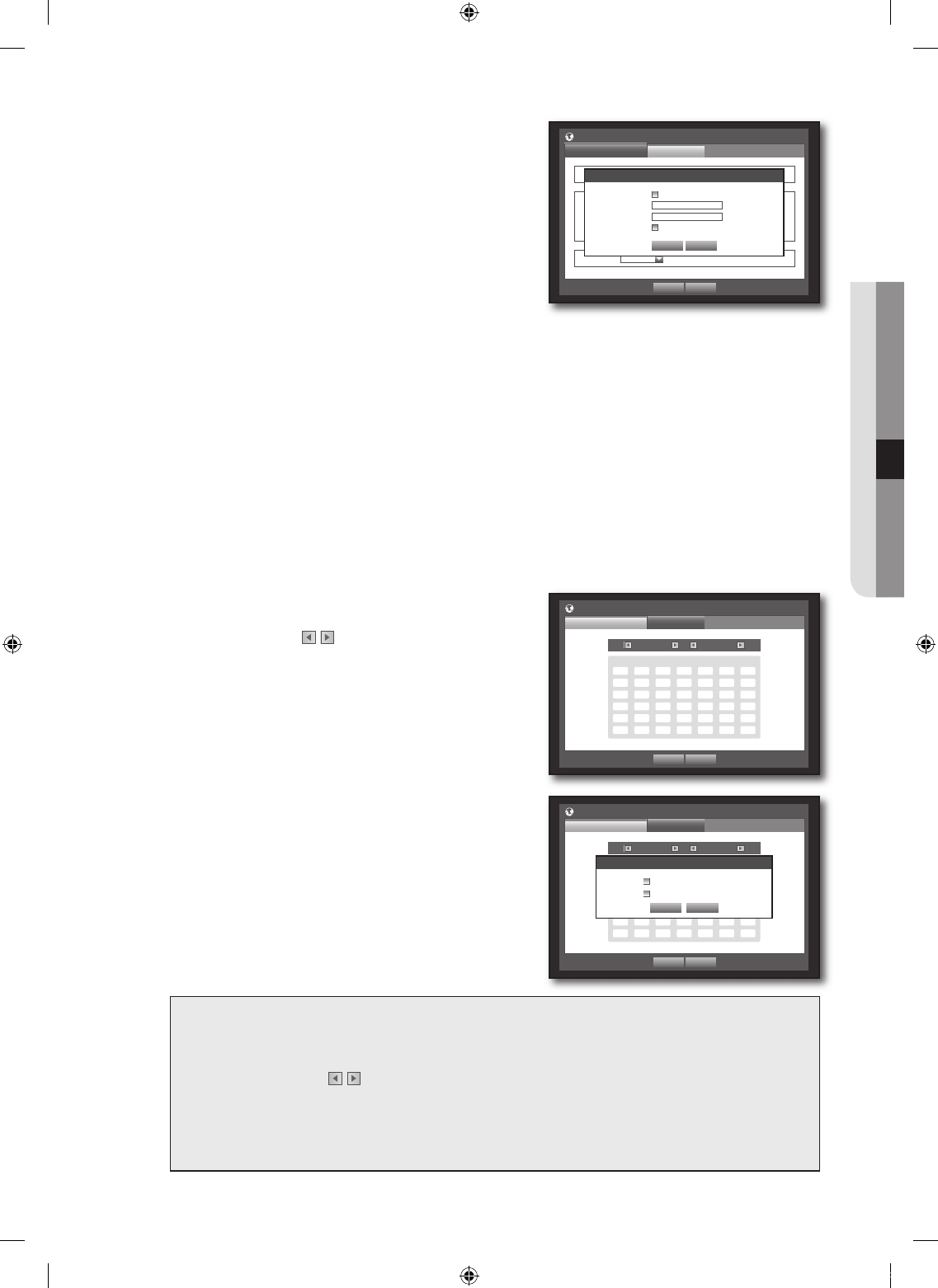

- Time Server: Enter an IP or URL address of the time
server.
- Last Sync Time: Displays the most recent synchronization
time from the selected time server.
- Activate as Server: Set to <Use> to allow the DVR to act
as a Time Server for other DVRs.
DST : Set up Daylight Saving Time with its period to make
the time earlier than the GMT of its time zone by 1 hour
during the set period.
Language : Select your language. Sets the language for the
interface.
English, French, German, Spanish, Italian, Chinese, Russian, Korean, Polish, Japanese, Dutch, Portuguese,
Turkish, Czech, Danish, and Swedish are available.
When the Date/Time/Language setup is done, press <OK>.
You can also use numeric buttons on the remote control or front panel to enter values for Date, Time and other
numeric fi elds.
Setting Holiday
You can set specifi c dates to Holidays according to your preferences.
Holidays are applied to <Recording Schedule> and <Alarm Schedule> too.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Date/Time/Language> window to select <Date/Time/Language>, and
press the [ENTER] button.
Select <Holiday>.
A calendar for Holiday setup appears.
Use the left/right < > buttons to select year or month,
and press the [ENTER] button.
Use direction buttons (
▲▼_ +
) to select a desired date,
and press the [ENTER] button.
You will see the “Setting Holiday” screen.
Ex: Select January 12th and check on <1/12> only to make every
January 12th a holiday. Check both on <1/12> and <Jan 2nd
Mon> to make every January 12th and 2nd Monday of January
holidays.
When the Holiday setup is done, press <OK>.
Using the Calendar
Using the mouse may help easy setup.

Select year and month.
Select the left/right < > key on the left/right side of year/month and press [ENTER] button to
adjust by 1 year/month.
Use direction buttons to select a date and press [ENTER] button.
A date with recorded data to be searched will be appeared in yellow in the System Log, Event Log, Time Search
and Event Search.
`
~
~
6.
M`
3.
4.
5.
6.
`
7.
Date/Time/Language
Date/Time/Language
Holiday
Date 2009 -01-01 YYYY-MM-DD
Time 08:14:24 24 Hours
Time Zone GMT+08:00
Time Sync. Setup Not Used
DST Dec First (Sun) 0H Dec First (Sun) 0H
Language English
OK Cancel
Time Synchronization Setup
OK Cancel
Synchronization Use
Time Server 203.248.240.103
Last Sync Time Fail
Activate as Server Use
OK Cancel
Date/Time/Language
Date/Time/Language Holiday
2009 Jan
Sun Mon Tue Wed Thu Fri Sat
1 2 3
4 5 6 7 8 9 10
11 12 13 14 15 16 17
18 19 20 21 22 23 24
25 26 27 28 29 30 31
OK Cancel
Date/Time/Language
Date/Time/Language Holiday
2009 Jan
Sun Mon Tue Wed Thu Fri Sat
1 2 3
4 5 6 7 8 9 10
11 12 13 14 15 16 17
18 19 20 21 22 23 24
25 26 27 28 29 30 31
Setting Holiday
OK Cancel
1 / 12
Jan 2nd Mon
00769B_SHR-8162_ENG-NEW.indb 35 2008-12-04 오전 10:15:03
36_ using the DVR
using the DVR

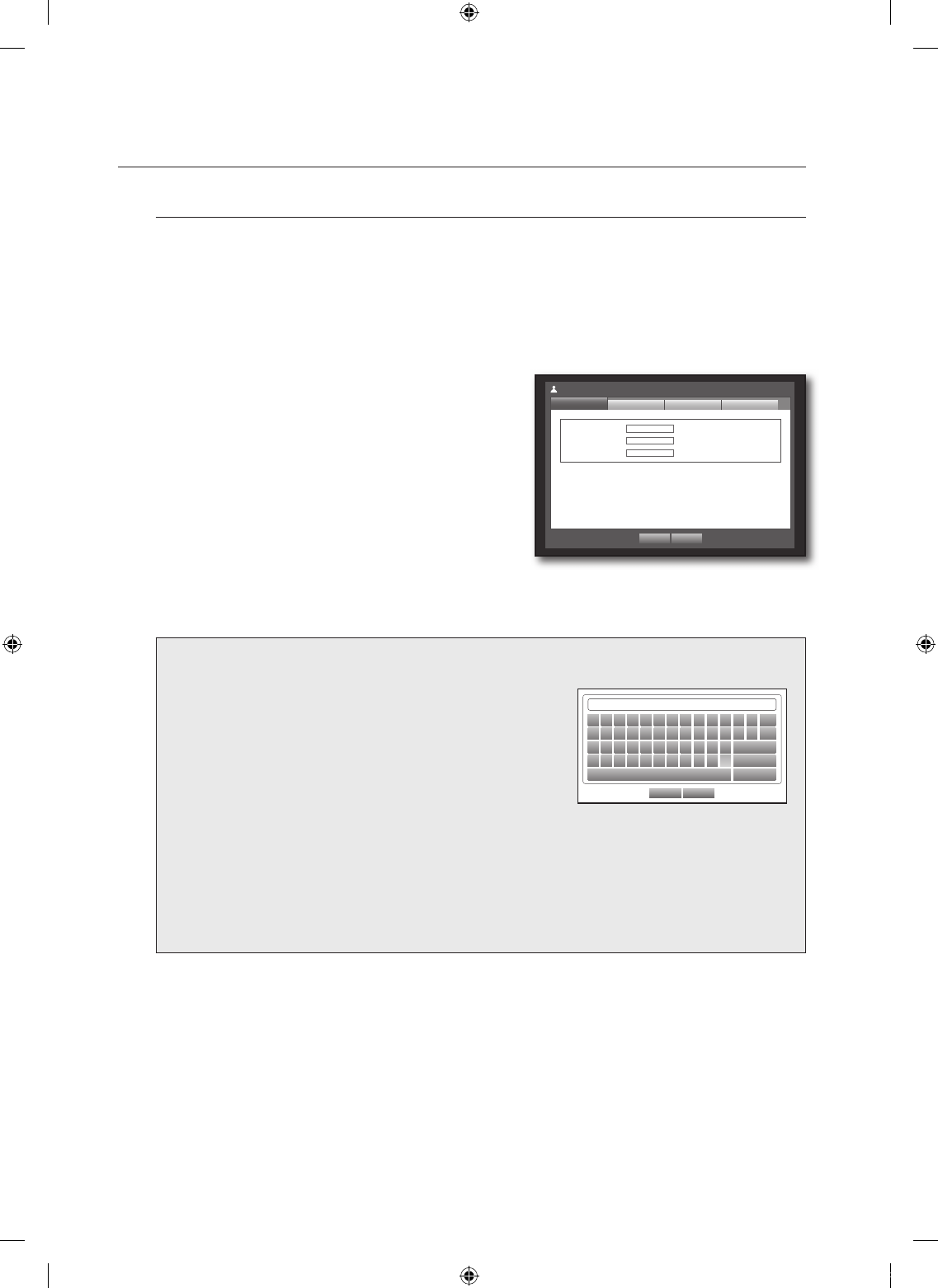

Permission Management
You can set permissions of each user over the DVR's specifi c function and settings.
Setting the Administrator
You can set and change Administrator’s ID and password.
The administrator can use and set all menu items and functions.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <System> window to
move to <Permission Management>, and press
[ENTER] button.
Select <Admin>. A dialog for Admin ID and Password
input appears.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the ID and password.
By default, initial ID and password are set to “admin”, and
“4321”.
When the administrator setup is done, press <OK>.
Using Virtual Keyboard

For alphanumeric inputs, the virtual keyboard window
appears.
Use direction buttons (
▲▼_ +
) to move to a desired
character, and press the [ENTER] button.
The selected character appears in the input fi eld above the
virtual keyboard layout.
Press <OK> to enter the selected input.
OK Cancel
` 1 2 3 4 5 6 7 8 9 0 – =
q w e r t y u i o p [ ] \ Del
a s d f g h j k l ; ‘ Caps Lock
z x c v b n m , . / Shift
Space Ctrl
For upper case letters, use <Caps Lock> button.
For special characters, use <Shift> button.
Using the virtual keyboard is the same to a normal keyboard use in your region.
Admin ID only allows lower case alphabets, numbers, “.” and ‘-’. Password only allows numbers.
You can use number buttons on the remote control or front panel.
`
`
`
`
`
3.
4.
5.
M`
6.
ID admin
Password ******** (Number only)
Confi rm P/W ********
Permission Management
Admin Group
OK Cancel
User Setup
00769B_SHR-8162_ENG-NEW.indb 36 2008-12-04 오전 10:15:05
English _37
● USING THE DVR

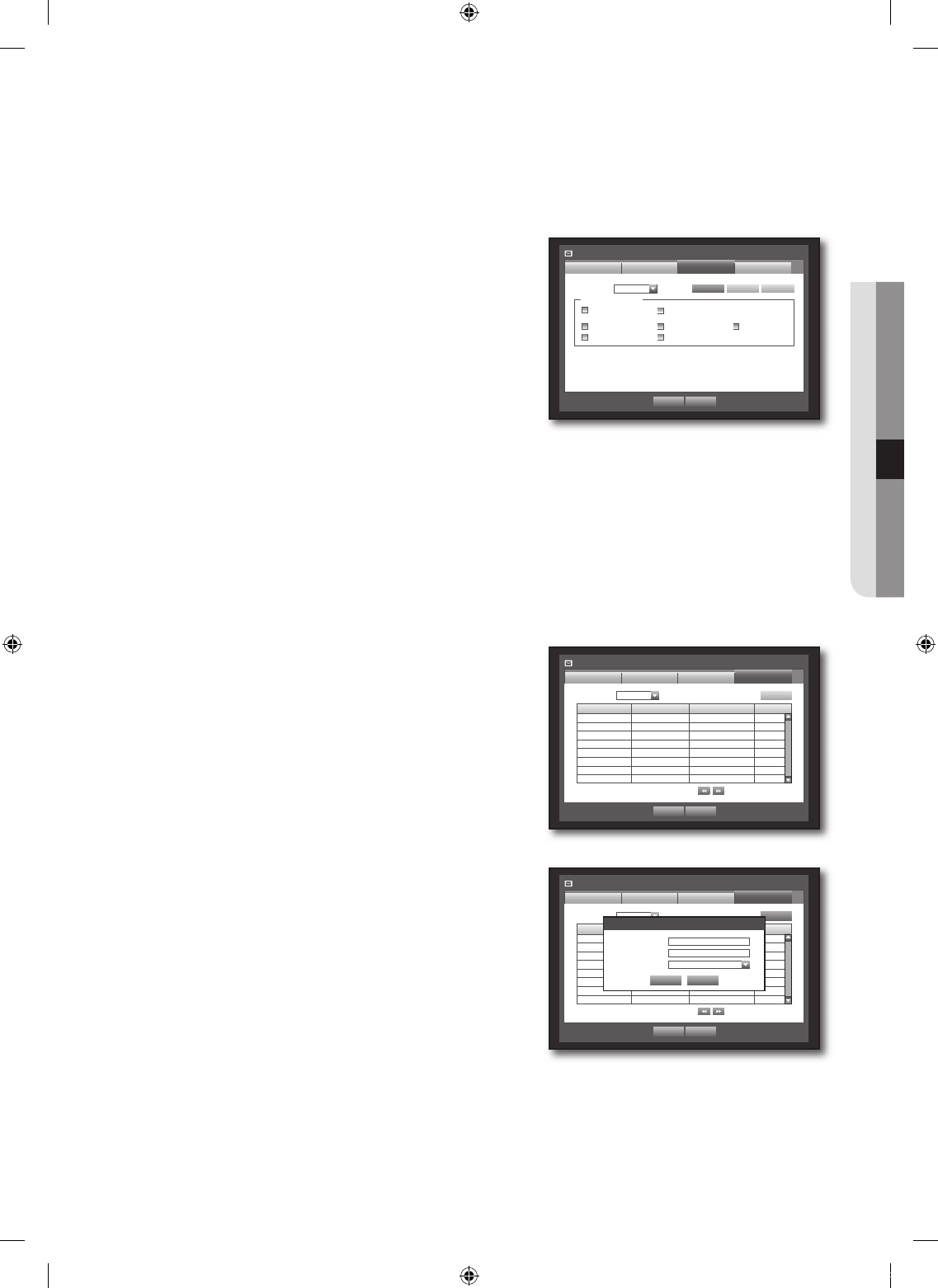

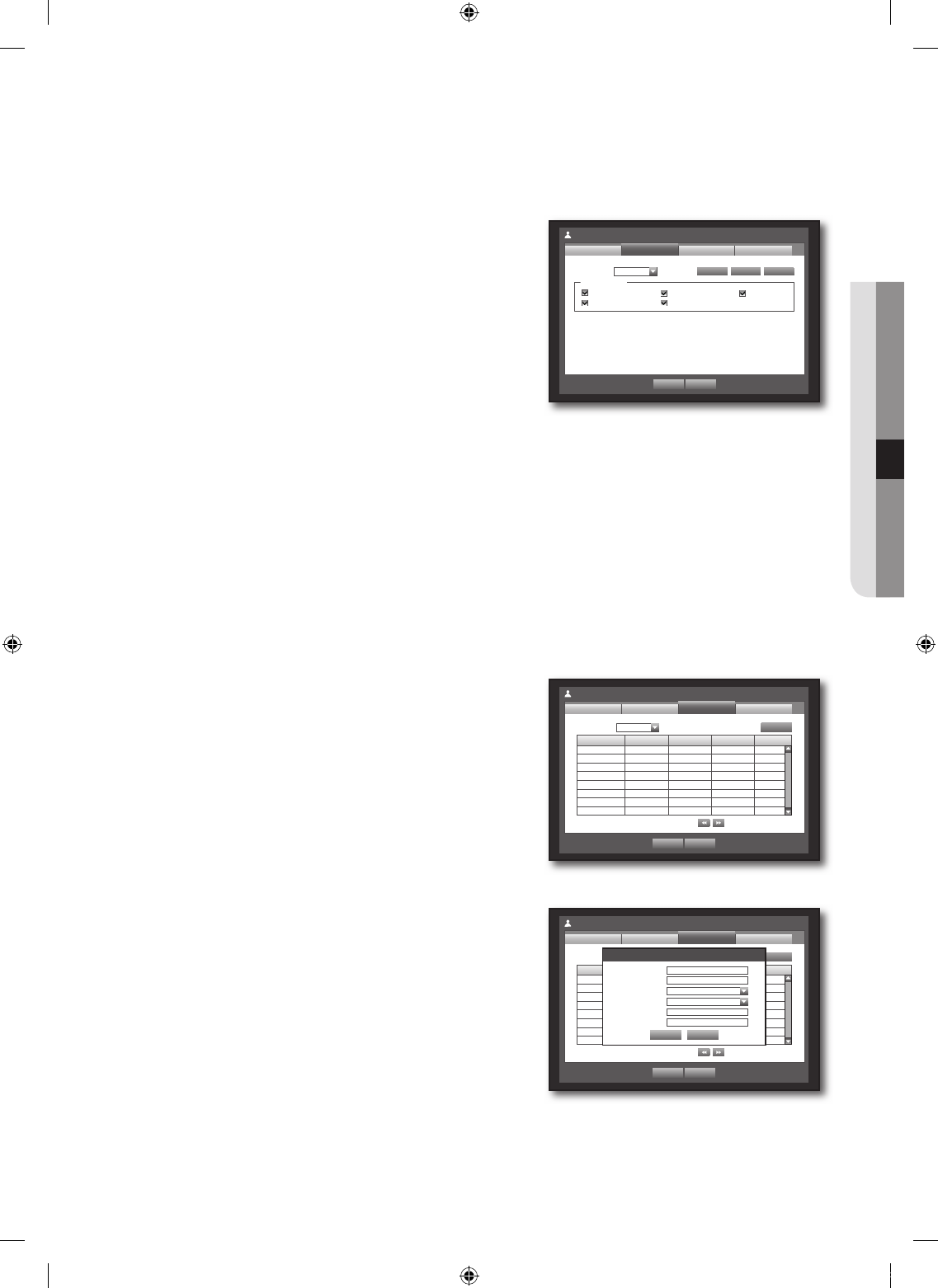

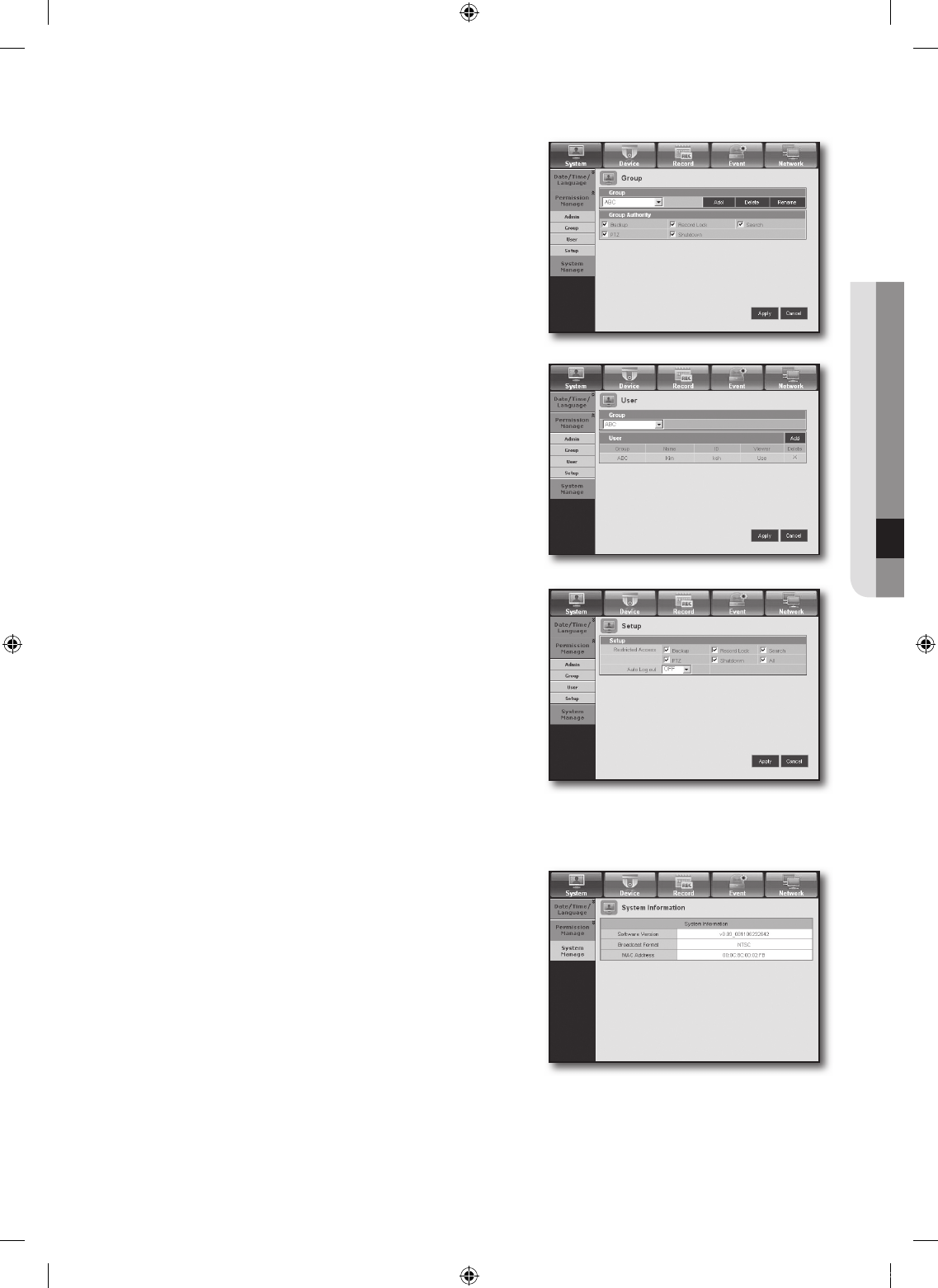

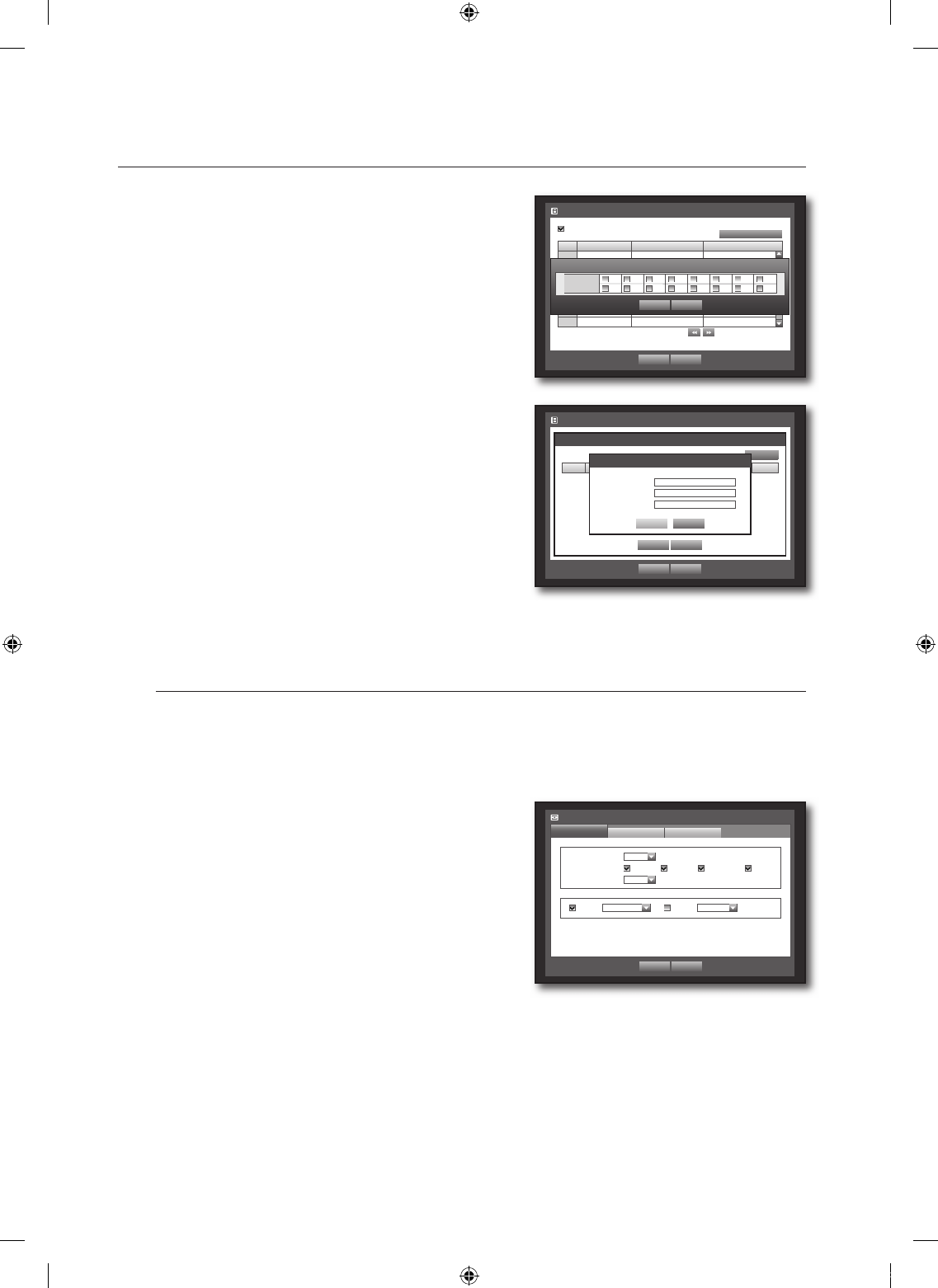

Setting the Group
You can create a user group, and setup permissions of a user group.
You can register a user for each group in <User>.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <System> window to
move to <Permission Management>, and press
[ENTER] button.
Select <Group>.
A window for <Add>, <Delete>, <Rename>, and
<Group Authority> setup appears.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the value.
Add, Delete, Rename : You can add, delete, rename a
group or modify the permissions given to the group.
The virtual keyboard appears when <Add> or <Rename> was selected.
You can add up to 10 groups.
Refer to “Using Virtual Keyboard”. (Page 36)
Group Authority : Sets permissions to access menu items of each group.
Users of a group can access checked functions.
When the group setup is done, press <OK>.
Setting the User
Users can be added only if a group was created in <Group> menu.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <System> window to
move to <Permission Management>, and press
[ENTER] button.
Select <User>.
A window for Add User appears.
Use direction buttons (
▲▼_ +
) to select <Add> from the
window.
A window for “Add User” appears.
You can set the name, ID, viewer, group and password of
the user.
Result of the user setup appears in the <User> window.
To change the user property, use “Edit User”.
The “Edit User” window appears when you select a
desired item to be changed in the <User> window.
When the user setup is done, press <OK>.
3.
4.
5.
~
`
~
6.
3.
4.
5.
6.
Permission Management
Group
Admin
OK Cancel
User
Add Delete Rename
Group ABC
Group Authority
Backup Record Lock Search
PTZ Shutdown
Setup
Group Name ID Viewer Delete
Permission Management
User
Admin
OK Cancel
Setup
Add
Group
Group All Group
Previous/Next Page
Group Name ID Viewer Delete
Permission Management
User
Admin
OK Cancel
Setup
Add
Group
Group All Group
Previous/Next Page
Add User
OK Cancel
Name Kim
ID ksh
Viewer Not Used
Select Group ABC
Password ********
Confi rm ********
00769B_SHR-8162_ENG-NEW.indb 37 2008-12-04 오전 10:15:07
38_ using the DVR
using the DVR

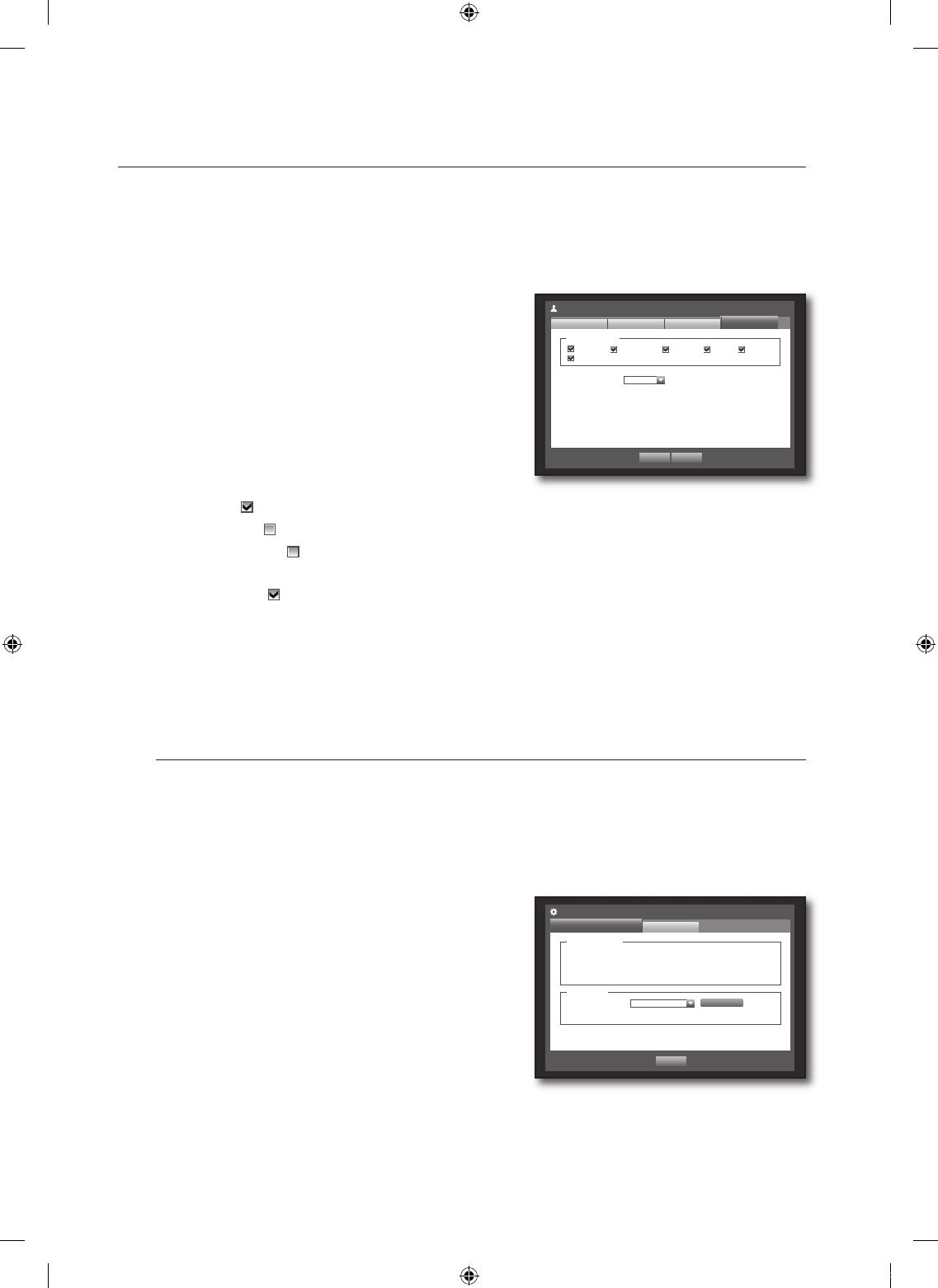

Setting Permissions
You can set restricted access for all general users.
Items with restrictions will require logging in for use.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <System> window to
move to <Permission Management>, and press
[ENTER] button.
Select <Setup>.
A window for Restricted Access and Auto Log out
appears.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the value.
Restricted Access : All menu items allowed for a user can
be set with restricted access.
- Checked ( ) : Restricted
- Not checked ( ) : Accessible
If it is not checked ( ) in <Restricted Access>, any user can access the item no matter what the <Group Authority>
setting.
If it is checked ( ) in <Restricted Access>, a user can access the item only if the user has permission in <Group
Authority> setting.
Auto Log out : A user will be automatically logged out if there is no operation on DVR for over set period of
time.
When the permission setup is done, press <OK>.
System Management
You can check the system version, update to a newer version, as well as data backup and initialization.
Checking the System Information
You can check the current system version, broadcasting system, MAC address. You can update the system.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <System> window to
move to <System Management>, and press [ENTER]
button.
Check the Version, Broadcast Format, and MAC Address.
System Information : Shows the current system’s
information.
The values can not be changed by a user.
S/W Upgrade : Updates the DVR’s software up to date.
3.
4.
5.
~
`
`
~
6.
3.
4.
~
~
Permission Management
Setup
Admin
OK Cancel
Group
Restricted Access
Backup Record Lock Search PTZ Shutdown
All
Auto Log out OFF
User
Software Version v0.02_080826225303
Broadcast Format NTSC
MAC Address 00:00:F0:54:FF:FF
System Management
System Information Settings
Previous
System Information
Upgrade
Device USB2FlashStorage
Version v0.02_080826225303
S/W Upgrade
00769B_SHR-8162_ENG-NEW.indb 38 2008-12-04 오전 10:15:09
English _39
● USING THE DVR

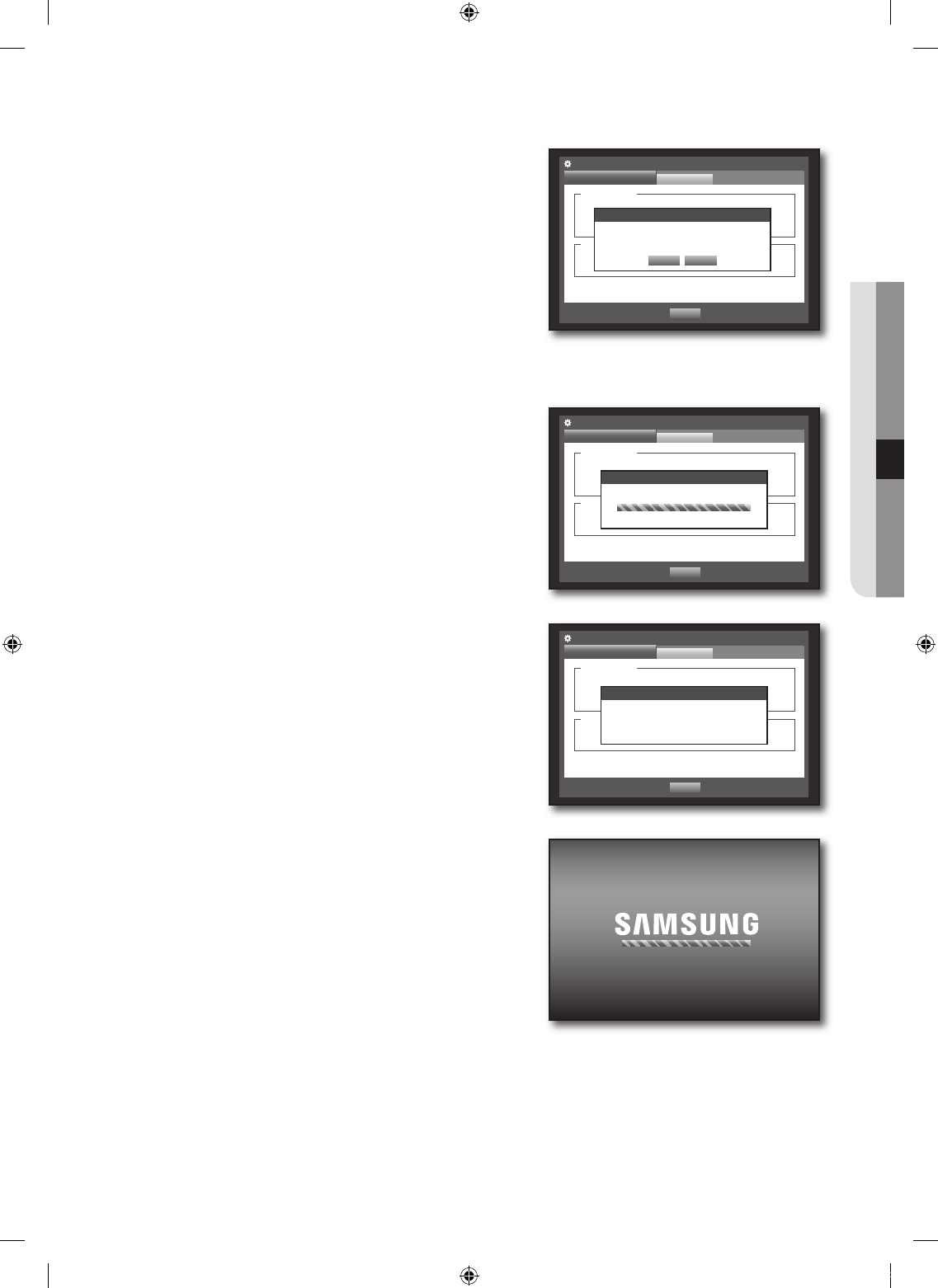

Updating the Software
Connect a device storing the software to be updated.
(It may take about 10 seconds to recognize the device.)
You can use a USB memory or CD/DVD for updating.
Select <System Management> from <System> window.
Select <System Information>.
When the recognized device appears, select <Upgrade>.
The <Upgrade> button will be activated only if the current
<Software version> of the <System information> is same to
or older than that of <S/W Upgrade>.
Press <OK> in the “System Upgrade” window.
While updating, it shows the progress.
Updating progresses with 3 steps as shown in the fi gure.
When the updating is done, it automatically restarts.
Do not turn the power off until it fi nishes restarting.
If “Upgrade Failed” appears, retry from the step 4.
When you experience continued failure, consult the service
center for assistance.
~
1.
`
2.
3.
4.
`
5.
`
~
6.
M`
Software Version v0.02_080826225303
Broadcast Format NTSC
MAC Address 00:00:F0:54:FF:FF
System Management
System Information Settings
Previous
System Information
Upgrade
Device USB2FlashStorage
Version v0.02_080826225303
S/W Upgrade
System Upgrade
OK Cancel
Current Version v0.02_080826225303
New Version v0.02_080826225303
Do you want to upgrade?
Software Version v0.02_080826225303
Broadcast Format NTSC
MAC Address 00:00:F0:54:FF:FF
System Management
System Information Settings
Previous
System Information
Upgrade
Device USB2FlashStorage
Version v0.02_080826225303
S/W Upgrade
S/W Upgrade
Software upgrading...
Software Version v0.02_080826225303
Broadcast Format NTSC
MAC Address 00:00:F0:54:FF:FF
System Management
System Information Settings
Previous
System Information
Upgrade
Device USB2FlashStorage
Version v0.02_080826225303
S/W Upgrade
S/W Upgrade
Software upgrading...
S/W Upgrade
Software upgrading...
Do not turn off during the upgrade.
00769B_SHR-8162_ENG-NEW.indb 39 2008-12-04 오전 10:15:12
40_ using the DVR
using the DVR

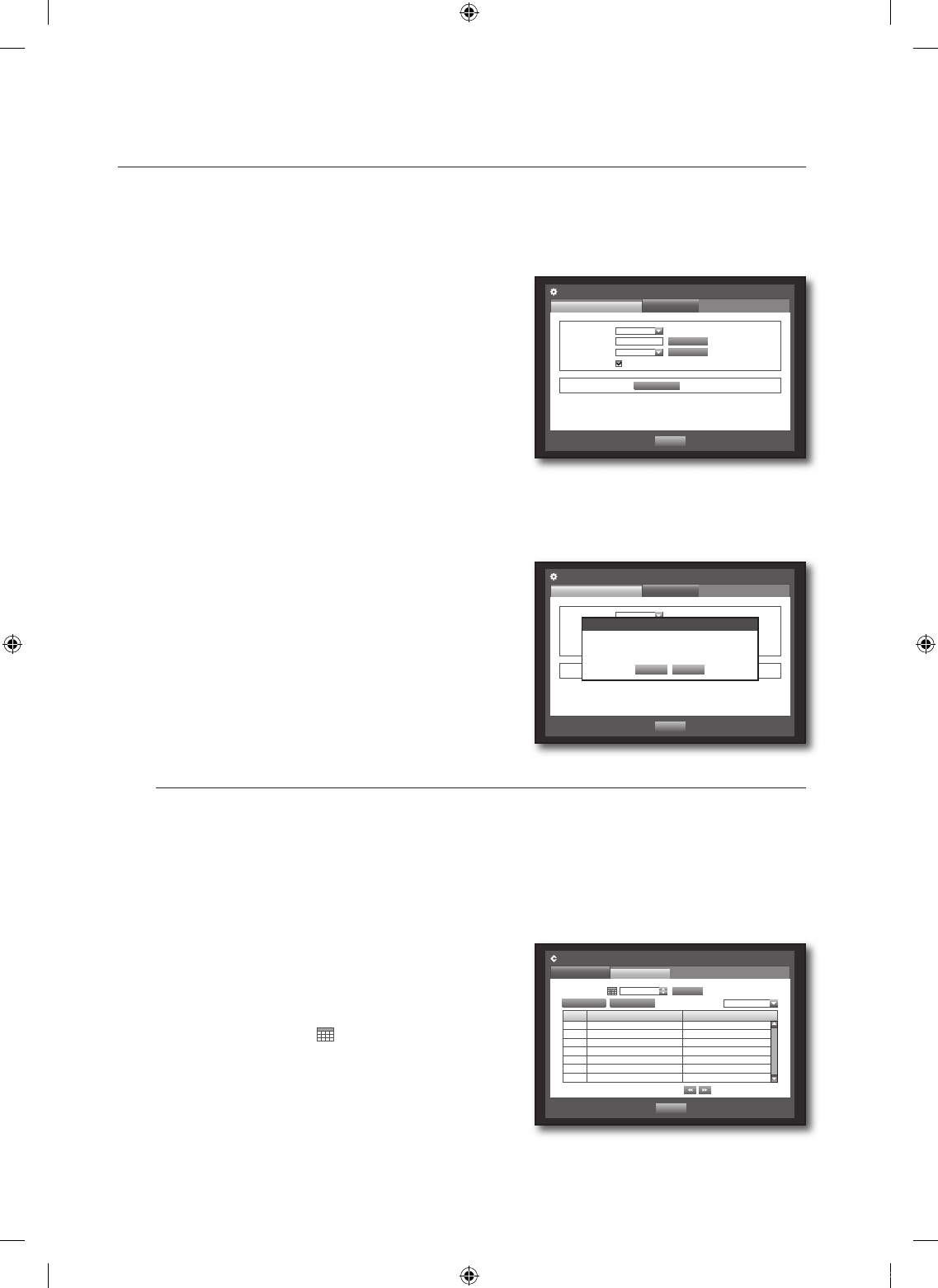

Settings
You can copy and import the DVR settings by using a storage media.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <System> window to
move to <System Management>, and press [ENTER]
button.
Select <Settings>.
A window of storage device and load factory default
appears.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and export or import settings data to a storage
device.
Storage Device : Shows the connected storage device.
Export : Exports DVR settings to the connected storage device.
Import : Imports DVR settings from the storage device and applies to the DVR.
If <Include Network Settings> is checked, the network settings will be imported too.
Load Factory Default : If <Default> is selected, a
confi rmation dialog for “Load Factory Default” prompts.
Press <OK> to initialize the system to the factory default.
To move to the previous menu, press <Previous>.
Log Information
You can browse logs on the system and events.
System Log
System Log shows log and timestamp on every system start up, system shutdown, and changes on system
settings.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <System> window to
move to <Log Information>, and press [ENTER] button.
Select <System Log>.
Refer to “Using the Calendar”. (Page 35)
Click on the calendar < > to display the calendar window.
Type : When there are too many logs, you can display logs of
the desired format by selecting the type.
Use direction buttons (
▲▼_ +
) to move to a desired item,
and press <Search>.
3.
4.
5.
~
~
~
`
~
6.
3.
4.
`
~
5.
Storage Device 1932 MB (Remained Capacity)
DVRUSB 38010100
USBDVR
Include Network Settings
Settings
System Information
Previous
Load Factory Default Default
Export
Import
System Management
Load Factory Default
OK Cancel
Sure to Default Setting?
Storage Device 1932 MB (Remained Capacity)
DVRUSB 38010100
USBDVR
Include Network Settings
Settings
System Information
Previous
Load Factory Default Default
Export
Import
System Management
No. Log List Date/Time
Log Information
System Log Event Log
First Page
Search Day 2009-01-01
Previous
Previous/Next Page
Type View all
Search
Last Page
00769B_SHR-8162_ENG-NEW.indb 40 2008-12-04 오전 10:15:14
English _41
● USING THE DVR

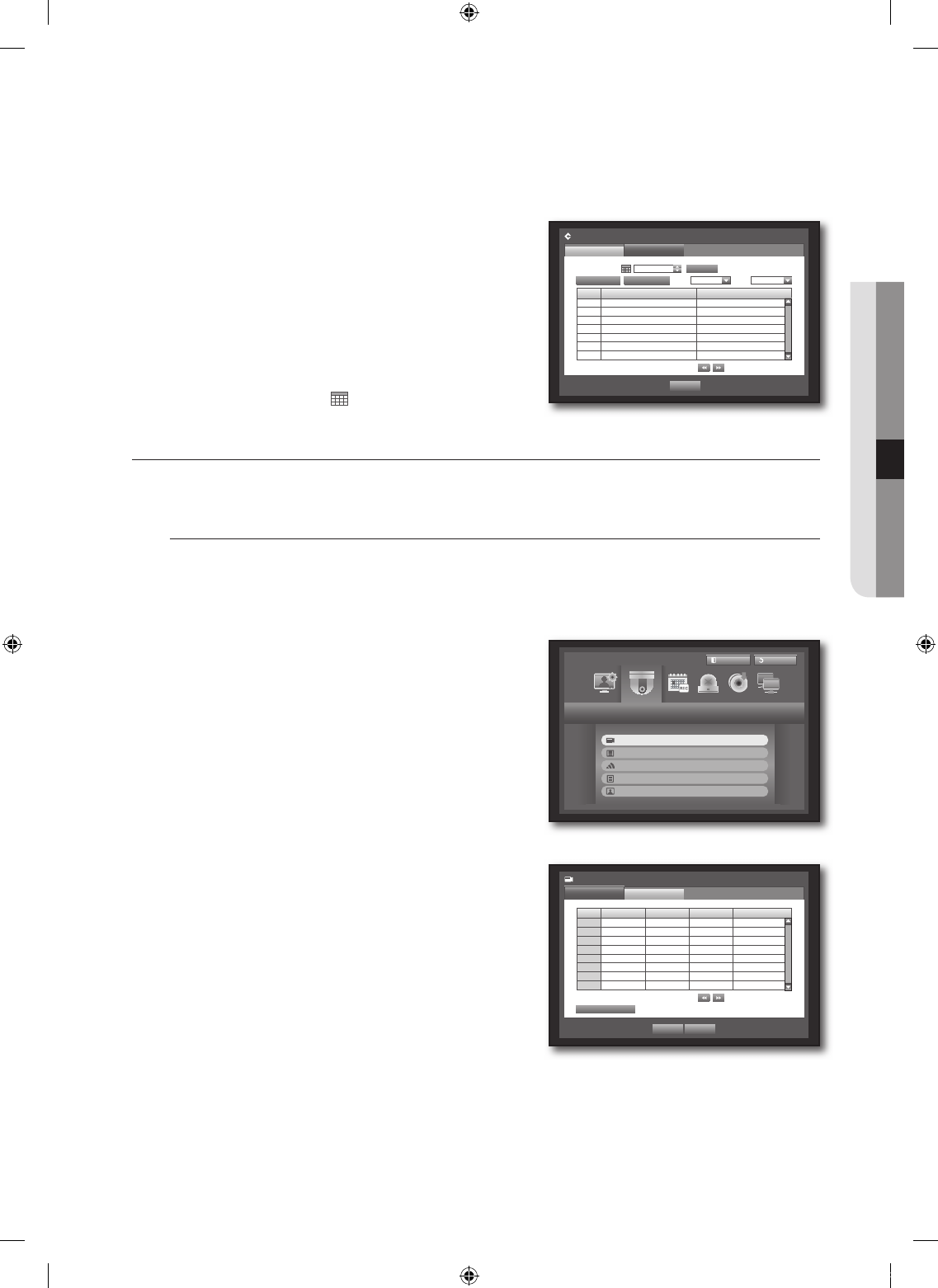

Event Log
Event log shows recorded events on alarms, motion detections and video loss.
It also shows the log and its timestamp.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <System> window to
move to <Log Information>, and press [ENTER] button.
Select <Event Log>.
Use direction buttons (
▲▼_ +
) to move to the desired
item.
Set Search Day, Channel and Type and the press
<Search>.
Refer to “Using the Calendar”. (Page 35)
Click on the calendar < > to display the calendar window.
SETTING THE DEVICE
You can setup Camera, Storage Device, Remote Device, POS Device and Monitor.
Camera
Setting the Camera
You can set Video, Audio, Channel Name and Dwell Time of a Camera.
Using the mouse may help easy setup.
Press the [MENU] button on the remote control or front
panel.
Use the left/right button (
_ +
) to select <Device>.
Device setting menu is selected.
Use the up/down buttons (
▲▼
) to move to <Camera>,
and press [ENTER] button.
Select <Camera>.
A window for setting Video, Audio, Channel Name and
Dwell Time of a Camera appears.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the value.
Video
- <ON/OFF> : You can turn ON/OFF the selected
channel’s camera.
- <Covert1> : Shows information other than the video of
the selected channel.
For privacy protection, it does not display the video while the recording continues.
- <Covert2> : Shows nothing but an empty screen while the recording continues.
3.
4.
5.
6.
`
1.
2.
3.
4.
5.
~
`
No. Log List Date/Time
7 Motion Detection [CH 7] 2009-01-01 00:02:18
6 Motion Detection [CH 6] 2009-01-01 00:02:18
5 Motion Detection [CH 5] 2009-01-01 00:02:18
4 Motion Detection [CH 4] 2009-01-01 00:02:18
3 Motion Detection [CH 3] 2009-01-01 00:02:18
2 Motion Detection [CH 2] 2009-01-01 00:02:18
1 Motion Detection [CH 1] 2009-01-01 00:02:18
Log Information
Event Log
System Log
First Page
Search Day 2009-01-01
Previous
Previous/Next Page
CH All CHs Type View all
Search
Last Page
Device
Logout Exit
Camera
Storage Device
Remote Device
POS Device
Monitor
CH Video Audio CH Name SEQ-Dwell Time
1 ON OFF CAM 01 5 sec
2 ON OFF CAM 02 5 sec
3 ON OFF CAM 03 5 sec
4 ON OFF CAM 04 5 sec
5 ON OFF CAM 05 5 sec
6 ON OFF CAM 06 5 sec
7 ON OFF CAM 07 5 sec
8 ON OFF CAM 08 5 sec
Camera
Camera PTZ
Previous/Next Page
Screen Setup
OK Cancel
00769B_SHR-8162_ENG-NEW.indb 41 2008-12-04 오전 10:15:16
42_ using the DVR
using the DVR
Audio
- If set to <ON>, you can turn the audio of the channel ON/OFF on the Live screen.
- If set to <OFF>, the channel’s audio is off on the Live screen and not recorded.
Audio output is available for only 1 channel.
CH Name : Up to 15 characters including blanks are allowed.
Refer to “Using Virtual Keyboard”. (Page 36)
SEQ-Dwell Time: You can set the dwell time between channels for the Live screen and SPOT OUT.
If set to <OFF>, the channel is not listed in the Auto Sequence mode.

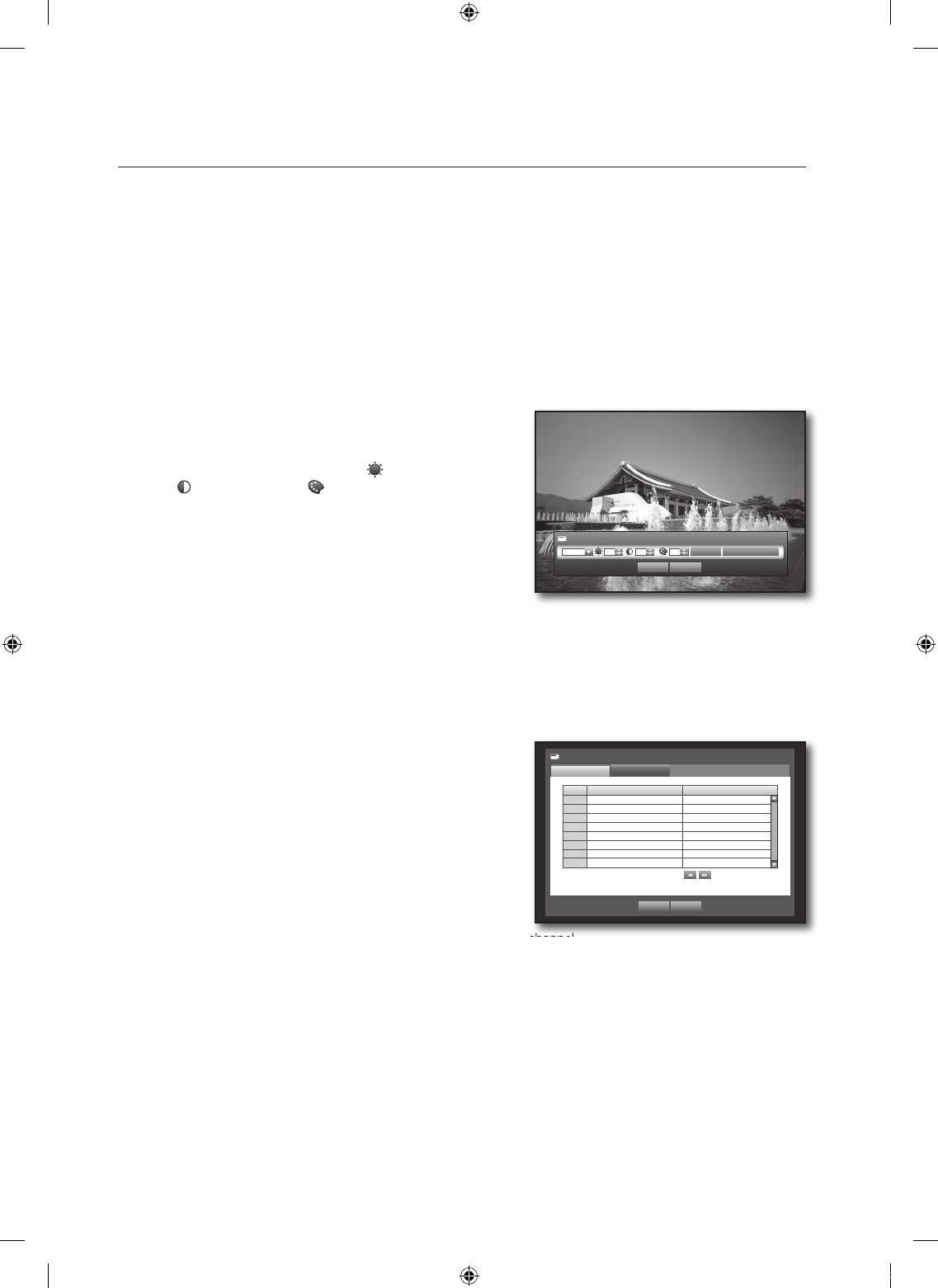

Screen Setup : The video appeared on the screen may vary
depending on the channel’s camera, confi gure the DVR
display to your preferences.
Select a channel and adjust the
<
(Brightness)>,
<
(Contrast)>, and
<
(Color)> of the selected channel.
Press the <Init> to initialize settings back to the default 50.
When the camera setup is done, press <OK>.
Setting the PTZ
To use Camera’s PTZ functions, ID and protocols of each camera and DVR should be matched.
For other settings, refer to the “Remote Devices” settings. (Page 45)
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Device> window to
move to <Camera>, and press [ENTER] button.
Select <PTZ>.
A window of PTZ settings appears.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and select it.
ID : Set the ID of the connected camera of each channel.
You can easily setup by using the numeric buttons on the
remote control or front panel.
Protocol : Set the protocol of the connected camera of each channel.
You can check the camera’s ID and protocol if you turn the camera off and on after connecting it to the DVR.
(Page 63)
When the PTZ setup is done, press <OK>.
~
`
~
`
~
`
~
~
6.
3.
4.
5.
~
~
M`
6.
Protocol : Set the protocol of the connected camera of each channel.
CH ID Protocol
1 0 > None
2 1 > None
3 2 > None
4 3 > None
5 4 > None
6 5 > None
7 6 > None
8 7 > None
Camera
PTZ
Camera
Previous/Next Page
OK Cancel
Screen Setup
Init Apply to All CH
CH1 50 50 50
OK Cancel
00769B_SHR-8162_ENG-NEW.indb 42 2008-12-04 오전 10:15:18
English _43
● USING THE DVR
Storage Device
You can check information on storage devices.
Confi rming Devices
You can check storage devices and their free space, usage as well as status.
Devices available are HDD, and USB devices (memory, HDD, CD/DVD).
Refer to “Product Specifi cations > Backup”. (Page 96)
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Device> window to
move to <Storage Device>, and press [ENTER] button.
Select <Device>.
No. : Shows the assigned number of the internal HDD.
To see the detailed positioning of the HDD according to the
number, refer to <HDD Map>.
Used/Total: Shows the used/total capacity of the storage
device.
Usage: Sets the storage device’s usage.
- USB memory is used only for backups.
External USB HDD, SATA HDD are used for extension and backup.
Status/Management : Shows the current status of the HDD, as in Normal/Check/Replace.
- Normal : Available to use
- Check : Available to use but recommended to replace
- Replace : Requires immediate replacement.
HDD Map : Shows the internal HDD’s locations according to
assigned numbers.
Refer to this for servicing or additional HDD installation.
To move to the previous menu, press <OK>.
Formatting
You can format a storage device.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Device> window to
move to <Storage Device>, and press [ENTER] button.
Select <Format>.
A window for selection of device for formatting appears.
Use direction buttons (
▲▼_ +
) to select a device to be
formatted.
3.
4.
~
`
~
~
`
~
~
`
5.
3.
4.
5.
HDD Map
OK
Storage Device
Device Format
OK Cancel
HDD Alarm
HDD Map
Device No. Used/Total Usage Status/Management
HDD 1 12.28G/499.37G Internal Normal
Storage Device
Device
OK Cancel
HDD Alarm
Format
Device Select Used/Total Usage
HDD 1 12.28G/499.37G Internal
Format
00769B_SHR-8162_ENG-NEW.indb 43 2008-12-04 오전 10:15:24

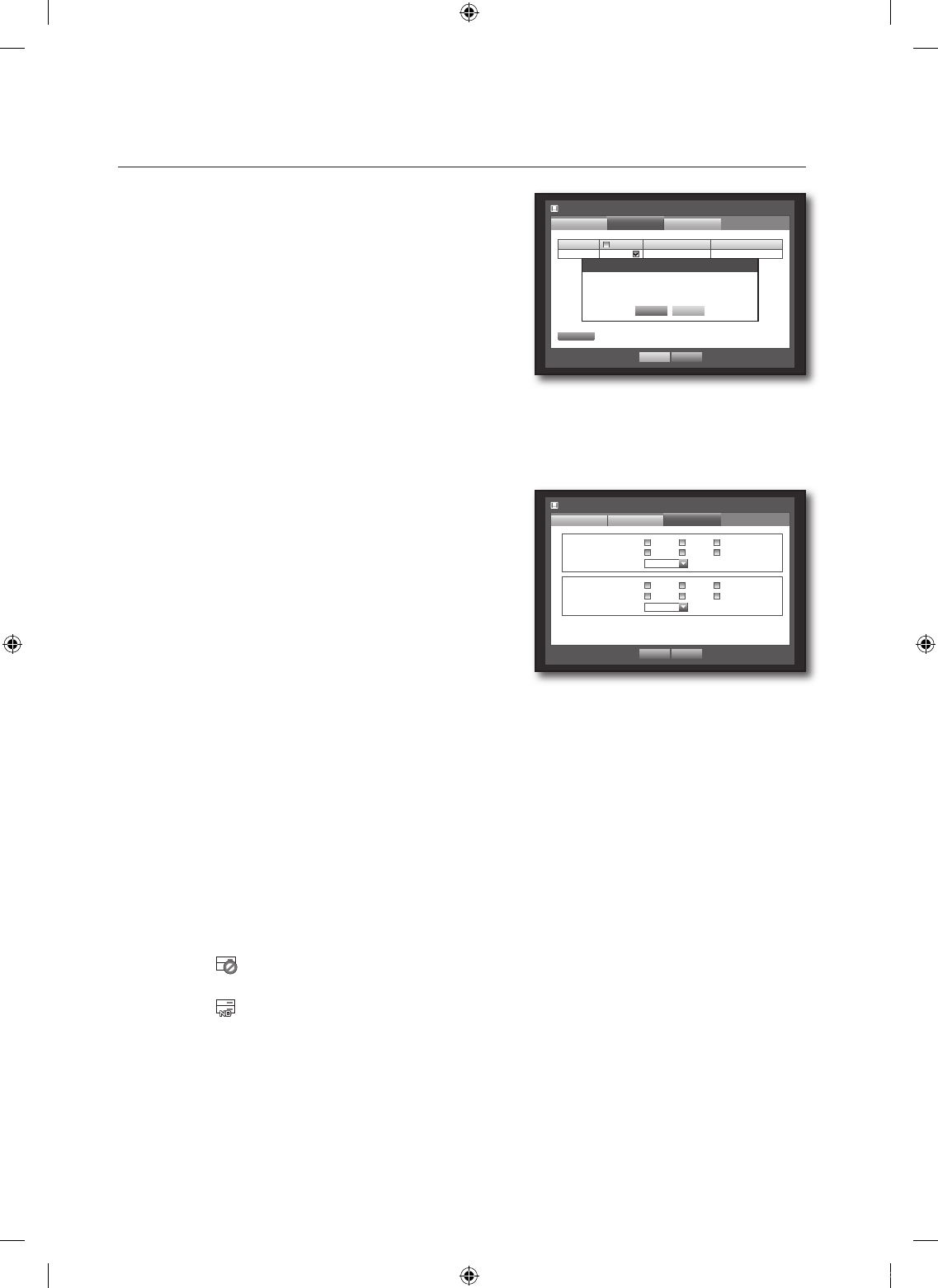

44_ using the DVR
using the DVR
Select <Format> on the bottom of the screen.
Press <OK> on the “Manage” confi rmation window will
start formatting the selected device.
When the formatting is done, press <OK>.
HDD Alarm
You can set alarm settings for HDD defects such as Check Alarm Output Port, Replace Alarm Output Port,
and its duration.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Device> window to
move to <Storage Device>, and press [ENTER] button.
Select <HDD Alarm>.
A window for setting HDD check and replace output ports
and their durations appears.
Use direction buttons (
▲▼_ +
) to move to the desired
item.
Alarm
- Alarm signal will output through the alarm out port on the
rear side when selected <1>, <2>, <3>, and <4>.
- If <BEEP> was selected, a beep will sound.
- If <All> was selected, both beep sound and alarm signal through rear side ports will output.
Check Alarm Output Port : If HDD generates check alarm, the alarm signal will output to the specifi ed alarm
output port.
Replace Alarm Output Port : If HDD generates replace alarm, the alarm signal will output to the specifi ed
alarm output port.
Duration: Sets the alarm duration for the alarm signal and beep sound.
- Check Alarm, Replace Alarm signals will output through the selected alarm out ports (1, 2, 3, and 4).
- If <BEEP> was selected, a beep will sound.
- If <All> was selected, both beep sound and alarm signal through rear side ports will output.
<Check> status means that the HDD is operating but it has problems that require technical examination.
( ) appears on the Live screen.
<Replace> status means that the HDD has defect and requires immediate replacement.
( ) appears on the Live screen.
When the HDD Alarm setup is done, press <OK>.
6.
7.
3.
4.
5.
~
~
~
~
M`
`
6.
Storage Device
Format
OK Cancel
Device HDD Alarm
Check Alarm Output Port
Duration OFF
1 2 3
4 BEEP All
Replace Alarm Output Port
Duration OFF
1 2 3
4 BEEP All
Storage Device
Device
OK Cancel
HDD Alarm
Format
Device Select Used/Total Usage
HDD 1 12.28G/499.37G Internal
Format
Manage
Formatting deletes all recordings.
Proceed formatting?
OK Cancel
00769B_SHR-8162_ENG-NEW.indb 44 2008-12-04 오전 10:15:26

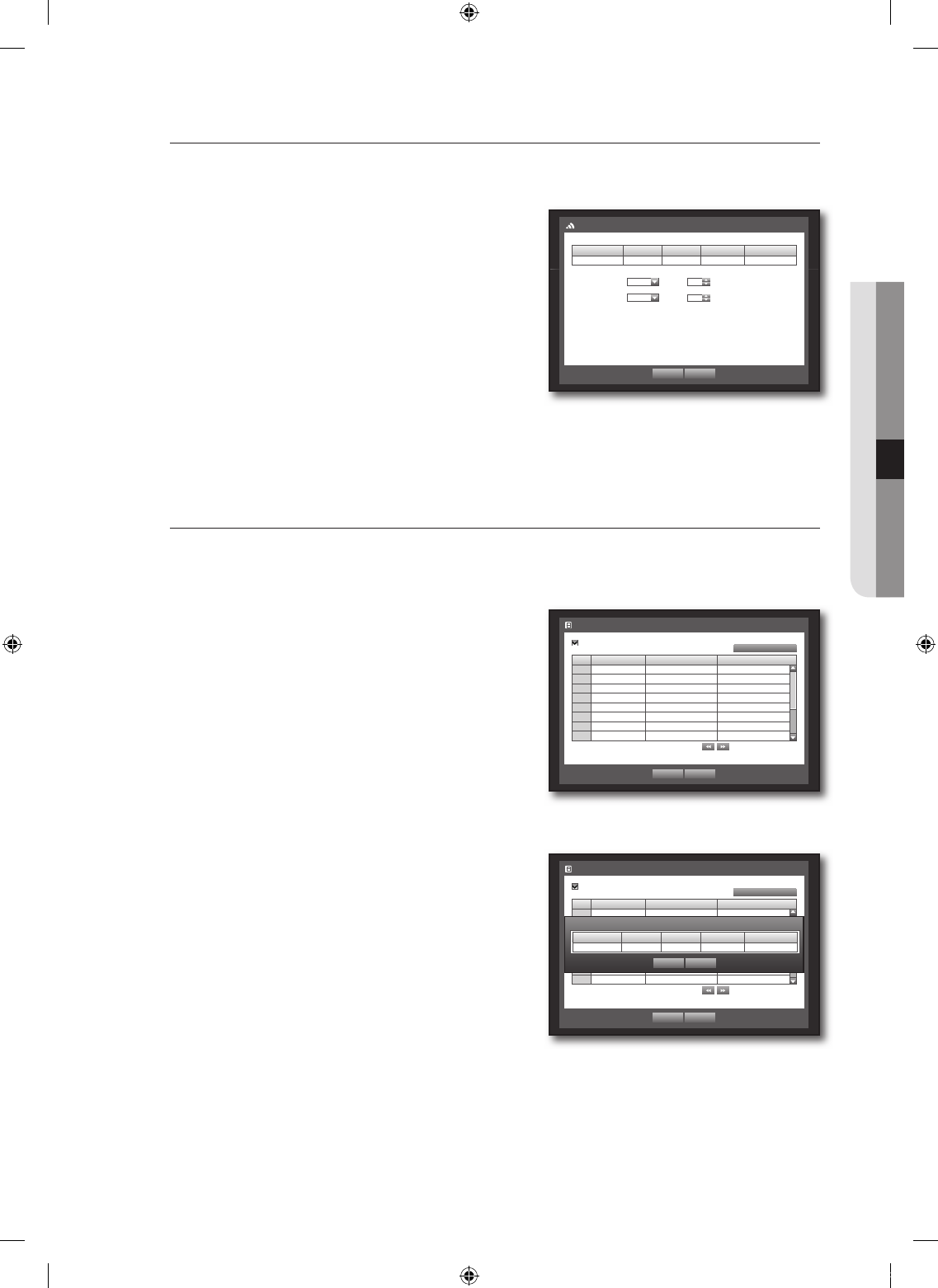

English _45
● USING THE DVR
Remote Devices
You can set the RS-485 communication for use of PTZ Camera and system keyboard with the DVR.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Device> window to
move to <Remote Device>, and press [ENTER] button.
Use direction buttons (
▲▼_ +
) to move to the desired
item, and press [ENTER] button.
Set the values of each communication setup of the remote
device.
Baud rate : Baud rate settings of the DVR, PTZ camera and
system keyboard should be matched for proper operations.
Make sure to match IDs of the DVR, System Keyboard
and Remote Control, and press <OK>.
For changing the remote control’s ID, refer to “Changing the Remote Control ID”. (Page 13)
POS Devices
You can set properties of POS devices connected to the DVR.
A POS device connection requires channel, preset, and port/Ethernet settings.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Device> window to
move to <POS Device>, and press [ENTER] button.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the value.
POS USE : When selected <POS USE>, DVR and POS will
be connected.
If you change settings for the device and press <OK> while
the <POS USE> is not checked, the changes for POS device
will not be saved.
POS Device Setup : Sets the communication setups for the
POS device and DVR.
It is independent to the Remote Device setup.
3.
4.
5.
~
6.
M`
3.
4.
~
J`
~
`
System Keyboard OFF ID 00
Remote Control ON ID 32
Baudrate Parity Data Stop Bit Transfer type
9600 None 8 1 Half Duplex
Remote Device
OK Cancel
POS USE
POS CH Preset Port/Ethernet
1 None No preset None
2 None No preset None
3 None No preset None
4 None No preset None
5 None No preset None
6 None No preset None
7 None No preset None
8 None No preset None
POS Device
OK Cancel
Previous/Next Page
POS Device Setup
POS USE
POS CH Preset Port/Ethernet
1 None No preset None
2 None No preset None
3 None No preset None
4 None No preset None
5 None No preset None
6 None No preset None
7 None No preset None
8 None No preset None
POS Device
OK Cancel
Previous/Next Page
POS Device Setup
POS Device Setup
OK Cancel
Baudrate Parity Data Stop bit Transfer type
9600 None 8 1 Half Duplex
00769B_SHR-8162_ENG-NEW.indb 45 2008-12-04 오전 10:15:28
46_ using the DVR
using the DVR
CH : Select the camera to be synchronized to the POS
device.
If selected a channel input fi eld, “Sync Channel Setup” window
appears.
One POS device and be synchronized up to 16 cameras
(channels), and a channel can not be synchronized to multiple POS
devices.
Channels to be synchronized to a POS device should be set to
“Event” in “Main Menu > Setting the Recording > Recording
Schedule”. (Page 48)
Preset : Sets the name, start and end strings of the receipt
for the preset.
Preset name should be unique.
Use <Add> button to display “Add Preset” window, and set its
name, start string, and end string.
Port / Ethernet : Sets the port number for the DVR and POS
device connection.
COM1 : For RS-232C connections
7001~7016 : For Ethernet connections
When the POS Device setup is done, press <OK>.

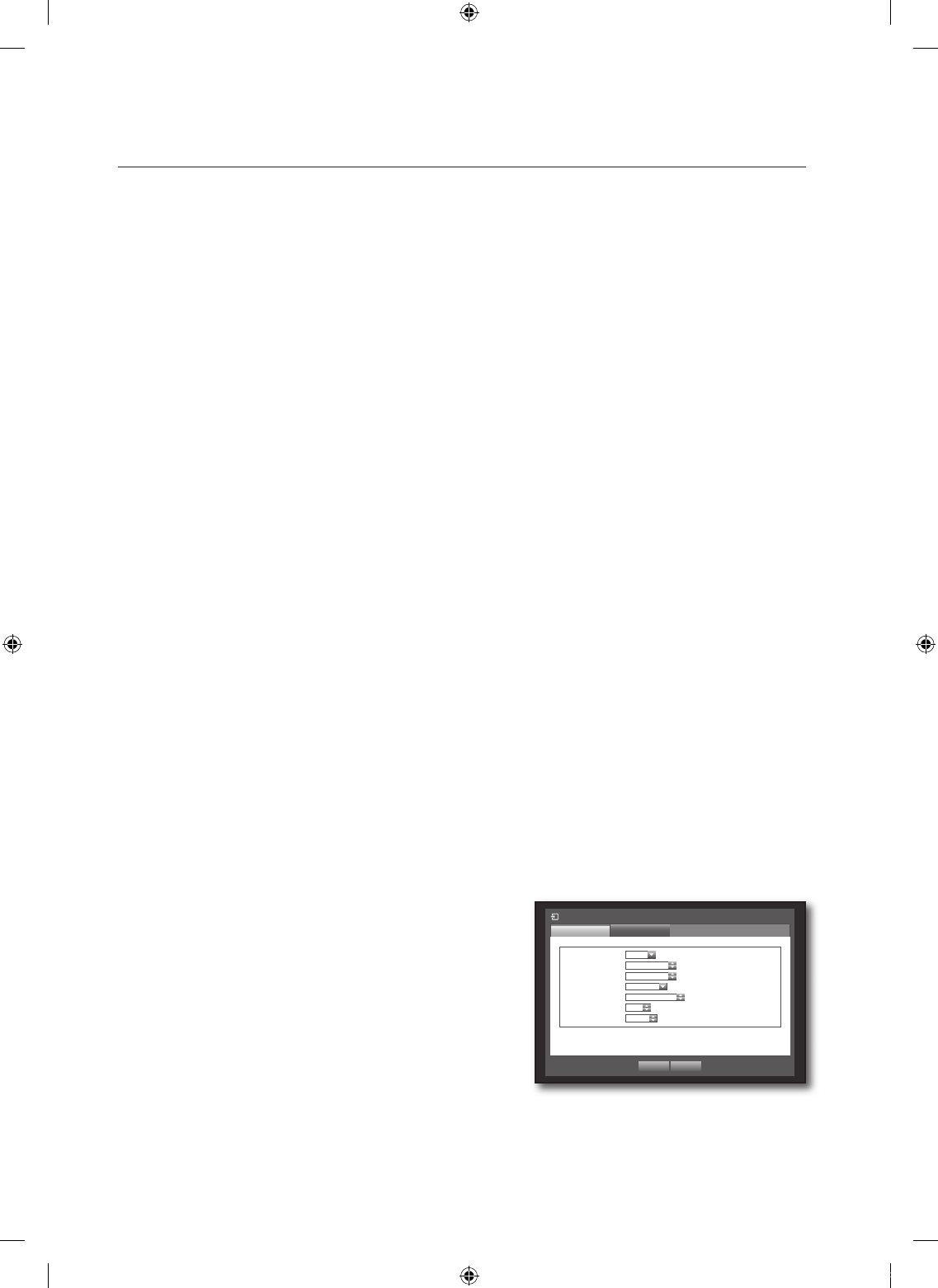

Monitor
You can confi gure information to be displayed and its format for SPOT OUT monitor.
Setting the Monitor
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Device> window to
move to <Monitor>, and press [ENTER] button.
Select <Monitor>.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the value.
Event Display : Sets the dwell time of the event channel
display on the monitor when an event occurs.
If selected <Continuous>, it displays the channel until you
press [ALARM] button to release it.
Display : Displays only checked items on the monitor
screen.
Multi CH SEQ Time : Sets the interval between automatic display switching in 4-split and 9-split mode of
the Live screen.
VGA, HDMI: Select between <VGA> and <HDMI> for screen output.
Outputs either one of <VGA> and <HDMI>.
If the output setting of <VGA> or <HDMI> does not match to the monitor, video may not be produced.
In this case, press and hold the [MODE] and [ZOOM] buttons simultaneously for around 5 seconds to
change the video output.
When the monitor setup is done, press <OK>.
~
`
`
`
~
`
`
~
`
`
5.
3.
4.
5.
~
~
~
~
6.
POS USE
POS CH Preset Port/Ethernet
1 None No preset None
2 None No preset None
3 None No preset None
4 None No preset None
5 None No preset None
6 None No preset None
7 None No preset None
8 None No preset None
POS Device
OK Cancel
Previous/Next Page
POS Device Setup
Sync Channel Setup
OK Cancel
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
CH
POS USE
POS CH Preset Port/Ethernet
1 None No preset None
2 None No preset None
3 None No preset None
4 None No preset None
5 None No preset None
6 None No preset None
7 None No preset None
8 None No preset None
POS Device
OK Cancel
Previous/Next Page
POS Device Setup
Preset Setup
OK Cancel
Add
No. Name Start End Input char. Set Del
Add Preset
OK Cancel
Name
Start Keyword
End Keyword
Monitor
Monitor SPOT OUT
Event Display OFF
Display Date Time CH Name Icon
Multi CH SEQ Time 5 sec
VGA 800x600 HDMI 480p
Mode
OK Cancel
00769B_SHR-8162_ENG-NEW.indb 46 2008-12-04 오전 10:15:30
English _47
● USING THE DVR

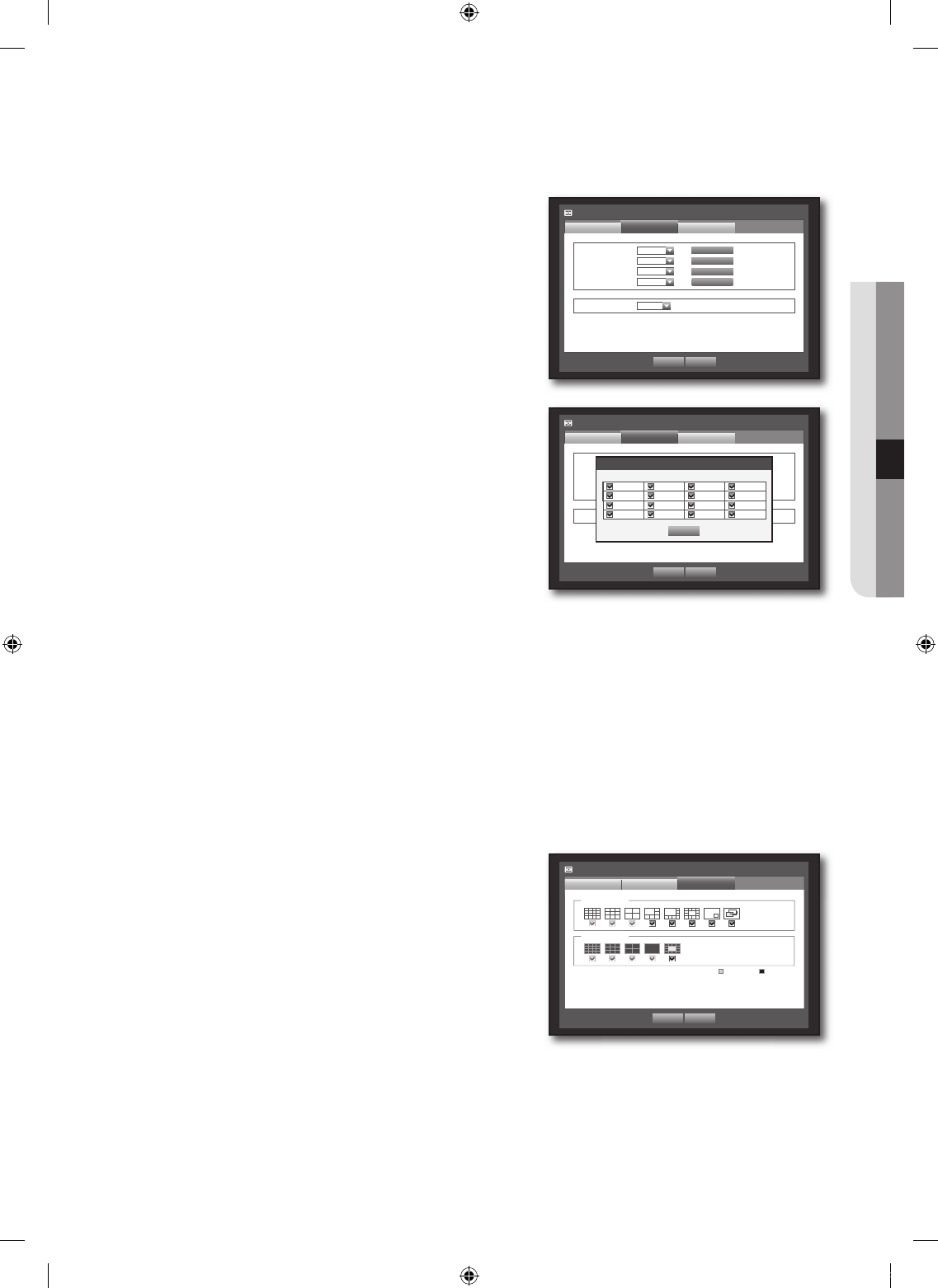

Setting the SPOT OUT
You can set the DVR to output information / video apart from the monitor out.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Device> window to
move to <Monitor>, and press [ENTER] button.
Select <SPOT OUT>.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the value.
SPOT OUT1 : You can select between 16-, 9-, 4-split, Auto
Sequence, and Single.
SPOT OUT2~4 : Only supports 4 channels, with 4-split,
Auto Sequence, and Single mode.
Set Mode : A window for “Set SPOT OUT” appears and
you can set the channel for it.
You can set the dwell time between the screen switching in
“Setting the Device > Camera> SEQ-Dwell Time”.
(Page 41)
Event Display : Sets the duration for the SPOT OUT on an
event.
If selected <OFF>, an event will not output to the SPOT OUT.
You can setup using the mouse right button in Live screen.
Refer to “SPOT OUT”. (Page 31)
When the SPOT OUT is done, press <OK>.
Setting the Screen Mode
You can confi gure the Live screen and Split Screens.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Device> window to
move to <Monitor>, and press [ENTER] button.
Select <Mode>.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the value.
Live Split Mode : Select split modes for the Live screen.
16-, 9-, and 4-split screens are included by default.
Play Split Mode : Select split modes for the playback
screen.
Only the 13-split screen is optional.
Black shows the playback while white shows the Live screen.
When the screen mode setup is done, press <OK>.
3.
4.
5.
~
~
~
~
M`
6.
3.
4.
5.
~
~
6.
Monitor
SPOT OUT
Monitor
SPOT OUT 1 16-split
SPOT OUT 2 4-split
SPOT OUT 3 4-split
SPOT OUT 4 4-split
Event Display OFF
Mode
OK Cancel
Set Mode
Set Mode
Set Mode
Set Mode
ALL CH
CH 5,6,7,8
CH 9,10,11,12
CH 13,14,15,16
Monitor
SPOT OUT
Monitor
SPOT OUT 1 16-split
SPOT OUT 2 4-split
SPOT OUT 3 4-split
SPOT OUT 4 4-split
Event Display OFF
Mode
OK Cancel
Set Mode
Set Mode
Set Mode
Set Mode
ALL CH
CH 5,6,7,8
CH 9,10,11,12
CH 13,14,15,16
Set SPOT OUT
OK
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
Monitor
Mode
Monitor SPOT OUT
OK Cancel
Live Play
Live Split Mode
Play Split Mode
00769B_SHR-8162_ENG-NEW.indb 47 2008-12-04 오전 10:15:32
48_ using the DVR
using the DVR
SETTING THE RECORDING
You can setup scheduled recording, event recording and other recording related settings.
Recording Schedule
Make your reservation on a date and time to schedule the recording on specifi ed time.
Using the mouse may help easy setup.
Press the [MENU] button on the remote control or front
panel.
Use the left/right button (
_ +
) to select <Record>.
Record menu is selected.
Use the up/down buttons (
▲▼
) to move to <Recording
Schedule>, and press [ENTER] button.
Select <Recording Schedule>.
A window of scheduled recording setup appears.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the value.
Apply to All CH : If selected <Apply to All CH>, “Apply to
All CH” window appears.
Press <OK> to apply the setup to all channels.
When the recording schedule setup is done, press <OK>.
1.
2.
3.
4.
5.
~
6.
Record
Logout Exit
Recording Schedule
Event Record Duration
REC Quality & Resolution
Record Option
All 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sun
Mon
Tue
Wed
Thu
Fri
Sat
Hol
No Recording Continuous Event Both(Cont&Evnt)
Apply to All CH
OK Cancel
Recording Schedule
CH1
All 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sun
Mon
Tue
Wed
Thu
Fri
Sat
Hol
No Recording Continuous Event Both(Cont&Evnt)
Apply to All CH
OK Cancel
Recording Schedule
CH1
Apply to All CH
OK Cancel
Apply recording schedule to all channels?
00769B_SHR-8162_ENG-NEW.indb 48 2008-12-04 오전 10:15:34
English _49
● USING THE DVR

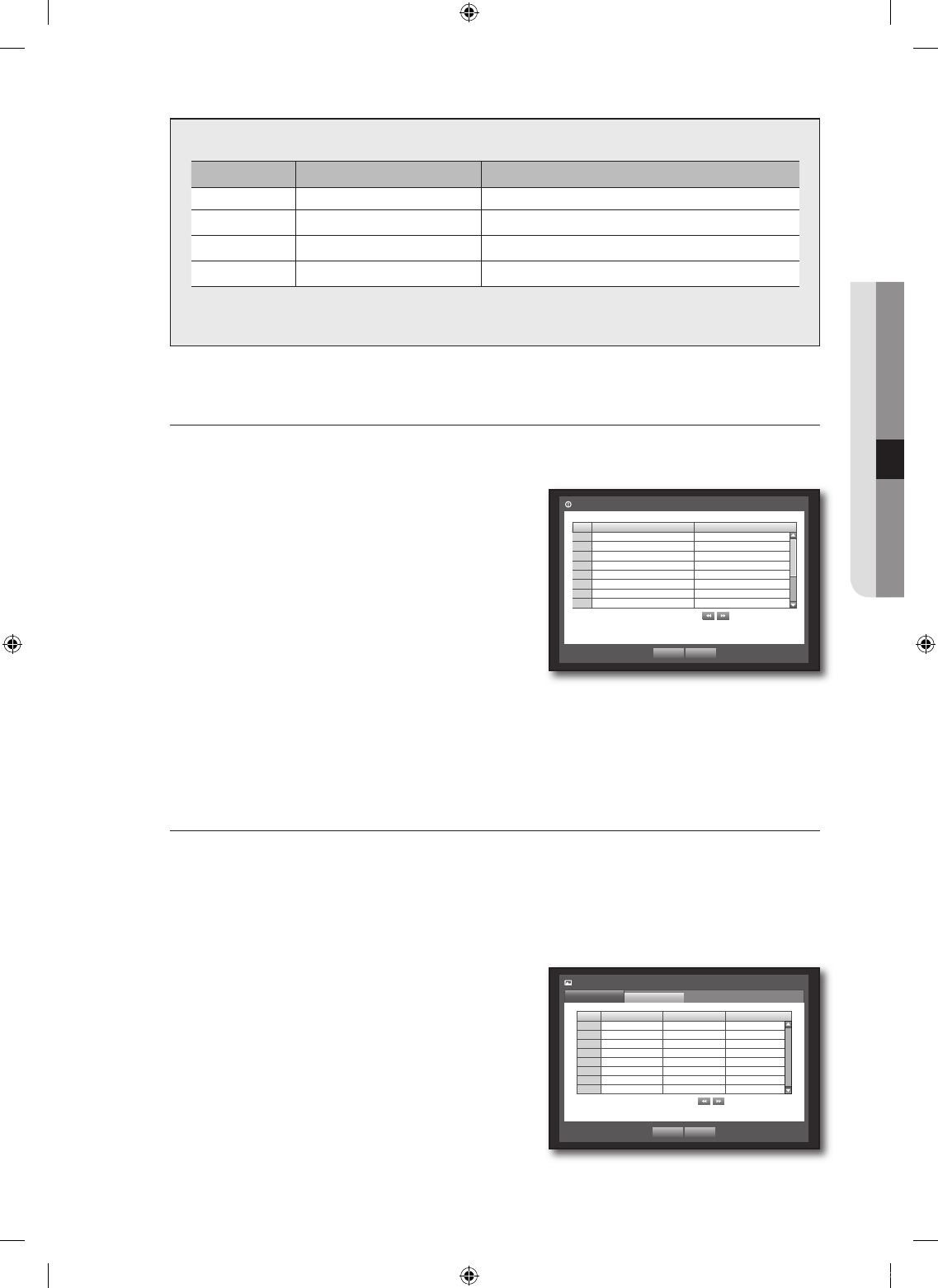

Recording Color Tags
Color Function Description
White No Recording No schedule / event recording
Orange Continuous Scheduled recording only
Blue Event Event recording only
Green Both(Cont&Evnt) Both scheduled / event recordings
Each press of a selected cell will cycle through <No Recording>-<Continuous>-<Event>-
<Both(Cont&Evnt)>.
Event Record Duration
You can set the beginning and ending point of a recording on an event.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Record> window to
move to <Event Record Duration>, and press [ENTER]
button.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the value.
Pre Event : The recording will be kept from the point of set
pre-event time earlier than the actual occurrence of an
event.
If it is set to 5 seconds, the recording begins from 5
seconds before the event.
Post Event : The recording will be kept to the point of set
post-event time after than the actual end of an event.
If it is set to 5 seconds, the recording ends in 5 seconds after an event.
When the event recording duration setup is done, press <OK>.
Quality / Resolution
You can set resolution, IPS, and quality of recordings by channel, and by recording type of standard / event.
Setting Standard Recording Properties
You can set each channel’s resolution, quality and IPS for normal recordings.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Record> window to
move to <REC Quality & Resolution>, and press
[ENTER] button.
Select <Standard>.
When the recording setup is done, press <OK>.
3.
4.
~
~
5.
3.
4.
5.
Event Record Duration
OK Cancel
Previous/Next Page
CH Pre Event POST Event
1 OFF 1 min
2 OFF 1 min
3 OFF 1 min
4 OFF 1 min
5 OFF 1 min
6 OFF 1 min
7 OFF 1 min
8 OFF 1 min
CH Resolution Record Rate Record Quality
1 CIF(S) 7.5ips Level4
2 CIF(S) 7.5ips Level4
3 CIF(S) 7.5ips Level4
4 CIF(S) 7.5ips Level4
5 CIF(S) 7.5ips Level4
6 CIF(S) 7.5ips Level4
7 CIF(S) 7.5ips Level4
8 CIF(S) 7.5ips Level4
REC Quality & Resolution
Standard Event
Previous/Next Page
OK Cancel
00769B_SHR-8162_ENG-NEW.indb 49 2008-12-04 오전 10:15:35

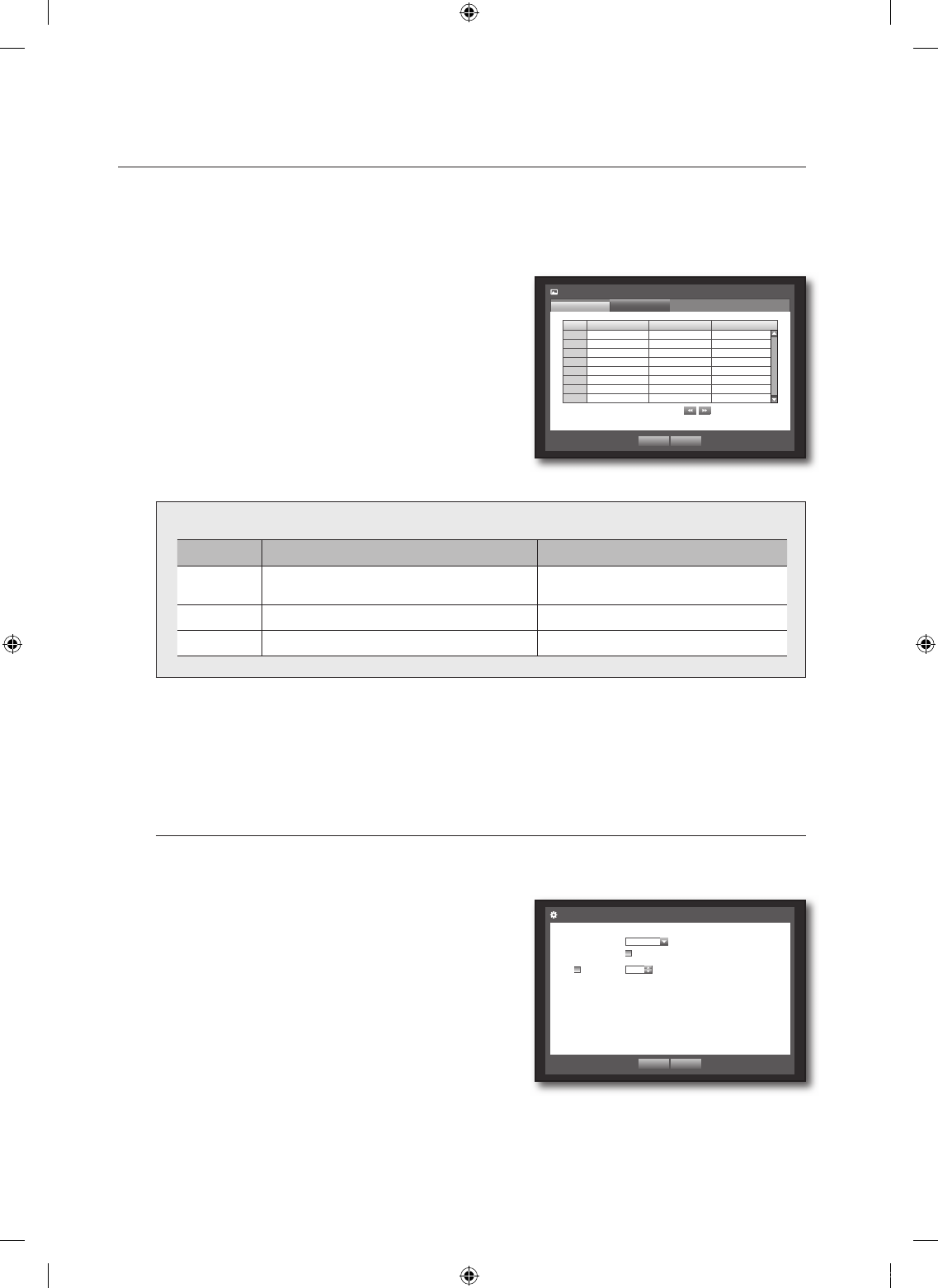

50_ using the DVR
using the DVR
Setting Event Recording Properties
You can set each channel’s resolution, quality and IPS for event recordings.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Record> window to
move to <REC Quality & Resolution>, and press
[ENTER] button.
Select <Event>.
Event recording setup window appears.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and select it.
Resolution : Sets the resolution of the recorded screen.
For SHR-7080,7082,7160,7162 models, setting the resolution to
<Full D1(L)> limits the maximum supported channels to 4.
Resolution
Name Resolution Description
CIF(S) NTSC: 352 X 240, PAL: 352 X 288 Samples each half of horizontal and
vertical screen.
Half D1(M) NTSC: 704 X 240, PAL: 704 X 288 Samples half of the horizontal screen.
Full D1(L) NTSC: 704 X 480, PAL: 704 X 576 Samples original screen size.
Record Rate : Image Per Second, means the frames recorded per a second.
Record Quality : Sets the recording quality.
When the Event recording setup is done, press <OK>.
Record Option
You can set the recording to stop or overwrite when the HDD is full.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Record> window to
move to <Record Option>, and press [ENTER] button.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the value.
3.
4.
5.
~
`
~
~
6.
3.
4.
CH Resolution Record Rate Record Quality
1 Full D1(L) 30ips Level4
2 Full D1(L) 30ips Level4
3 Full D1(L) 30ips Level4
4 Full D1(L) 30ips Level4
5 Full D1(L) 30ips Level4
6 Full D1(L) 30ips Level4
7 Full D1(L) 30ips Level4
8 Full D1(L) 30ips Level4
REC Quality & Resolution
Previous/Next Page
OK Cancel
Event
Standard
Record Option
OK Cancel
Disk End Mode Overwrite
Disk End Beep
Auto Delete 1 day
00769B_SHR-8162_ENG-NEW.indb 50 2008-12-04 오전 10:15:37
English _51
● USING THE DVR
Disk End Mode : If selected <Overwrite>, recording will continue despite the HDD full while overwriting the
oldest.
If selected <Stop>, the recording will stop when the HDD is full.
Disk End Beep : If selected <Stop>, the button is activated.
If you check it, the beep will sound on the disk full and the recording stops.
Auto Delete : If you check it, Record Period setup is activated.
If you setup the auto delete, recorded data only in the confi gured period are searchable.
When the recording option setup is done, press <OK>.

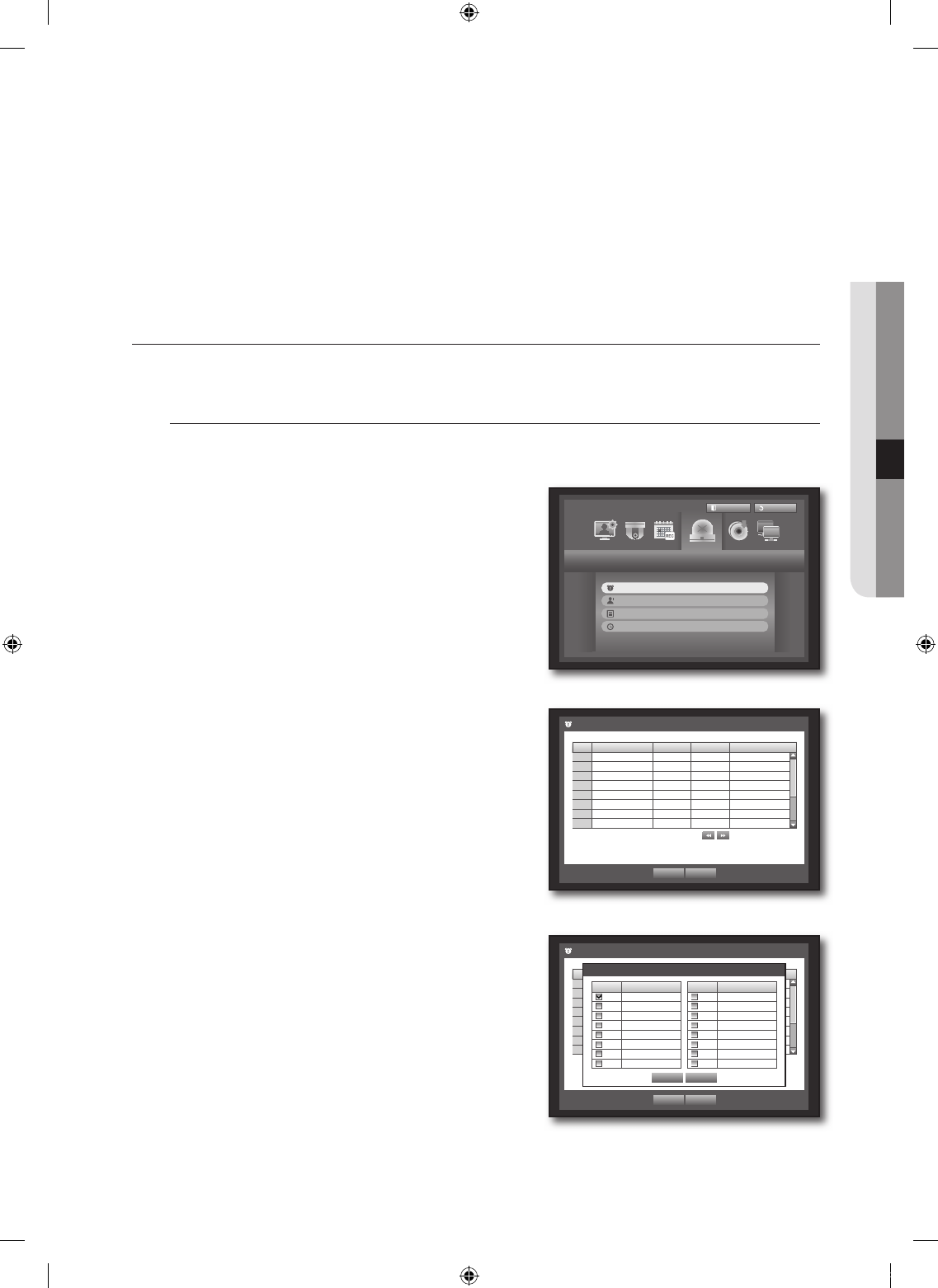

SETTING THE EVENT
You can set recording options for sensor, motion, and video loss event.
Sensor Detection
You can set the sensor’s operating condition and connected camera, as well as alarm output and its duration.
Using the mouse may help easy setup.
Press the [MENU] button on the remote control or front
panel.
Use the left/right button (
_ +
) to select <Event>.
Event setting menu is selected.
Use the up/down buttons (
▲▼
) to move to <Sensor
Detection>, and press [ENTER] button.
A window of sensor detection setup appears.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the value.
Sensor Operation : Sets the operation mode of sensors.
- <OFF> : Sensor does not operate.
- <N.O (Normal Open)> : Sensor is opened.
If the sensor is closed, it generates alarm.
- <N.C (Normal Close)> : Sensor is closed.
If the sensor is open by interruption, it generates alarm.
Cam : Select a channel to be connected to the sensor.
If selected camera, “Cam Preset Setup” window appears.
Select a channel and setup the preset.
Preset setup can be done in PTZ mode.
~
~
~
5.
1.
2.
3.
4.
~
~
`
Event
Logout Exit
Sensor Detection
Motion Detection
Video Loss Detection
Alarm Schedule
Sensor Detection
OK Cancel
Previous/Next Page
Sensor
Sensor Operation Cam Alarm Duration
1 OFF 1 None OFF
2 OFF 2 None OFF
3 OFF 3 None OFF
4 OFF 4 None OFF
5 OFF 5 None OFF
6 OFF 6 None OFF
7 OFF 7 None OFF
8 OFF 8 None OFF
Sensor Detection
OK Cancel
Previous/Next Page
Sensor
Sensor Operation Cam Alarm Duration
1 OFF 1 None OFF
2 OFF 2 None OFF
3 OFF 3 None OFF
4 OFF 4 None OFF
5 OFF 5 None OFF
6 OFF 6 None OFF
7 OFF 7 None OFF
8 OFF 8 None OFF
Cam Preset setup
OK Cancel
CH
Preset
1 None
2 None
3 None
4 None
5 None
6 None
7 None
8 None
CH
Preset
9 None
10 None
11 None
12 None
13 None
14 None
15 None
16 None
00769B_SHR-8162_ENG-NEW.indb 51 2008-12-04 오전 10:15:39
52_ using the DVR
using the DVR
Alarm : Sets the alarm output method.
For further information on alarm output, refer to “HDD Alarm >
Alarm”. (Page 44)
Duration : Sets the duration of alarm signal and alarm
sound.
When the sensor detection setup is done, press <OK>.
Motion Detection
You can set target detection region and motion, as well as the alarm signal output.
When the motion detection region is set, it detects motion within the area.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Event> window to
move to <Motion Detection>, and press [ENTER] button.
A window of motion detection area setup appears.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the value.
Mode : Sets whether to activate motion detection.
Sensitivity : Sets the sensitivity level of the motion detection.
Alarm : Sets the alarm output method.
For further information on alarm output, refer to “HDD Alarm >
Alarm”. (Page 44)
Alarm Duration : Sets the duration of alarm signal and alarm
sound.
When the motion detection setup is done, press <OK>.
Setting the Motion Detection Area

Select <Motion Region>.
When “Motion Region” window appears, select a
channel for detection and set the area of motion
detection.
To set the area in “Motion Region” window
In the “Motion Region” window, select desired region
from < >.
To set the area using <individual> selection
In the “Motion Region” window, you can select cells
individually by using <individual>.
~
~
Motion Region
OK Cancel
Select All
1 CH
Individual
Select
Unselect
Inverse
Menu
When selected <individual>, “Motion Region” window disappears and you can select cells one by one.
When the motion area setup is done, press the <Menu> on the screen or the [MENU] button on the
remote control or front panel to display the “Motion Region” window again.
- Select : Selected cell is set to be a part of motion detection area.
- Unselect : Selected cell is removed from the motion detection area.
- Inverse : Unselected cells are set to be the motion detection area.
- Menu : After selecting individual motion areas, move to the “Motion Region” window.
If selected <Select All>, selected motion area is applied to all channels.
When the motion detection setup is done, press <OK>.
`
~
`
~
5.
3.
4.
~
~
~
`
~
5.
Sensor Detection
OK Cancel
Previous/Next Page
Sensor
Sensor Operation Cam Alarm Duration
1 OFF 1 None OFF
2 OFF 2 None OFF
3 OFF 3 None OFF
4 OFF 4 None OFF
5 OFF 5 None OFF
6 OFF 6 None OFF
7 OFF 7 None OFF
8 OFF 8 None OFF
Alarm Setup
OK Cancel
1 2 3
4 BEEP All
Motion Detection
OK Cancel
Previous/Next Page
CH Mode Sensitivity Alarm Alarm Duration
1 OFF Very High None OFF
2 OFF Very High None OFF
3 OFF Very High None OFF
4 OFF Very High None OFF
5 OFF Very High None OFF
6 OFF Very High None OFF
7 OFF Very High None OFF
8 OFF Very High None OFF
Motion Region
00769B_SHR-8162_ENG-NEW.indb 52 2008-12-04 오전 10:15:44
English _53
● USING THE DVR
Video Loss Detection
You can set the alarm to be generated on a camera disconnection, which causes a video loss.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Event> window to
move to <Video Loss Detection>, and press [ENTER]
button.
A window of video loss detection area setup appears.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the value.
Video Loss State : Sets whether to activate video loss
detection.
Alarm : Sets the alarm output method.
For further information on alarm output, refer to “HDD Alarm >
Alarm”. (Page 44)
Alarm Duration : Sets the duration of alarm signal and alarm sound.
When the video loss detection setup is done, press <OK>.
Alarm Schedule
You can set the conditions and operating hours for scheduled alarms.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Event> window to
move to <Alarm Schedule>, and press [ENTER] button.
A window of <Alarm Schedule> settings appears.
Alarm : Sets the alarm output method.
For further information on alarm output, refer to “HDD Alarm >
Alarm”. (Page 44)
<ON> : Marked in orange, and always generates alarm on
scheduled time.
<OFF> : Marked in white, no alarm is generated even if an
event occurs.
Event Sync : Marked in Blue, generates alarm only when an event occurs.
Apply to All Alarm : Applies the confi gured schedule to all
alarms.
When the alarm is generated on the scheduled time, you can
stop the alarm by canceling the schedule.
When the Alarm Schedule setup is done, press <OK>.
3.
4.
~
~
`
~
5.
3.
4.
5.
`
~
~
~
~
M`
6.
All 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sun
Mon
Tue
Wed
Thu
Fri
Sat
Hol
OFF ON Event Sync Apply to All Alarm
OK Cancel
Alarm Schedule
Alarm1
Video Loss Detection
OK Cancel
Previous/Next Page
CH Video Loss State Alarm Alarm Duration
1 OFF 1,2,3,4 OFF
2 OFF 1,2,3,4 OFF
3 OFF 1,2,3,4 OFF
4 OFF 1,2,3,4 OFF
5 OFF 1,2,3,4 OFF
6 OFF 1,2,3,4 OFF
7 OFF 1,2,3,4 OFF
8 OFF 1,2,3,4 OFF
All 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sun
Mon
Tue
Wed
Thu
Fri
Sat
Hol
OFF ON Event Sync Apply to All Alarm
OK Cancel
Alarm Schedule
Alarm1
Apply to All Alarm
OK Cancel
Apply the alarm scheduling to all?
00769B_SHR-8162_ENG-NEW.indb 53 2008-12-04 오전 10:15:46
54_ using the DVR
using the DVR

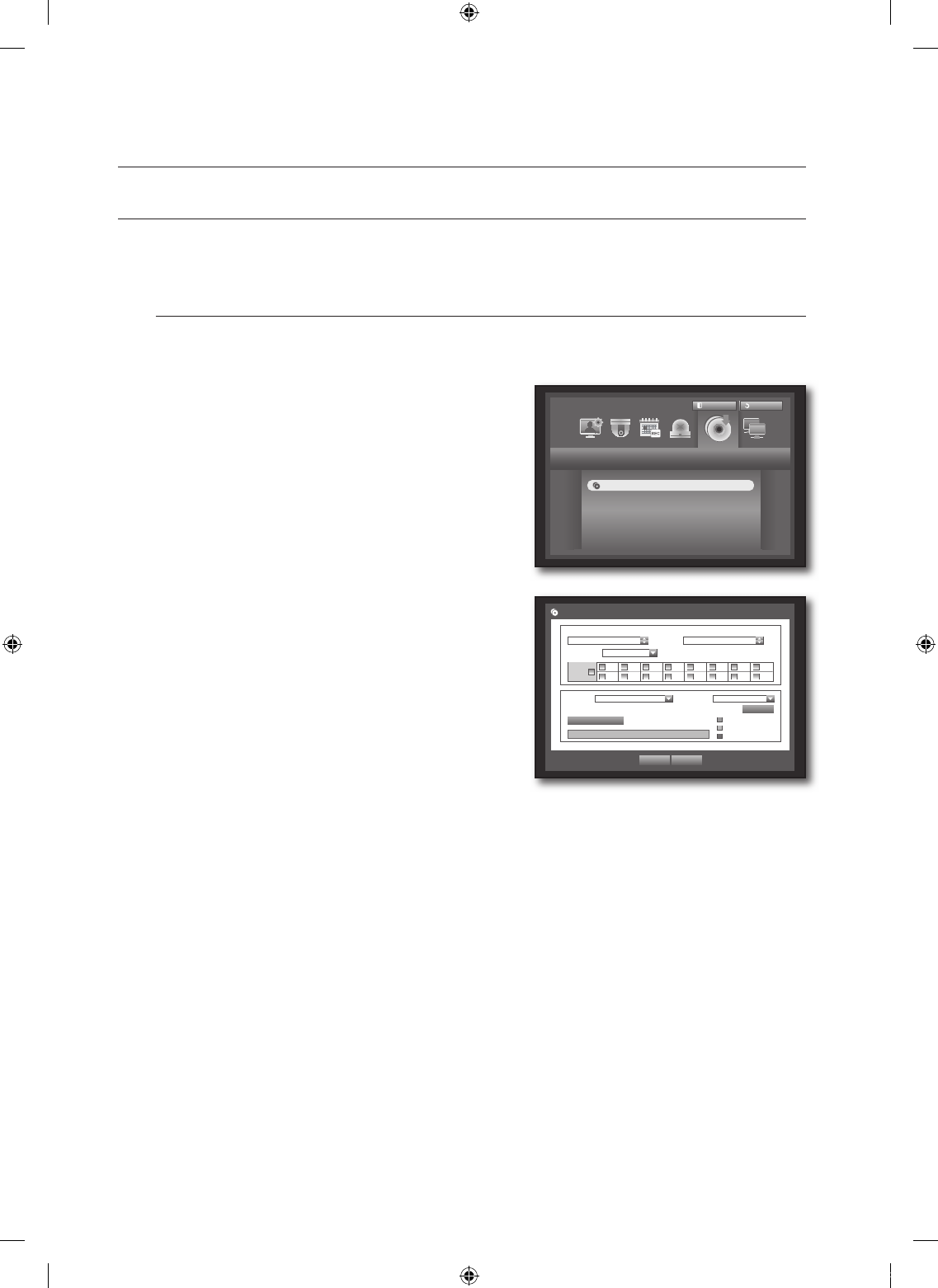

BACKUP
You can check the backup device and set the backup schedule by channel or by time.
The product only supports external HDD of USB memory/DVD and USB/SATA type. (Page 96)
Setting the Backup
You can backup the desired data to a connected device.
Using the mouse may help easy setup.
Press the [MENU] button on the remote control or front
panel.
Use the left/right button (
_ +
) to select <Backup>.
Backup menu is selected.
Press the [ENTER] button.
A backup window appears.
You can directly access it from the “Live screen menu”.
(Page 26)
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the value.
Backup Range : Sets the <Start> and <End> time for the
backup.
Channel : Sets the channel to backup.
You can select multiple channels.
Device : Select a backup device from the recognized devices.
If the built-in internal CD/DVD or external USB CD/DVD is used for the backup, you can select the format of
recording between AVI and SEC.
Since SHR-7080/7160/8080/8160 models do not have built-in internal DVD Writer, internal CD/DVD backup is not
available.
Format : Sets the backup data format.
- AVI : Saves the CODEC information provided by the DVR with the recording data, and saved data can be
played back by using external viewers (such as Windows Media Player) on a PC.
- DVR : Saved data can be played back only by the DVR.
- SEC : Saves data in the Samsung’s proprietary format with built-in viewer, which supports immediate
playback on a PC.
Filename : You can set the back fi le name.
Refer to “Using Virtual Keyboard”. (Page 36)
Check capacity : Shows the size of the selected backup data, used and available capacity of the selected
backup device.
Overlap : Shows a list of overlapping data on a same time according to the number of data.
It appears when one channel has multiple data on a certain time point due to changing of time or time zone
settings, etc.
Refer to time and time zone of “Setting the Date/Time/Language”. (Page 34)
1.
2.
3.
4.
~
~
~
`
~
~
`
~
~
`
Backup
Logout Exit
Backup
Backup
Used
Free
Check capacity
OK Cancel
Backup
Start End
2009-01-01 00:01:06 ~ 2009-01-01 08:25:45
Overlap List0
Device None Format AVI
Folder \20090101\ Filename 0001
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
CH
ALL
Change
00769B_SHR-8162_ENG-NEW.indb 54 2008-12-04 오전 10:15:47
English _55
● USING THE DVR
When the backup setup is done, press <OK>.
If no available device is recognized for backup, <OK> button is not activated.
The application may slow down during the backup.
When a CD/DVD or memory device is used for backup, it is not available to use the full capacity of the media since
the system consumes a part of its capacity.
If a CD or DVD media causes errors, the disc tray opens and closes a several times, and eventually backup process
will fail. In this case, replace the CD/DVD media and try again.
Pressing the <Exit> during the backup will return to the previous menu, while the backup progresses.
NETWORK CONFIGURATION
It provides networked monitoring of Live screen from a remote place, and supports mail forwarding function with
events. You can confi gure the network environment which enables such functions.
Connection Mode
You can set the network connection route and protocol.
Setting the Connection
Sets the protocol and environment of the network.
Using the mouse may help easy setup.
Press the [MENU] button on the remote control or front
panel.
Use the left/right button (
_ +
) to select <Network>.
Network menu is selected.
Use the up/down buttons (
▲▼
) to move to <Connection
Mode>, and press [ENTER] button.
Select <Connection>.
A window of connection mode setup appears.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the value.
Connection Mode : Sets the network connection mode.
Bandwidth : Sets the maximum data fl ow to be transferred.
(Upload speed)
Options will vary depending on the selected connection
mode.
- For <Static IP>, <Dynamic IP> : Select one from 128
kbps ~ 2Mbps, and Unlimited.
- For <ADSL>, select one from 128 kbps ~ 600 kbps.
5.
`
J`
`
`
M`
1.
2.
3.
4.
5.
~
~
Network
Logout Exit
Connection Mode
DDNS
Live Transfer
Mailing Service
Connection Mode
Connection Protocol
Connection Mode Static IP
Bandwidth 2Mbps
OK Cancel
IP 192.168. 1.200
Gateway 192.168. 1. 1
Subnet Mask 255.255.255. 0
DNS Manual 168.126. 63. 1
00769B_SHR-8162_ENG-NEW.indb 55 2008-12-04 오전 10:15:48
56_ using the DVR
using the DVR
IP, Gateway, Subnet Mask, and DNS
- For <Static IP> : You can directly input IP address,
Gateway, Subnet Mask and DNS.
- For <Dynamic IP> : IP address, Gateway, and Subnet
Mask are set automatically.
- For <ADSL> : IP address, Gateway, and Subnet Mask
are set automatically.
User ID, Password : In case you selected ADSL, provide the
“User ID” and its “Password”.
DNS server for <Dynamic IP> and <ADSL> can be set by user only if you selected <Manual>.
When the connection setup is done, press <OK>.
Setting the Protocol
Use the up/down buttons (
▲▼
) in <Network> window to
move to <Connection Mode>, and press [ENTER]
button.
Select <Protocol>.
Use direction buttons (
▲▼_ +
) to move to a desired
item, and set the value.
Protocol Type : Select the protocol type between TCP and
UDP.
If selected UDP, selections of Port (TCP), Port (UDP), and Unicast/
Multicast are activated.
Port (TCP) : Initially, <554~557> is set. It increases / decreases by 4.
- TCP: It has better stability and lower speed when compared to UDP, and recommended for internet
environments.
Port (UDP) : Initially, <8000~8159> is set. It increases / decreases by 160.
- UDP : It has less stability and faster speed when compared to TCP, and recommended for local area
network (LAN) environments.
Unicast, Multicast : Select one between Unicast and Multicast.
If selected Multicast, Multicast IP and TTL are activated.
- Unicast : Transfers data (UDP, TCP) individually to each connecting client.
- Multicast : Multiple client can receive the data (only in UDP) without putting additional traffi c load to the
network.
Multicast IP : User can directly input.
TTL : Select from 0 ~ 255. Initial value for the TTL is set to <5>.
Webviewer Port : Enter the port number for the Web Viewer. Initially, it is set to <80>.
When the protocol setup is done, press <OK>.
~
~
M`
6.
3.
4.
5.
~
`
~
~
~
~
~
~
6.
Connection Mode
Connection Protocol
Connection Mode ADSL
Bandwidth 600kbps
OK Cancel
IP 192.168. 1.200
Gateway 192.168. 1. 1
Subnet Mask 255.255.255. 0
DNS Manual 168.126. 63. 1
User ID ID
Password ********
Connection Mode
Protocol
Connection
Protocol Type TCP
Port(TCP) 554 ~ 557
Port(UDP) 8000 ~ 8159
Unicast/Multicast Unicast
Multicast IP 224.126. 63. 1
TTL 5
Webviewer Port 80
OK Cancel
00769B_SHR-8162_ENG-NEW.indb 56 2008-12-04 오전 10:15:50
English _57
● USING THE DVR

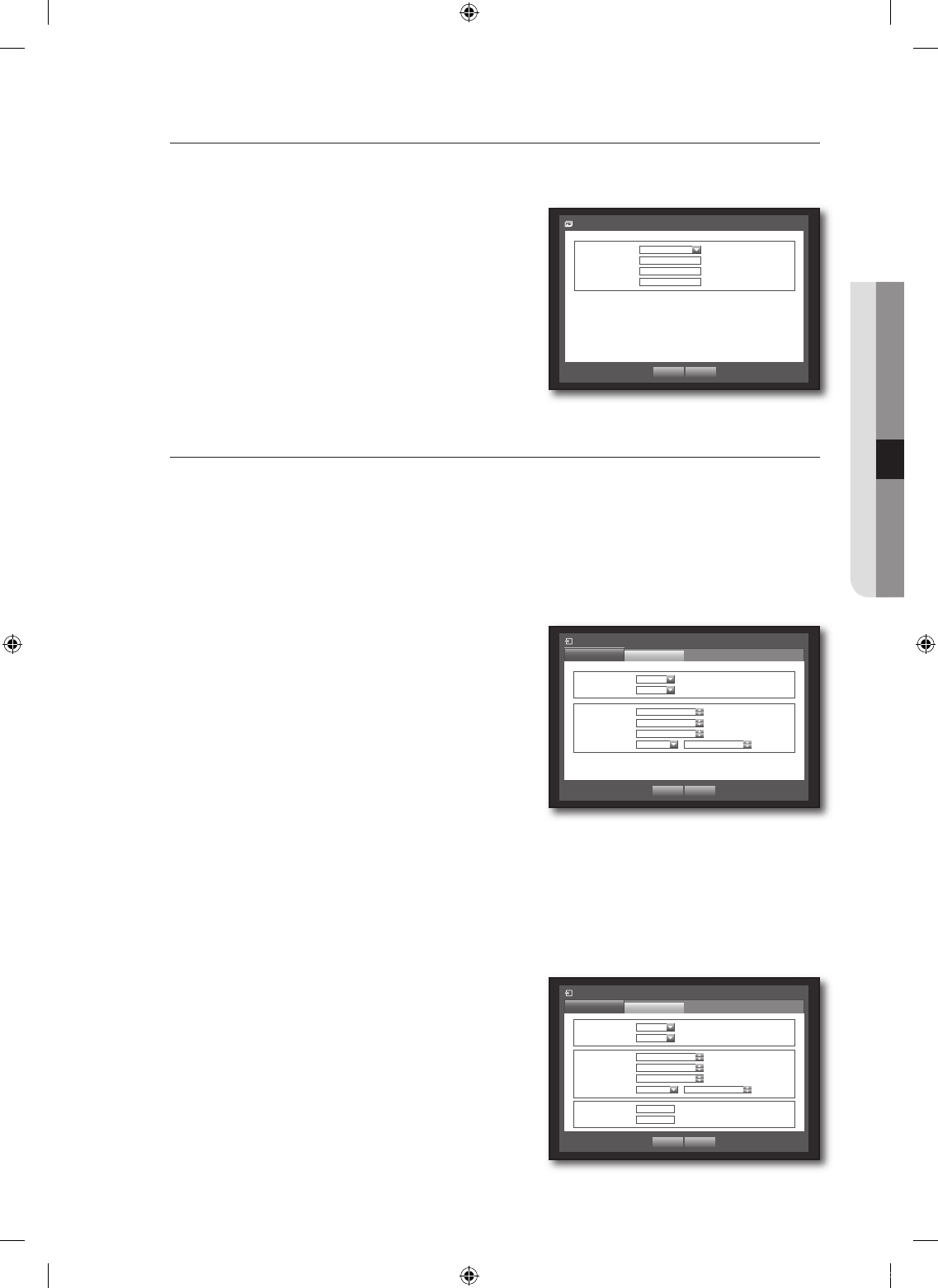

DDNS
You can set the DDNS site for a remote user’s network connection.
Using the mouse may help easy setup.
Use the up/down buttons (
▲▼
) in <Network> window to
move to <DDNS>, and press [ENTER] button.
Use virtual keyboard to enter user inputs.
Refer to “Using Virtual Keyboard”. (Page 36)
If selected <OFF> or <Samsung DDNS>, input fi elds are
deactivated.
When the DDNS setup is done, press <OK>.
Refer to <DDNS Setting>. (Page 59)
Connecting and Setting the Network
Networking may differ from the connection method, check your environment before setting the connection
mode.
When no router is used
Static IP mode
- Internet connection : Static IP ADSL, leased line, and LAN environments allows connection between the
DVR and remote user.
- DVR Network Settings : Set the <Connection Mode> in
<Connection> menu of the connected DVR to <Static IP>.
Consult your network manager for IP, Gateway and Subnet Mask.
Dynamic IP (DHCP) mode
- Internet connection : Connect the DVR directly to a cable modem, DHCP ADSL modem or FTTH network.
- DVR Network Settings : Set the <Connection Mode> in <Connection> menu of the connected DVR to
<Dynamic IP>.
ADSL (PPPoE: ID and password certifi cation)
- Internet connection : An ADSL modem is directly connected to the DVR, where the ADSL connection
requires user ID and password.
- DVR Network Settings : Set the <Connection Mode> in
<Connection> menu of the connected DVR to <ADSL>.
ADSL <User ID> and <Password> should be the same to the
ADSL user information.
If you don’t know the ID and password, consult your ADSL service
provider.
3.
4.
`
`
5.
M`
~
`
~
~
`
OK Cancel
DDNS
DDNS Site OFF
Host Name
User Name
User Password ********
Connection Mode
Connection Protocol
Connection Mode Static IP
Bandwidth 2Mbps
OK Cancel
IP 192.168. 1.200
Gateway 192.168. 1. 1
Subnet Mask 255.255.255. 0
DNS Manual 168.126. 63. 1
Connection Mode
Connection Protocol
Connection Mode ADSL
Bandwidth 600kbps
OK Cancel
IP 192.168. 1.200
Gateway 192.168. 1. 1
Subnet Mask 255.255.255. 0
DNS Manual 168.126. 63. 1
User ID ID
Password ********
00769B_SHR-8162_ENG-NEW.indb 57 2008-12-04 오전 10:15:51
58_ using the DVR
using the DVR
When a router is used
To avoid IP address confl ict with the DVR's static IP, check followings:
Setting the DVR with a static IP
- Internet connection : You can connect the DVR to a router which is connected to an ADSL/Cable modem or
a router in a Local Area Network (LAN) environment.
Setting the DVR Network
Set the <Connection Mode> in <Connection> menu of the connected DVR to <Static IP>.
Check whether the set IP address is in the static IP range provided by the IP router.
IP, Gateway, and Subnet Mask : Consult your network manager.
Check whether the set IP address is in the static IP range provided by the IP router.
If a DHCP server is confi gured with starting address (192.168.0.100) and end address (192.168.0.200), you should
set the IP address out of the confi gured DHCP range (192.168.0.2 ~ 192.168.0.99 and 192.168.0.201 ~
192.168.0.254).
Check the Gateway address and subnet mask are equal to those set in the IP router.
Setting the DHCP IP Address of the IP router
To access the IP router’s confi gurations, open a web browser on the local PC that is connected to the IP
router and enter the router’s address (ex: http://192.168.1.1).
At this stage, make the local PC's windows network confi gurations to the below example:
Ex) IP : 192.168.1.2
Subnet mask : 255.255.255.0
Gateway : 192.168.1.1
- Once connected to the IP router, it prompts with password. While entering nothing to the User Name fi eld,
enter “admin” into the password fi eld and press <OK> to access the router confi gurations.
- Access the router’s DHCP confi guration menu and set its DHCP server activation, and provide the start and
end address.
Set the start address (192.168.0.100) and end address (192.168.0.200).
Above steps may differ from the router devices depending on the manufacturer.
Setting Router’s Port Forwarding
Set the protocol to <TCP>.
External Port Range : Enter the TCP Port set in the
<Port (TCP)> in <Protocol> menu of the connected DVR.
If more than one DVRs are connected to the router, the
TCP port can be different.
Internal PC IP Address : Enter the IP address set to the
<IP> in <Connection> menu of the connected DVR.
Internal Port Range : Set the same to the “External Port
Range”.
Above steps may differ from the router devices depending on the manufacturer.
Port forwarding is required when you want to access the DVR connected to the router from outside of the router’s
network.
J`
~
~
1.
2.
`
J`
3.
~
1.
2.
M`
~
1.
2.
3.
4.
M`
Connection Mode
Protocol
Connection
Protocol Type TCP
Port(TCP) 554 ~ 557
Port(UDP) 8000 ~ 8159
Unicast/Multicast Unicast
Multicast IP 224.126. 63. 1
TTL 5
Webviewer Port 80
OK Cancel
00769B_SHR-8162_ENG-NEW.indb 58 2008-12-04 오전 10:15:52
English _59
● USING THE DVR
DDNS Setting
DDNS is a short form of Dynamic Domain Naming System.
DNS (Domain Name System) is a service that routes a domain name consisting of user friendly characters
(ex: www.google.com) to an IP address consisting of numbers (64.233.189.104).
DDNS (Dynamic DNS) is a service that registers a domain name and the fl oating IP address with the DDNS
server so that the domain name can be routed to the IP address even if the IP is changed in a dynamic IP
system.
Setting DDNS in the DVR
Set <Protocol Type> in the <Protocol> menu of the connected DVR to the following:
Ex) Protocol Type : TCP
Port (TCP) : 0554,0555,0556,0557
DDNS Site : Samsung DDNS
DDNS Settings of the Router
Select the corresponding menu for the network transfer protocol of the router.

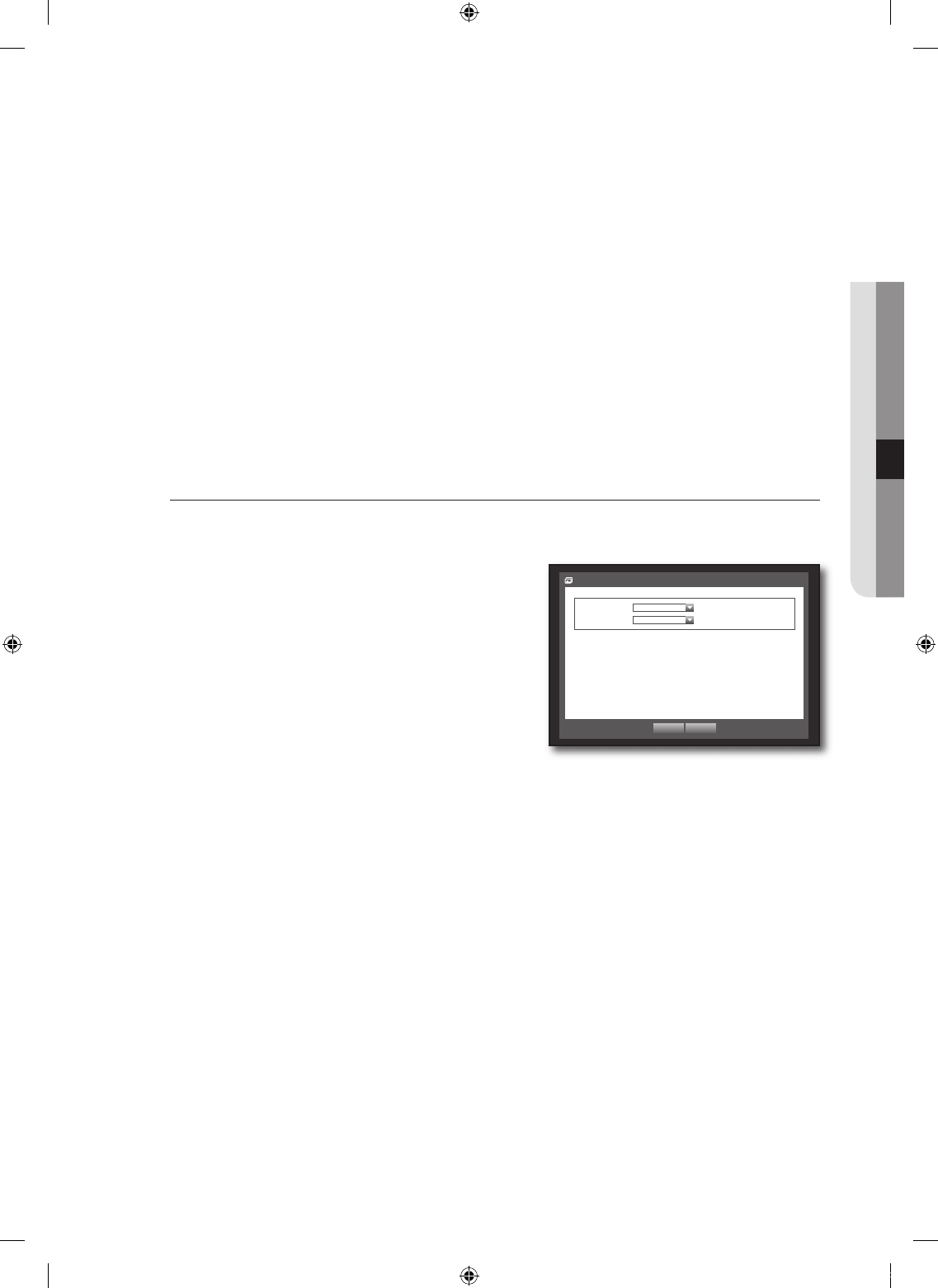

Live Transfer
Sets the quality of the image that is transferred from the DVR to the network.
Using the mouse may help easy setup.
In the <Network> setting window, press the up/down
(
▲▼
) button to move to <Live Transfer> and press the
[ENTER] button.
The Live Transfer window appears.
Use the direction buttons (
▲▼_ +
) to move to a desired
item and set the value.
When the live transfer is done, press <OK>.
For the resolution of the live transfer, refer to “Resolution”.
(Page 50)
For SHR-7080,7082,7160 and 7162, only Half D1(M) or lower is available.
~
~
3.
4.
5.
`
M`
Live Transfer
Resolution CIF(S)
Quality Low
OK Cancel
00769B_SHR-8162_ENG-NEW.indb 59 2008-12-04 오전 10:15:53
60_ using the DVR
using the DVR

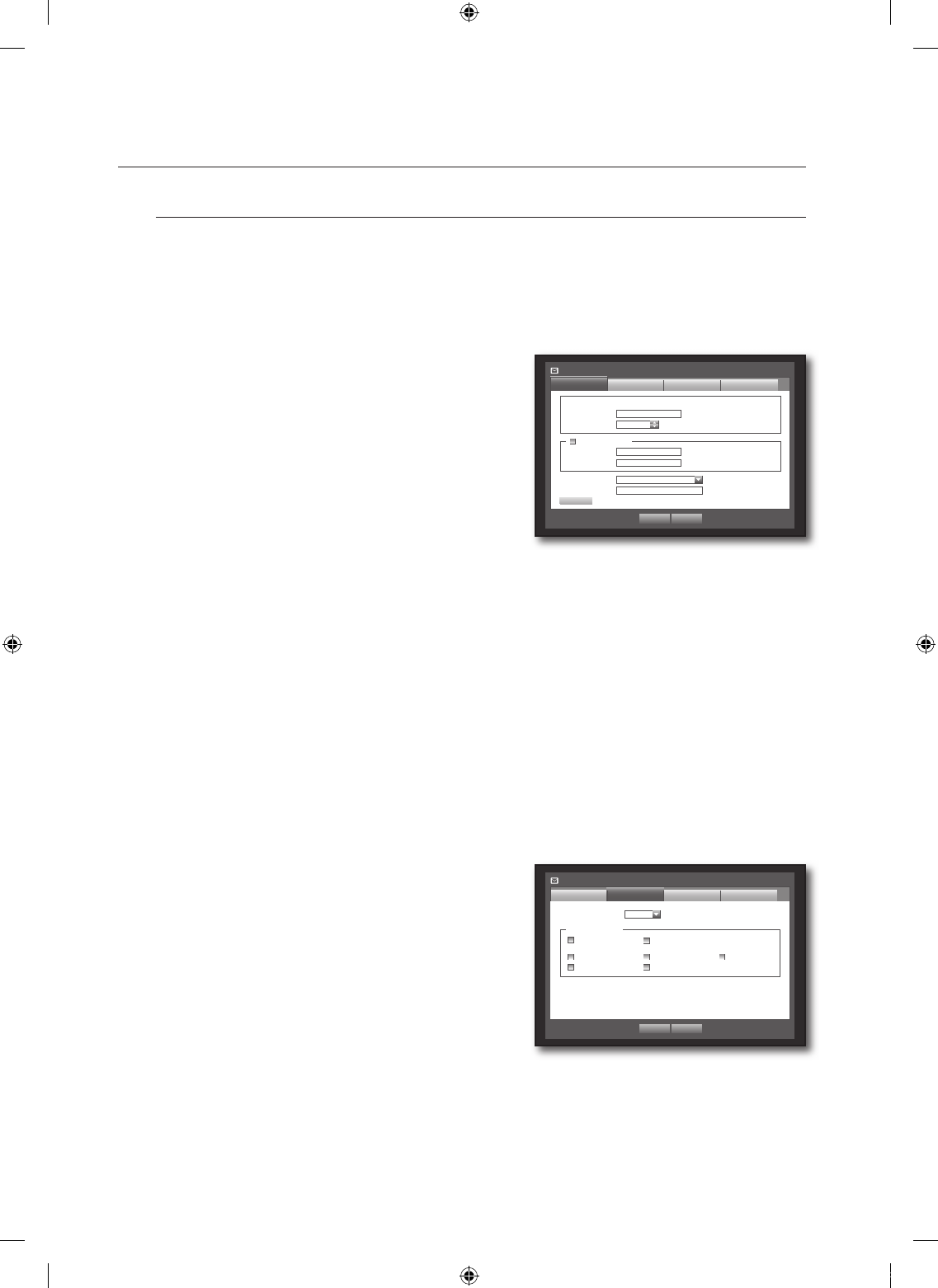

Mailing Service
You can send an e-mail to a DVR-registered user at a specifi c time interval, or if an event occurs.
SMTP Setting
Sets the SMTP mail server.
Using the mouse may help easy setup.
In the <Network> setting window, press the up/down
(
▲▼
) button to move to <Mailing Service> and press the
[ENTER] button.
Select <SMTP>.
You will see the SMTP setting window.
Use direction buttons (
▲▼_ +
) to move to a desired item
and set the value.
Server Type : Displays the connected server type.
Server : Enter a server to connect to.
Port : Sets the communication port.
Use Authentication : Check this if the SMTP server uses user authentication.
The account input box will be activated.
User : Enter a user to use authentication when connecting to the SMTP server.
Password : Enter the password of the SMTP server user.
Secure Transfer : Select one from <Never/TLS> and <If Available/TLS/SSL>.
Sender : Use the virtual keyboard to enter the sender’s e-mail address.
Refer to “Using Virtual Keyboard”. (Page 36)
Test : Conducts the test on the server settings.
When the SMTP setting is done, press <OK>.
Event Setting
You can set the interval and type of the event that will be sent to the user.
Using the mouse may help easy setup.
In the <Network> setting window, press the up/down
(
▲▼
) button to move to <Mailing Service> and press the
[ENTER] button.
Select <Event>.
Use direction buttons (
▲▼_ +
) to move to a desired item
and set the value.
Event Interval : Set the event interval.
If a series of events occurs, the e-mail will be sent at the specifi ed
interval, not on each event.
Use Event Transfer : Select an event type to send if an event occurs.
If the selected event occurs, the e-mail will be sent to the group that has the recipient authority.
When the event setting is done, press <OK>.
3.
4.
5.
~
~
~
~
~
~
~
~
`
~
6.
3.
4.
5.
~
`
~
6.
Mailing Service
SMTP
OK Cancel
Recipient
Event Interval 10 min
Use Event Transfer
Alarm Motion
Change P/W HDD Info Video Loss
Power On/Off Manual Record
Event Group
Mailing Service
SMTP Event
OK Cancel
Use Authentication
Group Recipient
ServerType SMTP mail Server
Server
Port 11
User
Password ********
Secure Transfer Never/TLS
Sender ex. user@example.net
TEST
00769B_SHR-8162_ENG-NEW.indb 60 2008-12-04 오전 10:15:54
English _61
● USING THE DVR
Group Setting
You can set the group to whom the e-mail is sent, and specify the permission for each group.
You can add recipients for each group in the <Recipient> menu item.
The recipient is set separately from the DVR user group.
Using the mouse may help easy setup.
In the <Network> setting window, press the up/down
(
▲▼
) button to move to <Mailing Service> and press the
[ENTER] button.
Select <Group>.
Use direction buttons (
▲▼_ +
) to move to a desired item
and set the value.
Add : Select <Add> and use the virtual keyboard to add a
group.
Refer to “Using Virtual Keyboard”. (Page 36)
Delete : Deletes the selected group.
Rename : You can reset the recipient permission of an existing group.
Recipient Permission : Set the permission of the recipient group.
When the group setting is done, press <OK>.
Recipient Setting
You can add a user to the group or delete him/her from the group, or change the group.
Using the mouse may help easy setup.
In the <Network> setting window, press the up/down
(
▲▼
) button to move to <Mailing Service> and press the
[ENTER] button.
Select <Recipient>.
Use direction buttons (
▲▼_ +
) to move to a desired item
and set the value.
Add : You can select a recipient name, e-mail address or
group.
You should have created a group in the <Group> menu
item before you can add a user to the group.
Refer to “Using Virtual Keyboard” for input of the user name and
the e-mail address. (Page 36)
When the recipient setting is done, press <OK>.
3.
4.
5.
~
`
~
~
~
6.
3.
4.
5.
~
`
6.
Mailing Service
SMTP
OK Cancel
Event Group Recipient
Group Name e-Mail Address Delete
Add
Group All Group
Previous/Next Page
Mailing Service
Group
SMTP
OK Cancel
Recipient
Group
Recipient Permission
Alarm Motion
Change P/W HDD Info Video Loss
Power On/Off Manual Record
Event
Add Delete Rename
Mailing Service
SMTP
OK Cancel
Event Group Recipient
Group Name e-Mail Address Delete
Add
Group ABC
Previous/Next Page
Add User
OK Cancel
Name
Email
Select Group ABC
00769B_SHR-8162_ENG-NEW.indb 61 2008-12-04 오전 10:15:56
62_ using the DVR
using the DVR
CONTROLLING A PTZ DEVICE
The DVR enables you to adjust the settings of a PTZ camera as well as an ordinary one to your preference.
PTZ Device
The PTZ device can be activated only if a channel in connection with the PTZ camera is selected.
Getting started with PTZ
The PTZ camera is available, only if a channel is selected, in the following way:
Using the button on the remote control or the front panel
Select the [PTZ] button on the remote control or the front panel.
Using the launcher menu
Click PTZ <
PTZ
> to display the live launcher.
Using the right-click menu in Live mode
Right-click any area on the screen to display the context menu, and
select <PTZ Control>.
Using icons on the live screen
Click the PTZ < > icon on the live screen.
The PTZ function is available only if the PTZ camera is
connected so that the PTZ icon is displayed on the screen.
Using the PTZ camera
You can use one camera to perform all functions of PAN, TITL and ZOOM for monitoring multiple places and
set the preset to your preference in a desired mode.
Launch the <PTZ Control> menu.
As the PTZ < > icon on the bottom right corner turns
yellow, you access the “PTZ Control” mode to display the
“PTZ Control” menu.
Use direction keys in the launcher menu or use direction
buttons (
▲▼_ +
) on the remote control or the front panel
to move the target area to record.
Zoom : You can use the Zoom function of the PTZ camera.
Auto Pan : The camera automatically runs between the two
points that you selected.
Scan : The camera moves to the preset points in the
specifi ed sequence.
If multiple presets are specifi ed, the PTZ camera will automatically move to all of the preset points one at a
time.
Pattern : Makes the PTZ camera remember and follow the past route.
The functions of Auto Pan, Scan and Pattern are supported in the protocols of Samsung, Panasonic and Pelco, and are
different in terms of the name and setting, depending on the protocols of Samsung, Panasonic and Pelco.
(Panasonic : Auto Pan, Sequence, Sort / Pelco : Auto Pan, Frame Scan, Pattern)
Before entering the PTZ device control mode, set the values of the PTZ device in the <Setting the PTZ> menu.
(Page 42)
`
`
`
`
M`
1.
2.
~
~
~
~
`
M`
PTZ Alarm Freeze
Scene Mode
SPOT OUT
PTZ Control
ZOOM
Audio
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Launcher hide
Logout
PTZ Control CAM01
Delete Delete All
Preset
Select Preset
OK Save/Add Rename
Cam. Setup
Auto Pan
Scan
Pattern
00769B_SHR-8162_ENG-NEW.indb 62 2008-12-04 오전 10:16:00

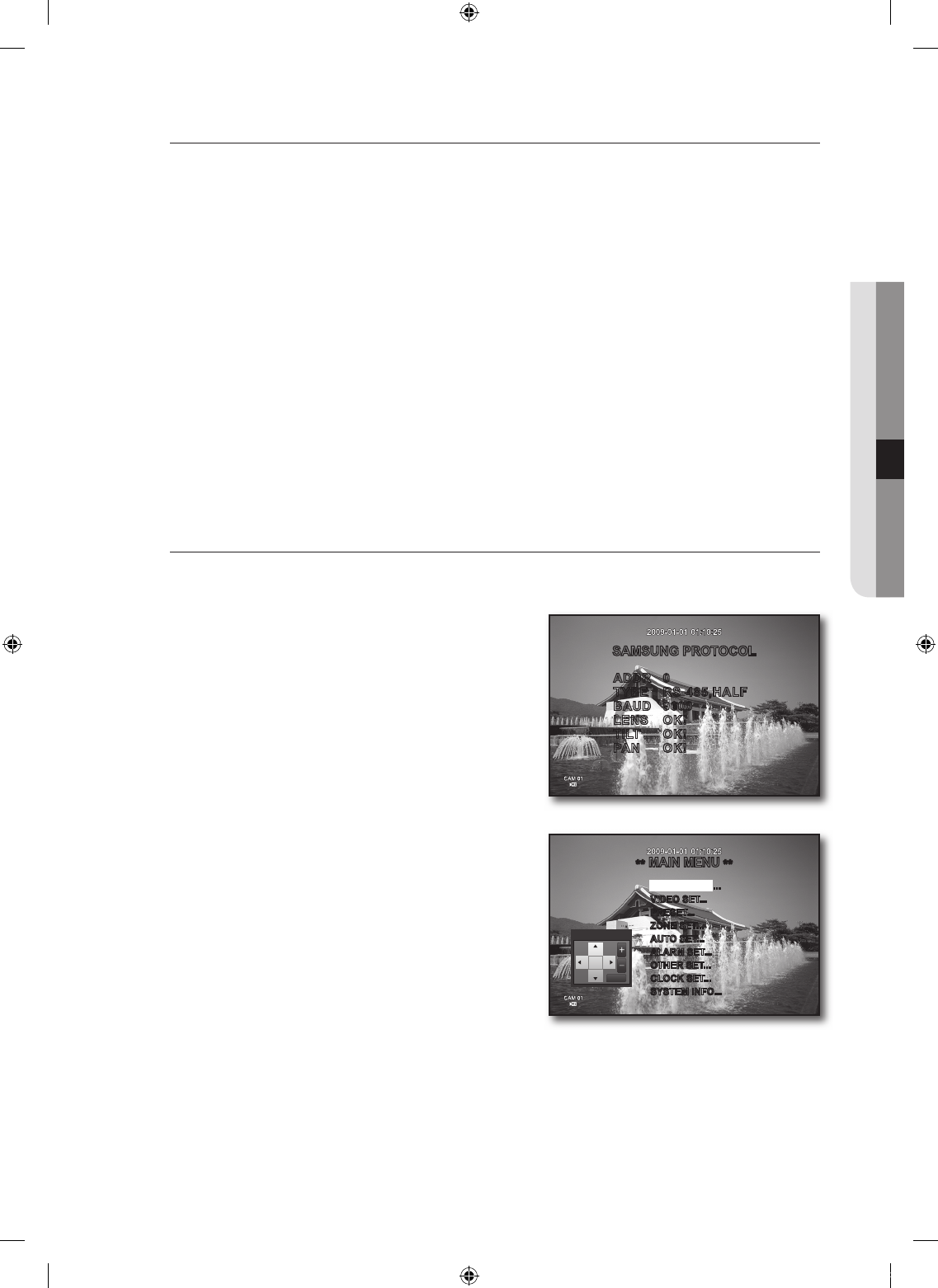

English _63
● USING THE DVR
Preset Setting
A preset is a set of specifi c target points of a PTZ camera, and up to 20 presets per a camera can be stored.
Using the mouse may help easy setup.
In PTZ Control mode, use the direction buttons to adjust the camera in a desired direction.
Select the <Save/Add> key.
The virtual keyboard for inputting the preset will appear.
Refer to “Using Virtual Keyboard”. (Page 36)
Save/Add : You can add and save the preset.
Rename : You can change the settings of the existing presets.
Delete : Deletes the selected preset.
Delete All : Deletes all existing presets.
If you replace the camera of the channel that stores the preset list with a new one, you should reset the preset
accordingly.
Press <OK>.
The preset will be saved as a name that you entered.
Camera Setting
A PTZ camera has its own menu system. Optimize the PTZ camera according to the DVR.
Using the mouse may help easy setup.
Connect the PTZ camera to the DVR and run the PTZ
camera again to display the camera’s protocol setting
window.
Check the protocol ID of the camera.
In “Device > Setting the PTZ”, enter the PTZ camera ID in the ID
input box of the channel that is connected to the PTZ camera.
(Page 42)
Select <Cam. Setup> in the PTZ Control menu.
The camera-specifi c menu appears.
You can confi gure the settings of only those cameras that support the
protocols of Samsung and Panasonic.
If you are setting Auto Pan or Pattern in the camera menu, press and
hold the appropriate button for a certain time so that the button
operation can be different from that in normal PTZ setting.
1.
2.
`
~
~
~
~
M`
3.
1.
2.
`
3.
`
`
SAMSUNG PROTOCOL
ADDR 0
TYPE RS-485,HALF
BAUD 9600
LENS OK!
TILT OK!
PAN OK!
** MAIN MENU **
Camera Setup
OK
Exit
CAMERA SET
...
VIDEO SET...
PRESET...
ZONE SET...
AUTO SET...
ALARM SET...
OTHER SET...
CLOCK SET...
SYSTEM INFO...
00769B_SHR-8162_ENG-NEW.indb 63 2008-12-04 오전 10:16:02
64_ search & play
search & play

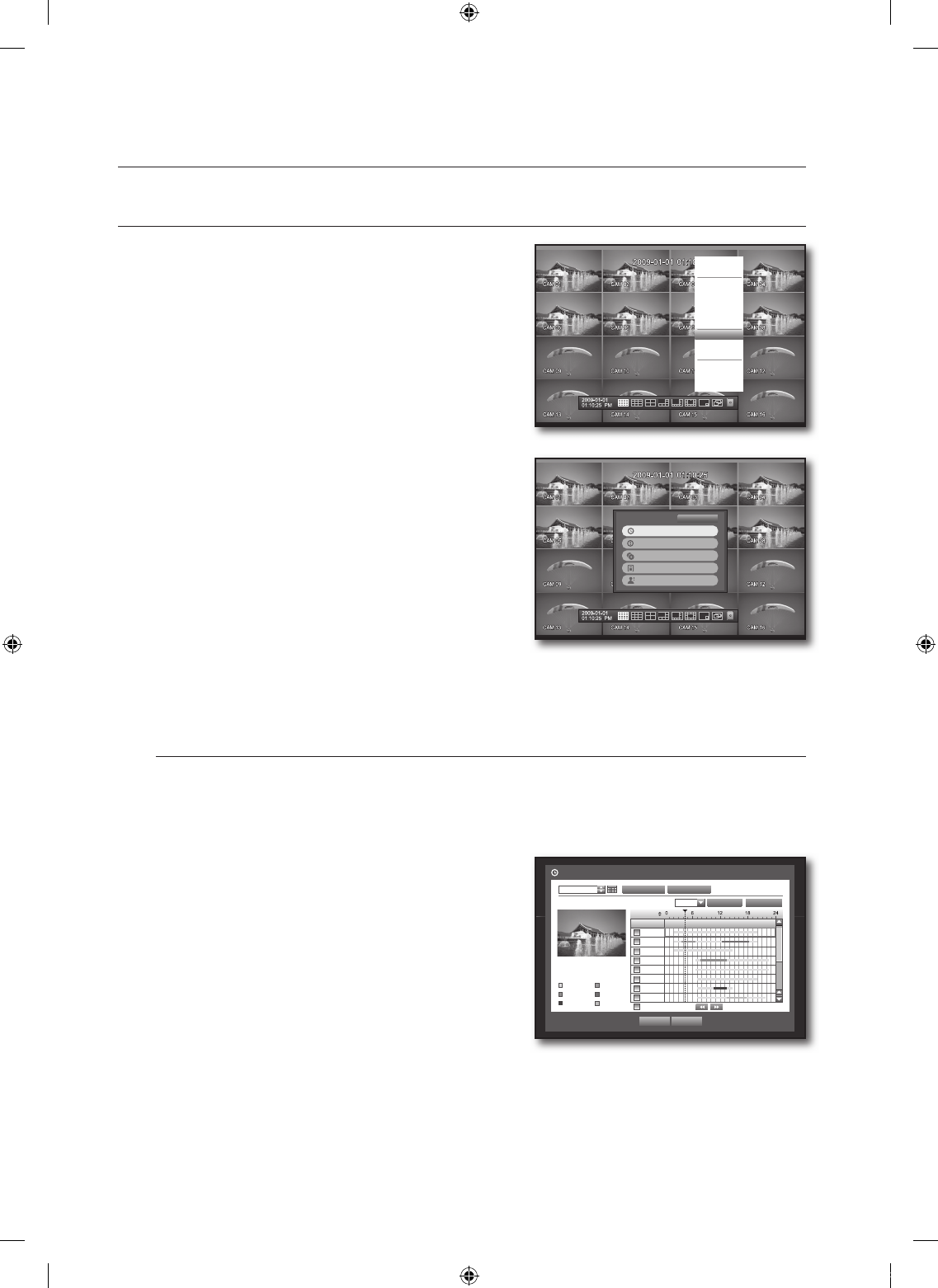

SEARCH
You can perform the search for recorded data by the time or by the
search criteria such as an event.
You can access the <Search> menu directly in Live mode.
In Live mode, right-click any area of the screen.
The Live menu appears.
Select <Search>.
Or, press the [SEARCH] button on the remote control or
the front panel.
The Search menu appears.
If you have not checked “POS USE” in the “Main Menu > Device
> POS Device” menu, the Search menu does not include the
“POS Search” item. (Page 45)
The search can be restricted by the Auto Delete function.
Refer to “Setting the Recording > Record Option”.
(Page 50)
Overlapped data : It only appears if there exists overlapped
data on a certain time, produced due to the change of DVR’s
time setup. The latest data comes fi rst, from <List0>.
It does not appear in <Backup Search>.
Time Search
You can search for recorded data of a desired time.
As the time to display may be different depending on the time zone and the DST standard time, the time of
data recorded in the same time can be displayed differently depending on time zone and DST settings.
Using the mouse may help easy setup.
Select <Time Search> in the <Search> menu.
Select a date to search.
Refer to “Using the Calendar”. (Page 35)
The record data on the specifi c date will be listed.
The display bar is different according to the data type.
So check the data type for the color in the left pane.
Use direction buttons (
▲▼_ +
) to set the search criteria
and press the [ENTER] button.
Go to First : Moves to the earliest date.
Go to Last : Moves to the most recent date.
Time : Enter a time to perform the search or use the up/down button <
>
> to select one.
1.
2.
3.
`
4.
M`
4.
5.
`
6.
7.
~
~
~
Scene Mode
SPOT OUT
Audio Off
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Launcher hide
Logout
Time Search
Event Search
Backup Search
POS Search
Motion Search
Return
Time Search
2009-01-01
Play Cancel
2009/01/01 00:01:17
Standard Schedule
Motion Alarm
V.Loss Etc
Go to First Go to Last
Zoom In Zoom Out
Channel Duration
CAM01
CAM02
CAM03
CAM04
CAM05
CAM06
CAM07
CAM08
CH ALL Previous/Next Page
00:01:17
Overlapped Data List0
00769B_SHR-8162_ENG-NEW.indb 64 2008-12-04 오전 10:16:05

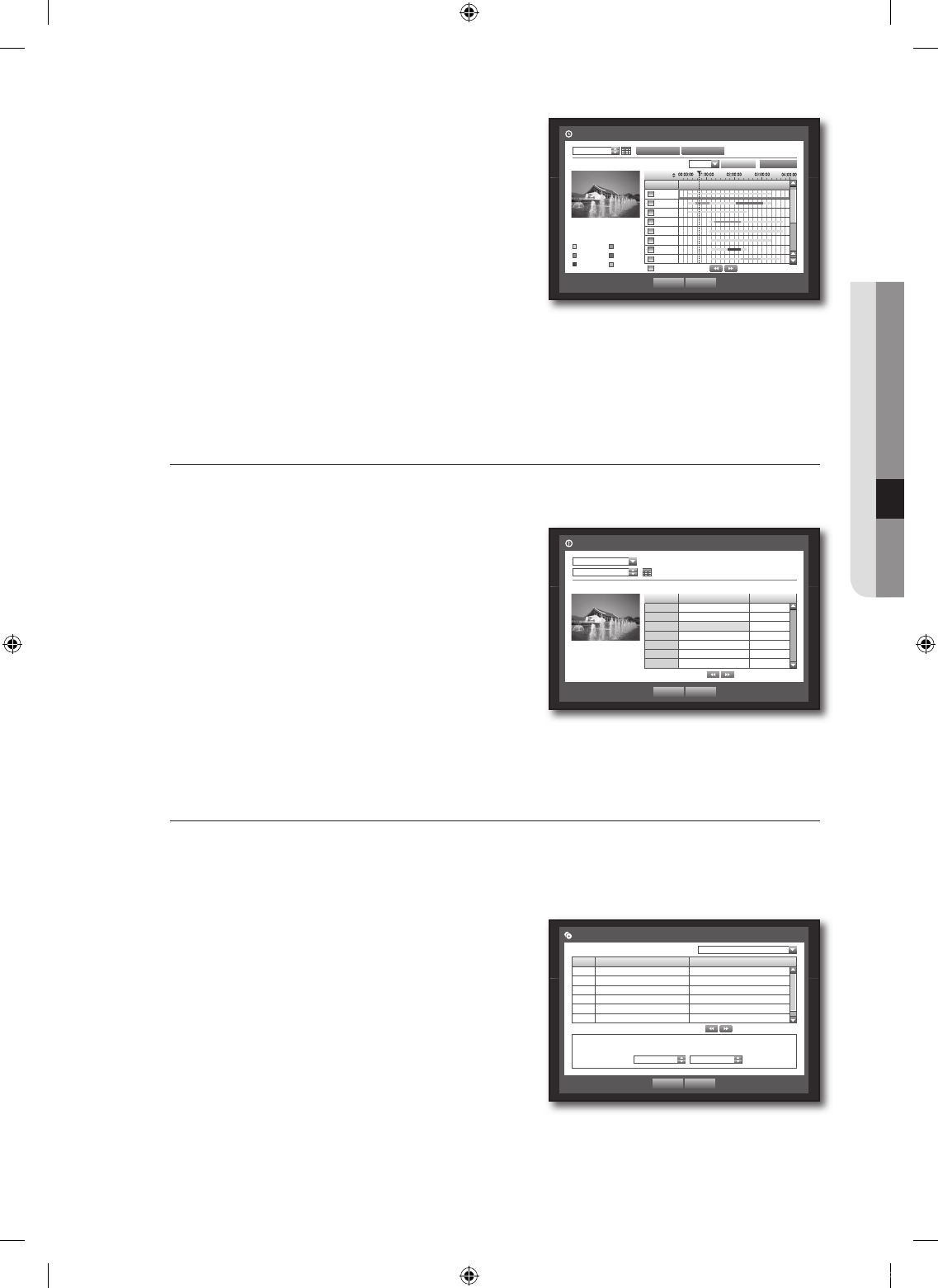

English _65
● SEARCH & PLAY
Zoom Out : The map enlarges in detail.
It will switch in the sequence of 24 hours-4 hours -1 hour -5
minutes.
Zoom In : The map will switch in the reverse order of the
detailed mode above.
It will switch in the sequence of 5 minutes-1 hour -4 hours -
24 hours.
Double-click a desired time to zoom it in/out.
Preview : Click <Channel> and select (click, drag) a time in
<Duration> to display a still image for the portion.
- If the selected channel does not contain any recorded data, it will be marked black.
Select a data item and click <Play>.
The screen switches to the data playback mode.
Event Search
You can search for events by the channel and play them.
Using the mouse may help easy setup.
Select <Event Search> in the <Search> menu.
Use direction buttons (
▲▼_ +
) to set the search criteria
and press the [ENTER] button.
All record events on a specifi c date will be found. (Normal/
Schedule recording included)
Date/Time Preview : If you select a data item in the list, the
still image of the selected data will be displayed in the left
preview pane.
Event : Displays the type of the event that occurred.
Select a data item and click <Play>.
The screen switches to the event data playback mode.
Backup Search
Searches for backup data in the connected backup device.
Only data in the format of DVR is included in the search.
Refer to <Format> in “Backup>Setting the Backup”. (Page 54)
Using the mouse may help easy setup.
Select <Backup Search> in the <Search> menu.
Use direction buttons (
▲▼_ +
) to set the search criteria
and press the [ENTER] button.
Record Period : Displays the record period.
Channel : Displays the recorded channel.
Play Start Time : Select a time that you start playing.
Select a data item and click <Play>.
The screen switches to the backup data playback mode.
~
~
M`
~
8.
4.
5.
`
~
~
6.
4.
5.
~
~
~
6.
Event Search
CAM 01
2009-01-01
Play Cancel
Previous/Next Page
2009/01/01 00:01:22
No. Date/Time Preview Event
3 02:47:54 ~ 02:48:59 Motion
2 00:39:06 ~ 00:40:30 Motion
1 00:01:22 ~ 00:02:28 Motion
Backup Search
Play Cancel
No. Folder Name File Name
1 20090101 16190000
Previous/Next Page
File Name 16190000 Channel 1
Record Period 2009-01-01 01:01:01 - 2009-01-01 01:01:10
Play Start Time 2009-01-01 16:30:52
USB:USB2FlashStorage
Time Search
2009-01-01
Play Cancel
2009/01/01 00:01:17
Standard Schedule
Motion Alarm
V.Loss Etc
Go to First Go to Last
Zoom In Zoom Out
Channel Duration
CAM01
CAM02
CAM03
CAM04
CAM05
CAM06
CAM07
CAM08
CH ALL Previous/Next Page
00:01:17
Overlapped Data List0
00769B_SHR-8162_ENG-NEW.indb 65 2008-12-04 오전 10:16:07
66_ search & play
search & play

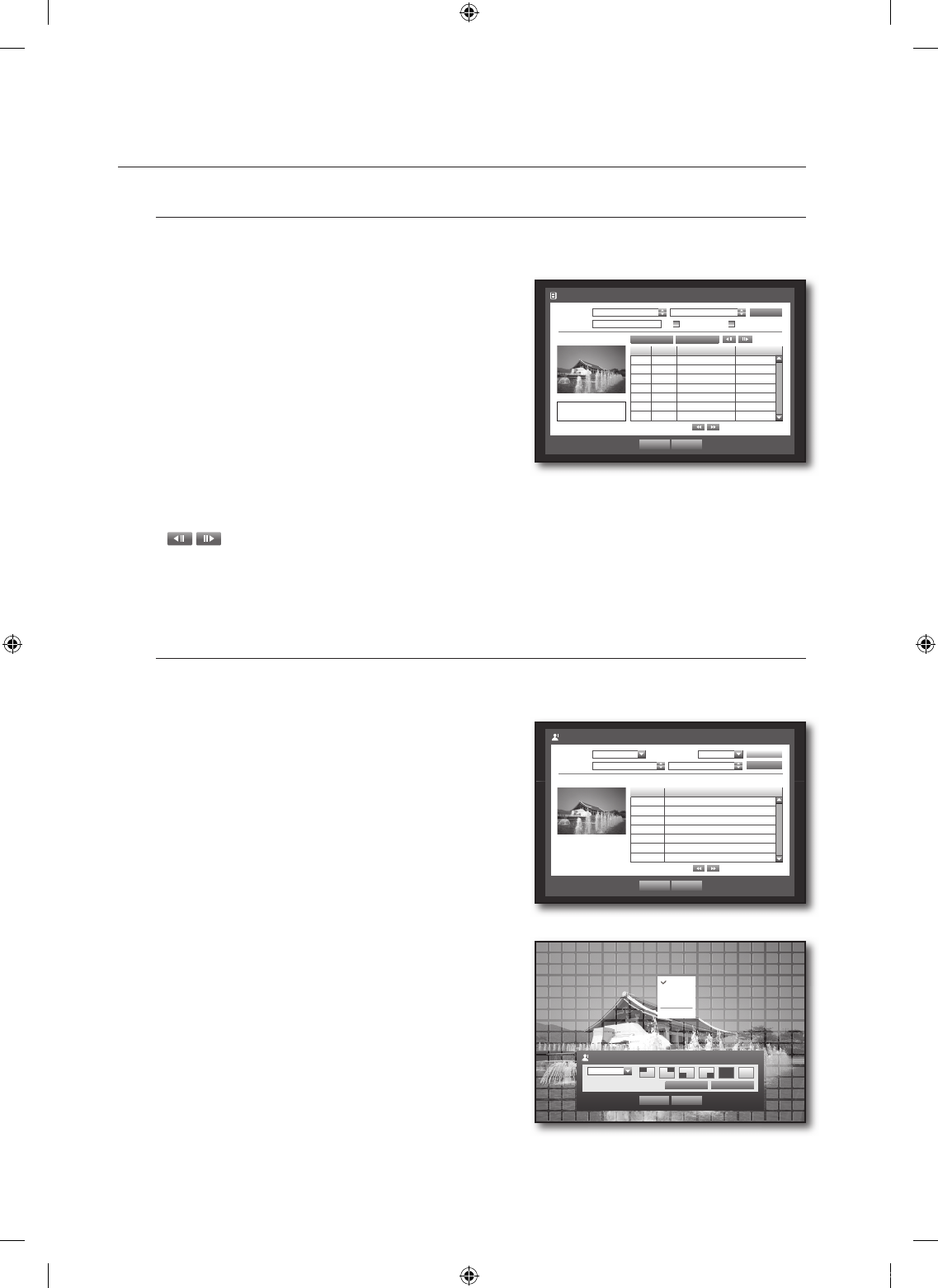

POS Search
You can search for data in the POS device that is connected to the DVR.
You can use the mouse to select the related items.
Select <POS Search> in the <Search> menu.
Use direction buttons (
▲▼_ +
) to set the search criteria
and press the [ENTER] button.
You can enter specifi c text to refi ne your search.
Keyword : Use the virtual keyboard to enter a keyword.
Search Criteria :
- <Case Sensitive>: If selected, search will be performed
case-sensitively.
- <Whole Word>: If selected, only the exact matches with
the keyword will be found.
Preview : Select a data item in the list to display the preview image.
Information about the image will be displayed on the bottom of the screen.
: You can use these buttons to accelerate your search if you have a huge list of search results.
Select a data item and click <Play>.
The screen switches to the POS data playback mode.
Motion Search
If a motion is detected in each channel, you can set a desired area to perform the search.
You can use the mouse to select the related items.
Select <Motion Search> in the <Search> menu.
Use direction buttons (
▲▼_ +
) to set the search criteria
and press the [ENTER] button.
If you set the motion area to <Manual Area>, the <Setup>
button will be activated.
Motion Region : Select an area to perform the search.
- All Area : Searches for all areas of the selected channel.
- Current Area : Searches for the motion area for each
channel specifi ed in “Motion Detection >
Setting the Motion Detection Area”. (Page 52)
- Manual Area : You can set the motion area manually.
Setup : The Setup button will be activated only if you have
set the motion area to Manual. Press this button to display
the area setting window.
Date/Time : The Date/Time will be automatically set by the
hour, and the end time will be automatically set to one hour
later than the start time if it is set.
Preview : Select a data item in the list to display the still
image of the item.
Select a data item and click <Play>.
The screen switches to the motion data playback mode.
4.
5.
`
~
~
~
~
6.
4.
5.
`
~
~
~
~
6.
POS Search
Date/Time 2007-12-25 03:41:18 2009-01-01 03:41:18
Play Cancel
POS CH Start Date/Time Keyword
1 1 2009-01-01 03:41:15 CHANGE _
1 1 2009-01-01 03:41:15 CASH _
1 1 2009-01-01 03:41:10 CASH _
Previous/Next Page
Search
Keyword Case Sensitive Whole Word
Go to First Go to Last
CHANGE
5.95
2009/01/01 03:41:15
Motion Search
Date/Time 2009-01-01 03:41:18 2009-01-01 05:11:44
Play Cancel
No. Start Time
7 01:01:30
6 01:01:25
5 01:01:20
4 01:01:15
3 01:01:10
2 01:01:05
1 01:01:01
Previous/Next Page
Search
Channel CAM 01 Motion Region All Area Setup
2009/01/01 01:01:30
Motion Region
OK Cancel
Select All
1 CH
Individual
Select
Unselect
Inverse
Menu
00769B_SHR-8162_ENG-NEW.indb 66 2008-12-04 오전 10:16:12
English _67
● SEARCH & PLAY
PLAYBACK
Play
You can play data stored in the HDD and backup a desired portion of the data.
Using the mouse may help easy setup.
In Live mode, click <Play> in the right-click menu or
< > in the launcher menu, or press the Play button on
the remote control or the front panel.
Use the up/down button (
▲▼
) to select a menu.
For data search, refer to <Search>. (Page 64)
Select a data item and click <Play> in the Search menu.
The selected data is played and the play launcher appears
on the screen.
If there is an existing data, <Play> will start immediately without
performing the search.
: You can play up to 4 channels in real time.
- In a split mode, the real time playback may not be
supported, depending on the record quality, resolution
and number of channels. And some frame rates may be
supported.
Playback Information : Displays the date and time of the current data in the top corner.
Mode Switch : Select a desired play mode or press the [MODE] button to switch the mode in the sequence
of 1-split, 4-split, 9-split, 16-split and 13-split.
The grey area in the center of the 13-split mode plays the Live channel.
The default channel of the Live mode is CH1, which can be changed later.
: Switches to Live mode.
REC : Records all channels in Live mode.
Play Time : Displays the time and date of the current video.
Play Bar : Displays the time of recorded data in the selected channel for the past 24 hours; the red gridline
indicates the current play time.
Speed : Supports various speed options of x1, x2(-2), x4(-4), x8(-8), x16(-16), x32(-32) and x64(-64).
Slow : Supports slow speed options of x1/2(-1/2), x1/4(-1/4) and x1/8(-1/8).
Backup : Click < > to set the current time to the start
time of backup; you can specify a backup area using the
mouse (yellow triangle).
Click < > again to set the current time to the end time of
the backup and the “Backup Range” window appears.
- Format: Supports formats of DVR, AVI and SEC.
Refer to a list of formats in “Setting the Backup”.
(Page 54)
- Device: Select a backup device.
- Check Capacity : Enables you to check the capacity of the
selected storage device.
If you want to return to the Live screen in Play mode, click <
> in the launcher menu or press the
[
@
] button on the remote control or the front panel.
1.
2.
`
3.
`
~
~
~
`
~
~
~
~
M`
`
~
4.
PTZ Alarm Freeze
Scene Mode
SPOT OUT
Audio Off
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Launcher hide
Logout
Backup
Used
Free
Check capacity
Backup Cancel
Backup Range
Start End
2009-01-01 00:01:06 2009-01-01 08:25:45
Device None Format DVR
Folder \20090101\ Filename 0001 Change
REC
00769B_SHR-8162_ENG-NEW.indb 67 2008-12-04 오전 10:16:16
68_ web viewer
web viewer

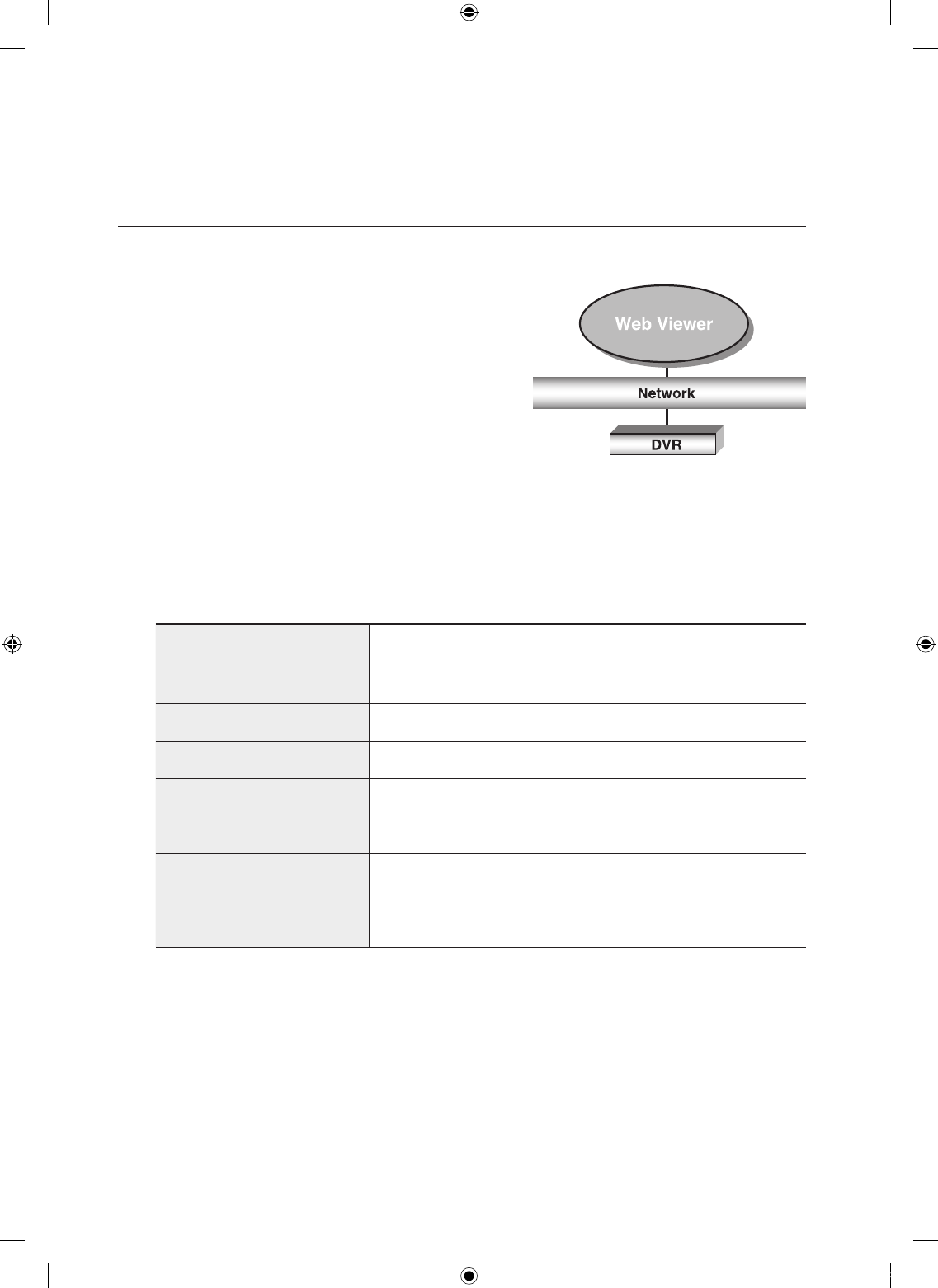

INTRODUCING WEB VIEWER
What is Web Viewer?
Web Viewer allows remote access to your DVRs. You have
access to live video, archived video, PTZ control (if configured),
etc.
PRODUCT FEATURES
Remote access from a standard browser
Supports PTZ camera controls
Supports 1, 4, 8, 16 camera viewing formats (maximum of
16 cameras in the list).
Gets JPEG format images to print and save to “Print or Save
JPEG format images”.
Record video in AVI format—compatible with popular media players. (needed the Divx codec)
SYSTEM REQUIREMENTS
The following lists the minimum suggested hardware and operating system requirements needed to run the
Web Viewer.
OS
Windows XP Professional
Windows 2000
Windows Vista Home Basic /Premium
Web Browser Internet Explorer 6.0.2900.2180 or higher
CPU Intel Pentium 4.2 GHz
MEMORY 512 MB
Monitor High Color 16-bit 1024 x 768
HDD
50 MB(Installation space required)
* Additional HDD space required for recording.
Recorded file size will vary depending on recording quality settings.
~
~
~
~
~
00769B_SHR-8162_ENG-NEW.indb 68 2008-12-04 오전 10:16:16
English _69
! WEB VIEWER

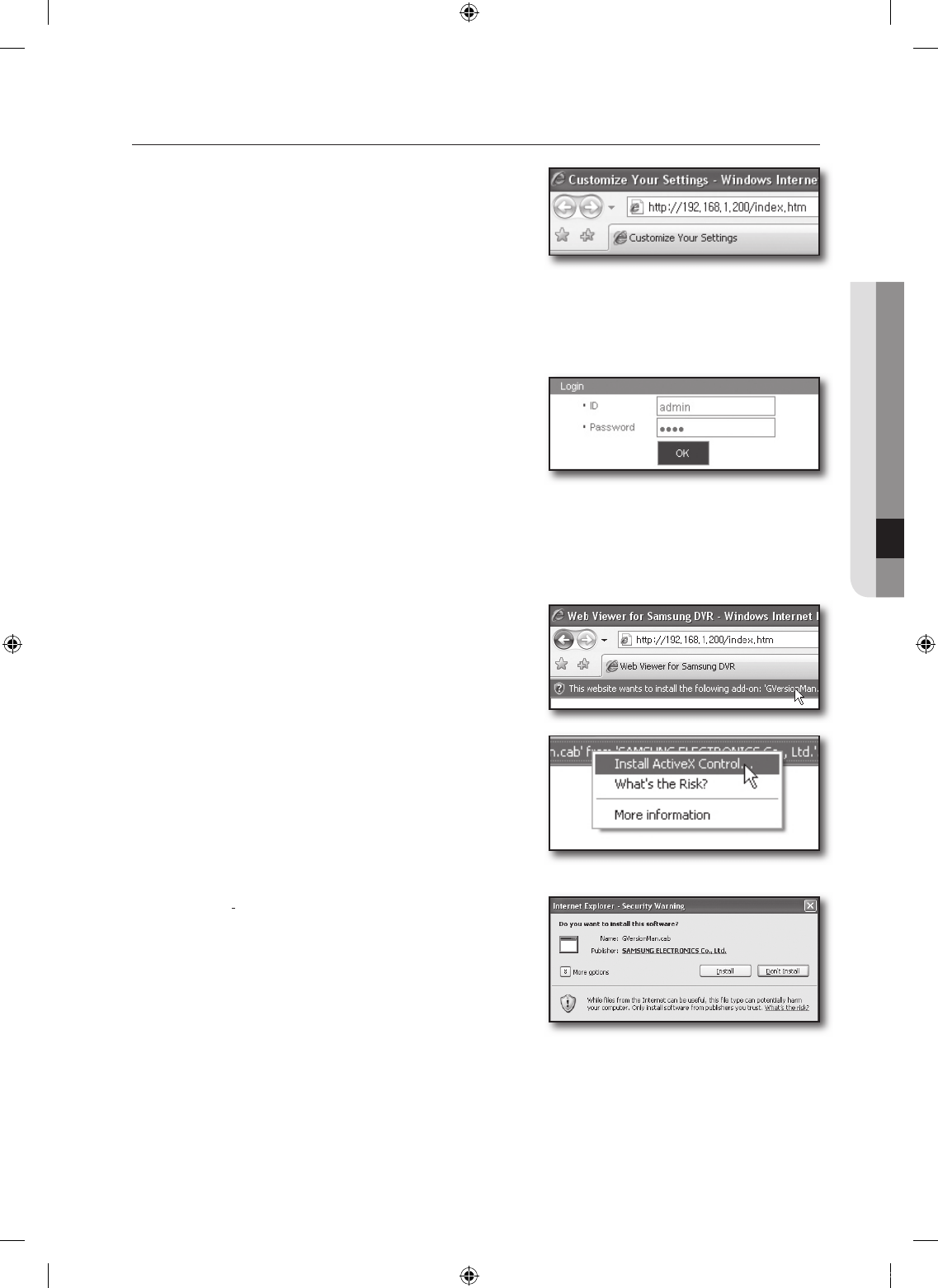

CONNECTING WEB VIEWER
Open your web browser and type the IP address or URL
of DVR into the URL address box.
The basic URL of the DVR is as following in case of MAC
address:
00-00-F0-ab-cd-ef : nabcdef.websamsung.net
00-16-6c-ab-cd-ef : mabcdef.websamsung.net
00-68-36-ab-cd-ef : pabcdef.websamsung.net
You can also use registered URL which setups up in the Setup menu of your DVR.
Set the Admin ID and password same to those of the DVR
Admin.
For general users, enter the DVR user ID and password.
It allows up to 5 simultaneous access including the Admin
and general users.
It does not allow multiple login of the Admin user.
Initial password of the Admin user is set to “4321”.
Password of the Admin and general users can be changed in <Permission Management> menu of the DVR.
All settings are applied by the DVR’s settings.
Click <Install ActiveX Control…>.
Click <Install>.
1.
M
`
`
`
`
2.
M`
`
`
`
`
3.
4.
00769B_SHR-8162_ENG-NEW.indb 69 2008-12-04 오전 10:16:18
70_ web viewer
web viewer
Click <Install>.
You may have “Windows Security Alert” that attempts to
block this with the Windows Firewall. In that case, click
<Unblock> to start Web Viewer.
Installation is complete.
Now you can see the main screen of Live Viewer.
5.
6.
7.
00769B_SHR-8162_ENG-NEW.indb 70 2008-12-04 오전 10:16:20
English _71
! WEB VIEWER
USING LIVE VIEWER
The Live Viewer screen consists of following :
This displays the IP address and the model name of the connected DVR.
These menus consist of <LIVE>, <SEARCH>, <SETUP>, <ABOUT>.
These buttons are used for the screen split and full screen mode.
Shows the IP address and model name of the connected DVR.
These buttons are used for sequence and changing the screen channel.
These buttons are used for capture, print, and save the image.
Shows the channel of the connected DVR.
These buttons are used for PTZ related functions.
This displays the screen for connected camera with DVR.
The resolution is set to 1024X768 pixels.
The initial split-screen mode is set according to the number of channels connected to DVR. You can change the
split-screen mode by clicking buttons for split-screen modes.
M`
`
00769B_SHR-8162_ENG-NEW.indb 71 2008-12-04 오전 10:16:21
72_ web viewer
web viewer
OSD INFORMATION DISPLAY
The channel number, video size, and IP address of the connected
DVR are displayed.
The current date and time of the DVR are displayed.
Alarm icon appears when alarm is issued.
It disappears when pressed the [ALARM] button of the DVR.
Motion icon appears when motion is detected.
It disappears when pressed the [ALARM] button of the DVR.
It displays whether the PTZ controls are active.
If you have set PTZ cameras for the DVR, “PTZ” is displayed on the
screen. Select a PTZ camera channel and use the [PTZ] button for
camera control.
SPLIT-SCREEN
You can change the split mode by clicking each number icon.
Click < > button.
The screen displays the selected camera connected to the DVR in
“SINGLE MODE”.
Click < > button.
The screen displays the selected camera connected to the DVR in
“QUAD MODE”.
Click < > button.
The screen displays the selected camera connected to the DVR in
“NINE MODE”.
Click < > button.
The screen displays the selected camera connected to the DVR in
“SIXTEEN MODE”.
Click < > button.
The screen displays the selected camera connected to the DVR in
“FULL SCREEN MODE”.
Double clicking on the screen or pressing any button of the keyboard
returns to the previous mode.
M`
~
~
~
~
~
SINGLE MODE QUAD MODE NINE MODE SIXTEEN MODE
00769B_SHR-8162_ENG-NEW.indb 72 2008-12-04 오전 10:16:24
English _73
! WEB VIEWER

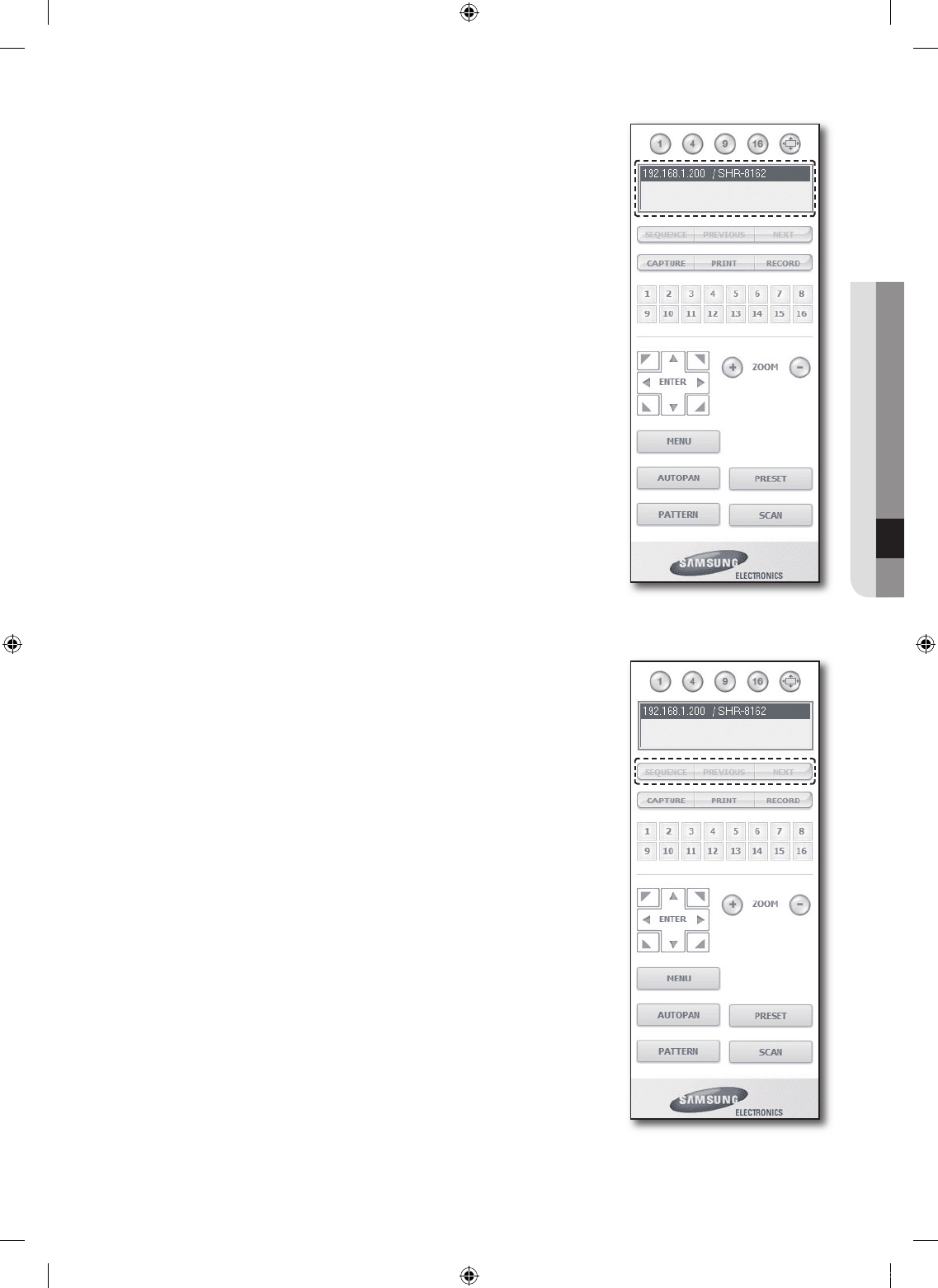

CONNECTED DVR
This displays the IP address and the status of the connecting DVR.
Connection failure message
No Response : Appears when the DVR does not respond.
Collision : Appears when Admin mode is already in use or simultaneous
access to the same DVR from another PC.
Access Denied : Appears when the maximum number of users is exceeded.
The number of simultaneous connections are limited to 5.
CHANGING THE LIVE SCREEN MODE
16-split mode does not support “SEQUENCE”, “PREVIOUS” and “NEXT”.
SEQUENCE: When this button is clicked, screens are switched at a
preset interval. In SINGLE MODE, the channel numbers are sequentially
switched from 1 to 16. In QUAD MODE, the screens are changed like 1st
4 channels (1~4) 2nd 4 channels(5~8) 3rd 4 channels(9~12) 4th
4 channels (13~16). In NINE MODE, the screens are changed from
9 channels (1~9) to 7 channels (10~16). In SIXTEEN MODE, the screen
refreshes at the preset interval
Preset interval (10 seconds)
PREVIOUS: When this button is clicked, the previous screen appears.
In SINGLE MODE, the channel numbers are switched in reverse order.
In QUAD MODE, the screens are changed like 1st 4 channels (1~4)
2nd 4 channels (13~16) 3rd 4 channels (9~12) 4th 4 channels (5~8).
In NINE MODE, the screens are changed from 9 channels (1~9) to
7 channels (10~16). In SIXTEEN MODE, the screen is refreshed.
M`
`
`
~
`
~
00769B_SHR-8162_ENG-NEW.indb 73 2008-12-04 오전 10:16:26
74_ web viewer
web viewer

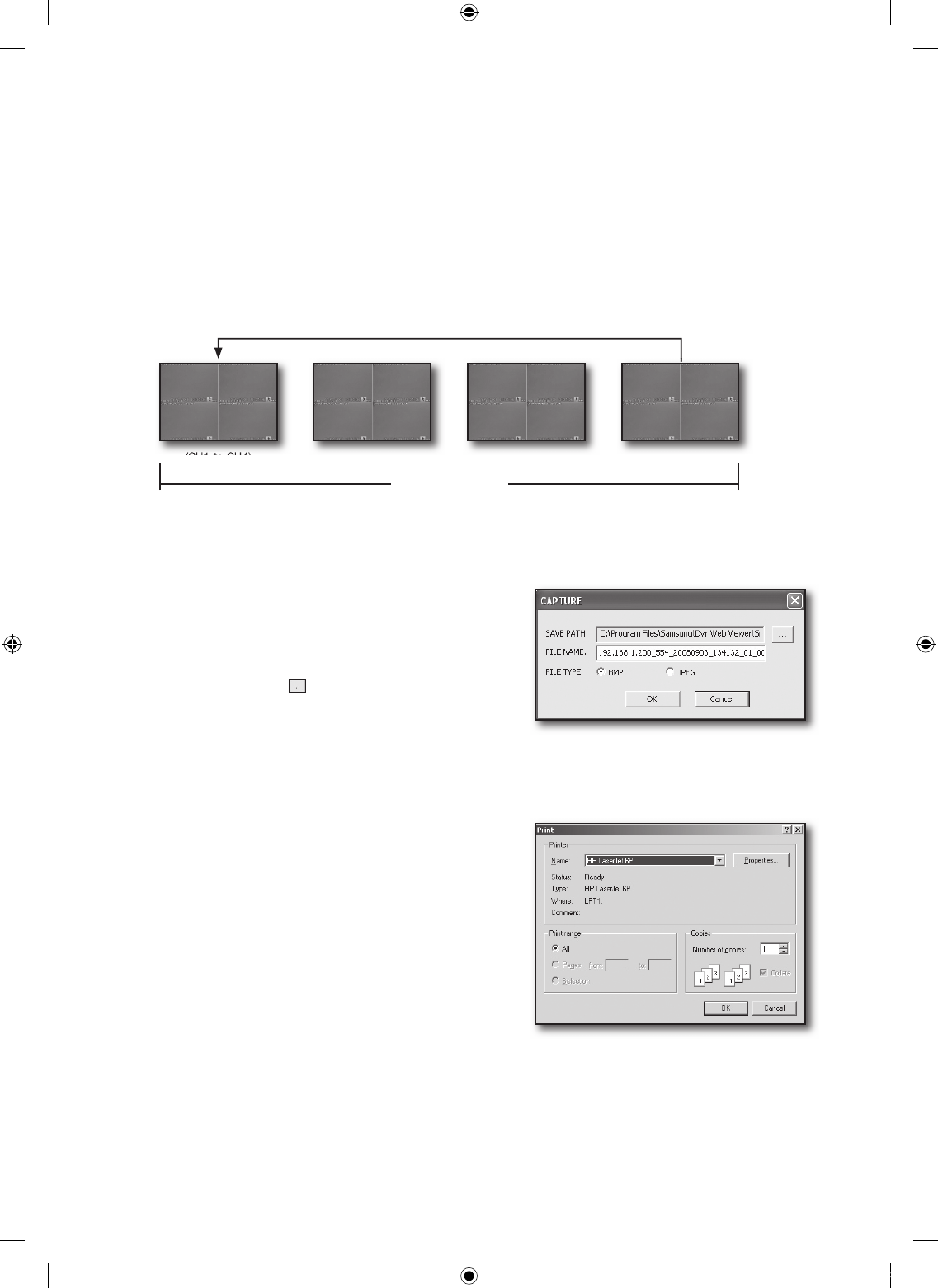

NEXT: When this button is clicked, the next screen appears.
In SINGLE MODE, the channel numbers are sequentially switched from 1 to 16.
In QUAD MODE, the screens are changed like 1st 4 channels (1~4) 2nd 4 channels (5~8) 3rd
4 channels (9~12) 4th 4 channels (13~16). In NINE MODE, the screens are changed from 9 channels
(1~9) to 7 channels (10~16). In SIXTEEN MODE, the screen is refreshed.
If 16-channel DVR is connected, clicking “NEXT” in QUAD MODE is to change the screen as shown in the picture.
SAVING THE LIVE SCREEN ON THE PC
CAPTURE: Saves the current screen into a BMP or JPEG
fi le.
The default saving path is “C:\Program Files\Samsung\Dvr
Web Viewer\SnapShot\Live”. To change the saving path, click
<SAVE PATH ( )> button and then select the path you
want. For Windows Vista, the saving path is “C:\users\(user
ID)\AppData\LocalLow\Samsung\DVR Web Viewer\Snapshot\”
and it cannot be modifi ed.
The fi le is automatically named as following: “IP address_
Port number_YYMMDD_camera number_index”
Ex) 192.168.130.12_554_20070615_101530_01_00
PRINT: Prints out the selected screen out of the currently
displayed live screens. It also prints the IP address, time,
camera number and the current event status together.
~
`
~
M`
`
~
(CH1 to CH4)
16-channel DVR
(CH1 to CH4)
(CH5 to CH8) (CH9 to CH12) (CH13 to CH16)
 
00769B_SHR-8162_ENG-NEW.indb 74 2008-12-04 오전 10:16:27

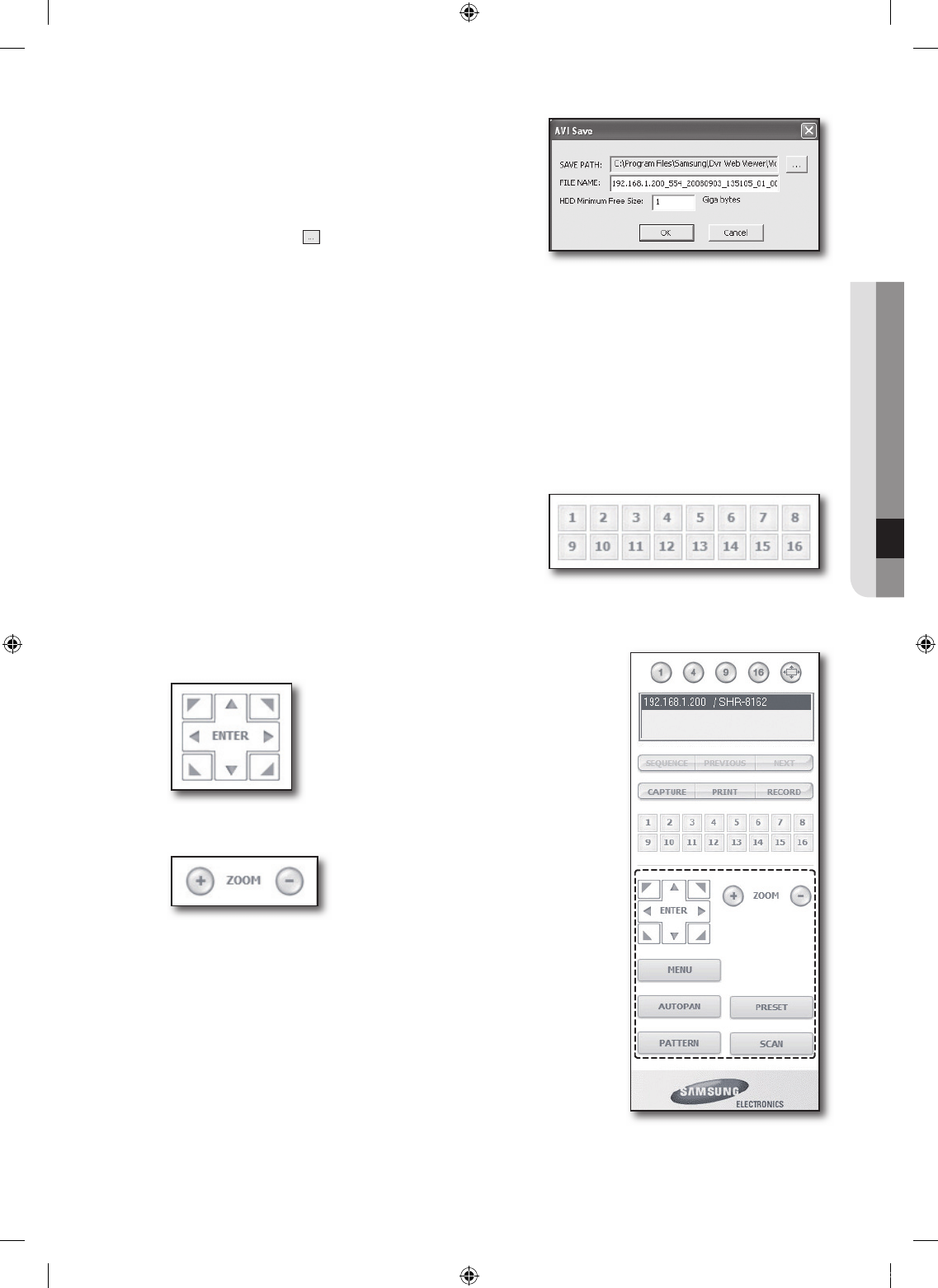

English _75
! WEB VIEWER
RECORD: Saves the current image on the screen and
saves it as a avi video fi le.
To record it, it is required at least 1GB of available space.
The default saving path is “C:\Program Files\Samsung\Dvr
Web Viewer\VideoClip\Live”. To change the saving path, click
<SAVE PATH ( )> button and then select the path you
want. For Windows Vista, the saving path is “C:\users\(user
ID)\AppData\Local-Low\Samsung\DVR Web Viewer\VideoClip\”
and it cannot be modifi ed.
The fi le is automatically named as following: “IP address_Port number_YYMMDD_camera number_index”
Ex) 192.168.130.12_554_20070615_101530_01_00
For AVI Save, you need the DivX codec for playing saved fi les. You can download the free version of the Divx codec at
http://sourceforge.net/projects/ffdshow/.
HDD Minimum Free Size : During the recording, if there is no more capacity available in the HDD than set free space
will prompt with a popup message: “Cannot record due to insuffi cient disc space in the HDD”.
CHANGING THE LIVE SCREEN CHANNEL
Blue numbers : Indicates that the current channel is
connected to a camera.
Gray numbers : Indicates that the current channel is not
connected to any camera.
USING PTZ CAMERA
Click the direction buttons to control the camera.
Click the + or - buttons to zoom in or out the image displayed.
~
M`
`
`
`
`
~
~
00769B_SHR-8162_ENG-NEW.indb 75 2008-12-04 오전 10:16:29
76_ web viewer
web viewer

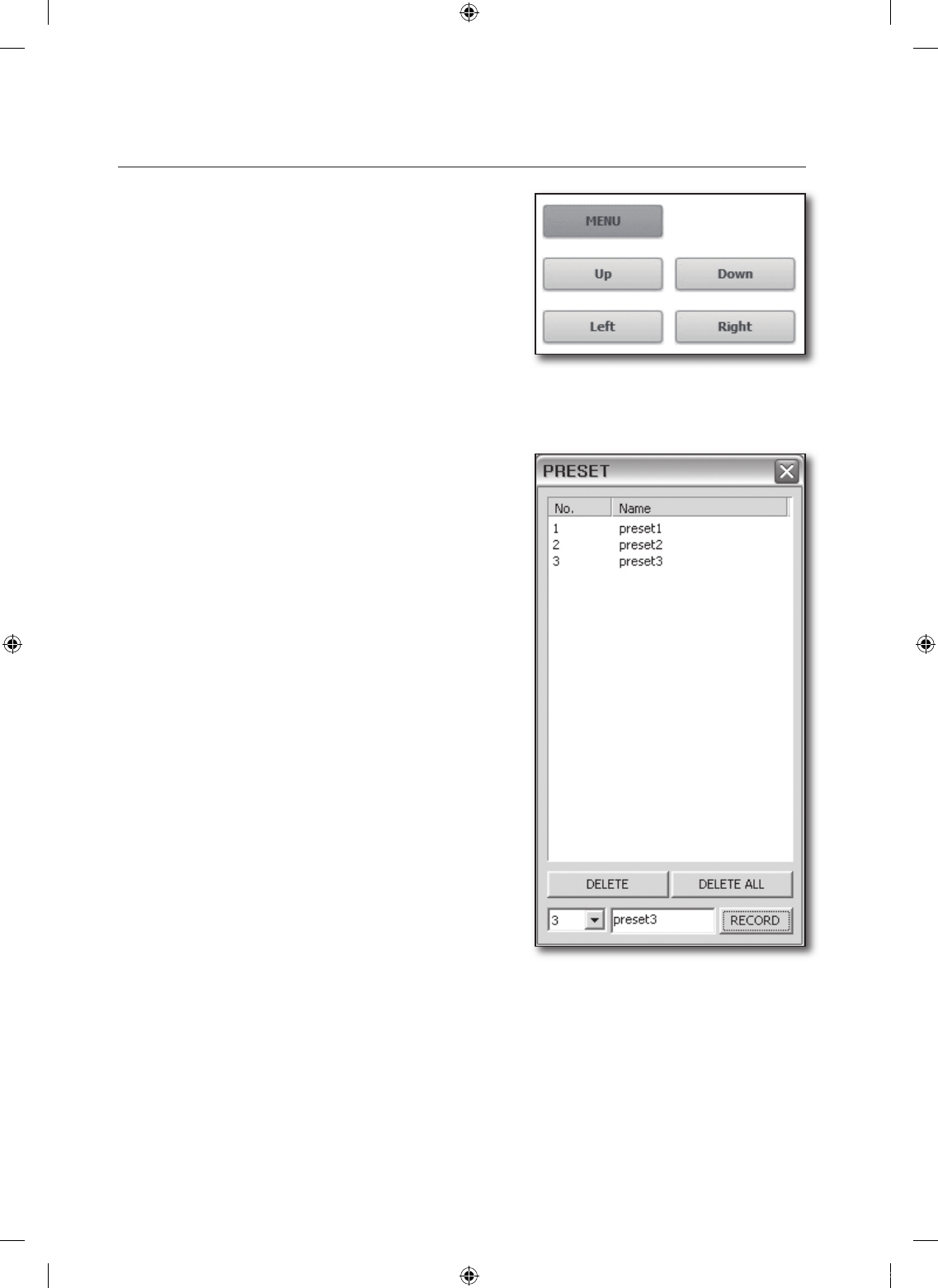

MENU: Appears the camera menu screen.
PRESET: Moves the lens direction to a preset direction.
If you click a preset, the camera moves to the selected
preset's position.
You can delete the selected preset or all presets.
You can save a new preset number and name.
You can save presets up to 20.
AUTOPAN: Moves the camera lens direction between 2
points set for the camera.
SCAN: Moves the camera lens direction between 2 preset
points of the camera.
PATTERN: You can set camera various movement patterns
such as zoom, move, etc. so that a camera automatically
moves according to the pattern.
While the DVR controls a PTZ camera, Web Viewer cannot
control the camera.
Camera menu setup is only available for camera supporting
the function.
Each function of PTZ is same to that of the DVR.
Pan/Tilt of the Smart dome camera is manipulated
automatically to center the camera to the mouse clicked
point.
If you drag the mouse using the left button on a certain point,
Pan/Tilt of the Smart dome camera is manipulated
automatically to center the camera to the middle point between the dragging start and end position.
Upward dragging will zoom out, while downward dragging will zoom in.
Tilt of Power PTZ operates properly within 45°.
Power and Pan Tilt functions are only available for camera supporting the functions.
Ex: Samsung SCC-C6475
~
~
1.
2.
3.
M`
~
~
~
M`
`
`
`
`
`
`
00769B_SHR-8162_ENG-NEW.indb 76 2008-12-04 오전 10:16:31
English _77
! WEB VIEWER
USING SEARCH VIEWER
The Search Viewer screen consists of following:
This displays the IP address and the model name of the connected DVR.
These menus consist of <LIVE>, <SEARCH>, <SETUP>, <ABOUT>.
These buttons are used for the screen split and full screen mode.
Shows the IP address and model name of the connected DVR.
These buttons are used for capture, print, and save the image.
This displays a calendar at which you can search the recorded video.
This displays a timeline at which you can search the recorded video by the time.
These buttons are used for controlling playback.
This displays the screen for playback of recorded video.
<SEQUENCE>, <PREVIOUS>, <NEXT> buttons are not available in SEARCH menu.
M`
00769B_SHR-8162_ENG-NEW.indb 77 2008-12-04 오전 10:16:32
78_ web viewer
web viewer
SPLIT-SCREEN
You can change the split mode by clicking each number icon.
Click < > button.
The screen displays the selected camera connected to the DVR in
“SINGLE MODE”.
Click < > button.
The screen displays the selected camera connected to the DVR in
“QUAD MODE”.
Only SINGLE and QUAD MODE are available in SEARCH menu.
If 16 channel DVR is connected, you can select a mode from SINGLE to
SIXTEEN MODE.
CONNECTED DVR
This displays the IP address and the status of the connecting DVR.
Connection failure message
No Response : Appears when the DVR does not respond.
Collision : Appears when Admin mode is already in use or simultaneous
access to the same DVR from the PC.
Access Denied : Appears when the maximum number of users is exceeded.
The number of simultaneous connections are limited to 5.
~
~
M`
`
M`
`
SINGLE MODE QUAD MODE
00769B_SHR-8162_ENG-NEW.indb 78 2008-12-04 오전 10:16:34

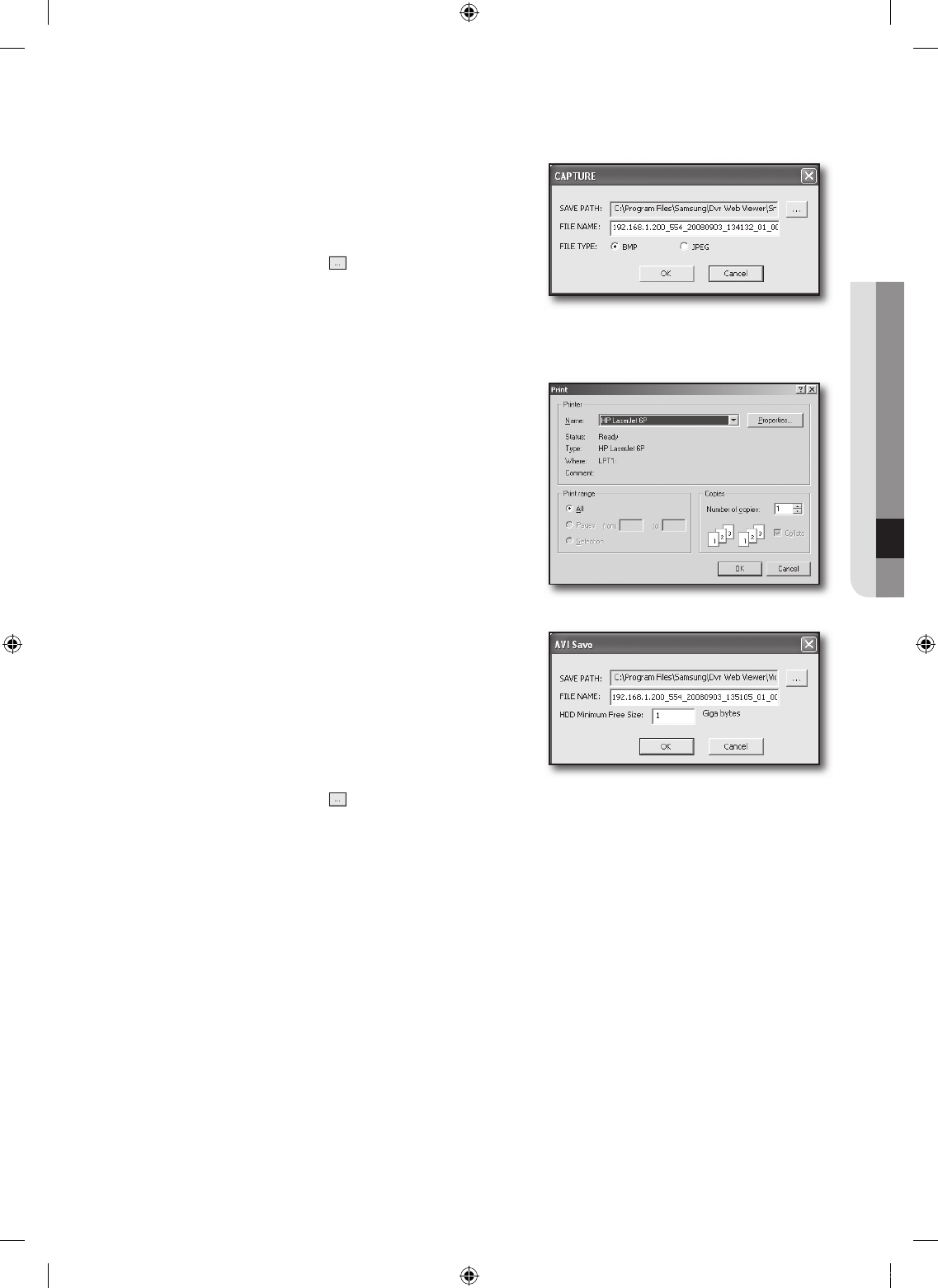

English _79
! WEB VIEWER
SAVING THE LIVE SCREEN ON THE PC
CAPTURE: Saves the current screen into a BMP or JPEG
fi le.
The default saving path is “C:\Program Files\Samsung\Dvr
Web Viewer\SnapShot\Search”. To change the saving path,
click <SAVE PATH ( )> button and then select the path
you want. For Windows Vista, the saving path is “C:\users\
(user ID)\AppData\LocalLow\Samsung\DVR Web Viewer\
Snapshot\”and it cannot be modifi ed.
The fi le is automatically named as following: “IP address_Port number_YYMMDD_camera number_index”
Ex) 192.168.130.12_554_20070615_101453_01_00
PRINT: Prints the playback screen that is now being
displayed. It also prints IP address, time, camera number,
and current event state.
RECORD: If you select a channel and click this button
during playback (only play), the video data is saved in a DVR
fi le. (It is saved in the designated folder on your PC.) To stop
recording, click this button again.
To record it, it is required at least 1GB of available space.
The default saving path is “C:\Program Files\Samsung\Dvr
Web Viewer\VideoClip\Search”. To change the saving path,
click <SAVE PATH ( )> button and then select the path you want. For Windows Vista, the saving path is
“C:\users\(user ID)\AppData\LocalLow\Samsung\DVR Web Viewer\Video-Clip\” and it cannot be modifi ed.
The fi le is automatically named as following: “IP address_Port number_YYMMDD_camera number_index”
Ex) 192.168.130.12_554_20070615_101530_01_00
For AVI save, you need the DivX codec for playing saved fi les. You can download the free version of the Divx codec at
http://sourceforge.net/projects/ffdshow/.
~
M`
`
~
~
M`
`
`
`
00769B_SHR-8162_ENG-NEW.indb 79 2008-12-04 오전 10:16:36
80_ web viewer
web viewer

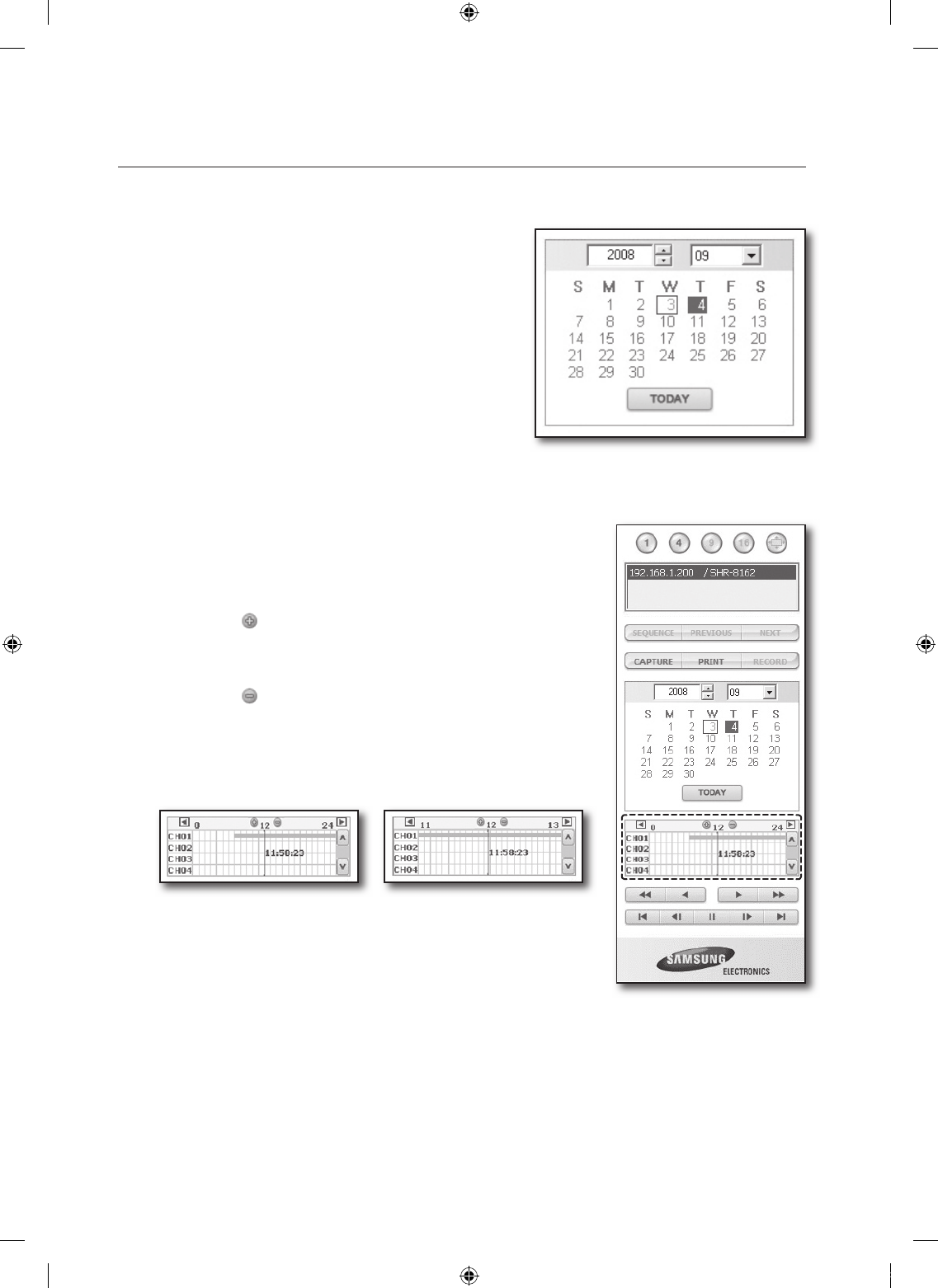

SEARCHING THE RECORDED VIDEO IN THE CALENDAR
If the video data has been recorded on a date, the date is
distinguished in green. If you click the date, the recorded video
information is displayed in the time line. When you click
<TODAY>, it is changed to today’s date.
SEARCHING THE RECORDED VIDEO IN THE TIMELINE
It displays the recorded video data status on the DVR after a date is
selected. The normal mode displays the time ranging from 0 to 24 Hours
while the extension mode displays the time every 2 hours.
[Normal Mode]
If you click < > button, it changes to the extension mode.
Each time line represents 1 hour.
[Extension Mode]
If you click < > button, it changes to the normal mode.
Each time line represents 5 minutes.
The channels are ranging from CH01 to CH16.
~
~
~
~
M`
00769B_SHR-8162_ENG-NEW.indb 80 2008-12-04 오전 10:16:37
English _81
! WEB VIEWER

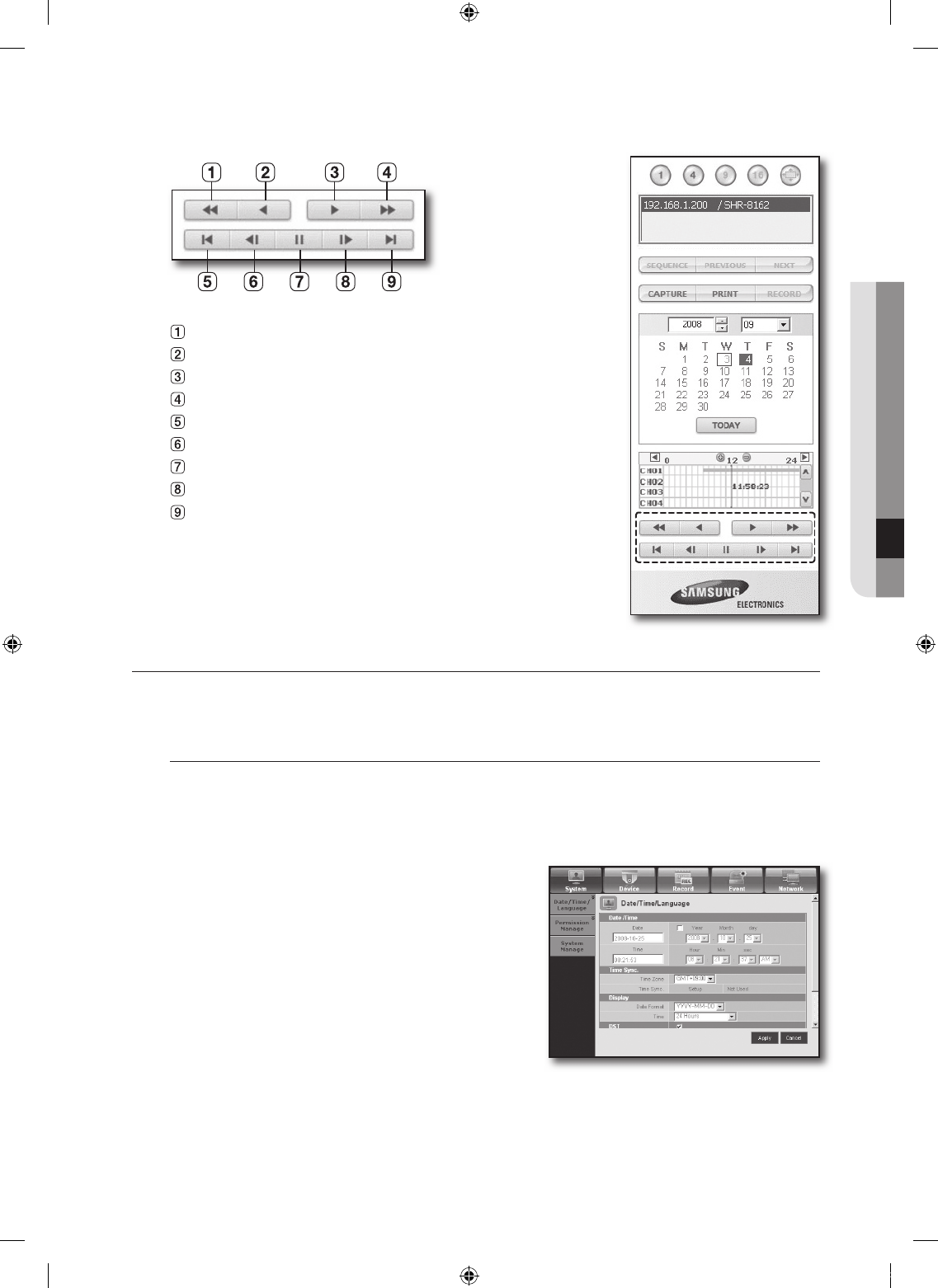

CONTROLLING PLAYBACK
Fast Backward: Reverse-plays faster(2x).
Reverse Play: Performs Reverse Play.
Play: Performs playback.
Fast Forward: Plays faster(2x).
Go to First: Moves the beginning time of recorded video in the time line.
Step Backward: Performs one step reverseplay by one frame.
Stop: Stops playing.
Step Forward: Performs one step forward by one frame.
Go to Last: Moves the last time of recorded video in the time line.
VIEWER SETUP
You can confi gure the DVR settings remotely on the network.
To confi gure the DVR settings, click <Setup>.
System
You can confi gure the various settings of the DVR system.
Date/Time/Language
For more information, refer to <Date/Time/Language> in the <System Setup> menu. (Page 34)
Select <Date/Time/Language> in the System menu.
Confi gure the DVR settings according to your system
environment.
Date/Time
Set the date and time.
1.
2.
~
00769B_SHR-8162_ENG-NEW.indb 81 2008-12-04 오전 10:16:39
82_ web viewer
web viewer

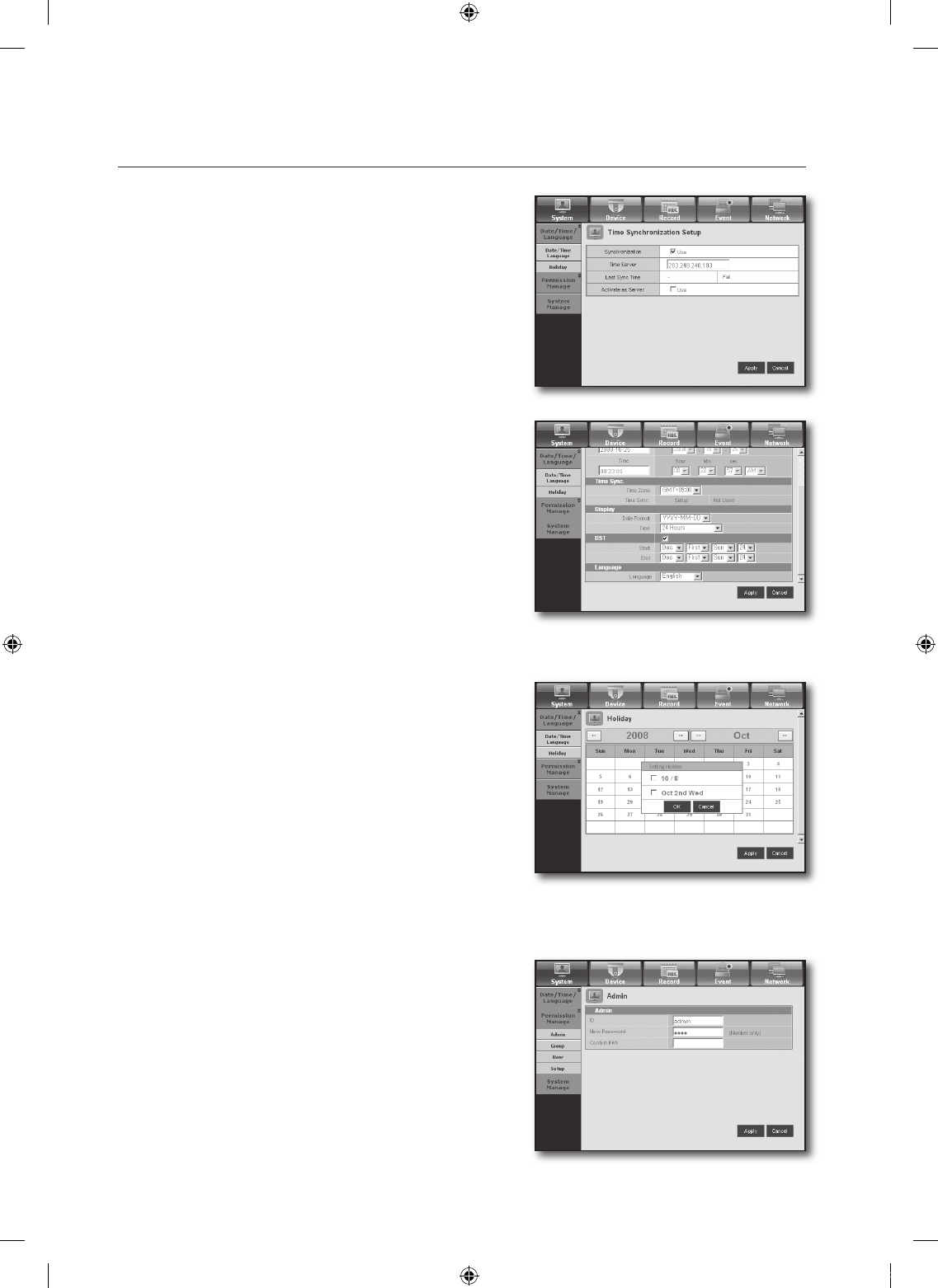

Time Synchronization Setup
Set the time synchronization.
Display
Date Format : Set the date type.
Time : Select a time format to display on the screen.
DST (Daylight Saving Time)
DST is displayed an hour ahead of the standard time of the
time zone.
Language
Select a preferred language for the DVR.
Holiday
You can set specifi c dates to Holidays according to your
preferences.
For more information, refer to <Setting Holiday> in the
<System Setup> menu. (Page 35)
Permission Management
For more information, refer to <Permission Management> in the <System Setup> menu. (Page 36)
Administrator
You can change the admin ID or the password.
~
~
~
~
~
00769B_SHR-8162_ENG-NEW.indb 82 2008-12-04 오전 10:16:41
English _83
! WEB VIEWER
Group
Users are classifi ed into groups and the permission can be
set according to the group.
First of all, add a group.
User
You can add, change or remove a user or users.
Setup
You can set the user permission.
System Management
For more information, refer to <System Management> in the <System Setup> menu. (Page 38)
System Information
You can see information of the current system.
Check the software version, broadcast format and
MAC address.
~
`
~
~
~
00769B_SHR-8162_ENG-NEW.indb 83 2008-12-04 오전 10:16:43
84_ web viewer
web viewer

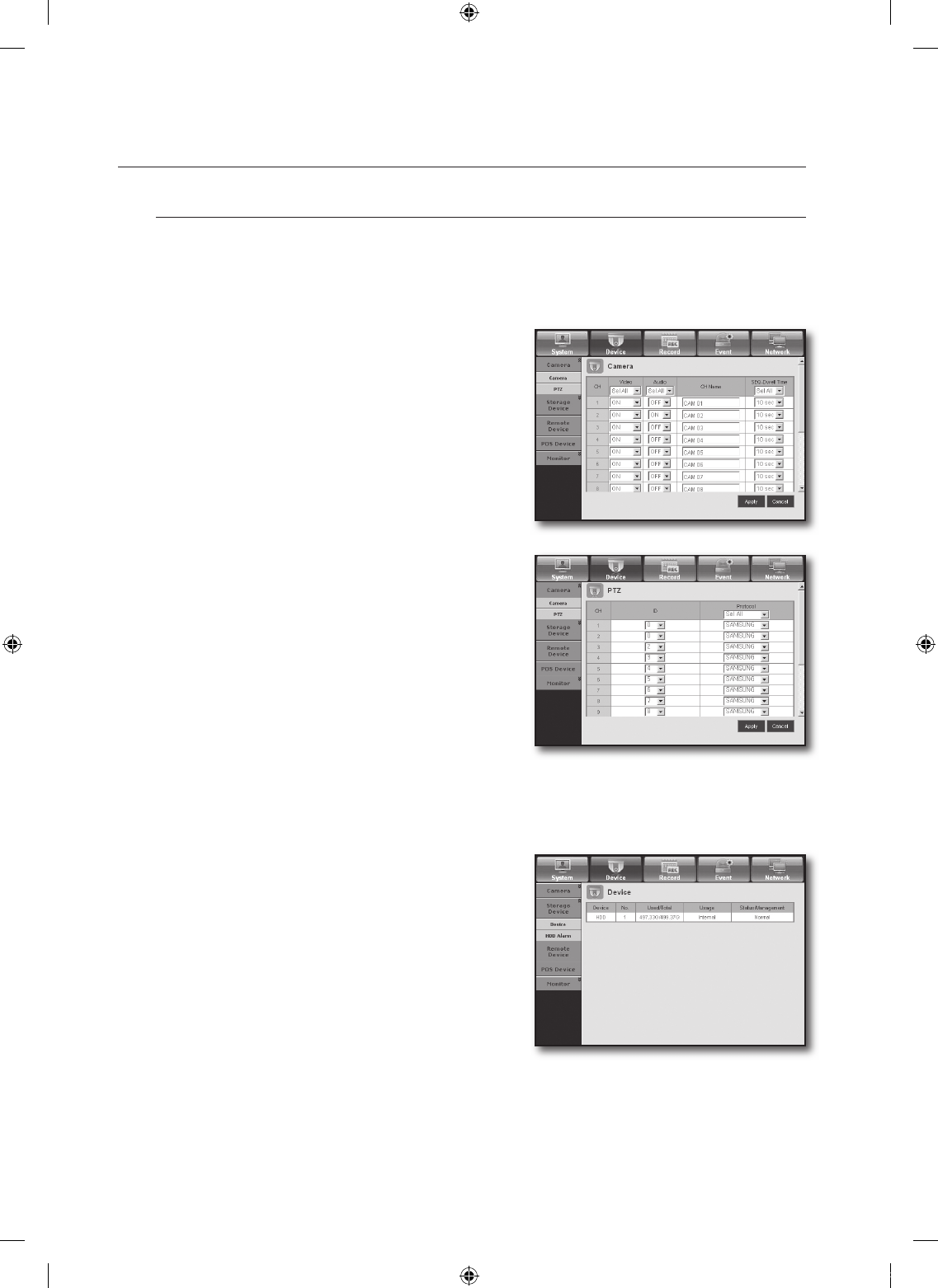

Device
You can check a list of devices that are connected to the DVR and confi gure the necessary settings.
Click <Device> in the menu screen.
For more information, refer to <Device Setup>. (Page 41)
Camera
Camera
You can confi gure the settings of the camera that is
connected to the DVR.
PTZ
You can confi gure the settings of the PTZ camera that is
connected to the DVR.
Set the ID and protocol.
Storage Device
You can check and change the settings of the storage device.
Device
You will see a list of storage devices that are connected to the
DVR.
You can check the type, used/total, usage and status of the
device.
~
~
~
00769B_SHR-8162_ENG-NEW.indb 84 2008-12-04 오전 10:16:45
English _85
! WEB VIEWER

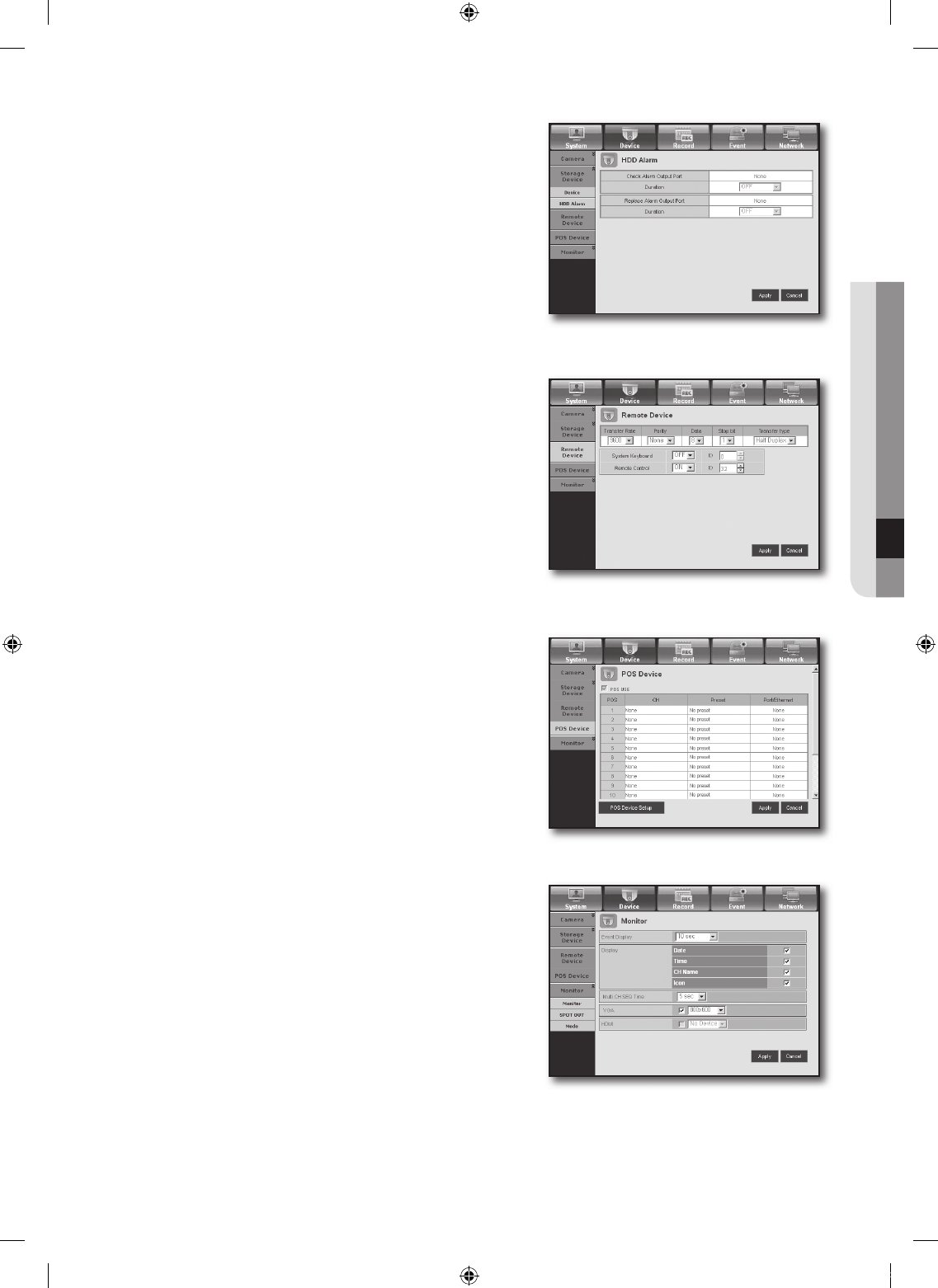

HDD Alarm
You can set the alarm output channel and the alarm duration
for an error.
Remote Device
You can see a list of remote devices including PTZ cameras
and system keyboards that are connected to the RS-485 port
of the DVR and confi gure the necessary settings.
POS Device
You can set the channel, preset and communication port of
the POS device that is connected to the DVR.
Monitor
Monitor
You can confi gure the monitoring screen settings and set the
output system.
~
~
00769B_SHR-8162_ENG-NEW.indb 85 2008-12-04 오전 10:16:47
86_ web viewer
web viewer
SPOT OUT
The registered user can view the event screen for the duration
set in <Event Display Time> if an event occurs from the
appropriate channel.
Mode
You can switch between live mode and play mode.
Record
For more information, refer to <Setting the Recording>. (Page 48)
Recording Schedule
If you set a recording schedule for a specifi c date and time,
the recording will start at that specifi c time.
- Apply to All CH : Click <Apply to All CH> to display the
confi rmation window.
~
~
00769B_SHR-8162_ENG-NEW.indb 86 2008-12-04 오전 10:16:49
English _87
! WEB VIEWER

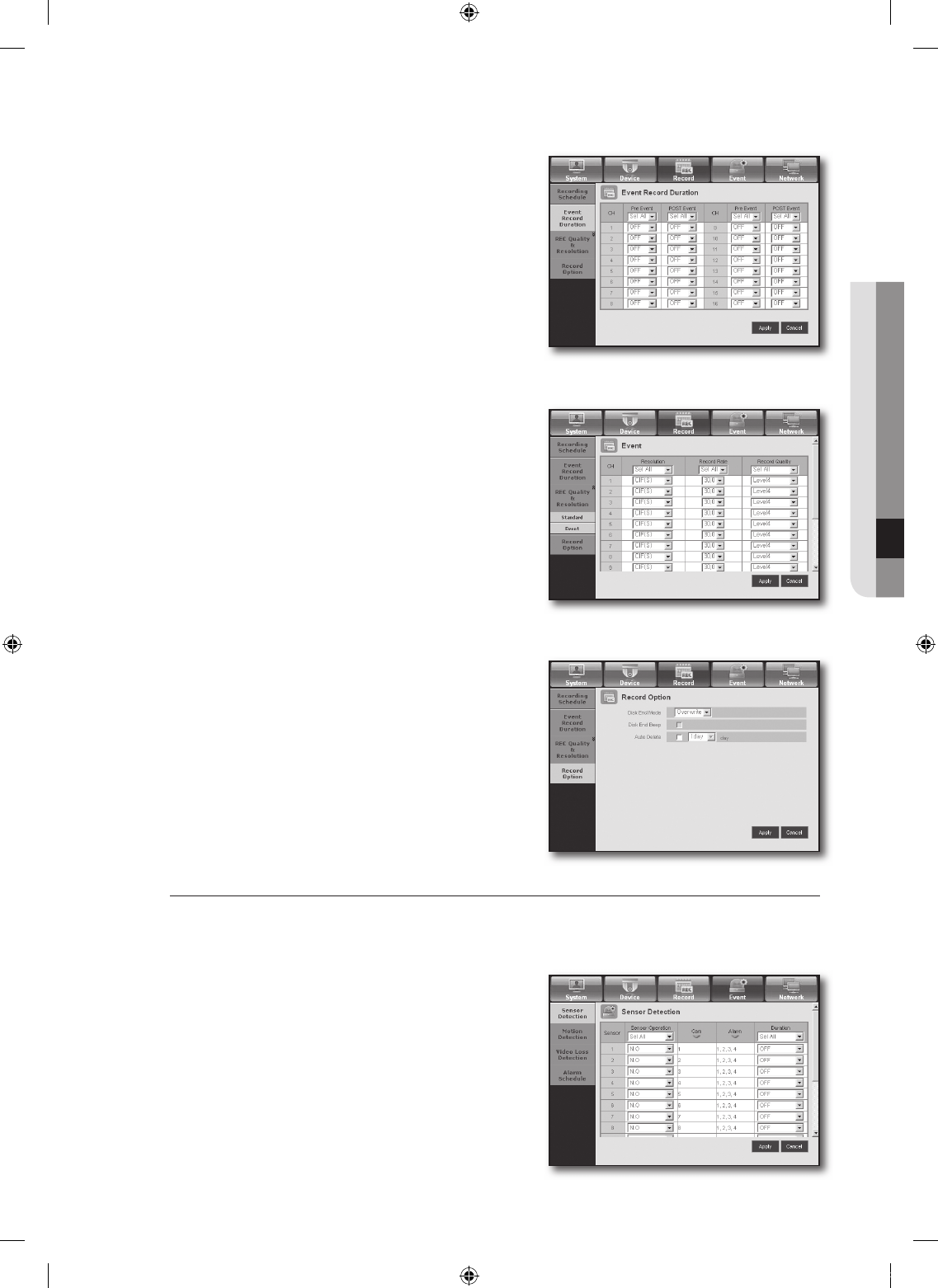

Event Record Duration
You can set the start and end times of recording that will be
activated if an event occurs.
REC Quality & Resolution
Standard/Event
You can set the resolution, frame rate and recording quality for
each channel.
Record Option
You can set the Disk End Mode.
Event
For more information, refer to <Setting the Event>. (Page 51)
Sensor Detection
You can set the sensor operation mode and the synchronized
camera as well as the alarm output type and the duration.
~
00769B_SHR-8162_ENG-NEW.indb 87 2008-12-04 오전 10:16:51
88_ web viewer
web viewer

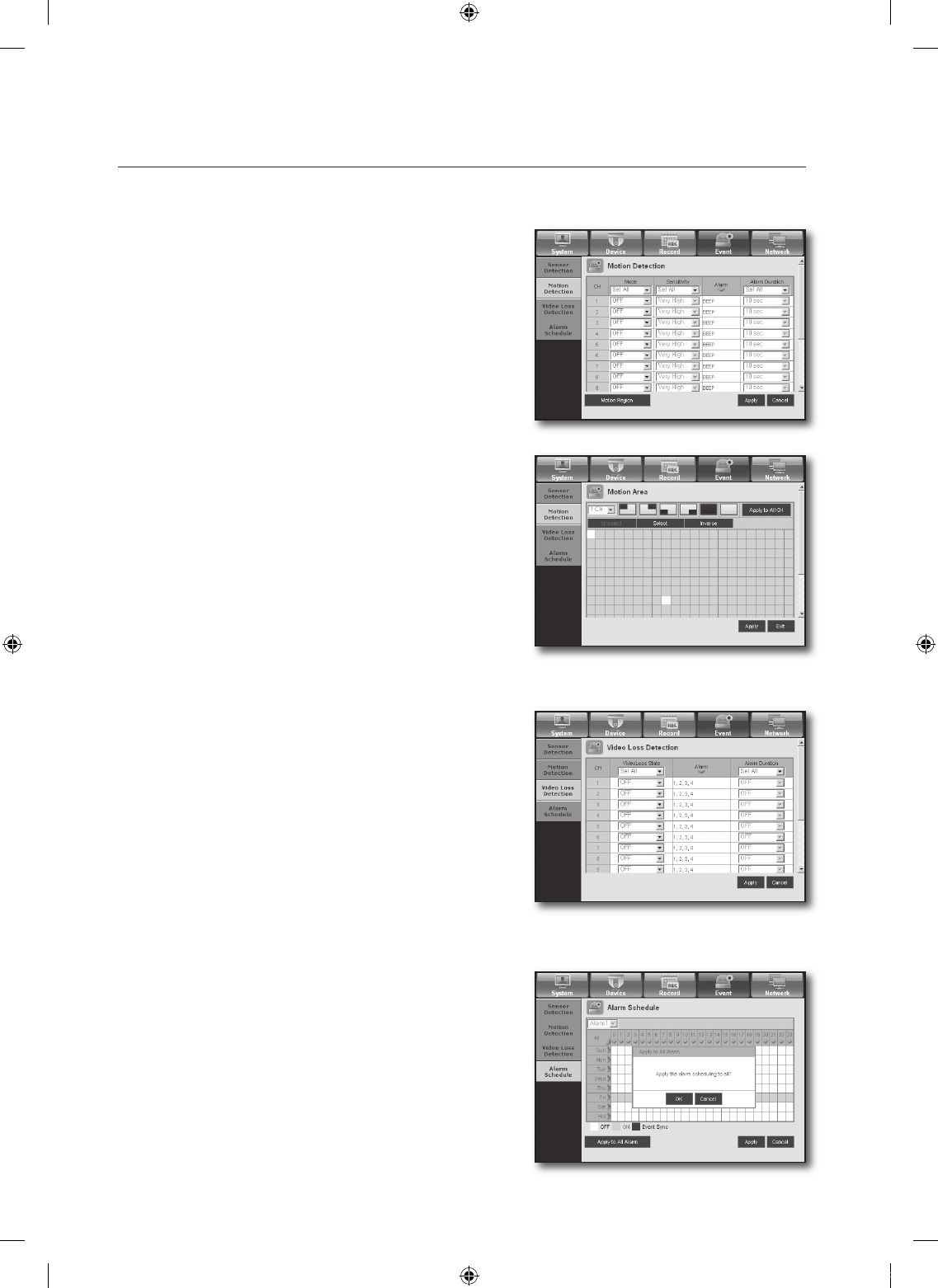

Motion Detection
You can set the motion detection mode and the sensitivity
as well as the alarm output type and the duration.
Motion Area
Set the target motion detection area
Video Loss Detection
You can set the alarm output time if a video loss occurs.
Alarm Schedule
You can schedule the alarm output according to the day of
the week and the time.
The default setting is Event Sync, which activates the alarm
only if an event occurs.
~
00769B_SHR-8162_ENG-NEW.indb 88 2008-12-04 오전 10:16:54
English _89
! WEB VIEWER

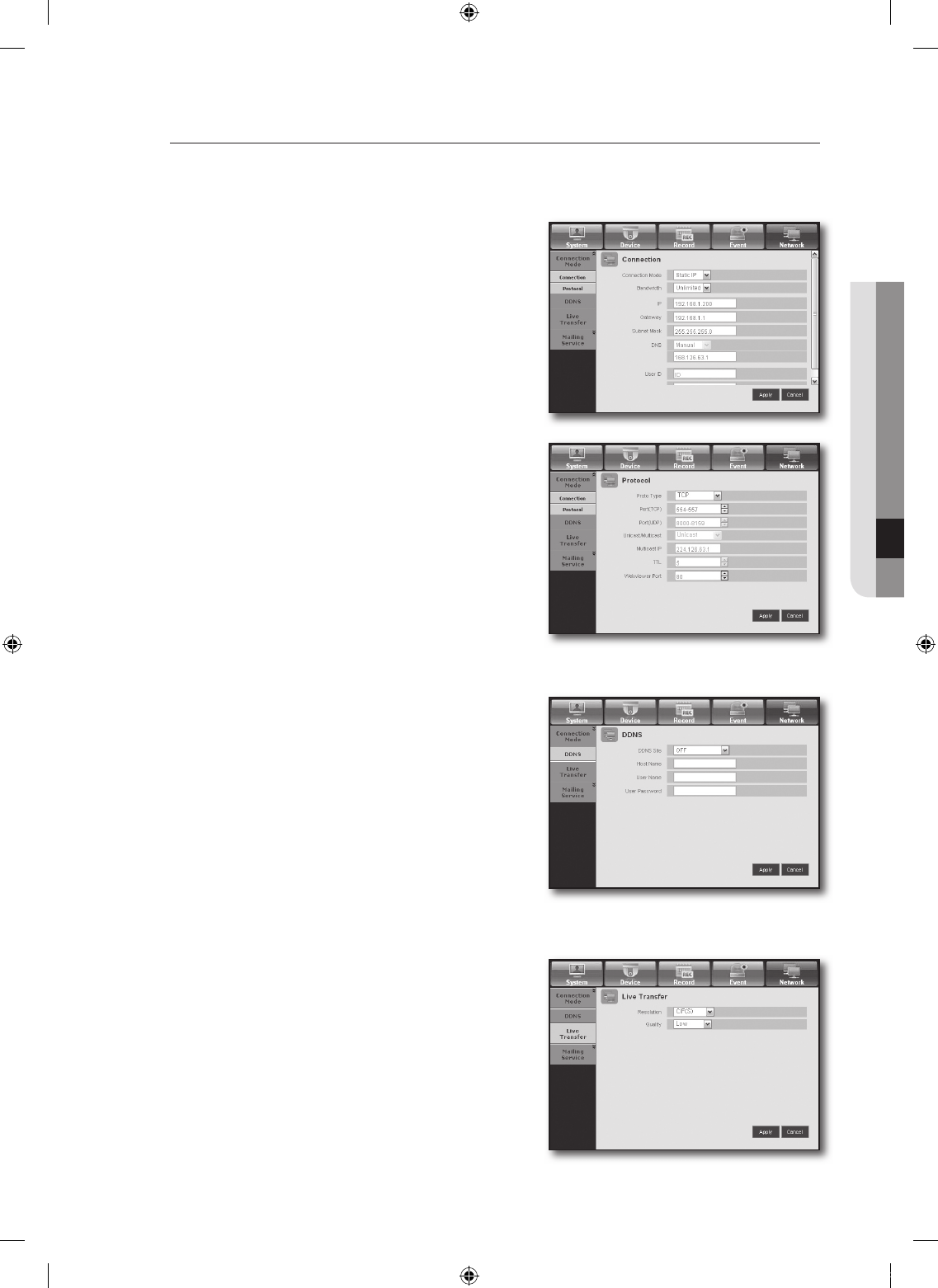

Network
For more information, refer to <Network Confi guration>. (Page 55)
Connection
A remote user can access the DVR via the network to check
the current mode and the IP address.
Connection
You can set the network connection route.
Protocol
You can confi gure the protocol related settings.
DDNS
You can check the DDNS settings.
Live Transfer
A remote user can set the images of the DVR.
Live Transfer
A remote user can set the image resolution of the transferred
data.
~
~
~
00769B_SHR-8162_ENG-NEW.indb 89 2008-12-04 오전 10:16:56
90_ web viewer
web viewer

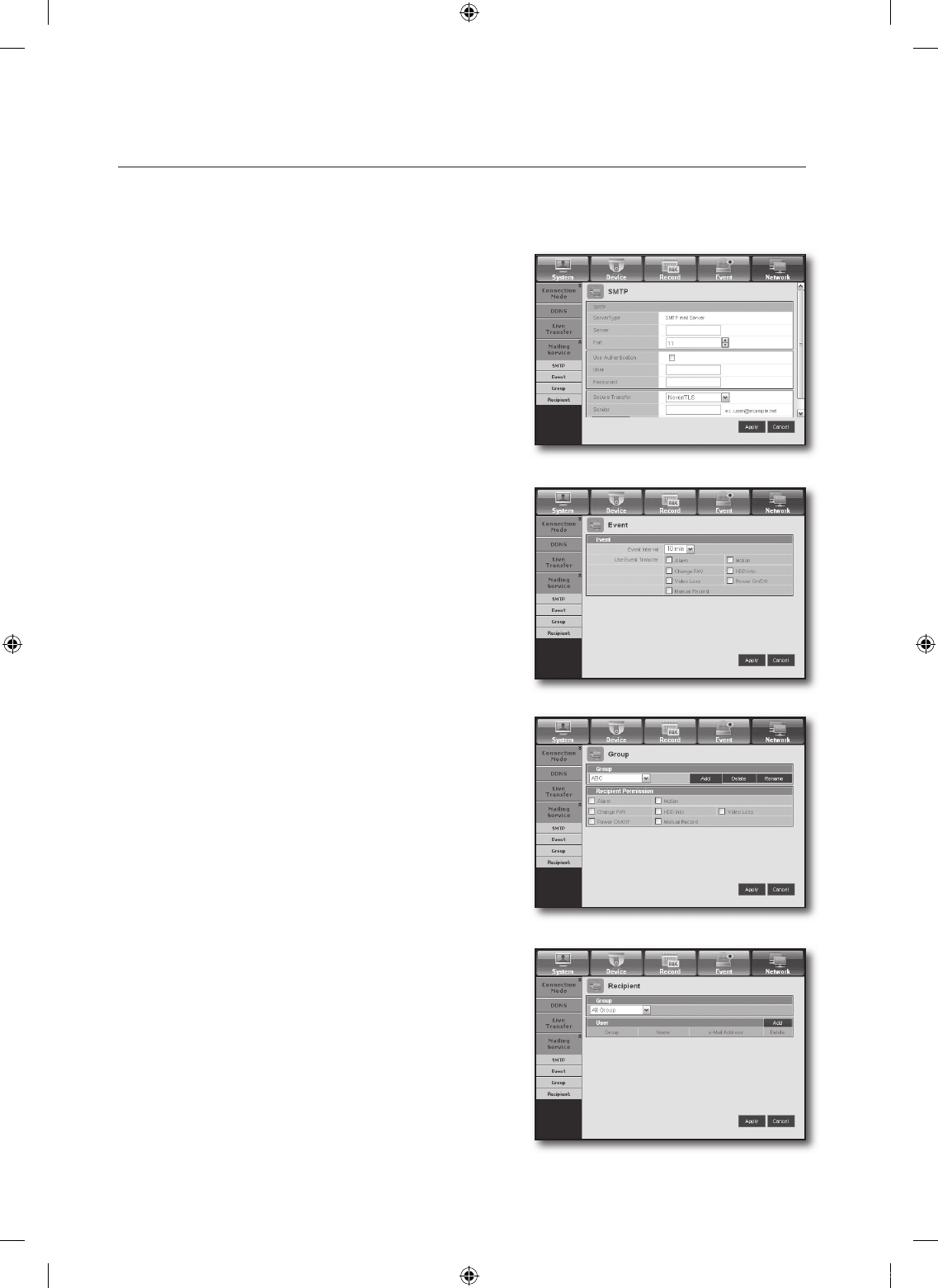

Mailing Service
You can specify the SMTP server that sends a mail if an event occurs and set the recipient group and users.
SMTP
You can set the server that sends mails and specify if you use
the authentication process.
Event
You can set the event interval and specify which events the
server sends mails for.
Group
You can add a group to receive the mail if an event occurs
and set the permission to receive the event mail for each
group.
Recipient
You can add a user or users who will receive the mail.
~
~
~
~
00769B_SHR-8162_ENG-NEW.indb 90 2008-12-04 오전 10:16:58
English _91
! WEB VIEWER
ABOUT
Click <ABOUT>.
Displays the model name of connected DVR and the version
of Web Viewer.
00769B_SHR-8162_ENG-NEW.indb 91 2008-12-04 오전 10:16:58
92_ backup viewer
backup viewer

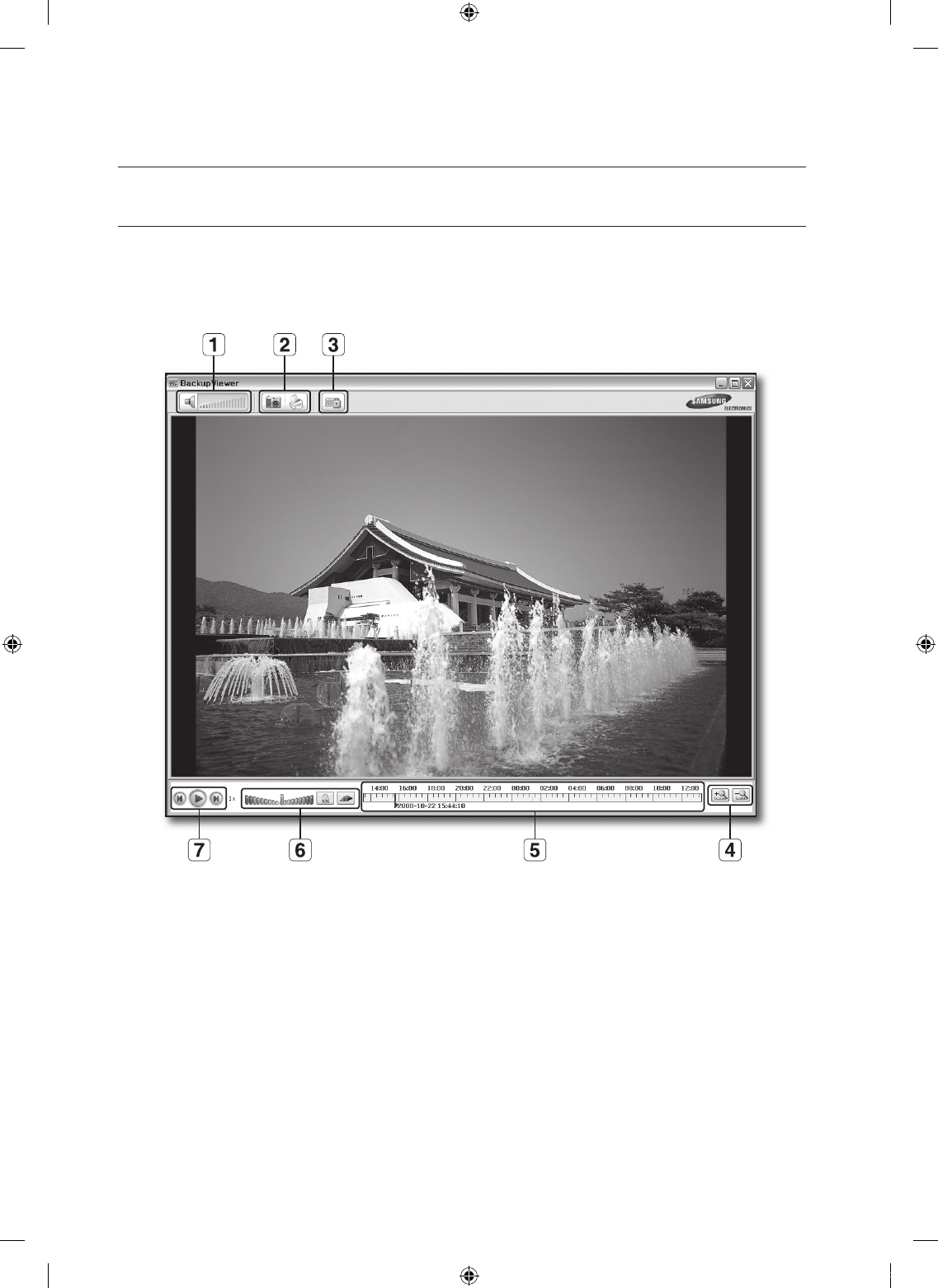

SEC BACKUP VIEWER
You can play a fi le that is backed up in the format of SEC.
Backup in the format of SEC will involve in generating two fi les: one for the backup data and one for the viewer.
If you run the backup fi le viewer, the backup data fi le will be automatically played.
Recommended System Requirements
PCs with a lower specifi cation than the recommended below may not fully support forward/backward and
high-speed playback.
OS : Windows XP professional, Windows Vista
CPU : Intel Core2-Duo 2.4GHz or higher
RAM : DDR PC-3200 1G or more
VGA : Geforce 6200 or higher
~
~
~
~
00769B_SHR-8162_ENG-NEW.indb 92 2008-12-04 오전 10:17:00
English _93
! BACKUP VIEWER

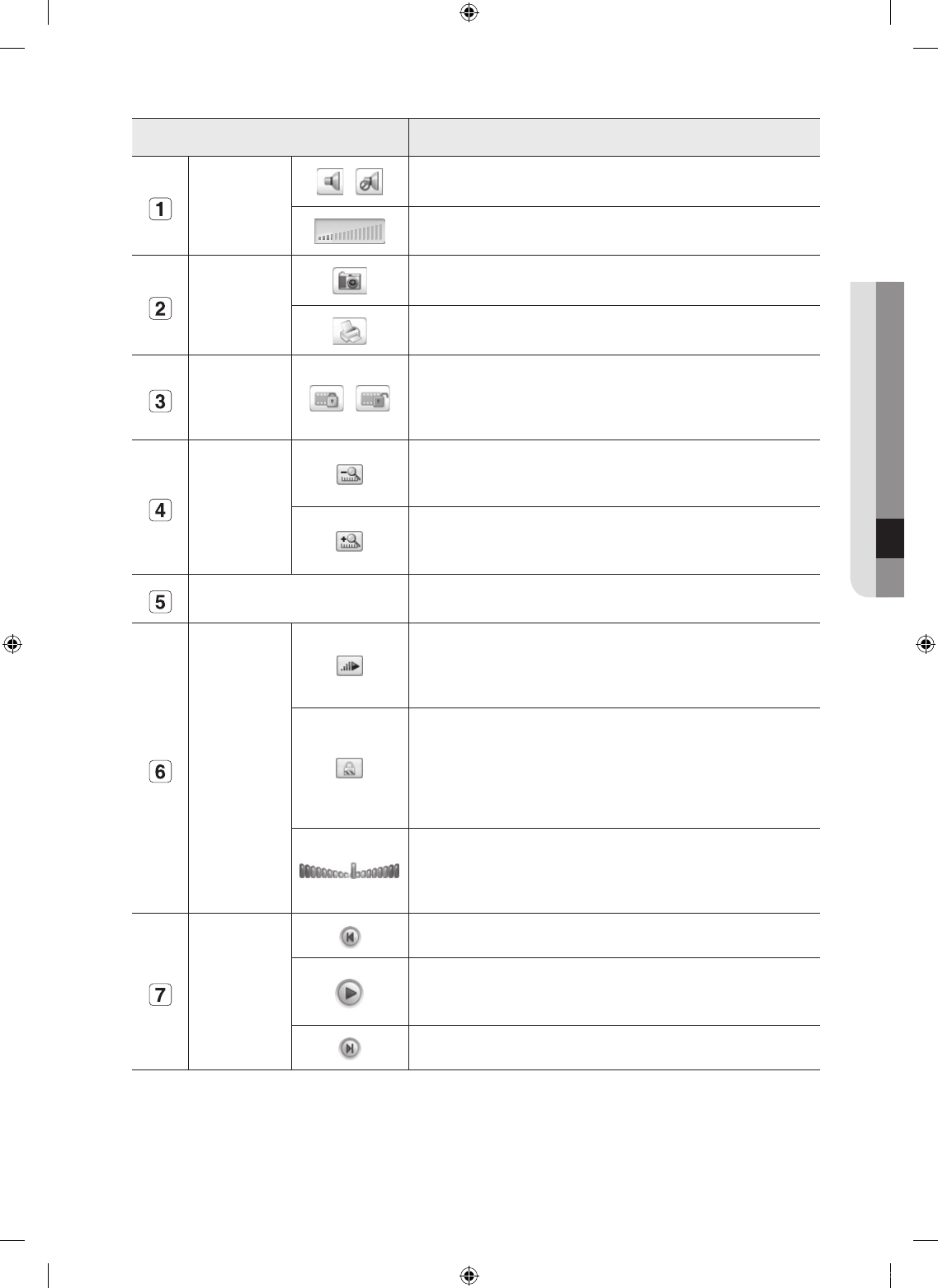

Name Description
Audio
/
A toggle button. Each time you press this button, the audio output will toggle
between activated and deactivated.
You can adjust the volume level from 0 to 100.
Screen Printout
Saves the current screen as an image file. Supported file formats include
BMP and JPEG.
Prints out the current screen. You should have installed the appropriate printer
driver before you can print out the screen.
File Tamper
Detection /
A toggle button. Each time you press this button, it will toggle between
activated and deactivated. The closed lock icon indicates activation of the file
tamper detection, which will blink the screen three times and stop playing if
an unauthorized manipulation of a data file is detected.
Zoom In/Out
Collapses the time range that is displayed on the range bar of the storage
time. You can collapse the range bar until the overall range is shortened to 24
hours.
Enlarges the time range that is displayed on the range bar of the storage
time. You can enlarge the range bar until the overall range is extended to 1
minute.
Display of storage time range Displays the time range of a stored video file.
You can move the gridline of the range bar to select a time point to play.
Speed
A toggle button. Each time you press this button, it will change the button
color and toggle the slow playback between deactivated and activated. If
deactivated, you can use the speed bar to adjust the playback speed from x-
16 to x16.
A toggle button. Each time you press this button, it will change the button
color and toggle the speed adjustment between activated and deactivated.
If activated, the adjusted speed will be kept even if you release the mouse on
the speed bar. If deactivated, the adjusted speed will be applied only while
you use the mouse to hold the adjusted speed, and if you release the mouse,
the speed will restore to x1.
You can adjust the speed from x-16 to x16, which varies according to the
frame rate of the source.
If the frame rate is high, the speed will be limited to a max of x4, and if low,
the speed will be limited to a max of x16.
Play
Displays the next frame. This is available only if the playback is stopped.
A toggle button. Press it once to start playing the video and switch the button
mode to 'Pause', and press it again to switch the button mode to Play and
stop playing temporarily.
Displays the previous frame. This is available only if the playback is stopped.
00769B_SHR-8162_ENG-NEW.indb 93 2008-12-04 오전 10:17:01
94_ appendix
appendix
PRODUCT SPECIFICATION
Item Details Note
Operating System Embedded OS
Broadcast Format NTSC/PAL System
Input Voltage AC 100~230V (PAL)
AC 110~220V (NTSC)
Power Consumption
SHR-816x : 60W
SHR-808x : 56W
SHR-7xxx : 55W
Video
Video In
Composite 16(8) Channel
- 1.0Vp-p
- 75Ω Hi Z Termination
BNC Type
Loop Through Out 16(8) Channel
- Auto Termination
Video Out
Composite 5 Channel(SHR-816x)
3 Channel(SHR-808x)
2 Channel(SHR-7xxx)
- Normal Video Output 1 Channel
- SPOT OUTPUT 4 (SHR-816x), 2 (SHR-808x)
1 (SHR-7xxx)
- BNC Type
VGA 1 Channel
HDMI 1 Channel
Audio
Audio In
Mono 16(8) Channel
- 5dBm, 600Ω
4 Channel : RCA Type
12 Channel : d-sub Accessory (Optional)
Audio Out
Mono 1 Channel
- 6dBm
RCA Type
Live Screen
Resolution & Frame
Rate
NTSC PAL
Resolution 704x480 704x576
Frame Rate 480ips(16Ch)/
240ips(8Ch)
400ips(16Ch)/
200ips(8Ch)
Display Mode
Single
Split Modes:
16CH : 4-,6-,8-,9-,13-,16- splits
8CH : 4-,6-,8-,9- splits
PIP
Mode sequence
Freeze
2 X Zoom
00769B_SHR-8162_ENG-NEW.indb 94 2008-12-04 오전 10:17:01
English _95
! APPENDIX
Item Details Note
Record
Compression
Method
Video : MPEG4
Audio : G.723
Resolution & Quality
Resolution Spec. (Quality) Max Recording Rate
CIF(S)
352X240(NTSC)
/352X288(PAL)
Level8 (high)
~ Level1 (low)
480(240)ips(NTSC)/
400(200)ips(PAL)
Half D1(M)
704x240(NTSC)
/704x288(PAL)
Level8 (high)
~ Level1 (low)
240(120)ips(NTSC)/
200(100)ips(PAL)
Full D1(L)
704x480(NTSC)
/704x576(PAL)
Level8 (high)
~ Level1 (low)
120(60)ips(NTSC)/
100(50)ips(PAL)
CIF(S)
/Half D1(M)
/Full D1(L)
Level8 (high)
~ Level1 (low)
480(240)ips(NTSC)/
400(200)ips(PAL)
SHR-716x
(SHR-708x)
SHR-716x
(SHR-708x)
SHR-716x
(SHR-708x)
SHR-816x
(SHR-808x)
Record Mode
Normal Recording REC button
Scheduled Recording Schedule Table
Event Recording
- Alarm Detection
- Motion Detection
- Video Loss
- Pre & Post Recording
Frame Rate NTSC : 0.9, 1.9, 3.8, 7.5, 15, 30ips
PAL : 0.8, 1.6, 3.1, 6.2, 12.5, 25ips
Storage
Internal
SHR-8162/8082/7162/7082 : SATA HDDx5(MAX)
MAX HDD size : 500GB x 5 = 2.5TB
SHR-8160/8080/7160/7080 : SATA HDDx6(MAX)
MAX HDD size : 500GB x 6 = 3.0TB
External
USB HDD
- MAX 1 (USB hub not supported)
- MAX HDD Size : 500GB
SATA HDD
- 2 Port
- MAX 1HDD/port
- MAX HDD Size : 500GB
Play
Search Mode
Calendar Search
Event Search
- Alarm,Motion,Video Loss
Time/Date Search
Go to First
Go to Last
Backup Search
Text Search(for POS)
Motion Search
Preview
Resolution &
Specification
Resolution Specification
CIF(S) 480ips(NTSC)/400ips(PAL)
Half D1(M) 240ips(NTSC)/200ips(PAL)
Full D1(L) 120ips(NTSC)/100ips(PAL)
Total
480/400ips
(CIF(S))
240/200ips
(Half D1(M))
120/100ips
(Full D1(L))
00769B_SHR-8162_ENG-NEW.indb 95 2008-12-04 오전 10:17:01
96_ appendix
appendix
Item Details Note
Play
Display Mode Single /4-/9-/13-/16-splits
Play Mode
Play,Pause,Stop,2xDigital Zoom
Fast Forward/Fast Reverse
- 2x, 4x, 8x,16x, 32x, 64x
Backup
USB External HDD
USB CD/DVD Writer,Internal DVD(SHR-7082,7162,8082,8162 only)
USB Memory
USB HDD-MAX 1(USB hub not supported)
SATA HDD-MAX 1
Network Ethernet : 10/100/1000 BaseT,ADSL(PPPoE),DHCP
Serial Communication
RS-485 PTZ Device Control
Remote Control Device
RS-232C POS
Alarm Input : SHR-816x/716x : 16 channels
SHR-808x/708x : 8 channels
Remote Viewer
PC Requirements
CPU : Intel Core 2 Quad 2.5GHz or higher
RAM : 2G
VGA : 32M RAM(64M or more)
Direct 8.1
Operating
Systems
Windows XP(Pro),
Windows-2000(Pro)
Windows Vista(Home Basic/Premium)
Features
Live Image Monitoring Mode
Local File Search & Play Back Mode
Remote File Search & Play Back Mode
Temperature (Operation) 0°C ~ 40°C (32°F ~ 104°F)
Temperature (Storage) -20°C ~ 60°C (-4°F ~ 140°F)
Humidity (Operation) 20% to 85% RH
Humidity (Storage) 20% to 85% RH
Dimension (W x H x D) 440 x 88 x 430mm (17.32 x 3.46 x 16.92 inch)
Weight
SHR-8162/7162 : ~7.55Kg(16.64lb)
SHR-8082/7082 : ~7.42Kg(16.35lb)
SHR-8160/7160 : ~6.70kg(14.77lb)
SHR-8080/7080 : ~6.57Kg(14.48lb)
It needs extra H/W to support ATM/POS function. So please contact your vendor to obtain H/W.
00769B_SHR-8162_ENG-NEW.indb 96 2008-12-04 오전 10:17:02
English _97
! APPENDIX
PRODUCT OVERVIEW
SHR-8162
~
00769B_SHR-8162_ENG-NEW.indb 97 2008-12-04 오전 10:17:18
98_ appendix
appendix
DEFAULT SETTING
This returns the factory default settings.
The settings are made as follows;
Use System/Load Factory Default in MENU
In Live mode, press and hold down [MODE] and then [PTZ] on the front panel for 6 seconds to reset the settings.
Category
Details Factory Default
System Settings
Date/Time/Language Date/Time/Language
Date YYYY-MM-DD
Time Format 24 hours
Time Zone GMT
Time Synchronize OFF
DST OFF
Language English
Permission
Management
Admin ID admin
New Password 4321
Setting Restricted Access All
Auto Logout 3 Min
System Management System Information Broadcast Format NTSC/PAL
Device
Camera
Camera
Video ON
Audio OFF
CH Name CAM 01 ~ CAM 16
SEQ-Dwell Time 5sec
PTZ ID Camera No.
Protocol None
Screen Setup
Brightness 50
Contrast 50
Color 50
Storage Device HDD Alarm
Check Alarm Output Port OFF
Duration OFF
Replace Alarm Output Port OFF
Duration OFF
Remote Device
Baudrate 9600
Parity None
Data 8
Stop bit 1
Transfer Type Half Duplex
System Keyboard OFF
Remote Control ON(0)
~
~
00769B_SHR-8162_ENG-NEW.indb 98 2008-12-04 오전 10:17:45
English _99
! APPENDIX
Category
Details Factory Default
Device
POS Device OFF
Monitor
Monitor
Display All
Switch to Split Screen 5 sec
VGA 800x600
HDMI 480p
SPOT OUT
SPOT OUT 1 CH1 ~ CH4
SPOT OUT 2 CH5 ~ CH8
SPOT OUT 3 CH9 ~ CH12
SPOT OUT 4 CH13 ~ CH16
Event Display OFF
Mode Live Mode ALL
Play Mode ALL
Recording
Recording Schedule Channel 1 Event
Event Record
Duration
PRE Event OFF
POST Event 1 min
Quality/Resolution
Normal Recording
Resolution CIF(S)
Frame Rate 7.5 ips
Record Quality Level 4
Event
Resolution Full D1(L)
Frame Rate 30 ips
Record Quality Level 4
Record Option Disk End Mode Setup Overwrite
Disk End Beep OFF
Auto Delete OFF
Event
Sensor Detection
Sensor Operation OFF
Camera Camera No.
Alarm None
Duration 10 sec
Motion Detection
Mode OFF
Sensitivity Very High
Alarm None
Duration 10 sec
Motion Region All Area
Video Loss Detection
Video Loss State OFF
Alarm None
Duration 10 sec
00769B_SHR-8162_ENG-NEW.indb 99 2008-12-04 오전 10:17:45
100_ appendix
appendix
Category
Details Factory Default
Network
Connection Mode
Connection
Connection Mode Static IP
Bandwidth 2Mbps
IP 192.168.1.200
Gateway 192.168.1.1
Subnet Mask 255.255.255.0
DNS 168.126.63.1
Protocol
Protocol Type TCP
Port (TCP) 554~557
Webviewer Port 80
DDNS DDNS Site OFF
Live Transfer Resolution CIF(S)
Quality Low
Mailing Service
SMTP
Server OFF
Port 11
Use Authentication OFF
Secure Transfer Never/TLS
Group Group OFF
Recipient Permission OFF
Event Event Interval 10 min
Use Event Transfer OFF
00769B_SHR-8162_ENG-NEW.indb 100 2008-12-04 오전 10:17:46
English _101
! APPENDIX
TROUBLESHOOTING
Symptom Countermeasures
The system does not turn on and the indicator on the
front panel does not work at all.
Check if the power supply system is properly connected.
Check the system for the input voltage from the power source.
If the problem persists even after you have taken the above actions,
check the power supplier and replace it with a new one if neccessary.
Some channels display just a black screen even if
they receive video sources.
Check if the camera connected to the system properly displays the
image. Sometimes, this problem may occur on a camera that is not
properly connected to the video source.
Check if the camera is properly supplied with power.
Sometimes, this problem may occur on a channel with weak video
signal from a video distributor that is connected to multiple systems. In
this case, input the video source of the camera directly into the DVR.
This may find the cause and solve the problem.
If I press the [REC] button on the front panel, the
REC indicator does not flash, nor the player start
recording.
Check if there is a free space on the HDD for the recording.
Check if the record mode is set to ON in the record mode setting.
The screen displays the logo image repeatedly. This may occur from a problem with the main board, or the related
software is corrupt.
Contact the nearest service center for more information.
The Channel button does not work on the Live
screen.
The Channel button does not work if the current screen is in the event
monitoring mode.
In the event monitoring screen, press the [ALARM] button to exit the
screen and select a channel.
The cursor will not move to the Start button when I
start the calendar search.
Check if the channel and the date that you want to play are marked with
the V symbol.
Both channel and date should be checked before you can start playing
with the Start button.
When the alarm sounds, I press the [ALARM] button
on the front panel to release the alarm but it does
not work. The alarm persists and I could not set it off
in any way.
Press the [MENU] button on the front panel to release the alarm in the
following way:
1) To release the event monitoring mode : Monitoring Mode – set the
duration of the event monitoring to Off.
2) To release the alarm sound : Event Record Mode - Alarm (Motion
Detection/Video Loss) – deactivate the alarm sound.
3) To release the event : Event Record Mode - Alarm (Motion Detection/
Video Loss) – set the mode to Off.
No response is made even if I press the [PTZ] button
on the Live screen.
Menu Camera Check if the current protocols and other settings in
the PTZ device are properly configured according to the PTZ camera.
I've found that the DVR does not recognize as many
disks as installed when I have connected multiple
external HDDs to the DVR.
It takes time for the DVR to recognize multiple external HDDs. Try again
in a moment and if the problem (of failure to recognize as many HDDs
as connected) persists, it may occur due to a mechanical error of the
HDD installed. Try again with a different HDD.
00769B_SHR-8162_ENG-NEW.indb 101 2008-12-04 오전 10:17:46
102_ appendix
appendix
Symptom Countermeasures
A message of “Need to reset date/time.” Is displayed
on the screen.
This message is displayed if there occurs a problem with the time
setting of the internal clock or an error in the clock itself. Contact the
retailer or the service center for more information.
The time bar is not displayed in Search mode. The timeline can switch between normal and extension mode.
In extension mode, the time bar may not be displayed in the current
timeline. Switch to normal mode or use the left or right button to
navigate through the time bar.
The “NO HDD” icon and an error message are
displayed.
Check the HDD for connection. If the problem persists in a normal
condition, contact the nearest service center to have the HDD checked
by the service personnel.
I have installed an additional HDD on the DVR but it
does not recognize the HDD.
See the compatibilty list to check if the additional HDD is supported by
the DVR. For the compatibility list, contact the retailer where you
purchased the DVR.
I have connected an external storage device (external
SATA HDD) to the DVR but the DVR seems not to
recognize it.
See the compatibility list of external storage devices to check if the
connected device is supported by the DVR.
For the compatibility list, contact the retailer where you purchased the
DVR.
If I press the ESC key in full screen mode of the
WebViewer, the system does not switch to a normal
split mode.
Press the ALT+TAB keys to select ‘ACTIVE MOVIE’ and press the ESC
key again. The system will switch to a normal split mode.
00769B_SHR-8162_ENG-NEW.indb 102 2008-12-04 오전 10:17:46
English _103
! APPENDIX
OPEN SOURCE LICENSE REPORT ON THE PRODUCT
This product uses software provided under the name of GPL and LGPL. You can receive the following GPL
and LGPL source codes by email request to www.sec.co.kr.

GPL Software : linux kernel, Sysvinit, dosfstols, wget, msmtp, busybox, cdrtools, dvd+rw-tools, iconv,
smartctl, uboot, minicom, openssl, bash, lm_sensors

LGPL Software : glibc, vmstat, inetutils

OpenSSL License : OpenSSL
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software
Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA
02110-1301, USA
Everyone is permitted to copy and distribute
verbatim copies of this license document, but
changing it is not allowed.
Preamble
The licenses for most software are designed
to take away your freedom to share and
change it. By contrast, the GNU General Public
License is intended to guarantee your freedom
to share and change free software to make
sure the software is free for all its users. This
General Public License applies to most of the
Free Software Foundation’s software and to
any other program whose authors commit to
using it. (Some other Free Software Foundation
software is covered by the GNU Lesser General
Public License instead.) You can apply it to your
programs, too.
When we speak of free software, we are
referring to freedom, not price. Our General
Public Licenses are designed to make sure that
you have the freedom to distribute copies of free
software (and charge for this service if you wish),
that you receive source code or can get it if you
want it, that you can change the software or use
pieces of it in new free programs; and that you
know you can do these things.
To protect your rights, we need to make
restrictions that forbid anyone to deny you
these rights or to ask you to surrender the
rights. These restrictions translate to certain
responsibilities for you if you distribute copies of
the software, or if you modify it.
For example, if you distribute copies of such a
program, whether gratis or for a fee, you must
give the recipients all the rights that you have.
You must make sure that they, too, receive or
can get the source code. And you must show
them these terms so they know their rights.
We protect your rights with two steps:
(1) copyright the software, and (2) offer you
this license which gives you legal permission to
copy, distribute and/or modify the software.
Also, for each author’s protection and ours, we
want to make certain that everyone understands
that there is no warranty for this free software. If
the software is modified by someone else and
passed on, we want its recipients to know that
what they have is not the original, so that any
problems introduced by others will not reflect on
the original authors’ reputations.
Finally, any free program is threatened constantly
by software patents. We wish to avoid the
danger that redistributors of a free program
will individually obtain patent licenses, in effect
making the program proprietary. To prevent this,
we have made it clear that any patent must be
licensed for everyone’s free use or not licensed
at all.
The precise terms and conditions for copying,
distribution and modification follow.
TERMS AND CONDITIONS FOR
COPYING, DISTRIBUTION AND
MODIFICATION
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software
Foundation, Inc.
51 Franklin S
0. This License applies to any program or other
work which contains a notice placed by the
copyright holder saying it may be distributed
under the terms of this General Public License.
The “Program”, below, refers to any such
program or work, and a “work based on the
Program” means either the Program or any
derivative work under copyright law: that is to
say, a work containing the Program or a portion
of it, either verbatim or with modifications and/or
translated into another language. (Hereinafter,
translation is included without limitation in the
term “modification”.) Each licensee is addressed
as “you”.
Activities other than copying, distribution and
modification are not covered by this License;
they are outside its scope. The act of running the
00769B_SHR-8162_ENG-NEW.indb 103 2008-12-04 오전 10:17:46
104_ appendix
Program is not restricted, and the output from the
Program is covered only if its contents constitute a
work based on the Program (independent of having
been made by running the Program). Whether that
is true depends on what the Program does.
1. You may copy and distribute verbatim copies
of the Program’s source code as you receive it, in
any medium, provided that you conspicuously and
appropriately publish on each copy an appropriate
copyright notice and disclaimer of warranty; keep
intact all the notices that refer to this License and
to the absence of any warranty; and give any other
recipients of the Program a copy of this License
along with the Program.
You may charge a fee for the physical act of
transferring a copy, and you may at your option offer
warranty protection in exchange for a fee.
2. You may modify your copy or copies of the
Program or any portion of it, thus forming a work
based on the Program, and copy and distribute
such modifications or work under the terms of
Section 1 above, provided that you also meet all of
these conditions:
a) You must cause the modified files to carry
prominent notices stating that you changed the
files and the date of any change.
b) You must cause any work that you distribute or
publish, that in whole or in part contains or is
derived from the Program or any part thereof,
to be licensed as a whole at no charge to all
third parties under the terms of this License.
c) If the modified program normally reads
commands interactively when run, you must
cause it, when started running for such
interactive use in the most ordinary way, to
print or display an announcement including
an appropriate copyright notice and a notice
that there is no warranty (or else, saying
that you provide a warranty) and that users
may redistribute the program under these
conditions, and telling the user how to view a
copy of this License. (Exception: if the Program
itself is interactive but does not normally print
such an announcement, your work based
on the Program is not required to print an
announcement.)
These requirements apply to the modified work as
a whole. If identifiable sections of that work are not
derived from the Program, and can be reasonably
considered independent and separate works in
themselves, then this License, and its terms, do not
apply to those sections when you distribute them as
separate works. But when you distribute the same
sections as part of a whole which is a work based
on the Program, the distribution of the whole must
be on the terms of this License, whose permissions
for other licensees extend to the entire whole, and
thus to each and every part regardless of who wrote
it.
Thus, it is not the intent of this section to claim
rights or contest your rights to work written entirely
by you; rather, the intent is to exercise the right to
control the distribution of derivative or collective
works based on the Program.
In addition, mere aggregation of another work not
based on the Program with the Program (or with
a work based on the Program) on a volume of a
storage or distribution medium does not bring the
other work under the scope of this License.
3. You may copy and distribute the Program (or a
work based on it, under Section 2) in object code
or executable form under the terms of Sections 1
and 2 above provided that you also do one of the
following:
a) Accompany it with the complete corresponding
machine-readable source code, which must
be distributed under the terms of Sections 1
and 2 above on a medium customarily used for
software interchange; or,
b) Accompany it with a written offer, valid for at
least three years, to give any third party, for a
charge no more than your cost of physically
performing source distribution, a complete
machine-readable copy of the corresponding
source code, to be distributed under the
terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or,
c) Accompany it with the information you received
as to the offer to distribute corresponding
source code. (This alternative is allowed only
for noncommercial distribution and only if
you received the program in object code or
executable form with such an offer, in accord
with Subsection b above.)
The source code for a work means the preferred
form of the work for making modifications to it. For
an executable work, complete source code means
all the source code for all modules it contains, plus
any associated interface definition files, plus the
scripts used to control compilation and installation
of the executable. However, as a special exception,
the source code distributed need not include
anything that is normally distributed (in either source
or binary form) with the major components (compiler,
kernel, and so on) of the operating system on which
the executable runs, unless that component itself
accompanies the executable.
If distribution of executable or object code is made
by offering access to copy from a designated place,
then offering equivalent access to copy the source
code from the same place counts as distribution of
the source code, even though third parties are not
compelled to copy the source along with the object
code.
4. You may not copy, modify, sublicense, or
distribute the Program except as expressly provided
under this License. Any attempt otherwise to copy,
modify, sublicense or distribute the Program is void,
and will automatically terminate your rights under
this License. However, parties who have received
copies, or rights, from you under this License will
00769B_SHR-8162_ENG-NEW.indb 104 2008-12-04 오전 10:17:46
English _105
! APPENDIX
not have their licenses terminated so long as such
parties remain in full compliance.
5. You are not required to accept this License,
since you have not signed it. However, nothing else
grants you permission to modify or distribute the
Program or its derivative works. These actions are
prohibited by law if you do not accept this License.
Therefore, by modifying or distributing the Program
(or any work based on the Program), you indicate
your acceptance of this License to do so, and all
its terms and conditions for copying, distributing or
modifying the Program or works based on it.
6. Each time you redistribute the Program (or
any work based on the Program), the recipient
automatically receives a license from the original
licensor to copy, distribute or modify the Program
subject to these terms and conditions. You may not
impose any further restrictions on the recipients’
exercise of the rights granted herein. You are not
responsible for enforcing compliance by third parties
to this License.
7. If, as a consequence of a court judgment or
allegation of patent infringement or for any other
reason (not limited to patent issues), conditions are
imposed on you (whether by court order, agreement
or otherwise) that contradict the conditions of this
License, they do not excuse you from the conditions
of this License. If you cannot distribute so as to
satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as
a consequence you may not distribute the Program
at all. For example, if a patent license would not
permit royalty-free redistribution of the Program by
all those who receive copies directly or indirectly
through you, then the only way you could satisfy
both it and this License would be to refrain entirely
from distribution of the Program.
If any portion of this section is held invalid or
unenforceable under any particular circumstance,
the balance of the section is intended to apply and
the section as a whole is intended to apply in other
circumstances.
It is not the purpose of this section to induce you to
infringe any patents or other property right claims or
to contest validity of any such claims; this section
has the sole purpose of protecting the integrity
of the free software distribution system, which is
implemented by public license practices. Many
people have made generous contributions to the
wide range of software distributed through that
system in reliance on consistent application of that
system; it is up to the author/donor to decide if he
or she is willing to distribute software through any
other system and a licensee cannot impose that
choice.
This section is intended to make thoroughly clear
what is believed to be a consequence of the rest of
this License.
8. If the distribution and/or use of the Program is
restricted in certain countries either by patents or by
copyrighted interfaces, the original copyright holder
who places the Program under this License may
add an explicit geographical distribution limitation
excluding those countries, so that distribution is
permitted only in or among countries not thus
excluded. In such case, this License incorporates
the limitation as if written in the body of this License.
9. The Free Software Foundation may publish
revised and/or new versions of the General Public
License from time to time. Such new versions will be
similar in spirit to the present version, but may differ
in detail to address new problems or concerns.
Each version is given a distinguishing version
number. If the Program specifies a version number
of this License which applies to it and “any later
version”, you have the option of following the terms
and conditions either of that version or of any later
version published by the Free Software Foundation.
If the Program does not specify a version number
of this License, you may choose any version ever
published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program
into other free programs whose distribution
conditions are different, write to the author to ask
for permission. For software which is copyrighted
by the Free Software Foundation, write to the
Free Software Foundation; we sometimes make
exceptions for this. Our decision will be guided by
the two goals of preserving the free status of all
derivatives of our free software and of promoting the
sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE
OF CHARGE, THERE IS NO WARRANTY FOR
THE PROGRAM, TO THE EXTENT PERMITTED BY
APPLICABLE LAW. EXCEPT WHEN OTHERWISE
STATED IN WRITING THE COPYRIGHT HOLDERS
AND/OR OTHER PARTIES PROVIDE THE
PROGRAM “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESSED OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE.
THE ENTIRE RISK AS TO THE QUALITY AND
PERFORMANCE OF THE PROGRAM IS WITH YOU.
SHOULD THE PROGRAM PROVE DEFECTIVE,
YOU ASSUME THE COST OF ALL NECESSARY
SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY
APPLICABLE LAW OR AGREED TO IN WRITING
WILL ANY COPYRIGHT HOLDER, OR ANY
OTHER PARTY WHO MAY MODIFY AND/OR
REDISTRIBUTE THE PROGRAM AS PERMITTED
ABOVE, BE LIABLE TO YOU FOR DAMAGES,
INCLUDING ANY GENERAL, SPECIAL,
00769B_SHR-8162_ENG-NEW.indb 105 2008-12-04 오전 10:17:47
106_ appendix
INCIDENTAL OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OR INABILITY TO USE
THE PROGRAM (INCLUDING BUT NOT LIMITED
TO LOSS OF DATA OR DATA BEING RENDERED
INACCURATE OR LOSSES SUSTAINED BY YOU
OR THIRD PARTIES OR A FAILURE OF THE
PROGRAM TO OPERATE WITH ANY OTHER
PROGRAMS), EVEN IF SUCH HOLDER OR OTHER
PARTY HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your
New Programs
If you develop a new program, and you want it to be
of the greatest possible use to the public, the best
way to achieve this is to make it free software which
everyone can redistribute and change under these
terms.
To do so, attach the following notices to the
program. It is safest to attach them to the start
of each source file to most effectively convey the
exclusion of warranty; and each file should have at
least the “copyright” line and a pointer to where the
full notice is found.
one line to give the program’s name and an idea of
what it does.
Copyright (C) yyyy name of author
This program is free software; you can redistribute
it and/or modify it under the terms of the GNU
General Public License as published by the Free
Software Foundation; either version 2 of the
License, or (at your option) any later version.
This program is distributed in the hope that it will
be useful, but WITHOUT ANY WARRANTY; without
even the implied warranty of MERCHANTABILITY or
FITNESS FOR A PARTICULAR PURPOSE. See the
GNU General Public License for more details.
You should have received a copy of the GNU
General Public License along with this program;
if not, write to the Free Software Foundation,
Inc., 51 Franklin Street, Fifth Floor, Boston, MA
02110-1301, USA.
Also add information on how to contact you by
electronic and paper mail.
If the program is interactive, make it output a short
notice like this when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) year name
of author Gnomovision comes with ABSOLUTELY
NO WARRANTY; for details type ‘show w’. This is
free software, and you are welcome to redistribute it
under certain conditions; type ‘show c’ for details.
The hypothetical commands ‘show w’ and ‘show
c’ should show the appropriate parts of the General
Public License. Of course, the commands you use
may be called something other than ‘show w’ and
‘show c’; they could even be mouse-clicks or menu
items--whatever suits your program.
You should also get your employer (if you work
as a programmer) or your school, if any, to sign a
“copyright disclaimer” for the program, if necessary.
Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright
interest in the program ‘Gnomovision’ (which makes
passes at compilers) written by James Hacker.
signature of Ty Coon, 1 April 1989
Ty Coon, President of Vice
This General Public License does not permit
incorporating your program into proprietary
programs. If your program is a subroutine library,
you may consider it more useful to permit linking
proprietary applications with the library. If this is
what you want to do, use the GNU Lesser General
Public License instead of this License.
GNU GENERAL PUBLIC LICENSE
Version 3, 29 June 2007
Copyright © 2007 Free Software Foundation, Inc.
<http://fsf.org/>
Everyone is permitted to copy and distribute
verbatim copies of this license document, but
changing it is not allowed.
Preamble
The GNU General Public License is a free, copyleft
license for software and other kinds of works.
The licenses for most software and other practical
works are designed to take away your freedom to
share and change the works. By contrast, the GNU
General Public License is intended to guarantee
your freedom to share and change all versions of
a program--to make sure it remains free software
for all its users. We, the Free Software Foundation,
use the GNU General Public License for most of our
software; it applies also to any other work released
this way by its authors. You can apply it to your
programs, too.
When we speak of free software, we are referring to
freedom, not price. Our General Public Licenses are
designed to make sure that you have the freedom
to distribute copies of free software (and charge for
them if you wish), that you receive source code or
can get it if you want it, that you can change the
software or use pieces of it in new free programs,
and that you know you can do these things.
To protect your rights, we need to prevent others
from denying you these rights or asking you to
surrender the rights. Therefore, you have certain
responsibilities if you distribute copies of the
software, or if you modify it: responsibilities to
respect the freedom of others.
00769B_SHR-8162_ENG-NEW.indb 106 2008-12-04 오전 10:17:47
English _107
! APPENDIX
For example, if you distribute copies of such a
program, whether gratis or for a fee, you must pass
on to the recipients the same freedoms that you
received. You must make sure that they, too, receive
or can get the source code. And you must show
them these terms so they know their rights.
Developers that use the GNU GPL protect your
rights with two steps: (1) assert copyright on the
software, and (2) offer you this License giving you
legal permission to copy, distribute and/or modify it.
For the developers' and authors' protection, the
GPL clearly explains that there is no warranty for
this free software. For both users' and authors'
sake, the GPL requires that modified versions be
marked as changed, so that their problems will not
be attributed erroneously to authors of previous
versions.
Some devices are designed to deny users access
to install or run modified versions of the software
inside them, although the manufacturer can do so.
This is fundamentally incompatible with the aim of
protecting users' freedom to change the software.
The systematic pattern of such abuse occurs in
the area of products for individuals to use, which is
precisely where it is most unacceptable. Therefore,
we have designed this version of the GPL to prohibit
the practice for those products. If such problems
arise substantially in other domains, we stand ready
to extend this provision to those domains in future
versions of the GPL, as needed to protect the
freedom of users.
Finally, every program is threatened constantly by
software patents. States should not allow patents
to restrict development and use of software on
general-purpose computers, but in those that do,
we wish to avoid the special danger that patents
applied to a free program could make it effectively
proprietary. To prevent this, the GPL assures that
patents cannot be used to render the program non-
free.
The precise terms and conditions for copying,
distribution and modification follow.
TERMS AND CONDITIONS
0. Definitions.
“This License” refers to version 3 of the GNU
General Public License.
“Copyright” also means copyright-like laws
that apply to other kinds of works, such as
semiconductor masks.
“The Program” refers to any copyrightable work
licensed under this License. Each licensee is
addressed as “you”. “Licensees” and “recipients”
may be individuals or organizations.
To “modify” a work means to copy from or adapt all
or part of the work in a fashion requiring copyright
permission, other than the making of an exact copy.
The resulting work is called a “modified version” of
the earlier work or a work “based on” the earlier
work.
A “covered work” means either the unmodified
Program or a work based on the Program.
To “propagate” a work means to do anything with it
that, without permission, would make you directly or
secondarily liable for infringement under applicable
copyright law, except executing it on a computer
or modifying a private copy. Propagation includes
copying, distribution (with or without modification),
making available to the public, and in some
countries other activities as well.
To “convey” a work means any kind of propagation
that enables other parties to make or receive
copies. Mere interaction with a user through a
computer network, with no transfer of a copy, is not
conveying.
An interactive user interface displays “Appropriate
Legal Notices” to the extent that it includes a
convenient and prominently visible feature that (1)
displays an appropriate copyright notice, and (2)
tells the user that there is no warranty for the work
(except to the extent that warranties are provided),
that licensees may convey the work under this
License, and how to view a copy of this License.
If the interface presents a list of user commands or
options, such as a menu, a prominent item in the
list meets this criterion.
1. Source Code.
The “source code” for a work means the preferred
form of the work for making modifications to it.
“Object code” means any non-source form of a
work.
A “Standard Interface” means an interface that
either is an official standard defined by a recognized
standards body, or, in the case of interfaces
specified for a particular programming language,
one that is widely used among developers working
in that language.
The “System Libraries” of an executable work
include anything, other than the work as a whole,
that (a) is included in the normal form of packaging
a Major Component, but which is not part of that
Major Component, and (b) serves only to enable
use of the work with that Major Component, or
to implement a Standard Interface for which an
implementation is available to the public in source
code form. A “Major Component”, in this context,
means a major essential component (kernel,
window system, and so on) of the specific operating
system (if any) on which the executable work runs,
or a compiler used to produce the work, or an
object code interpreter used to run it.
00769B_SHR-8162_ENG-NEW.indb 107 2008-12-04 오전 10:17:47
108_ appendix
The “Corresponding Source” for a work in object
code form means all the source code needed to
generate, install, and (for an executable work) run
the object code and to modify the work, including
scripts to control those activities. However, it does
not include the work's System Libraries, or general-
purpose tools or generally available free programs
which are used unmodified in performing those
activities but which are not part of the work. For
example, Corresponding Source includes interface
definition files associated with source files for the
work, and the source code for shared libraries and
dynamically linked subprograms that the work is
specifically designed to require, such as by intimate
data communication or control flow between those
subprograms and other parts of the work.
The Corresponding Source need not include
anything that users can regenerate automatically
from other parts of the Corresponding Source.
The Corresponding Source for a work in source
code form is that same work.
2. Basic Permissions.
All rights granted under this License are granted
for the term of copyright on the Program, and are
irrevocable provided the stated conditions are
met. This License explicitly affirms your unlimited
permission to run the unmodified Program. The
output from running a covered work is covered
by this License only if the output, given its
content, constitutes a covered work. This License
acknowledges your rights of fair use or other
equivalent, as provided by copyright law.
You may make, run and propagate covered works
that you do not convey, without conditions so
long as your license otherwise remains in force.
You may convey covered works to others for the
sole purpose of having them make modifications
exclusively for you, or provide you with facilities for
running those works, provided that you comply
with the terms of this License in conveying all
material for which you do not control copyright.
Those thus making or running the covered works
for you must do so exclusively on your behalf, under
your direction and control, on terms that prohibit
them from making any copies of your copyrighted
material outside their relationship with you.
Conveying under any other circumstances is
permitted solely under the conditions stated below.
Sublicensing is not allowed; section 10 makes it
unnecessary.
3. Protecting Users' Legal Rights From Anti-
Circumvention Law.
No covered work shall be deemed part of an
effective technological measure under any applicable
law fulfilling obligations under article 11 of the WIPO
copyright treaty adopted on 20 December 1996, or
similar laws prohibiting or restricting circumvention
of such measures.
When you convey a covered work, you waive any
legal power to forbid circumvention of technological
measures to the extent such circumvention is
effected by exercising rights under this License with
respect to the covered work, and you disclaim any
intention to limit operation or modification of the
work as a means of enforcing, against the work's
users, your or third parties' legal rights to forbid
circumvention of technological measures.
4. Conveying Verbatim Copies.
You may convey verbatim copies of the Program's
source code as you receive it, in any medium,
provided that you conspicuously and appropriately
publish on each copy an appropriate copyright
notice; keep intact all notices stating that this
License and any non-permissive terms added in
accord with section 7 apply to the code; keep intact
all notices of the absence of any warranty; and give
all recipients a copy of this License along with the
Program.
You may charge any price or no price for each
copy that you convey, and you may offer support or
warranty protection for a fee.
5. Conveying Modified Source Versions.
You may convey a work based on the Program, or
the modifications to produce it from the Program,
in the form of source code under the terms of
section 4, provided that you also meet all of these
conditions:
a) The work must carry prominent notices stating
that you modified it, and giving a relevant date.
b) The work must carry prominent notices stating
that it is released under this License and
any conditions added under section 7. This
requirement modifies the requirement in section
4 to “keep intact all notices”.
c) You must license the entire work, as a whole,
under this License to anyone who comes into
possession of a copy. This License will therefore
apply, along with any applicable section 7
additional terms, to the whole of the work,
and all its parts, regardless of how they are
packaged. This License gives no permission
to license the work in any other way, but it
does not invalidate such permission if you have
separately received it.
d) If the work has interactive user interfaces,
each must display Appropriate Legal Notices;
however, if the Program has interactive
interfaces that do not display Appropriate Legal
Notices, your work need not make them do so.
A compilation of a covered work with other
separate and independent works, which are not by
their nature extensions of the covered work, and
which are not combined with it such as to form a
larger program, in or on a volume of a storage or
distribution medium, is called an “aggregate” if the
compilation and its resulting copyright are not used
to limit the access or legal rights of the compilation's
00769B_SHR-8162_ENG-NEW.indb 108 2008-12-04 오전 10:17:47
English _109
! APPENDIX
users beyond what the individual works permit.
Inclusion of a covered work in an aggregate does
not cause this License to apply to the other parts of
the aggregate.
6. Conveying Non-Source Forms.
You may convey a covered work in object code
form under the terms of sections 4 and 5, provided
that you also convey the machine-readable
Corresponding Source under the terms of this
License, in one of these ways:
a) Convey the object code in, or embodied
in, a physical product (including a physical
distribution medium), accompanied by the
Corresponding Source fixed on a durable
physical medium customarily used for software
interchange.
b) Convey the object code in, or embodied
in, a physical product (including a physical
distribution medium), accompanied by a written
offer, valid for at least three years and valid for
as long as you offer spare parts or customer
support for that product model, to give anyone
who possesses the object code either (1) a
copy of the Corresponding Source for all the
software in the product that is covered by
this License, on a durable physical medium
customarily used for software interchange, for
a price no more than your reasonable cost of
physically performing this conveying of source,
or (2) access to copy the Corresponding Source
from a network server at no charge.
c) Convey individual copies of the object code
with a copy of the written offer to provide the
Corresponding Source. This alternative is
allowed only occasionally and noncommercially,
and only if you received the object code with
such an offer, in accord with subsection 6b.
d) Convey the object code by offering access from
a designated place (gratis or for a charge), and
offer equivalent access to the Corresponding
Source in the same way through the same
place at no further charge. You need not require
recipients to copy the Corresponding Source
along with the object code. If the place to
copy the object code is a network server, the
Corresponding Source may be on a different
server (operated by you or a third party) that
supports equivalent copying facilities, provided
you maintain clear directions next to the object
code saying where to find the Corresponding
Source. Regardless of what server hosts the
Corresponding Source, you remain obligated to
ensure that it is available for as long as needed
to satisfy these requirements.
e) Convey the object code using peer-to-peer
transmission, provided you inform other peers
where the object code and Corresponding
Source of the work are being offered to the
general public at no charge under subsection
6d.
A separable portion of the object code, whose
source code is excluded from the Corresponding
Source as a System Library, need not be included in
conveying the object code work.
A “User Product” is either (1) a “consumer product”,
which means any tangible personal property
which is normally used for personal, family, or
household purposes, or (2) anything designed or
sold for incorporation into a dwelling. In determining
whether a product is a consumer product, doubtful
cases shall be resolved in favor of coverage. For
a particular product received by a particular user,
“normally used” refers to a typical or common use of
that class of product, regardless of the status of the
particular user or of the way in which the particular
user actually uses, or expects or is expected to
use, the product. A product is a consumer product
regardless of whether the product has substantial
commercial, industrial or non-consumer uses,
unless such uses represent the only significant
mode of use of the product.
“Installation Information” for a User Product
means any methods, procedures, authorization
keys, or other information required to install and
execute modified versions of a covered work in
that User Product from a modified version of its
Corresponding Source. The information must
suffice to ensure that the continued functioning of
the modified object code is in no case prevented or
interfered with solely because modification has been
made.
If you convey an object code work under this
section in, or with, or specifically for use in, a User
Product, and the conveying occurs as part of a
transaction in which the right of possession and use
of the User Product is transferred to the recipient
in perpetuity or for a fixed term (regardless of how
the transaction is characterized), the Corresponding
Source conveyed under this section must be
accompanied by the Installation Information. But
this requirement does not apply if neither you nor
any third party retains the ability to install modified
object code on the User Product (for example, the
work has been installed in ROM).
The requirement to provide Installation Information
does not include a requirement to continue to
provide support service, warranty, or updates for
a work that has been modified or installed by the
recipient, or for the User Product in which it has
been modified or installed. Access to a network may
be denied when the modification itself materially and
adversely affects the operation of the network or
violates the rules and protocols for communication
across the network.
Corresponding Source conveyed, and Installation
Information provided, in accord with this section
must be in a format that is publicly documented
(and with an implementation available to the public
00769B_SHR-8162_ENG-NEW.indb 109 2008-12-04 오전 10:17:47
110_ appendix
in source code form), and must require no special
password or key for unpacking, reading or copying.
7. Additional Terms.
“Additional permissions” are terms that supplement
the terms of this License by making exceptions from
one or more of its conditions. Additional permissions
that are applicable to the entire Program shall
be treated as though they were included in this
License, to the extent that they are valid under
applicable law. If additional permissions apply only
to part of the Program, that part may be used
separately under those permissions, but the entire
Program remains governed by this License without
regard to the additional permissions.
When you convey a copy of a covered work,
you may at your option remove any additional
permissions from that copy, or from any part of it.
(Additional permissions may be written to require
their own removal in certain cases when you modify
the work.) You may place additional permissions
on material, added by you to a covered work, for
which you have or can give appropriate copyright
permission.
Notwithstanding any other provision of this License,
for material you add to a covered work, you may (if
authorized by the copyright holders of that material)
supplement the terms of this License with terms:
a) Disclaiming warranty or limiting liability differently
from the terms of sections 15 and 16 of this
License; or
b) Requiring preservation of specified reasonable
legal notices or author attributions in that
material or in the Appropriate Legal Notices
displayed by works containing it; or
c) Prohibiting misrepresentation of the origin of
that material, or requiring that modified versions
of such material be marked in reasonable ways
as different from the original version; or
d) Limiting the use for publicity purposes of names
of licensors or authors of the material; or
e) Declining to grant rights under trademark law
for use of some trade names, trademarks, or
service marks; or
f) Requiring indemnification of licensors and
authors of that material by anyone who conveys
the material (or modified versions of it) with
contractual assumptions of liability to the
recipient, for any liability that these contractual
assumptions directly impose on those licensors
and authors.
All other non-permissive additional terms are
considered “further restrictions” within the meaning
of section 10. If the Program as you received it,
or any part of it, contains a notice stating that it is
governed by this License along with a term that is
a further restriction, you may remove that term. If a
license document contains a further restriction but
permits relicensing or conveying under this License,
you may add to a covered work material governed
by the terms of that license document, provided
that the further restriction does not survive such
relicensing or conveying.
If you add terms to a covered work in accord with
this section, you must place, in the relevant source
files, a statement of the additional terms that apply
to those files, or a notice indicating where to find the
applicable terms.
Additional terms, permissive or non-permissive, may
be stated in the form of a separately written license,
or stated as exceptions; the above requirements
apply either way.
8. Termination.
You may not propagate or modify a covered work
except as expressly provided under this License.
Any attempt otherwise to propagate or modify it
is void, and will automatically terminate your rights
under this License (including any patent licenses
granted under the third paragraph of section 11).
However, if you cease all violation of this License,
then your license from a particular copyright holder
is reinstated (a) provisionally, unless and until the
copyright holder explicitly and finally terminates
your license, and (b) permanently, if the copyright
holder fails to notify you of the violation by some
reasonable means prior to 60 days after the
cessation.
Moreover, your license from a particular copyright
holder is reinstated permanently if the copyright
holder notifies you of the violation by some
reasonable means, this is the first time you have
received notice of violation of this License (for any
work) from that copyright holder, and you cure the
violation prior to 30 days after your receipt of the
notice.
Termination of your rights under this section does
not terminate the licenses of parties who have
received copies or rights from you under this
License. If your rights have been terminated and not
permanently reinstated, you do not qualify to receive
new licenses for the same material under section
10.
9. Acceptance Not Required for Having Copies.
You are not required to accept this License in
order to receive or run a copy of the Program.
Ancillary propagation of a covered work occurring
solely as a consequence of using peer-to-peer
transmission to receive a copy likewise does not
require acceptance. However, nothing other than
this License grants you permission to propagate or
modify any covered work. These actions infringe
copyright if you do not accept this License.
Therefore, by modifying or propagating a covered
work, you indicate your acceptance of this License
to do so.
00769B_SHR-8162_ENG-NEW.indb 110 2008-12-04 오전 10:17:48
English _111
! APPENDIX
10. Automatic Licensing of Downstream
Recipients.
Each time you convey a covered work, the recipient
automatically receives a license from the original
licensors, to run, modify and propagate that work,
subject to this License. You are not responsible
for enforcing compliance by third parties with this
License.
An “entity transaction” is a transaction transferring
control of an organization, or substantially all assets
of one, or subdividing an organization, or merging
organizations. If propagation of a covered work
results from an entity transaction, each party to that
transaction who receives a copy of the work also
receives whatever licenses to the work the party's
predecessor in interest had or could give under
the previous paragraph, plus a right to possession
of the Corresponding Source of the work from the
predecessor in interest, if the predecessor has it or
can get it with reasonable efforts.
You may not impose any further restrictions on the
exercise of the rights granted or affirmed under this
License. For example, you may not impose a license
fee, royalty, or other charge for exercise of rights
granted under this License, and you may not initiate
litigation (including a cross-claim or counterclaim in
a lawsuit) alleging that any patent claim is infringed
by making, using, selling, offering for sale, or
importing the Program or any portion of it.
11. Patents.
A “contributor” is a copyright holder who authorizes
use under this License of the Program or a work on
which the Program is based. The work thus licensed
is called the contributor's “contributor version”.
A contributor's “essential patent claims” are all
patent claims owned or controlled by the contributor,
whether already acquired or hereafter acquired,
that would be infringed by some manner, permitted
by this License, of making, using, or selling its
contributor version, but do not include claims that
would be infringed only as a consequence of further
modification of the contributor version. For purposes
of this definition, “control” includes the right to grant
patent sublicenses in a manner consistent with the
requirements of this License.
Each contributor grants you a non-exclusive,
worldwide, royalty-free patent license under the
contributor's essential patent claims, to make,
use, sell, offer for sale, import and otherwise run,
modify and propagate the contents of its contributor
version.
In the following three paragraphs, a “patent license”
is any express agreement or commitment, however
denominated, not to enforce a patent (such as an
express permission to practice a patent or covenant
not to sue for patent infringement). To “grant” such
a patent license to a party means to make such an
agreement or commitment not to enforce a patent
against the party.
If you convey a covered work, knowingly relying on
a patent license, and the Corresponding Source of
the work is not available for anyone to copy, free of
charge and under the terms of this License, through
a publicly available network server or other readily
accessible means, then you must either (1) cause
the Corresponding Source to be so available, or
(2) arrange to deprive yourself of the benefit of the
patent license for this particular work, or (3) arrange,
in a manner consistent with the requirements
of this License, to extend the patent license to
downstream recipients. “Knowingly relying” means
you have actual knowledge that, but for the patent
license, your conveying the covered work in a
country, or your recipient's use of the covered work
in a country, would infringe one or more identifiable
patents in that country that you have reason to
believe are valid.
If, pursuant to or in connection with a single
transaction or arrangement, you convey, or
propagate by procuring conveyance of, a covered
work, and grant a patent license to some of the
parties receiving the covered work authorizing them
to use, propagate, modify or convey a specific copy
of the covered work, then the patent license you
grant is automatically extended to all recipients of
the covered work and works based on it.
A patent license is “discriminatory” if it does not
include within the scope of its coverage, prohibits
the exercise of, or is conditioned on the non-
exercise of one or more of the rights that are
specifically granted under this License. You may
not convey a covered work if you are a party to
an arrangement with a third party that is in the
business of distributing software, under which you
make payment to the third party based on the
extent of your activity of conveying the work, and
under which the third party grants, to any of the
parties who would receive the covered work from
you, a discriminatory patent license (a) in connection
with copies of the covered work conveyed by you
(or copies made from those copies), or (b) primarily
for and in connection with specific products or
compilations that contain the covered work, unless
you entered into that arrangement, or that patent
license was granted, prior to 28 March 2007.
Nothing in this License shall be construed as
excluding or limiting any implied license or other
defenses to infringement that may otherwise be
available to you under applicable patent law.
12. No Surrender of Others' Freedom.
If conditions are imposed on you (whether by court
order, agreement or otherwise) that contradict
the conditions of this License, they do not excuse
you from the conditions of this License. If you
cannot convey a covered work so as to satisfy
simultaneously your obligations under this License
00769B_SHR-8162_ENG-NEW.indb 111 2008-12-04 오전 10:17:48
112_ appendix
and any other pertinent obligations, then as a
consequence you may not convey it at all. For
example, if you agree to terms that obligate you to
collect a royalty for further conveying from those to
whom you convey the Program, the only way you
could satisfy both those terms and this License
would be to refrain entirely from conveying the
Program.
13. Use with the GNU Affero General Public
License.
Notwithstanding any other provision of this License,
you have permission to link or combine any covered
work with a work licensed under version 3 of the
GNU Affero General Public License into a single
combined work, and to convey the resulting work.
The terms of this License will continue to apply to
the part which is the covered work, but the special
requirements of the GNU Affero General Public
License, section 13, concerning interaction through
a network will apply to the combination as such.
14. Revised Versions of this License.
The Free Software Foundation may publish revised
and/or new versions of the GNU General Public
License from time to time. Such new versions will be
similar in spirit to the present version, but may differ
in detail to address new problems or concerns.
Each version is given a distinguishing version
number. If the Program specifies that a certain
numbered version of the GNU General Public
License “or any later version” applies to it, you have
the option of following the terms and conditions
either of that numbered version or of any later
version published by the Free Software Foundation.
If the Program does not specify a version number of
the GNU General Public License, you may choose
any version ever published by the Free Software
Foundation.
If the Program specifies that a proxy can decide
which future versions of the GNU General Public
License can be used, that proxy's public statement
of acceptance of a version permanently authorizes
you to choose that version for the Program.
Later license versions may give you additional
or different permissions. However, no additional
obligations are imposed on any author or copyright
holder as a result of your choosing to follow a later
version.
15. Disclaimer of Warranty.
THERE IS NO WARRANTY FOR THE PROGRAM,
TO THE EXTENT PERMITTED BY APPLICABLE
LAW. EXCEPT WHEN OTHERWISE STATED IN
WRITING THE COPYRIGHT HOLDERS AND/OR
OTHER PARTIES PROVIDE THE PROGRAM “AS
IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THE ENTIRE RISK
AS TO THE QUALITY AND PERFORMANCE OF
THE PROGRAM IS WITH YOU. SHOULD THE
PROGRAM PROVE DEFECTIVE, YOU ASSUME
THE COST OF ALL NECESSARY SERVICING,
REPAIR OR CORRECTION.
16. Limitation of Liability.
IN NO EVENT UNLESS REQUIRED BY
APPLICABLE LAW OR AGREED TO IN WRITING
WILL ANY COPYRIGHT HOLDER, OR ANY OTHER
PARTY WHO MODIFIES AND/OR CONVEYS THE
PROGRAM AS PERMITTED ABOVE, BE LIABLE TO
YOU FOR DAMAGES, INCLUDING ANY GENERAL,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE THE PROGRAM (INCLUDING
BUT NOT LIMITED TO LOSS OF DATA OR DATA
BEING RENDERED INACCURATE OR LOSSES
SUSTAINED BY YOU OR THIRD PARTIES OR
A FAILURE OF THE PROGRAM TO OPERATE
WITH ANY OTHER PROGRAMS), EVEN IF SUCH
HOLDER OR OTHER PARTY HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES.
17. Interpretation of Sections 15 and 16.
If the disclaimer of warranty and limitation of liability
provided above cannot be given local legal effect
according to their terms, reviewing courts shall
apply local law that most closely approximates
an absolute waiver of all civil liability in connection
with the Program, unless a warranty or assumption
of liability accompanies a copy of the Program in
return for a fee.
END OF TERMS AND CONDITIONS
GNU LESSER GENERAL PUBLIC
LICENSE
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation,
Inc.
51 Franklin Street, Fifth Floor, Boston, MA
02110-1301 USA
Everyone is permitted to copy and distribute
verbatim copies
of this license document, but changing it is not
allowed.
[This is the first released version of the Lesser GPL.
It also counts
as the successor of the GNU Library Public
License, version 2, hence
the version number 2.1.]
Preamble
The licenses for most software are designed to
take away your freedom to share and change it.
By contrast, the GNU General Public Licenses are
00769B_SHR-8162_ENG-NEW.indb 112 2008-12-04 오전 10:17:48
English _113
! APPENDIX
intended to guarantee your freedom to share and
change free software to make sure the software is
free for all its users.
This license, the Lesser General Public License,
applies to some specially designated software
packages--typically libraries--of the Free Software
Foundation and other authors who decide to use
it. You can use it too, but we suggest you first think
carefully about whether this license or the ordinary
General Public License is the better strategy to use
in any particular case, based on the explanations
below.
When we speak of free software, we are referring
to freedom of use, not price. Our General Public
Licenses are designed to make sure that you have
the freedom to distribute copies of free software (and
charge for this service if you wish); that you receive
source code or can get it if you want it; that you can
change the software and use pieces of it in new free
programs; and that you are informed that you can
do these things.
To protect your rights, we need to make restrictions
that forbid distributors to deny you these rights or to
ask you to surrender these rights. These restrictions
translate to certain responsibilities for you if you
distribute copies of the library or if you modify it.
For example, if you distribute copies of the library,
whether gratis or for a fee, you must give the
recipients all the rights that we gave you. You
must make sure that they, too, receive or can get
the source code. If you link other code with the
library, you must provide complete object files to
the recipients, so that they can relink them with
the library after making changes to the library and
recompiling it. And you must show them these
terms so they know their rights.
We protect your rights with a two-step method: (1)
we copyright the library, and (2) we offer you this
license, which gives you legal permission to copy,
distribute and/or modify the library.
To protect each distributor, we want to make it very
clear that there is no warranty for the free library.
Also, if the library is modified by someone else and
passed on, the recipients should know that what
they have is not the original version, so that the
original author’s reputation will not be affected by
problems that might be introduced by others.
Finally, software patents pose a constant threat to
the existence of any free program. We wish to make
sure that a company cannot effectively restrict the
users of a free program by obtaining a restrictive
license from a patent holder. Therefore, we insist
that any patent license obtained for a version of the
library must be consistent with the full freedom of
use specified in this license.
Most GNU software, including some libraries,
is covered by the ordinary GNU General Public
License. This license, the GNU Lesser General
Public License, applies to certain designated
libraries, and is quite different from the ordinary
General Public License. We use this license for
certain libraries in order to permit linking those
libraries into non-free programs.
When a program is linked with a library, whether
statically or using a shared library, the combination
of the two is legally speaking a combined work, a
derivative of the original library. The ordinary General
Public License therefore permits such linking only
if the entire combination fits its criteria of freedom.
The Lesser General Public License permits more lax
criteria for linking other code with the library.
We call this license the “Lesser” General Public
License because it does Less to protect the user’s
freedom than the ordinary General Public License. It
also provides other free software developers Less of
an advantage over competing non-free programs.
These disadvantages are the reason we use the
ordinary General Public License for many libraries.
However, the Lesser license provides advantages in
certain special circumstances.
For example, on rare occasions, there may be a
special need to encourage the widest possible use
of a certain library, so that it becomes a de-facto
standard. To achieve this, non-free programs must
be allowed to use the library. A more frequent case
is that a free library does the same job as widely
used non-free libraries. In this case, there is little to
gain by limiting the free library to free software only,
so we use the Lesser General Public License.
In other cases, permission to use a particular library
in non-free programs enables a greater number of
people to use a large body of free software. For
example, permission to use the GNU C Library in
non-free programs enables many more people to
use the whole GNU operating system, as well as its
variant, the GNU/Linux operating system.
Although the Lesser General Public License is Less
protective of the users’ freedom, it does ensure that
the user of a program that is linked with the Library
has the freedom and the wherewithal to run that
program using a modified version of the Library.
The precise terms and conditions for copying,
distribution and modification follow. Pay close
attention to the difference between a “work based
on the library” and a “work that uses the library”.
The former contains code derived from the library,
whereas the latter must be combined with the
library in order to run.
TERMS AND CONDITIONS FOR
COPYING, DISTRIBUTION AND
MODIFICATION
0. This License Agreement applies to any software
library or other program which contains a notice
placed by the copyright holder or other authorized
party saying it may be distributed under the terms of
this Lesser General Public License (also called “this
License”). Each licensee is addressed as “you”.
00769B_SHR-8162_ENG-NEW.indb 113 2008-12-04 오전 10:17:48
114_ appendix
A “library” means a collection of software functions
and/or data prepared so as to be conveniently
linked with application programs (which use some
of those functions and data) to form executables.
The “Library”, below, refers to any such software
library or work which has been distributed under
these terms. A “work based on the Library” means
either the Library or any derivative work under
copyright law: that is to say, a work containing the
Library or a portion of it, either verbatim or with
modifications and/or translated straightforwardly
into another language. (Hereinafter, translation
is included without limitation in the term
“modification”.)
“Source code” for a work means the preferred form
of the work for making modifications to it. For a
library, complete source code means all the source
code for all modules it contains, plus any associated
interface definition files, plus the scripts used to
control compilation and installation of the library.
Activities other than copying, distribution and
modification are not covered by this License; they
are outside its scope. The act of running a program
using the Library is not restricted, and output from
such a program is covered only if its contents
constitute a work based on the Library (independent
of the use of the Library in a tool for writing it).
Whether that is true depends on what the Library
does and what the program that uses the Library
does.
1. You may copy and distribute verbatim copies of
the Library’s complete source code as you receive
it, in any medium, provided that you conspicuously
and appropriately publish on each copy an
appropriate copyright notice and disclaimer of
warranty; keep intact all the notices that refer to
this License and to the absence of any warranty;
and distribute a copy of this License along with the
Library.
You may charge a fee for the physical act of
transferring a copy, and you may at your option offer
warranty protection in exchange for a fee.
2. You may modify your copy or copies of the
Library or any portion of it, thus forming a work
based on the Library, and copy and distribute such
modifications or work under the terms of Section
1 above, provided that you also meet all of these
conditions:
a) The modified work must itself be a software
library.
b) You must cause the files modified to carry
prominent notices stating that you changed the
files and the date of any change.
c) You must cause the whole of the work to be
licensed at no charge to all third parties under
the terms of this License.
d) If a facility in the modified Library refers to a
function or a table of data to be supplied by an
application program that uses the facility, other
than as an argument passed when the facility is
invoked, then you must make a good faith effort
to ensure that, in the event an application does
not supply such function or table, the facility
still operates, and performs whatever part of its
purpose remains meaningful.
(For example, a function in a library to compute
square roots has a purpose that is entirely well-
defined independent of the application. Therefore,
Subsection 2d requires that any application-
supplied function or table used by this function must
be optional: if the application does not supply it,
the square root function must still compute square
roots.)
These requirements apply to the modified work as
a whole. If identifiable sections of that work are not
derived from the Library, and can be reasonably
considered independent and separate works in
themselves, then this License, and its terms, do not
apply to those sections when you distribute them as
separate works. But when you distribute the same
sections as part of a whole which is a work based
on the Library, the distribution of the whole must be
on the terms of this License, whose permissions for
other licensees extend to the entire whole, and thus
to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim
rights or contest your rights to work written entirely
by you; rather, the intent is to exercise the right to
control the distribution of derivative or collective
works based on the Library.
In addition, mere aggregation of another work not
based on the Library with the Library (or with a work
based on the Library) on a volume of a storage or
distribution medium does not bring the other work
under the scope of this License.
3. You may opt to apply the terms of the ordinary
GNU General Public License instead of this License
to a given copy of the Library. To do this, you must
alter all the notices that refer to this License, so
that they refer to the ordinary GNU General Public
License, version 2, instead of to this License. (If a
newer version than version 2 of the ordinary GNU
General Public License has appeared, then you
can specify that version instead if you wish.) Do not
make any other change in these notices.
Once this change is made in a given copy, it is
irreversible for that copy, so the ordinary GNU
General Public License applies to all subsequent
copies and derivative works made from that copy.
This option is useful when you wish to copy part of
the code of the Library into a program that is not a
library.
4. You may copy and distribute the Library (or
a portion or derivative of it, under Section 2) in
object code or executable form under the terms
of Sections 1 and 2 above provided that you
accompany it with the complete corresponding
machine-readable source code, which must be
distributed under the terms of Sections 1 and 2
00769B_SHR-8162_ENG-NEW.indb 114 2008-12-04 오전 10:17:48
English _115
! APPENDIX
above on a medium customarily used for software
interchange.
If distribution of object code is made by offering
access to copy from a designated place, then
offering equivalent access to copy the source code
from the same place satisfies the requirement to
distribute the source code, even though third parties
are not compelled to copy the source along with the
object code.
5. A program that contains no derivative of any
portion of the Library, but is designed to work with
the Library by being compiled or linked with it, is
called a “work that uses the Library”. Such a work,
in isolation, is not a derivative work of the Library,
and therefore falls outside the scope of this License.
However, linking a “work that uses the Library” with
the Library creates an executable that is a derivative
of the Library (because it contains portions of the
Library), rather than a “work that uses the library”.
The executable is therefore covered by this License.
Section 6 states terms for distribution of such
executables.
When a “work that uses the Library” uses material
from a header file that is part of the Library, the
object code for the work may be a derivative work
of the Library even though the source code is not.
Whether this is true is especially significant if the
work can be linked without the Library, or if the work
is itself a library. The threshold for this to be true is
not precisely defined by law.
If such an object file uses only numerical
parameters, data structure layouts and accessors,
and small macros and small inline functions (ten
lines or less in length), then the use of the object file
is unrestricted, regardless of whether it is legally a
derivative work. (Executables containing this object
code plus portions of the Library will still fall under
Section 6.)
Otherwise, if the work is a derivative of the Library,
you may distribute the object code for the work
under the terms of Section 6. Any executables
containing that work also fall under Section 6,
whether or not they are linked directly with the
Library itself.
6. As an exception to the Sections above, you may
also combine or link a “work that uses the Library”
with the Library to produce a work containing
portions of the Library, and distribute that work
under terms of your choice, provided that the terms
permit modification of the work for the customer’
s own use and reverse engineering for debugging
such modifications.
You must give prominent notice with each copy of
the work that the Library is used in it and that the
Library and its use are covered by this License.
You must supply a copy of this License. If the work
during execution displays copyright notices, you
must include the copyright notice for the Library
among them, as well as a reference directing the
user to the copy of this License. Also, you must do
one of these things:
a) Accompany the work with the complete
corresponding machine-readable source code
for the Library including whatever changes were
used in the work (which must be distributed
under Sections 1 and 2 above); and, if the
work is an executable linked with the Library,
with the complete machine readable “work
that uses the Library”, as object code and/or
source code, so that the user can modify the
Library and then relink to produce a modified
executable containing the modified Library. (It
is understood that the user who changes the
contents of definitions files in the Library will not
necessarily be able to recompile the application
to use the modified definitions.)
b) Use a suitable shared library mechanism for
linking with the Library. A suitable mechanism
is one that (1) uses at run time a copy of the
library already present on the user’s computer
system, rather than copying library functions
into the executable, and (2) will operate properly
with a modified version of the library, if the user
installs one, as long as the modified version is
interface-compatible with the version that the
work was made with.
c) Accompany the work with a written offer,
valid for at least three years, to give the same
user the materials specified in Subsection 6a,
above, for a charge no more than the cost of
performing this distribution.
d) If distribution of the work is made by offering
access to copy from a designated place, offer
equivalent access to copy the above specified
materials from the same place.
e) Verify that the user has already received a copy
of these materials or that you have already sent
this user a copy.
For an executable, the required form of the “work
that uses the Library” must include any data
and utility programs needed for reproducing the
executable from it. However, as a special exception,
the materials to be distributed need not include
anything that is normally distributed (in either source
or binary form) with the major components (compiler,
kernel, and so on) of the operating system on which
the executable runs, unless that component itself
accompanies the executable.
It may happen that this requirement contradicts the
license restrictions of other proprietary libraries that
do not normally accompany the operating system.
Such a contradiction means you cannot use both
them and the Library together in an executable that
you distribute.
7. You may place library facilities that are a work
based on the Library side-by-side in a single library
together with other library facilities not covered by
this License, and distribute such a combined library,
provided that the separate distribution of the work
00769B_SHR-8162_ENG-NEW.indb 115 2008-12-04 오전 10:17:48
116_ appendix
based on the Library and of the other library facilities
is otherwise permitted, and provided that you do
these two things:
a) Accompany the combined library with a
copy of the same work based on the Library,
uncombined with any other library facilities.
This must be distributed under the terms of the
Sections above.
b) Give prominent notice with the combined library
of the fact that part of it is a work based on
the Library, and explaining where to find the
accompanying uncombined form of the same
work.
8. You may not copy, modify, sublicense, link
with, or distribute the Library except as expressly
provided under this License. Any attempt otherwise
to copy, modify, sublicense, link with, or distribute
the Library is void, and will automatically terminate
your rights under this License. However, parties
who have received copies, or rights, from you under
this License will not have their licenses terminated
so long as such parties remain in full compliance.
9. You are not required to accept this License, since
you have not signed it. However, nothing else grants
you permission to modify or distribute the Library
or its derivative works. These actions are prohibited
by law if you do not accept this License. Therefore,
by modifying or distributing the Library (or any work
based on the Library), you indicate your acceptance
of this License to do so, and all its terms and
conditions for copying, distributing or modifying the
Library or works based on it.
10. Each time you redistribute the Library (or
any work based on the Library), the recipient
automatically receives a license from the original
licensor to copy, distribute, link with or modify the
Library subject to these terms and conditions. You
may not impose any further restrictions on the
recipients’ exercise of the rights granted herein. You
are not responsible for enforcing compliance by
third parties with this License.
11. If, as a consequence of a court judgment or
allegation of patent infringement or for any other
reason (not limited to patent issues), conditions are
imposed on you (whether by court order, agreement
or otherwise) that contradict the conditions of this
License, they do not excuse you from the conditions
of this License. If you cannot distribute so as to
satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as
a consequence you may not distribute the Library at
all. For example, if a patent license would not permit
royalty free redistribution of the Library by all those
who receive copies directly or indirectly through you,
then the only way you could satisfy both it and this
License would be to refrain entirely from distribution
of the Library.
If any portion of this section is held invalid or
unenforceable under any particular circumstance,
the balance of the section is intended to apply, and
the section as a whole is intended to apply in other
circumstances.
It is not the purpose of this section to induce you to
infringe any patents or other property right claims or
to contest validity of any such claims; this section
has the sole purpose of protecting the integrity
of the free software distribution system which is
implemented by public license practices. Many
people have made generous contributions to the
wide range of software distributed through that
system in reliance on consistent application of that
system; it is up to the author/donor to decide if he
or she is willing to distribute software through any
other system and a licensee cannot impose that
choice.
This section is intended to make thoroughly clear
what is believed to be a consequence of the rest of
this License.
12. If the distribution and/or use of the Library is
restricted in certain countries either by patents or by
copyrighted interfaces, the original copyright holder
who places the Library under this License may
add an explicit geographical distribution limitation
excluding those countries, so that distribution is
permitted only in or among countries not thus
excluded. In such case, this License incorporates
the limitation as if written in the body of this License.
13. The Free Software Foundation may publish
revised and/or new versions of the Lesser General
Public License from time to time. Such new versions
will be similar in spirit to the present version, but
may differ in detail to address new problems or
concerns.
Each version is given a distinguishing version
number. If the Library specifies a version number
of this License which applies to it and “any later
version”, you have the option of following the
terms and conditions either of that version or of
any later version published by the Free Software
Foundation. If the Library does not specify a license
version number, you may choose any version ever
published by the Free Software Foundation.
14. If you wish to incorporate parts of the Library
into other free programs whose distribution
conditions are incompatible with these, write to the
author to ask for permission. For software which is
copyrighted by the Free Software Foundation, write
to the Free Software Foundation; we sometimes
make exceptions for this. Our decision will be
guided by the two goals of preserving the free
status of all derivatives of our free software and
of promoting the sharing and reuse of software
generally.
00769B_SHR-8162_ENG-NEW.indb 116 2008-12-04 오전 10:17:48
English _117
! APPENDIX
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE
OF CHARGE, THERE IS NO WARRANTY FOR
THE LIBRARY, TO THE EXTENT PERMITTED BY
APPLICABLE LAW. EXCEPT WHEN OTHERWISE
STATED IN WRITING THE COPYRIGHT HOLDERS
AND/OR OTHER PARTIES PROVIDE THE LIBRARY
“AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESSED OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THE ENTIRE RISK AS
TO THE QUALITY AND PERFORMANCE OF THE
LIBRARY IS WITH YOU. SHOULD THE LIBRARY
PROVE DEFECTIVE, YOU ASSUME THE COST
OF ALL NECESSARY SERVICING, REPAIR OR
CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY
APPLICABLE LAW OR AGREED TO IN WRITING
WILL ANY COPYRIGHT HOLDER, OR ANY
OTHER PARTY WHO MAY MODIFY AND/OR
REDISTRIBUTE THE LIBRARY AS PERMITTED
ABOVE, BE LIABLE TO YOU FOR DAMAGES,
INCLUDING ANY GENERAL, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OR INABILITY TO USE
THE LIBRARY (INCLUDING BUT NOT LIMITED
TO LOSS OF DATA OR DATA BEING RENDERED
INACCURATE OR LOSSES SUSTAINED BY
YOU OR THIRD PARTIES OR A FAILURE OF
THE LIBRARY TO OPERATE WITH ANY OTHER
SOFTWARE), EVEN IF SUCH HOLDER OR OTHER
PARTY HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your
New Libraries
If you develop a new library, and you want it to
be of the greatest possible use to the public, we
recommend making it free software that everyone
can redistribute and change. You can do so by
permitting redistribution under these terms (or,
alternatively, under the terms of the ordinary General
Public License).
To apply these terms, attach the following notices
to the library. It is safest to attach them to the start
of each source file to most effectively convey the
exclusion of warranty; and each file should have
at least the “copyright” line and a pointer to where
the full notice is found. one line to give the library’s
name and an idea of what it does.
Copyright (C) year name of author
This library is free software; you can redistribute
it and/or modify it under the terms of the GNU
Lesser General Public License as published by the
Free Software Foundation; either version 2.1 of the
License, or (at your option) any later version.
This library is distributed in the hope that it will be
useful, but WITHOUT ANY WARRANTY; without
even the implied warranty of MERCHANTABILITY
or FITNESS FOR A PARTICULAR PURPOSE. See
the GNU Lesser General Public License for more
details.
You should have received a copy of the GNU Lesser
General Public License along with this library; if
not, write to the Free Software Foundation, Inc., 51
Franklin Street, Fifth Floor, Boston, MA 02110-1301
USA Also add information on how to contact you by
electronic and paper mail.
You should also get your employer (if you work
as a programmer) or your school, if any, to sign a
“copyright disclaimer” for the library, if necessary.
Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright
interest in the library ‘Frob’ (a library for tweaking
knobs) written by James Random Hacker.
signature of Ty Coon, 1 April 1990 Ty Coon,
President of Vice.
00769B_SHR-8162_ENG-NEW.indb 117 2008-12-04 오전 10:17:49
118_ appendix
OpenSSL LICENSE
* Copyright (c) 1998-2006 The OpenSSL
Project. All rights reserved.
* Redistribution and use in source and binary
forms, with or without
* modification, are permitted provided that the
following conditions
* are met:
* 1. Redistributions of source code must retain
the above copyright
* notice, this list of conditions and the
following disclaimer.
* 2. Redistributions in binary form must
reproduce the above copyright
* notice, this list of conditions and the
following disclaimer in
* the documentation and/or other materials
provided with the
* distribution.
* 3. All advertising materials mentioning features
or use of this
* software must display the following
acknowledgment:
* “This product includes software developed
by the OpenSSL Project
* for use in the OpenSSL Toolkit. (http://www.
openssl.org/)”
* 4. The names “OpenSSL Toolkit” and
“OpenSSL Project” must not be used to
* endorse or promote products derived from
this software without
* prior written permission. For written
permission, please contact
* openssl-core@openssl.org.
* 5. Products derived from this software may
not be called “OpenSSL”
* nor may “OpenSSL” appear in their names
without prior written
* permission of the OpenSSL Project.
* 6. Redistributions of any form whatsoever
must retain the following
* acknowledgment:
* “This product includes software developed
by the OpenSSL Project
* for use in the OpenSSL Toolkit (http://www.
openssl.org/)”
* THIS SOFTWARE IS PROVIDED BY THE
OpenSSL PROJECT ‘‘AS IS’’ AND ANY
* EXPRESSED OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
* IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR
* PURPOSE ARE DISCLAIMED. IN NO EVENT
SHALL THE OpenSSL PROJECT OR
* ITS CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL,
* SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT
* NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES;
* LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION)
* HOWEVER CAUSED AND ON ANY THEORY
OF LIABILITY, WHETHER IN CONTRACT,
* STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE)
* ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED
* OF THE POSSIBILITY OF SUCH DAMAGE.
* =============================
* This product includes cryptographic software
written by Eric Young
* (eay@cryptsoft.com). This product includes
software written by Tim
* Hudson (tjh@cryptsoft.com).
*/
Original SSLeay License
-----------------------
/* Copyright (C) 1995-1998 Eric Young (eay@
cryptsoft.com)
* All rights reserved.
* This package is an SSL implementation
written
* by Eric Young (eay@cryptsoft.com).
* The implementation was written so as to
conform with Netscapes SSL.
* This library is free for commercial and non-
commercial use as long as
* the following conditions are aheared to. The
following conditions
* apply to all code found in this distribution, be
it the RC4, RSA,
* lhash, DES, etc., code; not just the SSL code.
The SSL documentation
* included with this distribution is covered by
the same copyright terms
* except that the holder is Tim Hudson (tjh@
cryptsoft.com).
* Copyright remains Eric Young’s, and as such
any Copyright notices in
* the code are not to be removed.
* If this package is used in a product, Eric
Young should be given attribution
* as the author of the parts of the library used.
* This can be in the form of a textual message
at program startup or
* in documentation (online or textual) provided
with the package.
* Redistribution and use in source and binary
forms, with or without
* modification, are permitted provided that the
following conditions
* are met:
* 1. Redistributions of source code must retain
the copyright
* notice, this list of conditions and the
following disclaimer.
* 2. Redistributions in binary form must
reproduce the above copyright
* notice, this list of conditions and the
following disclaimer in the
* documentation and/or other materials
provided with the distribution.
00769B_SHR-8162_ENG-NEW.indb 118 2008-12-04 오전 10:17:49
English _119
! APPENDIX
* 3. All advertising materials mentioning features or
use of this software
* must display the following acknowledgement:
* “This product includes cryptographic software
written by
* Eric Young (eay@cryptsoft.com)”
* The word ‘cryptographic’ can be left out if the
rouines from the library
* being used are not cryptographic related :-).
* 4. If you include any Windows specific code (or a
derivative thereof) from
* the apps directory (application code) you must
include an acknowledgement:
* “This product includes software written by Tim
Hudson (tjh@cryptsoft.com)”
* THIS SOFTWARE IS PROVIDED BY ERIC
YOUNG ‘‘AS IS’’ AND
* ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
* IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE
* ARE DISCLAIMED. IN NO EVENT SHALL THE
AUTHOR OR CONTRIBUTORS BE LIABLE
* FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
* DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS
* OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION)
* HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT
* LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY
* OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF
00769B_SHR-8162_ENG-NEW.indb 119 2008-12-04 오전 10:17:49
AB68-00769B
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from
other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where
and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be
mixed with other commercial wastes for disposal.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their
working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return
system.
00769B_SHR-8162_ENG-NEW.indb 120 2008-12-04 오전 10:17:49

Navigation menu
