Contents
- 1. User Manual-1
- 2. User Manual-2
User Manual-1
1
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
Sw1
Sw3
Sw2
Trm2
Trm1
Trm3
MT-4S User's Guide.indd 1 2015/10/27 14:38:31
90478
90478
2
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
The packaging of your radio control system has been specially designed for the safe transportation and storage of the radio
control system's components. After unpacking your radio control system, do not discard the packaging materials. Save the
packaging materials for future use if you ever need to send your radio control system to us for service or to store your radio
control system if you don't plan on using it for an extended period of time.
TABLE OF CONTENTS GENERAL
We appreciate your purchase of the new Airtronics 90478 2.4GHz FH4T radio control system. This User's Guide is intended
to acquaint you with the many unique features of your state of the art Telemetry-capable radio control system. Please read
this User's Guide carefully prior to use so that you may obtain maximum success and enjoyment from the operation of your
new radio control system.
The 90478 has been designed for the utmost in comfort and precise control of all types of model cars and boats. We wish
you the best of success and fun with your new purchase!
Additional 2.4GHz FH2, FH3 and FH4T surface receivers* can be purchased and paired with the 90478. Due to differences
in the implementation of 2.4GHz technology among different manufacturers, only Airtronics brand 2.4GHz surface
receivers are compatible with your radio control system. Telemetry functions are available only when used with
Telemetry-capable receivers (available separately). Visit your local Airtronics dealer or our website at http://www.airtronics.net
for more information.
INTRODUCTION GENERAL
*Not all Features are Supported by all Types of Receivers. Some Features Limited by Receiver Type.
PACKAGING GENERAL
•90478 Digital High-Response Telemetry Transmitter
• RX-472 Super Response Receiver w/SSL Support
• On/Off Switch
• Dry Cell Receiver Battery Holder
• Wrist Strap Mount
• Optional Large Grip
• Optional Throttle Trigger Angle Brackets
• Receiver Dust Boot Covers
The following items should be included with your radio control system. If an item is missing or appears damaged, please
contact your local Airtronics distributor. For more information, see the Service and Support section on page 3.
WHAT'S INCLUDED GENERAL
Introduction........................................................................................................2
Packaging...........................................................................................................2
What's Included ...............................................................................................2
Service and Support .....................................................................................3
Safety ....................................................................................................................3
FCC Compliance Statement .....................................................................3
2.4GHz Frequency Band Precautions ..................................................4
Transmitter Precautions ..............................................................................4
Receiver Precautions ....................................................................................4
Telemetry Support Information................................................................4
System Features .............................................................................................5
System Specifications ..................................................................................5
Items Required, But Not Included ..........................................................5
Optional Items ..................................................................................................5
Transmitter Overview Diagrams .............................................................6
Receiver Overview Diagrams ...................................................................8
Transmitter and Receiver Overview Diagram Descriptions ......8
Servo Connectors ...........................................................................................9

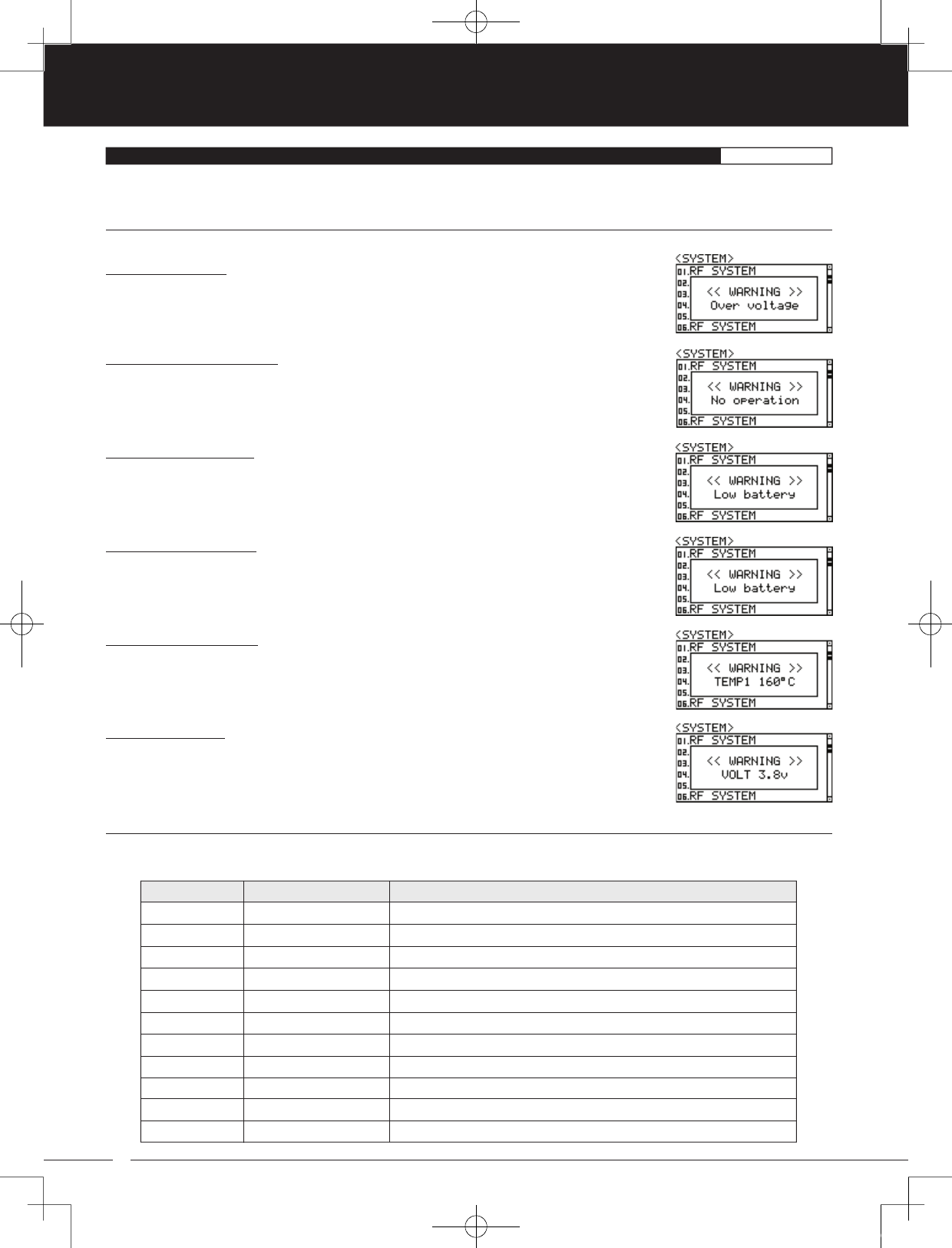

Transmitter Safety Alarms and LED Condition Indicators....... 10
Transmitter Battery Options ...................................................................11
Alkaline Battery Installation ..................................................................... 11
Transmitter Battery Charging Options ...........................................11
Warnings if Using a LiPo or LiFe Battery Pack............................11
Throttle Trigger Position Adjustment ...............................................12
Throttle Trigger Angle Adjustment ....................................................12
Optional Grip Installation .......................................................................12
Throttle and Steering Spring Tension Adjustment ...................13
Steering Wheel Travel Adjustment ...................................................13
Wrist Strap Anchor Installation ...........................................................13

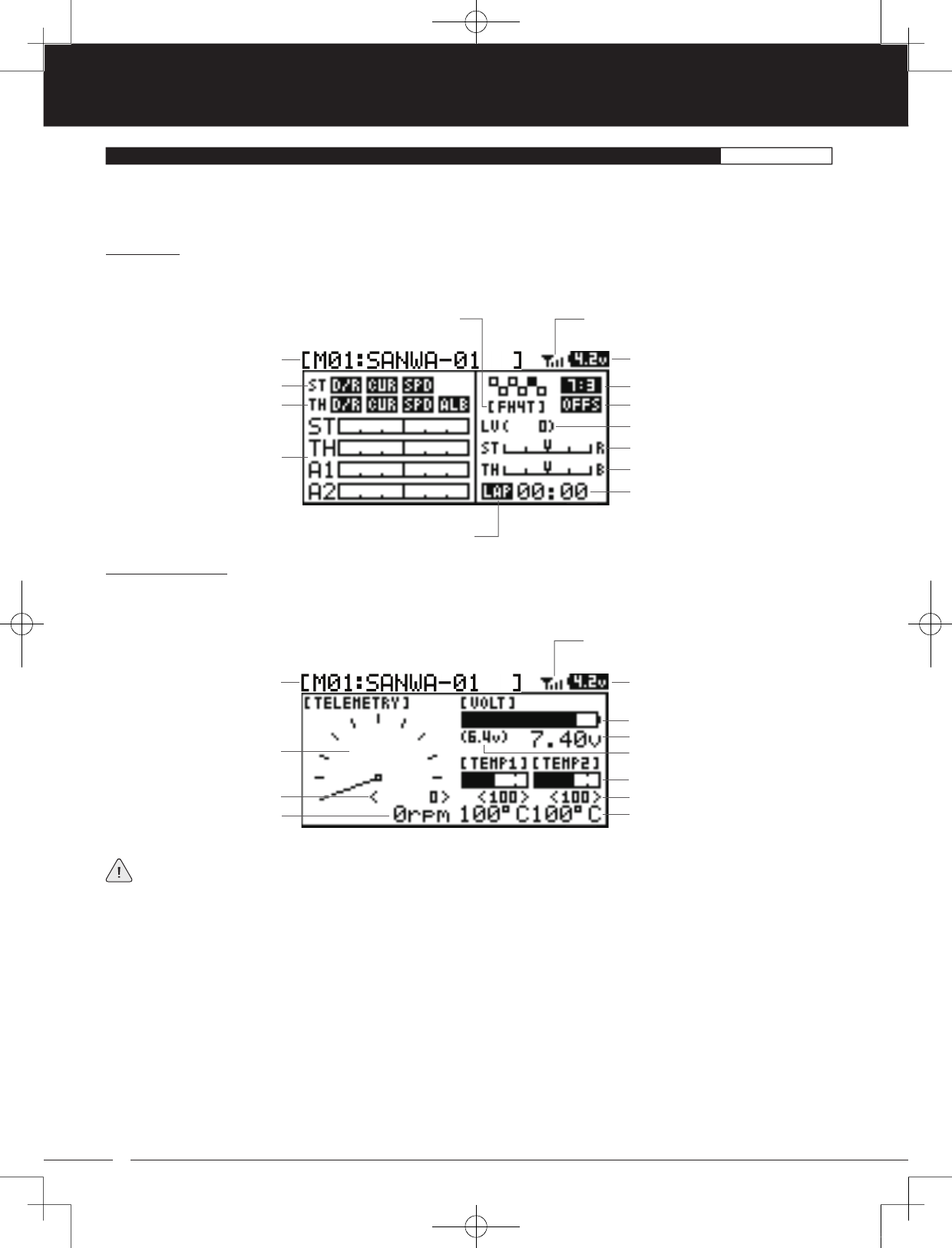

Top Screen and Telemetry Screen Overview .............................14
Programming Keys Overview and Functions .............................15

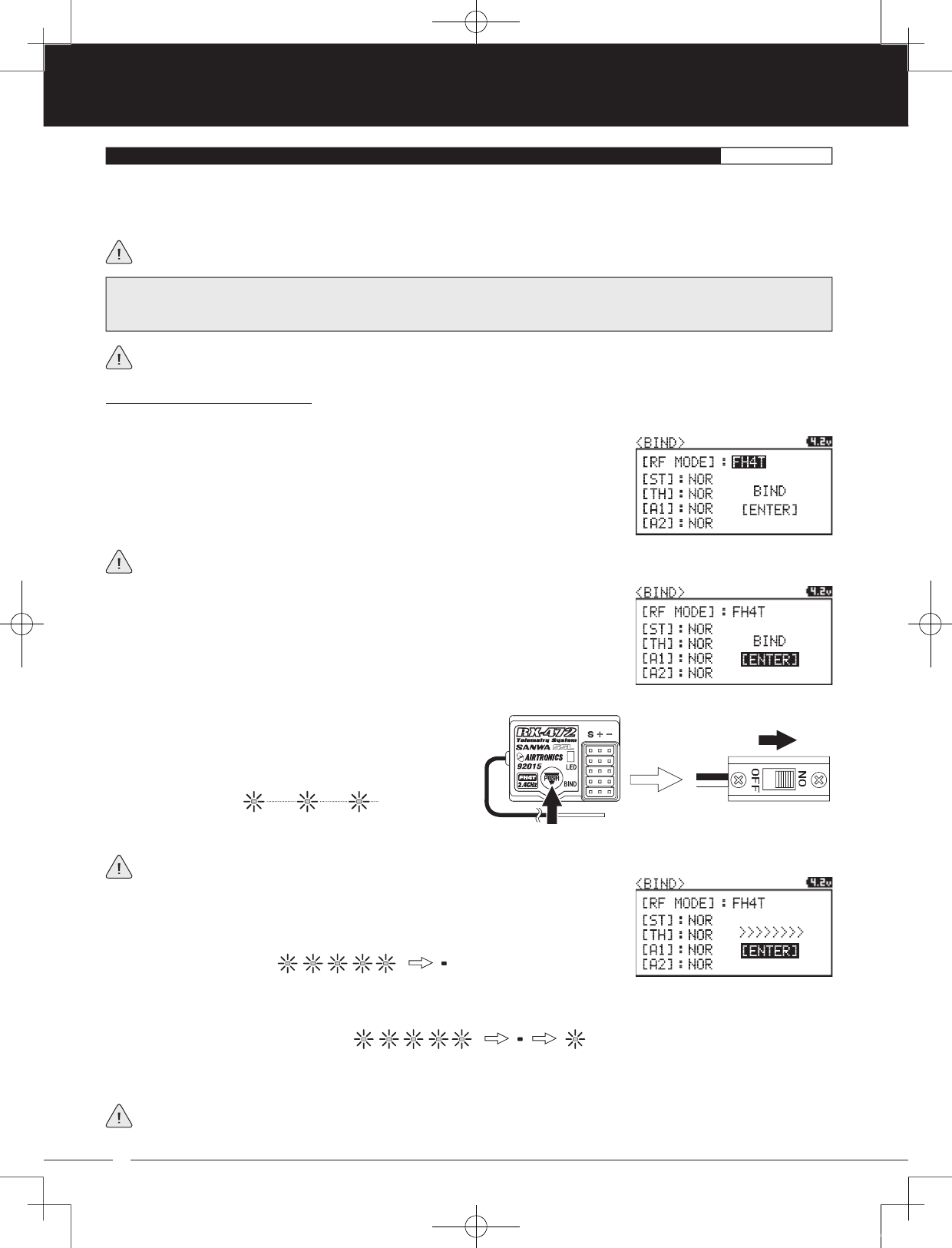

Binding the Transmitter and Receiver ............................................16
Programming Menus Overview .........................................................17
Includes Programming Menu Contents ..............................17
System Menus Overview .......................................................................49
Includes System Menu Contents ...........................................49

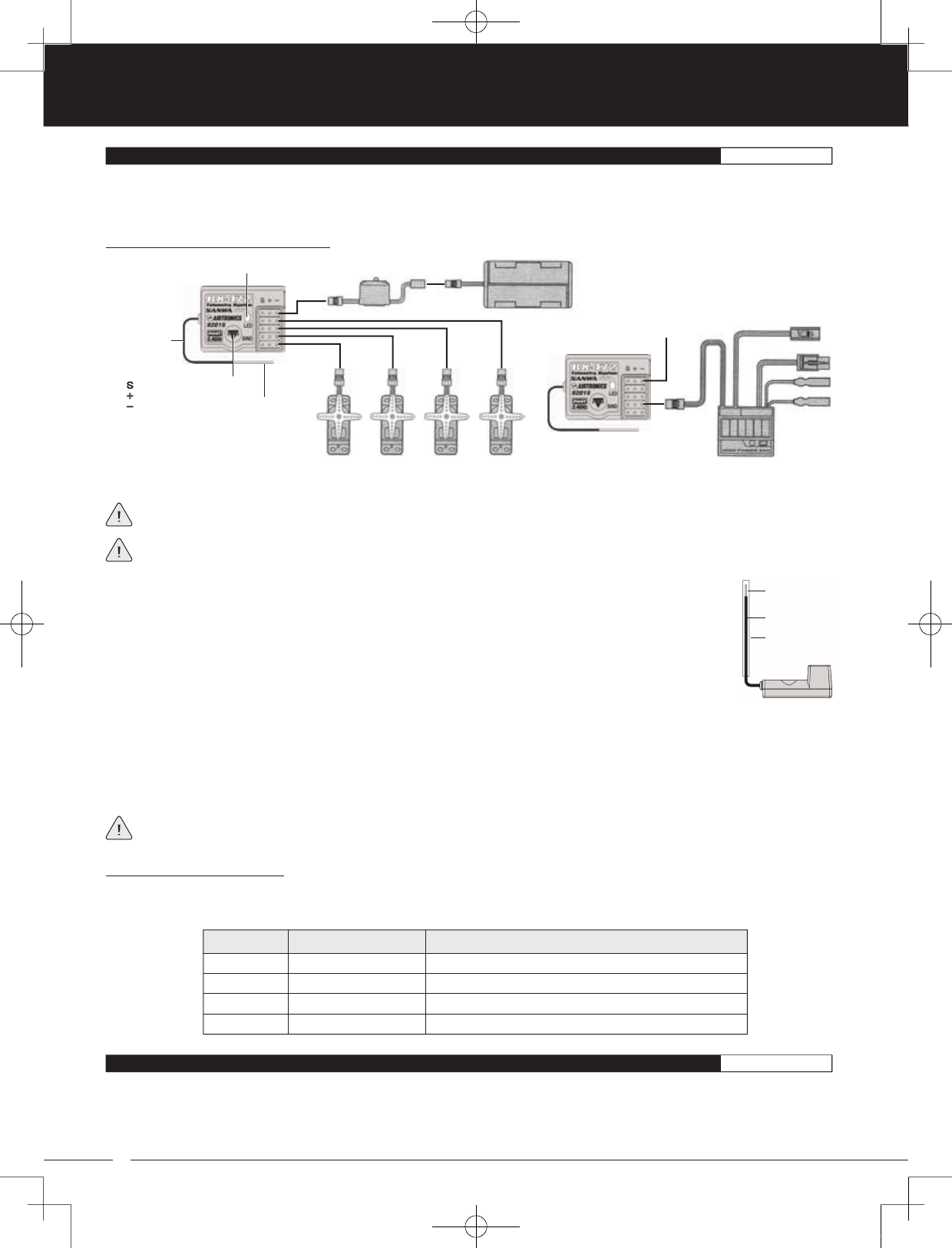

Telemetry Connections and Mounting ...........................................69
Troubleshooting Guide ...........................................................................71
Glossary of Terms......................................................................................72
Index .................................................................................................................77
Notes................................................................................................................85
Warranty and Liability Information ....................................................87
MT-4S User's Guide.indd 2 2015/10/27 14:38:32
3
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
If you have any questions or concerns, we're here to help. If you encounter a problem with your radio control system, first check
the Troubleshooting Guide section on pages 71 and 72. If you require further help, please contact us directly.
In North America Only:
Global Services
18480 Bandilier Circle
Fountain Valley, CA 92708
Telephone: 1-714-963-0329
Fax: 1-714-964-6236
Email: service@airtronics.net
If you made your purchase outside of North America, please contact your regional Airtronics or Sanwa agent for service
and support. Global Services is unable to offer warranty support for products purchased outside of North America.
This is a high-output, full-range radio control system that should well exceed the range needed for any surface model. For
safety, the user should perform a range test at the area of operation to ensure that the radio control system has complete
control of the model at the farthest reaches of the operational area. Rather than operating the model, we recommend that the
user enlist the help of a fellow modeler to walk the model to the farthest reaches of the track (or for boats, to walk the shore line
well in excess of the operational distance of the boat), then test for proper operation.
• Be certain to read this User's Guide in its entirety.
• 'Safety First' for yourself, others and your equipment.
• Observe all the rules of the field, track or lake where you operate your radio control equipment.
• If at any time during the operation of your Model, should you feel or observe erratic operation or abnormality, end your
operation as quickly and safely as possible. DO NOT operate your model again until you are certain the problem has been
corrected. TAKE NO CHANCES.
• Your model can cause serious damage or injury. Please use caution and courtesy at all times.
• Do not expose the radio control system to water or excessive moisture.
• Waterproof the receiver and servos by placing them in a water-tight radio box when operating R/C model boats.
• If you have little to no experience operating R/C models, we recommend you seek the assistance of an experienced
modeler or your local hobby shop for guidance.
• The Low Voltage Alert alarm will sound when the transmitter battery voltage drops to the default low voltage threshold. If this
occurs, stop using the transmitter as soon as is safely possible, then replace or recharge the transmitter batteries.
This radio control system operates on the 2.4GHz frequency band. The 2.4GHz connection is determined by the transmitter
and receiver pair. Unlike ordinary crystal-based systems, your model can be used without frequency control.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
operating instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications made to this equipment not expressly approved by Airtronics may void the FCC authorization
to operate this equipment.
RF Exposure Statement:
This transmitter has been tested and meets the FCC RF exposure guidelines when used with the Airtronics accessories supplied
or designated for this product, Use of other accessories may not ensure compliance with FCC RF exposure guidelines.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisee aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est
susceptible d'en compromettre le fonctionnement.
SERVICE AND SUPPORT GENERAL
SAFETY GENERAL
FCC COMPLIANCE STATEMENT GENERAL
GENERAL
MT-4S User's Guide.indd 3 2015/10/27 14:38:32
This device complies with Industry Canada’s licence-exempt RSSs, Operation is subject to the following two conditions:
(1) This device may not cause interference , and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
4
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR

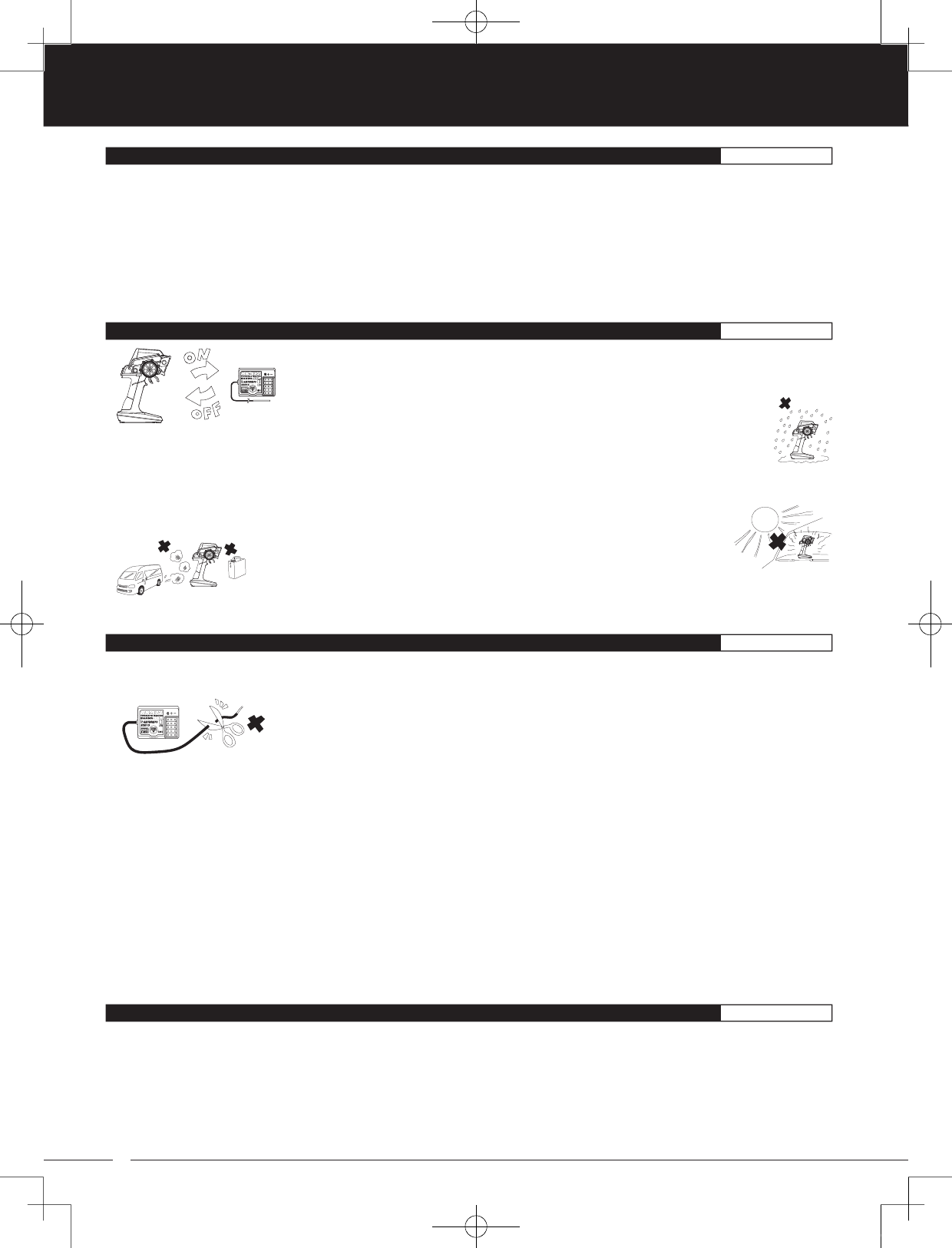

2.4GHZ FREQUENCY BAND PRECAUTIONS GENERAL
• The 2.4GHz frequency band may be used by other devices, or other devices in the immediate area may cause interference
on the same frequency band. Always before use, conduct a bench test to ensure that the servos operate properly. Also,
conduct checks with the transmitter as distant as possible from your Model.
• The response speed of the receiver can be affected if used where multiple 2.4GHz transmitters are being used, therefore,
carefully check the area before use. If response seems slow during use, stop your Model immediately and discontinue use.
• If the 2.4GHz frequency band is saturated (too many transmitters turned ON at once), as a safety precaution, the transmitter
and receiver may not Bind. This ensures that your radio control system does not get hit by interference. Once the frequencies
have been cleared, or the saturation level has dropped, your transmitter and receiver should Bind without any problems.
TRANSMITTER PRECAUTIONS GENERAL
• To prevent possible damage to your servos or a runaway model, turn the transmitter ON first,
then turn the receiver ON. After running your model, turn the receiver OFF first, then turn the
transmitter OFF.
• Before use, double-check that the transmitter and receiver batteries have sufficient
power.
• The transmitter antenna is mounted internally and is located in the vertical back portion of the carrying handle.
Do NOT cover the carrying handle in any way during use! Doing so can block the RF signal, resulting in loss of
control of your model.
• During use, hold the transmitter so that its orientated as close to vertical as possible at all times. This provides the best RF
signal between the transmitter and the receiver. Try not to ever 'follow' your model with the transmitter,
as this can result in a weakened RF signal.
• Do not expose the transmitter or any other components to excessive heat,
moisture, fuel, exhaust residue, etc.
• If the outer case becomes dirty, it can be cleaned with a soft dry cloth. If the outer case becomes
soiled, it can be cleaned with a damp cloth and liquid detergent. Do not use any solvents to clean
RECEIVER PRECAUTIONS GENERAL
• The antenna consists of a coaxial cable and a reception wire (the thin tip at the end of the coaxial cable). When you mount
the antenna, do not bend the reception wire. Reception performance decreases if the reception wire is bent.
• The antenna is delicate, therefore, handle with care. Do not pull on the antenna with force. Do
not cut or extend the antenna.
• The coaxial cable (the thicker portion of the antenna) can be bent into gentle curves, however,
do not bend the coaxial cable acutely, or repeatedly bend it, or the antenna core can be damaged.
• The antenna should be installed into a vertical plastic tube per your particular model's assembly instructions. Keep the
receiver antenna as far away from the motor, battery and ESC as possible.
• There is a danger of runaway operation if connectors shake loose during use. Make sure that the receiver, servo(s) and
switch connectors are securely fitted.
• The receiver is susceptible to vibration, shock and moisture. Take appropriate measures to protect against vibration and
moisture. Failure to take appropriate measures could result in runaway operation or damage to the receiver. We suggest
wrapping the receiver in shock-absorbing foam or securing it with double-sided foam tape when installing it into your
model.
• When routing the antenna, avoid contact with any carbon or metal chassis components. Contact between metal or carbon
parts can result in electrical noise, which can adversely effect receiver performance and possibly result in runaway operation
and result in damage to your model.
• With electric-powered models, be sure to fit any brushed motors with a noise suppression capacitor. Without a noise suppression
capacitor, excessive electrical noise generation can cause runaway operation and result in damage to your model.
the outer case. Solvents will damage the finish.
TELEMETRY SUPPORT INFORMATION GENERAL
• Full telemetry support requires the use of an Airtronics 2.4GHz FH4T telemetry-capable surface receiver, such as the RX-461
or RX-462, along with Airtronics Temperature and RPM Sensors (available separately). The included RX-472 receiver can
send Telemetry Data for the voltage of the receiver battery pack only, unless used with the Airtronics Super Vortex ZERO ESC.
• Full Telemetry support is provided when used with an Airtronics Super Vortex ZERO ESC (available separately) plugged into
the BATT/SSL port of the included RX-472 receiver.
• The range of the Telemetry System is approximately 260 feet (80 meters), although the range can vary based on many
environmental factors. Use the Telemetry Signal Indicator to determine the quality of the signal.
MT-4S User's Guide.indd 4 2015/10/27 14:38:39
5
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
• Adjustable Steering Wheel
• Adjustable Grip
• Variable Rate Adjustment
• Model Naming
• Model Select
• Direct Model Select
• Model Clear
• Selectable Modulation Type
• Adjustable LCD Contrast and On-Time
• Adjustable Key Volume and Tone
• Programmable Low Voltage Alarm
• Inactivity and Over Voltage Alarms
• Digital Battery Voltage Monitor
• 18 Model Memory
• Telemetry Logging
• Channel Set Menu
• Servo Reversing
• Steering, Throttle and Brake Dual Rate
• End Point Adjustment
• Exponential and ARC Adjustment
• Servo Speed Adjustment

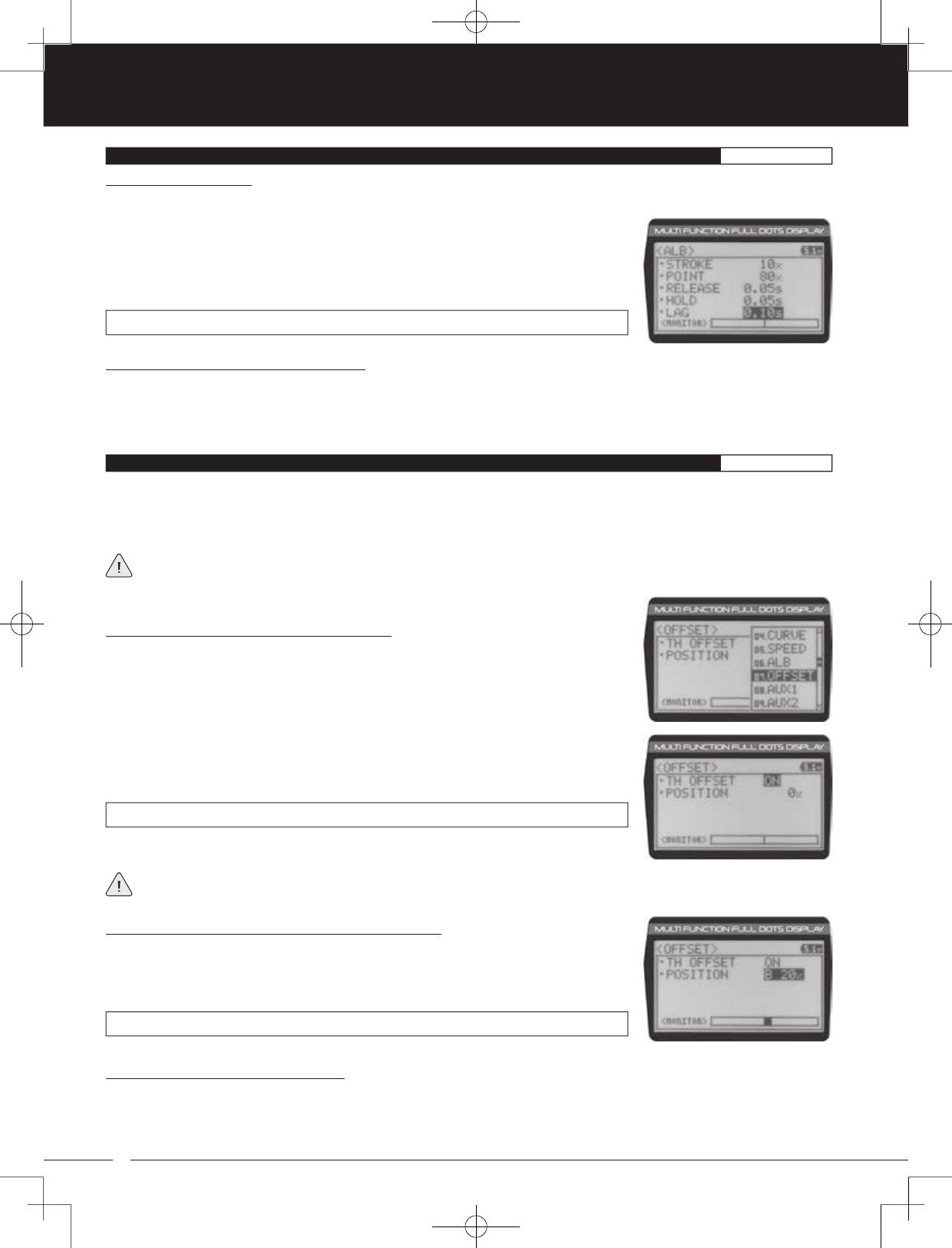

• Anti-Lock Braking
• Throttle Offset

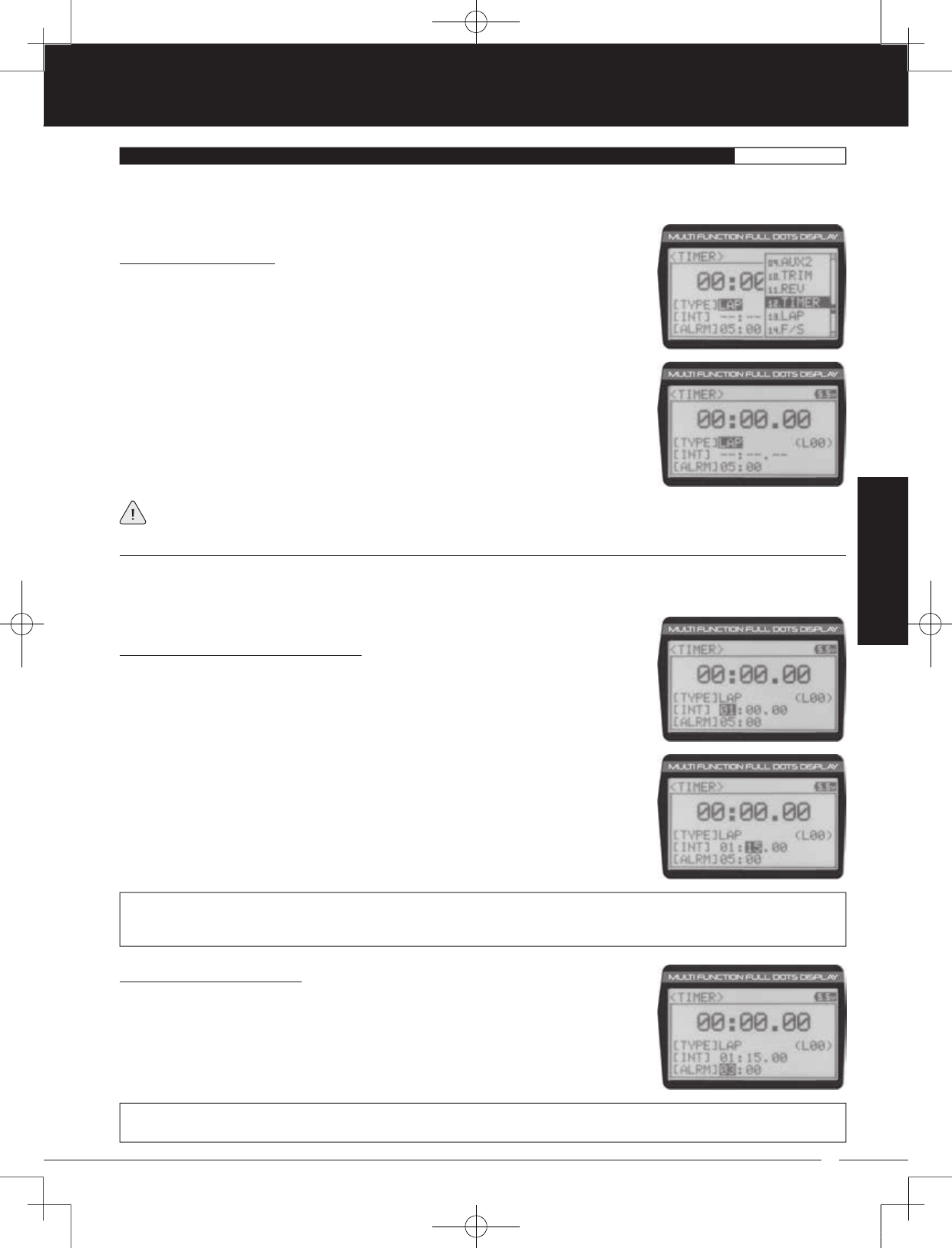

• Lap and Interval Timers
• Total, Best and Individual Lap Display

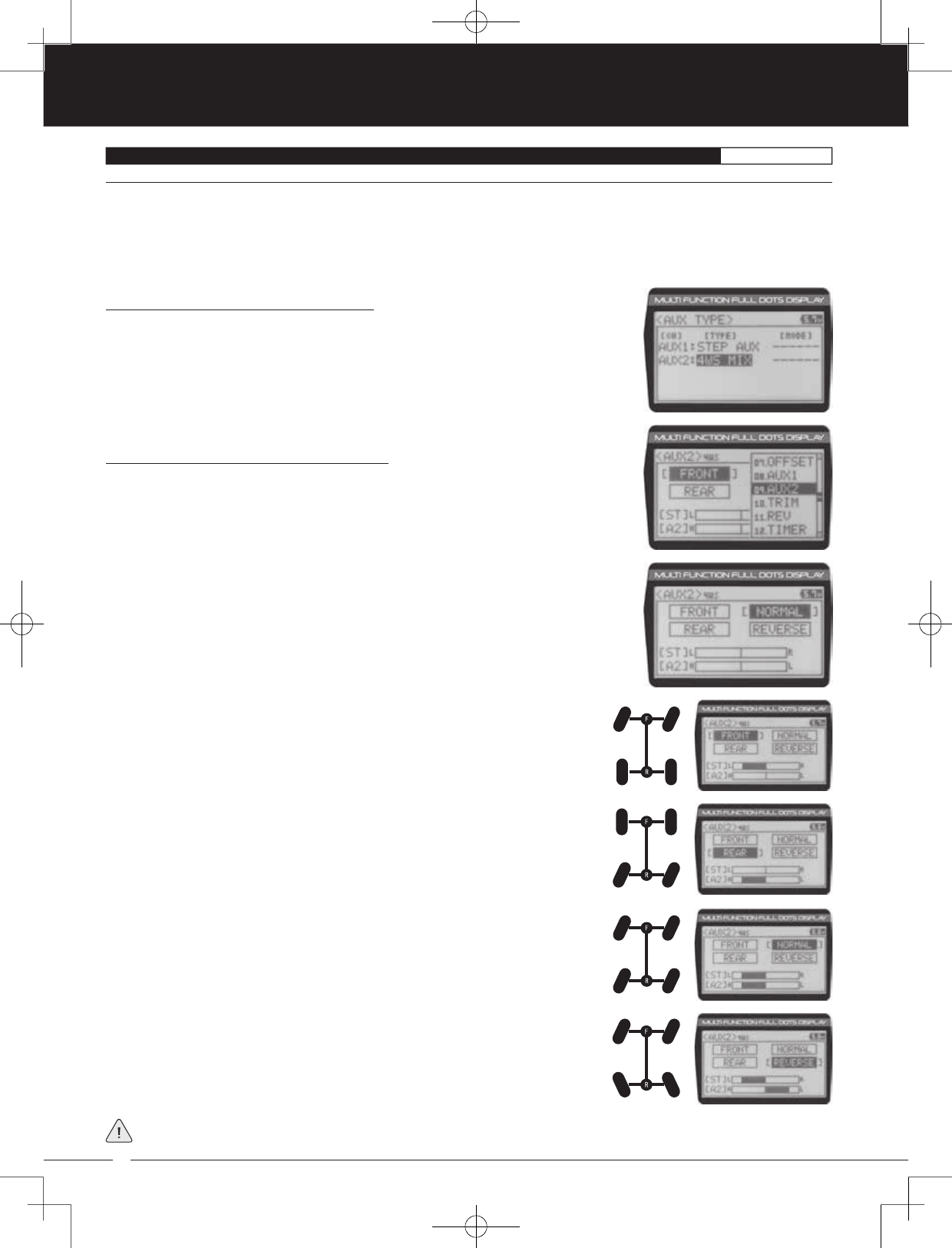

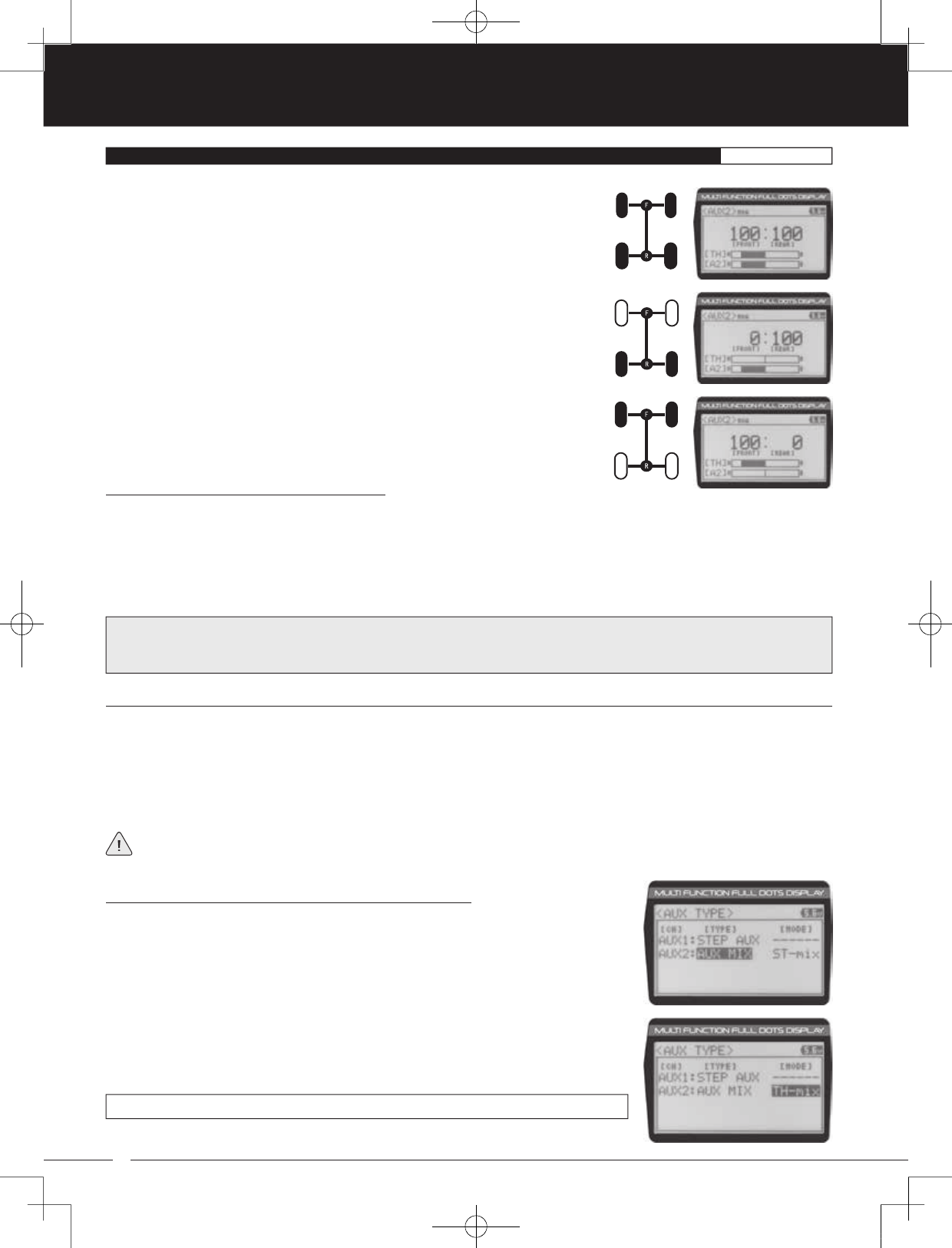

• Four Wheel Steering Mixing
• Dual Throttle Mixing w/Dig & Burn
• Normal, SSR and SHR Servo Modes
• Center or Parallel Trim Types
• CODE Auxiliary
• Step Auxiliary

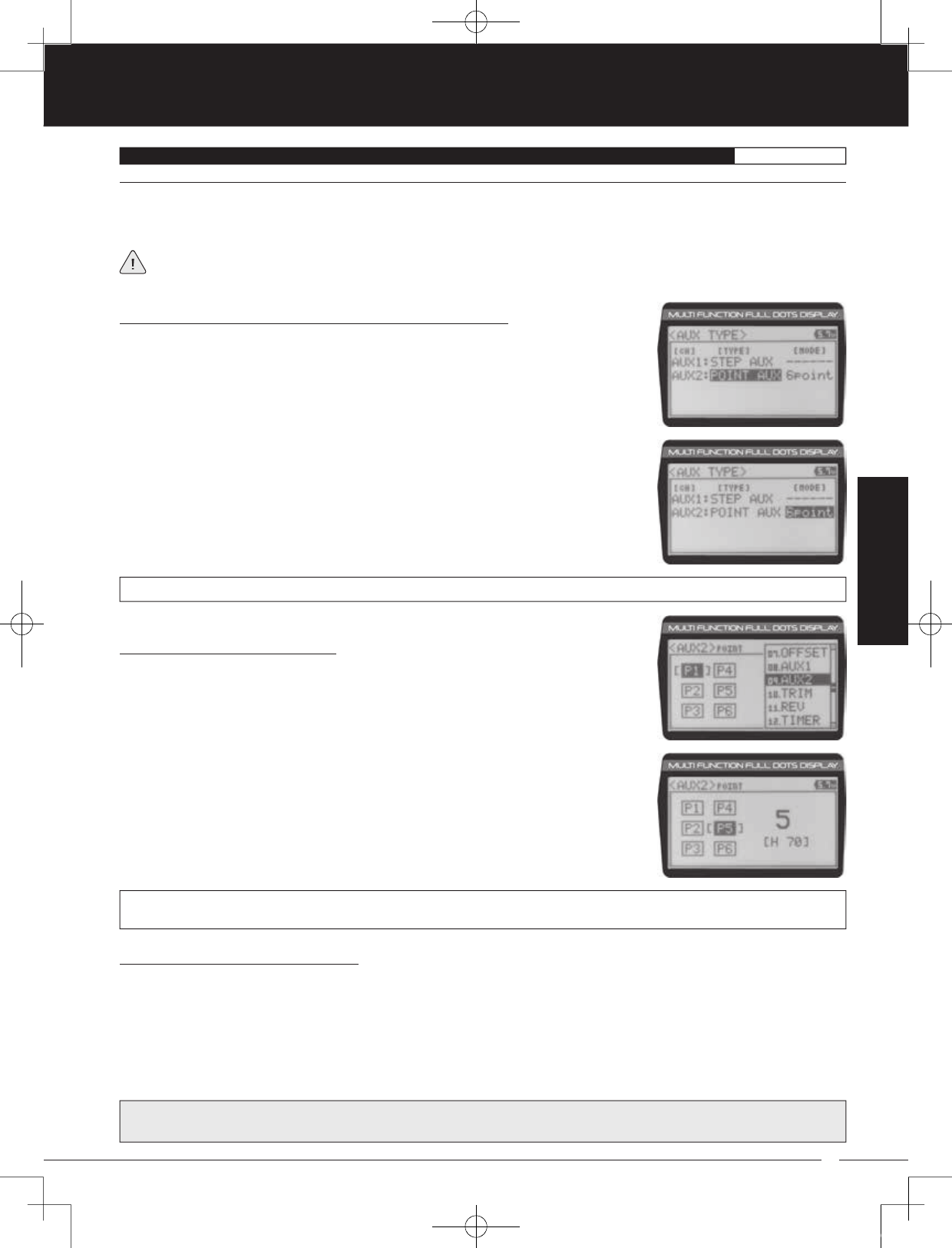

• Point Auxiliary
• Auxiliary Mixing
• Programmable Fail Safe
• Receiver Battery Voltage Fail Safe
• Digital Trims
• Servo Sub-Trim
• Adjustable Throttle Trigger
• Programmable Switches, Lever and Dial
SYSTEM FEATURES GENERAL
SYSTEM SPECIFICATIONS GENERAL
Transmitter:
• Model: 90478
•Output Power: 2mW
• Nominal Input Voltage: 4.8v to 7.4v
• Operating Voltage Range: 4.0v to 9.6v
• Dry Weight: 13.68oz (388g)
• Frequency: 2.4GHz FHSS
• Modulation Type: FH3, FH4T,
FH3E, FH4TE(for EU only)
Receiver:
• Model: RX-472 Super Response w/SSL Support
• Nominal Input Voltage: 3.7v to 7.4v
• Weight: 0. 23oz (6.6gr)
• Dimensions: 1.18 x 0.91 x 0.55in (30.0 x 23.3 x 14.0mm)
• Frequency: 2.4GHz FH3/FH4T Selectable Via Transmitter
• Fail Safe Support: Yes (All Channels)
• Battery Voltage Fail Safe Limit: 3.5 to 5.0v (FH3) / 3.5 to 7.4v (FH4T)
• 4-Channel 2.4GHz FH4T Digital High-Response Telemetry System with Advanced Programming
• Backlit LCD Screen Allows You to Easily View Programming Options and Telemetry Data in All Types of Conditions
• High-Power FH4T Technology Provides the Best Reception and Connectivity, Giving Racers Added Assurance
• 4-Cell Dry Battery Holder for Lighter Weight - Also Accepts Optional NiCd/NiMH Batteries or 2S LiPo/LiFe Battery Packs
• Includes RX-472 2.4GHz FH4T Super Response Receiver w/Sanwa Synchronized Link Support
Transmitter Batteries:
• 4 'AA' Alkaline or NiCd/NiMH cells or 2S LiPo or 2S LiFe battery pack.
Receiver Batteries:
• 4 'AA' Alkaline or NiCd/NiMH cells, 4 to 6 cell NiCd/NiMH battery pack or 2S LiPo battery pack.
Servos and ESCs:
•We recommend using digital servos and ESCs that support a high frame rate whenever possible. Due to the extremely
high frame rate of the 90478 transmitter and RX-472 Super Response receiver, analog servos and many ESCs may not
be compatible when used in SHR or SSR servo operating mode. To prevent compatibility issues, use analog servos
only in NOR servo operating mode. If your ESC does not work in SHR servo operating mode, use NOR servo operating
mode. Any brand and type of digital servo can be used in NOR or SHR servo operating mode. Only Airtronics/Sanwa
SRG series digital servos are compatible for use with SSR servo operating mode.
ITEMS REQUIRED, BUT NOT INCLUDED GENERAL
GENERAL
• RX-461 FH4T Telemetry Receiver (P/N 92010)
• RX-462 FH4T Telemetry Receiver w/Main Battery Meter (P/N 92011)
• Super Vortex ZERO Competition ESC (P/N 96338)
• SGS-01C Competition Gyro System (P/N 98015)
OPTIONAL ITEMS GENERAL
• Telemetry Temperature Sensor (P/N 99151)
• Telemetry RPM Sensor (P/N 99152)
• Dual Charger 4 to 6 Cell NiCd/NiMH (P/N 95034)
• Wrist Strap (P/N 479104)
MT-4S User's Guide.indd 5 2015/10/27 14:38:39
6
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
Use the diagrams in this section to familiarize yourself with the layout of your transmitter. Descriptions of these features can be
found in the Transmitter and Receiver Overview Diagram Descriptions section on pages 8 and 9.
The transmitter antenna is mounted internally and is located in the vertical back portion of the carrying handle. Do NOT
cover the carrying handle in any way during use! Doing so can block the RF signal, resulting in loss of control of your
model. During use, hold the transmitter so that its orientated as close to vertical as possible at all times. This provides the best
RF signal between the transmitter and the receiver. Try not to ever 'follow' your model with the transmitter, as this can result in
a weakened RF signal.
TRANSMITTER OVERVIEW DIAGRAMS GENERAL
MT-4S User's Guide.indd 6 2015/10/27 14:38:39
8
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
Antenna: Transmits the signal from the transmitter to the receiver in the model. Never touch the Antenna during use. Doing so
may result in a weakened RF signal or complete loss of control of your model.
Antenna Reception Wire: The portion of the receiver antenna that receives the transmitter signal. The Antenna Reception Wire
should never be bent or it could be damaged and limit the range of your model.
RECEIVER OVERVIEW DIAGRAMS GENERAL
Use the diagrams in this section to make receiver connections and to familiarize yourself with the RX-472 4-Channel 2.4GHz
FH4T Super Response receiver included with the 90478 transmitter. Descriptions of the features can be found in the
Transmitter and Receiver Features Descriptions section below and on the next page.
If using the Airtronics Super Vortex ZERO or other SSL compatible ESC, plug the ESC into the BATT/SSL port, otherwise
SSL features and Telemetry Data will not be available. All other ESC's should be plugged into the Throttle Channel 2 port.
The receiver's Nominal Input Voltage is 3.7 to 7.4 volts. A 2 cell LiPo or LiFe battery pack can be used to power the receiver
without the use of a voltage regulator. In addition, this allows you to take advantage of the Higher torque and speed
provided by using 7.4 volt digital servos.
Use a 2 cell LiPo or LiFe battery pack ONLY if your servos are rated to handle the Higher voltage.
• We suggest binding the transmitter and receiver and making all receiver connections to check for correct
operation prior to mounting the receiver in your model.
• The receiver should be mounted as far away from any electrical components as possible. When routing
the antenna, avoid contact with any carbon or metal chassis components. Contact between metal or
carbon parts can result in electrical noise, which can adversely effect receiver performance and possibly
result in runaway operation and result in damage to your model.
• Route the receiver antenna up through a plastic tube so that it is in the vertical position. Do not bend the reception wire.
Reception performance decreases if the reception wire is bent. Do not pull on the antenna with force. Do not cut or extend
the antenna. The coaxial cable can be bent into gentle curves, however, do not bend the coaxial cable acutely, or repeatedly
bend it, or the antenna core can be damaged.
• To protect the receiver from vibration and other damage, we recommend wrapping the receiver in shock absorbing foam
or using double-sided foam tape when installing it in your model.
As a safety precaution, set your model on a stand so the wheels are off the ground before turning on your radio control
system or connecting your motor for the first time.
Antenna Tube
Coaxial Cable
Antenna
Reception Wire
Bind LED Condition Indicator:
The Bind LED on the receiver can be used to determine receiver condition at a glance. The Bind LED will alert you to various
receiver conditions, as shown in the table below.
Blue
Blue
Red & Blue
Red
Receiving RF Signal
Binding Operation
Receiver Battery Fail Safe Activates
No RF Signal After Receiver Battery Fail Safe Activates
LED COLOR RECEIVER STATUS
LED CONDITION
ON
Slow Flash/Fast Flash
Flash
ON
TRANSMITTER AND RECEIVER OVERVIEW DIAGRAM DESCRIPTIONS GENERAL
Receiver Connections and Mounting:
Bind Button
= Signal
= Positive
= Negative
Bind LED
Coaxial Cable
Antenna
Reception Wire
Steering
Channel 1
Throttle
Channel 2
Auxiliary 1
Channel 3
Auxiliary 2
Channel 4
'AA' Dry Cell Battery Holder,
4.8v to 7.4v NiCd/NiMH Battery Pack or
2S LiPo/LiFe Battery Pack
On/Off Switch
To Battery
To Motor
ESC
Throttle
Channel 2
Glow/Gas
Setup
ESC
Setup
Optional Airtronics Super Vortex
ZERO ESC w/SSL
On/Off Switch
MT-4S User's Guide.indd 8 2015/10/27 14:38:39
9
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
The receiver uses Airtronics 'Z' connectors, which are electronically compatible with the servos of other radio control system
manufacturers. The connectors are rugged, but should be handled with care.
When unplugging the servo connector, don't pull on the servo wire itself. This could result in damage to the servo wire
pins in the plastic plug. Always grasp the plastic connector itself.
– = Negative (Black)
+ = Positive (Red)
S = Signal (Blue)
If using another brand of servo, double-check the polarity
of the servo connector prior to plugging it into the receiver.
SERVO CONNECTORS GENERAL
GENERAL
Auxiliary Lever: The Auxiliary Lever is programmable and will perform a different function depending on what function is
assigned to it. For example, it can be used to control Auxiliary 1 Channel 3 or to control the Servo Speed function.
BACK/CANCEL Key: Pressing the BACK/CANCEL Key returns the Programming Cursor to the previous menu. Press and HOLD
the BACK/CANCEL Key to return to the Top Screen. Display functions are shown on the LCD screen.
Battery Compartment: Houses the four 'AA' Alkaline cells that power the transmitter. Alternatively, the transmitter can be
powered using four 'AA' NiCd or NiMH rechargeable batteries or a 2S LiPo or 2S LiFe battery pack.
Bind Button: Used in the process of binding the transmitter and receiver.
Bind LED: Displays the current status of the receiver.
Charging Jack: Used for onboard charging of optional NiCd or NiMH batteries. Only the recommended Airtronics 110v AC
charger (95034) should be used through the Charging Jack. If using an after-market Peak-Detection charger or other type of fast
charger, the batteries should be removed from the transmitter to avoid damage to the transmitter circuitry and/or your batteries.
Do not attempt to charge a LiPo or LiFe battery pack through the Charging Jack.
Coaxial Cable: The portion of the receiver antenna that extends the Antenna Reception Wire. The Coaxial Cable can be bent
into gentle curves, however, do not bend it acutely, or repeatedly bend it, or the antenna core can be damaged.
Dial Knob: The Dial Knob can rotate 360º and is programmable to perform a different function depending on what function is
assigned to it. For example, it can be used to increase and decrease Programming Values, control a Trim function or control
an Auxiliary Channel.
Grip: The Grip is molded from rubber in an ergonomic shape for increased comfort, control and feel. An optional larger Grip
is included that some users may find feels more comfortable.
LED 1/2: Displays the current signal output status of the transmitter (LED 1 - Blue) and the Telemetry connection (LED 2 - Red).
In addition, one or both LEDs are used to indicate various transmitter conditions.
LCD Screen: The heart of the programming and display features of the transmitter. All programming and transmitter display
functions are shown on the LCD Screen.
Power Switch: Turns the transmitter ON and OFF.
Push-Button Rotary Dial: The Push-Button Rotary Dial (also referred to as the Up Key, Down Key, or Enter key) is used along
with the BACK/CANCEL Key to facilitate transmitter programming. It allows you to quickly and easily navigate the various
Programming Menus and switch between the Top Screen and the Telemetry Screen.
Push-Button Switch: The transmitter features two separate Push-Button Switches in different locations (Sw1 and Sw2). Each
Push-Button Switch is programmable and will perform a different function depending on what function is assigned to it.
Steering Wheel: Proportionally operates the model's right and left steering control. The Steering Wheel features a foam grip for
increased comfort, control and feel. In addition, the Steering Wheel spring tension and travel limits can be adjusted.

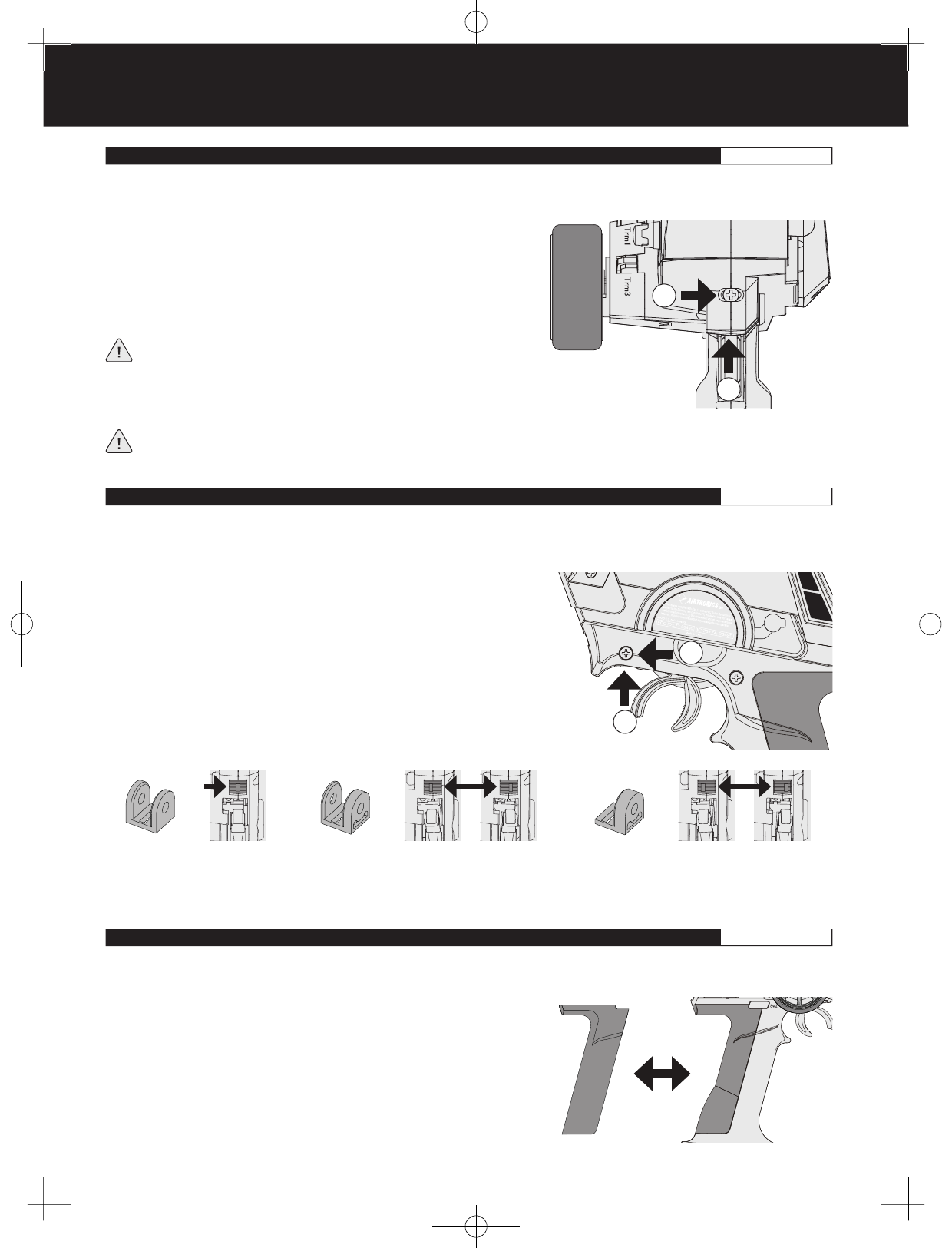

Steering Wheel Tension Adjustment Screw: Used to adjust the spring tension of the steering wheel to best suit the feel of
the user.
Throttle Trigger: Controls the speed of the model, both forward and backward, or the model's brake. The Throttle Trigger position,
angle and spring tension can all be adjusted.
Throttle Trigger Position Adjustment Indicator: Indicates the current position of the Throttle Trigger. As the throttle trigger
position is adjusted forward or backward, the Throttle Trigger Position Adjustment Indicator will move forward or backward.
Throttle Trigger Tension Adjustment Screw: Used to adjust the spring tension of the throttle trigger to best suit the feel of
the user.
Throttle Trigger Position Adjustment Screw: Used to adjust the position of the Throttle Trigger either forward or backward.
Trim Switch: The transmitter features four separate Trim Switches positioned around the steering wheel (Trm1, Trm2, Trm3
and Trm4). Each Trim Switch is programmable and will perform a different function depending on what function is assigned
to it. For example, Trm1 and Trm2 can be used to adjust steering and throttle Trim and Trm4 and Trm5 can be used to adjust
Dual Rate and steering EPA.
Wrist Strap Anchor Slot: Used to attach the wrist strap anchor to the transmitter.
TRANSMITTER AND RECEIVER OVERVIEW DIAGRAM DESCRIPTIONS, CONTINUED.... GENERAL
MT-4S User's Guide.indd 9 2015/10/27 14:38:40
10
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
Low Voltage Alert Alarm:
The Low Voltage Alert alarm will sound when the transmitter batteries reach the Alert Voltage
value programmed in the SYSTEM - ALARM menu. The alarm will sound each time the transmitter
battery voltage decreases by 0.1 volt. To clear this alarm, press the BACK/CANCEL key or the
Push-Button Rotary Dial. For more information, see the Voltage Alarm section on pages 61 and 62.
Temperature Alert Alarm:
The Temperature Alert alarm will sound when the TEMP1 and/or TEMP2 temperature reaches the
Alert Temperature value programmed in the SYSTEM - TELEMETRY menu. To clear this alarm,
press the BACK/CANCEL key or the Push-Button Rotary Dial. For more information, see the
Changing the Alert Temperature Value section on pages 64 and 65.
Voltage Alert Alarm:
The Voltage Alert alarm will sound when the receiver battery in your model reaches the Alert
Voltage value you've programmed in the SYSTEM - TELEMETRY menu. To clear this alarm, press
the BACK/CANCEL key or the Push-Button Rotary Dial. For more information, see the Changing
the Alert Voltage Value section on page 66.
Inactivity (Power ON) Alarm:
The Inactivity Alarm will sound if the transmitter is left on for a period of 10 minutes without any
control input from the user. This alarm alerts you to prevent unwanted draining of the transmitter
battery. To clear this alarm, either turn the transmitter OFF or press the BACK/CANCEL key or
the Push-Button Rotary Dial.
Low Voltage Limit Alarm:
The Low Voltage Limit alarm will sound when the transmitter batteries reach the Limit Voltage
value programmed in the SYSTEM - ALARM menu. This alarm can only be cleared by turning the
transmitter OFF and recharging or replacing the transmitter batteries. For more information, see
the Voltage Alarm section on pages 61 and 62.
LED 1 (Blue) and LED 2 (Red) can be used to determine various transmitter conditions at a glance. The LEDs will alert you to
various warnings and other transmitter conditions, as shown in the table below.
Over Voltage Alarm:
The Over Voltage Alarm will sound if the transmitter battery voltage is greater than 9.6 volts. To clear
this alarm, turn the transmitter OFF and replace the transmitter battery with one that when fully
charged does not exceed 9.6 volts.
TRANSMITTER SAFETY ALARMS AND LED CONDITION INDICATORS GENERAL
RF Output Signal OK
Throttle Offset Value ON with Positive or Negative Value
Telemetry Logger Function Operating
Anti-Lock Braking Function Operating
No Transmitter/Receiver Telemetry Connection
Telemetry Alarm Started
Low Voltage Alert Alarm Started
Bind Command Transmitted
Inactivity (Power ON) Alarm Started
Low Voltage Limit Alarm Started
Over Voltage Alarm Started
ON
Flash
Slow Flash
Fast Flash
ON
Flash
Flash
Flash Alternately
Flash
Fast Flash Alternately
Fast Flash Alternately
LED COLOR LED CONDITION
Blue
Blue
Blue
Blue
Red
Red
Red
Blue and Red
Blue and Red
Blue and Red
Blue and Red
LED CONDITION DESCRIPTION
The 90478 transmitter is equipped with several different safety alarms to warn you of an abnormal transmitter condition.
In addition, LED 1 and LED 2 can also be used to indicate various transmitter conditions.
Audible Warning Alarms
LED Condition Indicators
The audible alarms listed below may also be accompanied by an on-screen warning.
MT-4S User's Guide.indd 10 2015/10/27 14:38:40
11
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
GENERAL
TRANSMITTER BATTERY OPTIONS GENERAL
The 90478 transmitter's Operating Voltage Range is 4.0 to 9.6 volts. This allows you to use several different battery options
(not included), depending on your preference.
Alkaline - In the default configuration, the transmitter is designed to be powered using four 'AA' Alkaline batteries. This results
in a transmitter that is lightweight and well-balanced for unmatched comfort.
NiCd/NiMH - Rechargeable NiCd or NiMH batteries of desired capacity can be used in place of the Alkaline batteries. Using
rechargeable NiCd or NiMH batteries is more convenient and cheaper in the long run. The Higher capacity batteries will also
provide longer usage time than most Alkaline batteries.
LiPo or LiFe - A 2 cell LiPo or LiFe battery pack can be used to power the transmitter. These battery packs are popular due to
their light weight and high capacity for long usage time between charges.
Transmitter power output, range and speed are the same, regardless of the battery type used. If using a LiPo or LiFe
battery pack, please read the Warnings if Using a LiPo or LiFe Battery Pack section below.
ALKALINE BATTERY INSTALLATION GENERAL
3) Slide the battery cover back onto the transmitter and push it firmly until it 'clicks' closed.
When installing the batteries, remove the battery holder and double-check that the battery holder is plugged in. If it isn't,
plug the connector on the battery holder into the matching connector in the transmitter.
1) Remove the battery cover from the bottom of the transmitter by pushing firmly on the battery cover in the direction of the arrow.
2) Install four fresh 'AA' Alkaline batteries into the
battery holder, making sure that the polarity is
correct. The direction that each battery should be
installed is molded into the bottom of the battery
holder (+ Positive and - Negative).
The 90478 transmitter features a Charging Jack that can be used with the Airtronics 95034 Dual Output charger (available
separately) to charge the optional NiCd or NiMH batteries. This allows you to charge these batteries without removing them
from the transmitter. A Charging Jack is located on the Left side of the transmitter. For more information, see the Transmitter
Overview Diagrams section on pages 6 and 7.
WARNING: Do NOT attempt to recharge Alkaline batteries. Only NiCd or NiMH batteries should be charged through the
transmitter's Charging Jack, using only the Airtronics 95034 Dual Output charger or equivalent overnight/slow charger. Do
NOT attempt to charge a LiPo or LiFe battery pack through the Charging Jack.
Do NOT use the Charging Jack with a fast charger or a peak-detection charger, or the transmitter could be damaged!
If you use a fast charger or a peak-detection charger to charge the transmitter batteries, the battery holder must be removed
from the transmitter first. The circuitry within the transmitter will interfere with the peak-detection charger's normal operation,
resulting in over-charging and damaging the batteries and possibly the transmitter itself. In addition, the higher charge
rate common in many fast chargers can damage the transmitter's circuitry.
Damage caused by fast-charging through the transmitter or using an incorrect battery type will not be covered under
warranty!
TRANSMITTER BATTERY CHARGING OPTIONS GENERAL
• Use ONLY a 2 Cell LiPo or LiFe battery pack of desired capacity.
•Do NOT charge your LiPo or LiFe battery pack through the Charging Jack. The battery pack MUST be removed from the
transmitter prior to charging or the transmitter could be damaged. For more information, see the WARNING in the Transmitter
Battery Charging Options section above.
• Use a balance charger specifically designed to charge LiPo or LiFe battery packs.
• When changing the connector on your battery pack to match the battery connector in the transmitter,
please observe correct polarity. Connecting with reverse polarity will damage the transmitter.
• Observe all safety precautions provided with your LiPo or LiFe battery pack.
• Damage to the transmitter caused by improper use, wrong battery type, incorrect voltage, reverse polarity or charging
through the Charging Jack will not be covered under warranty!
The transmitter has a Nominal Input Voltage range of 4.8 to 7.4 volts. DO NOT USE A 3 CELL LiPo or LiFe battery pack or
the transmitter will be damaged! Use a 2 Cell LiPo or LiFe battery pack only!
- = Negative (Black)
+ = Positive (Red)
WARNINGS IF USING A LIPO OR LIFE BATTERY PACK GENERAL
MT-4S User's Guide.indd 11 2015/10/27 14:38:43
12
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
Moving the throttle trigger position does not affect the physical movement of the throttle trigger. Do not attempt to adjust
the throttle trigger position beyond the limits indicated by the Throttle Trigger Position Adjustment Indicator or damage
to the transmitter may result.
The position of the throttle trigger can be adjusted forward or backward to change the feel of the throttle trigger during use.
Some users may prefer the throttle trigger positioned farther forward and some users my prefer the throttle trigger positioned
farther back. It all depends on your personal preference.
A
B
To adjust the throttle trigger position, follow the step below:
1) To move the throttle trigger backward, use a # 1 philips head screwdriver
to turn the Throttle Trigger Position Adjustment Screw (A) counter-
clockwise. To move the throttle trigger forward, turn the Throttle Trigger
Position Adjustment Screw clockwise.
As you adjust the throttle trigger position, the Throttle Trigger Position
Adjustment Indicator (B) will move, indicating the current position of
the throttle trigger.
The angle of the throttle trigger can be adjusted right or left to change the feel of the throttle trigger during use. Some users may
prefer the throttle trigger straight while some users my prefer the throttle trigger angled toward the right or left. It all depends on
your personal preference. Throttle trigger adjustment plates are included to fine-tune the angle.
A
B
To adjust the throttle trigger angle, follow the steps below:
1) Use a # 1 philips head screwdriver to remove the throttle trigger mounting
screw (A) from the left side of the transmitter.
2) Use the tip of a modeling knife to carefully pop the trigger adjustment
plate (B) out of the transmitter.
3) Carefully press the desired trigger adjustment plate into the transmitter, making sure to orientate it in the direction you want
to angle the throttle trigger, then reinstall and tighten the throttle trigger mounting screw.
Included is an optional molded rubber grip that is shaped differently from the stock grip that's preinstalled on the transmitter.
The optional grip is larger and straight near the bottom, which some users may find more comfortable.
To install the optional grip, follow the steps below:
1) Remove the original grip from the handle by firmly pulling down on the
back of the grip (at the top), then by pulling the grip out along its front
edges.
2) To install the new grip, align the molded tabs in the grip with the matching
slots in the handle, then firmly push the molded tabs into the slots,
working your way around the grip until the edges of the grip are flush with
the handle.
A - Throttle Trigger Centered
(Stock)
B - Throttle Trigger Angled Slightly.
Angle Right or Left Depending on Orientation.
C - Throttle Trigger Angled More.
Angle Right or Left Depending on Orientation.
THROTTLE TRIGGER POSITION ADJUSTMENT GENERAL
THROTTLE TRIGGER ANGLE ADJUSTMENT GENERAL
OPTIONAL GRIP INSTALLATION GENERAL
MT-4S User's Guide.indd 12 2015/10/27 14:38:47
13
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE

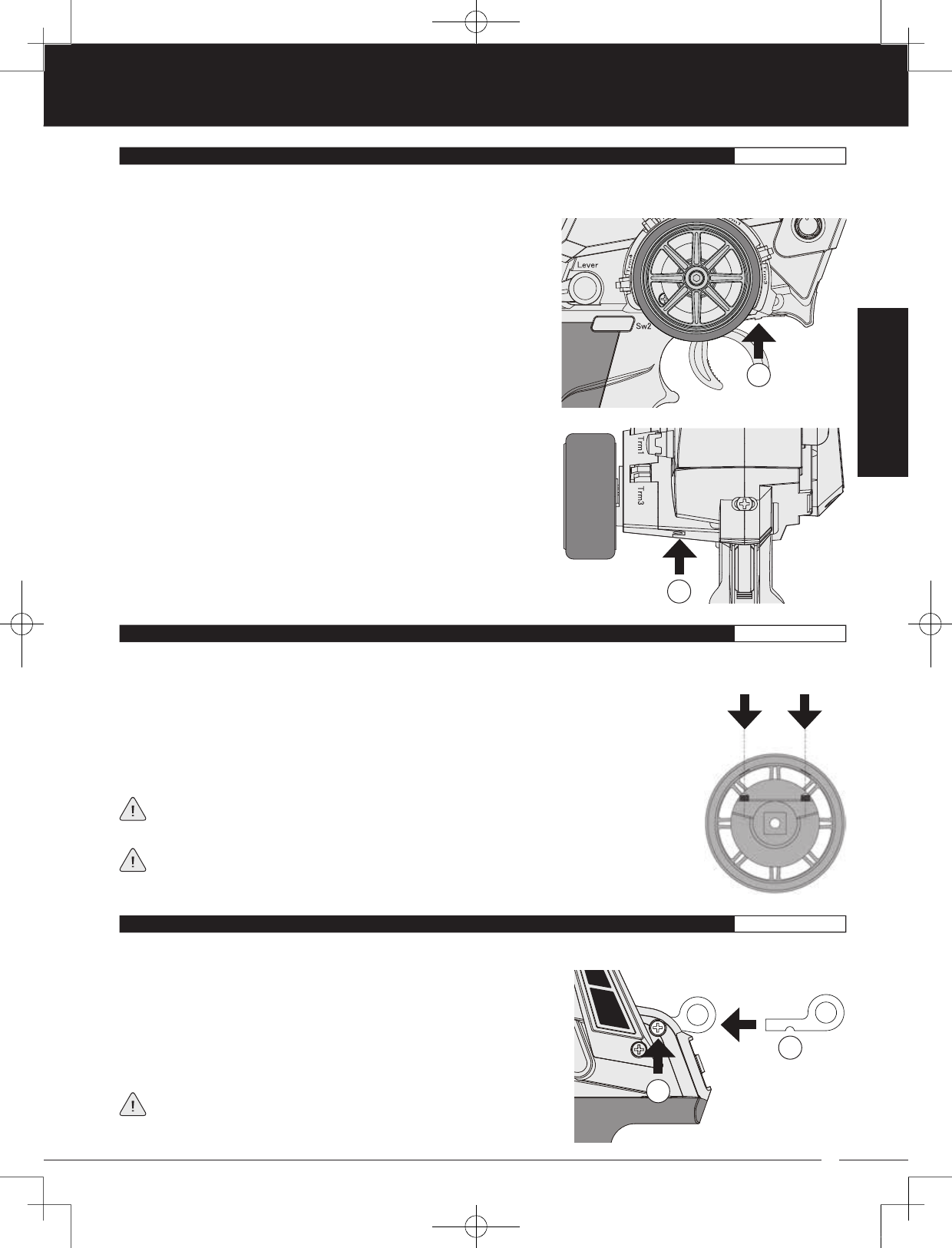

The maximum right and left travel of the steering wheel can be adjusted to best suit the feel of the steering wheel and your driving
style. Some drivers prefer to limit the travel of the steering wheel as it makes them feel more 'connected' to their model.
To adjust the maximum travel of the steering wheel, follow the steps below:
1) Remove the foam steering wheel grip from the steering wheel by firmly pulling it straight off.
2) To limit the maximum travel of the steering wheel, use a 1.5mm hex wrench to turn both grub
screws (A) clockwise equally the desired amount. To maximize the travel of the steering wheel,
turn both grub screws counter-clockwise equally the desired amount.
After making steering wheel travel adjustments, you must use the Variable Rate Adjustment
function to ensure your steering servo travel limits are equal. For more information, see the
Variable Rate Adjustment section on pages 68 and 69.
Limiting the maximum travel of the steering wheel will increase the sensitivity of the steering.
We recommend setting negative Exponential to soften the control feel around Neutral. For
more information, see the Exponential and ARC section on pages 21 through 23.
To adjust the steering wheel spring tension, follow the step below:
1) To increase the spring tension of the steering wheel (firmer), use a
1.5mm hex wrench to turn the Steering Wheel Tension Adjustment
Screw (A) clockwise. To decrease the spring tension of the steering
wheel (looser), turn the Steering Wheel Tension Adjustment Screw
counter-clockwise.
A
The spring tension of the throttle trigger and steering wheel can be adjusted to best suit the user. Some users may prefer the
throttle trigger and/or steering wheel to feel 'firmer' and some users may prefer them to feel 'softer'. It all depends on your
personal preference.
A
To adjust the throttle trigger spring tension, follow the step below:
1) To increase the spring tension of the throttle trigger (firmer), use a
1.5mm hex wrench to turn the Throttle Trigger Tension Adjustment
Screw (A) clockwise. To decrease the spring tension of the throttle
trigger (looser), turn the Throttle Trigger Tension Adjustment Screw
counter-clockwise.
A wrist strap anchor is included that can be installed onto the transmitter to facilitate the use of a wrist strap (not included).
A
B
To install the wrist strap anchor, follow the steps below:
1) Remove the self-tapping screw (A) from the transmitter, using a # 1 philips
head screwdriver.
2) Slide the wrist strap anchor into the mounting slot in the back of the
transmitter, then reinstall and tighten the self-tapping screw.
When installing the wrist strap anchor, note its orientation. The U-Shaped
groove in the base of the wrist strap anchor should be pointing down.
THROTTLE TRIGGER AND STEERING WHEEL SPRING TENSION ADJUSTMENT GENERAL
STEERING WHEEL TRAVEL ADJUSTMENT GENERAL
WRIST STRAP ANCHOR INSTALLATION GENERAL
GENERAL
MT-4S User's Guide.indd 13 2015/10/27 14:38:48
14
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
Model Number and Name
Timer Display
Digital Voltage Indicator
Steering Trim Display
Throttle Trim Display
Servo Monitor Display
Telemetry Signal Indicator
Throttle Mode Indicator
Throttle Offset Indicator
Auxiliary Lever Position Display
Timer Type Indicator
Steering Program Indicator
Throttle Program Indicator
Modulation Type Indicator
TOP Screen:
The Top Screen is displayed when you turn the transmitter ON. The Top Screen displays all pertinent information, such as the
Model Name, Modulation Type, Timer, Servo Monitor and much more.
TELEMETRY Screen:
The Telemetry Screen displays all pertinent telemetry information, such as RPM, Temperature and Receiver Voltage. To display
the Telemetry Screen, from the Top Screen scroll DOWN using the Push-Button Rotary Dial.
Auxiliary Lever Position Display: Displays the current position of the Auxiliary Lever.
Digital RPM Display: Displays the current RPM from the RPM Sensor in digital format.
Digital Temperature Display: Displays the current temperature from the TEMP1 and TEMP2 Temperature Sensors in digital
format.
Digital Voltage Indicator: Indicates the current Voltage of the transmitter batteries.
High RPM Display: Displays the last highest RPM value. This value can be Reset. For more information, see the Telemetry Clear
Function section on page 68.
High Temperature Display: Displays the last highest Temperature value. These values can be Reset. For more information, see
the Telemetry Clear Function section on page 68.
Modulation Type Indicator: Indicates the current Modulation Type that the transmitter is set to.
Model Number and Name: Displays the Model Number and Model Name of the currently selected model.
Model Number and Name Digital Voltage Indicator
Receiver Voltage Display
Digital Temperature Display
RPM Display Monitor
Digital RPM Display
High RPM Display
Telemetry Signal Indicator
High Temperature Display
Voltage Alert Indicator
Temperature Display Monitor
Voltage Display Monitor
TOP SCREEN AND TELEMETRY SCREEN OVERVIEW GENERAL
Use the information in this section to familiarize yourself with the layout and different indicators and displays that comprise the
Top Screen and Telemetry Screen.
The Top Screen will always be displayed when you turn the transmitter ON, regardless of which screen was last displayed.
Full telemetry support requires the use of an Airtronics 2.4GHz FH4T telemetry-capable surface receiver, such as the
RX-461 or RX-462, along with Airtronics Temperature and RPM Sensors (available separately). The included RX-472
receiver can send Telemetry Data for the voltage of the receiver battery pack only, unless used with the Airtronics Super Vortex
ZERO ESC (available separately), plugged into the BATT/SSL port of the included RX-472 receiver.
MT-4S User's Guide.indd 14 2015/10/27 14:38:48
15
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE

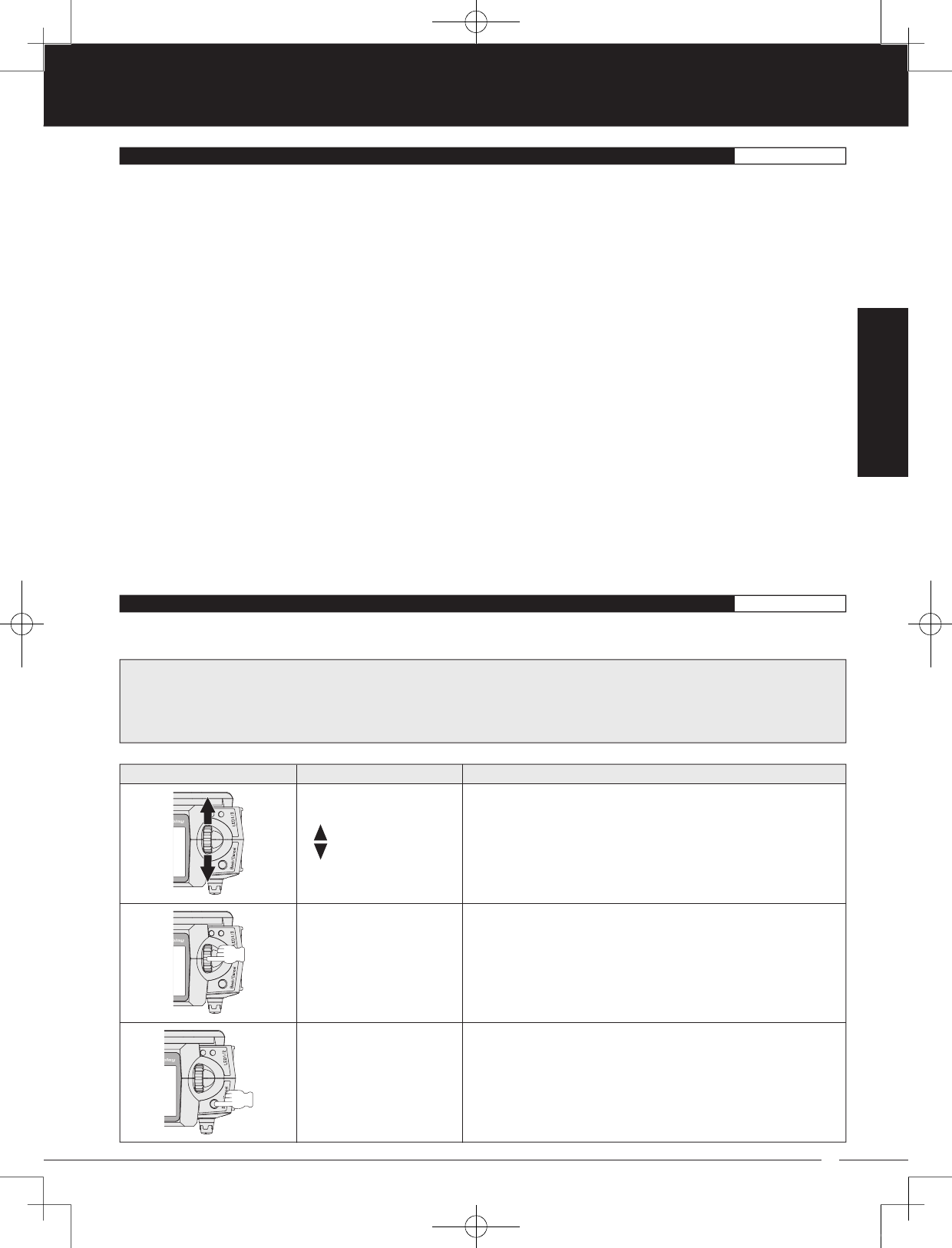

The 90478 transmitter features a Push-Button Rotary Dial and a BACK/CANCEL key that are used to facilitate transmitter
pro-gramming. This section summarizes the functions of the Push-Button Rotary Dial and the BACK/CANCEL key.
Receiver Voltage Display: Displays the current voltage of the receiver battery.
RPM Display Monitor: Displays the current RPM from the RPM Sensor in graphical format.
Servo Monitor Display: Displays the output levels of the four different channels in bar graph form, allowing you to monitor servo
operation in a virtual manner.
Steering Program Indicator: Indicates up to four different programming options that are currently programmed to the Steering
channel. The Steering Program Indicator will only be displayed if a Steering channel Programming Value is programmed.
Steering Trim Display: Displays the current position of the Steering Trim Switch.
Telemetry Signal Indicator: Indicates the current signal strength of the Telemetry connection between the transmitter and
receiver. The Telemetry Signal Indicator will only be displayed when the receiver is turned ON and there is a Telemetry
connection Active.
Temperature Display Monitor: Displays the current TEMP1 and TEMP2 temperatures in bar graph format.
Throttle Mode Indicator: Indicates the current Throttle Mode type.
Throttle Offset Indicator: Indicates that the Throttle Offset function is programmed. The Throttle Offset Indicator will only be
displayed if a Throttle Offset percentage value is programmed.
Throttle Program Indicator: Indicates up to four different programming options that are currently programmed to the Throttle
channel. The Throttle Program Indicator will only be displayed if a Throttle channel Programming Value is programmed.
Throttle Trim Display: Displays the current position of the Throttle Trim Switch.
Timer Display: Displays the time of the currently selected Timer.
Timer Type Indicator: Indicates the current Timer Type selected, either LAP or INT (Interval).
Voltage Alert Indicator: Indicates the currently programmed Voltage value that the receiver Voltage Alert alarm will sound at.
Voltage Display Monitor: Displays the current receiver battery voltage in bar graph format.
PRO TIP: While navigating Programming Menus and changing Programming Values, keep the following in mind: to choose
an option to program, scroll UP or DOWN to highlight the desired option. Press the ENTER key and the highlighted option will
flash, indicating the Programming Value can be changed. Once you've changed the Programming Value, press the ENTER
key again or press the BACK/CANCEL key and the highlighted option will stop flashing, indicating you can scroll UP or DOWN
to highlight another programming option.
Scrolls between TOP and TELEMETRY screens. Scrolls the
Programming Cursor RIGHT or UP and LEFT or DOWN. Increases
or Decreases Programming Values.
PROGRAMMING KEY NAME FUNCTION
Push-Button Rotary Dial
(Push ENTER)
Opens the selected menu or programming option. Press and
HOLD to reset the Selected programming option to its default
value.
BACK/CANCEL Key Returns to the previous menu. Press and HOLD to return to the
Top Screen.
Push-Button
Rotary Dial
(Scroll UP/DOWN)
PROGRAMMING KEYS OVERVIEW AND FUNCTIONS GENERAL
GENERAL
TOP SCREEN AND TELEMETRY SCREEN OVERVIEW, CONTINUED.... GENERAL
MT-4S User's Guide.indd 15 2015/10/27 14:38:49
16
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
The Binding function allows you to Bind the transmitter and receiver pair. When new, it is necessary to pair the transmitter and
receiver to prevent interference from transmitters operated by other users. This operation is referred to as Binding. Once the
Binding process is complete, the setting is remembered even when the transmitter and receiver are turned OFF. Therefore, this
procedure usually only needs to be done once.
Under some circumstances, the receiver may not operate after turning the transmitter and receiver ON. If this occurs,
perform the Binding process again.
Before beginning the Binding process, connect your servos and receiver battery pack to the receiver. For more information,
see the Receiver Connections and Mounting section on page 8. The transmitter and the receiver should be turned OFF.
4) While holding down the Bind Button on the receiver,
turn the receiver ON. The Bind LED on the receiver will
flash slowly. After approximately 2 seconds, release the
Bind Button. The Bind LED on the receiver will continue to
flash slowly.
Transmitter and Receiver Binding:
1) Turn the transmitter ON. The Top Screen will be displayed. Press the ENTER key (Push-Button Rotary Dial) to open the
Programming Menu list, then scroll UP or DOWN to highlight the SYSTEM menu.
5) Press the ENTER key. The [ENTER] command will begin to flash and the Bind LED on
the receiver will flash rapidly, then go out.
6) After the Bind LED on the receiver goes out, press the ENTER key a second time. The Bind LED on the receiver will illuminate
solid blue and LED 2 on the transmitter will go out, indicating that the Binding procedure is complete and a Telemetry
connection has been made.
Verify that the Modulation is set to [RF MODE]:FH4T is displayed an that the Servo Operating Mode for each channel is set
to NOR. If it isn't, change the Modulation Type to FH4T. If you need to change any of these settings, see the BIND Menu
section on pages 52 and 53.
3) Scroll UP or DOWN to highlight the [ENTER] command. Do not press the ENTER key yet.
7) Move the steering wheel and throttle trigger to verify that the servos are operating normally, then press and HOLD the
BACK/CANCEL key to return to the Top Screen.
When the Binding procedure is successful, the Bind LED on the receiver and LED 1 on the transmitter will illuminate solid
blue. If the Bind LED on the receiver is flashing rapidly or is not illuminated at all, the transmitter and receiver are not
paired. In this case, turn both the transmitter and receiver OFF, then repeat the Binding procedure again.
BINDING THE TRANSMITTER AND RECEIVER GENERAL
IMPORTANT: This section details Binding the RX-472 4-Channel 2.4GHz FH4T Super Response receiver with the Servo
Operating Mode set to Normal mode. If you are Binding an FH2 or FH3 receiver, or if you prefer to change the Servo Operating
Mode, see the BIND Menu section on pages 52 and 53.
2) Press the ENTER key to open the SYSTEM menu, then scroll DOWN to highlight the
BIND menu. Press the ENTER key to open the BIND menu.
You must complete step 5 below within 10 seconds or the Bind LED will go out, indicating the receiver has timed out. If
this occurs, turn the receiver OFF, then repeat step 4.
MT-4S User's Guide.indd 16 2015/10/27 14:38:50
17
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
PG. 17
PG. 18
PG. 19
PG. 21
PG. 23
PG. 24
PG. 26
PG. 27
PG. 34
PG. 41
PG. 42
PG. 43
PG. 46
PG. 46
PG. 47
PG. 49

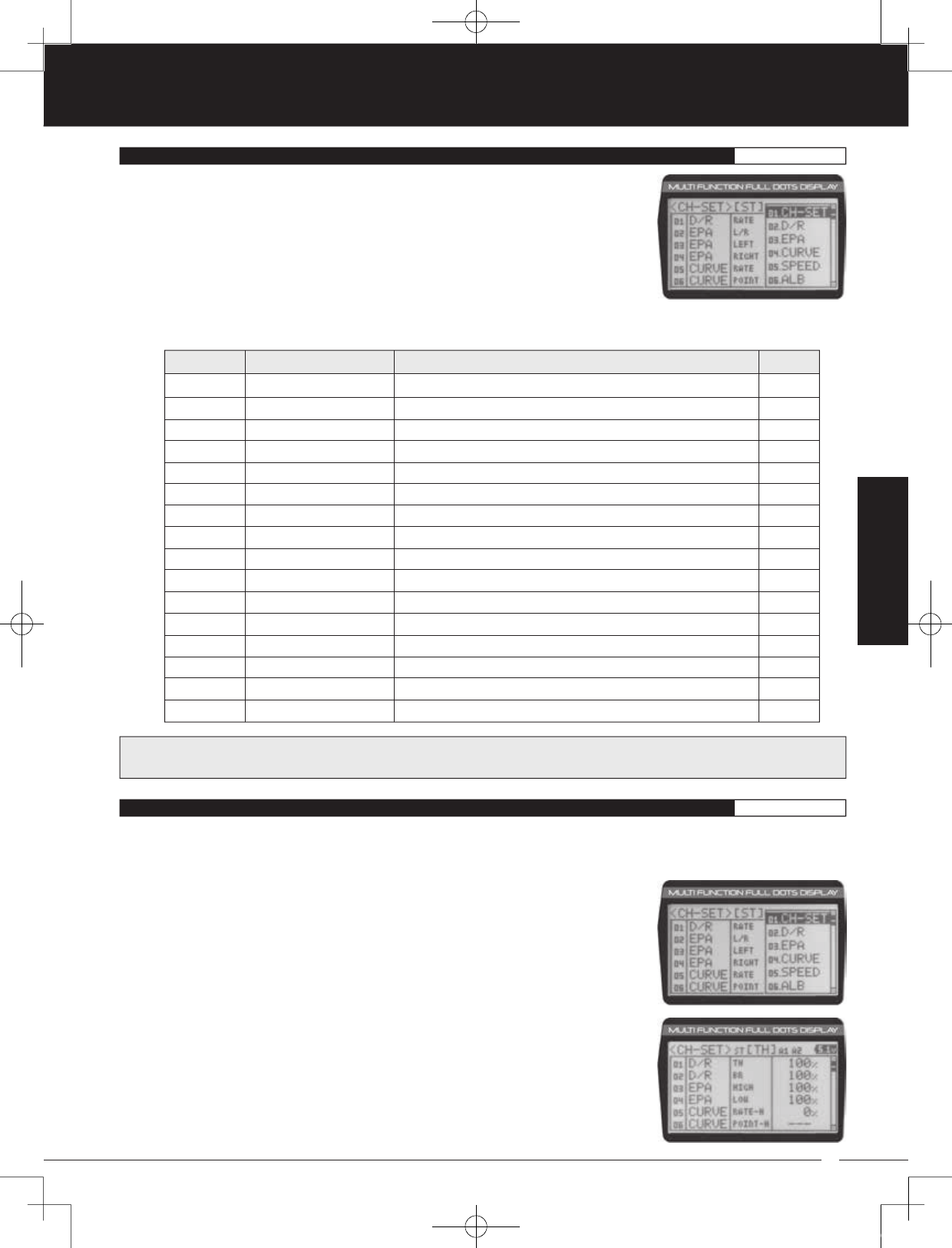

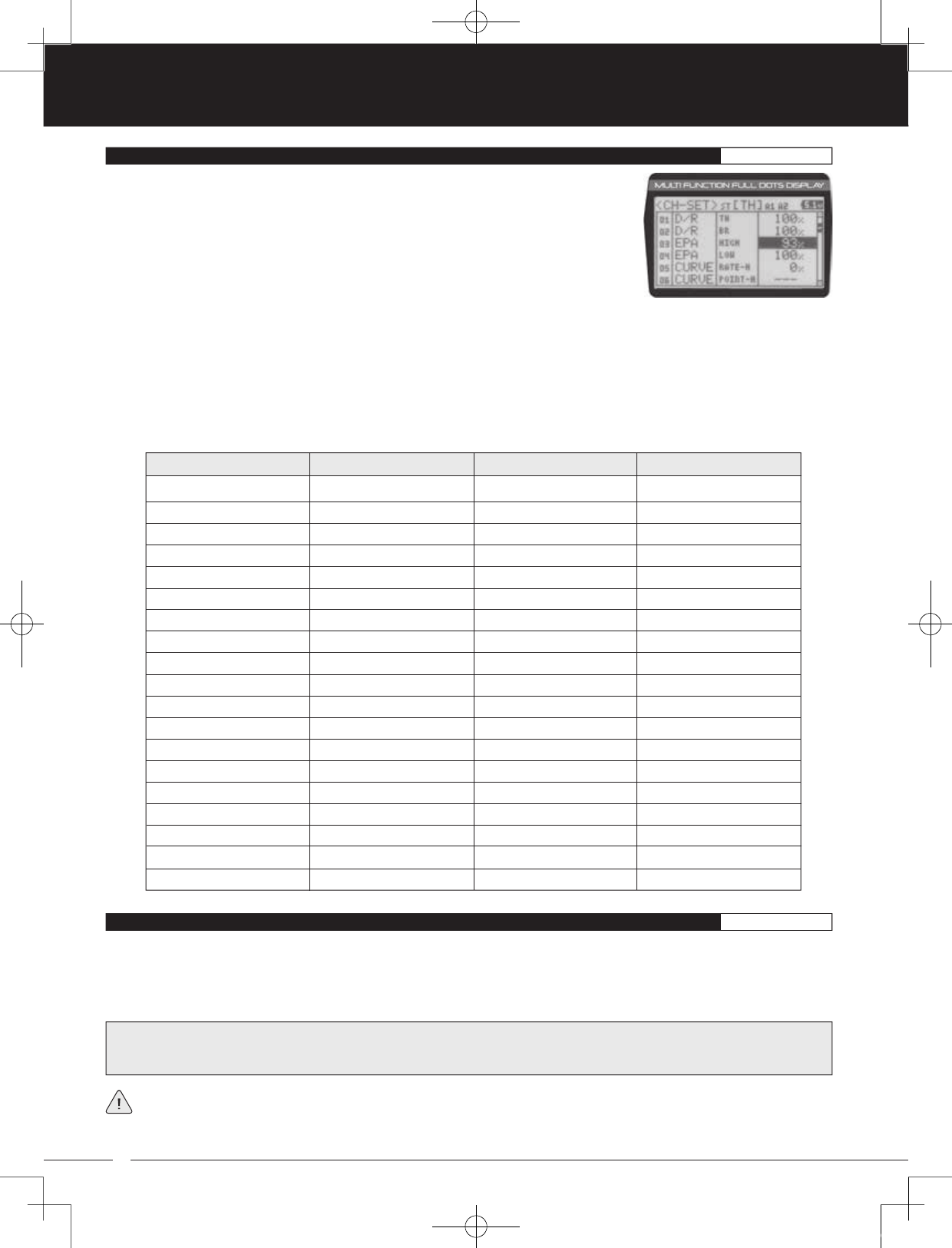

The Channel Set function allows you to make programming changes to each of the four channels without the need to enter
each Programming Menu separately. It encompasses the most common programming options in one convenient location. For
example, you can make all of your desired programming changes, such as End Point Adjustment, Exponential, Servo Speed,
Fail Safe settings, etc., for each channel, all from within the same menu.
PROGRAMMING MENUS OVERVIEW
The Programming Menus allow you to program the various functions of the 90478
trans-mitter, in addition to being able to access the System Menu.
1) To access the various Programming Menus, turn the transmitter ON, then press the
ENTER key (Push-Button Rotary Dial). A list of Programming Menus will be displayed
along the right side of the screen and the last Programming Menu when the transmitter
was turned OFF will be highlighted. The currently highlighted Programming Menu will
be displayed in the background.
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the CH-SET menu, then press the ENTER key. The CH-SET
menu will be displayed and the cursor will default to [ST].
01.CH-SET
02.D/R
03.EPA
04.CURVE
05.SPEED
06.ALB
07.OFFSET
08.AUX1
09.AUX2
10.TRIM
11.REV
12.TIMER
13.LAP
14.F/S
15.LOGGER
16.SYSTEM
Channel Set
Dual Rate
End Point Adjustment
Curve
Servo Speed
Anti-Lock Braking
Throttle Offset
Auxiliary 1
Auxiliary 2
Servo Trim
Servo Reversing
Lap and Interval Timers
Lap Times
Fail Safe
Telemetry Logging
System Menu
Change Common Programming Options From One Location
Adjust Channel Dual Rates
Adjust Channel End Points
Adjust Channel Exponential or Adjustable Rate Control (ARC)
Slow Down Servo Speed in Both Directions
Program the Anti-Lock Braking Function
Program the Throttle Offset Position
Adjust Auxiliary 1 Channel 3 Functions and Programming
Adjust Auxiliary 2 Channel 4 Functions and Programming
Adjust Servo Trim and Servo Sub-Trim
Change the Direction that the Servos Travel
Program the Lap Timer and the Interval Timer
Displays Current, Past and Best Lap Times
Program Fail Safe Settings
View Logs of Temperature, Voltage and RPM Telemetry Data
Access the System Menu
MENU MENU NAME MENU DESCRIPTION
PROGRAMMING MENUS
PAGE
3) Scroll DOWN to move the cursor to the channel you would like to make Programming
Value changes to. Choose from <CH-SET> [ST] (Steering), <CH-SET> [TH] (Throttle),
<CH-SET> [A1] (Auxiliary 1) or <CH-SET> [A2] (Auxiliary 2).
PROGRAM
PROGRAM
01.CH-SET (CHANNEL SET)PROGRAM
2) Use the Push-Button Rotary Dial to scroll UP or DOWN to highlight the desired Programming Menu, then press the ENTER key
to open the highlighted Programming Menu.
PRO TIP: Most Programming Menus feature a Servo Monitor at the bottom of the screen that you can use to see your
programming changes in virtual real time.
MT-4S User's Guide.indd 17 2015/10/27 14:38:50
18
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
6) After changing the desired Programming Value, press the ENTER key or the BACK/CANCEL key and the highlighted option
will stop flashing, indicating you can scroll UP or DOWN to highlight another programming option.
7) To change to another channel, press the BACK/CANCEL key, then scroll UP or DOWN to select the desired channel. Repeat
steps 4 and 5 above to change the desired Programming Values for that channel.
8) When complete, press and HOLD the BACK/CANCEL key to return to the Top Screen.
01.D/R - RATE
02.EPA - L/R
03.EPA - LEFT
04.EPA - RIGHT
05.CURVE - RATE
06.CURVE - POINT
07.SPEED - FORWARD
08.SPEED - RETURN
09.TRIM
10.SUB-T
11.REV - NOR/REV
12.F/S
01.D/R - TH
02.D/R - BR
03.EPA - HIGH
04.EPA - LOW
05.CURVE - RATE-H
06.CURVE - POINT-H
07.CURVE - RATE-B
08.CURVE - RATE-H
09.SPEED - FORWARD
10.SPEED - RETURN
11.ALB - POINT
12.ALB - STROKE
13.ALB - LAG
14.ALB - RELEASE
15.ALB - HOLD
16.TRIM
17.SUB-T
18.REV - NOR/REV
19.F/S
01.EPA - HIGH
02.EPA - LOW
03.CURVE - RATE
04.CURVE - POINT
05.CURVE
06.CURVE
07.SPEED - FORWARD
08.SPEED - RETURN
09.TRIM
10.SUB-T
11.REV - NOR/REV
12.F/S
01.EPA - HIGH
02.EPA - LOW
03.CURVE - RATE
04.CURVE - POINT
05.CURVE
06.CURVE
07.SPEED - FORWARD
08.SPEED - RETURN
09.TRIM
10.SUB-T
11.REV - NOR/REV
12.F/S
[ST] STEERING [TH] THROTTLE [A1] AUXILIARY 1 [A1] AUXILIARY 2
The Dual Rate function allows you to change the control authority of the Steering, Throttle High Side and Throttle Brake Side by
changing the amount of servo travel relative to control input. For example, by increasing the Steering Dual Rate, you can make
the steering servo travel more, which might prevent your model from pushing during turns. If your model oversteers during
turns, you can reduce the amount of Steering Dual Rate. Adjusting Steering Dual Rate affects both Right-hand and Left-hand
steering equally, however, you are able to adjust Throttle Dual Rate on the Throttle High Side and Throttle Brake Side independently.
IMPORTANT: Prior to programming the Dual Rate function, you should adjust the maximum Left and Right (or High and Low)
End Points, using the End Point Adjustment function. For more information, see the End Point Adjustment section on pages
19 through 21.
01.CH-SET (CHANNEL SET)PROGRAM
02.D /R (DUAL RATE)PROGRAM
4) Press the ENTER key to highlight the Programming Value in the upper right corner.
5) Scroll UP or DOWN to highlight the Programming Value you would like to change, then
press the ENTER key to select it. The highlighted Programming Value will flash
indicating you can change the Programming Value. Scroll UP or DOWN to change the
Programming Value
The following functions can be programmed from within the Channel Set menu:
Dual Rate is a percentage of End Point Adjustment. For example, if you set the Steering Dual Rate percentage value to
100%, the Steering will travel the same amount defined by your End Point Adjustment programming. Alternately, if you set
the Steering Dual Rate percentage value to 50%, the Steering will travel half the amount defined by your End Point Adjustment
programming.
MT-4S User's Guide.indd 18 2015/10/27 14:38:50

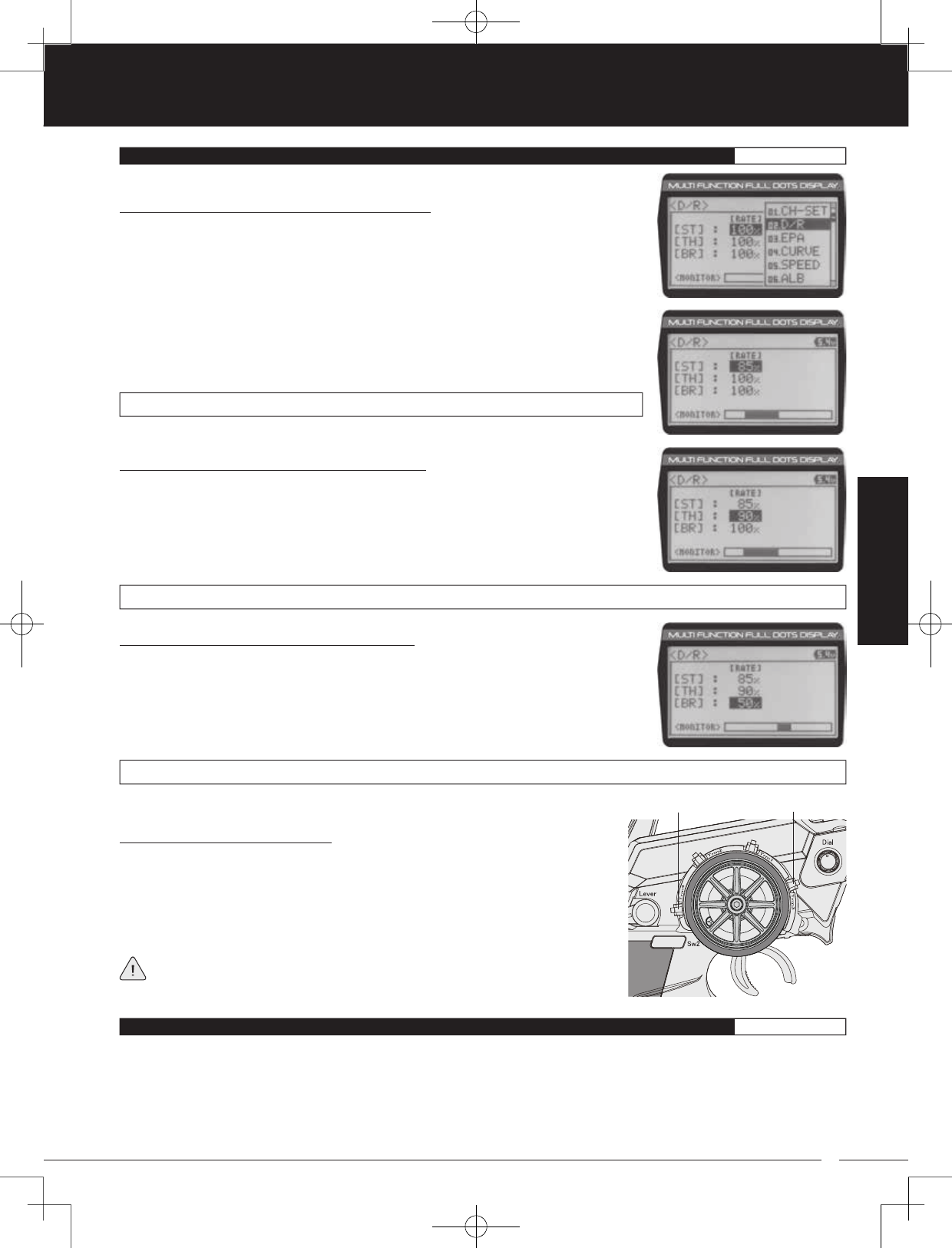

19
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
Adjusting the Throttle Dual Rate Percentage Value:
1) From within the D/R menu, scroll UP or DOWN to highlight [TH]:RATE 100%.
2) Press the ENTER key, then scroll UP or DOWN to increase or decrease the Throttle
Dual Rate percentage value. When the Throttle Dual Rate percentage value is decreased,
Throttle High side servo travel is decreased. When the Throttle Dual Rate percentage
value is increased, Throttle High side servo travel is increased.
D/R TH RATE setting range is 0% to 100%. The default setting is 100%.
Adjusting the Brake Dual Rate Percentage Value:
1) From within the D/R menu, scroll UP or DOWN to highlight [BR]:RATE 100%.
2) Press the ENTER key, then scroll UP or DOWN to increase or decrease the Brake Dual
Rate percentage value. When the Brake Dual Rate percentage value is decreased, Throttle
Brake side servo travel is decreased. When the Brake Dual Rate percentage value is
increased, Throttle Brake side servo travel is increased.
D/R BR RATE setting range is 0% to 100%. The default setting is 100%.
Trm3 [ST]
Trm4 [TH]
Controlling the Dual Rate Function:
1) By assigning the Steering, Throttle and Brake Dual Rate programming functions to
one or more of the Trim Switches, Auxiliary Lever or Dial Knob, these functions can
be adjusted while driving without accessing the Programming Menu. In addition,
these functions can be toggled OFF and ON by assigning them to one or more
Push-Button Switches. For more information, see the Key Assignments section on
pages 53 through 58.
In the default configuration, the Steering and Throttle Dual Rate programming
functions are adjusted using Trim Switch Trm3 and Trim Switch Trm4, respectively.
D/R ST RATE setting range is 0% to 100%. The default setting is 100%.
3) Press the ENTER key, then scroll UP or DOWN to increase or decrease the Steering
Dual Rate percentage value. When the Steering Dual Rate percentage value is decreased,
steering servo travel is decreased. When the Steering Dual Rate percentage value is
increased, steering servo travel is increased.
02.D /R (DUAL RATE)PROGRAM
Adjusting the Steering Dual Rate Percentage Value:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the D/R menu, then press the ENTER key. The D/R menu
will be displayed and [ST]:RATE 100% will be highlighted.
PROGRAM
The End Point Adjustment function allows you to adjust servo travel in each direction. This makes it possible to balance servo
travel in both directions and set the maximum desired amount of servo travel. For example, on a gas-powered model, if you
pull the throttle trigger and the carburetor does not open completely, you can increase the Throttle High End Point Adjustment
so that the carburetor opens completely. Another example is with steering. If your model turns sharper to the right than to the
left, you can increase the Steering Left End Point Adjustment to balance the steering. The End Point Adjustment function can be
adjusted for the Steering channel (Right and Left), the Throttle channel (Throttle High Side and Throttle Brake Side), Auxiliary 1
Channel 3 (High and Low) and Auxiliary 2 Channel 4 (High and Low).
03.EPA (END POINT ADJUSTMENT)PROGRAM
MT-4S User's Guide.indd 19 2015/10/27 14:38:51
20
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
IMPORTANT: Before making End Point Adjustments, the servo horn needs to be
centered. Install the servo horn onto the servo, making sure it's as close to being
centered as possible, then use the Servo Sub-Trim function to center the servo
arm exactly. For more information, see the Adjusting the Servo Sub-Trim Values
section on page 41.
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the EPA menu, then press the ENTER key. The EPA
menu will be displayed and [ST]:EPA L100% will be highlighted.
Adjusting the Steering End Point Adjustment Percentage Values:
Your model’s turning radius can differ from left to right because of variations in linkage, suspension balance, tire diameter, or
weight distribution. In such cases, Left Steering servo travel and Right Steering servo travel are adjustable using the End Point
Adjustment function.
EPA ST R setting range is 0% to 150%. The default setting is 100%.
4) From within the EPA menu, scroll DOWN to highlight [ST]:EPA R100%. Press the ENTER
key, then scroll UP or DOWN to increase or decrease the Steering Right End Point
Adjustment percentage value. Increasing the percentage value will increase steering
servo travel in that direction and decreasing the percentage value will
decrease steering servo travel in the direction.
3) Press the ENTER key, then scroll UP or DOWN to increase or decrease the Steering Left
End Point Adjustment percentage value. Increasing the percentage value will increase
steering servo travel in that direction and decreasing the percentage value will decrease
steering servo travel in the that direction.
EPA ST L setting range is 0% to 150%. The default setting is 100%.
Adjusting the Throttle End Point Adjustment Percentage Values:
Your model's carburetor may not open completely, or it may open too much and cause the throttle servo to bind. If you're
using an Electronic Speed Control, the Electronic Speed Control may not command full power, or the brake may not engage
adequately. In such cases, Throttle High servo travel and Throttle Brake servo travel are adjustable using the End Point
Adjustment function.
Steering EPA L/R can be adjusted from within the Channel Set menu. This option changes both Left and Right Steering
End Point Adjustment percentage values equally at the same time, which is similar to adjusting Steering Dual Rate.
03.EPA (END POINT ADJUSTMENT)PROGRAM
End Point Adjustment percentage values should not be increased to the point where your
linkages and servos Bind when moved all the way to the Right or Left. Binding will cause the
servos to 'buzz', resulting in a quicker loss of receiver battery power and eventual damage to the
servos or to your Model.
1) From within the EPA menu, scroll UP or DOWN to highlight [TH]:EPA H 100%.
2) Press the ENTER key, then scroll UP or DOWN to increase or decrease the Throttle High
End Point Adjustment percentage value. Increasing the percentage value will increase
Throttle High servo travel in that direction and decreasing the percentage
value will decrease Throttle High servo travel in that direction.
EPA TH H setting range is 0% to 150%. The default setting is 100%.
MT-4S User's Guide.indd 20 2015/10/27 14:38:52

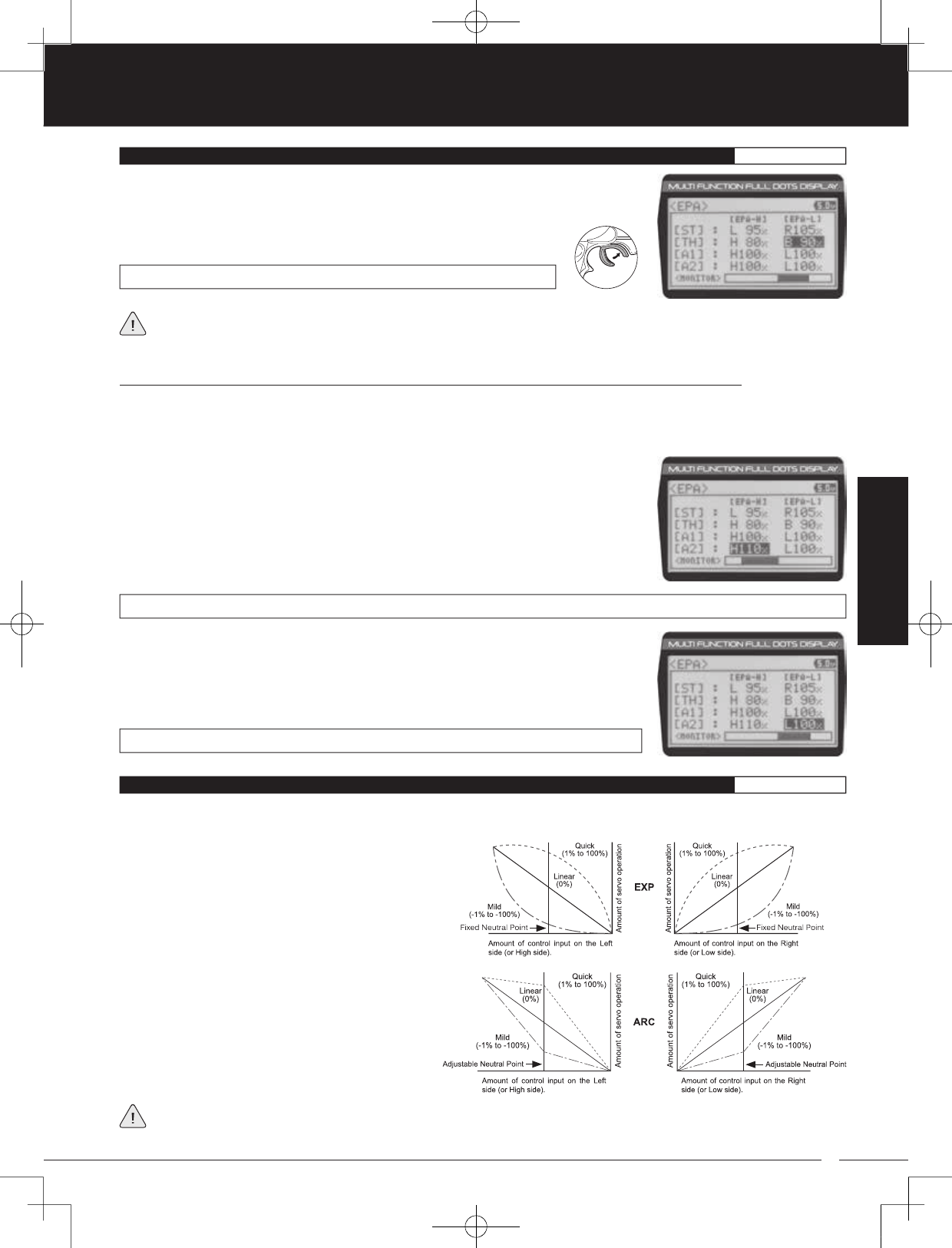

21
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
If you're using an Electronic Speed Control, the Throttle High and the Throttle Brake End Point Adjustment percentage
values are both generally set to 100%, although the Throttle High direction may need to be increased to achieve full
power. In some cases the End Point Adjustments can also be set directly via the Electronic Speed Control.
EPA TH B setting range is 0% to 150%. The default setting is 100%.
3) From within the EPA menu, scroll DOWN to [TH]:EPA B100%. Press the ENTER key,
then scroll UP or DOWN to increase or decrease the Throttle Brake End Point
Adjustment percentage value. Increasing the percentage value will increase Throttle
Brake servo travel in that direction and decreasing the percentage value
will decrease Throttle Brake servo travel in that direction.
Adjusting the Auxiliary 1 Channel 3 and Auxiliary 2 Channel 4 End Point Adjustment Percentage Values:
Auxiliary 1 Channel 3 and Auxiliary 2 Channel 4 can be used for a number of different uses. One of the more common uses
would be for the reverse function in a glow-powered monster truck. Often, the transmission only requires a small amount of
throw, but the servo binds because of too much servo travel. In such a case, Auxiliary High servo travel and Auxiliary Low servo
travel are adjustable using the End Point Adjustment function.
1) From within the EPA menu, scroll UP or DOWN to highlight [A1]:EPA H 100% or [A2]:EPA
H 100%.
2) Press the ENTER key, then scroll UP or DOWN to increase or decrease the Auxiliary
High End Point Adjustment percentage value. Increasing the percentage value will
increase auxiliary servo travel in that direction and decreasing the percentage value
will decrease auxiliary servo travel in that direction.
EPA A1 H and EPA A2 H setting range is 0% to 150%. The default setting is 100%.
EPA A1 L and EPA A2 L setting range is 0% to 150%. The default setting is 100%.
3) From within the EPA menu, scroll UP or DOWN to highlight [A1]:EPA L100% or [A2]:EPA
L100%. Press the ENTER key, then scroll UP or DOWN to increase or decrease the
Auxiliary Low End Point Adjustment percentage value. Increasing the percentage
value will increase auxiliary servo travel in that direction and decreasing the percentage
value will decrease auxiliary servo travel in that direction.
The Exponential and Adjustable Rate Control (ARC) functions allow you to vary the amount of servo travel in relation to the
movement of the steering wheel, throttle trigger and auxiliary lever near the Neutral positions to change the way those functions
react to control movement.
Decreasing the Exponential or Adjustable Rate Control
percentage values will soften the control feel around
Neutral and increasing the Exponential or Adjustable
Rate Control percentage values will heighten the
control feel around Neutral. Using a lower negative
value allows for smoother control. Using a higher
positive value may result in more 'twitchy' control
response.
The Exponential and Adjustable Rate Control functions
can be adjusted for the Steering channel, the Throttle
channel (Throttle High and Throttle Brake), Auxiliary 1
Channel 3 and Auxiliary 2 Channel 4. A graph that
depicts the Exponential or Adjustable Rate Control
curve is featured to help visualize the changes you make.
03.EPA (END POINT ADJUSTMENT)PROGRAM
PROGRAM
04.CURVE (EXPONENTIAL AND ARC)PROGRAM
The Exponential and Adjustable Rate Control functions work the same, except the Exponential Rate percentage value is
programmed from a fixed Neutral Point of 50% and the Adjustable Rate Control Rate percentage value is programmed
from a user-adjustable Neutral Point, giving you even greater programming control.
MT-4S User's Guide.indd 21 2015/10/27 14:38:53

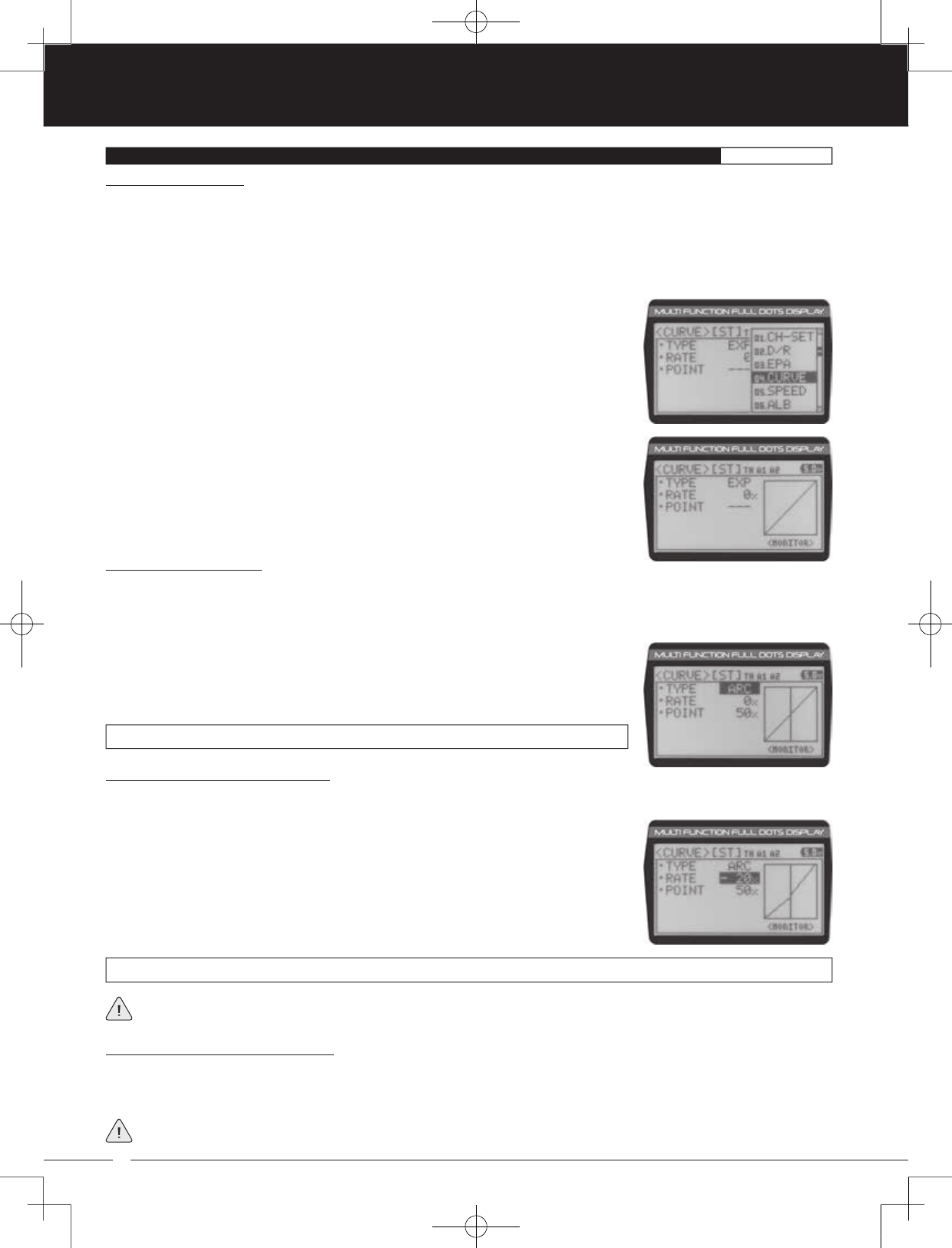

22
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
Choosing the Channel:
Exponential or Adjustable Rate Control percentage values can be adjusted from Mild through Linear to Quick to allow you to
set the most effective control response for your model. For example, if your model over-steers, reduce the Steering Exponential
or Adjustable Rate Control percentage value, and if your model under-steers, increase the Steering Exponential or Adjustable
Rate Control percentage value.
As another example, reduce the Throttle Exponential or Adjustable Rate Control percentage value on a slippery track or with a
model that has a higher-torque motor or engine, and increase the Throttle Exponential or Adjustable Rate Control percentage
value on a high-grip track or with a model that has a lower-torque motor or engine.
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the CURVE menu, then press the ENTER key. The CURVE
menu will be displayed and the cursor will default to [ST].
3) Scroll DOWN to move the cursor to the channel you would like to make Programming
Value changes to. Choose from <CURVE> [ST] (Steering), <CURVE> [TH] (Throttle),
<CURVE> [A1] (Auxiliary 1) or <CURVE> [A2] (Auxiliary 2).
Choosing the Curve Type:
The Exponential and Adjustable Rate Control functions work the same, except the Exponential Rate percentage value is
programmed from a fixed Neutral Point of 50% and the Adjustable Rate Control Rate percentage value is programmed from a
user-adjustable Neutral Point, giving you even greater programming control. For more information, see the Adjusting the Point
Percentage Value section below.
04.CURVE (EXPONENTIAL AND ARC)PROGRAM
CURVE TYPE setting range is EXP and ARC. The default setting is EXP.
1) Press the ENTER key to highlight TYPE EXP. Press the ENTER key a second time, then
scroll UP or DOWN to choose the desired Curve Type. If you are programming the Curve
function for the Throttle channel, you have the option of adjusting the Curve Type for the
Throttle High Side (TYPE-H) and the Throttle Brake Side (TYPE-B) independently.
Adjusting the Rate Percentage Value:
The Rate percentage value determines the desired amount and type of Exponential or Adjustable Rate Control, either Quick,
Mild or Linear (see diagrams on the previous page).
1) From within the CURVE menu, scroll DOWN to highlight RATE 0%. Press the ENTER key,
then scroll UP or DOWN to increase or decrease the Rate percentage value. Using a
negative Rate percentage value will soften the control feel around Neutral and using a
positive Rate percentage value will heighten the control feel around Neutral.
CURVE RATE setting range is -100% (Mild) to 100% (Quick). The default setting is 0% (Linear).
Changes to the Rate percentage value affects both the channel High side and Low side equally, except for the Throttle
channel, in which the Throttle High and Throttle Brake sides can be adjusted independently.
Adjusting the Point Percentage Value:
The Point percentage value determines the Neutral Point where the Rate percentage value begins. For example, you may not
want the Point to be centered between the High and Low End Points. You may want the Point to be offset from the center
position.
The Point percentage value option is available ONLY when the TYPE ARC option is selected.
MT-4S User's Guide.indd 22 2015/10/27 14:38:53

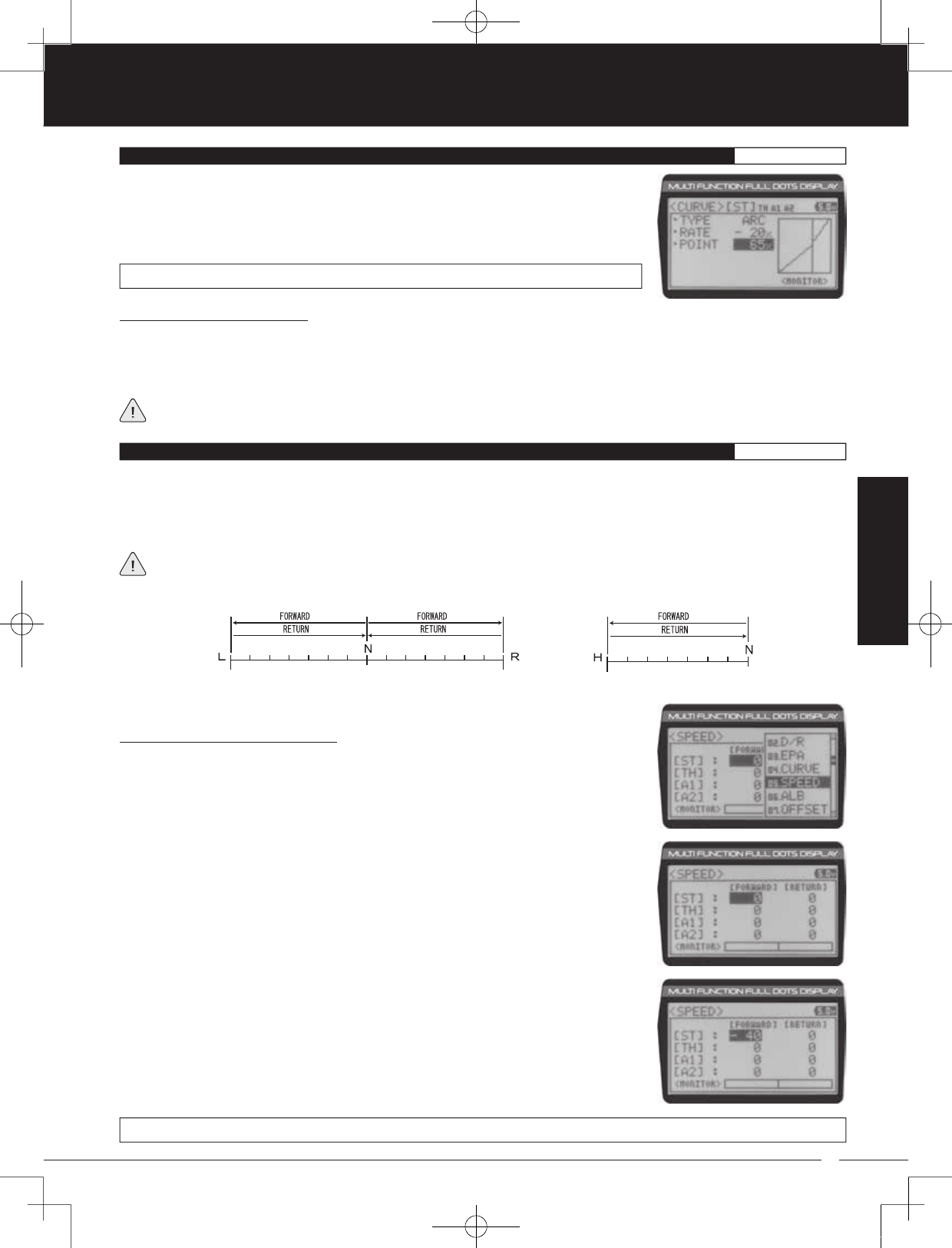

23
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
The Servo Speed function allows you to slow the transit speed of the Steering, Throttle, Auxiliary 1 and Auxiliary 2 servos. Servo
transit speed can be slowed in both the Forward and the Return to Neutral directions independently. When driving your model,
proper steering and throttle control are vital. For example, lowering the transit speed of the steering servo can help to limit
excessive steering, which will enable you to achieve smoother cornering. In addition, lowering the throttle servo speed can help
to ensure smooth throttle control.
Controlling the Curve Function:
1) By assigning the Steering, Throttle High and Throttle Brake Rate and Point programming functions to one or more of the
Trim Switches, Auxiliary Lever or Dial Knob, these functions can be adjusted while driving without accessing the Programming
Menu. In addition, the Steering Curve and Throttle Curve functions can be Toggled OFF and ON by assigning them to one
or more Push-Button Switches. For more information, see the Key Assignments section on pages 53 through 58.
Auxiliary 1 and Auxiliary 2 Rate and Point programming functions cannot be assigned.
Neutral Right End PointLeft End Point NeutralHigh Side End Point
Steering, Auxiliary 1 and Auxiliary 2 Throttle
Throttle Servo Speed affects only the Throttle High Side. The Throttle Brake Side is unaffected.
PROGRAM
1) From within the CURVE menu, scroll DOWN to highlight POINT 50%. Press the ENTER
key, then scroll UP or DOWN to increase or decrease the Point percentage value.
Increasing the Point percentage value will shift the Neutral Point to one side of center
and decreasing the Point percentage value will shift the Neutral Point to the opposite
side of center.
CURVE POINT setting range is 5% to 95%. The default setting is 50% (Centered).
04.CURVE (EXPONENTIAL AND ARC)PROGRAM
05.SPEED (SERVO SPEED)PROGRAM
3) Scroll UP or DOWN to highlight the desired channel you would like to change
the Forward Speed value for. Choose from either [ST]:FORWARD 0 (Steering),
[TH]:FORWARD 0 (Throttle), [A1]:FORWARD 0 (Auxiliary 1) or [A2]:FORWARD 0 (Auxiliary 2).
Adjusting the Forward Speed Value:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the SPEED menu, then press the ENTER key. The SPEED
menu will be displayed and [ST]:FORWARD 0 will be highlighted.
4) Press the ENTER key, then scroll DOWN to decrease servo Speed in the Forward
direction. Decreasing the Forward Speed value will cause the servo transit time to slow
down when it moves from the Neutral position to either End Point.
SPEED FORWARD setting range is -100 to 0. The default setting is 0 (Normal Speed).
MT-4S User's Guide.indd 23 2015/10/27 14:38:54
24

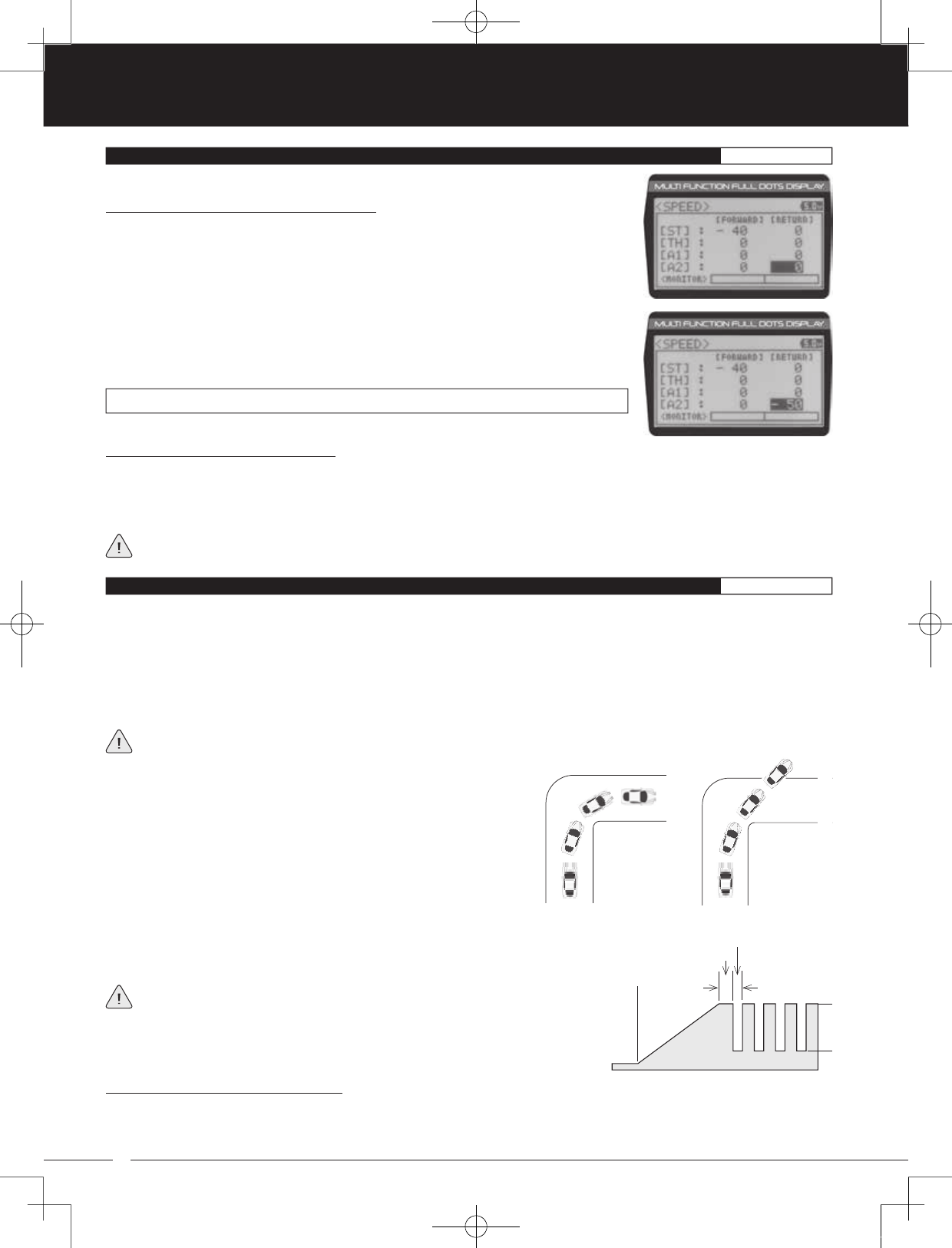

90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
Adjusting the Return to Neutral Speed Value:
1) From within the SPEED menu, scroll UP or DOWN to highlight the desired channel
you would like to change the Return to Neutral Speed value for. Choose from either
[ST]:RETURN 0 (Steering), [TH]:RETURN 0 (Throttle), [A1]:RETURN 0 (Auxiliary 1) or
[A2]:RETURN 0 (Auxiliary 2).
2) Press the ENTER key, then scroll DOWN to decrease servo Speed in the Return to
Neutral direction. Decreasing the Return to Neutral Speed value will cause the servo
transit time to slow down when it moves from either End Point to the Neutral position.
SPEED RETURN setting range is -100 to 0. The default setting is 0 (Normal Speed).
Controlling the Servo Speed Function:
1) By assigning the Steering and Throttle Forward and Return to Neutral Speed programming functions to one or more of the
Trim Switches, Auxiliary Lever or Dial Knob, these functions can be adjusted while driving without accessing the Programming
Menu. In addition, the Steering Speed and Throttle Speed functions can be Toggled OFF and ON by assigning them to one
or more Push-Button Switches. For more information, see the Key Assignments section on pages 53 through 58.
Auxiliary 1 and Auxiliary 2 Forward and Return to Neutral Speed programming functions cannot be assigned.
The Anti-Lock Braking function makes it possible to achieve stable braking even on a slippery surface. With stable braking, your
model is better able to trace an exact line under braking. The Anti-Lock Braking function also enables you to set different braking
characteristics depending on your particular model. Different Anti-Lock Braking function options can be custom programmed,
including the how quickly the brake pulsates, the point at which the Anti-Lock Braking function starts and more.
The Anti-Lock Braking function is primarily used on gasoline- or glow-powered models that feature a throttle servo. It can be
used on an electric model that uses an Electronic Speed Control, however, if your Electronic Speed Control features a reverse
function, the Anti-Lock Braking function will not operate properly.
Adjusting the Stroke Percentage Value:
The Stroke percentage value determines the amount of Brake that's applied automatically when the Anti-Lock Braking function
Activates. When set to OFF, the Anti-Lock Braking function will not work. A percentage value of 1% or greater must be
programmed for the Anti-Lock Braking function to operate.
When the Anti-Lock Braking function is Active, LED 1 (Blue) will flash rapidly.
05.SPEED (SERVO SPEED)PROGRAM
06.ALB (ANTI-LOCK BRAKING)PROGRAM
The Anti-Lock Braking function operates only when the Throttle Trigger is
moved from Neutral to the Brake Side. Set the hardest Braking you can
obtain from your model by carefully setting the Anti-Lock Braking function
right before the tires fully lock up but do not slip and lose traction. Be
aware that using the Anti-Lock Braking function will never result in your
model losing traction under braking. It only improves braking under less
than ideal conditions.
With ABS ON With ABS OFF
Throttle
Neutral
Point
Lag
Release
Hold
Stroke
The diagram at Right illustrates the relationship between the Point, Lag, Release,
Hold and Stroke functions, all of which can be programmed separately to suit
your specific car type, track conditions and Anti-Lock Braking behavior.
MT-4S User's Guide.indd 24 2015/10/27 14:38:54

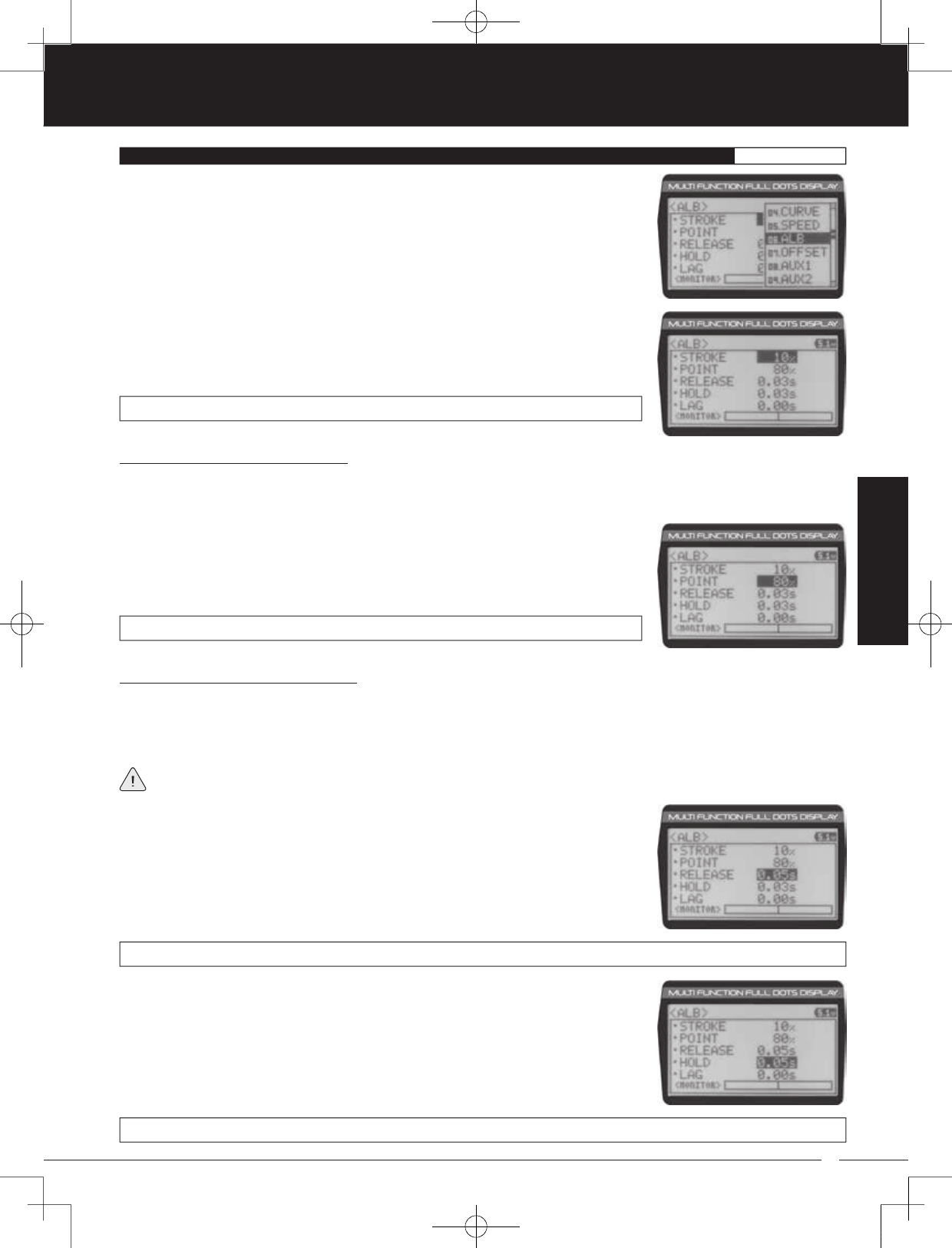

25
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
3) Press the ENTER key, then scroll UP or DOWN to increase or decrease the Stroke
percentage value. Increasing the Stroke percentage value will increase throttle servo
travel in the Brake direction and decreasing the Stroke percentage value will decrease
throttle servo travel in the Brake direction.
ALB STROKE setting range is OFF to 100%. The default setting is OFF.
Adjusting the Point Percentage Value:
The Point percentage value determines the position along the servo travel that the Anti-Lock Braking function Activates. For
example, if set to 80%, you will have Normal Braking from the Throttle Neutral Point to 79% of servo travel. At 80% of servo travel
and beyond, the Anti-Lock Braking function will Activate when turned ON.
1) From within the ALB menu, scroll DOWN to highlight POINT 80%. Press the ENTER key,
then scroll UP or DOWN to increase or decrease the Point percentage value. Increasing
the Point percentage value will cause the Anti-Lock Braking function to Activate later
and decreasing the Point percentage value will cause the Anti-Lock Braking function
to Activate sooner.
ALB POINT setting range is 5% to 100%. The default setting is 80%.
Adjusting the Release and Hold Values:
The Release and Hold values determine the speed at which the brake pulsates. By adjusting the Release and Hold values, you
can make the brake pulsate faster or slower. The Release value determines how quickly the Brake moves from Neutral to
the percentage value determined by the Stroke setting and the Hold value determines how quickly the Brake moves from the
Stroke setting to Neutral.
We recommend using equal Release and Hold values, although different values can be used to fine-tune how the Brake
pulsates. Using lower values make the Brake pulsate faster and using higher values make the Brake pulsate slower.
PROGRAM
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the ALB menu, then press the ENTER key. The ALB
menu will be displayed and STROKE OFF will be highlighted.
06.ALB (ANTI-LOCK BRAKING)PROGRAM
1) From within the ALB menu, scroll DOWN to highlight RELEASE 0.03s. Press the ENTER
key, then scroll UP or DOWN to increase or decrease the Release value. Increasing the
Release value will cause the Brake to move from Neutral to the Stroke setting slower
and decreasing the Release value will cause the Brake to move from Neutral to the
Stroke setting faster.
ALB RELEASE setting range is 0.01s to 1.00s. The default setting is 0.03s.
2) From within the ALB menu, scroll DOWN to highlight HOLD 0.03s. Press the ENTER key,
then scroll UP or DOWN to increase or decrease the Hold value. Increasing the Hold
value will cause the Brake to move from the Stroke setting to the Neutral position slower
and decreasing the Hold value will cause the Brake to move from the Stroke setting to
the Neutral position slower.
ALB HOLD setting range is 0.01s to 1.00s. The default setting is 0.03s.
MT-4S User's Guide.indd 25 2015/10/27 14:38:55
26
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
Controlling the Anti-Lock Braking Function:
1) By assigning the Anti-Lock Braking Point, Stroke, Lag, Hold and Release programming functions to one or more of the Trim
Switches, Auxiliary Lever or Dial Knob, these functions can be adjusted while driving without accessing the Programming
Menu. In addition, the Anti-Lock Braking function can be Toggled OFF and ON by assigning it to one of the Push-Button
Switches. For more information, see the Key Assignments section on pages 53 through 58.
The Throttle Offset function allows you to shift the Neutral position of the throttle servo, either toward the High Side or the Brake
Side. When used in conjunction with a Push-Button Switch, this function can be used several different ways. For example, if you're
driving a glow- or gas-powered model, you can program the Throttle Offset function to shut down your engine with the press of a
button. In addition, you can program the Throttle Offset function to increase to a steady idle while you're refueling during a race.
When a Position percentage value is programmed and the Throttle Offset function is Active, LED 1 (Blue) will flash rapidly
and OFFS will be displayed on the Top Screen. The Throttle Offset function shifts the Neutral position of the throttle servo
without affecting the High or Low End Points.
Turning the Throttle Offset Function ON or OFF:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the OFFSET menu, then press the ENTER key. The
OFFSET menu will be displayed and TH OFFSET OFF will be highlighted.
1) From within the ALB menu, scroll DOWN to highlight LAG 0.00s. Press the ENTER key,
then scroll UP and DOWN to increase or decrease the Lag value. Increasing the Lag
value increases the delay time to Activate the Anti-Lock Braking function after reaching
the Point setting and decreasing the Lag value decreases the delay time to Activate the
Anti-Lock Braking function after reaching the Point setting.
ALB LAG setting range is 0.00s to 1.00s. The default setting is 0.00s.
Adjusting the Lag Value:
The Lag value determines the amount of delay before the Anti-Lock Braking function Activates after reaching the POINT setting.
06.ALB (ANTI-LOCK BRAKING)PROGRAM
07.OFFSET (THROTTLE OFFSET)PROGRAM
Adjusting the Throttle Offset Position Percentage Value:
1) From within the OFFSET menu, scroll DOWN to highlight POSITION 0%. Press the
ENTER key, then scroll UP to shift the throttle servo Neutral position the desired amount
toward the Throttle High Side or scroll DOWN to shift the throttle servo Neutral position
the desired amount toward the Throttle Brake Side.
OFFSET POSITION setting range is H100% to B100%. The default setting is 0%.
Controlling the Throttle Offset Function:
1) By assigning the Throttle Offset Position programming function to one of the Trim Switches, Auxiliary Lever or Dial Knob, this
function can be adjusted while driving without accessing the Programming Menu. In addition, the Throttle Offset function can
be Toggled OFF and ON by assigning it to one of the Push-Button Switches. For more information, see the Key Assignments
section on 53 through 58.
3) Press the ENTER key, then scroll UP or DOWN to change the Throttle Offset value to
ON or OFF.
OFFSET TH OFFSET setting range is OFF to ON. The default setting is OFF.
Although the Throttle Offset value is set to ON, the Throttle Offset function will not operate until a Position percentage
value is programmed.
MT-4S User's Guide.indd 26 2015/10/27 14:38:55
27
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE

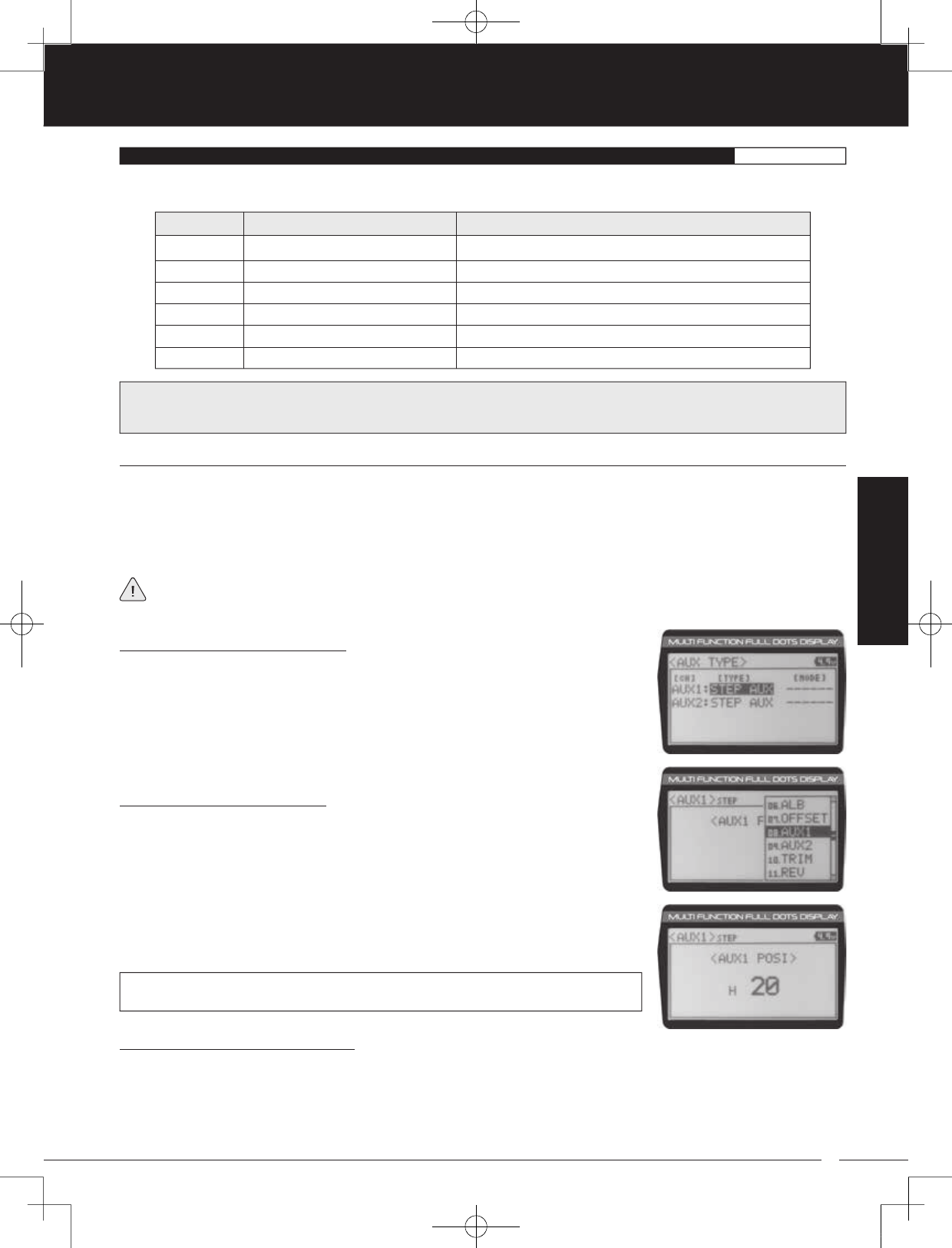

The Auxiliary 1 Programming function allows you to program the six different Auxiliary Programming functions that are
controlled by Auxiliary 1 Channel 3. Use the table below to determine the different functions that are available:
IMPORTANT: Prior to programming an Auxiliary 1 Programming function you must first choose the desired Auxiliary
Programming function in the SYSTEM AUX TYPE menu. Only one Auxiliary 1 Programming function can be Active at any
given time.
The Step Auxiliary function allows you to program the Auxiliary 1 servo to move a defined amount when toggled ON and OFF
using a Push-Button Switch. For example, if you assign Auxiliary 1 to a Push-Button Switch, then program the Step Auxiliary
percentage value to 50%, the Auxiliary 1 servo will travel from the Neutral position to 50% of travel when the Push-Button Switch
is pressed. Press the Push-Button switch a second time and the Auxiliary 1 servo will travel back to the Neutral position. This
is useful to control simple ON/OFF functions, such as a reverse servo for a transmission or a mechanical switch to turn lights
ON and OFF, etc.
The Step Auxiliary Position value can be adjusted while you're driving using one of the four Trim Switches, the Rotary Dial
or the Auxiliary Lever. The Step Auxiliary function can be toggled OFF and ON by assigning Auxiliary 1 to one of the two
Push-Button Switches. This allows you to control when the Auxiliary 1 servo travels to the programmed Step Auxiliary position.
PROGRAM
08.AUX1 (AUXILIARY 1 CHANNEL 3 PROGRAMMING)PROGRAM
STEP AUX
POINT AUX
4WS MIX
MOA MIX
AUX MIX
CODE AUX
Step Auxiliary
Point Auxiliary
Four Wheel Steering Mixing
Motor on Axle Dual Throttle Mixing
Auxiliary Mixing
CODE Auxiliary
Controls Step Values That the Auxiliary Servo Travels
Control Specific Points That the Auxiliary Servo Travels
Control Four Wheel Steering Options
Controls Dual Throttle Options (Dig and Burn)
Control User-Defined Auxiliary 1 Channel 3 Mixing Options
Controls SSL Equipped Accessories, Such as ESCs
FUNCTION FUNCTION NAME FUNCTION DESCRIPTION
STEP AUX (Step Auxliary)
Adjusting the Step Auxiliary Value:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the AUX1 menu, then press the ENTER key. The AUX1
STEP menu will be displayed and <AUX1 POSI> 0 will be shown.
3) Press the ENTER key, then scroll UP or DOWN to change the Auxiliary 1 Position value.
Increasing the value toward the High side (H) or Low side (L) will cause the Auxiliary 1
servo to travel to that specific position when you Activate the Auxiliary 1 Step function.
AUX1 STEP AUX1 POSI setting range is H100 to L100. The default setting is 0. This value
is a percentage of Auxiliary 1 servo travel.
Choosing the Step Auxiliary Function:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the SYSTEM menu, then press the ENTER key. Scroll
DOWN to highlight the AUX TYPE menu, then press the ENTER key.
3) Press the ENTER key, then scroll UP or DOWN to choose the AUX1:STEP AUX function.
Controlling the Step Auxiliary Function:
1) In the default configuration, Auxiliary 1 is controlled by the Rotary Dial which allows the Step Auxiliary function to be adjusted
while driving. Turn the Rotary Dial clockwise to increase the Position High Side value and turn the Rotary Dial counter-clockwise
to increase the Position Low Side value. In addition, Auxiliary 1 can be assigned to one of the four Trim Switches or the
Auxiliary Lever. The Step Auxiliary function can be toggled OFF and ON by assigning Auxiliary 1 to one of the two Push-Button
Switches. This allows you to control when the Auxiliary 1 servo travels to the programmed Step Auxiliary position. For more
information, see the Key Assignments section on pages 53 through 58.
MT-4S User's Guide.indd 27 2015/10/27 14:38:56
28
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR

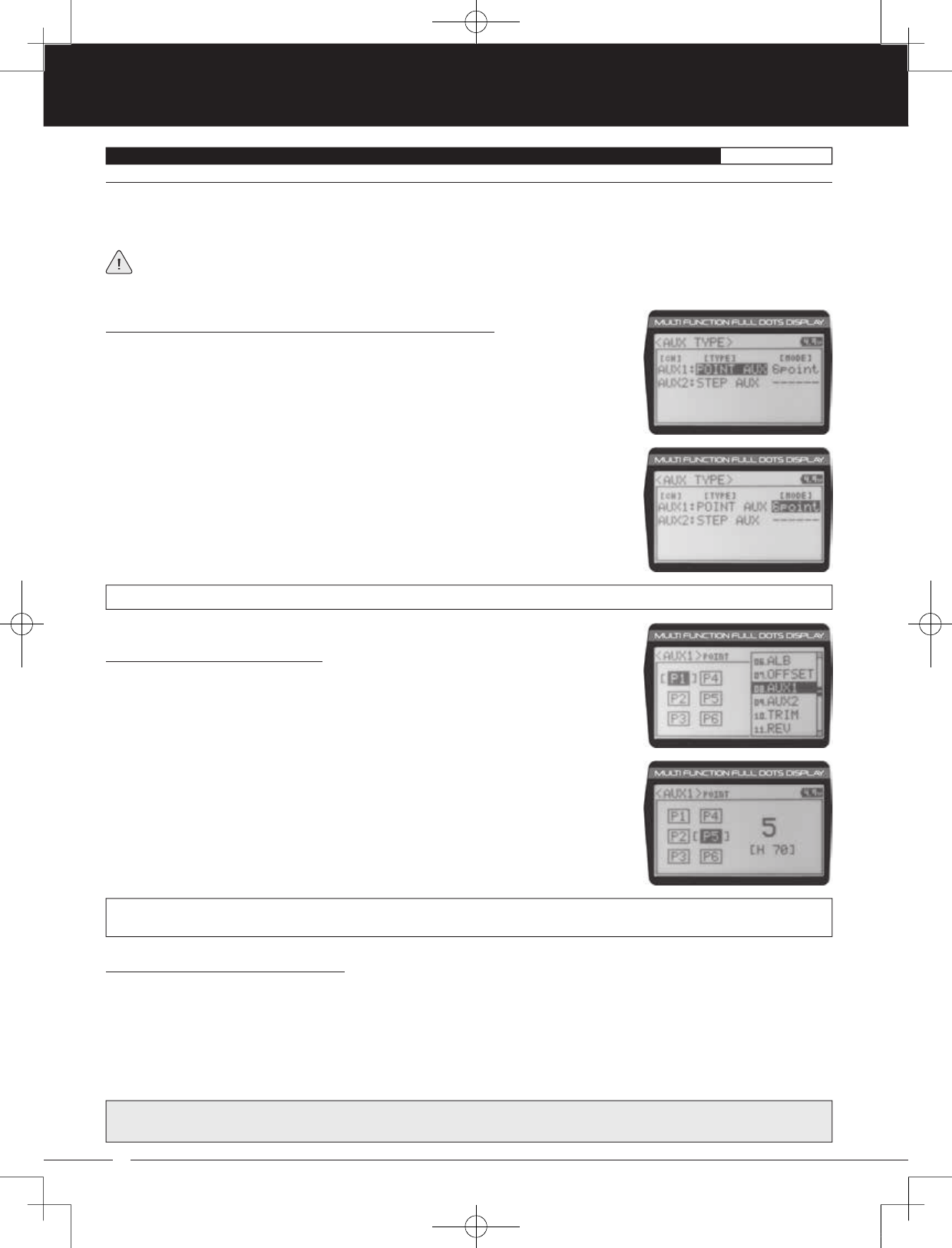

The Point Auxiliary function allows you to program the Auxiliary 1 servo to move up to 6 different Points along its travel, then
cycle through those Points using one of the Trim Switches or the Rotary Dial. For example, if your model requires a separate
3-position or more switch to operate a feature, the Point Auxiliary function can be customized to control this.
Use one of the four Trim Switches or the Rotary Dial to cycle through the Point positions while you're driving. The Point
Auxiliary function can be toggled OFF and ON while you're driving by assigning Auxiliary 1 to one of the two Push-Button
Switches. To ensure correct operation, make sure to refer the Important notice in the Controlling the Point Auxiliary Function below.
08.AUX1 (AUXILIARY 1 CHANNEL 3 PROGRAMMING)PROGRAM
POINT AUX (Point Auxliary)
Choosing the Point Auxiliary Function and the Number of Points:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the SYSTEM menu, then press the ENTER key. Scroll
DOWN to highlight the AUX TYPE menu, then press the ENTER key.
3) Press the ENTER key, then scroll UP or DOWN to choose the AUX1:POINT AUX function.
4) From within the AUX TYPE menu, scroll DOWN to highlight [MODE] 6 POINT. Press the
ENTER key, then scroll UP or DOWN to choose the desired number of Points you would
like to program.
AUX TYPE POINT setting range is 2point to 6point. The default setting is 6point.
Adjusting the Point Auxiliary Values:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the AUX1 menu, then press the ENTER key. The AUX1
POINT menu will be displayed and the last Point selected will be highlighted.
3) Scroll UP or DOWN to move the brackets to the Point you would like to change, then
press the ENTER key to highlight that Point.
4) Press the ENTER key, then scroll UP or DOWN to change the Point value. Increasing the
Point value toward the High side (H) or Low side (L) will cause the Auxiliary 1 servo to
travel to that specific position when you cycle through the various Points.
5) Repeat steps 3 and 4 to change the desired remaining Point values.
AUX1 POINT setting range is H100 to L100. The default setting for Point 1 is L100, for Point 2 is L60, for Point 3 is L20, for Point 4
is H20, for Point 5 is H60, and for Point 6 is H100. These values are a percentage of Auxiliary 1 servo travel.
Controlling the Point Auxiliary Function:
1) In the default configuration, Auxiliary 1 is controlled by the Rotary Dial. Turn the Rotary Dial clockwise to cycle Forward
through the programmed Point Auxiliary positions and turn the Rotary Dial counter-clockwise to cycle Backward through
the programmed Point Auxiliary positions. The Auxiliary 1 servo will move to the specified Point positions as you cycle
through the different Points.
In addition, Auxiliary 1 can be assigned to one of the four Trim Switches. The Point Auxiliary function can be toggled OFF
and ON by assigning Auxiliary 1 to one of the two Push-Button Switches. For more information, see the Key Assignments
section on pages 53 through 58.
IMPORTANT: To operate correctly, the TRIM or DIAL Step value must be set to 1. If set to a value other than 1, Point positions
will be skipped as you cycle through them. For more information, see the Key Assignments section on pages 53 through 58.
MT-4S User's Guide.indd 28 2015/10/27 14:38:56
29
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE

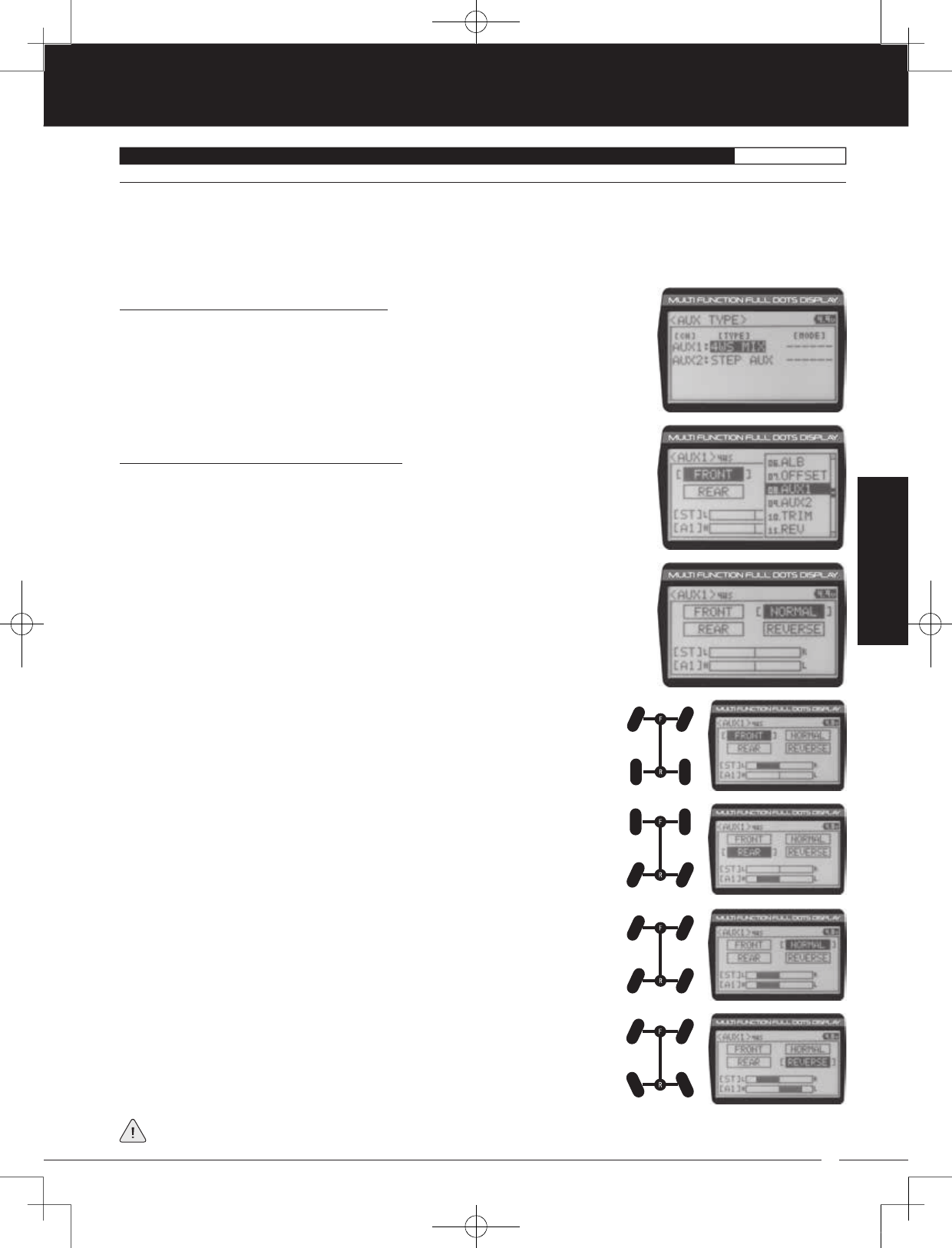

Choosing the Four Wheel Steering Function:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the SYSTEM menu, then press the ENTER key. Scroll
DOWN to highlight the AUX TYPE menu, then press the ENTER key.
3) Press the ENTER key, then scroll UP or DOWN to choose the AUX1:4WS MIX function.
PROGRAM
08.AUX1 (AUXILIARY 1 CHANNEL 3 PROGRAMMING)PROGRAM
The Four Wheel Steering Mixing function allows you to use Auxiliary 1 Channel 3 as a second steering channel, allowing you
to use two separate steering servos for Front and Rear steering. The Four Wheel Steering Mixing function allows you to control
either the Front or Rear steering independently, or Mix the Front and Rear steering to have Parallel Four Wheel Steering or
Tandem Four Wheel Steering. Use one of the four Trim Switches or the Rotary Dial to cycle through the different Four Wheel
Steering options while you're driving. The Four Wheel Steering Mixing function can be toggled OFF and ON while you're driving
by assigning Auxiliary 1 to one of the two Push-Button Switches.
4WS MIX (Four Wheel Steering Mixing)
Choosing Four Wheel Steering Mixing Options:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the AUX1 menu, then press the ENTER key. The AUX1
4WS menu will be displayed and the last Steering option selected will be highlighted.
3) Scroll UP or DOWN to move the brackets to the Four Wheel Steering option you would
like to use, then press the ENTER key to highlight that option. The highlighted option is
now Active.
The following Four Wheel Steering Mixing options are available:
REAR Wheel Steering - When highlighted, only the Rear Steering will operate.
NORMAL (Parallel/Crab) Four Wheel Steering - When highlighted, both the Front
and Rear Steering will operate in Parallel.
FRONT Wheel Steering - When highlighted, only the Front Steering will operate.
REVERSE (Tandem) Four Wheel Steering - When highlighted, both the Front and
Rear Steering will operate in Tandem.
If the steering servos do not operate as described above, use the Servo Reversing function to change the direction that each
servo operates. For more information, see the Servo Reversing section on page 42.
MT-4S User's Guide.indd 29 2015/10/27 14:38:57
30
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
Controlling the Four Wheel Steering Mixing Function:
1) In the default configuration, Auxiliary 1 is controlled by the Rotary Dial. Turn the Rotary Dial clockwise to cycle Forward
through the Four Wheel Steering options (FRONT > REAR > NORMAL > REVERSE) and turn the Rotary Dial counter-clockwise
to cycle Backward through the Four Wheel Steering options (REVERSE > NORMAL > REAR > FRONT).
In addition, Auxiliary 1 can be assigned to one of the four Trim Switches. The Four Wheel Steering Mixing function can be
toggled OFF and ON by assigning Auxiliary 1 to one of the two Push-Button Switches. For more information, see the Key
Assignments section on pages 53 through 58.
IMPORTANT: To operate correctly, the DIAL or TRIM Step value must be set to 1. If set to a value other than 1, Four Wheel
Steering Mixing options will be skipped as you cycle through them. For more information, see the Key Assignments section
on pages 53 through 58.

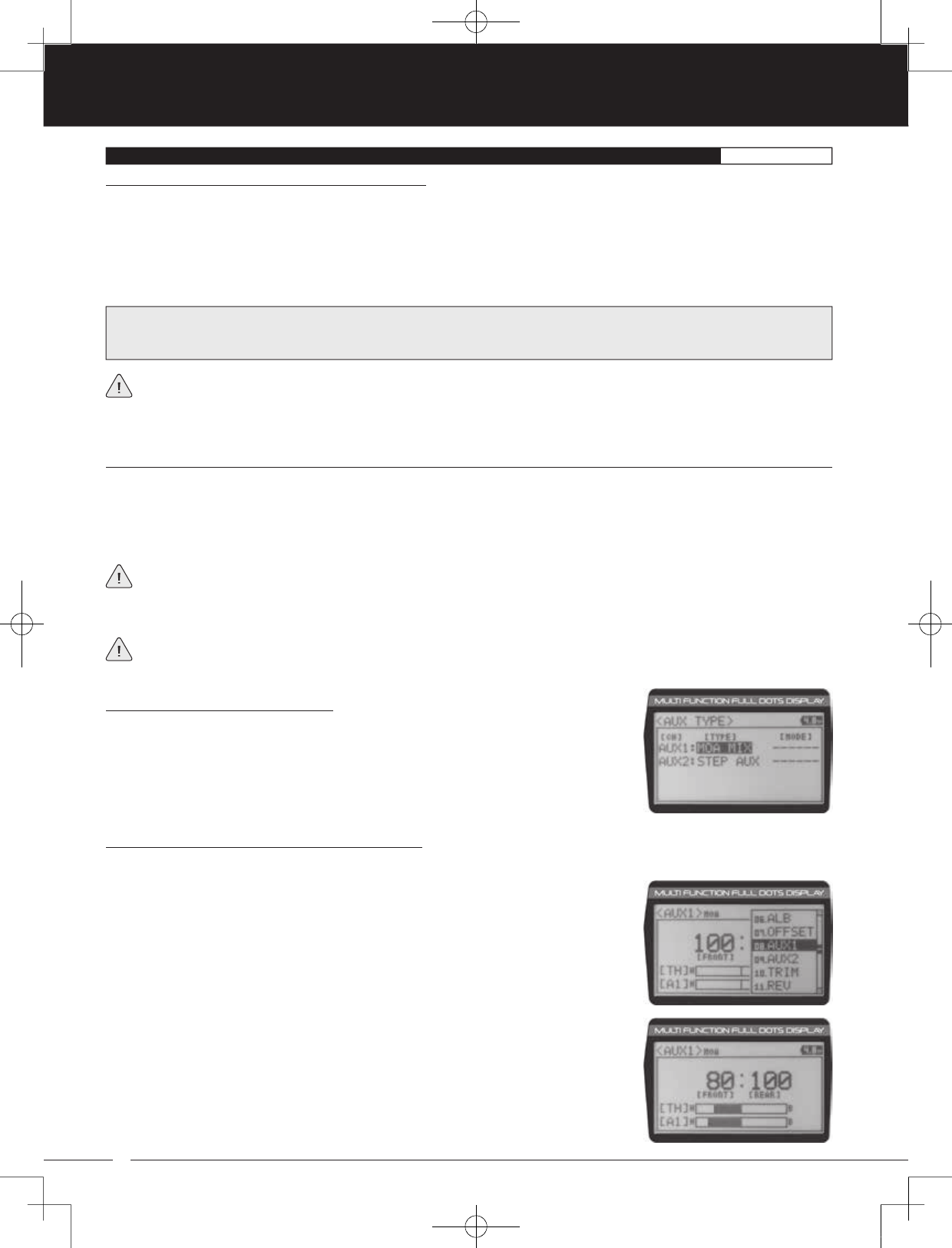

Choosing the Motor on Axle Function:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the SYSTEM menu, then press the ENTER key. Scroll
DOWN to highlight the AUX TYPE menu, then press the ENTER key.
3) Press the ENTER key, then scroll UP or DOWN to choose the AUX1:MOA MIX function.
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the AUX1 menu, then press the ENTER key. The AUX1
MOA menu will be displayed.
3) Press the ENTER key, then scroll UP or DOWN to change the Power Distribution
between the Front and Rear motors. Scrolling UP will reduce the available power to the
Rear motor (Dig) and scrolling DOWN will reduce the power to the Front motor (Burn).
08.AUX1 (AUXILIARY 1 CHANNEL 3 PROGRAMMING)PROGRAM
When using Four Wheel Steering, it's important to adjust the Steering Channel 1 and Auxiliary 1 Channel 3 Sub-Trim
values to center both servos. This will ensure that your model tracks straight. In addition, remember that you are able
to independently adjust the Auxiliary 1 Channel 3 Dual Rate, Exponential, Sub-Trim, Servo Speed settings and more to allow for
the optimum Four Wheel Steering Mixing setup.
MOA MIX (Motor On Axle Mixing)
The Motor on Axle Mixing function allows you to use Auxiliary 1 Channel 3 as a second throttle channel, allowing you to use
two separate throttle servos or ESCs. The Motor on Axle Mixing function is typically used in Rock Crawling and allows you to
control either the Front and Rear motors together or independently, giving you Normal (Balanced), Dig and Burn functions. And
when
coupled with the ability to variably change the power distribution between the Front and Rear motors, allows the utmost
in func
tionality.
When using the Motor on Axle function, it's important to adjust the Throttle Channel 2 and Auxiliary 1 Channel 3 Sub-Trim
values so both motors' idle (or OFF) settings are equal. This will ensure correct function. In addition, remember that you
are able to independently adjust the Auxiliary 1 Channel 3 Dual Rate, Exponential, Sub-Trim, Servo Speed settings and more to
allow for the optimum Motor on Axle Mixing setup.
Use the Rotary Dial, one of the four Trim Switches or the Auxiliary Lever to Activate the Dig and Burn functions while you're
driving. The Motor on Axle Mixing function can be toggled OFF and ON while you're driving by assigning Auxiliary 1 to one
of the two Push-Button Switches.
Changing Motor on Axle Power Distribution Options:
You are able to program Normal (Balanced), Dig and Burn functions by changing the Power Distribution between the Front
and Rear motors.
MT-4S User's Guide.indd 30 2015/10/27 14:38:58
31
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
08.AUX1 (AUXILIARY 1 CHANNEL 3 PROGRAMMING)PROGRAM
PROGRAM

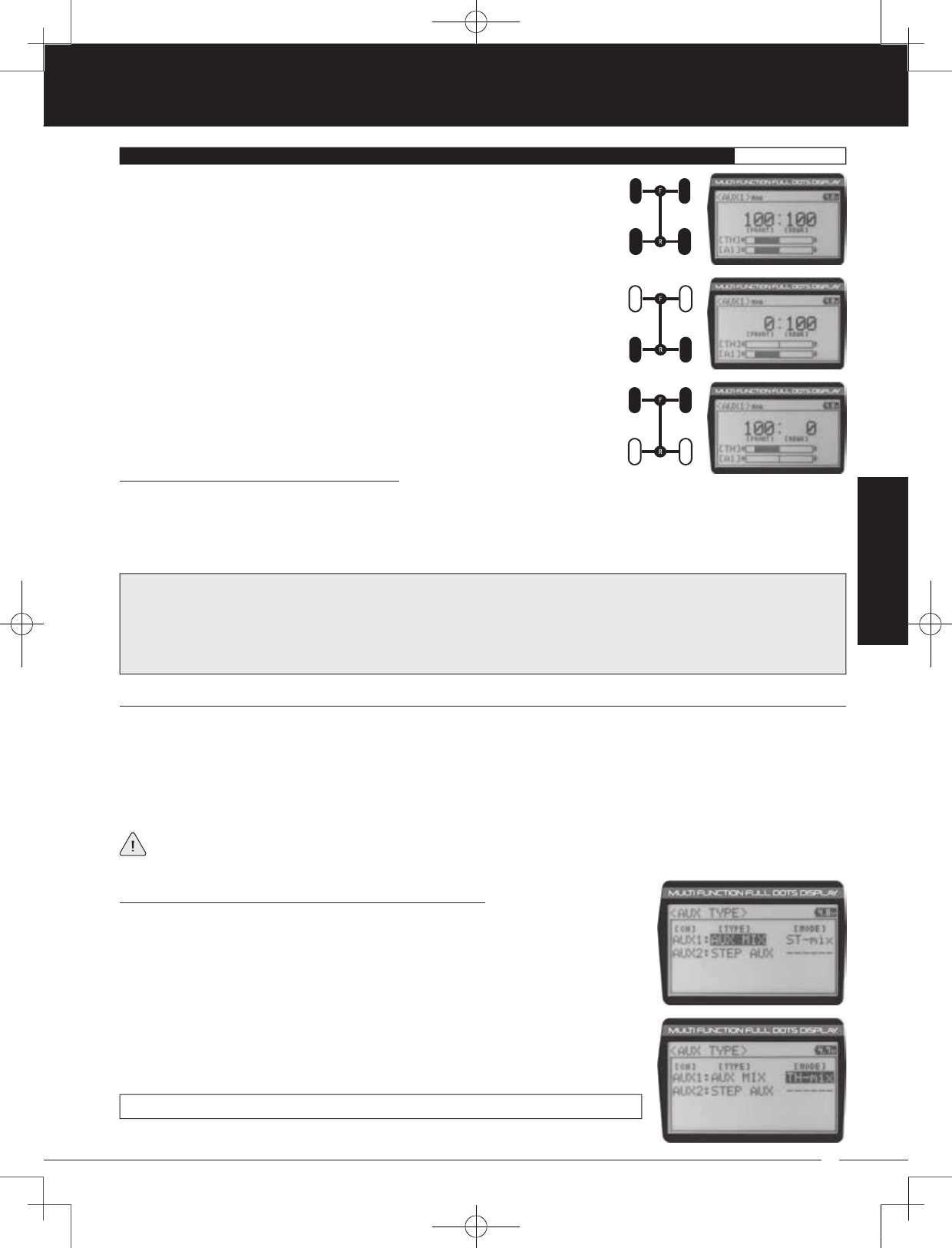

FRONT Throttle (Burn) - When set to 0:100, power will only be distributed to the Rear
motor (Burn). Power can be distributed proportionally between the Front and Rear
motors from 0:100 to 99:100.
REAR Throttle (Dig) - When set to 100:0, power will only be distributed to the Front
motor (Dig). Power can be distributed proportionally between the Front and Rear
motors from 100:0 to 100:99.
OFF (Balanced) - When set to 100:100, power will be evenly distributed between the
Front and Rear motors.
The following Motor on Axle Mixing options can be programmed:
Controlling the Motor on Axle Mixing Function:
1) In the default configuration, Auxiliary 1 is controlled by the Rotary Dial. Turn the Rotary Dial clockwise to reduce the available
power to the Rear motor (Dig) and turn the Rotary Dial counter-clockwise to reduce the power to the Front motor (Burn).
In addition, Auxiliary 1 can be assigned to one of the four Trim Switches or to the Auxiliary Lever. The Motor on Axle Mixing
function can be toggled OFF and ON by assigning Auxiliary 1 to one of the two Push-Button Switches. For more information,
see the Key Assignments section on pages 53 through 58.
IMPORTANT: In the default configuration, the Rotary Dial Step value is set to 5. This allows you to adjust the Power Distribution in
5 percent increments. If you prefer to control the Dig and Burn functions as if they were assigned to an ON/OFF switch, change
the DIAL Step value to 100. Alternately, the Motor on Axle Mixing function can be controlled by the Auxiliary Lever. This allows you
to quickly switch between the Dig and Burn functions and still have the ability to variably change the Power Distribution between
the Front and Rear motors. To set this up, change the Auxiliary Lever Function to AUX1, then change the TWEAK (H) value to +100
and the TWEAK (L) value to -100. For more information, see the Key Assignments section on pages 53 through 58.
The Auxiliary Mixing function allows you to Mix either Steering Channel 1 or Throttle Channel 2 to Auxiliary 1 Channel 3, while
maintaining separate Sub-Trim, End Point Adjustments, Servo Reversing and other channel-specific settings. For example,
if your monster truck features dual Front steering servos, instead of using a Y-Harness to join the two steering servos, you can
use Steering Mixing to operate both steering servos together and still be able to make adjustments to each servo separately.
In addition, if your model features a third-channel brake, you could use Throttle Mixing to control it along with the channel 2
brake.
The Auxiliary Mixing Rate percentage value can be adjusted while you're driving using one of the four Trim Switches,
the Rotary Dial or the Auxiliary Lever. The Auxiliary Mixing function can be toggled OFF and ON while you're driving by
assigning Auxiliary 1 to one of the two Push-Button Switches.
AUX MIX (Auxiliary Mixing)
Choosing the Auxiliary Mixing Function and the Mixing Type:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the SYSTEM menu, then press the ENTER key. Scroll
DOWN to highlight the AUX TYPE menu, then press the ENTER key.
3) Press the ENTER key, then scroll UP or DOWN to choose the AUX1:AUX MIX function.
4) From within the AUX TYPE menu, scroll DOWN to highlight [MODE] ST-mix. Press the
ENTER key, then scroll UP or DOWN to choose the desired Mixing type you would like
to program. Choose from either ST-mix (Steering Mixing) or TH-mix (Throttle Mixing).
AUX TYPE MIX setting range is ST-mix and TH-mix. The default setting is ST-mix.
MT-4S User's Guide.indd 31 2015/10/27 14:38:58

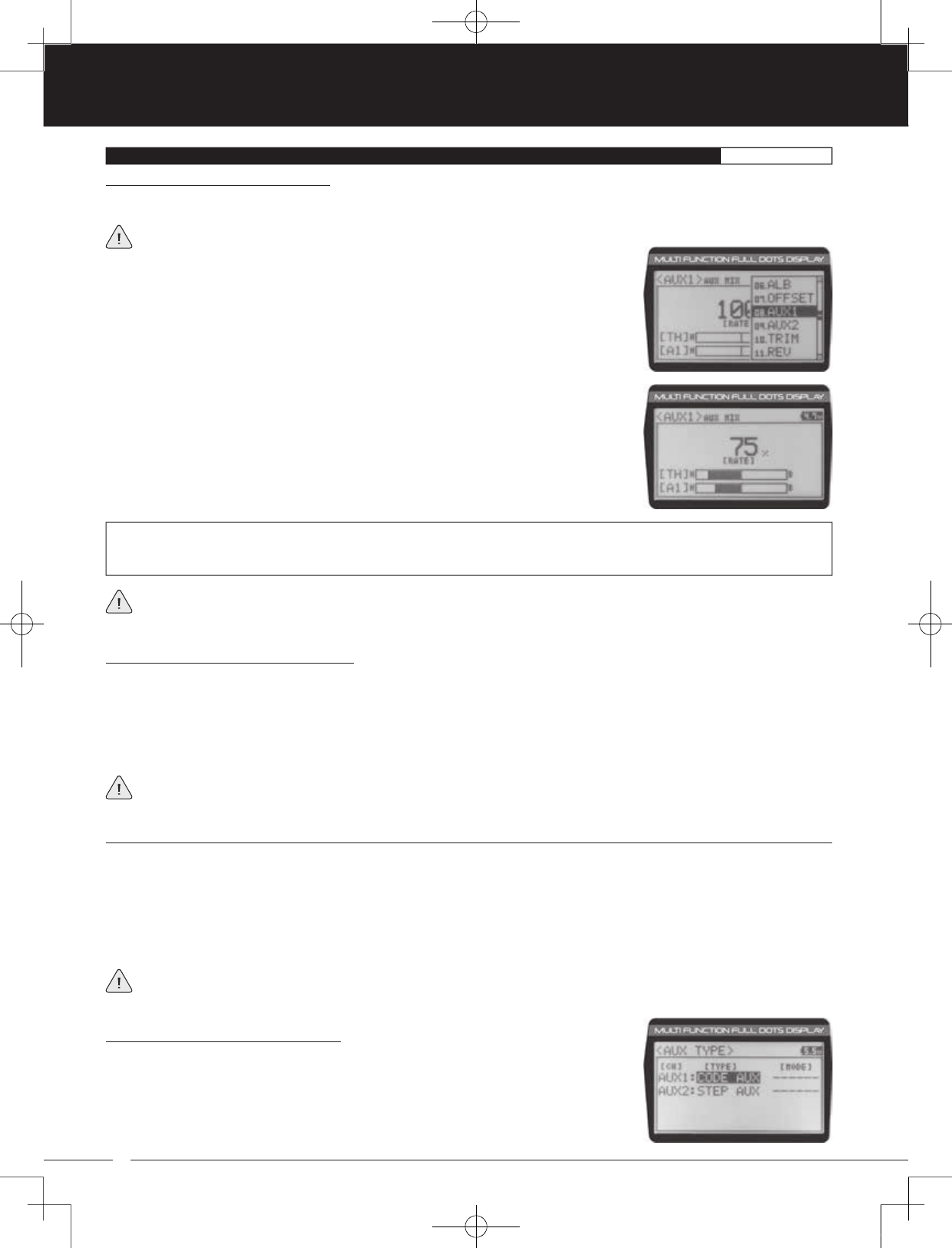

32
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
Choosing the CODE Auxiliary Function:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the SYSTEM menu, then press the ENTER key. Scroll
DOWN to highlight the AUX TYPE menu, then press the ENTER key.
3) Press the ENTER key, then scroll UP or DOWN to choose the AUX1:CODE AUX function.
08.AUX1 (AUXILIARY 1 CHANNEL 3 PROGRAMMING)PROGRAM
Adjusting the Rate Percentage Value:
The Rate percentage value defines how far the Auxiliary 1 servo travels relative to either the Steering servo or the Throttle servo.
The Master channel ( either Steering Channel 1 or Throttle Channel 2) always controls the Slave channel (Auxiliary 1
Channel 3).
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the AUX1 menu, then press the ENTER key. The AUX1
AUX MIX menu will be displayed.
3) Press the ENTER key, then scroll UP or DOWN to change the Rate percentage value.
Decreasing the Rate percentage value will reduce the amount the Auxiliary 1 servo
travels relative to the Steering servo or Throttle servo and increasing the Rate percentage
value will increase the amount the Auxiliary 1 servo travels relative to the Steering servo
or Throttle servo.
AUX1 AUX MIX RATE setting range is 100% to 0%. The default setting is 100%. This Mix is Linear. For example, if the Rate
percentage value is set to 100%, the Auxiliary 1 servo will travel the same amount as the Steering servo. Additionally, if the
Rate percentage value is set to 50%, the Auxiliary 1 servo will travel half the amount as the Steering servo.
Controlling the Auxiliary Mixing Function:
1) In the default configuration, Auxiliary 1 is controlled by the Rotary Dial. Turn the Rotary Dial clockwise to increase the Rate
percentage value and turn the Rotary Dial counter-clockwise to decrease the Rate percentage value. In addition, the
Auxiliary Mixing Rate function can be assigned to one of the four Trim Switches or the Auxiliary Lever.
In addition, the Auxiliary Mixing function can be toggled OFF and ON by assigning Auxiliary 1 to one of the two Push-Button
Switches. For more information, see the Key Assignments section on pages 53 through 58.
Remember that you are able to independently adjust the Auxiliary 1 Channel 3 Dual Rate, Exponential, Sub-Trim, Servo
Speed settings and more to allow for the optimum Auxiliary Mixing setup.
In the default configuration, the Auxiliary 1 servo will travel in the same direction as the Steering servo or Throttle servo. To
apply the Mix in the opposite direction, change the Servo Reversing value of Auxiliary 1 Channel 3. For more information,
see the Servo Reversing section on page 42.
CODE AUX (CODE Auxiliary)
The CODE Auxiliary function is used with Airtronics or Sanwa brand accessories, such as the Airtronics Super Vortex ZERO ESC,
that support Sanwa Synchronized Link (SSL). When used with an SSL equipped accessory item, the CODE Auxiliary function
allows you to remotely change accessory Programming Mode values.
For example, when used with the Airtronics Super Vortex ZERO ESC, many of the ESC Programming Mode values, such as
Drag Brake, Timing Advance, and more can be changed remotely from the transmitter while you're driving. In addition, you are
able to rename the different CODE Programming Names (CODE1, CODE2, etc) to make them easier to keep track of.
Individual CODE Auxiliary Programming values (CODE1, CODE2, etc) can be changed while you're driving by assigning
these functions to a Trim Switch, the Rotary Dial or the Auxiliary Lever. For more information, see the Key Assignments
section on pages 53 through 58.
MT-4S User's Guide.indd 32 2015/10/27 14:38:59

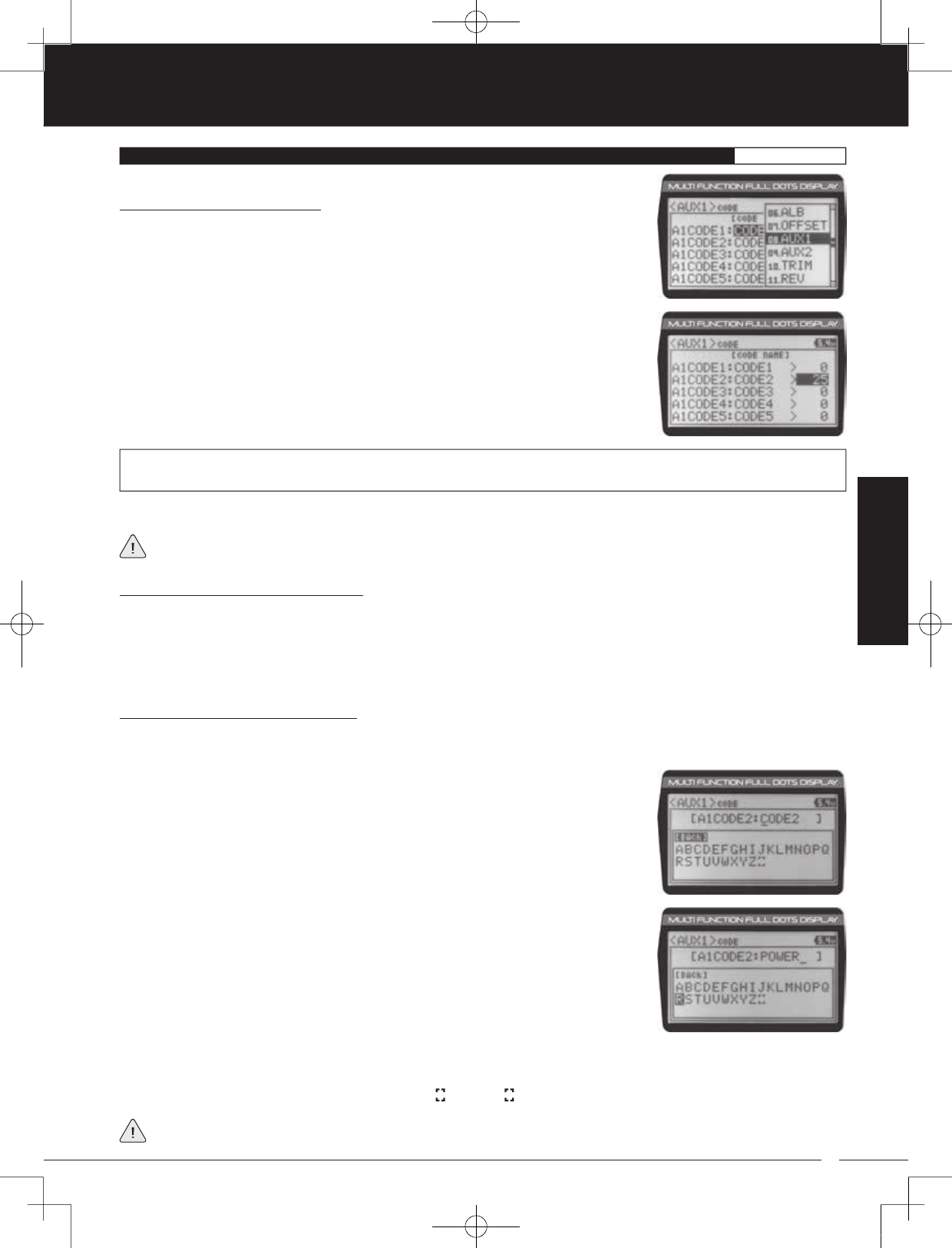

33
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
PROGRAM
08.AUX1 (AUXILIARY 1 CHANNEL 3 PROGRAMMING)PROGRAM
Changing CODE Auxiliary Values:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the AUX1 menu, then press the ENTER key. The AUX1
CODE menu will be displayed.
3) Press the ENTER key to open the AUX1 CODE menu. A1CODE1:CODE1 > 0 will be
highlighted.
4) Scroll UP or DOWN to highlight the desired CODE Auxiliary value you would like to
change.
5) Press the ENTER key, then scroll UP or DOWN to choose the desired CODE Auxiliary
value.
6) Press the ENTER key again, then repeat steps 3 and 4 to change any other desired CODE Auxiliary values.
Refer to the Airtronics or Sanwa brand accessory's User's Guide for information about what CODE Auxiliary value (or
values) control what accessory functions and what actual values to use.
A1CODE1, A1CODE2, A1CODE3, A1CODE4 and A1CODE5 setting range is -100 to 100. The default setting for all CODE
Auxiliary functions is 0.
Changing CODE Programming Names:
You are able to rename the different CODE Programming Names (CODE1, CODE2, etc) to make them easier to keep track of.
The CODE Programming Name can consist of up to 5 letters, numbers, or symbols. Choose from capital letters, lower case
letters, numbers, and various symbols.
1) From within the AUX1 CODE menu, scroll UP or DOWN to highlight the desired CODE
Auxiliary Name you want to change (CODE1, CODE2, etc.)
2) Press the ENTER key. The AUX1 CODE menu will be displayed, [BACK] will be highlighted
and the underscore will be flashing under the first editable character in the CODE
Programming Name.
3) Scroll UP or DOWN to move the underscore to the character you would like change.
4) Press the ENTER key, then scroll UP or DOWN to highlight a character in the Character
List. Press the ENTER key a second time to select the highlighted character. That
character will be displayed and the underscore will move to the next space in the CODE
Programming Name.
5) Repeat steps 3 and 4 to enter the rest of the characters. Up to five characters can be entered. Press the BACK/CANCEL key
to re-gain control of the underscore (the underscore will flash indicating you can scroll UP or DOWN to move it Forward or
Backward). To select lower case letters, numbers or symbols, continue to scroll UP or DOWN through the various Character
Lists. To add a space in your Model Name, use the icon. The icon can also be used to delete characters.
If you can't move the underscore, press the BACK/CANCEL key to re-gain control of the underscore (the underscore will
flash indicating you can scroll UP or DOWN to move it Forward or Back).
Controlling the CODE Auxiliary Function:
1) In the default configuration, Auxiliary 1 is controlled by the Rotary Dial. To adjust the CODE Auxiliary function while driving you
must assign the desired CODE Auxiliary value (A1CODE1, A1 CODE2, etc) to either the Rotary Dial or one of the Trim Switches.
In addition, the CODE Auxiliary function can be toggled OFF and ON by assigning Auxiliary 1 or the desired CODE Auxiliary
value (A1CODE1, A1 CODE2, etc) to one of the two Push-Button Switches. For more information, see the Key Assignments
section on pages 53 through 58.
MT-4S User's Guide.indd 33 2015/10/27 14:38:59
34
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
The Auxiliary 2 Programming function allows you to program the six different Auxiliary Programming functions that are
controlled by Auxiliary 2 Channel 4. Use the table below to determine the different functions that are available:
IMPORTANT: Prior to programming an Auxiliary 2 Programming function you must first choose the desired Auxiliary
Programming function in the SYSTEM AUX TYPE menu. Only one Auxiliary 2 Programming function can be Active at any
given time.
The Step Auxiliary function allows you to program the Auxiliary 2 servo to move a defined amount when toggled ON and OFF
using a Push-Button Switch. For example, if you assign Auxiliary 2 to a Push-Button Switch, then program the Step Auxiliary
percentage value to 50%, the Auxiliary 2 servo will travel from the Neutral position to 50% of travel when the Push-Button Switch
is pressed. Press the Push-Button switch a second time and the Auxiliary 2 servo will travel back to the Neutral position. This
is useful to control simple ON/OFF functions, such as a reverse servo for a transmission or a mechanical switch to turn lights
ON and OFF, etc.
The Step Auxiliary Position value can be adjusted while you're driving using one of the four Trim Switches, the Rotary Dial
or the Auxiliary Lever. The Step Auxiliary function can be toggled OFF and ON by assigning Auxiliary 2 to one of the two
Push-Button Switches. This allows you to control when the Auxiliary 2 servo travels to the programmed Step Auxiliary position.
09.AUX2 (AUXILIARY 2 CHANNEL 4 PROGRAMMING)PROGRAM
STEP AUX
POINT AUX
4WS MIX
MOA MIX
AUX MIX
CODE AUX
Step Auxiliary
Point Auxiliary
Four Wheel Steering Mixing
Motor on Axle Dual Throttle Mixing
Auxiliary Mixing
CODE Auxiliary
Controls Step Values That the Auxiliary Servo Travels
Control Specific Points That the Auxiliary Servo Travels
Control Four Wheel Steering Options
Controls Dual Throttle Options (Dig and Burn)
Control User-Defined Auxiliary 1 Channel 3 Mixing Options
Controls SSL Equipped Accessories, Such as ESCs
FUNCTION FUNCTION NAME FUNCTION DESCRIPTION
STEP AUX (Step Auxliary)
Adjusting the Step Auxiliary Value:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the AUX2 menu, then press the ENTER key. The AUX2
STEP menu will be displayed and <AUX2 POSI> 0 will be shown.
3) Press the ENTER key, then scroll UP or DOWN to change the Auxiliary 2 Position value.
Increasing the value toward the High side (H) or Low side (L) will cause the Auxiliary 2
servo to travel to that specific position when you Activate the Auxiliary 2 Step function.
AUX2 STEP AUX2 POSI setting range is H100 to L100. The default setting is 0. This value
is a percentage of Auxiliary 2 servo travel.
Choosing the Step Auxiliary Function:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the SYSTEM menu, then press the ENTER key. Scroll
DOWN to highlight the AUX TYPE menu, then press the ENTER key.
3) Press the ENTER key, then scroll UP or DOWN to choose the AUX2: STEP AUX function.
Controlling the Step Auxiliary Function:
1) In the default configuration, Auxiliary 2 is controlled by the Auxiliary Lever, however, we suggest re-assigning this function
to the Rotary Dial or one of the Trim Switches to make it easier to adjust while driving. Turn the Rotary Dial clockwise to
increase the Position High Side value and turn the Rotary Dial counter-clockwise to increase the Position Low Side value.
The Step Auxiliary function can be toggled OFF and ON by assigning Auxiliary 2 to one of the two Push-Button Switches.
This allows you to control when the Auxiliary 2 servo travels to the programmed Step Auxiliary position. For more information,
see the Key Assignments section on pages 53 through 58.
MT-4S User's Guide.indd 34 2015/10/27 14:39:00
35
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
The Point Auxiliary function allows you to program the Auxiliary 2 servo to move up to 6 different Points along its travel, then
cycle through those Points using one of the Trim Switches or the Rotary Dial. For example, if your model requires a separate
3-position or more switch to operate a feature, the Point Auxiliary function can be customized to control this.
Use one of the four Trim Switches or the Rotary Dial to cycle through the Point positions while you're driving. The Point
Auxiliary function can be toggled OFF and ON while you're driving by assigning Auxiliary 2 to one of the two Push-Button
Switches. To ensure correct operation, make sure to refer the Important notice in the Controlling the Point Auxiliary Function below.
09.AUX2 (AUXILIARY 2 CHANNEL 4 PROGRAMMING)PROGRAM
POINT AUX (Point Auxliary)
Choosing the Point Auxiliary Function and the Number of Points:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the SYSTEM menu, then press the ENTER key. Scroll
DOWN to highlight the AUX TYPE menu, then press the ENTER key.
3) Press the ENTER key, then scroll UP or DOWN to choose the AUX2: POINT AUX function.
4) From within the AUX TYPE menu, scroll DOWN to highlight [MODE] 6 POINT. Press the
ENTER key, then scroll UP or DOWN to choose the desired number of Points you would
like to program.
AUX TYPE POINT setting range is 2point to 6point. The default setting is 6point.
Adjusting the Point Auxiliary Values:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the AUX2 menu, then press the ENTER key. The AUX2
POINT menu will be displayed and the last Point selected will be highlighted.
3) Scroll UP or DOWN to move the brackets to the Point you would like to change, then
press the ENTER key to highlight that Point.
4) Press the ENTER key, then scroll UP or DOWN to change the Point value. Increasing the
Point value toward the High side (H) or Low side (L) will cause the Auxiliary 2 servo to
travel to that specific position when you cycle through the various Points.
5) Repeat steps 3 and 4 to change the desired remaining Point values.
AUX2 POINT setting range is H100 to L100. The default setting for Point 1 is L100, for Point 2 is L60, for Point 3 is L20, for Point 4
is H20, for Point 5 is H60, and for Point 6 is H100. These values are a percentage of Auxiliary 2 servo travel.
Controlling the Point Auxiliary Function:
1) In the default configuration, Auxiliary 2 is controlled by the Auxiliary Lever, however, we suggest re-assigning this function
to the Rotary Dial or one of the Trim Switches to make it easier to adjust while driving. Turn the Rotary Dial clockwise to cycle
Forward through the programmed Point Auxiliary positions and turn the Rotary Dial counter-clockwise to cycle Backward
through the programmed Point Auxiliary positions. The Auxiliary 2 servo will move to the specified Point positions as
you cycle through the different Points.
In addition, the Point Auxiliary function can be toggled OFF and ON by assigning Auxiliary 2 to one of the two Push-Button
Switches. For more information, see the Key Assignments section on pages 53 through 58.
IMPORTANT: To operate correctly, the TRIM or DIAL Step value must be set to 1. If set to a value other than 1, Point positions
will be skipped as you cycle through them. For more information, see the Key Assignments section on pages 53 through 58.
PROGRAM
MT-4S User's Guide.indd 35 2015/10/27 14:39:00
36
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
Choosing the Four Wheel Steering Function:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the SYSTEM menu, then press the ENTER key. Scroll
DOWN to highlight the AUX TYPE menu, then press the ENTER key.
3) Press the ENTER key, then scroll UP or DOWN to choose the AUX2:4WS MIX function.
09.AUX2 (AUXILIARY 2 CHANNEL 4 PROGRAMMING)PROGRAM
The Four Wheel Steering Mixing function allows you to use Auxiliary 2 Channel 4 as a second steering channel, allowing you
to use two separate steering servos for Front and Rear steering. The Four Wheel Steering Mixing function allows you to control
either the Front or Rear steering independently, or Mix the Front and Rear steering to have Parallel Four Wheel Steering or
Tandem Four Wheel Steering. Use one of the four Trim Switches or the Rotary Dial to cycle through the different Four Wheel
Steering options while you're driving. The Four Wheel Steering Mixing function can be toggled OFF and ON while you're driving
by assigning Auxiliary 1 to one of the two Push-Button Switches.
4WS MIX (Four Wheel Steering Mixing)
Choosing Four Wheel Steering Mixing Options:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the AUX1 menu, then press the ENTER key. The AUX2
4WS menu will be displayed and the last Steering option selected will be highlighted.
3) Scroll UP or DOWN to move the brackets to the Four Wheel Steering option you would
like to use, then press the ENTER key to highlight that option. The highlighted option is
now Active.
The following Four Wheel Steering Mixing options are available:
REAR Wheel Steering - When highlighted, only the Rear Steering will operate.
NORMAL (Parallel/Crab) Four Wheel Steering - When highlighted, both the Front
and Rear Steering will operate in Parallel.
FRONT Wheel Steering - When highlighted, only the Front Steering will operate.
REVERSE (Tandem) Four Wheel Steering - When highlighted, both the Front and
Rear Steering will operate in Tandem.
If the steering servos do not operate as described above, use the Servo Reversing function to change the direction that each
servo operates. For more information, see the Servo Reversing section on page 42.
MT-4S User's Guide.indd 36 2015/10/27 14:39:01
37
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
Controlling the Four Wheel Steering Mixing Function:
1) In the default configuration, Auxiliary 2 is controlled by the Auxiliary Lever, however, we suggest re-assigning this function
to the Rotary Dial or one of the Trim Switches to make it easier to adjust while driving. Turn the Rotary Dial clockwise to
cycle Forward through the Four Wheel Steering options (FRONT > REAR > NORMAL > REVERSE) and turn the Rotary Dial
counter-clockwise to cycle Backward through the Four Wheel Steering options.
In addition, the Four Wheel Steering Mixing function can be toggled OFF and ON by assigning Auxiliary 2 to one of the two
Push-Button Switches. For more information, see the Key Assignments section on pages 53 through 58.
IMPORTANT: To operate correctly, the DIAL or TRIM Step value must be set to 1. If set to a value other than 1, Four Wheel
Steering Mixing options will be skipped as you cycle through them. For more information, see the Key Assignments section
on pages 53 through 58.

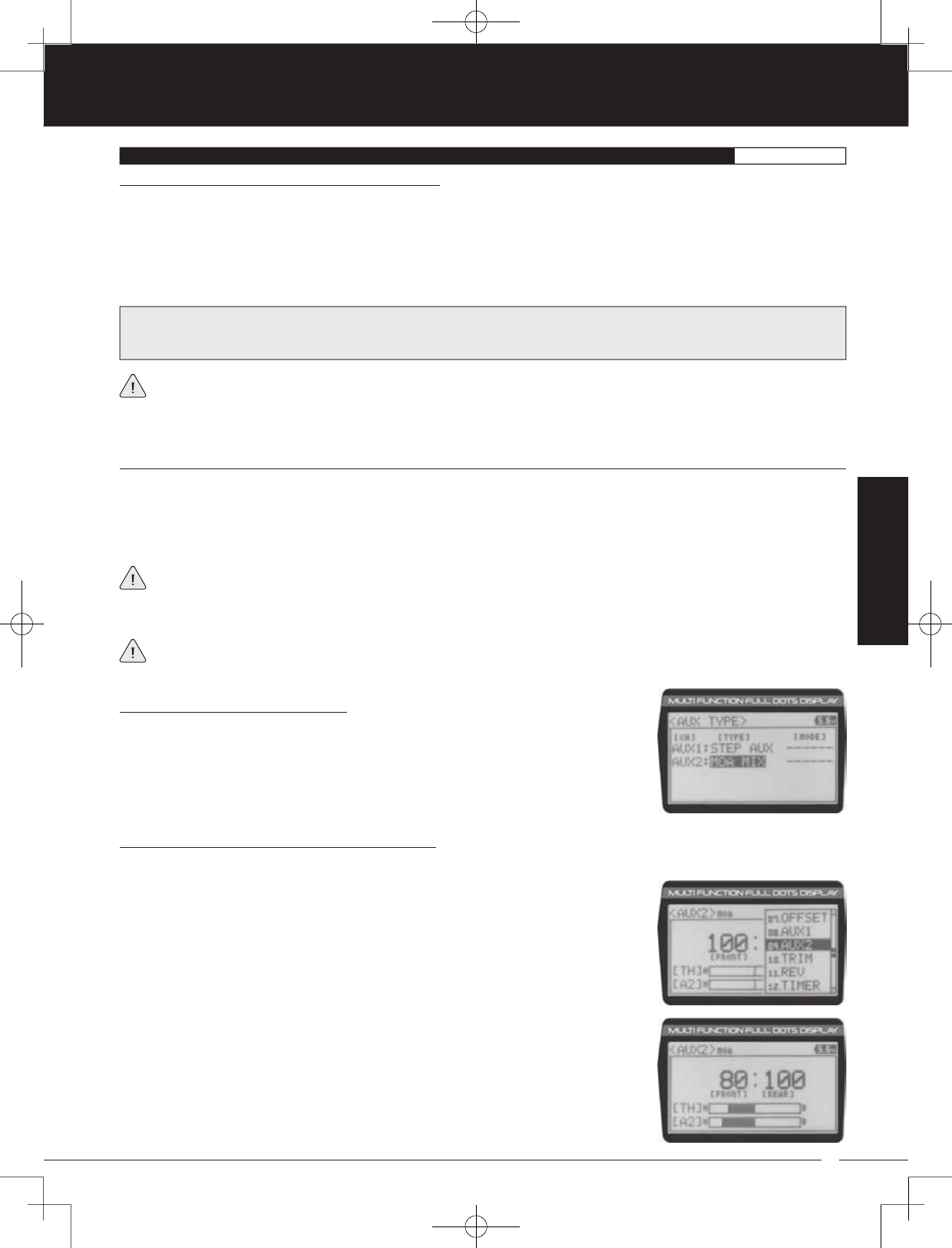

Choosing the Motor on Axle Function:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the SYSTEM menu, then press the ENTER key. Scroll
DOWN to highlight the AUX TYPE menu, then press the ENTER key.
3) Press the ENTER key, then scroll UP or DOWN to choose the AUX2:MOA MIX function.
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the AUX2 menu, then press the ENTER key. The AUX2
MOA menu will be displayed.
3) Press the ENTER key, then scroll UP or DOWN to change the Power Distribution
between the Front and Rear motors. Scrolling UP will reduce the available power to the
Rear motor (Dig) and scrolling DOWN will reduce the power to the Front motor (Burn).
09.AUX2 (AUXILIARY 2 CHANNEL 4 PROGRAMMING)PROGRAM
When using Four Wheel Steering, it's important to adjust the Steering Channel 1 and Auxiliary 2 Channel 4 Sub-Trim
values to center both servos. This will ensure that your model tracks straight. In addition, remember that you are able
to independently adjust the Auxiliary 2 Channel 4 Dual Rate, Exponential, Sub-Trim, Servo Speed settings and more to allow for
the optimum Four Wheel Steering Mixing setup.
MOA MIX (Motor On Axle Mixing)
The Motor on Axle Mixing function allows you to use Auxiliary 2 Channel 4 as a second Throttle Channel, allowing you to use
two separate throttle servos or ESCs. The Motor on Axle Mixing function is typically used in Rock Crawling and allows you to
control either the Front and Rear motors together or independently, giving you Normal (Balanced), Dig and Burn functions. And
when
coupled with the ability to variably change the power distribution between the Front and Rear motors, allows the utmost
in func
tionality.
When using the Motor on Axle function, it's important to adjust the Throttle Channel 2 and Auxiliary 2 Channel 4 Sub-Trim
values so both motors' idle (or OFF) settings are equal. This will ensure correct function. In addition, remember that you
are able to independently adjust the Auxiliary 2 Channel 4 Dual Rate, Exponential, Sub-Trim, Servo Speed settings and more to
allow for the optimum Motor on Axle Mixing setup.
Use the Rotary Dial, one of the four Trim Switches or the Auxiliary Lever to Activate the Dig and Burn functions while you're
driving. The Motor on Axle Mixing function can be toggled OFF and ON while you're driving by assigning Auxiliary 2 to one
of the two Push-Button Switches.
Changing Motor on Axle Power Distribution Options:
You are able to program Normal (Balanced), Dig and Burn functions by changing the Power Distribution between the Front
and Rear motors.
PROGRAM
MT-4S User's Guide.indd 37 2015/10/27 14:39:01
38
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
09.AUX2 (AUXILIARY 2 CHANNEL 4 PROGRAMMING)PROGRAM
FRONT Throttle (Burn) - When set to 0:100, power will only be distributed to the Rear
motor (Burn). Power can be distributed proportionally between the Front and Rear
motors from 0:100 to 99:100.
REAR Throttle (Dig) - When set to 100:0, power will only be distributed to the Front
motor (Dig). Power can be distributed proportionally between the Front and Rear
motors from 100:0 to 100:99.
OFF (Balanced) - When set to 100:100, power will be evenly distributed between the
Front and Rear motors.
The following Motor on Axle Mixing options can be programmed:
Controlling the Motor on Axle Mixing Function:
1) In the default configuration, Auxiliary 2 is controlled by the Auxiliary Lever. This allows you to quickly switch between the Dig and
Burn functions and still have the ability to variably change the Power Distribution between the Front and Rear motors. To set this
up, change the Auxiliary Lever Function to AUX2, then change the TWEAK (H) value to +100 and the TWEAK (L) value to -100. For
more information, see the Key Assignments section on pages 53 through 58. In addition, Auxiliary 2 can be assigned to the
Rotary Dial or one of the four Trim Switches. The Motor on Axle Mixing function can be toggled OFF and ON by assigning
Auxiliary 2 to one of the two Push-Button Switches. For more information, see the Key Assignments section on pages 53
through 58.
IMPORTANT: In the default configuration, the Rotary Dial Step value is set to 5. This allows you to adjust the Power Distribution in
5 percent increments. If you prefer to control the Dig and Burn functions as if they were assigned to an ON/OFF switch, change
the DIAL Step value to 100. For more information, see the Key Assignments section on pages 53 through 58.
The Auxiliary Mixing function allows you to Mix either Steering Channel 1 or Throttle Channel 2 to Auxiliary 2 Channel 4, while
maintaining separate Sub-Trim, End Point Adjustments, Servo Reversing and other channel-specific settings. For example,
if your monster truck features dual Front steering servos, instead of using a Y-Harness to join the two steering servos, you can
use Steering Mixing to operate both steering servos together and still be able to make adjustments to each servo separately.
In addition, if your model features a third-channel brake, you could use Throttle Mixing to control it along with the channel 2
brake.
The Auxiliary Mixing Rate percentage value can be adjusted while you're driving using one of the four Trim Switches,
the Rotary Dial or the Auxiliary Lever. The Auxiliary Mixing function can be toggled OFF and ON while you're driving by
assigning Auxiliary 2 to one of the two Push-Button Switches.
AUX MIX (Auxiliary Mixing)
Choosing the Auxiliary Mixing Function and the Mixing Type:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the SYSTEM menu, then press the ENTER key. Scroll
DOWN to highlight the AUX TYPE menu, then press the ENTER key.
3) Press the ENTER key, then scroll UP or DOWN to choose the AUX2:AUX MIX function.
4) From within the AUX TYPE menu, scroll DOWN to highlight [MODE] ST-mix. Press the
ENTER key, then scroll UP or DOWN to choose the desired Mixing type you would like
to program. Choose from either ST-mix (Steering Mixing) or TH-mix (Throttle Mixing).
AUX TYPE MIX setting range is ST-mix and TH-mix. The default setting is ST-mix.
MT-4S User's Guide.indd 38 2015/10/27 14:39:02
39
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
PROGRAM
Choosing the CODE Auxiliary Function:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the SYSTEM menu, then press the ENTER key. Scroll
DOWN to highlight the AUX TYPE menu, then press the ENTER key.
3) Press the ENTER key, then scroll UP or DOWN to choose the AUX2:CODE AUX function.
09.AUX2 (AUXILIARY 2 CHANNEL 4 PROGRAMMING)PROGRAM
Adjusting the Rate Percentage Value:
The Rate percentage value defines how far the Auxiliary 2 servo travels relative to either the Steering servo or the Throttle servo.
The Master channel ( either Steering Channel 1 or Throttle Channel 2) always controls the Slave channel (Auxiliary 2
Channel 4).
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the AUX2 menu, then press the ENTER key. The AUX2
AUX MIX menu will be displayed.
3) Press the ENTER key, then scroll UP or DOWN to change the Rate percentage value.
Decreasing the Rate percentage value will reduce the amount the Auxiliary 2 servo
travels relative to the Steering servo or Throttle servo and increasing the Rate percentage
value will increase the amount the Auxiliary 2 servo travels relative to the Steering servo
or Throttle servo.
AUX2 AUX MIX RATE setting range is 100% to 0%. The default setting is 100%. This Mix is Linear. For example, if the Rate
percentage value is set to 100%, the Auxiliary 2 servo will travel the same amount as the Steering servo. Additionally, if the
Rate percentage value is set to 50%, the Auxiliary 2 servo will travel half the amount as the Steering servo.
Controlling the Auxiliary Mixing Function:
1) In the default configuration, Auxiliary 2 is controlled by the Auxiliary Lever, however, we suggest re-assigning this function
to the Rotary Dial or one of the Trim Switches to make it easier to adjust while driving. Turn the Rotary Dial clockwise to
increase the Rate percentage value and turn the Rotary Dial counter-clockwise to decrease the Rate percentage value.
In addition, the Auxiliary Mixing function can be toggled OFF and ON by assigning Auxiliary 2 to one of the two Push-Button
Switches. For more information, see the Key Assignments section on pages 53 through 58.
Remember that you are able to independently adjust the Auxiliary 2 Channel 4 Dual Rate, Exponential, Sub-Trim, Servo
Speed settings and more to allow for the optimum Auxiliary Mixing setup.
In the default configuration, the Auxiliary 2 servo will travel in the same direction as the Steering servo or Throttle servo. To
apply the Mix in the opposite direction, change the Servo Reversing value of Auxiliary 2 Channel 4. For more information,
see the Servo Reversing section on page 42.
CODE AUX (CODE Auxiliary)
The CODE Auxiliary function is used with Airtronics or Sanwa brand accessories, such as the Airtronics Super Vortex ZERO ESC,
that support Sanwa Synchronized Link (SSL). When used with an SSL equipped accessory item, the CODE Auxiliary function
allows you to remotely change accessory Programming Mode values.
For example, when used with the Airtronics Super Vortex ZERO ESC, many of the ESC Programming Mode values, such as
Drag Brake, Timing Advance, and more can be changed remotely from the transmitter while you're driving. In addition, you are
able to rename the different CODE Programming Names (CODE1, CODE2, etc) to make them easier to keep track of.
Individual CODE Auxiliary Programming values (CODE1, CODE2, etc) can be changed while you're driving by assigning
these functions to a Trim Switch, the Rotary Dial or the Auxiliary Lever. For more information, see the Key Assignments
section on pages 53 through 58.
MT-4S User's Guide.indd 39 2015/10/27 14:39:02
40
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
09.AUX2 (AUXILIARY 2 CHANNEL 4 PROGRAMMING)PROGRAM
Changing CODE Auxiliary Values:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the AUX2 menu, then press the ENTER key. The AUX2
CODE menu will be displayed.
3) Press the ENTER key to open the AUX2 CODE menu. A2CODE1:CODE1 > 0 will be
highlighted.
4) Scroll UP or DOWN to highlight the desired CODE Auxiliary value you would like to
change.
5) Press the ENTER key, then scroll UP or DOWN to choose the desired CODE Auxiliary
value.
6) Press the ENTER key again, then repeat steps 3 and 4 to change any other desired CODE Auxiliary values.
Refer to the Airtronics or Sanwa brand accessory's User's Guide for information about what CODE Auxiliary value (or
values) control what accessory functions and what actual values to use.
A2CODE1, A2CODE2, A2CODE3, A2CODE4 and A2CODE5 setting range is -100 to 100. The default setting for all CODE
Auxiliary functions is 0.
Changing CODE Programming Names:
You are able to rename the different CODE Programming Names (CODE1, CODE2, etc) to make them easier to keep track of.
The CODE Programming Name can consist of up to 5 letters, numbers, or symbols. Choose from capital letters, lower case
letters, numbers, and various symbols.
1) From within the AUX2 CODE menu, scroll UP or DOWN to highlight the desired CODE
Auxiliary Name you want to change (CODE1, CODE2, etc.)
2) Press the ENTER key. The AUX2 CODE menu will be displayed, [BACK] will be highlighted
and the underscore will be flashing under the first editable character in the CODE
Programming Name.
3) Scroll UP or DOWN to move the underscore to the character you would like change.
4) Press the ENTER key, then scroll UP or DOWN to highlight a character in the Character
List. Press the ENTER key a second time to select the highlighted character. That
character will be displayed and the underscore will move to the next space in the CODE
Programming Name.
5) Repeat steps 3 and 4 to enter the rest of the characters. Up to five characters can be entered. Press the BACK/CANCEL key
to re-gain control of the underscore (the underscore will flash indicating you can scroll UP or DOWN to move it Forward or
Backward). To select lower case letters, numbers or symbols, continue to scroll UP or DOWN through the various Character
Lists. To add a space in your Model Name, use the icon. The icon can also be used to delete characters.
If you can't move the underscore, press the BACK/CANCEL key to re-gain control of the underscore (the underscore will
flash indicating you can scroll UP or DOWN to move it Forward or Back).
Controlling the CODE Auxiliary Function:
1) In the default configuration, Auxiliary 2 is controlled by the Auxiliary Lever. To adjust the CODE Auxiliary function while driving you
must assign the desired CODE Auxiliary value (A2CODE1, A2 CODE2, etc) to either the Rotary Dial or one of the Trim Switches.
In addition, the CODE Auxiliary function can be toggled OFF and ON by assigning Auxiliary 2 or the desired CODE Auxiliary
value (A2CODE1, A2 CODE2, etc) to one of the two Push-Button Switches. For more information, see the Key Assignments
section on pages 53 through 58.
MT-4S User's Guide.indd 40 2015/10/27 14:39:03
41
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
The Trim function allows you to view the currently programmed Trim value of each of the four channels and, if desired, allows
you to change the Trim values using the Push-Button Rotary Dial from within the Trim menu. In addition to the Trim function,
the Servo Sub-Trim function allows you to fine-tune the Neutral position of each servo.
Adjusting the Servo Sub-Trim Values:
It's not unusual that when you center a servo and install the servo horn, the servo horn is not exactly centered. The Sub-Trim
function allows you to center the servo horn exactly, without altering the servo End Point travel. This is especially useful when
using a Mix, such as Four Wheel Steering Mixing. For example, you can use the Sub-Trim function to adjust the Neutral Trim
setting of your Front and Rear Steering servos independently to ensure your Model tracks straight.
1) Install the servo horn (or servo saver for the Steering servo) onto your servo,
making sure that the servo horn (or servo saver) is as close to being centered
as possible. In some cases, you can get the servo horn closer to being centered
by rotating the servo horn 180º and reinstalling it.
2) From the Top Screen, press the ENTER key to open the Programming Menu list.
3) Scroll UP or DOWN to highlight the TRIM menu, then press the ENTER key. The TRIM
menu will be displayed and [ST]:TRIM 0 will be highlighted.
4) Scroll UP or DOWN to highlight the desired channel you would like to change
the Sub-Trim value for. Choose from either [ST]:[SUB-T] 0 (Steering), [TH]:[SUB-T] 0
(Throttle), [A1]:[SUB-T] 0 (Auxiliary 1) or [A2]:[SUB-T] 0 (Auxiliary 2).
PROGRAM
10.TRIM (TRIM AND SERVO SUB-TRIM)PROGRAM
Before changing the Sub-Trim values you should set the Steering
and Throttle Trim to 0 using the Trm1 and Trm2 Trim Switches.
Trm1 [ST]
Trm2 [TH]
5) Press the ENTER key, then scroll UP or DOWN to increase or decrease the Sub-Trim
value to center the servo horn.
TRIM SUB-T setting range for the Steering channel is R150 to L150, for the Throttle
channel is H150 to B150 and for Auxiliary 1 Channel 3 and Auxiliary 2 Channel 4 is H150
to L150. The default setting for all channels is 0.
After adjusting the Sub-Trim value, use the End Point Adjustment function to set the desired amount of maximum servo
travel in both directions. For more information, see the End Point Adjustment section on pages 19 through 21.
Adjusting the Trim Values:
The 90478 transmitter features Digital Trim Memory. Any amount of Trim that you set using the Trim Switches is
automatically stored in memory for that specific channel and for that specific model. The Trim values for each model will
automatically be loaded when the transmitter is turned ON.
Before adjusting the Trim values, you should first adjust the servo Sub-Trim values to center the servo horns. For more
information, see the Adjusting the Servo Sub-Trim Values section above.
MT-4S User's Guide.indd 41 2015/10/27 14:39:04

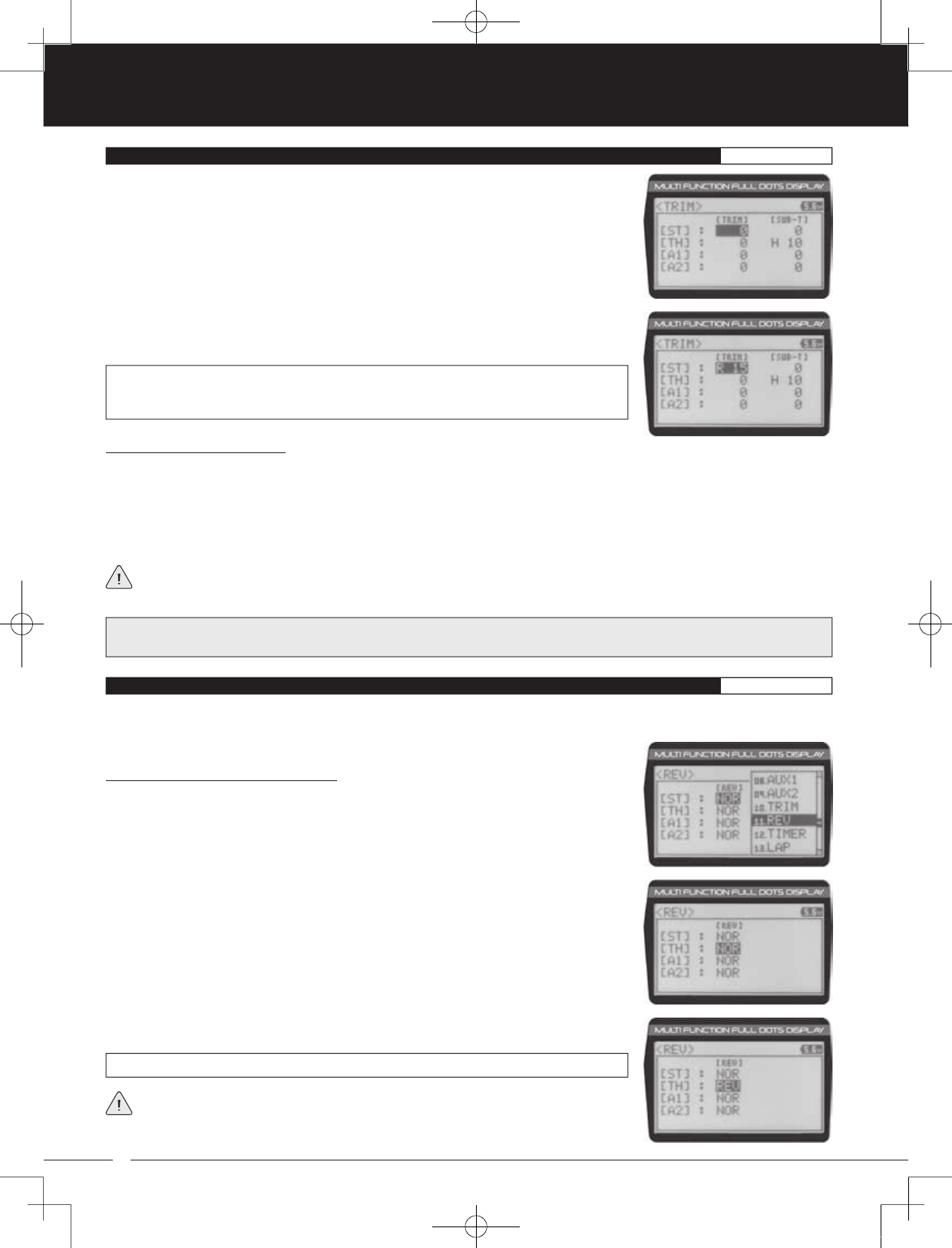

42
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
2) Press the ENTER key, then scroll UP or DOWN to increase or decrease the Trim value in
the desired direction.
TRIM TRIM setting range for the Steering channel is R100 to L100, for the Throttle channel
is H100 to B100 and for Auxiliary 1 Channel 3 and Auxiliary 2 Channel 4 is H100 to L100.
The default setting for all channels is 0.
1) From within the TRIM menu, scroll UP or DOWN to highlight the desired channel you
would like to change the Trim value for. Choose from either [ST]:[TRIM] 0 (Steering),
[TH]:[TRIM] 0 (Throttle), [A1]:[TRIM] 0 (Auxiliary 1) or [A2]:[TRIM] 0 (Auxiliary 2).
Controlling the Trim Function:
1) In the default configuration, Trim Switch Trm1 controls the Steering Right and Left Trim and Trim Switch Trm2 controls the
Throttle High and Brake Trim. When you move the Trim Switches, the Trim percentage value changes in 5% increments.
When you use the Trim function to change the Trim value, the Trim value changes in 1% increments.
Auxiliary 1 Trim and Auxiliary 2 Trim can be assigned to the remaining two Trim Switches, the Rotary Dial or the Auxiliary
Lever. For more information, see the Key Assignments section on pages 53 through 58.
Each time you move a Trim Switch a single audible tone is heard. When the Trim value reaches 0 (Centered), an audible
double-tone sounds. This indicates to you that the Trim is centered without the need to look down at the Trim Indicator
on the Top Screen while you're driving.
PRO TIP: The Trim function features two different Trim Type options that you can choose from. Choose from either Center
Trim or Parallel Trim. For more information, see the Trim Type section on page 59.
10.TRIM (TRIM AND SERVO SUB-TRIM)PROGRAM
11.REV (SERVO REVERSING)PROGRAM
The Servo Reversing function allows you to electronically switch the direction of servo travel. For example, if you rotate the steering
wheel to the right, and the steering servo moves to the left, you can use the Servo Reversing function to make the steering servo
move to the left. The Servo Reversing function is available for all four channels.
Changing the Servo Reversing Values:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the REV menu, then press the ENTER key. The REV
menu will be displayed and [ST]:NOR will be highlighted.
3) Scroll UP or DOWN to highlight the desired channel you would like to change the Servo
Reversing value for. Choose from either [ST]:NOR (Steering), [TH]:NOR (Throttle),
[A1]:NOR (Auxiliary 1) or [A2]:NOR (Auxiliary 2).
4) Press the ENTER key, then scroll UP or DOWN to change the direction of servo travel.
REV setting range is NOR and REV. The default setting for all channels is NOR.
When you change the direction of servo travel, the servo horn may no longer be
centered. If this occurs, use the Servo Sub-Trim function to center the servo horn. For
more information, see the Adjusting the Servo Sub-Trim Values section on page 41.
MT-4S User's Guide.indd 42 2015/10/27 14:39:04
43
TR
TR
TR
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
The Track Timers function features three different Timers. Timers are provided for measuring Lap Times, Interval Times, and
Countdown Times. Timers are displayed in the following format: 00:00.00 (Minutes:Seconds.1/100th of a Second). In the default
configuration, Push-Button Switch Sw2 controls the selected timer. The selected timer is also displayed on the Top Screen in
the following format: 00:00 (Minutes:Seconds).
Choosing the Timer Type:
1) From the Top Screen, press the ENTER key to open the Programming Menu list.
2) Scroll UP or DOWN to highlight the TIMER menu, then press the ENTER key. The TIMER
menu will be displayed and [TYPE] LAP will be highlighted.
3) Press the ENTER key, then scroll UP and DOWN to select the desired Timer Type.
Choose from LAP, INT (Interval) and DOWN (Countdown).
To program the Lap Timer function, see the Lap Timer section below. To program the Interval Timer function, see the Interval
Timer section on pages 44 and 45. To program the Countdown Timer function, see the Countdown Timer section on page 45.
PROGRAM
12.TIMER (TRACK TIMERS)PROGRAM
The Lap Timer function allows you to measure and record times for up to 99 laps. The number of laps completed is displayed in
the Timer menu, and when a lap is completed, the lap time is displayed momentarily on the Top Screen. An Alarm (Goal Time)
is featured that will sound when you reach your Goal Time and, if desired, the Interval Timer (Target Time) can be programmed
within the Lap Timer to alert you of your Target Time separately from your Goal Time.
Setting the Interval Timer (Target Time):
1) From within the TIMER menu, scroll DOWN to highlight [INT]:--.
2) Press the ENTER key, then scroll UP or DOWN to set the desired Interval Timer Minutes
value.
TIMER INT setting range is --:-- . -- to 99:59:99. The default setting is --:-- . -- (OFF). When the Lap Timer is counting up, an
audible double-tone will sound each time the Lap Timer reaches the Interval Timer value. For example, if you set the Interval
Timer for 30 Seconds, an audible double-tone will sound every 30 seconds.
3) To set the Interval Timer Seconds value, press the ENTER key, then scroll DOWN to
highlight --. Press the ENTER key a second time, then scroll UP and DOWN to set the
desired Interval Timer Seconds value.
4) To set the Interval Timer 1/100th Seconds value, press the ENTER key, then scroll DOWN
to highlight --. Press the ENTER key a second time, then scroll UP and DOWN to set the
desired Interval Timer 1/100th Seconds value.
LAP (Lap Timer)
Setting the Alarm (Goal Time):
1) From within the TIMER menu, scroll DOWN to highlight [ALRM] 05.
2) Press the ENTER key, then scroll UP or DOWN to set the desired Alarm Minutes value.
3) To set the Alarm Seconds value, press the ENTER key, then scroll DOWN to highlight 00.
Press the ENTER key a second time, then scroll UP and DOWN to set the desired Alarm
Seconds value.
TIMER ALRM setting range is 00:00 to 99:59. The default setting is 5:00 minutes. An audible tone will sound in 1 second
intervals 5 seconds before reaching the Goal Time. When the Goal Time is reached, a long audible tone will sound.
MT-4S User's Guide.indd 43 2015/10/27 14:39:05

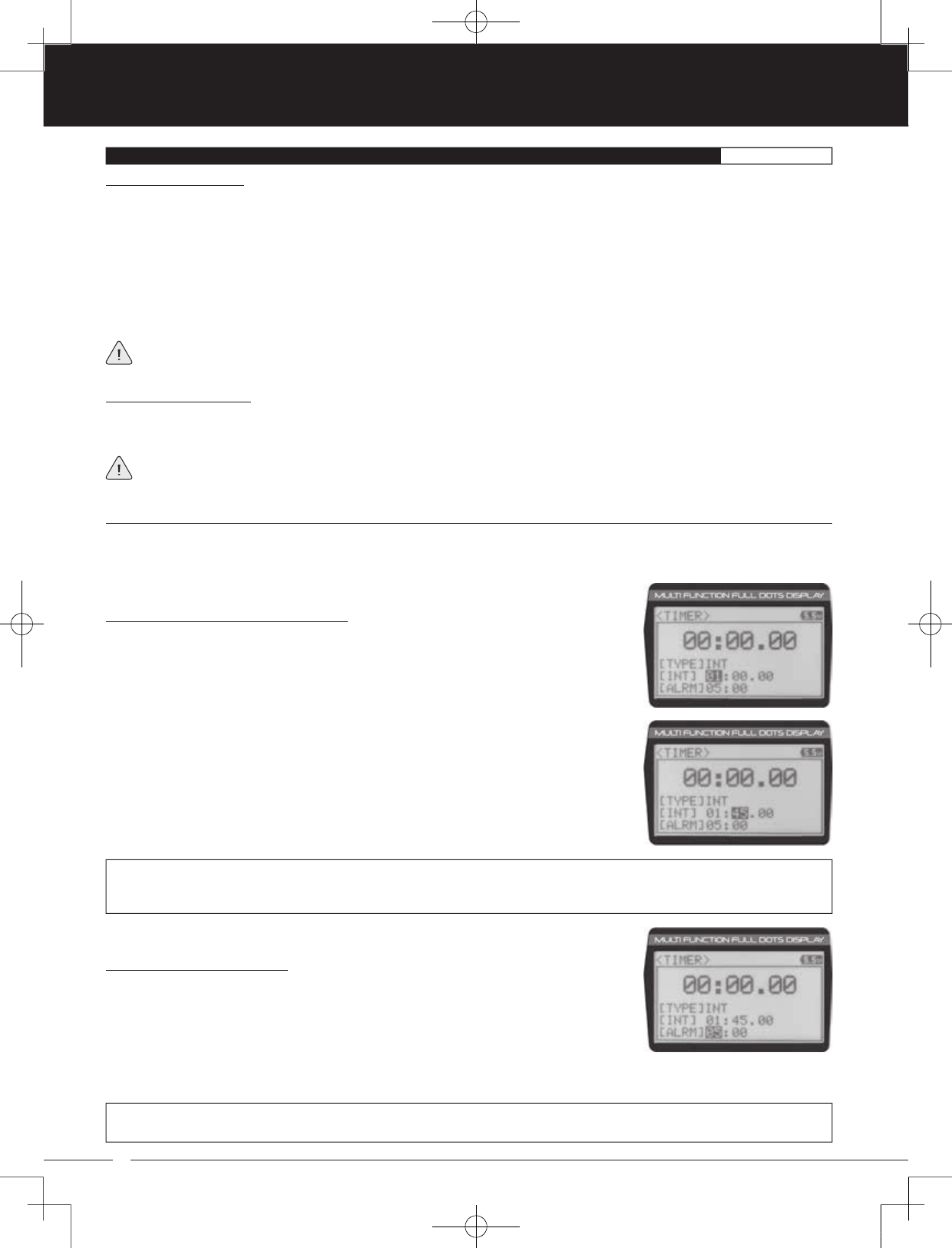

44
90478 2.4GHZ FH4T RADIO SYSTEM USER'S GUIDE
TR
TR
TR
Starting the Lap Timer:
1) In the default configuration, Push-Button Switch Sw2 controls the Lap Timer. Press and HOLD the Push-Button Switch for 3
seconds. An audible double-tone will sound and LAP will flash on the Top Screen indicating the Lap Timer is in Stand-by.
To start the Lap Timer, press the Push- Button Switch a second time or pull the Throttle Trigger. An audible double-tone will
sound and the Lap Timer will start counting up.
Pressing the Push-Button Switch a second time will store the first Lap Time, then begin counting a second Lap Time. Each
time you press the Push-Button Switch, an audible tone sounds, the previous Lap Time is stored, a new Lap Time begins
and the current Lap Time is displayed momentarily on the Top Screen.
If desired, the Timer Function can be assigned to Push-Button Switch Sw1. For more information, see the Key Assignments
section on pages 53 through 58.
Stopping the Lap Timer:
1) To stop the Lap Timer, press and HOLD Push-Button Switch Sw2 for 3 seconds. An audible double-tone will sound indicating
the Lap Timer is stopped and the Cumulative Time will be displayed on the Top Screen and in the TIMER menu.
The Cumulative Time cannot be manually cleared. It will be automatically cleared when the Lap Timer is put in
Stand-by again.
The Interval Timer (Target Time) function notifies you when a set interval elapses while you are driving, giving you an idea of
how close you are to your Target Time. An Alarm (Goal Time) is featured that will sound when you reach your Goal Time. When
the Interval Time is reached, an audible Double-Tone will sound, then the Interval Timer will Reset and begin counting Up again
from zero.
Setting the Interval Timer (Target Time):
1) From within the TIMER menu, scroll DOWN to highlight [INT]:--.
2) Press the ENTER key, then scroll UP or DOWN to set the desired Interval Timer Minutes
value.
TIMER INT setting range is --:-- . -- to 99:59:99. The default setting is --:-- . -- (OFF). When the Interval Timer is started, an au-
dible double-tone will sound each time the Interval Timer reaches the Interval Timer value. For example, if you set the Interval
Timer for 1 Minute, an audible double-tone will sound every Minute.
3) To set the Interval Timer Seconds value, press the ENTER key, then scroll DOWN to
highlight --. Press the ENTER key a second time, then scroll UP and DOWN to set the
desired Interval Timer Seconds value.
4) To set the Interval Timer 1/100th Seconds value, press the ENTER key, then scroll DOWN
to highlight --. Press the ENTER key a second time, then scroll UP and DOWN to set the
desired Interval Timer 1/100th Seconds value.
Setting the Alarm (Goal Time):
1) From within the TIMER menu, scroll DOWN to highlight [ALRM] 05.
2) Press the ENTER key, then scroll UP or DOWN to set the desired Alarm Minutes value.
TIMER ALRM setting range is 00:00 to 99:59. The default setting is 5:00 minutes. An audible tone will sound in 1 second
intervals 5 seconds before reaching the Goal Time. When the Goal Time is reached, a long audible tone will sound.
12.TIMER (TRACK TIMERS)PROGRAM
INT (Interval Timer)
3) To set the Alarm Seconds value, press the ENTER key, then scroll DOWN to highlight 00. Press the ENTER key a second
time, then scroll UP and DOWN to set the desired Alarm Seconds value.
MT-4S User's Guide.indd 44 2015/10/27 14:39:05
