Sanyo Electric Co CDR032 DVD-WRITER User Manual
Sanyo Electric Co Ltd DVD-WRITER Users Manual
Users Manual
![](/img.php?id=357025&img=bg1.png)
![](/img.php?id=357025&img=bg2.png)
![](/img.php?id=357025&img=bg3.png)
Page 2
Document No. Document Name
SANYO Electric Co., Ltd.
Revision History
(1/1)
1. Revision History
Revision No. Manager Change Description Check Approval
First Edition Newly issued
![](/img.php?id=357025&img=bg4.png)
Page 3
Document No. Document Name
SANYO Electric Co., Ltd.
Included Document List
(1/1)
2. Included Document List
Document Name Document No. Page No.
General Description 1/3 ~ 3/3 4
Dimensions, External View and
Names and Functions of Each Part
1/2 ~ 2/2 7
Terminal Description 1/3 ~ 3/3 9
Environmental Conditions 1/1 12
Reliability 1/3 ~ 3/3 13
Lot No. Reliability Description 1/1 16
Safety Standards 1/1 17

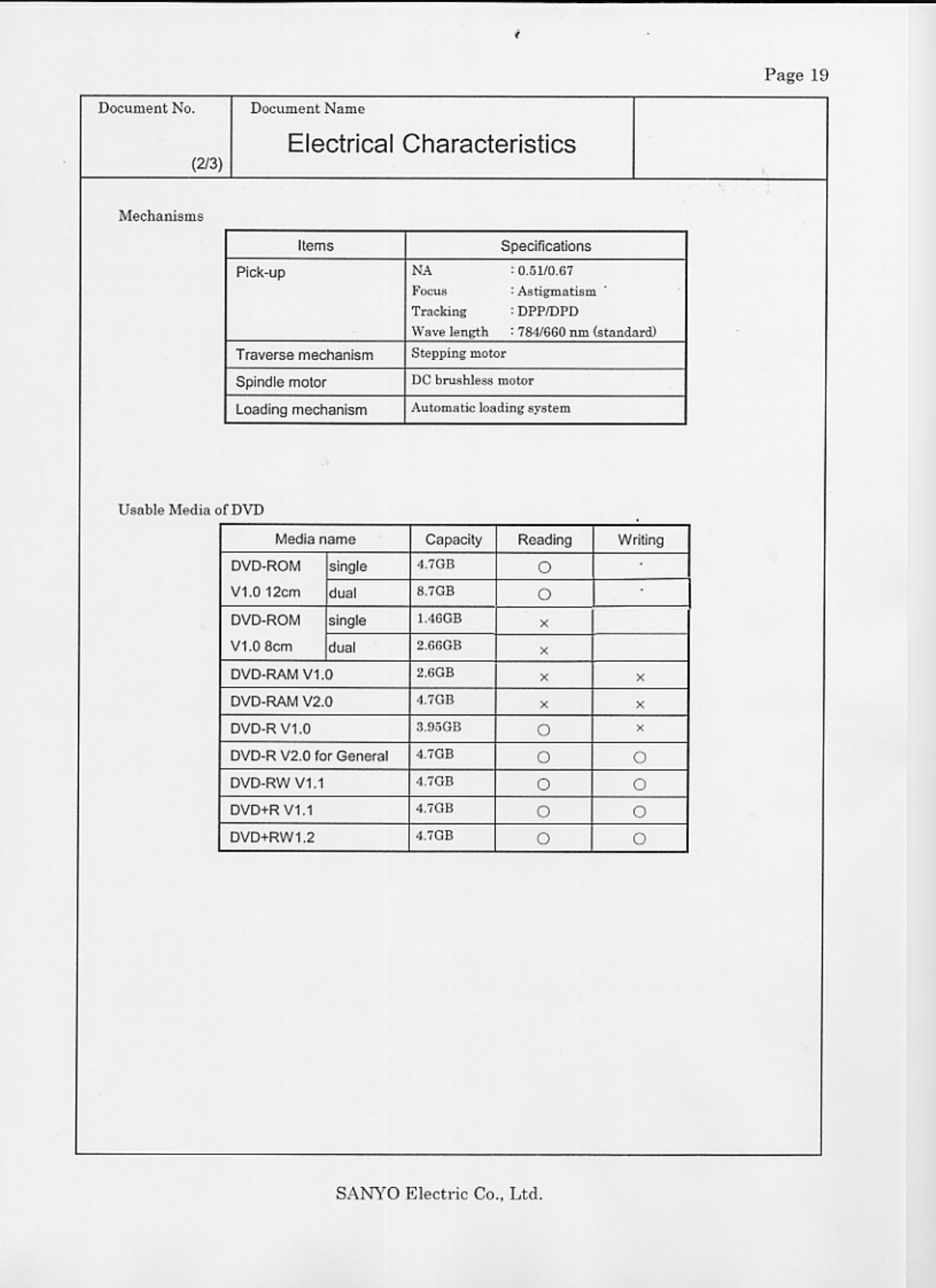

Electrical Characteristics 1/3 ~ 3/3 18
Function Description 1/3 ~ 3/3 21
Handling Manual 1/1 24
Notes for Handling 1/5 ~ 5/5 25
![](/img.php?id=357025&img=bg5.png)
Page 4
Document No. Document Name
SANYO Electric Co., Ltd.
General Description
(1/3)
General Description
(1) Model Name: CRD-BPDV3
DVD-R/RW: drive with MAX ×12 speed reading, (×8) speed writing, ×4 speed rewriting.
DVD+R/RW: drive with MAX ×12 speed reading, ×8 speed writing, ×4 speed rewriting.
CD-R drive with MAX ×48 speed reading, ×48 speed writing, and ×24 rewriting)
“
““
“The DVD-R/RW or DVD+R/RW feature will be selectable by the firmware.”
””
”

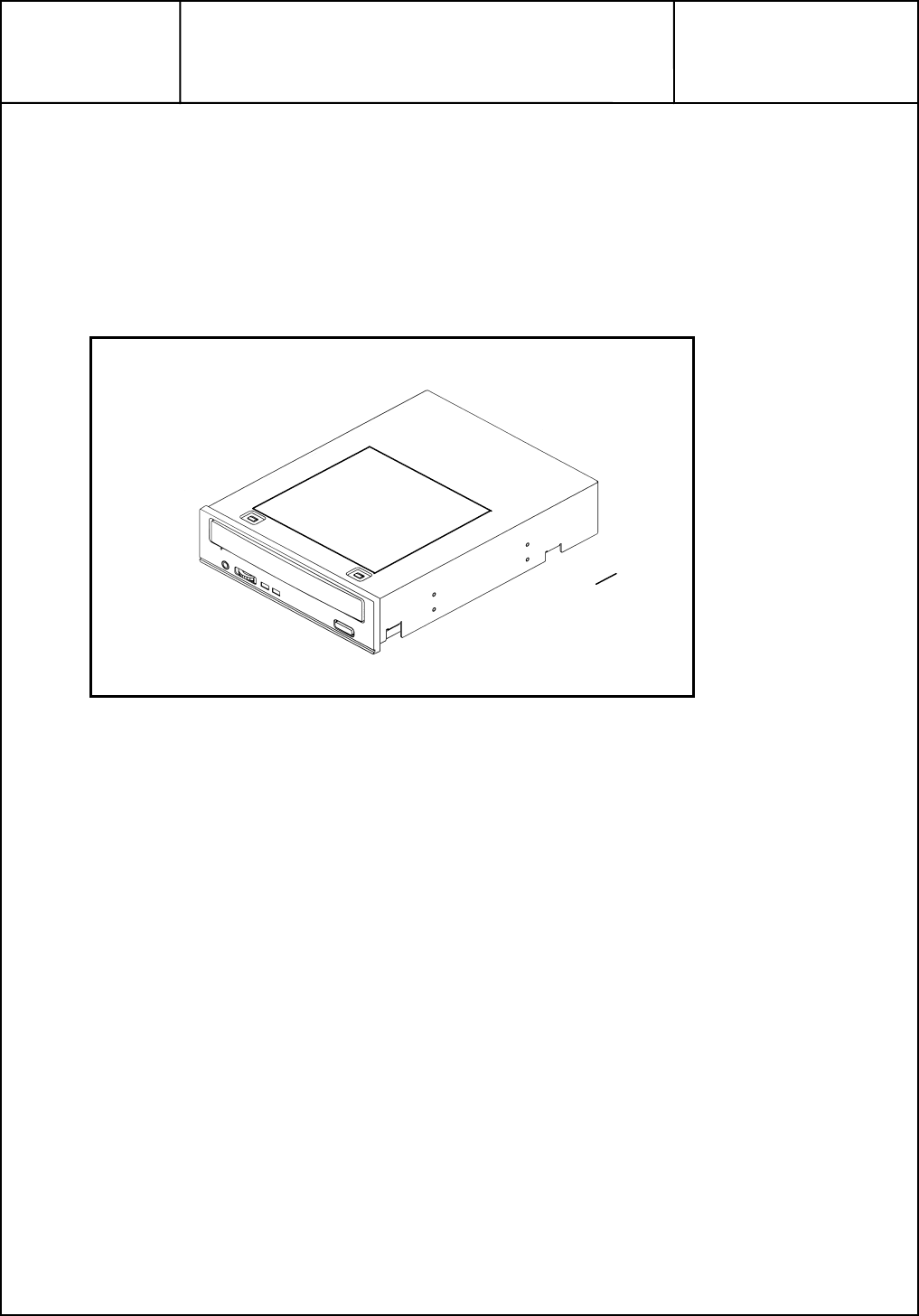

(2) External View
External View
(3) General Specifications
1) Characteristics
* Half-height and built-in type
* Conforms to Orange Book Part 2, 3 & DVD±R/RW for general specifications.
* Equipped with the newly developed automatic strategy LSI with the data reliability
enhanced.
* DVD-R/RW drive with MAX ×12 speed reading(CAV), (×8) speed writing(PCAV),×4 speed
rewriting(CLV) DVD+R/RW drive with MAX ×12 speed reading(CAV),×8 speed
writing(PCAV), ×4speed rewriting(CLV). CD-R drive with MAX ×48 speed reading, ×48
speed writing(ZCLV), and ×24 rewriting(CLV)
* ATAPI is employed to enable high speed data transmission.
* Automatic loading mechanism
* Emergency disc ejecting function
* Data verifying function
* Media condition check function
* CD-DA read function
* Vertical operation feasible
* BURN-Proof Technology implemented
“BURN-Proof” stands for Proof against Buffer Under Run error, not for proof against burning.
* HD-BURN: a high-density writing technology
* Safe-BP: detects recording error due to irregular mechanical characteristics.
* FlexSS-BP: automatically selects the optimum recording speed for each disc.
* MRW function(CD and DVD)will support.
![](/img.php?id=357025&img=bg6.png)
Page 5
Document No. Document Name
SANYO Electric Co., Ltd.
General Description
(2/3)
(4) Main Specifications
Items Specifications
Dimensions 148 (W) × 194.2 (D) × 42.3 (H) mm
Mass 1020 g
Recording Form Orange-book part 2, 3 Fixed packet
Disc-at-once Variable packet
Track-at-once
DVD-R for general 2.0
Disc at Once Recording
Incremental Recording
Front Panel Eject key, Emergency eject pinhole, LED (busy and write)
Headphone jack, Volume
Eject Automatic loading
Power Supply DC 5 × (1 ± 5 %) V DC 12 × (1 ± 10 %) V
(5) Operational environment for the “write/rewrite” application software
Items Specifications
Host Machine IBM compatible PC (Celeron433MHz or more) (Note 1)
OS MS-Windows 98SE/ME/2000/NT4.0/XP (Note 2)
Memory MS-Windows 98SE/ME/NT: 128 MB or more.
MS-Windows2000/WindowsXP: 128 MB required.
256 MB recommended.
Hard disc Empty Storage Capacity: 5GB or more (20GB or more recommended)
Average seek time: 20 ms or less
Transmission rate: 2 MB/s or more
Do not use the HDD which calibrate thermal during operation.
CD-R (×4 ~ ×48) : MITSUI CHEMICAL , HITACHI MAXELL,
RITEK, ACER, CMC (T.B.D)
CD-RW (×4 ,×10, ×12, ×16,×24 ) :MITSUBISHI CHEMICAL, RICOH
(T.B.D) (Note 3)
Recommended Media
DVD-R(×2, ×4, ×8):MITUBISHI CHEMICAL,HITACHI MAXELL,
PIONEER VIDEO,TAIYO YUDEN,TDK
DVD-RW(×2, ×4):PIONEER VIDEO,MITUBISHI CHEMICAL
,PRINCO
DVD+R (×2.4, ×4, ×8):RICOH,MITUBISHI CHEMICAL,RITEK
DVD+RW(×2.4, ×4):RICOH,MITUBISHI CHEMICAL,RITEK
(T.B.D)
(Note 1) If any problem occurs, negotiation is required to settle the matter.
(Note 2) Windows NT4.0 doesn’t have ATAPI-DMA-Driver in the standard.
Therefore, this Drive and IDE-HDD function with PIO-Mode.
(Note 3) We intend to add the proper media one by one in the near future.
![](/img.php?id=357025&img=bg7.png)
Page 6
Document No. Document Name
SANYO Electric Co., Ltd.
General Description
(3/3)
(6) Scope
This specification is applied to the CD-R/RW/DVD-R/RW,DVD+R/RW drive “CRD-BPDV3”
which is designed by SANYO Electric Co., Ltd.
(7) Contents
1) Model No. CRD-BPDV3
2) Performance Write function onto CD-R/RW/DVD-R/RW/DVD+R/RW disc in
combination with the write application software and
CD-ROM/DVD-ROM read function, in combination with the
CD-ROM/DVD-ROM application software.
3) Applications Write onto and read of the CD-R/RW/DVD-R/RW/DVD+R/RW disc.
Read of CD-ROM/DVD-ROM disc.
4) Dimensions Refer to the item “Dimensions and Dimensional Drawing”.
5) Notes for handling Refer to the Manual and Notes for Handling.
6) Others
a. The specifications of this product are the same as in the delivery specifications.
If any fault or malfunction of the product occurs when it is used under any conditions
except for our guaranteed conditions, our company has no responsibility for the claim.
b. The specifications of this product are subject to change to enhance the performance.
c. The change of notice is issued when the specification is changed only.
d. If any doubt occurs regarding the contents of the specifications, negotiation is required to
settle the matter.
![](/img.php?id=357025&img=bg8.png)
Page 7
Document No. Document Name
SANYO Electric Co., Ltd.
Dimensions, External View and Names and
Functions of Each Part
(1/2)
1. Dimensions and External View
(1) External View
Refer to the “General Description”.

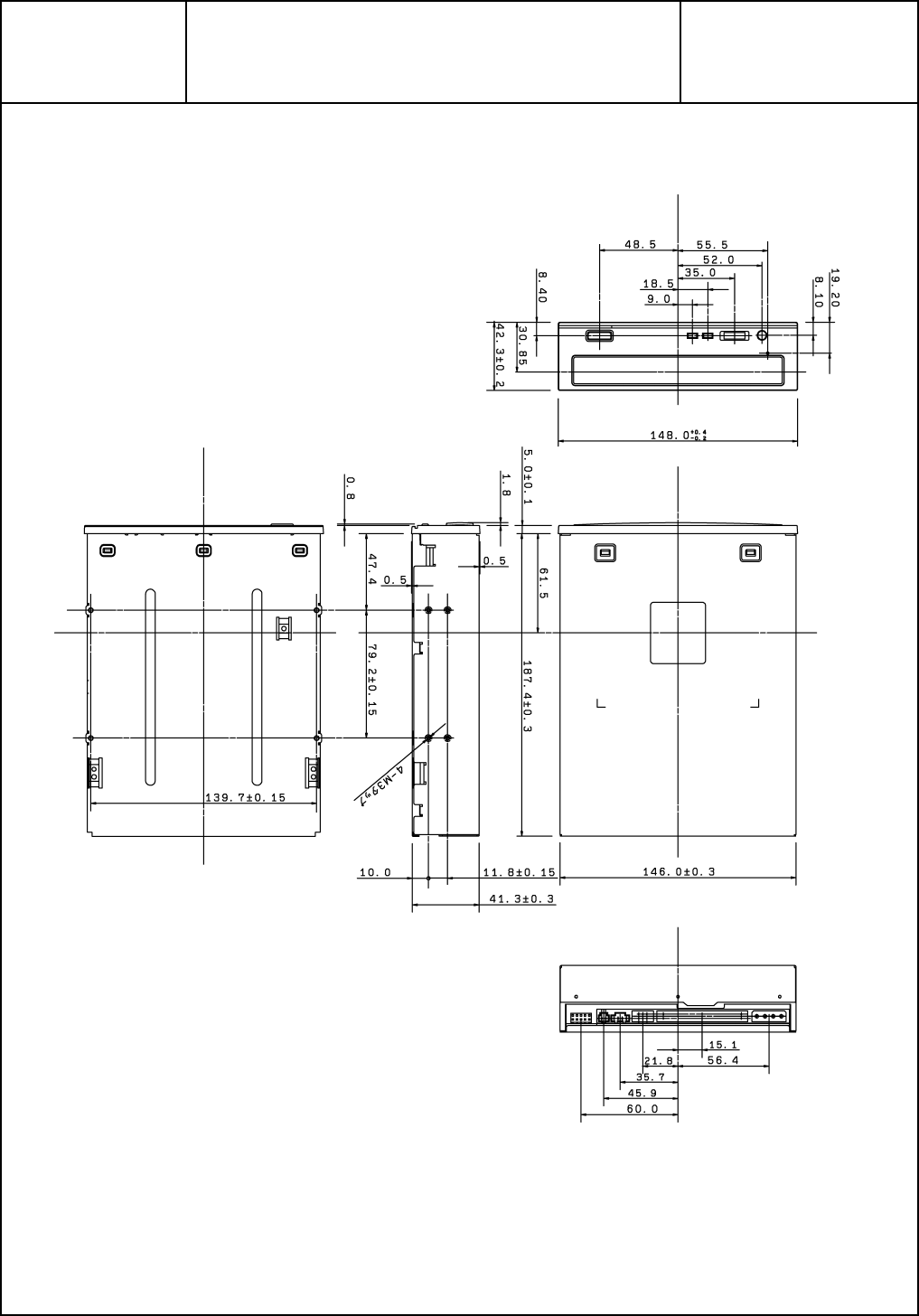

(2) Dimensions and Dimensional Drawing
Refer to the attached document “Dimensions and Dimensional Drawing”.

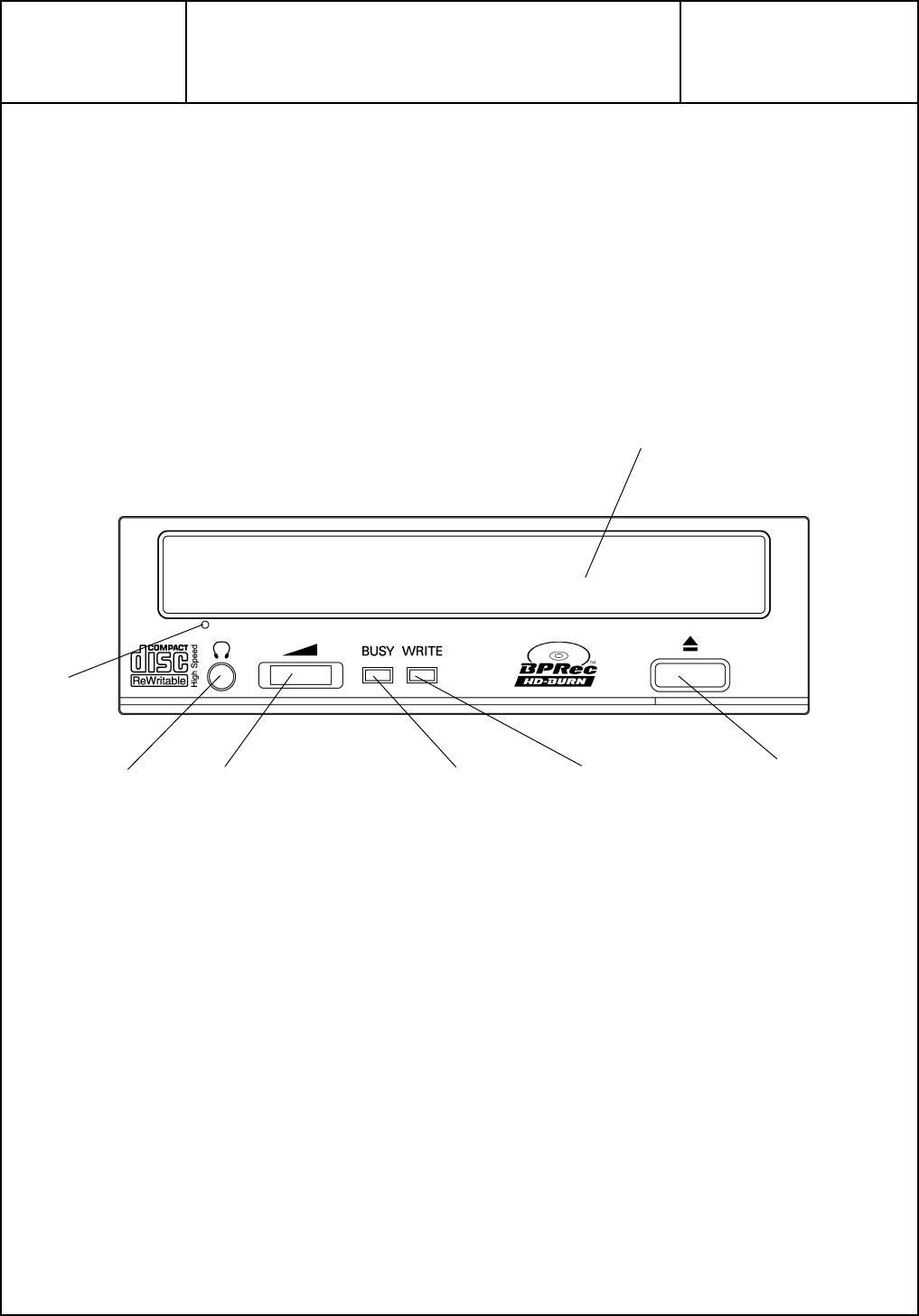

(3) Names and Functions of Each Part on the Front Panel
Front Panel
1. Headphone
Terminal : The headphone with a stereo mini plug is connected through this terminal.
2. Headphone
Volume : The volume of the headphone connected to the headphone terminal is adjusted
using this volume dial. When the volume dial is turned right, the volume becomes
louder.
3. BUSY
indicator : Command executing.
ON Reading disc, accessing condition and TOC reading condition.
OFF Pause or Stop condition
4. WRITE
indicator : This is ON when the data is written onto the disc.
5. EJECT key : The disc is ejected, using this key. This key is available even when the tray is
moving. When the PRV command is transmitted from HOST or during writing,
this key is not available.
6. Emergency
eject pinhole : If the disc is not ejected when the key is pressed, because of power failure or run
away of the software, this pinhole is used to take out the disc.
7. Disc tray : The disc is placed on this tray.
6
7
5
1 24
3
![](/img.php?id=357025&img=bg9.png)
Page 8
Document No. Document Name
SANYO Electric Co., Ltd.
Dimensions, External View and Names and
Functions of Each Part
(2/2)

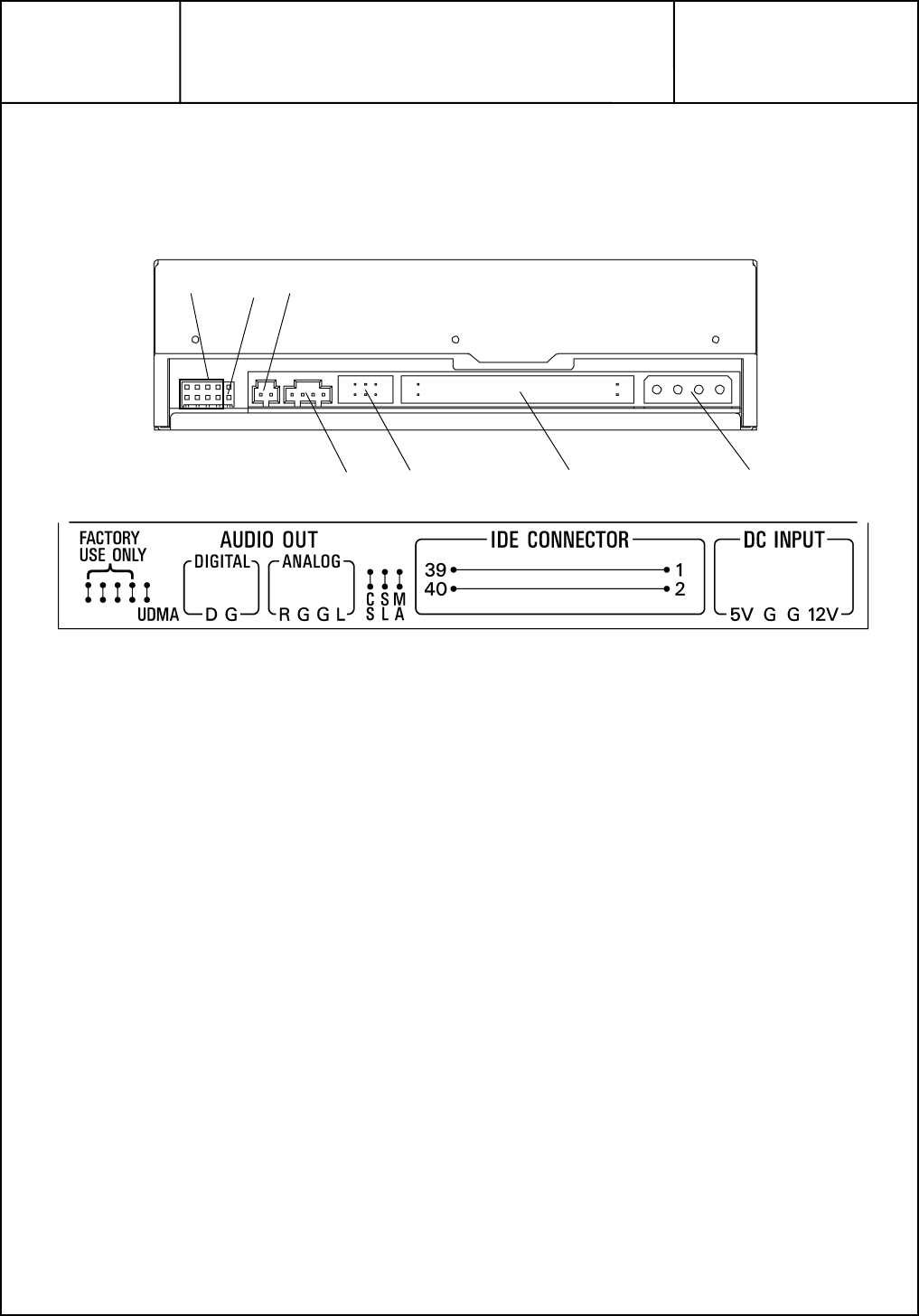

(4) Names and Functions of Each Part on the Rear Panel
Rear Panel
1. ANALOG AUDIO
Connector :
The audio analog signal output connector.
2. CS/SL/MA Pins : By covering the jumper block, these pins are used to set the CD-R drive to
either a Master or Slave mode to work with the hard disk drive inside the
personal computer.
Default is Master.
3. IDE Connector : Using a 40-pin connector, the ATAPI terminal of the host computer is
connected to this connector.
4. DC Connector : This is the power supply terminal.
5. FACTORY USE ONLY
Pins : These pins are used only for the test in the factory. Don’t cover the jumper
block on them.
6. DIGITAL AUDIO
Connector
: The audio digital signal output connector.
7. UDMA Pins
: UDMA mode is enabled by covering the jumper block on the 2 pins of the
UDMA jumper terminals.
Default is ON.
(Note 1) In case of using some personal computes, UDMA mode need
to be disable.
1 234
6
5 7
![](/img.php?id=357025&img=bga.png)
Page 9
Document No. Document Name
SANYO Electric Co., Ltd.
Terminal Description
(1/3)

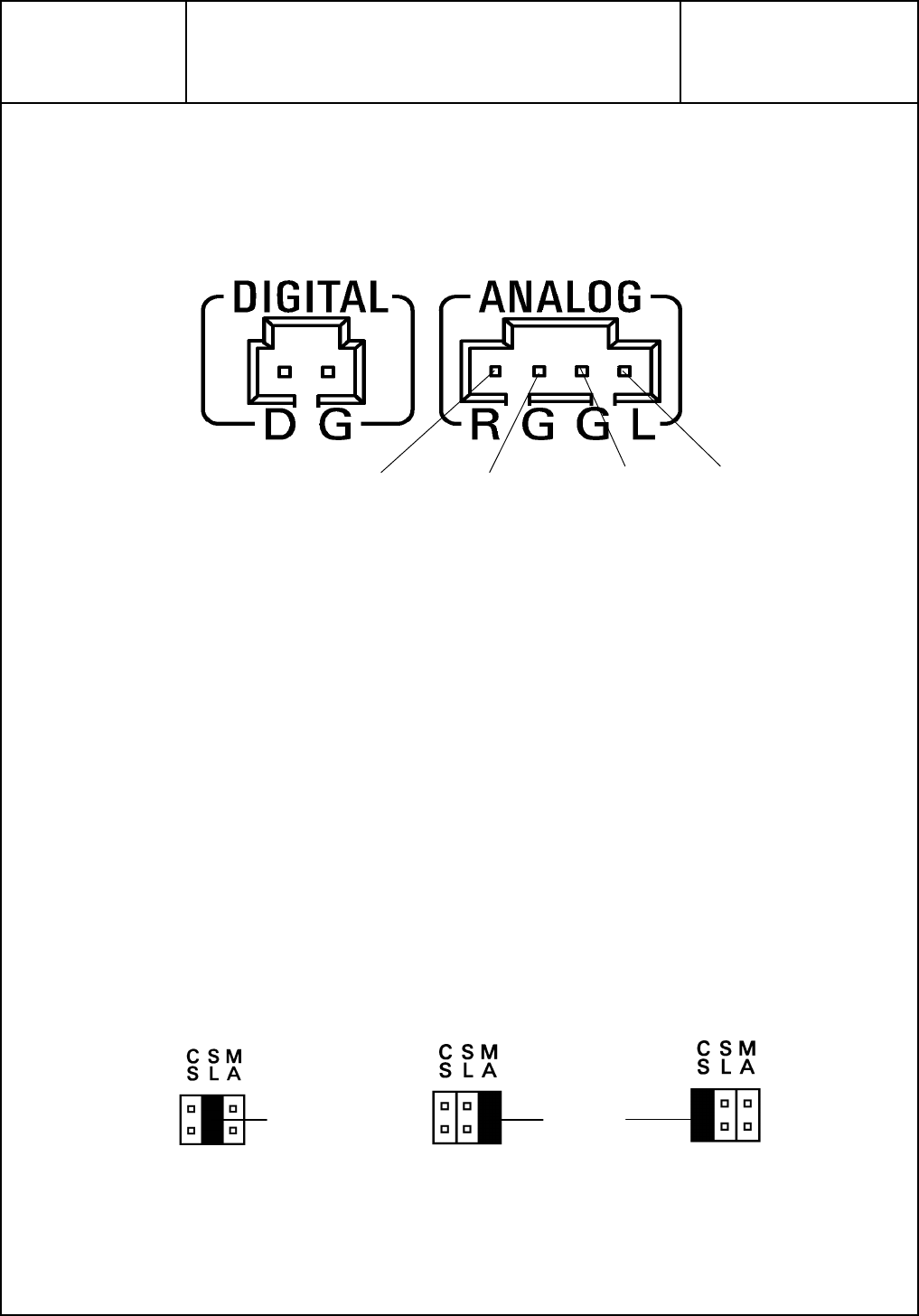

1. AUDIO Terminals
The audio signal is output through these terminals. These terminals are used when the sound
board applicable to these terminals, is attached to the personal computer.
2. Jumper Terminals (CS/SL/MA)
SL
SLSL
SL Jumper Terminals:
To set to Slave mode, cover the jumper block on the 2 pins of the SL jumper terminals.
If the IDE controller of the personal computer supports two devices, set the CD-R drive to Slave
mode. The hard disk drive inside the personal computer is set to Master mode.
MA
MAMA
MA Jumper Terminals:
To set to Master mode, cover the jumper block on the 2 pins of the MA jumper terminals.
If the IDE controller of the personal computer supports up to four devices, set the CD-R drive to
either a Primary Slave, a Secondary Master or a Secondary Slave mode. Primary or Secondary
is set up by the IDE controller, while Master or Slave mode is set up by covering the jumper
block on the rear of the CD-R drive. The hard disk drive inside the personal computer is set to
Primary Master mode.
CS
CSCS
CS Jumper Terminals:
If the personal computer is supporting CSEL (Cable Select) signal, cover the jumper block on
the 2 pins of the CS jumper terminals and remain Slave and Master open.
An exclusive interface cable is necessary.
R-ch GND L-ch GND
Slave
Master
Use CSEL
Jumper
block Jumper
block
![](/img.php?id=357025&img=bgb.png)
Page 10
Document No. Document Name
SANYO Electric Co., Ltd.
Terminal Description
(2/3)
3. IDE Connector Terminals (ATAPI CONNECTOR)
The IDE terminal of the host computer is connected through these terminals.
Use the 40-pin IDE cable.
The pin marked “1” means pin No. 1. Connect the IDE cable of the color-coding (normally red)
on one edge to pin No. 1.
PIN NO. SIGNAL NAME PIN NO. SIGNAL NAME
2 Ground 1 RESET-
4 DD8 3 DD7
6 DD9 5 DD6
8 DD10 7 DD5
10 DD11 9 DD4
12 DD12 11 DD3
14 DD13 13 DD2
16 DD14 15 DD1
18 DD15 17 DD0
20 (keypin) 19 Ground
22 Ground 21 DMARQ
24 Ground 23 DIOW-:STOP
26 Ground 25 DIOR-:HDMARDY-
:HSTROBE
28 CSEL 27 IORDY:DDMARDY-
:DSTROBE
30 Ground 29 DMACK-
32 reserved 31 INTRQ
34 PDIAG- 33 DA1
36 DA2 35 DA0
38 CS1- 37 CS0-
40 Ground 39 DASP-
39
40
1
2
![](/img.php?id=357025&img=bgc.png)
Page 11
Document No. Document Name
SANYO Electric Co., Ltd.
Terminal Description
(3/3)

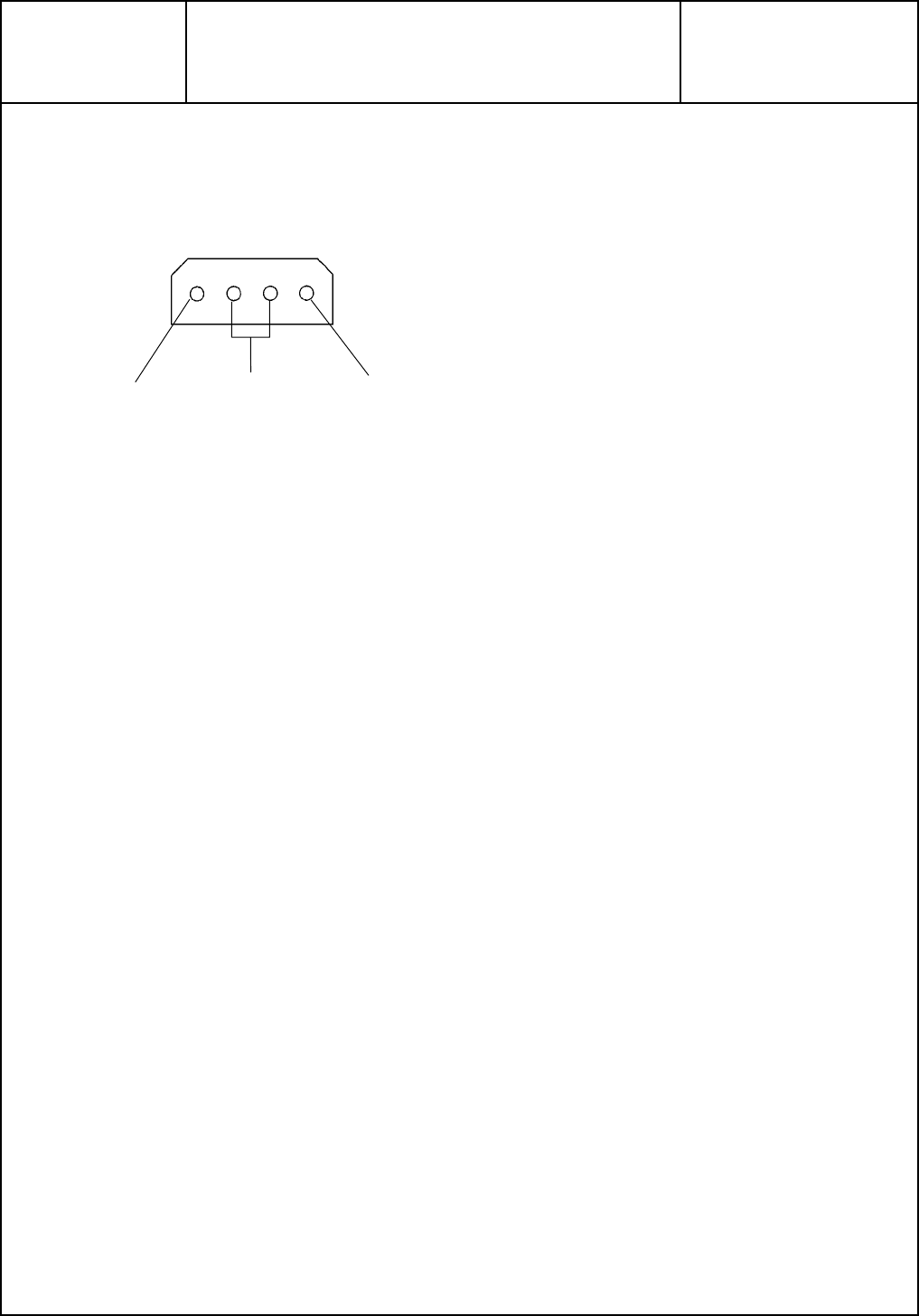

4. DC Connector Terminals (DC INPUT)
The DC power supply cable is connected through these terminals.
5V 12V
GND
![](/img.php?id=357025&img=bgd.png)
Page 12
Document No. Document Name
SANYO Electric Co., Ltd.
Environmental Conditions
(1/1)
Environmental Conditions
Items Environmental Conditions
Temperature
Operation : 5 °C < to < 40 °C
Storage : −30 °C < tNO < 60 °C
Humidity Operation : (20 to 80) % (non-condensing)
Storage : 90 % (40 °C, 48 h)
Mean-Time-Between-Failure (MTBF)
30000 POH DUTY 20 % (read operation) (Note 1)
Life Tray loading : 20000 cycles
Traverse mechanism : 1000000 seek
Vibration Operation: Read 0.98 m/s2 (0.1 G) [(10 to 500) Hz]
Random Vibration
Without operation (transportation):
800 cpm (13.3 Hz), 3 mm (1.06 G), Up/Down 20
min.
Impact Drop Impact: 490 m/s2 (50 G), 3 directions, 6 ms
(Note 1) POH : Power On Hour (live current time)
DUTY : Actual operation time
![](/img.php?id=357025&img=bge.png)
Page 13
Document No. Document Name
SANYO Electric Co., Ltd.
Reliability
(1/3)
1. Estimate Conditions
1) Standard test position
For the standard test position, the + side of the Z axis shall be in the upper direction, provided
that the Z axis shall be the outgoing beam and the direction of the outgoing beam shall be +
side.
2) Standard Estimate Environments
Temperature : (22 ± 2) °C
Humidity : (50 ± 5) % RH
However, when no doubt occurs regarding the judgment, the test may be performed under the
following conditions.
Temperature : (15 to 30) °C
Humidity : (45 to 85) % RH
3) Disc to be estimated
Test Disc made by ALMEDIO Inc. ROM DISK, DA DISK, CD-R DISK (RICOH),
CD-RW (RICOH, MITSUBISHI CHEMICAL)
DVD-R/+R(RICOH,MITSUBISHI CHEMICAL)
DVD-RW/+RW(RICOH,MITSUBISHI CHEMICAL)
However, when no doubt occurs regarding the judgment, TCD-784 made by ALMEDIO Inc.
may be used.
4) Power Supply Voltage
Power supply : DC 5 × (1 ± 5 %) V
Power supply : DC 12 × (1 ± 10 %) V
2. Reliability
The results should conform to the criteria of each item after the test has been performed under
the following conditions.
There shall be no crack, deformation or distortion from the external view of the product after
the test.
Unless otherwise specified, the measurement conditions of this test for each item shall be
subject to the above estimate conditions.
However, the temperature in this test shall be specified to the surrounding temperature of the
drive unit, rather than the surrounding temperature of the set unit where this product is
built-in.
![](/img.php?id=357025&img=bgf.png)
Page 14
Document No. Document Name
SANYO Electric Co., Ltd.
Reliability
(2/3)
Test items Test conditions Criteria
1. Operating
temperature test Operation under low temperature: +5 °C
Operation under high temperature: +40 °C
Leave the product for 4 hours without operation in the
environmental temperatures, as above. Turn on the
power and leave the product for 10 minutes.
Immediately after that, check the performance under
the same environmental temperatures as above.
However, there should be no dew condensation.
The performance should
conform to the standards
described in the Reliability
Estimation Standard
Table.
2. Practical
operation
temperature test
Operation under low temperature: +5 °C
Operation under high temperature: +40 °C
Leave the product for 4 hours without operation in the
environmental temperatures, as above. Turn on the
power of the product and leave the product for 10
minutes. Immediately after that, check the
performance under the same environmental
temperatures as above. However, there should be no
dew condensation.
There should be no errors
in the practical operation.
When this product is built
in the set unit, make sure
that the temperature does
not exceed the range
described on the left.
3. Storage test
under low
temperature.
Temperature: (−30 ± 2) °C
Leave the product for 24 hours without operation in the
above environmental temperature range, and then leave
it at normal temperature for 24 hours. After that,
measure the characteristic change. However, there
should be no dew condensation.
The characteristics should
conform to the standards
described in the Reliability
Estimation Standards
Table.
4. Storage test
under high
temperature
Temperature: (60 ± 2) °C
Leave the product for 24 hours without operation in the
above environmental temperature range, and then leave
it at normal temperature for 24 hours. After that,
measure the characteristic change. However, there
should be no dew condensation.
The characteristics should
conform to the standards
described in the Reliability
Estimation Standards
Table.
5. Storage
under high
temperature and
high humidity
Temperature and humidity: (40 ± 2) °C, (90 ± 2) % RH
Leave the product for 24 hours without operation in the
above environmental temperature range, and then leave
it at normal temperature for 24 hours. After that,
measure the characteristic change. However, there
should be no dew condensation.
The characteristics should
conform to the standards
described in the Reliability
Estimation Standards
Table.
6. Unit Vibration
(without
operation)
Amplitude:800 cpm (13.3 Hz)
3 mm (1.06 G)
The above amplitude is applied to the product for 20
minutes for Up/Down direction.
The characteristics should
conform to the standards
described in the Reliability
Estimation Standards
Table.
7. Unit Impact
(without
operation)
Impact: 490 m/s2 (50 G), 3 directions
Impact time: 6 ms
Measure the performance after applying the above
impact for each direction.
The characteristics should
conform to the standards
described in the Reliability
Estimation Standards
Table.
8. Pick-up
Slide Operation Random Seek
After 1000000 times operation, the performance is
checked.
There should be no errors
in the practical operation.
9. Jamming When the product is built in the set unit, the level of electromagnetic wave which is
emitted from the unit shall conform to the local radio wave standards. (When any
problems occurs, the negotiation is required to support the counter measures).
![](/img.php?id=357025&img=bg10.png)
Page 15
Document No. Document Name
SANYO Electric Co., Ltd.
Reliability
(3/3)
The following table shows the reliability standards for the main parts (units) which are used in
this product.
Test items Test conditions Criteria
10. Laser diode life
Check the recorded power after 1000 hours of
operation at 60 °C.
(except for breakage caused by static electricity)
The error rate should be
1 % or less.
11. Spindle motor life Measure the current in the motor after 1000 hours
operation. The initial value should be
+35 % or less.
12. Feeder motor life
After the pick-up slide operation as described in item
8, measure the consumption current in the motor. The values should be
conform to the pull-out
torque 1500pps 9.8×10-4
N-m (10grf-cm) or more.
3. Reliability Standards
The reliability standards are as follows.
1).CD
2).DVD
Items Before Test
Change in
Values after Test Remarks
1/3 stroke mean access
time ×48 CAV
speed 0.27 s or less 0.35 s or less Mean value measured after
reciprocating operation for (0
to 20) min. (one way value)
Items Before Test
Change in
Values after Test Remarks
1/3 stroke mean access
time ×12 CAV
speed 0.27 s or less 0.35 s or less Mean value measured after
reciprocating operation for (0
to 20) min. (one way value)
![](/img.php?id=357025&img=bg11.png)
Page 16
Document No. Document Name
SANYO Electric Co., Ltd.
Lot No. Reliability Description
(1/1)
Lot No. Description
[Serial No. Indication]
1 2 3 4 5 6 7 8
A B C D D D D D
A. Factory: Korea Tokyo Electronics: 6,
Sanyo Media Tech: 3, SSHQ: 8
B. Year of manufactured: (1996: 6, 1997: 7, 1998: 8, 1999: 9, 2000: 0, 2001: 1,
2002: 2, 2003: 3, 2004: 4, 2005: 5)
C. Month of manufactured: Form Jan. to Sep.: 1 ~ 9 & Form Oct. to Dec.:X ~Z
(Jan: 1, Feb: 2, Mar: 3, Apr: 4, May: 5, Jun: 6, Jul: 7,
Aug:8, Sep: 9, Oct: X, Nov: Y, Dec: Z)
D. Manufacturing Serial No.: Start from 00001.
(5 digits) When the number reach to 99999, the next is 00000,
then 00001 again.
![](/img.php?id=357025&img=bg12.png)
Page 17
Document No. Document Name
SANYO Electric Co., Ltd.
Safety Standards
(1/1)

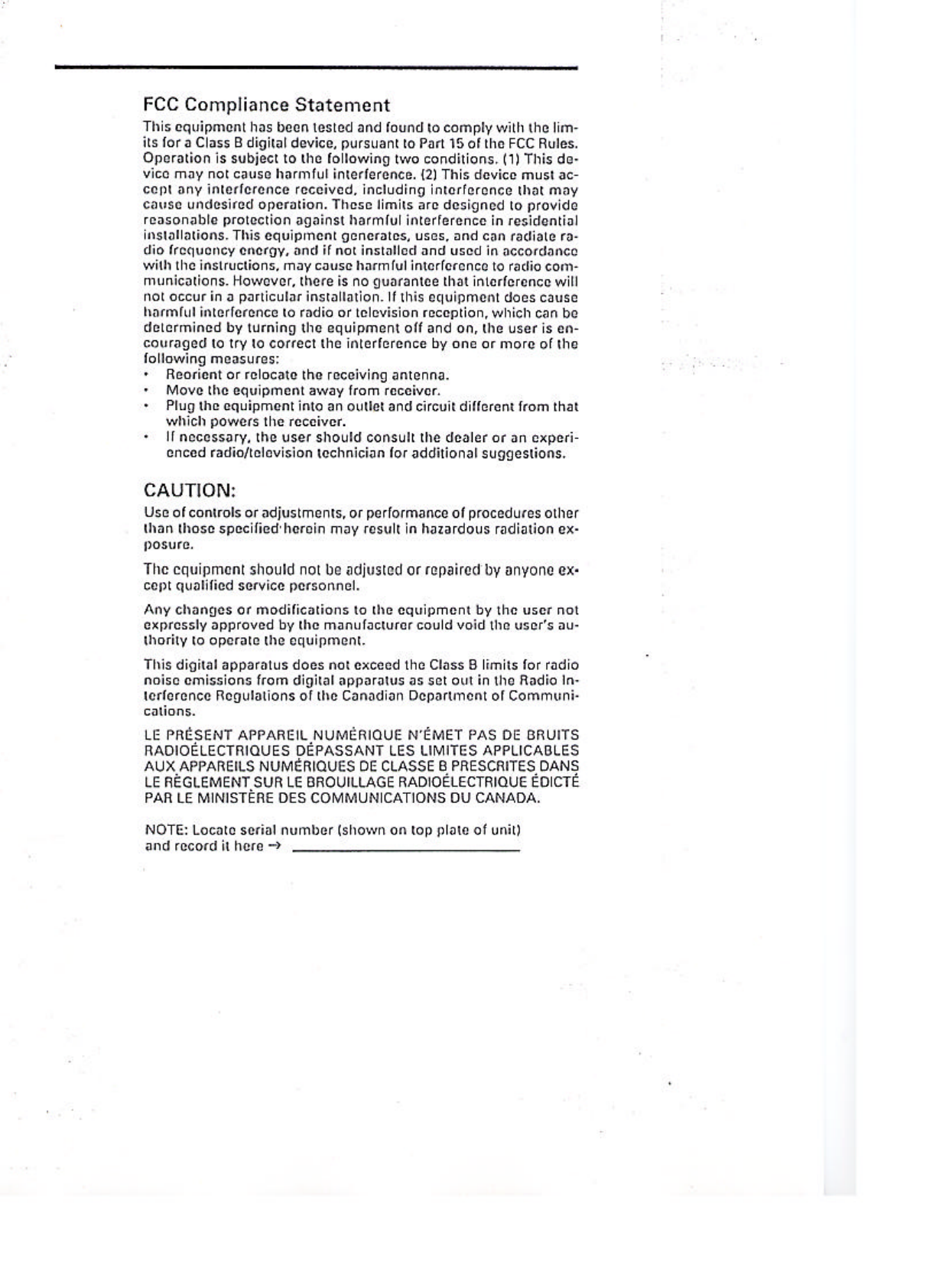

Safety Standards
(1) UL (UL1950 / FDA1040)
(2) CUL (UL1950)

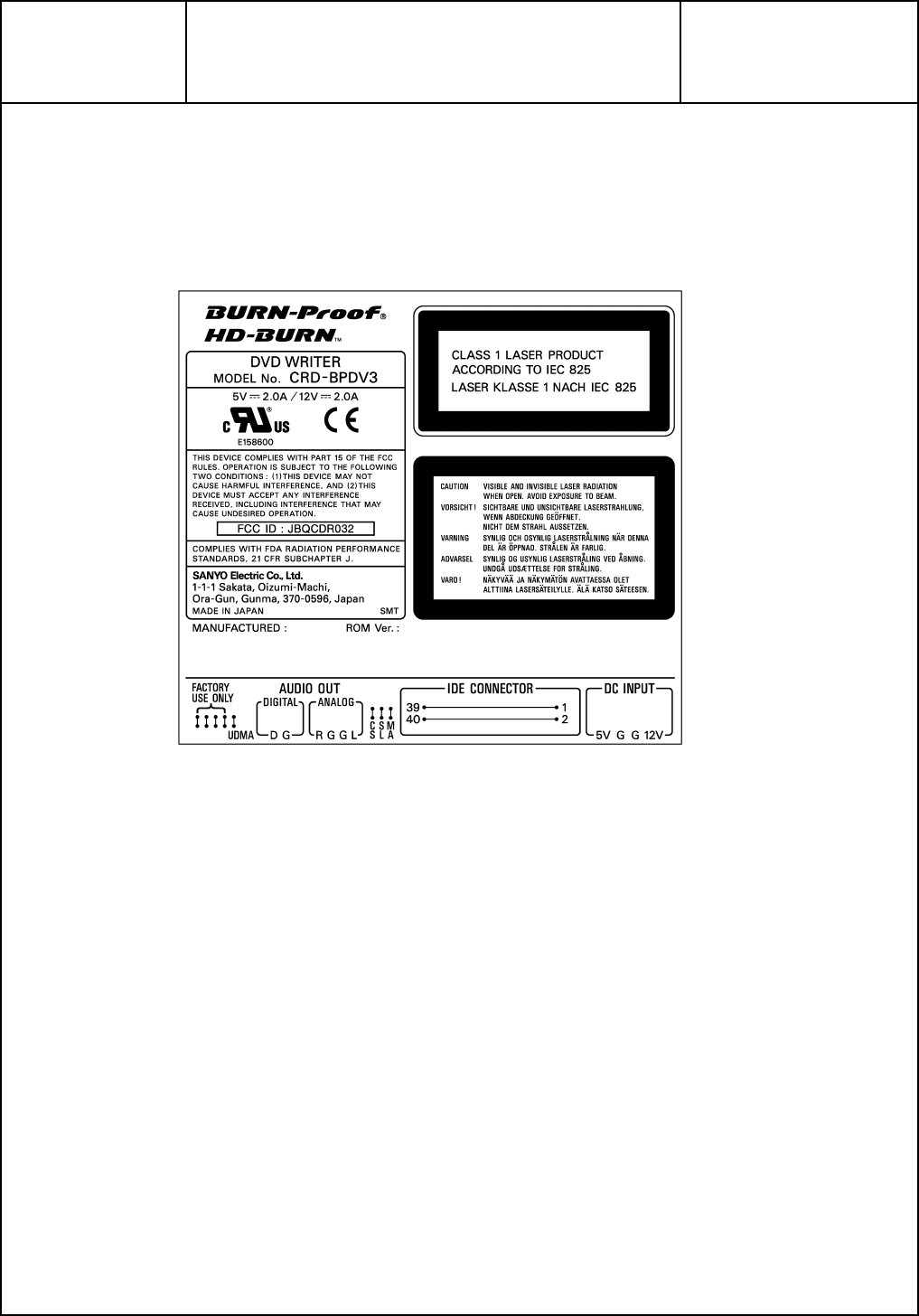

(3) Label
![](/img.php?id=357025&img=bg13.png)
![](/img.php?id=357025&img=bg14.png)
![](/img.php?id=357025&img=bg15.png)

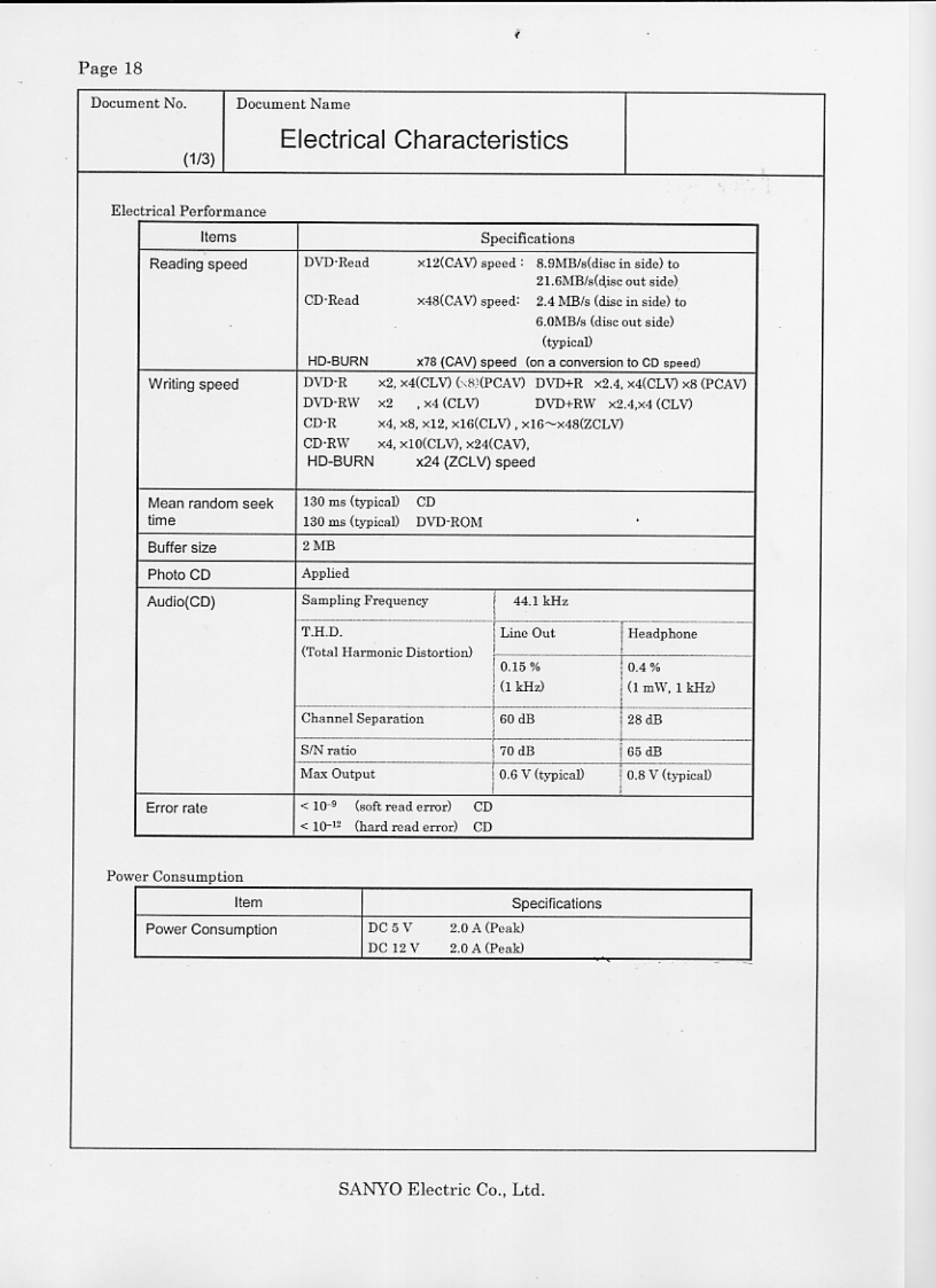

Page 20
Document No. Document Name
SANYO Electric Co., Ltd.
Electrical Characteristics
(3/3)
Application Discs
Items Specifications
CD-ROM mode 1
CD-ROMXA (Video CD) mode 2 form 1, mode 2 form 2
CD-DA Applicable
Photo CD Single session, multi-session
CD-I, CD-G, CD-TEXT Applicable
CD Extra 2 Session
First Session : CD-DA
Second Session : Data
Disc dia. 12 cm, 8 cm
Storage capacity 12 cm : 656 MB (mode 1)
748 MB (mode 2)
8 cm : 180 MB
Disc thickness 1.2 mm
Track pitch 1.6 µm
Items Specifications
DVD-R,-RW/DVD-ROM DVD-ROM,DVD-VIDEO
DVD+R,+RW/DVD-ROM DVD-ROM,DVD-VIDEO
Disc dia. 12 cm
Storage capacity 12 cm:4.7GB
Disc thickness 1.2 mm
Track pitch 0.74 µm
Interface
Items Specifications
Interface ATAPI
Transfer Rate U-DMA 33 MB/s
Connector
Item Specifications
I/O terminal (rear panel) Power connector (+5 V, +12 V 4 P)
ATAPI terminal (40 P)
Audio out (4 P), (2 P)
![](/img.php?id=357025&img=bg16.png)
Page 21
Document No. Document Name
SANYO Electric Co., Ltd.
Function Description
(1/3)
1. External View/Mechanism
(1) Tray type disc loading system
The disc is loaded on the TRAY.
(2) LED Indicator
BUSY : ON — Command executing conditions
OFF — Pausing and stop conditions
WRITE : ON — Recording condition
OFF — Others
(3) EJECT key
The disc is taken out using this key. This key is available even when the tray is moving.
However, this key is not available under the recording condition or when the PRV command
is transmitted from the HOST.
(4) 8 cm/12 cm disc applicable.
The read of 8 cm and 12 cm pit discs and the write of 12 cm pit discs of the CD-R disc are
available.
2. Data read processing
(1) Read speed
The standard, CD Max ×24/DVD Max ×12 are applicable. Arbitrary speed can be set using
the ATAPI command.
(2) Read data mode (Note 1-1)
CD DVD
MODE 1 2048Byte only
MODE 2 / Form 1
MODE 2 / Form 2
CD-DA
ISRC
Media catalogue No.
Sub-codeQ R-W
(3) Audio playback
TNO playback (MSF search)
PAUSE function
(Note 1-1) Audio playback becomes possible by using the host application.
(as per ATAPI command specifications)
![](/img.php?id=357025&img=bg17.png)
Page 22
Document No. Document Name
SANYO Electric Co., Ltd.
Function Description
(2/3)
3. Data write processing
(1) Write speed
i. DVD-R ×2, ×4 (CLV), (×8)(PCAV) DVD+R ×2.4, ×4 (CLV),×8(PCAV)
ii. DVD-RW ×2, ×4(CLV) DVD+RW ×2.4, ×4 (CLV)
iii. CD-R ×4, ×8, ×12, ×16,(CLV) ×16 ~ ×48 (ZCLV) write speed are applicable. ( mastering write)
iv. CD-RW ×4, ×10, ×12 (CLV), ×24(CAV) write speed are applicable.
v. HD-BURN x6,x12x,x18,x24 ( on a conversion to CD speed)
Arbitrary speed can be set using the ATAPI command.
(2) Write system
CD-R/RW DVD-RW DVD-RW DVD+R DVD+RW
Track-at-once Disc-at-once Disc-at-once Incremental
write Random
over write
Disc-at-once Incremental
write Incremental
write
Packet write(variable
length/fixed length) Restricted
over write
(3) Write data mode
CD-R/RW DVD±R/RW
MODE 1 CD-DA (Note 2-2) 2048Byte only
MODE 2 ISRC
MODE 2 / Form 1 Media catalogue No.
MODE 2 / Form 2 CD-TEXT
MODE 2 / Combination of Form1
and Form 2 (Note 2-1)
(4) Optimum write function
The strategy and write laser power are set automatically according to the characteristics of
the disc. This is performed when the disc is replaced or the CLV speed is changed.
In addition, the write condition is checked during writing the data, and the running OPC
function which sets the optimum laser power, is performed.
(5) BURN-Proof
BURN-Proof is a proprietary technology, which helps the users to protect from Buffer Under
Run Error.
(Note 2-1) This is applicable only within the approved range of the CD-ROM and CD-ROM XA.
(Note 2-2) Host computer makes and transfers the RAW data which includes pre-gap in the
case of the disc-at-once writing. At this time, the track management information
needs to provide instructions to transfer the start and end address of the actual audio
data portion.
![](/img.php?id=357025&img=bg18.png)
Page 23
Document No. Document Name
SANYO Electric Co., Ltd.
Function Description
(3/3)
4. Servo/access
(1) Servo Automatic Adjustment
When the disc is loaded, the focus, tracking offset and servo gain are adjusted automatically.
(2) Sled Control using the Stepping Motor Driving
The mechanisms and circuits related to the sled are simplified. The micro step operation is
controlled using the micro computer when the access-time-specific trapezoidal driving occurs
and the read/write operation is performed.
(3) High speed access using the learning function
The number of tracks calculated from the CLV speed and pick-up position are corrected so
that the disc program area is kept at the access time accompanied with the travel of the sled.
Then, the corrected number of tracks is stored and the final number of tracks on the disc are
calculated in order to reduce the number of seeks.
5. Other Functions
(1) Multi-volume applicable
To switch the sessions, the SESSION SELECTOR is used.
(2) Disc identification codes
The discs produced by each manufacturer are identified using the disc identification codes
prepared by the Orange Society for the Research. This is referred to when the laser power
and strategy are decided, when the writing operation is performed.
(3) Device type
Device type is 05 (CD-ROM) only.
6. CRD-BPDV3 Interface
The host computer interface of the CRD-BPDV3 conforms to the ATAPI.
7. BURN-Proof
In some case of disc condition, an error may happen by the failer of BURN-Proof function
because it controls previous recorded data and new recording data by the advanced signal
management system. In addition to the stated above, a BURN-Proof function also does not work
correctly due to the unexpected accident like a power cut and a malfunction of PC and so forth.
8. SHOCK-BP
Please refer to the latest information on the web: www.burn-proof.com.
9. Safe-BP
Please refer to the latest information on the web: www.burn-proof.com.
10. HD-BURN
Please refer to the latest information on the web: www.burn-proof.com.
![](/img.php?id=357025&img=bg19.png)
Page 24
Document No. Document Name
SANYO Electric Co., Ltd.
Handling Manual
(1/1)
(1) How to use
Before using this product, make sure that the device driver for the Combo driver is installed in
the personal computer.
1) How to insert the disc.
i. Turn on the power of the main machine where the product is attached.
ii. Press the eject key to open the disc tray.
iii. Place the disc on the tray so that the printed side is upside.
iv. Press the eject key to close the disc tray.
v. Read the disc. The read indicator goes on-and-off during the TOC read operation. Then
the indicator goes on.
Write the data onto the disc. The write indicator goes on while the data is written.
2) How to take out the disc.
i. Make sure that each indicator is OFF.
ii. Press the eject key to open the disc tray.
iii. Take out the disc.
iv. Press the eject key to close the disc tray.
3) How to take out the disc in an emergency.
When the disc can't be ejected because of power failure or run-away of the software, take the
following measures to force the take out of the disc.
i. Prepare a steel paper clip. Extend the paper clip.
ii. Insert the end of the paper clip into the emergency eject hole and press it strongly to eject
the disc tray.
iii. Pull the disc tray toward you and take out the disc.
Push back the disc tray.
(2) Product ID, Vender ID
Product ID: CRD-BPDV3, Vender ID: GENERIC
![](/img.php?id=357025&img=bg1a.png)
Page 25
Document No. Document Name
SANYO Electric Co., Ltd.
Notes for Handling
(1/5)
1. Don't look at the laser beam.
Don't look at the laser beam source.
If the laser beam hits your eyes, it might cause damage to your eyes.
2. Don't use deformed or cracked CDs and DVDs.
Don't use cracked, deformed CDs and DVDs or repaired CDs and DVDs with adhesives. As the
disc turns with high speed within the product, broken pieces might scatter and hurt you.
3. Don't touch the inside components of this product.
Don't disassemble or modify this product. It might cause the breakdown of this product.
4. Don't touch the connector parts.
If you touch the connector parts of this product, it might cause a contact fault or breakdown
because of the oil from your hands or static electricity. Also, don't touch the connector part on
the personal computer when this product is connected or disconnected.
5. Don't connect and disconnect this product excessively.
When this product is connected and disconnected repeatedly, the connector part becomes
heavily loaded and this might cause the breakdown of this product. Don't connect and
disconnect this product excessively, except for necessary cases.
6. How to prevent the breakdown
(1) Don't impact or vibrate this product.
(2) Keep the product where no fluid or alien substances can enter into this product.
(3) Don't use this product on an incline.
(4) Don't move this product with the disc inside.
7. Installation Place
Avoid the following places for using this product.
(1) Places of high temperature or greate changes in temperature.
(2) Places where sunlight can hit the product directly.
(3) Places with strong vibrations.
(4) Places with uneven surfaces.
![](/img.php?id=357025&img=bg1b.png)
Page 26
Document No. Document Name
SANYO Electric Co., Ltd.
Notes for Handling
(2/5)
8. Maintenance
(1) The dirt on this product should be cleaned off lightly with a soft cloth with some water or
diluted neutral detergent.
(2) Make sure not to use volatile chemicals such as benzine and thinner, because they might
cause deformation and color change of the product.
9. Notes for the Handling of the Disc.
(1) When you carry the disc, don’t touch the side where no letters are printed.
(2) Don't write letters on the disc or attach paper or a seal.
(3) Dust or finger prints on the side without any printing should be cleaned off by a soft cloth.
(4) When the disc is cleaned, always clean from the center to the outer rim.
(5) Don't use benzine, thinner, cleaner for analog LP or a static electricity preventing agent,
because these might cause damage to the disc.
(6) Keep the discs in the disc case. Don't put the disc in a place where sunlight can hit directly
or the temperature increases.
10. It is prohibited from copying, selling and transfering datas and programs that are protected by
the copyright to the authorities without permission.
However, personal use of the sound and images that are recorded with this product is
permitted.
11. Application
The following applications may be supported by this product, in future.
(Therefore, we are not responsible for any defects or damages using other applications. Also,
some version no. of above Applications may not recognize the drive. Please contact to the
Application maker.)
Software DVD Player: WinDVD (InterVideo Inc.), PowerDVD
Software writing Storage: NERO Version5 (AHEAD), B’sRecorderGold(BHA)
, Software DVD Video Recording: DVD it!,(Sonic Solutions), NEO DVD(Medio Streams)
12. Drive Mount
This drive has holes for heat radiation at top cabinet and side cabinet. Please do not fill these
ventilation holes.
Please avoid any components from these ventilation holes over 5mm in order to keep
circulation.
13.Recommend to use the JIS standard disc what is described the CD Logo XXX marking on the
surface of disc label side.
We do not guarantee the play-back function if the out of CD standard disc is inserted. Even if
it can be played, the sound qualities are not guaranteed.
![](/img.php?id=357025&img=bg1c.png)
Page 27
Document No. Document Name
SANYO Electric Co., Ltd.
Notes for Handling
(3/5)
Dimensions
The following items should be considered when enclosure chassis for this drive is designed.
1. Over 5 mm space should needed between top of drive and enclosure chassis.
2. Don’t press the production label even if there are any reasons.
![](/img.php?id=357025&img=bg1d.png)
Page 28
Document No. Document Name
SANYO Electric Co., Ltd.
Notes for Handling
(4/5)
Package
![](/img.php?id=357025&img=bg1e.png)
Page 29
Document No. Document Name
SANYO Electric Co., Ltd.
Notes for Handling
(5/5)

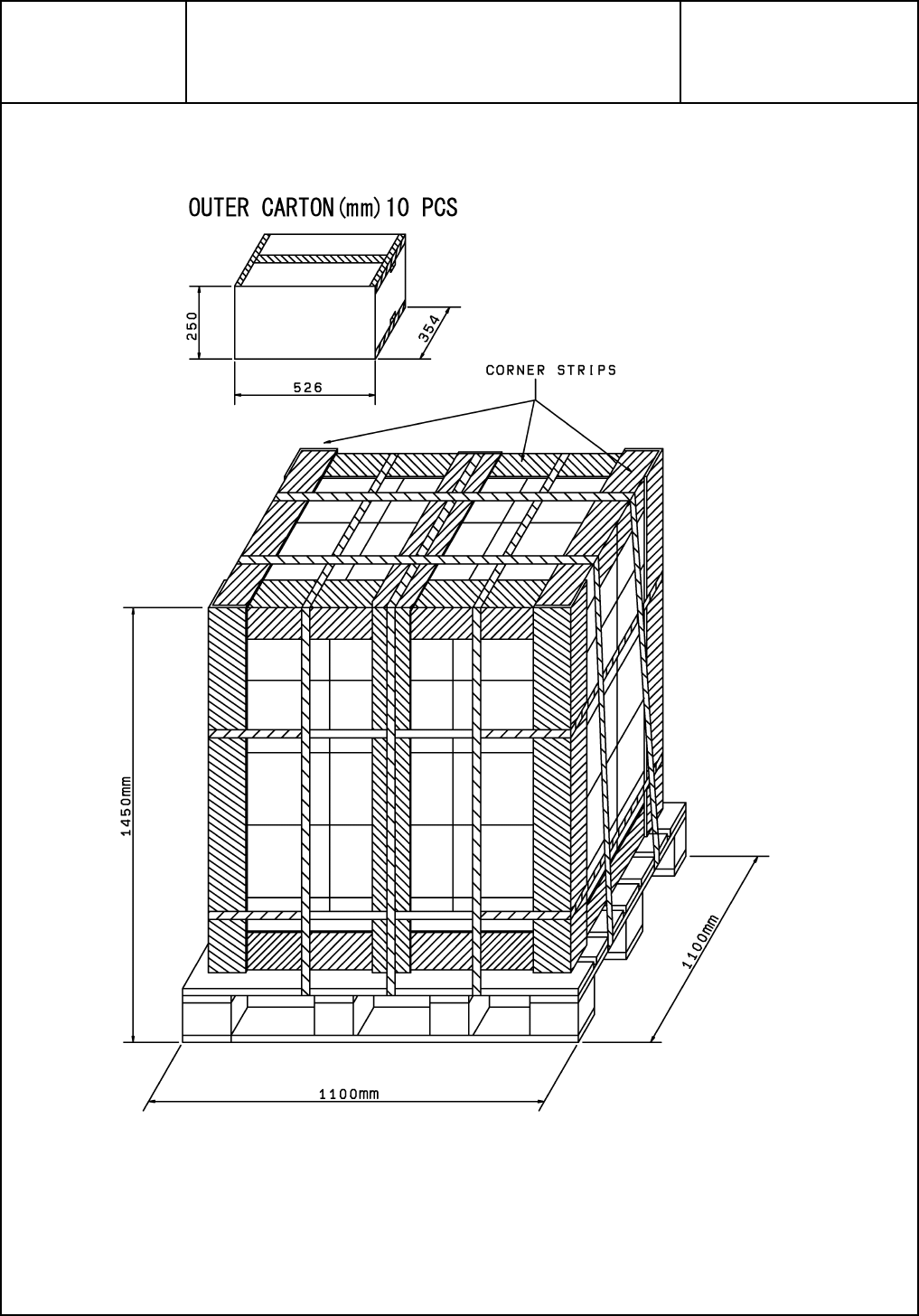

Package Configuration
GROSS WEIGHT 12 kg
300 unit 1 pallet: 6 box × 5 stack (30 box)
Pallets are to be banded and stretch-wrapped.
Corner strips are attached.
