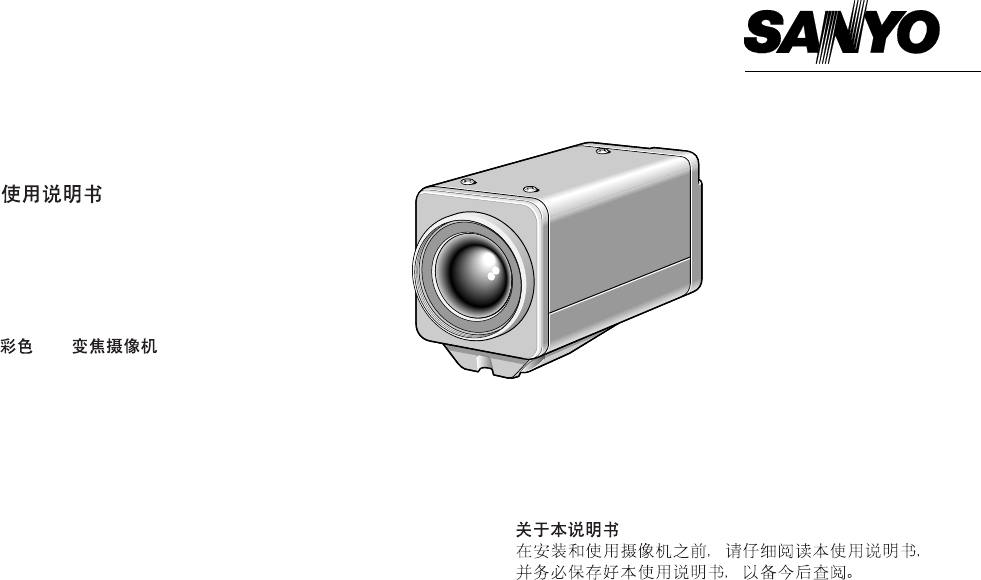

INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D’INSTRUCTIONS
VCC-ZM300P
COLOUR CCD ZOOM camera
CCD-Farb-Zoomkamera
Caméra CCD COULEURS avec ZOOM
CCD
About this manual
Before installing and using the camera, please read this manual
carefully. Be sure to keep it handy for later reference.
Über diese Bedienungsanleitung
Lesen Sie bitte vor der Montage und dem Inbetriebnehmen der
Kamera zuerst diese Bedienungsanleitung sorgfältig durch und
bewahren Sie sie zum späteren Nachschlagen auf.
A propos de ce manuel
Avant d’installer et d’utiliser la caméra, veuillez lire ce
manuel attentivement. Gardez-le à portée de main pour
toute référence ultérieure.
L5AA2/XE GB 2002, 4, 25
CONTENTS
MAIN FEATURES...................................................................... 2
ACCESSORIES........................................................................... 2
PRECAUTIONS.......................................................................... 3
PARTS NAMES AND FUNCTIONS ........................................... 4
CONNECTIONS ......................................................................... 6
Basic connection for monitoring or recording......................... 6
Connection of peripheral equipment and controller
terminal...................................................................................... 7
DISPLAYING/CLOSING THE MENU SCREEN .......................... 8

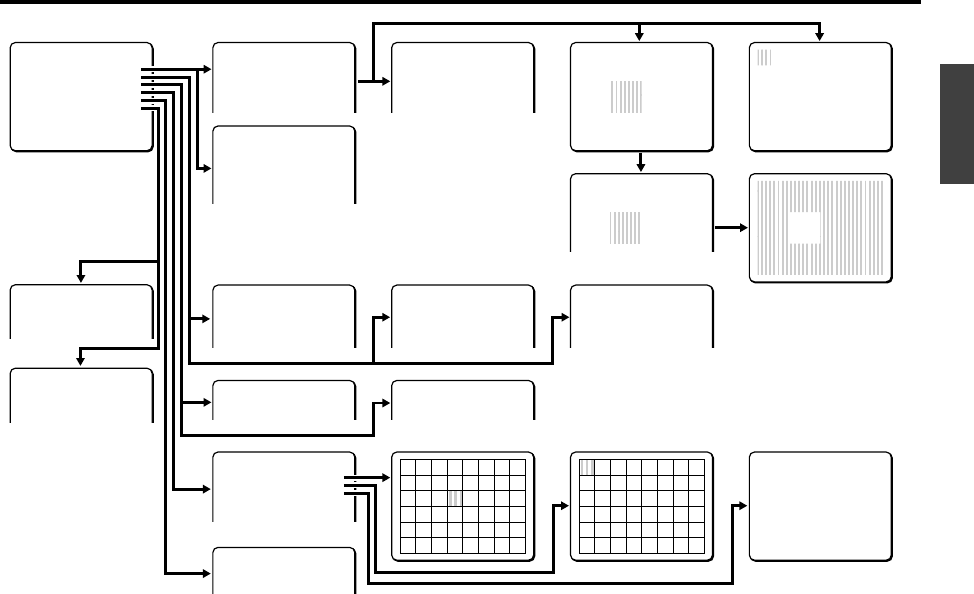

MENU ITEM FLOW AND MENU OPERATION........................ 9
LANGUAGE SETTING............................................................... 10
CAMERA ID SETTING............................................................... 11
Camera ID setting...................................................................... 11
SYNC SETTING (SYNC) ............................................................ 12
Power source synchronization (L-L) setting ............................ 12

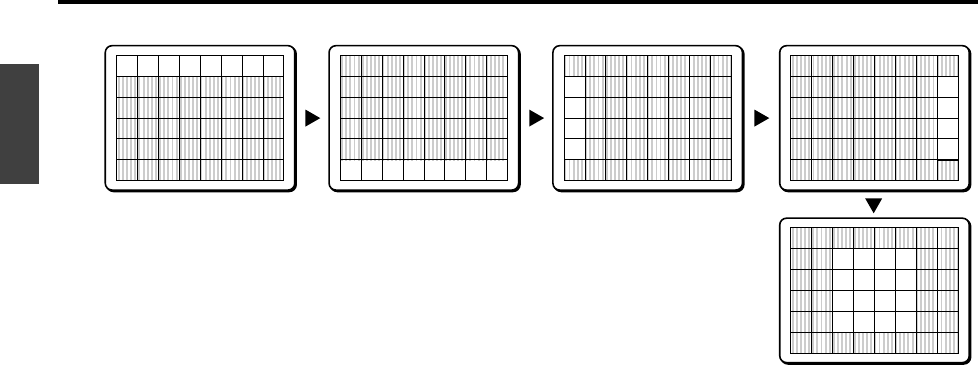

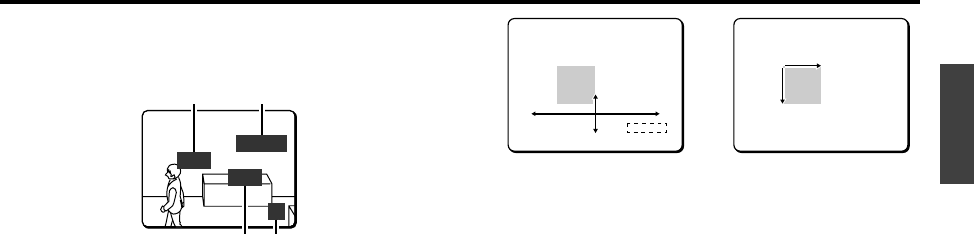

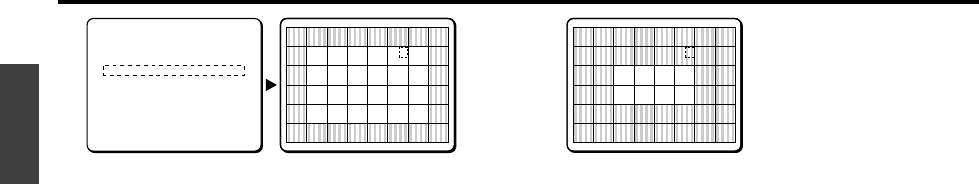

PRIVACY MASK SETTING (PRIVACY MASK) ......................... 13

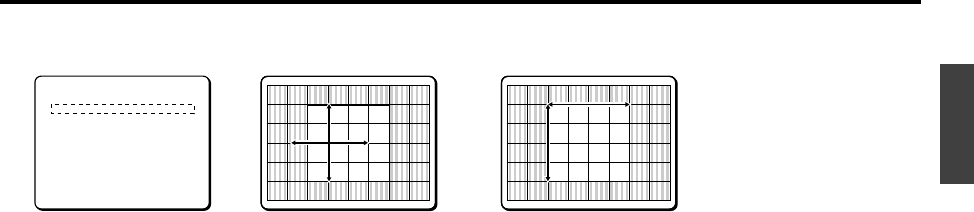

Mask setting .............................................................................. 13
PASSWORD setting ................................................................... 15
PASSWORD LOCK cancellation................................................. 16
PASSWORD changes ................................................................. 16
LENS SETTING (LENS).............................................................. 17
FOCUS setting............................................................................ 17
ZOOM setting ............................................................................ 20

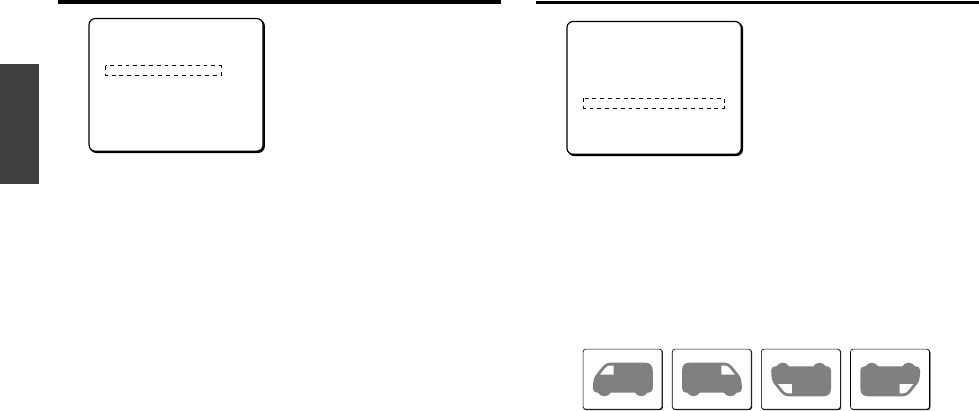

MIRROR SETTING..................................................................... 21
VIEW SETTING ITEM FLOW..................................................... 22
VIEW SETTING.......................................................................... 24
AIRIS setting ....................................................................................... 24
Autoiris setting (AUTO) ............................................................ 24
SENSE UP setting....................................................................... 29
LEVEL setting............................................................................. 29
Manual iris setting .................................................................... 30
BWHITE BALANCE adjustment ......................................................... 31
MWB setting ............................................................................. 32
ATW setting............................................................................... 32
AWC setting .............................................................................. 34
CElectronic SHUTTER setting ............................................................ 35
Fast shutter speed (SHORT) mode setting.............................. 35
Slow shutter speed (LONG) mode setting.............................. 36
DMOTION detector setting ............................................................... 37

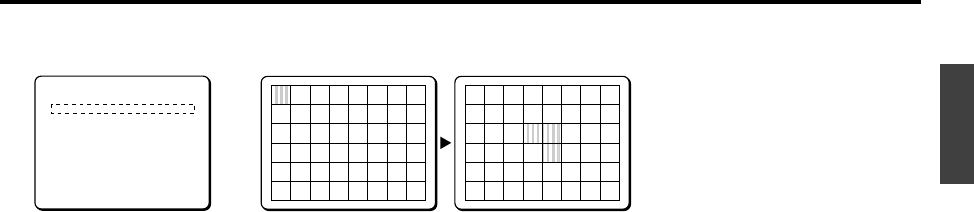

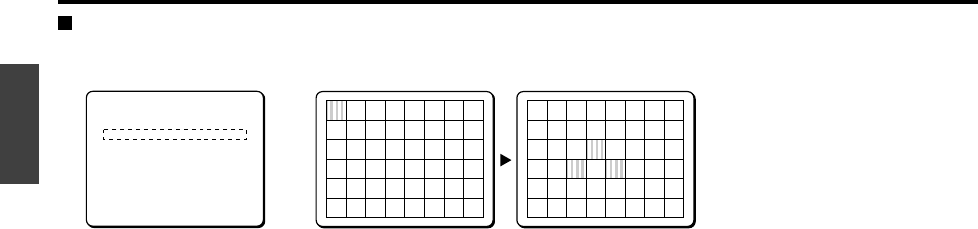

MOTION MASKING setting...................................................... 39
SENSITIVITY setting.................................................................. 40
ZOOM setting............................................................................ 41
INTERVAL setting...................................................................... 41
ALARM SIGN setting................................................................. 42
EProfile compensation setting (APERTURE) .................................... 43
FAutomatic gain control (AGC) setting ........................................... 44
GGAMMA correction setting............................................................. 45
OPTION SETTING ..................................................................... 46
CONTROL setting ...................................................................... 46
ADDRESS setting....................................................................... 47
ALARM setting .......................................................................... 47
AAlarm input setting (ALARM IN) ............................................. 47
BAlarm output setting (ALARM OUT) ....................................... 49
COperation of alarm signal output to the System
Controller setting (LINE OUT) .................................................. 50
MENU FLOW............................................................................. 51
SPECIFICATIONS ...................................................................... 53
L5AA2/XE GB 2002, 4, 25
English
1
MAIN FEATURES
•Built in Interline transfer method 1/4” CCD, approx. 470,000
picture elements.
•High sensitivity, minimum required illumination is 2.0 lux.
(F1.6, gain max)
•More than 520 TV lines of horizontal resolution.
•Equipped with intelligent Backlight compensation.
•Special Gamma mode (contrast up)
•Built in high speed electronic shutter and slow shutter.
•32X Electronic sensitivity
•Built in Digital Motion Detection
•Built in Privacy masking function
•12VDC/24V AC dual operation(electrically isolate) .
•Internal sync. / Line Lock.
•22x optical zoom and 16x electronic zoom.
•Coaxial control or RS485, operation via SSP.
ACCESSORIES

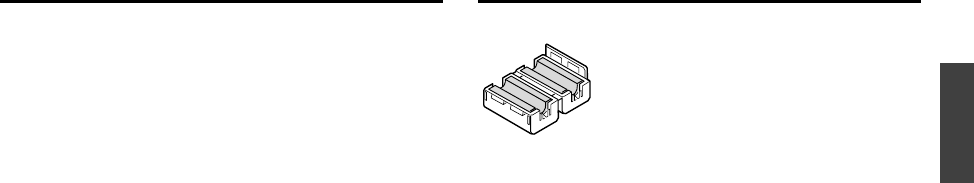

Clamping core ..........................................................................1 pc.
L5AA2/XE GB 2002, 4, 25
English
2
PRECAUTIONS
In case of problem
Do not use the camera if smoke or a strange odour comes from
the unit, or if it seems not to function correctly. Disconnect the
power cord immediately, and consult your dealer (or a Sanyo
Authorized Service Centre).
Do not open or modify
Do not open the cabinet, as it may be dangerous and cause
damage to the unit. For internal settings and repairs, consult your
dealer (or a Sanyo Authorized Service Centre).
Do not put objects inside the unit
Make sure that no metal objects or flammable substance get
inside the camera. If used with a foreign object inside, it could
cause a fire, short-circuits or damages.
If water or a liquid gets inside the camera, disconnect the power
cord immediately, and consult your dealer (or a Sanyo Authorized
Service Centre). Be careful to protect the camera from rain, sea
water, etc.
Be careful when handling the unit
To prevent damages, do not drop the camera or subject it to
strong shock or vibration.
Install away from electric or magnetic fields
If installed close to a TV, radio transmitter, magnet, electric motor,
transformer, audio speakers the magnetic field they generate will
distort the image.
Protect from humidity and dust
To prevent damages to the camera, do not install it where there is
greasy smoke or steam, where the dampness may get too high,
or where there is a lot of dust.
Protect from high temperatures
Do not install close to stoves, or other heat generating devices,
such as spotlights, etc., or where it could be subject to direct
sunlight, as that could cause deformation, discoloration or other
damages.
Be careful when installing close to the ceiling, in a kitchen or
boiler room, as the temperature may raise to high levels.
Install where the temperature range will stay between –10° C and
50° C. (no condensation)
Cleaning
•Dirt can be removed from the cabinet by wiping it with a soft
cloth. To remove stains, wipe with a soft cloth moistened with
a soft detergent solution and wrung dry, then wipe dry with a
dry soft cloth.
•Do not use benzine, thinner or other chemical product on the
cabinet, as that may cause deformation and paint peeling.
Before using a chemical cloth, make sure to read all
accompanying instructions. Make sure that no plastic or
rubber material comes in contact with the cabinet for a long
period of time, as that may cause damage or paint peeling.
L5AA2/XE GB 2002, 4, 25
English
3
PARTS NAMES AND FUNCTIONS
1Video output connector (VIDEO OUT: BNC type)
Connect this connector to a device such as a time lapse VCR or
monitor with a VIDEO IN connector.
2Power indicator (POWER)
Comes on when the power to the camera is on.
Note: After connecting the power supply the POWER indicator
will blink for 5 seconds. During this time no adjustments
using the menus or any other operation are possible.
3Cursor button (See p8)
j: Press this button to move the cursor up.
c: Press this button to move the cursor to the right, or to
turn the settings ON/OFF etc.
d: Press this button to move the cursor to the left, or to turn
the settings ON/OFF etc.
l: Press this button to move the cursor down.
4Menu setting button (SET) (See p8)
Connect the camera to the monitor, then press the SET
button for about 3 seconds to display the on-screen menu.
5RS-485 control push-lock terminals (RS485, A, B, G)
Use a cable thicker than AWG22.
A: Twisted-pair cable terminal G: Ground terminal
B: Twisted-pair cable terminal
624 V AC or 12 V DC input terminals (AC 24 V, DC 12 V,
GND)
Lens cap
The cap is installed to protect the lens section. Remove the cap
when using the camera.
SET
RS485
GND
AC24V
DC12V CLASS 2 WIRING
ABG
POWER
VIDEO OUT
FOCUS ALARM IN
OUT
ZOOM COM
2
5
6
4
3
1
Control
terminals
L5AA2/XE GB 2002, 4, 25
English
4
PARTS NAMES AND FUNCTIONS
Camera installation bracket
The bracket can be fixed at the top or bottom of the camera.
When fixing the bracket, be sure to use the longer screws and
install the shorter screws on the opposite side to seal the
openings.
CAUTION: When installing the camera bracket, select a location
that can support the total weight of the camera and
accessories.
Control terminals
1Zoom terminal (ZOOM)
Sets the zoom to wide angle or telescoping.
2Focus terminal (FOCUS)
Sets the focus to infinite or close range.
3Grounding terminal (COM)
4Alarm output terminal (ALARM OUT)
A detection alarm based on the motion sensor is sent to
connected equipment such as a buzzer or lamp or a time
lapse VCR device.
5Alarm input terminal (ALARM IN)
Used for detection of intruders through a connected
external alarm switch.
FOCUS ALARM INZOOM COM
12345
OUT
L5AA2/XE GB 2002, 4, 25
English
5
CONNECTIONS

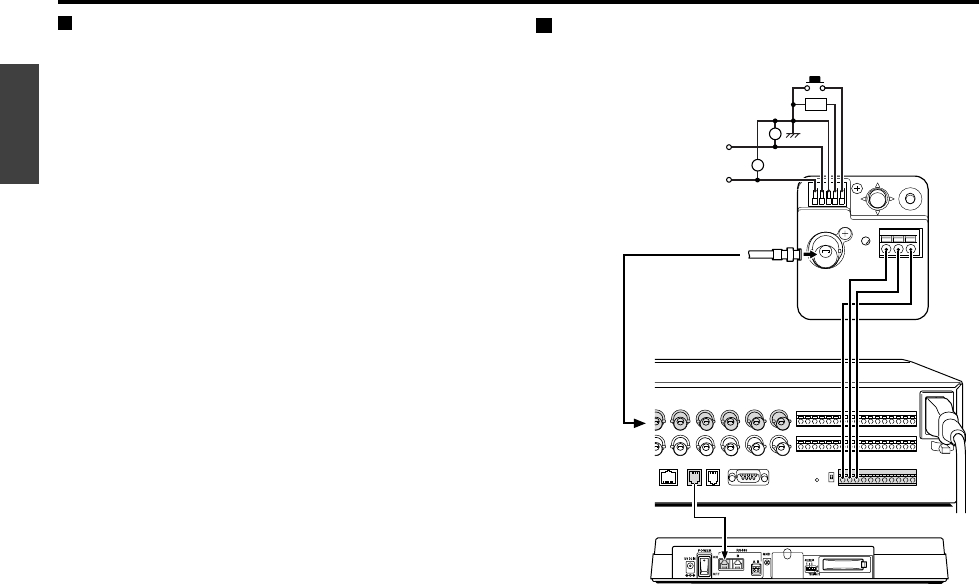

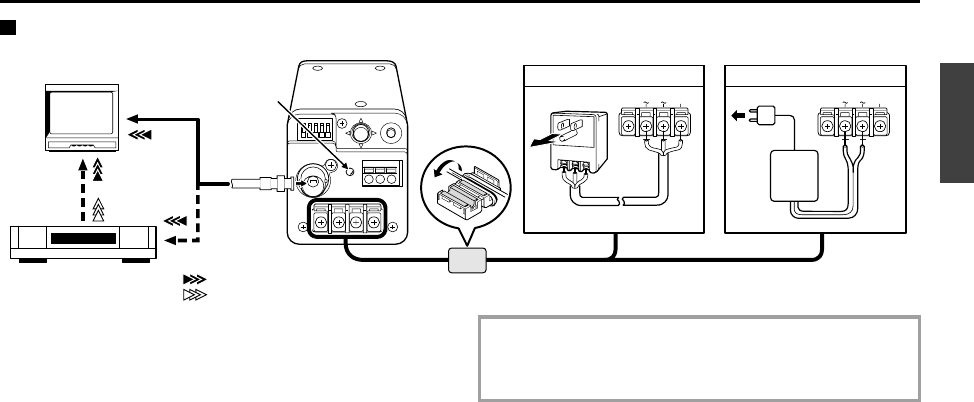

Basic connection for monitoring or recording
The peripheral devices (VCR, monitor, lens, etc.) and cables
are sold separately.
1Make the video signal connection between the camera
and the monitor or time lapse VCR.
When using this unit, the supplied clamping core A must be
installed on the power cord and BNC cable, in order to
prevent electromagnetic interference to the other devices
connected.
2Power supply choices
•Use a commercially available 24 V AC adaptor. Make sure
to use a cable with an earth line (22AWG or more) to
connect to the grouding terminal. (Fig.1.)
•When using a DC 12 V power supply, make the
connections as indicated in Fig. 2.
CAUTION:
To prevent camera and/or power supply failure, pay close
attention to polarity when making the connections.
3Insert the plug of this power supply into a wall outlet.
The POWER indicator (A) will light. Adjust the picture on the
monitor using the Brightness and Contrast controls.
GND
AC24V
DC12V CLASS 2 WIR
GND
AC24V
DC12V CLASS 2 WIR
(Video signal connections)
: VIDEO IN
: VIDEO OUT
(A)
AC 24 V connection DC 12 V connection
Fig. 1 Fig. 2
Time lapse VCR or
Digital video recorder
(sold separately)
TV monitor
(sold separately)
A
L5AA2/XE GB 2002, 4, 25
English
6
CONNECTIONS
Coaxial cable type and maximum length
•Cable type RG-59U (3C-2V), 250 m maximum.
•Cable type RG-6U (5C-2V), 500 m maximum.
•Cable type RG-11U (7C-2V), 600 m maximum.
CAUTION:
•The RG-59U type cable should not be run through electrical
conduits or through the air.
•Using CCTV/Video-grade coaxial cable.
Connection of peripheral equipment and
controller terminal
GAB
System controller (sold separately)
RS-485 connector
Multiplexer
(sold separately)
Buzzer or lamp
CAMERA IN
terminal
External alarm
switch
• Focus adjustment
DC–6V/12V: Infinite
DC+6V/12V: Close range
• Zoom adjustment
DC–6V/12V: Wide angle
DC+6V/12V: Telescoping
G
ABG
AB
L5AA2/XE GB 2002, 4, 25
English
7
DISPLAYING/CLOSING THE MENU SCREEN
1Press the SET button for about 3 seconds.
The MAIN MENU screen will appear.
2Using the cursor button
1Use the cursor button (l) to move the cursor down.
When the cursor reaches the bottom of the screen, it goes
back up to the top of the screen.
2Use the cursor button (j) to move the cursor up. When
the cursor reaches the top of the screen, it goes back
down to the bottom of the screen.
3Use the cursor button (c) to move the cursor to the right.
This button is also used to change ON/OFF settings etc.
4Use the cursor button (d) to move the cursor to the left.
This button is also used to change ON/OFF settings etc.
3Switching to sub-menu screens
Use the cursor button (j l d c) until an item with a “y”
next to it is flashing, then press the SET button.
4 Closing a settings screen
•To return to the previous screen, use the cursor button (l)
to select BACK for MENU, then press the SET button.
•To return to the normal screen, use the cursor button (d or
c) to select END for MENU, then press the SET button.
☞Returning to the default setting
Use cursor button (l, then d or c) to change the PRESET
setting to ON, then press the SET button.
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
LANGUAGE
LANGUAGE ENGLISH
LANGUE FRENCH
SPRACHE GERMANY
MENU BACK
MAIN MENU screen Sub-menu screen
SET
Cursor button SET button
L5AA2/XE GB 2002, 4, 25
English
8

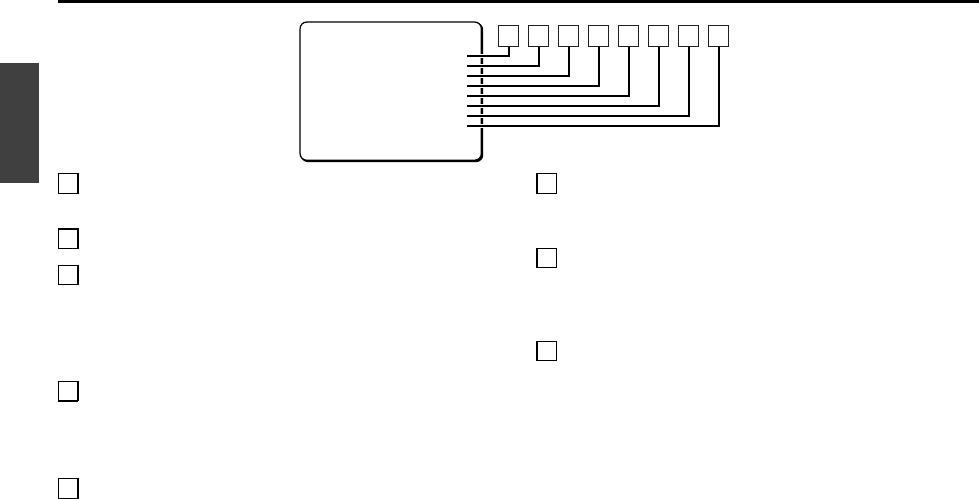

MENU ITEM FLOW AND MENU OPERATION
1 LANGUAGE setting (See p10)
Choose from among English, French and German.
2 CAMERA ID setting (See p11)
3SYNC setting (See p12)
Sets camera to internal synchronization (INT) or power source
synchronization (L-L).
Power source synchronization, the vertical synchronization phase
as adjusted on a sub-menu screen.
4 PRIVACY MASK setting (See p13)
This covers an area of the screen with a gray pattern for areas
that may infringe on privacy.
Gray patterns can be placed on up to 4 areas.
5LENS setting (See p17)
Sets camera to automatic focus or manual focus. Zoom speed and
magnification is also set here.
6 MIRROR setting (See p21)
The image can be rotated horizontally then vertically or vertically
then horizontally.
7 VIEW SETTING (See p22)
Different detailed settings can be made for each camera (9
screens). After they are set, these are linked to “VIEW SETTING
(0 – 8)” settings for preset positions.
8OPTION setting (See p46)
For setting communications conditions and alarms.
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
1 2 3 4 5 6 7 8
L5AA2/XE GB 2002, 4, 25
English
9
LANGUAGE SETTING
Select one of the languages shown on the menu screen (English, French, German).
1In the MAIN MENU, use the cursor button (j or l) to
select SET for LANGUAGE, then press the SET button.
The LANGUAGE screen will appear.
2Use the cursor button (j or l) to move the cursor to
language (example: “FRENCH”) then press the SET
button.
The interface language becomes French.
3Use the cursor button (j or l) to select RETUOR for
MENU, then press the SET button.
The MENU PRINCIPAL screen will reappear.
Information in the MAIN MENU screen will appear in the
selected language.
☞Use the cursor button (l) to select FIN, then press the
SET button. The display will return to the normal
monitor screen.
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
LANGUE
LANGUAGE ANGLAIS
LANGUE FRANCAIS
SPRACHE ALLEMAND
MENU RETOUR
LANGUAGE
LANGUAGE ENGLISH
LANGUE FRENCH
SPRACHE GERMANY
12
3
L5AA2/XE GB 2002, 4, 25
English
10
CAMERA ID SETTING
Camera ID setting
Example: Setting the Camera ID to “CAM 1”
1Use the cursor button (j or l) to move the cursor to
CAMERA ID, and then use the cursor button (d or c) to
change the setting to ON. Then press the SET button.
The CAMERA ID SETTING screen will appear.
2Use the cursor button (j l d c) to move the cursor to
the letter “C” in the character selection palette, then
press the SET button.
☞After at least one character is displayed in the ID field,
the carriage return mark (y) will appear at the lower
right corner of the character selection palette. Selecting
this mark between the characters of the field will create
a new line at that place.
3Use the same steps to select “A”, “M” and “1” from the
palette, then press the SET button.
The characters “CAM1” appear in the ID field.
12
MAIN MENU
LANGUAGE SET ‚
CAMERA ID ON ‚
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
CAMERA ID SETTING
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
0123456789 :-‚
ID ????????????????
-
POSITION SET ‚
PRESET OFF
MENU BACK
ID CAM1????????????
-
Camera ID screen
1Character selection palette:
By moving the cursor to letters or numbers in this
palette, you can select characters.
Selected characters will appear in the corresponding
field under ID.
2ID:
The ID entry field shows 16 question marks (?). The ID
will not be displayed on the screen.
3POSITION:
After characters are displayed in the ID field, moving
the cursor to the POSITION field with the cursor button
and pressing the SET button will display the camera ID
on the normal screen.
4PRESET:
When this item is turned to ON, the ID fields are
cleared (question marks appear). Use this function
when you want to change the ID.
CAMERA ID SETTING
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
0123456789 :-‚
ID ????????????????
-
POSITION SET ‚
PRESET OFF
MENU BACK
1
2
3
4
L5AA2/XE GB 2002, 4, 25
English
11
CAMERA ID SETTING
4Use the cursor button (j or l) to move the cursor to
POSITION, and then press the SET button.
The camera ID will be displayed on one line.
(Displaying the ID on 2 lines.)
1Use the cursor button (d or c) to move the cursor to the
location in the ID field where the carriage return is wanted.
2Use the cursor button (j l d c) to move the cursor to
the carriage return mark (y) at the lower right corner of
the character selection palette, and then press the SET
button.
5Moving the on-screen title display position
Use the cursor button (j l d c) to move the title
display to the preferred position on the screen, then
press the SET button.
The CAMERA ID SETTING screen will reappear.
SYNC SETTING (SYNC)
Initial setting is internal synchronization (INT), so it does not need
to be set again. Follow the steps below to change the setting to
power source synchronization (L-L).
Power source synchronization (L-L) setting
1Use the cursor button (j l d c) to select L-L for
SYNC, then press the SET button.
The L-L SETTING screen will appear.
2Use the cursor button (d or c) to adjust the position
of the vertical synchronization indicator shown on the
screen.
The numerical value will change, allowing adjustment of
vertical synchronization.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
CAMERA ID SETTING
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
0123456789 :-‚
ID CAM1????????????
POSITION SET ‚
PRESET OFF
MENU BACK
CAM1
Camera ID
12
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
L-L SETTING
(V SYNC PHASE)
ú------+------ü 0
PRESET OFF
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
12
PRIVACY MASK SETTING (PRIVACY MASK)
Mask setting
1Use the cursor button (j or l) to select SET for
PRIVACY MASK, then press the SET button.
The PRIVACY MASK SETTING screen will appear.
2Use the cursor button (j or l) to move the cursor to
SET for MASK SET and press the SET button.
The MASK NO. SELECT screen will appear.
Note: When PASSWORD LOCK is ON, moving the cursor to
MASK SET and press the SET button to bring up a
password access screen. The password must be entered in
this screen.
3Use the cursor button (j or l) to move the cursor to a
mask number (Ex: MASK 3), and then use the cursor
button (c) to change the setting to SET. Then press the
SET button.
The MASK 3 SET (POSITION) screen will appear, and SETy
will be blinking. The gray mask will appear in the center of the
screen.
Cursor button operation
OFF: to c side (ON appears), to c side again (SET appears)
•SET: Mask POSITION and SIZE can be set
•ON: Masks can be displayed
•OFF: Masks can be deleted
12
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
PRIVACY MASK SETTING
PASSWORD LOCK ON ‚
PASSWORD CHANGE SET ‚
MASK SET SET ‚
MASK NO.SELECT
MASK 1 OFF
MASK 2 OFF
MASK 3 OFF
MASK 4 OFF
3
MASK NO.SELECT
MASK 1 OFF
MASK 2 OFF
MASK 3 SET ‚
MASK 4 OFF
PRESET OFF
MENU BACK
MASK 3 SET
(POSITION)
SET ‚
L5AA2/XE GB 2002, 4, 25
English
13
PRIVACY MASK SETTING (PRIVACY MASK)
(About the POSITION screen)
It is possible to set as many as 4 masks on the same POSITION
screen.
4Use the cursor button (j l d c) to move the gray
mask, then press the SET button.
The SIZE screen will appear, and the mask that was positioned
in the POSITION screen will be displayed.
5Use the cursor button (j l d c) to adjust the size of
the gray mask, then press the SET button.
PRESET and MENU will appear at the bottom of the screen.
Move the cursor to BACK for MENU and press the SET button.
The screen will return to MASK NO. SELECT.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
34
MASK 1 2
45
MASK 3 SET
(SIZE)
SET ‚
MASK 3 SET
PRESET OFF
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
14
PRIVACY MASK SETTING (PRIVACY MASK)
PASSWORD setting
You can lock the privacy masks in place as gray patterns after they have been set. The password requirement is initially set to OFF, but to
begin using it, you must enter the factory set password “1234”.
1Use the cursor button (j or l) to move the cursor to
OFF for PASSWORD LOCK in the PRIVACY MASK
SETTING screen. Then press the SET button.
The PASSWORD screen will appear.
2Enter the factory set password “1234”.
Use the cursor button (j or l) to select “1”, then use
the cursor button (c).
To move the cursor to the next “*” digit.
3Use the same steps to enter “2,” “3,” and “4,” then press
the SET button.
“OK” will appear and BACK for MENU will be blinking. Press
the SET button again. The PRIVACY MASK SETTING screen
will reappear and “ON” will be blinking for PASSWORD LOCK.
Note: If a different password is required, “NG” will appear.
Please carefully maintain the password so that it will not be
forgotten.
1
PRIVACY MASK SETTING
PASSWORD LOCK OFF ‚
PASSWORD CHANGE SET ‚
MASK SET SET ‚
MENU BACK
PASSWORD
¤¤¤¤ SET ‚
-
MENU BACK
1¤¤¤
3
PASSWORD
1234 SET ‚
-
OK
MENU BACK
PRIVACY MASK SETTING
PASSWORD LOCK OFF ‚
PASSWORD CHANGE SET ‚
MASK SET SET ‚
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
15
PRIVACY MASK SETTING (PRIVACY MASK)
PASSWORD LOCK cancellation
For use when PASSWORD LOCK is ON
1Press the SET button.
The PASSWORD screen will appear.
2Enter the factory set password “1234”.
Use the cursor button (j or l) to select “1”, then use
the cursor button (c).
To move the cursor to the next “*” digit.
3Use the same steps to enter “2,” “3,” and “4,” then press
the SET button.
“OK” will appear and BACK for MENU will be blinking. Press
the SET button again. The PRIVACY MASK SETTING screen
will reappear and “OFF” will be blinking for PASSWORD LOCK.
PASSWORD changes
You can change the password with PASSWORD LOCK in either
the ON or OFF setting.
1Use the cursor button (j or l) to move the cursor to
SET for PASSWORD CHANGE and press the SET button.
The PASSWORD (NOW PASSWORD) screen will appear.
2Use the cursor button (d or c, j) to enter the current
password (Ex: 1234), then press the SET button.
The PASSWORD (NEW PASSWORD) screen will appear.
3Use the cursor button (d or c, j) to enter a new
password (Ex: 4321), then press the SET button.
“OK” will appear and BACK for MENU will be blinking. Press
the SET button again.
The PRIVACY MASK SETTING screen will reappear.
13
PASSWORD
¤¤¤¤ SET ‚
-
MENU BACK
PASSWORD
1234 SET ‚
-
OK
PRIVACY MASK SETTING
PASSWORD LOCK OFF ‚
PASSWORD CHANGE SET ‚
MASK SET SET ‚
12
PRIVACY MASK SETTING
PASSWORD LOCK ON ‚
PASSWORD CHANGE SET ‚
MASK SET SET ‚
PASSWORD
(NOW PASSWORD)
**** SET ‚
-
PASSWORD
(NOW PASSWORD)
1234 SET ‚
-
PASSWORD
(NEW PASSWORD)
**** SET ‚
-
L5AA2/XE GB 2002, 4, 25
English
16
LENS SETTING (LENS)
This item allows adjustment of focus (for manual focus or autofocus) and adjustment of zoom when needed.
FOCUS setting
☞Setting the manual focus (MANU)
Sets a limit for near distance focusing and sets focus speed for manual focus.
1Use the cursor button (j or l) to select SET for LENS,
then press the SET button.
The LENS screen will appear.
2Use the cursor button (d or c) to select MANU, then
press the SET button.
The FOCUS SETTING screen will appear.
3LIMIT NEAR focus distance setting
Use the cursor button (j or l) to move the cursor to
LIMIT NEAR, then use the cursor button (d or c) to
change the distance value. (Ex: 3M)
Available settings: 1M (meter), 3M, 5M, 10C (centimeters),
30C, 50C
Note: Focusing becomes difficult when near distance limit is set
to less than “1M”.
4SPEED of focus setting
Use the cursor button (j or l) to move the cursor to
SPEED, then use the cursor button (d or c) to select the
focus adjustment speed value. (Ex: 3)
Available settings: 1, 2, 3, 4 (Quickest speed)
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
12
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
LENS
FOCUS MANU ‚
ZOOM SET ‚
FOCUS SETTING
LIMIT NEAR 1M
SPEED 2
PRESET OFF
MENU BACK
3
FOCUS SETTING
LIMIT NEAR 3M
SPEED 2
PRESET OFF
MENU BACK
4
FOCUS SETTING
LIMIT NEAR 3M
SPEED 3
PRESET OFF
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
17
LENS SETTING (LENS)
☞Setting the autofocus (AUTO)
Sets a limit for near distance focusing and sets focusing sensitivity and focus iris.
Note: As a normal practice, use manual focus when keeping the camera focused on the same target object for a long period of time
(over 24 hours). This can be used with the one-push autofocus function when needed (operated from the system controller). Long
periods of surveillance with the autofocus in operation will shorten the work life of the lens.
1Use the cursor button (j or l) to select SET for LENS,
then press the SET button.
The LENS screen will appear.
2Use the cursor button (d or c) to select AUTO, then
press the SET button.
The FOCUS SETTING screen will appear.
3LIMIT NEAR focus distance setting
Use the cursor button (j or l) to move the cursor to
LIMIT NEAR, then use the cursor button (d or c) to
change the distance value. (Ex: 3M)
Available settings: 1M (meter), 3M, 5M, 10C (centimeters),
30C, 50C
Note: Focusing becomes difficult when near distance limit is set
to less than “1M”.
4Setting focus SENSITIVITY
Use the cursor button (j or l) to move the cursor to
SENSITIVITY, then use the cursor button (d or c) to
change the setting. (Ex: LOW)
Available settings:
•HIGH: High sensitivity focusing
•LOW: Low sensitivity focusing
Note: When focus SENSITIVITY is set to HIGH, it may react to
even slight movements of the target object. In this case,
change the setting to LOW.
12
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
LENS
FOCUS AUTO ‚
ZOOM SET ‚
FOCUS SETTING
LIMIT NEAR 1M
SENSITIVITY HIGH
AREA SET ‚
34
FOCUS SETTING
LIMIT NEAR 3M
SENSITIVITY HIGH
AREA SET ‚
PRESET OFF
MENU BACK
FOCUS SETTING
LIMIT NEAR 3M
SENSITIVITY LOW
AREA SET ‚
PRESET OFF
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
18
LENS SETTING (LENS)
5Use the cursor button (j or l) to move the cursor to
SET for AREA, and press the SET button.
The AREA SETTING screen for AREA 2 (initial setting) will
appear to allow setting of focus target area.
6Use the cursor button (d or c) to select the focus target
area. (Ex: 3)
The focus target area will become narrow.
Available settings: 1/full screen, 2/center of screen,
3/smaller center
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
5
FOCUS SETTING
LIMIT NEAR 3M
SENSITIVITY LOW
AREA SET ‚
PRESET OFF
MENU BACK
AREA SETTING
AREA 2
PRESET OFF
MENU BACK
6
AREA SETTING
AREA 3
PRESET OFF
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
19
LENS SETTING (LENS)
ZOOM setting
Sets zooming speed and magnification power of the electronic zoom. This item also has a setting for improvement of vertical resolution of
still pictures.
1Use the cursor button (j or l) to select SET for LENS,
then press the SET button.
The LENS screen will appear.
2Use the cursor button (j or l) to select SET for ZOOM,
then press the SET button.
The ZOOM SETTING screen will appear.
3Zoom speed setting
Use the cursor button (d or c) to select the zooming
speed. (Ex: 4)
Available settings: 1, 2, 3, 4 (Quickest speed)
4EL ZOOM (Electronic zoom) magnification setting
Use the cursor button (j or l) to move the cursor to EL
ZOOM, then use the cursor button (d or c) to select the
electronic zoom magnification power. (Ex: x4)
Available settings: OFF, x2, x4, x8, x16 (16 power)
12
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
LENS
FOCUS MANU ‚
ZOOM SET ‚
PRESET OFF
MENU BACK
34
ZOOM SETTING
SPEED 4
EL ZOOM OFF
V-RESO.UP OFF
PRESET OFF
MENU BACK
ZOOM SETTING
SPEED 4
EL ZOOM x4
V-RESO.UP OFF
PRESET OFF
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
20
LENS SETTING (LENS)
5V-RESO.UP (Vertical resolution) setting
Use the cursor button (j or l) to move the cursor to
V-RESO.UP, then use the cursor button (d or c) to
select the vertical resolution. (Ex: ON)
Note: When V-RESO.UP is set to “ON”, vertical resolution
sensitivity for still pictures in the electronic zoom field will
be improved but afterimages of moving objects will be
more conspicuous.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
Note:
V-RESO. UP will be automatically set to OFF when any of the
following settings is made.
•IRIS: AUTO item SENSE UP (activated)
•SHUTTER: LONG
•AGC: DNR (ON)
MIRROR SETTING
1Use the cursor button (j or l) to move the cursor to
MIRROR, then use the cursor button (d or c) to select
the mirror image effect (Ex: H).
The image will be inverted horizontally. The image will change
as described below each time the cursor button is pressed.
•OFF: Normal image •V: Inverted vertically
•H: Inverted horizontally •HV: Inverted horizontally and
vertically
2To return to the normal screen, use the cursor button
(l) to select END at the bottom of the screen, then press
the SET button.
5
ZOOM SETTING
SPEED 4
EL ZOOM x4
V-RESO.UP ON
PRESET OFF
MENU BACK
1
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
OFF H V HV
L5AA2/XE GB 2002, 4, 25
English
21
VIEW SETTING ITEM FLOW
☞Signifies that VIEW
SETTING 1 is the camera
setting 1. The cursor
button can be used (d or
c) to select one of the
nine VIEW SETTING
patterns (0 – 8).
AIRIS setting (See p24)
This setting allows selection of IRIS to either autoiris (AUTO) or manual iris (MANU). Initial setting is
autoiris.
BWHITE BALANCE adjustment (See p31)
This selects the white balance method to be used. Three white balance methods are available: auto
trace white balance (ATW), one-push automatic white balance (AWC), and manual white balance
(MWB). Default setting is auto trace white balance.
CElectronic SHUTTER setting (See p35)
This setting chooses either a fast shutter speed (SHORT) for target objects that may be moving quickly
or a slower shutter speed (LONG) for darker target objects.
DMOTION detector setting (See p37)
This function generates an alarm when a suspicious figure is detected. Each of the settings will enable
certain kinds of detection based on the natural image (swaying trees, flickers of light, etc.). It is also
possible to enable zooming in on target objects and intruders that have unusual brightness levels
(moving, bright) or are fast-moving.
EProfile compensation setting (APERTURE) (See p43)
This setting emphasizes the target object profile (horizontally or vertically).
FAutomatic Gain Control (AGC) setting (See p44)
This sets the gain of the AGC circuit. When a target object is dark, the gain changes and the object
becomes lighter.
GGAMMA correction setting (See p45)
This setting enables contrast sensitivity to be boosted by controlling the gamma characteristics. Three
gamma controls are available: gamma correction (ON), smart gamma correction 1 (SMART 1), and
smart gamma correction 2 (SMART 2). Initial setting is ON.
VIEW SETTING 1
IRIS AUTO ‚
WHITE BALANCE ATW ‚
SHUTTER OFF
MOTION OFF ‚
APERTURE ON ‚
AGC ON ‚
GAMMA ON
PRESET OFF
MENU BACK
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
A
B
C
D
E
F
G
☞
L5AA2/XE GB 2002, 4, 25
English
22
VIEW SETTING ITEM FLOW
(About creating image setting files in VIEW SETTING)
You can set 9 different patterns with view files. Use the cursor
button (d or c) to change the file number (1) for VIEW SETTING
and press the SET button. The selected image setting file will
appear. Neither the mask function nor the motion detector
function can be used with image setting file “0”, so they will not
appear as options in the screen for pattern 0.
Note: When each of the following functions is ON (shown by
single circle), it may be possible to use other functions in
conjunction with it (shown by double circle). View columns
vertically to determine which functions can be used
together.
IRIS AUTO: SENSE UP (activated) FTTTT
MANU: EI (ON) TFTTE
SHUTTER LONG TTFTT
SHORT TTTFE
MOTION TETEF
F: Function is set T: Not allowable E: Allowable
VIEW SETTING 1
IRIS AUTO ‚
WHITE BALANCE ATW ‚
SHUTTER LONG ‚
MOTION OFF
APERTURE ON ‚
AGC ON ‚
GAMMA ON
PRESET OFF
MENU BACK
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
(Screen for image setting 1 – 8)
VIEW SETTING 0
IRIS AUTO ‚
WHITE BALANCE ATW ‚
SHUTTER LONG ‚
MOTION ---
APERTURE ON ‚
AGC ON ‚
GAMMA ON
PRESET OFF
MENU BACK
(Screen for image setting 0)
L5AA2/XE GB 2002, 4, 25
English
23
VIEW SETTING
AIRIS setting
There are 2 possible settings for IRIS, autoiris (AUTO) and manual iris (MANU).
Autoiris setting (AUTO)
Sets backlight compensation, magnification of electronic
sensitivity and iris level.
1Use the cursor button (j or l) to move the cursor to
VIEW SETTING, then press the SET button. (Ex: 1)
The VIEW SETTING 1 screen will appear and AUTO for IRIS will
be blinking.
Available settings:
•AUTO: Sets automatic adjustment of iris.
•MANU: Sets manual adjustment of iris.
Note: When AUTO is selected, the following 3 types of detailed
backlight compensation settings will be available.
•Multi-spot evaluative metering (MULT)
•5 spot centerweighted average metering (CENT)
•48 multi-spot metering (MASK)
2Press the SET button.
The IRIS SETTING screen will appear.
VIEW SETTING 1
IRIS AUTO ‚
WHITE BALANCE ATW ‚
SHUTTER LONG ‚
MOTION OFF ‚
APERTURE ON ‚
AGC ON ‚
GAMMA ON
PRESET OFF
MENU BACK
1
L5AA2/XE GB 2002, 4, 25
English
24
VIEW SETTING
Backlight compensation additional settings 1
•
••
•Multi-spot evaluative metering (MULT)
1Use the cursor button (j or l) to move the cursor to
BLC, then use the cursor button (d or c) to select a
backlight compensation method. (Ex: MULT) Then press
the SET button.
The BLC SETTING screen will appear.
Available settings:
•MULT (Multi-spot evaluative metering): Evaluates the entire
screen and corrects according to the best image obtained.
•CENT (5 spot centerweighted average metering): Measures
light mainly at the center and corrects according to the best
image obtained. (See p26)
•MASK (48 multi-spot metering): Covers bright areas such as
persons with mask patterns and treats light measurement
output as irrelevant. (See p28)
2Use the cursor button (d or c) to select the value of
BLC WEIGHT. (Sets backlight and brightness level.)
Available settings: 0 – 15
Note: The larger the number, the more backlighting works.
3Use the cursor button (j or l) to move the cursor to
BRIGHT, and then use the cursor button (d or c) to
select the compensation level.
Available settings: 0 – 15
Note: When the number becomes larger, it brightens, and the
compensation level can be set for the brightness of the
backlighting.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
Note: When using multi-spot evaluative metering, the
background behind the target object will become very
dark. If a target image in the center of the image is too
bright while using the multi-spot evaluative metering
mode, switch to the 5 spot centerweighted average
metering mode.
12
IRIS SETTING
BLC MULT ‚
SENSE UP OFF
(LEVEL)
í-----ú+------ü 40
BLC SETTING
(BLC WEIGHT)
í------ú------ü 7
(BRIGHT)
í------ú------ü 7
L5AA2/XE GB 2002, 4, 25
English
25
VIEW SETTING
Backlight compensation additional settings 2
•
••
•5 spot centerweighted average metering (CENT)
1Use the cursor button (d or c) to select CENT, then
press the SET button.
The BLC SETTING (POSITION) screen will appear.
2Use the cursor button (j l d c) to shift the position
of the central light sensing zone.
The zone can be moved up or down and left or right.
Note:
•If the zone fills the right side it will become smaller.
•If the zone fills the bottom side it will become smaller.
3Press the SET button.
The BLC SETTING (SIZE) screen will appear.
4Use the cursor button (j l d c) to adjust the size of
the central light sensing zone.
5Press the SET button.
The BLC WINDOW WEIGHTING screen will appear.
12
IRIS SETTING
BLC CENT ‚
SENSE UP OFF
(LEVEL)
í-----ú+------ü 40
PRESET OFF
MENU BACK
4
BLC SETTING
(SIZE)
BLC SETTING
(POSITION)
L5AA2/XE GB 2002, 4, 25
English
26
VIEW SETTING
Example of setting the mask in the center weighting position.
6Use the cursor button (j or l) to select a zone, then
use the cursor button (d or c) to adjust weighting.
Each setting will change as shown in the illustration.
The area from each of the zones 0 – 7, except CENTER, can
be adjusted.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
6
BLC WINDOW WEIGHTING
TOP 0
BOTTOM 0
LEFT 0
RIGHT 0
CENTER(FIX) 7
PRESET OFF
MENU BACK
BLC WINDOW WEIGHTING
TOP 0
BOTTOM 0
LEFT 0
RIGHT 0
CENTER(FIX) 7
PRESET OFF
MENU BACK
BLC WINDOW WEIGHTING
TOP 0
BOTTOM 0
LEFT 0
RIGHT 0
CENTER(FIX) 7
PRESET OFF
MENU BACK
BLC WINDOW WEIGHTING
TOP 0
BOTTOM 0
LEFT 0
RIGHT 0
CENTER(FIX) 7
PRESET OFF
MENU BACK
23 4
5
1
BLC WINDOW WEIGHTING
TOP 0
BOTTOM 0
LEFT 0
RIGHT 0
CENTER(FIX) 7
PRESET OFF
MENU BACK
1 TOP: Weighting is at top.
2 BOTTOM: Weighting is at bottom.
3 LEFT: Weighting is at left.
4 RIGHT: Weighting is at right.
5 CENT (FIX): Center weighting is fixed by the number 7.
L5AA2/XE GB 2002, 4, 25
English
27
VIEW SETTING
Backlight compensation additional settings 3
•
••
•48 multi-spot metering (MASK)
1Use the cursor button (d or c) to select MASK, then
press the SET button.
The BLC MASKING screen will appear and the mask pattern
will be blinking.
2Use the cursor button (j l d c) to move the cursor to
move the mask pattern over the area not to be sensed,
then press the SET button.
The mask pattern will be set. You can use the same steps to
set additional mask patterns.
Note: The initial mask pattern is at the upper left of the screen,
and it is not set. To clear a mask pattern after it is set,
press the SET button again.
3Finishing mask pattern setting
Use the cursor button (j or l) to move a mask pattern to
the bottom area of the screen and continue holding it for 3
seconds. The PRESET and MENU items will appear on the
screen.
•Use the cursor button (l) to select BACK for MENU and
press the SET button. The IRIS SETTING screen will
reappear.
•Use the cursor button (l) to move the cursor to BACK for
MENU, use the cursor button (d or c) to select END, and
then press the SET button. The normal screen will reappear.
12
IRIS SETTING
BLC MASK ‚
SENSE UP OFF
(LEVEL)
í-----ú+------ü 40
PRESET OFF
MENU BACK
BLC MASKING
CONTINUE (ñ)
BLC MASKING
CONTINUE (ñ)
L5AA2/XE GB 2002, 4, 25
English
28
VIEW SETTING
SENSE UP setting
Use the cursor button (j or l) to move the cursor to
SENSE UP, then use the cursor button (d or c) to select the
power of the electronic sensitivity. (Ex: x4)
Available settings: OFF, x2, x4, x8, x16, x32
Note:
•Electronic sensitivity boosting (SENSE UP) automatically
lengthens the CCD exposure time in dark situations.
Accordingly, do not use for light target objects. Because
exposure time is lengthened while in operation, moving target
objects may cause conspicuous afterimages and blurs.
•It is not possible to set SENSE UP (activated) or SHUTTER
(LONG) when MOTION is set to “ON”.
•When SENSE UP is activated for IRIS SETTING, the electronic
shutter cannot be forcibly moved.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
LEVEL setting
Use the cursor button (j or l) to move the cursor to
LEVEL, then use the cursor button (d or c) to adjust the iris
level.
Available settings: 0 – 100
Note: The larger the number, the more it brightens.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
IRIS SETTING
BLC MULT
SENSE UP x4
(LEVEL)
í-----ú+------ü 40
PRESET OFF
MENU BACK
IRIS SETTING
BLC MULT
SENSE UP x4
(LEVEL)
í----ú-+------ü 40
PRESET OFF
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
29
VIEW SETTING
Manual iris setting
Sets electronic iris ON/OFF, lens aperture and iris level.
1Use the cursor button (j or l) to move the cursor to
VIEW SETTING, then press the SET button. (Ex: 1)
The VIEW SETTING 1 screen will appear.
2Use the cursor button (d or c) to select MANU, then
press the SET button.
The IRIS SETTING screen will appear.
3Electronic IRIS setting
Use the cursor button (d or c) to select El. (Ex: ON)
Note: When SENSE UP is activated for IRIS SETTING, the
electronic shutter cannot be forcibly moved.
4Lens aperture setting
Use the cursor button (j or l) to move the cursor to IRIS
STOP, then use the cursor button (d or c) to select the value.
Available settings: 1 – 17 (Aperture opening)
Note:
•The smaller the value the more the aperture closes and the
image darkens.
•Changes to the value directly control the aperture of the lens.
5Use the cursor button (j or l) to move the cursor to
LEVEL, then use the cursor button (d or c) to select the
value.
Available settings: 0 – 100 (Level of opening)
Note:
•The smaller the value the more the video level drops,
becoming darker.
•The LEVEL setting controls both AGC circuit gain and shutter
speed, changing the amount of exposure.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
Note:
•If the iris views an unusually bright image, it can cause a
smear that cannot be corrected by adjusting the light entering
through the lens. In this case, arrange the physical angle of
lighting in a way that will prevent on-screen smearing.
•If flickering of the target object occurs because of florescent
lighting in the camera location, changing to incandescent
lighting will prevent the flickering.
12 3 5
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
VIEW SETTING 1
IRIS MANU ‚
WHITE BALANCE ATW ‚
SHUTTER LONG ‚
MOTION OFF
APERTURE ON ‚
AGC ON ‚
GAMMA ON
IRIS SETTING
EI ON
(IRIS STOP)
í------+------ú 17
(LEVEL)
í----ú-+------ü 40
IRIS SETTING
EI ON
(IRIS STOP)
í------+------ú 17
(LEVEL)
í----ú-+------ü 40
L5AA2/XE GB 2002, 4, 25
English
30
VIEW SETTING
BWHITE BALANCE adjustment
Adjustments can be made to 3 methods of white balance correction: Auto trace white balance (ATW), one-push automatic white balance
(AWC), and manual white balance (MWB).
1Use the cursor button (j or l) to move the cursor to
VIEW SETTING, then press the SET button. (Ex: 1)
The VIEW SETTING 1 screen will appear.
2Use the cursor button (j or l) to move the cursor to
WHITE BALANCE, then use the cursor button (d or c)
to select a white balance type “MWB”. Then press the
SET button.
The MWB SETTING screen will appear.
The following methods are available for white balance correction.
See the corresponding reference sections for additional setting
options.
Available methods:
ATW (Auto trace white balance)
Even when light sources change, automatic adjustment assures
capture of most suitable colors. When a bright light source
prevents effective white balance, a mask can be placed over the
light source. (See p32)
AWC (One-push automatic white balance)
White balance is adjusted automatically with one-push activation.
AWC is usually set for white target objects (walls, paper, etc.) that
do not return color faithfully in the ATW method. (See p34)
MWB (Manual white balance)
Fine adjustments for preferred colors can be done manually. This
method is preferable when suitable colors cannot be obtained
with the ATW method. (See p32)
12
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
VIEW SETTING 1
IRIS AUTO ‚
WHITE BALANCE MWB ‚
SHUTTER LONG ‚
MOTION OFF
APERTURE ON ‚
AGC ON ‚
GAMMA ON
PRESET OFF
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
31
VIEW SETTING
White balance additional settings 1
MWB setting
1Use the cursor button (j or l) to move the cursor to
WHITE BALANCE, then use the cursor button (d or c)
to select a white balance type (Ex: MWB). Then press the
SET button.
The MWB SETTING screen will appear.
2Use the cursor button (d or c) to adjust the value for
“R” (red).
Available settings: 0 – 255
Note: The larger the number, the stronger red becomes.
3Use the cursor button (j or l) to move the cursor to
“B”, then use the cursor button (d or c) to adjust the
“Blue” value.
Available settings: 0 – 255
Note: The larger the number, the stronger blue becomes.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
White balance additional settings 2
ATW setting
Automatic white balance settings are completed when ATW is
selected. However, white balance will not be suitably adjusted if a
bright light source or an excessively dark area from the
environment is in the image. In this case, the bright light source or
dark area should be masked so that it will not be detected.
1Use the cursor button (j or l) to move the cursor to
ATW for WHITE BALANCE and press the SET button.
The ATW SETTING screen will appear.
2Use the cursor button (d or c) to select ON for
MASKING, then press the SET button.
The ATW MASKING screen will appear with the mask pattern
blinking in the upper left corner of the screen.
12
VIEW SETTING 1
IRIS AUTO ‚
WHITE BALANCE MWB ‚
SHUTTER LONG ‚
MOTION OFF
APERTURE ON ‚
AGC ON ‚
GAMMA ON
MWB SETTING
(OFFSET)
R í---ú--+------ü 70
B í---ú--+------ü 66
12
VIEW SETTING 1
IRIS AUTO ‚
WHITE BALANCE ATW ‚
SHUTTER LONG ‚
MOTION OFF ‚
APERTURE ON ‚
AGC ON ‚
GAMMA ON
ATW SETTING
MASKING ON ‚
SMART ATW OFF
L5AA2/XE GB 2002, 4, 25
English
32
VIEW SETTING
3Use the cursor button (j l d c) to move the mask
pattern over the bright light source, then press the SET
button.
Use the same steps to place addition masks as needed.
Note: Initial settings place no masks on the screen. To cancel the
placement of masks, press the SET button again.
4Use the cursor button (j or l) to move a mask pattern
to the bottom area of the screen and continue holding
the cursor button straight down for 3 seconds.
The PRESET and MENU items will appear on the screen. Use
the cursor button (j or l) to select BACK, then press the
SET button. The ATW SETTING screen will reappear.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
☞SMART ATW setting
If saturation is high or a scene is bright, the most suitable colors
may not be obtained. In this case, set the SMART ATW to ON.
5Use the cursor button (j or l) to move the cursor to
SMART ATW, then use the cursor button (d or c) to set
ON.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
3
ATW MASKING
CONTINUE (ñ)
ATW MASKING
CONTINUE (ñ)
45
ATW SETTING
MASKING ON ‚
SMART ATW OFF
PRESET OFF
MENU BACK
ATW SETTING
MASKING ON ‚
SMART ATW ON
PRESET OFF
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
33
VIEW SETTING
White balance additional settings 3
AWC setting
1Use the cursor button (j or l) to move the cursor to
AWC for WHITE BALANCE and press the SET button.
The AWC SETTING screen will appear.
2With SET blinking for AWC LOCK, press the SET button.
SET will light and adjustment of white balance will begin. After
about 3 seconds, SET will begin blinking again, signaling that
adjustment is complete.
Note:
For even finer adjustment of coloration, choose SET for GO TO
MWB. White balance mode will become MWB for fine
adjustment. After fine adjustment with GO TO MWB, the white
balance mode will automatically switch to MWB.
Note: Full adjustment may not be possible with just one
activation of SET for AWC LOCK. In that case, press the
SET button again.
3GO TO MWB setting
Use the cursor button (j or l) to move the cursor to
SET for GO TO MWB and press the SET button.
The MWB SETTING screen will appear and the “R” value will
be blinking.
4Use the cursor button (d or c) to adjust the value for
“R” (red).
Available settings: 0 – 255
Note: The larger the number, the stronger red becomes.
5Use the cursor button (j or l) to move the cursor to
“B”, then use the cursor button (d or c) to adjust the
“Blue” value.
Available settings: 0 – 255
Note: The larger the number, the stronger blue becomes.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
12 3 4
VIEW SETTING 1
IRIS AUTO ‚
WHITE BALANCE AWC ‚
SHUTTER LONG ‚
MOTION OFF ‚
APERTURE ON ‚
AGC ON ‚
GAMMA ON
AWC SETTING
AWC LOCK SET
GO TO MWB SET ‚
AWC SETTING
AWC LOCK SET
GO TO MWB SET ‚
MWB SETTING
(OFFSET)
R í---ú--+------ü 70
B í---ú--+------ü 66
L5AA2/XE GB 2002, 4, 25
English
34
VIEW SETTING
CElectronic SHUTTER setting
Sets the electronic shutter to either the fast shutter speed mode (SHORT) or the slow shutter speed mode (LONG).
Fast shutter speed (SHORT) mode setting
1Use the cursor button (j or l) to move the cursor to
VIEW SETTING, then press the SET button. (Ex: 1)
The VIEW SETTING 1 screen will appear.
2Use the cursor button (j or l) to move the cursor to
SHUTTER, then use the cursor button (d or c) to select
the speed mode for the electronic shutter. (Ex: SHORT)
Then press the SET button.
The ES SETTING screen will appear and 50 (1/50 sec) will be
blinking. This setting is suitable for fast moving target objects.
3Use the cursor button (d or c) to select a electronic
shutter speed.
Available settings: 50, 120, 250, 500, 1000, 2000, 4000,
10000
Note: SHORT mode cannot be set if SENSE UP is activated or IRIS
is “ON”.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
12 3
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
VIEW SETTING 1
IRIS AUTO ‚
WHITE BALANCE ATW ‚
SHUTTER SHORT‚
MOTION OFF
APERTURE ON ‚
AGC ON ‚
GAMMA OFF
PRESET OFF
MENU BACK
ES SETTING
SHUTTER SPEED 50
PRESET OFF
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
35
VIEW SETTING
Slow shutter speed (LONG) mode setting
1Use the cursor button (j or l) to move the cursor to
SHUTTER, then use the cursor button (d or c) to select
the speed mode for the electronic shutter. (Ex: LONG)
Then press the SET button.
The ES SETTING screen will appear and x1 (1/50 sec) will be
blinking. This setting is suitable for dark target objects.
Note: When a shutter speed is set, it can also be adjusted with
the “ELS” button on the system controller.
2Use the cursor button (d or c) to select a electronic
shutter speed.
Available settings: x1, x2, x4, x8, x16, x32 (Field times
shown as multiples.)
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
Note:
SHUTTER (LONG) cannot be set if any of the following settings is
active.
•MOTION: ON
•IRIS: AUTO item SENSE UP (activated) or MANU item El
(ON)
12
ES SETTING
SHUTTER SPEED x1
PRESET OFF
MENU BACK
VIEW SETTING 1
IRIS AUTO ‚
WHITE BALANCE ATW ‚
SHUTTER LONG ‚
MOTION OFF
APERTURE ON ‚
AGC ON ‚
GAMMA ON
PRESET OFF
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
36
VIEW SETTING
DMOTION detector setting
This function divides the monitor screen into 48 zones (8 x 6). Based on information from the separate zones, target images that show
intruder movements are detected and an alarm is generated. The degree of motion to be detected can be finely set.
Note:
•Before activating this setting, use the cursor button to select a surveillance location that will not detect motion.
•When SHUTTER speed is in LONG mode and IRIS SETTING has SENSE UP activated, the MOTION function cannot be turned ON.
1Use the cursor button (j or l) to move the cursor to
VIEW SETTING, then press the SET button. (Ex: 1)
The VIEW SETTING 1 screen will appear.
2Use the cursor button (j or l) to move the cursor to
MOTION, and then use the cursor button (d or c) to
select ON. Then press the SET button.
The MOTION SETTING screen will appear and SET for SIZE will
be blinking.
3MOTION SIZE setting
Sets the target object size desired for detection in the 48 zone
screen.
Press the SET button again.
The MOTION SIZE screen appears and the “1” for “V” will be
blinking.
12
MOTION SETTING
SIZE SET ‚
MASKING ON ‚
SENSITIVITY SET ‚
ZOOM OFF
INTERVAL 5S
ALARM SIGN OFF
PRESET OFF
MENU BACK
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
VIEW SETTING 1
IRIS AUTO ‚
WHITE BALANCE ATW ‚
SHUTTER OFF
MOTION ON ‚
APERTURE ON ‚
AGC ON ‚
GAMMA ON
PRESET OFF
MENU BACK
3
MOTION SIZE
V 1
H 1
PRESET OFF
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
37
VIEW SETTING
4Set the size of the target object desired for detection
1Determine the vertical size
Tilt the cursor button to the right (c).
The “V” value (vertical pattern) will change to “2” and the
detection pattern will expand downward. Repeating this
motion will expand the pattern in the up and down
direction. Tilting the cursor button to the left will reduce
the pattern size.
2Determine the horizontal size
Use the cursor button (l) to move the cursor to the
“1” for “H”, then tilt the cursor button to the right
(c).
The “H” value (horizontal pattern) will change to “2” and the
detection pattern will expand to the left. Repeating this
motion will expand the pattern in the left and right direction.
Tilting the cursor button to the left will reduce the pattern
size.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
MOTION SIZE
V 1
H 1
PRESET OFF
MENU BACK
MOTION SIZE
V 2
H 1
PRESET OFF
MENU BACK
MOTION SIZE
V 6
H 1
PRESET OFF
MENU BACK
MOTION SIZE
V 2
H 2
PRESET OFF
MENU BACK
MOTION SIZE
V 2
H 3
PRESET OFF
MENU BACK
MOTION SIZE
V 3
H 3
PRESET OFF
MENU BACK
MOTION SIZE
V 1
H 2
PRESET OFF
MENU BACK
MOTION SIZE
V 1
H 3
PRESET OFF
MENU BACK
MOTION SIZE
V 1
H 8
PRESET OFF
MENU BACK
V1, H1 V2, H1 V6, H1
V2, H2 V2, H3 V3, H3
V1, H2 V1, H3 V1, H8
L5AA2/XE GB 2002, 4, 25
English
38
VIEW SETTING
MOTION MASKING setting
Masking target objects that are not desired for detection (swaying trees, flickers of light , etc.) will prevent unwanted alarms from being
generated. This is done in the MOTION SETTING screen.
1Use the cursor button (j or l) to move the cursor to
MASKING, and then use the cursor button (d or c) to
select ON. Then press the SET button.
The MOTION MASKING screen will appear, and the mask
pattern will be blinking in the upper left corner of the screen.
2Use the cursor button (j l d c) to move the mask
pattern to the target object that is not to be detected,
then press the SET button.
Repeat these steps to set mask patterns in other locations.
Note: To clear a mask pattern, press the SET button again on
the pattern.
3Finishing motion pattern setting
Use the cursor button (j or l) to move a mask pattern to
the bottom area of the screen and continue holding it for 3
seconds. The PRESET and MENU items will appear on the
screen.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
12
MOTION SETTING
SIZE SET ‚
MASKING ON ‚
SENSITIVITY SET ‚
ZOOM OFF
INTERVAL 5S
ALARM SIGN OFF
PRESET OFF
MENU BACK
MOTION MASKING
CONTINUE (ñ)
MOTION MASKING
CONTINUE (ñ)
L5AA2/XE GB 2002, 4, 25
English
39
VIEW SETTING
SENSITIVITY setting
Set the degree of sensitivity for motion detection corresponding
to MOTION SIZE. Sensitivity can be set so that natural motions on
the screen such as wind and light changes will not be detected.
When this is necessary, activate the following setting.
Use the cursor button (j or l) to move the cursor to
SENSITIVITY, and then use the cursor button (d or c) to
select SET. Then press the SET button.
The SENSITIVITY screen will appear.
When necessary, adjust the following settings.
☞Motion sensitivity (MOVE) setting
Use the cursor button (j or l) to move the cursor to
MOVE, then use the cursor button (d or c) to adjust the
movement value.
To avoid detection of small movements such as wind, make the
value larger.
Available settings: 1 – 10
☞ Brightness level (Y-LEVEL)
Use the cursor button (j or l) to move the cursor to
Y-LEVEL, then use the cursor button (d or c) to adjust the
brightness level.
When noise from a dark screen is causing erroneous detections,
make the value larger.
Available settings: 1 – 10
☞Brightness differences (Y-DIFFER)
Use the cursor button (j or l) to move the cursor to
Y-DIFFER, then use the cursor button (d or c) to adjust the
brightness differences.
Changes in brightness can sometimes be mistakenly detected as
motion. To avoid detection of the turning on and off of lighting,
make the value larger.
Available settings: 1 – 10
☞DURATION setting
Use the cursor button (j or l) to move the cursor to
DURATION, then use the cursor button (d or c) to adjust
the detection time duration.
To avoid detecting fast movements, make the value larger.
Available settings: 1 – 60
☞Detected motion confirmation mode (DEMO)
Use the cursor button (j or l) to move the cursor to
DEMO, then use the cursor button (d or c) to change ON.
When a motion is detected, patterns are shown in that location.
While the detected motion is being confirmed, the SENSITIVITY
settings are optimized. This mode can only be activated in the
SENSITIVITY setting screen.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
MOTION SETTING
SIZE SET ‚
MASKING ON ‚
SENSITIVITY SET ‚
ZOOM OFF
INTERVAL 5S
ALARM SIGN OFF
SENSITIVITY
MOVE í---ú----ü 5
Y-LEVEL í---ú----ü 5
Y-DIFFER í---ú----ü 5
DURATION ú--------ü 1
DEMO OFF
L5AA2/XE GB 2002, 4, 25
English
40
VIEW SETTING
ZOOM setting
This item is set in the MOTION SETTING screen.
Use the cursor button (j or l) to move the cursor to
ZOOM, then use the cursor button (d or c) to select the
zoom magnification power (Ex.: x2).
Available settings: OFF, x1.4, x2, x2.8, x4, x6
Note:
•When a suspicious motion is detected, the camera zooms in
according to the set magnification power. The zoom takes
effect for 5 seconds and then returns to the previous
magnification level.
•The zoom focuses on the center of the screen. If the
maximum optical performance is exceeded, zooming will stop
at maximum magnification.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
INTERVAL setting
This item is set in the MOTION SETTING screen.
Use the cursor button (j or l) to move the cursor to
INTERVAL, then use the cursor button (d or c) to select the
time interval (Ex.: 15S).
Available settings: 5S, 10S, 15S, 20S, 30S, 1M, 2M, 3M, 4M,
5M
Note: When a motion is detected, no other motions will be
detected within the set interval of time.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
MOTION SETTING
SIZE SET ‚
MASKING ON ‚
SENSITIVITY SET ‚
ZOOM OFF
INTERVAL 5S
ALARM SIGN OFF
PRESET OFF
MENU BACK
MOTION SETTING
SIZE SET ‚
MASKING ON ‚
SENSITIVITY SET ‚
ZOOM OFF
INTERVAL 5S
ALARM SIGN OFF
PRESET OFF
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
41
VIEW SETTING
ALARM SIGN setting
This item is set in the MOTION SETTING screen.
Use the cursor button (j or l) to move the cursor to OFF
for ALARM SIGN, and then use the cursor button (d or c)
to select ON.
Available settings:
•ON: The camera ID display blinks when motion is detected.
•OFF: The camera ID display does not blink when motion is
detected.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
MOTION SETTING
SIZE SET ‚
MASKING ON ‚
SENSITIVITY SET ‚
ZOOM OFF
INTERVAL 5S
ALARM SIGN OFF
PRESET OFF
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
42
VIEW SETTING
EProfile compensation setting (APERTURE)
Set this function to further emphasize the profile of the target object. The amount of compensation can be adjusted for horizontal or
vertical directions.
1Use the cursor button (j or l) to move the cursor to
VIEW SETTING, then press the SET button. (Ex: 1)
The VIEW SETTING 1 screen will appear.
2Use the cursor button (j or l) to move the cursor to
APERTURE and then use the cursor button (d or c) to
select ON. Then press the SET button.
The APERTURE SETTING screen will appear and the “H” value
will be blinking.
3Select the amount of profile compensation
Available settings: 1 – 15 (Compensation intensity)
1Set the horizontal profile compensation
Use the cursor button (d or c) to adjust the value for
“H” (horizontal).
2Set the vertical profile compensation
Use the cursor button (j or l) to move the cursor to “V”
(vertical), then use the cursor button (d or c) to adjust
the value for “V”.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
12 3
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
APERTURE SETTING
H í------ú------ü 8
V í------ú------ü 8
PRESET OFF
MENU BACK
VIEW SETTING 1
IRIS AUTO ‚
WHITE BALANCE ATW ‚
SHUTTER LONG ‚
MOTION OFF ‚
APERTURE ON ‚
AGC ON ‚
GAMMA ON
PRESET OFF
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
43
VIEW SETTING
FAutomatic gain control (AGC) setting
Sets AGC to ON or OFF and adjusts the gain.
1Use the cursor button (j or l) to move the cursor to
VIEW SETTING, then press the SET button. (Ex: 1)
The VIEW SETTING 1 screen will appear.
2Use the cursor button (j or l) to move the cursor to
AGC, and then use the cursor button (d or c) to select
the compensation level.
Available settings:
•ON: DNR (digital noise reduction) can be set
•OFF: Fixed gain values can be adjusted manually.
☞When ON is set
1Use the cursor button (d or c) to select ON then press
the SET button.
The GAIN SETTING screen will appear, and “±0dB” will be
blinking for MAX GAIN.
2Use the cursor button (d or c) to select the gain.
Available settings: –6dB, ±0dB, +6dB, +9dB
3Use the cursor button (j or l) to move the cursor to
DNR, and then use the cursor button (d or c) to select
ON.
Available settings:
•ON: DNR (Digital Noise Reduction) is applied. Noise from
low light will be reduced.
•OFF: DNR will not be applied.
Note: Digital noise reduction works as gain control becomes
greater. If images for moving target objects have blurs or
afterimages, reduce the resolution sensitivity.
☞When OFF is set
1Use the cursor button (d or c) to select OFF, then press
the SET button.
The GAIN SETTING screen will appear, and “0dB” will be
blinking.
Available settings: 0 – 30dB
2Use the cursor button (d or c) to adjust the gain.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
12
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
VIEW SETTING 1
IRIS AUTO ‚
WHITE BALANCE ATW ‚
SHUTTER LONG ‚
MOTION OFF
APERTURE ON ‚
AGC ON ‚
GAMMA ON
GAIN SETTING
MAX GAIN ±0·
DNR OFF
GAIN SETTING
ú------+------ü 0·
(When ON is set) (When OFF is set)
L5AA2/XE GB 2002, 4, 25
English
44
VIEW SETTING
GGAMMA correction setting
In addition to turning gamma correction ON or OFF, contrast sensitivity can be boosted at 2 levels.
1Use the cursor button (j or l) to move the cursor to
VIEW SETTING, then press the SET button. (Ex: 1)
The VIEW SETTING 1 screen will appear.
2Use the cursor button (j or l) to move the cursor to
ON for GAMMA, then use the cursor button (d or c) to
select the gamma correction.
Available settings:
•OFF: No gamma correction
•ON: Gamma correction (γ = 0.45)
•SMART 1: Correction 1
•SMART 2: Correction 2 (improves contrast for dark
locations)
Note: When using SMART 1 or SMART 2, the target object may
be too bright, so determine which setting is better for the
target object.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
12
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
VIEW SETTING 1
IRIS AUTO ‚
WHITE BALANCE ATW ‚
SHUTTER LONG ‚
MOTION OFF
APERTURE ON ‚
AGC ON ‚
GAMMA ON
PRESET OFF
MENU BACK
L5AA2/XE GB 2002, 4, 25
English
45
OPTION SETTING
CONTROL setting
1Use the cursor button (j or l) to move the cursor to
OPTION, then press the SET button.
The OPTION screen will appear.
Note: The PRESET ON setting cannot be used when OPTION
settings are in use.
2Use the cursor button (j or l) to move the cursor to
485 for CONTROL, use the cursor button (d or c) to
select the device to be operated (Ex: 485), and then press
the SET button.
The RS-485 SETTING screen will appear.
Available settings:
•485: For operation by the System Controller
•COAX: For operation of device by linked coax cable.
3Use the cursor button (d or c) to select 19200 for BAUD
RATE.
Available settings: 19200, 9600, 4800, 2400
4Use the cursor button (j or l) to move the cursor to
TERMINATE, and then use the cursor button (d or c) to
select the terminate setting.
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
12 3 4
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
OPTION
CONTROL 485 ‚
ADDRESS 0
ALARM SET ‚
RS-485 SETTING
BAUD RATE 19200
TERMINATE OFF
RS-485 SETTING
BAUD RATE 19200
TERMINATE OFF
L5AA2/XE GB 2002, 4, 25
English
46
OPTION SETTING
ADDRESS setting
1Use the cursor button (j or l) to move the cursor to
OPTION, then press the SET button.
The OPTION screen will appear.
Note: The PRESET ON setting cannot be used when OPTION
settings are in use.
2Use the cursor button (j or l) to move the cursor to
ADDRESS, and then use the cursor button (d or c) to
select the address.
Available settings: 0 (d) ~ 127 (c)
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
ALARM setting
AAlarm input setting (ALARM IN)
Make the following settings for alarm detection.
Connect the external alarm switch to the alarm input terminal on
the back of the camera.
1Use the cursor button (j or l) to move the cursor to
OPTION, then press the SET button.
The OPTION screen will appear.
Note: The PRESET ON setting cannot be used when OPTION
settings are in use.
2Use the cursor button (j or l) to move the cursor to
ALARM, then press the SET button.
The ALARM SETTING screen will appear.
3Use the cursor button (d or c) to select POLARITY
between “NO” and “NC”.
Available settings:
•NO: Normal open (Normally open so closed condition is
detected as input.)
•NC: Normal closed (Normally closed so open condition is
detected as input.)
12
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
OPTION
CONTROL 485 ‚
ADDRESS 0
ALARM SET ‚
12
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
OPTION
CONTROL 485 ‚
ADDRESS 0
ALARM SET ‚
L5AA2/XE GB 2002, 4, 25
English
47
OPTION SETTING
Motion sensor input setting (MOTION)
Matches information from the camera’s motion sensor and the
external alarm and outputs it.
Use the cursor button (j or l) to move the cursor to
MOTION, then use the cursor button (d or c) to select the
input.
Available settings:
•OFF: Does not output a motion sensor alarm.
•AND: Outputs an alarm when an external alarm input and
motion sensor alarm are detected at the same time.
•OR: Outputs an alarm if either an external alarm or a motion
sensor alarm is detected.
Alarm duration setting (DURATION)
Set the duration for the following alarm input reception.
Use the cursor button (j or l) to move the cursor to
DURATION, then use the cursor button (d or c) to select
the alarm duration.
Available settings: 5S, 10S, 15S, 20S, 30S, 1M, 2M, 3M, 4M,
5M
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
3
ALARM SETTING
ALARM IN
POLARITY NO
MOTION OFF
DURATION 5S
ALARM OUT OFF
POLARITY NO
ALARM TIME 5S
LINE OUT OFF
L5AA2/XE GB 2002, 4, 25
English
48
OPTION SETTING
BAlarm output setting (ALARM OUT)
1Use the cursor button (j or l) to move the cursor to
ALARM OUT, then use the cursor button (d or c) to
select the “ON” or “ OFF”.
Available settings:
•ON: Output an alarm (for activation of buzzer or lamp)
•OFF: Does not output an alarm
2Use the cursor button (j or l) to move the cursor to
POLARITY, then use the cursor button (d or c) to select
the “NO” or “NC”.
Available settings:
•NO: Normal open (Normally open so closed condition is
detected as input.)
•NC: Normal closed (Normally closed so open condition is
detected as input.)
3Use the cursor button (j or l) to move the cursor to
ALARM TIME, then use the cursor button (d or c) to
select the amount of time for external alarm output.
Available settings: 5S, 10S, 15S, 20S, 30S, 1M, 2M, 3M, 4M,
5M
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
12
ALARM SETTING
ALARM IN
POLARITY NO
MOTION OFF
DURATION 5S
ALARM OUT OFF
POLARITY NO
ALARM TIME 5S
LINE OUT OFF
ALARM SETTING
ALARM IN
POLARITY NO
MOTION OFF
DURATION 5S
ALARM OUT OFF
POLARITY NO
ALARM TIME 5S
LINE OUT OFF
L5AA2/XE GB 2002, 4, 25
English
49
OPTION SETTING
cOperation of alarm signal output to the System
Controller setting (LINE OUT)
Outputs alarm signal to the System Controller. The ALARM lamp
on the System Controller will blink when it receives an alarm
signal. An alarm list can be displayed to show information such as
date/time alarm was received, the device sending the alarm and
the alarm type.
Use the cursor button (j or l) to move the cursor to LINE
OUT, then use the cursor button (d or c) to select the
“ON” or “ OFF”.
Available settings:
•ON: Outputs alarm signal to the System Controller
•OFF: Does not output alarm signal to the System Controller
☞To close the menu screen or return to the previous
screen, select BACK or END for MENU and press the SET
button.
1
ALARM SETTING
ALARM IN
POLARITY NO
MOTION OFF
DURATION 5S
ALARM OUT OFF
POLARITY NO
ALARM TIME 5S
LINE OUT OFF
L5AA2/XE GB 2002, 4, 25
English
50
MENU FLOW
MAIN MENU
LANGUAGE SET ‚
CAMERA ID OFF
SYNC INT
PRIVACY MASK SET ‚
LENS SET ‚
MIRROR OFF
VIEW SETTING 1 ‚
OPTION SET ‚
PRESET OFF
MENU END
PRIVACY MASK SETTING
PASSWORD LOCK ON ‚
PASSWORD CHANGE SET ‚
MASK SET SET ‚
MENU BACK
LANGUAGE
LANGUAGE ENGLISH
LANGUE FRENCH
SPRACHE GERMANY
MENU BACK
PASSWORD
1234 SET ‚
-
OK
PASSWORD
(NOW PASSWORD)
**** SET ‚
-
MASK NO.SELECT
MASK 1 OFF
MASK 2 OFF
MASK 3 OFF
MASK 4 OFF
CAMERA ID SETTING
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
0123456789 :-‚
ID ????????????????
POSITION SET ‚
L-L SETTING
(V SYNC PHASE)
ú------+------ü 0
MASK 3 SET
(POSITION)
SET ‚
PASSWORD
(NEW PASSWORD)
**** SET ‚
-
FOCUS SETTING
LIMIT NEAR 1M
SPEED 2
ZOOM SETTING
SPEED 3
EL ZOOM OFF
V-RESO.UP OFF
FOCUS SETTING
LIMIT NEAR 1M
SENSITIVITY HIGH
AREA SET ‚
LENS
FOCUS AUTO ‚
ZOOM SET ‚
OPTION
CONTROL 485 ‚
ADDRESS 0
ALARM SET ‚
RS-485 SETTING
BAUD RATE 19200
TERMINATE OFF
ALARM SETTING
ALARM IN
POLARITY NO
MOTION OFF
DURATION 5S
ALARM OUT ON
POLARITY NO
ALARM TIME 5S
LINE OUT OFF
VIEW SETTING 1
IRIS AUTO ‚
WHITE BALANCE ATW ‚
SHUTTER LONG ‚
MOTION OFF ‚
APERTURE ON ‚
AGC ON ‚
GAMMA ON
PRESET OFF
MENU BACK
A
AREA SETTING
AREA 3
PRESET OFF
MENU BACK
See page 52
MANU
L5AA2/XE GB 2002, 4, 25
English
51
MENU FLOW
VIEW SETTING 1
IRIS AUTO ‚
WHITE BALANCE ATW ‚
SHUTTER LONG ‚
MOTION OFF
APERTURE ON ‚
AGC ON ‚
GAMMA ON
PRESET OFF
MENU BACK
BLC SETTING
(POSITION)
BLC MASKING
CONTINUE (ñ)
BLC WINDOW WEIGHTING
TOP 0
BOTTOM 0
LEFT 0
RIGHT 0
CENTER(FIX) 7
PRESET OFF
MENU BACK
IRIS SETTING
BLC OFF
SENSE UP OFF
(LEVEL)
í------ú------ü 40
IRIS SETTING
EI OFF
(IRIS STOP)
í------ú------ü 17
(LEVEL)
í
------
ú
------ü 60
BLC SETTING
(BLC WEIGHT)
í------ú------ü 7
(BRIGHT)
í------ú------ü 7
ATW SETTING
MASKING OFF
SMART ATW OFF
AWC SETTING
AWC LOCK SET
GO TO MWB SET ‚
MWB SETTING
(OFFSET)
R í---ú--+------ü 70
B
í
---
ú
--+------ü 66
ES SETTING
SHUTTER SPEED 50
ES SETTING
SHUTTER SPEED x1
MOTION SIZE
V 1
H 1
PRESET OFF
MENU BACK
MOTION MASKING
CONTINUE (ñ)
SENSITIVITY
MOVE í---ú----ü 5
Y-LEVEL í---ú----ü 5
Y-DIFFER í---ú----ü 5
DURATION ú--------ü 1
DEMO OFF
PRESET OFF
MENU BACK
MOTION SETTING
SIZE SET ‚
MASKING ON ‚
SENSITIVITY SET ‚
ZOOM OFF
INTERVAL 5S
ALARM SIGN OFF
APERTURE SETTING
H í------ú------ü 8
V
í
------
ú
------ü 8
GAIN SETTING
MAX GAIN ±0·
DNR OFF
GAIN SETTING
ú
------+------ü 0·
BLC SETTING
(SIZE)
OFF
A
L5AA2/XE GB 2002, 4, 25
English
52
SPECIFICATIONS
Pickup device :1/4"
Effective pixels :752 (H) x 582 (V)
Horizontal resolution :Over 520 TV lines
Lens :22 power zoom lens, f=4.0 – 8.8mm (F1.6 –
3.8)
Electronic zoom and gearing
Zoom speed setting possible
Electronic zoom :16 power (combined with optic zoom gives
352 power max)
Max zoom magnification setting possible
Vertical resolution ON/OFF setting
Autofocus :AUTO/MANUAL
AF area setting possible (3 step)
Iris control :AUTO/MANUAL, 1/2 EV steps
Synchronization method :Internal synchronization/Line lock,
V phase adjustment possible
Lowest image illumination:2.0 lx (F1.6) at max AGC gain
0.06 lx (F1.6) at x32 electronic sensitivity
boost
S/N :Over 48dB
Backlight compensation :Multi-spot evaluative metering
5 spot centerweighted average metering
48 multi-spot metering
Electronic shutter :•Fast shutter speed mode (SHORT);
1/50, 1/120, 1/250, 1/500, 1/1000,
1/2000, 1/4000, 1/10000
•Slow shutter speed mode (LONG);
x1, x2, x4, x8, x16, x32
Electronic sensitivity
boosting :AUTO/OFF, works with auto iris
Up to x32 max setting possible
White balance :ATW/AWC/MWB
AGC gain :ON allows selection of ±0dB, +6dB, +9dB, –6dB
OFF allows manual adjustment from 0dB to
30dB
Motion detector :ON/OFF, ON allows setting of detection
patterns on a 48 zone screen for 6 motion
settings (size, masking, sensitivity, zoom,
interval, alarm sign)
Privacy masking :ON/OFF, max of 4 masked locations
Password lock possible
Alarm input/output
(back panel control
terminals) :Alarm input: 1 (for external alarm switch)
Alarm output: 1 (for sending a signal to the
system controller or an alarm detection
device such as a buzzer)
Mirror image effect :Horizontally (H), vertically (V), horizontally
and vertically (HV)
Camera ID :ON/OFF, 16 characters
View settings :9 (0 – 8) screen files can be established, and
each file can set 7 capturing characteristics
such as iris
Communications :Coaxial control, RS-485
Operational
temperature/humidity :–10 – 50°C/below 90% RH
Power source :24 V AC, 50 Hz/12 V DC
Power consumption :4.5 W
Weight :380 g
L5AA2/XE GB 2002, 4, 25
English
53
SPECIFICATIONS
Dimensions
External appearance and specifications subject to change
without notice.
124.3 mm54 mm
1/4"-20UNC
115 mm 9.3 mm5.5 mm
10.9 mm
62 mm
L5AA2/XE GB 2002, 4, 25
English
54

Navigation menu
