A6848F

FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com

CAUTION: IF A CYLINDER OTHER THAN SARGENT

IS USED, CONSULT CYLINDER MANUFACTURER

FOR PROPER SARGENT CAM.

816 KIT INSTALLATION PROCEDURE:

1. Remove existing insert.

2. Install cylinder as shown.

3. Slide insert with cylinder first into rail assembly.

4. Dog rail with key rotated counterclockwise.

5. Press plug into lockdown button hex.

NOTES:

The 816 kit requires exit devices manufactured before January 1, 1992 to

have the rear connecting arm replaced for proper operation.

Once insert is correctly positioned and tested, if the insert extends past

the end of the mounting rail, the insert must be cut flush with the end of

the mounting rail.

To cut insert:

1. Slide insert into rail completely and test operation.

2. Dog push rail.

3. Cut insert flush with end of mounting rail. NOTE: End of insert and

end of mounting rail MUST BE FLUSH FOR SMOOTH OPERATION.

KIT NUMBER RAIL SIZE

816-1 “F” WIDE

816-2 “E” NARROW “F” NARROW

816-3 “G” WIDE

816-4 “G” NARROW “J” WIDE

816-5 “E” WIDE

816-6 “J” NARROW

INSTALLATION INSTRUCTIONS FOR

80 AND 30 SERIES EXIT DEVICES

16- PREFIX AND 816 CYLINDER DOGGING KIT

16- CYLINDER INSTALLATION PROCEDURE:

1. Verify that rail is not dogged.

2. Slide insert out of rail assembly.

3. Slide spring & collar over cylinder and through

insert, bracket, and retainer collar.

4. Compress all components together and tighten

set screw.

5. Slide insert into assembly. NOTE: END OF RAIL

AND END OF INSERT MUST BE FLUSH FOR

SMOOTH OPERATION.

6. Check operation by turning key counterclockwise

to dog rail.

7. Press plug into lockdown button hex.

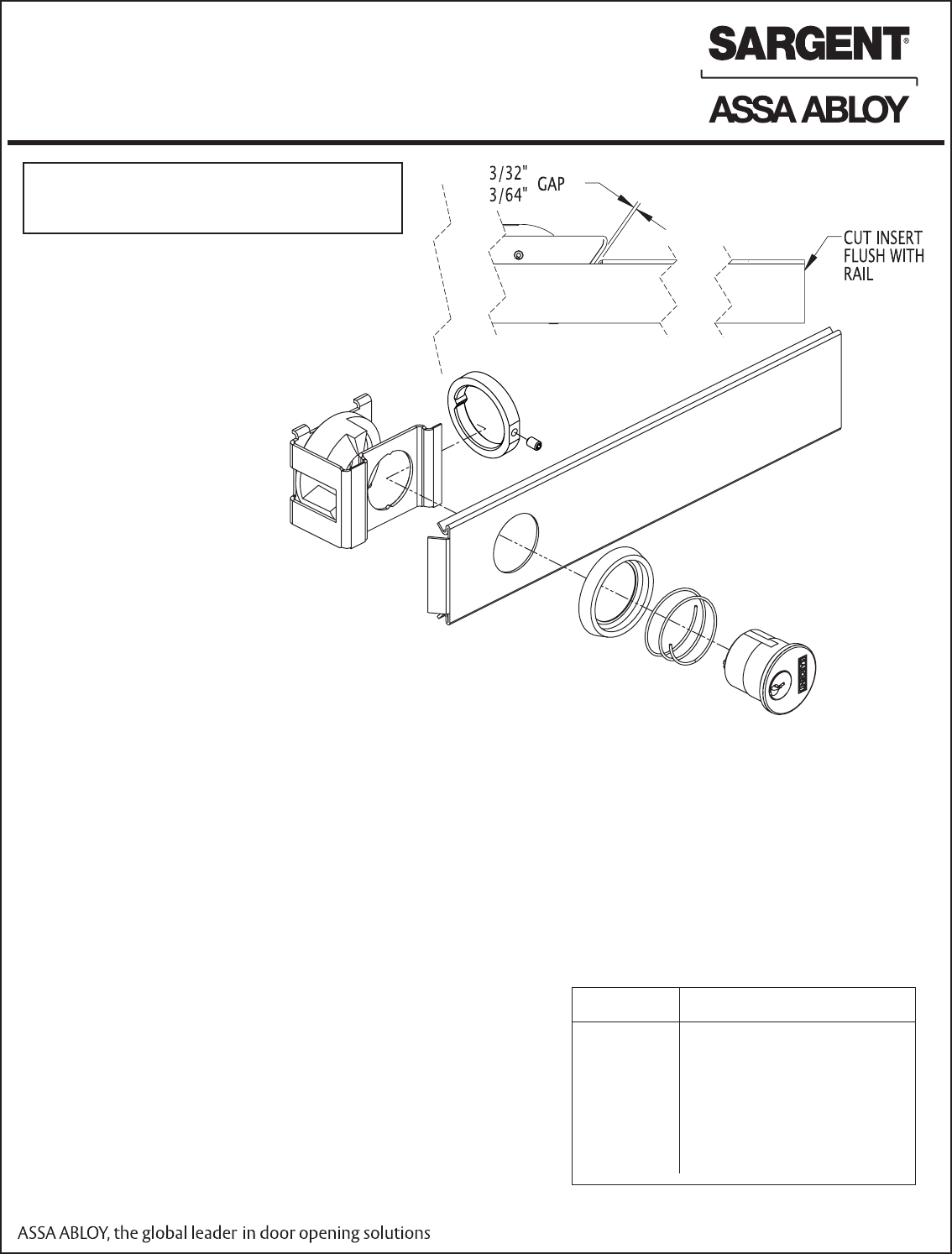

NOTE SPECIFIC CAM POSITION

within lockdown cam assembly

1

2

3

4

5

6

1 Lockdown cam assembly

2 Retaining Collar Assembly

3 Rail insert

4 Collar

5 Spring

6 Cylinder
