Sato Vicinity CL4NX-MR-1 MR-1 Module RFID Read Write Reader User Manual

Sato Vicinity Pty Ltd MR-1 Module RFID Read Write Reader Users Manual

Users Manual

Page 1 of 16 EMC Technologies Pty Ltd ABN 82 057 105 549 Unit 3/87 Station Road Seven Hills NSW 2147 Australia Telephone +61 2 9624 2777 Facsimile +61 2 9838 4050 Email syd@emctech.com.au www.emctech.com.au Melbourne 176 Harrick Road Keilor Park, Vic 3042 Tel: +61 3 9365 1000 Fax: +61 3 9331 7455 Sydney Unit 3/87 Station Road Seven Hills NSW 2147 Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 Brisbane 1/15 Success Street Acacia Ridge Qld 4110 Tel: +61 7 3875 2455 Fax: +61 7 3875 2466 Auckland (NZ) 47 MacKelvie Street Grey Lynn Auckland Tel: +64 9 360 0862 Fax: +64 9 360 0861 APPENDIX L OF TEST REPORT T150916 USER MANUAL FCC ID: 2ACXQ-CL4NX-MR-1 Manufacturer: Sato Vicinity Pty Ltd Test Sample: RFID Modular Read Write Reader Model Number: MR-1 Module Serial Number: Production Prototype Date: 10th February 2016

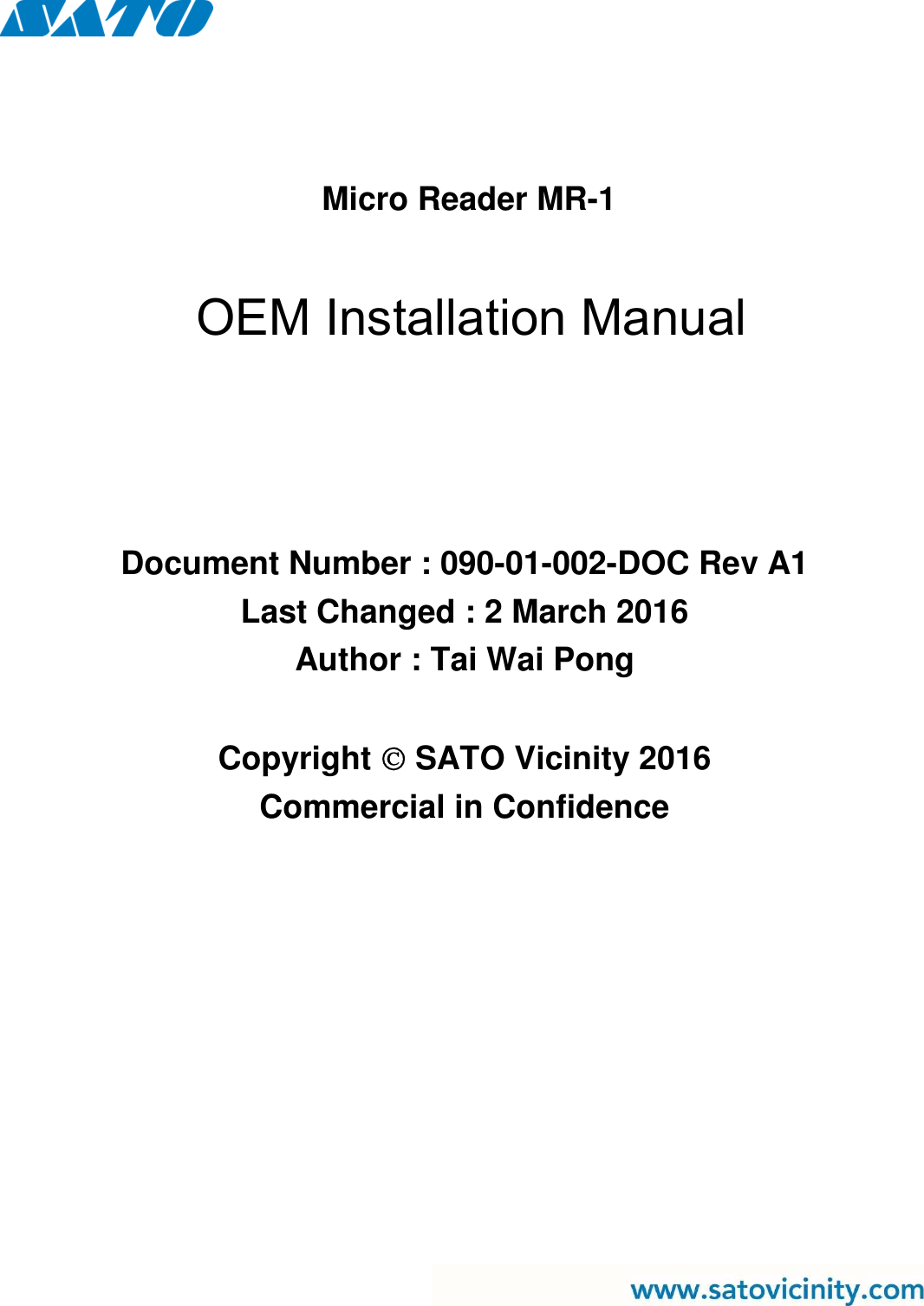

Micro Reader MR-1 OEM Installation Manual Document Number : 090-01-002-DOC Rev A1 Last Changed : 2 March 2016 Author : Tai Wai Pong Copyright  SATO Vicinity 2016 Commercial in Confidence

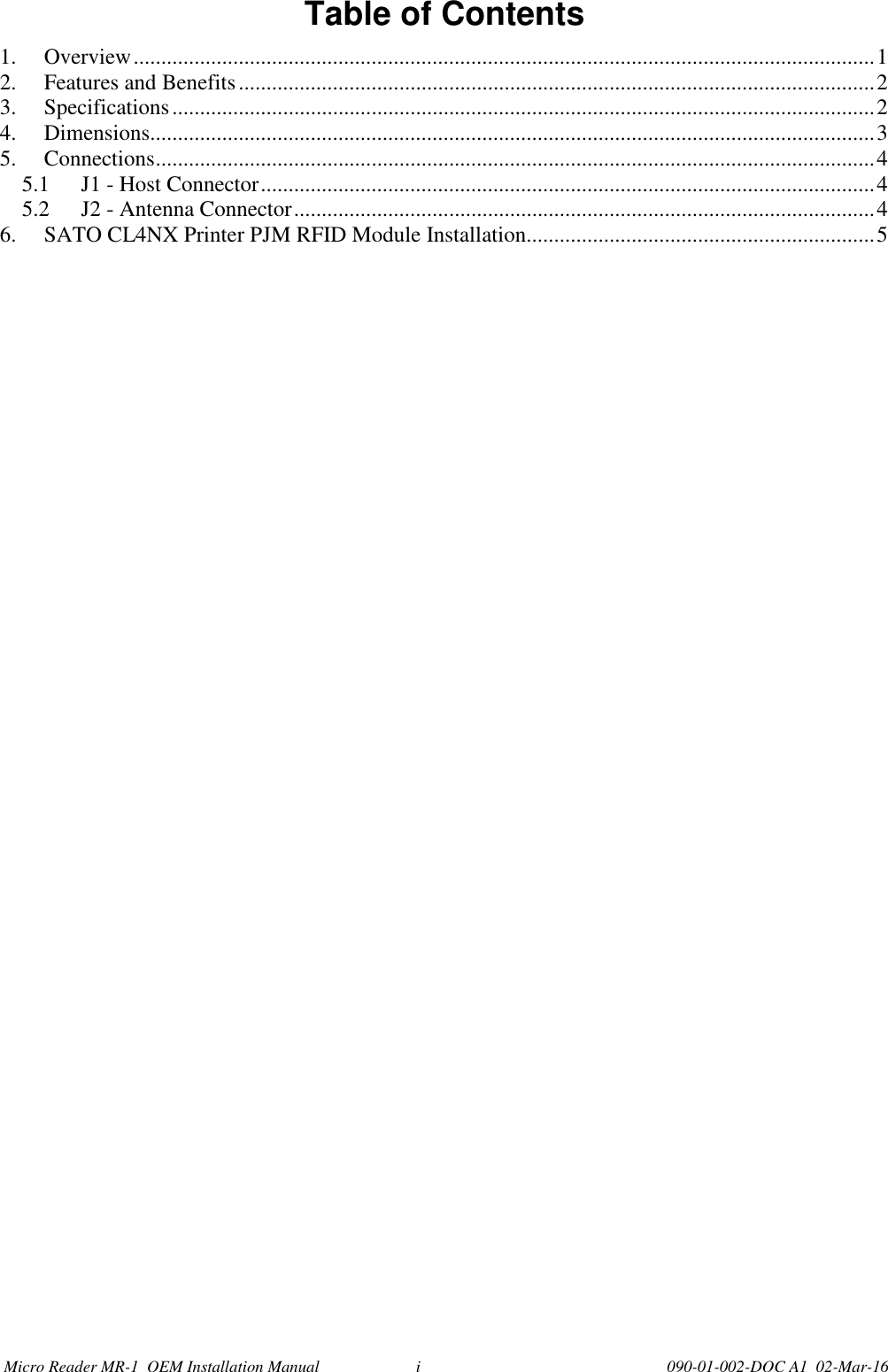

Micro Reader MR-1 OEM Installation Manual i 090-01-002-DOC A1 02-Mar-16 Table of Contents 1. Overview ...................................................................................................................................... 1 2. Features and Benefits ................................................................................................................... 2 3. Specifications ............................................................................................................................... 2 4. Dimensions................................................................................................................................... 3 5. Connections .................................................................................................................................. 4 5.1 J1 - Host Connector ............................................................................................................... 4 5.2 J2 - Antenna Connector ......................................................................................................... 4 6. SATO CL4NX Printer PJM RFID Module Installation............................................................... 5

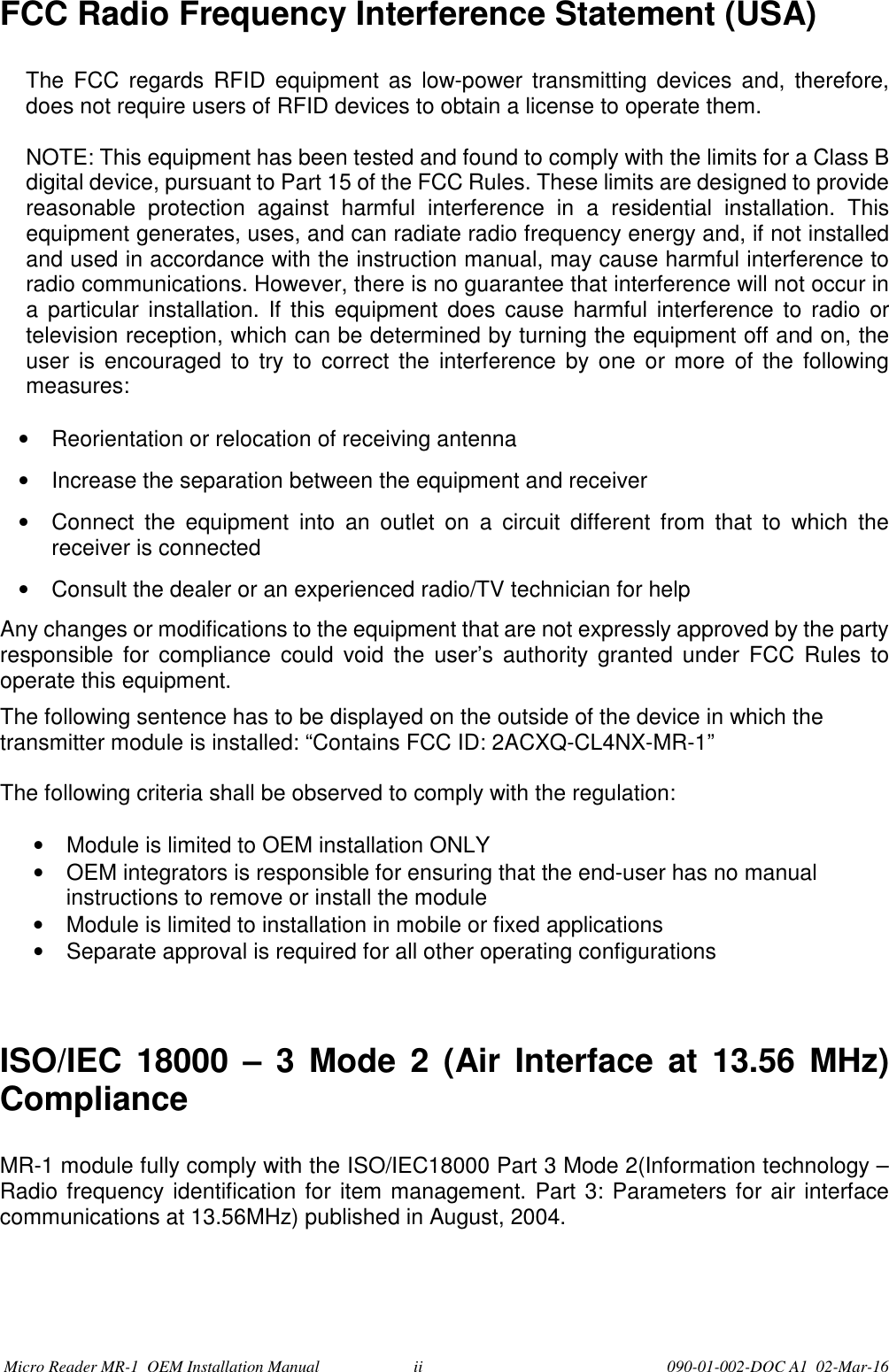

Micro Reader MR-1 OEM Installation Manual ii 090-01-002-DOC A1 02-Mar-16 FCC Radio Frequency Interference Statement (USA) The FCC regards RFID equipment as low-power transmitting devices and, therefore, does not require users of RFID devices to obtain a license to operate them. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorientation or relocation of receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Any changes or modifications to the equipment that are not expressly approved by the party responsible for compliance could void the user’s authority granted under FCC Rules to operate this equipment. The following sentence has to be displayed on the outside of the device in which the transmitter module is installed: “Contains FCC ID: 2ACXQ-CL4NX-MR-1” The following criteria shall be observed to comply with the regulation: • Module is limited to OEM installation ONLY • OEM integrators is responsible for ensuring that the end-user has no manual instructions to remove or install the module • Module is limited to installation in mobile or fixed applications • Separate approval is required for all other operating configurations ISO/IEC 18000 – 3 Mode 2 (Air Interface at 13.56 MHz) Compliance MR-1 module fully comply with the ISO/IEC18000 Part 3 Mode 2(Information technology – Radio frequency identification for item management. Part 3: Parameters for air interface communications at 13.56MHz) published in August, 2004.

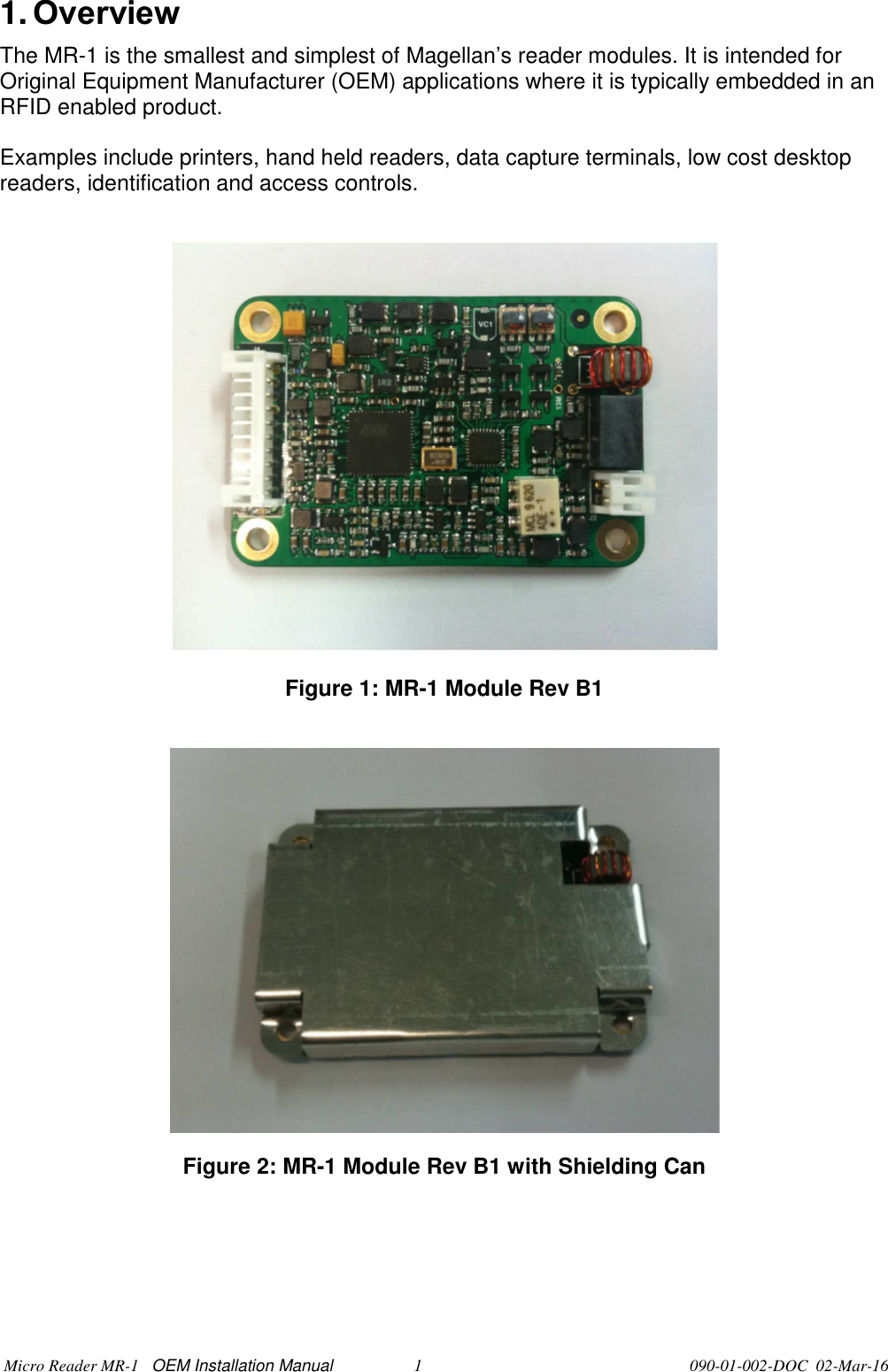

Micro Reader MR-1 OEM Installation Manual 1 090-01-002-DOC 02-Mar-16 1. Overview The MR-1 is the smallest and simplest of Magellan’s reader modules. It is intended for Original Equipment Manufacturer (OEM) applications where it is typically embedded in an RFID enabled product. Examples include printers, hand held readers, data capture terminals, low cost desktop readers, identification and access controls. Figure 1: MR-1 Module Rev B1 Figure 2: MR-1 Module Rev B1 with Shielding Can

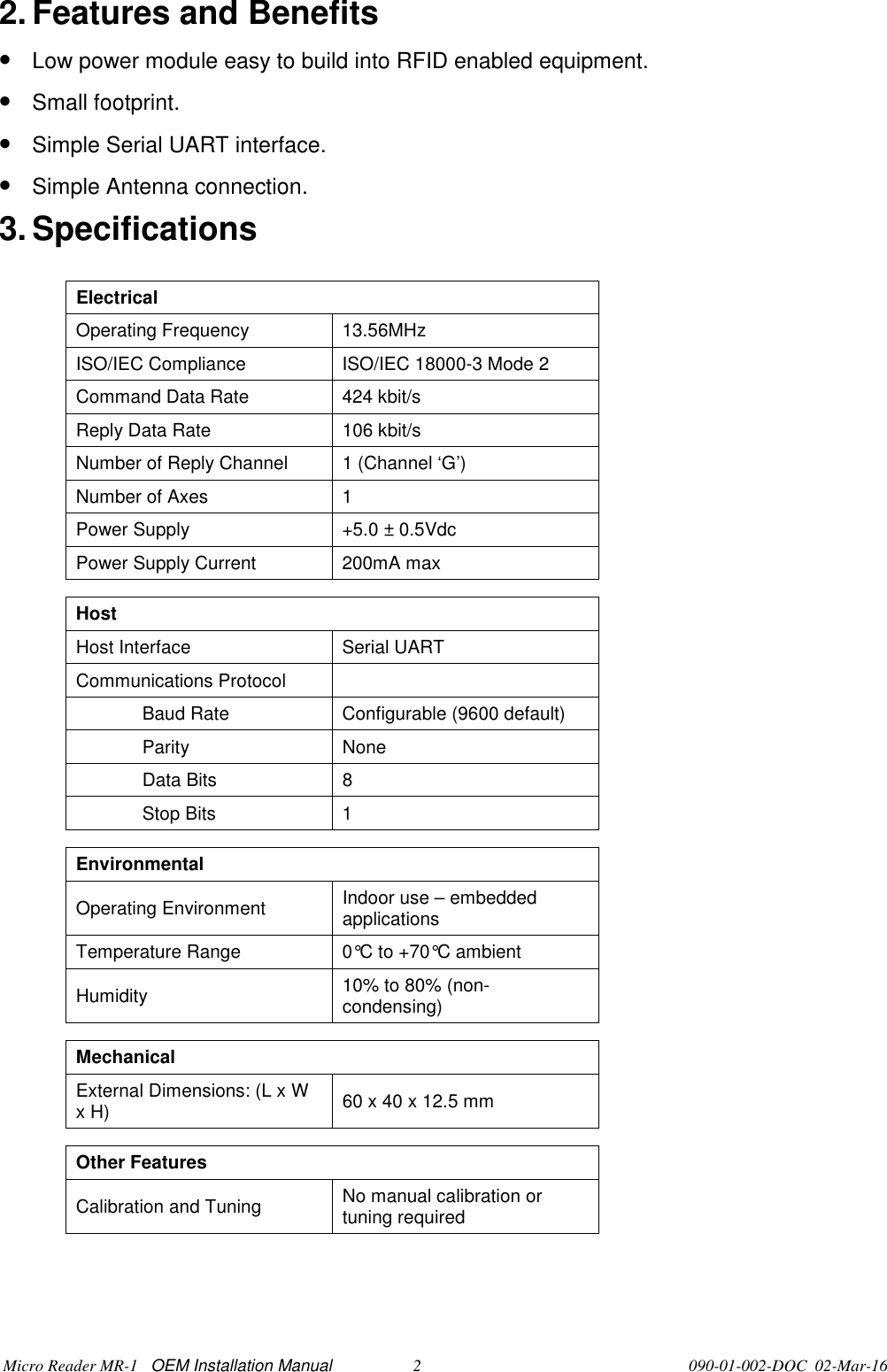

Micro Reader MR-1 OEM Installation Manual 2 090-01-002-DOC 02-Mar-16 2. Features and Benefits • Low power module easy to build into RFID enabled equipment. • Small footprint. • Simple Serial UART interface. • Simple Antenna connection. 3. Specifications Electrical Operating Frequency 13.56MHz ISO/IEC Compliance ISO/IEC 18000-3 Mode 2 Command Data Rate 424 kbit/s Reply Data Rate 106 kbit/s Number of Reply Channel 1 (Channel ‘G’) Number of Axes 1 Power Supply +5.0 ± 0.5Vdc Power Supply Current 200mA max Host Host Interface Serial UART Communications Protocol Baud Rate Configurable (9600 default) Parity None Data Bits 8 Stop Bits 1 Environmental Operating Environment Indoor use – embedded applications Temperature Range 0°C to +70°C ambient Humidity 10% to 80% (non-condensing) Mechanical External Dimensions: (L x W x H) 60 x 40 x 12.5 mm Other Features Calibration and Tuning No manual calibration or tuning required

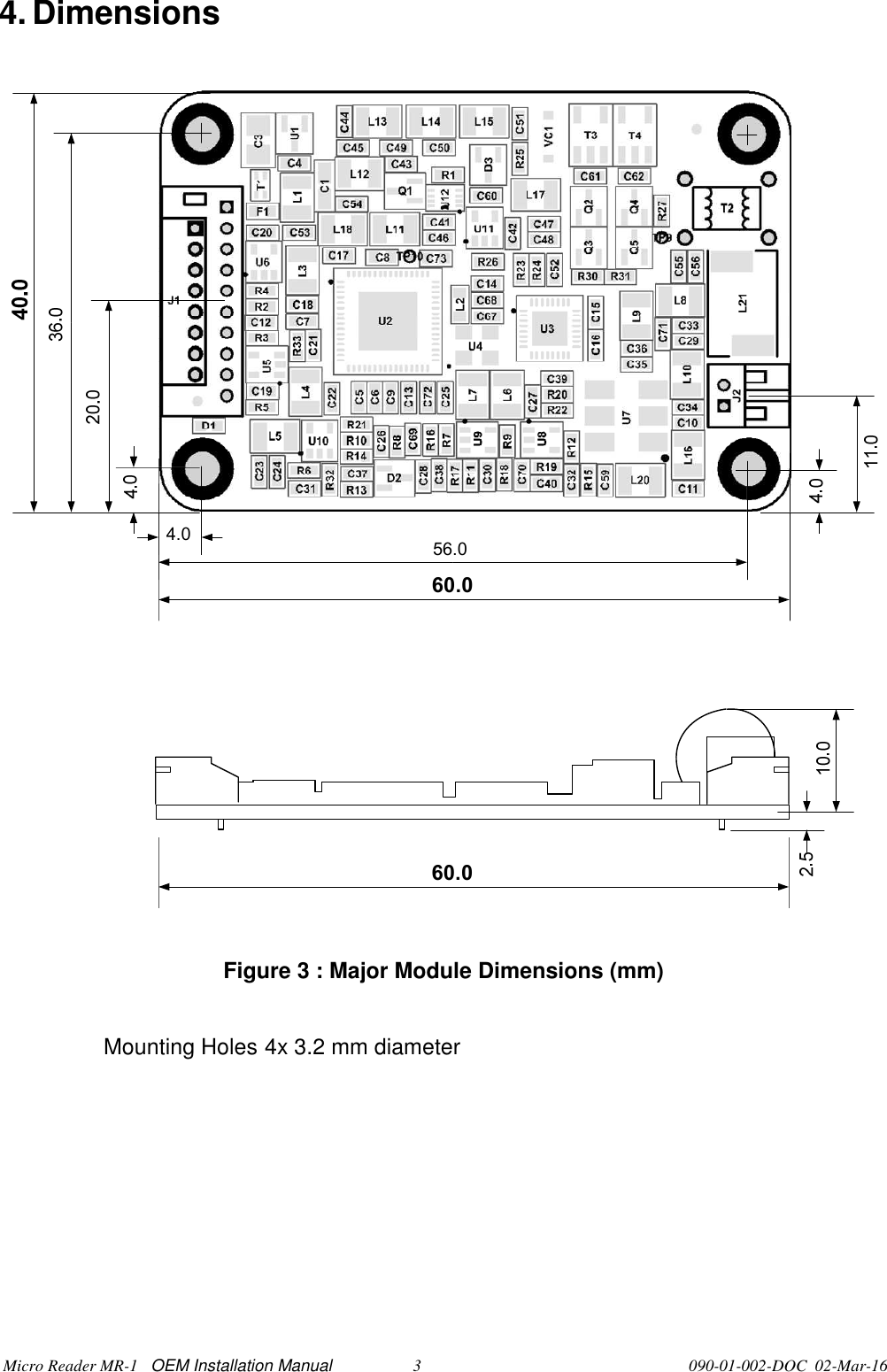

Micro Reader MR-1 OEM Installation Manual 3 090-01-002-DOC 02-Mar-16 4. Dimensions 4.056.060.060.0 Figure 3 : Major Module Dimensions (mm) Mounting Holes 4x 3.2 mm diameter

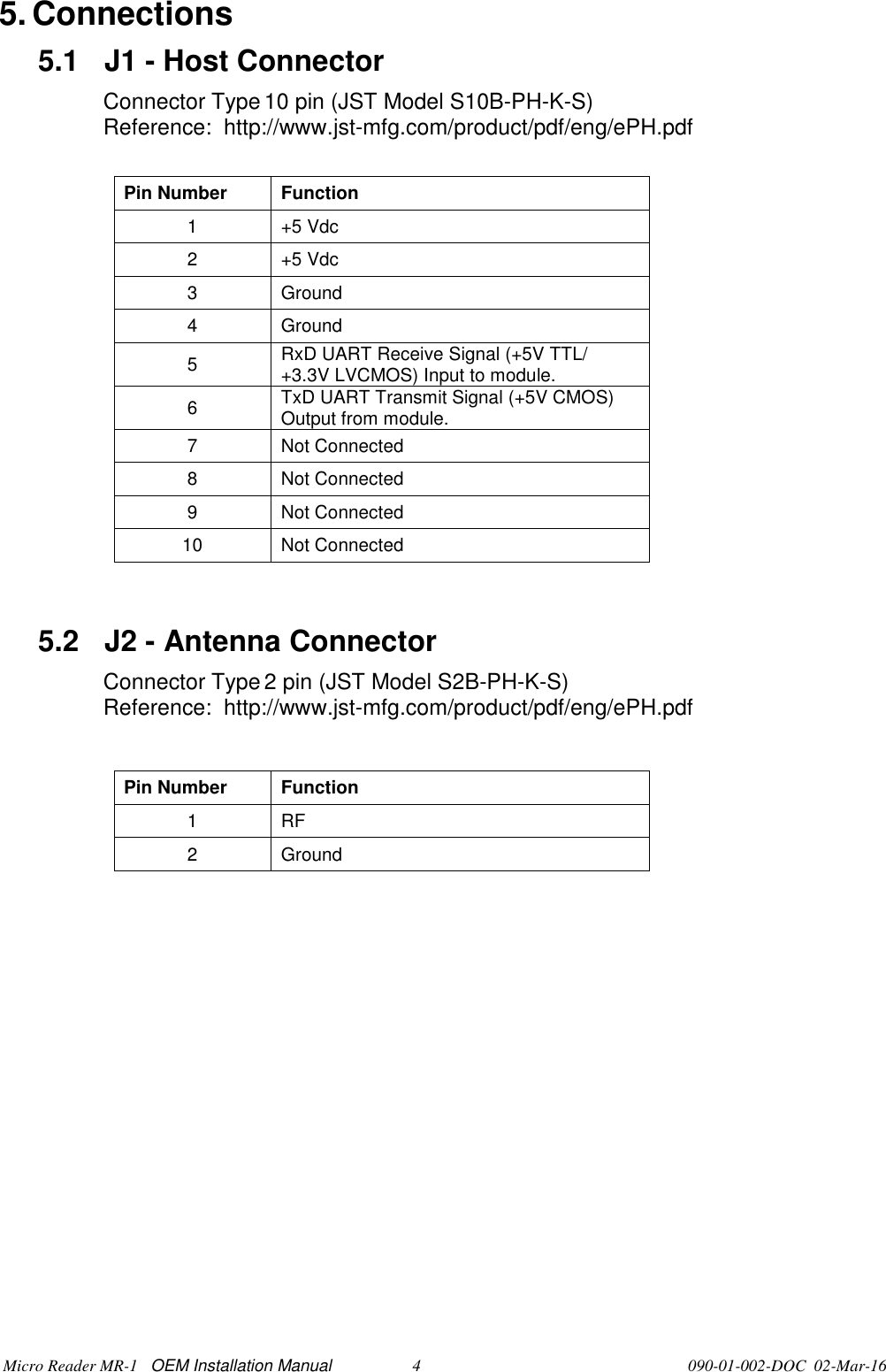

Micro Reader MR-1 OEM Installation Manual 4 090-01-002-DOC 02-Mar-16 5. Connections 5.1 J1 - Host Connector Connector Type 10 pin (JST Model S10B-PH-K-S) Reference: http://www.jst-mfg.com/product/pdf/eng/ePH.pdf Pin Number Function 1 +5 Vdc 2 +5 Vdc 3 Ground 4 Ground 5 RxD UART Receive Signal (+5V TTL/ +3.3V LVCMOS) Input to module. 6 TxD UART Transmit Signal (+5V CMOS) Output from module. 7 Not Connected 8 Not Connected 9 Not Connected 10 Not Connected 5.2 J2 - Antenna Connector Connector Type 2 pin (JST Model S2B-PH-K-S) Reference: http://www.jst-mfg.com/product/pdf/eng/ePH.pdf Pin Number Function 1 RF 2 Ground

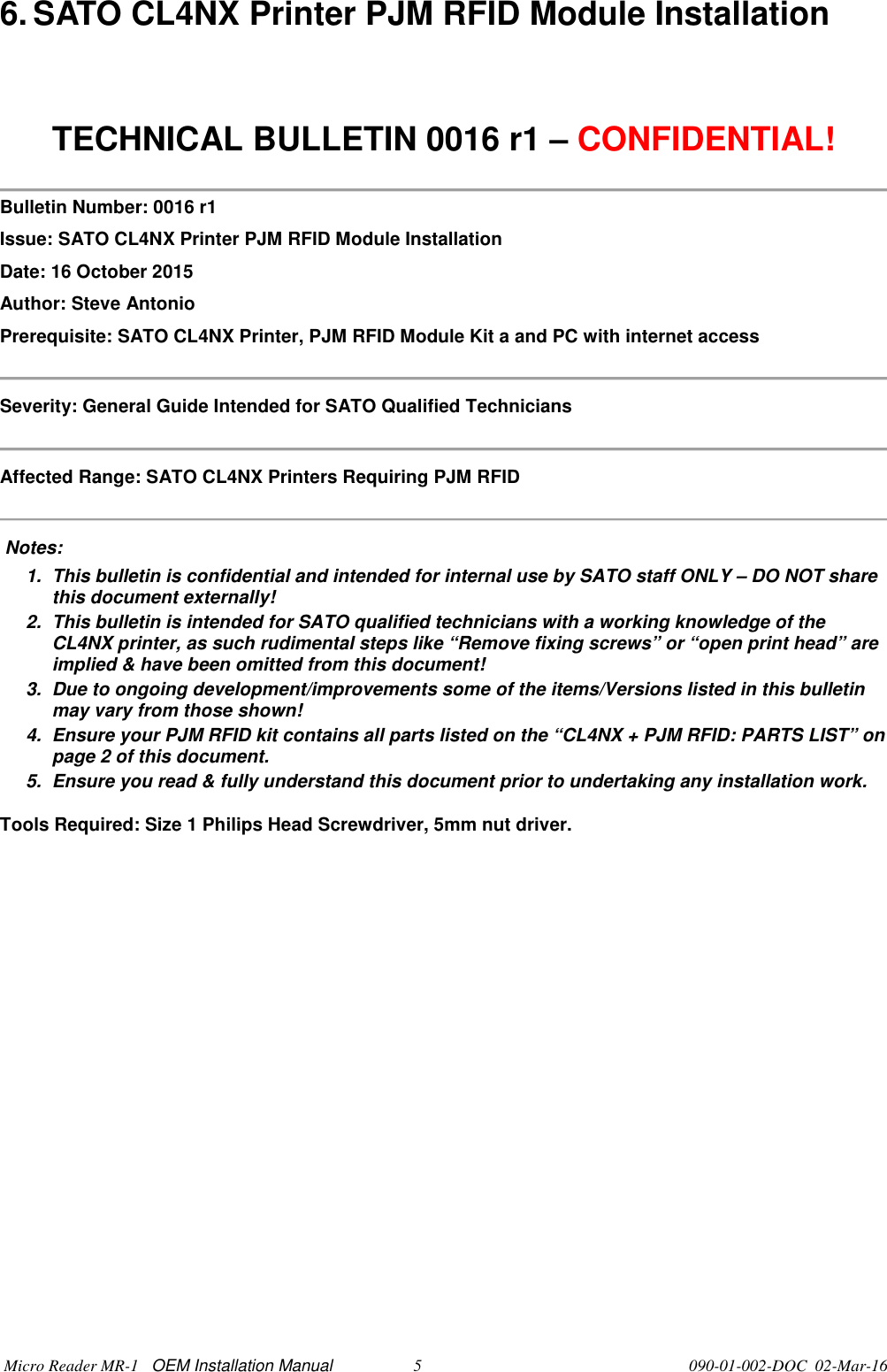

Micro Reader MR-1 OEM Installation Manual 5 090-01-002-DOC 02-Mar-16 6. SATO CL4NX Printer PJM RFID Module Installation TECHNICAL BULLETIN 0016 r1 – CONFIDENTIAL! Bulletin Number: 0016 r1 Issue: SATO CL4NX Printer PJM RFID Module Installation Date: 16 October 2015 Author: Steve Antonio Prerequisite: SATO CL4NX Printer, PJM RFID Module Kit a and PC with internet access Severity: General Guide Intended for SATO Qualified Technicians Affected Range: SATO CL4NX Printers Requiring PJM RFID Notes: 1. This bulletin is confidential and intended for internal use by SATO staff ONLY – DO NOT share this document externally! 2. This bulletin is intended for SATO qualified technicians with a working knowledge of the CL4NX printer, as such rudimental steps like “Remove fixing screws” or “open print head” are implied & have been omitted from this document! 3. Due to ongoing development/improvements some of the items/Versions listed in this bulletin may vary from those shown! 4. Ensure your PJM RFID kit contains all parts listed on the “CL4NX + PJM RFID: PARTS LIST” on page 2 of this document. 5. Ensure you read & fully understand this document prior to undertaking any installation work. Tools Required: Size 1 Philips Head Screwdriver, 5mm nut driver.

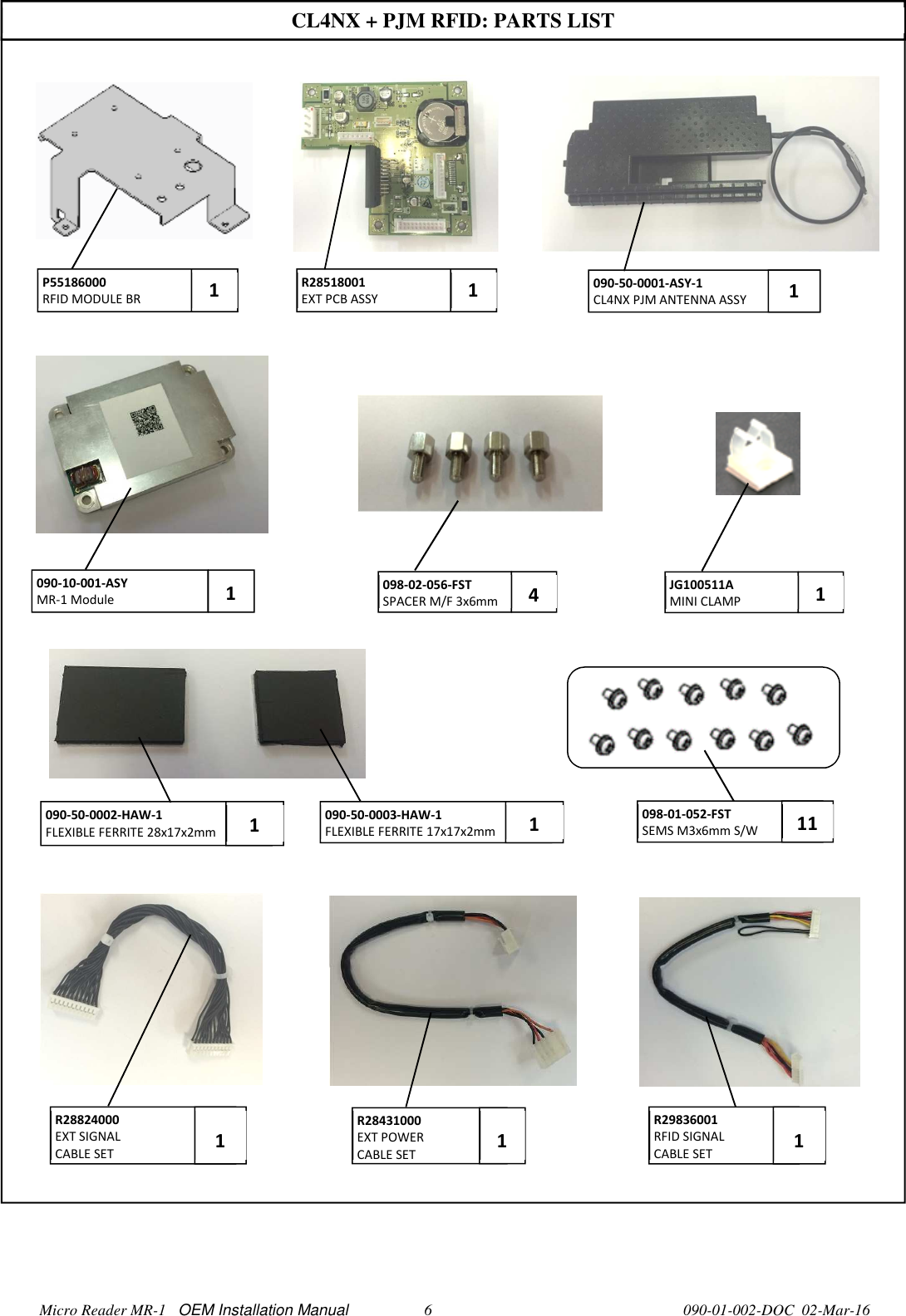

Micro Reader MR-1 OEM Installation Manual 6 090-01-002-DOC 02-Mar-16 CL4NX + PJM RFID: PARTS LIST P55186000 RFID MODULE BR 1 R28518001 EXT PCB ASSY 1 090-50-0001-ASY-1 CL4NX PJM ANTENNA ASSY 1 090-10-001-ASY MR-1 Module 1 098-02-056-FST SPACER M/F 3x6mm 4 JG100511A MINI CLAMP 1 090-50-0002-HAW-1 FLEXIBLE FERRITE 28x17x2mm 1 090-50-0003-HAW-1 FLEXIBLE FERRITE 17x17x2mm 1 098-01-052-FST SEMS M3x6mm S/W 11 R28824000 EXT SIGNAL CABLE SET 1 R28431000 EXT POWER CABLE SET 1 R29836001 RFID SIGNAL CABLE SET 1

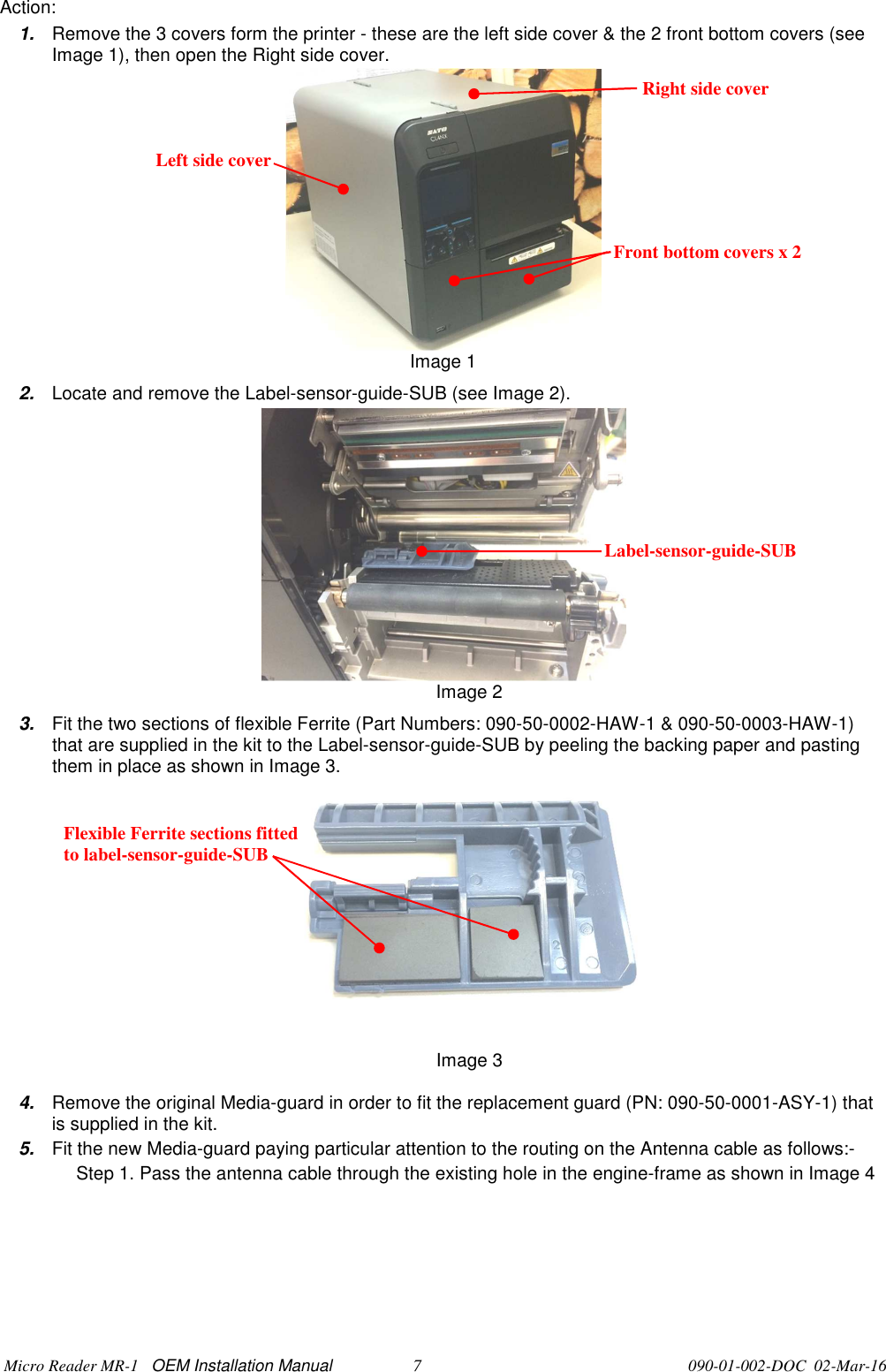

Micro Reader MR-1 OEM Installation Manual 7 090-01-002-DOC 02-Mar-16 Action: 1. Remove the 3 covers form the printer - these are the left side cover & the 2 front bottom covers (see Image 1), then open the Right side cover. Image 1 2. Locate and remove the Label-sensor-guide-SUB (see Image 2). Image 2 3. Fit the two sections of flexible Ferrite (Part Numbers: 090-50-0002-HAW-1 & 090-50-0003-HAW-1) that are supplied in the kit to the Label-sensor-guide-SUB by peeling the backing paper and pasting them in place as shown in Image 3. Image 3 4. Remove the original Media-guard in order to fit the replacement guard (PN: 090-50-0001-ASY-1) that is supplied in the kit. 5. Fit the new Media-guard paying particular attention to the routing on the Antenna cable as follows:- Step 1. Pass the antenna cable through the existing hole in the engine-frame as shown in Image 4 Front bottom covers x 2 Left side cover Right side cover Label-sensor-guide-SUB Flexible Ferrite sections fitted to label-sensor-guide-SUB

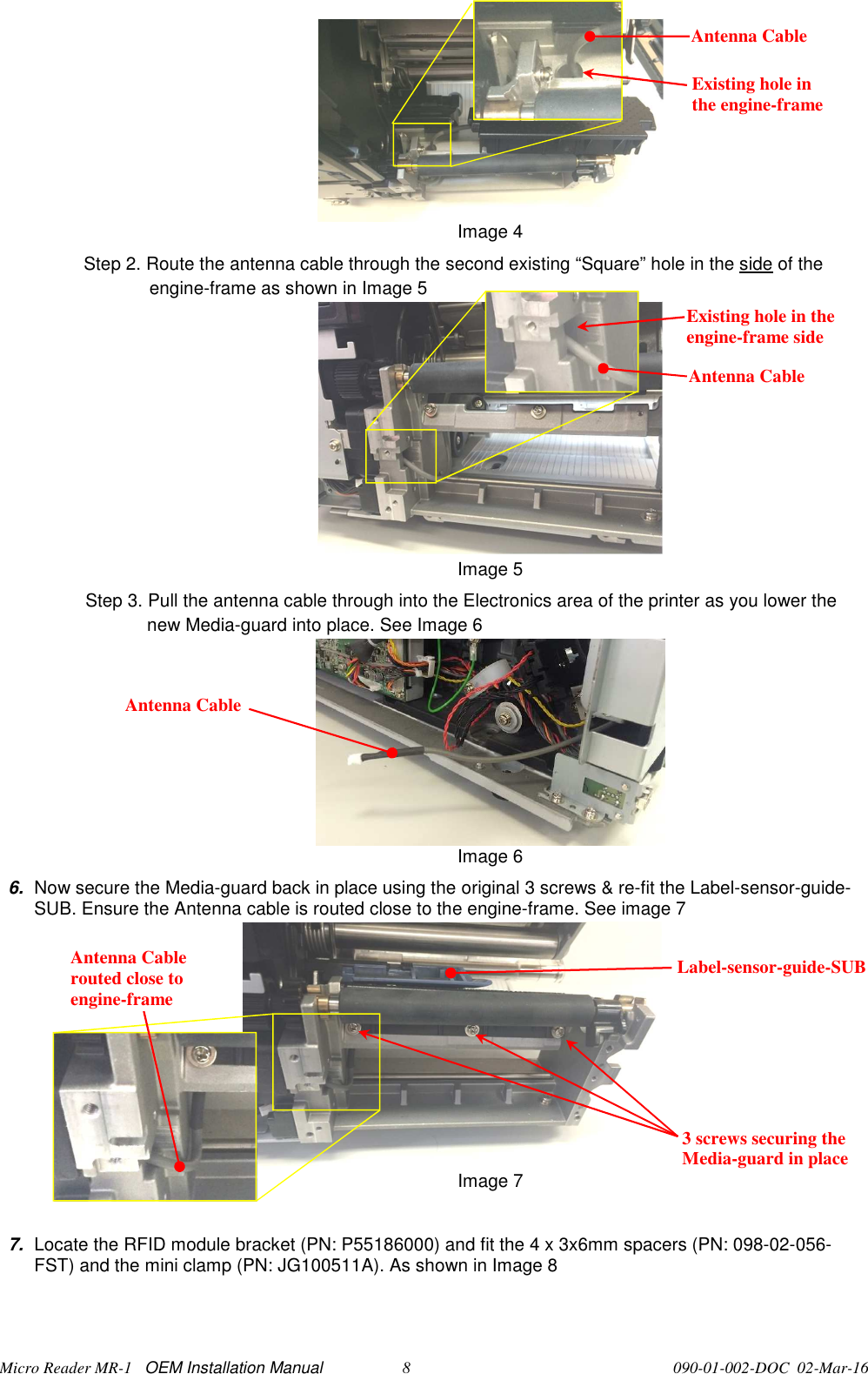

Micro Reader MR-1 OEM Installation Manual 8 090-01-002-DOC 02-Mar-16 Image 4 Step 2. Route the antenna cable through the second existing “Square” hole in the side of the engine-frame as shown in Image 5 Image 5 Step 3. Pull the antenna cable through into the Electronics area of the printer as you lower the new Media-guard into place. See Image 6 Image 6 6. Now secure the Media-guard back in place using the original 3 screws & re-fit the Label-sensor-guide-SUB. Ensure the Antenna cable is routed close to the engine-frame. See image 7 Image 7 7. Locate the RFID module bracket (PN: P55186000) and fit the 4 x 3x6mm spacers (PN: 098-02-056-FST) and the mini clamp (PN: JG100511A). As shown in Image 8 Existing hole in the engine-frame Antenna Cable Antenna Cable Existing hole in the engine-frame side Antenna Cable Label-sensor-guide-SUB 3 screws securing the Media-guard in place Antenna Cable routed close to engine-frame

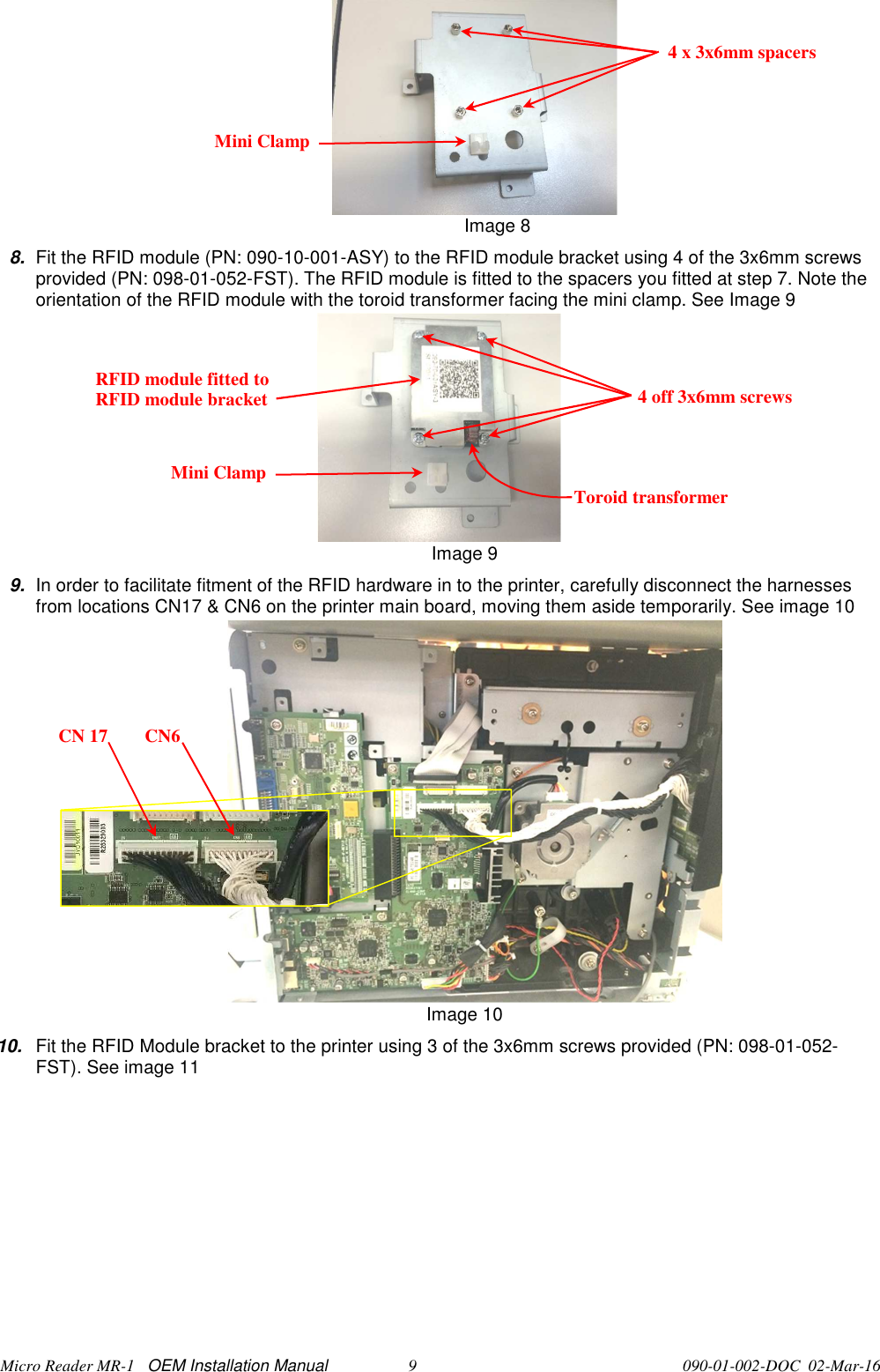

Micro Reader MR-1 OEM Installation Manual 9 090-01-002-DOC 02-Mar-16 Image 8 8. Fit the RFID module (PN: 090-10-001-ASY) to the RFID module bracket using 4 of the 3x6mm screws provided (PN: 098-01-052-FST). The RFID module is fitted to the spacers you fitted at step 7. Note the orientation of the RFID module with the toroid transformer facing the mini clamp. See Image 9 Image 9 9. In order to facilitate fitment of the RFID hardware in to the printer, carefully disconnect the harnesses from locations CN17 & CN6 on the printer main board, moving them aside temporarily. See image 10 Image 10 10. Fit the RFID Module bracket to the printer using 3 of the 3x6mm screws provided (PN: 098-01-052-FST). See image 11 4 x 3x6mm spacers Mini Clamp RFID module fitted to RFID module bracket 4 off 3x6mm screws CN 17 CN6 Toroid transformer Mini Clamp

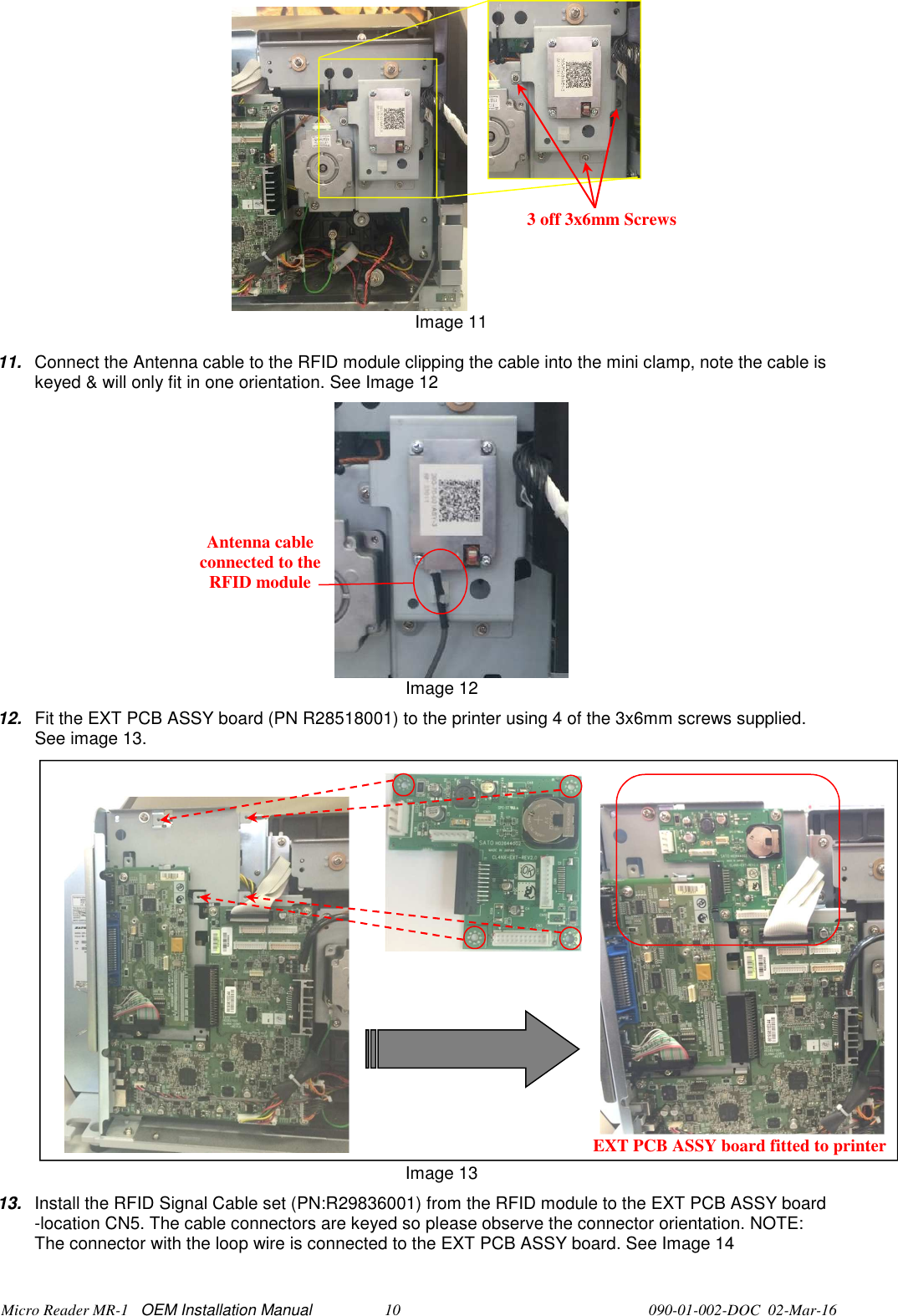

Micro Reader MR-1 OEM Installation Manual 10 090-01-002-DOC 02-Mar-16 Image 11 11. Connect the Antenna cable to the RFID module clipping the cable into the mini clamp, note the cable is keyed & will only fit in one orientation. See Image 12 Image 12 12. Fit the EXT PCB ASSY board (PN R28518001) to the printer using 4 of the 3x6mm screws supplied. See image 13. Image 13 13. Install the RFID Signal Cable set (PN:R29836001) from the RFID module to the EXT PCB ASSY board -location CN5. The cable connectors are keyed so please observe the connector orientation. NOTE: The connector with the loop wire is connected to the EXT PCB ASSY board. See Image 14 3 off 3x6mm Screws EXT PCB ASSY board fitted to printer Antenna cable connected to the RFID module

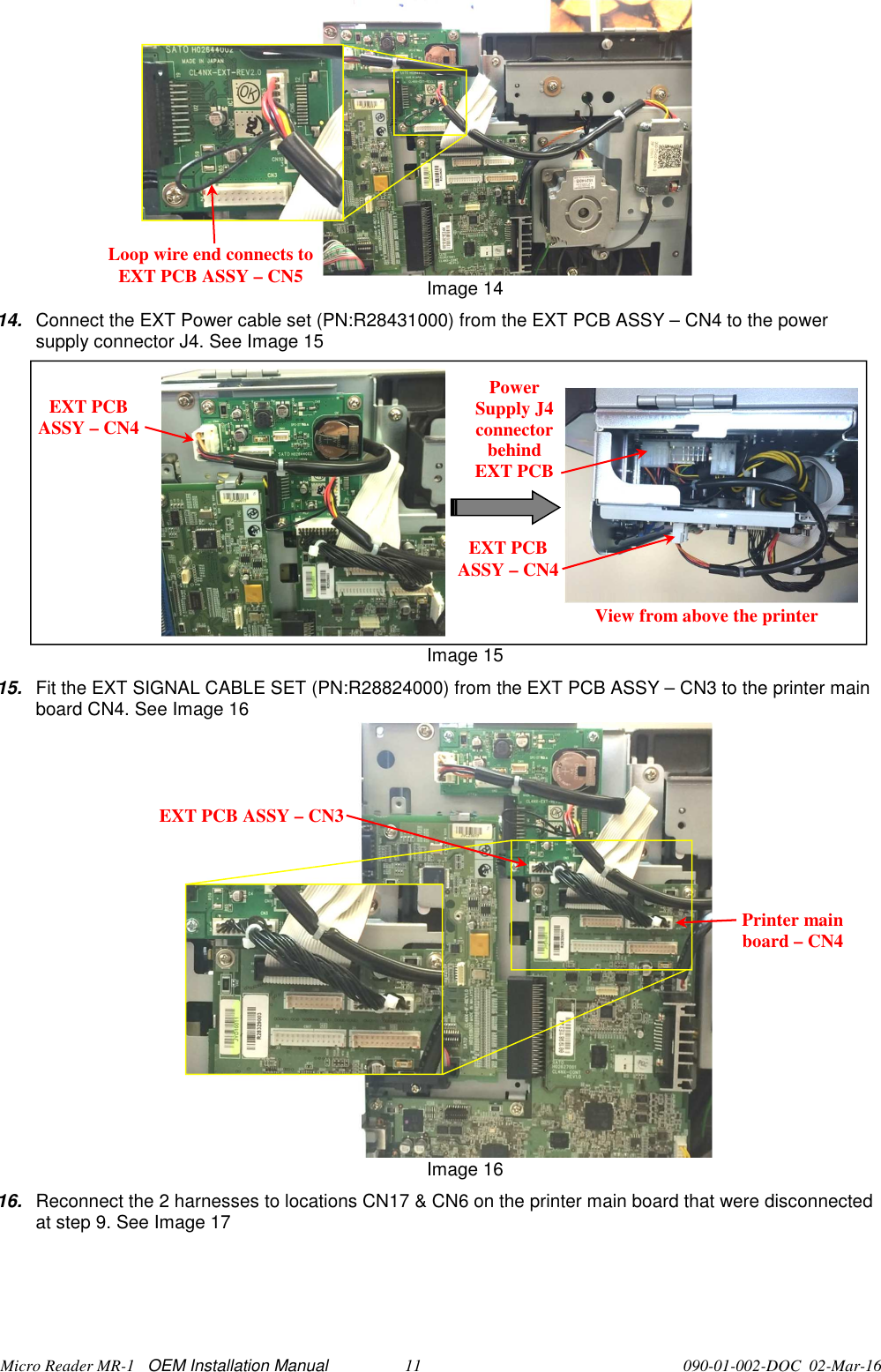

Micro Reader MR-1 OEM Installation Manual 11 090-01-002-DOC 02-Mar-16 Image 14 14. Connect the EXT Power cable set (PN:R28431000) from the EXT PCB ASSY – CN4 to the power supply connector J4. See Image 15 Image 15 15. Fit the EXT SIGNAL CABLE SET (PN:R28824000) from the EXT PCB ASSY – CN3 to the printer main board CN4. See Image 16 Image 16 16. Reconnect the 2 harnesses to locations CN17 & CN6 on the printer main board that were disconnected at step 9. See Image 17 Loop wire end connects to EXT PCB ASSY – CN5 EXT PCB ASSY – CN4 Power Supply J4 connector behind EXT PCB ASSY View from above the printer EXT PCB ASSY – CN4 EXT PCB ASSY – CN3 Printer main board – CN4

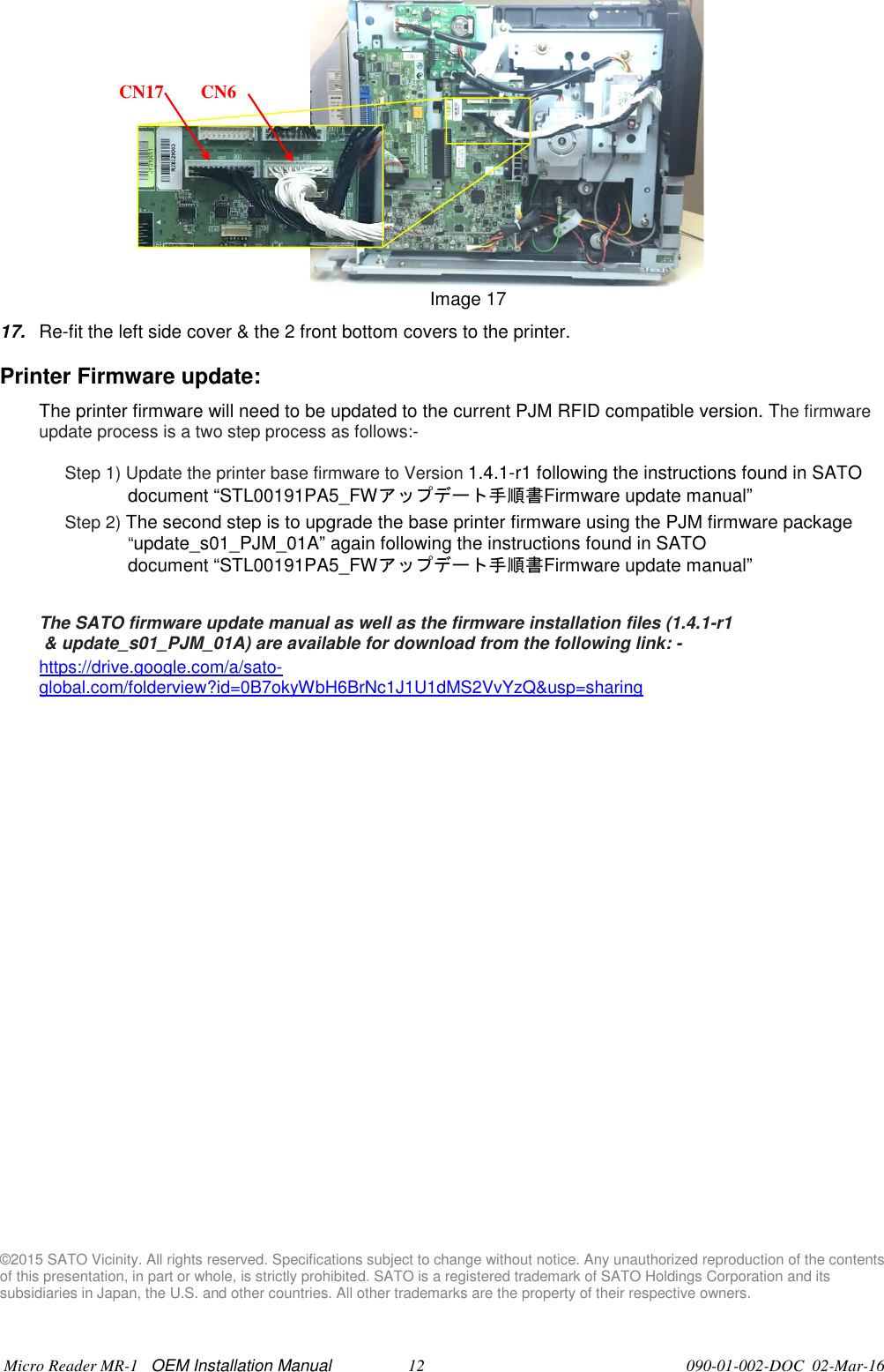

Micro Reader MR-1 OEM Installation Manual 12 090-01-002-DOC 02-Mar-16 Image 17 17. Re-fit the left side cover & the 2 front bottom covers to the printer. Printer Firmware update: The printer firmware will need to be updated to the current PJM RFID compatible version. The firmware update process is a two step process as follows:- Step 1) Update the printer base firmware to Version 1.4.1-r1 following the instructions found in SATO document “STL00191PA5_FWアップデート手順書Firmware update manual” Step 2) The second step is to upgrade the base printer firmware using the PJM firmware package “update_s01_PJM_01A” again following the instructions found in SATO document “STL00191PA5_FWアップデート手順書Firmware update manual” The SATO firmware update manual as well as the firmware installation files (1.4.1-r1 & update_s01_PJM_01A) are available for download from the following link: - https://drive.google.com/a/sato-global.com/folderview?id=0B7okyWbH6BrNc1J1U1dMS2VvYzQ&usp=sharing ©2015 SATO Vicinity. All rights reserved. Specifications subject to change without notice. Any unauthorized reproduction of the contents of this presentation, in part or whole, is strictly prohibited. SATO is a registered trademark of SATO Holdings Corporation and its subsidiaries in Japan, the U.S. and other countries. All other trademarks are the property of their respective owners. CN17 CN6
