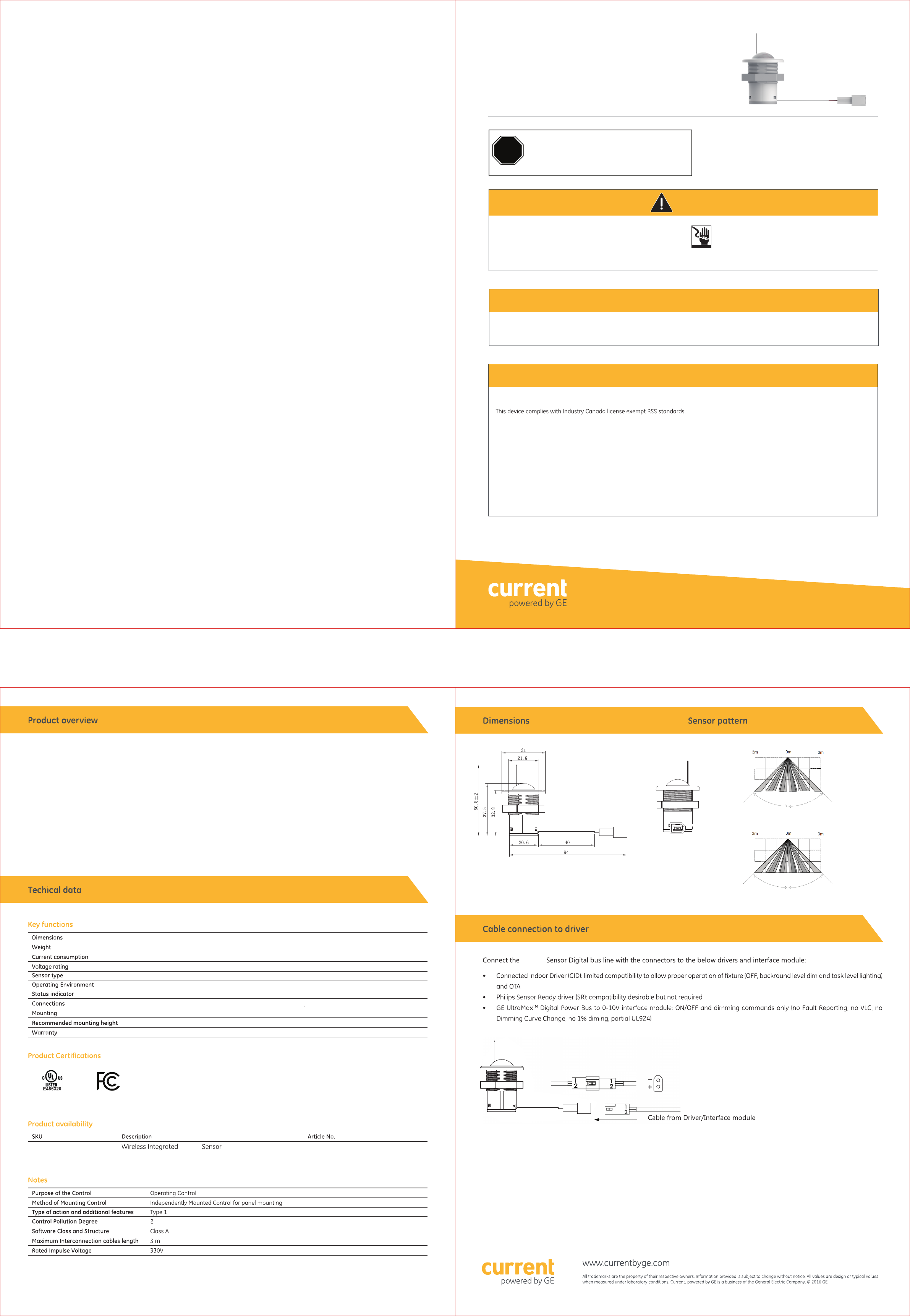

Savant Technologies GE Lighting a Savant WIZ100 WIZ100 SENSOR User Manual

GE Lighting WIZ100 SENSOR

User Manual

WIZ100 Sensor
Wireless Integrated Zigbee Sensor
WARNING
IMPORTANT
RISK OF ELECTRIC SHOCK
Turn power off before inspection, installation or removal
RISK OF FIRE
Follow all relevant IEC or UL instructions and local building codes
In case of Digital bus miswiring mains can present on
the device. Make sure all electricity switched of before
inspection.
Read these instructions completely and
carefully.
STOP BEFORE YOU BEGIN
Installation Guide
To ensure the product warranty is valid, please ensure all installation instructions and environmental conditions for storage and operation are
complied with.
Only GE trained contractors can install the product.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Operation is subject to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.
Cet appareil est conforme aux normes RSS exemptées de licence de Industrie Canada.
Son fonctionnement est soumis aux deux conditions suivantes:
• Cet appareil ne doit pas provoquer d'interférences et
• Cet appareil doit accepter toute interférence, y compris celles pouvant causer un mauvais fonctionnement de l'appareil.
To satisfy FCC/ISED RF exposure requirements a separation distance of 20 cm or more must be maintained between the antenna of this device
and persons during operation. Operation at closer than 20cm is not permitted
Pour être conforme aux limites d’exposition aux ondes RF des normes FCC/ISED, une distance de séparation d’au moins 20 cm doit être main-
tenue entre l’antenne de cet appareil et toute personne pendant son opération. Mettre en opération cet appareil a une distance plus rappro-
chée que 20 cm n’est pas permis.
FCC / IC COMPLIANCE STATEMENTS
Zigbee95039263 WIZ100
max. 22.5V, class 2, capable of no greater than 15VA power
FCC ID: PUU-WIZ100
IC: 10798A-PUUWIZ100
D31mm x H37.5mm(without antenna)
12.8g
Max 8mA(without digital communication)@Max 22.5V class 2
Passive infrared(PIR) sensor(for motion) light sensor
0 to 50(Indoor)
Network LED:Network joined
Cable connection to interface module
Easy screw installation to a D22mm hole
3m
5 years
WIZ100
2.1m 2.1m
Minor motion
3m 3m
Major motion
展开尺寸:420*290mm
The Wireless Integrated Zigbee sensor (WIZ100) is a small-size,
luminaire-integrated sensor with wireless communication, using
the zigbee protocol. This guarantees a secure and reliable
communication between the luminaires in the room. Using the
WIZ100 sensor in each luminaire provides a centralized lighting
control based on the built-in motion sensing and daylight
harvesting functionalities. This sensed information is uploaded to
Daintree network. The control of the luminaire is carried out
through the digital bus between the output of the sensor and the
control input of the luminaire’s LED driver. The digital bus also
provides the necessary supply power for the sensor,
Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help
no any additional wiring and auxiliary power supply is required.
This wireless communication help minimizing the installation
costs. Besides the automatic operation of the system it is also
possible to adjust preferred dimming levels through Current’s
WAC.
Connect sensor to GE Lighting Solutions L L C LED drivers or control modules not capable of providing greater than
15VA power, including but not Limited to models GED50MCC2P1000, GED36MCC2P700 and GED100MCC2P480
2
