Savi P/N 805-03910-001 (Rev. A)
Keep This Document
EchoPoint Tag ST-645 installation Guide
The EchoPoint ST-645 tag consists of a printed circuit board with two non-replaceable batteries
enclosed in a Fully potted, hermetically sealed plastic case with an armature containing two
inductive coils.
• The EchoPoint ST-645 tag contains a label on the top with the tag serial number in both
bar code and numerical format and another label that includes product model number.
The tag also contains a label on the bottom, which contains the compliance markings.
• The EchoPoint ST-645 tag can be exposed to environments including rain, snow and
direct exposure to sunlight.
• The tag battery life is approximately 10 years under normal operating conditions. The
tag contains two internal lithium batteries and should be discarded according to local
safety requirements.
Tag Mounting / Attachment
• The EchoPoint ST-645 has a coil arm, which utilizes a locking bolt assembly.
• Place the coil arm such that the holes align with the lock holes of the closed lock hasp.
o Slide the lock bolt through the aligned holes and snap the bolt locking mechanism
the portion of the bolt protruding past the bottom of the lock.
o A tie wrap may be used to limit the extra movement of the tag in transit. Use the
integrated tie wrap loop on the tag body to hold the tie wrap in place.
After installation the tamper bit must be reset using the appropriate command from a 600 series
Signpost and verified response is received on a 600 series SaviReader.

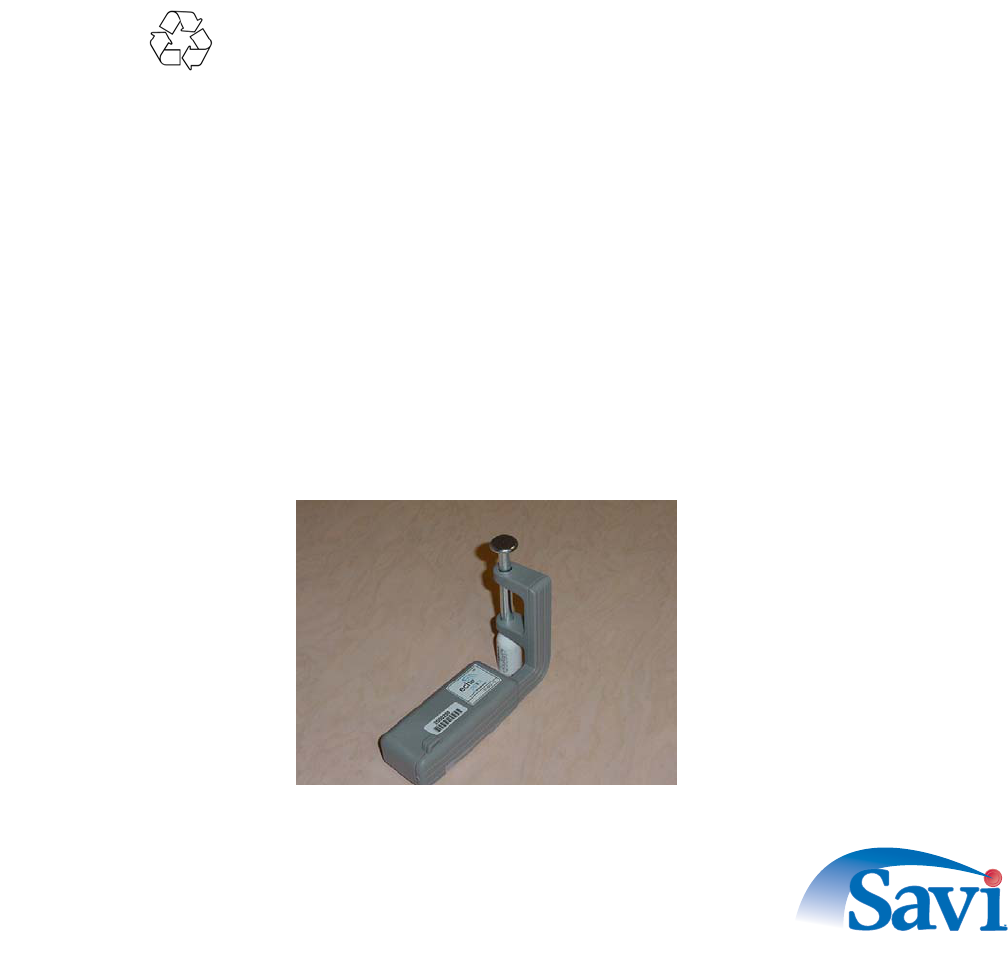

Figure 1 EchoPoint Tag ST-645
Copyright 2002, Savi Technology, Inc. All rights reserved. First edition printed May 2002
The lithium batteries can be harmful to the environment.
P
lease
f
ollow current procedures
f
or sa
f
el
y
disposin
g
o
f
lithium bat
t
eries
