Product description
G5 Pocket Transmitter
The G5 Pocket HCU is a light weight, impact and water resistant handheld unit
equipped with up to eight ON/OFF function buttons. It has ve congurable Light
Emitting Diodes (LED) for machine and status feedback. The buttons and the
LED’s can be congured for a variety of different operations. The unit is powered
with 3 standard AAA batteries and the backside has a belt clip for convenient at-
tachment on the operator’s belt.

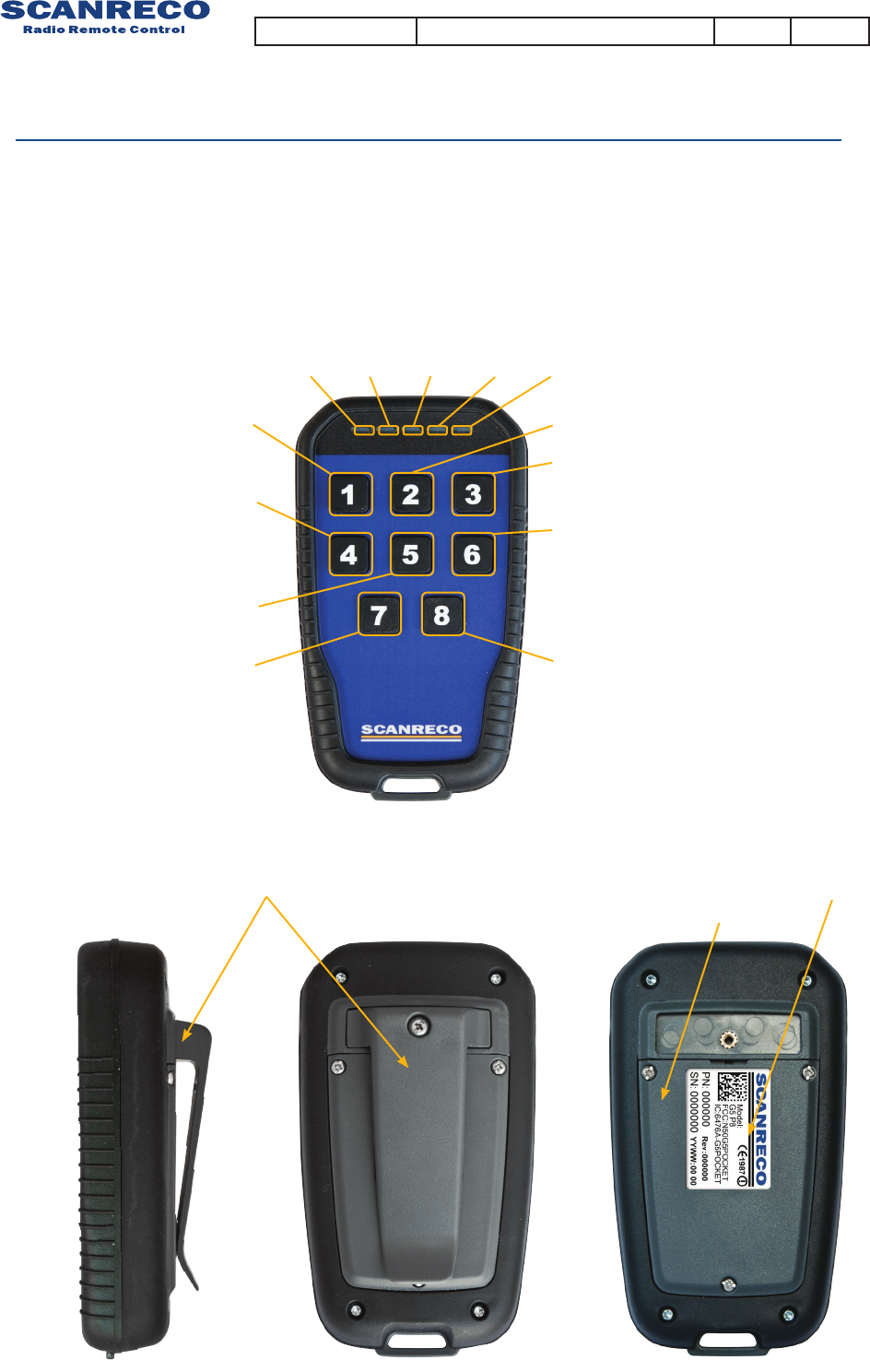

Belt clip Battery compartment
(Belt clip removed)
Label
LED 1
Button 1
Button 4
Button 3
Button 6
Button 2
Button 5
Button 7 Button 8
LED 2 LED 3 LED 4 LED 5
Document type Document number PageRev
Instruction Manual 66062 A3 of 9
ONIN OUT
OFF
1 2 3 1
4
2
5
3
6
1
4
7
2
5
8
3
6
1
4
ON
2
5
OFF
3
6
1
4
2
5
3
6
STOP
Fn
Model Functions
G5 P3 3 Push buttons
G5 P4 4 Push buttons
G5 P6 6 Push buttons
G5 P8 8 Push buttons
Versions

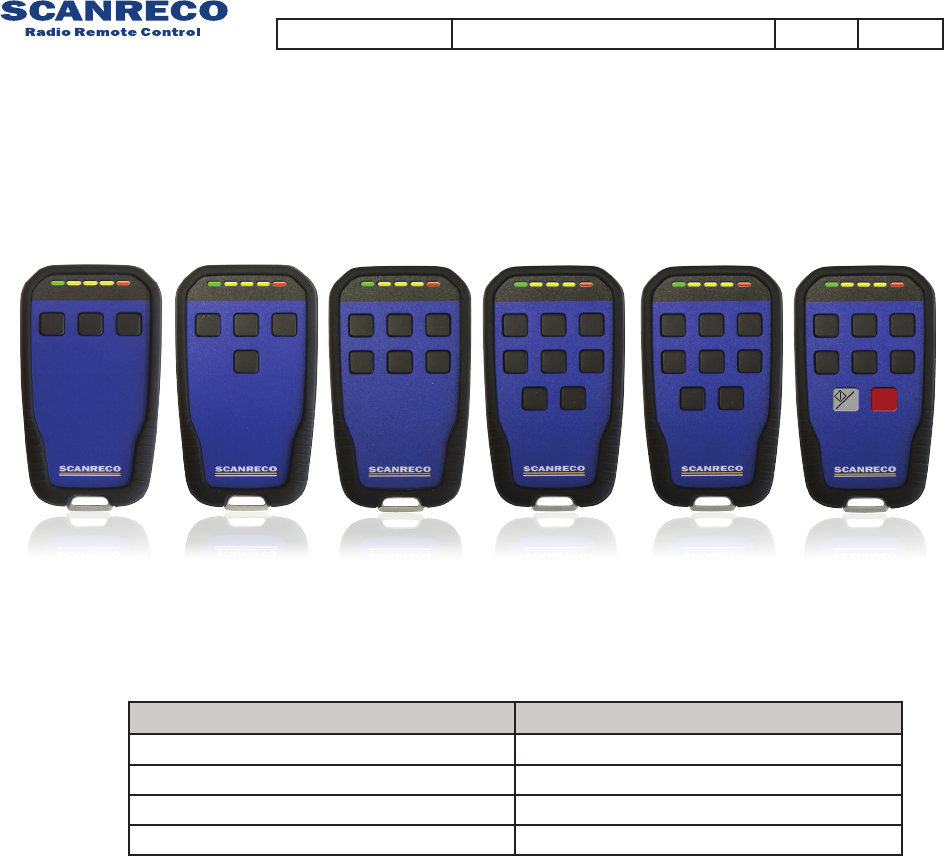

The G5 Pocket transmitter exists in the following versions:
Functionality
The G5 Pocket systems are required to be congured prior to operation but normally
this is done already before delivery. The push buttons are easily programmed to acti-
vate any output or series of functions. Button denitions include momentary, inter-
locked, non-latched or latched output.
G5 P3 G5 P4 G5 P6 G5 P8 G5 P8 G5 P8
The models may have the different printed symbols on the buttons, colors, scripts,
pictures etc.
Document type Document number PageRev
Instruction Manual 66062 A
4 of 9
5.4 Changing battery

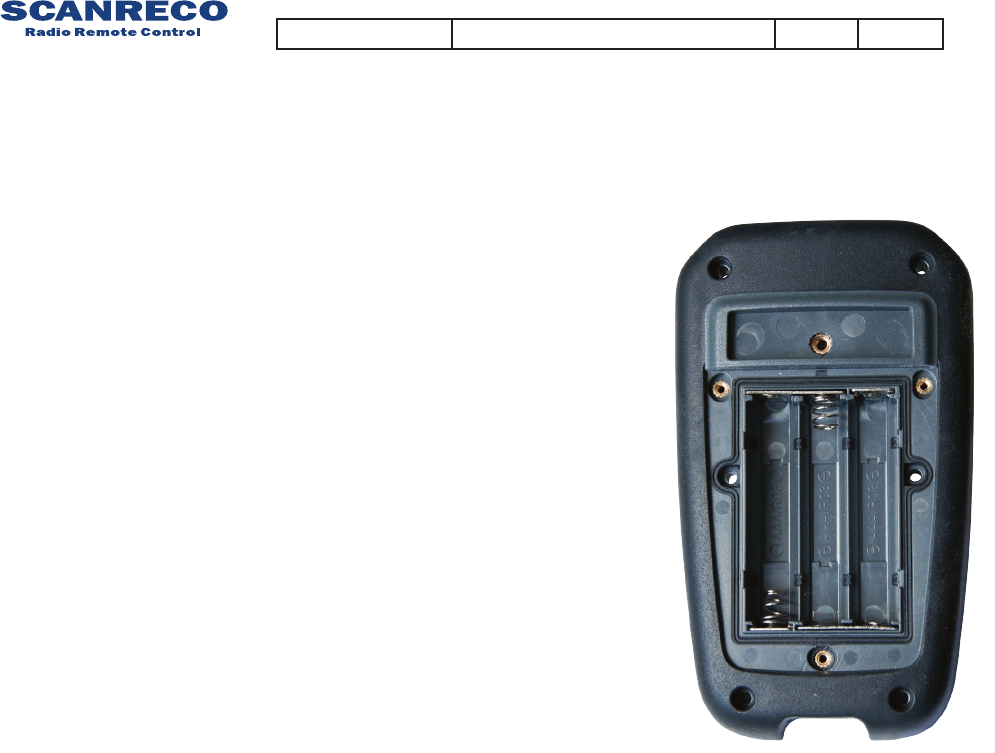

The G5 Pocket transmitter is equipped with 3 standard AAA cell batteries; to change
batteries follow the instructions below
1. Remove the belt clip by unscrewing the top middle screw.
2. Unscrew the three screws holding the lid.
3. Remove the batteries.
4. Remove all dirt/dust to ensure no water can enter the unit.
5. Insert new batteries, mind the polarity!
6. Reassemble the lid and the belt clip.
Tighten the screws according to chapter 7.4.
Document type Document number PageRev
Instruction Manual 66062 A
5 of 9

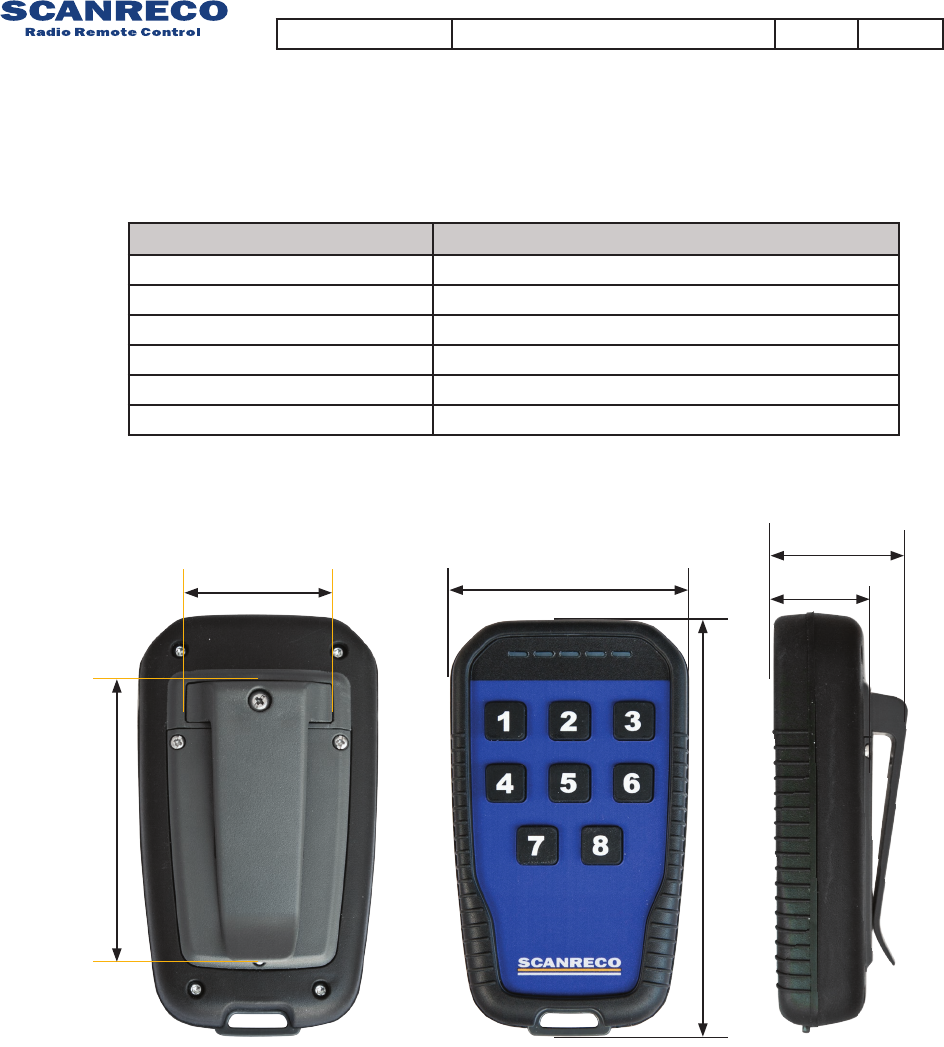

38,8mm
75,2mm
38mm
27mm
115mm
67mm
Attribute Information
Housing material Plastic PC-ABS
IP-class IP67
Ambient temperature -25˚C to +70˚C
Supply 3 x AAA battery
Operating time Several months (depending of usage and application)
Weight 160 g (0,35lb.) including battery
Dimensions:
Technical information
Size : approx. ~ 115 x 67 x 38 mm
/ ~ 4,5 x 2,6 x 1,5 in.
(incl. belt clip/holder).
Weight: incl. battery: approx.
~ 160 gram / ~ 0.35 lb.
Document type Document number PageRev
Instruction Manual 66062 A
6 of 9
Attribute Information
Frequency 2,400 - 2,4835 GHz
Channels
management
FHSS
DSSS
THSS
Channel order Pseudorandom
Channel
capacity
Duplex
System
address/ID
<16777216 unique system addresses available
Redundancy CRC-16
Range 100 meters
Technical information
The G5 system family incorporates an automated frequency jumping technology, a reliable
radio transmission highly resistant to interference.
The radio transmission takes place within the ISM-band used at pre-dened channels.
The channel switching takes place multiple times per second following a pseudorandom se-
quence. This ensures that transmission takes place on an optimal frequency at all times!
No transmitter uses the same pseudorandom sequence order when switching channels; this
minimizes the risk of two G5 systems interfering with each other.
The G5 Pocket is approved to transmit on the ISM band.
The radio is license free for the end user.
Radio information
Document type Document number PageRev
Instruction Manual 66062 A7 of 9
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates,uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de
l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
CAN ICES-3 (A)/NMB-3(A)
The antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating
in conjunction with any other antenna or transmitter.
When the device is stored on the operators belt it must be shut off. Pressing the
buttons and operating the machine while the device is hanging from the belt or any
other place it not allowed. It must be held in the hand.
L’antenne (s) utiliseé pour cet émetteur doit être installé pour fournir une distance
de séparation d’au moins 20 cm de toute personne et ne doit pas être co-localisées
ou opérant en conjonction avec une autre antenne ou émetteur.
Lorsque l’appareil est stocké sur la bande des opérateurs, il doit être arrêté.
Appuyant sur les boutons et faire fonctionner la machine alors que l’appareil est
accroché à la ceinture ou tout autre lieu il pas permis. Il doit être tenu à la main.
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Warning
FCC information
Industry Canada Information
Document type Document number PageRev
Instruction Manual 66062 A8 of 9
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
