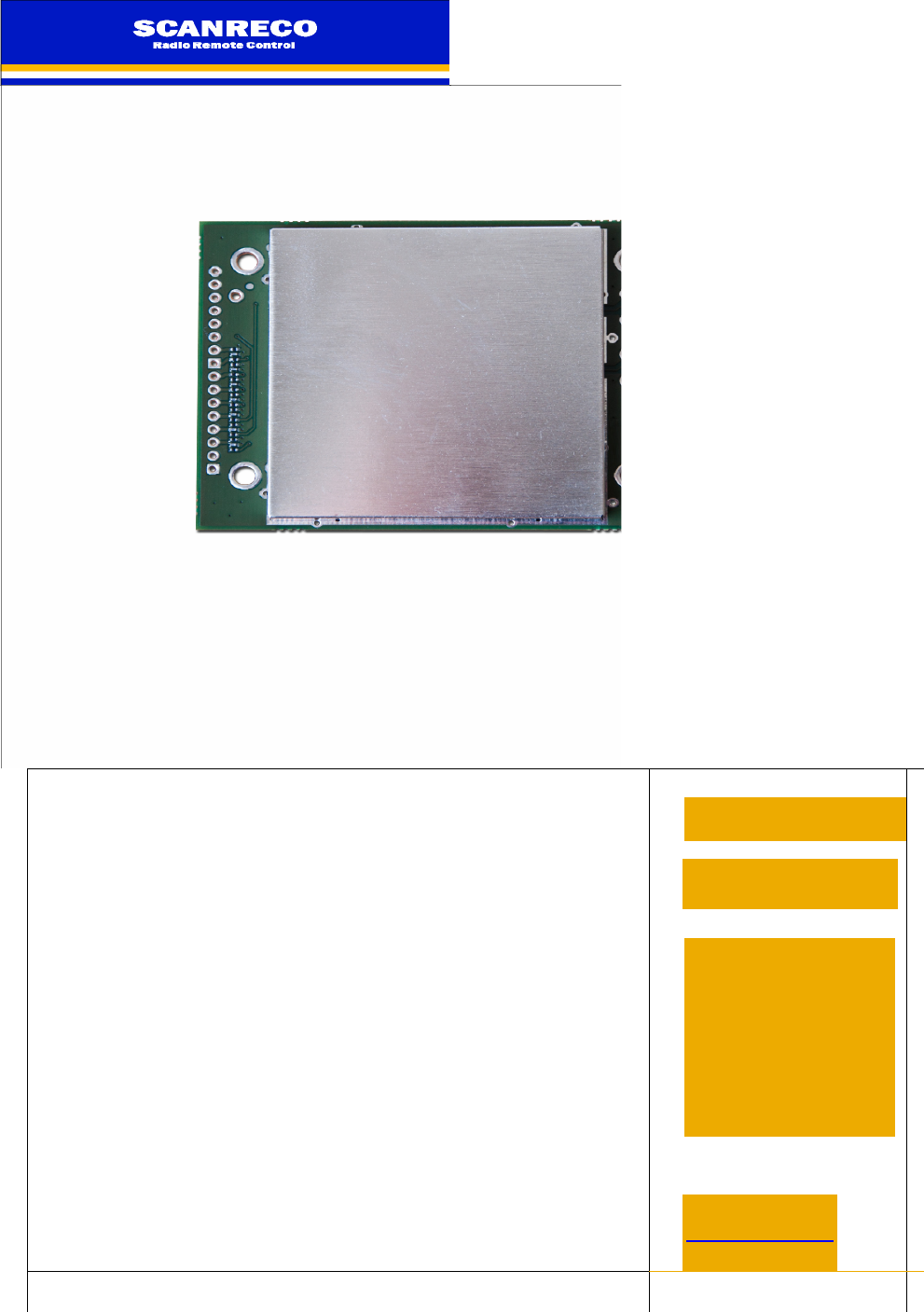

R C 9 1 7 / T R 0 2
U s e r m a n u a l a n d u p g r a d e i n s t r u c t i o n
D e v e l o p e d f o r d e m a n d i n g e n v i r o n m e n t s
Scanreco´s RC917 / TR02 is built and designed for the toughest and most demanding
of environments. Scanreco can hereby offer the market of crane and machine
operators an extremely easy to use radio remote control retaining speed,
precision, and control with the maximum of safety.
Behind the development of the radio transceivers lies the idea
of providing a product with a high degree of reliability, user-friendliness,
and easy upgrade for cable systems or other data radio applications.
The product family includes different transceivers and
receivers offering a variety of choice depending on the area of use. These products
are based on a modular architecture, which makes them extremely flexible
to customize and adapt according to the customer’s needs.
The products – which are in high demand – are mainly mounted on cranes
and mobile machines. Our customers are some of the world’s largest and most
challenging crane and machinery manufacturers. Thousands of cranes and
machines containing Scanreco’s radio products are in use worldwide.
Our products are deployed everywhere, from truck cranes laying heating
pipes in Stockholm to lifting oil pipelines in Russia and setting in place concrete
sections in Singapore.
Scanreco
–
freed om i n a b ox
Our customers development
is our own development. This
enables us to offer:
Customer-specific solutions
Industrial know-how
Expertise and experience
Innovative capacity
Nimble organisation
Quality
Delivery precision
Ser vi ce
www.scanreco.se
RC917/TR02
R C 9 1 7 / T R 0 2
U s e r m a n u a l a n d u p g r a d e i n s t r u c t i o n
H o w t o u s e t h e T R 0 2 f o r u s e r d e f i n e d m u l t i p u r p o s e u s e
T h e c o n t r o l a n d p o w e r c o n n e c t o r i s a s t a n d a r d 2 . 5 4 m m , 8 w a y p i n r o w .
T h e f u n c t i o n s o f t h e p i n s a r e a s f o l l o w s :
P i n 1 : P o w e r s u p p l y a n d s i g n a l g r o u n d .
P i n 2 : P o w e r s u p p l y p o s i t i v e t e r m i n a l .
A c c e p t s 6 t o 8 V D C . 7 . 2 V D C n o m i n a l .
P i n 3 : D a t a i n p u t .
P i n 4 : C l o c k i n p u t .
P i n 5 : L o a d s i g n a l .
P i n 6 : T r a n s m i t d a t a i n p u t . T T L l e v e l s .
P i n 7 : T r a n s m i t / r e c e i v e i n p u t s i g n a l . T T L l e v e l s . L o g i c l e v e l ” 1 ” o n t h i s p i n a n d a R S S I v a l u e
b e l o w 9 5 d B m w i l l p u t t h e m o d u l e i n t r a n s i t m o d e . I f t h e R S S I v a l u e e x c e e d s 9 5 d B m t
h e m o d u l e e n t e r s r e c e i v e m o d e . L o g i c l e v e l ” 0 ” w i l l f o r c e r e c e i v e m o d e .
P i n 8 : R e c e i v e d d a t a o u t p u t . T T L l e v e l s .
P i n s 3 t o 5 m a k e t o g e t h e r a n S P I p o r t f o r r e c e i v i n g c h a n n e l i n f o r m a t i o n . U p o n s t a r t u p t h e
m o t h e r b o a r d o n w h i c h t h e m o d u l e i s m o u n t e d w i l l s e n d t h e c h a n n e l f r e q u e n c y i n f o r m a t i o n
o n t h i s p o r t . T h e m o d u l e w i l l t h e n e n t e r s r e c e i v e o r t r a n s m i t m o d e d e p e n d i n g o n
t h e s t a t u s o f p i n 7 . I n r e c e i v e m o d e t h e r e c e i v e d d a t a w i l l a p p e a r a s y n c h r o n o u s l y o n p i n 8 .
I n t r a n s m i t m o d e t h e a s y n c h r o n o u s d a t a o n p i n 6 w i l l b e b u f f e d a n d f e d t o m o d u l a t o r
a t t h e s a m e t i m e t h e o u t p u t a m p l i f i e r w i l l b e e n a b l e d .
T h e h i g h p o w e r v e r s i o n R C 9 1 7 F H H h a s t h e o u t p u t p o w e r l e s s t h a n 1 8 d B m w h e n i t u s e s i n t h e
h a n d h e l d r e m o t e c o n t r o l u n i t s . T h e m a x o u t p u t p o w e r 1 8 d B m o f h a n d h e l d u n i t s i s p r o g r a m m e d
u n d e r p r o d u c t i o n a t t h e f a c t o r y a n d n o t p o s s i b l e t o c h a n g e u n d e r u s i n g b y t h e c u s t o m e r .
T h e r e a r e t w o a n t e n n a c o n n e c t o r s , w h i c h c a n n o t b e u s e d s i m u l t a n e o u s l y .
The antenna types used with the module are presented in the table:
N
Antenna type
Details
Manufacture
Part number
Connector
Gain
1
Internal wire λ/4
8cm length,
Stranded Ø1,2mm
conductor,
Ø2,2mm total
Scanreco
44374
Soldered
1,5dBi
2
Internal dipole antenna
Total length 16cm,
coax cable RG316
Scanreco
47146
Soldered
2,5dBi
3
External λ/4 Helix
Total
height
12cm
Scanreco
47938
RP
-
SMA
2,8dBi
4
External λ/4 whip
Total
length
82mm
Scanreco
47123/382
-
4179
TNC
2,6dBi
5
External Right Angle
λ/4
Total
length
45 mm
Jinchang
(or similar: Taoglas TG.22.0112,
Pulse W1900/1902,
Antenna Factor ANT-916-CW)
JC
-
GSM
-
000
-
55
-
SMAGSM
SMA
3,5dBi
I n c a s e o f i n t e r n a l a n t e n n a i t w i l l b e a l w a y s l o c a t e d a t l e a s t 2 , 5 c m f r o m t h e n e a r e s t
h o s t e n c l o s u r e w a l l .
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
W a r n i n g
The external antenna(s) used for this transmitter must be installed to provide a separation distance of
at least 20 cm from all persons and must not be co-located or operating in conjunction with any other
transmitter
W a r n i n g
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment
T y p i c a l c u s t o m e r a p p l i c a t i o n
a s a n e x a m p l e
N O T E : i f y o u n e e d a s s i s t a n c e o r c u s t o m e r
d e f i n e d a p p l i c a t i o n , p l e a s e c o n t a c t
S c a n r e c o c u s t o m e r s u p p o r t .
www.scanreco.se
I n s t r u c t i o n h o w t o u p g r a d e a l l S c a n r e c o R C 9 1 7 s y s t e m s ,
N o t e : P i c t u
r e s s h o w a t y p i c a l R C 9 1 7 s y s t e m b u t u p g r a d e
p r o c e s s i s v a l i d f o r a l l t y p e s o f R C 9 1 7 .

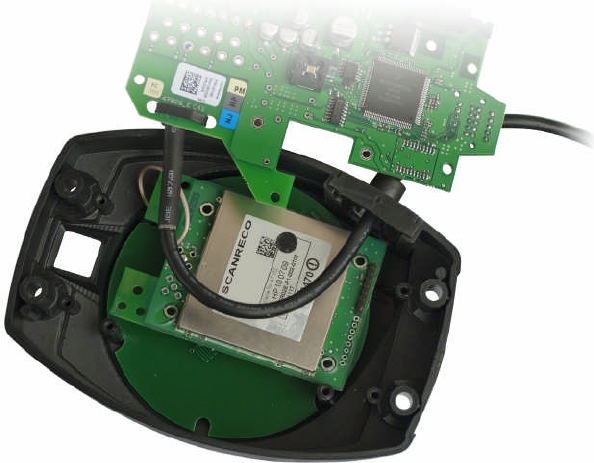

1 / O p e n c o n t r o l p u l t a n d l o c a t e p l a c e
f o r r a d i o m o d u l
*
2 / I n s t a l l T R 0 2 i n t e n d e d f o r c o n t r o l p u l t .
T i g h t e n t h e s u p p l i e d s c r e w s * , n o r m a l l y 4
N o t e : D i f f e r e n t
t y p e o f h o l d e r s
f o r w i r e a n t e n n a
i s s u p p l i e d
d e p e n d i n g t y p e
o f R C 9 1 7 s y s t e m
3 / R e a s s e m b l y c o n t r o l p u l t a n d c o n t i n u e t o s t e p 4 .
www.scanreco.se
R C 9 1 7 / T R 0 2
U s e r m a n u a l a n d u p g r a d e i n s t r u c t i o n

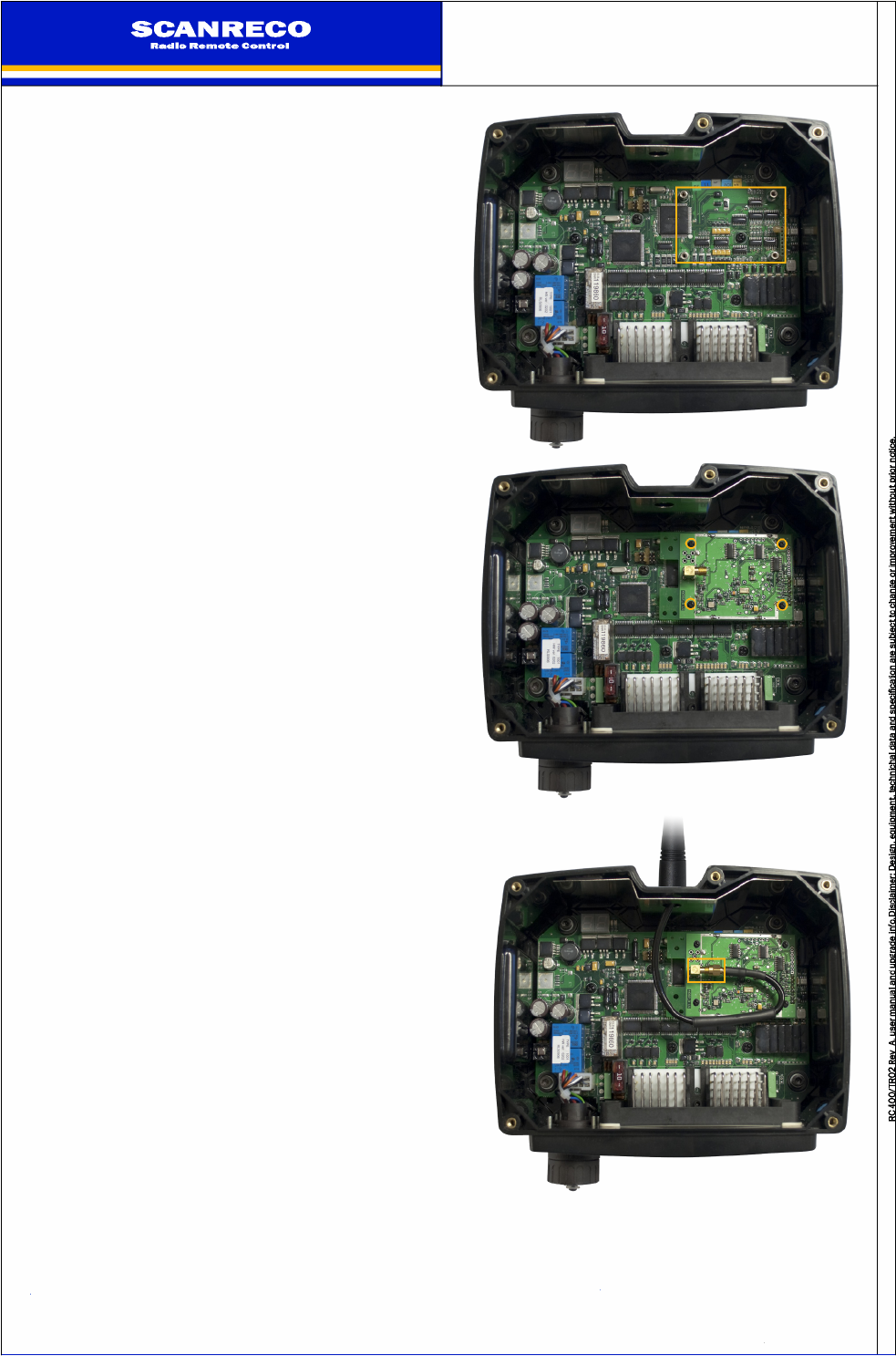

4 / O p e n t h e r e c e i v e r b o x
l o c a t e p l a c e f o r r a d i o m o d u l e
*
5 / I n s t a l l T R 0 2 i n t e n d e d f o r
R e c e i v e r b o x a n d t i g h t e n
s u p p l i e d s c r e w s * , n o r m a l l y 4 .
6 / I n s t a l l a n t e n n a c a b e l
i n a p p r o p r i a t e i n l e t o n b o x
a n d c o n n e c t t o T R 0 2 t h e S M A c o n
n e c t o r .
7 / R e a s s e m b l y r e c e i v e r b o x ,
g o t o s t e p 8 .
8 / S t a r t u p s y s t e m a n d a c c o r d i n g
t o s y s t e m m a n u a l R C 9 1 7 ,
r e s t a r t a n d p a i r s y s t e m w i t h o u t
c a b l e c o n t r o l a t t a c h e d .
N o t e : T h e S W i n R C 9 1 7 w i l l a u t o m a t i c
i n s t a l l a n d i d e n t i f y y o u r u p g r a d e d s y s t e m
f o r R a d i o R e m o t e C o n t r o l l e r .
T h i s p r o c e d u r e i s v a l i d f o r a l l R C 9 1 7 i n t e n d e d t o u s e w i t h R C 9 1 7
1 0 / U p g r a d e p r o c e d u r e i s d o n e a n d c u s t o m e r a r e
n o w a b l e t o e n j o y a R a d i o C o n t r o l S y s t e m .
