1 Introduction
This manual describes the ChipCoin read/write module PitBase TWN4 with the
S&B article no. 04 38882 0.

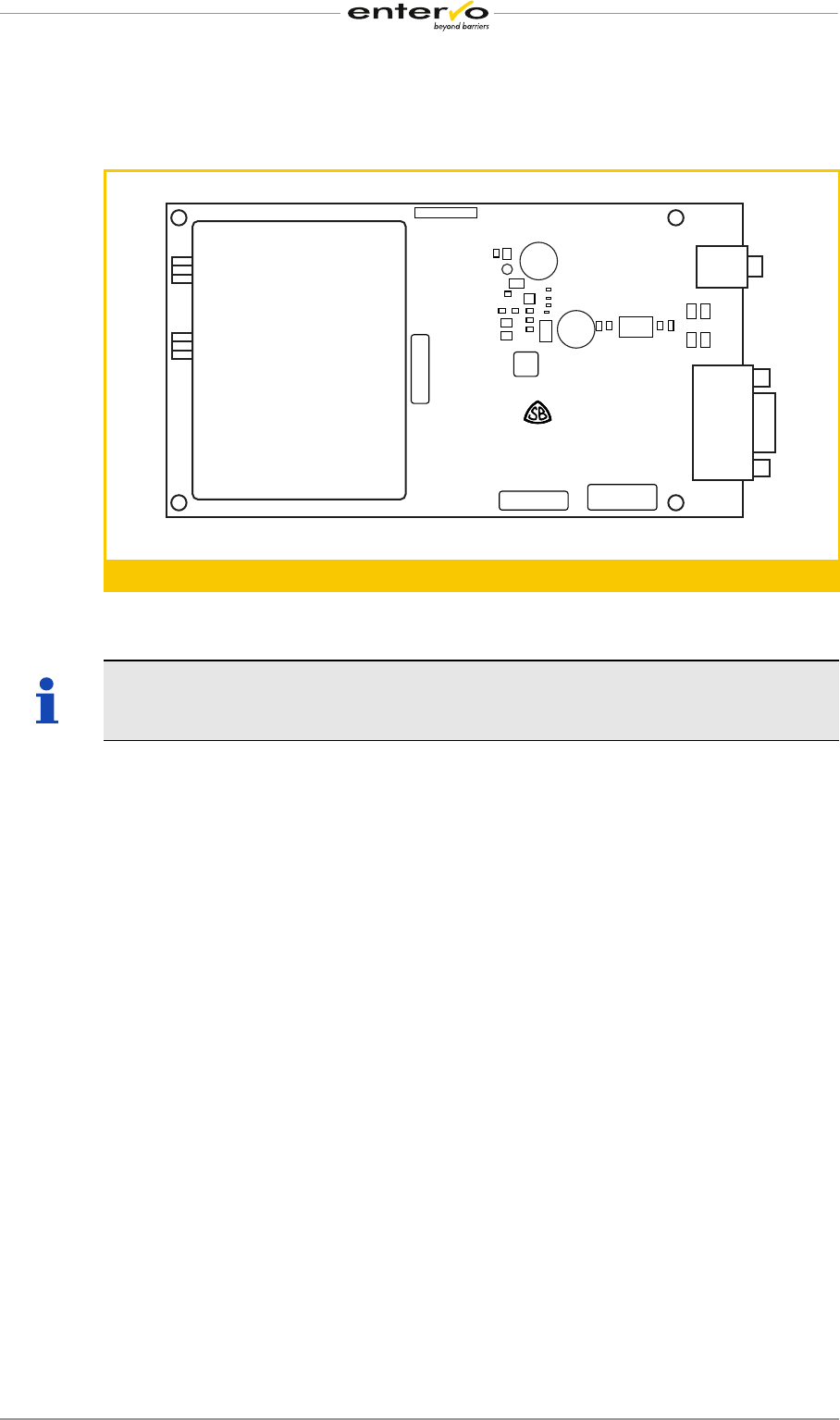

Fig. 1: PitBase TWN4
1.1 Range of Application
The PitBase TWN4 is a hardware interface for encoding and evaluation of
HITAG based ChipCoins and transponder cards.
PitBase TWN4 is used exclusively in Scheidt & Bachmann devices.
1.2 Safety
Electrostatically endangered parts! Do not touch connection points!
Installed components may contain electrostatically endangered parts (ESD).
When working on the module, please take measures to protect against ESD!
![](/img.php?id=3433301&img=bg7.png)
© 2015 Scheidt & Bachmann GmbH, Germany Subject to change
Component Description
7
PitBase TWN4, 86 93421 (a)
2 Module Description
Components
TWN4 Core-Module (Elatec)
S&B base board
The PitBase TWN4 has a power connector, a serial interface for the connection
of a single board computer (EPR) or a manual sales device and two antenna
connectors.

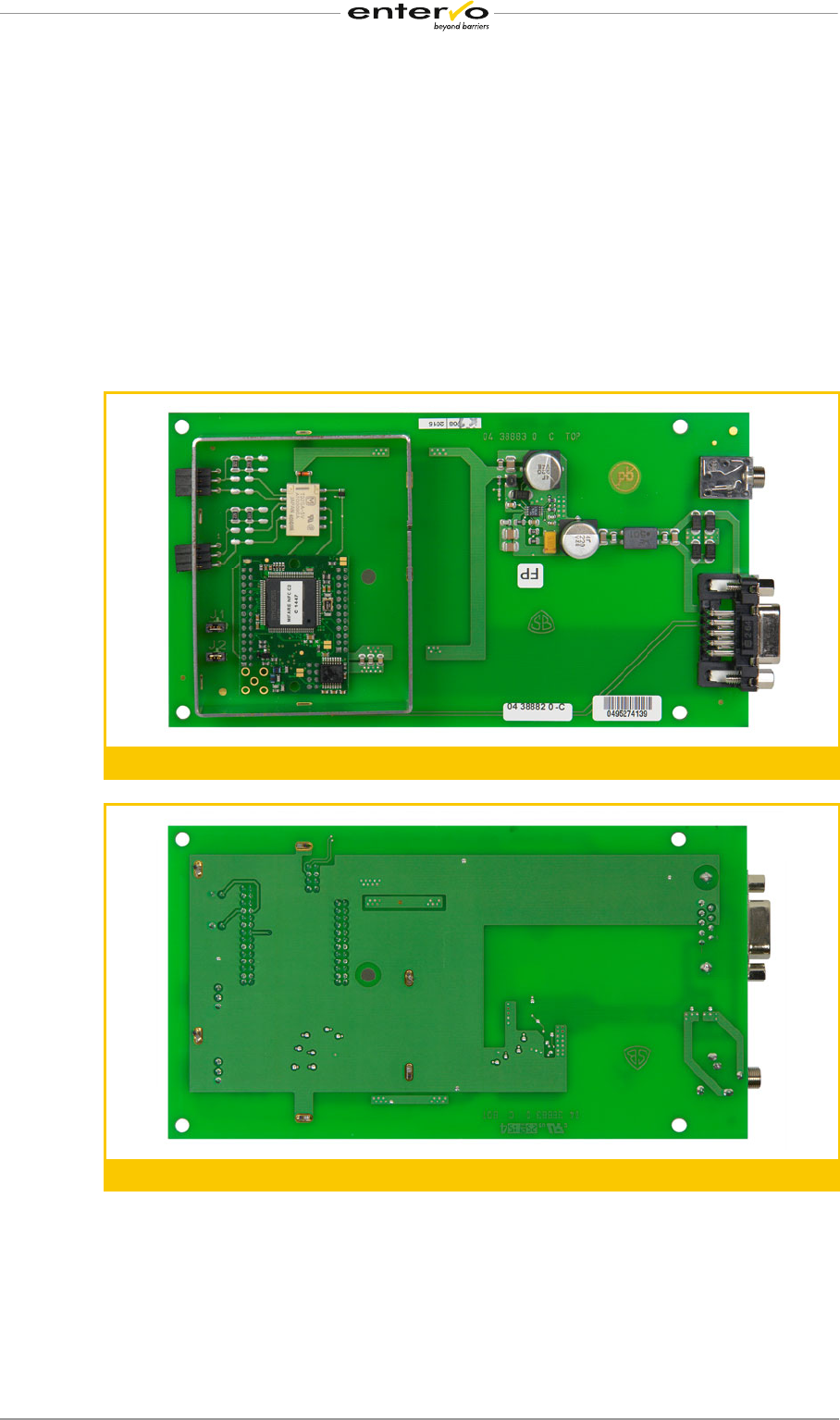

Fig. 2: PitBase TWN4 – top with the cover removed
Fig. 3: PitBase TWN4 - bottom
![](/img.php?id=3433301&img=bg8.png)
© 2015 Scheidt & Bachmann GmbH, Germany Subject to change
Component Description
8
PitBase TWN4, 86 93421 (a)
Fig. 4: RS232 interface and power con-
nector
Fig. 5: Antenna connectors
2.1 Block Diagram
Fig. 6: Block diagram
TWN4
Core Module
Host Interface
RS232
DSUB
RS232
Power
Antenna 2
Antenna 1
![](/img.php?id=3433301&img=bg9.png)
© 2015 Scheidt & Bachmann GmbH, Germany Subject to change
Component Description
9
PitBase TWN4, 86 93421 (a)
2.2 Antenna Connection
Fig: Antenna connection
There are 7 connection options for the two antenna connectors.
If antennas are connected to both antenna connectors, an automatically
cycled switching between both connectors takes place (e.g. every 5 seconds
/ configurable).
Connection option 1:
Connection terminal ST1: 1 x antenna 0420830 0 (air-core coil 30x30 490μH)
Connection terminal ST2: not used
Connection option 2:
Connection terminal ST1: 1 x antenna 0423652 0 (air-core coil 30x30 490μH)
Connection terminal ST2: not used
Connection option 3:
Connection terminal ST1: 1 x antenna 0434483 0 (air-core coil 30x60 490μH)
Connection terminal ST2: not used
Connection option 4:
Connection terminal ST1: 1 x antenna 04378230 (air-core coil 30x60 490μH)
Connection terminal ST2: not used
Connection option 5:
Connection terminal ST1: 1 x antenna 0423652 0 (air-core coil 30x30 490μH)
Connection terminal ST2: 1 x antenna 04184530 (air-core coil Ø30 490μH)
Connection option 6:
Connection terminal ST1: 1 x antenna 0420830 0 (air-core coil 30x30 490μH)
Connection terminal ST2: 2 x antenna 0418532 0 connected in parallel (air-
core coil Ø30 980μH)
ST2
ST1
![](/img.php?id=3433301&img=bga.png)
© 2015 Scheidt & Bachmann GmbH, Germany Subject to change
Component Description
10
PitBase TWN4, 86 93421 (a)
Connection option 7:
Connection terminal ST1: 2 x antenna 0431701 0 connected in parallel (air-
core coil 30x30 980μH)
Connection terminal ST2: not used
2.3 FCC Information
FCC ADDENDUM
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment gen-
erates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interfer-
ence to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be re-
quired to correct the interference at his own expense.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
IC-CANADA-ADDENDUM
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
![](/img.php?id=3433301&img=bgb.png)
© 2015 Scheidt & Bachmann GmbH, Germany Subject to change
Component Description
11
PitBase TWN4, 86 93421 (a)
2.4 FCC Label
The FCC label on the PCB provides information on the approval number:

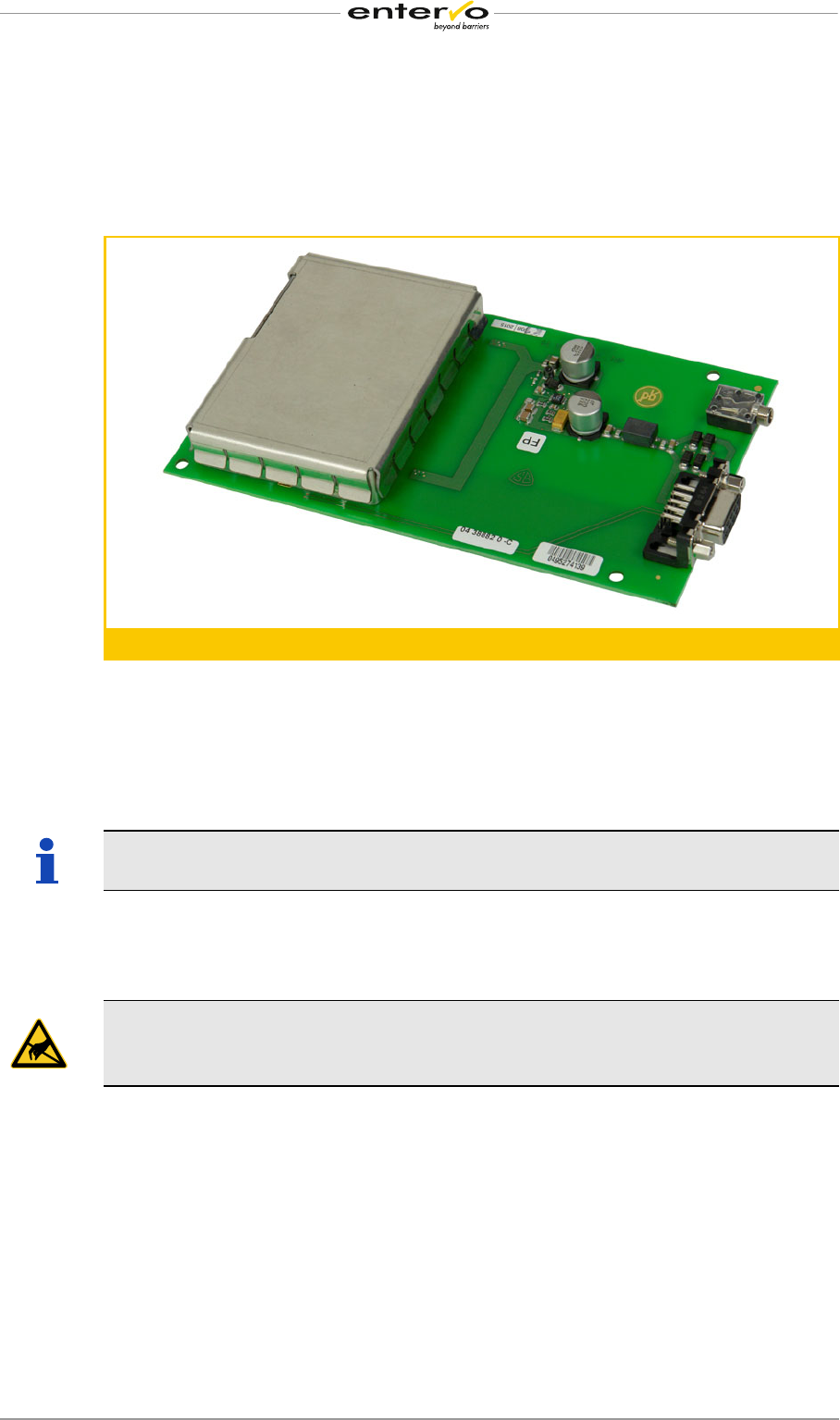

Fig. 7: PitBase TWN4 – FCC Label
FCC ID: O5K-PITBASETWN4 / IC: 8312A-PITBASETWN4
The device that contains the PitBase TWN4 must contain the following word-
ing in its user manual:
Contains FCC ID: O5K-PITBASETWN4
Contains IC: 8312A-PITBASETWN4
2.5 Technical Specifications
General technical data
Supported media: HITAG-1 transponder (125 kHz)
HITAG-S2048 transponder (125 kHz)
Connectors: 2 x antenna coil
Power connection via 3.5mm jack connector
RS232 interface
Operating voltage: 12 V DC ± 20 %
Current consumption: approx. 100 mA
Read/write antennas: 2 connectors
Inductance: 490μH per connector
approx. 3 cm read/write distance
Dimensions: approx. 165 mm x 87 mm x 20 mm
Weight: approx. 158 g
Temperature range: -25°C to +80°C
Relative humidity: ±0 % ... 95 % (non-condensing)
