Schlage Electronic Security BR100 Z-Wave to Ethernet Bridge User Manual link system setup 7 indd
Schlage Electronic Security Z-Wave to Ethernet Bridge link system setup 7 indd
Exhibit D Users Manual per 2 1033 b3

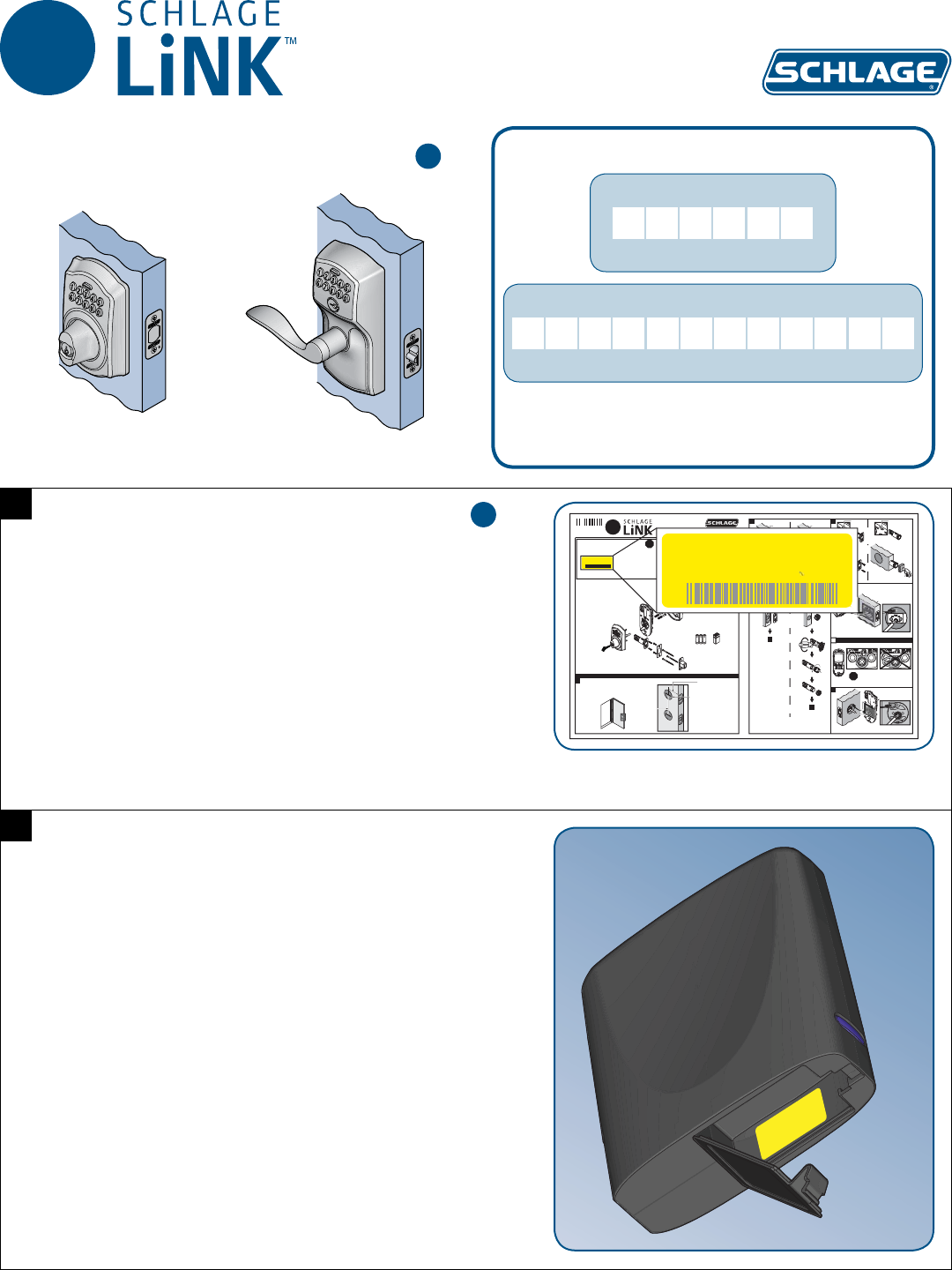

3System Setup
Important Information
Lock Programming Code
six (6) digits
Bridge MAC ID
twelve (12) characters
Web Support: testmydoorlock.com
Customer Service: (877) 288-7707
The lock should already be installed on your door. If not,
use the installation instructions (document number 2)
to install the lock and then come back to this document.
OR
Locate the programming code, on top of document 2.
Write the programming code in the “Important Information”
box at the top of this page.
The programming code is six digits long and is located on the •
yellow sticker on the installation sheet that is packed in the box.
The programming code can be changed. If you have changed •
your programming code, the code that is printed on the label
will not work. (See Manual Programming and Troubleshooting at
testmydoorlock.com.)
If you don’t remember your programming code, you can reset your •
lock, which will restore the original programming code. (See Manual
Programming and Troubleshooting at testmydoorlock.com.)
1
OR O OU
!
Without these user codes,
you can get locked out.
Si no cuenta con estos
códigos de usuario, es
posible que no pueda
abrir.
Vous ne pouvez entrer
sans déverrouiller à l'aide
des codes d'utilisateur.
Preset
Codes
Códigos
preajustados
Préréglage
des codes
Programming Code
Código de programación
Code de programmation
User Codes
Códigos de usuario
Codes utilisateur
Lock Model
Modelo de la cerradura
Modèle de serrure
Serial Number
Número de serie
Numéro de série
Alternate Faceplate
Chapa frontal alterna
Plateau à trous alternatif
2
Install LockInstalación de la cerradura Installer le verrou
1
OR
O
OU
2 ³⁄₄
180°
2³⁄₄” (70 mm)
2³⁄₈” (60 mm)
Choose Faceplate to Match Door
Escoja la placa delantera para emparejar la puerta
Choisir la têtière pour égaler la porte
OR
O
OU
4
4
3
OR
O
OU
4
5
!
66Caution Precaución Mise en garde
7
3
Top
Parte superior
Haut
Top
Parte superior
Haut
Match arrows
Las flechas deben quedar alineadas
Aligner les flèches
2³⁄₈” (60 mm)
OR O OU
2³⁄₄” (70 mm)
2¹⁄₈” (53 mm)
Hole
Agujero
Tro u
5¹⁄₂” (140 mm)
Minimum
Mínimo
Minimum
(2)
P515-861
Installation Instructions
Instrucciones de instalación
Notice d'installation
Check Dimensions
Revise las dimensiones
Vérifier les dimensions
2
Prog Code XXXXXX
User Code A XXXX
User Code B XXXX
(FCC ID: P2GXXXXX)
XXXXX
SN XXXXXXXXX
Prog Code XXXXXX
User Code A XXXX
User Code B XXXX
(FCC ID: P2GXXXXX)
XXXXX
SN XXXXXXXXX
Locate the bridge MAC ID. Write the MAC ID in the
“Important Information” box at the top of this page.
The MAC ID is 12 characters long and is located on the yellow label •
inside the battery compartment of the bridge.
2
MAC ID:
XXXXXXXXXXXX

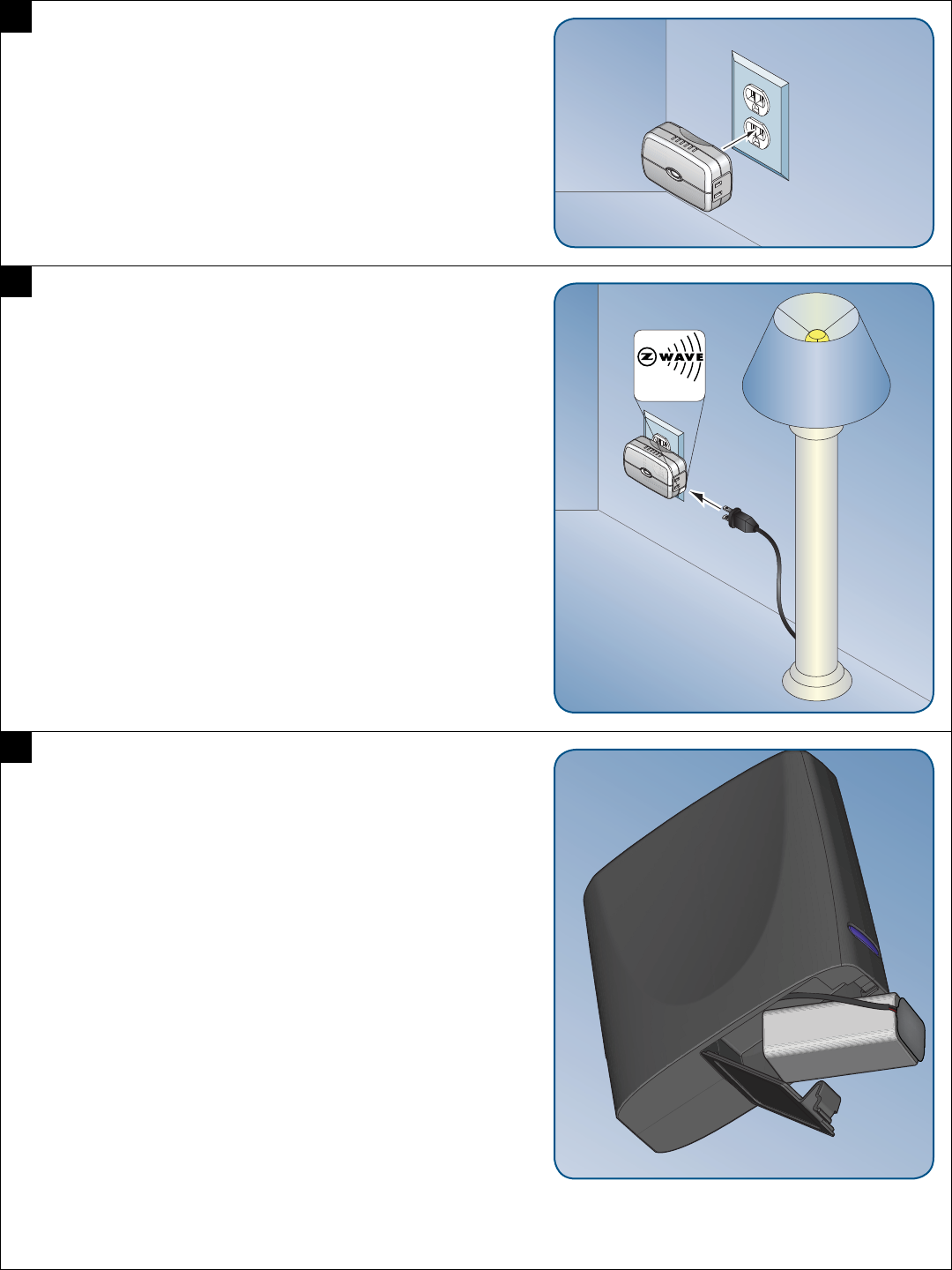

Install the light module.
The light module also repeats the Z-Wave signal. If the fi nal •
location of the bridge (where it can be connected to your router) is
more than 60 feet (18 meters) from the lock, use an outlet that is
approximately half way between the lock and the bridge.
The light module should be installed into any indoor, three-prong, •
120 volt A/C outlet.
3
Plug a lamp into the Z-Wave side of the light module.
There are two outlets on the light module. One of the outlets has •
only two prongs and is labelled with a Z-Wave sticker. A lamp (25
watts minimum and 300 watts maximum) must be plugged in to the
Z-Wave side of the light module for proper operation.
Use only an incandescent light bulb in the lamp that is plugged into •
the light module. DO NOT use a CFL (compact fl uorescent light
bulb).
The other outlet has three prongs and can be used simply as an •
outlet (1500 watts maximum). It is not controlled by the system, and
the system is not affected when it is used.
4
Max. 300W
Incandescent
Install the 9 volt battery into the bridge.
Use the 9 volt battery that is included in the box.•
Use any premium quality 9 volt battery for replacement.•
5
This portion of the setup is complete. For the next portion, please ensure that you have one of the following
browsers installed on your computer:
Internet Explorer 7.0 (http://www.microsoft.com/windows/downloads/ie/getitnow.mspx) ●
Firefox 3.0 (http://www.mozilla.com) ●
For troubleshooting, see testmydoorlock.com.

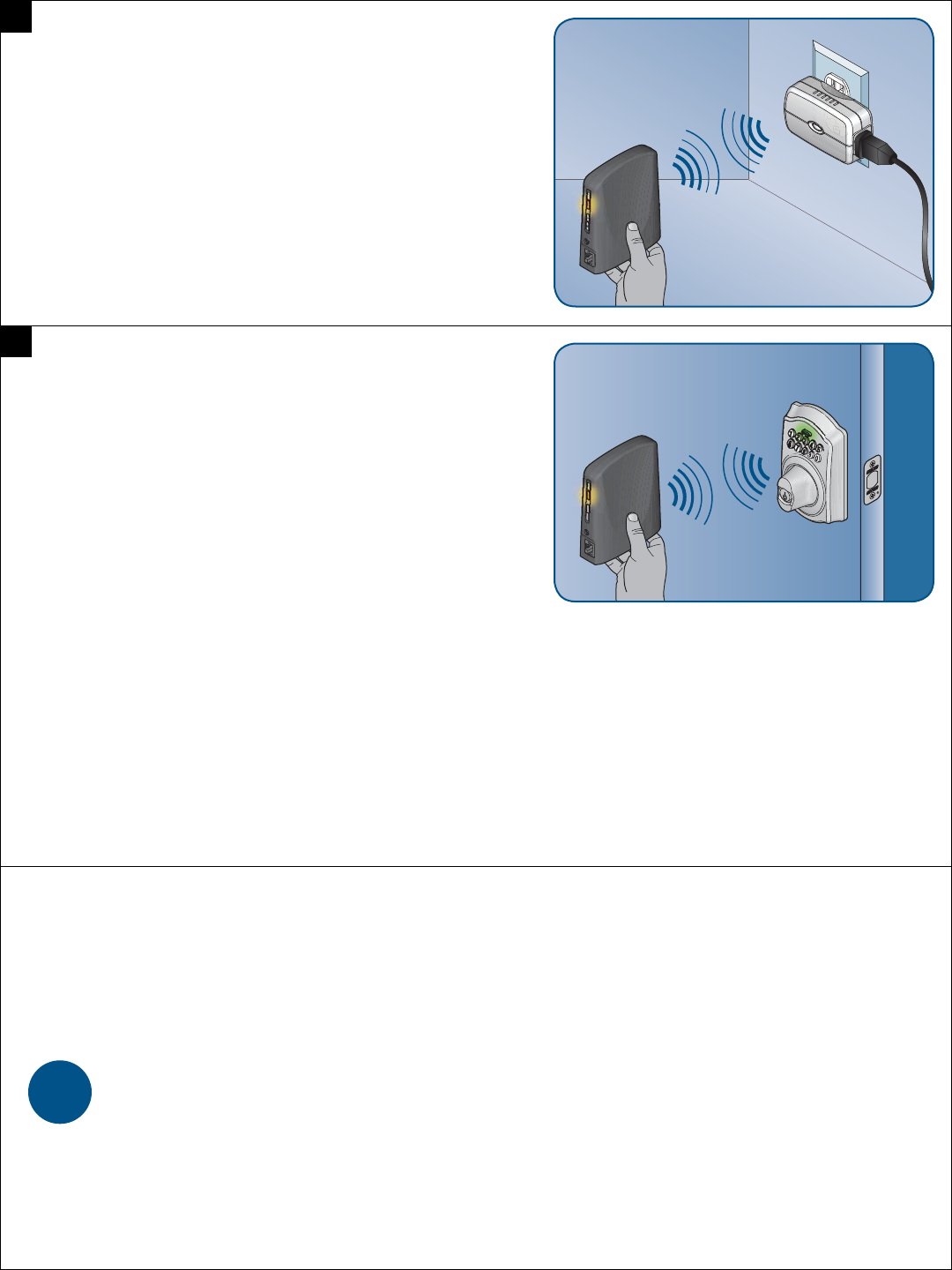

Enroll the light module into the bridge.
Hold the bridge within 6 feet (1.8 meters) of the light a.
module throughout all of step 6.
Press and release the plus (+) button on the bridge.b.
Double-click the button on the light module.c.
Observe the lights on bridge. The orange light will blink d.
while enrollment is taking place. Enrollment is complete
when the orange light becomes solid.
6
7
Using either Internet Explorer 7.0 or Firefox 3.0, browse to www.schlagelink.com
and follow the on-screen instructions.
4
Enroll the lock into the bridge.
Hold the bridge within 6 feet (1.8 meters) of the lock a.
throughout all of step 7.
Press and release the plus (+) button on the bridge. b. You
have 30 (thirty) seconds to complete the remainder
of the steps.
On the lock keypad, press the six-digit programming c.
code (located in the “Important Information” box).
Wait for the lock to beep three times and the Schlage d.
button on the lock to fl ash orange three times.
On the lock keypad, press the Schlage button and then e.
the 0 (zero) button. The lock will begin to beep.
On the lock keypad, observe the Schlage button. If the f.
Schlage button fl ashes green, enrollment was successful. If the Schlage button fl ashes red, enrollment was
unsuccessful and you should start over at step 7a.
If enrollment is unsuccessful multiple times, call customer service (877-288-7707).•
Observe the lights on bridge. The orange light will blink while enrollment is taking place. Enrollment is g.
complete when the orange light becomes solid.
©2008 Schlage Lock Company
link system setup Rev. 10/08-7
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC ID: P2GBE369
FCC ID: P2GFE369
FCC ID: P2GBR100
PATENT NOTICE
Schlage® products and those of its subsidiary companies and licensees
may be covered by both issued and pending U.S. and foreign patents,
copyrights and trademarks. Manufactured items are covered by one or
more of the following patents:
5070715
5152558
5308131
5395144
5593193
5598726
5640863
5683127
5715717
5765412
5769472
5809816
5816086
5820290
5881590
5918916
6286347
6297725
6523375
6533336
6540274
6581426
6802546
6905773
6926319
7143477
7159424
D372417
D372854
D406056
D406528
D426452
D428324
D450558
D457048
D457049
D458829
D467155
D472788
D487388
D520331
D520332
D537702
D541620
D543435
Lifetime Limited Mechanical and Finish Warranty and 1-Year Limited
Electronics Warranty
Subject to the terms and conditions of this warranty, Schlage extends
a lifetime limited mechanical and fi nish warranty and a one-year limited
electronics warranty to the original consumer user (“Original User”) of
our Schlage brand product (“Product”) against defects in material and
workmanship, as long as the Original User occupies the residential
premises upon which the Product was originally installed.
What Schlage will do: Upon return of the defective Product to Schlage,
Schlage’s sole obligation, at its option, is to either repair or replace
the Product, or refund the original purchase price in exchange for the
Product.
Original User: This warranty only applies to the Original User of Products.
This warranty is not transferable.
What is not covered: The following costs, expenses and damages are
not covered by the provisions of this limited warranty: (i) labor costs
including, but not limited to, such costs as the removal and reinstallation
of Product; (ii) shipping and freight expenses required to return Product to
Schlage; (iii) failures, defects, or damage (including, but not limited to, any
security failure or loss of data) caused by any third party product, service,
or system connected or used in conjunction with the Product; and (iv) any
other incidental, consequential, indirect, special and/or punitive damages,
whether based on contract, warranty, tort (including, but not limited to,
strict liability or negligence), patent infringement, or otherwise, even if
advised of the possibility of such damages. Some local laws do not allow
the exclusion or limitation of incidental or consequential damages, so the
above exclusion or limitation may not apply to you.
The provisions of this warranty do not apply to Products: (i) used in
commercial applications; (ii) used in common area applications; (iii) used
for purposes for which they are not designed or intended; (iv) which have
been subjected to alteration, abuse, misuse, negligence or accident; (v)
which have been improperly stored, installed, maintained or operated;
(vi) which have been used in violation of written instructions provided
by Schlage; (vii) which have been subjected to improper temperature,
humidity or other environmental conditions; or (viii) which, based on
Schlage’s examination, do not disclose to Schlage’s satisfaction non-
conformance to the warranty. Additionally, this warranty DOES NOT
COVER scratches, abrasions, or deterioration due to the use of paints,
solvents or other chemicals.
Exclusions: Oil Rubbed Bronze fi nish (613) is designed to improve
over time and change in appearance, creating a living fi nish through
daily use and thus, fi nish discoloration is not applicable to the above
warranty.
Additional terms: Schlage does not authorize any person to create
for it any obligation or liability in connection with the Product. Schlage’s
maximum liability hereunder is limited to the original purchase price of
the Product. No action arising out of any claimed breach of this warranty
by Schlage may be brought by the Original User more than one (1) year
after the cause of action has arisen.
How local law applies: This warranty gives you specifi c legal rights,
and you may also have other rights as otherwise permitted by law. If this
Product is considered a consumer product, please be advised that some
local laws do not allow limitations on incidental or consequential damages
or how long an implied warranty lasts, so that the above limitations may
not fully apply. Refer to your local laws for your specifi c rights under this
warranty.
Guaranteed Fit Program: Schlage products are designed to fi t standard
residential door preparations and retrofi t existing tubular locks. Note:
Mortise locks and preparations are not considered standard and are not
guaranteed under this program. During the initial installation, if there is
a problem with the Product’s performance, the Original User may simply
contact Schlage Customer Service at 888-805-9837 in the U.S. and
Canada or 800-506-7866 in Mexico for assistance.
Program and warranty claims: If you encounter a residential door
preparation or fi t issue under the Guaranteed Fit Program or have a claim
under this warranty, please contact Schlage Customer Service for repair,
replacement or refund of the original purchase price in exchange for the
return of the Product to Schlage
