Overview
Schlage AD Series locks seamlessly integrate with S2 NetBox to provide a cost
eective and scalable access control solution to meet your security needs.
Schlage AD Series locks combine the components typically found around the door,
such as the door position switch and the request to exit switch, into one unit which
simplifies installation and saves money. And since they are designed to be modular,
Schlage AD Series locks can easily be upgraded in the future to meet your changing
security and technology requirements.
The AD Series is available in wireless configurations to suit the requirements of the
facility. AD Series wireless locks provide many of the key benefits of a hardwired
system including real-time monitoring, audit trails, centralized lockdown and instant
access control management. In retrofit applications the Schlage AD Series wireless
locks and devices, which eliminate the need to run wires direct to each opening, can
help you extend the reach of your access control system.
System Capabilities
Summary
§ AD-400 wireless:
− Secure 900 MHz wireless communication,
AES-128 bit encrypted
− Real time access control and monitoring
− Powered by four (4) standard o-the-
shelf AA batteries
− Patent pending wireless lockdown/unlock
feature via PIM400 (10 seconds or less)
preserves up to 2 year battery life
§Additional details on readers supported and
chassis types available on page 3 and 4
§Weather resistant, exterior operating
temperature: -31° to 151°F (-35° to 66°C)
§Additional wireless products also available
− Wireless Portable Reader (WPR400) for
muster stations, buses, etc.
− Wireless Reader Interface (WRI400)
Eliminate running wires to remote doors,
gate, and elevator applications
§ANSI/BHMA A156.25, ANSI/BHMA Grade 1,
UL 294, UL 10C
Integrated
security solution
with AD-400 wireless devices
and S2 NetBox
For additional information contact S2 Security: www.s2sys.com or 508.663.2505
NetBox Controller
Rev 4.5 or higher
§S2-EP2500 supports up to 64 total locks
§S2-EP2500 supports a maximum of 8
PIM400-485 per RS-485 port. There are
2 RS-485 ports on each S2-EP2500.
§Wireless range up to 200’ in typical
building construction, up to 1000’ line
of sight
PIM400-1501
Intelligent controller
PIM400-TD2
Panel interface module
AD-400
Wireless devices
AD-400
Wireless devices
Ethernet
S2-EP2500
PoE network
switch1
EP-1502
Ethernet
900 MHz
900 MHz
Power Over
Ethernet (PoE)
Wiegand
Note:
Please refer to AD-400, PIM400-485, PIM400-1501, PIM400-TD2 and WRI400 data sheets for complete AD Series specifications
§PIM400-1501 supports up to 16 AD-400s
§Wireless range up to 200’ in typical
building construction, up to 1000’ line
of sight
1 In order to have a UL Listed configuration a UL294
12VDC power supply must be used instead of PoE
Firmware
Version 1.18.5
or greater
AD-400 via RS-485 with
S2 NetBox and S2-EP2500
AD-400 via PIM400-1501
with S2 NetBox
AD-400 via Wiegand with
S2 NetBox and EP-1502
PIM400-485
Panel interface module
RS-485
PIM400-485
Panel interface module
AD-400
Wireless devices
AD-400
Wireless devices
900 MHz
900 MHz
Schlage protocol
RS-485
§EP1502 supports 2 AD-400 wireless locks
via PIM400-TD2
§Wireless range up to 200’ in typical
building construction, up to 1000’ line
of sight
NetBox Controller
Rev 4.5 or higher
NetBox Controller
Rev 4.5 or higher
Ethernet
For additional information contact S2 Security: www.s2sys.com or 508.663.2505
System capabilities:
AD-400
PIM400-485
AD-400
PIM400-1501
AD-400
EP-1502/PIM400-TD2
Features
Maximum number of readers supported by controller/PIM 64 16 2
Maximum number of readers per PIM400 Up to 16 Up to 16 Up to 2
Maximum number of PIM400s per RS-485 port Up to 8 N/A N/A
Access control decision made by host or by lock database Host Host Host
Remote Linking capability via Host No No No
Readers - see supported card formats below
Keypad only No No No
Magnetic stripe card Yes Yes Yes
Multi-technology - 125 kHz proximity
and 13.56 MHz smart card
Yes Ye s Yes
PIV & PIV-I card compatible1Yes Ye s Yes
Card + PIN Yes (up to 6 digits) Yes (up to 6 digits) Yes (up to 6 digits)
Status monitors
Request to exit Yes Yes Yes
Door position Yes Ye s Yes
Mechanical key override Yes Yes No
Request to enter No No No
Low battery status Yes Ye s No
Communication status: RF/RS-485 Yes /Yes Yes /Yes Yes
Remote lockdown/unlock2Yes (<10 sec) 2Yes (<10 sec) 2Yes
Deadbolt position Yes 3Yes 3Yes 3
Interior push button Yes 3Yes 3Yes 3
Lock functions
Storeroom Yes Yes Yes
Oce Yes 3Yes 3Yes 3
Privacy Yes 3Yes 3Ye s 3
Apartment Yes 3Yes 3Yes 3
Proximity cards (125 kHz):
§AWID®
§GE/CASI®
§HID®
§Schlage®
§XceedID®
Smart cards (13.56 MHz):
§aptiQ™ MIFARE Classic
§aptiQ™ MIFARE DESFire™ EV1
§PIV and PIV-I compatible 1
Smart cards (13.56 MHz) -
reads card serial number only:
§HID iCLASS®
§DESFire®
§MIFARE®
§MIFARE DESFire™ EV1
Please contact
S2 Security for
additional details on
integrated features
and credentials
supported.
1 FIPS-201-1 compliant option available requires FMK reader: The AD Series can be used in applications which require approval by the U.S. Federal Government under HSPD-12 for FIPS
201-1 compliance. Specific components are required, please see the AD-401 and AD-301 data sheet for complete details. Contact S2 Security to confirm they are able to support your
FIPS 201-1 credential format.
2 For greater than 1 device will be <20 sec
3 Requires NetBox Controller version 4.7 or higher
Supported card formats
About Allegion
Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading brands
like CISA®
, Interflex®
, LCN®
, Schlage® and Von Duprin®
. Focusing on security around the
door and adjacent areas, Allegion produces a range of solutions for homes, businesses,
schools and other institutions. Allegion is a $2 billion company, with products sold in
almost 130 countries. For more, visit www.allegion.com. © 2015 Allegion
009822, Rev. 08/15
www.allegion.com/us

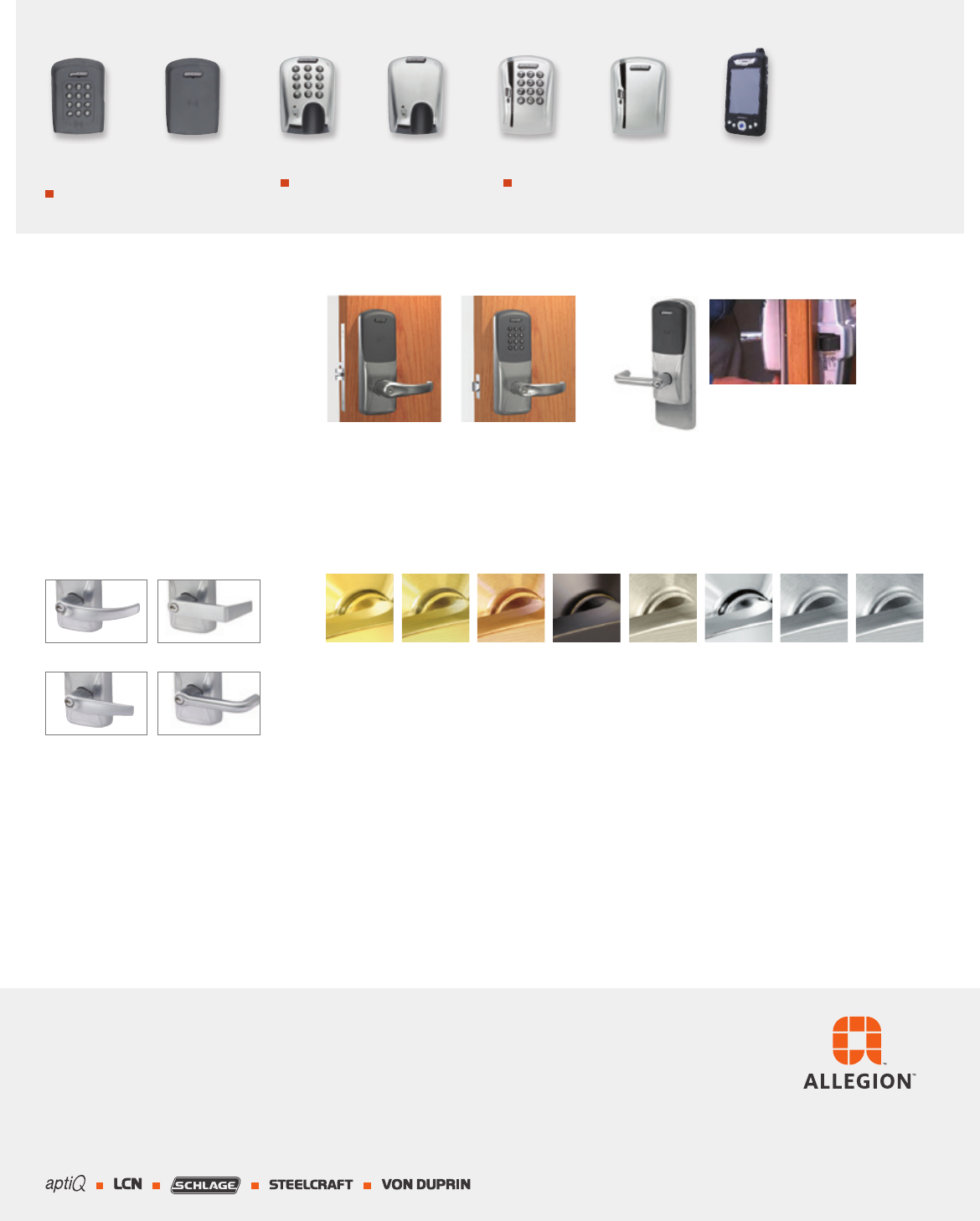

Available AD Series reader modules
Magnetic stripe
(insertion)
Multi-technology
§Proximity
§Smart card
Handheld device
(HHD)
Used to initialize,
configure, and test
AD Series Devices
Magnetic stripe
(swipe)
Multi-technology
§Proximity
§Smart card
KEYPAD
+
FIPS 201-1 compliant
option available (FMK)
Magnetic stripe
(swipe)
KEYPAD
Magnetic stripe
(insertion)
KEYPAD
+ +
Mortise Lock
(AD-400-MS)
Cylindrical Lock
(AD-400-CY)
The AD Series exit trims are exclusively
compatible with exit devices made by Allegion
when using the low current request to exit switch
(RX-LC part # 050281 for Von Duprin 98/99 &
Von Duprin 22/22F Rim/SVR devices and part
number 650359 for Falcon 25 Rim devices).
Exit Device Trim
(AD-400-993)
Allegion, the Allegion logo, Schlage, the Schlage logo, Von Duprin, Falcon, and aptiQ are trademarks of Allegion plc, its subsidiaries
and/or aliates in the United States and other countries. All other trademarks are the property of their respective owners.
For additional information contact S2 Security: www.s2sys.com or 508.663.2505
605
Bright brass
606
Satin brass
612
Satin bronze
643e
Aged bronze
619
Satin nickel
626
Satin chrome
626AM
Satin chrome with
antimicrobial
625
Bright chrome
Finishes
Warm tone finishes Cool tone finishes
Lever styles
Standard cylinders shown, SFIC and FSIC also available.
Sparta Rhodes
Athens Tubular
Compatibility
AD Series electronic locks from Schlage
are built from the ground up to provide
more options, more functionality and more
compatibility than any other solution on
the market today. Designed to suite with
the most popular lever styles and finishes,
Schlage AD Series locks can be configured to
accept most major key systems. See lever and
cylinder compatibility data sheet (010432).
