ND-Series
Service manual
Schlage • ND-Series service manual • iii
Contents
5 Introduction
5 Lock assembly drawing index
6 Lock assembly drawing index

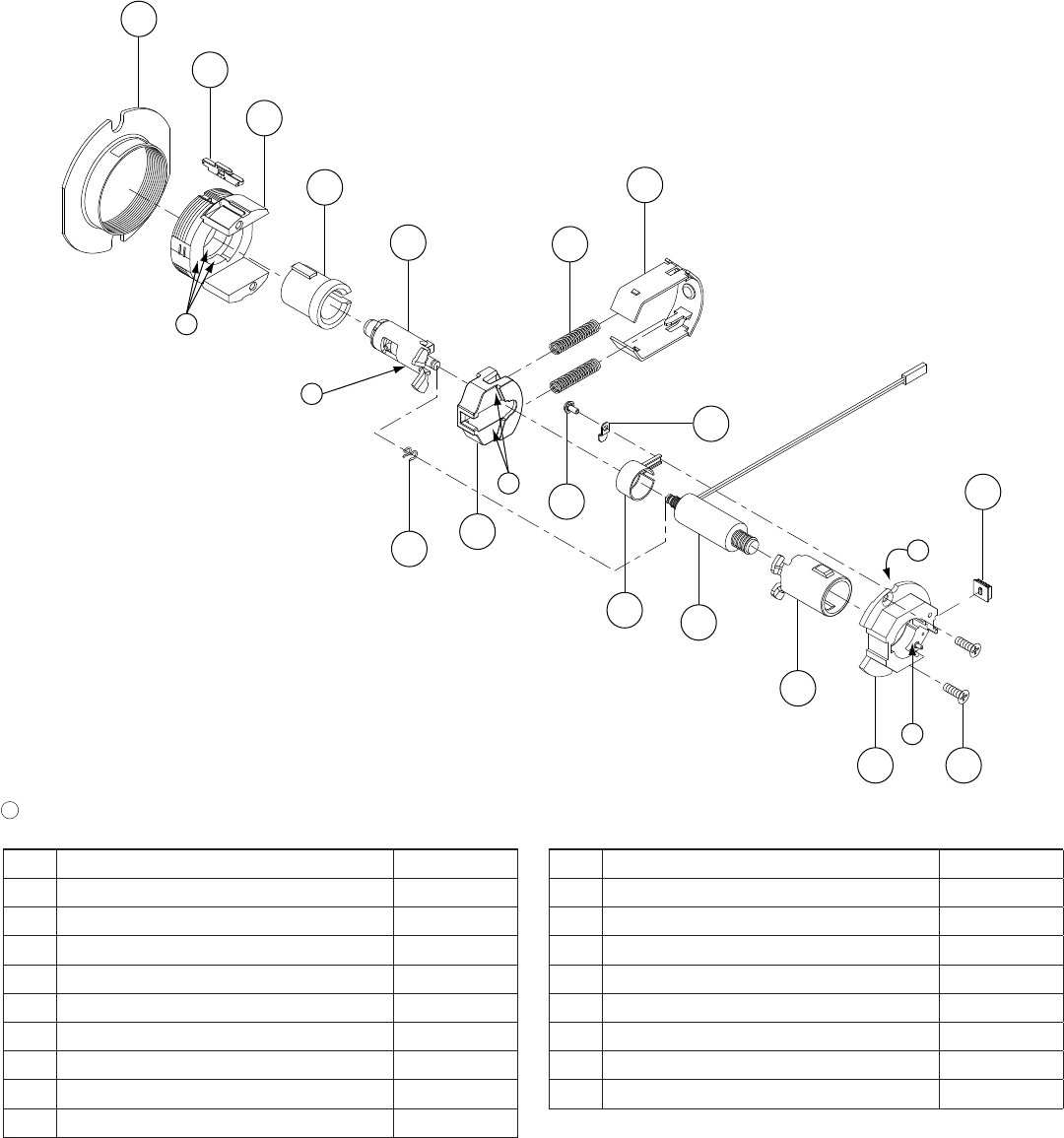

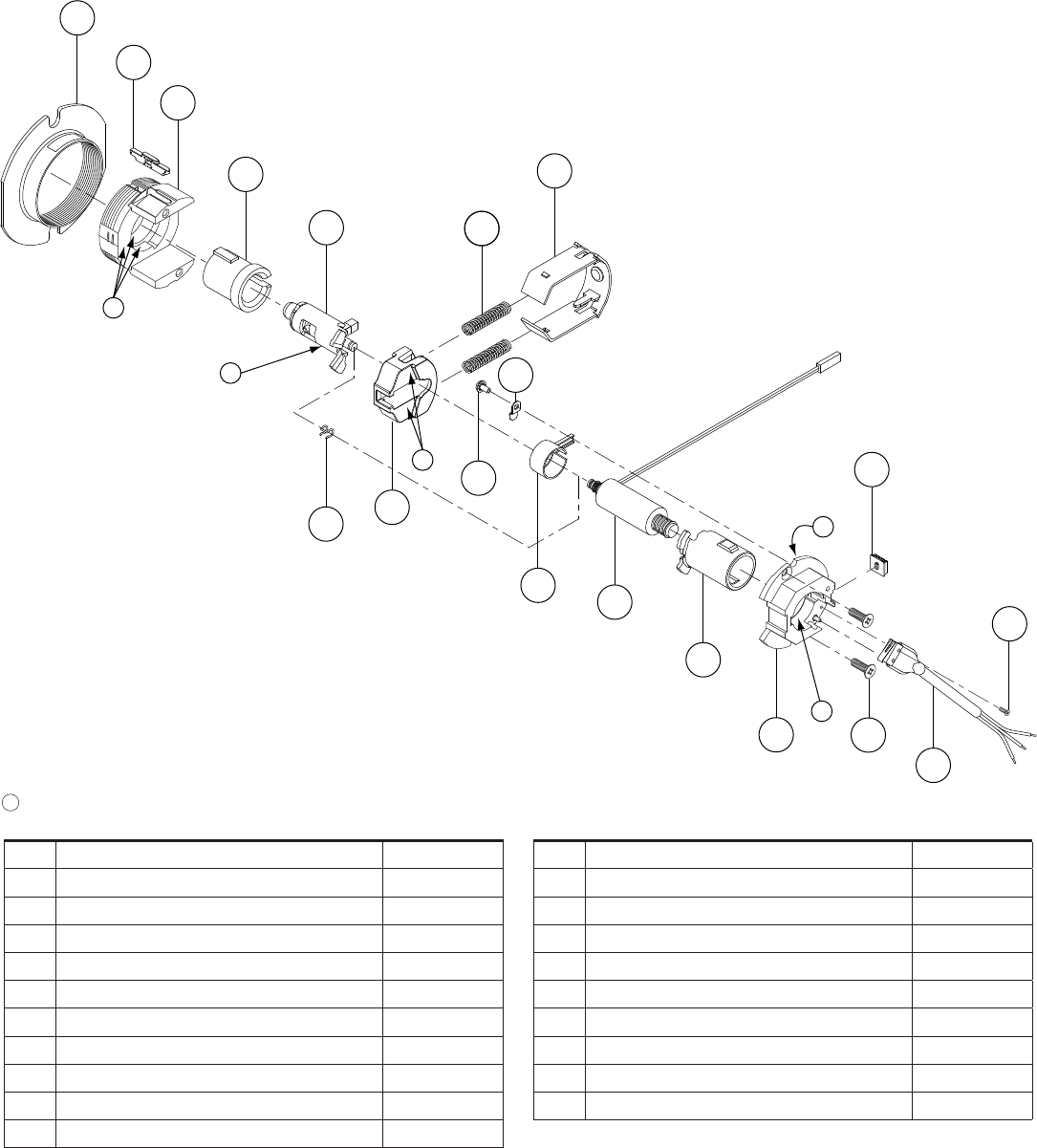

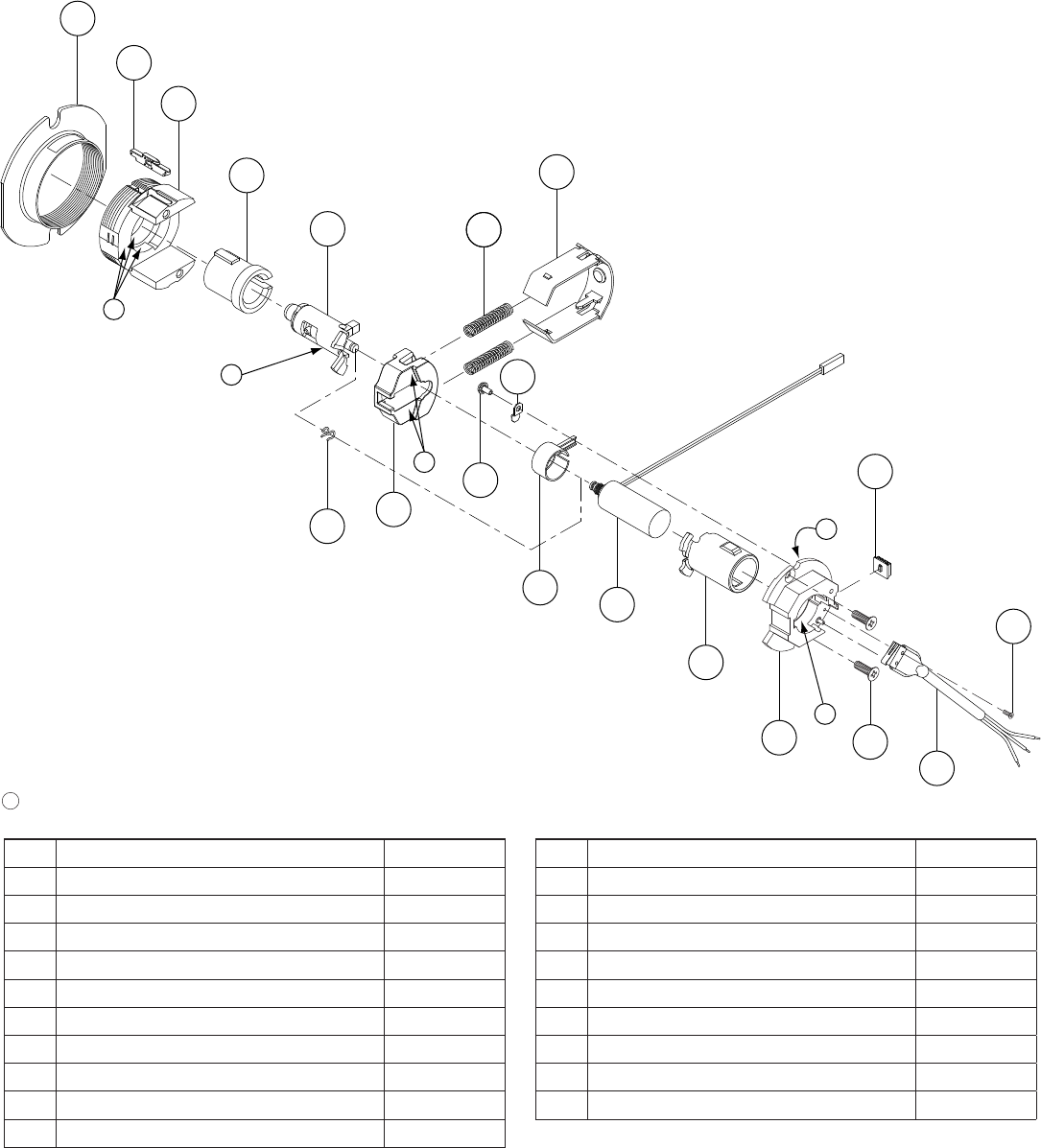

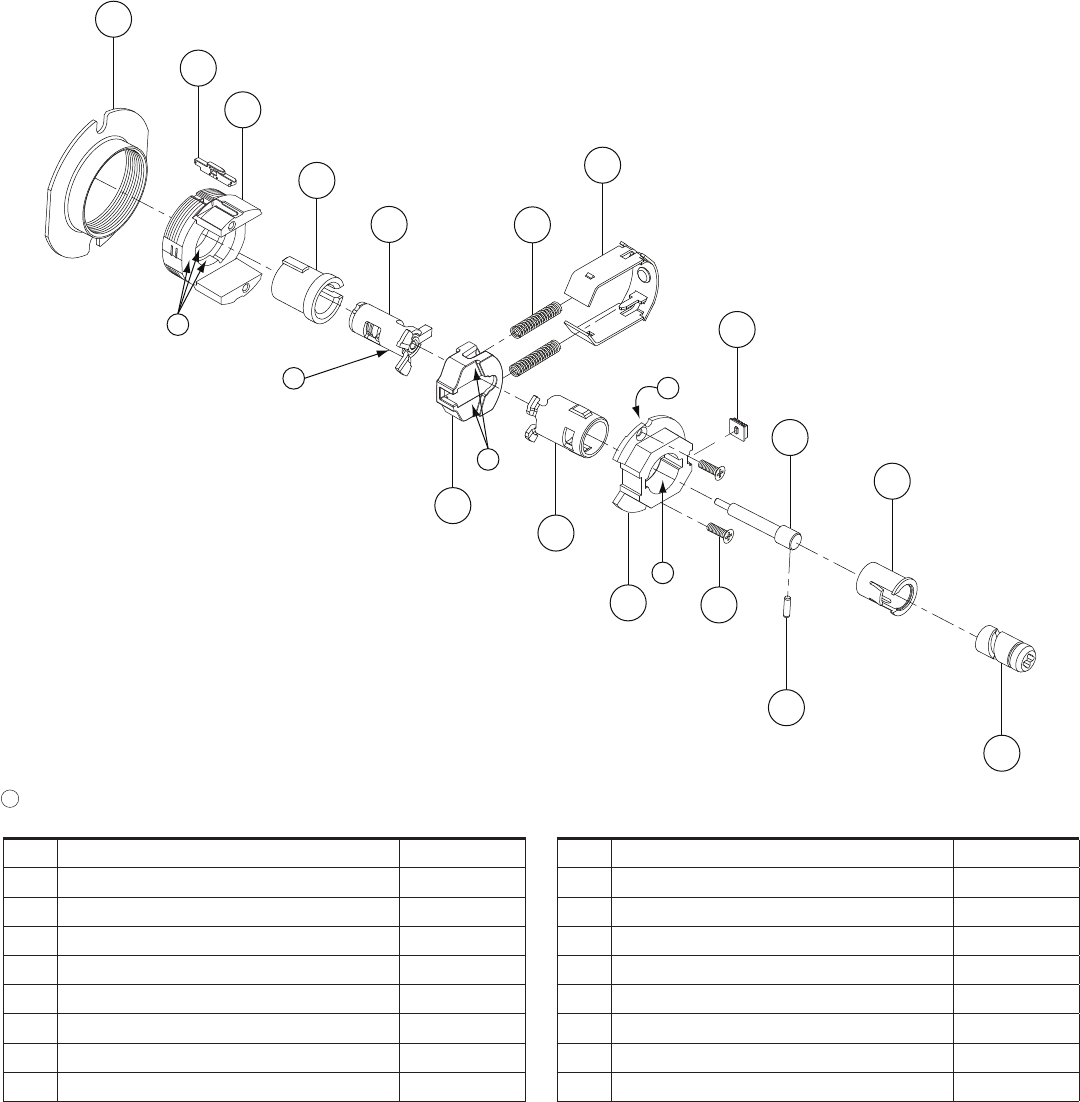

11 Chassis
12 Passage latch
13 Exit lock
14 Exit lock with request-to-exit
15 Exit lock— Electrically locked (fail safe)
16 Exit lock— Electrically locked (fail safe) with request-to-exit
17 Exit lock— Electrically unlocked (fail secure)
18 Exit lock— Electrically unlocked (fail secure) with request-to-exit
19 Single dummy trim
20 Exit lock with blank plate
21 Special— classroom exit lock
22 Special— storeroom exit lock
23 Patio, bath/bedroom privacy and hospital privacy lock
24 Entrance/oce and entrance lock
25 Vestibule lock
26 Store lock
27 Classroom lock
28 Special— classroom by storeroom lock
29 Special— communicating lock
30 Special— communicating lock with Vandlgard®
31 Corridor lock
32 Classroom security lock
33 Storeroom lock
34 Storeroom lock with request-to-exit
35 Storeroom lock— Electrically locked (fail safe)
36 Storeroom lock— Electrically locked (fail safe) with request-to-exit
37 Storeroom lock— Electrically unlocked (fail secure)
38 Storeroom lock— Electrically unlocked (fail secure) with request-to-
exit
39 Institution lock
40 Faculty restroom lock
41 Entrance/oce and entrance lock with Vandlgard®
42 Vestibule lock with Vandlgard®
43 Classroom lock with Vandlgard®
44 Classroom security lock with Vandlgard®
45 Storeroom lock with Vandlgard®
46 Storeroom lock with Vandlgard®— Electrically locked (fail
safe)
47 Storeroom lock with Vandlgard®— Electrically unlocked
(fail secure)
48 Corridor lock with Vandlgard®

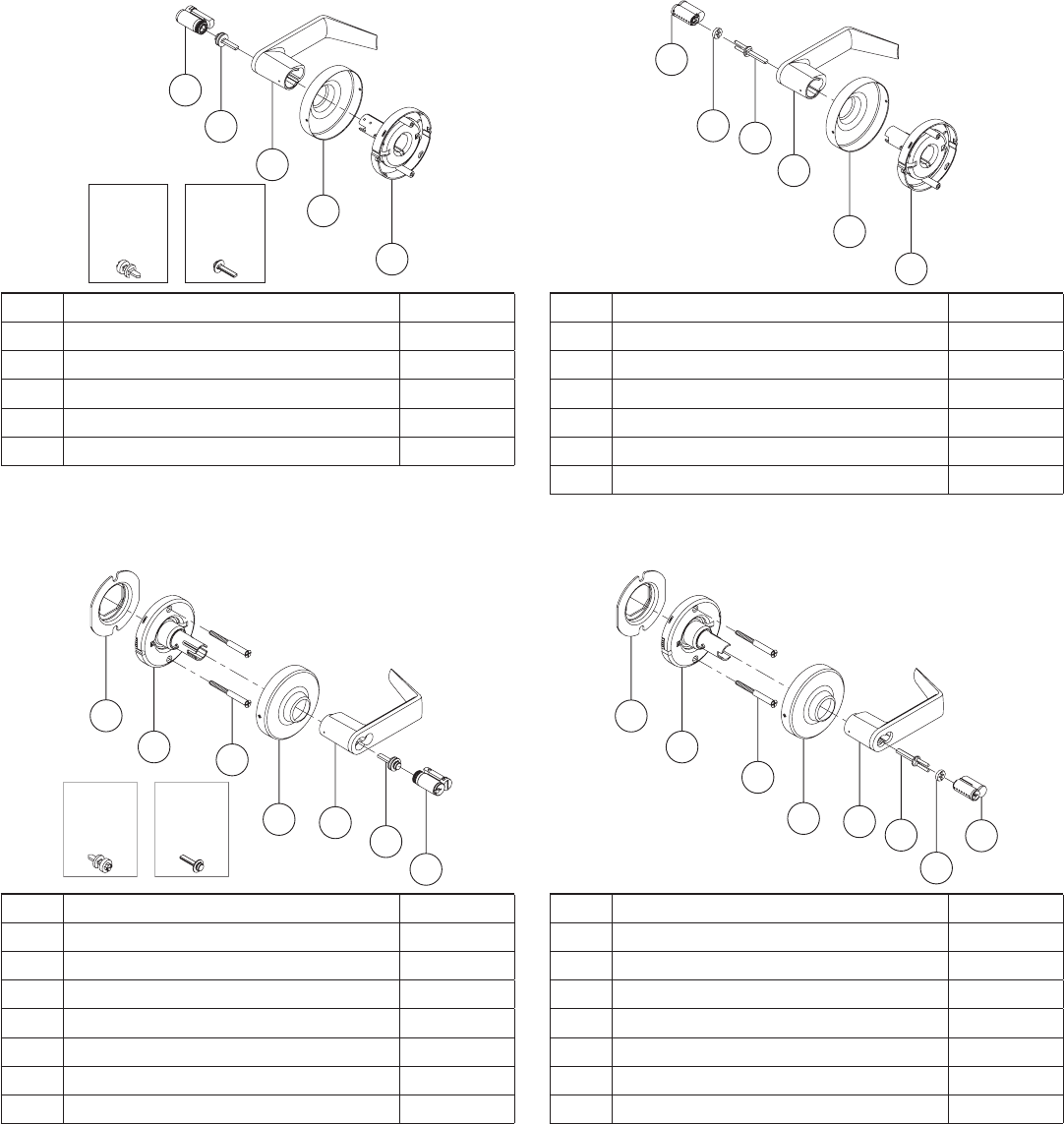

49 Trim assemblies
50 Passage latch
51 Exit lock
52 Exit lock request-to-exit
53 Exit lock—electrically locked (fail safe)
54 Exit lock— electrically locked (fail safe) request-to-exit
55 Exit lock and storeroom lock— electrically unlocked (fail
secure)
56 Exit lock and storeroom lock—electrically unlocked (fail secure)
request-to-exit
57 Single dummy trim
58 Exit lock with blank plate
59 Special—classroom exit lock
60 Special—storeroom exit lock
61 Special—patio lock
62 Bath/bedroom privacy lock
63 Hospital privacy lock
64 Entrance/oce lock
65 Entrance lock
66 Vestibule lock
67 ND60 with closed outside lever: special
68 Store lock
69 Classroom lock
70 Special—classroom by storeroom lock
71 Special—communicating lock
72 Special—communicating lock with Vandlgard®
73 Corridor lock
74 Classroom security lock
75 Storeroom lock
76 Storeroom lock with request-to-exit
77 Storeroom lock— electrically locked (fail safe)
78 Storeroom lock—electrically locked (fail safe) with
request-to-exit
79 Storeroom lock—electrically unlocked (fail secure)
80 Storeroom lock—electrically unlocked (fail secure) with
request-to-exit
81 Institution lock
82 Faculty restroom lock
83 Entrance/oce lock wtih Vandlgard®
84 Entrance lock with Vandlgard®
85 Vestibule with Vandlgard®
86 Classroom lock with Vandlgard®
87 Classroom security lock with Vandlgard®
88 Storeroom lock with Vandlgard®
89 Storeroom lock with Vandlgard®— electrically locked (fail
safe)
90 Storeroom lock with Vandlgard®—electrically unlocked
(fail secure)
91 Corridor lock with Vandlgard®
iv • Schlage • ND-Series service manual
92 Parts and kits

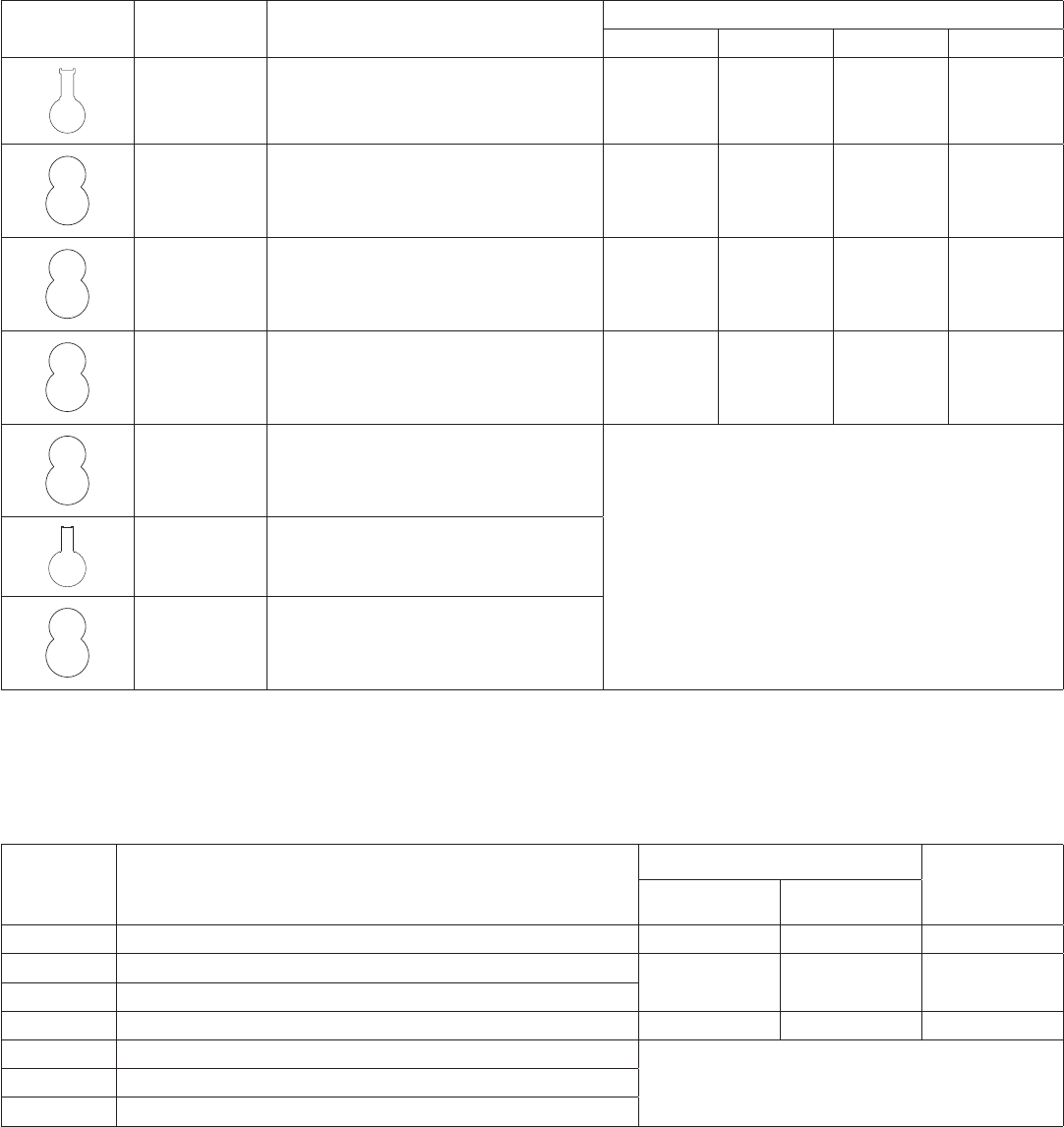

92 Full size IC and SFIC (small format interchangeable core)
configurations

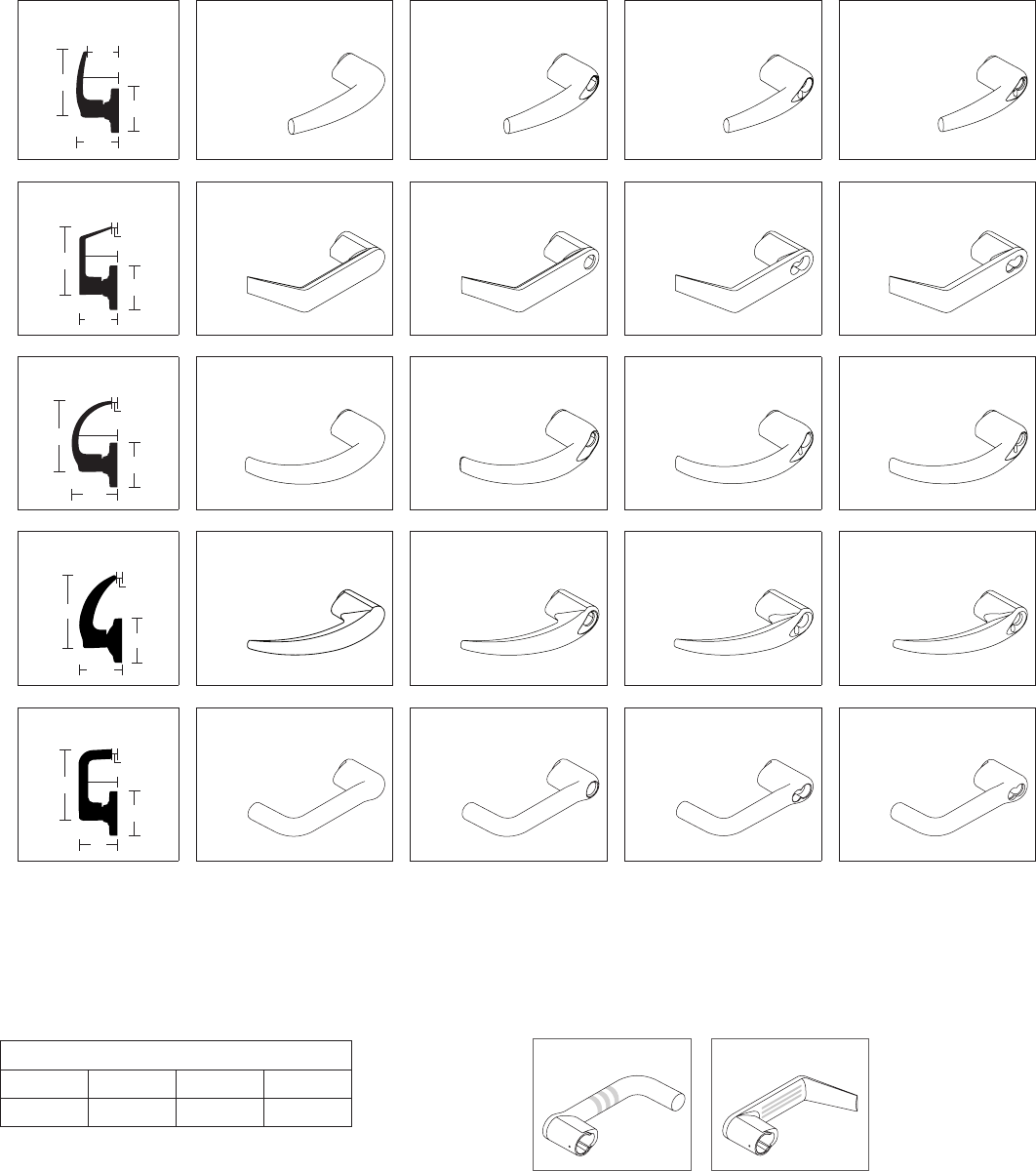

93 Lever designs
93 Tactile warning
94 Competitor cylinder options
94 Spring cage and tailpiece for competitor cylinder options

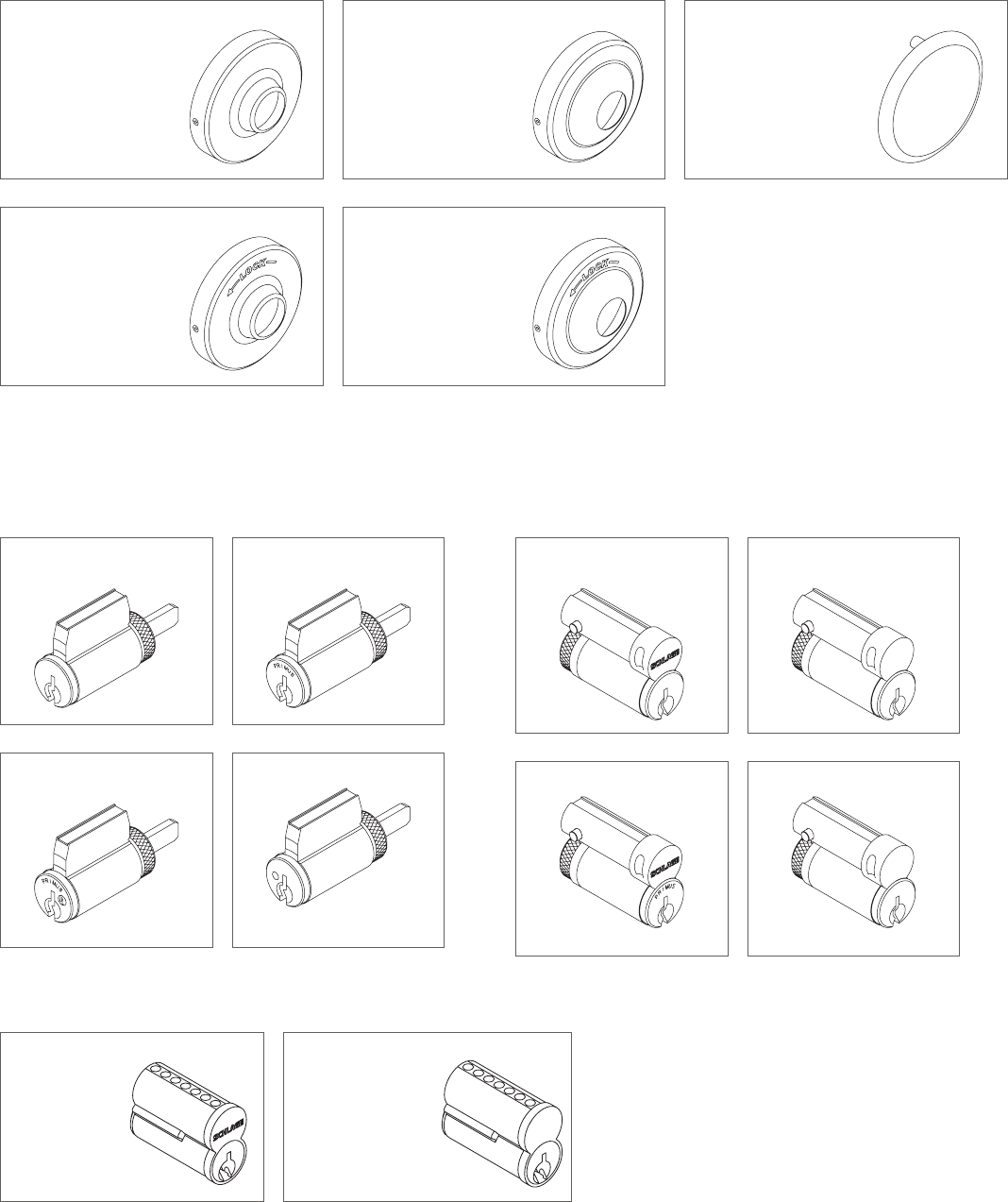

95 Roses
95 Cylinders

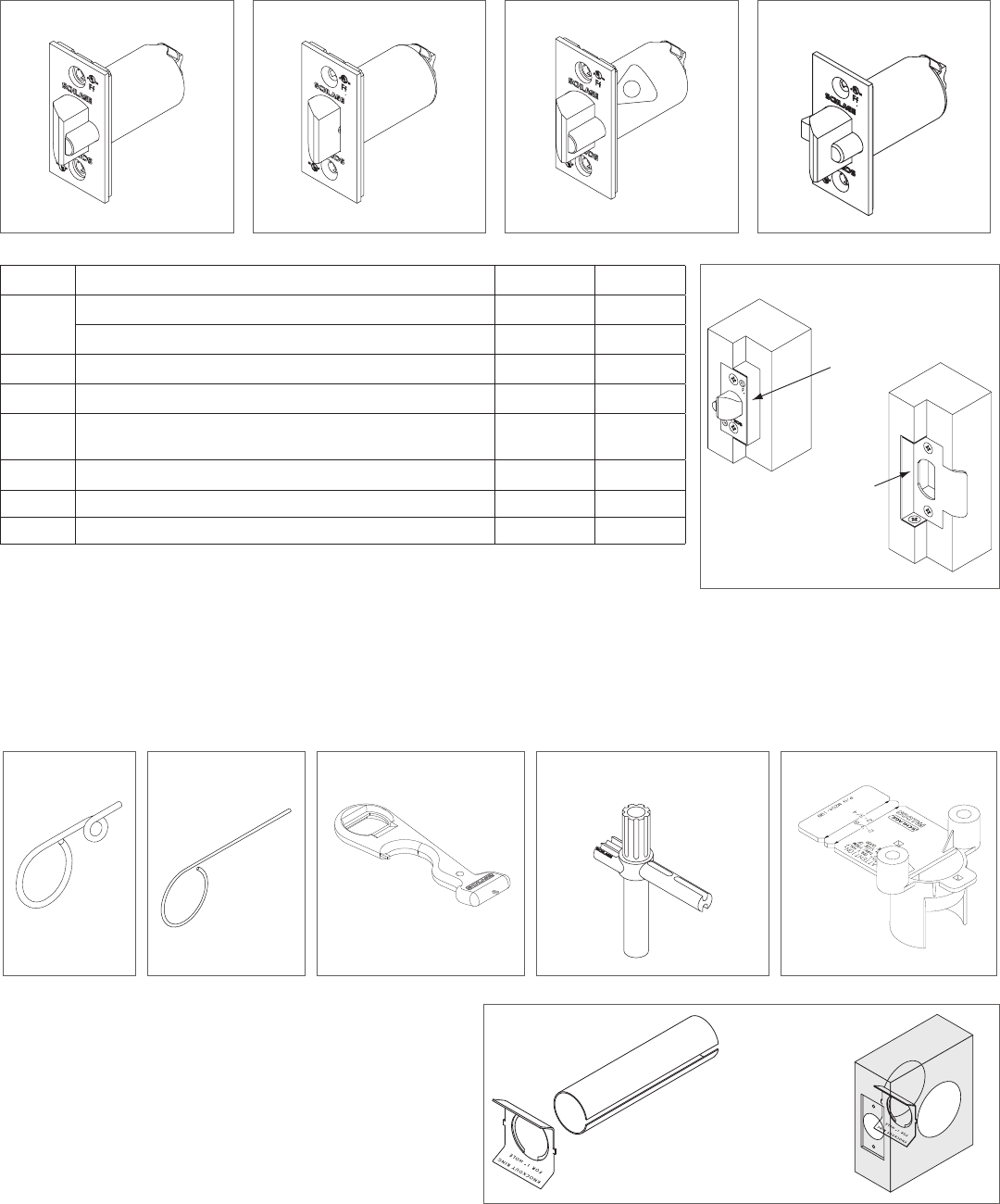

96 Latches

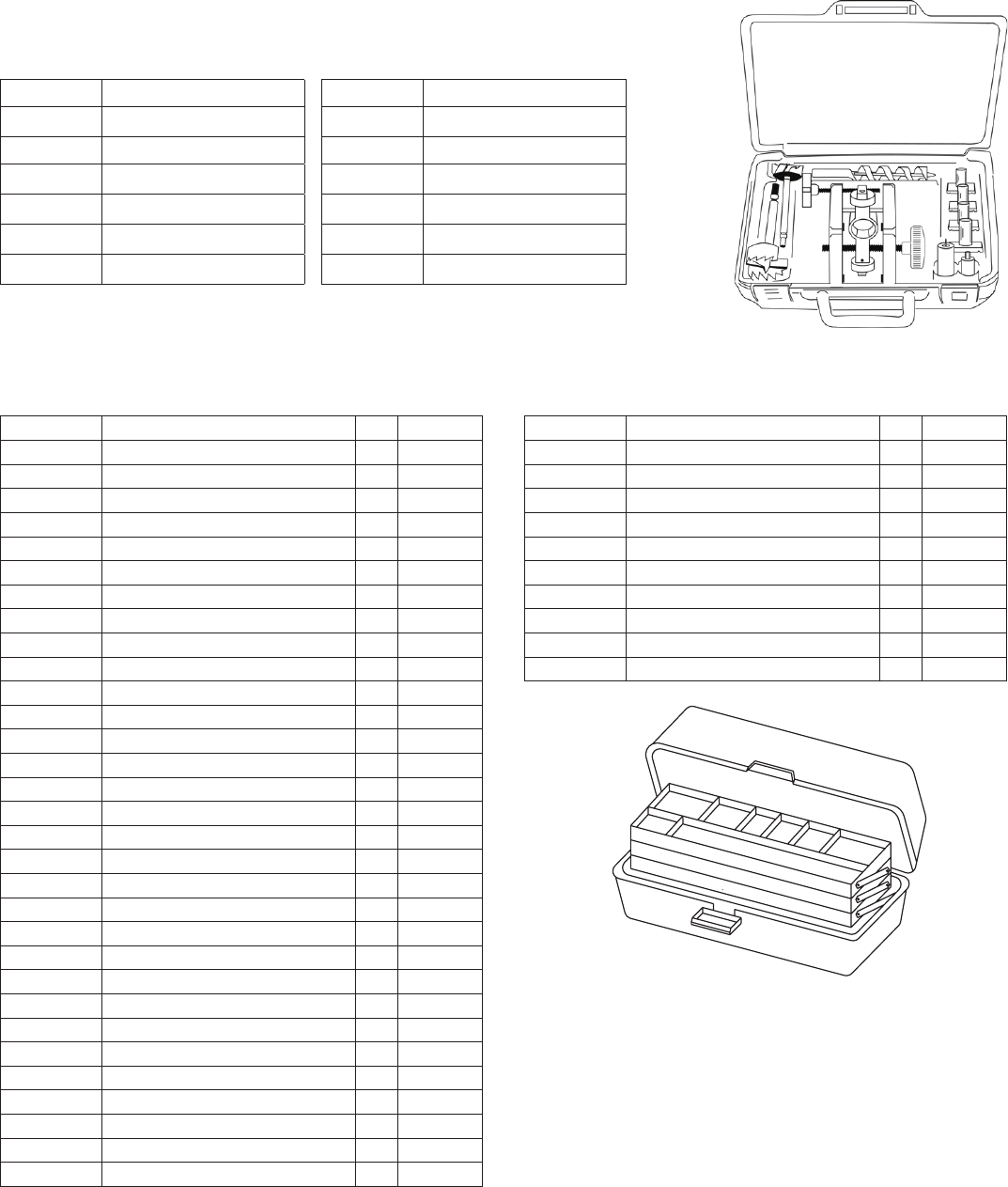

96 Installation tools and kits

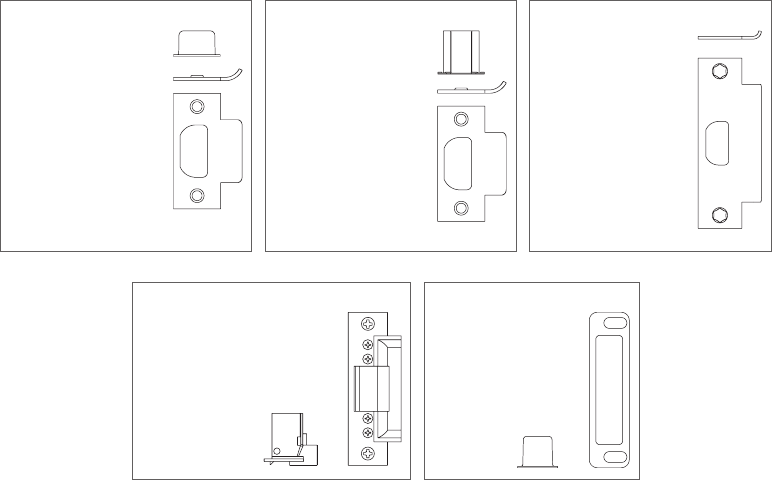

98 Strikes
99 Screws, screw packs and special parts
100 Finishes
100 Finish codes and descriptions
100 Ordering procedures
101 Limited warranty
Schlage • ND-Series service manual • 5
Introduction
This manual contains a complete listing of ND-Series (Grade 1) cylindrical lock parts and assemblies manufactured by the
Schlage Lock Company. This edition lists components of ND-Series locks manufactured aer November, 2003.

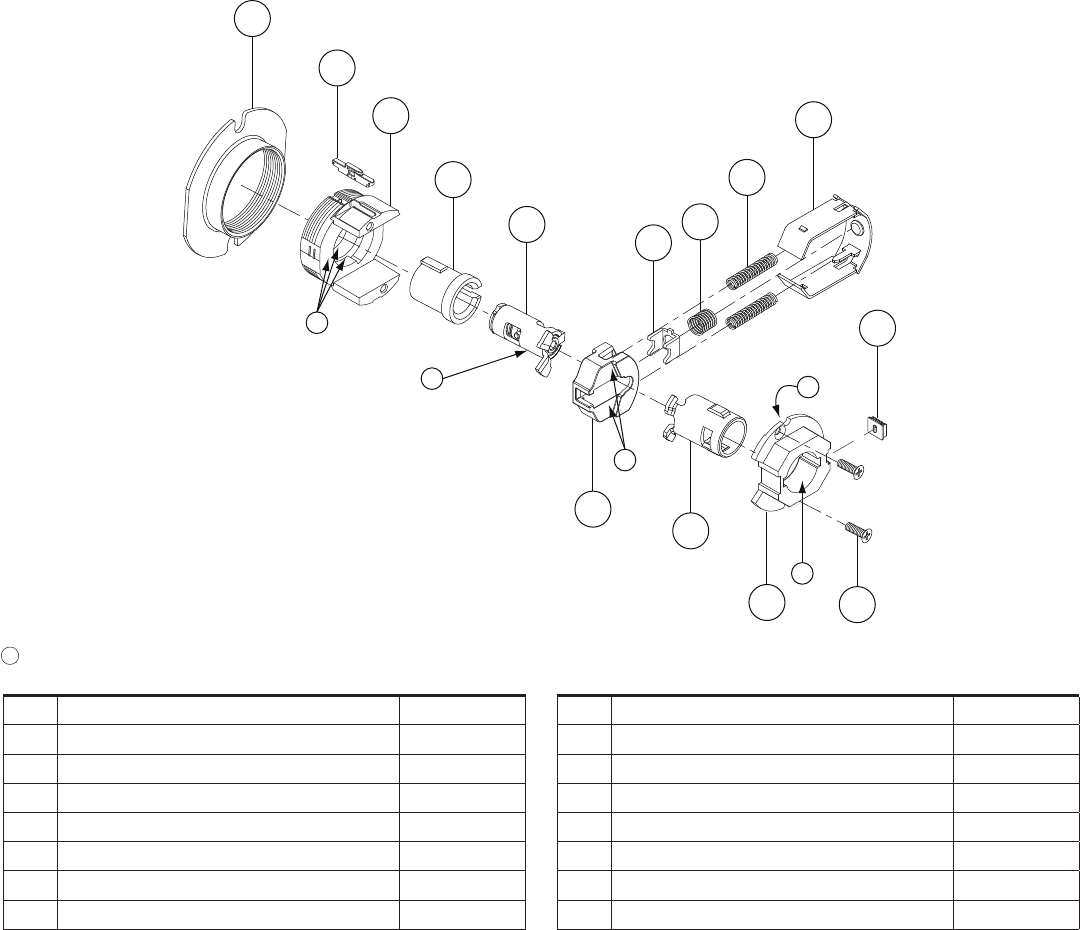

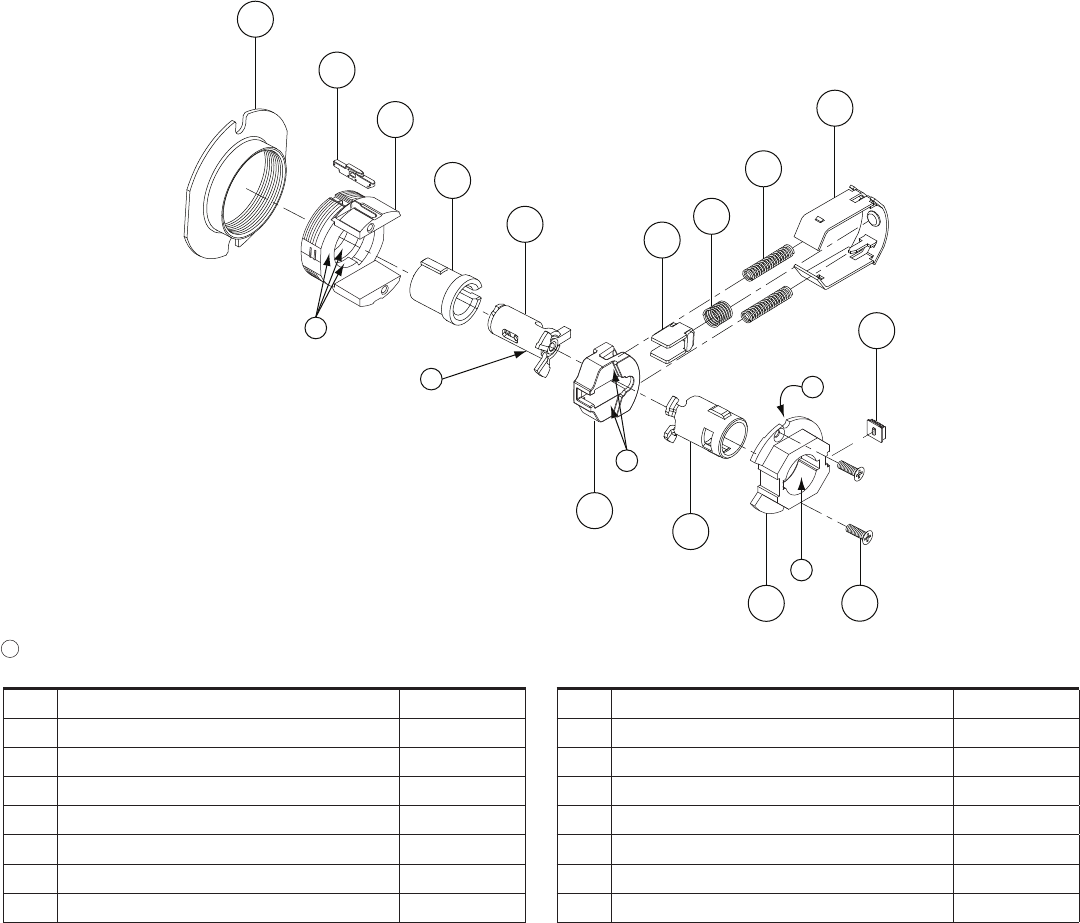

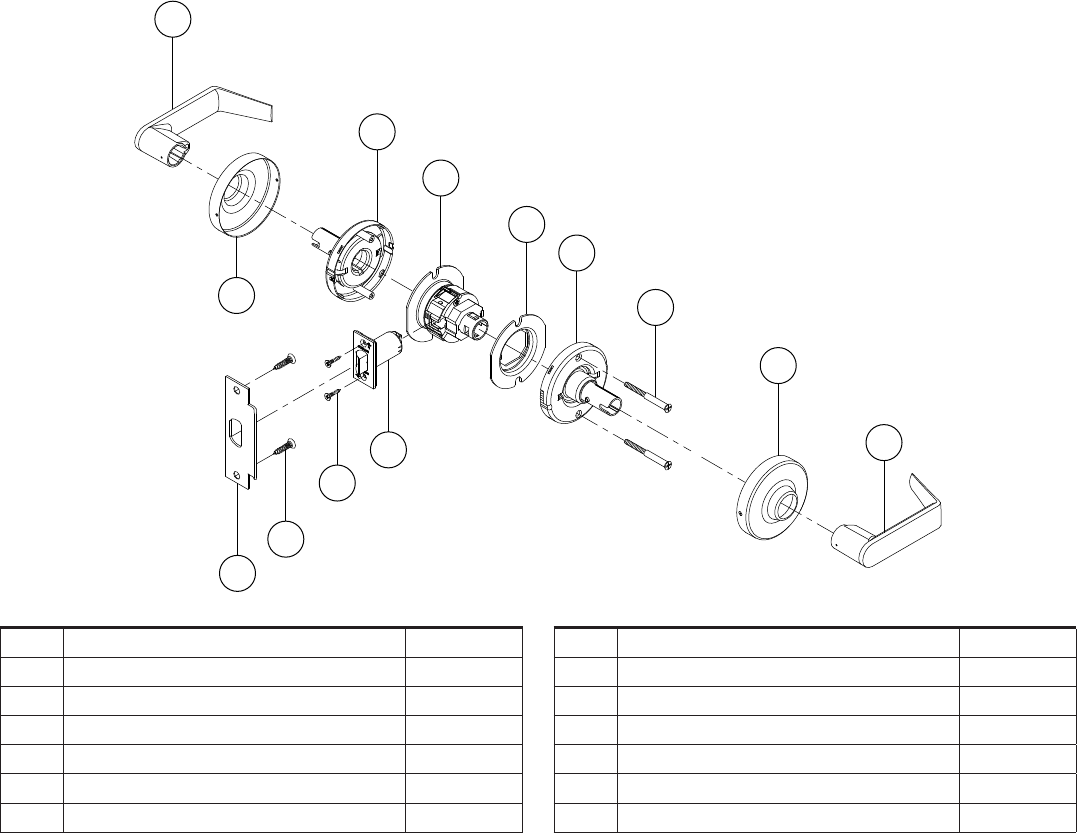

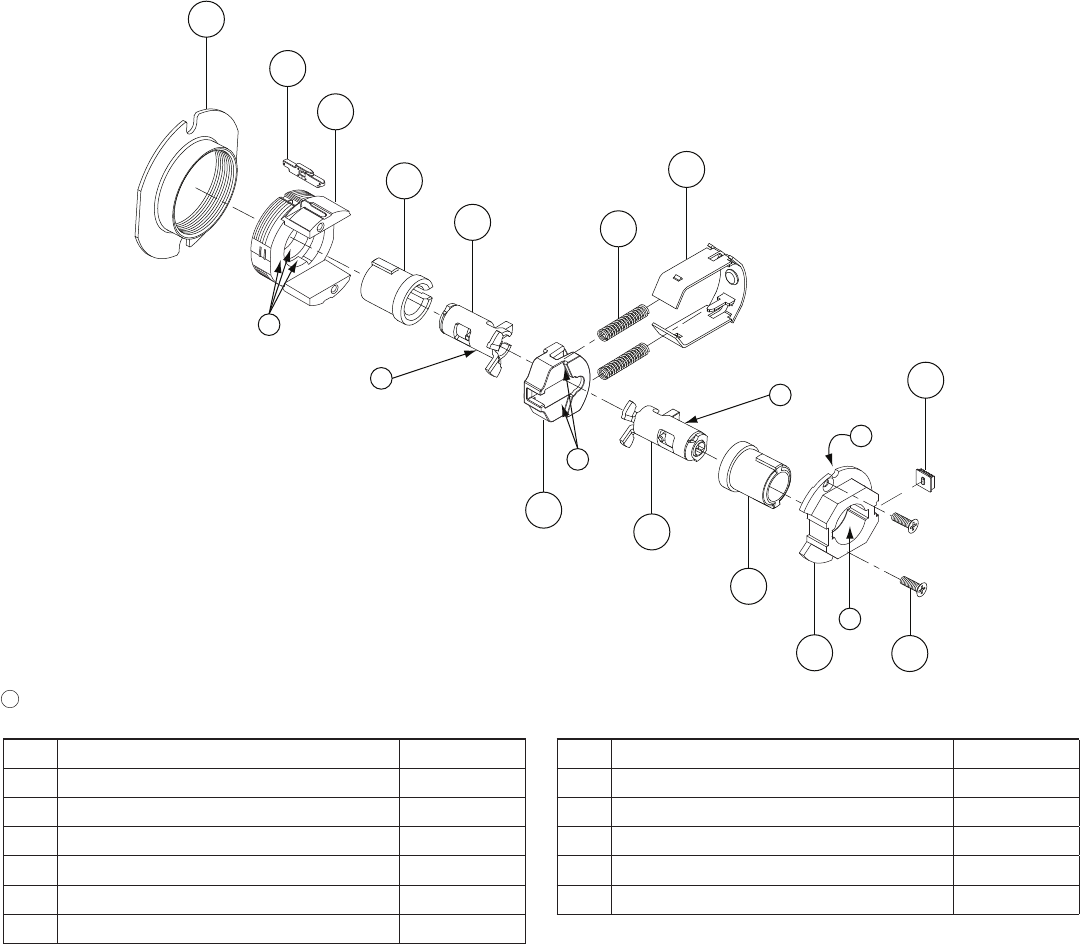

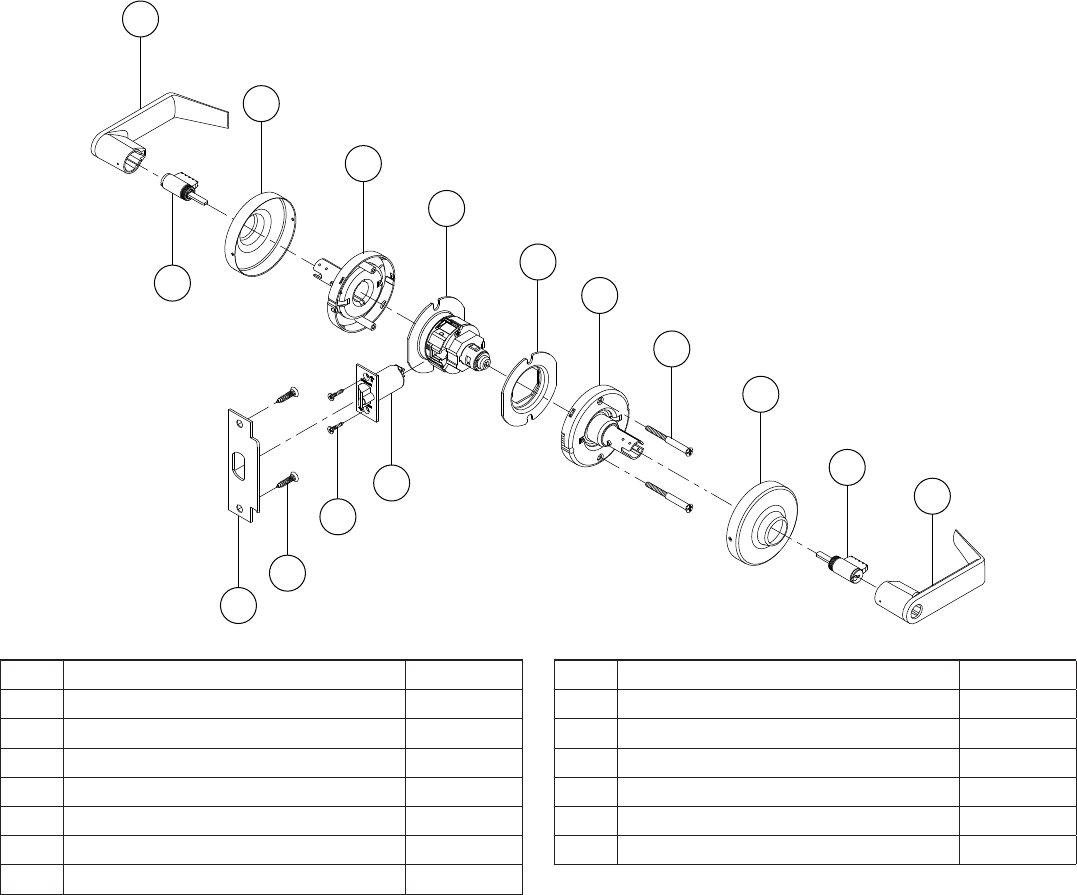

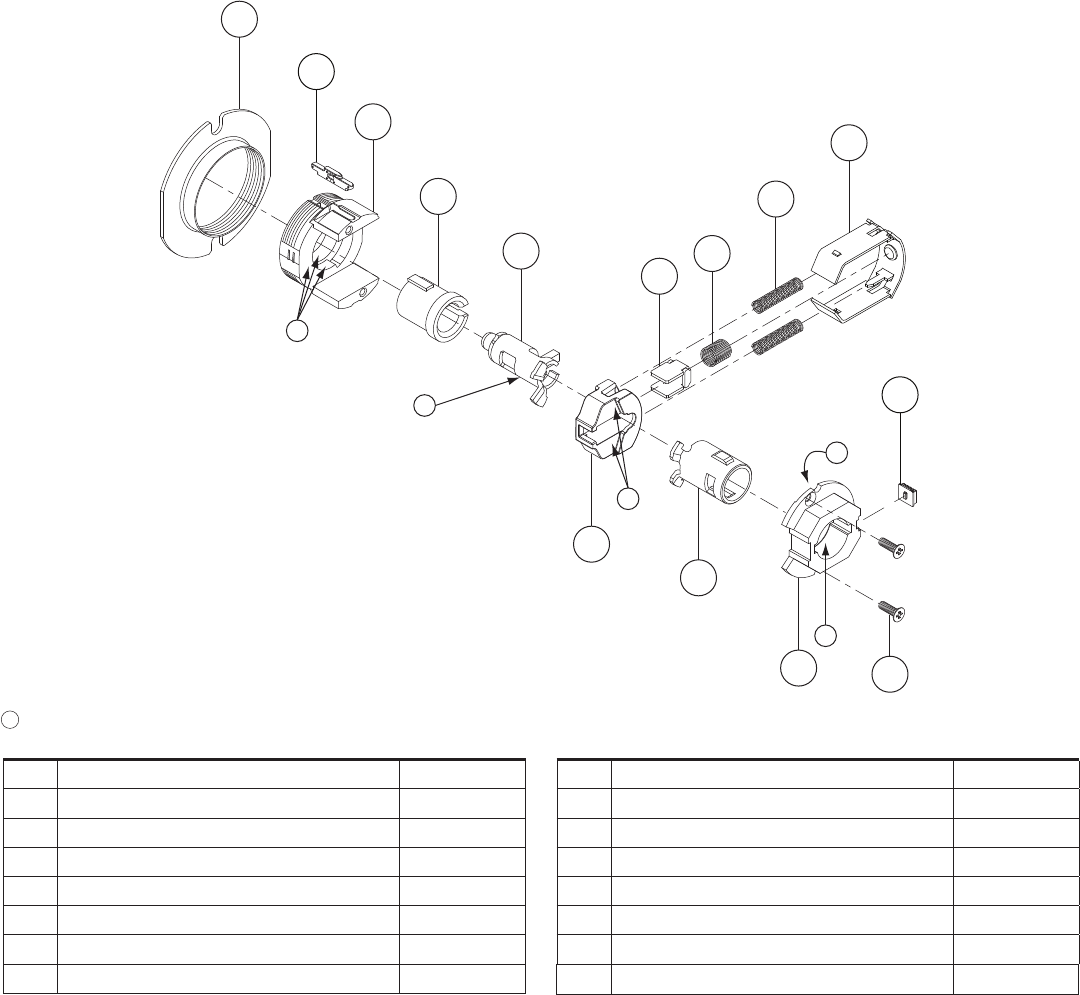

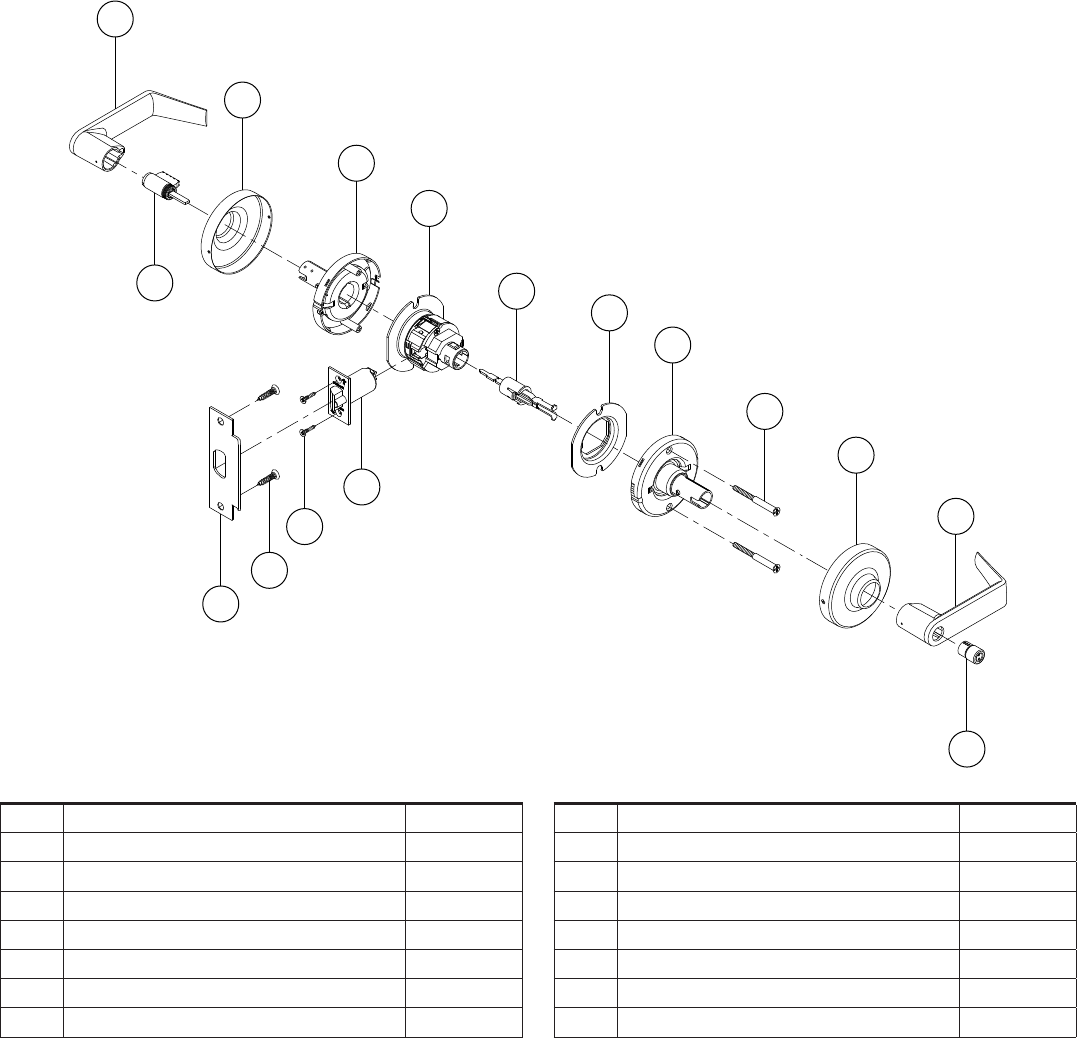

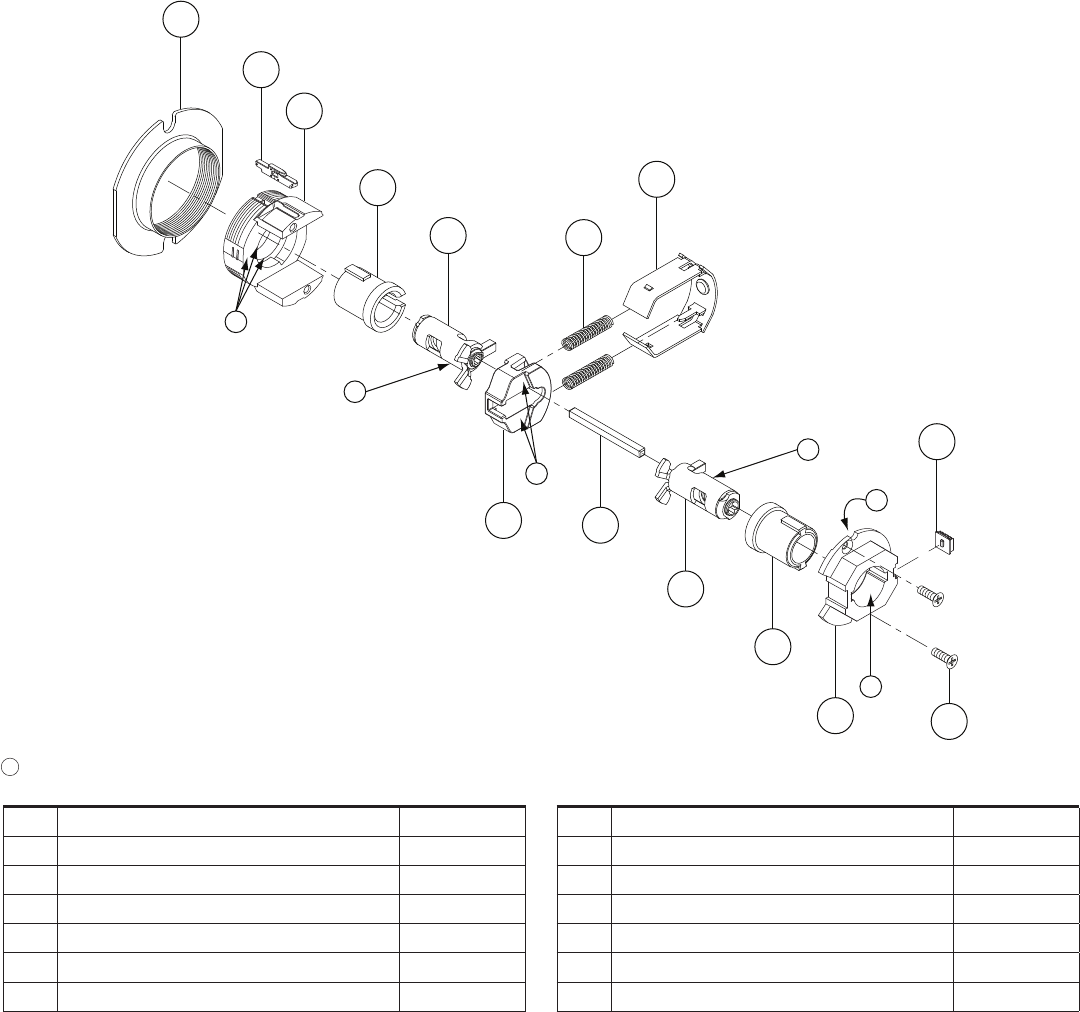

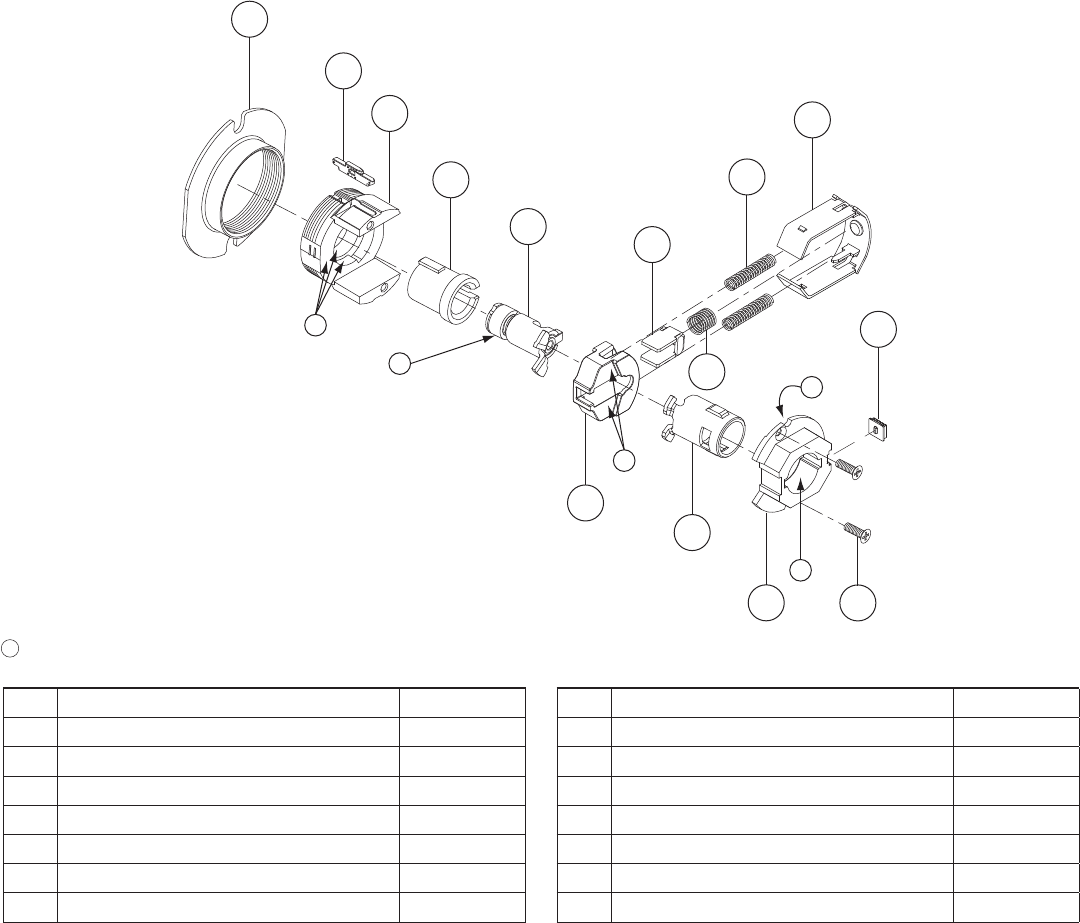

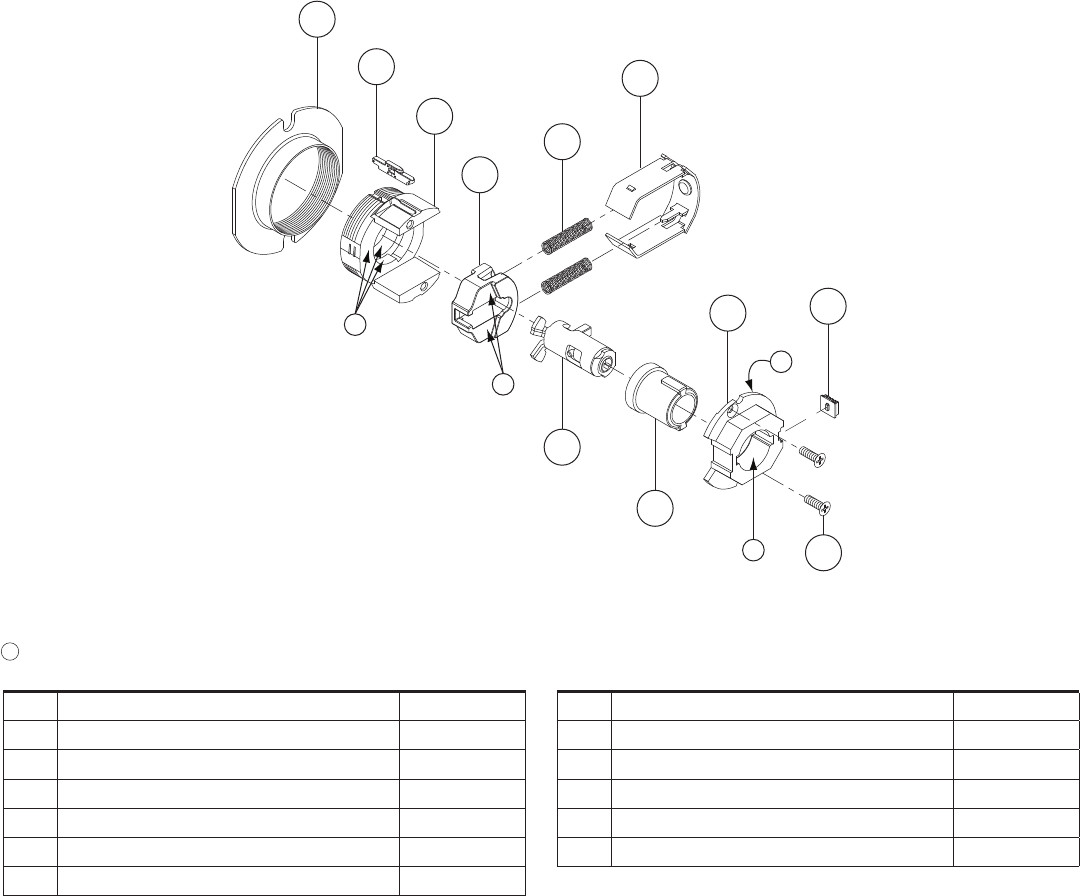

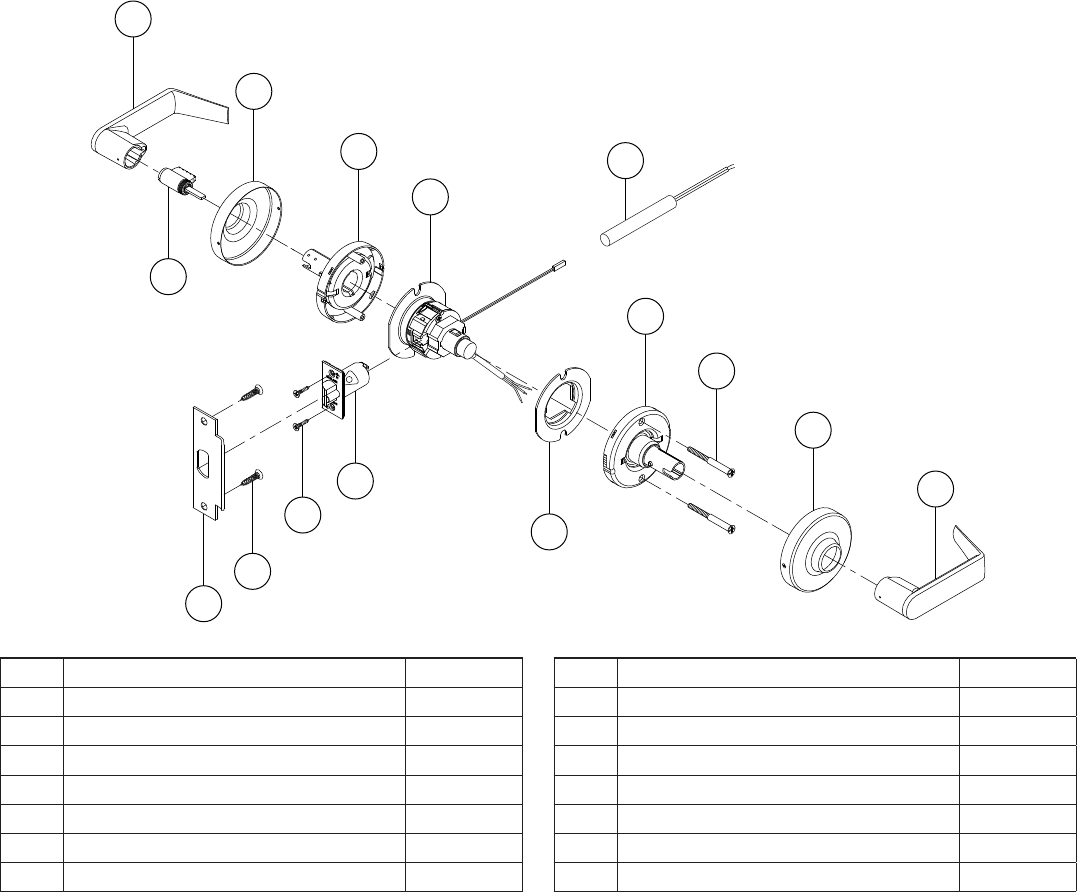

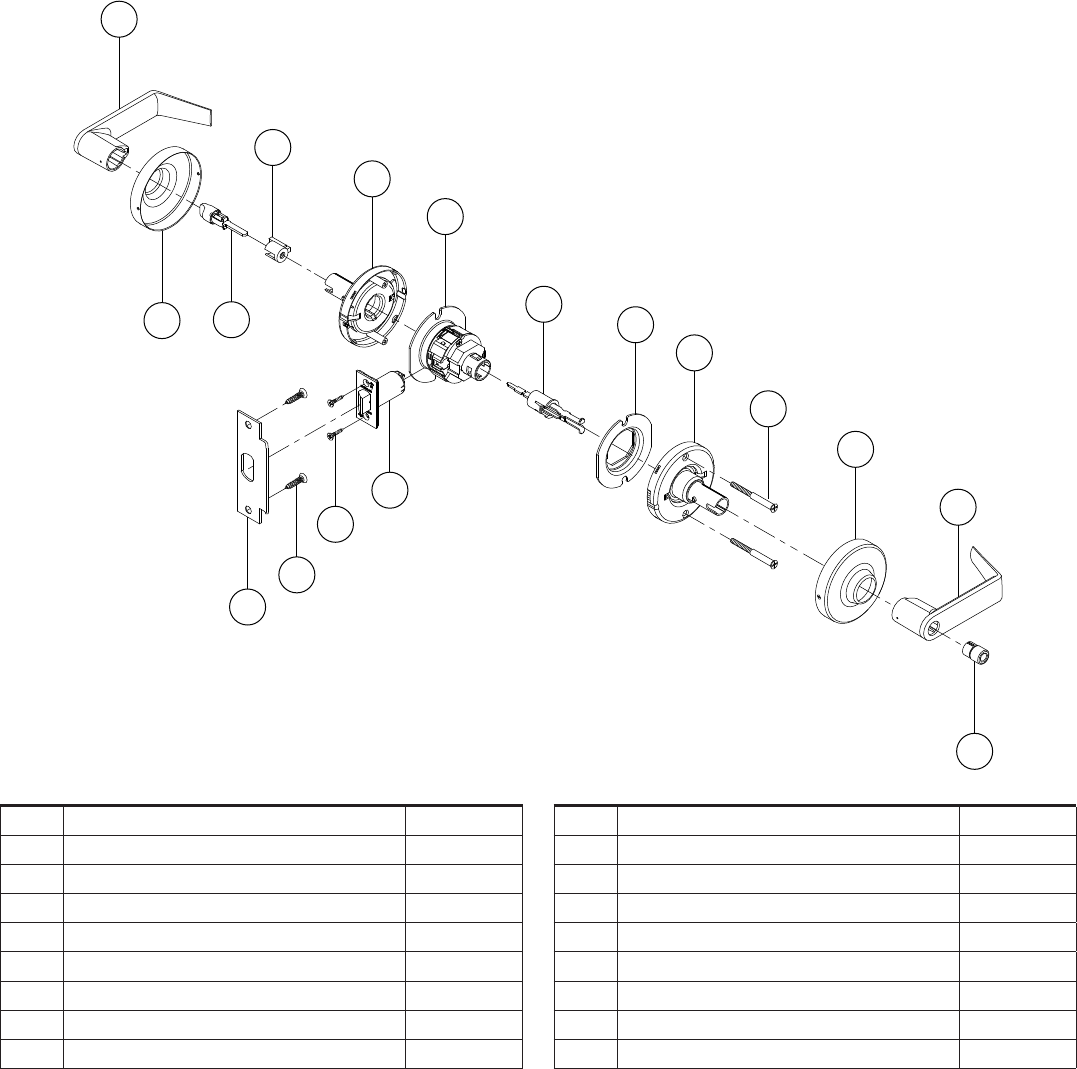

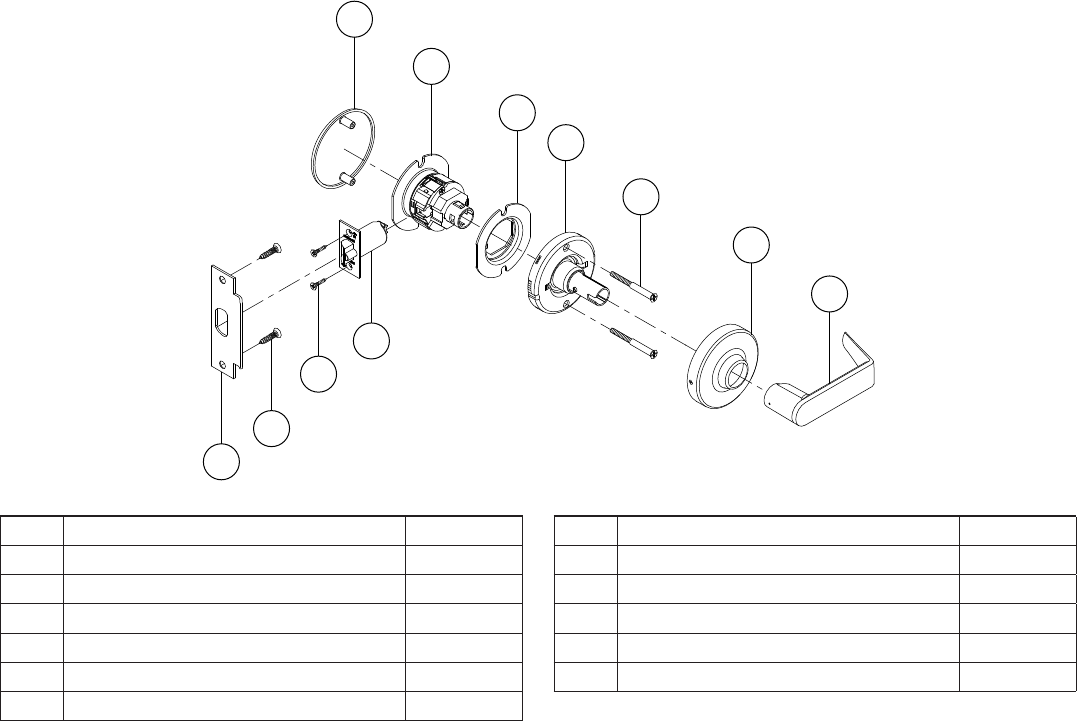

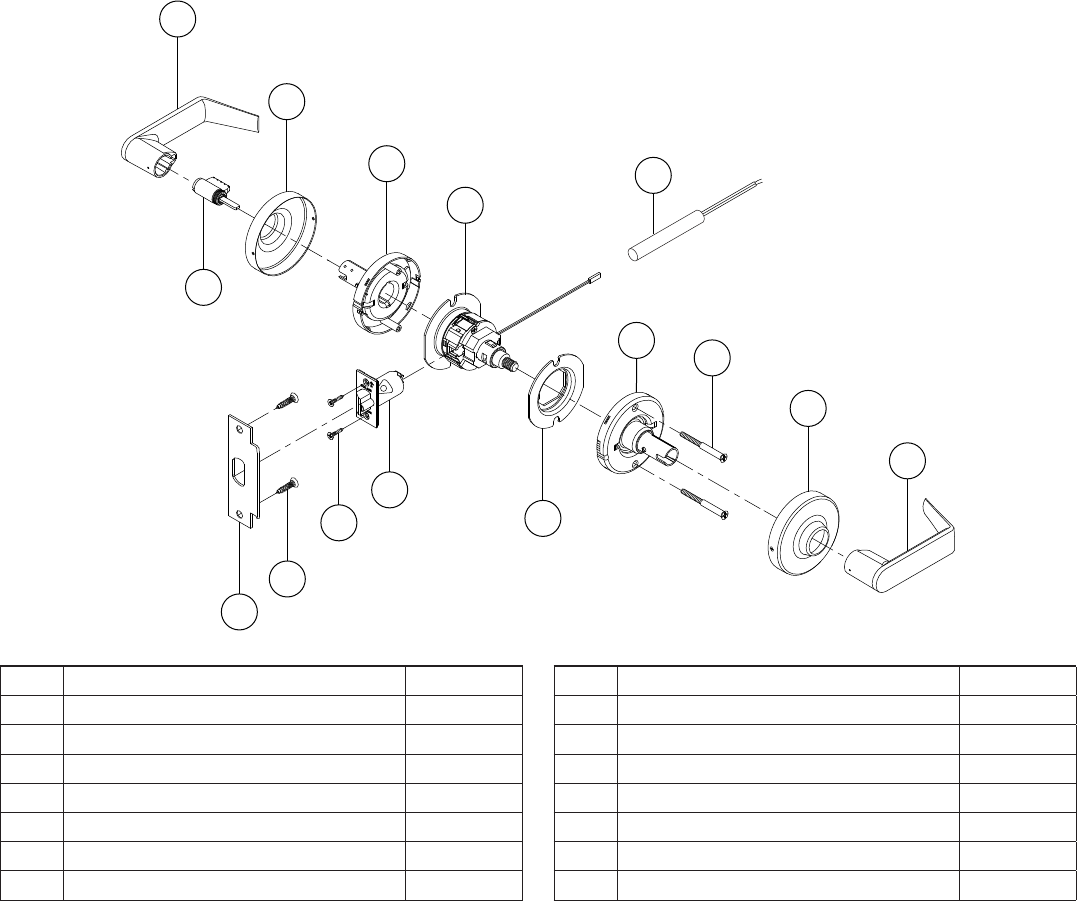

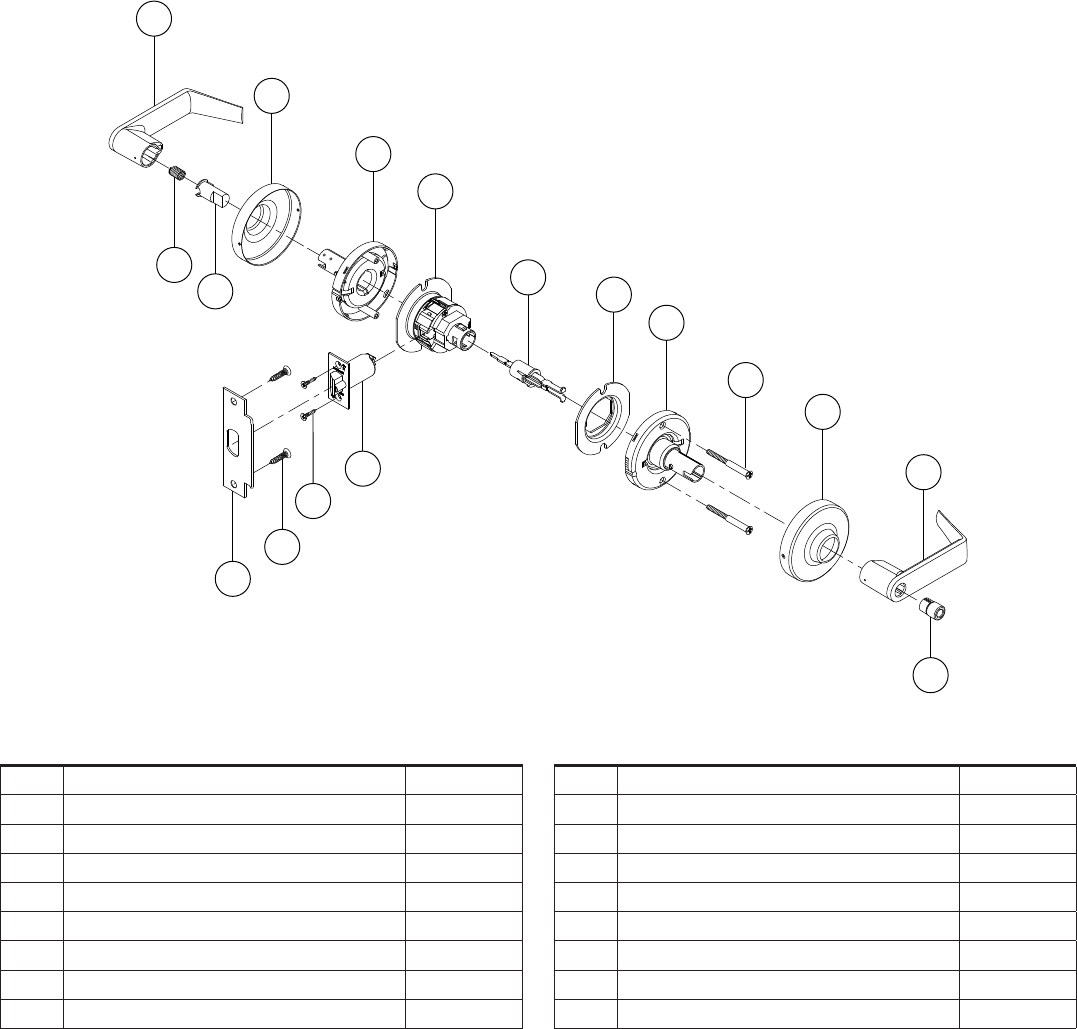

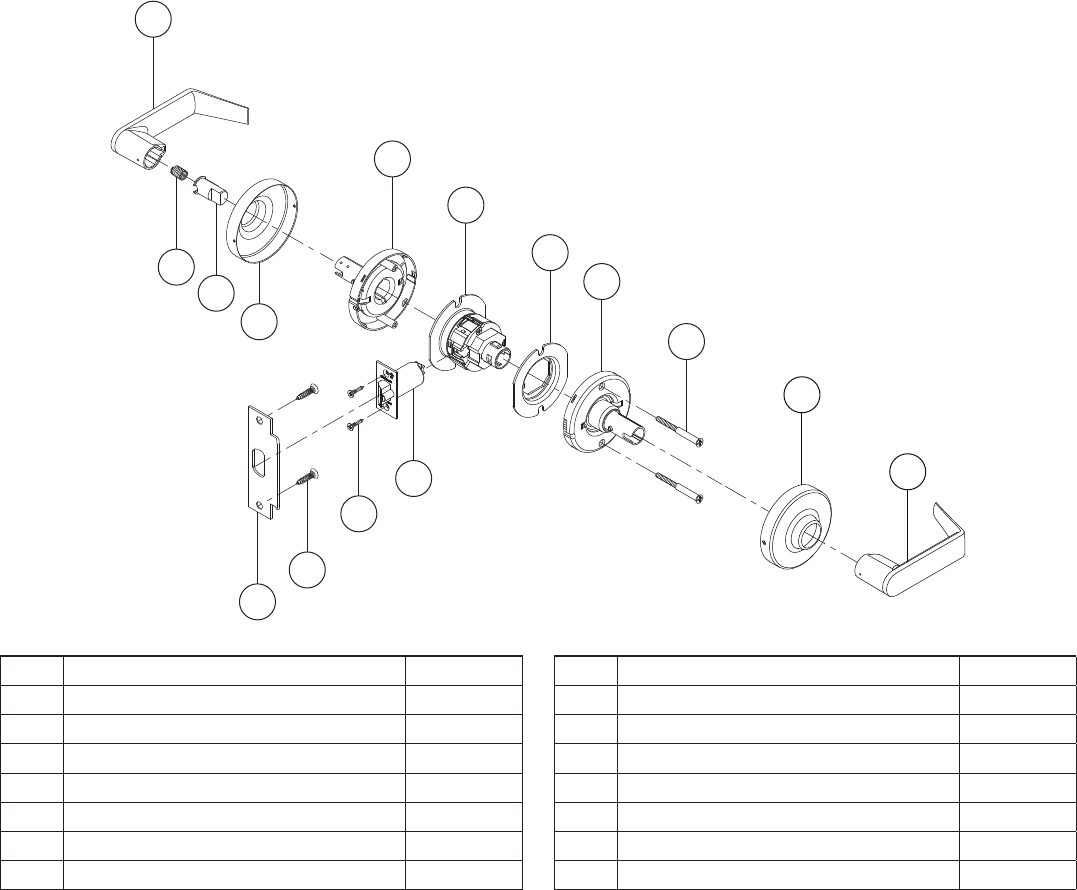

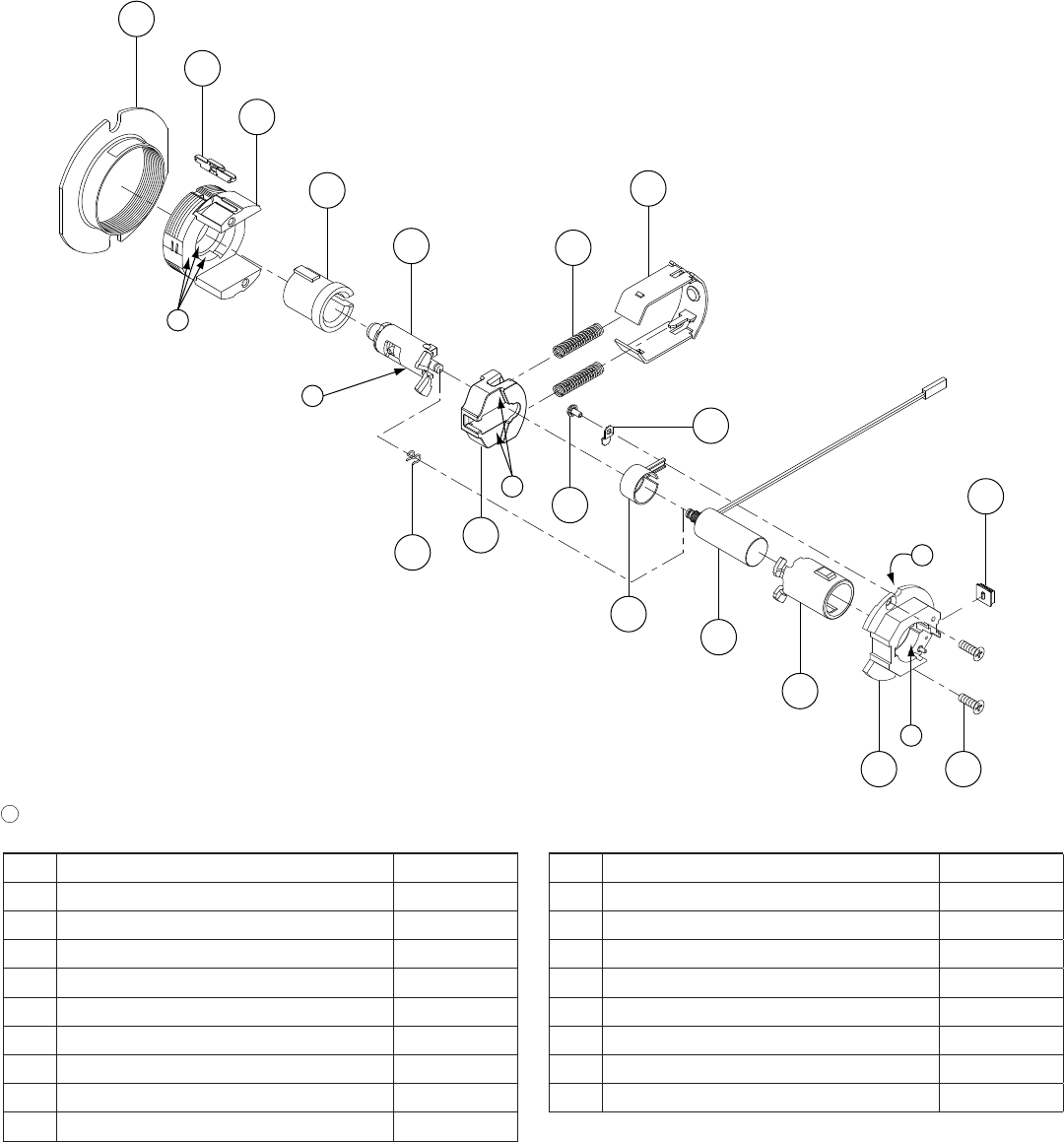

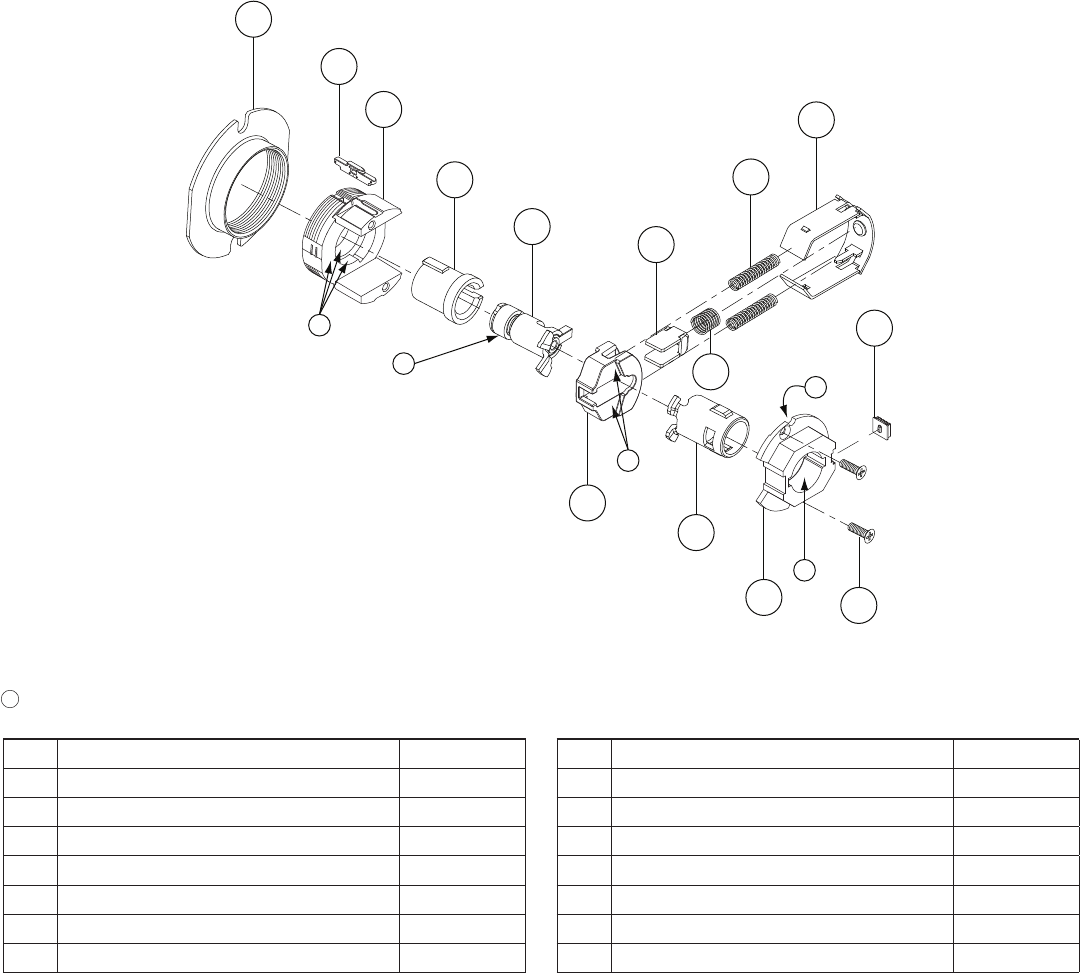

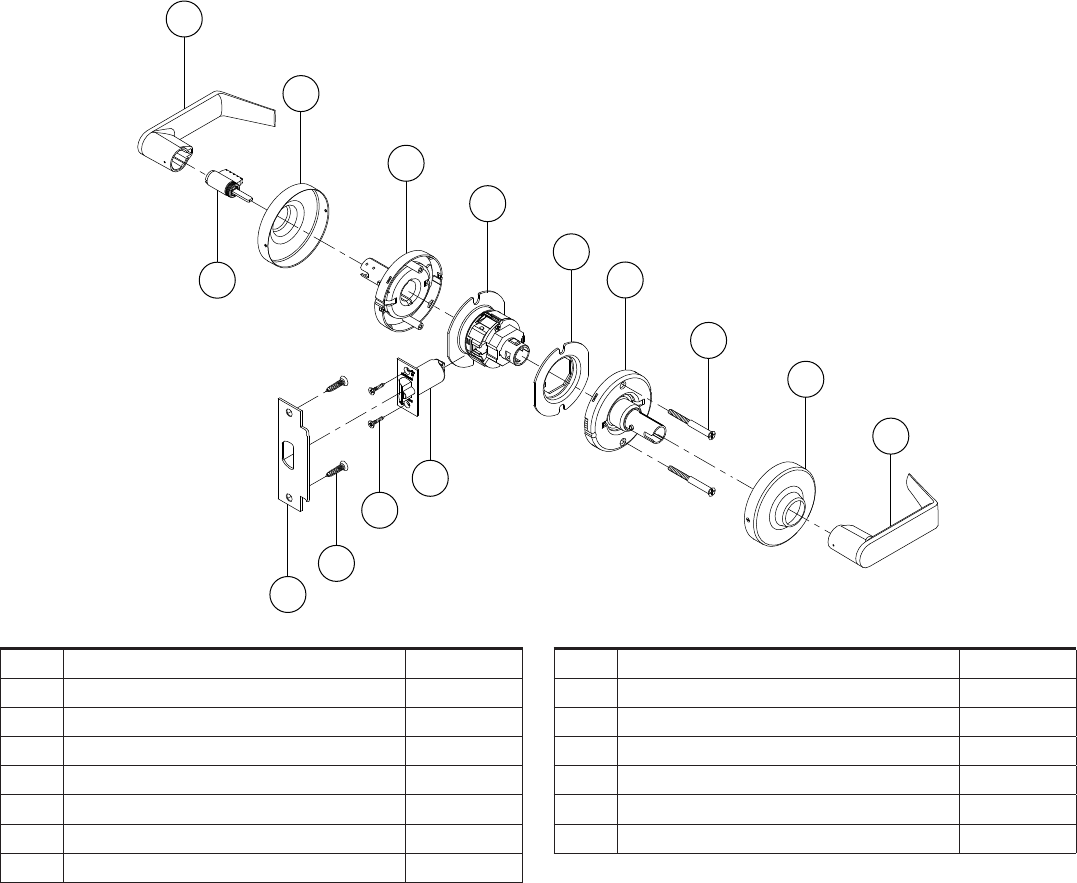

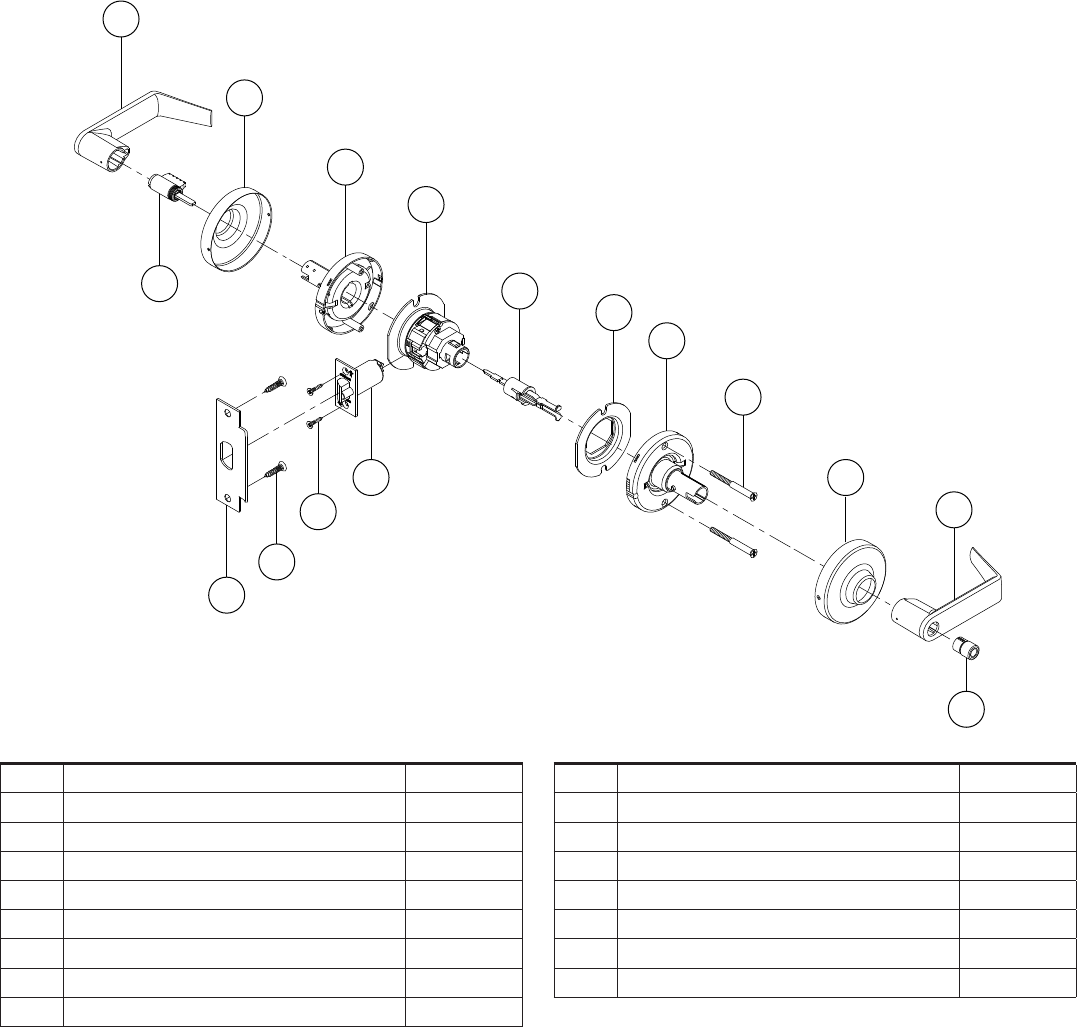

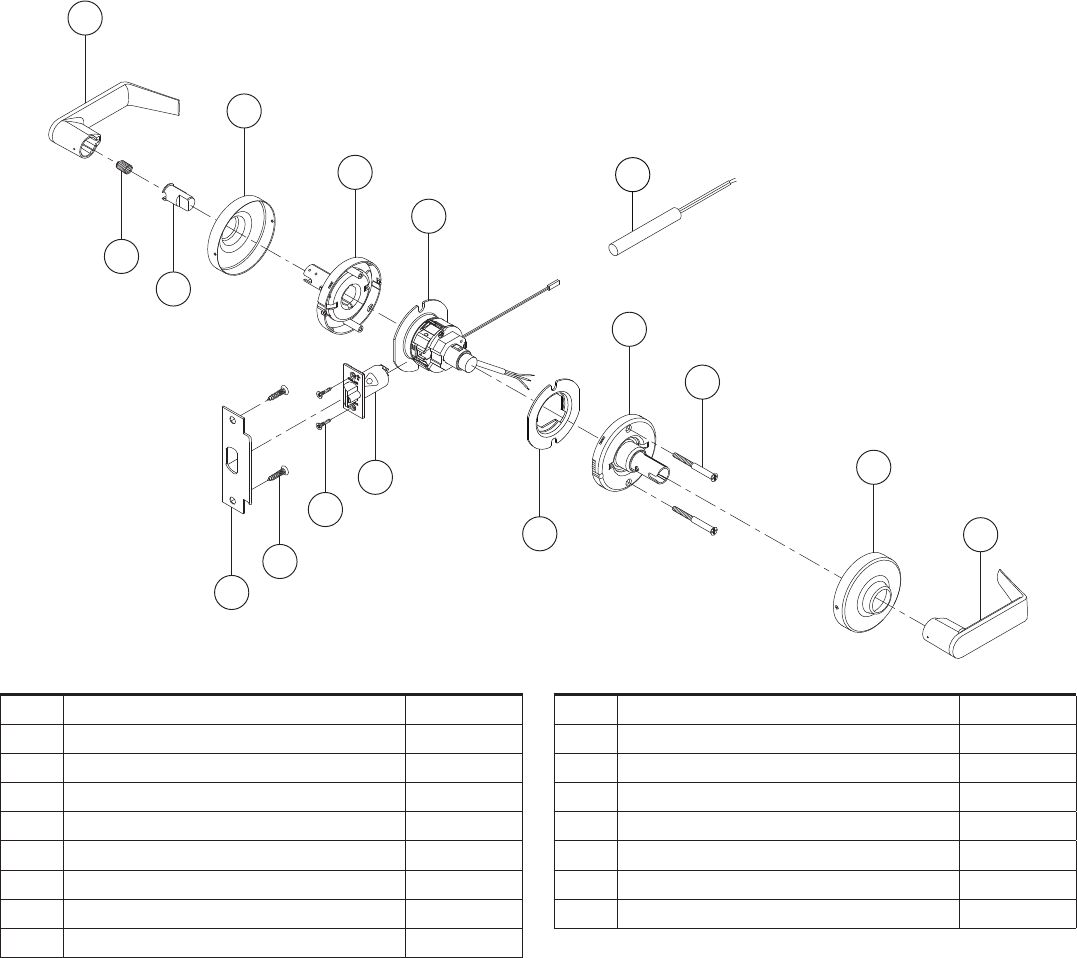

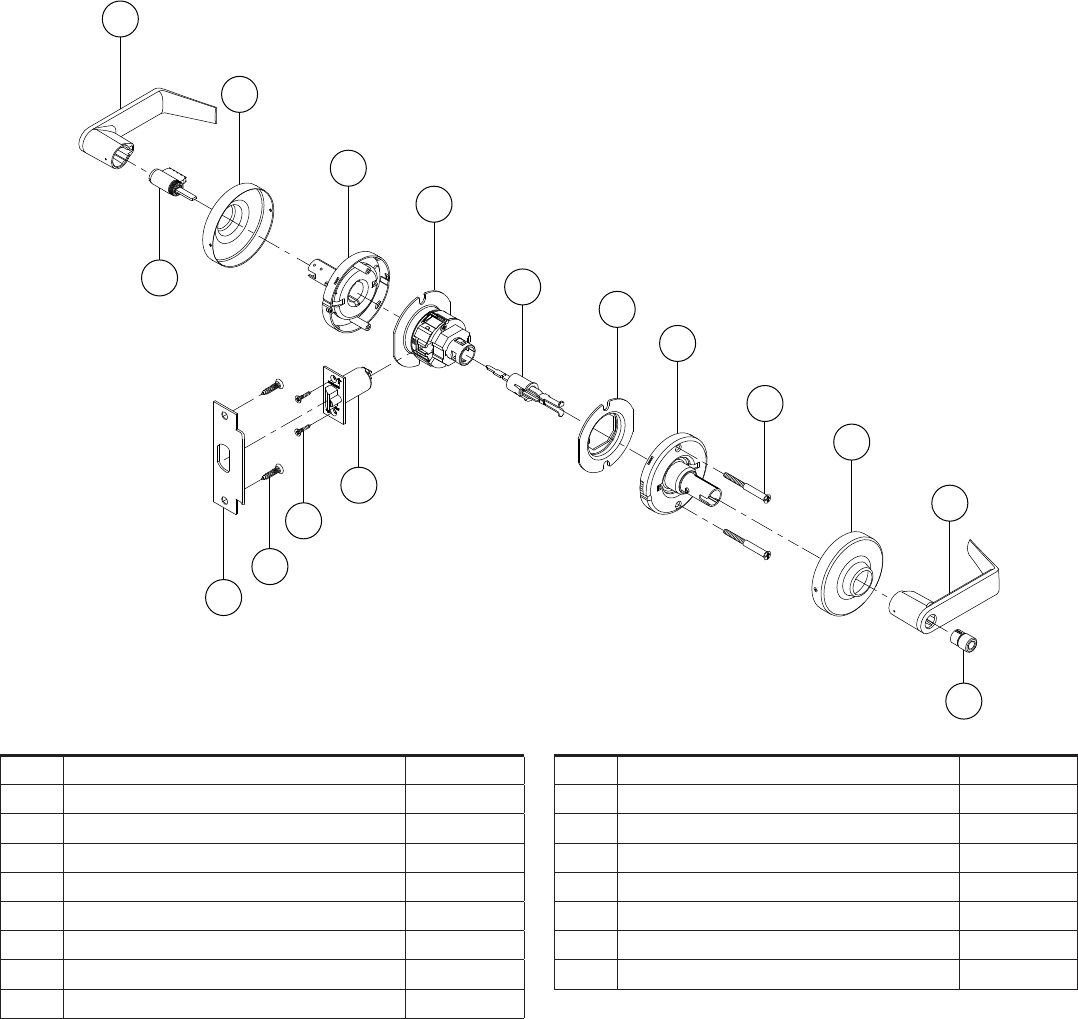

This manual provides exploded views of each lock chassis and trim assembly with an accompanying chart to identify parts for
replacement purposes, along with lock trim ordering procedures, general cylinder information, and all auxiliary components of
the ND-Series cylindrical locks.

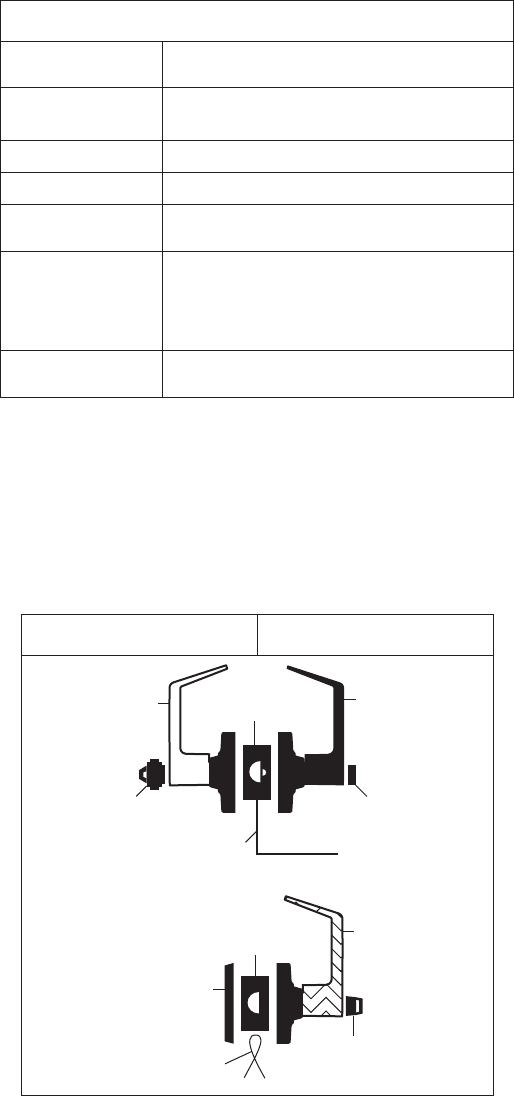

Standard Features*
Certifications ANSI A156.2, 2003, Series 4000, Grade 1, UL
listed for 3-hour fire door
Latch 1Z\,” x 2Z\v”, Square corner faceplate, 1” housing
diameter, Z\x” throw
Strike 1Z\v” x 4M\,”, ANSI, Square corner, no box
Backset 2C\v”
Cylinder 6-Pin solid brass, keyed 6-pin, C123 keyway,
keyed different (KD)**
Door Range Standard Lock Functions: 1B\,” – 2Z\,”
Vandlgard® Lock Functions: 1B\,” – 2Z\,”
ND85: 1C\v” – 2”
Keys Two nickel silver cut keys per lock, 6-pin, C123
section**
* Locks are furnished with standard features unless otherwise specified.
** Items specified in C keyway will be furnished with cylinder keyed 5-pin and with 5-pin keys unless otherwise specified.

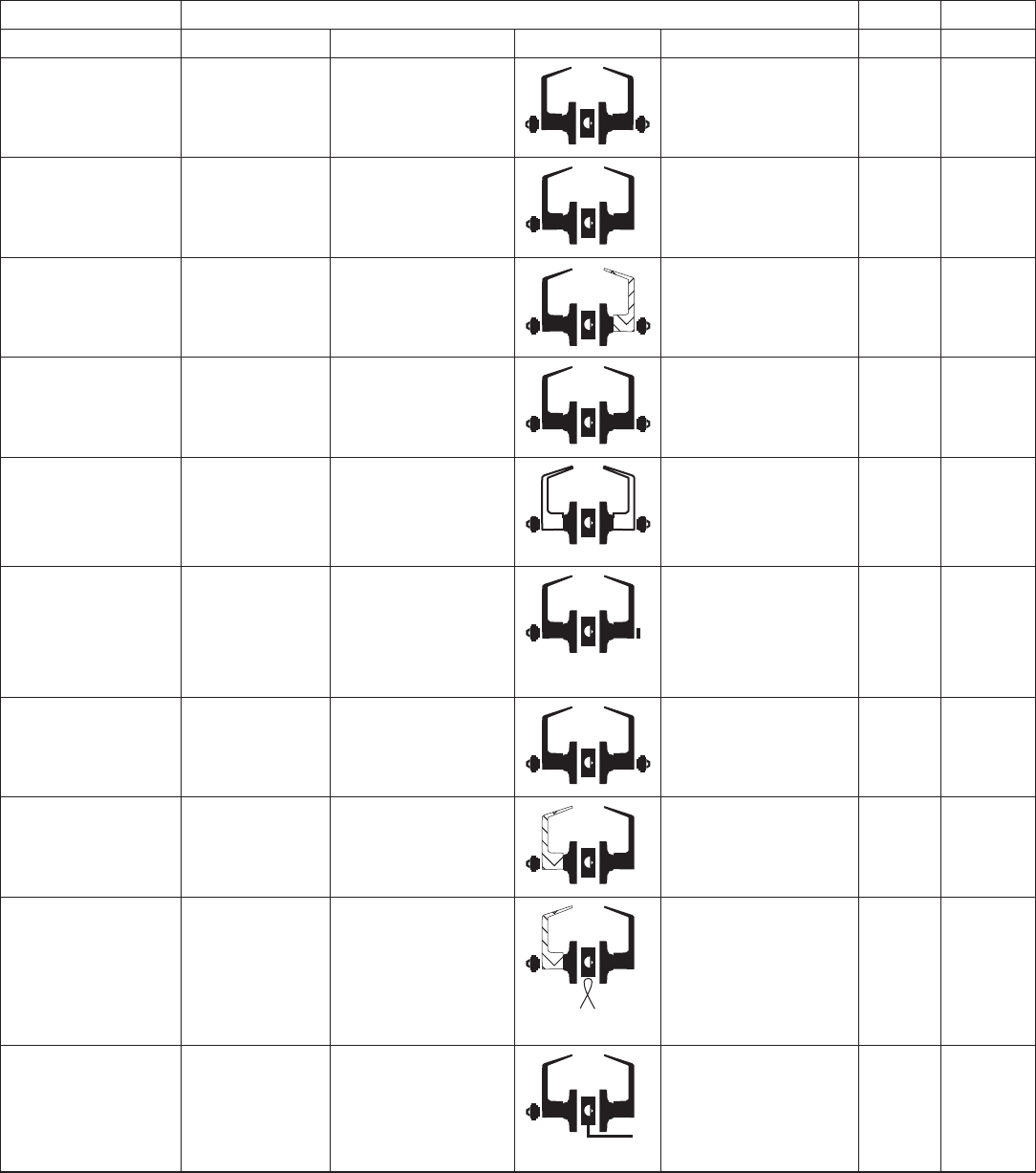

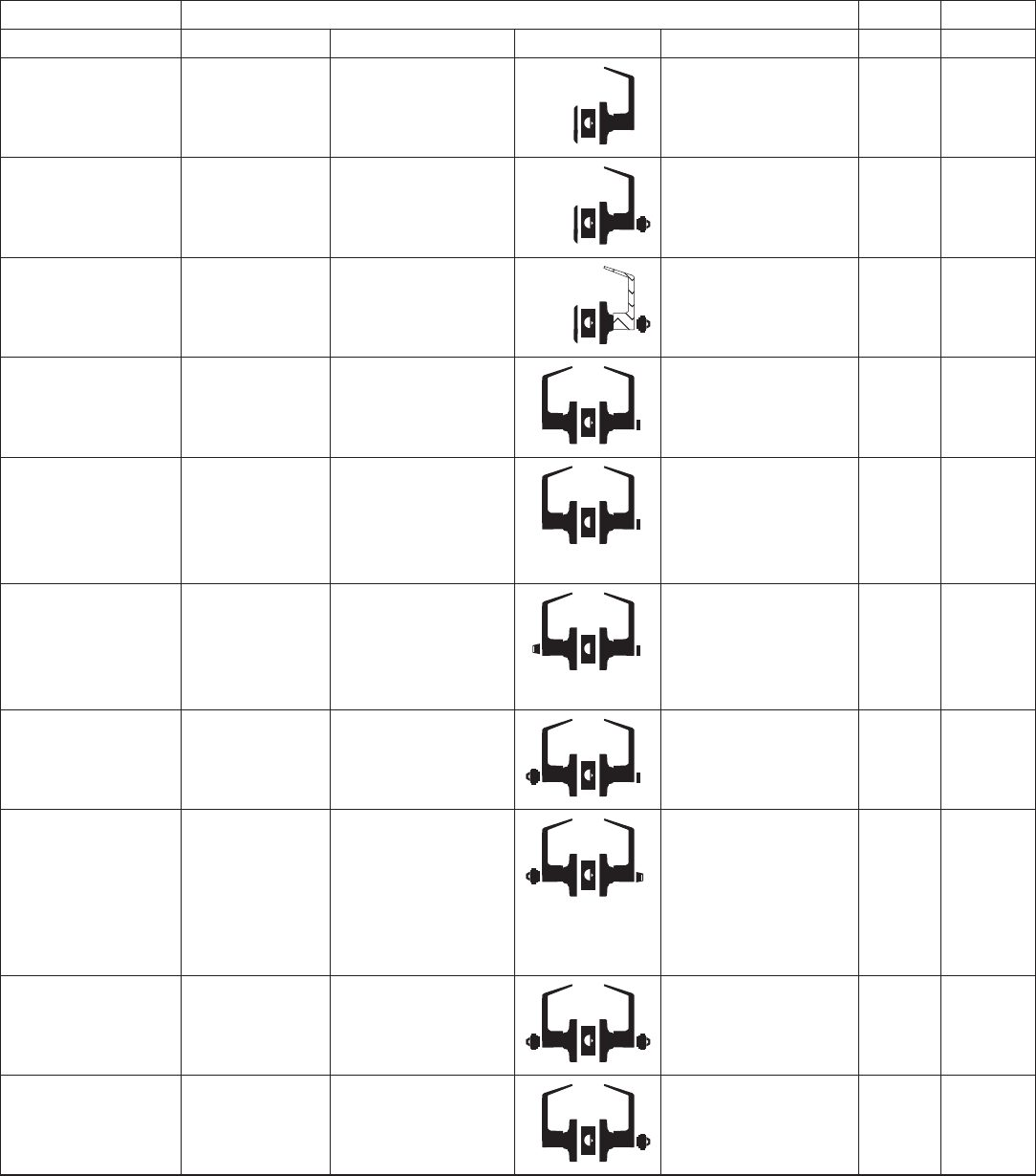

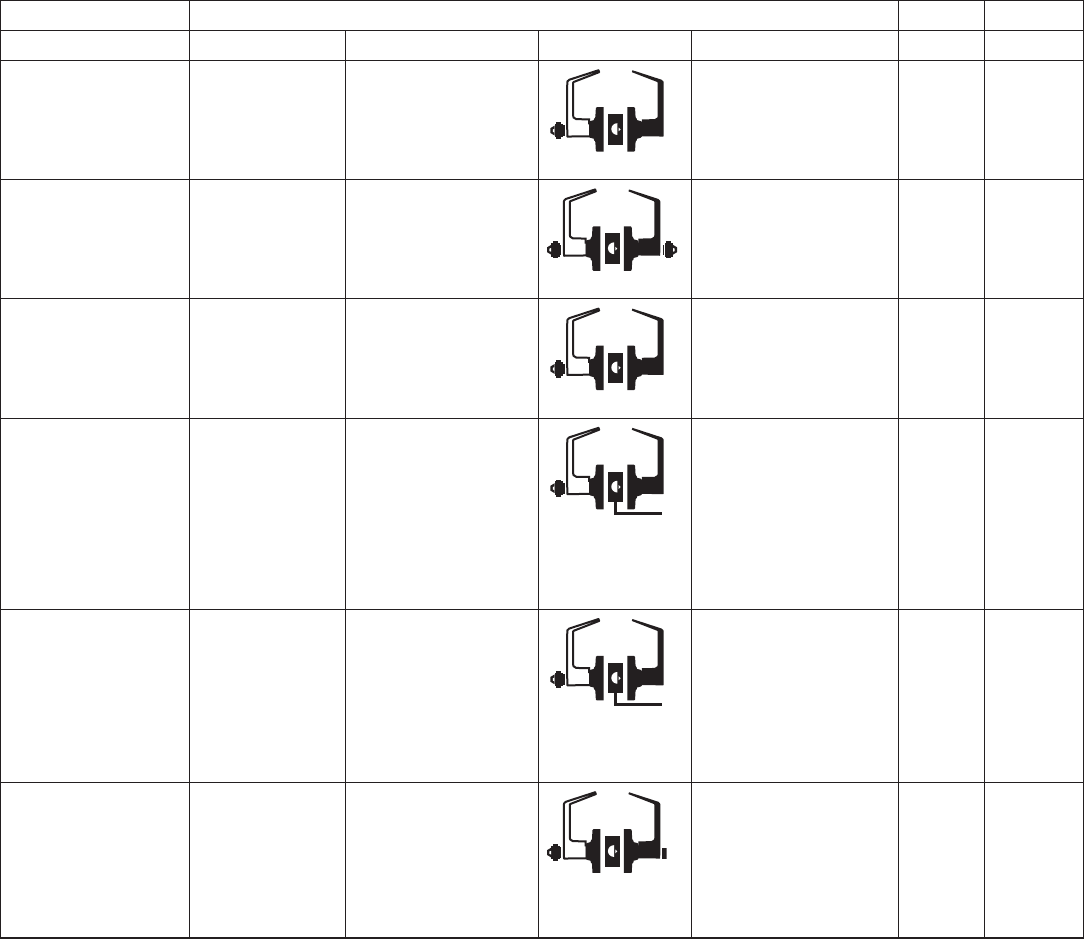

Lock assembly drawing index

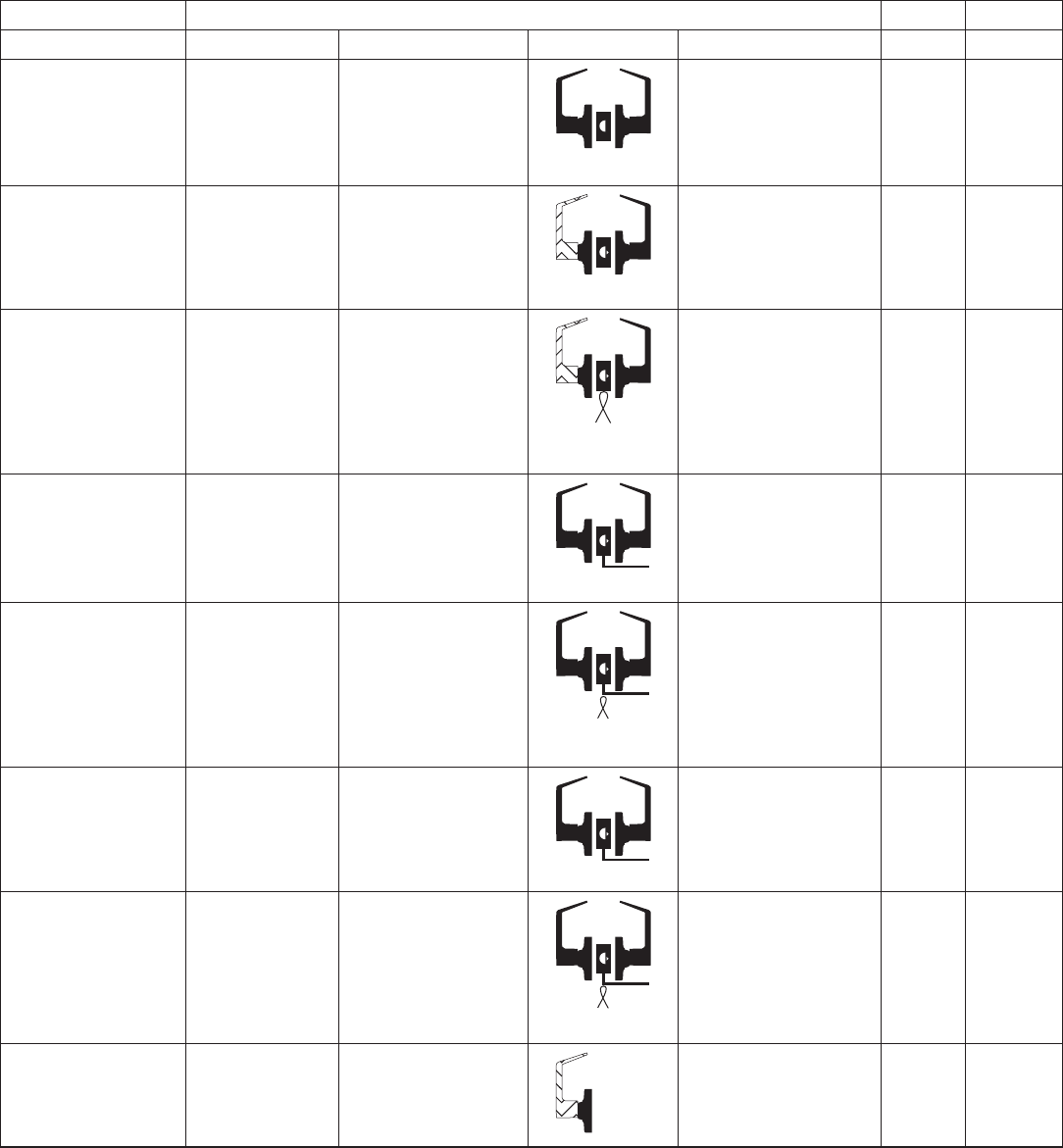

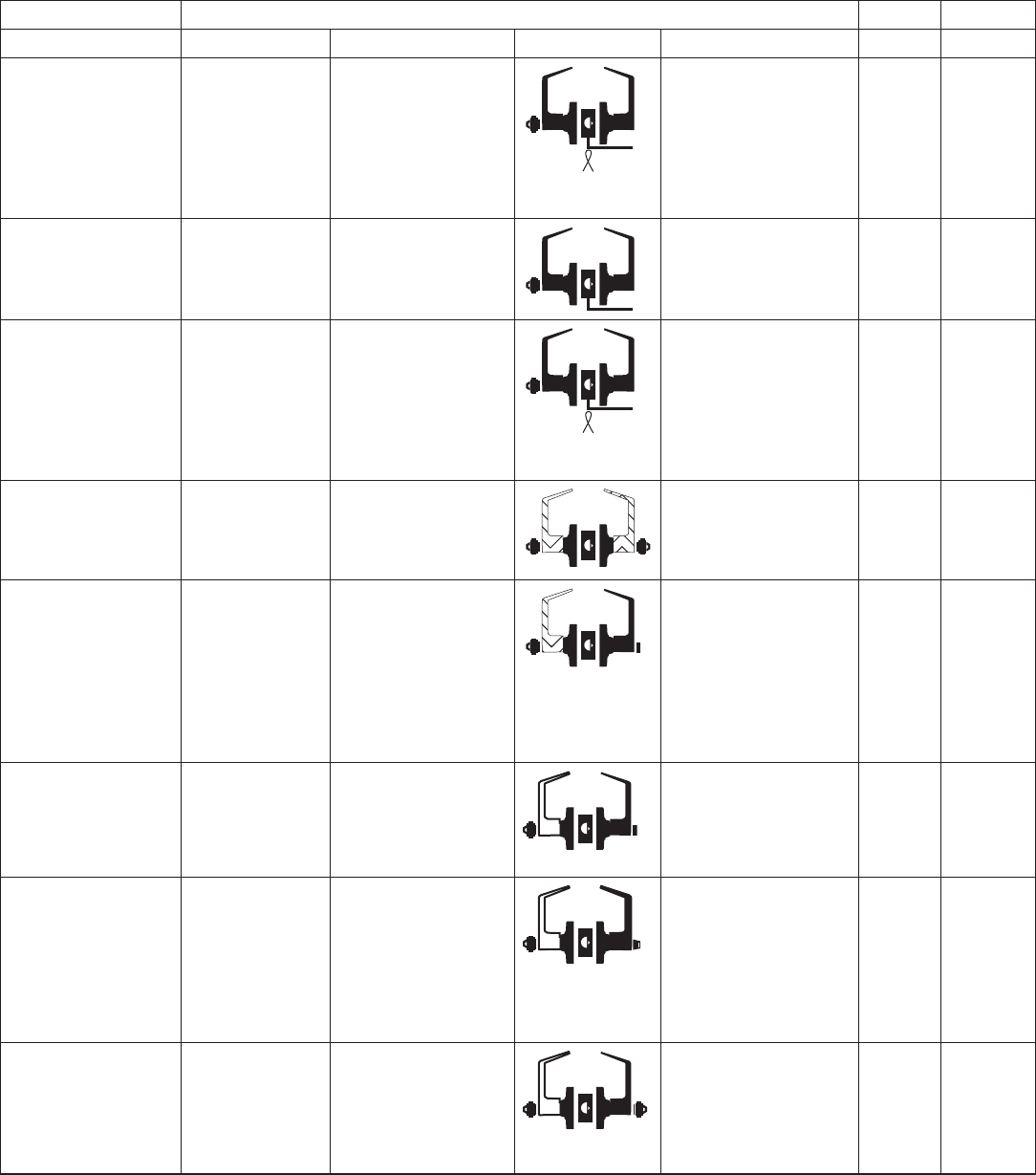

The Lock assembly drawing Index provides illustrations and textual descriptions of available functions. Page numbers for full
trim and chassis drawings are referenced.
Outside Inside
Key Push button
Electrified
Vandlgard®
Lever
Active Lever
Deadlatch
Springlatch
Turn/push button
Blank Plate
Fixed Lever
Request to Exit
6 • Schlage • ND-Series service manual

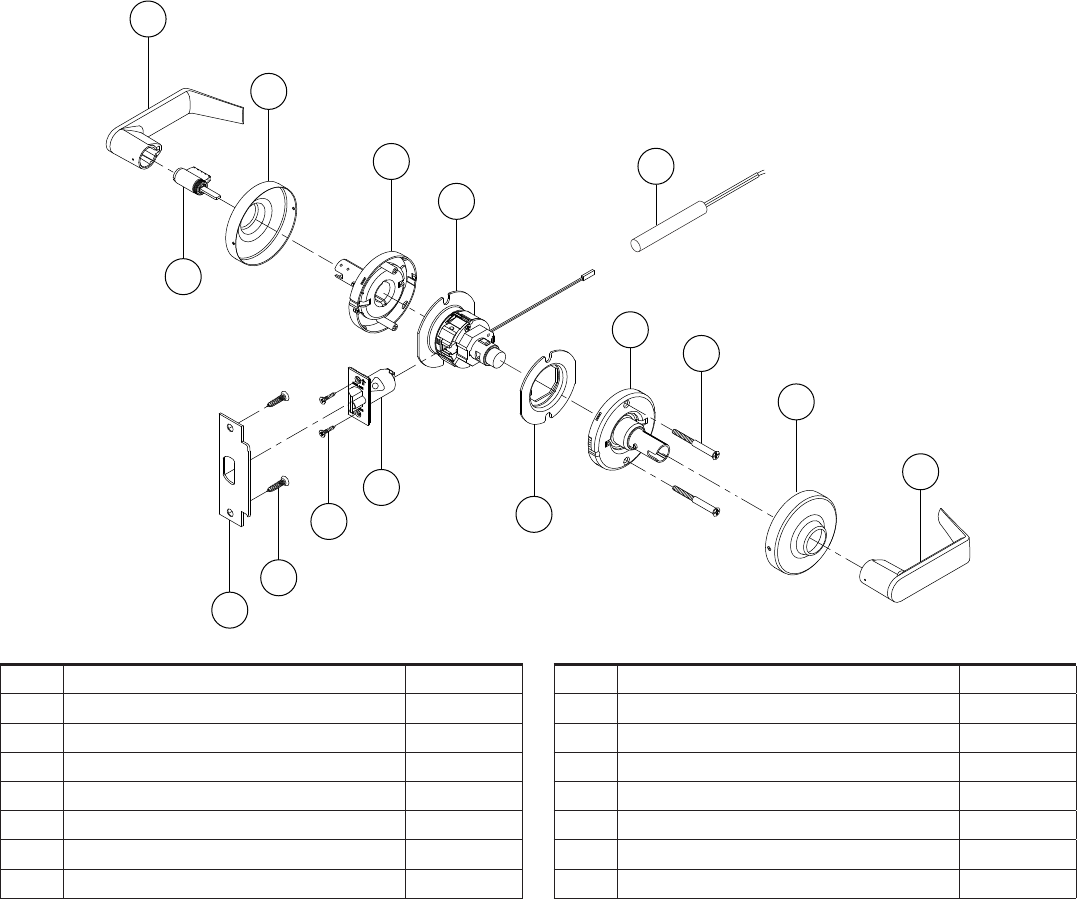

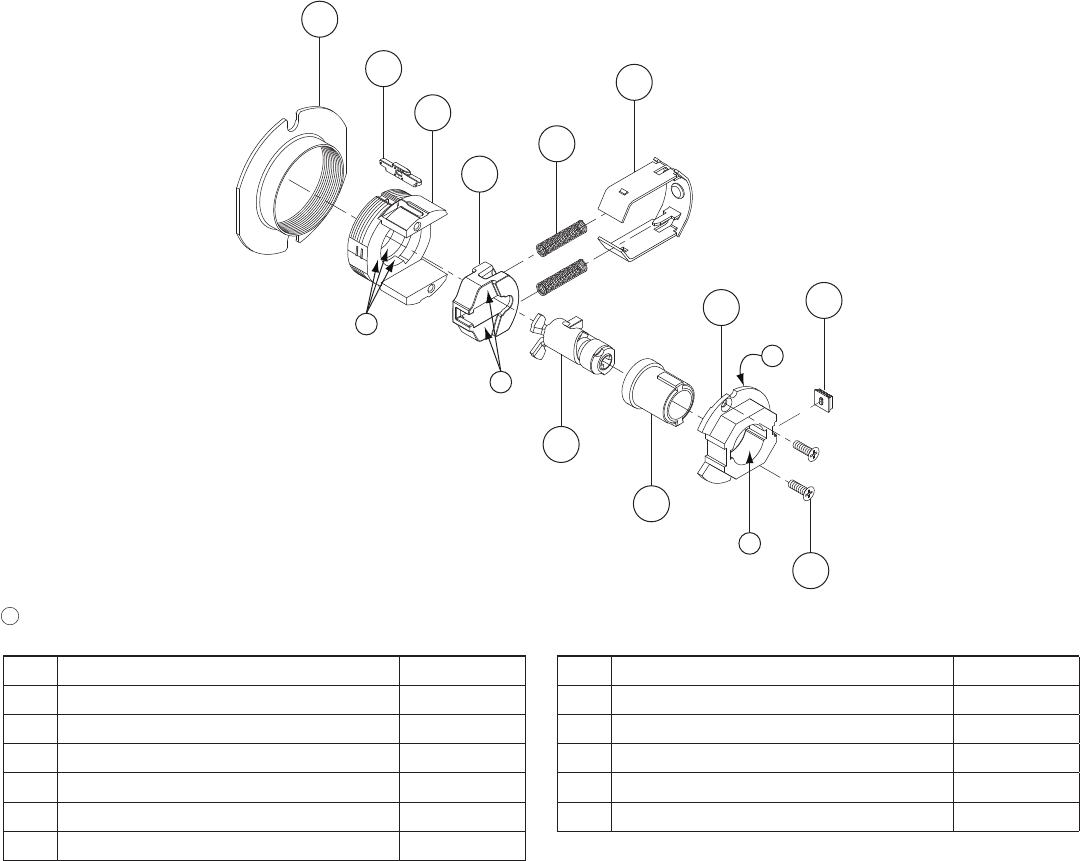

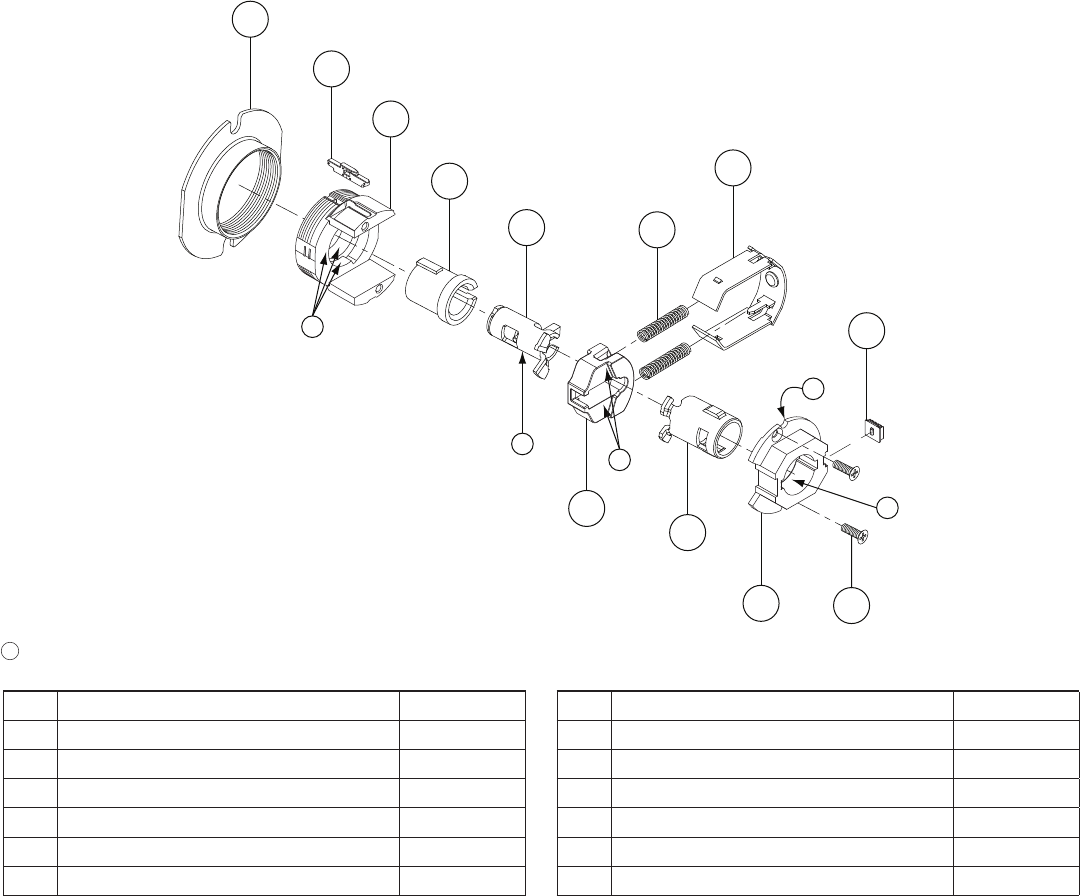

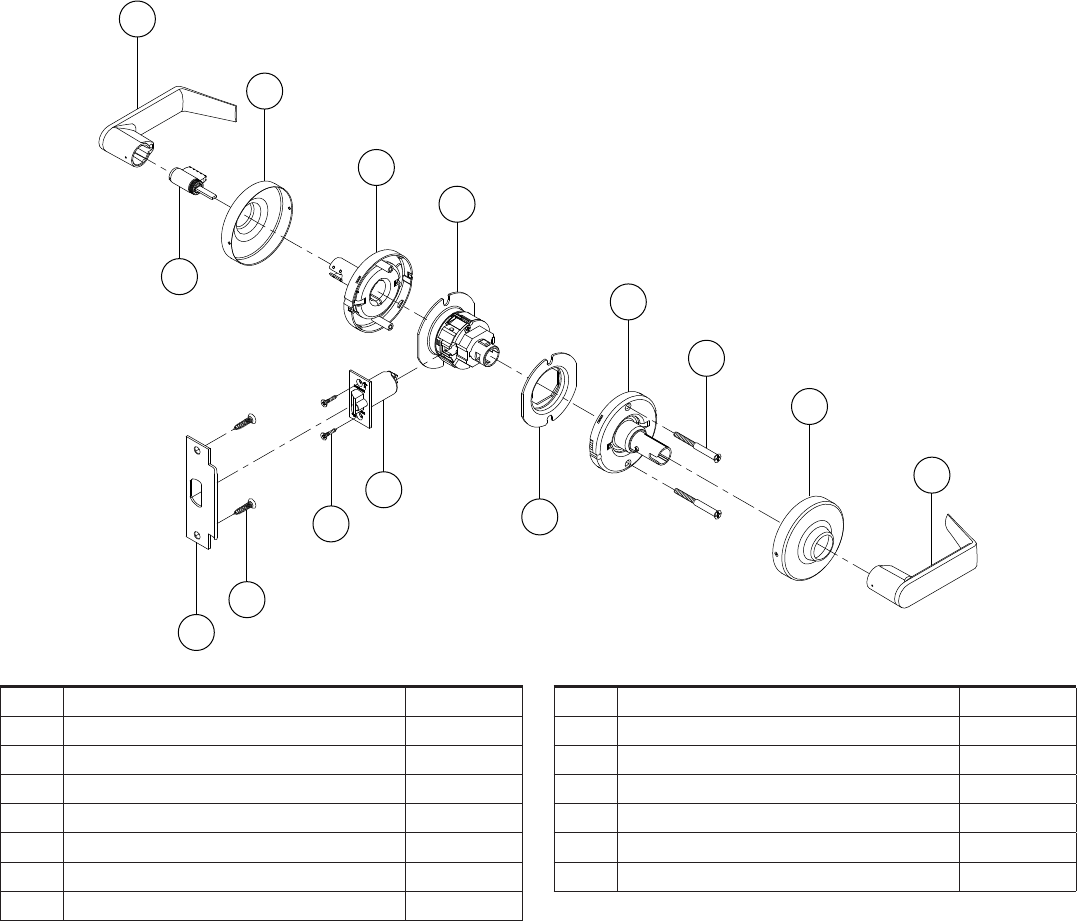

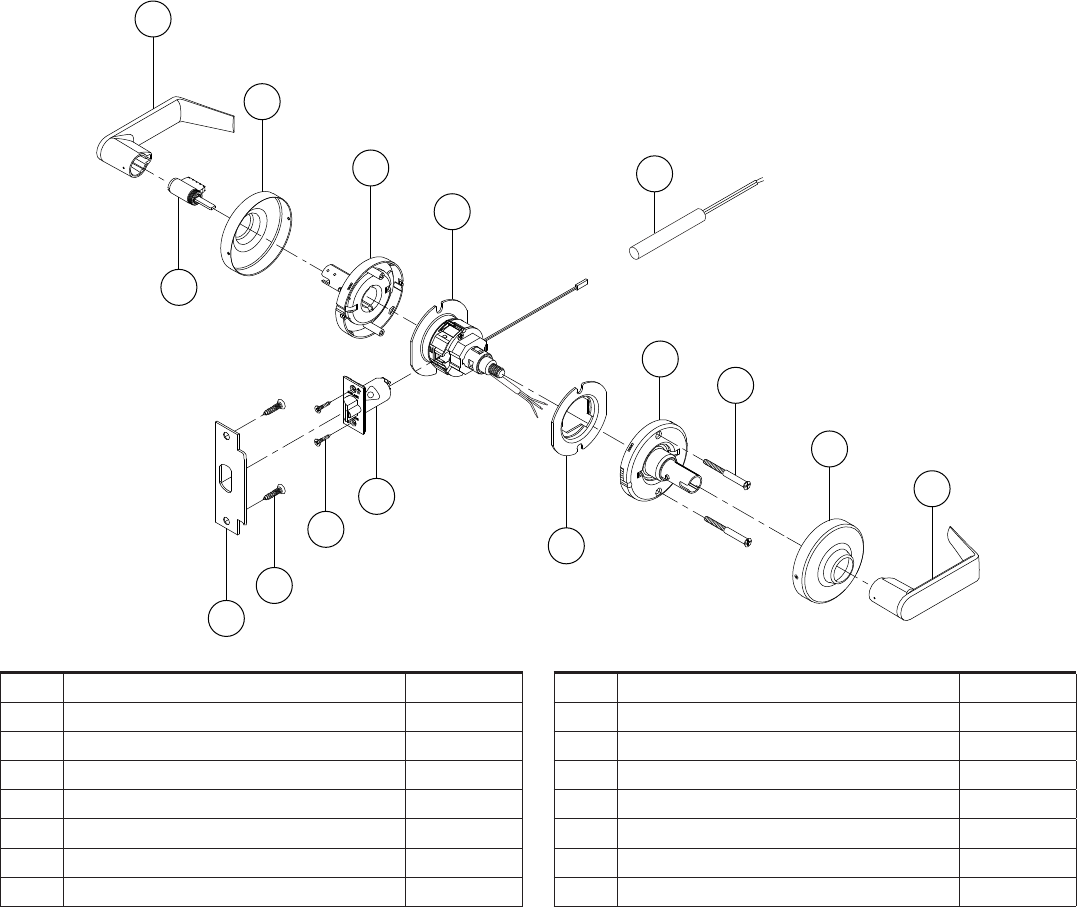

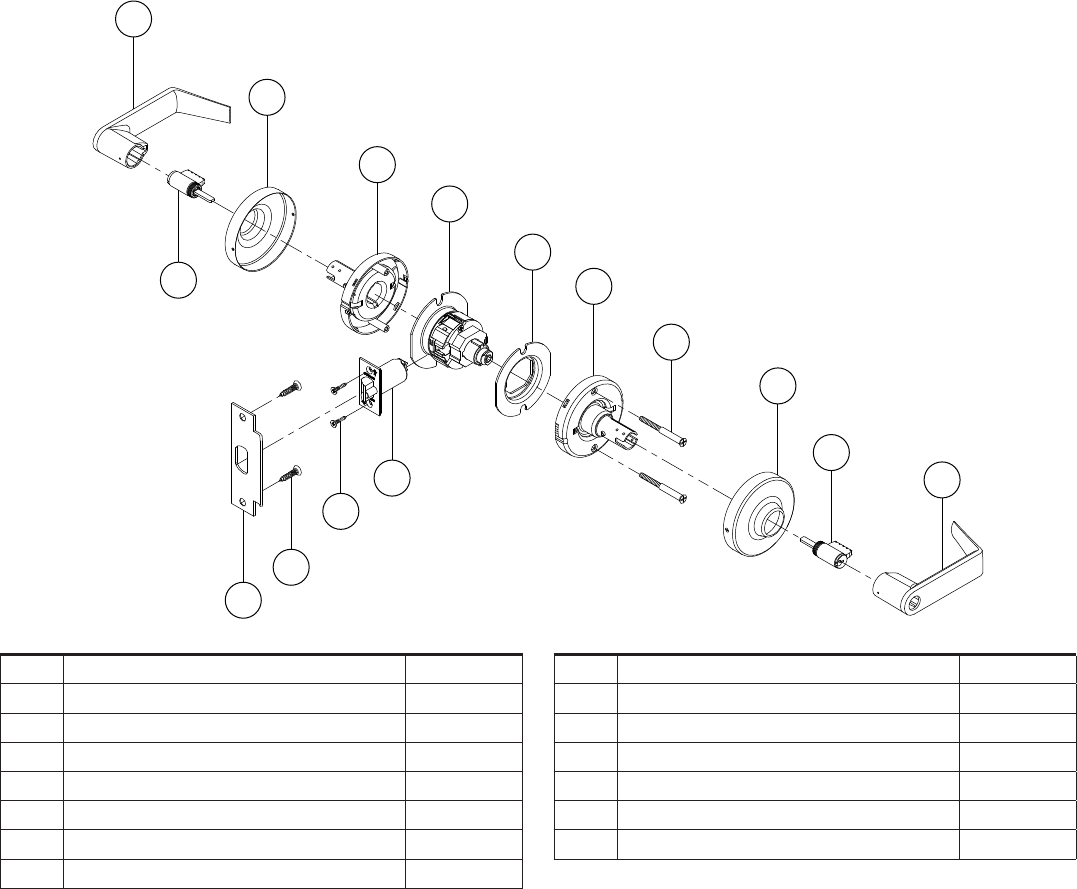

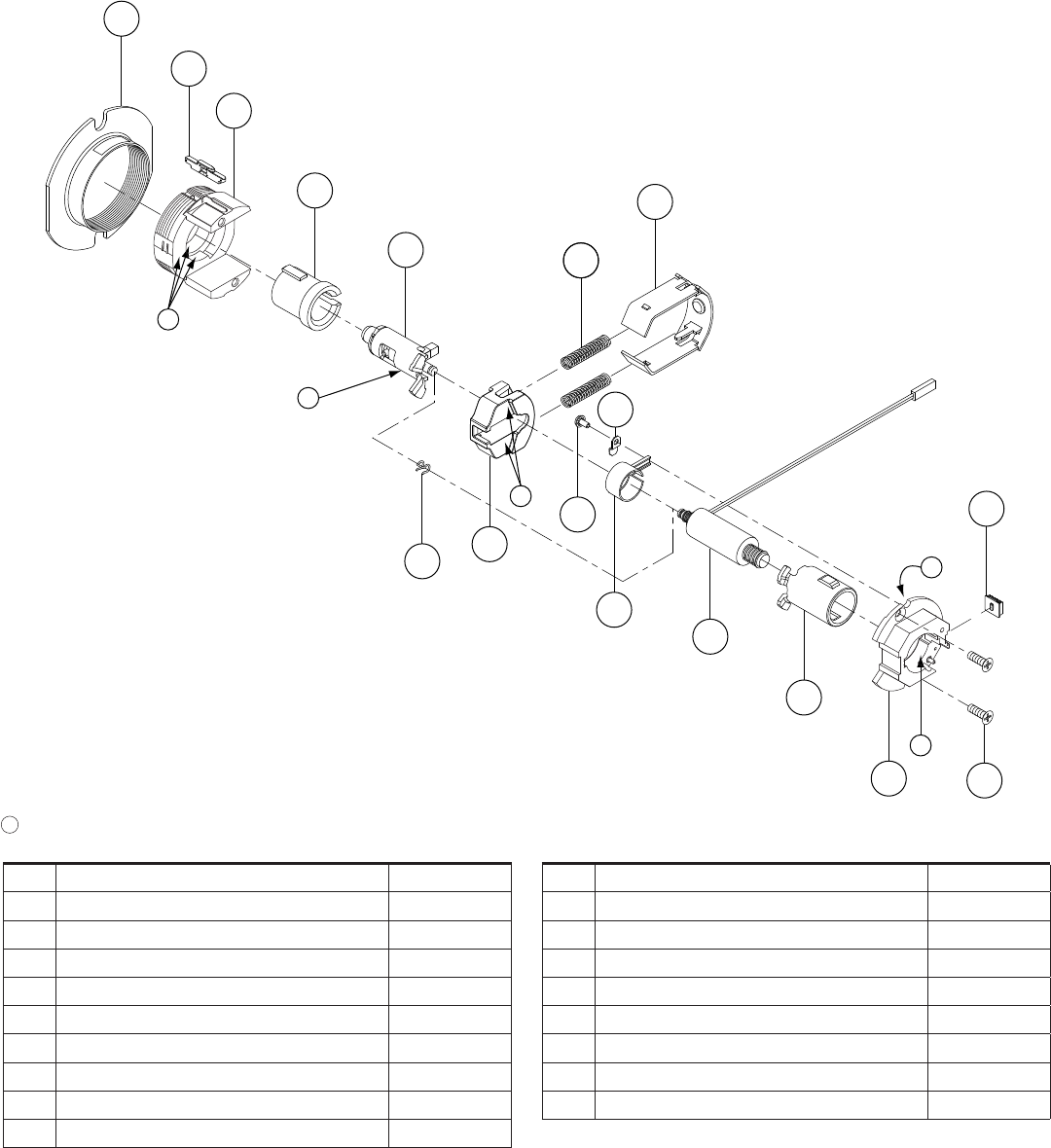

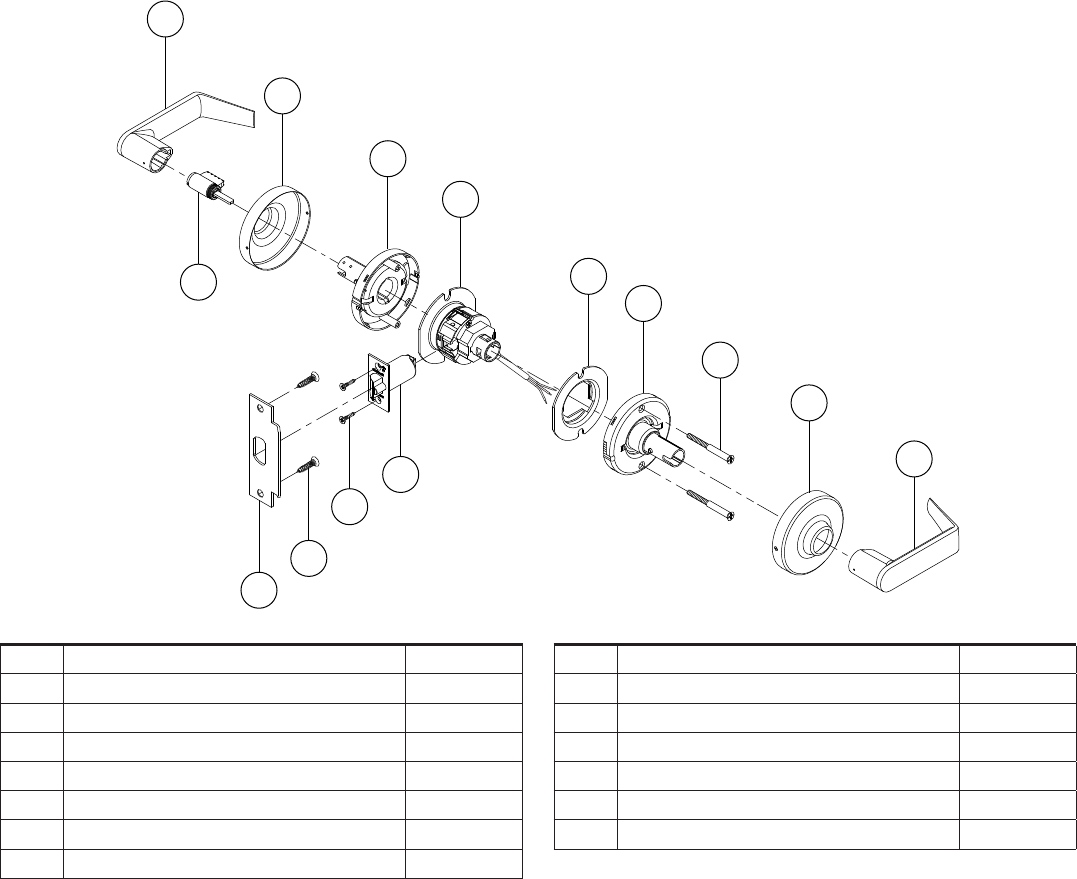

Lock assembly drawing index
Lock assembly drawing index
Function ANSI A156.2, 1996, Series 4000, Grade 1 Trim Chassis
Schlage ANSI Description Outside function Inside function Page Page
ND10 F75 Passage latch Lever is always unlocked. Lever is always unlocked
and is always free for
immediate egress.
50 12
ND12 F89 Exit lock Lever is fixed. Lever is always unlocked
and is always free for
immediate egress.
51 13
ND12-RX Exit lock with
request to exit
Same as ND12. Same as ND12.
A microswitch attached to
the chassis is activated
when the lever is rotated.
The switch signals use of
the lever to security
systems allowing
non-disruptive egress.
52 14
ND12EL Exit lock —
electrically locked
(fail safe)
Lever is continuously
locked by electric current
until unlocked by switch
or power failure.
Lever is always unlocked
and is always free for
immediate egress.
53 15
ND12EL-RX Exit lock —
electrically locked
(fail safe) with
request to exit
Same as ND12EL. Same as ND12EL.
A microswitch attached to
the chassis is activated
when the lever is rotated.
The switch signals use of
the lever to security
systems allowing
non-disruptive egress.
54 16
ND12EU Exit lock—
electrically
unlocked (fail
secure)
Lever is continuously
locked mechanically
until unlocked by electric
current.
Lever is always unlocked
and is always free for
immediate egress.
55 17
ND12EU-RX Exit lock—
electrically
unlocked (fail
secure) wtih
request to exit
Same as ND12EU. Same as ND12EU. A
microswitch attached to
the chassis is activated
when the lever is rotated.
The switch signals use of
the lever to security
systems allowing
non-disruptive egress.
56 18
ND170 Single dummy trim Inactive trim for one side
of door. Use for door pull
or as matching inactive
trim.
57 19
Note: Any function with a deadlatch locks the latchbolt when door is closed. See page 5 for identification.
* Available with Small Format Interchangeable Core.
† Caution: These locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is
not recommended. Installation should be in accordance with existing codes only.
Lock assembly drawing index
Schlage • ND-Series service manual • 7
Function ANSI A156.2, 1996, Series 4000, Grade 1 Trim Chassis
Schlage ANSI Description Outside function Inside function Page Page
ND25 Exit lock with blank
plate
Blank plate. Inside lever is always
unlocked and is always
free for immediate egress.
58 20
ND25 x 70 Classroom exit
lock† per
XN12-004
Blank plate. Key locks or unlocks lever. 59 21
ND25 x 80 Storeroom exit
lock† per XN12-005
Blank plate Key retracts latch. Lever is
fixed.
60 22
ND30 Patio lock per
XN12-007
Push-button locks outside
lever. Turning inside lever
or closing door releases
button.
61 23
ND40 F76 Bath/bedroom
privacy lock
Can be opened from
outside with small
screwdriver or
emergency release tool.
Push-button locks outside
lever. Turning inside lever
or closing door releases
button.
Inside lever is always free
for immediate egress.
62 23
ND44 Hospital privacy
lock
Unlocked from outside
by turning emergency
turn-button.
Push-button locks outside
lever. Turning inside lever
or closing door releases
button.
Inside lever is always free
for immediate egress.
63 23
ND50 F82 Entrance/oce
lock*
Lever is unlocked with
key when push-button is
pushed.
Push-button locks outside
lever. Turning inside lever
releases button. Inside
lever is always free for
immediate egress.
64 24
ND53 F109 Entrance lock* Key retracts latch when
button pushed and
turned. Lever is unlocked
with key when push-
button is pushed.
Turn/push-button:
Pushing and turning
button locks outside lever
until manually unlocked.
Push-button: pushing
button locks outside lever
until unlocked by turning
inside lever. Inside always
free for immediate egress.
65 24
ND60 F88 Vestibule lock* Latch retracted by key
when locked by inside
key.
Inside lever is always
unlocked and is always
free for immediate egress.
Key locks and unlocks
outside lever.
66 25
ND60 Vestibule lock with
closed lever
outside per
XN12-001
Same as ND60 except
outside lever is closed.
Same as ND60. Inside
lever is always fee for
immediate egress.
67 25
Note: Any function with a deadlatch locks the latchbolt when door is closed. See page 5 for identification.
* Available with Small Format Interchangeable Core.
† Caution: These locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is
not recommended. Installation should be in accordance with existing codes only.
8 • Schlage • ND-Series service manual
Lock assembly drawing index
Function ANSI A156.2, 1996, Series 4000, Grade 1 Trim Chassis
Schlage ANSI Description Outside function Inside function Page Page
ND66 F91 Store lock*† Key locks or unlocks
both levers
simultaneously.
Key locks or unlocks both
levers simultaneously.
68 26
ND70 F84 Classroom lock* Outside lever locked or
unlocked by key.
Inside lever is always
unlocked and always free
for immediate egress.
69 27
ND70 x 80 Classroom by
Storeroom lock†
per XN12-006
Outside lever locked or
unlocked by key.
Key in fixed inside lever
retracts latch.
70 28
ND72 Communicating
lock*† per
XN12-002
Outside lever only locked
or unlocked by key.
Inside lever only locked or
unlocked by key.
71 29
ND72 Communicating
lock with
Vandlgard®*† per
XN12-003
Same as ND72.
Vandlgard allows
outside spindle to
disengage from latch
when locked.
Same as ND72.
Vandlgard allows inside
spindle to disengage from
latch when locked.
72 30
ND73 F90 Corridor lock* Locked or unlocked by
outside key. When
locked by key it can only
be unlocked by key.
Push-button locks outside
lever. Turning lever or
closing door releases
button. Inside lever is
always unlocked and is
always free for immediate
egress.
73 31
ND75 Classroom security
lock*
Outside lever locked or
unlocked by key in either
lever.
Key locks or unlocks
outside lever. Inside lever is
always unlocked and is
always free for immediate
egress.
74 32
ND80 F86 Storeroom lock* Lever is fixed. Entrance
by key only.
Inside lever is always
unlocked and is always
free for immediate egress.
75 33
ND80-RX Storeroom lock*
with request to exit
Same as ND80. Same as ND80. A
microswitch attached to
the chassis is activated
when the lever is rotated.
The switch signals use of
the lever to security
systems allowing
non-disruptive egress.
76 34
ND80EL Storeroom
lock—electrically
locked (fail safe)*
Lever is continuously
locked electrically.
Unlocked by switch or
power failure. When
locked, key retracts
latch.
Inside lever is always
unlocked and is always
free for immediate egress.
77 35
Note: Any function with a deadlatch locks the latchbolt when door is closed. See page 5 for identification.
* Available with Small Format Interchangeable Core.
† Caution: These locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is
not recommended. Installation should be in accordance with existing codes only.
Lock assembly drawing index
Schlage • ND-Series service manual • 9
Function ANSI A156.2, 1996, Series 4000, Grade 1 Trim Chassis
Schlage ANSI Description Outside function Inside function Page Page
ND80EL-RX Storeroom
lock— electrically
locked (Fail safe)*
with request to exit
Same as ND80EL-RX. Same as ND80EL.
A microswitch attached to
the chassis is activated
when the lever is rotated.
The switch signals use of
the lever to security
systems allowing
non-disruptive egress.
78 36
ND80EU Storeroom
lock—electrically
unlocked (Fail
secure)*
Lever is continuously
locked mechanically
until unlocked by electric
current. When locked,
key retracts latch.
Inside lever is always
unlocked and is always
free for immediate egress.
79 37
ND80EU-RX Storeroom
lock—electrically
unlocked (Fail
secure) with
request to exit*
Same as ND80EU-RX. Same as ND80EU.
A microswitch attached to
the chassis is activated
when the lever is rotated.
The switch signals use of
the lever to security
systems allowing
non-disruptive egress.
80 38
ND82 F87 Institution lock*† Lever is fixed. Entrance
by key only.
Lever is fixed. Exit by key
only.
81 39
ND85 Faculty restroom
lock
Lever is fixed. Entrance
by key only.
Push-button activates
occupancy indicator,
allowing only emergency
master key to operate.
Turning lever or closing
door releases indicator.
Spanner-button rotation
provides lock-out feature.
Inside lever is always free
for immediate egress.
82 40
ND91 F82 Entrance/oce
lock with
Vandlgard®*
Lever is unlocked with
key when push-button is
pushed. Vandlgard
allows outside spindle to
disengage from latch
when locked.
Push-button locks outside
lever. Turning inside lever
releases button. Inside
lever is always free for
immediate egress.
83 41
ND92 F109 Entrance lock with
Vandlgard®*
Key retracts latch when
button pushed and
turned. Lever is unlocked
with key when push-
button is pushed.
Vandlgard allows
outside spindle to
disengage from latch
when locked.
Turn/push-button:
Pushing and turning
button locks outside lever
until manually unlocked.
Push-button: pushing
button locks outside lever
until unlocked by turning
inside lever. Inside always
free for immediate egress.
84 41
ND93 F88 Vestibule lock with
Vandlgard®*
Latch retracted by key
when locked by inside
key. Key locks and
unlocks lever. Vandlgard
allows outside spindle to
disengage from latch
when locked.
Inside lever is always
unlocked and is always
free for immediate egress.
85 42
Note: Any function with a deadlatch locks the latchbolt when door is closed. See page 5 for identification.
* Available with Small Format Interchangeable Core.
† Caution: These locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is
not recommended. Installation should be in accordance with existing codes only.
10 • Schlage • ND-Series service manual
Lock assembly drawing index
Function ANSI A156.2, 1996, Series 4000, Grade 1 Trim Chassis
Schlage ANSI Description Outside function Inside function Page Page
ND94 F84 Classroom lock
with Vandlgard®*
Outside lever locked or
unlocked by key.
Vandlgard allows
outside spindle to
disengage from latch
when locked.
Inside lever is always
unlocked and is always
free for immediate egress.
86 43
ND95 Classroom security
lock with
Vandlgard®*
Outside lever locked or
unlocked by key in either
lever. Vandlgard allows
outside spindle to
disengage from latch
when locked.
Key locks or unlocks
outside lever. Inside lever is
always unlocked and is
always free for immediate
egress.
87 44
ND96 F86 Storeroom lock
with Vandlgard®*
Lever always disengaged.
Entrance by key only.
Vandlgard allows
outside spindle to
disengage from latch
when locked.
Inside lever is always
unlocked and is always
free for immediate egress.
88 45
ND96EL Storeroom lock
with Vandlgard® —
electrically locked
(Fail safe)*
Lever is continuously
locked electrically.
Unlocked by key or
power failure or switch.
Auxiliary latch deadlocks
latchbolt when door is
closed. Vandlgard allows
outside spindle to
disengage from latch
when locked.
Inside is always unlocked
and free for immediate
egress.
89 46
ND96EU Storeroom lock
with Vandlgard ®—
electrically
unlocked (Fail
secure)*
Lever is continuously
locked until unlocked by
key or electric current.
Auxiliary latch deadlocks
latchbolt when door is
closed. Vandlgard allows
outside spindle to
disengage from latch
when locked.
Inside is always unlocked
and free for immediate
egress.
90 47
ND97 Corridor lock with
Vandlgard ®*
Locked or unlocked by
key. When locked by key,
outside lever can only be
unlocked by key.
Vandlgard allows
outside spindle to
disengage from latch
when locked.
Push-button locking.
Turning lever or closing
door releases button.
Inside is always unlocked
and free for immediate
egress.
91 48
Note: Any function with a deadlatch locks the latchbolt when door is closed. See page 5 for identification.
* Available with Small Format Interchangeable Core.
† Caution: These locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is
not recommended. Installation should be in accordance with existing codes only.
12 Passage latch
13 Exit lock
14 Exit lock with request-to-exit
15 Exit lock— Electrically locked (fail safe)
16 Exit lock— Electrically locked (fail safe) with request-to-exit
17 Exit lock— Electrically unlocked (fail secure)
18 Exit lock— Electrically unlocked (fail secure) with request-to-exit
19 Single dummy trim
20 Exit lock with blank plate
21 Special— classroom exit lock
22 Special— storeroom exit lock
23 Patio, bath/bedroom privacy and hospital privacy lock
24 Entrance/oce and entrance lock
25 Vestibule lock
26 Store lock
27 Classroom lock
28 Special— classroom by storeroom lock
29 Special— communicating lock
30 Special— communicating lock with Vandlgard®
31 Corridor lock
32 Classroom security lock
33 Storeroom lock
34 Storeroom lock with request-to-exit
35 Storeroom lock— Electrically locked (fail safe)
36 Storeroom lock— Electrically locked (fail safe) with request-to-exit
37 Storeroom lock— Electrically unlocked (fail secure)
38 Storeroom lock— Electrically unlocked (fail secure) with request-to-
exit
39 Institution lock
40 Faculty restroom lock
41 Entrance/oce and entrance lock with Vandlgard®
42 Vestibule lock with Vandlgard®
43 Classroom lock with Vandlgard®
44 Classroom security lock with Vandlgard®
45 Storeroom lock with Vandlgard®
46 Storeroom lock with Vandlgard®— Electrically locked (fail
safe)
47 Storeroom lock with Vandlgard®— Electrically unlocked
(fail secure)
48 Corridor lock with Vandlgard®
Chassis
12 • Schlage • ND-Series service manual
Chassis

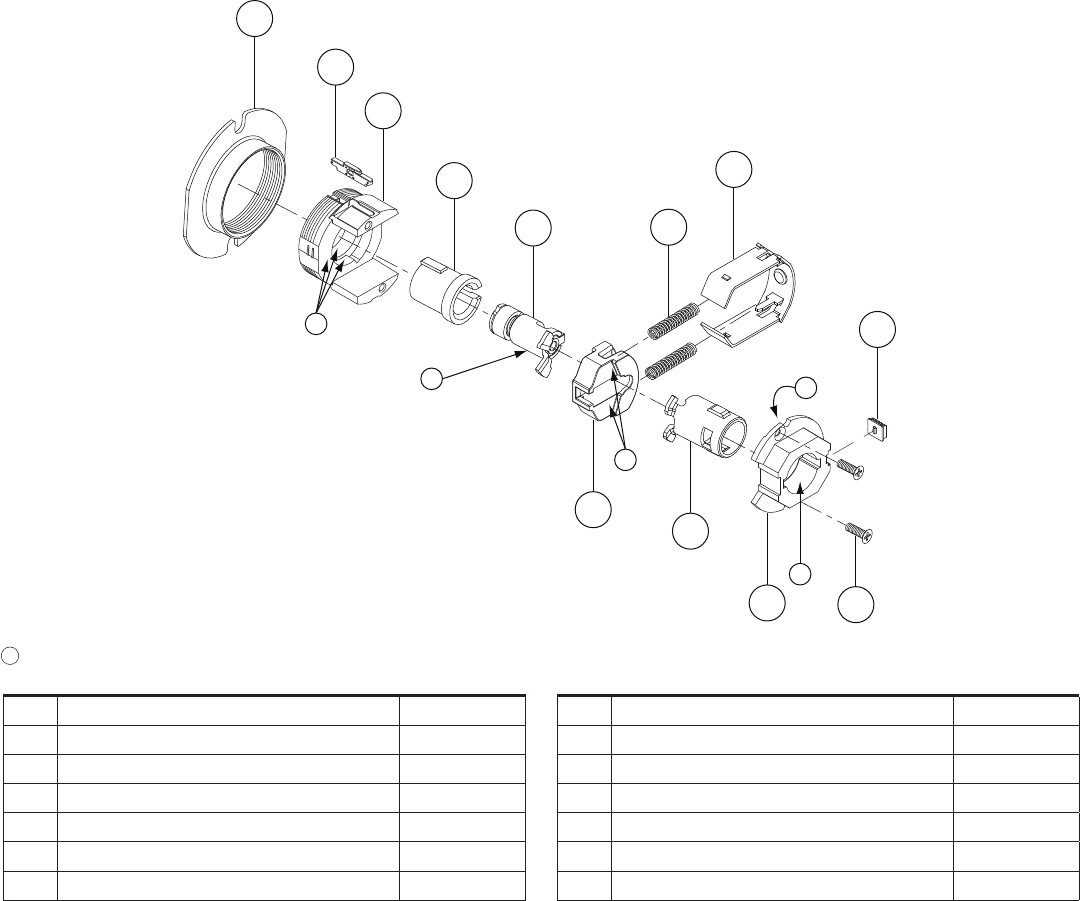

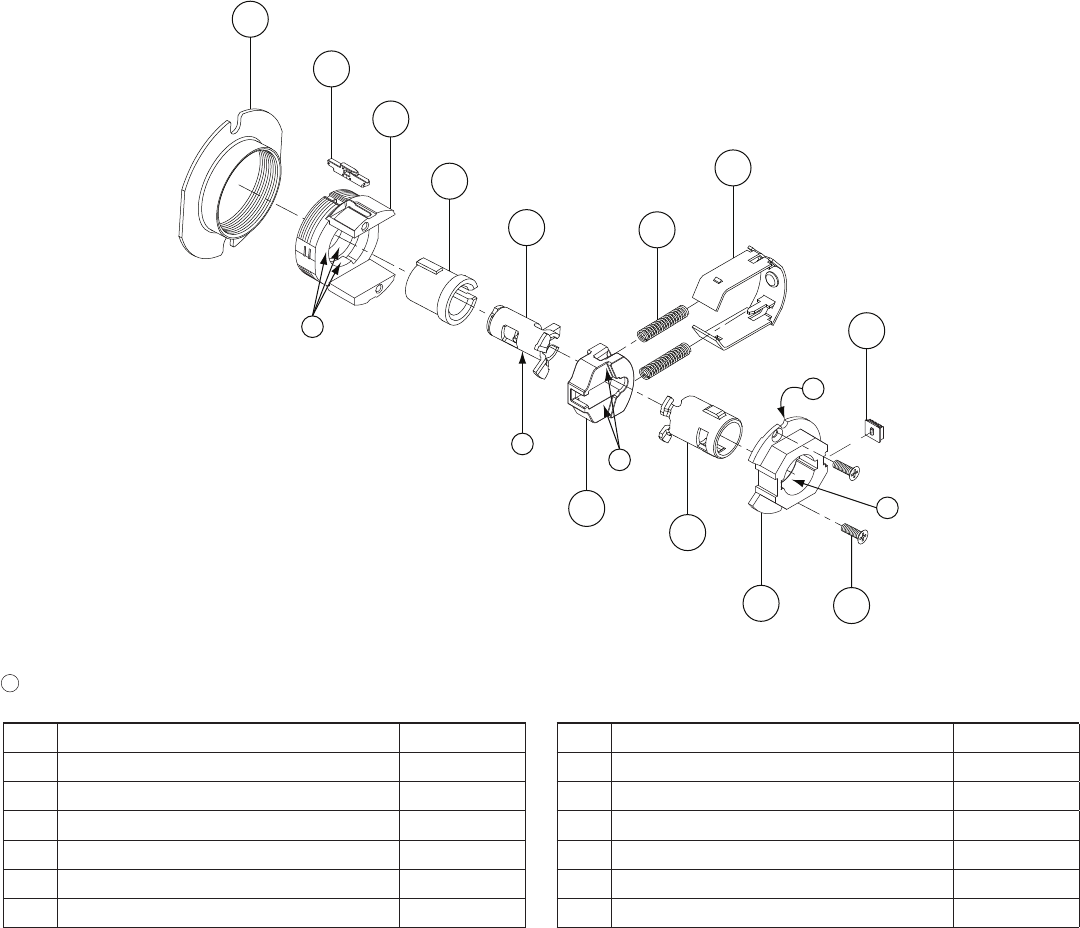

Passage latch
ND10
38
29
24 6
37
30
1
23
38
a
a
a
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
23 Outside housing 24088544
24 Inside hub 24085037
29 Slide N523-149
No. Description Part number
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-056
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 13

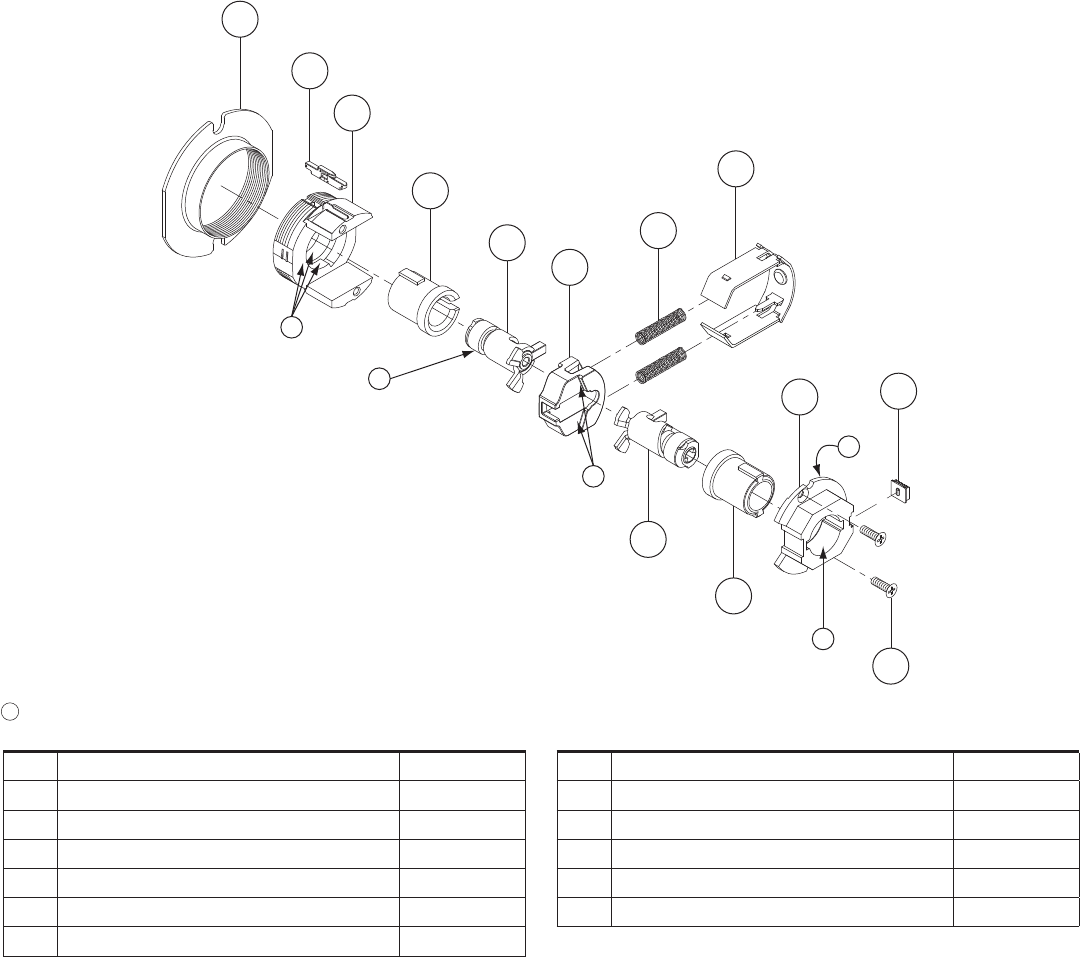

Exit lock
ND12
37
23
22
81
30
6
24
38
29
a
a
a
a
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
8Keycam assembly N123-008
22 Spindle N523-013
23 Outside housing 24088544
24 Inside hub 24085037
No. Description Part number
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-056
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
14 • Schlage • ND-Series service manual
Chassis

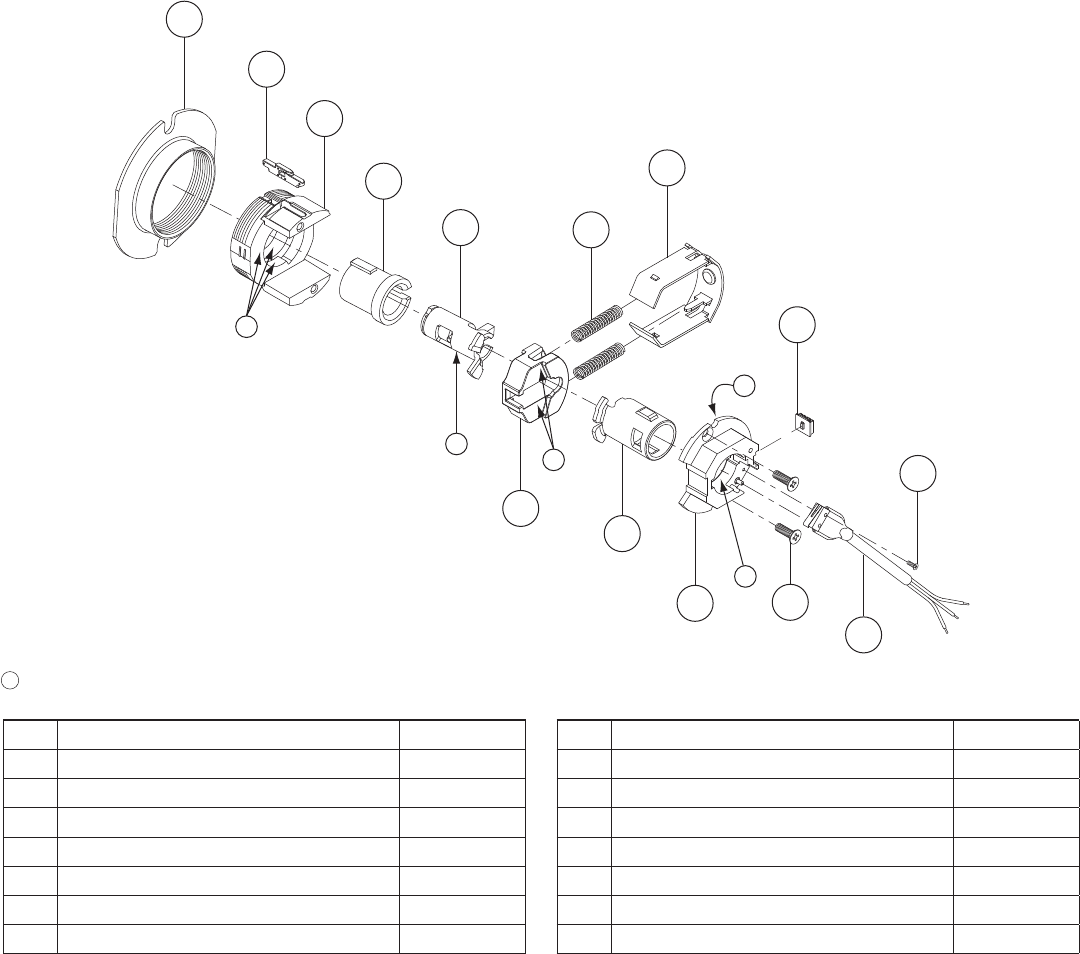

Exit lock with request-to-exit
ND12 RX
37
23
22
81
30
6
29
a
a
a
a
a
51
48
49
27
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
8Keycam assembly N123-008
22 Spindle N523-013
23 Outside housing 24088544
27 Inside hub, electrified and RX 24085078
29 Slide N523-149
No. Description Part number
30 Slide clip N523-025
37 Adjustment plate N523-054
48 RX harness N523-134
49 RX harness screw N523-135
51 RX inside spindle N523-138
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 15

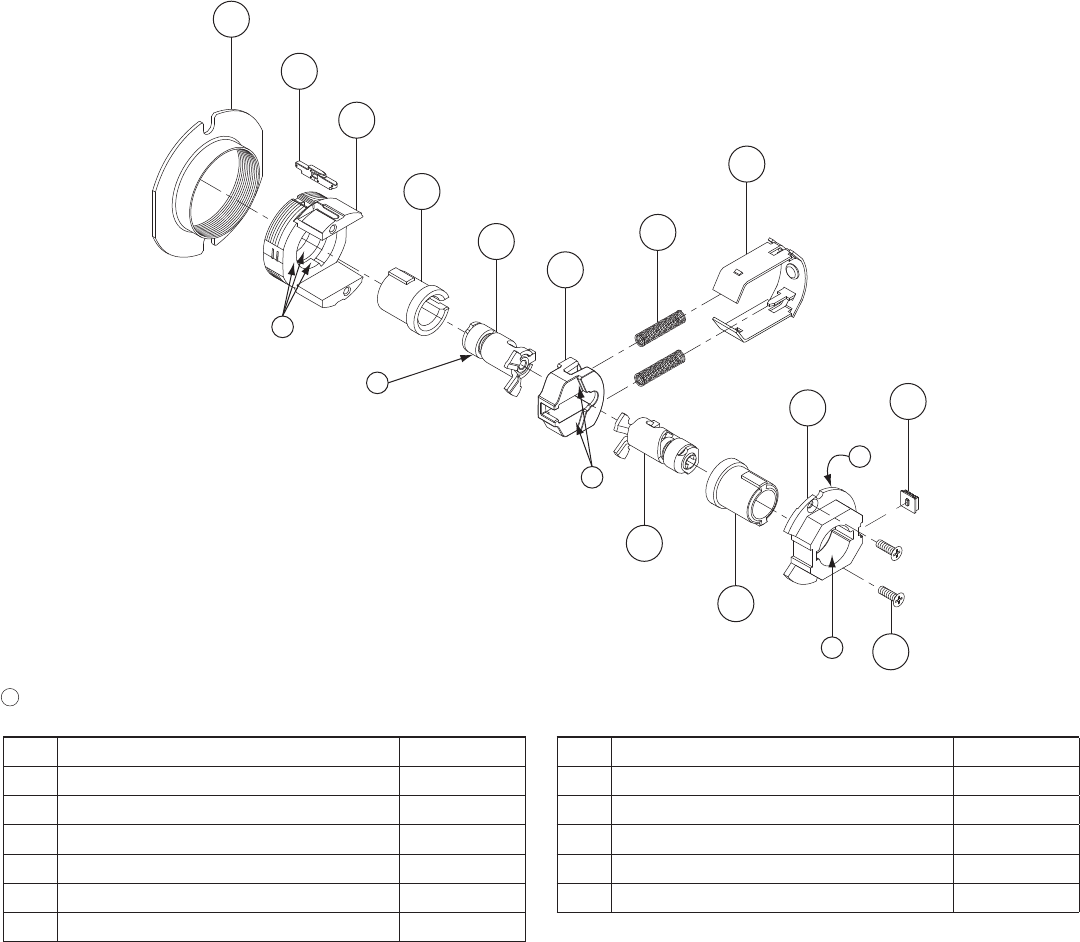

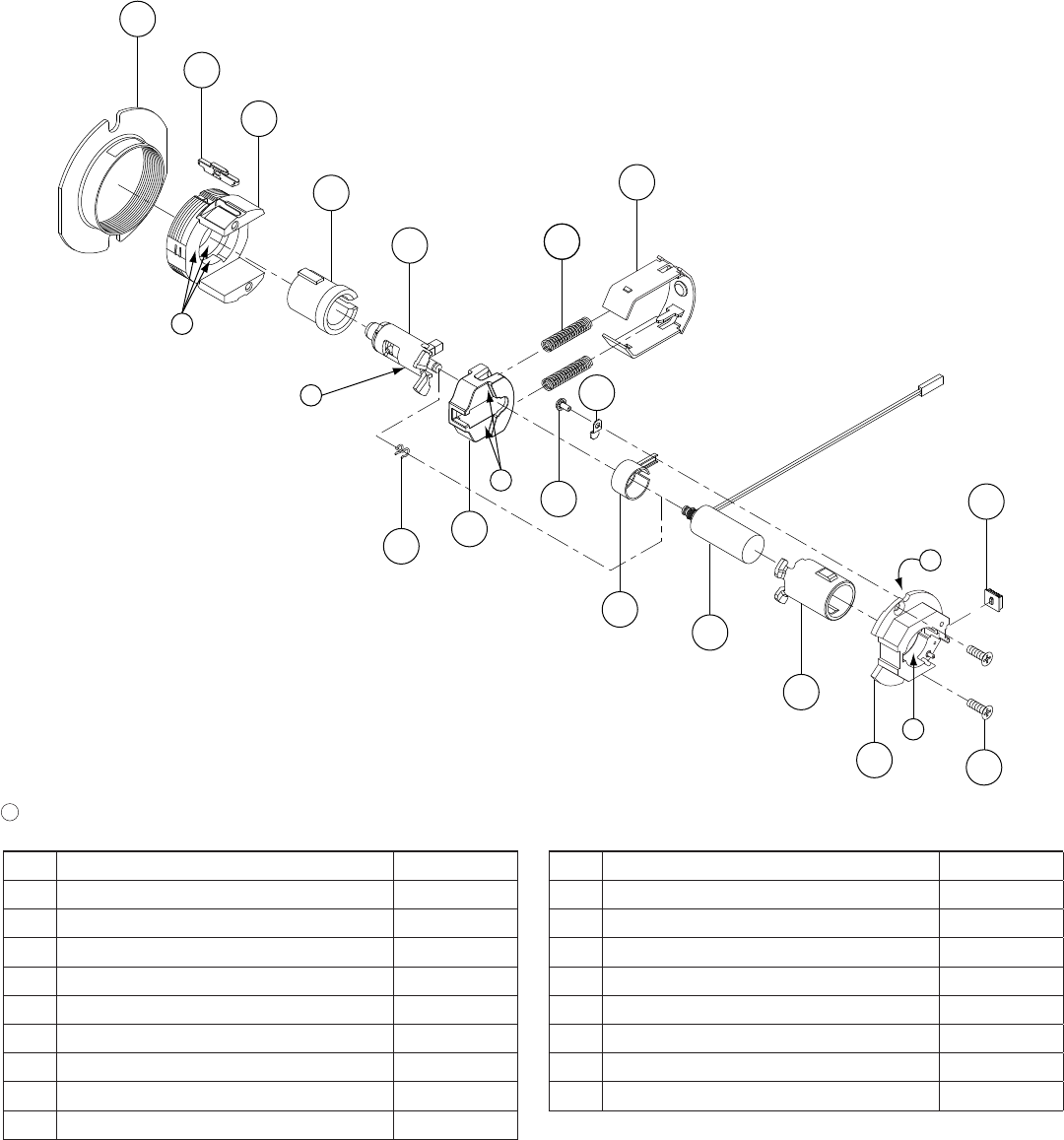

Exit lock— Electrically locked (fail safe)
ND12EL
37
1
28
15
30
6
34
27
39
32
35
29
33
36
a
a
a
a
26
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
15 Electrified keycam assembly N123-024
26 Outside electrified housing 24088551
27 Inside hub, electrified and RX 24085078
28 Outside electrified spindle N523-019
29 Slide N523-149
30 Slide clip N523-025
32 Solenoid—EL N523-027
No. Description Part number
33 Clip N523-028
34 Wire clamp N523-029
35 Sleeve N523-031
36 Wire clamp screw N523-033
37 Adjustment plate N523-054
39 Inside electrified spindle N523-057
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
16 • Schlage • ND-Series service manual
Chassis

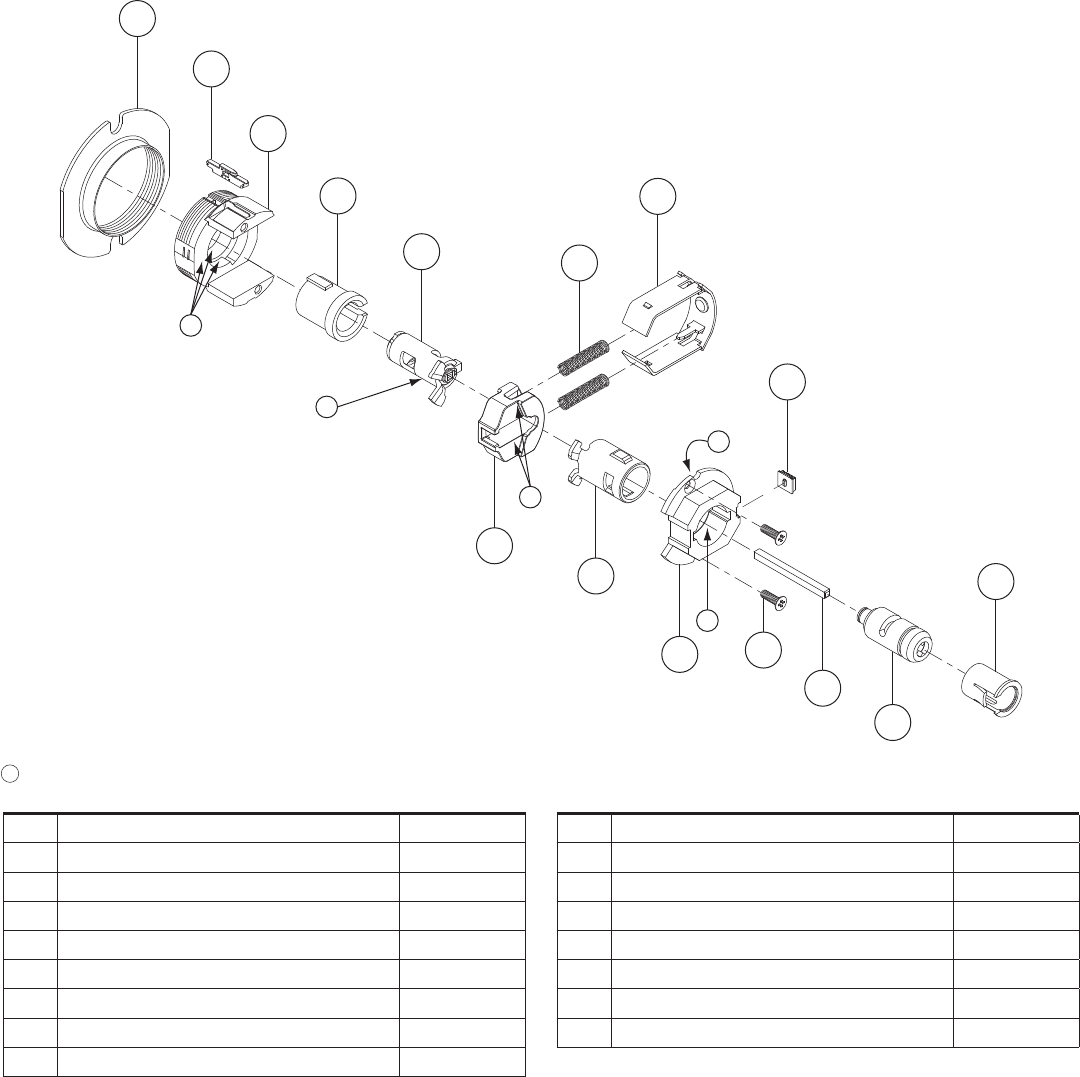

Exit lock— Electrically locked (fail safe) with request-to-exit
ND12EL RX
27
48
49
53
6
a
a
37
26
1
28
15
30
34
46
31
35
29
33
36
a
a
a
52
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
15 Electrified keycam assembly N123-024
26 Outside electrified housing 24088551
27 Inside hub, electrified and RX 24085078
28 Outside electrifed spindle N523-019
29 Slide N523-149
30 Slide clip N523-025
32 Solenoid—EL N523-027
33 Clip N523-028
No. Description Part number
34 Wire clamp N523-029
35 Sleeve N523-031
36 Wire clamp screw N523-033
37 Adjustment plate N523-054
46 Inside spindle electrified N523-132
48 RX harness N523-134
49 RX harness screw N523-135
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 17

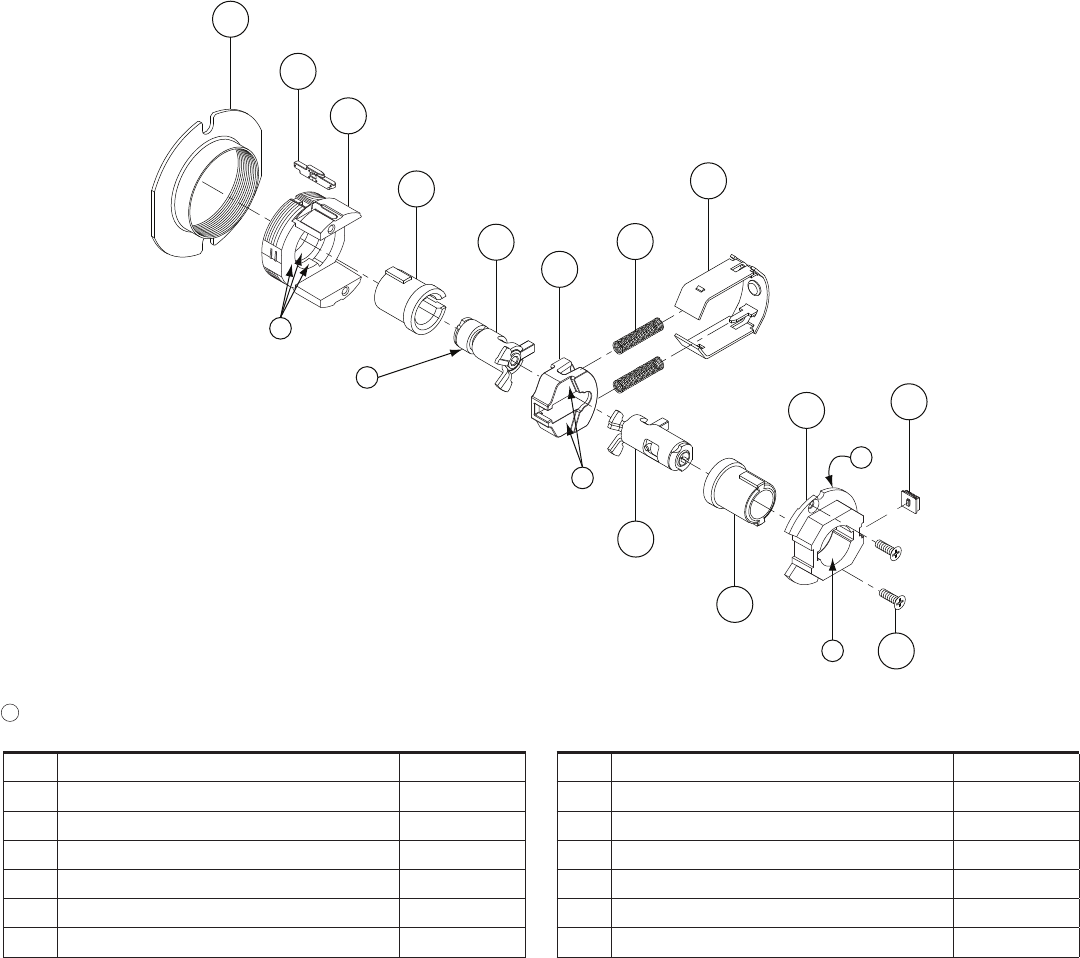

Exit lock— Electrically unlocked (fail secure)
ND12EU
37
26
1
28
15
30
6
34
27
39
31
35
29
33
36
a
a
a
a
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
15 Electrified keycam assembly N123-024
26 Outside electrified housing 24088551
27 Inside hub, electrified and RX 24085078
28 Outside electrified spindle N523-019
29 Slide N523-149
30 Slide clip N523-025
31 Solenoid—EU N523-026
No. Description Part number
33 Clip N523-028
34 Wire clamp N523-029
35 Sleeve N523-031
36 Wire clamp screw N523-033
37 Adjustment plate N523-054
39 Inside electrified spindle N523-057
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
18 • Schlage • ND-Series service manual
Chassis
Exit lock— Electrically unlocked (fail secure) with request-to-exit
ND12EU RX
27
48
49
6
a
a
37
26
1
28
15
30
34
46
31
35
29
33
36
a
a
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
15 Electrified keycam assembly N123-024
26 Outside electrified housing 24088551
27 Inside hub, electrified and RX 24085078
28 Outside electrifed spindle N523-019
29 Slide N523-149
30 Slide clip N523-025
31 Solenoid—EU N523-026
33 Clip N523-028
No. Description Part number
34 Wire clamp N523-029
35 Sleeve N523-031
36 Wire clamp screw N523-033
37 Adjustment plate N523-054
46 Inside spindle electrified N523-132
48 Harness, RX N523-134
49 Screw, harness, RX N523-135
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
20 • Schlage • ND-Series service manual
Chassis
Exit lock with blank plate
ND25
29
38
24
30
1
23
37
a
a
a
6
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
23 Outside housing 24088544
24 Inside hub 24085037
29 Slide N523-149
No. Description Part number
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-056
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 21
Special— classroom exit lock
ND25X70
37
23
29
30
1
25
6
10
22
a
a
a
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
10 Keycam assembly N123-010
22 Spindle N523-013
23 Outside housing 24088544
25 Inside hub 24085060
No. Description Part number
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
22 • Schlage • ND-Series service manual
Chassis
Special— storeroom exit lock
ND25X80
37
29
1
30
25
6
8
22
a
a
a
53
23
a
52
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
8Keycam assembly N123-008
22 Spindle N523-013
23 Outside housing 24088544
25 Inside hub 24085060
No. Description Part number
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 23
Patio, bath/bedroom privacy and hospital privacy lock
ND30, ND40 and ND44
37
22
17 2
1
30
6
24
38
29
a
a
a
a
4
23
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
2Restoring slide catch C604-187
4Slide catch spring C604-191
6Chassis screw L583-454
17 Keycam assembly N123-045
22 Spindle N523-013
23 Outside housing 24088544
No. Description Part number
24 Inside hub 24085037
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-056
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
24 • Schlage • ND-Series service manual
Chassis
Entrance/oce and entrance lock
ND50 and ND53
4
37
23
22
73
1
30
6
24
38
29
a
a
a
a
a
53
52
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
3Slide catch C604-188
4Slide catch spring C604-191
6Chassis screw L583-454
7Keycam assembly N123-007
22 Spindle N523-013
23 Outside housing 24088544
No. Description Part number
24 Inside hub 24085037
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-056
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 25

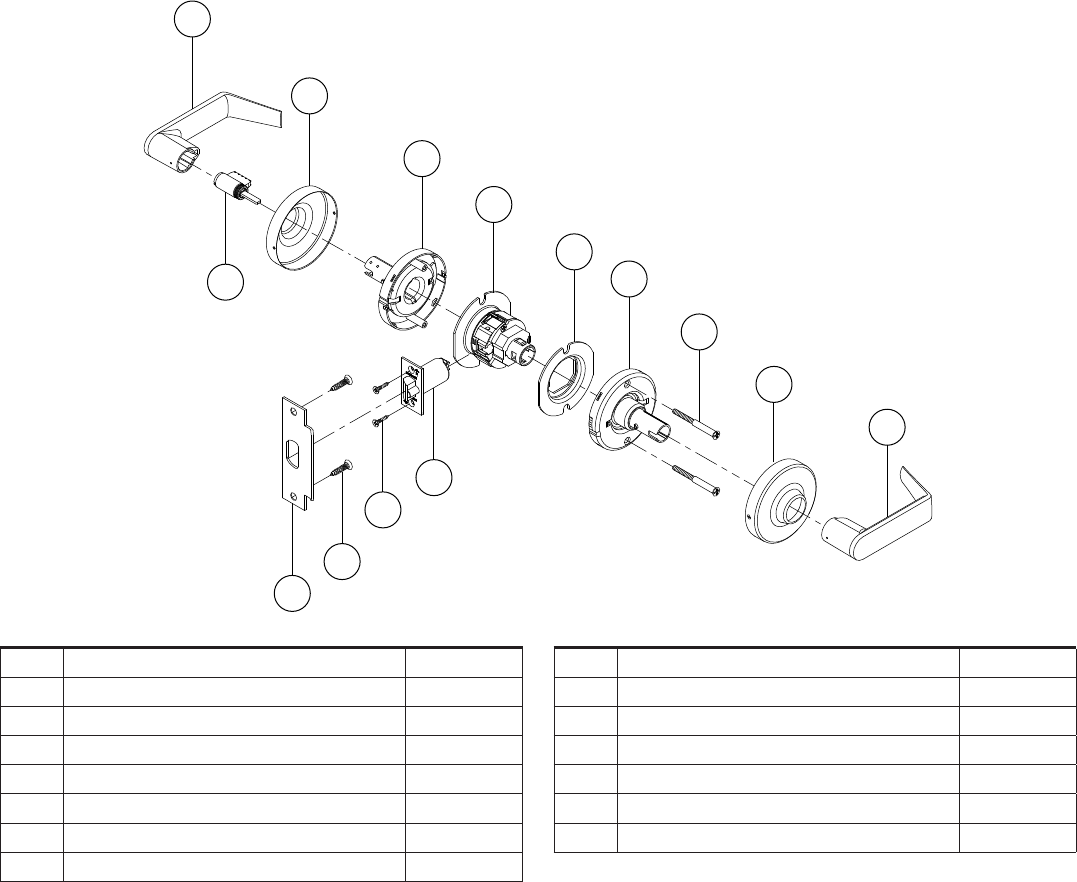

Vestibule lock
ND60
29
38
24
42
43
40
41
6
30
1
7
22
37
a
a
a
a
23
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
7Keycam assembly N123-007
22 Spindle N523-013
23 Outside housing 24088544
24 Inside hub 24085037
29 Slide N523-149
30 Slide clip N523-025
No. Description Part number
37 Adjustment plate N523-054
38 Spindle N523-056
40 Plunger sleeve N523-063
41 Plunger N523-064
42 Cam pin N523-065
43 Cam N523-066
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
26 • Schlage • ND-Series service manual
Chassis

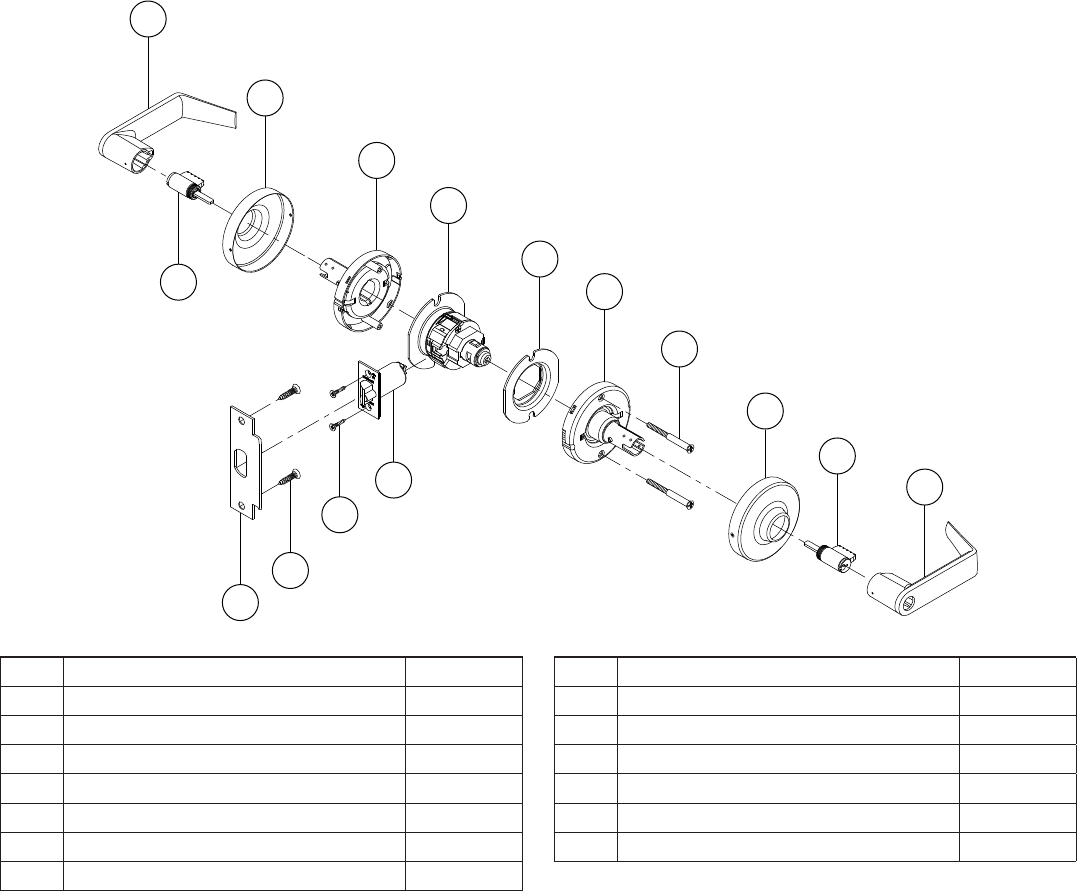

Store lock
ND66
37
23
22
91
30
6
25
22
9
44
29
a
a
a
a
a
a53
52
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
9Keycam assembly N123-009
22 Spindle N523-013
23 Outside housing 24088544
25 Inside hub 24085060
No. Description Part number
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
44 Plunger bar N523-067
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 27
Classroom lock
ND70
29
38
24 6
30
1
10
22
23
37
a
a
a
a
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
10 Keycam assembly N123-010
22 Spindle N523-013
23 Outside housing 24088544
24 Inside hub 24085037
No. Description Part number
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-056
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
28 • Schlage • ND-Series service manual
Chassis
Special— classroom by storeroom lock
ND70X80
37
23
22
10
29
1
30
25
6
8
22
a
a
a
a
a
53
52
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
8Keycam assembly N123-008
10 Keycam assembly N123-010
22 Spindle N523-013
23 Outside housing 24088544
No. Description Part number
25 Inside hub 24085060
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 29
Special— communicating lock
ND72
37
23
22
29
1
30
10
22
25
10
6
a
a
a
a
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
10 Keycam assembly N123-010
22 Spindle N523-013
23 Outside housing 24088544
25 Inside hub 24085060
No. Description Part number
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
30 • Schlage • ND-Series service manual
Chassis
Special— communicating lock with Vandlgard®
ND72 Vandlgard®
37
23
22
12
29
1
30
25
6
12
22
a
a
a
a
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
12 Keycam assembly N123-012
22 Spindle N523-013
23 Outside housing 24088544
25 Inside hub 24085060
No. Description Part number
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 31

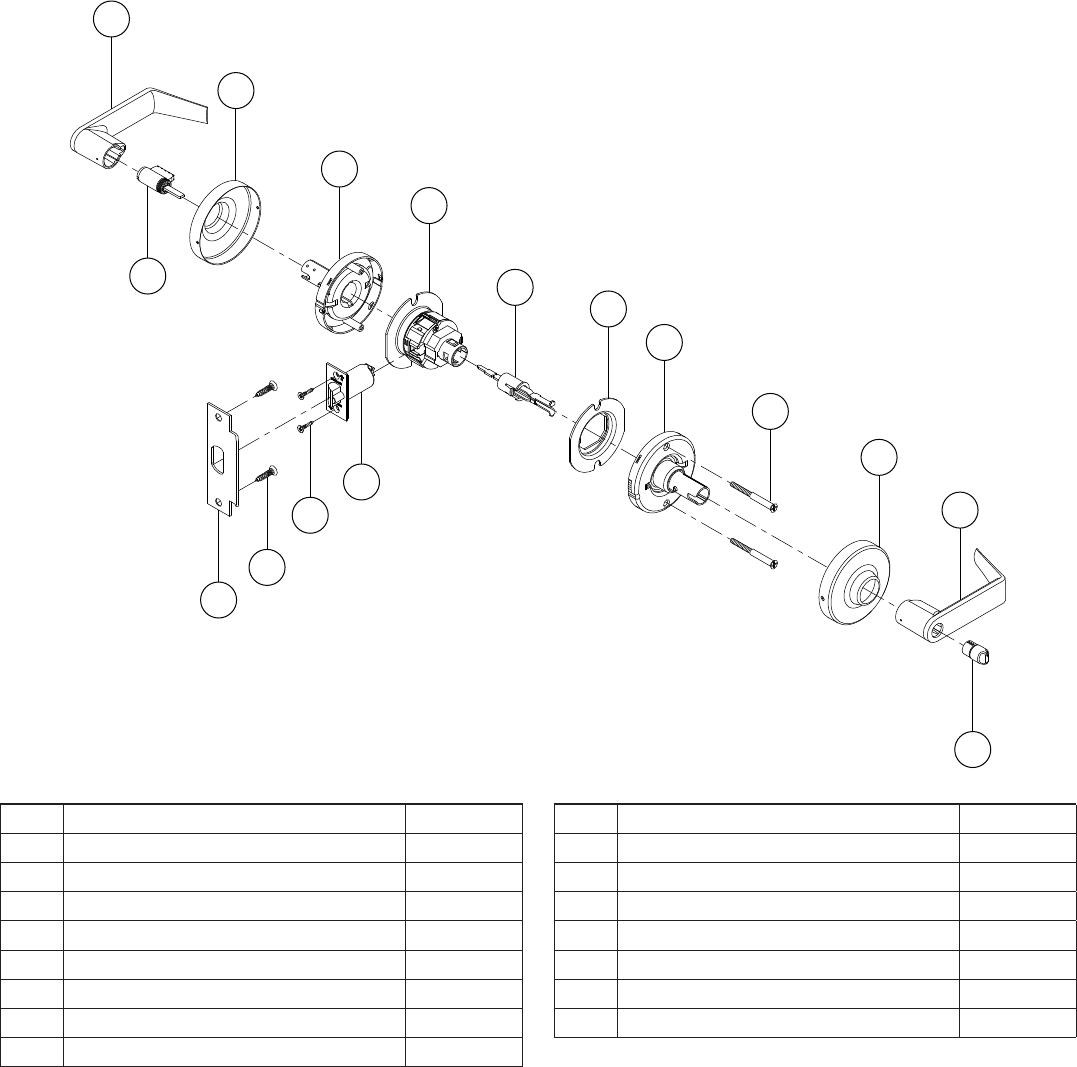

Corridor lock
ND73
37
23
22
10 2
1
30
6
29
38
24
4
a
a
a
a
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
2Restoring slide catch C604-187
4Slide catch spring C604-191
6Chassis screw L583-454
10 Keycam assembly N123-010
22 Spindle N523-013
23 Outside housing 24088544
No. Description Part number
24 Inside hub 24085037
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-056
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
32 • Schlage • ND-Series service manual
Chassis
Classroom security lock
ND75
37
a
a
a
a
a
23
22
91
30
29
38
24
40
6
44
20
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
9Keycam assembly N123-009
20 Inside cam N123-059
22 Spindle N523-013
23 Outside housing 24088544
24 Inside hub 24085037
29 Slide N523-149
No. Description Part number
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-056
40 Plunger sleeve N523-063
44 Plunger bar N523-067
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 33
Storeroom lock
ND80
37
23
22
81
30
6
24
38
29
a
a
a
a
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
8Keycam assembly N123-008
22 Spindle N523-013
23 Outside housing 24088544
24 Inside hub 24085037
No. Description Part number
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-056
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
34 • Schlage • ND-Series service manual
Chassis
Storeroom lock with request-to-exit
ND80 RX
37
23
22
81
30
6
29
a
a
a
a
a
51
48
49
27
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
8Keycam assembly N123-008
22 Spindle N523-013
23 Outside housing 24088544
27 Inside hub, electrified and RX 24085078
29 Slide N523-149
No. Description Part number
30 Slide clip N523-025
37 Adjustment plate N523-054
48 RX harness N523-134
49 RX harness screw N523-135
51 RX inside spindle N523-138
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 35
Storeroom lock— Electrically locked (fail safe)
ND80EL
37
1
28
15
30
6
34
27
39
32
35
29
33
36
a
a
a
a
26
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
15 Electrified keycam assembly N123-024
26 Outside electrified housing 24088551
27 Inside hub, electrified and RX 24085078
28 Outside electrified spindle N523-019
29 Slide N523-149
30 Slide clip N523-025
32 Solenoid—EL N523-027
No. Description Part number
33 Clip N523-028
34 Wire clamp N523-029
35 Sleeve N523-031
36 Wire clamp screw N523-033
37 Adjustment plate N523-054
39 Inside electrified spindle N523-057
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
36 • Schlage • ND-Series service manual
Chassis
Storeroom lock— Electrically locked (fail safe) with request-to-exit
ND80EL RX
27
48
49
53
6
a
a
37
26
1
28
15
30
34
46
31
35
29
33
36
a
a
a
52
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
15 Electrified keycam assembly N123-024
26 Outside electrified housing 24088551
27 Inside hub, electrified and RX 24085078
28 Outside electrifed spindle N523-019
29 Slide N523-149
30 Slide clip N523-025
32 Solenoid—EL N523-027
33 Clip N523-028
No. Description Part number
34 Wire clamp N523-029
35 Sleeve N523-031
36 Wire clamp screw N523-033
37 Adjustment plate N523-054
46 Inside spindle electrified N523-132
48 RX harness N523-134
49 RX harness screw N523-135
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 37
Storeroom lock— Electrically unlocked (fail secure)
ND80EU
37
26
1
28
15
30
6
34
27
39
31
35
29
33
36
a
a
a
a
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
15 Electrified keycam assembly N123-024
26 Outside electrified housing 24088551
27 Inside hub, electrified and RX 24085078
28 Outside electrified spindle N523-019
29 Slide N523-149
30 Slide clip N523-025
31 Solenoid—EU N523-026
No. Description Part number
33 Clip N523-028
34 Wire clamp N523-029
35 Sleeve N523-031
36 Wire clamp screw N523-033
37 Adjustment plate N523-054
39 Inside electrified spindle N523-057
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
38 • Schlage • ND-Series service manual
Chassis
Storeroom lock— Electrically unlocked (fail secure) with request-to-exit
ND80EU RX
27
48
49
6
a
a
37
26
1
28
15
30
34
46
31
35
29
33
36
a
a
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
15 Electrified keycam assembly N123-024
26 Outside electrified housing 24088551
27 Inside hub, electrified and RX 24085078
28 Outside electrifed spindle N523-019
29 Slide N523-149
30 Slide clip N523-025
31 Solenoid—EU N523-026
33 Clip N523-028
No. Description Part number
34 Wire clamp N523-029
35 Sleeve N523-031
36 Wire clamp screw N523-033
37 Adjustment plate N523-054
46 Inside spindle electrified N523-132
48 Harness, RX N523-134
49 Screw, harness, RX N523-135
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 39
Institution lock
ND82
29
8
22
25 6
30
1
8
22
23
37
a
a
a
a
aa
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-109
6Chassis screw L583-454
8Keycam assembly N123-008
22 Spindle N523-013
23 Outside housing 24088544
25 Inside hub 24085060
No. Description Part number
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
40 • Schlage • ND-Series service manual
Chassis
Faculty restroom lock
ND85
37
b
a
a
a
a
23
22
19
2
4
1
30
6
29
38
24
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
2Restoring slide catch C604-187
4Slide catch spring C604-191
6Chassis screw L583-454
19 Keycam assembly N123-055
22 Spindle N523-013
23 Outside housing 24088544
No. Description Part number
24 Inside hub 24085037
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-056
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 41
Entrance/oce and entrance lock with Vandlgard®
ND91 and ND92
37
23
22
11 3
1
30
6
24
38
29
a
a
a
a
a
4
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
3Slide catch C604-188
4Slide catch spring C604-191
6Chassis screw L583-454
11 Keycam assembly N123-011
22 Spindle N523-013
23 Outside housing 24088544
No. Description Part number
24 Inside hub 24085037
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-056
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
42 • Schlage • ND-Series service manual
Chassis
Vestibule lock with Vandlgard®
ND93
29
38
24
42
43
40
41
6
30
1
11
22
23
37
a
a
a
a
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
11 Keycam assembly N123-011
22 Spindle N523-013
23 Outside housing 24088544
24 Inside hub 24085037
29 Slide N523-149
30 Slide clip N523-025
No. Description Part number
37 Adjustment plate N523-054
38 Spindle N523-056
40 Plunger sleeve N523-063
41 Plunger N523-064
42 Cam pin N523-065
43 Cam N523-066
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 43
Classroom lock with Vandlgard®
ND94
37
23
22
12 1
30
6
29
38
24
a
a
a
a
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
12 Keycam assembly N123-012
22 Spindle N523-013
23 Outside housing 24088544
24 Inside hub 24085037
No. Description Part number
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-056
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
44 • Schlage • ND-Series service manual
Chassis
Classroom security lock with Vandlgard®
ND95
37
a
a
a
a
a
23
22
18 1
30
6
40
24
38
29
44
20
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
18 Keycam assembly N123-054
20 Inside cam N123-059
22 Spindle N523-013
23 Outside housing 24088544
24 Inside hub 24085037
29 Slide N523-149
No. Description Part number
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-056
40 Plunger sleeve N523-063
44 Plunger bar N523-067
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 45
Storeroom lock with Vandlgard®
ND96
29
38
24
37
23
22
13 1
30
6
a
a
a
a
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
13 Keycam assembly N123-013
22 Spindle N523-013
23 Outside housing 24088544
24 Inside hub 24085037
No. Description Part number
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-056
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
46 • Schlage • ND-Series service manual
Chassis
Storeroom lock with Vandlgard®— Electrically locked (fail safe)
ND96EL
37
26
1
28
16
30
6
34
27
39
32
35
29
33
36
a
a
a
a
a
53
52
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
16 Electrified keycam assembly—Vandlgard®N123-025
26 Outside electrified housing 24088551
27 Inside hub—electrified functions 24085078
28 Outside electrified spindle N523-019
29 Slide N523-149
30 Slide clip N523-025
32 Solenoid–EL N523-027
No. Description Part number
33 Clip N523-028
34 Wire clamp N523-029
35 Sleeve N523-031
36 Wire clamp screw N523-033
37 Adjustment plate N523-054
39 Inside electrified strike N523-057
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Chassis
Schlage • ND-Series service manual • 47
Storeroom lock with Vandlgard®— Electrically unlocked (fail secure)
ND96EU
37
26
28
16 1
30
6
35 31
39
27
34
29
33
36
a
a
a
a
a
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
6Chassis screw L583-454
16 Electrified keycam assembly—Vandlgard®N123-025
26 Outside electrified housing 24088551
27 Inside hub—electrified functions 24085078
28 Outside electrified spindle N523-019
29 Slide N523-149
30 Slide clip N523-025
31 Solenoid—EU N523-026
No. Description Part number
33 Clip N523-028
34 Wire clamp N523-029
35 Sleeve N523-031
36 Wire clamp screw N523-033
37 Adjustment plate N523-054
39 Inside electrified spindle N523-057
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
48 • Schlage • ND-Series service manual
Chassis
Corridor lock with Vandlgard®
ND97
37
23
22
2
1
30
6
29
38
24
4
a
a
a
a
a
21
52
53
a Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1Slide spring C503-019
2Restoring slide catch C604-187
4Slide catch spring C604-191
6Chassis screw L583-454
21 Keycam assembly N123-097
22 Spindle N523-013
23 Outside housing 24088544
No. Description Part number
24 Inside hub 24085037
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-056
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.

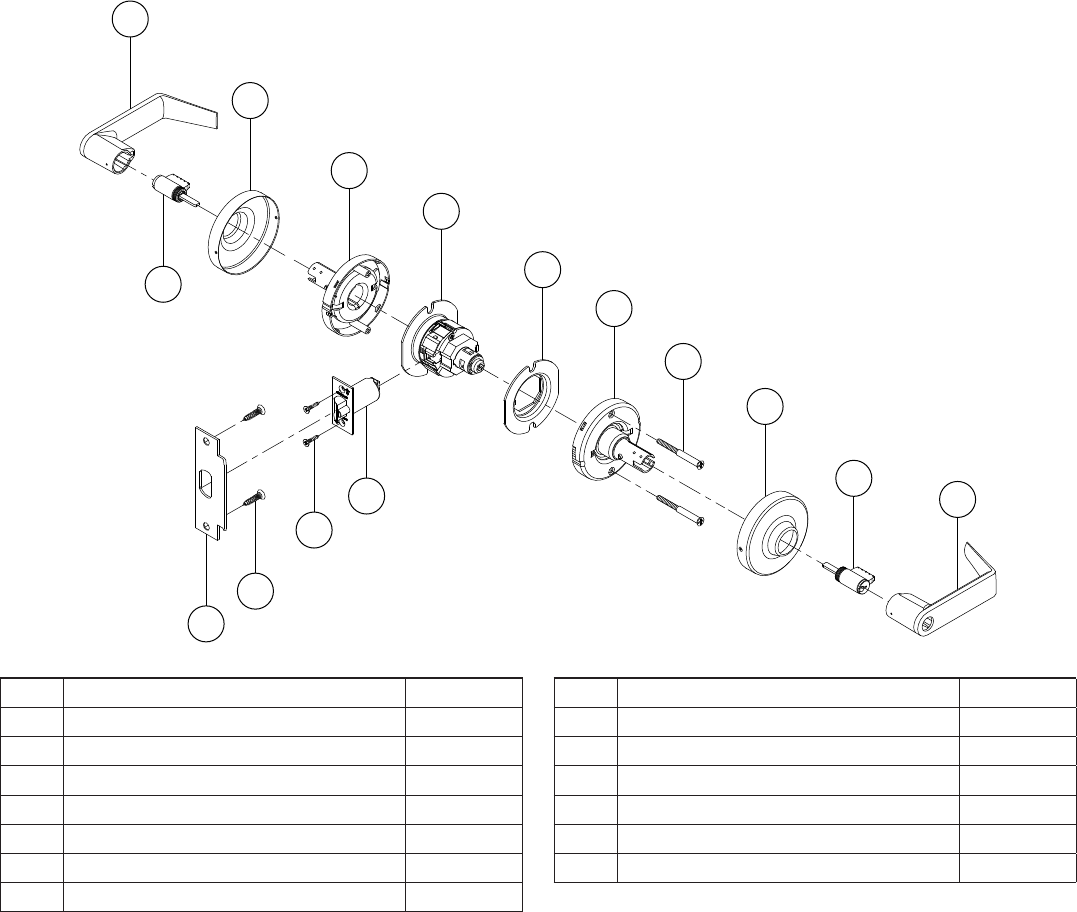

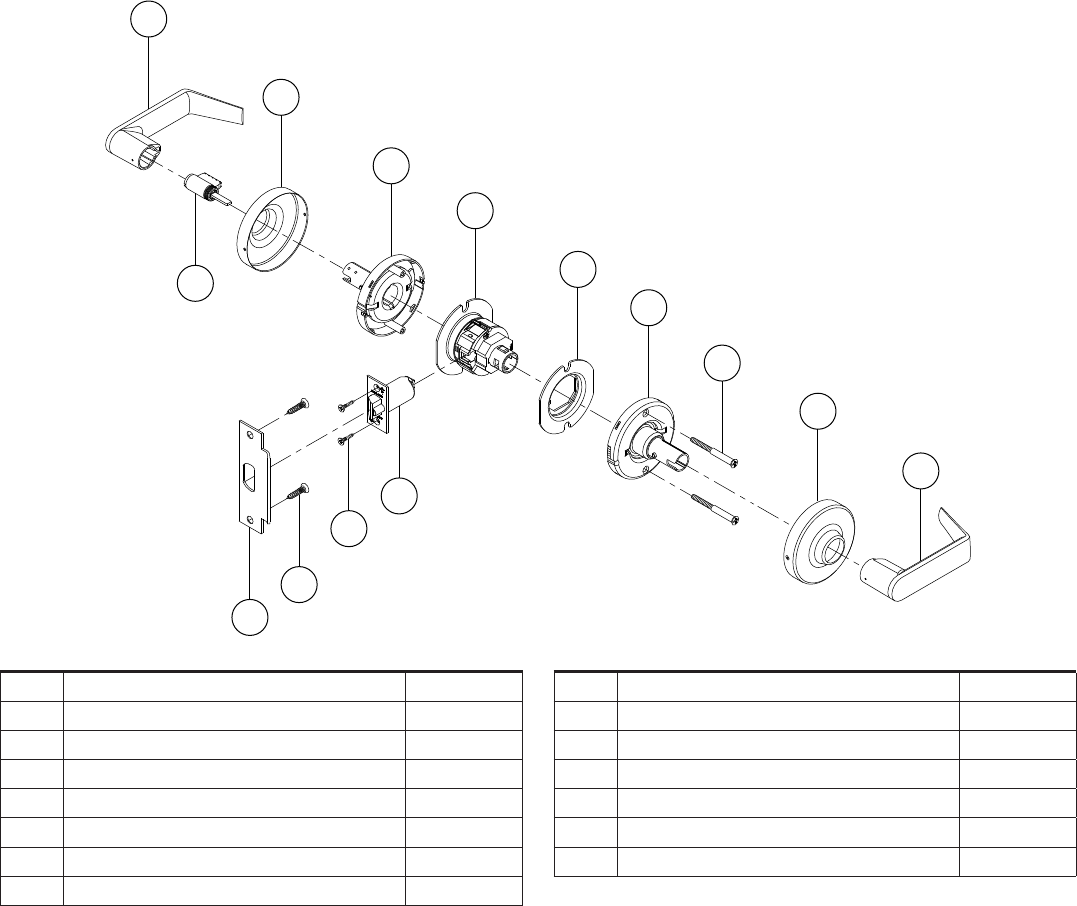

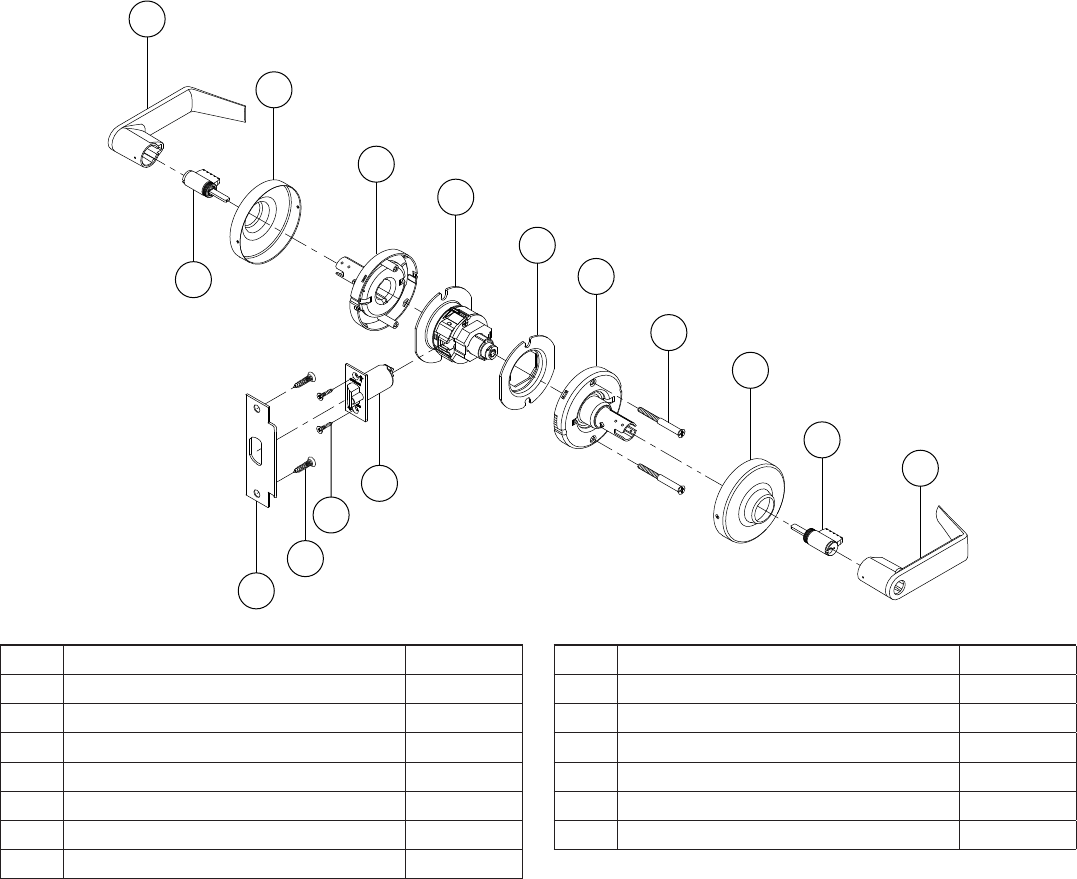

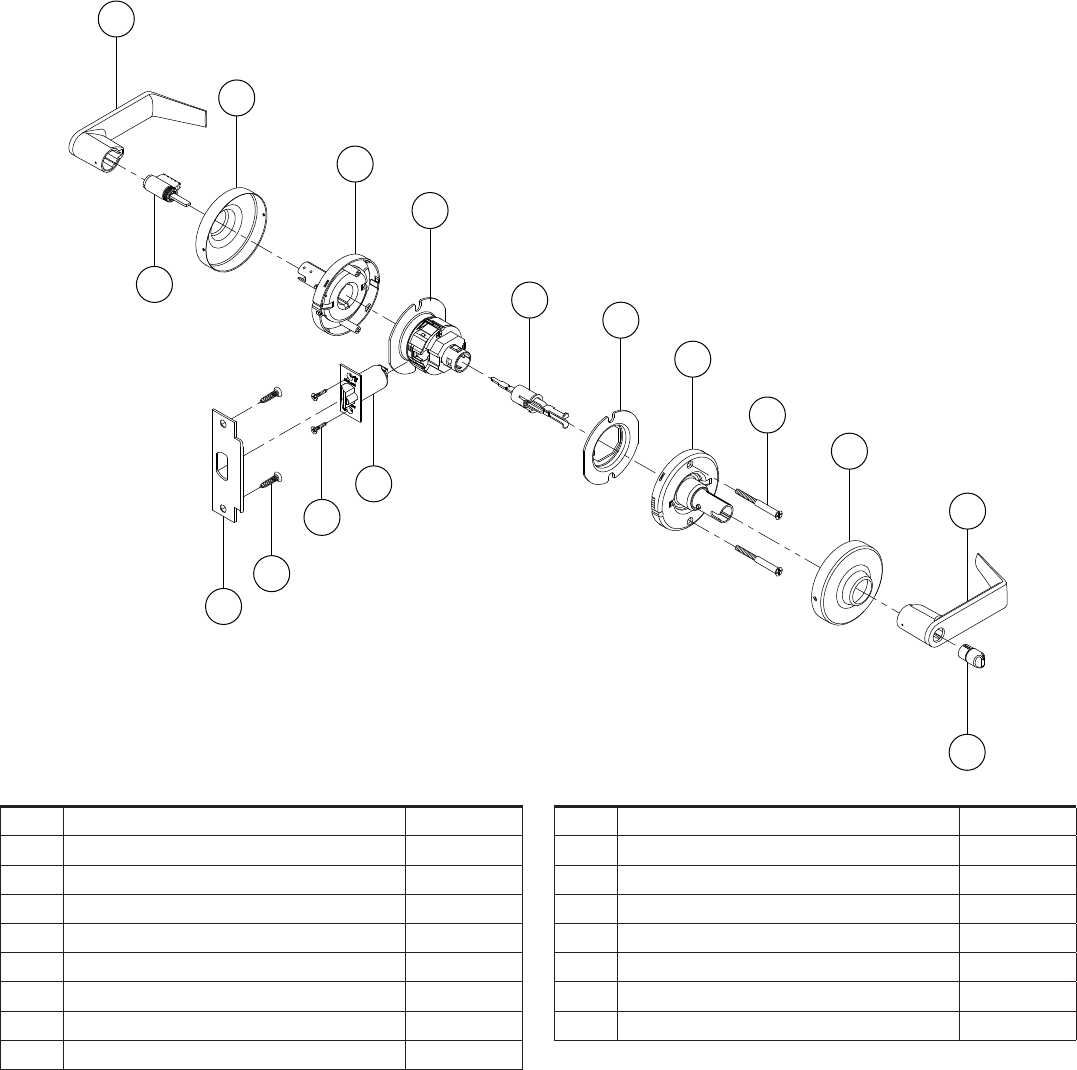

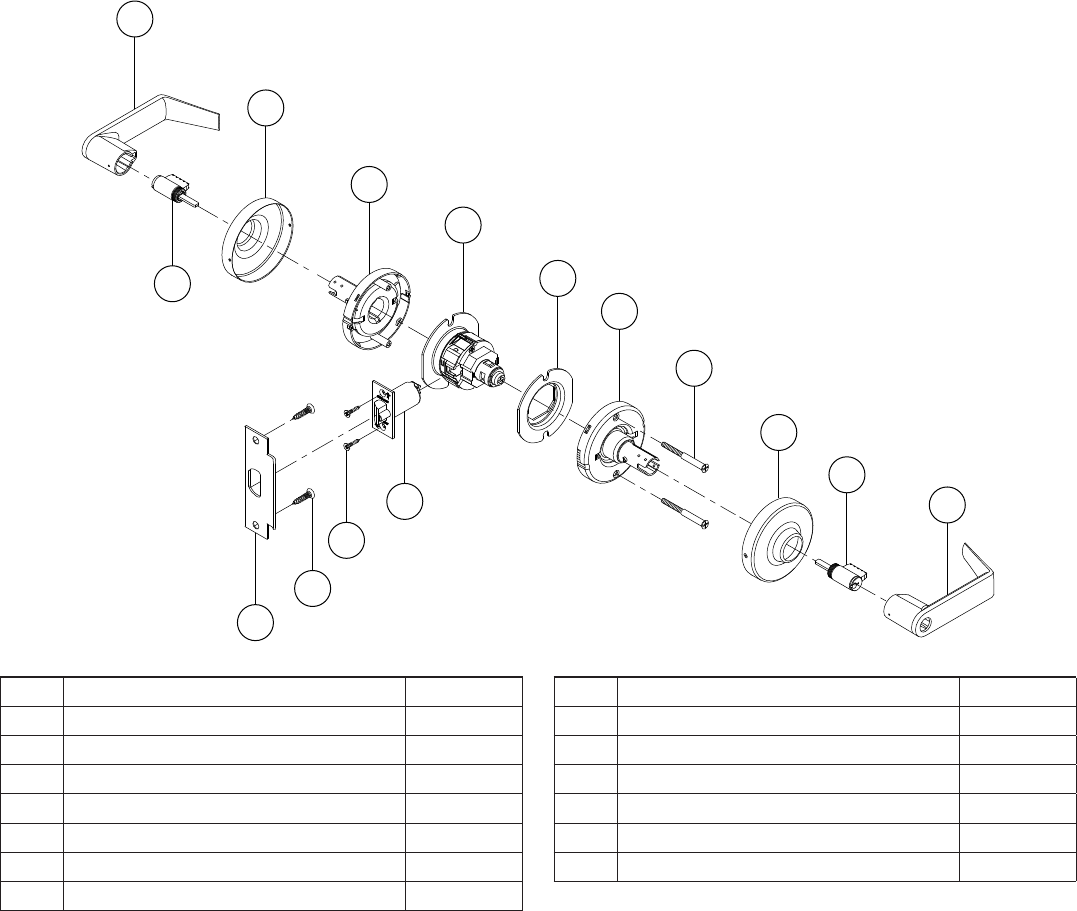

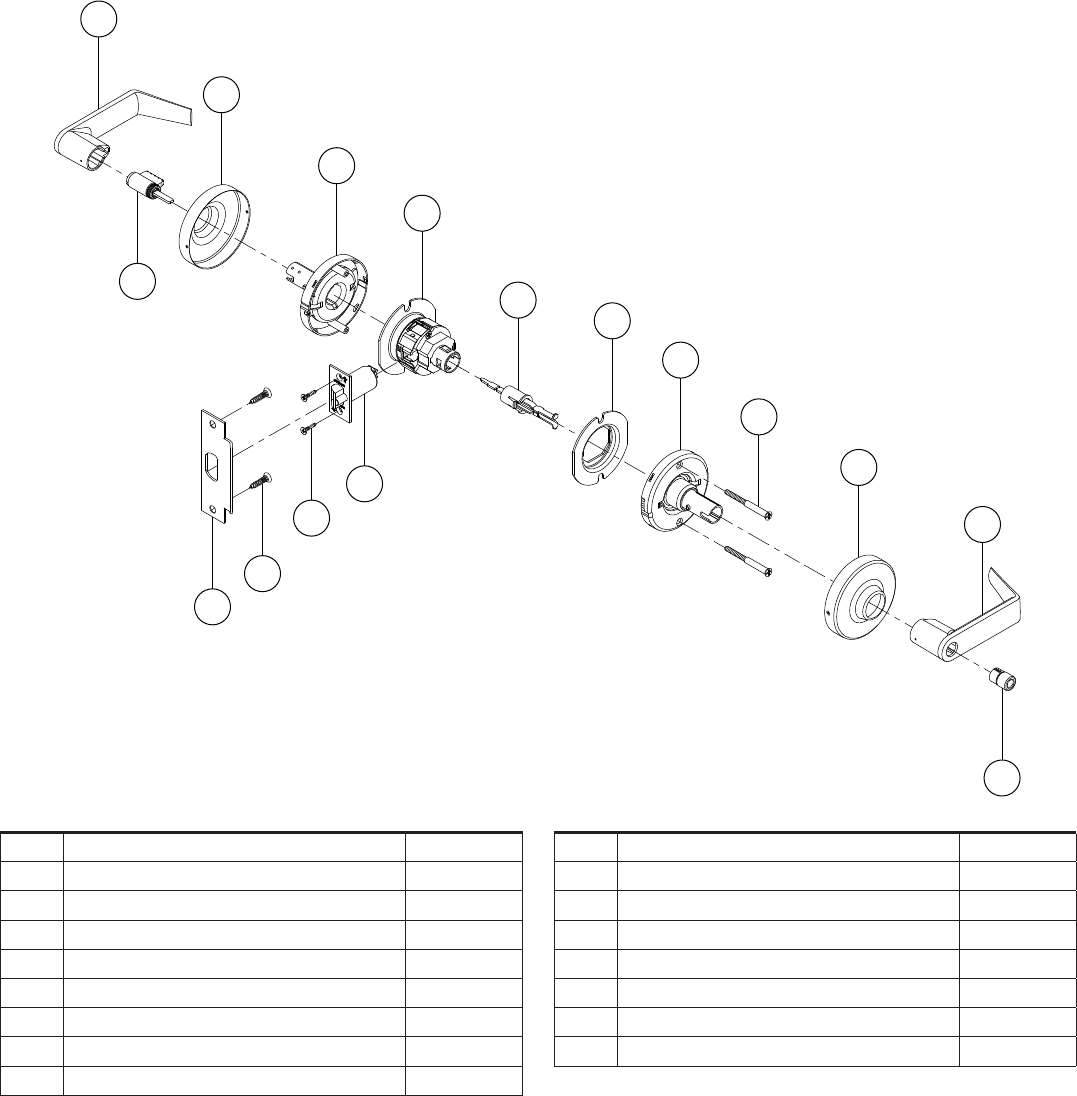

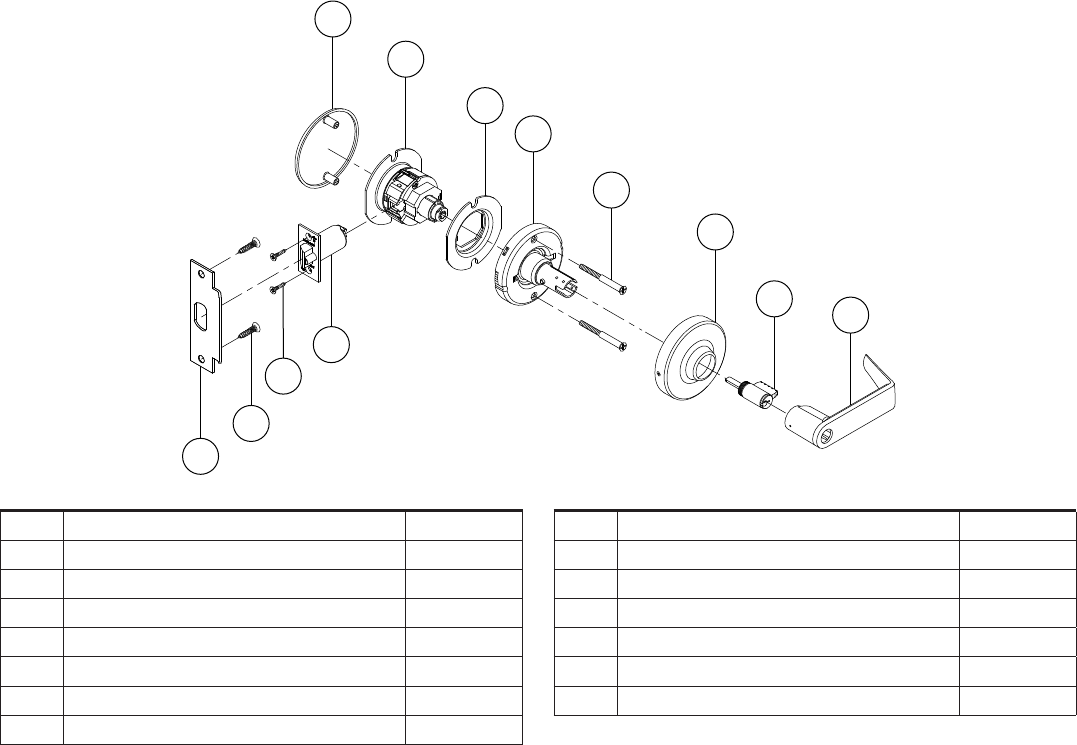

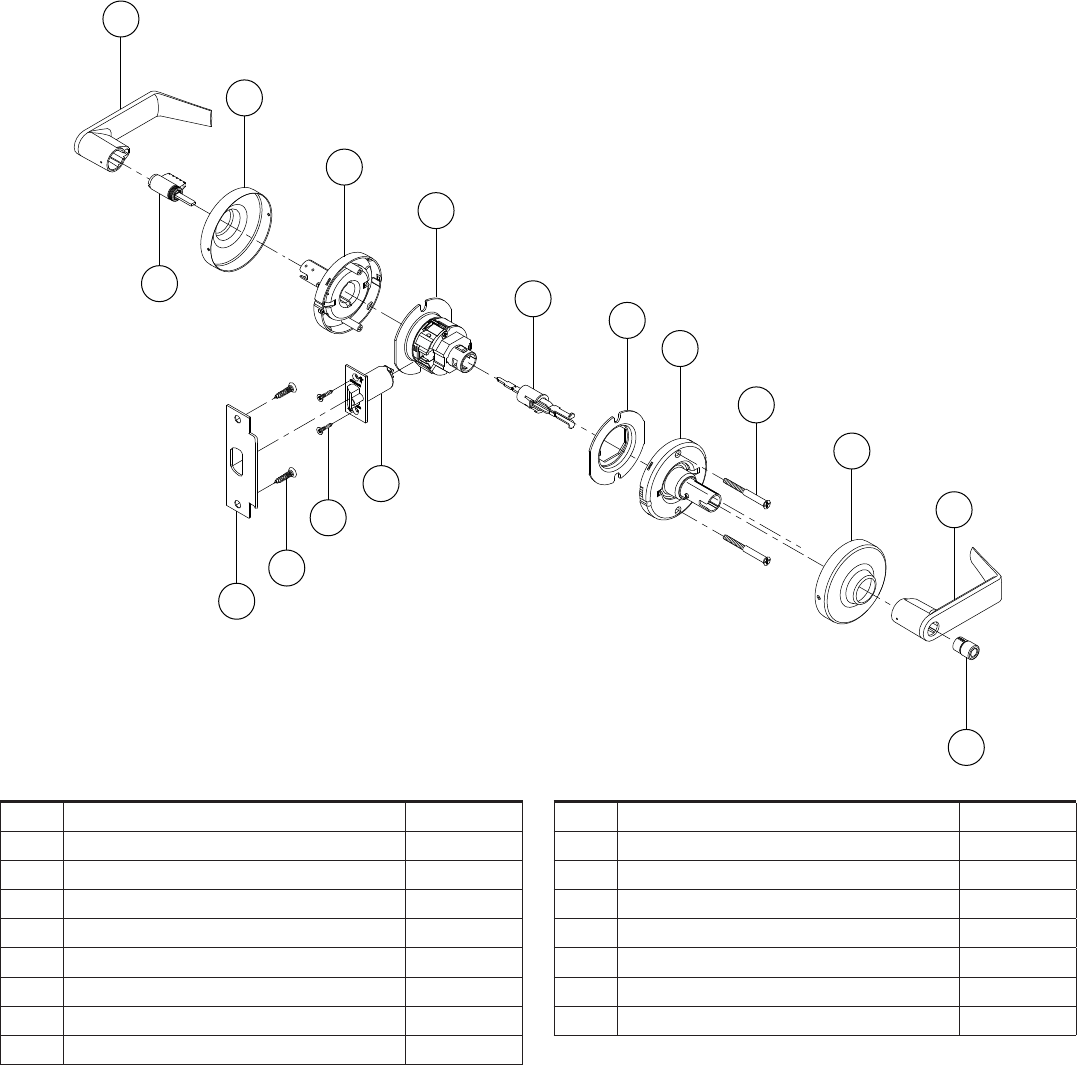

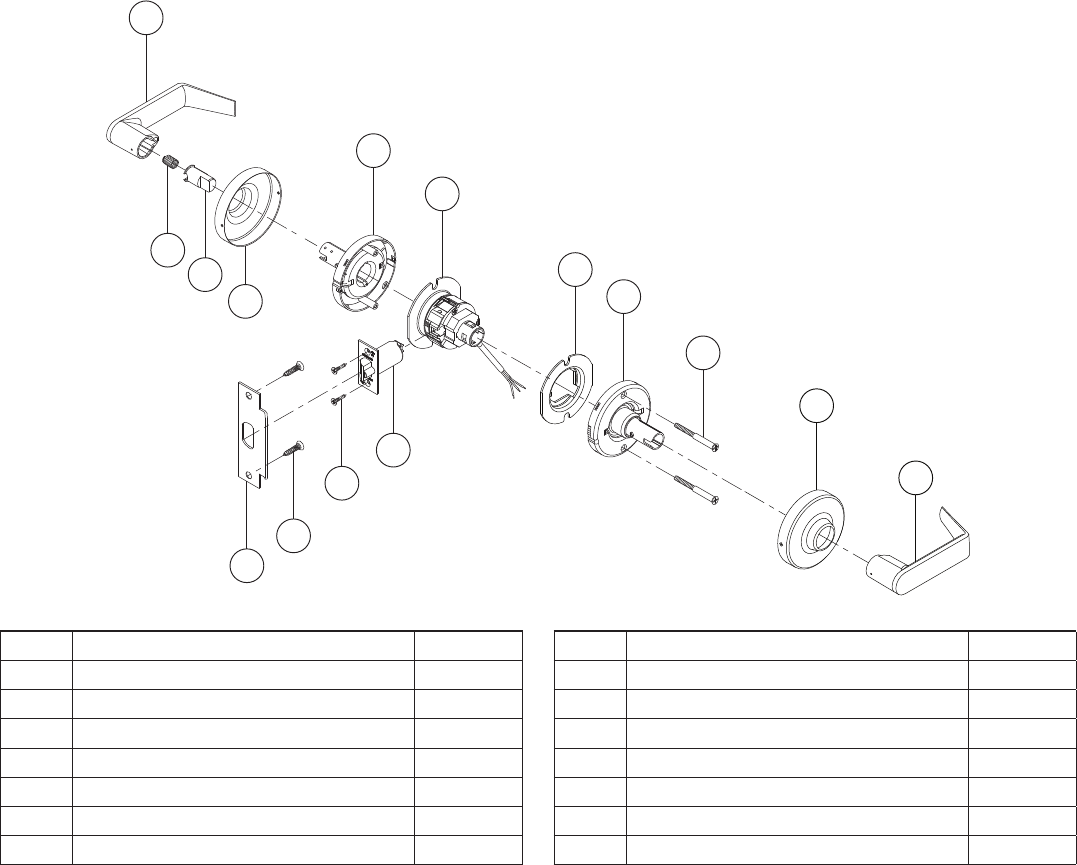

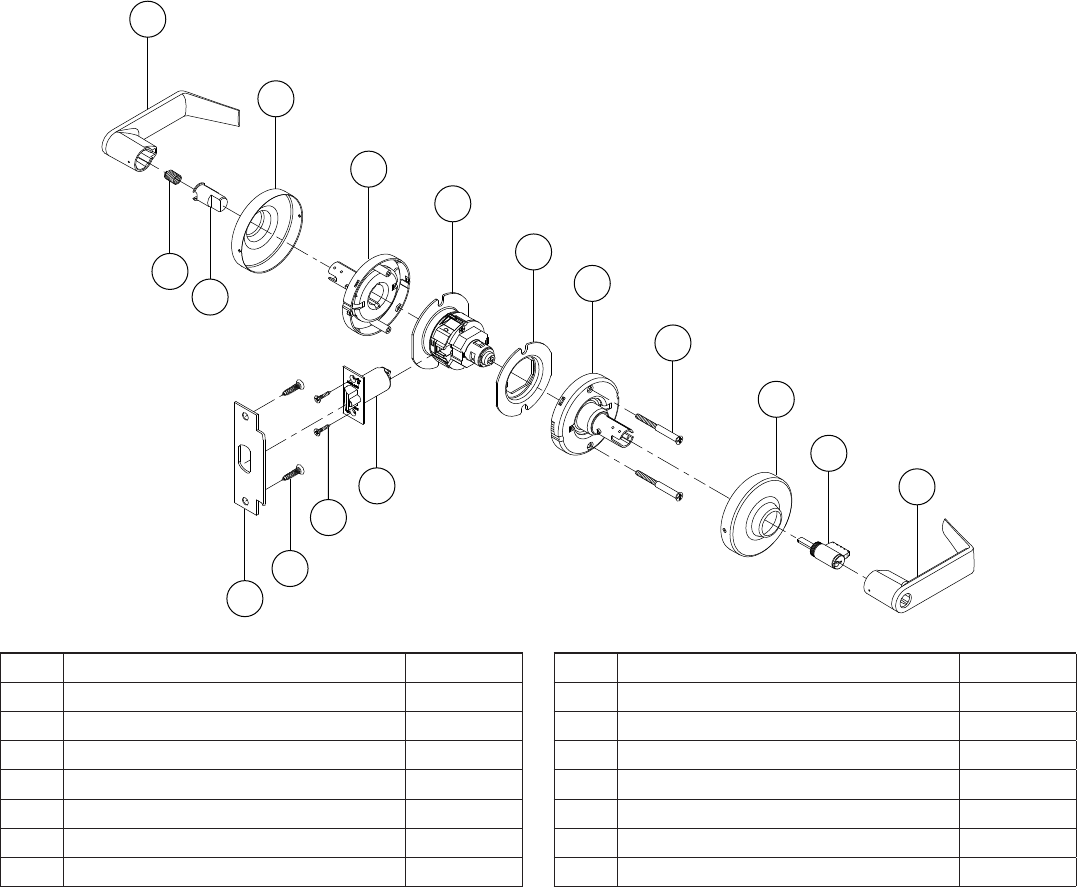

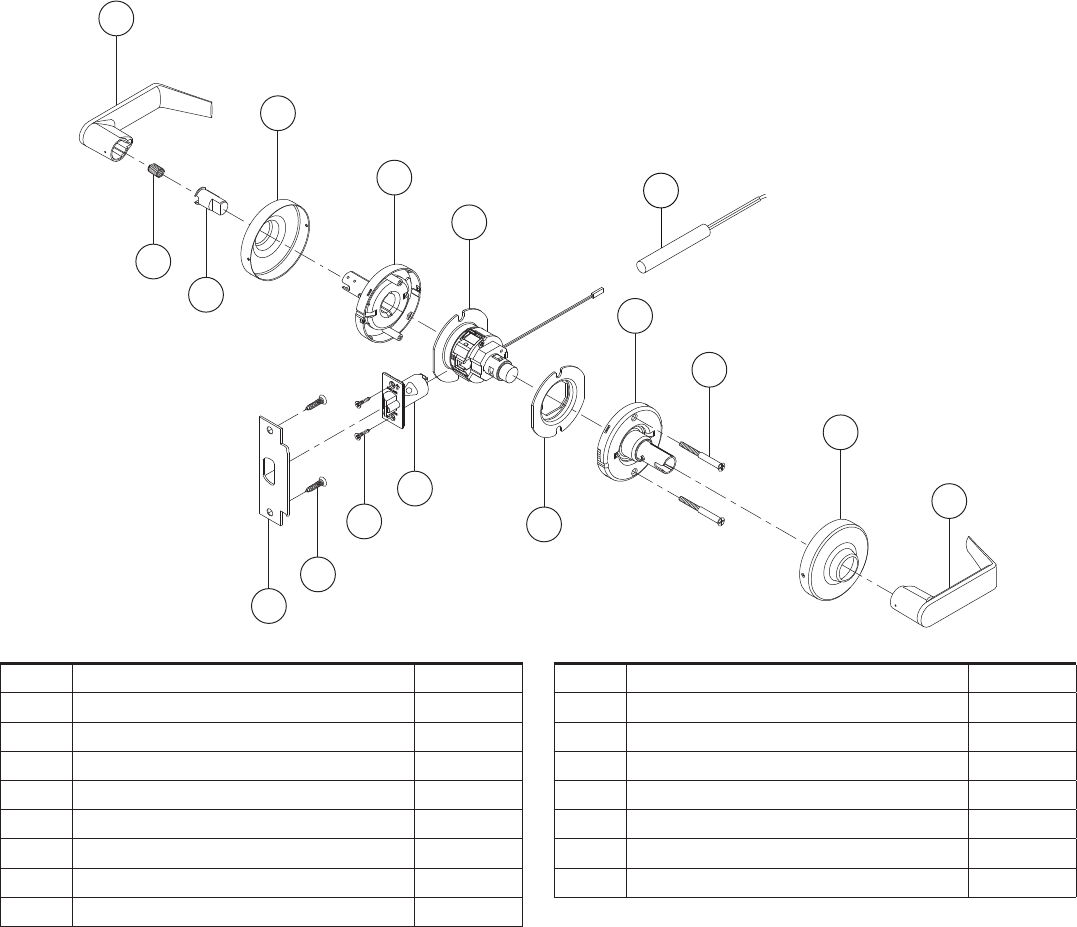

Trim assemblies
44 Passage latch
45 Exit lock
46 Exit lock request-to-exit
47 Exit lock—electrically locked (fail safe)
48 Exit lock— electrically locked (fail safe) request-to-exit
49 Exit lock and storeroom lock— electrically unlocked (fail
secure)
50 Exit lock and storeroom lock—electrically unlocked (fail secure)
request-to-exit
51 Single dummy trim
52 Exit lock with blank plate
53 Special—classroom exit lock
54 Special—storeroom exit lock
55 Special—patio lock
56 Bath/bedroom privacy lock
57 Hospital privacy lock
58 Entrance/oce lock
59 Entrance lock
60 Vestibule lock
61 ND60 with closed outside lever: special
62 Store lock
63 Classroom lock
64 Special—classroom by storeroom lock
65 Special—communicating lock
66 Special—communicating lock with Vandlgard®
67 Corridor lock
68 Classroom security lock
69 Storeroom lock
70 Storeroom lock with request-to-exit
71 Storeroom lock— electrically locked (fail safe)
72 Storeroom lock—electrically locked (fail safe) with request-
to-exit
73 Storeroom lock—electrically unlocked (fail secure)
74 Storeroom lock—electrically unlocked (fail secure) with
request-to-exit
75 Institution lock
76 Faculty restroom lock
77 Entrance/oce lock wtih Vandlgard®
78 Entrance lock with Vandlgard®
79 Vestibule with Vandlgard®
80 Classroom lock with Vandlgard®
81 Classroom security lock with Vandlgard®
82 Storeroom lock with Vandlgard®
83 Storeroom lock with Vandlgard®— electrically locked (fail
safe)
84 Storeroom lock with Vandlgard®—electrically unlocked (fail
secure)
85 Corridor lock with Vandlgard®
50 • Schlage • ND-Series service manual
Trim assemblies
Passage latch
ND10
A
C
B
C
P
E
J
H
D
K
N
Q
M
Letter Description Part number
AOutside lever—closed 03-030
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—passage N123-043
EInside spring cage—standard N123-032
HChassis 24088254*
Letter Description Part number
JAnti-rotation plate N523-055
KSpringlatch 13-048
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 51
Exit lock
ND12
A
C
P
E
J
H
D
K
N
Q
M
CC
DD
B
C
Letter Description Part number
AOutside lever—closed 03-030
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—passage N123-022
EInside spring cage—standard N123-032
HChassis 24088262*
JAnti-rotation plate N523-055
Letter Description Part number
KSpringlatch 13-048
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
CC Spring C503-331
DD Catch stop N523-041
* Chassis part number is for reference only.
52 • Schlage • ND-Series service manual
Trim assemblies
Exit lock request-to-exit
ND12 RX
A
C
P
E
J
H
D
K
N
Q
M
CC
DD
B
C
Letter Description Part number
AOutside lever—closed 03-030
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—passage N123-022
EInside spring cage—standard N123-032
HChassis 24088437*
JAnti-rotation plate N523-131
Letter Description Part number
KSpringlatch 13-048
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
CC Spring C503-331
DD Catch stop N523-041
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 53
Exit lock—electrically locked (fail safe)
ND12EL
A
B
E
H
D
C
K
N
Q
M
CC
DD
P
C
J
GG
Letter Description Part number
AOutside lever—closed 03-030
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—passage N123-022
EInside spring cage—standard N123-032
HChassis 63-106*
JAnti-rotation plate N523-055
KElectrified latch **
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
CC Spring C503-331
DD Catch stop N523-041
GG AC rectifier circuit C303-439
** Not sold separately as a part.
* Chassis part number is for reference only.
54 • Schlage • ND-Series service manual
Trim assemblies
Exit lock— electrically locked (fail safe) request-to-exit
ND12EL RX
A
B
E
H
D
C
K
N
Q
M
CC
DD
P
C
J
GG
Letter Description Part number
AOutside lever—closed 03-030
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—passage N123-022
EInside spring cage—standard N123-032
HChassis 63-215*
JAnti-rotation plate N523-131
KElectrified latch **
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
CC Spring C503-331
DD Catch stop N523-041
GG AC rectifier circuit C303-439
** Not sold separately as a part.
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 55
Exit lock and storeroom lock— electrically unlocked (fail secure)
ND12EU
A
B
E
H
D
C
K
N
Q
M
CC
DD
P
C
J
GG
Letter Description Part number
AOutside lever—closed 03-030
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—passage N123-022
EInside spring cage—standard N123-032
HChassis 63-105*
JAnti-rotation plate N523-055
KElectrified latch **
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
CC Spring C503-331
DD Catch stop N523-041
GG AC rectifier circuit C303-439
** Not sold separately as a part.
* Chassis part number is for reference only.
56 • Schlage • ND-Series service manual
Trim assemblies
Exit lock and storeroom lock—electrically unlocked (fail secure) request-to-exit
ND12EU RX
B
A
E
H
D
K
C
N
Q
M
P
CC
DD
C
J
GG
Letter Description Part number
AOutside lever—closed 03-030
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—passage N123-022
EInside spring cage—standard N123-032
HChassis 63-216*
JAnti-rotation plate N523-131
KElectrified latch **
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
CC Spring C503-331
DD Catch stop N523-041
GG AC rectifier circuit C303-439
** Not sold separately as a part.
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 57
Single dummy trim
ND170
B
H
EE
F
C
G
Letter Description Part number
BInside lever—closed 03-030
CRose 03-042
FDummy mounting screws L583-133
Letter Description Part number
GWasher A501-171
HChassis 63-104*
EE Dummy through bolt N523-092
* Chassis part number is for reference only.
N523-105 threaded mounting rod
Use for mounting two (2) ND170
sets as double dummy set.
58 • Schlage • ND-Series service manual
Trim assemblies
Exit lock with blank plate
ND25
B
C
P
E
J
H
BB
K
N
Q
M
Letter Description Part number
BInside lever—closed 03-030
CRose 03-042
EInside spring cage—standard N123-032
HChassis 24088296*
JAnti-rotation plate N523-055
KDeadlatch 13-047
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
BB Blank plate N523-002
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 59
Special—classroom exit lock
ND25X70
ND25X70PD (shown), ND25X70RD†, ND25X70GD†
BB
H
J
E
P
C
S
B
M
K
Q
N
Letter Description Part number
BInside lever—open 03-031
CRose 03-042
EInside spring cage—keyed inside except SFIC N123-021
HChassis 24088213*
JAnti-rotation plate N523-055
KDeadlatch 13-047
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
BB Blank plate N523-002
† For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 92.
* Chassis part number is for reference only.
60 • Schlage • ND-Series service manual
Trim assemblies
Special—storeroom exit lock
ND25X80
ND25X80PD (shown), ND25X80RD†, ND25X80GD†
BB
H
J
P
C
SB
M
K
Q
N
E
Letter Description Part number
BInside lever—open 03-031
CRose 03-042
EInside spring cage—keyed inside except SFIC N123-021
HChassis 24088221*
JAnti-rotation plate N523-055
KDeadlatch 13-047
MStrike 10-025
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
BB Blank plate N523-002
† For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 92.
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 61
Special—patio lock
ND30
A
C
D
H
J
E
P
C
R
M
K B
Q
N
CC
DD
V
Letter Description Part number
AOutside lever—closed 03-030
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 24088304*
JAnti-rotation plate N523-055
KDeadlatch 13-047
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
RPlunger—push button N123-028
VPush button N523-000
CC Spring C503-331
DD Catch stop N523-041
* Chassis part number is for reference only.
62 • Schlage • ND-Series service manual
Trim assemblies
Bath/bedroom privacy lock
ND40
A
B
C
P
E
J
H
D
K
N
Q
M
CZYR
V
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 24088304*
JAnti-rotation plate N523-055
KSpringlatch 13-048
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
RPlunger—push button N123-028
VPush button N523-000
YEmergency cylinder N523-020
ZEmergency button and plunger N123-034
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 63
Hospital privacy lock
ND44
A
B
C
P
E
J
H
D
K
N
Q
M
CAA
Y
R
V
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 24088304*
JAnti-rotation plate N523-055
KSpringlatch 13-048
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
RPlunger—push button N123-028
VPush button N523-000
YEmergency cylinder N523-020
AA Emergency turn button and plunger N123-035
* Chassis part number is for reference only.
64 • Schlage • ND-Series service manual
Trim assemblies
Entrance/oce lock
ND50
ND50PD (shown), ND50RD†, ND50GD†
A
B
C
P
E
J
H
D
K
N
Q
M
SR
V
C
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 24088247*
JAnti-rotation plate N523-055
KDeadlatch 13-047
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
RPlunger—push button N123-028
SCylinder—6-pin 23-065
VPush button N523-000
† For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 92.
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 65
Entrance lock
ND53
ND53PD (shown), ND53RD†, ND53GD†
A
B
C
P
E
J
H
D
K
N
Q
M
SR
W
C
Letter Description Part number
AOutside Lever—Open 03-031
BInside Lever—Open 03-031
CRose 03-042
DOutside Spring Cage—Standard N123-022
EInside Spring Cage—Standard N123-032
HChassis 24088247*
JAnti-Rotation Plate N523-055
KDeadlatch 13-047
Letter Description Part number
MStrike 10-025
NLatch Screw C603-897
PMounting Screw N523-021
QStrike Screw C603-256
RPlunger—Push and Turn N123-017
SCylinder—6-Pin 23-065
WPush and Turn Button N523-001
† For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 92.
* Chassis part number is for reference only.
66 • Schlage • ND-Series service manual
Trim assemblies
Vestibule lock
ND60
ND60PD (shown), ND60RD†, ND60GD†
A
B
S
C
P
E
H
D
K
N
Q
M
SJ
C
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—keyed inside except SFIC N123-021
HChassis 24088320*
JAnti-rotation plate N523-055
Letter Description Part number
KDeadlatch 13-047
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
† For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 92.
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 67
ND60 with closed outside lever: special
ND60PD with closed outside lever (shown), ND60RD†, ND60GD†
A
C
D
H
J
E
P
C
S
M
KB
Q
N
DD
CC
Letter Description Part number
AOutside lever—closed 03-030
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—keyed inside except SFIC N123-021
HChassis 24088320*
JAnti-rotation plate N523-055
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
CC Spring C503-331
DD Catch stop N523-041
† For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 92.
* Chassis part number is for reference only.
68 • Schlage • ND-Series service manual
Trim assemblies
Store lock
ND66
ND66PD (shown), ND66RD†, ND66GD†
A
M
S
Q
N
KB
S
C
P
E
J
H
D
C
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—keyed inside except SFIC N123-021
HChassis 24088338*
JAnti-rotation plate N523-055
Letter Description Part number
KDeadlatch 13-047
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
† For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 92.
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 69
Classroom lock
ND70
ND70PD (shown), ND70RD†, ND70GD†
A
M
S
Q
N
K
B
C
P
E
J
H
D
C
Letter Description Part number
AOutside lever—open 03-031
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 24088346*
JAnti-rotation plate N523-055
Letter Description Part number
KDeadlatch 13-047
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
† For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 92.
* Chassis part number is for reference only.
70 • Schlage • ND-Series service manual
Trim assemblies
Special—classroom by storeroom lock
ND70X80
ND70X80PD (shown), NDX80RD†, ND70X80GD†
A
C
D
H
J
E
P
C
S
M
KB
Q
N
S
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—keyed inside except SFIC N123-021
HChassis 24088239*
JAnti-rotation plate N523-055
Letter Description Part number
KDeadlatch 13-047
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
† For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 92.
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 71
Special—communicating lock
ND72
ND72PD (shown), ND72RD†, ND72GD†
A
C
D
H
J
E
P
C
S
M
KB
Q
N
S
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—keyed inside except SFIC N123-021
HChassis 24088197*
JAnti-rotation plate N523-055
Letter Description Part number
KDeadlatch 13-047
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
† For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 92.
* Chassis part number is for reference only.
72 • Schlage • ND-Series service manual
Trim assemblies
Special—communicating lock with Vandlgard®
ND72 Vandlgard®
ND72PD Vandlgard® (shown), ND72RD Vandlgard®*, ND72GD Vandlgard®*
A
C
H
J
E
P
C
S
M
KB
Q
N
S
D
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—keyed inside except SFIC N123-021
HChassis 24088205*
JAnti-rotation plate N523-055
Letter Description Part number
KDeadlatch 13-047
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
† For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 92.
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 73
Corridor lock
ND73
ND73PD (shown), ND73RD†, ND73GD†
A
M
V
Q
N
K
S
C
P
E
J
R
H
D
C
B
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 24088353*
JAnti-rotation plate N523-055
KDeadlatch 13-047
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
RPlunger—push button N123-028
SCylinder—6-pin 23-065
VPush button N523-000
† For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 92.
* Chassis part number is for reference only.
74 • Schlage • ND-Series service manual
Trim assemblies
Classroom security lock
ND75
ND75PD (shown), ND75RD†, ND75GD†
A
B
S
C
P
E
H
D
K
N
Q
M
S
J
C
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—keyed inside except SFIC N123-021
HChassis 24088163*
JAnti-rotation plate N523-055
Letter Description Part number
KDeadlatch 13-047
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
† For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 92.
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 75
Storeroom lock
ND80
ND80PD (shown), ND80RD†, ND80GD†
M
K
N
Q
S
C
P
J
H
D
C
A
E
B
Letter Description Part number
AOutside lever—open 03-031
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 24088262*
JAnti-rotation plate N523-055
Letter Description Part number
KDeadlatch 13-047
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
† For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 92.
* Chassis part number is for reference only.
76 • Schlage • ND-Series service manual
Trim assemblies
Storeroom lock with request-to-exit
ND80 RX
ND80PD RX (shown), ND80RD RX, ND80GD RX
M
K
N
Q
S
C
P
J
H
D
C
A
E
B
Letter Description Part number
AOutside lever—open 03-031
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 24088437*
JAnti-rotation plate N523-131
Letter Description Part number
KDeadlatch 13-047
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
† For RD (Full Size Interchangeable Core) and GD (SFIC) inside trim configurations, see 92.
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 77

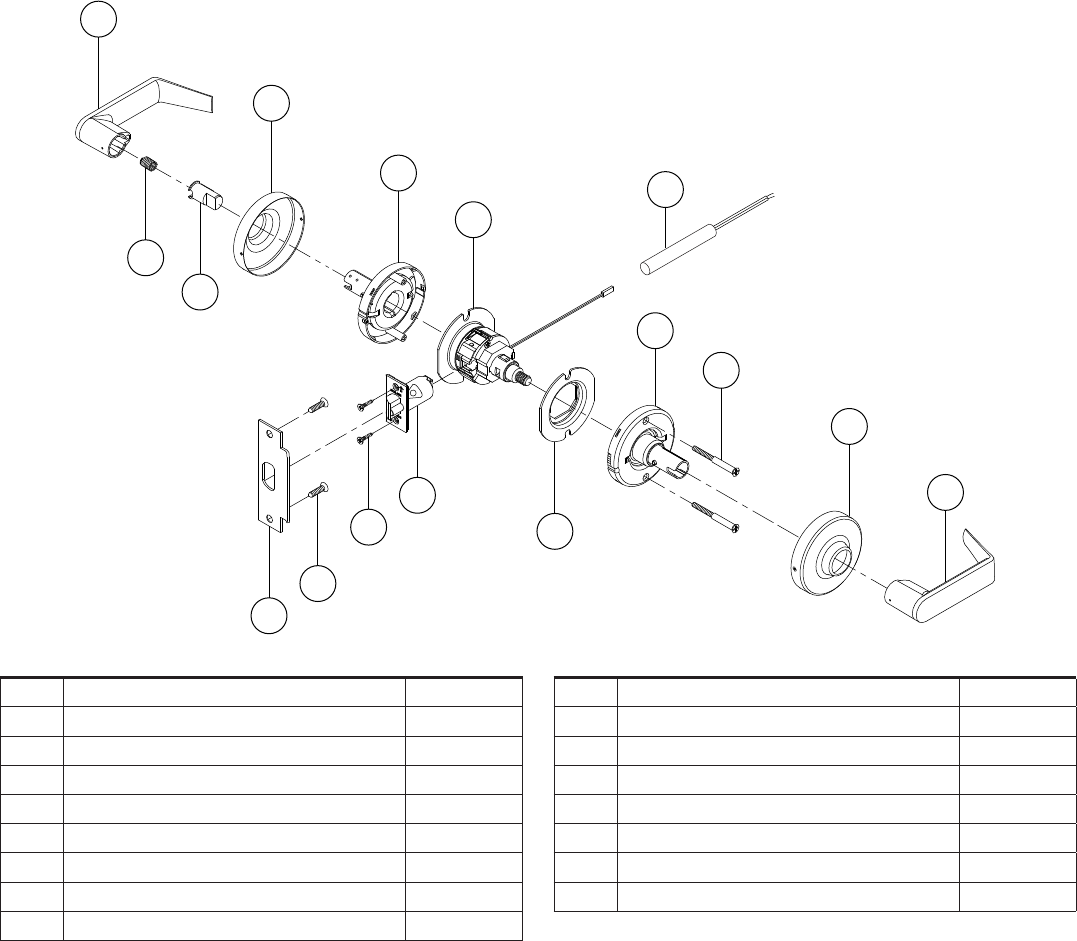

Storeroom lock— electrically locked (fail safe)
ND80EL
ND80ELPD (shown), ND80ELRD†, ND80ELGD†
A
B
E
H
D
C
K
N
Q
M
S
P
C
J
GG
Letter Description Part number
AOutside lever—open 03-031
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 63-106*
JAnti-rotation plate N523-055
Letter Description Part number
KElectrified latch **
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
GG AC rectifier circuit C303-439
† For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 92.
** Not sold separately as a part.
* Chassis part number is for reference only.
78 • Schlage • ND-Series service manual
Trim assemblies
Storeroom lock—electrically locked (fail safe) with request-to-exit
ND80EL RX
ND80ELPD RX (shown), ND80ELRD RX, ND80ELGD RX
A
B
E
H
D
C
K
N
Q
M
S
P
C
J
GG
Letter Description Part number
AOutside Lever—Open 03-031
BInside Lever—Closed 03-030
CRose 03-042
DOutside Spring Cage—Standard N123-022
EInside Spring Cage—Standard N123-032
HChassis 63-215*
JAnti-Rotation Plate N523-131
Letter Description Part number
KElectrified Latch **
MStrike 10-025
NLatch Screw C603-897
PMounting Screw N523-021
QStrike Screw C603-256
SCylinder—6-Pin 23-065
GG AC Rectifier Circuit C303-439
† For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 92.
** Not sold separately as a part.
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 79

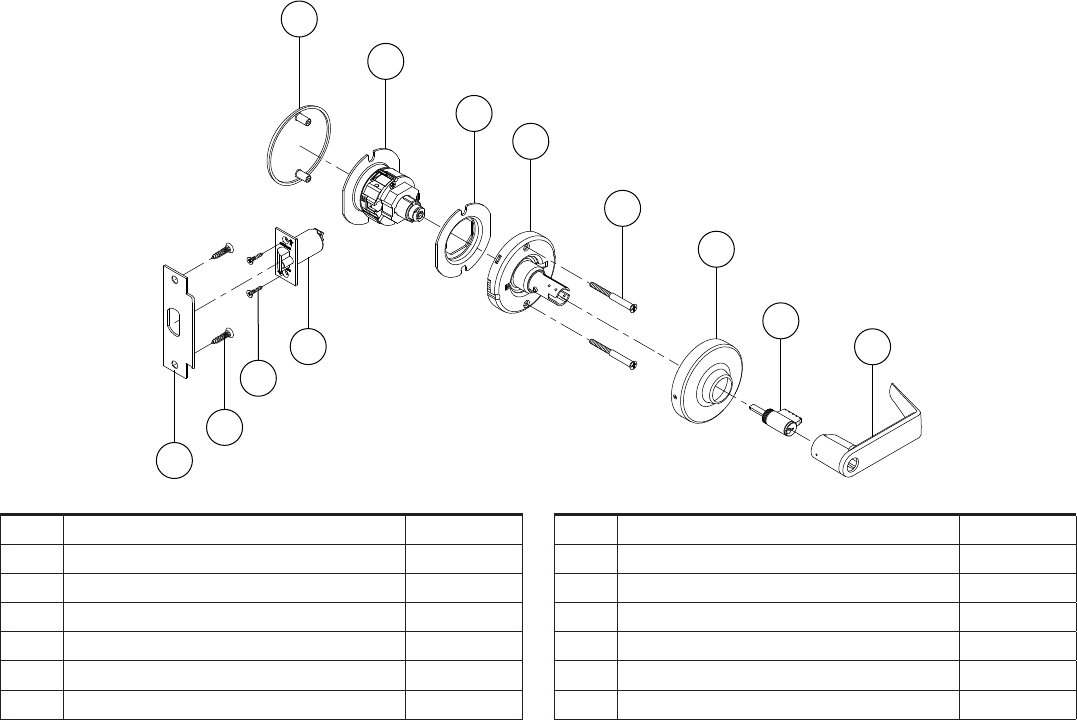

Storeroom lock—electrically unlocked (fail secure)
ND80EU
ND80EUPD (shown), ND80EURD†, ND80EUGD†
M
K
N
Q
S
B
C
P
E
H
D
C
A
J
GG
Letter Description Part number
AOutside lever—open 03-031
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 63-105*
JAnti-rotation plate N523-055
Letter Description Part number
KElectrified latch **
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
GG Ac rectifier circuit C303-439
† For RD (Full Size Interchangeable Core) and GD (SFIC)
outside trim configurations, see 92.
** Not sold separately as a part.
* Chassis part number is for reference only.
80 • Schlage • ND-Series service manual
Trim assemblies
Storeroom lock—electrically unlocked (fail secure) with request-to-exit
ND80EU RX
ND80EUPD RX (shown), ND80EURD RX, ND80EUGD RX
GG
M
K
N
Q
S
B
C
P
E
H
D
C
A
J
Letter Description Part number
AOutside lever—open 03-031
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 63-216*
JAnti-rotation plate N523-131
Letter Description Part number
KElectrified latch **
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
GG AC rectifier circuit C303-439
† For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 92.
** Not sold separately as a part.
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 81
Institution lock
ND82
ND82PD (shown), ND82RD†, ND82GD†
M
K
N
Q
S
C
P
H
D
C
A
J
B
E
S
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—keyed inside except SFIC N123-021
HChassis 24088361*
JAnti-rotation plate N523-055
Letter Description Part number
KDeadlatch 13-047
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6 pin 23-065
† For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 92.
* Chassis part number is for reference only.
82 • Schlage • ND-Series service manual
Trim assemblies
Faculty restroom lock
ND85
ND85PD
A
B
C
P
E
J
H
D
K
N
Q
M
SR
FF
C
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 24088411*
JAnti-rotation plate N523-055
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
RPlunger—push and turn N123-017
SCylinder—6-pin indicator 23-003
FF Push button with spanner access N523-124
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 83
Entrance/oce lock wtih Vandlgard®
ND91
ND91PD (shown), ND91RD†, ND91GD†
M
K
N
Q
S
P
E
H
D
C
A
R
B
J
C
V
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 24088379*
JAnti-rotation plate N523-055
KDeadlatch 13-047
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
RPlunger—push button N123-028
SCylinder—6-pin 23-065
VPush button N523-000
† For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 92.
* Chassis part number is for reference only.
84 • Schlage • ND-Series service manual
Trim assemblies
Entrance lock with Vandlgard®
ND92
ND92PD (shown), ND92RD†, ND92GD†
M
K
N
Q
S
P
E
H
D
C
A
R
B
J
C
W
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 24088379*
JAnti-rotation plate N523-055
KDeadlatch 13-047
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
RPlunger—push and turn N123-017
SCylinder—6-pin 23-065
WPush and turn button N523-001
† For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 92.
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 85
Vestibule with Vandlgard®
ND93
ND93PD (shown), ND93RD†, ND93GD†
M
K
N
Q
S
C
P
H
D
C
A
J
B
E
S
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—keyed inside except SFIC N123-021
HChassis 24088387*
JAnti-rotation plate N523-055
Letter Description Part number
KDeadlatch 13-047
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
* Chassis part number is for reference only.
86 • Schlage • ND-Series service manual
Trim assemblies
Classroom lock with Vandlgard®
ND94
ND94PD (shown), ND94RD†, ND94GD†
M
K
N
Q
S
P
E
H
D
C
A
B
J
C
Letter Description Part number
AOutside lever—open 03-031
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 24088395*
JAnti-rotation plate N523-055
Letter Description Part number
KDead latch 13-047
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
† For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 92.
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 87
Classroom security lock with Vandlgard®
ND95
ND95PD (shown), ND95RD†, ND95GD†
A
B
S
C
E
H
D
K
N
Q
M
S
J
C
P
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—keyed inside except SFIC N123-021
HChassis 24088171*
JAnti-rotation plate N523-055
Letter Description Part number
KDeadlatch 13-047
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
† For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 92.
* Chassis part number is for reference only.
88 • Schlage • ND-Series service manual
Trim assemblies
Storeroom lock with Vandlgard®
ND96
ND96PD (shown), ND96RD†, ND96GD†
A
B
E
H
D
C
K
N
Q
M
S
P
C
J
Letter Description Part number
AOutside lever—open 03-031
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 24088403*
JAnti-rotation plate N523-055
Letter Description Part number
KDeadlatch 13-047
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
† For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 92.
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 89
Storeroom lock with Vandlgard®— electrically locked (fail safe)
ND96EL
ND96ELPD (shown), ND96ELRD†, ND96ELGD†
A
B
E
H
D
C
K
N
Q
M
S
P
C
J
GG
Letter Description Part number
AOutside lever—open 03-031
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 63-108*
JAnti-rotation plate N523-055
Letter Description Part number
KElectrified latch **
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
GG AC rectifier circuit C303-439
† For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 92.
** Not sold separately as a part.
* Chassis part number is for reference only.
90 • Schlage • ND-Series service manual
Trim assemblies
Storeroom lock with Vandlgard®—electrically unlocked (fail secure)
ND96EU
ND96EUPD (shown), ND96EURD†, ND96EUGD†
A
B
E
H
D
C
K
N
Q
M
S
P
C
J
GG
Letter Description Part number
AOutside lever—open 03-031
BInside lever—closed 03-030
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 63-107*
JAnti-rotation plate N523-055
Letter Description Part number
KElectrified latch **
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
SCylinder—6-pin 23-065
GG AC rectifier circuit C303-439
† For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 92.
** Not sold separately as a part.
* Chassis part number is for reference only.
Trim assemblies
Schlage • ND-Series service manual • 91
Corridor lock with Vandlgard®
ND97
ND97PD (shown), ND97RD†, ND97GD†
A
M
V
Q
N
K
S
C
P
E
J
R
H
D
C
B
Letter Description Part number
AOutside lever—open 03-031
BInside lever—open 03-031
CRose 03-042
DOutside spring cage—standard N123-022
EInside spring cage—standard N123-032
HChassis 24088189*
JAnti-rotation plate N523-055
KDeadlatch 13-047
Letter Description Part number
MStrike 10-025
NLatch screw C603-897
PMounting screw N523-021
QStrike screw C603-256
RPlunger—push button N123-028
SCylinder—6-pin 23-065
VPush button N523-000
† For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see 92.
* Chassis part number is for reference only.
92 • Schlage • ND-Series service manual

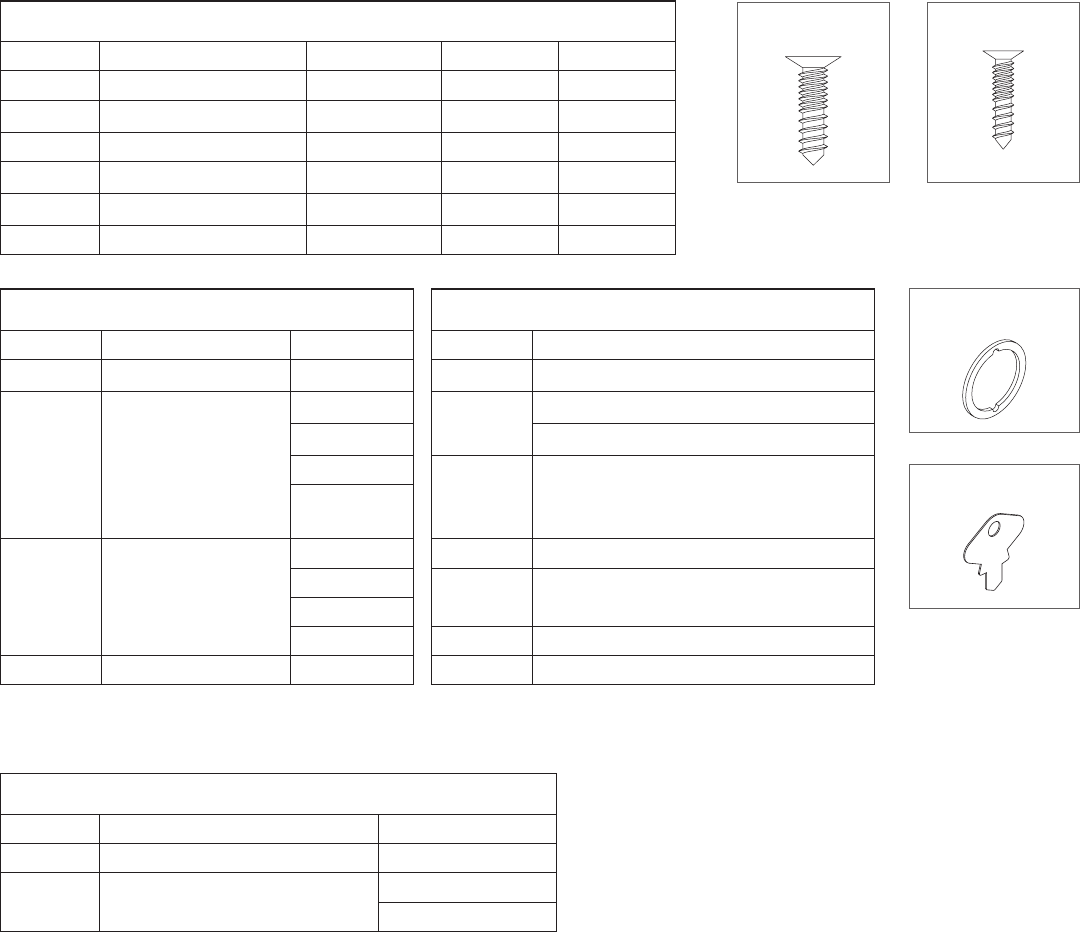

Parts and kits
Parts and kits
Full size IC and SFIC (small format interchangeable core) configurations
Full size IC—outside SFIC—outside
A
S
U
C
D
Old Style
IC Driver
N523-077
(Obsolete)
Old Style
IC Driver
N523-118
(Obsolete)
A
S
T
C
D
V
Letter Description Part number Letter Description Part number
AOutside lever—full size IC 03-032 AOutside lever—SFIC 03-000
CRose 03-042 CRose 03-042
DOutside spring cage—standard N123-022 DOutside spring cage—SFIC N123-056
SCylinder—full size IC 23-030 SCylinder—SFIC 80-037
UIC driver N523-127 TSFIC driver N523-091
VSmall format IC spacer (6-pin only) D500-000
Full size IC—outside SFIC—outside
B
S
U
C
P
E
J
Old Style
IC Driver
N523-077
(O
bsolete)
Old Style
IC Driver
N523-118
(Obsolete)
B S
T
C
P
E
J
V
Letter Description Part number Letter Description Part number
BInside lever—full size IC 03-032 BInside lever—SFIC 03-000
CRose 03-042 CRose 03-042
EInside spring cage —keyed inside except SFIC N123-021 EInside spring cage—SFIC N123-057
JAnti-rotation plate N523-055 JAnti-rotation plate N523-055
PMounting screw N523-021 PMounting screw N523-021
SCylinder—full size IC 23-030 SCylinder—SFIC 80-037
UIC driver N523-127 VSmall format IC spacer (6-pin only) D500-000
Parts and kits
Schlage • ND-Series service manual • 93
Lever designs
All lever designs are available in finishes 605, 606, 612, 613, 619, 625, 626 and 626AM.
Closed levers Open levers Interchangeable
core levers**
SFIC levers
Athens (ATH)
5¹⁄₈"
3⁷⁄₁₆"
B
C
A
03-030 ATH
A=2C\v”
B=3B\zn”
C=2Z\x”
03-031 ATH
A=2C\v”
B=3B\zn”
C=2Z\x”
03-032 ATH
A=3”
B=3Z\x”
C=2ZZ\zn”
03-000 ATH
A=2M\,”
B=3C\,”
C=2Z\x”
Rhodes (RHO)
5¹⁄₈"
A
3⁷⁄₁₆"
B
*
03-030 RHO
A=2M\zn”
B=2ZB\zn”
03-031 RHO
A=2M\zn”
B=2ZB\zn”
03-032 RHO
A=2C\v”
B=3Z\v”
03-000 RHO
A=2Z\x”
B=3”
Sparta (SPA)
5¹⁄₂"A
3⁷⁄₁₆"
B
*
03-030 SPA
A=3”
B=3Z\x”
03-031 SPA
A=3”
B=3Z\x”
03-032 SPA
A=3Z\v”
B=3C\v”
03-000 SPA
A=3”
B=3Z\x”
Omega (OME)
5⁵⁄₈"
B
3⁷⁄₁₆"
*
03-030 OME
B=3B\zn”
03-031 OME
B=3B\zn”
03-032 OME
B=3Z\x”
03-000 OME
B=3C\,”
Tubular (TLR)
5¹⁄₂"A
3⁷⁄₁₆"
B
*
03-030 TLR
A=2Z\v”
B=3”
03-031 TLR
A=2Z\v”
B=3”
03-032 TLR
A=2Z\x”
B=3C\zn”
03-000 TLR
A=2Z\v”
B=3”
* Meets California Fire Code for Z\x” or less return to the door.
** Lever sizes available for Competitor Cylinder Options, see 94. Not available on Omega lever style.
Tactile warning
Not available on Omega levers
Preface design code for tactile warning levers
Athens Rhodes Sparta Tubular
8AT 8RH 8SP 8TR
Tubular lever
Rhodes lever
94 • Schlage • ND-Series service manual
Parts and kits
Competitor cylinder options
Competitor lever designs are available in finishes 613, 626 and 626AM.
Tactile warning is available. See Tactile warning on page 93 for details.
Cylinder Order sux Description Lever design
Athens Rhodes Sparta Tubular
LD SAR Sargent Key In Lever 03-044-ATH 03-044-RHO 03-044-SPA 03-044-TLR
JD SAR Sargent Full Size Interchangeable Core
Cylinder
03-077-ATH 03-077-RHO 03-077-SPA 03-077-TLR
JD CO6 Corbin Russwin Full Size Interchangeable Core
6 Pin Cylinder
03-066-ATH 03-066-RHO 03-066-SPA 03-066-TLR
JD YA6 Yale Full Size Interchangeable Core 6 Pin
Cylinder
03-055-ATH 03-055-RHO 03-055-RHO 03-055-TLR
JD CO7 Corbin Russwin Full Size Interchangeable Core
7 Pin Cylinder
UNDER DEVELOPMENT
LD CO6 Corbin Russwin Key in Lever 6 Pin Cylinder
JD YA7 Yale Full Size Interchangeable Core 7 Pin
Cylinder

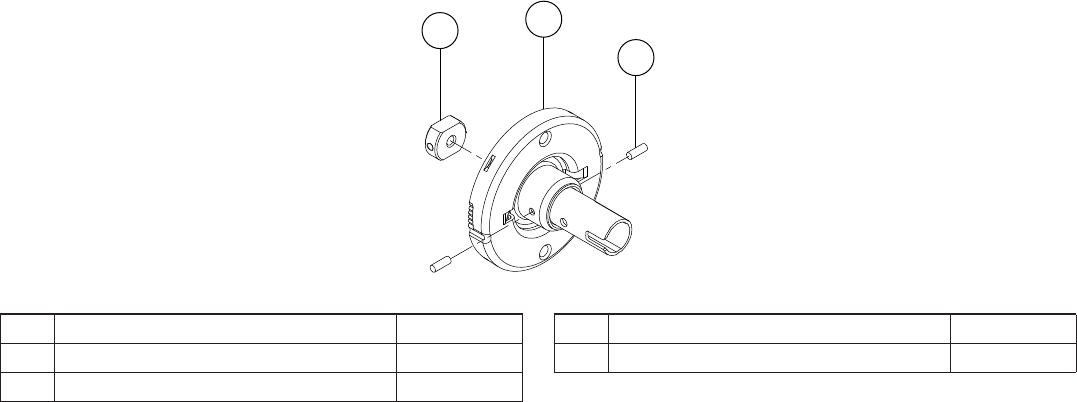

Spring cage and tailpiece for competitor cylinder options
Available for the following functions: ND50D, ND53D, ND60D, ND66D, ND70D, ND73D, ND75D, ND80D, ND80EL/EU, ND80EL/
EU-RX, ND82D, ND91D, ND92D, ND93D, ND94D, ND95D, ND96D, ND96DEL/EU, ND96DEL/EU-RX, and ND97D.
Order sux Description Spring cage Cylinder
tailpiece
Outside Inside(double
cylinder locks)
LD SAR Sargent Key In Lever N123-064 N123-067 N523-146
JD SAR Sargent Full Size Interchangeable Core Cylinder N123-066 N123-069 N523-148
JD CO6 Corbin Russwin Full Size Interchangeable Core 6 Pin Cylinder
JD YA6 Yale Full Size Interchangeable Core 6 Pin Cylinder N123-065 N123-068 N523-147
JD CO7 Corbin Russwin Full Size Interchangeable Core 7 Pin Cylinder UNDER DEVELOPMENT
LD CO6 Corbin Russwin Key in Lever 6 Pin Cylinder
JD YA7 Yale Full Size Interchangeable Core 7 Pin Cylinder
Parts and kits
Schlage • ND-Series service manual • 95
Roses
Inside/outside rose, 03-042 RHO
Standard inside/outside
rose for use with ATH,
SPA or RHO levers.
Size: 3M\zn” dia.
Available in 605,
606,612, 613, 619, 625,
626.
Omega inside/outside rose, 03-042 OME
Standard inside/outside
rose for use with OME
levers.
Size: 3M\zn” dia.
Available in 605, 606,
612, 613, 619, 625, 626.
Blank outside rose, N523-002
Standard inside/outside
rose for use with ATH,
SPA or RHO levers.
Size: 3M\zn” dia.
Engraved inside rose (Rhodes) XN12-035
Inside rose engraved
with “LOCK”. For use
with classroom security
function locks with ATH,
SPA or RHO levers.
Size: 3M\zn” dia.
Available in 626 only.
Engraved inside rose (Omega) XN12-045
Inside rose engraved
with “LOCK”. For use
with classroom security
function locks with OME
levers.
Size: 3M\zn” dia.
Available in 626 only.
Cylinders
Standard
Conventional Classic or
Everest, 23-065
Primus® Controlled Access,
20-765
Primus® High Security,
23-565. UL437 Listed
Indicator, 23-000
Full size interchangeable cores
Conventional with Logo
Classic or Everest, 23-030
Conventional without Logo
Classic or Everest, 23-031
Primus® with logo, 20-740
Primus® without Logo, 20-741
Small format interchangeable cores
Everest® Combinated, 80-037
Also available in
uncombinated
(80-036)
Best® Keyway 7-Pin Uncombinated,
80-033
Also available in
6-pin uncombinated
(80-043)
96 • Schlage • ND-Series service manual
Parts and kits
Latches
All ND-Series latches have one-inch diameter housing and adjustable faceplates for flat or beveled doors.
Deadlatch, 13-047
Springlatch, 13-048
Electrified deadlatch, 13-049
Anti-frIction fire door
deadlatch, 14-042
Backset Description Springlatch Deadlatch
2C\,”Square corner, 1Z\,” x 2Z\v”—14-047
Square corner, 1” x 2Z\v”—14-048
2C\v”Square corner, 1Z\,” x 2Z\v”, standard 13-048 13-047
2C\v”Square corner, electrified latch, 1Z\,” x 2Z\v”—13-049
2C\v”Anti-friction fire door latch, square corner, 1Z\,” x 2Z\v”, C\v”
throw
—14-042
3C\v”Square corner, 1Z\,” x 2Z\v”14-010 14-028
5” Backset extension link —43-005**
—Rabbeted latch and strike kit, 605, 626 only 39-030*
* Adapts square corner latch and 2C\v” high square corner strike to Z\x” rabbeted door and
frame preparations.
** Can only be used with 2 ³⁄₄” backset latch.
Installation tools and kits
Boring jigs and tools are designed to provide fast and accurate lock installation. Complete kits or individual tools can be ordered
for preparing doors and jambs for Schlage products.
Pin wrench
N523-108
Old style pin wrench
M504-271
Lever Removal Tool
24002693
Installation tool for
interchangeable core M504-413
Drill fixture M204-198
For through
bolts on AL
and ND-Series
levers
Reinforcement kit 37-001
Reinforcement kit 37-001 is used to reinforce and prevent
the collapse of hollow metal doors when locksets are
mounted. This kit should be used for installation in hollow
metal doors to prevent lateral movement of the latch bolt.
Extension link is included for long backset installations.
Specify door thIckness 1C\,” or 1C\v” when ordering.
Rabbeted latch and strike kit, 39-030
Spacer for
latch
Shield for
strike
Extension Link
43-005*
Reinforcement
A501-565 - 1C\,” doors*
A501-566 - 1C\v” doors*
Placement of
reinforcement in
hollow metal
door
Parts and kits
Schlage • ND-Series service manual • 97
* Parts may be ordered separately.
Installation kit 40-147
Installation kit 40-147 for locksets and deadbolts is adjustable for 2C\,” and 2C\v” backsets.
Includes a removable bushing adaptor for M\,” latch hole. For door thickness 1C\,” to 2Z\,”.
Part no. Description Part no. Description
40-015 M\,” Bit 40-148 Installation Jig *
40-029 Full Lip Strike Chisel 40-175 1” Bit
40-030 1Z\,” x 2C\v” Latch Chisel 40-176 2Z\,” Multi Spur Bit
40-031 1” x 2Z\v” Latch Chisel 40-177 1Z\x” Multi Spur Bit
40-032 1Z\,” x 2Z\v” Latch Chisel 40-178 QuIck Change Bit Adapter
40-035 M\,” Strike Locator M504-497 Case *
* May be ordered separately.
Maintenance Kit 40-097
Maintenance kit for ND-Series lever locks contains: plunger sleeves, screw packs in various finishes, slide catches and service
parts listed below.
Part no. Description Qty Slot no.
N523-055 Plate, anti-rotation 2 1
N523-020 Cylinder 3 2
N523-091 Driver, SFIC 5 2
N523-127 Driver, IC 5 2
23988066 Insert, gauge 10 3
N523-025 Clip, slide 2 4
N523-149 Slide 2 4
D500-000 Spacer, SFIC 5 5
N523-021 Screw, mounting 4 5
N523-092 Screw, machine, oval head 4 5
C604-187 Catch, slide 2 6
C604-188 Catch, slide 2 6
C604-191 Spring, catch, slide 4 6
C503-019 Slide, spring 8 7
N523-054 Plate, adjustment 2 8
N123-008 Keycam assembly 210
N123-009 Keycam assembly 211
N123-010 Keycam assembly 212
N123-011 Keycam assembly 213
N123-012 Keycam assembly 213
N123-013 Keycam assembly 214
24002693 Tool, trim removal 215
N123-028 Plunger assembly 516
N123-017 Plunger assembly 317
N523-056 Spindle, inside 218
N523-013 Spindle, outside 2 19
N523-019 Spindle, outside, electrified 220
N123-020 Package, screw 221
N123-040 Package, screw 222
24085037 Hub, inside 223
24085060 Hub, inside 224
Part no. Description Qty Slot no.
24088544 Housing, outside 2Bottom
63-104 Spring cage assembly, dummy 1Bottom
M504-413 Installation tool, IC 1Bottom
N123-021 Spring cage assy, inside 1Bottom
N123-022 Spring cage assy, outside 1Bottom
N123-032 Spring cage assy, inside 1Bottom
N123-043 Spring cage assy, outside 1Bottom
N123-056 Spring cage assy, SFIC, O/S 1Bottom
N123-057 Spring cage assy, SFIC, I/S 1Bottom
P515-181 Component sheet 1Bottom
1
20
19 21 25
24
23
22
18
11 16 17
15
14
13
12
10
6
4
9
87
5
32
98 • Schlage • ND-Series service manual
Parts and kits
Strikes
Square Corner T-Strike, 10-013
Size: 1Z\,” x 2C\v” x C\cx”
Lip length: 1Z\,”, 1Z\x”
Includes strike box
C603-623
Available in 605,
606,612, 613, 619,
625, 626.
Square Corner Fire Door
T-Strike, 10-016
Size: 1Z\,” x 2C\v” x C\cx”
Lip length: 1Z\,”, 1Z\x”
Includes strike box
B502-853
Available in 605, 606,
612, 613, 619, 625,
626.
ANSI Prep. A115.2, 10-025
Size: 1Z\,” x 4M\,” x C\cx”
Lip length:
1C\zn” (std), 1C\,”
If required, K510-066
strike must be
ordered separately.
Available in 605,
606, 612, 613, 619,
625, 626.
ElectrIc Strike, 10-042
Size: 1Z\v” x 4M\,”
24 Volt AC
12 Volt DC
Available in
606 and 626
only.
ANSI PlastIc Strike Box,
K510-066
Parts and kits
Schlage • ND-Series service manual • 99
Screws, screw packs and special parts
Screws
Part no. Description Door thickness Type Size
A501-171 ND170, washer –Washer –
N523-092 ND170, mounting screw 1Z\x” - 2” POH Machine Z\v”-20 x 2Z\x”
C603-256 ANSI strike screw –PFH Combo 12-24 X 1”
C603-897 Latch and strike screw –PFH Combo #8 X C\v”
N523-021 Spring cage screws 1C\,” - 2” POH Machine #8 X 32 x 2Z\,”
N583-133 ND170, Spring cage screws –PFH Combo #8 X 1”
Screw packs, standard Special parts
Part no. Description Contents Part no. Description
B502-517 Latch and strike screws (4) C603-897 XQ02-309* 10-013 Strike, M\,” flat lip
N123-020 Mounting, all except
ND170
(4) C603-897 XQ03-494* 10-013 Strike, 1B\,” - 6” lip
(2) C603-256 10-013 Strike, 6Z\,” - 12” lip
(2) N523-021 XQ07-351* 10-025 Strike, M\,” flat lip
10-025 Strike, lips through 6”
(except M\,”, 1C\zn” and 1C\,”)
(1) M504-271
N123-040 Mounting, ND170 (2) L583-133 XC03-069 Extension links, backsets over 5” - 42”
(1) N523-092 XN12-012** Chassis spacer for 1C\,” door (2 required)
(1) A501-171
(1) M504-271 35-250 Emergency Key, ND40
C203-736 ANSI Strike (2) C603-256 35-251 Spanner Key, ND85
* Specify lip length
** Specify finish.
Screw packs, Torx®
Part no. Description Contents
C203-311 Latch and strike (includes tool) (4) C503-766 (T-15)
C203-312 Latch and ANSI strike (includes tool) (2) C503-766 (T-15)
(2) L583-371 (T-20)
Latch and strike
screw, C603-897
ANSI strike screw,
C603-256
1C\,” Chassis spacer,
XN12-012**
ND40 Emergency
key, 35-250
100 • Schlage • ND-Series service manual
Finishes
Finishes
Schlage Lock finishes are durable, top quality finishes
obtained by the careful processing of solid brass, bronze,
stainless steel, or other materials.
Where required, a protective clear coating is applied and
cured under high temperature. It is important that the
climatic conditions and usage be taken into consideration
when selecting finishes. This is especially true in areas
subjected to strong corrosive vapors, humid climate, or sea air
which, in short time, may have a damaging effect on metal
finishes.
The longevity and preservation of the finish appearance is
determined by base metal and finishing process. Clear
protective coating or other organic finishing applications may
require different methods of cleaning and care. For example,
non-clear coated finishes should not be cleaned with any
soaps or solvents. Organically coated surfaces should
periodically be cleaned with a mild non-abrasive soap and be
buffed lightly with a clean cloth. The type of base metal and
finished techniques must be considered when applying any
cleaning or preservative method.
In some instances for customer convenience, the most
appropriate BHMA (Builders Hardware Manufacturers
Association) finish symbols are used to indicate similarity of
appearance regardless of base metal or finishing process.
Finish numbers in the 600-Series are the BHMA industry
standard. The nearest former U.S. equivalent code
designations are shown in parenthesis.
Finish codes and descriptions
Schlage code BHMA Description
605 (US 3) Bright brass, clear coated
606 (US 4) Satin brass, clear coated
612 (US 10) Satin bronze, clear coated
613 (US 10B) Oil rubbed bronze, oxidized satin
bronze, oil rubbed, no coating
Schlage code BHMA Description
619 (US 15) Satin nickel, clear coated
625 (US 26) Bright chromium plated, no coating
626 (US 26D) Satin chromium plated, no coating
Ordering procedures
To order Schlage products, descriptive data should be in the same sequence as shown below.
Line Item Qty Product Outside Inside Hand Latch Strike Dr Thk Ext Dim Additional Details
DES FIN DES FIN
1 2 3 4 5 6 7 8 9 10 11 12 13 14
Line Item: Line item number
Qty: Quantity
Product: Complete lock product or part number
Outside DES: Outside design code
Outside FIN: Outside finish code
Inside DES: Inside design code
Inside FIN: Inside finish code
Hand: Hand of door: Only one hand allowed per line item. Example: RH=right hand, LH=le hand, RR=right reverse, LH=le reverse
Latch: Leave blank for standard latch or specify part number if non-standard latch is required
Strike: Leave blank for standard strike or specify part number if non-standard latch is required. LLL=less strike
Dr Thk: Door thickness: Enter door thickness if non-standard, example 138=1C\,”, 214=2Z\v”, 212=2Z\x” (EI or EO assumes the latch will be
centered on 1” door, to which material has been added)
Ext: Extension: Enter one of the following when door 2” thick or greater are specified: EE=extended equally, EI=extended inside,
EO=extended outside, ED=extended differently
Dim: Dimension: Enter dimension for non-standard strike lip length and mortise cylinder or blocking ring length
Additional Details: Enter detail for keying information and for special requirements
Limited warranty
Schlage • ND-Series service manual • 101
Limited warranty
Product warranty: commercial applications
Limited warranty
Schlage Lock Company, LLC (the “Company”) extends a three-
year limited warranty to the original user of the products
manufactured by the Company (the “Products”) against defects in
material and workmanship from the date of purchase. Certain
Products contain restrictions to this limited warranty, additional
warranties or different warranty periods. Please see below for
specific Product warranty information.
What The Company Will Do: Upon return of the defective Product
to the Company or its authorized distributor for inspections, free
and clear of all liens and encumbrances and accompanied by the
statement of defects of proof of purchase, the Company will
replace the Product.
Original User: These warranties only apply to the Original User of
Products. These warranties are not transferable.
What Is Not Covered: The following costs, expenses and damages
are not covered by the provisions of these limited warranties: (i)
labor costs including, but not limited to, such costs for the removal
and reinstallation of Products; (ii) shipping and freight expenses
required to return the Products to the Company; or (iii) any other
incidental, consequential, indirect, special and/or punitive
damages, whether based on contract, warranty, tort (including,
but not limited to strict liability or negligence), patent
infringement, or otherwise, even if advised of the possibility of
such damages. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above
exclusion or limitation may not apply to you.
The provisions of this warranty do not apply to Products: (i) used
for purposes for which they are not designed or intended; (ii)
which have been subjected to alteration, abuse, misuse,
negligence or accident; (iii) which have been improperly stored,
installed, maintained or operated; (iv) which have been used in
violation of written instructions provided by Schlage; (v) which
have been subjected to improper temperature, humidity or other
environmental conditions (i.e., corrosion); or (vi) which, based on
the Company’s examination, do not disclose to the Company’s
satisfaction non-conformance to the warranty. Additionally, the
Company will not warrant ANSI A156.2 Grade 2 lever Product
installed in educational facilities and student housing.
Specific product warranty restrictions/additional warranties
ND-Series Levers 10-Year Mechanical Warranty: The limited
warranty is provided for a period of ten (10) years from the date of
purchase and is subject to the restrictions of these limited
warranties.
Small Format Interchangeable Core (SFIC) Warranty: The limited
warranty also applies to Schlage locks and housings when used
with another manufacturer’s cores, or to Schlage cores (i.e. SFIC)
when used in another manufacturer’s locks and housings. The use
of unauthorized cylinder cams or other components with the
Products shall void these warranties.
Everest® Primus® Limited Lifetime Key Breakage Warranty: A
limited lifetime warranty is provided to the original user against
breakage and is subject to the restrictions of these limited
warranties.
