RF Module User Manual
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 1 of 20

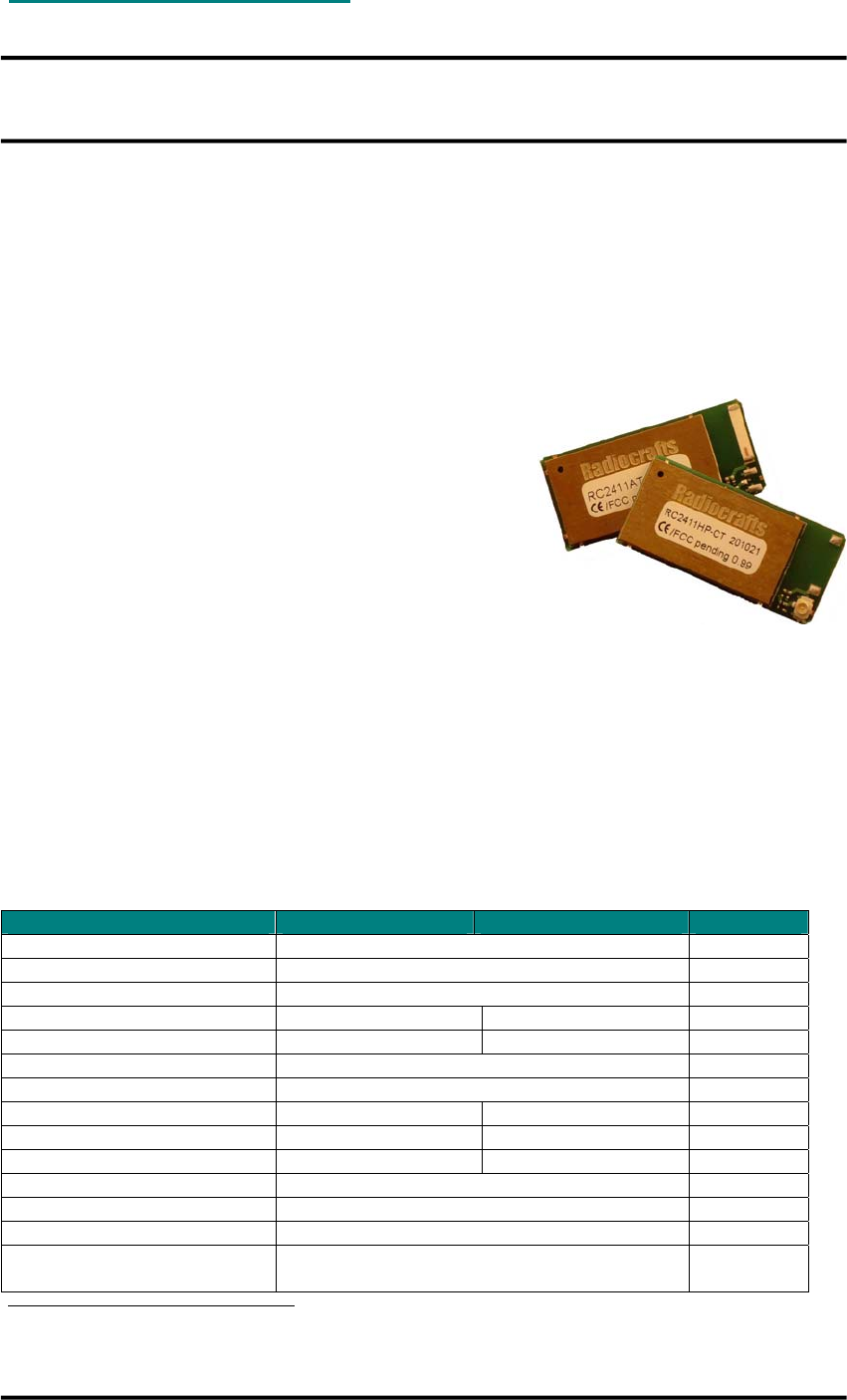

ZigBee®- Ready RF Transceiver Modules
Product Description
The RC241x and RC241xHP RF Transceiver Modules are a series of compact surface-
mounted modules specially designed for the ZigBee® PRO protocol stack. It can also be
used for wireless star and mesh networks based on an IEEE 802.15.4 compliant PHY and
MAC.
The complete shielded module is only 16.5 x 35.6 x 3.5 mm and comes in both a low-power
consuming variant (RC241x) and a High Power version with LNA and power amplifier for
extended range (RC241xHP). The two variants are pin compatible. The module is available
with integrated antenna or RF connector (U.FL type)
Applications
• Home- and building automation
• Smart Metering / AMR / AMI
• Electricity, gas, water and heat meters
• Energy Service Portal (ESP) / Load Control
• IP sensor networks (6LoWPAN)
• Wireless sensor networks
Features
• 100mW / 20 dBm option and low-power option in same packages
• 16.5 x 35,6 x 3.5 mm compact shielded module for SMD mounting
• Integrated antenna option / U.FL connector option
• 256 kB Flash memory, 8 kB SRAM
• 15 digital and analogue I/Os, 8 channel 12 bit ADC
• 2.0 – 3.6 V supply voltage, ultra low power modes
• Optional 4 kB internal EEPROM
• Optional internal SPI flash for over the air upgrade (OTA)
• Conforms with EN 300 440 and EN 300 328 (Europe), FCC CFR 47 part 15 (US),
ARIB STD-T66 (Japan) and G.S.R. 542(E)/45(E) (both for India)
Quick Reference Data (typical over manufacturing lots at 3.3V, frequency 2440 MHz)
Parameter RC241x RC241xHP Unit
Frequency band 2.400-2.4835 GHz
Number of channels 16
Data rate 250 kbit/s
Max output power 4 20* dBm
Sensitivity (PER 1%) -97 -99 dBm
Adjacent Channel Rejection 49 dB
Alternate Channel Rejection 57 dB
Supply voltage 2.0 - 3.6 3.0 - 3.6 Volt
Current consumption, RX/TX 24/34 27/175 mA
Current consumption, PD 0.4 10 uA
Flash memory 256 kB
RAM 8 kB
Internal EEPROM (optional) 4 kB
Operating Temperature -30 to +85
(-40 to +85 available on request)
°C
* Limited to 12 dBm in Europe due to ETSI regulation and limited to 10 dBm in US for
frequency 2480MHz due to FCC regulation.
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 2 of 20
Quick Product Introduction
The RC241x series of modules are specially designed to comply with IEEE 802.15.4-based
industry standards like ZigBee PRO, 6LoWPAN, Wireless HART, RF4CE and others. Using
the module together with the TI Z-stack is a powerful combination to build any ZigBee profile
and application. The module contains qualified RF hardware and enough processor power to
run the complete ZigBee mesh network protocol for a full function device including the
application.
Using a pre-qualified module is the fastest way to make a ZigBee product and shortest time to
market. The embedded RF HW and MCU resources in a 100% RF tested and pre-qualified
module shorten the qualification and approval process. No RF design or RF expertise is
required to add powerful wireless networking to the product. In most cases you only need
supply voltage (for example an external battery) and a sensor/actuator and the module can
run the entire application.
The module can be delivered as:
• RC241x/RC241xHP: HW platform. No preloaded firmware.
• RC2411x-ZNM/RC2411HP-ZNM : A complete ZigBee PRO network module where
the entire ZigBee PRO compliant stack and configurable application software is
preloaded in module and available via a serial API.
Article number and variants:
-AT includes internal chip antenna
-CT include U.FL type connector
For detailed article numbers with various antenna variants, see page (18)
About this document
This document is one part of the documentation for the module. It describes the electrical

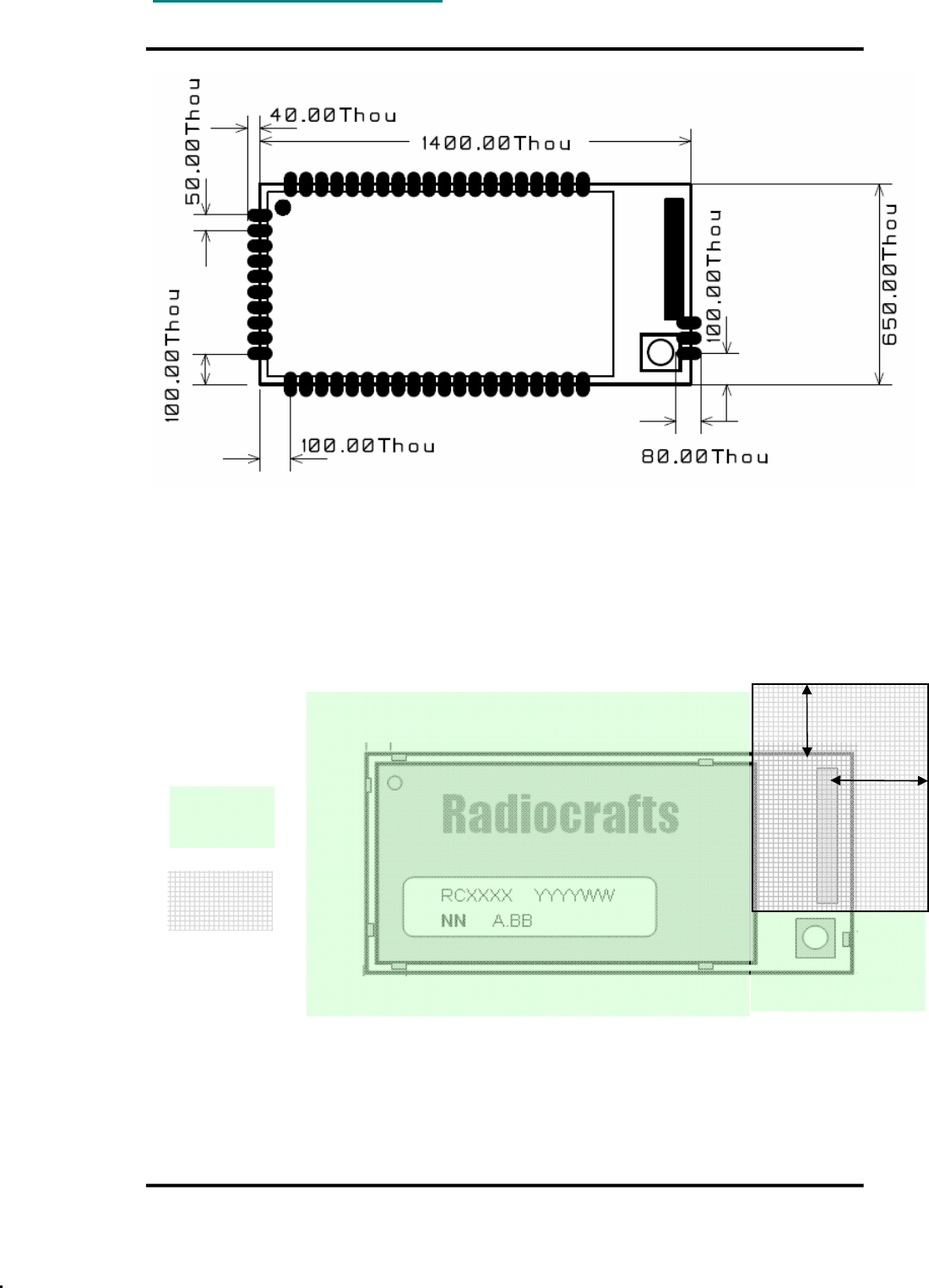

parameters, RF performance, footprint and PCB layout and regulatory information. Depending
on the selected FW solution one additional User Manual should be used. See
• RC24xx/RC24xxHP Firmware Development User Manual for using the module as a
hardware platform only
• RC24xx/RC24xxHP-ZNM User Manual for details on how to use the ZNM module
with preloaded ZigBee Pro stack and API through a serial interface.
Figure 1 Document structure
RC241x/RC241xHP Datasheet (This document)
RC24xx/RC24xxHP
Firmware Development User Manual
RC24xx/RC24xxHP-ZNM
User Manual
Future
User Manuals
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 3 of 20

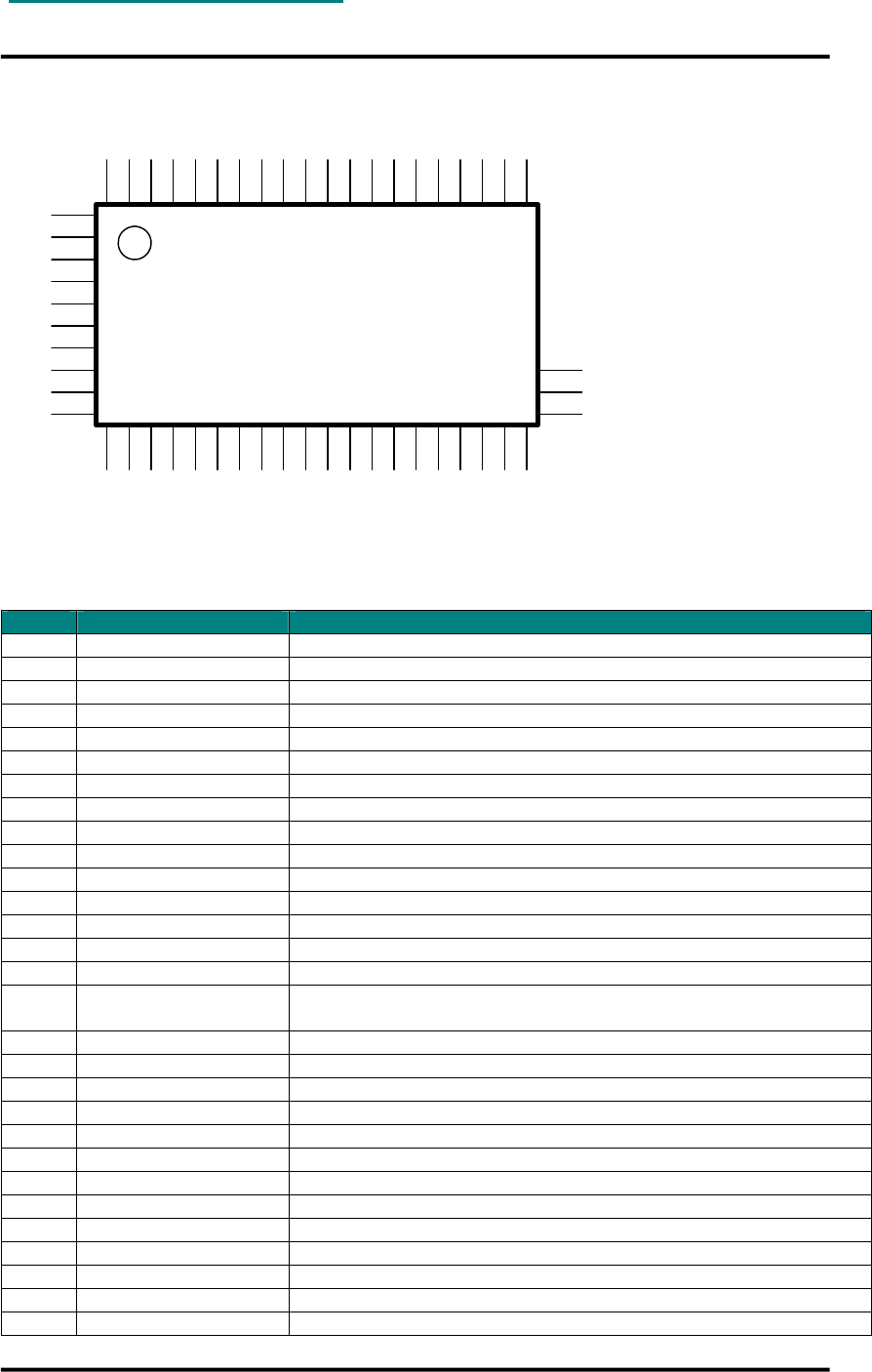

Pin Assignment
Radiocrafts
1
10
11 30
33
31
53 34
Pin Description
(See User Manual for more detailed pin out)
Pin no Pin name Description and internal MCU connection
1 GND System ground
2 NC Reserved for future use
3 NC Reserved for future use
4 GND System ground
5 I/O pin Digital I/O
6 I/O pin Digital I/O
7 I/O pin Digital I/O
8 I/O pin Digital I/O
9 I/O pin Digital I/O
10 GND System ground
11 GND System ground
12 I/O pin Digital I/O, HGM for PA CTRL IN HP VERSION
13 I/O pin Digital I/O
14 I/O pin Digital I/O
15 I/O pin Digital I/O
16 I/O pin Digital I/O ENABLE(LNA_ENABLE) FOR PA CTRL IN HP
VERSION
17 RESET_N RESET
18 NC Not connected
19 NC Not connected
20 NC Not connected
21 NC Not connected
22 NC Not connected
23 NC Not connected
24 NC Not connected
25 NC Not connected
26 NC Not connected
27 NC Not connected
28 NC Not connected
29 NC Not connected
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 4 of 20
30 GND System ground
31 GND System ground
32 RF_TEST RF I/O connection for Automatic test purposes.
For modules intended for use with U.FL connector, do not
connect this pad.
33 GND System ground
34 GND System ground
35 VCC VCC
36 NC Not connected
37 NC Not connected
38 NC Not connected
39 NC Not connected
40 NC Not connected
41 SPI_FLASH_RESET RESET for SPI flash, NC for without SPI flash
42 I/O pin Digital I/O or Connected to 32kHz crystal
43 I/O pin Digital I/O or Connected to 32kHz crystal
44 I/O pin Digital I/O or Programming
45 I/O pin Digital I/O or Programming
46 I/O pin Digital I/O
47 I/O pin Digital I/O
48 I/O pin Digital I/O
49 I/O pin Digital I/O
50 I/O pin Digital I/O
51 I/O, PA enable Digital I/O, PA ENABLE FOR PA CTRL IN HP VERSION
52 I/O pin Digital I/O
53 GND System ground
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 5 of 20

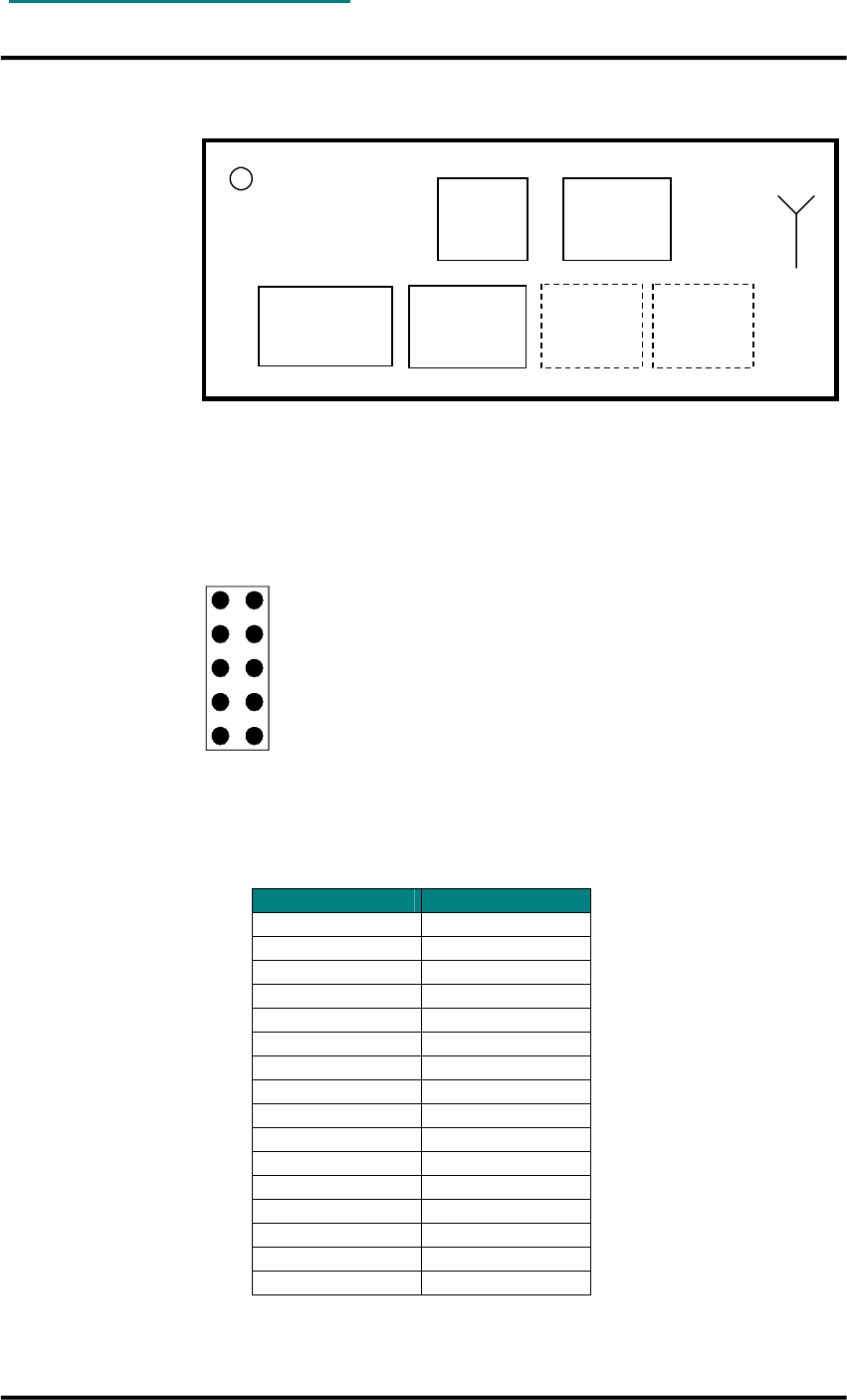

Block Diagram
Programming and debugging Interface
For downloading firmware to the module it is required to include a 2x5 pins programming
connector to the modules programming pins. The connector should be a 2.54 mm pitch pin-row
(same pitch in both directions), SMD or through-hole version, with the following connections:
RF Frequency, Output Power Levels and Data Rates
The following table shows the RF channels as defined by the IEEE 802.15.4 standard.
RF channel Frequency
11 2405 MHz
12 2410 MHz
13 2415 MHz
14 2420 MHz
15 2425 MHz
16 2430 MHz
17 2435 MHz
18 2440 MHz
19 2445 MHz
20 2450 MHz
21 2455 MHz
22 2460 MHz
23 2465 MHz
24 2470 MHz
25 2475 MHz
26 2480 MHz
For proprietary solutions (non-IEEE 802.15.4), the RF transceiver can be programmed in
steps of 1 MHz.
RC241xHP
Communication
controller
RF
Transceiver
PA
Low noise
amplifier,
LNA
EEPROM
(Option)
GND 1
Pin 44 3
2To VCC
4 Pin 45
Pin 17, RESET 7
FLASH
(Option)
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 6 of 20
The RF transceiver uses direct sequence spread spectrum (DSSS) with 2 Mchip/s chip rate,
giving a raw data rate of 250 kbit/s. The modulation format is Offset – Quadrature Phase Shift
Keying (O-QPSK). The DSSS makes the communication link robust in noisy environments,
which is beneficial when sharing the same frequency band with other applications.
Regulatory Compliance Information
The use of RF frequencies and maximum allowed transmitted RF power is limited by national
regulations. The RC241XHP has been designed to comply with world wide regulations
(R&TTE directive 1999/5/EC in Europe, G.S.R. 542(E)/45(E) for India and FCC and ARIB).
The RC241X (non-HP) complies with all directives and regulations at any power lever setting.
In order to comply with the different standards, the output power for RC241XHP should be
configured as commented below.
R&TTE directive (EU)
According to R&TTE directive it is the responsibility of Radiocrafts’ customers to
check that the host product (i.e. final product) is compliant with R&TTE essential
requirements. The use of a CE marked radio module can avoid re-certification of the
final product, provided that the end user respects the recommendations established
by Radiocrafts. A Declaration of Conformity for the modules is available from
Radiocrafts on request.
In terms of R&TTE the RC241XHP is a wideband radio and must comply with EN
300 328 on those premises. This implies that the radiated power must be lower than
12 dBm and hence power setting giving 12 dBm or lower can be used in compliance
to EN 300 328.
FCC/IC compliance (US, Canada)
This device complies with Part 15 of the FCC Rules.
Part number FCC ID IC ID
RC241xAT Y2NRC24XX IC 9402A-RC24XX
RC241xCT Y2NRC24XX IC 9402A-RC24XX
RC241xHP-AT Y2NRC24XXHP IC 9402A-RC24XXHP
RC241xHP-CT Y2NRC24XXHP IC 9402A-RC24XXHP
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Son fonctionnement est soumis aux deux conditions: (1) cet appareil ne doit pas
créer d'interférences nuisibles et (2) cet appareil doit accepter toute interférence
reçue, y compris les interférences qui peuvent en perturber le fonctionnement.
Changes or modifications to the equipment not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 7 of 20
If an detachable RF connector is introduced in RF path it must be a non-standard
type RP-SMA, U.Fl etc. The modules have been approved with the following external
quarter wave antennas:
Manufacturer Part number
EAD Acara
Taoglas FXP73.07.0100A
Antennova Titanis
Any use of antenna with gain > 2.5 dBi is strictly forbidden.
Warning for RC241xHP: This is device complies with FCC RF radiation exposure
limits set forth for an uncontrolled environment. The antenna used for this transmitter
must be installed to provide a separation distance of at least 20 cm from all persons
and must not be co-located or operating in conjunction with any other antenna or
transmitter. For approval of end product as portable device, separate SAR tests and
approval is required for end product.
Avertissement concernant le module RC2400HP: Le module RC2400 HP est
conforme à l'exposition aux limites de rayonnements RF FCC acceptées pour un
environnement non contrôlé. L'antenne utilisée pour cet émetteur doit être installé
pour fournir une distance minimum 20 cm par rapport à toute personne et ne doit pas
être à côté ou fonctionner conjointement avec une autre antenne ou transmetteur.
Pour l'approbation du produit final en tant que périphérique portable, des tests et
homologations SAR propres au produit sont requis.
The output power of RC241x is below the FCC threshold requiring that it be tested for
SAR compliance.
La puissance de sortie du RC2400 est inférieur au seuil FCC nécessitant que des
tests de conformité SAR soient réalisés.
This device has been designed to operate with an quarter wave antenna having a
maximum gain of 2.5 dBi. Antenna having a higher gain is strictly prohibited per
regulations of Industry Canada. The required antenna impedance is 50 ohms.
Cet appareil a été conçu pour fonctionner avec une antenne 1/ d'ondes ayant
un gain maximum de 2,5 dBi. Utiliser une antenne à gain plus élevé est
strictement interdite par les règlements d'Industrie Canada. L'impédance
d'antenne requise est de 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (EIRP) is not
more than that required for successful communication.
Pour réduire le risque d'interférence pour les autres utilisateurs, le type d'antenne et
son gain doivent être choisies de façon que la puissance isotrope rayonnée
équivalente (PIRE) n'est pas supérieure à celle requise pour une communication
réussie.
The installer of this radio equipment must ensure that the antenna is located or
pointed such that it does not emit RF field in excess of Health Canada limits for the
general population; consult Safety Code 6, obtainable from Health Canada’s website
www.hc-sc.gc.ca/rpb
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 8 of 20
Le programme d'installation de cet équipement radio doit s'assurer que l'antenne est
située ou orientée de façon à ne pas émettre de champ RF dépassant les limites de
Santé Canada pour la population en général, consulter le Code de sécurité 6,
disponible sur le site Web de Santé Canada www.hc-sc.gc.ca/rpb
End product marking FCC/IC
The end product including the module must include the following text on a visible
label:
For RC241x
For RC241xHP
WPC compliance (India)
License based operation in India is based on case by case grant and the basis is
often a compliance to the R&TTE directive or to FCC.
ARIB compliance
The RC241xHP has been designed to comply with the requirements given by the
Japanese ARIB STD-T66 for low power (short range) devices in the 2.4GHz range.
However, it has not been formally assessed for conformity with the appropriate
regulations. Users must assess and verify that their final product meets the
appropriate specifications and to perform the required procedures for regulatory
compliance.
The relevant regulations are subject to change. Radiocrafts AS does not take responsibility
for the validity and accuracy of the understanding of the regulations referred above.
Radiocrafts only guarantee that this product meets the specifications in this document.
Radiocrafts is exempt from any responsibilities related to regulatory compliance.
Contains Transmitter Module FCC ID: Y2NRC24XX/IC: 9402A-RC24XX
Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Module transmetteur ID IC: 9402A-RC24XX
Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil
ne doit pas causer d'interférences nuisibles et (2) cet appareil doit accepter toute
interférence reçue, y compris les interférences qui peuvent perturber le
fonctionnement.
Contains Transmitter Module FCC ID: Y2NRC24XXHP/IC: 9402A-RC24XXHP
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Module transmetteur ID IC: 9402A-RC24XX
Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne
doit pas causer d'interférences nuisibles et (2) cet appareil doit accepter toute
interférence reçue, y compris les interférences qui peuvent perturber le
fonctionnement.
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 9 of 20
Antenna and Range Considerations
The module needs an antenna to operate. The following antenna options could be
considered.
Antenna Advantage Estimated
LOS range
(meters)
RC241X
Estimated
LOS range
(meters)
RC241XHP (100
mW)
Chip antenna
-AT
Low cost,
easy to implement
200-300 1000-1500
External whip
monopole
High performance 500-700 3000-4000
External whip
dipole
High preformance,
no large ground
plane required
500-700 3000-4000
When using a module of -CT version with external antenna, the VSWR (Voltage Standing
Wave Ratio) of the antenna should be less than 2:1. The VSWR is normally specified in the
antenna datasheet and most commercial available antennas fulfil this requirement.
Also note that if the external antenna is a monopole connected with cable, the antenna
require a ground plane at base of antenna. Only ground through the cable will not give
optimal preformance for a monopole antenna.
Antenna parameter for a typical RC2411AT is shown below, for a module with equivalent 4
dBm conducted output power.
Parameter Result
Total Radiated Power
-0,91 dBm
Peak EIRP 1,83 dBm
Directivity 2,74 dBi
Efficiency -4,91 dB
Efficiency 32,28494 %
Gain -2,17 dBi
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 10 of 20

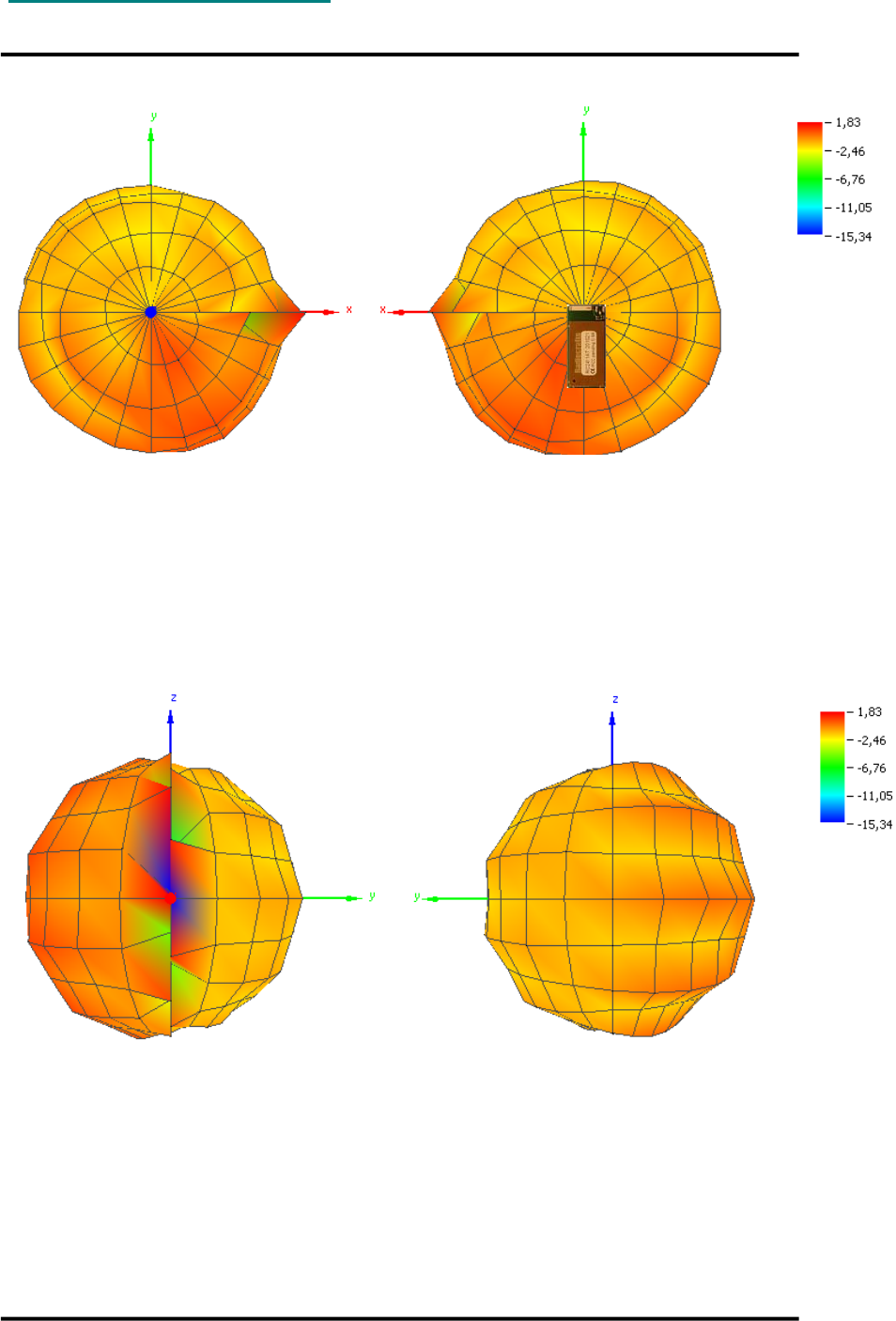

Figure 2 Antenna radiation xy plane
Figure 3. Antenna radiation yz plane
Side view (looking into pin
34-53) Side view (looking into pin
11-30)
Top view
Bottom view
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 11 of 20

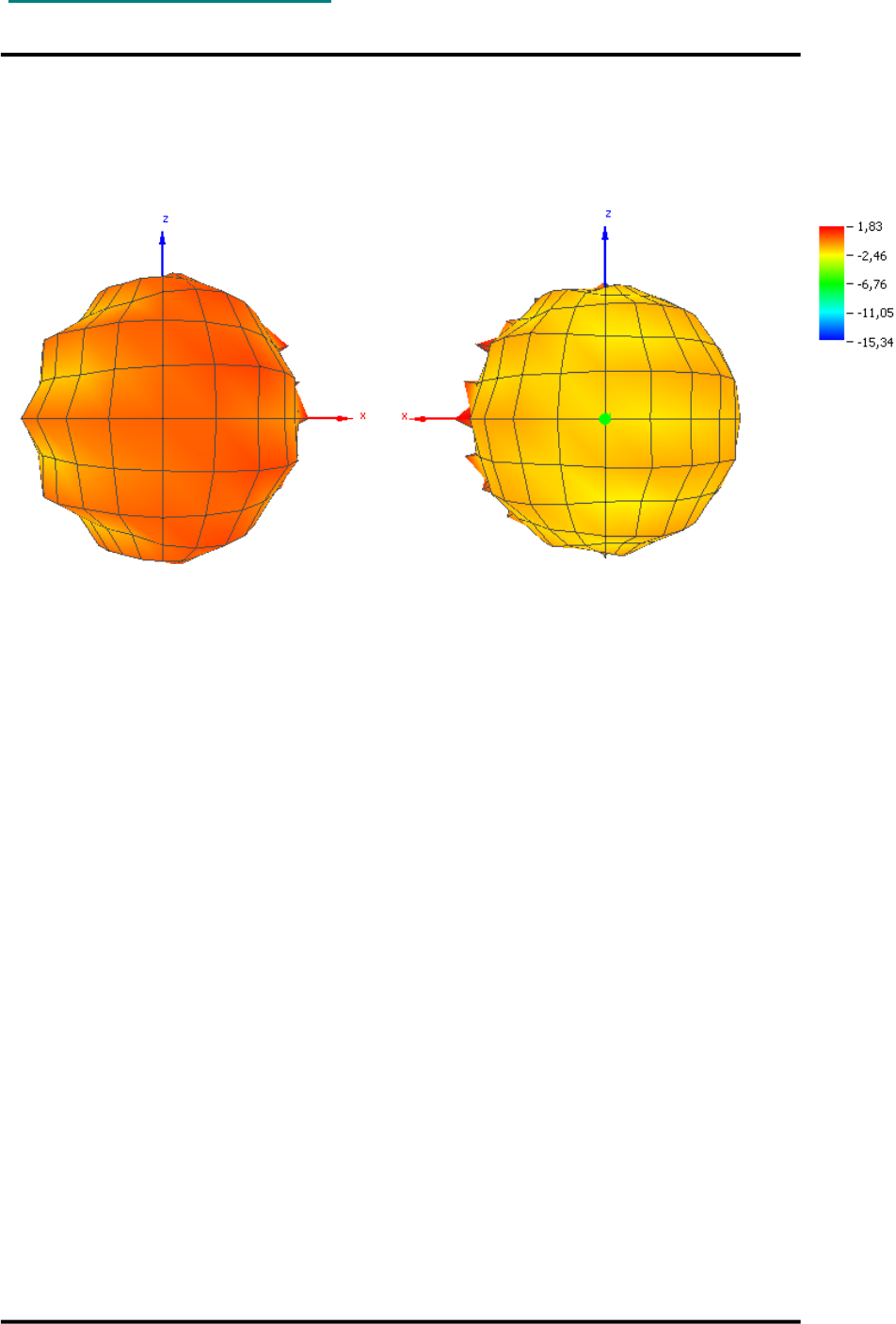

Figure 4. Antenna radiation xz plane
PCB Layout Recommendations
The recommended layout pads for the module are shown in the figure below (top view, pin 1
is in upper left corner). All dimensions are in thousands of an inch (mil). The circle in upper
left corner is an orientation mark only, and should not be a part of the copper pattern.
Front view, looking into
antenna
Rear view, looking into
pin 1-10
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 12 of 20
Figure 5 Recommended layout drawing with dimension (all numbers in mil)

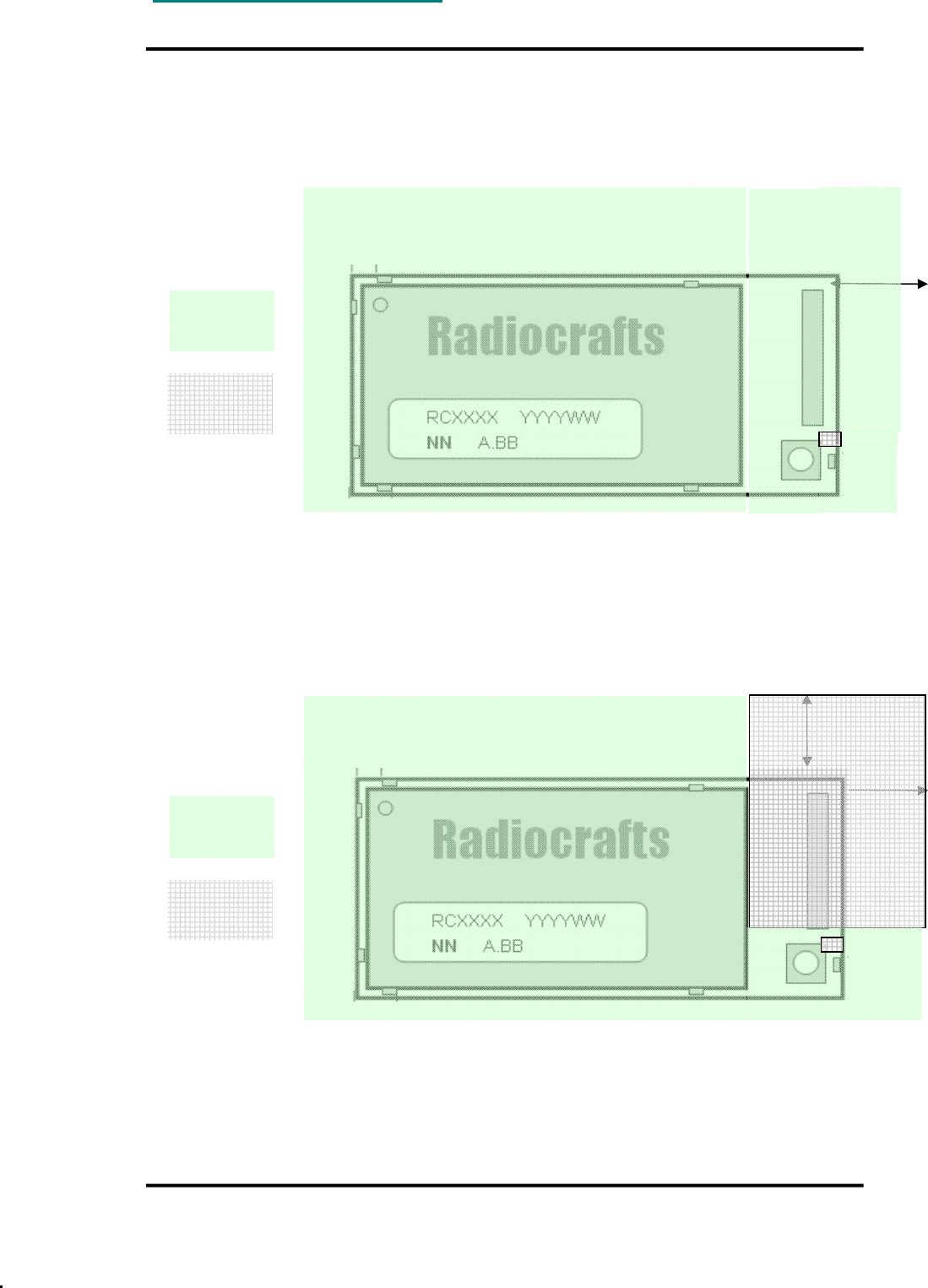

Figure 6 Layout recommendation for variant with chip antenna (-AT)
1.5 cm
1.5 cm
Ground on
motherboard
NO ground
on
motherboard
m
il
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 13 of 20
Proper grounding of all ground pins to ground on motherboard is crucial to get best
preformance. The ground connection should be made with a via directly from the pad to the
ground plane, with shortest possible routing trace.
Figure 7 Layout recommendation for variant with U.FL connector.
Removal of ground under RF test pin (Pin 32 on module) to avoid increased capacitance on
the RF transmission line is important for optimum preformance.
Figure 8. Common layout -AT/-CT
When using –AT version of the module, best range performance is achieved by placing
module with chip antenna on corner (A) or edge (B) of carrier-board.
1.5 cm
1.5 cm
Ground on
motherboard
NO ground
on
motherboard
Ground on
motherboard
NO ground
on
motherboard
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 14 of 20

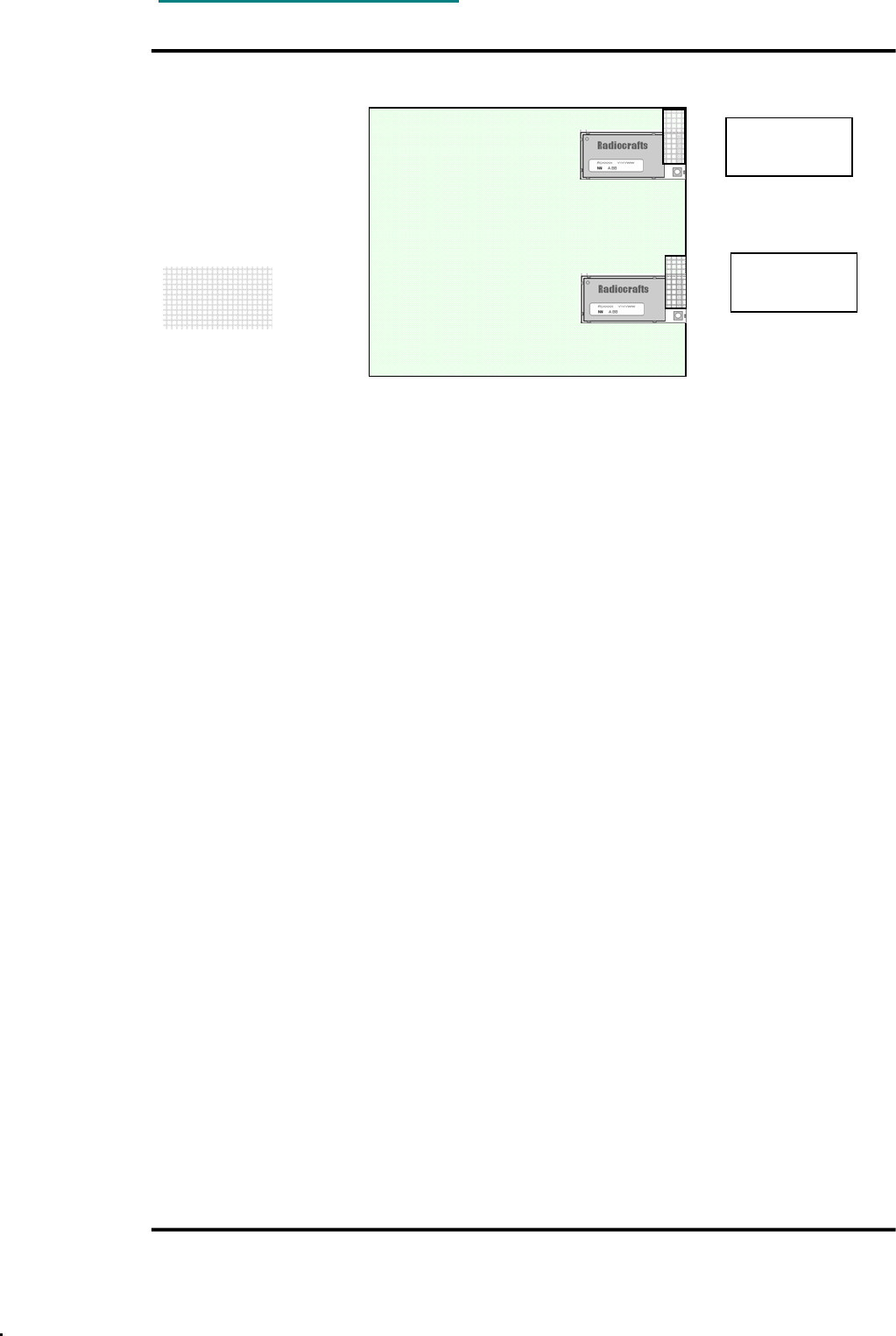

Figure 9. Placement of module on carrier board
NO ground
on
motherboard
Placement
option A
Placement
option B
Carrier board
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 15 of 20

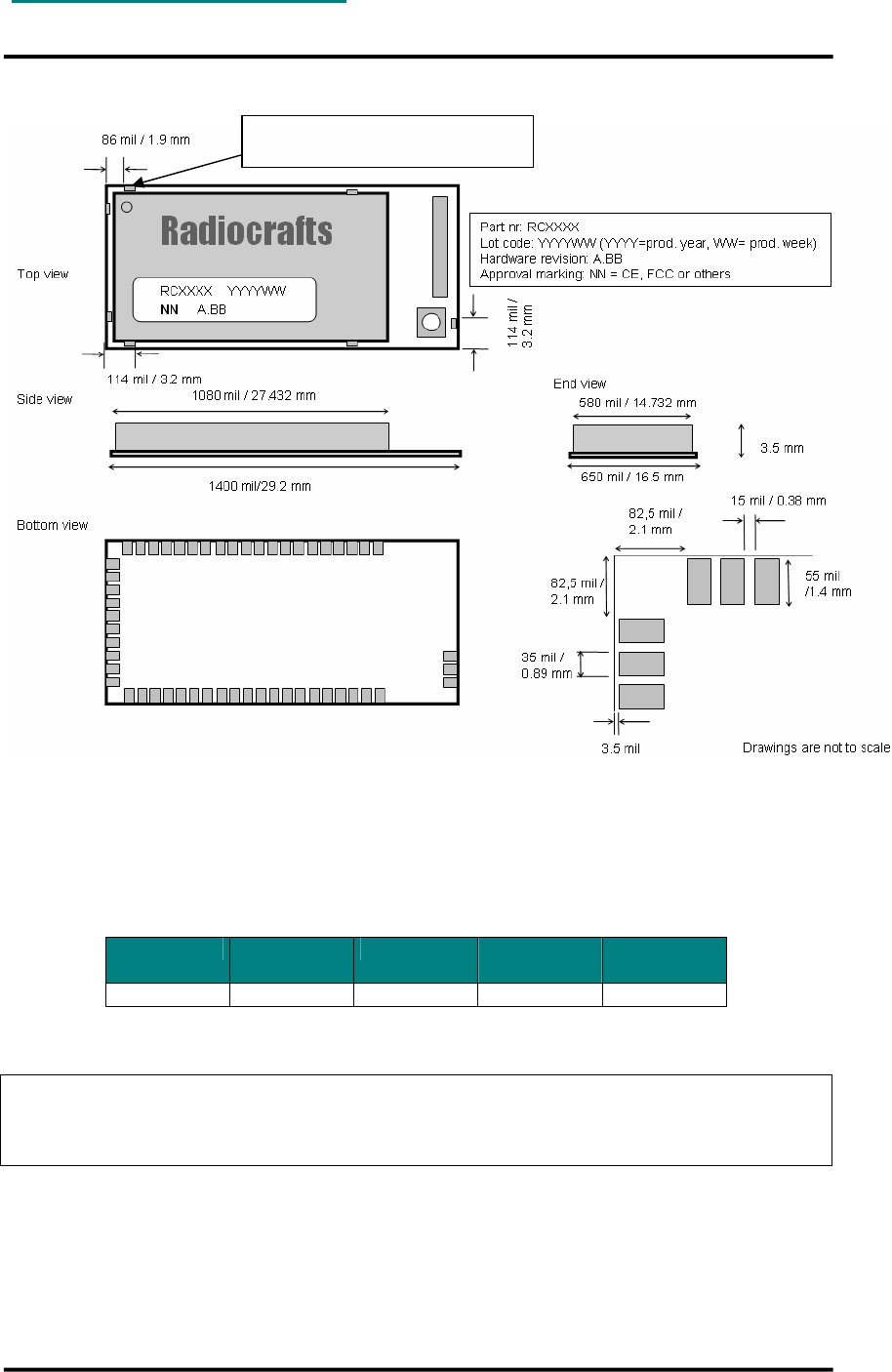

Mechanical Drawing
Mechanical Dimensions
The module size is 0.65” x 1.4” x 0.14” (16.5 x 35.6 x 3.5 mm).
Carrier Tape and Reel Specification
Carrier tape and reel is in accordance with EIA Specification 481.
Tape width Component
pitch
Hole pitch Reel
diameter
Units per
reel
56 mm 20 mm 4 mm 13” Max 800
Note that the Radiocrafts technical support team is available for free-of-charge schematic-
and layout review of your design.
Alignments mark on top layer to help
align module during assembly
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 16 of 20
Soldering Profile Recommendation
JEDEC standard IPC/JEDEC J-STD-020D.1 (page 7 and 8), Pb-Free Assembly is
recommended.
The standard requires that the heat dissipated in the "surroundings" on the PCB is taken into
account. The peak temperature should be adjusted so that it is within the window specified in
the standard for the actual motherboard.
Aperture for paste stencil is normally areal-reduced by 20-35%, please consult your
production facility for best experience aperture reduction. Nominal stencil thickness of 0.1-
0.12 mm recommended.
Absolute Maximum Ratings
Parameter Min Max Unit
Supply voltage, VCC -0.3 3.6 V
Voltage on any pin -0.3 VCC+0.5 V
Input RF level 10 dBm
Storage temperature -40 85 °C
Operating temperature -30 85 °C
Caution ! ESD sensitive device.
Precaution should be used when handling
the device in order to prevent permanent
damage.
Under no circumstances the absolute maximum ratings given above should be violated.
Stress exceeding one or more of the limiting values may cause permanent damage to the
device.
Electrical Specifications
T=25°C, VCC = 3.3V, 50 ohm if nothing else stated.
Parameter Min Typ. Max Unit Condition / Note
Operating frequency
2400 2483 MHz Programmable in 1 MHz steps,
5 MHz steps for IEEE 802.15.4
compliance
Number of channels
16 For IEEE 802.15.4 compliance
Channel spacing
5 MHz For IEEE 802.15.4 compliance
Input/output impedance
50 Ohm
Data rate
250 kbit/s
DSSS chip rate
2 Mc/s
Frequency stability
+/-40 ppm With 10 year aging
Transmit power
RC241x
RC241xHP
-23
-6
4
20
dBm Programmable from firmware
Harmonics
RC241X
2nd harmonic
3rd harmonic
RC241XHP (20 dBm Pout)
2nd harmonic
3rd harmonic
-50
-70
-48
-50
-45
-45
Measured according to FCC
CRF47 Part 15
Spurious emission
RC241xHP, TX, 20 dBm
30 – 1000 MHz
1-12.75 GHz
-50
-45
dBm
Complies with EN 300 328, EN
300 440, FCC CRF47 Part 15
and ARIB STD-T66
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 17 of 20
Parameter Min Typ. Max Unit Condition / Note
RC241x TX, 4 dBm
30 – 1000 MHz
1-12.75 GHz
1.8-1.9 GHz
5.15-5.3 GHz
-56
-48
-53
-60
Sensitivity
RC241x
RC241xHP
-97
-99
dBm PER = 1%
Adjacent channel rejection
+/- 5 MHz
49
dB
At -82 dBm, PER = 1%.
0 dB for IEEE 802.15.4
compliance
Alternate channel selectivity
+/- 10 MHz
57
dB
At -82 dBm, PER = 1%.
30 dB for IEEE 802.15.4
compliance
Saturation
10 dBm
Spurious emission, RX
30 -1000 MHz
1-12.75 GHz
-57
-47
dBm
Complies with EN 300 328, EN
300 440, FCC CRF47 Part 15
and ARIB STD-T66
Supply voltage
RC241x
RC241xHP
2.0
3.0
3.6
3.6
V
Current consumption, RX
RC241x
RC241xHP
24
27
mA MCU in Idle mode using the 32
MHz oscillator.
Current consumption, TX
RC241x, 4dBm
RC241xHP, 20 dBm
34
200
mA MCU in Idle mode using the 32
MHz oscillator.
Current consumption, Power
down, power mode 3
RC2411AT
RC2411HP-CT
0.4
10
µA Wake-up time to power mode 0
is 54 uS
RAM memory 8 kB
MCU clock frequency 32 MHz
MCU low frequency crystal
32.768 kHz
Antenna VSWR <2:1 3:1 Requirement for external
antenna
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 18 of 20

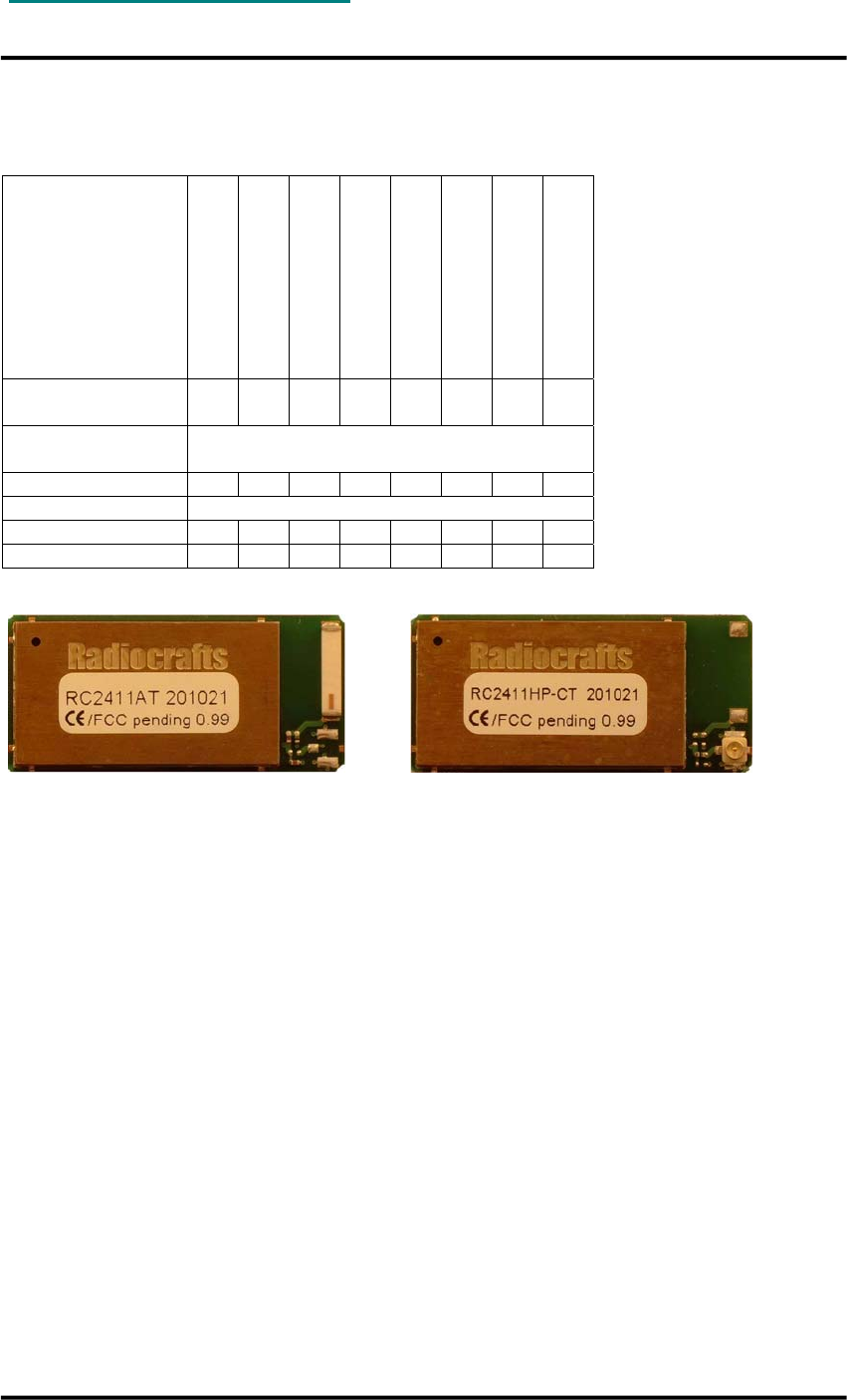

Variant MATRIX
-AT includes internal chip antenna
-CT include U.FL type connector
Ordering Part
Number
RC2412AT
RC2411AT
RC2412CT
RC2411CT
RC2412HP-AT
RC2411HP-AT
RC2412HP-CT
RC2411HP-CT
High power
amplifier (20 dBm)
● ● ● ●
SPI flash (OTA)
256 kB
On Request
32 kHz RTC (XO) ● ● ● ●
I2C EEPROM On Request
Chip antenna ● ● ● ●
U.FL connector ● ● ● ●
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 19 of 20
Document Revision History
Document Revision Changes
1.0 First release
1.1 Updated with FCC information. Status changed to Full Production
Product Status and Definitions
Current
Status
Data Sheet Identification Product Status Definition
Advance Information Planned or under
development
This data sheet contains the design
specifications for product
development. Specifications may
change in any manner without notice.
Preliminary Engineering Samples
and First Production
This data sheet contains preliminary
data, and supplementary data will be
published at a later date. Radiocrafts
reserves the right to make changes at
any time without notice in order to
improve design and supply the best
possible product.
X
No Identification Noted Full Production This data sheet contains final
specifications. Radiocrafts
reserves the right to make
changes at any time without notice
in order to improve design and
supply the best possible product.
Not recommended for new designs Last time buy
available
Product close to end of lifetime
Obsolete Not in Production
Optionally accepting
order with Minimum
Order Quantity
This data sheet contains
specifications on a product that has
been discontinued by Radiocrafts.
The data sheet is printed for
reference information only.
Radiocrafts
Embedded Wireless Solutions RC241x/RC241xHP
©2011 Radiocrafts AS RC241x Data Sheet (rev. 1.1) Page 20 of 20
Disclaimer
Radiocrafts AS believes the information contained herein is correct and accurate at the time of this printing. However,
Radiocrafts AS reserves the right to make changes to this product without notice. Radiocrafts AS does not assume
any responsibility for the use of the described product; neither does it convey any license under its patent rights, or
the rights of others. The latest updates are available at the Radiocrafts website or by contacting Radiocrafts directly.
As far as possible, major changes of product specifications and functionality, will be stated in product specific Errata
Notes published at the Radiocrafts website. Customers are encouraged to check regularly for the most recent
updates on products and support tools.
Trademarks
ZigBee®™ is a registered trademark of the ZigBee Alliance.
All other trademarks, registered trademarks and product names are the sole property of their respective owners.
Life Support Policy
This Radiocrafts product is not designed for use in life support appliances, devices, or other systems where
malfunction can reasonably be expected to result in significant personal injury to the user, or as a critical component
in any life support device or system whose failure to perform can be reasonably expected to cause the failure of the
life support device or system, or to affect its safety or effectiveness. Radiocrafts AS customers using or selling these
products for use in such applications do so at their own risk and agree to fully indemnify Radiocrafts AS for any
damages resulting from any improper use or sale.
© 2010, Radiocrafts AS. All rights reserved.
Contact Information
Web site: www.radiocrafts.com
Email: radiocrafts@radiocrafts.com
Address:
Radiocrafts AS
Sandakerveien 64
NO-0484 OSLO
NORWAY
Tel: +47 4000 5195
Fax: +47 22 71 29 15
E-mail: sales@radiocrafts.com
support@radiocrafts.com
