Scientific Toys 4339-49SV REMOTE CONTROL TOY RECEIVER User Manual INSTRUCTION MANUAL
Scientific Toys Ltd REMOTE CONTROL TOY RECEIVER INSTRUCTION MANUAL
INSTRUCTION MANUAL
TRANSMITER
POLICE CAR BANDIT CAR POLICE CAR
I
Diagram
1
Diagram
2
Diagram
3
Diagram
4
I
Forward
Turns
left
and
right
in
forward
Reverse
Turns
left
and
right
in
reverse
Diagram
5
Steering
lignment Lever
POLICE CAR
Diagram
6
Diagram 7 Diagram
8

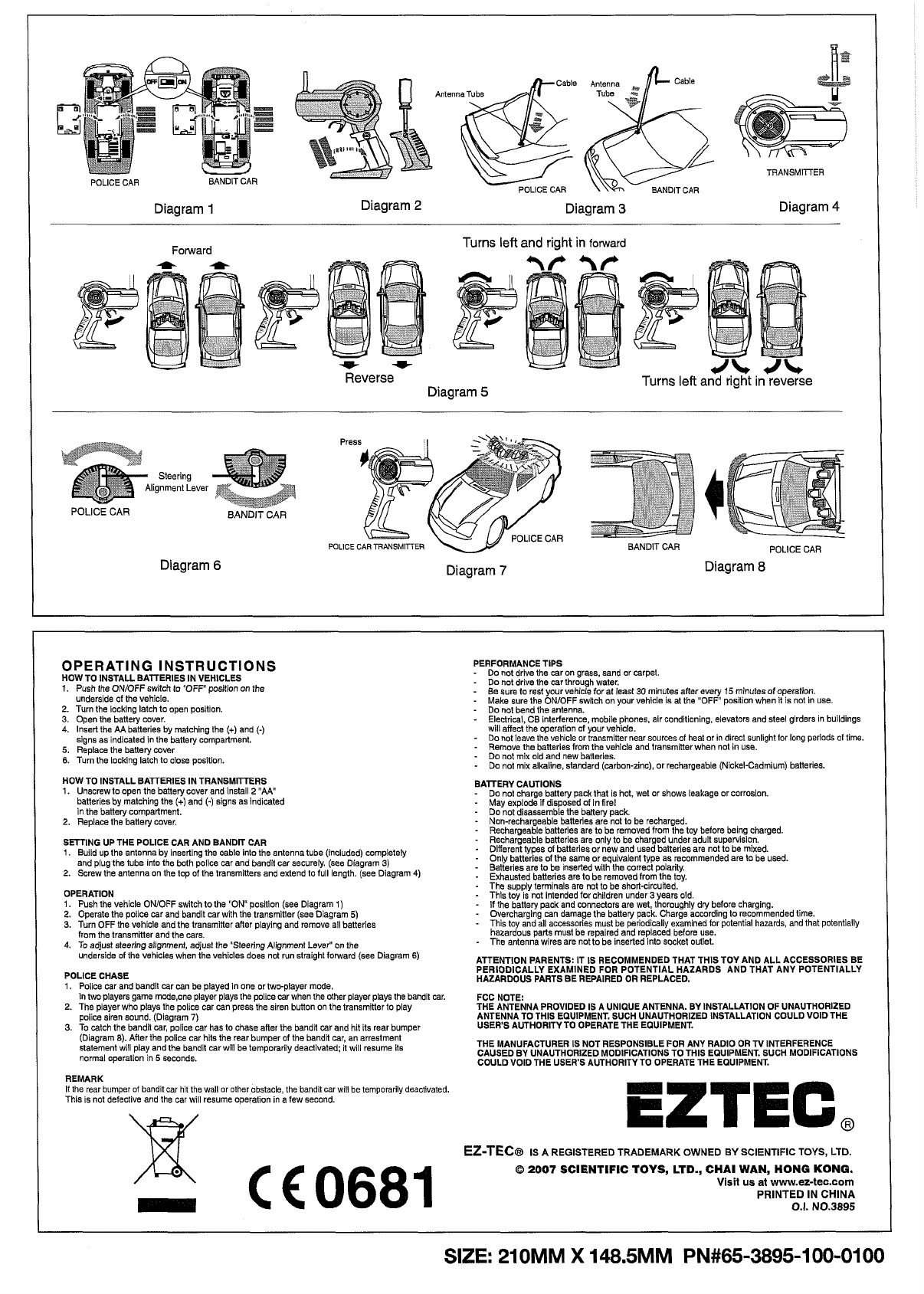

OPERATING INSTRUCTIONS
HOW TO INSTALL BATTERIES IN VEHICLES
1. Push the ONfOFF switch to "OFF" position on the
underside of the vehicie.
2.
Turn the locking latch to open position.
3.
Open the battery cover.
4.
Insert the
AA
batteries by matching the (+) and
(-)
signs as indicated in the battery compartment.
5.
Replace the battery cover
6. Turn the locking latch to close position.
HOW TO INSTALL BATTERIES IN TRANSMITTERS
1. Unscrew to open the battery cover and install
2
"AA
batteries by matching the (+)and
(-)
signs as indicated
in the battery compartment.
2.
Replace the battery cover.
SETTING UP THE POLICE CAR AND BANDIT CAR
1. Build
UD
the antenna bv insertim the cable into the antenna tube linciudedl comDietelv
and pig the tLbe into ihe both iolce car ana band't car securely.'(see ~iagram
3)
'
2.
Screw tne antenna on the top of the transm,tters ano extend to f, I ength. (see Diagram 4)
OPERATION
1. Push the vehicie ONJOFF switch to the "ON position (see Diagram 1)
2.
Operate the police car and bandit car with the transmitter (see Diagram 5)
3.
Turn OFF the vehicie and the transmitter after playing and remove ail batteries
from the transmitter and the cars.
4.
To aojust steering al.gnment, ad,ust tne Steering
A
ignment Lever' on tne
Jnderside ol the vehicles wnen the venicies ooes not rdn straight lotward (see Diagram 6)
POLICE CHASE
1. Police car and bandit car can be played in one
or two-player
mode.
In two players game rnode,one player plays the police car when the other player plays the bandit car.
2.
The player who plays the police car can press the siren button on the transmitter to play
police siren sound. (Diagram
7)
3.
To catch the bandit car, police car has to chase after the bandit car and hit its rear bumper
(Diagram
8).
After the police car hits the rear bumper of the bandit car, an arrestment
statement will play and the bandit car will be temporarily deactivated; it will resume its
normal operation in 5 seconds.
REMARK
If the rear bumper of bandit car hit the wall or other bbstacle, the bandit car wlll be temporarily deactivated.
This is not defective and the car will resume operation in a few second.
PERFORMANCE TIPS
-
Do not drive the car on grass, sand or carpet.
-
Do not drive the car through water.
-
Be sure to rest your vehicie for at least
30
minutes after every 15 minutes of operation.
-
Make sure the ONIOFF switch on your vehicle is at the "OFF" position when it is not in use.
-
Do not bend the antenna.
-
Electrical, CB interference, mobile phones, air conditioning, elevators and steel girders in buildings
will affect the operation
of
your vehicie.
-
Do not leave the vehicle or transmitter near sources of heat or in direct sunlight tor long periods of time.
-
Remove the batteries from the vehicle and transmitter when not in use.
-
Do not mix old and new batteries.
-
Do not mix alkaline, standard (carbon-zinc), or rechargeable (Nickel-Cadmium) batteries.
BATTERY CAUTIONS
-
Do not charge battery pack that is hot, wet or shows leakage or corrosion.
-
May explode if disposed of in firei
-
Do not disassemble the betterv ~ack.
-
on-recharoeable
batteries ark ;lot to be recharoed
-
~echargei6le
batteries
ari
to
be removed from ihe toy before oelng charged
-
Rechargeable batter es are only to be cnarged Lnder add supervls on
-
Different
types of batter es or new and ~sed batter es are not to oe m~xed
-
Only baneiies of the same or equivalent type as recommended are to be used.
-
Batteries are to be inserted with the correct polarity.
-
Exhausted batteries are to be removed from the tov.
The suonlv
terminals
are not to
be
short-clrculted
.
~h~siii;;not lntendeo forih~idren Lnder
3
old
-
If the battery pack an0 connectors are net, thoroughly dy before charglng
-
Overcharging
can oamage the battery pack Charge
according
to recommended t me
-
This tov aid
ill
accessorks must be ~eriodicalk examined for uotential hazards, and that potentially
hazardous parts must be repaired and replaced before use.
-
The antenna wires are not to be inserted into socket outlet.
ATTENTION PARENTS: IT IS RECOMMENDED THAT THlS TOY AND ALL ACCESSORIES BE
PERlODlCALLY EXAMINED FOR POTENTIAL HAZARDS AND THAT ANY POTENTIALLY
HAZARDOUS PARTS BE REPAIRED OR REPLACED.
FCC NOTE:
THE ANTENNA PROVIDED IS A UNIQUE ANTENNA. BY INSTALLATION OF UNAUTHORIZED
ANTENNA TO THlS EQUIPMENT. SUCH UNAUTHORIZED INSTALLATION COULD VOlD THE
USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR
N
INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THlS EQUIPMENT. SUCH MODIFICATIONS
COULD VOlD THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
ZTEC,
EZ-TEC@
IS A REGISTERED TRADEMARK OWNED BY SCIENTIFIC TOYS,
LTD.
O
2007
SCIENTIFIC TOYS, LTD., CHAl WAN, HONG KONG.
Visit
us
at www.ez-tec.com
PRINTED IN CHINA
0.1.
N0.3895
SIZE:
21 0MM
X
148.5MM PN#65-3895-100-0100
