Scientific Toys Ltd REMOTE CONTROL TOY RECEIVER INSTRUCTION MANUAL
INSTRUCTION MANUAL

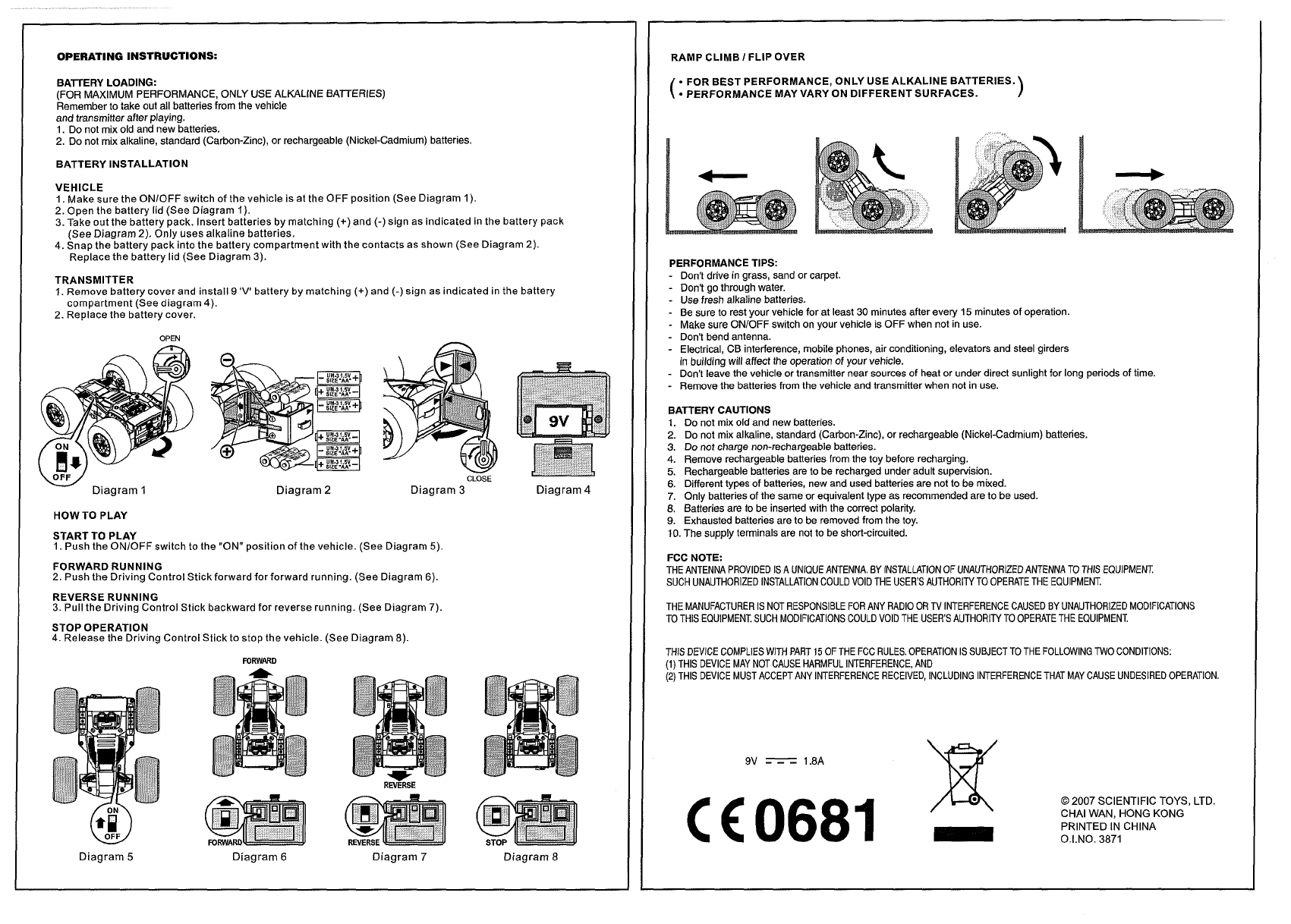

OPERATING INSTRUCTIONS:
BATTERY LOADING:
(FOR MAXIMUM PERFORMANCE, ONLY USE ALKALINE BATTERIES)
Remember to take out all batteries from the vehicle
and transmitter after playing.
1.
Do not mix old and new batteries.
2.
Do not mix alkaline, standard (Carbon-Zinc), or rechargeable (Nickel-Cadmium) batteries.
BATTERY INSTALLATION
VEHICLE
1.
Make sure the ONIOFF switch of the vehicle is at the OFF position (See Diagram 1).
2. Open the battery lid (See Diagram 1).
3. Take out the battery pack. Insert batteries by matching (+)and (-)sign as indicated in the battery pack
(See Diagram
2).
Only uses alkaline batteries.
4. Snap the battery pack into the battery compartment with the contacts as shown (See Diagram 2).
Replace the battery lid (See Diagram 3).
TRANSMITTER
1.
Remove battery cover and install
9
'V'
battery by matching (+)and (-)sign as indicated in the battery
compartment (See diagram 4).
2. Replace the battery cover.
OPEN
4-
-1
CLOSF
w
Diagram 1 Diagram
2
Diagram
3
Diagram
4
HOW TO PLAY
START TO PLAY
1. Push the ONIOFF switch to the "ON" position of the vehicle. (See Diagram 5).
FORWARD RUNNING
2. Push the Driving Control Stick forward for forward running. (See Diagram
6).
REVERSE RUNNING
3. Pull the Driving Control Stick backward for reverse running. (See Diagram 7).
STOP OPERATION
4. Release the Driv~ng Control Stick to stop the vehicle. (See Diagram 8).
FORWARD
Diagram
5
Diagram
6
Diagram
7
Diagram 8
RAMP CLIMB
I
FLIP OVER
FOR BEST PERFORMANCE, ONLY USE ALKALINE BATTERIES.
PERFORMANCE MAY VARY ON DIFFERENT SURFACES.
PERFORMANCE TIPS:
-
Don't drive in grass, sand or carpet.
-
Don't go through water.
-
Use fresh alkaline batteries.
-
Be sure to rest your vehicle for at least
30
minutes after every 15 minutes of operation.
-
Make sure ONIOFF switch on your vehicle is OFF when not in use.
-
Don't bend antenna.
-
Electrical, CB interference, mobile phones, air conditioning, elevators and steel girders
in building will affect the operation of your vehicie.
-
Don't leave the vehicle or transmitter near sources of heat or under direct sunlight for long periods of time.
-
Remove the batteries from the vehicle and transmitter when not in use.
BATTERY CAUTIONS
1. Do not mix old and new batteries.
2.
Do not mix alkaline, standard (Carbon-Zinc), or rechargeable (Nickel-Cadmium) batteries.
3.
Do not charge non-rechargeable batteries.
4.
Remove rechargeable batteries from the toy before recharging.
5.
Rechargeable batteries are to be recharged under adult supervision.
6.
Different types of batteries, new and used batteries are not to be mixed.
7. Only batteries of the same or equivalent type as recommended are to be used.
8.
Batteries are to be insetted with the correct polarity.
9.
Exhausted batteries are to be removed from the toy.
10.
The supply terminals are not to be short-circuited.
FCC NOTE:
THE ANTENNA PROVIDED IS A UNIQUE ANTENNA. BY INSTALLATION OF UNAUTHORIZED ANTENNA TO THlS EQUIPMENT
SUCH UNAUTHORIZED INSTALLATION COULD VOlD THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
THE MANUFACTURER IS NOT RESPONS BLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS
TO THIS EQUIPMENT. SUCH MODlFlCAT ONS COU-D VOlD TrlE USER'S AUTHOR.TY TO OPERATE THE EQUIPMENT.
THlS DEVICE COMPLIES WITH PART
15
OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(I)
THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2)
THlS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
O
2007 SCIENTIFIC TOYS, LTD.
CHAl WAN, HONG KONG
PRINTED IN CHINA
0.I.NO. 3871
