Screen Service Broadcasting Technologies SDTX-ARK1 20 Watt Multimode SDR Transmitter User Manual

Screen Service Broadcasting Technologies SpA 20 Watt Multimode SDR Transmitter

User Manual Revised

SDT 200UB – SDT 500UB ARK-1 ATSC

Software Defined Transmitter

Screen Service

OPERATION MANUAL

July 2009 - Version 1.0

Screen Service Broadcasting Technologies S.p.A.

Via Giuseppe Di Vittorio, 17

25125 Brescia, Italy

All specifications, characteristics and circuit descriptions set forth in this manual are subject to change without notice.

SDT 200UB - 500UB ARK-1 ATSC

Software Defined Transmitter

OPERATION MANUAL

July 2009 - Version 1.0

Screen Service Broadcasting Technologies S.p.A.

Via Giuseppe Di Vittorio, 17

25125 Brescia, Italy

All specifications, characteristics and circuit descriptions set forth in this manual are subject to change without notice.

Screen Service SDT 500UB ARK-1 ATSC Contents

July, 2009 v 1.0 ii

SDT 500UB ARK-1 ATSC

Software Definable Transmitter

OPERATION MANUAL

LIST OF CONTENTS

CHAPTER 1: GENERAL INFORMATION

Gives information on safety procedures and good practices to follow using

the equipment.

CHAPTER 2: PURPOSE AND PLANNING

Introduction to the manual, technical specifications, brief functional

description with block diagram.

CHAPTER 3: OPERATIONS

Installation and unpacking instructions, mounting specifications, controls

and connections, first time operating procedures and channel changing

procedures.

CHAPTER 4: TECHNICAL INFORMATION

Provides technical information on all modules including schematic

diagrams and components layouts.

CHAPTER 5: MANUAL CHANGE INFORMATION

Contents of this publication may not be reproduced in any form without the written permission of Screen Service Broadcasting

Technologies S.p.A. No representation or warranty is given and no liability is assumed by Screen Service Broadcasting Technologies

S.p.A. with respect to the accuracy or use of such information, or infringement of patents or other intellectual property rights arising

from such use or otherwise. All trademarks mentioned herein are the property of their respective companies.

Screen Service SDT 200UB - 500UB ARK-1 ATSC General information

July, 2009 v 1.0 Page 1 - 1

SDT 200UB - 500UB ARK-1 ATSC

Software Defined Transmitter

OPERATION MANUAL

1 GENERAL INFORMATION

CONTENTS

1.1 SAFETY SUGGESTIONS ...................................................................................................................... 2

1.2 GENERAL SAFETY RECOMMENDATIONS ......................................................................................... 3

1.3 GOOD PRACTICES ............................................................................................................................... 3

1.4 PROCEDURE FOR ESTABLISH THE ABSENCE OF VOLTAGE......................................................... 4

1.4.1 PROCEDURE FOR DETERMINATION OF THE ABSENCE OF VOLTAGE ................................. 4

1.5 FIRST AID IN CASE OF ELECTRICAL SHOCK.................................................................................... 5

1.5.1 EMERGENCY RESUSCITATION TECHNIQUE............................................................................. 5

1.5.2 TREATMENT FOR BURNS ............................................................................................................ 6

1.5.3 ELECTRIC SAFETY PRECAUTIONS............................................................................................. 7

1.5.4 COMPONENTS CONTAINING TOXIC MATERIAL HANDLING PRECAUTION ........................... 7

1.5.5 ELECTROSTATIC PRECAUTIONS................................................................................................ 7

1.6 R&TTE DIRECTIVE 1999/5/EC.............................................................................................................. 8

1.7 WASTE ELECTRICAL AND ELECTONIC EQUIPMENT (WEEE)......................................................... 9

1.8 RADIO LINK SYSTEM SPECIAL ADVISE: EN 50385 STANDARD...................................................... 9

Screen Service SDT 200UB - 500UB ARK-1 ATSC General information

July, 2009 v 1.0 Page 1 - 2

1.1 SAFETY SUGGESTIONS

Regardless of how well electrical equipment is designed, personnel can be exposed to dangerous

electrical shock when protective covers are removed for maintenance or other activities. Therefore, it is

incumbent on the user to see that all safety regulations are consistently observed and that each individual

assigned to the equipment has a clear understanding of the first aid related to electrical shocks. (see next

pages)

In addition these safety practices must be followed:

¾ Do not attempt to adjust unprotected circuit controls or to dress leads with power on.

¾ Always avoid placing parts of the body in series between ground and circuit points.

¾ To avoid burns, do not touch heavily loaded or overheated components without precautions.

¾ Remember that some semiconductor cases and solid-state circuits carry high voltages.

¾ Do not assume that all danger of electrical shock is removed when the power is off. Charged

capacitors can retain dangerous voltages for a long time after power is turned off. These capacitors

should be discharged trough a suitable resistor before any circuit points are touched.

¾ Don't take chances. Be fully trained. Screen Service Italia equipment should be operated and

maintained by fully qualified personnel.

¾ Do not service alone and do not perform internal adjustments of this unit unless another person

capable of rendering first aid and resuscitation is present.

¾ Some components used in the construction of this equipment contain Beryllium Oxide (BeO). This

substance is harmless as it is, but becomes highly dangerous if it is ground to powder. Special

procedures of disposal must be observed in case of failure of these devices.

NOTE: This section is not intended to contain a complete statement of all safety precautions which

should be observed by personnel in using this electronic equipment or others.

Screen Service shall not be responsible for injury or damage resulted from improper procedures or from

using it by improperly trained or inexperienced personnel.

Screen Service SDT 200UB - 500UB ARK-1 ATSC General information

July, 2009 v 1.0 Page 1 - 3

1.2 GENERAL SAFETY RECOMMENDATIONS

When connecting the equipment to the power, please follow these important recommendations:

¾ This product is intended to operate from a power source that will not apply more than 10% of the

voltage specified on the rear panel between the supply conductors or between either supply

conductor and ground. A protective-ground connection by way of the grounding conductor in the

power cord is essential for safe operation.

¾ This equipment is grounded through the grounding conductor of the power cord. To avoid electrical

shock, plug the power cord into a properly wired socket before connecting to the product input or

output terminals.

¾ Upon loss of the protective-ground connection, all accessible conductive parts (including parts that

may appear to be insulating) can render an electric shock.

¾ To avoid fire hazard, use only the fuse of correct type, voltage rating, and current rating. Refer fuse

replacement to qualified service personnel.

¾ To avoid explosion, do not operate this equipment in an explosive atmosphere.

¾ To avoid personal injury, do not remove the product covers or panels. Do not operate the product

without the covers and panels properly installed.

1.3 GOOD PRACTICES

In maintaining the equipment covered in this manual, please keep in mind the following, standard good

practices:

¾ At regular intervals, the condition of the equipment and the correct functioning of protective and

safety devices shall be checked by a skilled person approved by the appropriate authority for this

duty. Functional checks shall be carried out on interlocking systems of doors, mechanical interlocks,

isolating switches, earthing switches, parallel resistances and protective devices against over-

voltages and over-currents. The above checks shall not be carried out after the protective and safety

devices have operated under fault conditions. The safety devices shall not be altered or

disconnected except for replacement, nor shall the safety circuit be modified without specific

approval of the appropriate authority in each case.

¾ When connecting any instrument (wattmeter, spectrum analyzer, etc.) to a high frequency output,

use the appropriate attenuator or dummy load to protect the final amplifiers and the instrument input.

¾ When inserting or removing printed circuit boards (PCBs), cable connectors, or fuses, always turn off

power to the affected portion of the equipment. After power is removed, allow sufficient time for the

power supplies to bleed down before reinserting PCBs.

¾ When troubleshooting, remember that FETs and other metal-oxide semiconductor (MOS) devices

may appear defective because of leakage between traces or component leads on the printed circuit

board. Clean the printed circuit board and recheck the MOS device before assuming it is defective.

¾ When replacing MOS devices, follow standard practices to avoid damage caused by static charges

and soldering.

¾ When removing components from PCBs (particularly ICs), use care to avoid damaging PCB traces.

Screen Service SDT 200UB - 500UB ARK-1 ATSC General information

July, 2009 v 1.0 Page 1 - 4

1.4 PROCEDURE FOR ESTABLISH THE ABSENCE OF VOLTAGE

Follow these simple steps for establish the absence of voltage:

¾ Before starting work on the equipment, it shall be isolated from the mains supply. This disconnection

shall always be checked by visual inspection. Further precautions shall be taken to ensure that the

mains supp!y cannot be restored whilst work is being carried out. After the mains supply has been

disconnected, all other lines such as control, interlocking and modulation lines shall be disconnected

if they carry dangerous voltages. Moreover, the antenna or the antenna transmission line shall be

disconnected from the antenna terminal device to prevent the introduction of dangerous voltages

due to antenna pick-up. When disconnection of the antenna or antenna transmission line is not

possible, other suitable precautions shall be taken, for example, earthing, when necessary at several

places, to esablish absence of voltage. These earthing connections shall be very short compared

with the wave-lenght.

¾ Capacitors which are connected to a circuir isolated frcm its supply shall be discharged and have

their terminals permanently short-circuited and the casing earthed during the whole period of the

work.

¾ The electrical charge retained by electrical machinery when stopped may, in certain cases, be

sufficient to cause a severe shock. This shall be taken into account when making connections to an

apparently "dead" machine. Therefore all machinery shall be discharged and earthed using an

adequately insulated lead for this purpose. The discharge operation shall be repeated several times.

¾ Before any maintenance work is carried out on automatic or remote controlled equipment, the

remote swithching circuits shall be made inoperative.

1.4.1 PROCEDURE FOR DETERMINATION OF THE ABSENCE OF VOLTAGE

After the equipment has been isolated according to the standard EN60215, the absence of voltage shall be

determined at the work place. This may be done by the use of voltage indicators, measuring instruments,

glow discharge lamps for indicating radio-frequency voltage or other suitable means.

Screen Service SDT 200UB - 500UB ARK-1 ATSC General information

July, 2009 v 1.0 Page 1 - 5

1.5 FIRST AID IN CASE OF ELECTRICAL SHOCK

If someone seems unable to free himself while receiving an electric shock, turn power off before rendering

aid. A muscular spasm or unconsciousness can make a victim unable to free himself from the electrical

power.

If power cannot be turned off immediately, very carefully loop a length of dry non-conducting material (such

as a rope, insulating material, or clothing) around the victim and pull him free of the power. Carefully avoid

touching him or his clothing until free of power.

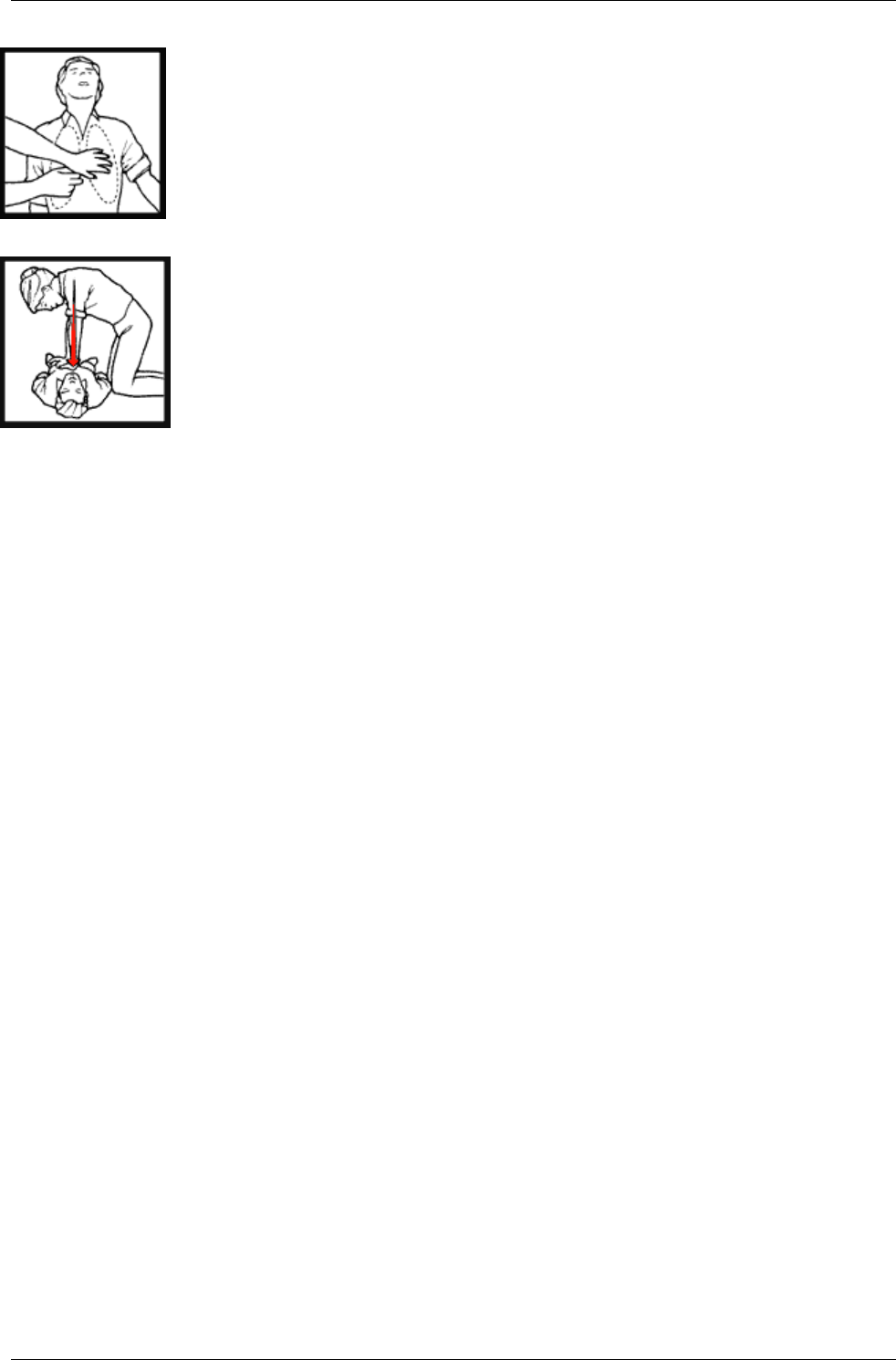

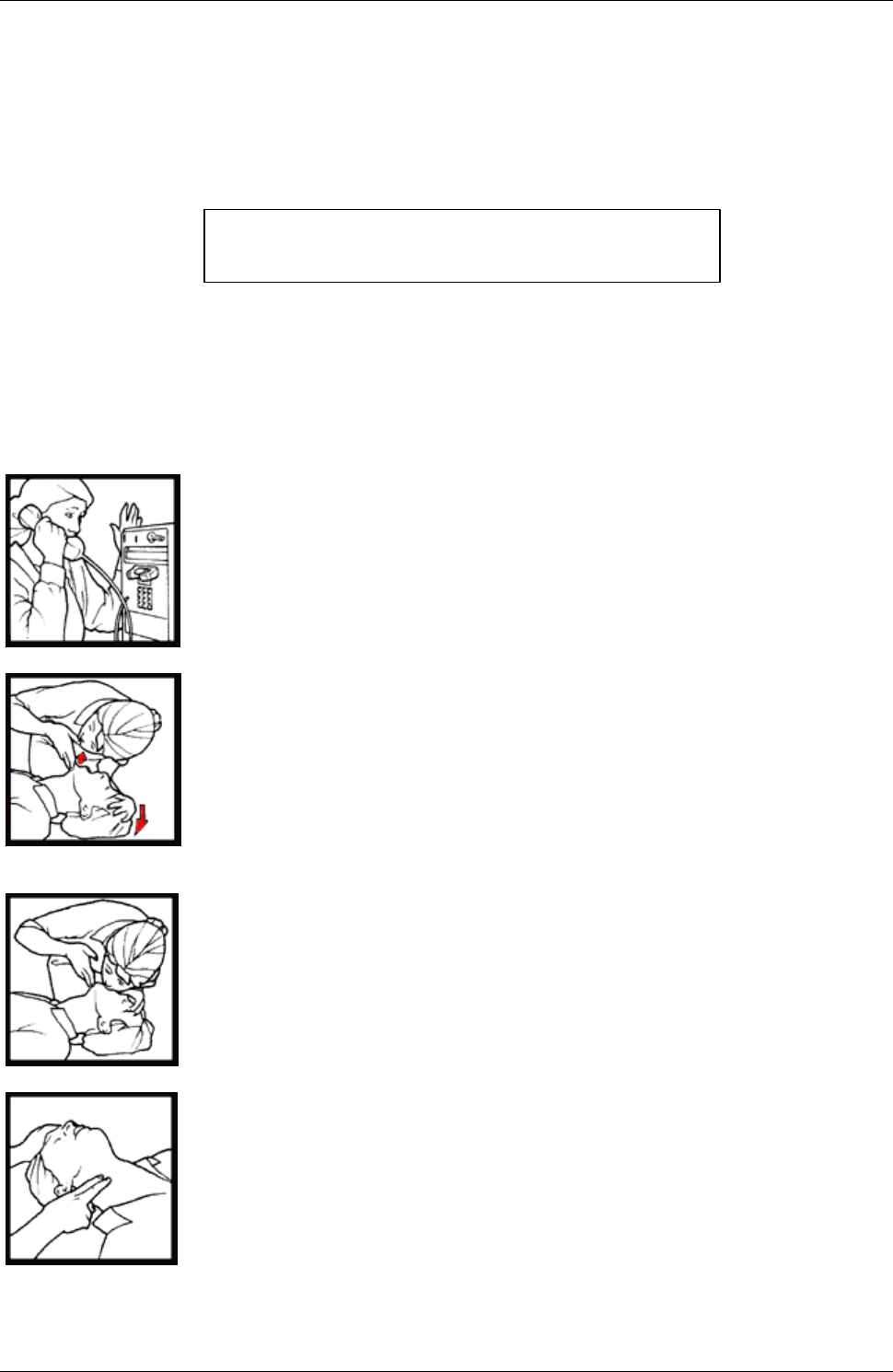

1.5.1 EMERGENCY RESUSCITATION TECHNIQUE

Step 1

Check the victim for unresponsiveness. If there is no response, immediately call for

medical assistance, and then return to the person.

Step 2

Position the person flat on their back. Kneel by their side and place one hand on the

forehead and the other under the chin. Tilt the head back and lift the chin until teeth

almost touch. Look and listen for breathing.

Step 3

If not breathing normally, pinch the nose and cover the mouth with yours. Give two

full breaths. The person's chest will rise if you are giving enough air.

Step 4

Put the fingertips of your hand on the Adam's apple, slide them into the groove next

to the windpipe. Feel for a pulse. If you can not feel a pulse or are unsure, move on

to the next step.

DO NOT TOUCH VICTIM OR HIS CLOTHING BEFORE

POWER IS DISCONNECTED OR YOU CAN ALSO

BECOME A SHOCK VICTIM

Screen Service SDT 200UB - 500UB ARK-1 ATSC General information

July, 2009 v 1.0 Page 1 - 6

Step 5

Position your hands in the center of the chest between the nipples. Place one hand on

top of the other.

Step 6

Push down firmly two inches. Push on chest 15 times.

CONTINUE WITH TWO BREATHS AND 15 PUMPS UNTIL HELP ARRIVES.

1.5.2 TREATMENT FOR BURNS

¾ Continue treat victim for electrical shock.

¾ Check for points of entry and exit of current.

¾ Cover burned surface with a clean dressing.

¾ Remove all clothing from the injured area, but cut around any clothing that adheres to the skin and leave

it in place. Keep the patient covered, except the injured part, since there is a tendency to chill.

¾ Splint all fractures. (Violent muscle contractions caused by the electricity may result in fractures.)

¾ Never permit burned surfaces to be in contact with each other, such as: areas between the fingers or

toes, the ears and the side of the head, the undersurface of the arm and the chest wall, the folds of the

groin, and similar places..

¾ Transport to a medical facility

Screen Service SDT 200UB - 500UB ARK-1 ATSC General information

July, 2009 v 1.0 Page 1 - 7

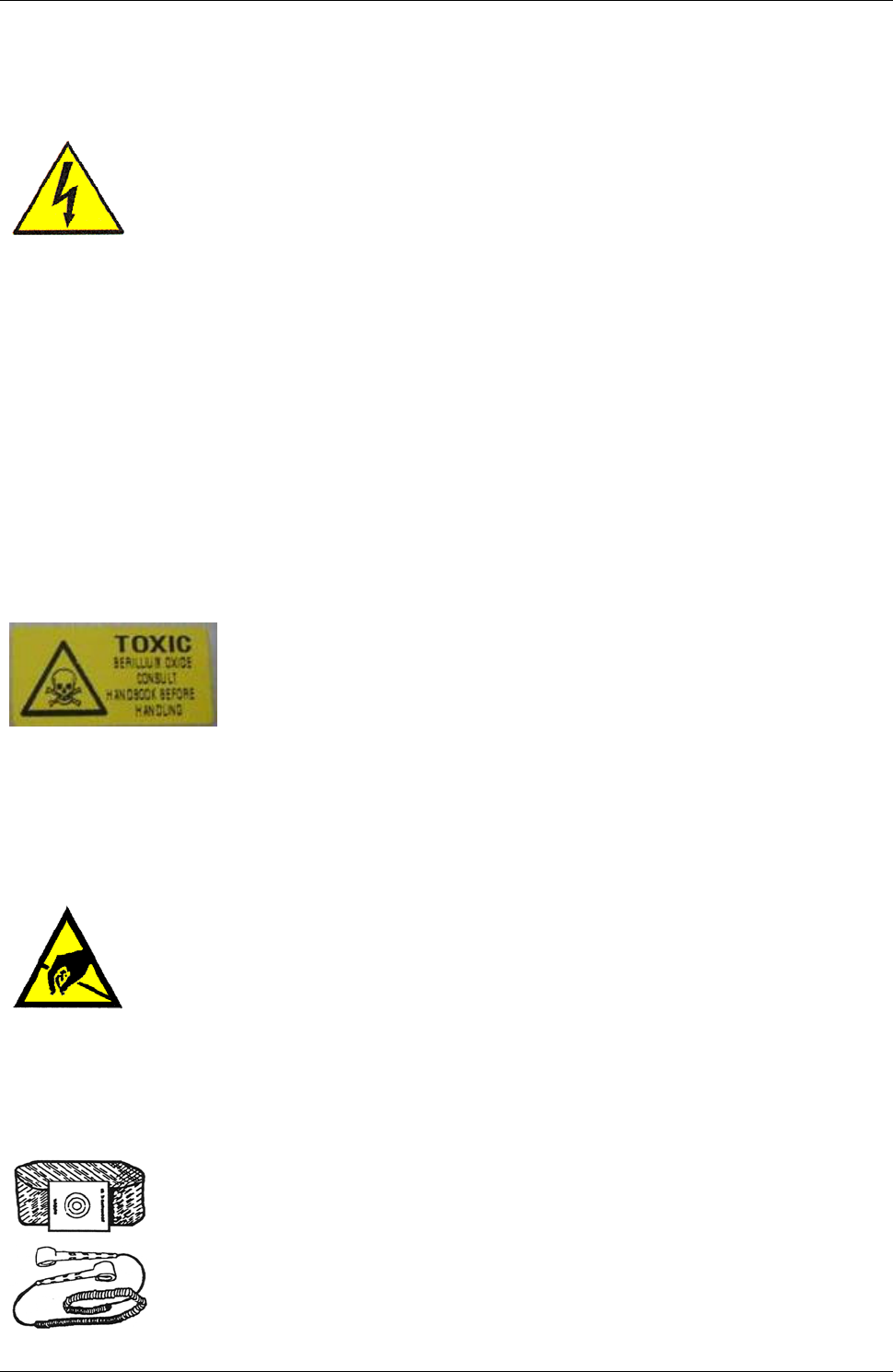

1.5.3 ELECTRIC SAFETY PRECAUTIONS

All the parts making up the equipment have got danger identification tags (with a yellow background) to

highlight the parts dangerous for the operator that has access to the system.

Presence of hazardous energy levels

A hazardous energy level is defined as a stored energy level of 20 J or more, or an

available continuous power level of 240 VA or more, at a potential of 2 V or more.

1.5.4 COMPONENTS CONTAINING TOXIC MATERIAL HANDLING PRECAUTION

Beryllium (BERILLIUM OXIDE) is used in the construction of the some of the components in this equipment.

This material, when in the form of fine dust or vapor and inhaled into the lungs, can cause a respiratory

disease. In its solid form, as used here, it can be handled quite safely although it is prudent to avoid handling

conditions which promote dust formation by surface abrasion.

Because of this hazard, you are advise to be very careful in removing and disposing of these components.

Do not put them in the general industrial or domestic waste or dispatch them by post. They should be

separately and securely packed and clearly identified to show the nature of the hazard and then disposed of

in a safe manner by an authorized toxic waste contractor.

Before removing or replacing any RF COMPONENTS, make sure that all precautions comply with SAFETY

recommendations.

This WARNING tag is used for the RF COMPONENTS.

1.5.5 ELECTROSTATIC PRECAUTIONS

Before removing or replacing any PCB assembly within the equipment, make sure that all precautions

comply with ESD protections (ESD = Electro Static Discharge). Make sure that electrostatic discharge

protections are reset after maintenance and/or measurement operations.

This ATTENTION tag is used for the majority of electronic devices that are sensitive to

electrostatic discharges.

If electronic parts have to be touched during installation or repair, please observe the following precautions.

Operators must be equipped with anti-static protection devices such as:

Elastic wrist band. To be fixed on the operator’s wrist.

Flexible cord. To be connected to the elastic wrist band and the special plug on

the shelf highlighted with the ESD warning label.

Screen Service SDT 200UB - 500UB ARK-1 ATSC General information

July, 2009 v 1.0 Page 1 - 8

1.6 R&TTE DIRECTIVE 1999/5/EC

Declaration of Conformity with regards to the R&TTE Directive 1999/5/EC

English: This equipment is in compliance with the essential requirements and other relevant

provisions of Directive 1999/5/EC

Deutsch: Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren

entsprechenden Vorgaben der Richtlinie 1999/5/EU.

Dansk: Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante

bestemmelser i Directiv 1999/5/EF.

Español: Este equipo cumple con los requisitos esenciales asi como con otras disposiciones de la

Directiva 1999/5/EC.

'Ελληνας Αυτός ο εξοπλισµóς συµµορφώνεται µε τις ουσιώδεις απαιτήσεις και τις λοιπές διατάξεις της

Οδηγίας 1999/5/ΕΚ

Français: Cet appareil est conforme aux exigences essentielles et aux autres dispositions pertinentes

de la Directive 1999/5/EC.

Íslenska: Þessi búnaður samrýmist lögboðnum kröfum og öðrum ákvæðum tilskipunar 1999/5/ESB.

Italiano: Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva

1999/5/EC.

Nederlands: Deze apparatuur voldoet aan de belangrijkste eisen en andere voorzieningen van richtlijn

1999/5/EC.

Norsk: Dette utstyret er i samsvar med de grunnleggende krav og andre relevante bestemmelser i

EU-directiv 1999/5/EC.

Português: Este equipamento satisfaz os requisitos essenciais e outras provisões da Directiva

1999/5/EC.

Suomalainen: Tämä laite täyttää direktiivin 1999/5/EY oleelliset vaatimukset ja on siinä asetettujen

muidenkin ehtojen mukainen.

Svenska: Denna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta

bestämmelser i Direktiv 1999/5/EC.

The Declaration of Conformity related to this product can be found at the following URL: www.screen.it/rtte

The following CE mark is affixed to the equipment:

RADIO LINKS:

0470

TV BROADCASTING EQUIPMENTS:

0648

The identification number of the Notified Body who certified the product might change.

This equipment is intended to be used in all EU and EFTA countries.

The use of this equipment may be restricted to certain frequencies and requires a license for

operation. For more details, contact your customer service representative.

Screen Service SDT 200UB - 500UB ARK-1 ATSC General information

July, 2009 v 1.0 Page 1 - 9

1.7 WASTE ELECTRICAL AND ELECTONIC EQUIPMENT (WEEE)

The purpose of the DIRECTIVE 2002/96/EC OF THE EUROPEAN

PARLIAMENT AND OF THE COUNCIL of 27 January 2003 on waste electrical

and electronic equipment (WEEE) is, as first priority, the prevention of waste

electrical and electronic equipment and, in addition, the reuse, recycling and

other forms of recovery of such wastes so as to reduce the disposal of waste.

To do this, remember to collect separately all the

electronic material.

1.8 RADIO LINK SYSTEM SPECIAL ADVISE: EN 50385 STANDARD

The responsible of the installation and (or) the use of the RADIOLINK SYSTEM composed of:

• EQUIPMENT(s)

• CONNECTION(s)

• ANTENNA(s)

Shall certify under its own responsibility the conformity as per EN 50385 standard:

EN 50385:2002 - Product standard to demonstrate the compliance of radio base stations and fixed terminal

stations for wireless telecommunication systems with the basic restrictions or the reference levels related to

human exposure to radio frequency electromagnetic fields (110 MHz - 40 GHz) - General public.

Screen Service SDT 200UB - 500UB ARK 1 Purpose and planning

July, 2009 v 1.0 Page 2 - 1

SDT 200UB - 500UB ARK-1 ATSC

Software Defined Transmitter

OPERATION MANUAL

2 PURPOSE AND PLANNING

CONTENTS

2.1 INTRODUCTION .................................................................................................................................... 3

2.2 ITU 470 modulator .................................................................................................................................. 3

2.3 ATSC modulator ..................................................................................................................................... 3

2.3.1 FUNCTIONAL BLOCK DIAGRAMS ................................................................................................ 4

2.4 PURPOSE .............................................................................................................................................. 5

2.5 COMPOSITION ...................................................................................................................................... 5

2.5.1 FRONT AND RARE PANEL FUNCTIONS LIST ............................................................................. 6

2.6 TECHNICAL SPECIFICATIONS ............................................................................................................ 7

2.6.1 GENERAL........................................................................................................................................ 7

2.6.2 MECHANICAL AND ENVIRONMENTAL ........................................................................................ 7

2.6.3 INPUT PARAMETERS .................................................................................................................... 7

2.6.3.1 DIGITAL 1, 2, 3, 4 .................................................................................................................... 7

2.6.3.2 GBE .......................................................................................................................................... 7

2.6.3.3 GPS .......................................................................................................................................... 7

2.6.4 OUTPUT PARAMETERS ................................................................................................................ 7

2.6.4.1 RF GENERAL .......................................................................................................................... 7

2.6.5 ATSC MODULATION ...................................................................................................................... 8

2.6.6 OUTPUT PARAMETERS ................................................................................................................ 8

2.6.6.1 ATSC MODE ............................................................................................................................ 8

2.6.7 RF AMPLIFICATION ....................................................................................................................... 9

Screen Service SDT 200UB - 500UB ARK 1 Purpose and planning

July, 2009 v 1.0 Page 2 - 2

Screen Service SDT 200UB - 500UB ARK 1 Purpose and planning

July, 2009 v 1.0 Page 2 - 3

2.1 INTRODUCTION

ARK1 ATSC is a Multi-standard Television Transposer based on Software defined technology; ARK1 ATSC

allows the definition of different operative modes on the same hardware platform.

At the state of the art ARK1 ATSC has two working modes:

• ITU 470 modulator (based on ITU-R BT.470-7);

• ATSC modulator (based on ATSC A/53).

ITU 470 modulator receives NTSC signals on SDI interfaces and modulates them.

ATSC modulator receives ATSC signals and modulates them. Inputs and outputs allow to import and export

TS contents on ASI and GBE interfaces.

The single software controller allows the switching between working modes and different settings for each

operative mode using the same platform.

A brief description of the main features and potentialities of each operative mode follows.

2.2 ITU 470 modulator

ITU 470 modulator for NTSC (ITU-R BT.470-7) television system.

Capable of:

• Agile UHF output Up-converter (from 473 MHz up to 851 MHz).

• Video and Audio modulation parameters setting.

• AM/PM Software Pre-correction.

2.3 ATSC modulator

ATSC modulator for digital (ATSC A/53) television standard.

Capable of:

• Agile UHF input Down-converter (from 473 MHz up to 851 MHz)

• Agile UHF output Up-converter (from 473 MHz up to 851 MHz).

• Input RF signal level monitoring.

• Auxiliary Transport Stream inputs on ASI (EN-50083/9).

• Auxiliary Transport Stream inputs on Gigabit Ethernet (Pro-MPEG cop 3) - not implemented.

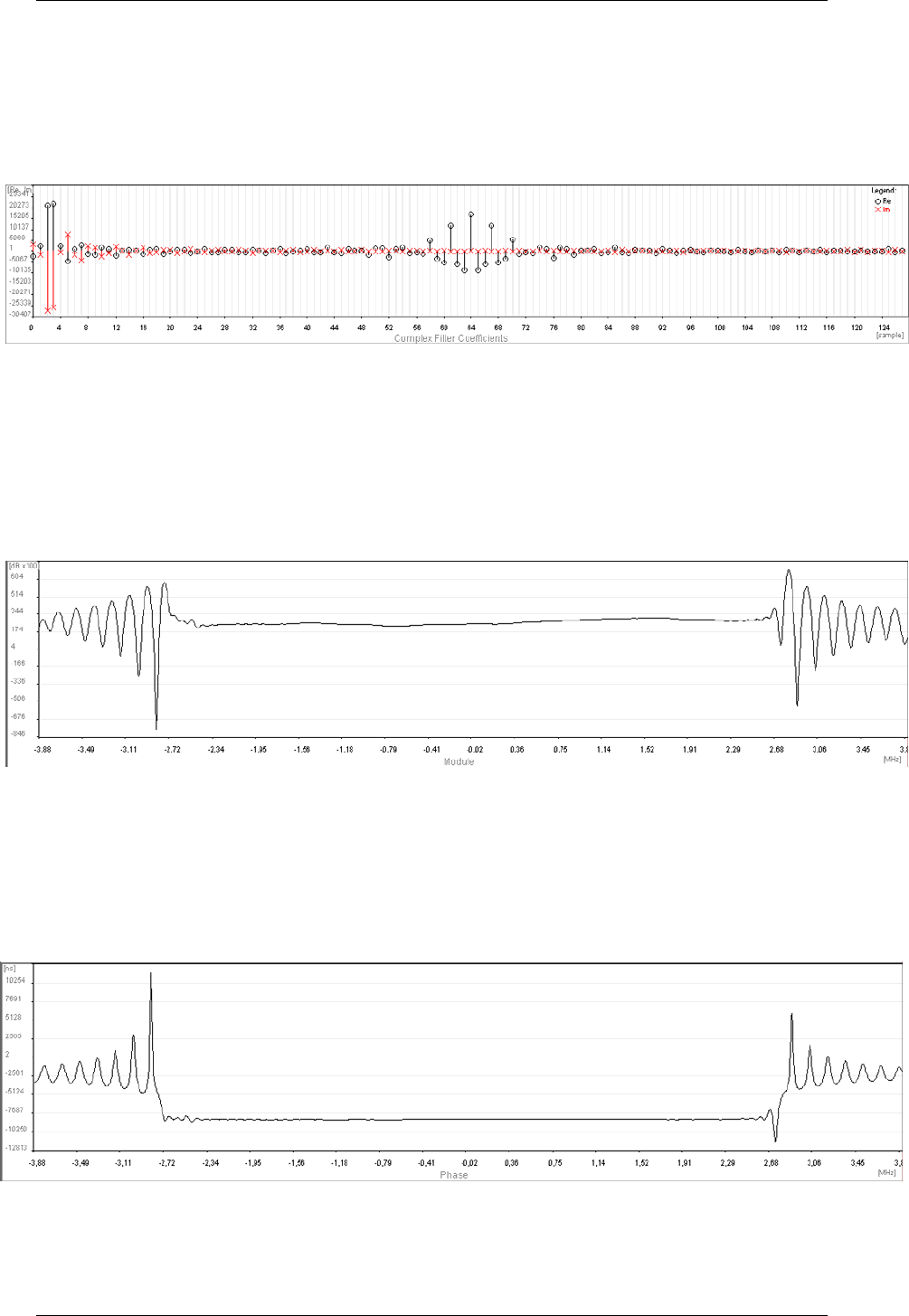

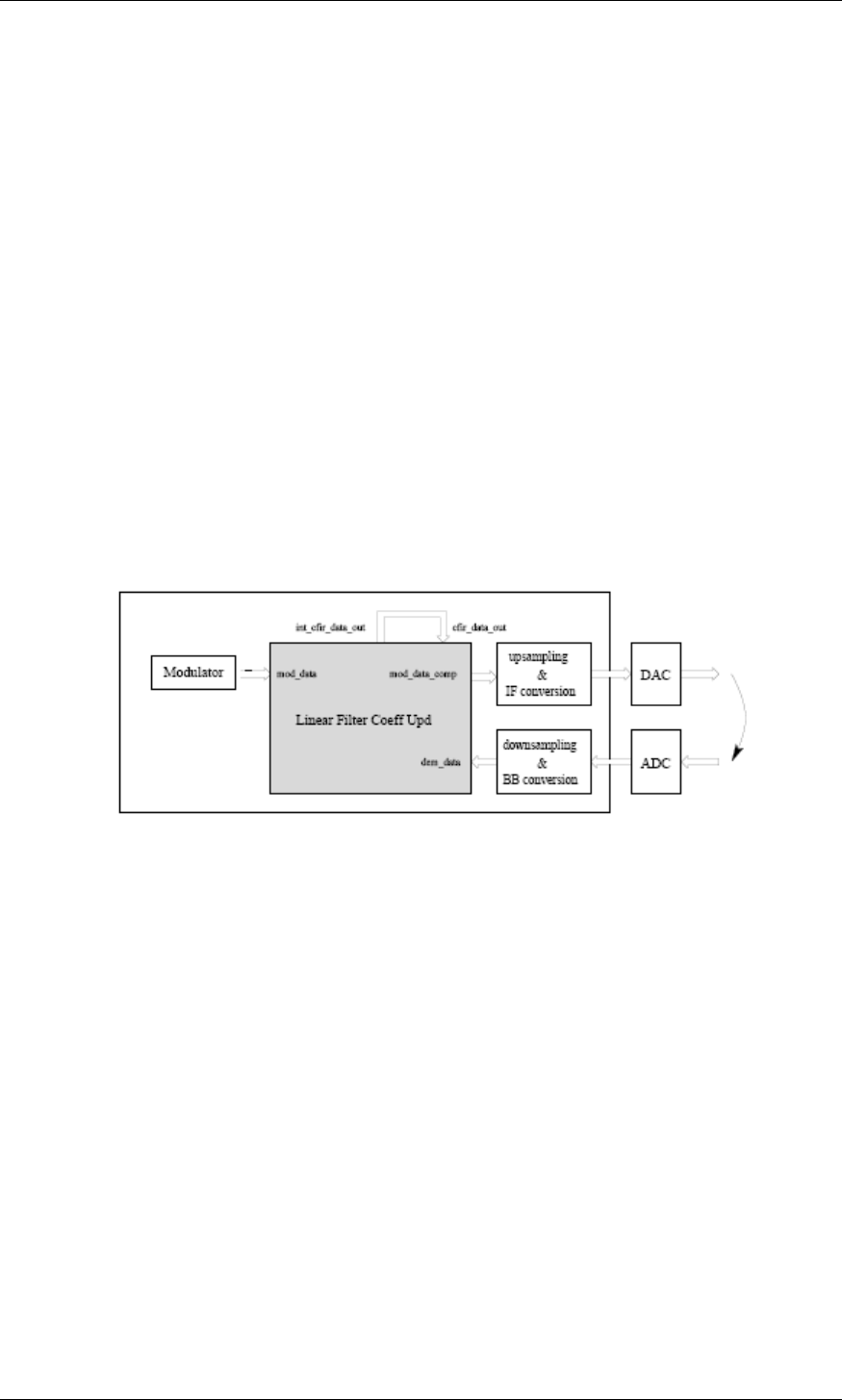

• Adaptive filter.

• AM/PM Software pre-correction.

Screen Service SDT 200UB - 500UB ARK 1 Purpose and planning

July, 2009 v 1.0 Page 2 - 4

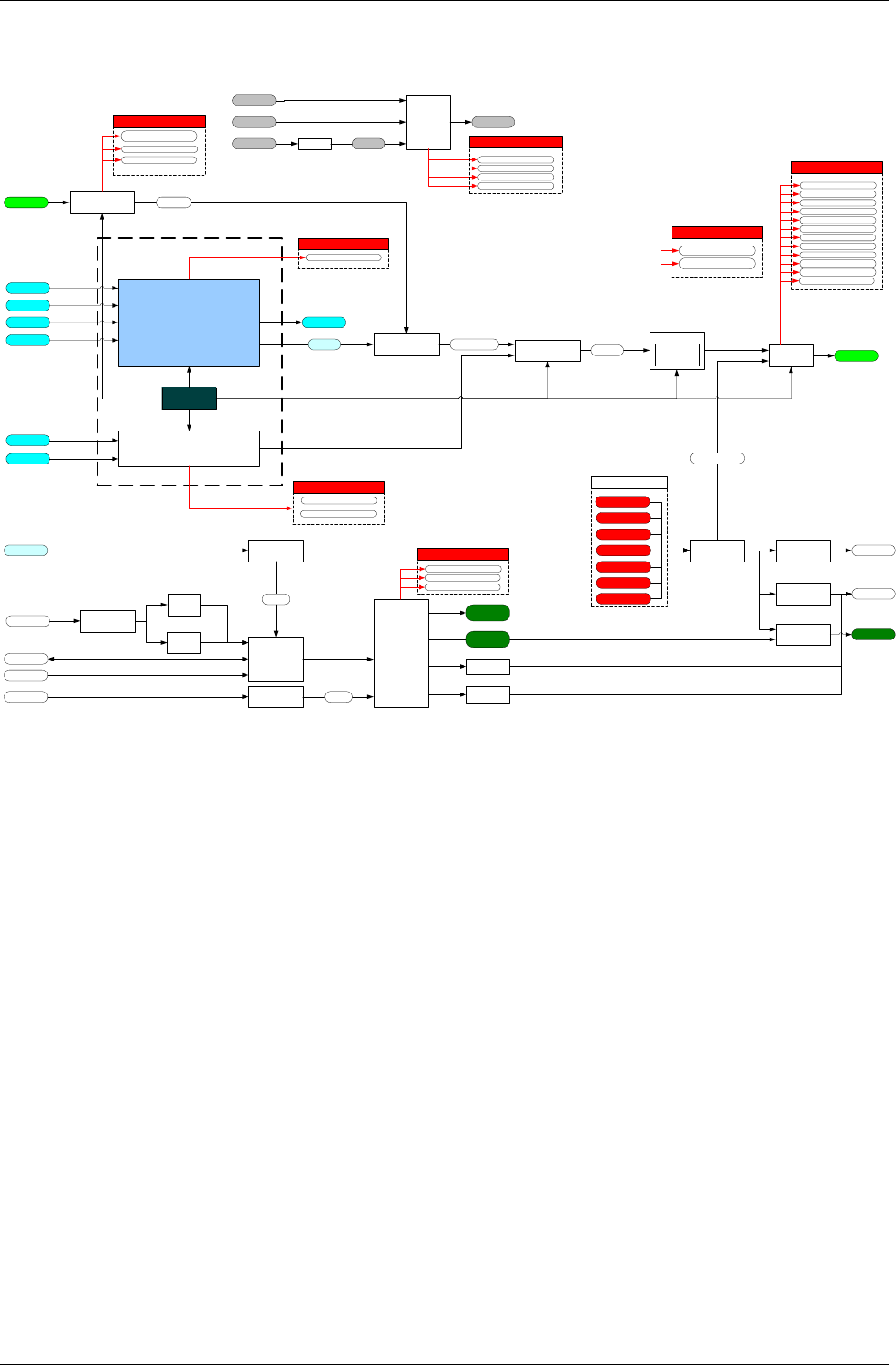

2.3.1 FUNCTIONAL BLOCK DIAGRAMS

BOARD MODE SELECTOR

RF IN DOWNCONVERTER IF IN

36 MHz

ALARM

PROCESSOR

EVENT

PROCESSOR

RELAYS

MANAGEMENT

SNMP TRAP

PROCESSOR

GbE

MANAGEMENT

RELAYS

AM/PM

PRECORRECTION RF Ou tput

AMPLIFIER

AMPL PWR OFF

UPCONVERTER

CHANNEL

1 PPS external

10 MHz external

GPS input GPS Rx

CLOCK

SELECTION

10 M &

1 PPS GPS

10 M &

1 PPS

ATSC Modulator

ITU470 Modulator

SDI

Input 1

SDI

Input 2

ATSC MO DE ALARMS

UPCONVERTER

ALARMS

CLOCK ALARMS

AMPLI/POWER

ALARMS

SYSTEM ALARMS

DOWNCONVERTER

ALARMS

ALARMS DETECTION

Board mode

Management

OPTO

RS 232

LOCAL

INTERFACE

COMMANDS

MAILBOX

SNMP

SERVER

JAVA

SERVER

OPTO INPUT

MANAGEMENT

STAND-BY STAND-BY

Processor

STD-BY

command

NETWORK

MANAGEMENT

COMMANDS

PROCESSOR SNMP

SERVER

JAVA

SERVER

MANAGEMENT

COMMANDS

RESET

COMMANDS

OPTO

command

EVENTS

Monitoring

IF OUT

GPS unlo cked alarm

10MHz unlock ed alarm

GPS com m unicat ion error a lar m

129 MHz unlocked alarm

960 MHz unlocked alarm

Down-conv. oscillator unlock alarm

Rf input Squelch ala rm

File system error alarm

Bad file in file system alarm

No TS Input

Up-conv. oscillator unlocked alarm

Up-conv comm munication

error alarm

PSU voltag e out of range ala rm

PSU current out of range alarm

High case tem perature alar m

Absolute power limiter alarm

Case temperat ure warni ng

Case temperat ure al arm

High forward power alarm

Low forward power warning

Low forward power alarm

High refl ected power al arm

FAN s peed al arm

AMPLI POWER ALARMS

UPCONVERTER ALARMS

ATSC MODE ALARMS

SYSTEM ALARMS

DOWNCONVERTER ALARMS

CLOCK ALARMS

Warm UP Alarm

FPGA Boot Alar m

RX ATSC ALARMS

ASI output

ASI/SSI

Input 1

GBe

Input

ASI/SSI

Input 2

ASI/SSI

Input 3

ASI/SSI

Input 4 ADAPTIVE FILTER

I/Q base

band

IF to AM/PM

PRECORRECTION

No SDI Input

ITU 470 MODE ALARMS

Wrong input standard

Screen Service SDT 200UB - 500UB ARK 1 Purpose and planning

July, 2009 v 1.0 Page 2 - 5

2.4 PURPOSE

This manual contains information and reference documentation on installation, operation and maintenance of

the SDT 200UB - 500UB ARK-1 ATSC equipment.

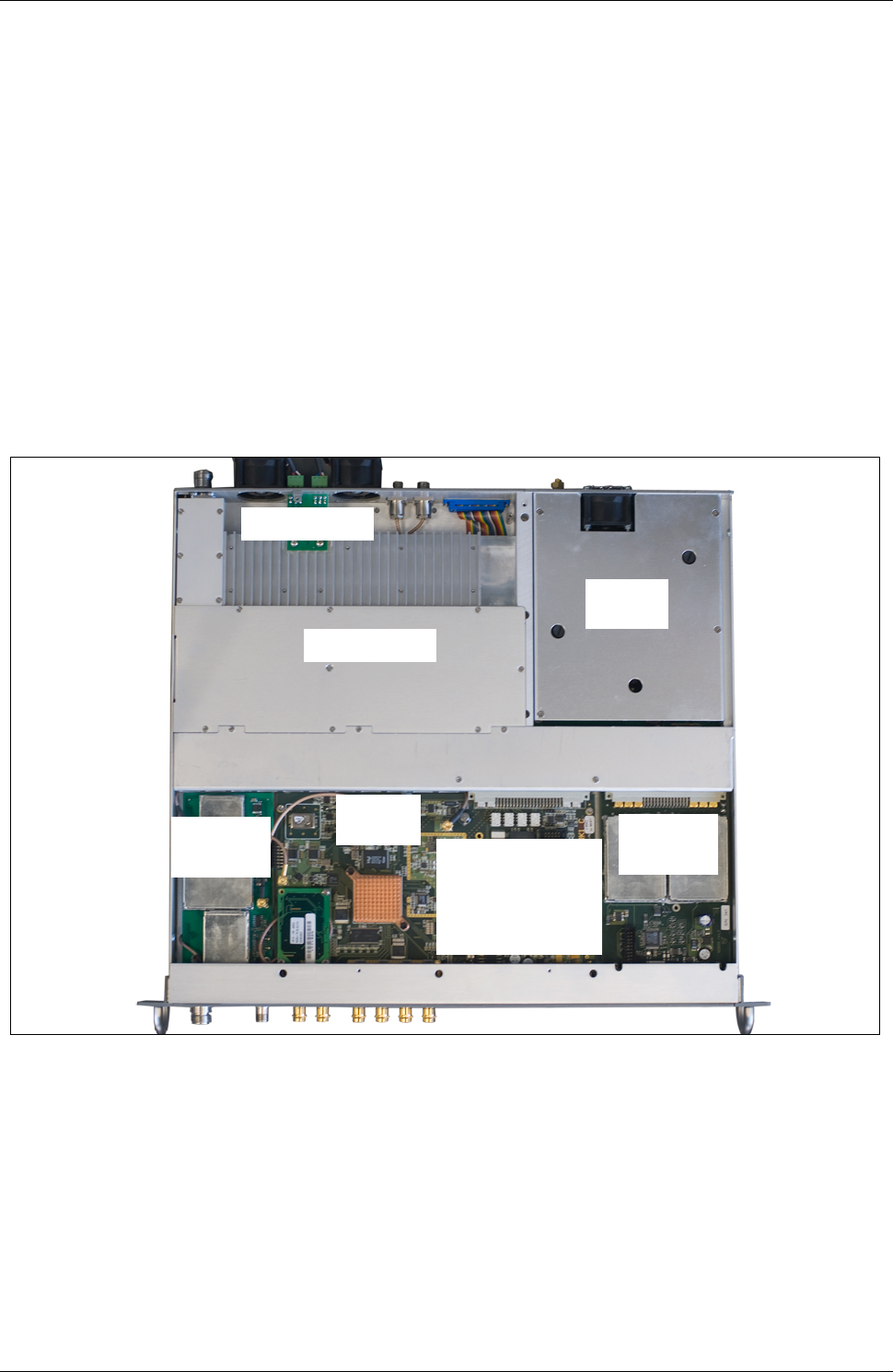

2.5 COMPOSITION

The equipment is composed of the following functional blocks:

1st AC/DC POWER SUPPLY

2nd IF DIGITAL

3rd RF AMPLIFIER

4th COOLING SYSTEM

5TH AGILE DOWN CONVERTER

6TH AGILE UP CONVERTER

7TH DC/DC CONVERTER

C/DC

POWER

SUPPLY

RF AMPLIFIER

DIGITAL

COOLING SYSTEM

AGILE

DOWN

CONVERTER

GILE

CONVERTER

DC/DC CONVERTER

(layer B)

DSP

(layer A)

Screen Service SDT 200UB - 500UB ARK 1 Purpose and planning

July, 2009 v 1.0 Page 2 - 6

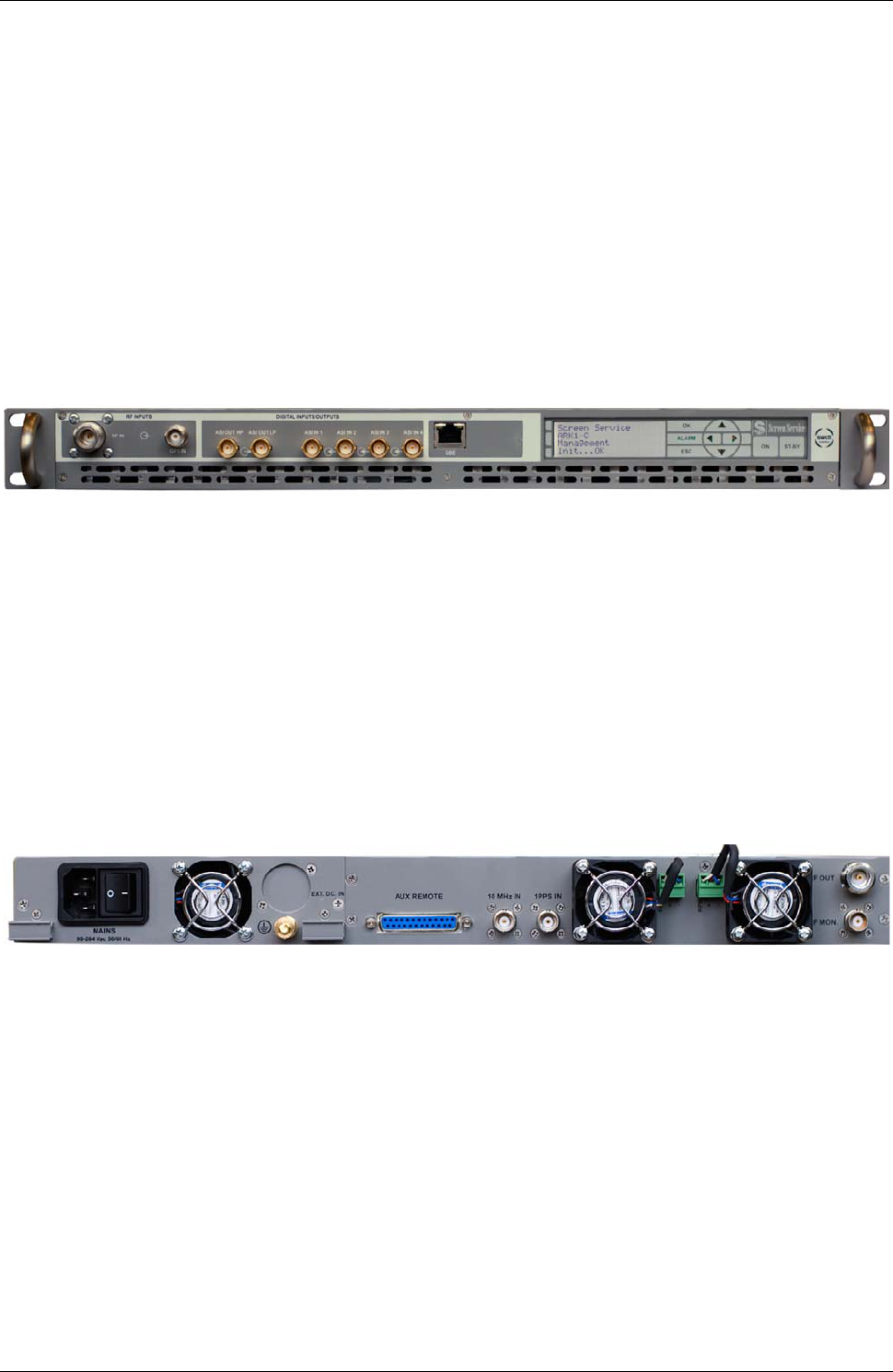

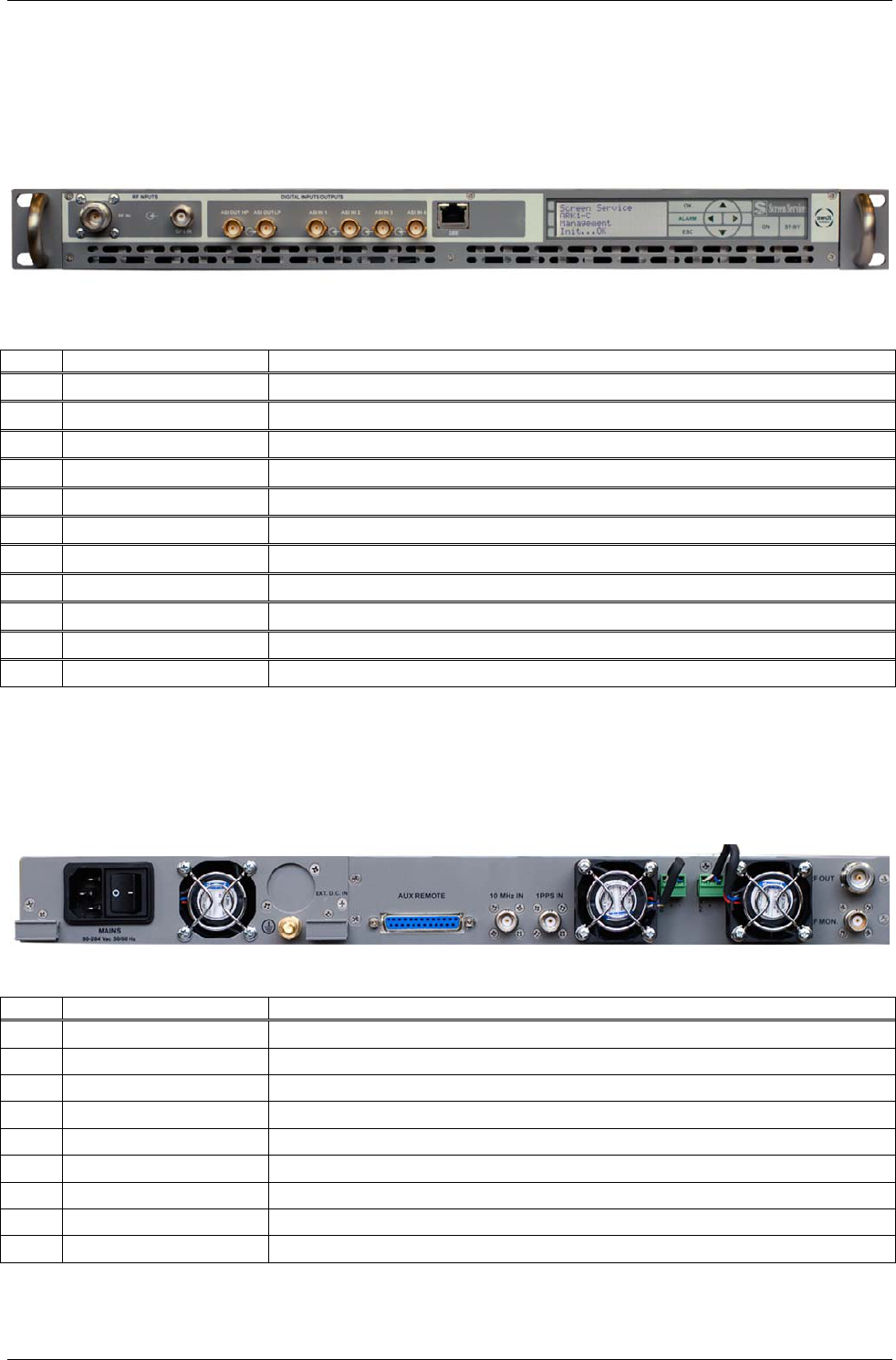

2.5.1 FRONT AND RARE PANEL FUNCTIONS LIST

On the front panel are located the following functions/connectors (from left to right)

1. RF INPUT

2. GPS INPUT

3. DIGITAL OUTPUT HP

4. DIGITAL OUTPUT LP

5. DIGITAL INPUT 1

6. DIGITAL INPUT 2

7. DIGITAL INPUT 3

8. DIGITAL INPUT 4

9. GBE

10. DISPLAY & NAVIGATION

1 2 3 4 5 6 7 8 9 10

On the rear panel are located the following functions/connectors (from left to right)

1. AC MAIN INPUT & ON/OFF SWITCH

2. AC/DC FAN

3. GROUND REFERENCE

4. AUX REMOTE

5. 10 MHz INPUT

6. 1 PPS INPUT

7. FANs EQUIPMENT COOLING (a & b)

8. RF OUTPUT

9. RF MONITOR

1 2 3 4 5 6 7a 7b 8

Screen Service SDT 200UB - 500UB ARK 1 Purpose and planning

July, 2009 v 1.0 Page 2 - 7

2.6 TECHNICAL SPECIFICATIONS

2.6.1 GENERAL

Available standards ATSC

Operating frequency range UHF Band (470 - 862 MHz)

Cooling Forced Air (3 FANS: 1 P.S + 2 equipment)

Main supply 230 V AC

MAX Power consumption 500 VA (ARK 1 – 201 U)

200 VA (ARK 1 – 100 U)

2.6.2 MECHANICAL AND ENVIRONMENTAL

Dimensions 483 mm (W) x 400 mm (D) x 90 mm (H)

Weight 11 kg approx.

Operating temperature from 0° C to + 45° C

Storage temperature from -10° C to +60° C

Maximum relative humidity 90%, non condensing

2.6.3 INPUT PARAMETERS

2.6.3.1 DIGITAL 1, 2, 3, 4

Input Signal Transport Stream, ASI, SSI format

Input Level 800 mV (±10%)

Data rate 270 MB/s

Data rate error ±3ppm

Input connector BNC

Input impedance 75 Ω

2.6.3.2 GBE

MPEG over IP Transport Stream input using GBE port (not yet implemented).

Full control and management via SNMP protocol using GBE port

2.6.3.3 GPS

Input connector TNC female

Antenna power supply from transmitter, 5V DC

2.6.4 OUTPUT PARAMETERS

2.6.4.1 RF GENERAL

RF OUTPUT Connector N Female

Impedance 50 Ω

Load mismatches 2:1 Max. (With output isolator)

RF monitor connector SMA

Impedance 50 Ω

Screen Service SDT 200UB - 500UB ARK 1 Purpose and planning

July, 2009 v 1.0 Page 2 - 8

2.6.5 ATSC MODULATION

Modulation Modes 8VSB

Inputs 2 ASI + 2 SSI

Input Data Rate up to 19.39 Mbps

Channel Bandwidth 6 MHz

Symbol Rate 10.762 MSymbol/sec

Bandwidth Efficiency 3 Bits/symbol

PCR Restamping and Del. Null Packet Included

Frequency Step 1 Hz

Test Signal PRBS, CW

GPS Receiver Integrated

Adaptive Digital Precorrector Integrated

2.6.6 OUTPUT PARAMETERS

2.6.6.1 ATSC MODE

Nominal output power 8W rms (SDT 200UB ARK-1)

20W rms (SDT 500UB ARK-1)

In Band Flatness ± 0.5dB

Shoulders at F0 ± 4.3 MHz better than 40 dB

With pre-correction inserted

Spurious emission (with output filter) < -60 dBc



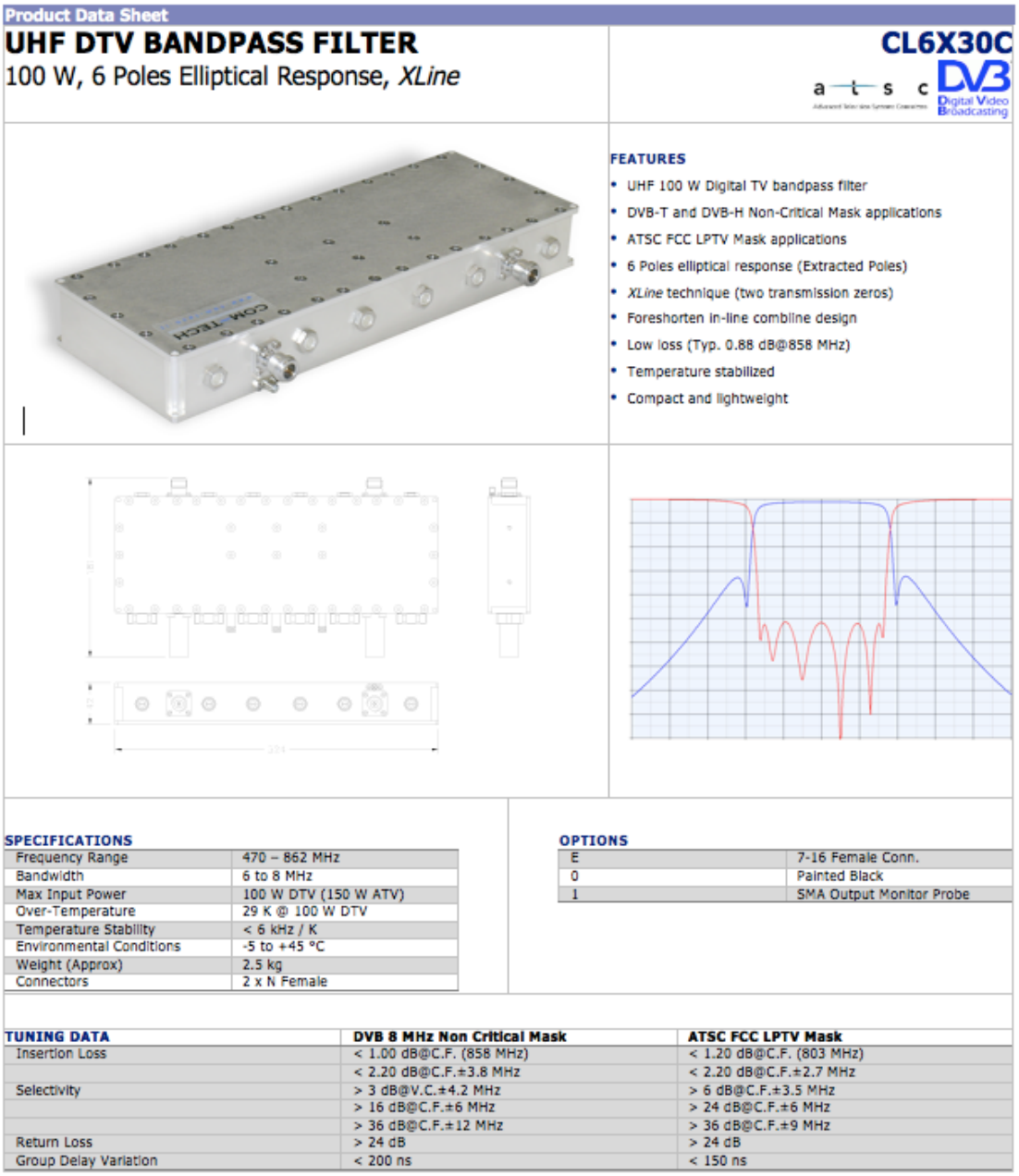

$QH[WHUQDOILOWHULVUHTXLUHGIRUFRPSOLDQFHZLWKWKHHPLVVLRQPDVNV6FUHHQ6HUYLFHUHFRPPHQGVWKH

&207(&+&/;&RUDQ\)&&DSSURYHGILOWHUZLWKVLPLODUVSHFLILFDWLRQV6HH&/;&VSHFVVKHHW

DWWDFKHGDWWKHHQGRIWKLVVHFWLRQ



Screen Service SDT 200UB - 500UB ARK 1 Purpose and planning

July, 2009 v 1.0 Page 2 - 9

2.6.7 RF AMPLIFICATION

The signal coming from the agile up converter goes to the RF amplifier section. The RF amplification is done

by class A stages (ARK_1 200 U) and by class AB (ARK_1 201).

They are made by PALLET and, as reported in FIGG.2-3 and 2.4, there are NO SINGLE POINT FAILURE

Out of the final stage, the RF signal passes through a directional coupler. The directional coupler detects

samples of direct and reflected power and passes this information to the check function

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 1

SDT 200UB – SDT 500UB ARK-1 ATSC

Software Defined Transmitter

OPERATION MANUAL

3 OPERATIONS

CONTENTS

3.1 INSTALLATION ...................................................................................................................................... 4

3.1.1 INSTALLATION PROCEDURE CHECK OFF..................................................................................... 4

3.1.2 SITE SELECTION............................................................................................................................... 4

3.1.2.1 MOUNTING SPECIFICATIONS .................................................................................................. 4

3.1.3 UNPACKING....................................................................................................................................... 4

3.1.4 EQUIPMENT MOUNTING .................................................................................................................. 5

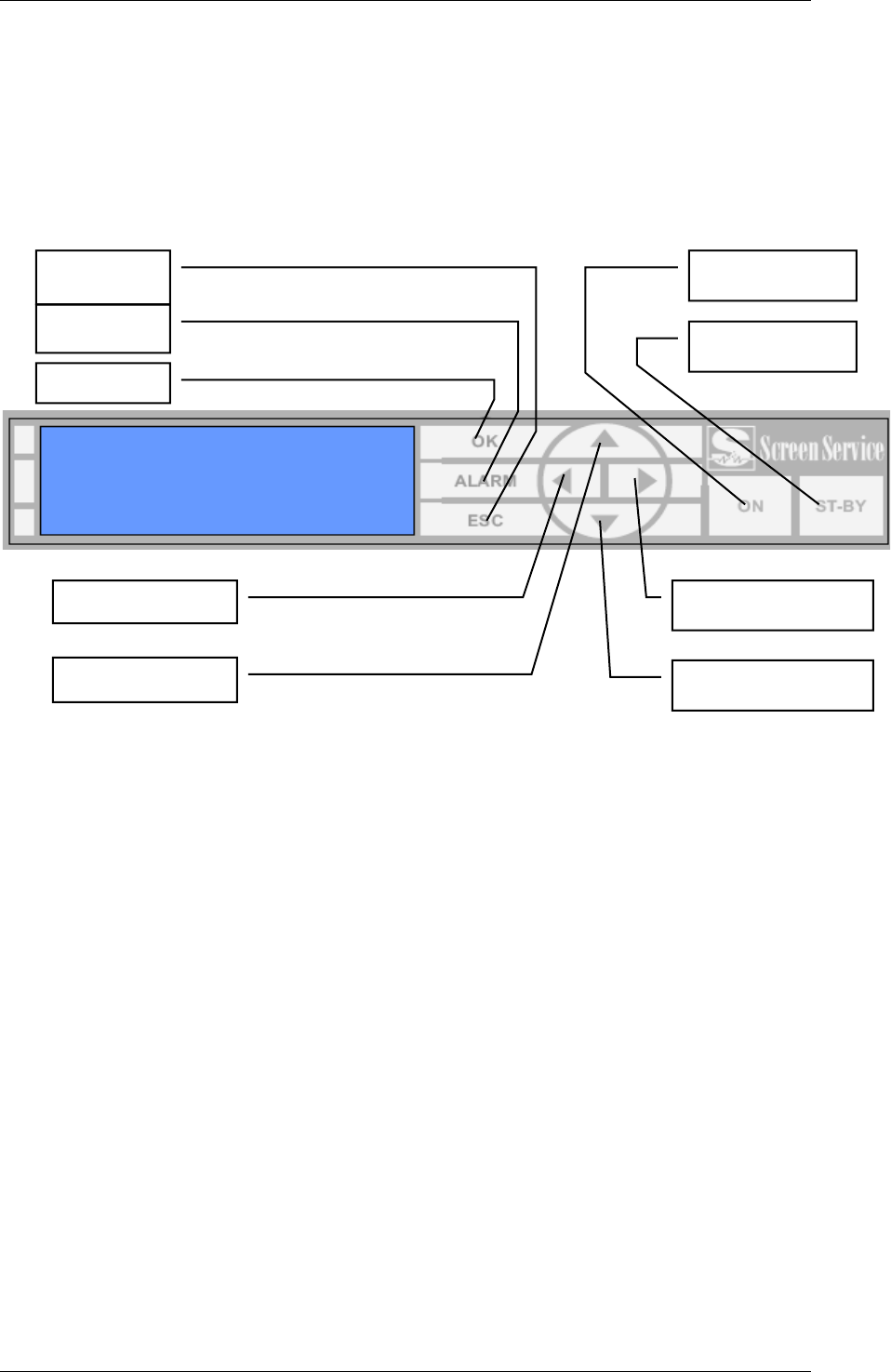

3.1.5 FRONT PANEL ................................................................................................................................... 6

3.1.5.1 REAR PANEL .............................................................................................................................. 6

3.1.5.2 REAR PANEL CONNECTORS.................................................................................................... 6

3.2 MULTIMETER......................................................................................................................................... 8

3.2.1 LOCAL INTERRFACE MENU TREE .................................................................................................. 9

3.2.2 BOOT AND WELCOME MESSAGE................................................................................................. 12

3.2.3 Idle Menu........................................................................................................................................... 12

3.2.4 Main Menu......................................................................................................................................... 13

3.2.5 LCD alarms ....................................................................................................................................... 14

3.3 SNMP – SIMPLE NETWORK MANAGEMENT PROTOCOL .............................................................. 16

3.3.1 SNMP Protocol Preferences ............................................................................................................. 16

3.3.2 Monitoring.......................................................................................................................................... 17

3.3.3 OID .................................................................................................................................................... 18

3.3.4 SNMP tree structure.......................................................................................................................... 18

3.3.5 Configuring alarms masks................................................................................................................. 32

3.3.6 Traps ................................................................................................................................................. 34

3.3.7 Configuring traps............................................................................................................................... 34

3.4 STANDALONE/DRIVER WORKING MODES...................................................................................... 37

3.5 TRANSPORT-LEVEL PROTOCOLS.................................................................................................... 40

3.6 JAVA(TM) PLATFORM......................................................................................................................... 41

3.6.1 Download .......................................................................................................................................... 41

3.6.2 Java Control Panel............................................................................................................................ 41

3.6.3 Supported Web Browsers ................................................................................................................. 42

3.7 JAVA REMOTE GRAPHIC USER INTERFACE .................................................................................. 43

3.7.1 Java interface overview..................................................................................................................... 43

3.7.2 General.............................................................................................................................................. 45

3.7.3 Input .................................................................................................................................................. 46

3.7.4 Tuner ................................................................................................................................................. 51

3.7.4.1 Modes management .................................................................................................................. 51

3.7.5 Modes switching rules................................................................................................................ 56

3.7.6 Tuner management.................................................................................................................... 56

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 2

3.7.7 Modulation......................................................................................................................................... 58

3.8 Filter ...................................................................................................................................................... 64

3.8.1 Management panel .................................................................................................................... 66

3.8.2 Complex filter coefficients graph................................................................................................ 68

3.8.3 Module graph ............................................................................................................................. 68

3.8.4 Phase graph............................................................................................................................... 68

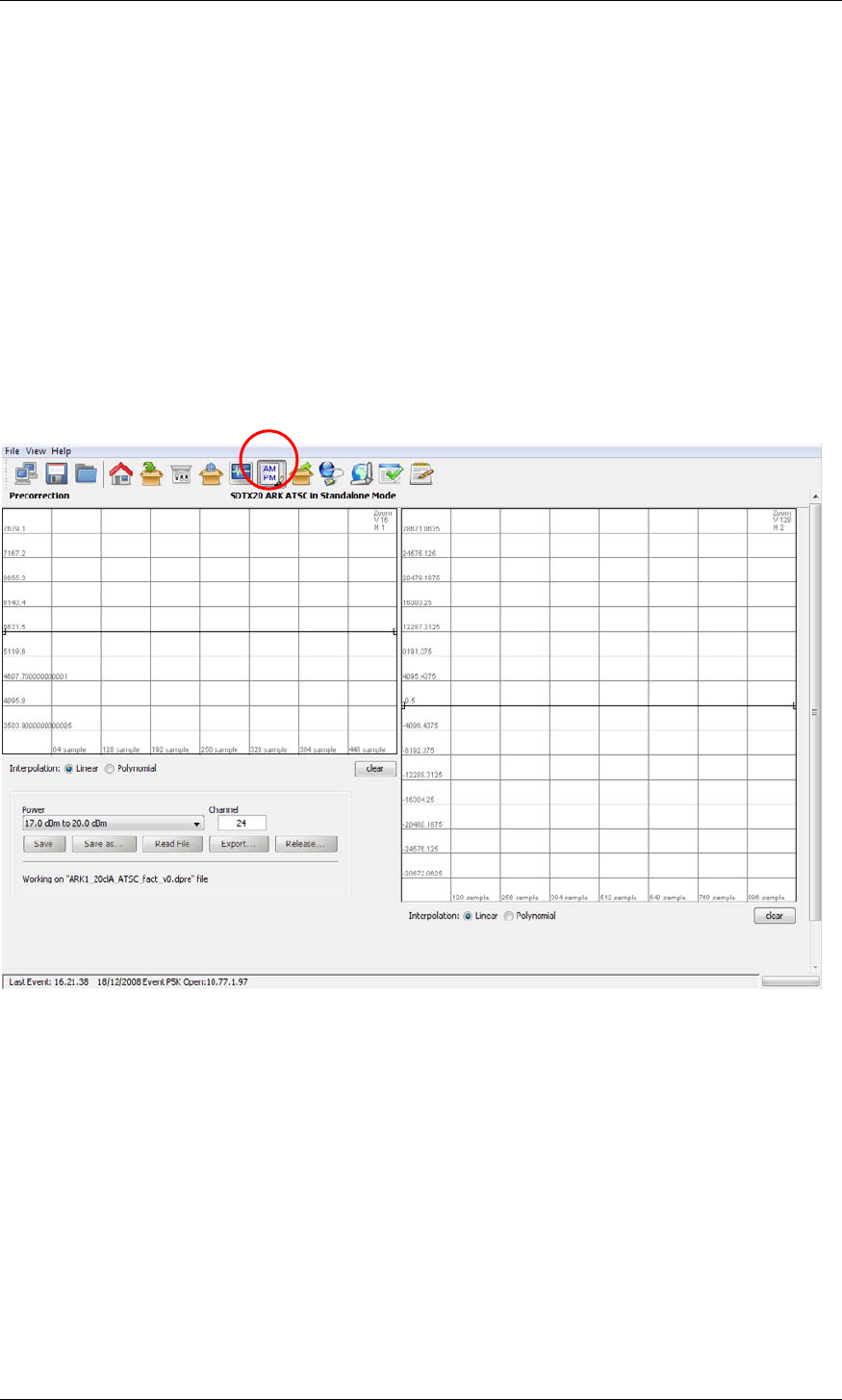

3.8.5 AM/PM pre-correction tool ................................................................................................................ 69

3.8.6 Connection to port 5000............................................................................................................. 71

3.8.7 Output................................................................................................................................................ 72

3.8.8 Network ............................................................................................................................................. 83

3.8.9 GPS................................................................................................................................................... 90

3.8.10 Alarms ............................................................................................................................................... 92

3.8.11 Events ............................................................................................................................................. 102

3.8.12 Time/Date setting..................................................................................................................... 102

3.8.12.1 Events monitoring .................................................................................................................... 103

3.8.13 Task Error Event ...................................................................................................................... 107

3.8.14 System Error Event.................................................................................................................. 108

3.8.15 System Initialization Event ....................................................................................................... 109

3.8.16 System menu .................................................................................................................................. 113

3.8.17 File menu ................................................................................................................................. 113

3.8.18 View menu ............................................................................................................................... 114

3.8.18.1.1 Option sub-menu............................................................................................................ 115

3.8.18.2 Time.................................................................................................................................. 115

3.8.18.3 Alerts................................................................................................................................. 115

3.8.19 Help menu................................................................................................................................ 117

3.8.19.1 About................................................................................................................................. 117

3.8.19.2 Info .................................................................................................................................... 118

3.8.20 Download Software Standalone...................................................................................................... 118

LIST OF FIGURE

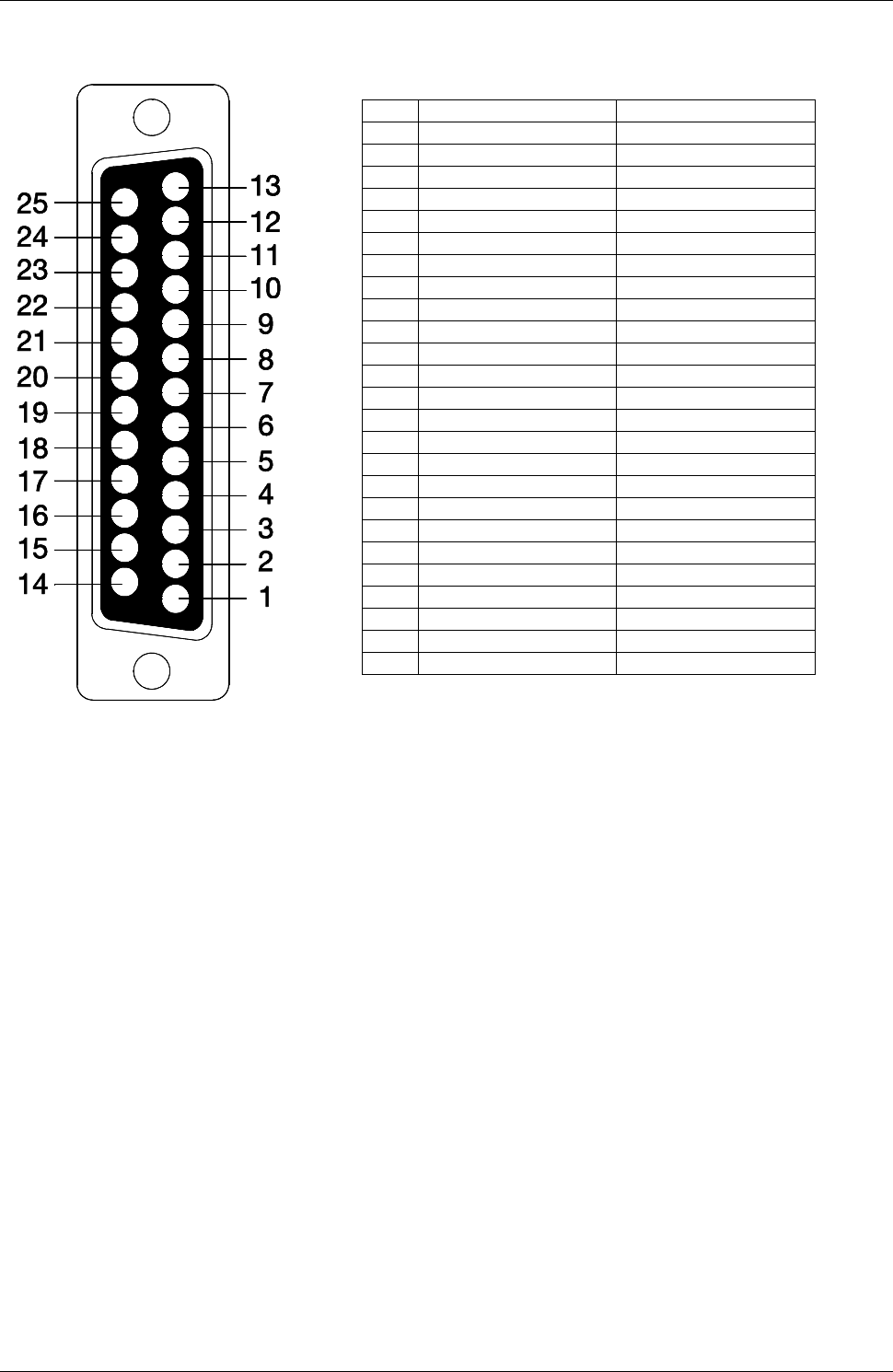

Fig. 1: AUX REMOTE CONNECTOR................................................................................................................ 7

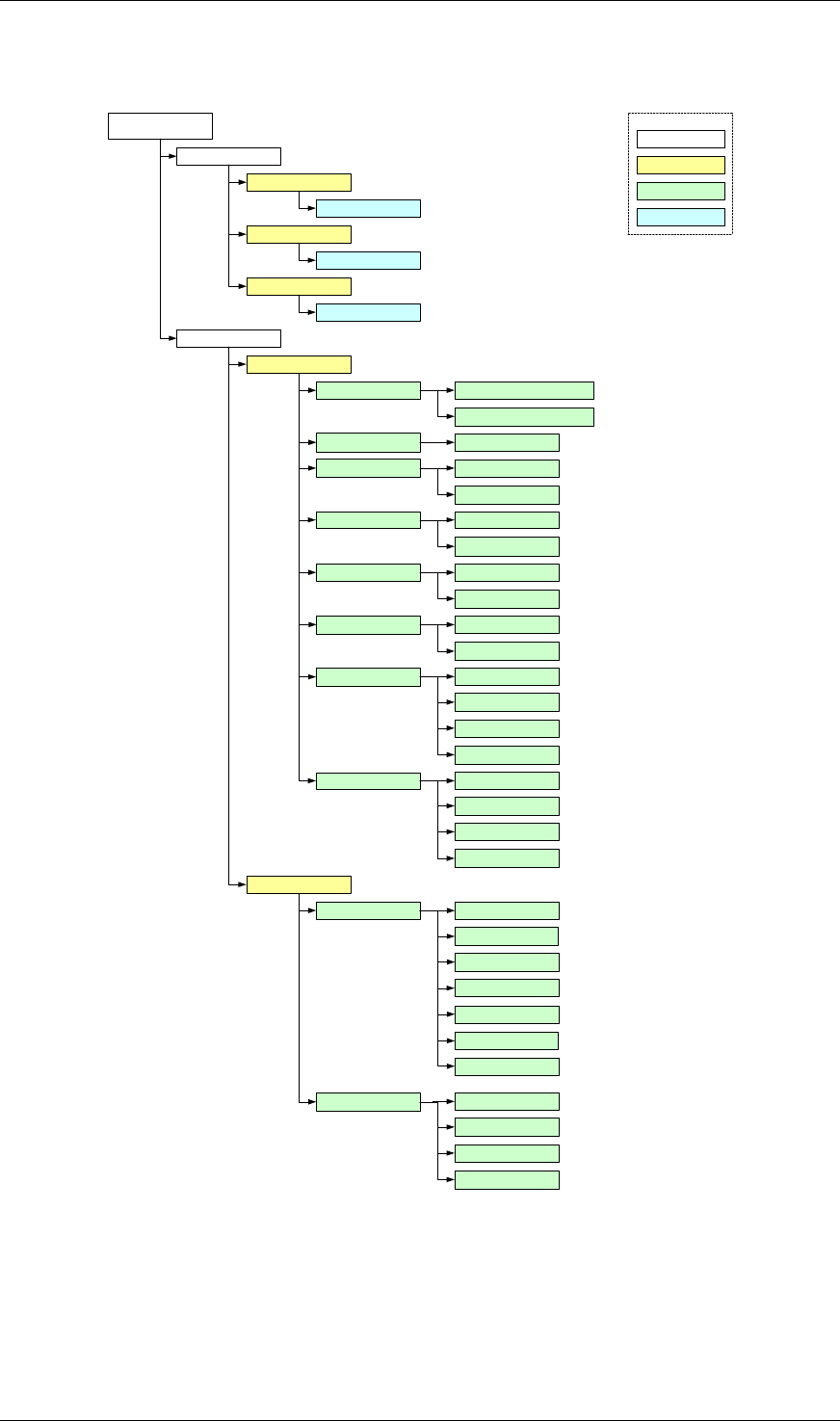

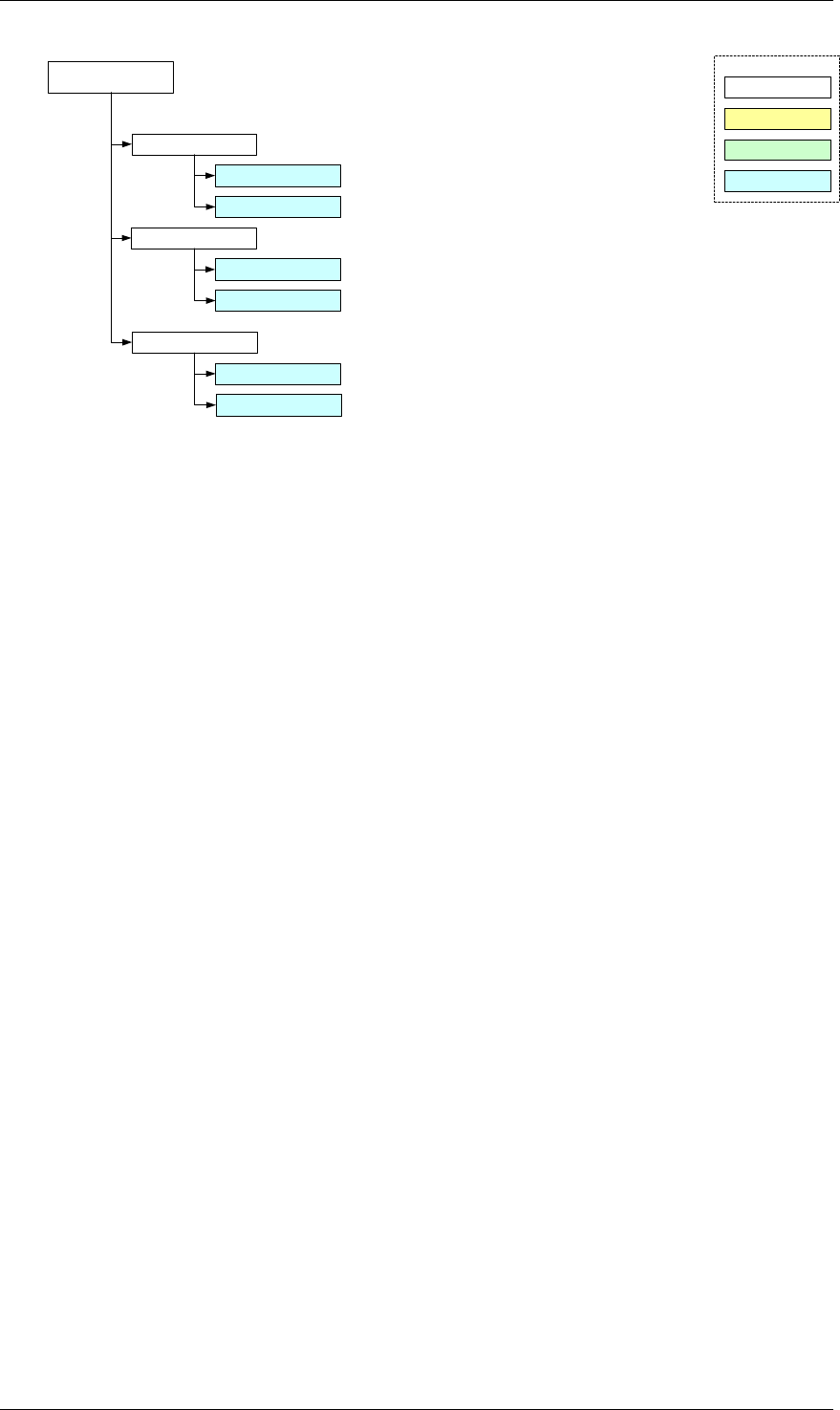

Fig. 2: Local Interface Menu Tree.................................................................................................................... 11

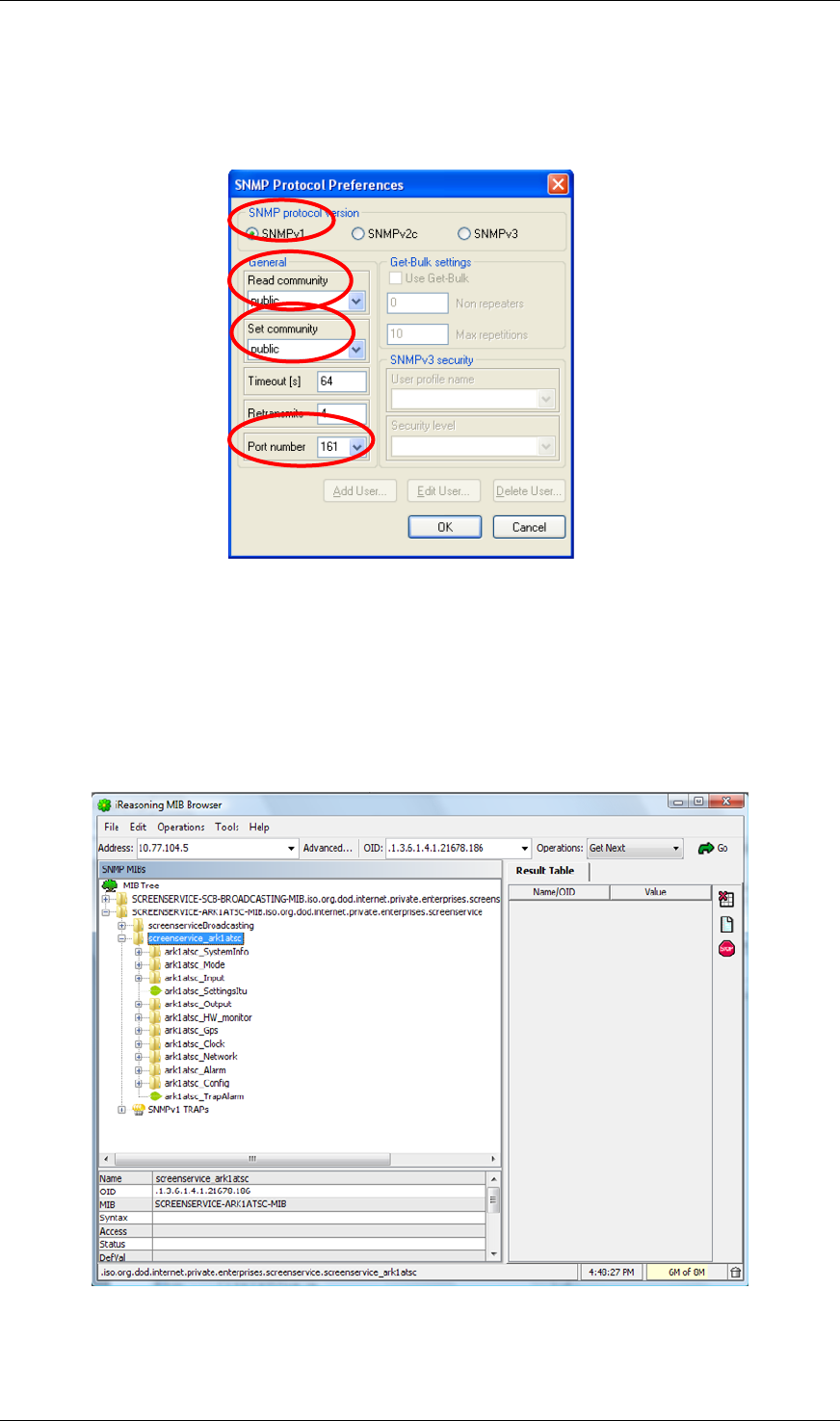

Fig. 3: SNMP Protocol Preferences................................................................................................................. 17

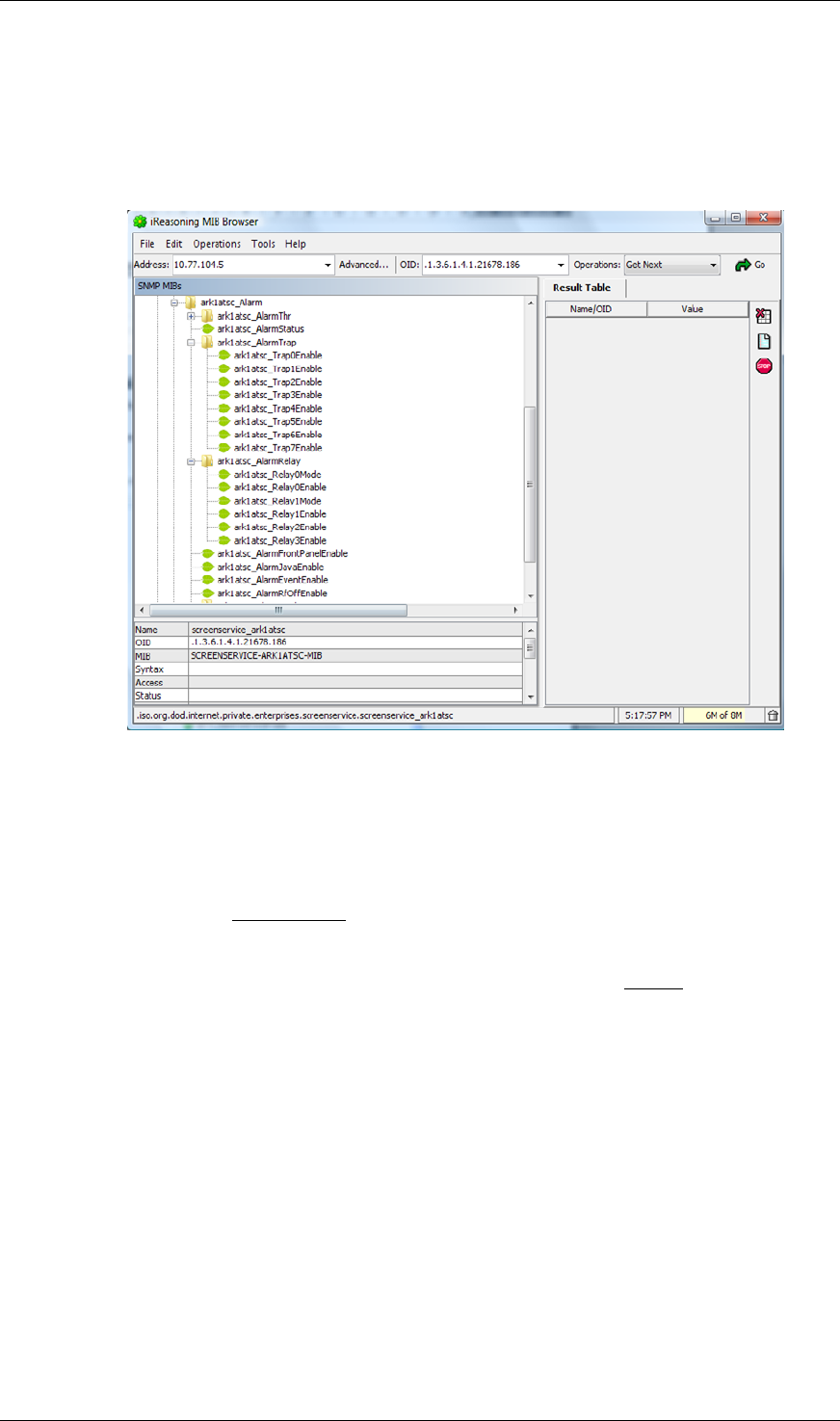

Fig. 4: ARK1 ATSC MIB Browser .................................................................................................................... 17

Fig. 5:Configuring alarms ................................................................................................................................ 33

Fig. 6:Configuring traps ................................................................................................................................... 35

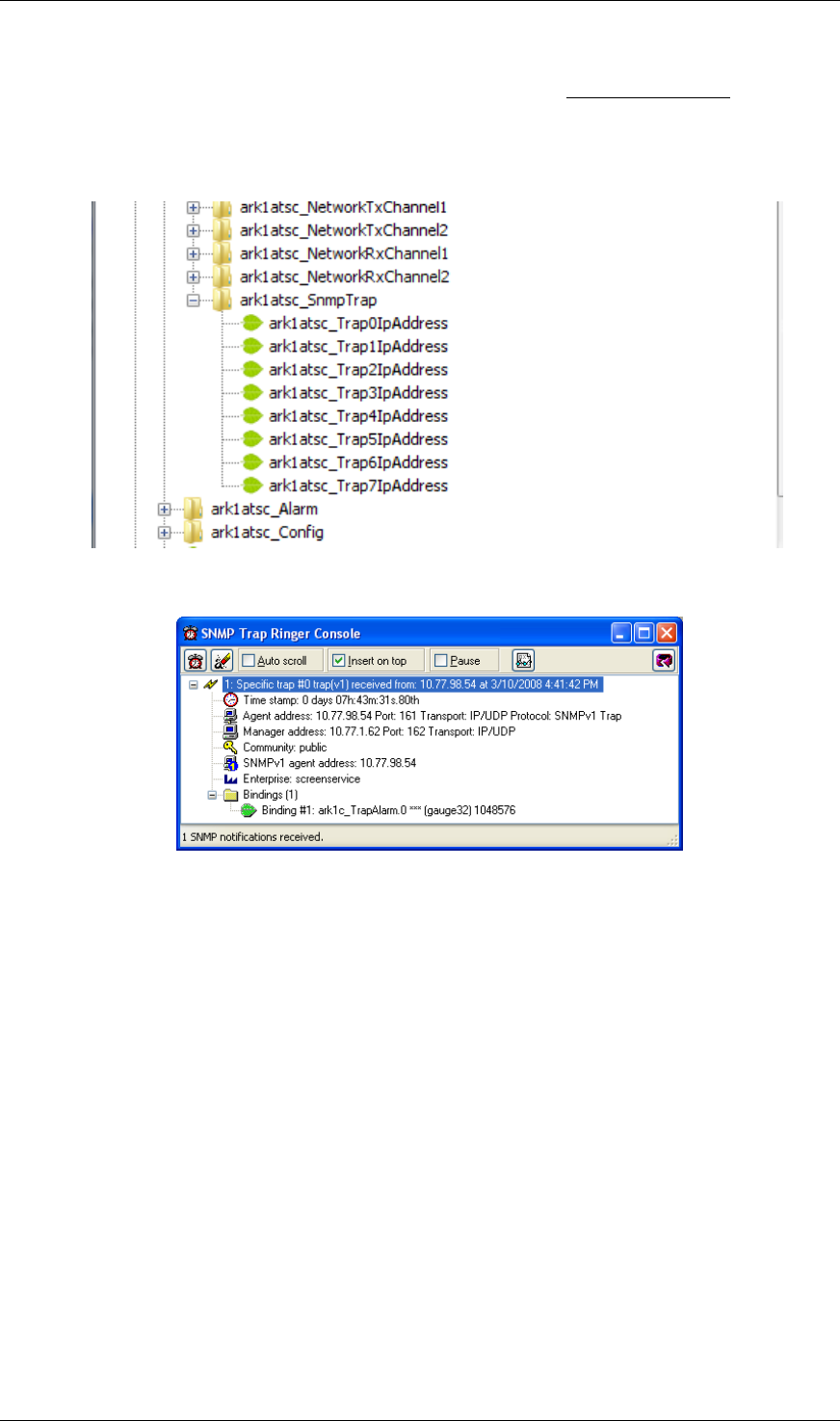

Fig. 7:SNMP Trap Message ............................................................................................................................ 35

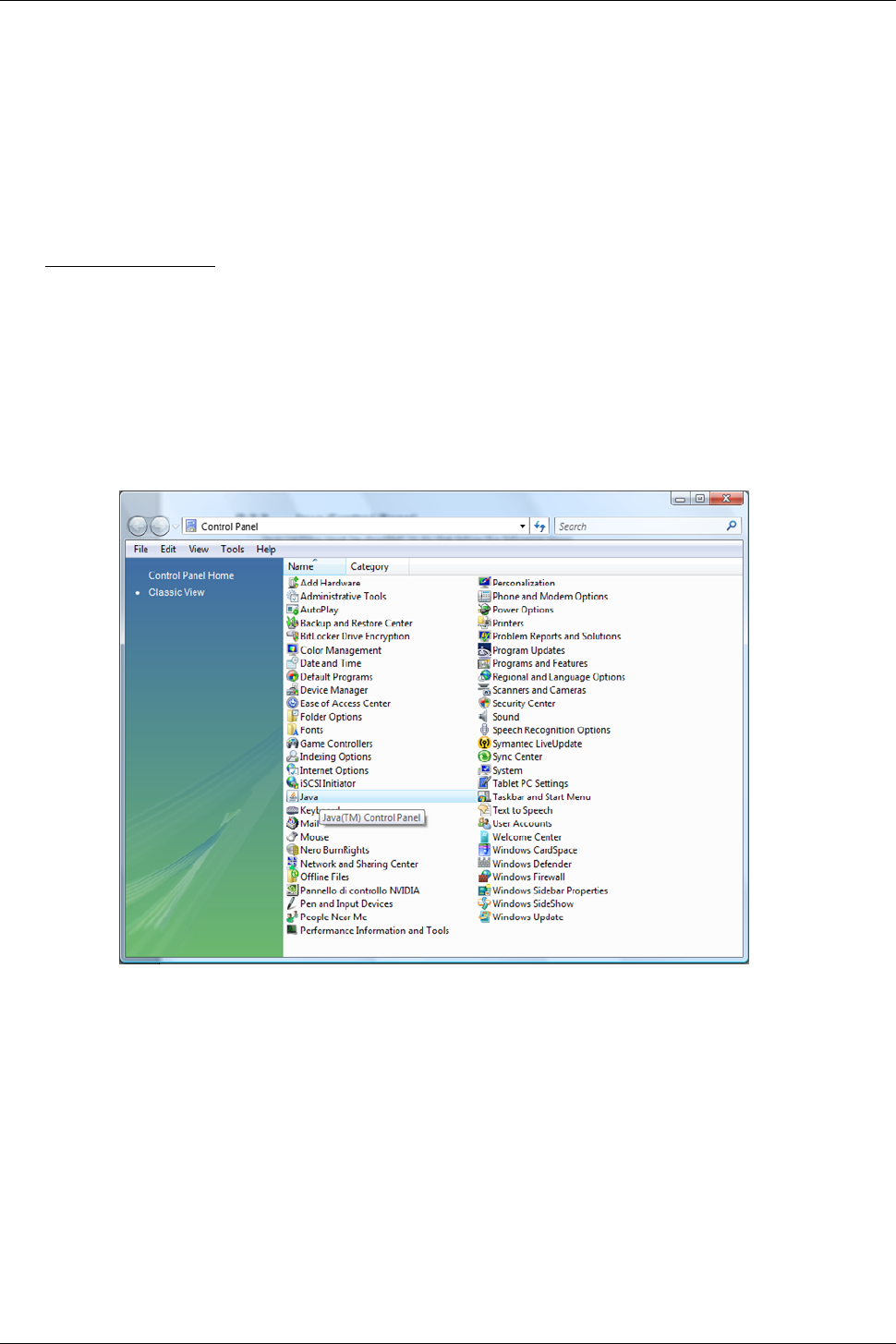

Fig. 8: PC Control Panel.................................................................................................................................. 41

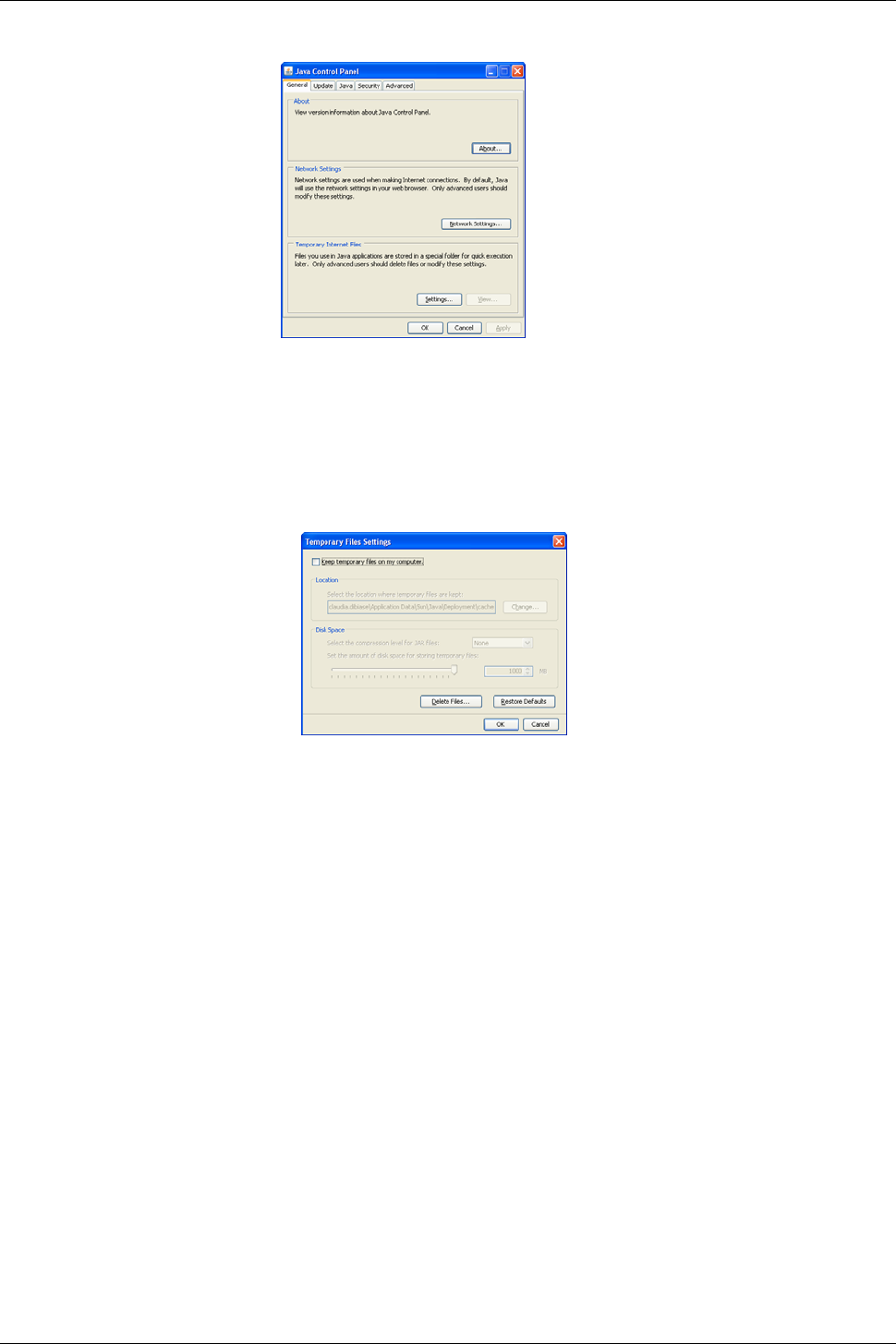

Fig. 9: Java Control Panel ............................................................................................................................... 42

Fig. 10: Temporary Files Settings.................................................................................................................... 42

Fig. 11: Java main control switch .................................................................................................................... 43

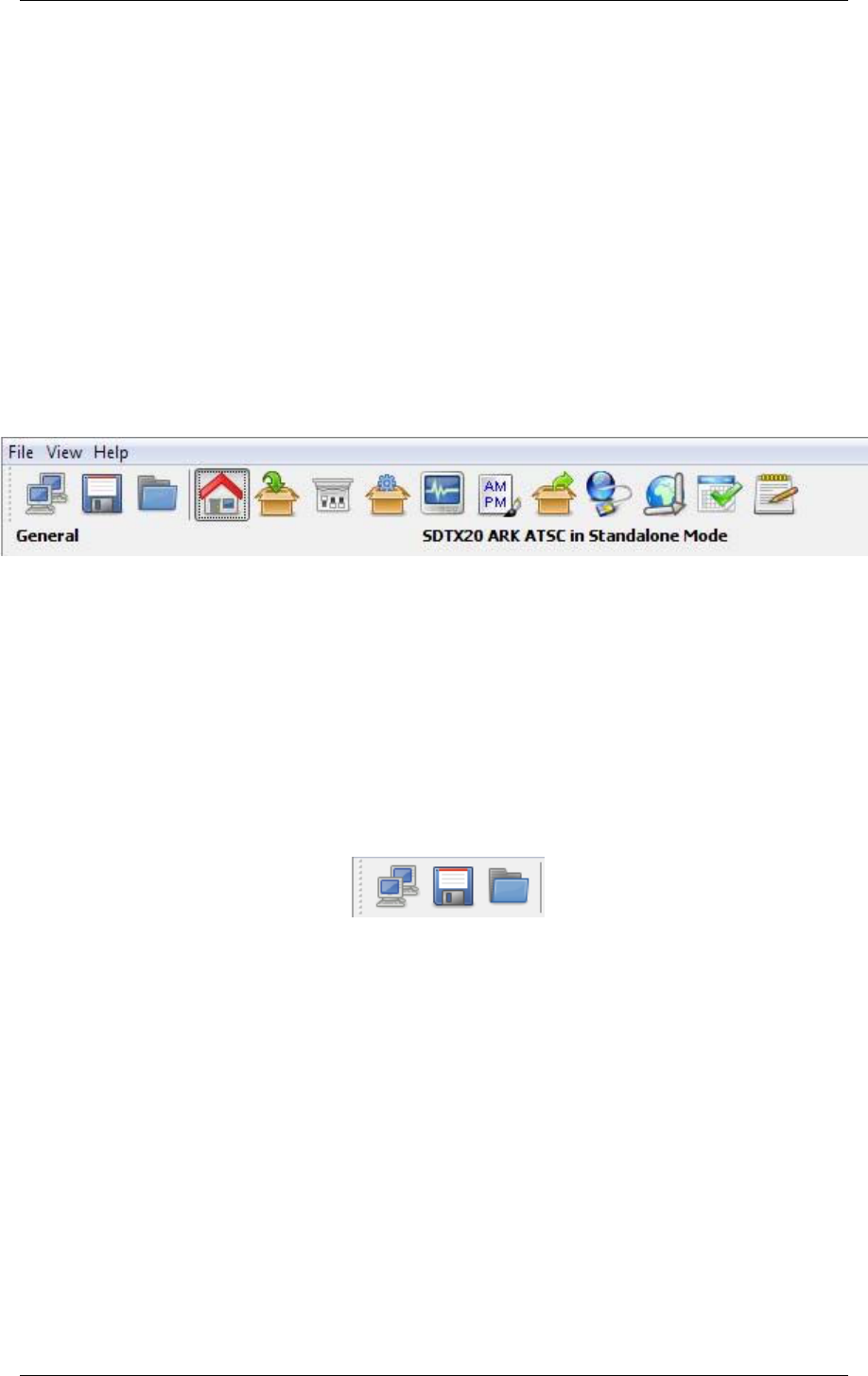

Fig. 12: System commands bar....................................................................................................................... 43

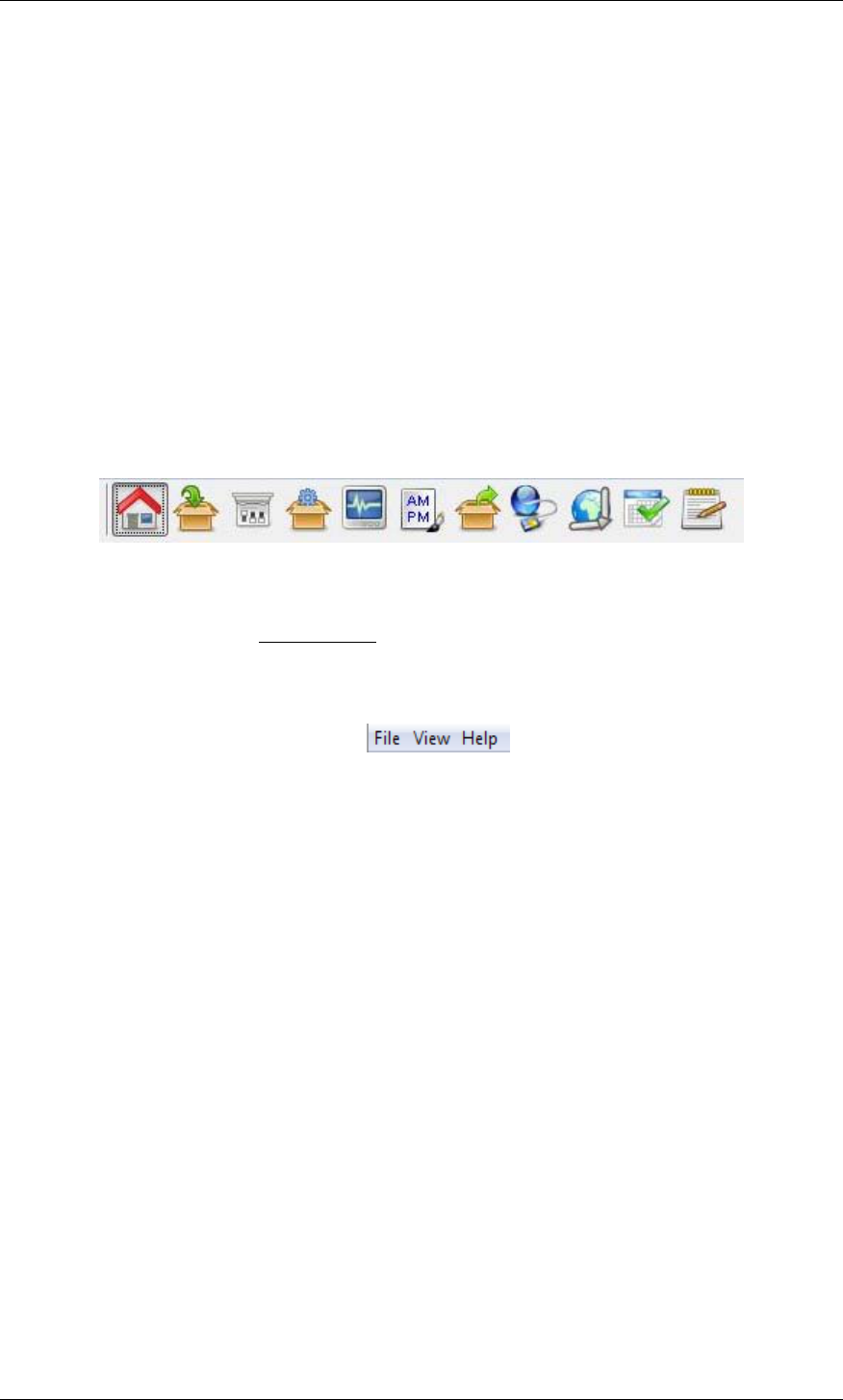

Fig. 13: Operation pages bar........................................................................................................................... 44

Fig. 14: System menu...................................................................................................................................... 44

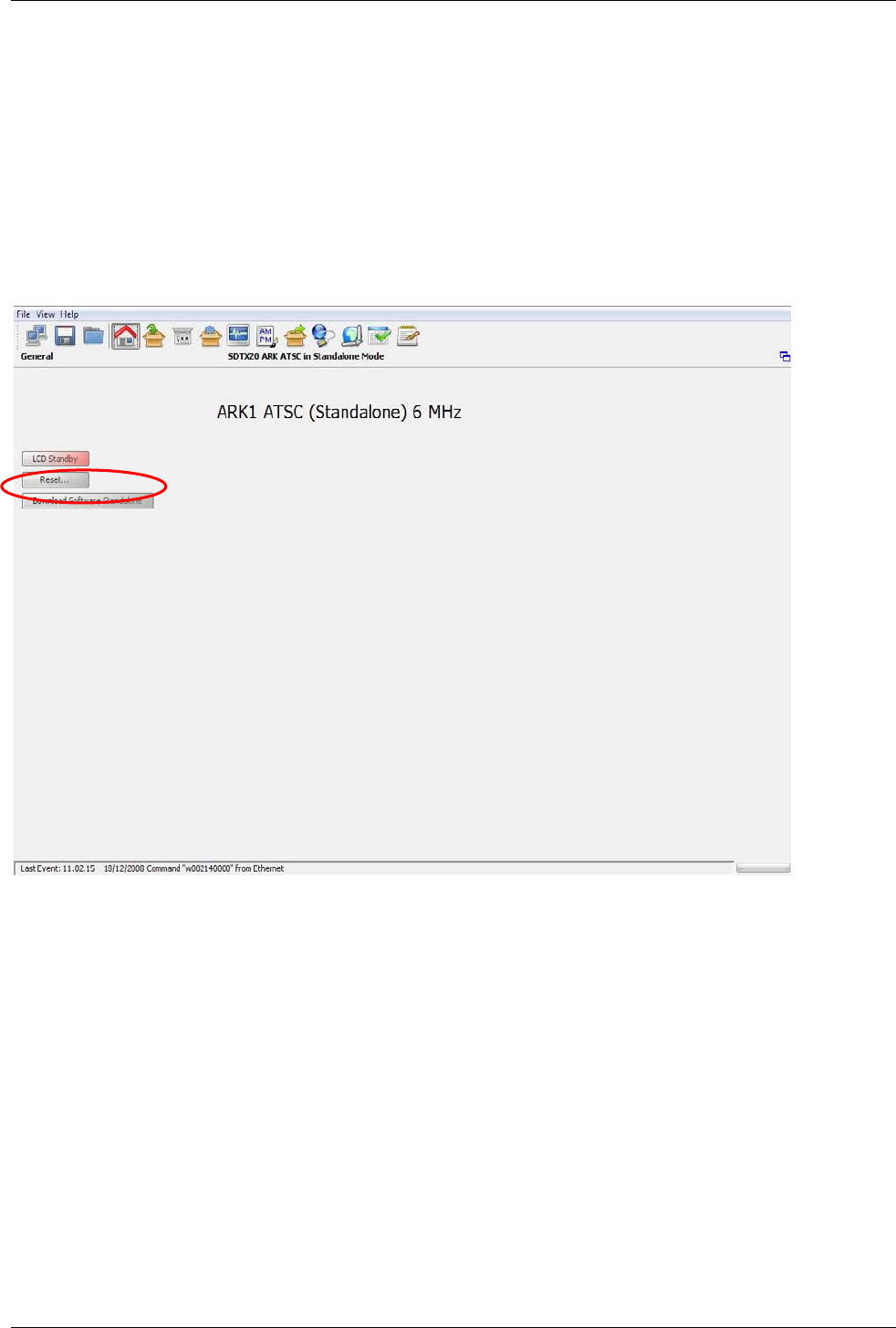

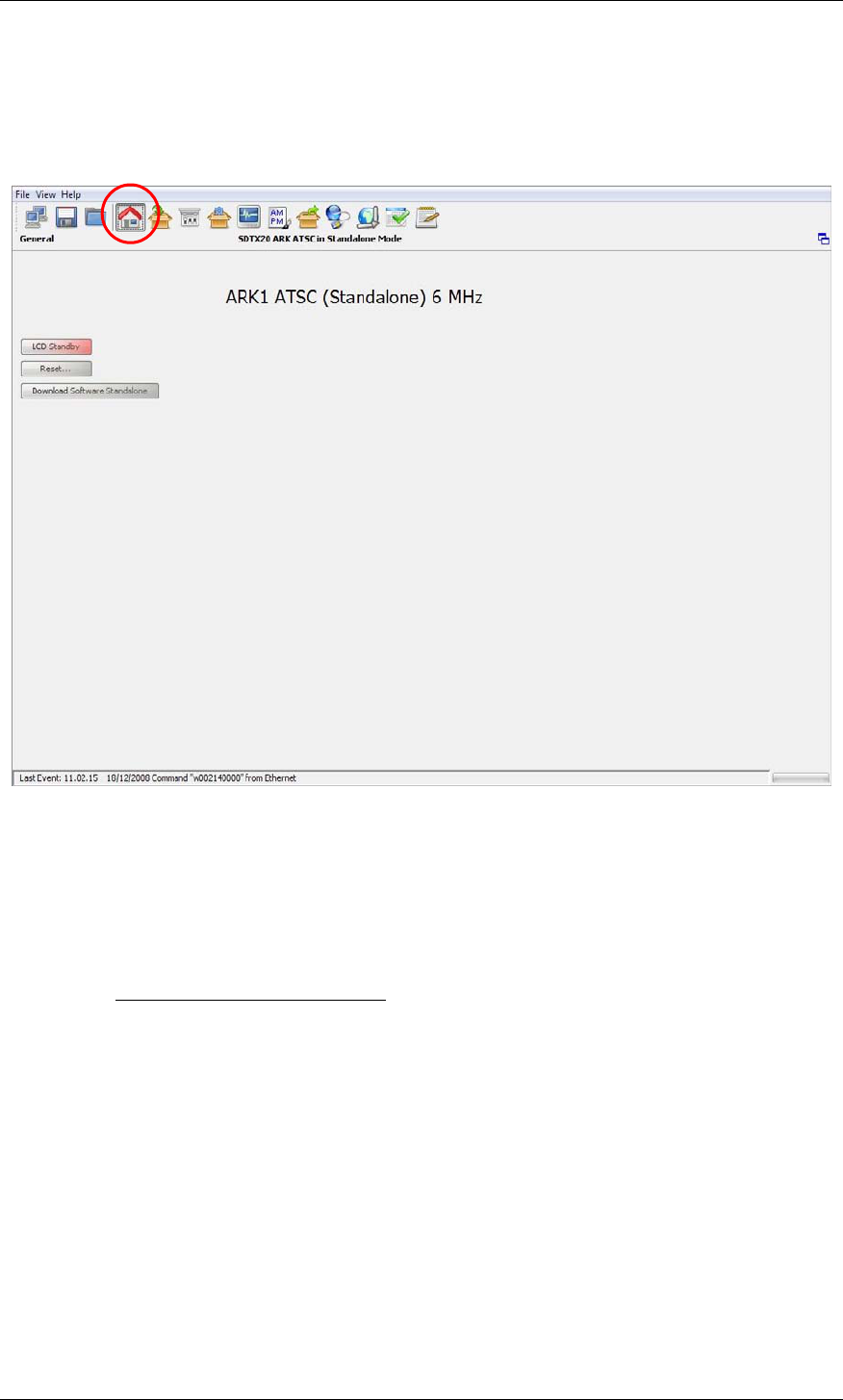

Fig. 15: General window.................................................................................................................................. 45

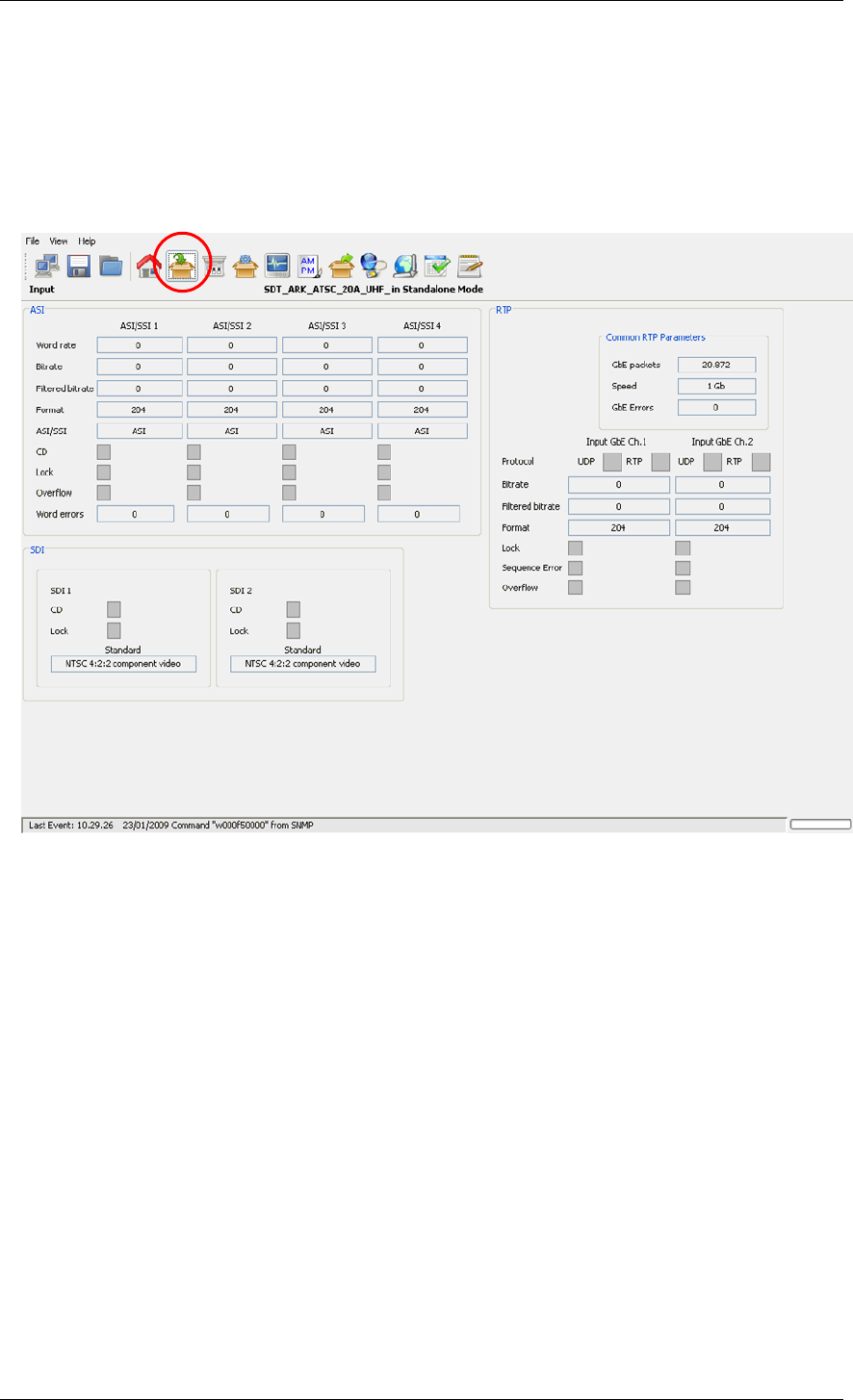

Fig. 16: Input window....................................................................................................................................... 46

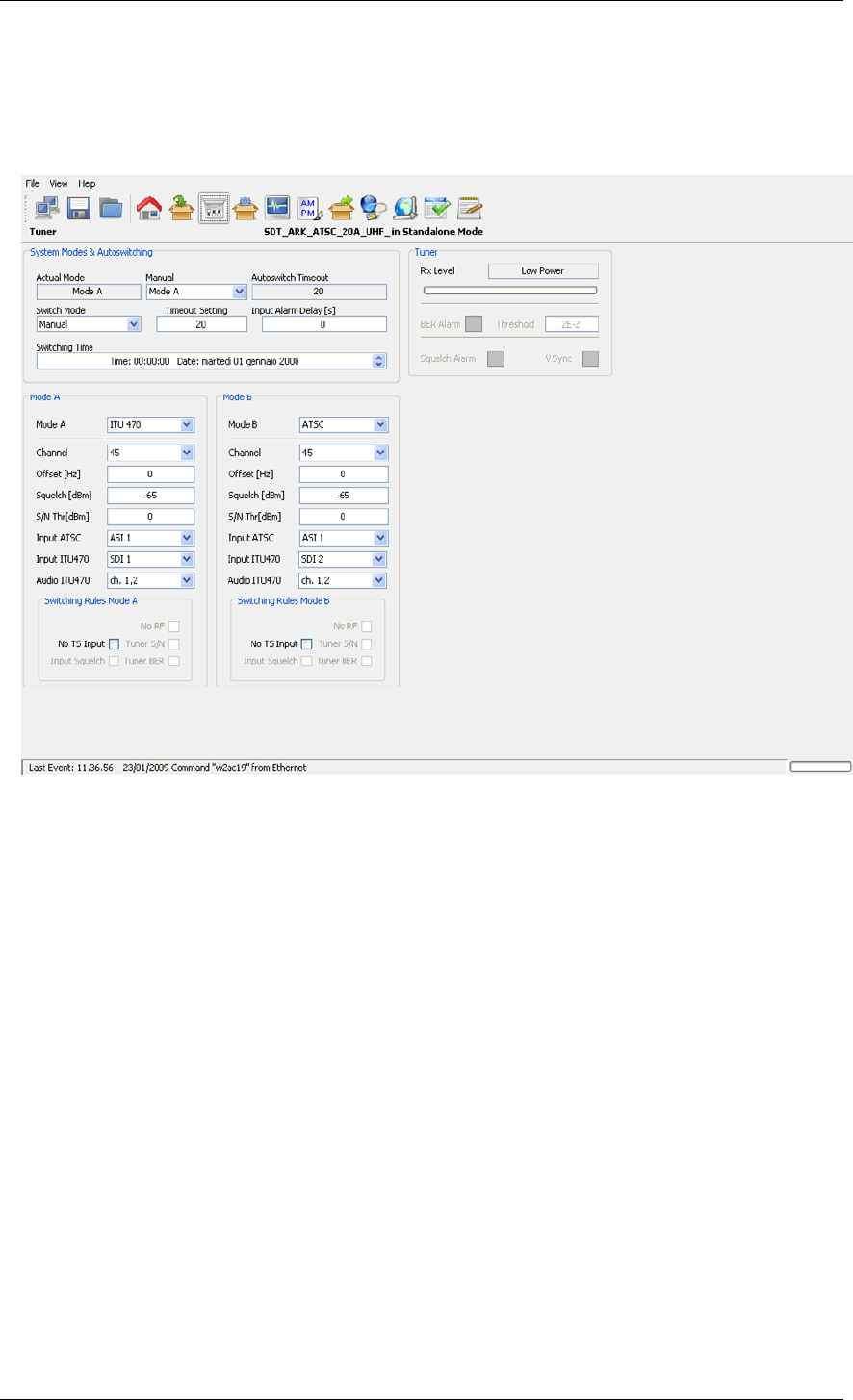

Fig. 17: Tuner window ..................................................................................................................................... 51

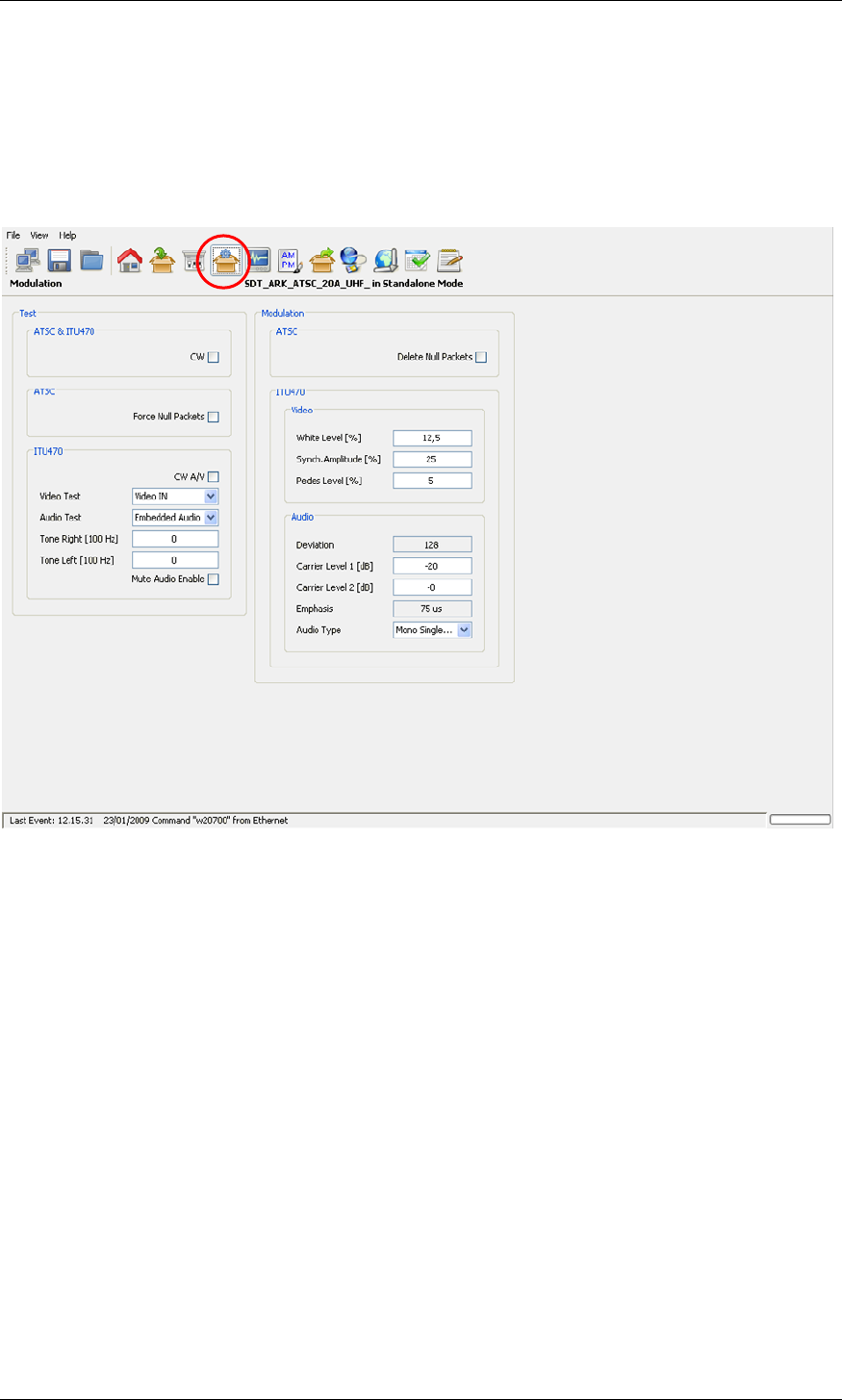

Fig. 18: Modulator window.............................................................................................................................. 58

Fig. 19: Adaptive Filter..................................................................................................................................... 64

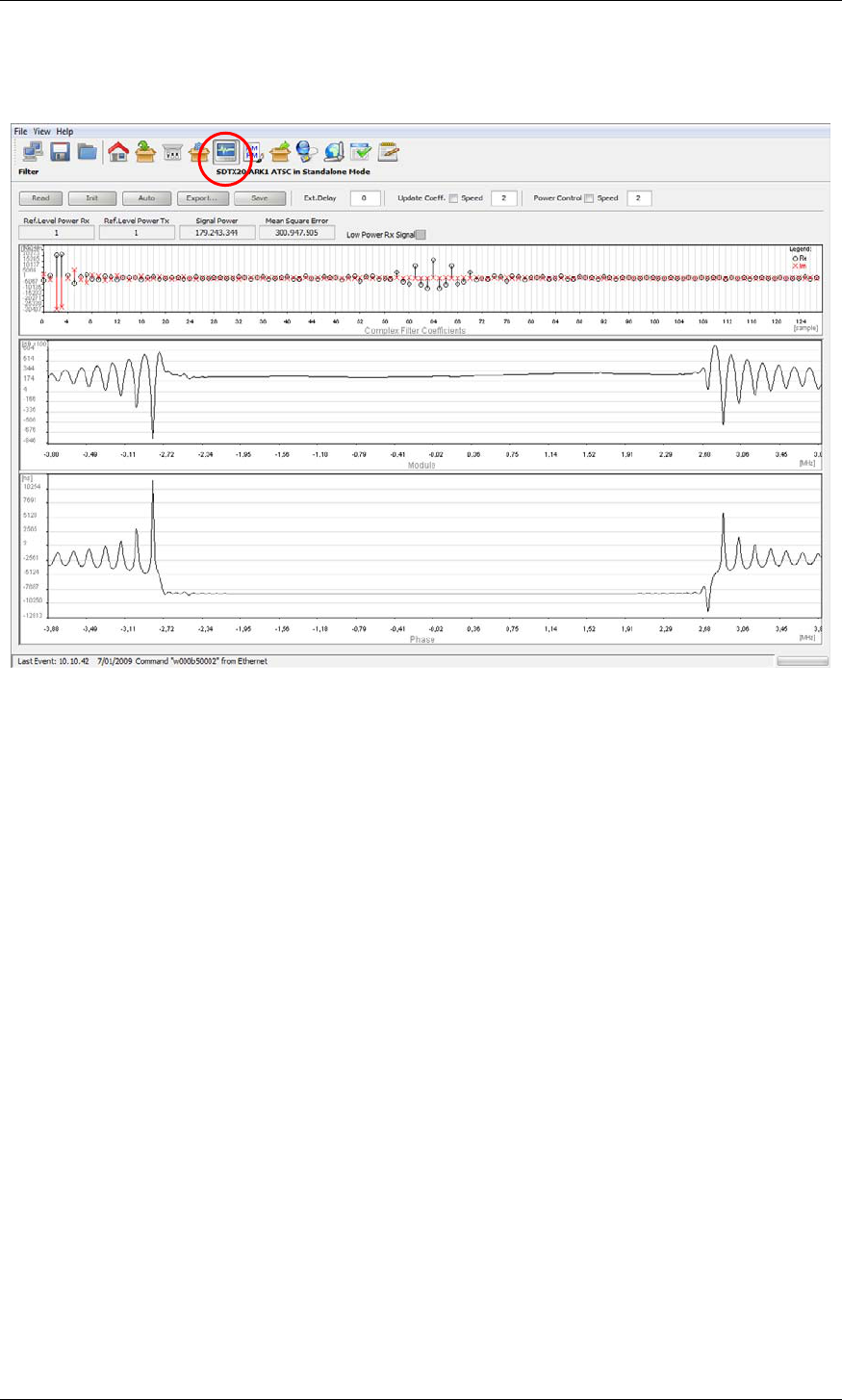

Fig. 20: Filter window....................................................................................................................................... 65

Fig. 21: Filter window: complex filter coefficients graph .................................................................................. 68

Fig. 22: Filter window: module graph............................................................................................................... 68

Fig. 23: Filter window: phase graph................................................................................................................. 68

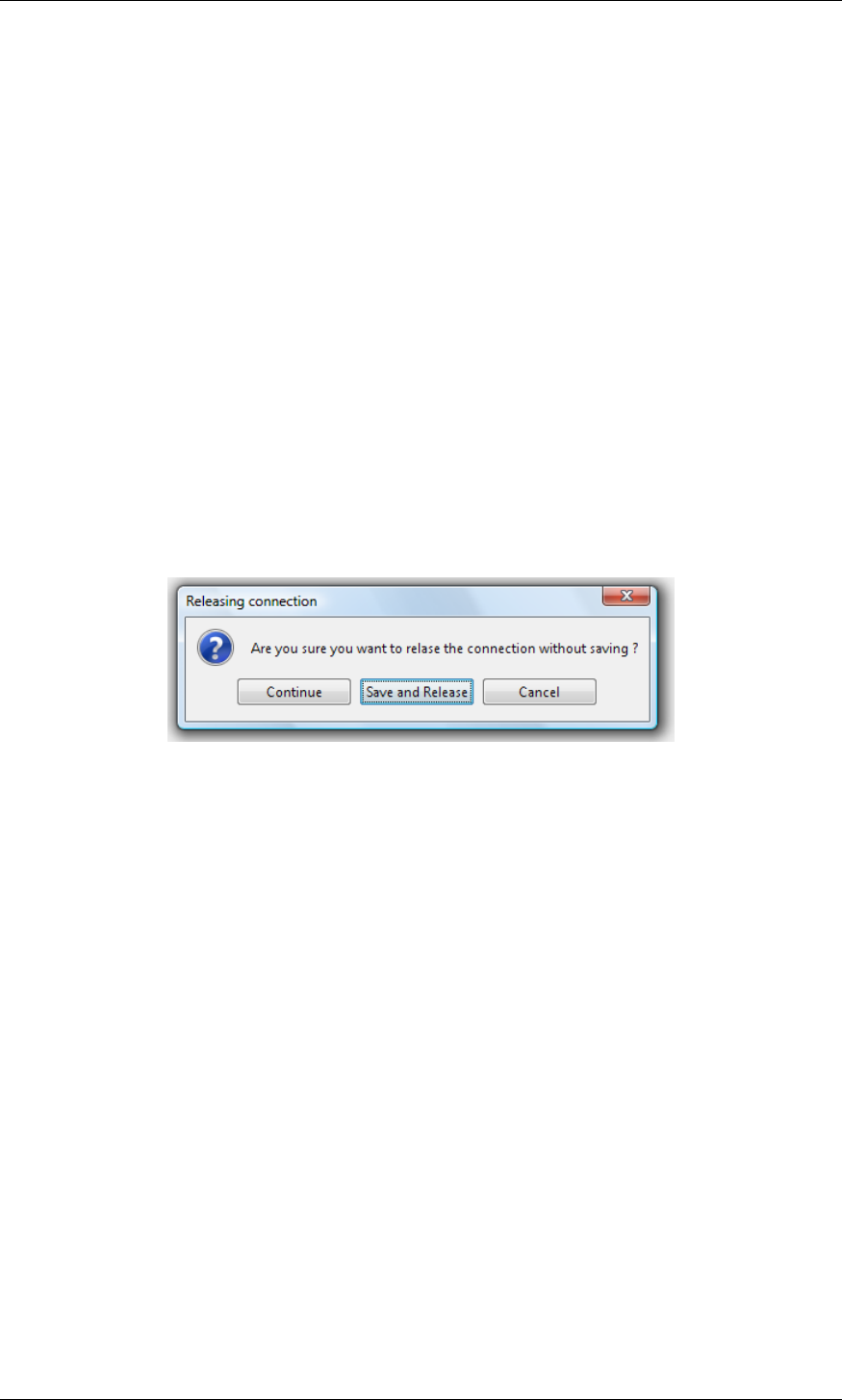

Fig. 24: Releasing connection ......................................................................................................................... 71

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 3

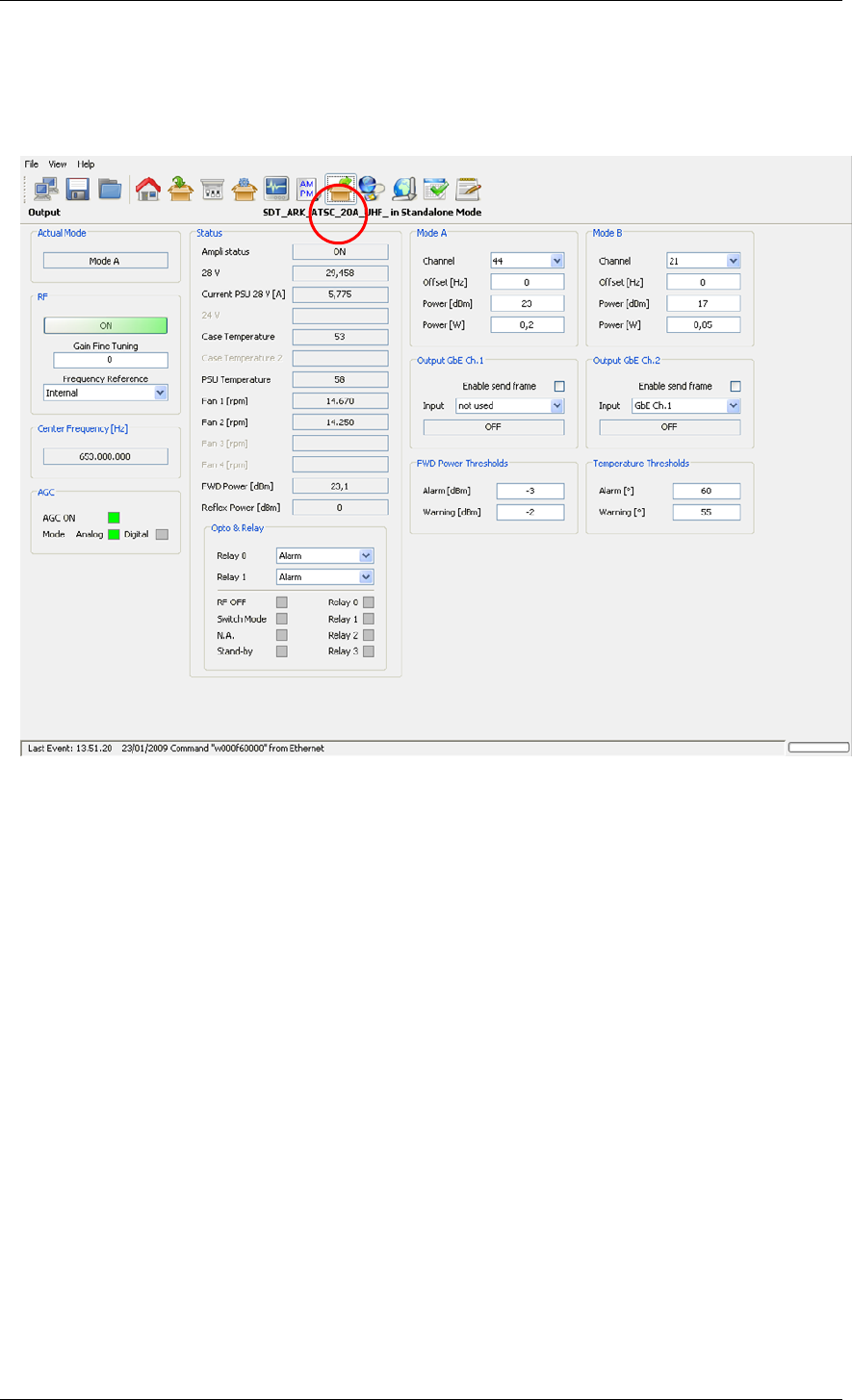

Fig. 25: Output window.................................................................................................................................... 72

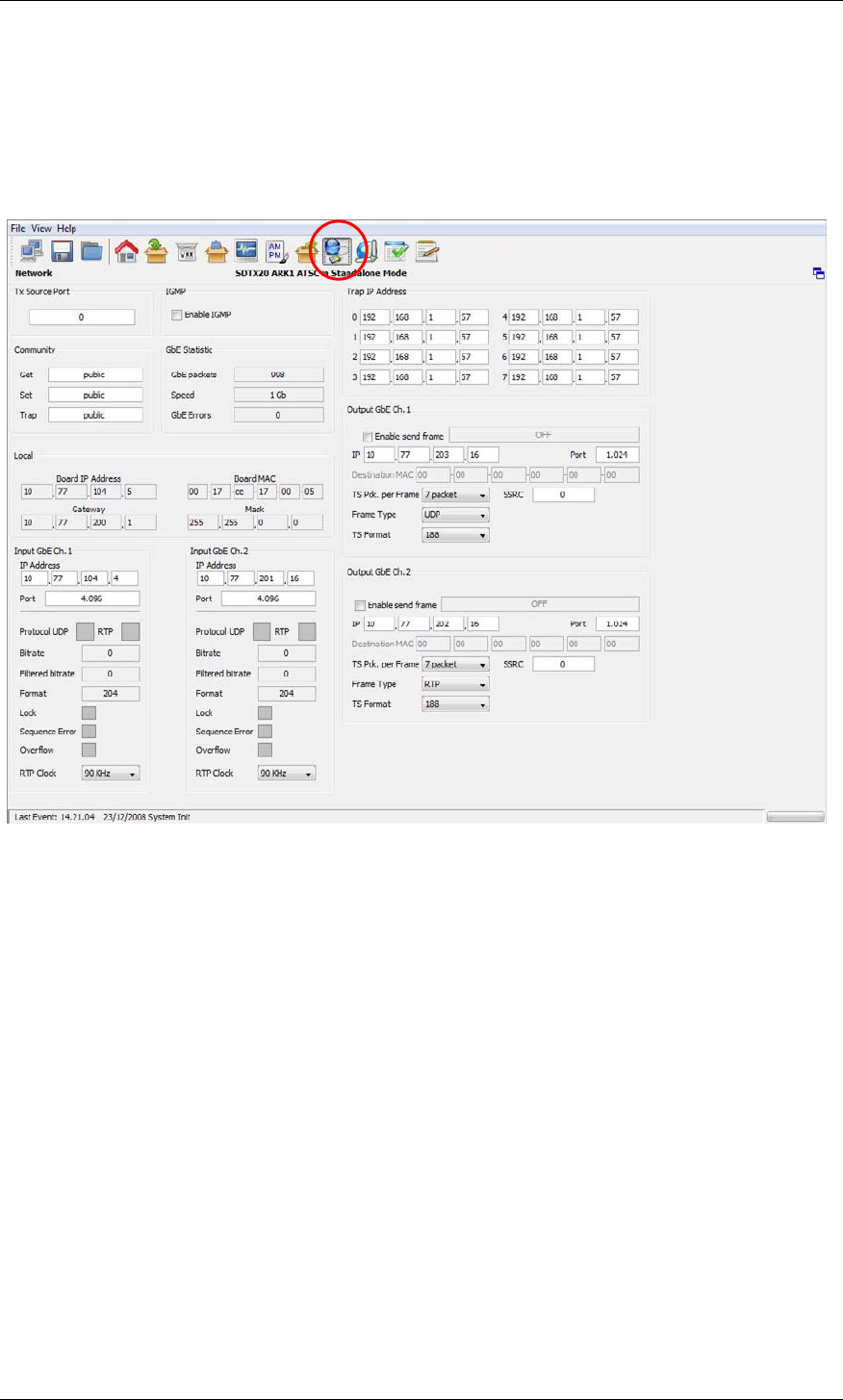

Fig. 26: Network window ................................................................................................................................. 83

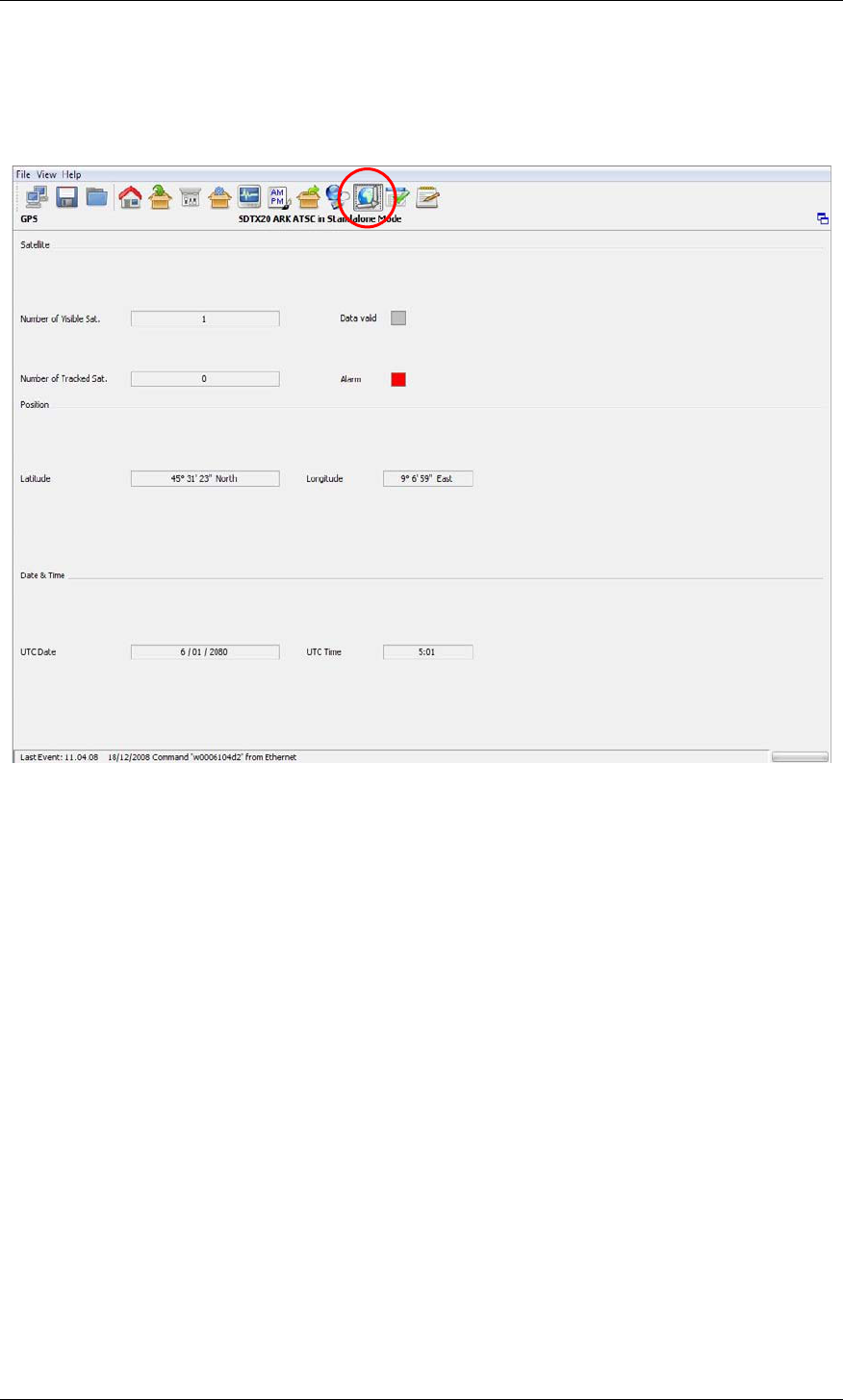

Fig. 27: GPS window ....................................................................................................................................... 90

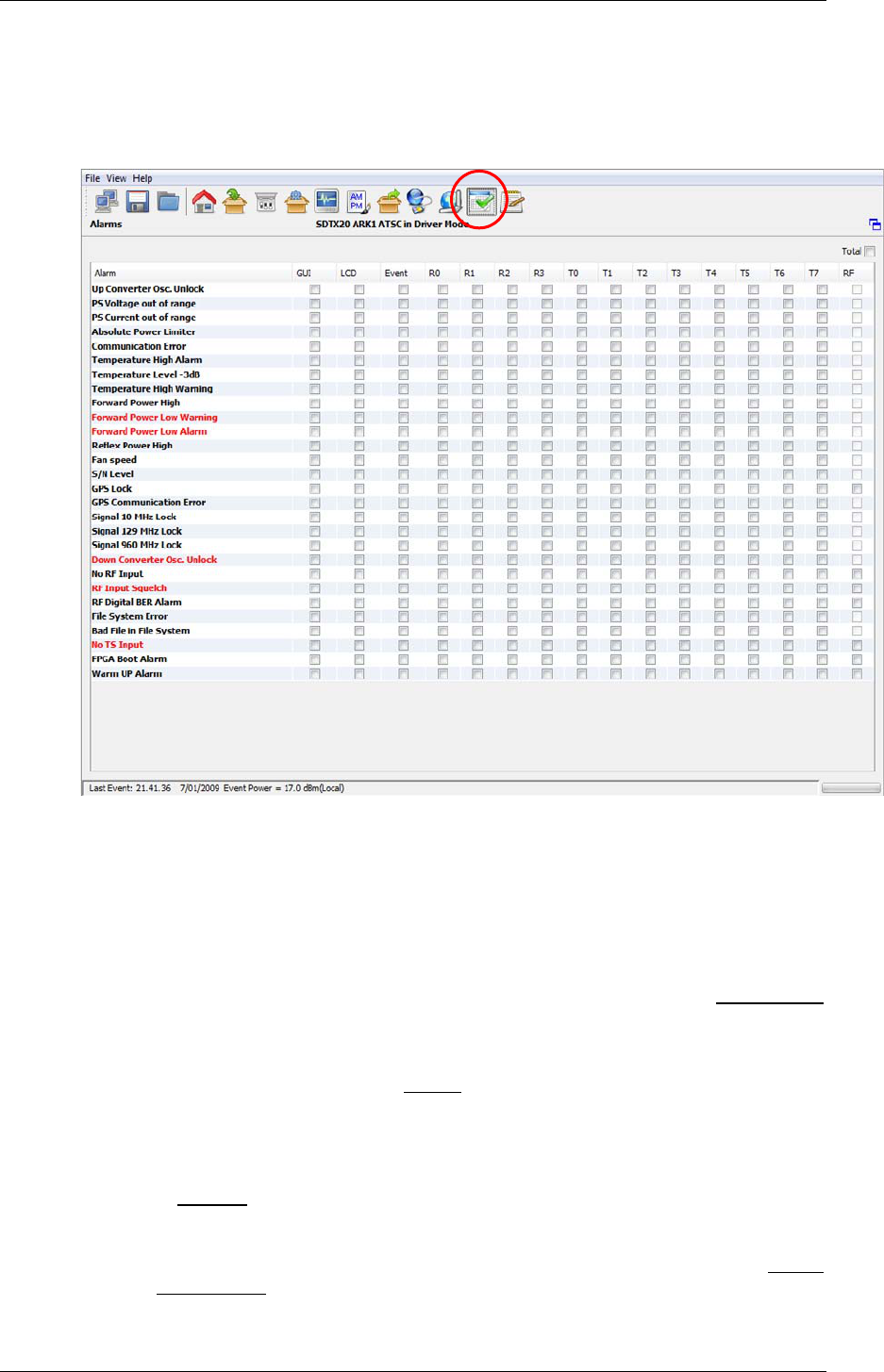

Fig. 28: Alarms window.................................................................................................................................... 92

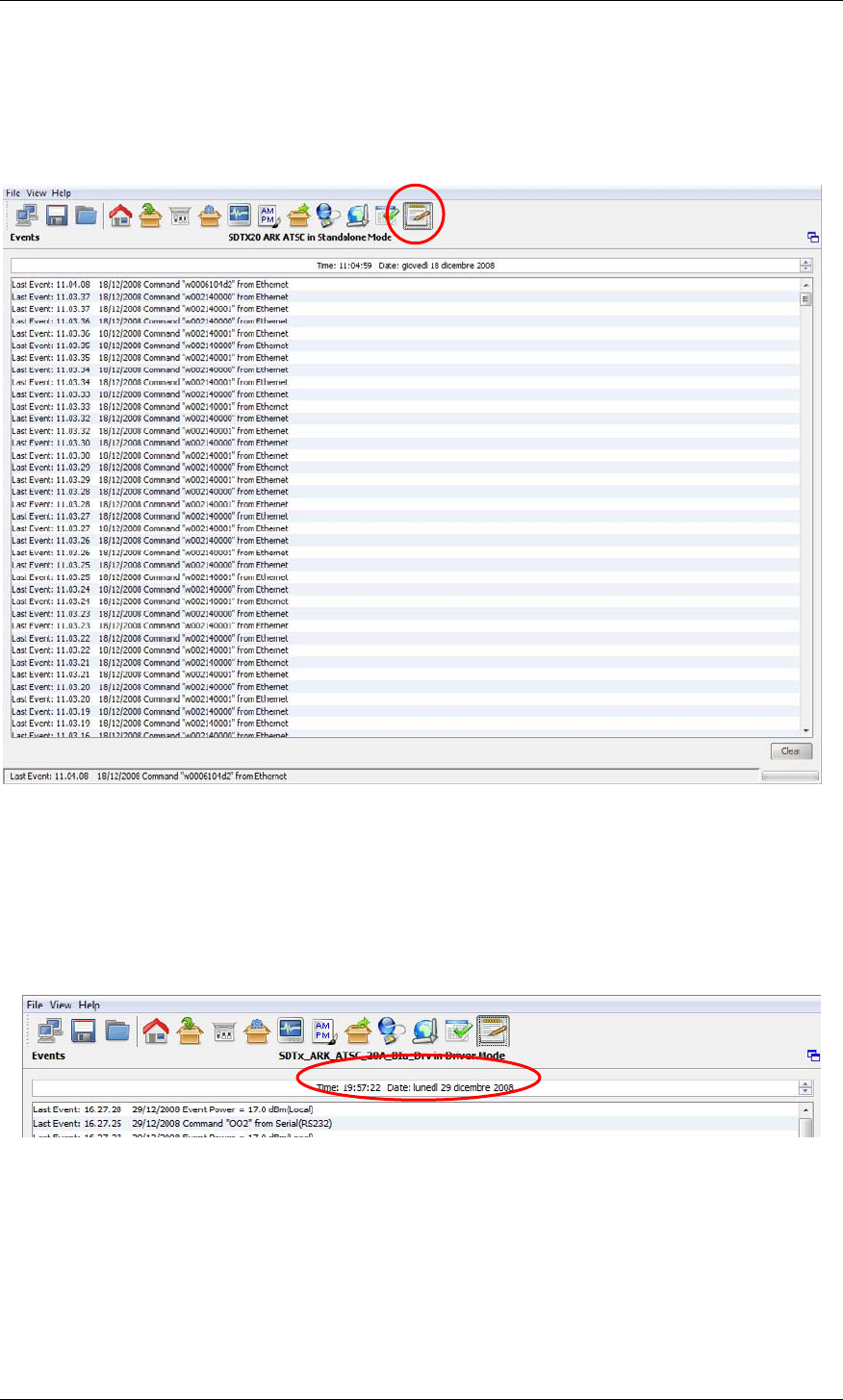

Fig. 29: Events window.................................................................................................................................. 102

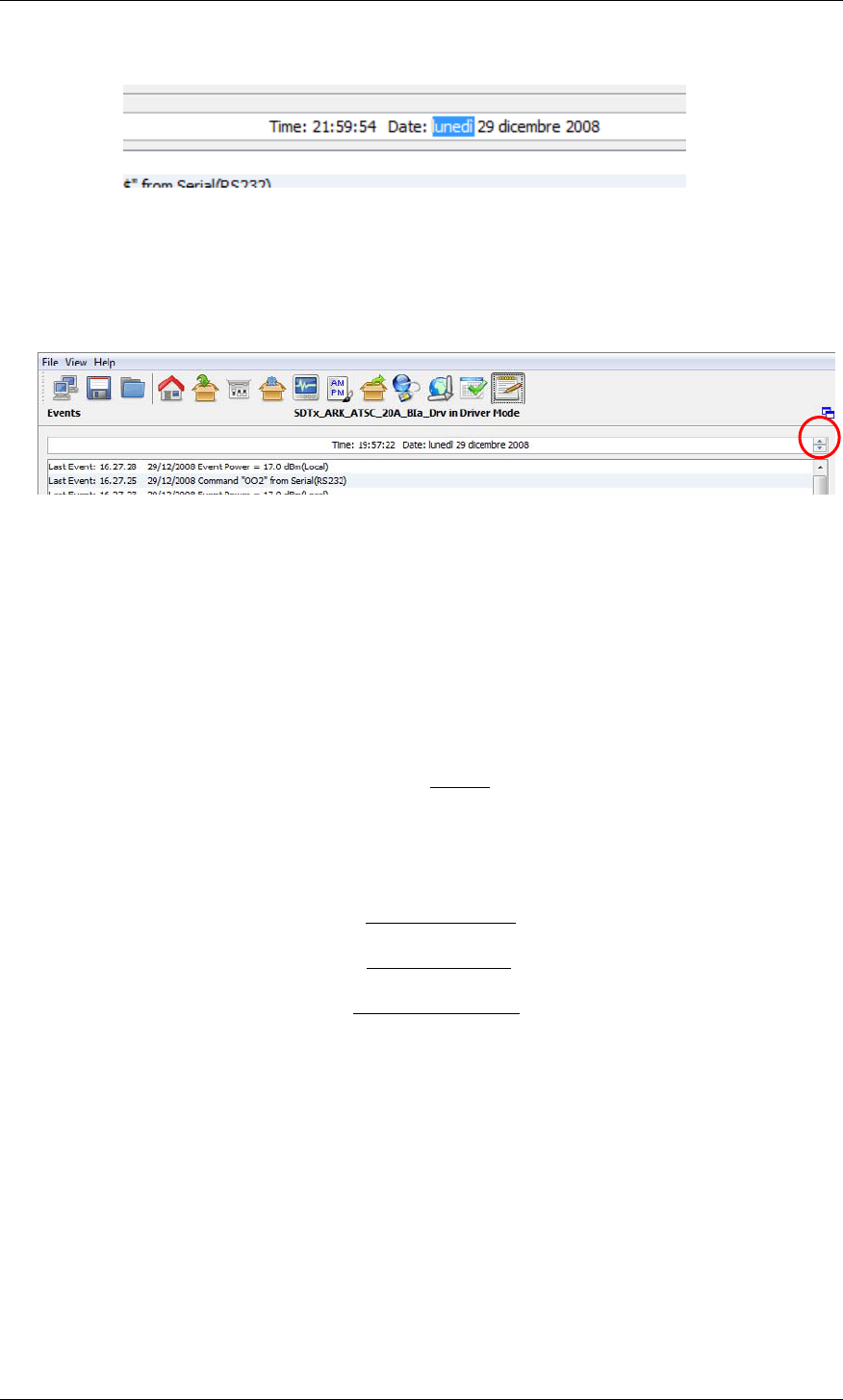

Fig. 30: Time/Date bar................................................................................................................................... 102

Fig. 31: Time/Date field selected ................................................................................................................... 103

Fig. 32: Lateral up-down arrows for Time/Date setting ................................................................................. 103

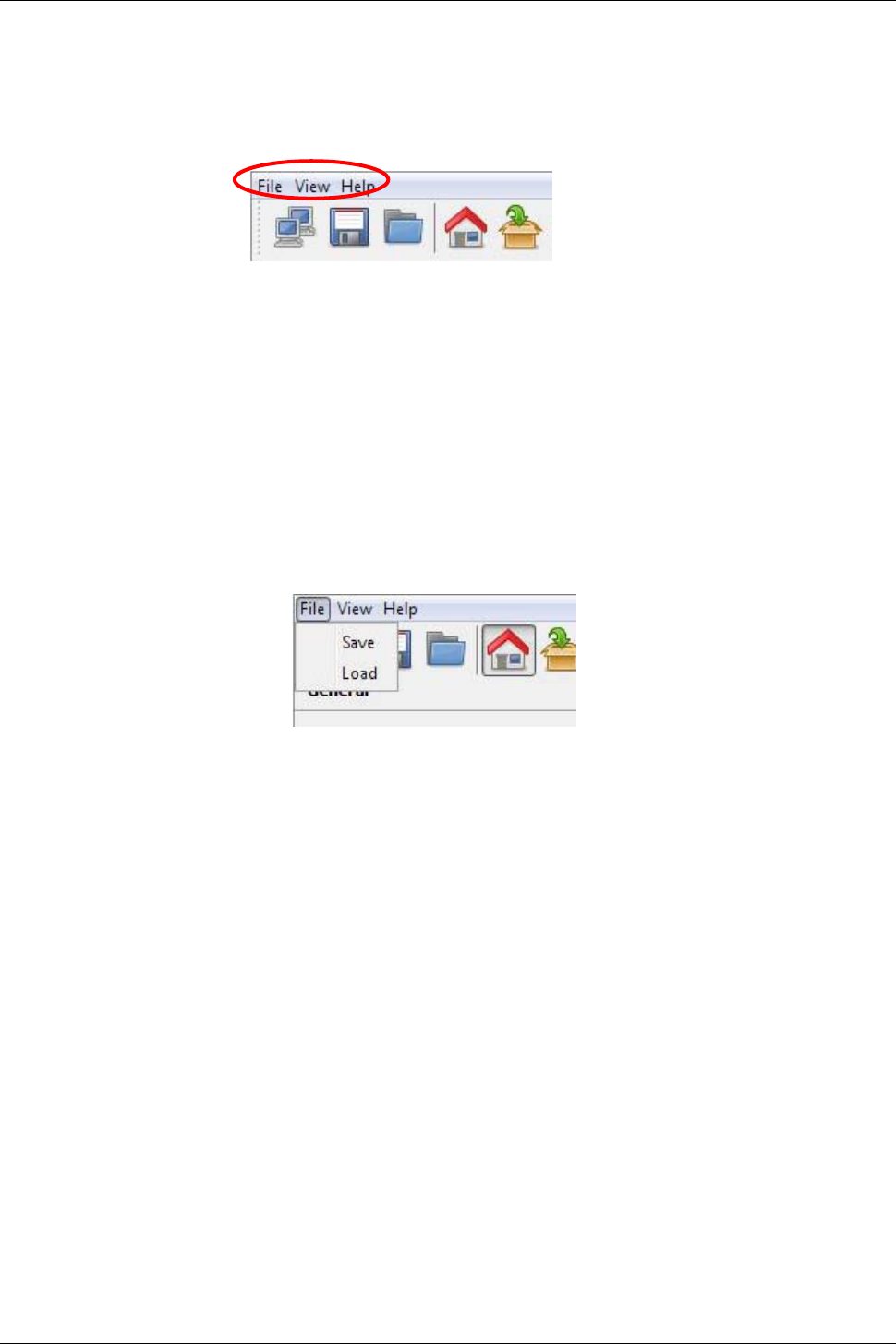

Fig. 33: Menu bar........................................................................................................................................... 113

Fig. 34: File menu .......................................................................................................................................... 113

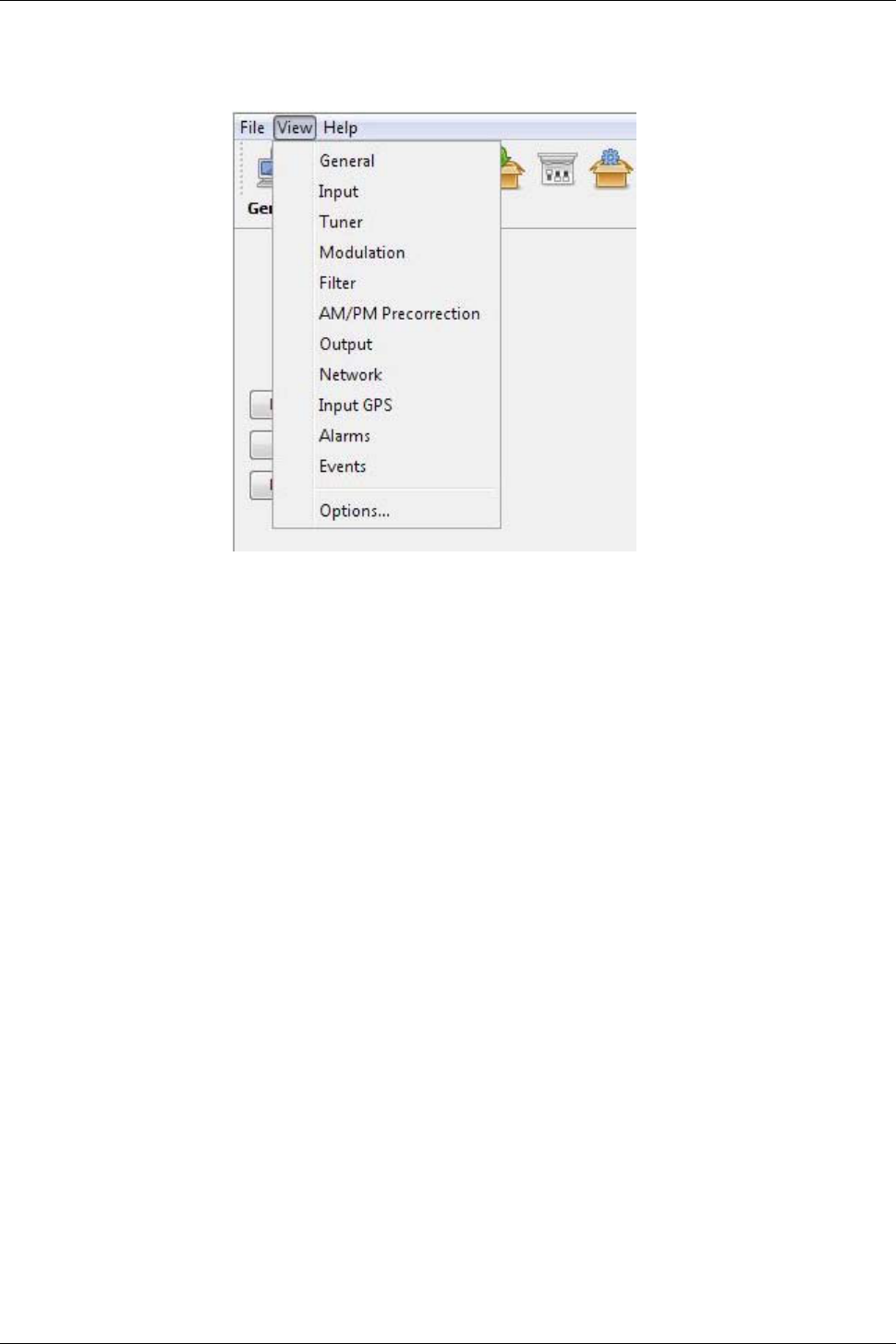

Fig. 35: View menu ........................................................................................................................................ 114

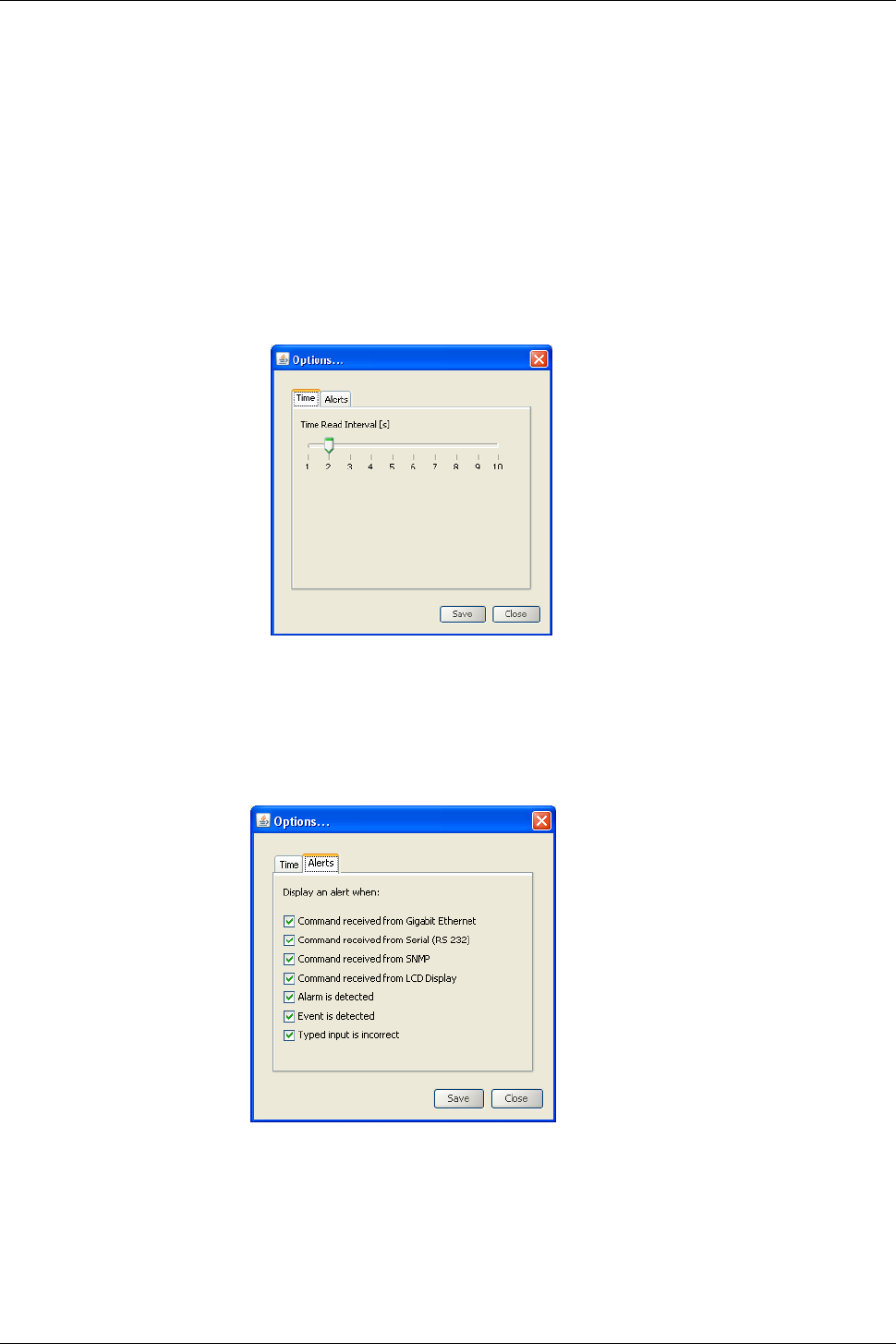

Fig. 36: Time window..................................................................................................................................... 115

Fig. 37: Alerts window.................................................................................................................................... 115

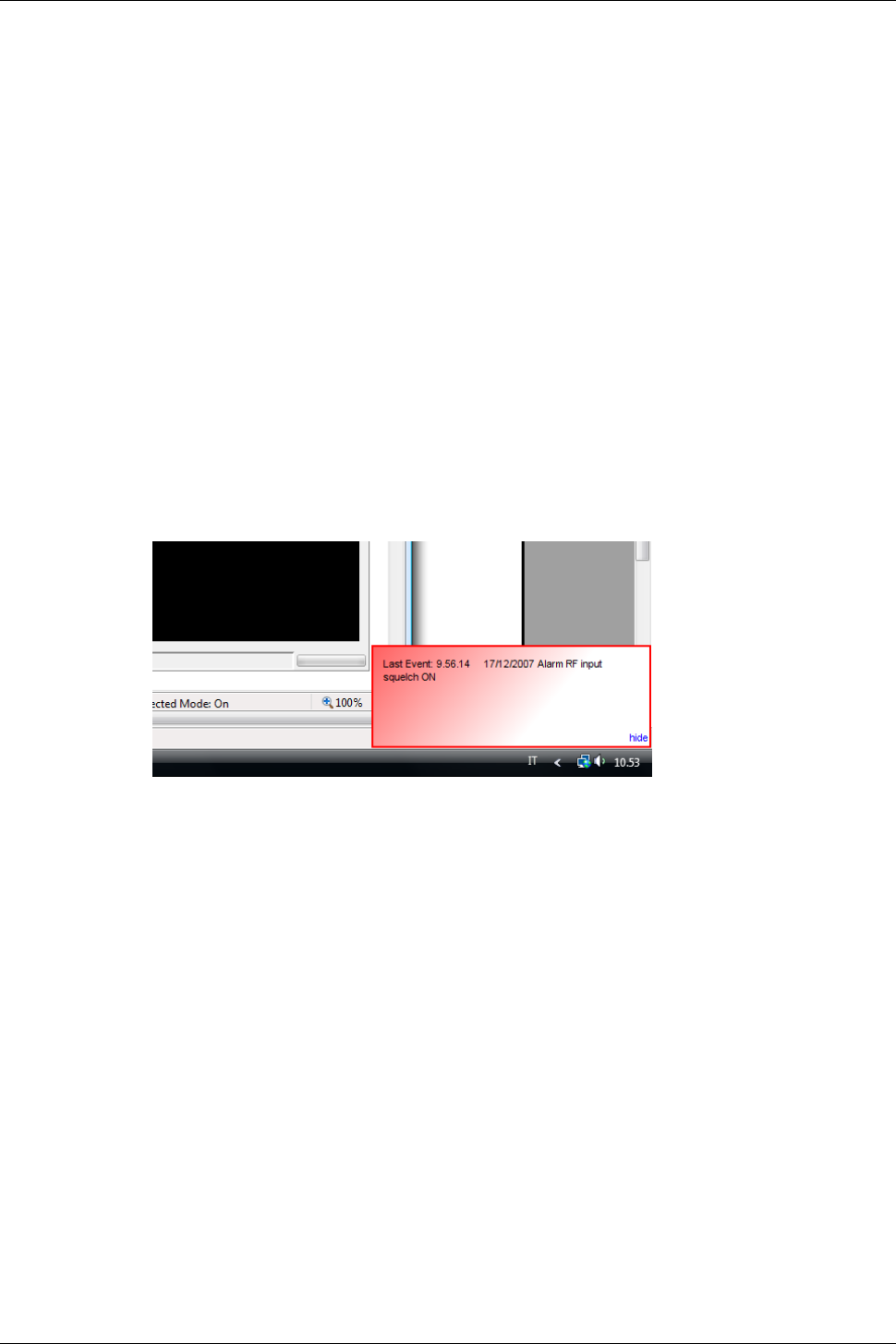

Fig. 38: Alert message................................................................................................................................... 116

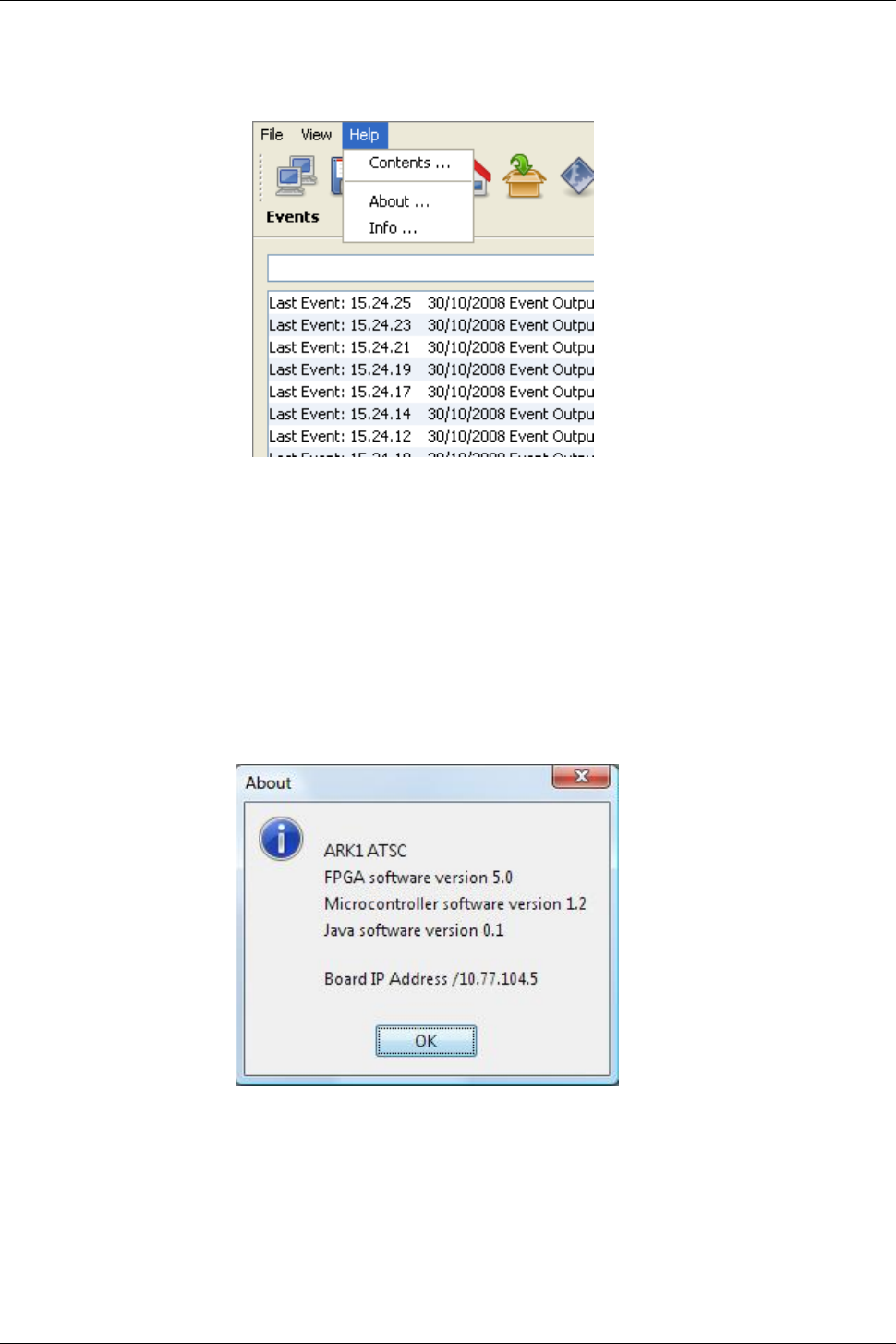

Fig. 39: Help menu ........................................................................................................................................ 117

Fig. 40: About window ................................................................................................................................... 117

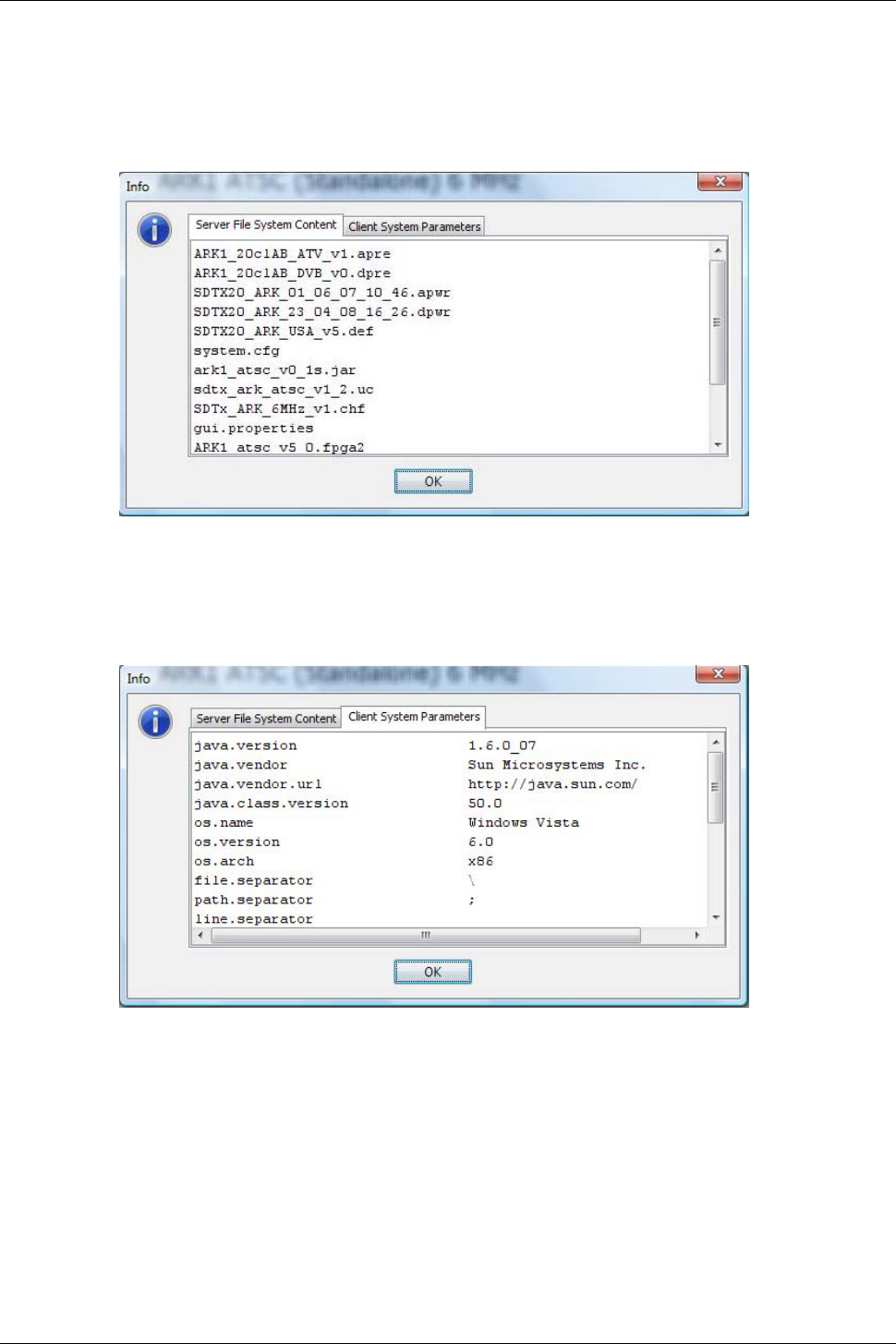

Fig. 41: Info window: file system content....................................................................................................... 118

Fig. 42: Info window: client system parameters ............................................................................................ 118

Fig. 43: Download Software Standalone ....................................................................................................... 119

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 4

3.1 INSTALLATION

3.1.1 INSTALLATION PROCEDURE CHECK OFF

Some procedures in this section contain steps preceded by a check box. Fill out or initial each step as it is

completed.

3.1.2 SITE SELECTION

Use the following specifications to establish criteria for site selection and equipment installation.

3.1.2.1 MOUNTING SPECIFICATIONS

¾ Mount.

• A floor-standing, open rack or permanent structure with vertical mounting members conforming to

EIA Standard 310 is recommended.

¾ Environment.

• Ambient temperature: 0°C to +45°C (room temperature or below is ideal)

• Relative humidity: 10% to 90%, non condensing

¾ Clearance.

• No clearance is required for sides.

• At least 1 U free space above and below the equipment is recommended to obtain adequate cooling.

• Access to the front requires approximately 20 centimeters clearance for making connections.

• Access to the rear requires approximately 20 centimeters clearance for making connections.

3.1.3 UNPACKING

The containers used to ship a MAGNUM transmitter will vary with the number of options ordered. If there is

any external damage to the containers, inform the shipping company and request that an agent be present

during unpacking. Carefully unpack the boxes (no special instructions are required) and note any damage

making pictures if possible.

After all items are unpacked, check the equipment received. If there are any damages or shortages, notify

the carrier and Screen Service BT immediately.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 5

3.1.4 EQUIPMENT MOUNTING

Install the transmitter in an EIA (Standard 310) 19 inch rack as follows:

 Place the equipment into the rack (2 units), align the mounting holes, and secure in place with four rack

screws.

 If configured to operate, make sure the "LINE" switch on the front panel of the POWER SUPPLY &

METERING module is OFF.

 Connect the power cord to an operating power source.

Note: We warmly suggest the installation of spike suppressors, line conditioners, isolation

transformers or other devices useful to protect the equipment.

 Connect the transmitting antenna cable to the "RF OUTPUT" connector in the rear panel.

 Connect the Transport Stream source/s, SAT RECEIVER , GPS, SNMP PORT, AUX REMOTE and

CVBS/R,G,B to the relevant connectors on the front and rear panel.

 REMEMBER TO CONNECT the equipment to the GROUND using the relevant screw located on the

rear panel.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 6

3.1.5 FRONT PANEL

1 2 3 4 5 6 7 8 9 10

ARK 1 Front Panel

n. Label Description

1 RF INPUT

2 GPS IN

3 ASI OUTPUT HP

4 ASI OUTPUT LP

5 DIGITAL in 1

6 DIGITAL in 2

7 DIGITAL in 3

8 DIGITAL in 4

9 GBE 1

10 LCD Display

3.1.5.1 REAR PANEL

1 2 3 4 5 6 7a 7b 8

ARK 1 Rear Panel

n. Label Description

1 AC INPUT

2 AC/ DC FAN

3 GND

4 AUX REMOTE

5 10 MHz INPUT

6 1 PPS INPUT

7,a,b FANs EQUIPMENT

8 RF OUTPUT N Type (50W) female connector, 50 Ω

9 RF MONITOR BNC Type female connector, 50 Ω

3.1.5.2 REAR PANEL CONNECTORS

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 7

AUX REMOTE CONNECTOR

Sub-D 25 Male.

PIN ASSIGNMENT REMARKS

2 Not used

3 Alarm reset in opto active to gnd

4 Remote STBY in opto active to gnd

5 GND OPTO

9 SERIAL 485/232

10 SERIAL 485/232

12 RF OFF in opto active to gnd

17 COM RL 0 NOR. CLOSED

18 RL 0

19 COM RL 1 NOR. CLOSED

20 RL 1

21 COM RL2 NOR. CLOSED

22 RL 2

23 COM RL 3 NOR. CLOSED

24 RL 3

Fig. 1: AUX REMOTE CONNECTOR

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 8

3.2 MULTIMETER

The following paragraphs describe the local user interface for ARK1.

This user interface is composed of LCD Display, seven buttons and two status leds.

Here below is depicted the ARK1 Front Panel.

• STAND-BY: push this button (lie in wait for two seconds) to put the equipment on

STAND-BY mode. The orange led lights up and the written STAND-BY MODE

appears on the display. The remote Stand-by mode is enforceable only if on JAVA

interface this feature is enabled.

• ON: push this button (lie in wait for two seconds) to turn on the equipment. The

green led lights up and the MAIN MENU is displayed.

• OK: push this button to select or to confirm the subwindow or the value respectively.

Touching the screen with a finger the green led lights up.

• ESC: push this button to quit a submenu and to return to the previous one. Touching

the screen with a finger the green led lights up.

• ALARM: when an alarm occurs the RED LED lights up.

• UP ARROW: push this botton to scroll up menus or to increase a value. Touching

the screen with a finger the green led lights up.

• DOWN ARROW: push this botton to scroll down menus or to decrease a value.

Touching the screen with a finger the green led lights up.

• LEFT ARROW: push this botton to move within a string. Touching the screen with a

finger the green led lights up.

• RIGHT ARROW: push this botton to move within a string. Touching the screen with

a finger the green led lights up.

ALARM

ESCAPE ON

STANB-BY

LEFT ARROW

UP ARROW

RIGHT ARROW

DOWN ARROW

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 9

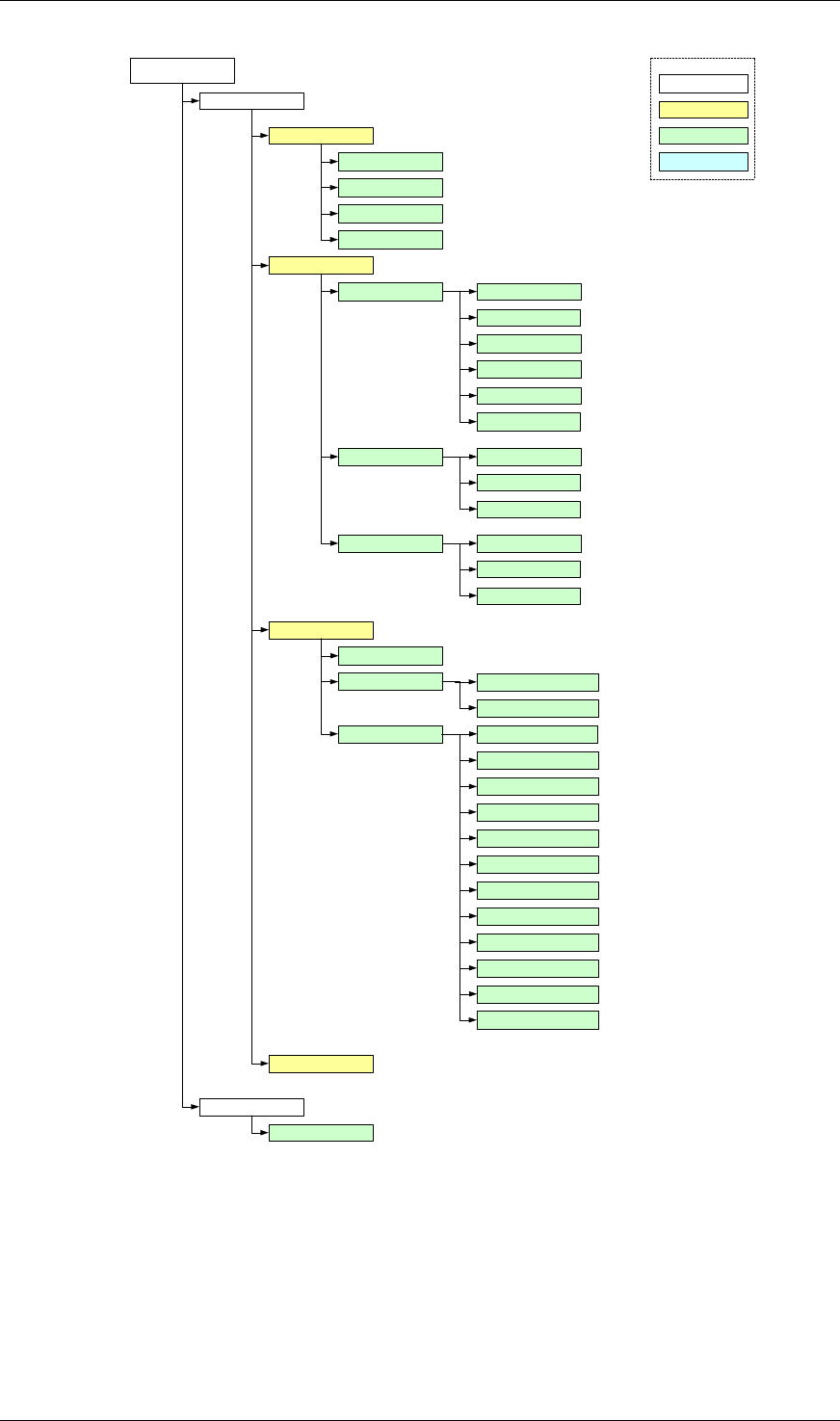

3.2.1 LOCAL INTERRFACE MENU TREE

Main display

Network setup

System Status

IP addr GBE

Gateway GBE

Netmask GBE

System

A1:A2:A3:A4

G1:G2:G3:G4

N1:N2:N3:N4

Actual mode

Amplifier status

Power supply

Temperature

Fans speed

Real Time Clock

Optos status

Relays status

Input

ATSC:

Multiple choice

Data R

LEGEND

Data W

Current Mode A / B

Tx ATSC / Tx ITU 470

Voltage

Current

Case

PSU

FAN 1

FAN 2

Time

Date

Opto1

Opto2

Opto3

Opto4

Relay1

Relay2

Relay3

Relay4

Input selected

Lock

Bitrate

Useful

Overflow

Format

Errors

Status

ITU 470: Input Selected

Lock

Mode

Audio

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 10

Main display

Tuner

Multiple choice

Data R

LEGEND

Output

Output RF status

Frequency ref

Channel

Offset

FWD power

RFL power

Data W

System status

Modulation

Alarms

Alams list

Input channel

Input offset

Input squelch

Rx level

CW A/V

Pedes level

White level

Synch ampl

Deviation

video test

Audio test

Audio mute

Force Null Pck

Delete Null Pck

Carrier level 1

Carrier level 2

Emphasis

Audio type

ATSC:

ITU 470:

Installer version

RTP1 Input

Status

RTP2 Input

Status

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 11

Reset system

Change mode

Mode A

Mode B

Yes

Time and Date

Time

Date

Main display

menu Menu

Multiple choice

Data R

LEGEND

Data W

Fig. 2: Local Interface Menu Tree

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 12

3.2.2 BOOT AND WELCOME MESSAGE

Turning on the equipment, the display shows the progress bar as follow:

When the boot is over, the board is ready.

Press ESC to enter the main menu, otherwise after one minute waiting the idle status message

appears.

3.2.3 Idle Menu

This menu appears after one minute waiting from the last touch. Information contained in the

Idle Menu are described in next table.

Screen Service

ARK - ATSC/ITU.470

Up Converter check

Init : [ ] Wait

Screen Service

ARK - ATSC/ITU.470

System Init

Init : [ ] Wait

Screen Service

ARK - ATSC/ITU.470

Boot FPGA

Init : [ ] Wait

Screen Service

ARK - ATSC/ITU.470

Up Converter check

Init : [ ] Wait

Screen Service

ARK - ATSC/ITU470

Start system

Init : [ ] Ready

Screen Service

–

ATSC/ITU.470

10.77.104.4

Ready

ARK –ITU 470

In: RTP1

Out 23.1dBm CH:22

UTC: 14:11 08/11/06

ARK -ATSC

In: RTP1

Out 23.1dBm CH:22

UTC: 14:11 08/11/06

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 13

Table 1. Local User Interface: Idle Menu

Information Description

Operating mode

• ARK - ATSC: ATSC modulator

• ARK - ITU 470: NTSC modulator

Input • In: input selected

Output Power and Channel • Out: output power and channel

UTC • Time and date coming from GPS

receiver

Press ESC to enter the MAIN MENU.

3.2.4 Main Menu

This menu shows five SUBMENUS. It is possible to view them sliding the menu up and

down, with the UP or DOWN ARROWS, and to select one of them by pushing on the OK

button.

Submenus contained in the Main Menu are described in next table.

Submenu Description

Network setup

Enter this submenu to change:

• Board IP address

• Gateway address

• Netmask

System Status

Enter this submenu to monitor:

• Selected mode / System HW status

• Selected input statistics

• Tuner status

• Output status and settings

• Actual modulation

• Installer version

All information are refreshed every 5

seconds.

Alarms Enter this submenu to view the alarm list

Change Mode

Network setup

System Status

/ OK:Enter

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 14

Reset system Enter this submenu to reset the device.

Change mode Enter this submenu to change operating

mode (A or B).

Time and Date Enter this submenu to change Time and

Date

3.2.5 LCD alarms

Through the LCD Alarms mask it is possible to select which alarm has to be notified on LCD

display. The alarm button is lighted and when an alarm condition occurs, alarms status is

displayed in the Alarms submenu.

The following table lists the alarms messages displayed on LCD, associated to the

corresponding alarm (refer to Alarms paragraph for further information about alarms and

their masks).

Table 2.

Alarms descriptions list

Alarm Alarm Message

Up converter Osc. Unlock UPCV not locked

PS Voltage out of range PS V out of range

PS Current out of range PS I out of range

Absolute Power Limiter Abs. pwr high

Communication error UPCV dialog error

Temperature High Alarm Temperature high

Temperature Level-3dB Temp alarm (-3dB)

Temperature High Warning Temp warning

Forward Power High FWD power high

Forward Power Low Warning FWD low warning

Forward Power Low Alarm FWD low alarm

Reflex Power High RFL power high

Fan Speed Fans warning

S/N level RF in S/N low

GPS Lock GPS not locked

GPS Communication Error GPS dialog error

Signal 10 MHz Lock 10MHz not detected

Signal 129 MHz Lock 129MHz not detected

Signal 960 MHz Lock 960MHz not detected

Down Converter Osc. Unlock DWCV not locked

No RF Input In. not detected

RF Input Squelch RF in Squelch

RF Digital Ber Alarm RF BER high

File System Error FS wrong

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 15

Alarm Alarm Message

Bad File in File system File error

No TS Input In. not detected

FPGA Boot alarm FPGA boot err

Warm up alarm Sys. warm up

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 16

3.3 SNMP – SIMPLE NETWORK MANAGEMENT PROTOCOL

The SNMP model assumes the existence of managers and agents. A manager is a software

module in a management system responsible for managing the device. An agent is a

software module in a managed device responsible for maintaining local management

information and delivering that information to a manager via SNMP. A management

information exchange can be initiated by the manager (via polling) or by the agent (via trap).

Interaction between a user of board management and the board management software

takes place across a user interface. Such an interface is needed to provide users with a

monitoring and controlling tool in order to allow some parameters to be viewed or set locally.

The operations that are supported in SNMP network management are the alteration and

inspection of variables. Specifically, three general-purpose operations may be performed on

scalar objects:

• Get: a management station retrieves a scalar object value from a managed station.

• Set: a management station updates a scalar object value in a managed station.

• Trap: a managed station sends an unsolicited scalar object value to a management

station.

Management information accessible via SNMP is maintained in a management information

base (MIB) at each manager and agent node.

On manager side, ARK1 ATSC management system has been tested with MG-SOFT as

MIB Browser; besides compatibility with any other MIB browser is assured.

The following MIB libraries are required for the SNMP management of the equipment:

• SCREENSERVICE-SCB-BROADCASTING-MIB.my;

• ark1atsc_0_6.MY.

Compatibility tested and assured with SNMP version 1 and 2.

3.3.1 SNMP Protocol Preferences

Go to SNMP Protocol Preferences. The following parameters should be set in order to

correctly configure the SNMP Manager:

• SNMP protocol version: SNMPv1;

• Read Community: the same of the one set in the Get field of Java interface,

community section;

• Set Community: the same of the one set in the Set field of Java interface,

community section;

• Timeout [s]: user defined;

• Retransmits: user defined;

• Port number: 161.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 17

Next figure illustrates how to configure SNMP Protocol Preferences using MG_SOFT MIB

Browser as an example.

Fig. 3: SNMP Protocol Preferences

3.3.2 Monitoring

All status and setup information can be queried via SNMP. To get the setup and status

information you need a management system (or a special MIB browser).

Next figure, referring to iReasoning MIB Browser as an example, is a broad view of the

ARK1 ATSC tree structure.

Fig. 4: ARK1 ATSC MIB Browser

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 18

3.3.3 OID

Any status and setup information has an OID (Object Identifier). The OID of the ARK1 ATSC

system is:

• screenservice_ark1atsc: 1.3.6.1.4.1.21678.186

iso(1).org(3).odd(6).internet(1).private(4).enterprises(1).screenservice(21678).scree

nservice_ark1atsc(186)

3.3.4 SNMP tree structure

The screenservice_ark1atsc tree has 12 nodes and 1 leave.

The nodes are:

• ark1atsc_SystemInfo: global description of the system.

• ark1atsc_Mode: shows and manages board modes.

• ark1atsc_Input: shows and manages inputs.

• ark1atsc_Modulation: shows and sets local modulation.

• ark1atsc_Output: shows and manages the output.

• ark1atsc_HW_monitor: shows the amplifier status.

• ark1atsc_Gps: shows the collection of live data from GPS receiver.

• ark1atsc_Clock: shows and sets 10MHz and 1PPS source.

• ark1atsc_Network: shows and sets network parameters.

• ark1atsc_Alarm: shows and manages system alarms.

• ark1atsc_Config: allows the management of the machine configuration.

• ark1atsc_TrapAlarm: is the OID used in the trap message:

Table 3. ARK ATSC SNMP Tree Structure

OID Name R\W Description

1 iso

1.03 org

1.03.06 dod

1.3.6.1 internet

1.3.6.1.2 mgmt

1.3.6.1.2.1 mib-2

1.3.6.1.2.1.1 system

1.3.6.1.2.1.1.1 sysDescr R

1.3.6.1.2.1.1.2 sysObjectID R

1.3.6.1.2.1.1.3 sysUpTimeInstance R

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 19

OID Name R\W Description

1.3.6.1.2.1.1.4 sysContact R

1.3.6.1.2.1.1.5 sysName R

1.3.6.1.2.1.1.6 sysLocation R

1.3.6.1.2.1.1.7 sysServices R

1.3.6.1.4 private

1.3.6.1.4.1 enterprise

1.3.6.1.4.1.21678 screenservice

1.3.6.1.4.1.21678.186 screenservice_ark1atsc

1.3.6.1.4.1.21678.186.1 ark1atsc_SystemInfo

1.3.6.1.4.1.21678.186.1.1 ark1atsc_SystemInfoIdentifier R Identification name of the equipment managed

1.3.6.1.4.1.21678.186.1.2 ark1atsc_SystemInfoName R Manufacturer name

1.3.6.1.4.1.21678.186.1.3 ark1atsc_SystemInfoDescription R Description of the equipment managed

1.3.6.1.4.1.21678.186.1.4 ark1atsc_SystemInfoLocation R Geographical implantation

1.3.6.1.4.1.21678.186.1.5 ark1atsc_SystemInfoContact R

The person to contact in case of problems with

the managed element

1.3.6.1.4.1.21678.186.1.6 ark1atsc_SystemInfoFamilyNumber R Device family number

1.3.6.1.4.1.21678.186.1.7 ark1atsc_SystemInfoId R System info ID

1.3.6.1.4.1.21678.186.1.8 ark1atsc_SystemInfoSerialNumber R Device serial number

1.3.6.1.4.1.21678.186.1.9 ark1atsc_SystemInfoVersion

1.3.6.1.4.1.21678.186.1.9.1 ark1atsc_VersionUc R UC file version

1.3.6.1.4.1.21678.186.1.9.2 ark1atsc_VersionFpga R Fpga file version

1.3.6.1.4.1.21678.186.1.9.3 ark1atsc_VersionSnmp R Snmp file version

1.3.6.1.4.1.21678.186.1.9.4 ark1atsc_VersionPsu

1.3.6.1.4.1.21678.186.1.9.4.1 ark1atsc_PsuFamily R PSU family number

1.3.6.1.4.1.21678.186.1.9.4.2 ark1atsc_PsuSerial R PSU serial number

1.3.6.1.4.1.21678.186.1.9.5 ark1atsc_VersionUpconverter

1.3.6.1.4.1.21678.186.1.9.5.1 ark1atsc_UpconverterFamily R Upconverter family number

1.3.6.1.4.1.21678.186.1.9.5.2 ark1atsc_UpconverterSerial R Upconverter serial number

1.3.6.1.4.1.21678.186.1.9.5.3 ark1atsc_UpconverterLib R Upconverter software library number

1.3.6.1.4.1.21678.186.1.9.5.4 ark1atsc_UpconverterVer R Upconverter version

1.3.6.1.4.1.21678.186.2 ark1atsc_Mode

1.3.6.1.4.1.21678.186.2.1 ark1atsc_ModeSwitch RW

Switch mode selector 0:manual 1:auto 2:opto

3:time

1.3.6.1.4.1.21678.186.2.2 ark1atsc_ModeManualSelector RW Manual mode 0: modeA 1: modeB

1.3.6.1.4.1.21678.186.2.3 ark1atsc_ModeActual R Actual mode 0: modeA 1: modeB

1.3.6.1.4.1.21678.186.2.4 ark1atsc_ModeSelectorA RW Mode A selector 0: ITU 470 1: ATSC

1.3.6.1.4.1.21678.186.2.5 ark1atsc_ModeSelectorB RW Mode B selector 0: ITU 470 1: ATSC

1.3.6.1.4.1.21678.186.2.6 ark1atsc_ModeAutoSwitchTmo RW Auto-switch timeout (s)

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 20

OID Name R\W Description

1.3.6.1.4.1.21678.186.2.7 ark1atsc_ModeActualTmo R Actual auto-switch timeout (s)

1.3.6.1.4.1.21678.186.2.8 ark1atsc_ModeAutoSwitchRuleA RW

Auto-switch rules mode A (bit to alarm

association) 0: no rules 4: no TS input rule

1.3.6.1.4.1.21678.186.2.9 ark1atsc_ModeAutoSwitchRuleB RW

Auto-switch rules mode B (bit to alarm

association) 0: no rules 4: no TS input rule

1.3.6.1.4.1.21678.186.2.10 ark1atsc_ModeSwitchingTime

1.3.6.1.4.1.21678.186.2.10.1 ark1atsc_SwitchingTimeYear RW Switching time: year setting (starting from 2000)

1.3.6.1.4.1.21678.186.2.10.2 ark1atsc_SwitchingTimeMonth RW Switching time: month setting

1.3.6.1.4.1.21678.186.2.10.3 ark1atsc_SwitchingTimeDay RW Switching time: day setting

1.3.6.1.4.1.21678.186.2.10.4 ark1atsc_SwitchingTimeHour RW Switching time: hour setting

1.3.6.1.4.1.21678.186.2.10.5 ark1atsc_SwitchingTimeMinutes RW Switching time: minutes setting

1.3.6.1.4.1.21678.186.2.10.6 ark1atsc_SwitchingTimeSeconds RW Switching time: seconds setting

1.3.6.1.4.1.21678.186.3 ark1atsc_Input

1.3.6.1.4.1.21678.186.3.1 ark1atsc_InputSettings

1.3.6.1.4.1.21678.186.3.1.1 ark1atsc_InputSettingsA

1.3.6.1.4.1.21678.186.3.1.1.1 ark1atsc_InputSettingsA_Rf

1.3.6.1.4.1.21678.186.3.1.1.1.1 ark1atsc_SettingsA_Rf_Channel RW Mode A: input channel

1.3.6.1.4.1.21678.186.3.1.1.1.2 ark1atsc_SettingsA_Rf_FrequencyOffset RW

Mode A: input frequency offset expressed in Hz

(from -4,000,000 up to 4,000,000)

1.3.6.1.4.1.21678.186.3.1.1.2 ark1atsc_InputSettingsA_Atsc

1.3.6.1.4.1.21678.186.3.1.1.2.1 ark1atsc_SettingsA_Atsc_Input RW

Mode A: Atsc input selector 0: asi 1 1: asi 2 2:

asi 3 3: asi 4 4: ssi 1 5: ssi 2 6: ssi 3 7: ssi

4 8: Gbe Ch1 9: Gbe Ch2

1.3.6.1.4.1.21678.186.3.1.1.3 ark1atsc_InputSettingsA_Itu

1.3.6.1.4.1.21678.186.3.1.1.3.1 ark1atsc_SettingsA_Itu_Input RW Mode A: Itu 470 input selector 0: sdi 1 1: sdi 2

1.3.6.1.4.1.21678.186.3.1.1.3.2 ark1atsc_SettingsA_Itu_Audio_Ch RW

Mode A: Itu 470 audio channel selector 0: CH

1,2 1: CH 3,4

1.3.6.1.4.1.21678.186.3.1.2 ark1atsc_InputSettingsB

1.3.6.1.4.1.21678.186.3.1.2.1 ark1atsc_InputSettingsB_Rf

1.3.6.1.4.1.21678.186.3.1.2.1.1 ark1atsc_SettingsB_Rf_Channel RW Mode B: input channel

1.3.6.1.4.1.21678.186.3.1.2.1.2 ark1atsc_SettingsB_Rf_FrequencyOffset RW

Mode B: input frequency offset expressed in Hz

(from -4,000,000 up to 4,000,000)

1.3.6.1.4.1.21678.186.3.1.2.2 ark1atsc_InputSettingsB_Atsc

1.3.6.1.4.1.21678.186.3.1.2.2.1 ark1atsc_SettingsB_Remod_Input RW

Mode B: input selector 0: asi 1 1: asi 2 2: asi

3 3: asi 4 4: ssi 1 5: ssi 2 6: ssi 3 7: ssi 4

8: Gbe Ch1 9: Gbe Ch2

1.3.6.1.4.1.21678.186.3.1.2.3 ark1atsc_InputSettingsB_Itu

1.3.6.1.4.1.21678.186.3.1.2.3.1 ark1atsc_SettingsB_Itu_Input RW Mode B: Itu 470 input selector 0: sdi 1 1: sdi 2

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 21

OID Name R\W Description

1.3.6.1.4.1.21678.186.3.1.2.3.2 ark1atsc_SettingsB_Itu_Audio_Ch RW

Mode B: Itu 470 audio channel selector 0: CH

1,2 1: CH 3,4

1.3.6.1.4.1.21678.186.3.2 ark1atsc_InputStatistics

1.3.6.1.4.1.21678.186.3.2.1 ark1atsc_StatisticsRf

1.3.6.1.4.1.21678.186.3.2.1.1 ark1atsc_RfRxLevel R

Input RX level 0: over input 255: low power

1...254: power (absolute value expressed in

dBm)

1.3.6.1.4.1.21678.186.3.2.1.2 ark1atsc_Not_implemented

1.3.6.1.4.1.21678.186.3.2.1.3 ark1atsc_Not_implemented

1.3.6.1.4.1.21678.186.3.2.2 ark1atsc_StatisticsAtsc

1.3.6.1.4.1.21678.186.3.2.2.1 ark1atsc_AtscAsiSsi

1.3.6.1.4.1.21678.186.3.2.2.1.1 ark1atsc_AsiSsi1

1.3.6.1.4.1.21678.186.3.2.2.1.1

.1 ark1atsc_AsiSsi1WordRate R Asi 1 input word rate

1.3.6.1.4.1.21678.186.3.2.2.1.1

.2 ark1atsc_AsiSsi1ByteRate R Asi 1 input byte rate

1.3.6.1.4.1.21678.186.3.2.2.1.1

.3 ark1atsc_AsiSsi1Filtered R Asi 1 filtered byte rate

1.3.6.1.4.1.21678.186.3.2.2.1.1

.4 ark1atsc_AsiSsi1OverFlowAlarm R Asi 1 overflow alarm 0: off 1: on

1.3.6.1.4.1.21678.186.3.2.2.1.1

.5 ark1atsc_AsiSsi1Lock R Asi 1 lock status 0: unlock 1: lock

1.3.6.1.4.1.21678.186.3.2.2.1.1

.6 ark1atsc_AsiSsi1PacketFormat R Asi 1 packet format 0: 204 1: 188

1.3.6.1.4.1.21678.186.3.2.2.1.1

.7 ark1atsc_AsiSsi1Cd R Asi 1 carrier detect alarm 0: unlock 1: lock

1.3.6.1.4.1.21678.186.3.2.2.1.1

.8 ark1atsc_AsiSsi1Errors R

Asi 1 wrong bytes received (pay attention: when

the input is not connected it is different from zero)

1.3.6.1.4.1.21678.186.3.2.2.1.1

.9 ark1atsc_AsiSsi1Type R Asi 1 type 0: ASI 1: SSI

1.3.6.1.4.1.21678.186.3.2.2.1.2 ark1atsc_AsiSsi2

1.3.6.1.4.1.21678.186.3.2.2.1.2

.1 ark1atsc_AsiSsi2WordRate R Asi 2 input word rate

1.3.6.1.4.1.21678.186.3.2.2.1.2

.2 ark1atsc_AsiSsi2ByteRate R Asi 2 input byte rate

1.3.6.1.4.1.21678.186.3.2.2.1.2

.3 ark1atsc_AsiSsi2Filtered R Asi 2 filtered byte rate

1.3.6.1.4.1.21678.186.3.2.2.1.2

.4 ark1atsc_AsiSsi2OverFlowAlarm R Asi 2 overflow alarm 0: off 1: on

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 22

OID Name R\W Description

1.3.6.1.4.1.21678.186.3.2.2.1.2

.5 ark1atsc_AsiSsi2Lock R Asi 2 lock status 0: unlock 1: lock

1.3.6.1.4.1.21678.186.3.2.2.1.2

.6 ark1atsc_AsiSsi2PacketFormat R Asi 2 packet format 0: 204 1: 188

1.3.6.1.4.1.21678.186.3.2.2.1.2

.7 ark1atsc_AsiSsi2Cd R Asi 2 carrier detect alarm 0: unlock 1: lock

1.3.6.1.4.1.21678.186.3.2.2.1.2

.8 ark1atsc_AsiSsi2Errors R

Asi 2 wrong bytes received (pay attention: when

the input is not connected it is different from zero)

1.3.6.1.4.1.21678.186.3.2.2.1.2

.9 ark1atsc_AsiSsi2Type R Asi 2 type 0: ASI 1: SSI

1.3.6.1.4.1.21678.186.3.2.2.1.3 ark1atsc_AsiSsi3

1.3.6.1.4.1.21678.186.3.2.2.1.3

.1 ark1atsc_AsiSsi3WordRate R Asi 3 input word rate

1.3.6.1.4.1.21678.186.3.2.2.1.3

.2 ark1atsc_AsiSsi3ByteRate R Asi 3 input byte rate

1.3.6.1.4.1.21678.186.3.2.2.1.3

.3 ark1atsc_AsiSsi3Filtered R Asi 3 filtered byte rate

1.3.6.1.4.1.21678.186.3.2.2.1.3

.4 ark1atsc_AsiSsi3OverFlowAlarm R Asi 3 overflow alarm 0: off 1: on

1.3.6.1.4.1.21678.186.3.2.2.1.3

.5 ark1atsc_AsiSsi3Lock R Asi 3 lock status 0: unlock 1: lock

1.3.6.1.4.1.21678.186.3.2.2.1.3

.6 ark1atsc_AsiSsi3PacketFormat R Asi 3 packet format 0: 204 1: 188

1.3.6.1.4.1.21678.186.3.2.2.1.3

.7 ark1atsc_AsiSsi3Cd R Asi 3 carrier detect alarm 0: unlock 1: lock

1.3.6.1.4.1.21678.186.3.2.2.1.3

.8 ark1atsc_AsiSsi3Errors

Asi 3 wrong bytes received (pay attention: when

the input is not connected it is different from zero)

1.3.6.1.4.1.21678.186.3.2.2.1.3

.9 ark1atsc_AsiSsi3Type R Asi 3 type 0: ASI 1: SSI

1.3.6.1.4.1.21678.186.3.2.2.1.4 ark1atsc_AsiSsi4

1.3.6.1.4.1.21678.186.3.2.2.1.4

.1 ark1atsc_AsiSsi4WordRate

R Asi 4 input word rate

1.3.6.1.4.1.21678.186.3.2.2.1.4

.2 ark1atsc_AsiSsi4ByteRate

R Asi 4 input byte rate

1.3.6.1.4.1.21678.186.3.2.2.1.4

.3 ark1atsc_AsiSsi4Filtered

R Asi 4 filtered byte rate

1.3.6.1.4.1.21678.186.3.2.2.1.4

.4 ark1atsc_AsiSsi4OverFlowAlarm

R Asi 4 overflow alarm 0: off 1: on

1.3.6.1.4.1.21678.186.3.2.2.1.4 ark1atsc_AsiSsi4Lock R Asi 4 lock status 0: unlock 1: lock

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 23

OID Name R\W Description

1.3.6.1.4.1.21678.186.3.2.2.1.4

.6 ark1atsc_AsiSsi4PacketFormat

R Asi 4 packet format 0: 204 1: 188

1.3.6.1.4.1.21678.186.3.2.2.1.4

.7 ark1atsc_AsiSsi4Cd

R Asi 4 carrier detect alarm 0: unlock 1: lock

1.3.6.1.4.1.21678.186.3.2.2.1.4

.8 ark1atsc_AsiSsi4Errors

Asi 4 wrong bytes received (pay attention: when

the input is not connected it is different from zero)

1.3.6.1.4.1.21678.186.3.2.2.1.4

.9 ark1atsc_AsiSsi4Type

R Asi 4 type 0: ASI 1: SSI

1.3.6.1.4.1.21678.186.3.2.2.2 ark1atsc_AtscGbe

1.3.6.1.4.1.21678.186.3.2.2.2.1 ark1atsc_GbePckCounter R Good frame count

1.3.6.1.4.1.21678.186.3.2.2.2.2 ark1atsc_GbeErrors R Bad frame count

1.3.6.1.4.1.21678.186.3.2.2.2.3 ark1atsc_GbeRxCh1

1.3.6.1.4.1.21678.186.3.2.2.2.3

.1 ark1atsc_GbeRxCh1PckRate

Not implemented - GbE Rx channel 1 input

packet rate

1.3.6.1.4.1.21678.186.3.2.2.2.3

.2 ark1atsc_GbeRxCh1Filtered

Not implemented - GbE Rx channel 1 filtered

packet rate

1.3.6.1.4.1.21678.186.3.2.2.2.3

.3 ark1atsc_GbeRxCh1PacketFormat

Not implemented - GbE Rx channel 1 packet

format 0: 204 01: 188 3: not valid

1.3.6.1.4.1.21678.186.3.2.2.2.3

.4 ark1atsc_GbeRxCh1Lock

Not implemented - GbE Rx channel 1 lock lock

status 0: unlock 1: lock

1.3.6.1.4.1.21678.186.3.2.2.2.3

.5 ark1atsc_GbeRxCh1OverFlowAlarm

Not implemented - GbE Rx channel 1 overflow

alarm 0: off 1: on

1.3.6.1.4.1.21678.186.3.2.2.2.3

.6 ark1atsc_GbeRxCh1SequenceError

Not implemented - GbE Rx channel 1 sequence

error 0: off 1: on

1.3.6.1.4.1.21678.186.3.2.2.2.3

.7 ark1atsc_GbeRxCh1Protocol

Not implemented - GbE Rx channel 1

transmission protocol 0: udp 1: rtp

1.3.6.1.4.1.21678.186.3.2.2.2.4 ark1atsc_GbeRxCh2

1.3.6.1.4.1.21678.186.3.2.2.2.4

.1 ark1atsc_GbeRxCh2PcktRate

Not implemented - GbE Rx channel 2 input

packet rate

1.3.6.1.4.1.21678.186.3.2.2.2.4

.2 ark1atsc_GbeRxCh2Filtered

Not implemented - GbE Rx channel 2 filtered

packet rate

1.3.6.1.4.1.21678.186.3.2.2.2.4

.3 ark1atsc_GbeRxCh2PacketFormat

Not implemented - GbE Rx channel 2 packet

format 0: 204 01: 188 3: not valid

1.3.6.1.4.1.21678.186.3.2.2.2.4

.4 ark1atsc_GbeRxCh2Lock

Not implemented - GbE Rx channel 2 lock lock

status 0: unlock 1: lock

1.3.6.1.4.1.21678.186.3.2.2.2.4

.5 ark1atsc_GbeRxCh2OverFlowAlarm

Not implemented - GbE Rx channel 2 overflow

alarm 0: off 1: on

1.3.6.1.4.1.21678.186.3.2.2.2.4 ark1atsc_GbeRxCh2SequenceError R Not implemented - GbE Rx channel 2 sequence

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 24

OID Name R\W Description

.6 error 0: off 1: on

1.3.6.1.4.1.21678.186.3.2.2.2.4

.7 ark1atsc_GbeRxCh2Protocol

Not implemented - GbE Rx channel 2

transmission protocol 0: udp 1: rtp

1.3.6.1.4.1.21678.186.3.2.3 ark1atsc_StatisticsItu

1.3.6.1.4.1.21678.186.3.2.3.1 ark1atsc_ItuSdi

1.3.6.1.4.1.21678.186.3.2.3.1.1 ark1atsc_Sdi1

1.3.6.1.4.1.21678.186.3.2.3.1.1

.1 ark1atsc_Sdi1Lock

R Sdi 1 lock status 0: unlock 1: lock

1.3.6.1.4.1.21678.186.3.2.3.1.1

.2 ark1atsc_Sdi1Cd

R Sdi 1 carrier detect alarm 0: lock 1: unlock

1.3.6.1.4.1.21678.186.3.2.3.1.1

.3 ark1atsc_Sdi1Standard

Sdi 1 standard 0: NTSC 4:2:2 component video

1: invalid 2: NTSC 4:2:2 16x9 component video

3: NTSC 4:4:4 13,5 MHz component video 4:

PAL 4:2:2 component video 5: invalid 6: PAL

4:2:2 16x9 component video 7: PAL 4:4:4 13,5

MHz component video

1.3.6.1.4.1.21678.186.3.2.3.1.2 ark1atsc_Sdi2

1.3.6.1.4.1.21678.186.3.2.3.1.2

.1 ark1atsc_Sdi2Lock

R Sdi 2 lock status 0: unlock 1: lock

1.3.6.1.4.1.21678.186.3.2.3.1.2

.2 ark1atsc_Sdi2Cd

R Sdi 2 carrier detect alarm 0: lock 1: unlock

1.3.6.1.4.1.21678.186.3.2.3.1.2

.3 ark1atsc_Sdi2Standard

Sdi 2 standard 0: NTSC 4:2:2 component video

1: invalid 2: NTSC 4:2:2 16x9 component video

3: NTSC 4:4:4 13,5 MHz component video 4:

PAL 4:2:2 component video 5: invalid 6: PAL

4:2:2 16x9 component video 7: PAL 4:4:4 13,5

MHz component video

1.3.6.1.4.1.21678.186.4 ark1atsc_Modulation

1.3.6.1.4.1.21678.186.4.1 ark1atsc_Modulation_Settings

1.3.6.1.4.1.21678.186.4.1.1 ark1atsc_Modulation_Atsc

1.3.6.1.4.1.21678.186.4.1.1.1 ark1atsc_Modulation_Atsc_DelNullPck RW

Delete null packets enable 0: disabled 1:

enable

1.3.6.1.4.1.21678.186.4.1.2 ark1atsc_Modulation_Itu

1.3.6.1.4.1.21678.186.4.1.2.1 ark1atsc_Modulation_Itu_Video

1.3.6.1.4.1.21678.186.4.1.2.1.1

ark1atsc_Modulation_Itu_Video_Whitelev

el RW

White level [%] (range 10 to 22) = [(x*0.05) + 10]

(x: range 0 to 240)

1.3.6.1.4.1.21678.186.4.1.2.1.2

ark1atsc_Modulation_Itu_Video_SynchA

mplitude RW

Synch Amplitude [%] (range: 22 to 27,5) =

[(x*0.05) + 20] (x: range 40 to 150)

1.3.6.1.4.1.21678.186.4.1.2.1.3 ark1atsc_Modulation_Itu_Video_PedesL RW Pedes leve [%] (range: 0 to 7) = (x*0.05) (x:

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 25

OID Name R\W Description

evel range 0 to 140)

1.3.6.1.4.1.21678.186.4.1.2.2 ark1atsc_Modulation_Itu_Audio

1.3.6.1.4.1.21678.186.4.1.2.2.1

ark1atsc_Modulation_Itu_Audio_Deviatio

n RW Audio deviation

1.3.6.1.4.1.21678.186.4.1.2.2.2

ark1atsc_Modulation_Itu_Audio_CarrierL

evel1 RW

Carrier Level 1 [dB] (range: -7 to -22) = [-1*

(x/10)] (range 70 to 220)

1.3.6.1.4.1.21678.186.4.1.2.2.3

ark1atsc_Modulation_Itu_Audio_CarrierL

evel2 RW

Carrier Level 2 [dB] (range: -7 to -22) = [-1*

(x/10)] (range 70 to 220)

1.3.6.1.4.1.21678.186.4.1.2.2.4

ark1atsc_Modulation_Itu_Audio_Emphas

is R

Monitor emphasis 0: 50 us 1: 75 us 2: no

emphasis 3: no emphasis

1.3.6.1.4.1.21678.186.4.1.2.2.5 ark1atsc_Modulation_Itu_Audio_Type RW

Select Audio type 0: mono dual carrier 1: dual

sound 2: stereo 3: mono single carrier

1.3.6.1.4.1.21678.186.4.2 ark1atsc_Modulation_Test

1.3.6.1.4.1.21678.186.4.2.1 ark1atsc_Test_Common

1.3.6.1.4.1.21678.186.4.2.1.1 ark1atsc_Test_Cw RW Test CW enable 0: disabled 1: enabled

1.3.6.1.4.1.21678.186.4.2.2 ark1atsc_Test_Atsc

1.3.6.1.4.1.21678.186.4.2.2.1 ark1atsc_Test_ForceNullPck RW

Force null packets enable 0: disabled 1:

enabled

1.3.6.1.4.1.21678.186.4.2.3 ark1atsc_Test_Itu

1.3.6.1.4.1.21678.186.4.2.3.1 ark1atsc_Test_Cw_Av RW Test CW A/V enable 0: disabled 1: enabled

1.3.6.1.4.1.21678.186.4.2.3.2 ark1atsc_Test_Video RW Test video selector 0: bars 1: no video test

1.3.6.1.4.1.21678.186.4.2.3.3 ark1atsc_Test_Audio RW Test audio selector 0: no audio test 1: test tone

1.3.6.1.4.1.21678.186.4.2.3.4 ark1atsc_Test_Tone_Right RW

Right tone frequency (range:0 to127) [unit x

100Hz]

1.3.6.1.4.1.21678.186.4.2.3.5 ark1atsc_Test_Tone_Left RW

Left tone frequency (range:0 to127) [unit x

100Hz]

1.3.6.1.4.1.21678.186.4.2.3.6 ark1atsc_Test_Mute_Audio_Enable RW Mute audio enable 0: disabled 1: enabled

1.3.6.1.4.1.21678.186.5 ark1atsc_Output

1.3.6.1.4.1.21678.186.5.1 ark1atsc_OutputSettings

1.3.6.1.4.1.21678.186.5.1.1 ark1atsc_OutputSettingsA

1.3.6.1.4.1.21678.186.5.1.1.1 ark1atsc_SettingsAChannel RW Mode A: output channel

1.3.6.1.4.1.21678.186.5.1.1.2 ark1atsc_SettingsAFrequencyOffset RW

Mode A: output frequency offset expressed in Hz

(from -4,000,000 up to 4,000,000)

1.3.6.1.4.1.21678.186.5.1.1.3 ark1atsc_SettingsAPower RW Mode A: output power

1.3.6.1.4.1.21678.186.5.1.2 ark1atsc_OutputSettingsB

1.3.6.1.4.1.21678.186.5.1.2.1 ark1atsc_SettingsBChannel RW Mode B: output channel

1.3.6.1.4.1.21678.186.5.1.2.2 ark1atsc_SettingsBFrequencyOffset RW

Mode B: output frequency offset expressed in Hz

(from -4,000,000 up to 4,000,000)

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 26

OID Name R\W Description

1.3.6.1.4.1.21678.186.5.1.2.3 ark1atsc_SettingsBPower RW Mode B: output power

1.3.6.1.4.1.21678.186.5.1.3 ark1atsc_OutputSettingsGbe

1.3.6.1.4.1.21678.186.5.1.3.1 ark1atsc_SettingsGbeTxCh1

1.3.6.1.4.1.21678.186.5.1.3.1.1 ark1atsc_GbeTxCh1Selector RW

Not implemented - Input to GbE Tx Ch 1 selector

0: asi 1 1: asi 2 2: asi 3 3: asi 4 4: ssi 1 5:

ssi 2 6: ssi 3 7: ssi 4 8: Gbe Ch1 9: Gbe

Ch2

1.3.6.1.4.1.21678.186.5.1.3.1.2 ark1atsc_GbeTxCh1Status R

Not implemented - GbE Tx Ch 1: transmission

status 0: off 1: Resolving IP 2: No entry error

3: TX data 4: IP address not found 5: TX

multicast data

1.3.6.1.4.1.21678.186.5.1.3.1.3 ark1atsc_GbeTxCh1Enable RW

Not implemented - GbE Tx Ch 1: transmission

enable 0: disabled 1: enabled

1.3.6.1.4.1.21678.186.5.1.3.2 ark1atsc_SettingsGbeTxCh2

1.3.6.1.4.1.21678.186.5.1.3.2.1 ark1atsc_GbeTxCh2Selector RW

Not implemented - Input to GbE Tx Ch 2 selector

0: asi 1 1: asi 2 2: asi 3 3: asi 4 4: ssi 1 5:

ssi 2 6: ssi 3 7: ssi 4 8: Gbe Ch1 9: Gbe

Ch2

1.3.6.1.4.1.21678.186.5.1.3.2.2 ark1atsc_GbeTxCh2Status R

Not implemented - GbE Tx Ch 2: transmission

status 0: off 1: Resolving IP 2: No entry error

3: TX data 4: IP address not found 5: TX

multicast data

1.3.6.1.4.1.21678.186.5.1.3.2.3 ark1atsc_GbeTxCh2Enable RW

Not implemented - GbE Tx Ch 2: transmission

enable 0: disabled 1: enabled

1.3.6.1.4.1.21678.186.5.2 ark1atsc_OutputRf

1.3.6.1.4.1.21678.186.5.2.1 ark1atsc_RfOn RW RF output enable 0: disabled 1: enabled

1.3.6.1.4.1.21678.186.5.2.2 ark1atsc_RfStatus R RF output status 0: off 1: on

1.3.6.1.4.1.21678.186.5.2.3 ark1atsc_RfPrecCurveMode R

Pre-correction curve editing status 0:

Standalone 1: Driver

1.3.6.1.4.1.21678.186.5.2.4 ark1atsc_RfPrecPort5kStatus R Port 5000 status 0: closed 1: opened

1.3.6.1.4.1.21678.186.5.2.5 ark1atsc_RfPrecCurveActualNumber R Current pre-correction curve number

1.3.6.1.4.1.21678.186.5.3 ark1atsc_OutputTest

1.3.6.1.4.1.21678.186.5.3.1 ark1atsc_TestForceNullPck RW Force null packets 0: disabled 1: enabled

1.3.6.1.4.1.21678.186.5.3.2 ark1atsc_TestCw RW Test CW 0: disabled 1: enabled

1.3.6.1.4.1.21678.186.5.3.3 ark1atsc_NotUsed

1.3.6.1.4.1.21678.186.5.4 ark1atsc_OutputTsProcessing

1.3.6.1.4.1.21678.186.5.4.1 ark1atsc_TsProcessingDeleteNullPck RW

Delete null packets enable 0: disabled 1:

enable

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 27

OID Name R\W Description

1.3.6.1.4.1.21678.186.5.4.2 ark1atsc_NotUsed

1.3.6.1.4.1.21678.186.5.5 ark1atsc_OutputMonitor

1.3.6.1.4.1.21678.186.5.5.1 ark1atsc_Monitor_FwdPowerDbm R Forward power [dBm x 10] indicator

1.3.6.1.4.1.21678.186.5.5.2 ark1atsc_Monitor_AgcMode R AGC mode status 0: analog 1: digital

1.3.6.1.4.1.21678.186.5.5.3 ark1atsc_Monitor_AgcOn R Auto AGC status 0: off 1: on

1.3.6.1.4.1.21678.186.6 ark1atsc_HW_monitor

1.3.6.1.4.1.21678.186.6.1 ark1atsc_HW_monitor_RflPowerDbm

R Reflex power [dBm x 10]

1.3.6.1.4.1.21678.186.6.2 ark1atsc_HW_monitor_Amplifier R

Amplifier status 0: on 1: off 2: restart 3:

stand by off 4: GPS off 5: init 6: alarm off 7:

rf off 8: opto off 9: change mode

1.3.6.1.4.1.21678.186.6.3 ark1atsc_HW_monitor_CurrentOut R Current indicator (mA)

1.3.6.1.4.1.21678.186.6.4 ark1atsc_HW_monitor_PowerSupply

Voltage indicator (mV): 28V for 20W and 50W

versions, and 42V for 200W version

1.3.6.1.4.1.21678.186.6.5 ark1atsc_HW_monitor_FanPulse

1.3.6.1.4.1.21678.186.6.5.1 ark1atsc_FanSpeed1 R FAN 1 speed (rpm)

1.3.6.1.4.1.21678.186.6.5.2 ark1atsc_FanSpeed2 R FAN 2 speed (rpm)

1.3.6.1.4.1.21678.186.6.5.3 ark1atsc_FanSpeed3 R FAN 3 speed (rpm) - only for 200W version

1.3.6.1.4.1.21678.186.6.5.4 ark1atsc_FanSpeed4 R FAN 4 speed (rpm) - only for 200W version

1.3.6.1.4.1.21678.186.6.6 ark1atsc_HW_monitor_Temperature

1.3.6.1.4.1.21678.186.6.6.1 ark1atsc_TemperatureCase R Case temperature

1.3.6.1.4.1.21678.186.6.6.2 ark1atsc_TemperaturePsu R PSU temperature

1.3.6.1.4.1.21678.186.6.6.3 ark1atsc_TemperatureCase2 R Case temperature 2 (only in SDTX 200 version)

1.3.6.1.4.1.21678.186.6.7 ark1atsc_HW_monitor_Relays

1.3.6.1.4.1.21678.186.6.7.1 ark1atsc_Relay0Status R Relay 0 status 0: on 1: off

1.3.6.1.4.1.21678.186.6.7.2 ark1atsc_Relay1Status R Relay 1 status 0: on 1: off

1.3.6.1.4.1.21678.186.6.7.3 ark1atsc_Relay2Status R Relay 2 status 0: on 1: off

1.3.6.1.4.1.21678.186.6.7.4 ark1atsc_Relay3Status R Relay 3 status 0: on 1: off

1.3.6.1.4.1.21678.186.6.8 ark1atsc_HW_monitor_Opto

1.3.6.1.4.1.21678.186.6.8.1 ark1atsc_Opto0Status R

Opto 0 status (RF Off): if closed the output RF is

switch off 0: closed 1: opened

1.3.6.1.4.1.21678.186.6.8.2 ark1atsc_Opto1Status R

Opto 1 status (Mode Switch): if closed Mode B,

otherwise Mode A 0: closed 1: opened

1.3.6.1.4.1.21678.186.6.8.3 ark1atsc_Opto2Status R

Opto 2 status (Retry, only in 200 watt version) 0:

closed 1: opened

1.3.6.1.4.1.21678.186.6.8.4 ark1atsc_Opto3Status R

Opto 3 status (Stand-by): if closed the device is

put on stand-by 0: closed 1: opened

1.3.6.1.4.1.21678.186.6.9 ark1atsc_HW_monitor_PowerSupply24V

24V voltage indicator (mV), only in 200 watt

version

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 28

OID Name R\W Description

1.3.6.1.4.1.21678.186.7 ark1atsc_Gps

1.3.6.1.4.1.21678.186.7.1 ark1atsc_GpsSat

1.3.6.1.4.1.21678.186.7.1.1 ark1atsc_SatVisible R Number of visible satellite

1.3.6.1.4.1.21678.186.7.1.2 ark1atsc_SatTracked R Number of satellite locked

1.3.6.1.4.1.21678.186.7.2 ark1atsc_GpsStatus

1.3.6.1.4.1.21678.186.7.2.1 ark1atsc_StatusDataValid R Signal precision status 0: Not valid 1: Valid

1.3.6.1.4.1.21678.186.7.3 ark1atsc_GpsPosition

1.3.6.1.4.1.21678.186.7.3.1 ark1atsc_PositionLatitude R Latitude position [°]

1.3.6.1.4.1.21678.186.7.3.2 ark1atsc_PositionLongitude R Longitude position [°]

1.3.6.1.4.1.21678.186.7.4 ark1atsc_GpsTime

1.3.6.1.4.1.21678.186.7.4.1 ark1atsc_TimeActual R UTC time

1.3.6.1.4.1.21678.186.7.4.2 ark1atsc_TimeDate R UTC date

1.3.6.1.4.1.21678.186.8 ark1atsc_Clock

1.3.6.1.4.1.21678.186.8.1 ark1atsc_ClockSel10MhzReference

10 MHz frequency reference 0: ext 1: int 2:

gps

1.3.6.1.4.1.21678.186.8.2 ark1atsc_ClockSel1Pps RW 1PPS frequency reference 0: int 1: ext

1.3.6.1.4.1.21678.186.8.3 ark1atsc_GainFineTuning RW Gain fine tuning (from 0 up to 255)

1.3.6.1.4.1.21678.186.9 ark1atsc_Network

1.3.6.1.4.1.21678.186.9.1 ark1atsc_NetworkManagement

1.3.6.1.4.1.21678.186.9.1.1 ark1atsc_ManagementMacAddress R Board MAC address

1.3.6.1.4.1.21678.186.9.1.2 ark1atsc_ManagementIpAddress R Board IP address

1.3.6.1.4.1.21678.186.9.1.3 ark1atsc_ManagementNetmask R Subnet mask

1.3.6.1.4.1.21678.186.9.1.4 ark1atsc_ManagementGateway R Gateway address

1.3.6.1.4.1.21678.186.9.1.5 ark1atsc_ManagementUdpPort RW UDP port

1.3.6.1.4.1.21678.186.9.1.6 ark1atsc_ManagementSpeed R GBE Speed 0: 10 Mbit 1: 100 Mbit 2: 1 Gbit

1.3.6.1.4.1.21678.186.9.1.7 ark1atsc_ManagementGoodFrame R GbE good frame counter

1.3.6.1.4.1.21678.186.9.1.8 ark1atsc_ManagementBadFrame R GbE bad frame counter

1.3.6.1.4.1.21678.186.9.2 ark1atsc_NetworkIgmp

1.3.6.1.4.1.21678.186.9.2.1 ark1atsc_IgmpEnable RW

Not implemented - IGMP enable 0: disabled 1:

enabled

1.3.6.1.4.1.21678.186.9.3 ark1atsc_NetworkTxChannel1

1.3.6.1.4.1.21678.186.9.3.1 ark1atsc_TxChannel1Type RW

Not implemented - Tx channel 1: transmission

protocol selector 0: RTP 1: UDP

1.3.6.1.4.1.21678.186.9.3.2 ark1atsc_TxChannel1TsFormat RW

Not implemented - Tx channel 1: packet format

0: 204 1: 188

1.3.6.1.4.1.21678.186.9.3.3 ark1atsc_TxChannel1TsNum RW

Not implemented - Tx channel 1: number of TS

packet per frame

1.3.6.1.4.1.21678.186.9.3.4 ark1atsc_TxChannel1IpAddr RW Not implemented - Tx channel 1: destination IP

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 29

OID Name R\W Description

address

1.3.6.1.4.1.21678.186.9.3.5 ark1atsc_TxChannel1Port RW Not implemented - Tx channel 1: destination port

1.3.6.1.4.1.21678.186.9.3.6 ark1atsc_TxChannel1Ssrc RW Not implemented - Tx channel 1: SSRC identifier

1.3.6.1.4.1.21678.186.9.3.7 ark1atsc_TxChannel1MacAddr R

Not implemented - Tx channel 1: destination

MAC address

1.3.6.1.4.1.21678.186.9.4 ark1atsc_NetworkTxChannel2

1.3.6.1.4.1.21678.186.9.4.1 ark1atsc_TxChannel2Type RW

Not implemented - Tx channel 2: transmission

protocol selector 0: RTP 1: UDP

1.3.6.1.4.1.21678.186.9.4.2 ark1atsc_TxChannel2TsFormat RW

Not implemented - Tx channel 2: packet format

0: 204 1: 188

1.3.6.1.4.1.21678.186.9.4.3 ark1atsc_TxChannel2TsNum RW

Not implemented - Tx channel 2: number of TS

packet per frame

1.3.6.1.4.1.21678.186.9.4.4 ark1atsc_TxChannel2IpAddr RW

Not implemented - Tx channel 2: destination IP

address

1.3.6.1.4.1.21678.186.9.4.5 ark1atsc_TxChannel2Port RW Not implemented - Tx channel 2: destination port

1.3.6.1.4.1.21678.186.9.4.6 ark1atsc_TxChannel2Ssrc RW Not implemented - Tx channel 2: SSRC identifier

1.3.6.1.4.1.21678.186.9.4.7 ark1atsc_TxChannel2MacAddr R

Not implemented - Tx channel 2: destination

MAC address

1.3.6.1.4.1.21678.186.9.5 ark1atsc_NetworkRxChannel1

1.3.6.1.4.1.21678.186.9.5.1 ark1atsc_RxChannel1IpAddr RW Not implemented - Rx channel 1: IP address

1.3.6.1.4.1.21678.186.9.5.2 ark1atsc_RxChannel1Port RW Not implemented - Rx channel 1: port

1.3.6.1.4.1.21678.186.9.5.3

ark1atsc_RxChannel1ClkRecoveryEnabl

e RW

Not implemented - Rx channel 1: clock recovery

enable 0: enabled 1: disabled

1.3.6.1.4.1.21678.186.9.5.4

ark1atsc_RxChannel1SourceClkReferen

ce RW

Not implemented - Rx channel 1: source clock

reference selector 0: 90 kHz 1: 27 MHz

1.3.6.1.4.1.21678.186.9.6 ark1atsc_NetworkRxChannel2

1.3.6.1.4.1.21678.186.9.6.1 ark1atsc_RxChannel2IpAddr RW Not implemented - Rx channel 2: IP address

1.3.6.1.4.1.21678.186.9.6.2 ark1atsc_RxChannel2Port RW Not implemented - Rx channel 2: port

1.3.6.1.4.1.21678.186.9.6.3

ark1atsc_RxChannel2ClkRecoveryEnabl

e RW

Not implemented - Rx channel 2: clock recovery

enable 0: enabled 1: disabled

1.3.6.1.4.1.21678.186.9.6.4

ark1atsc_RxChannel2SourceClkReferen

ce RW

Not implemented - Rx channel 2: source clock

reference selector 0: 90 kHz 1: 27 MHz

1.3.6.1.4.1.21678.186.9.7 ark1atsc_SnmpTrap

1.3.6.1.4.1.21678.186.9.7.1 ark1atsc_Trap0IpAddress RW Trap 0: destination IP address

1.3.6.1.4.1.21678.186.9.7.2 ark1atsc_Trap1IpAddress RW Trap 1: destination IP address

1.3.6.1.4.1.21678.186.9.7.3 ark1atsc_Trap2IpAddress RW Trap 2: destination IP address

1.3.6.1.4.1.21678.186.9.7.4 ark1atsc_Trap3IpAddress RW Trap 3: destination IP address

1.3.6.1.4.1.21678.186.9.7.5 ark1atsc_Trap4IpAddress RW Trap 4: destination IP address

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 30

OID Name R\W Description

1.3.6.1.4.1.21678.186.9.7.6 ark1atsc_Trap5IpAddress RW Trap 5: destination IP address

1.3.6.1.4.1.21678.186.9.7.7 ark1atsc_Trap6IpAddress RW Trap 6: destination IP address

1.3.6.1.4.1.21678.186.9.7.8 ark1atsc_Trap7IpAddress RW Trap 7: destination IP address

1.3.6.1.4.1.21678.186.10 ark1atsc_Alarm

1.3.6.1.4.1.21678.186.10.1 ark1atsc_AlarmThr

1.3.6.1.4.1.21678.186.10.1.1 ark1atsc_Not_implemented

1.3.6.1.4.1.21678.186.10.1.2 ark1atsc_ThrRfSquelchA RW Mode A: Squelch threshold (absolute value)

1.3.6.1.4.1.21678.186.10.1.3 ark1atsc_ThrRfSquelchB RW Mode B: Squelch threshold (absolute value)

1.3.6.1.4.1.21678.186.10.1.4 ark1atsc_ThrFwdPowerWarning RW

Forward power warning threshold (absolute value

[dBm x 10] )

1.3.6.1.4.1.21678.186.10.1.5 ark1atsc_ThrFwdPowerAlarm RW

Forward power alarm threshold (absolute value

[dBm x 10])

1.3.6.1.4.1.21678.186.10.1.6 ark1atsc_ThrTemperatureWarning RW Case temperature warning threshold

1.3.6.1.4.1.21678.186.10.1.7 ark1atsc_ThrTemperatureAlarm RW Case temperature alarm threshold

1.3.6.1.4.1.21678.186.10.1.8 ark1atsc_Not_implemented

1.3.6.1.4.1.21678.186.10.1.9 ark1atsc_Not_implemented

1.3.6.1.4.1.21678.186.10.1.10 ark1atsc_InputAlarmDelay RW TS input missing alarm delay [val * 100 ms]

1.3.6.1.4.1.21678.186.10.2 ark1atsc_AlarmStatus R

32 bits word indicating alarms status (each bit is

associated to an alarm)

1.3.6.1.4.1.21678.186.10.3 ark1atsc_AlarmTrap

1.3.6.1.4.1.21678.186.10.3.1 ark1atsc_Trap0Enable RW Trap 0: alarm mask

1.3.6.1.4.1.21678.186.10.3.2 ark1atsc_Trap1Enable RW Trap 1: alarm mask

1.3.6.1.4.1.21678.186.10.3.3 ark1atsc_Trap2Enable RW Trap 2: alarm mask

1.3.6.1.4.1.21678.186.10.3.4 ark1atsc_Trap3Enable RW Trap 3: alarm mask

1.3.6.1.4.1.21678.186.10.3.5 ark1atsc_Trap4Enable RW Trap 4: alarm mask

1.3.6.1.4.1.21678.186.10.3.6 ark1atsc_Trap5Enable RW Trap 5: alarm mask

1.3.6.1.4.1.21678.186.10.3.7 ark1atsc_Trap6Enable RW Trap 6: alarm mask

1.3.6.1.4.1.21678.186.10.3.8 ark1atsc_Trap7Enable RW Trap 7: alarm mask

1.3.6.1.4.1.21678.186.10.4 ark1atsc_AlarmRelay

1.3.6.1.4.1.21678.186.10.4.1 ark1atsc_Relay0Mode RW

Relay 0: mode selector 0: alarm mask 1:

mode indicator 2: RF status

1.3.6.1.4.1.21678.186.10.4.2 ark1atsc_Relay0Enable RW Relay 0: alarm mask

1.3.6.1.4.1.21678.186.10.4.3 ark1atsc_Relay1Mode RW

Relay 1: mode selector 0: alarm mask 1:

mode indicator

1.3.6.1.4.1.21678.186.10.4.4 ark1atsc_Relay1Enable RW Relay 1: alarm mask

1.3.6.1.4.1.21678.186.10.4.6 ark1atsc_Relay2Enable RW Relay 2: alarm mask

1.3.6.1.4.1.21678.186.10.4.8 ark1atsc_Relay3Enable RW Relay 3: alarm mask

1.3.6.1.4.1.21678.186.10.5 ark1atsc_AlarmFrontPanelEnable RW Front panel: alarm mask

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 31

OID Name R\W Description

1.3.6.1.4.1.21678.186.10.6 ark1atsc_AlarmJavaEnable RW Java: alarm mask

1.3.6.1.4.1.21678.186.10.7 ark1atsc_AlarmEventEnable RW Events: alarm mask

1.3.6.1.4.1.21678.186.10.8 ark1atsc_AlarmRfOffEnable RW RF Off: alarm mask

1.3.6.1.4.1.21678.186.10.9 ark1atsc_AlarmSingleStatus

1.3.6.1.4.1.21678.186.10.9.1 ark1atsc_UpconvUnlockStatus R Upconverter Oscillator Unlock alarm status

1.3.6.1.4.1.21678.186.10.9.2 ark1atsc_PsVoltageStatus R PS Voltage out of range alarm status

1.3.6.1.4.1.21678.186.10.9.3 ark1atsc_PsCurrentStatus R PS Current out of range alarm status

1.3.6.1.4.1.21678.186.10.9.4 ark1atsc_AbsPowerLimiterStatus R Absolute Power Limiter alarm status

1.3.6.1.4.1.21678.186.10.9.5 ark1atsc_CommErrorStatus R Upconverter Communication error alarm status

1.3.6.1.4.1.21678.186.10.9.6 ark1atsc_TempHighStatus R Temperature High Alarm status

1.3.6.1.4.1.21678.186.10.9.7 ark1atsc_TempAlarmStatus R Temperature Level -3dB alarm status

1.3.6.1.4.1.21678.186.10.9.8 ark1atsc_TempWarningStatus R Temperature High Warning status

1.3.6.1.4.1.21678.186.10.9.9 ark1atsc_FwdPowerHighStatus R Forward Power High alarm status

1.3.6.1.4.1.21678.186.10.9.10 ark1atsc_FwdPowerWarningStatus R Forward Power Low Warning status

1.3.6.1.4.1.21678.186.10.9.11 ark1atsc_FwdPowerAlarmStatus R Forward Power Low Alarm status

1.3.6.1.4.1.21678.186.10.9.12 ark1atsc_ReflexPowerStatus R Reflex Power High alarm status

1.3.6.1.4.1.21678.186.10.9.13 ark1atsc_FansSpeedStatus R Fans Speed alarm status

1.3.6.1.4.1.21678.186.10.9.14 ark1atsc_ItuNoSdiInputStatus R

ITU 470: selected SDI input presence alarm

status

1.3.6.1.4.1.21678.186.10.9.15 ark1atsc_GpsLockStatus R GPS Lock alarm status

1.3.6.1.4.1.21678.186.10.9.16 ark1atsc_GpsCommErrorStatus R GPS Communication Error alarm status

1.3.6.1.4.1.21678.186.10.9.17 ark1atsc_10MhzLockStatus R Signal 10 MHz Lock alarm status

1.3.6.1.4.1.21678.186.10.9.18 ark1atsc_129MhzLockStatus R Signal 120 MHz Lock alarm status

1.3.6.1.4.1.21678.186.10.9.19 ark1atsc_960MhzLockStatus R Signal 960 MHz Lock alarm status

1.3.6.1.4.1.21678.186.10.9.20 ark1atsc_DownconvUnlockStatus R Downconverter Oscillator Unlock alarm status

1.3.6.1.4.1.21678.186.10.9.21 ark1atsc_ItuWrongInputStdStatus R

ITU 470: wrong signal standard from selected

SDI alarm status

1.3.6.1.4.1.21678.186.10.9.22 ark1atsc_RfInputSquelchStatus R RF Input Squelch alarm status

1.3.6.1.4.1.21678.186.10.9.23 ark1atsc_NotUsed R Reserved for future use

1.3.6.1.4.1.21678.186.10.9.24 ark1atsc_FileSysErrorStatus R File System Error alarm status

1.3.6.1.4.1.21678.186.10.9.25 ark1atsc_BadFileStatus R Bad File in File System alarm status

1.3.6.1.4.1.21678.186.10.9.26

1.3.6.1.4.1.21678.186.10.9.27

1.3.6.1.4.1.21678.186.10.9.28

1.3.6.1.4.1.21678.186.10.9.29

1.3.6.1.4.1.21678.186.10.9.30 ark1atsc_AtscNoTsInputStatus R ATSC: selected input TS presence alarm status

1.3.6.1.4.1.21678.186.10.9.31 ark1atsc_FpgaBootStatus R FPGA Boot alarm status

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 32

OID Name R\W Description

1.3.6.1.4.1.21678.186.10.9.32 ark1atsc_WarmUpStatus R Warm up alarm status

1.3.6.1.4.1.21678.186.11 ark1atsc_Config

1.3.6.1.4.1.21678.186.11.1 ark1atsc_ConfigLoad W Load configuration

1.3.6.1.4.1.21678.186.11.2 ark1atsc_ConfigSave W Save configuration

1.3.6.1.4.1.21678.186.11.3 ark1atsc_ConfigReset W Reset board

1.3.6.1.4.1.21678.186.11.4 ark1atsc_ConfigStandByEnable RW

LCD stand-by button enable 0: disabled 1:

enabled

1.3.6.1.4.1.21678.186.11.5 ark1atsc_ConfigStandByStatus R Current device mode 0: normal 1: standby

1.3.6.1.4.1.21678.186.11.6 ark1atsc_ConfigTime

1.3.6.1.4.1.21678.186.11.6.1 ark1atsc_Year RW Year setting (starting from 2000)

1.3.6.1.4.1.21678.186.11.6.2 ark1atsc_Month RW Month setting

1.3.6.1.4.1.21678.186.11.6.3 ark1atsc_Day RW Day setting

1.3.6.1.4.1.21678.186.11.6.4 ark1atsc_Hour RW Hour setting

1.3.6.1.4.1.21678.186.11.6.5 ark1atsc_Minutes RW Minutes setting

1.3.6.1.4.1.21678.186.11.6.6 ark1atsc_Seconds RW Seconds setting

1.3.6.1.4.1.21678.186.12 ark1atsc_TrapAlarm Alarm

3.3.5 Configuring alarms masks

The ark1atsc_Alarm leaf allows the monitoring of alarms status, the setting of alarm masks

and thresholds.

Use alarm masks to select how and which alarm have to be notified.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 33

Fig. 5:Configuring alarms

There are six families of alarm masks:

• ark1atsc_AlarmJavaEnable: the selected alarms status is notified on the Java

alarm page icon.

• ark1atsc_AlarmFrontPanelEnable: the selected alarms status is notified on

LCD display lighting the alarm button and listing the alarms in the Alarms menu

(refer to Alarms Menu paragraph).

• ark1atsc_AlarmEventsEnable: the selected alarms status generate an alarm

event that will be logged in the event memory (refer to Events paragraph).

• ark1atsc_AlarmRelay: the selected alarms switch-on the corresponding relay.

• ark1atsc_AlarmTrap: the selected alarms generate the corresponding trap

message.

• ark1atsc_AlarmRfEnable: the selected alarms switch off the RF output. The

RF mask is almost entirely fixed in order to avoid board damages or

malfunctioning.

Each alarm mask is a 32 bits word and each alarm represents one bit (0: Off, 1: On). Set the

decimal value corresponding to the mask you want to activate in the relatve leaf. The

following table shows the bit-to-alarm association.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 34

Table 4.

Bit-to-alarm association map

Alarm Bit Alarm Bit

Up converter Osc. Unlock 0 Signal 10 MHz Lock 16

PS Voltage out range 1 Signal 129 MHz Lock 17

PS Current out of range 2 Signal 960 MHz Lock 18

Absolute Power Limiter 3 Down Converter Osc. Unlock 19

Up converter communication error 4 No RF Input 20

Temperature High Alarm 5 RF Input Squelch 21

Temperature Level-3dB 6 RF Digital Ber. Alarm 22

Temperature High Warning 7 File System Error 23

Forward Power High 8 Bad File in File system 24

Forward Power Low Warning 9 No TS input 25

Forward Power Low Alarm 10 FPGA Boot alarm 26

Reflex Power High 11 Warm Up 27

Fan Speed 12 Not used

S/N Level 13 Not used

GPS Lock 14 Not used

GPS Communication Error 15 Not used

E.g. if you want to enable the GPS Lock and No TS Input alarms of a generic alarm mask,

set the decimal value of 33,570,816 that corresponds to a binary value of

0000 0010 0000 0000 0100 0000 0000 0000.

3.3.6 Traps

While a management station can poll, at fixed time interval, all the agents it knows for some

key information, each agent is responsible for notifying the management station of any alarm

condition. These events are communicated in SNMP messages known as traps.

The following parameters should be set in order to correctly configure traps:

• SNMP Agent Port: 162.

• SNMP Agent Transport protocol: IP/UDP.

• Variable

o OID: 1.3.6.1.4.1.21678.186.13.

o Value(gauge): 32 Bit

3.3.7 Configuring traps

Use Java (refer to Network and Alarms paragraphs for further information) or SNMP user

interfaces to configure traps.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 35

The configuration of traps is performed through the setting of a trap alarm mask, by means

of leaves housed in the ark1atsc_AlarmTrap node (refer to Configuring alarms paragraph),

and through the setting of the destination IP Address of the receiving management stations,

by means of leaves housed in the ark1atsc_Network node as shown in next figure.

Fig. 6:Configuring traps

Fig. 7:SNMP Trap Message

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 36

Each trap carries a 32 bits word in which each alarm represents one bit (0: Off, 1: On). The

following table shows the bit-to-alarm association.

Table 5.

Bit-to-trap association map

Alarm Bit Alarm Bit

Up converter Osc. Unlock 0 Signal 10 MHz Lock 16

PS Voltage out range 1 Signal 129 MHz Lock 17

PS Current out of range 2 Signal 960 MHz Lock 18

Absolute Power Limiter 3 Down Converter Osc. Unlock 19

Up converter communication error 4 No RF Input 20

Temperature High Alarm 5 RF Input Squelch 21

Temperature Level-3dB 6 RF Digital Ber. Alarm 22

Temperature High Warning 7 File System Error 23

Forward Power High 8 Bad File in File system 24

Forward Power Low Warning 9 No TS Input 25

Forward Power Low Alarm 10 FPGA Boot alarm 26

Reflex Power High 11 Warm Up 27

Fan Speed 12 Not used

S/N Level 13 Not used

GPS Lock 14 Not used

GPS Communication Error 15 Not used

E.g. A trap carring the decimal value 33,570,816, corresponding to a binary value of

0000 0010 0000 0000 0100 0000 0000 0000, means GPS Lock (bit 14) and No TS Input (bit

25) alarms raised.

The Community shown in trap messages can be set from Java interface in the Community

box within the Network window (refer to Network paragraph).

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 37

3.4 STANDALONE/DRIVER WORKING MODES

Two different working modes are provided:

• Stand-alone: the device works in stand-alone mode. The system configuration can

be totally set through user interfaces. Pre-correction curves are automatically

selected according to channel and power range.

• Driver: the device works in a driven system. The system configuration cannot be

totally set through user interfaces. Some settings are disabled on the user interfaces

in order to be driven by serial interface commands. Pre-correction curves are not

automatically selected according to channel and power range, but the selection is

manually performed through serial interface commands.

The following table lists the commands, specific to each system interface, which must be

enabled or disabled while working in Driver mode.

Note: Diver mode is a specific working mode available and used only in N+1 configuration

systems.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 38

Table 6. Driver mode

Issue Ethernet

Interface –

Port 10001

Java SNMP Ethernet

interface

– Port

5000

Char interface Local

Interface

(Display)

OPTO

Block output

channel

setting

Commands:

“w” uC

registers 0x02

and 0x12

uC ignores

the

commands.

Java

control

disabled

SNMP

commands

are

ignored

Not

present

Commands: “W” or

“w” uC registers

0x02 and 0x12

The command is

enabled.

Control

not

present

No OPTO

associated

to the

command

Block output

frequency

offset setting

Commands:

“w” FPGA

registers

0x07 up to

0x0A and

0x17 up to

0x1A

uC ignores

the

commands.

Java

control

disabled

SNMP

commands

are

ignored

Not

present

Commands:

“W” or “w” FPGA

registers

0x07 up to 0x0A

and 0x17 up to

0x1A

The command is

enabled.

Control

not

present

No OPTO

associated

to the

command

Block power

setting

Commands:

“w” uC

registers

0x0C and

0x0B, and

0x1C and

0x1B

uC ignores

the

commands.

Java

control

disabled

SNMP

commands

are

ignored

Not

present

Command: “W” or

“w” uC registers

0x0C and 0x0B,

and 0x1C and 0x1B

The command is

enabled.

Control

not

present

No OPTO

associated

to the

command

Block manual

RF ON/OFF

command

Command:

“W” uC

uC ignores

Java

control

disabled

SNMP

commands

are

ignored

Not

present

Command:

“W” or “w” uC

The command is

Control

not

present

OPTO 0

control

enabled

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 39

Issue Ethernet

Interface –

Port 10001

Java SNMP Ethernet

interface

– Port

5000

Char interface Local

Interface

(Display)

OPTO

the

commands.

enabled.

Block mode

setting

Commands:

“w” uC

registers 0x00

and 0x10

uC ignores

the

commands.

Java

controls

are

disabled

SNMP

commands

are

ignored

Not

present

Commands: “W” or

“w” uC registers

0x00 and 0x10

The command is

enabled.

Command

mode

switch

The

command

disabled

No OPTO

associated

to the

command

Block mode

switch

Commands:

“w” uC

registers 0x32

and 0x33

uC ignores

the

commands.

Java

controls

are

disabled

SNMP

commands

are

ignored

Not

present

Commands: “W” or

“w” uC registers

0x32 and 0x33

The command is

enabled.

Control

not

present

OPTO 1

control

enabled

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 40

3.5 TRANSPORT-LEVEL PROTOCOLS

ARK 1 ATSC device allows connections over different ports and using different transport protocols

over Gigabit Ethernet depending on functions and operations.

In the following table used ports and protocols are listed to help users understand what software

functions allow multiple connections and which port must be enabled.

E.g. pre-correction curves editing and files updating operations open and keep busy the connection

to port 5000 till the connection releasing. The connection to this port precludes the possibility of

multiple connections and of programming the device.

Table 7. Transport-level Protocols

Port Protocol Application Multiple connections

10001 TCP Management Yes

TCP Updating No

5000

TCP Pre-correction curves No

161 UDP SNMP Yes

162 UDP SNMP Trap management Yes

Java Virtual Machine

The Java interface requires a host computer connected via Ethernet to the board with the proper

Java Machine version installed.

A.1 Ethernet connection

The host computer has to be connected via Ethernet to the board.

Direct or crossed UTP category 6 cable is recommended.

A.1.1 Configuration

In order to connect to the board trough a LAN, all the devices have to be on the same network.

The default IP address settings of the X-port are:

• IP address: 10.77.xx.xx , where xx is the host address unique for each board.

• Subnet mask: 255.255.0.0 .

Remember to change these settings if they are not compatible with the LAN where the computer

and the board are connected.

IP address and network parameters can be changed only using the local interface. Please refer to

chapter 6 for the network setting commands.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 41

3.6 JAVA(TM) PLATFORM

3.6.1 Download

The Java Interface works with any Sun Java Virtual Machine after the 1.4.1 version.

If the computer has no Java Virtual Machine installed, the recommended 1.5.0 version can be

downloaded from the Sun Server trough this link:

http://www.java.com/.

3.6.2 Java Control Panel

Java caching must be disabled; to do that follow the following steps:

1. Open the PC general Control Panel and enter in the Java Control Panel

Fig. 8: PC Control Panel

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 42

2. The following window will suddenly appear.

Fig. 9: Java Control Panel

3. Select “Settings…” in the “Temporary Internet Files” section of the “General” tab.

4. Deselect the check box of the “Keep temporary files on my computer” (disable cache).

Fig. 10: Temporary Files Settings

5. Push “OK” button and close the window.

3.6.3 Supported Web Browsers

The Java GUI is designed to support every Web Browser that uses Sun Java Virtual Machine from

1.4.1 and newer.

Here’s a list of Web Browsers where Java GUI has been tested and troubleshot:

• Microsoft Internet Explorer, version 5 and newer.

• Mozilla Firefox, version 1.5 and newer.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 43

3.7 JAVA REMOTE GRAPHIC USER INTERFACE

The Java Graphic User Interface, stored in the board File System, is downloaded to the local

PC every time the user connects to the board with a Web Browser. A proper Java Virtual

Machine is needed; refer to the Appendix E for a description of supported Java and Internet

Browsers.

3.7.1 Java interface overview

The following figure shows the main control switch of the Java User Interface. It allows the

switching between control pages for settings and monitoring the device.

Fig. 11: Java main control switch

The following controls are provided:

• System commands bar allows the enabling of the following commands:

o Connect: connects/disconnects the local machine to ARK1 ATSC system

o Save: allows saving the device configuration.

o Load: allows loading the last saved device configuration.

Fig. 12: System commands bar

• Operation pages bar allows switching between the following operative sections:

o General: allows to enable the Stand-by mode through the LCD Button, to reset

the device and to locally download the *.jar file.

o Input: shows ASI/SSI, GbE input statistics for ATSC modulator and SDI input

statistics for ITU 470 modulator.

o Tuner: allows to select the input specific for each operative mode, to monitor the

RF input and to configure operative modes (ITU 470 modulator and ATSC

modulator).

o Modulation: allows management and monitoring of ATSC and ITU-470

modulation parameters

o Filter: allows management and monitoring of adaptive filter in ATSC mode.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 44

o AM/PM pre-correction: allows management of AM/PM pre-correction curves

tool.

o Output: allows to set output parameters, specific for each operative mode, and to

monitor the hardware status (ITU 470 modulator and ATSC modulator).

o Network: allows the Network management and the GbE in/out parameters

setting.

o GPS: shows received GPS statistics.

o Alarms: provides a grid where to set alarms masks for LCD, Graphic User

Interface, Events, Relays, Traps and RF Off.

o Events: shows the board events log and allows the manual setting of date and

time.

Fig. 13: Operation pages bar

• System menu allows the access to the same commands and pages as System

commands and Operation pages bars plus management options, help and version

windows (refer to System menu paragraph).

Fig. 14: System menu

A brief description of all the provided indicators and controls follows in the next paragraphs.

The column named I/A specifies if the indicator/command belongs to the ITU 470 modulator

mode rather than belonging to the ATSC modulator mode.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 45

3.7.2 General

Click on General button icon, highlighted in the nex figure, to access the general window.

Fig. 15: General window

The General window provides a general description of the device and allows accessing a

subset of commands through the following buttons:

• Reset: resets the device.

• LCD Standby: enables the LCD Stand-by button.

• Download Software Standalone: performs a local download of the *.jar file (refer to

Download Software Standalone paragraph).

In General window is also specified the bandwidth and the current working mode (refer to

Appendix B).

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 46

3.7.3 Input

Click on Input button icon, highlighted in the nex figure, to access the input window.

Fig. 16: Input window

The Input window allows the monitoring of:

• ASI/SSI and GbE input statistics for ATSC modulator;

• SDI input statistics for ITU 470 modulator.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 47

Table 8. Input window

Box Parameter /

Control Description Admitted Ranges / Values I/A

ASI/SSI Word rate ASI input word rate. 10 bits word rate of ASI input (Ref. to CEI EN 50083-9). Approximately 27 Mword/s A

ASI/SSI

Bitrate [bit/s] ASI input bitrate. A

ASI/SSI

Filtered bitrate

[bit/s] Bit-rate actually used by the modulator.

• Zero when the input has not been

selected

• Equal to the total bitrate, when Delete

Null Packets disabled

• Less than total bitrate, when Delete

Null Packets enabled

ASI/SSI

Format Format of received TS Packets (Ref. to CEI EN 50083-9). • 188 Bytes

• 204 Bytes

ASI/SSI

CD ASI Carrier detection flag. • Green: Detected

• Grey: Not detected

ASI/SSI

Lock ASI lock status. The input Transport Stream is unlocked when more than two consecutive Sync Byte

are missed then five consecutive Sync Bytes must occur to regain the lock (Ref. to ETSI ETR-291)

• Green: Locked

• Grey: Not locked

ASI/SSI

Overflow ASI input overflow indicator. This alarm condition occurs when the input bit-rate exceeds the

capability of the modulation (Ref. to ATSC A/53).

• Red: Alarm

• Grey: No alarms

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 48

Box Parameter /

Control Description Admitted Ranges / Values I/A

ASI/SSI

Word Errors Total amount of ASI wrong words received. A

RTP Protocol Not implemented - Ethernet input packets protocol. • UDP

• RTP

RTP Bitrate [bit/s] Not implemented - Bitrate of TS from Ethernet input. A

RTP Filtered bitrate

[bit/s] Not implemented - Bitrate actually used by the modulator.

• Zero when the input is not selected

• Equal to the total bitrate, when Delete

Null Packets disabled

• Less than total bitrate, when Delete

Null Packets enabled

RTP Format Not implemented - Format of received TS Packets (Ref. to CEI EN 50083-9). • 188 Bytes

• 204 Bytes

RTP Lock

Not implemented - TS lock status. The input Transport Stream is unlocked when more than two

consecutive Sync Byte are missed then five consecutive Sync Bytes must occur to regain the lock

(Ref. to ETSI ETR-291)

• Green: Locked

• Grey: Not locked

RTP Sequence

error

Not implemented - Ethernet input Sequence error alarm status. This alarm condition occurs when an

error in the sequence of input packets at IP level occurs.

• Red: Alarm

• Grey: No alarms

RTP Overflow

Not implemented - Input GbE overflow alarm status. This alarm condition occurs when the input

bitrate exceeds the capability of the modulation (Ref. to ATSC A/53).

• Red: Alarm on

• Grey: Alarm off

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 49

Box Parameter /

Control Description Admitted Ranges / Values I/A

RTP GBE packets Not implemented - Total amount of good Ethernet frames received. A

RTP Speed Not implemented - Ethernet connection speed. No duplex information is provided.

• 10 Mbit//s

• 100 Mbit//s

• 1 Gbit//s

RTP GBE errors Not implemented - Total amount of bad Ethernet frames received. A

SDI CD SDI Carrier detection flag. • Green: Detected

• Grey: Not detected

SDI Lock SDI lock status. • Green: Locked

• Grey: Not locked

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 50

Box Parameter /

Control Description Admitted Ranges / Values I/A

SDI Standard Standard of received SDI.

• 0: NTSC 4:2:2 component video;

• 1: invalid;

• 2: NTSC 4:2:2 16x9 component

video;

• 3: NTSC 4:4:4 13,5 MHz component

video;

• 4: PAL 4:2:2 component video;

• 5: invalid;

• 6: PAL 4:2:2 16x9 component video;

• 7: PAL 4:4:4 13,5 MHz component

video"

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 51

3.7.4 Tuner

Click on Tuner button icon, highlighted in the nex figure, to access the tuner window.

Fig. 17: Tuner window

This window provides commands that allow the selection of working modes, the

management and selection of inputs, and the monitoring of input RF signal level.

The Tuner window is divided in the following boxes:

• System Mode & Autoswitching;

• Mode A;

• Switching Rules Mode A;

• Mode B;

• Switching Rules Mode B;

• Tuner;

3.7.4.1 Modes management

These commands allow the setting of working modes and switch selection rules.

The following table shows the commands and indicators available for modes management.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 52

Table 9. Tuner window: modes management

Box

Parameter /

Control

Description Admitted Ranges / Values I/A

System Mode &

Autoswitching

Actual mode Current operating mode.

• Mode A

• Mode B

I/A

System Mode &

Autoswitching

Manual Mode selector used when Manual Switch mode is selected.

• Mode A

• Mode B

I/A

System Mode &

Autoswitching

Switch mode

Selector of the switch mode rules.

Refer to

Switching modes rules

paragraph for a detailed description of the switching rules and conditions.

• Manual

• Auto

• Opto

• Time

System Mode &

Autoswitching

Autoswitch

Timeout

When Auto Switch Mode is enabled shows the time to wait for switching. If the used input regains lock before the

countdown reaches 0 the switch is blocked and device keeps the same mode. • Countdown from 255 to 0 s A

System Mode &

Autoswitching

Timeout setting

Setting of the time to wait for switching.

Note: It is highly recommended to set a timeout value different from zero as to allow the input signal locking.

• Min: 0 s

• Max: 255 s

System Mode &

Autoswitching

Input Alarm

Delay [s]

Not implemented - Time to wait for No Input alarm rising expressed in seconds (refer to

Alarms

paragraph).

Note: It is highly recommended to set an Input Alarm Delay value different from zero as to allow the input signal

locking.

• Min: 1 s

• Max: 25.5 s

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 53

Box

Parameter /

Control

Description Admitted Ranges / Values I/A

System Mode &

Autoswitching

Switching Time Time and date setting for modes switching when Time Switch mode is enabled. I/A

Mode A / Mode B Mode A / B

Selector of working mode.

Two different working modes are provided:

• ITU 470 modulator

• ATSC modulator

• ITU 470

• ATSC

I/A

Mode A / Mode B Channel Selector of the UHF input channel used as RF input.

• Min: 14

• Max: 77

Mode A / Mode B Offset [Hz] Frequency offset from the channel center frequency of the RF input. 1 Hz step variation.

• Min: -4 MHz

• Max: 4 MHz

Mode A / Mode B

Squelch

[dBm]

Squelch alarm threshold expressed in dBm. Input is squelched when the RF level is under this threshold.

• Min: -70

• Max: -20

Mode A / Mode B S/N Thr [dBm] Not implemented - Signal / Noise alarm threshold

• Min: -10 dBm

• Max: –50 dBm

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 54

Box

Parameter /

Control

Description Admitted Ranges / Values I/A

Mode A / Mode B Input ATSC Selector of ATSC TS input source.

• ASI 0

• ASI 1

• ASI 2

• ASI 3

• SSI 1

• SSI 2

• SSI 3

• SSI 4

• GbE Ch1

• GbE Ch2

Mode A / Mode B

Input ITU470 Selector of ITU470 SDI input.

• SDI 1

• SDI 2

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 55

Box

Parameter /

Control

Description Admitted Ranges / Values I/A

Mode A / Mode B

Audio ITU470 Selector of ITU470 SDI audio channels.

• CH 1,2

• CH 3,4

Switching Rules Mode

A / B

No RF, No TS

Input, Tuner S/N,

Input Squelch,

Tuner BER, No

MIP

Autoswitch alarms mask. Refer to

Switching modes rules

paragraph for a detailed description of the switching

rules and conditions. Implemented only “No TS Input” rule.

• Checked: Use rule

• Not checked: Do not use rule

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 56

3.7.5 Modes switching rules

Four switching rules are provided in order to cover different requirements:

• Manual: switch between mode A and mode B by selecting one mode using the

Manual Selector. The selected mode is always enabled until the user selects the

other one.

• Auto: switch between mode A and mode B using the rules shown in the following

table. One mode is enabled until at least one of the alarms associated to the

enabled automatic switch rules is raised, then a countdown starts and, if the

parameter doesn’t regain a normal status during the timeout, the device switches

to the other mode.

Table 10. Auto-switch rules

Mode Autoswitch rules

ITU 470

modulator Not implemented

ATSC

modulator

No RF: video carrier not locked by the DVB-T receiver. It is associated to

the No RF Input alarm. (Not implemented)

Input Squelch: Received signal level under the squelch threshold. It is

associated to the RF Input Squelch alarm. (Not implemented)

Tuner BER: Bit Error Rate after demodulator over the BER threshold. It

is associated to the RF Digital BER Alarm alarm. (Not implemented)

Tuner S/N: Signal to Noise ratio under the S/N threshold. It is associated

to the S/N Level alarm. (Not implemented)

No TS Input: selected TS input not locked. TS input Alarm should be

enabled in the RF Off alarms mask. It is associated to the No Input alarm.

• Opto: switch between mode A and mode B by selecting one mode using the Opto

2 input with the following rules:

o 1 – Open: Mode A.

o 0 – Closed: Mode B.

• Time: switch from mode A to mode B at a specified Date and Time (Switching

Time). Switching will happen only one time from A to B. In order to set the

Switching Time, select hours, minutes, seconds, days, months and years, and

click on up/down arrows to increase/decrease them.

3.7.6 Tuner management

These commands allow the setting of BER alarm threshold and monitoring of RF input

status.

The following table shows all the commands and indicators available.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 57

Table 11. Tuner window: Tuner management

Box Parameter /

Control Description Admitted Ranges / Values I/A

Turner Main Rx level RF input rx level monitoring. A

Turner Main BER Threshold Not implemented - Demodulator Bit Error Rate alarm threshold.

• Min: 0.000001

• Max: 0.06

Turner Main BER Alarm Not implemented - BER alarm status.

• Red: Alarm

• Grey: No alarms

Turner Main Squelch alarm Not implemented - Squelch alarm status.

• Red: Alarm

• Grey: No alarms

Turner Main V Sync

Not implemented - Analog signal lock status.

The PAL detector has been implemented through the detection of the video carrier synchronization at

15,625 Hz..

• Green: Good Analog

• Grey: Bad Analog

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 58

3.7.7 Modulation

Click on Modulation button icon, highlighted in the nex figure, to access the modulation window.

Fig. 18: Modulator window

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 59

Table 12. Modulator window

Box Parameter /

Control Description Admitted Ranges / Values I/A

Test: ATSC & ITU CW CW check box. • Not checked: CW disabled

• Checked: CW enabled

I/A

Test: ATSC Force Null

Packets Force Null packets function enable.

• Not checked: Force Null packets

disabled

• Checked: Force Null packets enabled

Test: ITU 470 CW A/V Enable for CW on video and audio carriers.

• Not checked: CW A/V disabled

• Checked: CW A/V enabled

Test: ITU 470

Video Test Video test color bars enable.

• Bars

• No video test

Test: ITU 470

Audio Test Audio test tones enable.

• Test Tone

• No audio test

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 60

Box Parameter /

Control Description Admitted Ranges / Values I/A

Test: ITU 470

Tone Right

[100 KHz] Right tone frequency setting. Not used for NTSC

• MIN: 0

• MAX: 127

Test: ITU 470

Tone Left

[100 KHz] Left tone frequency setting.

• MIN: 0

• MAX: 127

Test: ITU 470

Mute Audio

Enable Audio mute enable

• Not checked: audio mute disabled

• Checked: audio mute enabled

Modulation ATSC Delete null

packets Delete null packets function enable.

• Not checked: Delete null packets

disabled

• Checked: Delete null packets enabled

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 61

Box Parameter /

Control Description Admitted Ranges / Values I/A

Modulation ITU470

video White level [%] Video white level setting. The level value is in percentage upon the synch level. The synch level is

taken as 100% reference.

• MIN: 10

• MAX: 22

• Step: 0,05

Modulation ITU470

video

Synch

Amplitude [%]

Video synch amplitude setting. The level value is in percentage upon the synch level. The synch level

is taken as 100% reference.

• MIN: 22

• MAX: 27,5

• Step: 0,05

Modulation ITU470

video

Pedes level

[%]

Video pedes level setting. The level value is in percentage upon the synch level. The synch level is

taken as 100% reference.

• MIN: 0

• MAX: 7

• Step: 0,05

Modulation ITU470

audio Deviation Audio deviation monitor. • I

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 62

Box Parameter /

Control Description Admitted Ranges / Values I/A

Modulation ITU470

audio

Carrier Level 1

[dB] Audio 2 carrier level setting.

• MIN: -7

• MAX: -22

• Step: 0,1

Modulation ITU470

audio

Carrier Level 2

[dB] Audio 1 carrier level setting. Not used for NTSC

• MIN: -7

• MAX: -22

• Step: 0,1

Modulation ITU470

audio

Emphasis Audio emphasis value monitor.

• 50 us

• 75 us

• no emphasis

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 63

Box Parameter /

Control Description Admitted Ranges / Values I/A

Modulation ITU470

audio Audio Type Audio type selector. Only the mono single carrier audio type is used for NTSC.

• mono dual carrier

• dual sound

• stereo

• mono single carrier"

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 64

3.8 Filter

The Adaptive Filter provides the ARK1 ATSC with an effective adaptive linear

compensation.

The adaptive filter works only in ATSC operative mode.

The developed system is responsible for pre-emptively compensating an ATSC signal in

order to make unimportant the contribution of the system transmission section. The signal

passes through the transmission section and re-enters the system as to determine the

distortion and the compensating adaptive filter.

The system is composed of two main blocks: a Power Calculation block and a 128-tap

Complex FIR. The modulated signal, with IQ format and sampled at ƒc frequency, enters

both blocks:

• Power Calculation block is responsible for estimating the mean power level that will

be restored at both transmitting and receiving sides;

• 128-tap Complex FIR is responsible for linearly pre-correcting the modulated signal.

Filter coefficients are obtained by estimating the channel between the signal before

the transmission section and the signal reentering the system, after the channel

distortion and the A/D conversion.

Fig. 19: Adaptive Filter

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 65

Click on Filter button icon, highlighted in the nex figure, to access the filter window.

Fig. 20: Filter window

This window provides commands and monitors for adaptive filter management and is organized in

four subwindows:

• Management panel

• Complex filter coefficients graph

• Module graph

• Phase graph

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 66

3.8.1 Management panel

Table 13. Filter window: management panel

Parameter /

Control Description Admitted Ranges / Values I/A

Read To read and loads the filter coefficients from the respective FPGA registers.. I/A

Init To load flat curves coefficients. I/A

Auto To move the filter at the center of the band I/A

Export To export the file with the actual adaptive filter coefficients. I/A

Save To save the actual adaptive filter coefficients I/A

Ext Delay To monitor the external Delay value (indicated in unit x sampling time). The external delay is the delay

between the compensated signal at the filter output and the correlated feedback signal at filter input.

I/A

Update Coeff To enable the filter coefficients real time update. Checked: enabled

Not checked: disabled I/A

Update Coeff /

Speed

To set the speed of the filter coefficients update. Min: 0

Max: 7 I/A

Power Control

To enable the power control coefficient update. The power control block multiples the input signal for a

calculated coefficient to guarantee the same average power level in reception and in transmission of

the filter..

Checked: enabled

Not checked: disabled I/A

Power Control

/ Speed

To set the speed of the power control coefficient update. Min: 0

Max: 7 I/A

Ref Level

Power Rx

To monitor the power control coefficient value applied for the reception. I/A

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 67

Ref Level

Power Tx

To monitor the power control coefficient value applied for the transmission. I/A

Signal Power To monitor the power value of the modulated signal at the input. I/A

Mean Square

Error

To monitor the Mean Square Error value of the compensate signal. It gives a quality indication of the

preventive compensation.

I/A

Low Power Rx

Signal

Indicates that the signal that re-enters the system has a low output power. When this flag is on, the

automatic update of the filter coefficients is stopped.

Red: bad RF rx signal

Grey: good RF rx signal I/A

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 68

3.8.2 Complex filter coefficients graph

Fig. 21: Filter window: complex filter coefficients graph

This graph shows the actual coefficients values applied. The circles indicate the coefficients real

values, the red crosses indicate the imaginary ones.

3.8.3 Module graph

Fig. 22: Filter window: module graph

This graph shows the actual module applied according to the coefficients calculated.

3.8.4 Phase graph

Fig. 23: Filter window: phase graph

This graph shows the actual phase applied according to the coefficients calculated.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 69

3.8.5 AM/PM pre-correction tool

The ARK1 ATSC system provides a pre-correction tool for AM/PM output signal pre-

correction.

Remember to click on the Save as button the first time you change the factory default curves

in order to do not overwrite them.

Before closing the connection to port 5000, save curves changes otherwise they will be lost.

Note: the operation of uploading and downloading pre-correction curves moves a large

amount of data from and to the device. The use of these tools over low badwidth, not stable

or high distances netwoks could cause frequently time-out disconnections and it is not

recommended.

Click on AM/PM button icon, highlighted in the nex figure, to access the pre-correction

window.

Table 14. AM/PM pre-correction window

Two main actions are possible in this section:

• AM/AM and AM/PM curve drawing: used to change the AM/PM pre-correction

coefficient.

• AM/PM pre-correction files management: used to open or save AM/PM pre-

correction setting file.

AM/AM and AM/PM curves are specific for each power range of each output channel.

The two curves are used to calculate the AM/PM pre-correction coefficients. The curves are

drawn by the interpolation of 1024 points referring to the points inserted and using a linear or

polynomial interpolation algorithm.

Knob points can be added with a left-click of the mouse on the grid and deleted with a right-

click, drag and move a point to change the curve.

Each coefficient variation, due to curves change, is saved in the FPGA “runtime” memory

registers and dynamically changes the device’s output.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 70

The tool is prevented to send an “overflowing” amount of data to the device: curve changes

will be applied only when the mouse button is released.

In the module grid, the red curve is used to monitor the current module curve calculating and

saving. The last saved coefficients are locally downloaded from the FPGA runtime memory

registers in order to redraw the curve.

During saving actions are created two nonlinear pre-correction files:

• *.dpre files: files containing digital coefficients values.

• *.apre files: files containing analog coefficients values.

The following buttons allow the management of linear pre-correction files and the

management of the connection to port 5000:

• Save: used to save in the device memory the current curves setting. The previously

saved file will be overwritten except in the event that no files have been saved

before; in this case a dedicated window appears in order to let the user name the

new file.

• Save as: used to save in the device memory the current curves setting. The

previously saved file will be overwritten with a new name. In the event that no files

have been saved before, a new file will be created.

• Read file: used to reload the last saved file.

• Export: used to download pre-correction files on the user PC. A browser window

allows the selection of the saving path.

• Release: releases the connection in order to allow others remote machines to

connect to port 5000 (refer to Connection to port 5000 paragraph).

Note: only the drawn curves have the coefficients written in the FPGA registers and so

savable. A curve not yet drawn takes as default the same shape of the last curve drawn and

visualized, to make it drawn click on the graph.

Files are separately managed in analog and in digital AGC mode.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 71

3.8.6 Connection to port 5000

The connection to port 5000 is performed every time the pre-correction tool is opened

through AM/PM button, from Java interface. The pre-correction tool opens and keeps busy

the connection to port 5000 till the connection releasing

The connection to this port precludes the possibility of:

• programming the device;

• allowing more than one user, the very same one that is keeping busy the connection,

to open the pre-correction tools.

The Release button comes through these limits. It closes the connection to port 5000, close

the AM/PM window and opens the General window. Once clicked the Release buttons and

before quitting the pre-correction tool, three options are provided:

• Continue: continue without saving;

• Save and Release: save, continue and release the connection;

• Cancel: cancel the request of releasing the connection.

Fig. 24: Releasing connection

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 72

3.8.7 Output

Click on Output button icon, highlighted in the nex figure, to access the output window.

Fig. 25: Output window

Use the Output window to change and monitor both Ethernet and RF output settings, and all

accessible hardware indicators.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 73

Table 15.

Output window

Box Parameter /

Control Description Admitted Ranges / Values I/A

RF ON / OFF

Output RF signal enabling. The possible output RF signal status are the following:

• ON;

• RF OFF: automatic switch off of the output signal (refer to Ampli status);

• OFF: manual switch off of the output signal.

• Green: ON

• Green: RF OFF

• Red: OFF

I/A

RF Frequency

reference Frequency reference source selector.

• External

• Internal

• GPS

I/A

RF Internal Freq.

Ref. Tune

Internal frequency reference fine tuning setting. Allows the fine tuning of VCO, internal clock

oscillator, with 60 Hz steps.

• Min: 0

• Max: 255

I/A

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 74

Box Parameter /

Control Description Admitted Ranges / Values I/A

AGC AGC ON AGC status.

• Green: ON

• Grey: OFF

I/A

AGC Mode Current AGC mode indicator.

• Analog/Digital:

• Green: ON

• Grey: OFF

I/A

Frequency

Out [Hz]

Frequency

Out [Hz] Output center frequency expressed in Hz. I/A

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 75

Box Parameter /

Control Description Admitted Ranges / Values I/A

Status Ampli status Current amplifier status indicator.

• On

• Off

• Restart

• Stand-by off

• GPS Off

• Init

• Alarm off

• Rf off

• Opto off

• Change mode

I/A

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 76

Box Parameter /

Control Description Admitted Ranges / Values I/A

Status 28V / 42V

PSU voltage indicator (values are expressed in V). It depends on the hardware type of the device:

• 28V for SDTx_ARK1 20W and 50W;

• 42V for SDTx_ARK1 200W.

I/A

Status Current PSU

28V / 42V [A] PSU current indicator (values are expressed in A). I/A

Status 24V PSU 24V indicator (values are expressed in V).

Only in SDTX 200 version. I/A

Status Case

Temperature Case temperature indicator (values are expressed in °C). I/A

Status Case

Temperature 2

2nd Case temperature indicator (values are expressed in °C).

Only in SDTX 200 version. I/A

Status PSU

Temperature PSU temperature indicator (values are expressed in °C). I/A

Status Fan 1 Fan 1 speed indicator (values are expressed in rpm). I/A

Status Fan 2 Fan 2 speed indicator (values are expressed in rpm). I/A

Status Fan 3

Fan 3 speed indicator (values are expressed in rpm).

Only in SDTX 200 version. I/A

Status Fan 4

Fan 4 speed indicator (values are expressed in rpm).

Only in SDTX 200 version. I/A

Status FWD Power

[dBm] Output forward power indicator (values are expressed in dBm). I/A

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 77

Box Parameter /

Control Description Admitted Ranges / Values I/A

Status Reflex Power

[dBm] Output reflex power indicator (values are expressed in dBm). I/A

Opto & Relay Relay 0 Selector of Relay 0 using mode.

• Alarm: indicator of an alarm

condition

• Mode: indicator of operating

mode

• RF Status: indicator output RF

signal status (on/off)

I/A

Opto & Relay Relay 1 Selector of Relay 1 using mode.

• Alarm: indicator of an alarm

condition

• Mode: indicator of operating

mode

I/A

Opto & Relay Relay 0…3 Relays status indicators.

• Green: Alarm on/Mode A/RF

Off

• Grey: Alarm off/Mode B/RF On

I/A

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 78

Box Parameter /

Control Description Admitted Ranges / Values I/A

Opto&Relay Opto 0…3

Opto status indicators. Optos are normally opened:

• Opto 0: RF Off, manual switching off of output RF;

• Opto 1: Mode A/B switch;

• Opto 2: Retry of amplifier alarms (only in SDTX 200 version);

• Opto 3: Stand-by enabling; it puts the device on stand-by.

• Green: Closed (0)

• Grey: Opened (1)

I/A

Mode A / Mode B Channel Output channel.

• Min: 14

• Max: 77

I/A

Mode A / Mode B Power [dBm] Output power (expressed in dBm).

• SDTx 20/50

o Analog min: 23 dBm

I/A

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 79

Box Parameter /

Control Description Admitted Ranges / Values I/A

Mode A / Mode B Power [W] Output power (expressed in W). I/A

Mode A / Mode B Offset [Hz] Output frequency offset (expressed in Hz).

• Min: -4 MHz

• Max: 4 MHz

I/A

FWD Power

Thresholds Warning [dB] Forward power warning threshold expressed in dBm.

• Min: -16 dBm

I/A

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 80

Box Parameter /

Control Description Admitted Ranges / Values I/A

FWD Power

Thresholds Alarm [dB] Forward power alarm threshold expressed in dBm. I/A

Temperature

Thresholds Warning Case temperature warning threshold expressed in °C. I/A

Temperature

Thresholds Alarm Case temperature alarm threshold expressed in °C.

• Min: 0 °C

• Max: 100 °C I/A

Output GbE Ch.1

/ Ch. 2

Enable send

frame Enable for transmission on GbE channel 1/2. Not implemented

• Checked: Enabled

• Not checked: Disabled

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 81

Box Parameter /

Control Description Admitted Ranges / Values I/A

Output GbE Ch.1

/ Ch. 2

Input Source selector for transmission on GbE channel 1/2. Not implemented

• ASI 0

• ASI 1

• ASI 2

• ASI 3

• SSI 1

• SSI 2

• SSI 3

• SSI 4

• GbE Ch.1

• GbE Ch. 2

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 82

Box Parameter /

Control Description Admitted Ranges / Values I/A

Output GbE Ch.1

/ Ch. 2

Status Status indicator of transmission on GbE channel 1/2. Not implemented

• Resolving IP Addr.

• IP not found

• No entry

• Transmitting data

• Transmitting data multicast

• ON

• OFF

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 83

3.8.8 Network

Click on Network button icon, highlighted in the nex figure, to access the Network

management window.

Fig. 26: Network window

This window allows the Network parameters management and monitoring.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 84

Table 16. Network window

Box Parameter /

Control Description Admitted Ranges / Values I/A

Local Board IP

address Board IP address. A

Local Board MAC

address Board MAC address. A

Local Gateway Gateway address. A

Local Mask Net Mask. A

Local Tx Source Port Board receiving port.

• Min: 0

• Max: 65,535

Trap IP address 0…7 Trap 0…7 destination IP address. A

IGMP Enable IGMP IGMP enabling.

• Checked: Enabled

• Not checked: Disabled

Input GbE Ch.1/

Ch.2 IP Address Channel 1/2 receiving IP address. Not implemented. A

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 85

Box Parameter /

Control Description Admitted Ranges / Values I/A

Input GbE Ch.1/

Ch.2

Port Channel 1/2 receiving port. Not implemented.

• Min: 0

• Max: 65,535

Input GbE Ch.1/

Ch.2

Protocol Ethernet input packets protocol. Not implemented.

• UDP/RTP:

o Green: Detected

o Grey: Not detected

Input GbE Ch.1/

Ch.2

Bitrate [bit/s] Bitrate of TS from Ethernet input. Not implemented. A

Input GbE Ch.1/

Ch.2

Filtered bitrate

[bit/s] Bitrate actually used by the modulator. Not implemented.

• Zero when the input is not

selected

• Equal to the total bitrate, when

Delete Null Packets disabled

• Less than total bitrate, when

Delete Null Packets enabled

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 86

Box Parameter /

Control Description Admitted Ranges / Values I/A

Input GbE Ch.1/

Ch.2

Format Received transmission format. Not implemented.

• 188 Bytes

• 240 Bytes

Input GbE Ch.1/

Ch.2

Lock Ethernet input lock status indicator. The input Transport Stream is locked when no more than two

consecutive Sync Byte are missed. Not implemented.

• Green: Lock

• Grey: Not locked

Input GbE Ch.1/

Ch.2

Sequence

error

Ethernet input Sequence error alarm status. This alarm condition occurs when an error in the

sequence of input packets at IP level occurs. Not implemented.

• Red: Error

• Grey: No errors

Input GbE Ch.1/

Ch.2

Overflow Input GbE overflow alarm status. This alarm condition occurs when the input bitrate exceeds the

capability of the modulation (Ref. to ATSC A/53). Not implemented.

• Red: Alarm on

• Grey: Alarm off

Input GbE Ch.1/

Ch.2

RTP Clock RTP packets source clock reference. Not implemented.

• 90 kHz

• 27 MHz

Gbe statistic GBE Packets Total amount of good frames received. A

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 87

Box Parameter /

Control Description Admitted Ranges / Values I/A

Gbe statistic Speed Ethernet speed.

• 10 Mbit//s

• 100 Mbit//s

• 1 Gbit/s

Gbe statistic GBE Errors Total amount of bad frames received. A

Community Get Read community setting. A

Community Set Set community setting. A

Community Trap Trap community setting. A

Output GbE Ch.1

/ Ch.2

Enable send

frame Channel 1/2 Ethernet transmission enabling. Not implemented.

• Checked: Enabled

• Not checked: Disabled

Output GbE Ch.1

/ Ch.2

IP Channel 1/2 Ethernet transmission IP address. Not implemented. A

Output GbE Ch.1

/ Ch.2

Port Port used for RTP/UDP data transmission. Not implemented.

• Min: 0

• Max: 65,535

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 88

Box Parameter /

Control Description Admitted Ranges / Values I/A

Output GbE Ch.1

/ Ch.2

Status Ethernet transmission on channel 1/2 status indicator. Not implemented.

• Resolving IP Addr.

• IP not found

• No entry

• Transmitting data

• Transmitting data multicast

• ON

• OFF

Output GbE Ch.1

/ Ch.2

Destination

MAC Destination MAC address. Not implemented. A

Output GbE Ch.1

/ Ch.2

SSRC SSRC identifier of the RTP transmission on channel ½. Not implemented. A

Output GbE Ch.1

/ Ch.2

TS Pck per

Frame Number of packets per frame. Not implemented.

• Min: 1

• Max: 7

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 89

Box Parameter /

Control Description Admitted Ranges / Values I/A

Output GbE Ch.1

/ Ch.2

Frame type Transmission protocol selector. Not implemented.

• RTP

• UDP

Output GbE Ch.1

/ Ch.2 TS Format Transmission format. Not implemented.

• 188 Bytes

• 240 Bytes

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 90

3.8.9 GPS

Click on GPS button icon, highlighted in the nex figure, to access the GPS received statistics

window.

Fig. 27: GPS window

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 91

Table 17.

GPS window

Box Parameter /

Control Description Admitted Ranges / Values I/A

Satellite #Number of

Visible sat Number of visible GPS satellites indicator. I/A

Satellite #Number of

Tracked sat Number of tracked GPS satellites indicator. I/A

Satellite Alarm

GPS alarm status indicator. This alarm is a logic OR of the GPS alarms (refer to

Alarms

paragraph).

• Red: Alarm on

• Grey: Alarm off

I/A

Satellite Data valid Valid satellite signal receiving status indicator.

• Green: Valid

• Grey: Not valid

I/A

Position Latitude (°) Site latitude expressed in degrees. I/A

Position Longitude (°) Site longitude expressed in degrees. I/A

Date & Time UTC Time

Current time indicator.

Each GPS satellite has an atomic clock and continually transmits messages containing the

current time and date at the start of the message sended by the GPS itself.

I/A

Date & Time UTC Date

Current date indicator.

Each GPS satellite has an atomic clock and continually transmits messages containing the

current time and date at the start of the message send by the GPS itself.

I/A

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 92

3.8.10 Alarms

Click on Alarms button icon, highlighted in the nex figure, to access the alarms management

window.

Fig. 28: Alarms window

The Alarm window allows the setting of alarm masks and the monitoring of alarms status.

Use alarm masks to select how and which alarm have to be notified.

Masks are organized in columns. The sixteen columns represent sixteen destinations of each

alarm notification:

• GUI: the selected alarms status is notified on the Java alarm page icon.

• LCD: the selected alarms status is notified on LCD display lighting the alarm

button and listing the alarms in the Alarms menu (refer to LCD alarms

paragraph).

• Event: the selected alarms status generate an alarm event that will be logged

in the event memory (refer to Events paragraph).

• R0…R3: the selected alarms switch on the corresponding relay.

• T0…T7: the selected alarms generate the corresponding trap messages (refer

to Network paragraph to set destination IP addresses).

• RF: the selected alarms switch off the output RF signal. The RF mask is almost

entirely fixed in order to avoid board damages or malfunctioning (refer to RF Off

Alarms Mask paragraph).

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 93

In the Alarms window, when an alarm condition occurs, the relative alarm is red highlighted.

The Total check box enables all alarms-to-masks associations.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 94

Table 18. Alarms window

Alarm Description I/A

(1) Troubleshooting

mask

Up converter Osc. Unlock PLL of the Up-converter board not locked to 129 MHz

clock. I/A • Hardware fault 1

PS Voltage out range

Voltage out of range. The ranges are:

• 20V up to 30V for SDTx_ARK ATSC 20W and 50W;

• 38V up to 44V for SDTx_ARK ATSC 200W.

I/A

• Hardware fault 1

PS Current out of range

The current exceeds the 22 Ampere upper limit of

SDTx_ARK ATSC 20W and 50W and the 17 Ampere

upper limit of SDTx_ARK ATSC 200W.

I/A

• Hardware fault 1

Absolute Power Limiter The output power exceeds the maximum endurable limit. I/A

• Hardware fault 1

Communication error Communication errors between ARK ATSC main board

and Up-converter board. I/A

• Hardware fault 1

Temperature High Alarm Case temperature over 70°C, the maximum endurable

limit. I/A

Temperature Level-3dB

Temperature level goes over the alarm threshold.

The output power is consequently lowered by 3 dBm

(always within the admitted power range).

I/A

• Check alarm and warning thresholds

• Lower the output power to decrease internal temperature 0

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 95

Temperature High Warning Temperature level goes over the warning threshold. I/A

Forward Power High FWD power goes over the maximum endurable limit. I/A

• Verify that the No RF Input alarm is enabled in the RF Off alarms

mask

• Hardware fault

Forward Power Low Alarm FWD power level goes over the alarm threshold. I/A

Forward Power Low Warning FWD power level goes over the warning threshold. I/A

• Check alarm and warning thresholds

• At every amplifier initialization the FWD power alarm and warning

are temporary on

• Amplifier is not properly working, hardware fault

Reflex Power High RFL power goes over the maximum endurable limit. I/A

• Check the RF output for disconnection or wrong impendence

adaptation

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 96

Fan Speed One of the fans speeds is under the minimum speed level

(1,000 rpm). I/A

• Check fans connections

• Verify that fans are not damaged; in this case substitute them.

The substitution can be performed during device normal

operations

ITU No SDI Input

• Device in ITU470 mode

• Selected SDI input not locked.

• Check input statistics X (1)

GPS Lock

• GPS is selected as frequency reference

• GPS communication error alarm is not signaled

• GPS signal is not lock.

I/A

• Check cable and GPS antenna connections

• Hardware fault

X (0)

GPS Communication Error

• GPS is selected as frequency reference

• Communication errors between ARK ATSC main

board and GPS board.

I/A

• Hardware fault X (0)

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 97

Signal 10 MHz Lock

• GPS communication error alarm is not signaled

• GPS lock alarm is not signaled

• 10 MHz is not locked.

I/A

• If the Network’s Transmitters Synchronization is SFN, check the

frequency reference: it should be other than internal

• If the frequency reference is Internal: internal PLL fault

• If the frequency reference is External:

o Internal PLL fault

o Lack of external 10 MHz

o Hardware fault

• If the frequency reference is GPS:

o Check GPS alarms

o Internal PLL fault

o Hardware fault

X (0)

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 98

Signal 129 MHz Lock

• GPS communication error alarm is not signaled

• GPS lock alarm is not signaled

• 10 MHz lock alarm is not signaled

• 129 MHz is not locked.

I/A

• 129 MHz oscillator can loose the lock

• Hardware fault

Signal 960 MHz Lock 960 MHz is not locked. I/A

• Hardware fault 1

Down Converter Osc. Unlock PLL of the Down-converter board not locked to 129 MHz

clock. A

• Hardware fault X (0)

ITU Wrong Input Standard

• Device in ITU470 mode

• Selected SDI signal standard is not NTSC

• Check input statistics X (1)

RF Input Squelch

• Device in ATSC mode

• RF input alarm is not signaled.

• RF signal level under the squelch threshold

• Check Squelch alarm threshold

• Check input channel

• Check RF input source and signal

X (0)

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 99

Not implemented 0

File System Error File System loading error. I/A

• File system partition damage 0

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 100

Bad File in File system

One more of the following files missing in the File System.

• *.def;

• *.sav;

• *.apwr;

• *.dpwr;

• *.apre;

• *.dpre;

• *.chf;

• *.cfg.

• *.cdef

• *.mod

• *.gdly

I/A

• Check files list

• Reload the file system

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 101

No TS Input

• Device in ATSC mode

• Selected TS input not locked.

The No TS Input is an alarm of the Tx ATSC mode. It

should be always enabled in the RF Off alarms mask

while working in ATSC mode.

• Check input statistics X (1)

FPGA Boot alarm FPGA boot has not been successfully completed. I/A

• Restart the machine

• Reload the file system

X (0)

Warm up alarm Temperature level under 5°C or temperature sensor fault. I/A

• Restart the machine

• Temperature sensor fault

Notes to the table:

(1) I stands for ITU470 modulator and A stands for ATSC modulator.

(2) 0/1 stands for disabled/enabled and is fixed, X (0/1) stands for not fixed with default value indicated between brackets.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 102

3.8.11 Events

Click on Events button icon, highlighted in the nex figure, to access the events windos.

Fig. 29: Events window

This window allows to monitor the events list and to set the device time and date.

3.8.12 Time/Date setting

The bar above the events list allows to monitor and to set the device time/date.

Fig. 30: Time/Date bar

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 103

Double click on the Time/Date field to change.

Fig. 31: Time/Date field selected

Click on the lateral up-arrows or on the down-arrows to respectively increase or decrease the

value of the field selected.

Fig. 32: Lateral up-down arrows for Time/Date setting

3.8.12.1 Events monitoring

Events are reported with the following information:

• Time: event detection time.

• Date: event detection date.

• Type: event type:

o Alarm (refer to alarms list in Alarms paragraph and to Alarms list table);

o Command

o Event (refer to Events list table);

o System init (refer to Init System Event paragraph);

o TASK_ERR (refer to Task Error Event paragraph);

o SYS_ERR (refer to System Error Event paragraph).

• Description: event description:

o Alarm: which alarm generated the event;

o Command: the low level code and command source;

o Event: event description;

o System Init: system initialization perhaps followed by the alarm

Use the following buttons, sited on the right side of the window, to manage the Events list:

• Clear: resets the events list.

• Get History: gets all the stored events from the last board reset (max 512 events).

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 104

Table 19.

Events descriptions list

Event Description Description

RF OFF enabled from OPTO RF output switched off through OPTO 0.

RF OFF disabled from OPTO RF output switched on through OPTO 0.

Stand-by ON from OPTO Stand-by mode enabled through OPTO 3.

Stand-by OFF from OPTO Stand-by mode disabled through OPTO 3.

Stand-by ON from LCD Stand-by mode enabled through LCD button.

Stand-by OFF Stand-by mode disabled through LCD button.

Power = xx.x dBm (source)

New output power setting.

xx.x: output power expressed in dBm.

Source: Local or MIP

Update file *.xxxx New file loading.

Xxxx: file extension.

P5K open: xx.xx.xx.xx Connection to port 5000 open.

xx.xx.xx.xx: host IP address.

P5K closed Connection to port 5000 closed.

Mode X= (mode)

Manual change mode.

X: new mode (A/B)

mode: Tx ATSC – Tx ITU 470.

Switch mode swhitch X => Y

Switch mode change.

Switch mode: Manual / Auto / Opto / Time.

X=>Y: A/B=>B/A.

UPCV not configured

The Upconverter has been found not configured during the

UPCV_TASK (refer to

Task Error Event

paragraph).

UPCV configured Automatic reconfiguring of the Upconverter. It automatically starts at

every UPCV not configured event or UPCV communication error.

File system busy File system already in use while tring to employ it (e.g. change mode

during a file loading).

UTC Time set from GPS

Time and date set by GPS. As soon as the GPS lock is regained,

once lost, and if the current time and date are different from the GPS

ones, the UTC time is set by GPS.

Warm UP Restart When Warm up alarm is risen this event is reported and the device is

restarted.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 105

Event Description Description

PS Restart N

This event is reported when one of the following alarms is risen:

• Up converter Osc. Unlock

• PS 28V out range

• PS Current out of range

• Absolute Power Limiter

The fourth time one of the preceding alarms is risen the amplifier is

restarted (from 1 up to 4 times).

N: number of amplifier restarting.

Only in SDTX 200 version.

PS OFF

After the fourth time the amplifier has been restarted, if an alarm

condition causing a PS Restart event occurs, PS OFF event is

reported and the amplifier is turned off

When this event is reported amplifier can be turned on only by OPTO

2 (only in SDTX 200 version).

Restart Amp from OPTO

This event is reported when the retry command is given by the Retry

Alarm OPTO (OPTO 2).

Only in SDTX 200 version.

PS ON This event is reported at every amplifier restarting

Only in SDTX 200 version.

FPGA Re-config When Signal 129 MHz Lock alarm is risen the FPGA is re-configured

and this event is reported.

Events List cleared This event is reported when the events list is cleared.

Saving config… Saving configuration task started (after the command “s” given by

RS232 or GbE commans).

Save config Finished Saving configuration task correctly ended.

Save config error: xx

An error occurs during saving configuration.

xx: error code:

•

0x80: File system busy;

•

0x01: New *.sav file opening error;

•

0x02: FPGA data writing error;

•

0x03: uC data writing error;

•

0x05: Old *.sav file deleting error

•

0x06: New file naming error (deleting of “*”).

The following table lists the descriptions of all the alarm type events (refer to Alarms paragraph for

further information about alarms).

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 106

Table 20.

Alarms descriptions list

Alarm Alarm Description

Up converter Osc. Unlock UPCV Osc. not locked

PS Voltage out of range PS voltage error

PS Current out of range PS current error

Absolute Power Limiter Absolute pwr high

Communication error UPCV dialog error

Temperature High Alarm Temperature high

Temperature Level-3dB Temperature -3dB

Temperature High Warning Temperature warning

Forward Power High FWD Power high

Forward Power Low Warning FWD Pwr low warning

Forward Power Low Alarm FWD Pwr low alarm

Reflex Power High Reflected Power high

Fan Speed Fans warning

S/N level RF input S/N low

GPS Lock GPS not locked

GPS Communication Error GPS dialog err

Signal 10 MHz Lock 10MHz not locked

Signal 129 MHz Lock 129MHz not locked

Signal 960 MHz Lock 960MHz not locked

Down Converter Osc. Unlock DWCV Osc. not locked

No RF Input RF In. not detected

RF Input Squelch RF input squelch

RF Digital Ber Alarm RF input BER high

File System Error File system wrong

Bad File in File system File error (*.ext)

No TS Input TS In. not detected

FPGA Boot alarm FPGA boot err

Warm up alarm System warm up

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 107

3.8.13 Task Error Event

The watchdog performs a periodic (every 20 seconds) polling of tasks and triggers a system reset if

one or more tasks do not answer, restarting the Codeloader (See

Codeloader_Operations_Note_v1.1.doc for further information) and generating a TSK ERR event as

follows:

The blue underlined 32-bits word is the enabling status of the alarms mask. The red underlined 32-

bits word indicates the status of tasks (1 if the task has been successfully performed, otherwise 0)

as specified in the following table:

Table 21. Task error event specific data

TASK Description Bit

WD_FAN_TASK This task controls fans speed on the base of the

board temperature. 0

WD_UPCV_TASK This task controls the Upconverter status. 1

WD_GPS_TASK This task controls the GPS status. 2

WD_STATUS_TASK

This task gathers quite all the board information in

order to perform the following operations:

•

It updates all variables of the system;

•

It manages alarms;

•

It manages the RF status (e.g. on, off…);

•

It manages the mode switch;

•

It manages the ARP resolution in DVB mode.

WD_TCP_IP_TASK This task implements the TCP-IP protocol stack. 4

WD_TIMER_TICK_TASK This task generates the clock for the TCP-IP task. 5

WD_STV0371_TASK This task gathers information from the demodulator

and configures it. 6

The default tasks mask at the board startup is set to 0x0000007D (nb the UPCV task is excepted).

Once the presence of the upconverter is assured, the upconverter task bit is automatically enabled

and the mask is set to 0x0000007F. Tasks execution is stopped during de-fragmentation operations

and FPGA boots.

TSK ERR 00000028, 0000003c

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 108

3.8.14 System Error Event

For critical and fatal errors, the system calls the system error function and the SYS_ERR event is reported.

The error code is describer below:

• 0x00: Out of memory. Memory pool size is too small.

• 0x01: Invalid memory block release. Buffer data has been written out of boundaries of the allocated

memory block.

• 0x02: Link pointer corrupted. Buffer data has been written out of boundaries of the allocated memory

block.

• 0x03: No free UDP Sockets. The system has run out of UDP Sockets.

• 0x04: No free TCP Sockets. The system has run out of TCP Sockets.

•

0x05: TCP socket is in an undefined state. System memory has been accidentally overwritten.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 109

3.8.15 System Initialization Event

At every system initialization the event System Init is generated.

This event is followed by 25 bytes specifying type and specific code of errors occurred during

system initialization.

Each byte refers to an error as described in the following table:

Table 22. Init system event specific data

Byte Description Errors code

1° FS_ERR

File System error.

• 0x00: File System ok.

• 0x01: FS partition error (invalid FS).

2° INFO_ERR

*.cfg file error.

• 0x00: File ok.

• 0x01: File not found or File open error.

• 0x02…0x03: Invalid file (syntax errors).

3° DEF_ERR

*.def file error.

• 0x00: File ok.

• 0x01: File not found.

• 0x02: File open error.

4° LCD_ERR

LCD error.

• 0x00: LCD ok.

• 0x01: LCD not found.

5° PLL_960M_ERR

960 MHz PLL error.

• 0x00: PLL locked.

• 0x01: PLL not locked

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 110

Byte Description Errors code

6° BOOT_ERR

FPGA boot error.

• 0x00: FPGA boot ok.

• 0x01: FPGA configuration erasing

process error.

• 0x02: Invalid configuration (the

configuration has been correctly loaded,

but the FPGA doesn’t boot).

• 0x10: FPGA file not found.

• 0x11 and 0x20: Invalid FPGA file

(syntax error).

7° LOAD_CFG_ERR

*.sav file error.

• 0x00: File ok.

• 0x01: File open error.

• 0x02…0x05: Invalid file (syntax errors).

• 0x10: File not found.

8° SNMP_ERR

SNMP file error.

• 0x00: SNMP file ok.

• 0x01: SNMP file not found.

• 0x02: File open error.

• 0x03: UDP socket initialization error.

• 0x04: Port 161 open error.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 111

Byte Description Errors code

9°

CALIB_ERR

*.apwr and *.dpwr files

error.

• 0x00: File ok.

• 0x01: Analog (Digital) mode (current

mode) file not found.

• 0x02: Analog (Digital) file open error.

• 0x03…0x12: Invalid Analog (Digital) file

(syntax error).

• 0x20: Digital (Analog) mode file not

found

• 0x21: Digital (Analog) file open error.

• 0x22…0x26: Invalid Digital (Analog) file

(syntax error).

10°

PREC_ERR

*.apre and *.dpre files

error.

• 0x00: File ok.

• 0x01: File not found.

• 0x02File open error.

• 0x03…0x0a: Invalid file (syntax errors).

11° LINEAR_ERR

*.drlin file error file error.

• 0x00: File ok.

• 0x01: File not found.

• 0x02: File open error.

• 0x03…0x06: Invalid file (syntax errors).

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 112

Byte Description Errors code

12°

DOWNCV_ERR

Downconverter PLL not

locked error.

• 0x00: PLL locked.

• 0x01: PLL not locked

• 0x10: PLL disabled.

13° UPCV_ERR

Upconverter error.

• 0x00: Upconverter ready.

• 0x01: Upconverter not found.

• 0x02: Upconverter doesn’t correctly

answer.

14° CH_FILT_ERR

*.chf file error.

• 0x00: File ok.

• 0x01: File not found.

• 0x02: File open error.

• 0x03…0x06: Invalid file (syntax errors).

15° CH_DEFINE_ERR

*.cdef file error.

• 0x00: File ok.

• 0x01: File not found.

• 0x02: File open error.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 113

3.8.16 System menu

Fig. 33: Menu bar

The menu bar allows the access to three menus:

• File: allows the enabling of load and save commands

• View: allows to manage sections windows showing, java update time and events alert

massages

• Help: informs about board name, GbE IP address, file system and operator managing

system characteristics.

3.8.17 File menu

Fig. 34: File menu

The File menu allows the enabling of the following commands:

• Save: allows device configuration saving creating a new *.sav file in the file system.

• Load: allows last *.sav file loading from file system.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 114

3.8.18 View menu

Fig. 35: View menu

The View menu allows the enabling of the following commands:

• General: allows accessing the general window.

• Input: allows accessing the input window.

• Tuner: allows accessing the Tuner window.

• Modulation: allows accessing the Modulation window

• Filter: allows accessing the Filter window.

• AM/PM precorrection: allows accessing the AM/PM precorrection window.

• Output: allows accessing the Output window.

• Network: allows accessing the Network window.

• Input GPS: allows accessing the Input GPS window.

• Alarms: allows accessing the Alarms window.

• Events: allows accessing the Events window.

• Options: allows accessing the Options sub-menu.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 115

3.8.18.1.1 Option sub-menu

The Option sub-menu allows two controls type:

• Time: Time Read Interval [s];

• Alerts: the selection of events to display.

Click on the Save button to save Java options; a *.properties file will be created.

The device is not loaded with a factory default *.properties file, but it is created and then stored in

System File once the properties have been saved.

3.8.18.2 Time

Fig. 36: Time window

This control allows changing the device-to-management PC java update time. The default value is 2

seconds. Click on Close button to quit this sub-window.

3.8.18.3 Alerts

Fig. 37: Alerts window

The Alert sub-window allows selecting which types of events will be notified through an Alert box.

Alert boxes appear on the right side of the monitor. The selection is performed among the following

types of event:

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 116

• Commands (blue boxes):

o Gigabit Ethernet commands;

o RS232 commands;

o SNMP commands;

o LCD Display commands.

• Alarms (red boxes);

• Events (green messages):

o Board events.

• Typing error (yellow messages):

o Typed setting is incorrect.

Click on hide button to close these alert popup windows.

Fig. 38: Alert message

Alert boxes can be disabled through the hide button located on the right side of the box.

The hide button, once clicked, disables all boxes belonging to the same class.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 117

3.8.19 Help menu

Fig. 39: Help menu

The Help menu allows enabling the following controls type:

• Contents: actually not implemented.

• About: shows the board name and the GbE IP address. It also informs about the board uC,

fpga and java software versions.

• Info: shows the board system files list and the operator managing system characteristics.

3.8.19.1 About

Fig. 40: About window

The “About” window shows the board name and the GbE IP address. It also informs about the

board uC, FPGA and Java software versions. Click on OK button to close the window.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 118

3.8.19.2 Info

Fig. 41: Info window: file system content

The server file system content section of info window shows the entire board system files list.

Use scroll bars to view all the items.

Fig. 42: Info window: client system parameters

The client system parameters section of info window shows the operator managing system

characteristics list. Use scroll bars to view all the items. Click on OK button to close the window.

3.8.20 Download Software Standalone

The Download Software Standalone button allows the downloading of standalone java application

(executable jar file) based on java applet.

If your browser is Internet Explorer, it may blocks the site from downloading files to your computer. If

you want to enable the file downloading, follow the instructions listed below:

• Open Internet Explorer;

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Operations

July, 2009 v 1.0 Page 3 - 119

• Click on the Tools button and then click on Internet Options;

• Click on the Security tab and then click on Custom level button;

• To turn off the Information bar for file downloads, scroll to the Downloads section of the list,

and then, under Automatic prompting for file downloads, click on Enable;

• Click on OK, click Yes in order to confirm that you want to make the change, and then click

OK again.

Fig. 43: Download Software Standalone

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Technical Information

July, 2009 v 1.0 Page 4 - 1

SDT 200UB – SDT 500UB ARK-1 ATSC

Software Defined Transmitter

OPERATION MANUAL

4 TECHNICAL INFORMATION

CONTENTS

FIGURE AND TABLES LIST

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Technical Information

July, 2009 v 1.0 Page 4 - 2

This chapter is left intentionally blank.

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Manual change information

July, 2009 v 1.0 Page 5 - 1

SDT 500UB ARK 1

Software DefinedTransmitter

OPERATION MANUAL

5 MANUAL CHANGE INFORMATION

CONTENTS

5.1 INTRODUCTION.............................................................................................................................................5 - 2

Screen Service SDT 200UB – SDT 500UB ARK-1 ATSC Manual change information

July, 2009 v 1.0 Page 5 - 2

5.1 INTRODUCTION

At Screen Service, we continually try to keep our customers up with the latest technology by adding circuit

and component improvements to our equipment as soon as they are developed and tested.

Sometimes, due to printing and shipping requirements, we can't get these changes immediately into printed

manuals; therefore this manual may contain new change information on following pages.

A single change may affect several sections. Since the change information sheets are carried in the manual

until all changes are permanently entered, some duplication may occur.

If no such change pages appear following this page, this manual is correct as printed.

Special versions and variants required by individual Customers are also described in this section.
