Sean and Stephen 1593-RF08 RF08 PRESENTER User Manual

Sean & Stephen Corporation RF08 PRESENTER

User Manual

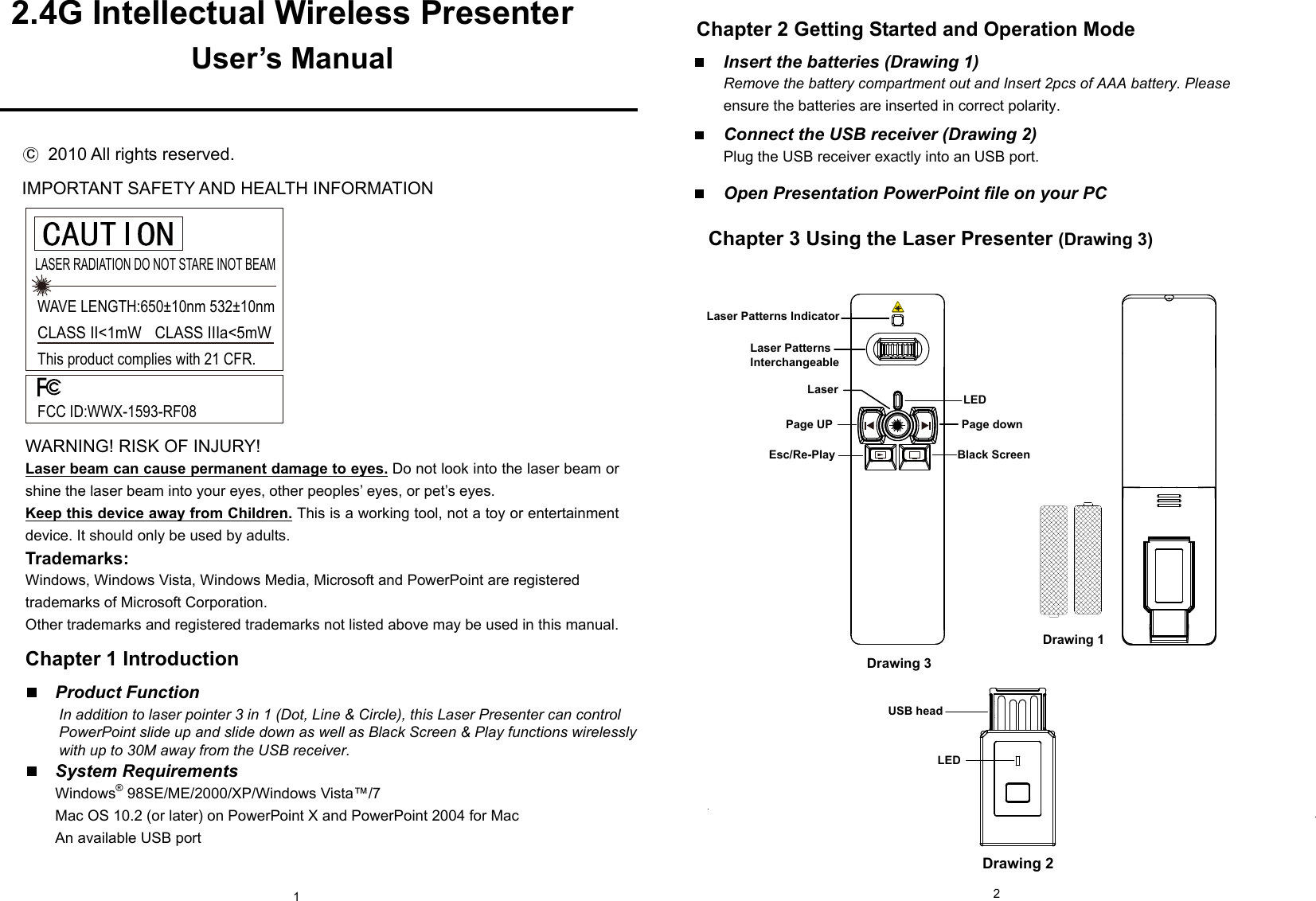

○c2010 All rights reserved.IMPORTANT SAFETY AND HEALTH INFORMATIONWARNING! RISK OF INJURY!Laser beam can cause permanent damage to eyes. Do not look into the laser beam orshine the laser beam into your eyes, other peoples’ eyes, or pet’s eyes.Keep this device away from Children. This is a working tool, not a toy or entertainmentdevice. It should only be used by adults.Trademarks:Windows, Windows Vista, Windows Media, Microsoft and PowerPoint are registeredtrademarks of Microsoft Corporation.Other trademarks and registered trademarks not listed above may be used in this manual.Chapter 1 IntroductionProduct FunctionIn addition to laser pointer 3 in 1 (Dot, Line & Circle), this Laser Presenter can control PowerPoint slide up and slide down as well as Black Screen & Play functions wirelessly with up to 30M away from the USB receiver.System RequirementsWindows®98SE/ME/2000/XP/Windows Vista™/7Mac OS 10.2 (or later) on PowerPoint X and PowerPoint 2004 for MacAn available USB portChapter 2 Getting Started and Operation Mode 2Insert the batteries (Drawing 1)Remove the battery compartment out and Insert 2pcs of AAA battery. Please ensure the batteries are inserted in correct polarity.Connect the USB receiver (Drawing 2)Plug the USB receiver exactly into an USB port.Open Presentation PowerPoint file on your PCChapter 3 Using the Laser Presenter (Drawing 3)USB headLEDDrawing 3Drawing 1Drawing 21LEDLaser Patterns IndicatorLaser Patterns InterchangeablePage UPLaserPage downEsc/Re-Play Black Screen2.4G Intellectual Wireless PresenterUser’s ManualLASER RADIATION DO NOT STARE INOT BEAMWAVE LENGTH:650±10nm 532±10nmCLASS II<1mW CLASS IIIa<5mW This product complies with 21 CFR.FCC ID:WWX-1593-RF08

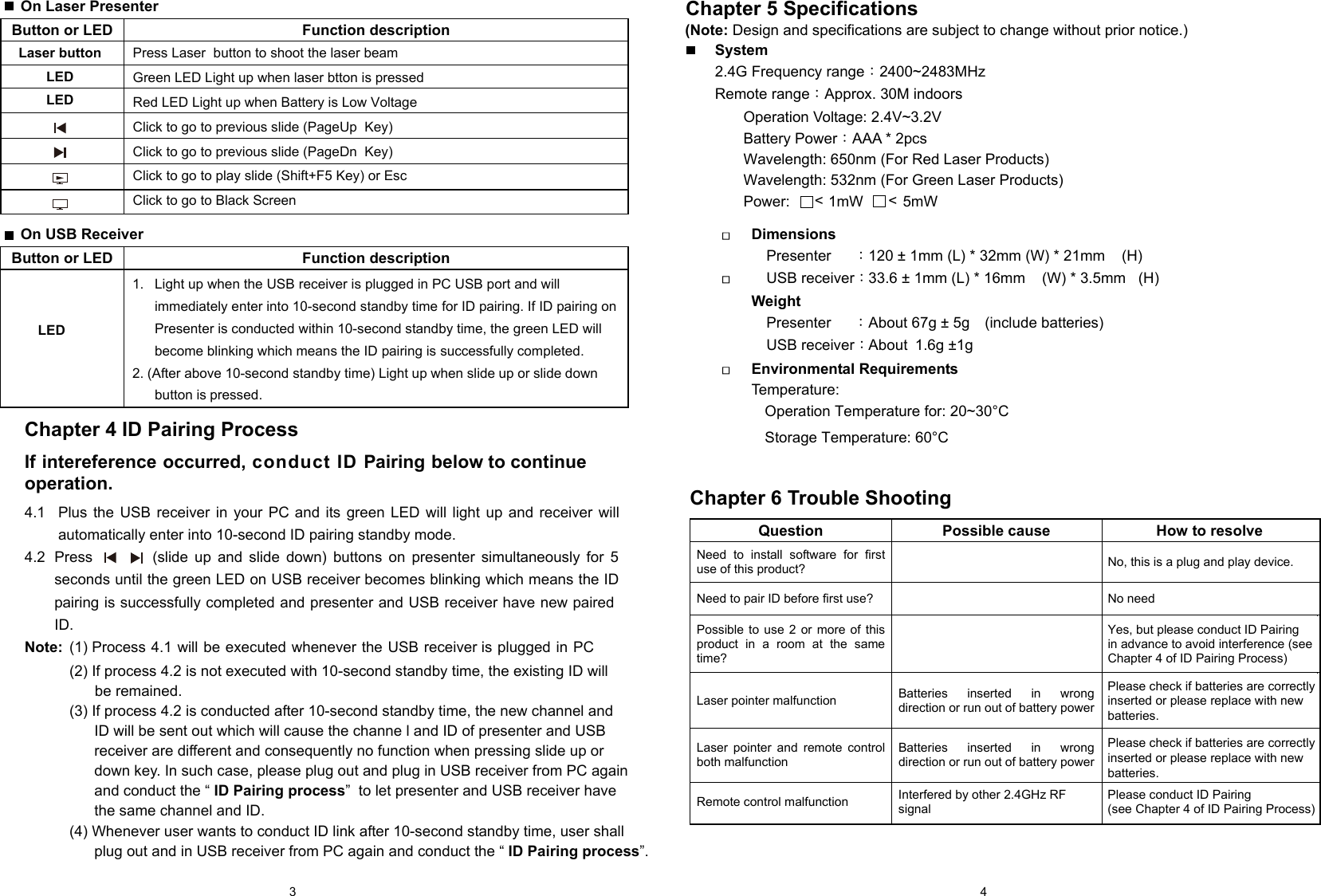

Button or LED Function descriptionLaser button Press Laser button to shoot the laser beam3LED Green LED Light up when laser btton is pressed Chapter 4 ID Pairing Process If intereference occurred, conduct ID Pairing below to continue operation.On Laser PresenterOn USB Receiver4.1 Plus the USB receiver in your PC and its green LED will light up and receiver willautomatically enter into 10-second ID pairing standby mode.4.2 Press (slide up and slide down) buttons on presenter simultaneously for 5seconds until the green LED on USB receiver becomes blinking which means the IDpairing is successfully completed and presenter and USB receiver have new pairedID.Note: (1) Process 4.1 will be executed whenever the USB receiver is plugged in PC(2) If process 4.2 is not executed with 10-second standby time, the existing ID will be remained.(3) If process 4.2 is conducted after 10-second standby time, the new channel and ID will be sent out which will cause the channe l and ID of presenter and USB receiver are different and consequently no function when pressing slide up or down key. In such case, please plug out and plug in USB receiver from PC again and conduct the “ ID Pairing process” to let presenter and USB receiver have the same channel and ID.(4) Whenever user wants to conduct ID link after 10-second standby time, user shall plug out and in USB receiver from PC again and conduct the “ ID Pairing process”.LED1. Light up when the USB receiver is plugged in PC USB port and will immediately enter into 10-second standby time for ID pairing. If ID pairing onPresenter is conducted within 10-second standby time, the green LED willbecome blinking which means the ID pairing is successfully completed.button is pressed.2. (After above 10-second standby time) Light up when slide up or slide downChapter 5 Specifications(Note: Design and specifications are subject to change without prior notice.)System2.4G Frequency range：2400~2483MHzRemote range：Approx. 30M indoorsOperation Voltage: 2.4V~3.2V4Wavelength: 650nm (For Red Laser Products)Wavelength: 532nm (For Green Laser Products)Battery Power：AAA * 2pcsDimensionsPresenter ：120 ± 1mm (L) * 32mm (W) * 21mm (H)USB receiver：33.6 ± 1mm (L) * 16mm (W) * 3.5mm (H)WeightPresenter ：About 67g ± 5g (include batteries)USB receiver：About 1.6g ±1gEnvironmental RequirementsTemperature:Operation Temperature for: 20~30°C Storage Temperature: 60°CChapter 6 Trouble ShootingQuestion Possible cause How to resolveNeed to install software for firstuse of this product? No, this is a plug and play device. Need to pair ID before first use? No need Possible to use 2 or more of thisproduct in a room at the sametime?Yes, but please conduct ID Pairing in advance to avoid interference (see Chapter 4 of ID Pairing Process) Laser pointer malfunction Batteries inserted in wrongdirection or run out of battery powerPlease check if batteries are correctly inserted or please replace with new batteries.Please check if batteries are correctly inserted or please replace with new batteries.Laser pointer and remote controlboth malfunctionBatteries inserted in wrongdirection or run out of battery powerRemote control malfunction Interfered by other 2.4GHz RF signalPlease conduct ID Pairing (see Chapter 4 of ID Pairing Process) LED Red LED Light up when Battery is Low Voltage Button or LED Function descriptionClick to go to previous slide (PageUp Key)Click to go to previous slide (PageDn Key)Click to go to play slide (Shift+F5 Key) or EscClick to go to Black Screen Power: <1mW 5mW<

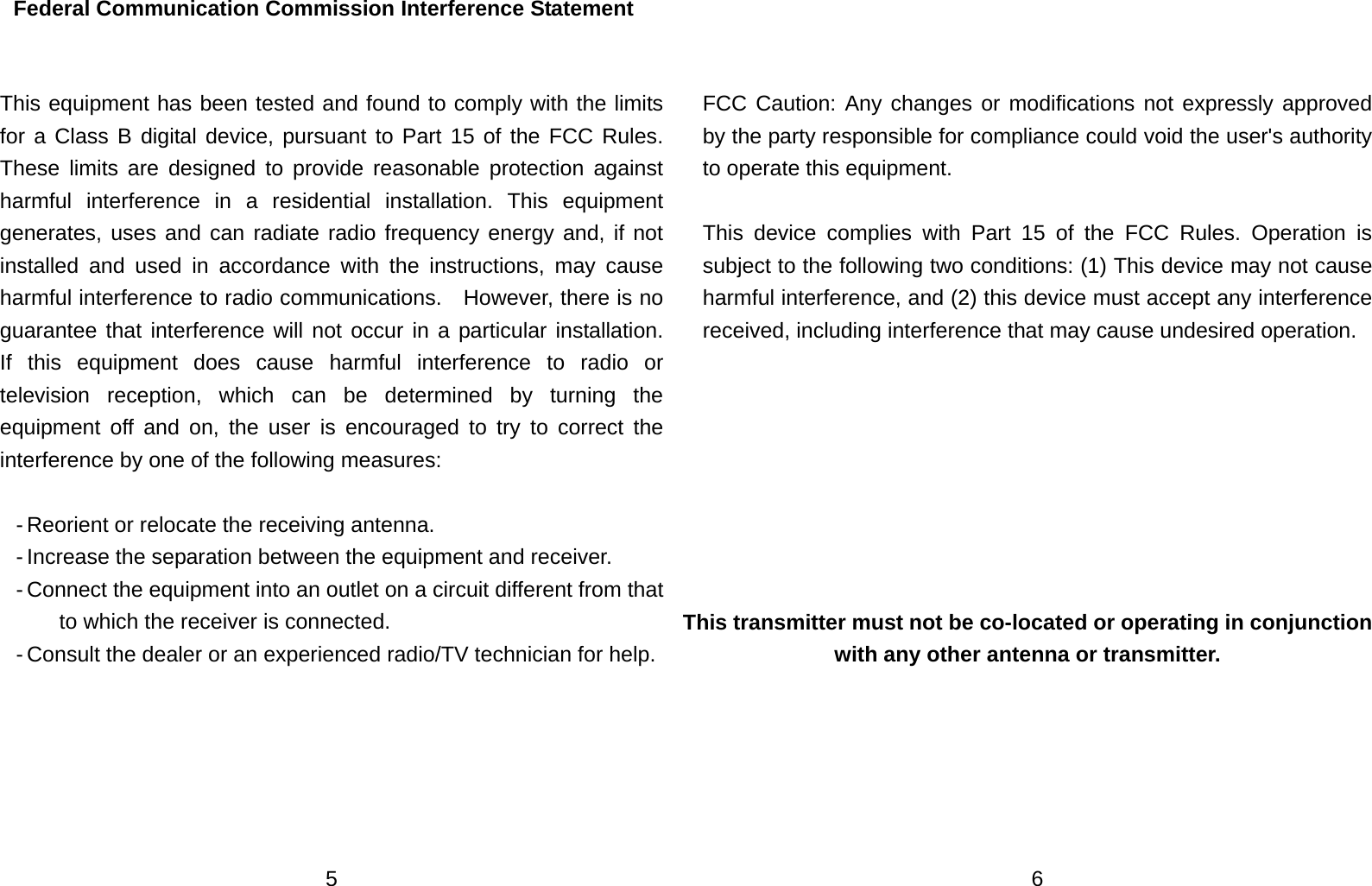

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from thatto which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 5 6
