Secure Wireless DWV2 Wireless Recess Door/Window Sensor User Manual
Secure Wireless, Inc Wireless Recess Door/Window Sensor
User Manual
Secure Wireless Model SW-xxx-V2, VANISHING 2, DOOR/WINDOW DEVICE
Description
The Secure Wireless model number SW-xxx-V2 Vanishing 2 device is a
fully supervised, tamper-protected door/window transmitter that works with
the xxx receiver. It is designed to be installed with its integral magnet on
most doors or windows and includes a radio transmitter that sends
information to the receiver. Opening the door or window will cause the radio
transmitter to send an alarm report. Closing the door or window will cause the
radio transmitter to send a restore code that indicates that the door or window is
closed. If the case of the SW-xxx-V2 is removed for any reason, the radio
transmitter will send a tamper alert to the receiver. Should the battery voltage
drop below a prescribed level the SW-xxx-V2 will send a low battery report
indicating that the devices battery requires changing. (Consult the “installing the
battery” section for information about changing the battery.)
Locating the Transmitter

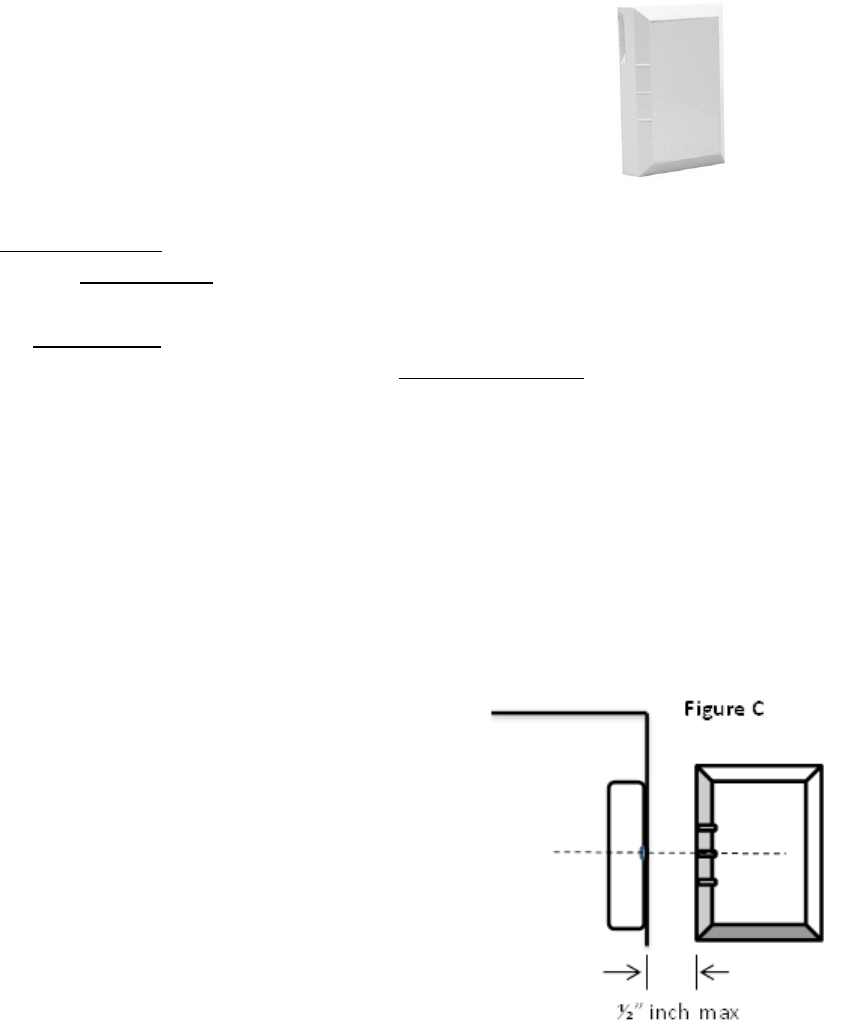

For Door Installation: Select the location where the SW-xxx-V2 is to be mounted.
The transmitter should be located vertically on the door jam or more than six
inches of the top of the door. The integral magnet should be mounted on the
door, within ½ inch of the transmitter with the notch on the magnet aligned with
the middle notch on the transmitter as shown on Figure C.
For Window Installation: Select the location where the SW-xxx-
V2 is to be located. Mount the transmitter on the window jam
near the top of the section of the window to be protected. The
integral magnet should be mounted on the window, within ½
inch of the transmitter with the notch on the magnet aligned
with the middle notch on the transmitter as shown on Figure C.
Mounting the Transmitter
1. Use the base of the sensor as a template and mark the mounting holes
with a pencil.
2. Drill the holes for the screws, 5/16” drill size
3. Mount the base to the door jam with the screws provided.

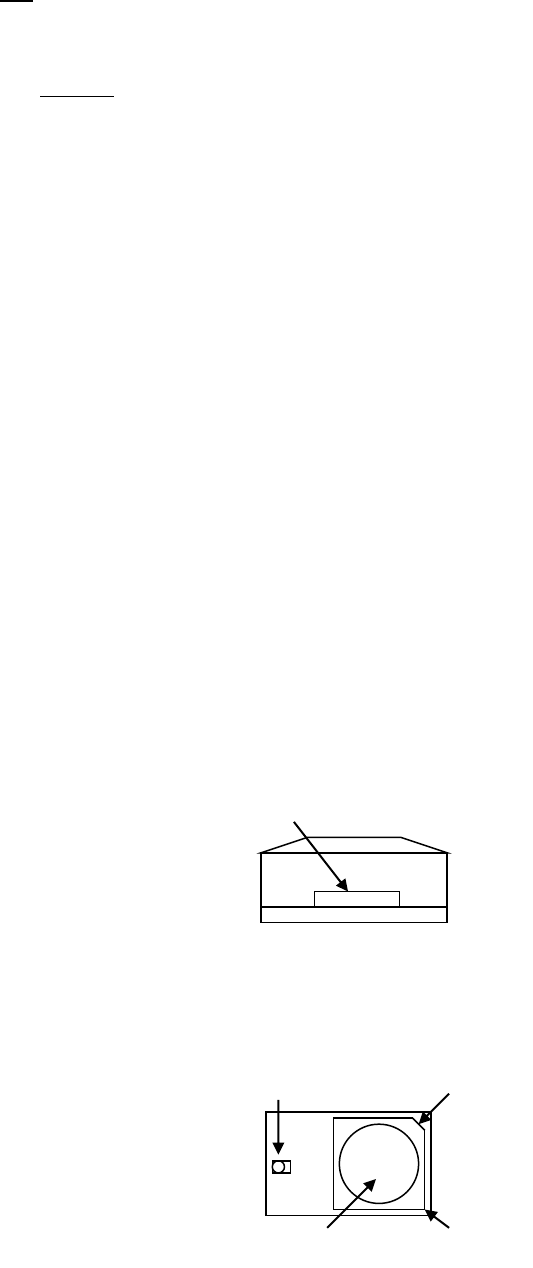

To remove cover, insert
Screwdriver here, and gently twist
Figure A
a. For doors that open on the left hand side, the round battery cavity
in the base should be at top when the base is mounted to the door
jam.
b. For doors that open on the right hand side, the round battery cavity
in the base should be at the bottom when the base is mounted to
the door jam.
4. Carefully replace the sensor on the base by aligning the tamper switch
with the plastic tamper tab (Figure 1) and snap the cover down on the
base.
The accessory package also includes self adhesive tape. The use of this tape is
not allowed in UL listed installations. For non-UL listed systems, once the proper
location for the SW-xxx-V2 has been determined it can be permanently mounted
using the supplied adhesive.
Using Adhesive Tape
Make sure that the surface is clean and dry. Apply the supplied tape to the back
of the SW-xxx-V2, press and hold firmly in the desired location for approximately
10 to 15 seconds. Note that it may take up to 24 hours for the tape to reach its
maximum bonding strength.
Note: Attaching the transmitter with Double-stick tape is not allowed in UL
installations.
Installing or Changing the Battery
The SW-xxx-V2 requires one CR2032 lithium battery.
To install the battery, remove the cover as indicated in
Figure A.
Once cover is removed, insert the battery with the positive
(+) side up as indicated in Figure B.
Enrolling the Transmitter
(Per customer requirements)
Figure B
Circuit Board
Tamper Switch
To remove battery, insert
screwdriver here and twist
+
Battery (+ side up)
Verifying the programming and RF communications
(Per customer requirements)
Case Tamper Detection
Removing the cover of the SW-xxx-V2 will cause the integral transmitter to send
a case tamper report to the receiver. This tamper condition will remain on the
system until the case cover is reinstalled and the integral transmitter sends a
tamper restore to the receiver.
General Specifications
Operating Temperature: 32° to 120° F (0° to 49° C)
Operating Rel. Humidity: 5 to 95%, non-condensing
Operating Frequency: 433.92 MHz
Battery Type: 3-Volt CR2032 Lithium Battery
IMPORTANT INFORMATION ABOUT RADIO DEVICES
1. This device provides a reliable communications link and fills an important need in
portable wireless signaling. However, there are some limitations which must be
observed.
2. For US installations only: the radios are required to comply with FCC rules and
regulations including FCC part 15 devices. As such, they have limited transmitter
power and therefore limited range.
3. A receiver cannot respond to more than one transmitted signal at a time and may
be blocked by radio signals that occur on or near their operating frequencies
regardless of code settings.
4. Changes or modifications to the device may void FCC compliance
5. Infrequently used radio links should be tested regularly to protect against
undetected interference or fault.
6. RF signals can be affected by metal objects including metal doors or large mirrors.
Care should be taken to avoid these objects during installation as they can interfere
with proper operation.
FCC compliance statement
This device complies with FCC Rules and Regulations as Part 15
devices as well as Industry Canada Rules and Regulations. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
Conformité Réglementaire
Ce dispositif est conforme à la réglementation de la IC et (Partie 15) de la FCC.
Son fonctionnement est soumis à deux conditions : (1) ce dispositif ne doit pas
causer d’interférences nuisibles, et (2) ce dispositif doit accepter toute
interférence reçue, y compris les interférences pouvant entraîner des conditions
de fonctionnement indésirables.
WARNING: The polarity of the battery must be observed. Improper handling of
lithium batteries may result in heat generation, explosion or fire which may lead
to personal injuries. Replace only with the same or equivalent type of battery as
indicated in the General Specifications.
Batteries should not be recharged, disassembled or disposed of in fire.
Disposal of used batteries must be made in accordance with the waste recovery
and recycling regulations in your area.
Notice to users in California—CR Coin Cell Lithium Battery information:
This product contains a CR Coin Cell Lithium Battery which contains
Perchlorate Material—special handling may apply See
www.dtsc.ca.gov.hazardouswaste/perchlorate.
SECURE WIRELESS LIMITED WARRANTY
This SECURE WIRELESS product is warranted against detects in material and
workmanship for a period of ______years. This warranty extends only to wholesale
customers who buy direct from SECURE WIRELESS or through SECURE
WIRELESS’s normal distribution channels. SECURE WIRELESS does not warrant
this product to consumers. Consumers should inquire from their selling dealer as to the
nature of the dealer’s warranty. There are no obligations or liabilities on the part of
SECURE WIRELESS for consequential damages arising out of or in connection with
use or performance of this product or other indirect damages with respect to loss of
property, revenue, or profit, or cost of removal, installation or reinstallation. All
implied warranties, including implied warranties for merchantability and implied warranties
for fitness, are valid only until the warranty expires. This SECURE WIRELESS Warranty
is in lieu of all other warranties express or implied.
All products returned for warranty service require a Return Product Authorization Number
(RPA#). Contact SECURE WIRELESS Technical Support at 1-866-966-9473 or at
www.mysecurewireless.com for an RPA # and other important details.
