Users Manual
DXS-55AF
SUPERVISED
WIRELESS
MOTION
DETECTOR
With Pet Immunity
Installation Instructions
PRODUCT DESCRIPTION
The DXS-55AF is a battery powered passive infrared motion detector with a built-in transmitter. This transmitter
can be used in a variety of motion detection applications. When the passive infrared sensor detects motion in
its fi eld of view, the transmitter sends a digitally coded wireless signal to its companion receiver. To reduce false
alarms caused by pets inside the protected area, the DXS-55AF features pet immunity with a selectable large or
small pet setting.
The transmitter is pre-coded at the factory to unique codes, so no fi eld coding is required. The DXS-55AF can send
four different signals: alarm, low battery, status, and tamper. Receivers must be programmed to the transmitter’s
code before system testing and operation. Refer to the receiver’s instructions for details on programming.
In a typical installation, the motion detector is mounted indoors in a corner or on a wall 7-1/2 feet high. Two
mounting brackets and an adjustable PIR bracket are included. The sensor will monitor the infrared level in its
detection pattern. If the level increases or decreases rapidly (as when a person moves through the area) the
transmitter triggers, sending an alarm signal to the receiver.
The unit is powered from a 3-Volt Type CR123A lithium battery. The battery’s life can be up to three years
depending on the area’s traffi c. When the battery gets low, a low battery signal will be sent to the receiver.
Approximately every hour, the DXS-55AF will send a status transmission to the receiver. The hourly signal updates
the receiver to the transmitter’s condition. By monitoring status transmissions, the receiver can determine if a
transmitter has a low battery or has been removed from the system.
To conserve battery life, during normal operation, the detector can trigger the transmitter a maximum of once every
three minutes. Opening the case will trigger a tamper transmission.
For setup and testing, pressing the small button on the left side of the case places the unit in walk test mode for
three minutes. The installer can walk in front of the unit while viewing the red test indicator through the detector’s
lens to determine the detection area.

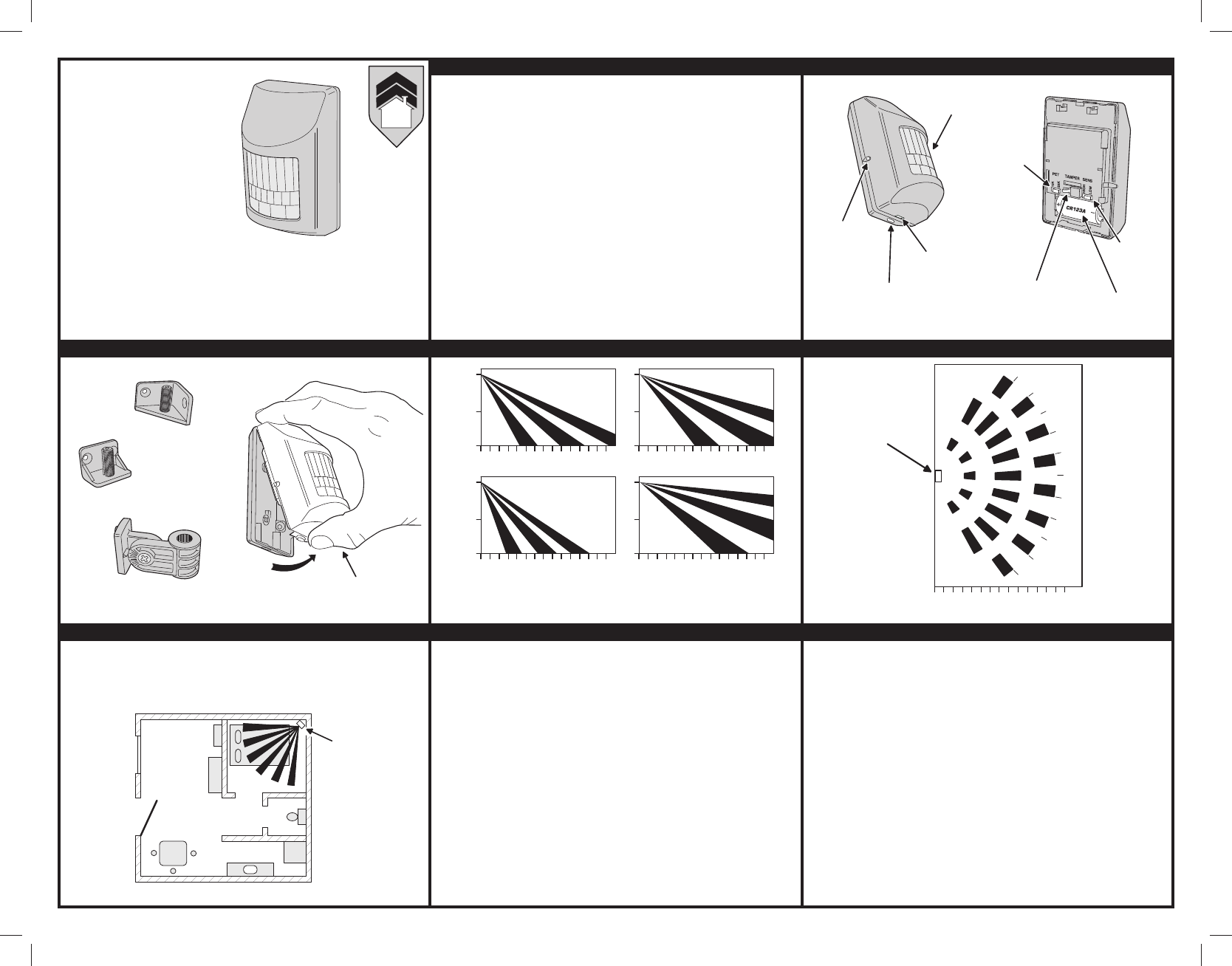

PIR FEATURES
INSTALLATION BRACKETS & OPENING CASE DETECTION PATTERN SIDE VIEW DETECTION PATTERN TOP VIEW
TYPICAL INSTALLATION PIR INSTALLATION TIPS PIR INSTALLATION TIPS
PRINTER’S INSTRUCTIONS:
INSTR,INSTL,DXS-55AF - FILE NAME: P983 X10 - INK: BLACK - MATERIAL: 20 LB. MEAD BOND - SIZE: 11.000” X 8.500” - SCALE: 1-1 - SIDE 1 OF 2
WALK TEST
BUTTON
PIR
LENS
CASE
LOCKING
BUTTTON
15K - 25K
PET IMMUNITY
PET SIZE JUMPER
TAMPER SWITCH
HIGH - LOW
SENSITIVITY
JUMPER
CR123A 3-VOLT
LITHIUM BATTERY
CASE
ACCESS
SLOT
WALL MOUNTING
BRACKET
CORNER
MOUNTING
BRACKET
ADJUSTABLE PIR
MOUNTING BRACKET
SQUEEZE TOP AND BOTTOM
OF CASE TO OPEN
7.5
3.75
0
036 9 12 15 1821 24 27 3033 363940
-9
°
7.5
3.75
0
036 9 12 15 1821 24 27 3033 363940
0
°
7.5
3.75
0
036 9 12 15 1821 24 27 3033 363940
-18
°
7.5
3.75
0
036 9 12 15 1821 24 27 3033 363940
+9
°
0° IS THE PIR FACING THE OPPOSITE WALL WITH NO TILT
-9° IS THE PIR TILTED DOWN ONE CLICK
-18° IS THE PIR TILTED DOWN TWO CLICKS
+9° IS THE PIR TILTED UP ONE CLICK
ALL UNITS ARE IN FEET 036 9 12 15 1821 24 27 3033 363942
50
°
40
°
30
°
20
°
10
°
0
°
10
°
20
°
30
°
40
°
50
°
DISTANCE FROM PIR IN FEET
PIR LOCATION
DON'T POINT AT HEAT SOURCES
(HEATERS, ETC.), WINDOWS, OTHER
MOTION DETECTORS OR DOOR/WINDOW
TRANSMITTERS
BEDROOM
BATH
KITCHEN
FRONT
ROOM
(FOR INDOOR
USE ONLY)
MOUNT
DETECTOR
SO THAT
INTRUDER
WILL CROSS
BEAMS
PIR
MOTION
DETECTOR
While the DXS-55AF PIR is a highly reliable intrusion detection device, it does not offer guaranteed protection
against burglary. Any intrusion detection device is subject to compromise or failure to warn for a variety of reasons.
The following issues should be considered during new installations or when troubleshooting:
• If the premise has pets, make sure to follow the instructions in this manual concerning installation with pets.
• This PIR has built-in protection, which keeps bugs from getting into the sensor area and causing false
alarms. This does not prevent insects from crawling across the lens of the PIR, which in turn can cause the
PIR to trigger an alarm.
• Infrared energy can be refl ected off any glossy surface such as mirrors, windows, fl oors or counter tops with
glossy fi nish, and slick fi nished concrete. Some surfaces will refl ect less than others will. For example, PIRs
can see a change in infrared energy refl ected off any refl ective surface even if the heat or cold source is not
within the detection pattern of the PIR.
• Windows cannot only refl ect infrared energy, but they can also allow sunlight or lights from cars to pass
through to the PIR. For example, a PIR can detect a quick change in infrared energy if sun light comes
through a window (which may not be detected by the PIR) and shines on a hardwood fl oor (which can be
detected by the PIR). If the change in infrared energy is quick enough on the fl oor, the PIR can trigger an
alarm. The same applies if the PIR “covers” the window, even though the pattern of protection cannot “see”
through glass. Lights from a passing car can also pass through the window at night and directly into the lens
of the detector.
• Heating and A/C ducts are also important to take into consideration because if they blow air onto an object
within the fi elds of view, the temperature of that object could change quickly enough for the detector to see
a change in infrared energy. Detectors cannot see air current, only the change in temperature of a physical
object.
• The PIR senses change in temperature; however, as the ambient temperature of the protected area
approaches the temperature range of 95° to 120°F, the detection performance can decrease.
• Make sure the area you wish to protect does not have obstructions (curtains, screens, large pieces of
furniture, plants, etc.) that may block the pattern of coverage provided by the PIR.
• Anything that can sway or move due to air current can cause a change in infrared energy within the fi elds
of view. Heating and A/C ducts, drafts from doors or windows can cause this to happen. Other objects to be
aware of are curtains, blinds, balloons, loose paper, plants, hanging banners or baskets, etc.
• Make sure the PIR is mounted on a solid surface and does not allow for any vibration. Vibration will not only
cause the PIR to move a little, but this will also cause the fi elds of view in the room to move with respect to
the PIR. A little vibration can go a long way with the fi elds of view, thus the PIR may see a change in energy.
• An installation may require a PIR to be aimed at a door. The PIR may “detect” door movement before the
door contact can initiate an entry delay, causing the PIR to trigger an alarm. If the PIR has to be installed this
way, it is recommended that the alarm control panel program set the PIR as an entry delay.
• The PIR detects intrusion only within the pattern of coverage as diagrammed in this manual.
• The PIR does not provide volumetric area protection.
• The PIR creates multiple beams of protection and intrusion can only be detected in unobstructed areas
covered by those beams.
• The PIR cannot detect motion or intrusion that takes place behind walls, ceilings, fl oors, closed doors, glass
partitions, glass doors, or windows.
• Tampering with, masking, painting, or spraying of any material on the PIR lens or any part of the optical
system can reduce the detection ability of the PIR.
• The PIR will not operate without the appropriate battery installed, or if the battery is weak or improperly
connected (i.e., reversed polarity).
• The PIR, like other electrical devices, are subject to component failure. Even though the DXS-55AF is
designed to last as long as 10 years, the electronic components in it could fail at any time.
AlarmForce Industries Inc.
675 Garyray Drive
Toronto, ON M9L 1R2, Canada
ALARMFORCE
Copyright © 2011 P983 X10

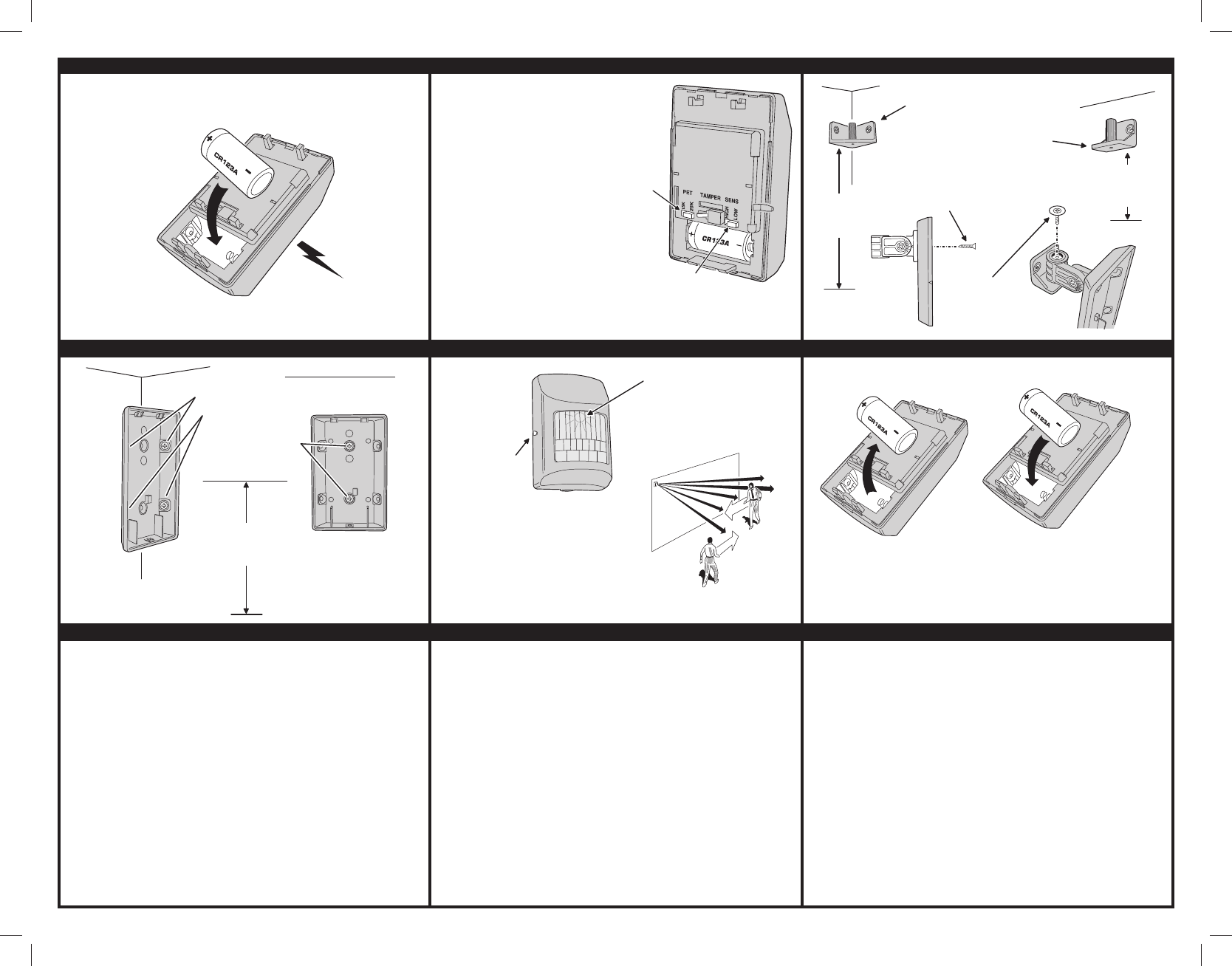

BATTERY INSTALLATION & PROGRAMMING PET IMMUNITY TIPS MOUNTING PIR WITH INSTALLATION BRACKETS
MOUNTING PIR WITHOUT INSTALLATION BRACKETS WALK TESTING AND OPERATIONAL TESTING BATTERY REPLACEMENT
SPECIFICATIONS IMPORTANT! REGULATORY STATEMENTS
• The radios are required to comply with Rules and Regulations. As such, they have
limited transmitter power and therefore limited range.
• Changes or modifi cations not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
• A receiver cannot respond to more than one transmitted signal at a time and may
be blocked by radio signals that occur on or near their operating frequencies,
regardless of code settings.
• Infrequently used radio links should be tested regularly to protect against undetected
interference or fault.
• A general knowledge of radio and its vagaries should be gained prior to acting as
a wholesale distributor or dealer, and these facts should be communicated to the
ultimate users.
PRINTER’S INSTRUCTIONS:
INSTR,INSTL,DXS-55AF - FILE NAME: P983 X10 - INK: BLACK - MATERIAL: 20 LB. MEAD BOND - SIZE: 11.000” X 8.500” - SCALE: 1-1 - SIDE 2 OF 2
PET SIZE
JUMPER
15K = 33 LBS.
25K = 55 LBS.
SENSITIVITY
JUMPER
USE LOWEST
SETTING FOR
MAXIMUM
PET WEIGHT
ALWAYS SET
TO LOW FOR
PETS
To take full advantage of the DXS-55AF pet
immunity features in installations with pets, use
these following steps:
• Mount the PIR with the center of the lens 7-1/2
to 8 feet above fl oor level.
• Set the SENSITIVITY jumper to the LOW
position.
• Set the PET SIZE jumper to the lowest setting
for the maximum pet weight.
• Mount the PIR where pets cannot come within
six feet of the unit by climbing on furniture,
boxes, or other objects.
• Do not aim the PIR at stairs or furniture, boxes,
or other objects that can be climbed by pets.
• NOTE: The DXS-55AF will provide immunity
to false alarms for an individual animal or a
group of animals whose total weight is equal
to or less than 55 pounds when the room
temperature is above 50° F and below 90° F.
If the optional mounting bracket is used, it
should be mounted with no tilt.
OBSERVE BATTERY POLARITY!!!
PREPARE THE RECEIVER TO
"LEARN" THE TRANSMITTTER
WHEN THE RECEIVER IS READY,
INSTALL THE CR123A 3-VOLT
LITHIUM BATTERY AS SHOWN
PIR WILL SEND A TRANSMISSION
TO THE RECEIVER AND THE
TRANSMITTER'S ID WILL
BE STORED IN THE RECEIVER
CORNER MOUNTING
WITH CORNER
BRACKET
7.5 FEET
ABOVE THE
FLOOR
7.5 FEET
ABOVE THE
FLOOR
WALL MOUNTING
WITH WALL
BRACKET
ATTACH REAR OF
CASE TO THE
PIR BRACKET
- OR -
SECURE PIR
BRACKET WITH
SCREW AND WASHER
7.5 FEET
ABOVE THE
FLOOR
CORNER MOUNT
REAR CASE WITH
FOUR SCREWS
- OR -
WALL MOUNT
REAR CASE
WITH TWO
SCREWSPRESS WALK TEST
BUTTON ON LEFT
SIDE OF CASE
RED WALK TEST INDICATOR
WILL SHOW THROUGH PIR LENS
UNIT WILL STAY IN
WALK TEST MODE
FOR THREE MINUTES
WALK ACROSS BEAM PATTERN
WHILE OBSERVING THE
WALK TEST INDICATOR
SNAP CASE
CLOSED BEFORE
WALK TESTING
AFTER WALK TESTING, TEST
THE PIR WITH THE SYSTEM
CONTROL PANEL OR RECEIVER
INSTALL CR123A 3-VOLT
LITHIUM BATTERY AS SHOWN
OBSERVE
BATTERY
POLARITY!!!
WHEN THE SYSTEM INDICATES THAT THE
PIR HAS A LOW BATTERY, REMOVE THE
OLD BATTERY AND DISPOSE OF IT PROPERLY
WARNING!
IMPROPER HANDLING OF LITHIUM
BATTERIES MAY RESULT IN HEAT
GENERATION, EXPLOSION OR FIRE,
WHICH MAY LEAD TO PERSONAL
INJURIES. REPLACE WITH ONLY
TYPE CR123A BATTERY.
WARNING!
BATTERY MUST NOT BE RECHARGED,
DISASSEMBLED, OR DISPOSED OF
IN A FIRE. DISPOSAL OF USED BATTERIES
MUST BE MADE IN ACCORDANCE WITH THE
WASTE RECOVERY AND RECYCLING
REGULATIONS IN YOUR AREA.
OUTPUTS: ALARM, LOW BATTERY, & STATUS
TRANSMITTER FREQUENCY: 315 MHz
UNIQUE ID CODES: OVER ONE MILLION CODES
SUPERVISORY INTERVAL: 70 MINUTES
SENSOR TYPE: QUAD ELEMENT
PET IMMUNITY: SELECTABLE: 15 Kg (33 LBS.) OR 25 Kg (55 LBS.)
SENSITIVITY JUMPER: SELECTABLE: HIGH OR LOW
SUGGESTED MOUNTING HEIGHT: 7.5 FT. (2.3 m)
SENSOR RANGE: 30 FT. (9.1 m) X 50 FT. (15.2 m)
MAXIMUM HORIZONTAL SENSING ANGLE: 86°
DIMENSIONS: 3.2” x 2.5” x 1.9” (8.12 x 6.35 x 4.82 cm)
WEIGHT (INCLUDING BATTERY & BRACKET): 3.7 OZ. (104.9 g)
COLOR: WHITE
OPERATING TEMPERATURE: 32° TO 103° F (0° TO 39° C)
RELATIVE HUMIDITY: 5-95% NON-CONDENSING
BATTERY (INCLUDED, NOT INSTALLED): ONE (1) PANASONIC CR123A,
OR EQUIVALENT LITHIUM BATTERY
INCLUDED ACCESSORIES: MOUNTING BRACKETS AND SCREWS, PLASTIC
WALL ANCHORS
WARRANTY: FOR THE LIFE OF THE INSTALLATION
• KEEP BATTERY AWAY FROM SMALL CHILDREN. IF BATTERY IS SWALLOWED,
PROMPTLY SEE A DOCTOR.
