1. I
NTRODUCTION
This document describes how the SecureKey device is used in the end-user environment.
1.1 A
BOUT
S
ECURE
K
EY
SecureKey makes it faster and easier to shop online and access banking and other secured web
sites while increasing security. SecureKey lets online customers authenticate with their
contactless or contact chip card so that sign-on and check-out processes become more familiar
and more secure.
The USB-based SecureKey can read cards while insulating the card information from the PC. At
check-out and sign-on pages, the user simply taps their card against the SecureKey or inserts
their contact card. SecureKey then securely interacts with the card, delivering the needed card,
device and transaction details to the card issuer or other relying party for validation. All security
operations take place within an EAL certified secure element. The SecureKey’s ability to protect
card details is an important advantage of our technology over generic PC/SC-based smart card
readers.
For the cardholder, the act of tapping or inserting their card is familiar and convenient. During e-
commerce transactions, merchant forms are automatically filled for the cardholder without
requiring changes to the merchant site. For the card issuers and other relying parties, online
authentication is strengthened and investments modern cards are leveraged. The SecureKey
device can interact with a variety of form factors, such as payment cards and stickers, access
control cards, NFC compliant mobile handsets or any other contactless form factor that supports
proximity (ISO/IEC 14443) or NFC (ISO/IEC 18092) contactless communication protocols.
SecureKey provides strong authentication appropriate for e-commerce checkout, banking and
VPN sign-on. SecureKey can be used for many scenarios including online payment, strong
online authentication, VPN authentication, and EMV scripting. A single SecureKey device can be
used with multiple cards and cardholders. The SecureKey solution is portable, browser
independent, firewall and anti-virus friendly and does not require any software installation or
administrative privileges on the cardholder’s computer.
2. T
HE
S
ECURE
K
EY
PC
H
OST
A
PPLICATION
The SecureKey Token is designed to be plug-and-play and no installation is normally required.
Installation might be required if, for example, “autorun/autoplay” is disabled, or if the hot
computer does not allow external CD-ROM driver. The procedure for manually installing and
uninstalling is described in Appendix A of this document.
L
AST SAVED ON
12/07/2010 S
ECURE
K
EY
T
OKEN
M
ANUAL
S
TRICTLY
C
ONFIDENTIAL AND
P
ROPRIETARY TO
S
ECURE
K
EY
T
ECHNOLOGIES
I
NC
.
5
OF
8
3. A
BOUT THE
S
ECURE
K
EY
T
OKEN
This section provides information on understanding and using the SecureKey token, as well as
troubleshooting information. Operation is subject to the following two conditions:
3.1 LED
STATUS INDICATOR
The LED is the light emitting diode on the Token casing as shown in the table. It has four
possible colour states: off, green, orange and red as described in the table below.
LED
Colour
LED State Meaning
Off Token is unpowered
Green Solid Token is powered and has "connected" to the PC Host application,
and has been activated
Green Fast flash Card in the field, visible to the Contactless reader.
Green Slow Flash Token is powered and has "connected" to the PC Host application,
but has not been activated
Orange Fast Flash Token is "booting up". It has power but is not yet operational
Orange Slow Flash Firmware update (turn off contactless card reader)
Red Slow Flash Firmware update failed (a.k.a. firmware component missing)
Red Solid Permanent Error (turn off contactless car reader)
L
AST SAVED ON
12/07/2010 S
ECURE
K
EY
T
OKEN
M
ANUAL
S
TRICTLY
C
ONFIDENTIAL AND
P
ROPRIETARY TO
S
ECURE
K
EY
T
ECHNOLOGIES
I
NC
.
6
OF
8
3.2 A
UDIO
S
TATUS
S
IGNATURES
When a card is presented to the Token there is an audible sound status signal. The beep is
heard every time a card is presented.
Sound Meaning
High Beep Card presented to Token successfully read
Low Beep Unrecognised card presented to Token or failed communication with the
card. Either the card not presented long enough or card was not readable
by the Token
No Beep Either no communication with the card, or speaker volume not high enough
3.3 C
ARD
O
RIENTATION
Both the card and the Token have internal antennas. With most cards, the best communication
results are achieved when the card is held perpendicular to the SecureKey. See the diagram
below.
Orientation Diagram
Most Effective Card and token are
perpendicular
Least Effective Card and token are
parallel
L
AST SAVED ON
12/07/2010 S
ECURE
K
EY
T
OKEN
M
ANUAL
S
TRICTLY
C
ONFIDENTIAL AND
P
ROPRIETARY TO
S
ECURE
K
EY
T
ECHNOLOGIES
I
NC
.
7
OF
8
4. A
PPENDIX
A
4.1 I
NSTALLING THE
S
ECURE
K
EY
PC
H
OST
A
PPLICATION

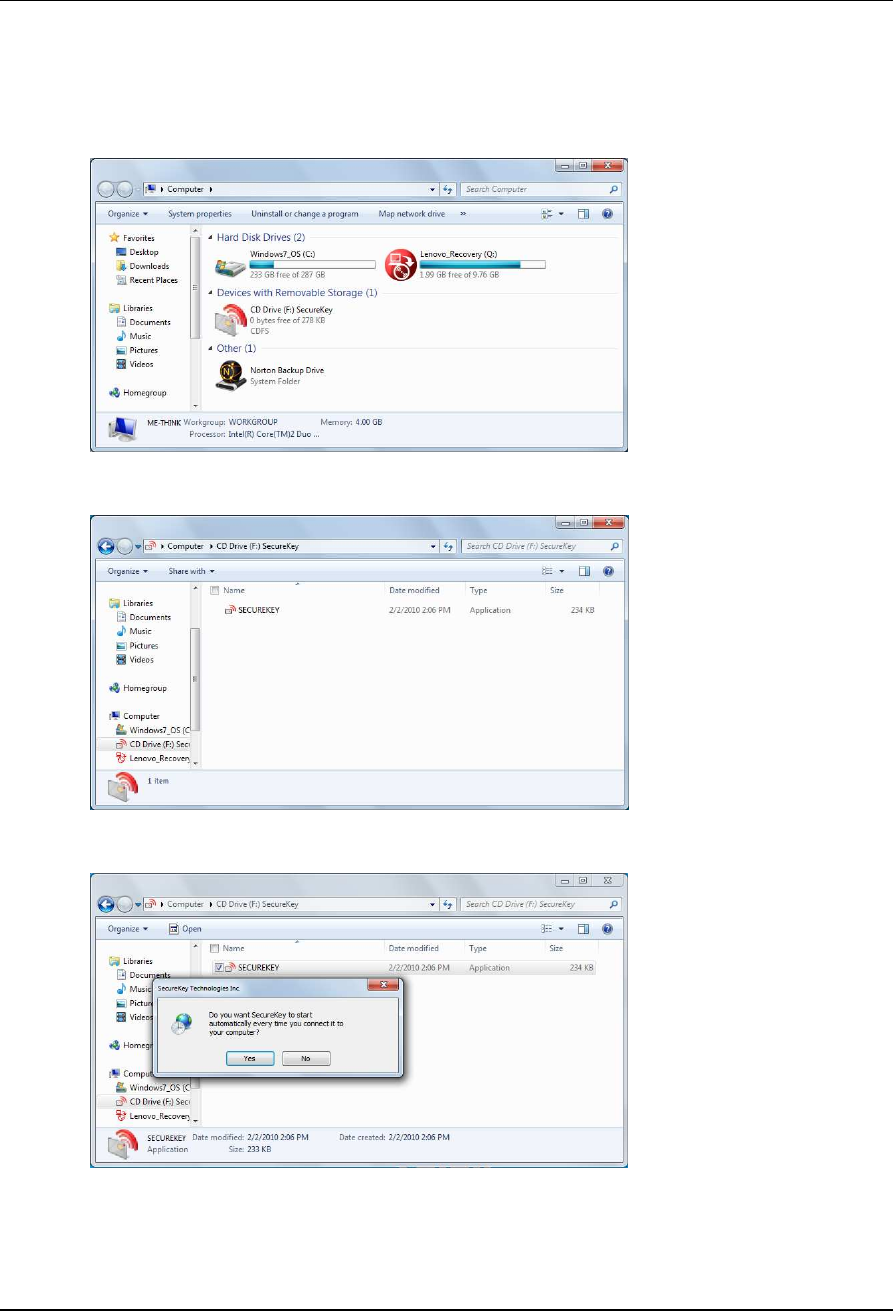

1. Go to Computer
2. Right click on CD Drive (F:) SecureKey and select Open
3. Double click SECUREKEY
4. Click on Yes to install
L
AST SAVED ON
12/07/2010 S
ECURE
K
EY
T
OKEN
M
ANUAL
S
TRICTLY
C
ONFIDENTIAL AND
P
ROPRIETARY TO
S
ECURE
K
EY
T
ECHNOLOGIES
I
NC
.
8
OF
8
4.2 U
NINSTALLING THE
S
ECURE
K
EY
PC
H
OST
If the SecureKey PC Host application has been installed on the host computer the following steps
will remove it.

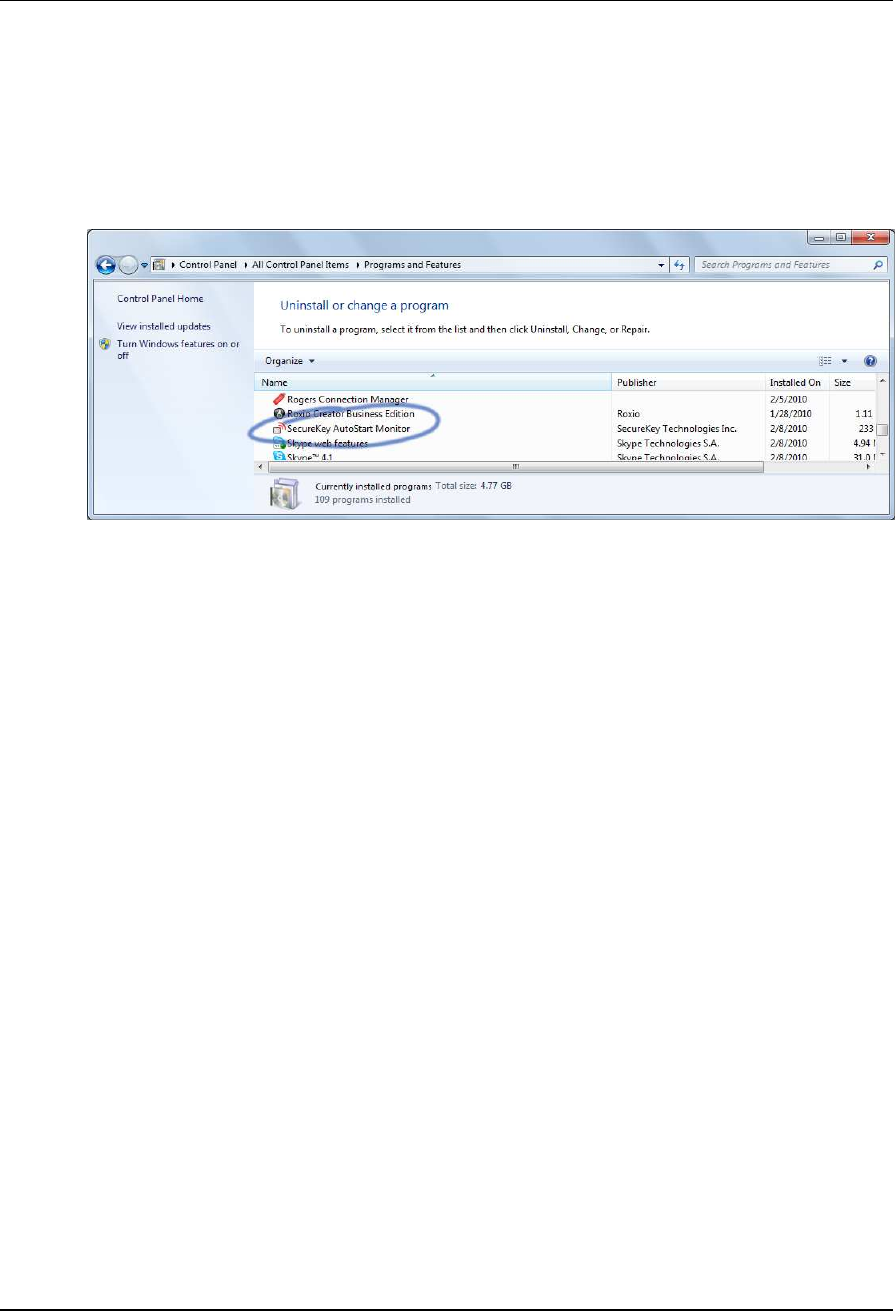

1. Uninstall the SecureKey PC Host application from the Window Control Panel. In the Control
Panel select Programs and Features. Right click on the item labeled SecureKey AutoStart
Monitor. Select Uninstall.
2. Reboot the computer before using the SecureKey token again.
5. R
EGULATORY
C
OMPLIANCE
:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. Any
changes or modifications of this product, not approved by manufacturer will void the user’s
authority to operate the equipment.
