Advanced Simplicity

Open-architecture, feature-rich video management software (VMS) solutions that delivers

complete access to live and recorded security video across your network.

www.vicon-security.com

Middle East

ViconNet Solution Guide

October 2017

+44 (0) 1489 566 300 | www.vicon-security.com

ViconNet Video Management System

Administrator Workstation/Nucleus

ViconNet employs a distributed architecture that is linked

together through an administrator workstaion designated

as the “Nucleus”. The Nucleus maintains a master copy of all

critical settings in the system that enables the entire system

to work together virtually as a single entity. Each server

and workstation maintains a current copy of the Nucleus

conguration settings, so that in the event there is a failure, the

system will continue to operate without disruption.

The workstation application provides advanced functionality

not available through the web or mobile interfaces.

Recording Servers

ViconNet open-platform servers can be scaled to meet the

customer requirements. Multiple servers can be virtually linked

to build enterprise scale systems. These feature rich recording

devices are designed for long term reliability and ease of

maintenance. Fully redundant hardware congurations are

availabe to minimize any risk of system failure.

SAN Storage

Vicon oers a variety of external storage options for systems

with higher recording requirements. It is recommended to

connect 4 recording server to a single Vicon SAN device.

Video Encoders

Encoders convert analogue camera inputs into streamed IP.

These encoders support 1080P analogue.

Web Servers

The Web/Mobile Server is designed to allow authorised

security managers and operators to select and

control video displayed from a browser-based interface.

The server acts as a gateway to the ViconNet network video

system without any requirement to install and maintain client-

based software. A dedicated webserver is recommended for

systems with more than 10 concurrent remote viewers.

Mobile Device Clients

The mobile device solution (Apple iOS and Andriod OS

versions) interfaces through the Vicon Web Server. As the

system grows, and the need for more devices increases, Servers

can be added to the system to handle the load. To save on

bandwidth and display resources, the application processes

the video image into an optimal size for the device.

Video Walls

The Virtual Matrix Display Controller (VMDC) provides a

scalable matrix control solution. The VMDC is comprised of

both a matrix command/control center software interface and

a hardware decoding component that enables the remote

network video streams to be displayed on multiple monitors in

multiple locations.

Integration with Third Party Solutions

ViconNet integrates with many popular third party applications

through an SDK or web client application. The platform also

includes a powerful XML engine that can incorporate data from

any network data source. Third party applications have access

to the entire ViconNet system thru a single IP address.

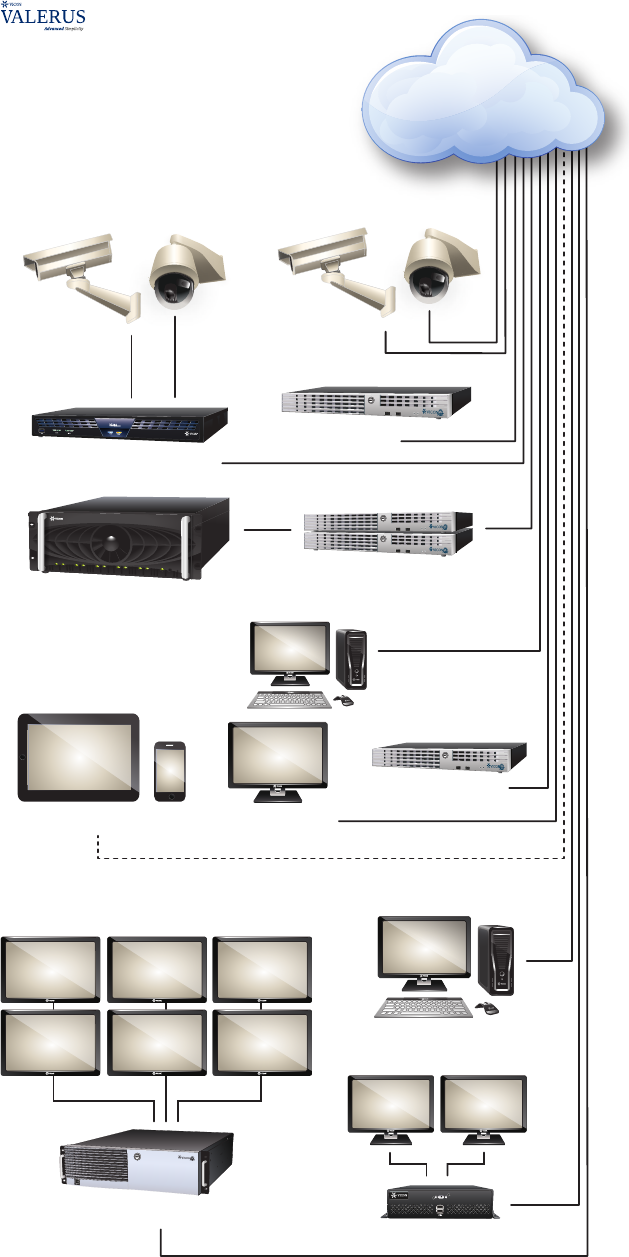

PC Workstation

(wireless)

Mobile Device

(s) Web Viewer(s)

Analogue Video Encoder

264

Analog Cameras Digital Cameras

PWR

HDD

VN-DECODER-2

Remote Monitoring Station

LAN

SAN Storage

Video Wall

Virtual Matrix Display Controller

Web Server(s)

Recording Servers

Recording Server

Administrator Workstation

Analogue Cameras Network Cameras

Recording Server Failover

ViconNet can detect if any of the active recording servers have failed and will initiate recordings of the aected cameras to a designated spare

recording server. This is achieved under 30 seconds (typically less than 10 seconds) and live viewing of all cameras are not aected during

this period. The ViconNet system will manage the storage of the entire system and not require the operator of the system to manually look in

dierent storage locations for the video.

2017 ViconNet hardware is compatibility with the new

Valerus Video Management System. Contact your salesman

to discuss options of using Valerus with an existing ViconNet

system.

+44 (0) 1489 566 300 | www.vicon-security.com

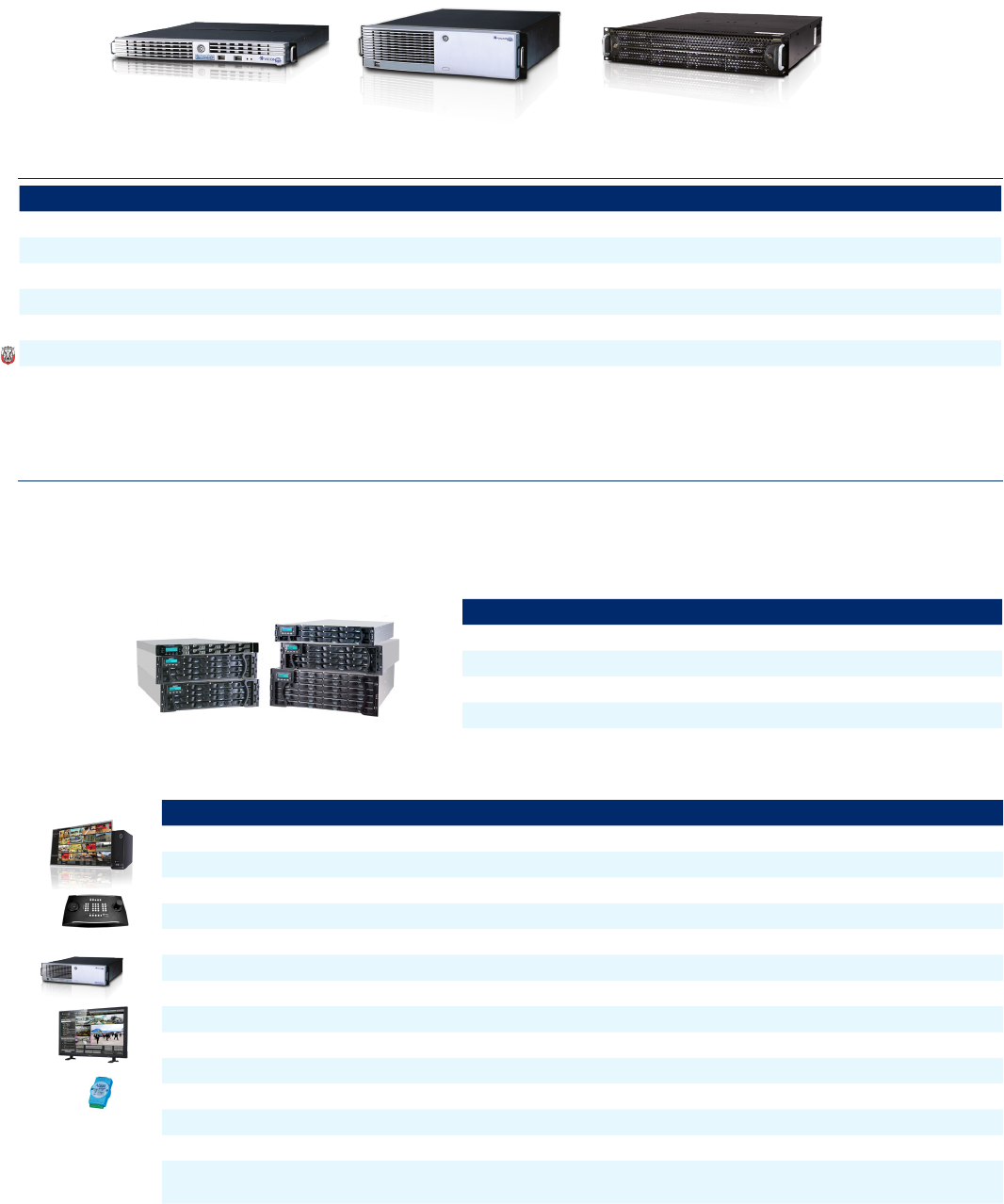

Recording Hardware

The ViconNet recording server enables you to simultaneously capture up to 120 real-time utilizing

RAID storage. There dierent versions based on the system requirements (including MOI specied

redundancy).

Recording Servers

Note: See Price List for congurations with dierent storage capacities.

2U Shadow RAID Server

3U Recording Server

1U Recording Server

Type Drive Bays SAN Ready? Nr Cameras * Redundancy** 16 Cameras 35 Cameras Unlimited

Desktop 2 Up to 70 VZN-16-V8 VZN-35-V8 VPK-NVR-V8

1U Rackmount 2 Yes Up to 100 VPK-SANV8-RK

3U Rackmount 4 Yes Up to 70 VZN-16-V8-RK VZN-35-V8-RK VPK-NVR-V8-RK

2/4U RAID Rackmount 8/24 Up to 100 VZN16-xTBXV8-5 VZN35-xTBXV8-5 VPK-xTBXV8-5

2/4U RAID+ 8/24 Up to 100 Yes VZN16-SHADOW8P VZN35-SHADOW24P VPK-SHADOW24P

2U SAN+ 8 Yes Up to 100 Yes VZN16-SANV8-PLUS VZN35-SANV8-PLUS VPK-SANV8-PLUS

* Based on 1080P resolution at 15fps ** Dual CPU. Dual power supply. Dual GBE LAN Port. Dual SCSI SAN Port (SAN model). Dual Windows Operating System

Hard Drives.

SAN Storage

Drive Bays Size Model (Redundant SCSI) Model (Standard)

12 2U KOL-iRAID12D

16 2U KOL-iRAID16

24 3U KOL-iRAID24D KOL-iRAID24

48 4U KOL-iRAID48D

Vicon® KOL-iRAID iSCSI RAID Array devices provide a high-density storage solution that can be

used for primary and/or backup data storage. The KOL-iRAID is oered in 12, 16, 24 and 48-bay

systems. Redundant power supplies and enterprise class hard drives ensure reliability.

Accessories

Type Desktop Model Rackmount Model Description

Workstation VWS-PCV8 VWS-PCV8-RK PC used for workstation operator

Admin Workstation (Nucleus) VNUC-PCV8 VNUC-PCV8-RK PC used for Administrator (Nucleus)

Web Server VN-RMT-PCV8 VN-RMT-PCV8-RK Web server to enhance remote connection performance

Keyboard VN-KEYPAD USB keypad for use with workstations

Decoder (2 monitor) VN-DECODER-2 2 monitor decoder for use with Virtual Matrix

Virtual Matrix 2 monitor VMDC-2V8-A VMDC-2V8-A-RK Virtual Matrix Display Controller (2 Monitor Output)

Virtual Matrix 4 Monitor VMDC-4V8-A VMDC-4V8-A-RK Virtual Matrix Display Controller (4 Monitor Output)

Virtual Matrix 6 Monitor VMDC-6V8-A VMDC-6V8-A-RK Virtual Matrix Display Controller (6 Monitor Output)

22” Monitor VM-722N-1 22” 16:9 1080P Monitor

32” Monitor VM-632LED 32” 1366 x 768 Monitor

42” Monitor VM-642LED 42” 16:9 1080P Monitor

Alarm Relay ADAM-6050 I/O network device; 12 alarm inputs/6 outputs

Third Party Camera License VN-CAM-LIC Connection license for non-Vicon cameras (1 camera)

Vicon Software Only See Price List All ViconNet software is available for installation

on COTS hardware. See Price List for Details

Professional Services See Price List Vicon Technicians can conﬁgure the system or

provide trainining. See Price List for Details.

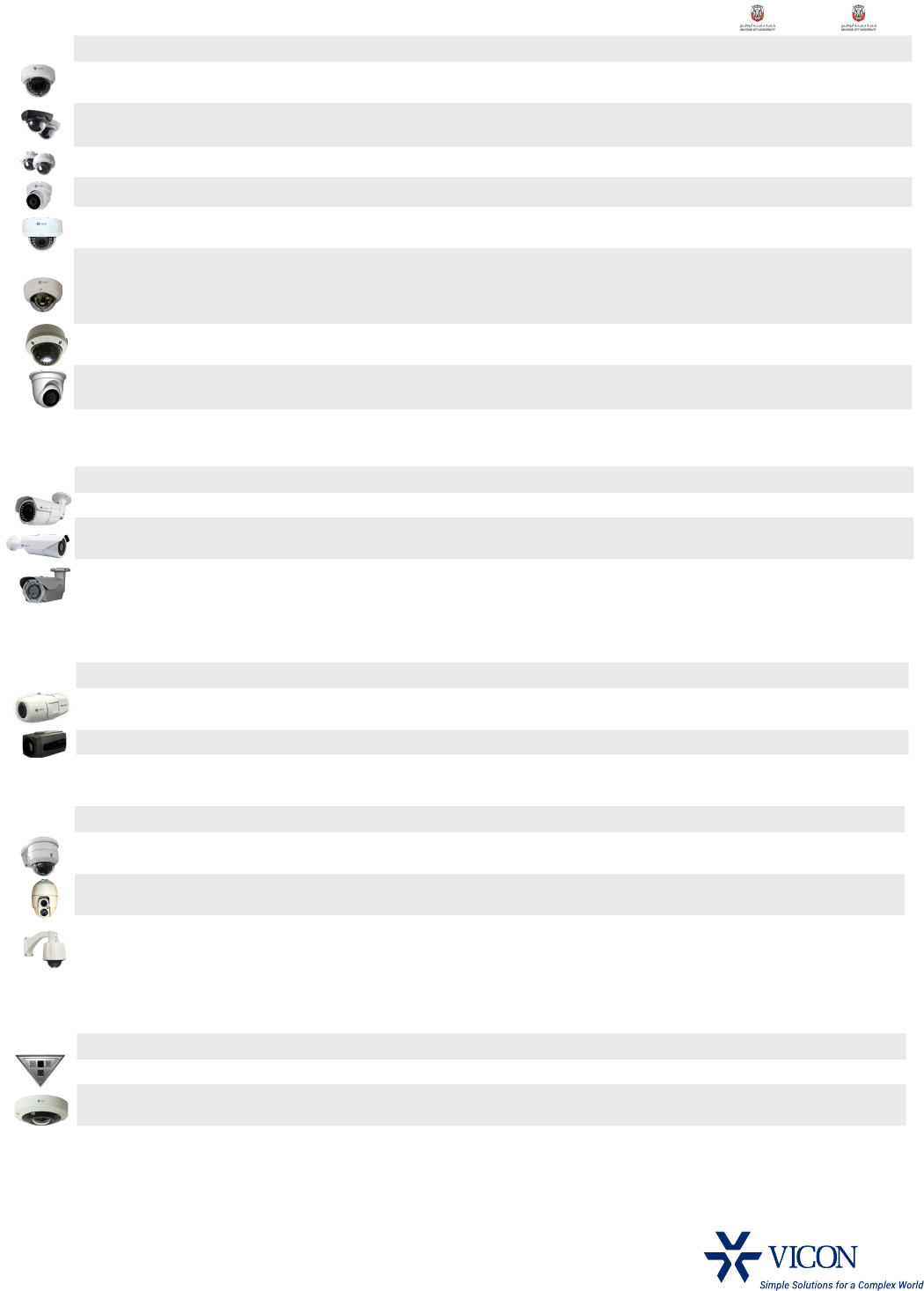

Recommended Cameras (See Camera brochure for more options)

+44 (0) 1489 566 300 | www.vicon-security.com

Vicon and its logo are registered trademarks and Vicon Valerus and its logo are trademarks of Vicon Industries Inc. Product specications are subject to

publication are the property of their owners.

Model Res FPS WDR IR Lens Temp (C) Vandal Alarm Recognition Identication

V802D-W310MIR

V804D-W310MIR

1080

4MP

120dB

25m

2.8-12mm MFZ

-10 to 45

Yes

IQD61WV-B7

IQD62WV-B7

720

1080

100dB

3-6mm

0 to 40

Yes

V972D-N312IR 1080 30 72dB 30m 2.8-12mm -20 to 60 Yes Yes Yes

V9520D-312MIR 1080 30 72dB 30m 2.8-12mm MFZ -10 to 50 Yes Yes

V942D-W312MIR-XS

V944D-W312MIR

1080

4MP

120dB

30m

2.7-12mm MFZ

-40 to 60

Yes

IQM61NE-B5

IQM61WR-B5

IQM62NE-B5

IQM62WR-B5

720

1080

50dB

100dB

50dB

100dB

20m

3-13mm

-30to 50

-30 to 50

Yes

V922D-W39MIR-ME

V922D-W39IR-ME

1080

120dB

25m

3-9mm MFZ

3-9mm

-20 to 60

Yes

V932EZ-W312MIR

V933EZ-N312MIR

1080

3MP

120dB

72dB

25m

2.8-12mm MFZ

+ Pan/Tilt

-20 to 60

Yes

Model Res FPS WDR IR LENS TEMP (C) Vandal ALARM Recognition Identication

V814B-312MIR 4MP 20 72dB 30m 2.8-12mm MFZ -10 to 50 Yes Yes

V944B-W312MIR

V942B-W310MIR-XS

4MP

1080

120dB

30m

3-10.5mm MFZ

-40 to 60

Yes

V922B-W551MIR-A

V922B-W39MIR-A

1080

120dB

25m

5-51mm MFZ

3-9mm MFZ

-30 to 60

Yes

Dome Camera

Bullet Camera

The following table contains the most popular cameras. It also identies cameras that meet Abu Dhabi MCC requirements which include the ability to record a

stream at 25 fps and record the same HD stream at 15fps. (Reference: Abu Dhabi MCC Regulations).

Model Res FPS WDR IR Lens Temp (C) Vandal Alarm Recognition Identication

IQB92WI-NL

IQB92WI-A5

1080

100dB

100dB 2.8-12mm MFZ

0 to 40

Yes

V922-D4129 1080 30 120dB 4-129mm MFZ 0 to 60 Yes

Model Res FPS WDR IR Lens Temp (C) Vandal Alarm Recognition Identication

SN663V-B

SN663V-B-EX

1080

120dB

20x

-10 to 60

-30 to 65

Yes

SN680D-B-WNIR 1080 60 120dB 400m 30x -30 to 65 Yes Yes

SN230W

SN230M

SN230P

1080

110dB

30x

-40 to 55

Yes

Model Res FPS WDR IR Lens Temp (C) Vandal Alarm Recognition Identication

V-CELL-HD-A 1080 30 50dB 20m 2.6mm 0 to 60 Yes Yes

V9360-12

V9360W-12

12MP

120dB

180º

-10 to 50

-30 to 50

Yes

Box Camera

PTZ Camera

Specialty Camera
