1. Introduction
The Bluetooth Shield integrates a Serial Bluetooth module. It can be easily used with
Arduino / Seeeduino for transparent wireless serial communication. You can choose
two pins from Arduino D0 to D7 as Software Serial Ports to communicate with
Bluetooth Shield (D0 and D1 is Hardware Serial Port). The shield also has two Grove
connectors (one is Digital, the other is Analog) for you to install Grove modules.
2. Features
Seeeduino/Arduino compatible
Up to10m communication distance in house without obstacle
UART interface (TTL) with programmable baud rate (SPP firmware installed)
Default Baud rate: 38400, Data bits: 8, Stop bit: 1, Parity: No parity
Default PINCODE:”0000”
A full set of configuration commands
On board PCB Antenna
FCC ID Certificated
3. Specification
Contents
Item Min Typical Max Unit
Voltage 2.8 3.3 3.5 VDC
Current 3 / 50 mA
Communication Distance(in
house) / / 10 m
Protocol Bluetooth V2.0 with SPP firmware /
Interface Uart Serial Port(TTL) /
Supported Baudrate 9600, 19200, 38400, 57600, 115200,
230400, 460800 bps
ESD contact discharge ±4 KV
ESD air discharge ±8 KV
Dimension 57.4x45.3x19.4 mm
Net Weight 10±2 g
4. Interface Function

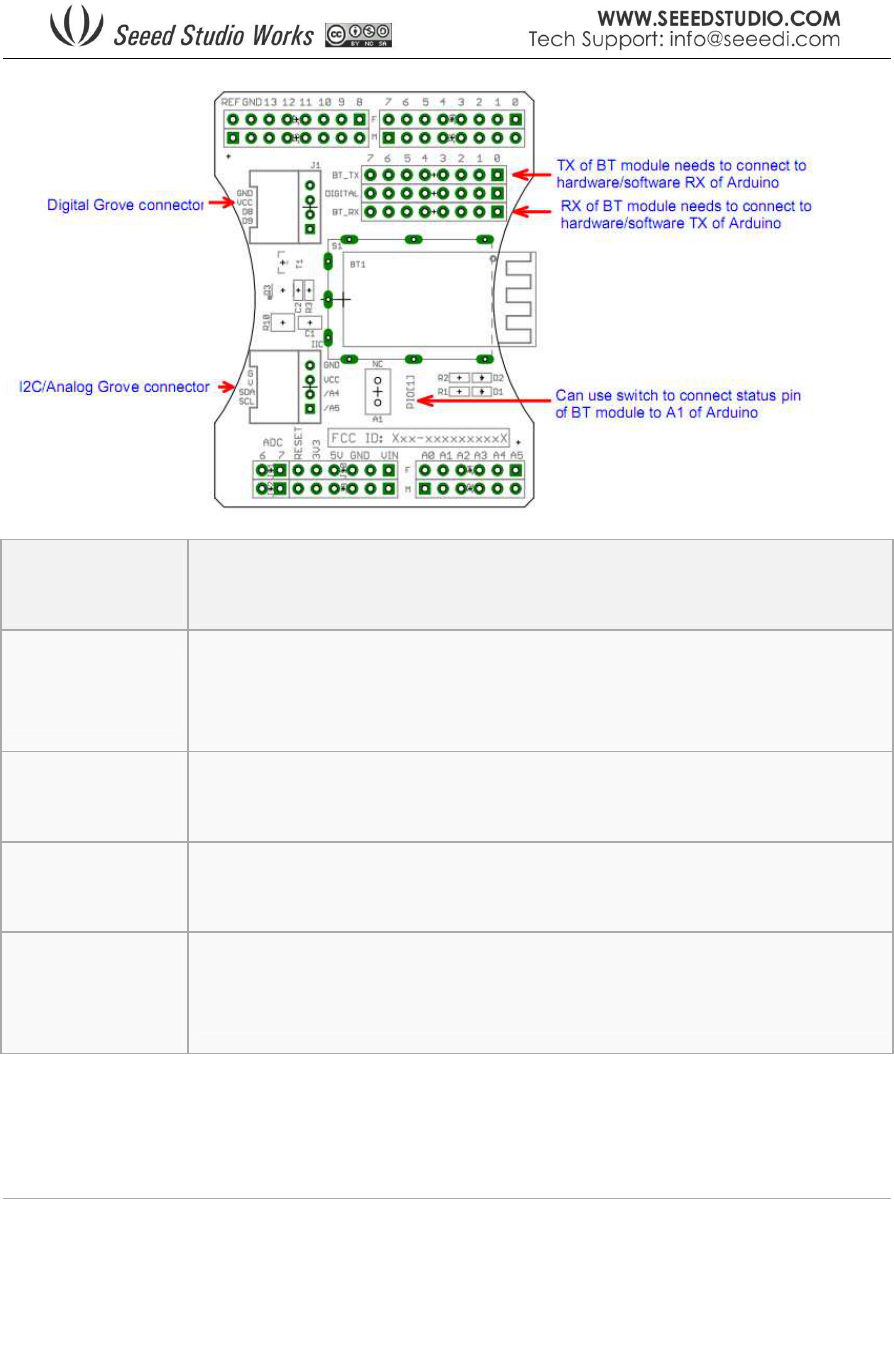

Pad Type Description
PIO1 Status instruction port of Bluetooth module can be read by
Arduino A1 port: low-disconnected, high-connected.
BT_RX UART Data input of Bluetooth module
BT_TX UART Data output Bluetooth module
Two Grove
connectors One is Digital (D8 and D9), the other is I2C/Analog (A4 and A5).
5. Usage
5.1 Hardware Installation

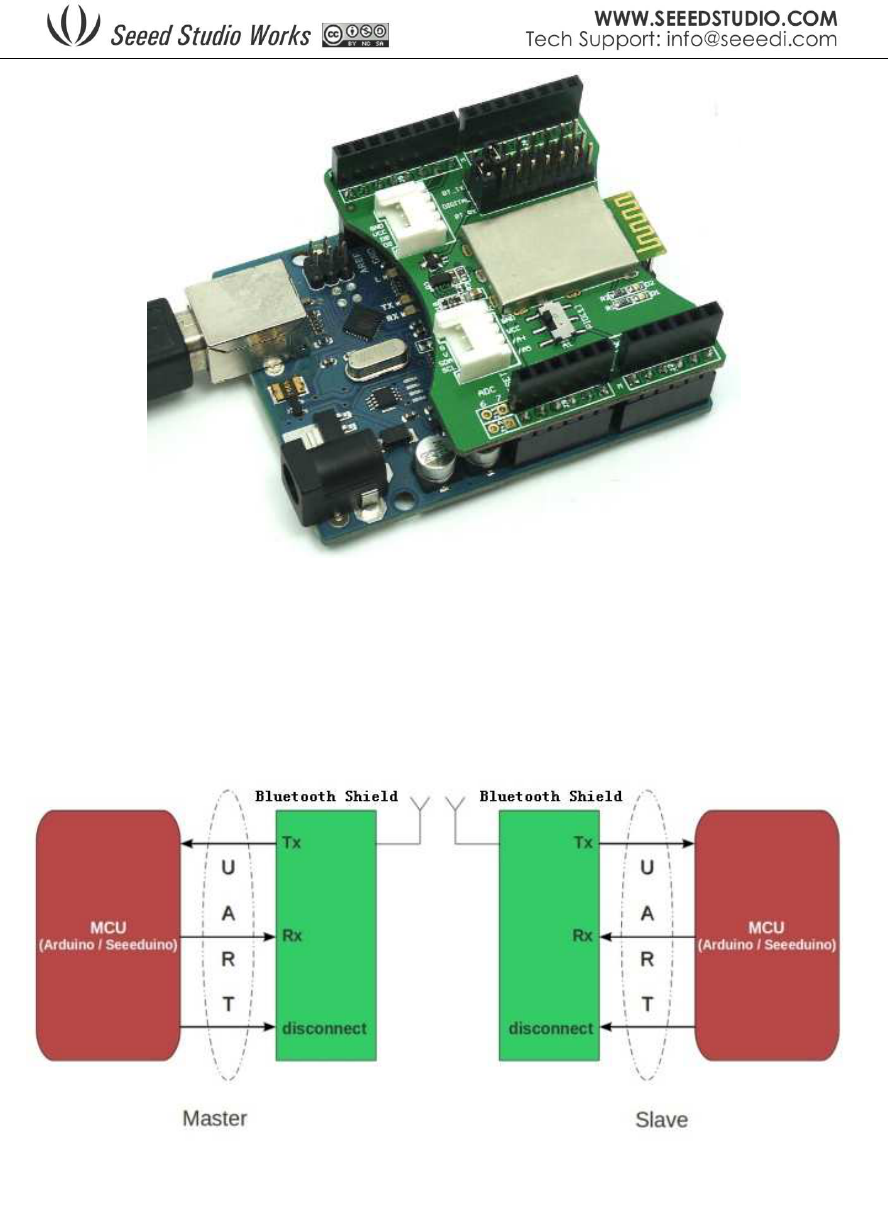

Plug the Bluetooth Shield onto Arduino/Seeeduino and then connect the board to
PC using USB cable.
5.2 Software Instruction

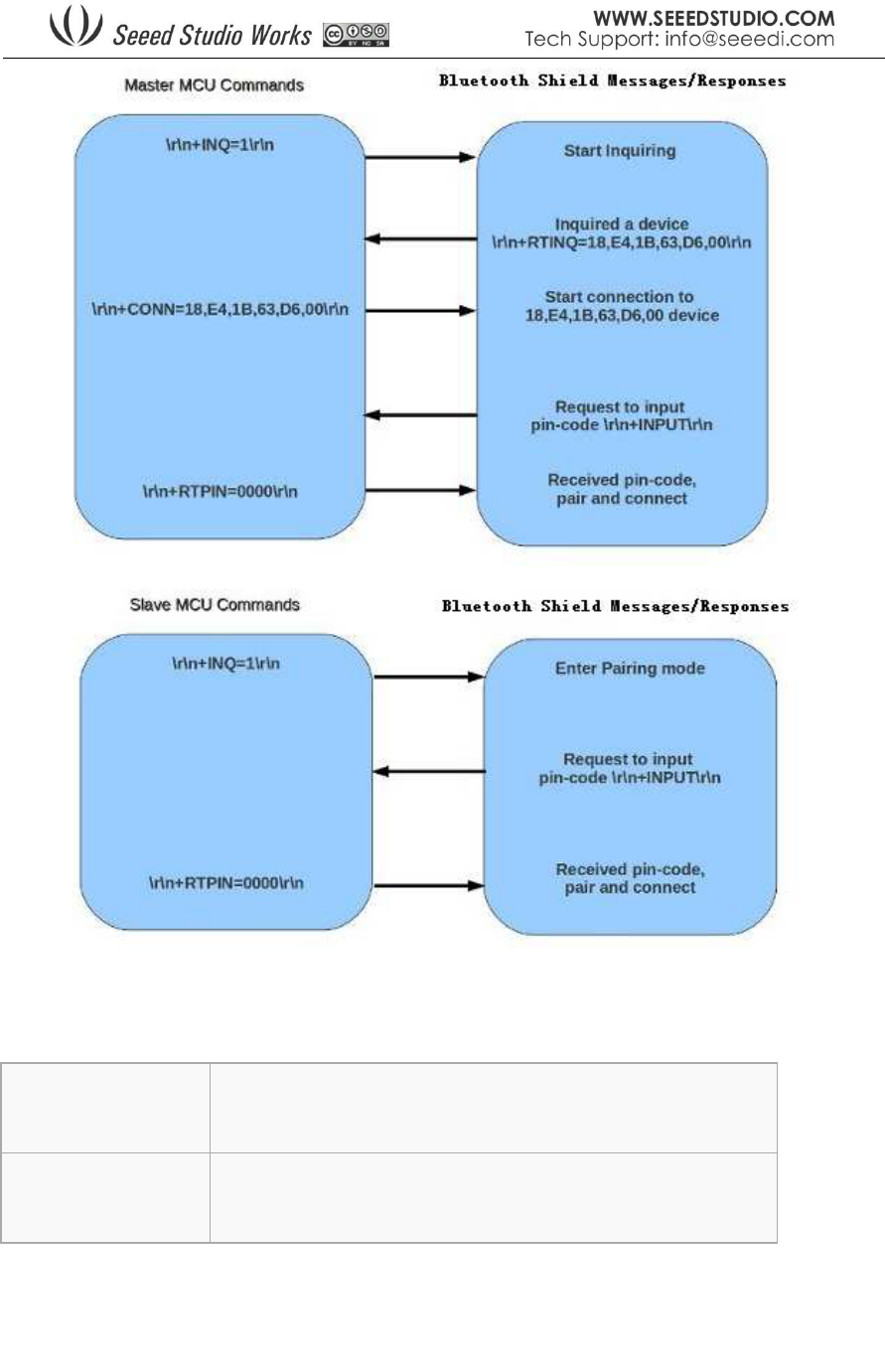

Working Sketch Map
The following sketch presents an overview of Bluetooth Shield operation in
master and slave mode.
The following flowchart gives a quick start guide to Bluetooth
Shield programming.
Commands to change default configuration
1. Set working MODE
\r\n+STWMOD=0\r\n
Set device working mode as client (slave). Save and Rest.
\r\n+STWMOD=1\r\n
Set device working mode as server (master). Save and Rest.
Note: \r\n is necessary for operation and the value of are 0x0D 0x0A in
Hex. \r and \n represent carriage-return and line-feed (or next line),
2. Set BAUDRATE
\r\n+STBD=115200\r\n
Set baudrate 115200. Save and Rest.
Supported baudrate: 9600, 19200, 38400, 57600, 115200, 230400, and 460800.
3. Set Device NAME
\r\n+STNA=abcdefg
Set device name as “abcdefg”. Save and Rest.
4. Auto-connect the last paired device on power
\r\n+STAUTO=0\r\n
Auto-connect forbidden. Save and Rest.
\r\n+STAUTO=1\r\n
Permit Auto-connect. Save and Rest.
5. Permit Paired device to connect me
\r\n+STOAUT=0\r\n
Forbidden. Save and Rest.
\r\n+STOAUT=1\r\n
Permit. Save and Rest.
6. Set PINCODE
\r\n +STPIN=2222\r\n
Set pincode “2222”, Save and Rest.
7. Delete PINCODE(input PINCODE by MCU)
\r\n+DLPIN\r\n Delete pincode. Save and Rest.
8. Read local ADDRESS CODE
\r\n+RTADDR\r\n Return address of the device.
9. Auto-reconnect the device when they loss connection.
\r\n+LOSSRECONN=0\r\n
Forbid auto-reconnecting.
\r\n+LOSSRECONN=1\r\n
Permit auto-reconnecting.
Commands for Normal Operation:
1. Inquire
a) Master
\r\n+INQ=0\r\n Stop Inquiring
\r\n+INQ=1\r\n Begin/Restart Inquiring
a) Slave
\r\n+INQ=0\r\n Disable been inquired
\r\n+INQ=1\r\n Enable been inquired
When +INQ=1 command is successful, the red and green LEDS blink
alternatively.
2. Bluetooth module returns inquiring result
\r\n+RTINQ=aa,bb,cc,dd,ee,ff;name\r\n
Serial Bluetooth device with the address
“aa,bb,cc,dd,ee,ff” and the name
3. Connect device
\r\n+CONN=aa,bb,cc,dd,ee,ff\r\n Connect to a device with address of
"aa,bb,cc,dd,ee,ff”
4. Bluetooth module requests inputting PINCODE
\r\n+INPIN\r\n
5. Input PINCODE
\r\n+RTPIN=code\r\n
Example: RTPIN=0000, Input PINCODE which is four zero.
6. Return status \r\n+BTSTA:xx\r\n
xx status:
0 - Initializing
1 - Ready
2 - Inquiring
3 - Connecting
4 - Connected
(Note: This is not a command, but the information returned from the module after
every command)
