owner’s manual
®
page
introduction
2
Hello and congratulations on
purchasing a Breezair Ducted
Cooler for your home.
Breezair coolers have been
designed to provide quiet,
reliable and cool comfort.
At Seeley International we
manufacture Breezair
evaporative coolers from the
highest quality materials, and
we have designed the product
to provide many years of
economical, trouble free
cooling.
Please take a few moments to
read these operating
instructions, so that the most
can be gained from this
investment.
Breezair coolers are fitted
with either a Wall Mounted
Thermostat Control or a
Remote Thermostat Control.
Please refer to the relevant
section in this manual for
instructions on how to operate
either system. Also, please be
aware of the components and
features that are fitted to your
particular cooler.
Keep these instructions in a
safe place for future reference.
EFFECTIVE COOLING
To provide efficient cooling or
ventilation the building must
have sufficient exhaust
openings to the outside of the
building. To assist air flow, open
windows and doors that are
farthest from the outlet vent in
each room. In these rooms,
provide an exhaust opening
about 2 times the vent size of
the room.
Where the design of the
building prevents adequate
exhaust, consideration should
be given to the provision of
mechanical extractions, such
as an exhaust fan.
In areas where temperatures
can cause water supply pipes
to freeze, a drain down facility
should be provided during the
installation.
This drain down facility must be
activated prior to freezing
conditions, to avoid possible
damage to the cooler
components.
Important Note!
®
®
®
®
®
range
thermostat
3

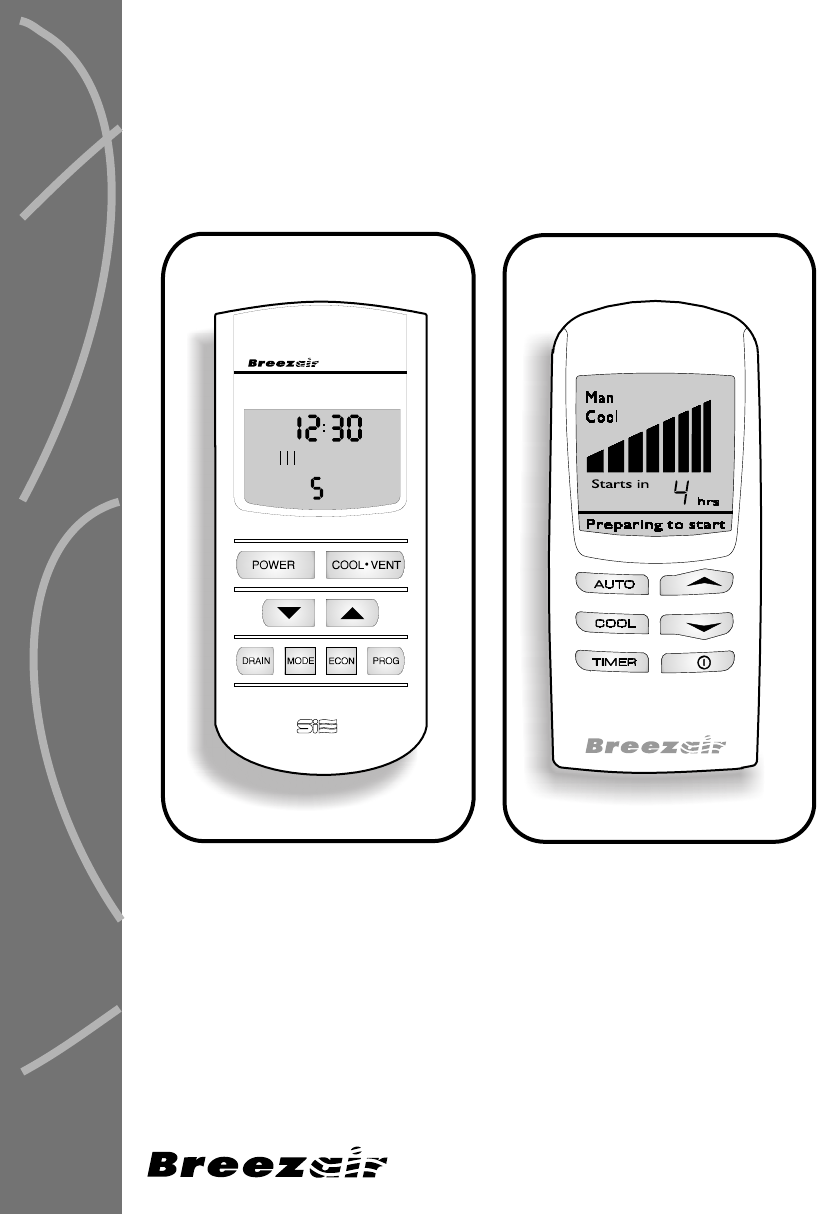

Wall Mounted Thermostat Control
(wall control)
Remote Thermostat Control
(remote control)
AUTO COOL
PM
FAN
SPEED
ECONOMY
REMOTE CONTROL
ILL239-D ILL1140-A
®
page
contents
4
Remote Thermostat Control..............5
Wall Mounted Thermostat Control...11

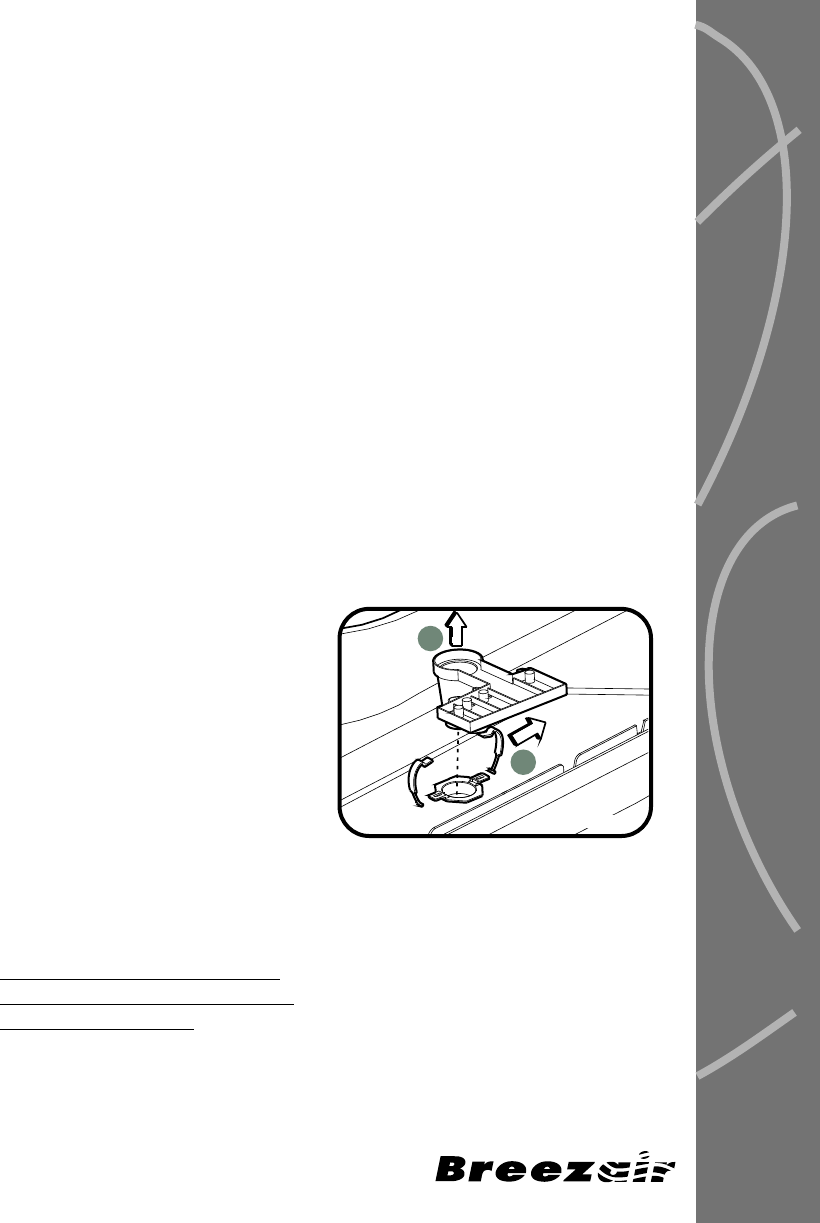

Bleed Funnel & Drain Valve............15
Power Outages...............................15

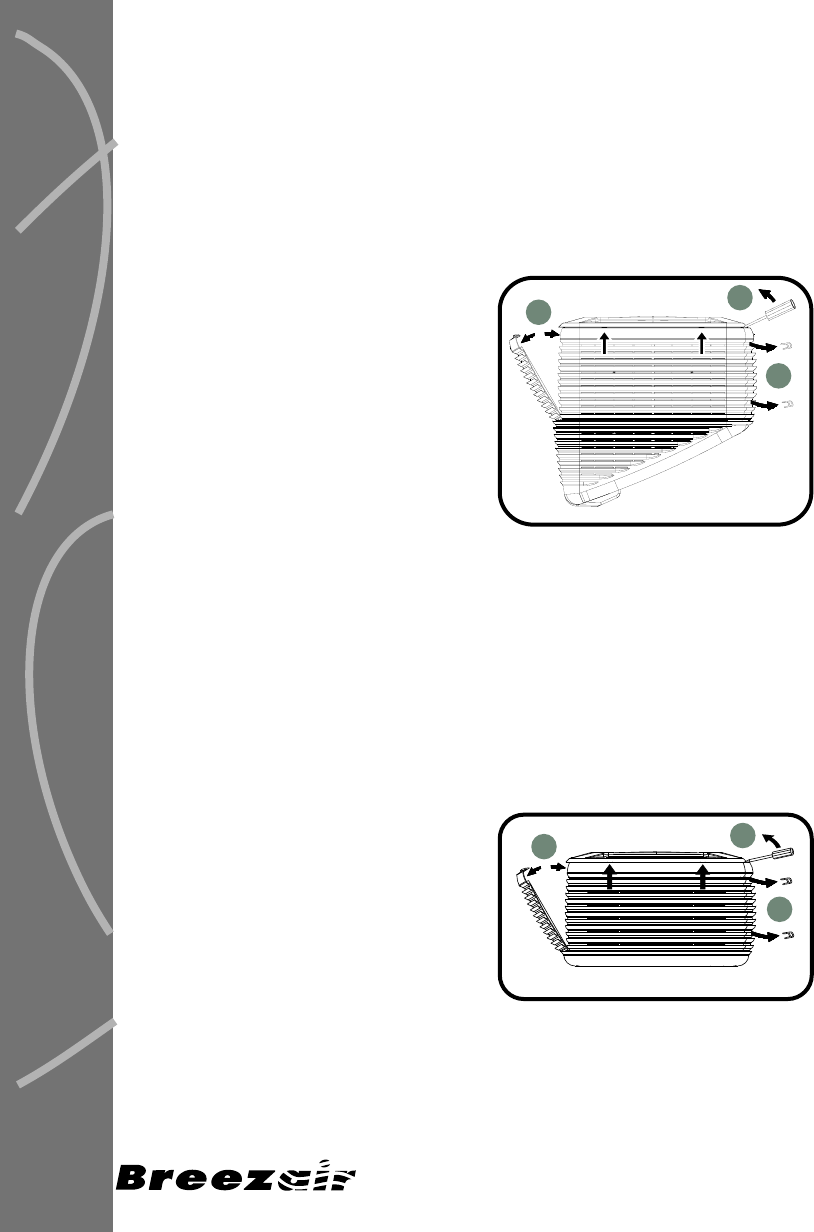

Seasonal Maintenance...................16
Troubleshooting..............................18
Service & Warranty.........................20
®
thermostat control
remote
5

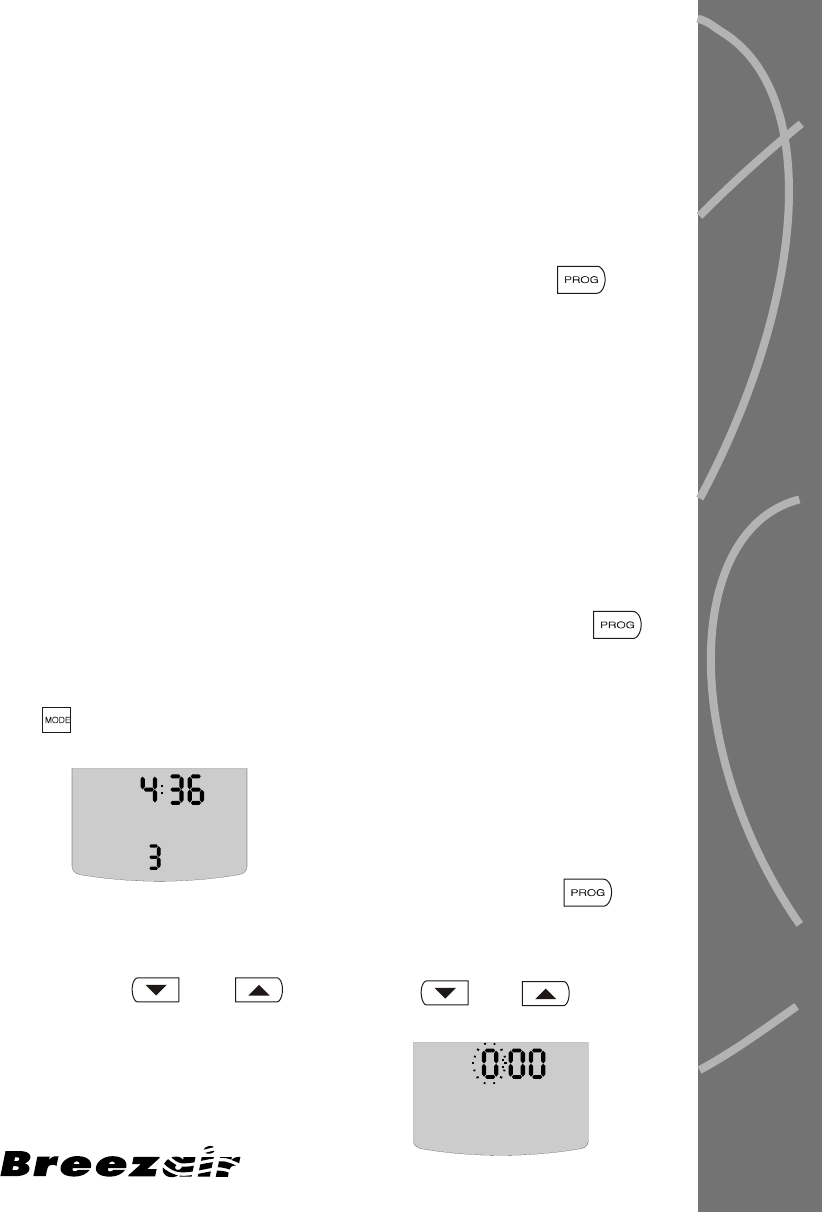

SETTING THE CLOCK
TURNING THE
COOLER
Set the clock on the remote
control before proceeding with
any other programming.
The clock can only be set with
the remote control switched
OFF. Hold the button
down for over 2 seconds, until
the hour flashes.
Use the and buttons
to change the hour. To change
minutes, press the button
again. Change the minutes
using the and
buttons.
To lock in the time setting, and
enter the OFF state, press the
button. The display will
stop flashing.
The remote control is switched
on and off using the
button. The memory will store
The clock can
be set to either 12 or 24 hours
(see page 10). If the clock is set
to 12 hours make sure that the
AM/PM displayed on the screen
is correct. AM/PM will change
with adjustment of the hour.
ON
and use the settings from when
the cooler was last used. Once
the remote control is on, you
can choose between MANUAL,
AUTO and AUTO TIMER
modes by pressing the
button.
decrease increase

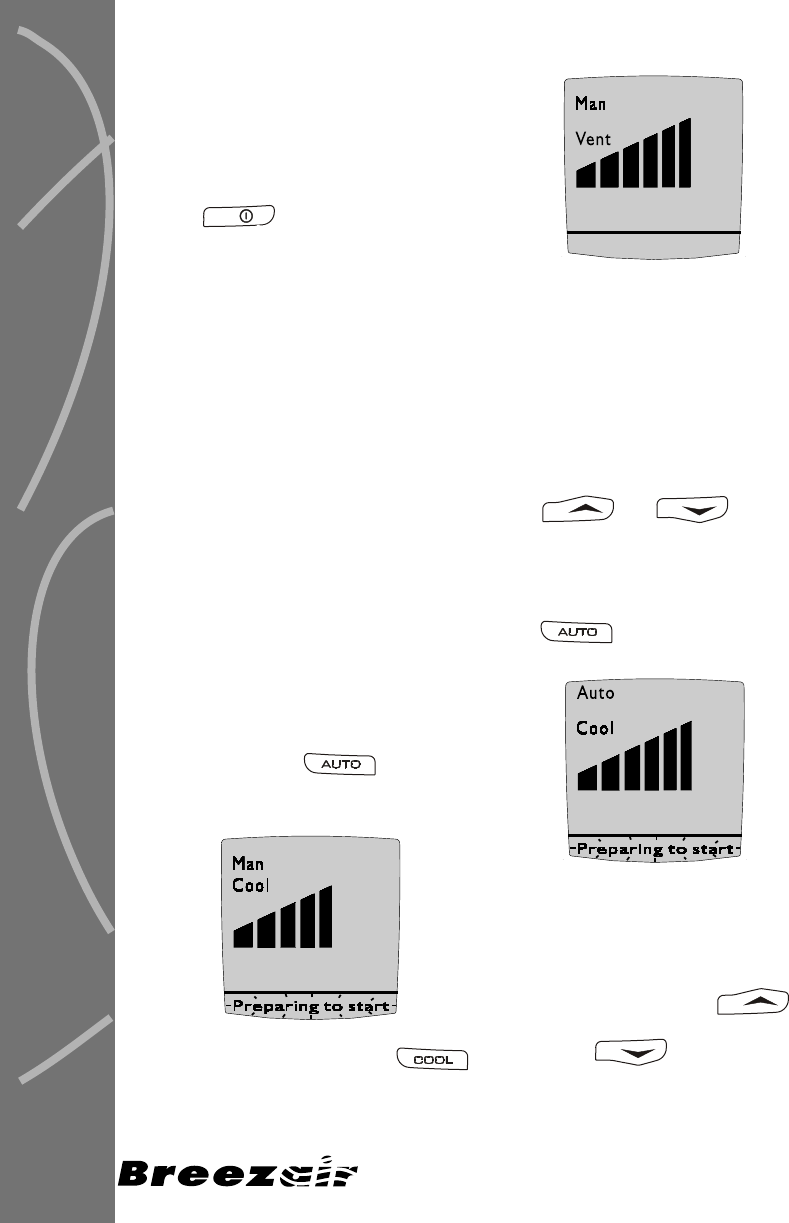

MANUAL MODE
With the remote control ON,
press the button until
MANUAL is shown in the top
left corner of the display.
The button is used to
select VENT (where fresh air is
being delivered without being
cooled) or COOL.
Once either COOL or VENT
has been selected, the remote
control will maintain a constant
fan speed. This is indicated by
the bar graph in the centre of
the display.
To or the fan
speed required, press either the
or buttons.
MANUAL
COOL
FAN
SPEED
ILL1108-A
MANUAL VENT
FAN
SPEED
ILL1109-A
ILL1104-A
PM
®
6
AUTO MODE
The remote control contains a
thermostat. In AUTO mode the
cooler is controlled
automatically, based on your
pre- comfort level. The
cooler will adjust the fan speed,
switch between COOL and
VENT and turn itself off.
However, the sequence and
regularity at which these
settings change will differ with
each operation of the cooler.
As the remote control senses
room conditions, the
heat from direct
sunlight or electrical appliances.
Likewise placing the remote
control in cupboards or drawers
or under cooling vents will affect
the cooler’s operation.
To set the AUTO mode press
the button until AUTO is
displayed.
Ten levels of comfort are
available with the remote
control. While in AUTO mode
pressing the and
buttons will adjust the level of
required comfort. The display
selected
comfort
control settings will be
influenced by
will show your selection by
indicating a level between 1
and 10. WARMER or COOLER
will be displayed on the screen
as settings are changed.
Begin by pressing the
button. The hour displayed will
start flashing and the word ON
will appear on the screen. Then
use the and buttons
to change the hour value.

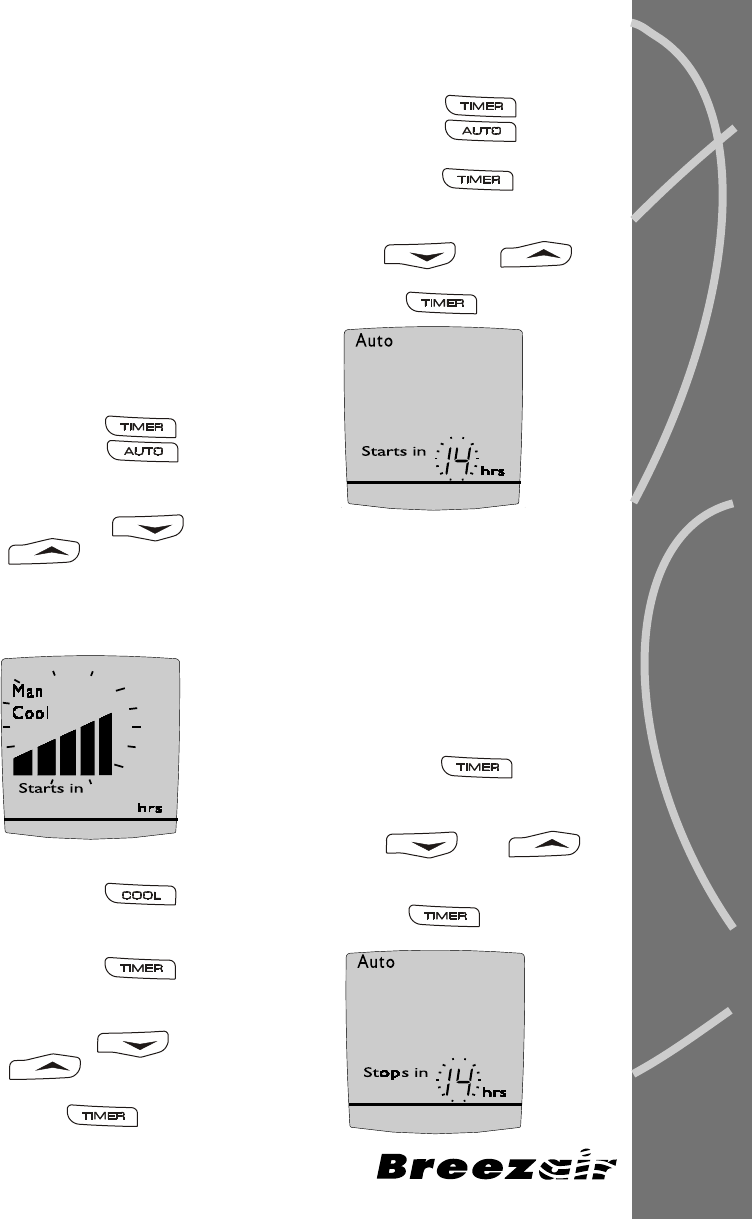

AUTO TIMER MODE
AUTO TIMER mode can be
selected by using the
button. Once the AUTO TIMER
mode is selected the cooler will
only operate during the
programmed time period.
Programming the timer must be
performed before AUTO TIMER
can be activated. This can be
done while in any mode, even
when it is OFF. There are 7
steps involved in setting the
AUTO TIMER.
NOTE: After pressing the
button the display will revert
back to the previous setting if
no buttons are pressed within 4
seconds.

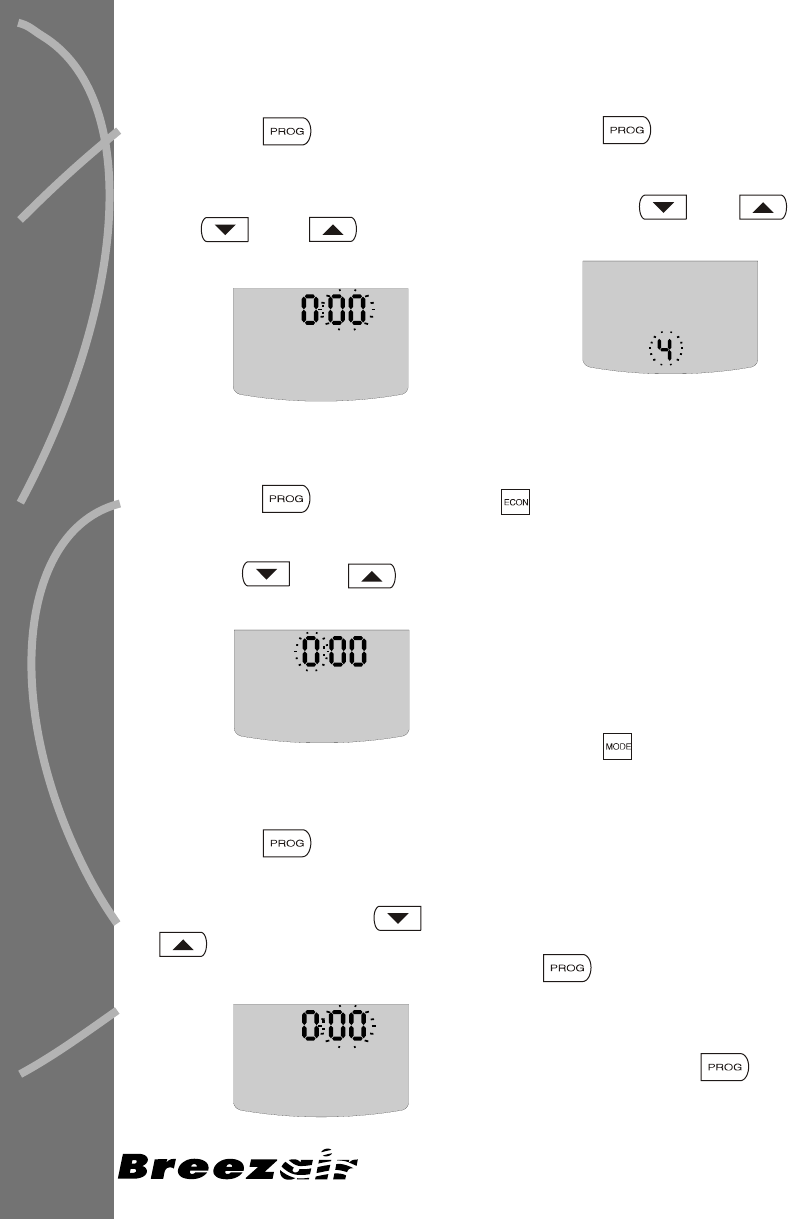

To program the timer use the
following sequence:
(1) Setting the ON time hour
AUTO
TIMER ON
ILL1112-A
thermostat control
remote
AUTO
FAN
SPEED
ILL1105-A
PM
®
7
(2) Setting the ON time minutes
(3) Setting the OFF time hour
Press the button. The
minutes displayed will start
flashing and the word ON will
appear on the screen. Then use
the and buttons to
change the minute setting.
Press the button. The
hour displayed will start flashing
and OFF will be displayed. Then
use the and buttons
to change the hour.
Press the button. The
minutes displayed will start
flashing and the word OFF will
appear. Then use the and
buttons to change the
minute setting.
(4) Setting the OFF time minutes
AUTO
TIMER ON
ILL1113-A
AUTO
TIMER
OFF
ILL1114-A
AUTO
TIMER
OFF
ILL1115-A
(5) Setting the comfort level
Press the button and the
comfort level number (1 to 10)
displayed will start flashing.
Then use the and
buttons to change this setting.
To select economy press the
button so that it is displayed
on the screen.
Now that you have
programmed the settings for
AUTO TIMER they will be
stored in the remote control’s
memory until you change them.
Press the button until
AUTO TIMER is displayed on
the screen. Your cooler will now
only operate during the
programmed time period.
NOTE: To change any AUTO
TIMER settings when the
remote control is switched off,
the button needs to be
pressed and released within 1
second. To change settings
when the remote control is
turned on press the
button until the desired number
is flashing.
(6) Setting ECONOMY
(7) Activating AUTO TIMER
AUTO
TIMER
ILL1116-A
thermostat control
remote
®
8
ECONOMY MODE
DRAIN MODE
Selecting the ECONOMY mode
limits the maximum available
cooling or ventilation and
reduces the power used by up
to 20%. The ECONOMY
function can be used in either
AUTO MANUAL modes. To
select this mode press the
button so that ECONOMY
appears on the display.
Pressing the button opens
the drain valve in the cooler and
empties the water in the tank.
This will leave the tank clean
and dry and turn the cooler off.
If the cooler has not been used
for 3 days or 3 hours,
depending on the DIP switch
setting - see page 10, the tank
will automatically be drained to
ensure the system remains
clean.
or
MANUAL
COOL
PM
FAN
SPEED
ECONOMY
ILL1125-A
DRAIN TANK
ILL1107-A
thermostat control
remote
PRE - COOL MODE
Your remote control is designed
to allow for the saturation of the
cooler’s cooling pads before
the fan is switched on. This
function, referred to as PRE-
COOL mode, is enabled at DIP
switch D (refer to page 10).
Once it is enabled the cooler,
will
operate as follows:
(1)...... If the tank is empty the
drain system will be
closed. The tank will
then be filled.
(2)...... After 60 seconds of the
tank filling with water,
the pump will turn on
and saturate the filter
pads.
(3)...... After the pump has been
running for 3 minutes
the fan will start.
During this operation the word
PRE-COOL will be displayed
on the remote control’s screen.
NOTE: PRE-COOL mode will
not be activated if VENT is
selected on the remote control
or the cooler is used again
shortly after having been turned
off.
when first switched on,
MANUAL
COOL
PM
FAN
SPEED
ECONOMY
ILL1142-A
PRE-COOL
®
9
WATER MANAGER
The Breezair remote control is
fitted with the WaterManager
feature which automatically
monitors the quality of the water
in the cooler.
The WaterManager drains the
existing water in the cooler to
allow it to be replaced with fresh
water, only when it is needed.
Therefore, you may notice your
cooler draining water
occasionally. How often the
WaterManager performs this
operation depends upon the
quality of the water supply and
the rate of evaporation.
In areas of poor water quality,
the WaterManager will
operate more often as it tries to
maintain the optimum water
quality in the cooler. This
maximises the cooling effect
and life of the cooling pads.
The remote control has a
unique feature attached to the
WaterManager that allows you
to specify either high or low
salinity settings. The low salinity
setting is used in specific
circumstances only. We
recommend talking with your
dealer before adjusting this
setting.
The high salinity setting is
designed to operate the cooler
at a maximum safe salinity
level to maintain a normal
working life. It also results in a
minimum usage of water .
NOTE: High salinity outlet
water should not be used on
salt sensitive grass or plants. It
has a high salt content.

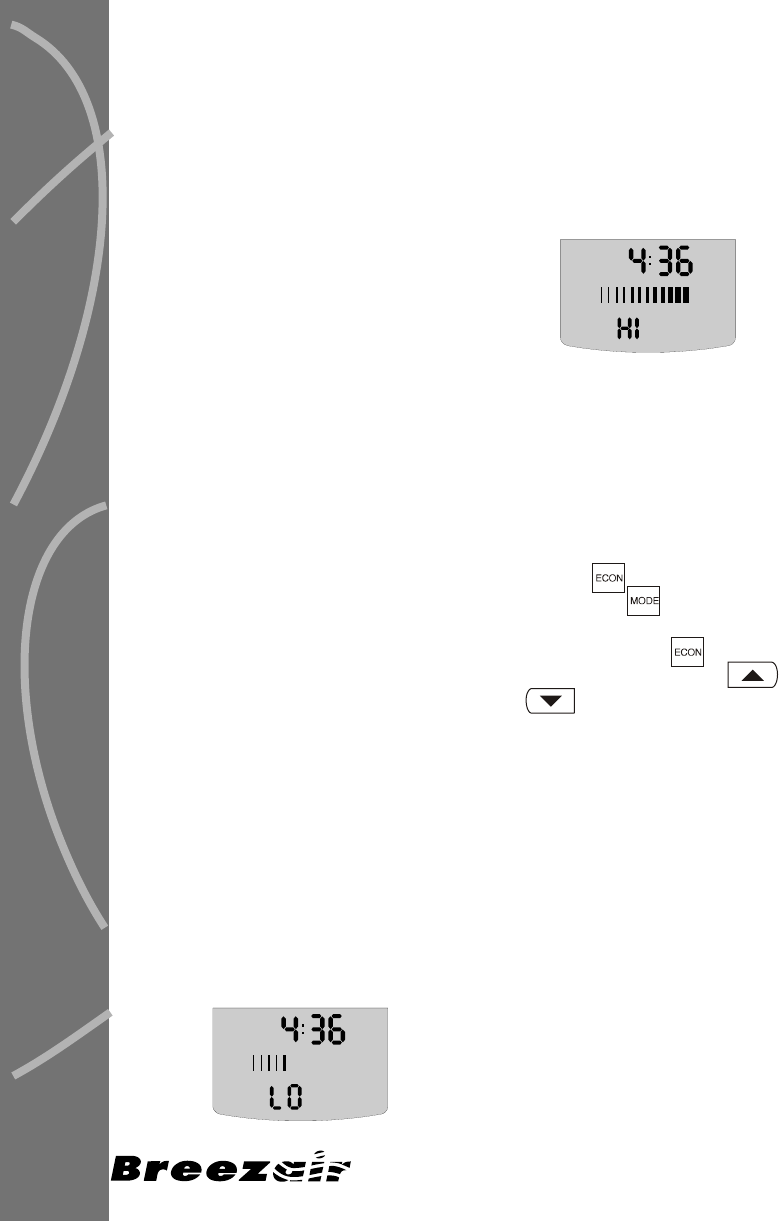

The current WaterManager
setting is displayed by holding
down the button and
pressing the button. The
setting can be changed by
holding down the button
and pressing either the
or button for HI and LO
respectively.
The factory default
WaterManager setting is HI.
For areas operating with bore
water, DIP switch F should be
switched to off (see page 10).
This will disable the salinity
measuring circuit and simply
drain water from the tank every
65 minutes of operation.
MANUAL
COOL
FAN
SPEED
ECONOMY
ILL1111-A
MANUAL
COOL
PM
FAN
SPEED
ECONOMY
ILL1110-A
thermostat control
remote
®
®
®
®
®
®
®
®
®
®
BATTERIES
The remote control requires 3
AAA batteries. The use of good
quality alkaline batteries is
recommended. Under normal
conditions a set of batteries will
operate for 12 months. We
recommend that you replace
the batteries before each
season.
When the batteries are getting
low on power, BATTERY LOW
is displayed on the screen (the
cooler may also switch off while
the display remains ON). This
indicates that the batteries
have only a small amount of life
remaining.
To change the batteries remove
the cover from the back of the
remote control. Pull out the old
batteries and replace them all
with the new ones. Do not mix
new batteries with old batteries.
The remote control has 2 mins.
of back-up power to retain its
memory while the batteries are
being changed. If this time is
exceeded, turn the power off to
the cooler and wait until the
screen goes blank. Restore the
power and fit the batteries
within 4 minutes.
Do not use
rechargeable batteries as their
voltage rating is too low for the
remote control.
10

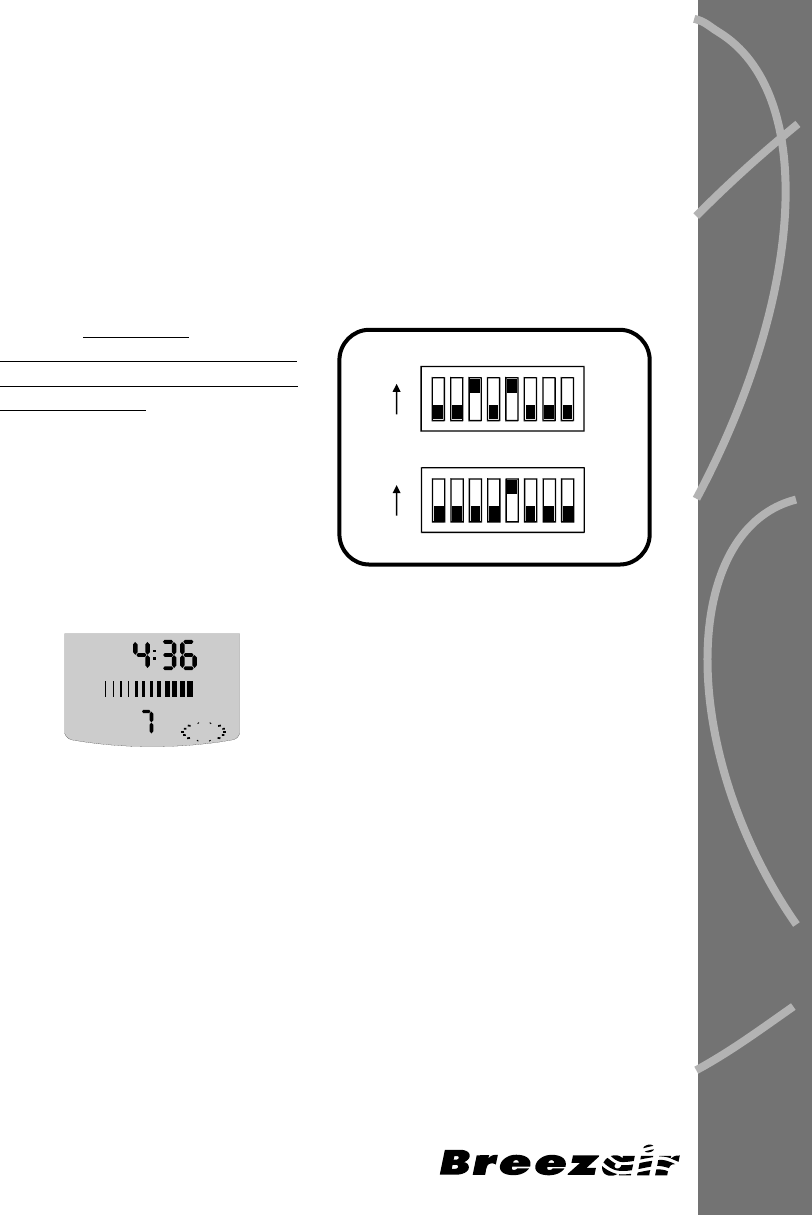

DIP SWITCHES
There are 2 rows of DIP
switches located under the
battery cover on the remote
control.
Definition of DIP switch
positions (first 6 in bottom row
only) are as follows:
(A)...... Reserved for later use.
(B)...... OFF, 24 hour clock.
ON, 12 hour clock.
(C)...... OFF, 1HP motor.
ON, 1/2HP motor.
(D)...... OFF, no pre-cool.
ON, pre-cool.
(E)...... OFF, drains 3 days after
power off.
ON, drains 3 hours after
power off.
(F)...... OFF, drains every 65
minutes of operation.
ON, activates water
salinity circuit
(WaterManager ).
WARNING: Do not alter DIP
switches 1 to 10 as the cooler
will cease to work.
ILL217-G
ON
ON
12345678
A B C D E F 9 10
OFF
OFF
EXAMPLE ONLY
thermostat control
remote
AUTO COOL
PM
FAN
SPEED
BATTERY LOW
ILL1106-A
®
®
thermostat control
wall mounted
11
TURNING THE COOLER
ON
PREPARING TO START
MANUAL MODE
The wall control can be
switched on and off by pressing
the button. The wall
control will remember the
previous setting it was in when
the cooler was last used.
With the wall control switched
ON, press the button
until MAN is shown on the
display.
You may then press the
button to switch between COOL
and VENT (where fresh air is
being delivered but not cooled).
Whenever you select AUTO
mode or COOL in MANUAL
mode, the cooler will take a few
minutes to start as it fills with
water and saturates the cooling
pads. The time will be
decreased if the tank is full or
the cooler has only recently
been turned OFF. During this
time PREPARING TO START
will flash on the display.
ILL1122-A
Once COOL or VENT has been
selected, the wall control will
maintain a constant fan speed.
This is indicated by the bar
graph shown on the display.
In AUTO mode the cooler will
remember the last setting used
and try to achieve this. It may
vary depending on the day’s
conditions. Press the
button if you require more cool
air or the button if you
require less. Don’t alter the
setting however, until the room
temperature has stabilised.
To increase or decrease the fan
speed required, press either
the or button.
To select the AUTO mode press
the button until AUTO
is shown on the display.
AUTO MODE
ILL1124-A
ILL1123-A
®
12
Programming in auto mode
(1)...... Press the button.
Press the button
until AUTO is displayed.
(3)...... Press the button
and the ‘starts in’ time
will start flashing. Use
the or
button to select the hour.
(4)...... Press again.
The delayed stop time can only
be programmed once the cooler
is ON. This is ideal if you are
going to bed but don’t want to
turn the cooler off straight away.
To program the delayed time in
which you want the cooler to
stop use the following
sequence:
(1)......Select the button
and the ‘stops in’ time
will start flashing. Use
the and
buttons to select the
desired off time.
(2)...... Press again.
(2)......

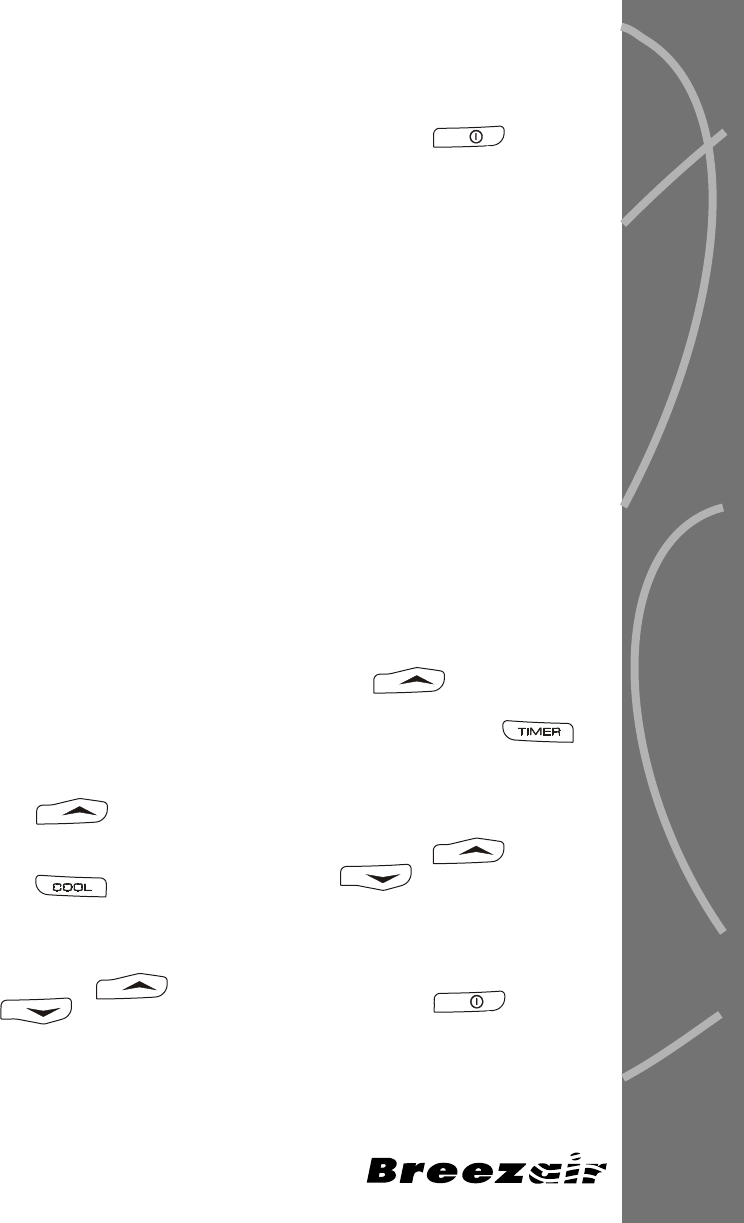

DELAYED START OR STOP
The cooler can be programmed
to start at a specific time or stop
at a specific time.
The delayed start time can only
be programmed when the cooler
is OFF. To program the cooler to
start in a certain amount of
hours use the following
sequence:
(1)...... Press the button.
(2)...... Press the button
until MAN is displayed
on the screen.
(3)...... Press the or
button until the
desired fan speed is
displayed by the bars in
the middle of the screen.
(4)...... Press the
button to set either
COOL or VENT.
(5)...... Press the
button and the ‘starts in’
time will start flashing.
Use the and
buttons to select
the desired time.
(6)...... Press again.
Programming in manual mode
ILL1119-A
thermostat control
wall mounted
ILL1118-A
ILL1117-A
®
13

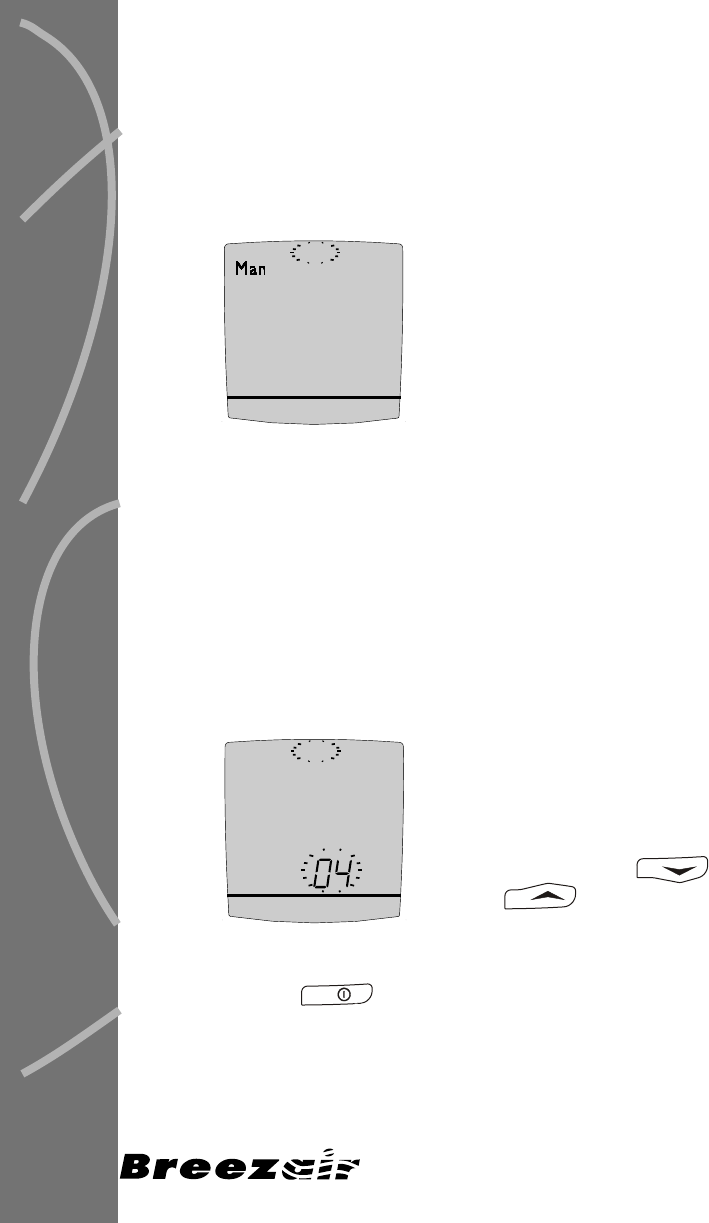

SERVICE MODE
When a fault has been
recognised by the wall control
the word SERVICE flashes on
the screen.
When SERVICE is displayed it
maybe necessary for you to
phone the Service number
located on the back of this
manual. However, before doing
so, turn the wall control OFF.
You will notice a number
flashing at the bottom of the
screen. This number indicates
the reason for requiring service.
Please write this number down,
then push the button to
turn the cooler back on. If after
a short time SERVICE is again
shown on the display, turn the
wall control OFF and check if
Service
ILL1120-A
Service
ILL1121-A
thermostat control
wall mounted
the flashing number is the
same. If it is check the following
possible problems. However,
we do suggest that any checks
be carried out by an authorised
dealer or service agent.
(1)...... Check that the water
supply tap to the cooler
is turned on.
(2)...... Check that your local
water authority haven’t
temporarily
disconnected the water
in your area.
(1)...... If your cooler is fitted
with a drain valve,
check that the drain is
not blocked.
If ‘02’ is displayed
If ‘04’ is displayed
If these do not fix the problem
then contact your Dealer or the
Service number on the back of
this manual. You will need to
quote the flashing number that
you wrote down.
Pressing the and
buttons at the same
time will open the drain valve
and empty the water in the
tank. The wall control will
display DR on the screen.
Draining the water will leave
the tank clean and dry until it is
next used.
DRAIN MODE
®
(3)...... When the desired
setting is displayed,
press the button
to store the new setting.
This parameter changes the
time before the tank is emptied
of water, after the cooler has
been turned off. The 5 options
available are:
0 = 4 hours
1 = 1 day
2 = 2 days
3 = 3 days (default)
4 = 4 days.
To change the tank drain delay
use the following sequence:
(1)...... With the wall control
turned OFF, hold down
the button.
While holding down this
button press the
button. The current
setting and 3 central
fan speed bars will be
displayed.
(2)...... Press the or
button to scroll
through the available
settings.
(3)...... When the desired
setting is displayed,
press the button
to store the new setting.
TANK DRAIN DELAY
14
thermostat control
wall mounted
CHANGING THE DEFAULT
PARAMETER SETTINGS
SALINITY CONTROL
METHOD SELECTOR
The following operating
parameters can be adjusted
using the wall control but only if
a drain valve has been fitted to
your cooler.
This parameter controls the
following 2 options. Value 0
uses the intelligent
WaterManager which
measures and controls the
water’s salinity level. Value 1
drains the tank every 65
minutes when the cooler is ON.
Value 0 is the preset and
preferred setting.
To change the salinity control
setting use the following
sequence:
(1)...... With the wall control
turned OFF, hold down
the button.
Continue to hold this
button down and press
the button. The
current setting and the 3
right most fan speed
bars will be displayed.
(2)...... Press the or
button to scroll
through the various
setting options
discussed previously.
â
®
Your cooler is fitted with one of
two water management
systems designed to control the
water salinity and optimise the
life of the pads in your cooler.
BLEED SYSTEM
DRAIN VALVE
If fitted, the bleed system,
pictured on page 16, will
constantly drain small amounts
of water during the operation of
the cooler. This allows fresh
water to be added diluting any
minerals and salts accumulated.
The bleed rate for your cooler
will depend on local operating
conditions and will be set by the
installer.
If your cooler has been installed
with a drain valve it is
accompanied by the
WaterManager salinity probes.
When the tank’s water salinity
level reaches a preset level the
WaterManager will open the
drain valve and release about 6
to 8 litres. Fresh water will then
be added diluting any minerals
or salts accumulated. The
Water Manager will continue
to monitor and drain water as
required.
Alternatively, the cooler can be
set to drain 6 to 8 litres of water
at a preset period of pump
15
& drain valve
bleed funnel
operating time. This can be set
by changing the salinity control
method selector if using the
wall control, or DIP switch F if
using the remote control.
NOTE: When the cooler’s tank
is empty and the cooler is
turned on again, the fan
operation will be delayed as the
tank is refilled and the pads are
saturated.
If the power in your home goes
off for less than 5 seconds the
cooler will retain its current
settings. That is, it will stop for
the time the power is off but
resume operation when the
power comes back on again.
If the power goes off for more
than 5 seconds the cooler will
automatically turn itself off. That
is, once the power comes back
on the cooler will not resume
operation. You will have to turn
the cooler back on using the
wall control or remote control.
POWER OUTAGES
®
®
®
®
16
maintenance
Seasonal maintenance is only
required if you have a cooler
fitted with a bleed system. The
following pages outline the
maintenance required at the
end of the season and then at
the start of the next season.
This ensures that your cooler
continues to operate efficiently.
If your cooler is fitted with a
drain valve no seasonal
maintenance is required.
However, we require that the
following components and the
operation of, be checked every
2 years.
(1)...... Belt drive.
(2)...... Pump.
(3)...... Dump valve.
(4)...... Solenoid and filter.
(5)...... Fan motor operation and
current.
(6)...... Float valve.
WARNING
As your cooler is mounted on
the roof, we suggest that any
maintenance or checks be
carried out by an authorised
Breezair dealer or service
agent. Climbing onto the roof
can be hazardous and could
result in injury to you and
damage to your property.
.
Failure to carry out regular
maintenance will affect your
warranty coverage
HEALTH REGULATIONS
In some states, regulations
require that evaporative air
coolers be serviced at specific
intervals.
END OF SEASON
(1)...... Turn off the water
supply to the cooler.
(2)...... Remove the pad
frames as shown on
page 17.
(3)...... Turn off the power at
the isolating switch
inside the cooler.
(4)...... Check and clean the
water distributing
channels under the lid.
(5)...... Unclip and remove the
bleed system as shown
below. Take care not to
lose the o-ring. This
removal will allow the
water to drain from the
tank throughout the
winter.
(6)...... Thoroughly clean the
tank and the pump
filter. Do not replace
the bleed system. If you
do, water will sit without
draining from the tank
throughout the winter
months.
(7)...... Refit the pad frames.
seasonal
®
ILL1141-A
1
2
PRE-SEASON
(1)..Turn your main switchboard
power off.
(2)...Remove the pad frames as
shown in the next column.
(3)...Ensure the power is off at
the isolating switch inside
the cooler.
(4)...Gently wash the pad
frames to remove any dust
build up during the winter.
If the pads are salted-up
replace them.
(5)...Replace the bleed system
that was removed at the
end of the last season.
Ensure that the o-ring is in
place and that the tray is
positioned so that it can
catch the water from the
pad.
(6)...Turn on the water supply
to the cooler.
(7)...Check for water leaks.
Check operation of float
valve.
(8)...Check if adj. required to
belt drive. Reset motor
amps.
(9)...Switch on the isolating
switch.
(10).Refit the pad frames.
(11).Turn the power on at
your main switchboard.
(12).Run the cooler.
NOTE: Do not wash the
pads with high pressure
water spray.
WARNING: Do not run the
cooler with the pad frames
removed.
17
maintenance
REMOVING PAD FRAMES
To remove a pad frame:
(1)...... Remove the clips
holding the pad frame in
place.
(2)...... I
(3)...... Take hold of the pad
frame, pivot it outwards
and lift it up. Be careful
not to damage the pad.
Repeat the steps above with
the 3 remaining pad frames.
nsert a flat head screw
driver into the slot
between the lid and the
top of the pad frame.
Lever it so the pad
frame is released.
ILL950-C
1
2
3
seasonal
®
ILL187-E
1
2
3
18
shooting
trouble
SYMPTOM CAUSE ACTION
Unpleasant
odour.
Odour from the
new pads.
Allow time to
condition by
running the cooler.
Inadequate
cooling.
Dry pads. Ensure the water
supply is turned
on. Then check the
water flow to the
pads.
Insufficient
exhaust openings
for conditioned air.
Ensure efficient
openings. Refer to
page 2.
Excessive
ambient humidity.
On days during
the summer when
the ambient
humidity is high,
the cooler will not
reduce the
temperature as
much as on drier
days.
Remote control
has no display.
Batteries are
incorrectly fitted or
they are flat.
R or r the
batteries.
efit eplace
®
19
shooting
trouble
Remote control
has flat batteries.
Replace the
batteries.
Fault in the cooler. Contact the Dealer
or Service number.
If the wall or
remote control is in
AUTO or AUTO
TIMER mode and
no fan bars are
displayed the fan
will not come on.
Switch to MANUAL
mode to check the
fan operation.
Cooler turns ON
and OFF.
Fan does not
start but other
functions work.
SYMPTOM CAUSE
®
ACTION
20
serivce
Affix serial & model
numbers sticker here
If your wall control displays SERVICE or should you consider that
your cooler requires service, contact your local Dealer or the
Service number on the back of this manual.
When you contact your Dealer regarding service or warranty
please quote the unit model number and serial number as shown
below.
®
Service
1300 650 644
839103-D 0306
®
