Contents

05 (Short-Term Confidential) User Manual 1

TRUME
WATCH
MODEL:TR-MB8
Accessory
MODEL:MB00
Product Features
GPS wave watch functionality (SATELLITELINK)
Accurately adjust your watch to the
correct time based on GPS satellite
waves. Note that you will still need to
adjust for DST (summer time) manually.
Solar charge your watch when exposed to light (LIGHT CHARGE)
You can charge your watch by casting
solar or fluorescent light on the dial
plate.
Make sure to keep exposing the dial
plate to light where possible as it may
take a while to build up a suffi cient
charge once the remaining battery
supply runs out.
Altimeter/barometer functions using an air pressure sensor
The air pressure sensor installed inside the device enables altitude and air
pressure readings.
Azimuth meter function using a magnetic sensor
The magnetic sensor installed inside the device makes it easy to check for north.
Measurement functions using external sensors (accessory)
Use the product accessory to measure the UV index, temperature, the number of
steps taken and used calories.
Simple navigation functions using GPS satellite waves and the
magnetic sensor
Use GPS satellite waves to acquire positional information and establish the
direction and linear distance from your current location to a previously set home
point (goal point). (User’s Guide)
Notes Before Use
Cautions for Use
Please read through the contents of this product manual before using
this product to use it in a safe manner.
Using this product in a manner other than that described in this manual
could lead to product failures and accidents.
Signs Used in this Manual
This product manual uses the following signs to express warnings
concerning dangerous use and handling of this product in order to
prevent harm to the customer and other persons, or damage to property
before they occur. Please read this manual with a complete
understanding of what each of these signs mean.
Danger
This sign indicates instances where ignoring this sign and
handling the product in an erroneous manner brings with it
impending risks to life and limb.
Warning
This sign indicates instances where ignoring this sign and
handling the product in an erroneous manner could lead
to the loss of life or serious injury.
Caution
This sign indicates instances where ignoring this sign and
handling the product in an erroneous manner could lead
to injury or property damage.
Indicates matters
(instructions/actions) that
must be adhered to.
Indicates actions that must
not be performed under any
circumstances (prohibited
actions).
Indicates cautions regarding
this product.
Indicates cautions regarding
the product accessory.
Cautions for Use
Warning
Do not use this product when damaged.
Doing so may lead to injury, product failure or fi re. Stop
use and bring this product into a repairs center under the
following circumstances.
• When the watch or the watch band has sharpened due to
corrosion or some other factor
• When the pin on the watch band has come off
Do not leave this product or product parts within the
reach of small children.
• Small children touching this product or product accessory
may result in injury, and may cause allergies,
infl ammation or other issues.
If an injury or skin abnormalities occur, consult a specialist
doctor immediately.
• Accidentally ingesting product parts may cause negative
physical effects.
If product parts are accidentally ingested, consult a
specialist doctor immediately.
Do not attempt to disassemble or repair this product
yourself.
Doing so may lead to electric shock or other accidents.
Do not use when scuba diving or when saturation
diving.
Doing so may lead to accidents or damage to the product.
Use a watch designed for diving when scuba diving or
saturation diving.
Caution
Carefully wipe off any moisture, sweat or grime
adhered to this product.
• Continuing to use this product while moisture, sweat,
grime or other impurities are on this product may result in
itching, infl ammation, or other conditions.
If skin abnormalities occur, immediately stop use and
consult a specialist doctor.
• Leaving moisture, sweat, grime or other impurities on this
product may result in reduced waterproofi ng functionality.
--
Cover this product with a soft cloth or other similar
material when removing this product.
Removing this product and placing it down as is may result
in the back cover scratching against the watch band or
fastening strap, causing damage to the back cover of the
watch.
--
Do not attempt to adjust the metal band yourself.
Doing so may lead to an injury.
Adjusting the metal band requires specialist knowledge and
technical skills. Please inquire with the place of purchase if
such adjustments are required.
Immediately stop using this product if skin
abnormalities occur.
Allergies or skin itching, infl ammation, etc. may occur
depending on how this product is used.
If skin abnormalities occur, immediately stop using this
product and consult a specialist doctor.
--
Make sure that the accessory attachment clip is
securely fastened.
A loose clip may result in product damage or injury.
Caution
Do not store or leave in the following locations.
• Places with extreme temperature/humidity changes
• Places with extremely high temperatures, low tempera-
tures, or high humidity
• Places with volatile materials
• Places with large amounts of soot and dust
• Places with an open fl ame
• Places with strong vibration
• Places susceptible to magnetism and static electricity
Doing so may lead to electric shock or fi res. This may also
result in unsatisfactory product performance or product
failure.
Charging and Battery-related Cautions
Danger
--
Do not store or leave batteries within the reach of small
children.
Accidentally ingesting batteries, or touching leaking battery
fl uid or having it enter your eyes or mouth may cause
negative physical effects.
If product parts are accidentally ingested, consult a
specialist doctor immediately.
Warning
--
When replacing batteries make sure that + and - sides
of the battery are facing the right way.
Forcing a battery in the wrong direction may cause the
battery to crack and battery fl uid to leak, and could cause a
fi re or an injury.
Follow the instructions provided by your local
municipality when disposing of any batteries used in
the accessory.
Warning
--
Do not take out the rechargeable battery inside this
product.
Using a regular silver oxide battery with this product may
result in cracking, heat buildup and fi res.
Replacing the rechargeable battery requires specialist
knowledge and technical skills. Please inquire with the
place of purchase if the battery needs replacing.
Do not charge this product while under incandescent
light or a spotlight, or on the dashboard of a car.
Doing so can cause the product to overheat, damaging the
product.
--
Do not keep or leave batteries in locations where they
could overheat, and do not put them in fi res.
Doing so can cause a battery to burst, causing a fi re or
injuries.
Cautions Regarding Water-proofi ng
The water-proofi ng specifi cations for this product are as follows.
Watch
10 atm wa-
ter-proofi ng
WATER
RESISTANT
10BAR
Can be used during water sports (swimming, fi shing,
yachting, etc.) and free diving (skin diving).
Accessory
Drip-
proof
Can be used in inclement weather and other environments
susceptible to splashes and sprays of water.
Warning
--
Check that the battery cover is securely closed before
using the accessory.
This product cannot exhibit effective water-proofi ng perfor-
mance if the battery cover is not closed.
The customer is responsible for ensuring that the
battery cover is securely closed when replacing the
battery for the accessory.
Warning
--
Do not use the winding crown or other buttons on this
product while it is submerged in water or while wet.
Doing so may degrade water-proofi ng performance or lead
to product failure.
Do not directly expose this product or the accessory to
water from a water faucet.
A characteristic of tap water is its extremely high water
pressure which can degrade the water-proofi ng
performance of even highly water-resistant products.
Do not use this product or the accessory while bathing
or while in a sauna.
Doing so may degrade water-proofi ng performance, or lead
to rusting or product failure.
--
Do not use the accessory while in water. Do not leave
the accessory for extended periods of time when wet.
Doing so may degrade water-proofi ng performance or lead
to product failure.
Do not wash the accessory with water.
Doing so may cause damage to the accessory.
Do not remove the packing for the accessory battery
cover.
Do not allow the packing for the accessory battery
cover to become dirty, or directly touch the packing.
Damaging or deforming the packing may reduce
water-proofi ng performance or cause damage.
If the packing has been damaged or deformed,
immediately stop use and bring this product into a repairs
center.
Do not open and close the accessory battery cover
with wet hands. Do not open and close the accessory
battery cover while in water or while wet.
Doing so may degrade water-proofi ng performance or lead
to product failure.
Electromagnetic Wave-related Cautions
This product is equipped with Bluetooth® technology. This only functions
to transmit waves with the accessory packaged with this product.
This product has been authorized for use as a low power data
communications system according to the Radio Act. Therefore, a wireless
station license is not required to use this product.
However, be aware that the following acts may be punishable by law.
• Disassembling or modifying this product
• Removing product certifi cation and authentication numbers
■
Frequencies
This product uses frequencies between 2.402GHz to 2.480GHz.
Note that other wireless devices may use the same frequency. Be aware
of the following matters when using this product to avoid interference
with other wireless devices.
■
Notes Regarding the Use of Wireless Communications
This product operates on the 2.4GHz frequency band.
This frequency band is used by microwaves and other industrial,
scientifi c and medical devices, private mobile object identifi cation radio
stations used in factory manufacturing lines (wireless stations that
require a license), specifi ed low power radio stations (wireless stations
that do not require a license), and amateur radio stations (wireless
stations that require a license).
1 Before using this product check for any private mobile object
identifi cation radio stations, specifi ed low power radio stations or
amateur radio stations used in the area.
2 If there are instances of harmful radio wave interference with a private
mobile object identifi cation radio station immediately either change the
frequency band in use or stop transmitting radio waves, and then use
the “Inquiries” form to consult with the customer inquiries center on
potential interference avoidance measures, etc. that can be pursued
(for example, establishing partitions, etc.).
3 Additionally, if issues with harmful interference with specifi ed mobile
object identifi cation low power radio stations and amateur radio
stations arise, contact the customer inquiries center using the
“Inquiries” form.
Warning
If skin abnormalities occur, immediately stop use and
consult a specialist doctor.
In airplanes, hospitals and other areas where use may
be restricted, follow the instructions provided on-site
(via in-fl ight announcements, etc.) with regard to use.
Do not bring this product into surgery rooms,
intensive care units, etc., and do not use this product
near electric medical equipment.
Radio waves from this product may negatively affect the
use of electric medical equipment, leading to malfunctions
and accidents.
Caution
Follow the instructions and cautions provided with
implantable medical devices when using this product.
Radio waves from this product may negatively affect
cardiac pacemakers and other implantable medical
devices.
Measurement-related Cautions
Caution
Users are responsible for acting on their own
discretion with regard to the use of this product’s
measurement functions.
This product is not a specialized measuring instrument.
Measurement results and simple navigation functions may
differ from actual values or circumstances at hand. Further,
accurate measurements may not be possible depending on
GPS signal reception and pressure, altitude, temperature
or other environmental factors.
Use the measurement and simple navigation functions
provided with this product as a guide.
We cannot accept responsibility for any damages incurred
by the customer or a third party due to the use of this
product.
Caution
Do not use this product when devices that generate
magnetic fi elds are nearby, or in areas where there is a
strong magnetic fi eld.
This may stop clock functions and prevent accurate
measurements. This could also cause damage to the
product.
Do not use this product in environments where rapid
changes in altitude are experienced (in tall buildings,
and in sports that involve rapid changes in elevation in
a short period of time, etc.).
Rapid environmental changes may prevent accurate
measurements.
Refer to the User’s Guide for cautions regarding each measuring mode.
Product Usage Restrictions and Taking this Product
Outside Japan
Be aware that certain countries and regions prohibit the use of
Bluetooth® by law.
Visit our website before using this product to fi nd a list of countries where
Bluetooth® use is permitted.
<URL: Link TBD>
• Using this product in countries that do not permit use may be
punishable by law.
• Bluetooth® communications may be intercepted by a third party either
intentionally or unintentionally.
Preparation
1. Confi rm Packaged Contents
Please confi rm the contents of the product package purchased.
Please contact the place of purchase if there are items missing or if
defects are found. We apologize for the inconvenience caused.
□Reference manual (this
manual)
□Warranty
□Watch
□Accessory

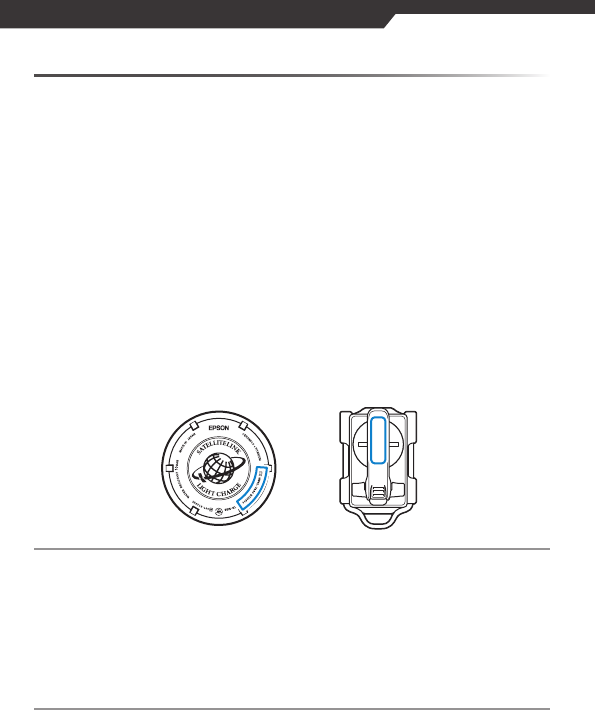

2. Remove the Protective Seal
Remove the protective seal on the product (back cover) and the
accessory (front surface) before use.
Using this product with the protective seal in place may cause sweat,
grime, moisture or other impurities to build up, causing rust. When left on
the accessory you may not be able to perform measurements.
3 sec.

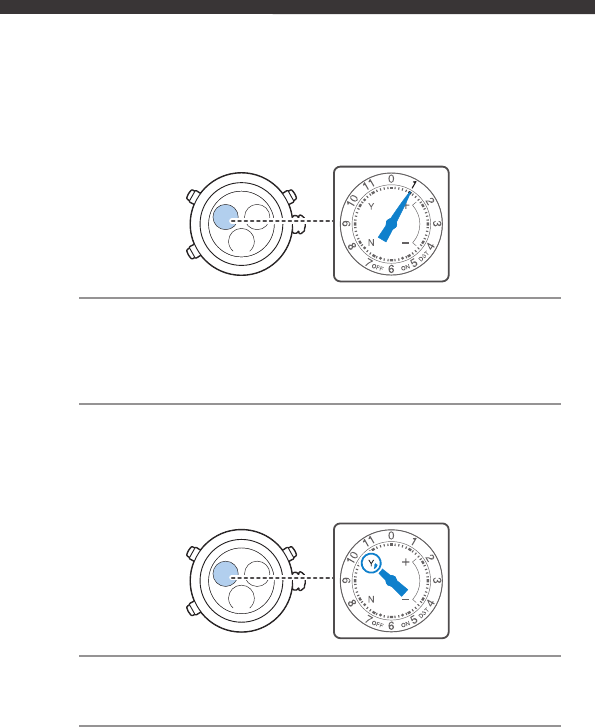

3. Remove Flight Mode
This product has been shipped in Flight Mode ( ) as required under the
provisions of the Civil Aeronautics Act.
If this product has been set to Flight Mode when purchasing the product,
turn off Flight Mode before using the product.
How to turn off Flight Mode: Hold down the “A” button (around
three seconds)
When Flight Mode is turned off the indicator hand will point to the remaining battery
level.
Reference
When set to Flight Mode you will no longer be able to receive GPS waves,
communicate with the accessory or use sensor functions, etc.
Screw lock
winding
crown
Center hand Minute hand
Bezel
Displays the unit’s and ten’s
place during measurements
Dial ring
Gradations used for measurements
Displays the time zone
Hour hand
Displays results
[Y] Success
[N] Failure
Numbers
Unit for tens of thousands when
measuring steps
Number of satellites used for
capture when receiving GPS data
Measurement value symbols
DST (summer time) settings
Barometric tendency
display range
Short
seconds hand
Basic Operations
C
B
A
Names of Each Part and How to Use Them
Watch
The dial plate may vary depending on the model of watch.
Numbers
Short hand:
Unit for thousands when
performing measurements
Long hand:
Unit for hundreds when
performing measurements
Measuring hand (short hand)
Measuring hand (long hand)
Mode
[TIME] Clock mode
[ALT] Altimeter mode
[COM] Compass mode
[BAR] Barometric
pressure
mode
[ACC] Accessory mode
Flight Mode
Currently working
Calendar
Remaining battery
level
Mode hand
Indicator hand
■
Using the Screw Lock Winding Crown
The winding crown uses a screw-type lock mechanism. Unlock/set the
lock in the following manner.
Important
Make sure to lock the winding crown again once adjustments are complete.
Continuing to use the watch while the winding crown is unlocked may degrade
water-proofi ng performance and lead to product failure.
Removing the lock
Rotate the winding crown to
the left
(Until the winding crown
pops out)
Locking the winding crown
Press the winding crown in and
rotate it to the right
(Fasten securely)
Removing the lock on the winding crown allows you to pull out and rotate
the winding crown.
Pulling out The winding crown is pulled out in two stages.
Each stage results in a different action.
012
Rotating Quickly move the hand forwards or backwards by rapidly
turning the winding crown.
To stop this, either turn the winding crown once more, or
rotate it in the opposite direction.
Pushing back Push the winding crown into the watch to return it to its
original state.
Wireless Functions
Press and release the “C” button while the watch is in [ACC] mode to
begin transmission with the accessory.
Press and release the “C” button once more to stop transmission.
Attachment
clip
UV reading
window
Mode
“Mode”
button
“On/Off”
button
Battery
replacement
required
sign
Metal hook
3 sec.
Accessory
■
Accessory Power On/Off
Press and hold the “On/Off” button on the accessory (around three
seconds).
Power On One of the modes lights up for around two seconds.
Power Off All modes fl ash three times.
Turning the power off will stop all functions, including the wireless
communications function.
Remaining battery level 3 (around 30 ~ 70%)
All functions available for use.
Remaining battery level 2 (around 5 ~ 30%)
While all functions remain available for use, remember to
recharge the battery as soon as possible.
The watch may enter “Power Saving 2” mode when used
in low temperature conditions.
Remaining battery level 4 (70% or higher)
All functions available for use.
Remaining battery level 1 (around 5% and under)
Some functions are unavailable for use. Please recharge the watch.
At level 1 the following constraints are placed on the movement of the short seconds hand (seen
in the diagram below).
Two second hand movements Five second hand movements
While the hour hand keeps moving, button
functions are unavailable.
The hour hand does not move, and button
functions are unavailable.
Confi rming Remaining Battery Power
Remaining Battery for the Watch
Check the indicator hand on the watch to see the remaining battery for
the watch.
Watch Power Saving Functions
This product is equipped with power saving functions to limit battery
power consumption.
There are two types of power saving functions, with each used when
certain conditions are met.
Note that while the hour and minute hands will stop moving, this does
not indicate damage to the product.
■Power Saving 1
The watch will go into “Power Saving 1” mode when
kept away from light for at least 72 hours. In this
mode the short seconds hand will stop at the 15
seconds mark. All other displays besides the short
seconds hand will also stop.
The clock will start again showing the current time
after exposing the watch to light for at least fi ve
seconds, or by pressing a button.
■Power Saving 2
The watch will go into “Power Saving 2” mode when
in a poor state of charge. In this mode the short
seconds hand will stop at the 45 seconds mark.
Provide a suffi cient charge to the watch and then
readjust the time as necessary.
Remaining Battery Power for the Accessory
[Battery] will start fl ashing when the accessory is
low on battery charge. We recommend replacing
the battery as soon as possible. (User’s Guide)
Charging
A solar power function (LIGHT CHARGE) has been included in the dial
plate of this device. Frequently exposing this product to solar and
fl uorescent light allows for extended use over long periods of time.
How to Charge this Product
Charge this product by exposing the dial
plate to light.
Use and keep this product in well-lit
environments.
Warning
Please be aware that some light source conditions and environments may
cause the product to overheat, causing fi res, malfunctions or damage to
the product.
Avoid charging this product under the following high temperature conditions.
• On the dashboard of a car parked under the blazing sun
• Locations close to light bulbs and other heat sources
• Hot locations where the product is exposed to direct sunlight for long periods of
time
Reference
Charging may take a while in dark areas and other environments that are not very
well lit. (Under the shade of clothing garments, etc.)
Also note that you cannot charge this product in environments with no light.
(Inside drawers, etc.)
3 sec.

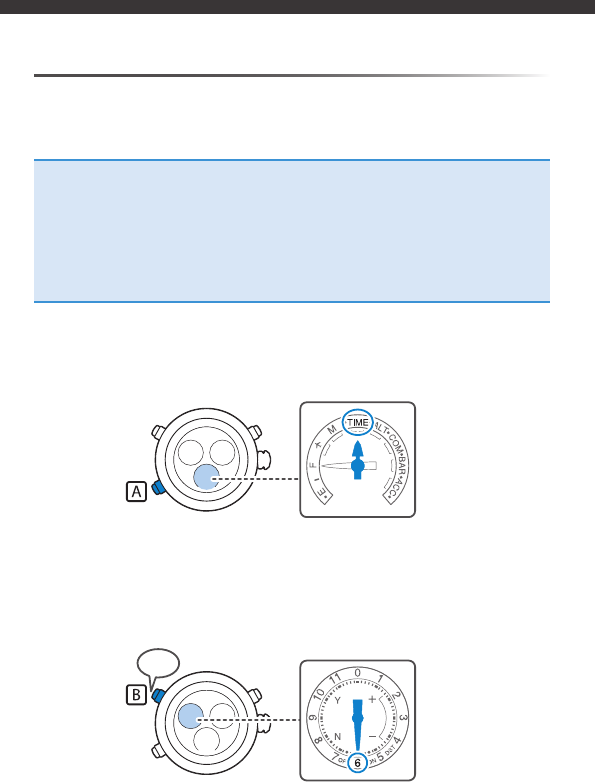

Setting the Time
Setting the Time
You can set the time to the time zone set based on GPS satellite waves.
Reference
You will need to set the correct time zone when adjusting the time to your travel
destination.
1 Move to an area suitable for receiving GPS information
2 Keep pressing the “A” button to set the mode to [TIME]
3 Press and hold down the “B” button (around three seconds) and
release when the short seconds hand points to the 0 seconds
mark
Reference
If the short seconds hand points to [Y] or [N] without pointing to the 0 sec-
onds mark the device is not receiving data.
Press and hold down the “B” button again (around three seconds) and
release when the short seconds hand points to the 0 seconds mark.
4 Point the watch upwards and wait until the data transmission
results appear (the short seconds hand points to [Y] or [N])
It will take anywhere from 10 seconds to 1 minute for data to be received.
■Receiving data
The short seconds hand will show the number of GPS data sources acquired.
Reference
• In general at least one GPS data acquisition site is needed to acquire
time information.
• Press and release the “B” button during the acquisition process to cancel
it.
■Ending data transmissions
Data has been successfully received when the short seconds hand points to
[Y].
The time and date will be adjusted automatically based on the time
information acquired.
Reference
The data transmission has failed if the short seconds hand points to [N].
Move to a location more suited to receiving data and try again.
Refer to the “User’s Guide” for information on other time setting
functions.
5 sec.
Matching Time Zones and Time Settings
Receive GPS data to acquire positional information on your current
location. You can use the positional information acquired to identify the
time zone and set the time and date for your location.
Important
Note that your watch may be set to a neighboring time zone if you use this
function near the boundary between time zones. Avoid being near the
boundary between time zones when setting the time zone if possible. Check the
time displayed on your watch to see if the correct time zone has been set.
Set the time zone and time manually if the time zone has been set incorrectly.
(User’s Guide)
1 Move to an area suitable for receiving GPS information
2 Keep pressing the “A” button to set the mode to [TIME]
3 Press and hold down the “B” button (around fi ve seconds) and
release when the short seconds hand points to the 30 seconds
mark
The short seconds hand will point to the 0 seconds mark three seconds after
pressing the “B” button. Ignore this and keep holding the button down.
4 Point the watch upwards and wait until the data transmission
results appear (the short seconds hand points to [Y] or [N])
It will take anywhere from 30 seconds to 2 minutes for data to be received.
■Receiving data
The short seconds hand will show the number of GPS data sources acquired.
Reference
• In general four GPS data acquisition sites are needed to acquire
positional information.
However, you may not be able to receive data correctly even if four or
more sites are displayed.
• Press and release the “B” button during the acquisition process to cancel it.
■Ending data transmissions
Data has been successfully received when the short seconds hand points to [Y].
The time and date will be adjusted automatically based on the positional
information acquired.
Reference
The data transmission has failed if the short seconds hand points to [N].
Move to a location more suited to receiving data and try again.
• Manually adjust for DST (summer time) as required. (User’s Guide)
• Refer to the “User’s Guide” for information on other time setting
functions.
Using the Watch as a Measuring Device
Measuring Altitude/Barometric Pressure
The air pressure sensor installed inside the device enables altitude and air
pressure readings.
Altitude readings are taken when in [ALT] mode, and barometric
pressure readings are taken when in [BAR] mode.
Important
This product uses an air pressure sensor to calculate altitude readings. Note
that changes in air pressure will result in different altitude readings even when
standing in the same location. This may result in discrepancies in altitude readings
from the actual elevation height. Make sure to calibrate altitude readings (set the
standard altitude) before use.
Measurement
1 Keep pressing the “A” button to set the mode to [ALT] or [BAR]
Reference
This product automatically measures the altitude and barometric pressure
in intervals of around 10. Switching between [ALT] and [BAR] modes will
display the last measured value. Proceed to step 2 to measure values for
your current location in real time.
2 Press and release the “C” button to perform a measurement
When measurements are being performed (one minute) the indicator hand
will point to [M].
After measurements are complete measurement results will be updated
around once every 10 minutes.
3 Confi rm the measurement results
Checking Direction
The magnetic sensor installed inside the device makes it easy to check
for north.
Important
Make sure to calibrate the magnetic sensor when fi rst using this product, or
whenever you feel that the measured results diverge from true north.
1 Keep pressing the “A” button to set the mode to [COM]
2 Press and release the “C” button while keeping the watch level
The center hand will point to north (one minute).
Important
Note that directional readings may be incorrect when using this function
near products with a strong magnetic discharge or in strong magnetic
fi elds.
Avoid the following locations when using this function.
• Near magnets
• Near electric products
• Near metallic products
• Near modes of transport or inside motor vehicles
• Near high-voltage wires, overhead railway lines, etc.
• Indoors, or within buildings built using reinforced concrete structures and
steel structures
1
Calibrating the Magnetic Sensor
Placing this product in environments with strong magnetic fi elds may
prevent it from showing north.
Make sure to calibrate the magnetic sensor when fi rst using this product,
or whenever you feel that the measured results diverge from true north.
Important
• Avoid areas close to products with a strong magnetic discharge or strong
magnetic fi elds when calibrating the magnetic sensor.
• When calibrating the magnetic sensor keep the watch
level and make sure that the metal part of the watch
band does not come into contact with the clock part of
the watch.
1 Keep pressing the “A” button to set the mode to [COM]
2 Unlock the winding crown and pull it out one level
3 Press and release the “C” button while keeping the watch level
180°
When performing the fi rst calibration the short seconds hand will move from
the 0 seconds mark to the 30 seconds mark.
4 Rotate the watch 180 degrees as accurately as possible while
keeping the watch level
5 Keep the watch as it is in step 4 and press and release the “C”
button once more
When performing the second calibration the short seconds hand will point to
[Y].
Reference
If the short seconds hand points to [N] check to see if there any products
giving of a strong magnetic discharge nearby, or if you are in an area with
a strong magnetic fi eld. Following this, press and release the “C” button
again and repeat this process from step 3.
If the short seconds hand continues to point to [N] even after repeated
calibration attempts, please contact our customer support center.
6 Push the winding crown back in to lock it into place
Using the Watch and Accessory Together for Measurements
Measuring the UV Index
You can use the product accessory to measure the UV index. The UV
index indicates the strength of UV light.
Measurement results are sent from the accessory to the watch and
displayed using the watch hands.
Measurement
1 Turn the accessory on
When on, pressing and releasing the “Mode” button will light up a mode for
around two seconds.
2 Keep pressing the “Mode” button on the accessory to set the
mode to [UVI]
3 Keep pressing the “A” button to set the mode to [ACC]
Switching to the [ACC] mode will display details of the last connection with
the accessory.
4 Press and release the “C” button to start a connection between
the watch and the accessory
When transmitting (one minute) the indicator hand will point to [M].
5 Point the UV reading window on the accessory (the sensor
used to measure UV light) directly at the sunlight
6 Confi rm the measurement results
Measuring the Temperature
You can use the product accessory to measure the temperature.
Measurement results are sent from the accessory to the watch and
displayed using the watch hands.
Important
• Temperature readings are affected by direct sunlight, body temperature,
humidity and other environmental factors.
• While temperature changes are roughly refl ected in the temperature displayed
within minutes, it may take around 30 minutes for the temperature displayed to
stabilize.
Measurement
1 Turn the accessory on
When on, pressing and releasing the “Mode” button will light up a mode for
around two seconds.
2 Keep pressing the “Mode” button on the accessory to set the
mode to [Temp.]
3 Keep pressing the “A” button to set the mode to [ACC]
Switching to the [ACC] mode will display details of the last connection with
the accessory.
4 Press and release the “C” button to start a connection between
the watch and the accessory
When transmitting (one minute) the indicator hand will point to [M].
5 Confi rm the measurement results
Measuring Steps Taken and Calories Used
You can use the product accessory to measure steps taken and calories
used.
Check the number of steps taken in the [Steps] mode, and the number
of calories used in the [Calorie] mode.
Measurement results are sent from the accessory to the watch and
displayed using the watch hands.
Before Measurement
1 Turn the accessory on
When on, pressing and releasing the “Mode” button will light up a mode for
around two seconds.
2 Attach the accessory to your waist
Use the attachment clip for the accessory to attach it to a belt, pocket or
elsewhere. Fully insert the accessory to the base of the attachment clip so that it
does not fall off.
3 sec.
Reference
• The number of steps taken and calories used are always being tracked
regardless of the measurement mode used on the watch provided that
the accessory is turned on.
• Measurement results are cumulative. To begin measurements from 0, reset
the measurement results.
Set the accessory mode to [Steps] or [Calorie], and then press and hold
down the “Mode” button. (Around three seconds)
After each mode begins fl ashing in order, all modes will light up for around
three seconds to indicate that measurement results for the number of
steps taken and calories used are being simultaneously reset.
Confi rming Measurement Results
1 Keep pressing the “Mode” button on the accessory to set the
mode to [Steps] or [Calorie]
2 Keep pressing the “A” button to set the mode to [ACC]
Switching to the [ACC] mode will display details of the last connection with
the accessory.
3 Press and release the “C” button to start a connection between
the watch and the accessory
When transmitting (one minute) the indicator hand will point to [M].
4 Confi rm the measurement results
TBD
Appendix
Customer Service and Support
■
After-sales Support
• Please contact the place where you purchased this product or our
repairs center for repairs and parts cleaning (overhaul work) for tuning.
• If a defect occurs within the warranty period, make sure to bring the
warranty form when dealing with the place where you purchased this
product or our repairs center.
If needed we can provide repair services for a fee for issues
occurring past the warranty period where repair work can restore
product functions. Please contact the place where you purchased this
product or our repairs center for further details.
• Warranty content is written on the warranty form. Please read the
warranty form carefully and keep it in a safe place.
• Serial numbers for the watch and the accessory are marked on the
reverse side of each.
Reference
• The watch band, rechargeable battery and batteries for the accessory are
outside the scope of the warranty provided.
To purchase replacements, please contact a retailer or our customer service
center.
• Customers can replace batteries for the accessory themselves.
Battery in use: Coin type lithium battery CR2032
Refer to the “User’s Guide” for information on replacing batteries.
■
Repair Parts
• The standard warranty period for repair parts used for the watch is
seven years.
The standard warranty period for repair parts used for the accessory is
six years after the end of manufacturing.
• Please note that replacement parts with a different appearance may
be used for repairs.
■
Parts Cleaning (Overhaul Work) for Tuning
• To ensure that this product stands up to regular use over an extended
period of time, we recommend sending this product in for parts
cleaning (overhaul work) for tuning once every three to four years.
Depending on the manner in which this product is used, a drop in the
oil-holding properties in the machinery used within this product (due
to degradation, oxidation, lack of oil, etc.) may result in wear and tear
between parts, causing a malfunction. Further, degradation to the
packing, etc. used may result in sweat and moisture seeping into this
product, reducing its water-proofi ng performance.
Sending this product in to be overhauled helps check and maintain
the timekeeping elements of the watch and keep the watch in good
working order.
• When sending this product in to be overhauled, specify that “genuine
parts” are to be used when contacting the place where you purchased
this product or our repairs center.
Also request that the packing and spring rods used are replaced.
• Note that depending on the state of the watch, the watch movement
may also be replaced when sending this product in to be overhauled.
■
Replacing the Packing Used for the Accessory Battery
Cover
To ensure that the accessory stands up to regular use over an extended
period of time, we recommend replacing the packing used for the battery
cover once every two years.
Packing degradation may result in reduced water-proofi ng performance
or lead to product failure.
■
Measurement Data
• Data stored within this device is not covered under warranty should
the watch or the accessory break down.
• All data will be formatted without being backed up when product
replacements are performed at our repairs center.
Inquiries
Product, Warranty and Repairs-related Inquiries
Customer Service Center
Hours: 9:30 ~ 17:00 Monday ~ Friday (excluding public holidays,
company holidays)
TEL: TBD
Site for Repairs
Watch and Wearable Repairs Center
421-8 Hino, Hino-shi, Tokyo 191-8510
TEL: +81 42-847-3378
FAX: +81 42-847-3381
Please visit out website for up to date information on product support.
<URL: Link TBD>
Manufacturer
Seiko Epson Corporation
3-3-5 Owa, Suwa-shi, Nagano 392-8502
TEL: +81 266-52-3131 (Main)
Distributor
Epson Sales Japan Corporation
29F JR Shinjuku Miraina Tower, 4-1-6 Shinjuku,
Shinjuku-ku, Tokyo 160-8801
TEL: +81 3-5919-5211 (Main)
