Function 802.11b/g/n/ac 1x1 WLAN + Bluetooth Combo module
Project Name RTL8821CU 11ac+BT Combo module
Part No. J26H005
Delivery Specification Rev. 1.0
Prepared by Reviewed by Approved by
J26H005 Delivery Specification
COMPANY CONFIDENTIAL
2
Content
0. REVISION HISTORY ........................................................................ 3
1. INTRODUCTION ........................................................................... 4
1.1 SCOPE ................................................................................... 4
1.2 FUNCTION ................................................................................ 4
1.3 SPECIFICATION BY MODEL ................................................................... 5
1.4 MODULE WEIGHT .......................................................................... 5
1.5 PRODUCT REGULATORY ..................................................................... 5
2. MECHANICAL SPECIFICATION ............................................................. 6
2.1 MODULE MECHANICAL DRAWING .............................................................. 6
2.2 WTB CONNECTOR ......................................................................... 7
2.3 RF SWITCH CONNECTOR .................................................................... 8
3.WTB CONNECTOR PIN-OUT................................................................. 8
5. ELECTRICAL SPECIFICATION .............................................................. 9
5.1 RECOMMENDED OPERATING CONDITION ........................................................ 9
5.2 RF CHARACTERISTICS ...................................................................... 9
5.3 CURRENT CONSUMPTION ................................................................... 11
5.4 EFUSE CONTENT .......................................................................... 12
5.5 POWER ON/OFF SEQUENCE ................................................................. 14
5.6 FLOATING PIN STATUS ...................................................................... 16
5.7 ANTENNA SPECIFICATION ................................................................... 16
5.8 OPERATING SYSTEM SUPPORT .............................................................. 18
6. LABEL INFORMATION .................................................................... 19
6.1 MAC-ID LABEL LASER MARKING ............................................................. 19
6.2 REGULATORY LABEL ....................................................................... 19
6.3 PANEL LABEL ............................................................................. 20
6.4 CARTON LABEL ........................................................................... 20
6.5 PALLET LABEL ............................................................................ 21
7. PACKING INFORMATION .................................................................. 21
7.1 MODULE SCAN GUIDE ...................................................................... 23
8. RELIABILITY ............................................................................. 24
8.1 HARDWARE RELIABILITY TEST ............................................................... 24
8.2 PACKAGE RELIABILITY TEST (TBD) ........................................................... 25
9. QUALITY ................................................................................. 25
9.1 QC FLOW CHART ......................................................................... 25
9.2 VISUAL INSPECTION STANDARD .............................................................. 26
9.3 PVT MFG. TEST PLAN ..................................................................... 26
COMPANY CONFIDENTIAL
3
0. Revision History
Date Document
revision
Version Author Change Description
2017/08/11 1.0 NA Fly Huang
Initial released
COMPANY CONFIDENTIAL
4
1. Introduction
Project Name: J26H005
This documentation describes the engineering requirements specification of RTL8821CU
(WLAN/BT) Combo Module. It is a confidential document of Foxconn.
1.1 Scope
This module design is based on Realtek solution RTL8821CU chipset. The RTL8821CU
is a highly-integrated IEEE 802.11a/b/g/n/ac (1T1R) MAC/Baseband/RF WLAN and
Bluetooth Baseband/RF single chip. For Wireless LAN (WLAN) operation, it supports
1-stream 802.11ac solution with Multi-user MIMO (Multiple-Input, Multiple-Output) STA
mode with USB2.0 network interface controller. For Bluetooth operation, it supports
Bluetooth 2.1/4.2 with USB interface controller. This module support antenna diversity for
better coverage.
This specification is applied at the product to deliver to Seiko Epson group (including an
overseas subsidiary),and EMS, the outsourcer to utilize in the company.

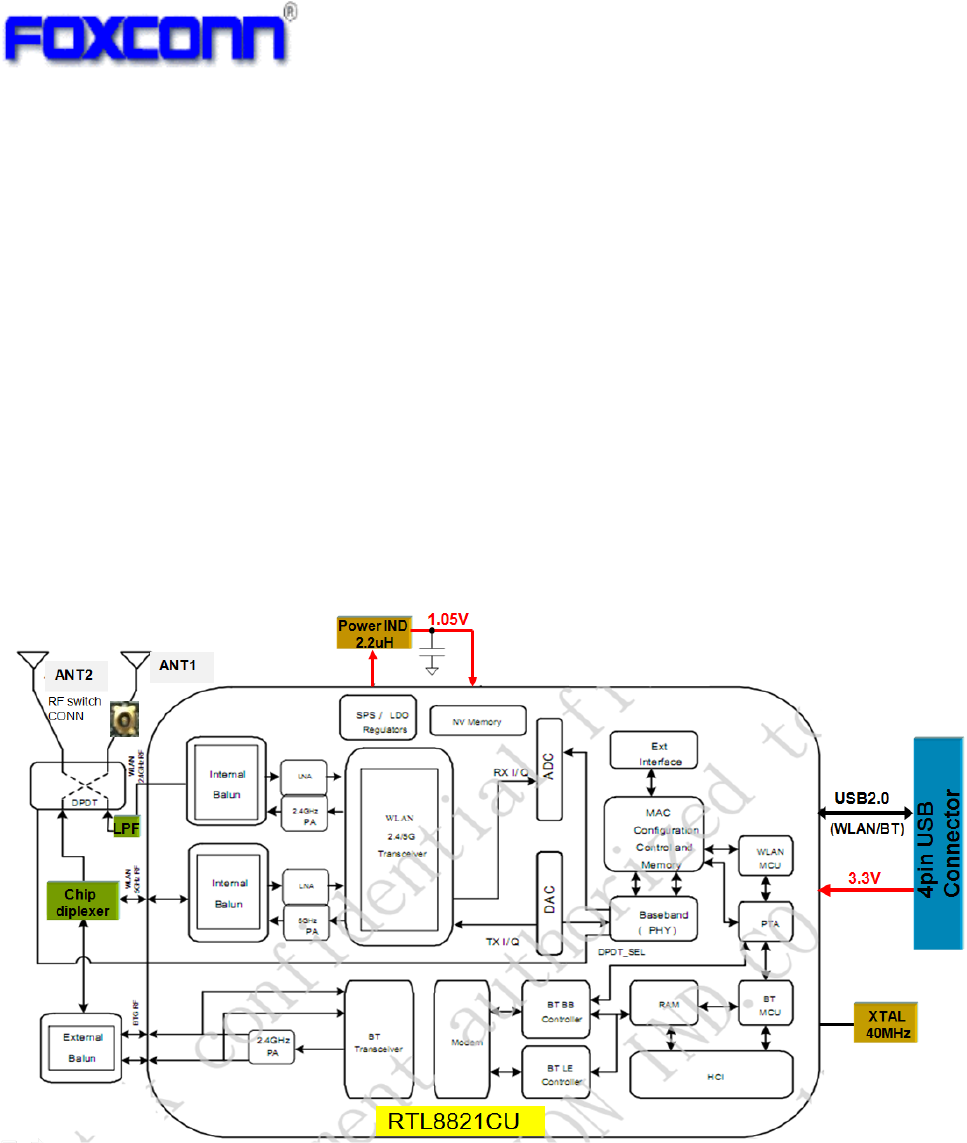

11ac combo module block diagram
1.2 Function
z USB2.0 interface for WLAN and BT.
z Support dual-band WLAN 20MHz at 2.4GHz and 20/40/80 MHz at 5GHz
z Support BT4.2+HS , BLE and be backwards compatible with BT1.x,2.x+EDR.
z Support BT-WLAN coexistence.
z Support Antenna diversity.
z GP compliance
In accordance with SEIKO EPSON Group's requirements specified by the latest
“Green Purchasing Standard for Production Materials", all production materials shall
conform to SEIKO Epson’s policy about chemical substances already banned or to be
eliminated and shall be controlled by "4M Variation Management".
COMPANY CONFIDENTIAL
5
1.3 Specification by Model
LOT No.
EPSON
Parts Name
EPSON
Parts Code
Foxconn
Parts Name Connecter Regulatory
countries US W I Remark
J26H005.C01 2187149-00 J26H005.00 WTB
(Right Angle) None A 0 A A PVT
1.4 Module Weight
Model J26H005
Sample 1 2.7g
Sample 2 2.7g
Sample 3 2.7g
1.5 Product Regulatory
Regulatory countries/IDs
Country Approval Certification Certification No. Remark
USA FCC TBD
Canada IC TBD
EU CE TBD
Japan TELEC TBD
COMPANY CONFIDENTIAL
6
2. Mechanical Specification

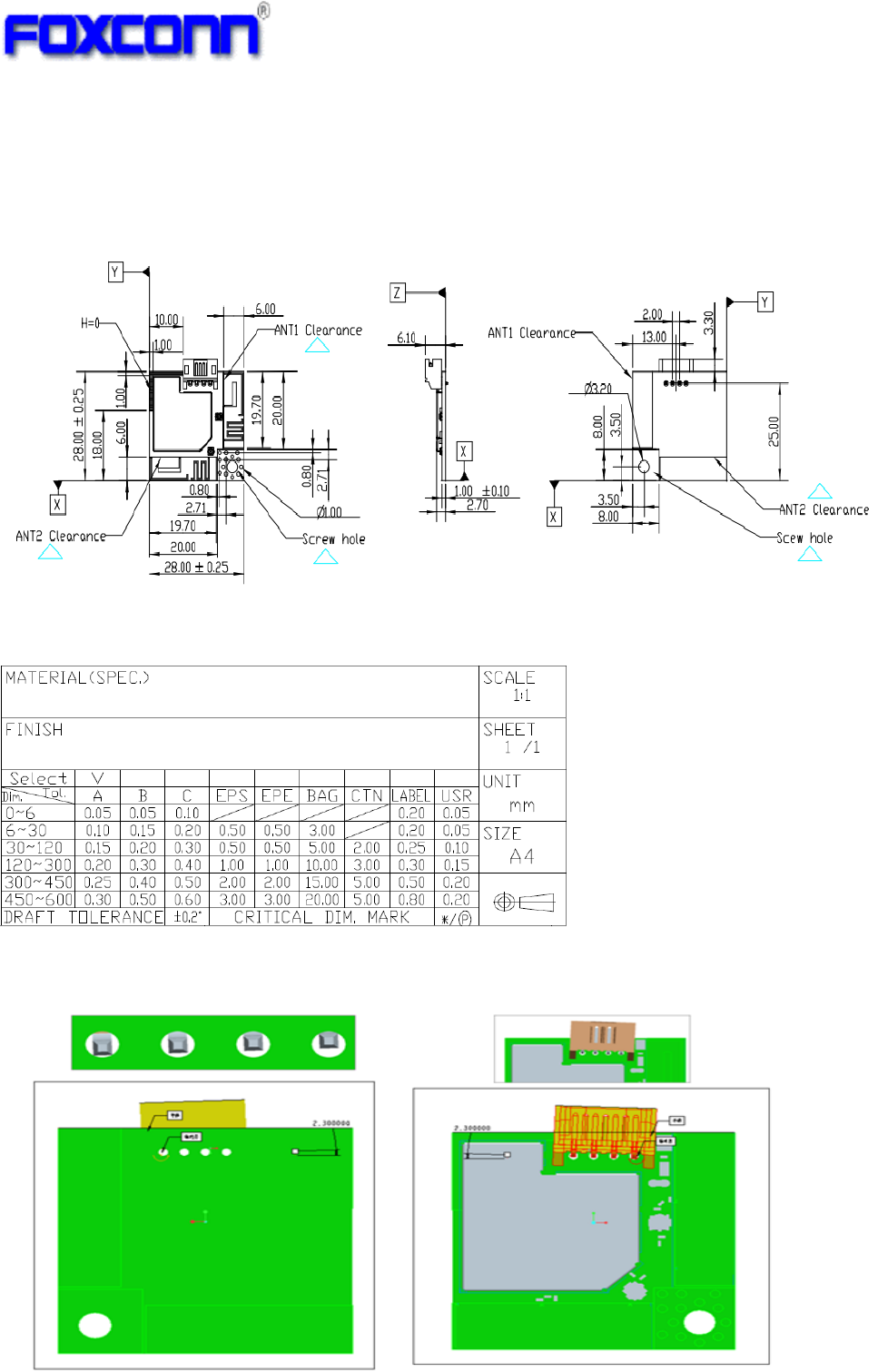

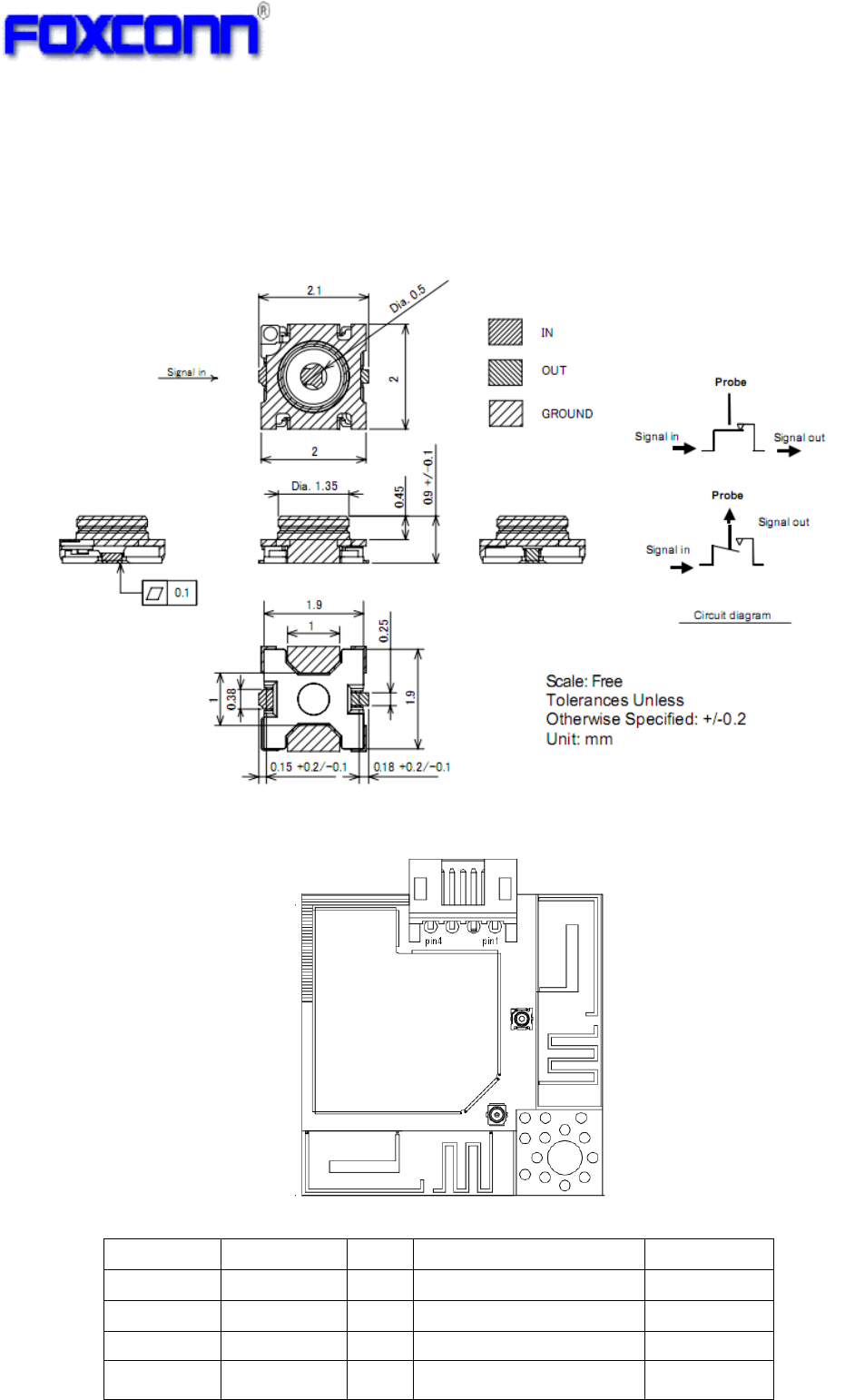

2.1 Module Mechanical Drawing
Typical module dimension (W x L): 28mmx28mm.
Top view Bottom view
The tolerance for the module mechanical dimension
Note1: The max shift degree of WTB connector is 2.3degree.
COMPANY CONFIDENTIAL
7

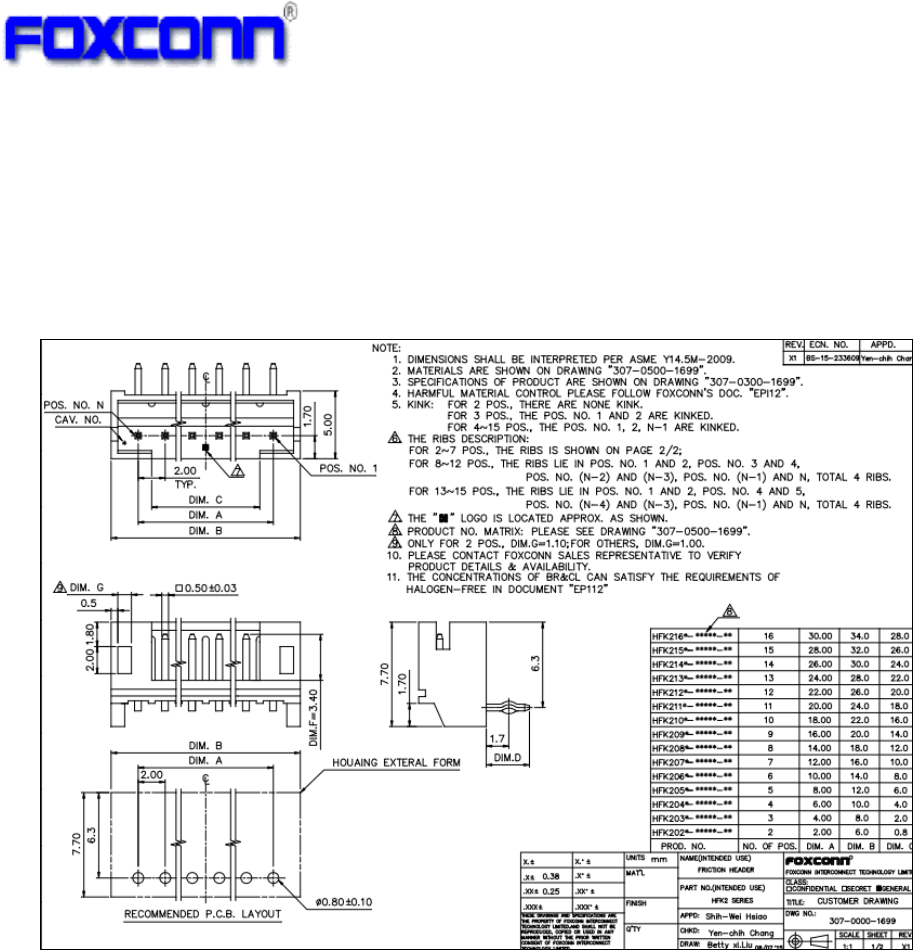

2.2 WTB Connector
¾ 4pin, 2.0mm pitch, Right angle type
¾ Part number: HFK2040-G1C3K-8F
¾ Vendor: Foxconn FIT
¾ High temperature plastic PA9T which meet SMT reflow profile(PIP)
¾ The shifter degree in worst case is 2.3 degree.
COMPANY CONFIDENTIAL
8
2.3 RF Switch Connector
¾ Part number: MM8030-2610RJ3
¾ Vendor: Murata
3.WTB Connector Pin-out
Pin Number Pin Name I/O Description Voltage
1 VDD33 I 3.3V source 3.3V
2 USB_DN I/O USB D- Signal --
3 USB_DP I/O USB D+ Signal --
4 GND -- Ground --
COMPANY CONFIDENTIAL
9
5. Electrical Specification
5.1 Recommended Operating Condition
Symbol Condition Min. Typ. Max Unit
3.3v(VDD33) Respect to GND 3.0 3.3 3.6 V
Max Ripple on Supplied Voltage 3.3V @full loading 110 330 mVpp
DC current @3.3V at full loading
(WiFi @TX and BT @ TX) Avg. - 330 400 mA
USB Suspend current 2.0 10 mA
Operating Temperature 0 +25 +70 ℃
Storage Temperature -25 25 +85 ℃
Operating Humidity 30~50% 90% RH
ESD HBM(contact) Standard:MIL-STD-883H +/-1.5 KV
ESD (indirect) Standard:EN61000-4-2 +/-4 KV
Function operation is not guaranteed outside of this limit, and operation outside of this limit for extended
period can adversely affect long-term reliability of the device.
5.2 RF Characteristics
All typical performance specification are measured at RF connector port operating in +25℃@3.3V
Note2: The target power table is just defined for board level.
WiFi
Standard IEEE802.11a/b/g/n/ac
Data Rate
802.11b: 11, 5.5, 2, 1 Mbps;
802.11 a/g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n:
HT20 mode: MCS0~MCS7,up to 72.2Mbps
HT40 mode: MCS0~MCS7,up to 150Mbps
802.11ac:
VHT20 mode:MCS0~MCS8, up to 86.7Mbps
VHT40 mode: MCS0~MCS9, up to 200Mbps
VHT80 mode :MCS0~MCS9, up to 433.3Mbps
Bandwidth 20MHz for 2.4GHz,
20MHz, 40MHz, 80MHz for 5GHz
Modulation Techniques
802.11b: CCK, DQPSK, DBPSK
802.11a/g: 64QAM,16QAM, QPSK, BPSK
802.11n: 64QAM,16QAM, QPSK, BPSK
802.11ac: 256QAM,64QAM,16QAM, QPSK, BPSK
Operating Frequency 2.412GHz~2.462GHz,
5.18 ~ 5.24GHz, 5.26 ~ 5.32GHz, 5.5~5.70GHz, 5.745 ~ 5.825GHz
Media Access Control CSMA/CA with ACK
COMPANY CONFIDENTIAL
10
Transmit Output Power
2.4GHz:
11b CCK_11Mbps: 21dBm+/-1.5dB
11g 54Mbps: 25 dBm +/-1.5dB
11n HT20_MCS7: 24 dBm +/-1.5dB
5GHz:
11a 54Mbps: 20 dBm +1.5/-2dB
11an HT20_MCS7: 20 dBm +1.5/-2dB
HT40_MCS7: 20 dBm +1.5/-2dB
11ac VHT80_MCS7: 20 dBm +1.5/-2dB
VHT80_MCS9: 20 dBm +1.5/-2dB
Frequency error 2.4GHz: +/-10ppm
5GHz:+/-10ppm
Receiver Sensitivity
2.4GHz:
11b 11Mbps: -83dBm@PER<=8%
11g 54Mbps: -70dBm@PER<=10%
11n HT20 MCS7: -67dBm@PER<=10%
5GHz:
11a 54Mbps: -70dBm@PER<=10%
11n HT20 MCS7: -67dBm@PER<=10%
11n HT40 MCS7: -64dBm@PER<=10%
11ac VHT80 MCS9: -52dBm@PER<=10%
BT
Radio Modulation FHSS
Operating Frequency 2.402GHz ~ 2.480GHz
Channel Numbers 79 channels with 1MHz BW
BDR Transmitter Output
Power
0~+10Bm
BDR Power Control 2dB≤Power Control Step≤8dB
BDR Initial Carrier Freq.
Tolerance
≤ ± 75 kHz
BDR Carrier Frequency
Drift
Drift Rate/50us <±20kHz
DH1: +/- 25kHz,DH3: +/- 40kHz,DH5: +/- 40kHz
BDR Modulation
Characteristics
140kHz ≤ ∆f1avg ≤175kHz
∆f2max ≥115kHz
∆f2avg/∆f1avg ≥0.8
BDR Maximum Receiver
Signal
-20dBm@ BER <= 0.1% at 1Mbps
BDR Sensitivity -85dBm @BER <= 0.1% at 1Mbps
EDR Relative Power P[GFSK]-4dB<P[DPSK]< P[GFSK]+1dB
EDR Stability and Mod
Accuracy
-75 kHz <ωi < 75 kHz
-10kHz<ω0 <10kHz
RMS DEVM<=0.13 for all 8DPSK @3Mbps
Peak DEVM<=0.25 for all 8DPSK @3Mbps
99% DEVM<=0.2 for 99% 8DPSK @3Mbps
BDR Frequency Range FL>2.4GHz,FH<2.4835GHz
EDR Sensitivity -80dBm@BER <= 0.01% at 2Mbps
-80dBm@BER <= 0.01% at 3Mbps
BDR TX Output Spectrum
-20dB Bandwidth
≤1MHz
LE Output Power 0~+12dBm
LE Modulation
Characteristics
225kHz ≤ ∆f1avg ≤275kHz;
∆f2max ≥185kHz for at least 99.9% test packets;
∆f2avg/∆f1avg ≥0.8
LE Carrier frequency
offset and drift
Carrier frequency offset: ±150kHz
Carrier Drift: ≤50kHz
Drift rate: ≤20kHz/50us
LE Receiver Sensitivity -90dBm@PER <= 30.8%,GFSK,1Mbps
COMPANY CONFIDENTIAL
11
5.3 Current consumption
5.3.1 WiFi current consumption

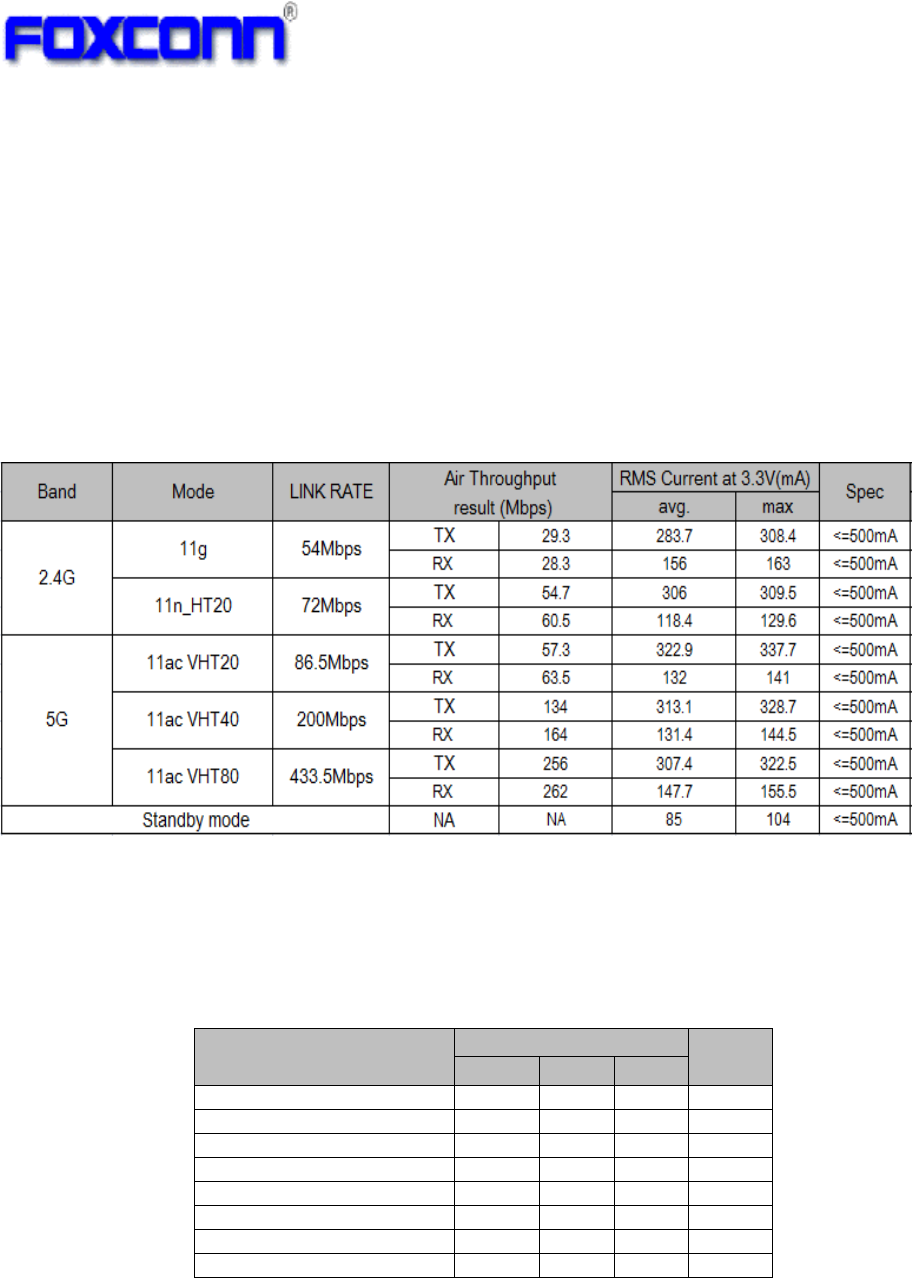

Remark: Base-on Win7 OS to do WiFi only throughput tests. The standby mode means module connect to
AP only, and don’t transfer the data.
5.3.2 Bluetooth current consumption
Test Condition
Current at 3.3V Unit
Min Typ. Max
Idle mode( power on only) 79
BT BDR 1DH5 TX@6dBm 149 mA
BT BDR 1DH5 Rx 120 mA
BT EDR 2DH5 TX@6dBm 150 mA
BT EDR 2DH5 Rx 120 mA
BLE TX@6dBm 110 mA
BLE Rx 120 mA
Standby mode 92 mA
Remark: The result is base-on Win7 driver.
The Idle mode means “ module power on only, don’t open any testing tool”
The standby mode means “module connect to BT device only, and don’t transfer the data”
COMPANY CONFIDENTIAL
12
5.4 eFuse Content
5.4.1 WiFi eFuse
Revision Note
EEPROM Version Chang Lists Owner Date Remark
address Value for WiFi Efuse address 0xC4, change
value from 0x00 to 0x01
Fly. Huang 2017/08/11 PVT
0xC4 0x01
efuse for WiFi Efuse address Description Remark
address 0 1 2 3 4 5 6 7 8 9 A B C D E F 0x00~0F fixed value
0 29 8100BC090021006E 04A4341000300B
1 26 26 26 27 29 29 28 29 2A 2B 2C 02 FF FF FF FF 0x10h~15h Path A 2.4G cck TX calibration power index
2 FFFF28272727242424 25 25 26262626 26
3 02 FFFFFFFFFF1C FF FF FF 28 28 28 28 28 28 0x16h~1Ah Path A 2.4G 2.4G 11n HT40 MCS7 TX calibration power index
4 28 282828 2802FFFFFF FF FFFFFFFFFFFF
5 FF FFFFFFFFFFFFFFFF FF FFFFFFFFFFFF 0x1Bh path A 2.4G power diff index. fixed value(0x02)
6 FF FFFFFFFFFFFFFFFF FF FFFFFFFFFFFF Bit[0:3]: the power index difference between OFDM and HT40
7 FF FFFFFFFFFFFFFFFF FF FFFFFFFFFFFF Bit[4:7]: the power index difference between HT20 and HT40
8 FF FFFFFFFFFFFFFFFF FF FFFFFFFFFFFF
9 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x22h~2Fh Path A 5G 11n HT40 mcs7 TX calibration power index
A FF FFFFFFFFFFFFFFFF FF FFFFFFFFFFFF
B FF FFFFFFFFFFFFFF7F 20 1A00FFFFFF FF 0x30h path A 5G power diff index. fixed value(0x02)
C FF2900C00100000000 FF20FFFFFFFFFF Bit[0:3]: the power index difference between OFDM and HT40
D FF FFFFFFFFFFFFFFFF FF FFFFFFFFFFFF Bit[4:7]: the power index difference between HT20 and HT40
E FF FFFFFFFFFFFFFFFF FF FFFFFFFFFFFF
F FF FFFFFF FFFFFFFF FF FF FF FFFFFFFF FF 0x36h path A 5G power index difference between 11ac and HT40 fixed value(0x1C)
10 DA 0B 20 C8 E3 46 02 A8 6B AD 71 90 81 09 03 52
Bit[0:3]: the power index difference between VHT160 and
HT40
11 65 61 6C 74 65 6B 0E 3 38 30 32 2E 31 31 61 63 Bit[4:7]: the power index difference between HT20 and HT40
12 20 4E 49 43 08 03 31 32 33 34 35 36 FF FF FF FF
13 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x3Ah~3Fh Path B cck TX power calibration index
14 FF FF FF FF 00 00 31 0F FF FF FF FF FF FF FF FF
15 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x40h~44h Path B 11n HT40 mcs7 TX calibration power index
16 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
17 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x45h path A 5G power diff index fixed value(0x02)
18 FF FF FF FF FF FF FF FF E1 21 A9 8D 97 1D 8D 91
19 25 CF 88 31 C0 0A 00 00 FC 8C 00 11 9B 14 00 0A 0xB8h channel plan:0x7F fixed value(0x7F)
1A FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
1B FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0xB9h Crystal calibration data
1C FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
1D FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0xBAh Thermal meter
1E FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
1F FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0xC3h Antanna setting fixed value
0xC4h EEPROM version: 0x01 fixed value
0xCAh RFE Type fixed value
0x100~101h VID:0x0BDA fixed value
0x102~103h PID:0xC820 fixed value
0x104 for USB eye diagram optima fixed value
0x107~10Ch WiFi MAC: A86BAD719081 confirm consistency
with label
0xC1~0xC2 other config fixed value
0xC4~0xC8
0x105~0x106
0x10D~0x12B
COMPANY CONFIDENTIAL
13
Note:
USB Vendor ID (VID): 0x0BDA
USB Product ID (PID): 0xC820
5.4.2 BT eFuse
COMPANY CONFIDENTIAL
14
efuse for BT
address 0 123 456 7 8 9ABCDEF
0 FFFFFFFFFF FFFFFF FF FF FFFF FFFFFFFF
1 FFFFFFFFFF FFFFFF FFFF FFFF FFFFFFFF Efuse address description Value Remark
2 FFFFFFFFFF FFFFFF FF FF FFFF FFFFFFFF
3 FFFFFFFFFF FFFFFF FF FF FFFF FFFFFFFF 0x44~0x49 BT MAC address A86BAD719082 Not fixed value
4 FFFFFFFF 8290 71AD6BA8FFFF FFFFFFFF
5 FFFFFFFFFF FFFFFF FF FF FFFF FFFFFFFF 0xDA~0xDB default value from IC 10,D8 Fixed value
6 FFFFFFFFFF FFFFFF FF FF FFFF FFFFFFFF 0x1F4~0x1F7 default value from IC 94,80,06,00 Fixed value
7 FFFFFFFFFF FFFFFF FF FF FFFF FFFFFFFF
8 FFFFFFFFFF FFFFFF FFFF FFFF FFFFFFFF 0x15B~0x15E BT TX power calibration index Not fixed value
9 FFFFFFFFFF FFFFFF FFFF FFFF FFFFFFFF 0x15B 1M power index 1A
A FFFFFFFFFF FFFFFF FF FF FFFF FFFFFFFF 0x15C 2M power index 1B
B FFFFFFFFFF FFFFFF FFFF FFFF FFFFFFFF 0x15D 3M power index 1B
C FFFFFFFFFF FFFFFF FFFF FFFF FFFFFFFF 0x15E LE power index 1A
D FFFFFFFFFF FFFFFF FF FF 10D8 FFFFFFFF
E FFFFFFFFFF FFFFFF FF FF FFFF FFFFFFFF 0x15F BT Tx gain step 01 Fixed value
F FFFFFFFFFF FFFFFF FF FF FFFF FFFFFFFF
10 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x188~0x189 BT Thermal value inde
x
00,1D Not fixed value
11 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
12 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x1CE~0x1CF BT Antenna info 29,C0 Fixed value
13 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
14 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x1E4~0x1E5 BT Modem tx gain com
p
10,32 Not fixed value
15 FF FF FF FF FF FF FF FF FF FF 26 1A 1B 1B 1A 01
16 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 0x1E6 BT Xtal cap 20 Not fixed value
17 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
18 FF FF FF FF FF FF FF FF 00 1D FF FF FF FF FF FF
19 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
1A FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
1B FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
1C FF FF FF FF FF FF FF FF FF FF FF FF FF FF 29 C0
1D FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
1E FF FF FF FF 10 32 20 FF FF FF FF FF FF FF FF FF
1F FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
20 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
21 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
22 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
23 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
24 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
25 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
26 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
27 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
28 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
29 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
2A FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
2B FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
2C FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
2D FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
2E FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
2F FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
30 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
31 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
32 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
33 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
34 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
35 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
36 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
37 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
38 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
39 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
3A FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
3B FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
3C FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
3D FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
3E FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
3F FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
5.5 Power On/Off Sequence
5.5.1 Power On Sequence
COMPANY CONFIDENTIAL
15

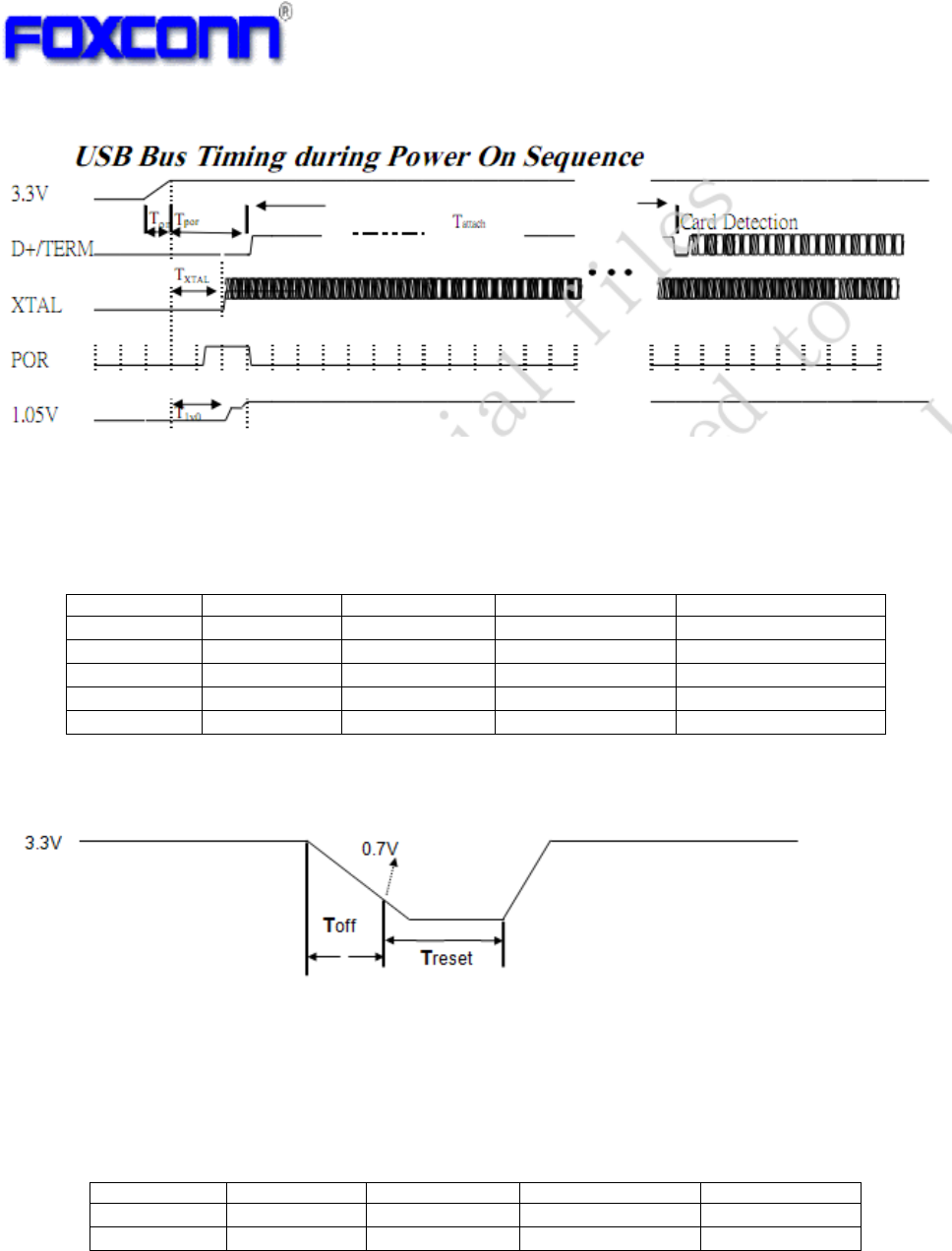

Ton: The main power ramp up duration
Tpor: The power on reset releases and power management unit executes power on tasks
Tattach: USB attach state
Item Min. Typ. Max Unit
Ton -- 1.5 5 ms
Tpor -- 2 20 ms
Txtal -- 1.5 8 ms
Tattach 100 250 -- ms
T1v05 0 0 5 ms
5.5.2 Power Off Sequence
Toff: The main power ramp down duration(from 3.3V fall to 0.7V)
VDD33(3.3V) is coming from system, different DC power supply’s load cap value may cause the
different discharge time.
Treset: To assert Chip reset, keep the VDD33 under 0.7V for 100ms
Item Min. Typ. Max Unit
Toff -- 430 1000 ms
Treset 100 -- -- ms
COMPANY CONFIDENTIAL
16
5.6 Floating pin status

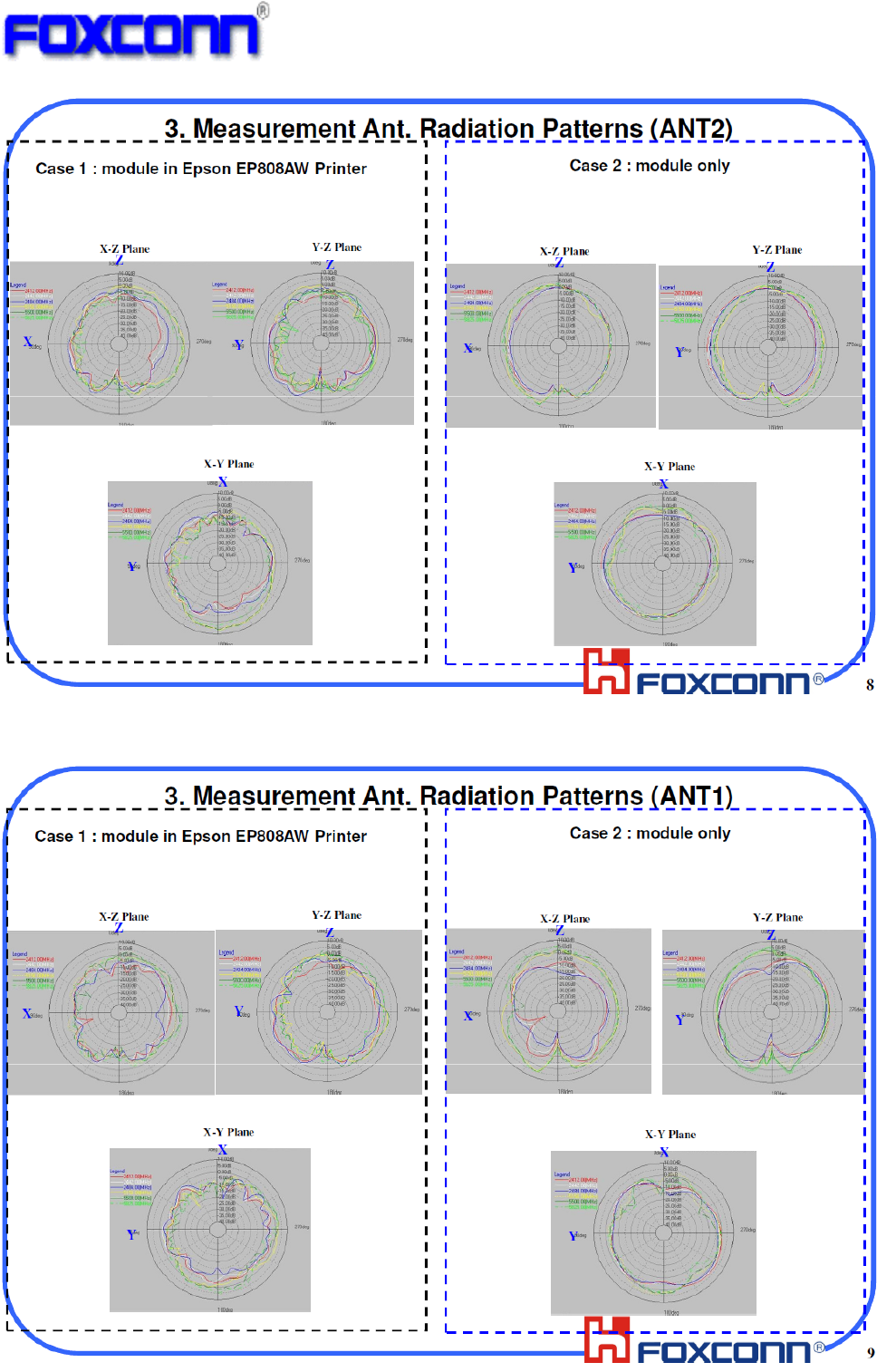

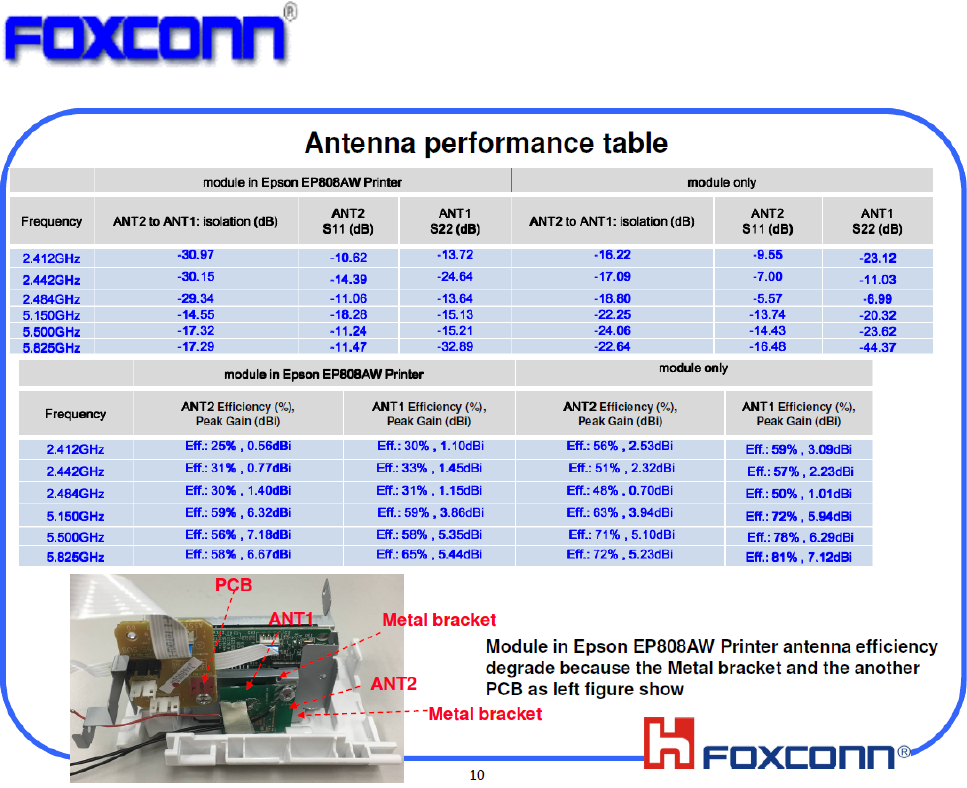

5.7 Antenna Specification
COMPANY CONFIDENTIAL
17
COMPANY CONFIDENTIAL
18
5.8 Operating System Support
Support the Win7, Win8.1, Win10, Linux operating system on normal driver
COMPANY CONFIDENTIAL
19

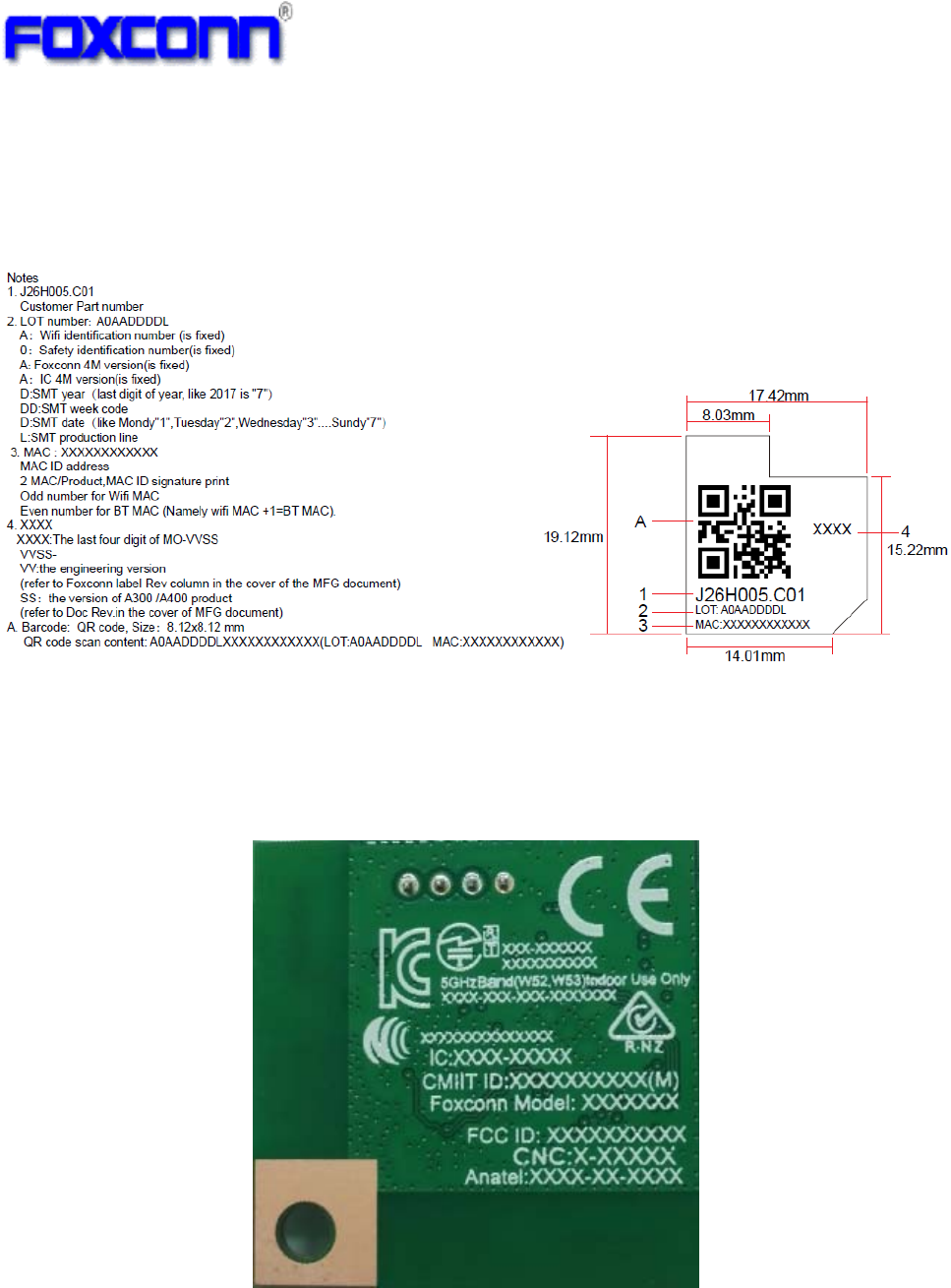

6. Label Information
6.1 MAC-ID Label Laser Marking
All content is engraved by laser into shielding cover.
6.2 Regulatory Label
Regulatory label was printed on PCB Bottom side for PVT, it will be updated after
get the official regulatory ID
COMPANY CONFIDENTIAL
20

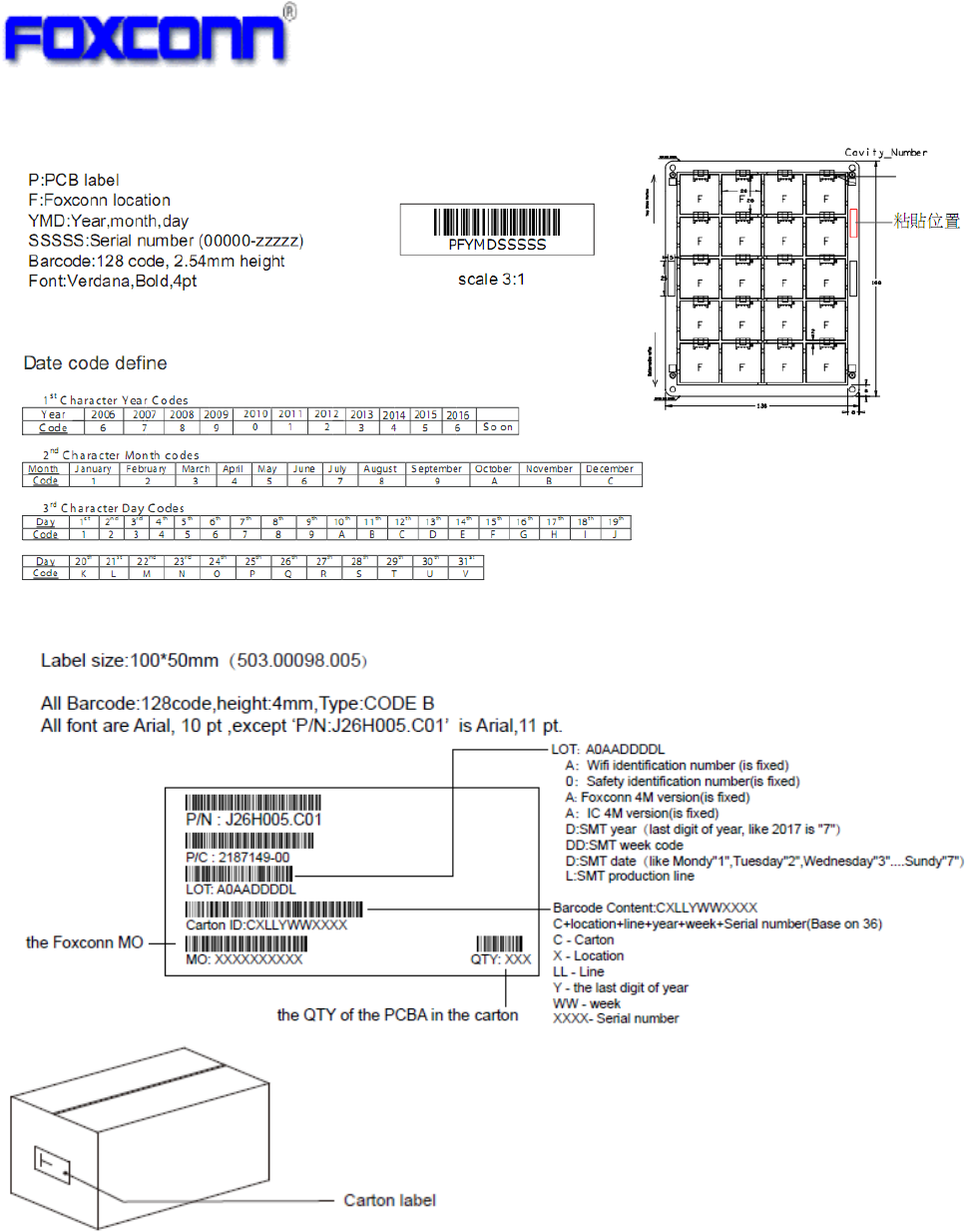

6.3 Panel Label
6.4 Carton Label
COMPANY CONFIDENTIAL
21

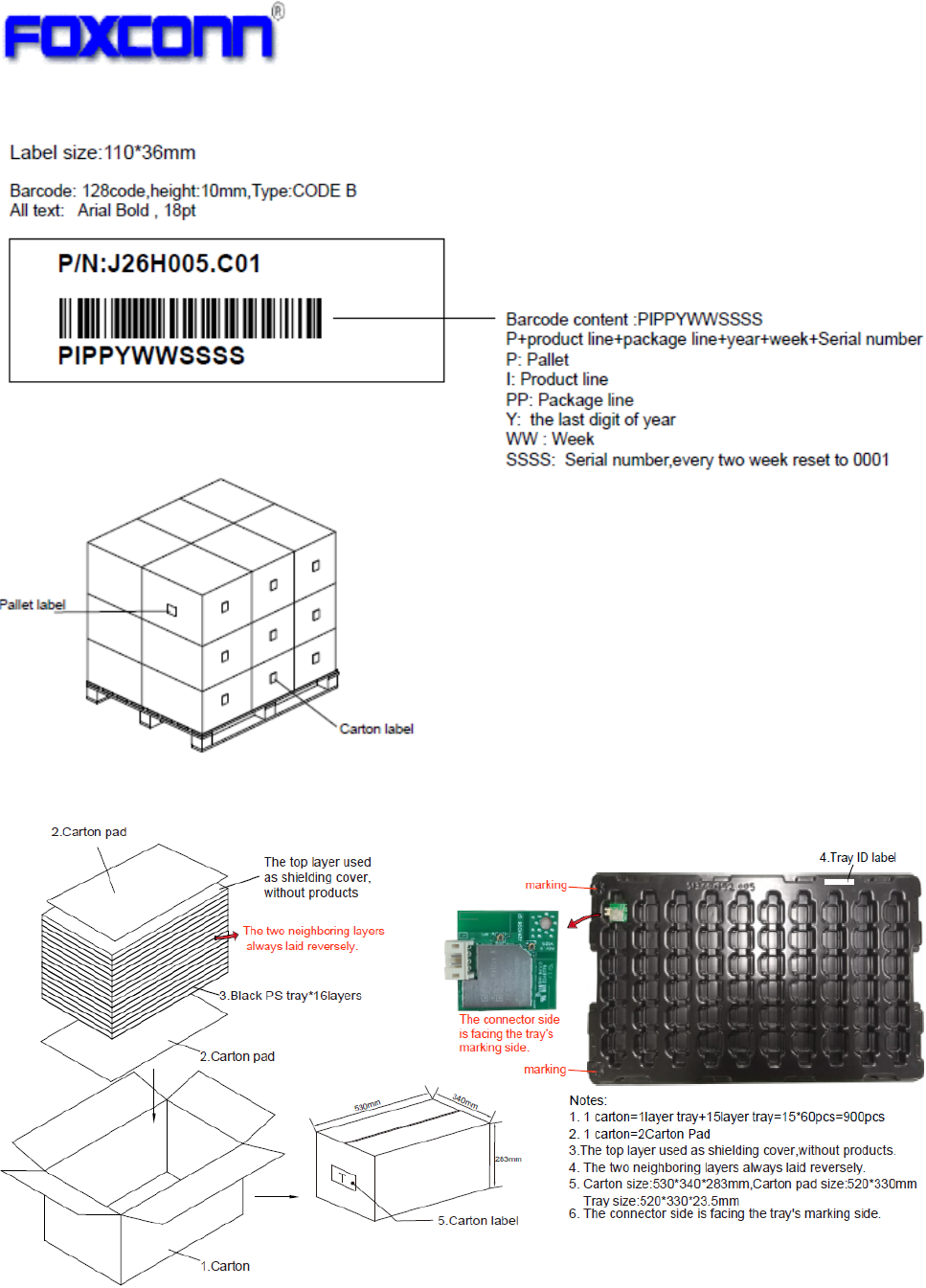

6.5 Pallet Label
7. Packing Information
COMPANY CONFIDENTIAL
22
The detailed dimension of the tray
The hollow length and side value/
The distance between module and module,and between module and outline of tray
COMPANY CONFIDENTIAL
23

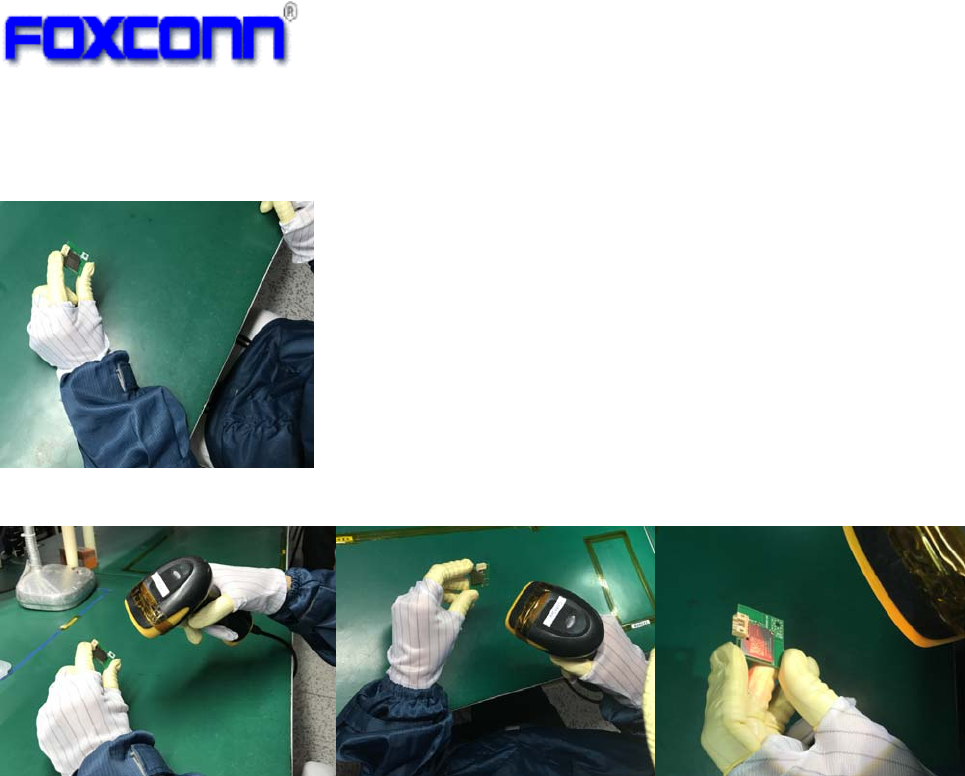

7.1 Module Scan Guide
1. Taking the module in declining way about 45° to prevent the shielding reflecting the
lightness;
2. Taking the scanner and turning left in 45° angle；
Note: The distance between scanner and module is about 5-8cm
COMPANY CONFIDENTIAL
24
8. Reliability

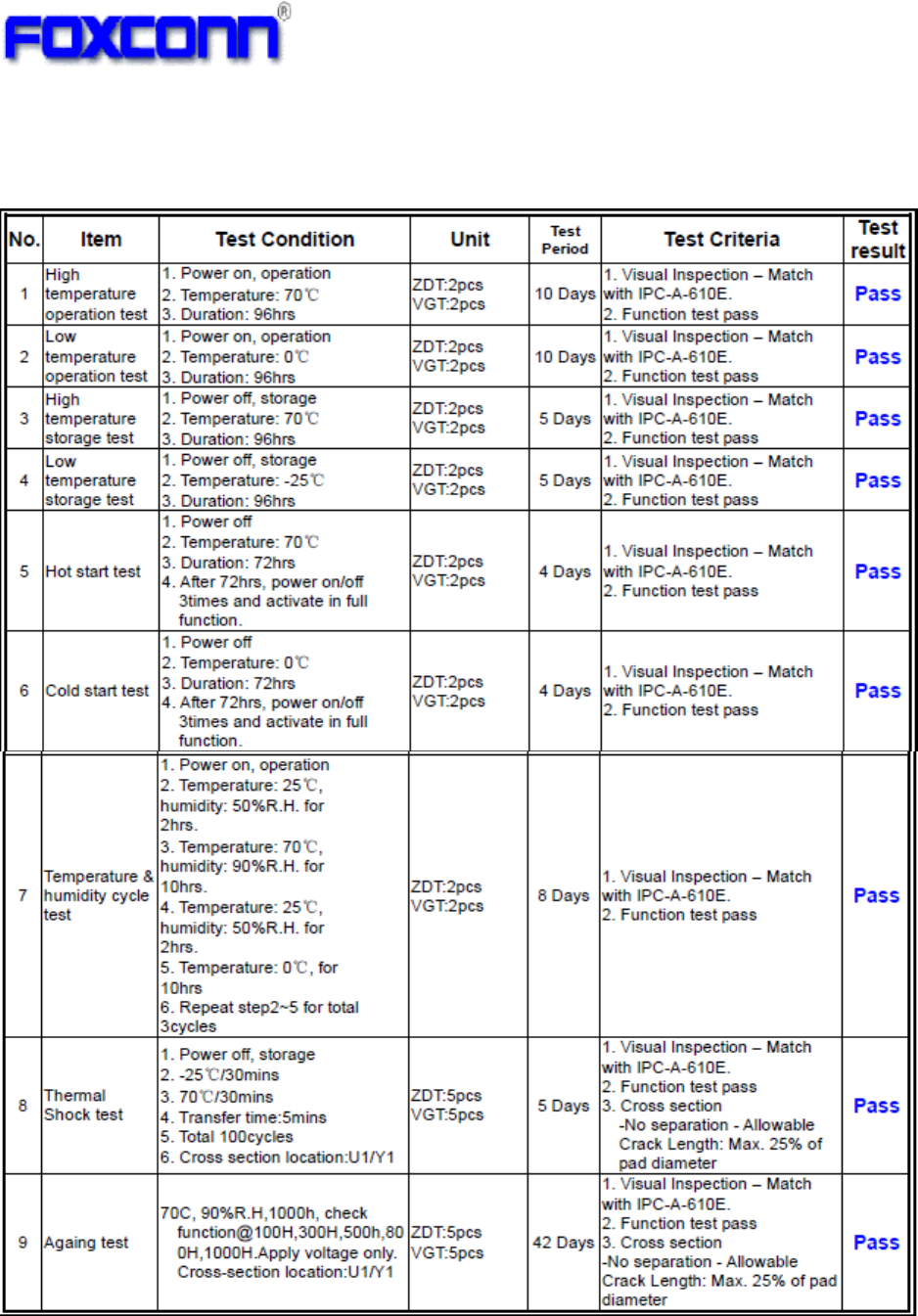

8.1 Hardware Reliability test
COMPANY CONFIDENTIAL
25
8.2 Package Reliability Test (TBD)
The product shall pass below package reliability test plan.
No Test Items Description Test Criteria Reference Qty' Result
1 Atmospheric Conditioning Test Temlpearture: 38℃
Test humidity: 85%R.H.
Dwell time: 72hours
No obvious visible damage
on boxes after temperature
and humidity test. ISTA-2A 1carton TBD
2 Static Compression Test
Units are packaged
Compression load=Wt x (S - 1) x F
Wt:Total weitht of the packaged-procuct
S:Total number of packaged-products in a stack
1:Represents the bottom container in a Stack
Compression Test duration:1hour
No obvious visible damage
on boxes after static
compression test. ISTA-2A 1carton TBD
3 Random Vibration Test
The following breakpoints shall be programmed into the vibration
controller to produce the acceleration versus frequency profile (spectrum)
below with an overall Grm s level of 1.15.
Face 3: 30mins, Face1: 10mins, Face 2 or 4: 10mins, Face 5 or 6: 10mins No obvious visible damage
on boxes after random
vibration test. ISTA-2A 1carton TBD
4Package drop test
The test drop height varies with the weight of the packaged-product.
Find the weight of the packaged-product in the following chart to
determine a drop height or an equivalent impact velocity to
be used for a substituted drop:
No obvious visible damage
on boxes after packaged
drop test. ISTA-2A 1carton TBD
5 Fix displacement Test
Displacement:25mm
Duration:14200times No obvious visible damage
on boxes after fixed
displacement test. ISTA-2A 1carton TBD
9. Quality
The product quality must be followed-up by Foxconn factory quality control system.
In accordance with SEIKO EPSON Group's requirements specified by the latest “Electronic
Component Quality Requirements Standard" and "WiFi+BT Combo Module Quality
Requirements Specification Rev.B" , the product shall be managed Quality control.
9.1 QC Flow Chart
COMPANY CONFIDENTIAL
26
9.2 Visual Inspection Standard

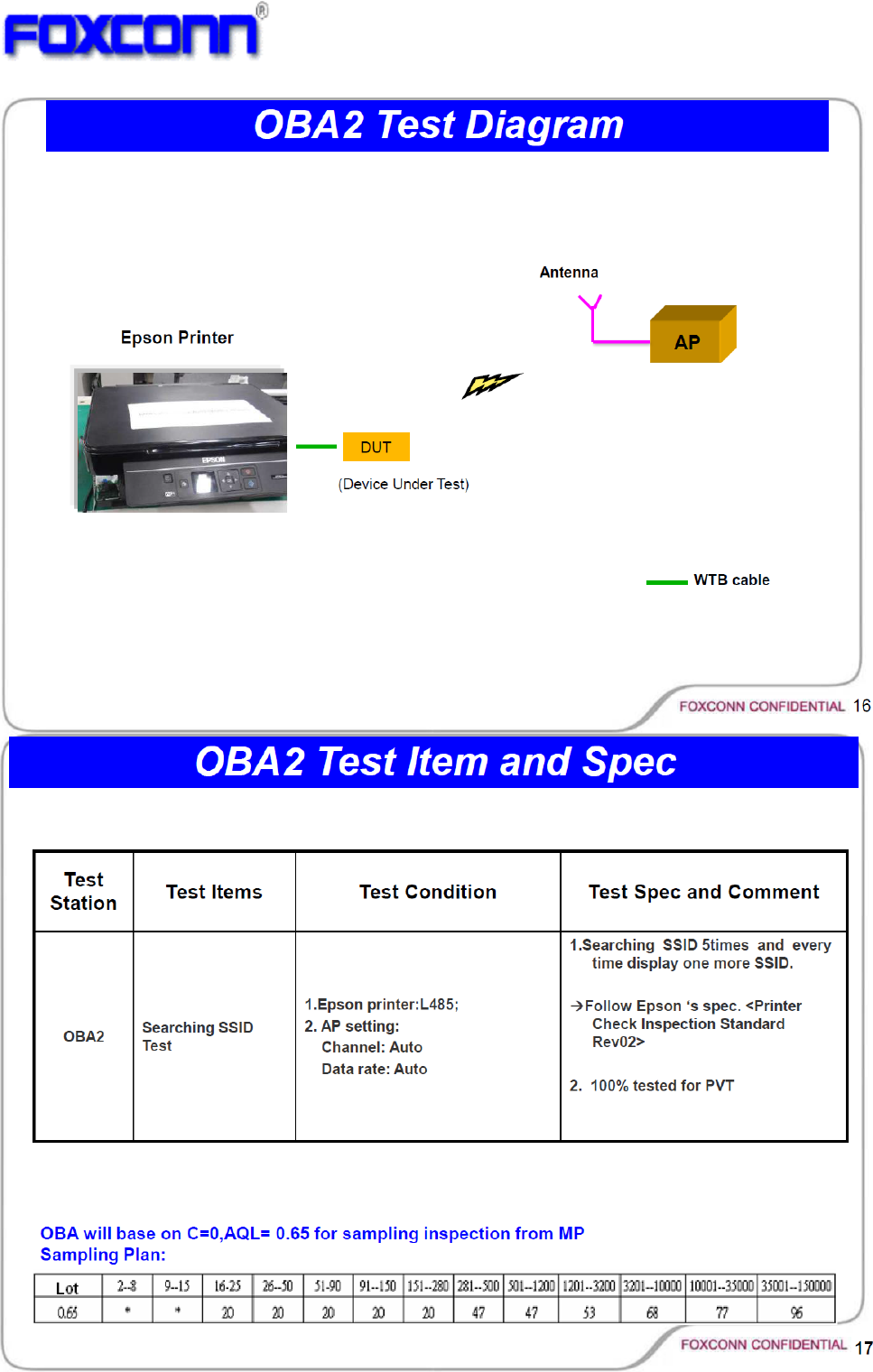

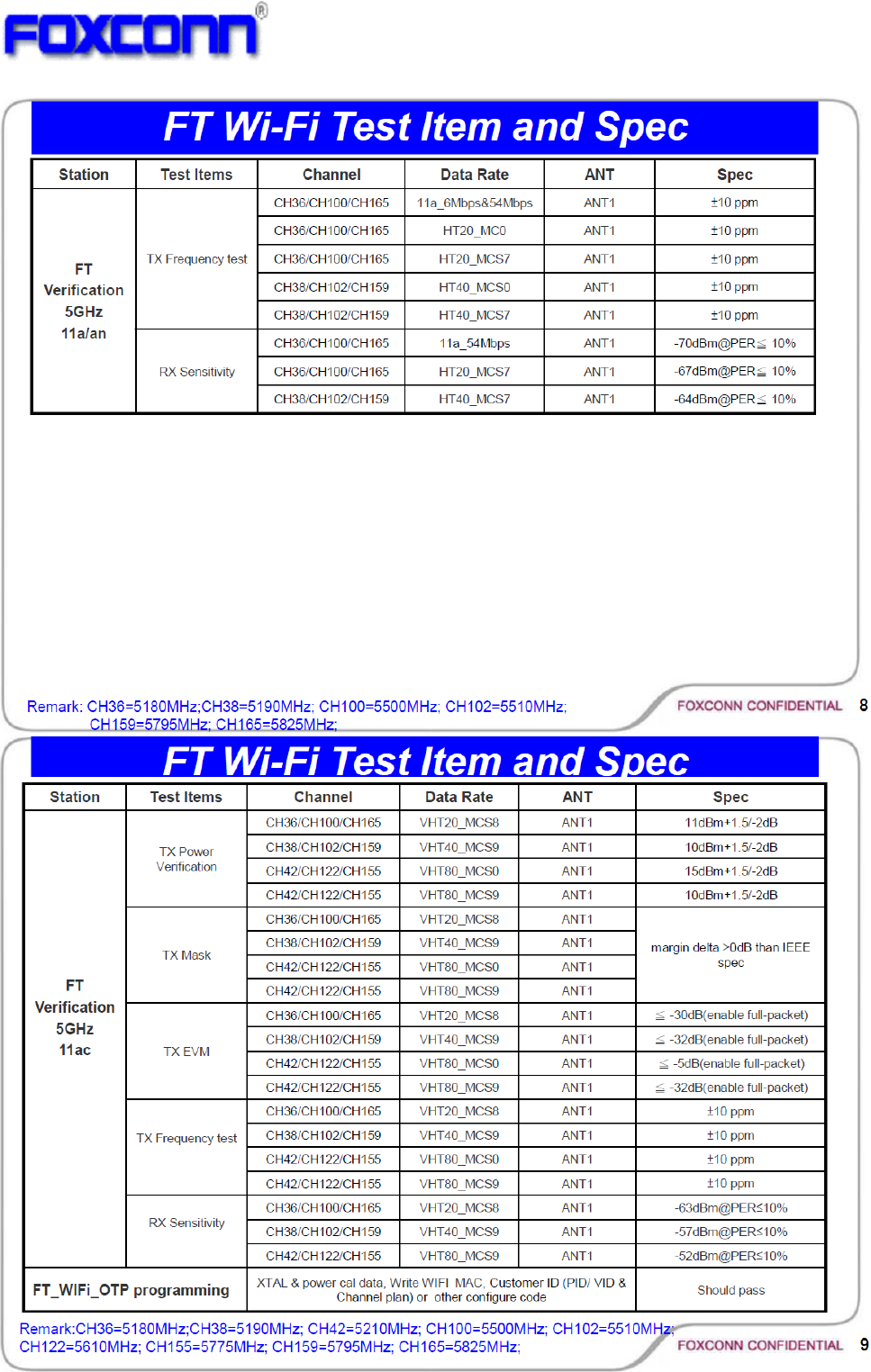

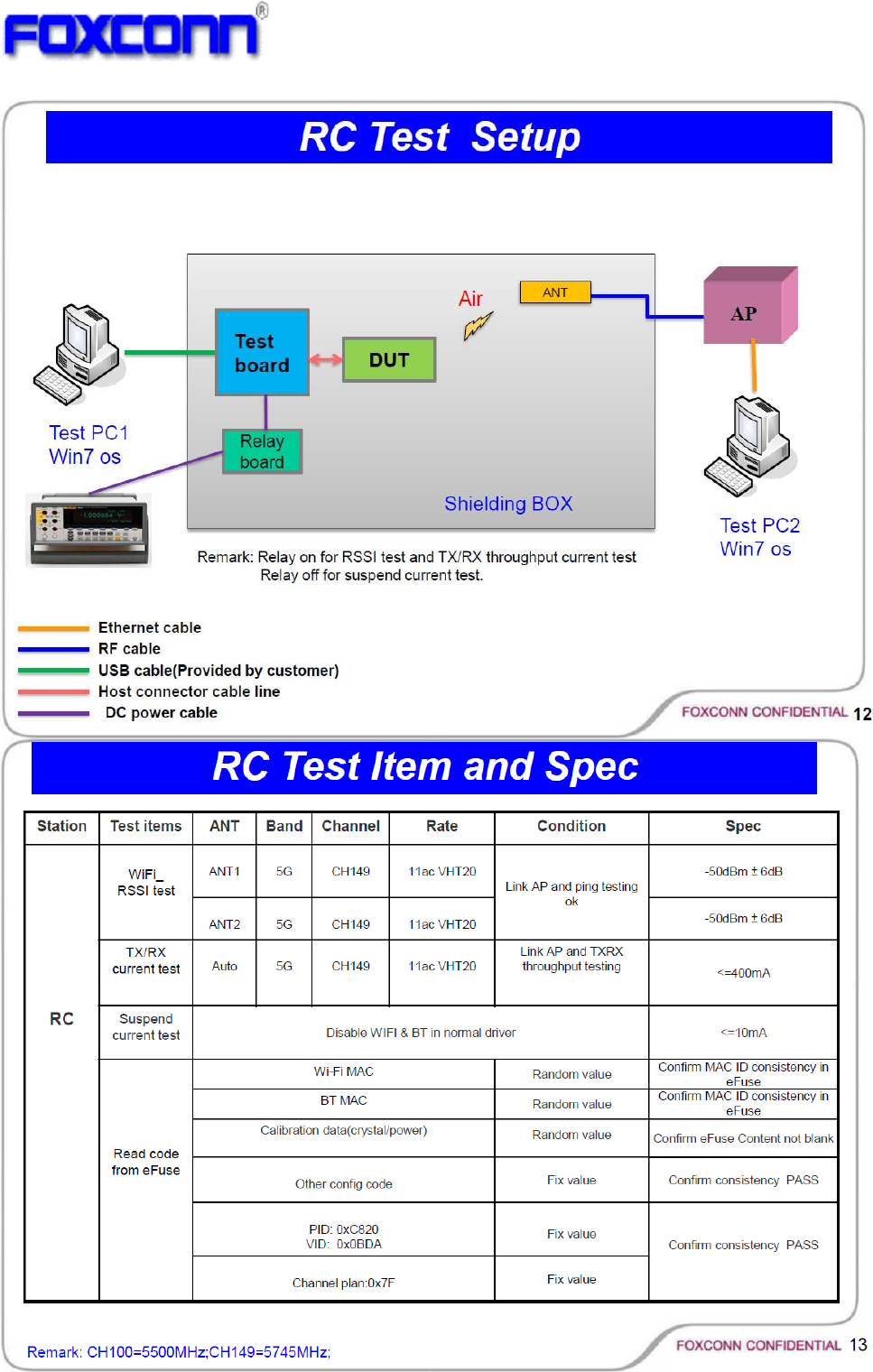

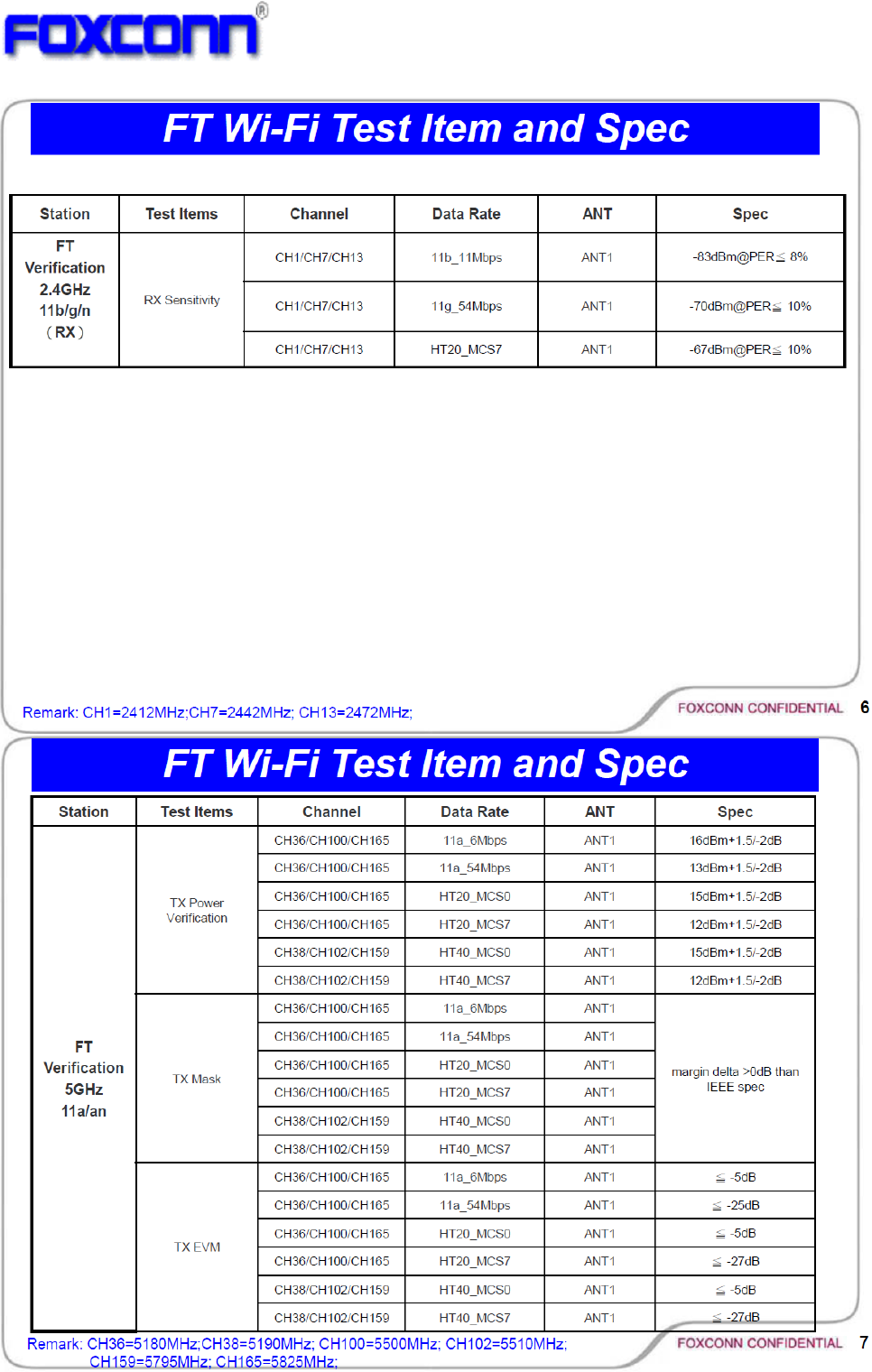

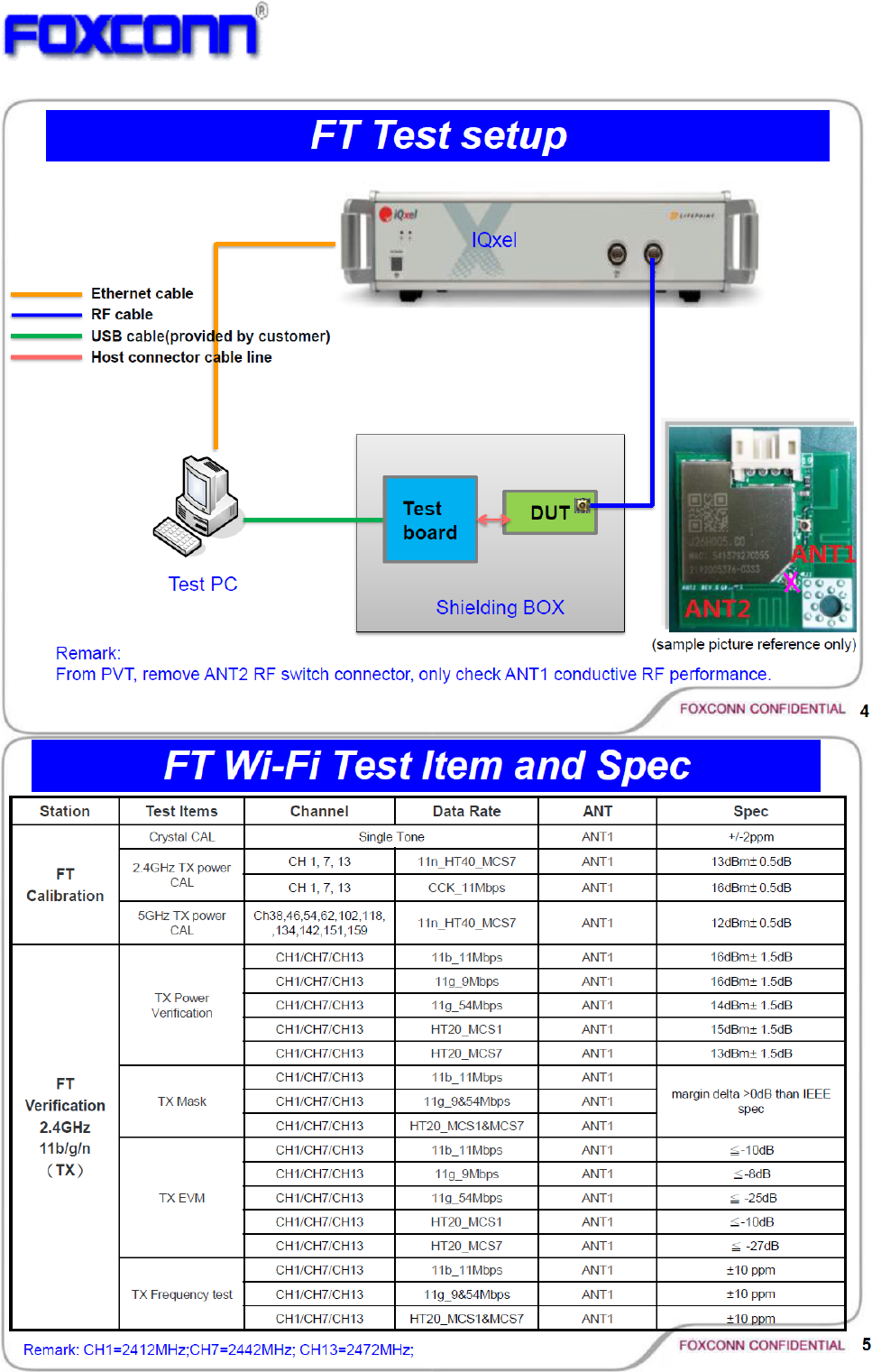

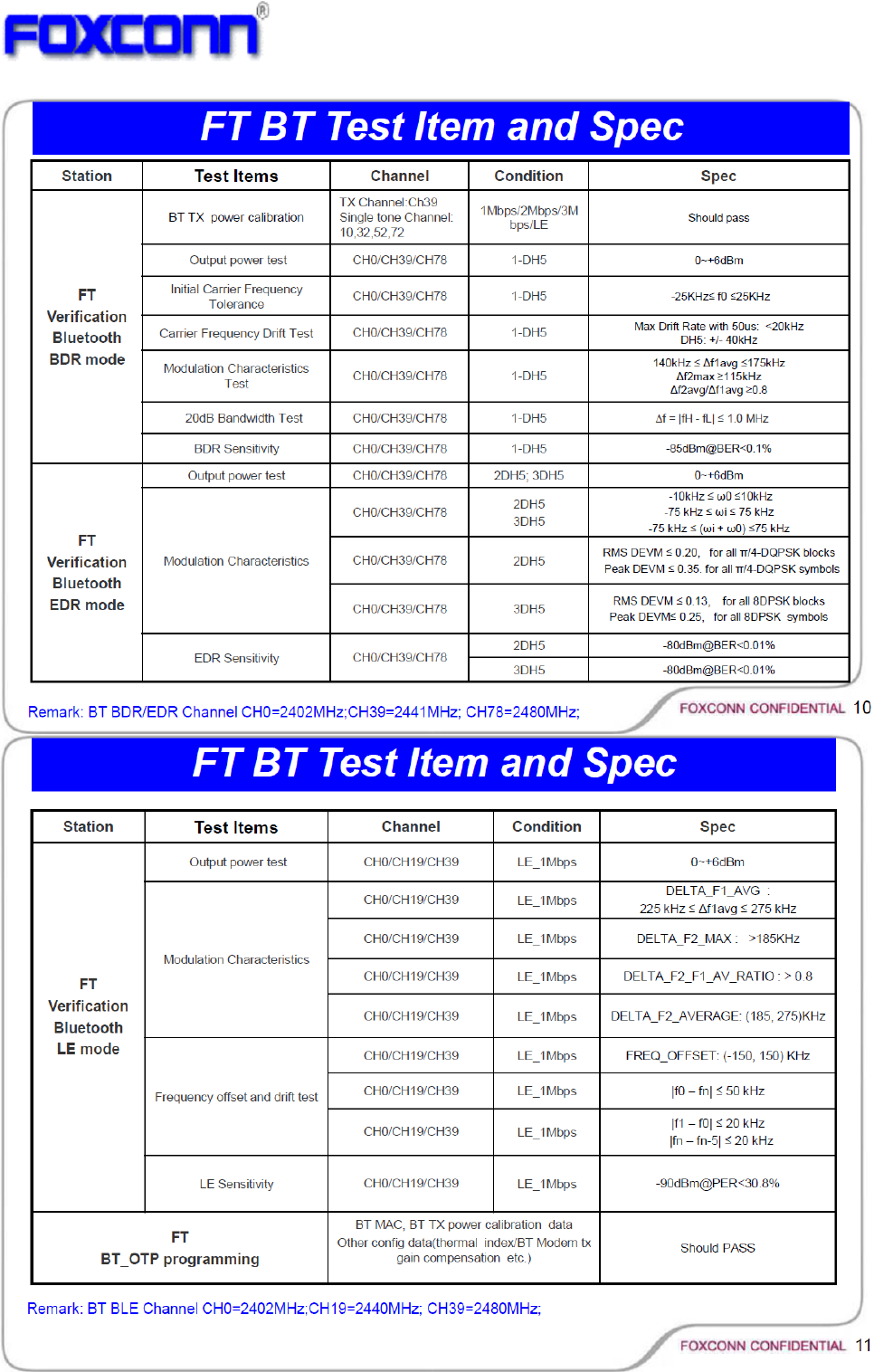

9.3 PVT Mfg. Test Plan
Date
Version Author Change Description
2017/08/7 1.7 Fly Huang
Initial released
COMPANY CONFIDENTIAL
27
COMPANY CONFIDENTIAL
28
COMPANY CONFIDENTIAL
29
COMPANY CONFIDENTIAL
30
COMPANY CONFIDENTIAL
31
COMPANY CONFIDENTIAL
32
COMPANY CONFIDENTIAL
33
FederalCommunicationCommissionInterferenceStatement
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)
thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay
causeundesiredoperation.
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB
digitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedto
providereasonableprotectionagainstharmfulinterferenceinaresidential
installation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergy
and,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful
interferencetoradiocommunications.However,thereisnoguaranteethat
interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause
harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby
turningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe
interferencebyoneofthefollowingmeasures:
‐ Reorientorrelocatethereceivingantenna.
‐ Increasetheseparationbetweentheequipmentandreceiver.
‐ Connecttheequipmentintoanoutletonacircuitdifferentfromthat
towhichthereceiverisconnected.
‐ Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
FCCCaution:Anychangesormodificationsnotexpresslyapprovedbytheparty
responsibleforcompliancecouldvoidtheuser'sauthoritytooperatethisequipment.
Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyother
antennaortransmitter.
RadiationExposureStatement:
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan
uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith
minimumdistance20cmbetweentheradiator&yourbody.
ThisdeviceisintendedonlyforOEMintegratorsunderthefollowingconditions:
Theantennamustbeinstalledsuchthat20cmismaintainedbetweentheantenna
andusers,and
Thetransmittermodulemaynotbeco‐locatedwithanyothertransmitterorantenna.
Aslongas2conditionsabovearemet,furthertransmittertestwillnotberequired.
However,theOEMintegratorisstillresponsiblefortestingtheirend‐productforany
additionalcompliancerequirementsrequiredwiththismoduleinstalled
IMPORTANTNOTE:Intheeventthattheseconditionscannotbemet(forexample
certainlaptopconfigurationsorco‐locationwithanothertransmitter),thentheFCC
authorizationisnolongerconsideredvalidandtheFCCIDcannotbeusedonthe
finalproduct.Inthesecircumstances,theOEMintegratorwillberesponsibleforre‐
evaluatingtheendproduct(includingthetransmitter)andobtainingaseparateFCC
authorization.
EndProductLabeling
Thistransmittermoduleisauthorizedonlyforuseindevicewheretheantennamay
beinstalledsuchthat20cmmaybemaintainedbetweentheantennaandusers.The
finalendproductmustbelabeledinavisibleareawiththefollowing:“ContainsFCC
ID:BKMFBJ26H005”.Thegrantee'sFCCIDcanbeusedonlywhenallFCCcompliance
requirementsaremet.
ManualInformationTotheEndUser
TheOEMintegratorhastobeawarenottoprovideinformationtotheenduser
regardinghowtoinstallorremovethisRFmoduleintheuser’smanualoftheend
productwhichintegratesthismodule.
Theendusermanualshallincludeallrequiredregulatoryinformation/warningas
showinthismanual.
IndustryCanadastatement:
ThisdevicecomplieswithISED’slicence‐exemptRSSs.Operationissubjecttothe
followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)
thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay
causeundesiredoperation.
LeprésentappareilestconformeauxCNRd’ISEDapplicablesauxappareilsradio
exemptsdelicence.L’exploitationestautoriséeauxdeuxconditionssuivantes:(1)le
dispositifnedoitpasproduiredebrouillagepréjudiciable,et(2)cedispositifdoit
acceptertoutbrouillagereçu,ycomprisunbrouillagesusceptibledeprovoquerun
fonctionnementindésirable.
RadiationExposureStatement:
ThisequipmentcomplieswithISEDradiationexposurelimitssetforthforan
uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith
minimumdistance20cmbetweentheradiator&yourbody.
Déclarationd'expositionauxradiations:
Cetéquipementestconformeauxlimitesd'expositionauxrayonnementsISED
établiespourunenvironnementnoncontrôlé.Cetéquipementdoitêtreinstalléet
utiliséavecunminimumde20cmdedistanceentrelasourcederayonnementet
votrecorps.
ThisdeviceisintendedonlyforOEMintegratorsunderthefollowingconditions:(For
moduledeviceuse)
1)Theantennamustbeinstalledsuchthat20cmismaintainedbetweentheantenna
andusers,and
2)Thetransmittermodulemaynotbeco‐locatedwithanyothertransmitteror
antenna.
Aslongas2conditionsabovearemet,furthertransmittertestwillnotberequired.
However,theOEMintegratorisstillresponsiblefortestingtheirend‐productforany
additionalcompliancerequirementsrequiredwiththismoduleinstalled.
CetappareilestconçuuniquementpourlesintégrateursOEMdanslesconditions
suivantes:(Pourutilisationdedispositifmodule)
1)L'antennedoitêtreinstalléedetellesortequ'unedistancede20cmestrespectée
entrel'antenneetlesutilisateurs,et
2)Lemoduleémetteurpeutnepasêtrecoïmplantéavecunautreémetteurou
antenne.
Tantqueles2conditionsci‐dessussontremplies,desessaissupplémentairessur
l'émetteurneserontpasnécessaires.Toutefois,l'intégrateurOEMesttoujours
responsabledesessaissursonproduitfinalpourtoutesexigencesdeconformité
supplémentairesrequispourcemoduleinstallé.
IMPORTANTNOTE:
Intheeventthattheseconditionscannotbemet(forexamplecertainlaptop
configurationsorco‐locationwithanothertransmitter),thentheCanada
authorizationisnolongerconsideredvalidandtheICIDcannotbeusedonthefinal
product.Inthesecircumstances,theOEMintegratorwillberesponsibleforre‐
evaluatingtheendproduct(includingthetransmitter)andobtainingaseparate
Canadaauthorization.
NOTEIMPORTANTE:
Danslecasoùcesconditionsnepeuventêtresatisfaites(parexemplepourcertaines
configurationsd'ordinateurportableoudecertainesco‐localisationavecunautre
émetteur),l'autorisationduCanadan'estplusconsidérécommevalideetl'IDICne
peutpasêtreutilisésurleproduitfinal.Danscescirconstances,l'intégrateurOEM
serachargéderéévaluerleproduitfinal(ycomprisl'émetteur)etl'obtentiond'une
autorisationdistincteauCanada.
EndProductLabeling
Thistransmittermoduleisauthorizedonlyforuseindevicewheretheantennamay
beinstalledsuchthat20cmmaybemaintainedbetweentheantennaandusers.The
finalendproductmustbelabeledinavisibleareawiththefollowing:“ContainsIC:
1052C‐J26H005”.
Plaquesignalétiqueduproduitfinal
Cemoduleémetteurestautoriséuniquementpouruneutilisationdansundispositif
oùl'antennepeutêtreinstalléedetellesortequ'unedistancede20cmpeutêtre
maintenueentrel'antenneetlesutilisateurs.Leproduitfinaldoitêtreétiquetédans
unendroitvisibleavecl'inscriptionsuivante:"ContientdesIC:1052C‐J26H005".
ManualInformationTotheEndUser
TheOEMintegratorhastobeawarenottoprovideinformationtotheenduser
regardinghowtoinstallorremovethisRFmoduleintheuser’smanualoftheend
productwhichintegratesthismodule.
Theendusermanualshallincludeallrequiredregulatoryinformation/warningas
showinthismanual.
Manueld'informationàl'utilisateurfinal
L'intégrateurOEMdoitêtreconscientdenepasfournirdesinformationsà
l'utilisateurfinalquantàlafaçond'installeroudesupprimercemoduleRFdansle
manueldel'utilisateurduproduitfinalquiintègrecemodule.
Lemanueldel'utilisateurfinaldoitincluretouteslesinformationsréglementaires
requisesetavertissementscommeindiquédanscemanuel.
Caution:
(i)thedeviceforoperationintheband5150‐5250MHzisonlyforindooruseto
reducethepotentialforharmfulinterferencetoco‐channelmobilesatellitesystems;
(ii)themaximumantennagainpermittedfordevicesinthebands5250‐5350MHz
and5470‐5725MHzshallbesuchthattheequipmentstillcomplieswiththee.i.r.p.
limit;
(iii)themaximumantennagainpermittedfordevicesintheband5725‐5850MHz
shallbesuchthattheequipmentstillcomplieswiththee.i.r.p.limitsspecifiedfor
point‐to‐pointandnon‐point‐to‐pointoperationasappropriate;and
(iv)theworst‐casetiltangle(s)necessarytoremaincompliantwiththee.i.r.p.
elevationmaskrequirementsetforthinSection6.2.2(3)shallbeclearlyindicated.
(v)Usersshouldalsobeadvisedthathigh‐powerradarsareallocatedasprimary
users(i.e.priorityusers)ofthebands5250‐5350MHzand5650‐5850MHzandthat
theseradarscouldcauseinterferenceand/ordamagetoLE‐LANdevices.
Avertissement:
Leguided’utilisationdesdispositifspourréseauxlocauxdoitincluredesinstructions
précisessurlesrestrictionssusmentionnées,notamment:
(i)lesdispositifsfonctionnantdanslabande5150‐5250MHzsontréservés
uniquementpouruneutilisationàl’intérieurafinderéduirelesrisquesdebrouillage
préjudiciableauxsystèmesdesatellitesmobilesutilisantlesmêmescanaux;
(ii)legainmaximald'antennepermispourlesdispositifsutilisantlesbandesde5250
à5350MHzetde5470à5725MHzdoitêtreconformeàlalimitedelap.i.r.e;
(iii)legainmaximald'antennepermis(pourlesdispositifsutilisantlabandede5725
à5850MHz)doitêtreconformeàlalimitedelap.i.r.e.spécifiéepourl'exploitation
pointàpointetl’exploitationnonpointàpoint,selonlecas;
(iv)lespiresanglesd’inclinaisonnécessairespourresterconformeàl’exigencedela
p.i.r.e.applicableaumasqued’élévation,eténoncéeàlasection6.2.23),doivent
êtreclairementindiqués.
(v)Deplus,lesutilisateursdevraientaussiêtreavisésquelesutilisateursderadarsde
hautepuissancesontdésignésutilisateursprincipaux(c.‐à‐d.,qu’ilsontlapriorité)
pourlesbandes5250‐5350MHzet5650‐5850MHzetquecesradarspourraient
causerdubrouillageet/oudesdommagesauxdispositifsLAN‐EL.

Navigation menu
